YEALINK T66P IP Phone User Manual SIP T66P T66G Quick Start Guide V80 1
YEALINK (XIAMEN ) NETWORK TECHNOLOGY CO., LTD. IP Phone SIP T66P T66G Quick Start Guide V80 1
YEALINK >
Users Manual
Quick Start Guide (V80.1)
Enterprise IP Phone
SIP-T66P
Applies to firmware version 48.0.80.1 or later.

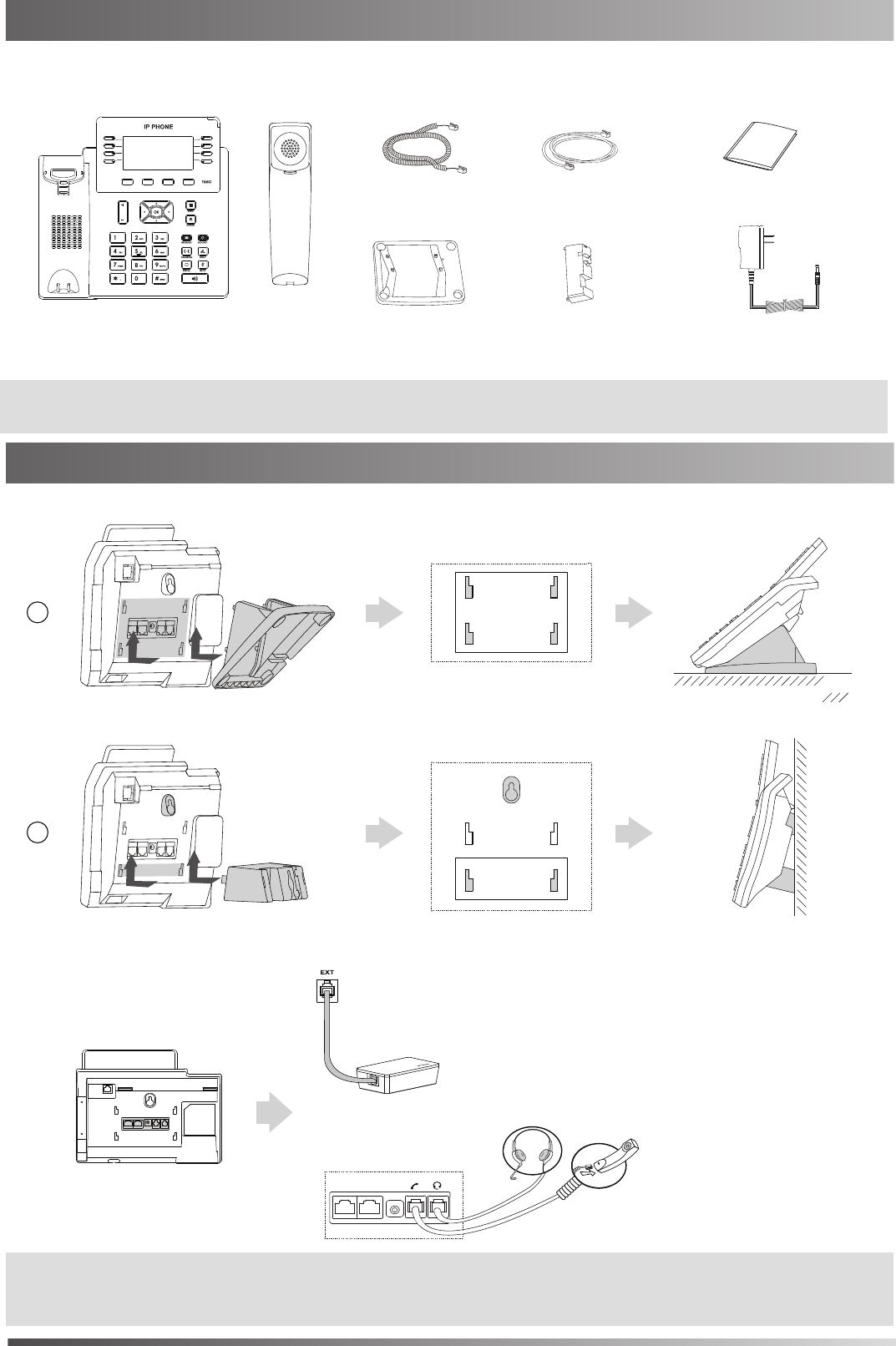

1. Attach the stand or the wall mount bracket, as shown below:
2. Connect the handset and optional headset, as shown below:
The following items are included in your package. If you find anything missing, contact your system administrator.
Stand
Handset Cord
Handset
IP Phone
Ethernet Cable
2
Quick Start Guide
Packaging Contents
Assembling the Phone
Note: The headset, EHS36 should be purchased separately.
The EXT port can be used to connect an expansion module EXP39 or CM69, wireless headset adapter EHS36.
For more information on how to use EXP39, EHS36, refer to EXP39 User Guide, EHS36 User Guide.
Note: The models displayed on the phone differ from each other. The packaging content "IP Phone" listed above
takes a SIP-T66G IP phone as an example.
A
B
Desk Mount Method
Wall Mount Method
Wall Mount Bracket Power Adapter
(Optional)
Wireless Headset Adapter EHS36
3. Connect the network and power, as shown below:
After the IP phone is connected to the network and
supplied with power, it automatically begins the
initialization process. After startup, the phone is ready
for use. You can configure the phone via phone user
interface or web user interface.
3
Note: If inline power (PoE) is provided, you don’t need to connect the power adapter. Make sure the hub/switch is
PoE-compliant.
Startup
B
PoE ( Power over
Ethernet ) Option
A
AC Power Option
PC Connection
(Optional)
PC Connection
(Optional)
IEEE 802.3af compliant
PoE Hub/Switch
Power Adapter
(DC 5V)
Accessing the web user interface:
Account Settings:
Click on
Account->Register->Account X (X=1,2,3...5,6)
Parameters of the account:
Network Settings:
Account Settings:
Configuring via phone user interface
Configuring via web user interface
Register status icons on the LCD screen:
1. Press the OK key when the phone is idle to obtain the IP address of the phone.
You can configure the network settings in the following ways:
It shows the register status of the current account.
You can select Enabled/Disabled to enable/disable the account.
It is shown on the LCD screen to identify the account.
It is shown as caller ID when placing a call.
It is provided by ITSP for registration (required).
It is an authenticated ID for authentication provided by ITSP (required).
It is provided by ITSP for registration (required).
It is provided by ITSP for registration (required).
DHCP: By default, the phone attempts to contact a DHCP server in your network to obtain its valid network settings,
e.g., IP address, subnet mask, gateway address and DNS address.
Static IP Address: If your phone can not contact a DHCP server for any reason, you need to configure the IP address,
subnet mask, gateway address, primary DNS address and secondary DNS address for the phone
manually.
PPPoE: If you are using an xDSL modem, you can connect your phone to the Internet via PPPoE mode. Contact the
ITSP for the account and password.
Press the Menu soft key when the phone is idle, select Settings->Advanced Settings (default password: admin)->Network->
WAN Port/VLAN/Webserver Type/802.1x Settings/VPN/LLDP/CDP/NAT to configure the network.
Press the Menu soft key when the phone is idle, select Settings->Advanced Settings (default password: admin)->Accounts to
configure the account.
2. Open a web browser on your computer, enter the IP address into the address bar (e.g., "http://192.168.0.10"
or "192.168.0.10") and then press Enter.
Register Status:
Line Active:
Label:
Display Name:
User Name:
Register Name:
Password:
Server Host:
3. Enter the user name (default: admin) and password (default: admin) in the login page and click Confirm.
Network Settings: Click on
Network->Basic->IPv4 Config
4
Configuring Your Phone
Note: Wrong network settings may result in the inaccessibility of your phone and may have an impact on the
network performance. Contact your system administrator for more information.
Note: Check with your system administrator if any error appears during the registration process or a specific
configuration is required for your registration.
Note: For more information on account parameters, refer to Configuring via web user interface.
Registering
Register Failed
Registered
Placing a Call
Answering a Call
Ending a Call
Call Mute and Un-mute
Redial
Call Hold and Resume
To place a call on hold:
Using the handset:
Using the speakerphone:
Using the headset:
Using the handset:
Using the speakerphone:
Using the headset:
Using the handset:
Using the speakerphone:
Using the headset:
1. With the handset on-hook, press
.
1. Pick up the handset.
2. Enter the number, and then press the
Send soft key.
1. With the headset connected, press
to activate the headset mode.
2. Enter the number, and then press the
Send
soft key.
2. Enter the number, and then press the
Send soft key.
Pick up the handset.
Press
.
Hang up the handset or press the
EndCall
soft key.
Press
.
Press
or the
EndCall
soft key.
Press the
EndCall soft key.
Press
to enter the
Placed Calls
list, press
or
to select the desired entry, and then press
or the
Send
soft key.
Press twice when the phone is idle to dial out the last dialed number.
To resume the call, do one of the following:
Press to mute the microphone during a call.
Press again to un-mute the call.
If there is only one call on hold, press
or the Resume soft key.
Press or the Hold soft key during an active call.
5
Basic Call Features
Note: During a call, you can alternate between the headset, hands-free speakerphone and handset modes by
pressing the HEADSET key, the Speakerphone key or by picking up the handset. Headset mode requires a
connected headset .
Note: You can reject an incoming call by pressing the Reject soft key.
Speed Dial
To configure a speed dial key:
To use the speed dial key:
4. Press the EndCall soft key to disconnect all parties.
1. Press the Menu soft key when the phone is idle, and then select Features->DSS Keys.
2. Select the desired DSS key, and then press the Enter soft key.
4. Press the Save soft key to accept the change.
Press the speed dial key to dial out the preset number.
3. Select Speed Dial from the Type field, select the desired line from the Account ID field, enter a label in the Label field
and enter the number in the Value field.
Call Conference
Call Forward
To enable call forward:
Always Forward----Incoming calls are forwarded unconditionally.
Busy Forward----Incoming calls are forwarded when the phone is busy.
No Answer Forward----Incoming calls are forwarded if not answered after a period of time.
1. Press the Menu soft key when the phone is idle, and then select
Features->Call Forward.
2. Select the desired forward type:
3. Enter the number you want to forward to. For
No Answer Forward
,
press or to select the desired ring time
to wait before forwarding.
4. Press the Save soft key to accept the change.
1. Press the Conf soft key during an active call. The call is placed on hold.
2. Enter the number of the second party, and then press the Send soft key.
3. Press the Conf soft key again when the second party answers. All parties are now joined in the conference.
If there is more than one call on hold, press or to select the desired call, and then press
or the Resume soft key.
Semi-Attended Transfer
Attended Transfer
Blind Transfer
Call Transfer
You can transfer a call in the following ways:
1. Press or the Tran soft key during an active call. The call is placed on hold.
1. Press or the Tran soft key during an active call. The call is placed on hold.
1. Press or the Tran soft key during an active call. The call is placed on hold.
2. Enter the number you want to transfer to, and then press .
3. Press or the Tran soft key when the second party answers.
2. Enter the number you want to transfer to, and then press .
3. Press or the Tran soft key when you hear the ring-back tone.
3. Press or the Tran soft key.
2. Enter the number you want to transfer to.
Note: You can split the conference call into two individual calls by tapping the Split soft key.
6
Voice Message
Contact Directory
Ring Tones
Volume Adjustment
To add a contact:
To edit a contact:
Call History
To delete a contact:
To listen to voice messages:
Press the Send soft key to call the entry.
Select Detail to view detailed information about the entry.
Select Add to Contacts to add the entry to the local directory.
Select Add to Blacklist to add the entry to the blacklist.
Select Del All to delete all entries from the list.
Press during a call to adjust the receiver volume of the handset/speakerphone/headset.
Press when the phone is idle to adjust the ringer volume.
Press the Delete soft key to delete the entry from the list.
Message waiting indicator on the idle screen indicates that one or more voice messages are waiting at the message
center. The MESSAGE key LED lights up.
1. Press or the Connect soft key.
2. Follow the voice prompts to listen to your voice messages.
1. Press the History soft key when the phone is idle, press or to scroll through the list.
2. Select an entry from the list, you can do the following:
If you press the Option soft key, you can also do the following:
1. Press the Dir soft key when the phone is idle, and then select the desired group.
2. Press the Add soft key to add a contact.
1. Press the Dir soft key when the phone is idle, and then select the desired group.
1. Press the Dir soft key when the phone is idle, and then select the desired group.
3. Press the OK soft key when the LCD screen prompts “Delete selected item?”.
1. Press the Menu soft key when the phone is idle, and then select Settings->Basic Settings->Sound->Ring Tones.
3. Press or to select the desired ring tone.
4. Press the Save soft key to accept the change.
3. Edit the contact information.
4. Press the Save soft key to accept the change.
4. Press the Add soft key to accept the change.
3. Enter a unique contact name in the Name field and contact numbers in the corresponding fields.
2. Press or to select the desired contact, press the Option soft key and then select Detail from the prompt list.
2. Press or to select the desired contact, press the Option soft key and then select Delete from the prompt list.
7
Customizing Your Phone
Note: You can add contacts from call history easily. For more information, refer to Call History above.
2. Press or to select Common or the desired account.
Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo
conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept
anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
