VXR-9000 FM REPEATER OPERATING MANUAL
VXR-9000
OPERATING MANUAL
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
RACK MOUNT REPEATER
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL

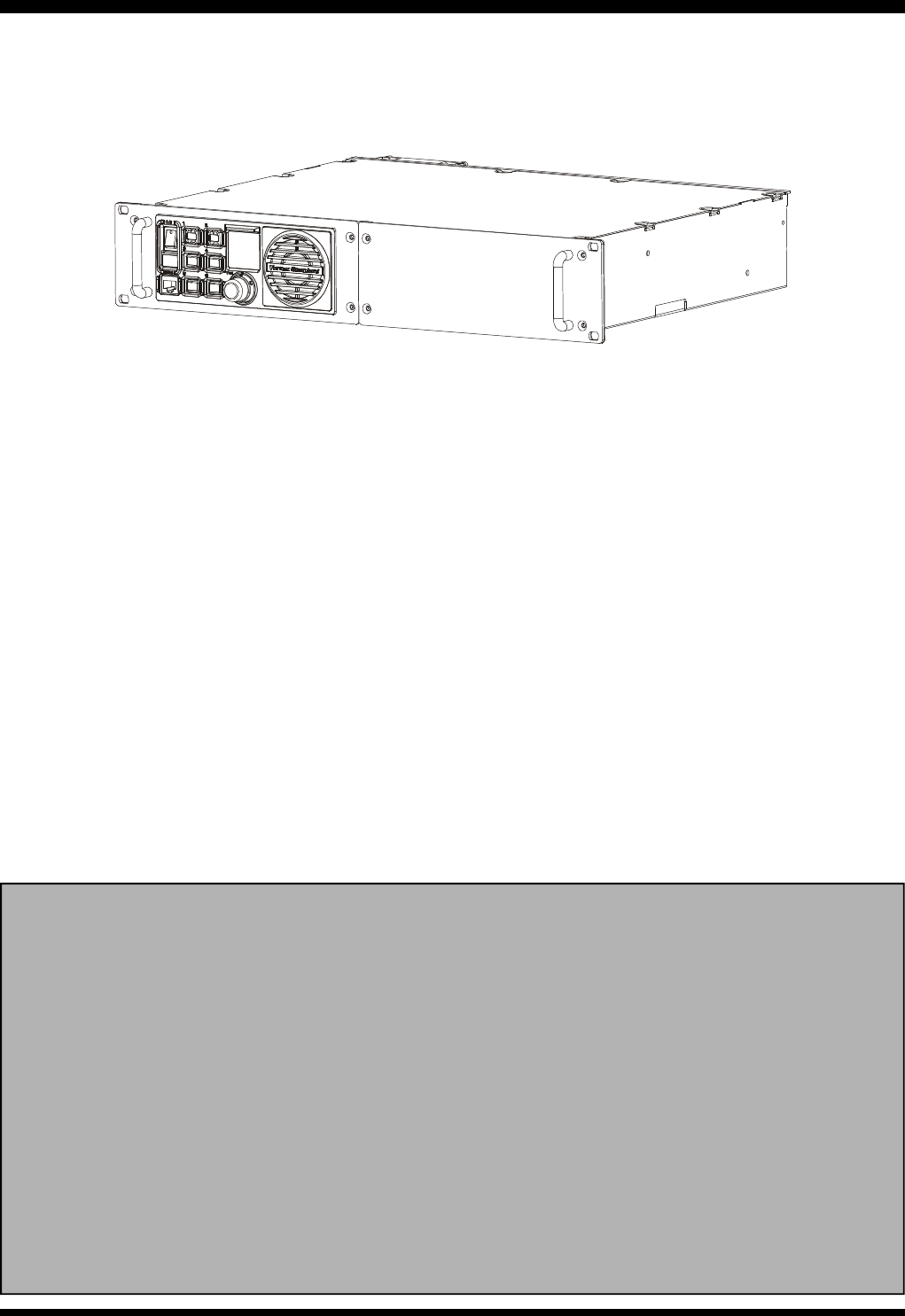

The VXR-9000 is commercial-grade 50-watt FM repeater designed to provide reliable two-way full-duplex commu-
nications over a wide range of environmental conditions.
Designed to mount in a standard 19-inch rack, the VXR-9000 is crafted using the latest computer-aided design and
manufacturing processes, to ensure a high level of reliability to users. Important channel frequency data is stored in
EEPROM, and is easily programmable by a Servicing Technician or Dealer using an IBM compatible personal com-
puter and the VPL-1 Programming Cable and CE60 Software.
Please take a few minutes to read this manual carefully. The information presented here will allow you to derive
maximum performance from your VXR-9000. After reading it, keep this manual handy for quick reference, in case
questions arise later on.
Important Note: Internal service work, programming, and accessory installations should only be performed by your
authorized Vertex Standard Dealer. Dangerous conditions and/or possibly illegal operation may result from im-
proper setup, programming, or internal modifications.
SAFETY/WARNING INFORMATION
The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a
separation distance of at least 100cm from all persons during normal operation and must not exceed an
antenna gain of 0 dBd. This device must be restricted to work related operations in an Occupational/Con-
trolled RF exposure Environment, not exceeding a maximum transmitting duty factor of 50%. The antenna(s)
used with this device must satisfy the antenna co-location requirements of 47 C.F.R. 1.1307(b)(3).
NOTICE!
rDo not modify this repeater for any reason.
Refer service of this repeater to qualified technicians only.
rShould an obviously abnormal condition be observed, such as overheating, a burning smell, etc., turn the
main power switch off, and disconnect the AC plug from the AC mains supply or wall outlet immedi-
ately.
rDo not place any combustible material near the repeater.
rDo not spray any liquid over the repeater.
rEnsure that the power and antenna connections are securely made, using cables with excess capacity for
the power being utilized.
INTRODUCTION
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL

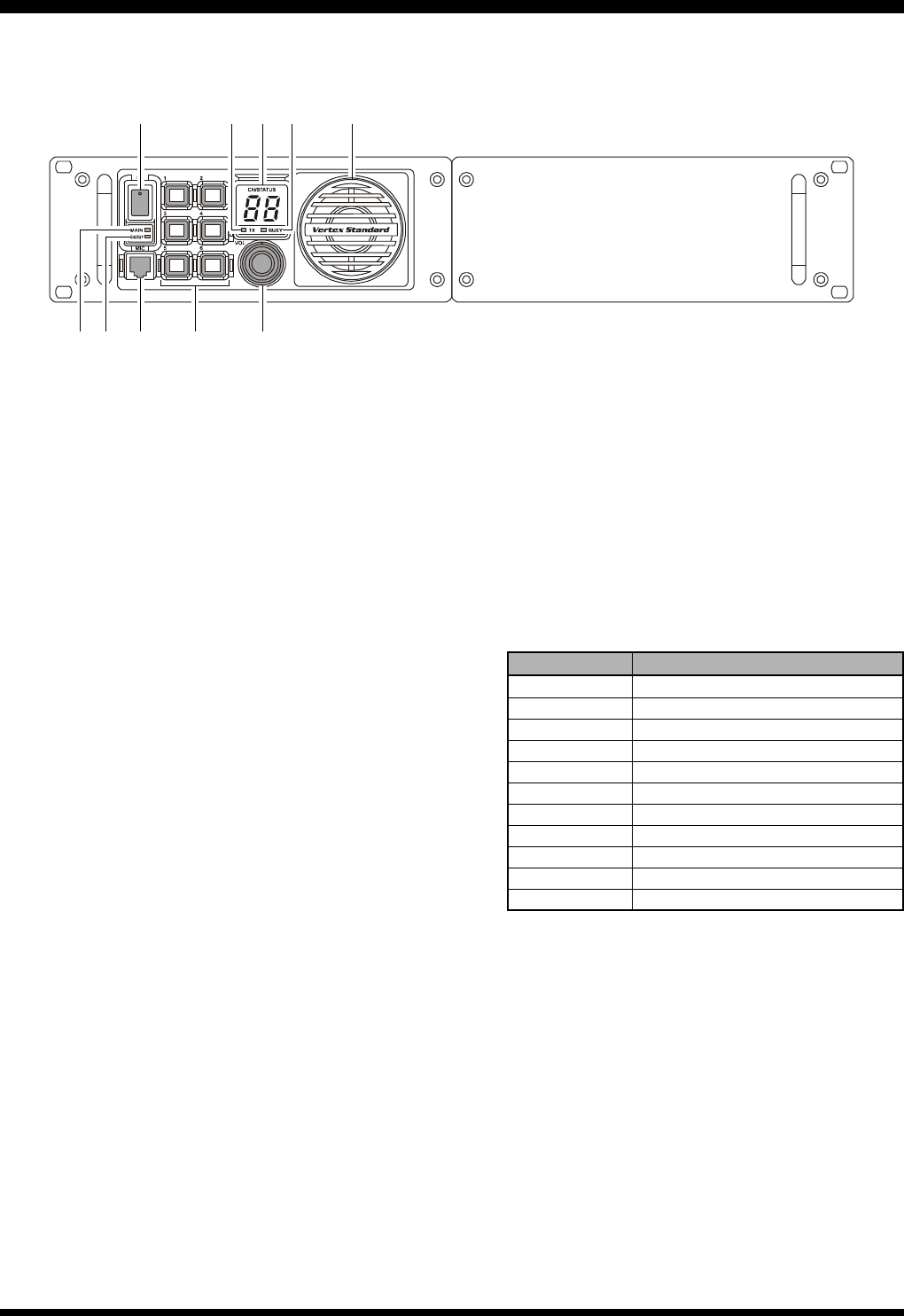

FRONT PANEL CONTROLS & CONNECTORS
•POWER (O/I) Switch
This is the main power switch for the repeater.
‚ Power Indicator (MAIN)
This LED glows green when the main power source
is used.
ƒ Power Indicator (BACKUP)
This LED glows red when the backup power source
is used.
„ MIC Jack
Connect the microphone plug to this jack. This jack
is also used for writing and reading channel fre-
quency or other configurations via the COM Port of
the PC on which the clone editor (CE60) is running.
… Programmable Function (PF) Key
Six pushbuttons on the front panel are program-
mable function (PF) keys, each with an orange in-
dicator inside. Each key can be programmed with
two functions, one for a “long” press and one for a
“momentary” press. The PF key functions may be
customized, via programming by your VERTEX
STANDARD dealer, to meet your communications
network requirements. Note that some functions
may require the purchase of optional internal ac-
cessories. The possible PF key features and func-
tions are explained on the pages to follow.
† VOL Knob
This control knob adjusts the output level of the
front speaker and external speaker jack on the back
panel.
‡ TX Indicator
This LED glows red when the repeater is transmit-
ting.
ˆ Numeric Display
This display consists of two 7-segment LEDs, indi-
cating the channel number during normal opera-
tion. If an abnormal condition arises, an error code
will be displayed:
DISPLAYDESCRIPTION
01 - 32 Channel Number
PC Clone Active
UL PLL Unlock
HI High temperature in PA Unit
SC Scan Active
LC Front Panel Keys are Locked
E1 PTT key is Disabled
E2 Cooling Fan is Disabled
E5 Low Voltage in Backup Battery
E7 PA Unit Abnormality
E3, E4, E6, E9 Contact your Dealer
‰ BUSY Indicator
This LED glows green when the receiving channel
is busy.
Š Speaker
The internal speaker is located here.
‚
•
ƒ „ †…
‡ ˆ ‰ Š
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL
PROGRAMMABLE FUNCTION (PF) KEY DETAILS
CH DOWN
Press (or Press and hold in for one second) the PF key
assigned to “CH Down” to step to the next-lower oper-
ating channel.
CH UP
Press (or Press and hold in for one second) the PF key
assigned to “CH Up” to step to the next-higher operat-
ing channel.
COMPANDER
Press (or Press and hold in for one second) the PF key
assigned to “Compander” to turn the Compander cir-
cuit “On” or “Off” (toggle). This function is only acti-
vated on the “Narrow Channel Spread” of the “Base
Transceiver” mode.
The Compander IC contains two variable gain circuits
configured for compressing and expanding the dynamic
range of the repeater’s transmitted and received audio
signal. When you enable this function, the signal-to-
noise ratio can be improved by reducing the transmit-
ted audio dynamic range.
CTCSS/DCS ENC
Press (or Press and hold in for one second) the PF key
assigned to “CTCSS/DCS Enc” to turn the CTCSS/DCS
Encoder “On” or “Off” (toggle).
CTCSS/DCS DEC
Press (or Press and hold in for one second) the PF key
assigned to “CTCSS/DCS Dec” to turn the CTCSS/DCS
Decoder “On” or “Off” (toggle).
CW ID
Press (or Press and hold in for one second) the PF key
assigned to “CW ID” to turn the CW Identifier feature
“On” or “Off” (toggle).
When the CW ID feature is set to “On,” your station’s
callsign will be superimposed on the outbound signal,
in Morse Code, at the beginning of every transmission.
Programming of the callsign is performed by your VER-
TEX STANDARD dealer.
FUNCTION
CH DOWN
CH UP
COMPANDER
CTCSS/DCS ENC
CTCSS/DCS DEC
CW ID
TWO TONE DEC
CW ID SIGNAL
CW MESSAGE 1
CW MESSAGE 2
CW MESSAGE 3
CW MESSAGE 4
CW MESSAGE 5
CW MESSAGE 6
CW MESSAGE 7
CW MESSAGE 8
DC POWER SAVE
ENCRYPTION
ENCRYPTION CODE
KEY LOCK
LOCAL PTT
MONITOR
MONITOR M
MULTI TONE
PANEL INDICATOR
REMOTE
REPEAT
RESET
SCAN
SQUELCH
TEST TONE
TEST TONE M
TOT
TRANSMIT
TX POWER MID
TX POWER LOW
PF-1 KEY
P
RESS
P
RESS
& H
OLD
PF-2 KEY
P
RESS
P
RESS
& H
OLD
PF-3 KEY
P
RESS
P
RESS
& H
OLD
PF-4 KEY
P
RESS
P
RESS
& H
OLD
PF-5 KEY
P
RESS
P
RESS
& H
OLD
PF-6 KEY
P
RESS
P
RESS
& H
OLD
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL
TWO TONE DEC
Press (or Press and hold in for one second) the PF key
assigned to “Two Tone Dec” to turn the 2-Tone Decoder
“On” or “Off” (toggle).
CW ID SINGLE
Press (or Press and hold in for one second) the PF key
assigned to “CW ID Single” to send the station callsign,
via Morse Code, once. Programming of the callsign is
performed by your VERTEX STANDARD dealer.
CW MESSAGE 1 - CW MESSAGE 8
Press (or press and hold in for one second) the PF key
assigned to “CW Message 1 - 8” to send a pre-pro-
grammed Morse Code message on the transmitted sig-
nal. Programming of the message(s) is performed by
your VERTEX STANDARD dealer.
DC POWER SAVE
Press (or Press and hold in for one second) the PF key
assigned to “DC Power Save” to turn the DC Power
Save feature “On” or “Off” (toggle).
When DC Power Save feature is set to “ON,” activate
the various power save feature (determined from your
VERTEX STANDARD dealer) while the repeater oper-
ates from the Backup Power Source.
ENCRYPTION
Press (or Press and hold in for one second) the PF key
assigned to “Encryption” to turn off the Optional En-
cryption Unit temporarily.
ENCRYPTION C ODE
Press (or Press and hold in for one second) the PF key
assigned to “Encryption Code” to select the Encryption
Code (determined from your VERTEX STANDARD
dealer; require the FVP-35 Rolling Code Encryption
Unit).
KEY LOCK
Press (or Press and hold in for one second) the PF key
assigned to “Key Lock” to lock the repeater’s front panel
keys (except “Key Lock” key); this feature can be en-
abled to prevent repeater settings from being disturbed.
LOCAL PTT
Press (or Press and hold in for one second) the PF key
assigned to “Local PTT” to enable (“On”) or disable
(“Off”) operation using a PTT switch connected to the
front panel’s Microphone Jack.
MONITOR
Press (or Press and hold in for one second) the PF key
assigned to “Monitor” to cancel CTCSS and DCS squelch
decoding, so as to enable reception of signals present on
the channel that do not contain a matching CTCSS tone
or DCS code.
MONITOR M
This function provides to “Monitor” to cancel CTCSS
and DCS squelch decoding, so long as the PF key as-
signed to “Monitor M” is pressed and held in.
MULTI TONE
Press (or Press and hold in for one second) the PF key
assigned to “Multi Tone” to switch the Tone Table be-
tween “Main” and “Sub.”
PANEL I NDICATOR
Press (or Press and hold in for one second) the PF key
assigned to “Panel Indicator” to turn the Front Panel’s
Illumination “On” or “Off” (toggle).
REMOTE
Press (or Press and hold in for one second) the PF key
assigned to “Remote” to toggle the operating mode be-
tween the “Remote” mode and “Local” mode.
When the “Remote” mode is selected, the repeater op-
erates according to the control instructions received
from the external device (connected to the ACC jack on
the rear panel). While in the “Local” mode, the repeater
operates from the front panel’s PF keys.
REPEAT
Press (or Press and hold in for one second) the PF key
assigned to “Repeat” to toggle the operating mode be-
tween the “Repeater” mode and “Base Transceiver”
mode.
For normal operation, set this key to the “Repeat” mode.
When the “Base Transceiver” mode is selected, you can
speak into the microphone to use this repeater as a trans-
ceiver.
RESET
Press (or Press and hold in for one second) the PF key
assigned to “Reset” to reset (same function as the
POWER switch “off” and “on”) the repeater.
PROGRAMMABLE FUNCTION (PF) KEY DETAILS
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL
SCAN
Press (or Press and hold in for one second) the PF key
assigned to “Scan” to start scanning. To stop scanning,
press (or Press and hold in for one second) this key again.
The scanning feature is used to monitor multiple chan-
nels programmed into the repeater.
This function is only activated on the “Base Trans-
ceiver” mode.
SQUELCH
Press (or Press and hold in for one second) the PF key
assigned to “Squelch” to override the Squelch action
(CTCSS, DCS, and Noise Squelch), so as to hear any sig-
nal present on the operating channel.
TEST TONE
Press (or Press and hold in for one second) the PF key
assigned to “Test Tone” to generate the Test Tone Signal,
as programmed by your VERTEX STANDARD dealer.
Press (or Press and hold in for one second) this key again
to stop the generation of the Test Tone. This is a toggle
function.
Press (or Press and hold in for one second) this key while
press and holding the PTT switch to transmit the Test
Tone Signal, as programmed by your VERTEX STAN-
DARD dealer.
TEST TONE M
This function provides momentary generation of the
above-referenced Test Tone signal, so long as the PF key
assigned to “Test Tone M” is pressed and held in.
Press this key while press and holding the PTT switch
to transmit the Test Tone Signal, as programmed by
your VERTEX STANDARD dealer.
TOT
Press (or press and hold in one second) the PF key as-
signed to “TOT” to turn the Time-Out Timer feature
“On” or “Off” (toggle).
When the TOT feature is set to “On,” the repeater will
return to the “Receive” mode automatically after a pre-
set time of continuous transmission (determined via
programming by your VERTEX STANDARD dealer).
TRANSMIT
Press (or Press and hold in for one second) the PF key
assigned to “Transmit” to enable (“On”) or disable
(“Off”) the transmission of the VXR-9000.
TX POWER MID
Press (or Press and hold in one second) the PF key as-
signed to “TX Power Mid”to set the transmitter power
to the “Mid” level.
Press (or press and hold in one second) this key again to
return to the “Original” power level (determined via
programming by your VERTEX STANDARD dealer).
This function is ignored on the channel which is pro-
grammed to the transmitter power to the “Mid” or
“Low” level by your VERTEX STANDARD dealer.
TX POWER LOW
Press (or Press and hold in one second) the PF key as-
signed to “TX Power Low”to set the transmitter power
to the “Low” level.
Press (or press and hold in one second) this key again to
return to “Original” power level (determined via pro-
gramming by your VERTEX STANDARD dealer).
This function is ignored on the channel which is pro-
grammed to the transmitter power to the “Low” level
by your VERTEX STANDARD dealer.
PROGRAMMABLE FUNCTION (PF) KEY DETAILS
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL

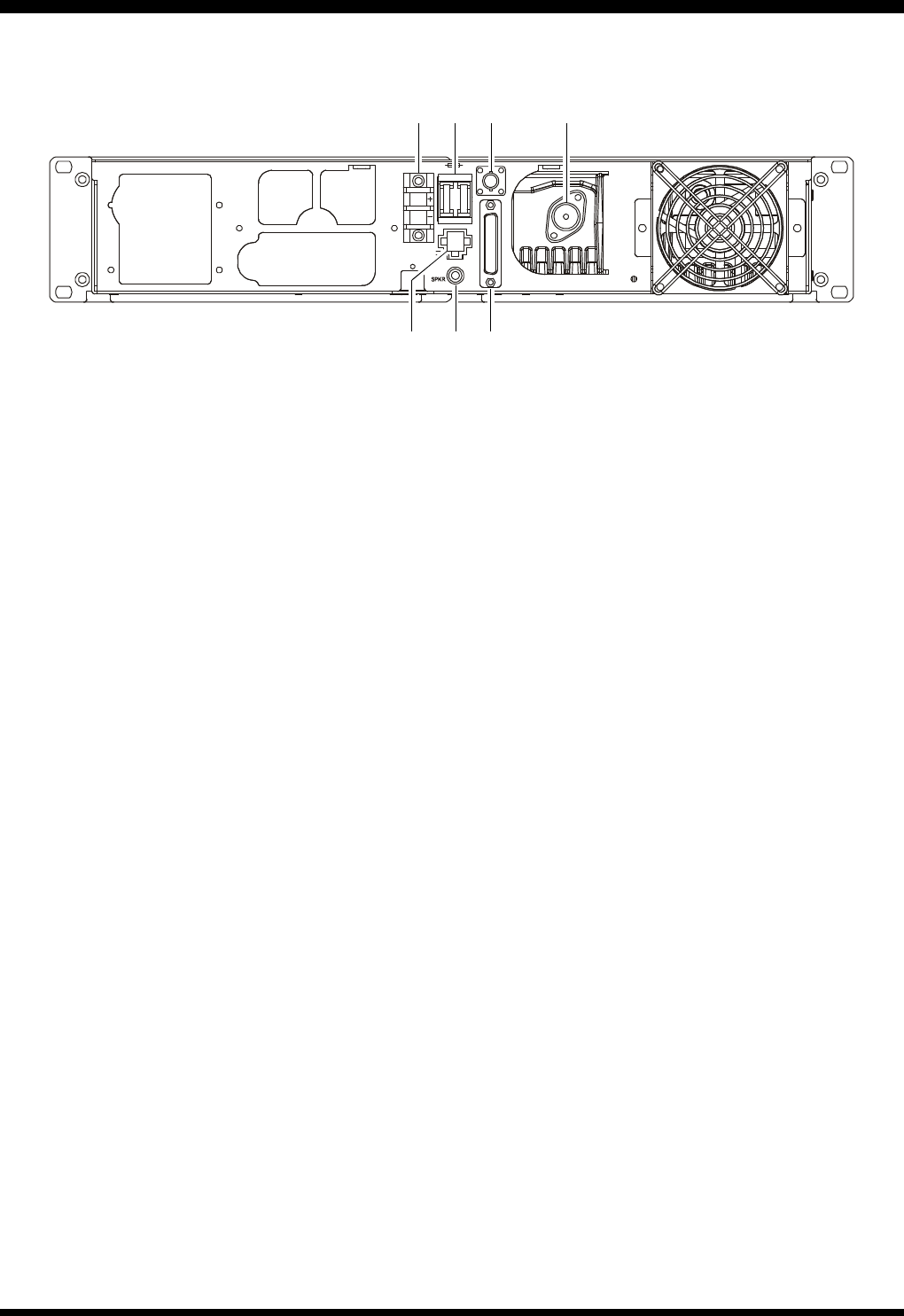

REAR PANEL CONNECTORS
• Backup Power Source Terminals
If available, a backup 13.6 Volt power source, such
as a rechargeable battery, may be connected here.
When the Battery Charge switch (located on the PA
Unit) is set to “ON,” a “trickle” charge current is
present here while the repeater is operating from
the “Main Power Source.”
‚ Circuit Protection Fuse
Two 15-Amp blade fuses, for the “Main” and
“Backup” power sources, are installed here.
ƒ RX Antenna Jack
This BNC-type coaxial jack accepts the receiver in-
put signal, for connection to the receiving antenna,
or the “RX” jack on the duplexer. The input imped-
ance requirement is 50 Ohms.
„TX Antenna Jack
This N-type coaxial jack provides the transmitter
output signal, for connection to the transmitting
antenna, or the “TX” jack on the duplexer. The out-
put impedance requirement is 50 Ohms.
… Main Power Source Connector
The primary DC power source should be connected
here. The power requirements are 13.6 V DC at 12
Amps, continuous duty.
† External Speaker Jack
This 3.5-mm, 2-pin jack provides variable audio
output for an external speaker. The audio output
impedance at this jack is 4 to 16 Ohms, and the level
varies according to the setting of the front panel's
VOL knob.
‡ DSUB 25-pin Accessory Connector
This DB-25F connector allows the repeater to be re-
mote-controlled by an external controller. Analog
I/O signals, such as TX Audio In, Discriminator
Output, RSSI, etc. are available. Moreover, the VXR-
9000 provides eight ports that can be programmed
for various input or output signals, or for control
functions. Each port may be programmed as to its
function, its status (input or output), and its logic
(for output ports only).
RX
MAIN
BACKUP
BACKUP
TX
GND
ACC
EXT
INPUT
DC 13.6V
‚• ƒ „
†… ‡
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL
DB-25 CONNECTOR PORT
The VXR-9000 repeater is provided with a 25-pin DB-
25F female connector for interconnections to
accessories.Use a DB-25M 25-pin male connector to con-
nect accessories to the repeater. The pins on the acces-
sory connector are explained in detail as follows:
Pin 1: GND
Chassis ground for all logic levels and power supply
return.
Pin 2: +13.6 V
[POWER SUPPLY]
This pin provides 13.6 Volts, 2.0 A, DC from the repeater
supply. There is a internal 3 A fuse to prevent damage
to the repeater.
Pin 3: TX AF IN
[ANALOG TRANSMITTER INPUT] (VOICE BAND: 300 ~ 3,000 HZ)
This pin is audio input. Input impedance is 600 Ohms.
This audio is injected before the splatter filter stage, so
excess signal input levels are clipped.
Use shielded cable to connect to this pin, and connect
the shield to GND.
Pin 4: TONE IN
[TRANSMITTER INPUT] (SUB-AUDIBLE BAND: 5 ~ 250 HZ)
This pin is sub-audiable tone input. The input imped-
ance is 600 Ohms, and has a flat response characteristic
(repeater deviation is constant for a given signal level
over the frequency range of 5 ~ 250 Hz). Injecting too
high a voltage here causes over-deviation of CTCSS or
DCS, degrading performance.
Use shielded cable to connect to this pin, connecting the
shield to GND.
Pin 5: TX ATT
This output is intended for controlling an external co-
axial switching relay. It is an open drain output which
can sink approx. 1.5 A when active. The delay time
which is between the repeater cause to transmit mode
and this port switches to ground can be programmed
by your VERTEX STANDARD dealer.
Pin 6: DISC OUT
[ANALOG OUTPUT] (WIDE-BAND: 0 ~ 3,000 HZ)
Received signals with full system deviation produce
350 mVrms audio at this pin. The output impedance is
600 Ohm, and is extracted before the de-emphasis and
squelch circuitry. Use shielded cable to connect to this
pin, and connect the shield to GND.
Pin 7: N.C.
No connection.
Pin 8: RSSI
[ANALOG OUTPUT]
A DC voltage proportional to the strength of the signal
currently being received (Receiver Signal Strength In-
dicator) is provided on this pin. This low impedance
output is generated by the receiver IF sub-system and
buffered by an internal op-amp. Typical voltages are
graphed as follows:

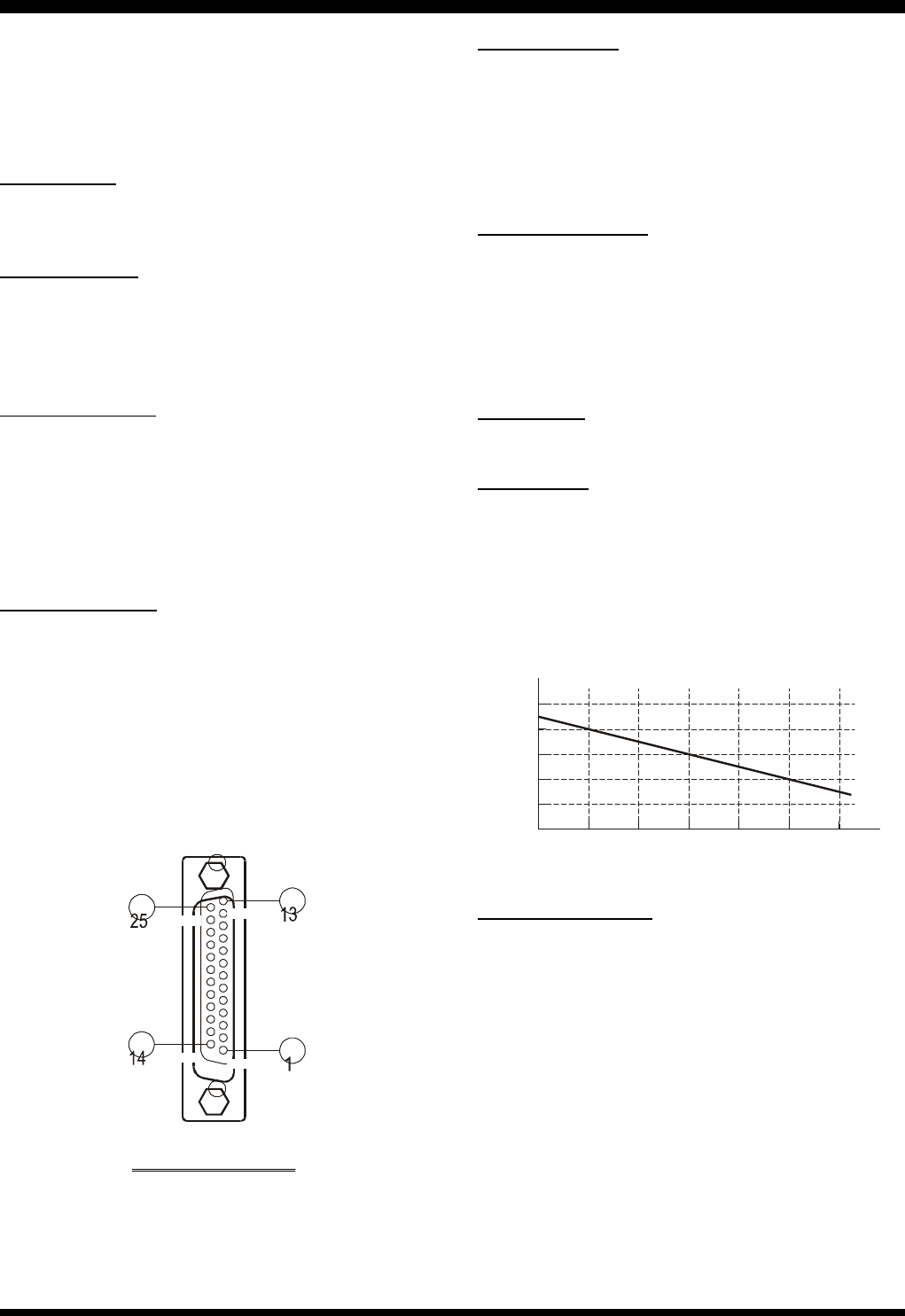

DB-25 PIN NUMBERING
0
–60
–100
–110
–120
(dBm)
–70 –80 –90
0.5
1.0
1.5
2.0
2.5
(DC V)
Input Signal Level
R
S
S
I
O
u
t
p
u
t
V
o
l
t
a
g
e
Pin 9: COAX. SW
[LOGIC OUTPUT (ACTIVE LOW)]
This output is intended for controlling an external co-
axial switching relay. It is an open drain output which
can sink approx. 1.5 A when active. This signal only
switches if the repeater has been programmed for “SIM-
PLEX” mode. If programmed for “DUPLEX,” the signal
remains open (high impedance) at all time.
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL
Pin 10, 13, 15, 16, 17, 18, 19, 21:
PROGRAMMABLE I/O “0” ~ ”7”
The VXR-9000 provides eight ports (PIO)
that can be programmed for various
input or output signals, or for control
functions. Each port may be pro-
grammed as to its function, its status
(input or output), and its logic (for out-
put ports only).
Pin 11: NSQ DET
This is an open-collector, active-low output capable of
sinking about 10 mA. It indicates that the receiver
squelch is open. If the squelch control is properly set,
this indicates a carrier on the receiver channel.
Pin 12: EXT PTT
This input is internally pulled up to 5 VDC. When pulled
low by an external device, it keys the repeater trans-
mitter while the repeater is operating in the “Remote”
mode. Avoid voltage in excess of 5 V on this pin, or
internal damage to the microprocessor on the repeater
CNTL Unit may result.
Pin 14, 20: GND
Chassis ground for all logic levels and power supply
return.
Pin 22: RXD LOW
[ANALOG OUTPUT FOR DATA COMMUNICATIONS]
(300 ~ 3,000 Hz)
This pin is an output for low speed receiving data sig-
nals (typically 1200 bps), with the data being extracted
after the de-emphasis and low pass filter stages.
Pin 23: RXD HIGH
[DIGITAL OUTPUT FOR DATA COMMUNICATIONS]
(Max.: 5 kHz)
This pin is an output for high speed receiving data sig-
nals (typically 9600 bps), with the data being extracted
immediately after the discriminator (prior to any de-
emphasis).
Pin 24: TXD LOW
[ANALOG INPUT FOR DATA COMMUNICATIONS]
(300 ~ 3,000 Hz)
This pin is intended to be used as a low speed data
signal input to the repeater (typically 1200 bps). This
digital data signal is injected before the transmitter pre-
emphasis and limiting stages, so excess signal input
levels are clipped.
Pin 25: TXD HIGH
[DIGITAL INPUT FOR THE DATA COMMUNICATIONS]
(0 ~ 5 kHz)
This pin is intended to be used as a high speed digital
data signal input to the repeater (typically 9600 bps).
This digital data signal is injected after the transmitter
splatter filter stage.
DB-25 CONNECTOR PORT
Pin I/O Port
10 6
13 7
15 4
16 3
17 2
18 1
19 0
21 5
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL
Antenna Considerations
Repeater operation requires two antennas, one for re-
ceiving and one for transmitting, so that the receiving
antenna does not absorb energy from the transmitting
antenna. There are a number of ways to do this, de-
pending on the TX/RX frequency separation, and on the
locations available for antenna mounting.
Regardless of the above choice, it is of paramount im-
portance that the antenna(s) be mounted as high and in
the clear as possible, preferably within line-of-sight to
all repeater users. Furthermore, losses in the feedline(s)
must be minimized, so the feedline(s) should be high
quality, and as short as possible. If a long feedline is
necessary, use coaxial “hardline” cable to reduce losses.
Repeater antennas should have an impedance of 50 W
at the operating frequency. When separate receive and
transmit antennas are used, high-Q narrow-band types
may serve to minimize interaction.
NEVER TRANSMIT WITHOUT HAVING A
TRANSMIT ANTENNA CONNECTED TO THE
TX ANTENNA JACK OF THE REPEATER.
Equipment Location
The VXR-9000 must be installed in a 19-inch Mounting
Rack, which will allow for free air flow around the heat
sink on the rear apron at all times. In warm climates,
the repeater should not be sealed in a small, closed room
without air conditioning.
While the operating temperature range of the VXR-9000
is quite broad, the best location is one in which the air
temperature does not approach the extremes of the
specified range, and one that does not change rapidly.
Protect the VXR-9000 (Mounting Rack) from wind and
rain, and extremes in temperature or humidity that
may shorten the useful life of the equipment. Try to lo-
cate the VXR-9000 (Mounting Rack) in an environment
that is also comfortable for service personnel, if pos-
sible.
INSTALLATION
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL
RX
MAIN
BACKUP
BACKUP
TX
GND
ACC
EXT
INPUT
DC 13.6V
Power Supply
Operation of the VXR-9000 requires a power source ca-
pable of providing at least 12 Amps continuously at
13.6 Volts DC. The FP-1023 (23 A) and FP-1030A (30 A)
AC Power Supplies are available from your Vertex Stan-
dard dealer to satisfy these requirements. Other well-
regulated power supplies may be used, as well, if they
meet the above voltage and current specifications.
Use the DC power cable supplied with your repeater
for making power connections to the power supply.
Connect the RED power cable lead to the POSITIVE (+)
power supply terminal, and connect the BLACK power
cable lead to the NEGATIVE (–) power supply terminal.
INSTALLATION
Backup Power Supply
For uninterrupted operation during power failures, a
12 volt rechargeable type battery (55-Ah or more rec-
ommended) may be connected to the BACKUP termi-
nal posts on the rear panel. When the Battery Charge
switch is set to “ON,” a slight charging current will
maintain battery charge while the repeater is operat-
ing from the “Main Power Source.” In the event of an
“Main Power Source” outage, the automatic power con-
trol circuit will automatically switch the repeater to
the backup battery, and operation will not be inter-
rupted.
After prolonged operation from the battery, it should
be disconnected from the repeater and recharged sepa-
rately before re-connecting, as the trickle charge is not
sufficient for recharging a completely discharged bat-
tery.
Never reapply “Main” power to the repeater with a
discharged battery connected, as the DC startup cur-
rent can damage the repeater and battery.
While operating from a backup battery, the repeater
requires approximately 7 amperes at 12 Volts during
transmit.
Never short the “Backup Power Sorce” Terminals,
when the Battery Charge switch (located on the PA
Unit) is set to “ON.”

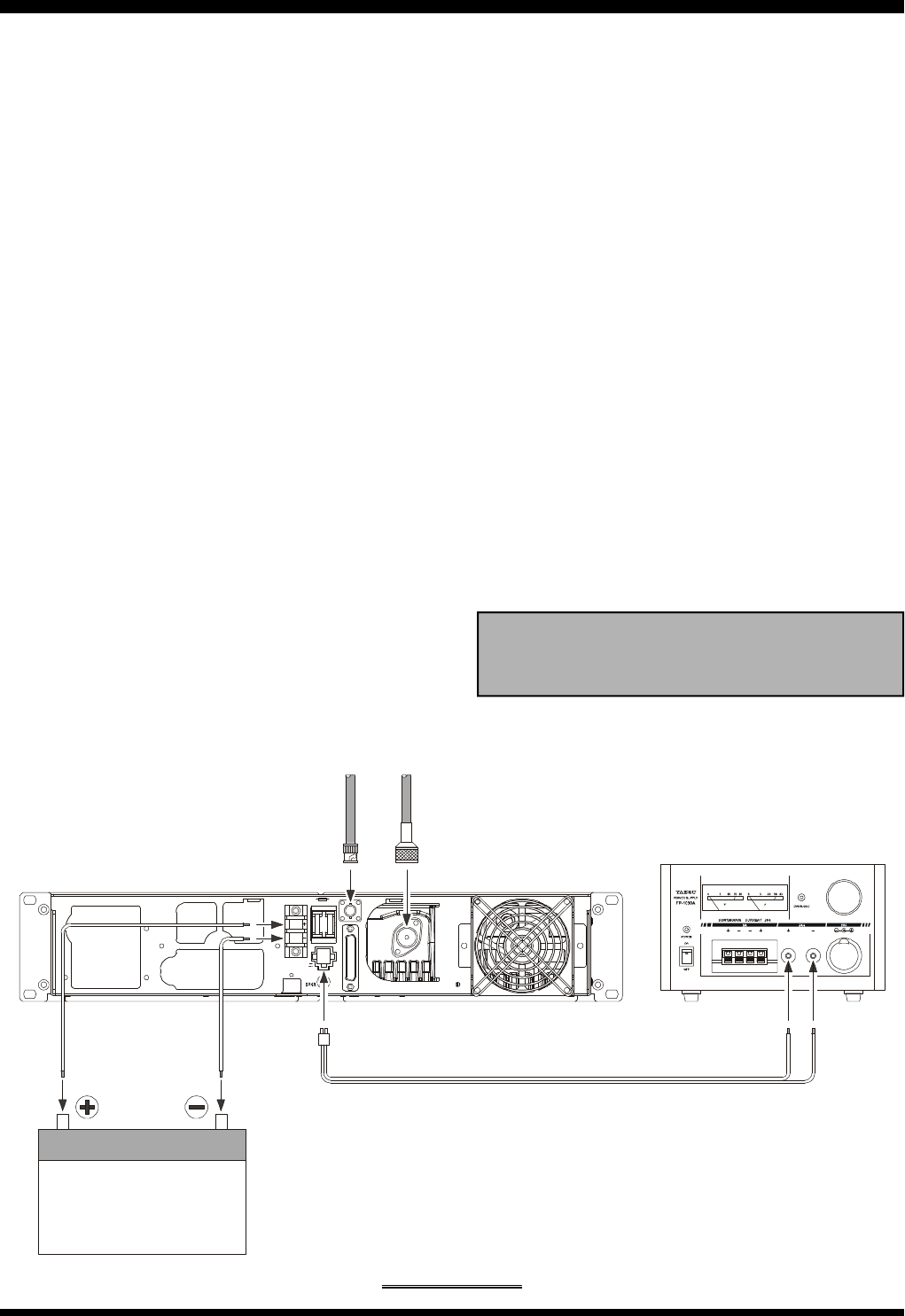

Ú To TX Antenna
Ú To RX Antenna
Supplied DC Power Code
RED
BLACK
RED
BLACK
Backup Battery
(12 V, 55 Ah)
TYPICALLY SETUP
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL
ACCESSORIS & OPTION
Supplied Accessories
DC Power Cord (T9023449) ......................................... 1
15-A Blade Fuse (Q0000075) ........................................ 1
Knob Cap (RA0506900) ................................................ 1
Operating Manual ........................................................ 1
Optional Accessories
FIF-9 Inline Interface Box
FVP-25 Encryption Unit
FVP-35 Rolling Code Encryption Unit
MD-11A8J Desktop Microphone
MH-27A8J Hand Microphone
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL
Part 15.21: Changes or modifications to this device not expressly ap-
proved by Vertex Standard could void the user’s authorization to operate
this device.
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
VXR-9000 FM REPEATER OPERATING MANUAL
FCC ID: K6610443240
IC ID: 511B-10443240
Vertex Standard Co., Ltd.
