USERS MANUAL
VX-2200
SERIES
OPERATING MANUAL
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
P2P1 P3 P4
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
Unsafe Radiation Distance
Congratulations!
You now have at your fingertips a valuable communications tool: a VERTEX STAN-
DARD two-way radio! Rugged, reliable and easy to use, your VERTEX STANDARD
radio will keep you in constant touch with your colleagues for years to come, with
negligible maintenance downtime.
Please take a few minutes to read this manual carefully. The information presented
here will allow you to derive maximum performance from your radio, in case ques-
tions arise later on.
We’re glad you joined the VERTEX STANDARD team. Call on us anytime, because
communications is our business. Let us help you get your message across.
NOTICE !
There are no owner-serviceable parts inside the transceiver. All service jobs
must be referred to an authorized VERTEX STANDARD Service Represen-
tative. Consult your Authorized VERTEX STANDARD Dealer for installa-
tion of optional accessories.
SAFETY/WARNING INFORMATION
WARNING - DO NOT operate the VX-2200 radio when any person(s) (by-
standers) outside the vehicle are within the distances shown in the chart at the
bottom of this section.
Safety Training information:
Antennas used for this transmitter must not exceed an antenna gain of 0 dBd.
The radio must be used in vehicle-mount configurations with a maximum op-
erating duty factor not exceeding 50 %, in typical Push-to-Talk configurations.
This radio is restricted to occupational use, work related operations only where
the radio operator must have the knowledge to control the exposure condi-
tions of its passengers and bystanders by maintaining the minimum separa-
tion distance shown below.
Failure to observe these restrictions will result in exceeding the FCC RF ex-
posure limits.
Antenna Installation:
For rear deck trunk installation, the antenna must be located at least the fol-
lowing distance away from rear-seat passengers in order to comply with the
FCC RF exposure requirements.
For roof top installations, the antenna must be placed in the center of the roof.
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 (400-470 MHz)
0.29 m
VX-2200 SERIES OPERATING MANUAL 1
INTRODUCTION
The VX-2200 Series are full-featured FM transceivers designed for flexible mobile
and base station business communications in the VHF or UHF Land Mobile bands.
These transceiver are designed for reliable business communications in a wide vari-
ety of applications with a wide range of operating capability provided by their lead-
ing-edge design.
The 128-channel memories can each be programmed with a 8-character channel name.
Important channel frequency data is stored in EEPROM and flash memory on the
CPU, and is easily programmable by dealers using a personal computer and the VER-
TEX STANDARD VPL-1 Programming Cable and CE82 Software.
The pages which follow will detail the many advanced features provided on the VX-
2200 Series transceiver. After reading this manual, you may wish to consult with
your Network Administrator regarding precise details of the configuration of this
equipment for use in your application.
For North American Users Regarding 406 MHz Guard Band
The U.S. Coast Guard and National Oceanographic and Atmospheric Admin-
istration have requested the cooperation of the U.S. Federal Communications
Commission in preserving the integrity of the protected frequency range 406.0
to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt
to program this apparatus, under any circumstances, for operation in the fre-
quency range 406.0 - 406.1 MHz if the apparatus is to be used in or near
North America.
P2P1 P3 P4
FCC ID: K6610614630/IC ID: 511B-10614630
Vertex Standard Co., Ltd.
VX-2200 SERIES OPERATING MANUAL2
CONTROLS & CONNECTORS

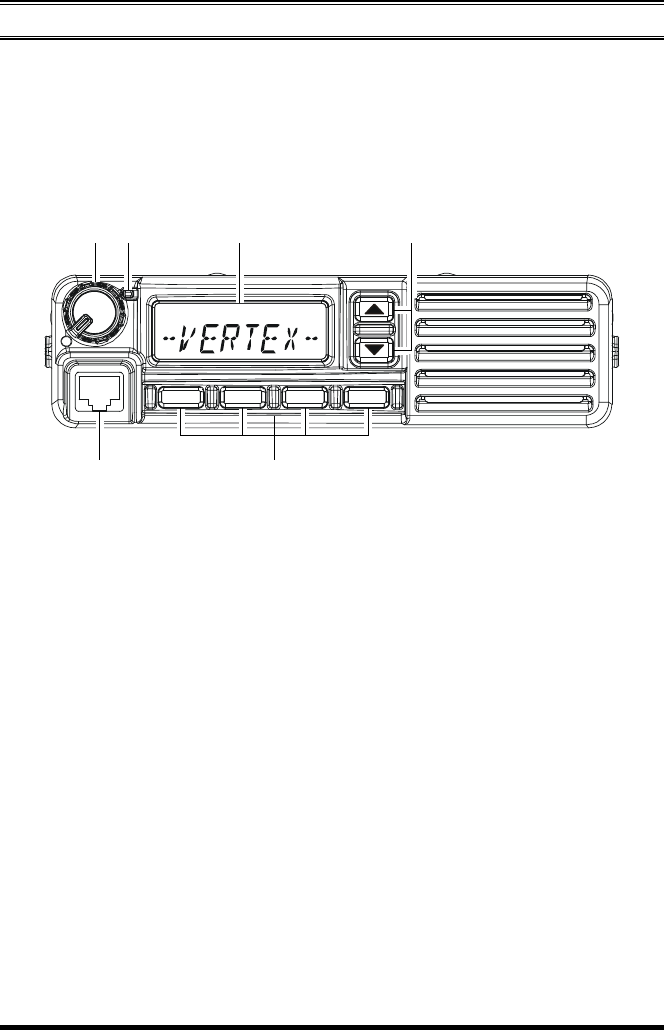

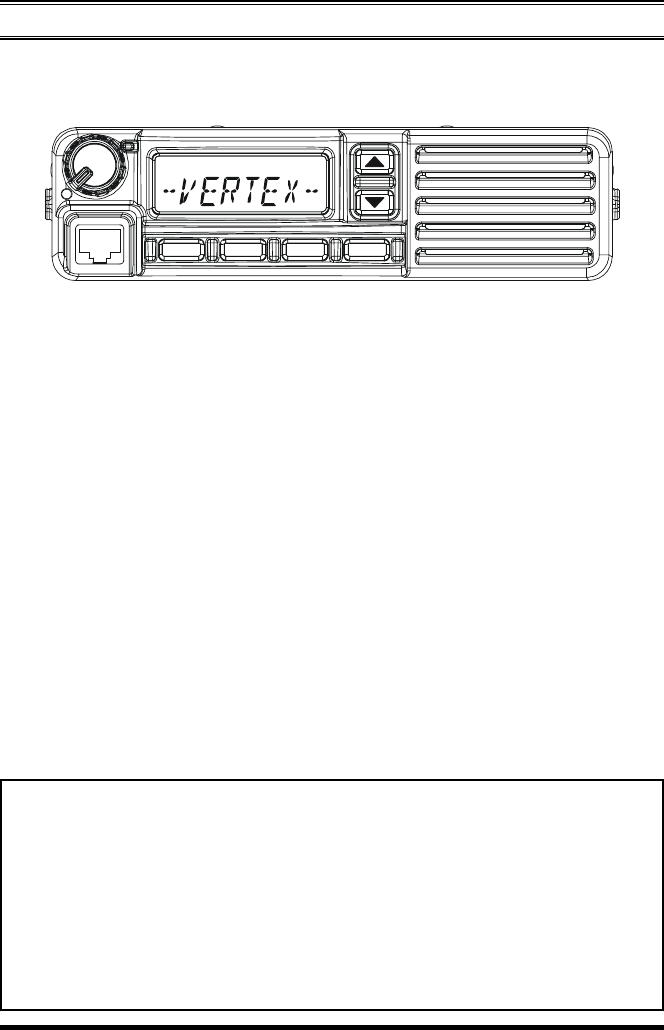

Front Panel
Important! - All buttons located on the Front Panel are Programmable Function (PF)
Buttons, configured according to your network requirements and programmed by
your VERTEX STANDARD dealer. The instructions below describe a typically-
configured radio.
VOL/PWR Knob
Turn this control clockwise to turn the radio on and to increase the volume. Turn
it counterclockwise into the click-stop to turn the radio off.
Microphone Jack
Connect the microphone plug to this jack.
[P1] - [P1] Buttons (Programmable Function Buttons)
These buttons can be set up for special applications, such as High/Low power
selection, Monitor, Talk-Around, etc., as determined by your network require-
ments and programmed by your VERTEX STANDARD dealer.
[]/[] Buttons (Programmable Function Buttons)
Pressing either button changes the current channel (and displayed channel num-
ber or name). Holding in either button for more than 1.5 second causes the radio
to begin stepping (repeatedly) upward or downward through the channels.
P2P1 P3 P4
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL 3
LCD (Liquid Crystal Display)
The display includes a 8-character alpha-numeric section showing Channel name
tags/identity information and error messages, and an upper icon row displaying
feature status (see below).
BUSY/TX Indicator
Indicates transceiver’s Transmit/Receive Status
Steady Red: Transmitting in progress
Steady Green: Signaling Off
Blinking Green: Busy Channel/Squelch Off
CONTROLS & CONNECTORS
“Call” indicator
“Dual Watch” is activated
Low Transmt Power Mode “ON”
: “Scan” is activated
: “Priority Scan” is activated
“Talk-Around” is enabled
Receiver Monitor
“Group Scan” is enabled
“AUX A” Port is activated
8 Character Alpha-numeric Display
“Encryption” is enabled Channel Group Number
Priority Channel
RSSI Indicator (four steps)
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL4

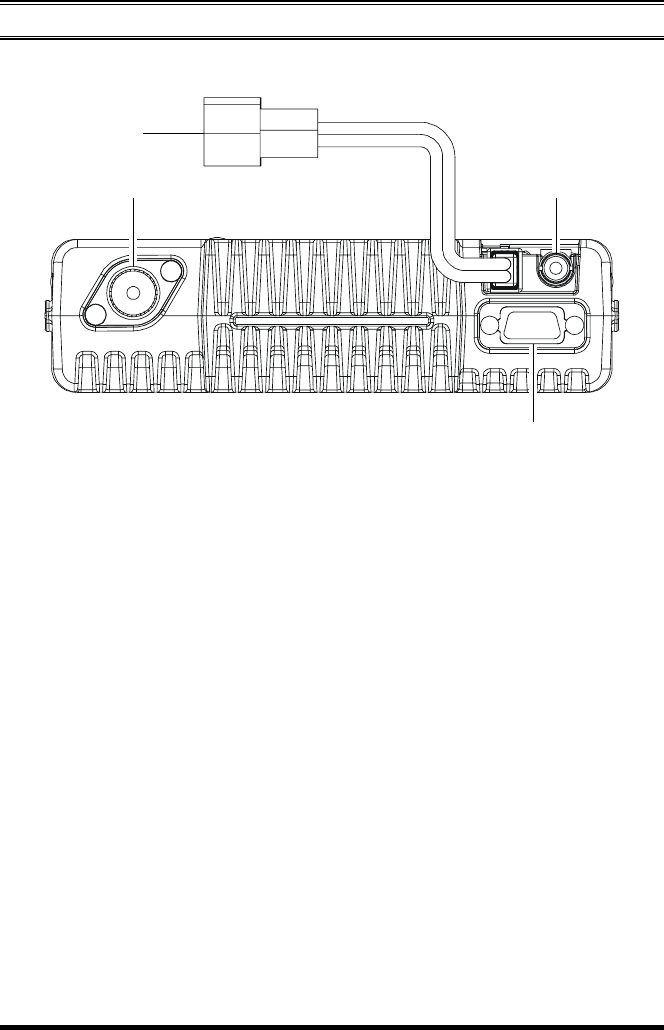

Rear Panel
CONTROLS & CONNECTORS
13.6V DC Cable Pigtail with Connector
The supplied DC power cable must be connected to this 2-pin connector. Use
only the supplied fused cable, extended if necessary, for power connection.
Antenna Socket
The 50-Ohm coaxial feedline to the antenna must be connected here, using a
type-M (PL-259) plug.
D-Sub 15-Pin Accessory Connector
External TX audio line input, PTT (Push To Talk), Squelch, and external RX
audio line output signals may be obtained from this connector for use with acces-
sories such as data transmission/reception modems, and external Channel con-
trol input etc.
External Speaker Jack
An external loudspeaker may be connected to this 2-contact, 3.5-mm mini-phone
jack.
Caution: Do not connect either wire of this line to ground, and be certain that the
speaker has adequate capability to handle the audio output (12 W) from the
radio.
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL 5
BASIC OPERATION OF THE TRANSCEIVER
Important! - Before turning on the radio the first time, confirm that the power con-
nections have been made correctly and that a proper antenna is connected to the
antenna jack.
Switching Power ON/OFF
Turn the VOL/PWR knob turn on the radio. The display will become illumi-
nated.
Press the []/[] button to choose the desired operating channel. A channel
name will appear on the display. If you want to select an operating channel from
a different group, press the PF (Programmable Function) button which is pro-
grammed to the Group Up/Down feature to select the group you want before
selecting the operating channel. See page 7 for more information on the Pro-
grammable Function keys.
Setting the Volume
Turn the VOL/PWR knob clockwise to increase the volume, and counterclock-
wise to decrease it.
Transmitting
To transmit, monitor the channel and make sure it is clear.
THIS IS AN FCC REQUIRMENT!
Press the PF button which is programmed to the Monitor feature to listen for
channel activity.
When receiving a call, transmit only after the incoming call ends. The radio
cannot receive a call and transmit simultaneously.
Press the PTT switch.
If the channel is clear, the BUSY/TX indicator will glow red. The radio is now
transmitting. While holding in the PTT switch, speak across the face of the micro-
phone in a clear and normal voice. For best transmission, hold the microphone
about 1-1/2 to 2 inches away from your mouth. Release the PTT switch to receive.
If the Busy Channel Lockout feature has been programmed on a channel, the
radio will not transmit when a carrier is present. Instead, the radio will generate
a short beep three times and indicate “* ERROR *” on the display. Release the
PTT switch and wait for the channel to be clear of activity.
If CTCSS or Digital Coded Squelch (DCS) Lockout has been programmed on a
channel, the radio can transmit only when there is no carrier being received or
when the carrier being received includes the correct CTCSS tone or DCS code.
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL6
Automatic Time-Out Timer
If the selected channel has been programmed for automatic time-out, you must limit
the length of each transmission. While transmitting, a beep will sound 10 seconds
before time-out. Another beep will sound just before the deadline; the red “TX”
indicator will disappear and transmission will cease soon thereafter. To resume trans-
mitting, you must release the PTT switch and wait for the “penalty timer” to expire
(if you press the PTT switch before this timer expires, the timer restarts, and you will
have to wait another “penalty” period)
Key Lock
In order to prevent accidental frequency change or inadvertent transmission, various
aspects of the VX-2200’s keys, and PTT switch, may be locked out. The precise
lockout configuration may be configured using the “User Set” (Menu) mode. See
page 16 for detail.
To activate the Locking feature, press and hold in the [P4] key while turning the
radio on. To disable the Locking feature, repeat this power-on procedure.
BASIC OPERATION OF THE TRANSCEIVER
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL 7
ADVANCED OPERATION
Programmable Function (PF) Buttons
The VX-2200 Series includes seven Programmable Function (PF) Buttons. The PF
button functions can be customized, via programming by your VERTEX STAN-
DARD dealer, to meet your communications/network requirements. Some features
may require the purchase and installation of optional internal accessories. The pos-
sible PF button programming features are illustrated below, and these functions are
explained on the pages to follow.
For further details, contact your VERTEX STANDARD dealer. For future reference,
check the box next to the function that has been assigned to each PF button on your
particular radio, and keep it handy.
: Requires optional unit
CALL 3
CALL 4
CALL 5
Code Up
Code Down
Code SET
Speed Dial
HOME
Selectable Tone
Public Address
EXT. ACC1
EXT. ACC2
Direct CH#1
Direct CH#2
Direct CH#3
Direct CH#4
AF Min Vr
SET
Function
MONI
SQL
DIMMER
Channel Up
Channel Down
Group Up
Group Down
SCAN
DW (Dual Watch)
Follow-Me SCAN
Follow-Me DW
LOW
TA (Talk Around)
TX SAVE Disable
Encryption Disable
Emergency
CALL/RESET
CALL 1
CALL 2
PF Button
P1 P2 P3 P4
Function
PF Button
P1 P2 P3 P4
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL8
Description of Operating Functions
MONITOR (MONI)
Press the assigned programmable key to cancel CTCSS- and DCS-controlled squelch;
the BUSY/TX indicator will glow green. Press and hold in this button for 1.5 sec-
onds to hear background noise (unmute the audio); the BUSY/TX indicator will
blink green.
SQUELCH (SQL)
You can manually adjust the squelch level using this function:
Press the assigned programmable key. A tone will sound, and the current squelch
will level appears on the display.
Press the []/[] button to select the desired squelch level.
Press this key again. A tone will sound, and the display will revert to the normal
channel indication.
DIMMER
Press the assigned programmable key to select the brightness level of the display and
key backlight. Available selections are four levels.
CHANNEL UP/DOWN
Press the assigned programmable key (generally the []/[] button) to select a
different channel within the current group.
GROUP UP/DOWN
Press the assigned programmable key to select a different group of channels. Once
the desired Group is reached, press the Channel Up/Down key (generally the []/
[] button) to select the desired channel within the selected Group.
You may wish to have the Scanner pass through more than one Group during the
scanning process (normally, scanning is performed within the current group only). To
include the current Group in the scanning loop, press and hold in the assigned
programmable key for one second. To remove a Group from Group Scan, press and
hold in the assigned programmable key again for one second.
Multi-Group Scanning is only possible if you are using the “User Scan” list. To edit
the User Scan list, press and hold the assigned programmable key for one second to
delete the current Memory Group from the Scanning. Alternatively, press and hold
the assigned programmable key for one second to delete the Current Memory chan-
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL 9
ADVANCED OPERATION
nel from the Scanning. When you delete a Group or channel, “-SCAN Skip-” will
appear on the LCD for one second after pressing the assigned programmable key. To
restore a particular channel to your scanning list, press and hold in the assigned
programmable key again for one second; “-SCAN Stop-” will appear on the LCD for
one second after pressing the assigned programmable key.
CHANNEL SCAN (SCAN)
The Scanning feature is used to monitor multiple channels programmed into the trans-
ceiver. While scanning, the transceiver will check each channel for the presence of a
signal, and will stop on a channel if a signal is present.
To activate scanning:
Press the assigned programmable key to activate scanning on the current group.
The scanner will search the programmed channels, looking for active ones; it
will pause each time it finds a channel on which someone is speaking.
Press the assigned programmable key again to disable scanning. Operation will
revert to the programmed revert channel or activate the Group scanning when
Multi-Group Scanning is enabled.
Note: Your dealer may have programmed your radio to stay on one of the follow-
ing channels if you press the PTT switch during the scanning pause:
Current channel (“Talk Back”)
“Last Busy” channel
“Priority” channel
“Home” channel
“Scan Start” channel
DUAL WATCH (DW)
The Dual Watch feature is similar to the SCAN feature, except that only two channels
are monitored:
The current operating channel; and
The Priority channel.
To activate Dual Watch:
Press the assigned programmable key.
The scanner will search the two channels; it will pause each time it finds a
channel on which someone is speaking.
To stop Dual Watch:
Press the assigned programmable key.
Operation will revert to the “Dual Watch Start” channel.
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL10
FOLLOW-ME SCAN
“Follow-Me” Scan feature checks a User-assigned Priority Channel regularly as you
scan the other channels. Thus, if only Channels 1, 3, and 5 (of the 8 available chan-
nels) are designated for “Scanning,” the user may nonetheless assign Channel 2 as
the “User-assigned” Priority Channel via the “Follow-Me” feature.
To activate “Follow-Me” scanning, first select the channel you want to designate as
the “User-Assigned Priority Channel” and press the assigned programmable key.
Then press the Channel Up/Down key (generally the []/[] button) to recall to the
“Scanning Start” channel which has been programmed by your dealer to activate the
scanner. When the scanner stops on an “Active” channel, the User-assigned Priority
Channel will automatically be checked every few seconds; if activity is found on the
User-assigned Priority Channel, the radio will switch between it and the Dealer-As-
signed Priority Channel, if any.
FOLLOW-ME DUAL WATCH (DW)
To set up a “Dual Watch” frequency pair using the “Follow-Me” feature, select a
channel using the Channel Up/Down key (generally the []/[] button). Now press
the assigned programmable key; pressing the assigned programmable key locks the
current channel as the User-assigned Priority Channel. Now press the Channel Up/
Down key to select another channel (not the “Scanning Start” channel). Your radio
will now switch back-and-forth between the currently-selected channel and the User-
assigned Priority Channel.
During “Follow-Me” scanning (after you have pressed the key), you can set up the
“Dual Watch” feature by pressing the Channel Up/Down key to another channel. The
radio will then scan back and forth between the original User-assigned Priority Channel
and the newly-selected channel.
The Priority Channel you have assigned (before pressing the key) will be retained in
memory until you change it.
LOW POWER (LOW)
Press the assigned programmable key to set the radio’s transmitter to the “Low Power”
mode, thus extending battery life. Press the key again to return to “High Power”
operation when in difficult terrain.
When the radio’s transmitter is set to “Low Power” mode, the “ ” icon will be
indicated on the display.
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL 11
TALK AROUND (TA)
Press the assigned programmable key to activate the Talk Around feature when you
are operating on duplex channel systems (separate receive and transmit frequencies,
utilizing a “repeater” station). The Talk Around feature allows you to bypass the
repeater station and talk directly to a station that is nearby. This feature has no effect
when you are operating on “simplex” channels, where the receive and transmit fre-
quencies are already the same.
When the “TA” function is activated, the “ ” icon will be indicated on the display.
Note that your dealer may have mode provision for “Talk Around” channels by pro-
gramming “repeater” and “Talk Around” frequencies on two adjacent channels. If so,
the key may be used for one of the other Pre-Programmed Functions.
ENCRYPTION DISABLE (OPTION)
When the Voice Scrambler feature is enabled, press the assigned programmable key
to toggle the voice encryption on and off.
EMERGENCY
The VX-2200 series include an “Emergency” feature which may be useful if you
have someone monitoring on the same frequency as your transceiver’s channel.
Press the assigned programmable key to initiate an emergency call. For further de-
tails contact your VERTEX STANDARD dealer.
CALL/RESET
This feature, if enabled, allows the user to change the 3-digit Page Call code, used to
call other similarly-equipped stations. Press the assigned programmable key, fol-
lowed by the three digits representing the Page Call code of the station you wish to
call. Three tones will be heard after the last key is pressed (the new code will now be
transmitted).
The receiver squelch of the other station will be opened, and you can begin commu-
nication.
CALL 1 TO CALL 5
Press the assigned programmable key to send a 5-Tone sequential burst which is pre-
defined.
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL12
CODE UP/DOWN
Press the assigned programmable key to select a 5-Tone encode code from pre-de-
fined encode list.
CODE SET
Press the assigned programmable key to change the 5-Tone encodeing digit. To change
the tones, select the desired digit using the [P1]/[P2] keys, then change the number
using the []/[] keys.
STATUS UP/DOWN
Press the assigned programmable key to select a 5-Tone status code from the pre-
defined status list.
SPEED DIAL
Your Dealer may have pre-programmed Auto-Dial telephone number memories into
your radio.
To dial a number, press the assigned programmable key, then press the microphone’s
numbered key corresponding to the Auto-Dial memory number list provided by your
Dealer. The DTMF tones sent during the dialing sequence will be heard in the speaker.
HOME CHANNEL (HOME)
Press the assigned programmable key to recall the pre-defined Home group/channel.
When you recall the Home group/channel, the “H” icon will appear on the LCD.
SELECTABLE TONE
Press the assigned programmable key to select a sub-audible tone (CTCSS/DCS)
from the pre-defined tone table. You can operate the indicated sub-audible tone in
Selectable Tone mode.
PUBLIC ADDRESS
Press the assigned programmable key to use the transceiver as a PA amplifier. When
you enable this function, a tone sounds and “Public ADRS” will appear on the dis-
play. The public address can be used even while scanning and receiving a call.
EXT. ACC1
Press the assigned programmable key to toggle output port on “1” “on” and “off.”
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL 13
EXT. ACC2
Press the assigned programmable key to toggle output port on “2” “on” and “off.”
DIRECT CH#1 TO DIRECT CH#4
Press the assigned programmable key to recall the Dealer pre-programmed channel
directly.
AF MIN VR
Press the assigned programmable key to reduce the audio output to the (lower) level
programmed by your Dealer.
SET
Press the assigned programmable key to activate the “User Set” (Menu) Mode.
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL14
ARTS (Auto Range Transpond System)
This system is designed to inform you when you and another ARTS-equipped station
are within communication range.
During ARTS operation, when the radio receives an incoming ARTS signal, a short
beep will sound, and “In” (“In Service”) will be displayed on the LCD for 2 seconds.
If you move out of range for more than two minutes, your radio senses that no signal
has been received; a short triple-beep will sound, and “Out” (“Out of Service”) will
be displayed on the LCD for 2 seconds. If you subsequently move back into commu-
nication range, as soon as the other station transmits, a short beep will sound and
“In” will be displayed again on the LCD for 2 seconds.
DTMF Paging System
(Requires the optional FVP-25 Encryption/DTMF Pager Unit)
This system allows paging and selective calling, using DTMF tone sequences.
When your radio is paged by a station bearing a tone sequence which matches yours,
your radio’s squelch will open and the alert will sound. The three-digit code of the
station which paged you will be displayed on your radio’s LCD.
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL 15
USER SET MODE
The VX-2200 Series includes a “User Set” (Menu) Mode which allows the user to
define or configure various settings, such as Squelch, Display contrast, etc. To acti-
vate the “User Set” (Menu) Mode:
Press the programmable key assigned to the “SET” function.
Select the User Set Mode item you wish to change using the [P1]/[P2] keys,
then use the []/[] keys to adjust the setting of the selected item.
Press the [P1] or [P2] key to store the new configuration.
Press the programmable key assigned to the “SET” function to exit to normal
operation.
DISPLAY DESCRIPTION
1 SCN List Select the “User” or “Dealer” Scan List.
2 BEEP Enables/Disables the Key Beeper.
3 BELL Enables/Disables the Bell function.
(alert tone activated by incoming subaudible CTCSS/DCS tone)
4 Lighting Enables/Disables the BUSY/TX LED.
5 Lock Set the Control Key Lockout Cofiguration (Key/PTT/Key+PTT).
6 Group Select the desired Channel Group.
7 SCAN Engages/Disengages Scanning (same as the programmable [SCAN] key).
8DW Engages/Disengages Dual Watch (same as the programmable [DW] key).
9TA Engages/Disengages Talk Around (same as the programmable [TA ] key).
10 Encrypt Enables/Disables the disabling the Encryption Unit temporarily.
ENB: Enables the disabling the Encryption Unit.
DIS: Disables the disabling the Encryption Unit.
11 AF MinVR Sets the minimum Audio Volume level.
12 Beep VR Sets the Beep Volume level.
13 Contrast Sets the LCD Contrast level.
14 Dimmer Sets the brightness of the backlighting of the key and LCD.
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
VX-2200 SERIES OPERATING MANUAL16
OPTIONAL ACCESSORIES
FVP-25 Encryption/DTMF Pager Unit
FVP-35 Encryption Unit
VTP-50 VX-Trunk Unit
FP-1023A External Power Supply
MLS-100 Mobile Loudspeaker (12 W Peak Power)
LF-1 Line Filter
MH-700D DTMF Back-lit Microphone
MH-67A8J Microphone
MH-25A8J Microphone
MD-11A8J Desktop Microphone
VPL-1 Programming Kit
Availability of accessories may vary; some accessories are supplied standard per
local requirements, others may be unavailable in some regions.
Check with your VERTEX STANDARD Dealer for changes to this list.
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
Part 15.21: Changes or modifications to this device not expressly ap-
proved by Vertex Standard could void the user’s authorization to oper-
ate this device.
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
Copyright 2006
VERTEX STANDARD CO., LTD.
All rights reserved.
No portion of this manual
may be reproduced
without the permission of
VERTEX STANDARD CO., LTD.
Printed in Japan
EC061U100
Vertex Standard Co., Ltd.
FCC ID: K6610614630/IC ID: 511B-10614630
