Yaesu Musen 10944720 PORTABLE TRANSCEIVER User Manual P65
Yaesu Musen Co., Ltd. PORTABLE TRANSCEIVER P65
Users Manual
16-Key Version 4-Key Version Non-LCD Version
VX-450 SERIES
OPERATING MANUAL
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
VERTEX STANDARD (AUSTRALIA) PTY., LTD.
Normanby Business Park, Unit 14/45 Normanby Road
Notting Hill 3168, Victoria, Australia
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
Warning! FCC RF Exposure Requirements ............... 2
Controls & Connectors (16-Key Version) ................... 4
Controls & Connectors (4-Key Version) ..................... 5
Controls & Connectors (Non-LCD Version) ............... 6
LCD Icons & Indicators (16- & 4-Key Versions) ....... 7
Before You Begin ........................................................... 8
Battery Pack Installation and Removal ............................... 8
Low Battery Indication ....................................................... 8
Battery Charging ................................................................. 9
Operation ..................................................................... 10
P
reliminary Steps ..................................................... 10
Operation Quick Start .............................................. 10
Advanced Operation ................................................... 14
Programmable Key Functions
...................................... 14
Descriptipon of Operating Functions
............................ 16
ARTS (Auto Range Transpond System) ................... 24
DTMF Paging System ................................................. 25
LOCK ............................................................................ 25
CONTENTS
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
1
IMPORTANT NOTICE FOR NORTH AMERICAN USERS REGARDING 406 MHZ GUARD BAND
The U.S. Coast Guard and National Oceanographic and Atmospheric Administration have requested the
cooperation of the U.S. Federal Communications Commission in preserving the integrity of the protected
frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to
program this apparatus, under any circumstances, for operation in the frequency range 406.0 - 406.1
MHz if the apparatus is to be used in or near North America.
Warning - Frequency band 406 - 406.1 MHz is reserved for use ONLY as a distress beacon by the
US Coast Guard and NOAA. Under no circumstance should this frequency band be part of the
preprogrammed operating frequencies of this radio.
CONGRATULATIONS!
You now have at your fingertips a valuable communications tool-a Vertex Standard two-way radio! Rug-
ged, reliable and easy to use, your Vertex Standard radio will keep you in constant touch with your
colleagues for years to come, with negligible maintenance down-time. Please take a few minutes to read
this manual carefully. The information presented here will allow you to derive maximum performance
from your radio, in case questions arise later on.
We’re glad you joined the Vertex Standard team. Call on us anytime, because communications is our
business. Let us help you get your message across.
Notice!: There are no owner-serviceable parts inside the radio. All service jobs must be referred to an
authorized Vertex Standard Service Representative. Consult your Authorized Vertex Standard Dealer for
installation of optional accessories.
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
2
WARNING! FCC RF EXPOSURE REQUIREMENTS
This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure
limits for Occupational Use/Controlled exposure environment. In addition, it complies with the following Stan-
dards and Guidelines:
FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation.
FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines for
Human Exposure to Radio Frequency Electromagnetic Fields.
ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Fre-
quency Electromagnetic Fields, 3 kHz to 300 GHz.
ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Elec-
tromagnetic Fields - RF and Microwave.
WARNING:
This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and
classified as Occupational Use Only, meaning it must be used only during the course of employment by
individuals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for
use by the General Population in an uncontrolled environment.
CAUTION:
To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupa-
tional use, always adhere to the following guidelines:
This radio is NOT approved for use by the general population in an uncontrolled exposure environ-
ment. This radio is restricted to occupational use, work related operations only where the radio opera-
tor must have the knowledge to control his or her RF exposure conditions.
When transmitting, hold the radio in a vertical position with its microphone 2 inches (5 cm) away from
your mouth and keep the antenna at least 2 inches (5 cm) away from your head and body.
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
2001
VX-450 SERIES OPERATING MANUAL
3
The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical Push-to-
Talk configurations.
DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more
than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded.
The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause the
radio to transmit by pressing the P-T-T button.
SAR compliance for body-worn use was only demonstrated for the specific belt-clip Part Number
(CLIP-450). Other body-worn accessories or configurations may NOT comply with the FCC RF expo-
sure requirements and should be avoided.
DO NOT transmit when the radio is used in Body Worn configuration with the following accessory:
belt-clip.
It must be used ONLY for (1) there is 4 cm distance from the body during transmitting, (2) monitoring
purposes, using the speaker only and (3) for carrying purposes.
Always use Vertex Standard authorized accessories.
The information listed above provides the user with the information needed to make him or her aware
of RF exposure, and what to do to assure that this radio operates with the FCC RF exposure limits of
this radio.
Electromagnetic Interference/Compatibility
During transmissions, this radio generates RF energy that can possibly cause interference with other
devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.
Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospi-
tals, health care facilities, aircraft, and blasting sites.
WARNING! RF EXPOSURE REQUIREMENTS
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
4

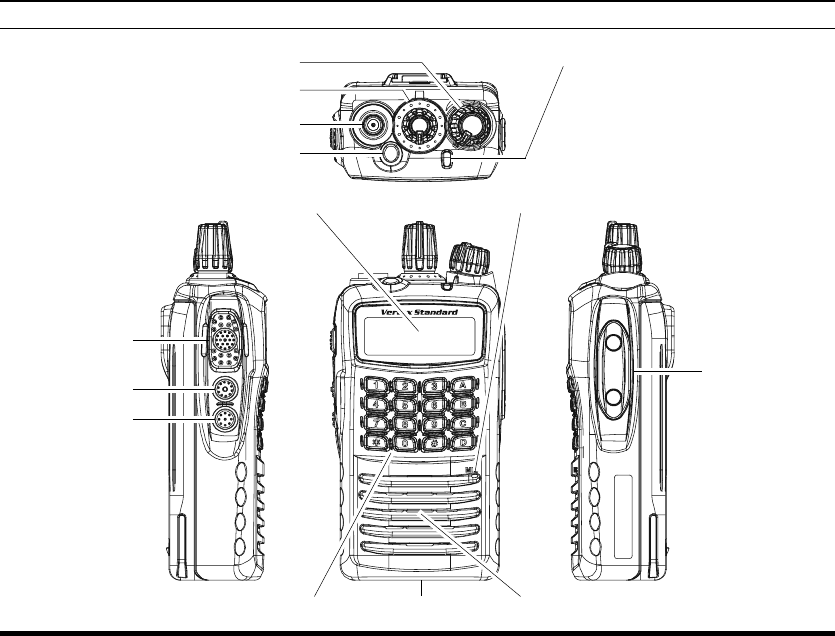

CONTROLS & CONNECTORS (16-KEY VERSION)
PTT Switch
SIDE-1 Button
SIDE-2 Button
MIC/SP Jack
(External MIC/SP)
Battery Pack Latch16-Button DTMF Keypad
LCD (Liquid Crystal Display)Microphone
LED Indicator
Steady Red:
Transmitting in progress
Blinking Green:
Busy Channel
Steady Green:
Tone Squelch in defeated condition
Dealer Programmed Color:
Emergency, 5-Tone Decoded, or
2-Tone Decoded
Speaker
Antenna Jack
TOP SEL Key
CH (Channel) Selector
VOL/PWR Knob
: one of “Flashing in white,”
“Continuation changes in
sequential colors,” or “tog-
gling the two colors.”
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
5

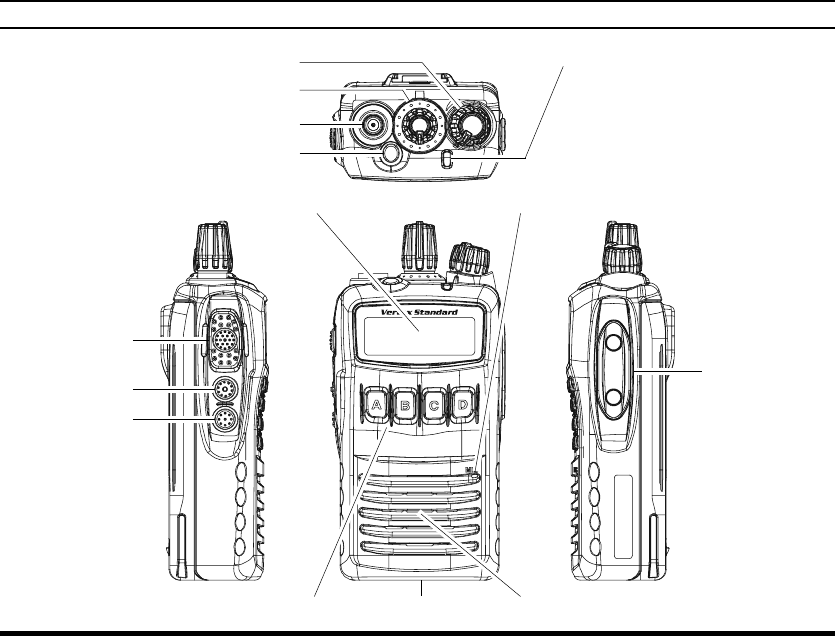

CONTROLS & CONNECTORS (4-KEY VERSION)
Battery Pack Latch4-Button Programmable Key
LCD (Liquid Crystal Display)Microphone
LED Indicator
Steady Red:
Transmitting in progress
Blinking Green:
Busy Channel
Steady Green:
Tone Squelch in defeated condition
Dealer Programmed Color:
Emergency, 5-Tone Decoded, or
2-Tone Decoded
Speaker
Antenna Jack
TOP SEL Key
CH (Channel) Selector
VOL/PWR Knob
: one of “Flashing in white,”
“Continuation changes in
sequential colors,” or “tog-
gling the two colors.”
PTT Switch
SIDE-1 Button
SIDE-2 Button
MIC/SP Jack
(External MIC/SP)
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
6

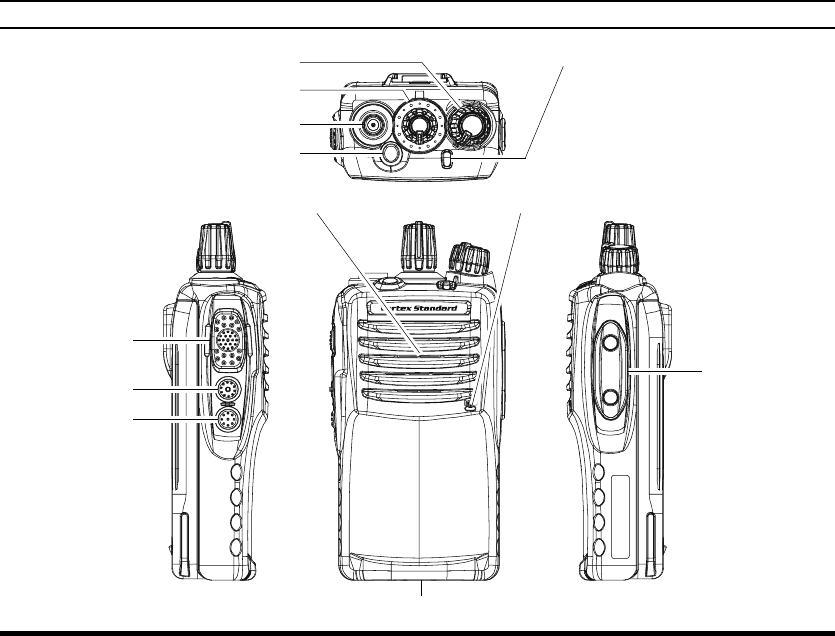

CONTROLS & CONNECTORS (NON-LCD VERSION)
Battery Pack Latch
Speaker Microphone
LED Indicator
Steady Red:
Transmitting in progress
Blinking Green:
Busy Channel
Steady Green:
Tone Squelch in defeated condition
Dealer Programmed Color:
Emergency, 5-Tone Decoded, or
2-Tone Decoded
Antenna Jack
TOP SEL Key
CH (Channel) Selector
VOL/PWR Knob
: one of “Flashing in white,”
“Continuation changes in
sequential colors,” or “tog-
gling the two colors.”
MIC/SP Jack
(External MIC/SP)
PTT Switch
SIDE-1 Button
SIDE-2 Button
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
7

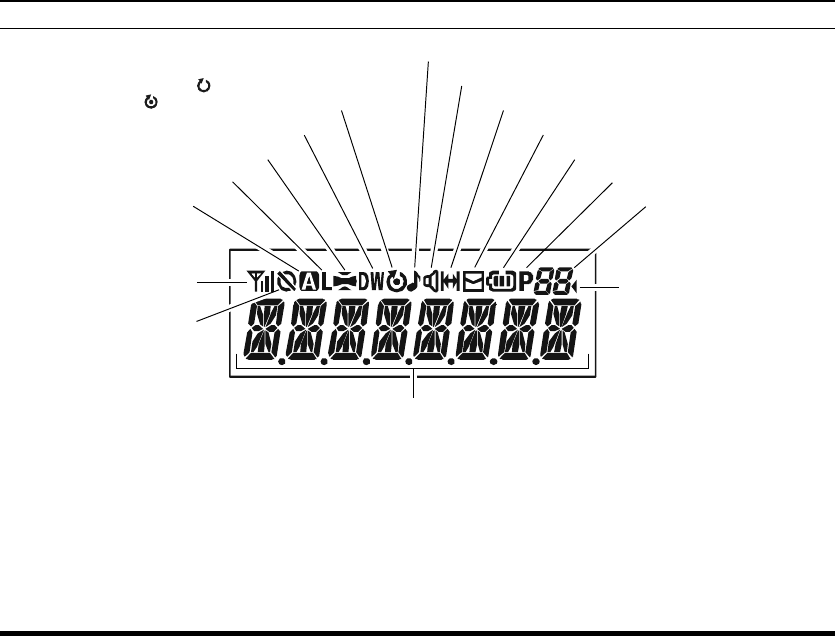

LCD ICONS & INDICATORS (16-KEY & 4-KEY VERSIONS)
12 Character Alpha-numeric Display
Zone Number
RSSI Indicator (four steps)
Encryption is activated
Option SW (Key Function)
is activated
Low Transmit Power Mode On
“Audio Compander” is activated
“CALL” Indicator
Receiver Monitor
“Talk-Around” is enabled
“Voice Message” is received
Battery Indicator
“Zone Scan” is enabled
Priority Channel
“DUAL WATCH” is activated
: “Scan” is activated
: “Priority Scan” is activated
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
8
BEFORE YOU BEGIN

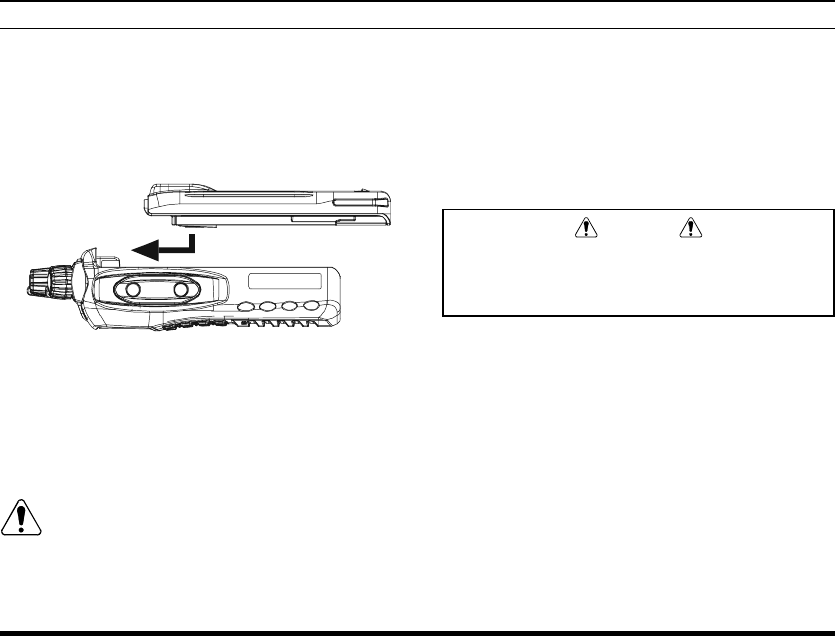

Battery Pack Installation and Removal
To install the battery pack, align the battery pack
to the radio with an offset about 1/2 inch from the
top edge of battery compartment, then slide the
battery pack upward until it locks in place with a
“Click.”
Low Battery Indication
As the battery discharges during use, the voltage
gradually becomes lower. When the battery voltage
becomes to low, substitute a freshly charged battery
and recharge the depleted pack. The LED indicator
on the top of the radio will blink red when the bat-
tery voltage is low.
Caution
Danger of explosion if battery is replaced with
an incorrect battery. Replace only with the same
or equivalent type.
To remove the battery, turn the radio off and re-
move any protective cases. Slide the Battery Pack
Latch on the bottom of the radio toward the front
panel while sliding the battery down about 1/2
inch. Then lift the battery out from the radio while
unfolding the Belt Clip.
Do not attempt to open any of the recharge-
able Lithium-Ion packs, as they could ex-
plode if accidentally short-circuited.
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
9
BEFORE YOU BEGIN
Battery Charging
Insert the DC plug from the PA-45 AC Adapter
into the DC jack on the rear panel of the CD-49
Desktop Rapid Charger, then plug the PA-45 AC
Adapter into the AC line outlet.
Insert the battery pack into the CD-49 Desktop
Rapid Charger while aligning the slots of the bat-
tery pack with the guides in the nest of the CD-
49; refer to the illustration at the right for details
on proper positioning of the pack. If charging with
the transceiver attached, turn the transceiver off,
and the antenna jack should be at the left side when
viewing the charger from the front.
If the battery pack is inserted correctly, the LED
indicator will glow red. A fully-discharged pack
will be charged completely in approximately 1.5
hours (FNB-V112LI, 2.5 hours: FNB-V113LI).
The LED indicator will blink red/green alternately
when charging is nearing completion.
When charging is completed, the LED indicator
will change to green. Even if the charging is com-
pleted, the LED indicator will sometimes change
to red for trickle charging.
Disconnect the pack from the CD-49 Desktop
Rapid Charger, and unplug the PA-45 AC Adapter
from the AC line outlet.
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
10
OPERATION
Preliminary Steps
Install a charged battery
pack onto the transceiver, as
described previously.

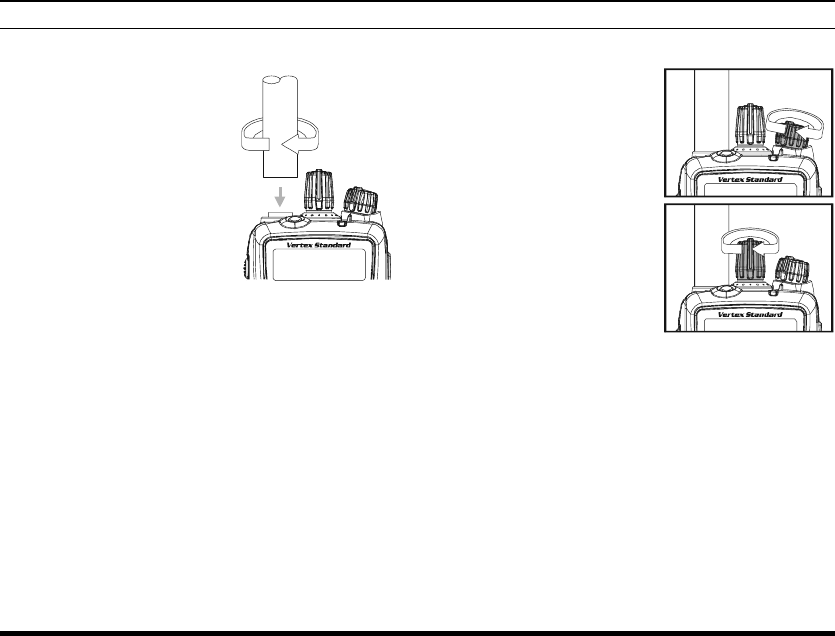

Screw the supplied antenna
onto the Antenna jack.
Never attempt to operate
this transceiver without an
antenna connected.
If you have a Speaker/Mi-
crophone, we recommend
that it not be connected until you are familiar with
the basic operation of the VX-450.
Operation Quick Start
Turn the top panel’s
VOL/PWR knob clock-
wise to turn the radio on.
Turn the top panel’s CH
Selector knob to choose
the desired operating
channel. On the 16-key
and 4-key versions, a
channel name will appear
on the LCD.
If you want to select the operating channel from a
different Memory Channel Zone, press the Pro-
grammable key (assigned to the Memory Zone
Up or Down function) to select the Memory Chan-
nel Zone you want before selecting the operating
channel. A Zone name will appear on the LCD
whenever the Programmable key is pressed.
Note: Some models are programmed so that the
operating channels are selected by the Program-
mable key and the Memory Channel Zone is se-
lected by the CH selector knob. For further de-
tails, contact your Vertex Standard dealer.
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
11

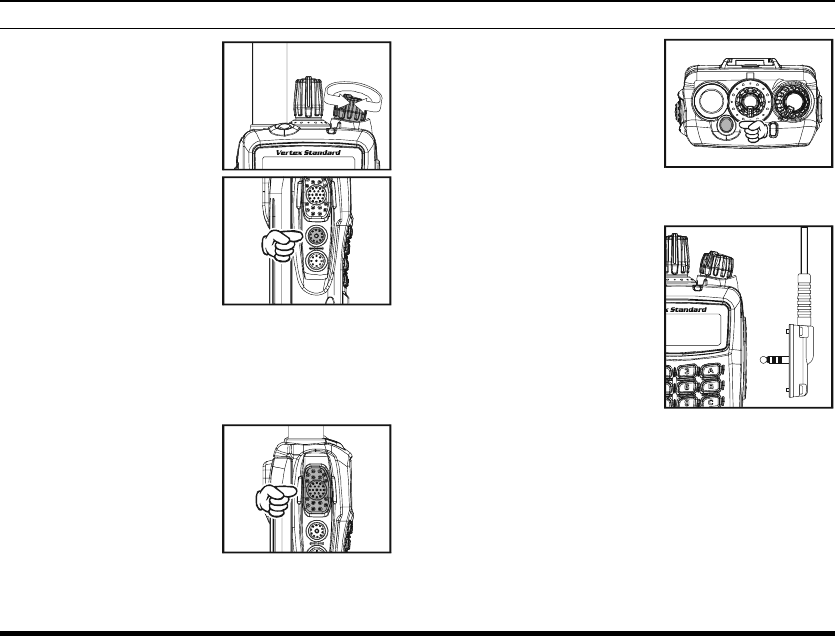

Rotate the VOL/PWR
knob to set the volume
level. If no signal is
present, press and hold in
the SIDE-1 button (un-
der the PTT switch)
more than 2 seconds;
background noise will
now be heard, and you
may use this to set the
VOL/PWR knob for the
desired audio level. Press
and hold the SIDE-1 button more than 2 seconds
(or press the SIDE-1 button twice) to quiet the
noise and resume normal (quiet) monitoring.
To transmit, monitor the channel and make sure it
is clear.
Press and hold the PTT
switch. Speak into the
microphone area of the
front panel grille (above
the upper left edge of the
LCD) in a normal voice
level. To return to the Receive mode, release the
PTT switch.
Press the (Orange) TOP
SEL key to activate one
of the preprogrammed
functions which may
have been enabled at the
time of programming by
the dealer. See the next section for details regard-
ing the available features.
If a Speaker/Microphone
is available, remove the
plastic cap and its two
mounting screws from
the right side of the trans-
ceiver, then align the con-
nector of the Speaker/
Microphone on the trans-
ceiver body; secure the
connector pin using the screws supplied with the
Speaker/Microphone. Hold the speaker grille up
next to your ear while receiving. To transmit, press
the PTT switch on the Speaker/Microphone, just
as you would on the main transceiver’s body, and
speak into the microphone on a normal voice level.
Note 1): Save the original plastic cap and its
mounting screws. They should be reinstalled
when not using the Speaker/Microphone.
OPERATION
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
12
2) When you press the PTT switch on the
Speaker/Microphone, it disables the internal mi-
crophone, and vice versa.
Do not remove/install the Speaker/Micro-
phone in a hazardous location.
If the Busy Channel Lockout feature has been
programmed on a channel, the radio will not trans-
mit when a carrier is present. Instead, the radio
will generate short beep three times and indicate
“* CH Busy *” on the display (16-key and 4-
key versions). Release the PTT switch and wait
for the channel to be clear of activity.
If CTCSS or Digital Coded Squelch (DCS) Lock-
out has been programmed on a channel, the radio
can transmit only when there is no carrier being
received or when the carrier being received in-
cludes the correct CTCSS tone or DCS code.
Automatic Time-Out Timer
If the selected channel has been programmed for au-
tomatic time-out, you must limit the length of each
transmission. While transmitting, a beep will sound
10 seconds before time-out. Another beep will sound
just before the deadline; the “TX” indicator will dis-
appear and transmission will cease soon thereafter.
To resume transmitting, you must release the PTT
switch and wait for the “penalty timer” to expire.
OPERATION
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
13
NOTE
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
14
ADVANCED OPERATION
Programmable Key Functions
All versions of the VX-450 include the TOP SEL,
SIDE-1, and SIDE-2 key. The 16-key and 4-key ver-
sions include the [A], [B], [C], and [D] function keys.
Furthermore, the 16-key version includes the [] and
[#] function keys.
The Programmable key functions can be customized,
via programming by your Vertex Standard dealer, to
meet your communications/network requirements.
Some features may require the purchase and instal-
lation of optional internal accessories. The possible
Programmable key programming features are illus-
trated at the right, and their functions are explained
on page 16. For further details, contact your Vertex
Standard dealer.
For future reference, check the box next to each func-
tion that has been assigned to the Programmable key
on your particular radio, and keep it handy.
TOP SEL
FUNCTION
None
Monitor
Lamp
Lock1
Scan
Dual Watch
Low Power
Talk Around
TX Save Disable
Encryption
FM Scan
Zone Up1
Zone Down1
Channel Up1
Channel Down1
Set1
Call/Reset
SIDE-1 SIDE-2 [A] [B] [C] [D]
PROGRAMMABLE KEY
[] [#]
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
15
ADVANCED OPERATION
FUNCTION
Call 1
Call 2
Call 3
Call 4
Call 5
Code Up1
Code Down1
Code Set1
Speed Dial2
Option SW 1
Option SW 2
Emergency
PRI-11
Selectable Tone1
Direct Channel #11
Direct Channel #21
Direct Channel #31
Direct Channel #41
REC3
PLAY3
SQL
AF Min Volume
Status Set1
Status Up1
Status Down1
Status Check
Lone Worker
DTMF Code Set2
TA Scan
Priority Disable
Beep Off
Whisper
Duty
TOP SEL SIDE-1 SIDE-2 [B] [C] [D]
PROGRAMMABLE KEY
[A] [] [#]
1: This function can not be selected on the Non-LCD Version
2: This function is only selected on the 16-key Version
3: Requires DVS-8 Voice Storage Unit
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
16
Description of Operating Functions
MONITOR
Press the assigned Programmable key to cancel
CTCSS- and DCS-controlled squelch; the BUSY/TX
indicator will glow green. Press and hold this button
for 2 seconds to hear background noise (unmute the
audio); the BUSY/TX indicator will blink green.
LAMP
Press the assigned Programmable key to illuminate
the LCD for five seconds.
LOCK
Press the assigned Programmable key to lock the CH
Selector knob, Programmable keys, and PTT switch.
The precise lockout configulation is programmed by
your Dealer.
SCAN
The Scanning feature is used to monitor multiple sig-
nals programmed into the transceiver. While scan-
ning, the transceiver will check each channel for the
presence of a signal, and will stop on a channel if a
signal is present.
To activate scanning:
Press the assigned Programmable key to activate
scanning.
The scanner will search the channels of each chan-
nel, looking for active ones; it will pause each time
it finds a channel on which someone is speaking.
Press the assigned Programmable key again to dis-
able scanning. Operation will revert to the pro-
grammed revert channel.
Note: Your dealer may have programmed your ra-
dio to stay on one of the following channels if you
press the PTT switch during scanning pause:
Current channel (“Talk Back”)
“Last Busy” channel
“Priority” channel
“Home” channel
“Scan Start” channel
ADVANCED OPERATION
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
17
DUAL WATCH
The Dual Watch feature is similar to the SCAN fea-
ture, except that only two channels are monitored:
The current operating channel; and
The Priority channel.
To activate Dual Watch:
Press the assigned Programmable key.
The scanner will search the two channels; it will
pause each time it finds a channel on which some-
one is speaking.
To stop Dual Watch:
Press the assigned Programmable key.
Operation will revert to the “Dual Watch Start”
channel.
LOW POWER
Press the assigned Programmable key to set the
radio’s transmitter to the “Low Power” mode, thus
extending battery life. Press the key again to return
to “Normal” transmit power when in difficult terrain.
When the radio’s transmitter is set to “Low Power”
mode, the “ ” icon will be indicated on the dis-
play.
TALK AROUND (TA)
Press the assigned Programmable key to activate the
Talk Around feature when you are operating on du-
plex channel systems (separate receive and transmit
frequencies, utilizing a “repeater” station). The Talk
Around feature allows you to bypass the repeater sta-
tion and talk directly to a station that is nearby. This
feature has no effect when you are operating on “sim-
plex” channels, where the receive and transmit fre-
quencies are already the same.
When the “TA” function is activated, the “ ” icon
will be indicated on the display.
Note that your dealer may have mode provision for
“Talk Around” channels by programming “repeater”
and “Talk Around” frequencies on two adjacent chan-
nels. If so, the key may be used for one of the other
Pre-Programmed Functions.
ADVANCED OPERATION
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
18
TX SAV E DISABLE
Press the assigned Programmable key to disable the
Transmit Battery Saver, if you are operating in a lo-
cation where high power is almost always needed.
The Transmit Battery Saver helps extend battery life
by reducing transmit power when a very strong sig-
nal from an apparently nearby station is being re-
ceived. Under some circumstances, though, your
hand-held radio may not be heard well at the other
end of the communication path, and high power may
be necessary at all times.
ENCRYPTION
Press the assigned Programmable key to toggle the
Encryption feature “On” and “Off.”
FM SCAN
The FM Scan feature checks a User-assigned Prior-
ity Channel regularly as you scan other channels.
Thus, if only Channels 1, 3, and 5 (of the 8 available
channels) are designated for “Scanning,” the user may
nonetheless assign Channel 2 as the “User-assigned”
Priority Channel via the “Follow-Me” feature.
To activate FM Scan, first select the channel you want
to designate as the “User-Assigned Priority Chan-
nel” and press the assigned programmable key. Then
rotate the CH Selector knob to recall to the “Scan-
ning Start” channel which has been programmed by
your dealer to activate the scanner. When the scan-
ner stops on an “Active” channel, the User-assigned
Priority Channel will automatically be checked ev-
ery few seconds; if activity is found on the User-as-
signed Priority Channel, the radio will switch between
it and the Dealer-Assigned Priority Channel, if any.
ADVANCED OPERATION
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
19
ZONE UP/DOWN
Press the assigned Programmable key to select a dif-
ferent Zone of channels. Once the desired Zone is
reached, rotate the CH Selector knob to select the
desired channel within the selected Zone.
You may wish to have the Scanner pass through more
than one Zone during the scanning process (normally,
scanning is performed within the current Zone only).
To include the current Zone in the scanning loop,
press and hold in the assigned Programmable key
for one second. To remove a Zone from Zone Scan,
press and hold in the assigned programmable key
again for one second.
Multi-Zone Scanning is only possible if you are us-
ing the “User Scan” list. To edit the User Scan list,
press and hold the assigned Programmable key for
one second to delete the current Memory Zone from
the Scanning. Alternatively, press and hold the as-
signed Programmable key for one second to delete
the Current Memory channel from the Scanning. When
you delete a Zone or channel, “-SCAN Skip-” will
appear on the LCD for one second after pressing the
assigned Programmable key. To restore a particular
channel to your scanning list, press and hold in the
assigned Programmable key again for one second;
“-SCAN Stop-” will appear on the LCD for one sec-
ond after pressing the assigned programmable key.
CHANNEL UP/DOWN
Press the assigned Programmable key to select a dif-
ferent channel within the current Zone.
SET
Press the assigned Programmable key to activate the
“User Set” (Menu) Mode. See page 20 for details
CALL/RESET
While the DTMF Paging System
This feature, if enabled, allows the user to change
the 3-digit Page Call code, used to call other simi-
larly-equipped stations. Press the assigned Program-
mable key, followed by the three digits representing
the Page Call code of the station you wish to call.
Three tones will be heard after the last key is pressed
(the new code will now be transmitted).
The receiver squelch of the other station will be
opened, and you can begin communication.
While the 2-Tone/5-Tone Paging System
This feature, if enabled, press the assigned Program-
mable key to send a 2-tone/5-tone sequential tone.
ADVANCED OPERATION
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
20
CALL 1 TO CALL 5
Press the assigned Programmable key to send a 2-
tone/5-tone sequential tone group which is pre-de-
fined.
CODE UP/DOWN
Press the assigned Programmable key to select a 2-
tone/5-tone encode code from the pre-defined encode
list.
CODE SET
Press the assigned Programmable key to change the
encode digits for 5-tone operation. To change a spe-
cific digit, select the desired digit using the [A] key,
then change the number using the [B]/[C] keys, and
store the number using the [D] key.
SPEED DIAL (16-KEY VERSION ONLY)
Your Dealer may have pre-programmed Auto-Dial
telephone number memories into your radio.
To dial a number, press the assigned Programmable
key, then press the front panel’s numeric key corre-
sponding to the Auto-Dial memory number list pro-
vided by your Dealer or Network Administrator. The
DTMF tones sent during the dialing sequence will
be heard in the speaker.
OPTION SW1
Press the assigned Programmable key to toggle the
optional accessory “1” “On” and “Off.”
OPTION SW2
Press the assigned Programmable key to toggle the
optional accessory “2” “On” and “Off.”
EMERGENCY
The VX-450 series include an “Emergency” feature
which may be useful for alerting another party moni-
toring on the same frequency as your transceiver’s
channel.
Press the assigned Programmable key to initiate an
emergency call. For further details contact your
Dealer.
PRI-1
Press the assigned Programmable key to recall the
pre-defined Priority channel. When you recall the
Priority channel, the “P” notation will appear on the
LCD.
ADVANCED OPERATION
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
21
ADVANCED OPERATION
SELECTABLE TONE
Press the assigned Programmable key to select a sub-
audible tone (CTCSS/DCS) from the pre-defined tone
table. You can operate using the indicated sub-au-
dible tone in the Selectable Tone mode.
DIRECT CH#1 TO #4
Press the assigned Programmable key to recall the
Dealer pre-programmed channel directly.
REC/PLAY (VOICE STORAGE: OPTION)
This function allows your radio to record a received
voice message, and to play back the recorded audio.
It requires installation of the optional Voice Record-
ing Unit.
Recording;
Press the assigned Programmable key for 1.5 sec-
onds to enable the Voice Recording Mode. If the in-
coming signal is received, so as to un-mute the
squelch and pass audio, then the “ ” Icon will flash
and received audio will be recorded. When the voice
recording is completed, the “ ” stays on.
Playback;
Press the assigned Programmable key momentarily
to play back the last message.
To stop the play-back, press the TOP SEL key.
While playback is proceeding, you may press the [A]
key (4-key version) or [] key (16-key version) to
jump to the previous message, or press the [B] key
(4-key version) or [#] key (16-key version) to jump
to the next message. Furthermore, press the [D] key
to clear the all messages and stop the play-back.
SQL
You can manually adjust the squelch level using this
function:
Press the assigned Programmable key. A tone will
sound, and the current squelch level will appear
on the display.
Press the SIDE-1/SIDE-2 button to select the de-
sired squelch level.
Two seconds after releasing the SIDE-1/SIDE-2
button, the display will revert to the normal chan-
nel indication.
AF MIN VR
Press the assigned Programmable key to reduce the
audio output to the (lower) level programmed by your
Dealer.
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
22
STATUS SET
Press the assigned Programmable key to change the
5-Tone status code. To change the status code, select
the desired digit by [A] key, then change the number
by [B]/[C] key, and store the number by [D] key.
STATUS UP/DOWN
Press the assigned Programmable key to select a 5-
Tone status code from the pre-defined status list.
STATU S CHECK
Press the assigned Programmable key to check the
5-Tone receive status code. When you press this key,
the LCD display will indicate the “Message” corre-
sponding to the receive status condition per the pre-
defined status list.
LONE WORKER
Press the assigned Programmable key to toggle the
Lone Worker feature “On” and “Off.”
The Lone Worker feature is designed to emit an alarm
for 30 seconds when the Lone Worker Timer (pro-
grammed by your Dealer) has expired. If the user
does not reset the timer by pressing the PTT switch,
the radio switches to the Emergency mode.
DTMF CODE SET (16-KEY VERSION ONLY)
You may send the desired telephone number manu-
ally.
To dial a number manually, press the assigned Pro-
grammable key, then press the desired numbers on
the front panel’s numeric key. Now, press the PTT
switch to send the telephone number. The DTMF
tones sent during the dialing sequence will be heard
in the speaker.
TA SCAN
Press the assigned Programmable key to toggle the
TA (Talk Around) scan feature “On” and “Off.”
While TA scan is proceeding, the VX-450 will search
both the transmit and receive frequencies (the “ ”
icon will blink). When a signal is encountered on the
receive frequency, the VX-450 will pause until the
signal disappears (“ ” icon will appear but not
blink). When a signal is encountered on the transmit
frequency, the VX-450 will check for activity on the
receive frequency every few seconds (interval pro-
grammed by your Dealer).
ADVANCED OPERATION
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
23
PRIORITY DISABLE
Press the assigned Programmable key to disable the
Priority feature temporarily. Again press the assigned
Programmable key to resume the Priority feature.
BEEP OFF
Press the assigned Programmable key to disable the
radio beeps temporarily. Again press the assigned Pro-
grammable key to enable the radio beeps.
WHISPER
Press the assigned Programmable key to increase the
microphone gain; thus you can speak in a low voice
(whisper) temporarily. Again press the assigned Pro-
grammable key to resume normal microphone gain.
ADVANCED OPERATION
DUTY
Press the assigned Programmable key to toggle the
Duty function of the 2-tone/5-tone decoder “On” and
“Off.”
When the Duty function is set to“On,” the user will
always hear (depending on the sub-audio signalling)
all traffic on the paging channel. The radio will sound
the paging alert when it receives the programmed 2-
tone/5-tone code.
When the Duty function is set to“Off,” the user will
NOT hear normal radio traffic on the paging chan-
nel. The radio will sound the paging alert and unmute
only when it receives the programmed 2-tone/5-tone
code.
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
VX-450 SERIES OPERATING MANUAL
24
ARTSTM (AUTO RANGE TRANSPOND SYSTEM)
This system is designed to inform you when you and
another ARTSTM-equipped station are within com-
munication range.
During ARTSTM operation, when the radio receives
the correct ARTSTM signal, a short beep will sound
and the “In” (meaning “In Service”) notation will be
displayed on the sub-LCD. If you move out of range
for more than two minutes, your radio senses that no
signal has been received; three short beeps will sound,
and “Out” (“Out of Service”) will be displayed on
the sub-LCD. If you subsequently move back into
range, as soon as the other station transmits, a short
beep will sound and “In” will be displayed again on
the sub-LCD.
: Except on Non-LCD version.
DTMF PAGING SYSTEM
This system allows paging and selective calling, us-
ing DTMF tone sequences.
When your radio is paged by a station bearing a tone
sequence which matches yours, your radio’s squelch
will open and the alert will sound. The three-digit
code of the station which paged you will be displayed
on your radio’s LCD.
LOCK
In order to prevent accidental channel change or in-
advertent transmission, various aspects of the
CH Selector knob, Programmable keys, and PTT
switch may be locked.
The precise lockout configulation is programmed by
your Dealer.
To locked out the key locking, turn the radio off. Now,
press and hold the PTT and SIDE-2 key while turn-
ing the radio on again.
To cancel locking, repeat this process.
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
Part 15.21: Changes or modifications to this device not expressly ap-
proved by Vertex Standard could void the user’s authorization to operate
this device.
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
Copyright 2010
VERTEX STANDARD CO., LTD.
All rights reserved.
No portion of this manual
may be reproduced
without the permission of
VERTEX STANDARD CO., LTD.
Printed in Japan
FCC ID: K6610944720 / IC: 511B-10944720
Vertex Standard Co.,Ltd.
FCC ID: K6610944720 / IC: 511B-10944720
