User Manual
VHF FM TRANSCEIVER
FT-270R
OPERATING MANUAL
YAESU MUSEN CO., LTD.
Tennozu Parkside Building
2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan
YAESU USA
6125 Phyllis Drive, Cypress, CA 90630, U.S.A.
YAESU UK
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
YAESU HK
Unit 2002, 20/F, 9 Chong Yip Street,
Kwun Tong, Kowloon, Hong Kong
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
Contents
Scanning .......................................................... 36
VFO Scanning .............................................. 37
Manual VFO Scan ................................... 37
Programmed VFO Scan ........................... 37
Memory Scanning ........................................ 38
How to Skip (Omit) a Channel
during Memory Scan Operation .............. 38
Preferential Memory Scan ....................... 39
Memory Bank Scan ................................. 40
Programmable (Band Limit) Memory Scan
(PMS) ........................................................... 41
“Priority Channel” Scanning
(Dual Watch) ................................................ 42
Automatic Lamp Illumination
on Scan Stop ................................................ 44
Band Edge Beeper........................................ 44
Weather Alert Scan ...................................... 45
Emergency Channel Operation .................... 46
Smart Search Operation................................ 47
Internet Connection Feature ......................... 48
ARTS
(Automatic Range Transponder System)
....... 50
DTMF Operation ........................................... 53
DTMF Pager Operation ................................ 55
Miscellaneous Settings ................................... 58
Password ...................................................... 58
Programming the Key Assignment .............. 59
Changing the Channel Steps ........................ 59
Receive Battery Saver Setup ........................ 60
TX Battery Saver.......................................... 60
Disabling the TX/BUSY Indicator .............. 61
Automatic Power-Off (APO) Feature .......... 61
Transmitter Time-Out Timer (TOT) ............ 62
Busy Channel Lock-Out (BCLO) ................ 62
DCS Code Inversion .................................... 63
Changing the TX Deviation Level ............... 64
Reset Procedures ............................................ 65
Cloning ............................................................ 66
Set Mode .......................................................... 68
Specifications .................................................. 81
Installation of the FTD-7 DTMF Pager Unit
...... 82

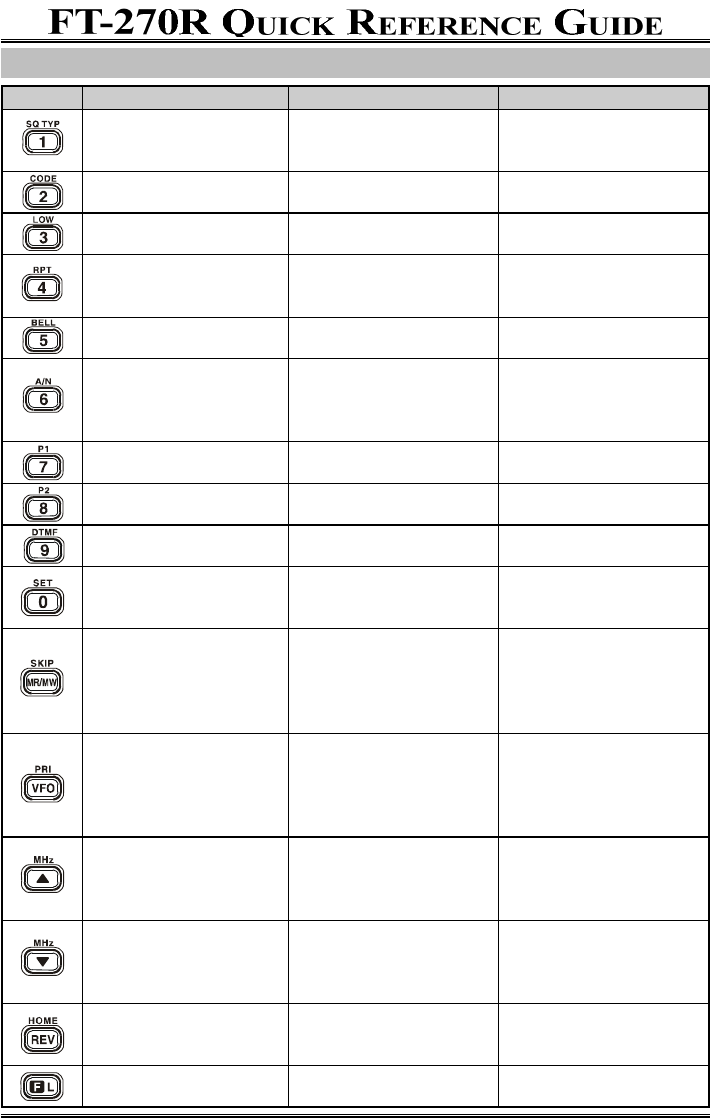

FT-270R Quick Reference Guide
General Description ......................................... 1
Accessories & Options ..................................... 2

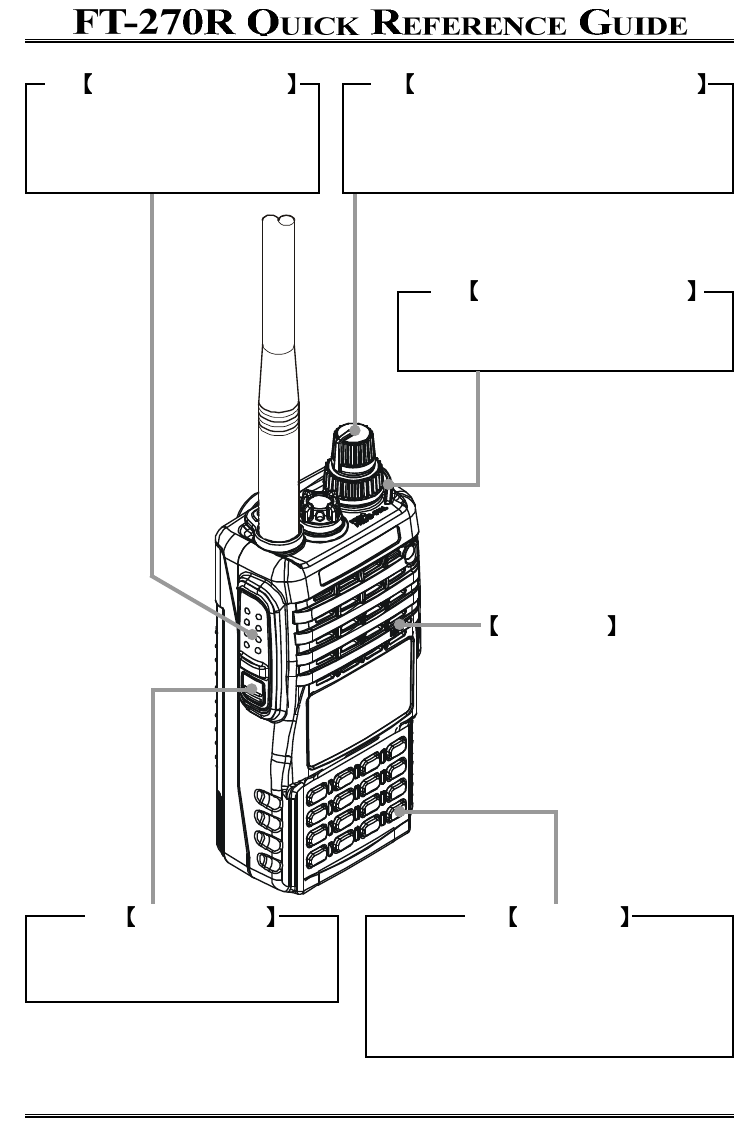

Controls & Connections .................................. 3
Top & Front Panel .......................................... 3
LCD ................................................................ 4
Side Panel ....................................................... 5
Keypad Functions .......................................... 6
Installation of Accessories ............................... 8
Antenna Installation ....................................... 8
Installation of FNB-83 Battery Pack ............. 8
Battery Charging ............................................ 9
Low Battery Indication .................................. 9
Belt Clip Installation .................................... 10
Installation of FBA-25A Battery Case ......... 10

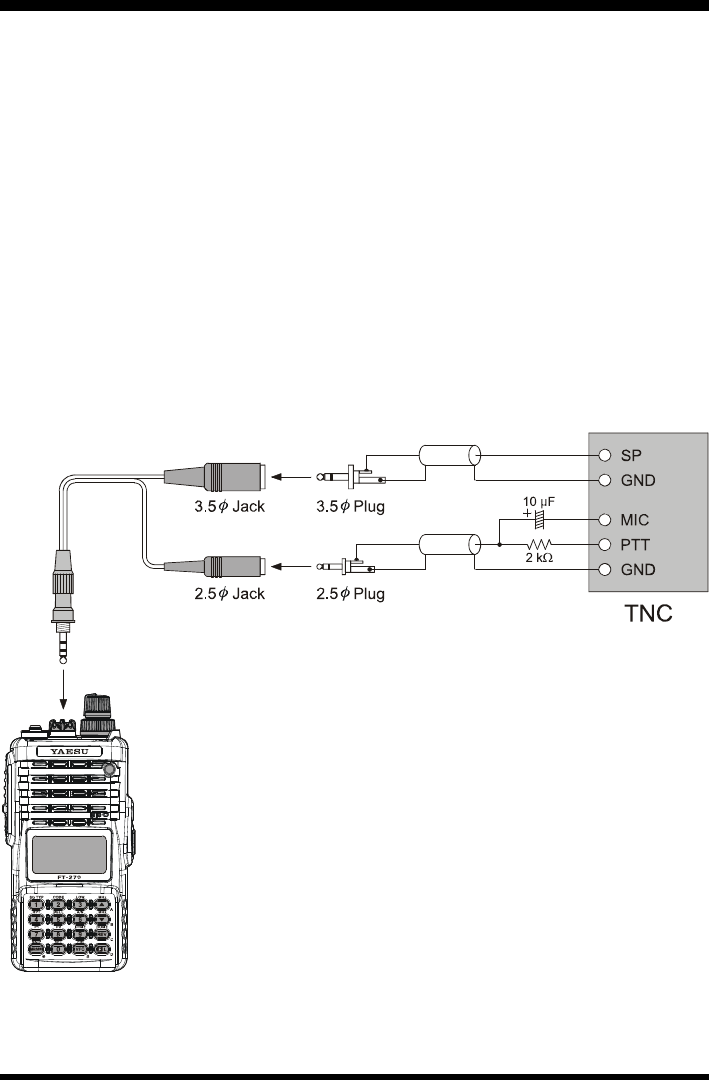

Interface of Packet TNCs .............................. 11
Operation ........................................................ 12
Switching Power On and Off ....................... 12
Adjusting the Audio Volume Level ............. 12
Squelch Adjustment ..................................... 13
Frequency Navigation .................................. 13
Transmission ................................................ 15
Advanced Operation ...................................... 16
Keyboard Locking ........................................ 16
Keypad/LCD Illumination ........................... 17
Disabling the Keypad Beeper ...................... 17
RF Squelch ................................................... 18
Checking the Battery Voltage ...................... 18
Repeater Operation........................................ 19
Repeater Shifts ............................................. 19
Automatic Repeater Shift (ARS) ................. 19
Manual Repeater Shift Activation ............... 20
VFO Split Mode ........................................... 21
CTCSS/DCS/EPCS Operation ...................... 23
CTCSS Operation ........................................ 23
DCS Operation ............................................. 24
Tone Search Scanning ................................. 25
EPCS
(Enhanced Paging & Code Squelch)
....... 26
CTCSS/DCS/EPCS Bell Operation ............. 27
Split Tone Operation .................................... 28
Tone Calling (1750 Hz) ............................... 28
Memory Mode ................................................ 29
Memory Storage ........................................... 29
Storing Independent
Transmit Frequencies (“Odd Split”) ........ 29
Memory Recall ............................................. 30
HOME Channel Memory ............................. 30
Labeling Memories ...................................... 31
Memory Offset Tuning ................................ 32
Deleting Memories ....................................... 32
Memory Bank Operation ............................. 33
Moving Memory Data to the VFO............... 34
Memory Only Mode ..................................... 34

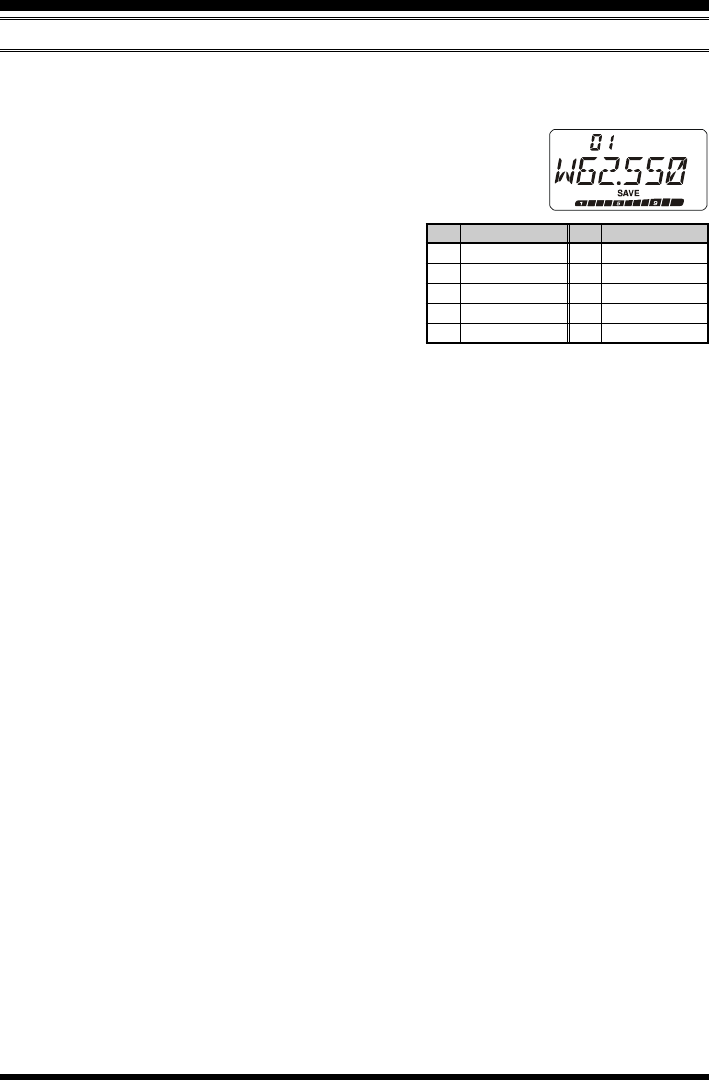

Weather Broadcast Channels ....................... 35
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.

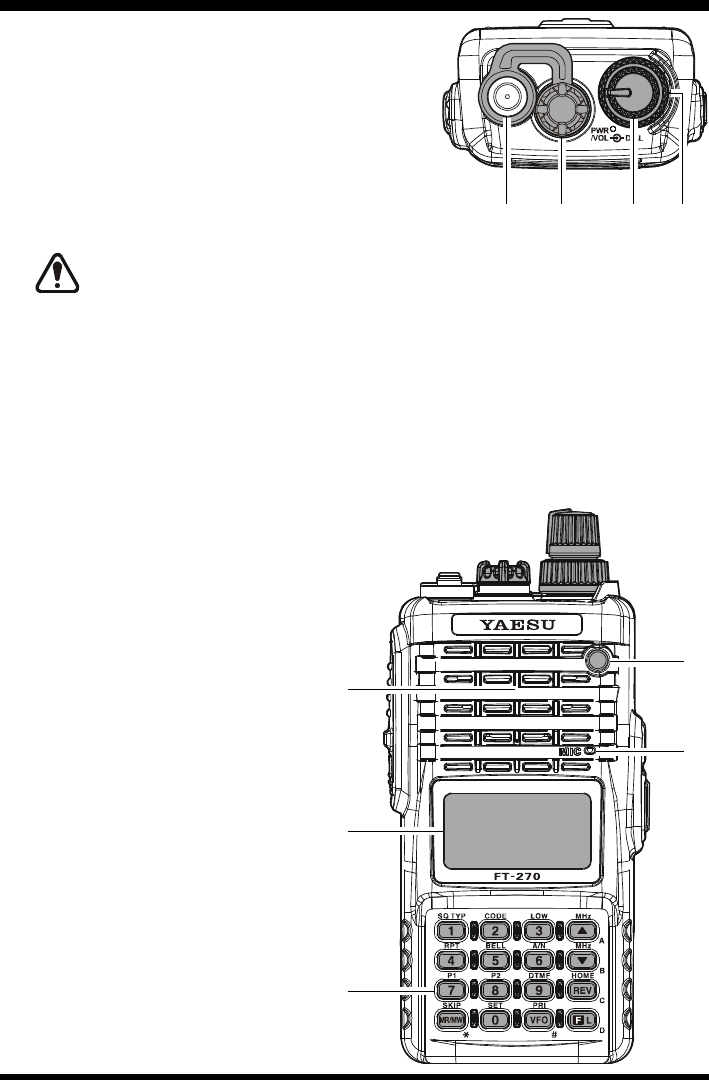

LOCK KEY
Press and hold in the [F/L] key for
one second to lock all key functions
except the VOL Knob, PTT and
MONI Switches.
FREQUENCY DIAL KNOB
Rotate the DIAL knob to select the
operating frequency.
POWER SWITCH AND VOL KNOB
Rotate the PWR/VOL knob to turn the
radio on and adjust the Audio Volume
Level.
MONI SWITCH
Press MONI Switch to disable
the noise squelching action.
MICROPHONE
TRANSMISSION SWITCH
Speak into the microphone
in a normal voice level while
pressing the PTT switch.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.

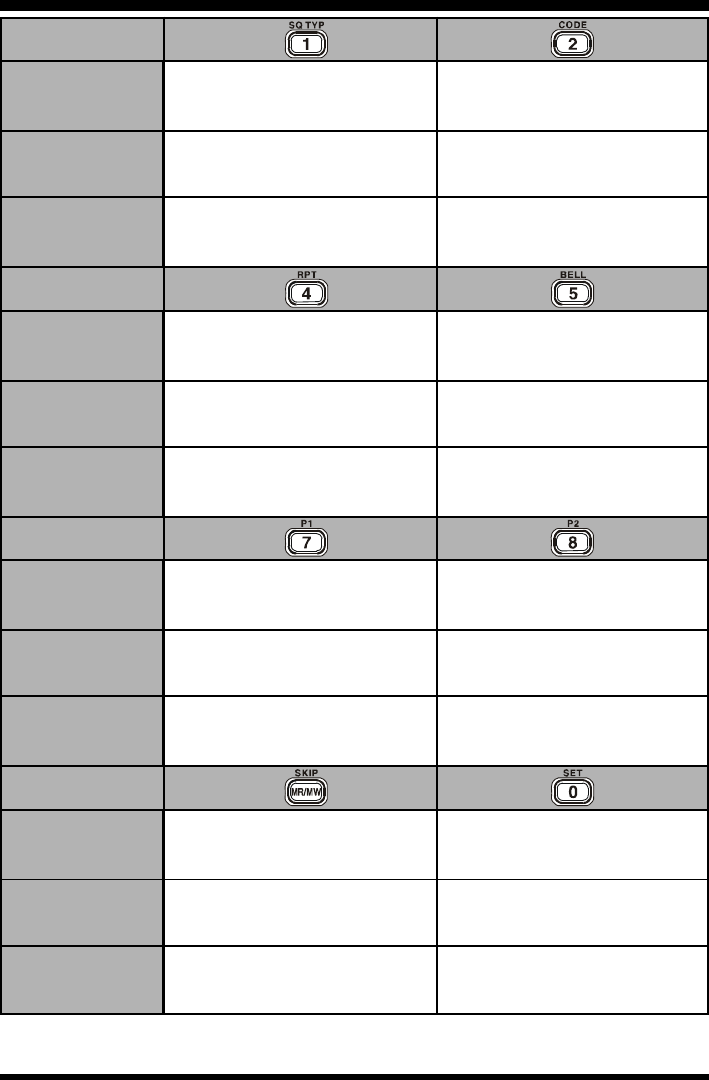

Press Key
Frequency entry digit “1.”
Frequency entry digit “2.”
Frequency entry digit “3.”
Frequency entry digit “4.”
Frequency entry digit “5.”
Frequency entry digit “6.”
Frequency entry digit “7.”
Frequency entry digit “8.”
Frequency entry digit “9.”
Activates the Internet Con-
nection feature.
Frequency entry digit “0.”
Sets the frequency control to
the Memory Recall mode.
Activates the “Memory
“Tune” mode while in the
Memory Recall mode.
Sets frequency control to
the VFO mode.
Toggles the VFO between
“VFO A” and “VFO B”
while in the VFO mode.
Increasser the VFO fre-
quency by one step or moves
the memory channel to the
next-highest channel.
Decreases the VFO fre-
quency by one step or moves
the memory channel to the
next-lowest channel.
Reverses the transmit and
receive frequencies while
working through a repeater.
Activates the “Alternate”
key function.
KEY OVERVIEW
Press [F/L] + Key
Activates the CTCSS or
DCS Operation.
Selects the CTCSS tone or
DCS code number.
Selects the desired trans-
mit power output level.
Selects the direction of the
uplink frequency shift dur-
ing repeater operation.
Selects the CTCSS/DCS
Bell ringer repetitions.
Toggles the display indica-
tion between “frequency”
and the channel’s “Alpha/
Numeric Tag”.
Selects the Scan Resume
Mode.
Selects the LCD/Keypad
Lamp Mode.
Selects the DTMF Mode.
Engages the Set (Menu)
Mode.
Selects the Memory Scan
“Skip” channel-selection
mode.
Activates the Priority
(Dual Watch) function.
Tunes the VFO frequency
upward in 1 MHz steps.
Tunes the VFO frequency
downward in 1 MHz steps.
Switches to the “Home”
(favorite frequency) Chan-
nel.
Disables the “Alternate”
key function.
Press & Hold Key
Toggles the “Weather”
broadcast channel memory
bank on/off.
Activates the ARTS fea-
ture.
Activates the Smart Search
feature.
Activates the EMER-
GENCY function.
Starts the programmable
scanner upward (toward a
higher frequency or a
higher channel number).
Enables Internet access
code selection.
Activates the “Memory
Write” mode (for memory
channel storage).
Selects the Band width for
the VFO scanner. Selects
the Memory Bank while in
the Memory Recall mode.
Starts the scanner upward.
(toward a higher frequency
or a higher channel num-
ber).
Starts the scanner down-
ward. (toward a lower fre-
quency or a lower channel
number).
Activates the Key Lockout
feature.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 1
GENERAL DESCRIPTION
The FT-270R is a compact, high-performance FM hand-held providing up to five watts of
RF power and wealth of convenient features for the 2-meter amateur band.
New and exciting features of the FT-270R are Enhanced Paging and Code Squelch (EPCS),
that allows you to page a particular station and only receive calls from that station, if
desired; and a security Password feature, that will allow you to turn on and operate your
transceiver only after you enter your Password.
Additional features include a convenient access key for Yaesu’s WIRES™ (Wide-coverage
Internet Repeater Enhancement System), a transmit Time-Out Timer (TOT), Automatic Power-
Off (APO), Automatic Repeater Shift (ARS), Yaesu’s exclusive ARTS™ (Auto-Range Tran-
sponder System) which “beeps” the user when you move out of communications range
with another ARTS™ equipped station, plus provision for reduction of the TX deviation in
areas of high channel congestion. And an RF squelch circuit allows the owner to set the
squelch to open at a programmable setting of the S-Meter, thus reducing guesswork in
setting the squelch threshold.
We appreciate your purchase of the FT-270R, and encourage you to read this manual
thoroughly, so as to learn about the many exciting features of your exciting new Yaesu
hand-held transceiver!
: IPX7 Specification for submersility: 3 ft. for 30 minutes
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL2
SUPPLIED ACCESSORIES
FNB-83 7.2 V, 1,400 mAh
Rechargeable Nickel-Metal Hydride Battery Pack
PA-48B Overnight Battery Charger (10-Hour)
SBH-13 Desktop Charger
YHA-68 Antenna
Quick Draw Belt Clip
Operating Manual
Warranty Card
AVAILABLE OPTIONS
FNB-83 7.2 V, 1,400 mAh
Rechargeable Nickel-Metal Hydride Battery Pack
PA-48B/C/UOvernight Battery Charger (10-Hour)
SBH-13 Desktop Charger
CD-47 Desktop Rapid Charger
CD-26 Charger Cradle
FBA-25A Dry Cell Battery Case for 6 “AA” Alkaline Cells (not supplied)
CN-3 BNC-to-SMA Adapter
CT-91 Microphone Adapter
E-DC-5B DC Cable with Cigarette-Lighter Adapter
E-DC-6 DC Cable; plug and wire only
MH-57A4B Speaker/Microphone
MH-73A4B Waterproof Speaker/Microphone
VC-27 Earpiece/Microphone
VC-24 VOX Headset
FTD-7 DTMF Paging Unit
:“B” suffix is for use with 100-120 VAC, “C” suffix is for use with 230-240 VAC, and “U”
suffix is for use with 230 VAC.
Availability of accessories may vary. Some accessories are supplied as standard per local
requirements, while others may be unavailable in some regions. This product is designed
to perform optimally when used with genuine Yaesu accessories. Yaesu shall not be liable
for any damage to this product and/or accidents such as fire, leakage or explosion of a
battery pack, etc., caused by the malfunction of non- Yaesu accessories. Consult your
Yaesu dealer for details regarding these and any newly-available options. Connection of
any non-Yaesu-approved accessory, should it cause damage, may void the Limited War-
ranty on this apparatus.
ACCESSORIES & OPTIONS
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 3
Antenna Jack
Connect the supplied rubber flex antenna (or an-
other antenna presenting a 50-Ohm impedance)
here.
MIC/SP Jack
This four-conductor miniature jack provides con-
nection points for microphone audio, earphone
audio, PTT, and ground.
Do not allow the FT-270R to become submerged in water while the plastic
cover over the MIC/SP jack is removed.
VOL/PWR Knob
Turn this control clockwise to turn the radio on and to increase the volume. Counter-
clockwise rotation into the click-stop will turn the radio off.
DIAL Knob
This (inner) 20-position detented rotary switch is used for setting the operating fre-
quency, and also is used for menu selections and other adjustments.
Speaker
The internal speaker is located here.
LCD (Liquid Crystal Display)
The display shows the current op-
erating conditions, as described on
the next page.
Keypad
These 16 keys select many of most
important operating features on the
FT-270R. The functions of the keys
are described in detail on the pages
to follow.
TX/BUSY Indicator Lamp
This indicator glows green when the
squelch opens, and turns red dur-
ing transmit.
MIC
The internal microphone is located
here.
CONTROLS & CONNECTORS (TOP & FRONT PANELS)
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL4

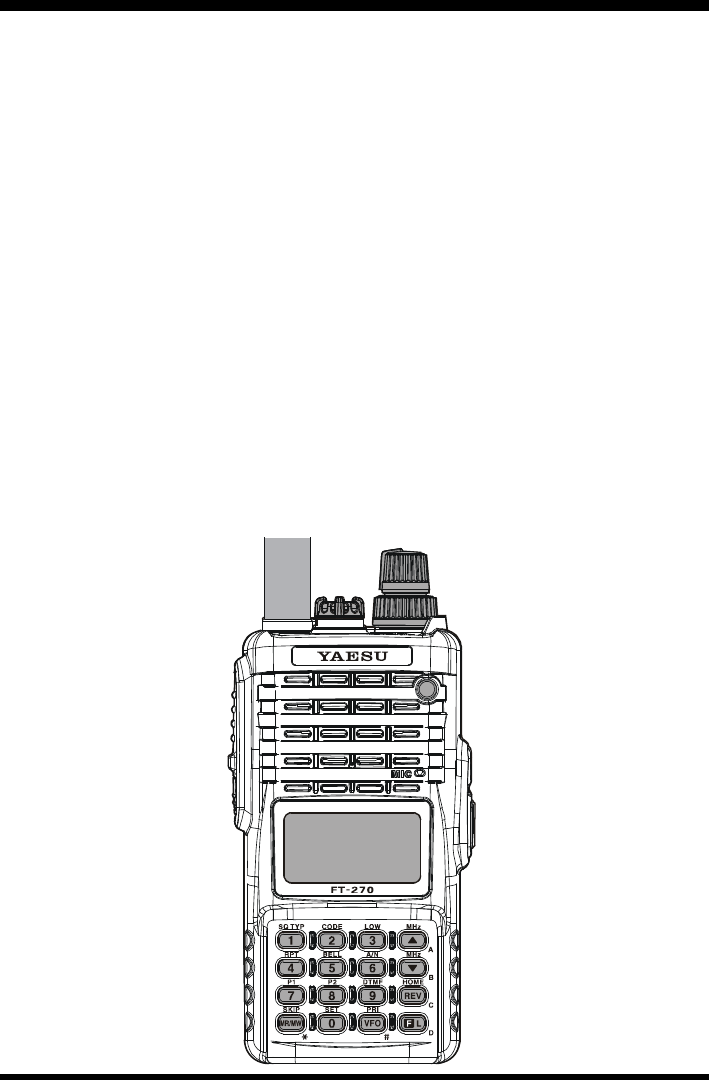

CONTROLS & CONNECTORS (LCD)

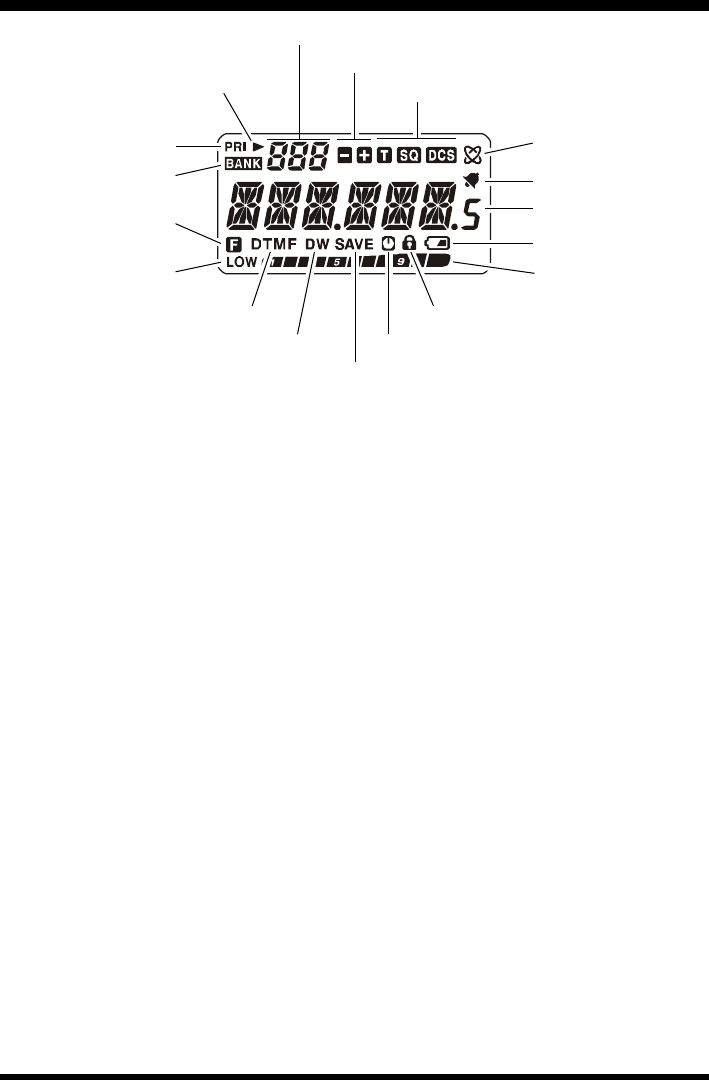

Operating Frequency
Memory Channel Number
S- & PO Meter
Secondary Keypad
Active
Skip Memory Channel or
Preferential Memory Channel Repeater Shift Direction
CTCSS/DSC Operation
Internet Connection
Feature Active
Key Lock Active
Bell Alarm Active
Battery Saver Active
Dual Watch Active
Priority Channel
Battery Indicator
Memory Bank Active
Low TX Power Selected
Automatic Power-Off Active
DTMF Autodial Active
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 5
PTT (Push To Talk) Switch
Press this switch to transmit, and release it (to receive) after your transmission is
completed.
MONI Switch
Pressing this switch disables the noise squelching action, allowing you to hear very
weak signals near the background noise level temporarily.
Press the [F/L] key on the keypad first, then press this switch to enable to adjustment
of the squelch threshold level.

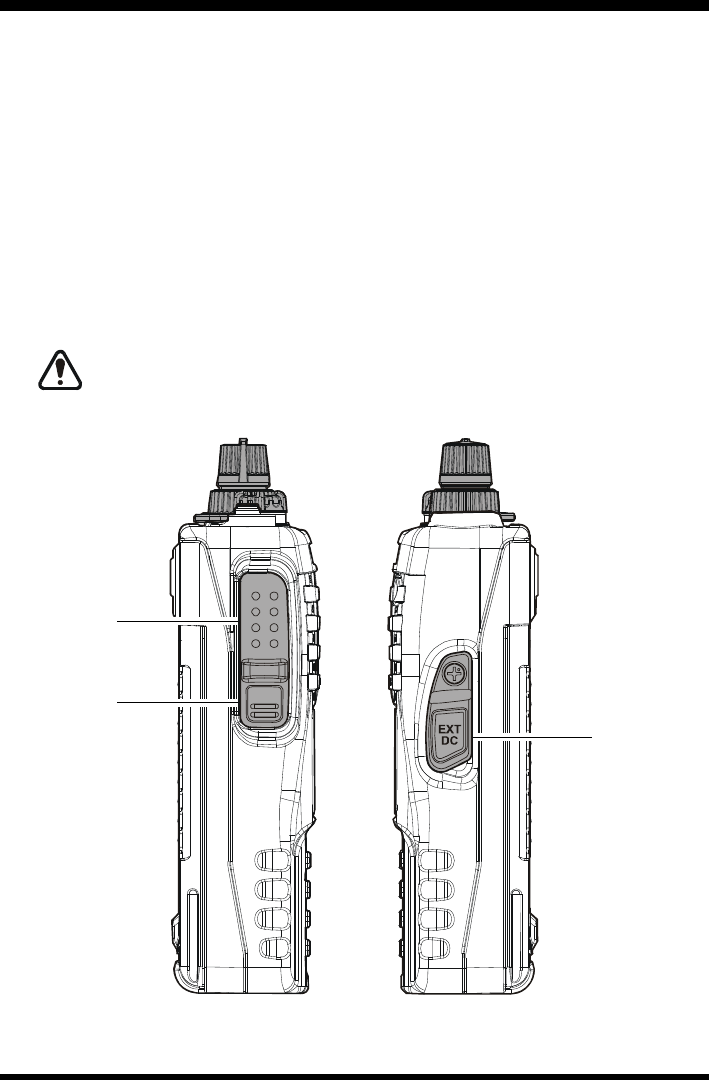

EXT DC Jack
This coaxial DC jack allows connection to an external DC power source (6-16V DC).
The center pin of this jack is the Positive (+) connection.
Do not allow the FT-270R to become submerged in water while the rubber
cap over the EXT DC jack is removed.
CONTROLS & CONNECTORS (SIDE PANEL)
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL6
CONTROLS & CONNECTORS (KEYPAD FUNCTIONS)
Primary Function
(PRESS KEY)
Secondary Function
(PRESS [F/L] + KEY)
Third Function
(PRESS & HOLD KEY)
Frequency entry digit “1.” Frequency entry digit “2.”
Frequency entry digit “4.” Frequency entry digit “5.”
Frequency entry digit “7.” Frequency entry digit “8.”
Activates the Internet Connection
feature.
Frequency entry digit “0.”
Activates the CTCSS or
DCS Operation.
Toggles the “Weather” broadcast
channel memory bank on/off.
Selects the CTCSS tone or
DCS code number.
Activates the ARTS feature.
Selects the direction of the uplink
frequency shift (either “–,” “+,” or
“simplex”) during repeater operation.
Activates the EMERGENCY
function.
Selects the CTCSS/DCS Bell ringer
repetitions.
None
Selects the Scan Resume Mode.
None None
Sets the frequency control to the
Memory Recall mode.
Activates the “Memory “Tune” mode
while in the Memory Recall mode.
Selects the Memory Scan “Skip”
channel-selection mode. Engages the Set (Menu) Mode.
Enables Internet access code
selection.
Primary Function
(PRESS KEY)
Secondary Function
(PRESS [F/L] + KEY)
Third Function
(PRESS & HOLD KEY)
Primary Function
(PRESS KEY)
Secondary Function
(PRESS [F/L] + KEY)
Third Function
(PRESS & HOLD KEY)
Primary Function
(PRESS KEY)
Secondary Function
(PRESS [F/L] + KEY)
Third Function
(PRESS & HOLD KEY)
1:You can program the secondary (press [F/L] key +) function of the key to another function, if
desired. See page 59 for details.
11
Selects the LCD/Keypad
Lamp Mode.
Activates the “Memory Write” mode
(for memory channel storage).
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 7

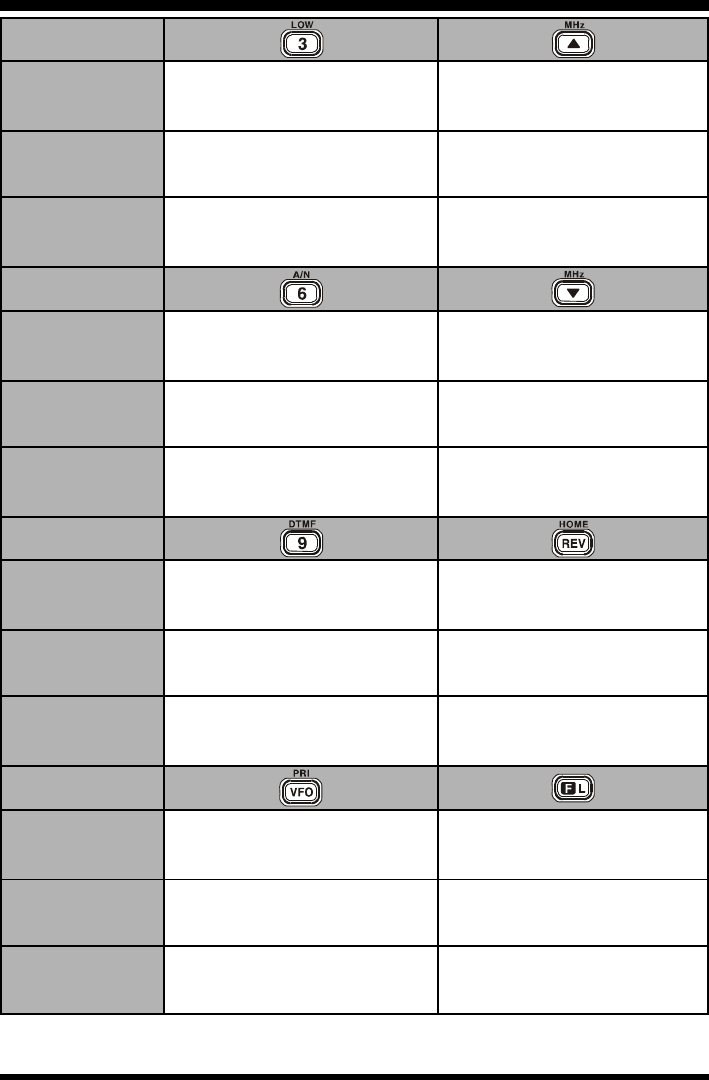

CONTROLS & CONNECTORS (KEYPAD FUNCTIONS)
Frequency entry digit “3.”
Frequency entry digit “6.”
Frequency entry digit “9.”
Selects the desired transmit power
output level.
Activates the Smart Search feature.
Increases the VFO frequency by
one step or moves the memory
channel to the next-highest channel.
Tunes the VFO frequency
upward in 1 MHz steps.
Starts the scanner upward
(toward a higher frequency or
a higher channel number).
Toggles the display indication
between “frequency” and the
channel’s “Alpha/Numeric Tag”.
Starts the programmable scanner
upward (toward a higher frequency
or a higher channel number)
Decreases the VFO frequency by
one step or moves the memory
channel to the next-lowest channel.
Tunes the VFO frequency
downward in 1 MHz steps.
Starts the scanner downward
(toward a lower frequency or
a lower channel number).
Selects the DTMF mode.
None
Reverses the transmit and receive
frequencies while working through a
repeater.
Switches to the “Home” (favorite
frequency) Channel.
None
Sets frequency control to the VFO mode.
Toggles the VFO between “VFO A” and
“VFO B” while in the VFO mode.
Activates the Priority (Dual Watch)
function.
Selects the Band width for the VFO
scanner.
Selects the Memory Bank while in the
Memory Recall mode.
Activates the “Alternate” key
function.
Disables the “Alternate” key
function.
Activates the Key Lockout feature.
Primary Function
(PRESS KEY)
Secondary Function
(PRESS [F/L] + KEY)
Third Function
(PRESS & HOLD KEY)
Primary Function
(PRESS KEY)
Secondary Function
(PRESS [F/L] + KEY)
Third Function
(PRESS & HOLD KEY)
Primary Function
(PRESS KEY)
Secondary Function
(PRESS [F/L] + KEY)
Third Function
(PRESS & HOLD KEY)
Primary Function
(PRESS KEY)
Secondary Function
(PRESS [F/L] + KEY)
Third Function
(PRESS & HOLD KEY)
2:You can exchange the function between the primary (press key) function and secondary
(press [F/L] key +) function, if desired. See page 77 for details.
2
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL8
ANTENNA INSTALLATION
The supplied antenna provides good results over the entire
frequency range of the transceiver. However, for enhanced
reception on certain non-Amateur frequencies, you may wish
to connect an antenna designed specifically for that frequency
range, as the supplied antenna is necessarily a compromise
outside the Amateur band, and cannot be expected to provide
high performance at all frequencies.
To install the supplied antenna, hold the bottom end of the
antenna, then screw it onto the mating connector on the trans-
ceiver until it is snug. Do not over-tighten by use of extreme
force.
Notes:
Never transmit without having an antenna connected.
When installing the supplied antenna, never hold the upper part of the antenna while
screwing it onto the mating connector on the transceiver.
If using an external antenna for transmission, ensure that the SWR presented to the
transceiver is 1.5:1 or lower, to avoid excessive feedline loss.

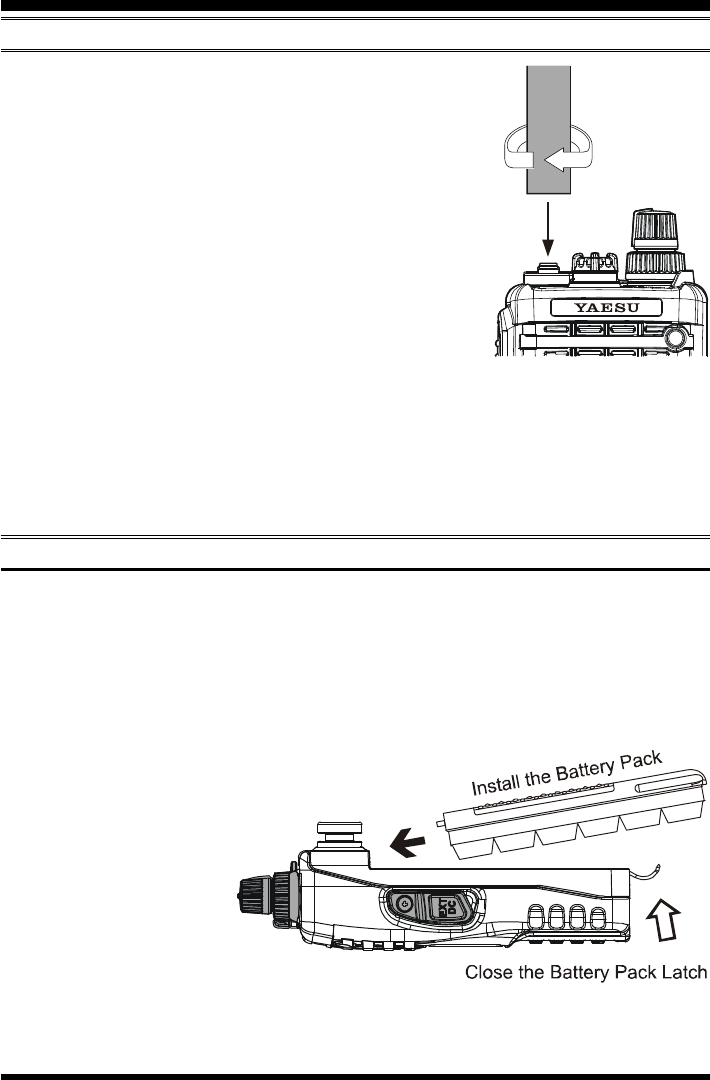

INSTALLATION OF FNB-83 BATTERY PACK
The FNB-83 is a high-performance Ni-MH battery providing high capacity in a compact
package. Under normal use, the FNB-83 may be used for approximately 300 charge cycles,
after which operating time may be expected to decrease. If you have an old battery pack
which is displaying capacity which has become diminished, you should replace the pack
with a new one.
Installation of the battery is easy and quick:
Insert the battery pack into the battery compart-
ment on the back of the radio while tilting the
Belt Clip outward, then
close the Battery Pack
Latch until it locks in
place with a “Click.”
To remove the battery,
turn the radio off and
remove any protective
cases. Open the Battery
Pack Latch on the bottom of the radio, then slide the battery downward and out from
the radio while tilting the Belt Clip out of the way.
INSTALLATION OF ACCESSORIES
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 9

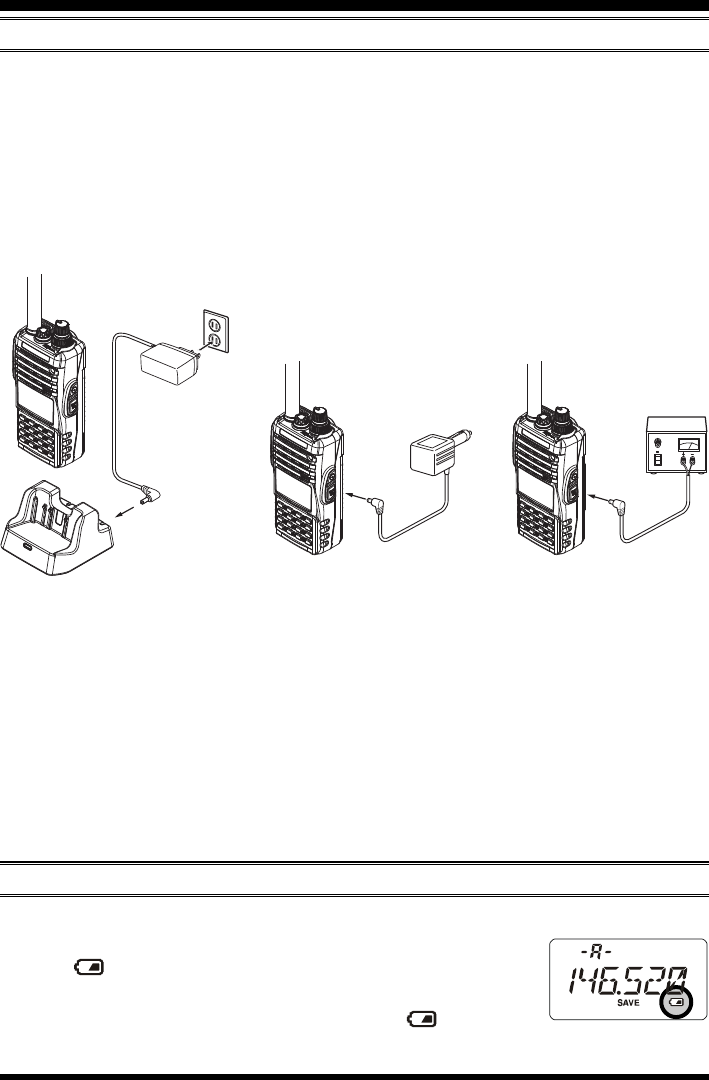

BATTERY CHARGING
If the battery has never been used, or its charge is depleted, it may be charged by connect-
ing the PA-48 Battery Charger, as shown in the illustration, to the SBH-13 DC jack.
If only 12 ~ 16 Volt DC power is available, the optional E-DC-5B DC Cable (with its cigarette
lighter plug) or E-DC-6 DC Cable (plug and wire only) may also be used for charging the
battery.
A fully-discharged pack will be charged completely in 3.5 - 4 hours. Disconnect the PA-48
from the SBH-13 DC jack and the AC line outlet.
INSTALLATION OF ACCESSORIES
Important Note
The PA-48 is not designed to power the transceiver for operation (reception or trans-
mission).
Do not leave the PA-48 connected to the transceiver for continuous periods in excess
of 24 hours. Long term overcharging can degrade the Ni-MH battery pack and signifi-
cantly shorten its useful life.
Please be advised that the PA-48 may contribute noise to TV and radio reception in the
immediate vicinity, so we do not recommend its use adjacent to such devices.
LOW BATTERY INDICATION
As your battery discharges during use, the voltage will gradually become lower. When
the battery voltage is becoming too low for reliable operation,
the “ ” icon will blink on the LCD display, indicating that the
battery pack must be recharged before further use.
Avoid recharging Ni-MH batteries before the “ ”indicator is
observed, as this can degrade the charge capacity of your Ni-MH battery pack.
SBH-13 with PA-48 E-DC-6E-DC-5B
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL10
BELT CLIP INSTALLATION
Connect the hanger to the rear of the FT-270R, with the notch pointing directly up,
using the supplied screw (Figure 1). Use only the screw included with the clip to mount
the clip to the back of the FT-270R.
Clip the Quick-Draw Belt Clip onto your belt (Figure 2).
To install the FT-270R into the Quick-Draw Belt Clip, align the hanger with the Quick-
Draw Belt Clip, and slide the FT-270R into its slot until a click is heard (Figure 3).
To remove the FT-270R from the Quick-Draw Belt Clip, rotate the FT-270R 180 de-
grees, then slide the FT-270R out from the Quick-Draw Belt Clip (Figure 4).
INSTALLATION OF ACCESSORIES
INSTALLATION OF FBA-25A ALKALINE BATTERY CASE (OPTION)
The optional FBA-25A Battery Case allows operation of the FT-270R using six “AA” size
Alkaline batteries.
When installing batteries, insert the (–) end first, then press in the (+) end so the battery
snaps into place. Always replace all six batteries at the same time, paying attention to the
polarity indicated inside the case.
The FBA-25A must not be used with rechargeable cells. The FBA-25A does not contain
the thermal and over-current protection circuits (provided in the “FNB” series of Ni-MH
Battery Packs) required when utilizing Ni-Cd and Ni-MH cells.
Note that the power output and battery life will be much shorter when using Alkaline AA
cells. They should be considered an emergency backup power source only, for this reason.
Figure 4
Figure 3
Figure 2
Figure 1
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 11
The FT-270R may be used for Packet operation, using the optional CT-91 Microphone
Adapter (available from your Yaesu dealer) for easy interconnection to commonly-avail-
able connectors wired to your TNC. You may also build your own cable, using a four-
conductor miniature phone plug, per the diagram below.
The audio level from the receiver to the TNC may be adjusted by using the VOL knob, as
with voice operation. The input level to the FT-270R from the TNC should be adjusted at
the TNC side; the optimum input voltage is approximately 5 mV at 2000 Ohms.
Be sure to turn the transceiver and TNC off before connecting the cables, so as to prevent
voltage spikes from possibly damaging your transceiver.
When you are operating on Packet, switch the Receive Battery Saver OFF, as the “sleep”
cycle may “collide” with the beginning of an incoming Packet transmission, causing your
TNC not to receive the full data burst. See page 60 for details regarding Battery Saver
setup.
INTERFACE OF PACKET TNCS
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL12
Hi! I’m R. F. Radio, and I’ll be helping you along as you learn the many
features of the FT-270R. I know you’re anxious to get on the air, but I encour-
age you to read the “Operation” section of this manual as thoroughly as
possible, so you’ll get the most out of this fantastic new transceiver. Now. . .let’s get
operating!
SWITCHING POWER ON AND OFF
Be sure the Battery Pack is installed, and that the battery is fully charged. Connect the
antenna to the top panel ANTENNA jack.
Rotate the top panel’s VOL/PWR knob (inner knob)
out of the click-stop to turn on the radio. The current
DC supply voltage will be indicated on the display for 2
seconds. After this 2 second interval, the display will
resume its normal indication of the operating frequency.
To turn the radio off, turn the VOL/PWR knob fully
counter-clockwise into the click stop position.
ADJUSTING THE AUDIO VOLUME LEVEL
Rotate the VOL/PWR knob (inner knob) to adjust the re-
ceiver audio to a comfortable listening level, using the back-
ground noise as a reference. Clockwise rotation increases
the volume level.
OPERATION
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 13
OPERATION

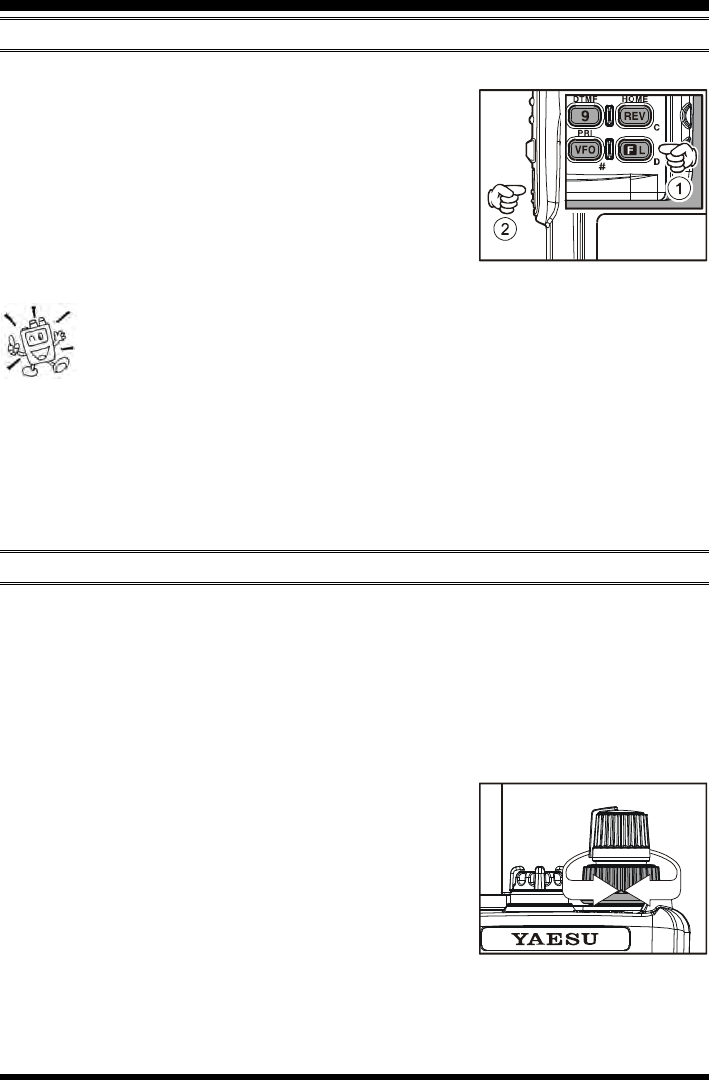

SQUELCH ADJUSTMENT
To set the squelch, press the [F/L] key, followed by the MONI switch just below the
PTT switch on the left side of the transceiver.
Now rotate the DIAL (outer knob) to find the lowest
setting (“LVL 1LVL 1
LVL 1LVL 1
LVL 1” through “LVL 15LVL 15
LVL 15LVL 15
LVL 15”) that will just
silence the background noise. Do not use a higher set-
ting than necessary, or sensitivity to weak incoming
signals will be degraded.
Press the PTT switch momentarily when you’ve made
the new setting; this will return you to normal operation (without having transmitted).
1) A special “RF Squelch” feature is provided on this radio. This feature
allows you to set the squelch so that only signals exceeding a certain S-meter
level will open the squelch. See page 18 for details.
2) If you’re operating in an area of high RF pollution, you may need to consider “Tone
Squelch” operation using the built-in CTCSS Decoder. This feature will keep your radio
quiet until a call is received from a station sending a carrier which contains a matching
(subaudible) CTCSS tone. Or, if your friends have radios equipped with DCS (Digital
Coded Squelch) like your FT-270R has, try using that mode for silent monitoring of busy
channels.
FREQUENCY NAVIGATION
The FT-270R will initially be operating in the “VFO” mode, a channelized system which
allows free tuning throughout the currently-selected operating band.
Three basic frequency navigation methods are available on the FT-270R:
1) Tuning Dial
Rotation of the DIAL (outer knob) allows tuning in the pre-programmed steps established
for the current operating band. Clockwise rotation of the DIAL causes the FT-270R to be
tuned toward a higher frequency, while counter-clockwise
rotation will lower the operating frequency.
If you press the [F/L] key momentarily, then rotate the DIAL,
frequency steps of 1 MHz will be selected. This feature is
extremely useful for making rapid frequency excursions over
the wide tuning range of the FT-270R.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL14
2) Direct Keypad Frequency Entry
The desired operating frequency may be entered directly from the keypad. The first “1” in
the frequency does not need to be entered, as it is “assumed” by the microprocessor.
To enter a frequency directly, just key in the 10 MHz, 1 MHz, and the kHz digits.
Examples:To enter 146.560 MHz, press [4] [6] [5] [6] [0]
To enter 146.5625 MHz (12.5 kHz steps), [4] [6] [5] [6] [2]
3) Scanning

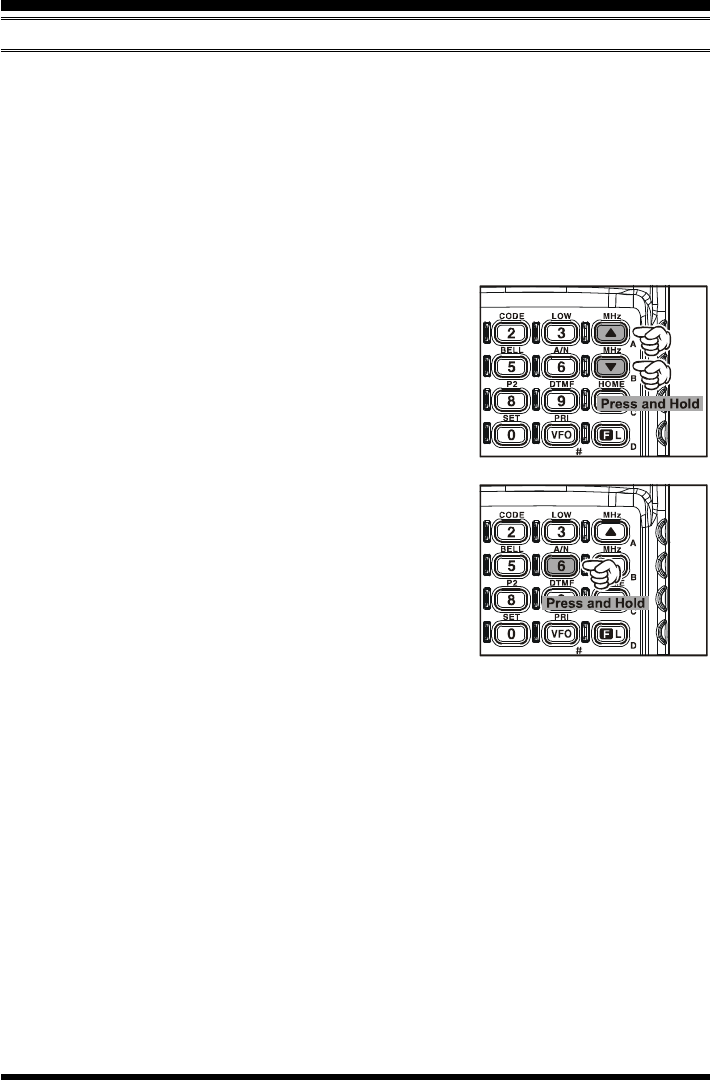

Press and hold in either the [(MHz)] or [(MHz)] key for
one second to initiate upward or downward scanning, re-
spectively (Manual VFO Scan).
For scanning within a limited sub-band range, from the VFO
mode, press and hold in the [6(A/N)] key for one second to
begin scanning toward a higher frequency within the previ-
ously-defined sub-band (Programmed VFO Scan). Details
regarding sub-band setup may be found on page 37.
If you wish to reverse the direction of the scan (i.e. toward a
lower frequency, instead of a higher frequency), just rotate
the DIAL one click in the counter-clockwise direction while
the FT-270R is scanning. The scanning direction will be
reversed. To revert to scanning toward a higher frequency
once more, rotate the DIAL one click clockwise.
The scanner will stop when it receives a signal strong enough to break through the Squelch
threshold. The FT-270R will then hold on that frequency according to the setting of the
“RESUME” mode (Set Mode Item 32: RESUMERESUME
RESUMERESUME
RESUME). Press the PTT switch momentarily to
cancel the scanning. This only stops the scan; it does not cause transmission to occur. See
page 38 for details regarding Scan Operation.
OPERATION
FREQUENCY NAVIGATION
(MANUAL VFO SCAN)
(PROGRAMMED VFO SCAN)
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 15
OPERATION
TRANSMISSION
Once you have set up an appropriate frequency inside the 144 MHz Amateur band on
which the FT-270R can transmit, you’re ready to go on the air! These are the most basic
steps; more advanced aspects of transmitter operation will be discussed later.

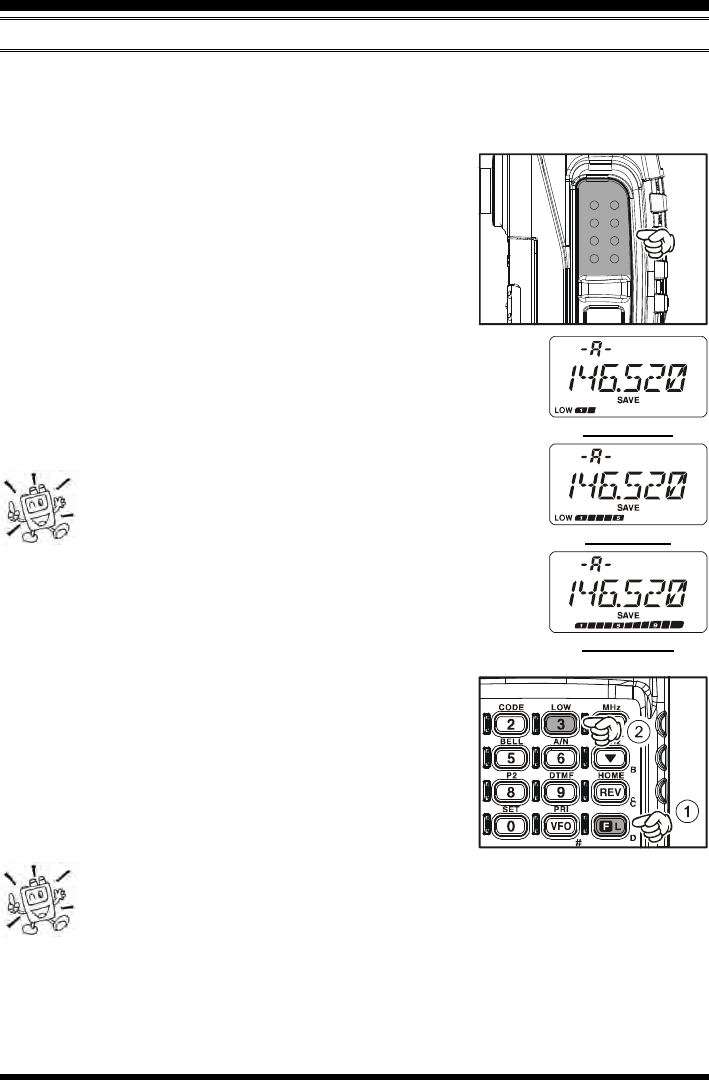

To transmit, press the PTT switch, and speak into the
front panel microphone (located in the lower left-hand
corner of the speaker grille) in a normal voice level. The
TX/BUSY indicator will glow red during transmission.
To return to the receive mode, release the PTT switch.
During transmission, the relative power level will be
indicated on the bar graph at the bottom of the LCD;
full scale deflection confirms “High Power” operation, while
deflection of two bars indicates “Low Power” operation. Five
bars indicate “Medium Power” operation. Additionally, the
“LOW” icon will appear at the bottom of the display while oper-
ating on the “Low Power” and “Medium Power” settings.
1) If you’re just talking to friends in the immediate area,
you’ll get much longer battery life by switching to Low
Power operation, described in the next chapter. And don’t
forget: always have an antenna connected when you transmit.
2) Transmission is possible only on the 144 MHz amateur band.
Changing the Transmitter Power Level
To change the power level:
Press the [F/L] key, then press the [3(LOW)] key. The
LCD shows the current power output level.
Rotate the DIAL knob to select the desired power out-
put level. Available selections are “HIGHHIGH
HIGHHIGH
HIGH” (5 W),
“MIDMID
MIDMID
MID” (2 W), and “LOWLOW
LOWLOW
LOW” (0.5 W).
When you have made your choice, press the PTT switch
to save the new setting and return to normal operation.
1) The FT-270R is smart! When you store memories, you can store the power
output settings separately in each memory, so you don’t waste battery power
when using very close-in repeaters!
2) When you are operating on the “Low” or “Medium” power setting, you can press the
[F/L] key, then press the PTT switch, to cause the FT-270R to transmit (temporarily) on
High power. After one transmission, the power level will revert to the previously-selected
(“Low” or “Medium” power) setting.
“LOW” POWER
“MID” POWER
“HIGH” POWER
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL16
Now that you’re mastered the basics of FT-270R operation, let’s learn more about some of
the really neat features.

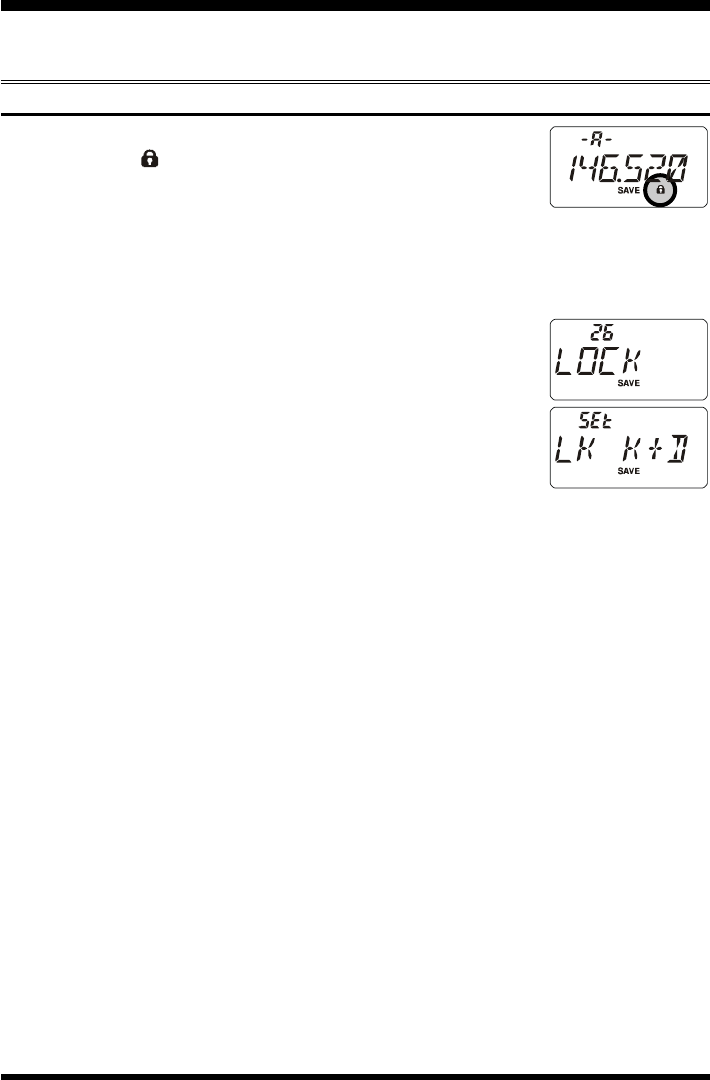

KEYBOARD LOCKING
To activate the locking feature, press and hold in the [F/L] key for
one second. The “ ” icon will appear on the LCD. To cancel locking
press and hold in the [F/L] key again for one second.
In order to prevent accidental frequency change or inadvertent trans-
mission, various aspects of the FT-270R’s DIAL and keypad may be locked out. You may
change the lockout combinations.
To lock out some or all of the keys:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set
mode.
2. Rotate the DIAL knob to select Set Mode Item 26: LOCKLOCK
LOCKLOCK
LOCK.
3. Press the [F/L] key momentarily to enable adjustment of this
Item.
4. Rotate the DIAL knob to the desired locking scheme as listed
below:
LK KEYLK KEY
LK KEYLK KEY
LK KEY:Just the front panel keypad is locked out
LKDIALLKDIAL
LKDIALLKDIAL
LKDIAL: Just the top panel DIAL is locked out
LK K+DLK K+D
LK K+DLK K+D
LK K+D: Both the keypad and DIAL are locked out (factory default)
LK PTTLK PTT
LK PTTLK PTT
LK PTT: The PTT switch is locked out (TX not possible)
LK P+KLK P+K
LK P+KLK P+K
LK P+K: Both the PTT switch and keypad are locked out
LK P+DLK P+D
LK P+DLK P+D
LK P+D: Both the PTT switch and DIAL are locked out
LK ALLLK ALL
LK ALLLK ALL
LK ALL:All of the above are locked out
5. When you have made your selection, press the PTT switch to save the new setting
and return to normal operation.
ADVANCED OPERATION
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 17
ADVANCED OPERATION

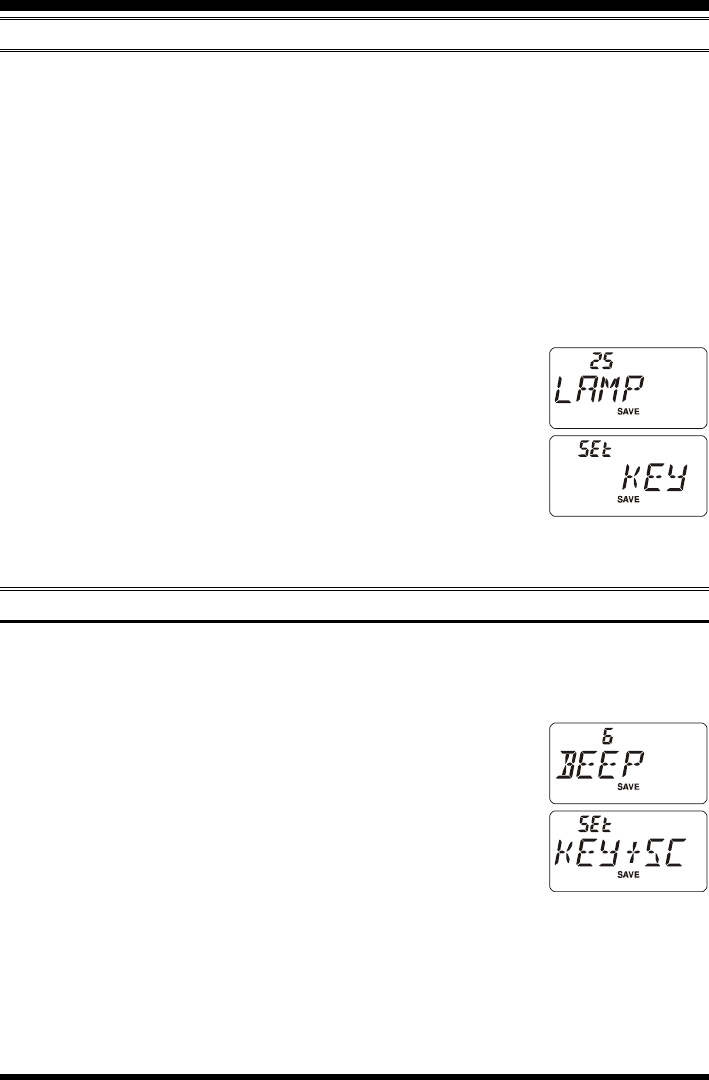

KEYPAD/LCD ILLUMINATION
Your FT-270R includes a reddish illumination lamp which aids in nighttime operation. The
reddish illumination yields clear viewing of the display in a dark environment, with minimal
degradation of your night vision.
Three options for activating the lamp are provided:
KEYKEY
KEYKEY
KEY Mode: Illuminates the Keypad/LCD lamp for five seconds when you rotate the
DIAL knob or press the keypad or any switch (except PTT switch).
This is the factory-programmed default setting.
CONTCONT
CONTCONT
CONT Mode:Illuminates the Keypad/LCD lamp continuously.
OFFOFF
OFFOFF
OFF Mode: Disables the Keypad/LCD lamp.
Here is the procedure for setting up the Lamp operating mode:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set
mode.
2. Rotate the DIAL knob to select Set Mode Item 25: LAMPLAMP
LAMPLAMP
LAMP.
3. Press the [F/L] key momentarily to enable adjustment of this
Item.
4. Rotate the DIAL knob to select one of the three modes described
above.
5. When you have made your choice, press the PTT switch to save the new setting and
return to normal operation.
DISABLING THE KEYPAD BEEPER
A keypad beeper provides useful audible feedback whenever a keypad is pressed.
If you want to turn the beep off:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 6: BEEPBEEP
BEEPBEEP
BEEP.
3. Press the [F/L] key momentarily to enable adjustment of this
Item.
4. Rotate the DIAL knob to change the setting to “OFFOFF
OFFOFF
OFF.”
5. Press the PTT switch to save the new setting and return to
normal operation.
6. To turn the beep back on again, select “KEYKEY
KEYKEY
KEY” or “KEY+SCKEY+SC
KEY+SCKEY+SC
KEY+SC
(factory default)” in step 4 above.
KEYKEY
KEYKEY
KEY: The beeper sounds when you press the keypad.
KEY+SCKEY+SC
KEY+SCKEY+SC
KEY+SC:The beeper sounds when you press the keypad, or when the scanner stops.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL18
ADVANCED OPERATION
RF SQUELCH
A special RF Squelch feature is provided on this radio. This feature allows you to set the
squelch so that only signals exceeding a certain S-meter level will open the squelch.
To set up the RF squelch circuit for operation, use the following procedure:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 34: RF SQLRF SQL
RF SQLRF SQL
RF SQL.
3. Press the [F/L] key momentarily to enable adjustment of this
Item.
4. Rotate the DIAL knob to select the desired signal strength level
for the squelch threshold (S-1S-1
S-1S-1
S-1, S-2S-2
S-2S-2
S-2, S-3S-3
S-3S-3
S-3, S-4S-4
S-4S-4
S-4, S-5S-5
S-5S-5
S-5, S-6S-6
S-6S-6
S-6, S-8S-8
S-8S-8
S-8,
S-FULLS-FULL
S-FULLS-FULL
S-FULL, or OFFOFF
OFFOFF
OFF).
5. Press the PTT switch to save the new setting and return to
normal operation.

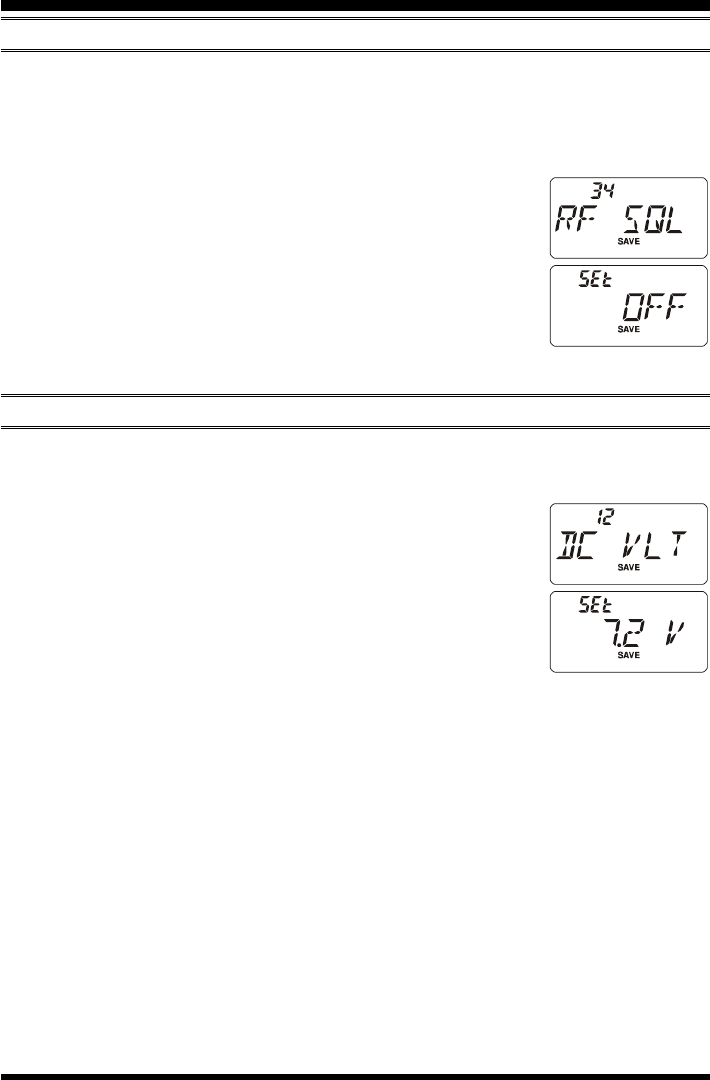

CHECKING THE BATTERY VOLTAGE
The FT-270R’s microprocessor includes programming which will measure the current bat-
tery voltage.
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set
mode.
2. Rotate the DIAL knob to select Set Mode Item 12: DC VLTDC VLT
DC VLTDC VLT
DC VLT.
3. Press the [F/L] key momentarily to display the current DC volt-
age being supplied.
4. Press the [F/L] key, followed by the PTT switch to return to
normal operation.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 19
REPEATER OPERATION
Repeater stations, usually located on mountaintops or other high locations, provide a
dramatic extension of the communication range for low-powered hand-held or mobile trans-
ceivers. The FT-270R includes a number of features which make repeater operation simple
and enjoyable.
REPEATER SHIFTS
The FT-270R has been configured, at the factory, with the repeater shift set to 600 kHz.
Depending on the part of the band in which
you are operating, the repeater shift may be
either downward (–) or upward (+), and one of
these icons will appear at the top of the LCD
when repeater shifts have been enabled.
AUTOMATIC REPEATER SHIFT (ARS)
The FT-270R provides a convenient Automatic Repeater Shift feature, which causes the
appropriate repeater shift to be applied automatically whenever you tune into the desig-
nated repeater sub-bands in your country. These sub-bands are shown below.
If the ARS feature does not appear to be working, you may have accidentally disabled it.
To re-enable ARS:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 4: ARSARS
ARSARS
ARS.
3. Press the [F/L] key momentarily to enable adjustment of this
Item.
4. Rotate the DIAL knob to select “ARS. ONARS. ON
ARS. ONARS. ON
ARS. ON.”
5. When you have made your selection, press the PTT switch to
save the new setting and return to normal operation.
EXP Version
USA Version
145.1 145.5
145.6 145.8
146.0 146.4 147.0 147.6 148.0
146.6 147.4
ARS-Repeater Subbands
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL20

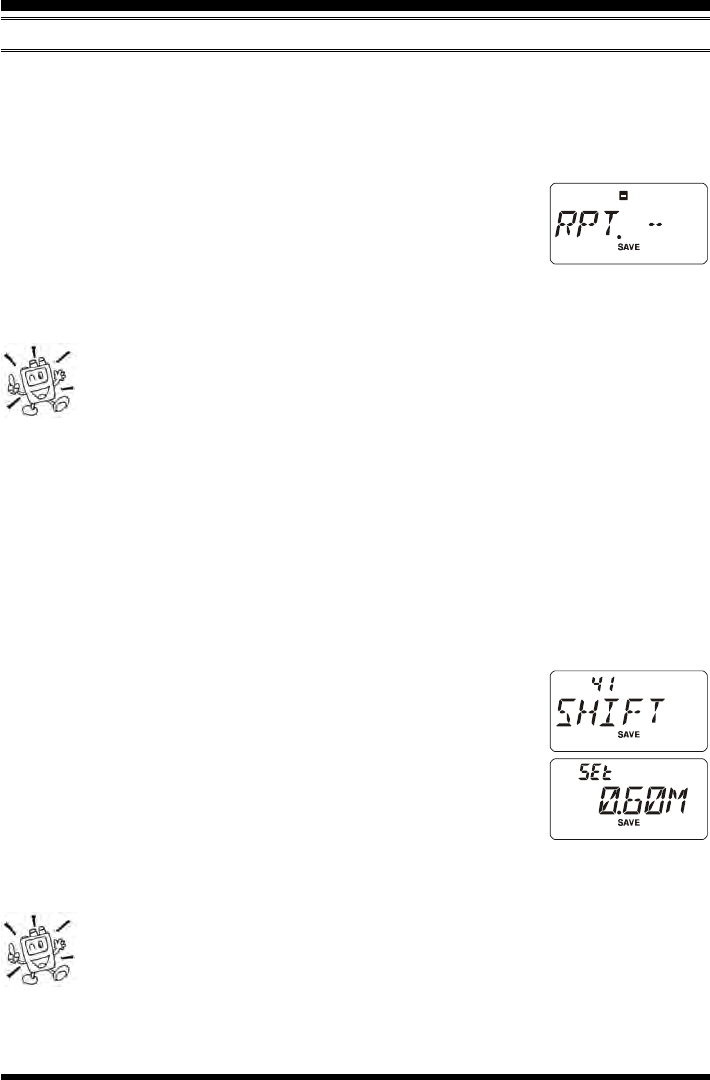

MANUAL REPEATER SHIFT ACTIVATION
If the ARS feature has been disabled, or if you need to set a repeater shift direction other
than that established by the ARS, you may set the direction of the repeater shift manually.
To do this:
1. Press the [F/L] key, then press the [4(RPT)] key to enable selection of the repeater
shift direction.
2. This provides a “short-cut” to Set Mode Item 35: RPT.MODRPT.MOD
RPT.MODRPT.MOD
RPT.MOD.
3. Rotate the DIAL knob to select the desired shift among “RPT.–RPT.–
RPT.–RPT.–
RPT.–,”
“RPT.+RPT.+
RPT.+RPT.+
RPT.+,” and “RPT.OFFRPT.OFF
RPT.OFFRPT.OFF
RPT.OFF.”
4. When you have made your selection, press the PTT switch to save the new setting and
return to normal operation.
If you make a change in the shift direction, but still have Automatic Repeater
Shift still engaged (see previous section), when you change frequency (by
rotating the DIAL knob, for example) the ARS will over-ride your manual
setting of the shift direction. Turn ARS off if you do not wish this to happen.
If you make a change in the repeater shift on a memory channel that you already stored, the
radio will consider this a “temporary” change unless you store the memory once more, this
time with the desired repeater shift engaged.
Changing the Default Repeater Shifts
If you travel to a different region, you may need to change the default repeater shift so as
to ensure compatibility with local operating requirements.
To do this, follow the procedure below:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set
mode.
2. Rotate the DIAL knob to select Set Mode Item 41: SHIFTSHIFT
SHIFTSHIFT
SHIFT.
3. Press the [F/L] key momentarily to enable adjustment of this
Item.
4. Rotate the DIAL knob to select the new repeater shift magni-
tude.
5. When you have made your selection, press the PTT switch to save the new setting
and return to normal operation.
If you just have one “odd” split that you need to program, don’t change the
“default” repeated shifts using this Set Mode Item. Enter the transmit and
receive frequencies separately, as shown on page 29.
REPEATER OPERATION
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 21
REPEATER OPERATION
MANUAL REPEATER SHIFT ACTIVATION
Checking the Repeater Uplink (Input) Frequency
It often is helpful to be able to check the uplink (input) frequency of a repeater, to see if the
calling station is within direct (“Simplex”) range.

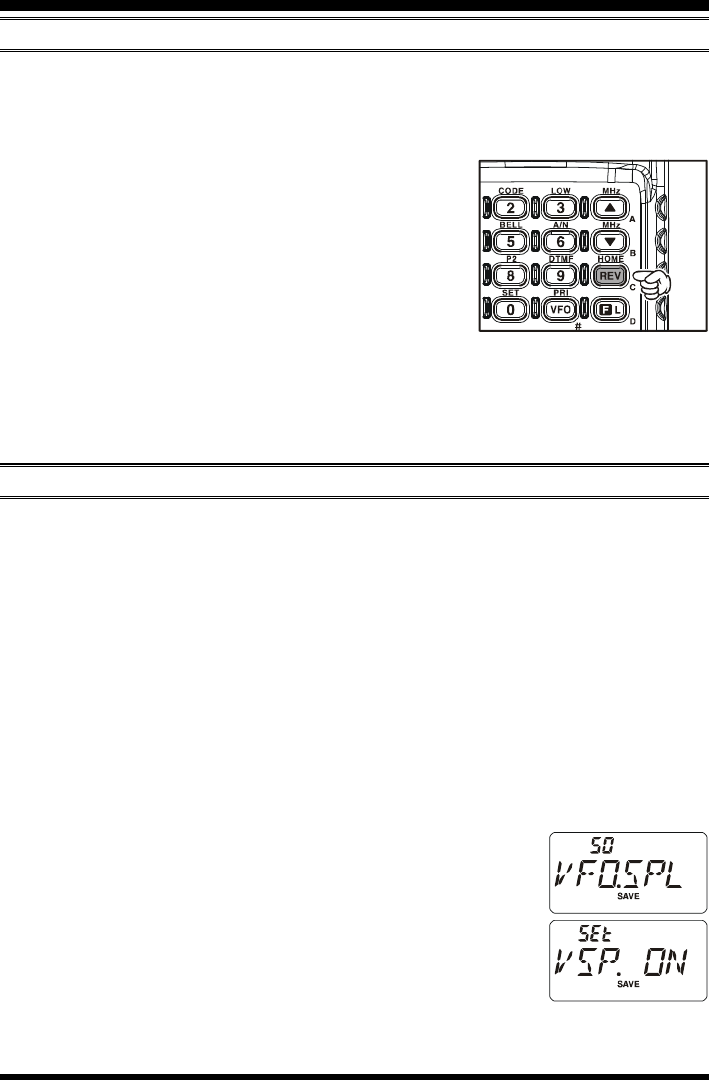

To do this, just press the [REV(HOME)] key. You’ll notice
that the display has shifted to the repeater uplink frequency.
Press the [REV(HOME)] key again to cause operation to
revert to normal monitoring of the repeater downlink (out-
put) frequency. While you are listening on the input fre-
quency to the repeater using the [REV(HOME)] key, the
repeater offset icon will blink.
The configuration of this key may be set either to “RV” (for checking the input fre-
quency of a repeater), or “HM” (for instant switching to the “Home” channel for the
band you are operating on). To change the configuration of this key, use Set Mode Item
33: REV/HM. See page 77.
VFO SPLIT MODE
For working on repeaters with odd splits, or communicating with astronauts on orbiting
space vehicles, it may be necessary to use non-standard splits between the receive and
transmit frequency. If the application is infrequent enough not to warrant the dedication of
a memory channel for this purpose, the “VFO Split” mode may be used. Here is the proce-
dure for going Split:
1. Press the [VFO(PRI)] key, as needed, to select VFO-A. Set VFO-A for the desired
receiving (downlink) frequency (e.g.145.800 MHz).
2. Now press the [VFO(PRI)] key, and set VFO-B for the desired transmit (uplink) fre-
quency (e.g. 144.490 MHz).
3. Press the [VFO(PRI)] key once more to re-establish VFO-A as the “Main” (receive)
VFO.
4. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
5. Rotate the DIAL to select Set Mode Item 50: VFO.SPLVFO.SPL
VFO.SPLVFO.SPL
VFO.SPL.
6. Press the [F/L] key, then rotate the DIAL to set this function
“VSP. ONVSP. ON
VSP. ONVSP. ON
VSP. ON.”
7. Press the PTT switch once to save the new setting and exit to
normal operation.
8. You will now be operating in the Split mode. When you press
the PTT switch to transmit, you will observe that VFO-A and
VFO-B will reverse positions. The VFO selection indicator “-b-” will blink while the
transceiver is transmitting, this means that the VFO Split feature is now activated.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL22
9. If you need to modify the VFO-B (transmit) frequency (for Doppler Shift correction,
etc.), just press the [VFO(PRI)] key, then make the necessary change, then press
[VFO(PRI)] key once more to restore VFO-A to the “receive VFO” position.
10. When you have finished with Split operation, re-enter the Set mode, and change Set
Mode Item 50: VFO.SPLVFO.SPL
VFO.SPLVFO.SPL
VFO.SPL to “VSP.OFFVSP.OFF
VSP.OFFVSP.OFF
VSP.OFF.”
A split frequency pair set up via the VFO Split feature cannot be stored directly into
memory. You can, however, store odd frequency pairs using a different (slightly simpler)
procedure. See page 29.
VFO SPLIT MODE
REPEATER OPERATION
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 23
CTCSS/DCS/EPCS OPERATION
CTCSS OPERATION
Many repeater systems require that a very-low-frequency audio tone be superimposed on
your FM carrier in order to activate the repeater. This helps prevent false activation of the
repeater by radar or spurious signals from other transmitters. This tone system, called
“CTCSS” (Continuous Tone Coded Squelch System), is included in your FT-270R, and is
very easy to activate.
CTCSS setup involves two actions: setting the Tone Mode and then setting of
the Tone Frequency. These actions are set up by using the [1(SQ TYP)] key
and [2(CODE)] keys.

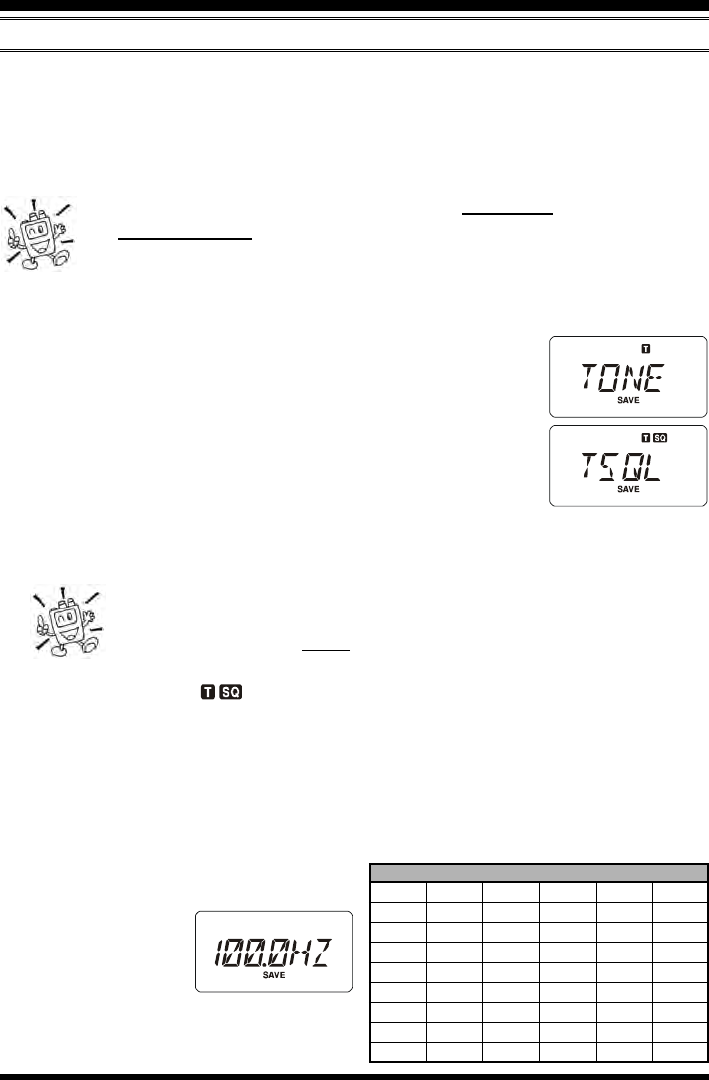

1. Press the [F/L] key, then press the [1(SQ TYP)] key to enable selection of the CTCSS/
DCS/ECS mode.
2. Rotate the DIAL knob so that “TONETONE
TONETONE
TONE” indication appears on
the display; this activates the CTCSS Encoder, for access to
repeaters requiring a CTCSS tone.
3. Rotation of the DIAL knob one more “click” in step “2” above
will cause the “TSQLTSQL
TSQLTSQL
TSQL” notation to appear. When “TSQLTSQL
TSQLTSQL
TSQL” is
displayed, this means that the Tone SQueLch system is active,
which mutes your FT-270R’s receiver until it receives a call from
another radio sending out a matching CTCSS tone. This can
help keep your radio quiet until a specific call is received, which may be helpful while
operating in congested areas of the band.
1) You may notice a “REV TN” indication on the display while you rotate
the DIAL knob in this step; this means that the Reverse Tone Squelch
system is active, which mutes your FT-270R’s receiver (instead of opening
the squelch) when it receives a call from the radio sending a matched
CTCSS tone. The “ ” icon will blink on the display when the Reverse Tone
Squelch system is activated.
2) You may notice the “DCS” and “ECS” indications on the display while you rotate
the DIAL knob still more. We’ll discuss the Digital Code Squelch system (for “DCS”)
and Enhanced Paging & Code Squelch (for “ECS”) later.
4. When you have made your selection of the CTCSS tone mode, press the PTT switch
to save the new setting.
5. Press the [F/L] key, then press the
[2(CODE)] key to enable adjustment of
the CTCSS fre-
quency.
6. Rotate the DIAL
knob until the dis-
play indicates the Tone Frequency you
need to be using (ask the repeater owner/
CTCSS TONE FREQUENCY (Hz)
67.0 69.3 71.9 74.4 77.0 79.7
82.5 85.4 88.5 91.5 94.8 97.4
100.0 103.5 107.2 110.9 114.8 118.8
123.0 127.3 131.8 136.5 141.3 146.2
151.4 156.7 159.8 162.2 165.5 167.9
171.3 173.8 177.3 179.9 183.5 186.2
189.9 192.8 196.6 199.5 203.5 206.5
210.7 218.1 225.7 229.1 233.6 241.8
250.3 254.1 ––––
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL24
operator if you don’t know the tone frequency).
7. When you have made your selection, press the [F/L] key momentarily to save the new
settings and exit to normal operation. This is different than the usual method of restor-
ing normal operation, and it applies only to the configuration of the CTCSS/DCS
frequencies.
Your repeater may or may not re-transmit a CTCSS tone - some systems just
use CTCSS to control access to the repeater, but don’t pass it along when
transmitting. If the S-Meter deflects, but the FT-270R is not passing audio,
repeat steps “1” through “4” above, but rotate the DIAL so that “TSQ” disappears - this
will allow you to hear all traffic on the channel being utilized.

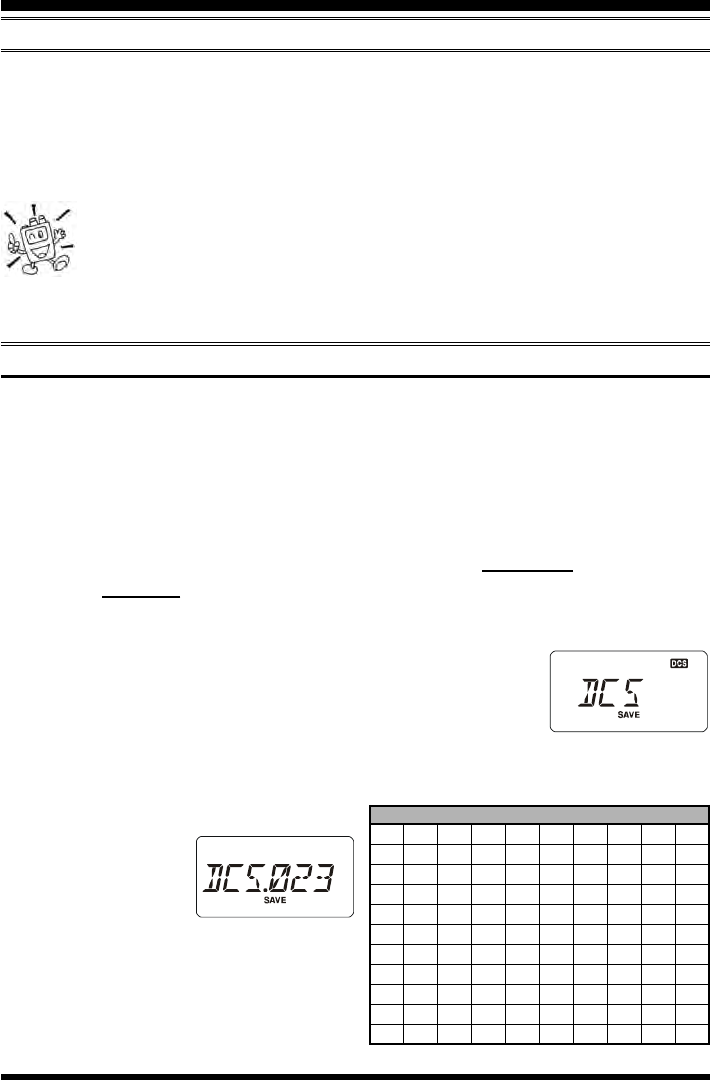

DCS OPERATION
Another form of tone access control is Digital Code Squelch, or DCS. It is a newer, more
advanced tone system which generally provides more immunity from false paging than
does CTCSS. The DCS Encoder/Decoder is built into your FT-270R, and operation is very
similar to that just described for CTCSS. Your repeater system may be configured for
DCS; if not, DCS is frequently quite useful in Simplex operation if your friend(s) use
transceivers equipped with this advanced feature.
Just as in CTCSS operation, DCS requires that you set the Tone Mode to DCS and that
you select a tone code.
1. Press the [F/L] key, then press the [1(SQ TYP)] key to enable selection of the CTCSS/
DCS/ECS mode.
2. Rotate the DIAL knob until the “DCSDCS
DCSDCS
DCS” indication appears on the
display; this activates the DCS Encoder/Decoder.
3. Press the PTT switch to save the new setting.
4. Press the [F/L] key, then press the [2(CODE)] key to enable adjustment of the DCS code.
5. Rotate the DIAL knob to select the desired DCS Code (a three-digit number). Ask the
repeater owner/operator if you don’t
know DCS Code; if
you are working
simplex, just set up
the DCS Code to
be the same as that used by your friend(s).
6. When you have made your selection,
press the [F/L] key momentarily to save
the new settings and exit to normal opera-
tion.
CTCSS OPERATION
CTCSS/DCS/EPCS OPERATION
DCS CODE
023 025 026 031 032 036 043 047 051 053
054 065 071 072 073 074 114 115 116 122
125 131 132 134 143 145 152 155 156 162
165 172 174 205 212 223 225 226 243 244
245 246 251 252 255 261 263 265 266 271
274 306 311 315 325 331 332 343 346 351
356 364 365 371 411 412 413 423 431 432
445 446 452 454 455 462 464 465 466 503
506 516 523 526 532 546 565 606 612 624
627 631 632 654 662 664 703 712 723 731
732 734 743 754 – – – – – –
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 25
CTCSS/DCS/EPCS OPERATION
Remember that the DCS is an Encode/Decode system, so your receiver will
remain muted until a matching DCS code is received on an incoming trans-
mission. Switch the DCS off when you’re just tuning around the band!

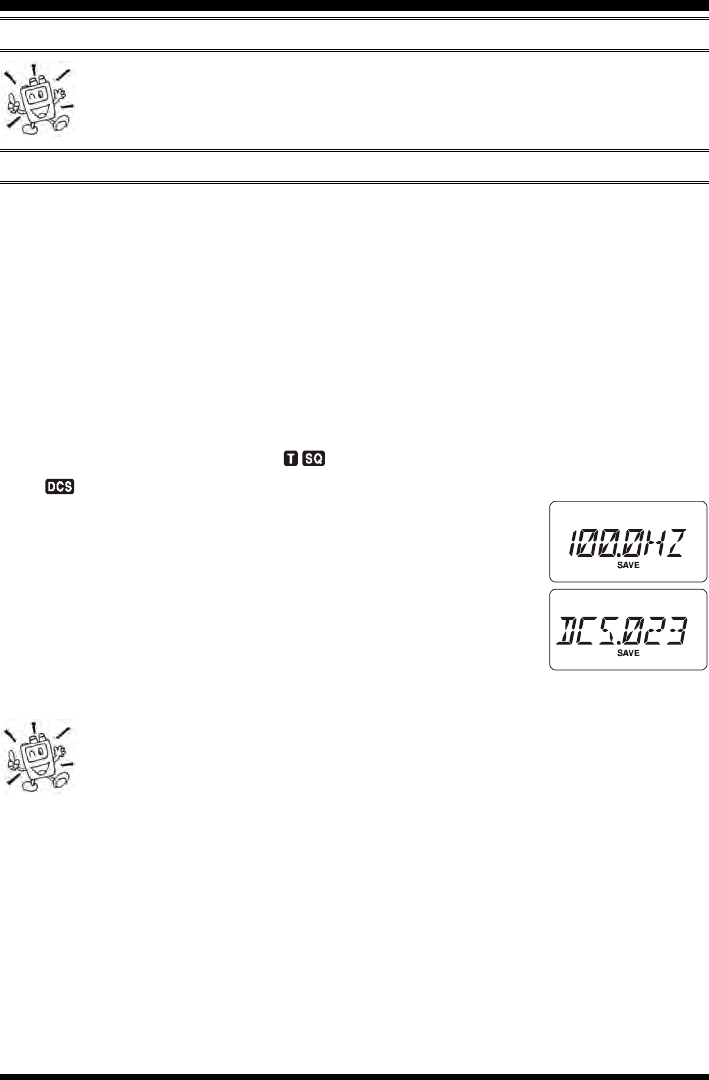

TONE SEARCH SCANNING
In operating situations where you don’t know the CTCSS or DCS tone being used by
another station or stations, you can command the radio to listen to the incoming signal and
scan in search of the tone being used. Two things must be remembered in this regard:
You must be sure that your repeater uses the same tone type (CTCSS vs. DCS).
Some repeaters do not pass the CTCSS tone; you may have to listen to the station(s)
transmitting on the repeater uplink (input) frequency in order to allow Tone Search
Scanning to work.
To scan for the tone in use:
1. Set the radio up for either CTCSS or DCS Decoder operation (see the previous discus-
sions). In the case of CTCSS, “ ” will appear on the display; in the case of DCS,
“” will appear on the display.
2. Press the [F/L] key, then press the [2(CODE)] key.
3. Press and hold in the [(MHz)] or [(MHz)] key for one sec-
ond to start scanning for the incoming CTCSS or DCS tone/
code.
4. When the radio detects the correct tone or code, it will halt on
that tone/code, and audio will be allowed to pass. Press the [F/L]
key to lock in that tone/code, then press the [F/L] key again to
exit to normal operation.
If the Tone Scan feature does not detect a tone or code, it will continue to scan
indefinitely. When this happens, it may be that the other station is not sending
any tone. You can press the PTT switch to halt the scan at any time.
You also can press the MONI key during Tone Scanning to listen to the (muted) signal from
the other station. When you release the MONI key, Tone Scanning will resume after about
a second.
Tone Scanning works either in the VFO or Memory modes.
DCS OPERATION
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL26

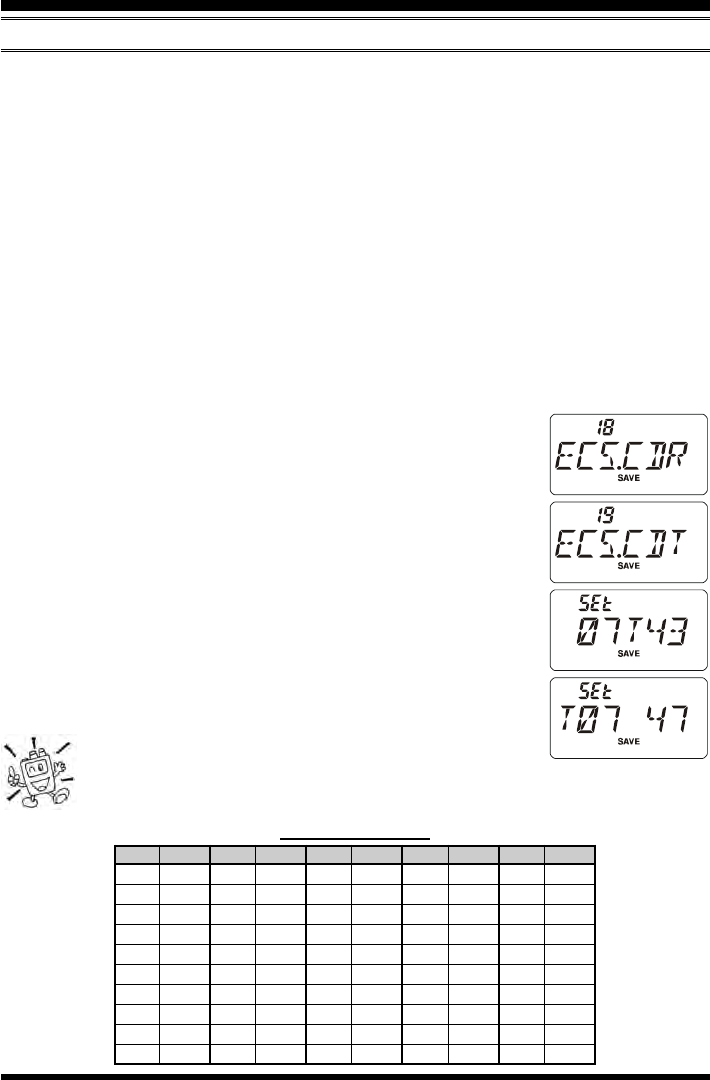

EPCS (ENHANCED PAGING & CODE SQUELCH)
The FT-270R includes an Enhanced CTCSS tone encoder/decoder and a dedicated micropro-
cessor providing paging and selective calling features. This allows you to place a call to a specific
station (Paging), and to receive calls of your choice directed only to you (Code Squelch).
The paging and code squelch systems use two pairs of (alternately switched) CTCSS tones
which are stored in the pager memories. Basically, your receiver remains silent until it
receives the CTCSS tone pair that matches those stored in the Receiving Pager Memory.
The squelch then opens so the caller is heard, and the paging ringer immediately sounds, if
activated. When you close the PTT switch to transmit, the CTCSS tone pair which is
stored in the Transmitting Pager Memory will be transmitted automatically.
On the paged radio, the squelch will close automatically after the incoming page ends.
Storing the CTCSS Tone Pairs for EPCS Operation
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 18: ECS.CDRECS.CDR
ECS.CDRECS.CDR
ECS.CDR
for the Receiving CTCSS Tone Pair or Set Mode Item 19:
ECS.CDTECS.CDT
ECS.CDTECS.CDT
ECS.CDT for the Transmitting CTCSS Tone Pair.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to set the CTCSS Tone number which
corresponds to the first tone of the CTCSS Tone Pair.
5. Press the [(MHz)] or [(MHz)] key, then rotate the DIAL
knob to set the CTCSS Tone number which corresponds to the
second tone of the CTCSS Tone Pair.
6. Press the PTT switch to save the new setting and exit to normal
operation.
The FT-270R does not recognize the order of the 1st
tone and the 2nd tone. In other words, for example, the
FT-270R considers both CTCSS pairs “10, 35” and “35, 10” to be identical.
CTCSS/DCS/EPCS OPERATION
Hz
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
No.
01
02
03
04
05
06
07
08
09
10
Hz
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
No.
11
12
13
14
15
16
17
18
19
20
Hz
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
No.
21
22
23
24
25
26
27
28
29
30
Hz
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
No.
31
32
33
34
35
36
37
38
39
40
Hz
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
No.
41
42
43
44
45
46
47
48
49
50
CTCSS TONE NUMBER
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 27

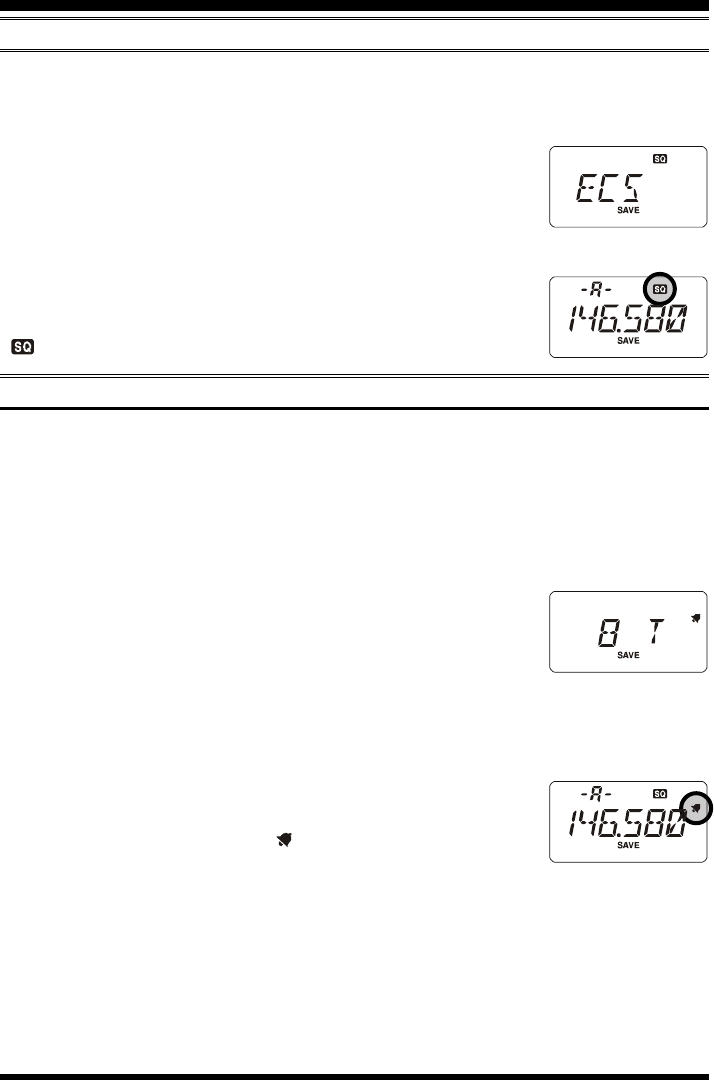

Activating the Enhanced Paging & Code Squelch System
1. Press the [F/L] key, then press the [1(SQ TYP)] key to enable selection of the CTCSS/
DCS/ECS mode.
2. Rotate the DIAL knob so that the “ECSECS
ECSECS
ECS” indication appears on
the display.
3. Press the PTT switch to save the new setting and activate the
Enhanced Paging & Code Squelch.
4. To disable the Enhanced Paging & Code Squelch, just repeat the above procedure,
rotating the DIAL knob to select “OFFOFF
OFFOFF
OFF” in step 2 above.
When the Enhanced Paging & Code Squelch feature is activated, the
“” icon will blink on the display.
CTCSS/DCS/EPCS BELL OPERATION
During CTCSS Decode, DCS, or EPCS operation, you may set up the FT-270R such that a
ringing “bell” sound alerts you to the fact that a call is coming in. Here is the procedure for
activating the CTCSS/DCS/EPCS Bell:
1. Set the transceiver up for CTCSS Decode (“Tone Squelch”), DCS, or EPCS operation,
as described previously.
2. Adjust the operating frequency to the desired channel.
3. Press the [F/L] key, then press the [5(BELL)] key.
4. Rotate the DIAL knob to set the desired number of rings of the
Bell. The available choices are “1 T1 T
1 T1 T
1 T,” “3 T3 T
3 T3 T
3 T,” “5 T5 T
5 T5 T
5 T,” or “8 T8 T
8 T8 T
8 T”
rings, CONTCONT
CONTCONT
CONT (continuous ringing), or OFFOFF
OFFOFF
OFF.
5. Press the PTT switch momentarily to save the new setting and exit to normal opera-
tion.
When you are called by a station whose transceiver is sending a CTCSS tone, DCS code,
or CTCSS code pair which matches that set into your Decoder, the
Bell will ring in accordance with this programming. When the CTCSS/
DCS/EPCS Bell is activated, the “ ” icon will appear at the upper
right corner on the LCD.
CTCSS/DCS/EPCS OPERATION
EPCS (ENHANCED PAGING & CODE SQUELCH)
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL28
SPLIT TONE OPERATION
The FT-270R can be operated in a Split Tone configuration via the Set mode.
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 43: SPLITSPLIT
SPLITSPLIT
SPLIT.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select ONON
ONON
ON (to enable the Split Tone
feature).
5. Press the PTT switch momentarily to save the new setting and
exit to normal operation.
When the Split Tone feature is activated, you can see the following additional parameters
following the “DCSDCS
DCSDCS
DCS” parameter (while selecting the tone mode by pressing [F/L]
[1(SQ TYP)]):
DD
DD
D: DCS Encode only (the “ ” icon will blink during operation)
T DCST DCS
T DCST DCS
T DCS: Encodes a CTCSS Tone and Decodes a DCS code
(the “ ” icon will blink and the “ ” icon will appear during operation)
D TSQLD TSQL
D TSQLD TSQL
D TSQL: Encodes a DCS code and Decodes a CTCSS Tone
(the “ ” icon will appear and the “ ” icon will blink during operation)
Select the desired operating mode from the selections shown above.
TONE CALLING (1750 HZ)
If the repeaters in your country require a 1750-Hz burst tone for access (typically in Eu-
rope), you can set the MONI key to serve as a “Tone Call” switch instead. To change the
configuration of this switch, we again use the Set Mode to help us.
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set
mode.
2. Rotate the DIAL knob to select Set Mode Item 27: MM
MM
M/T-CLT-CL
T-CLT-CL
T-CL.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select “T-CALLT-CALL
T-CALLT-CALL
T-CALL” on the display.
5. Press the PTT switch to save the new setting and exit to normal
operation.
To access a repeater, press and hold in the MONI key for the amount of time specified by
the repeater owner/operator. The transmitter will automatically be activated, and a 1750-
Hz audio tone will be superimposed on the carrier. Once access to the repeater has been
gained, you may release the MONI key, and use the PTT switch for activating the transmit-
ter thereafter.
CTCSS/DCS/EPCS OPERATION
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 29
MEMORY MODE
The FT-270R provides a wide variety of memory system resources. These include:
200 “Standard” memory channels, numbered “11
11
1” through “200200
200200
200.”
A “Home” channel, providing storage and quick recall of one prime frequency.
10 sets of band-edge memories, also known as “Programmable Memory Scan” chan-
nels, labeled “L1L1
L1L1
L1/U1U1
U1U1
U1” through “L10L10
L10L10
L10/U10U10
U10U10
U10.”
10 Memory Banks, labeled “BANK 1BANK 1
BANK 1BANK 1
BANK 1” through “BANK10BANK10
BANK10BANK10
BANK10.” Each Memory Bank
can be assigned up to 200 channels from the “standard” memory channels.
10 “Weather Broadcast” Channels.
MEMORY STORAGE
1. Select the desired frequency, while operating in the VFO mode. Be sure to set up any
desired CTCSS or DCS tones, as well as any desired repeater offset, now. The power
level may also be set at this time, if you wish to store it.
2. Press and hold in the [MR/MW(SKIP)] key for one second.
3. Within ten seconds of releasing the [MR/MW(SKIP)] key, you need to make a deci-
sion regarding channel storage. The microprocessor will automatically select the next-
available “free” channel (a memory register on which no data has been stored), so you
may not wish to make any change; if this is the case, proceed to step 4. If you wish to
select a different channel number into which to store the data, rotate the DIAL knob to
select the desired memory channel. You may jump 10 memory channels, if you’re in a
hurry (11 21 31 …) by pressing the [VFO(PRI)] key (multiple times, if necessary).
4. Press the [MR/MW(SKIP)] key once more to store the frequency into memory.
5. You still will be operating in the “VFO” mode, so you may now enter other frequencies,
and store them into additional memory locations, by repeating the above process.
Storing Independent Transmit Frequencies (“Odd Splits”)
All memories can store an independent transmit frequency, for operation on repeaters with
non-standard shift. To do this:
1. Store the receive frequency using the method already described under MEMORY
STORAGE (it doesn’t matter if a repeater offset is active).
2. Tune to the desired transmit frequency, then press and hold in the [MR/MW(SKIP)]
key for one second.
3. Within ten seconds of releasing the [MR/MW(SKIP)] key, rotate the DIAL knob to
select the same memory channel number as used in step “1” above.
4. Press and hold in the PTT switch. Then while holding the PTT switch in, momentarily
press the [MR/MW(SKIP)] key once more. (This does not key the transmitter).
1) The “Odd Splits” feature permits setting TONE/DCS indi-
vidually for transmit and receive. Briefly, press the [F/L] key,
and then press the [2(CODE)] key. Rotate the DIAL knob to
select the TONE or DCS for receive. You can confirm the Transmit and
receive TONE/DCS by alternately pressing of the [REV(HOME)] key.
r: receiver
t: transmit
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL30

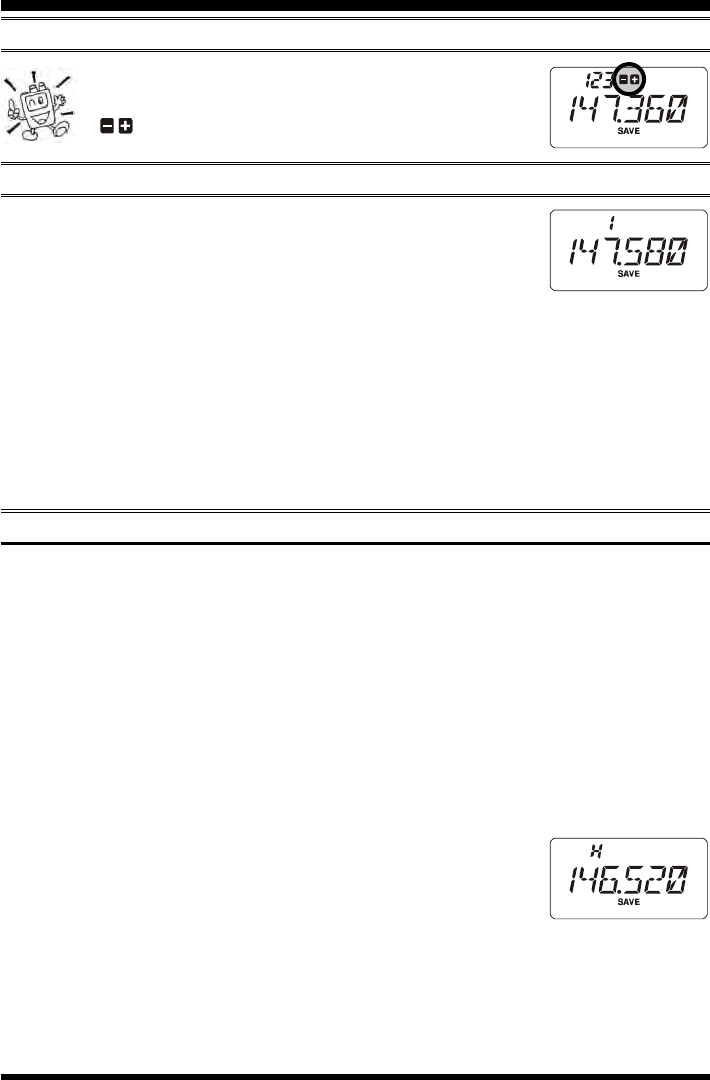

MEMORY MODE
2)Whenever you recall a memory which contains inde-
pendently-stored transmit and receive frequencies, the
“” indication will appear in the display.
MEMORY RECALL
1. While operating in the VFO mode, press the [MR/MW(SKIP)]
key to enter the Memory mode.
2. Rotate the DIAL knob to select the desired channel.
3. To return to the VFO mode, press the [VFO(PRI)] key.
When the radio is already set to the Memory mode, an easy way to recall memories is to key
in the memory channel number, then press the [F/L] key.
For example, to recall memory channel #14, press [1(SQ TYP)] [4(RPT)] [F/L].
You may also recall Programmable Memory channels (“L1L1
L1L1
L1/U1U1
U1U1
U1” through “L10L10
L10L10
L10/U10U10
U10U10
U10.”)
using the following numbers: Programmable Memory channels #L1L1
L1L1
L1 = “201,” U1U1
U1U1
U1 = “202,”
L10L10
L10L10
L10 = “219,” and U10U10
U10U10
U10 = “220.”
HOME CHANNEL MEMORY
A special one-touch “HOME” channel is available, to allow quick recall of a favorite oper-
ating frequency.
Home Channel storage is simple to accomplish:
1. Change the setting of Set Mode Item 33: REVREV
REVREV
REV/HMHM
HMHM
HM from “REVREV
REVREV
REV” to “HOMEHOME
HOMEHOME
HOME,” if it is
not already set to this option (see page 77).
2. Select the desired frequency, while operating in the VFO mode. Be sure to set up any
desired CTCSS or DCS tones, as well as any desired repeater offset. The power level
may also be set at this time, if you wish to store it.
3. Press and hold in the [MR/MW(SKIP)] key for one second.
4. While the memory channel number is blinking, just press the [REV(HOME)] key. The
frequency and other data (if any) will now be stored in the spe-
cial HOME channel register.
5. To recall the HOME channel, press the [REV(HOME)] key mo-
mentarily while operating either in the VFO or MR mode.
MEMORY STORAGE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 31
MEMORY MODE
LABELING MEMORIES
You may wish to append an alpha-numeric “Tag” (label) to a memory or memories, to aid in
recollection of the channel’s use (such as a club name, etc.). This is easily accomplished
using the Set Mode.
1. Recall the memory channel on which you wish to append a label.
2. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
3. Rotate the DIAL knob to select Set Mode Item 29: NM WRTNM WRT
NM WRTNM WRT
NM WRT.
4. Press the [F/L] key momentarily to display the previously
stored label (if any).
5. Press the [F/L] key again to clear any previous label.
6. Rotate the DIAL knob to select the first digit of the desired
label.
7. Press the [F/L] key to move to the next character.
8. If you make a mistake, press the [(MHz)] key to back-
space the cursor, then re-enter the correct letter, number, or
symbol.
9. Repeat steps 5 through 7 to program the remaining letters,
numbers, or symbols of the desired label. A total of six characters
may be used in the creation of a label.
10. When you have programmed a label which is under 6 characters,
press and hold in the [F/L] key for one second to confirm the label (if the label is exactly 6
characters in length, you do not need to press and hold in [F/L] key).
11. When you have completed the creation of the label, press the
PTT switch to save the label and return to the memory recall
mode with labeled (alpha-numeric “Tag”) display.
To disable the alpha-numeric Tag (and enable the frequency display):
1. Set the FT-270R to the “MR” (Memory Recall) mode, and recall the memory channel
on which you wish to disable the alpha-numeric Tag.
2. Press the [F/L] key, then press the [6(A/N)] key to activate the alpha-numeric Tag.
3. Rotate the DIAL knob to set this to “FREQFREQ
FREQFREQ
FREQ” (enabling the fre-
quency display).
4. To display the alpha-numeric Tag again, just repeat the above
procedure.
5. When you have made your selection, press the PTT switch to save the setting and exit
to normal operation.
To display the alpha-numeric Tag again, just repeat the above procedure, rotating the DIAL
knob to select “ALPHAALPHA
ALPHAALPHA
ALPHA” in step 3 above.
This procedure is not applied to all memory channels at once (just the chan-
nel on which you currently are operating).
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL32

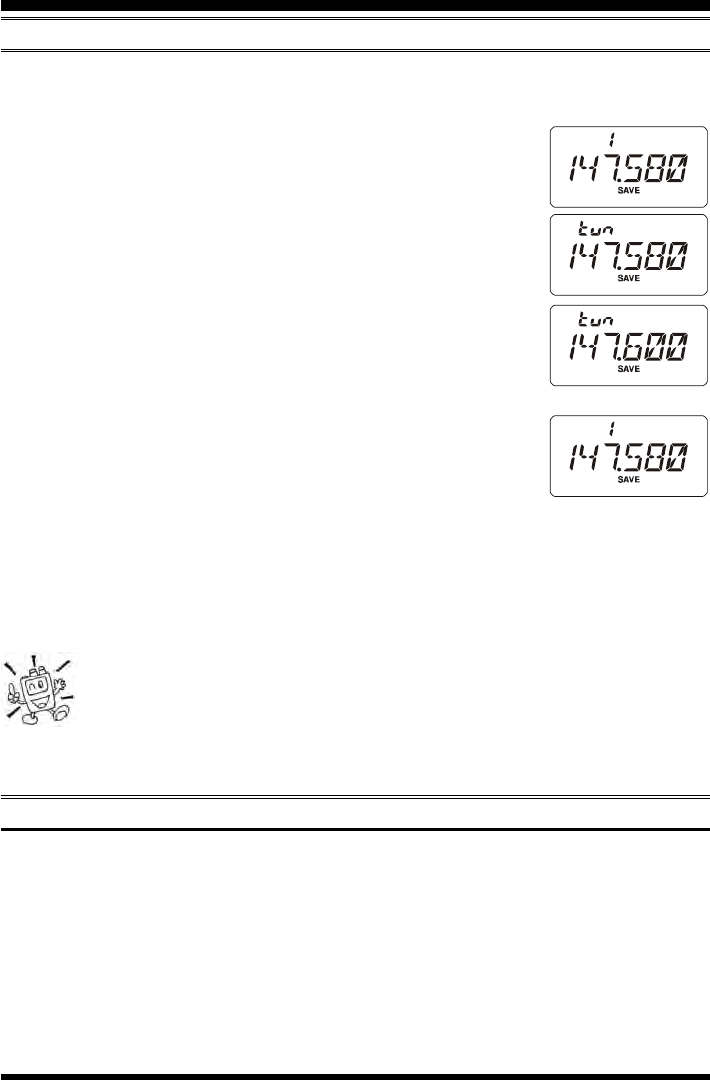

MEMORY OFFSET TUNING
Once you have recalled a particular memory channel, you may easily tune off that channel,
as though you were in the “VFO” mode.
1. With the FT-270R in the “MR” (Memory Recall) mode, select
the desired memory channel.
2. Press the [MR/MW(SKIP)] key momentarily to activate the
“Memory Tuning” feature. The Memory Channel number will be
replaced by “tuntun
tuntun
tun.” And if you have an alpha-numeric Tag dis-
played on the memory channel, the display will automatically
revert to display of the operating frequency, so you can navi-
gate without having to enter the Menu to change the display
configuration.
3. Rotate the DIAL knob, as desired, to tune to a new frequency.
The synthesizer steps selected for VFO operation on the current
band will be the steps used during Memory Tuning.
4. If you wish to return to the original memory frequency, just press
the [MR(SKIP)] key momentarily. The display will revert to dis-
play of the alpha-numeric Tag (if any) that may have originally
appeared on the LCD.
5. If you wish to store a new frequency set during Memory Tuning, just press and hold
in the [F/L] key for one second, per normal memory storage procedure. The micropro-
cessor will automatically set itself to the next-available clear memory location, and you
then press [F/L] again to lock in the new frequency.
1) If you want to replace the original memory contents with those of the new
frequency, be sure to rotate the DIAL knob to the original memory channel
number!
2) Any required CTCSS/DCS changes, or repeater offset modifications, must be done
before storing the data into the new (or original) memory channel location.
DELETING MEMORIES
You may delete any of the memories (except for Memory Channel “1” and the Home Chan-
nel). The procedure for deleting a channel is quite simple.
1. Press the [VFO(PRI)] key, if needed, to enter the MR mode.
2. Press and hold in the [MR/MW(SKIP)] key for one second, then rotate the DIAL knob
to select the memory channel to be deleted.
3. Press the [F/L] key momentarily. The display will revert to memory channel #1. The
previously-selected memory will be deleted.
Important Notice! Once deleted, the channel data cannot be recovered!
MEMORY MODE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 33
MEMORY MODE

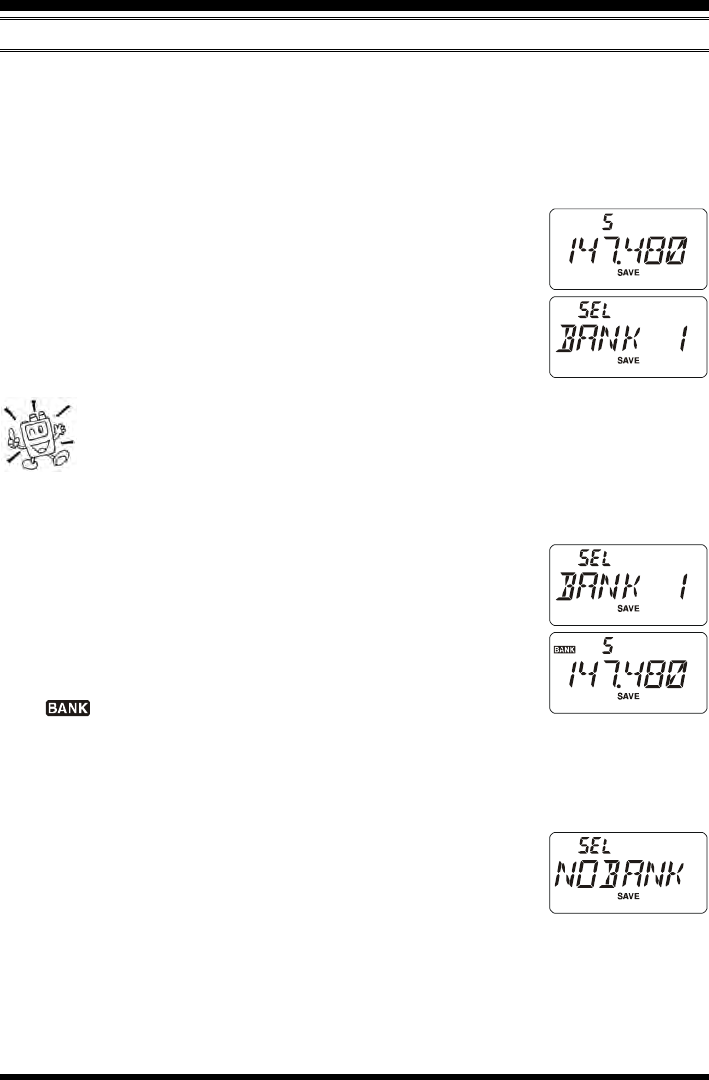

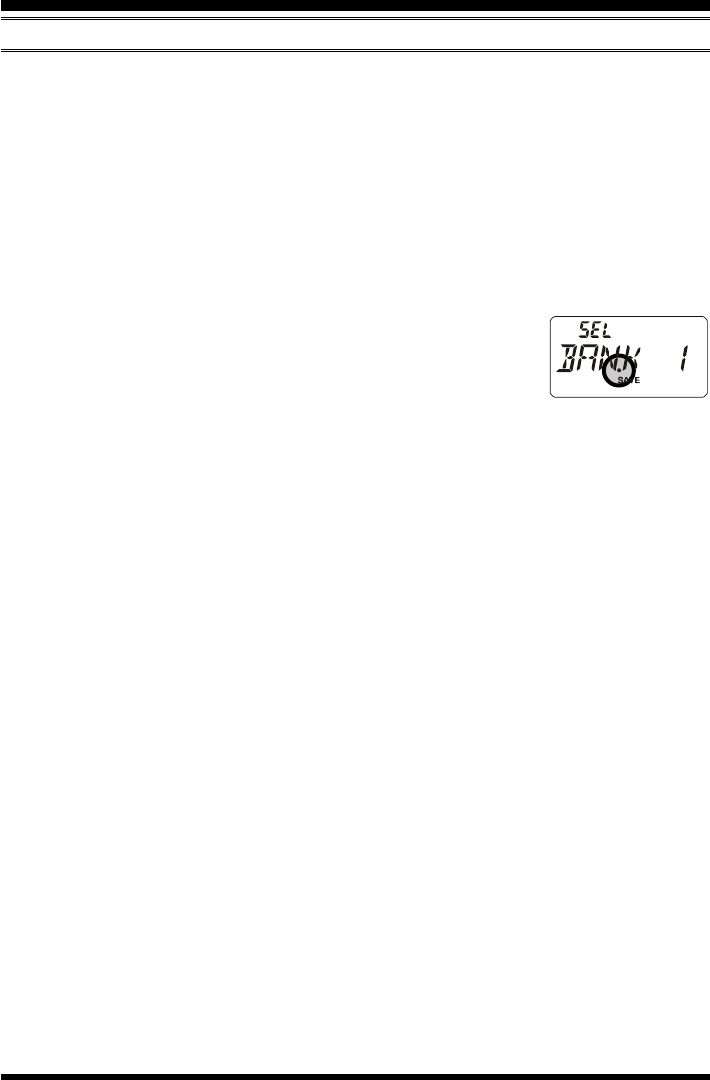

MEMORY BANK OPERATION
The large number of memories available in the FT-270R could be difficult to utilize without
some means of organizing them. Fortunately, the FT-270R includes provision for dividing
the memories into as many as ten Memory Groups, so you can categorize the memories in
a manner convenient to you.
Assigning Memories to a Memory Bank
1. Recall the memory channel to be assigned to a Memory Bank.
2. Press and hold in the [VFO(PRI)] key for one second, then ro-
tate the DIAL knob to select the Memory Bank number you want
as the Memory Bank for this channel (“BANK 1BANK 1
BANK 1BANK 1
BANK 1” ~
“BANK10BANK10
BANK10BANK10
BANK10”).
3. Press and hold in the [F/L] key for one second to copy the
memory channel data into the Memory Bank.
1) You may assign one memory channel into multiple Memory Banks.
2) The PMS memory channels (L1/U1 through L10/U10) may not be as-
signed to a Memory Bank.
Memory Bank Recall
1. Press the [MR/MW(SKIP)] key, if needed, to enter the Memory Recall mode.
2. Press and hold in the [VFO(PRI)] key, then rotate the DIAL
knob to select the desired Memory Bank (“BANK 1BANK 1
BANK 1BANK 1
BANK 1” through
“BANK10BANK10
BANK10BANK10
BANK10”).
3. Press the [MR/MW(SKIP)] key momentarily; now, as you rotate
the DIAL knob to select memories, you will observe that you can
only select memory channels in the current memory bank. The
“” indication will appear at the left side of the frequency
display while operating within a Memory Bank.
4. To change to another Memory Bank, press and hold in the [VFO(PRI)] key, rotate the
DIAL knob to select the new Memory Bank, then press the [MR/MW(SKIP)] key momen-
tarily.
5. To exit from Memory Bank operation, select “NOBANKNOBANK
NOBANKNOBANK
NOBANK” in
step 4 above. You are now in the “standard” Memory Recall
mode, without utilization of the Memory Banks. The memories
stored in the various Banks will remain in those banks, however;
you do not need to store them again.
Removing Memories from a Memory Bank
1. Recall the memory channel to be removed from a Memory Bank.
2. Press and hold in the [VFO(PRI)] key for one second, then press and hold in the [F/L]
key to remove the memory channel data from the Memory Bank.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL34
MOVING MEMORY DATA TO THE VFO
Data stored on memory channels can easily be moved to the last selected VFO, if you like.
1. Select the memory channel containing the frequency data to be moved to the VFO.
2. Press the [MR/MW(SKIP)] key momentarily to activate the “Memory Tune” feature
temporarily, then press and hold in the [VFO(PRI)] key for one second. The data will
now have been copied to the last selected VFO, although the original memory contents
will remain intact on the previously-stored channel.
If a Split Frequency Memory channel was transferred, the TX frequency will be ignored
(you will be set up for Simplex operation on the Receive frequency).

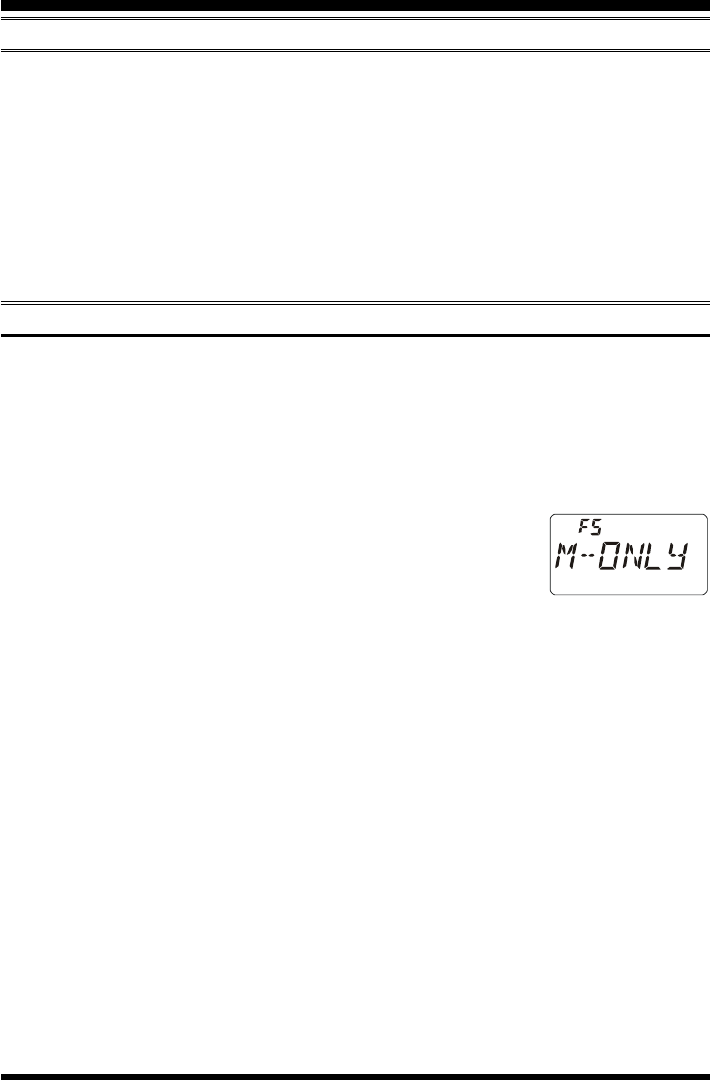

MEMORY ONLY MODE
Once memory channel programming has been completed, you may place the radio in a
“Memory Only” mode, whereby VFO operation is impossible. This may be particularly
useful during public-service events, where a number of operators may be using the radio
for first time, and ultimate simplicity of channel selection is desired.
To place the radio into the Memory Only mode:
1. Turn the radio off.
2. Press and hold in the MONI switch (just below the PTT switch)
while turning the radio on.
3. Rotate the DIAL knob to select the “F5 M-ONLYF5 M-ONLY
F5 M-ONLYF5 M-ONLY
F5 M-ONLY” option, then
press the [F/L] key.
To return to normal operation, repeat the above power-on procedure.
MEMORY MODE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 35
MEMORY MODE
WEATHER BROADCAST CHANNELS
The VHF Weather Broadcast Station Memory Channel Bank has been pre-programmed at
the factory, for quick selection of NOAA weather information stations.
1. Press and hold in the [1(SQ TYP)] key for one second to recall
the Weather Broadcast Memory Bank.
2. Rotate the DIAL knob to select the desired Weather Broadcast
channel.
3. If you wish to scan this bank to search for louder
stations, just press the PTT switch. When the
scanner pauses on a station, press the PTT switch
once to halt the scan, or press it twice to restart
the scan.
4. To exit to normal operation, press the [VFO(PRI)] key, or press and hold in the
[1(SQ TYP)] key again.
Severe Weather Alert
In the event of extreme weather disturbances, such as severe thunderstorms and hurri-
canes, the NOAA (National Oceanic and Atmospheric Administration) sends a weather
alert accompanied by a 1050 Hz tone and subsequent weather report on one of the NOAA
weather channels. See page 45 for details regarding activation of this mode.
CH
01
02
03
04
05
CH
06
07
08
09
10
FREQUENCY
162.550 MHz
162.400 MHz
162.475 MHz
162.425 MHz
162.450 MHz
FREQUENCY
162.500 MHz
162.525 MHz
161.650 MHz
161.775 MHz
163.275 MHz
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL36

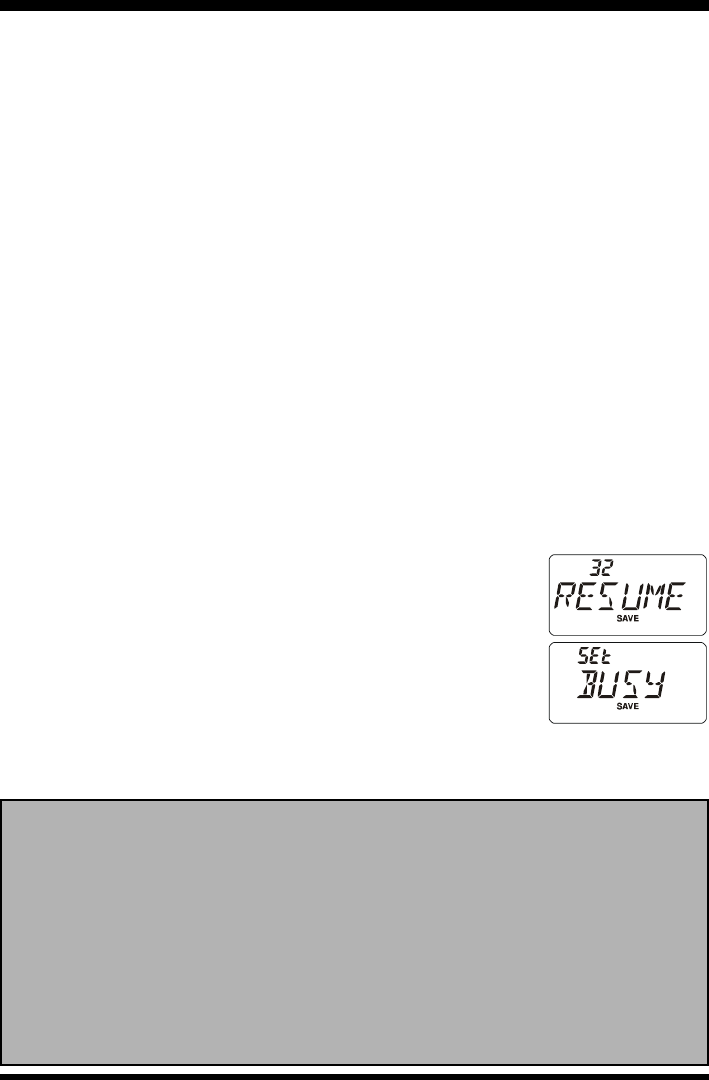

The FT-270R allows you to scan just the memory channels, the entire operating band, or a
portion of that band. It will halt on signals encountered, so you can talk to the station(s) on
that frequency, if you like.
Scanning operation is basically the same in each of the above modes. Before you begin,
take a moment to select the way in which you would like the scanner to resume scanning
after it halts on a signal.
Setting the Scan-Resume Technique
Three options for the Scan-Resume mode are available:
BUSYBUSY
BUSYBUSY
BUSY: In this mode, the scanner will halt on a signal it encounters. Two seconds after the
carrier has dropped because the other station(s) ceased transmission, the scanner
will resume. In the case of constant-carrier signals like Weather Station broad-
casts, the scanner will likely remain on this frequency indefinitely.
HOLDHOLD
HOLDHOLD
HOLD: In this mode, the scanner will halt on a signal it encounters. It will not restart
automatically; you must manually re-initiate scanning if you wish to resume.
TIMETIME
TIMETIME
TIME: In this mode, the scanner will halt on a signal it encounters, and will hold there for
five seconds. If you do not take action to disable the scanner within that time
period, the scanner will resume even if the stations are still active.
To set the Scan-Resume mode:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 32: RESUMERESUME
RESUMERESUME
RESUME.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select the desired scan-resume mode.
5. When you have made your selection, press the PTT switch to
save the new setting and exit to normal operation.
The default condition for this Set Mode Item is “BUSY.”
SCANNING
SETTING THE SQUELCH LEVEL DURING ACTIVE SCANNING OPERATION
The FT-270R allows adjustment of the Squelch level “on the fly” while you are scanning.
1. While the scanner is engaged, press the [F/L] key, then press the MONI switch
(the current squelch level (e.g. “S 1S 1
S 1S 1
S 1”) will appear in fine print above the frequency
display).
2. Rotate the DIAL to select the desired Squelch level.
3. Press the PTT switch momentarily to save the new setting and exit to normal
operation. In this case, pressing the PTT switch this one time will not causing
scanning to stop.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 37
SCANNING

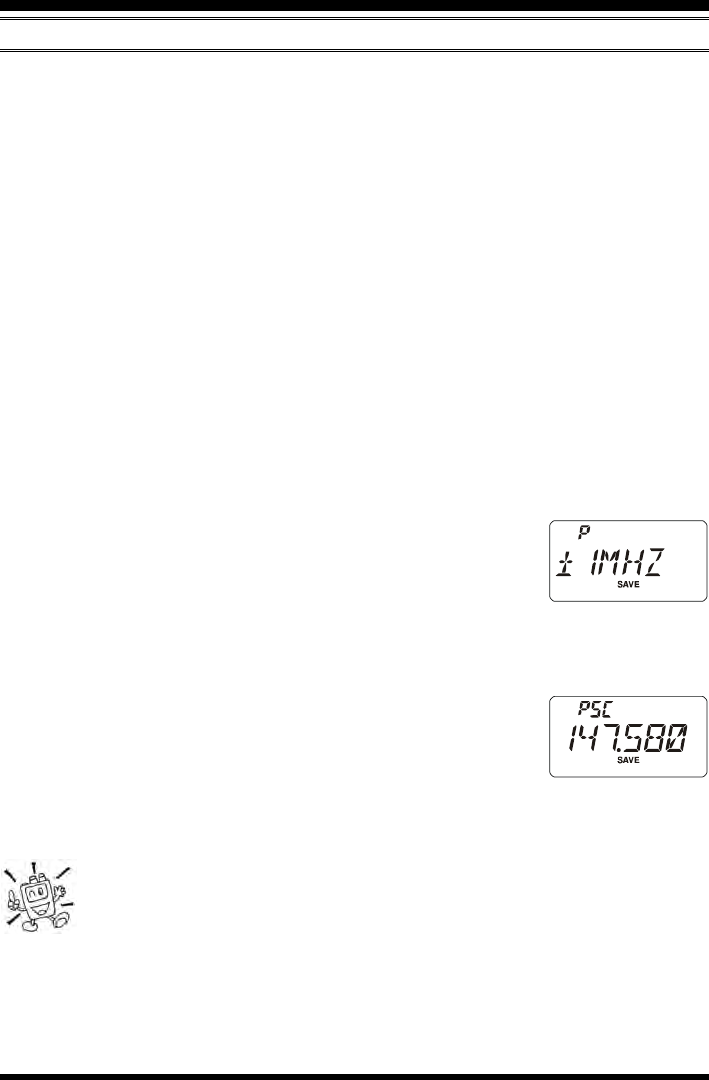

VFO SCANNING
The FT-270R provides two VFO scanning functions: “Manual VFO Scanning” and “Pro-
grammed VFO Scanning.”
Manual VFO Scan
1. Select the VFO mode by pressing the [VFO(PRI)] key, if necessary.
2. Press and hold in either the [(MHz)] or [(MHz)] key for one second to initiate
upward or downward scanning, respectively.
3. If and when the scanner encounters a signal strong enough to open the squelch, the
scanner will halt temporarily; the decimal point of the frequency display will blink
during this “Pause” condition.
4. The scanner will then resume according to the Scan-Resume mode selected in the
previous section.
5. To cancel scanning, press the PTT switch or [VFO(PRI)] key.
Programmed VFO Scan
1. Select the VFO mode by pressing the [VFO(PRI)] key, if necessary.
2. Press and hold in the [VFO(PRI)] key for one second, then rotate the DIAL knob to
select the bandwidth for the Programmed VFO scanner. Available selections are ±1
MHz, ±2 MHz, ±5 MHz, PMS-x, and ALL.
PMS-xPMS-x
PMS-xPMS-x
PMS-x: The scanner will sweep frequencies within the currently-
selected PMS frequency pair. See page 41 for details.
ALLALL
ALLALL
ALL: The scanner will sweep all frequencies.
3. Press the [VFO(PRI)] key momentarily to save the new setting and exit to normal
operation.
4. Press and hold in the [6(A/N)] key for one second to start scanning.
5. If and when the scanner encounters a signal strong enough to
open the squelch, the scanner will halt temporarily; the decimal
point of the frequency display will blink during this “Pause” condi-
tion.
6. The scanner will then resume according to the Scan-Resume mode selected in the
previous section.
7. To cancel scanning, press the PTT switch or the [VFO(PRI)] key.
When you start the Programmed VFO Scanner, the FT-270R will be chang-
ing frequency in the upward direction. If you want to change direction of the
scan while it is underway, rotate the DIAL knob one click in the opposite direction (in
this case, one click counter-clockwise). You’ll see the scanner turn around and change
frequency downward!
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL38
MEMORY SCANNING
Memory scanning is similarly easy to initiate:
1. Select the Memory mode by pressing the [MR/MW(SKIP)] key, if necessary.
2. Press and hold in either the [(MHz)] or [(MHz)] key for one second to initiate
upward or downward scanning, respectively.
3. If and when the scanner encounters a signal strong enough to open the squelch, the
scanner will halt temporarily; the decimal point of the frequency display will blink
during this “Pause” condition.
4. The scanner will then resume according to the Scan-Resume mode selected in the
previous section.
5. To cancel scanning, press the PTT switch or [MR(SKIP)] key.

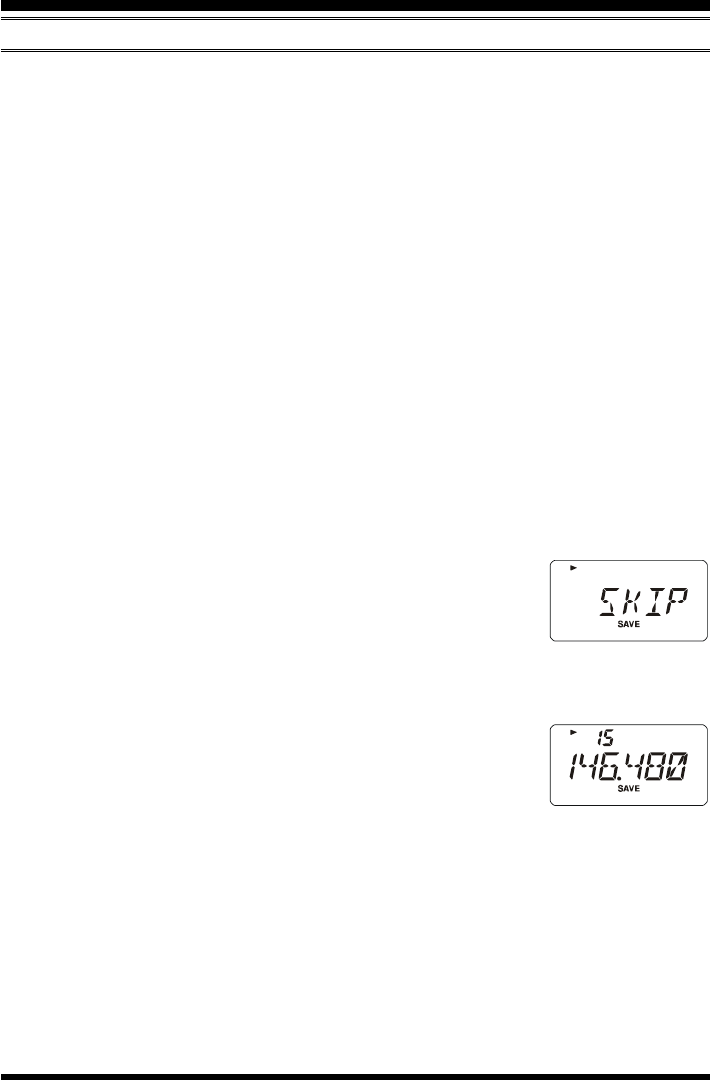

How to Skip (Omit) a Channel during Memory Scan Operation
As mentioned previously, some continuous-carrier stations like a Weather Broadcast sta-
tion will seriously impede scanner operation if you are using the “Carrier Drop” Scan-
Resume mode, as the incoming signal will not pause long enough for the transceiver to
resume scanning. Such channels may be “Skipped” during scanning, if you like:
1. Recall the Memory Channel to be skipped during scanning.
2. Press the [F/L] key, then press the [MR/MW(SKIP)] key to enter the “Skip” channel-
selection mode.
3. Rotate the DIAL knob so as to select “SKIPSKIP
SKIPSKIP
SKIP.” The current Memory
Channel will now be ignored during scanning. The “ONLYONLY
ONLYONLY
ONLY” se-
lection is used for “Preferential Memory Scan,” described in the
next section.
4. When you have made your selection, press the PTT switch to save the setting and exit
to normal operation.
When you recall the “skipped” memory channel manually, a small
“” icon will appear at the left of the memory channel number, indi-
cating it is to be ignored during scanning.
To re-institute a channel into the scanning loop, select “OFFOFF
OFFOFF
OFF” in step 3 above (the “Skipped”
channel will, of course, still be accessible via manual channel selection methods using the
DIAL knob in the MR mode, whether or not it is locked out of the scanning loop).
SCANNING
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 39
SCANNING

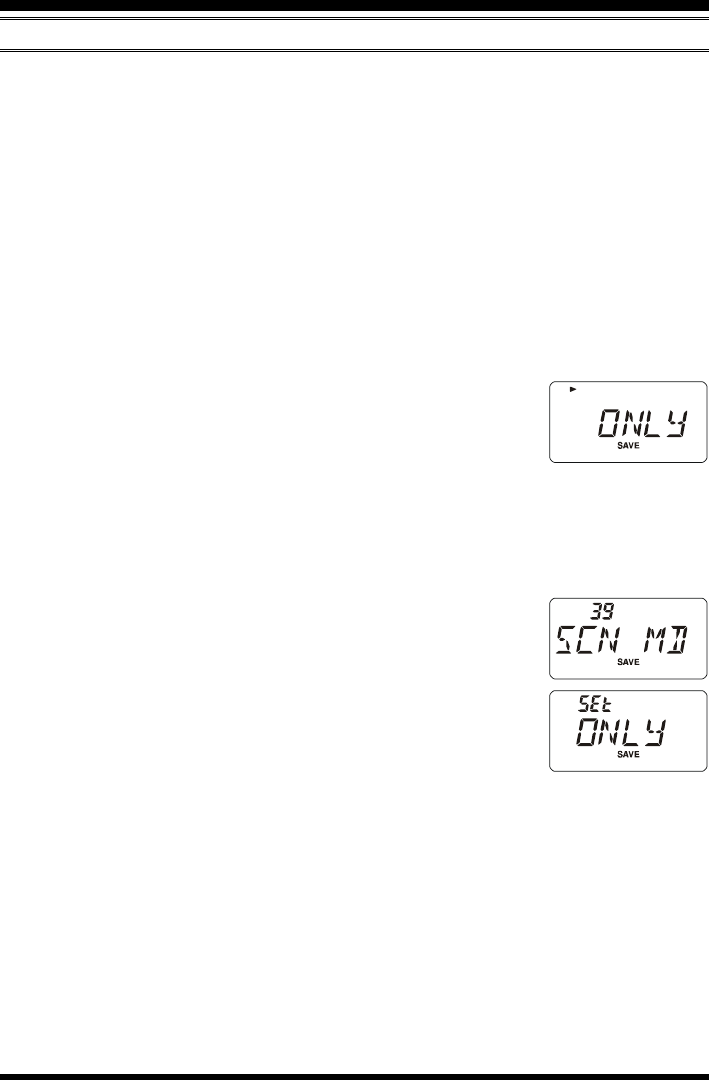

Preferential Memory Scan
The FT-270R also allows you to set up a “Preferential Scan List” of channels which you
can “flag” within the memory system. These channels are designated by a blinking “”
icon when you have selected them, one by one, for the Preferential Scan List.
When you initiate memory scanning, beginning on a channel with the blinking “” icon
appended, only those channels bearing the blinking “u” icon will be scanned. If you ini-
tiate scanning on a channel which does not have the blinking “” icon appended, you will
scan all channels including those with the blinking “” icon appended.
Here is the procedure for setting up and using the Preferential Scan List:
1. Recall the Memory Channel which you wish to add to the Preferential Scan List.
2. Press the [F/L] key, then press the [MR/MW(SKIP)] key to enter the “Skip” channel-
selection mode.
3. Rotate the DIAL knob so as to select “ONLYONLY
ONLYONLY
ONLY.”
4. When you have made your selection, press the PTT switch to
save the setting and exit to normal operation.
5. To remove a channel from the Preferential Scan List, just repeat the above procedure,
rotating the DIAL knob to select “OFFOFF
OFFOFF
OFF” in step 3 above.
To initiate Preferential Memory Scan:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 39: SCN MDSCN MD
SCN MDSCN MD
SCN MD.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob so as to select “ONLYONLY
ONLYONLY
ONLY.”
5. Press the PTT switch to save the setting and exit to normal
operation.
6. Now, press and hold in either the [(MHz)] or [(MHz)] key
for one second to initiate the Preferential Memory Scan. Only the channels which have
the blinking “” icon appended to the channel number will be scanned.
7. To cancel the Preferential Memory Scan, just repeat the above procedure, rotating the
DIAL knob to select “MEMMEM
MEMMEM
MEM” in step 4 above
MEMORY SCANNING
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL40
Memory Bank Scan
When the Memory Bank feature is engaged, the scanner sweeps only memory channels in
the current Memory Bank. However, if the Memory Bank Link Scan feature is enabled,
you may sweep the memory channels in several Memory Banks which you have selected.
To enable the Memory Bank Link Scan feature:
1. Set the radio to the Memory mode by pressing the [MR/MW(SKIP)] key, if necessary.
2. Press and hold in the [VFO(PRI)] key for one second, then rotate the DIAL knob to
select the first Memory Bank (“BANK 1BANK 1
BANK 1BANK 1
BANK 1” ~ “BANK10BANK10
BANK10BANK10
BANK10”) you wish to sweep using
Memory Bank Link Scan.
3. Press the [F/L] key momentarily. The current Memory Bank will
now be swept during Memory Bank Scan. A “decimal point”
will be appended between the “NN
NN
N” and “KK
KK
K” of the Memory Bank
number indication (such as BAN.K 2BAN.K 2
BAN.K 2BAN.K 2
BAN.K 2).
4. Repeat steps 2 and 3 above, to append the “decimal point” to any other Memory Banks
you wish to sweep.
5. Now, press and hold in the [6(A/N)] key for one second to initiate the Memory Bank
Link Scan.
6. To remove a Memory Bank from the Memory Bank Link Scan, repeat steps 2 and 3
above, to delete the “decimal point” from the Memory Bank number indication.
SCANNING
MEMORY SCANNING
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 41
SCANNING
PROGRAMMABLE (BAND LIMIT) MEMORY SCAN (PMS)
This feature allows you to set sub-band limits for either scanning or manual VFO operation.
For example, you might wish to set up a limit (in North America) of 144.300 MHz to 148.000
MHz so as to prevent encroachment into the SSB/CW “Weak Signal” portion of the band
below 144.300 MHz. Here’s how to do this:
1. Set the radio to the VFO mode by pressing the [VFO(PRI)] key, if necessary.
2. Using the techniques learned earlier, store (per the above concept) 144.300 MHz into
Memory Channel #L1 (the “L” designates the Lower sub-band limit).
3. Likewise, store 148.000 MHz into Memory Channel #U1 (the “U” designates the
Upper sub-band limit).
4. Confirm the radio is in the VFO mode, press and hold in the [VFO(PRI)] key for one
second, and rotate the DIAL knob to select the desired PMS frequency pair (PMSxxPMSxx
PMSxxPMSxx
PMSxx),
then press the [VFO(PRI)] key.
5. Now, press and hold in the [MR/MW(SKIP)] key for one second to initiate Program-
mable (Band Limit) Memory Scan. Scanning will now be limited within the just-pro-
grammed range.
6. 10 pairs of Band Limit memories, labeled L1/U1 through L10/U10 are available. You
therefore can set upper and lower operation limits in multiple segments on the band, if
you like.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL42

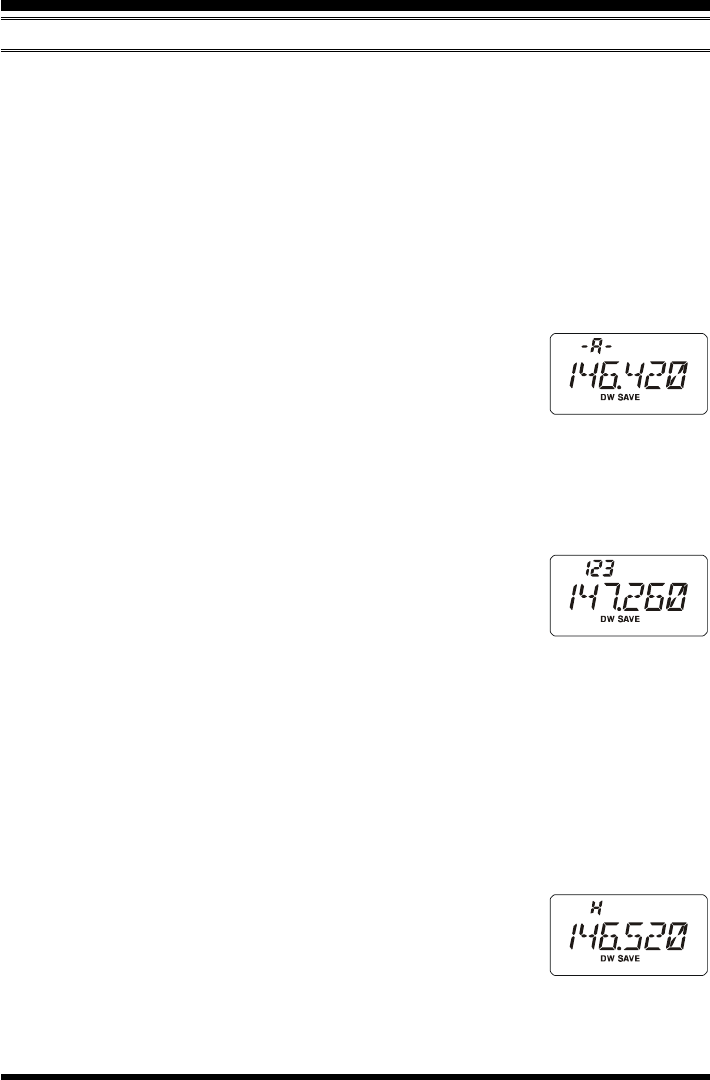

“PRIORITY CHANNEL” SCANNING (DUAL WATCH)
The FT-270R’s scanning features include a two-channel scanning capability which allows
you to operate on a VFO or Memory channel, while periodically checking a user-defined
Memory Channel for activity. If a station is received on the Memory Channel which is
strong enough to open the Squelch, the scanner will pause on that station in accordance
with the Scan-Resume mode set via Set Mode Item 32: RESUMERESUME
RESUMERESUME
RESUME. See page 36.
Here is the procedure for activating Priority Channel Dual Watch operation:
VFO Priority
1. Recall the memory channel you wish to use as the “Priority” frequency.
2. Now, set the radio to the VFO mode by pressing the [VFO(PRI)] key.
3. Press the [F/L] key, then press the [VFO(PRI)] key to activate
the VFO Priority mode. The display will remain on the VFO fre-
quency, but every five seconds the radio will check the Priority
Channel (memory channel) for activity.
4. Press [F/L] [VFO(PRI)] again to disable the VFO Priority mode.
Memory Channel Priority
1. Store the frequency you wish to be the “Priority” Channel into memory channel “1.”
2. Now, set the radio for operation on another memory channel.
3. Press the [F/L] key, then press the [VFO(PRI)] key to activate
the Memory Priority mode. The display will remain on the cur-
rent memory channel frequency, but every five seconds the ra-
dio will check the Priority Channel (memory channel “1”) for
activity.
4. Press [F/L] [VFO(PRI)] again to disable the Memory Priority mode.
When the Memory Bank feature is activated, the FT-270R will check the lowest num-
bered memory channel in the current Memory Bank as the Priority Channel.
HOME Channel Priority
1. Recall the memory channel you wish to use as the “Priority” frequency.
2. Now set the radio for operation on the HOME channel by pressing the [F/L] key
followed by [REV(HOME)].
3. Press the [F/L] key, then press the [VFO(PRI)] key to activate
the HOME Priority mode. The display will remain on the HOME
channel frequency, but every five seconds the radio will check
the Priority Channel (memory channel) for activity.
4. Press [F/L] [VFO(PRI)] again to disable the HOME Priority mode.
SCANNING
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 43

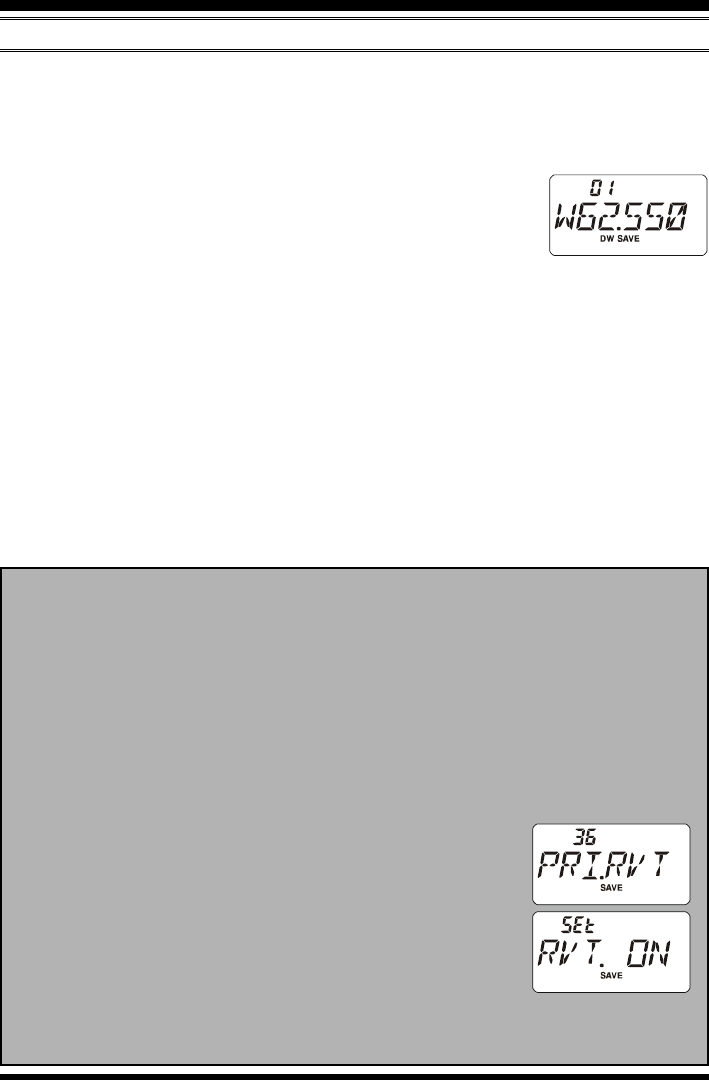

WX Channel Priority
1. Recall the memory channel you wish to use as the “Priority” frequency.
2. Now, set the radio for operation on a WX channel by pressing and holding in the
[1(SQ TYP)] key for one second.
3. Press the [F/L] key, then press the [VFO(PRI)] key to activate
the WX Priority mode. The display will remain on the WX chan-
nel frequency, but every five seconds the radio will check the
Priority Channel (memory channel) for activity.
4. Press [F/L] [VFO(PRI)] again to disable the WX Priority mode.
VFO-VFO Dual Watch
1. Press the [VFO(PRI)] key to switch the VFO mode, if needed.
2. Press the [F/L] key, then press and hold in the [VFO(PRI)] key for one second. The
FT-270R will now periodically change from VFO-A frequency to the VFO-B frequency,
checking for activity on each VFO for 0.2 second interval.
3. Press the [VFO(PRI)] key to disable the VFO-VFO Dual Watch.
SCANNING
“PRIORITY CHANNEL” SCANNING (DUAL WATCH)
Priority Revert Mode
During Priority channel operation (Dual Watch), a special feature is available which
will allow you to move to the Priority channel instantly, without waiting for activity to
appear on the Priority channel.
When this feature is enabled, and Priority monitoring is engaged, just press the PTT
switch; operation will instantly revert to the Priority channel.
To enable the Priority Revert operation:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 36: PRI.RVTPRI.RVT
PRI.RVTPRI.RVT
PRI.RVT.
3. Press the [F/L] key momentarily to enable adjustment of
this Set Mode Item.
4. Rotate the DIAL knob to set this Set Mode Item to “RVT.RVT.
RVT.RVT.
RVT.
ONON
ONON
ON.”
5. When you have made your selection, press the PTT switch
to save the setting and exit to normal operation.
6. To disable the Priority Revert operation, just repeat the above procedure, rotating
the DIAL knob to select “RVT.OFFRVT.OFF
RVT.OFFRVT.OFF
RVT.OFF” in step 4 above.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL44

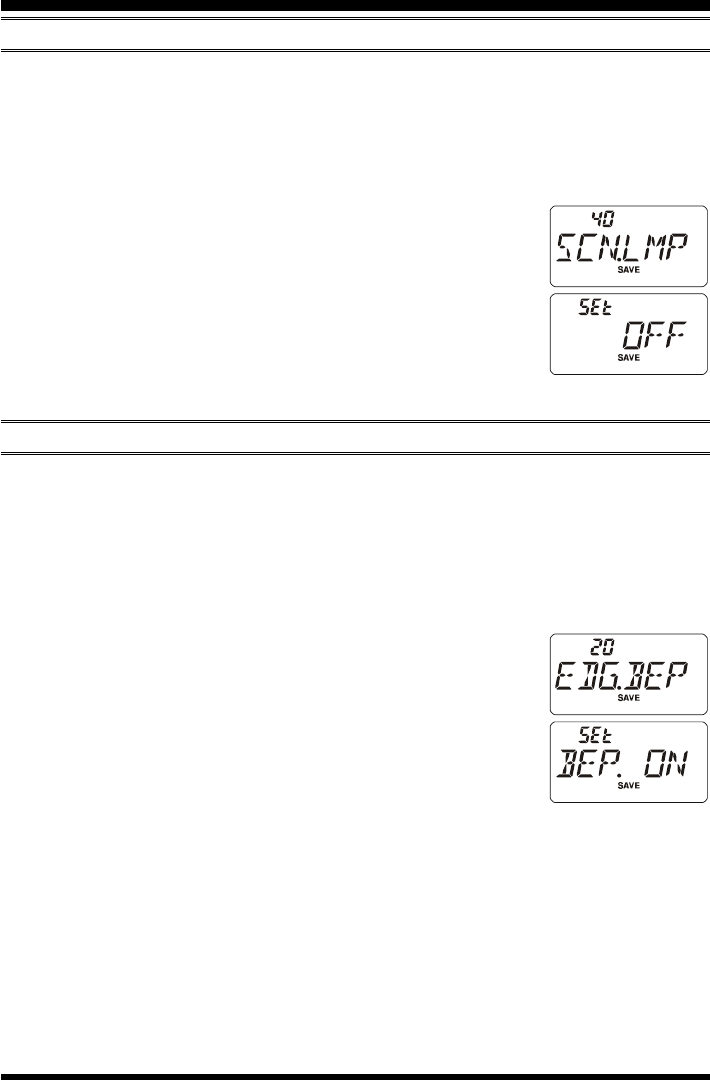

AUTOMATIC LAMP ILLUMINATION ON SCAN STOP
The FT-270R will automatically illuminate the LCD/Keypad Lamp whenever the scanner
stops on a signal; this allows you to see the frequency of the incoming signal better at night.
Note that this will, of course, increase the battery consumption, so be sure to switch it off
during the day (the default condition for this feature is “ON”).
The procedure for disabling the Scan Lamp is:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set
mode.
2. Rotate the DIAL knob to select Set Mode Item 40: SCN.LMPSCN.LMP
SCN.LMPSCN.LMP
SCN.LMP.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to set this Set Mode Item to “OFFOFF
OFFOFF
OFF.”
5. When you have made your selection, press the PTT switch to
save the setting and exit to normal operation.
BAND EDGE BEEPER
The FT-270R will automatically “beep” when a band edge is encountered during scanning
(either in standard VFO scanning or during PMS operation). You may also enable this
feature (band edge beeper) to operate when the frequency reaches the band edge while
tuning using the DIAL knob.
The procedure for enabling the Band-Edge Beeper is:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 20: EDG.BEPEDG.BEP
EDG.BEPEDG.BEP
EDG.BEP.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to set this Set Mode Item to “BEP. ONBEP. ON
BEP. ONBEP. ON
BEP. ON.”
5. When you have made your selection, press the PTT switch to
save the setting and exit to normal operation.
SCANNING
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 45

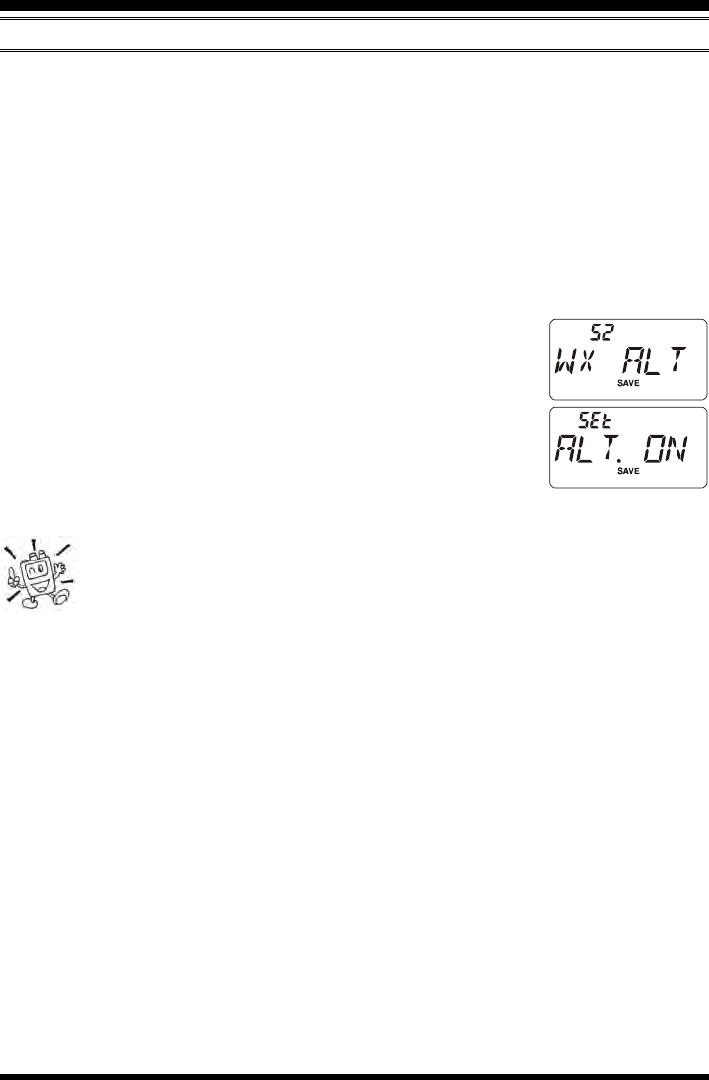

WEATHER ALERT SCAN
This feature allows you to check the Weather Broadcast Memory Channels for the pres-
ence of the NOAA Alert Tone while operating using VFO scan or Memory channel scan.
When the Weather Alert Scan feature is engaged, the FT-270R will check the Weather
Broadcast Memory Channels for activity every five seconds while scanning. If you watch
the display carefully, you’ll observe the scanner periodically shifting to the Weather Broad-
cast bank, scanning the Weather channels quickly in search of the Alert Tone, after which
regular scanning will resume for another five seconds.
To enable the Weather Alert Scan feature:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 52: WX ALTWX ALT
WX ALTWX ALT
WX ALT.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob so as to select “ALT. ONALT. ON
ALT. ONALT. ON
ALT. ON.”
5. When you have made your selection, press the PTT switch to
save the setting and exit to normal operation.
6. To disable the Weather Alert Scan feature, select “ALT.OFFALT.OFF
ALT.OFFALT.OFF
ALT.OFF” in
step 4 above.
1) When the Weather Alert Scan feature is engaged, the Scan-Resume mode
is fixed to “TIME.”
2) If you are just scanning the Weather Broadcast Channels, the FT-270R’s
receiver will remain muted indefinitely unless the Alert Tone is received. This yields a
long period of monitoring time, as no power will be consumed via audio output while
scanning for the Alert Tone is in progress.
SCANNING
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL46
The FT-270R includes an “Emergency” feature which may be useful if you have someone
monitoring on the same frequency as your transceiver’s “Home” channel. See page 30 for
details on setting up the Home channel.
The “Emergency” feature is activated by pressing and holding in the [4(RPT)] key for one
second. When this is done, (A) the radio is placed on the Home channel, (B) it emits a loud
“Alarm” sound (the volume is controlled by the VOL/PWR knob), (C) it flashes the LCD/
keypad lamp, (D) if you press the PTT switch, you will disable the Emergency feature
temporarily; you can then transmit on the Home channel, and (E) two seconds after the
PTT switch release, the Emergency feature will resume.
To disable the “Emergency” feature, press the [F/L] key momentarily or turn the radio off
by rotating the VOL/PWR knob fully counter-clockwise into the click-stop position.
Use this feature if you are out for a walk and want a quick way of alerting a family member
as to a dangerous situation. The alarm sound may discourage an attacker and allow you to
escape.
1) Be sure to arrange with a friend or family member to be monitoring on the
same frequency, as there will be no identification sent via the Emergency
alarm sound. And do not transmit the alarm tone except in a true emergency!
2) The “Emergency” feature may be changed to another function via Set Mode Item 21:
EMG S; see page 74 for details.
EMERGENCY CHANNEL OPERATION
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 47

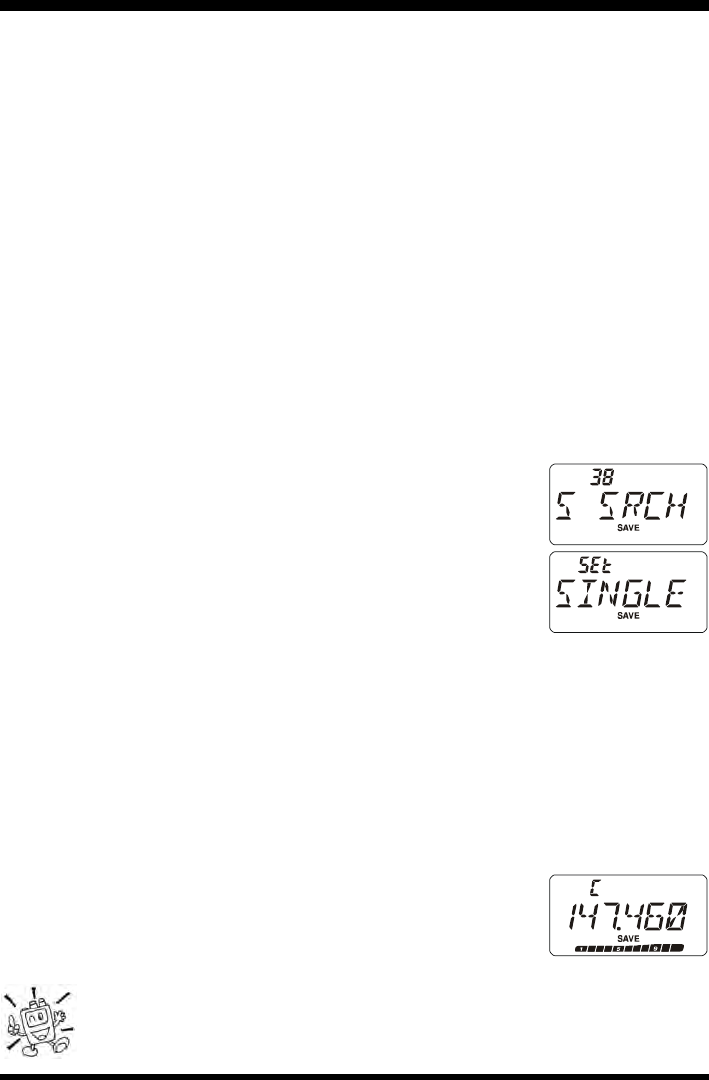

The Smart Search feature allows you to load frequencies automatically according to where
activity is encountered by your radio. When Smart Search is engaged, the transceiver will
search above and below your current frequency, storing active frequencies as it goes
(without stopping on them even momentarily); these frequencies are stored into a special
Smart Search memory bank, consisting of 31 memories (15 above the current frequency, 15
below the current frequency, plus the current frequency itself).
Two basic operating modes for Smart Search are available:
SINGLESINGLE
SINGLESINGLE
SINGLE: In this mode, the transceiver will sweep the current band once in each direction
starting on the current frequency. All channels where activity is present will be
loaded into the Smart Search memories; whether or not all 31 memories are
filled, the search will stop after one sweep in each direction.
CONTCONT
CONTCONT
CONT: In this mode, the transceiver will make one pass in each direction as with One-
Shot searching; if all 31 channels are not filled after the first sweep, however, the
radio will continue sweeping until they are all filled.
Setting the Smart Search Mode
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 38: S SRCHS SRCH
S SRCHS SRCH
S SRCH.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select the desired Smart Search mode
(see above).
5. When you have made your selection, press the PTT switch to
save the setting and exit to normal operation.
Storing Smart Search Memories
1. Set the radio to the VFO mode. Be sure that you have the Squelch adjusted properly
(so that band noise is quieted).
2. Press and hold in the [3(LOW)] key for one second to begin the Smart Search scanning.
3. As active channels are detected, you will observe the number of “loaded” channels
increasing in the regular memory channel window.
4. Depending on the mode you set for Smart Search operation (“SINGLESINGLE
SINGLESINGLE
SINGLE” or “CONTCONT
CONTCONT
CONT”),
the Smart Search scan will eventually terminate, and the LCD will revert to Smart
Search Memory Channel “CC
CC
C.”
5. To recall the Smart Search memories, rotate the DIAL knob to
choose from among the frequencies stored by Smart Search.
6. To return to normal operation, press the [VFO(PRI)] key.
Smart Search is a great tool when visiting a city for the first time. You don’t
need to spend hours looking up repeater frequencies from a reference guide-
book. . .just ask your FT-270R where the action is!
SMART SEARCH OPERATION
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL48

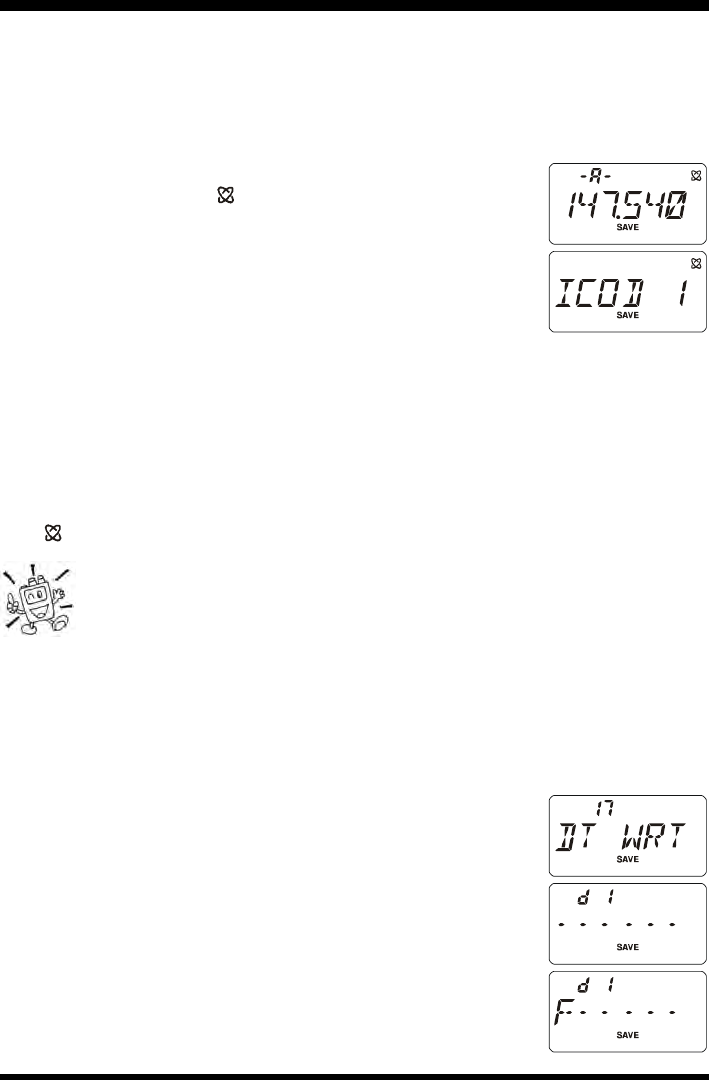

The FT-270R can be used to access a “node” (repeater or base station) which is tied into
the YaesuWiRES™ (Wide-Coverage Internet Repeater Enhancement System) network, op-
erating in the “SRG” (Sister Radio Group) mode. Details may be found at the WiRES-II Web
site: http://www.yaesu.com/jp/en/wiresinfo-en/index.html. This feature may also be used
to access other systems, as described below.
1. Press the [0(SET)] key momentarily to activate the Internet Con-
nection feature. The “ ” icon will appear in the upper right
corner of the display.
2. Press and hold in the [0(SET)] key for one second, then rotate
the DIAL knob to select the access number (ICODICOD
ICODICOD
ICOD “00
00
0” ~ “99
99
9,”
“AA
AA
A,” “BB
BB
B,” “CC
CC
C,” “DD
DD
D,” “E E
E E
E (),” “F F
F F
F (#),”) corresponding to the
WIRES™ node to which you wish to establish an Internet link
(ask the node or repeater owner/operator if you don’t know the access number in the
network). Now press the PTT switch to exit from the selection mode.
3. With the Internet Connection feature activated (as in step 1 above), the FT-270R will
generate a brief (0.1 second) DTMF tone according to your selection in step 2. This
DTMF tone is sent at the beginning of every transmission to establish or maintain the
link to the local WIRES™ node operating in the SRG mode.
4. To disable the Internet Connection feature, press the [0(SET)] key momentarily (the
“” icon will disappear from the display).
If other users report that you always have a DTMF “beep” at the beginning of
each transmission, and you are not operating in conjunction with Internet
access, disable this function via step (4) above.
You may access other Internet Link Systems (including WiRES™ in the “FRG” mode) that
use a DTMF string for access.
1. Load the DTMF tones which you wish to use for Internet-link access into a DTMF Autodial
memory register. For purposes of this example, we will use “#123” as the access code.
A. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
B. Rotate the DIAL knob to select Set Mode Item 17: DT WRTDT WRT
DT WRTDT WRT
DT WRT.
C. Press the [F/L] key to enable adjustment of this Set Mode Item.
D. Rotate the DIAL knob to select the DTMF Memory register
(“d1d1
d1d1
d1” ~ “d9d9
d9d9
d9”) into which you wish to store the access
code.
E. Press the [F/L] key momentarily. The first digit will blink.
F. Rotate the DIAL knob to select “FF
FF
F” (representing DTMF
“#”: the first digit of the DTMF string).
G. Press the [F/L] key momentarily to accept the first digit and
move to the second digit of the DTMF string.
INTERNET CONNECTION FEATURE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 49

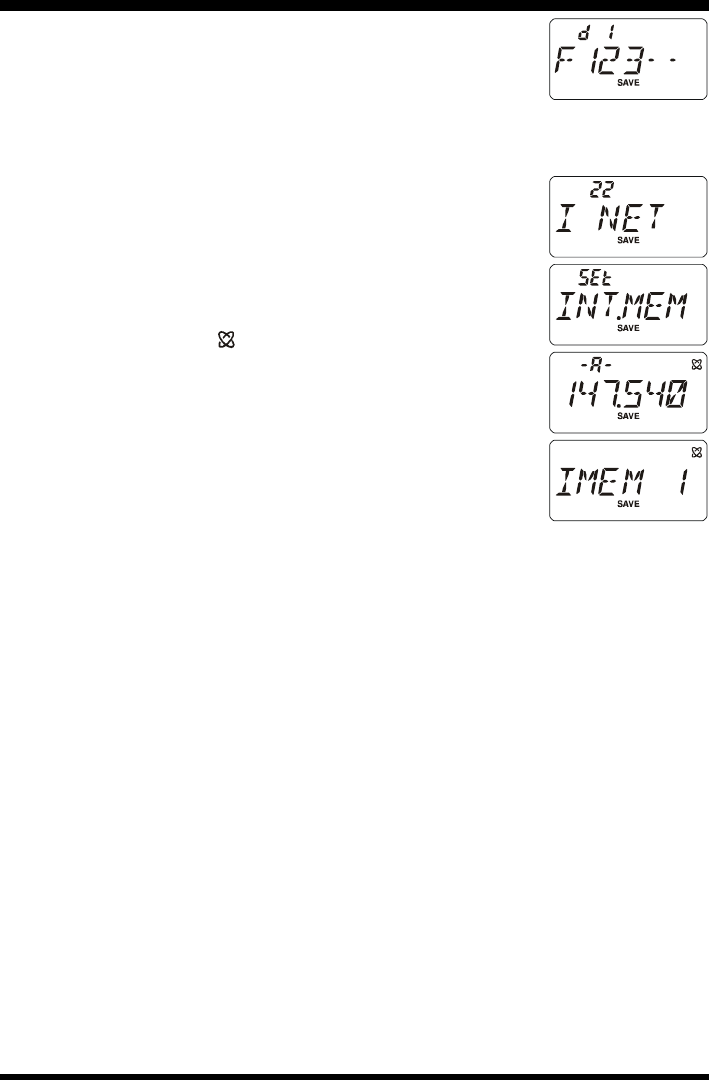

INTERNET CONNECTION FEATURE
H. Repeat the previous steps until you have completed the
access code (“#123”).
I. Press and hold in the [F/L] key for one second to save the
setting.
2. Press the PTT switch to exit to normal operation.
3. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode again.
4. Rotate the DIAL knob to select Set Mode Item 22: I NETI NET
I NETI NET
I NET.
5. Press the [F/L] key to enable adjustment of this Set Mode Item.
6. Rotate the DIAL knob to set this Set Mode Item to “INT.MEMINT.MEM
INT.MEMINT.MEM
INT.MEM”
(thus activating the “Other Internet Link System” mode).
7. Press the PTT switch to save the new settings.
8. Press the [0(SET)] key momentarily to activate the Internet Con-
nection feature. The “ ” icon will appear in the upper right
corner of the display.
9. Press and hold in the [0(SET)] key for one second, rotate the
DIAL knob to select the DTMF access number (“IMEM 1IMEM 1
IMEM 1IMEM 1
IMEM 1” ~
“IMEM 9IMEM 9
IMEM 9IMEM 9
IMEM 9”) corresponding to the Internet link repeater to which
you wish to establish an Internet link, then press the PTT switch
momentarily to lock in the selected access number.
10. Once the Internet Connection feature is activated per step 8
above, you may now press the [0(SET)] key, while you are transmitting, to send out
the selected DTMF string (to establish the link to the desired Internet-link mode).
To return to the WIRES™ mode, repeat steps 3 - 6 above, selecting “INT.CODINT.COD
INT.CODINT.COD
INT.COD” in step 6.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL50

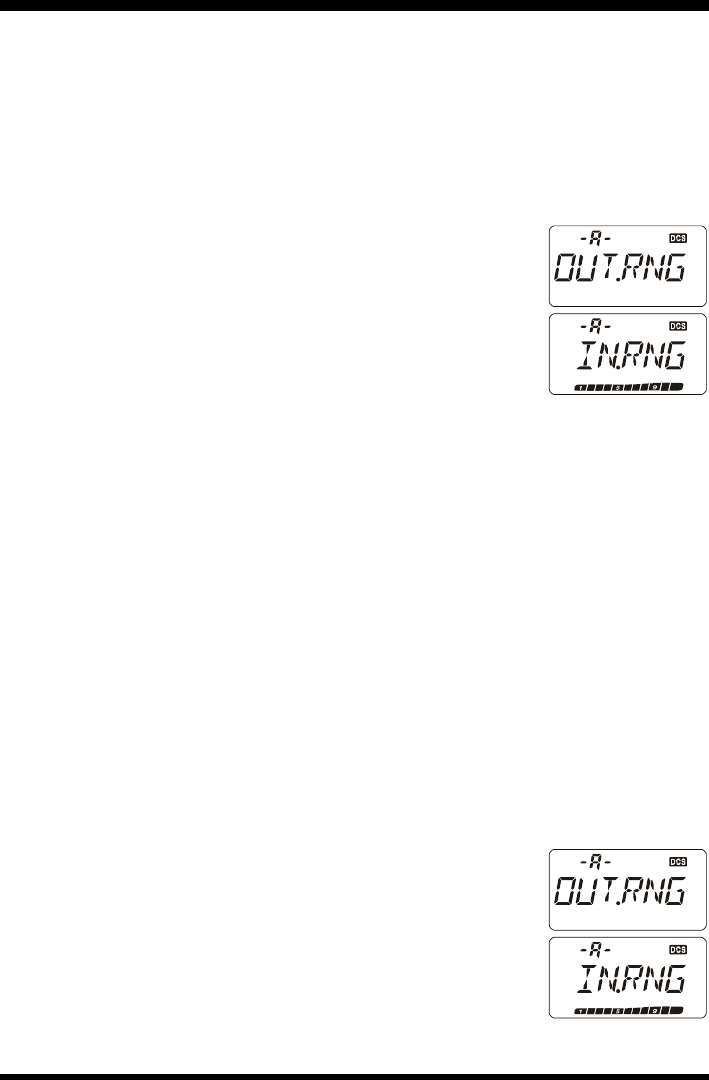

The ARTS™ feature uses DCS signaling to inform both parties when you and another
ARTS™-equipped station are within communications range. This may be particularly use-
ful during Search-and Rescue situations, where is important to stay in contact with other
members of your group.
Both stations must set up their DCS codes to the same code number, then activate their
ARTS™ feature using the command appropriate for their radio. Alert ringers may be acti-
vated, if desired.
Whenever you push the PTT switch, or every 25 (or 15) seconds
after ARTS™ is activated, your radio will transmit a signal which
includes a (subaudible) DCS signal for about 1 second. If the other
radio is in range, the beeper will sound (if enabled) and the display
will show “IN.RNGIN.RNG
IN.RNGIN.RNG
IN.RNG” as opposed to the out of range display
“OUT.RNGOUT.RNG
OUT.RNGOUT.RNG
OUT.RNG” in which ARTS™ operation begins.
Whether you talk or not, the polling every 15 or 25 seconds will
continue until you de-activate ARTS™. Every 10 minutes, moreover, you can have your
radio transmit your callsign via CW, so as to comply with identification requirements.
When ARTS™ is de-activated, DCS will also be deactivated (if you were not using it
previously in non-ARTS™ operation).
If you move out of range for more than one minute (four pollings), your radio will sense that
no signal has been received, three beeps will sound, and the display will revert to
“OUT.RNGOUT.RNG
OUT.RNGOUT.RNG
OUT.RNG.” If you move back into range, your radio will again beep, and the display will
change back to the “IN.RNGIN.RNG
IN.RNGIN.RNG
IN.RNG” indication.
During ARTS™ operation, your operating frequency will continue to be displayed, but no
changes may be made to it or other settings; you must terminate ARTS™ in order to resume
normal operation. This is a safety feature designed to prevent accidental loss of contact
due to channel change, etc.
Basic ARTS™ Setup and Operation
1. Set your radio and the other radio(s) to the same DCS code number, per the discussion
on page 24.
2. Press and hold in the [2(CODE)] key for one second. You will
observe the “OUT. RNGOUT. RNG
OUT. RNGOUT. RNG
OUT. RNG” display on the LCD below the operat-
ing frequency. ARTS™ operation has now commenced.
3. Every 25 seconds, your radio will transmit a “polling” call to the
other station. When that station responds with its own ARTS™
polling signal, the display will change to “IN.RNGIN.RNG
IN.RNGIN.RNG
IN.RNG” to confirm
that the other station’s polling code was received in response to
yours.
ARTS™ (AUTOMATIC RANGE TRANSPONDER SYSTEM)
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 51

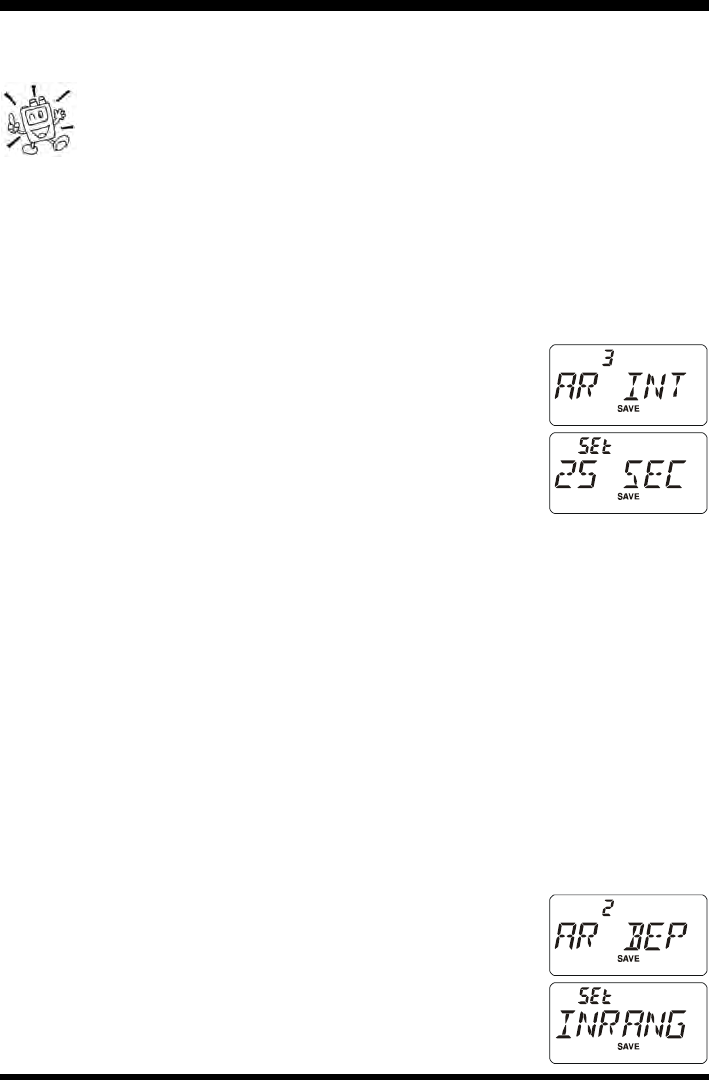

4. Press the [F/L] key momentarily to exit ARTS™ operation and resume normal function-
ing of the transceiver.
ARTS™ constitutes a form of “remote control” operation that may be re-
stricted to certain frequencies. U.S. users should confirm the current status
of §97.201(b) of the FCC’s rules governing the 144 MHz band of the Ama-
teur service before utilizing this feature.
ARTS™ Polling Time Options
The ARTS™ feature may be programmed to poll every 25 seconds (default value) or 15
seconds. The default value provides maximum battery conservation, because the polling
signal is sent out less frequently. To change the polling interval:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 3: AR INTAR INT
AR INTAR INT
AR INT.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select the desired polling interval (1515
1515
15
or 2525
2525
25 seconds).
5. When you have made your selection, press the PTT switch to
save the new setting and exit to normal operation.
ARTS™ Alert Beep Options
The ARTS™ feature allows two kinds of alert beeps (with the additional option of turning
them off), so as to alert you to the current status of ARTS™ operation. Depending on your
location and the potential annoyance associated with frequent beeps, you may choose the
Beep mode which best suits your needs. The choices are:
INRANGINRANG
INRANGINRANG
INRANG: The beeps are issued only when the radio first confirms that you are within
range, but does not re-confirm with beeps thereafter.
ALWAYSALWAYS
ALWAYSALWAYS
ALWAYS: Every time a polling transmission is received from the other station, the alert
beeps will be heard.
OFFOFF
OFFOFF
OFF: No alert beeps will be heard; you must look at the display to confirm current
ARTS™ status.
To set the ARTS™ Beep mode, use the following procedure:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 2: AR BEPAR BEP
AR BEPAR BEP
AR BEP.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select the desired ARTS™ Beep mode
(see above).
5. When you have made your selection, press the PTT switch to
save the new setting and exit to normal operation.
ARTS™ (AUTOMATIC RANGE TRANSPONDER SYSTEM)
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL52

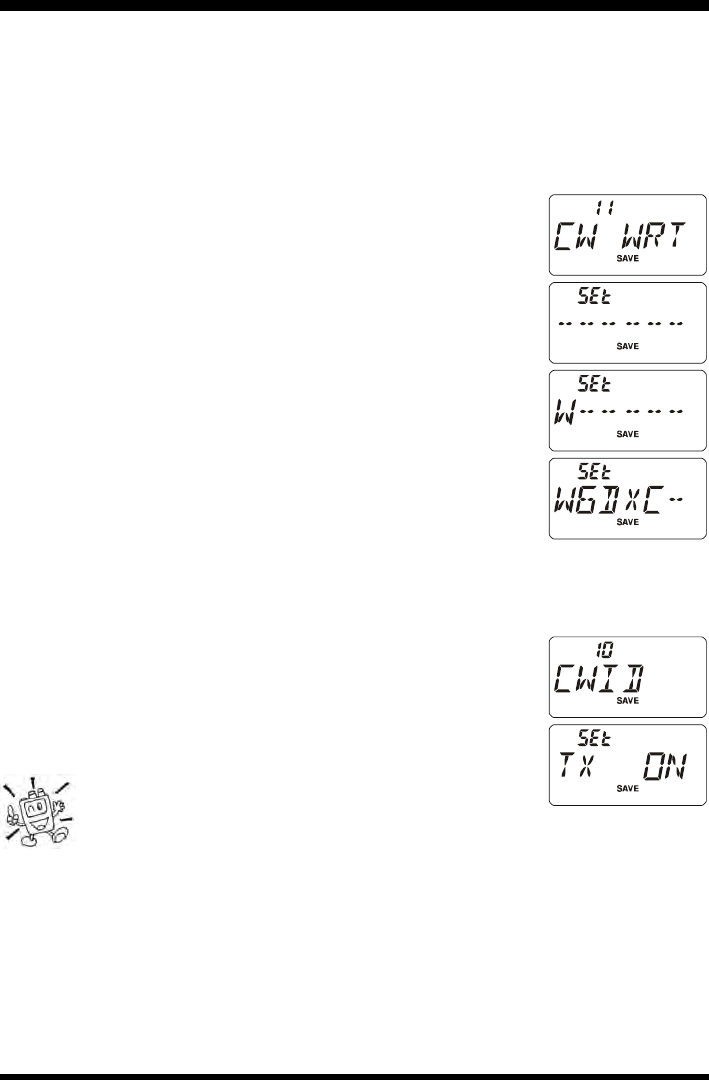

CW Identifier Setup
The ARTS™ feature includes a CW identifier, as discussed previously. Every ten minutes
during ARTS™ operation, the radio can be instructed to send “DE (your callsign) K” if
this feature is enabled. The callsign field may contain up to 6 characters.
Here’s how to program the CW Identifier:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 11: CW WRTCW WRT
CW WRTCW WRT
CW WRT.
3. Press the [F/L] key momentarily to display any previously-stored
callsign.
4. Press the [F/L] key again to clear any previous callsign.
5. Rotate the DIAL knob to select the first letter/number of your
callsign, then press the [F/L] key momentarily to save the first
letter/number and move on to the next character.
6. Repeat the previous step, as many times as necessary, to com-
plete your callsign. If you make a mistake, press the [(MHz)]
key to move back to the previous letter/number’s slot, then re-
select the correct letter/number.
7. When you have finished entering your entire callsign and it con-
tains less than 6 characters, press and hold in the [F/L] key for
one second to confirm the callsign. (if you callsign has exactly 6
characters, you do not need to press and hold in [F/L] in this step).
8. Press the PTT switch to save the settings and exit to normal operation.
9. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode again.
10. Rotate the DIAL knob to select Set Mode Item 10: CWIDCWID
CWIDCWID
CWID.
11. Press the [F/L] key momentarily, then rotate the DIAL knob to
set this Item to “TX ONTX ON
TX ONTX ON
TX ON” (to enable the CW ID function).
12. Press the PTT switch to save the settings and exit to normal
operation.
You may check your work by monitoring the entered
callsign. To do this, repeat steps 1- 7 above, then press
the MONI switch.
ARTS™ (AUTOMATIC RANGE TRANSPONDER SYSTEM)
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 53

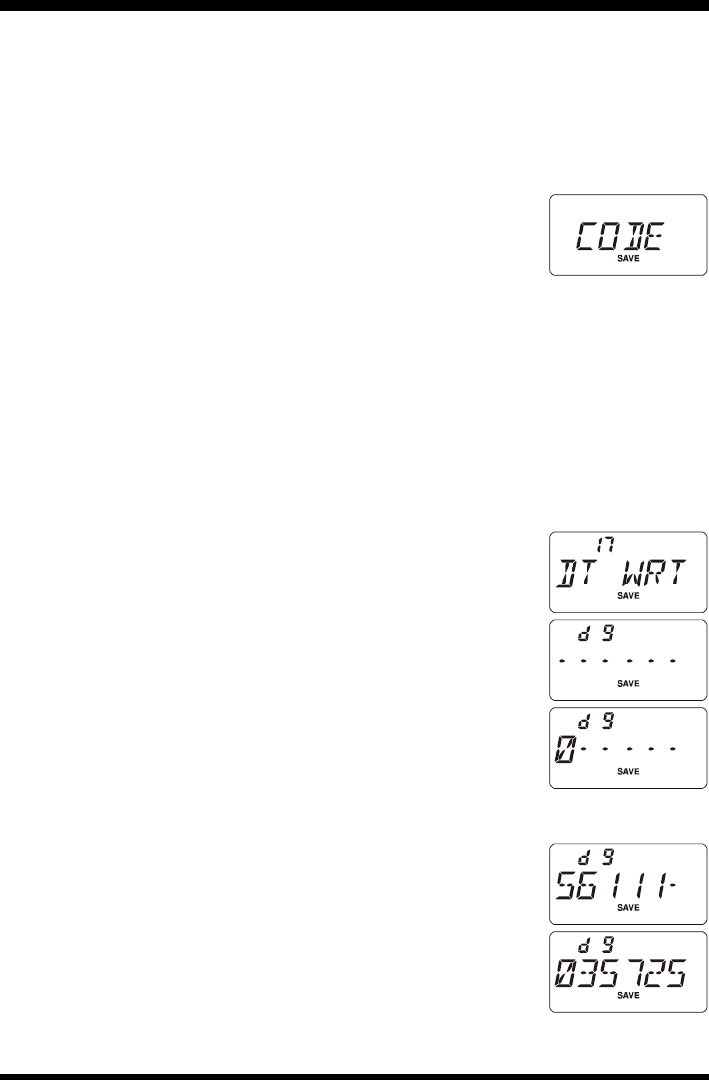

DTMF OPERATION
The FT-270R’s 16-button keypad allows easy DTMF dialing for Autopatch, repeater con-
trol, or Internet-link access purposes. Besides numerical digits [0] through [9], the keypad
includes the [] and [#] digits, plus the [A], [B], [C], and [D] tones often used for repeater
control.
Manual DTMF Tone Generation
You can generate DTMF tones during transmission manually.
1. Press the [F/L] key, then press the [9(DTMF)] key to disable the
DTMF Autodialer, if necessary. The “CODECODE
CODECODE
CODE” indication will ap-
pear in the display for a moment.
2. Press the PTT switch to begin transmission.
3. While transmitting, press the desired numbers on the keypad.
4. When you have sent all the digits desired, release the PTT switch.
DTMF Autodialer
Nine DTMF Autodial memories are provided, allowing you to store telephone numbers for
autopatch use. You can also store short autopatch or Internet-link access code streams so as
to avoid having to send them manually.
Here is the DTMF Autodial storage procedure:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 17: DT WRTDT WRT
DT WRTDT WRT
DT WRT.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select the DTMF Memory register (“d1d1
d1d1
d1”
~ “d9d9
d9d9
d9”) into which you wish to store this DTMF string.
5. Press the [F/L] key momentarily to begin DTMF Memory entry
into the selected register.
6. Rotate the DIAL knob to select the first digit of the DTMF string.
Selectable entries are 0 - 9, and A - F, with E and F representing
DTMF “” and “#” tones respectively.
7. Press the [F/L] key to accept the first digit and move to the next
digit of the DTMF string.
8. Repeat steps 5 and 6 until you have completed the telephone
number.
9. If you make a mistake, press the [(MHz)] key to move back to
the previous digit, then re-select the correct number.
10. If the telephone number made up of numbers only, you may key
in the telephone number directly from the keypad.
11. Press and hold in the [F/L] key for one second to save the setting.
12. If you store other numbers, repeat steps 4- 10 above, using a different DTMF memory
register.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL54

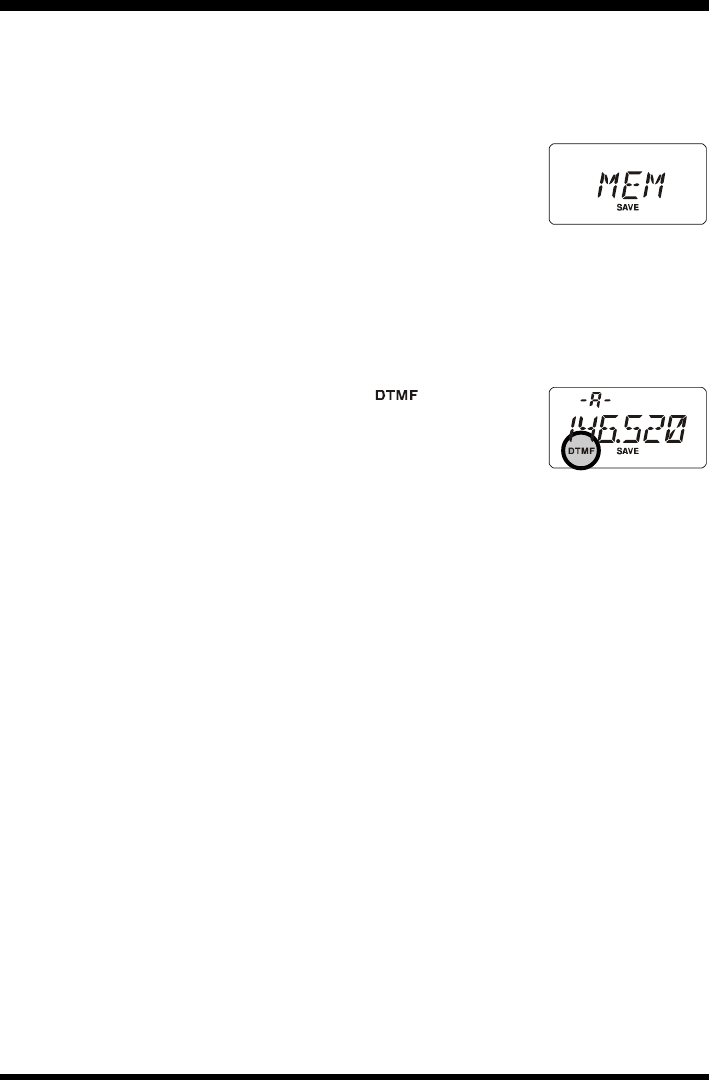

13. When all required DTMF memories are filled to your satisfaction, press the PTT switch
to save the settings and exit to normal operation
To send the telephone number:
1. Press the [F/L] key, then press the [9(DTMF)] key to activate the DTMF Autodialer.
The “MEMMEM
MEMMEM
MEM” indication display will appear in the display for a
moment.
2. While the DTMF Autodialer is activated, first press the PTT
switch, then press the numerical key ([1] through [9]) corre-
sponding to the DTMF memory string you wish to send. Once the string begins, you
may release the PTT switch, as the transmitter will be held “on the air” until the DTMF
string is completed.
3. To disable the DTMF Autodialer, press [F/L] [9(DTMF)] again. The “CODECODE
CODECODE
CODE”
indication will appear in the display for a moment.
While the DTMF Autodialer is activated, the “ ” icon will ap-
pear at the lower left corner on the LCD
You can change the DTMF Autodialer sending speed, using Set Mode
Item 16: DT SPDDT SPD
DT SPDDT SPD
DT SPD. See page 73 for details.
You can also set a longer delay between the time you press the numerical key (correspond-
ing to the DTMF memory string; with PTT switch pressed) and the instant when the first
DTMF digit is sent, using Set Mode Item 15: DT DLYDT DLY
DT DLYDT DLY
DT DLY. See page 73 for details.
DTMF OPERATION
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 55

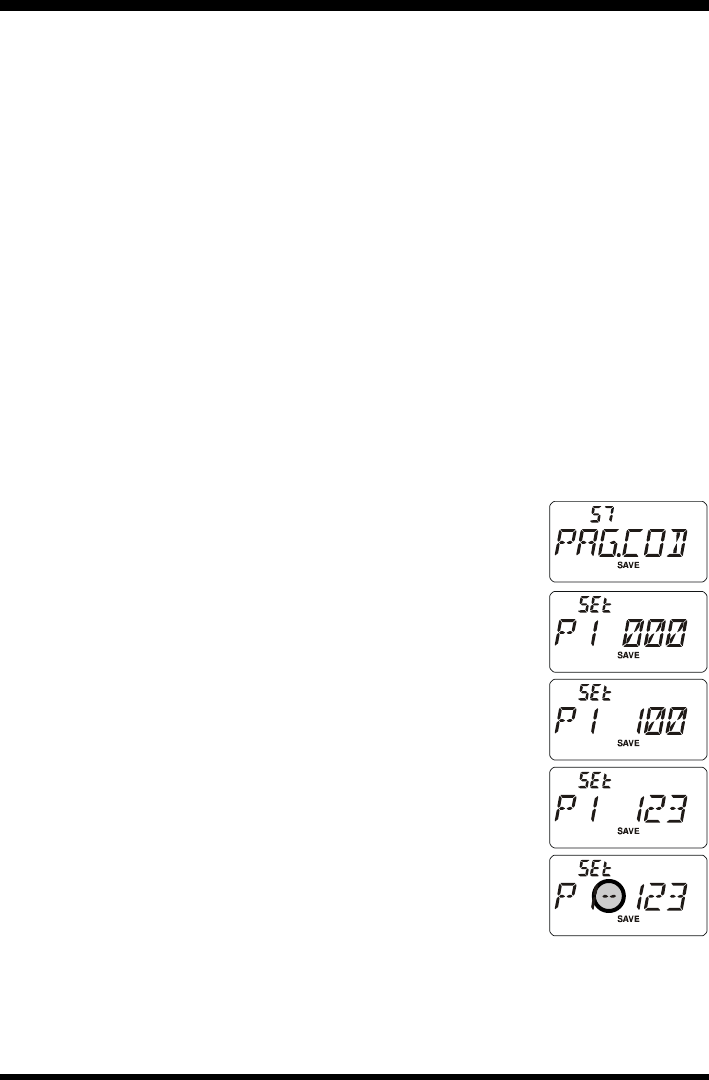

The FT-270R allows you to utilize a DTMF (Dual-Tone, Multi-Frequency) tone encoder/
decoder, with a dedicated microprocessor providing paging and selective calling features
now that you've installed the optional FTD-7 DTMF Paging Unit. This capability allows
you to make a call to a specific station (Paging), and to receive calls of your choice di-
rected only to you (Code Squelch).
The paging and code squelch systems use 3-digit numeric codes (000 - 999) which are
stored in the DTMF Pager Memories. Basically, your receiver remains silent until it re-
ceives the 3-digit DTMF pager code that matches those stored in the DTMF Pager Memory.
The squelch then opens so the caller is heard, and the LCD displays the 3-digit DTMF
pager code which was received. Also, the paging ringer immediately sounds, if the Bell
function is activated. When you close the PTT switch to transmit, the 3-digit DTMF pager
code which is stored in the last selected DTMF Pager Memory register will be transmitted
automatically.
On the paged radio, the squelch will close automatically five seconds after the incoming
page ends (you may now resume DTMF Pager operation).
Storing the 3-digit code for the DTMF Pager Operation
1. Press the [F/L] key, then press the [0(SET)] key, to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 57: PAG.CODPAG.COD
PAG.CODPAG.COD
PAG.COD.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select the DTMF Pager Memory regis-
ter into which you wish to store the access code.
5. Press the [F/L] key momentarily. The first digit will blink.
6. Rotate the DIAL knob to select the first digit of the 3-digit DTMF
pager code. The “AA
AA
A” and “DD
DD
D” keys are “wild cards.”
7. Press the [F/L] key momentarily to accept the first digit and
move to the second digit of the 3-digit DTMF pager code.
8. Repeat the previous steps until you have completed the 3-digit
DTMF pager code.
9. Press the [REV(HOME)] key to toggle the decoder “on” and
“off.” When the decoder is set to “on,” the “----------” notation ap-
pears between the DTMF pager memory register number and the
3-digit DTMF pager code; for example, “P2P2
P2P2
P2------123-123
-123-123
-123.”
The 3-digit DTMF pager code which does not have the “----------” no-
tation is used for encode only.
10. Press the PTT switch to save the new settings and exit to normal operation.
DTMF PAGER OPERATION (REQUIRES OPTIONAL FTD-7)
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL56

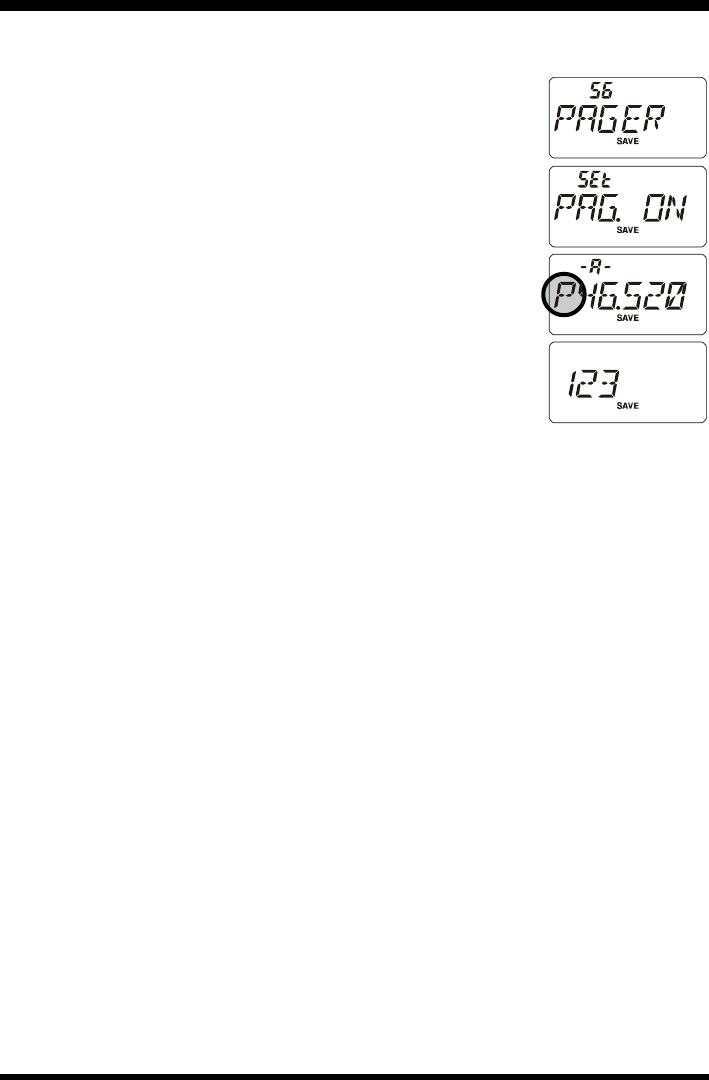

Activating the DTMF Pager
1. Press the [F/L] key, then press the [0(SET)] key, to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 56: PAGERPAGER
PAGERPAGER
PAGER.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select “ONON
ONON
ON.”
5. Press the PTT switch to save the new setting and activate the
DTMF Pager.
When the DTMF Pager is activated, the “PP
PP
P” notation will re-
place the “100 MHz” digit of the frequency display.
6. Press the PTT switch to send the 3-digit DTMF pager code which
is stored in the last-selected DTMF Pager Memory register.
7. When you receive a DTMF paging call, it will open your radio’s
DTMF squelch, and the LCD will display the 3-digit DTMF
pager code which was received. After five seconds, the DTMF
pager will revert to its squelched mode.
8. To disable the DTMF Pager, just repeat the above procedure, rotating the DIAL knob
to select “OFFOFF
OFFOFF
OFF” in step 4 above.
During DTMF Pager operation, you may set up the FT-270R such that a ringing “Bell”
sound alerts you to the fact that a call is coming in, as described previously. See page 29 of
the Operating Manual for details.
DTMF PAGER OPERATION (REQUIRES OPTIONAL FTD-7)
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 57
DTMF PAGER OPERATION (REQUIRES OPTIONAL FTD-7)
When you activate the ANI (Automatic Number Identification) feature during DTMF Pager
operation, the DTMF tones stored in ANI memory will automatically be sent whenever you
press the PTT switch. When the ANI is received, the LCD will displays the received ANI
code after the 3-digit DTMF pager code.
Storing the ANI code
1. Press the [F/L] key, then press the [0(SET)] key, to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 55: ANI.WRTANI.WRT
ANI.WRTANI.WRT
ANI.WRT.
3. Press the [F/L] key momentarily to display any previously-stored
ANI code.
4. Press the [F/L] key again to clear any previous ANI code.
5. Rotate the DIAL knob to select the first number/letter (00
00
0-99
99
9, AA
AA
A, BB
BB
B, CC
CC
C, DD
DD
D, EE
EE
E (substitute
for “”), and FF
FF
F (substitute for “#”), then press the [F/L] key momentarily to save the
first letter/number and move on to the next character.
6. Repeat the previous step, as many times as necessary (up to 16 characters), to com-
plete ANI code. If you make a mistake, press the [(MHz)] key to move back to the
previous letter/number’s slot, then re-select the correct letter/number.
7. When you have finished entering the ANI code and it contains less than 16 characters,
press and hold in the [F/L] key for one second to confirm the callsign. (if the ANI code
has exactly 16 characters, you do not need to press and hold in [F/L] in this step).
8. Press the PTT switch to save the settings and exit to normal operation.
You may check your work by monitoring the entered callsign. To do this,
repeat steps 1- 7 above, then press the MONI switch.
Activating the ANI feature
1. Press the [F/L] key, then press the [0(SET)] key, to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 54: ANIANI
ANIANI
ANI.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select “ONON
ONON
ON.”
5. Press the PTT switch to save the new setting and activate the
ANI feature.
6. Press the PTT switch to send the DTMF tones stored in ANI memory after the 3-digit
DTMF pager code which is stored in the last-selected DTMF
Pager Memory register.
7. When you receive a ANI code, the LCD will displays the re-
ceived ANI code after the 3-digit DTMF pager code. You may
scroll the received ANI code by rotating the DIAL knob.
8. To disable the ANI feature, just repeat the above procedure,
rotating the DIAL knob to select “OFFOFF
OFFOFF
OFF” in step 4 above.
ANI CODE
FLAGPAGER CODE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL58

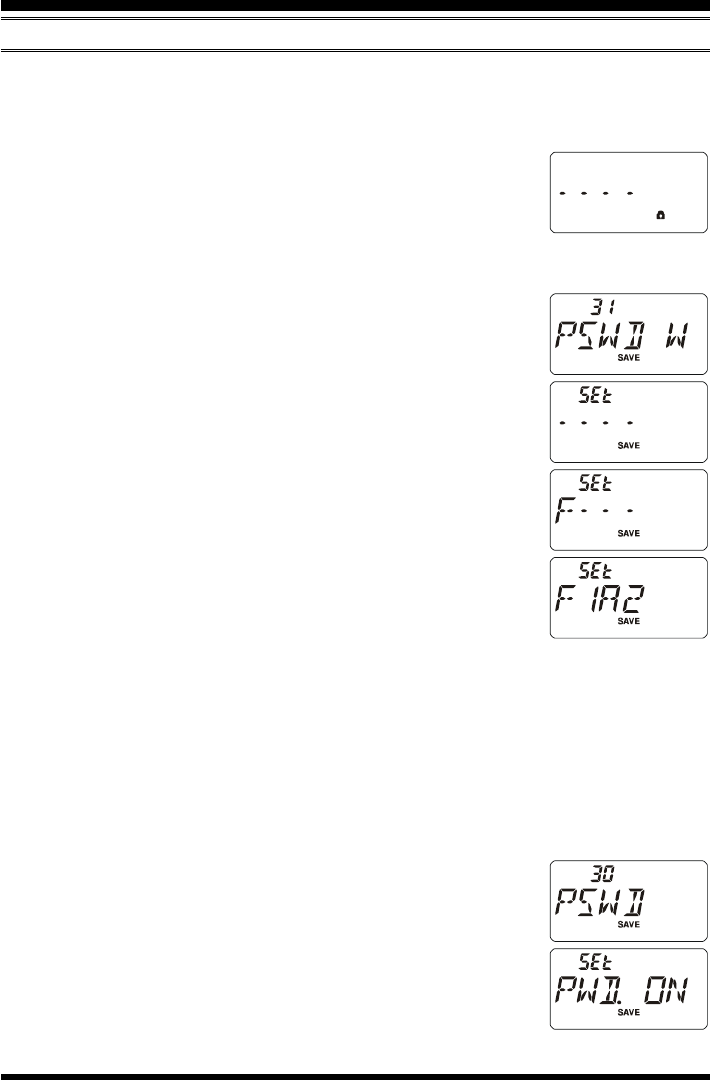

PASSWORD
The FT-270R provides a security password feature which can minimize the chance that
your transceiver could be used by an unauthorized party.
When the password feature is activated, the radio will ask for the four digit password to be
entered when the radio is first turned on. You must enter the four
digit password from the keypad. If the wrong password is entered,
the microprocessor will shut down the radio automatically.
To enter the password , use the following procedure:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 31: PSWD WPSWD W
PSWD WPSWD W
PSWD W.
3. Press the [F/L] key momentarily to display any previously-stored
password.
4. Press the [F/L] key again to clear any previous password.
5. Rotate the DIAL knob to select the first digit of the desired
number/letter (00
00
0-99
99
9, AA
AA
A, BB
BB
B, CC
CC
C, DD
DD
D, EE
EE
E (substitute for “”), and FF
FF
F
(substitute for “#”).
6. Press the [F/L] key to move to the next digit.
7. Repeat steps 5 and 6 to program the remaining numbers/letters
of the desired password.
8. If you make a mistake, press the [(MHz)] key to move back to
the previous digit, then re-select the correct number/letter.
9. If your password is made up of numbers only, you may enter
your password directly from the keypad. For example, to enter
the “1234” as your password, press [1] [2] [3] [4].
10. When you have finished entering the password, press the PTT switch to save the new
setting and exit to normal operation.
We recommend that you to write down the password number, and keep it in a safe place
you can easily find if you forget your password.
To Activate the Password feature:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 30: PSWDPSWD
PSWDPSWD
PSWD.
3. Press the [F/L] key momentarily to enable adjustment of this
Item.
4. Rotate the DIAL knob to set this Set Mode Item to “PWD. ONPWD. ON
PWD. ONPWD. ON
PWD. ON.”
5. When you have made your selection, press the PTT switch to
save the new setting and exit to normal operation.
6. If you wish to disable the Password feature, just repeat the above
procedure, rotating the DIAL knob to select “PWD.OFFPWD.OFF
PWD.OFFPWD.OFF
PWD.OFF” in step 4 above.
MISCELLANEOUS SETTINGS
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 59

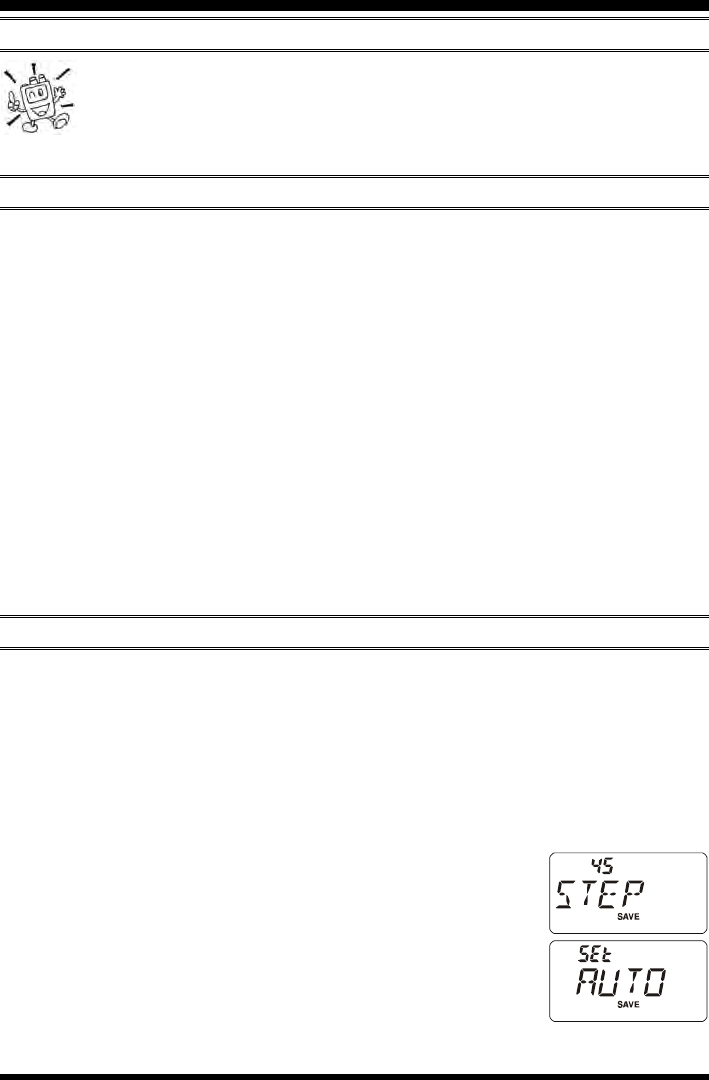

If you forget the password number, you may turn on the transceiver by per-
forming the “All Reset” procedure (see page 65). However, the FT-270R will
clear the password, as well as all memories, and will restore all other settings
to factory defaults.
PROGRAMMING THE KEY ASSIGNMENTS
Default FT-270R Set Mode Items have been assigned (at the factory) to the [7(P1)] and
[8(P2)] keys. These may be changed by the user, if you wish to assign another Set Mode
Item to either or both of these keys.
To change the assignment of a key’s Set Mode Item:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select the Set Mode Item which you wish to assign to the key
as a Menu short-cut.
3. Press and hold in the [7(P1)] or [8(P2)] key for one second to assign the Set Mode
Item to the [7(P1)] or [8(P2)] key.
4. Press the PTT switch to save the new setting and exit to normal operation.
The following Set Mode Items may not be assigned to the [7(P1)] and [8(P2)] keys.
Set Mode Item 11: CW WRT
Set Mode Item 17: DT WRT
Set Mode Item 31: PSWD W
CHANGING THE CHANNEL STEPS
The FT-270R’s synthesizer provides the option of utilizing channel steps of 5/10/12.5/15/
20/25/50/100 kHz per step, as well as an automatic step selection based on the current
operating frequency (“AUTO”), any number of which may be important to your operating
requirements. The FT-270R is set up at the factory in the “AUTO” configuration, which
probably is satisfactory for most operation. However, if you need to change the channel
step increments, the procedure to do so is very easy.
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 45: STEPSTEP
STEPSTEP
STEP.
3. Press the [F/L] key momentarily to enable adjustment of this
Item.
4. Rotate the DIAL knob to select the new channel step size.
5. When you have made your selection, press the PTT switch to
save the new setting and return to normal operation.
MISCELLANEOUS SETTINGS
PASSWORD
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL60

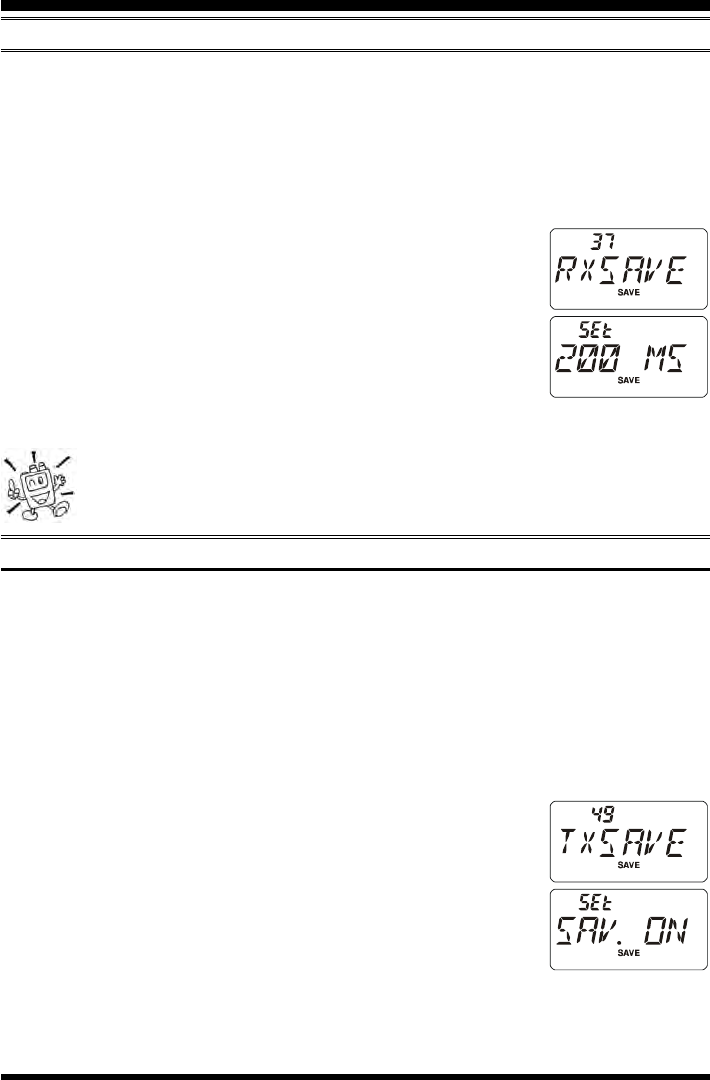

MISCELLANEOUS SETTINGS
RECEIVE BATTERY SAVER SETUP
An important feature of the FT-270R is its Receive Battery Saver, which “puts the radio to
sleep” for a time interval, periodically “waking it up” to check for activity. If somebody is
talking on the channel, the FT-270R will remain in the “active” mode, then resume its
“sleep” cycles. This feature significantly reduces quiescent battery drain, and you may
change the amount of “sleep” time between activity checks using the Set Mode:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 37: RXSAVERXSAVE
RXSAVERXSAVE
RXSAVE.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select the desired “sleep” duration.
The selections available are 200 ms, 300 ms, 500 ms, 1 second, 2
seconds, or OFF. The default value is 200 ms.
5. When you have made your selection, press the PTT switch to
save the new setting and exit to normal operation.
When you are operating on Packet, switch the Receive Battery Saver OFF, as
the sleep cycle may “collide” with the beginning of an incoming Packet
transmission, causing your TNC not to receive the full data burst.
TX BATTERY SAVER
The FT-270R also includes a useful Transmit Battery Saver, which will automatically lower
the power output level when the last signal received was very strong. For example, when
you are in the immediate vicinity of a repeater station, there generally is no reason to use
the High Power output in order to achieve full-quieting access to the repeater. With the
Transmit Battery Saver, the automatic selection of Low Power operation conserves battery
drain significantly.
To activate the Transmit Battery Saver:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 49: TXSAVETXSAVE
TXSAVETXSAVE
TXSAVE.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to set this Set Mode Item to “SAV. ONSAV. ON
SAV. ONSAV. ON
SAV. ON”
(thus activating the Transmit Battery Saver).
5. When you have made your selection, press the PTT switch to
save the new setting and exit to normal operation.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 61

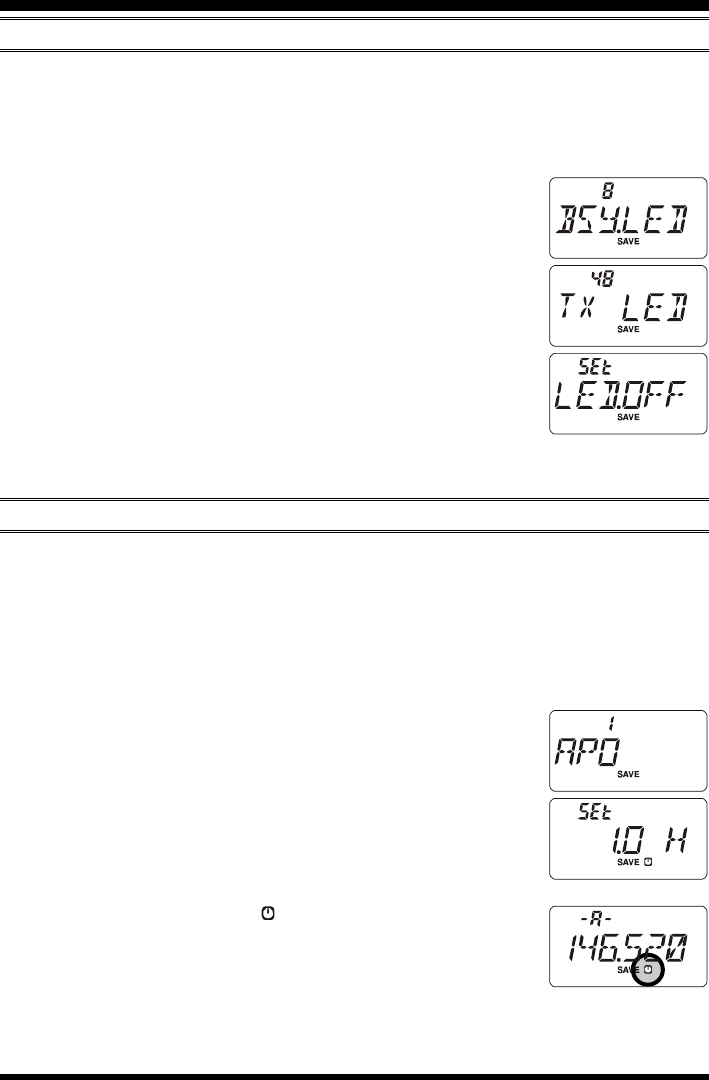

DISABLING THE TX/BUSY INDICATOR
Further battery conservation may be accomplished by disabling the TX indicator while
transmitting and disabling the BUSY indicator while receiving a signal. Use the following
procedure:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 8: BSY.LEDBSY.LED
BSY.LEDBSY.LED
BSY.LED if
you wish to disable the BUSY indicator or Set Mode Item 48:
TX.LEDTX.LED
TX.LEDTX.LED
TX.LED if you wish to disable the TX indicator.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to set this Set Mode Item to “LED.OFFLED.OFF
LED.OFFLED.OFF
LED.OFF”
(thus disabling the BUSY or TX lamp).
5. When you have made your selection, press the PTT switch to
save the new setting and exit to normal operation.
6. If you wish to re-enable the TX/BUSY Indicator, just repeat the
above procedure, rotating the DIAL knob to select “LED. ONLED. ON
LED. ONLED. ON
LED. ON”
in step 4 above.
AUTOMATIC POWER-OFF (APO) FEATURE
The APO feature helps conserve battery life by automatically turning the radio off after a
user-defined period of time within which there has been no dial or key activity. The avail-
able selections for the time before power-off are 0.5 to 12.0 hours in 0.5 hour multiple, as
well as APO Off. The default condition for the APO is OFF, and here is the procedure for
activating it:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 1: APOAPO
APOAPO
APO.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to select the desired time period after
which the radio will automatically shut down.
5. When you have made your selection, press the PTT switch to
save the new setting and exit to normal operation.
When the APO is activated, the “ ” icon will appear on the LCD. If
there is no action by you within the time interval programmed, the
microprocessor will shut down the radio automatically.
Rotate the VOL/PWR knob counter-clockwise to the “off” position, then clockwise out of
the click-stop, to turn the radio on after an APO shutdown.
MISCELLANEOUS SETTINGS
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL62

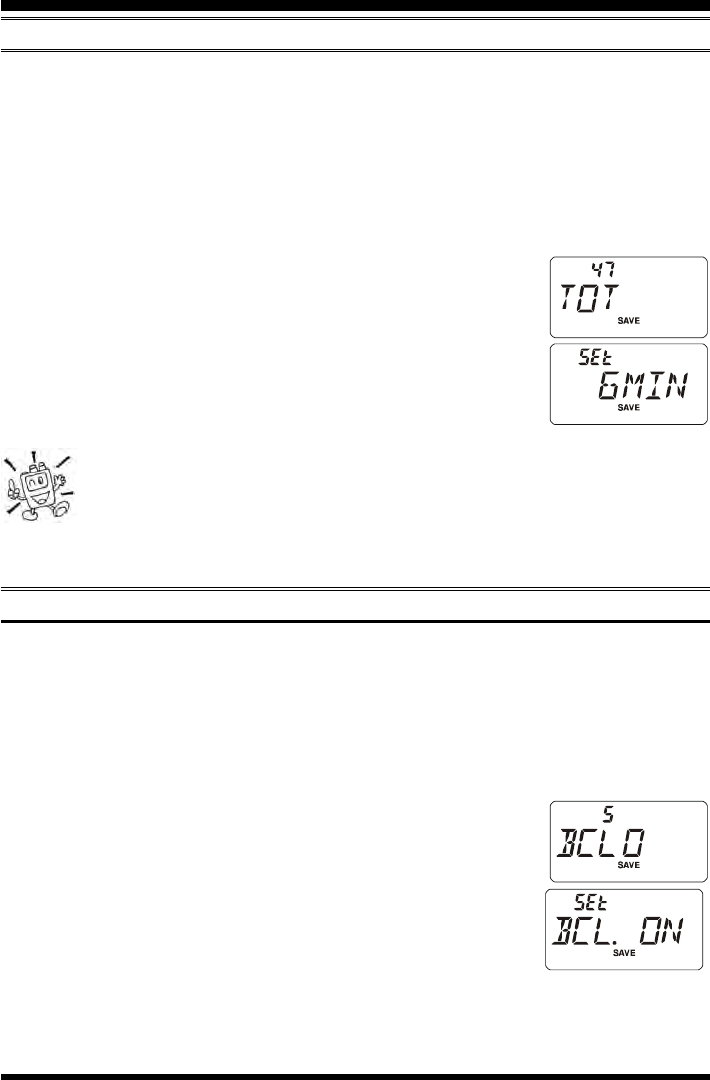

TRANSMITTER TIME-OUT TIMER (TOT)
The TOT feature provides a safety switch which limits transmission time to a pre-pro-
grammed value. This will promote battery conservation by not allowing you to make ex-
cessively-long transmissions, and in the event of a stuck PTT switch (perhaps if the radio
or a Speaker/Mic is wedged between car seats) it can prevent interference to other users as
well as battery depletion. As configured at the factory the TOT feature is set to “6 min-
utes,” and here is the procedure for activating it:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 47: TOTTOT
TOTTOT
TOT.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to set the Time-Out Timer to the desired
“Maximum TX” time (between 1 and 30 minutes), or OFF.
5. When you have made your selection, press the PTT switch to
save the new setting and exit to normal operation.
1) When your transmission time is within 10 seconds of the Time-Out Timer
expiration, an Alert bell will provide an audible warning from the speaker.
2) Since brief transmissions are the mark of a good operator, try setting up
your radio’s TOT feature for a maximum transmission time of one minute. This will
significantly improve battery life, too!
BUSY CHANNEL LOCK-OUT (BCLO)
The BCLO feature prevents the radio’s transmitter from being activated if a signal strong
enough to break through the “noise” squelch is present. On a frequency where stations
using different CTCSS or DCS codes may be active, BCLO prevents you from disrupting
their communications accidentally (because your radio may be muted by its own Tone
Decoder). The default setting for the BCLO is OFF, and here is how to change that setting:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 5: BCLOBCLO
BCLOBCLO
BCLO.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to set this Set Mode Item to “BCL. ONBCL. ON
BCL. ONBCL. ON
BCL. ON”
(thus activating the BCLO feature).
5. When you have made your selection, press the PTT switch to
save the new setting and exit to normal operation.
MISCELLANEOUS SETTINGS
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 63

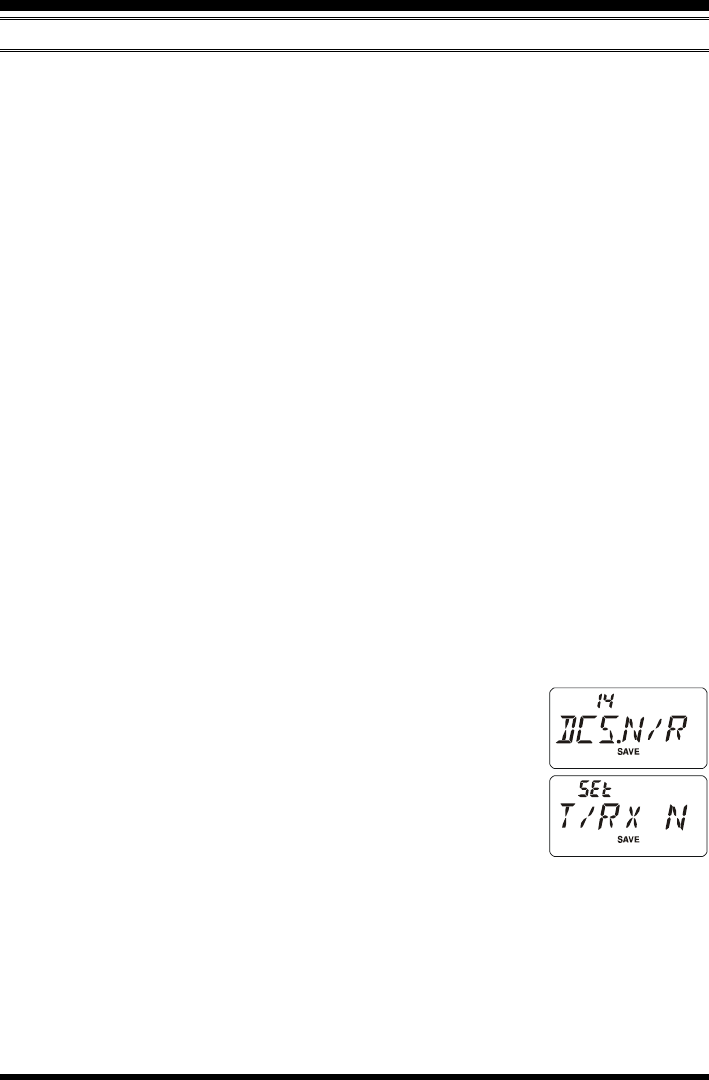

DCS CODE INVERSION
The DCS system was first introduced in the commercial LMR (Land Mobile Radio) service,
where it is now in widespread use. DCS is sometime referred to by its different proprietary
names, such as DPL® (Digital Private Line®, a registered trademark of Motorola, Inc.).
DCS uses a codeword consisting of a 23-bit frame, transmitted (subaudible) at a data rate of
134.4 bps (bit/sec). Occasionally, signal inversion can result in the complement of a code to
be sent or received. This prevents the receiver’s squelch from opening with DCS enabled,
as the decoded bit sequence would not match that selected for operation.
Typical situations that might cause inversion to occur are:
Connection of an external receiver preamplifier.
Operating through a repeater.
Connection of an external linear amplifier.
Note that code inversion does not mean that any of the above listed equipment is defec-
tive!
In certain amplifier configurations, the output signal (phase) is inverted from the input.
Small signal or power amplifiers having an odd number (1, 3, 5, etc.) of amplification stages
may result in inversion of a transmitted or received DCS code.
While under most circumstances this should not occur (amplifier designs and industry
standards take this into account), if you find that your receiver squelch does not open
when both you and the other station are using a common DCS code, you or the other
station (but not both) can try the following:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 14: DCS.NDCS.N
DCS.NDCS.N
DCS.N/RR
RR
R.
3. Press the [F/L] key momentarily, then rotate the DIAL knob to
select one of the following modes:
TT
TT
T/RX NRX N
RX NRX N
RX N:Encoder, Normal; Decoder, Normal
RX RRX R
RX RRX R
RX R: Encoder, Normal; Decoder, Reverse (Inverted)
TX RTX R
TX RTX R
TX R: Encoder, Reverse (Inverted); Decoder, Normal
TT
TT
T/RX RRX R
RX RRX R
RX R:Encoder, Reverse (Inverted); Decoder, Reverse (In-
verted)
4. When you have made your selection, press the PTT switch to save the new setting
and exit to normal operation.
5. Remember to restore the default setting to “TT
TT
T/RX NRX N
RX NRX N
RX N” (Encoder; Normal, Decoder;
Normal) when done.
MISCELLANEOUS SETTINGS
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL64

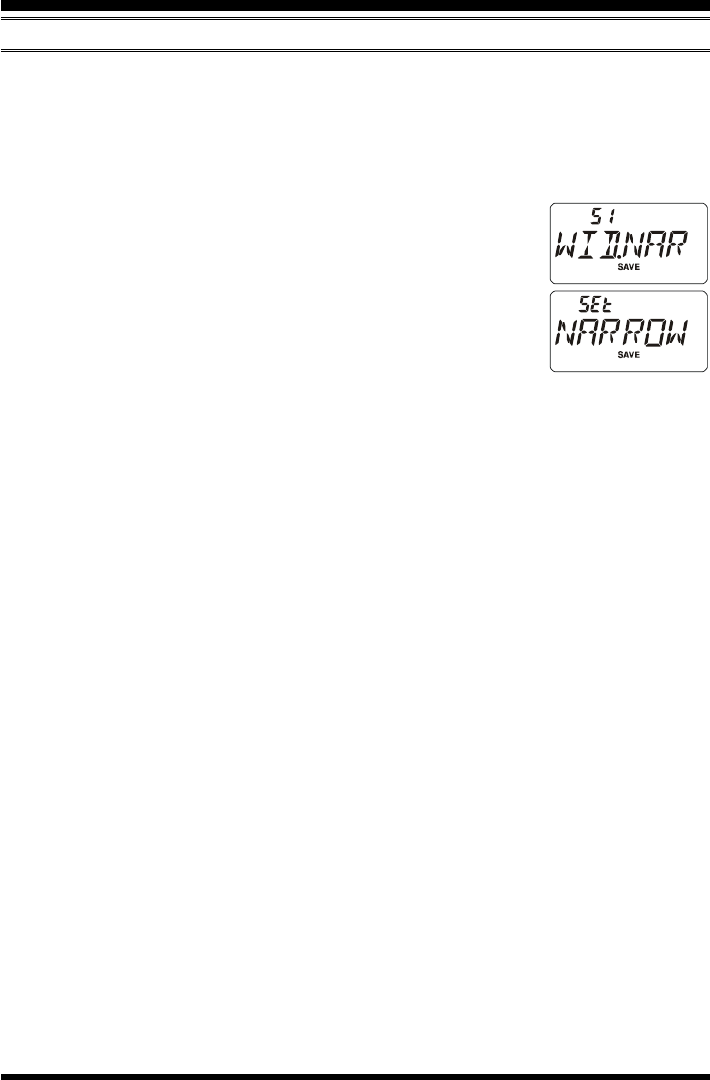

CHANGING THE TX DEVIATION LEVEL
In many areas of the world, channel congestion has required that operating channels be
closely spaced. In such operating environments, it often is required that operators use
reduced deviation levels, so as to reduce the potential for interference to users on adjacent
channels. The FT-270R includes a simple method of accomplishing this:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 51: WID.NARWID.NAR
WID.NARWID.NAR
WID.NAR.
3. Press the [F/L] key momentarily to enable adjustment of this Set
Mode Item.
4. Rotate the DIAL knob to set this Set Mode Item to “NARROWNARROW
NARROWNARROW
NARROW.”
In this configuration (HALF DEVIATION active), the
transmitter’s deviation will be approximately ±2.5 kHz, and the
received audio output level will be increased, for easier listening
on the narrow signal.
5. When you have made your selection, press the PTT switch to save the new setting
and exit to normal operation.
The “normal” setting for the deviation (when this Menu Item is set to WIDE) is ±5 kHz.
MISCELLANEOUS SETTINGS
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 65
In the event of erratic operation of the transceiver, it is possible that data on the micropro-
cessor may have become corrupted. While this is a highly unusual situation, the only path
to recovery may involve resetting of the microprocessor. Here’s how to do this:
1. Turn the radio off.
2. Press and hold in the MONI switch (just below the PTT switch) while turning the
radio on.
3. Rotate the DIAL knob to select one of the choices from the reset menu:
F1 SETRSTF1 SETRST
F1 SETRSTF1 SETRST
F1 SETRST: Resets the Set (Menu) mode settings to their factory defaults.
F2 MEMRSTF2 MEMRST
F2 MEMRSTF2 MEMRST
F2 MEMRST:Clears the Memory settings to factory defaults.
F3 MB RSTF3 MB RST
F3 MB RSTF3 MB RST
F3 MB RST: Clears the Memory Bank Assignments.
F4 ALLRSTF4 ALLRST
F4 ALLRSTF4 ALLRST
F4 ALLRST: Clears all memories and other settings to factory defaults.
4. Press the [F/L] key momentarily to complete the reset procedure.
The “F5” option is used for setting up the “Memory Only” mode, and “F6” is
used for Cloning. See page 34 for details regarding the memory Only mode,
and the next section regarding Cloning.
RESET PROCEDURES
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL66

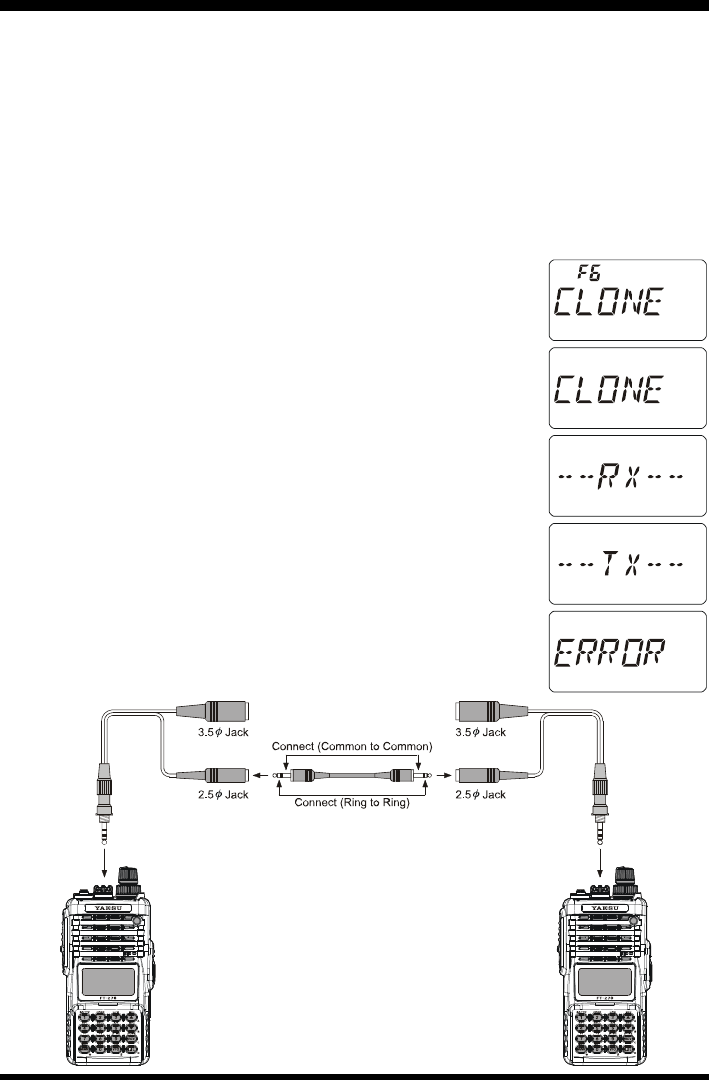

The FT-270R includes a convenient “Clone” feature, which allows the memory and con-
figuration data from one transceiver to be transferred to another FT-270R. This can be
particularly useful when configuring a number of transceivers for a public service opera-
tion. Here is the procedure for Cloning one radio’s data to another:
1. Turn both radios off.
2. Connect the user-constructed cloning cable and two optional CT-91 Microphone
Adapters (one on each end) between the MIC/SP jacks of the two radios.
3. Press and hold in the MONI switch (just below the PTT switch) while turning the
radios on. Do this for both radios (the order of switch-on does not matter).
4. Rotate the DIAL knob on each radio to select to “F6 CLONEF6 CLONE
F6 CLONEF6 CLONE
F6 CLONE,”
then press the [F/L] key momentarily.
5. The display will disappear for a moment, then the “CLONECLONE
CLONECLONE
CLONE”
notation will appear on the displays of both radios when the Clone
mode is successfully activated in this step.
6. On the Destination radio, press the MONI switch (“- - RX - -- - RX - -
- - RX - -- - RX - -
- - RX - -”
will appear on the LCD).
7. Press and hold in the PTT switch on the Source radio; “- - TX - -- - TX - -
- - TX - -- - TX - -
- - TX - -”
will appear on the Source radio, and the data from this radio will
be transferred to the other radio.
8. If there is a problem during the cloning process, “ERRORERROR
ERRORERROR
ERROR” will
be displayed. Check your cable connections and battery voltage,
and try again.
9. If the data transfer is successful, “CLONECLONE
CLONECLONE
CLONE” will reappear on both
displays. Turn both radios off and disconnect the cloning cable.
You can then turn the radios back on, and begin normal opera-
tion.
CLONING
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 67
NOTE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL68
The FT-270R Set Mode, already described in parts of many previous chapters, is easy to
activate and set. It may be used for configuration of a wide variety of transceiver param-
eters, some of which have not been detailed previously. Use the following procedure to
activate the Set Mode:
1. Press the [F/L] key, then press the [0(SET)] key to enter the Set
mode.
2. Rotate the DIAL knob to select the Set Mode Item to be ad-
justed.
3. Press the [F/L] key momentarily to enable adjustment of the Set
Mode Item.
4. Rotate the DIAL knob to adjust or select the parameter to be
changed on the Set Mode Item selected in above step.
5. After completing your selection and adjustment, press the PTT switch momentarily to
save the new setting and exit to normal operation.
1) Some Set Mode Items (like Set Mode Item 46: TN FRQ) require that the [F/
L] key be pressed after setting of the parameter, and before exiting to normal
operation.
2) Two Set Mode Item numbers (in the factory default, Set Mode Item 25: LAMP, and 32:
RESUME) will blink while selecting the Set Mode Item; this indicates that this Set Mode
Item has been assigned to the [7(P1)] or [8(P2)] key of the keypad.
SET (MENU) MODE
SET MODE ITEM
1 [APO]
2 [AR BEP]
3 [AR INT]
4 [ARS]
5 [BCLO]
6 [BEEP]
7 [BELL]
8 [BSY.LED]
9 [CLK.SFT]
10 [CWID]
11 [CW WRT]
12 [DC VLT]
13 [DCS.COD]
14 [DCS.N/R]
15 [DT DLY]
16 [DT SPD]
17 [DT WRT]
18 [ECS.CDR]
19 [ECS.CDT]
20 [EDG.BEP]
FUNCTION
Setting of the Automatic Power-Off feature.
Selects the Beep option during ARTS operation.
Selects the Polling Interval during ARTS operation.
Enables/Disables the Automatic Repeater Shift function.
Enables/Disables the Busy Channel Lock-Out feature.
Enables/Disables the beeper.
Selects the number of CTCSS/DCS Bell ringer repetitions.
Enables/Disables the BUSY LED while the Squelch is open.
Shifting of the CPU clock frequency.
Enables/disables the CW identifier during ARTS operation.
Programs and activates the CW Identifier.
Indicates the DC Supply Voltage.
Setting of the DCS code.
Enables/Disables “Inverted” DCS code decoding.
Setting of the DTMF Autodialer Delay Time.
Setting of the DTMF Autodialer Sending Speed.
Programming of the DTMF Autodialer.
Setting the Receiver Pager Code for the Enhanced CTCSS
Paging & Code Squelch.
Setting the Transmitting Pager Code for the Enhanced
CTCSS Paging & Code Squelch.
Enables/Disables the Band-edge beeper while selecting the
frequency via the DIAL knob.
AVAILABLE VALUES
(DEFAULT: BOLD ITALIC)
OFF / 0.5H - 12.0 H
INRANG / ALWAYS / OFF
25 SEC / 15 SEC
ARS. ON / ARS.OFF
BCL. ON / BCL.OFF
KEY+SC / KEY / OFF
OFF / 1T / 3T /
5T / 8T / CONT
LED. ON / LED.OFF
SFT.OFF / SFT. ON
TX OFF / TX ON
---
---
104 DCS codes (023)
T/RX N, RX R,
TX R, T/RX R
50MS / 100MS / 250MS /
450MS / 750MS / 1000MS
50MS / 100MS
---
(R05 47)
(T05 47)
BEP.OFF / BEP. ON
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 69
SET (MENU) MODE
FUNCTION
Selects the alarm(s) utilized when the Emergency function is
engaged.
Selects the Internet Link Connection mode.
Selects the Access Number (DTMF digit) for WiRES™
operation.
Selects the memory register for an Access Number (DTMF
code) for non-WiRES™
Selects the LCD/Keypad Lamp mode.
Selects the Control Locking lockout combination.
Selects the MONI switch function.
Toggles the display indication between “frequency” and the
channel’s “Alpha/Numeric Tag.”
Stores Alpha-Numeric “Tags” for the Memory channels.
Enables/disables the Password feature.
Stores the password.
Selects the Scan Resume mode.
Selects the function of the [HM/RV] key.
Adjusts the RF Squelch threshold level.
Sets the Repeater Shift Direction.
Enables/disables the Priority Revert feature.
Selects the Receive-mode Battery Saver interval (“sleep” ratio)
Selects the Smart Search Sweep mode.
Selects the Memory Scan channel-selection mode.
Enables/Disables the Scan lamp while paused.
Sets the magnitude of the repeater Shift.
Selects the Memory Scan “Skip” channel-selection mode.
Enables/Disables split CTCSS/DCS coding.
Selects the Tone Encoder and/or Decoder mode.
Setting of the synthesizer steps.
Setting of the CTCSS Tone Frequency.
Setting of the TOT time.
Enables/Disables the TX LED while the radio is transmitting.
Enables/Disables the Transmitter Battery Saver.
Enables or disables “VFO Split” operation.
Select Wide (±5 kHz) or Narrow (±2.5 kHz) TX Deviation.
Enables/Disables the Weather Alert Scan feature.
AVAILABLE VALUES
(DEFAULT: BOLD ITALIC)
EMG.BEP / EMG.LMP /
EMG.B+L / EMG.CWT /
EMG.C+B / EMG.C+L /
EMG.ALL / OFF
INT.OFF / INT.COD / INT.MEM
CODE 0 - CODE 9,
CODE A - CODE F (CODE 1)
d1 - d9
KEY / CONT / OFF
LK KEY / LKDIAL / LK K+D /
LK PTT / LK P+K /
LK P+D / LK ALL
MONI / T-CALL
FREQ / ALPHA
---
PWD.OFF / PWD. ON
---
BUSY / HOLD / TIME
<
REV
>
/
<
HOME
>
S-1 / S-2 / S-3 / S-4 / S-5 /
S-6 / S-8 / S-FULL / OFF
RPT.OFF / RPT.– / RPT. +
RVT.OFF / RVT. ON
200 MS / 300 MS /500 MS /
1 SEC / 2 SSEC / OFF
SINGLE / CONT
ONLY / MEM
ON / OFF
0.00 - 99.95 MHz (0.60 MHz)
OFF / SKIP / ONLY
SPL.OFF / SPL. ON
OFF / TONE / TSQL /
REV TN / DCS / ECS
5 / 10 / 12.5 / 15 / 20 / 25 / 50
/ 100 kHz, or AUTO
50 CTCSS tones (100 Hz)
1MIN - 30MIN or OFF (6 MIN)
LED. ON / LED.OFF
SAV.OFF / SAV. ON
VSP.OFF / VSP.ON
WIDE / NARROW
ALT.OFF / ALT. ON
SET MODE ITEM
21 [EMG S]
22 [I NET]
23 [INT CD]
24 [INT MR]
25 [LAMP]
26 [LOCK]
27 [M/T-CL]
28 [NAME]
29 [NM WRT]
30 [PSWD]
31 [PSWD W]
32 [RESUME]
33 [REV/HM]
34 [RF SQL]
35 [RPT.MOD]
36 [PRI.RVT]
37 [RXSAVE]
38 [S SRCH]
39 [SCN MD]
40 [SCN.LMP]
41 [SHIFT]
42 [SKIP]
43 [SPLIT]
44 [SQL.TYP]
45 [STEP]
46 [TN FRQ]
47 [TOT]
48 [TX.LED]
49 [TXSAVE]
50 [VFO.SPL]
51 [WID.NAR]
52 [WX ALT]
SET MODE ITEM
53 [ANI]
54 [ANI.WRT]
55 [PAGER]
56 [PAG.COD]
57 [PAG.ABK]
FUNCTION
Enables/Disables the ANI function.
Program the ANI Identifier.
Enables/Disables the ANI function.
Setting the Pager Code for the DTMF Pager.
Enables/Disables the Answer Back function of the DTMF Pager.
AVAILABLE VALUES
(DEFAULT: BOLD ITALIC)
ANI.OFF/ANI. ON
---
PAG.OFF/PAG. ON
000 - 999
ABK. OFF/ABK. ON
The following Set Mode Items will appears when the optional FTD-7 DTMF Paging Unit is installed.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL70
SET (MENU) MODE
REPEATER SETTING
Enables/Disables the Automatic Repeater Shift function.
Sets the Repeater Shift Direction.
Sets the magnitude of the repeater Shift.
CTCSS/DSC/DTMF/EPCS SETTING
Selects the number of CTCSS/DCS Bell ringer repetitions.
Setting of the DCS code.
Enables/Disables “Inverted” DCS code decoding.
Setting of the DTMF Autodialer Delay Time.
Setting of the DTMF Autodialer Sending Speed.
Programming of the DTMF Autodialer.
Setting the Receiver Pager Code for the Enhanced CTCSS
Paging & Code Squelch.
Setting the Transmitting Pager Code for the Enhanced
CTCSS Paging & Code Squelch.
Enables/Disables split CTCSS/DCS coding.
Selects the Tone Encoder and/or Decoder mode.
Setting of the CTCSS Tone Frequency.
ARTS SETTING
Selects the Beep option during ARTS operation.
Selects the Polling Interval during ARTS operation.
Enables/disables the CW identifier during ARTS operation.
Programs and activates the CW Identifier (used during ARTS
operation).
MEMORY SETTING
Toggles the display indication between “frequency” and the
channel’s “Alpha/Numeric Tag.”
Stores Alpha-Numeric “Tags” for the Memory channels.
SCAN SETTING
Selects the Scan Resume mode.
Enables/disables the Priority Revert feature.
Selects the Memory Scan channel-selection mode.
Enables/Disables the Scan lamp while paused.
Selects the Memory Scan “Skip” channel-selection mode.
Enables/Disables the Weather Alert Scan feature.
POWER SAVER SETTING
Selects the Receive-mode Battery Saver interval (“sleep”
ratio).
Enables/Disables the Transmitter Battery Saver.
WIRES™ SETTING
Selects the Internet Link Connection mode.
Selects the Access Number (DTMF digit) for WiRES™
operation.
Selects the memory register for an Access Number (DTMF
digit) for non-WiRES™.
SET MODE ITEM
4 [ARS]
35 [RPT.MOD]
41 [SHIFT]
SET MODE ITEM
7 [BELL]
13 [DCS.COD]
14 [DCS.N/R]
15 [DT DLY]
16 [DT SPD]
17 [DT WRT]
18 [ECS.CDR]
19 [ECS.CDT]
43 [SPLIT]
44 [SQL.TYP]
46 [TN FRQ]
SET MODE ITEM
2 [AR BEP]
3 [AR INT]
10 [CWID]
11 [CW WRT]
SET MODE ITEM
28 [NAME]
29 [NM WRT]
SET MODE ITEM
32 [RESUME]
36 [PRI.RVT]
39 [SCN MD]
40 [SCN.LMP]
42 [SKIP]
52 [WX ALT]
SET MODE ITEM
37 [RXSAVE]
49 [TXSAVE]
SET MODE ITEM
22 [I NET]
23 [INT CD]
24 [INT MR]
AVAILABLE VALUES (DEFAULT)
ARS. ON / ARS.OFF
RPT.OFF / RPT. – / RPT. + ()
0.00 - 99.95 MHz ()
AVAILABLE VALUES (DEFAULT)
OFF / 1T / 3T / 5T / 8T / CONT
104 standard DCS codes (023)
T/RX N, RX R, TX R, T/RX R
50MS / 100MS / 250MS / 450MS /
750MS / 1000MS
50MS /100MS
–
(R05_47)
(T05_47)
SPL.OFF / SPL. ON
OFF / TONE / TSQL /
REV TN / DCS
50 standard CTCSS tones (100 Hz)
AVAILABLE VALUES (DEFAULT)
INRANG / ALWAYS / OFF
25 SEC / 15 SEC
TX OFF / TX ON
–
AVAILABLE VALUES (DEFAULT)
FREQ / ALPHA
–
AVAILABLE VALUES (DEFAULT)
BUSY / HOLD / TIME
RVT.OFF / RVT. ON
ONLY / MEM
ON / OFF
OFF / SKIP / ONLY
ALT.OFF / ALT. ON
AVAILABLE VALUES (DEFAULT)
200 MS / 300 MS / 500 MS /
1 S / 2 S / OFF
SAV.OFF / SAV. ON
AVAILABLE VALUES (DEFAULT)
INT.OFF / INT.COD / INT.MEM
CODE 0 - CODE 9,
CODE A - CODE F, (CODE 1)
d1 - d9
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 71
SET (MENU) MODE
SWITCH/KNOB SETTING
Enables/Disables the beeper.
Selects the LCD/Keypad Lamp mode.
Selects the Control Locking lockout combination.
Selects the MONI switch function.
Selects the function of the [HM/RV] key.
MISCELLANEOUS SETTING
Setting of the Automatic Power-Off feature.
Enables/Disables the Busy Channel Lock-Out feature.
Enables/Disables the BUSY LED while the Squelch is open.
Shifting of the CPU clock frequency.
Indicates the DC Supply Voltage.
Enables/Disables the Band-edge beeper while selecting the
frequency via the DIAL knob.
Selects the alarm(s) utilized when the Emergency function
is engaged.
Enables/disables the Password feature.
Stores the password.
Adjusts the RF Squelch threshold level.
Selects the Smart Search Sweep mode.
Setting of the synthesizer steps.
Setting of the TOT time
Enables/Disables the TX LED while the radio is transmit-
ting.
Enables or disables “VFO Split” operation.
Select Wide (±5 kHz) or Narrow (±2.5 kHz) TX Deviation.
PAGER SETTING (REQUIRES OPTIONAL FTD-7)
Enables/Disables the ANI function.
Program the ANI Identifier.
Enables/Disables the ANI function.
Setting the Pager Code for the DTMF Pager.
Enables/Disables the Answer Back function of the DTMF
Pager.
SET MODE ITEM
6 [BEEP]
25 [LAMP]
26 [LOCK]
27 [M/T-CL]
33 [REV/HM]
SET MODE ITEM
1 [APO]
5 [BCLO]
8 [BSY.LED]
9 [CLK.SFT]
12 [DC VLT]
20 [EDG.BEP]
21 [EMG S]
30 [PSWD]
31 [PSWD W]
34 [RF SQL]
38 [S SRCH]
45 [STEP]
47 [TOT]
48 [TX.LED]
50 [VFO.SPL]
51 [WID.NAR]
SET MODE ITEM
53 [ANI]
54 [ANI.WRT]
55 [PAGER]
56 [PAG.COD]
57 [PAG.ABK]
AVAILABLE VALUES (DEFAULT)
KEY+SC / KEY / OFF
KEY / 5SEC / TOGGLE
LK KEY / LKDIAL / LK K+D / LK
PTT / LK P+K / LK P+D / LK ALL
MONI / T-CALL
<
REV
>
/
<
HOME
>
AVAILABLE VALUES (DEFAULT)
OFF / 0.5H - 12.0 H
BCL. ON / BCL.OFF
LED. ON / LED.OFF
SFT.OFF / SFT. ON
–
BEP.OFF / BEP. ON
EMG.BEP / EMG.LMP / EMG.B+L /
EMG.CWT / EMG.C+B /
EMG.C+L / EMG.ALL / OFF
PWD.OFF / PWD. ON
–
S-1 / S-2 / S-3 / S-4 / S-5 / S-6 /
S-8 / S-FULL / OFF
SINGLE / CONT
5 / 10 /12.5 / 15 / 20 / 25 /
50 / 100 kHz, or AUTO
1MIN - 30MIN or OFF (6MIN)
LED. ON / LED.OFF
SPL.OFF / SPL. ON
WIDE / NARROW
AVAILABLE VALUES (DEFAULT)
ANI.OFF / ANI. ON
–
PAG.OFF / PAG. ON
000 - 999
ABK. OFF / ABK. ON
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL72
Set Mode Item 1 [APO]
Function: Setting of the Automatic Power-Off feature.
Available Values: OFF/0.5H - 12.0 H in 0.5 hour multiples
Default: OFF
Set Mode Item 2 [AR BEP]
Function: Selects the Beep option during ARTS operation.
Available Values: INRANG/ALWAYS/OFF
Default: INRANG
INRANG: Beeps sound only when the radio first detects that you are within range.
ALWAYS: Beeps sound every time a polling transmission is received from the other sta-
tion (every 15 or 25 seconds when in range).
OFF: No alert beeps sound.
Set Mode Item 3 [AR INT]
Function: Selects the Polling Interval during ARTS operation.
Available Values: 25 SEC/15 SEC
Default: 25SEC
Set Mode Item 4 [ARS]
Function: Enables/Disables the Automatic Repeater Shift function.
Available Values: ARS. ON/ARS.OFF
Default: ARS. ON
Set Mode Item 5 [BCLO]
Function: Enables/Disables the Busy Channel Lock-Out feature.
Available Values: BCL. ON/BCL.OFF
Default: BCL.OFF
Set Mode Item 6 [BEEP]
Function: Enables/Disables the beeper.
Available Values: KEY+SC/KEY/OFF
Default: KEY+SC
KEY+SC: The beeper sounds when you press any key, or when the scanner stops.
KEY: The beeper sounds when you press any key.
OFF: Beeper is disabled.
Set Mode Item 7 [BELL]
Function: Selects the number of CTCSS/DCS Bell ringer repetitions.
Available Values: OFF/1T/3T/5T/8T/CONT (Continuous ringing)
Default: OFF
SET (MENU) MODE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 73
Set Mode Item 8 [BSY.LED]
Function: Enables/Disables the BUSY LED while the Squelch is open.
Available Values: LED. ON/LED.OFF
Default: LED. ON
Set Mode Item 9 [CLK.SFT]
Function: Shifting of the CPU clock frequency.
Available Values: SFT.OFF/SFT. ON
Default: SFT.OFF
This function is only used to move a spurious response “birdie,” should it fall on a desired
frequency.
Set Mode Item 10 [CWID]
Function: Enables/disables the CW identifier during ARTS operation.
Available Values: TX OFF/TX ON
Default: TX OFF
Set Mode Item 11 [CW WRT]
Function: Programs and activates the CW Identifier (used during ARTS operation).
See page 52 for details.
Set Mode Item 12 [DC VLT]
Function: Indicates the DC Supply Voltage.
Set Mode Item 13 [DCS.COD]
Function: Setting of the DCS code.
Available Values: 104 standard DCS codes
Default: DCS.023
Set Mode Item 14 [DCS.N/R]
Function: Enables/Disables “Inverted” DCS
code decoding.
Available Values: T/RX N, RX R, TX R,
T/RX R
Default: T/RX N
Set Mode Item 15 [DT DLY]
Function: Setting of the DTMF Autodialer Delay Time.
Available Values: 50MS/100MS/250MS/450MS750MS/1000MS
Default: 450MS
Set Mode Item 16 [DT SPD]
Function: Setting of the DTMF Autodialer Sending Speed.
Available Values: 50MS (high speed)/100MS (low speed)
Default: 50MS
SET (MENU) MODE
DCS CODE
023 025 026 031 032 036 043 047 051 053
054 065 071 072 073 074 114 115 116 122
125 131 132 134 143 145 152 155 156 162
165 172 174 205 212 223 225 226 243 244
245 246 251 252 255 261 263 265 266 271
274 306 311 315 325 331 332 343 346 351
356 364 365 371 411 412 413 423 431 432
445 446 452 454 455 462 464 465 466 503
506 516 523 526 532 546 565 606 612 624
627 631 632 654 662 664 703 712 723 731
732 734 743 754 – – – – – –
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL74
Set Mode Item 17 [DT WRT]
Function: Programming of the DTMF Autodialer.
See page 53 for details.
Set Mode Item 18 [ECS.CDR]
Function: Setting the Receiver Pager Code for the Enhanced CTCSS Paging & Code
Squelch.
See page 26 for details.
Set Mode Item 19 [ECS.CDT]
Function: Setting the Transmitting Pager Code for the Enhanced CTCSS Paging & Code
Squelch.
See page 26 for details.
Set Mode Item 20 [EDG.BEP]
Function: Enables/Disables the Band-edge beeper while selecting the frequency via the
DIAL knob.
Available Values: BEP.OFF/ BEP. ON
Default: BEP.OFF
Set Mode Item 21 [EMG S]
Function: Selects the alarm(s) utilized when the Emergency function is engaged.
Available Values: EMG.BEP/EMG.LMP/EMG.B+L/EMG.CWT/EMG.C+B/EMG.C+L/
EMG.ALL/OFF
Default: EMG.B+L
EMG.BEP: Loud “Alarm” sounds.
EMG.LMP: The LCD/Keypad lamp flashes.
EMG.B+L: Loud “Alarm” sounds and the LCD/Keypad lamp flashes.
EMG.CWT: Transmits the Morse Code “SOS” (• • • – – – • • •) message on the air begin-
ning one minute after activation of the Emergency function.
EMG.C+B: Loud “Alarm” sounds and the Morse Code “SOS” (• • • – – – • • •) message is
transmitted on the air beginning one minute after activation of the Emergency
function.
EMG.C+L: The LCD/Keypad lamp flashes, and the Morse Code “SOS” (• • • – – – • • •)
message is transmitted on the air beginning one minute after activation of the
Emergency function.
EMG.ALL: All of the above are activated.
OFF: Disables the Emergency function. The Emergency function also cannot be en-
gaged, by pressing and holding in the [4(RPT)] key, if this Menu is set to “OFF.”
When the radio is set to the EMG.CWT, EMG.C+B, EMG.C+L, or EMG.ALL mode, the
radio will be instructed to send “DE (your callsign)” after the sending of the SOS message,
if your callsign is entered via Set Mode Item 10: CWIDCWID
CWIDCWID
CWID.
SET (MENU) MODE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 75
Set Mode Item 22 [I NET]
Function: Selects the Internet Link Connection mode.
Available Values: INT.OFF/INT.COD/INT.MEM
Default: INT.OFF
INT.OFF: Disables the Internet Link Connection mode.
INT.COD: Sets up the Internet Link Connection mode for WiRES™ access.
INT.MEM: Sets up the Internet Link Connection mode for other (DTMF string) Internet
Link System access.
Set Mode Item 23 [INT CD]
Function: Selects the Access Number (DTMF digit) for WIRES™ operation.
Available Values: CODE 0 - CODE 9, CODE A - CODE F
Default: CODE 1
Set Mode Item 24 [INT MR]
Function: Selects the memory register for an Access Number (DTMF code) for non-
WIRES™ Internet Link System access.
Available Values: d1 - d9
Default: d1
Set Mode Item 25 [LAMP]
Function: Selects the LCD/Keypad Lamp mode.
Available Values: KEY/CONT/OFF
Default: KEY
KEY: Illuminates the Keypad/LCD lamp for five seconds when you rotate the DIAL
knob or press the keypad or any switch (except PTT switch). This is the factory-
programmed default setting.
CONT: Illuminates the Keypad/LCD lamp continuously.
OFF: Disables the Keypad/LCD lamp.
Set Mode Item 26 [LOCK]
Function: Selects the Control Locking lockout combination.
Available Values: LK KEY/LKDIAL/LK K+D/LK PTT/LK P+K/LK P+D/LK ALL
Default: LK K+D
Note: “K” = “Key;” “D” = “Dial;” and “P” = “PTT.”
SET (MENU) MODE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL76
Set Mode Item 27 [M/T-CL]
Function: Selects the MONI key (just below the PTT switch) function.
Available Values: MONI/T-CALL
Default: Depends on the transceiver version.
MONI: Pressing the MONI key causes the Noise/Tone Squelch to be over-ridden, allow-
ing you to listen for weak (or non-encoded) signals.
T-CALL: Pressing the MONI key activates a 1750-Hz burst tone, used for repeater access
in many countries (especially in Europe).
Set Mode Item 28 [NAME]
Function: Toggles the display indication between “frequency” and the channel’s “Alpha/
Numeric Tag.”
Available Values: FREQ/ALPHA
Default: FREQ
Set Mode Item 29 [NM WRT]
Function: Stores Alpha-Numeric “Tags” for the Memory channels.
See page 33 for details.
Set Mode Item 30 [PSWD]
Function: Enables/disables the Password feature.
Available Values: PWD.OFF/PWD. ON
Default: PWD.OFF
Set Mode Item 31 [PSWD W]
Function: Stores the password.
Available entries are 0-9, A, B, C, D, E (substitute for “”), and F (substitute for “#”)
Set Mode Item 32 [RESUME]
Function: Selects the Scan Resume mode.
Available Values: BUSY/HOLD/TIME
Default: BUSY
BUSY: The scanner will hold until the signal disappears, then will resume when the car-
rier drops.
HOLD: The scanner will stop when a signal is received, and will not restart.
TIME: The scanner will hold for the five seconds, then resume whether or not the other
station is still transmitting.
SET (MENU) MODE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 77
Set Mode Item 33 [REV/HM]
Function: Selects the function of the [REV(HOME)] key.
Available Values:
<
REV
>
/
<
HOME
>
Default: <REV>
<
REV
>
: Pressing the [REV(HOME)] key reverses the transmit and receive frequencies
during repeater operation.
<
HOME
>
: Pressing the [REV(HOME)] key instantly recalls a favorite “Home” channel.
Set Mode Item 34 [RF SQL]
Function: Adjusts the RF Squelch threshold level.
Available Values: S-1/S-2/S-3/S-4/S-5/S-6/S-8/S-FULL/OFF
Default: OFF
Set Mode Item 35 [RPT.MOD]
Function: Sets the Repeater Shift Direction.
Available Values: RPT.OFF/RPT. –/RPT. +
Default: Depends on the transceiver version, as well as the setting of Set Mode Item 4:
ARSARS
ARSARS
ARS.
Set Mode Item 36 [PRI.RVT]
Function: Enables/disables the Priority Revert feature.
Available Values: RVT.OFF/RVT. ON
Default: RVT.OFF
See page 45 for details.
Set Mode Item 37 [RXSAVE]
Function: Selects the Receive-mode Battery Saver interval (“sleep” ratio)
Available Values: 200 MS(1:1)/300 MS(1:1.5)/500 MS(1:2.5)/1 S(1:5)/2 S(1:10)/OFF
Default: 200 MS
Set Mode Item 38 [S SRCH]
Function: Selects the Smart Search Sweep mode.
Available Values: SINGLE/CONT
Default: SINGLE
SINGLE: The transceiver sweeps the current band once in each direction, starting on the
current frequency. All channels where activity is present (up to 15 in each di-
rection) are loaded into the Smart Search memories. Whether or not all 31
memories are filled, the search stops after one sweep in each direction.
CONT: The transceiver makes a sweep in each direction as with the “SINGLE” mode,
but if all 31 channels are not filled after the first sweep, the radio continues
sweeping until they are all filled.
SET (MENU) MODE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL78
Set Mode Item 39 [SCN MD]
Function: Selects the Memory Scan channel-selection mode.
Available Values: ONLY/MEM
Default: MEM
ONLY: The scanner will only scan channels that are flagged (Preferential Scan List).
MEM: The scanner will “skip” the flagged channels during scanning.
Set Mode Item 40 [SCN.LMP]
Function: Enables/Disables the Scan lamp while paused.
Available Values: ON/OFF
Default: ON
Set Mode Item 41 [SHIFT]
Function: Sets the magnitude of the repeater Shift.
Available Values: 0.00 - 99.95 MHz (50 kHz increments)
Default: Depends on the operating band and transceiver version.
Set Mode Item 42 [SKIP]
Function: Selects the Memory Scan “Skip” channel-selection mode.
Available Values: OFF/SKIP/ONLY
Default: OFF
SKIP: The scanner will “skip” the flagged channels during scanning.
ONLY: The scanner will only scan channels that are flagged (Preferential Scan List).
OFF: All memory channels will be scanned (the “flag” will be ignored).
Set Mode Item 43 [SPLIT]
Function: Enables/Disables split CTCSS/DCS coding.
Available Values: SPL.OFF/SPL. ON
Default: SPL.OFF
When this Set Mode Item is set to “SPL. ON,” you will see the following additional param-
eters after the “DCS” parameter while configuring Set Mode Item 44: SQL.TYPSQL.TYP
SQL.TYPSQL.TYP
SQL.TYP.
D: DCS Encode only.
T DCS: Encodes a CTCSS tone and Decodes a DCS code.
D TSQL: Encodes a DCS code and Decodes a CTCSS tone.
Select the desired operating mode from the selections shown above.
SET (MENU) MODE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 79
Set Mode Item 44 [SQL.TYP]
Function: Selects the Tone Encoder and/or Decoder mode.
Available Values: OFF/TONE/TSQL/REV TN/DCS/ECS
Default: OFF
TONE: CTCSS Encoder
TSQL: CTCSS Encoder/Decoder
REV TN:Reverse CTCSS Decoder (Mutes receiver when matching tone is received)
DCS: Digital Coded Encoder/Decoder
ECS: Enhanced Paging & & Code Squelch
Note: See also Set Mode Item 43: SPLITSPLIT
SPLITSPLIT
SPLIT regarding additional selections available during
“Split Tone” operation.
Set Mode Item 45 [STEP]
Function: Setting of the synthesizer steps.
Available Values: 5/10/12.5/15/20/25/50/100 kHz, or AUTO
Default: AUTO (Step automatically changes according to operating frequency.)
Set Mode Item 46 [TN FRQ]
Function: Setting of the CTCSS Tone Fre-
quency.
Available Values: 50 standard CTCSS tones
Default: 100.0 Hz
Set Mode Item 47 [TOT]
Function: Setting of the TOT time
Available Values: 1MIN - 30MIN or OFF
Default: 6MIN (minutes)
The time-out timer shuts off the transmitter after continuous transmission of the pro-
grammed time.
Set Mode Item 48 [TX LED]
Function: Enables/Disables the TX LED while the radio is transmitting.
Available Values: LED. ON/LED.OFF
Default: LED. ON
Set Mode Item 49 [TXSAVE]
Function: Enables/Disables the Transmitter Battery Saver.
Available Values: SAV.OFF/ SAV. ON
Default: SAV.OFF
SET (MENU) MODE
CTCSS TONE FREQUENCY (Hz)
67.0 69.3 71.9 74.4 77.0 79.7
82.5 85.4 88.5 91.5 94.8 97.4
100.0 103.5 107.2 110.9 114.8 118.8
123.0 127.3 131.8 136.5 141.3 146.2
151.4 156.7 159.8 162.2 165.5 167.9
171.3 173.8 177.3 179.9 183.5 186.2
189.9 192.8 196.6 199.5 203.5 206.5
210.7 218.1 225.7 229.1 233.6 241.8
250.3 254.1 ––––
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL80
Set Mode Item 50 [VFO.SPL]
Function: Enables or disables “VFO Split” operation.
Available Values: VSP.OFF/VSP. ON
Default: VSP.OFF
Set Mode Item 51 [WID.NAR]
Function: Select Wide (±5 kHz) or Narrow (±2.5 kHz) TX Deviation.
Available Values: WIDE/NARROW
Default: WIDE
Note: If “Narrow” is selected, the receiver audio level is increased slightly to compensate
for the reduced deviation. The receiver IF filter bandwidth is not changed via this setting.
Set Mode Item 52 [WX ALT]
Function: Enables/Disables the Weather Alert Scan feature.
Available Values: ALT.OFF/ALT. ON
Default: ALT. OFF
The following Set Mode Items will appears when the optional FTD-7 DTMF Paging Unit
is installed.
Set Mode Item 53 [ANI]
Function: Enables/Disables the ANI function.
Available Values: ANI.OFF/ANI. ON
Default: ANI. OFF
Set Mode Item 54 [ANI.WRT]
Function: Program the ANI Identifier.
See page 57 for details.
Set Mode Item 55 [PAGER]
Function: Enables/Disables the ANI function.
Available Values: PAG.OFF/PAG. ON
Default: PAG. OFF
Set Mode Item 56 [PAG.COD]
Function: Setting the Pager Code for the DTMF Pager.
See page 55 for details.
Set Mode Item 57 [PAG.ABK]
Function: Enables/Disables the Answer Back function of the DTMF Pager.
Available Values: ABK.OFF/ABK. ON
Default: ABK. OFF
SET (MENU) MODE
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL 81
General
Frequency Ranges: RX 137 - 174 MHz
TX 144 - 146 (148) MHz
Channel Steps: 5/10/12.5/15/20/25/50/100 kHz
Frequency Stability: ±5 ppm @ 14º to 140º F (–10° to +60° C)
Repeater Shift: ±600 kHz
Emission Type: F2D , F3E
Antenna Impedance: 50
Supply Voltage: Nominal: 7.2 V DC
(Negative Ground) Operating: 6.0 ~ 16.0 V DC (EXT DC Jack)
11.0 ~ 16.0 V DC (EXT DC Jack with Charging)
Current Consumption: 165 mA (Receive, 200 mW output)
(Approx. @7.2 V) 45 mA (Standby, Saver Off)
20.5 mA (Standby, Saver On)
8 mA (Auto Power Off)
1.5 A (5 W TX)
Operating Temperature: –4º to 140º F (–20 °C to +60 °C)
Case Size: 2.36” (W) x 4.72” (H) x 1.26” (D) (60 x 120 x 32 mm)
(W/O knob, antenna, & belt clip)
Weight: 13.8 Oz (390 g) with FNB-83, antenna, and belt clip
Transmitter
RF Power Output: 5.0 W (High) / 2.0 W (Middle) / 0.5 W (Low) (@7.2 V)
Modulation Type: Variable Reactance F2D, F3E
Maximum Deviation: ±5.0 kHz (F2D, F3E)
Spurious Emission: At least 60 dB down (@ High and Middle power)
At least 40 dB down (@ Low power)
Microphone Impedance:2 k
Receiver
Circuit Type: Double-Conversion Superheterodyne
Intermediate Frequencies:1st: 21.7 MHz
2nd: 450 kHz
Sensitivity: 0.2 μV for 12 dB SINAD (137-140 MHz)
0.16 μV for 12 dB SINAD (140-150 MHz)
0.2 μV for 12 dB SINAD (150-174 MHz)
Selectivity: 12 kHz/35 kHz (–6 dB /–60 dB)
AF Output: 800 mW @ 16 for 10 % THD (Internal Speaker)
(@ 7.5 V) 400 mW @ 8 for 10 % THD (EXT SP Jack)
Specifications are subject to change without notice, and are guaranteed within the 144
MHz amateur band only. Frequency ranges and functions will vary according to trans-
ceiver version; check with your dealer.
SPECIFICATIONS
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
FT-270R OPERATING MANUAL82

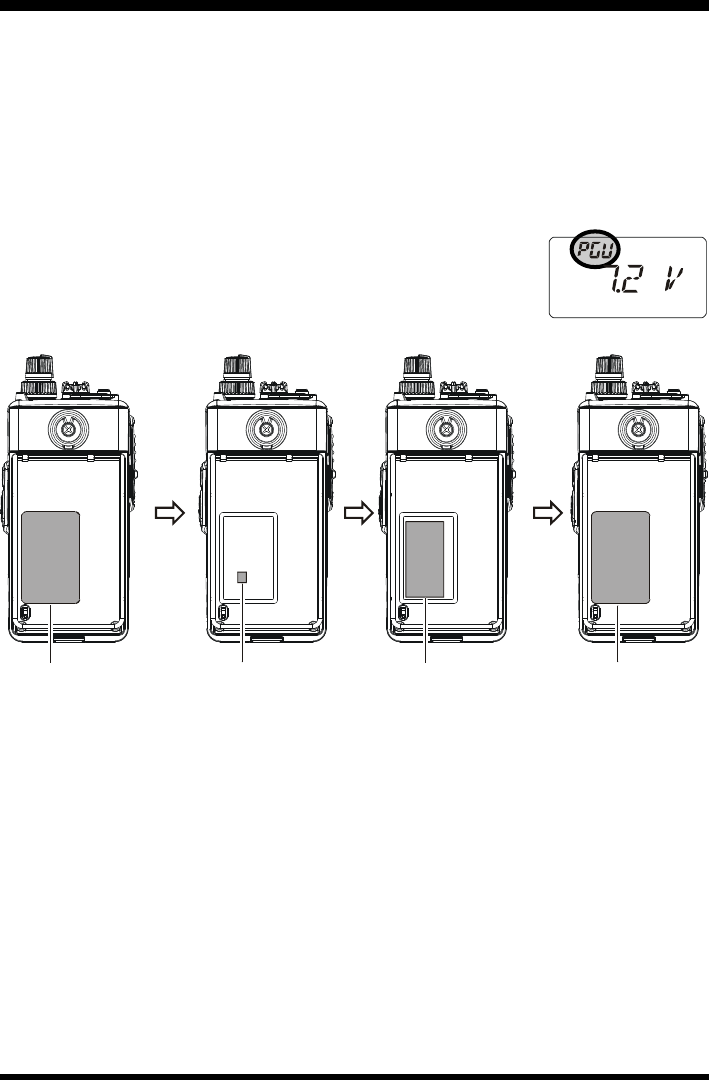

I
NSTALLATION
OF
THE
FTD-7 DTMF P
AGING
U
NIT
(O
PTION
)
1. Make sure that the transceiver is off. Remove the hard or soft case, if used.
2. Remove the battery pack.
3. Locate the connector for the FTD-7 under the caution seal in the battery compartment
on the back of the radio; just peel off the caution seal.
4. Align the connector on the FTD-7 with the transceiver's connector, and gently press
the unit into place.
5. Affix the new (supplied) caution seal, and replace the battery.
6. Installation is now complete.
When the optional FTD-7 DTMF Pager Unit is installed, a “PGUPGU
PGUPGU
PGU”
notation will be indicated on the display for 2 seconds, along with
the current DC supply voltage, when you turn the radio on.
Press the
Optional Unit Affix the supplied
Caution Seal
Peel off the
Caution Seal Connector
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
1. Changes or modifications to this device not expressly approved by YAESU
MUSEN could void the user’s authorization to operate this device.
2. This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference including
received, interference that may cause undesired operation.
3. The scanning receiver in this equipment is incapable of tuning, or readily
being altered, by the User to operate within the frequency bands allocated
to the Domestic public Cellular Telecommunications Service in Part 22.
WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR
RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES
AND FEDERAL LAW.
DECLARATION BY MANUFACTURER
The Scanner receiver is not a digital scanner and is incapable of being converted
or modified to a digital scanner receiver by any user.
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
Copyright 2013
YAESU MUSEN CO., LTD.
All rights reserved.
No portion of this manual
may be reproduced
without the permission of
YAESU MUSEN CO., LTD.
Printed in China
EH022N113
FCC ID: K6620223X20 / IC: 511B-20223X20
YAESU MUSEN CO., LTD.
