GENERAL FEATURE ........................................... 1

FRONT PANEL BUTTONS AND KNOBS ............ 2

DISPLAY INDICATIONS ....................................... 6

REAR PANEL JACKS .......................................... 8

SUPPLIED MH-31A8J MICROPHONE ................. 9

ACCESSORIES & OPTIONS ............................. 10

INSTALLATION .................................................. 11

CONNESTION OF ANTENNA AND POWER SUPPLY .. 11

ABOUT COAXIAL CABLE ............................................... 12

GROUNDING ................................................................... 12

VL-1000 LINEAR AMPLIFIER INTERCONNECTIONS .. 13

INTERFACING TO OTHER LINEAR AMPLIFIER ........... 13

EASY OPERATION ............................................ 14

HOW TO USE THE [DSP/SEL] KNOB ............................ 15

MENU OPERATION ......................................................... 15

HOW TO USE THE [VOICE/C.S] SWITCH .................... 16

KEY DURATION SETTING .............................................. 17

RESETTING THE MICROPROCESSOR ........................ 18

RECEIVING ........................................................ 19

TUNING STEPS ............................................................... 19

CHANGE THE TUNING STEP

OF THE [MAIN DIAL] KNOB ..................... 19

CHANGE THE TUNING STEP

OF THE [DSP/SEL] KNOB ........................ 19

ABOUT THE [UP]/[DWN] BUTTONS

OF THE MH-31A8J ........... 20

CLARIFIER ....................................................................... 20

DIGITAL VOICE ANNOUNCEMENT ............................... 21

DIAL LOCK ....................................................................... 21

MY BANDS OPERATION ................................................ 22

MY MODES OPERATION ............................................... 23

DIGITAL VOICE RECORDER ......................................... 24

CONVENIENCE FEATURES ............................. 25

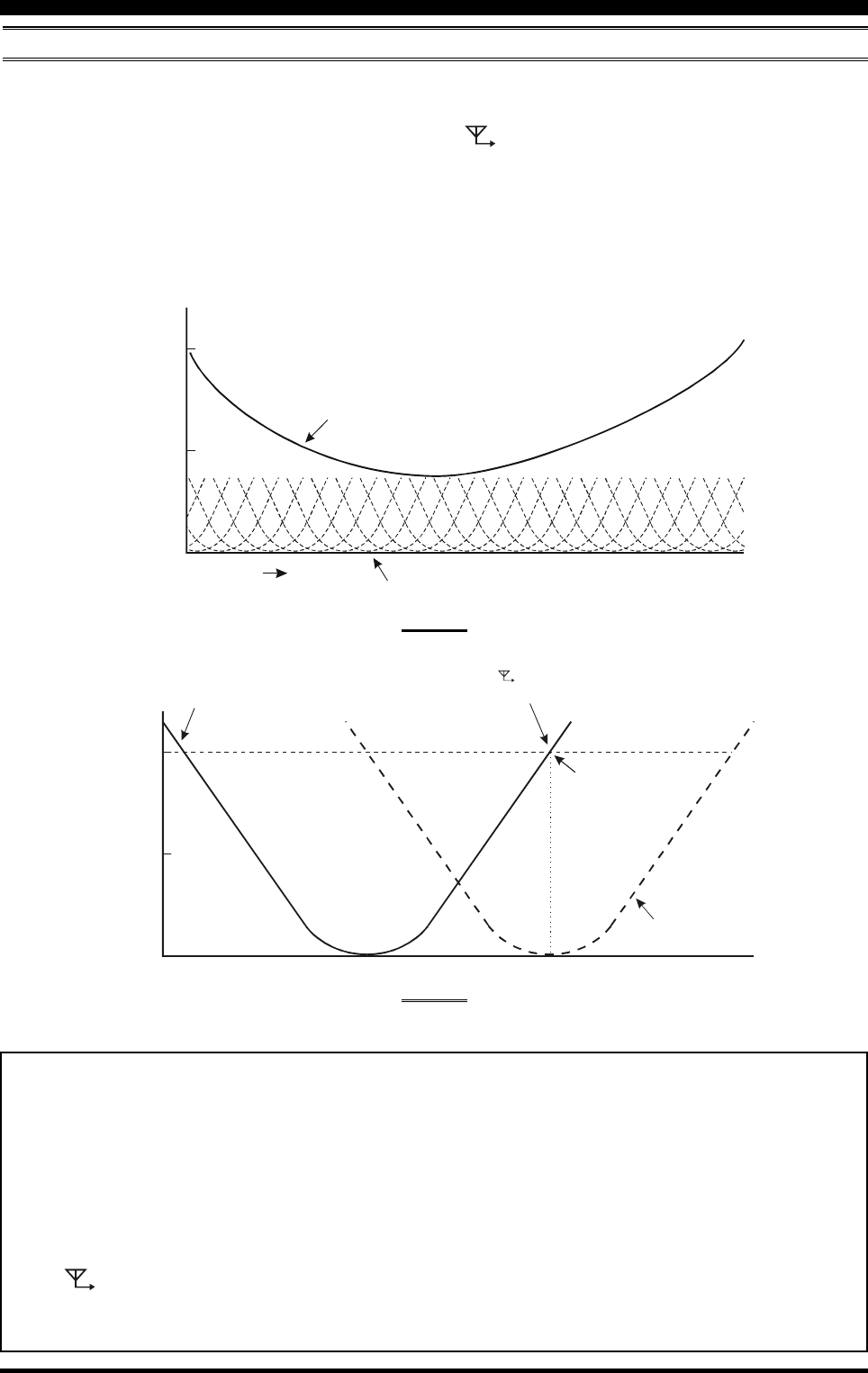

RECEIVER OPERATION

(FRONT END BLOCK DIAGRAM

) ......................................... 25

IPO/ATT

(ADJUST THE RECEIVING SENSITIVITY)

..................................

NOISE BLANKER

(INTERFERENCE REJECTION “SIGNALS WITHIN 3 kHz”)

........... 26

AGC

(TOOL FOR COMFORTABLE AND EFFECTIVE RECEPTION) .........

CONTOUR

(INTERFERENCE REJECTION “SIGNALS WITHIN 3 kHz”)

........... 28

SHIFT

(INTERFERENCE REJECTION “SIGNALS WITHIN 3 kHz”)

........... 29

WIDTH

(INTERFERENCE REJECTION “SIGNALS WITHIN 3 kHz”)

........... 30

NOTCH

(INTERFERENCE REJECTION “SIGNALS WITHIN 3 kHz”)

........... 31

DNR

(INTERFERENCE REJECTION “SIGNALS WITHIN 3 kHz”)

........... 32

RF GAIN ........................................................................... 33

Using the Automatic Antenna Tuner ............... 34

ATU Operation ................................................................. 34

About ATU Operation ....................................................... 35

SSB/AM MODE TRANSMISSION .....................36

TX METER SELECTION ................................................. 37

TX POWER ADJUSTMENT ............................................ 37

TRANSMITTER TIME-OUT TIMER (TOT) ...................... 38

MICROPHONE GAIN LEVEL ADJUSTMENT ................ 39

DSP MICROPHONE EQUALIZER .................................. 40

AUTOMATIC TX/RX SWITCHING

USING VOICE CONTROL (VOX) ........................... 41

MONITOR ........................................................................ 42

SPLIT-FREQUENCY OPERATION ................................. 43

QUICK SPLIT OPERATION ............................................ 43

VOICE MEMORY (SSB/AM/FM MODES) ...................... 44

CW MODE OPERATION .................................... 46

SETUP FOR STRAIGHT KEY

(AND STRAIGHT KEY EMULATION) OPERATION ..... 46

USING THE BUILT-IN ELECTRONIC KEYER ................ 47

CW SPOTTING (ZERO-BEATING) ................................. 49

USING CW REVERSE .................................................... 49

CW DELAY TIME SETTING ............................................ 50

CW SIDETONE VOLUME LEVEL SETTING .................. 50

CW PITCH ADJUSTMENT .............................................. 51

CW TRAINING FEATURE ............................................... 51

BEACON FEATURE ........................................................ 52

FM MODE OPERATION ..................................... 54

BASIC OPERATION ........................................................ 54

REPEATER OPERATION ................................................ 55

TONE SQUELCH/DCS OPERATION .............................. 56

TONE SEARCH SCANNING ........................................... 57

MEMORY OPERATION ...................................... 58

CONVENIENT MEMORY FUNCTIONS .......................... 58

MEMORY GROUPS......................................................... 59

REGULAR MEMORY OPERATION ................................ 60

MEMORY STORAGE ................................................ 60

MEMORY CHANNEL RECALL ................................. 60

ERASING MEMORY CHANNEL DATA ..................... 61

MEMORY TUNE OPERATION .................................. 61

LABELING MEMORIES ............................................ 62

HOME CHANNEL MEMORIES ....................................... 64

HOME CHANNEL RECALL ....................................... 64

HOME CHANNEL FREQUENCY CHANGE ............. 64

QMB (QUICK MEMORY BANK) ...................................... 65

STORAGE ................................................................. 65

RECALL ..................................................................... 65

SCANNING OPERATION ................................... 66

VFO AND MEMORY SCANNING .................................... 66

PREPARATION ......................................................... 66

VFO/MEMORY SCAN ............................................... 67

PROGRAMMABLE MEMORY SCANNING

(PMS) ........ 68

OPERATION ON ALASKA

EMERGENCY FREQUENCY: 5167.5 kHz

(U.S. Version Only) ........... 69

MISCELLANEOUS SETTINGS .......................... 70

DISPLAY SETTING .......................................................... 70

BEEPER SETTING .......................................................... 71

BEEP VOLUME ......................................................... 71

BEEP TONE .............................................................. 72

AUTOMATIC POWER-OFF (APO) .................................. 73

TABLE OF CONTENTS

Disposal of your Electronic and Electric Equipment

Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Electronic and Electric Equipment should be recycled at a facility capable of handling these items and

their waste byproducts.

In EU countries, please contact your local equipment supplier representative or service center for

information about the waste collection system in your country.

Page 1FT-450D OPERATION MANUAL

TABLE OF CONTENTS

RTTY (RADIO TELETYPE) OPERATION .......... 74

SETTING UP FOR RTTY OPERATION .......................... 74

BASIC SETUP ................................................................. 74

PACKET OPERATION ....................................... 75

PACKET SETUP

(INCLUDING SUBCARRIER FREQUENCY) ........... 75

BASIC SETUP ................................................................. 75

MISCELLANEOUS AFSK-BASED

DATA MODES ................. 76

MENU MODE ..................................................... 78

USING THE MENU .......................................................... 78

MENU MODE RESET ...................................................... 78

CLONING ........................................................... 88

GENERAL FEATURES

Super Compact HF Transceiver with IF-DSP

Built-in ATU (automatic antenna tuner)

Great HF radio performance, with uncomplicated operation, is realized with the very small FT-450D HF

transceiver.

HF + 50 MHz with 100 Watts output all mode operation

Small, compact and light-weight HF radio, 9 (W) x 3.3 (H) x 8.5 (D) in, 8.8 lb

Large 9-segment LCD display characters, provide easily read frequency indication

Black-Nega type LCD

Illumination Button

Built-in IF DSP unit that performs all of the following functions:

Modulation and Demodulation

CONTOUR

MANUAL NOTCH

DNR

WIDTH (CW narrow 300 Hz operation available without any optional filters)

Microphone equalizer built in

Speech Processor

DSP VOX operation

Two Voice memory channels included

Frequency read out function

TCXO built-in

500 memory channels

IF SHIFT

IPO

20 dB ATT built-in

Clarifier

Electronic keyer built-in

Microphone and phone jacks on the front panel

FSK-RTTY TX operation

Long wire antenna can be used by the optional FC-40

INSTALLATION OF

OPTIONAL ACCESSORIES .................... 90

AUTOMATIC-MATCHING 200-MEMORY

ANTENNA TUNER FC-40 OPERATION ....................... 90

ACTIVE-TUNING ANTENNA SYSTEM

(ATAS-100/-120/120A) OPERATION .................... 92

CARRYING HANDLE MHG-1 INSTALLATION ............... 94

MOUNTING BRACKET

MMB-90 INSTALLATION ............................ 95

SPECIFICATIONS .............................................. 96

FCC NOTICE ...................................................... 98

Congratulations on the purchase of your Yaesu amateur transceiver! Whether this is

your first rig, or if Yaesu equipment is already the backbone of your station, rest assured

that your transceiver will provide many hours of operating pleasure for years to come.

Page 2 FT-450D OPERATION MANUAL

PHONES

KEY

RONT

ANEL

UTTONS

AND

NOBS

PHONE Jack

A 3.5 mm, 3-contact jack accepts ei-

ther monaural or stereo headphones

with 2 or 3-contact plugs. When a plug

is inserted, the loudspeaker is dis-

abled.

NOTE:

When wearing headphones, we rec-

ommend that you turn the AF GAIN

levels down to their lowest settings

before turning power on, to minimize

the impact on your hearing caused by

audio “pops” during switch-on.

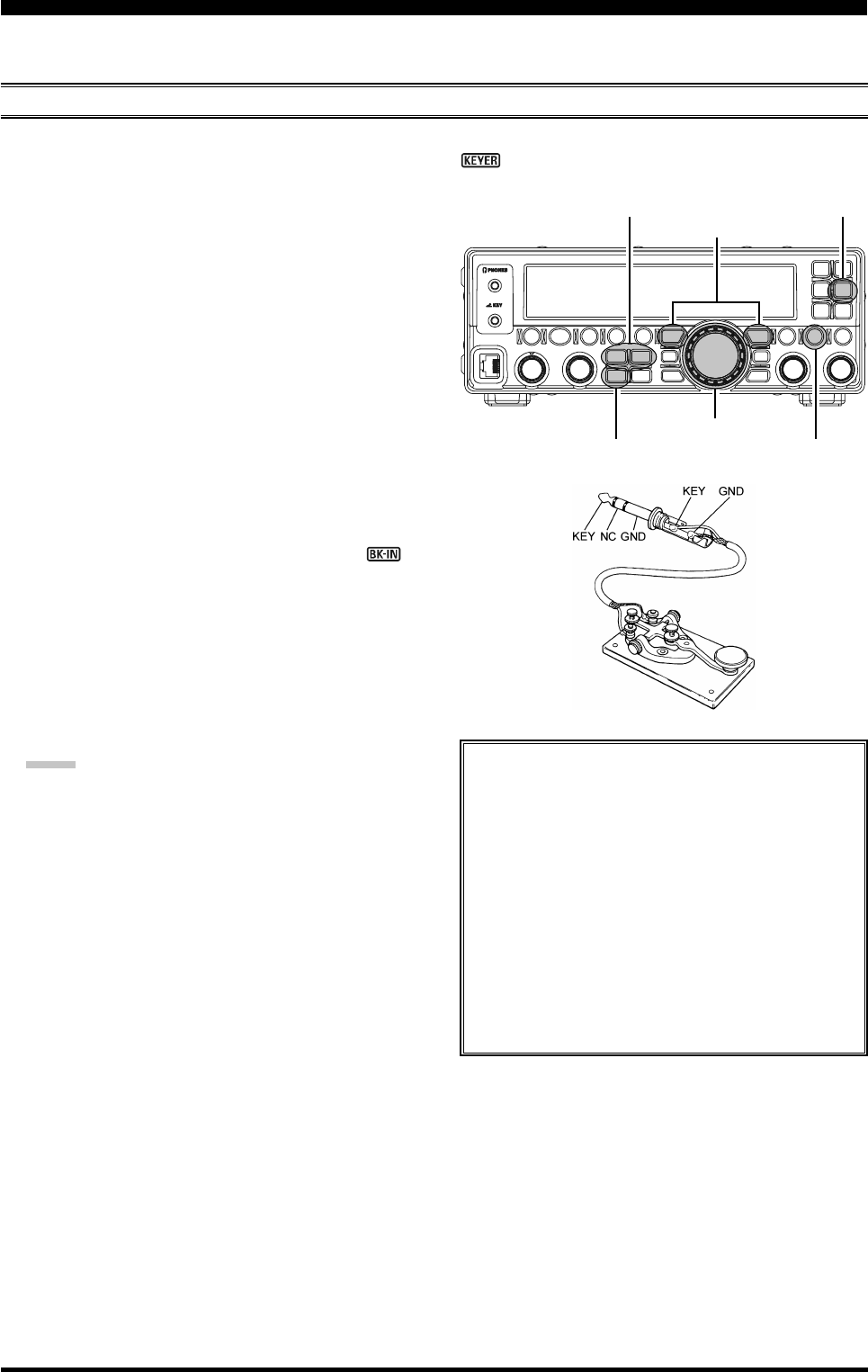

KEY Jack

This 3.5 mm, 3-contact

jack accepts a CW key or

keyer paddles (for the

built-in electronic keyer),

or output from an external

electronic keyer. Pinout is

shown below. Key up is 5

volts, and key down cur-

rent is 0.5 mA.

DSP Button

This button selects the DSP functions.

Available selections are CONTOUR,

NOTCH, DNR, and WIDTH.

IPO/ATT Button

This button selects the IPO or ATT feature. Available se-

lections are:

ATT:OFF/IPO:OFF  ATT:OFF/IPO:ON

 ATT:ON/IPO:OFF  ATT:ON/IPO:ON

 ATT:OFF/IPO:OFF

IPO: OFF, ATT: OFF

Attenuator is OFF, and the RF preamplifier amplifies

the incoming signal.

IPO: ON, ATT: OFF

Attenuator is OFF, and the received signal bypasses

the RF preamplifier, yielding a direct feed to the first

mixer.

IPO: OFF, ATT: ON

The received signal is reduced by 20 dB, and the RF

preamplifier amplifies the incoming signal.

IPO: ON, ATT: ON

The received signal is reduced by 20 dB, and the in-

coming signal bypasses the RF preamplifier, yielding a

direct feed to the first mixer.

The selection will be indicated in the Block Diagram on

the display.

ON/OFF Button

Press and hold in this button for one second

to turn the transceiver on or off.

NB Button

This button turns the IF Noise Blanker

on and off. Press this button to re-

duce short-duration pulse noise.

AGC Button

This button selects the AGC characteristics for the receiver.

Press and hold in this button for one second to disable the

AGC (for testing or weak-signal reception).

Do not use the plug except the 3.5-mm 3-pin type plug. If the plug in correct size is

not used the radio may be harmed or damaged.

Page 3FT-450D OPERATION MANUAL

RONT

ANEL

UTTONS

AND

NOBS

C.S/VOICE Button

Press this button to activate one of the 52 functions, which

can be assigned via Menu Item “PNL-C.S.”

Press the [F] button followed by this button to announce the

current operating frequency (with resolution to the displayed

100 Hz digit) and operating mode.

TUNE Button

Press this button momen-

tarily to toggle the Internal

Automatic Antenna Tuner

on/off.

Press and hold in this but-

ton to begin the automatic

Tuning.

F Button

Press this button to activate the alternate

key functions of the six command buttons

located on the upper right corner of the

front panel.

Press and hold this button for one sec-

ond to engage the “Menu” mode.

METER/DIM Button

Press this button to change the meter

function in the transmit mode as fol-

lows.

PO  ALC  SWR  PO

PO: Indicates the average power

output level.

ALC: Indicates the relative ALC volt-

age.

SWR: Indicates the Standing Wave

Ratio (Forward/Reflected).

Press the [F] button followed by this

button to enable adjustment of the

display dimmer level by the [DSP/

SEL] knob. When the adjustment is

complete, press this key again.

RCL/HOME Button

Press this button to recall the Quick Memory Bank

memory for operation. Press this button again to

return to the VFO or Memory mode.

Press the [F] button followed by this button to recall

the “Home” (favorite frequency) channel.

SPLIT/STEP Button

Press this button to activate split fre-

quency operation between VFO-A,

used for reception and VFO-B, used

for transmission (or vice versa).

Press the [F] button followed by this

button to enable setting of the fre-

quency step with the [DSP/SEL] knob.

When the selection is complete, press

this key again.

V/M/MW Button

This button toggles frequency control between the

VFO and the memory system.

Press the [F] button followed by this button to copy

the current operating data from the VFO into the cur-

rently selected memory channel.

STO/VOX Button

Press this button to copy the operating in-

formation (frequency, mode, bandwidth,

and also repeater direction/shift frequency

and CTCSS functions on the FM mode) into

the Quick Memory Bank.

Press the [F] button followed by this button

to activate the VOX (voice-actuated trans-

mitter switching) feature in the SSB, AM,

and FM modes.

SCAN/PMS Button

Press this button to initiate the

upward scanning of VFO fre-

quencies or memory chan-

nels.

Press the [F] button followed

by this button to engage the

Programmable Memory Scan,

(PMS) which limits scanning

within a particular frequency

range.

Front Feet

The two front feet allow the transceiver to be

tilted upward for better viewing.

Page 4 FT-450D OPERATION MANUAL

PHONES

KEY

RONT

ANEL

UTTONS

AND

NOBS

CLAR Button

Pressing this button activates the Clarifier,

to allow temporarily offsetting the receive

frequency. When the Clarifier is active, you

may offset the receive frequency by adjust-

ing the [MAIN DIAL] knob.

SHIFT Knob

This knob shifts the IF DSP passband

to reduce an interfering signal which

is inside the IF passband.

DSP/SEL Knob

This knob is used to select functions

depending on the situation.

GFrequency Tuning

GMemory Channel Selection

GDSP Setting

GMenu Mode Selection

MODE/MODE Button

These buttons select the operating

mode.

KEYER Button

This button toggles the in-

ternal CW keyer on and off.

MIC Jack

This 8-pin jack accepts input from

a supplied MH-67A8J Hand Micro-

phone.

(viewed from front panel)

Page 5FT-450D OPERATION MANUAL

RONT

ANEL

UTTONS

AND

NOBS

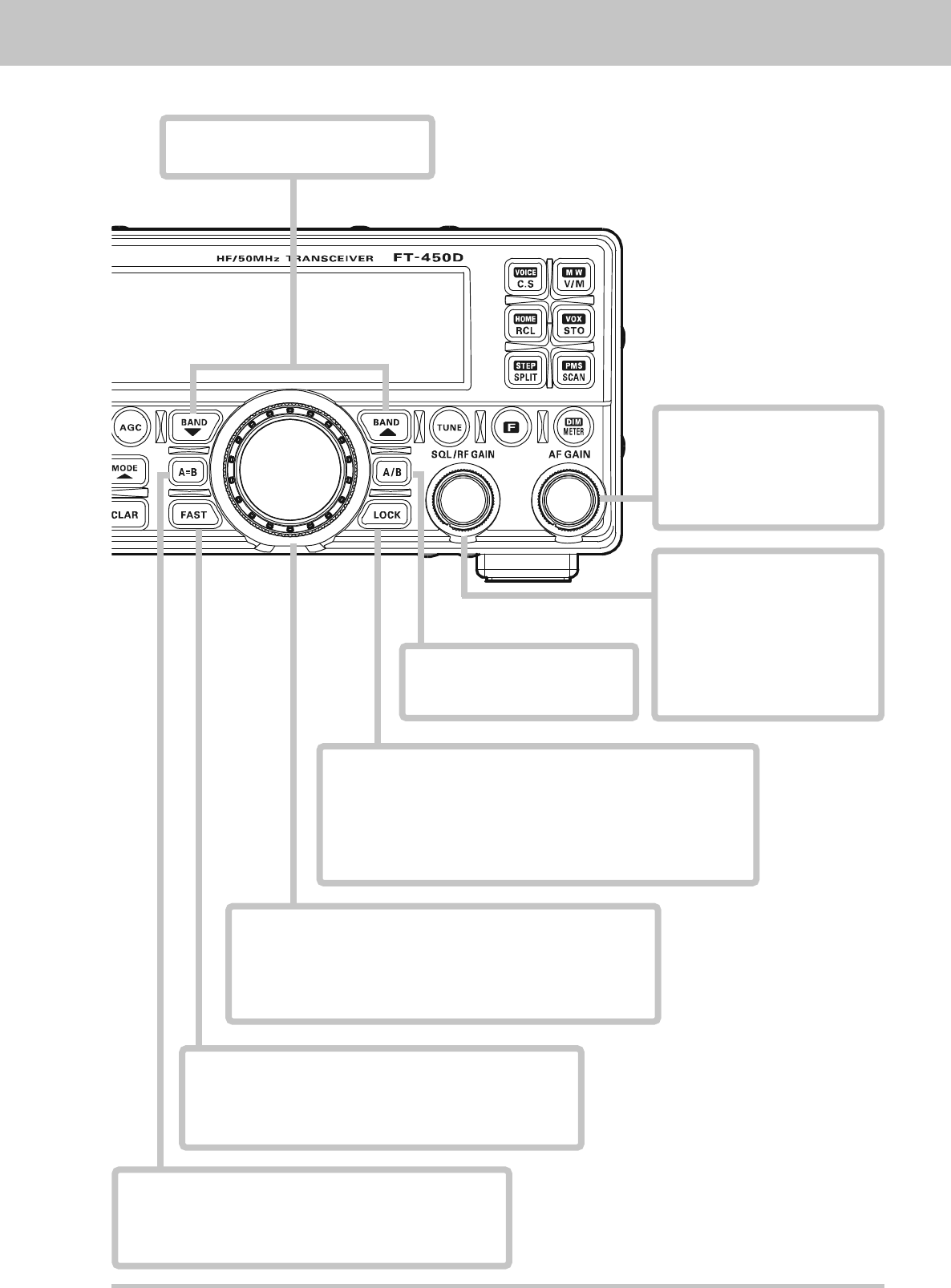

A=B Button

Press this button momentarily to transfer data from VFO-A fre-

quency (or a recalled memory channel) to VFO-B, overwriting

the previous contents in VFO-B. Use this key to set both VFO-A

and VFO-B to the same frequency and mode.

A/B Button

This button toggles the frequency

control between VFO-A and VFO-B.

FAST Button

Pressing this button will increase or decrease the tuning rate of

the [MAIN DIAL] knob by a factor of ten and also increase or

decrease the tuning rate of the [DSP/SEL] knob by a factor of

two.

LOCK Button

This button toggles the locking of the [MAIN DIAL] knob and some

switches, to prevent accidental frequency changes.

Advice: You may select the locking schemes via the Menu Mode.

Term Explanation: The Menu Mode permits you to make small changes

in the parameters of many of the functions of the FT-450D. You can cus-

tomize the operations to your personal preferences.

MAIN DIAL Knob

This knob adjusts the operating frequency in the SSB/CW/DATA modes.

You may change the knob’s function to also adjust frequency in AM/FM

mode via the Menu Mode.

When the Clarifier is activated, this knob adjusts the receiver offset

frequency.

AF GAIN

This knob sets the receiver’s audio

volume level. Typically, you will op-

erate with this control set between

the 9 o’clock and 10 o’clock posi-

tions.

SQL/RF GAIN Knob

In the factory default, this knob ad-

justs the gain of the receiver’s RF

and IF stages. Using Menu Item

“SQL/RFG”, this knob may be

changed to function as a Squelch

control, which may be used to si-

lence background noise when no sig-

nal is present.

BAND/BAND Button

These buttons select the operating band.

Page 6 FT-450D OPERATION MANUAL

PHONES

KEY

ISPLAY

NDICATIONS

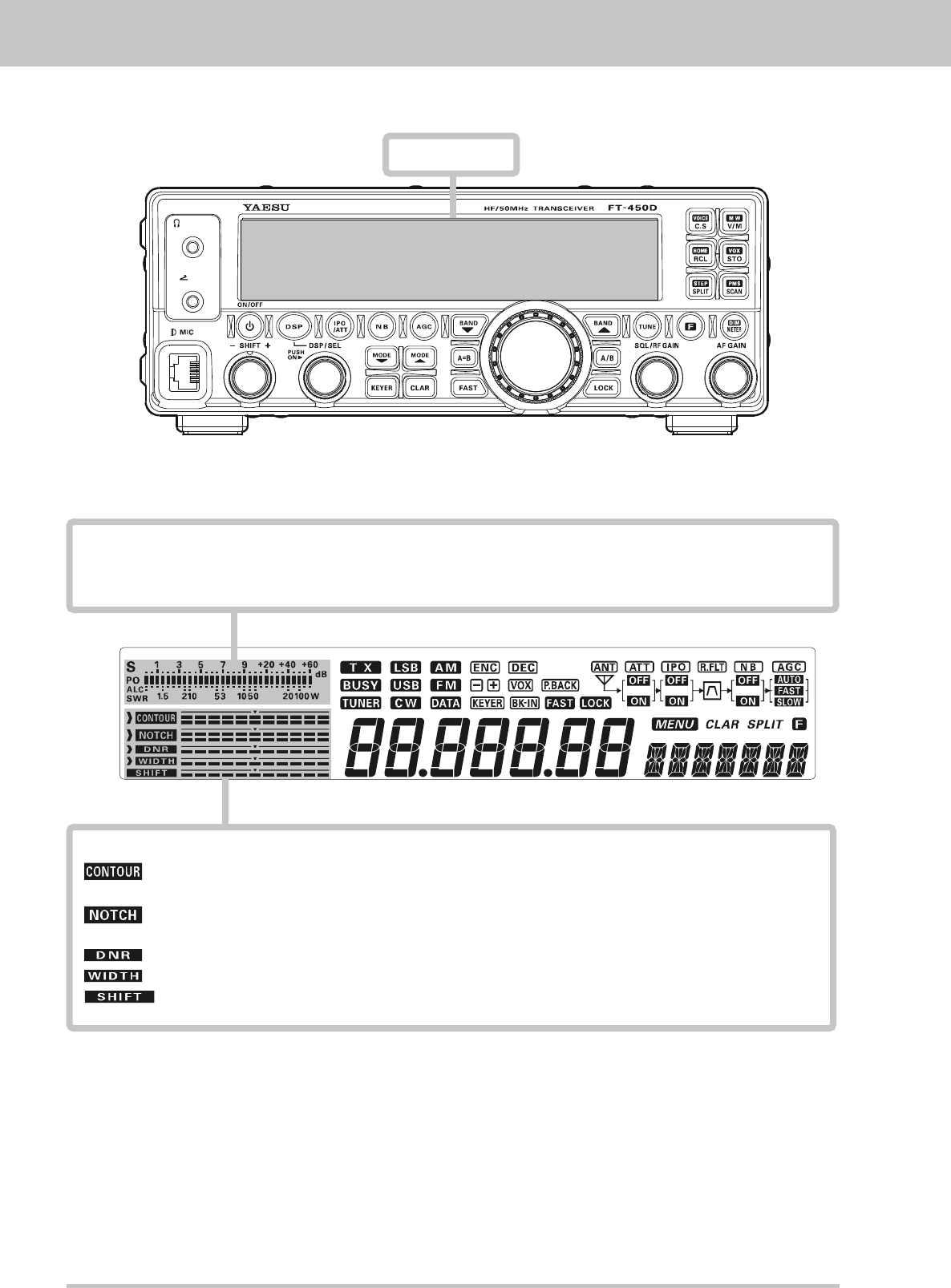

DSP Graphic Display

: The peak position of the CONTOUR Filter is depicted graphically here when the CONTOUR

Filter is activated.

: The null position of the IF Notch Filter is depicted graphically here when the IF Notch Filter

is activated.

: Indicates the Noise Reduction level of the Digital Noise Reducer.

: Indicates the bandwidth of the DSP IF filter.

: Indicates the peak position of the DSP IF filter.

Meter

While receiving, the received signal strength is displayed.

While transmitting, the meter displays PO, ALC, or SWR (determined by the [METER/DIM] button).

Display

Page 7FT-450D OPERATION MANUAL

ISPLAY

NDICATIONS

Frequency Display

The operating frequency is displayed.

: This indicator appears during transmission.

: This indicator appears whenever the receiver squelch is open.

: This indicator appears when the Internal Automatic Antenna Tuner is activated.

/////: Displays the currently selected operating mode.

/: Displays the current CTCSS operation while in FM mode.

/: Displays the Repeater Shift Direction while in FM mode.

: This indicator appears whenever the VOX (automatic voice-actuated transmitter switching)

circuit is activated.

: This indicator appears while the voice recorder is recording the receiver audio. This indicator

blinks while the voice recorder is playing back the recorded audio.

: This indicator appears whenever the internal CW keyer is activated.

: This indicator appears whenever the CW break-in operation is activated.

: This indicator appears when the [MAIN DIAL] knob’s tuning rate is set to fast.

: This indicator appears when the [MAIN DIAL] knob is locked.

: This indicator appears whenever the Menu Mode is engaged.

: This indicator appears whenever the Clarifier function is activated.

: This indicator appears whenever Split-frequency operation is activated.

: This indicator appears when the alternate key functions of the six command buttons located on

the upper right corner of the front panel is activated.

Block Diagram Display

: Indicates the antenna status. When the antenna system became abnormality, this indicator will blink.

: Indicates the RF attenuator status (“ON” or “OFF”) selected for operation by the [IPO/ATT] button.

: Indicates that the front-end RF pre-amplifier is removed from the receiver circuit. The incoming signal

is fed direct to the first mixer.

: Indicates the 10 kHz Roofing Filter status. This is always turned on.

: Indicates the Noise Blanker status (“ON” or “OFF”).

: Indicates the AGC decay time.

Page 8 FT-450D OPERATION MANUAL

EAR

ANEL

ACKS

INPUT

DC 13.8V

22 A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

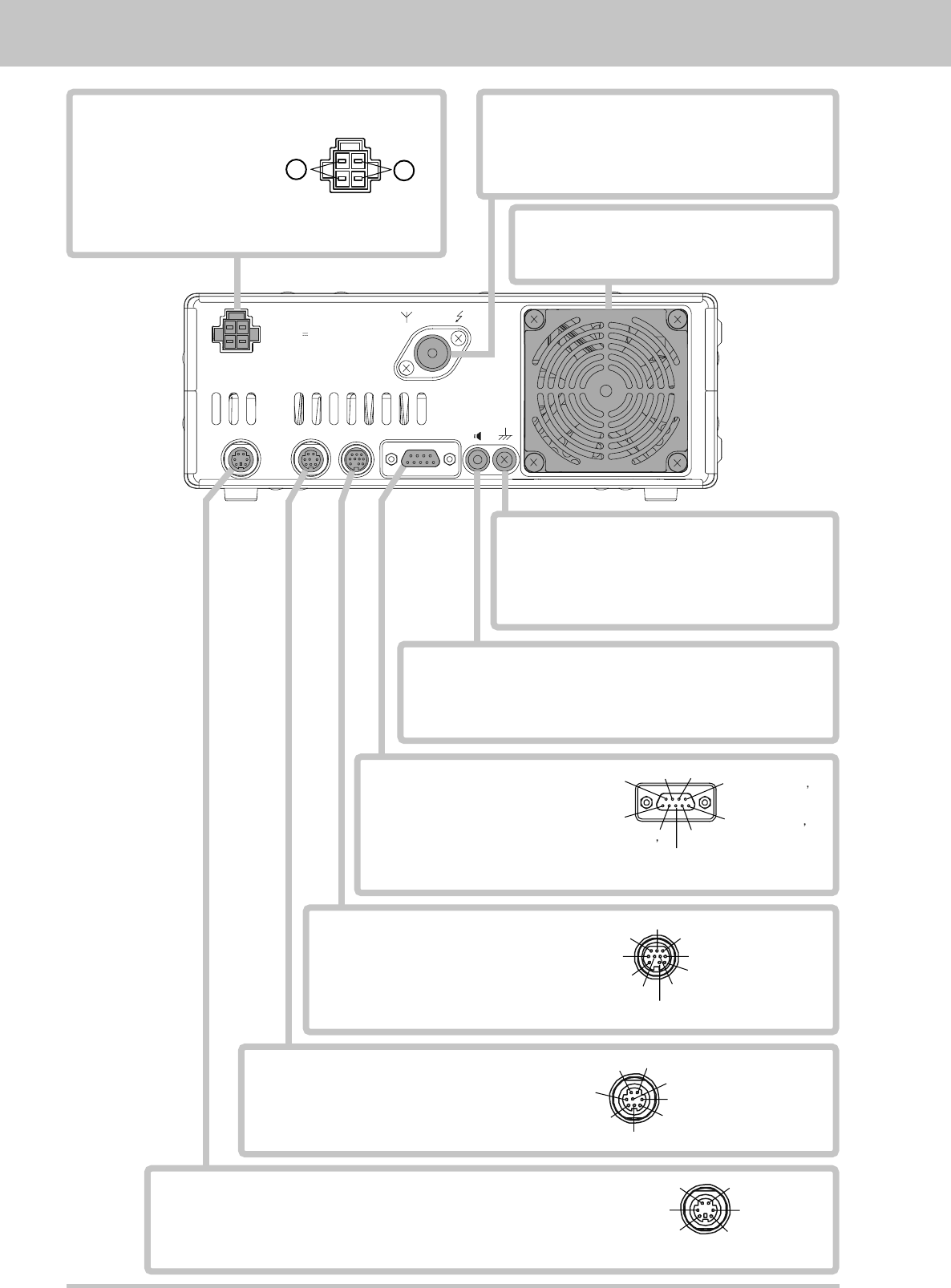

DC IN Jack

This is the DC power supply

connection for the transceiver.

Use the supplied DC cable to

connect directly to the car bat-

tery or to a DC power supply,

which must be capable of sup-

plying at least 22 A @13.8

VDC.

ANT Jack

Connect your antenna here, using a type-M (PL-259) co-

axial connector and 50 Ohm coaxial feedline.

Warning!: High Power RF voltage is present at the TX RF

section of the transceiver while transmitting. Absolutely!

Do not touch the TX RF section while transmitting.

DATA Jack

This 6-pin input/output jack provides receiver audio and squelch sig-

nals, and accepts transmit (AFSK) audio and PTT control, from an

external packet TNC.

LINEAR Jack

This 10-pin output jack pro-

vides band selection data,

which may be used for control

of the optional VL-1000 Solid-

State Linear Amplifier.

CAT Jack

This 9-pin serial DB-9 jack allows ex-

ternal computer control of the FT-

450D. Connect a (straight) serial

cable here and to the RS-232C COM

port on your personal computer (no

external interface is required).

EXT SPKR Jack

This 3.5-mm, 2-pin jack provides variable audio output for an external

speaker. The audio output impedance at this jack is 4 - 16 Ohms and

the level varies according to the setting of the front panel’s [AF GAIN]

knob. Inserting a plug into this jack disables the internal loudspeaker.

GND Terminal

For safety and optimum performance, use this termi-

nal to connect the transceiver to a good earth ground.

Use a large diameter, short braided cable for making

ground connections. Refer to page 12 for other notes

about proper grounding.

SQL OUT

 FSK IN

 GND DATA IN

 DATA PTT

DATA OUT

 TXD

 TX GND OUT +13.8V OUT

 GND

 TUNER SENSE  TX INH IN

 RXD

 RESET OUT

BAND DATA-A (LSB)

TX GND OUT

+13.8V OUT

TXREG IN

GND

BAND DATA-B BAND DATA-C

BAND DATA-D (MSB)

TX INH IN

EXT ALC IN

CTS RTS

GND

SERIAL IN

SERIAL OUT

Connect to 

 Connect to 

N/A

 Connect to 

TUNER Jack

This 8-pin jack is used for Connection to

the FC-40 External Automatic Antenna

Tuner.

COOLING FAN

Turns at low speed in receive mode.

Turns at high speed when the temperature begins to

rise or in transmit mode.

(viewed from rear panel)

Page 9FT-450D OPERATION MANUAL

DYNA MIC MICROPH ONE

MH-31

DWN FST UP

UPPLIED

MH-31A8J M

ICROPHONE

PTT Switch

Press this Switch to transmit,

and release it to receive after

your transmission is com-

pleted.

MIC

The microphone is located

here. Speak into the micro-

phone in a normal voice level.

The microphone should be po-

sitioned within 2 inches (5 cm)

from the mouth for optimum

performance.

TONE Switch

Position 1 provides flat-audio-

characteristic transmit audio.

Position 2 attenuates low au-

dio tones, for improved clarity

in moderate band conditions,

or if you have a naturally deep

voice.

DWN Key

Press to tune down, hold to

start scanning.

UP Key

Press to tune up, hold to start

scanning.

FST (FAST) Key

The FST Button on the trans-

ceiver should be set for mo-

mentary operation.

Page 10 FT-450D OPERATION MANUAL

CCESSORIES

& O

PTIONS

SUPPLIED ACCESSORIES

Hand Microphone (MH-31A8J) 1 pc P/N: M3090086A

DC Power Cord with Fuse 1 pc P/N: T9025225

Fuse 1 pc P/N: Q0000074

Operation Manual 1 pc

Warranty Card 1 pc

AVAILABLE OPTIONS

External Automatic Antenna Tuner (for Wire Antenna) FC-40

Active-Tuning Antenna System ATAS-25

Active-Tuning Antenna System ATAS-120A

Solid-State Linear Amplifier/AC Power Supply VL-1000 / VP-1000

Band Data Cable (for VL-1000)CT-118

Desktop Microphone MD-100

DTMF Hand Microphone MH-36E8J

Hand Microphone MH-31A8J

Lightweight Stereo Headphone YH-77STA

Mobile Mounting Bracket MMB-90

Carrying Handle MHG-1

CT Cable (MDIN10P - Bare Wire 2m) Linear Amplifier Connection Cable (P/N T9207451)

Page 11FT-450D OPERATION MANUAL

NSTALLATION

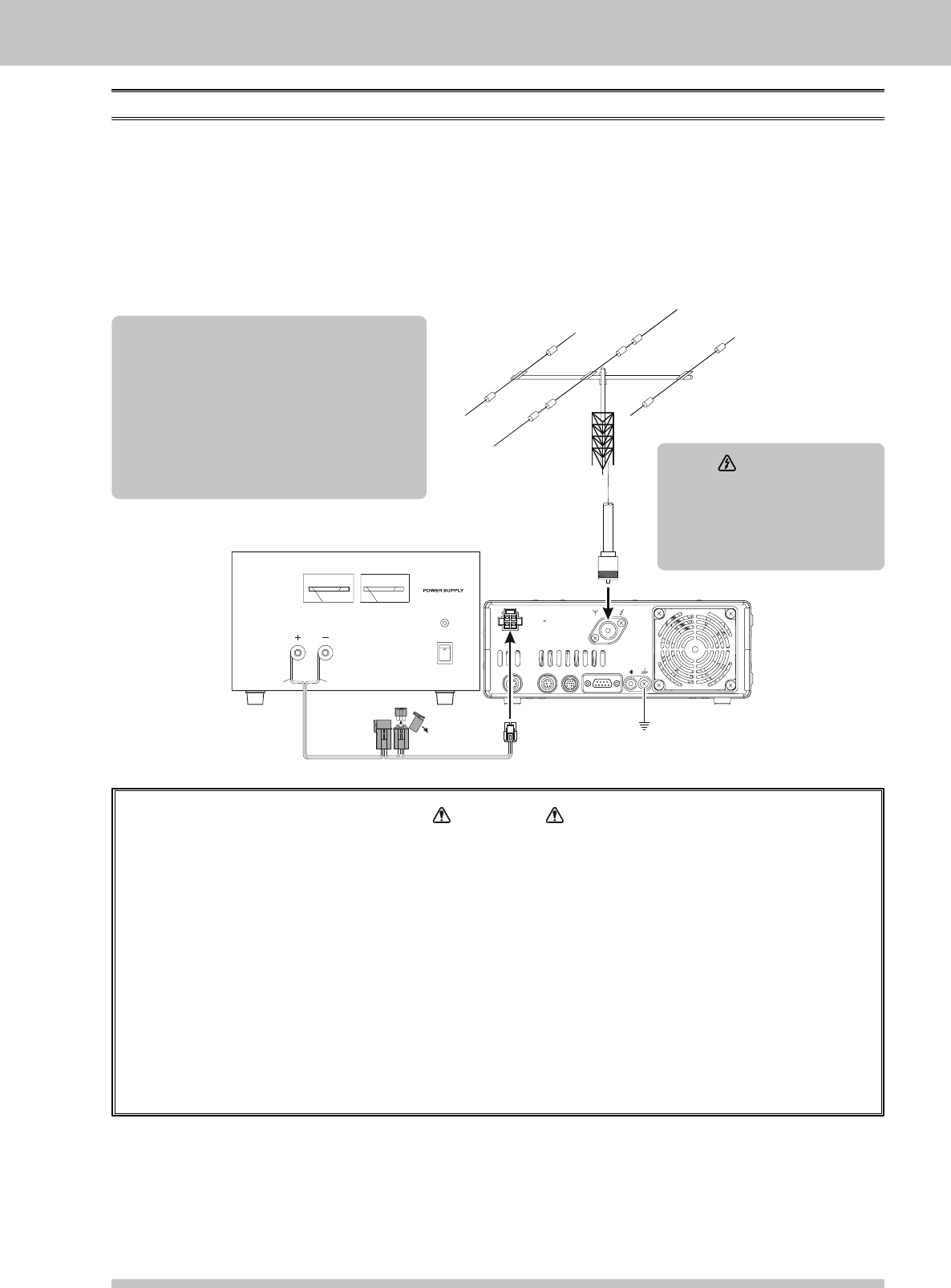

CONNECTION OF ANTENNA AND POWER SUPPLY

The FT-450D is designed for use with any antenna system providing a 50 Ohm resistive impedance at the

desired operating frequency. Every effort should be made to ensure the impedance of the antenna system is as

close as possible to the specified 50-Ohm value. Note that the “G5RV” type antenna does not provide 50-Ohm

impedance on all HF Amateur bands, and an external wide-range antenna coupler must be used with this

antenna type.

Any antenna to be used with the FT-450D must, ultimately, be fed with 50 Ohm coaxial cable. Therefore, when

using a “balanced” antenna such as a dipole, remember that a balun or other matching/balancing device must

be used to ensure proper antenna performance.

AC Power Supply

FT-450D

CAUTION

Permanent damage can result if improper supply

voltage, or reverse-polarity voltage, is applied to

the FT-450D. The Limited Warranty on this trans-

ceiver does not cover damage caused by applica-

tion of AC voltage, reversed polarity DC, or DC volt-

age outside the specified range of 13.8V ±10%.

When replacing fuses, be certain to use a fuse of

the proper rating. The FT-450D requires a 25A fast-

blow fuse.

INPUT

DC 13.8 V

22 A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

0 5 20 30 40

POWER

OFF

RED BLACK

FUSE: 25A

0 5 10 15 20

Warning!

The 100V RF voltage (@100 W/50

Ω) is applied to the TX RF section

of the transciver while transmitting.

Do not touch the TX RF section ab-

solutely while transmitting.

CAUTION

Do not position this apparatus in a location with direct exposure to sunshine.

Do not position this apparatus in a location exposed to dust and/or high humidity.

Do not expose the apparatus to dripping or splashing. Do not put objects with liquids on the apparatus.

Ensure adequate ventilation around this apparatus, so as to prevent heat build-up and possible reduc-

tion of performance due to high heat.

Do not install this apparatus in a mechanically-unstable location, or where objects may fall onto this

product from above.

To minimize the possibility of interference to home entertainment devices, take all precautionary steps

including separation of TV/FM antennas from Amateur transmitting antennas to the greatest extent

possible, and keep transmitting coaxial cables separated from cables connected to home entertain-

ment devices.

Be absolutely certain to install your transmitting antenna(s) such that they cannot possibly come in

contact with TV/FM radio or other antennas, nor with outside power or telephone lines.

Page 12 FT-450D OPERATION MANUAL

NSTALLATION

ABOUT COAXIAL CABLE

Use high-quality 50-Ohm coaxial cable for the lead-in to your FT-450D transceiver. All efforts at providing an

efficient antenna system will be wasted if poor quality, lossy coaxial cable is used. This transceiver utilizes

standard “M” (“PL-259”) type connector.

GROUNDING

The FT-450D transceiver, like any other HF communications apparatus, requires an effective ground system for

maximum electrical safety and best communications effectiveness. A good ground system can contribute to

station efficiency in a number of ways:

It can minimize the possibility of electrical shock to the operator.

It can minimize RF currents flowing on the shield of the coaxial cable and the chassis of the transceiver.

Such currents may lead to radiation, which can cause interference to home entertainment devices or

laboratory test equipment.

It can minimize the possibility of erratic transceiver/accessory operation caused by RF feedback and/or

improper current flow through logic devices.

An effective earth ground system may take several forms. For a more complete discussion, see an appropriate

RF engineering text. The information below is intended only as a guideline.

Typically, the ground connection consists of one or more copper-clad steel rods, driven into the ground. If

multiple ground rods are used, they should be positioned in a “V” configuration, and bonded together at the apex

of the “V” which is nearest the station location. Use a heavy, braided cable (such as the discarded shield from

type RG-213 coaxial cable) and strong cable clamps to secure the braided cable(s) to the ground rods. Be sure

to weatherproof the connections to ensure many years of reliable service. Use the same type of heavy, braided

cable for the connections to the station ground bus (described below).

Inside of the station, a common ground bus consisting of a copper pipe of at least 25 mm (1”) diameter should

be used. An alternative station ground bus may consist of a wide copper plate (single-sided circuit board material

is ideal) secured to the bottom of the operating desk. Grounding connections from individual devices such as

transceivers, power supplies, and data communications devices (TNCs, etc.) should be made directly to the

ground bus using a heavy, braided cable.

Do not make ground connections from one electrical device to an-

other, and thence to the ground bus. This so-called “Daisy-Chain”

grounding technique may nullify any attempt at effective radio fre-

quency grounding. See the drawing at the right for examples of proper

grounding techniques.

Inspect the ground system - inside the station as well as outside - on

a regular basis so as to ensure maximum performance and safety.

Besides following the above guidelines carefully, note that house-

hold or industrial gas lines must never be used in an attempt to

establish an electrical ground. Cold water pipes may, in some in-

stances, help in the grounding effort, but gas lines represent a sig-

nificant explosion hazard, and must never be used.

TYPICAL PL-259 INSTALLATION

Linear

Amplifier

TNC

Transceiver

Linear

Amplifier

TNC

Transceiver

"Daisy Chain"

PROPER GROUND CONNECTION

IMPROPER GROUND CONNECTION

1/16''

3/4''

1 1/8''

3/4''

Adapter

1/8''

5/8''3/8''

20 mm

30 mm

3 mm

10 mm 15 mm

2 mm

Page 13FT-450D OPERATION MANUAL

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

ANT 1

ANT 2

ANT 3

ANT 4

REMOTE

OFF

BAND DATA 1

BAND DATA 2

GND

ALC 2

ALC 1

PTT 2

PTT 1

INPUT 1

INPUT 2

CONTROL

DC48V IN

ANT

INPUT

DC 13.8 V

ANT 1

HF Vertical Antenna

HF Dipole Antenna

HF Beam Antenna

ANT 2

ANT 3

INPUT 2

LINEAR

BAND-DATA 2

GND

DC 48V IN

CONTROL

ALC 2

CT-118 CONNECTION CABLE

(Option)

ANTENNA CABLE (Not Supplied)

VP-1000



VP-1000



NSTALLATION

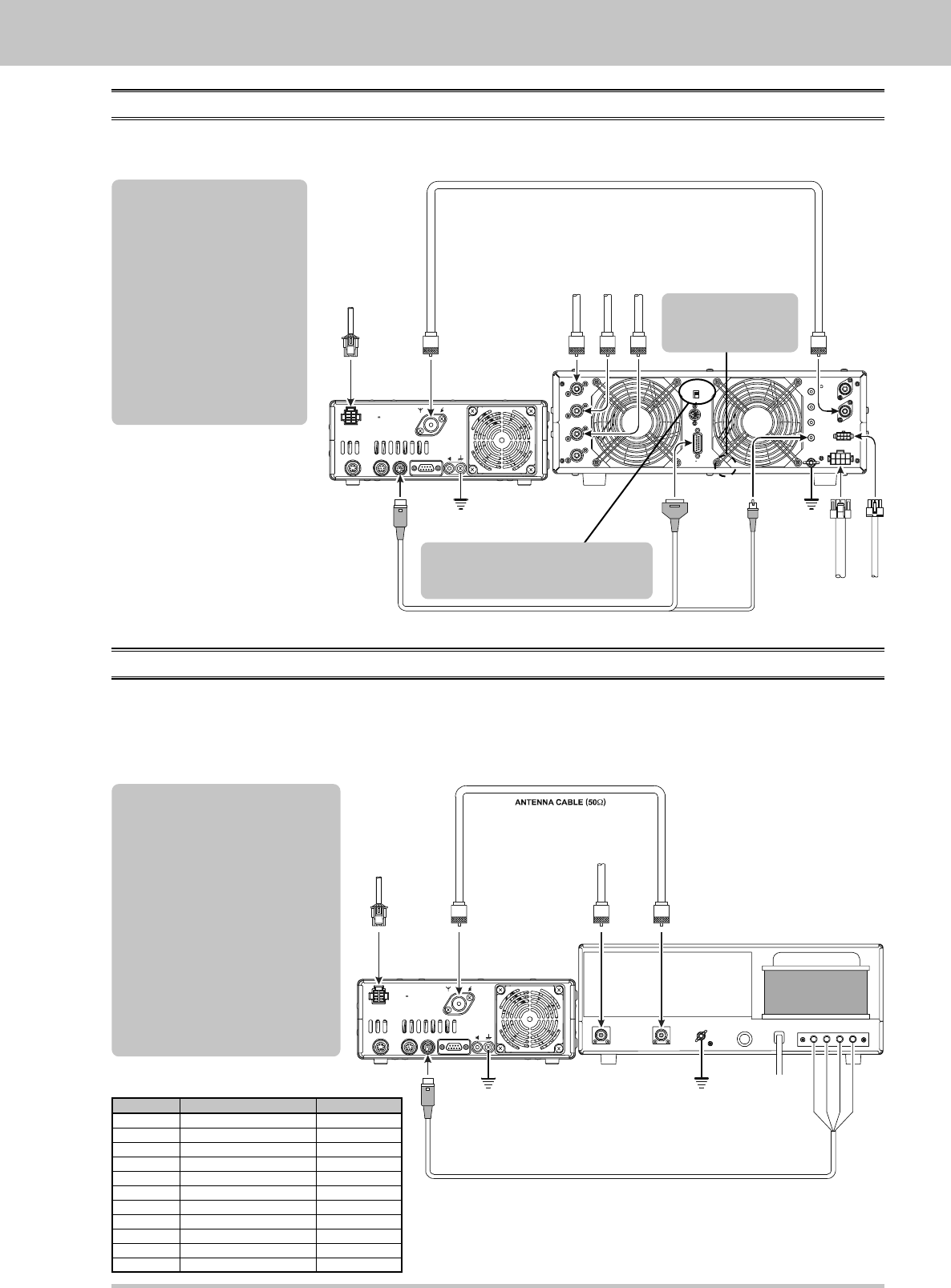

VL-1000 LINEAR AMPLIFIER INTERCONNECTION

INTERFACING TO OTHER LINEAR AMPLIFIER

Be sure that both the FT-450D and VL-1000 are turned off, then follow the installation recommendations con-

tained in the illustration.

The T/R control line is a transistor “open collector” circuit, capable of handling positive amplifier relay coil volt-

ages of up to +50V DC and current of up to 400 mA. If you plan on using multiple linear amplifiers for different

bands, you must provide external band-switching of the “Lin Tx” relay control line from the “TX GND OUT” line

at the LINEAR jack.

Important Note!

Do not exceed the maximum volt-

age or current ratings for the “TX

GND OUT” line at the LINEAR jack.

This line is not compatible with

negative DC voltages, nor AC volt-

ages of any magnitude.

Most amplifier control relay systems

require only low DC voltage/current

switching capability (typically, +12V

DC at 25 ~ 75 mA), and the switch-

ing transistor in the FT-450D will eas-

ily accommodate such amplifiers.

To link the FT-450D and VL-1000

Power switches, set the VL-1000 RE-

MOTE switch to the “ON” position.

Set the front panel’s

INPUT switch to the

“INPUT2”.

Note

ÌPlease refer to the

VL-1000 Operating

Manual for details re-

garding amplifier op-

eration.

ÌPlease do not at-

tempt to connect or

disconnect coaxial

cables when your

hands are wet.

EERYALC

ACFUSEGND

RF INRF OUT

ANT 1

HF Antenna

INPUT

GND

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

PUT

DC 13.8 V

LINEAR

Light-Blue

Black

Green

Yellow

Linear Amplifier Connection Cable (T9207451: Option)

Wire Color

Orange

Yellow

Green

Red

White

Blue

Violet

Brown

Black

Gray

Light Blue

LINEA Jack (Pin Number)

Case

Function

+13.8 V

TX GND OUT

GND

BAND DATA A

BAND DATA B

BAND DATA C

BAND DATA D

TX INH

EXT ALC IN

TX REQ IN

Shield

Linear Amplifier Connection Cable (T9207451)

Color Code Information

Page 14 FT-450D OPERATION MANUAL

PHONES

KEY

EASY OPERATION

RECEIVING

1. Connect your antenna to the ANT jack on the rear

panel.

2. Connect the after-market DC power supply (or car

battery) using the supplied DC power cable, and set

the POWER switch of the DC power supply to on.

3. Press and hold in the [POWER(ON/OFF)] switch

for one second to turn the transceiver on.

4. Rotate the [SQL/RF GAIN] knob to the fully

counter-clockwise position.

5. Rotate the [AF GAIN] knob to set a comfortable

audio level on incoming signals or noise. Clock-

wise rotation of the [AF GAIN] knob increases

the volume level.

6. Press the [BAND]/[BAND] button to select the

amateur band which you wish to begin operating.

7. Press the [MODE]/[MODE] button to select

the desired operating mode.

8. Rotate the [MAIN DIAL] knob to set the desired

frequency.

[SQL/RF GAIN] knob

[AF GAIN] knob

[MAIN DIAL] knob

[BAND]/[BAND] button

[MODE]/[MODE] button

TRANSMIT

1. Connect the supplied MH-31A8J to the MIC jack

on the front panel.

2. To transmit, press the microphone’s PTT (Push

To Talk) switch, speak into the microphone in a

normal voice level.

3. Release the PTT switch to return to the receive

mode.

[POWER(ON/OFF)] switch

NOTICE

Regarding of the [DSP/SEL] knob

The [DSP/SEL] knob is used for operating

various functions depending on the situation.

If you can not change the frequency/memory

channel by tuning the [DSP/SEL] knob, the

[DSP/SEL] knob is selected to operate of one

of the DSP functions.

In this case, press the [DSP] button several

times until the “>” icon disappears from the

DSP Graphic Display.

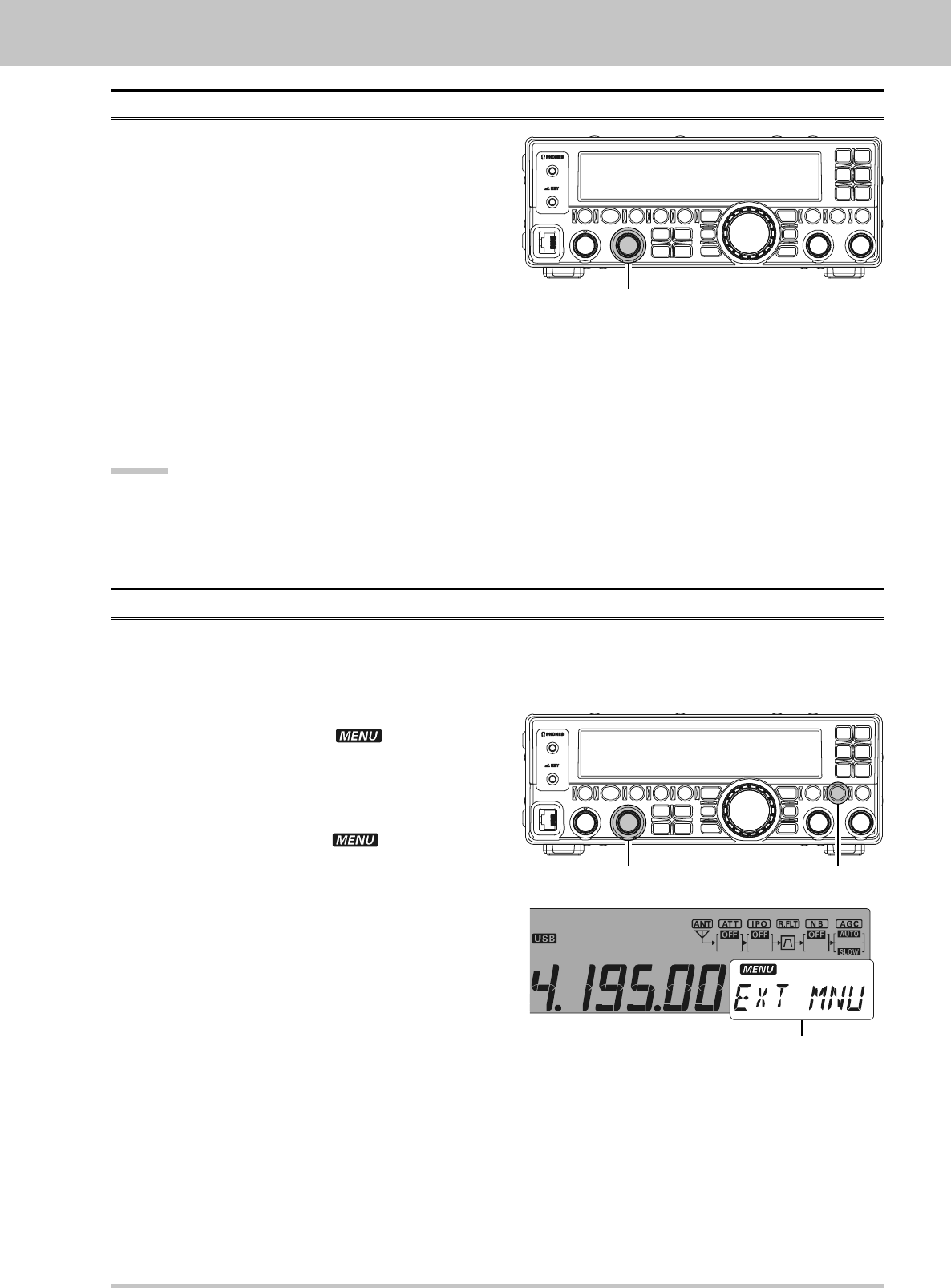

Page 15FT-450D OPERATION MANUAL

[F] button

[DSP/SEL] knob

HOW TO USE THE [DSP/SEL] KNOB

EASY OPERATION

When a DSP function is not selected and no “>” icon

is shown in the LCD Graphic Display, then turning

the [DSP/SEL] knob controls the frequency in VFO

mode, or selects the memory channel in memory

mode, or selects the menu item in memory mode. In

the VFO Mode, briefly depressing the [DSP/SEL]

knob will permit frequency adjustment in 100 kHz

steps (Default setting). (The 100 kHz operation may

be changed with the“SELDIAL” menu function.)

When a DSP function is selected, the “>” icon will

appear next to the function in the LCD Graphic Dis-

play. Then pressing the [DSP/SEL] knob will switch

the DSP function on or off. When the DSP function is

on, turning the [DSP/SEL] knob will change the func-

tion parameters.

ADVICE:

You may change the function of the [DSP/SEL] knob

via menu item “SELDIAL”.

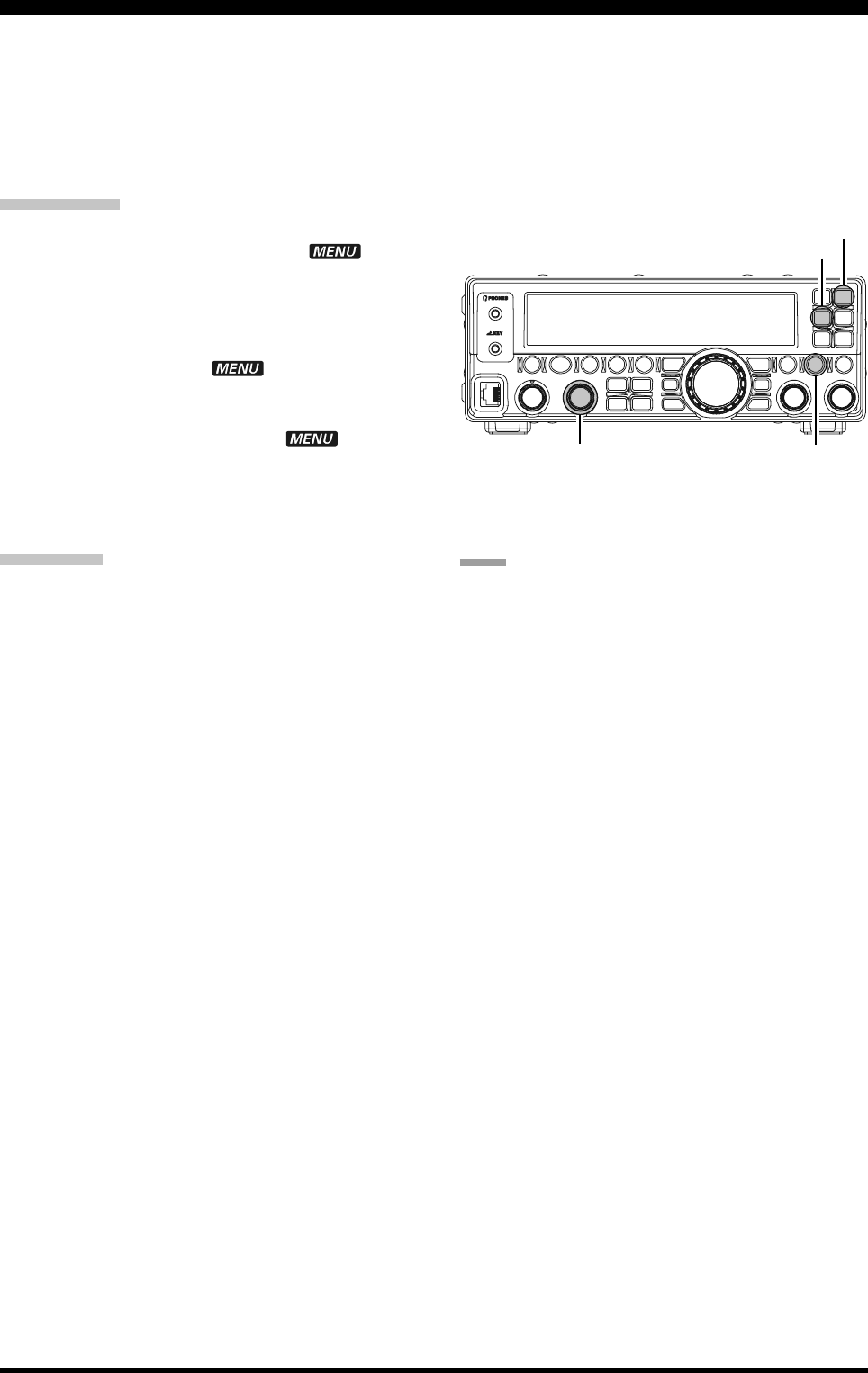

MENU OPERATION

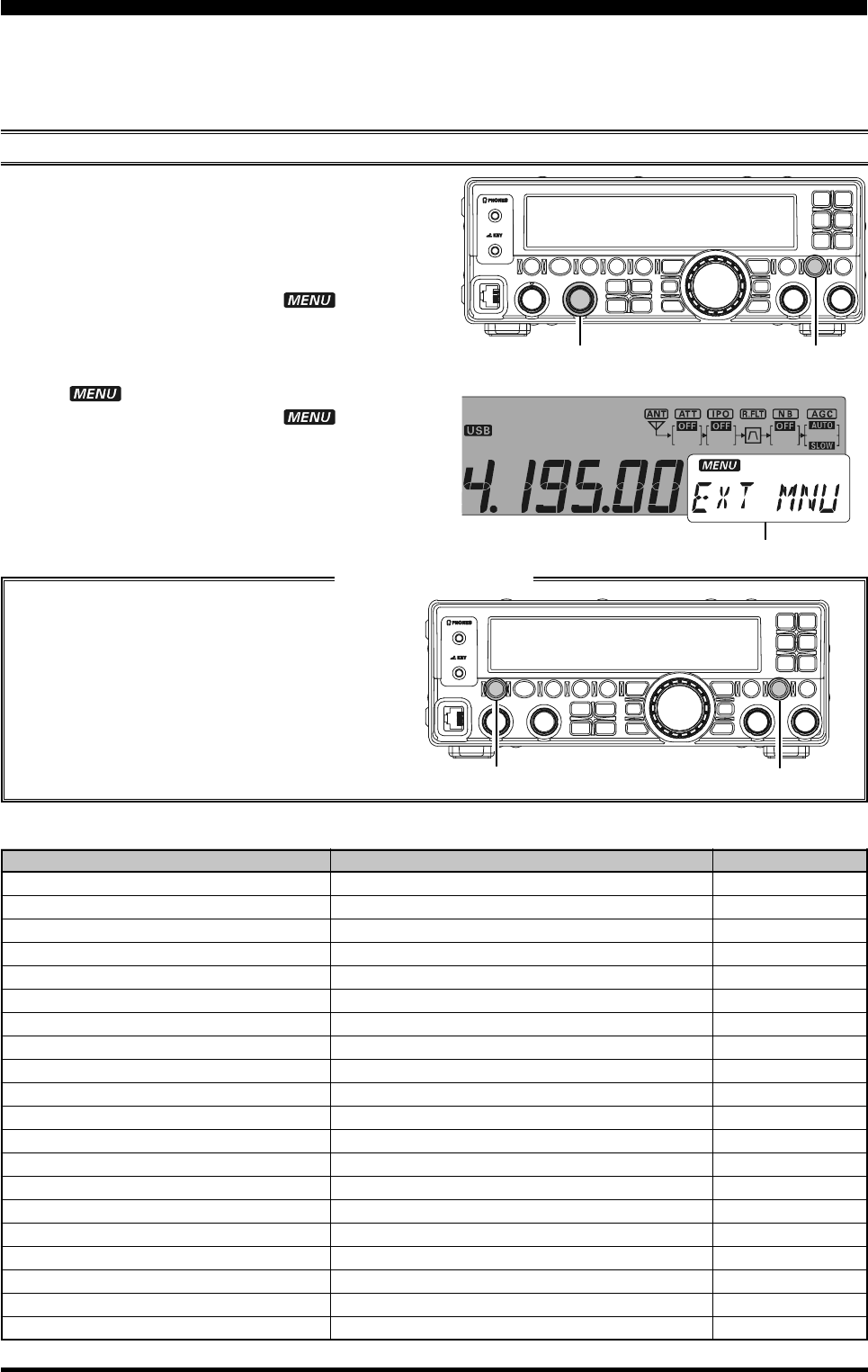

The Menu System allows you to customize a wide variety of transceiver performance aspects and operating

characteristics. After you have initially customized the various Menu procedures, you will find that you will not

have to resort to them frequently during everyday operation.

1. Press and hold the [F] button for one second to

enter the Menu Mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the Menu

Item to be adjusted.

3. Press the [DSP/SEL] knob to enable adjustment of

the selected Menu Item. The “ ” icon will blink.

4. Rotate the [DSP/SEL] knob to adjust or select

the parameter to be changed.

5. Press the [DSP/SEL] knob to save the selection.

The icon appears continuously.

6. Press and hold the [F] button for one second to

return to normal operation.

Menu Item or Menu Setting

[DSP/SEL] knob

Page 16 FT-450D OPERATION MANUAL

HOW TO USE THE [C.S/VOICE] SWITCH

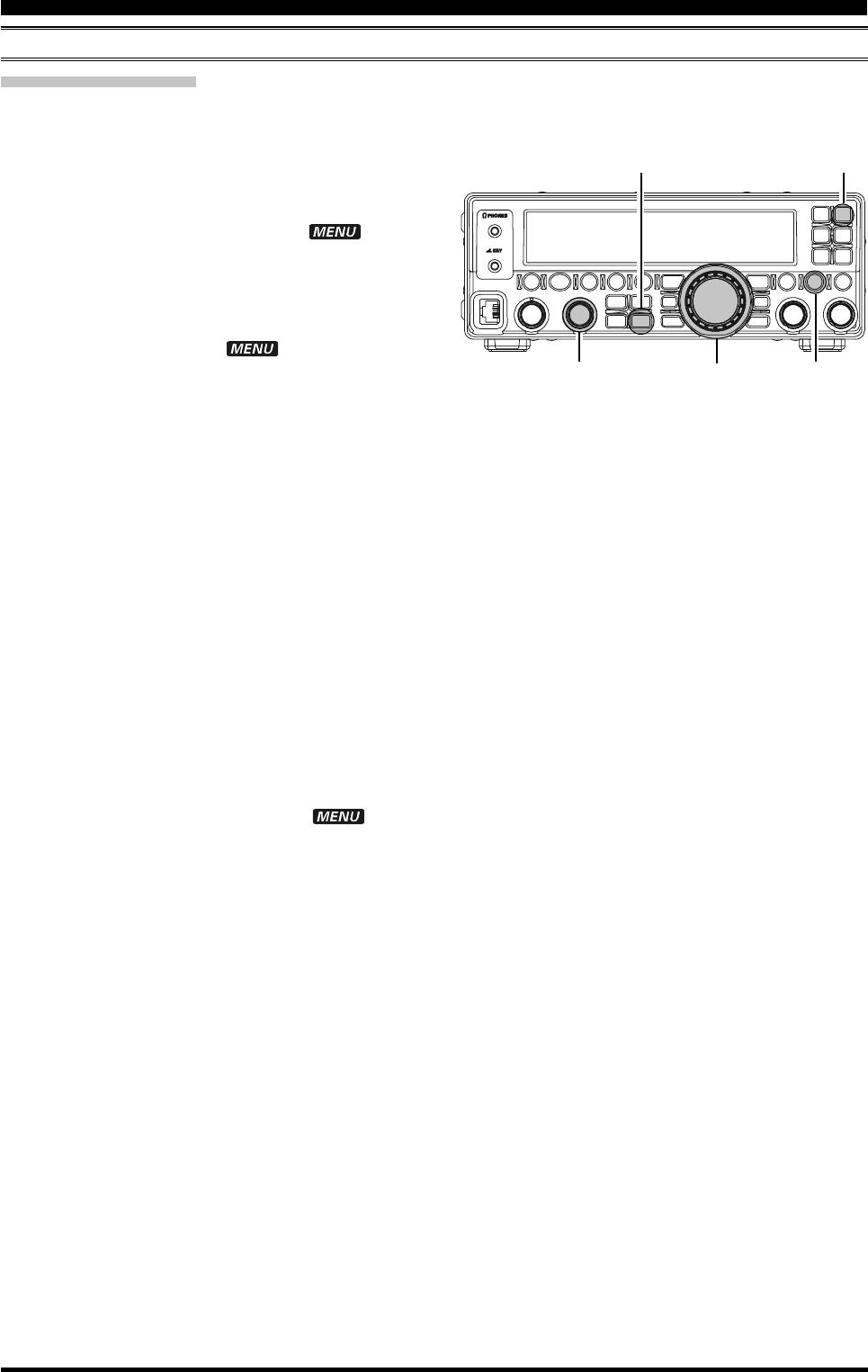

You may set the [C.S/VOICE] button function to one of 52 functions via Menu Item “PNL-C.S”.

To assign a function to the [C.S/VOICE] button:

1. Press and hold the [F] button for one second to enter the

Menu Mode. The “ ” icon will appear on the display.

2. Rotate the [DSP/SEL] knob to select Menu Item “PNL-C.S”.

3. Press the [DSP/SEL] knob to enable adjustment of

this Menu Item. The “ ” icon will be blinking.

4. Rotate the [DSP/SEL] knob to select the desired function.

5. Press the [DSP/SEL] knob. The “ ” icon returns

to appear continuously.

6. Press and hold the [F] button for one second to return

to normal operation.

EASY OPERATION

Item Function

MONI Activates the Monitor function.

N/A No Function.

P/B Activates the Digital Voice Recorder.

PLAY1 Send the CW message, which is memorized in BEACON TEXT 1.

PLAY2 Send the CW message, which is memorized in BEACON TEXT 2.

PLAY3 Send the CW message, which is memorized in BEACON TEXT 3.

QSPL Activates Quick Split Operation

SPOT Generates a CW Spot Tone while pressing the [C.S/VOICE] button when using CW mode.

SQLOFF Opens the noise squelch while pressing the [C.S/VOICE] button.

SWR Transmits a 10 watts carrier (CW mode) to measure the SWR ratio while pressing the [C.S/VOICE] button.

TXW Monitor the transmit frequency while pressing the [C.S/VOICE] button when Split Frequency operation is engaged.

VCC Display the DC supply voltage while pressing the [C.S/VOICE] button.

VOICE2 Announces the current S-meter reading, operating frequency (with resolution to the displayed 100 Hz digit), and

operating mode.

VM1MONI Play back the voice message, which is memorized in Voice Memory 1.

VM1REC Store the voice message into Voice Memory 1.

VM1TX Send the voice message, which is memorized in Voice Memory 1.

VM2MONI Play back the voice message, which is memorized in Voice Memory 2.

VM2REC Store the voice message into Voice Memory 2.

VM2TX Send the voice message, which is memorized in Voice Memory 2.

DOWN Decreases the VFO frequency by one step or moves the memory channel to the next-lowest channel while pressing

the [C.S/VOICE] button.

FAST Set to the same function as the front panel’s [FAST] button.

UP Increases the VFO frequency by one step or moves the memory channel to the next-highest channel while pressing

the [C.S/VOICE] button

DSP Set to the same function as the front panel’s [DSP] button.

IPO/ATT Set to the same function as the front panel’s [IPO/ATT] button.

NB Set to the same function as the front panel’s [NB] button.

AGC Set to the same function as the front panel’s [AGC] button.

MODEDN Set to the same function as the front panel’s [MODE] button.

MODEUP Set to the same function as the front panel’s [MODE] button.

DSP/SEL Set to the same function as the front panel’s [DSP/SEL] button.

KEYER Set to the same function as the front panel’s [KEYER] button.

CLAR Set to the same function as the front panel’s [CLAR] button.

BANDDN Set to the same function as the front panel’s [BAND] button.

BANDUP Set to the same function as the front panel’s [BAND] button.

A=B Set to the same function as the front panel’s [A=B] button.

A/B Set to the same function as the front panel’s [A/B] button.

LOCK Set to the same function as the front panel’s [LOCK] button.

TUNE Set to the same function as the front panel’s [TUNE] button.

VOICE Announce the current operating frequency (with resolution to the displayed 100 Hz digit) and operating mode.

MW Copies the current operating data from the VFO into the currently selected memory channel.

V/M Toggles frequency control between VFO and memory system.

HOME Recall the “Home” (favorite frequency) channel.

RCL Recall the QMB (Quick Memory Bank) memory.

VOX Activate the VOX (automatic voice-actuated transmitter switching) feature.

STO Copies operating data into QMB (Quick Memory Bank) Memory.

STEP Enables the setting of the frequency step of the [DSP/SEL] knob by the [DSP/SEL] knob.

SPLIT Activates split frequency operation between VFO-A and VFO-B.

PMS Engages Programmable Memory Scan (PMS).

SCAN Initiates the upward scanning of VFO frequencies or memory channels.

MENU Engage the “Menu” mode.

DIMMER Enables adjustment of the display dimmer level by the [DSP/SEL] knob.

MTR Change the meter function in the transmit mode.

USER This parameter is for future expansion of the transceiver’s capabilities. Do not select this parameter.

[C.S/VOICE] button

[F] button

[DSP/SEL] knob

Page 17FT-450D OPERATION MANUAL

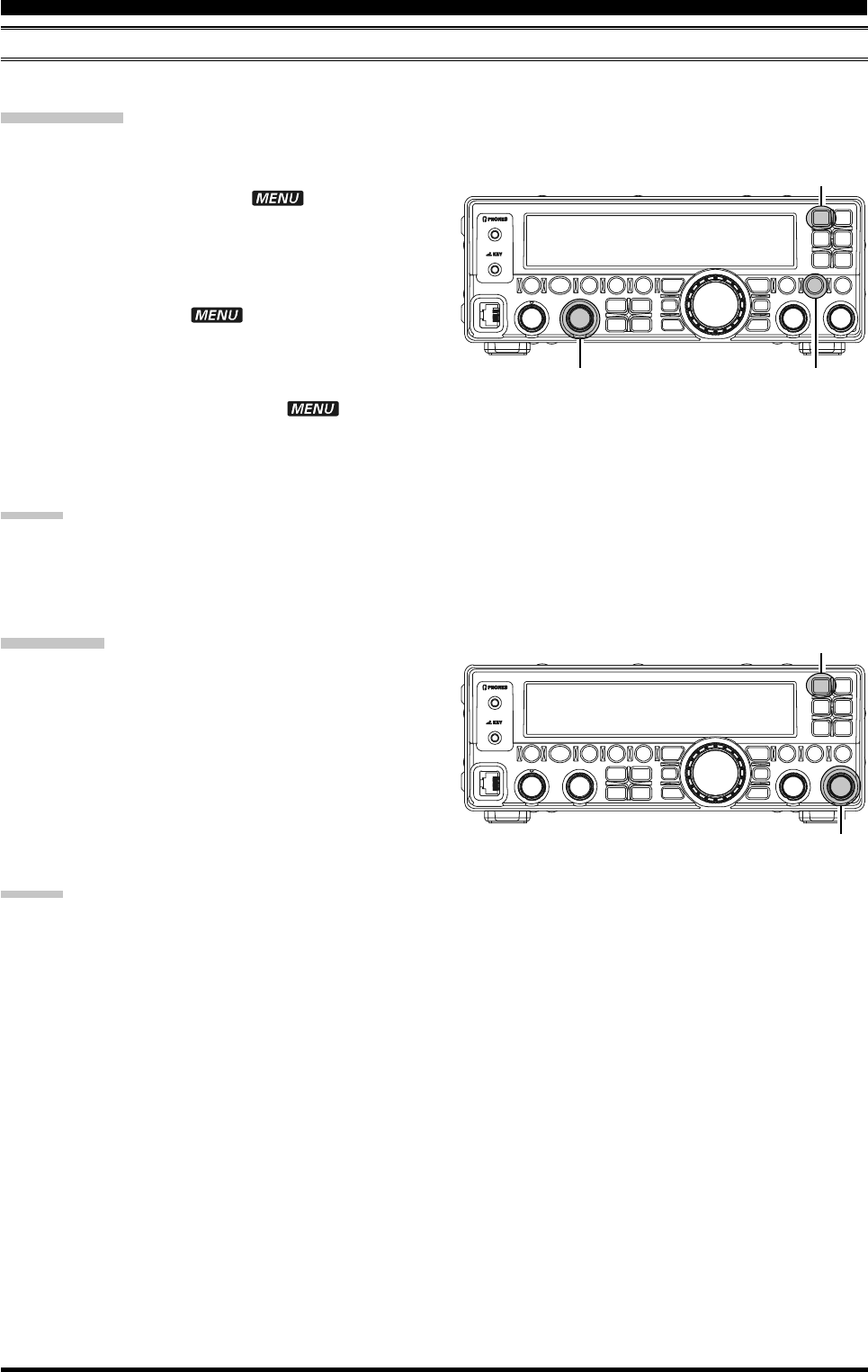

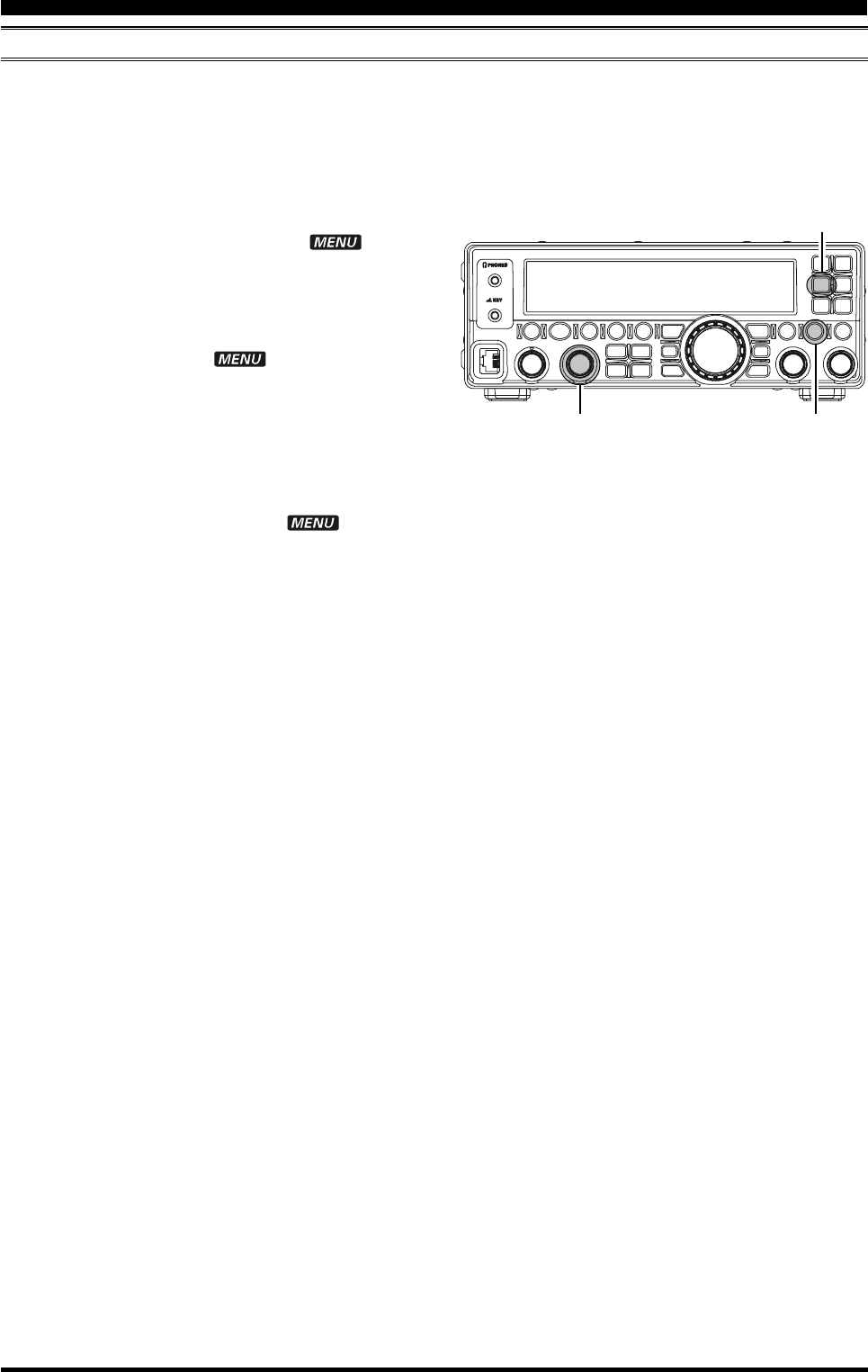

KEY DURATION SETTING

The duration that buttons are held determines the function they activate. Factory default is one second. Pressing

a button for less than one second activates one function. Pressing and holding the button in for longer than one

second activates another function.

The default one second release time can be changed to a shorter or longer duration, if desired.

EASY OPERATION

To do this:

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select menu item

“KEYHOLD”.

3. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

4. Rotate the [DSP/SEL] knob to set the desired du-

ration time. Available selections are 0.5/1.0/1.5/

2.0 sec. (default value: 1.0 sec).

You may Press the [RCL/HOME] button to reset

the duration time to the factory default.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

[RCL/HOME] button

[F] button

[DSP/SEL] knob

Page 18 FT-450D OPERATION MANUAL

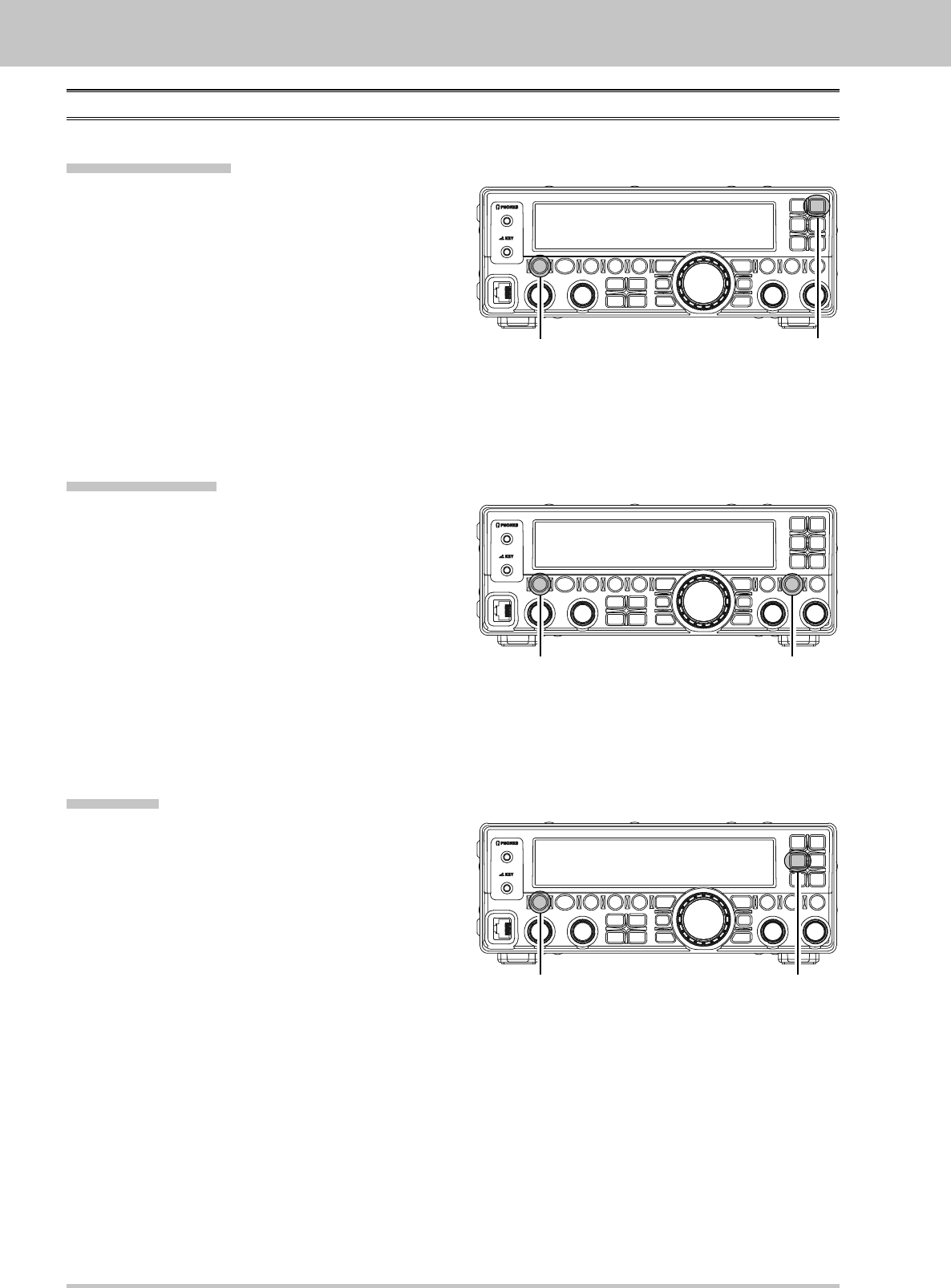

RESETTING THE MICROPROCESSOR

The FT-450D has three reset methods.

EASY OPERATION

VFO/MEMORY RESET

Use this procedure to reset (clear out) the Memory

channels (Except the QMB channel) previously stored

and VFO data, without affecting any configuration

changes you may have made to the Menu settings.

1. Press and hold in the [POWER(ON/OFF)] button

for one second to turn the transceiver off.

2. Press and hold the [(V/M)/MW] button. While

holding it in, press and hold in the [POWER(ON/

OFF)] switch for one second to turn the trans-

ceiver on. Once the transceiver comes on, you

may release the [(V/M)/MW] button.

[(V/M)/MW] button

[ON/OFF] button

[F] button

[ON/OFF] button

[RCL/HOME] button

[ON/OFF] button

MENU MODE RESET

Use this procedure to restore the Menu settings to

their factory defaults, without affecting the memories

you have programmed.

1. Press and hold in the [POWER(ON/OFF)] button

for one second to turn the transceiver off.

2. Press and hold the [F] button. While holding it in,

press and hold in the [POWER(ON/OFF)] button

for one second to turn the transceiver on. Once

the transceiver comes on, you may release the

[F] button.

FULL RESET

Use this procedure to restore all Menu and Memory

settings to their original factory defaults. All Memo-

ries will be cleared by this procedure.

1. Press and hold in the [POWER(ON/OFF)] button

for one second to turn the transceiver off.

2. Press and hold the [RCL/HOME] button. While

holding it in, press and hold in the [POWER(ON/

OFF)] button for one second to turn the trans-

ceiver on. Once the transceiver comes on, you

may release the [RCL/HOME] button.

Page 19FT-450D OPERATION MANUAL

TUNING STEPS

RECEIVING

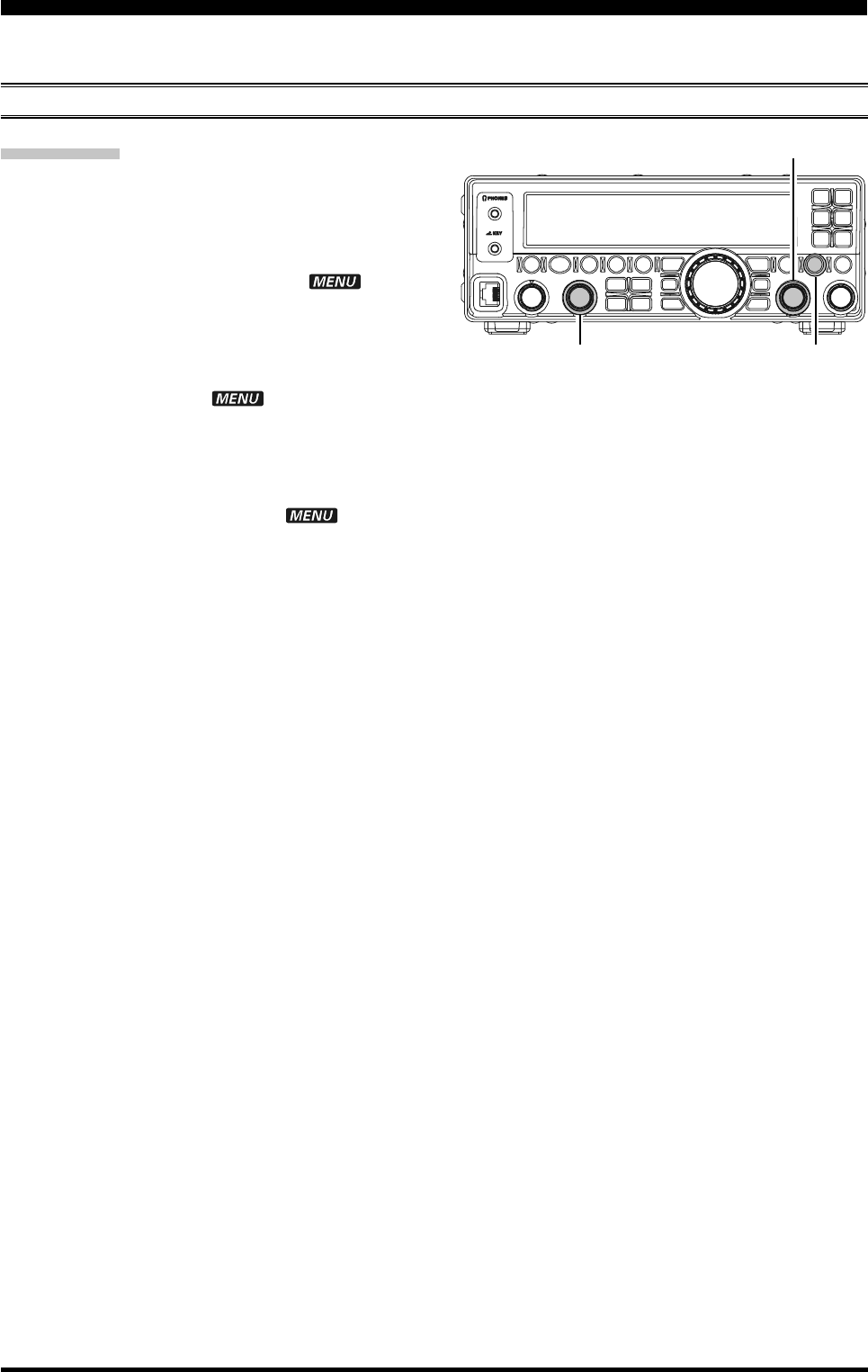

The tuning step of the [MAIN DIAL] knob and the

[DSP/SEL] knob is different depending on the oper-

ating mode.

1: When you press the [DSP/SEL] knob, the tuning step of the

[DSP/SEL] knob changes to 100 kHz in all modes.

2: In the factory default, the [MAIN DIAL] knob does not tune

the AM and FM modes. However, you may activate the [MAIN

DIAL] knob on the AM and FM mode via Menu Item

“A&FDIAL”.

PERATING

ODE

LSB/USB

DATA

[MAIN DIAL]

1/10/20 Hz

100/200 Hz2

1/10/20 Hz

[DSP/SEL]

1

1.0/2.5/5.0 kHz

2.5/5.0/9.0/10/12.5/25 kHz

5.0/6.25/10/12.5/15/20/25/50 kHz

1.0/2.5/5.0 kHz

NOB

Pressing the [FAST] button will increase or de-

crease the tuning rate of the [MAIN DIAL] knob

by a factor of ten and also increase or decrease

the tuning rate of the [DSP/SEL] knob by a factor

of two.

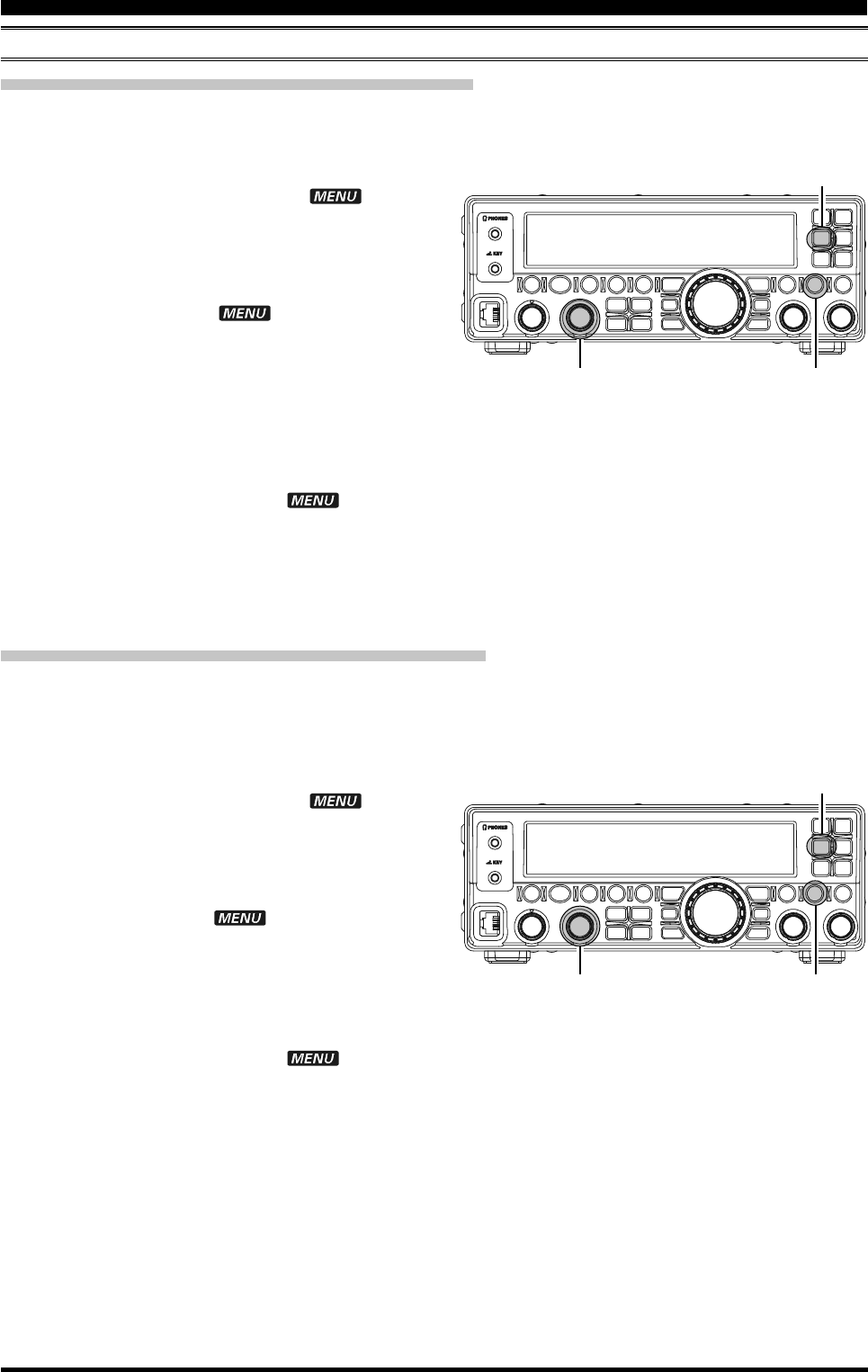

CHANGE THE TUNING STEP OF THE [MAIN DIAL] KNOB

1. Set the operating mode by pressing the

[MODE]/[MODE] button.

2. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

3. Rotate the [DSP/SEL] knob to select the menu

item “DIALSTP”.

4. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

5. Rotate the [DSP/SEL] knob to select the desired

tuning step described above.

(You may Press the [RCL/HOME] button to reset

the tuning step to the factory default.)

6. Press the [DSP/SEL] knob. The “ ” icon is

displayed continuously.

7. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

CHANGE THE TUNING STEP OF THE [DSP/SEL] KNOB

1. Set the operating mode by pressing the

[MODE]/[MODE] button.

2. Press the [F] button momentarily.

3. Press the [SPLIT/STEP] button.

4. Rotate the [DSP/SEL] knob to select the desired

tuning step described above.

5. Press the [DSP/SEL] knob to save the new set-

ting and return to normal operation.

[RCL/HOME] button

[F] button

[DSP/SEL] button

[MODE]/[MODE] button

[SPLIT/STEP] button

[F] button

[DSP/SEL] knob

[MODE]/[MODE] button

[DSP/SEL] knob [MAIN DIAL] knob

[FAST] button

NOTICE

Regarding of the [DSP/SEL] knob

The [DSP/SEL] knob is used for operating

various functions depending on the situation.

If you can not change the frequency/memory

channel by tuning the [DSP/SEL] knob, the

[DSP/SEL] knob is selected to operate of one

of the DSP functions.

In this case, press the [DSP] button several

times until the “>” icon disappears from the

DSP Graphic Display.

Page 20 FT-450D OPERATION MANUAL

RECEIVING

BOUT

THE

[UP]/[DWN]

BUTTONS

THE

MH-31

A8J

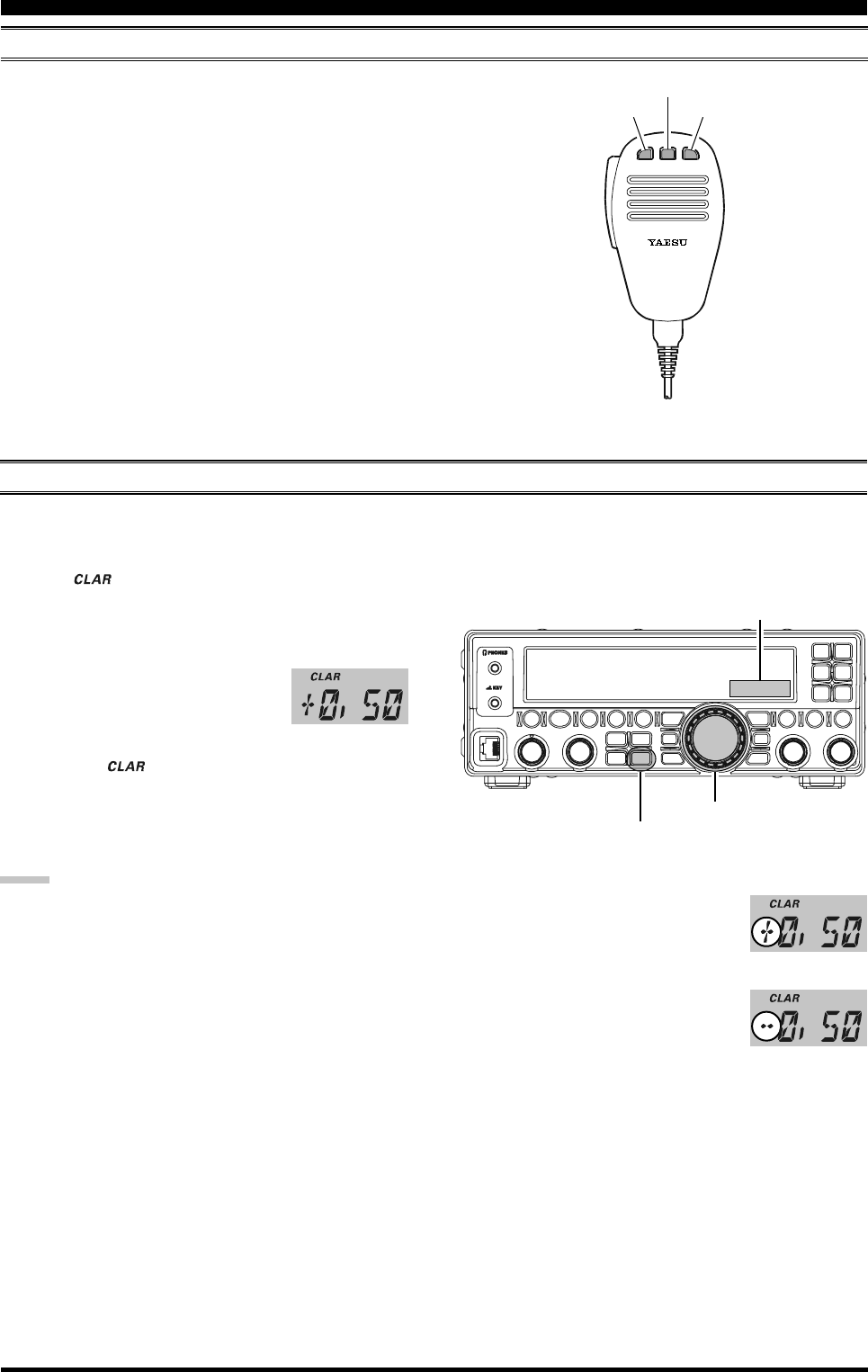

The microphone [UP]/[DWN] keys utilize the tun-

ing steps of the [MAIN DIAL] knob on the SSB/

CW/DATA mode, and utilize the tuning steps of

the [DSP/SEL] knob on the AM/FM mode.

When the microphone [FST] key is pressed, the

tuning rate increases by a factor of ten, in a man-

ner similar to the effect of the transceiver front-

panel [FAST] button.

CLARIFIER

You may change the receiving frequency only without changing the transmit frequency.

1. Press the [CLAR] button to activate the clarifier.

The “ ” icon will appear on the display.

2. Rotate the [MAIN DIAL] knob to tune the desired

receive frequency. (Offset of up to ±9.99 kHz may

be set using the clarifier.)

The offset frequency will appear

at the bottom right corner of the

display.

3. Press the [CLAR] button again to disable the clari-

fier. The “ ” icon will disappear from the dis-

play.

[MAIN DIAL] knob

[CLAR] button

Clarifier Offset

When the receiving frequency is

higher than transmit frequency,

“+” will be appended to the off-

set frequency.

When the receiving frequency is

lower than transmit frequency, “–”

will be appended to the offset fre-

quency.

You may assign the CLAR function to the [DSP/

SEL] knob via the Menu Item “CLAR”.

NOTE:

Even when the clarifier is disabled, the variance

of the clarifier remains (both TX and RX frequen-

cies).

Press and hold in the [CLAR] button for one sec-

ond to clear the clarifier offset, meaning the re-

ceiving frequency is equal to the transmit fre-

quency.

When the [MAIN DIAL] knob is rotated to change

the frequency after disabling the clarifier, the clari-

fier offset becomes “zero”, meaning the receiv-

ing frequency is equal to the transmit frequency.

DYNAMIC MICROPHONE

MH-31

DWN F ST UP

[DWN] Key

[FST] Key

[UP] Key

Page 21FT-450D OPERATION MANUAL

RECEIVING

DIGITAL VOICE ANNOUNCEMENT

Press the [F] button followed by the [C.S/VOICE] but-

ton to announce the current operating frequency (with

resolution to the displayed 100 Hz digit) and operat-

ing mode.

ADVICE:

If you assign the “VOICE2” function to the [C.S/VOICE]

button via the menu item “PNL-C.S”, you may confirm

the current operating frequency (with resolution to the

displayed 100 Hz digit), operating mode, and S-meter

reading through the voice message announcement

system by pressing the [C.S/VOICE] button. See page

16 for details of the [C.S/VOICE] button assignment.

[C.S/VOICE] button

[F] button

DIAL LOCK

Pressing the [LOCK] button toggles the locking of

the [MAIN DIAL] knob and some switches, to pre-

vent accidental frequency changes.

ADVICE:

You may select the locking schemes via the menu

item “LOCKMOD”. See page 83 for details.

[LOCK] button

Page 22 FT-450D OPERATION MANUAL

MY BANDS OPERATION

The “My Bands” feature allows you to select several Amateur bands, and make only those bands available for

selection via the [BAND]/[BAND] buttons.

This feature can be very useful in a contest, where the 10/18/24 MHz band are not used, or if you do not have

antennas for some bands.

MY BANDS SETUP

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “MY BAND”.

3. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

4. Press the [BAND]/[BAND] buttons to choose

a band you wish to skip (omit) from the band se-

lection loop.

5. Rotate the [DSP/SEL] knob to select “OFF”, and

then press the [DSP/SEL] knob.

NOTE

The “OFF” selection sets the selected band to be

skipped, while the “ON” selection sets the selected

band to be included in the band-selection list.

6. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

7. Repeat steps 4 through 6 to select/deselect as

many bands as you like.

NOTE

The GEN (General Band) and the current band

cannot be skipped.

8. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

MY BANDS OPERATION

Press the [BAND]/[BAND] buttons to choose the

Amateur band on which you wish to operate. Only

those Amateur bands that have not been skipped will

appear as you scroll through the bands.

NOTE

If you want to recall an operating band which has

been set to my band “OFF”, Press the [F] button,

then press the [BAND]/[BAND] button until

the desired band appears.

RECEIVING

[BAND]/[BAND] button

[F] button

[DSP/SEL] knob

[BAND]/[BAND] button

1.8MHz

3.5

MHz

GEN

3.5

MHz

GEN

3.5MHz 7MHz 14MHz

28MHz 21MHz GEN

Page 23FT-450D OPERATION MANUAL

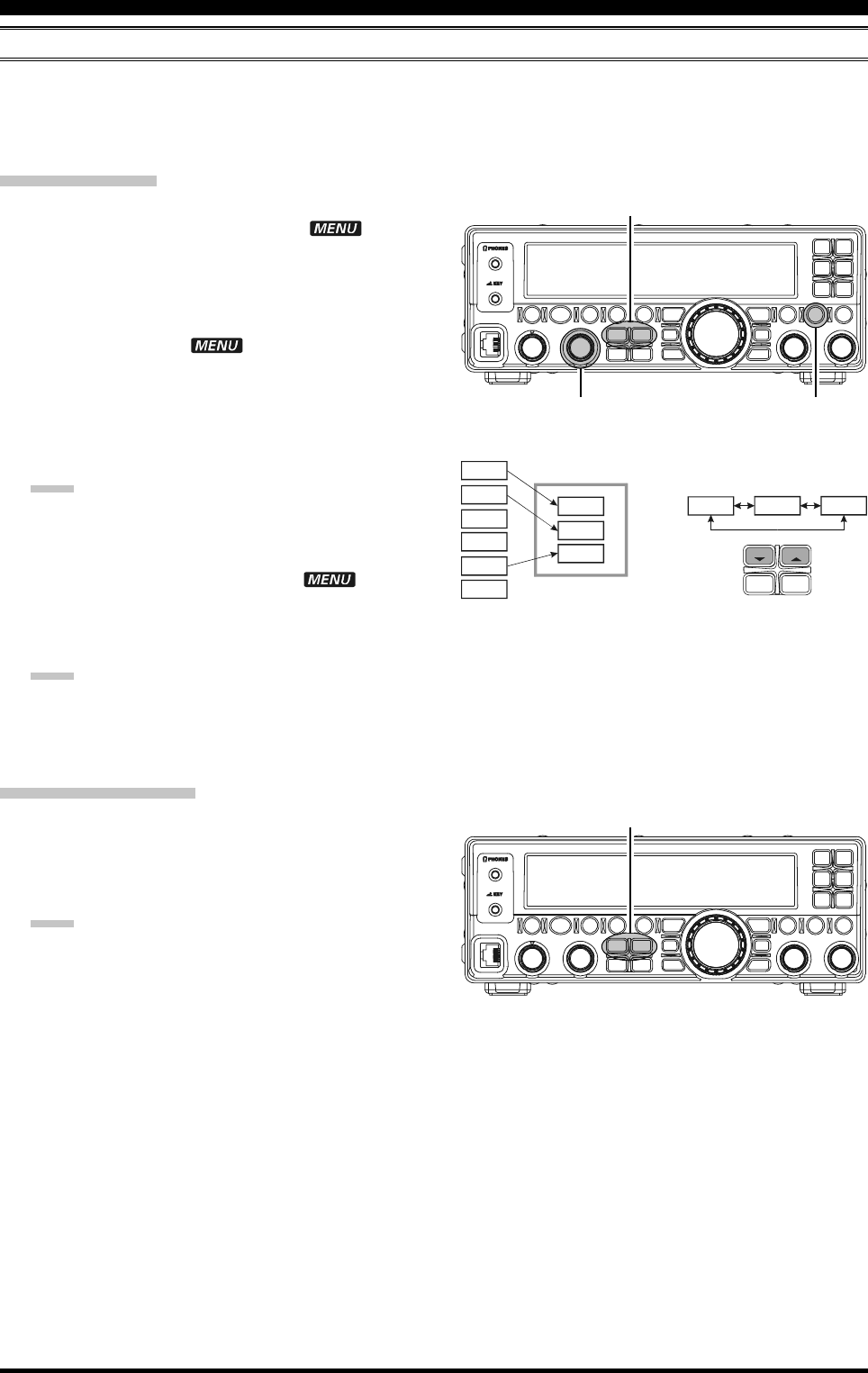

MY MODES OPERATION

The “My Modes” feature allows you to select the operating modes you wish to have available for selection via the

[MODE]/[MODE] buttons. Only the desired modes will be displayed in the loop.

This feature can be very useful in an HF operation, where the AM/FM/DATA modes are not used.

RECEIVING

MY MODES SETUP

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “MY MODE”.

3. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

4. Press the [MODE]/[MODE] buttons to choose

a mode you wish to skip (omit) from the mode

selection loop.

5. Rotate the [DSP/SEL] knob to select “OFF”, and

then press the [DSP/SEL] knob.

NOTE

The “OFF” selection sets the selected mode to be

skipped, while the “ON” selection sets the selected

mode to be included in the mode-selection list.

6. Press the [DSP/SEL] knob. The “ ” icon

returns to appear continuously.

7. Repeat steps 4 through 6 to select/deselect as

many modes as you like.

NOTE

The mode currently in use cannot be turned off.

8. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

MY MODES OPERATION

Press the [MODE]/[MODE] buttons to choose the

operating mode on which you wish to operate. Only

those operating modes that have not been skipped

will appear as you scroll through the modes.

NOTE

If you want to recall an operating Mode which has

been set to my band “OFF”, Press the [F] button,

then press the [MODE]/[MODE] button until

the desired Mode appears.

[F] button

[DSP/SEL] knob

[MODE]/[MODE] button

LSB

USB

DATA

LSB

USB

LSB USB FM

MODEMODE

CLARKEYER

Page 24 FT-450D OPERATION MANUAL

DIGITAL VOICE RECORDER

PREPARATIONS

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “PNL-C.S”.

3. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

4. Rotate the [DSP/SEL] knob to select “P/B” to as-

sign the Play Back feature to the [C.S/VOICE]

button.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

RECORDING

1. Press and hold in the [C.S/VOICE] button for one

second to initiate recording. The “ ” icon will

appear in the display to confirm that recording is

in progress. The recorder will store up to 20 sec-

onds of the received audio and then halt the re-

cording. The “ ” icon will go out.

2. You may halt the recording in progress, by press-

ing and holding the [C.S/VOICE] button for one

second.

PLAYBACK

Press the [C.S/VOICE] button momentarily to begin

playback of the recorded audio. The “ ” icon will

blink in the display to confirm that playback is in

progress.

ADVICE:

You may adjust the playback level of the recording

with the [AF GAIN] knob

RECEIVING

[F] button

[DSP/SEL] knob

[C.S/VOICE] button

[AF GAIN] knob

Page 25FT-450D OPERATION MANUAL

RECEIVER OPERATION (FRONT END BLOCK DIAGRAM)

The FT-450D includes a wide range of special features to suppress the many types of interference that may be

encountered on the HF bands. However, real world interference conditions are constantly changing, so optimum

setting of the controls is somewhat of an art, requiring familiarity with the types of interference and the subtle

effects of some of the controls. Therefore, the following information is provided as a general guideline for typical

situations, and a starting point for your own experimentation.

The FT-450D’s interference-fighting circuitry begins in its “RF” stages, and continues throughout the entire

receiver section. FT-450D allows configuration of the features described below.

R. FLT (IF Roofing Filters)

The Roofing filter, with a bandwidth of 10 kHz is pro-

vided in the 68 MHz First IF, right after the first mixer.

This filter provides narrow-band selectivity to protect

the following IF and DSP stages, for special operat-

ing circumstances.

CONTOUR Filter (SEE PAGE 28)

The DSP Contour filter provides a unique capability

on the receiver, providing either nulling or peaking of

tunable segments of the receiver passband, so as to

suppress interference or excessive frequency com-

ponents on an incoming signal, or to peak those tun-

able frequency segments. The amount of nulling/

peaking, and the bandwidth over which it is applied,

are adjustable via the Menu.

IF SHIFT (SEE PAGE 29)

The passband center frequency response of the IF

DSP filtering may be adjusted using this control.

IF WIDTH (SEE PAGE 30)

The width of the IF DSP filtering may be adjusted

using this control.

IF NOTCH (SEE PAGE 31)

The IF Notch filter is a high-Q notch filter that can

significantly reduce, if not eliminate, an interfering

carrier.

DNR (DIGITAL NOISE REDUCTION) (SEE PAGE 32)

The DSP’s Digital Noise Reduction (DNR) feature uti-

lizes eleven different mathematical algorithms to ana-

lyze and suppress different noise profiles encountered

on the HF/50 MHz bands. Choose the selection that

provides the best noise suppression, which concur-

rently will allow the signal to rise up out of the noise.

AGC (SEE PAGE 27)

The AGC system is highly adaptable to changing sig-

nal and fading characteristics, making reception pos-

sible under the most difficult conditions.

CONVENIENCE FEATURES

Page 26 FT-450D OPERATION MANUAL

NOISE BLANKER (INTERFERENCE REJECTION “SIGNALS WITHIN 3 KHZ”)

The FT-450D includes an effective Noise Blanker, which can significantly reduce noise caused by automotive

ignition systems.

IPO/ATT (ADJUST THE RECEIVING SENSITIVITY)

You may reduce the receiving signal strength to 20 dB when extremely strong local signals or high noise de-

grade reception. You may optimize the characteristics of the receiver front-end, for best reception, depending on

the noise levels and the signal strengths.

Press the [IPO/ATT] button several times to set the

desired selection, per the chart below.

The selection will be indicated in the Block Diagram

on the display.

Block Diagram

[IPO/ATT] button

CONVENIENCE FEATURES

1. Press the [NB] button to activate the Noise

Blanker.

2. Press the [NB] button again to disable the Noise

Blanker.

The selection will be indicated in the Block Diagram

on the display.

Block Diagram

[NB] button

NOTE

An attenuator is always “ON” between 30kHz

and 1.7MHz.

ATT: OFF, IPO: OFF Attenuator is OFF, and the incoming

signal is amplified by the RF preampli-

fier.

ATT: OFF, IPO: ON Attenuator is OFF, and the incoming

signal bypasses the RF preamplifier,

yielding direct feed to the first mixer.

ATT: ON, IPO: OFF Attenuator is ON, (the incoming signal

is reduced by 20 dB) and the incom-

ing signal is amplified by the RF pream-

plifier.

ATT: ON, IPO: ON Attenuator is ON, (the incoming signal

power is reduced by 20 dB) and the

incoming signal bypasses the RF

preamplifier, yielding direct feed to the

first mixer.

Page 27FT-450D OPERATION MANUAL

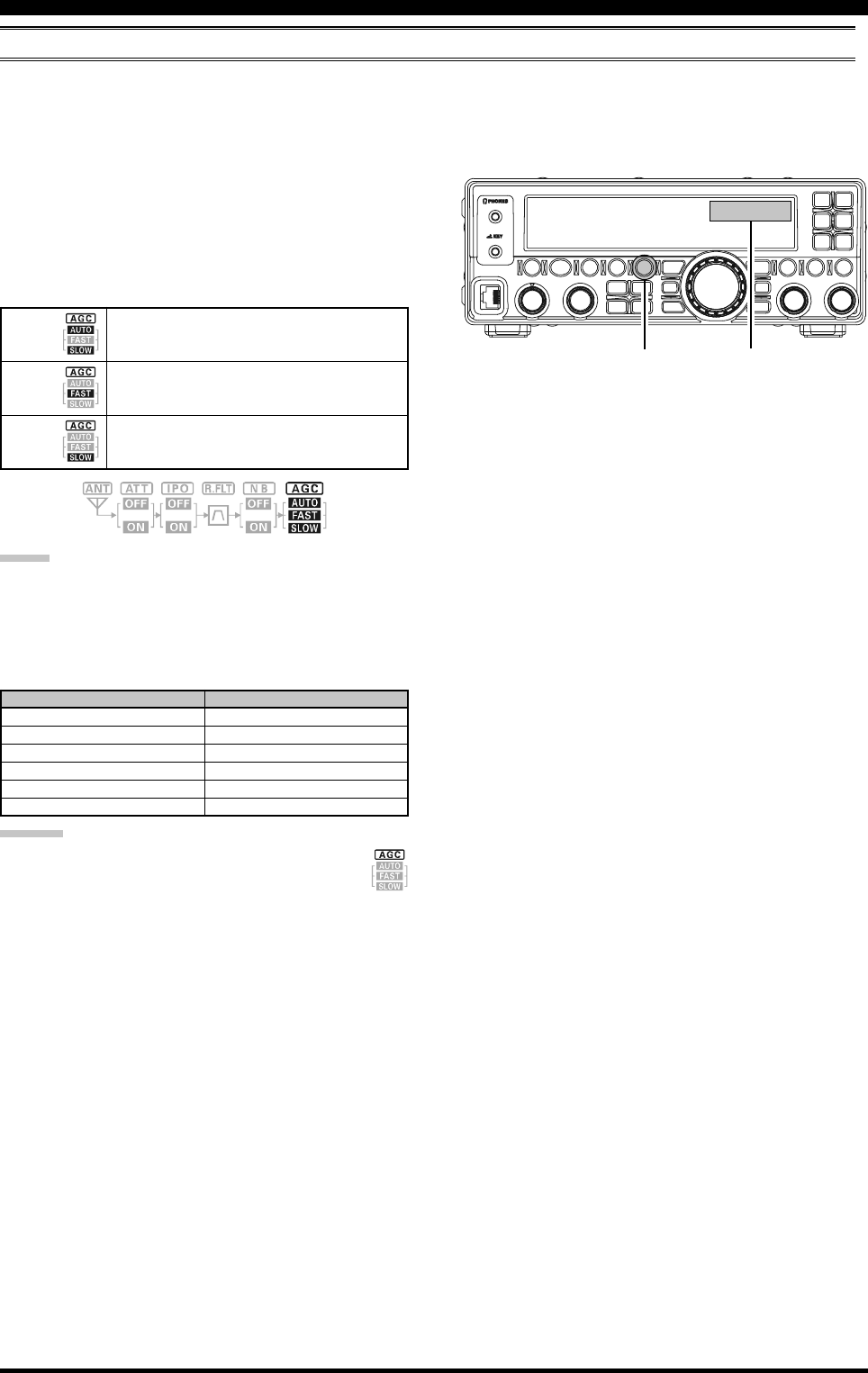

AGC (TOOL FOR COMFORTABLE AND EFFECTIVE RECEPTION)

The AGC system is designed to help compensate for fading and other propagation effects, with characteristics

that can be of particular value on each operating mode. The basic objective of AGC is to maintain a constant

audio output level once a certain minimum threshold of signal strength is achieved.

Press the [AGC] button repeatedly to select the de-

sired receiver-recovery time constant. The AGC sta-

tus is indicated in the Block Diagram displayed on

the display. For most operations, we recommend the

“AUTO” mode. You may disable the AGC by press-

ing and holding in the [AGC] button for one second.

CONVENIENCE FEATURES

Block Diagram

[AGC] button

NOTE:

Normally, the “AUTO” selection is satisfactory for most

situations, but in the event of operation on a crowded

band where you wish to receive a weak signal, you

may wish to change the setting (to FAST, for ex-

ample). The “AUTO” mode selections are:

ADVICE:

If the AGC receiver-recovery time is set to “Off”

by pressing and holding in the [AGC] button,

the S-meter will no longer deflect. Additionally, you

will likely encounter distortion on stronger signals, as

the IF amplifiers and the following stages are prob-

ably being overloaded.

AUTO Sets the receiver-recovery time automatically

depending on the operating mode.

FAST Sets the receiver-recovery time to fast.

This mode is suitable for CW/DATA recep-

tion.

SLOW Sets the receiver-recovery time to slow.

This mode is suitable for SSB/AM reception.

OPERATING MODE

LSB

USB

DATA

AUTO AGC SELECTION

SLOW

FAST

SLOW

FAST (Fixed)

FAST

Page 28 FT-450D OPERATION MANUAL

BANDWIDTH

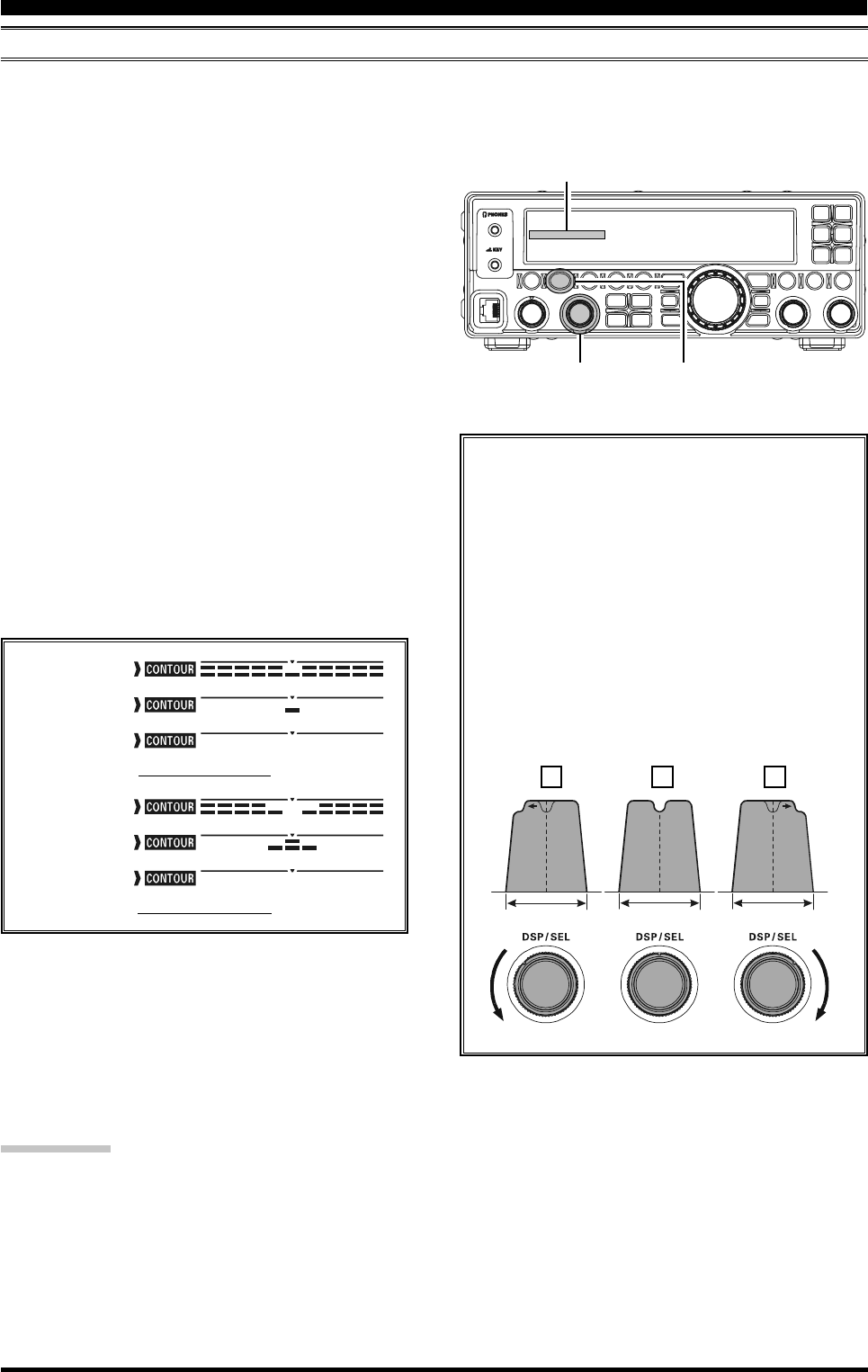

CONTOUR (INTERFERENCE REJECTION “SIGNALS WITHIN 3 KHZ”)

The Contour filtering system provides a gentle perturbation of the IF filter pass band, so as to suppress or

enhance particular frequency components in five steps, thus improving the sound and/or readability of a re-

ceived signal.

1. Press the [DSP] button several times to set the

“>” icon to the “CONTOUR” indicator of the DSP

Graphic Display on the display.

2. Press the [DSP/SEL] knob to engage the con-

tour filter.

3. Press and hold the [DSP/SEL] knob for one sec-

ond to toggle the contour filter’s level between

“null” and “peak”.

4. Rotate the [DSP/SEL] knob to achieve the most

natural-sounding audio reproduction on the in-

coming signal.

The peak position of the contour filter is graphi-

cally-depicted in the “CONTOUR” indicator of the

DSP Graphic Display on the LCD.

5. Press the [DSP/SEL] knob again to increase the

contour filter’s level (“null” or “peak”).

6. To disable the contour filter, press the [DSP/SEL]

button again. The graphic disappears from the

“CONTOUR” indicator of the LCD Display, confirm-

ing that the contour filter is no longer operating.

QUICK POINT:

The steep slopes of the DSP filtering can, when adjusted aggressively, impart an unnatural sound to an incom-

ing signal. Often, a narrow bandwidth is not the key to improving copy. The incoming signal itself may have

undesirable or excessive frequency components. By judicious use of the Contour filter, the “shoulder” of the

passband response may be altered, or components removed from within the passband, allowing the desired

signal to rise above the background noise and interference in a manner not obtainable with other filtering sys-

tems.

CONVENIENCE FEATURES

“CONTOUR” Indicator

[DSP] button

[DSP/SEL] knob

CONTOUR GAIN “HIGH”

CONTOUR “NULL”

CONTOUR “PEAK”

CONTOUR “OFF”

CONTOUR GAIN “LOW”

CONTOUR “NULL”

CONTOUR “PEAK”

CONTOUR “OFF”

Refer to Figure “B”, this shows a “indenta-

tion” of the contour filter is center of a pass-

band. Counter-clockwise rotation (to the left)

of the [DSP/SEL] knob causes the indenta-

tion to move toward a lower frequency within

the passband, while clockwise rotation (to the

right) causes the indentation to move toward

a higher frequency within the passband. By

removing interference or unwanted frequency

components on the incoming signal, it is pos-

sible to make the desired signal rise out of

the background noise/interference, enhanc-

ing intelligibility.

A B C

Page 29FT-450D OPERATION MANUAL

SHIFT (INTERFERENCE REJECTION “SIGNALS WITHIN 3 KHZ”)

IF Shift allows you to vary the DSP filter passband higher or lower, without changing the pitch of the incoming

signal, so as to reduce or eliminate interference. Because the carrier tuning frequency is not varied, there is no

need to re-tune the operating frequency when eliminating the interference. The total passband tuning range for

the IF Shift system is ±1 kHz.

CONVENIENCE FEATURES

Rotate the [SHIFT] knob to the left or right to reduce

the interference.

You may observe the position of the passband in the

“SHIFT” indicator of the DSP Graphic Display on the

display.

“SHIFT” Indicator

[SHIFT] knob

[SHIFT] KNOB FULLY COUNTER-CLOCKWISE

[SHIFT] KNOB 12 O’CLOCK POSITION

[SHIFT] KNOB FULLY CLOCKWISE

Referring to Figure “A”, note the depiction of

the IF DSP filter as the thick line, with the

[SHIFT] knob in the 12 o’clock position. In

Figure “B”, an interfering signal has appeared

inside the original passband. In Figure “C”,

you can see the effect of rotating the [SHIFT]

knob to reduce the interference level by mov-

ing the filter passband so that the interfer-

ence is outside of the passband.

A B C

BANDWIDTH

Desired Signal Desired Signal Desired Signal

QRMQRM

Page 30 FT-450D OPERATION MANUAL

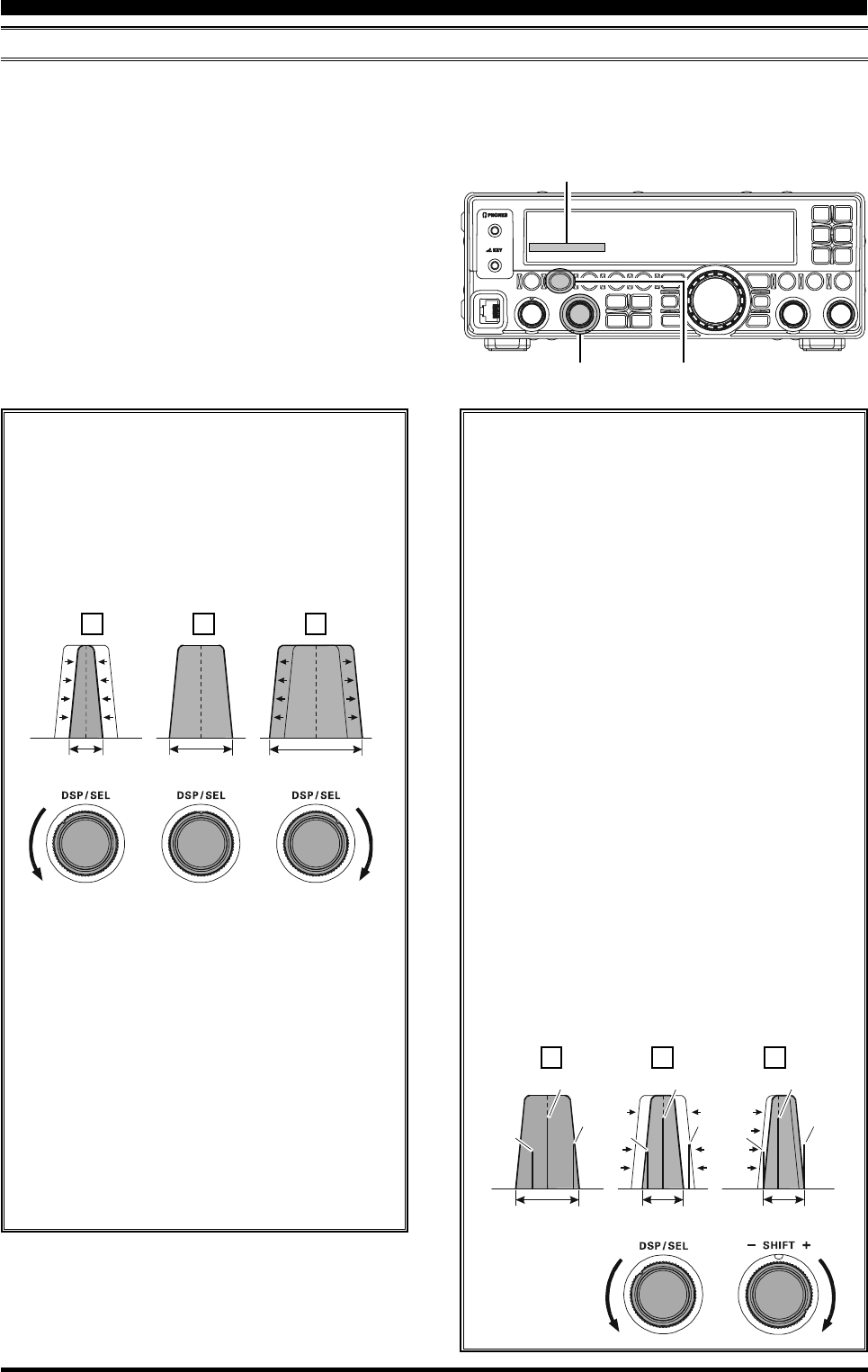

Referring to Figure “B”, this is default band-

width.

By rotating the [DSP/SEL] knob to the left,

the bandwidth will narrow (see Figure “A”),

while rotation of the [DSP/SEL] knob to the

right, as depicted in Figure “C”, will widen the

bandwidth.

The default bandwidths, and total bandwidth

adjustment range, will vary according to the

operating mode:

SSB Mode: 1.8 kHz / 2.4 kHz / 3.0 kHz

(Nominal: 2.4 kHz).

CW Mode: 300 Hz / 500 Hz / 2.4 kHz

(Nominal: 2.4 kHz).

DATA Mode:300 Hz / 2.4 kHz / 3.0 kHz

(Nominal: 2.4 kHz).

AM Mode: 3.0 kHz / 6.0 kHz / 9.0 kHz

(Nominal: 6.0 kHz).

FM Mode: 2.5 kHz / 5.0 kHz

(Nominal: 5.0 kHz).

A B C

WIDTH (INTERFERENCE REJECTION “SIGNALS WITHIN 3 KHZ”)

The IF Width tuning system allows you to vary the width of the DSP IF passband with three steps (FM: two

steps), so as to eliminate interference. Moreover, the bandwidth may actually be expanded from its default

setting, should you wish to enhance incoming signal fidelity when interference on the band is low.

CONVENIENCE FEATURES

1. Press the [DSP] button several times to set the

“>” icon to the “WIDTH” indicator of the DSP

Graphic Display on the display, to enable adjust-

ment of the bandwidth by the [DSP/SEL] knob.

2. Rotate the [DSP/SEL] knob to adjust the band-

width. Counter-clockwise rotation reduces the

bandwidth, while clockwise rotation increases the

bandwidth.

“WIDTH” Indicator

[DSP] button

[DSP/SEL] knob

Using IF Shift and Width Together

The IF Shift and Variable IF Width features

together form a very effective interference-

fighting filtering system.

For example, in Figure “A” you can see how

interference has appeared both on the high

and low sides of the desired signal. By rotat-

ing the [DSP/SEL](WIDTH) knob, as shown

in Figure “B”, the interference from one side

can be eliminated, and by re-positioning the

[SHIFT] knob (Figure “C”), the interference

on the opposite side can be removed, with-

out re-introducing the interference previously

eliminated in Figure “B”.

Advice: For best interference reduction, the

Width and Shift features are the primary tools

you should use. After narrowing the bandwidth

(Width) and/or adjusting the center of the

passband (Shift), the Contour control may

also yield additional signal-enhancement ben-

efits on the net residual bandwidth. What’s

more, the IF Notch Filter (see the next sec-

tion) may also be utilized, in conjunction with

the three other filter systems, to significant

advantage.

A B C

BANDWIDTH

Desired Signal Desired Signal Desired Signal

QRM

QRMQRMQRM

QRMQRM

Page 31FT-450D OPERATION MANUAL

CONVENIENCE FEATURES

NOTCH (INTERFERENCE REJECTION “SIGNALS WITHIN 3 KHZ”)

The IF Notch filter is a highly effective system that allows you to slice out an interfering beat note or other carrier

signal from inside the receiver passband.

“NOTCH” Indicator

[DSP] button

[DSP/SEL] knob

1. Press the [DSP] button several times to set the

“>” icon to the “NOTCH” indicator of the DSP

Graphic Display on the display.

2. Press the [DSP/SEL] knob to engage the IF Notch

filter.

3. Rotate the [DSP/SEL] knob to adjust the center

frequency of the IF Notch Filter.

You may observe the graphically depicted peak

position of the IF Notch filter in the “NOTCH” indi-

cator of the DSP Graphic Display on the display.

4. To disable the IF Notch filter, press the [DSP/SEL]

button again. The graphically depicted peak po-

sition disappears from the “NOTCH” indicator of

the DSP Graphic Display on the display confirm-

ing that the IF Notch filter is no longer operating. The performance of the IF Notch filter is

shown in Figure “A”, where the effect of rota-

tion of the [DSP/SEL] knob is depicted. In

Figure “B”, you can see the notching effect

of the IF Notch filter as you rotate the [DSP/

SEL] knob to eliminate the incoming interfer-

ence.

A B

BANDWIDTH

QRM

(Heterodyne)

QRM

(Heterodyne)

BANDWIDTH

Desired Signal Desired Signal

Page 32 FT-450D OPERATION MANUAL

“DNR” Indicator

[DSP] button

[DSP/SEL] knob

DNR (INTERFERENCE REJECTION “SIGNALS WITHIN 3 KHZ”)

The Digital Noise Reduction (DNR) system is designed to reduce the level of random noise found on the HF and

50 MHz bands, and it is especially effective during SSB operation. Any of eleven different noise-reduction algo-

rithms can be selected. Each of these algorithms was created for dealing with a different noise profile, and you

will want to experiment with the DNR system to find the best setting according to the noise currently being

experienced.

1. Press the [DSP] button several times to set the

“>” icon to the “DNR” indicator of the DSP Graphic

Display on the display.

2. Press the [DSP/SEL] knob to engage the Digital

Noise Reduction system.

3. Rotate the [DSP/SEL] knob to select the setting

that most effectively reduces the noise level.

You may observe the effectiveness of the Digital

Noise Reduction system in the “DNR” indicator

of the DSP Graphic Display on the display.

4. To disable the Digital Noise Reduction system,

press the [DSP/SEL] button again. The graph ef-

fectively disappears from the “DNR” indicator of

the DSP Graphic Display on the display confirm-

ing that the Digital Noise Reduction system is no

longer operating.

CONVENIENCE FEATURES

Page 33FT-450D OPERATION MANUAL

RF GAIN

The RF Gain controls provide manual adjustment of the gain levels for the receiver RF and IF stages, to com-

pensate for noise and/or signal strength conditions at the moment.

The [SQL/RF GAIN] knob should, initially, be rotated

to the fully clockwise position. This is the point of maxi-

mum sensitivity, and counter-clockwise rotation will

gradually reduce the system gain.

ADVICE:

As the [SQL/RF GAIN] knob is rotated counter-

clockwise to reduce the gain, the S-meter read-

ing will rise. This indicates that the AGC voltage

being applied to the receiver is increasing (which

causes a reduction in receiver gain).

Rotating the [SQL/RF GAIN] knob control to the

fully counter-clockwise position will essentially dis-

able the receiver, as the gain will be greatly re-

duced. In this case, the S-meter will appear to be

“pegged”. (That is a full-scale reading).

[SQL/RF GAIN] knob

CONVENIENCE FEATURES

Page 34 FT-450D OPERATION MANUAL

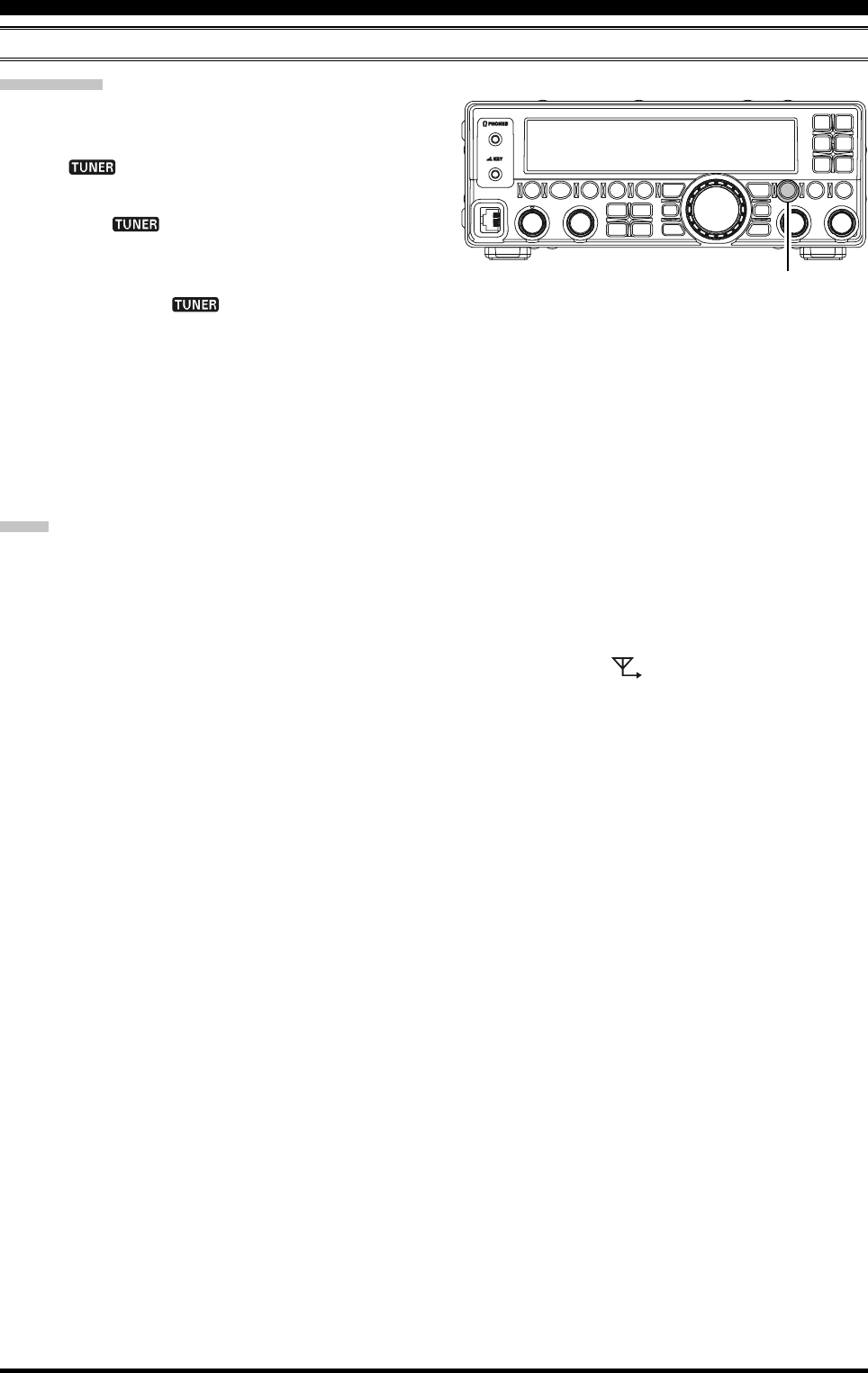

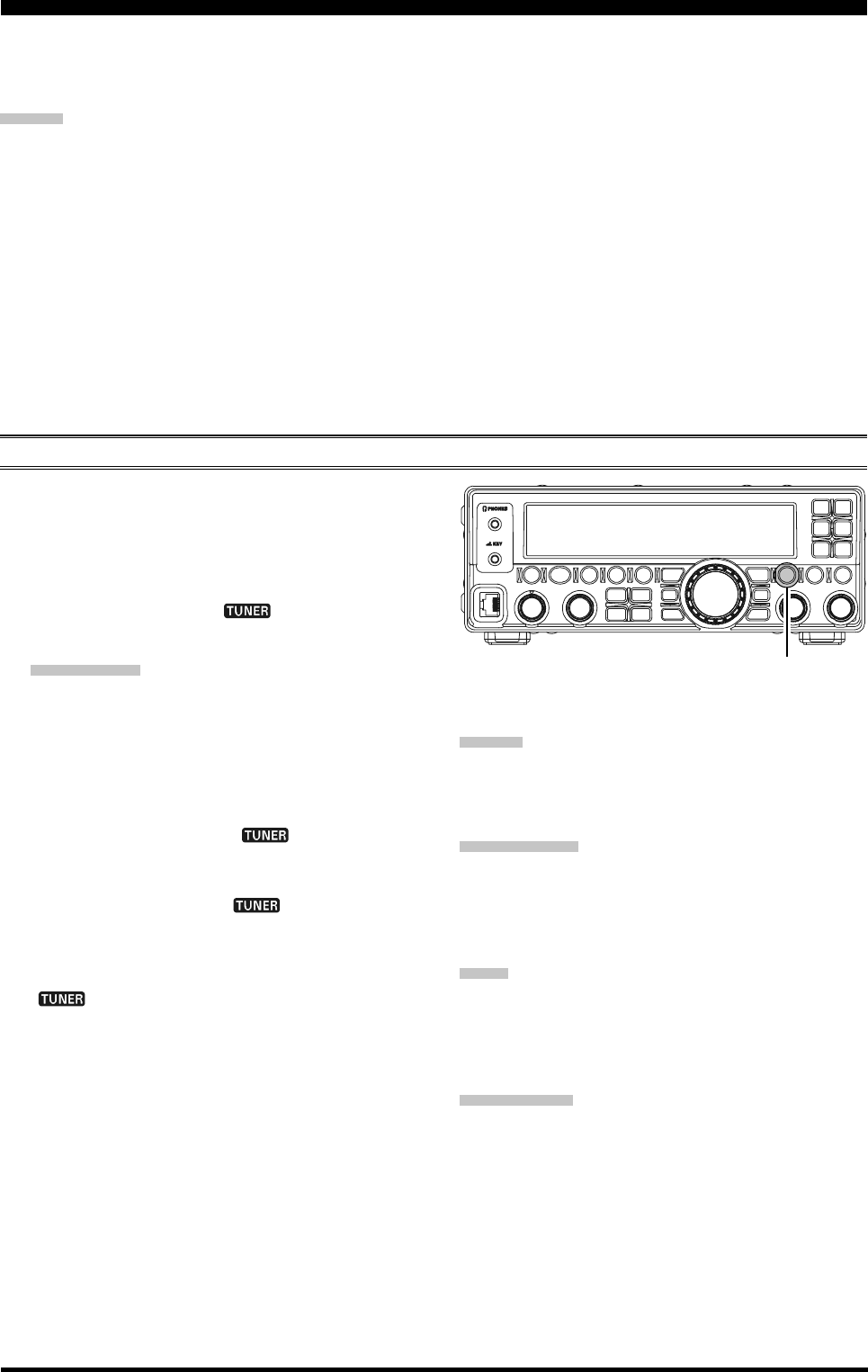

SING

THE

UTOMATIC

NTENNA

UNER

The Automatic Antenna Tuner (hereinafter referred to as the “ATU”) built into each FT-450D is designed to

ensure a 50-Ohm load for the final amplifier stage of the transmitter. We recommend that the ATU be used

whenever you operate on the FT-450D.

ADVICE:

Because the ATU of the FT-450D is located inside the station, it only adjusts the impedance presented to the

transceiver at the station end of your coaxial cable feedline. It does not “tune” the SWR at the antenna feed

point itself. When designing and building your antenna system, we recommend that every effort be made to

ensure a low SWR at the antenna feed point.

The ATU of the FT-450D includes 100 memories for tuning data. Eleven of these memories are allocated,

one per Amateur band, so that each band has at least one setting preset for use on that band. The remaining

89 memories are reserved for the 89 most-recent tuning points, for quick frequency change without the need

to retune the ATU.

The ATU in the FT-450D is designed to match impedances within the range of 16.7 Ohms to 150 Ohms,

corresponding to an SWR of 3:1 or less on the 160 through 6 meter amateur bands. Accordingly, simple

non-resonant whip antennas, along with random-length wires and the “G5RV” antenna (on most bands) may

not be within the impedance matching range of the ATU.

ATU OPERATION

1. Use the Main Tuning Dial knob to set the radio to

the desired operating frequency within the Ama-

teur band.

2. Press the [TUNE] button momentarily to place

the ATU in the transmit line (no adjustment/tun-

ing will occur yet). The “ ” icon will appear

in the display.

QUICK POINT:

The momentary press of the [TUNE] button will

turn the tuner on, and the microprocessor will

automatically select the tuning point closest to

the current operating frequency.

3. Press and hold in the [TUNE] button for one sec-

ond to begin automatic tuning. The transmitter

will be engaged, and the “ ” icon will blink

while tuning is in progress. When the optimum

tuning point has been reached, the radio will re-

turn to receive, and the “ ” icon will again

glow steadily (instead of blinking).

4. To disconnect the ATU from the transmit line,

press the [TUNE] button momentarily. The

“” icon will turn off, confirming that the ATU

has been turned off. In the “Off” mode, the trans-

ceiver will be directly connected to the coaxial

cable connected to your antenna, and will oper-

ate based on whatever impedance is present at

the station end of the coax.

ADVICE:

The ATU circuit is located between the final amplifier

and the rear-panel antenna jack; reception is not af-

fected by the ATU.

QUICK POINTS:

As shipped from the factory, only one ATU alignment

point is saved on each Amateur band. This was

memorized during the final alignment and perfor-

mance verification stages on the production line.

NOTE:

Please check the operating frequency before begin-

ning the tuning process, to be sure you are not inter-

fering with others who may already be using the fre-

quency.

TERMINOLOGY:

Antenna Tuner Memories: The microprocessor of the

ATU makes a note of the positions of the tuning ca-

pacitors and the selected inductors, and stores the

data for each 10 kHz window in which tuning has

occurred. This eliminates the need to re-tune every

time you return to a frequency on which you have

already completed the tuning process.

[TUNE] button

Page 35FT-450D OPERATION MANUAL

SING

THE

UTOMATIC

NTENNA

UNER

ABOUT ATU OPERATION

Figure 1 depicts a situation where normal tuning via the ATU has been successfully completed, and the tuning

data has been stored in the ATU memory. The antenna system as seen by the transmitter is shown.

In Figure 2, the operator has changed frequency, and the “ ” icon has appeared. The operator presses and

holds in the [TUNE] button for two seconds to begin impedance matching using the ATU.

If a high SWR condition exists (above 3:1), corrective action must be taken in the antenna system to bring the

impedance closer to 50 Ohms. The ATU will refuse to memorize settings on frequencies where the SWR

exceeds 3:1. A High SWR may indicate a mechanical failure in the feed system, and can lead to the generation

of spurious signals causing TVI, etc.

About ATU Memories

SWR (After tuning) Less than 2:1

The tuner settings are stored in the ATU memory.

SWR (After tuning) Greater than 2:1

Tuning data will not be retained in memory. If you return to the same frequency, the tuning process must be

repeated.

SWR (After tuning) Greater than 3:1

The “ ” icon does not blink, and the tuner settings, if achieved, will not be memorized. Please investi-

gate the high SWR condition and resolve the problem, before attempting further operation using this an-

tenna.

SWR: 2.0

Frequency

SWR: 1.5

Feed Point SWR

SWR after ATU Tuning

SWR: 1.0

FIGURE 1

FIGURE 2

SWR = 1.0

SWR = 2.0

SWR = 3.0

Frequency

Memorized ATU Tuning

Retuned Setting

SWR: 3.0

The " " icon appears on the display

when you transmit on this frequency

Page 36 FT-450D OPERATION MANUAL

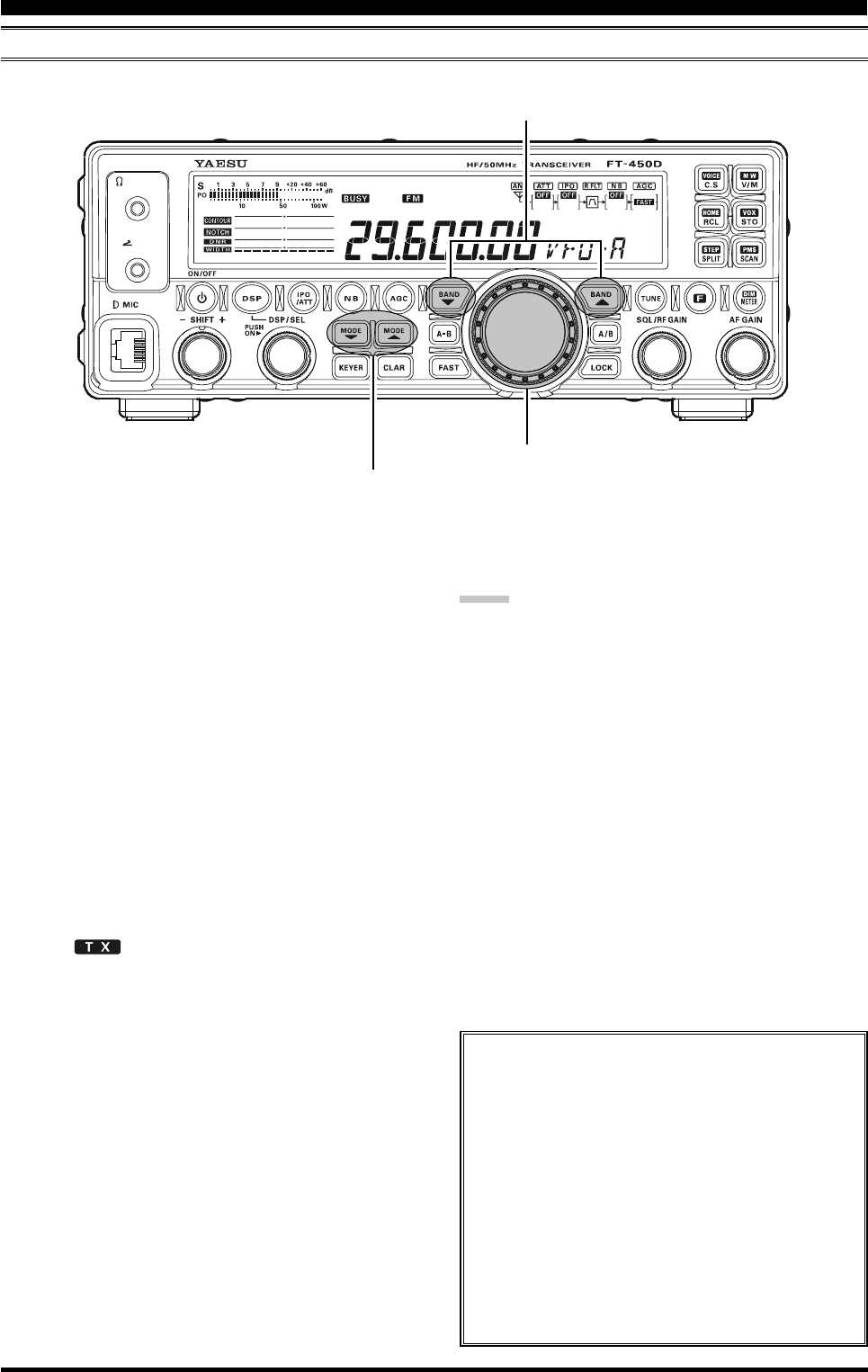

PHONES

KEY

1. Press the [BAND]/[BAND] buttons to select

the operating band.

By pressing the [BAND]/[BAND] buttons, the

operating band will change as follows.

7  10  14  15  18  21  24.5 

28  50  1.8  3.5  7 ......

2. Press the [MODE]/[MODE] buttons to select

the LSB, USB or AM mode.

By convention, LSB is used in the 7 MHz and

lower Amateur bands for SSB communication,

and USB is used on the 14 MHz and higher bands

(the 10 MHz band is used for CW and data modes

only).

3. Rotate the [MAIN DIAL] knob to adjust the oper-

ating frequency.

If you use the MH-31A8J (or MD-100A8X: option),

you may adjust the operating frequency by the

[UP]/[DWN] buttons on the microphone.

SSB/AM MODE TRANSMISSION

4. Press the microphone’s PTT (Push To Talk)

switch to begin transmission. Speak into the mi-

crophone in a normal voice level.

The “ ” icon will appear in the display, con-

firming that transmission is in progress.

The Speech Processor is automatically activated

while transmitting. The Speech Processor in-

creases “talk power” by increasing the average

power output.

5. Release the PTT switch at the end of your trans-

mission. The transceiver will return to the receive

mode.

IMPORTANT NOTE:

When performing tests, be sure to check the fre-

quency before transmitting, to avoid interfering with

others who may already be using the frequency.

[MAIN DIAL] knob

[BAND]/[BAND] button

[MODE]/[MODE] button

NOTICE

Regarding of the [DSP/SEL] knob

The [DSP/SEL] knob is used for operating

various functions depending on the situation.

If you can not change the frequency/memory

channel by tuning the [DSP/SEL] knob, the

[DSP/SEL] knob is selected to operate of one

of the DSP functions.

In this case, press the [DSP] button several

times until the “>” icon disappears from the

DSP Graphic Display.

Page 37FT-450D OPERATION MANUAL

SSB/AM MODE TRANSMISSION

TX METER SELECTION

You may change the PO meter function to ALC meter or SWR meter in the transmit mode.

TX POWER ADJUSTMENT

By pressing the [METER/DIM] button, the meter func-

tion will change as follows.

PO  ALC  SWR  PO ......

PO: Indicates the average power output level.

ALC: Indicates the relative ALC voltage.

SWR: Indicates the Standing Wave Ratio.

Adjusting the TX output power:

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “RFPOWER”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select the desired

power output.

You may press the [RCL/HOME] button to reset

the power output to the factory default.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

[RCL/HOME] button

[F] button

[DSP/SEL] knob

[METER/DIM] button

Page 38 FT-450D OPERATION MANUAL

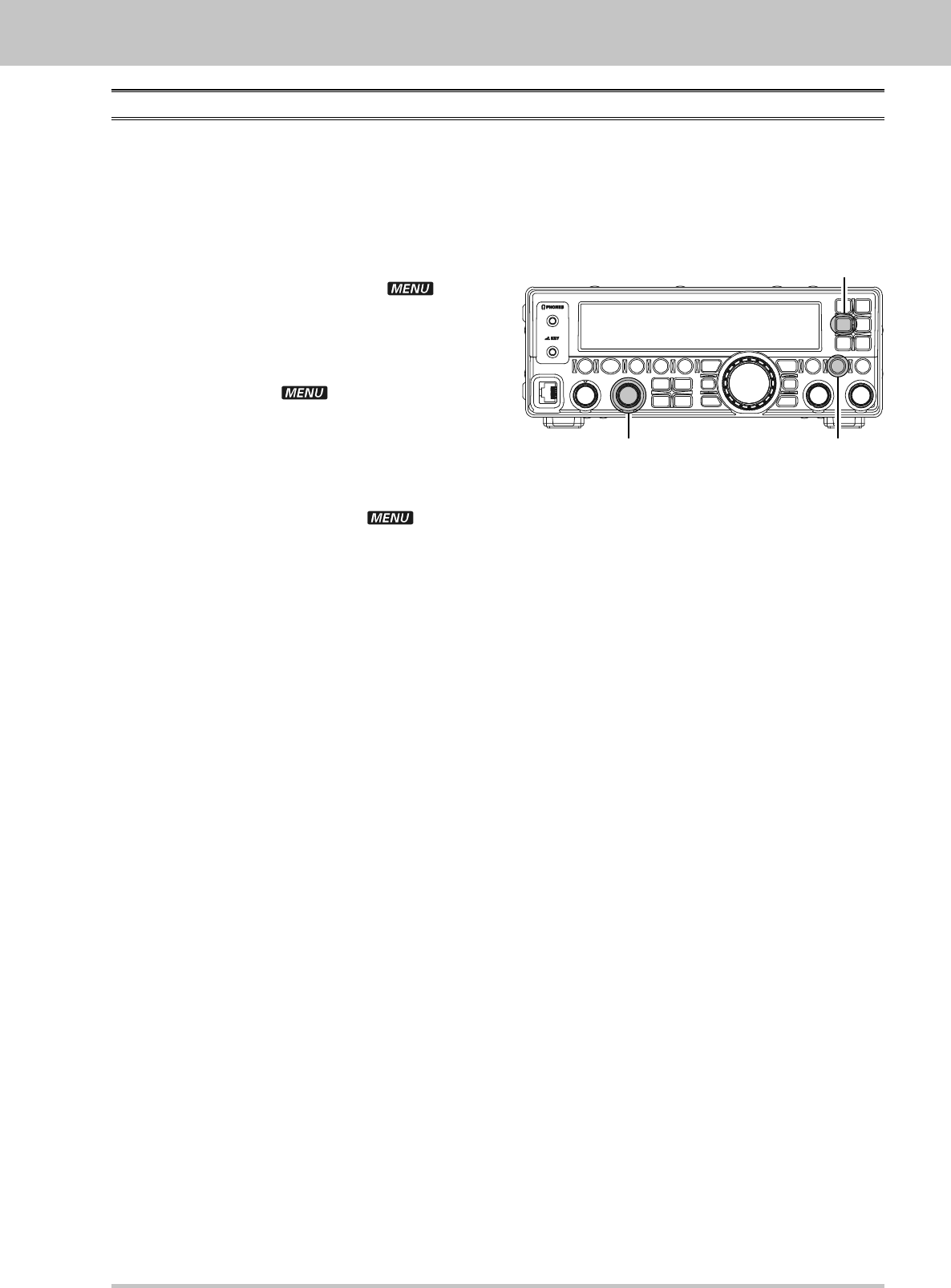

TRANSMITTER TIME-OUT TIMER (TOT)

The “Time-Out Timer” (TOT) feature that is designed to force the transceiver into the “receive” mode after a

preset time period of continuous transmission (the default is “OFF”). This feature prevents your transceiver from

transmitting a “dead carrier” for a long period of time if the microphone PTT switch is accidentally locked in the

“TX” condition. The Time-Out Timer “switch-to-receive” time may be adjusted from 1 to 20 minutes, or Off via

Menu Item “TOT”.

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “TOT”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select the desired

“Maximum TX” time. Available selections are 1

minute through 20 minutes or off.

Press the [RCL/HOME] button to reset the TOT

time to the factory default.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

[RCL/HOME] button

[F] button

[DSP/SEL] knob

SSB/AM MODE TRANSMISSION

Page 39FT-450D OPERATION MANUAL

MICROPHONE GAIN LEVEL ADJUSTMENT

At the factory, a microphone gain has been programmed that should be satisfactory for the supplied MH-31A8J

Hand Microphone. If you use an after-market microphone, you may wish to set a different Microphone Gain

Level.

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “MICGAIN”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select the desired

microphone gain (LOW, NOR, or HIGH, factory

default: NOR).

LOW: When the microphone input is high the

speech processor is turned off automati-

cally.

NOR For normal voice the speech processor is

turned on automatically.

HIGH: When the microphone input is low the

speech processor is turned on automati-

cally.

Press the [RCL/HOME] button to reset the mi-

crophone gain to the factory default.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

[RCL/HOME] button

[F] button

[DSP/SEL] knob

SSB/AM MODE TRANSMISSION

Page 40 FT-450D OPERATION MANUAL

DSP MICROPHONE EQUALIZER

You may select one of ten available DSP equalization techniques for transmitted microphone audio.

1. Press and hold the [DSP] button for one second.

This instantly activates menu item “MIC EQ”. The

“” icon will appear on the display.

2. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

3. Rotate the [DSP/SEL] knob to select the desired

equalizer pattern.

Observe the relative equalizer pattern on the dis-

play.

(You may press the [RCL/HOME] button to reset

the equalizer pattern to the factory default.)

4. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

5. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

The available selections are:

0: Flat

1: Low-frequency components are reduced.

2: Mid-frequency components are reduced.

3: High-frequency components are reduced.

4: High-frequency components are enhanced.

5: Mid-frequency components are enhanced.

6: Low-frequency components are enhanced.

7: Low-frequency components are enhanced

and High-frequency components are re-

duced.

8: Low-frequency components are reduced and

Mid-frequency components are enhanced.

9: Low-frequency components are reduced and

High-frequency components are enhanced

SSB/AM MODE TRANSMISSION

[RCL/HOME] button

[F] button

[DSP/SEL] knob

[DSP] button

Page 41FT-450D OPERATION MANUAL

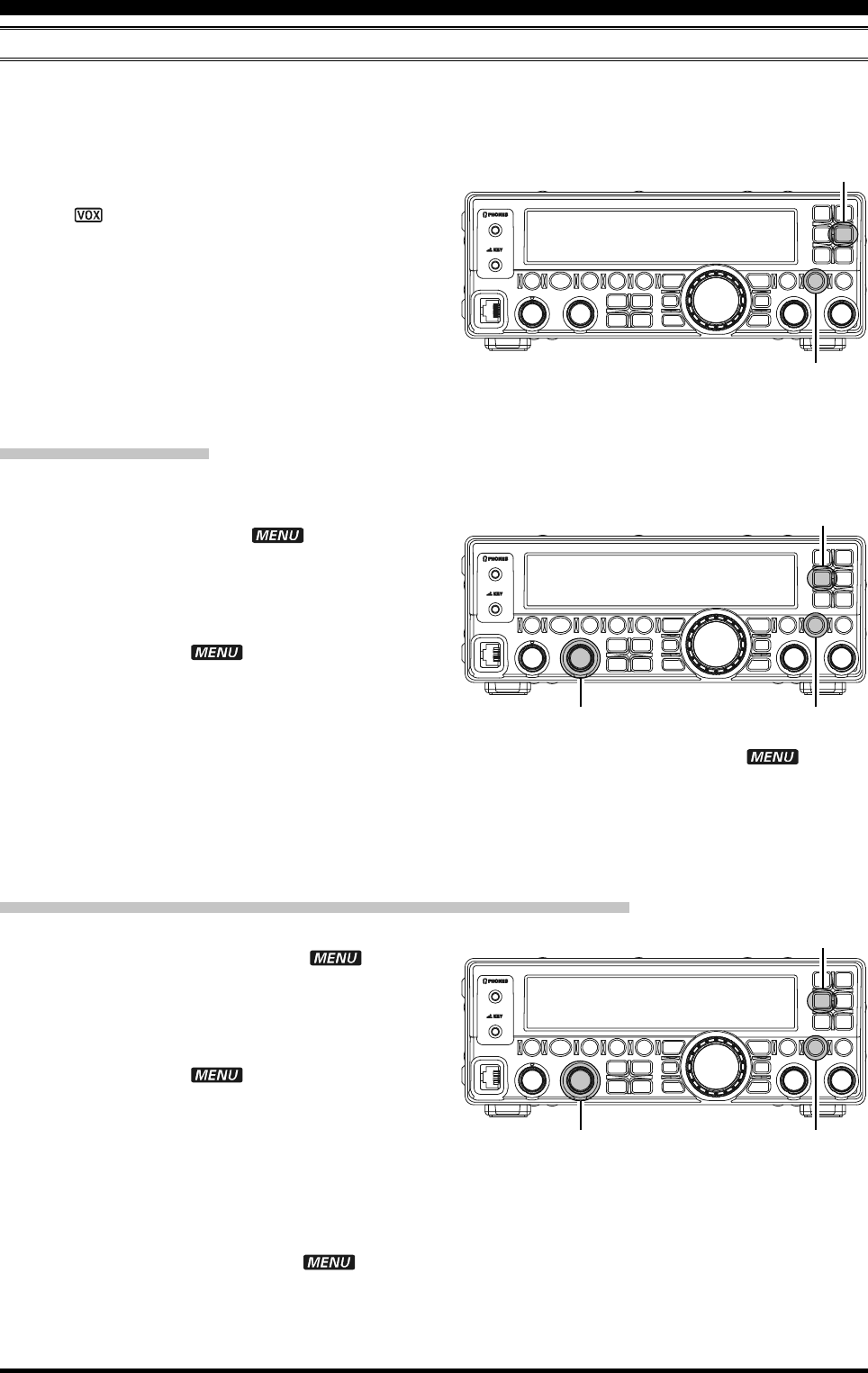

AUTOMATIC TX/RX SWITCHING USING VOICE CONTROL (VOX)

Instead of using the microphone’s PTT switch to activate the transmitter, the VOX (Voice Operated TX/RX

Control) system provides hands-free, automatic activation of the transmitter, based on voice input into the mi-

crophone. Setup of the VOX system takes only a few seconds.

SSB/AM MODE TRANSMISSION

1. Press the [F] button followed by the [STO/VOX]

button to engage the VOX operation.

The “ ” icon will appear in the display.

2. Without pressing the PTT switch, speak into the

microphone in a normal voice level.

When you start speaking, the transmitter should

be activated automatically. When you finish

speaking, the transceiver should return to the

receive mode (after a short delay).

3. To exit from VOX operation, press the [F] button

followed by the [STO/VOX] button again.

[RCL/HOME] button

[F] button

[DSP/SEL] knob

[STO/VOX] button

[F] button

VOX GAIN ADJUSTMENT

Adjust the VOX gain level to prevent accidental transmitter activation in a noisy environment.

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “VOXGAIN”.

3. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

4. Rotate the [DSP/SEL] knob to set to the point

where the transmitter is quickly activated by your

voice, without causing background noise to acti-

vate the transmitter. Available selections are 1

through 100 (factory default: 50).

Press the [RCL/HOME] button to reset the VOX

gain level to the factory default.

VOX DELAY ADJUSTMENT (THE TRANSMIT-RECEIVE DELAY AFTER THE CESSATION OF SPEECH)

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “VOX DLY”.

3. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

4. Rotate the [DSP/SEL] knob while saying a brief

syllable like “Ah” and listening to the hang time,

so as to set the desired delay. Available selec-

tions are 100 through 3000 msec (factory default:

500 msec).

Press the [RCL/HOME] button to reset the VOX

delay time to the factory default.

5. Press the [DSP/SEL] knob. The “ ”” icon

returns to appear continuously.

6. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

[RCL/HOME] button

[F] button

[DSP/SEL] knob

Page 42 FT-450D OPERATION MANUAL

SSB/AM MODE TRANSMISSION

MONITOR

You may listen to the quality of your transmitted signal using the Monitor feature.

PREPARATIONS

Assign the Monitor feature to the [C.S/VOICE] button.

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “PNL-C.S”.

3. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

4. Rotate the [DSP/SEL] knob to select “MONI” to

assign the Monitor feature to the [C.S/VOICE]

button.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

ADVICE:

You may assign the MONITOR feature to the MH-

31A8J (or optional microphone’s) [DWN]/[FST]/[UP]

button via the Menu Item “P M-DWN”, “P M-FST” or “P

M-UP”.

MONITORING

1. Press the [C.S/VOICE](MONITOR) button to ac-

tivate the Monitor feature.

During transmission, your transmitted voice is

output from the speaker.

2. Rotate the [AF GAIN] knob to adjust the audio

level from the monitor.

3. To disable the Monitor feature, press the [C.S/

VOICE](MONITOR) button again.

[F] button

[DSP/SEL] knob

ADVICE:

If you are using the speaker for monitoring, instead of headphones, excessive advancement of the [AF

GAIN] knob can cause feedback to occur. Additionally, this feedback can cause the VOX system to hang up

in a loop, making it impossible to return to receive. Therefore, we recommend the use of headphones, if at

all possible, or the minimum usable setting of the [AF GAIN] knob, if the speaker must be used.

Because the Monitor feature utilizes a sampling of the transmitter’s DSP signal, it can be very useful for

checking the adjustment of the Speech Processor or Microphone Equalizer on SSB, and for checking the

general signal quality on AM and FM.

[C.S/VOICE] button

[AF GAIN] button

[C.S/VOICE] button

Page 43FT-450D OPERATION MANUAL

SSB/AM MODE TRANSMISSION

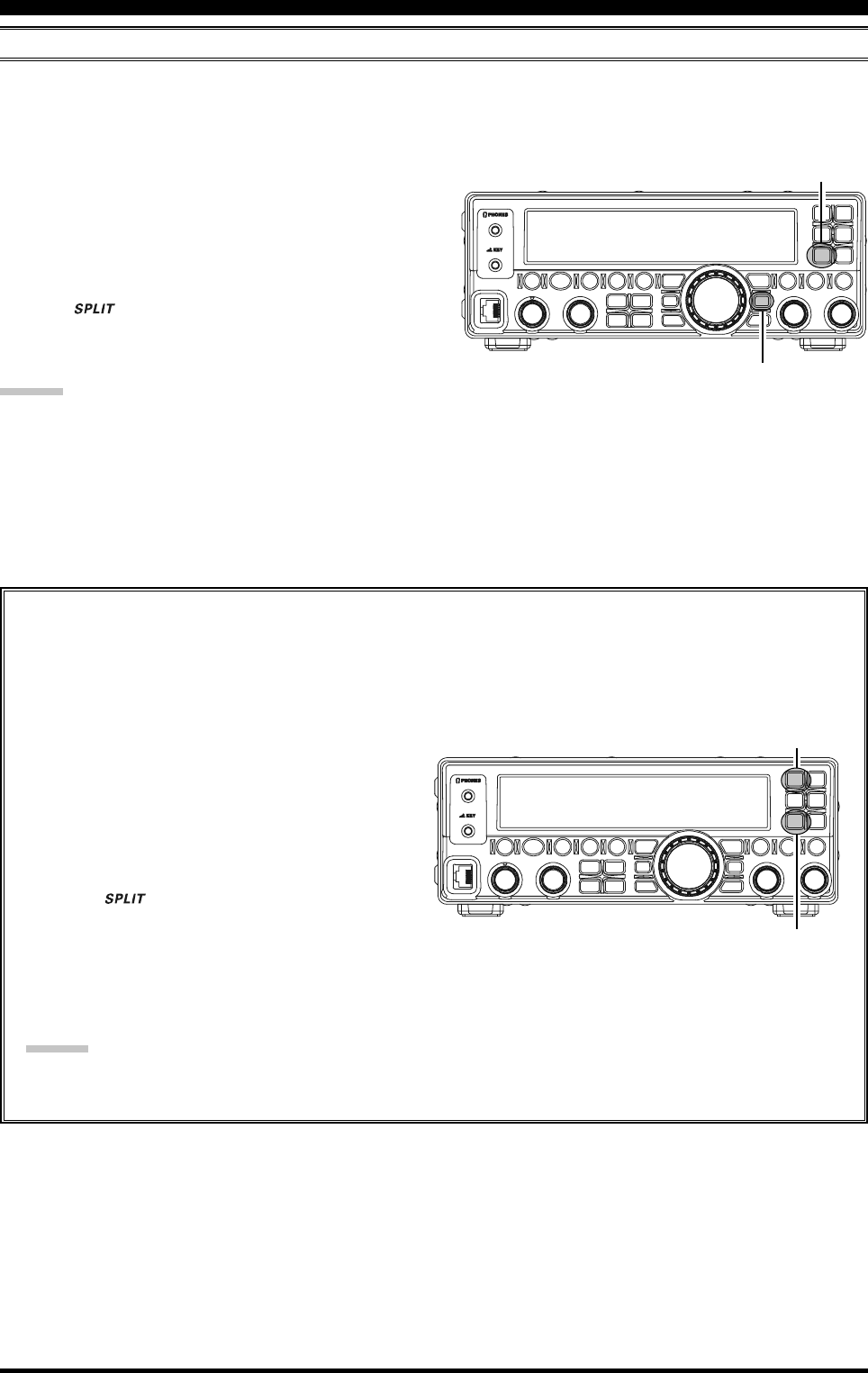

SPLIT-FREQUENCY OPERATION

A powerful capability of the FT-450D is its flexibility in Split Frequency operation, using VFO-A and VFO-B

frequency registers. This makes the FT-450D especially useful for high-level DX-pedition use, as the Split op-

eration capability is very advanced and easy to use.

1. Press the [A/B] button to switch the VFO register

to VFO-B, then set the transmit frequency.

2. Press the [A/B] button again to switch the VFO

3. Now press the [SPLIT/STEP] button to activate

Split-Frequency Operation.

4. The “ ” icon will appear in the display.

5. To quit Split-Frequency Operation, press the

[SPLIT/STEP] button again.

ADVICE:

It is possible to set different operating modes (for

example, LSB and USB) on the two VFOs used

during Split operation.

It is possible to set different amateur bands (for

example, 14 MHz and 21 MHz) on the two VFOs

used during Split operation, if you use the multi

band antenna.

QUICK SPLIT OPERATION

The Quick Split feature allows you to set a one-touch offset of +5 kHz to be applied to your radio’s

transmit frequency compared to the receiving frequency. Furthermore, the transmit mode sets to the

same mode as the receiving frequency register.

1. Press and hold in the [SPLIT/STEP] button

for one second to engage the Quick Split fea-

ture. The transmit mode is set to the same

mode as the receiver frequency register and

applies a frequency 5 kHz above the receiv-

ing frequency register to the transmit fre-

quency register.

The “ ” icon will appear in the display.

2. Press and hold in the [SPLIT/STEP] button

for one second to increment the transmit fre-

quency +5 kHz.

3. To quit the Quick Split Operation, press the

[SPLIT/STEP] button again.

[SPLIT/STEP] button

[A/B] button

[C.S/VOICE] button

[SPLIT/STEP] button

ADVICE:

If you assign the “TXW” feature into the [C.S/VOICE] button, you may also listen to the TX frequency

temporarily while pressing the [C.S/VOICE] button during Split operation.

Page 44 FT-450D OPERATION MANUAL

SSB/AM MODE TRANSMISSION

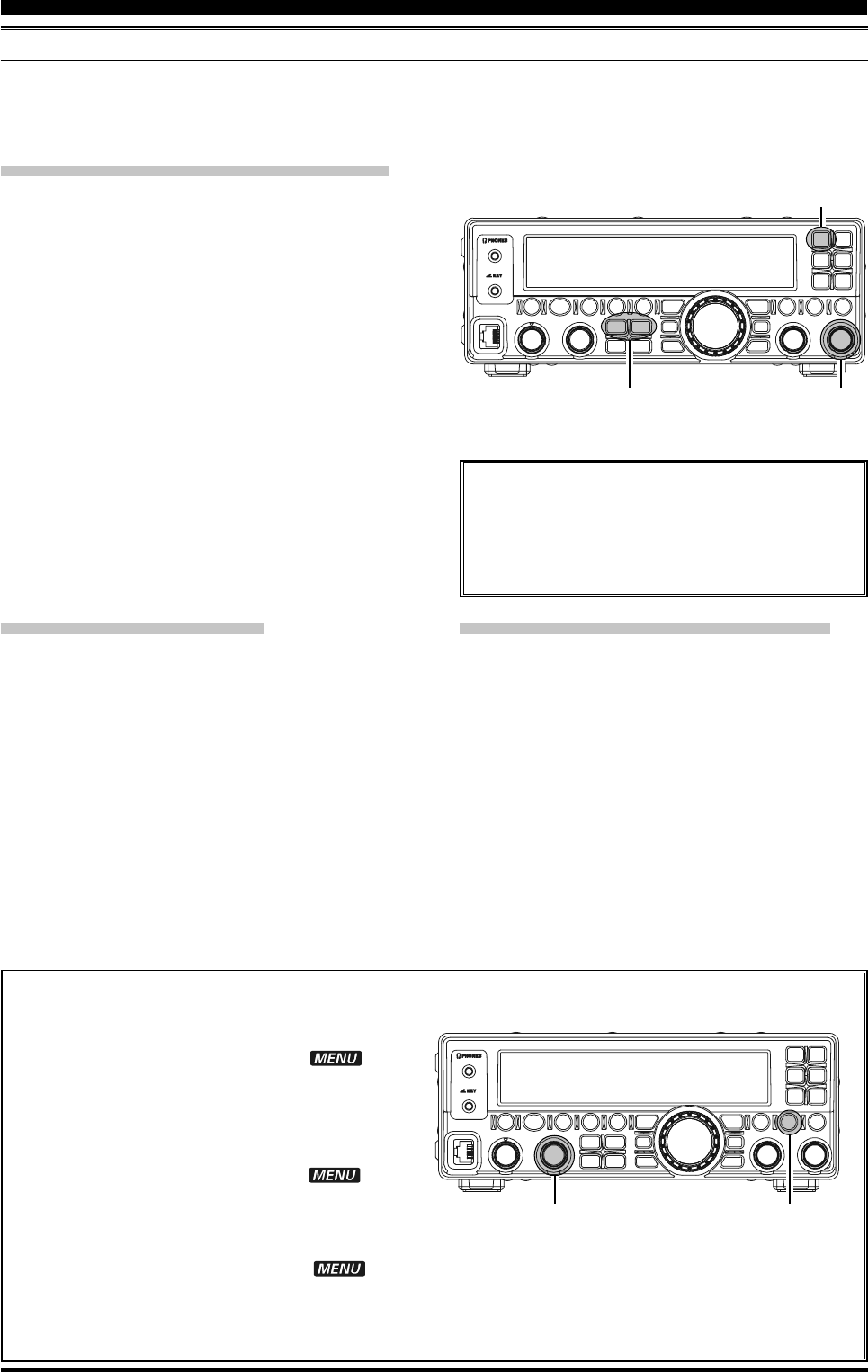

VOICE MEMORY (SSB/AM/FM MODES)

You may utilize the Voice Memory capability of the FT-450D for repetitive messages. The Voice Memory system

includes two memories (VM1 and VM2) capable of storing up to 10 seconds of voice audio each. The maximum

that both memories can hold is 10 seconds.

Recording Your Own Voice in Memory

1. Assign the “VM1REC” (Voice Recording) function

to the [C.S/VOICE] button using the procedure in

the box below.

2. Select the LSB, USB, AM, or FM mode using the

[MODE]/[MODE] buttons.

2. Press the [C.S/VOICE] button. A “VM1 REC” no-

tation will appear in the display.

3. Press and hold the microphone’s PTT switch, the

radio display will count down.

(“VM1 –3”  “VM1 –2”  “VM1 –1”  “VM1 10” ......)

5. When the display Shows “VM1 10”, speak into

the microphone in a normal voice level to record

the message (such as “CQ DX, CQ DX, this is W

6 Delta X-Ray Charlie, W 6 Delta X-Ray Charlie,

Over”). Remember that the time limit for record-

ing is 10 seconds.

6. Release the PTT switch to terminate the mes-

sage storage process.

Checking Your Recording

1. Assign the “VM1MONI” (Voice Monitoring) func-

tion to the [C.S/VOICE] button using the proce-

dure in the box below.

2. Select the LSB, USB, AM, or FM mode using the

[MODE]/[MODE] buttons.

3. Press the [C.S/VOICE] button, and you will hear

the contents of the voice memory you just re-

corded.

4. You may adjust the playback level of the record-

ing by the [AF GAIN] knob.

Transmitting the Recorded Message

1. Assign the “VM1TX” (Voice Transmitting) func-

tion to the [C.S/VOICE] button using the proce-

dure in the box below.

2. Select the LSB, USB, AM, or FM mode using the

[MODE]/[MODE] buttons.

3. Press the [C.S/VOICE] button to transmit the con-

tents of the voice memory you just recorded.

4. You may adjust the playback level of the record-

ing by the [AF GAIN] knob.

How to assign a function to the [C.S/VOICE] button

1. Press and hold the [F] button for one second

to enter the Menu Mode. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select Menu

Item “PNL-C.S”.

3. Press the [DSP/SEL] knob to enable adjust-

ment of this Menu Item. The “ ” icon

will be blinking.

4. Rotate the [DSP/SEL] knob to select the de-

sired function.

5. Press the [DSP/SEL] knob. The “ ” icon

returns to appear continuously.

6. Press and hold the [F] button for one second

to return to normal operation.

[F] button

[DSP/SEL] knob

[C.S/VOICE] button

[MODE]/[MODE] button [AF GAIN] button

ADVICE

You may perform the Voice Memory operation

with the memory slot “VM2 (VM2REC,

VM2MONI, and VM2TX)” instead of memory

slot “VM1 (VM1REC, VM1MONI, and VM1TX)”.

Page 45FT-450D OPERATION MANUAL

SSB/AM MODE TRANSMISSION

NOTE

Page 46 FT-450D OPERATION MANUAL

The powerful CW operating capabilities of the FT-450D include operation using both an electronic keyer paddle

and a “straight key” or emulation thereof, as is provided by a computer-based keying device.

SETUP FOR STRAIGHT KEY (AND STRAIGHT KEY EMULATION) OPERATION

Before starting, connect your key to the front panel KEY jack in the status that turned off the [POWER(ON/OFF)]

switch, and be sure the [KEYER] button is turned off (the “ ” icon is not displayed) for now.

1. Press the [BAND]/[BAND] buttons to select

the operating band.

By pressing the [BAND]/[BAND] buttons, the

operating band will change as follows.

7  10  14  15  18  21  24.5 

28  50  1.8  3.5  7 ......

2. Press the [MODE]/[MODE] buttons to select

the CW mode.

3. Rotate the [MAIN DIAL] knob to adjust the oper-

ating frequency.

If you use the MH-31A8J (or MD-100A8X: option),

you may adjust the operating frequency by the

[UP]/[DWN] buttons on the microphone.

4. Press the [F] button followed by the [STO/VOX]

button to engage automatic activation of the trans-

mitter when you close the CW key. The “ ”

icon will appear in the display.

5. When you close your CW key, the transmitter will

automatically be activated, and the CW carrier

will be transmitted. When your release the key,

transmission will cease after a brief delay. The

delay time is user-programmable, per the discus-

sion on page 48.

NOTE:

Do not use the plug except the 3.5-mm 3-pin type

plug. If the plug in correct size is not used the

radio may be harmed or damaged.

CW MODE OPERATION

[F] button

[MAIN DIAL] knob

[KEYER] button

[BAND]/[BAND] button

[MODE]/[MODE] button [STO/VOX] button

NOTICE

Regarding of the [DSP/SEL] knob

The [DSP/SEL] knob is used for operating

various functions depending on the situation.

If you can not change the frequency/memory

channel by tuning the [DSP/SEL] knob, the

[DSP/SEL] knob is selected to operate of one

of the DSP functions.

In this case, press the [DSP] button several

times until the “>” icon disappears from the

DSP Graphic Display.

Page 47FT-450D OPERATION MANUAL

USING THE BUILT-IN ELECTRONIC KEYER

Before starting, connect your keyer paddle to the front panel KEY jack in the status that turned off the [POWER(ON/

OFF)] switch.

1. Press the [BAND]/[BAND] buttons to select

the operating band.

By pressing the [BAND]/[BAND] buttons, the

operating band will change as follows.

7  10  14  15  18  21  24.5 

28  50  1.8  3.5  7 ......

2. Press the [MODE]/[MODE] buttons to select

the CW mode.

3. Rotate the [MAIN DIAL] knob to adjust the oper-

ating frequency.

If you use the MH-31A8J (or MD-100A8X: option),

you may adjust the operating frequency by the

[UP]/[DWN] buttons on the microphone.

4. Press the [F] button followed by the [STO/VOX]

button to engage automatic activation of the trans-

mitter when you close the CW key. The “ ”

icon will appear in the display.

5. Press the [KEYER] button to activate the built-in

Electronic Keyer. The “ ” icon will appear in

the display.

6. When you press either the “Dot” or “Dash” side of

your paddle, the transmitter will automatically be

activated and the CW carrier will be transmitted.

When your release the paddle, transmission will

cease after a brief delay. The delay time is user-

programmable, per the discussion on page 48.

NOTE:

Do not use the plug except the 3.5-mm 3-pin type

plug. If the plug in correct size is not used the

CW MODE OPERATION

radio may be harmed or damaged.

ADJUSTING THE KEYER SPEED

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “CWSPEED”.

3. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

4. Rotate the [DSP/SEL] knob while pressing either

the “Dot” or “Dash” side of your paddle, so as to

set the desired keyer speed (4 - 60 wpm).

Press the [F] button if you wish to select display

of “cpm” (characters per minute) instead of “wpm”

(words per minute). The “cpm” selection is based

on the international “PARIS” standard, which stipu-

lates five characters per word.

(You may Press the [RCL/HOME] button to reset

the keyer speed to the factory default.)

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

[F] button

[MAIN DIAL] knob

[KEYER] button

[BAND]/[BAND] button

[MODE]/[MODE] button [STO/VOX] button

6. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

TERMINOLOGY:

PARIS Word Length: By convention in the Amateur

industry (utilized by ARRL and others), the length of

one “word” of CW is defined as the length of the Morse

Code characters spelling the word “PARIS.” This char-

acter (dot/dash/space) length is used for the stan-

dard definition of code speed in “words per minute”.

[RCL/HOME] button

[F] button

[DSP/SEL] knob



You may enable the CW keying by the [UP]/

[DWN] keys of the MH-

31A8J (while the built-in

electronic keyer is en-

gaged) via menu item “CW

PADDLE”. See page 81 for

details.

DWN F ST UP

Dash Dot

Page 48 FT-450D OPERATION MANUAL

SETTING THE KEYER WEIGHT (DOT/SPACE:DASH) RATIO

The Menu Item “CWWEIGHT” may be used to adjust the Weight for the built-in Electronic Keyer. The default

weighting is 3:1 (a dash is three times longer than a dot or space).

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “CWWEIGHT”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will change

to blink.

4. Rotate the [DSP/SEL] knob to set the desired

keyer weight value. Available adjustment range

is for a Dot/Space:Dash ratio of “2.5” - “4.5” (de-

fault value: “3.0”).

(You may press the [RCL/HOME] button to reset

the keyer weight value to the factory default.)

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

USING THE BUILT-IN ELECTRONIC KEYER

SELECTING THE KEYER PADDLE’S WIRING CONFIGURATION

You may select “normal” or “reverse” paddle polarity via Menu Item “CW KEY”. The default setting is “normal”,

whereby the “Tip” connection on the key plug is “Dot” and the “Ring” connection is “Dash”.

[RCL/HOME] button

[F] button

[DSP/SEL] knob

To change the paddle polarity:

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “CW KEY”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to set the “REV” (de-

fault: “NOR”).

(You may Press the [RCL/HOME] button to reset

the paddle polarity to the factory default.)

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

[RCL/HOME] button

[F] button

[DSP/SEL] knob

CW MODE OPERATION

Page 49FT-450D OPERATION MANUAL

CW SPOTTING (ZERO-BEATING)

“Spotting” (zeroing in on another CW station) is a handy technique for ensuring that you and the other station are

precisely on the same frequency.

CW MODE OPERATION

TO USE CW SPOTTING:

In CW mode, while pressing and holding the

[IPO/ATT] button, the Spot tone will be heard and Spot

tone frequency will show in the display. This tone cor-

responds to the pitch of your transmitted signal, and

if you adjust the receiver frequency to match the pitch

of the received CW signal to that of the Spot tone,

your transmitted signal will be precisely matched to

that of the other station.

Release the [IPO/ATT] button to turn the Spot tone off.

USING CW REVERSE

If you experience a difficult interference situation, where an interfering station cannot readily be eliminated, you

may wish to try receiving using the opposite sideband. This may throw the interfering station’s frequency in a

direction that may lend itself more readily to rejection.

1. To start, let’s use a typical example where you

have set the CW mode (using the default “USB”

injection: the “ ” and “ ” icon appear).

2. Press and hold in the [MODE] or [MODE]

button for one second. The “ ” icon appears

instead of “ ”, indicating that the “LSB” injec-

tion side has now been selected.

3. Press and hold in the [MODE] or [MODE]

button, once again, for one second to return to

the normal (USB) injection side and cancel CW

Reverse operation (the “ ” and “ ” icons

appear).

[IPO/ATT] button

In the illustration, Figure A demonstrates the

normal CW injection setup, using the USB

side. In Figure B, CW Reverse has been en-

gaged, so as to receive using LSB-side in-

jection to eliminate interference.

The beneficial effect of switching sidebands

can clearly be seen in this example.

RX Passband

Carrier

QRM

Normal CW

( )

CW Reverse

( )

USB

LSB

[MODE]/[MODE] button

Page 50 FT-450D OPERATION MANUAL

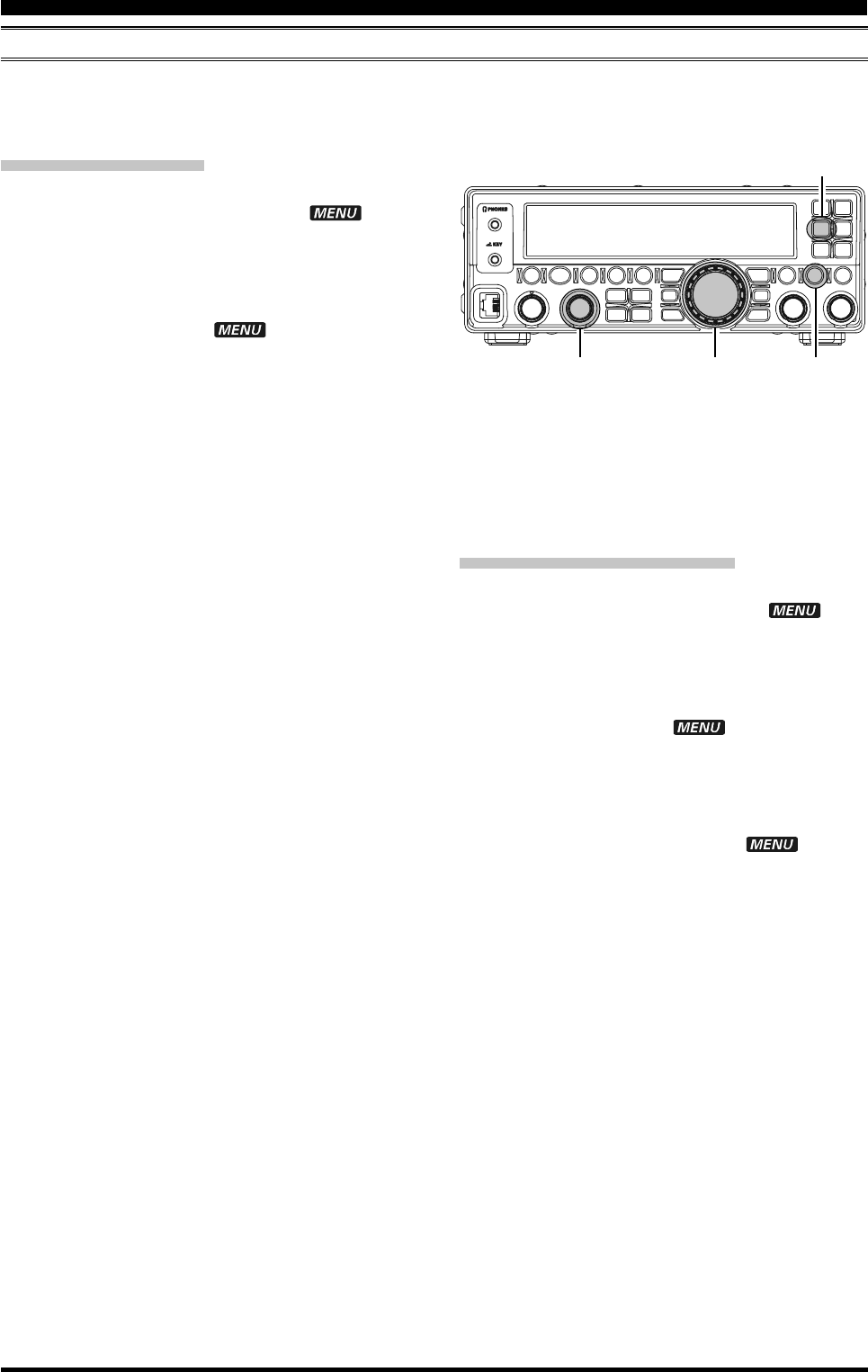

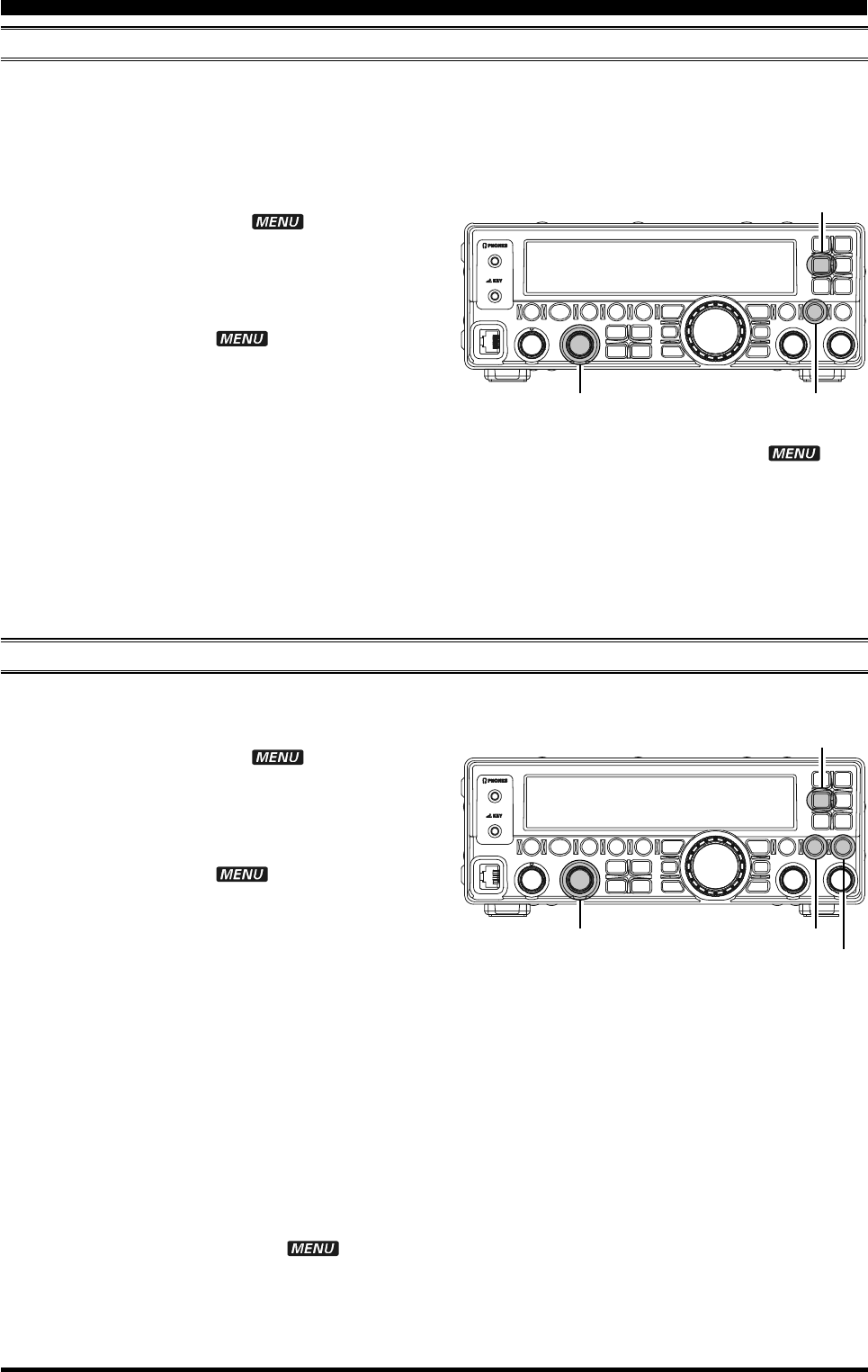

CW DELAY TIME SETTING

During semi-break-in (not QSK) operation, the hang time of the transmitter, after you have finished sending, may

be adjusted to a comfortable value consistent with your sending speed. This is the functional equivalent to the

“VOX Delay” adjustment used on voice modes, and the delay may be varied anywhere between 30 - 3000

millisecond (10 millisecond step) and FULL (Full Break-in operation).

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “CW DLY”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to set the desired de-

lay time.

If the delay selection is set to “FULL”, the trans-

ceiver operates in the full break-in mode (allow-

ing you to hear between the characters that are

being sent).

(You may press the [RCL/HOME] button to reset

the delay time to the factory default.)

CW SIDETONE VOLUME LEVEL SETTING

You may adjust the CW sidetone volume level via the Menu Item “CWSTONE”.

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “CWSTONE”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. While pressing and holding the [METER/DIM] but-

ton, rotate the [DSP/SEL] knob to set the desired

sidetone volume level (FIX 0 - FIX 100).

If you wish to adjust the CW sidetone level with

the [AF GAIN] knob, press the [F] key to change

the display to “LNK-xx” then rotate the [DSP/SEL]

knob to set the volume ratio of the CW sidetone

volume level for the receiving audio volume level.

Available selections are LNK-50 ~ LNK 0 ~

LNK+50. When the LNK 0 is selected, the CW

sidetone volume level becomes the same as re-

ceiving audio volume level.

(You may press the [RCL/HOME] button to reset

the CW sidetone level to the factory default.)

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

5. Press the [DSP/SEL] knob. The “ ” icon

returns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

[RCL/HOME] button

[F] button

[DSP/SEL] knob

CW MODE OPERATION

[RCL/HOME] button

[F] button

[DSP/SEL] knob

[METER/DIM] button

Page 51FT-450D OPERATION MANUAL

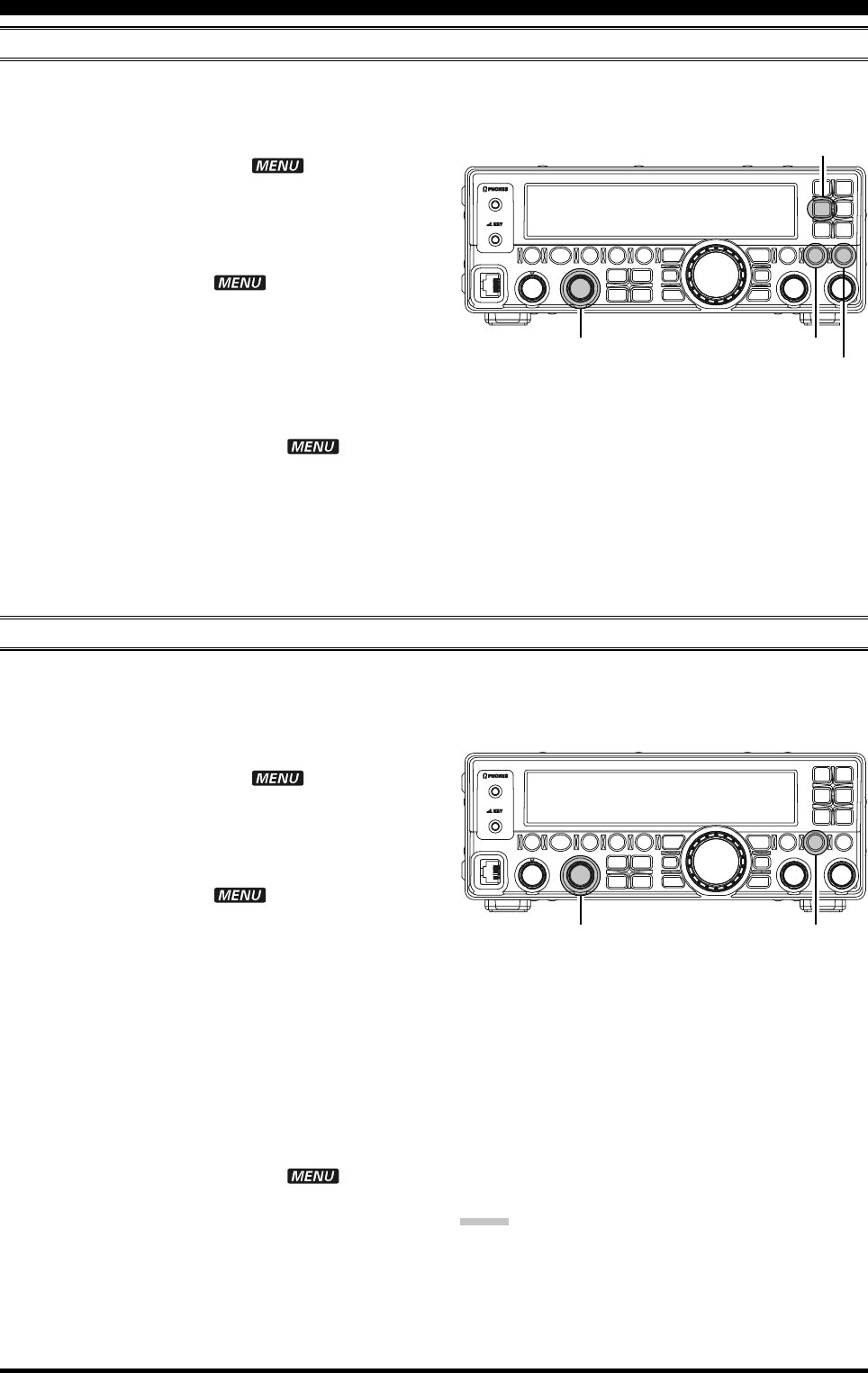

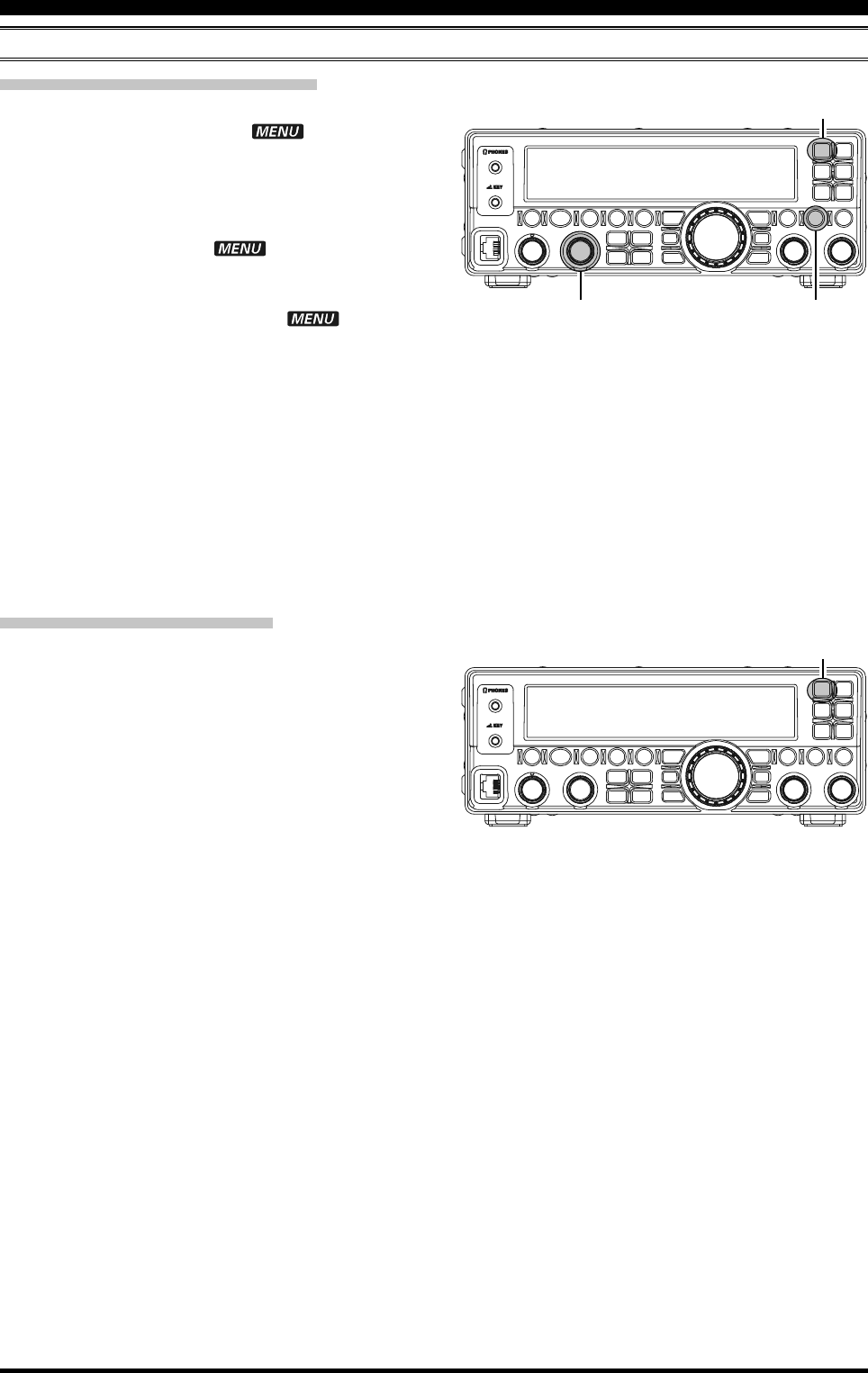

CW PITCH ADJUSTMENT

You may adjust the center frequency of the receiver passband, as well as the pitch of your offset CW carrier via

the Menu Item “CWPITCH”. Available tone selections are 400 Hz through 800 Hz, in 100 Hz step.

CW MODE OPERATION

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “CWPITCH”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. While pressing and holding the [METER/DIM] but-

ton, rotate the [DSP/SEL] knob to set the desired

pitch frequency.

(You may press the [RCL/HOME] button to reset

the pitch frequency to the factory default.)

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

CW TRAINING FEATURE

The FT-450D provides a unique CW Training feature, which sends random Morse Code five-character groups

via the sidetone (heard in the speaker), so you can improve your CW proficiency whether or not the bands are

open.

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “CWTRAIN”.

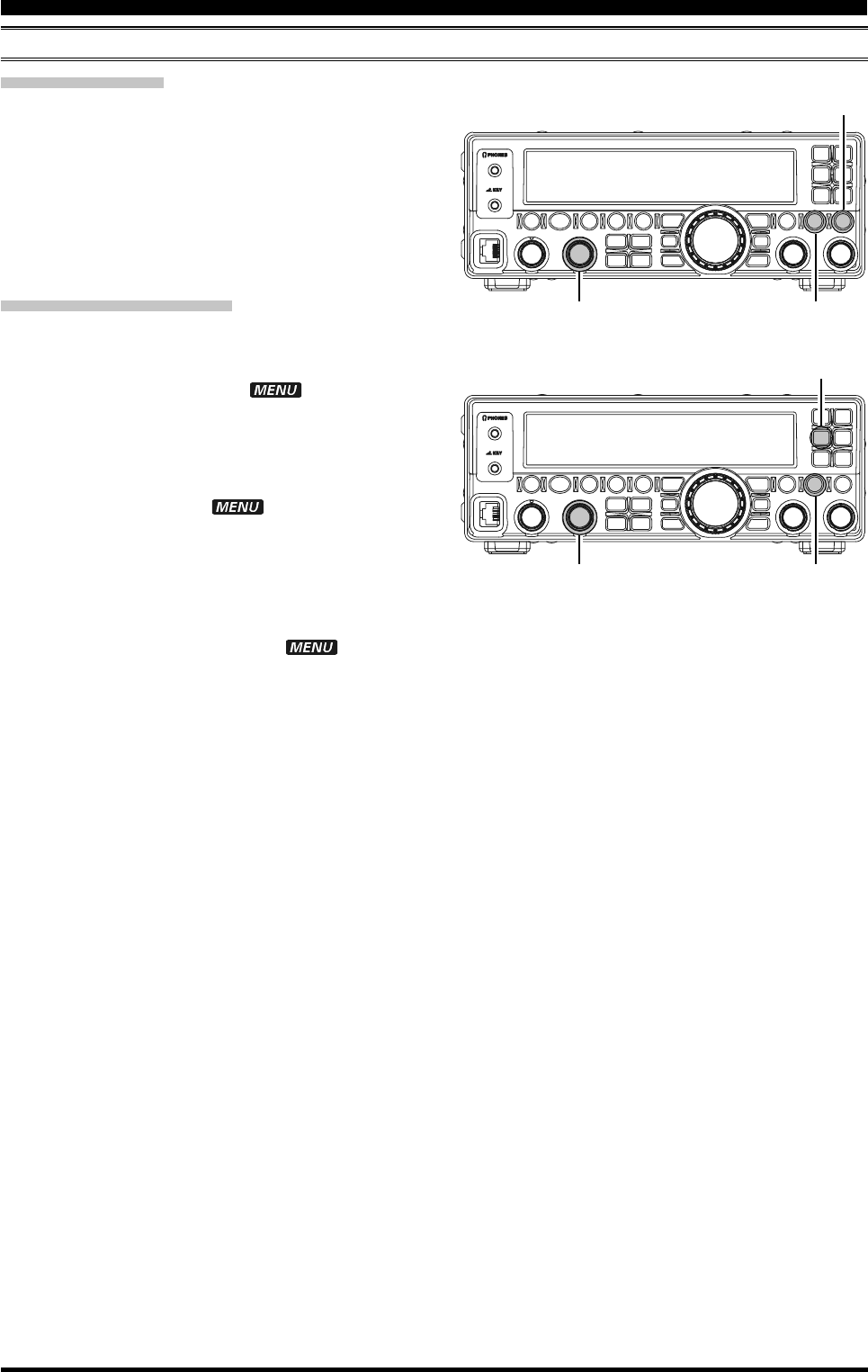

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select the training

mode:

N: Numeric character only

A: Alphabet character only

M: Numeric and Alphabet characters (Mixed)

5. Press the [F] button to begin generation of the

five character code groups (CW sidetone only,

does not key the transmitter).

6. When the code group is completed, the “Answer”

will appear on the display.

7. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

8. Press the [F] button to generate another code

group, as above.

9. To disable the CW Training feature, press and

hold the [F] button for one second to return to

normal operation.

NOTE:

You may adjust the Morse Speed via Menu Item

“CWSPEED”.

You may adjust the sidetone volume level via

Menu Item “CWSTONE”.

[F] button

[DSP/SEL] knob

[RCL/HOME] button

[F] button

[METER/DIM] button

[DSP/SEL] knob

Page 52 FT-450D OPERATION MANUAL

BEACON FEATURE

The FT-450D’s unique “Beacon” feature allows you to set up the transceiver to send a repetitive message. For

example, on a DX-pedition, the FT-450D beacon might be activated on a 50 MHz frequency, to alert DXers to

possible band openings.

CW MODE OPERATION

BEACON TEXT STORAGE

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “BCN TXT”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [MAIN DIAL] knob to select “1:1- - - -”.

5. Rotate the [DSP/SEL] knob one click clockwise

to enable storage of the Beacon Text.

6. Rotate the [MAIN DIAL] knob to select the first

character (number or letter) in the Beacon Text you

wish to store. Then rotate the [DSP/SEL] knob one

click clockwise to move to the next character.

Available characters are A - Z, 0 - 9, /, , space

and @ character.

7. Repeat step 6 as many times as necessary to

complete the Beacon Text.

If the Beacon Text is more than 40 charac-

ters long, but less than 79, set the last (40th)

character to be “,” press the [DSP/SEL]

knob twice, then rotate the [MAIN DIAL] knob

to select “2:2- - - -”. Now repeat step 6.

If the Beacon Text is more than 79 charac-

ters long, but less than 118 characters may

be stored. In this case, set the final character

slot in “2:” to be “”, press the [DSP/SEL]

knob twice, and then rotate the [MAIN DIAL]

knob to select “3:3- - - -”. Now repeat step 6.

8. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

SET THE BEACON INTERVAL TIME

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “BCN TIM”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select the interval

time (between message and message) Available

selections are 1 - 255 second or off.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

[MAIN DIAL] knob

[RCL/HOME] button

[F] button

[DSP/SEL] knob

Page 53FT-450D OPERATION MANUAL

CW MODE OPERATION

BEACON TRANSMISSION (ON THE AIR)

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select menu item

“PNL-C.S”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select “PLAY1”.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

7. Set the operating mode to CW.

8. Press the [C.S/VOICE] button to activate the Bea-

con Feature (transmit the CW Beacon).

The “PLAY1” notation appears on the display while

sending the beacon, and the “BEACON” notation

appears on the display between transmissions.

To disable the transmission from the Beacon, press

the [C.S/VOICE] button again.

MANUAL BEACON TRANSMISSION

You may also send the Beacon text manually. If this

is done, all three “Beacon” messages may be used

as a traditional CW message keyer. To do this:

1. Repeat the “Set the Beacon Interval Time” pro-

cedure described previously, rotating the [DSP/

SEL] knob to select “off” in step 4.

2. Repeat the “Beacon Transmission (On the Air)”

procedure, rotating the [DSP/SEL] knob to se-

lect “PLAY2” if you wish to send the message

manually which is stored in bank “1”, “2”, or

“PLAY3” if you wish to send the message manu-

ally which is stored in bank “3” in step 4.

3. Press the [C.S/VOICE] button to activate the Bea-

con Feature (transmit the CW Beacon).

BEACON FEATURE

[C.S/VOICE] button

[F] button

[DSP/SEL] knob

[C.S/VOICE] button

Page 54 FT-450D OPERATION MANUAL

PHONES

KEY

BASIC OPERATION

1. Press the [BAND]/[BAND] buttons to select

the 28 MHz or 50 MHz.

Note: FM is only used in the 28 MHz and 50 MHz

Amateur bands covered in the FT-450D. Please

do not use FM on any other bands.

2. Press the [MODE]/[MODE] buttons to select

the FM mode.

3. Rotate the [MAIN DIAL] knob to adjust the oper-

ating frequency.

If you use the MH-31A8J (or MD-100A8X: option),

you may adjust the operating frequency by the

[UP]/[DWN] buttons on the microphone.

4. Press the microphone’s PTT (Push To Talk)

switch to begin transmission. Speak into the mi-

crophone in a normal voice level.

The “ ” icon will appear in the display, con-

firming that transmission is in progress.

5. Release the PTT switch at the end of your trans-

mission. The transceiver will return to the receive

mode.

FM MODE OPERATION

NOTE:

In the FM mode, the squelch circuit is set to the

threshold point automatically.

However, when turn the [SQL/RF GAIN] knob

counter-clockwise, the squelch circuit is turned

off.

Keep the [SQL/RF GAIN] knob always clockwise

position.

You may change the [SQL/RF GAIN] knob from

the RF GAIN function to the squelch function via

Menu item SQL/RFG.

At the factory, a microphone gain has been pro-

grammed that should be satisfactory for the sup-

plied MH-31A8J Hand Microphone. If you use an

after-market microphone, you may wish to set a

different Microphone Gain Level, described pre-

viously (Microphone Gain Level Adjustment: see

page 39)

[MAIN DIAL] knob

[BAND]/[BAND] button

[MODE]/[MODE] button

NOTICE

Regarding of the [DSP/SEL] knob

The [DSP/SEL] knob is used for operating

various functions depending on the situation.

If you can not change the frequency/memory

channel by tuning the [DSP/SEL] knob, the

[DSP/SEL] knob is selected to operate of one

of the DSP functions.

In this case, press the [DSP] button several

times until the “>” icon disappears from the

DSP Graphic Display.

Page 55FT-450D OPERATION MANUAL

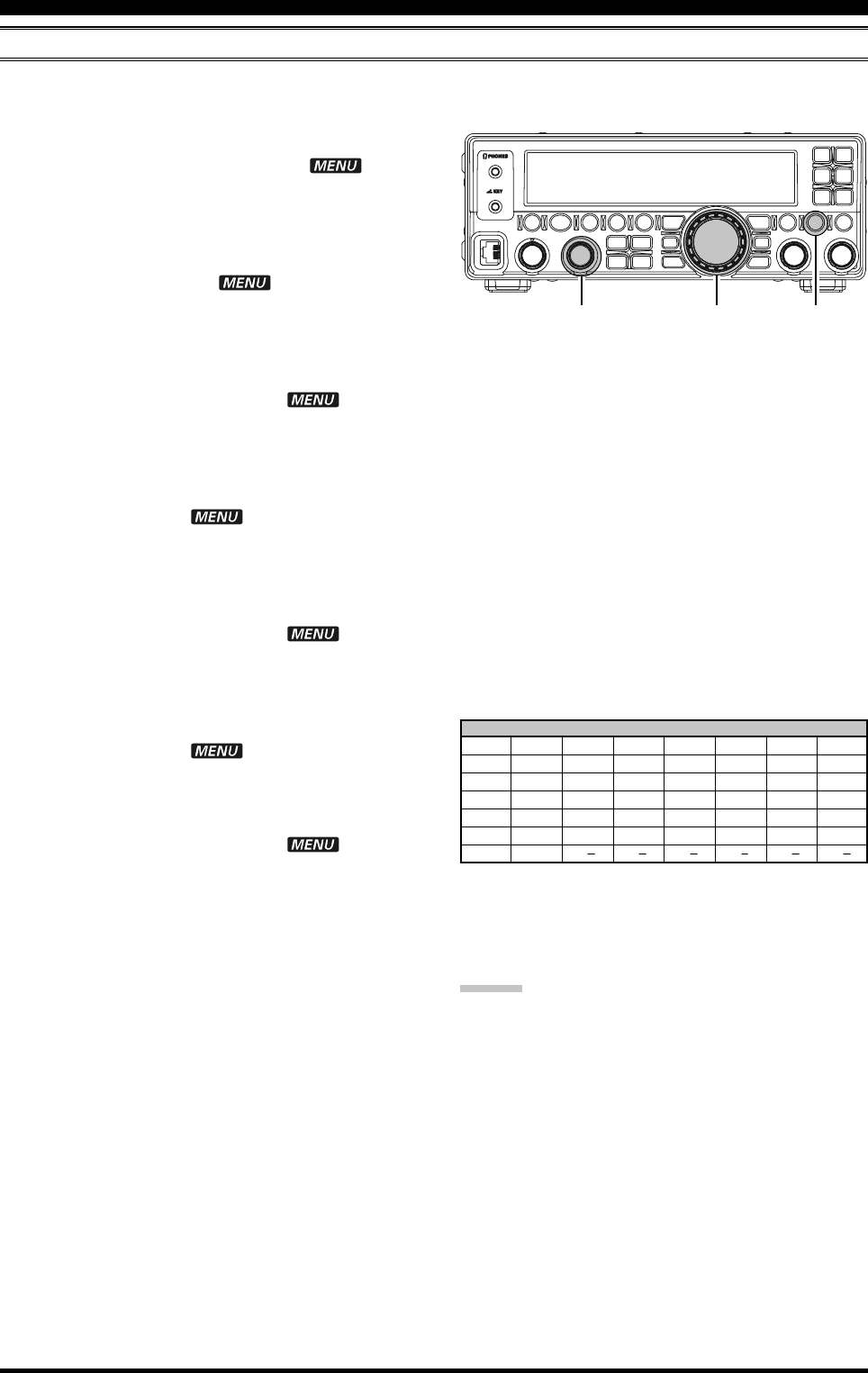

REPEATER OPERATION

The FT-450D may be operated on 29 MHz and 50 MHz repeaters. Use this procedure to set the repeater shift

direction, and the CTCSS squelch mode & tone.

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “RPT”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will change

to blink.

4. Rotate the [DSP/SEL] knob to select the desired

repeater shift direction. Available selections are

–SHIFT, SIMPLEX, and +SHIFT.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Rotate the [DSP/SEL] knob to select the menu

item “SQL TYP”.

7. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

8. Rotate the [DSP/SEL] knob to select the desired

CTCSS mode. If you just need to send the uplink

encoding tone, select “ENC”. For encode/decode

operation, choose “ENC DEC” instead.

9. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

10. Rotate the [DSP/SEL] knob to select the menu

item “TONE F”.

11. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

12. Rotate the [DSP/SEL] knob to select the desired

CTCSS tone to be used. A total of 50 standard

CTCSS tones are provided.

13. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

14. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

15. Rotate the [MAIN DIAL] to the output frequency

(downlink) from the repeater.

16. Close the microphone’s PTT switch to begin

transmission. You will observe that the frequency

has shifted to correspond to the programming you

set up in the previous steps. Speak into the mi-

crophone in a normal voice level, and release the

PTT switch to return to the receive mode.

FM MODE OPERATION

ADVICE:

The conventional repeater shift used on 29 MHz is

100 kHz, while on the 50 MHz band the shift may

vary between 500 kHz and 1.7 MHz (or more). To

program the proper repeater shift, use Menu Item

“RPT SFT”.

[F] button

[DSP/SEL] knob [MAIN DIAL] knob

CTCSS TONE FREQUENCY (Hz)

67.0 69.3 71.9 74.4 77.0 79.7 82.5 85.4

88.5 91.5 94.8 97.4 100.0 103.5 107.2 110.9

114.8 118.8 123.0 127.3 131.8 136.5 141.3 146.2

151.4 156.7 159.8 162.2 165.5 167.9 171.3 173.8

177.3 179.9 183.5 186.2 189.9 192.8 196.6 199.5

203.5 206.5 210.7 218.1 225.7 229.1 233.6 241.8

250.3 251.4

Page 56 FT-450D OPERATION MANUAL

TONE SQUELCH OPERATION

You may also use “Tone Squelch” whereby your receiver will be kept silent until an incoming signal bearing a

matching CTCSS tone is received. Your receiver’s squelch will then open in response to the reception of the

required tone.

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select menu item

“SQL TYP”.

3. Press the [DSP/SEL] knob to enable adjustment of

this menu item. The “ ” icon will be blinking.

4. Rotate the [DSP/SEL] knob to select the “ENC

DEC”.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Rotate the [DSP/SEL] knob to select menu item

“TONE F”, then press the [DSP/SEL] knob to en-

able adjustment of this menu item.

7. Rotate the [DSP/SEL] knob to select the desired

CTCSS tone to be used. A total of 50 standard

CTCSS tones are provided.

8. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

9. Press and hold the [F] button for one second to save

the new setting and return to normal operation.

When Tone Squelch is activated, the “ ” icon

appears in the display.

FM MODE OPERATION

[F] button

[DSP/SEL] knob

CTCSS TONE FREQUENCY (Hz)

67.0 69.3 71.9 74.4 77.0 79.7 82.5 85.4

88.5 91.5 94.8 97.4 100.0 103.5 107.2 110.9

114.8 118.8 123.0 127.3 131.8 136.5 141.3 146.2

151.4 156.7 159.8 162.2 165.5 167.9 171.3 173.8

177.3 179.9 183.5 186.2 189.9 192.8 196.6 199.5

203.5 206.5 210.7 218.1 225.7 229.1 233.6 241.8

250.3 251.4

Page 57FT-450D OPERATION MANUAL

FM MODE OPERATION

TONE SEARCH SCANNING

In operating situations where you don’t know the CTCSS tone being used by another station or stations, you can

command the radio to listen to the incoming signal and scan in search of the tone being used. Two things must

be remembered in this regard:

You must be sure that your repeater uses the same tone type (CTCSS).

Some repeaters do not pass the CTCSS tone; you may have to listen to the station(s) transmitting on the

repeater uplink (input) frequency in order to allow Tone Search Scanning to work.

To scan for the tone in use:

1. Set the radio up for CTCSS operation (see the

previous discussion). The “ ” icon will

appear on the display.

2. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

3. Rotate the [DSP/SEL] knob to select the menu

item “TONE F”.

4. Press the [DSP/SEL] knob to enable adjustment

of the selected Menu Item. The “ ” icon will

be blinking.

5. Press the [SCAN/PMS] button to start scanning

for the incoming CTCSS tone.

6. When the radio detects the correct tone, it will

halt on that tone, and audio will be allowed to pass.

7. Press the [DSP/SEL] knob to lock in that tone.

8. Press and hold the [F] button for one second to

return to normal operation.

NOTE:

If the Tone Scan feature does not detect a tone, it will

continue to scan indefinitely. When this happens, it

may be that the other station is not sending any tone.

You can press the [SCAN/PMS] button to halt the

scan at any time.

[SCAN/PMS] button

[F] button

[DSP/SEL] knob

Page 58 FT-450D OPERATION MANUAL

(UK5-FM)

(UK5-FE)

(UK5-FL)

(UK5-FK)

MEM-001

(UK5-FA)

MEM-498

MEM-002 (UK5-FB)

MEM-499

MEM-003 (UK5-FC)

MEM-500

QMB

US5-005

US5-004

US5-001

US5-002

US5-003

MEMORY OPERATION

CONVENIENT MEMORY FUNCTIONS

The FT-450D contains 500 regular memories, labeled “MEM-001” through “MEM-500”, two Home channels,

one for the HF band and another for the 50 MHz band, two special programmed limit memory pairs, labeled

“MEM-P1L/MEM-P1U” and “MEM-P2L/MEM-P2U”, one QMB (Quick Memory Bank) memory, one Alaska Emer-

gency Frequency Channel (5167.5 kHz), and five 60-meter (5 MHz) band channels (US version only). and seven

60-meter (5 MHz) band channels (UK version only). Each (except the Alaska Emergency Frequency Channel

and 60-meter Band channels, which are fixed.) stores various settings, in addition to the frequency and mode

(See below). By default, the 500 regular memories are contained in one group; however, they can be arranged

in up to 10 separate groups, if desired.

Quick Point:

The FT-450D’s memory channels store the following data:

ÌOperating Frequency

ÌOperating Mode

ÌNARROW / WIDE FM bandwidth status

ÌATT status

ÌIPO status

ÌCONTOUR status and its Peak Frequency

ÌDSP Noise Reduction (DNR) status and its Reduction algorithm selection.

ÌDSP Notch filter (NOTCH) status

ÌRepeater Shift Direction

ÌCTCSS Tone Frequency

IMPORTANT NOTE:

On a rare occasion the memory data may be lost or corrupted due to static electricity, electrical noise or errone-

ous operation. Parts changes or repairs may cause memory loss. Be sure to write down or record your data so

you will be able to restore it.

REGULAR MEMORY CHANNELS (500 ch)

PMS MEMORY CHANNELS

(2 ch)

QMB MEMORY CHANNEL (1 ch)

60-METER (5 MHZ) BAND CHANNELS (5 ch) : U.S. VERSION ONLY

60-METER (5 MHZ) BAND CHANNELS (7 ch): U.K. VERSION ONLY

Page 59FT-450D OPERATION MANUAL

EMORY

PERATION

MEMORY GROUPS

Memory channels may be organized into as many as 10 convenient groups, for easy identification and selec-

tion. For example, you might want to set aside memory groups for AM BC stations, shortwave broadcast

stations, contest frequencies, repeater frequencies, and PMS limits, or any other groupings you like.

Each memory group is capable of holding up to 50 memory channels (the Group size is fixed). When a

memory channel is grouped, the channel numbers change to correspond to the chart below:

Memory Channel Number

Group Memory ”OFF” Group Memory ”ON”

MEM-001 ~ MEM-050 M-01-01 ~ M-01-50

MEM-051 ~ MEM-100 M-02-01 ~ M-02-50

MEM-101 ~ MEM-150 M-03-01 ~ M-03-50

MEM-151 ~ MEM-200 M-04-01 ~ M-04-50

MEM-201 ~ MEM-250 M-05-01 ~ M-05-50

MEM-251 ~ MEM-300 M-06-01 ~ M-06-50

MEM-301 ~ MEM-350 M-07-01 ~ M-07-50

MEM-351 ~ MEM-400 M-08-01 ~ M-08-50

MEM-401 ~ MEM-450 M-09-01 ~ M-09-50

MEM-450 ~ MEM-500 M-10-01 ~ M-10-50

MEM-P1L ~ MEM-P2U M-11-1L ~ M-11-2U

MEM-EMG M-12-EM

US5-001 ~ US5-005 M-13-01 ~ M-13-05

(UK5-FA ~ UK5-FM)(M-13-FA ~ M-13-FM)

Memory Group Assignment:

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “MEM GRP”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select “ON”.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

To cancel Memory Group operation, repeat above

steps, choosing “OFF” in step 4.

[DSP/SEL] Knob [F] button

: UK version ony.

Page 60 FT-450D OPERATION MANUAL

EMORY

PERATION

REGULAR MEMORY OPERATION

The Regular Memory of the FT-450D allows storage and recall of up to 500 memories, each storing frequency,

mode, and a wide variety of status information detailed previously. Memories may be organized into as many as

ten Memory Groups, and additionally you get two pairs of band-limit (PMS) memories along with one QMB

(Quick Memory Bank) memory and two Home channels.

Memory Storage

1. In the VFO mode, select the desired frequency,

mode, and status the way you want to have it

stored.

2. Press the [F] button followed by the [V/M/MW]

button.

The blinking current memory channel number will

be shown on the display, and the contents of the

current memory channel will be shown on the dis-

play.

If there is no action by you within 90 second from

releasing the [V/M/MW] button the Memory Stor-

age procedure is canceled.

The memory storage procedure is canceled un-

less you operate it within 90 seconds.

3. Rotate the [DSP/SEL] knob to select the memory

channel in which you wish to store the data. If you

have selected a channel on which data is already

stored, that frequency will appear on the display.

4. Press the [V/M/MW] button momentarily to store

the frequency and other data into the selected

memory channel. A beep will confirm that you have

held the [V/M/MW] button.

You may over write new data into a channel on which

data is already stored.

Memory Channel Recall

1. Press the [V/M/MW] button, if necessary, to enter

the Memory mode. A memory channel number will

appear in the display.

2. Rotate the [DSP/SEL] knob to select the desired

memory channel.

Advice:

To work within a particular Memory Group, press the

[DSP/SEL] button. Then rotate the [DSP/SEL] knob

to select the desired Memory Group. Now press the

[DSP/SEL] button again. You may now choose the

memory channel within the selected Memory Group.

[DSP/SEL] Knob [V/M/MW] button

Page 61FT-450D OPERATION MANUAL

EMORY

PERATION

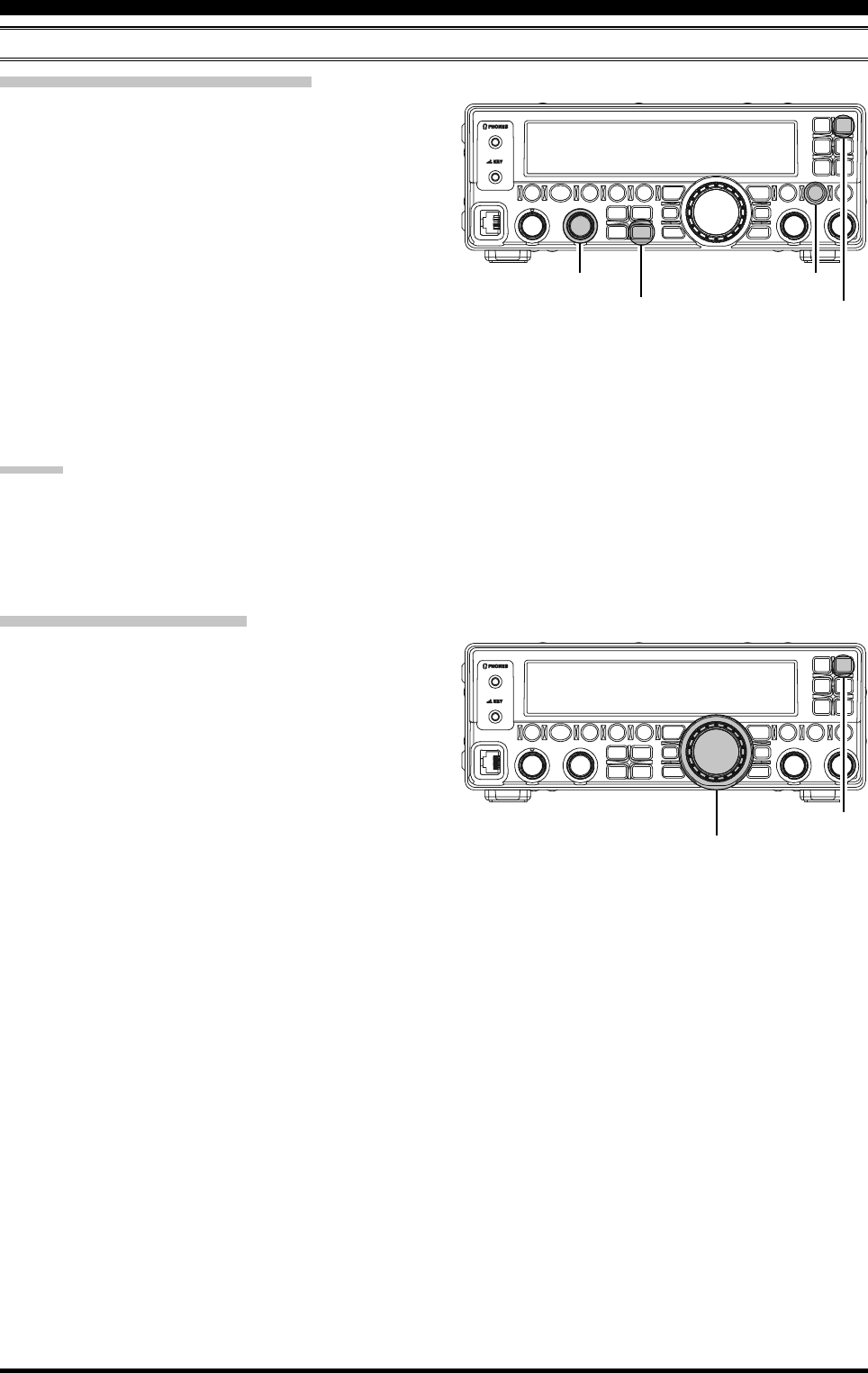

Erasing Memory Channel Data

1. Press the [V/M/MW] button, if necessary, to enter

the Memory mode.

2. Press the [F] button followed by the [V/M/MW]

button.

The blinking current memory channel number will

be shown on the display, and the contents of the

current memory channel will be shown on the dis-

play.

3. Rotate the [DSP/SEL] knob to select the memory

channel that you would like to erase.

4. Press the [CLAR] button to erase the contents of

the selected memory channel.

5. Press the [V/M/MW] button momentarily to erase

the selected memory channel. The display will

revert to memory channel 1.

ADVICE:

After erasure, only the memory channel number will

remain. The frequency data will disappear from the

display.

If you make a mistake and wish to restore the

memory’s contents, just repeat above steps.

Memory Tune Operation

You may freely tune off of any memory channel in the

“Memory Tune” mode, this is similar to VFO opera-

tion. So long as you do not over-write the contents of

the current memory, Memory Tune operation will not

alter the contents of the memory channel.

1. Press the [V/M/MW] button, if necessary, to enter

the Memory mode.

2. Rotate the [MAIN DIAL] knob. You will now ob-

serve that the memory channel’s frequency is

changing.

The “M-TUNE” notation will replace the Memory

Channel Number, indicating you are in the

“Memory Tune” mode.

During Memory Tune operation, you may change

operating modes, and engage and offset the Clari-

fier, if desired.

3. Press the [V/M/MW] button momentarily to return

to the originally-memorized frequency of the cur-

rent memory channel. One more press of the

[V/M/MW] button will return you to VFO opera-

tion.

[DSP/SEL] Knob

[V/M/MW] button

REGULAR MEMORY OPERATION

[F] button

[CLAR] button

[MAIN DIAL] Knob

[V/M/MW] button

Page 62 FT-450D OPERATION MANUAL

EMORY

PERATION

Labeling Memories

You may wish to append an Alphanumeric “Tag” (label) to a memory or memories, to aid in recollection of the

channel’s use (such as a club name, etc.). This is easily accomplished using the Menu mode.

REGULAR MEMORY OPERATION

1. Recall the memory channel that you wish to ap-

pend a label.

2. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

3. Rotate the [DSP/SEL] knob to select the menu

item “MEM TAG”.

4. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will blink,

and “MEM TAG” will be replaced with “TAG-OFF”

5. Press the [F] button to display the previously stored

label (in the factory default, all memory channels

are stored with the memory channel number as

the label).

6. Rotate the [MAIN DIAL] knob to select the first

digit of the desired label.

7. Rotate the [DSP/SEL] knob one step clockwise

to move to the next character.

8. Repeat steps 6 and 7 to program the remaining

letters, numbers, or symbols of the desired label.

Seven characters may be used in the creation of

a label.

9. If you make a mistake, rotate the [DSP/SEL] knob

counter-clockwise to move back the cursor, then

re-enter the correct letter, number, or symbol.

You may press the [CLAR] button to clear the cur-

rent digit label.

10.When you have completed the creation of the la-

bel, press the [DSP/SEL] knob. The “ ” icon

returns to appear continuously.

11. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

In Memory mode operation, the display indicates the

channel numbers while selecting the memory chan-

nels, then the display will switch to the Alphanumeric

“Tag” (label) after two seconds.

[DSP/SEL] Knob

[V/M/MW] button

[F] button

[MAIN DIAL] Knob

[CLAR] button

Page 63FT-450D OPERATION MANUAL

EMORY

PERATION

To disable the Alphanumeric “Tag” (label) display.

1. Recall the memory channel that you wish to dis-

able the Alphanumeric “Tag” (label).

2. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

3. Rotate the [DSP/SEL] knob to select the menu

item “MEM TAG”.

4. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will blink and

the “MEM TAG” notation will be replaced with the

Alphanumeric “Tag” (label).

5. Press the [F] button. The “ ” icon returns to

appear continuously and the Alphanumeric “Tag”

(label) will be replaced with the “TAG-OFF” nota-

tion.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

REGULAR MEMORY OPERATION

[DSP/SEL] Knob [F] button

Page 64 FT-450D OPERATION MANUAL

EMORY

PERATION

HOME CHANNEL MEMORIES

Two one-touch “Home” channels are available, for special frequencies you use often.

The HF band Special “Home” channel default is 29.300 MHz or 29.600 MHz, FM. The 50 MHz band “Home”

channel default is 50.100 MHz, 51.000 MHz, or 52.525 MHz, FM (depends on the transcever’s version).

Home Channel Recall

1. Press the [F] button, followed by the [RCL/HOME]

button to recall the Home Channel on the band

group where you currently are operating (HF or

50 MHz). The “HOME” notation appears in the dis-

play.

2. Press the [F] button, followed by the [RCL/HOME]

button to return to the previous-used frequency

(either a VFO or a memory channel).

The transceiver switches to VFO mode if either the

[DSP/SEL] knob or [MAIN DIAL] knob is turned. (In

AM/FM modes the menu item “A&FDIAL” should be

set to “ON” for the [MAIN DIAL] to be active).

Home Channel Frequency Change

The factory default for the Home Channel is 29.300 MHz, FM for HF band and 51.000 MHz, FM for 50 MHz

band. You can re-program the Home Channel in a manner identical to that used for the regular memories:

1. In the VFO mode, select the desired frequency,

mode, and status the way you want to have it

stored.

2. Press the [F] button followed by the [V/M/MW]

button.

The blinking current memory channel number will

be shown on the display, and the contents of the

current memory channel will be shown on the dis-

play.

If there is no action by you within 10 second from

releasing the [V/M/MW] button the Memory Stor-

age procedure is canceled.

The memory storage procedure is canceled un-

less you operate it within 10 seconds

3. Press the [RCL/HOME] button momentarily to

store the frequency and other data into the Home

Channel. A double beep will confirm that you have

held the [RCL/HOME] button in long enough.

[DSP/SEL] Knob

[RCL/HOME] button

[F] button

[MAIN DIAL] Knob

[V/M/MW] button

[F] button

[RCL/HOME] button

Page 65FT-450D OPERATION MANUAL

EMORY

PERATION

QMB (QUICK MEMORY BANK)

The Quick Memory Bank is independent from the regular and PMS memories. You can quickly store operating

parameters for later recall.

Storage

1. Tune to the desired frequency on the VFO mode.

2. Press the [STO/VOX] button momentarily. The

“beep” will confirm that the contents of the VFO

have been written to the QMB memory.

Recall

1. Press the [RCL/HOME] button. The QMB

channel’s data will be shown on the display.

2. Press the [RCL/HOME] button to return to the

previous-used frequency (either a VFO or a

memory channel).

Advice:

Rotating the [MAIN DIAL] knob, or changing the op-

erating mode, will place the transceiver in the

“Memory Tune” mode (The “QMB” notation will re-

place the “MT-QMB” in the display), which is a tem-

porary “pseudo-VFO” method of tuning off of a stored

memory channel. If you do not over-write the con-

tents of the current memory channel, the original con-

tents will not be disturbed by the initiation of Memory

Tune operation. Press the [RCL/HOME] button to

return original QMB frequency and/or operating mode.

[STO/VOX] button

[RCL/HOME] button

Page 66 FT-450D OPERATION MANUAL

CANNING

PERATION

You may scan either the VFO or the memories of the FT-450D, and the radio will halt the scan on any station with

a signal strong enough to open the receiver’s squelch.

VFO AND MEMORY SCANNING

Preparation

When operating the Scanning feature, set the con-

figuration of the [SQL/RF GAIN] knob to “Squelch”

via the Menu Item “SQL/RFG”.

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “SQL/RFG”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select “SQL” to as-

sign the Squelch feature to the [SQL/RF GAIN]

knob.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

[DSP/SEL] Knob [F] button

[SQL/RF GAIN] Knob

Page 67FT-450D OPERATION MANUAL

CANNING

PERATION

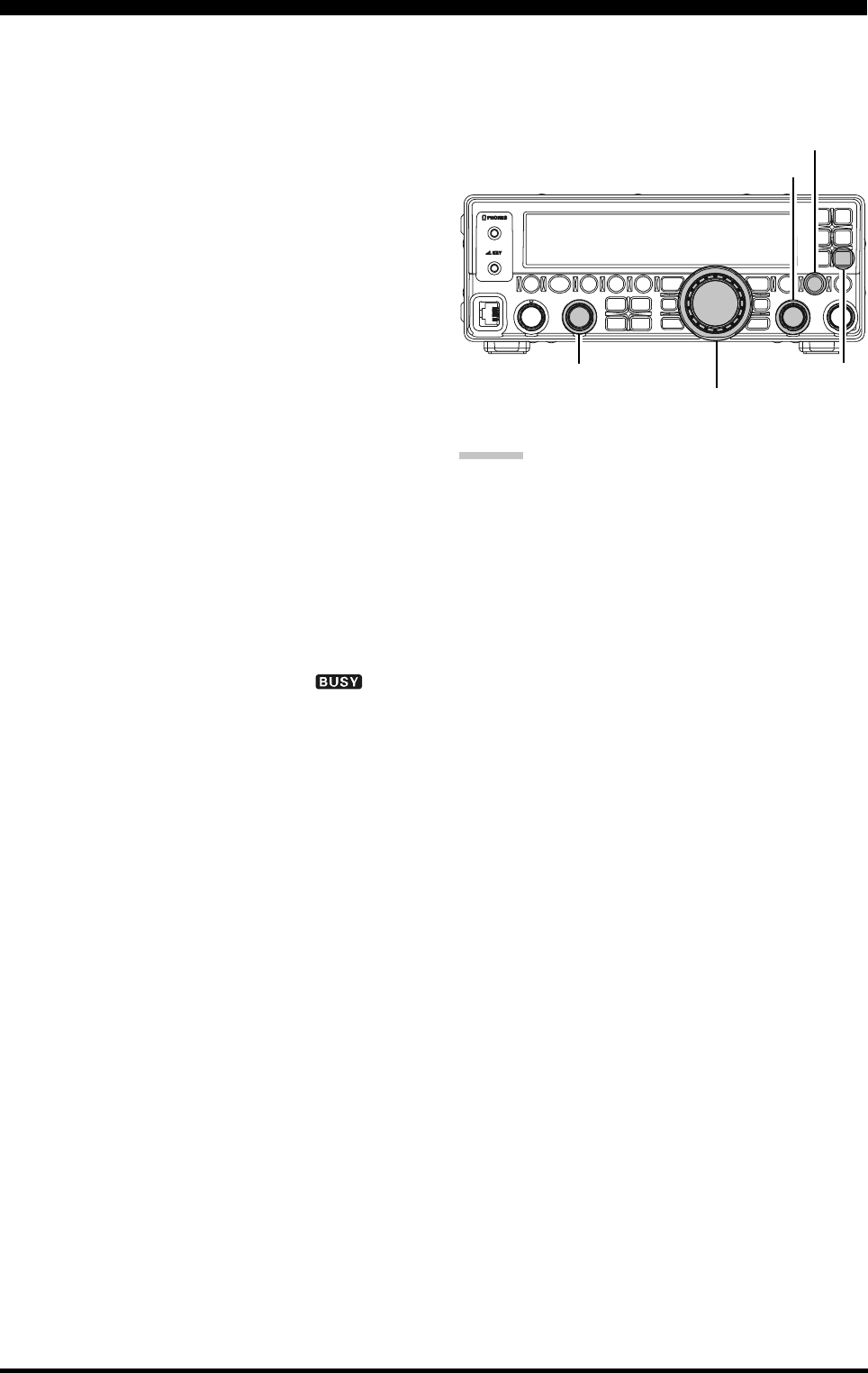

VFO/Memory Scan

1. Rotate the [SQL/RF GAIN] knob just to the point

where the noise is silenced and the “ ” indi-

cator on the display turns off.

2. Press the [SCAN/PMS] key to initiate upward

scanning (toward higher frequencies or higher

memory channel numbers).

3. If you want to change direction of the scan while it

is underway, rotate the [MAIN DIAL] knob one click

in the opposite direction (in this case, one click

counter-clockwise). You will see the scanner re-

verse direction and scan down in frequency.

You may change the direction of the scanner by

pressing and holding the microphone’s [UP]/

[DWN] key for one second, if you are using the

MH-31A8J Hand Microphone or optional MD-

100A8X Desktop Microphone.

4. In FM/AM mode, when the scanner encounters a

signal strong enough to open the squelch, the

scanner will halt for five seconds, after which scan-

ning will resume.

In the SSB/CW and SSB-based Data modes,

when the scanner encounters a signal strong

enough to open the squelch, the scanner will step

across the signal very slowly, giving you time to

stop the scan, if you like.

5. To stop the scanner, press the [SCAN/PMS] but-

ton or PTT switch.

ADVICE:

You may select the manner in which the scanner re-

sumes while it has paused on a signal, using Menu

Item “SCN RES” The default “5Sec” setting will cause

the scanner to resume scanning after five seconds;

you may change it, however, to resume only after the

carrier has dropped out, if you like See page 85.

During Memory Group operation, only the channels

within the current Memory Group will be scanned.

[DSP/SEL] Knob [SCAN/PMS] button

[SQL/RF GAIN] Knob

VFO AND MEMORY SCANNING

[MAIN DIAL] Knob

Page 68 FT-450D OPERATION MANUAL

ROGRAMMABLE

EMORY

CANNING

(PMS)

To limit scanning (and manual tuning) within a particular frequency range, you can use the Programmable

Memory Scanning (PMS) feature, which utilizes two special-purpose memory pairs (“MEM-P1L/MEM-P1U” and

“MEM-P2L/MEM-P2U”). The PMS feature is especially useful in helping you to observe any operating sub-band

limits, which apply to your Amateur license class.

1. Store the Lower and Upper tuning/scanning limit

frequencies into the memory pair “MEM-P1L” and

“MEM-P1U”, respectively, or “MEM-P2L” and

“MEM-P2U”. See page 58 for details regarding

memory storage.

2. Press the [F] button, followed by the [SCAN/PMS]

button.

3. Rotate the [DSP/SEL] knob to select “PMS-1”

“PMS2” or “PMS1+2”.

PMS-1: The scanner will be limited within the

frequency range programmed in the

memory pair “MEM-P1L/MEM-P1U”.

PMS-2: The scanner will be limited within the

frequency range programmed in the

memory pair “MEM-P2L/MEM-P2U”.

PMS-1+2: The scanner will be limited within the

frequency ranges programmed by both

memory pairs (“MEM-P1L/MEM-P1U”

and “MEM-P2L/MEM-P2U”).

If a memory pair is vacant, the PMS-1+2 selec-

tion is not available.

4. Press the [SCAN/PMS] button.

5. Rotate the [SQL/RF GAIN] knob just to the point

where the noise is silenced and the “ ” indi-

cator on the display turns off.

6. Press the [SCAN/PMS] key to initiate upward

scanning (toward higher frequencies or higher

memory channel numbers).

7. If you want to change direction of the scan while it

is underway, rotate the [MAIN DIAL] knob one click

in the opposite direction (in this case, one click

counter-clockwise). You will see the scanner re-

verse direction and scan down in frequency.

You may change the direction of the scanner by

pressing and holding the microphone’s [UP]/

[DWN] key for one second, if you are using the

MH-31A8J Hand Microphone or optional MD-

100A8X Desktop Microphone.

8. In FM/AM mode, when the scanner encounters a

signal strong enough to open the squelch, the

scanner will halt for five seconds, after which scan-

ning will resume.

In the SSB/CW and SSB-based Data modes,

when the scanner encounters a signal strong

enough to open the squelch, the scanner will step

across the signal very slowly, giving you time to

stop the scan, if you like.

ADVICE:

You may select the manner in which the scanner re-

sumes while it has paused on a signal, using Menu

Item “SCN RES” The default “5Sec” setting will cause

the scanner to resume scanning after five seconds;

you may change it, however, to resume only after the

carrier has dropped out, if you like See page 85.

[DSP/SEL] Knob [SCAN/PMS] button

[SQL/RF GAIN] Knob

[MAIN DIAL] Knob

[F] button

Page 69FT-450D OPERATION MANUAL

OPERATION ON ALASKA EMERGENCY FREQUENCY: 5167.5 KHZ (U.S. VERSION ONLY)

Section 97.401(d) of the regulations governing amateur radio in the United States permit emergency amateur

communications on the spot frequency of 5167.5 kHz by stations in (or within 92.6 km of) the state of Alaska.

This frequency is only to be used when the immediate safety of human life and/or property are threatened, and

is never to be used for routine communications.

The FT-450D includes the capability for transmission and reception on 5167.5 kHz under such emergency

conditions.

Preparation

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “EMERGEN”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select “ON”.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

Operation

1. Press the [V/M/MW] button, if necessary, to enter

the Memory mode. A memory channel number will

appear in display.

2. Rotate the [DSP/SEL] knob to select the emer-

gency channel (“MEM-EMG”), which is found be-

tween channels “MEM-P2U” and “US5-001.”

If you partitioned your memory channels into

Memory Groups via Menu Item “MEM GRP”, then

select the memory channel group “M-12-EM”

which is the emergency channel.

3. To exit from emergency channel and return to the

VFO mode, just press the [V/M/MW] button.

Note:

ÌThe receive-mode CLARIFIER functions normally

while using this frequency, but variation of the

transmit frequency is not possible. Activation of

“MEM-EMG” or “M-12-EM” does not enable any

other out-of-amateur-band capability on the trans-

ceiver. The full specifications of the FT-450D are

not necessarily guaranteed on this frequency, but

power output and receiver sensitivity should be

fully satisfactory for the purpose of emergency

communication.

ÌIn an emergency, note that a half-wave dipole cut

for this frequency should be approximately 45’3”

on each leg (90’6” total length). Emergency op-

eration on 5167.5 kHz is shared with the Alaska-

Fixed Service. This transceiver is not authorized

for operation, under the FCC’s Part 87, for aero-

nautical communications.

[V/M/MW] button

[DSP/SEL] knob

[HOME/RCL] button

[F] button

Page 70 FT-450D OPERATION MANUAL

ISCELLANEOUS

ETTINGS

DISPLAY SETTINGS

Display Dimmer

You may adjust the brightness level with the five steps.

1. Press the [F] button, followed by the [METER/DIM]

button to enable adjustment of display dimmer.

2. Rotate the [DSP/SEL] knob to select a comfort-

able brightness level (1 - 8).

3. Press the [METER/DIM] button to save the new

setting and return to normal operation.

Display Contrast Level

You may also adjust the contrast level with the 24 steps.

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “CONT”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select a desired

contrast level (1 - 24).

You may press the [RCL/HOME] button to reset

the contrast level to the factory default.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

[DSP/SEL] Knob

[METER/DIM] button

[F] button

[DSP/SEL] Knob

[RCL/HOME] button

[F] button

Page 71FT-450D OPERATION MANUAL

BEEPER SETTING

Beep Volume

You may adjust the beep volume level via the Menu Item “BEEPVOL”.

1. Press and hold the [F] button for one second to

enter the Menu mode. The “ ” icon will ap-

pear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “BEEPVOL”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to set the desired beep

volume level (FIX 0 - FIX 100).

WARNING! Do not adjust the beep volume too

high. You may press the [METER/DIM] button to

sound a beep as you adjust the [DSP/SEL] knob.

If you wish to adjust the beep volume level in ac-

cordance with the [AF GAIN] knob, press the [F]

key to change the display to “LNK-XX” then rotate

the [DSP/SEL] knob to set the volume ratio of the

beep volume level for the receiving audio volume

level. Available selections are “LNK-50” ~ “LNK 0”

~ “LNK+50”. When the “LNK 0” is selected, the

beep volume level is the same as receiving audio

volume level.

You may press the [RCL/HOME] button to reset

the beep volume level to the factory default.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

ISCELLANEOUS

ETTINGS

[RCL/HOME] button

[F] button

[DSP/SEL] knob

[METER/DIM] button

Page 72 FT-450D OPERATION MANUAL

Beep Tone

You may adjust the beep tone to your desired tone via the Menu Item “BEEPTON”.

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “BEEPTON”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select the desired

tone. Available selections are 440/880/1760 Hz,

factory default: 880 Hz). You may press the

[METER/DIM] button to sound a beep as you ad-

just the [DSP/SEL] knob.

You may press the [RCL/HOME] button to reset

the beep tone level to the factory default.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

BEEPER SETTING

ISCELLANEOUS

ETTINGS

[RCL/HOME] button

[F] button

[DSP/SEL] knob

[METER/DIM] button

Page 73FT-450D OPERATION MANUAL

AUTOMATIC POWER-OFF (APO)

The “Automatic Power-Off” (APO) feature will turn the radio completely off after a user-defined period of PTT or

key/button inactivity. If you do not press any front panel keys or buttons, rotate the [MAIN DIAL] knob, use the

microphone’s keys and buttons, or transmit, and so long as the transceiver is not scanning or engaged in priority

monitoring, the radio will shut itself off after the specified time period. The available selections for the time before

power-off are 1 - 12 hours (1 hour step), as well as APO Off. This feature is useful in minimizing battery drain in

a mobile installation if you forget to turn the transceiver off.

1. Press and hold the [F] button for one second to

enter the Menu mode again. The “ ” icon

will appear on the display.

2. Rotate the [DSP/SEL] knob to select the menu

item “APO”.

3. Press the [DSP/SEL] knob to enable adjustment

of this menu item. The “ ” icon will be blink-

ing.

4. Rotate the [DSP/SEL] knob to select desired

“Switch-off” time or “off.”

You may press [RCL/HOME] button to reset the

APO to the factory default.

5. Press the [DSP/SEL] knob. The “ ” icon re-

turns to appear continuously.

6. Press and hold the [F] button for one second to

save the new setting and return to normal opera-

tion.

If there is no action by you within the time interval

programmed, the “APO” notation will blink on the dis-

play and an alert bell will provide an audible warning

from the speaker within one minute of the APO timer

expiration, then the microprocessor will shut down

the radio automatically.

[DSP/SEL] Knob

[RCL/HOME] button

[F] button

ISCELLANEOUS

ETTINGS

Page 74 FT-450D OPERATION MANUAL

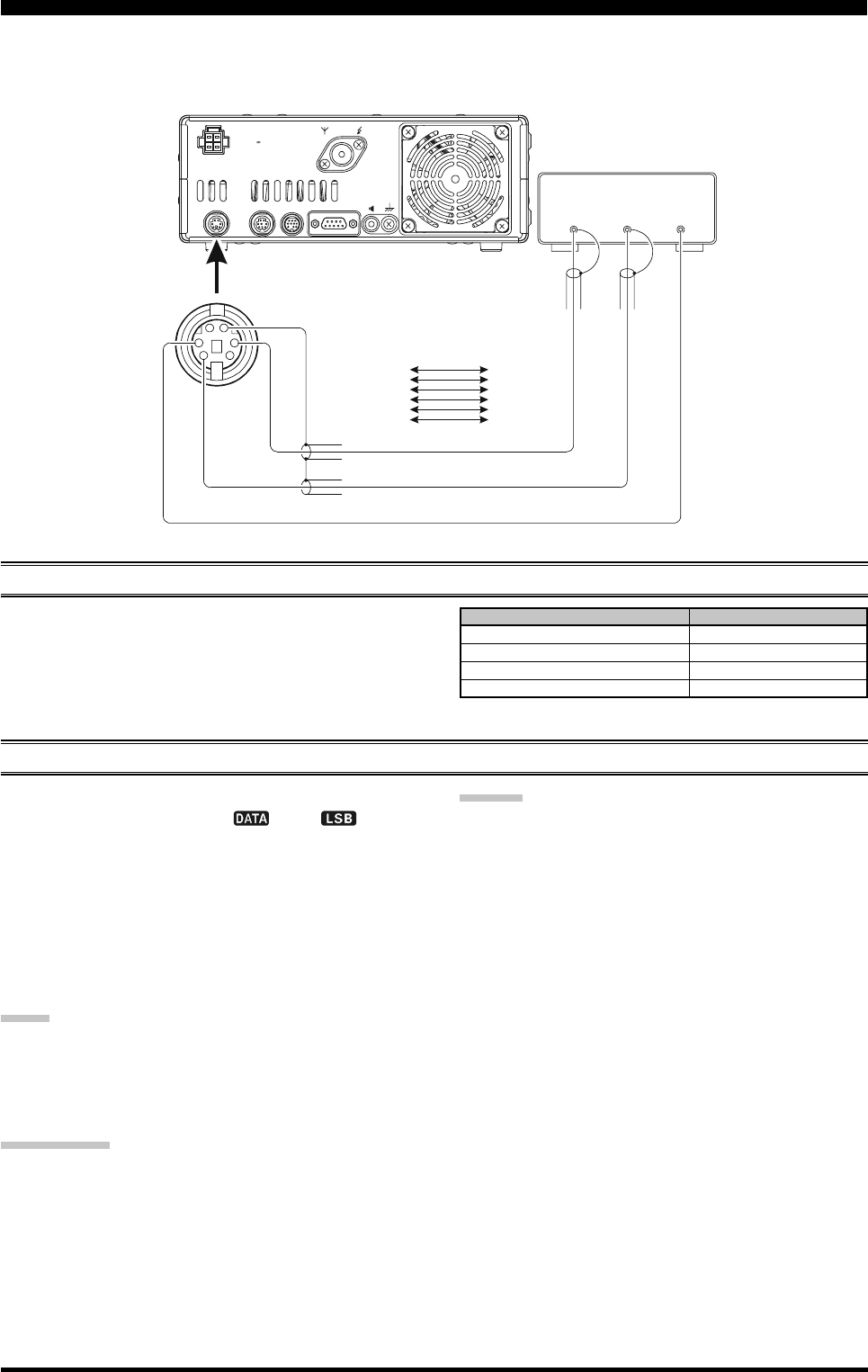

RTTY (RADIO TELETYPE) OPERATION

Most RTTY operation today is accomplished using a TNC or other computer-based system that utilizes AFSK

tones. For RTTY operation using a Terminal Unit (TU) or the “FSK” output from a TNC, please see the discus-

sion below. See also the illustration for details regarding connection to your TU.

SETTING UP FOR RTTY OPERATION

Before commencing RTTY operation, please direct

your attention to the setup steps shown in the chart

to the right.

BASIC SETUP

1. Press the [MODE]/[MODE] buttons several

times to indicate both the “ ” and “ ” icons

on the display. Engage the RTTY operation us-

ing “LSB” injection, which is generally used in the

Amateur service.

2. When you begin typing on your TU or computer

keyboard, the command to transmit should auto-

matically be sent to the transceiver, causing it to

enter the transmit mode.

NOTE:

If you anticipate making data transmissions of longer

than a few minutes, we recommend that you reduce

the transmitter power to 1/2 ~ 1/3 of its normal maxi-

mum via Menu Item “RFPOWER”.

QUICK POINT:

In the FT-450D, “RTTY” is a mode defined as being

an “FSK” mode, whereby the closing and opening of

a keying line (to ground) causes the Mark/Space tones

to alternate. The RTTY mode is not an AFSK based

mode in this transceiver, and the AFSK output tones

from a TNC will not cause Mark/Space shifting to oc-

cur. Use the “Packet” mode for AFSK-based Baudot

and other data modes.

MENU ITEM

RTY SFT (RTTY SHIFT)

RTY TON (RTTY TONE)

RTYRPOL (RTTY RX POLARITY)

RTYTPOL (RTTY TX POLARITY)

AVAILABLE VALUES

170 / 200 / 425 / 850 Hz

1275 / 2125 Hz

NOR / REV

ADVICE:

There is no adjustment of the FSK input level

(FSK IN of the DATA jack) on the rear panel;

please make any needed level adjustments at the

TU side.

The Mark/Space Shift utilized in most Amateur

RTTY operation is 170 Hz. Other shifts may be

configured, however, using Menu Item “RTY SFT”.

The FT-450D is set up for “high tone” operation

(centered on 2125 Hz) by default, but you may

configure it for low tone (1275 Hz) operation us-

ing Menu Item “RTY TON”.

You may find that you are unable to decode some

RTTY stations, even if they are of sufficient sig-

nal strength. If this is observed, there may be a

Mark/Space polarity problem between your sta-

tion and the other station. If so, try setting Menu

Item “RTYRPOL” to “REV” (“Reverse”) to see if

that permits copy. A separate Menu Item permits

reversal of your transmitter’s Mark/Space polar-

ity: “RTYTPOL.”

IN PTT

FSK

OUT

FSK IN

TA OUT

TA PTT

GND

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

N.C.

GND

PTT

FSK OUT

AF IN

N.C.

DATA JACK

DATA IN (Pin 1)

Pin 6

GND (Pin 2)

DATA PTT (Pin 3)

FSK IN (Pin 4)

DATA OUT (Pin 5)

SQL OUT( )

Page 75FT-450D OPERATION MANUAL

PACKET OPERATION

Packet operation is easily accomplished on the FT-450D by connecting your TNC (Terminal Node Controller) to

the transceiver, per the illustration.

PACKET SETUP (INCLUDING SUBCARRIER FREQUENCY)

Before operation can commence, change Menu Item

“D TYPE” setting to “USER-L” (for LSB-Based Packet

Operation) or “USER-U” (for USB-Based Packet Op-

BASIC SETUP

1. Press the [MODE]/[MODE] buttons several

times to indicate both the “ ” and “ ” icons

(for LSB-Based Packet) or the “ ” and “ ”

icons (for USB-Based Packet) on the display. En-

gage the Packet operation.

2. When the “transmit” command is received from

the TNC, the transmitter of the FT-450D will au-

tomatically be engaged. Likewise, the command

to return to receive will cause the radio to revert

to the receive mode.

ADVICE:

There is no adjustment of the DATA input level

and DATA output level of the DATA jack on the

rear panel; please make any needed level ad-

justments at the TU side.

During Packet operation via the rear panel’s DATA

jack, the front panel MIC jack is cut off, so you

won’t have a “live microphone” problem during

data operation.

NOTE:

If you anticipate making data transmissions of longer

than a few minutes, we recommend that you reduce

the transmitter power to 1/2 ~ 1/3 of its normal maxi-

mum via Menu Item “RFPOWER”.

QUICK POINT:

DATA Jack Specifications

DATA IN

Input Level: 60 mVp-p

Input Impedance: 600 Ohms

DATA OUT

Fixed level, does not respond to setting of

[AF GAIN] or [SQL/RF GAIN] knob.

Output Level: 500 mVp-p

Output Impedance: 600 Ohms

DATA

OUT PTT

DATA

TA IN

TA OUT

TA PTT

GND

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

TNC

DATA OUT

GND

PAC KET PTT

N.C.

DATA IN

(SQL Control).

DATA JACK

DATA IN (Pin 1)

Pin 6

GND (Pin 2)

DATA PTT (Pin 3)

FSK IN (Pin 4)

DATA OUT (Pin 5)

SQL OUT( )

eration), to configure your radio for the data mode to

be used.

Page 76 FT-450D OPERATION MANUAL

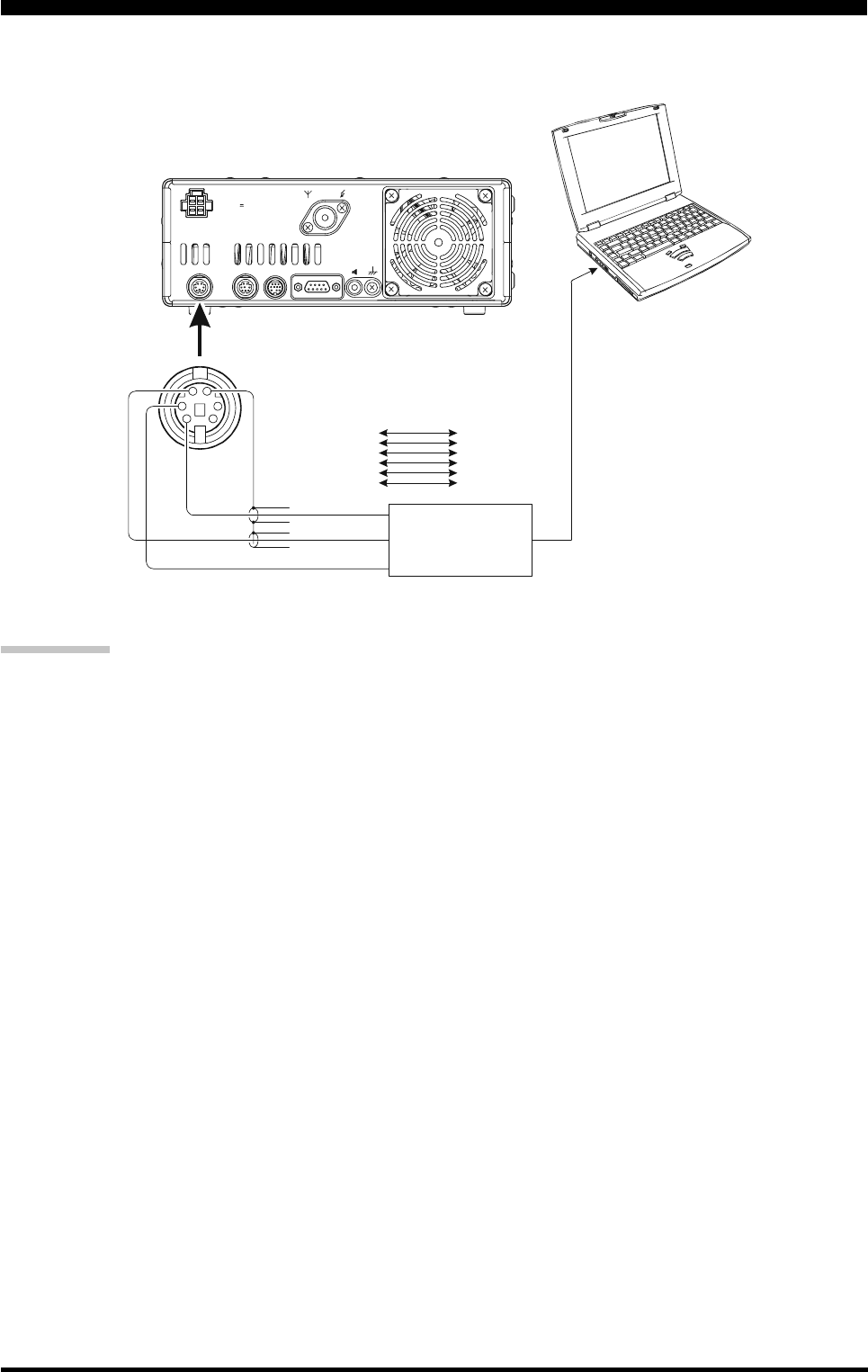

ISCELLANEOUS

AFSK-B

ASED

ATA

ODES

The FT-450D may also be used for a host of other SSB-based Data modes. Please set up your system using the

illustration as a guideline.

QUICK POINT:

When you have configured Menu Item “DIG VOX” to

select the desired VOX Gain level (1 - 100), the trans-

ceiver will operate in a “VOX” mode, and it is not nec-

essary to connect a PTT line. This makes for very

convenient interfacing to computer Sound Cards, etc.

TA IN

TA OUT

TA PTT

GND

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

LINE IN or MIC IN

LINE OUT or MIC OUT

COM PORT

Interface

DATA OUT

GND

PACKET PTT

N.C.

DATA IN

N.C.

DATA JACK

DATA IN (Pin 1)

Pin 6

GND

)

(Pin 2)

DATA PTT (Pin 3)

FSK IN (Pin 4)

DATA OUT (Pin 5)

SQL OUT(

Page 77FT-450D OPERATION MANUAL

ISCELLANEOUS

AFSK-B

ASED

ATA

ODES

NOTE

Page 78 FT-450D OPERATION MANUAL

MENU MODE

The Menu system permits extensive customization of the FT-450D.

You can set up your transceiver to operate just the way you want.

The Menu’s 62 items are grouped into generally used categories from “EXT MNU” to “VOXGAIN”. The Menu

Mode may be set to display all 62 items or the abbreviated set of 16 most often used items.

USING THE MENU

1. Press and hold in the [F] button for one second.

The Menu Item and a title for the Menu Mode will

appear in the display.

2. Rotate the [DSP/SEL] knob to select the desired

Menu Item.

3. Press the [DSP/SEL] knob. The “ ” icon will

appear in the display.

4. Rotate the [DSP/SEL] knob to change the value

or condition for the Menu Item.

The “ ” icon will blink in the display.

5. Press the [DSP/SEL] knob. The “ ” icon will

appear in the display

6. Now, hold in the [F] button for one second to save

the new setting and exit to normal operation.

[DSP/SEL] Knob

Menu Mode Reset

Menu Item or Menu Setting

[F] Button

You may reset all the Menu settings to their

original factory defaults.

1. Turn the front panel [POWER] Button off.

2. While holding in [F] button, press the

[POWER] Button to turn the transceiver

on.

[POWER] Button [F] Button

MENU FUNCTION AVAILABLE VALUES DEFAULT SETTING

EXT MNU (EXTENSION MENU) ON / OFF ON

A&FDIAL (AM&FM DIAL) DISABLE / ENABLE DISABLE

APO (APO TIME) OFF / 1 ~ 12 (h) OFF

BCN TIM (BEACON TIME) OFF / 1 ~ 255 (sec) OFF

BCN TXT (BEACON TEXT) - -

BEEPTON (BEEP TONE) 440 / 880 / 1760 (Hz) 880Hz

BEEPVOL FIX0 ~ FIX100 or LNK-50 ~ LNK0 ~ LNK+50 FIX10 or LNK-8

CAT RTS DISABLE / ENABLE ENABLE

CAT TOT (CAT TIME OUT TIME) 10 / 100 / 1000 / 3000 (mSec) 10

CATRATE 4800 / 9600 / 19200 / 38400 (bps)/DATA 4800

CLAR (CLAR DIAL / SEL) DIAL / SEL DIAL

CLK SFT (CLOCK SHIFT) ON / OFF OFF

CONT (DISP CONTRAST) 1 ~ 24 10

CW AUTO (CW AUTO MODE) ON / OFF OFF

CW BFO USB / LSB / AUTO USB

CW DLY (CW DELAY) FULL / 30 ~ 3000 (mSec) 250

CW KEY (CW KEY REV) NOR / REV NOR

CW QSK 15 / 20 / 25 / 30 (mSec) 15

CWPADDL (CW PADDLE) KEY / MIC KEY

CWPITCH 400 / 500 / 600 / 700 / 800 (Hz) 700

Page 79FT-450D OPERATION MANUAL

MENU MODE

MENU FUNCTION AVAILABLE VALUES DEFAULT SETTING

CWSPEED 4 wpm (20cpm) ~ 60 wpm (300cpm) 12wpm (60cpm)

CWSTONE (CW SIDE TONE) FIX0 ~ FIX100 or LNK-50 ~ LNK0 ~ LNK+50 FIX10 or LNK-8

CWTRAIN (CW TRAINING) N: / A: / M: N:

CWWEIGT (CW WEIGHT) 1/2.5 ~ 1/4.5 1/3.0

D DISP (DATA DISP) -3000 ~ 0 ~ +3000 (Hz) 0

D TYPE (DTAT MODE) RTTY / USER-L / USER-U RTTY

DIALSTP (DIAL STEP) SSB/CW:1/10/20 (Hz), AM/FM:100/200 (Hz)

SSB/CW:10,AM/FM:100

DIG VOX OFF / 1 ~ 100 OFF

EMERGEN (EMERGENCY) ON / OFF OFF

KEYHOLD (KEY HOLD TIME) 0.5 / 1.0 / 1.5 / 2.0 1.0

LOCKMOD (LOCK MODE) FREQ / PANEL / ALL FREQ

M-TUNE ON / OFF ON

MEM GRP (MEMORY GROUP) ON / OFF OFF

MEM TAG TAG-OFF / TAGNAME TAG-OFF

MIC EQ 0 ~ 9 0

MICGAIN LOW / NOR / HIGH NOR

MICSCAN (MIC AUTO SCAN) ON / OFF ON

MY BAND ON / OFF ON

MY MODE ON / OFF ON

P M-DWN (MIC-DWN PG) One of 52 functions (See page 16) DWN

P M-FST (MIC-FAST PG) One of 52 functions (See page 16) FAST

P M-UP (MIC-UP PG) One of 52 functions (See page 16) UP

PEAKHLD (METER PEAK HOLD ) ON / OFF ON

PNL-C.S (PANEL’S CUSTOM SWITCH) One of 52 functions (See page 16) VCC

QSPL F (QUICK SPLIT FREQ) -20 ~ 0 ~ +20(KHz) +5

RFPOWER (RF PWR SET) 5 ~ 100 100

RPT (REPEATER SHIFT DIRECTION) - SHIFT / SIMPLEX / +SHIFT SIMPLEX

RPT SFT (REPEATER SHIFT OFFSET) 0 ~ 9.99 

RTY SFT (RTTY-SHIFT) 170 / 200 / 425 / 850 170

RTY TON (RTTY-TONE) 1275 / 2125 (Hz) 2125

RTYRPOL (RTTY-RX-POLARITY) NOR / REV NOR

RTYTPOL (RTTY-TX-POLARITY) NOR / REV NOR

SCN RES (SCAN RESUME) BUSY / TIME 1 ~ 10 TIME5

SELDIAL (SEL DIAL MODE) CWSTONE / CWSPEED / 100KHz /1MHz 100KHZ

/ MICGAIN / RFPOWER

SQL TYP (SQL TYPE) OFF / ENC / ENC DEC OFF

SQL/RFG (SQL/RF GAIN) SQL / RF GAIN RF GAIN

STBY BP (STBY BEEP) ON / OFF OFF

TONE F (TONE FREQ) 67 ~ 254.1 (Hz) 88.5 (Hz)

TOT (TOT TIME) OFF/1 ~ 20 (Min) OFF

TUNER (TUNER/ATAS) ATAS / EXT ATU / INT ATU

/ INTRATU / F TRANS INT ATU

VOX DLY (VOX DELAY) 100 ~ 3000 (ms) 500 (ms)

VOXGAIN 1 ~ 100 50

: Depends on the transcever’s version

Page 80 FT-450D OPERATION MANUAL

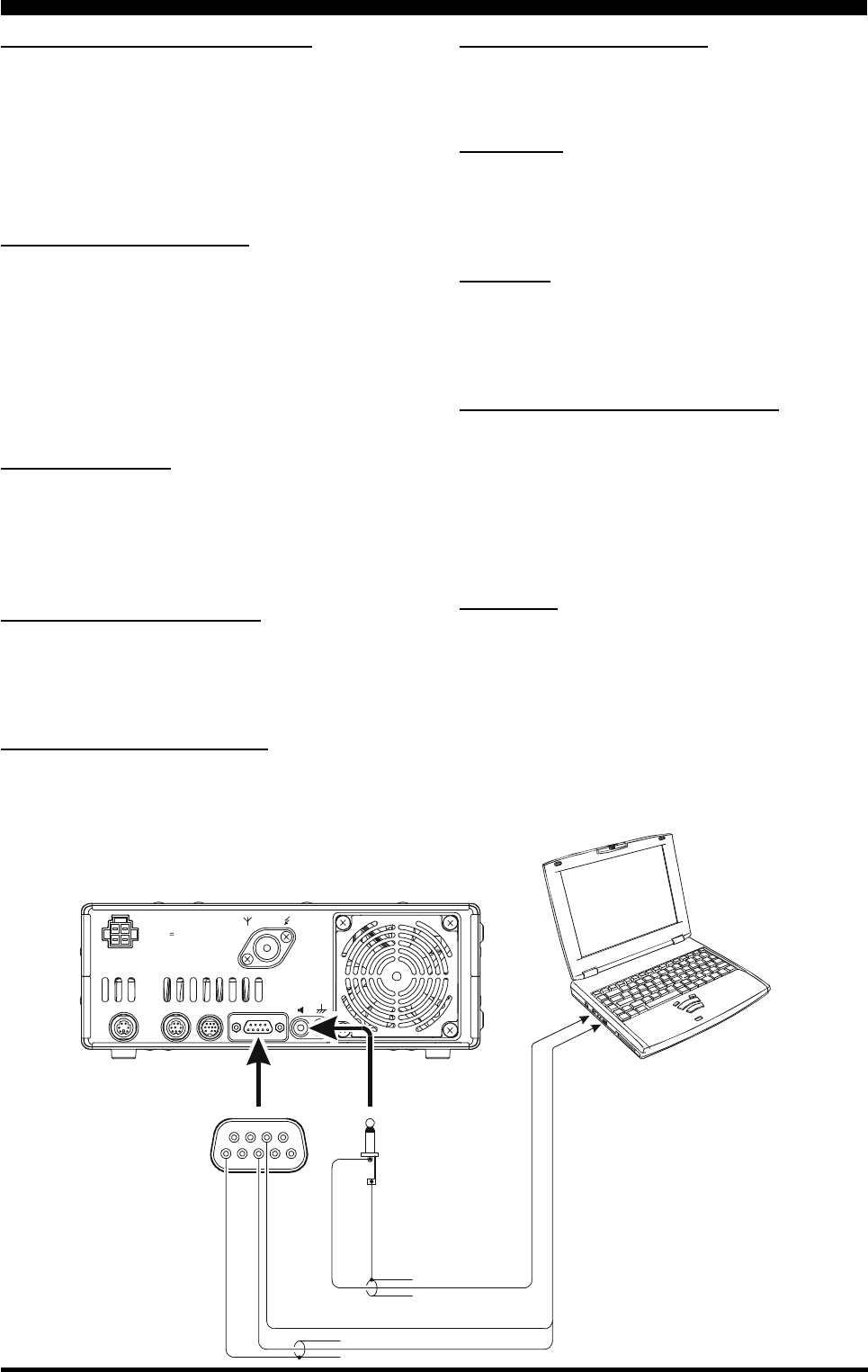

EXT MNU (EXTENSION MENU)

Function: Enables / Disables the extended Menu

Mode

Available Values: ON / OFF

Default: ON

OFF: The menu will only display the 16 most often

used items.

ON: All 62 menu mode items will be displayed.

A&FDIAL (AM&FM DIAL)

Function: Enables or disables the [MAIN DIAL] knob

in the AMand FM modes.

Available Values: ENABLE / DISABLE

Default: DISABLE

ENABLE: The frequency can be set with the [MAIN

DIAL] knob even in the AM/FM mode.

DISABLE: The [MAIN DIAL] knob does not change

the frequency in the AM / FM mode.

APO (APO TIME)

Function: OFF / 1~12 (h)

Available Values: ON / OFF

Default: OFF

Selects the Auto Power Off time (time before power

goes off).

BCN TIM (BEACON TIME)

Function: Selects the interval time (between mes-

sage and message)

Available Values: OFF/1~255 (sec)

Default: OFF

BCN TXT (BEACON TEXT)

Function: Stores the message for the Beacon. Up

to 118 characters may be stored.

Please refer to page 52 for storage procedure.

BEEPTON (BEEP TONE)

Function: Selects the beep frequency.

Available Values: 440 / 880 / 1760 (Hz)

Default: 880 (Hz)

BEEPVOL

Function: Selects the beep volume level.

Available Values: FIX0 ~ FIX100 or

LNK-50 ~ LNK 0 ~ LNK+50

Default: FIX10 or LNK-8

CAT RTS

Function: Enables / Disables the RTS port of the

CAT jack.

Available Values: DISABLE/ENABLE

Default: ENABLE

CAT TOT (CAT TIME OUT TIME)

Function: Sets the Time-Out Timer countdown time

for a CAT command input.

Available Values: 10 / 100 /1000 / 3000 (ms)

Default: 10

The Time-Out Timer shuts off the CAT data input af-

ter a continuous transmission of the programmed

time.

CATRATE

Function: Sets the transceiver circuitry for the CAT

baud rate to be used.

Available Values: 4800/9600/19200/38400 (bps)/

DATA

Default: 4800

The CAT baud rate is set for the transceiver.

Setting “CATRATE” to “DATA” will enable RTTY op-

eration from the CAT jack. The interconnection for

RTTY operation is shown below.

MENU MODE

Pin 3: SERIAL IN

(FSK IN)

EXT SP

(FSK OUT)

Pin 7: RTS

(DATA PTT)

Requires the RTTY Software

(Not Supplied)

LINE IN Jack

RS-232S Jack

Pin 5: GND

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

Page 81FT-450D OPERATION MANUAL

CLAR (CLAR DIAL/SEL)

Function: Setting of CLAR button

Available Values: DIAL / SEL

Default: DIAL

Defines which Control knob is used for setting the

clarifier-offset frequency.

CLK SFT (CLOCK SHIFT)

Function: Shifting of CPU clock frequency

Available Values: ON / OFF

Default: OFF

This function is only used to move a spurious re-

sponse “birdie,” should it fall on a desired frequency.

CONT (DISP CONTRAST)

Function: Display contrast adjustment

Available Values: 1~24

Default: 10

The display contrast level is set 1~24

CW AUTO (CW AUTO MODE)

Function: Enables the KEY jack, to permit CW op-

eration while in SSB modes.

Available Values: OFF / ON

Default: OFF

OFF: The KEY jack is enabled in CW mode only.

ON: The KEY jack is enabled on all modes (SSB

mode: A1A). Thus, on SSB, you can ask a sta-

tion for a CW QSO without having to change

your FT-450’s Mode selection, if Menu “CW

AUTO” is set to “ON.”

CW BFO

Function: Sets the CW carrier oscillator injection

side in CW mode

Available Values: USB / LSB / AUTO

Default: USB

USB: Injects the CW carrier oscillator on the USB

side

LSB: Injects the CW carrier oscillator on the LSB

side

AUTO: Injects the CW carrier oscillator on the LSB

side while operating on the 7 MHz band and

below, USB side while operating on the 10

MHz band and up.

CW DLY (CW DELAY)

Function: Sets the receiver recovery time during

pseudo-VOX CW semi-break-in opera-

tion.

Available Values: FULL / 30~3000ms

Default: 250

The recovery time may be adjusted in steps of 10

msec. A longer delay may be preferable if you pause

frequently while sending.

CW KEY (CW KEY REV)

Function: Sets the keyer paddle's wiring configura-

tion.

Available Values: NOR / REV

Default: NOR

The polarity can be reversed in the menu without

changing the connection of the keyer when there is a

left-handed operator or, two or more people.

NOR(NORMAL): Keyer paddle polarity is normal.

The plug “Tip” connection pro-

duces dots, and the plug "ring" con-

nection produces dashes.

REV(REVERSE): Keyer paddle polarity is inverted.

The plug “Tip” connection pro-

duces dashes, and the “Ring” con-

nection produces dots.

CW QSK

Function: Selects the time delay between when the

key is closed and the carrier is transmit-

ted during QSK operation when using the

internal keyer.

Available Values: 15 / 20 / 25 / 30 (ms)

Default: 15 (ms)

Note:

If you select “25 ms” or “30 ms,” please do not at-

tempt to set Menu “CW SPEED” to a speed faster than

50 wpm (250 cpm), as the delay will make it impos-

sible to transmit.

CWPADDL (CW PADDLE)

Function: When enabled, the microphone’s (MH-

31A8J) [UP]/[DWN] keys may be used for

CW keying.

Available Values: KEY / MIC

Default: KEY

KEY: The key connected to KEY Jack is selected.

MIC: When this Menu Item is set to “MIC,” the

microphone’s (MH-31A8J) [UP]/[DWN] keys

may be used for CW keying. (while the built-in

electronic keyer is engaged).

CWPITCH

Function: Sets the pitch of the CW sidetone, (BFO

offset) and the CW filter center frequen-

cies.

Available Values: 400 / 500 / 600 / 700 / 800 (Hz)

Default: 700

The CW pitch may be adjusted in steps of 100 Hz.

MENU MODE

Page 82 FT-450D OPERATION MANUAL

CWSPEED

Function: Sets the sending speed for the built-in

Electronic keyer.

Available Values: 4 wpm(20cpm)~60wpm(300cpm)

Default: 12wpm (60cpm)

You can set the sending speed in either: wpm (words

per minute), or cpm (characters per minute).

To button between “Wpm” and “cpm”, just press the

[F] button.

Note:

If the CW QSK is set to 25ms, the setting of CW

SPEED must not exceed 50wpm (250cpm); And if

the CW QSK is set to 30ms, the setting of CW SPEED

must not exceed 42wpm (210cpm). The delay will

make it impossible to transmit.

CWSTONE (CW SIDE TONE)

Function: Sets the CW sidetone volume level.

Available Values: FIX0 ~ FIX100 or

LNK-50 ~ LNK 0 ~ LNK+50

Default: FIX10 or LNK-8

CWTRAIN (CW TRAINING)

Function: Setting of CW training function

Available Values: N: / A: / M:

Default: N:

Sends random Morse Code five-character groups via

the sidetone.

N: Numeric characters only

A: Alphabet characters only

M: Numeric and Alphabet characters (Mixed)

CWWEIGT (CW WEIGHT)

Function: Sets the CW weight level.

Available Values: 1/2.5~1/4.5

Default: 1/3.0

Sets the Dot/Dash ratio for the built-in electronic keyer.

D DISP (DATA DISP)

Function: DIG (USER-L or USER-U) mode opera-

tion.

Available Values: -3000Hz ~ 0 ~ +3000Hz

Default: 0

Defines the displayed frequency offset during DATA

(USER-L or USER-U) mode operation.

D TYPE (DTAT MODE)

Function: Selects the mode and sideband (if appli-

cable) in the DATA mode.

Available Values: RTTY/USR-L/USR-U

Default: RTTY

RTTY: FSK RTTY operation

USR-L: User-programmed custom operation based

on LSB mode

USR-U: User-programmed custom operation based

on USB mode

DIALSTP (DIAL STEP)

Function: Sets the DIAL knob's tuning speed.

Available Values: SSB/CW: 1 / 10 / 20 (Hz)

AM/FM: 100 / 200 (Hz)

Default: SSB/CW: 10 (Hz), AM/FM: 100 (Hz)

The width of the step of the [MAIN DIAL] knob can

be set for each mode.

DIG VOX

Function: Sets the gain of the VOX circuitry input

level for the DIG mode.

Available Values: OFF / 1~100

Default: OFF

EMERGEN (EMERGENCY)

Function: Enables Tx/Rx operation on the Alaska

Emergency Channel, 5167.5 kHz.

Available Values: ON/OFF

Default: OFF

When this Menu Item is set to “ON,” the spot fre-

quency of 5167.5 kHz will be enabled. To get to this

frequency, use the [DSP/SEL] knob to navigate. The

Alaska Emergency Channel will be found between

the Memory channel “US5-001” and “MEM-500.”

NOTE:

Use of this frequency is restricted to amateurs oper-

ating in (or within 92.6 km of) the U.S. State of Alaska,

and it is to be used for emergency communications

only (involving the immediate protection of life or prop-

erty).

KEYHOLD (KEY HOLD TIME)

Function: Sets the hold time for a push button to

activate.

Available Values: 0.5 / 1.0 / 1.5 / 2.0

Default: 1.0

MENU MODE

Page 83FT-450D OPERATION MANUAL

LOCKMOD (LOCK MODE)

Function: Sets the keylock for the panel buttones

and dial

Available Values: FREQ / PANEL / ALL

Default: FREQ

Selects the operation of the front panel’s [LOCK] key.

FREQ: Locks the front panel keys and knobs related

to frequency control.

Front Panel:

[A=B] button, [FAST] button, [BAND] button,

[A/B] button, [MW] button [V/M] button,

[HOME] button, [RCL] button, [STO] button,

[SPLIT] button, [PMS] button, [SCN] button,

[MAIN DIAL] knob, [DSP/SEL] knob (Turns or

Pushes).

[C.S] button:

QSPL, DWN, FAST, UP

Microphone:

MH-31A8J (or optional MH-36E8J, MD-100A8X and

MD-200A8X):

[UP] key, [DWN] key, [FAST] key

ALL: Locks all front panel keys and knobs (except

POWER and LOCK keys) and microphone keys.

Front Panel:

[DSP] button, [PROC/KEYER] button,

[IPO/ATT] button, [AGC] button, [MODE] but-

ton, [NB] button, [CLAR] button, [A=B] button,

[FAST] button, [BAND] button, [A/B] button,

[HOME] button, [RCL] button, [VOX] button,

[STO] button, [STEP] button, [SPLIT] button,

[MW] button, [V/M] button, [PMS] button,

[SCAN] button, [MAIN DIAL] knob,

[DSP/SEL] knob (Turns or Pushes) ([CLAR]

knob)

[C/S] button:

MONI, N/A, P/B, PLAY1, PLAY2, PLAY3, QSPL,

SWR, VCC, DWN, FAST, UP

Microphone:

MH-31A8J (or optional MH-36E8J, MD-100A8X and

MD-200A8X):

[UP] key, [DWN] key, [FAST] key

MENU MODE

PANEL: Locks all front panel keys and knobs.

[DSP] button, [PROC/KEYER] button,

[IPO/ATT] button, [AGC] button, [MODE] but-

ton, [NB] button, [CLAR] button, [A=B] button,

[FAST] button, [BAND] button, [A/B] button,

[HOME] button, [RCL] button, [VOX] button,

[STO] button, [STEP] button, [SPLIT] button,

[MW] button, [V/M] button, [PMS] button,

[SCAN] button, [MAIN DIAL] knob,

[DSP/SEL] knob (Turns or Pushes), [METER]

button

M-TUNE

Function: Permission/non-permission of Memory

tune

Available Values: ON / OFF

Default: ON

ON: Forwarding from the memory channel and the

home channel to VFO is permitted.

OFF: Forwarding from the memory channel and the

home channel to VFO is not permitted.

In the “Memory Tune” mode, you may freely tune off

of the memory channel. This is similar to VFO opera-

tion. Memory Tune operation will not alter the con-

tents of the memory channel, so long as you do not

over-write the contents of the current memory.

MEM GRP (MEMORY GROUP)

Function: Enables/disables the memory grouping

feature.

Available Values: ON / OFF

Default: OFF

When this Menu Item is set to “ON,” the 500 “stan-

dard” memory channels are partitioned into ten

Memory Groups, each holding up to 50 memory chan-

nels.

MEM TAG

Function: Stores Alpha-Numeric “Tags” for the

memory channels.

See page 62 for information on setting the “Memory

Tags”.

Page 84 FT-450D OPERATION MANUAL

MIC EQ

Function: Setting of the DSP microphone equalizer

Available Values: 0 ~ 9

Default: 0

You may select one of ten available DSP equaliza-

tion techniques for transmitted microphone audio.

0: Flat

1: Low-frequency component is decreased.

2: Mid-frequency component is decreased.

3: High-frequency component is decreased.

4: High-frequency component is enhanced.

5: Mid-frequency component is enhanced.

6: Low-frequency component is enhanced.

7: Low-frequency component is enhanced and High-

frequency component is decreased.

8: Low-frequency component is decreased and Mid-

frequency component is enhanced.

9: Low-frequency component is decreased and High-

frequency component is enhanced.

MICGAIN

Function: Setting of the MIC gain

Available Values: LOW / NOR / HIGH

Default: NOR

Adjusts the microphone gain level for SSB/AM/FM.

LOW: When the microphone input is high the speech

processor is turned off automatically.

NOR: For normal voice the speech processor is

turned on automatically.

HIGH: When the microphone input is low the speech

processor is turned on automatically.

MICSCAN (MIC AUTO SCAN)

Function: “ON/OFF” of microphone scanning func-

tion

Available Values: ON/OFF

Default: ON

Enables/disables scanning access via the

microphone’s [UP]/[DWN] keys.

OFF: The frequency or the memory channel is

scanned only while [UP]/[DWN] button is be-

ing pushed. The scanning stops when [UP]/

[DWN] button is released.

ON: When [UP]/[DWN] button is held for about 1.0

second, the scanning continues even after the

button is released.

MY BAND

Function: Setting of the my band

Available Values: ON/OFF

Default: ON

The “My Bands” feature allows you to select several

Amateur bands, and make only those bands avail-

able for selection via the [BAND]/[BAND] but-

tons.

ON: Only the bands that are turned on will be shown

when pushing the [BAND]/[BAND] button.

OFF: A Band that is turned off will not appear when

the [BAND]/[BAND] button is pushed.

NOTE:

The band presently in use and the General band can-

not be turned off.

MY MODE

Function: Setting of my mode

Available Values: ON/OFF

Default: ON

The “My Mode” feature allows you to select an oper-

ating mode, and set whether or not the mode will be

displayed or skipped when the [MODE]/ [MODE]

buttons are pressed.

This feature can be very useful in HF operation, when

the AM/FM/DATA modes are not used.

ON: Only the mode registered by turning on can be

selected by pushing [MODE]/ [MODE]

button.

OFF: A mode that is turned off will not be appear

when pressing the [MODE]/ [MODE] but-

ton.

NOTE:

The mode displayed on the display while setting “My

mode” cannot be turned off.

P M-DWN (MIC-DWN PG)

Function: One of 52 functions can be preset and

assigned to the [DWN] key of the microphone.

Available Values: Please see page 16.

Default: DOWN

Presets of various functions can be assigned to the

[DWN] key of the microphone using this option.

P M-FST (MIC-FAST PG)

Function: One of 52 functions can be preset and

assigned to the [FST] key of the microphone.

Available Values: Please see page 16.

Default: FAST

Presets of various functions can be assigned to the

[FAST] key of the microphone using this option.

MENU MODE

Page 85FT-450D OPERATION MANUAL

P M-UP (MIC-UP PG)

Function: One of 52 functions can be preset and

assigned to the [UP] key of the micro-

phone.

Available Values: Please see page 16.

Default: UP

Presets of various functions can be assigned to the

[UP] key of the microphone using this option.

PEAKHLD (METER PEAK HOLD )

Function: Peak hold setting of S meter.

Available Values: ON/OFF

Default: ON

When this function is set to on the peak S meter read-

ing is held for one second to improve readability.

PNL-C.S

Function: One of 52 functions can be preset and as-

signed to the [VOICE/C.S] key.

Available Values: Please see page 16.

Default: VCC

Presets of various functions can be assigned to the

[VOICE/C.S] key using this option.

Please see page 16 for a detailed explanation.

QSPL F (QUICK SPLIT FREQ)

Function: offsets the transmit frequency.

Available Values: -20 ~ 0 ~ +20 (kHz)

in 1kHz increments

Default: +5

The Quick Split feature allows you to set a one-touch

offset to be applied to your radio's transmit frequency

compared to the receiving frequency. Also, the trans-

mit mode is set to the same mode as the receive

frequency (See page 43).

RFPOWER (RF PWR SET)

Function: Sets the maximums transmit power level

for the current band.

Available Values: 5 ~ 100 (W)

Default: 100 (W)

RPT (REPEATER SHIFT DIRECTION)

Function: Sets the Repeater shift Direction

Available Values: -SHIFT / SIMPLEX / +SHIFT

Default: SIMPLEX

RPT SFT (REPEATER SHIFT OFFSET)

Function: Sets the magnitude of the repeater shift

on the 28/50MHz band.

Available Values: 0.00 ~ 99.99 (MHz)

Default: Depends on the transcever’s version.

The FT-450D may be utilized on 29 MHz and 50 MHz

repeaters.

ADVICE:

The conventional repeater shift used on 29 MHz is

100 kHz, while on the 50 MHz band the shift may

vary between 500 kHz and 1.7 MHz (or more). To

program the proper repeater shift, use Menu Item

“RPT SFT” (see page 55).

RTY SFT (RTTY-SHIFT)

Function: Selects the frequency shift for FSK RTTY

operation.

Available Values: 170 / 200 / 425 / 850 (Hz)

Default: 170

RTY TON (RTTY-TONE)

Function: Selects the Mark tone for RTTY opera-

tion.

Available Values: 1275 / 2125 (Hz)

Default: 2125

RTYRPOL (RTTY-RX-POLARITY)

Function: Selects normal or reverse Mark / Space

polarity for RTTY receive operation.

Available Values: NOR/REV

Default: NOR

RTYTPOL (RTTY-TX-POLARITY)

Function: Selects normal or reverse Mark / Space

polarity for RTTY transmit operation.

Available Values: NOR /REV

Default: NOR

SCN RES (SCAN RESUME)

Function: Sets the delay time for scan resume.

Available Values: BUSY / TIME1 ~ 10 (sec)

Default: TIME5 (sec)

SELDIAL (SEL DIAL MODE)

Function: Assigns a second function to DSP/SEL

knob that is activated when the DSP/SEL

knob is momentarily depressed.

Available Values: CWSTONE / CWSPEED

/ 100KHZ /1MHZ/MICGAIN

/ RFPOWER

Default: 100KHZ (100 kHz)

CWSTONE: CW SIDETONE LEVEL

CWSPEED: CW KEYER SPEED

100KHZ: 100KHz Step

1MHZ: 1MHz Step

MICGAIN: MIC GAIN SET

RFPOWER: RF POWER SET

SQL TYP (SQL TYPE)

Function: Selects the Tone Encoder and/or Decoder

mode.

Available Values: OFF / ENC / ENC/DEC

Default: OFF

OFF: The function of “SQL knob” that exists in

the front panel is selected.

ENC: CTCSS Encoder

ENC/DEC: CTCSS Encoder/Decoder(Tone Squelch)

SQL/RFG (SQL/RF GAIN)

Function: Selects the configuration of the front

panel’s SQL/RF knob.

Function: SQL/RF-GAIN

Default: SQL

MENU MODE

Page 86 FT-450D OPERATION MANUAL

STBY BP (STBY BEEP)

Function: Setting of standby beep

Available Values: OFF / ON

Default: OFF

OFF: No beep sound is transmitted.

ON: A beep is transmitted before returning to

receive.

The beep, transmitted when the PTT is released, will

inform the other operators that your transmission has

ended.

TONE F (TONE FREQ)

Function: Sets the CTCSS Tone Frequency.

Available Values: 67.0 ~ 254.1 (Hz)

50 Standard CTCSS tones

Default: 88.5 (Hz)

TOT (TOT TIME)

Function: Selects the time of the Time-Out-Timer.

Available Values: OFF/1 ~ 20 (min)

Default: OFF

MENU MODE

TUNER (TUNER/ATAS)

Function: Setting of the Auto Antenna and Antenna

Tuner

Available Values: ATAS / EXT ATU / INT ATU

/ INTRATU / F RANS

Default: INT ATU

Selects the device (FC-40 or ATAS-100/-120/-120A)

controlled by the front panel’s [TUNE] button.

ATAS: The [TUNE] button will activate the op-

tional ATAS-100/-120/-120A on the HF

amateur bands and 50 MHz amateur

band.

EXT ATU: The [TUNE] button will activate the op-

tional FC-40.

INT ATU: The [TUNE] button will activate the An-

tenna Tuner. The tuner passes only the

Transmitter RF.

INTRATU: The [TUNE] button will activate the An-

tenna Tuner. The tuner passes both the

Transmitter RF and the Receiver signal.

F TRANS: The frequency data of the radio is sent to

another FT-450D. This feature is very

usefll for the “SO2R” (Single Operator,

Two Radio) operation. In this case, the in-

terconnection is as follows.

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

TUNER

CAT

Junction Connector

Dsub 9pin to Dsub 9pin

Cross CableCT-62

MASTER SETTING

Set menu itme “TUNER” to “F TRANS”.

SLAVE TRANSCEIVER SETTING

Set menu itme “CAT RTS” to “DISABLE”.

Set menu itme “CATRATE” to “4800 bps”.

OPERATION

When the [TUNE] button on the Master Transceiver is pressed, the

Slave Transceiver frequency becomes the same as the Master Trans-

ceiver.

IMPORTANT NOTICE

Please install an antenna protection circuit so the Master (RX) Trans-

ceiver is not damaged when the Slave (TX) Transceiver is transmitting.

Page 87FT-450D OPERATION MANUAL

MENU MODE

VOX DLY (VOX DELAY)

Function: Sets the “hang time” for the VOX circuitry.

Available Values: 100 ~ 3000 (ms) (100 ms/step)

Default: 500 (ms)

In VOX operation, sets the delay time when the trans-

mitter will return to receive after a voice pause.

The Delay time can be set while transmitting.

VOXGAIN

Function: Sets the gain of the VOX circuitry's input

audio detector.

Available Values: 1 ~ 100

Default: 50

The sensitivity is least at “1”, and maximum at “100”.

The VOX operation sensitivity can be set while trans-

mitting.

Page 88 FT-450D OPERATION MANUAL

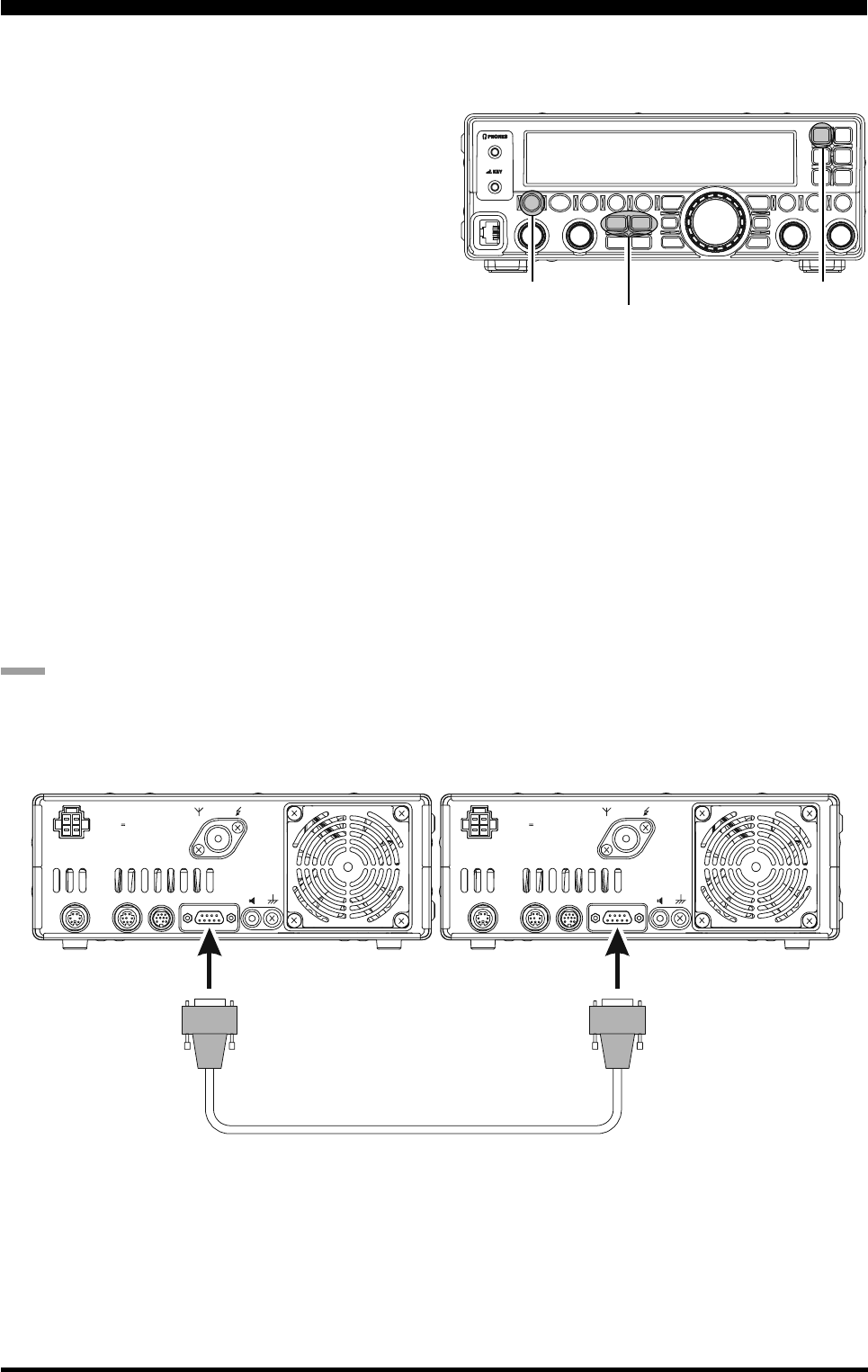

CLONING

You can transfer all data stored in one transceiver to another set by utilizing the handy “Cloning” feature. This

requires a user supplied cloning cable, which connects the CAT jacks on the two transceivers, as shown below.

To clone from one transceiver to another, use the following procedure:

1. Insert the D-SUB 9pin cross cable (User Supplied)

into the CAT jack of each transceiver.

2. Turn both transceivers off, then press and hold in

the [MODE] and [MODE] buttons on each ra-

dio while turning the power on again. The “cLonE

C.S-SND” notation will appear on the display.

3. On the “Source” radio, press the [C.S/VOICE] but-

ton.

4. Data will now be transferred to the “Destination”

radio from the “Source” radio.

When the clone completes successfully, “CLonE

SENDING” is displayed on the display.

If there is a problem during the cloning process,

“Error” will be displayed. Check your cable con-

nections and try again.

5. If cloning is successful, turn the “Destination” ra-

dio off, and “cLonE C.S-SND” notation will reappear

on the “Source” radio.

6. Turn the “Source” radio off.

7. Remove the clone cable. The channel and oper-

ating data for both radios are now identical. Both

radios may be turned on now for normal opera-

tion.

NOTE:

The cloning operation cannot be performed between

the FT-450D and FT-450.

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

D-SUB 9pin cross cable (User Supplied)

[C.S/VOICE] button

“Destination” “Source” Press the [C.S/VOICE] button

[MODE] and [MODE] buttons

[ON/OFF] button

Page 89FT-450D OPERATION MANUAL

OTE

Page 90 FT-450D OPERATION MANUAL

NSTALLATION

PTIONAL

CCESSORIES

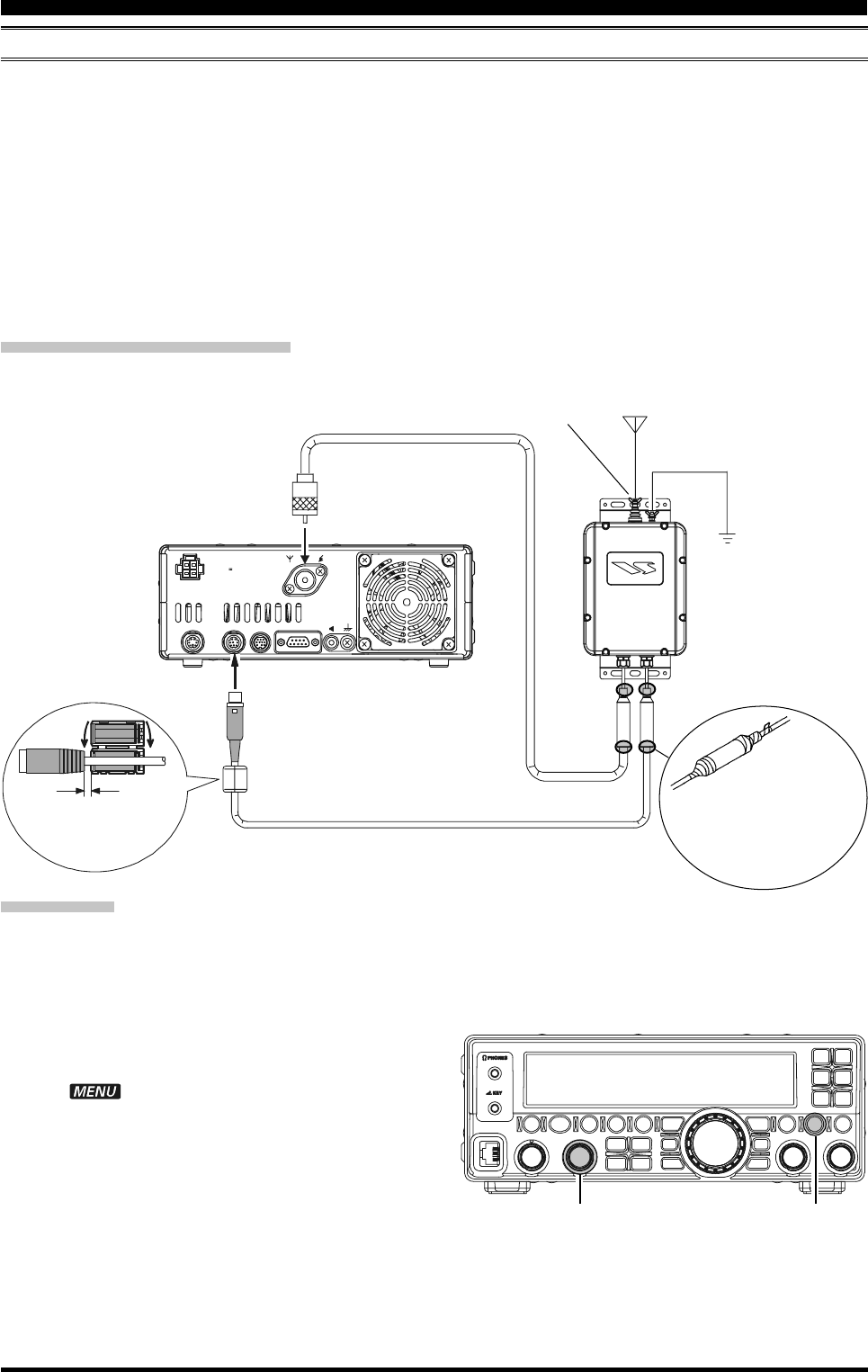

AUTOMATIC-MATCHING 200-MEMORY ANTENNA TUNER FC-40 OPERATION

The FC-40 makes use of the control circuitry built into the transceiver, which allows the operator to control and

monitor automatic operation of the FC-40, which mounts near the antenna feedpoint. The FC-40 uses specially

selected, thermally-stable components, and is housed in a waterproof case to withstand severe environmental

conditions with high reliability.

A carefully-chosen combination of solid-state switching components and high-speed relays allows the FC-40 to

match a wide variety of antennas to within a 2:1 SWR on any amateur band frequency (160 through 6 meters),

typically in less than eight seconds. Transmitter power required for matching may be as little as 4 - 60 Watts, and

matching settings are automatically stored in memory for instant recall when the same frequency range is

selected later.

Please see the manual of FC-40 for detailed information.

Interconnections to FT-450D

After mounting the FC-40, connect the cables from the tuner to the ANT and TUNER jacks on the rear panel of

the FT-450D Transceiver.

Installation

The optional FC-40 Automatic Antenna Tuner provides automatic tuning of a coaxial line so as to present a

nominal 50-ohm impedance to the FT-450D’s, HF/50 MHz antenna port.

Before operation can begin, you must instruct the FT-450D’s microprocessor that the FC-40 is being used. This

is done using the Menu Mode:

1. Press and hold the [F] button for one second to

enter the Menu Mode.

The “ ” icon will appear in the display.

2. Rotate the [DSP/SEL] knob to select the Menu

Item “TUNER.”

3. Press the [DSP/SEL] knob to enable this selected

Menu Item.

4. Rotate the [DSP/SEL] knob to change the setting

to “EXT ATU.”

5. Press and hold the [F] button for one second to

return to normal operation.

[DSP/SEL] Knob [F] button

INPUT

DC 13.8V

22A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

Instal supplied ferrite

core as close to con-

nector as possible. Control Cable (5 m)

Coaxial Cable (5 m)

Antenna Terminal

GND

Wrap the ends of the wa-

terproof cap with supplied

sealing tape to protect

against moisture ingress.

FT-450D

FC-40

Page 91FT-450D OPERATION MANUAL

NSTALLATION

PTIONAL

CCESSORIES

Operation

1. Press the [TUNE] button briefly to activate the

Automatic Antenna Tuner.

The “ ” icon will appear in the display.

If the transceiver frequency is out of the amateur

band, the “ ” icon will not appear.

2. Press and hold the [TUNE] button for one second

to begin automatic tuning. The transmitter will be

engaged, and the “ ” icon will blink while tun-

ing is in progress.

3. Tuning will stop automatically when a low SWR is

achieved. You may Press and hold the [TUNE]

button for one second while tuning is in progress,

to cancel the automatic tuning.

4. To disable the Automatic Antenna Tuner, press

the [TUNE] button briefly again.

AUTOMATIC-MATCHING 200-MEMORY ANTENNA TUNER FC-40 OPERATION

Note

ÌPlease connect a good earth ground to the GND terminal of FC-40.

ÌThe carrier signal transmits continuously while tuning is in progress. Please monitor the operating frequency

before beginning the tuning process. Be sure you are not interfering with others who may already be using

the frequency.

ÌIt is normal to hear the sound of the relays while tuning is in progress.

ÌIf the impedance cannot be matched by the FC-40 better than 2:1, and the “ ” icon will blink, the micropro-

cessor will not retain the tuning data for that frequency, as the FC-40 presumes that you will want to adjust or

repair your antenna system to correct the high SWR condition.

[TUNE] button

Page 92 FT-450D OPERATION MANUAL

NSTALLATION

PTIONAL

CCESSORIES

ACTIVE-TUNING ANTENNA SYSTEM (ATAS-100/-120/120A) OPERATION

The optional ATAS-100, ATAS-120, or ATAS-120A Active-Tuning Antenna System permits operation on a num-

ber of HF bands (7/14/21/28 MHz) plus 50 MHz.

The FT-450D provides microprocessor control of the tuning mechanism in the ATAS antenna for convenient

automatic tuning.

Interconnections to FT-450D

“ATAS-120A” is connected referring to the figure below.

ADVICE:

Always turn off the power switch on the FT-450D and the external power supply before you connect any cables.

ATTENTION:

ÌDo not touch the cables or connectors with wet hands.

ÌDo not touch the cables or connectors when you transmit. There is danger of electric shock or other serious

injury.

Installation

Before operation can begin, you must instruct the FT-450D’s microprocessor that the ATAS-100/-120/-120A is

being used. This is done using the Menu Mode:

1. Press and hold the [F] button for one second to

enter the Menu Mode.

The “ ” icon will appear in the display.

2. Rotate the [DSP/SEL] knob to select the Menu

Item “TUNER”.

3. Press the [DSP/SEL] knob to enable this selected

Menu Item.

4. Rotate the [DSP/SEL] knob to change the setting

to “ATAS”.

5. Press and hold the [F] button for one second to

return to normal operation.

Operation

AUTOMATIC TUNING

1. Press the [TUNE] button briefly to activate the

Automatic Antenna Tuner.

The “ ” icon will appear in the display.

If the transceiver frequency is out of the amateur

band, the “ ” icon will not appear.

If the antenna SWR is High (more than 1:2.0), the

“” icon will blink.

2. Press and hold the [TUNE] button for one second

to begin automatic tuning. The transmitter will be

engaged, and the “ ” icon will blink while tun-

ing is in progress.

3. Tuning will stop automatically when a low SWR is

achieved. You may Press and hold the [TUNE]

button for one second while tuning is in progress,

to cancel the automatic tuning.

[DSP/SEL] Knob [F] button

[TUNE] button

Page 93FT-450D OPERATION MANUAL

NSTALLATION

PTIONAL

CCESSORIES

ACTIVE-TUNING ANTENNA SYSTEM (ATAS-100/-120/120A) OPERATION

MANUAL TUNING

1. Press the [TUNE] button briefly to activate the

Automatic Antenna Tuner.

The “ ” icon will appear in the display.

If the transceiver frequency is out of the amateur

band, the “ ” icon will not appear.

If the antenna SWR is High (more than 1:2.0), the

“” icon will blink.

2. Press and hold in the microphone PTT switch.

With the transceiver in the “transmit” mode, press

and hold in the [BAND] button (to raise the an-

tenna) or the [BAND] button (to lower the an-

tenna). While you hold in one of these keys, the

FT-450D will generate a carrier, and you may

watch the SWR meter of the FT-450D, looking for

the meter indication to reach its minimum value.

When this is reached, release the [BAND] or

[BAND] button, then release the PTT switch to

return to the “receive” mode.

[TUNE] button

FT-450D

INPUT

DC 13.8V

2 2A

ANT

GND

EXT

SPKR

CATLINEARTUNERDATA

After-market mount

Page 94 FT-450D OPERATION MANUAL

NSTALLATION

PTIONAL

CCESSORIES

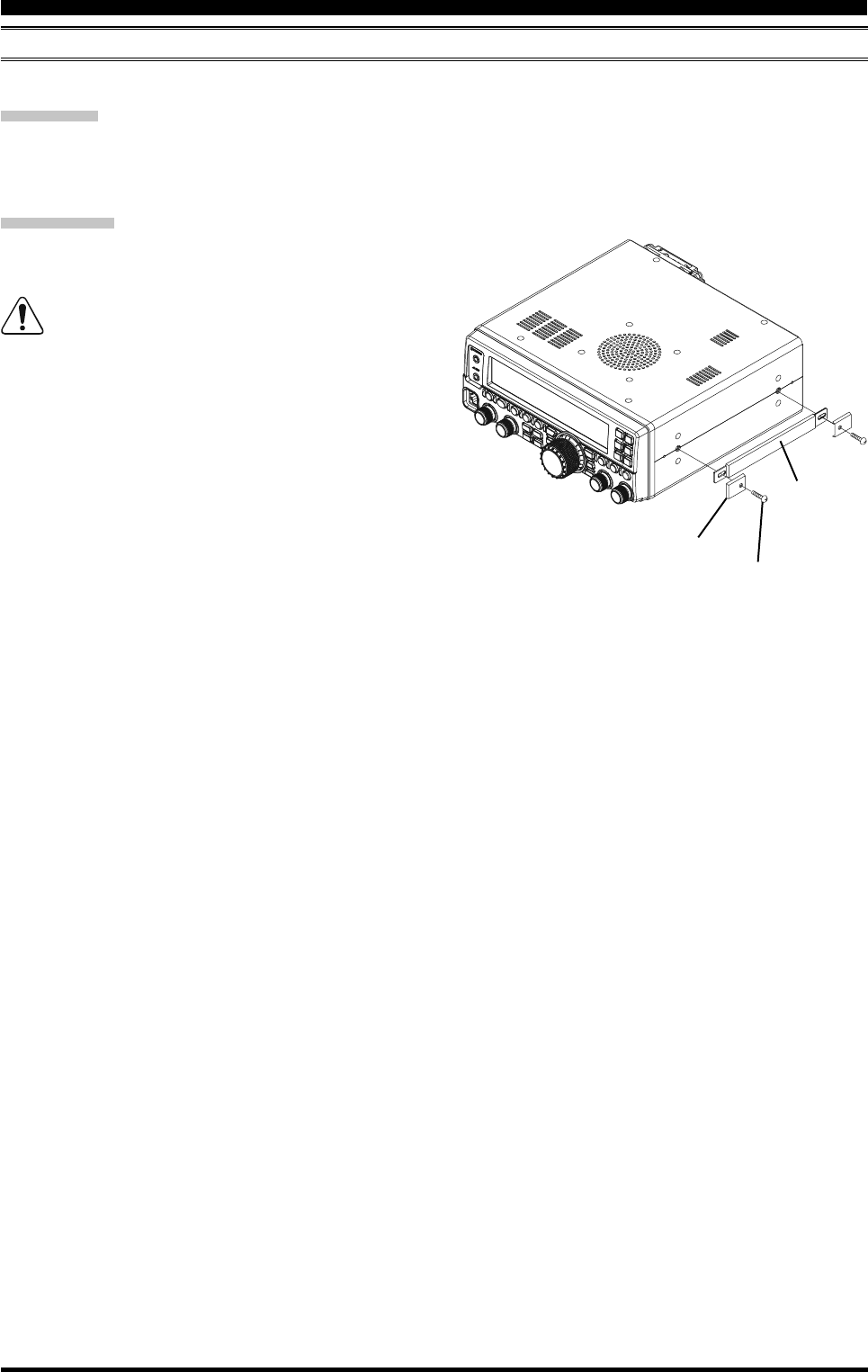

CARRYING HANDLE MHG-1 INSTALLATION

The MHG-1 is a Carrying Handle designed to match FT-450D transceiver.

Parts List

Handle ................................................................ 1pc

Handle end ....................................................... 2pcs

Mounting Screws (M4x15B) ............................. 2pcs

Installation

Screw the Carrying Handle to the FT-450D using the

supplied screws.

Do not install the supplied MHG-1 Mounting

Screws if you are not installing the MHG-1!

Also, do not use an improper screw for mount-

ing the MHG-1! An improper screw may cause

a “short circuit” to the internal circuitry, caus-

ing serious damage!

Handle

Handle end

(2 pcs)

Mounting Screws

(2 pcs)

Page 95FT-450D OPERATION MANUAL

NSTALLATION

PTIONAL

CCESSORIES

MOUNTING BRACKET MMB-90 INSTALLATION

The MMB-90 is a mounting bracket designed to match the YAESU FT-450D transceiver.

Parts List

Mounting Bracket ........................................................ 1 pc

Double Face Adhesives ............................................ 2 pcs

Screws, Washers & Nuts for Mounting Bracket

M4 Knob-screws .................................................. 4 pcs

M5X20 Screws ..................................................... 4 pcs

M5X20 Tapping screws ........................................ 4 pcs

Washers ............................................................... 8 pcs

Washers ............................................................... 4 pcs

N5 Nut .................................................................. 4 pcs

Installation Procedure

1. Determine a convenient mounting location with

sufficient clearance and ventilation. Use the

bracket as a template and locate the mounting

holes. Use a 4.8-mm (3/16#) bit to drill the holes.

Secure the bracket with the supplied screws,

washers and nuts.

NOTE:

The supplied double-sided adhesive tape may be

used to temporarily hold the mobile mounting

bracket in place, while drilling the holes for instal-

lation.

Stay (user prepared)

2. Position the transceiver in the bracket so the holes

in the side are aligned with those in the bracket.

Fasten the transceiver into place using the sup-

plied Knob-screws (M4).

Upper side

Lower side

M4 Knob-screws

(4 pcs)

Page 96 FT-450D OPERATION MANUAL

General

Rx Frequency Range: 30 kHz - 56 MHz (operating)

160 - 6 m (specified performance, Amateur bands only)

Tx Frequency Ranges: 160 - 6 m (Amateur bands only)

Frequency Stability: ±1 ppm/hour (@+25 °C, after warmup)

Operating Temperature Range: 14 °F ~ 122 °F (–10 °C ~ +50 °C)

Emission Modes: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM)

Frequency Steps: 10 Hz (SSB & CW), 100 Hz (AM & FM)

Antenna Impedance: 50 Ohms, unbalanced

Power Consumption: Rx (signal present) 1.5 A

Tx (100 W) 22 A

Supply Voltage: DC 13.8 V ± 10%

Dimensions (WxHxD): 9’ x 3.3” x 8.5” (229 x 84 x 217 mm)

Weight (approx.): 8.8 lb (4.0 kg)

Transmitter

Power Output: 100 watts (25 watts AM carrier)

Modulation Types: J3E (SSB): Balanced,

A3E (AM): Low-Level (Early Stage),

F3E (FM): Variable Reactance

Maximum FM Deviation: ±5.0 kHz / ±2.5 kHz

Harmonic Radiation: Better than –60 dB (160 - 10m Amateur bands)

Better than –70 dB (6m Amateur band)

SSB Carrier Suppression: At least 60 dB below peak output

Undesired Sideband Suppression: At least 60 dB below peak output

Audio Response (SSB): Not more than –6 dB from 300 to 2400 Hz

Microphone Impedance: 600 Ohms (200 to 10 kOhms)

SPECIFICATIONS

Page 97FT-450D OPERATION MANUAL

SPECIFICATIONS

Receiver

Circuit Type: Double-conversion superheterodyne

Intermediate Frequencies: 67.899 MHz / 24 kHz

Sensitivity (IPO “OFF”, ATT: OFF): SSB (2.4 kHz, 10 dB S+N/N)

0.25 µV (1.8 - 2.0 MHz)

0.25 µV (3.5 - 30 MHz)

0.20 µV (50 - 54 MHz)

AM (6 kHz, 10 dB S+N/N, 30 % modulation @400 Hz)

2.00 µV (1.8 - 2.0 MHz)

2.00 µV (3.5 - 30 MHz)

1.00 µV (50 - 54 MHz)

FM (BW: 15 kHz, 12 dB SINAD)

0.50 µV (28 - 30 MHz)

0.30 µV (50 - 54 MHz)

There is no specification in frequency ranges not listed.

Squelch Sensitivity: SSB/CW/AM

(IPO “OFF”, ATT: “OFF”) 2.50 µV (1.8 - 30 MHz)

1.00 µV (50 - 54 MHz)

0.32 µV (28 - 30 MHz)

0.16 µV (50 - 54 MHz)

There is no specification in frequency ranges not listed.

Selectivity (–6/–60 dB): Mode – 6 dB – 60 dB

CW 250 Hz or better 700 Hz or less

SSB 2.2 kHz or better 4.5 kHz or less

AM 6 kHz or better 20 kHz or less

FM 15 kHz or better 30 kHz or less

FM-N 9 kHz or better 25 kHz or less

Image Rejection: 80 dB or better

IF Rejection: 80 dB or better (160 - 10m Amateur bands)

65 dB or better (6m Amateur band)

Maximum Audio Output: 2.2 W into 4 Ohms with 10% THD

Audio Output Impedance: 4 to 16 Ohms (8 Ohms: nominal)

Conducted Radiation: – 47 dBm < 1000 MHz, – 57 dBm > 1000 MHz

Specifications are subject to change, in the interest of technical improvement, without notice or obligation, and

are guaranteed only within the amateur bands.

Page 98 FT-450D OPERATION MANUAL

FCC N

OTICE

1. Changes or modifications to this device not expressly approved by VERTEX STANDARD could void the user’s

authorization to operate this device.

2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this

device may not cause harmful interference, and (2) this device must accept any interference including interference

that may cause undesired operation.

3. The scanning receiver in this equipment is incapable of tuning, or readily being altered, by the User to operate

within the frequency bands allocated to the Domestic public Cellular Telecommunications Service in Part 22.

DECLARATION BY MANUFACTURER

The scanner receiver is not a digital scanner and is incapable of being converted or modified a digital scanner

receiver by any user.

WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS

PROHIBITED UNDER FCC RULES AND FEDERAL LAW.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

THIS CLASS B DIGITALAPPARATUS COMPLIES WITH CANADIAN ICES-003.

Declaration of Conformity

We, Yaesu UK Ltd. declare under our sole responsibility that the following equipment complies with the

essential requirements of the Directive 1999/5/EC and 2004/104/EC.

Type of Equipment: HF Transceiver

Brand Name: YAESU

Model Number: FT-450 / FT-450D

Manufacturer: Vertex Standard Co., Ltd.

Address of Manufacturer: 4-8-8 Nakameguro Meguro-Ku, Tokyo 153-8644, Japan

Applicable Standards:

This equipment is tested and conforms to the essential requirements of directive, as included in follow-

ing standards.

EN 301 783-2 V1.1.1

Radio Standard:

EN 301 489-1 V1.8.1

EMC Standard: EN 301 489-15 V1.2.1

EN 60065 :2002+A1 :2006+A11 :2008

Safety Standard:

The technical documentation as required by the Conformity Assessment procedures is kept at the

following address:

Company: Yaesu UK Ltd.

Address: Unit 12, Sun Valley Business Park, Winnall Close

Winchester, Hampshire, SO23 0LB, U.K.

This transceiver works on frequencies which are not generally permit-

ted.

As for the actual usage, the user has to possess an amateur radio licence.

Usage is allowed only in the frequency bands which are allocated for

amateur radios.

Attention in case of use

AUT BEL BGR CYP CZE DEU DNK

ESP EST FIN FRA GBR GRC HUN

IRL ITA LTU LUX LVA MLT NLD

POL PRT ROM SVK SVN SWE CHE

ISL LIE NOR

List of the practicable area

VERTEX STANDARD CO., LTD.

No portion of this manual

may be reproduced without

the permission of

VERTEX STANDARD CO., LTD.

Printed in Japan

1012M-0Y

EH024H250

Yaesu Ft 450D Users Manual 1_COVER.P65 User 121911

Navigation menu

Versions of this User Manual:

Views

Navigation
