User Manual

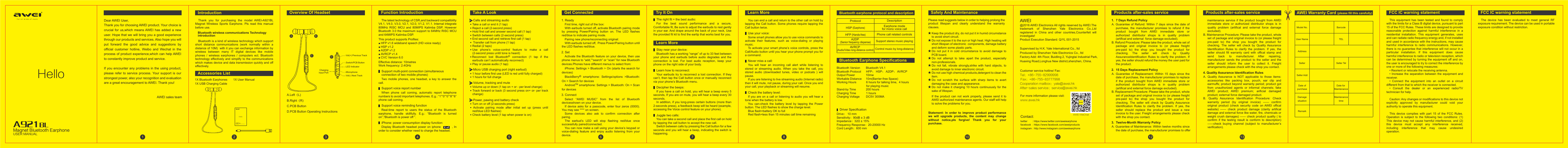

Magnet Bluetooth Earphone2345678 9Drive: 10 mm             Sensitivity:90dB ± 3 dBImpedance:32Ω ± 15%            Frequency Response:20-20000 HzCord Length:600 mmIntroductionThe latest technology of CSR,and backward compatibility V4.1, V4.0, V3.0, V2.1, V2.0, V1.2, V1.1. Internal integrate 80MHz RISC MCU and 80MIPS Kalimba DSP, However Bluetooth 3.0 the maximum support to 64MHz RISC MCU and 64MIPS Kalimba DSP.Two mobile phones, one headset, a key to answer the call.Support multi-point connection (simultaneous connection of two mobile phones)First time, right out of the box:With earbuds turned off, activate Bluetooth pairing mode by pressing Power/Pairing button on. The LED flashes red/blue to indicate pairing mode.Pairing new phone/reconnecting original:With earbuds turned off,  Press Power/Pairing button until the LED flashes red/blue.Activate the Bluetooth feature on your device, then use phone menus to “add,”“search” or “scan” for new Bluetooth devices.Phones have different menus to select from:iPhone: Settings > Bluetooth > On (starts the search for devices)BlackBerry® smartphone: Settings/options >Bluetooth: On > Search for devicesAndroidTM smartphone: Settings > Bluetooth: On > Scan for devicesSelect “AWEI MUSIC” from the list of Bluetooth devicesshown on your device.If device asks for a passcode, enter four zeros (0000). You may see **** on screen.Some devices also ask to confirm connection after paring.The earbud’s LED will stop flashing red/blue once successfully paired/connected.You can now make a call using your device’s keypad or voice-dialing feature and enjoy audio listening from your device. When phone call coming, automatic report telephone numbers to avoid important telephones. E.g.: “1”“0”“0”“8”“6” phone call coming.Support voice report numberReal-time report to users the status of the Bluetooth earphone, handle skillfully. E.g.: “Bluetooth is turned on”,“Bluetooth is power off ”.Support voice reminding functionDisplay Bluetooth headset power on iphone          , In order to consider whether need to charge the headset.iPhone: power consumption display function:Driver SpecificationBluetooth Earphone Specifications1X Bluetooth Earphones       1X User Manual     1X USB Charging Cable       Vol(+) Previous TrackMicrophoneChargingInput PortLED IndicatorVol(-) Next TrackSwitch/PCB ButtonThank you for purchasing the model AWEI-A921BL Magnet Wireless Sports Earphone. Pls read this manual before use.Bluetooth is a kind of wireless technology which support short distance communications (work normally within a distance of 10M)  with it you can exchange information by wireless between many IT digital devices like mobile phones / wireless earphones / computers ect. Bluetooth technology effectively and simplify to the communications which makes device and data transmission quickly and off effectively.Bluetooth wireless communications Technology introductionOverview Of Headset Function IntroductionFor the best sound performance and a secure, Comfortable fit, Be sure to adjust the earbuds to rest gently in your ear. And drape around the back of your neck, Use the provided fit kit to find the eartip that works best for you.The right fit = the best audio:Try It OnBluetooth has a working “range” of up to 33 feet between your phone and earbuds before audio degrades and the connection is lost. For best audio reception, keep your phone on the right side of your body.Stay near your device:If you have a call on hold, you will hear a beep every 5 seconds, If you are on mute, you will hear a beep every 30 seconds.In addition, if you long-press certain buttons (more than 2-seconds press), a feedback beep will be heard (example, accessing the Voice control feature on your phone).Decipher the beeps:You can end a call and return to the other call on hold by tapping the Call button. Some phones require tapping the Call button twice.You can take a second call and place the first call on hold by tapping the call button to accept the new call.Switch between calls by pressing the Call button for a few seconds and you will hear a beep, indicating the switch is happening.Juggle two calls:Some smart phones allow you to use voice commands to activate their features, such as voice-dialing or playing music.To activate your smart phone’s voice controls, press the Call/Audio button until you hear your phone prompt you for a command.Use your voice:You will hear an incoming call alert while listening to stored or streaming audio. When you take the call, you stored audio (downloaded tunes, video or podcats ) will pause.If you are listening to live streaming audio (Internet radio) then it will mute, not pause, during your call. Once you end your call, your playback or streaming will resume.Never miss a call:Your earbuds try to reconnect a lost connection. If they can’t, then tap the Call button once or manually reconnect via your phone’s Bluetooth menu.Learn how to reconnect:Learn MoreLearn MoreIf you are on a call or listening to audio you will hear a tone when the battery is low.You can-check the battery level by tapping the Power button. The LED flashes to show the charge level.Blue flash=battery OK to fullRed flash=less than 15 minutes call time remainingCheck the battery level:ACalls and streaming audioBMicro USB charging port (right earbud)CVolume, tracking and muteTake A LookDPower, pawing and battery checkGet ConnectedC.PCB ButtonD.PCB Button Operating InstructionsAccessories ListA.Left(L)B.Right(R)Bluetooth Version       Bluetooth V4.1Bluetooth Protocol      HFP、 HSP、 A2DP、 AVRCPOutput Power             10mwWorkable Distance     10m(Barrier-free Space)Working Hours            6 hours for talking time,  4 hours                                    for playing musicStand-by Time            200 hoursCharging Time            1 hoursCharging Voltage        DC5V 300MA◆ Take a call or end it (1 tap)◆ Reject a call (2-second press)◆ Hold first call and answer second call (1 tap)◆ Switch between calls (2-second press)◆ End second call and retrieve first call (1 tap)◆  Transfer call from phone (1 tap)◆ Redial (2 taps)◆Use phone’s voice-control feature to make a call (2-second press unitil tone is heard)◆ Reconnect lost Bluetooth® connection (1 tap if the earbuds can’t automatically reconnect)◆ Play or pause audio (1 tap)◆ Turn on or off (2-seconds press)◆  Activate pairing mode after initial set up (press until red/blue LED flashes)◆ Check battery level (1 tap when power is on)◆ 1 hour before first use (LED is red until fully charged)◆ 1 hours for full charge◆ Volume up or down (1 tap on + or - per level change)◆ Track forward or back (3 second press on+ or- per track change)■ HFP v1.6 wideband speech (HD voice ready)■ HSP v1.2■ A2DP v1.2■ AVRCP v1.4■ CVC Version 6.0This product supports Profiles:1. Ready2. Set3. ConnectEffective distance: 10metresWork frequency: 2.4GHzHelloUSER MANUALA921BL Wireless Sport Stereo Bluetooth EarphonesHelloUSER MANUALA921 BL1Dear AWEI User,Thank you for choosing AWEI product. Your choice is crucial for us,which means AWEI has added a new user. Hope that we will bring you a good experience through our products and services. Also hope you will put forward the good advice and suggestions by official customer hotline, Weibo and Wechat in the process of product experience,which can help AWEI to constantly improve product and service. If you encounter any problems in the using product, please refer to service process. Your support is our strongest power, also your recognition and evaluation are a great encouragement to AWEI. Thank you!                                                          AWEI sales teamBluetooth earphone protocol and descriptionProtocolHSP (Earphone)HFP (Hands-free)A2DP (Senior frequency dispense)AVRCP (Audio/Video long-distance control)DescriptionEarphone modefor mono voice callPhone call related controlsSupport stereo music playingControl music by long-distanceDPlease read suggests below in order to helping prolong the product lifespan and clearly understand the warranty clauses.★Keep the product dry, do not put it in humid circumstance to avoid short circuit.★Do not expose it to the sun or high heat. High heating will short lifespan of electronic  components, damage battery and deform some plastic parts.★Do not put it in cold circumstance to avoid damage to PCB board.★Do not attempt to take apart the product, especially non-professionals.★Do not fall, vibrate strongly,strike with hard objects, to avoid damage to inner electronic circuit.★Do not use high chemical products,detergent to clean the item.★Do not scratch the surface with sharp items to avert damaging the case and appearance.★Do not make it charging 10 hours continuously for the sake of lifespan.10If the product can not work properly, please send it to AWEI authorized maintenance agents. Our staff will help to solve the problems for you.Statement: In order to improve product performance we will upgrade products, the content may change without notice,pls forgive! Thank you for your purchase.Safety And MaintenanceThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.•  Increase  the  separation  between  the  equipment  and receiver.•  Connect  the  equipment  into  an  outlet  on  a  circuit different from that to which the receiver is connected.•  Consult  the  dealer  or  an  experienced  radio/TV technician for help.Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.FCC IC warning statementThe device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.FCC IC warning statement11@2016 AWEI Electronics All rights reserved by AWEI.The trademark of Shenzhen Yale Electronics Co.,Ltd registered in China and other countries,Counterfeit will investigate!Product Execution Standard: Q/YL 001-2015Supervised by H.K. Yale International Co., ltdProduced by Shenzhen Yale Electronics Co., ltdFactory Add: 4th Floor, Buidling 2, Yujingtai Industrial Park, Huaxing Road,Longhua New district,shenzhen, China.Customer service hotline/ Fax:  Tel:+86-755-82999998 Fax:+86-755-83777998Cooperation mailbox:yale@awei.hkAfter-sales service:service@awei.hk For more information please visit:www.awei.hkContact:twitter       : https://www.twitter.com/aweiearphonefacebook  : https://www.facebook.com/aweiproductsinstagram : http://www.instagram.com/aweiearphoneAWEIAWEI Warranty Card (please fill this carefully)Model No. BarcodeUser Name TELAddressSeller Seller TelSeller AddDate ofpurchaseDate for MaintenanceDamagesituationMaintenancetimeRemark12A. Guarantee of Refund: Within 7 days since the date of purchase, the manufacturer promises to refund if the product bought from AWEI immediate store or authorized distributor shops is in quality problem (artifical and external  force damage excluded).B. Refund Procedure: Please take the product, whole set of package and original invoice to (or please freight pre-paid to) the shop you bought the product for checking. The seller will check by Quality AssuranceIdentification Rules to clarify the problem. If yes, the seller should refund the money the user paid for the product. 1.  7 Days Refund PolicyA. Guarantee of Replacement: Within 15 days since the date of purchase, the manufacturer promises to replace if the product bought from AWEI immediate store or authorized distributor shops is in quality problem (artifical and external force damage excluded).B. Replacement Procedure: Please take the product, whole set of package and original invoice to (or please freight pre-paid to) the shop you bought the product for checking. The seller will check by Quality Assurance Identification Rules to clarify the problem. If yes, the seller should replace the product and issue a new invoice to the user. Freight arrangements please check with the shop you contact.2.  15 Days Replacement Policy Products after-sales service Products after-sales service13A. Quality Assurance is NOT applicable to those items: accessories like packing box, pouch, ear clip and earmuffs; product beyond warranty period; product got from unauthorized agents or informal channels; fake AWEI product; AWEI premium; arificial damaged product; external force damaged product.B. Quality Assurance Identification Procedure: Check warranty period (by original invoice) —— confirm original product (check security code on AWEI offical website) —— check product damage (clarity artifical damage and external force like water, fire, chemicals or weight crush damages) —— check product quality ( to confirm if the testing result is conform to description) ——check buying channel (subject to manufacturer’s verification).4. Quality Assurance Identification RulesA. Guarantee of Maintenance: Within twelve months since the date of purchase, the manufacturer promises to offer    maintenance service if the product bought from AWEI immediate store or authorized distributor shops is in quality problem (artifical and external force damage excluded).B. Maintenance Procedure: Please take the product, whole set of package and original invoice to (or please freight pre-paid to) the shop you bought the product for checking. The seller will check by Quality Assurance Identification Rules to clarify the problem. If yes, the seller should fill warranty card with offical stamp and send back to manufacturer. After repairing, manufacturer sends the product to the seller and the seller should inform the user to collect it. Freight arrangements please check with the shop you contact.3.  Twelve-Month Warranty PolicyAWEI WeChatABC
