CONDENSED CATALOG

YALE COMMERCIAL LOCKS & HARDWARE

CLOSERS

LOCKS

CATALOG

EXITS

TITLE

Page 2Condensed Catalog

INTRODUCTION

Introduction . . . . . . . . . . . . . .2

Mortise Locksets . . . . . . . . . . .3

Mortise Lock Trim . . . . . . . .4-5

Cylindrical Locksets . . . . . .6-13

Monolocks . . . . . . . . . . . . . .14

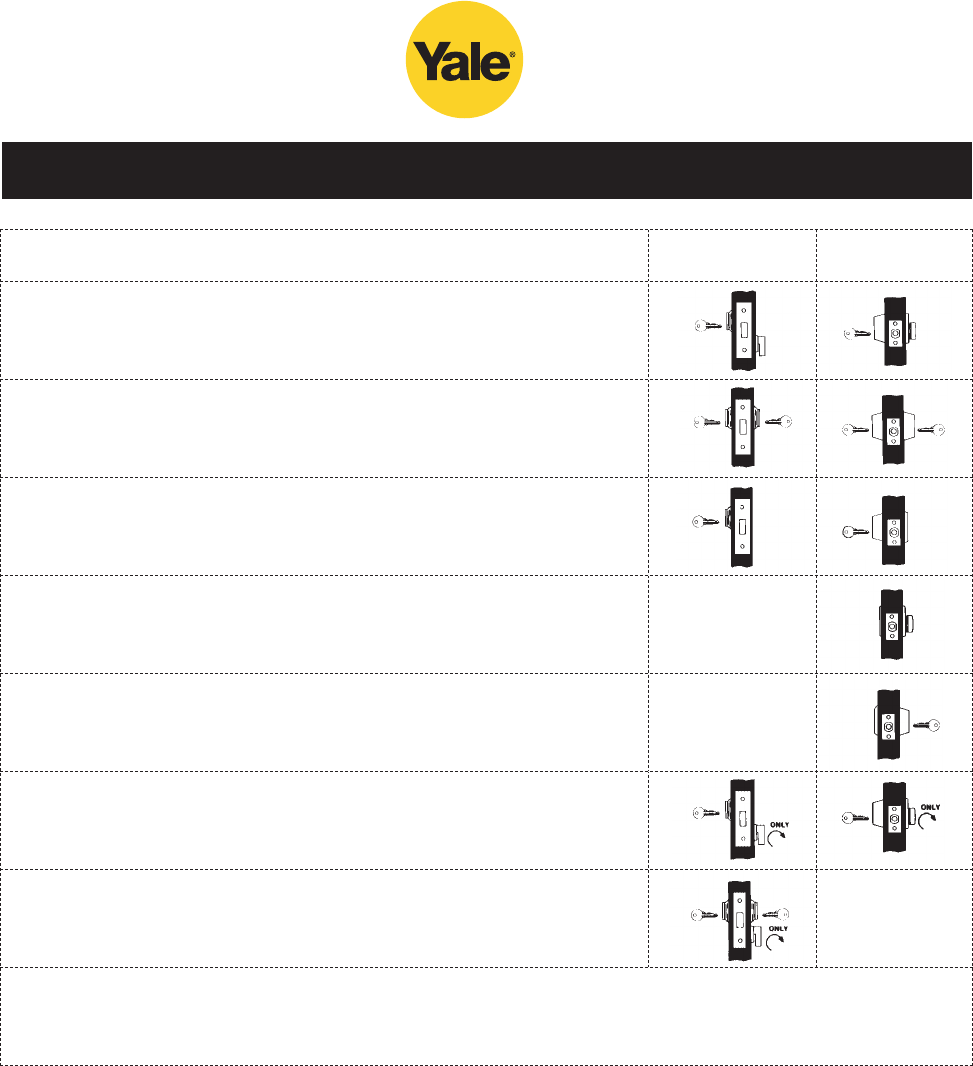

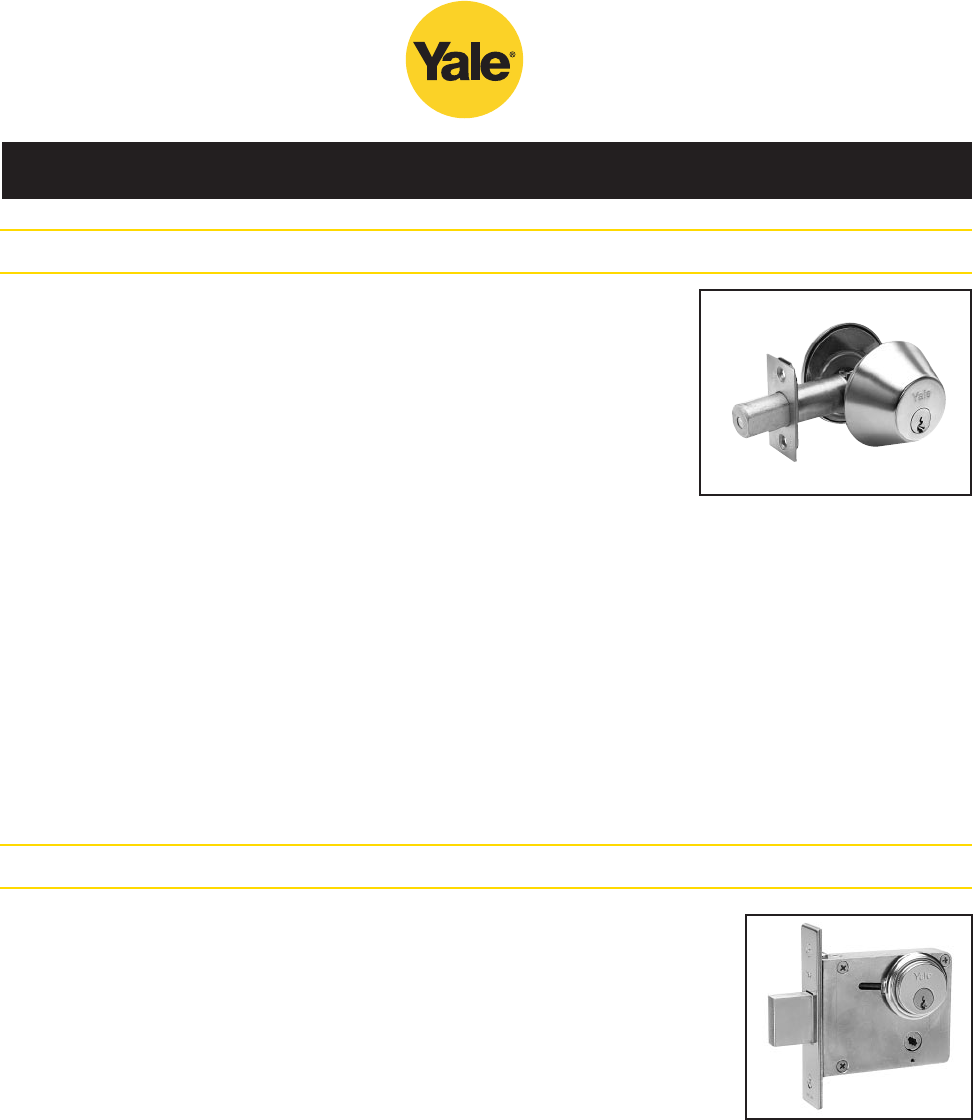

Auxiliary Locks . . . . . . . . . . .15

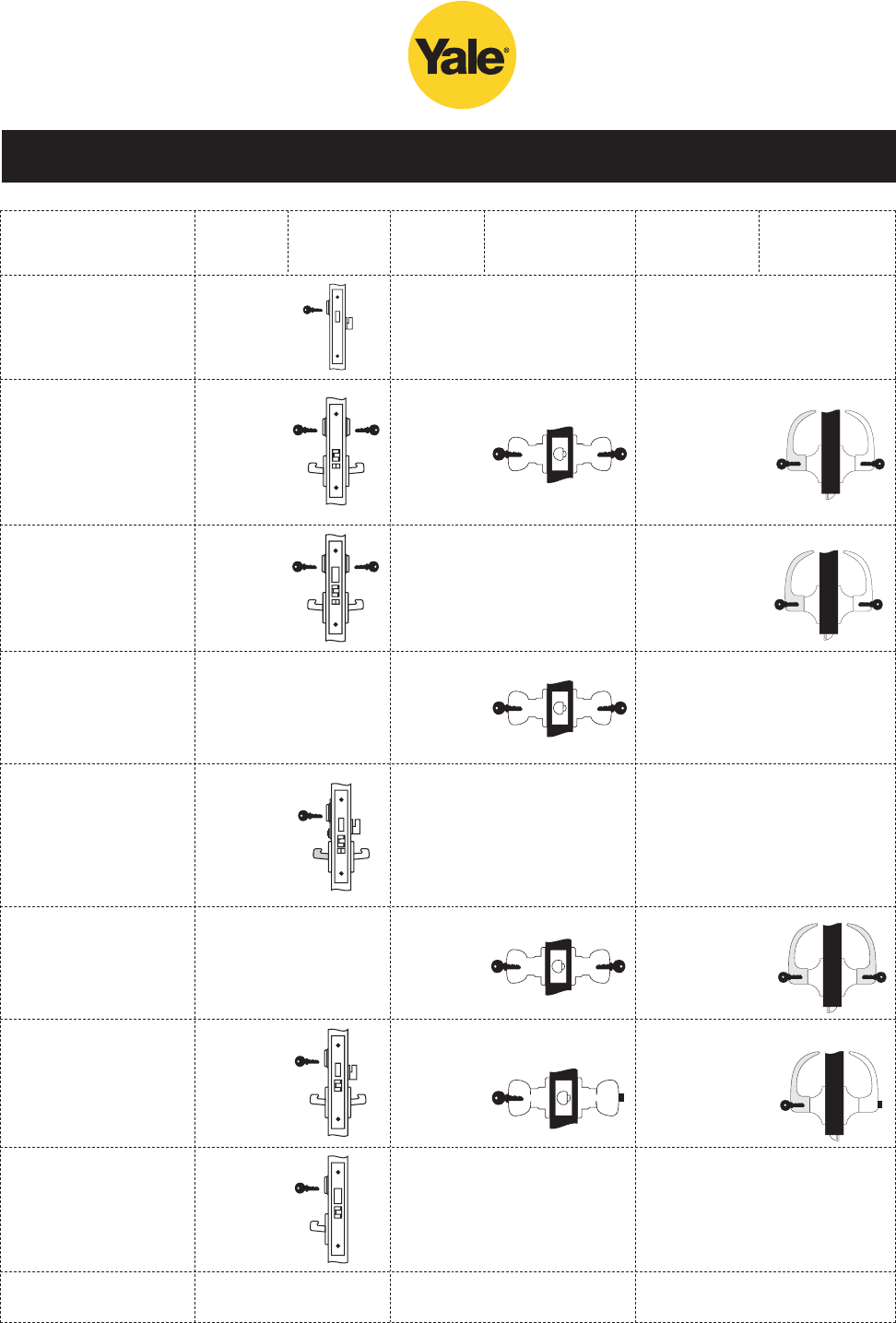

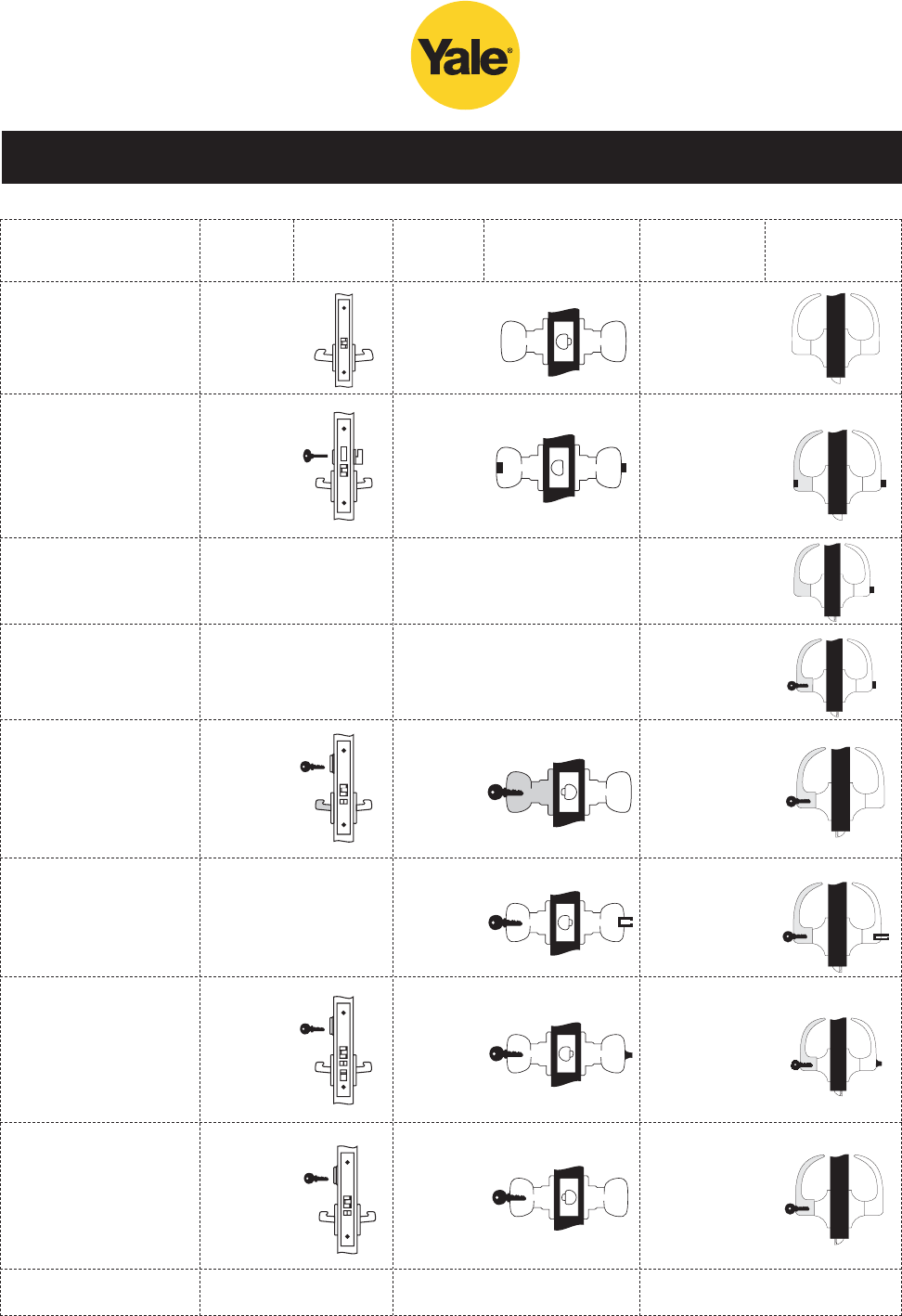

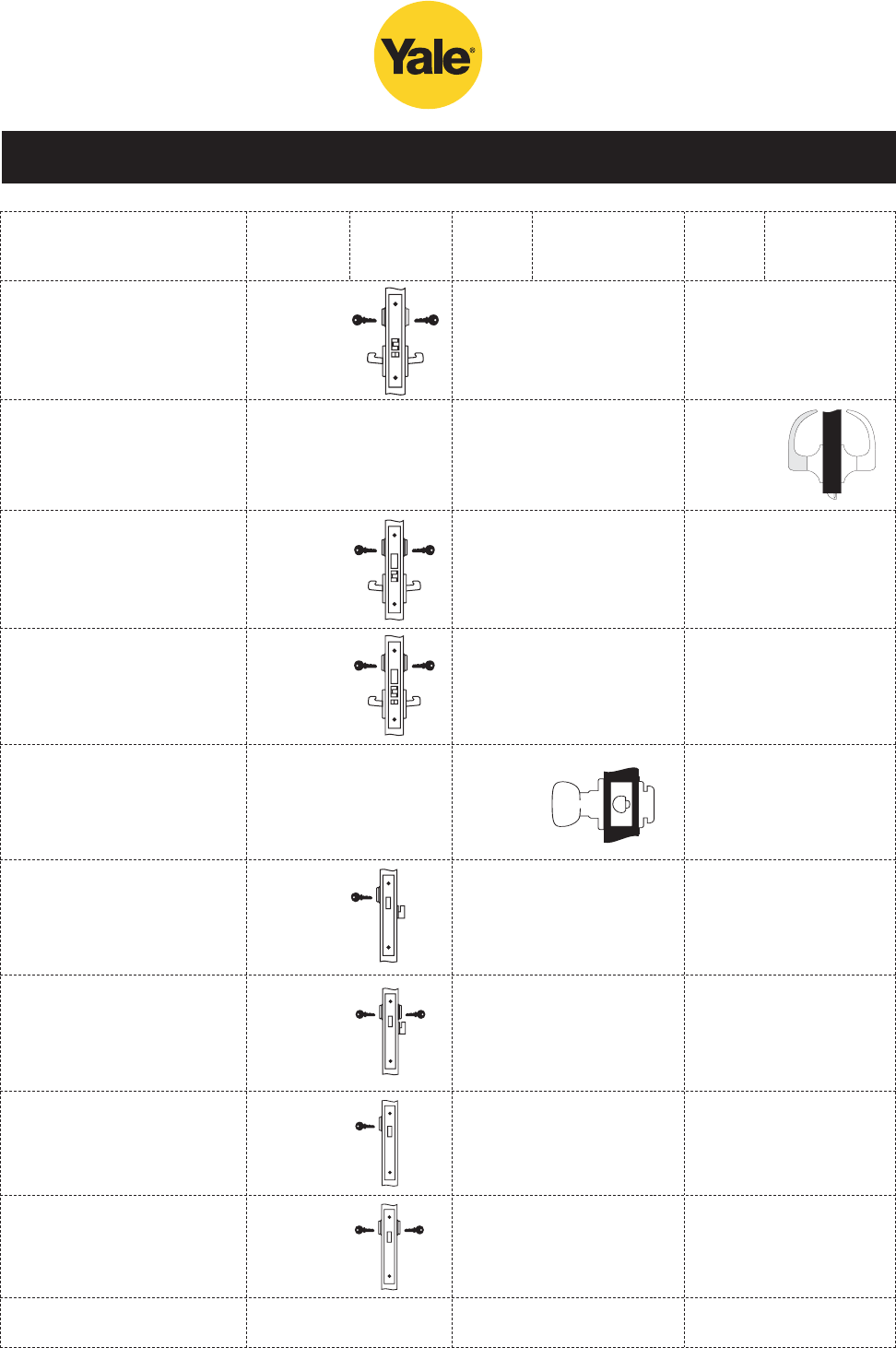

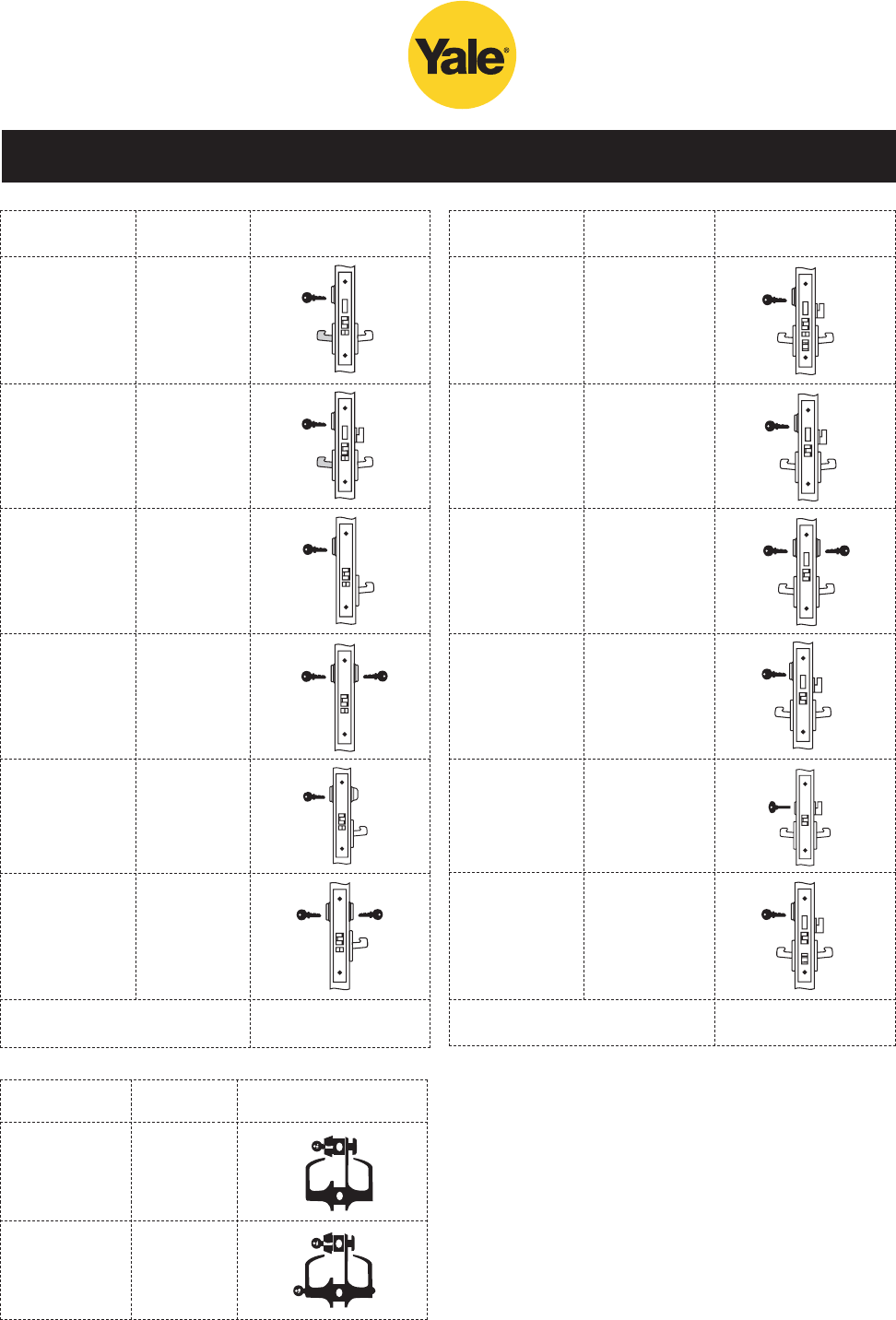

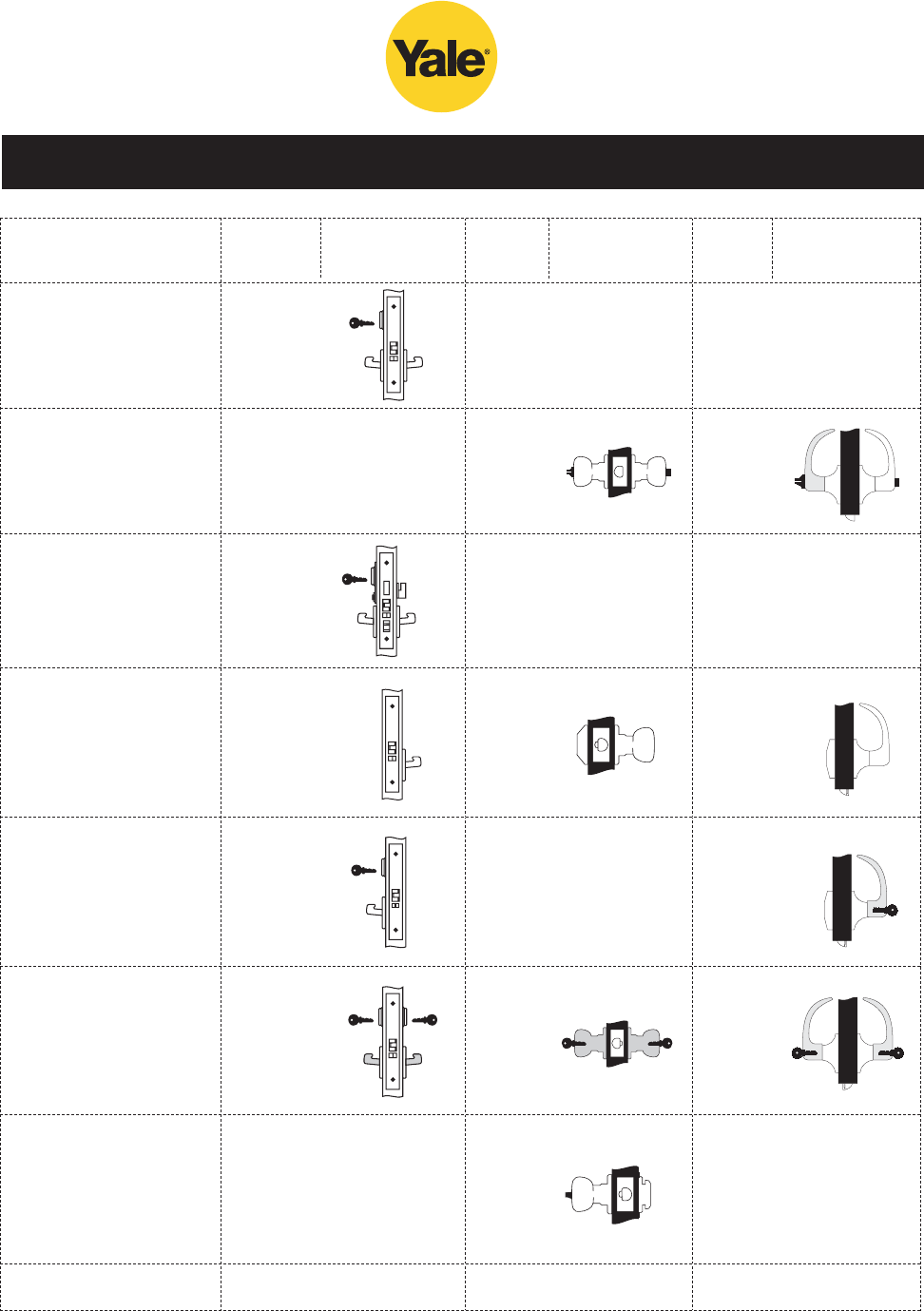

Lockset Functions . . . . . .16-21

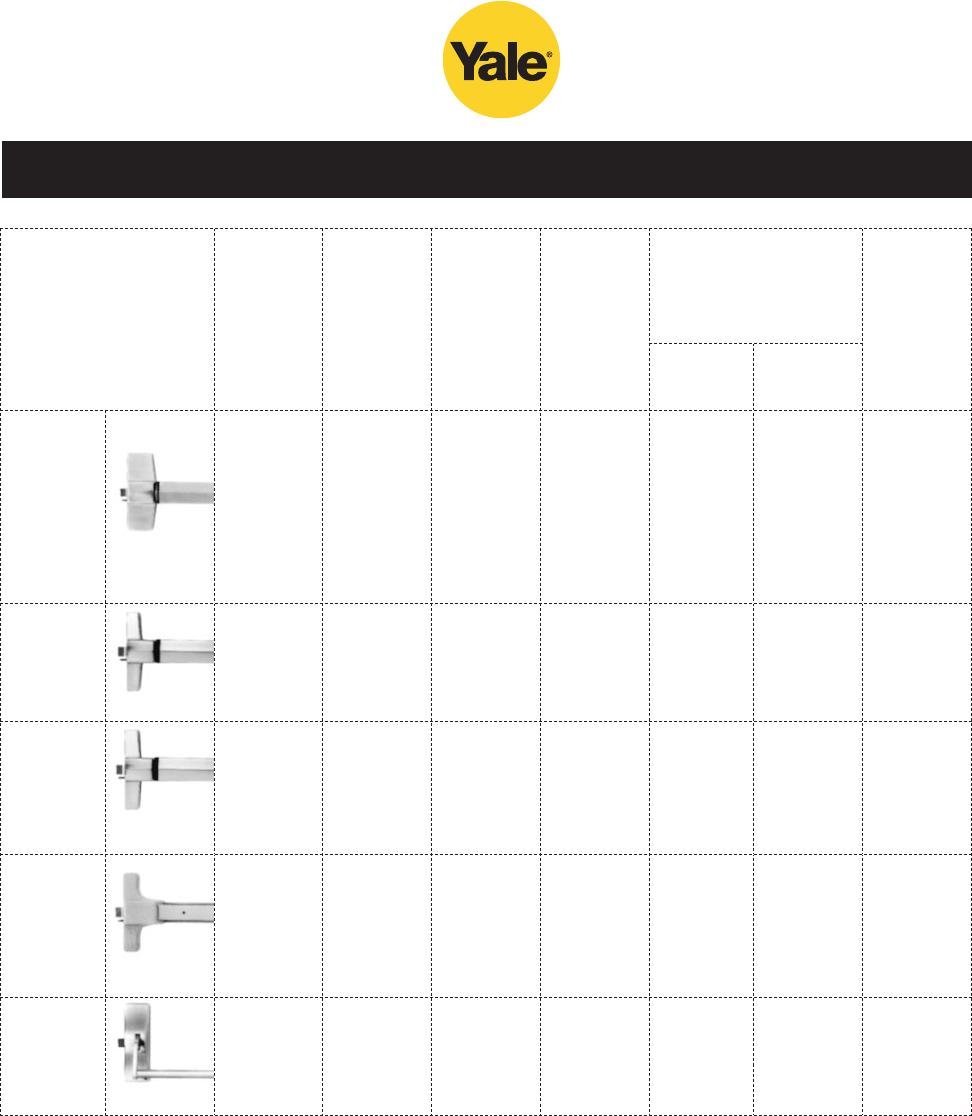

Exit Devices . . . . . . . . . . .22-24

Exit Device Trim . . . . . . .25-26

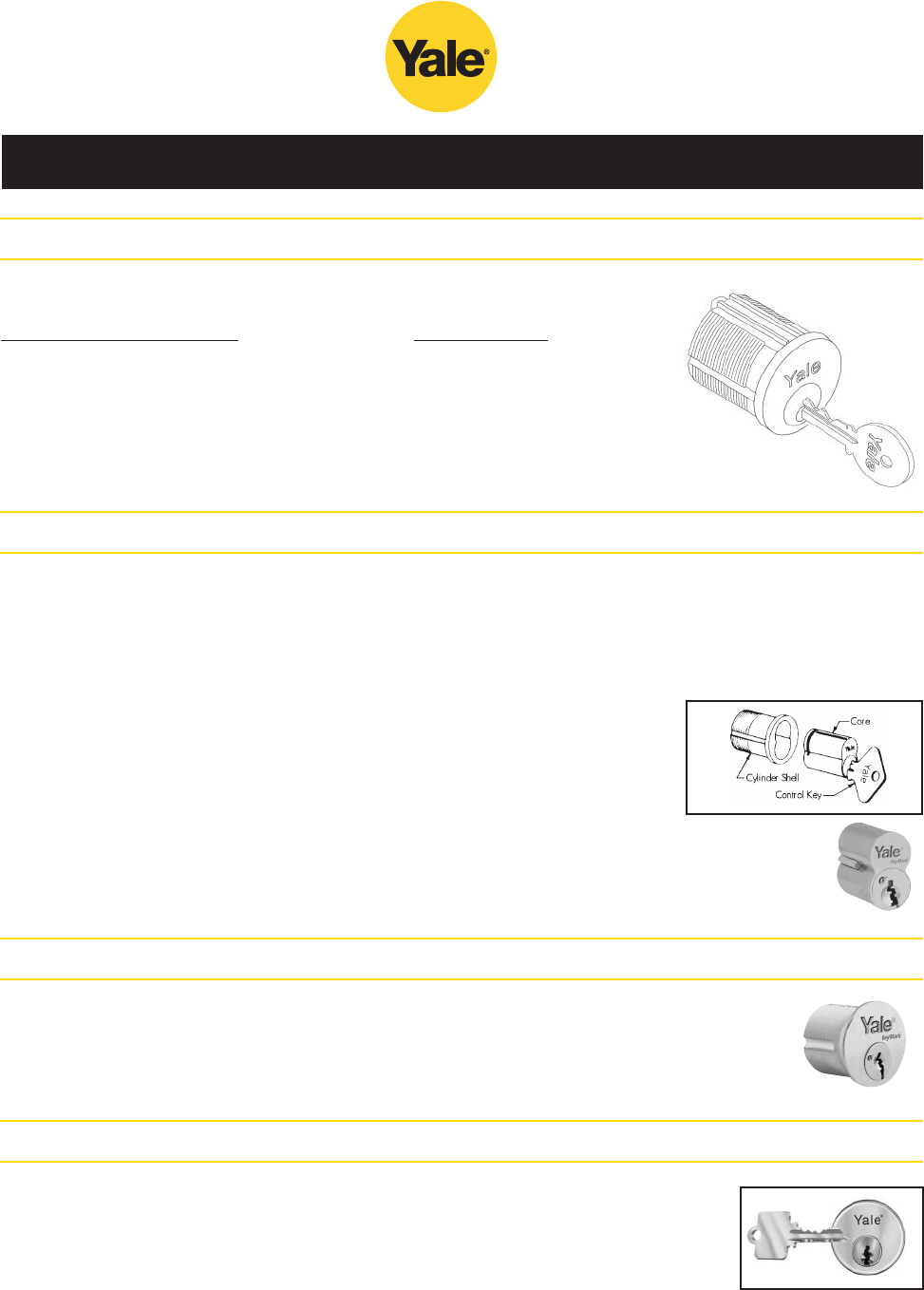

Cylinders and Keying . . . . . .27

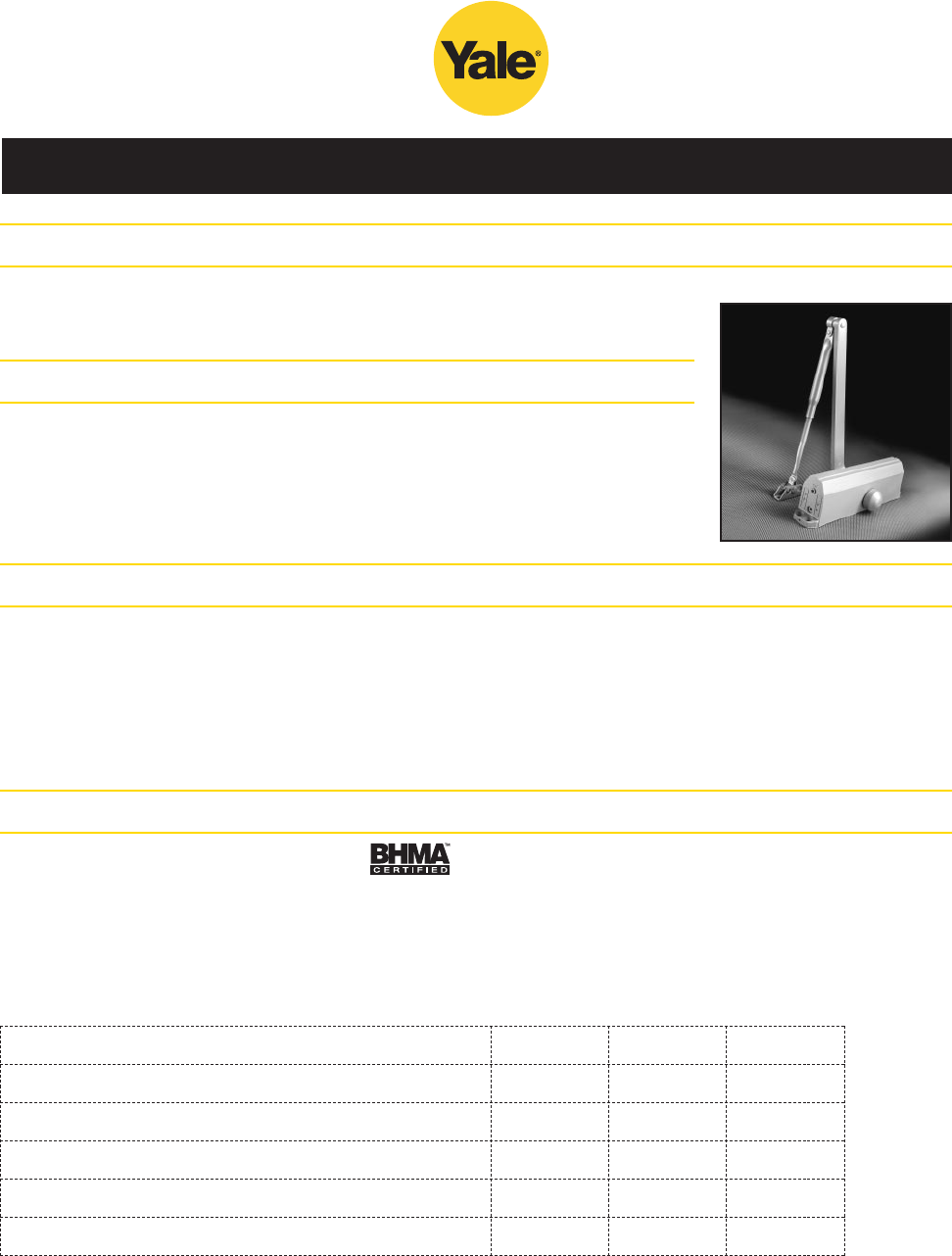

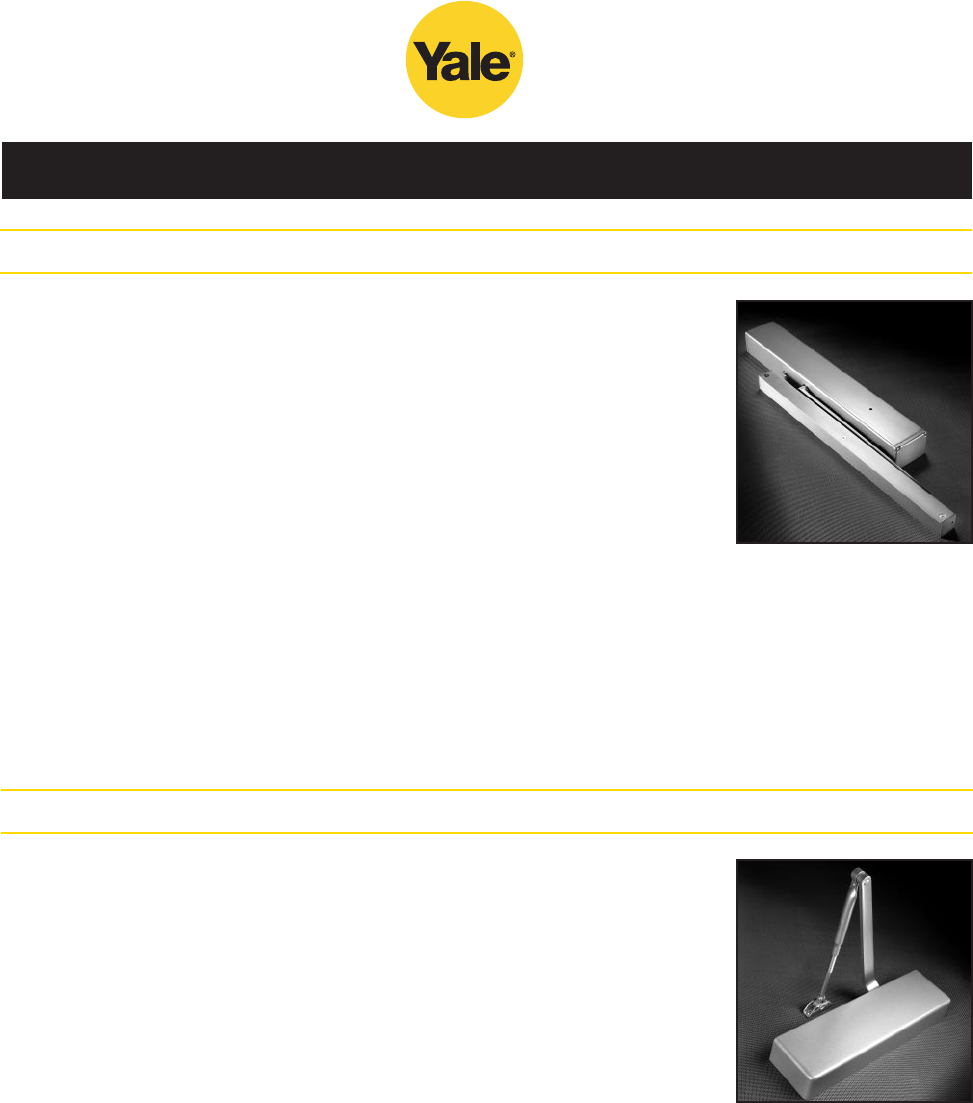

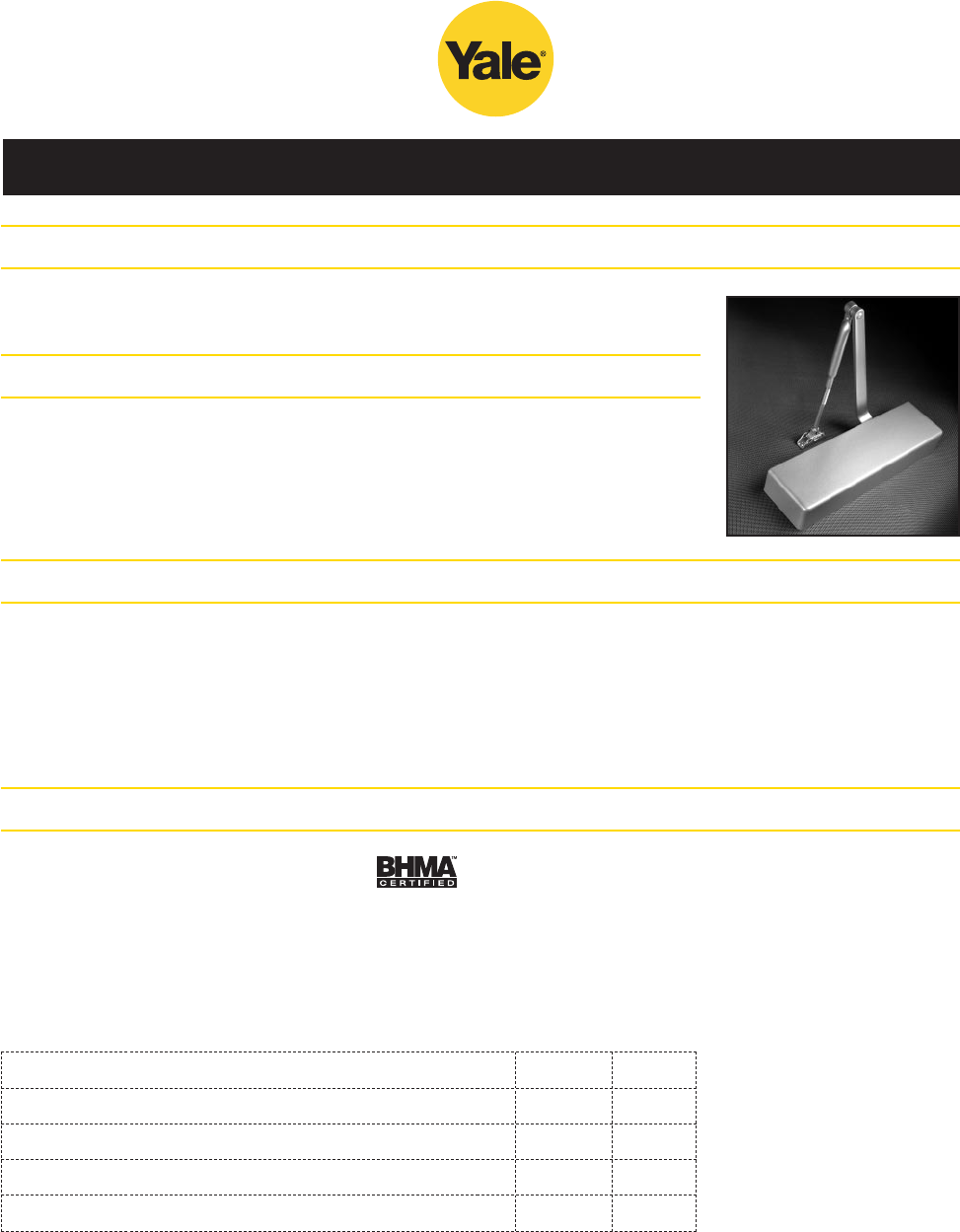

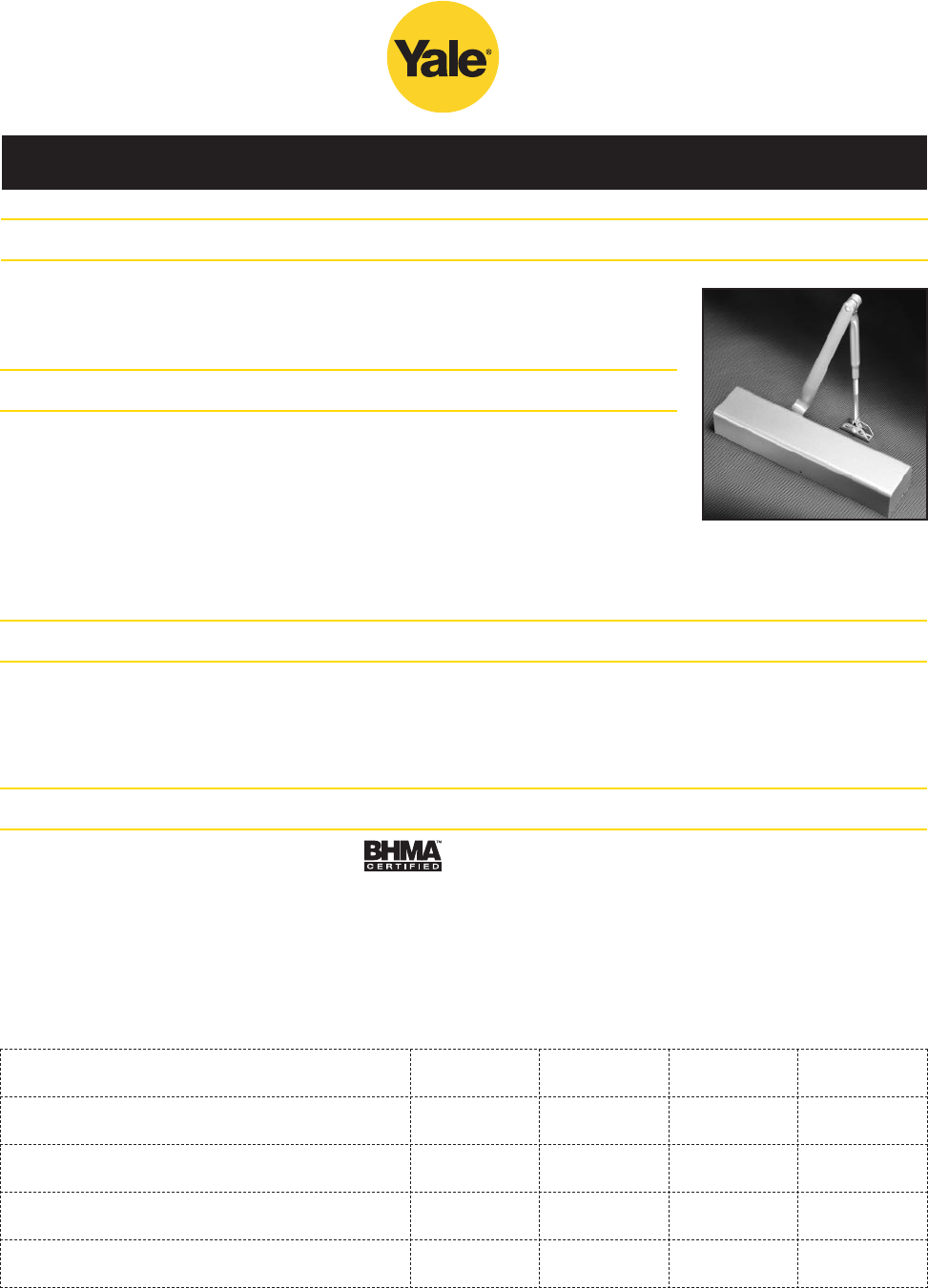

Door Controls . . . . . . . . .28-30

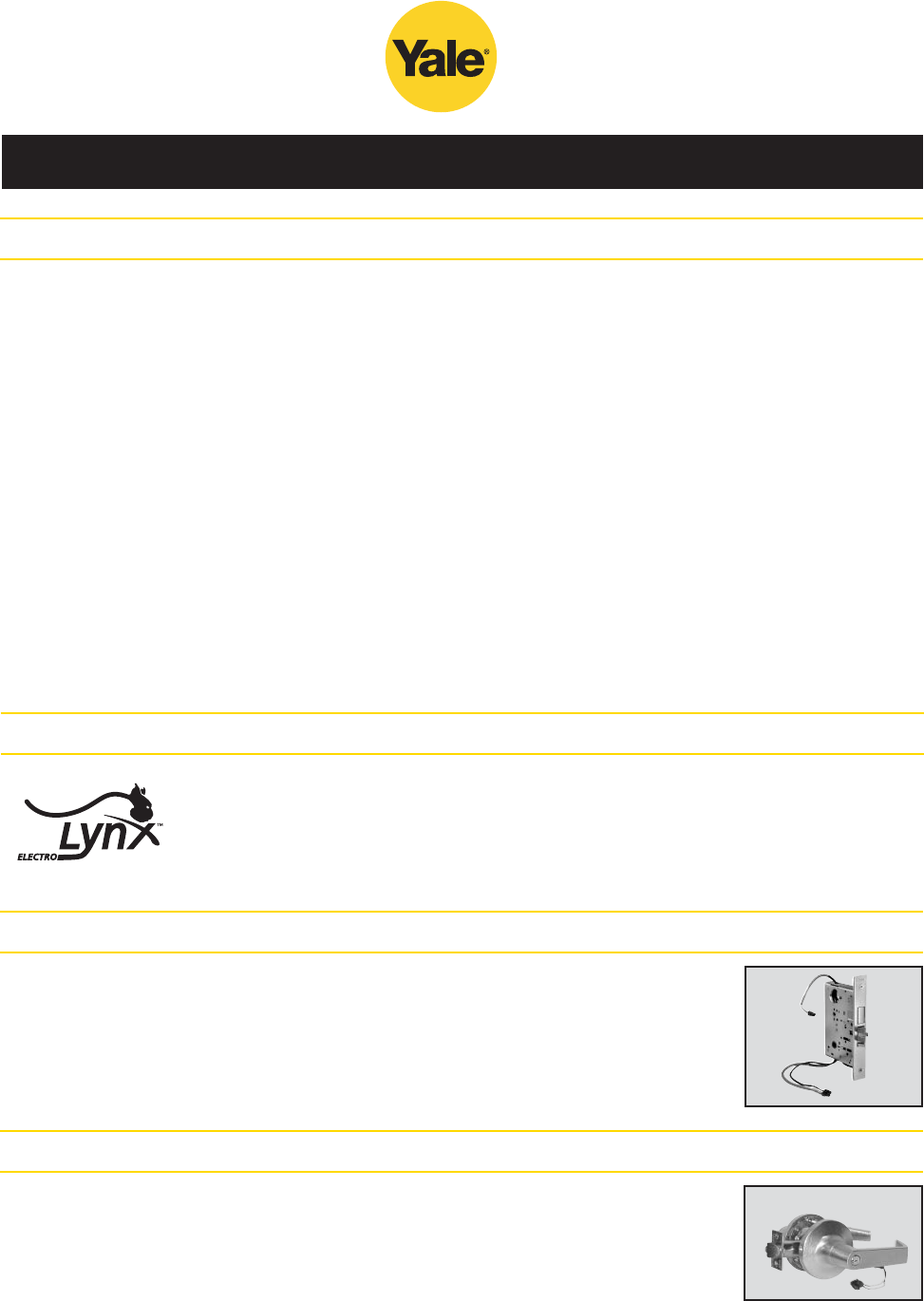

Electrified Hardware . . . .31-35

CONTENTS

AMERICANS WITH DISABILITIES ACT (A.D.A.)

Title III of the Americans With Disabilities Act (A.D.A.), Public Law

101-336, became effective on January 28, 1992. The A.D.A. “prohibits

discrimination on the basis of disability by private entities in places of

public accommodation and that the commercial facilities be designed

and constructed so as to be readily accessible to and usable by persons

with disabilities...” (Federal Register, Vol. 56, No. 144/7-26-91/Rules

and Reg u la tions).

Yale locksets and door controls that comply with A.D.A. requirements

are indicated as such by the accessibility symbol in this catalog.

Yale Commercial Locks and Hardware is solely dedicated to the

engineering, design, and man u fac ture of builders’ hardware.

Yale®offers a complete line of locksets and door control hardware

designed for the needs of the architect and end user.

In addition to superior product quality, Yale offers a mix of product

expertise that is unsurpassed in the hardware industry. A constant

exchange of information among lock specialists, exit hardware

pro fession als and floor closer experts ensures comprehensive door

hardware capability. It is an important reservoir of knowledge that is

available for every architectural specification you prepare.

Our Technical Product Specialists can provide answers to all your

hard ware applications questions, from a special high school exit device

application to deep frame reveals or cylinder matching in a 1920

restoration project. And Yale’s Customer Service De part ment provides

answers on availability and order tracking quickly to ensure on-time

delivery to the job site. A toll-free call can take care of all your concerns.

Yale’s education programs, instructed by veteran hardware

pro fes sion als, are considered the best in the industry. Hundreds of

dis trib u tors, specifiers, locksmiths, and owners annually attend Yale

Product Maintenance Schools, Architectural Hardware Schools and

special traveling pre sen ta tions on keying and other hardware subjects.

This catalog is a condensed version of the Yale library of catalogs. Yale

provides complete cat a logs on more than 2,000 door opening hardware items.

For further information contact your sales representative, call

toll-free at 1-800-438-1951, or visit us at www.yalecommercial.com.

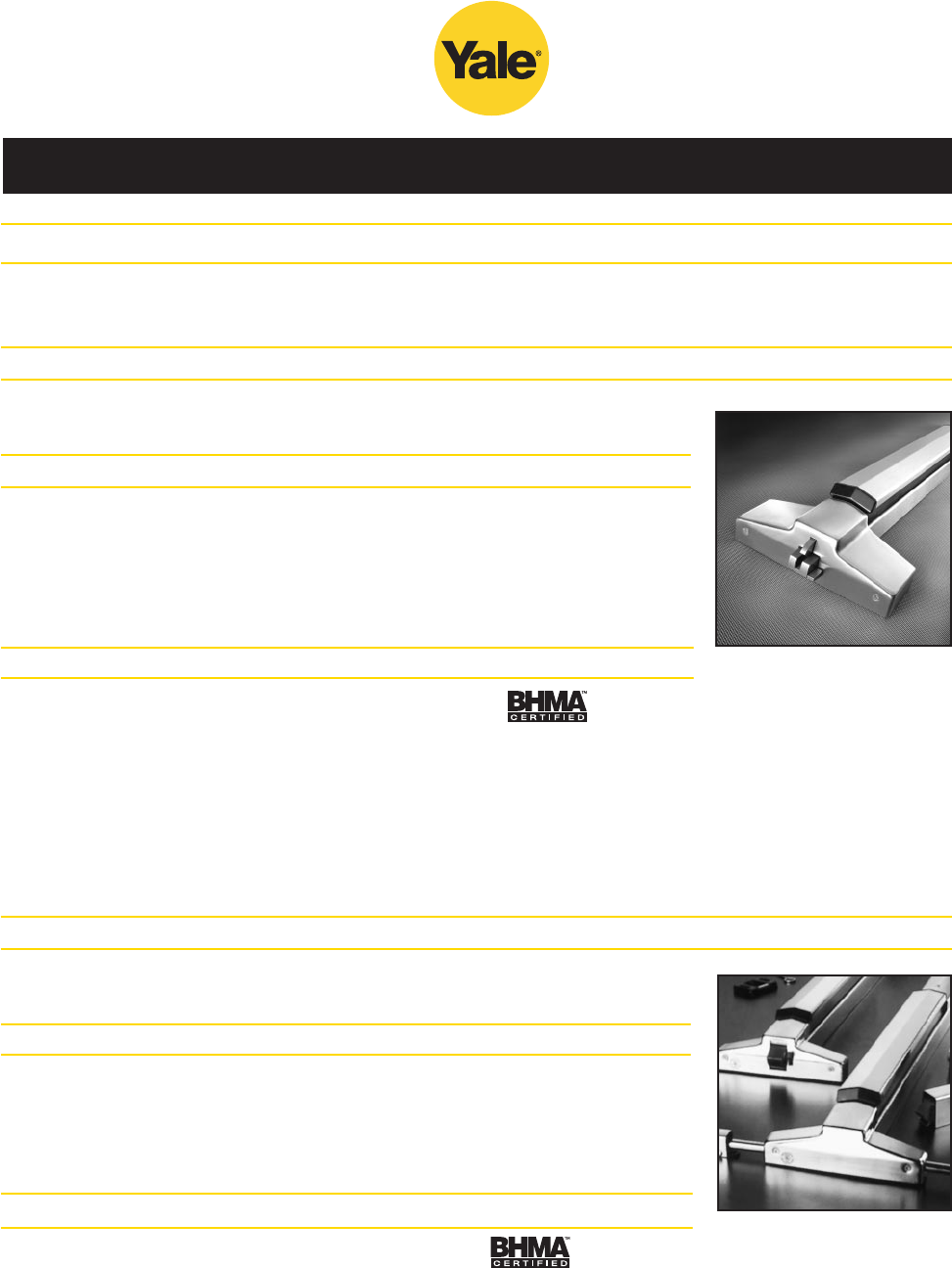

7100/7200 Series

Exit Devices

See Page 22

5400LN Series

Key-In-Lever Locksets

See Page 6

8800 Series

Mortise Locksets

See Page 3

eBoss®Series

Keypad Locksets

See Page 33

MORTISE LOCKSETS

Page 3

Condensed Catalog

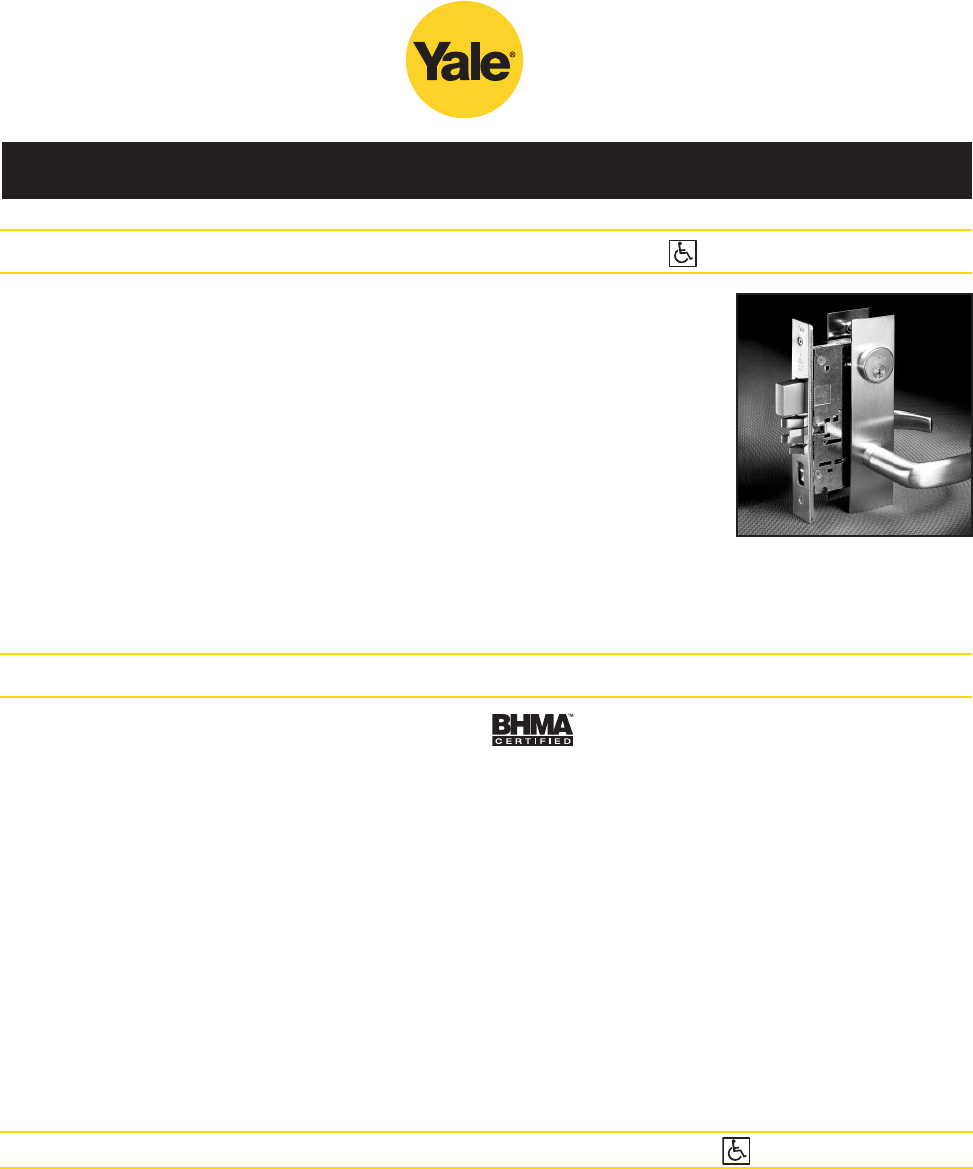

8800 SERIES MORTISE LOCKSETS

The 8800 provides steadfast dependability and is the choice of architects and

owners who require superior performance in even the toughest applications. As a

longtime industry standard of quality, the Yale®steel case mortise lock continues to

provide the highest level of security. This mortise lock brings versatility as well as

uncompromising strength and durability. With quick lever handing and a patent-

pending, tamper-proof, quick-reversible latchbolt, lockset handing takes only

seconds. Options, such as an occupancy indicator for privacy functions, provide

flexibility and ease of use.

When it comes to strength, the Yale 8800 Series brings a new measure of security

to the door. Its 1" throw stainless steel deadbolt extends further back into the

reinforced steel case when in the locked position, providing added stability and resistance to abuse. Solid trim

packages also provide deterrence to vandalism, making the 8800 Series number one in the total opening

package. See page 31 and 32 for electrified information.

ANSI/BHMA: A156.13, Series 1000 Grade 1

UL: UL fire-rated up to 3 hours

Windstorm: Certified (refer to local codes)

Lock Case and Cover: Heavy-gauge wrought steel, zinc-plated, dichromated

Backset: 2-3/4" only

Deadbolt: Stainless steel, 1" throw, with 2 saw-resistant pins

Latchbolt: 2 pc - stainless steel, mechanical anti-friction 3/4" throw

Guardbolt: Non-handed. Deadlocks latchbolt when door is closed

Armor Front: 8" x 1-1/4"

Rabbeted Doors: Non-handed for 1/2" rabbet

Lead Shielding: Available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available

to order. For other cylinder and keying options see page 27.

Reversibility: Locksets are handed and offer quick field reversibility

Strikes: 1-1/4" Non-handed curved lip standard; other curved lip and flat available to order

Finishes: Available in 17 finishes, including PVD lifetime finish options for 605, 606 and 613

Warranty: 7-year mechanical

The SL8800 security mortise lock features extra heavy-duty lever escutcheon trim. Available in all mortise

lever trim designs, it is designed primarily for applications in schools and other institutions where excessive abuse

and vandalism may occur.

The escutcheon for this lock is wider than and more than twice as thick as standard escutcheons. The SL trims

feature through-bolted installation and all exposed screws are tamper-resistant Torx®security head to prevent

removal.

Offered with Augusta (AUSL), Jefferson (JNSL), Pacific Beach (PBSL), Monroe (MOSL), Carmel (CRSL), and

Arcadia (ARSL) handle escutcheon trim. Virginia (VISL) and designer handle escutcheon trim available to

special order.

SL8800 SERIES HEAVY-DUTY ESCUTCHEON TRIM

FEATURES

8800 SERIES KNOB TRIM

All through-bolted. Avail able in brass, bronze, or stainless steel except where noted.

Brandywine Carolina*

BRR BRE CAR CAE**

Copenhagen Litchfield

COR COE LFR LFE

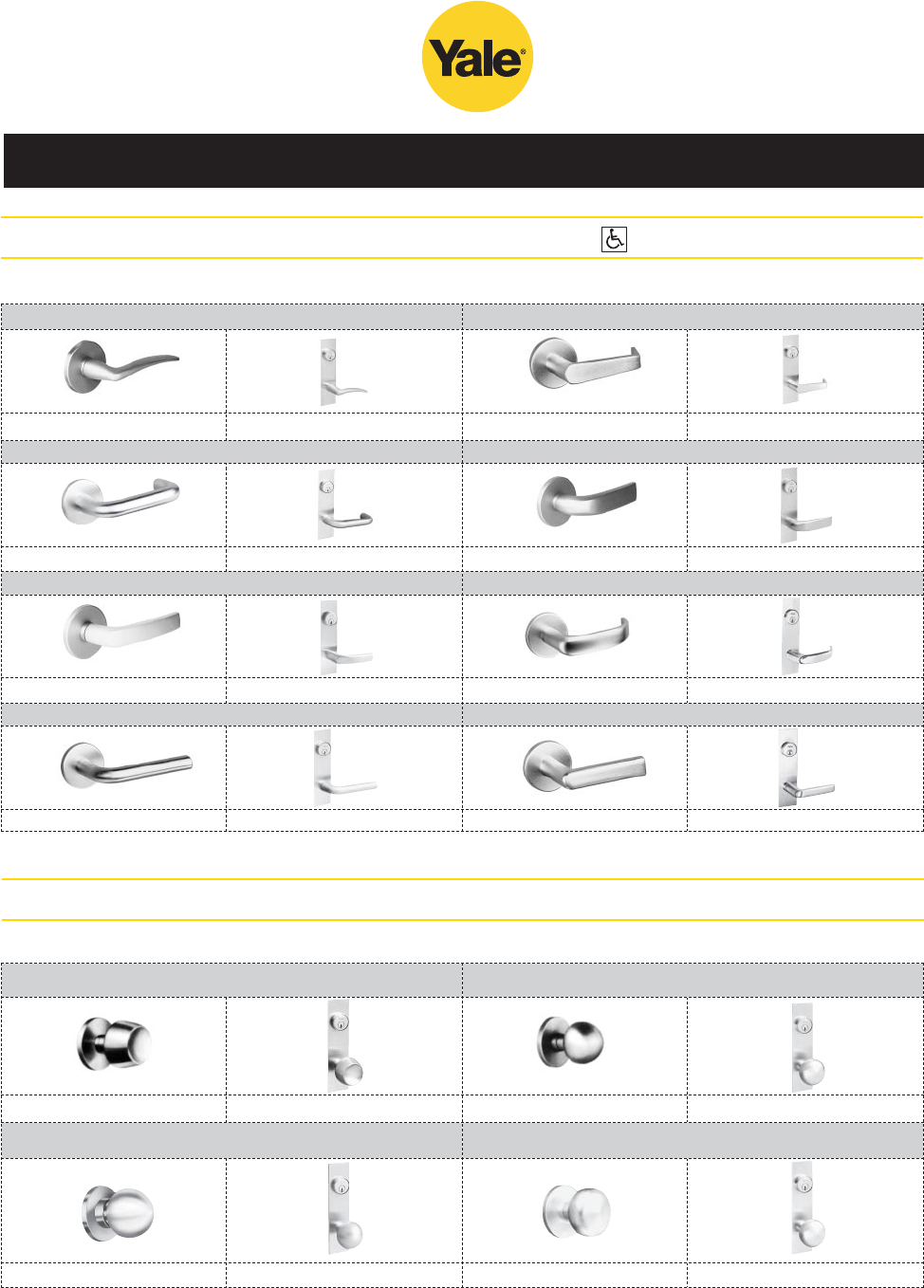

MORTISE LOCK TRIM

Page 4Condensed Catalog

*Not available in stainless steel.

**Available only with “WG” escutcheon.

8800FL SERIES LEVER TRIM

All through-bolted. Available in brass, bronze, or stainless steel.

Arcadia Augusta

ARR ARE AUR AUE

Carmel Jefferson

CRR CRE JNR JNE

Monroe Pacific Beach

MOR MOE PBR PBE

Pinehurst Virginia

PNR PNE VIR VIE

MORTISE LOCK TRIM

Page 5

Condensed Catalog

8800FL DESIGNER TRIM

Charleston Hampton

CHR1 CHE1 HAR1 HAE1

Mayfair Easton Lenoir

MF CE LN

OPTIONAL ROSE AND ESCUTCHEONS

Available with all lever and knob trim designs, except where noted on page 4.

R2 E2

OPTIONAL DESIGNER ROSE AND ESCUTCHEON

Wellington

WER1 WEE1

CYLINDRICAL LOCKSETS

Page 6Condensed Catalog

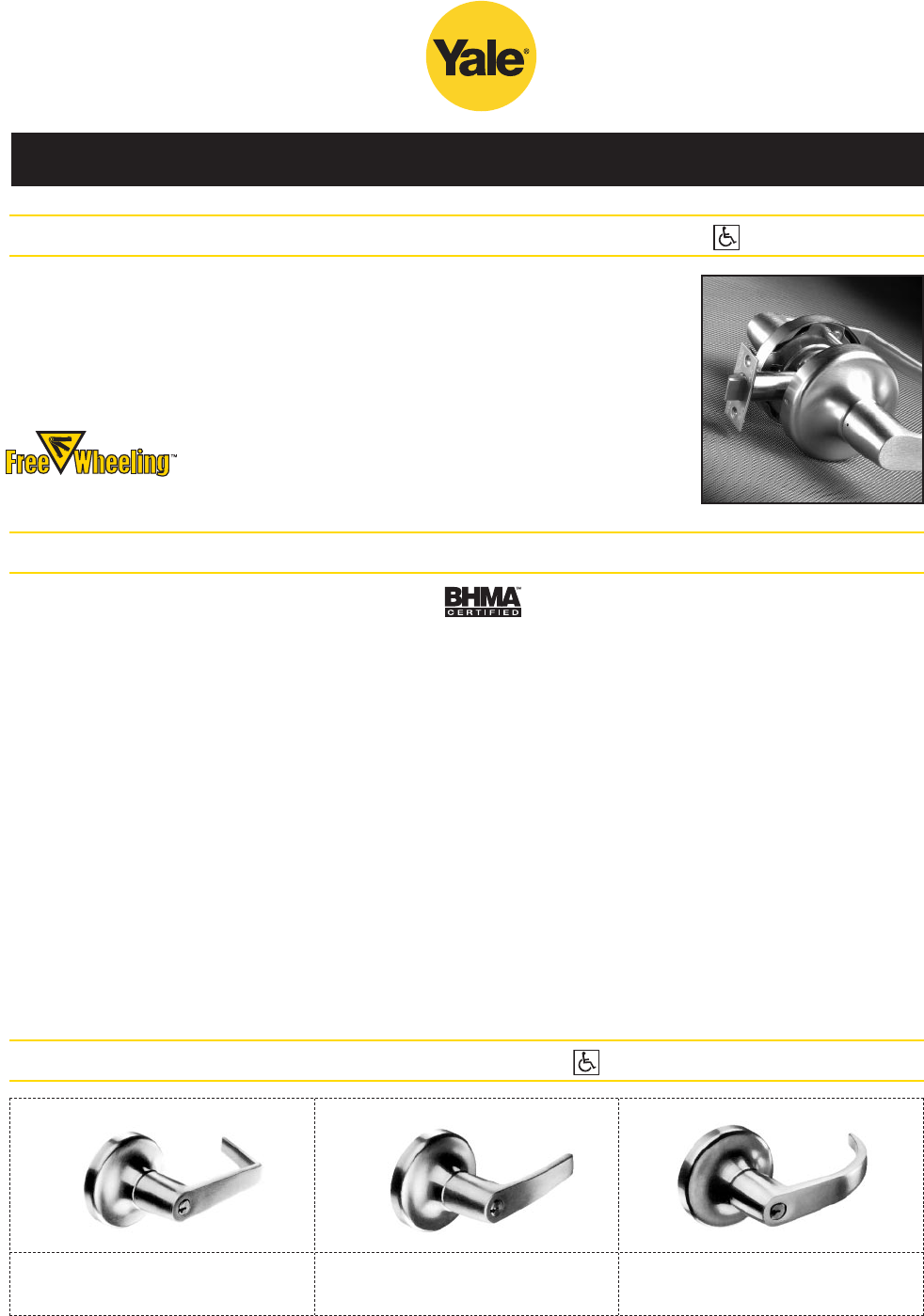

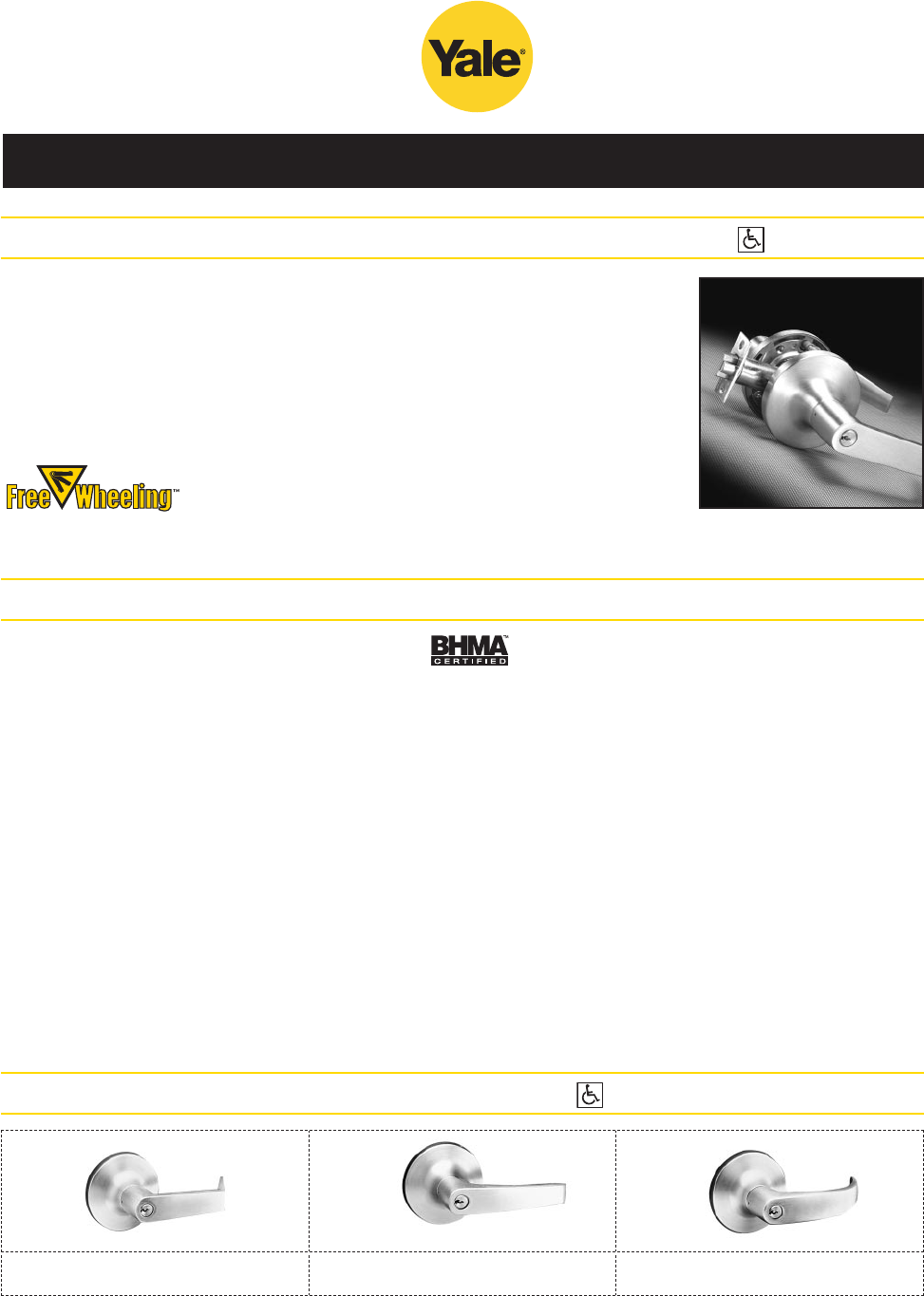

5400LN SERIES CYLINDRICAL LEVER LOCKSETS

Designed for industrial, commercial and institutional use, Yale's 5400LN offers

no compromise when it comes to reliability and performance. With construction

features such as our patented (Patent No. 4,920,773) Free Wheeling lever

mechanism, wear-resistant chassis plates, heavy-duty return springs and patented

(Patent No. 6,131,970) door thickness adjustment, it's easy to see why it's a

favorite among those who demand the highest standard of product quality. See

page 31 and 32 for electrified information.

All 5400LN functions feature the patented Free Wheeling

lever mechanism. When the outside lever is locked, it will

rotate freely up and down while remaining securely

locked.

ANSI/BHMA: A156.2, Series 4000 Grade 1

UL: UL fire-rated up to 3 hours

Windstorm: Certified (refer to local codes)

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order

Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1-3/4" to 2-1/4"

Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order

Rabbeted Doors: Latchbolt with 1/2" rabbet step available to order

Lead Shielding: Available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to

order. For other cylinder and keying options, see page 27.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible

Finishes: Available in 12 finishes, including PVD lifetime finish options for 613. PVD is standard for

605 and 606

Warranty: 7-year mechanical

5400LN SERIES TRIM

Augusta AU Monroe MO Pacific Beach PB

FEATURES

Levers available to accept small format interchangeable cores; large format interchangeable cores from Corbin

Russwin, Medeco®, Sargent®and Schlage®; and fixed core cylinders from Corbin Russwin and Schlage®.

CYLINDRICAL LOCKSETS

Page 7

Condensed Catalog

Yale's highest-quality knob locksets offer the finest cylindrical lock mechanisms

available. The 5400 series is assembled with superbly engineered components of

high-grade materials for long-lasting reliability. Manufactured for the industrial,

commercial and institutional markets, this lockset features security, dependability

and versatility in attractive designs and finishes.

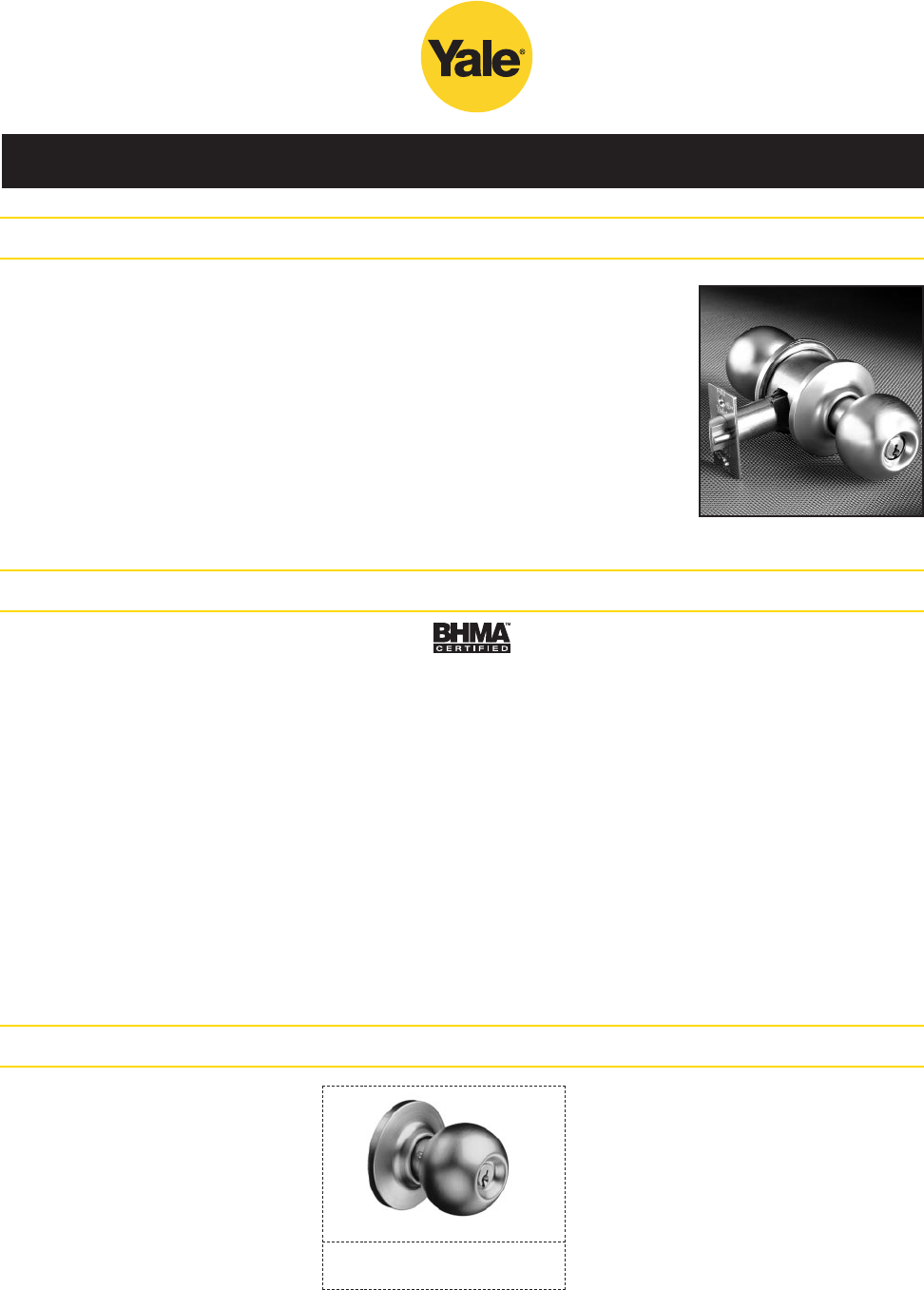

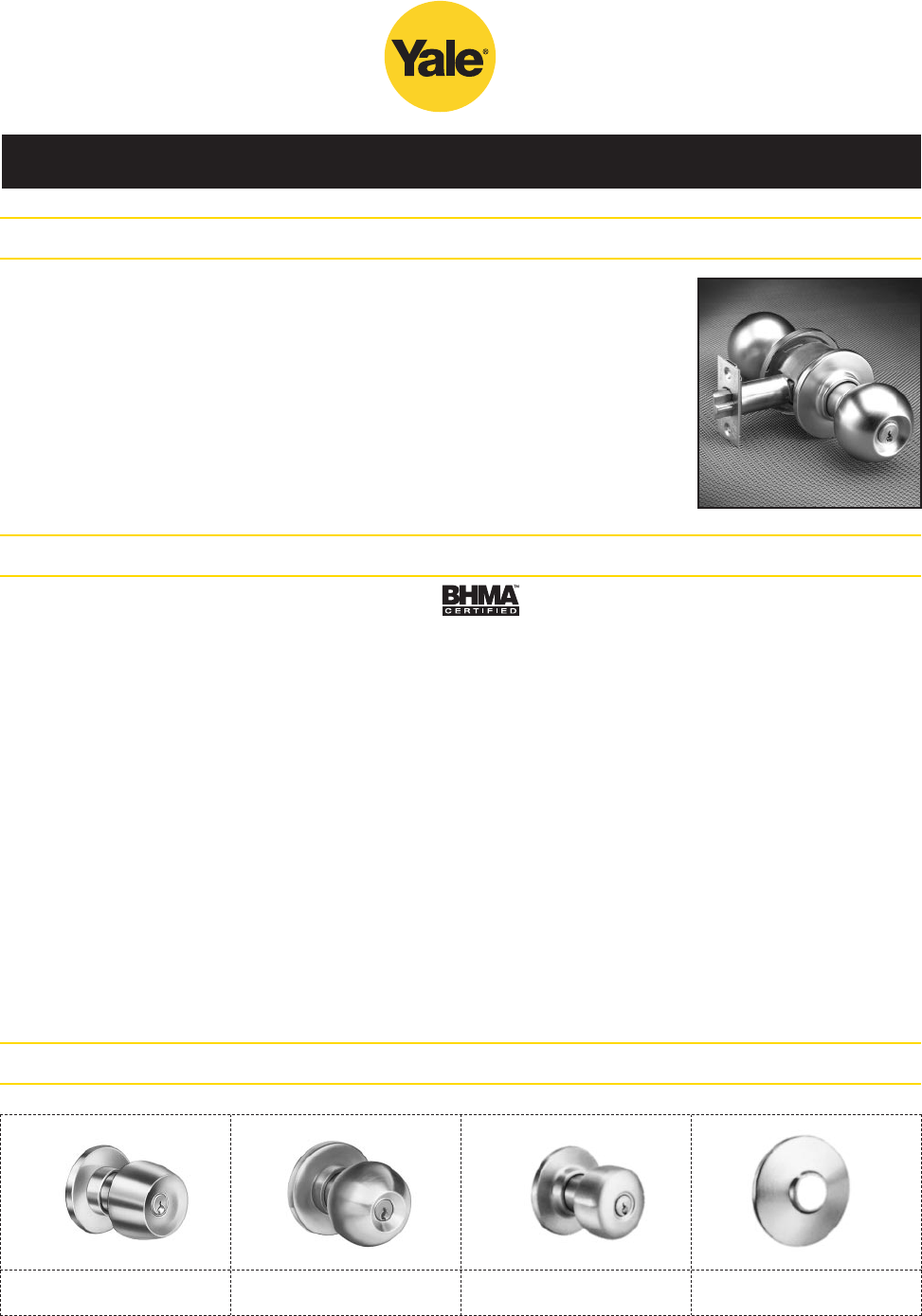

5400 SERIES CYLINDRICAL KNOB LOCKSETS

ANSI/BHMA: A156.2, Series 4000 Grade 1

UL: UL fire-rated up to 3 hours

Mechanism: 5400 Series heavy-gauge steel, zinc-plat ed, dichromated

Backset: 2-3/4" stan dard; 3-3/4" or extension links thru 42" available to order

Latchbolt: 1/2" stainless steel throw stan dard; 5/8" and 3/4" throw available to order

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1-3/8" to 2" standard; 1-1/4" to 1-3/8" or 2" to 2-1/4" available to order

for most trim

Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order

Rabbeted Doors: Latchbolts with a 1/2" rabbet step available to order

Lead Shielding: Available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to

order. For other cylinder and keying options, see page 27.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible

Finishes: Available in 14 finishes

Warranty: 1-year mechanical

FEATURES

5400 SERIES TRIM

Brandywine BR Carolina CA Litchfield LF Mayfair - MF Optional Rose

CYLINDRICAL LOCKSETS

Page 8Condensed Catalog

This revolutionary lockset boasts patented features such as a vandal-resistant

Free Wheeling lever mechanism (Patent No. 4,920,773) and an adjustable door

thickness design (Patent No. 6,131,970) that makes installation a breeze.

Through-bolting provides a secure fit that resists rattling and shaking. With three

lever designs and twelve finishes, including three PVD lifetime finishes, you have

the freedom and ability to match any decor.

All 5300LN functions feature the patented Free Wheeling

lever mechanism. When the outside lever is locked, it will

rotate freely up and down while remaining securely locked.

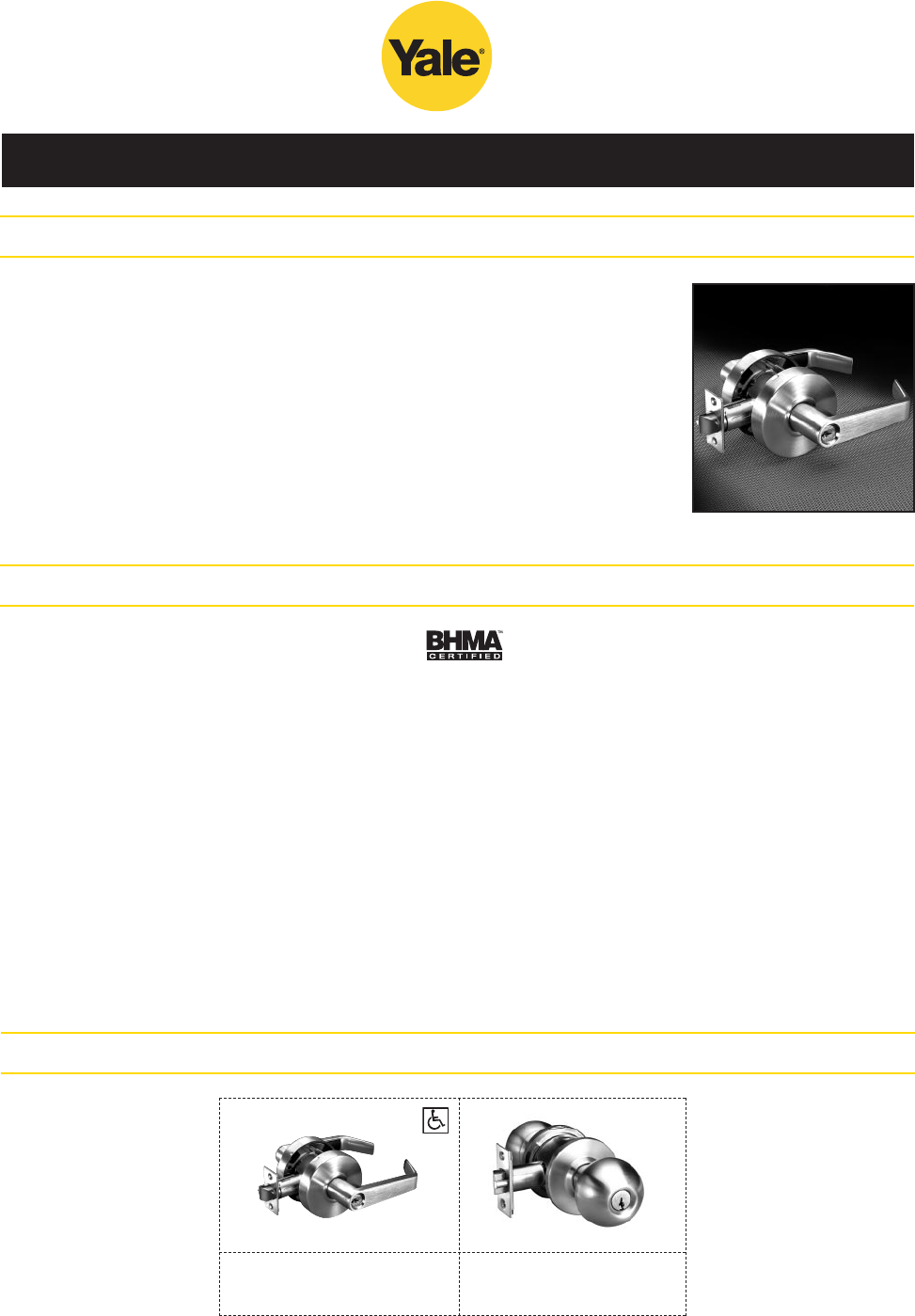

5300LN SERIES CYLINDRICAL LEVER LOCKSETS

FEATURES

Augusta AU Monroe MO Pacific Beach PB

ANSI/BHMA: A156.2, Series 4000 Grade 2

UL: UL fire-rated up to 3 hours

Windstorm: Certified (refer to local codes)

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Preassembled for 1-3/8" and 1-3/4" doors. Available for 2" or 2-1/4" doors to order

Fronts: Universal for both flat and beveled door edges

Rabbeted Doors: Latchbolt with 1/2" rabbet step available to order

Lead Shielding: Not available

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not

available. For other cylinder and keying options see page 27.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all

reversible

Finishes: Available in 12 finishes, including PVD lifetime finish options for 613. PVD is standard

for 605 and 606

Warranty: 5-year mechanical

5300LN SERIES TRIM

Levers available to accept small format interchangeable cores, large format interchangeable cores from Corbin

Russwin, Medeco®, Sargent®and Schlage®; as well as fixed core cylinders from Corbin Russwin and Schlage®.

CYLINDRICAL LOCKSETS

Page 9

Condensed Catalog

Yale's 5300 series offers a unique combination of positive security, trim array

and quality construction. This knob lockset is designed for various commercial

and residential applications and is available in a wide variety of functions.

5300 SERIES CYLINDRICAL KNOB LOCKSETS

ANSI/BHMA: A156.2, Series 4000 Grade 2

UL: UL fire-rated up to 3 hours

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/8" standard; 2-3/4", 3-3/4" or extension links through 18" available to order

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1-3/8" to 2" standard; 2" to 2-1/4" available to order for most trim

Fronts: 2-1/4" x 1" rectangular flat front standard; beveled rect an gu lar or round flat fronts

available to order

Rabbeted Doors: Latchbolts with a 1/2" rabbet step available to order

Lead Shielding: Not available

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available

with restrictions. For other cylinder and keying options, see page 27.

Reversibility: Locksets are field reversible

Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all

reversible

Finishes: Available in 14 finishes

Warranty: 1-year mechanical

FEATURES

5300 SERIES TRIM

Brandywine BR Carolina CA Litchfield LF Mayfair - MF Optional Rose

Page 10 Condensed Catalog

CYLINDRICAL LOCKSETS

The Yale®4800LN Series Interconnected Locksets combine our key-in-lever locksets

with the added safety and security of a deadbolt. From the inside, both the

latchbolt and the deadbolt are retracted simultaneously in a single motion for a

quick and easy egress. The 4800LN Series is ideal for multi-family dwellings, assisted

living facilities, office and light-duty commercial use.

4800LN SERIES LEVER INTERCONNECTED LOCKSETS

FEATURES

UL: UL fire-rated up to 1-1/2 hours

Windstorm: Certified (refer to local codes)

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4" standard; 2-3/8" available to order

Deadbolt: Face removable standard for quick re-keying

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1-3/8" to 2"

Fronts: Square corner front standard; round corner available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.

For other cylinder and keying options see page 27.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip T-strike standard for lockset, 1-1/8" x 2-3/4" standard for deadbolt;

others available to order

Finishes: Available in 8 finishes

Warranty: 4-year mechanical

4800LN SERIES TRIM

Augusta AU Madrid MA Monroe MO Pacific Beach PB

Page 11

Condensed Catalog

An economical, light/medium-duty lever lockset that provides an outstanding

combination of value and performance. It is the ideal lever lockset for light

commercial and heavy-duty residential applications, including multi-family

housing units, nursing homes, retail complexes, restaurants and hotels.

4300LN SERIES TUBULAR LEVER LOCKSETS

ANSI/BHMA: A156.2, Series 4000 Grade 2

UL: UL fire-rated up to 1-1/2 hours

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4" standard; 2-3/8" available to order

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all functions

Door Thickness: Adjustable from 1-3/8" to 1-3/4"

Fronts: Square corner front standard; round corner available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.

For other cylinder and keying options, see page 27.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip T-strike standard; ANSI and full lip strikes available to order

Finishes: Available in 8 finishes

Warranty: 1-year mechanical

FEATURES

4300LN SERIES TRIM

CYLINDRICAL LOCKSETS

Augusta AU Madrid MA Monroe MO Pacific Beach PB

CYLINDRICAL LOCKSETS

Page 12 Condensed Catalog

4300 SERIES TUBULAR KNOB LOCKSETS

An economical, light/medium-duty knob lockset that pro vides an outstanding

com bi na tion of value and per for mance. It is the ideal knob lockset for light

com mer cial and heavy-duty residential applications, including multi-family housing

units, nursing homes, retail complexes, restaurants, and hotels.

ANSI/BHMA: A156.2, Series 4000 Grade 2

UL: UL fire-rated up to 1-1/2 hours

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4" standard; 2-3/8" available to order

Latchbolt: 1/2" stainles steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all functions

Door Thickness: Adjustable from 1-3/8" to 1-3/4"

Fronts: Square corner fronts standard; round corner available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not

available. For other cylinder and keying options, see page 27.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip T-Strike standard; ANSI and full lip strikes available to order

Finishes: Available in 2 finishes

Warranty: 1-year mechanical

FEATURES

4300 SERIES TRIM

Carolina CA

CYLINDRICAL LOCKSETS

Page 13

Condensed Catalog

MIDDLETON™ SERIES CYLINDRICAL LEVER AND KNOB LOCKSETS

Yale's Middleton™ Series cylindrical locksets are the ideal choice for light-duty

commercial applications where consistent quality, ease of use and installation are

required at an economical price. The Middleton Series is ANSI/BHMA certified to

Grade 2 standards and is UL fire-listed for all functions ensuring reliability and

peace of mind.

FEATURES

ANSI/BHMA: A156.2, Series 4000 Grade 2

UL: UL fire-rated up to 3 hours

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4"standard or 2-3/8" available to order

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1-3/8" to 1-3/4"

Fronts: Universal for both flat and beveled door edges

Cylinders: Brass, 6-pin keyed-random cylinder with two keys furnished standard, PARA keyway

only. 7-pin not available

Reversibility: Non-handed

Strikes: ANSI strike supplied standard for lever. T-Strike standard for knob, full lip strike available

to order

Finishes: Available in 2 finishes

Warranty: 1-year mechanical

MIDDLETON™ SERIES TRIM

Augusta AU Carolina CA

MONOLOCKS

Page 14 Condensed Catalog

6400LN SERIES MONOLOCKS

Based on Yale's 5400LN Grade 1 cylindrical lockset, the 6400LN Monolock

continues the tradition of quality and dependability as a preassembled lock series

designed to retrofit existing Yale®Monolock as well as Corbin Russwin Unit

Lock and Falcon®Retrofit Lock installations with 1-3/4" latch height.

All 6400LN functions feature the patented Free Wheeling

lever mechanism. When the outside lever is locked, it will

rotate freely up and down while remaining securely

locked.

UL: UL fire-rated up to 1-1/2 hours

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4"

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: 1-3/4" only

Lead Shielding: Available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to

order. For other cylinder and keying options, see page 27.

Reversibility: Handing must be specified for all functions and designs

Strikes: 1-1/4" lip ANSI strike supplied; other lip lengths and strikes available to order; all reversible

Finishes: Available in 12 finishes, including PVD lifetime finish options for 613. PVD is standard for

605 and 606

Warranty: 7-year mechanical

6400LN SERIES TRIM

Augusta AU Monroe MO Pacific Beach PB

FEATURES

Levers available to accept small format interchangeable cores; large format interchangeable cores from Corbin

Russwin, Medeco®, Sargent®and Schlage®; and fixed core cylinders from Corbin Russwin and Schlage®.

AUXILIARY LOCKS

Page 15

Condensed Catalog

3500/3600/3700 SERIES AUXILIARY BORED DEADBOLTS

UL: UL fire-rated up to 3 hours when used with

Listed hardware

Backset: 2-3/4" or 2-3/8" available to order

Door Preparation: Can be installed on metal doors pre pared to

ANSI A115.13 Specifications

Cross Bore Wood Doors: Standard - 2-1/8" diameter

Edge Bore: 1" diameter

Deadbolt: 1" throw, 5/8" wide x 3/4" high.

3500: extruded brass with 3/8" diameter

hardened armor pin to resist sawing

3600/3700: stainless steel with 3/8"diameter hardened armor pin to resist sawing

Door Thickness: 1-3/4" to 2-1/4", must be specified

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin

available to order. 3500/3600: fixed core. 3700: interchangeable core. For other

cylinder and keying options, see page 27.

Reversibility: Non-handed

Strikes: #541 standard; #542 or 545 available to order

Finishes: Available in 7 finishes

Warranty: 1-year mechanical

300 SERIES AUXILIARY MORTISE DEADLOCK

UL: UL fire-rated up to 3 hours when used with Listed hardware

Case: Heavy wrought steel, zinc-plated and dichromated

Backset: 2-3/4"

Deadbolt: 1" throw, 1-1/4" high x 1/2" thick. Two hard ened steel free-

rotating pins make sawing through bolt vir tu al ly impossible.

Resists end pressure when thrown.

Door Thickness: 1-3/8" to 3" maximum, must be specified

Front: Universal for both flat and beveled door edges

Thumbturn: Brass, bronze or stainless steel. Thumbturn attaches directly to

lock case for added security.

Cylinder: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to

order. For other cylinder and keying options, see page 27.

Reversibility: Non-handed

Finishes: Available in 14 finishes

Warranty: 1-year mechanical

LOCKSET FUNCTIONS

Page 16 Condensed Catalog

Function/

Application (ANSI)

Model Nos. Mortise

Locksets (ANSI)

Model Nos. Cylindrical Knob

Locksets (ANSI)

Model Nos.

Cylindrical Lever

Locksets/

Monolocks

Pas sage Latch

(F01)

Knob

8801

Levers

8801FL

SL8801FL

(F75)

5401

5301

4301

MCK201

(F75)

5401LN

5301LN

4301LN

6401LN

MCL201

Pri va cy Lock

(F19)

Knob

8802

Levers

8802FL

SL8802FL

(F76A&B)

5402

5302

4302

MCK202

(F76A&B)

5402LN

5302LN

4302LN

6402LN

MCL202

Patio or Privacy Lock N/A N/A

(F77)

5403LN

5303LN

6403LN

Entry Lock N/A N/A

(F82A)

5404LN

5304LN

6404LN

Storeroom or

Closet Lock

(F07)

Knob

8805

Levers

8805FL

SL8805FL

(F86)

5405

5305

4305

MCK205

(F86)

5405LN

5305LN

4305LN

6405LN

MCL205

Service Station Lock N/A

(F92)

5406

5306

(F92)

5406LN

5306LN

6406LN

Entrance or Office

(F04)

Knob

8807

Levers

8807FL

SL8807FL

(F109)

5407

5307

4307

MCK207

(F109)

5407LN

5307LN

4307LN

6407LN

MCL207

Classroom Lock

(F05)

Knob

8808

Levers

8808FL

SL8808FL

(F84)

5408

5308

4308

MCK208

(F84)

5408LN

5308LN

4308LN

6408LN

MCL208

Note: Shaded area denotes rigid

lever or knob. Note: Shaded area denotes rigid knob. Note: Shaded area denotes Free Wheeling

lever.

Function/

Application (ANSI)

Model Nos. Mortise

Locksets

(ANSI)

Model

Nos.

Cylindrical Knob

Locksets

(ANSI)

Model

Nos.

Cylindrical Lever

Locksets/

Monolocks

Classroom Lock

Knob

8808-2

Levers

8808-2FL

SL8808-2FL

N/A N/A

Exit Latch N/A N/A

(F89)

5409LN

5309LN

6409LN

Classroom Deadbolt

(F33)

Knob

8811-2

Levers

8811-2FL

SL8811-2FL

N/A N/A

Classroom Security Lock

(F34)

Knob

8812-2

Levers

8812-2FL

SL8812-2FL

N/A N/A

Closet Latch N/A 5313 N/A

Classroom Deadlock (F29)

8813ST N/A N/A

Classroom Deadlock 8813ST-2 N/A N/A

Deadlock (F18)

8814 N/A N/A

Deadlock (F16)

8814-2 N/A N/A

Note: Shaded area denotes rigid

lever or knob. Note: Shaded area denotes rigid knob. Note: Shaded area denotes Free

Wheeling lever.

LOCKSET FUNCTIONS

Page 17

Condensed Catalog

LOCKSET FUNCTIONS

Page 18 Condensed Catalog

Function/

Application (ANSI)

Model Nos. Mortise

Locksets (ANSI)

Model Nos. Cylindrical Knob

Locksets (ANSI)

Model Nos.

Cylindrical Lever

Locksets/

Monolocks

Deadlock (F17)

8815 N/A N/A

Apartment, Exit or

Public Toilet Lock

(F09)

Knob

8817-2

Levers

8817-2FL

SL8817-2FL

(F88)

5417

(F88)

5417LN

6417LN

Classroom Security

Intruder Lock

Knob

8818-2

Levers

8818-2FL

SL8818-2FL

N/A

(F110)

5418LN

6418LN

Store Door Lock N/A (F91)

5419 N/A

Hotel/Motel Lock

(F15)

Knob

8820

Levers

8820FL

SL8820FL

N/A N/A

Communicating Lock N/A

(F80)

5421

(F80)

5421LN

5321LN

6421LN

Dormitory Lock

(F13)

Knob

8822

Levers

8822FL

SL8822FL

(F90)

5422

5322

(F90)

5422LN

5322LN

6422LN

Storeroom Lock

Knob

8823

Levers

8823FL

SL8823FL

N/A N/A

Note: Shaded area denotes rigid

lever or knob. Note: Shaded area denotes rigid knob. Note: Shaded area denotes Free Wheeling

lever.

LOCKSET FUNCTIONS

Page 19

Condensed Catalog

Function/

Application (ANSI)

Model Nos. Mortise

Locksets

(ANSI)

Model

Nos.

Cylindrical Knob

Locksets

(ANSI)

Model

Nos.

Cylindrical Lever

Locksets/

Monolocks

Classroom Lock with

Holdback

Knob

8824

Levers

8824FL

SL8824FL

N/A N/A

Privacy Lock N/A 5425

5425LN

5325LN

6425LN

Hotel/Motel Lock

Knob

8827

Levers

8827FL

SL8827FL

N/A N/A

Exit Latch

(F31)

Knob

8828

Levers

8828FL

SL8828FL

(F111)

5428

5328

(F111)

5428LN

5328LN

4328LN

6428LN

Communicating or

Closet Lock

Knob

8829

Levers

8829FL

SL8829FL

N/A

(F113)

5429LN

5329LN

6429LN

Asylum Lock

(F30)

Knob

8830-2

Levers

8830-2FL

SL8830-2FL

(F87)

5430

(F87)

5430LN

5330LN

6430LN

Twin Communicating Lock N/A (F79)

5331 N/A

Note: Shaded area denotes rigid lever or

knob. Note: Shaded area denotes rigid knob. Note: Shaded area denotes Free

Wheeling lever.

LOCKSET FUNCTIONS

Page 20 Condensed Catalog

Function/

Application (ANSI)

Model Nos. Mortise Locksets

Detention Lock

Knob

8831

Lever

SL8831FL

Hotel/Motel

Lock

Knob

8832

Levers

8832FL

SL8832FL

Exit Lock

Knob

8833

Lever

8833FL

All Purpose

Lock 8833-2

All Purpose

Lock

Knob

8834

Lever

8834FL

All Purpose

Lock

Knob

8834-2

Lever

8834-2FL

Note: Shaded area denotes

rigid lever or knob.

Function/

Application

(ANSI)

Model Nos. Mortise Locksets

Entrance &

Apartment Door

Lock

(F20)

Knob

8847

Levers

8847FL

SL8847FL

Entrance or

Storeroom Lock

(F21)

Knob

8860

Levers

8860FL

SL8860FL

Entrance or

Storeroom Lock

(F14)

Knob

8860-2

Levers

8860-2FL

SL8860-2FL

Dormitory or

Storeroom Lock

Knob

8861

Levers

8861FL

SL8861FL

Bathroom Lock

Knob

8862

Levers

8862FL

SL8862FL

Entrance or

Apartment Door

Lock

(F12)

Knob

8867

Levers

8867FL

SL8867FL

Note: Shaded area denotes

rigid lever or knob.

Function/

Application (ANSI)

Model Nos. Cylindrical Interconnected

Lever Locksets

Entrance,

Single Locking

(F95)

4851LN

Entrance,

Double Locking

(F97)

4871LN

LOCKSET FUNCTIONS

Page 21

Condensed Catalog

Auxiliary Deadlock

Function /(ANSI)/ Model Nos. 300 Series 3500/3600/

3700 Se ries

Cylinder x Thumbturn

Deadbolt operated by key outside, thumbturn inside.

(E06071)

Cylinder x Cylinder

Deadbolt operated by key outside, key inside.

(E06061)

Cylinder x Blank (Rose)

Deadbolt operated by key outside only.

(E06081)

Blank Plate x Thumbturn

Deadbolt operated by thumbturn inside only. N/A

Blank Plate x Cylinder

Deadbolt operated by key inside only. N/A

Cylinder x School Thumbturn

Deadbolt operated by key outside, deadbolt retracted by

thumbturn inside. Thumbturn will not project deadbolt.

(E06091)

Cylinder x Cylinder & Thumbturn

Deadbolt by key outside and inside. Inside thumbturn will

retract deadbolt but will not project it. N/A

3500/3600/3700

• Third digit determines function

• Fourth digit determines backset: “1” 2-3/8" backset, “2” 2-3/4" backset

• Letter determines front plate size: “A” 2-1/4" x 1", “B” 2-1/4" x 1-1/8"

OUT SIDE INSIDE

OUT SIDE INSIDE

OUT SIDE INSIDE

OUT SIDE INSIDE

OUT SIDE INSIDE

OUT SIDE INSIDE

OUT SIDE INSIDE

OUT SIDE INSIDE

OUT SIDE INSIDE

OUT SIDE INSIDE

OUT SIDE INSIDE

315

3511/3611/3711(A)(B)

3512/3612/3712 (A)(B)

314-1/4

3521/3621/3721 (A)(B)

3522/3622/3722 (A)(B)

314

3531/3631/3731 (A)(B)

3532/3632/3732 (A)(B)

3541/3641 - (A)(B)

3542/3642 - (A)(B)

3551/3651/3751 (A)(B)

3552/3652/3752 (A)(B)

313 ST

3561/3661/3761(A)(B)

3562/3662/3762 (A)(B)

314-1/4 ST

EXIT DEVICES

Page 22 Condensed Catalog

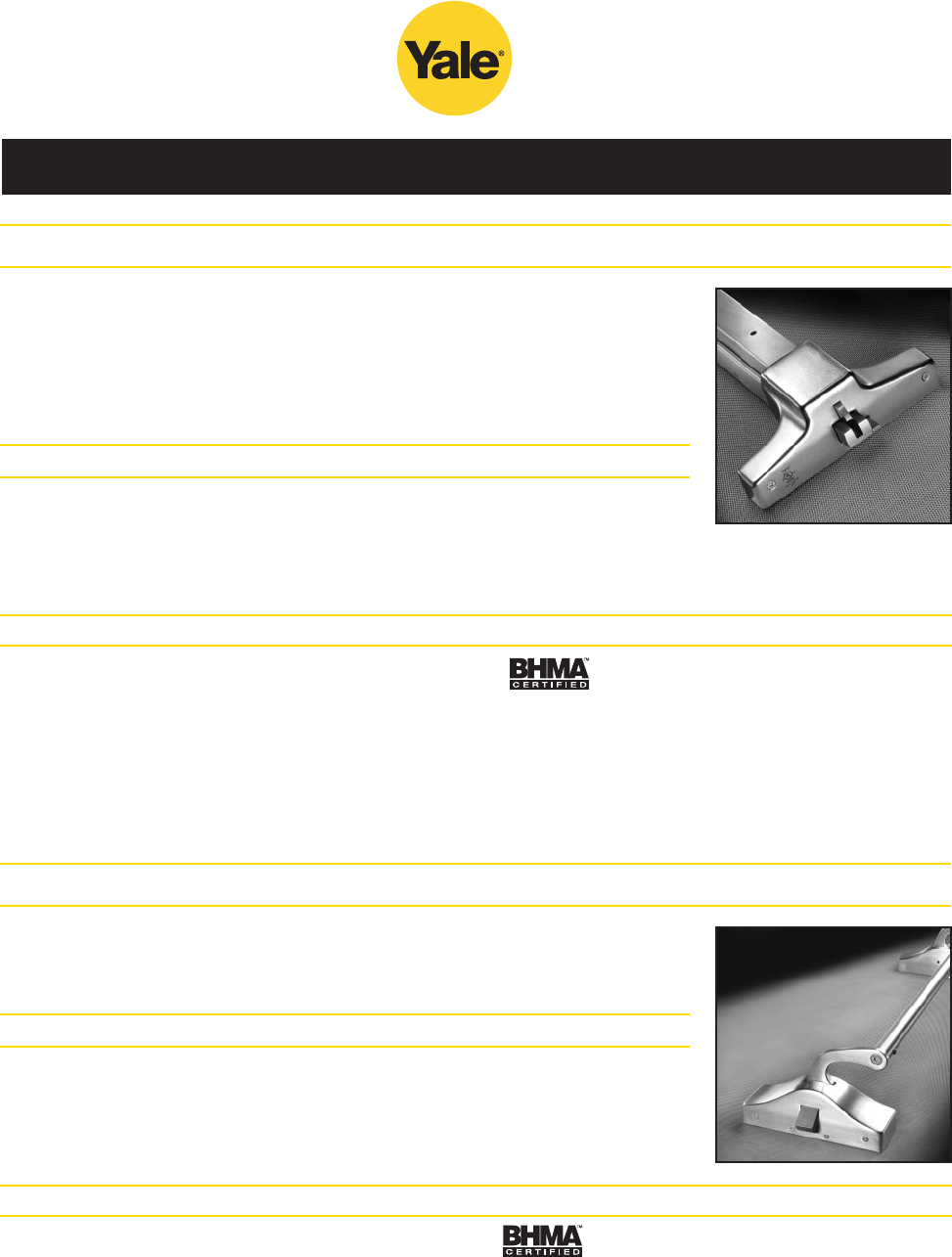

7000 SERIES ARCHITECTURAL EXIT DEVICES

Yale®7000 Series exit devices deliver an unparalleled combination of durability, breadth of line, innovation

and aesthetics. With an architecturally inspired design that features simple clean lines, both our wide and

narrow stile devices are visually appealing and bring gracious totality to the entire line of Yale locks and hardware.

7100 SERIES EXIT DEVICES

A conventional exit device used for single swing doors or pairs of doors of metal,

wood or composite construction.

• Rim SquareBolt®Devices (type 28), Yale®exclusive feature covered by patent

(Patent # 5,605,362)

• Rim Pullman Bolt Devices (type 1)

• Surface Vertical Rod Devices (type 2)

• Concealed Vertical Rod Devices (types 7 and 8)

• Mortise Devices (type 3)

• Certified ANSI/BHMA A156.3 Grade 1 exit hardware

• UL listed for fire labeled or panic exit doors

• Windstorm certified (refer to local codes)

• Outside trim fits stock 161 door preps, escutcheon outside fitting stock 86 door preps

• Surface and concealed vertical rod devices are available in Less Bottom Rod varieties

• Double cylinder devices are available for Rim SquareBolt, Rim Pullman and Mortise varieties

• Available with complete range of electrified options, including REX, electric dogging, outside trim

monitoring, latch pullback, bolt status monitoring or delayed egress

• Available in 16 finishes

• Five-year mechanical warranty

TYPES

FEATURES

7200/7200M SERIES EXIT DEVICES

A narrow stile exit device compatible with the aesthetics and function

requirements of contemporary doors of aluminum or metal construction.

• Rim SquareBolt Devices (type 28), Yale®exclusive feature covered by patent

(Patent # 5,605,362)

• Rim Pullman Bolt Devices (type 4)

• Surface Vertical Rod Devices (type 5)

• Concealed Vertical Rod Devices (types 6 and 8)

• Certified ANSI/BHMA A156.3 Grade 1 exit hardware

• UL listed for fire labeled (7200M) or panic exit doors

• Windstorm certified (refer to local codes)

• Optional removable mullions, keyed removable mullions, raised molding clearance kits and custom

specialties are all available

• Available with complete range of electrified options, including REX, electric dogging, outside trim

monitoring, latch pullback, bolt status monitoring or delayed egress

• Available in 16 finishes

• Five-year mechanical warranty

TYPES

FEATURES

EXIT DEVICES

Page 23

Condensed Catalog

Traditional exit devices for compliance with the exit and access demands of

today’s codes, where it is important to maintain the architectural lines of yester

year.

• Rim Pullman Bolt Devices (type 1)

• Surface Vertical Rod Devices (type 2)

• Concealed Vertical Rod Devices (type 8)

• Mortise Devices (type 3)

• Certified ANSI/BHMA A156.3 Grade 1 exit hardware

• UL listed for fire labeled or panic exit doors

• Mortise devices available with fail safe or fail secure options

• Outside trim options available for most functions

• Optional removable mullions, keyed removable mullions, Torx®security screws and custom specialties are

all available

• One-year mechanical warranty

1500 SERIES EXIT DEVICES

It’s no secret that the 2100 series Flatbar Exit Device has a reputation as the right

choice for meeting the rigors of demanding industry segments.

The quality and certified ANSI/BHMA A156.3 Grade 1 performance of the 2100

Series are unmatched in the security industry. So it’s no wonder that architects and

specifiers request it for their toughest applications.

• Rim SquareBolt®Devices (type 28), Yale®exclusive feature covered by patent

(Patent # 5,605,362)

• Rim Pullman Bolt Devices (type 1)

• Surface Vertical Rod Devices (type 2)

• Certified ANSI/BHMA A156.3 Grade 1 exit hardware

• UL listed for fire labeled or panic exit doors

• Windstorm certified (refer to local codes)

• Available with self-contained, battery operated 2116 alarm kit to offer exit control

• Optional removable mullions, keyed removable mullions, Torx®security screws and custom specialties are

all available

• Available in 5 finishes

• Two-year mechanical warranty

2100 SERIES EXIT DEVICES

TYPES

FEATURES

TYPES

FEATURES

EXIT DEVICE FUNCTIONS

Page 24 Condensed Catalog

Series Application Rim Pullman

Bolt Rim

SquareBolt®

Surface

Vertical Rod

Concealed Vertical Rod

Mortise

Metal

Doors Wood

Doors

7100

Flush

or

Wide Stile

Doors

Panic:

7100

7100-2

Fire:

7100F

7100F-2

Panic:

7150

7150-2

7150WS

Fire:

7150F

7150F-2

7150FWS

Panic:

7110

7170*

7170WS

Fire:

7110F

7170F90*

7170WS

Panic:

7120

7160*

Fire:

7120F

7160F90*

Panic:

7160*

Fire:

7160F90*

Panic:

7130

7130-2

Fire:

7130F

7130F-2

7200

Narrow

Stile

Doors

Panic:

7200 Panic:

7250 Panic:

7210 Panic:

7220 — —

7200M

Flush

or

Wide Stile

Doors

Panic:

7200M

Fire:

7200MF

Panic:

7250M

7250MWS

Fire:

7250MF

7250MFWS

Panic:

7210M

Fire:

7210MF

Panic:

7220M

Fire:

7220MF

— —

2100

Flush

or

Wide Stile

Doors

Panic:

2100

Fire:

2100F

Panic:

2150

2150WS

Fire:

2150F

2150FWS

Panic:

2110

Fire:

2110F

— — —

1500

Flush

or

Wide Stile

Doors

Panic:

1500

Fire:

1500F

—

Panic:

1510

Fire:

1510F

Panic:

1520

Fire:

1520F

—

Panic:

1530

Fire:

1530F

*Less Bottom Rod (LBR) option available.

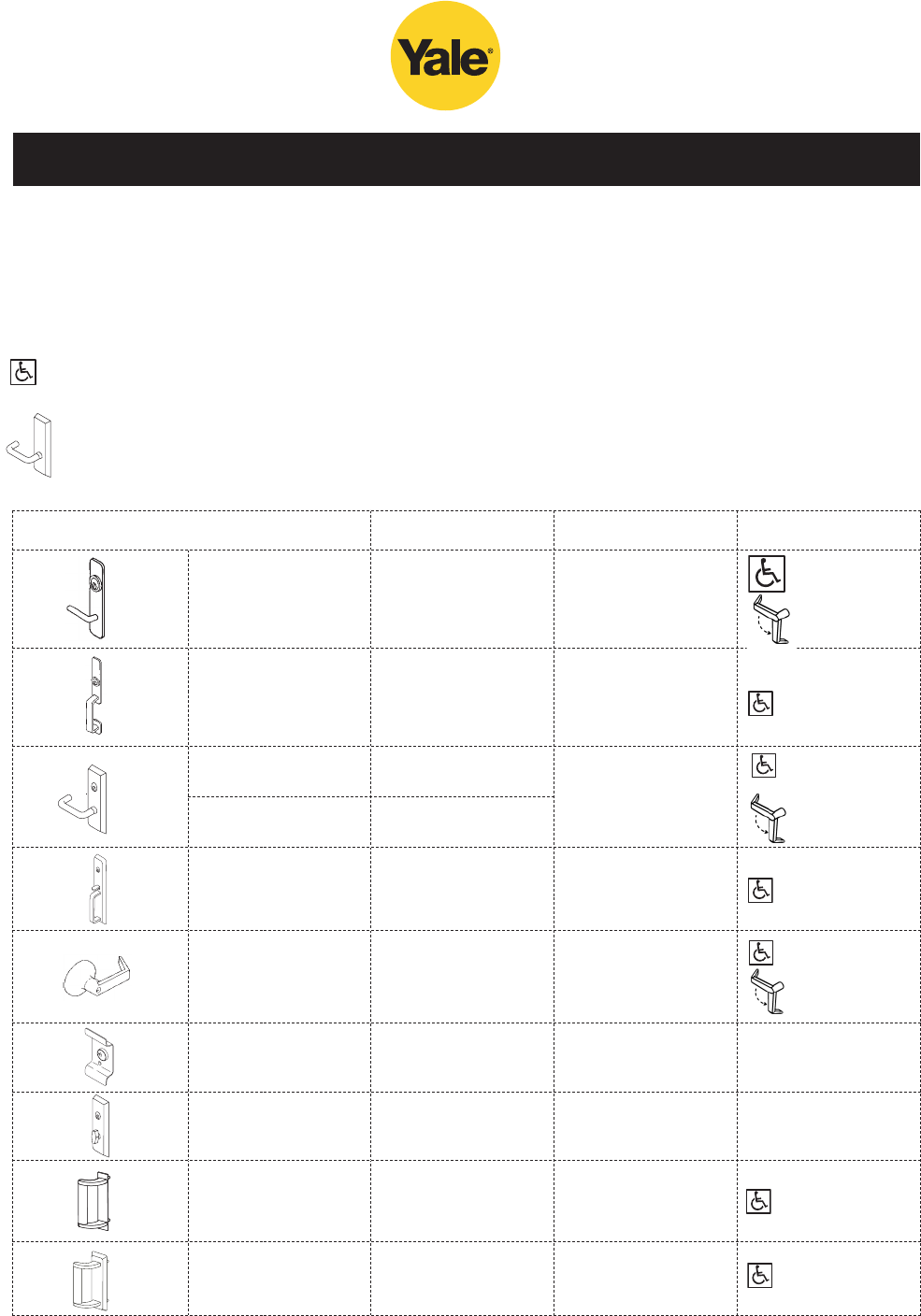

EXIT DEVICE TRIM

Page 25

Condensed Catalog

Entry functions, for doors equipped with Yale®exit

devices, are provided by trim with mechanisms mor -

tised into the doors, and exposed components in

architectural finishes. Yale Keying systems, as well as

other keying, are easily integrated.

ADA compliance is maintained when Yale®exit

devices are used with lever handle or pull trims.

Vandal-Resistant Free Wheeling lever action

offers protection against forced entry,

lockouts, and damage to the hardware.

Options include outside cylinder only and designer

line lever han dles.

Cylinders: Brass, 6-pin, keyed-random cylinder with

two keys furnished standard, 7-pin available to order.

For other cylinder and keying options, see page 27.

Warranty: 5-year mechanical for all 600 Series trims.

1-year mechanical for all others.

Trim Series Device Series Trim Functions Remarks

500F

Narrow Escutcheon 7200

7200M

F02, F03, F08, F09

F11, F12 Passage

Blank Plate

ADA Lever

Access

Vandal-Resistant

Lever Action

510

Narrow Escutcheon

With Pull

7200

7200M

F02, F03, F05, F06

F11, F12, F15, F16

Passage

Blank Plate ADA Pull Access

620F (Rim, V.R.)

650F (Mortise)

7100

2100 F02, F03, F08, F09, F14

Passage Blank Plate

ADA Lever

Access

Vandal Resistant

Lever Action

(Rim V.R. Only)

350F (Mortise)

Full Escutcheon 1500

630F (Rim, V.R.)

660F/670F (Mortise)

Full Escutcheon

7100

2100

1500

F02, F03, F05, F06, F15

Passage Blank Plate ADA Pull Access

540F

580F

Rose

7100

2100 F02, F03, F08, F14

Passage

ADA Lever Access

Vandal-Resistant

Lever Action

210F

Plate/Finger Pull 2100 F02, F03 Baked Enamel Finishes

603F

Full Escutcheon with

Thumbturn 7100 F08, F09, F14

Passage Rim, SVR, CVR for use

with pull by others

480F

Narrow Escutcheon

with Offset Pull

7200

7200M F02, F03 ADA Pull Access

680F

Full Escutcheon

with Offset Pull

7100

2100 F02, F03 ADA Pull Access

EXIT DEVICE TRIM

Page 26 Condensed Catalog

Arcadia AR Augusta AU Carmel CR Jefferson JN

Monroe MO Pacific Beach PB Pinehurst PN Virginia VI

Brandywine BR Copenhagen CO Litchfield LF

TRIM DESIGNS

Charleston CH Hampton HA Wellington WE

DESIGNER TRIM DESIGNS

CYLINDERS AND KEYING/SECURITY CYLINDERS

Page 27

Condensed Catalog

Yale's utility patented keyway cylinders are available by choosing Yale®KeyMark®. Yale

KeyMark cylinders include mortise, rim, key-in-lever, key-in-knob, auxiliary, and

interchangeable core. IC core is available in both large and small formats. All formats can be

tied into one master key system.

PATENTED KEYWAY CYLINDERS

SECURITY/HIGH SECURITY CYLINDERS

Yale's security/high-security cylinders contain two independent locking mechanisms.

The first is a traditional 6 or 7-pin tumbler mechanism with spool drivers for increased

picking resistance.

The second is a 5-tumbler rotating disc mechanism with sidebar engagement. The

rotating discs are spring loaded and block the bottom of the keyway. Only a specially cut key will move the

discs and allow entrance of the key. This key has a special side bitting and must align all five discs perfectly

before the cylinder plug will rotate to open the lock.

All Yale®locksets are available in a wide choice of cylinder and keying options:

Cylinder Types and Options: Keying Options:

• Fixed Core (standard) Keyed Different (KD)

• Large Format Interchangeable Core Keyed Alike (KA)

• Conventional Keyways Master-Keyed (MK)

• Patented Keyways Grand Master-Keyed (GMK)

• Security Cylinders (Not UL437 Certified) Great Grand Master-Keyed (GGMK)

• High Security Cylinders (UL437 Certified) Construction Keying (CMK)

Yale®cyl in ders with in ter change able cores al low your mas ter key sys tems to be flex i ble. With the spe cial

“Con trol” key any cyl in der can have its core in ter changed quick ly. Any Yale core can be in ter changed into any

other Yale lock pro vid ed it has a in ter change able core. As a result, security for any given lock can be changed

in a matter of minutes. Yale interchangeable core cylinders can be used through out the en tire mas ter key

sys tem. They can be used se lec tive ly within the system along with Yale fixed core cyl in ders. There are two types

of interchangeable cores that are offered by Yale.

1. Large Format (LFIC) - These cores are available in both standard Yale

cylinders and also Yale®KeyMark®(see Patented Keyway) cylinders. Note

that standard Yale cylinders and Yale KeyMark cylinders cannot be keyed to

the same master key system.

2. Small Format (SFIC) - These cores are only available master-keyed in Yale KeyMark cylinders.

CYLINDERS AND KEYING

INTERCHANGEABLE CORES

DOOR CONTROLS

Page 28 Condensed Catalog

400/4400 Series Institutional Door Closers offer customers the ideal combination

of superior performance, quality and strength.

• Non-handed

• Standard, separate and independent, latch, sweep and backcheck intensity valves

• 2-1/8" (54mm) projection

• Staked valves

• All standard arm applications allow doors to swing 180°, conditions permitting

• Metal cover

• Corrosion-resistant model (specify 4400S)

• Delayed action

• Enhanced backcheck

• Heavy-duty arms available: Parallel Rigid, Holder/Stop, Holder/Stop Spring and UNI Stop™

• Slide track – push or pull mounting

• Certified ANSI/BHMA A156.4, Grade 1

• UL listed

• UL10C compliant for positive pressure

• ADA compliant (4400 Series)

400/4400 SERIES

400 4400

Sized springs 2,3,4,5,6 with 50% additional adjustment X

Adjustable spring sizes 1 through 6 X

Bi-pack standard (regular arm and top jamb mounting) X

Tri-pack standard (regular arm, top jamb and parallel arm mounting) X

FEATURES

OPTIONAL FEATURES

COMPLIANCE STANDARDS

Page 29

Condensed Catalog

3000 Series Architectural Door Closers offer the perfect combination of reliability,

appearance and durability in today’s market.

• Non-handed

• Staked valves

• Standard, separate and independent, latch, sweep and backcheck intensity valves

• 2-1/8" (54mm) projection (standard covers)

• All standard arm applications allow doors to swing 180°, conditions permitting

• 3300/3301 shipped with slim-line plastic covers

• 3500/3501 shipped with full cover

• Metal, architectural plastic or architectural metal covers (3500 or 3501 only)

• Delayed action

• Heavy-duty arms available: Parallel Rigid, Holder/Stop, Holder/Stop Spring and UNI Stop™

• Certified ANSI/BHMA A156.4, Grade 1

• UL listed

• UL10C compliant for positive pressure

• ADA compliant (3301 and 3501)

DOOR CONTROLS

3000 SERIES

3300 3500 3301 3501

Sized springs 2,3,4,5,6 with 50% additional adjustment X X

Adjustable spring sizes 1 through 6 X X

Bi-pack standard (regular arm and top jamb mounting) X X

Tri-pack standard (regular arm, top jamb or parallel arm

mounting) X X

FEATURES

OPTIONAL FEATURES

COMPLIANCE STANDARDS

Page 30 Condensed Catalog

50BC/51 Series Door Closers are ideal for use with aluminum store front doors

and frames, yet they also complement wood or metal door installations.

• Non-handed

• Staked valves

• Standard, separate and independent, latch, sweep and backcheck intensity valves

• 2-7/8" (73mm) projection

• Delayed action (in lieu of backcheck)

• Corrosion-resistant model (specify 51S)

• Molded plastic cover

• Heavy-duty arms available: Parallel Rigid, Holder/Stop, Holder/Stop Spring and UNI Stop™

• Certified ANSI/BHMA A156.4, Grade 1

• UL listed

• UL10C compliant for positive pressure

• ADA compliant (51BF)

DOOR CONTROLS

50BC/51 SERIES

50BC 51 51BF

Sized springs 2,3,4,5,6 with no power adjustment X

Adjustable spring sizes 3 through 6 X

Adjustable spring sizes 1 through 4 X

Bi-pack standard (regular arm and top jamb mounting) X

Tri-pack standard (regular arm, top jamb or parallel arm mounting) X X

FEATURES

OPTIONAL FEATURES

COMPLIANCE STANDARDS

What normally took an hour or more to connect now takes minutes. All Yale®electrified

hardware is equipped with ElectroLynx™ connectors. As a standard feature, these

connectors link power from the incoming source to electrified locking products,

including hinges, locks, exit devices, magnetic holders and strikes.

Note: Electrified door hardware with ElectoLynx™ connectors require a compatible hinge.

ELECTRIFIED HARDWARE

Page 31

Condensed Catalog

MORTISE LOCKSETS

SECUREX™

ELECTROLYNX™

CYLINDRICAL LOCKSETS

• Certified ANSI/BHMA A156.2

Series 4000, Grade 1

• UL Listed

• Utilizes 5400LN lockset

• Patented Free Wheeling lever

mechanism

• Available in 12 or 24V

• External rectifier accepts AC or DC

voltage

• Mechanical cylinder over ride

• Fail Safe or Fail Secure Operation

• Request to Exit (REX) option

available

• Certified ANSI/BHMA A156.13

Series 1000, Grade 1

• UL10B Listed for 3-hour fire-rated

openings

• Utilizes 8800 lockset

• Continuous duty integral solenoid

• Available in 12 or 24VDC

• Fail Safe or Fail Secure Operation

• Request to Exit (REX), Latchbolt

Monitoring (LBM) and Deadbolt

Monitoring (DBM) options available

In 2001, Yale®revolutionized the exit device market with its introduction of SecureX®, a delayed egress exit

device. As a result of outstanding customer response and loyalty, Yale is proud to expand the SecureX name to

include its entire line of electromechanical hardware.

Throughout the industry, the SecureX name is synonymous with security, strength, quality and durability. The

7100D series exit devices have evolved as premier products for retail, healthcare and assisted living

applications, offering the ideal combination of security and life safety.

The expansion of the SecureX name is yet another example of Yale’s ongoing commitment to meeting the needs of

its customers. Under the Yale SecureX brand name, Yale customers can expect a range of new and exciting

electromechanical products to meet a variety of applications, ensuring a distinct “Yale Advantage.”

The Yale SecureX brand will include eBoss®standalone keypad access control, alarms and alarmed devices, and

electrified mortise and cylindrical locking products.

SecureX products in cor po rate the high est level of se cu ri ty avail able with the added flexibility and

se cu ri ty of remote electrical control. Electrified hardware is ideal for interfacing with access control, security

and fire alarm systems.

ELECTRIFIED HARDWARE

Function Description Mortise Model Number Cylindrical Model Numbers

• Power on – outside lever locked

• Inside lever always free

• No key override 8880 5480LN

• Power on – both levers locked

• No key override 8884 N/A

• Power on – outside lever locked

• Mechanical key override by outside 8890 5490LN

• Power on – both levers locked

• Mechanical key override by both sides 8894-2 N/A

• Power on – outside lever locked

• Deadbolt by key outside, thumbturn inside

• Mechanical key override by outside 8896 N/A

• Power on – outside lever locked

• Deadbolt by key both sides

• Mechanical key override by both sides 8896-2 N/A

• Power on – both levers locked

• Deadbolt by key outside, thumbturn inside

• Mechanical key override by outside 8898 N/A

• Power on – both levers locked

• Deadbolt by key both sides

• Mechanical key override by both sides 8898-2 N/A

MORTISE AND CYLINDRICAL FUNCTIONS

Fail Safe – Locked when power is on and unlocked when power is off.

Condensed Catalog

Page 32

Function Description Mortise Model Number Cylindrical Model Numbers

• Power off – outside lever locked

• Inside lever always free

• No key override 8881 5481LN

• Power off – both levers locked

• No key override 8885 N/A

• Power off – outside lever locked

• Mechanical key override by outside 8891 5491LN

• Power off – both levers locked

• Mechanical key override by both sides 8895-2 N/A

• Power off – outside lever locked

• Deadbolt by key outside, thumbturn inside

• Mechanical key override by outside 8897 N/A

• Power off – outside lever locked

• Deadbolt by key both sides

• Mechanical key override by both sides 8897-2 N/A

• Power off – both levers locked

• Deadbolt by key outside, thumbturn inside

• Mechanical key override by outside 8899 N/A

• Power off – both levers locked

• Deadbolt by key both sides

• Mechanical key override by both sides 8899-2 N/A

Fail Secure – Unlocked when power is on and locked when power is off.

ELECTRIFIED HARDWARE

Page 33

Condensed Catalog

Yale’s Electronic Battery-Operated Security Solution is available in mortise and

cylindrical versions. These battery operated stand-alone keypad locksets are

designed to provide the industrial, commercial, residential and hospitality

marketplace with reliable, competitively priced, keyless entry with or without

mechanical key override for interior or exterior environments.

• Certified ANSI/BHMA, Grade 1 (cylindrical)

• Windstorm certified (refer to local codes)

• Battery-operated (hard wire options available)

• Modern modular design (patent pending) with all metal escutcheon

and pushbuttons

• Keypad blinders (patent pending)

• LED function indicators

• Weather resistant, ADA compliant 12-button stainless steel keypad

• 94-user capacity plus Master, Emergency, Supervisor, Lockout and Passage codes

• Deadbolt for mortise version retracted only by use of Emergency and/or

Supervisor codes

E8800FL AND E5400LN SERIES EBOSS®KEYPAD LOCKSETS

Function Description Mortise Model Numbers Cylindrical Model Numbers

No Cylinder Override E8850FL E5486LN

No Cylinder Override with Deadbolt E8852FL N/A

Single Cylinder Override E8851FL E5496LN

Single Cylinder Override with Deadbolt E8853FL N/A

FEATURES

FUNCTIONS

ELECTRIFIED HARDWARE

Page 34 Condensed Catalog

The Yale 7000 Series exit device offers a complete range of electrical options:

Continuity in appearance, security and functions with the 7000 Series mechanical

exit device is maintained. Electrified exit devices may be integrated into the

monitoring security and alarm systems of most buildings.

*Also available for 2100 series exit devices.

EXIT DEVICES/ALARMS

ELECTRIFIED HARDWARE OPTION DESCRIPTIONS

Note: Any combination of the following

options cannot be ordered together:

1) P, G, or D 2) B or A 3) D, B or A

*Only available for rim and SquareBolt®

Devices when used with Delayed Egress

option.

AAlarm Option

BTouchbar Monitor

DDelayed Egress

GElectric Dogging

H* Security Package (DPS)

OTrim Monitor

ELECTRIFIED OPTIONS CHART

Model # Exit Device Description A B D G H O P S SAFE SECURE 690F 691F

7100(F) Rim Exit Device (Wide) x x x x x x x x x x

7110(F) Surface Vertical Rod (Wide) x x x x x x x x

7120(F) Concealed Vertical Rod (Wide) x x x x x x x x x

7130(F) Mortise Exit Device (Wide) x x x x x x x x x

7150(F) Rim SquareBolt®Device (Wide) x x x x x x x x x x

7150(F)WS Rim

SquareBolt

Windstorm (Wide) x x x x x x x x

7160(F90) Concealed Vertical Rod (Wide) x x x x x x x x x

7170(F90) Surface Vertical Rod (Wide) x x x x x x x x

7170(F90)WS Surface Vertical Rod Windstorm (Wide) x x x x x x x

7200(M)(F) Rim Exit Device (Narrow) x x x x x x

7210(M)(F) Surface Vertical Rod (Narrow) x x x x x

7220(M)(F) Concealed Vertical Rod (Narrow) x x x x x x

7250(M)(F) Rim SquareBolt®Device (Narrow) x x x x x x

• Latch Retraction

• Electric Dogging

• Mortise Device Trim Control

• Touchbar Monitor or Signaling

• Outside Trim Monitor or Signaling

• Bolt Position Monitor or Signaling

• Delayed Egress

• Electric Trim Control

•Alarm*

The SDA16 stand-alone battery operated

door alarm is designed to continually

monitor the status of a door. When the

door is opened without authorization, an

alarm is triggered to alert the security

violation. This alarm features a Peizo

horn which blasts a deafening 105+

decibels to alert the violation.

This unit is ideal for emergency doors

as well as stairwell doors and rear exit

doors in retail environments. The unit,

which can also be hardwired, easily

complements existing hardware, making

any opening alarmed. The SDA16 door

alarm is typically mounted on the

interior of the door frame or door and is

paired with a magnet mounted on the

opposing side of the door gap.

STAND-ALONE DOOR ALARM

PLatch Retraction

SBolt Monitor

SAFE Fail Safe Operation (Mortise)

SECURE Fail Secure Operation (Mortise)

690F Fail Safe Electrified Trim

691F Fail Secure Electrified Trim

ELECTRIFIED CLOSERS

Page 35

Condensed Catalog

4200 SERIES MULTI-POINT ELECTROMECHANICAL CLOSER/HOLDER RELEASING DEVICE

Combines electromechanical door holder with 400 Series door closer.

• U.L. listed: 4200MPD listed for application on labeled fire/smoke doors.

4200MP, MPS, and MPD listed for application with any compatibly labeled or

listed fire and smoke detection equipment

• Fail Safe: Solenoid will de-energize. Closer/Holder will operate as a normal

door closer

• Wiring Options: Accommodate either surface or concealed wiring

• Handed

• 2-year warranty

Units with Integral Smoke Detectors Feature:

• Dual chamber ionization sensing

• Alarm (relay) contacts

• Trouble (relay) contacts

• 4290 Series Multi-Point overhead concealed without integral smoke detection

• Available with Radio Frequency Release (RFI)

• Operating voltage - 120VAC or 24VAC/VDC

• Incorporates solenoid-actuated cam that locks arm slide in track at selected

Hold Open point. Power holds door at the selected single Hold Open point.

Interruption releases arm slide and door closes. Release manually by pushing

toward closed direction.

• Closer mounted on door. Power Track mounted on frame face or frame soffit

and is non-handed for most applications. Single Hold Open selectable by

adjusting telescoping arm. Hold Open range is 85° - 110°. 2-year warranty.

Units with Integral Smoke Detectors Feature:

• Dual chamber ionization sensor

• Red LED “Alarm”

• Green LED “Power-On”

• Operating voltage - 120VAC or 24VAC/VDC

400 SERIES POWER TRACK®CLOSER/HOLDER RELEASING DEVICE

For the latest information on Yale

Commercial Lock and Hardware products,

visit our website at www.yalecommercial.com.

Click on the “Literature” button to find:

ICatalogs

IParts manuals

ITemplates

ISpecifications

IInstallation instructions

Yale®customers can click on the ebusiness

symbol on the website to register for an

ebusiness account to:

ICheck the status of orders

ICheck availability of Quick-Ship items

ITrack your order and confirm delivery

IReceive email notification of template

changes

And More...

online literature

and templates

www.yalecommercial.com

42027-3/07R

Yale®, SecureX®, PowerTrack® and eBoss® are registered trademarks of the respective ASSA ABLOY Group company. Uni Stop™, Electrolynx™, Middleton™ and SecureX™ are

trademarks of the respective ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for

reference purposes only. These materials are protected under U.S. copyright laws. All contents current at time of publication. The ASSA ABLOY Group companies reserve the right to

change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 2001, 2007, ASSA ABLOY Group companies. All rights reserved.

ASSA ABLOY is the world's leading manufacturer and supplier of locking solutions,

meeting tough end-user demands for safety, security and user friendliness.

Yale Commercial Locks and Hardware

Address:

100 Yale Avenue, Lenoir City, TN 37771-3226 USA

Tel:

1-800-438-1951 •

Fax:

1-800-338-0965 •www.yalecommercial.com

ASSA ABLOY Door Security Solutions - Canada

Address:

6940 Edwards Boulevard, Mississauga, Ontario, Canada L5T 2W2

Tel:

1-800-461-3007 •

Fax:

1-800-461-8989 •www.assaabloycanadadss.ca

ASSA ABLOY NA International

www.aanai.com
