8800 Series

Grade 1 Mortise Locks

warranty

Yale 8800 series mechanical mortise

locks carry a ten (10) year warranty

and 8800 series electrified mortise

locks carry a two (2) year warranty.

windstorm

Certified (refer to

local codes).

camden escutcheon

8800 series locks with escutcheon

trim are provided standard with the

Camden (CN) escutcheon. This zinc

die cast escutcheon features one-

piece casting for superior strength.

Locks with this escutcheon are ANSI/

BHMA certified operational and security

Grade 1 and will retrofit to existing Yale

escutcheon preps. The aesthetics of

the CN escutcheon provide a design

continuum with Yale exit device trim for

a consistent look throughout the facility.

8800

The Yale 8800 series mortise lock is

an industry standard product. Suitable

for installation on doors 1-3/4" to

3-1/4" thick with standard trims, these

products have a 1" throw stainless steel

deadbolt. The anti-friction one-piece

latchbolt is stainless steel and has a

3/4" throw.

finishes

The Yale 8800 series mortise lock

is available in the trim finishes as

listed. All knobs, lever handles, roses,

escutcheons, cylinder collars and other

exposed parts are fabricated of either

brass, bronze, stainless steel or zinc

and will be compatible with the finish

ordered. When ordering, specify the

finish required by the ANSI/BHMA

Code Number only. When locksets are

ordered with different trim finishes on

each side, specify the outside finish first,

i.e. COR8817-2 x 612 x 625. The front

and strike finish will match the inside

finish unless specified otherwise.

ANSI/

BHMA

Code

Finish Description

605 Bright Brass, Clear Coated

606 Satin Brass, Clear Coated

609 Satin Brass, Blackened,

Satin Relieved, Clear Coated

611 Bright Bronze, Clear Coated

612 Satin Bronze, Clear Coated

613 Dark Oxidized Satin Bronze,

Oil Rubbed

1

613E Dark Oxidized Satin Bronze -

equivalent

616 Satin Bronze, Blackened, and

Satin Relieved, Clear Coated

618 Bright Nickel Plated, Clear Coated

619 Satin Nickel Plated, Clear Coated

620 Satin Nickel Plated, Blackened,

Satin Relieved, Clear Coated

625 Bright Chrome Plated

626 Satin Chrome Plated

629 Bright Stainless Steel

630 Satin Stainless Steel

693 Black Painted

722 Black Oxidized Bronze, Oil Rubbed2

contents

Introduction .................... 2

Finishes ....................... 2

Features ...................... 3

SL8800 ....................... 4

Facts and Figures ............... 5

Standard Lever Trim Installation .... 5

Standard Lever Trim ............6-9

8800RL Reflections® Trim ......10-11

Knob Trim ..................12-13

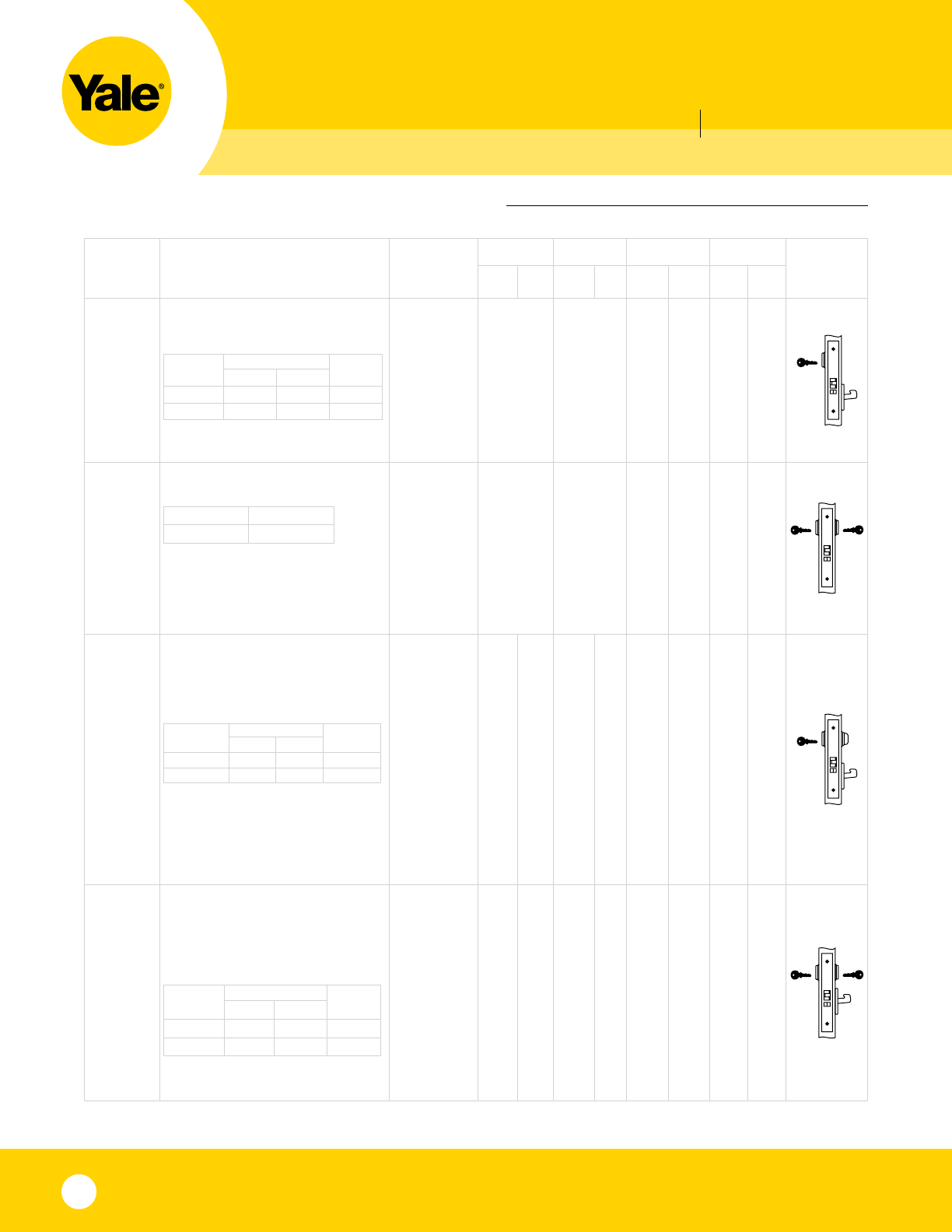

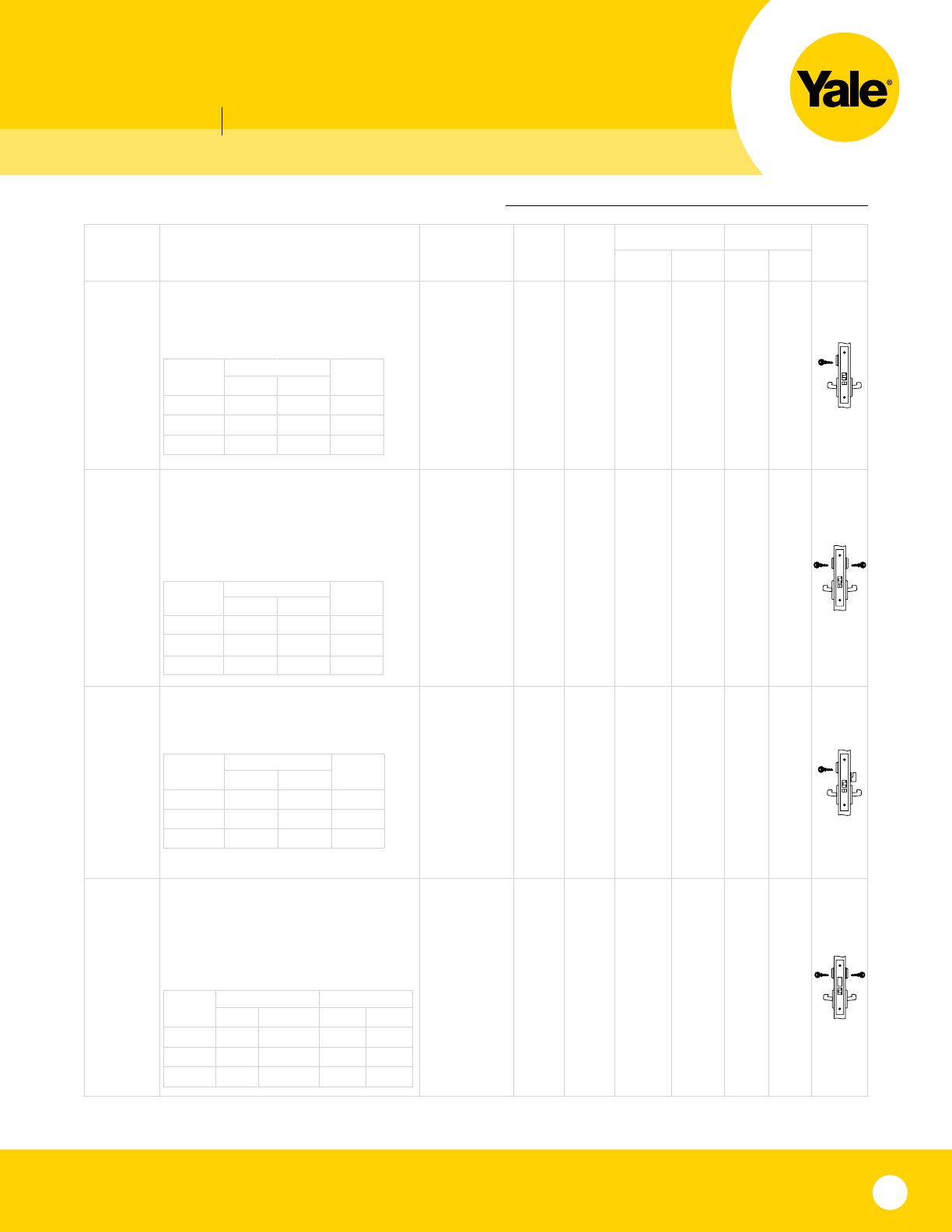

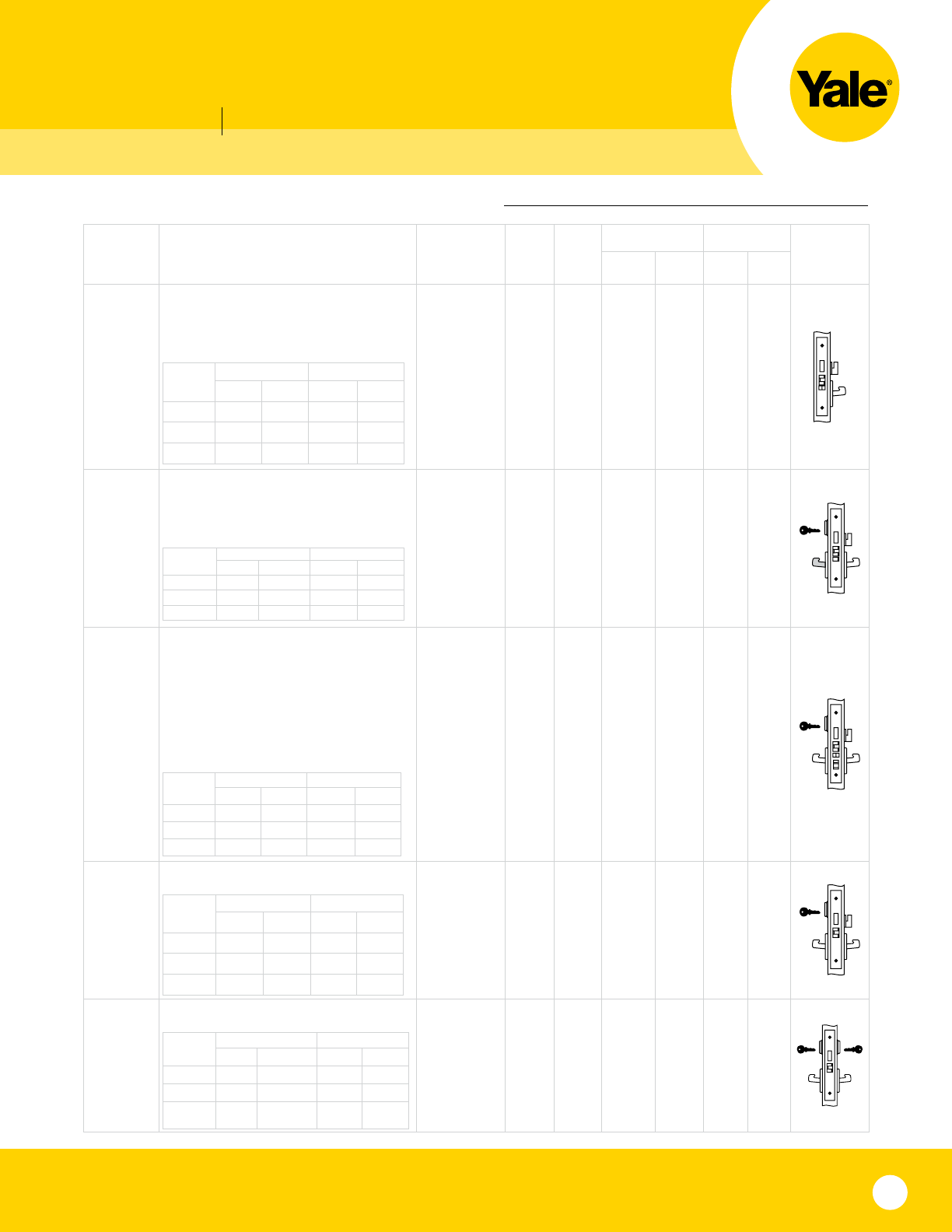

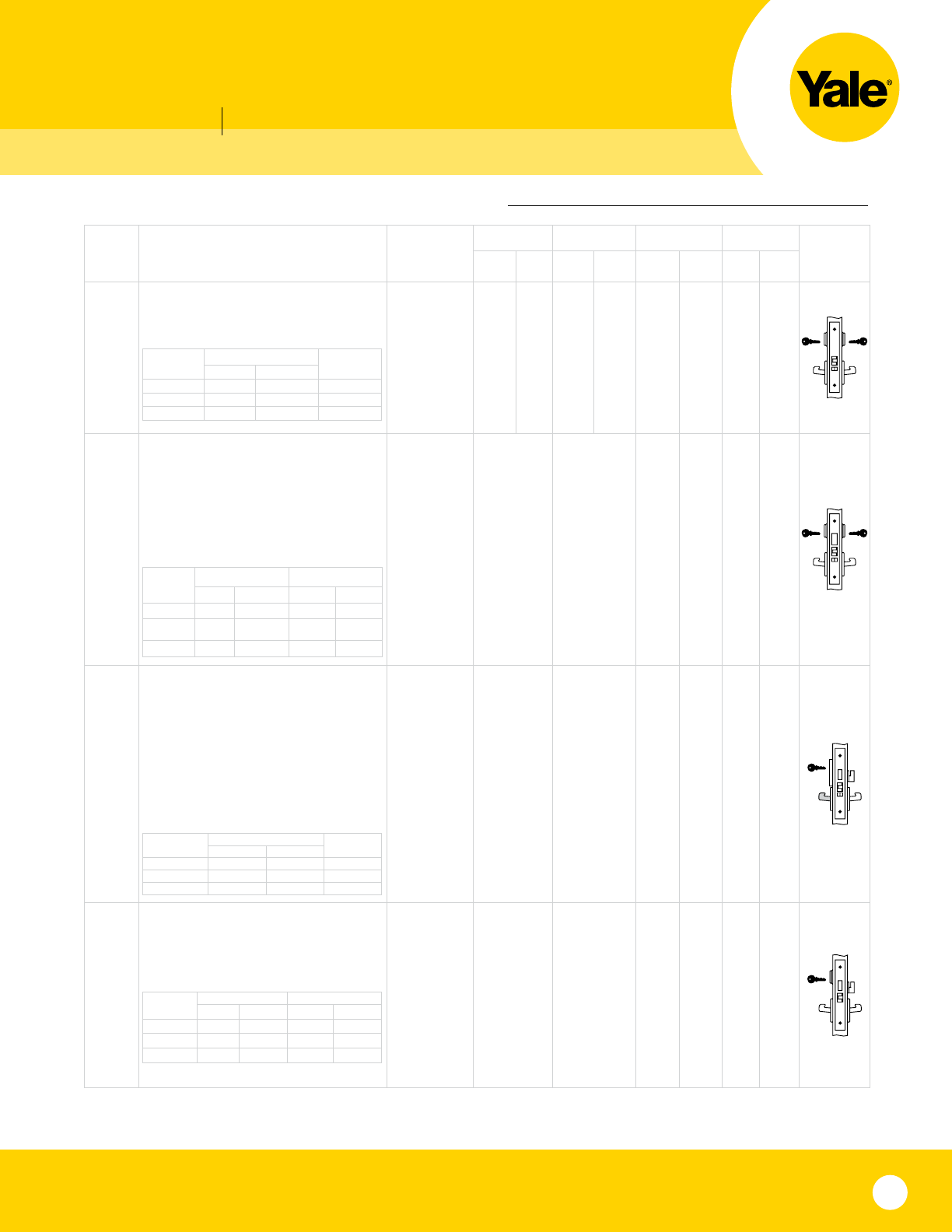

Lockset Functions ............14-23

SecureX® Electrified ...........24-26

SecureX® Electrified Accessories .....27

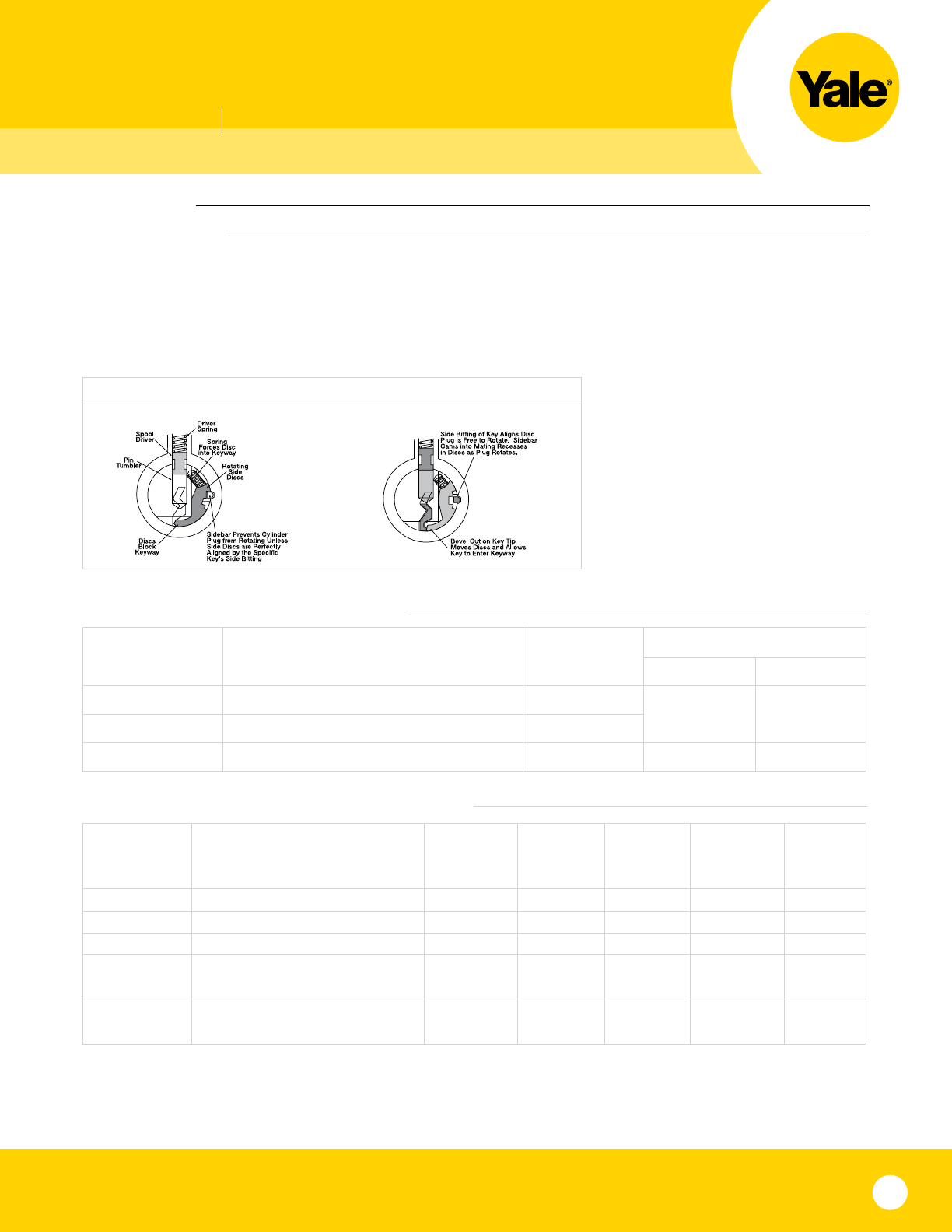

Cylinders ...................28-30

Cylinder Collars ..............31-37

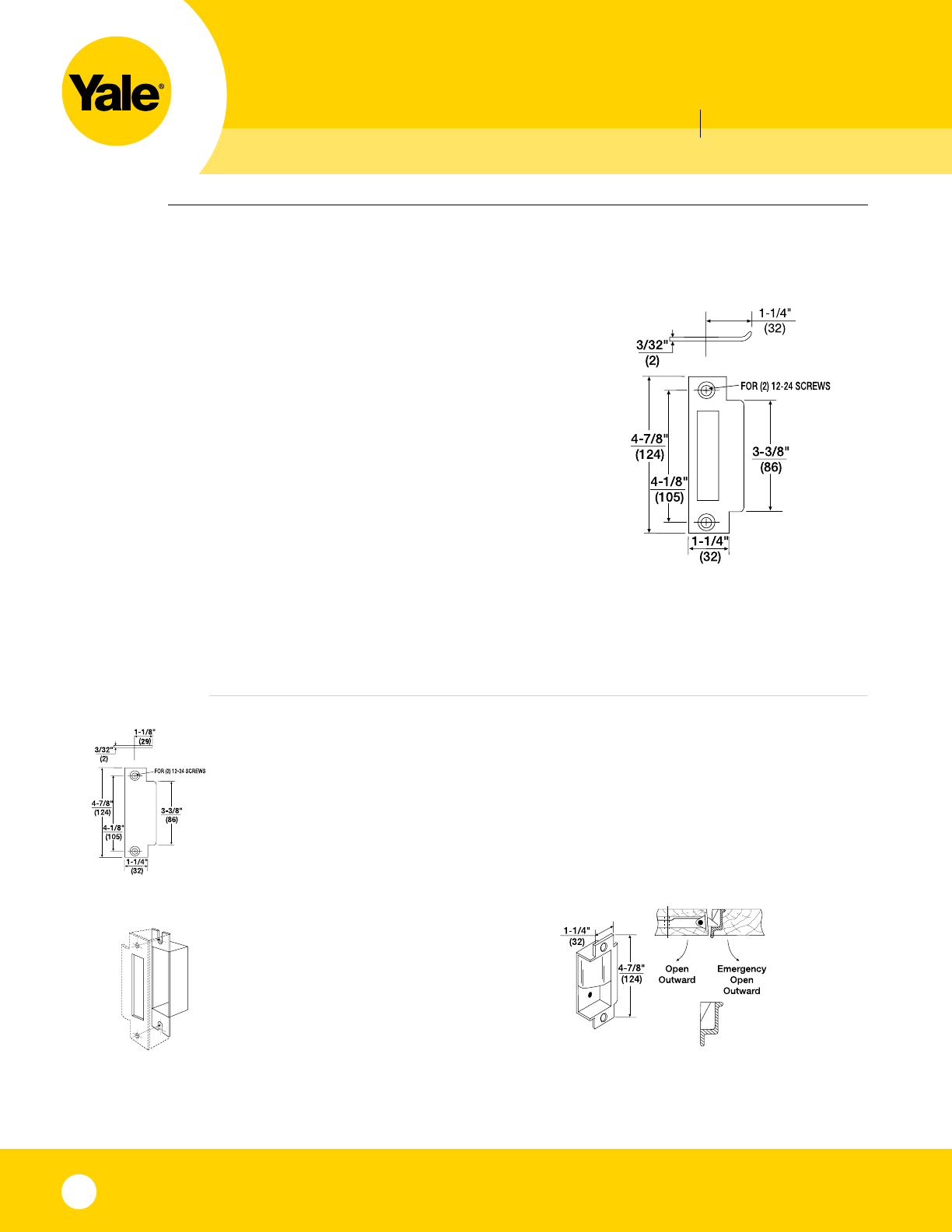

Strikes ....................... 38

Miscellaneous ................. 39

Occupancy Indicators ........... 40

How to Order ................. 41

Handing...................... 42

The value of any product is equal to the quality of the labor and materials put into

making it. And the Yale® 8800 series mortise lock is a perfect example that true

quality doesn’t just happen. Meticulous design and engineering have gone into

manufacturing a mortise lock that brings you versatility as well as uncompromising

strength and durability.

With quick lever handing and a quick reversible latchbolt, lockset handing takes only

seconds. Add a standard non-handed curved lip strike, and you have a no-hassle

mortise lock that’s quick and easy to install.

When it comes to strength, the Yale® 8800 series brings a new measure of security

to the door. Its 1" throw stainless steel deadbolt extends further back into the

reinforced steel case when in the locked position, providing added stability and

resistance to abuse. Solid trim packages also provide deterrence to vandalism,

making the 8800 series a prime player in your total opening security package.

For over 160 years, Yale Locks and Hardware has built a reputation on

manufacturing products that exceed expectations of quality and reliability. The Yale

8800 series mortise lock is no exception, and to demonstrate that quality proves

itself, we back it with a 10-year mechanical warranty.

We won’t compromise, and neither should you.

8800 series grade 1 mortise locks

never compromise

2

1. New May 1, 2010

2. Formerly 613 prior to May 1, 2010

Finish available with MicroShield®

antimicrobial coating, additional finishes

by special application. Consult factory for

availability.

microshield®

8800 series locks are available

with MicroShield® antimicrobial

coating. MicroShield is a revolutionary

hardware finish coating, using a silver

ion based technology, which inhibits

the growth of bacteria, algae, yeast,

fungus, mold and mildew. MicroShield

is non-toxic and lasts for the lifetime

of the finish to which it is applied. To

order, suffix option code “YMS”.

Note: MicroShield® coating may vary finish color

from architectural standards. MicroShield is not

intended as a substitute for traditional infection

control programs such as hand hygiene or use

of disinfectants. Coated product must still be

cleaned to insure the surfaces will be free of

destructive microbes. Yale Locks & Hardware

makes no representations or warranties, express

or implied, as to the efficacy of the MicroShield

antimicrobial.

quick reversibility

Yale mortise locks with the same trim

on both sides (knob x knob or lever x

lever) are field reversible. These locks

can be converted to accommodate the

hand of the door. However, to reduce

installation costs, it is recommended

that the hand of the door be specified

for each lockset ordered. If the hand

of the door is not specified, RH will be

furnished.

installations

8800 series mortise locks conform to

ANSI/BHMA Specifications A156.115

which cover hardware preparations

for steel doors and steel frames and

A156.115-W which cover hardware

preparations for wood doors with

wood or steel frames.

knurled designs

Where required by the local authority,

trim can be knurled to be identifiable

to the touch for blind persons. All knob

designs except CA may be ordered

knurled; all lever designs except

designer trim and Reflections® trim

(pages 9 & 11) may be ordered knurled.

Only the outside knob or lever will

be knurled or abrasive coated unless

specified otherwise. To order a

complete lockset knurled or abrasive

coated, suffix the lockset model

number with “Knurled” or “Abrasive

Coated,” i.e. LF x CN8807 x “Knurled,”

LF x CN8817-2 x “Knurled Inside Only,”

AU x CN8828FL “Abrasive Coated.”

underwriters laboratories

(UL - cUL)

Yale 8800 series mortise locks

have been listed by Underwriters

Laboratories Inc. for use on fire doors

having a rating up to and including

3 hours and for use on 20 minute

wood doors. This pertains to single

swing doors not exceeding 4 feet in

width and 8 feet in height and in doors

mounted in pairs not exceeding 8 feet

in either direction (unless otherwise

noted in the individual listings.)

In general, single-point mortise locks or

latches with 3/4" minimum latch throw

are intended for the active leaf of doors

mounted in pairs, with the inactive

leaf provided with top and bottom

flush or surface bolts of the manual,

automatic, or self-latching type. The

door Classification Marking specifies

the minimum latch throw required for

the individual door.

Yale 8800 series mortise locks with

3/4" throw latchbolts may also be used

on single swing doors rated 1-1/2

hours or less, up to 4 feet in width and

9 feet in height. This is in addition to

the rating mentioned above. All Yale

8800 Series Mortise Locks with Lever

Handle Trim are UL listed for fire door

applications. Underwriters Laboratories

does not list locks with rabbeted fronts,

locks with deadbolt only, or locks with

hold-back feature on the latchbolt.

Note: Any retrofit or other field modification to

a fire rated opening can potentially impact the

fire rating of the opening, and Yale Locks &

Hardware makes no representations or warranties

concerning what such impact may be in any

specific situation. When retrofitting any portion

of an existing fire rated opening, or specifying

and installing a new fire-rated opening, please

consult with a code specialist or local code

official (Authority Having Jurisdiction) to ensure

compliance with all applicable codes and ratings.

lead shielding

All Yale 8800 series mortise locks

are available with a lead shield for

installation in lead-lined doors. To

order, suffix the lockset model number

with “lead-lined.”

bevel front

Yale 8800 series fronts are free-

floating to adjust from flat to the

standard bevel of 1/8" in 2".

door thickness

8800 series mortise locks are

supplied as standard for 1-3/4" thick

doors. For other than standard, specify

the door thickness on the order:

(i.e. 2", 2-1/4", etc.)

A.D.A.

The 8800FL meets accessibility

guidelines of the Americans with

Disabilities Act and the requirements

of the Uniform Federal Accessibility

standards and ANSI 117.1, all requiring

ease of accessibility for the handicapped.

ANSI/BHMA

Certified ANSI/BHMA A156.13,

Series 1000, Operational Grade 1

(8800FL with CN escutcheon &

SL8800 meet Security Grade 1).

ISO 9001

Designed and manufactured under a

certified ISO 9001 quality system.

features

3

8800 series grade 1 mortise locks

8800 series grade 1 mortise locks

Y

ale

4

• TheSL8800seriesmortiselock

features heavy-duty lever escutcheon

trim and is designed primarily for

applications in schools and other

institutions where excessive abuse

and vandalism may occur. It is also

recommended for use in minimum

security prisons and office buildings

or apartment buildings located in

“high crime” areas.

• Yale® SL8800 series lever escutcheon

trims feature through-bolted

installation with security head screws.

• Outsidetrimisheldinplaceby

threaded posts. Posts fit through

holes in the door, above and below

the lock case, and are secured by

through-bolts from the inside trim.

• Leversareattachedtothe

escutcheon for added security.

• Yale outside escutcheon trims have

no visible screws – a great deterrent

to vandalism.

• Eachmortiselockorderedwithlever

trim features an internal heavy-duty

spring cartridge which prevents

lever sag.

• AllYale mortise lock trims are UL

listed for fire door applications.

• SL8800’sareofferedwithAugusta,

Arcadia*, Carmel, Jefferson, Monroe,

Pacific Beach and Virginia lever

handle escutcheon trims.

*Handed lever.

• SL8800seriesmortiselocksare

available in most lock functions. (See

pages 14-23.)

SL Escutcheon: 8" x 2-1/2"

Cylinder Collar: See pages 34-37

Material: Stainless steel escutcheon;

Cast lever (plated to match stainless steel)

Specifications for all levers below:

Jefferson - JNSL

Pacific Beach - PBSLMonroe - MOSL

Carmel - CRSL

Arcadia - ARSL

Augusta - AUSL

Virginia - VISL

SL8800

facts and figures

•AllYale® 8800FL series sectional lever trims feature through-bolted

installation. This ensures positive alignment of the trim with the lock

case and offers an attractive appearance.

•Outsidetrimisheldinplacebythreadedposts.Thepostst

through holes in the lock case and are secured by through-bolts

from the inside trim.

•Sinceself-aligningtrimiseasytoinstall,on-the-joblaborcosts

may be reduced.

• Eachmortiselockorderedwithlevertrimfeaturesaninternalheavy-

duty spring cartridge which prevents lever sag.

•AllYale mortise lock trims are UL listed for fire door applications.

•Avarietyofsectionalleverdesignsareavailableasshownon

pages 6-11.

sectional lever installation

5

8800 series grade 1 mortise locks

•AllYale 8800FL series escutcheon lever trims feature through-

bolted installation.

•Outsidetrimisheldinplacebythreadedposts.Thepostst

through the door and are secured by through-bolts from the

inside trim.

•Yale outside escutcheon trims have no visible screws – a great

deterrent to vandalism.

• Eachmortiselockorderedwithlevertrimfeaturesaninternalheavy-

duty spring cartridge which prevents lever sag.

•AllYale mortise lock trims are UL listed for fire door applications.

•Avarietyofescutcheonleverdesignsareavailableasshownon

pages 6-11.

escutcheon lever installation

Armor Front - 8" x 1-1/4"

Door Thickness - 1-3/4" standard, to 3-1/4" thick doors to order.

Deadbolt - 1" throw, solid investment cast stainless steel.

Latchbolt - 3/4" throw, stainless steel one-piece anti-friction.

UL Listed - for application on labeled fire doors.

Backset - 2-3/4" only.

Case - wrought steel, zinc dichromated.

Hubs - 3/8" solid steel, fine-blanked and heat treated for additional

strength.

8800/SL8800 series

6

8800 series grade 1 mortise locks

Carmel - CRRAugusta - AURArcadia - ARR

Carmel – CR x CNAugusta – AU x CNArcadia – AR x CN

AR Lever

Handle3:Cast

CO Rose1: Stamped

Cylinder

Collar: See pages 32-33

AR Lever

Handle3: Cast

CN

Escutcheon2: Cast

Cylinder

Collar: See pages 34-37

AU Lever

Handle: Cast

CO

Rose1: Stamped

Cylinder

Collar: See pages 32-33

AU Lever

Handle: Cast

CN

Escutcheon2: Cast

Cylinder

Collar: See pages 34-37

CR Lever

Handle: Cast

CN

Escutcheon2: Cast

Cylinder

Collar: See pages 34-37

CR Lever

Handle: Cast

CO

Rose1: Stamped

Cylinder

Collar: See pages 32-33

standard lever trim

3-1/4

(83)

3

(76) 3

(76)

3

(76)

3

(76)

3

(76) 3

(76)

3

(76)

3

(76)

2-1/2

(64)

3-1/8

(79)

2-9/16

(65)

3

(76)

3-1/4

(83)

3-1/8

(79) 2-7/8

(73)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

3-1/4

(83)

3

(76) 3

(76)

3

(76)

3

(76)

3

(76) 3

(76)

3

(76)

3

(76)

2-1/2

(64)

3-1/8

(79)

2-9/16

(65)

3

(76)

3-1/4

(83)

3-1/8

(79) 2-7/8

(73)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

3-1/4

(83)

3

(76) 3

(76)

3

(76)

3

(76)

3

(76) 3

(76)

3

(76)

3

(76)

2-1/2

(64)

3-1/8

(79)

2-9/16

(65)

3

(76)

3-1/4

(83)

3-1/8

(79) 2-7/8

(73)

2-3/16

(56) 2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

8-21/32

(220)

2-3/16

(56)

1/2

(13)

8-21/32

(220)

2-3/16

(56)

1/2

(13)

8-21/32

(220)

2-3/16

(56)

1/2

(13)

1. Available with Reflections® roses. See page 11 for options.

2. Available with Reflections® escutcheons. See page 11 for options.

3. Indicates levers that are handed.

standard lever trim

7

8800 series grade 1 mortise locks

Pacific Beach – PB x CNMonroe – MO x CNJefferson – JN x CN

Pacific Beach - PBRMonroe - MORJefferson - JNR

JN Lever

Handle: Cast

CO Rose1: Stamped

Cylinder

Collar: See pages 32-33

MO Lever

Handle: Cast

CO

Rose1: Stamped

Cylinder

Collar: See pages 32-33

PB Lever

Handle: Cast

CO

Rose1: Stamped

Cylinder

Collar: See pages 32-33

JN Lever

Handle: Cast

CN

Escutcheon2: Cast

Cylinder

Collar: See pages 34-37

MO Lever

Handle: Cast

CN

Escutcheon2: Cast

Cylinder

Collar: See pages 34-37

PB Lever

Handle: Cast

CN

Escutcheon2: Cast

Cylinder

Collar: See pages 34-37

3-1/4

(83)

3

(76) 3

(76)

3

(76)

3

(76)

3

(76) 3

(76)

3

(76)

3

(76)

2-1/2

(64)

3-1/8

(79)

2-9/16

(65)

3

(76)

3-1/4

(83)

3-1/8

(79) 2-7/8

(73)

2-3/16

(56) 2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

8-21/32

(220)

2-3/16

(56)

1/2

(13)

3-1/4

(83)

3

(76) 3

(76)

3

(76)

3

(76)

3

(76) 3

(76)

3

(76)

3

(76)

2-1/2

(64)

3-1/8

(79)

2-9/16

(65)

3

(76)

3-1/4

(83)

3-1/8

(79) 2-7/8

(73)

2-3/16

(56) 2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

8-21/32

(220)

2-3/16

(56)

1/2

(13)

3-1/4

(83)

3

(76) 3

(76)

3

(76)

3

(76)

3

(76) 3

(76)

3

(76)

3

(76)

2-1/2

(64)

3-1/8

(79)

2-9/16

(65)

3

(76)

3-1/4

(83)

3-1/8

(79) 2-7/8

(73)

2-3/16

(56) 2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

8-21/32

(220)

2-3/16

(56)

1/2

(13)

1. Available with Reflections® roses. See page 11 for options.

2. Available with Reflections® escutcheons. See page 11 for options.

8

8800 series grade 1 mortise locks

Virginia - VIRPinehurst - PNR

Virginia – VI x CNPinehurst – PN x CN

PN Lever

Handle: Cast

CO Rose1: Stamped

Cylinder

Collar: See pages 32-33

PN Lever

Handle: Cast

CN

Escutcheon2: Cast

Cylinder

Collar: See pages 34-37

VI Lever

Handle: Cast

CO

Rose1: Stamped

Cylinder

Collar: See pages 32-33

VI Lever

Handle: Cast

CN

Escutcheon2: Cast

Cylinder

Collar: See pages 34-37

standard lever trim

3-1/4

(83)

3

(76) 3

(76)

3

(76)

3

(76)

3

(76) 3

(76)

3

(76)

3

(76)

2-1/2

(64)

3-1/8

(79)

2-9/16

(65)

3

(76)

3-1/4

(83)

3-1/8

(79)

2-7/8

(73)

2-3/16

(56) 2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

8-21/32

(220)

2-3/16

(56)

1/2

(13)

3-1/4

(83)

3

(76) 3

(76)

3

(76)

3

(76)

3

(76) 3

(76)

3

(76)

3

(76)

2-1/2

(64)

3-1/8

(79)

2-9/16

(65)

3

(76)

3-1/4

(83)

3-1/8

(79)

2-7/8

(73)

2-3/16

(56) 2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

2-3/16

(56)

8-21/32

(220)

2-3/16

(56)

1/2

(13)

1. Available with Reflections® roses. See page 11 for options.

2. Available with Reflections® escutcheons. See page 11 for options.

9

8800 series grade 1 mortise locks

designer trim

Hampton - HA

Designer trims are available in only the following finishes: 605, 606, 619, 625, 626

Designer trims are available with a choice of two roses and two escutcheons. When ordering utilize the design symbol (i.e. HA) and specific rose

or escutcheon symbol (R1, R2, E1 or E2). An example of a complete symbol, including lever design, would be HAE1. Escutcheon E1 and Rose

R1 are shown with above lever designs.

HAE1 HAR1

E1 E2

Thumbturn

1-1/2" x 1"

Projection

Emergency

Release

R1 R2

escutcheons, roses and parts

HA Lever

Handle: Cast

E1 or E2

Escutcheon: Cast

HA Lever

Handle: Cast

R1 or R2

Rose: Cast

ANSI/

BHMA

Code

Finish Description US

Code

605 Bright Brass, Clear Coated US3

606 Satin Brass, Clear Coated US4

611 Bright Bronze, Clear

Coated US9

612 Satin Bronze, Clear

Coated US10

613 Dark Oxidized Satin

Bronze, Oil Rubbed2US10B

613E Dark Oxidized Satin

Bronze - equivalent US10BE

N/A Dark Oxidized Satin

Bronze, Clear Coated1 US10BL

N/A Statuary Dark Bronze,

Clear Coated1US20D

618 Bright Nickel Plated, Clear

Coated US14

619 Satin Nickel Plated, Clear

Coated US15

625 Bright Chrome Plated US26

626 Satin Chrome Plated US26D

629 Bright Stainless Steel US32

630 Satin Stainless Steel US32D

722 Black Oxidized Bronze,

Oil Rubbed3

MicroShield® antimicrobial coating available

as special application. Contact factory for

availability.

1. Yale finishes are designated by ANSI/BHMA codes.

There is no equivalent designation and request will be

processed by special order.

2. New May 1, 2010

3. Formerly 613 prior to May 1, 2010

sectional lever installation escutcheon lever installation

introduction

Yale® 8800RL mortise locks are available with Reections lever trim,

a comprehensive line of highly stylized lever handles. Reections lever

handles are made from solid brass or stainless steel and can withstand

years of abuse. Available in a multitude of finishes, the levers complement

any wood grain or other door exterior. Each lever is hand-polished and

specially designed for ergonomics and style.

features

•All8800RLserieslevertrimsfeaturethrough-boltedinstallation.For

sectional trims, this ensures positive alignment of the trim with the lock

case.

•Alloutsidetrimisheldinplacebythreadedposts.Forsectionaltrims,

the posts fit through holes in the lock case and are secured by through-

bolts from the inside trim. For escutcheon trims, the posts fit through

the door and are secured by through-bolts from the inside trim.

•Outsideescutcheontrimshavenovisiblescrews-agreatdeterrentto

vandalism.

•8800RLmortiselocksfeatureaninternalheavy-dutyspringcartridge

which prevents lever sag.

•All8800RLtrimsareULlistedforredoorapplications.

•Availablefor1-3/4"to3-1/4"thickdoors.

•Lever,rose,andescutcheondesignsareavailableasshownonpage

11. Levers are also available for use with standard CO rose* and/or CN

escutcheon as shown on pages 6-8.

finishes

10

8800 series grade 1 mortise locks

*When using Reections Levers with the CO rose, the rose adaptor is not used. Levers will not install and/or properly operate if rose adaptor

is included.

8800RL Reflections® decorative trim

8800 series grade 1 mortise locks

11

hudson danube seine thames victoria niagara

TB TE TG* TM TT* MA*

UB TI TO* TN TU* RA*

TC TJ* TP TV* RB*

UC TK* TR TW* RC*

TD TS UW*

TQ TX*

R3 R4 R5 UX*

R6 R7 R7 TY*

R6 R7 R8

TZ*

Reflections® escutcheons

Reflections® roses

*Indicates levers that are handed.

Note: Reections levers are also available for use with CO rose and/or CN escutcheon.

2-3/4"

(69.9)

2-3/4"

(69.9)

2-3/4"

(69.9)

2"

(50.8)

2-3/16"

(55.6) 2-3/16"

(55.6)

E3 E4

Reflections® trim

12

8800 series grade 1 mortise locks

knob trim installation

•AllYale® 8800 series sectional knob trims

feature through-bolted installation. This

ensures positive alignment of the trim

with the lock case and offers an attractive

appearance.

•Outsidetrimisheldinplacebythreaded

posts. The posts fit through holes in the

lock case and are secured by through-

bolts from the inside trim.

•Sinceself-aligningtrimiseasytoinstall,

on-the-job labor costs may be reduced.

•AllYale mortise lock trims are UL listed for

fire door applications.

• Sectionalknobdesignsareavailableas

shown on page 13.

escutcheon knob installation

•AllYale 8800® series escutcheon knob

trims feature through-bolted installation.

•Outsidetrimisheldinplacebythreaded

posts. The posts fit through the door and

are secured by through-bolts from the

inside trim.

•Yale outside escutcheon trims have

no visible screws – a great deterrent to

vandalism.

•AllYale mortise lock trims are UL listed for

fire door applications.

• Escutcheonknobdesignsareavailableas

shown on page 13.

sectional knob installation

8800 series grade 1 mortise locks

knob trim

13

Copenhagen - COR

Copenhagen – CO x CN

3-1/16"

(78)

2-1/4

(57)

2-1/4

(57)

2-1/2

(64)

2-9/16

(65)

3-3/32

(79)

2-1/4

(57)

2-9/16

(65)

2-1/4

(57)

2-1/2

(64)

CO Knob: Cast

CN Escutcheon2: Cast

Cylinder Collar: See pages 34-37

CO Knob: Cast

CO Rose1: Stamped

Cylinder Collar: See pages 32-33

3-1/16"

(78)

2-1/4

(57)

2-1/4

(57)

2-1/2

(64)

2-9/16

(65)

3-3/32

(79)

2-1/4

(57)

2-9/16

(65)

2-1/4

(57)

2-1/2

(64)

3-1/16"

(78)

2-1/4

(57)

2-1/4

(57)

2-1/2

(64)

2-9/16

(65)

3-3/32

(79)

2-1/4

(57)

2-9/16

(65)

2-1/4

(57)

2-1/2

(64)

Litchfield – LF x CN

3-1/16"

(78)

2-1/4

(57)

2-1/4

(57)

2-1/2

(64)

2-9/16

(65)

3-3/32

(79)

2-1/4

(57)

2-9/16

(65)

2-1/4

(57)

2-1/2

(64)

Litchfield - LFR

LF Knob: Cast

CO Rose1: Stamped

Cylinder Collar: See pages 32-33

LF Knob: Cast

CN Escutcheon2: Cast

Cylinder Collar: See pages 34-37

1. Available with Reflections® roses. See page 11 for options.

2. Available with Reflections® escutcheons. See page 11 for options.

8800 series grade 1 mortise locks

14

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

Mechanical

Functions

(ANSI)

Description / Model Numbers Armor Front Part

Number *Cylinder *Cam

Escutcheon Plate

Spacing Numbers Spindles

Illustration

Outside Inside Knobs Levers

(Std.)

8801

Passage or

closet latch

(F01)

• Fordoorsthatdonotrequirelocking.

• Latchboltretractedbyknob/levereithersideatalltimes.

Trim

Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8801 8801FL 3/4"

SL — SL8801FL 3/4"

Reflections®— 8801RL 3/4"

50-8801-x219-FIN — — 201 201 1178L 1178L

8802

Privacy,

bedroom or

bath lock

(F19)

• Latchboltretractedbyknob/levereitherside.

• Deadboltoperatedbythumbturninside.

• Whenthedeadboltisprojected,outsideknob/leveris

automatically locked.

• Anti-panicoperation.Operatinginsideknob/leverretracts

the latchbolt and deadbolt simultaneously, automatically

unlocking

outside knob/lever.

•Inemergency,deadboltmaybeunlockedfromoutsideby

E203 emergency key, supplied.

Trim

Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8802 8802FL 3/4" 1"

SL — SL8802FL 3/4" 1"

Reflections®— 8802RL 3/4" 1"

50-8802-x219-FIN — — 211

(261 for

Occupancy

Indicator)

211 1178L 1178L

8805

Storeroom or

closet lock

(F07)

• Foruseonstoreroom,utility,exitdoors.

• Latchboltretractedbykeyoutside,knob/leverinside.

• Outsideknob/leverrigidatalltimes.

• Insideknob/leveralwaysactive.

• Deadlockinglatchbolt.

Trim

Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8805 8805FL 3/4"

SL — SL8805FL 3/4"

Reflections®— 8805RL 3/4"

50-8805-x219-FIN 2153 2160 208 201 1178L 1178L

8807

Entry lock

(F04)

• Forofcedoorswherelockingisrequired.

• Latchboltretractedbyknob/levereitherside,exceptwhen

outside knob/lever is locked by stopwork activator.

• Whenoutsideknob/leverislocked,latchboltisoperated

by key outside and knob/lever inside.

• Deadlockinglatchbolt.

Trim

Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8807 8807FL 3/4"

SL — SL8807FL 3/4"

Reflections®— 8807RL 3/4"

50-8807-x219-FIN 2153 2160 208 201 1178L 1178L

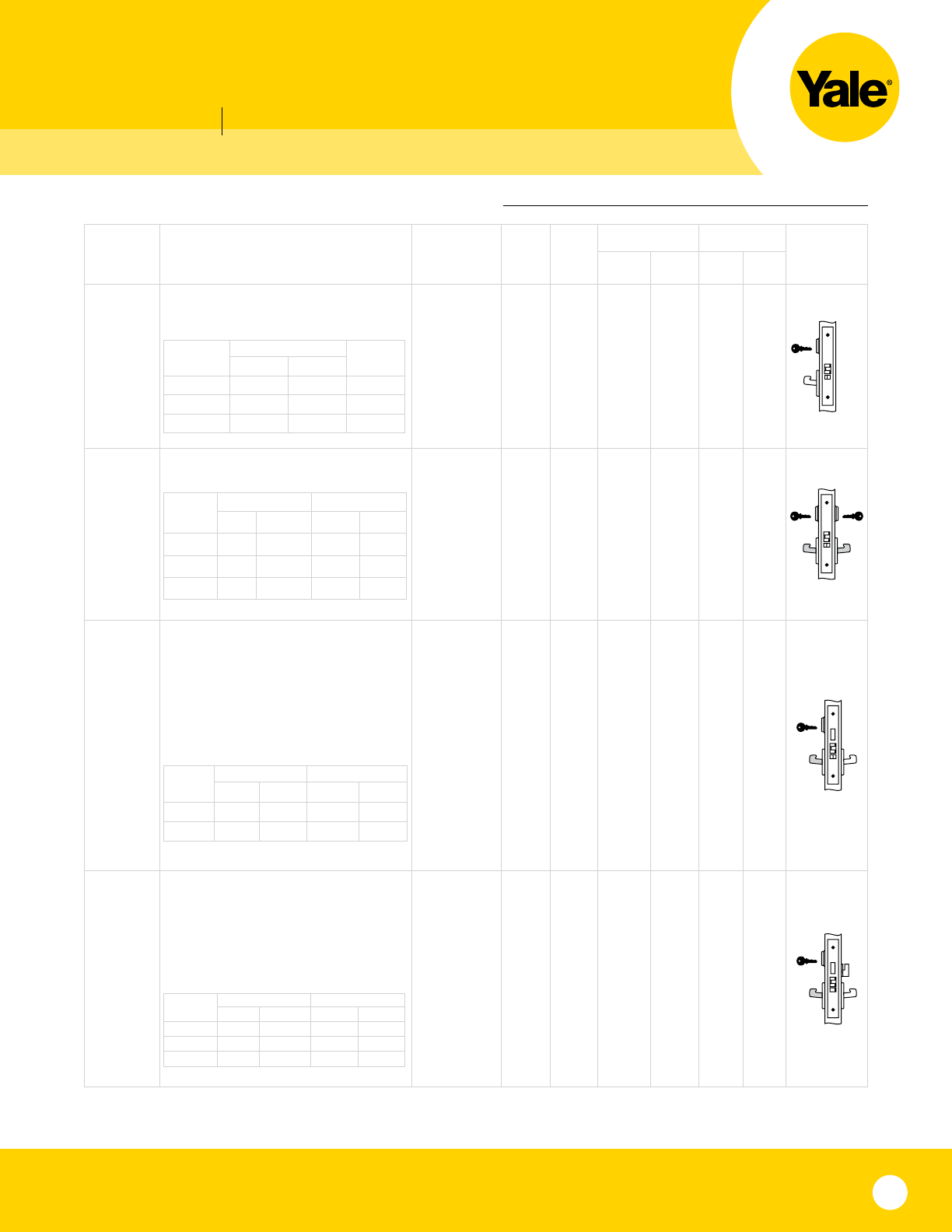

mechanical functions and descriptions

mechanical functions and descriptions

15

8800 series grade 1 mortise locks

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

Mechanical

Functions

(ANSI)

Description / Model Numbers Armor Front Part

Number *Cylinder *Cam

Escutcheon Plate

Spacing Numbers Spindles

Illustration

Outside Inside Knobs Levers

(Std.)

8808

Classroom lock

(F05)

• Forclassroom,ofce,orutilityroomdoors.

• Latchboltretractedbyknob/levereitherside, 

except when outside knob/lever is locked by

key outside.

• Insideknob/leveralwaysactive.

• Deadlockinglatchbolt.

Trim

Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8808 8808FL 3/4"

SL — SL8808FL 3/4"

Reflections®— 8808RL 3/4"

50-8805-x219-FIN 2153 2160 208 201 1178L 1178L

8808-2

Intruder

latchbolt lock

(F32)

•Latchboltretractedbyknob/levereitherside 

unless outside knob/lever is locked by key.

• Eithercylinderlocksorunlocksoutside 

knob/lever.

• Latchboltcanberetractedbykeywhen 

outside knob/lever is locked.

• Operatinginsideknob/leverretractslatchbolt, 

but outside knob/lever remains locked.

• Deadlockinglatchbolt.

Trim

Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8808-2 8808-2FL 3/4"

SL — SL8808-

2FL 3/4"

Reflections®— 8808-2RL 3/4"

50-8805-x219-FIN 2153

(both

sides)

2160 208 208 1178L 1178L

8809

Classroom or

office lock

•Latchboltretractedbyknob/levereithersideunlessoutside

knob/lever is locked by key outside or thumbturn inside.

•Latchboltretractedbythumbturninsideorkeyoutside.

•Insideknob/leveralwaysactive.

•Deadlockinglatchbolt.

Trim

Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8809 8809FL 3/4"

SL — SL8809FL 3/4"

Reflections®— 8809RL 3/4"

50-8805-x219-FIN 2153 2160 208 211 1178L 1178L

8811-2

Intruder

deadbolt lock

(F33)

•Latchboltretractedbyknob/levereithersideunlessoutside

knob/lever is locked by key.

•Deadbolt operated by key either side.

•Whendeadboltisprojected,outsideknob/leveris

automatically locked.

•Key retraction of deadbolt unlocks outside knob/lever.

•Anti-panicoperation.Operatinginsideknob/leverretracts

the latchbolt and deadbolt simultaneously, automatically

unlocking outside knob/lever.

Trim

Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8811-2 8811-2FL 3/4" 1"

SL — SL8811-2FL 3/4" 1"

Reflections®— 8811-2RL 3/4" 1"

50-8802-x219-FIN 2153

(both

sides)

2160 208 208 1178L 1178L

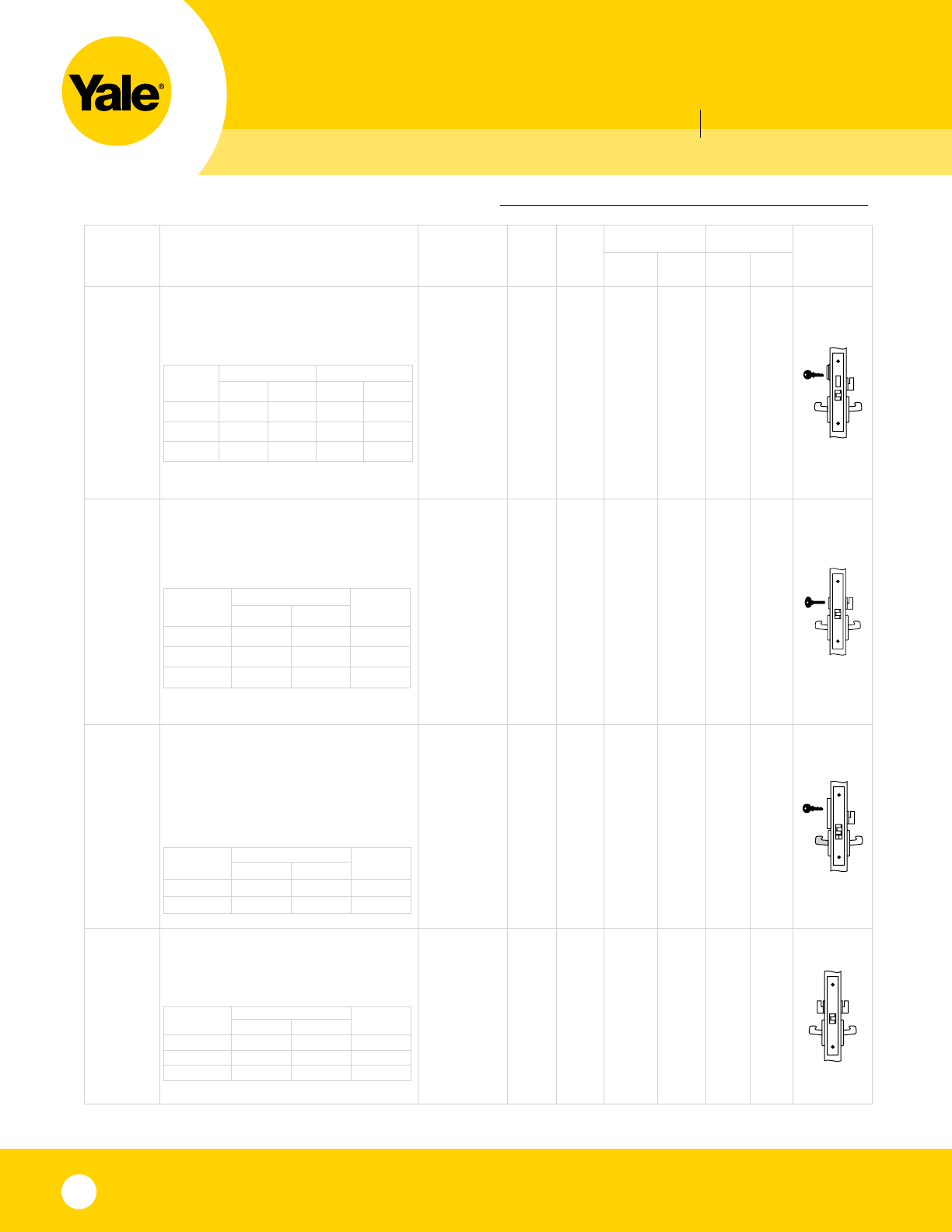

16

8800 series grade 1 mortise locks

mechanical functions and descriptions

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

Mechanical

Functions

(ANSI)

Description / Model Numbers Armor Front Part

Number *Cylinder *Cam

Escutcheon Plate

Spacing Numbers Spindles

Illustration

Outside Inside Knobs Levers

(Std.)

8812-2

Intruder

deadbolt lock

(F34)

•Latchboltretractedbyknob/levereithersideunless

outside knob/lever is locked by key.

•Deadboltoperatedbykeyeitherside.

•Whendeadboltisprojected,outsideknob/leveris

automatically locked.

•Key retraction of deadbolt unlocks outside knob/lever.

•Anti-panicoperation.Operatinginsideknob/leverretracts

the latchbolt and deadbolt simultaneously, automatically

unlocking outside knob/lever.

• Deadlockinglatchbolt.

Trim

Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8812-2 8812-2FL 3/4" 1"

SL — SL8812-2FL 3/4" 1"

Reflections®— 8812-2RL 3/4" 1"

50-8820-x219-FIN 2153

(both

sides)

2160 208 208 1178L 1178L

8813ST

Classroom

deadlock

(F29)

• Deadboltoperatedbykeyoutside,thumbturninside.

• Thumbturninsidewillretractthedeadboltbutwillnot

project it.

• NOTULlisted.

Model Number Deadbolt Throw

8813ST 1"

50-8813-x219-FIN 2153 2160 250 251 — —

8813ST-2

Classroom

deadlock

• Deadboltoperatedbykeyeitherside.

• Thumbturninsidewillretractthedeadboltbutwillnot

project it.

• NOTULlisted.

Model Number Deadbolt Throw

8813ST-2 1"

50-8813-x219-FIN 2153

(both

sides)

2160 250 252 — —

8814

Deadlock

(F18)

• Deadboltoperatedbykeyoutsideonly.

• Noinsideoperation.

• NOTULlisted.

Model Number Deadbolt Throw

8814 1"

50-8813-x219-FIN 2153 2160 250 — — —

8814-2

Deadlock

(F16)

• Deadboltoperatedbykeyeitherside.

• NOTULlisted.

Note: Use only on rooms with more than one exit.

Model Number Deadbolt Throw

8814-2 1"

50-8813-x219-FIN 2153

(both

sides)

2160 250 250 — —

8815

Deadlock

(F17)

• Deadboltoperatedbykeyoutside,

thumbturn inside.

• NOTULlisted.

Model Number Deadbolt Throw

8815 1"

50-8813-x219-FIN 2153 2160 250 251 — —

17

8800 series grade 1 mortise locks

mechanical functions and descriptions

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

Mechanical

Functions

(ANSI)

Description / Model Numbers Armor Front

Part Number

*Cylinder *Cam Escutcheon Plate

Spacing Numbers Spindles

Illustration

Outside Inside Outside Inside Outside Inside Knobs Levers

(Std.)

8817-2

Apartment,

exit or

public toilet

lock

(F09)

• Latchboltretractedbyknob/levereitherside,except

when outside knob/lever is locked by key inside.

• Whenoutsideknob/leverislocked,latchboltisoperated

by key outside and knob/lever inside.

• Deadlockinglatchbolt.

Trim Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8817-2 8817-2FL 3/4"

SL — SL8817-2FL 3/4"

Reflections®— 8817-2RL 3/4"

50-8805-x219-FIN 2153 2153S 2160 2130 208 208 1178L 1178L

8818-2

Classroom

security

intruder lock

•Latchboltretractedbyknob/leverunlessoutsideknob/

lever is locked by key.

•Deadboltoperatedbykeyeitherside.

•Whendeadboltisprojected,outsideknob/leveris

automatically locked.

•Keyretractionoflatchboltbyeithersideunlocksoutside

knob/lever.

•Anti-panicoperation.Operatinginsideknob/leverretracts

the latchbolt and deadbolt simultaneously, with outside

knob/lever remaining locked.

• Deadlockinglatchbolt.

Trim Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8818-2 8818-2FL 3/4" 1"

SL — SL8818-2FL 3/4" 1"

Reflections®— 8818-2RL 3/4" 1"

50-8820-x219-FIN 2153

(both sides)

2160 208 208 1178L 1178L

8820

Hotel guest

lock

(F15)

• Latchboltretractedbykeyoutside,knob/leverinside.

• Latchboltretractedbymasterkeysandchangekeys

only when deadbolt is NOT projected.

• Deadboltoperatedbyemergency/shut-outordisplaykey

outside and thumbturn inside.

• Whendeadboltisprojected,theoccupancyindicator

shows "OCC" (indicating room is occupied). Access from

outside can be gained only with an emergency/shut-out

or display key.

• Outsideknob/leverrigidatalltimes.

• Anti-panicoperation.Operatinginsideknob/lever

retracts the latchbolt and deadbolt simultaneously.

• Deadlockinglatchbolt.

• Masterkeysystemmustbe7-pin.

Trim Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8820 8820FL 3/4"

SL — SL8820FL 3/4"

Reflections®— 8820RL 3/4"

50-8820-x219-FIN 2719 2160 260 211 1178L 1178L

8822

Dormitory

or exit lock

(F13)

• Latchboltretractedbyknob/levereitherside.

• Deadboltoperatedbykeyoutsideandthumbturninside.

• Whenthedeadboltisprojected,outsideknob/leveris

automatically locked.

• Anti-panicoperation.Operatinginsideknob/lever

retracts the latchbolt and deadbolt simultaneously,

automatically unlocking outside knob/lever.

Trim Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8822 8822FL 3/4" 1"

SL — SL8822FL 3/4" 1"

Reflections®— 8822RL 3/4" 1"

50-8802-x219-FIN 2153 2160 208 211 1178L 1178L

18

8800 series grade 1 mortise locks

mechanical functions and descriptions

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

Mechanical

Functions

(ANSI)

Description / Model Numbers Armor Front Part

Number *Cylinder *Cam

Escutcheon Plate

Spacing Numbers Spindles

Illustration

Outside Inside Knobs Levers

(Std.)

8823

Storeroom lock

• Latchboltretractedbyknob/leveroutside.

• Deadboltoperatedbykeyoutside.

• Whendeadboltisprojected,outsideknob/lever 

is automatically locked.

• Noinsideknob/leverorcylinder.

Trim Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8823 8823FL 3/4" 1"

SL — SL8823FL 3/4" 1"

Reflections®— 8823RL 3/4" 1"

50-8802-x219-FIN 2153 2160 208 — F1198 F1198

8824

Holdback lock

(F06)

• Forclassroom,ofce,orutilityroomdoors.

• Latchboltretractedbyknob/levereitherside, 

except when outside knob/lever is locked by

key outside.

• Latchboltcanbeheldinretractedpositionby 

outside cylinder.

• Insideknob/leveralwaysactive.

• Deadlockinglatchbolt.

• NOTULlisted.

Trim Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8824 8824FL 3/4"

SL — SL8824FL 3/4"

Reflections®— 8824RL 3/4"

50-8805-x219-FIN 2153 2160 208 211 1178L 1178L

8827

Hotel/motel lock

•Latchboltretractedbyknob/levereitherside,except

when outside knob/lever is independently locked by

stopwork activator or automatically locked when the

deadbolt is projected.

• Latchboltretractedbymasterkeysandchangekeys

only when deadbolt is NOT projected.

• Deadboltoperatedbyemergency/shut-outor 

display key outside and thumbturn inside.

• Whendeadboltisprojected,theoccupancyindicator

shows "OCC" (indicating room is occupied). Access

from outside can be gained only with an emergency/

shut-out or display key.

• Anti-panicoperation.Operatinginsideknob/lever

automatically retracts latchbolt and deadbolt with

outside knob/lever remaining locked.

• Deadlockinglatchbolt.

• Masterkeysystemmustbe7-pin.

• FunctiononlyavailablewithCO,R6,R7,R8rosesor

CN escutcheon.

Trim Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8827 8827FL 3/4" 1"

SL — SL8827FL 3/4" 1"

Reflections®— 8827RL 3/4" 1"

50-8847-x219-FIN 2719 2160 260 211 1178L 1178L

8828

Exit or

communicating

lock (F31)

• Fortwincommunicatingorexitdoorswhere 

one-sided operation is required.

• Latchboltretractedbyknob/leverinsideatall 

times.

• Nooutsideoperations.

• Deadlockinglatchbolt.

Trim Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8828 8828FL 3/4"

SL — SL8828FL 3/4"

Reflections®— 8828RL 3/4"

50-8805-x219-FIN — — — 201 F1198 F1198

19

8800 series grade 1 mortise locks

mechanical functions and descriptions

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

Mechanical

Functions

(ANSI)

Description / Model Numbers Armor Front Part

Number *Cylinder *Cam

Escutcheon Plate

Spacing Numbers Spindles

Illustration

Outside Inside Knobs Levers

(Std.)

8829

Closet lock

•Latchboltretractedbyknob/leveroutside.

•Outside cylinder locks or unlocks outside knob/lever.

• Noinsideknob/leverorcylinder.

• Deadlockinglatchbolt.

Trim

Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8829 8829FL 3/4"

SL — SL8829FL 3/4"

Reflections®— 8829RL 3/4"

50-8805-x219-FIN 2153 2160 208 — F1198 F1198

8830-2

Asylum or

institutional lock

(F30)

• Latchboltretractedbykeybothsides.

• Rigidknob/leverbothsidesforuseaspullsonly.

• Deadlockinglatchbolt.

Trim

Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8830-2 8830-2FL 3/4" 1"

SL — SL8830-2FL 3/4" 1"

Reflections®— 8830-2RL 3/4" 1"

50-8805-x219-FIN 2153

(both

sides)

2160 208 208 1173L 1173L

8831

Detention lock

• Latchboltretractedbykeyoutside,knob/leverinside.

• Latchboltretractedbymasterkeysandchangekeys

only when deadbolt is NOT projected.

• Deadboltoperatedbyemergency(guards)keyonly 

outside.

• Insideknob/leveronlyopensdoorwhendeadboltis

in retracted position.

• Outsideknob/leverrigidatalltimes.

• Deadlockinglatchbolt.

• Trimmountedwithfastenersoutside.

• FurnishedstandardwithTORX® security screws.

• Master key system must be 7-pin.

Trim

Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8831 —3/4" 1"

SL — SL8831FL 3/4" 1"

50-8820-x219-FIN 2719 2160 201 208 1178L 1178L

8832

Hotel/motel lock

• Latchboltretractedbykeyoutside,knob/leverinside.

• Latchboltretractedbymasterkeysandchangekeys

only when deadbolt is NOT projected.

• Deadboltoperatedbyemergency/shut-outor 

display key only outside and thumbturn inside.

• Outsideknob/leverrigidatalltimes.

• Anti-panicoperation.Operatinginsideknob/lever 

retracts the latchbolt and deadbolt simultaneously.

• Deadlockinglatchbolt.

• Master key system must be 7-pin.

Trim Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8832 8832FL 3/4" 1"

SL — SL8832FL 3/4" 1"

Reflections®— 8832RL 3/4" 1"

50-8820-x219-FIN 2719 2160 208 211 1178L 1178L

20

8800 series grade 1 mortise locks

mechanical functions and descriptions

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

Mechanical

Functions

(ANSI)

Description / Model Numbers Armor Front Part

Number

*Cylinder *Cam Escutcheon Plate

Spacing Numbers Spindles

Illustration

Outside Inside Outside Inside Outside Inside Knobs Levers

(Std.)

8833

Exit lock

• Latchboltretractedbykeyoutside,knob/lever

inside.

• Noknob/leveroutside.

• Deadlockinglatchbolt.

Trim Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8833 8833FL 3/4"

Reflections®— 8833RL 3/4"

50-8805-x219-FIN 2153 2160 250 201 F1198 F1198

8833-2

All-purpose lock

• Latchboltretractedbykeybothsides.

• Noknob/levereitherside.

• Deadlockinglatchbolt.

Model Number Latchbolt Throw

8833-2 3/4"

50-8805-x219-FIN 2153

(both sides)

2160 250 250 — —

8834

All purpose lock

• Latchboltretractedbykeyoutside,knob/lever

inside.

• Noknob/leveroutside.

• Latchboltcanbeheldinretractedpositionby

inside thumbturn cylinder.

• Deadlockinglatchbolt.

• NOTULlisted.

Trim Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8834 8834FL 3/4"

Reflections®— 8834RL 3/4"

50-8805-x219-FIN 2153 S2053S 2160 2130 250 208 F1198 F1198

8834-2

All purpose lock

• Forclassroom,ofce,orutilityroomdoors.

• Latchboltretractedbykeyoutside,knob/lever

inside.

• Noknob/leveroutside.

• Latchboltcanbeheldinretractedpositionby

inside cylinder.

• Deadlockinglatchbolt.

• NOTULlisted.

Trim

Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8834-2 8834-2FL 3/4"

Reflections®— 8834-2RL 3/4"

50-8805-x219-FIN 2153 2153S 2160 2130 250 208 F1198 F1198

21

8800 series grade 1 mortise locks

mechanical functions and descriptions

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

Mechanical

Functions

(ANSI)

Description / Model Numbers Armor Front Part

Number *Cylinder *Cam

Escutcheon Plate

Spacing Numbers Spindles

Illustration

Outside Inside Knobs Levers

(Std.)

8835

Exit lock

• Latchboltretractedbyknob/leverinside.

• Deadboltoperatedbythumbturninside.

• Nooutsideoperations.

• Anti-panicoperation.Operatinginsideknob/lever 

retracts the latchbolt and deadbolt simultaneously.

• Deadlockinglatchbolt.

Trim

Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8835 8835FL 3/4" 1"

SL — SL8835FL 3/4" 1"

Reflections®— 8835RL 3/4" 1"

50-8820-x219-FIN — — — 211 F1198 F1198

8840

Storeroom

Deadbolt

• Latchboltretractedbykeyoutside,knob/leverinside.

• Deadboltoperatedbykeyoutsideandthumbturninside.

• Outsideknob/leverrigidatalltimes.

• Anti-panicoperation.Operatinginsideknob/leverretracts

the latchbolt and deadbolt simultaneously.

• Deadlockinglatchbolt.

Trim Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8840 8840FL 3/4" 1"

SL — SL8840FL 3/4" 1"

Reflections®— 8840RL 3/4" 1"

50-8820-x219-FIN 2153 2160 208 211 1178L 1178L

8847

Apartment

corridor door lock

(F20)

• Latchboltretractedbyknob/levereitherside,except

when outside knob/lever is locked by stopwork

activator.

• Deadboltoperatedbykeyoutside,thumbturninside.

• Whenoutsideknob/leverislocked,latchboltand 

deadbolt are operated by key outside.

• Whendeadboltisprojected,outsideknob/leveris 

automatically locked.

• Anti-panicoperation.Operatinginsideknob/lever

automatically retracts latchbolt and deadbolt with outside

knob/lever remaining locked.

• Deadlockinglatchbolt.

Trim Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8847 8847FL 3/4" 1"

SL — SL8847FL 3/4" 1"

Reflections®— 8847RL 3/4" 1"

50-8847-x219-FIN 2153 2160 208 211 1178L 1178L

8860

Room door lock

(F21)

• Latchboltretractedbyknob/levereitherside.

• Deadboltoperatedbykeyoutside,thumbturninside.

Trim

Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8860 8860FL 3/4" 1"

SL — SL8860FL 3/4" 1"

Reflections®— 8860RL 3/4" 1"

50-8802-x219-FIN 2153 2160 208 211 1178L 1178L

8860-2

Store door lock

(F14)

• Latchboltretractedbyknob/levereitherside.

• Deadboltoperatedbykeybothsides.

Trim

Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8860-2 8860-2FL 3/4" 1"

SL — SL8860-2FL 3/4" 1"

Reflections®— 8860-2RL 3/4" 1"

50-8802-x219-FIN 2153

(both

sides)

2160 208 208 1178L 1178L

22

8800 series grade 1 mortise locks

mechanical functions and descriptions

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

Mechanical

Functions

(ANSI)

Description / Model Numbers Armor Front Part

Number *Cylinder *Cam

Escutcheon Plate

Spacing Numbers Spindles

Illustration

Outside Inside Knobs Levers

(Std.)

8861

Dormitory or

storeroom lock

•Latchboltretractedbyknob/levereitherside.

•Deadboltoperatedbykeyoutside,thumbturninside.

•Whendeadboltisprojected,outsideknob/leveris 

automatically locked.

• Whendeadboltisretracted,outsideknob/leveris 

automatically unlocked.

Trim

Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8861 8861FL 3/4" 1"

SL — SL8861FL 3/4" 1"

Reflections®— 8861RL 3/4" 1"

50-8802-x219-FIN 2153 2160 208 211 1178L 1178L

8862

Privacy,

bedroom or

bath lock

(F22)

•Latchboltretractedbyknob/levereithersideexceptwhen

outside knob/lever is locked by thumbturn.

•Operatinginsideknob/leverretractsthelatchbolt, 

automatically unlocking outside knob/lever.

•Outside emergency release unlocks outside knob/lever. E203

emergency key supplied.

•Automaticallyunlockswhendoorlatches.

Trim

Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8862 8862FL 3/4"

SL — SL8862FL 3/4"

Reflections®— 8862RL 3/4"

50-8801-x219-FIN — — 211

(261 for

Occupancy

Indicator)

211 1178L 1178L

8864

Bathroom lock

with indicator

• Latchboltretractedbykeyoutside,knob/leverinside.

• Occupancyindicatoroperatedbythumbturninside,key

outside.

• WhenoccupancyindicatorshowsOCC,keyoutside

WILL operate occupancy indicator and retract latchbolt.

• Outsideknob/leverrigidatalltimes.

• Insideknob/leveralwaysactive.

• Deadlockinglatchbolt.

• FunctiononlyavailablewithCO,R6,R7,R8rosesorCN

escutcheon.

Trim Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8864 8864FL 3/4"

Reflections®— 8864RL 3/4"

50-8805-x219-FIN 2153 2160 260 211 1178L 1178L

8865

Bathroom lock

•Latchboltretractedbyknob/levereithersideexceptwhen

outside knob/lever is locked by thumbturn either side.

• Outsidethumbturnunlocksoutsideknob/lever.

•Automaticallyunlockswhendoorlatches.

•Operating inside knob/lever retracts the latchbolt,

automatically unlocking outside knob/lever.

Trim Model Numbers Latchbolt

Throw

Knobs Levers

Standard 8865 8865FL 3/4"

SL — SL8865FL 3/4"

Reflections®— 8865RL 3/4"

50-8801-x219-FIN — — 211 211 1178L 1178L

23

8800 series grade 1 mortise locks

8800 mechanical functions and descriptions

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

Mechanical

Functions

(ANSI)

Description / Model Numbers Armor Front Part

Number *Cylinder *Cam

Escutcheon Plate

Spacing Numbers Spindles

Illustration

Outside Inside Knobs Levers

(Std.)

8867

Dormitory or

exit lock

(F12)

• Latchboltretractedbyknob/levereitherside,except

when outside knob/lever is locked by stopwork activator or

automatically locked when deadbolt is projected.

• Deadboltoperatedbykeyoutside,thumbturninside.

• Whenoutsideknob/leverislocked,operatingkey 

outside retracts both latchbolt and deadbolt.

• Anti-panicoperation.Operatinginsideknob/leverretracts

the latchbolt and deadbolt simultaneously, with outside

knob/lever remaining locked.

Trim Model Numbers Throw

Knobs Levers Latchbolt Deadbolt

Standard 8867 8867FL 3/4" 1"

SL — SL8867FL 3/4" 1"

Reflections®— 8867RL 3/4" 1"

50-8867-x219-FIN 2153 2160 208 211 1178L 1178L

Mechanical

Functions

(ANSI)

Description

Model Numbers Armor Front

Part Number Illustration

Spindles

Knobs Levers Knobs Levers

(Std.)

Dummy trim

both sides

• Pushandpullonly.

• Knob/leverbothsides.

• Bothknob/levernon-operationalandrigidatalltimes.

• Plainrectangularfrontusedwithspindle-barstabilizer.

• Availableinallsectionalandescutcheontrim.

836A prefixed by design

symbol (i.e. LFR836A,

CO x CN836A)

838AFL prefixed

by design symbol

(i.e.JNR838AFL,

JN x CN838AFL)

50-0836-2002-FIN — —

Dummy trim

both sides

• Pushorpullonly.

• Knob/leverbothsidesofinactiveleafofapairofdoors.

• Bothknob/levernon-operationalandrigidatalltimes.

• Availableinallsectionalandescutcheontrim.

• 2815Strikeavailableuponrequest.

836B prefixed by design

symbol (i.e. COR836B,

LF x CN836B)

838BFL prefixed

by design symbol

(i.e.JNR838BFL,

JN x CN838BFL)

—— —

Dummy trim

one side

• Pushorpullonly.

• Knob/leveroneside.

• Knob/levernon-operationalandrigidatalltimes.

• Availableinallsectionalandescutcheontrim.

855 prefixed by design

symbol (i.e. COR855)

855FL prefixed by

design symbol

(i.e. CR x CN855FL)

—— —

Active dummy

trim

• Knob/leverbothsides.

• Pushorpullonly.

• Primarilyforleverhandletrim.

• Knob/leveractivetopreventdamage.

8871DT – Armor front acts as strike for latchbolt only functions.

8872DT – Armor front acts as strike for latchbolt x deadbolt functions

Model Numbers

Armor Front Armor Front Part Numbers Illustration

Knobs Levers Reflections®

8870DT 8870FLDT 8870RLDT Plain 50-8870-7020-FIN

8871DT 8871FLDT 8871RLDT Latchbolt Hole RH = 50-8871-7020-FIN

LH = 50-8871-7021-FIN

8872DT 8872FLDT 8872RLDT Latchbolt/

Deadbolt Hole

RH = 50-8872-7020-FIN

LH = 50-8872-7021-FIN

Handing must be specified when ordering.

1173L 1173L

applications

Stair tower doors, office doors, classrooms, interlocks, elevator lobby doors, laboratories, computer rooms, cashier

stations, hospital equipment rooms and pharmaceutical storage rooms. For narrow frame profiles, consult factory.

trim designs

8800 electrified mortise locksets are

available with all knob, lever, SL and

Reflections® trims.

ANSI/BHMA

Certified ANSI/BHMA

A156.13, Series 1000,

Operational Grade 1 (8800FL with

CN escutcheon & SL8800 meet

Security Grade 1).

electrical specifications

Fail Safe/Fail Secure

Voltage: 12VDC or 24VDC Regulated

Current Draw:

.25A at 24VDC

.5A at 12VDC

Operating Temp.:

Max. 151°F (66°C)

Min. -31°F (-35°C)

All monitoring switches rated at:

2 Amp @ 30 VDC

3 Amp @ 125 VAC

monitoring options

electrolynx®

Yale® electrified 8800 locks are equipped with ElectroLynx connectors. As a

standard feature, these connectors link power from the incoming source to

electrified locking products, including hinges, locks, exit devices, magnetic

holders and strikes.

Note: Electrified door hardware with ElectroLynx connectors require a compatible number of lead wires attached to the

door hinge.

24

8800 series grade 1 mortise locks

securex® electrified mortise lockset

Model Number Description

REX Request to Exit - An SPDT switch that monitors activation of the free lever (not available with knob trim). REX is available for

all mechanical and electrified functions and can be supplied alone or with either LBM or DBM.

LBM Latchbolt Monitor - An SPDT switch that monitors full retraction of the latchbolt. LBM is available for all electrified functions

and can be supplied alone or with REX.

DBM Deadbolt Monitor - An SPDT switch that monitors full retraction of the deadbolt. DBM is available for all mechanical and

electrified funtions with a deadbolt and can be supplied alone or with REX.

ITS

Integrated Total Security - Enhanced security reporting allows facility supervisors to tailor decisions with greater certainty.

Monitoring includes Request to Exit (REX), Lock Performance Monitoring (LPM), Concealed Door Position Status (DPS)

and Cylinder Monitoring (CX). This monitoring option is available with 8890FL/8891FL or 8890RL/8891RL functions only.

Locksets ordered with ITS option must be provided with Yale cylinder. Not available less cylinder. Handing must be

specified.

25

8800 series grade 1 mortise locks

securex® functions and descriptions

The following functions are locked when power is on and unlocked when power is off.

Function # of

Cyls Description Armor Front

Part Number

Cylinders*

Cam(s)

Esc Plate

Spacing Number Spindles

Outside Inside Outside Inside Knobs Levers

8880 0

•Poweroff–outsideleveractive

•Poweron–outsideleverlocked

• Auxiliarylatchdeadlockslatchbolt

•Insidelever always free

•Nokeyoverride

50-8805-x219-FIN N/A N/A N/A 201 201 1178L 1178L

8884 0

•Poweroff–bothleversactive

•Poweron–bothleverslocked

• Auxiliary latch deadlocks latchbolt

•Nokeyoverride

50-8805-x219-FIN N/A N/A N/A 201 201 1178L 1178L

8890 1

•Poweroff–outsideleveractive

•Poweron–outsideleverlocked

• Auxiliarylatchdeadlockslatchbolt

•Insideleveralways free

•Mechanicalkeyoverrideby

outside when locked

50-8805-x219-FIN 2153 N/A 2160 208 201 1178L 1178L

8894-2 2

•Poweroff–bothleversactive

•Poweron–bothleverslocked

• Auxiliarylatchdeadlocks latchbolt

•Mechanicalkeyoverridebyboth

sides when locked

50-8805-x219-FIN 2153 2153 2160 208 208 1178L 1178L

8896 1

•Poweroff–outsideleveractive

(even when deadbolt thrown)

•Poweron–outsideleverlocked

•Auxiliarylatchdeadlockslatchbolt

•Deadboltprojectedbykeyoutside,

thumbturn inside

•Insideleveralwaysfree

•Mechanicalkeyoverridebyoutside

when locked

50-8820-x219-FIN 2153 N/A 2160 208 211 1178L 1178L

8896-2 2

•Poweroff–outsideleveractive

(even when deadbolt thrown)

•Poweron–outsideleverlocked

• Auxiliarylatchdeadlockslatchbolt

• Deadboltprojectedbykey both sides

•Insideleveralwaysfree

•Mechanicalkeyoverridebyboth

sides when locked

50-8820-x219-FIN 2153 2153 2160 208 208 1178L 1178L

8898 1

•Poweroff–bothleversactive(even

when deadbolt thrown)

•Poweron–bothleverslocked

• Auxiliarylatchdeadlockslatchbolt

•Deadbolt projected by key

outside, thumbturn inside

•Mechanicalkeyoverrideby

outside when locked

50-8820-x219-FIN 2153 N/A 2160 208 211 1178L 1178L

8898-2 2

•Poweroff–bothleversactive

(even when deadbolt thrown)

•Poweron–bothleverslocked

• Auxiliarylatch deadlocks latchbolt

• Deadboltprojectedbykeybothsides

•Mechanicalkeyoverridebyboth

sides when locked

50-8820-x219-FIN 2153 2153 2160 208 208 1178L 1178L

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

fail safe

26

8800 series grade 1 mortise locks

securex® functions and descriptions

Function # of

Cyls Description Armor Front

Part Number

Cylinders* Cam(s)

Esc Plate

Spacing Number Spindles

Outside Inside Outside Inside Knobs Levers

8881 0

•Poweroff–outsideleverlocked

•Poweron–outsideleveractive

•Auxiliarylatchdeadlockslatchbolt

•Insidelever always free

•Nokeyoverride

50-8805-x219-FIN N/A N/A N/A 201 201 1178L 1178L

8885 0

•Poweroff–bothleverslocked

•Poweron–bothleversactive

•Auxiliary latch deadlocks latchbolt

•Nokeyoverride

50-8805-x219-FIN N/A N/A N/A 201 201 1178L 1178L

8891 1

•Poweroff–outsideleverlocked

•Poweron–outsideleveractive

•Auxiliarylatchdeadlockslatchbolt

•Insideleveralways free

•Mechanicalkeyoverrideby

outside when locked

50-8805-x219-FIN 2153 N/A 2160 208 201 1178L 1178L

8895-2 2

•Poweroff–bothleverslocked

•Poweron–bothleversactive

•Auxiliarylatchdeadlocks latchbolt

•Mechanicalkeyoverridebyboth

sides when locked

50-8805-x219-FIN 2153 2153 2160 208 208 1178L 1178L

8897 1

•Poweroff–outsideleverlocked

•Poweron–outsideleveractive(even

when deadbolt thrown)

•Auxiliarylatchdeadlockslatchbolt

•Deadboltprojectedbykey

outside, thumbturn inside

•Insideleveralwaysfree

•Mechanicalkeyoverrideby

outside when locked

50-8820-x219-FIN 2153 N/A 2160 208 211 1178L 1178L

8897-2 2

•Poweroff–outsideleverlocked

•Poweron–outsideleveractive(even

when deadbolt thrown)

•Auxiliarylatchdeadlockslatchbolt

•Deadboltprojectedbykey both sides

•Insideleveralwaysfree

•Mechanicalkeyoverridebyboth

sides when locked

50-8820-x219-FIN 2153 2153 2160 208 208 1178L 1178L

8899 1

•Poweroff–bothleverslocked

•Poweron–bothleversactive(even

when deadbolt thrown)

•Auxiliarylatchdeadlockslatchbolt

•Deadbolt projected by key

outside, thumbturn inside

•Mechanicalkeyoverrideby

outside when locked

50-8820-x219-FIN 2153 N/A 2160 208 211 1178L 1178L

8899-2 2

•Poweroff–bothleverslocked

•Poweron–bothleversactive(even

when deadbolt thrown)

•Auxiliarylatch deadlocks latchbolt

•Deadboltprojectedbykeybothsides

•Mechanicalkeyoverridebyboth

sides when locked

50-8820-x219-FIN 2153 2153 2160 208 208 1178L 1178L

*Standard cylinder and cam indicated. For optional cylinders, see pages 28-30.

The following functions are unlocked when the power is on and locked when power is off.

fail secure

27

8800 series grade 1 mortise locks

securex® accessories

Operation

Power supplies are designed to provide reliable filtered and regulated power for long life to a variety of electrified

hardware components.

Product Features

• Individualoutputcircuitbreakers

• Regulatedandlteredfuseprotectedoutputs

• LEDsmonitorzonestatus(voltageornovoltage)

• Slideswitchesconnectordisconnectloadfrompower(Notavailableon1Ampsupplies)

• InternalBack-Upbatterychargingcircuit

• Ruggedsteelenclosure

• Firealarminterface

Listings

• ULCLASS2

Applications (use with):

• FailSafemortiselocks

• FailSecuremortiselocks

Ordering

Ex: BPS-24-4, BPS-12-3

Model Input Output Application

BPS-24-1 120 VAC 1 Amp @ 24 VDC 2-8800

BPS-24-2 120 VAC 2 Amp @ 24 VDC 5-8800

BPS-24-4 120 VAC 4 Amp @ 24 VDC 11-8800

BPS-12-1 120 VAC 1 Amp @ 12 VDC 1-8800

BPS-12-3 120 VAC 3 Amp @ 12 VDC 3-8800

bps power supplies by securitron®

Consult factory for additional power supply applications.

Yale recommends McKinney®, Pemko and Securitron® for power transfer devices and other electronic accessories.

Illustration Model Number Application Cam Length

6-Pin 7-Pin

2153 Standard cylinder 2160 1-1/8"

1-1/4"

1-3/8"

1-1/2"

1-5/8"

1-3/4"

1-1/4"

1-3/8"

1-1/2"

1-5/8"

1-3/4"

2153S For inside operation of 8817-2 and

8834-2 functions only 2130

2123 Cylinder for longer lengths 2160

1-7/8” thru 3-1/2" in 1/8" increments*

2123S For inside operation of 8817-2 and

8834-2 functions only for longer lengths 2130

2719 For hotel/motel locks 8820, 8827 and 8832 2160 1-3/8" —

*Contact Technical Product Support for cylinder collar requirements

when ordering these cylinders separately. See pages 32-37 for other

collar requirements.

conventional mortise cylinders

Cylinder Model

Number Application Cam Length Pins

Housing Only

Model

Number

Core Only

Model

Number

2196 Standard Cylinder 2160 1-1/2", 1-3/4", 2" 6 2221 1210

2197 Standard Cylinder 2160 1-11/16", 2" 7 2213 1220

2196H For Hotel/Motel Locks 8820, 8827, 8832 2160 1-11/16" 6 2213 1210H

2196S For inside operations of 8817-2 and

8834-2 functions 2130 1-1/2" 6 2214S 1210

2197S For inside operations of 8817-2 and

8834-2 functions 2130 1-11/16" 7 2217S 1220

interchangeable core mortise cylinders

Note: When ordering interchangeable core cylinders or cores only,

control keys are not furnished. If control keys are required they must

be ordered separately.

28

8800 series grade 1 mortise locks

cylinders

8800 series grade 1 mortise locks

29

cylinders

security cylinders

Security cylinders contain two independent locking mechanisms. The first is a traditional 6- or 7-pin tumbler

mechanism with spool drivers for greatly increased picking resistance.

The second is an innovative 5-tumbler rotating disc mechanism with sidebar engagement. The rotating discs are

spring loaded and block the bottom of the keyway.

Illustration

Model Number Application Cam

Length

6-pin 7-pin

5153/U5153 Standard Cylinder 2160 1-1/8"

1-1/4" 1-1/4"

5153S/U5153S For inside operations of 8817-2 and 8834-2 functions 2130

5719/U5719 For Hotel/Motel Locks 8820, 8827, 8832 2160 1-3/8"

security/high security mortise cylinders

Cylinder Model

Number Application Cam Length Pins

Housing Only

Model

Number

Core Only

Model

Number

5196 Standard Cylinder 2160 1-1/2" 6 2221 5210

5197 Standard Cylinder 2160 1-11/16" 7 2213 5220

5196H For Hotel/Motel Locks 8820, 8827, 8832 2160 1-11/16" 6 2213 5210H

5196S For inside operations of 8817-2 and

8834-2 functions 2130 1-1/2" 6 2214S 5210

5197S For inside operations of 8817-2 and

8834-2 functions 2130 1-11/16" 7 2217S 5220

security interchangeable core mortise cylinders

Note: When ordering interchangeable core cylinders or cores only, control keys are not furnished. If control keys are required they must be

ordered separately.

8800 series grade 1 mortise locks

30

cylinders

Yale® KeyMark®

For those applications requiring protected key control, Yale® KeyMark® cylinders guard against unauthorized key duplication.

The Yale KeyMark Security Leg® keyway feature increases resistance against picking and impressioning and can easily retrofit

into existing systems. For further details and availability, refer to the separate Yale KeyMark catalog.

other manufacturers keyway cylinders/cores

camsmiscellaneous cylinder

Model Number Type Cam Length Pins

Housing Only

Model

Number

Core Only

Model

Number

K100 Fixed Core Mortise KC1

1-1/8", 1-1/4"

1-1/2", 1-3/4"

2"

6 or 7 N/A N/A

K820 Large Format IC Mortise KC1

1-1/2", 1-3/4"

2" 6

K860 K800

1-11/16"

1-3/4", 2" 7

K620 Small Format IC Mortise KC1

1-1/4" 6

K660 K600

1-3/8", 1-3/4" 6 or 7

K630 Small Format IC Mortise-Tapered KC1

1-1/4" 6

K670 K600

1-3/8" 6 or 7

Protected Keyway Mortise Cylinders

Model

Number Application Cam Length

S2053S Thumbturn cylinder, for inside

operation of 8834 function only 2130 1"

1-1/8"

S2053

Thumbturn cylinder, for

replacement of key operated

cylinder.

2160 1"

1-1/8"

Illustration Model

Number Type Cam Length Pins

Housing

Only Model

Number

Core Only

Model

Number

A620

Small Format IC Mortise, includes Best®

Keyway Core. Available keyed random,

master keyed or uncombinated. Specify

keyway A, B, C, D, E, F, G, H, J, K,

L or M.

KC1

1-1/4" 6

K660 A600

1-3/8"

1-3/4" 6 or 7

2553

Fixed Core Mortise Schlage® "C" Keyway

Cylinder. Available 0-bitted or keyed

random.

2160 1-1/8" 6 N/A N/A

2130 2160 KC1

Note: KC2 cam required for inside operation of 8817-2 and 8834-2 functions.

8800 series grade 1 mortise locks

31

cylinder collars

1765 Recessed Cylinder Collar

“A” Dimension: Thicknesses from

1/16" (2mm) to 1-15/32"

(37mm) as required.

Material: Brass, Bronze

1766 Tubular Spacer Collar

“A” Dimension: 1/8"(3mm), 3/16"

(5mm) and 5/16" (8mm)

Material: Brass, Bronze, Stainless

Steel. (Used with U5153 and U5109

cylinders only.)

KP3 Wave Washer

(Furnished standard with 1765 collar for

Yale® KeyMark® cylinders only).

KP4 Flush Mount Cylinder Collar

Material: Brass, Bronze

1-7/8"

(48)

1762 Cylinder Ring

5/64"

(2)

Cylinder collars are supplied as standard where required with those locksets supplied with cylinders. Collar size and thickness are

supplied to suit the length of the cylinder, the thickness of the door and the trim ordered. (If door thickness is not specified, collars

will be furnished for 1-3/4" (44mm) door.)

Collar length required must be specified for cylinders and/or housings ordered separately.

32

8800 series grade 1 mortise locks

collars for use with standard sectional and all Reflections® trims

Door

Thickness

Rose or

Escutcheon

Trim Design

No. of

Pins

2153, 2153S, 5153,

2123, 2123S Fixed

Core Mortise Cylinders

U5153, U5153S,

H.S. Fixed Core

Cylinders

2196, 2196S, 5196,

2197, 2197S, 5197 LFIC

Cylinders

5719, 2719

Fixed Core Hotel/

Motel Cylinders

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

1-3/4"

(44)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-1/8" 1765.250 1-1/8" No Collar 1-1/2" 1765.656 1-3/8" 1765.531

6 or 7 1-1/4" 1765.375 1-1/4" 1766 1-11/16" 1765.844

6 or 7 1-3/8" 1765.531 1-3/8" N/A

6 or 7 1-1/2" 1765.656 1-1/2" N/A

2"

(51)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-1/8" 1765.125 1-1/8" N/A 1-1/2" 1765.531 1-3/8" 1765.531

6 or 7 1-1/4" 1765.250 1-1/4" No Collar 1-11/16" 1765.719

6 or 7 1-3/8" 1765.375 1-3/8" N/A

6 or 7 1-1/2" 1765.531 1-1/2" N/A

2-1/4"

(57)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-1/8" KP4 1-1/8" No Collar 1-1/2" 1765.375 1-3/8" 1765.250

6 or 7 1-1/4" 1765.125 1-1/4" No Collar 1-11/16" 1765.563

6 or 7 1-3/8" 1765.250 1-3/8" N/A

6 or 7 1-1/2" 1765.375 1-1/2" N/A

2-1/2"

(64)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.250 1-3/8" 1765.125

6 or 7 1-1/4" KP4 1-1/4" No Collar 1-11/16" 1765.469

6 or 7 1-3/8" 1765.125 1-3/8" N/A

6 or 7 1-1/2" 1765.250 1-1/2" N/A

2-3/4"

(70)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.125 1-3/8" KP4

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.344

6 or 7 1-3/8" KP4 1-3/8" N/A

6 or 7 1-1/2" 1765.125 1-1/2" N/A

3"

(76)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-1/8" N/A 1-1/8" N/A 1-1/2" KP4 1-3/8" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.187

6 or 7 1-3/8" N/A 1-3/8" N/A

6 or 7 1-1/2" KP4 1-1/2" N/A

3-1/4"

(83)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.062

6 or 7 1-3/8" N/A 1-3/8" N/A

6 or 7 1-1/2" N/A 1-1/2" N/A

N/A = Application Not Available

33

8800 series grade 1 mortise locks

collars for use with standard sectional and all Reflections® trims

Door

Thickness

Rose or

Escutcheon

Trim Design

No. of Pins

5196H, 2196H

Hotel/Motel LFIC

Cylinders

K100

Yale® KeyMark®

Fixed Core

Cylinders

K820, K860 Yale®

KeyMark® LFIC

Cylinders

K620, K630 K660,

K670, A620, A630

Yale® KeyMark® and

Best® Keyway SFIC

Cylinders

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

1-3/4"

(44)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-11/16" 1765.844 1-1/8" 1765.312 1-1/2" 1765.656 1-1/4" 1765.375

6 or 7 1-1/4" 1765.375 1-11/16" 1765.844 1-3/8" 1765.563

6 or 7 1-1/2" 1765.656

6 or 7

2"

(51)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-11/16" 1765.719 1-1/8" 1765.187 1-1/2" 1765.563 1-1/4" 1765.281

6 or 7 1-1/4" 1765.281 1-11/16" 1765.750 1-3/8" 1765.469

6 or 7 1-1/2" 1765.563

6 or 7

2-1/4"

(57)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-11/16" 1765.563 1-1/8" 1765.062 1-1/2" 1765.406 1-1/4" 1765.125

6 or 7 1-1/4" 1765.125 1-11/16" 1765.594 1-3/8" 1765.312

6 or 7 1-1/2" 1765.406

6 or 7

2-1/2"

(64)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-11/16" 1765.469 1-1/8" N/A 1-1/2" 1765.281 1-1/4" 1765.062

6 or 7 1-1/4" 1765.062 1-11/16" 1765.500 1-3/8" 1765.187

6 or 7 1-1/2" 1765.281

6 or 7

2-3/4"

(70)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-11/16" 1765.344 1-1/8" N/A 1-1/2" 1765.187 1-1/4" N/A

6 or 7 1-1/4" N/A 1-11/16" 1765.375 1-3/8" 1765.062

6 or 7 1-1/2" 1765.187

6 or 7

3"

(76)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-11/16" 1765.187 1-1/8" N/A 1-1/2" 1765.062 1-1/4" N/A

6 or 7 1-1/4" N/A 1-11/16" 1765.219 1-3/8" N/A

6 or 7 1-1/2" 1765.062

6 or 7

3-1/4"

(83)

CO, R1, R2,

R3, R4, R5,

R6, R7, R8,

E1, E2,

E3, E4

6 1-11/16" 1765.062 1-1/8" N/A 1-1/2" N/A 1-1/4" N/A

6 or 7 1-1/4" N/A 1-11/16" 1765.062 1-3/8" N/A

6 or 7 1-1/2" N/A

6 or 7

N/A = Application Not Available

34

8800 series grade 1 mortise locks

collars for use with standard escutcheon trim

Door

Thickness

Escutcheon

Trim Design

No. of

Pins

2153, 2153S, 5153,

2123, 2123S Fixed

Core Mortise

Cylinders

U5153, U5153S,

H.S. Fixed Core

Cylinders

2196, 2196S, 5196,

2197, 2197S, 5197

LFIC Cylinders

5719, 2719

Fixed Core Hotel/

Motel Cylinders

5196H, 2196H

Hotel/Motel LFIC

Cylinders

K100

Yale® KeyMark®

Fixed Core

Cylinders

K820, K860 Yale®

KeyMark® LFIC

Cylinders

K620, K630 K660,

K670, A620, A630

Yale® KeyMark®

and Best® Keyway

SFIC Cylinders

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

1-3/4"

(44)

Copenhagen

(R)

6 1-1/8" 1765.156 1-1/8" No Collar 1-1/2" 1765.563 1-3/8" 1765.469 1-11/16" 1765.750 1-1/8" 1765.187 1-1/2" 1765.594 1-1/4" 1765.344

6 or 7 1-1/4" 1765.312 1-1/4" No Collar 1-11/16" 1765.750 1-1/4" 1765.344 1-11/16" 1765.844 1-3/8" 1765.469

6 or 7 1-3/8" 1765.469 1-3/8" No Collar 1-1/2" 1765.594

6 or 7 1-1/2" 1765.563 1-1/2" No Collar

Camden

(CN)

6 1-1/8" No Collar 1-1/8" N/A 1-1/2" 1765.219 1-3/8" 1765.094 1-11/16" 1765.469 1-1/8" No Collar 1-1/2" 1765.250 1-1/4" No Collar

6 or 7 1-1/4" No Collar 1-1/4" N/A 1-11/16" 1765.406 1-1/4" No Collar 1-11/16" 1765.469 1-3/8" 1765.125

6 or 7 1-3/8" 1765.094 1-3/8" N/A 1-1/2" 1765.250

6 or 7 1-1/2" 1765.219 1-1/2" N/A

SL

6 1-1/8" 1765.094 1-1/8" N/A 1-1/2" 1765.469 1-3/8" 1765.344 1-11/16" 1765.656 1-1/8" 1765.125 1-1/2" 1765.500 1-1/4" 1765.156

6 or 7 1-1/4" 1765.219 1-1/4" No Collar 1-11/16" 1765.656 1-1/4" 1765.156 1-11/16" 1765.719 1-3/8" 1765.375

6 or 7 1-3/8" 1765.375 1-3/8" N/A 1-1/2" 1765.500

6 or 7 1-1/2" 1765.500 1-1/2" N/A

Easton

(CE)

6 1-1/8" 1765.062 1-1/8" N/A 1-1/2" 1765.500 1-3/8" 1765.375 1-11/16" 1765.656 1-1/8" 1765.125 1-1/2" 1765.500 1-1/4" 1765.156

6 or 7 1-1/4" 1765.219 1-1/4" No Collar 1-11/16" 1765.656 1-1/4" 1765.156 1-11/16" 1765.719 1-3/8" 1765.375

6 or 7 1-3/8" 1765.344 1-3/8" N/A 1-1/2" 1765.500

6 or 7 1-1/2" 1765.500 1-1/2" N/A

Lenoir

(LN)

6 1-1/8" 1765.094 1-1/8" N/A 1-1/2" 1765.531 1-3/8" 1765.406 1-11/16" 1765.750 1-1/8" 1765.187 1-1/2" 1765.563 1-1/4" 1765.281

6 or 7 1-1/4" 1765.281 1-1/4" No Collar 1-11/16" 1765.750 1-1/4" 1765.281 1-11/16" 1765.750 1-3/8" 1765.469

6 or 7 1-3/8" 1765.406 1-3/8" N/A 1-1/2" 1765.563

6 or 7 1-1/2" 1765.531 1-1/2" N/A

2"

(51)

Copenhagen

(R)

6 1-1/8" KP4 1-1/8" N/A 1-1/2" 1765.406 1-3/8" 1765.312 1-11/16" 1765.594 1-1/8" 1765.094 1-1/2" 1765.469 1-1/4" 1765.219

6 or 7 1-1/4" 1765.187 1-1/4" No Collar 1-11/16" 1765.594 1-1/4" 1765.219 1-11/16" 1765.656 1-3/8" 1765.344

6 or 7 1-3/8" 1765.312 1-3/8" N/A 1-1/2" 1765.469

6 or 7 1-1/2" 1765.406 1-1/2" N/A

Camden

(CN)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.062 1-3/8" N/A 1-11/16" 1765.250 1-1/8" N/A 1-1/2" 1765.125 1-1/4" No Collar

6 or 7 1-1/4" No Collar 1-1/4" No Collar 1-11/16" 1765.250 1-1/4" No Collar 1-11/16" 1765.344 1-3/8" No Collar*

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" 1765.125

6 or 7 1-1/2" 1765.062 1-1/2" N/A

SL

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.344 1-3/8" 1765.219 1-11/16" 1765.531 1-1/8" KP4 1-1/2" 1765.375 1-1/4" 1765.094

6 or 7 1-1/4" 1765.094 1-1/4" N/A 1-11/16" 1765.531 1-1/4" 1765.094 1-11/16" 1765.563 1-3/8" 1765.250

6 or 7 1-3/8" 1765.219 1-3/8" N/A 1-1/2" 1765.375

6 or 7 1-1/2" 1765.344 1-1/2" N/A

Easton

(CE)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.344 1-3/8" 1765.219 1-11/16" 1765.500 1-1/8" KP4 1-1/2" 1765.375 1-1/4" 1765.094

6 or 7 1-1/4" 1765.062 1-1/4" N/A 1-11/16" 1765.500 1-1/4" 1765.094 1-11/16" 1765.563 1-3/8" 1765.250

6 or 7 1-3/8" 1765.219 1-3/8" N/A 1-1/2" 1765.375

6 or 7 1-1/2" 1765.344 1-1/2" N/A

Lenoir

(LN)

6 1-1/8" No Collar 1-1/8" N/A 1-1/2" 1765.344 1-3/8" 1765.187 1-11/16" 1765.531 1-1/8" No Collar* 1-1/2" 1765.406 1-1/4" 1765.125

6 or 7 1-1/4" 1765.094 1-1/4" N/A 1-11/16" 1765.531 1-1/4" 1765.125 1-11/16" 1765.594 1-3/8" 1765.312

6 or 7 1-3/8" 1765.187 1-3/8" N/A 1-1/2" 1765.406

6 or 7 1-1/2" 1765.344 1-1/2" N/A

*Single Cylinder Only

N/A = Application Not Available

Note: Copenhagen, Easton and Lenoir escutcheons discontinued. Information for reference only.

35

8800 series grade 1 mortise locks

collars for use with standard escutcheon trim

Door

Thickness

Escutcheon

Trim Design

No. of

Pins

2153, 2153S, 5153,

2123, 2123S Fixed

Core Mortise

Cylinders

U5153, U5153S,

H.S. Fixed Core

Cylinders

2196, 2196S, 5196,

2197, 2197S, 5197

LFIC Cylinders

5719, 2719

Fixed Core Hotel/

Motel Cylinders

5196H, 2196H

Hotel/Motel LFIC

Cylinders

K100

Yale® KeyMark®

Fixed Core

Cylinders

K820, K860 Yale®

KeyMark® LFIC

Cylinders

K620, K630 K660,

K670, A620, A630

Yale® KeyMark®

and Best® Keyway

SFIC Cylinders

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

2-1/4"

(57)

Copenhagen

(R)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.344 1-3/8" 1765.187 1-11/16" 1765.500 1-1/8" N/A 1-1/2" 1765.375 1-1/4" 1765.094

6 or 7 1-1/4" 1765.062 1-1/4" N/A 1-11/16" 1765.500 1-1/4" 1765.094 1-11/16" 1765.531 1-3/8" 1765.250

6 or 7 1-3/8" 1765.187 1-3/8" N/A 1-1/2" 1765.375

6 or 7 1-1/2" 1765.344 1-1/2" N/A

Camden

(CN)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" No Collar 1-11/16" 1765.156 1-1/8" N/A 1-1/2" N/A 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.156 1-1/4" N/A 1-11/16" 1765.219 1-3/8" No Collar*

6 or 7 1-3/8" No Collar 1-3/8" N/A 1-1/2" N/A

6 or 7 1-1/2" N/A 1-1/2" N/A

SL

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.219 1-3/8" 1765.062 1-11/16" 1765.406 1-1/8" N/A 1-1/2" 1765.250 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.406 1-1/4" N/A 1-11/16" 1765.469 1-3/8" 1765.156

6 or 7 1-3/8" 1765.062 1-3/8" N/A 1-1/2" 1765.250

6 or 7 1-1/2" 1765.219 1-1/2" N/A

Easton

(CE)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.219 1-3/8" 1765.062 1-11/16" 1765.406 1-1/8" N/A 1-1/2" 1765.250 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.406 1-1/4" N/A 1-11/16" 1765.469 1-3/8" 1765.156

6 or 7 1-3/8" 1765.062 1-3/8" N/A 1-1/2" 1765.250

6 or 7 1-1/2" 1765.219 1-1/2" N/A

Lenoir*

(LN)

5 1-1/8" N/A 1-1/8" No Collar 1-1/2" 1765.219 1-3/8" No Collar 1-11/16" 1765.406 1-1/8" No Collar 1-1/2" 1765.312 1-1/4" 1765.062

6 1-1/4" No Collar 1-1/4" No Collar 1-11/16" 1765.406 1-1/4" 1765.062 1-11/16" 1765.469 1-3/8" 1765.187

6 or 7 1-3/8" 1765.094 1-3/8" No Collar 1-1/2" 1765.312

6 or 7 1-1/2" 1765.219 1-1/2" No Collar

2-1/2"

(64)

Copenhagen

(R)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.187 1-3/8" 1765.062 1-11/16" 1765.375 1-1/8" N/A 1-1/2" 1765.219 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.375 1-1/4" N/A 1-11/16" 1765.406 1-3/8" 1765.094

6 or 7 1-3/8" 1765.062 1-3/8" N/A 1-1/2" 1765.219

6 or 7 1-1/2" 1765.187 1-1/2" N/A

Camden

(CN)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" No Collar 1-3/8" N/A 1-11/16" 1765.062 1-1/8" N/A 1-1/2" No Collar 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.062 1-1/4" N/A 1-11/16" 1765.062 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" No Collar 1-3/4" 1765.187

6 or 7 1-1/2" No Collar 1-1/2" N/A

SL

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.062 1-3/8" N/A 1-11/16" 1765.250 1-1/8" N/A 1-1/2" 1765.125 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.250 1-1/4" N/A 1-11/16" 1765.312 1-3/8" KP4

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" 1765.125

6 or 7 1-1/2" 1765.062 1-1/2" N/A

Easton

(CE)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.062 1-3/8" N/A 1-11/16" 1765.250 1-1/8" N/A 1-1/2" 1765.125 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.250 1-1/4" N/A 1-11/16" 1765.312 1-3/8" KP4

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" 1765.125

6 or 7 1-1/2" 1765.062 1-1/2" N/A

Lenoir

(LN)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.094 1-3/8" N/A 1-11/16" 1765.312 1-1/8" N/A 1-1/2" 1765.156 1-1/4" No Collar

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.312 1-1/4" No Collar 1-11/16" 1765.375 1-3/8" 1765.062

6 or 7 1-3/8" No Collar 1-3/8" N/A 1-1/2" 1765.156

6 or 7 1-1/2" 1765.094 1-1/2" N/A

*Single Cylinder Only

N/A = Application Not Available

Note: Copenhagen, Easton and Lenoir escutcheons discontinued. Information for reference only.

36

8800 series grade 1 mortise locks

collars for use with standard escutcheon trim

Door

Thickness

Escutcheon

Trim Design

No. of

Pins

2153, 2153S, 5153,

2123, 2123S Fixed

Core Mortise

Cylinders

U5153, U5153S,

H.S. Fixed Core

Cylinders

2196, 2196S, 5196,

2197, 2197S, 5197

LFIC Cylinders

5719, 2719

Fixed Core Hotel/

Motel Cylinders

5196H, 2196H

Hotel/Motel LFIC

Cylinders

K100

Yale® KeyMark®

Fixed Core

Cylinders

K820, K860 Yale®

KeyMark® LFIC

Cylinders

K620, K630 K660,

K670, A620, A630

Yale® KeyMark®

and Best® Keyway

SFIC Cylinders

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

2-3/4"

(70)

Copenhagen

(R)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.062 1-3/8" N/A 1-11/16" 1765.250 1-1/8" N/A 1-1/2" 1765.062 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.250 1-1/4" N/A 1-11/16" 1765.250 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" 1765.062

6 or 7 1-1/2" 1765.062 1-1/2" N/A

Camden

(CN)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" No Collar 1-1/8" N/A 1-1/2" N/A 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" No Collar 1-1/4" N/A 1-11/16" No Collar* 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" N/A

6 or 7 1-1/2" N/A 1-1/2" N/A

SL

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" 1765.094 1-1/8" N/A 1-1/2" KP4 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.094 1-1/4" N/A 1-11/16" 1765.187 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" KP4

6 or 7 1-1/2" N/A 1-1/2" N/A

Easton

(CE)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" 1765.094 1-1/8" N/A 1-1/2" KP4 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.094 1-1/4" N/A 1-11/16" 1765.187 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" KP4

6 or 7 1-1/2" N/A 1-1/2" N/A

Lenoir*

(LN)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" 1765.062 1-3/8" N/A 1-11/16" 1765.156 1-1/8" N/A 1-1/2" 1765.062 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.156 1-1/4" N/A 1-11/16" 1765.219 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" 1765.062

6 or 7 1-1/2" 1765.062 1-1/2" N/A

3"

(76)

Copenhagen

(R)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" 1765.094 1-1/8" N/A 1-1/2" N/A 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.094 1-1/4" N/A 1-11/16" 1765.156 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" N/A

6 or 7 1-1/2" N/A 1-1/2" N/A

6 or 7 1-5/8" 1765.062 1-5/8" N/A

6 or 7 1-3/4" N/A 1-3/4" N/A

Camden

(CN)

6 1-1/8" N//A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" N/A 1-1/8" N/A 1-1/2" N/A 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" N/A 1-1/4" N/A 1-11/16" No Collar 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" N/A

6 or 7 1-1/2" N/A 1-1/2" N/A

6 or 7 1-5/8" N/A 1-5/8" N/A

6 or 7 1-3/4" No Collar 1-3/4" N/A

SL

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" N/A 1-1/8" N/A 1-1/2" N/A 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" N/A 1-1/4" N/A 1-11/16" 1765.062 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" N/A

6 or 7 1-1/2" N/A 1-1/2" N/A

6 or 7 1-5/8" N/A 1-5/8" N/A

6 or 7 1-3/4" 1765.062 1-3/4" N/A

Easton

(CE)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" N/A 1-1/8" N/A 1-1/2" N/A 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" N/A 1-1/4" N/A 1-11/16" 1765.062 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" N/A

6 or 7 1-1/2" N/A 1-1/2" N/A

6 or 7 1-5/8" N/A 1-5/8" N/A

6 or 7 1-3/4" 1765.062 1-3/4" N/A

Lenoir

(LN)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" 1765.062 1-1/8" N/A 1-1/2" No Collar 1-1/4" N/A

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" 1765.062 1-1/4" N/A 1-11/16" 1765.125 1-3/8" N/A

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" N/A

6 or 7 1-1/2" N/A 1-1/2" N/A

6 or 7 1-5/8" N/A 1-5/8" N/A

6 or 7 1-3/4" 1765.094 1-3/4" N/A

*Single Cylinder Only

N/A = Application Not Available

Note: Copenhagen, Easton and Lenoir escutcheons discontinued. Information for reference only.

37

8800 series grade 1 mortise locks

collars for use with standard escutcheon trim

Door

Thickness

Escutcheon

Trim Design

No. of

Pins

2153, 2153S, 5153,

2123, 2123S Fixed

Core Mortise

Cylinders

U5153, U5153S,

H.S. Fixed Core

Cylinders

2196, 2196S, 5196,

2197, 2197S, 5197

LFIC Cylinders

5719, 2719

Fixed Core Hotel/

Motel Cylinders

5196H, 2196H

Hotel/Motel LFIC

Cylinders

K100

Yale® KeyMark®

Fixed Core

Cylinders

K820, K860 Yale®

KeyMark® LFIC

Cylinders

K620, K630 K660,

K670, A620, A630

Yale® KeyMark®

and Best® Keyway

SFIC Cylinders

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

Cylinder

Length

Collar

Required

3-1/4"

(83)

Copenhagen

(R)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" 1765.062 1-1/8" ** 1-1/2" ** 1-1/4" **

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" N/A 1-1/4" ** 1-11/16" ** 1-3/8" **

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" **

6 or 7 1-1/2" N/A 1-1/2" N/A

6 or 7 1-5/8" N/A 1-5/8" N/A

6 or 7 1-3/4" 1765.062 1-3/4" N/A

6 or 7 1-7/8" 1765.125 1-7/8" N/A

Camden

(CN)

6 1-1/8" N//A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" 1765.062 1-1/8" ** 1-1/2" ** 1-1/4" **

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" N/A 1-1/4" ** 1-11/16" ** 1-3/8" **

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" **

6 or 7 1-1/2" N/A 1-1/2" N/A

6 or 7 1-5/8" N/A 1-5/8" N/A

6 or 7 1-3/4" N/A 1-3/4" N/A

6 or 7 1-7/8" No Collar 1-7/8" N/A

SL

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" 1765.062 1-1/8" ** 1-1/2" ** 1-1/4" **

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" N/A 1-1/4" ** 1-11/16" ** 1-3/8" **

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" **

6 or 7 1-1/2" N/A 1-1/2" N/A

6 or 7 1-5/8" N/A 1-5/8" N/A

6 or 7 1-3/4" N/A 1-3/4" N/A

6 or 7 1-7/8" 1765.062 1-7/8" N/A

Easton

(CE)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" 1765.062 1-1/8" ** 1-1/2" ** 1-1/4" **

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" N/A 1-1/4" ** 1-11/16" ** 1-3/8" **

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" **

6 or 7 1-1/2" N/A 1-1/2" N/A

6 or 7 1-5/8" N/A 1-5/8" N/A

6 or 7 1-3/4" N/A 1-3/4" N/A

6 or 7 1-7/8" 1765.062 1-7/8" N/A

Lenoir

(LN)

6 1-1/8" N/A 1-1/8" N/A 1-1/2" N/A 1-3/8" N/A 1-11/16" 1765.062 1-1/8" ** 1-1/2" ** 1-1/4" **

6 or 7 1-1/4" N/A 1-1/4" N/A 1-11/16" N/A 1-1/4" ** 1-11/16" ** 1-3/8" **

6 or 7 1-3/8" N/A 1-3/8" N/A 1-1/2" **

6 or 7 1-1/2" N/A 1-1/2" N/A

6 or 7 1-5/8" N/A 1-5/8" N/A

6 or 7 1-3/4" No Collar 1-3/4" N/A

6 or 7 1-7/8" 1765.094 1-7/8" N/A

*Single Cylinder Only

**Consult Factory

N/A = Application Not Available

Note: Copenhagen, Easton and Lenoir escutcheons discontinued. Information for reference only.

38

8800 series grade 1 mortise locks

strikes

497B ANSI Blank Filler Plate: Reversible

to replace a strike where a lock has been

removed or where a frame with a strike

preparation when no lock is installed on a

door. Lip Lengths: 1-1/8" (29mm) only.

Material: Brass, Bronze, Stainless Steel.

202 Strike Box: Reversible for installation

with all Flat or Curved Lip Strikes. Available

to special order only.

Material: Wrought Steel, Zinc Plated,

Dichromated.

718 Open Back Strike: Field handable for

a standard V-beveled pair of doors with a

latchbolt only function on the active door.

This strike permits emergency opening of

the inactive door without damaging the lock

mechanism. Available for doors 1-3/4" or

2-1/4" thick only. Specify the door thickness

required.

Material: Stainless Steel, Black Nylon

Coated.

optional strikes

Yale® 8800 series mortise locks

are supplied standard with a

2815 Curved Lip Strike with a

1-1/4" (32mm) lip length. The

strike supplied will accommodate the

locking function, i.e. latchbolt and/

or deadbolt, and can be installed on

doors 1-3/4" (44mm) thick. These

strikes are non-handed.

Longer/Shorter Lip Lengths:

Mortise Lock Strikes are mounted

3/8" above the center line of the

lock. To determine the proper

length of lip use the following

formula:

1/2 of the door thickness, plus 1/16"

inset, plus trim thickness, plus 1/8"

for flat lip strike OR 1/4" for curved

lip strike. Select the nearest available

length.

2815 Curved Lip:

• 1-1/4"(32mm)standard

To special order

• 1-1/8"(29mm)

• 1-3/8"(35mm)

• 1-1/2"(38mm)

• 1-5/8"(41mm)

• 1-3/4"(44mm)

• 1-7/8"(48mm)

• 2"(51mm)

• 2-1/8"(54mm)

• 2-1/4"(57mm)

2816 Flat Lip:

To special order,

• 7/8"(22mm)

• 1"(25mm)

• 1-1/8"(29mm)

• 1-1/4"(32mm)

• 1-1/2"(38mm)

• 1-3/4"(44mm)

• 2"(51mm)

• 2-1/4"(57mm)

• 2-1/2"(64mm)

Material: Brass, Bronze, Stainless

Steel.

39

8800 series grade 1 mortise locks

miscellaneous

The Yale® 8800 series mortise lock can be installed on a pair of doors with a standard 1/2" (13mm) step rabbet.

Kits are available which adapt these locks to the rabbeted doors. These kits contain a 1/2" (13mm) standard step

rabbet strip for the active door, a strike, a strike box, and, depending on the door thickness, a strike lip. They are

available for doors 1-3/4" (44mm), 2" (51mm) and 2-1/4" (57mm) thick. All components of these kits are reversible.

To order a complete Yale mortise lock with a Rabbet Door Kit, suffix the lock model number with a Rabbeted Door

by door thickness, hand and finish required, i.e. AU8807 x Rabbeted Door x 1-3/4" x RH x 626.

Kits for rabbeted doors can be ordered by model number separately from the accompanying chart. When ordered

separately, specify the finish required.

Door Thickness Rabbeted Door Kit

Model No.

Strike Model

No.

1-3/4"

2" RK245 22E

rabbeted door kits

These kits contain the above components plus a No. 22D strike lip

with attaching screws for doors above 2".

miscellaneous trim design

GF1824 Thumbturn and

Round Plate

Supplied as standard on all locks

with round rose sectional trim or

lock functions with no roses.

Thumbturn: Cast Zinc.

Plate: 1-7/8" (48mm) Diameter,

Brass, Bronze,

Simulated Stainless

Steel.

GF1826-Plate Only

- Used for outside of

8802 Privacy Lock.

attaching screws

GF1824 and GF1826

No. 6 x 3/8" (10mm) type “AB”,

Oval Phillips Head sheet metal

screw, stainless steel plated to

match trim

(P/N 81-3173-0308). Specify finish

required.

E203

Used with 8802 privacy lock and

8862 bathroom lock for emergency

access from outside.

emergency key

40

occupancy indicators

8800 series grade 1 mortise locks

This indicator can be ordered as an option with the 8802 (privacy) and 8862 (bathroom) functions. Available for all

lever and knob trim designs.

The privacy occupancy indicator can be ordered with locksets by specifying IND as an option. It can be ordered

separately as a retrofit kit for sectional trim by specifying model number IND-K and required finish and for

escutcheon trim by specifying CN88 x 261 x finish (available for CN escutcheon only).

When specifying option IND, the lockset will be provided with an indicator that shows the room is either occupied

(locked icon/red background) when deadbolt is thrown or vacant (unlocked icon/green background) when deadbolt

is retracted.

privacy function indicator

Deadbolt Thrown

Locked icon/Red background

Deadbolt Retracted

Unlocked icon/Green background

Deadbolt Retracted

Unlocked icon/Green background

Deadbolt Thrown

Locked icon/Red background

cylinder function indicator

The cylinder indicator is standard with the 8820 (hotel guest), 8827(hotel/motel), and 8864 (bathroom) functions

and can be ordered as an option with 8832 (hotel/motel), 8822 (dormitory) and 8818-2 (classroom security intruder)

functions. Available for all lever and knob trim designs. Note: Cylinder indicator is not available for use with R1, R2,

R3, R4, or R5 roses.

The cylinder occupancy indicator can be ordered with locksets by specifying IND as an option. It can be ordered

separately as a retrofit kit for sectional trim by specifying model number CIND-K and required finish and for

escutcheon trim by specifying CN88 x 260 x finish (without cointurn) or CN88 x 262 x finish (with cointurn). When

ordered separately, cylinder not included (available for CN escutcheon only).

Page revised electronically 10/14

how to order

8800 series grade 1 mortise locks

41

From this outline select the model number for the Yale® 8800 series mortise lockset you require.

*If other than standard cylinder is required, specify by Model Number.

ordering information

Trim

Design

Lock

Series/

Function

*Cylinder Hand Door

Thickness Finish Highest

Keying Level

Supplementary

Specifications/Options

AU x CN 8807FL 2153 RH 1-3/4" 626 GM - Lead Lined

- Knurled

- Abrasive coated

- Specific keying

- 7-pin cylinders

- Specific strike

requirements, i.e. special

lip length, curved, open

back

- Special attachment or

special head screws

- Specify in detail for split

finish (indicate outside

finish first regardless of

hand of door - but for

RHR and LHR doors

indicate the finish desired

for front and strike).

- Voltage for electrified

See

Pages

6-13

See

Pages

14-23

See Pages

28-30

See

Page 42

See

Page 3

See Page

2

“Level One” - KA or KD

“Level Two” - MK

“Level Three” - GM

“Level Four” - GGM

42

8800 series grade 1 mortise locks

handing

The outside is the key side of an entrance door or the corridor side of a room door. The outside of a single

communicating door is the side opposite the hinges. The outside of twin communicating doors is the space

between the doors.

Left Hand: Hinges on left, opens inward.

For handed locks, specify LH.

Right Hand: Hinges on right, opens

inward. For handed locks, specify RH.

Left Hand Reverse: Hinges on left, opens

outward. For handed locks, specify LHR.

Right Hand Reverse: Hinges on right,

opens outward. For handed locks, specify

RHR.

hand of doors

handing the 8800 mortise lock

1. Locate the red mark on locking piece

2. The red mark indicates the locked side

3. Push toggle button to the "Unlock" position

4. With a flat blade screwdriver push red mark on

locking piece to rotate locking piece 180° to the

desired location

5. The locking piece must be fully rotated 180° for

proper operation

HANDING THE LATCHBOLT

1. Locate and depress spring plate mechanism in one

of the rectangular holes.

2. While depressing spring plate pull latchbolt head.

3. Rotate head for desired handing.

4. Push head into lockbody until secured.

5. Operate several times to insure operation.

Units Shipped Prior To March 2012 Units Shipped After March 2012

Rotate

Flat Blade

Screwdriver

Red Mark on

Locking Piece

HANDING THE LATCHBOLT

1. Insert a flat blade screwdriver into cover slot.

2. Pull back on screwdriver until latchbolt extends past

the base front.

3. Rotate head to desired position.

HANDING THE HUBS (LEVER OPERATION)

43

8800 series grade 1 mortise locks

notes

8800 series grade 1 mortise locks

Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.

Yale®, MicroShield®, SecureX® and Reflections® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. KeyMark® is a registered trademark of Medeco Security Locks,

Inc., and ASSA ABLOY Group company. Other products’ brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only.

These materials are protected under Copyright© 2004, 2014, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express

written permission of the Yale Security Inc., an ASSA ABLOY Group company, is prohibitied.

Yale, with its unique global reach and range of products, is the world’s favorite lock.

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.

42002-10/14RE

online literature and templates

Or contact us at:

U.S.A.

Yale Locks & Hardware

Address: 225 Episcopal Road, Berlin, CT 06037-4004

Tel:1-800-438-1951•Fax:1-800-338-0965•www.yalelocks.com

Canada:

ASSA ABLOY Door Security Solutions Canada

Address: 160 Four Valley Drive, Vaughan, Ontario L4K 4T9

Tel:1-800-461-3007•Fax:1-800-461-8989•www.assaabloy.ca

International:

ASSA ABLOY Americas International

Tel:1-905-821-7775•Fax:1-905-821-1429•www.assaabloyai.com

An ASSA ABLOY Group brand

For the latest information on Yale Locks & Hardware products, visit our website at: www.yalelocks.com

Click on the “Product Information” button to find:

• Catalogs

• Partsmanuals

• Templates

• Specications

• Installationinstructions

Yale® customers can click on the ebusiness symbol on the website to register for an ebusiness account to:

• Checkthestatusoforders

• CheckavailabilityofQuickShipitems

• Trackyourorderandconrmdelivery

• Receiveemailnoticationoftemplatechanges

And More...
