7000 Series

Architectural Exit Devices

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Table of Contents

Yale® 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation and aesthetics. With ANSI/BHMA Grade 1

certification and a full range of mechanical and electromechanical functions and accessories, the 7000 Series can be easily integrated into

existing security or fire alarm systems to ensure the safety of every opening. The simple, clean lines and variety of available finishes suit the

modern decor of any commercial building.

When the beauty of your facility matters almost as much as life safety, Yale Works for YouSM.

Contents

Introduction .........................................................................................3

Benefits & Features ............................................................................4

Finishes ................................................................................................5

How to Order .......................................................................................6

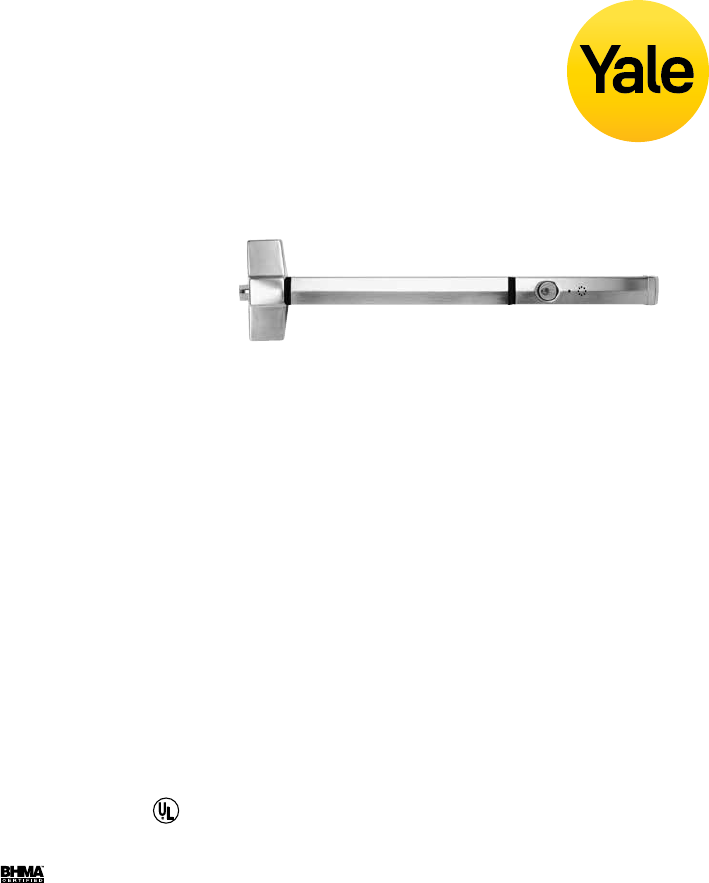

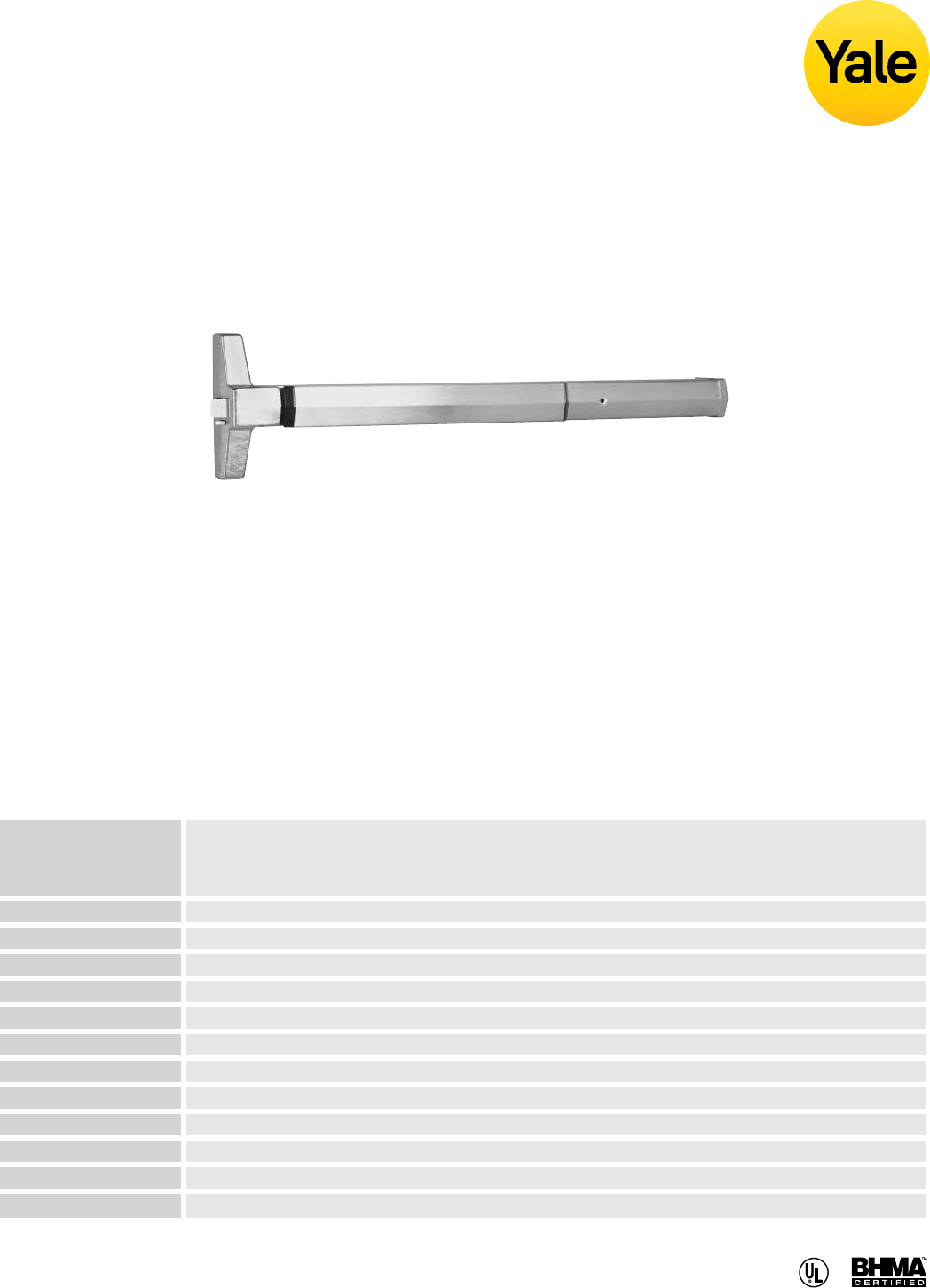

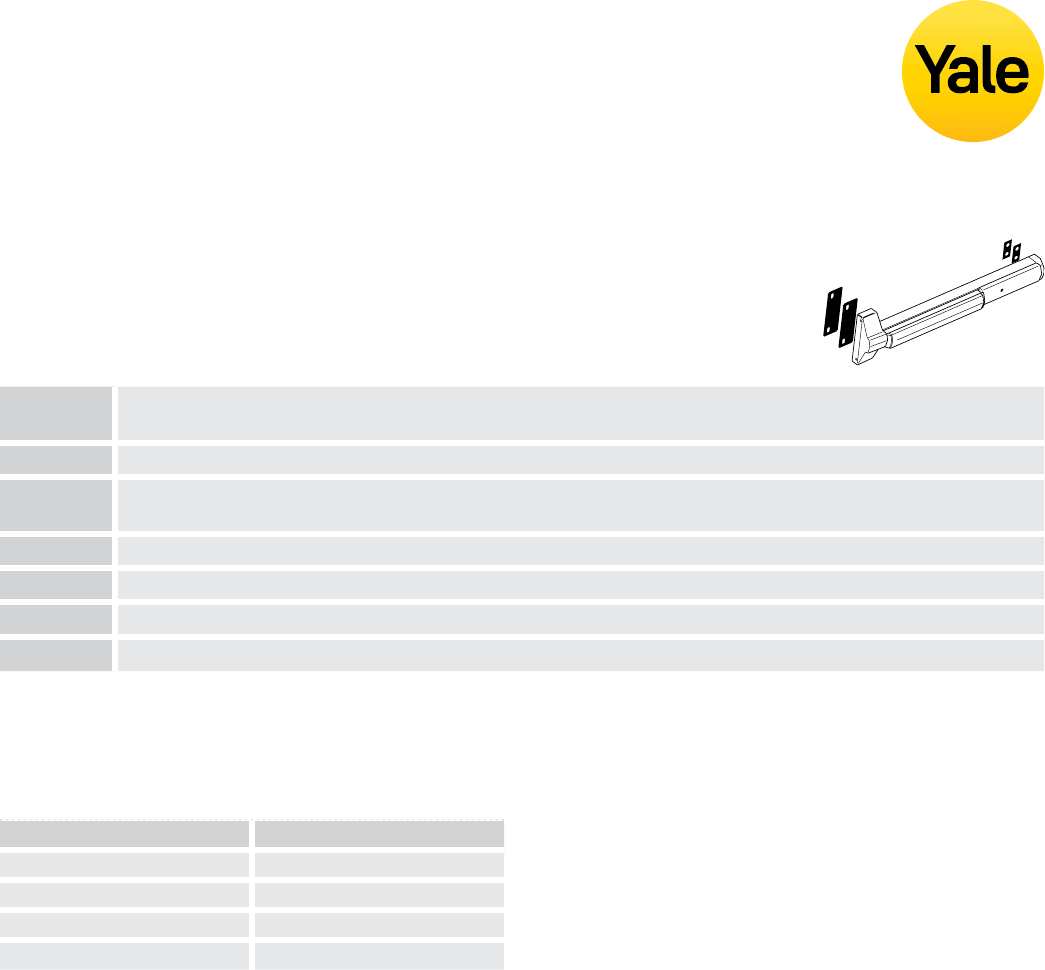

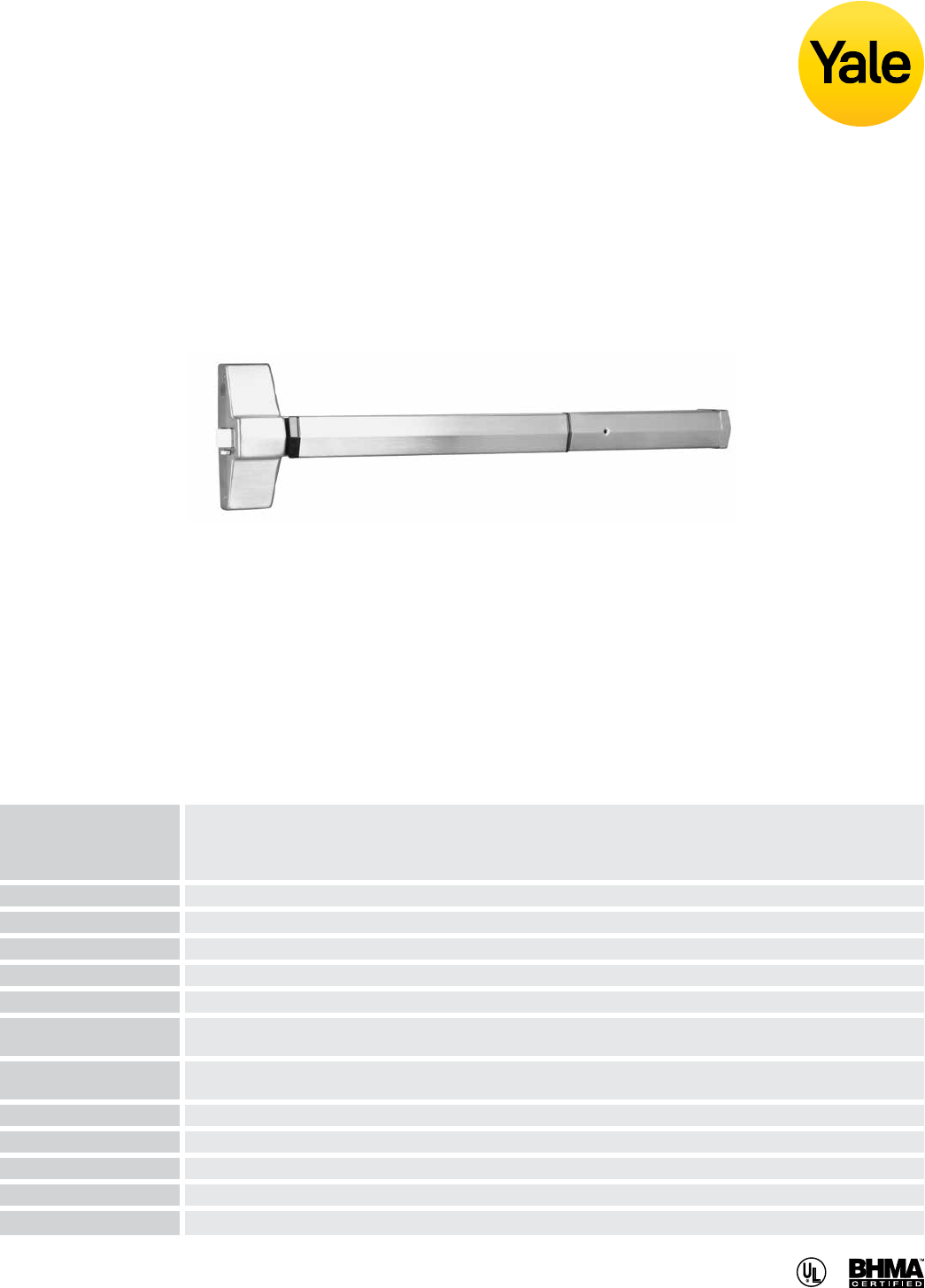

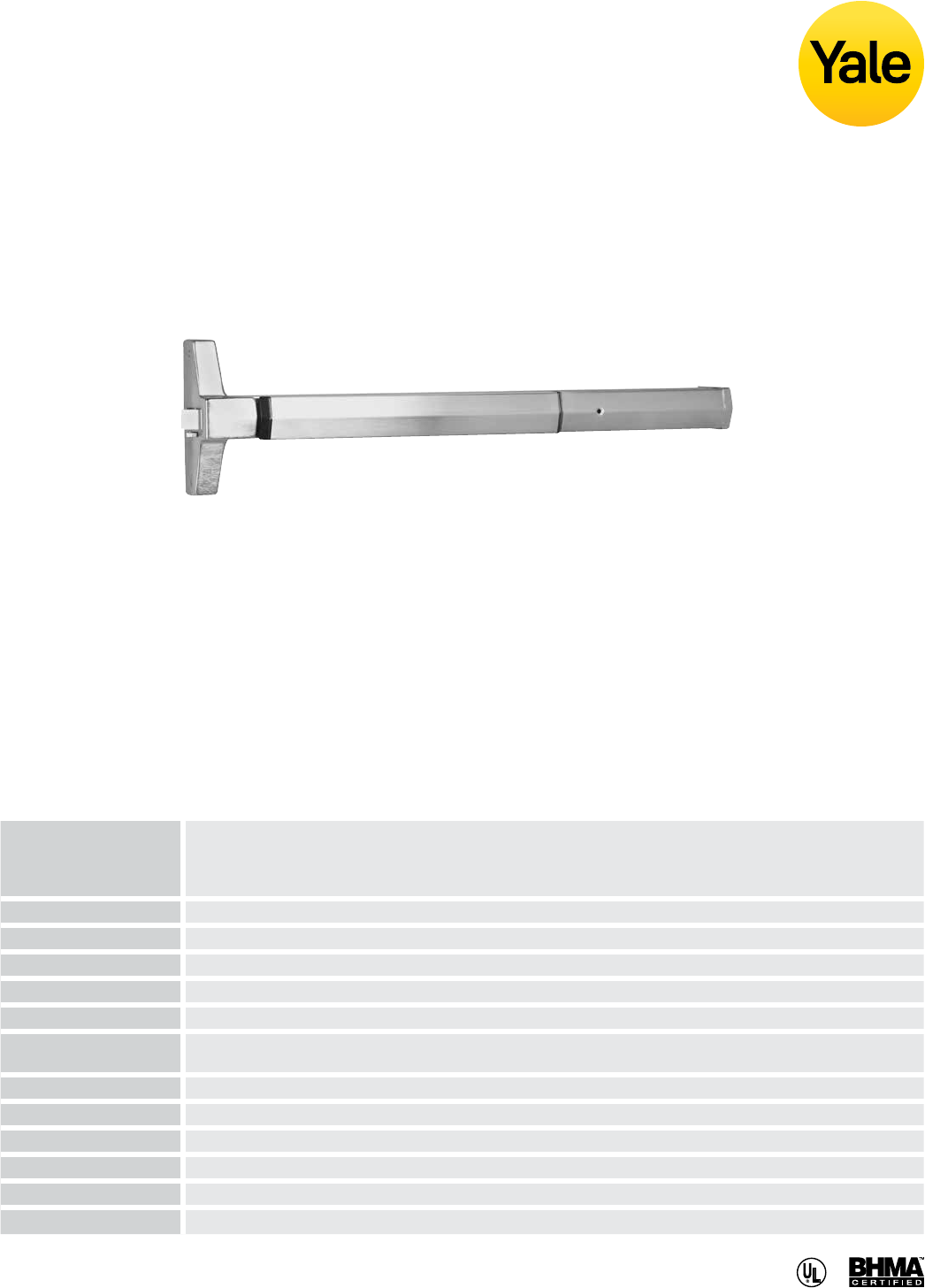

Rim Devices

7100(F) ...........................................................................................7

7200.................................................................................................8

7200M(F) .......................................................................................9

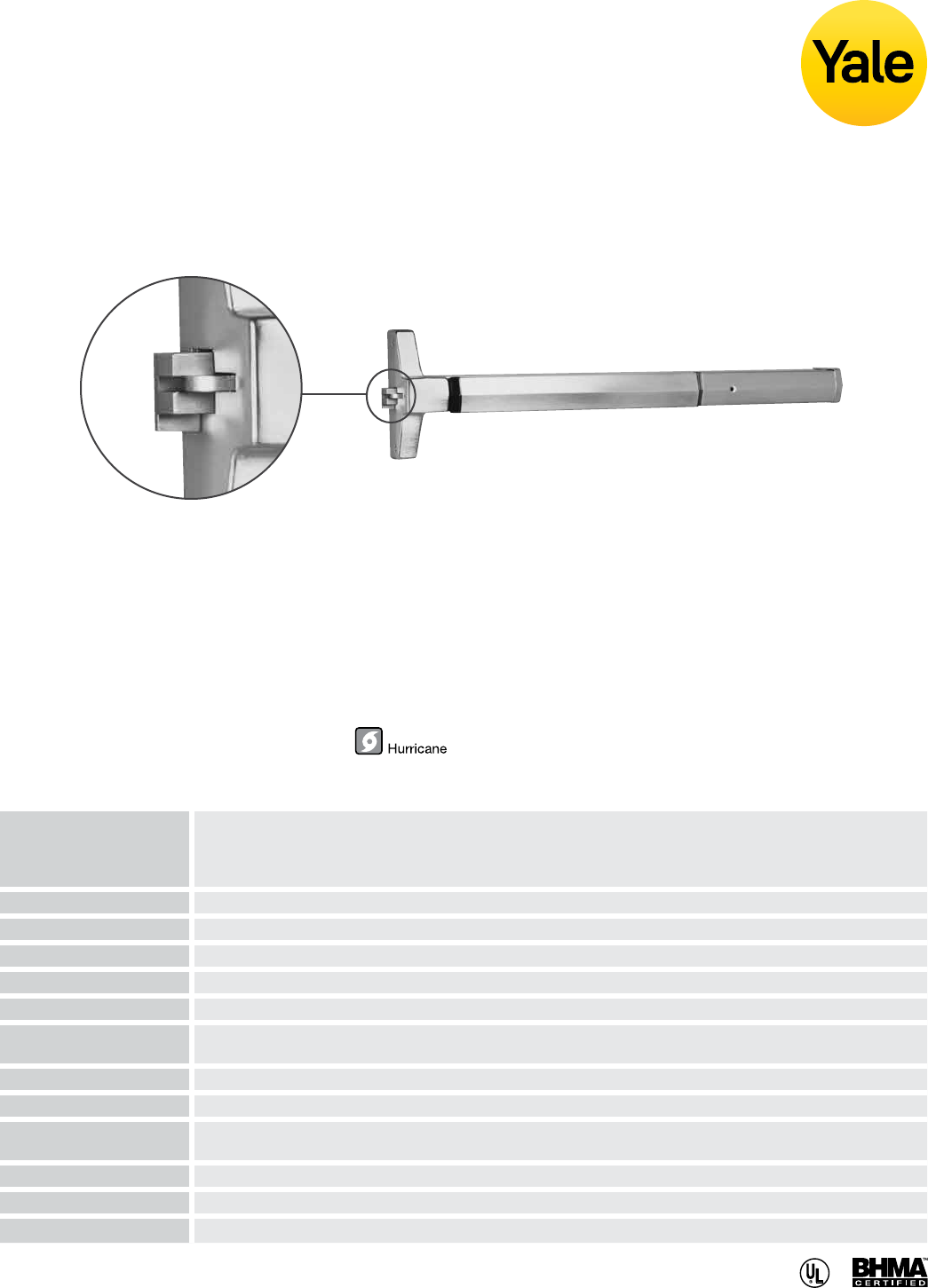

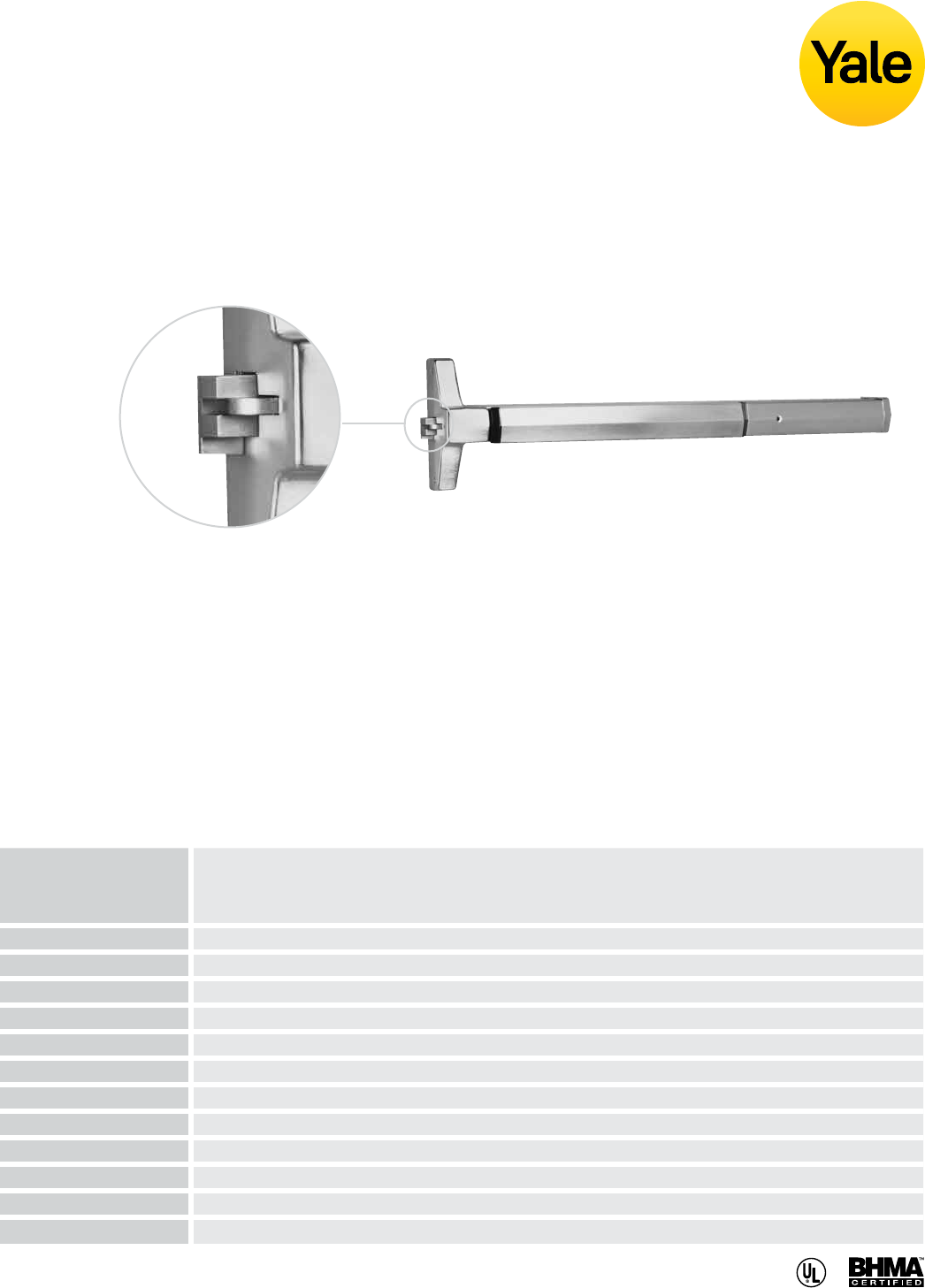

SquareBolt® Devices

7150(F) .........................................................................................10

7250 .............................................................................................. 11

7250M(F) .....................................................................................12

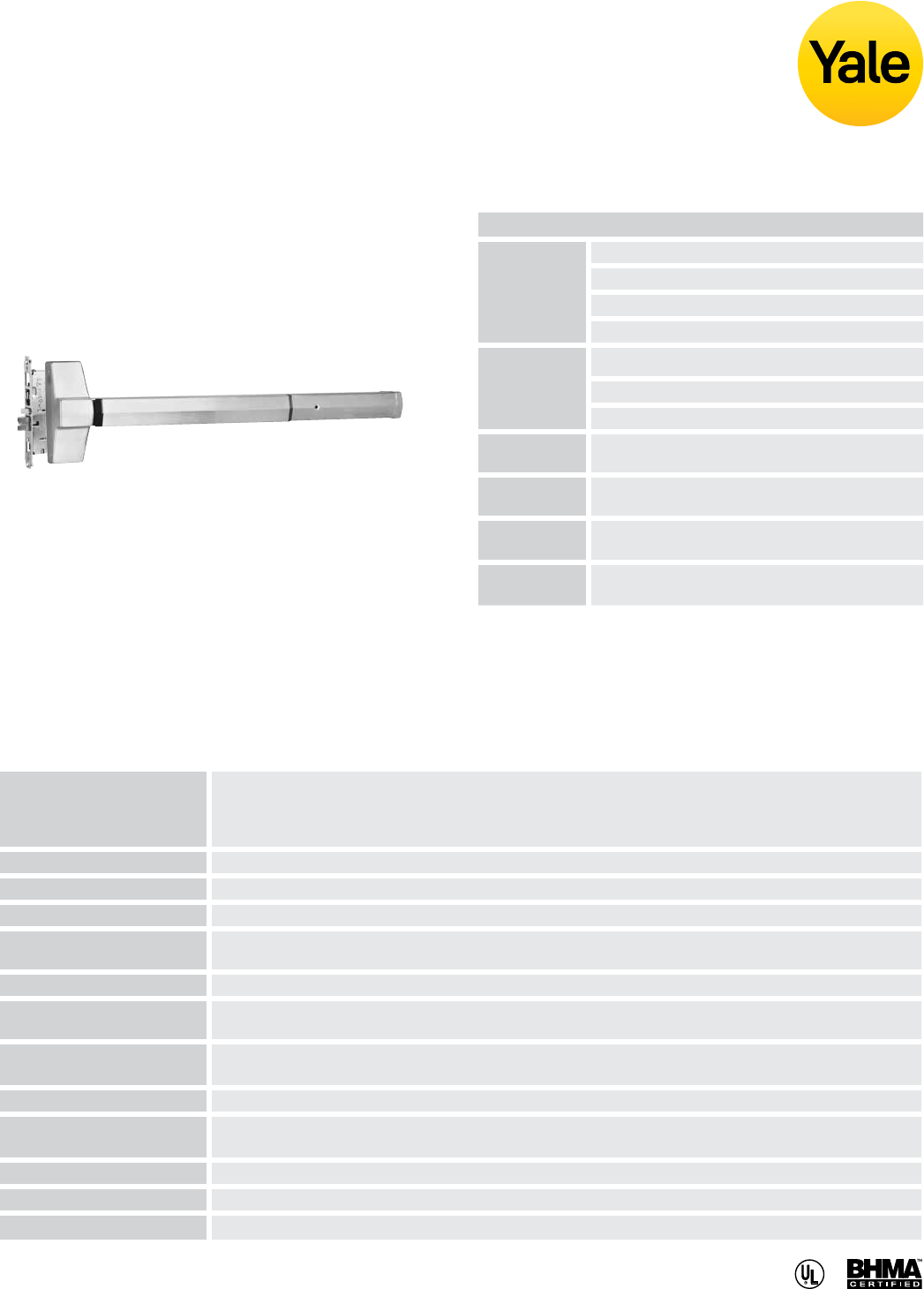

Mortise Devices

7130(F) .........................................................................................13

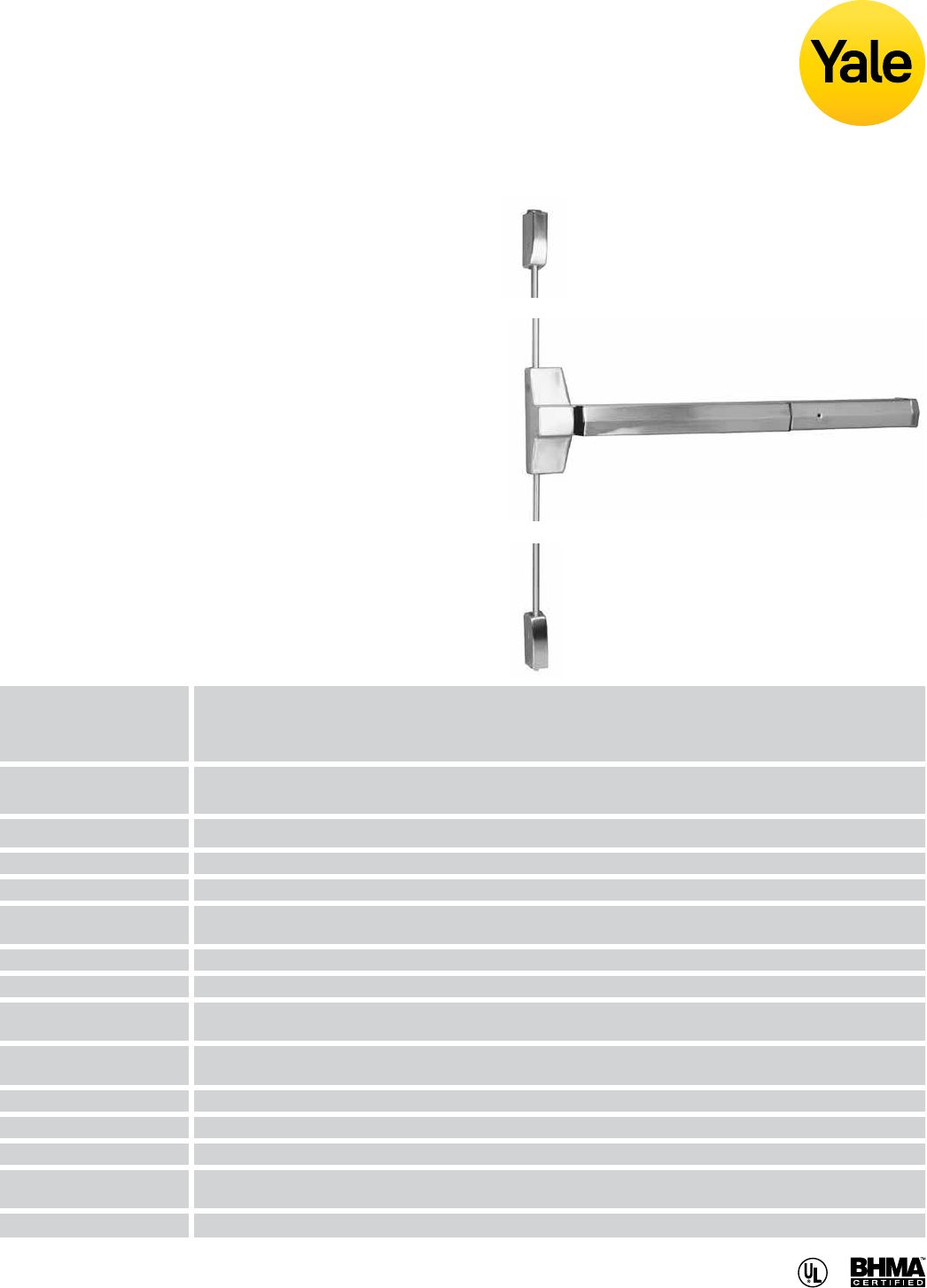

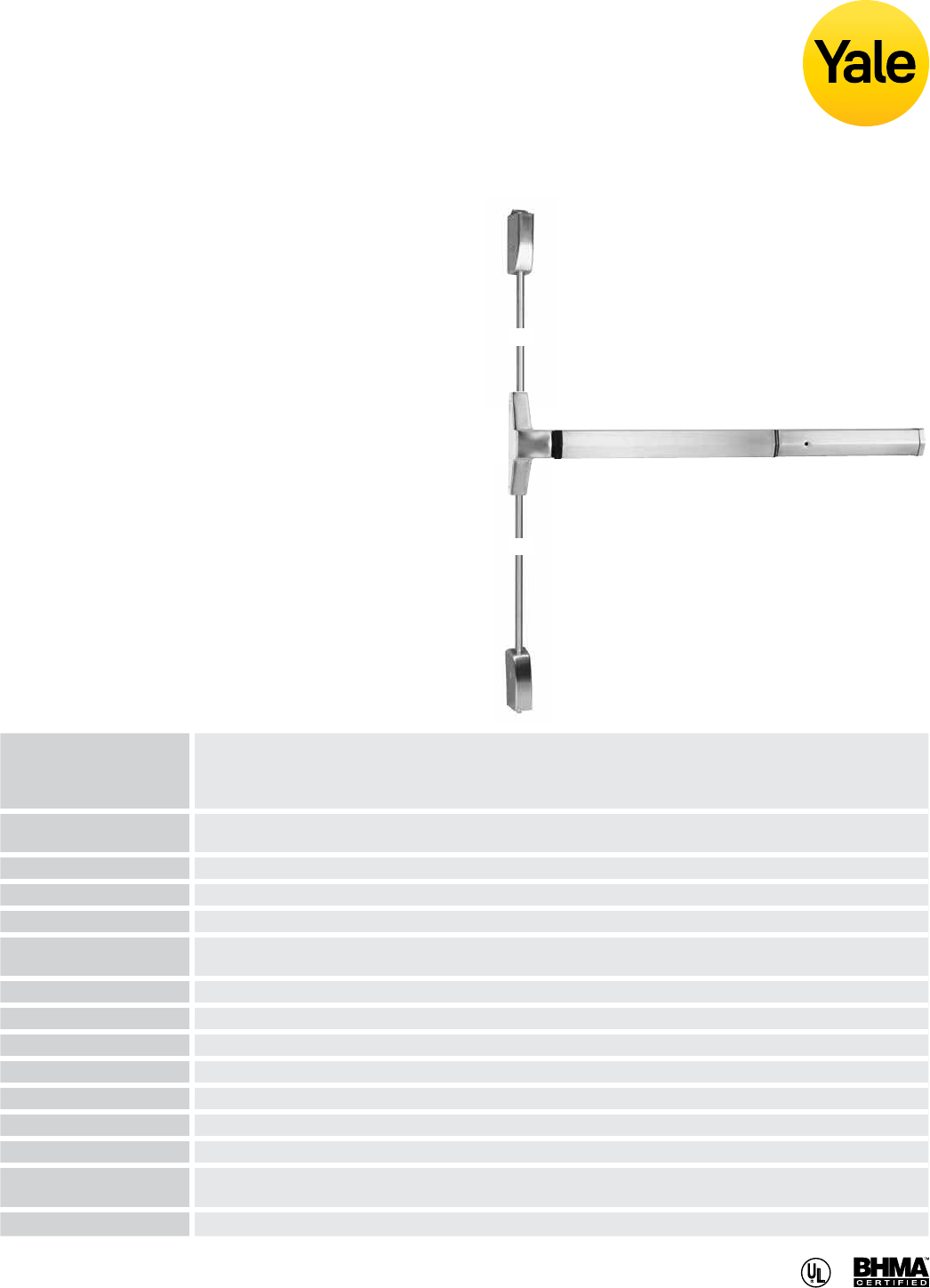

Surface Vertical Rod Devices

7110(F) ..........................................................................................14

7170(F)..........................................................................................15

7210 ...............................................................................................16

7210M(F) ...................................................................................... 17

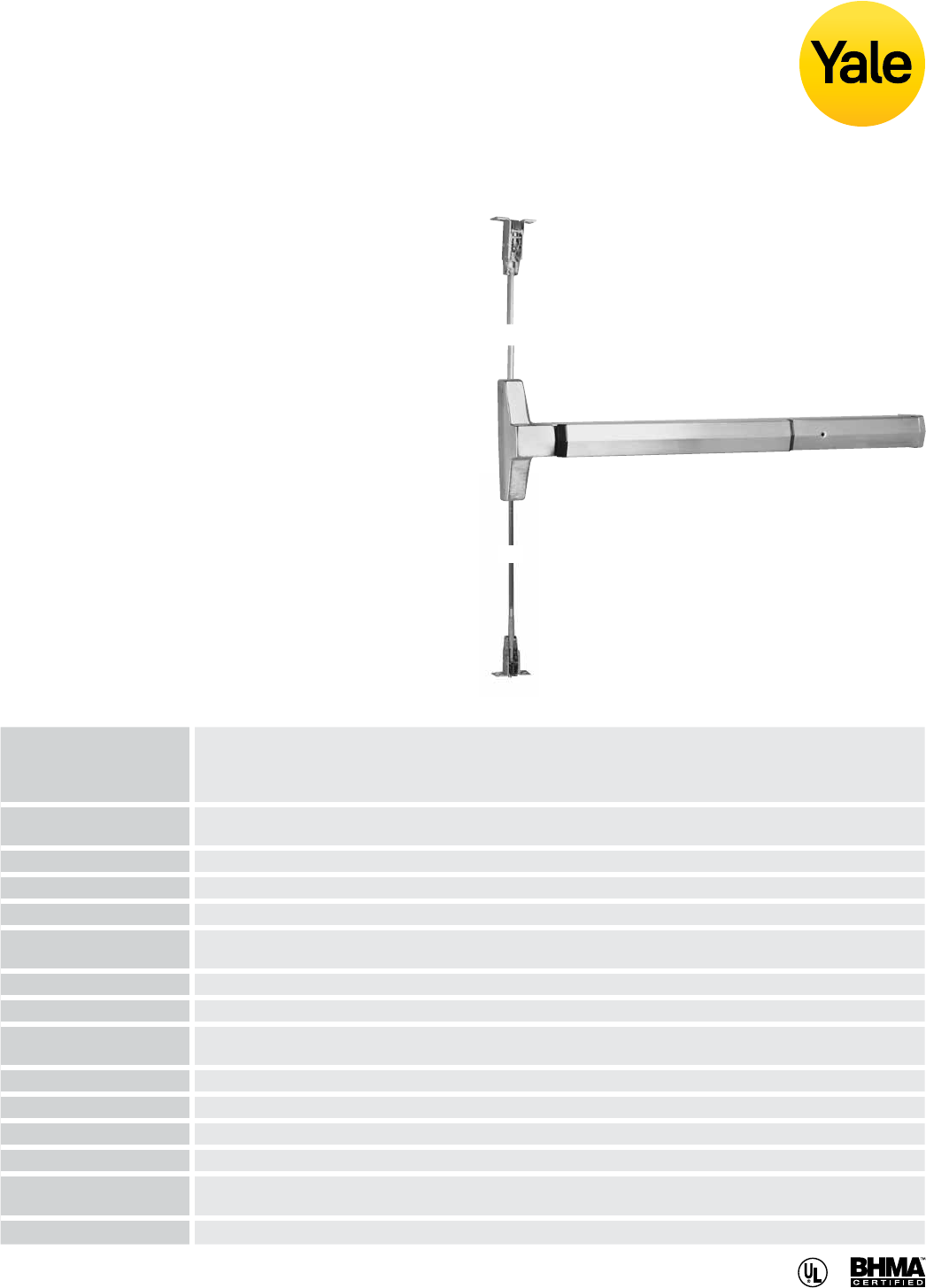

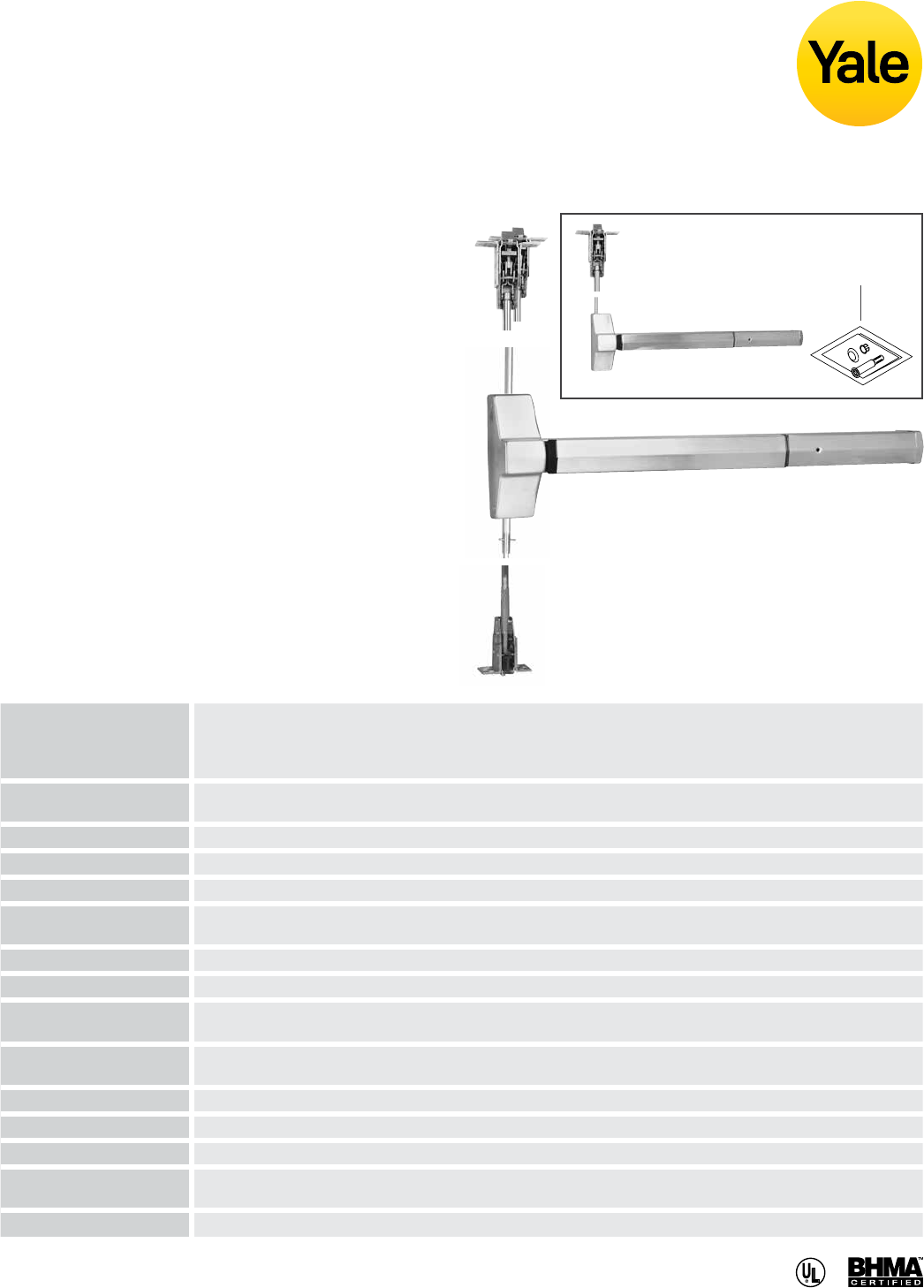

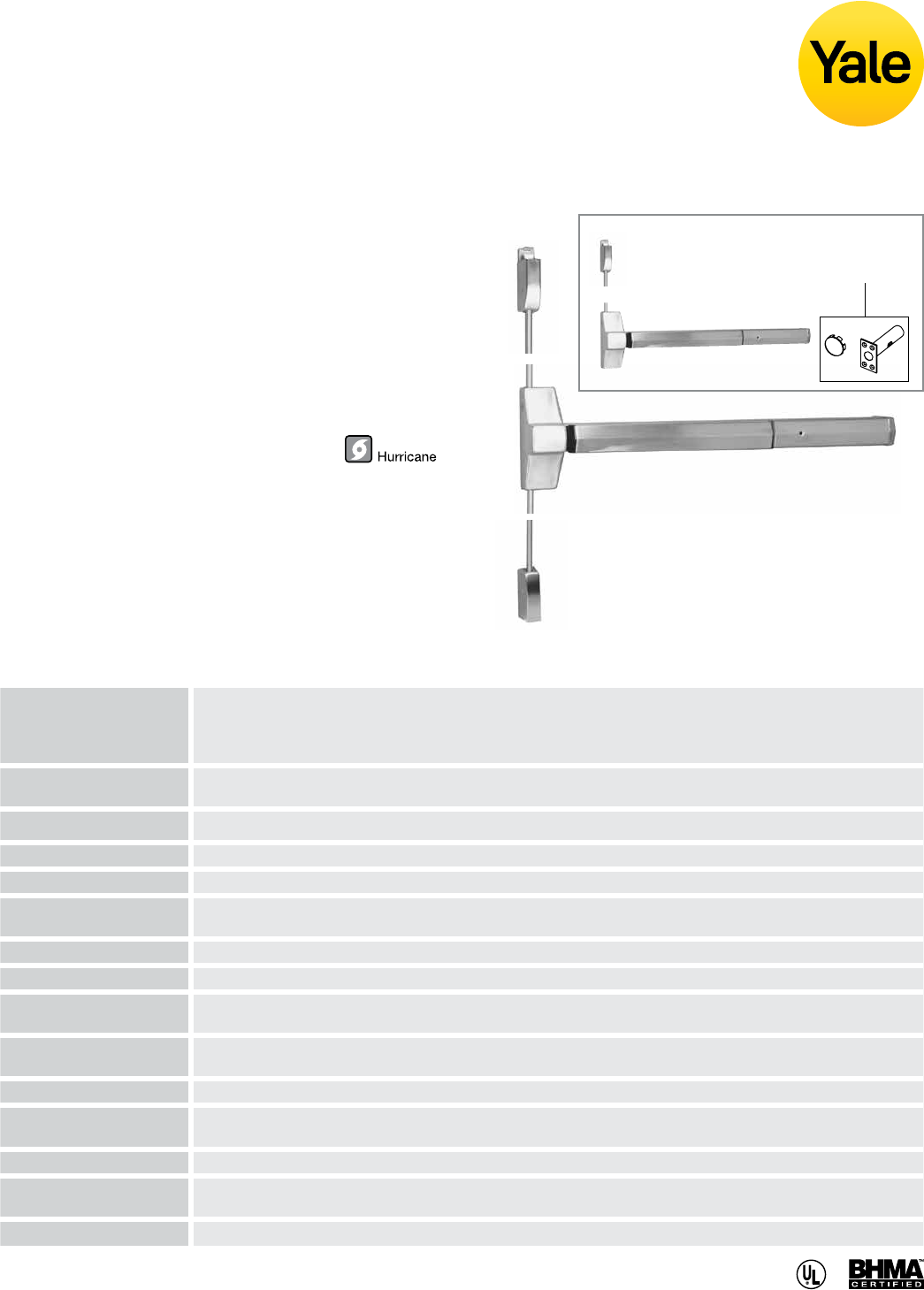

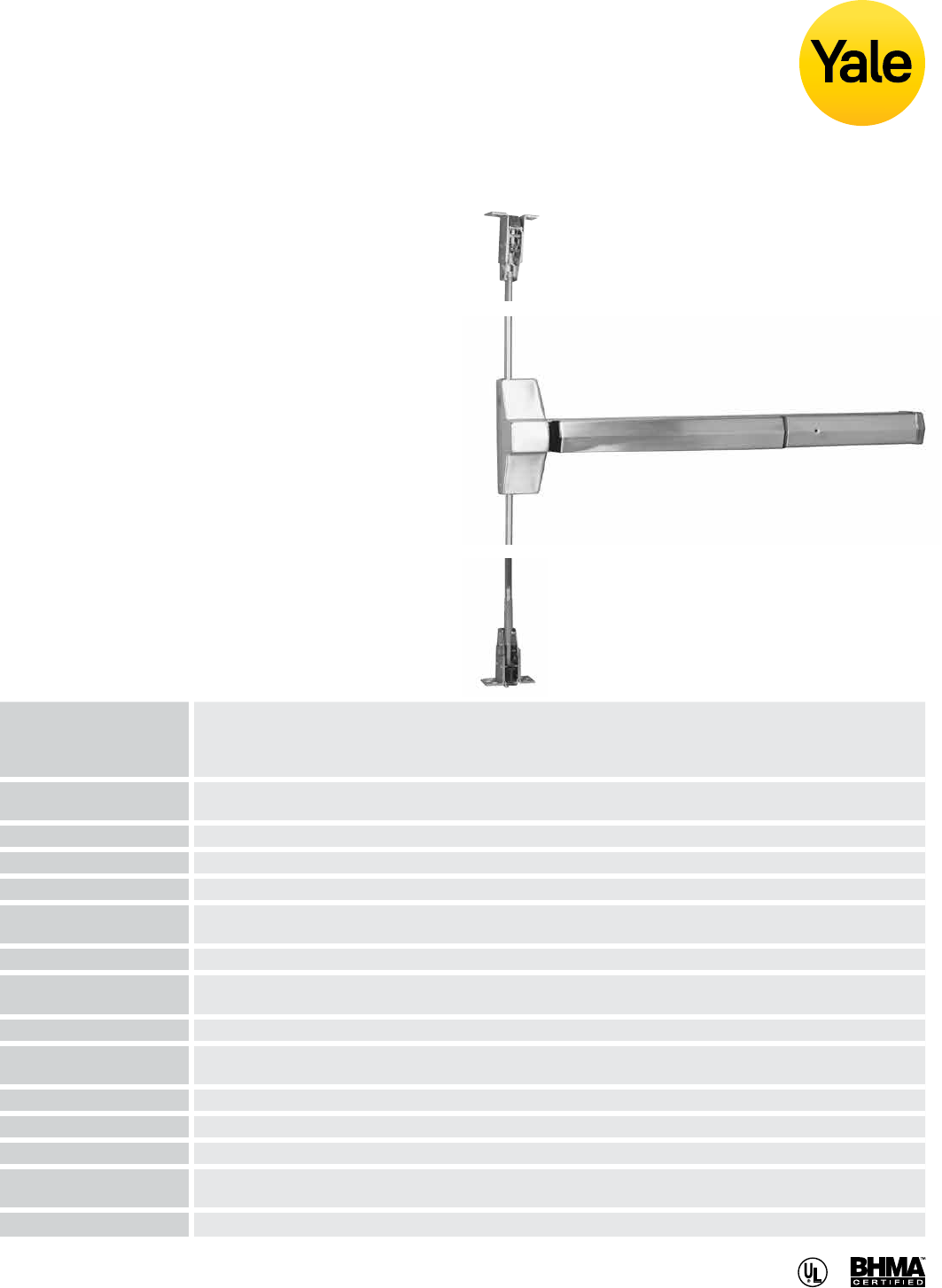

Concealed Vertical Rod Devices

7120(F) .........................................................................................18

7160(F) .........................................................................................19

7220 .............................................................................................. 20

7220M(F) .....................................................................................21

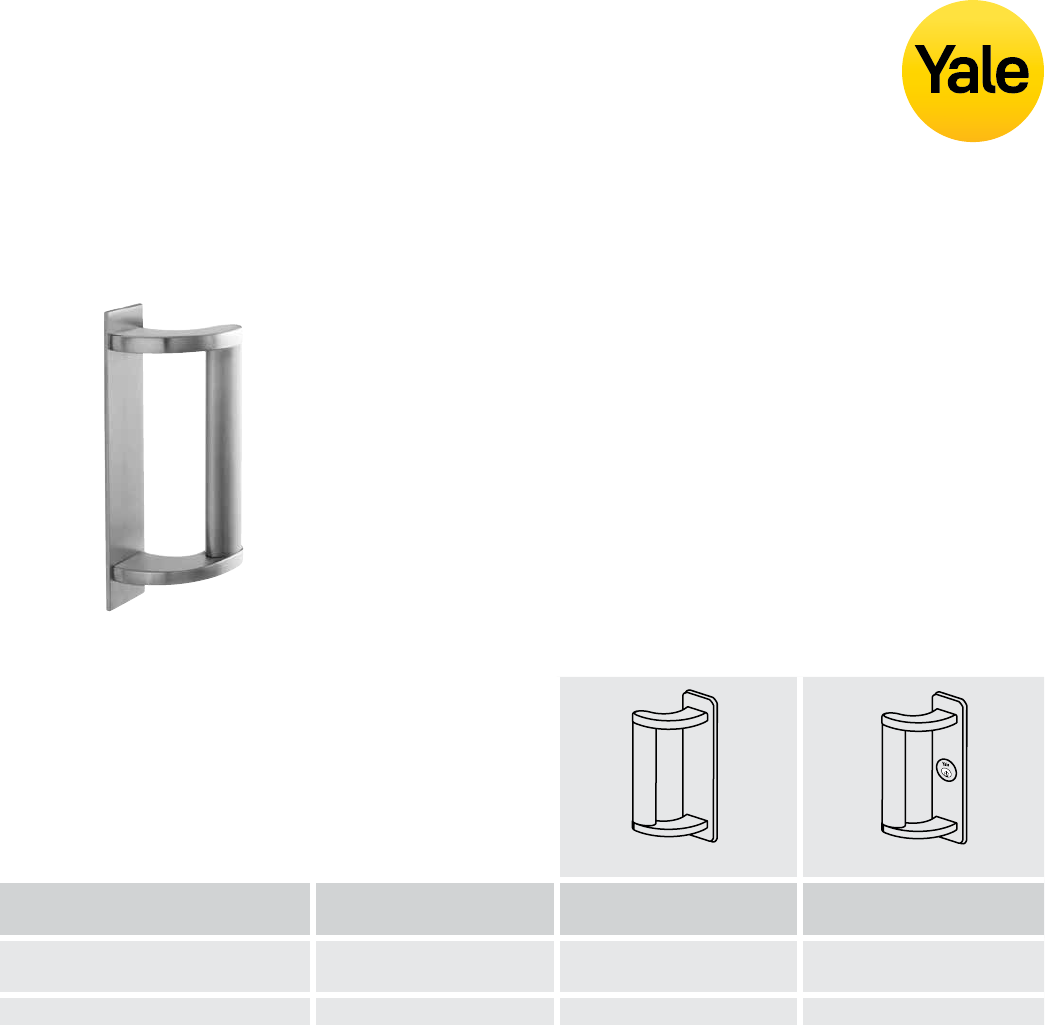

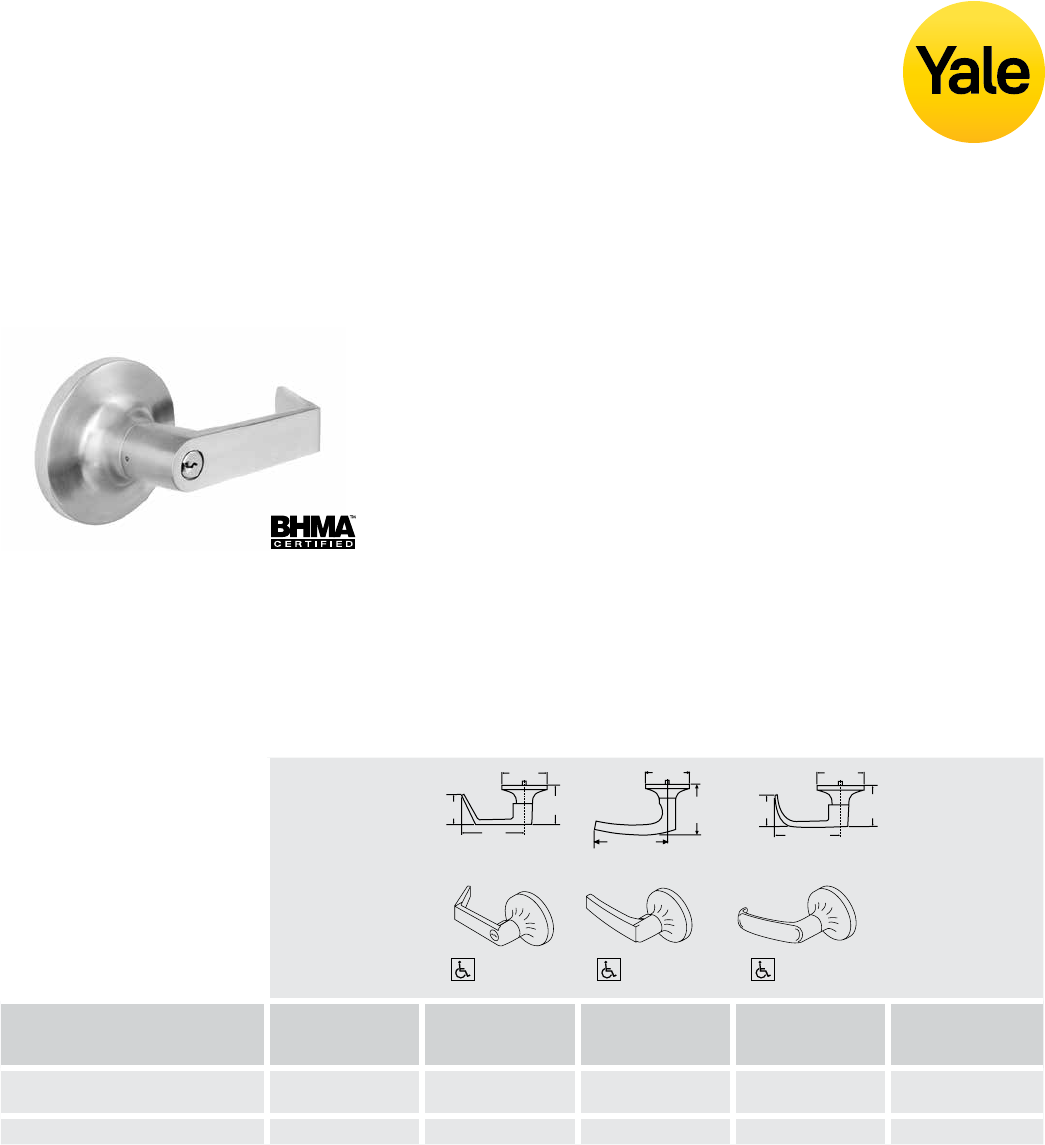

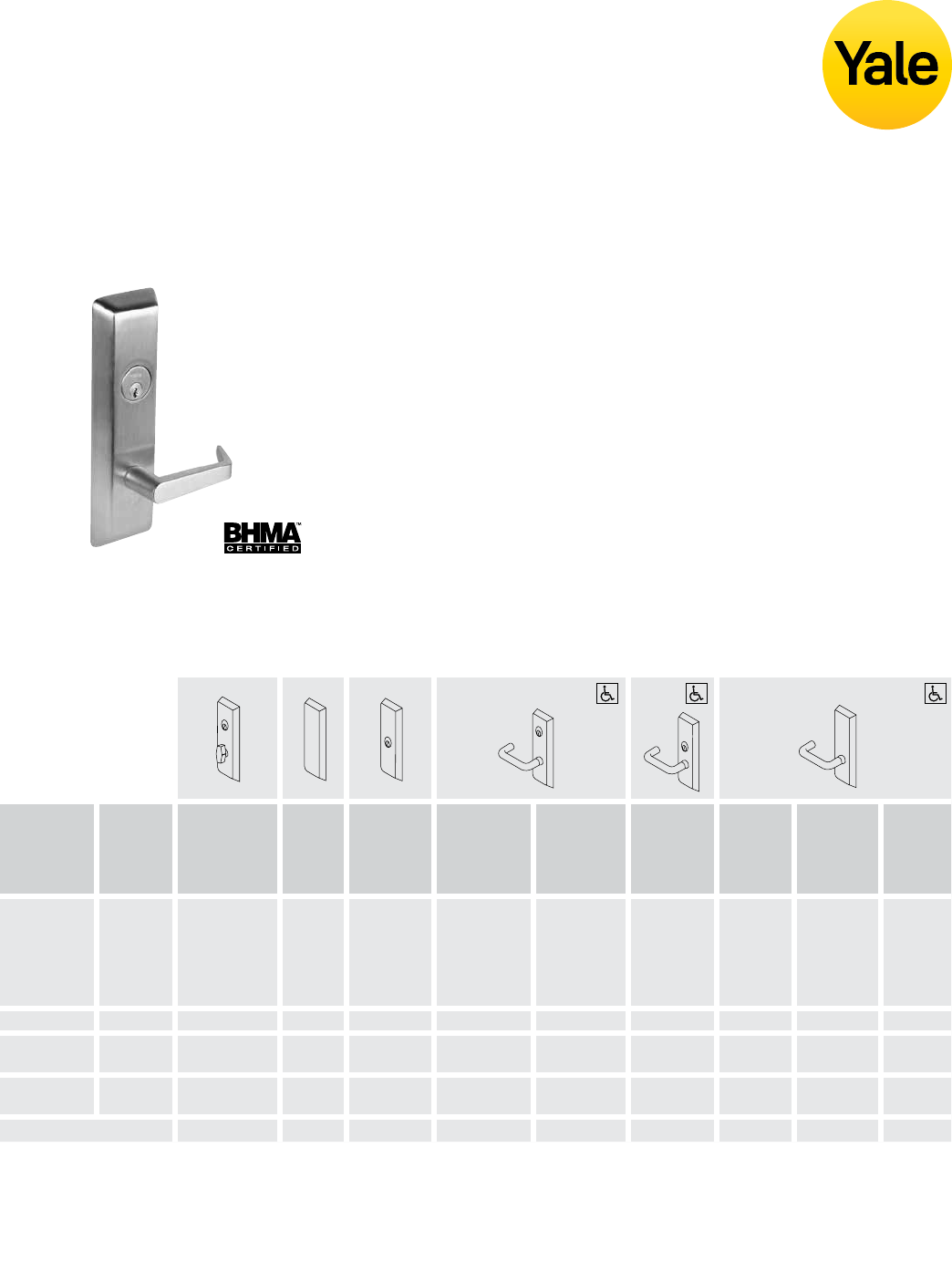

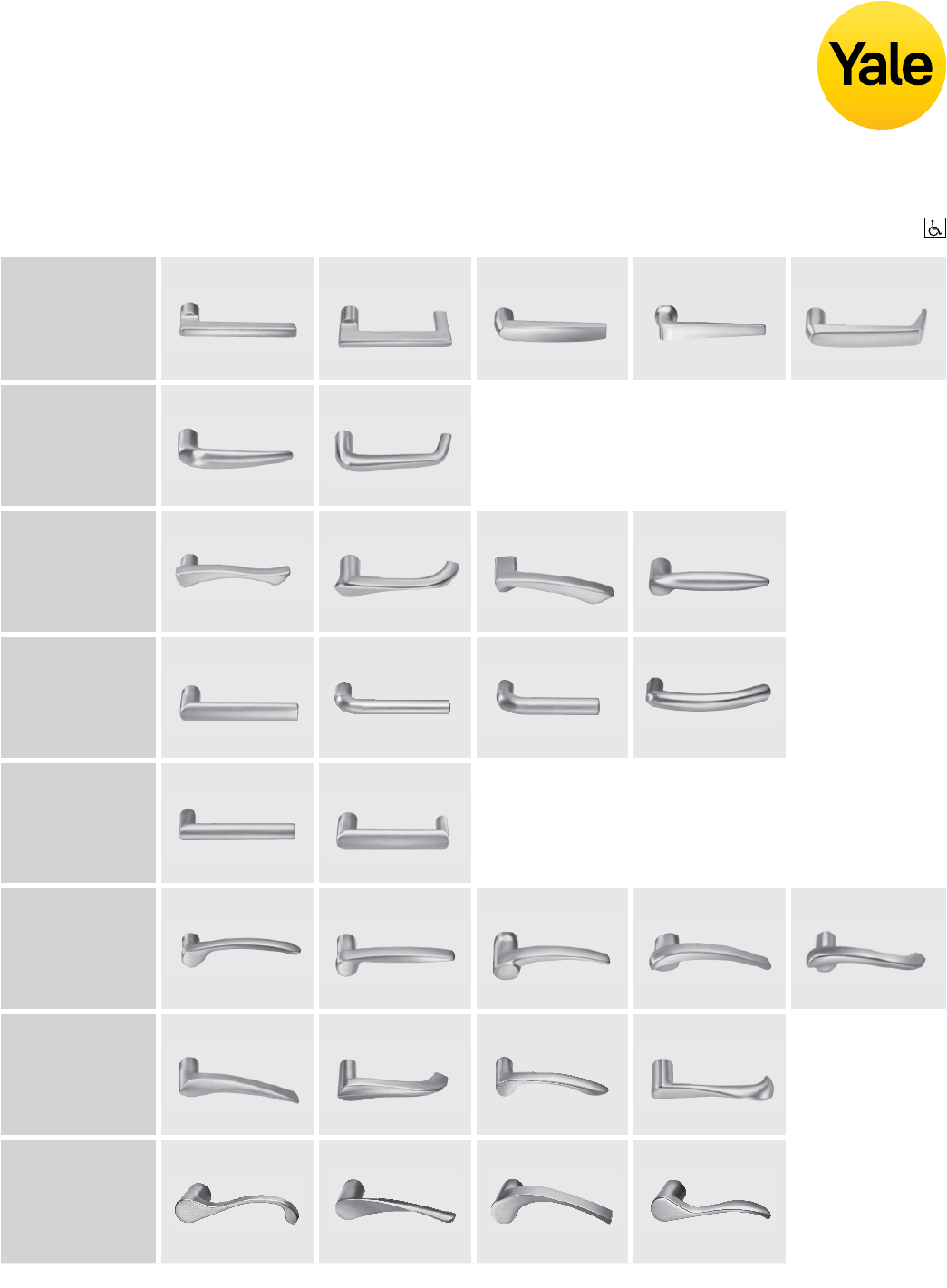

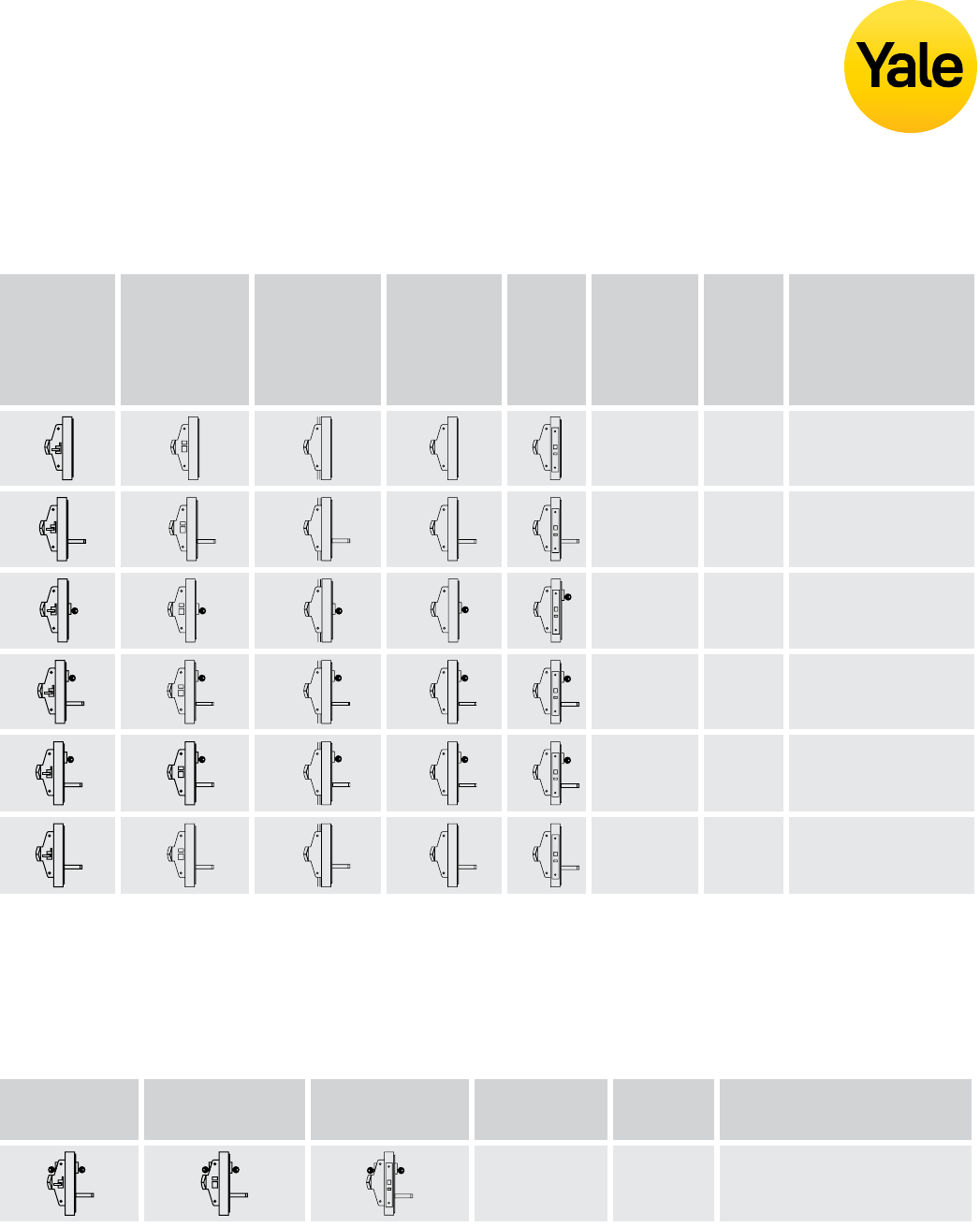

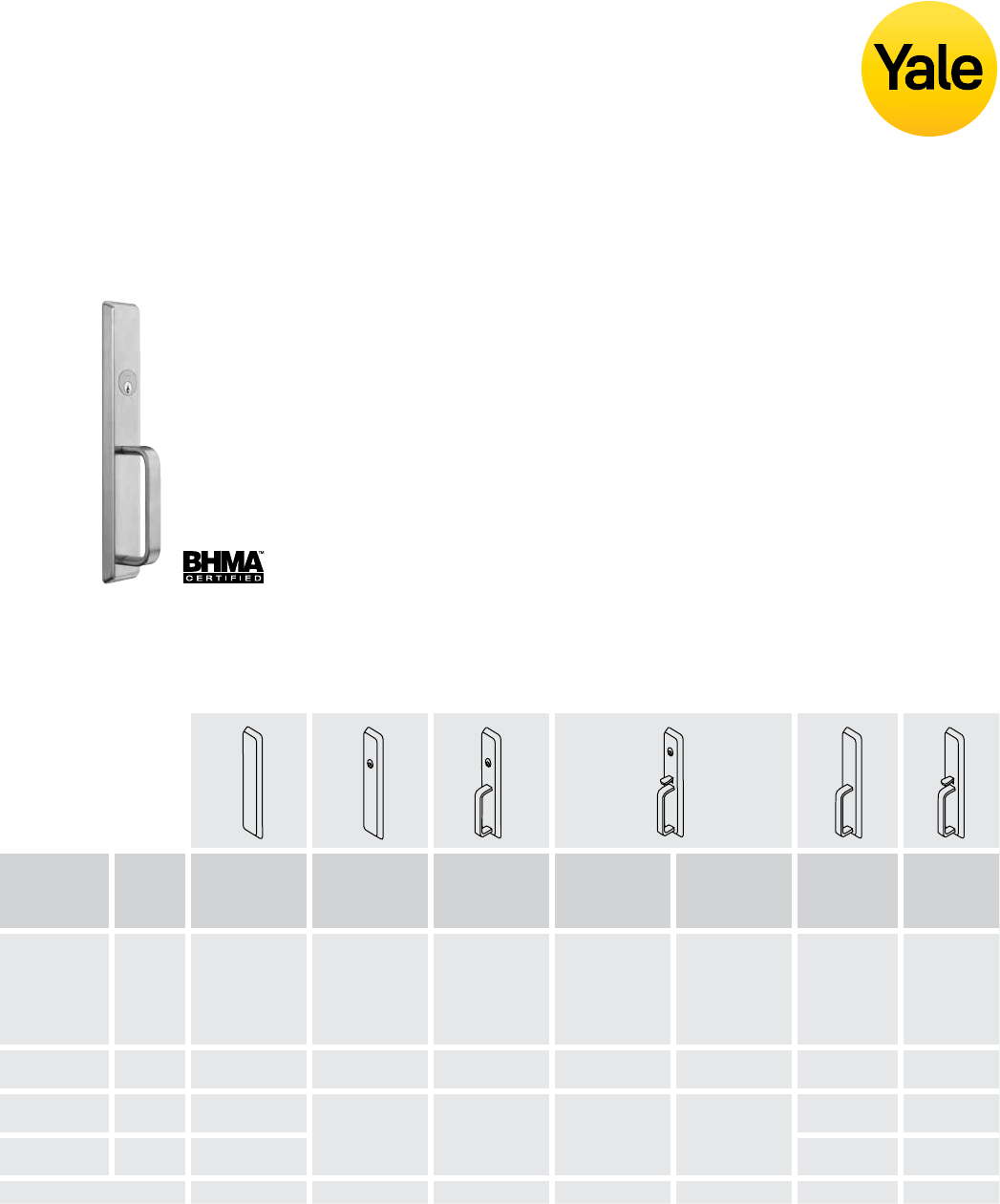

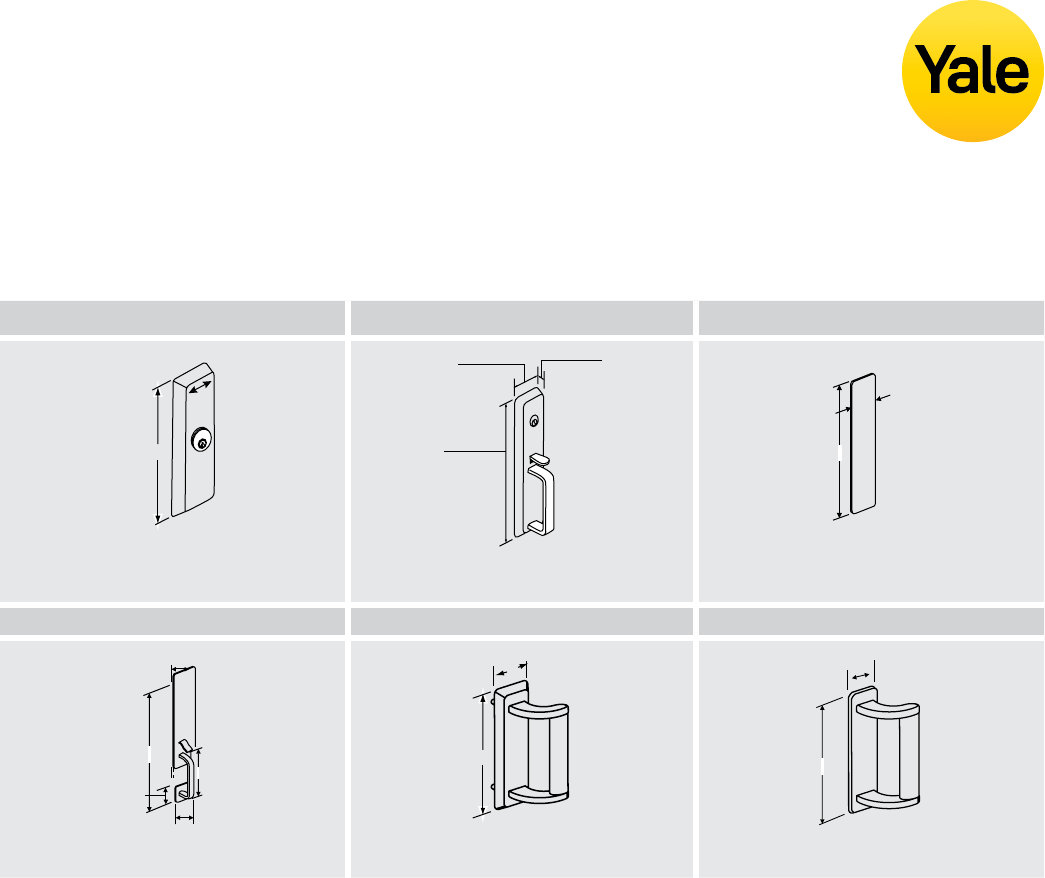

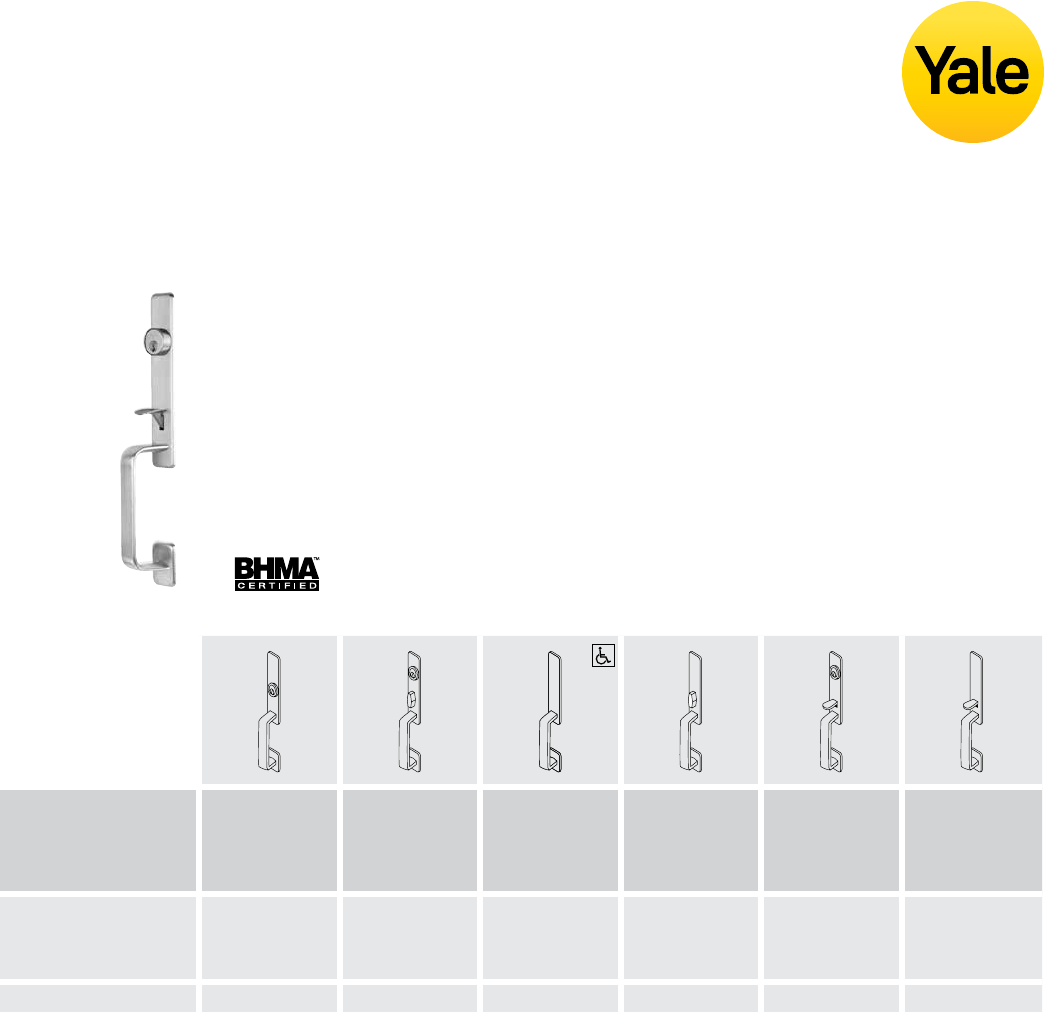

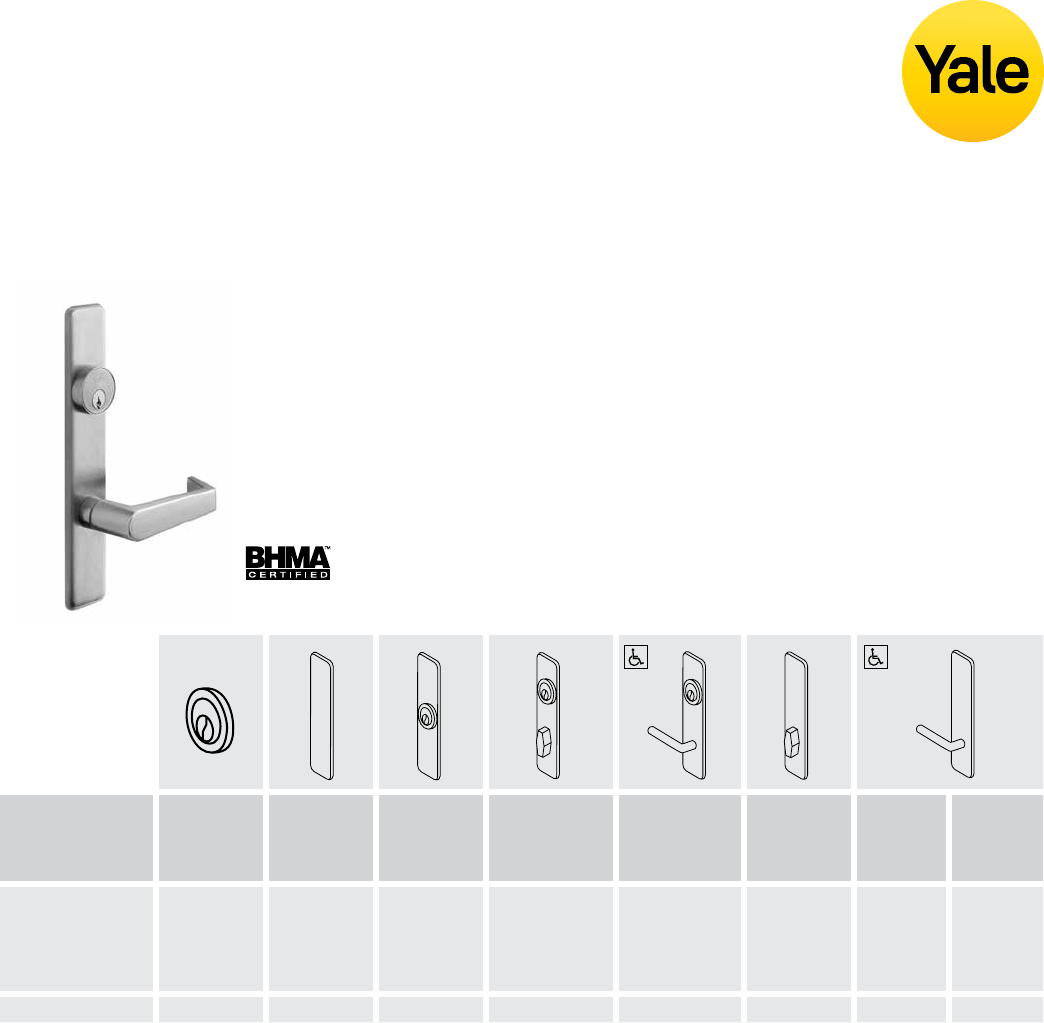

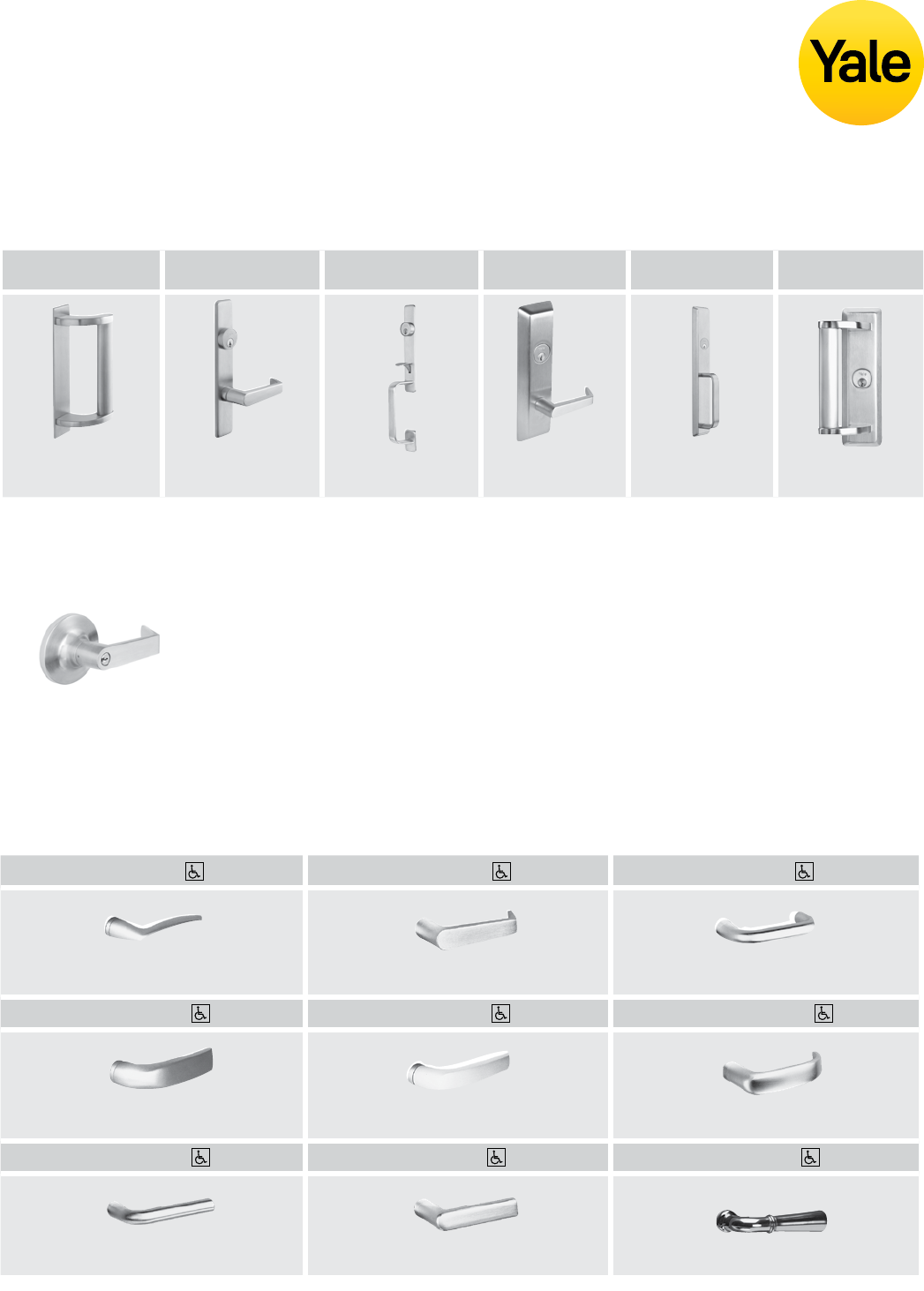

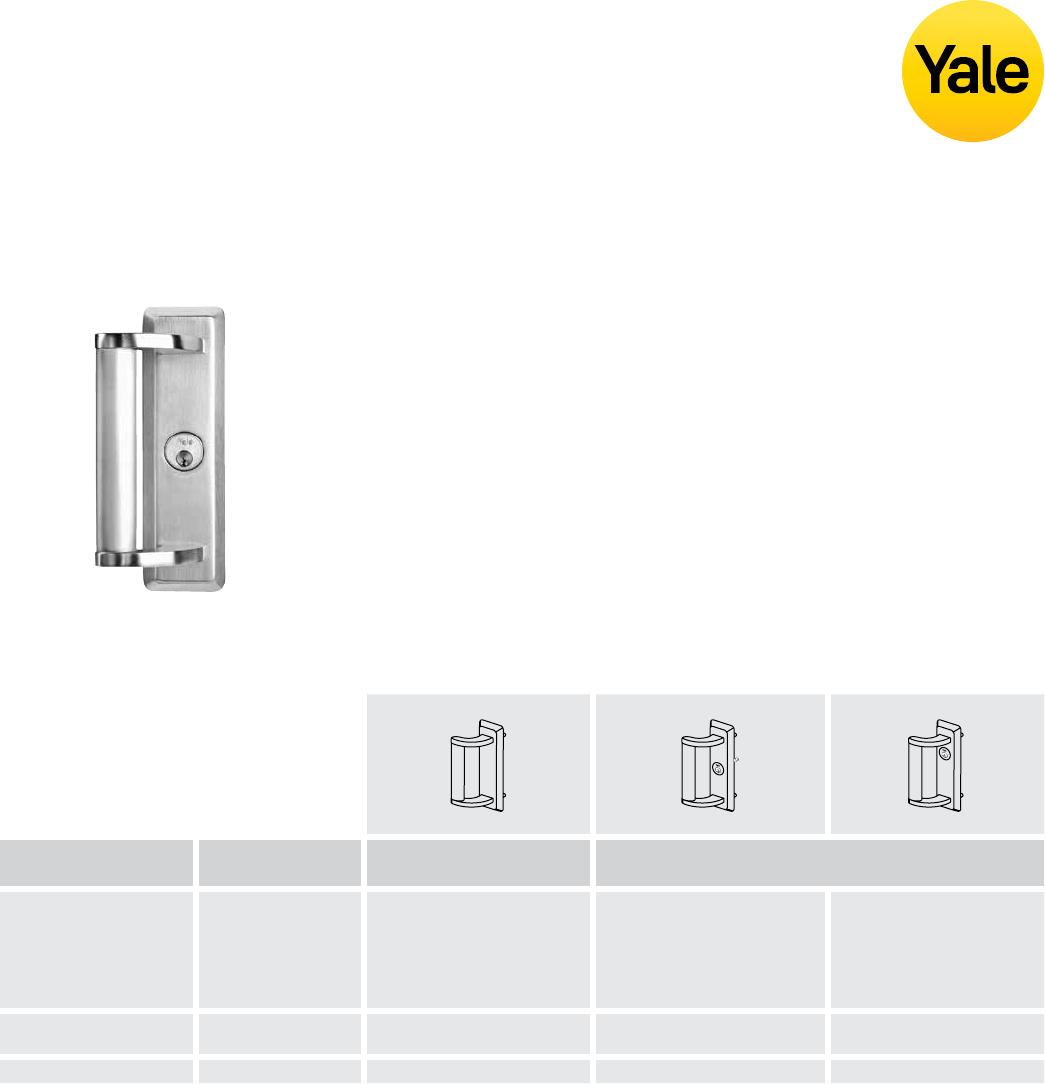

Trim Designs ............................................................................... 2230

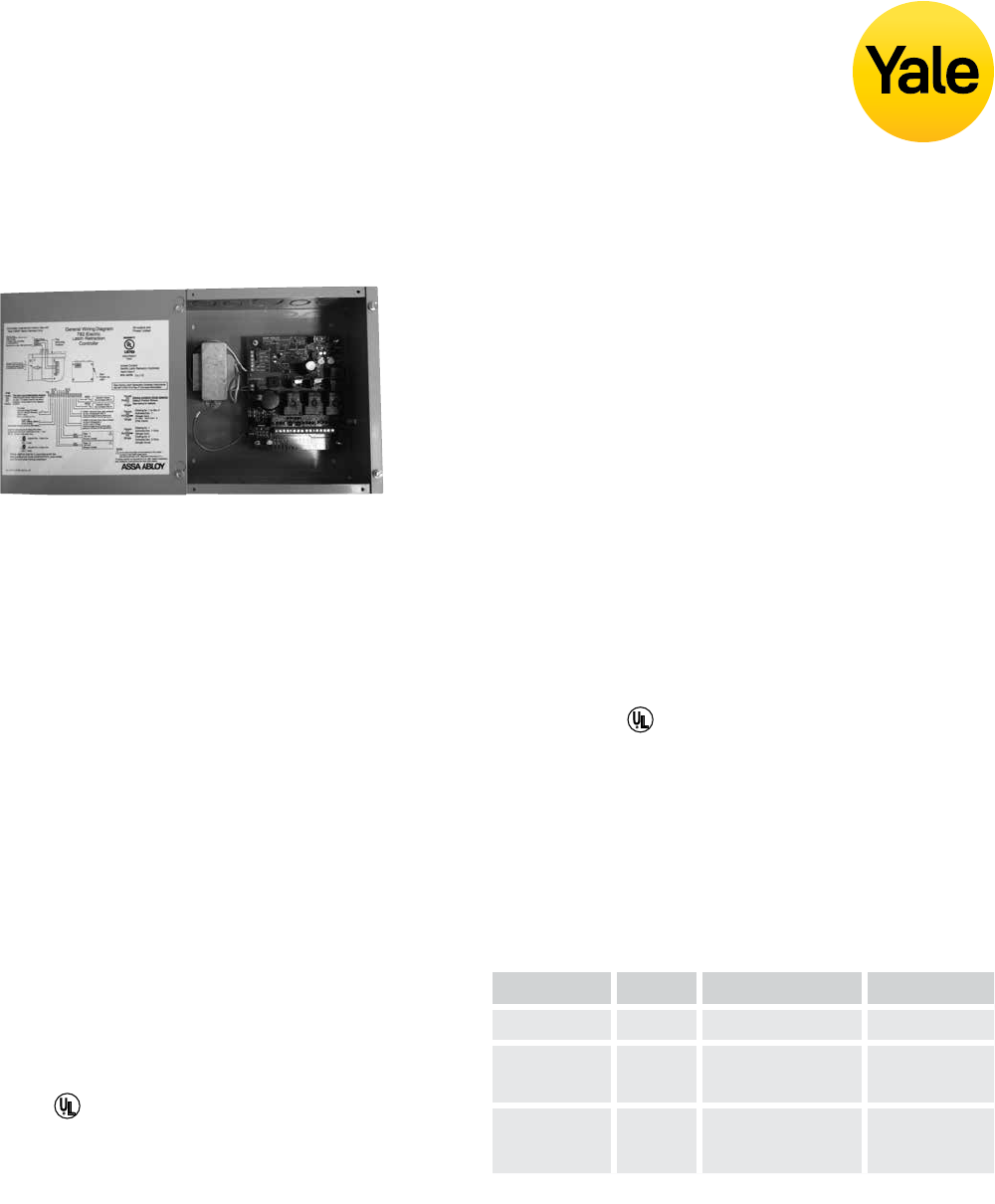

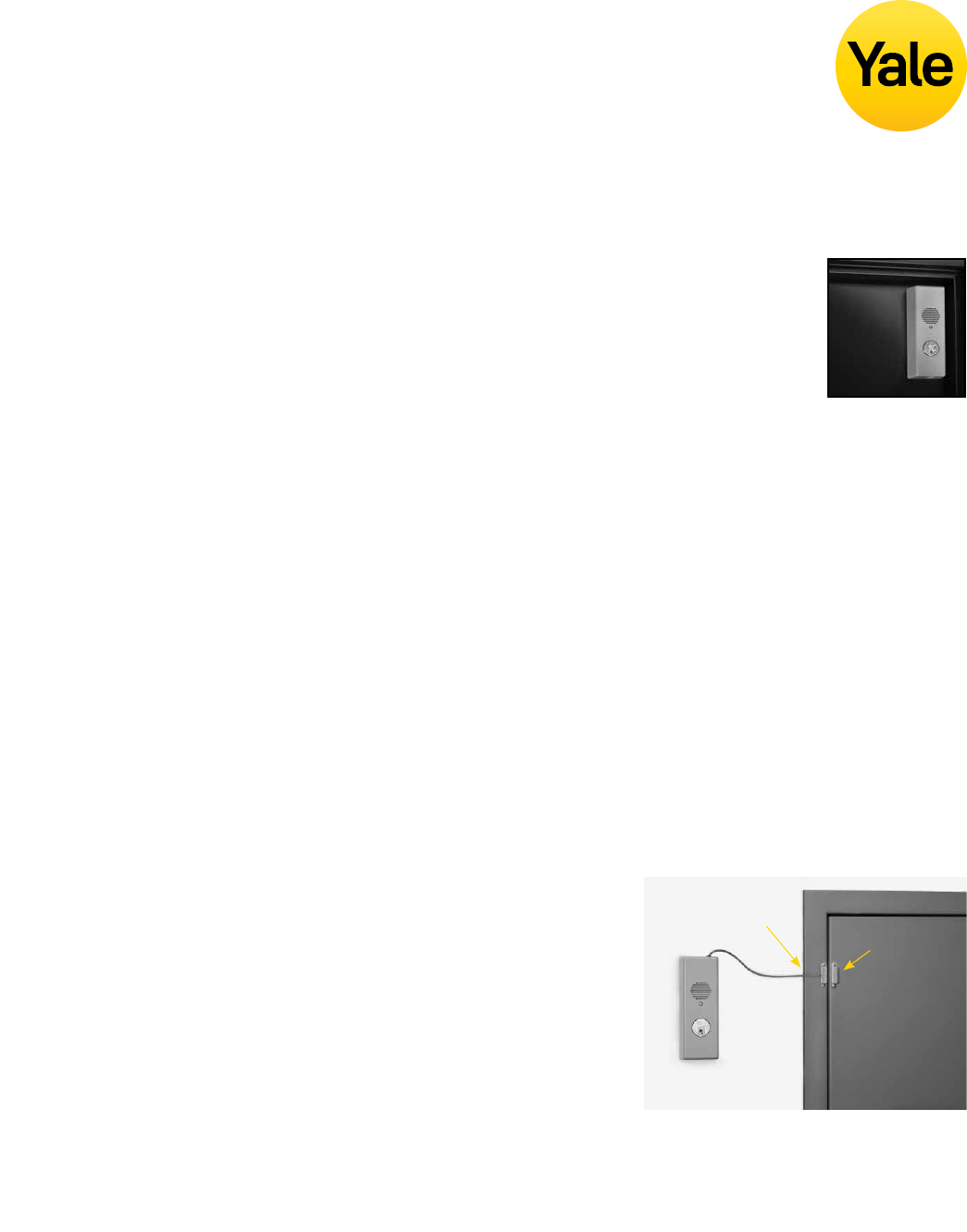

Electrified Options ......................................................................3139

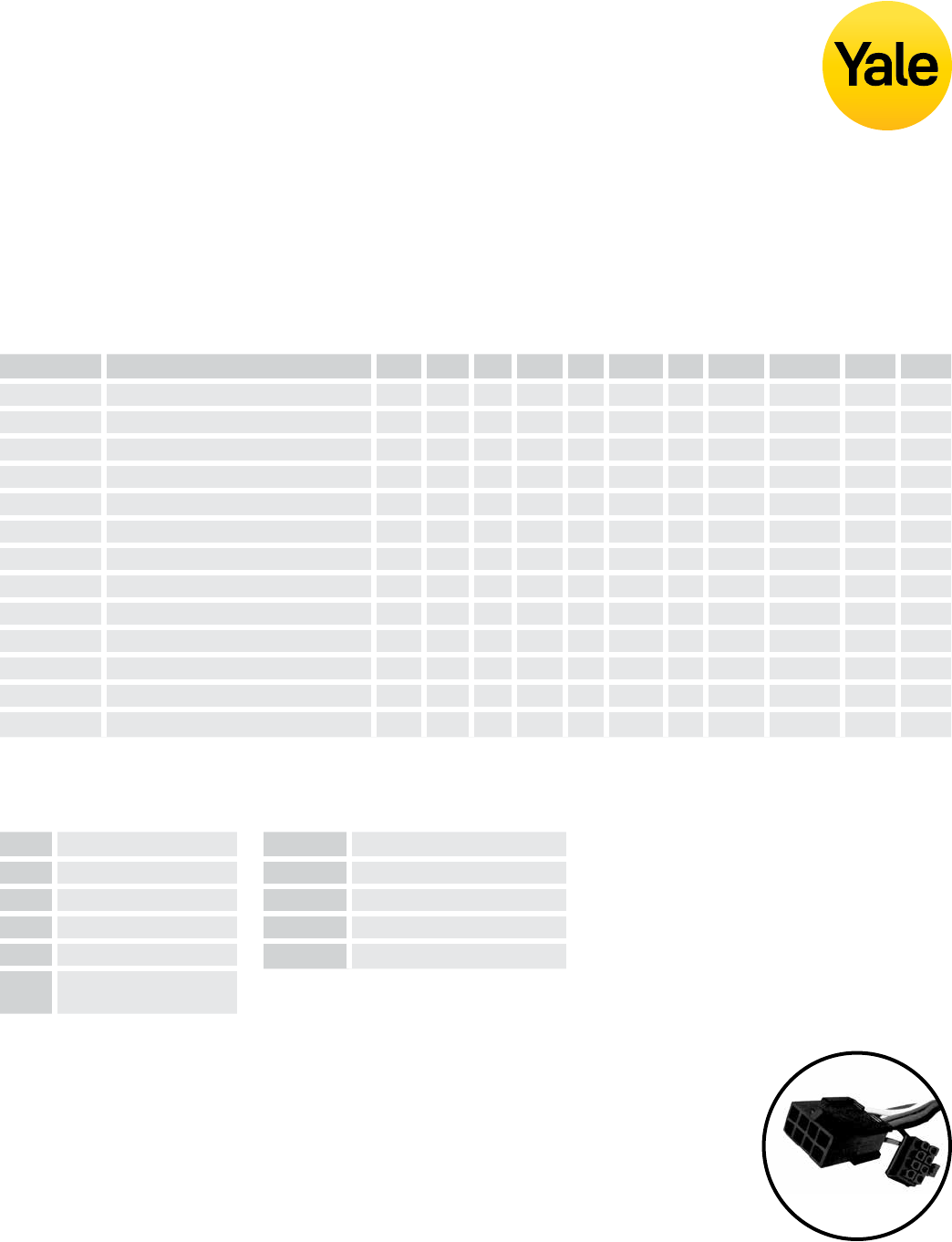

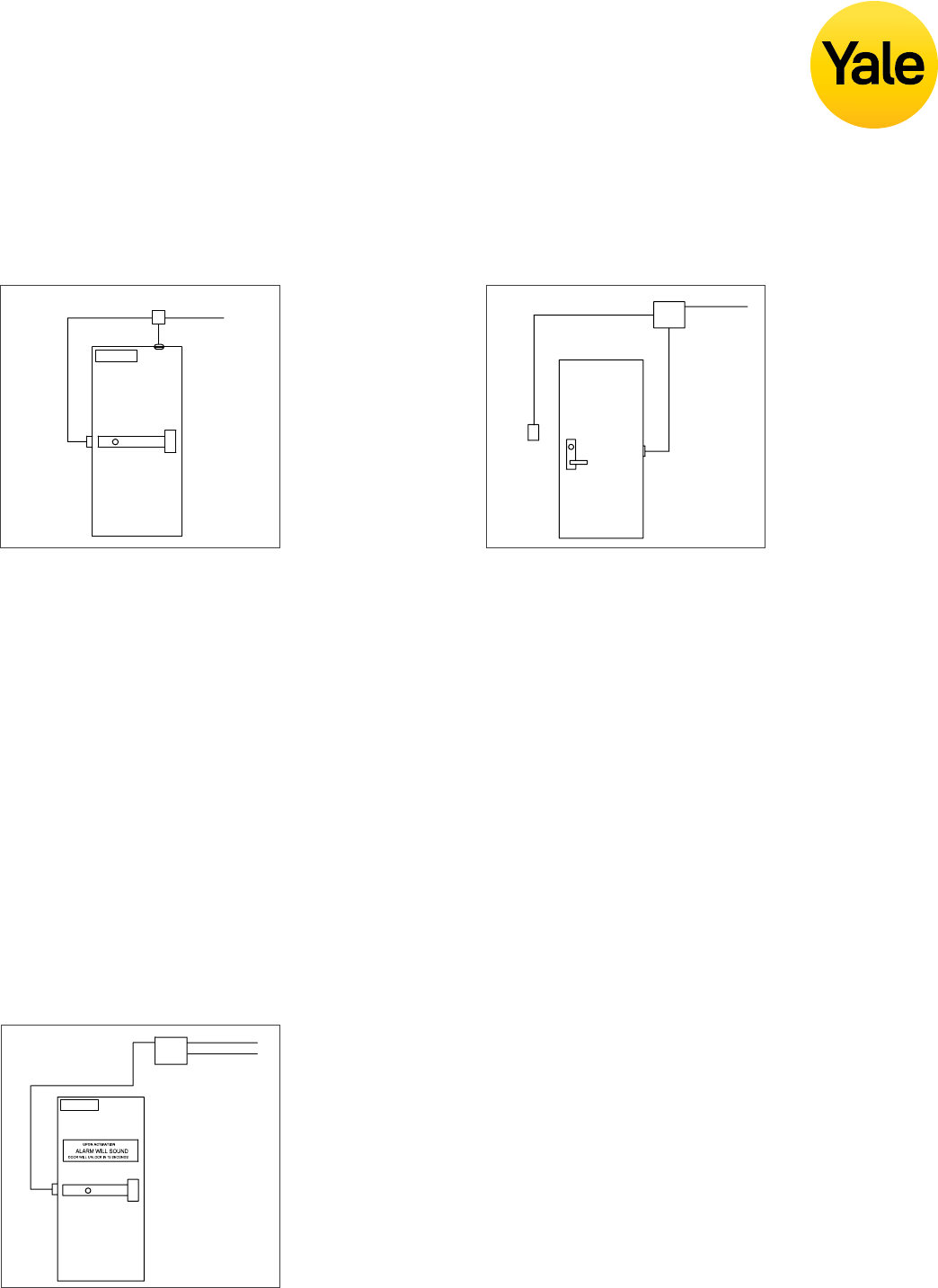

Electrical System Guide ............................................................ 4041

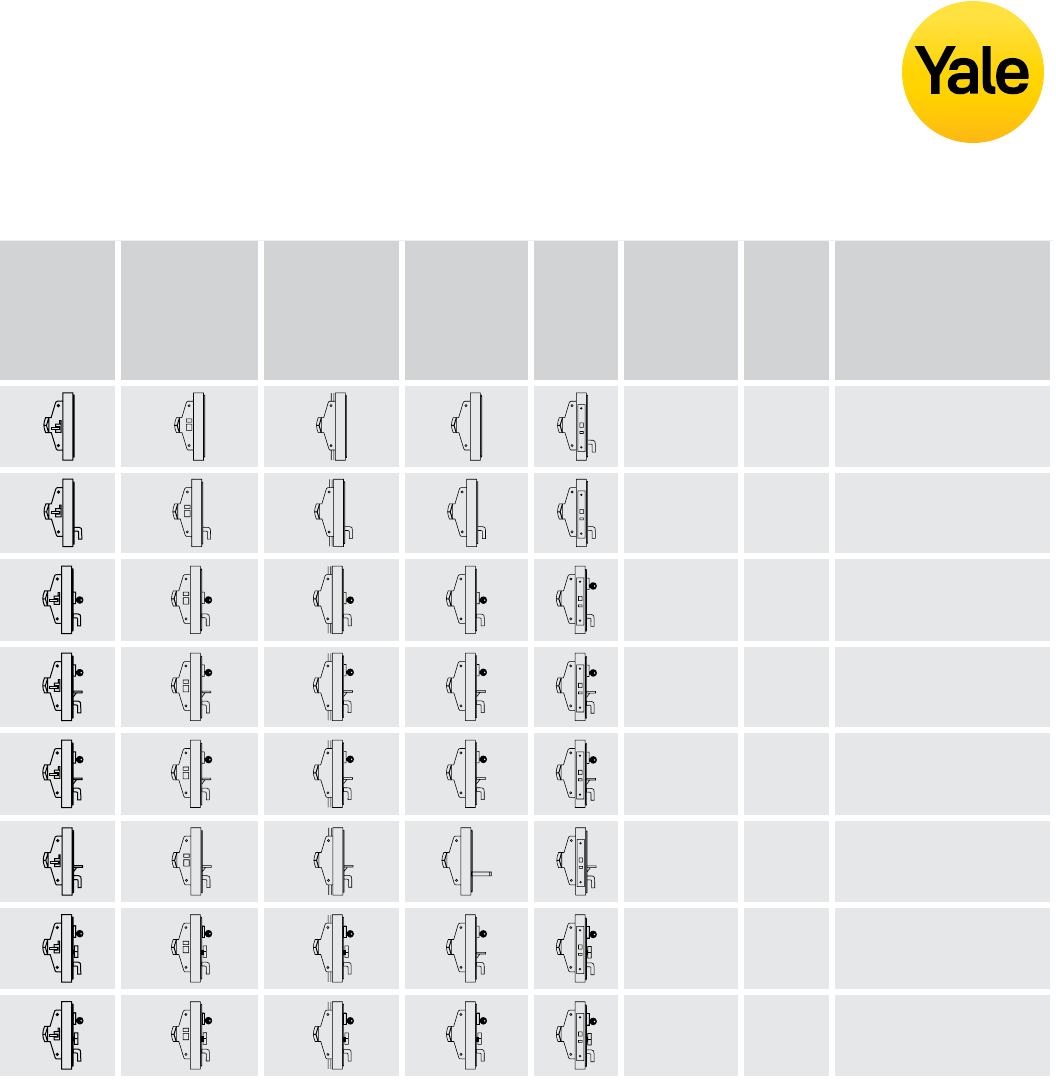

Functions ....................................................................................4243

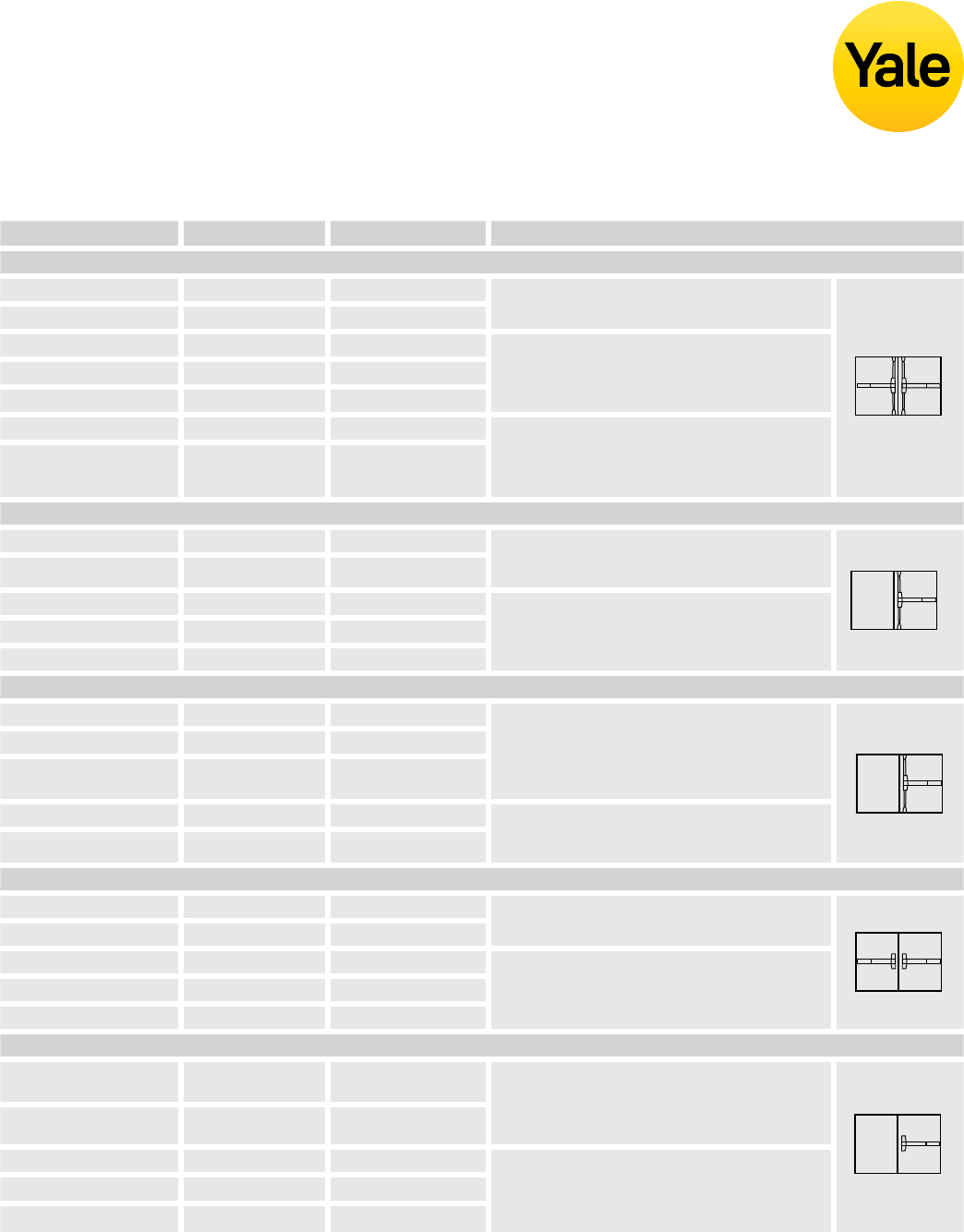

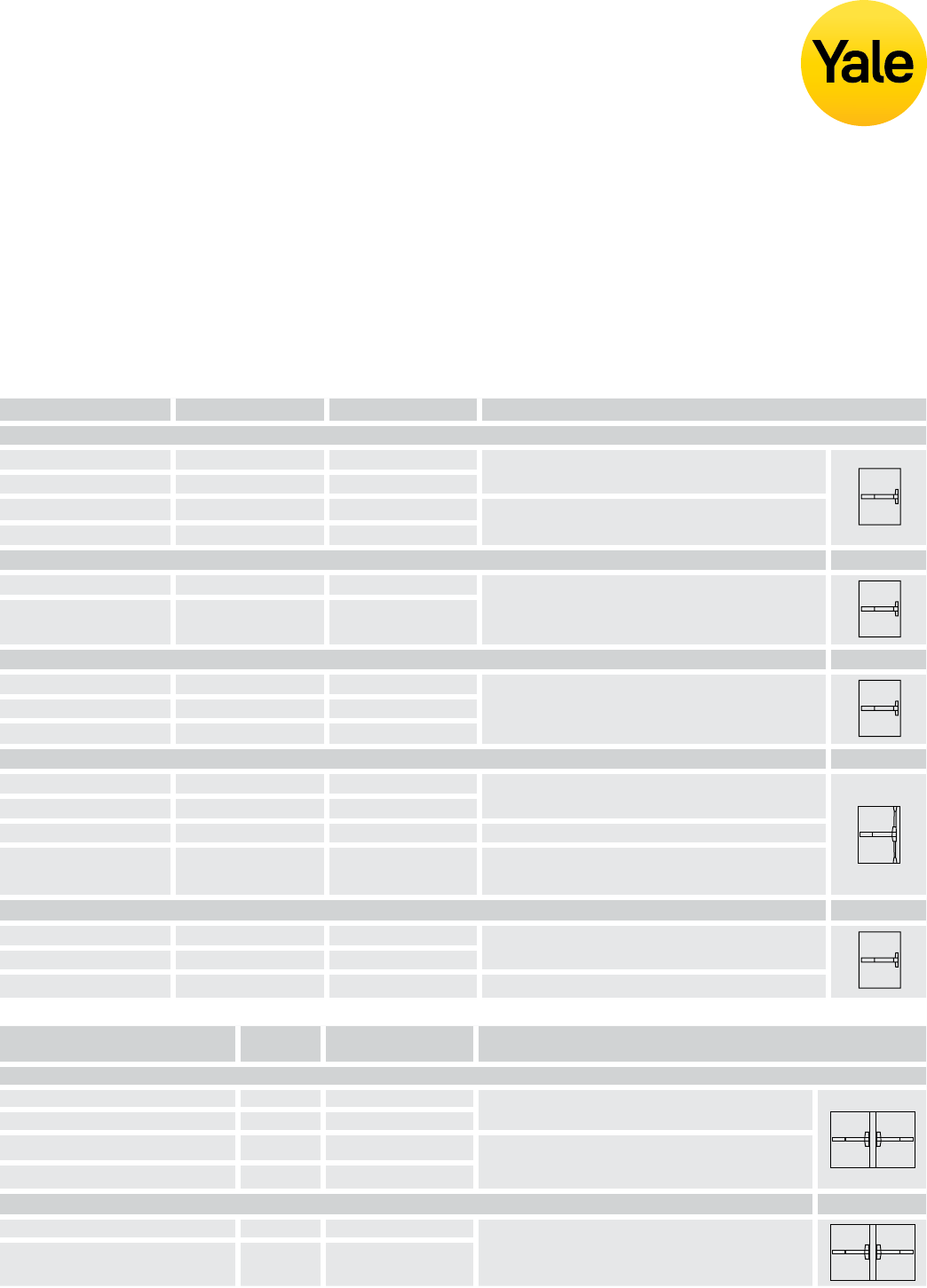

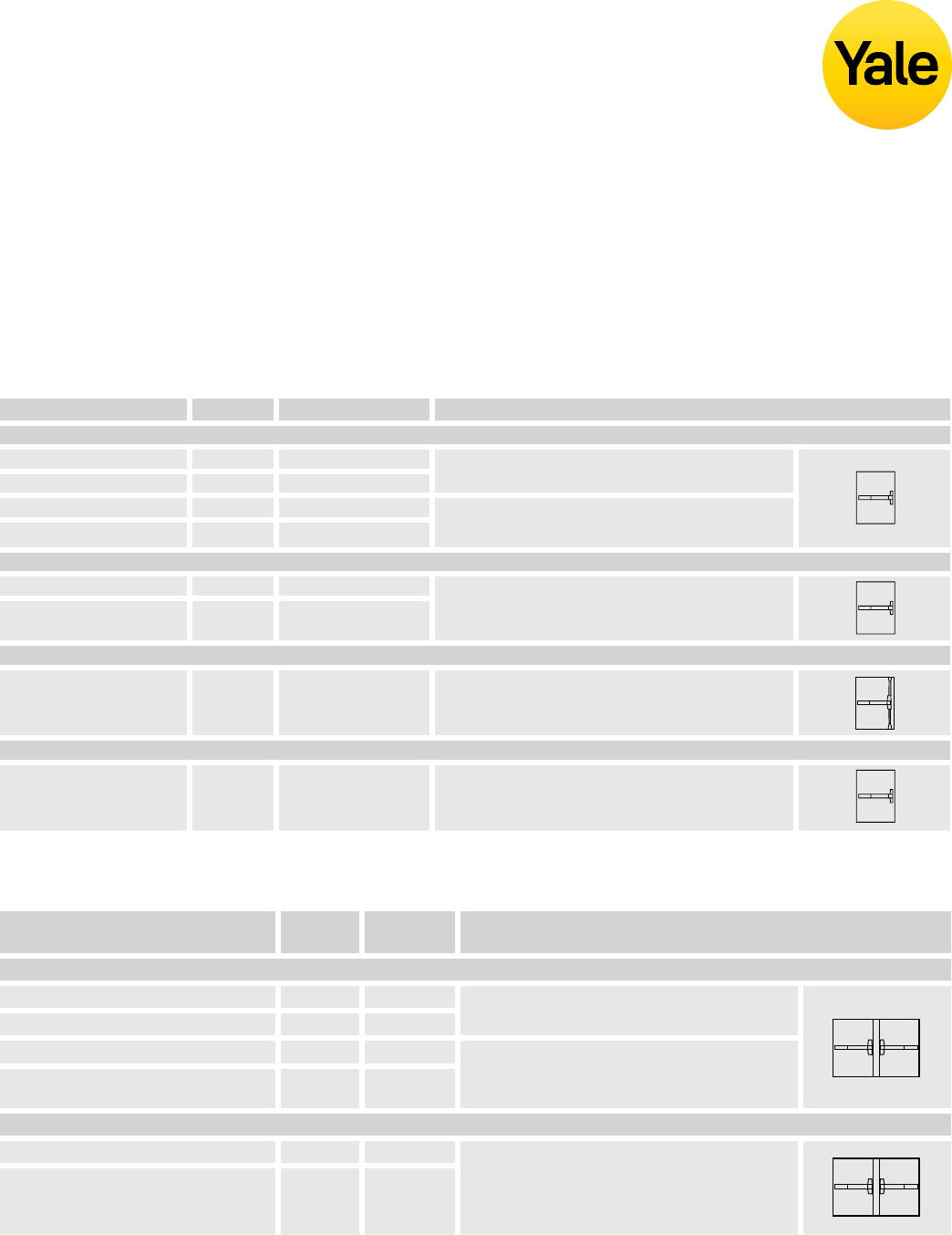

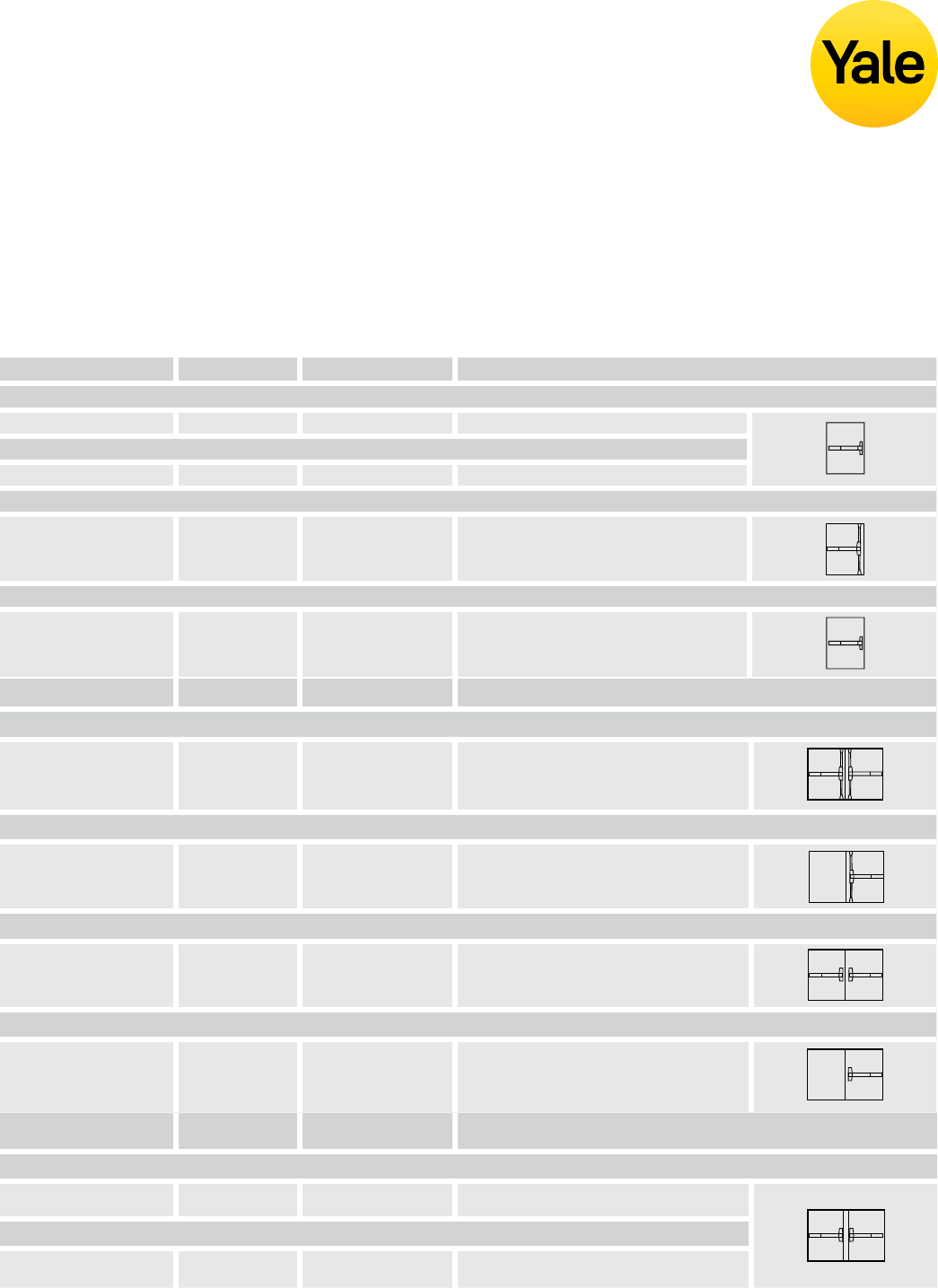

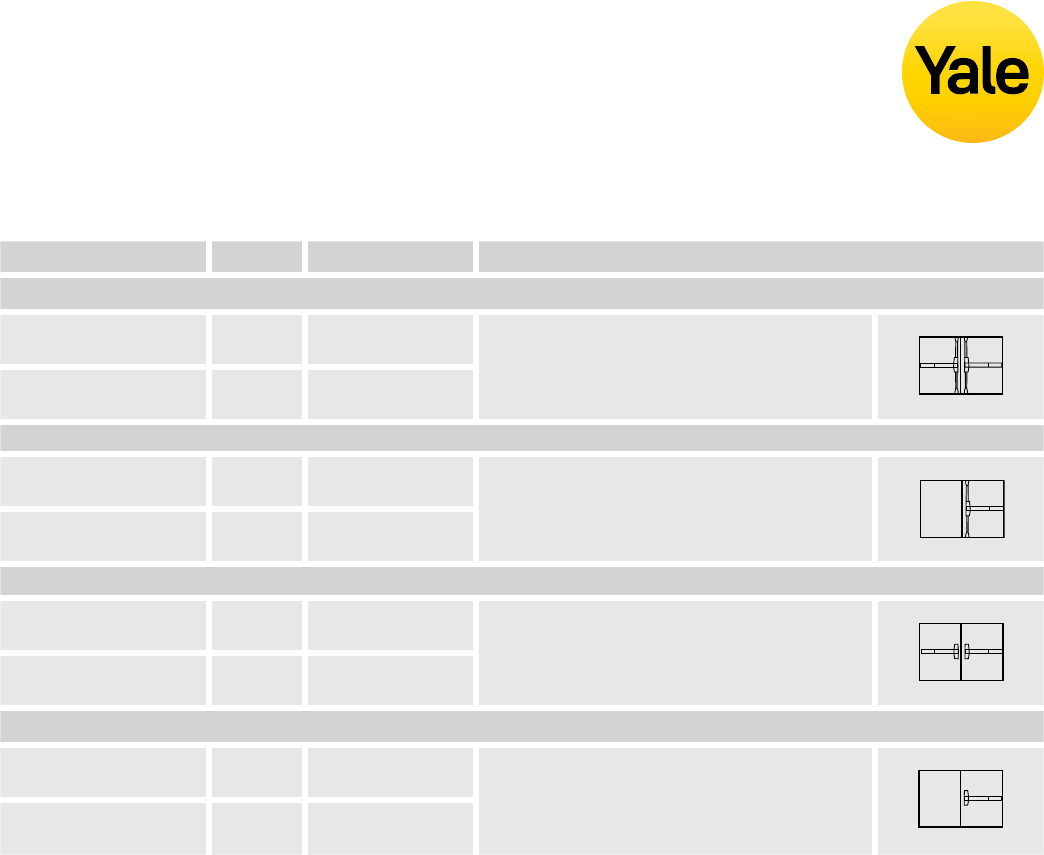

Applications ...............................................................................4448

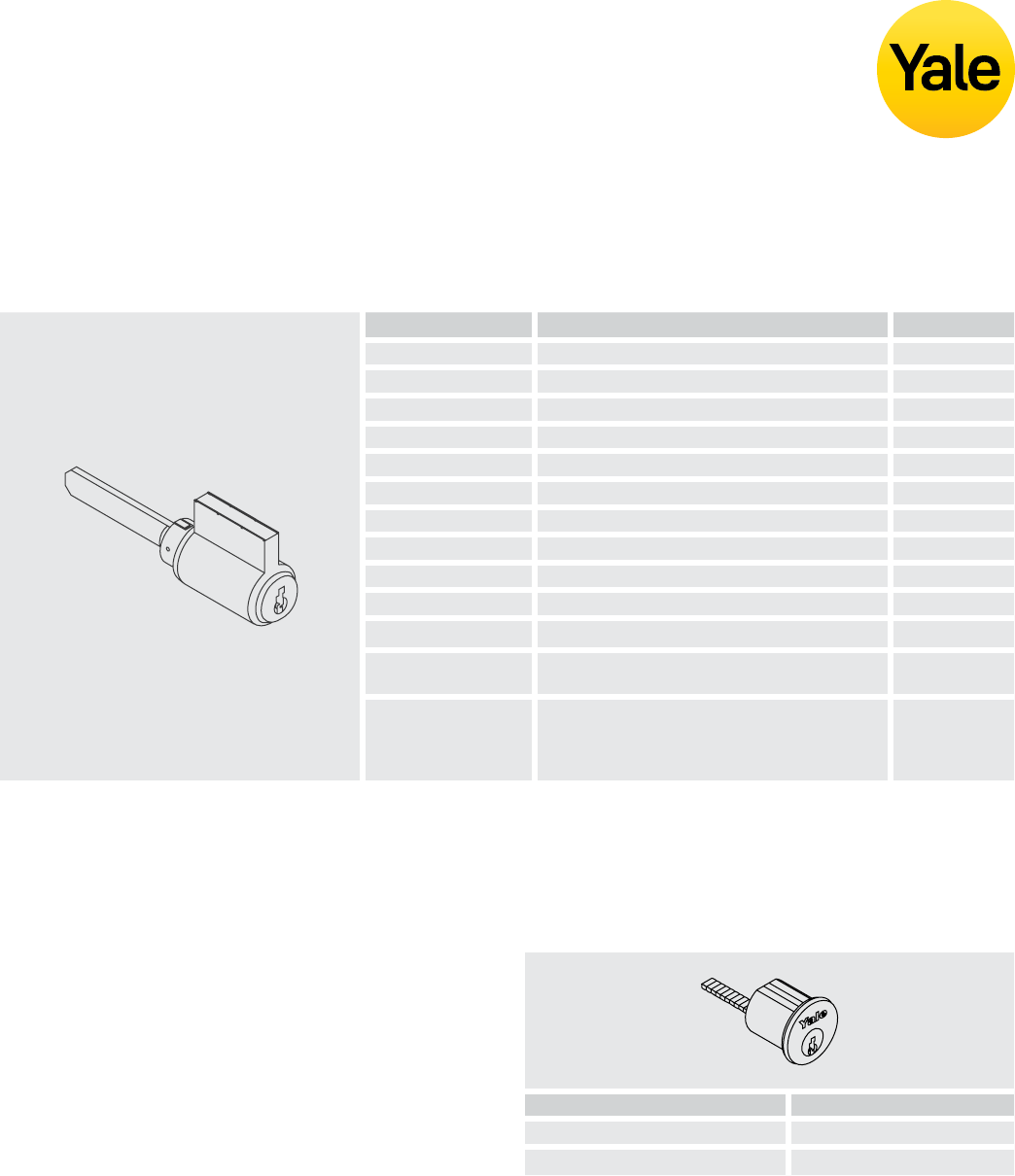

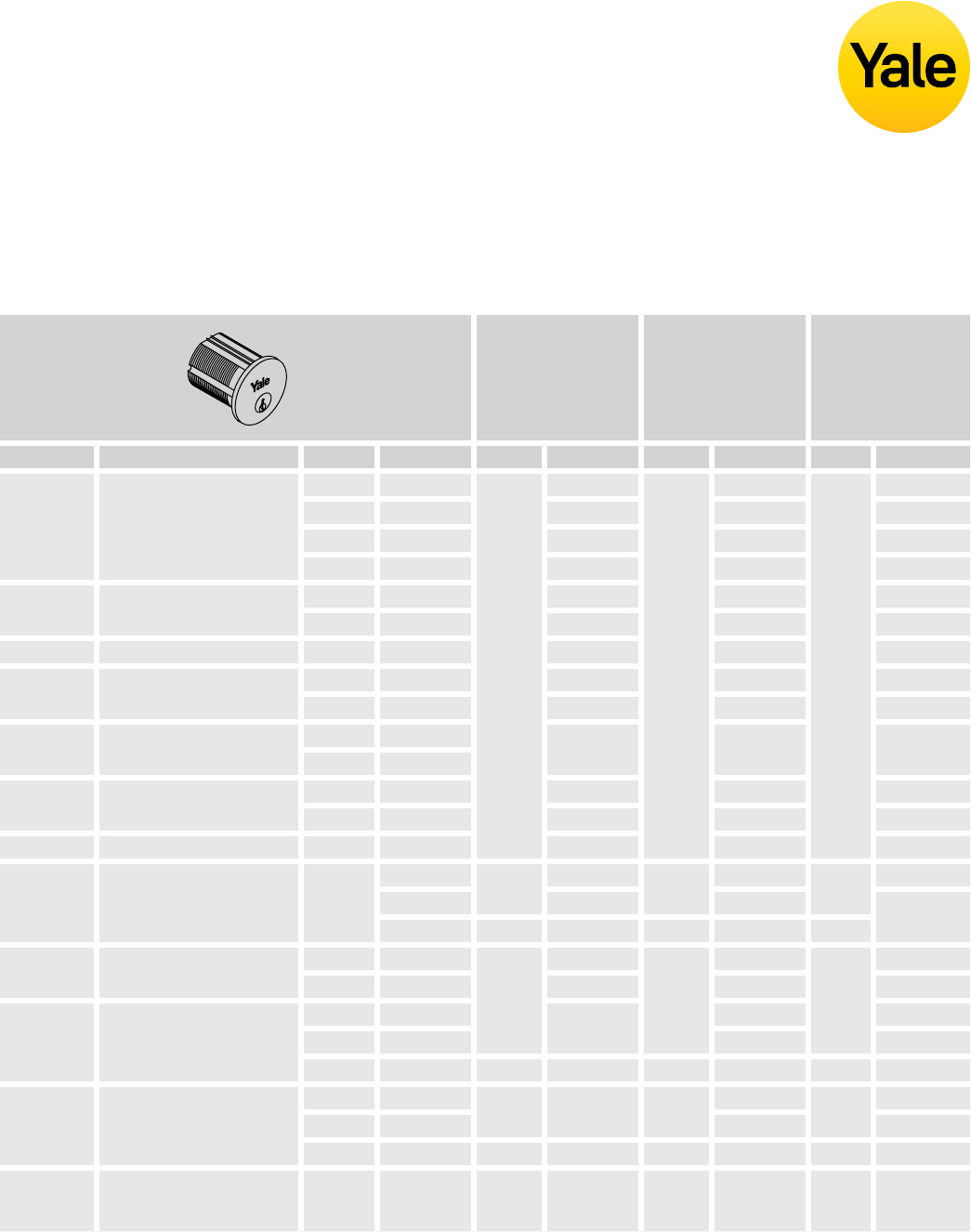

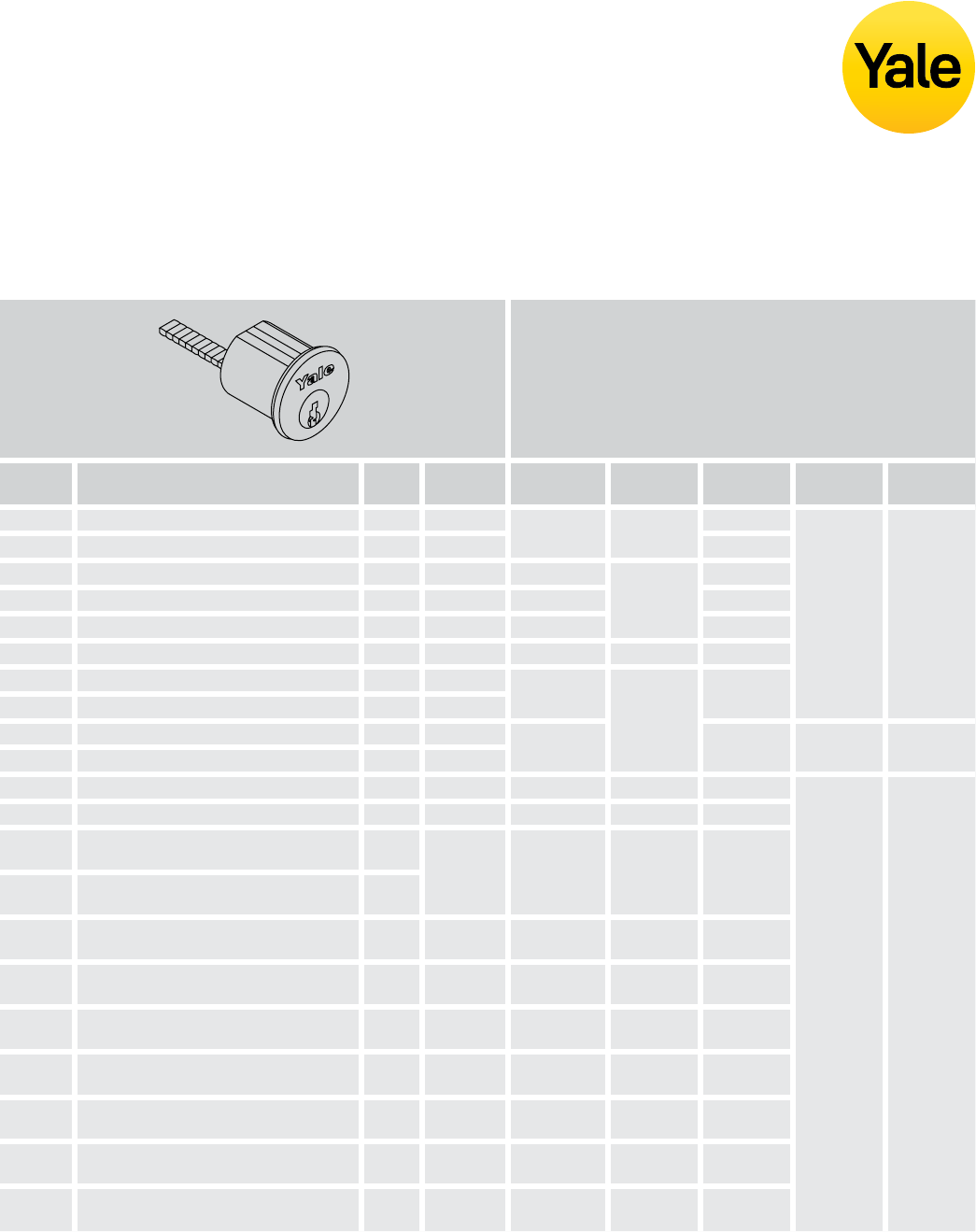

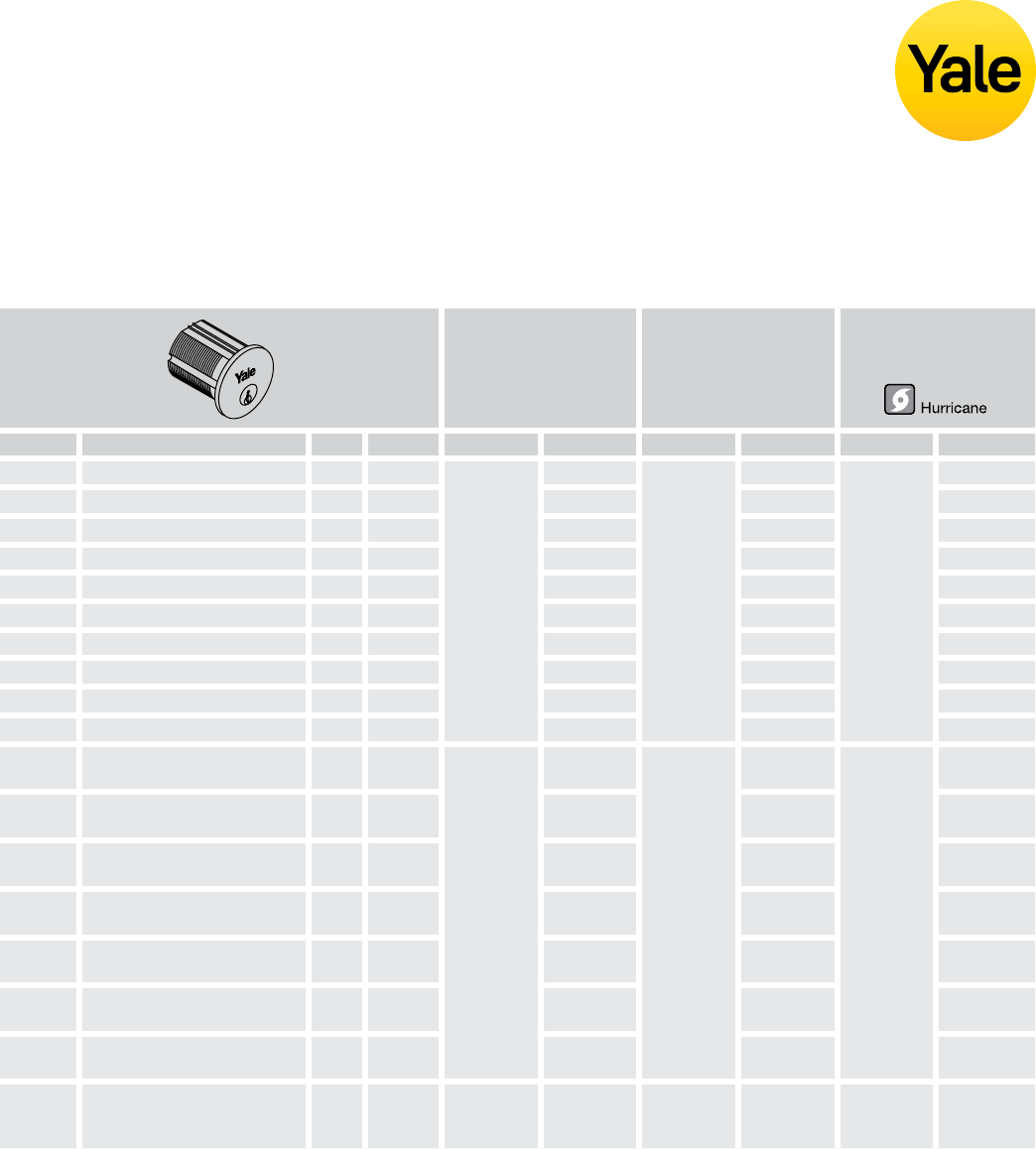

Cylinders ..................................................................................... 4950

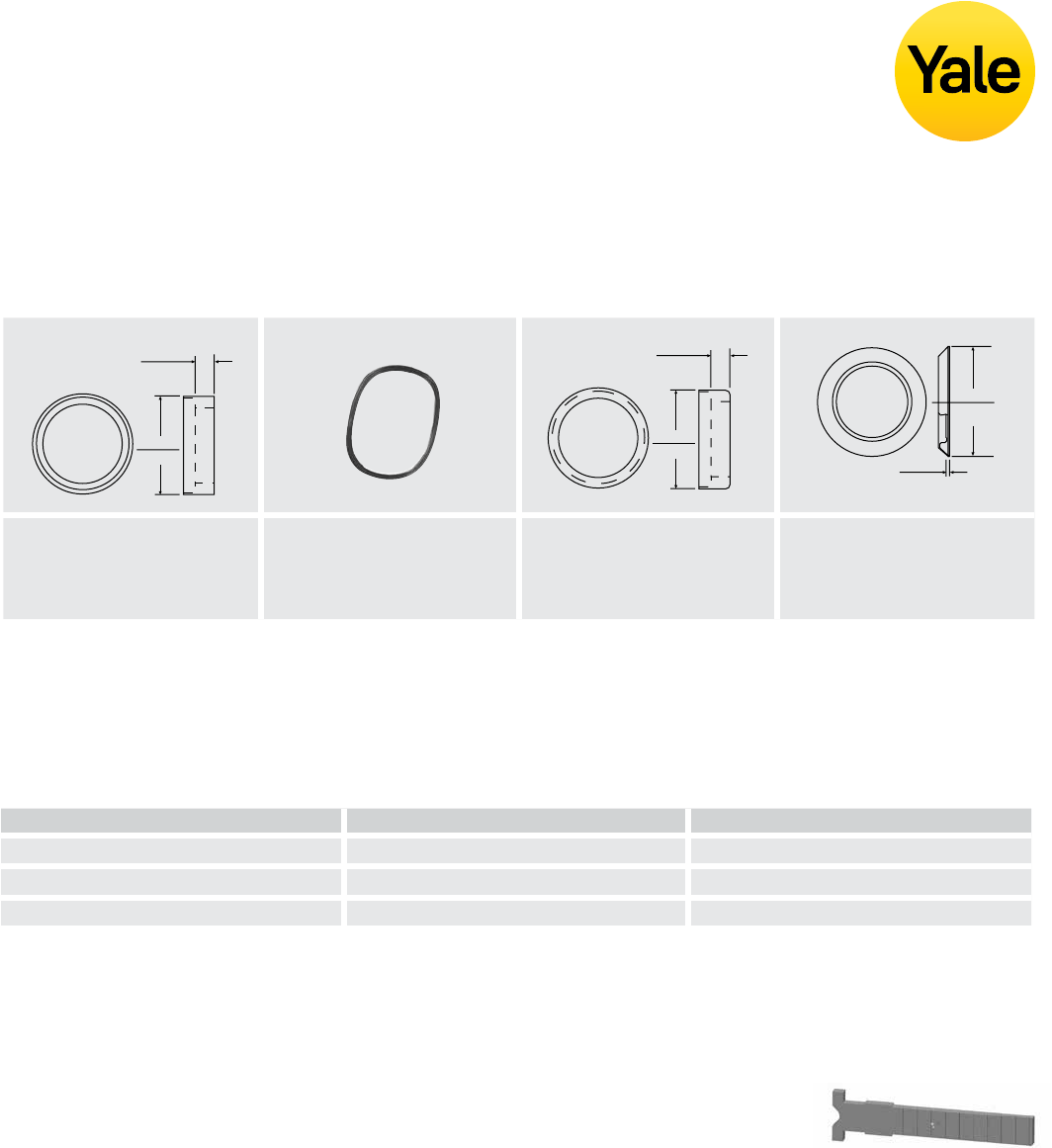

Collars & Tailpieces ......................................................................... 53

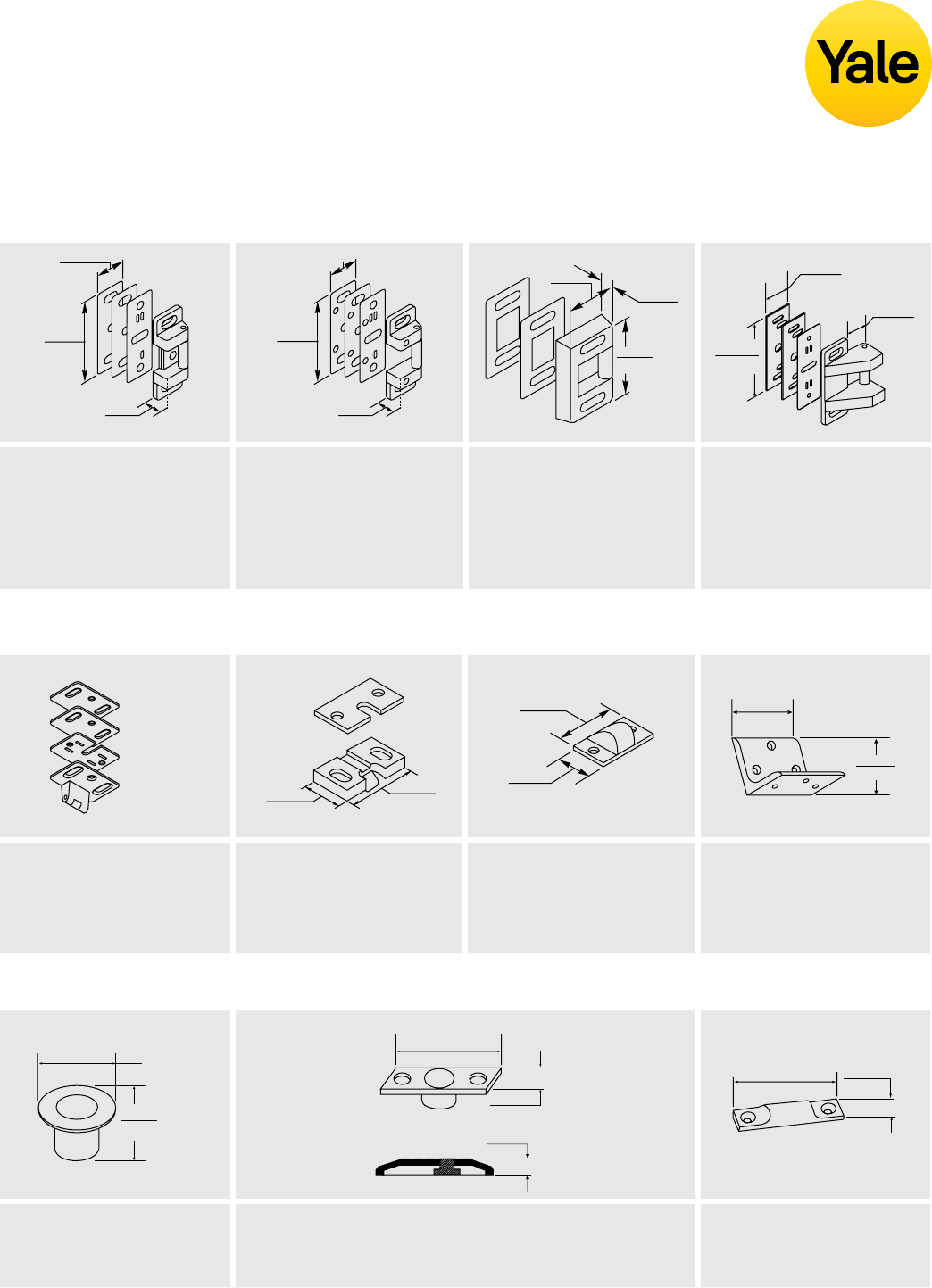

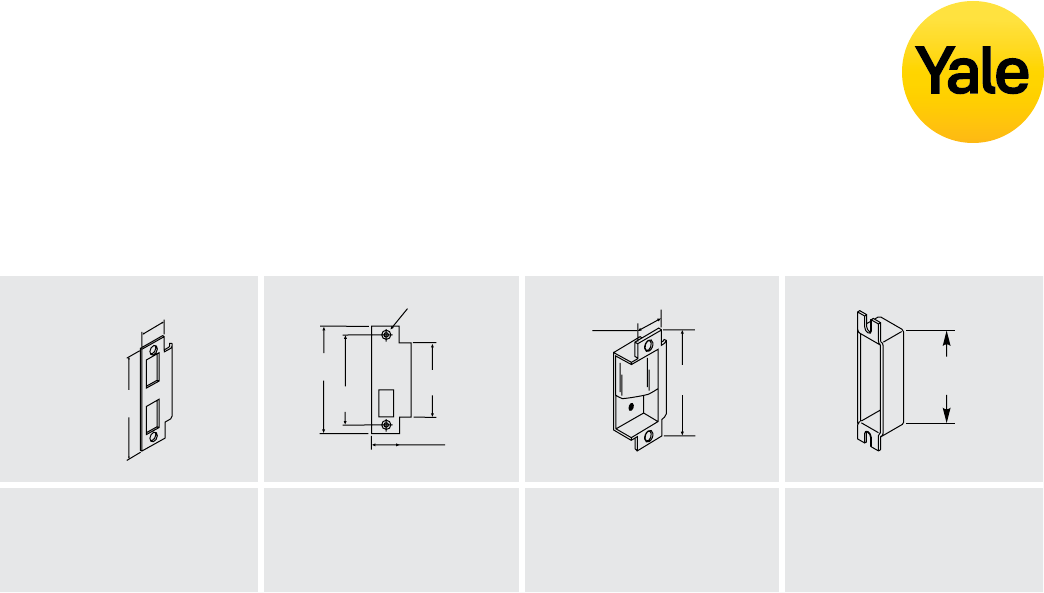

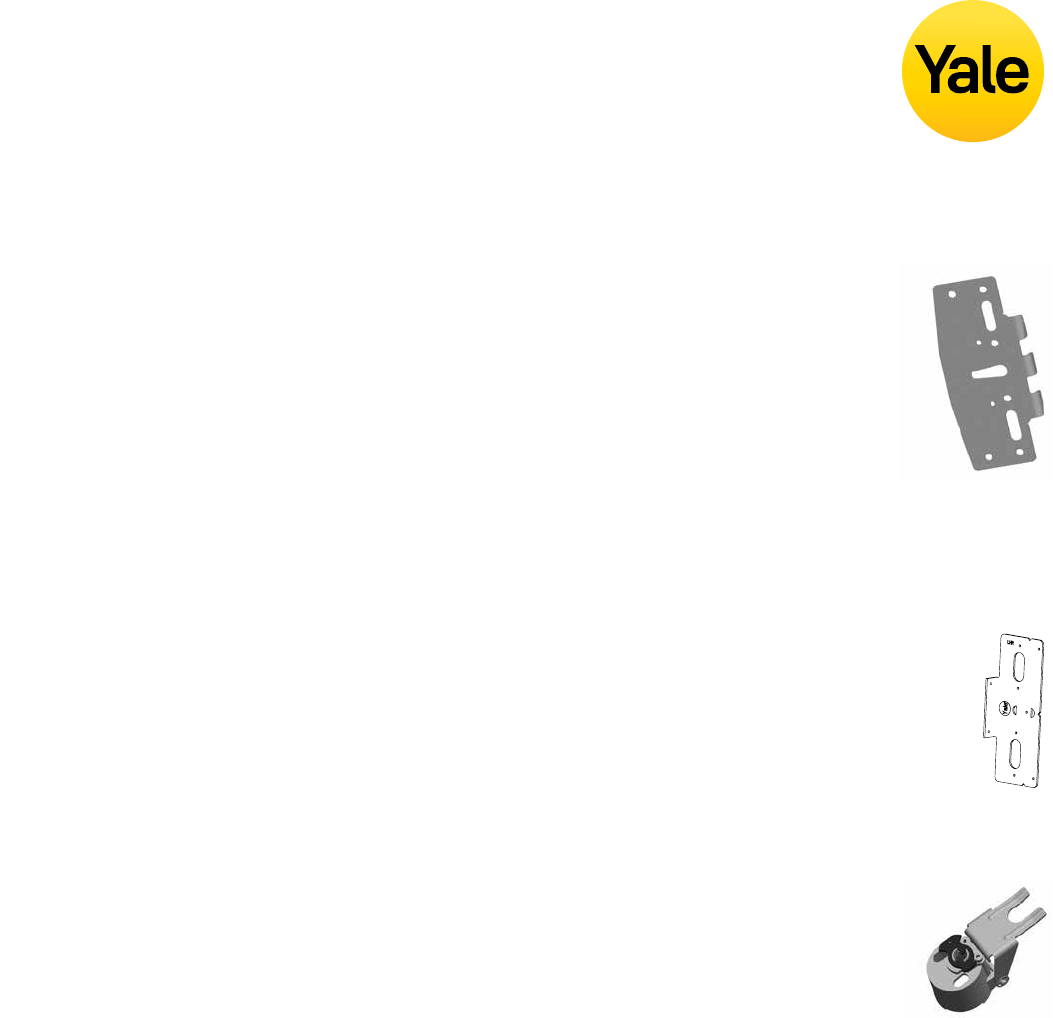

Strikes .........................................................................................5455

Accessories/Options ................................................................. 5659

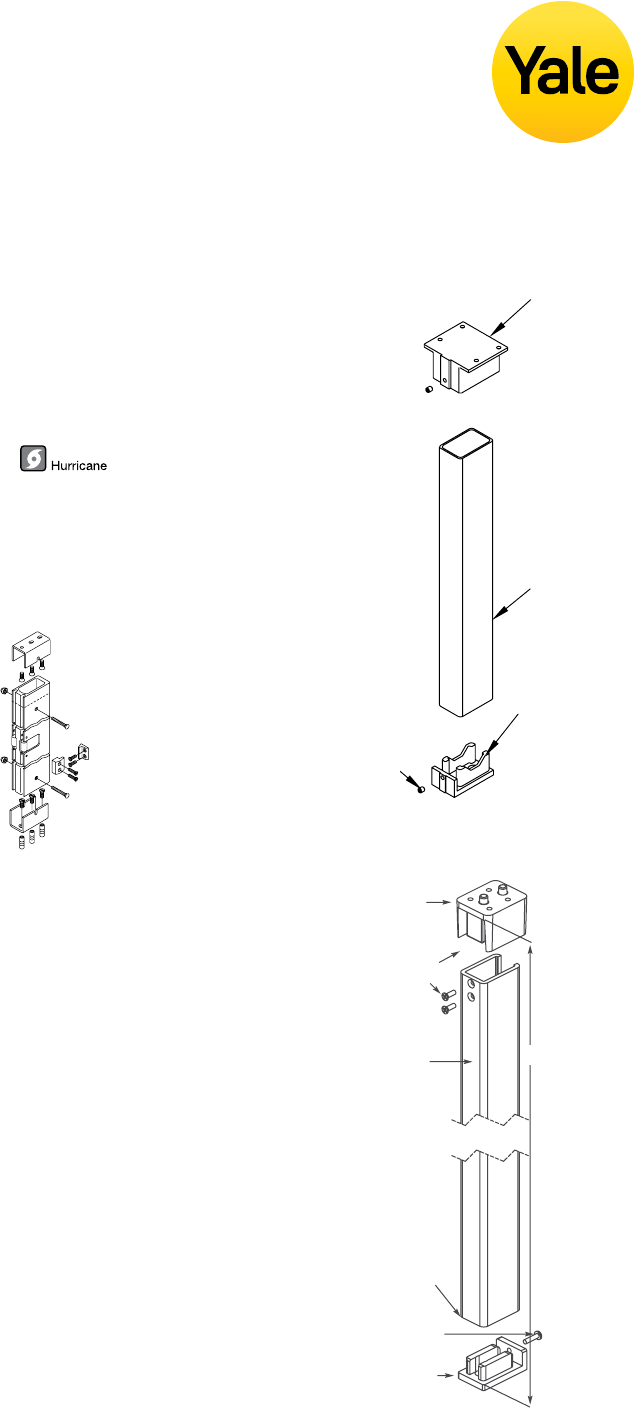

Mullions ......................................................................................5960

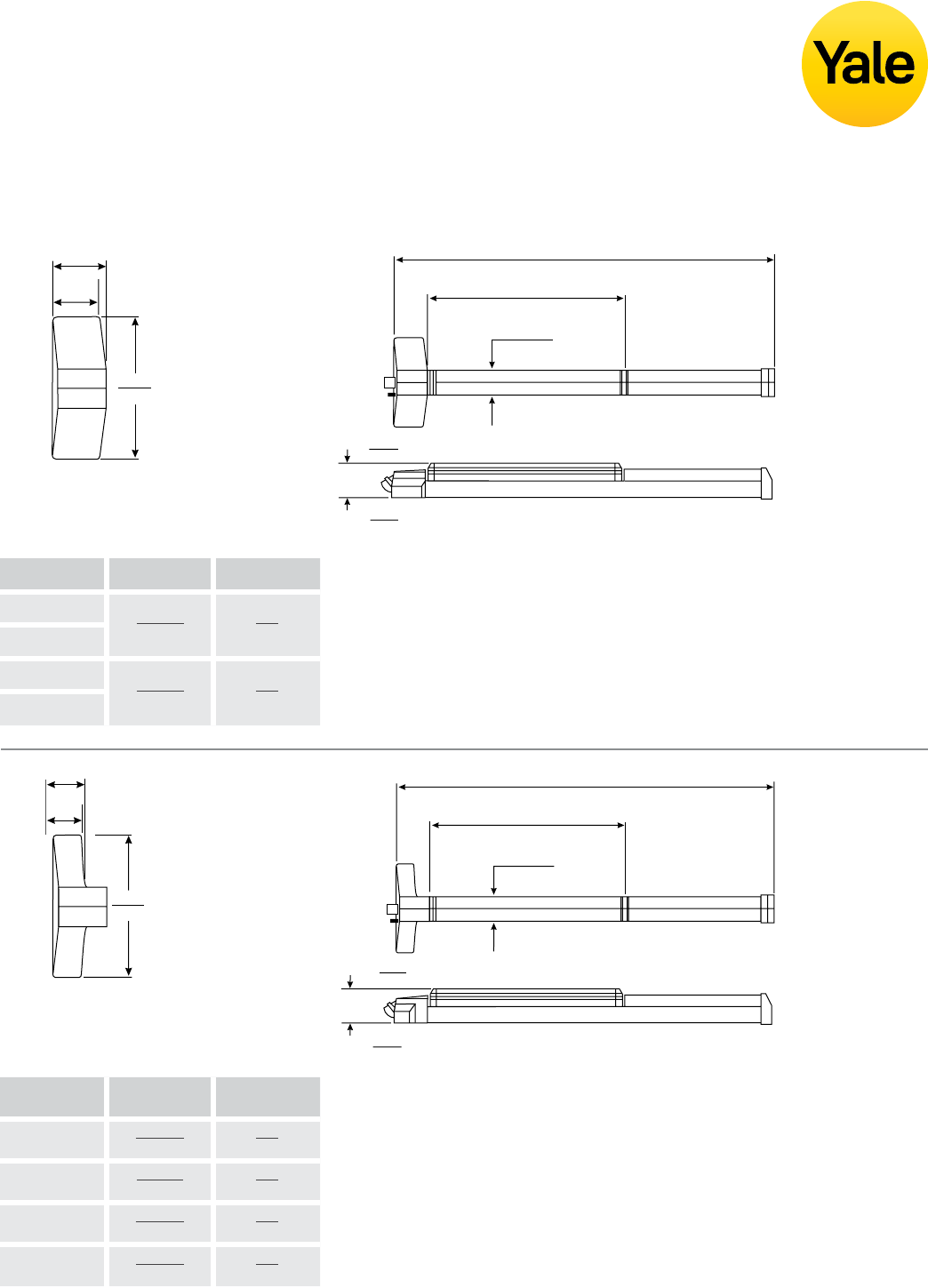

Dimensions .................................................................................6162

Sample Specifications .................................................................... 63

7000 Series Exit Devices

MicroShield®

To assist with reduction of bacteria and other microbes, Yale offers MicroShield®, an antimicrobial coating for door hardware. MicroShield uses proven

silver ion-based technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes. MicroShield

is effective against abroad range of bacteria, mold, fungi, algae and mildew.

7000 Series Architectural Exit Devices 3

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Introduction

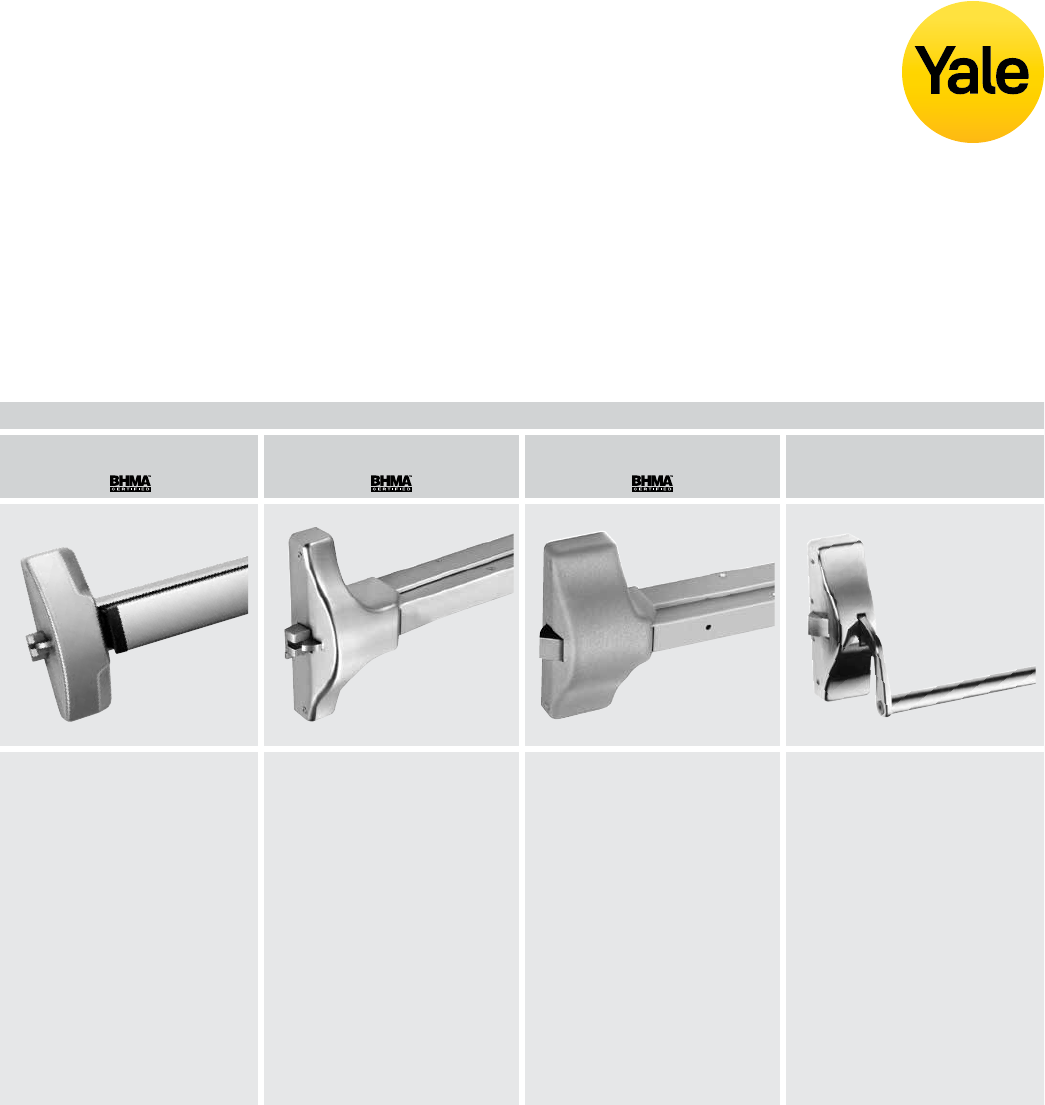

Yale Exit Devices

6000 Series 2100 Series 1800 Series 1500 Series

• Ideal for facilities that

require modern form and full

functionality to meet their life

safety needs

• Wide & Narrow Stile

Applications

• Rim, Squarebolt, CVR, SVR &

Mortise

• Mechanical & Electro-

Mechanical Functions

• Aluminum rail assembly with

Architectural Metals

• Solid Cast Flush End Cap

• ANSI/BHMA Certified Grade 1

• UL Rated for Panic & Fire

• Can meet the Buy American

Act

• 10 Year Warranty

• Ideal for commercial

applicatons and budget

conscious end users

• Narrow & Wide Stile

Applications

• Rim, Squarebolt, CVR & SVR

• Mechanical Functions

• ANSI/BHMA Grade 1 Certified

• UL Rated for Panic & Fire

• Can meet the Buy American

Act

• Architectural & Painted

Finishes

• 3 Year Warranty

• Ideal for back of the

house where function and

code compliance are the

requirement

• Wide Stile Applications

• Rim & SVR

• Mechanical Functions

• ANSI/BHMA Certified Grade 1

• UL Rated for Panic & Fire

• Can meet the Buy American

Act

• Powder-coat Painted Finishes

• 1 Year Warranty

• Ideal for renovation projects

where historical preservaton is

the desired look

• Wide Stile Applications

• Rim, CVR, SVR & Mortise

• ANSI/BHMA Certified Grade 1

• UL Rated for Panic & Fire

• Can Meet Buy American Act

• Architectural & Painted

Finishes

• 1 Year Warranty

Yale® Commercial Solutions offers innovative and reliable products to solve the challenges of commercial, retail, hospitality, assisted

living, mixed-use, and multi-family properties. With over 150 years of door hardware experience, Yale's expertise extends beyond

products to people - and provides the service and support you expect.

Featuring durable products to meet all your facilities' requirements - and the quality you expect from a leader in the hardware

industry. Yale works for youSM.

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Beneﬁts & Features

Benefits

• Innovative: Featuring patented security options including

SquareBolt® latchbolt and delayed

egress function

• Durable: Heavy-duty steel components are

ANSI/BHMA Grade 1 certified for the ultimate in strength and

security

• Flexibility: Various options available to customize this exit

device to suit any opening

• Clean, modern look: Sleek design with a variety of attractive

finish options to suit any decor

Features

• High quality steel chassis and heavy-duty components

• Full range of mechanical and electromechanical options to

suit any life safety application and pair with existing security

systems

• ANSI/BHMA Grade 1 certified

• UL/cUL listed for panic and fire doors

• Windstorm certified (refer to local codes)

• Five year mechanical warranty, one year trim warranty, two

year warranty on electrical options and components

Available with various configurations

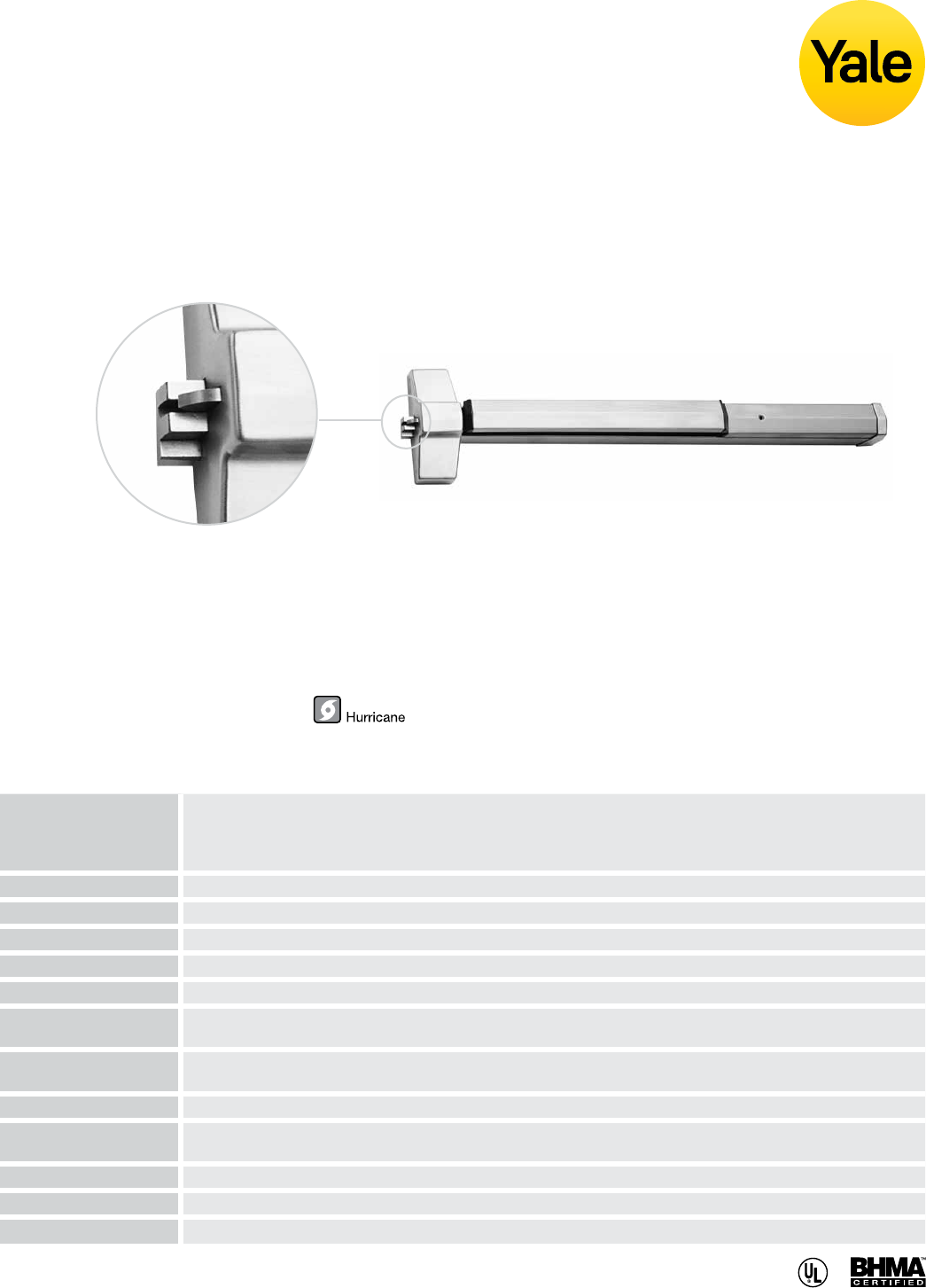

including rim, SquareBolt®, surface/

concealed vertical rod, to suit any

opening

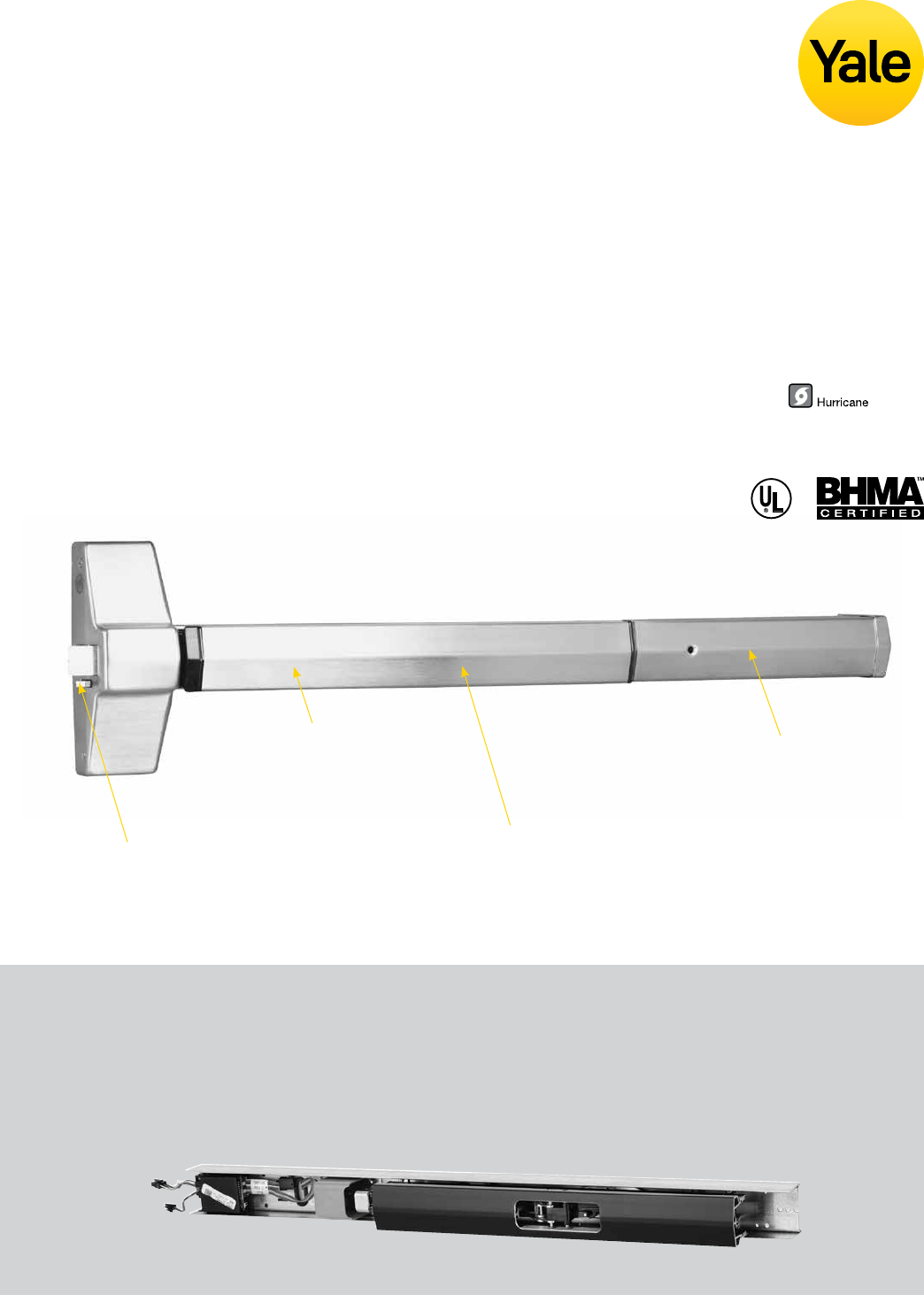

Constructed with high quality steel and

heavy-duty components for durability

Sleek design and clean lines

suit the appearance of many

modern commercial buildings

Easily integrated into existing

alarm systems with a range of

available electrified options

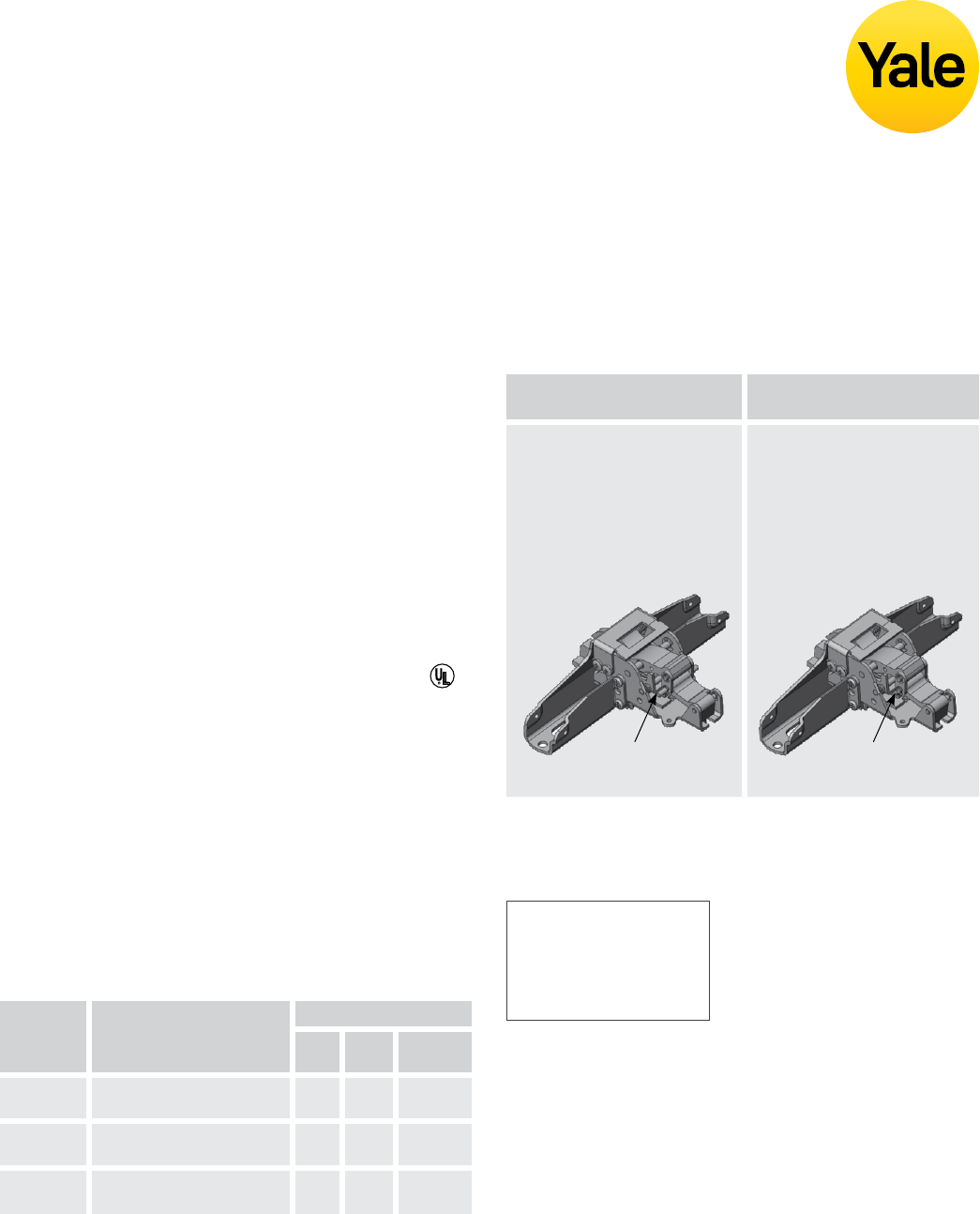

The Motorized Electric Latch Retraction (MELR) feature provides remote-controlled latch retraction that delivers quiet,

smooth operation for convenient, hassle-free egress. Easily installed in new applications and available as retrofit rail kit

assemblies for field updates, the MELR features maintenance-free design with few moving parts using 86% less power

consumption during retraction than solenoid devices. Plus, MELR is powered by a standard power supply, simplifying

installation and increasing system design flexibility. See page 32 for more details.

Now Available with Motorized Electric Latch Retraction!

7000 Series Architectural Exit Devices 5

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

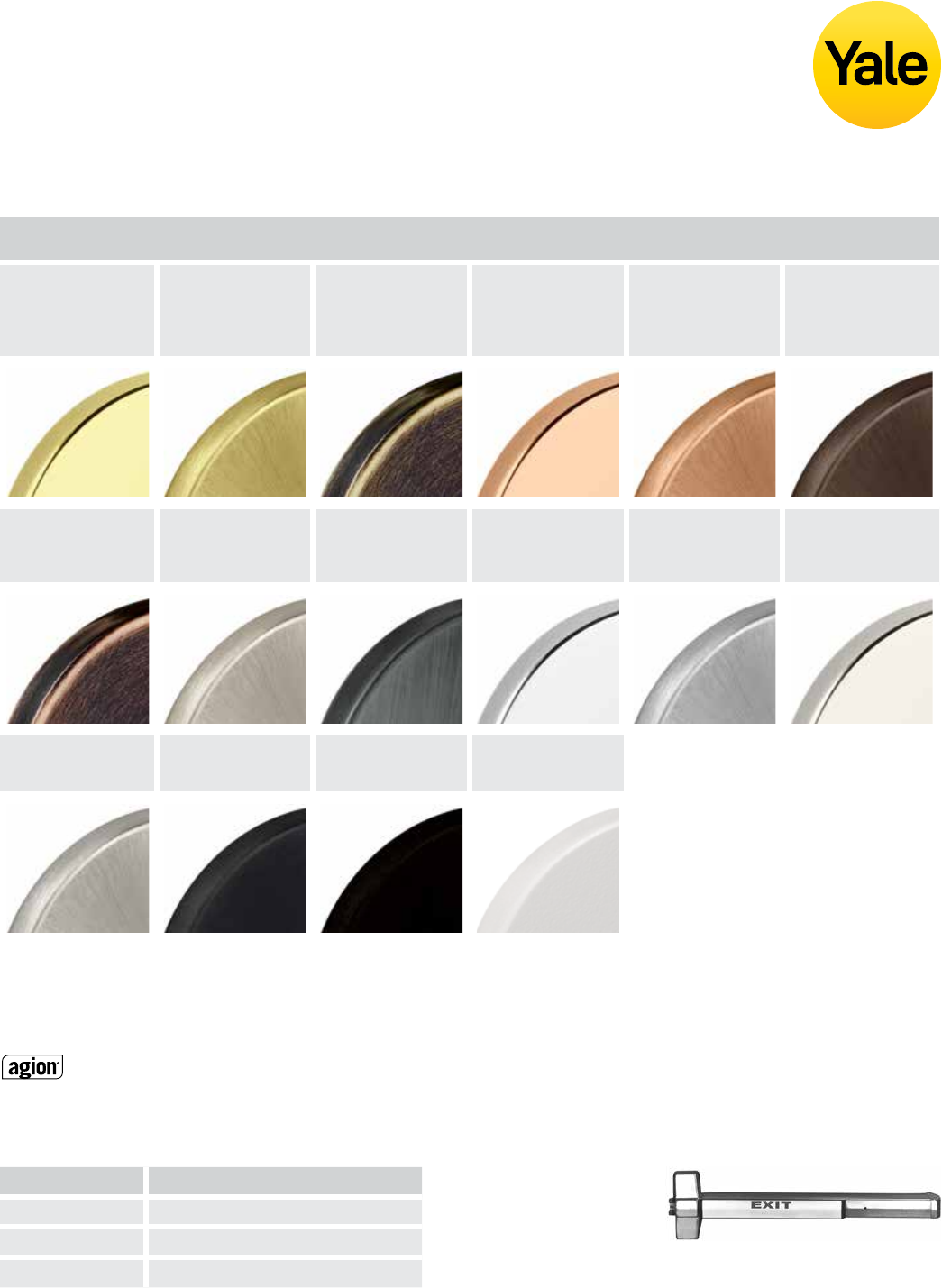

Finishes

ANSI/BHMA Code Finish Description

BN3Semi-gloss black fused polymer

LUM Lumi-lite Photoluminescence

SS Stainless Steel

Finishes For Touchbar Covers Only

613, 626 and 722 finishes available as Special Product Requests only. Please contact Customer Service for more information.

*Finish available with MicroShield® antimicrobial coating, additional finishes by special application. Consult factory for availability.

MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control

programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive

microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will

be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion

antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.

ANSI/BHMA Code

Finish Description

605

Bright Brass,

Clear Coated

606

Satin Brass,

Clear Coated

609

Satin Brass,

Blackened,

Satin Relieved,

Clear Coated

611

Bright Bronze, Clear

Coated

612

Satin Bronze, Clear

Coated

613E

Dark Oxidized Satin

Bronze - equivalent

616

Satin Bronze,

Blackened, and Satin

Relieved, Clear Coated

619

Satin Nickel Plated,

Clear Coated

620

Satin Nickel Plated,

Blackened, Satin

Relieved, Clear Coated

625

Bright Chrome Plated

(540F trim only)

626

Satin Chrome Plated

(Trim only)

629

Bright Stainless Steel

630*

Satin Stainless Steel

693

Black Painted

BSP

Black Suede

Powder Coat

WSP

White Suede

Powder Coat

Lumi-Lite

Lumi-lite uses

photoluminescence

technology to provide

visibility of exit doors

in low-light, no light or

smoky conditions. Lumi-lite can be ordered with your 7000 Series

Exit Device or easily retrofitted to existing devices. See Lumi-lite

Touchpad Cover on page 57 for more information.

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

How To Order

From this outline select the Model Number for the Yale® 7000 Exit Device Series you require.

It is recommended that exit devices and trim for the same opening be

ordered together. Standard product is for 13/4" (44mm) reinforced

metal doors. Accessories detached from the device and trim should

be specified separately. Materials by others are required to be fit for the

purpose as detailed in this catalog and the product installation literature.

Notes:

1. Required for electrical feature, Suffix “-SAFE” or “-SECURE”.

2. LBR available on 7160(F90) and 7170(F90) devices only.

3. For double cylinder devices, suffix “-2” after fourth digit.

4. If “-24” device is to be used with a DOW greater than 24", the device

will ship without UL label. The 12" touchpad will not cover 50% of the

device touchbar length.

5. “WS” applies only to 7150(F), 7250M(F) and 7170(F) devices.

6. Maximum opening size 8'0" x 8'0".

7. Contact Ceco, Curries® or Fleming for detailed frame/door requirements

and limitations.

7 X X X Mechanical/Electrical Size Design Trim Finish Other Info.

Second Digit:

“1” - Standard

device, 41/2"

(114mm) or

wider door stile.

“2” - Narrow

stile door or

narrow

escutcheon trim

(500F, 510F

Series)

Third Digit:

“0” - Rim Device,

Pullman

Latch

"1" - SVR Device

up to 8'

“2” - CVR Device,

Metal Doors

up to 8'

“3” - Mortise

Device

“5” - SquareBolt®,

Rim Security

“6” - CVR Device

over 8',

wood door

or LBR

“7” - SVR Device

over 8' or

LBR

Fourth Digit:

“0” - Standard

“5” - Cylinder

Dogging (Not

with suffix “F”)

Mechanical Feature

“F” - Fire Exit Device

“M” - Narrow escutcheon trim

in 41/2" (114mm) or wider

door stile

“LBR"- Less Bottom Rod2

“L5” - Mortise Device, Entry by

Key with/without Rigid Lever1

“L8” - Mortise Device, Entry by

Lever

“T5” - Mortise Device with

Thumbpiece Trim

“T8” - Mortise Device, Active

Thumbpiece Trim

“2” - Double Cylinder Device3

“WS” - Windstorm Certified

Products5, 6, 7

Electrical Feature

“-A” - Alarm Kit

“-B” - Bar Monitor or Signaling

“-D” - Delayed Egress

“-G” - Electric Dogging

“-O” - Outside Trim Monitor or

Signaling

“-MELR” - Motorized Electric

Latch Retraction

“-S” - Latchbolt Status Monitor

or Signaling

“-Safe” - Mortise Device Trim

Control (lever only)

“-Secure” - Mortise Device Trim

Control (lever only)

Trim

Design

(Lever

only)

Trim

Model

Number

See

page 4

Other

Information:

Door Hand

- RHR or LHR

Door

Thickness

- Over 13/4"

(45mm)

Fastener

Options

- TORX®

Security

Screws

SNB (wood,

composite, or

unreinforced

metal doors)

Specialty

Cylinders &

Components

Lumi-lite: LUM

Exit Device Only

7150D36 x 619 x RHR x SNB

Exit Device with Trim and Cylinder*

7170F90948 x AU626F x 605 x LHR x 1109 GA 0-bit

Trim Only

MO656F x 630 x RHR x LC

Double Cylinder Exit Device with Trim

7150F236 x AU626F x 630

*Yale® exit devices and trims are processed separately. To aid in order

processing, the device, trim and cylinder should be detailed as separate

line items. These items can be ordered on one line item as shown, but

they will be entered to the factory and acknowledged separately.

Ordering Examples

7000 Series Architectural Exit Devices 7

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7100(F) Rim

The 7100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials.

Designed for application in high-use areas, the 7100(F) comes in a variety of finishes and can be combined with a variety of trims to

match any desired style.

Features

• Designed for wide stile doors

• 3/4" throw deadlocking stainless steel pullman latchbolt

• Electroplated ferrous components provide corrosion resistance

• Available in double cylinder function (handing must be specified)

Applications

• Non-handed for easy installation

• Single swing doors

• Pairs of doors with removable mullions

• Metal, wood or composite door materials

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Thickness 13/4" (44mm) standard. Optional door thicknesses available to 41/2"; specify door thickness when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt 3/4" (19mm) deadlocking stainless steel pullman-type

Strike 757F, 793 optional (double door application, panic only)

Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire

exit hardware.

Trims 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim,

121NL cylinder only. See pages 2224.

ANSI/BHMA Certified A156.3 Type 1, Grade 1

UL/cUL FVSR/FVSR - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.)

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #723, sex nuts and bolts, MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7200 Rim

The 7200 is a narrow stile rim exit device compatible with the aesthetics and functional requirements of contemporary doors. The

7200 comes in varied finishes and can be combined with a variety of trims to match any desired style.

Features

• Designed for narrow stile doors

• 3/4" throw deadlocking stainless steel pullman latch

• Non-handed for easy installation

Applications

• Single swing narrow stile doors

• Pairs of narrow stile doors with removable mullions

• Metal and aluminum doors

• For panic-rated doors only

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Thickness 13/4" (44mm) standard. 2" (51mm) and 21/4" (57mm); specify when ordering.

Minimum Stile Width 2" (51mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt 3/4" (19mm) deadlocking stainless steel pullman type.

Strike Standard: 759. Optional: 793 (double door applications, panic only)

Fasteners Machine screws standard for panic hardware

Trims 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim. See pages 2526.

ANSI/BHMA Certified A156.3, Type 4, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware

Dogging Hex key dogging supplied standard

Options Cylinder dogging, shim kit #723NS, sex nuts and bolts, MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices 9

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7200M(F) Rim

The 7200M(F) rim exit device provides the appearance of a narrow stile rim exit device for use on wide stile or flush doors. Using the

7200M(F) with narrow stile trim provides design continuity and pleasing aesthetics when matching exit devices for inside doors to

outside narrow stile doors.

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Thickness 13/4" (44mm) standard. 2" (51mm) and 21/4" (57mm); specify when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt 3/4" (19mm) deadlocking stainless steel pullman type

Strike 757F, 793 optional (double door application, panic only)

Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts

supplied standard for fire exit hardware.

Trims 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim. See pages 2526.

ANSI/BHMA A156.3, Type 4, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.)

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #723NS, sex nuts and bolts, MicroShield®, Lumi-lite

Warranty 5-year limited

Features

• Narrow stile appearance designed for wide stile or flush doors

• 3/4" throw deadlocking stainless steel pullman latchbolt

• Non-handed for easy installation

• Fully adjustable surface mounted 3/8" diameter roller strike complete

with positive locking plate and shims

Applications

• Single swing doors

• Pairs of doors with removable mullions

• Metal, wood or composite door materials

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7150(F) Rim SquareBolt®

Features

• Patented SquareBolt security deadbolt (Pat. no. 5,605,362) designed for

maximum holding power

• Non-handed for easy installation

• Can be retrofitted onto existing 7100 series templated doors

• Fully adjustable surface-mounted 3/8" diameter roller strike complete

with positive locking plate and shims

• Available in double cylinder function (handing must be specified)

• Available certified hurricane resistant

(refer to local codes). Specify 7150(F)WS

Applications

• Single swing doors

• Pairs of doors with removable mullions

• Metal, wood or composite door materials

Specifications

Just as easy to open as traditional latchbolts, the SquareBolt® exit device’s unique construction offers innovative protection.

Its patented SquareBolt (Pat. no. 5,605,362) design presents an improved physical barrier over standard rim latchbolts. The

SquareBolt exit device locks into place and stays there. Credit cards, crowbars, door rattling and shaking are resisted, significantly

reducing the threat of unauthorized entry.

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Thickness 13/4" (44mm) standard. Optional door thicknesses available to 41/2"; specify door thickness when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Deadbolt Patented 1" (25mm) slide projection bolt with full 3/4" (19mm) projection

Strike 757F, 793 optional (double door application, panic only)

Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire

exit hardware.

Trims 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim,

121NL cylinder only. See pages 2224.

ANSI/BHMA A156.3, Type 4 or 28, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.);

ZHEM - Latching hardware; ZHLA - Windstorm rated assemblies

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #723, sex nuts and bolts, MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices 11

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7250 Rim SquareBolt®

The unique construction of the SquareBolt exit device offers innovative protection. The patented square latchbolt design provides

an improved physical barrier over standard pullman-type rim latchbolts. It locks into place and stays there. Credit cards, crowbars,

door rattling and shaking are resisted, significantly reducing the threat of unauthorized entry, especially in applications that include

removable mullions. The 7250 SquareBolt is designed for narrow stile doors.

Features

• Patented SquareBolt security deadbolt (Pat. no. 5,605,362)

designed for maximum holding power

• Non-handed for easy installation

• Maintains the look of the Yale® 7200 series architectural exit

devices, allowing for continuity in both design and finish

• Fully adjustable surface mounted 3/8" diameter roller

strike complete with positive locking plate and shims

• Used with narrow stile trim

Applications

• Single swing narrow stile doors

• Pairs of narrow stile doors with removable mullions

• Metal and aluminum doors

• For panic-rated doors only

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Thickness 13/4" (44mm) standard. 2" and 21/4" (51mm and 57mm); specify when ordering.

Minimum Stile Width 2" (51mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Deadbolt Patented 1" (25mm) slide projection bolt with full 3/4" (19mm) projection

Strike Standard: 759. Optional: 793 (double door applications, panic only)

Fasteners Machine screws standard for panic hardware

Trims 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim. See pages 2526.

ANSI/BHMA Certified A156.3, Type 4 or 28, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware

Dogging Hex key dogging supplied standard

Options Cylinder dogging, shim kit #723NS, sex nuts and bolts, MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7250M(F) Rim SquareBolt®

The unique construction of the 7250M(F) SquareBolt exit device offers innovative protection while maintaining the appearance of a

narrow stile exit device. The patented square latchbolt design provides an improved physical barrier over standard pullman-type latchbolts.

The 7250M(F) SquareBolt is designed for wide stile or flush doors and provides design continuity of the 7200 series exit devices.

Features

• Patented SquareBolt security deadbolt (Pat. no. 5,605,362)

designed for maximum holding power

• Non-handed for easy installation

• Maintains the look of the Yale® 7200 series architectural exit

devices, allowing for continuum in both design and finish

• Fully adjustable surface mounted 3/8" diameter roller

strike complete with positive locking plate and shims

• Used with narrow stile trim

• Available certified hurricane resistant (refer to

local codes). Specify 7250M(F)WS

Applications

• Single swing doors

• Pairs of doors with removable mullions

• Metal, wood or composite door materials

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Thickness 13/4" (44mm) standard. 2" (51mm) and 21/4" (57mm); specify when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Deadbolt Patented 1" (25mm) slide projection bolt with full 3/4" (19mm) projection

Strike 757F, 793 optional (double door application, panic only)

Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts

supplied standard for fire exit hardware.

Trims 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim. See pages 2526.

ANSI/BHMA Certified A156.3, Type 4 or 28, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.); ZHEM -

Latching hardware; ZHLA - Windstorm rated assemblies

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #723NS, sex nuts and bolts, MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices 13

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7130(F) Mortise

The 7130(F) is an exit device integrated with the Yale® 8700

Series Mortise Lock for use on single doors or active leaf of a

pair of doors where life safety and extra security are required.

The 8700 Series Mortise Lock used is modified for use with exit

devices only.

Applications

• Single swing doors

• Pairs of doors with vertical rod devices or automatic flush

bolts

• Metal, wood or compatible door materials

Specifications

Order as follows, according to function.

7130K5(F)

(01) Exit only.

(02) Entry by pull when dogged.

(03) Key retracts latchbolt.

Electrical control for trim, w/wo key override.

7130L5(F)

(02) Entry by rigid lever when dogged.

(03) Key retracts latchbolt.

Electrical control for trim, w/wo key override.

7130T5(F) (02) Entry by pull when dogged.

(03) Key retracts latchbolt.

7130L8(F) (08) Entry by lever lock/unlocked by key or lever

only (passage).

7130L8(F)-2 (08) Entry by lever lock/unlocked by key either side

or lever only (passage).

7130T8(F) (05) Entry by thumbpiece lock/unlocked by key or

thumbpiece only (passage).

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Thickness 13/4" (44mm) standard. 2" and 21/4" (51mm and 57mm) optional; specify when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt Two piece mechanical 3/4" (19mm) deadlocking stainless steel with anti-friction insert and auxiliary

deadlocking latch

Strike Curved lip, non-handed 798. Optional 712 for door pairs with astragals. Optional 718 open back strike.

Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for

fire exit hardware.

Trims 620F/650F series escutcheon trim, 630F/660F/670F series pull/thumbpiece trim, 684F offset pull trim. See

pages 2224.

ANSI/BHMA Certified A156.3 Type 3, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.) (4' x 9'

single, 8' x 9' pairs, 11/2 hr.)

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #723, sex nuts and bolts, MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

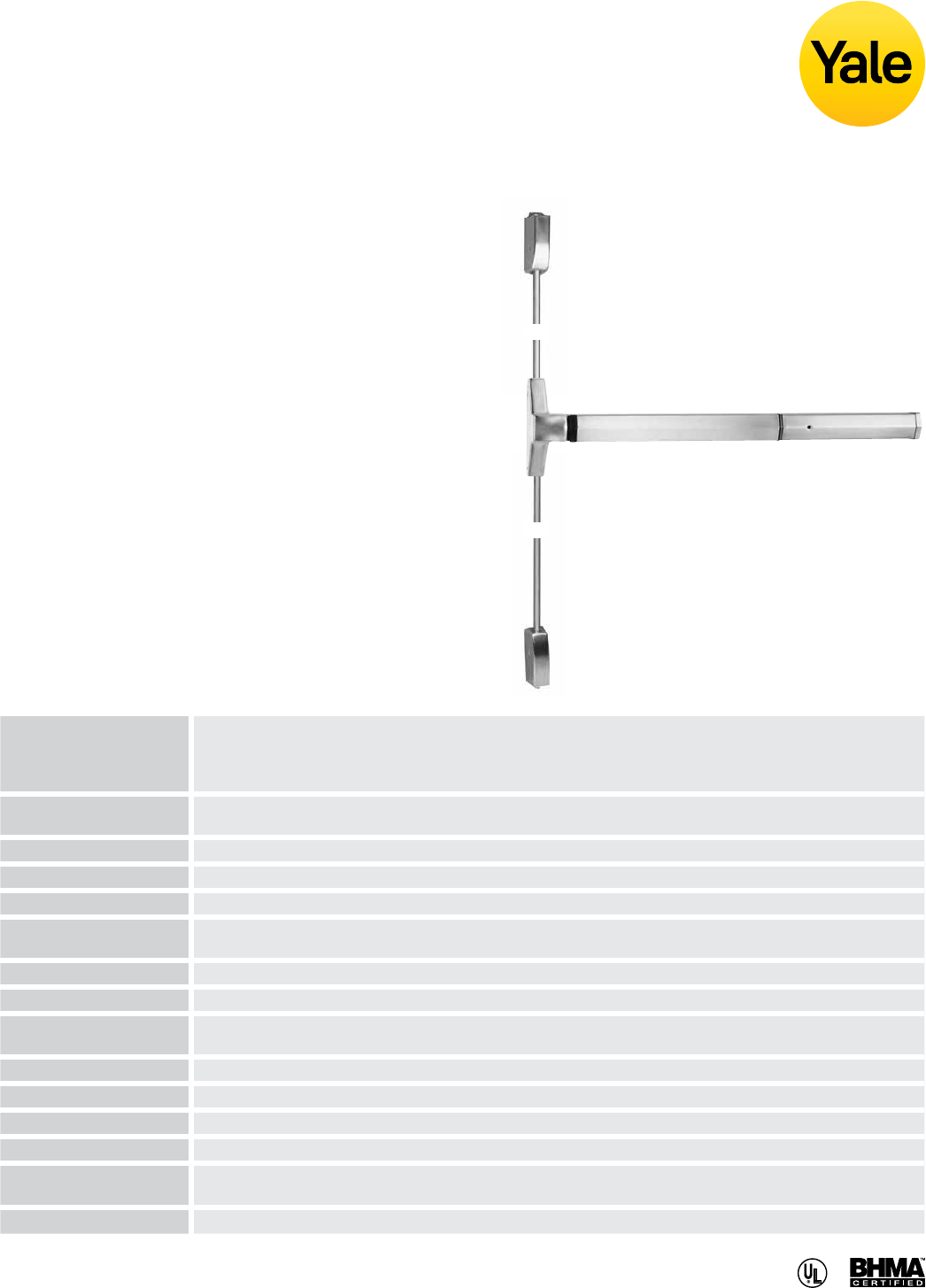

7110(F) Surface Vertical Rod

The 7110(F) is a surface vertical rod exit device to be used on

wide stile or flush doors up to 8' (fire) and 10' (panic) where

two-point latching is desired.

Features

• Designed for wide stile and flush doors

• Handed. Specify hand (field reversible)

• Bottom deadbolt for secure latching

• Fully adjustable roller strike

Applications

• Pairs of doors

• Double egress

• Metal, wood or composite door materials

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Opening Height Standard door height 7' (213cm), with the device centerline at 3915/16" (101cm) from floor. Optional heights up to

8' (fire) and 10' (panic) available by using rod extensions. For fire rated openings over 8', see 7170F SVR.

Door Thickness 13/4" (44mm) standard. Optional door thicknesses available to 41/2"; specify door thickness when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching

Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing

Vertical Rods 1/2" O.D. tubular brass, bronze or stainless steel with rod guides

Strike Top: Roller type 791. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings).

Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire

exit hardware.

Trims 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim.

See pages 2224.

ANSI/BHMA Certified A156.3 Type 2, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (8' x 8' pairs, 3 hr.)

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #724, sex nuts and bolts, rod extensions, bottom pullman latch (panic only)

MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices 15

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7170(F) Surface Vertical Rod

The 7170(F) is a surface vertical rod exit device to be used on

wide stile and flush doors up to 10' where one- or two-point

latching is desired. A Less Bottom Rod (LBR) option is available.

Features

• Designed for wide stile and flush doors

• Handed. Specify hand (field reversible)

• Interlocking top strike and latch mounting plate

• Available less bottom rod (LBR option)

• Available certified hurricane resistant

(refer to local codes ~ not approved for LBR).

Specify 7170(F)WS

• Pairs of doors

• Double egress

• Metal or wood doors

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Opening Height Standard door height 7' (213cm), with the device centerline at 3915/16" (101cm) from floor. Optional heights

specify suffix -8, -9, -10.

Door Thickness 13/4" (44mm) standard. Optional door thicknesses available to 41/2"; specify door thickness when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching

Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing

Vertical Rods 1/2" O.D. tubular brass, bronze or stainless steel with rod guides

Strike Top: 726. Bottom: Flush-mounted 790. 794 floor strike optional (threshold openings).

Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire

exit hardware.

Trims 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim.

See pages 2224.

ANSI/BHMA Certified A156.3 Type 2, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (8' x 10' pairs, 11/2 hr.) (8' x 8' pairs, 3 hr.);

ZHEM - Latching hardware; ZHLA - Windstorm rated assemblies

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #724, sex nuts and bolts, bottom pullman latch (panic only), less bottom rod (LBR),

-8, -9, -10 opening height, rod extensions, MicroShield®, Lumi-lite.

Warranty 5-year limited

Applications

Heat-activated door bolt (thermal

pin) - Used when bottom rod is

omitted from fire exit devices (LBR).

7170(F90) LBR

(Less Bottom Rod)

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7210 Surface Vertical Rod

The 7210 is a narrow stile surface vertical rod exit device to be

used on narrow stile, aluminum and metal doors where two-

point latching is desired.

Features

• Designed for narrow stile doors

• Handed. Specify hand (field reversible)

• Bottom deadbolt for secure latching

• Fully adjustable roller strike

Applications

• Pairs of narrow stile doors

• Metal and aluminum doors

• For panic-rated doors only

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Opening Height Standard door height 7' (213mm), with the device centerline at 3915/16" (101cm) from floor. Optional heights

specify suffix -8, -9, -10.

Door Thickness 13/4" (44mm) standard. 2" (51mm) and 21/4" (57mm); specify when ordering.

Minimum Stile Width 2" (51mm).

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt Top: 3/4" (19mm) stainless steel throw, pullman-type with automatic deadlatching.

Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.

Vertical Rods 1/2" (13mm) O.D. tubular brass, bronze or stainless steel with rod guides.

Strike Top: Roller type 791. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings).

Fasteners Machine screws standard for panic hardware.

Trims 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim. See pages 2526.

ANSI/BHMA Certified A156.3 Type 5, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware

Dogging Hex key dogging supplied standard

Options Cylinder dogging, shim kit #724, sex nuts and bolts, -8, -9, -10 opening height, rod extensions, bottom pullman

latch, MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices 17

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7210M(F) Surface Vertical Rod

The 7210M(F) is a narrow appearance surface vertical rod exit

device to be used on wide stile and flush metal or wood doors

where two-point latching is desired.

Features

• Narrow stile appearance designed for wide stile doors

• Handed. Specify hand (field reversible)

• Fully adjustable roller strike

Applications

• Pairs of doors

• Double egress

• Metal, wood or composite door materials

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Opening Height Standard door height 7' (213mm), with the device centerline at 3915/16" (101cm) from floor. Optional heights

specify suffix -8 (fire and panic), -9, -10 (panic only).

Door Thickness 13/4" (44mm) standard. 2" (51mm) and 21/4" (57mm); specify when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt Top: 3/4" (19mm) stainless steel throw, pullman-type with automatic deadlatching.

Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.

Vertical Rods 1/2" (13mm) O.D. tubular brass, bronze or stainless steel with rod guides.

Strike Top: Roller type 791. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings).

Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and

bolts supplied standard for fire exit hardware.

Trims 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim. See pages 2526.

ANSI/BHMA Certified A156.3, Type 5, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (8' x 8' pairs, 3 hr.)

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #724NS, sex nuts and bolts, bottom pullman latch (panic only), -8, -9, -10 opening

height, rod extensions, MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7120(F) Concealed Vertical Rod

The 7120(F) is a concealed vertical rod exit device to be used

on metal doors only up to 8’ (fire) and 10’ (panic) where two-

point latching is desired.

Features

• Designed for wide stile and flush doors

• Handed. Specify hand (field reversible)

• Bottom deadbolt for secure latching

• Fully adjustable roller strike

Applications

• Pairs of doors

• Double egress

• Metal doors only

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Opening Height Standard door height adjustable to 8' (244cm), with the device centerline at 3915/16" (101cm) from floor.

Optional heights up to 10' (panic) available by using rod extensions. For fire rated openings over 8', see 7160F CVR.

Door Thickness 13/4" (44mm) standard. 2" and 21/4" (51mm and 57mm) optional; specify when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching

Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing

Vertical Rods 1/2" (13mm) O.D. telescoping tubular rods

Strike Top: Roller type 791 (panic and fire). Bottom: Flush mounted 790 (panic and fire). 794 floor strike

optional (threshold openings).

Fasteners Machine screws standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.

Trims 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim.

See pages 2224.

ANSI/BHMA Certified A156.3 Type 8, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (8' x 8' pairs, 3 hr.)

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #723, sex nuts and bolts, rod extensions, bottom pullman latch (panic only)

MicroShield®, Lumi-lite

Warranty 5-year limited

Note: Not available with Less Bottom Rod option

7000 Series Architectural Exit Devices 19

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7160(F) Concealed Vertical Rod

Features

• Designed for wide stile and flush doors

• Handed. Specify hand (field reversible)

• Mortised top strike

• Available less bottom rod (LBR option)

Specifications

Applications

• Pairs of doors

• Double egress

• Metal, wood, or composite door materials

The 7160(F) is a concealed vertical rod exit device to be

used on wood and metal doors up to 10' where one- or

two-point latching is desired. A Less Bottom Rod (LBR)

option is available.

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Opening Height Standard door height adjustable to 8' (244cm), with the device centerline at 3915/16" (101cm) from floor.

Optional heights specify suffix -9, -10.

Door Thickness 13/4" (44mm) standard. 2" and 21/4" (51mm and 57mm) optional; specify when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching

Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing

Vertical Rods 1/2" (13mm) O.D. telescoping tubular rods

Strike Top: Mortised 761. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings).

Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire

exit hardware.

Trims 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim.

See pages 2224.

ANSI/BHMA Certified A156.3 Type 7 and 8, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (8' x 10' pairs, 11/2 hr.) (8' x 8' pairs, 3 hr.)

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #723, sex nuts and bolts, less bottom rod (LBR), -9, -10 opening height, rod extensions,

bottom pullman latch (panic only), MicroShield®, Lumi-lite.

Warranty 5-year limited

Heat-activated door bolt (thermal

pin) - Used when bottom rod is

omitted from fire exit devices (LBR).

INSTRUCTIONS:

7160(F90) LBR

(Less Bottom Rod)

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7220 Concealed Vertical Rod

The 7220 is a narrow stile concealed vertical rod exit device to

be used on narrow stile, aluminum and metal doors where two-

point latching is desired.

Features

• Designed for narrow stile doors

• Handed. Specify hand (field reversible)

• Bottom deadbolt for secure latching

• Fully adjustable roller strike

Applications

• Pairs of narrow stile doors

• Metal and aluminum doors

• For panic-rated doors only

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Opening Height Standard top rod adjustable to 7' to 8' (213cm to 244cm), with the device centerline at 3915/16" (101cm) from

floor. Optional heights specify suffix -9, -10

Door Thickness 13/4" (44mm) standard. 2" (51mm) and 21/4" (57mm); specify when ordering.

Minimum Stile Width 2" (51mm).

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt Top: 3/4" (19mm) stainless steel throw, pullman-type with automatic deadlatching.

Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.

Vertical Rods 1/2" (13mm) O.D. telescoping tubular rods

Strike Top: Roller type 791. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings).

Fasteners Machine screws standard for panic hardware.

Trims 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim. See pages 2526.

ANSI/BHMA Certified A156.3 Type 6, Grade 1

UL/cUL FVSR/FVSR7 - Panic hardware

Dogging Hex key dogging supplied standard

Options Cylinder dogging, shim kit #723NS, sex nuts and bolts, -9, -10 opening height, rod extensions, bottom pullman latch,

MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices 21

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7220M(F) Concealed Vertical Rod

The 7220M(F) is a narrow appearance concealed vertical rod

exit device for wide stile and flush metal doors only and is to be

used where two-point latching is desired.

Features

• Narrow stile look designed for wide stile doors

• Handed. Specify hand (field reversible)

• Bottom deadbolt for secure latching

• Fully adjustable roller strike

Applications

• Pairs of doors

• Double egress

• Metal doors only

Specifications

Door Opening Width

-24 for 24" (60cm) doors

-36 for 30" - 36" (76cm - 91cm) doors

-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Opening Height Standard door height adjustable to 8' (244mm), with the device centerline at 3915/16" (101cm) from floor.

Optional heights specify suffix -9, -10 (panic only).

Door Thickness 13/4" (44mm) standard. 2" (51mm) and 21/4" (57mm); specify when ordering.

Minimum Stile Width 41/2" (114mm)

Projection 31/4" (83mm) active, 23/4" (70mm) dogged

Latchbolt Top: 3/4" (19mm) stainless steel throw, pullman-type with automatic deadlatching.

Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.

Vertical Rods 1/2" (13mm) O.D. telescoping tubular rods.

Strike Top: Roller type 791. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings).

Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and

bolts supplied standard for fire exit hardware.

Trims 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim. See pages 2526.

ANSI/BHMA Certified A156.3, Type 8, Grade 1

UL/cUL Listed FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (8' x 8' pairs, 3 hr.)

Dogging Hex key dogging supplied standard on panic devices

Options Cylinder dogging, shim kit #723NS, sex nuts and bolts, bottom pullman latch (panic only), -9, -10 opening height,

rod extensions, MicroShield®, Lumi-lite

Warranty 5-year limited

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Trim Designs

Arcadia AR Augusta AU Carmel CR

Projection: 31/4" (82mm) Projection: 25/8" (61mm) Projection: 31/8" (79mm)

Jefferson JN Monroe MO Pacific Beach PB

Projection: 29/16" (65mm) Projection: 3" (76mm) Projection: 35/16" (84mm)

Pinehurst PN Virginia VI Hampton HA

Projection: 31/16" (78mm) Projection: 31/8" (79mm) Projection: 33/8" (86mm)

Standard Trims

Note: Projection dimensions are provided using the 620F series escutcheon plates.

All Yale exit device trims (except mortise trim) feature the unique Free-Wheeling lever mechanism, similar to our 5400LN cylindrical

lock. This Free-Wheeling trim features a clutch mechanism which allows the lever to float down 60 degrees when operated in the

locked condition, improving vandal resistance.

Escutcheons

480F Series 500F Series 510F Series 620F/650F Series 630F/660F/670F

Series 680F Series

Projection: 213/32"

(61mm)

Projection:

see levers

Projection:

see levers

Projection:

see levers

Projection:

21/8" (54mm)

Projection:

see levers

Roses

540F Series

Projection: 31/2" (89mm)

7000 Series Architectural Exit Devices 23

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Trim Designs

Reflections® Levers

Hudson TB UB TC TD UC

Projection 31/16" (78mm) 31/4" (83mm) 3" (76mm) 37/16" (87mm) 37/16" (87mm)

Danube TE TI

Projection 3" (76mm) 33/8" (85mm)

Seine TG TO TJ TK

Projection 213/16" (61mm) 31/2" (89mm) 31/16" (78mm) 31/4" (83mm)

Thames TM TN TP TR

Projection 31/16" (78mm) 31/16" (78mm) 35/16" (84mm) 31/16" (78mm)

TS TQ

Projection 31/8" (80mm) 31/16" (78mm)

Victoria TT TU TV TW UW

Projection 211/16" (68mm) 31/4" (83mm) 31/2" (89mm) 3" (76mm) 37/16" (87mm)

TX UX TY TZ

Projection 35/8" (92mm) 37/16" (87mm) 35/16" (84mm) 37/16" (87mm)

Niagara MA RA RB RC

Projection

Note: Projection dimensions are provided using the 620F Series escutcheon plates.

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7100 Series Trims

620F and 650F Series Escutcheon Trim

• Certified ANSI/BHMA A156.3, Grade 1.

• Trim thrubolts to exit device for strength.

• Beveled sides improve attack resistance.

• Solid forged escutcheon and Free-Wheeling trim resists vandalism and

abuse.

• Flush cylinder in 6-pin applications for additional security.

• 13/4" (44mm) door standard. For doors through 21/4" (57mm) or shim-

mounted devices, specify on order.

• Dimensions: 3" x 101/4" x 13/16" (76mm x 260mm x 19mm).

• Cylinders not included. See page 4548 for cylinder options. 11/2" mortise

cylinder required for mortise trim.

• Available with AR, AU, CR, JN, MO, PB, PN, VI and HA lever designs. See

page 22.

- Finishes: 605, 606, 609, 611, 612, 613E, 616, 619, 620,

626, 629, 630, 693, BSP

• Available with Reflections® lever designs. See page 21.

- Finishes: 605, 606, 611, 612, 613E, 619, 626, 629, 630, BSP

• Trim ordering example: AU626F x 626 x RHR.

• 5-year limited warranty.

1. 09, 12 and Free Wheeling 02 achieved with single trim modification at installation.

2. Not recommended for use with vertical rod devices.

3. 08 only

For 626, 629 & 630 finishes the escutcheon is plated to simulate stainless steel.

For 629 & 630 finishes the standard levers are plated to simulate stainless steel.

Free-Wheeling is not available on mortise trim.

For 620F series trim, optional door thickness available up to 41/2", specify on order.

Application Cylinder

Classroom/

Storeroom

Cylinder

Controls

Thumbturn

Exit Only

Blank

Plate

Nightlatch

Access

by Key

Classroom

Cylinder

Controls Lever

Storeroom

Cylinder

Controls Lever

Nightlatch

Cylinder

by Lever

Passage

Dummy

Trim

Free-

Wheeling

Dummy

Rigid

Lever

7100(F)

7150(F)

7110(F)

7120(F)

7160(F)

7170(F)

Rim 603F1620F 621F2626F 626F1627F2628F 628F1629F

7130(F) Mortise — 620F 651F 656F — 656F 658F — 658F

7100(F)-2

7150(F)-2 Rim x Rim — — — 626F — — — — —

7130(F)-2 Mortise x

Rim — — — 656F — — — — —

ANSI 11/12 01 03 08 09 03 14 02 02

7000 Series Architectural Exit Devices 25

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7100 Series Trims

630F, 660F and 670F Series Pull/Thumbpiece Trim

• Certified ANSI/BHMA A156.3, Grade 1.

• Trim thrubolts to exit device for strength.

• Beveled sides improve attack resistance.

• Flush cylinder in 6-pin applications for additional security.

• 13/4" (44mm) door standard. For doors through 21/4" (57mm) or shim-

mounted devices, specify on order.

• Plate Dimensions: 23/4" x 151/2" x 5/8" (70mm x 394mm x 16mm).

• Pull Dimensions: 67/16" (164mm) on centers x 21/8" (54mm) projection.

• Cylinders not included. See page 4952 for cylinder options. 11/2" mortise

cylinder required for mortise trim.

• Finishes: 605, 606, 609, 612, 613E, 616, 619, 620, 626, 629, 630, 693, BSP

• Trim ordering example: 630F x 630

• 5-year limited warranty.

1. 06 achieved with single trim modification at installation.

2. Not recommended for use with vertical rod exit devices.

3. Available for 13/4" thick doors only.

For 630F series trim, optional door thickness available up to 41/2", specify on order.

For 626, 629 & 630 finishes the escutcheon is plated to simulate stainless steel.

Applications Cylinder Exit Only

Blank Plate

Nightlatch

Access by Key

Nightlatch

Cylinder by

Pull

Classroom

Cylinder

Controls

TPiece

Storeroom

Cylinder

Controls

TPiece

Dummy Trim

Pull Plate

Passage

Active

TPiece

7100(F)

7150(F)

7110(F)

7120(F)

7160(F)

7170(F)

Rim 630F 631F2632F2633F 633F1634F 635F

7100(F)-2

7150(F)-2

Rim x

Rim — — — 633F — — —

7130(F) Mortise 630F

K5F 661F

K5F

662F

K5F

673F3

T8F —

634F

K5F

675F3

T8F

7130(F)-2 Mortise x

Mortise — — —

ANSI 01 03 03 05 06 02 15

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7100 Series Trims

• 13/4" (44mm) door standard. For doors through 21/4" (54mm) or shim-

mounted devices, specify on order.

• Plate Dimensions: 3" x 101/4" x 13/16" (76mm x 260mm x 21mm)

• Pull Dimensions: 71/4" (184mm) on centers x 213/32" (61mm) projection.

• Trim thrubolts to exit device for strength.

• Beveled sides improve attack resistance.

• Flush cylinder in 6-pin applications for additional security.

• Cylinders not included. See page 4952 for cylinder options. 11/2" mortise

cylinder required for mortise trim.

• Finishes: 605, 606, 609, 611, 612, 613E, 616, 619, 620, 626, 629, 630,

693, BSP

• Trim ordering example: 681F x 630 x LHR

• 5-year limited warranty

*Not recommended for use with vertical rod exit devices.

For 626, 629 & 630 finishes the escutcheon is plated to simulate stainless steel.

680F Series Offset Pull Trim

Applications Cylinder Dummy Pull Nightlatch

Access by Key

7100(F)

7150(F)

7110(F)

7120(F)

7160(F)

7170(F)

Rim 680F 681F* —

7130(F)

7130(F)-2 Mortise — — 684F

ANSI — 02 03 —

7000 Series Architectural Exit Devices 27

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7100 Series Trims

3-1/2"

2-9

/16"

3-1/2"

2-13/16"

4-15/16"

3-1/2"

1/2"

5-1/2"

2-9/16"

Applications Nightlatch Access

by Key

Classroom

Cylinder Controls

Lever

Passage Lever Dummy Trim Free-

Wheeling Lever

Dummy Trim Rigid

Lever

7100(F), 7150(F), 7110(F),

7120(F), 7160(F), 7170(F) 541F 546F 548F 548F 549F

ANSI 03 08 14 02 02

540F Series Rose Trim

• Certified ANSI/BHMA A156.3, Grade 1.

• 540F rose trim for stock doors.

• Trim thrubolts to exit device for strength.

• 13/4" (44mm) door standard. For doors through 21/4" (57mm) or shim-

mounted devices, specify on order.

• AU, PB and MO trim designs. See below.

• Accepts cylindrical type cylinders. Cylinders included, see page 49 for cylinder

options.

• Finishes: 605, 606, 609, 612, 613E, 616, 619, 620, 625, 626, 693, BSP

• “B” trim prefix - Lever trim accepting all small format interchangeable cores. 6- or

7-pin (Example: BAU546F)

• “M” trim prefix - Lever trim accepting Medeco® (32 series) and ASSA® large

format interchangeable cores. Available in AU lever only. 6-pin only. (Example:

MAU546F)

• “S” trim prefix - Lever trim accepting Schlage® standard cylinders. 6-pin only.

(Example: SAU546F)

• “SI” trim prefix - Lever trim accepting Schlage® large format interchangeable

cores. 6-pin only. (Example: SIAU546F)

• Please specify when ordering 1210 LFIC prep.

• 3-year limited warranty.

AU MO PB

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7200 & 7200M Series Trims

500f Series Escutcheon Trim

• Certified ANSI/BHMA A156.3, Grade 1.

• Trim thrubolts to exit device for strength.

• 13/4" (44mm) door standard. For doors through 21/4" (57mm) or shim-

mounted devices, specify on order.

• Dimensions:15/8" x 91/2" x 1/4" (41mm x 241mm x 6mm)

• Cylinders not included. See page 4952 for cylinder options.

• Available with AR, AU, CR, JN, MO, PB, PN, VI and HA lever designs. See

page 2223.

- Finishes: 605, 606, 609, 611, 612, 613E, 616, 619, 620, 626, 629, 630,

693, BSP

• Available with Reflections® lever designs. See page 23.

- Finishes: 605, 606, 611, 612, 612, 613E, 619, 626, 629, 630, BSP

• Trim ordering example: AU506F x 626 x RHR.

• 1-year limited warranty.

1 09, 12 and Free-Wheeling 02 achieved with simple trim modification at installation.

2 Not recommended for use with vertical rod devices.

For 629 & 630 finishes the standard levers are plated to simulate stainless steel.

Applications Nightlatch

Access by Key

Exit Only

Blank Plate

Nightlatch

Access by Key

Classroom/

Storeroom

Cylinder Controls

Thumbturn

Classroom/

Storeroom

Cylinder Controls

Lever

Passage Passage or

Dummy

Trim

7200, 7210, 7220,

7250, 7200M(F),

7210M(F), 7220M(F),

7250M(F)

121NL2500F 501F2503F1506F1507F 508F1509F

ANSI 03 01 03 11/12 08/09 16 14/02 02

7000 Series Architectural Exit Devices 29

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7200 & 7200M Series Trims

510f Series Pull/Thumbpiece Trim

• Certified ANSI/BHMA A156.3, Grade 1.

• Trim thrubolts to exit device for strength.

• 13/4" (44mm) door standard. For doors through 21/4" (57mm) or shim-

mounted devices, specify on order.

• Plate Dimensions: 15/8" x 151/4" x 5/8" (41mm x 387mm x 16mm).

• Pull Dimensions: 67/16" (164mm) on centers x 21/8" (54mm) projection.

• Accepts rim cylinders. Cylinders not included. See page 45 for cylinder options.

• Finishes: 605, 606, 609, 611, 612, 613E, 616, 619, 620, 626, 629, 630,

693, BSP

• Trim ordering example: 512F x 630

• 1-year limited warranty.

^Not recommended for use with vertical rod devices.

Applications Nightlatch

Access by Key

Classroom/

Storeroom

Cylinder

Controls

Thumbturn

Dummy Trim Passage

Classroom/

Storeroom

Cylinder

Controls TPiece

Passage

7200, 7210, 7220,

7250, 7200M(F),

7210M(F), 7220M(F),

7250M(F)

512F^ 513F 514F 517F 518F 519F

ANSI 03 11/12 02 16 05/06 15

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

7200 & 7200M Series Trims

• 13/4" (44mm) door standard. For doors through 21/4" (57mm) or shim-

mounted devices, specify on order.

• Plate Dimensions: 13/4" x L x 3/16" (44mm x L x 5mm) L = Overall plate

length is 21/4" (57mm) longer than pull dimension.

• Pull Dimensions:

• 480F and 481F trim have a 71/4" (184mm) pull length on centers which

thrubolts to exit device for strength.

• 482F and 483F trim have a 9" (229mm) pull length on centers and are

not to allow pulls of different lengths to be utilized. Longer lengths of 15"

(381mm), 18" (457mm) and up to 30" (762mm) are available.

• 213/32" (61mm) projection.

• Cylinders not included. See page 45 for cylinder options.

• Finishes: 605, 606, 609, 611, 612, 613E, 616, 619, 620, 626, 629, 630,

693, BSP

• Trim ordering example: 481F x 630 x LHR

• 1-year limited warranty

*Not recommended for use with vertical rod exit devices.

For 626, 629 & 630 finishes the escutcheon is plated to simulate stainless steel.

Applications Cylinder Dummy Pull Nightlatch

Access by Key

7200, 7210, 7220, 7250, 7200M(F),

7210M(F), 7220M(F), 7250M(F) Rim 480F

482F

481F*

483F*

ANSI -- 02 03

480f Series Offset Pull Trim

7000 Series Architectural Exit Devices 31

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Electrified Options

The Yale® 7000 Series exit devices offer a complete range of electrical options. A continuity in appearance, security and functions

with the 7000 Series mechanical exit device is maintained. These electrified exit devices may be integrated into the monitoring

security and alarm systems of most buildings.

Electrified Options

Electrified Hardware Option Descriptions

What normally took an hour or more to connect now takes minutes. Yale electrified exit devices and

trims are equipped with ElectroLynx connectors. As a standard feature, these “plug & play” connectors

link power from the incoming source to electrified locking products, including hinges, locks, exit

devices, magnetic holders and strikes.

Note: Electrified door hardware with ElectoLynx connectors require a compatible number of lead wires attached to

the door hinge.

Model # Exit Device Description A B D G O MELR S SAFE SECURE 690F 691F

7100(F) Rim Device (Wide) x x x x x x x x x

7110(F) Surface Vertical Rod (Wide) x x x x x x x x x

7120(F) Concealed Vertical Rod (Wide) x x x x x x x

7130(F) Mortise Device (Wide) x x x x x x x x x

7150(F) Rim SquareBolt® Device (Wide) x x x x x x x x x

7150(F)WS Rim SquareBolt Windstorm (Wide) x x x x x x x

7160(F) Concealed Vertical Rod (Wide) x x x x x x x

7170(F) Surface Vertical Rod (Wide) x x x x x x x x x

7170(F)WS Surface Vertical Rod Windstorm (Wide) x x x x x x x

7200(M)(F) Rim Device (Narrow) x x x x x x

7210(M)(F) Surface Vertical Rod (Narrow) x x x x x x

7220(M)(F) Concealed Vertical Rod (Narrow) x x x x x x

7250(M)(F) Rim SquareBolt Device (Narrow) x x x x x x

Note: Any combination of the following options cannot

be ordered together:

1) MELR, G, or D 2) B or A 3) D, B or A

*Only available for rim and SquareBolt® Devices when

used with Delayed Egress option.

AAlarm Option

BTouchbar Monitor

DDelayed Egress

GElectric Dogging

OTrim Monitor Switch

MELR Motorized Electric Latch

Retraction

SLatchbolt Position Monitor

SAFE Fail Safe Operation (Mortise)

SECURE Fail Secure Operation (Mortise)

690F Fail Safe Electrified Trim

691F Fail Secure Electrified Trim

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Electrified Options

Motorized Electric Latch Retraction

“MELR”

Operation

Allows the latchbolt to be retracted electrically for momentary

or maintained periods of time from a remote location. The

exit device bolt remains retracted for as long as the device

is energized. Removal of power returns the device to the life

safety, self-latching mechanical mode. Easy interface with

central or local fire alarm systems, automatic door operators,

and access control systems. Allows free egress at all times.

Manual hex key dogging standard on non-rated devices. Not

available on openings less than 30" wide.

Electrical Specifications

Solenoid Assembly

• 24VDC (BPS241) regulated/filtered power supply. Requires

1A per device

• .65A amp max during retraction

• .2 amp holding-continuous duty

Listings

UL/cUL listed for panic and fire exit hardware. Fire-rated

devices must be wired into an automatic fire alarm

system.

Applications

Rim: 7100(F), 7200, 7200M(F)

SquareBolt®: 7150(F), 7250, 7250M(F)

SVR: 7110(F), 7170(F), 7210, 7210M(F)

CVR: 7120(F), 7160(F), 7220, 7220M(F)

Mortise: 7130(F)

Ordering

Suffix “MELR” to the Model Number. Ex: 7100MELR.

Note: Not available on “D” delayed egress exit devices.

Existing solenoid and mechanical devices can be retrofit to

motorized electric latch retraction (MELR) by purchasing a

retrofit kit, if the device was manufactured after April 2015.

Latchhead Pins Latchhead Pins

(Since April 2015 (17/15)) (Prior to April 2015 (17/15))

New latchheads must be

ordered when upgrading to

MELR if the Date Code Label

is before 17/15. See parts

manual for replacement part

numbers.

Note: Label with date code is located on front face of latch head.

Latchhead Requirements

Existing solenoid and mechanical devices manufactured prior to

April 2015 require the device assembly retrofit kit (see above)

and a new latchhead. Refer to the ED5000 Series Parts &

Service Manual for latchhead replacement part numbers.

Long Pin Short Pin

8077100010048

AAO

17/15

17/15 refers to 17th week of

2015.

Date Code Label Example

List No. Product Description

Available Options

WS "O" WS &

"O"

RMELR36 7100 36"

MELR DEVICE ASSY X X X

RMELR38 7200 36"

MELR DEVICE ASSY X

RMELR48 7100 & 7200 48"

MELR DEVICE ASSY X X X

7000 Series Architectural Exit Devices 33

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Electrified Options

Electric Dogging “G”

Operation

Provides continuous latch retraction and pushpad dogging

simultaneously. When power is applied to the device,

depressing the pushpad will retract the latchbolt and

continuously hold down the pushpad in the unlock position

for push/pull operation. Removal or interruption of power will

release the pushpad and the latchbolt will extend and secure

the opening. For use in areas that require quiet door operation.

Exit device allows free egress at all times.

Electrical Specifications

2 Holding Magnets

• .35 amps @ 24VDC

• Requires a 2-wire pivot or hinge and a standard 24VDC

regulated and filtered power source (Recommended BPS

power supplies)

Listings

UL/cUL listed for panic and fire exit hardware.

Fire-rated devices must be wired into an automatic fire alarm

system.

Applications

Rim: 7100(F), 7200, 7200M(F)

SquareBolt: 7150(F), 7250, 7250M(F)

SVR: 7110(F), 7170(F), 7210, 7210M(F)

CVR: 7120(F), 7160(F), 7220, 7220M(F)

Mortise: 7130(F)

Ordering

Suffix “G” to the Model Number. Ex: 7150G.

Note: Not available on “D” delayed egress exit devices.

Mortise Device Trim Control

“Safe/Secure”

Operation

Allows the outside trim to lock or unlock electrically from a

remote location. Exit device allows free egress at all times.

Fail Safe devices are commonly used in stair towers or locations

that require the trim to unlock when power is removed or during

fire alarm activation.

Fail Secure devices are used to secure openings and are

usually integrated into the building security system to allow

access control. Fail Secure trims remain locked when power is

removed.

Electrical Specifications

Solenoid

• .35 amps @ 24VDC only (12 volt not available)

• Continuous duty

• Requires a 2-wire pivot or hinge and a standard 24VDC

regulated and filtered power source Recommended BPS

power supplies)

Listings

UL/cUL listed for panic and fire exit hardware.

Applications

Mortise: 7130(F) - lever functions only

Ordering

“Safe” – Maintains the outside trim in a locked state when

energized. Removal of power unlocks outside trim.

“Secure” – Unlocks the outside trim when energized. Remains

locked when power is removed.

Suffix “SAFE” or “SECURE” to the Model Number.

Ex: 7130 x L5 x Safe.

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Electrified Options

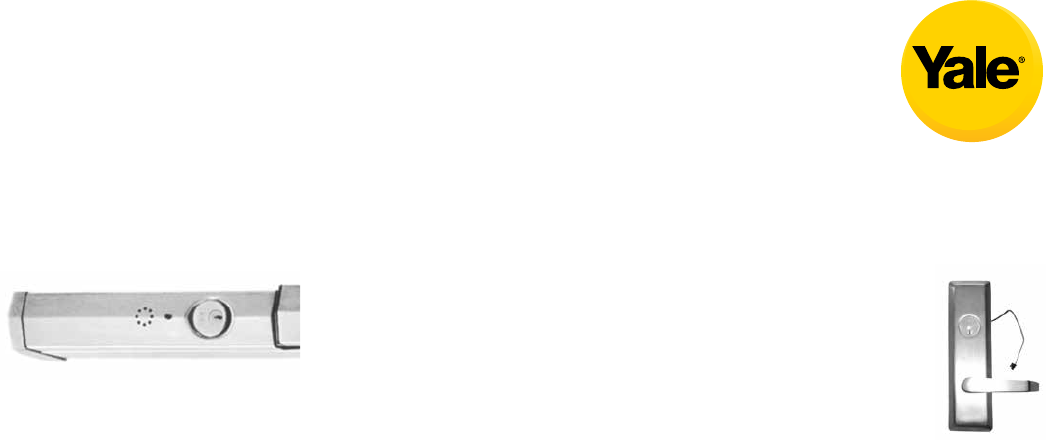

Delayed Egress “D”

Operation

An exit door is normally closed and latched. The delayed egress

device secures the door in the locked mode with the Red LED

indicating locked mode status. Depressing the pushpad for

less than three seconds will cause the device to beep without

initiating the alarm. Depressing the pushpad for three seconds

or longer will initiate an irreversible local audible beeping

tone and a visual amber indicator. The person depressing the

pushpad is denied egress for 15 or 30 seconds while alarm

signals unauthorized egress. After the factory-set delay time

(15 or 30 seconds), the device releases for egress, the LED

changes to Green and the beep changes to a steady tone which

continues to alarm until reset. The remote monitoring contact

outputs can be used to alert security personnel.

Note: The 15-second time delay is standard. (Optional

30-seconds may be accepted by local jurisdiction.)

Electrical Specifications

• Input Voltage 24VDC (+/- 10%)

Power Consumption:

• Standard Device: 500 mA

• Device with Safe/Secure Electric Mortise or Electric Trim

Control: 1.5 Amps.

Certifications & Listings

UL/cUL Listed: FUKD/FUKD7 - Controlled Exit Panic Devices

FWAX/FWAX7 - Special Locking Arrangements

GXHX/GXHX7 - Fire Exit Hardware

ANSI/BHMA Certified: A156.3 & A156.24

U.S. Patent #: 7,469,942

Applications

• For use on hollow metal interior or exterior doors.

• Available for 7100(F), 7200M(F) and 7200 series rim,

SquareBolt®, surface vertical rod, concealed vertical rod and

mortise panic and fire-rated exit devices. For surface vertical

rod exit devices, rod and latch guards (provided by other)

must be used.

• Complies with NFPA 101 “Code For Safety To Life From

Buildings And Structures” by National Fire

Protection Association.

• BOCA options available to comply with National Building

Code requirements. BOCA option is not suitable for

installations in accordance with NFPA 101.

• 13/4" door thickness standard; 2" and 21/4" optional;

specify when ordering.

• Standard 36" device fits doors 35"- 36" Device cannot be cut

less than 35".

• Option -48 fits doors 41"- 48". Devices cannot be cut less

than 41".

Standard Features

Key Switch Operation:

• Normal: The system is armed by applying power to the device

(solid Red LED). Depressing the pushpad for more than the

nuisance delay time starts the exit delay cycle.

• Bypass: Turning the key switch clockwise to the bypass

position allows immediate egress without alarming. The bar

functions as a standard exit device (Red LED flashes slowly).

• Reset/Delay: Used to reset device after the factory-set 15 or

30-second delay cycle has timed out.

• Rearm: If the device is armed, turning the key

counterclockwise to the reset mode will release the device

without alarm for egress and will rearm after 10 seconds (Red

LED flashes quickly).

Local Visual Status Indicator:

• RED: The exit device is secure and the delayed egress

circuitry is energized.

• AMBER: The egress cycle has started, indicated by an

irreversible local audible beeping tone.

• GREEN: The exit device is in alarm and has released.

Nuisance Delay Time:

• Depressing the pushpad for less than three seconds sounds

an audible beep without activating the irreversible alarm

sequence. (Immediate alarm can be selected by removing a

jumper on the control board.) Nuisance Delay Times are dip

switch selectable to Immediate, 1, 2, or 3 (default) seconds

on the control board.

Internal Alarm Siren:

• When armed, depressing the pushpad initiates the internal

85db alarm siren.

Door Position Switch (DPS) Control Board input:

• Allows external DPS wiring to control board for higher

security. Alarm sounds when the DPS contacts open when

the door is forced open.

Remote Control Inputs:

• Remote Reset: Accepts a momentary contact (keyswitch,

pushbutton, etc) to reset the unit during alarm or allows

momentary egress (selectable 5, 10 (default), 20 or 40

seconds) when the unit is armed.

• Remote Bypass: Accepts a momentary contact to put the unit

in a maintained bypass operation. The exit device functions

as a standard device.

Alarm Outputs:

• Contacts change only during alarm status. One set of Alarm

Relay Output contacts change state when device delay cycle

has started (Alarm). Contacts are selectable for Normally

Open (N.O.) or Normally Closed (N.C.) using the 2-pin

jumper on the control board. N.O. is default setting. One set

of contacts changes when device has released (Secure).

Secure Relay Output has two sets of contacts (N.O. and

N.C.). The Alarm Relay and Secure Relay contacts are SPDT

type, rated 1A @24VDC.

Door Sign:

• Door sign per code included.

7000 Series Architectural Exit Devices 35

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Electrified Options

Delayed Egress “D” (cont.)

Rearm After Closing (RAC)

Works in conjunction with an external DPS wired to the

Control Board. Field selectable settings:

Setting 1 :

If the door is open beyond the momentary egress or remote

reset time the device will Alarm.

Setting 2:

If the door is open beyond the momentary egress or remote

reset time the device will remain in egress mode indefinitely

until the door closes (will not Alarm).

Options

Latchbolt Position Monitor “S”:

• Used to monitor the positions of the latchbolt or vertical rods

(SPDT switch).

• To order, suffix “S”.

• See page 32 for more information.

Trim Monitor Switch “O”:

• Used when outside trim is desired. This switch will allow

Bypass (disarms device) when the trim is used for ingress.

The device will need to be reset upon entry by means of the

keyswitch on the device or a remote switch.

• To order, suffix “O”.

NFPA 101 Requirements:

15- & 30Second Delay

• Upon depressing the pushpad for 3 seconds, the delayed

egress device will sound an audible beeping tone and allow

the door to be opened after 15 (or 30) seconds. The tone

will then change to a continuous alarm until reset. Resetting

of the alarm and re-arming of the device is accomplished by

manual means only.

• To order, specify NFPA 15-second or NFPA 30-second.

• Purchase orders that do not have an option noted will default

to the NFPA 15-second delay.

• NOTE: Where approved by the authority having jurisdiction, a

delay not exceeding 30 seconds shall be permitted.

BOCA Requirements:

15- & 30Second Delay

• Upon depressing the pushpad for 1 second, the delayed

egress device will sound an audible beeping tone and allow

the door to be opened within 15 (or 30) seconds. The

tone will then change to a continuous alarm until reset.

Resetting of the alarm and re-arming of the device occurs

automatically once the door has been returned to the closed

position for 30 seconds. The 30-second re-arming timer will

re-start if the pushpad is depressed or the door is re-opened

before actual re-arming of the device occurs. A DPS (Door

Position Switch) is required for the BOCA option.

• To order specify BOCA 15-second or BOCA 30-second.

• Purchase orders that do not have an option noted will default

to the NFPA 15-second delay.

• NOTE: An increase in the egress delay to 30 seconds shall

not be permitted except as approved by the authority having

jurisdiction.

Electric Trim Control - “SAFE” or “SECURE”:

• The mortise delayed egress exit device can be ordered

with fail safe or fail secure outside trim operation. In a fire

condition the fail safe trim will release for entry. When access

control is used the fail secure trim allows entry by means of a

remote card reader, keyswitch, pushbutton, etc.

• To order, suffix “Safe” or "Secure".

• NOTE: The trim will open the door without affecting the

device in an armed condition, if a door position switch is not

used.

Power Supply:

A regulated and filtered power supply with a fire alarm

interface is required. 1 Amp minimum @ 24VDC per device.

Special options will require more amperage. Consult factory.

Recommend: BPS series.

Power Transfer:

Allows the power cable to make the transition from frame to

door without pinching or removal of insulation.

Cylinders

Utilizes a 11/8" mortise cylinder with a 2160 cam. Cylinder not

included unless specified. See page 4548.

Ordering

Suffix “D” after device.

Example: 7150FD

Required Accessories

Refer to McKinney Power Transfer Device catalog for ElectroLynx options.

ElectroLynx® Power Transfer Device Options

Hinge External DPS Options

QC8 Not required None

QC12 Required S, or O, or Safe/Secure Options

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Electrified Options

Alarm Kit “A”

Activation: Alarm is armed by turning key clockwise. Low

audible chirp indicates alarm has been activated. Alarm will

sound when the exit device pushpad is depressed. Factory

preset for standard alarm mode which automatically resets after

5 minutes.

Continuous Alarm Mode: Alarm sounds continuous when the

exit device pushpad is depressed. Alarm must be manually

reset by keyswitch. (This feature is selected by a switch on the

circuit board.)

Low Battery Warning: Audible chirp.

Nuisance Alarm: Factory preset for instant alarm. Selectable

feature for alarm to sound when pushpad is depressed for more

than 2 seconds. (This feature is selected by a switch on the

circuit board.)

Arming Delay/Authorized Egress: 10-second delay (after

arming) permitting egress (by turning key clockwise).

Alarm Shunt: Ingress shunt alarm input for devices with

latchbolt position (S) monitor. NOTE: “S” included with SVR

devices.

Power Requirements: One 9-volt battery (included).

Loudness: 90db @ 10 feet.

Arm/Disarm: Uses one 11/8" straight cam mortise cylinder.

Clockwise turn arms the alarm, counter clockwise turn disarms

or silences the alarm.

Device Status: A Red LED indicator will illuminate every 30

seconds when the alarm is armed.

Tamper Resistant: Built-in safety monitor sounds alarm when

tampering occurs.

Warning Decal: “EMERGENCY EXIT - ALARM WILL SOUND”

Applications: Rim: 7100(F), 7200, 7200M(F); SquareBolt®:

7150(F), 7250, 7250M(F); SVR: 7110(F), 7170(F), 7210,

7210M(F); CVR: 7120(F), 7160(F), 7220, 7220M(F); Mortise:

7130(F)

Kit: Available in kit form for field retrofit.

Bar Length: Available for 36"- 48" devices only. May not be

used on bars less than 36".

• Standard 36" device fits doors 35"-36" Device cannot be cut

less than 35".

• Option -48 fits doors 41"– 48". Devices cannot be cut less

than 41".

How to Order: Specify 7116 for alarm kit. Suffix -“A” when

ordering with device. Ex: 7150A.

NOTE: The 7116 alarm kit cannot be retrofitted in the field to

the 7110(F), 7170(F), 7210 or 7210M(F) surface vertical rod

exit devices. This option is available as a factory order only for

these devices. Any attempt to retrofit the 7116 alarm kit with

these surface vertical rod exit devices will void the warranties

for these products.

Electric Trim

The electrified 600 series heavy-duty trim

provides electric locking and unlocking of trim.

Ideal for door control where increased security is

necessary at all times, while meeting life safety

codes. Electric trim is ideal for many applications,

including stairwell towers, high-security areas,

schools, hospitals, and factories.

Functions

690F Trim - Fail Safe

• Lever is locked when power is on

(Free-Wheeling)

• Power off allows entry from trim

• Inside device is always active for egress

• Mechanical key override

(09 Function - Key allows lever to retract latchbolt. Key can

only be removed in locked position)

691F Trim - Fail Secure

• Lever is locked when power is off (Free-Wheeling)

• Power on allows lever activation for entry

• Inside device is always active for egress

• Mechanical key override (09 Function - Key allows lever

to retract latchbolt. Key can only be removed in locked

position.)

Features

• Accepts all standard and Reflections® decorative lever

designs

• Plug connector with 4' wire lead (Exit device is used as wire

raceway, not door)

• Key Override - Requires rim cylinder (sold separately)

Applications

• 7100(F) Rim Device

• 7150(F) SquareBolt®

• 7110(F), 7170(F) Surface Vertical Rod

Electrical Specifications

• 330 mA @ 24 Volts

SM - Security Monitor Switch

• 4 AMP @ 250VAC

Voltage: 24 VAC/VDC only

BPS series power supplies recommended.

Options

• SM - Security Monitor. A SPDT switch that monitors the

position of the solenoid (lock and unlock status).

• EX - Trim gasket for exterior applications.

7000 Series Architectural Exit Devices 37

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Electrified Options

Touchbar Monitor “B”

Provides indication of the pushpad being depressed. Used as

a Request to Exit switch to shunt alarm systems, release

electromagnetic locks or monitor egress.

Electrical Specifications:

2A @ 28VDC

SPDT contacts

Listings: UL/cUL listed for panic and fire exit hardware.

Applications: Rim: 7100(F), 7200, 7200M(F)

SquareBolt®: 7150(F), 7250, 7250M(F)

SVR: 7110(F), 7170(F), 7210, 7210M(F)

CVR: 7120(F), 7160(F), 7220, 7220M(F)

Mortise: 7130(F)

Ordering: Suffix “B” to the Model Number. Ex: 7120B.

Note: Not available on “D” Delayed Egress devices or with the “A” Alarm kit option.

Latchbolt Position Monitor “S”

Provides indication on the position of the latchbolt. Used with

security systems to monitor the latchbolt, also used to activate

automatic door operators upon latch retractions.

Electrical Specifications:

2A @ 28VDC

SPDT contacts

Listings: UL/cUL listed for panic and fire exit hardware.

Applications: Rim: 7100(F), 7200, 7200M(F)

SquareBolt®: 7150(F), 7250, 7250M(F)

SVR: 7110(F), 7170(F), 7210, 7210M(F)

CVR: 7120(F), 7160(F), 7220, 7220M(F)

Mortise: 7130(F)

Ordering: Suffix “S” to the Model Number. Ex: 7120S.

Trim Monitor Switch “O”

Provides indication of the trim being operated from the outside.

Used as a Request to Enter signal switch to shunt alarms, also

used to monitor entry.

Electrical Specifications:

2A @ 28VDC

SPDT contacts

Listings: UL/cUL listed for panic and fire exit hardware.

Applications: Rim: 7100(F)

SquareBolt®: 7150(F)

SVR: 7110(F), 7170(F)

CVR: 7120(F), 7160(F)

Mortise: 7130(F)

Ordering: Suffix “O” to the Model Number. Ex: 7150O.

TAN

GREY

PINK

COM

ORANGE

WHITE

GREEN

COM

YELLOW

BLUE

BROWN

COM

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Electrified Options

Features

• Dimensions: 8.3"L x 3.1"W x 2.0"D (210mm L x 79mm W x 52mm D)

• Non-handed unit (field reversible)

• Unit powered by 9V battery

• Unit can be hardwired by using WH11 wire harness and 784 power supply

• No battery is required in unit with hard-wire option – if power is lost, optional gel-cell battery in power supply will give

approximately 10,000 operations

• Reverse battery protection safeguards the unit if the battery is incorrectly installed

• A low-voltage battery is indicated by an audible signal every 30 seconds

• Piezo horn blasts at 105+ decibels if the door is used with out proper authorization

• The LED will flash every 30 seconds, indicating either the unit is armed or, if under auto reset, that the door has been violated

• Various field-adjustable features by dip switch including automatic alarm reset, REX and passage time delay, and LED color

preference

• A tamper switch provides instantaneous signal to sound horn in the event the cover is removed. Horn will sound until the unit is

reset by the key or remote reset/arm switch

• Conformally coated electronics for weather resistance

• Cover is held in place by cam lock which protects mounting screws, electrical system and internal sensors

• Accepts external cylinder (not included, must be specified)

• Accepts standard mortise cylinders (not included, must be specified)

Remote Mounting

The SDA16 can be installed remotely from the door by attaching the contacts

to the door and frame. The unit can be installed up to 6 feet from the door.

This provides the ideal solution for circumstances where exposure to weather

may be an issue. To order specify "SDA16XL".

Cylinders and Accessories

• 784 Power supply (9VDC) – includes plug-in wall transformer

• Plug-in wall transformer with 12' cable assembly (part no. 0000003425)

• Gel-cell battery – optional for use with 784 power supply (part no. 0000003426)

• WH11 Wire harness for remote power and remote unlock

• Mortise cylinder for unit

• Rim cylinder for outside control

• See pages 4548 for cylinder information.

The SDA16 stand-alone battery operated door alarm is designed to continually monitor the status of a door. When

the door is opened without authorization, an alarm is triggered to alert the security violation. This alarm features a

Peizo horn which blasts a deafening 105+ decibels to alert the violation.

This unit is ideal for emergency doors as well as stairwell doors and rear exit doors in retail environments. The unit,

which can also be hardwired, easily complements existing hardware, making any opening alarmed. The SDA16

door alarm is typically mounted on the interior of the door frame or door and is paired with a magnet mounted on

the opposing side of the door gap.

Note: Actual wire length is 6 feet.

Frame contact

attached to wire

Contact for door

Stand Alone Door Alarm SDA16

7000 Series Architectural Exit Devices 39

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Electrified Options

782 Power Control

Operation

Designed to control one or two electric latch retraction “P”

exit devices. Equipped with two 20-second timers which can

operate the exit devices together or independently. Requires a

momentary or timed, dry contact input and can be interfaced

with access control systems, automatic door operators, “blow

open” type scenarios and has provisions for N/C fire alarm

systems.

Note: The 782 is required for use with the “P” latch retraction

option. Using any other power supply with the “P” option voids

the warranty of the device.

Features

• Two control inputs. Accepts normally closed dry contacts

for device activation from a key switch, push button, access

control or fire alarm system.

• Two normally open control outputs for automatic door

operators

• Two “P” device outputs

• Fire Alarm Interface input

• 24VDC output for audible or LEDS .25 AMP

Electrical Specifications

• 120 VAC 60Hz 750mA (max.)

• Not available in 240V

• 3842 VDC output

• 10 amp inrush

Listings

• UL 294

• UL CLASS 2 outputs

Applications

“P” Electric Latch Retraction Option (not required with

standard MELR option)

Ordering

782 Controller

Note: This part will no longer be listed as a sellable item for use

with the 7000 Series exit device as of December 15, 2020.

BPS Power Supplies By Securitron®

Operation

Power supplies are designed to provide reliable filtered and

regulated power for long life to a variety of electrified hardware

components.

Note: The BPS is required for use with the "MELR" latch

retraction option. Using any other power supply with the

"MELR" option voids the warranty of the device.

Product Features

• Individual output circuit breakers

• Regulated and filtered fuse protected outputs

• LEDs monitor zone status (voltage or no voltage)

• Slide switches connect or disconnect load from power (Not

available on 1 Amp supplies)

• Internal Back-Up battery charging circuit

• Rugged steel enclosure

• Fire alarm interface

Listings

• UL CLASS 2

Applications (use with):

• D – Delayed Egress

• G – Electric Dogging

• Safe – Fail Safe mortise device trim control

• Secure – Fail Secure mortise device trim control

• 690/691 – Electric Trim

Ordering

Ex: BPS244

Model Input Output Application

BPS241 120 VAC 1 Amp @ 24 VDC 1 “D”

BPS242 120 VAC 2 Amp @ 24 VDC

2 “D” or 1 “D”

with Safe or

Secure

BPS244 120 VAC 4 Amp @ 24 VDC

4 “D” or 3 “D”

with Safe or

Secure

Consult factory for additional power supply applications.

Yale recommends McKinney®, Pemko and Securitron® for power transfer devices and other electronic accessories.

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

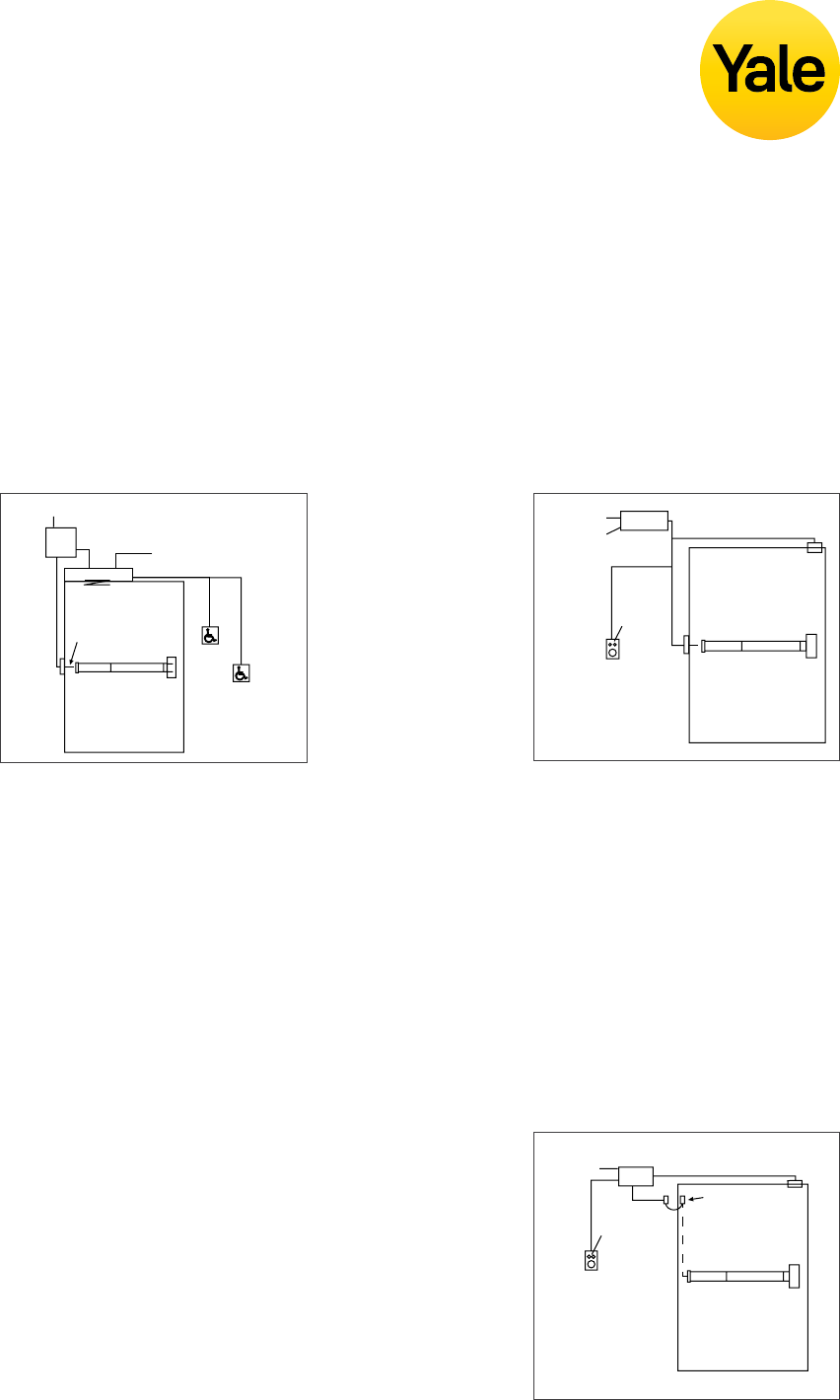

Electrified System Guide

DPS

120VAC

Fire Alarm

tie in

LED

Keyswitch

QC12

Hinge

7100GBS

BPS

120VAC

Powermatic®

Interior

Exterior

ADA

Pushbutton

QC8

Hinge

7100P

782

Electric Dogging

Electric Dogging with Monitor Functions

Components

• 7100GBS Electric Dogging Device with Touchbar

Monitor

• BPS Power Supply with fire alarm interface

• Keyswitch with a Red and a Green LED

• DPS (door position switch) by Securitron®

• QC12 Power Transfer Hinge by McKinney®

Operation

Exit device allows

free egress at all

times.

Activating the

maintained

keyswitch applies

power to the

7100GBS device.

The first mechanical

depression of the

pushpad will retract

the latchbolt and

hold the pushpad down in a dogged position. Fire alarm

activation, interruption of power or turning the keyswitch off

will release the pushpad and the latch will extend.

• The Green LED illuminates when power is on, and the

pushpad can be depressed and dogged.

• The Red LED illuminates when power is off, the door is

closed and the device is latched and secure.

Motorized Electric Latch Retraction

Motorized Electric Latch Retraction Interfaced with an

Automatic Door Operator

Components

• 7100MELR Latch Retraction

• PowerMatic® Door Operator by Norton®

• ADA Pushbuttons #661 by Norton

• QC8 Power Transfer Hinge by McKinney®

Operation

Exit device allows

free egress at all

times.

Activating the

interior or exterior

pushbutton retracts

the latchbolt in

the device and the

door automatically

opens. Door closes

and relatches after

hold open time has

elapsed in the operator.

Motorized Electric Latch Retraction with Monitor

Functions

Components

• 7100MELRBOS, Exit Device with Touchbar, Outside

Trim and Bolt Position Monitors

• Momentary Pushbutton with Red and Green LED

• DPS (door position switch) by Securitron®

• TSBC Door Cord by Securitron®

Operation

Exit device allows free egress at all times.

Activating the 402 x L2 push button retracts the latchbolt

from a remote location.

• The Red LED indicates that the door is closed and

latched.

• The Green LED illuminates when any of the following

situations occur:

- The pushpad

is depressed

- Tampering or

retraction of

the latchbolt

- Operation of

outside trim

- Opening of

door

782

TSB-C

Push button

LED

120VAC DPS

Door Cord

7100PBOS

Monitor Functions

7000 Series Architectural Exit Devices 41

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Electrified System Guide

120VAC Input

DK11

Keypad

QC8

Hinge

691F

BPS

Alarm System J-Box

Closer

QC12

Hinge 7100BOS-PB627F

Components

• 7100 - PB627F Nightlatch Trim - Yale®

• S Bolt Position Monitor Switch

• B Pushpad Monitor Switch

• O Trim Monitor Switch

• Door Position Switch - Securitron®

• QC12 Power Transfer Hinge by McKinney®

• Surface Door Closer - Yale

Operation

Operation of the 7100 Exit Device with the S, B, O and

ASSW104A can be used together or individually to

sound an alarm, shunt an alarm, monitor the door’s

security or as a “Request to Exit” in conjunction a

magnetic lock.

Components

• 691F Electrified Trim - Yale

• 7100 Rim Exit Device - Yale

• Digital Keypad by Securitron®

• QC8 Power Transfer Hinge by McKinney®

• BPS Power Supply

Operation

Operation of the Digital Keypad will allow keyless entry

from the non-protected side of the opening. When a

valid code is entered into the keypad, voltage will be

applied to the trim, making the lever active and allowing

ingress. Free exit is allowed by using the exit device from

the protected side of the door.

Monitor Functions

Rim Exit Device with High Security Application

Electric Trim

Rim Exit Device with Electrified Trim

Delayed Egress

Rim Exit Device with Delayed Egress Option on “Exit

Only” Door

Components

• 7100D Delayed Egress Exit Device - Yale

• QC8 Power Transfer Hinge by McKinney®

• BPS Power Supply

• Surface Door Closer - Yale

Operation

Operation of the 7100D Exit Device will sound an alarm

and activate either a 15- or 30-second alarm sequence

inside of the exit device. After this time period, the device

will release the pushpad, making it active and egress is

possible. When the fire alarm is activated, power to the

exit device will be interrupted, allowing free egress and

mechanical latching. Authorized alarm bypass and reset

is done through the built-in keyswitch located in the exit

device.

BPS

120VAC Input

7100D

Closer

QC8

Hinge

Fire Alarm

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Functions

Lever Trims

Double Cylinder Exit Device Lever Trims

SquareBolt®

7150(F)

7250

7250M(F)

Inside Outside

Rim

7100(F)

7200

7200M(F)

Inside Outside

Surface Vertical

Rod

7110(F)

7170(F)

7210

7210M(F)

Inside Outside

Concealed

Vertical Rod

7120(F)

7160(F)

7220

7220M(F)

Inside Outside

Mortise

7130(F) Type

ANSI

Function

No.

Function Description

Exit Only/

Blank Plate

–

Exit only, no trim.

Exit only, blank plate.

Dummy 02

Entrance by trim when

actuating bar is locked

down.

Nightlatch 03

Entrance by trim when

latchbolt is retracted by

key. Key removable only

when locked.

Classroom 08 Entrance by lever. Key

locks or unlocks lever.

Storeroom 09

Entrance by lever only

when released by key.

Key removable only when

locked.

Passage 14

Entrance by trim when

latchbolt is released by

lever. Lever always active,

no cylinder.

SquareBolt®

7150(F)-2

Inside Outside

Rim

7100(F)-2

Inside Outside

Mortise

7130(F)-2

Inside Outside

Type ANSI

Function No. Function Description

Classroom 08 Entrance by lever. Key either side

locks or unlocks lever.

Note: 09 and Free-Wheeling 02 achieved with a single modification at installation.

7000 Series Architectural Exit Devices 43

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Functions

SquareBolt®

7150(F)

7250

7250M(F)

Inside Outside

Rim

7100(F)

7200

7200M(F)

Inside Outside

Surface Vertical

Rod

7110(F)

7170(F)

7210

7210M(F)

Inside Outside

Concealed

Vertical Rod

7120(F)

7160(F)

7220

7220M(F)

Inside Outside

Mortise

7130(F) Type

ANSI

Function

No.

Function Description

Exit Only/

Blank Plate

–

Exit only, no trim.

Exit only, blank plate.

Dummy/

Pull Plate 02

Entrance by trim when

actuating bar is locked

down.

Nightlatch 03

Entrance by trim when

latchbolt is retracted by key.

Key removable only when

locked.

Classroom 05

Entrance by thumbpiece.

Key locks or unlocks

thumbpiece.

Storeroom 06

Entrance by thumbpiece

only when released by key.

Key removable only when

locked.

Passage 15

Entrance by trim when latch

is released by thumbpiece.

Thumbpiece is always active,

no cylinder.

Classroom 11

Entrance by control turn

piece. Key locks or unlocks

control.

Storeroom 12

Entrance by control turn

piece only when released by

turning key. Key removable

only when locked.

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Applications

7100 Series

The 7100 is the perfect choice for wide stile panic and fire-rated applications. The smooth architectural lines provide pleasing

aesthetics to accent a building’s appearance, and looks aren't always deceiving. Beneath the strong exterior lie the components

to meet the demanding security and access control needs of today. The delayed egress option is just one of the many

electromechanical options offered to enhance security. Complementing the 7100 series with the 600F series heavy-duty trim

completes the package for a heavy-duty, security hardware package.

Applications

Single Door UL Listing Maximum Opening Application

SquareBolt®

7150/71502 Panic 4' x * Surface applied; single-point latching.

7150F/7150F2 3 Hr. 4' x 8'

7150WS Panic 4' x 8' Surface applied; single-point latching. Used as

components in swinging door windstorm-rated

assemblies (refer to local codes).

7150FWS 3 Hr. 4' x 8'

Rim

7100/71002 Panic 4' x *

Surface applied; single-point latching.

7100F/7100F2 3 Hr. 4' x 8'

Mortise

7130/71302 Panic 4' x *

Mortised in door; single-point latching.

7130F/7130F2 11/2 Hr. 4' x 9'

7130F/7130F2 3 Hr. 4' x 8'

Surface Vertical Rod

7110 Panic 4' x 8' Surface applied; two-point latching.

7170 Panic 4' x 10'

7170 x LBR Panic 4' x 10' Surface applied; one-point latching.

7170WS Panic 4' x 8'

Surface applied; two-point latching. Used as

components in swinging door windstorm-rated

assemblies (refer to local codes).

Concealed Vertical Rod

7120 Panic 4' x 8' Rods concealed in door; two-point latching.

7160 Panic 4' x 10'

7160 x LBR Panic 4' x 10' Rods concealed in door; one-point latching.

Pair of Doors with

Removable Mullion UL Listing Maximum Opening Application

SquareBolt® x SquareBolt®

7150 x 7150 x M200 Series Panic 8' x 10' Two independent active doors with removable

mullion.

7150F x 7150F x M200F Series 3 Hr. 8' x 8'

7150WS x 7150WS x M200FWS Panic 8' x 8' Two independent active doors with removable

mullion. Used as components in swinging door

windstorm-rated assemblies (refer to local codes).

7150FWS x 7150FWS x M200FWS 3 Hr. 8' x 8'

Rim x Rim

7100 x 7100 x M200 Series Panic 8' x 10'

Two independent active doors with removable

mullion.

7100F x 7100F x M200F Series 3 Hr. 8' x 8'

*UL does not set a door height limitation on panic applications.

7000 Series Architectural Exit Devices 45

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Applications

Pair of Doors UL Listing Maximum Opening Application

Surface Vertical Rod

7110 x 7110 Panic 8' x 8' Two independent doors with two-point latching,

swinging in the same direction.

7110F x 7110F 3 Hr. 8' x 8'

7170 x 7170 Panic 8' x 10'

Two independent doors with one- or two-point

latching, swinging in the same direction.

7170F90 x 7170F90 11/2 Hr. 8' x 10'

7170F x 7170F 3 Hr. 8' x 8'

7170WS x 7170WS Panic 8' x 8' Two independent doors with two-point latching,

swinging in opposite directions. Used as

components in swinging door windstorm-rated

assemblies (refer to local codes).

7170FWS x 7170FWS 11/2 Hr. 8' x 8'

Surface Vertical Rod (Double Egress)

7110 x 7110 Panic 8' x 8' Two independent doors with two-point latching,

swinging in opposite directions. Overlapping

astragal required for 3-hour openings.

7110F x 7110F 3 Hr. 8' x 8'

7170 x 7170 Panic 8' x 10' Two independent doors with one- or two-

point latching, swinging in opposite directions.

Overlapping astragal not required.

7170F90 x 7170F90 11/2 Hr. 8' x 10'

7170F x 7170F 3 Hr. 8' x 8'

Surface Vertical Rod x Mortise

7110 x 7130 Panic 8' x 8'

Overlapping astragal required for 3-hour openings.

Coordinator required with standard ANSI strike.

7110F x 7130F 3 Hr. 8' x 8'

7110F x 7130F x Open

Back Strike 11/2 Hr. 8' x 8'

7170 x 7130 Panic 8' x 10' Overlapping astragal required for fire-rated

openings. Coordinator required with standard

ANSI strike.

7170F90 x 7130F 11/2 Hr. 8' x 9'

Concealed Vertical Rod

7120 x 7120 Panic 8' x 8' Two independent metal doors with two-point

latching, swinging in the same direction.

7120F x 7120F 3 Hr. 8' x 8'

7160 x 7160 Panic 8' x 10' Two independent metal or wood doors with

one- or two-point latching, swinging in the same

direction.

7160F90 x 7160F90 11/2 Hr. 8' x 10'

7160F x 7160F 3 Hr. 8' x 8'

Concealed Vertical Rod (Double Egress)

7120 x 7120 Panic 8' x 8' Two independent metal doors with two-point

latching, swinging in opposite directions.

Overlapping astragal required for 3-hour openings.

7120F x 7120F 3 Hr. 8' x 8'

7160 x 7160 Panic 8' x 10' Two independent metal or wood doors with

one- or two-point latching, swinging in opposite

directions. Overlapping astragal not required.

7160F90 x 7160F90 11/2 Hr 8' x 10'

7160F x 7160F 3 Hr. 8' x 8'

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Applications

7200 Series

7200 Series narrow stile exit devices are designed for aluminum openings and are compatible with the aesthetics and functional

requirements of contemporary glass doors. The device features lines chosen by leading architects and is available with the proven

SquareBolt® exit device for increased security.

Applications

Single Door UL Listing Maximum Opening Application

SquareBolt®

7250 Panic 4' x * Surface applied; single-point latching.

Rim

7200 Panic 4' x * Surface applied; single-point latching.

Surface Vertical Rod

7210 Panic 4' x 10' Surface applied; two-point latching.

Concealed Vertical Rod

7220 Panic 4' x 10' Rods concealed in door; two-point latching.

Pair of Doors UL Listing Maximum Opening Application

Surface Vertical Rod

7210 x 7210 Panic 8' x 10' Two independent doors with two-point

latching, swinging in the same direction.

Surface Vertical Rod (Double Egress)

7210 x 7210 Panic 8' x 10' Two independent doors with two-point

latching, swinging in opposite directions.

Concealed Vertical Rod

7220 x 7220 Panic 8' x 10' Two independent metal doors with two-point

latching, swinging in the same direction.

Concealed Vertical Rod (Double Egress)

7220 x 7220 Panic 8' x 10' Two independent metal doors with two-point

latching, swinging in opposite directions.

Pair of Doors with

Removable Mullion UL Listing Maximum Opening Application

SquareBolt® x SquareBolt®

7250 x 7250 x M300 Panic 8' x 10' Two independent active doors with

removable mullion.

Rim x Rim

7200 x 7200 x M300 Panic 8' x 10' Two independent active doors with

removable mullion.

7000 Series Architectural Exit Devices 47

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Applications

*UL does not set a door height limitation on panic applications.

Pair of Doors UL Listing Maximum Opening Application

Surface Vertical Rod

7210M x 7210M Panic 8' x 10'

Two independent doors with two-point latching,

swinging in the same direction.

7210MF x 7210MF 3 Hr. 8' x 8'

Surface Vertical Rod (Double Egress)

7210M x 7210M Panic 8' x 10'

Two independent doors with two-point latching,

swinging in opposite directions.

7210MF x 7210MF 3 Hr. 8' x 8'

Concealed Vertical Rod

7220M x 7220M Panic 8' x 10'

Two independent metal doors with two-point latching,

swinging in the same direction.

7220MF x 7220MF 3 Hr. 8' x 8'

Concealed Vertical Rod (Double Egress)

7220M x 7220M Panic 8' x 10'

Two independent metal doors with two-point latching,

swinging in opposite directions.

7220MF x 7220MF 3 Hr. 8' x 8'

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Applications

7200M Series

The 7200M series combines the appearance of the 7200 narrow stile series with the life safety and fire rating options of the

7100 series. This unique narrow design exit device may be used on wide or flush stile doors and is available with a wide range of

mechanical and electromechanical options including, electric latch pullback and monitoring features. The 7200M series is not to be

used on narrow stile applications.

Applications

Single Door UL Listing Maximum Opening Application

SquareBolt®

7250M Panic 4' x * Surface applied; single-point latching.

7250MF 3 Hr. 4' x 8'

7250MWS Panic 4' x 8' Surface applied; single-point latching. Used as

components in swinging door windstorm-rated

assemblies (refer to local codes).

7250MFWS 3 Hr. 4' x 8'

Rim

7200M Panic 4' x *

Surface applied; single-point latching.

7200MF 3 Hr. 4' x 8'

Surface Vertical Rod

7210M Panic 4' x 10' Surface applied; one- or two-point latching.

Concealed Vertical Rod

7220M Panic 4' x 10' Rods concealed in door; one- or two-point latching.

Pair of Doors with

Removable Mullion UL Listing Maximum

Opening Application

SquareBolt® x SquareBolt®

7250M x 7250M x M200 Panic 8' x 10' Two independent active doors with removable

mullion.

7250MF x 7250MF x M200F 3 Hr. 8' x 8'

7250MWS x 7250MWS x M200FWS Panic 8' x 8' Two independent active doors with removable

mullion. Used as components in swinging door

windstorm-rated assemblies (refer to local codes).

7250MFWS x 7250MFWS x M200FWS 3 Hr. 8' x 8'

Rim x Rim

7200M x 7200M x M200 Panic 8' x 10'

Two independent active doors with removable

mullion.

7200MF x 7200MF x M200F 3 Hr. 8' x 8'

*UL does not set a door height limitation on panic applications.

7000 Series Architectural Exit Devices 49

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Cylinders

Rim

Collar Requirements*

Model # Description Pins Length 480F/500F/

510F 620F/680F 630F 121NL SDA16

Outside

1109 Standard Fixed Core 6 11/4" 599.419 No Collar No Collar

1765.250 1765.250

1109 Standard Fixed Core 7 17/16" KP4

1709 CMK 6 115/16" 599.544

1765.250

1709 CMK 7 15/8" 599.700 1765.406

1193 LFIC Complete 6 17/16" 599.544 1765.250

1193 LFIC Complete 7 15/8" 599.700 1765.344 1765.406

5109 Security Fixed Core 6 19/16" 599.419

No Collar

1765.250

5109 Security Fixed Core 7 17/16"

U5109 High Security Fixed Core 6 1" NA No Collar No Collar No Collar

U5109 High Security Fixed Core 7 1"

5193 Security LFIC Complete 6 17/16" 599.544 1765.250 1765.250

1765.250 1765.250

5193 Security LFIC Complete 7 15/8" 599.700 1765.344 1765.406

K300 Yale® KeyMark®

Standard Fixed Core 6

11/8" 599.544 KP4 1765.250

K300 Yale KeyMark

Standard Fixed Core 7

K840/

K880

Yale KeyMark

LFIC Complete / Housing Only 6 17/16" 599.700 1765.406 1765.500

K840/

K880

Yale KeyMark

LFIC Complete / Housing Only 7 15/8" NA 1765.563 1765.719

K640/

K680

Yale KeyMark

SFIC Complete / Housing Only 6 11/4" 599.544 KP4 1765.250

K640/

K680

Yale KeyMark

SFIC Complete / Housing Only 6 or 7 13/8" 599.700 1765.187 1765.406

A640/

K680

Best® Keyway

SFIC Complete / Housing Only 6 11/4" 599.544 KP4 1765.250

A640/

K680

Best® Keyway

SFIC Complete / Housing Only 6 or 7 13/8" 599.700 1765.187 1765.406

2109 Schlage® "C" Keyway Fixed Core

Available 0-bitted or keyed random. 6 11/8" 599.419 No Collar No Collar

*Based on 13/4" door thickness. Collar length required must be specified for cylinders and/or housings ordered separately.

LFIC = Large Format Interchangeable Core

SFIC = Small Format Interchangeable Core

NA = Application Not Available

The following chart details rim cylinders for use with 480F, 500F, 510F, 620F, 680F, 630F, 121NL trims and outside of SDA16

door alarm:

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Cylinders

Component

Model # Description Pins

1802 Standard Lever Fixed Core 6

1802A Standard Lever Fixed Core 7

5802A Security Lever Fixed Core 7

1210 LFIC Only 6

1220 LFIC Only 7

5210 Security LFIC Only 6

5220 Security LFIC Only 7

K402 Yale KeyMark Lever Fixed Core 6 or 7

K800 Yale KeyMark LFIC Only 6 or 7

K600 Yale KeyMark SFIC Only 6 or 7

A600 Best® Keyway SFIC Only 6 or 7

2802 Schlage® "C" Keyway Fixed Core.

Available 0-bitted or keyed random. 6

3804*

Corbin Russwin "L4", Corbin "60", Russwin "D1",

Sargent® "LA" or Schlage® "E" Keyway Fixed Core.

Specify keyway. Available keyed random

*Requires the 107S kit. These cylinders are not ANSI/BHMA certified.

The following chart details component cylinders for use with 540F series trim.

121NL Cylinder Only

• Application: 7100(F) and 7150(F) rim and SquareBolt® exit

devices. Not recommended for surface or concealed vertical

rod devices.

• Must specify rim cylinder when ordering. See page 45

for cylinder options.

• Cylinder collar 1765.250 furnished standard for 13/4"

thick doors.

• For 1109, 5109, K300, K640, A640 and 2109 cylinders:

- Screw part number 3423118738048

- Backplate part number 3400101015059

• For 1193, 5193 and K840 cylinders:

- Screw part number 1011931018048

- Backplate part number 3400101015059

Function Description Nightlatch Access by Key

Model No. 121NL

ANSI 03

7000 Series Architectural Exit Devices 51

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Cylinders

Mortise

The following chart details mortise cylinders for use with 350F, 650F, 660F, 670F trims, cylinder dogging, delayed egress, and

7116 alarms:

350F/650F 660F/670F Cylinder Dogging/

DEED/7116

Model # Description Pins Length Cam Collar Cam Collar Cam Collar

2153 Standard Fixed Core

6 11/8

2160

No Collar

6 13/4 No Collar KP4 NA

7 11/4 NA NA 1765.156

7 13/4 No Collar KP4 NA

2196 LFIC Complete 6 11/2 NA NA 1765.406

6 13/4 No Collar KP4 NA

2197 LFIC Complete 7 111/16 KP4 1765.250 1765.594

5153 Security Fixed Core 6 11/8 NA NA No Collar

7 11/4 NA NA 1765.156

U5153 High Security Fixed Core 6 11/8 NA NA NA

7 11/4

5196 Security LFIC Complete 6 11/2 NA NA 1765.406

6 13/4 No Collar KP4 NA

5197 Security LFIC Complete 7 111/16 KP4 1765.250 1765.594

K100 Yale® KeyMark® Standard

Fixed Core 6 or 7

11/8 KC1 NA KC1 NA KC1 No Collar

13/4 No Collar KP4 NA

13/4 Riveted KP4 Riveted 1765.375 NA

K820/K860 Yale KeyMark LFIC

Complete/Housing Only

6 or 7 13/4

KC1

No Collar

KC1

KP4

KC1

1765.406

7 111/16 KP4 1765.375 1765.594

K620/K660 Yale KeyMark SFIC

Complete/Housing Only

6 11/4 NA NA 1765.156

6 or 7 13/8 No Collar 1765.281

6 or 7 13/4 Riveted KP4 Riveted 1765.375 NA NA

A620/K660

Best Keyway

SFIC Complete/

Housing Only

6 11/4 KC1 NA KC1 NA KC1 1765.156

6 or 7 13/8 No Collar 1765.281

6 or 7 13/4 Riveted KP4 Riveted 1765.375 NA NA

2553

Schlage® "C" Keyway Fixed

Core. Available 0-bitted or

keyed random.

6 11/8 2160 NA 2160 NA 2160 No Collar

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Cylinders

Mortise

SDA16 Inside KRM200 (Standard) KRM200 (Windstorm)

Model # Description Pins Length Cam Collar Cam Collar Cam Collar

2153 Standard Fixed Core 611/8"

2160

No Collar

2160

1765.312

2160

1765.156

2153 Standard Fixed Core 711/4" No Collar 1765.500 1765.250

2196 LFIC Complete 611/2" KP4 1765.750 1765.500

2197 LFIC Complete 7111/16" 1765.250 1765.844 1765.719

5153 Security Fixed Core 611/8" No Collar 1765.312 1765.156

5153 Security Fixed Core 711/4" No Collar 1765.500 1765.250

U5153 High Security Fixed Core 6NA NA NA NA

U5153 High Security Fixed Core 7NA NA NA NA

5196 Security LFIC Complete 611/2" KP4 1765.750 1765.500

5197 Security LFIC Complete 7111/16" 1765.250 1765.844 1765.719

K100 Yale® KeyMark®

Standard Fixed Core 6 or 7 11/8"

KC1

No Collar

KC1

1765.312

KC1

1765.156

K820/

K860

Yale KeyMark LFIC

Complete / Housing Only 611/2" KP4 1765.750 1765.500

K820/

K860

Yale KeyMark LFIC

Complete / Housing Only 7111/16" 1765.250 1765.844 1765.719

K620/

K660

Yale KeyMark SFIC

Complete / Housing Only 611/4" No Collar 1765.500 1765.250

K620/

K660

Yale KeyMark SFIC

Complete / Housing Only 6 or 7 13/8" No Collar 1765.563 1765.500

A620/

K660

Best® Keyway SFIC

Complete / Housing Only 611/4" No Collar 1765.500 1765.250

A620/

K660

Best® Keyway SFIC

Complete / Housing Only 6 or 7 13/8" No Collar 1765.563 1765.500

2553

Schlage® "C" Keyway Fixed

Core. Available 0-bitted or

keyed random.

611/8" 2160 No Collar 2160 1765.312 2160 1765.156

Based on 13/4" door thickness. Collar length required must be specified for cylinders and/or housings ordered separately.

LFIC = Large Format Interchangeable Core.

SFIC = Small Format Interchangeable Core.

NA = Application Not Available

The following chart details mortise cylinders for use with inside of SDA16 door alarm, KRM200 standard and windstorm mullions

7000 Series Architectural Exit Devices 53

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Collars & Tailpieces

“A”

1-1/2"

(38)

“A”

1-1/2"

(38)

1-7/8"

(48)

5/64"

(2)

1765 Recessed Cylinder Collar

“A” Dimension: Thicknesses from

1/16" (2mm) to 115/32"

(37mm) as required.

Material: Brass, Bronze

KP3 Wave Washer

(Furnished standard with 1765

collar for Yale® KeyMark® cylinders

and 630F series trim).

599 Recessed Cylinder Collar

with Radius "A" Dimension:

Thicknesses from 1/16" (2mm) to

115/32" (37mm) as required.

Material: Brass, Bronze

KP4 Flush Mount Cylinder Collar

Material: Brass, Bronze

Cylinder Collars

If required, cylinder collar size must be specified.

Long Tailpiece Kit

Long tailpiece kit for use with escutcheon series trim, up to 41/2" thick doors.

Door Thickness Trim Type Part Number

2" - 21/2" 620F and 630F Series Trim 8195001665000

21/2" - 31/2" 620F and 630F Series Trim 8195001635000

31/2" - 41/2" 620F and 630F Series Trim 8195001636000

Specify part number to order.

Von Duprin® Tailpiece

This tailpiece is available for the Yale® 1109 rim cylinder to operate the night latch function for Von

Duprin exit devices. To order, specify model number: 1145VD.

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Strikes

Vertical Rod Devices - Top Strikes

Vertical Rod Devices - Bottom Strikes

Rim Devices

11/16"

(17mm)

1-1/4"

(32mm)

3-1/2"

(89mm)

11/16"

(17mm)

1-1/4"

(32mm)

3-1/2"

(89mm)

(76mm)

1/2"

(13mm)

(51mm)

(25mm)

1-1/4"

(32mm)

3-1/2"

(89mm)

757F

Standard strike for 7100(F), 7150(F),

7200M(F) and 7250M(F) devices.

Supplied with #1024 x 3/4" machine

screws, two shims (each 1/16" thick),

and one locking plate.

757FWS

Standard strike for 7150(F)WS and

7250M(F)WS devices. Supplied with

2 each #1024 x 11/4" and 2 each

#1024 x 3/4" machine screws, two

shims (each 1/16" thick), one locking

plate and one interlocking bracket (not

shown) with 4 each #1024 x 3/4"

machine screws.

759

Standard strike for 7200, 7205 devices.

793

Optional strike for double door

applications without a mullion. Supplied

with #1024 x 3/4" machine screws,

two shims (each 1/16" thick), and one

locking plate. Panic only.

1-9/16"

x 15/16"

(40mm

x 24mm)

2-1/8"

(54mm)

(25mm)

(50mm)

1-5/8"

(41mm)

1-3/4"

(44mm)

2-1/2"

(64mm)

791

Standard top strike for 7110(F),

7120(F), 7210, 7220, 7210M(F),

7220M(F) series devices. Supplied

with #1024 x 3/4" machine screws,

two shims (each 1/16" thick), and one

locking plate.

726

Standard top strike for 7170(F) series

devices. Supplied with #1224 x 11/16"

machine screws and #12 x 11/4" sheet

metal screws, and one shim (1/16"

thick).

761

Standard top strike for 7160(F) series

devices. Supplied with #1032 x 3/8"

machine screws and #10 x 1" sheet

metal screws.

797

Optional bracket for mounting 791

top strike in flush transom opening.

Supplied with 1/420 machine screws;

SN134 sex nuts, optional.

1-1/16"

(27mm) Dia x 1/16

(2mm) lip

11/16"

(17mm)

2-5/8"

(67mm)

1-1/16"

(27mm)

2-17/32"

(64mm)

9/16"

(14mm)

3/8" (10mm) high

790

Standard bottom strike for 7110(F),

7120(F), 7160(F), 7170(F), 7210,

7220, 7210M(F), 7220M(F) series

devices. Press in place.

794

Optional bottom strike for fire openings using saddle thresholds or for flush floor

mount. Must use for fire openings with 1/2" thresholds. Supplied with #1024 x

1/2" machine screws and floor anchors.

702

Optional bottom strike for bottom

pullman latch option. Supplied with #8

x 8/32" combination screws.

1/2"

(13mm)

7000 Series Architectural Exit Devices 55

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Strikes

Mortise Devices

1-1/4"

(32mm)

4-7/8"

(124mm)

4-7/8"

(124mm)

1-1/4"

(32mm)

For (2) #12-24

Screws

3-3/8"

(86mm)

4-1/8"

(105mm)

1-1/4"

(32mm)

4-7/8"

(124mm)

3-1/2"

(89mm)

798

Standard curved lip ANSI strike

used with 7130(F) devices.

(11/4" lip)

712

Optional flat lip ANSI strike used

with 7130 devices for pairs of

doors with astragals. (7/8" lip)

718

Optional open back strike. Permits

opening of the inactive door for

pairs of doors where approved by

door manufacturer.

202

Optional strike box for ANSI

strikes. 7/8" (22mm) deep.

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Accessories/Options

Shim kits, for devices on doors with interfering molding, are available. Each standard shim kit

contains 2 sets of 1/8" thick shims to shim a device 1/8" (3mm) or 1/4" (6mm). Windstorm (WS)

shim kits contain 3 sets of 1/8" thick shims. Longer device mounting screws (not included) are

required for more than 1/4" (6mm) shimming. 693 (Black) finish.

Shim Kits

Extension Rods

Model # Length

70102 2" (51mm)

70106 6" (152mm)

701012 12" (305mm)

701024 24" (610mm)

Sex Nuts:

Required for wood, composite or unreinforced metal doors.

• SN104 – Interlock bracket pack of (4) 1024 sex nuts for all

fire rim and SquareBolt® devices.

• SN134 – pack of (4) 1/420 sex nuts for all devices.

TORX® Security Screws:

Available for factory product orders. Wood screws may only be

used in predrilled pilot holes of solid core wood doors.

Specialty Fasteners

Specify finish.

723 Shim kit for 7100(F) series rim, 7150(F) series SquareBolt®, 7120(F), 7160(F) series* concealed vertical rod, and 7130(F) series*

mortise exit devices.

723WS Shim kit for 7150(F)WS series SquareBolt exit devices.

723NS Shim kit for 7200 series rim, 7200M(F) series rim, 7250 series SquareBolt, 7250M(F) series SquareBolt, 7220 series* and

7220M(F)* concealed vertical rod exit devices.

723NSWS Shim kit for 7250M(F)WS series SquareBolt exit devices.

724 Shim kit for 7110(F) and 7170(F) series surface vertical rod exit devices.

724WS Shim kit for 7170(F)WS series surface vertical rod exit devices.

724NS Shim kit for 7210(F) series surface vertical rod exit devices.

*Note: Special mortise or concealed vertical rod components needed for openings requiring more than (2) shim kits, or for shimmed mortise devices

in doors over 13/4" (44mm) thick. Details on application.

7000 Series Architectural Exit Devices 57

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

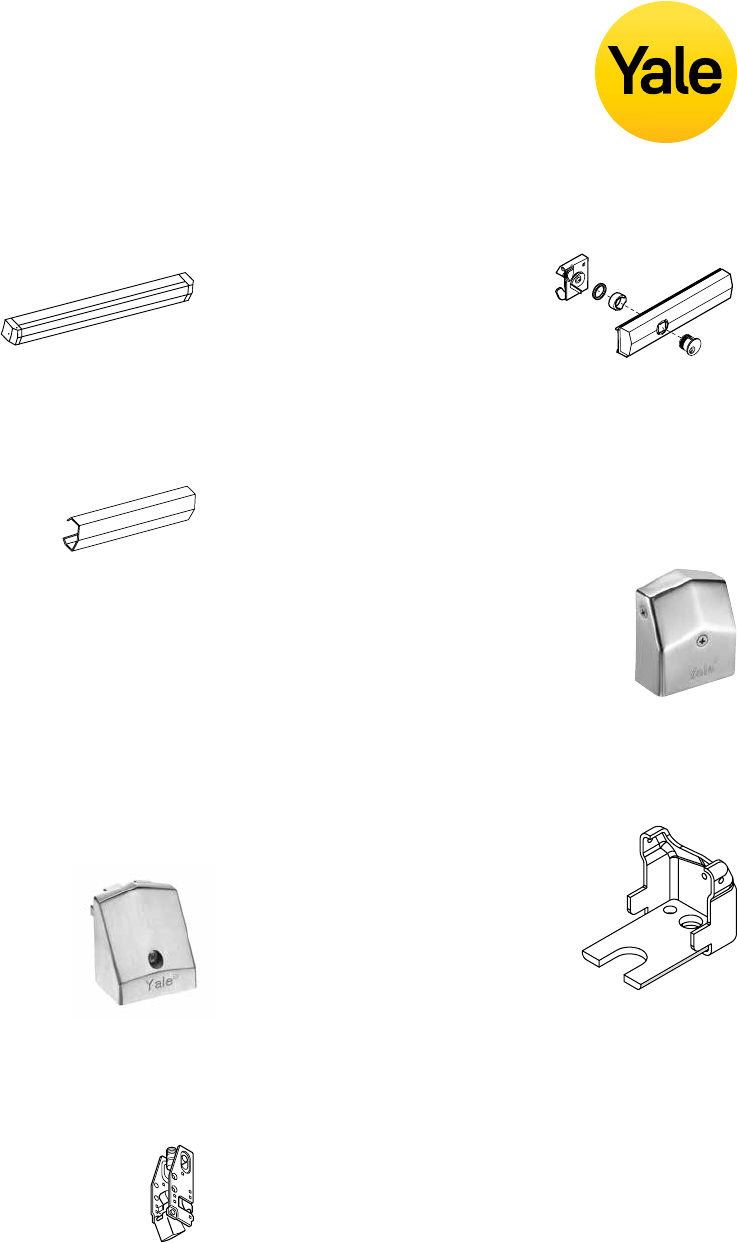

Accessories/Options

720 Dummy Pushbar

For push-pull vestibule doors leading

to doors with 7000 series exit

devices. Bars fit doors up to 48"

(122cm) wide. Same finishes as

devices. Specify 720 x finish.

730 Touchpad Cover

Field replacement cover to renew touchpad

looks. Specify 73036 or 73048 x finish.

Lumi-Lite Touchpad Cover

The Lumi-lite touchpad cover can be ordered separately and

easily retrofits to existing 7000 exit devices in the field. To order

specify: 73036LUM for 36" cover and 73048LUM for 48" cover

Bottom Pullman Latch

Optional bottom pullman latch available for panic listed

vertical rod exit devices. To order with devices, specify

“BPL.” 702 bottom strike required, see page 49.

Cylinder Dogging

Cylinder dogging is available for

all panic-listed exit devices only.

Requires use of 11/8" mortise

cylinder. When ordered with a

devices, cylinder must be ordered

separately. (See How to Order, “Fourth Digit”, page 5.) Cylinder

dogging kit available; specify 71548 (cylinder not included with

this kit).

The flush end cap is a heavy-duty flush

mounted end cap constructed of solid cast

or stainless steel materials. For use on exit

devices subject to abuse by vehicles being

pushed through the doorway opening; i.e. carts,

gurneys, wagons, etc. To order with device,

specify option: ECK1. Available as a retrofit

kit for existing installations, to order specify part number:

8195000620 x finish.

The 7000 series replacement end cap is

designed with heavy-duty material with

three screw holes in strategic locations to

resist abuse and maintain functionality.

The ECK7 kit is available for easy retrofit to

existing exit devices. To order retrofit kit,

specify ECK7 x finish.

Flush End Cap

Replacement End Cap

This end cap consists of a solid steel

plate welded to the end bracket which

evenly distributes impact forces over a

larger surface area, thus eliminating point

loading. To order with device, specify option

ECK3. To order separately, specify kit model

number ECK3. Kit includes reinforced

bracket, end cap and (6) 1/4" x 20 screws.

Reinforced End Cap**

**Note: Six 1/4 x 20 screws come standard with either ECK3 option or kit. Only two screws required to fasten end cap assembly to door for retrofit.

Other four screws are used with SquareBolt® Latch Head if ordered as an ECK3 option with complete device. When the kit is ordered a new end cap is

also supplied, finish must be specified.

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Accessories/Options

The anti-pry bracket offers end users increased security by improving resistance against jamb spreading during

a pry attack. When the door is in the closed position, the anti-pry bracket interlocks in position between the exit

device strike and frame preventing the strike and exit device latch from being separated. For use with all 7100(F)

rim and 7150(F) SquareBolt® devices. Kit includes interlock bracket and end cap shim, the standard exit device

mounting screws can be used, therefore, no additional fasteners are required. Black powder coat finish. To order

specify option/model number: 725

Anti-Pry Bracket

Less Bottom Rod

7170(F90) surface and 7160(F90) concealed vertical rod exit devices available less bottom rod. Fire-rated devices supplied

standard with a heat-activated door bolt popper. To order, suffix LBR.

Plastic Installation Template

Provided as a standard with all 7000 series exit device, the plastic installation template facilitates door markings over

traditional paper templates. This provides a more accurate door prep which reduces installation mistakes and overall

installation time. Template dimensions: 81/4”x 31/4”(210mm x 83mm). To order separately, specify part number:

6070009100999.

Schlage® Cam Assembly

This cam and housing assembly includes a cam engineered to accept Schlage rim cylinders. No modifications

are required to existing 500 and 600 series exit device trims thus maintaining the trim’s classroom and storeroom

functions. To order, specify part number: 6070000815.

7000 Series Architectural Exit Devices 59

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Mullions

M200(F) Removable Mullion

M200(F) steel mullions are for use with 7100(F) series exit devices. Mullions may be field cut

to fit opening. Red primer finish.

• M200 panic rated.

Tubular steel, 2" x 3" (51mm x 76mm). Specify 7', 8', or 10'.

• M200F 3 hour fire rated.

Tubular steel, 2" x 3" (51mm x 76mm). Specify 7' or 8'.

• M200FWS 3 hour fire rated.

Certified hurricane resistant (refer to local codes).

Tubular steel, 2" x 3" (51mm x 76mm). Specify 7' or 8'.

M300 Removable Mullion

M300 mullions are for use with 7200 series exit

devices. They consist of an aluminum extrusion

11/4" x 3" (32mm x 76mm), with built-in strikes

for device bolts. Supplied with mounting brackets,

mechanical fasteners, and mullion stabilizers.

Available finishes are 628 (Satin, clear anodized)

and 695 (dark amber coat). Specify 8' or 10'. For

9' mullion, specify 10' and cut to size in field.

M300

Top Retainer

Mullion Body

Bottom Retainer

Set Screw

M200(F)

102S Mullion Stabilizer Kit

Recommended for high openings and whenever door

movement must be further restricted. Supplied standard with

M300 mullions. To order separately, specify 102S.

#1/4-20 x 1-1/4"

Round Head Screw

Bottom retainer

To p retainer

(Door side)

6 x 1/4-20 x 5/8"

Flat

Head Screws

Mullion body

If length needs to

be altered, cut

from this end

M200FWS

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

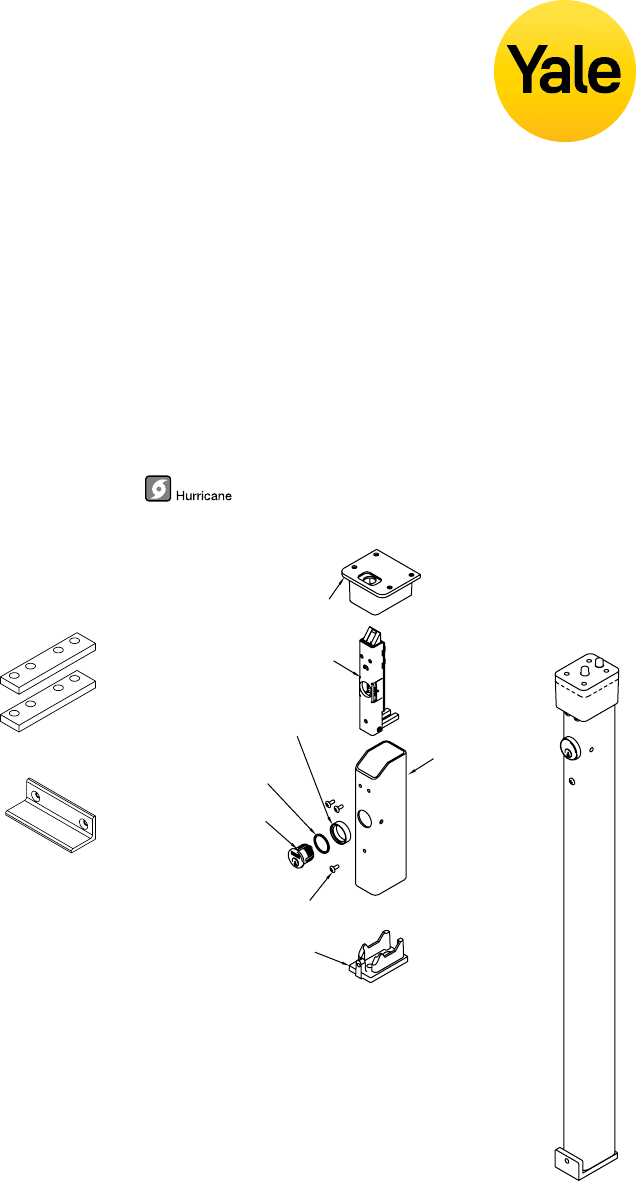

Mullions

• M204 Angle Bracket

Recommended for any header

configuration with less than 3" (76mm) of

mounting surface.

• M203 Spacer Block

Recommended for double rabbeted frames

where the stop face width is less than the

mounting hole spacing or for applications

with 53/4" (146mm) or less door frames.

KRM200(F) Keyed Removable Mullion (KRM)

Keyed removable mullions are for use with 7100(F) series exit devices. They are designed for simple removing when an

unobstructed large opening is required and easy replacement and locking to maintain the integrity of the opening.

• Easy cylinder installation.

• Mullion automatically relocks when reinstalled without the use of the cylinder key.

• When ordering, add KR prefix to mullion, example: KRM200 and KRM200F.

• KRM200 panic rated. Specify 7', 8', or 10'.

• KRM200F 11/2 hour fire rated. Specify 7' or 8'.

• KRM200FWS 3 hour fire rated.

Certified hurricane resistant (refer to local codes). Specify 7' or 8'.

KRM Cylinders

As with any exit device trim, you must order a cylinder and

collar if one is required. The Yale® keyed removable mullion

accepts a mortise cylinder. Refer to page 52 for details.

Top Retainer

Locking Mechanism

Mullion Body

Bottom Retainer

Cylinder Collar

(Sold Separately)

Cylinder

(Sold Separately)

Security Screw

Wave Washer

(Included with Collar)

KRM200(F)

KRM200FWS

M200(F) And KRM Options

7000 Series Architectural Exit Devices 61

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Dimensions

2-1/4

(57)

3-1/4

(83)

2-3/4

(70)

“A”

“B”

d Extended

d Depressed

3-1/8

(79)

2-3/4

(70)

8-3/1

(208)

Cover Detail

1-5/8

(41)

1-3/8

(35)

8-3/16

(208)

Cover Detail

2-1/4

(57)

3-1/4

(83)

2-3/4

(70)

“A”

“B”

Pad Extended

d Depressed

7100 Series

(all variables)

7200 and 7200M Series

(all variables)

Series “A” “B”

710036 327/8"

(835mm)

18"

(457mm)

7100F36

710048 447/8"

(1130mm)

24"

(610mm)

7100F48

Series “A” “B”

720036 345/8"

(880mm)

18"

(457mm)

7200M36

7200MF36

327/8"

(835mm)

18"

(457mm)

720048 465/8"

(1184mm)

24"

(610mm)

7200M48

7200MF48

447/8"

(1130mm)

24"

(610mm)

Device

7000 Series Architectural Exit Devices

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress

Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Dimensions

Trim Dimensions

620F/650F Series 630F/660F Series 500F Series

10-

1/4"

2-3/4"

(70mm)

5/8"

(16mm)

15-1/2"

(394mm

)

1/2"

1-5/8"

Projection: 13/16" (20mm) Projection: 23/4" (70mm) Projection: 1/4" (6mm)

510F Series 680F Series 480F Series

15-1/4"

1-5/8"

6-7/16

2-1/2"

1/4"

1-5/8"

10-1/4"

3" 1-3/4"

Projection: 21/8" (54mm) Projection: 3" (76mm) Projection: 27/8" (73mm)

*Length varies by pull, see page 26

7000 Series Architectural Exit Devices 63

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and

Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Sample Specifications

Specification

Exit devices shall be 7000 Series Pushpad Exit Devices as

manufactured by Yale Locks & Hardware.

The exit device chassis shall be cold forged steel, electroplated

for corrosion resistance, and shall be architecturally finished

brass, bronze or stainless steel. The pushpad mechanism shall

be constructed of extruded aluminum and shall be scalped

with architecturally finished brass, bronze or stainless steel.

The maximum projection shall be 31/4" when the pushpad is

active and 23/4" when the pushpad is dogged down. Nylon

bearings and stainless steel springs shall be used for long life

and durability; only torsion springs are acceptable. Rear and

active case covers shall be wrought brass or bronze and shall

be plated to match the exit bar. Plastic or painted covers are

not acceptable. Latchbolts shall be steel and shall incorporate

a deadlocking latch for increased security. Devices without

deadlocking latches are not acceptable. Mounting screws shall

be concealed to deter tampering. Devices shall be closed on all

sides with no pinch points. Exit devices shall be easily field sized

to accommodate various door widths.

Panic-listed exit devices shall have single point, one quarter

turn hex key dogging standard. Optional cylinder dogging shall

be available on panic listed devices. Devices with hex key

dogging shall be easily field converted to cylinder dogging.

Panic listed devices shall be available less dogging.

Trims shall be throughbolted with concealed fasteners.

Escutcheon and pull-type trims shall be constructed of brass

or bronze. All lever trims shall use cast or forged levers. On

rim, SquareBolt® and vertical rod trims with cylinders, the

mechanism that locks and unlocks the trim shall be housed

in the trim and not in the active case of the exit device. Lever

trims (except mortise) shall be Free-Wheeling with clutch

mechanism allowing lever to rotate 60° when locked for ideal

protection. Lever trims shall match those on Yale® mortise and

cylindrical locksets.

Exit devices and trims shall be furnished in ANSI/BHMA

standard architectural finishes.

Exit devices shall be listed by Underwriters Laboratories (UL)

for safety as panic hardware. Fire-rated devices shall be listed

for A label and lesser class doors.

Certification:

ANSI/BHMA A156.3, Grade 1

Devices, trims and cylinders shall be from one manufacturer.

Devices and 600 Series trim shall carry a five-year limited

warranty.

500 Series trim shall carry a one-year limited warranty.

Electronic components shall carry a two-year limited warranty.

Delayed Egress Specification

Delayed egress exit devices shall be 7100/7200 Series (rim,

SquareBolt®, mortise or concealed vertical rod) with the “D”

suffix, manufactured by Yale Locks & Hardware.

The delayed egress device secures the door in the locked mode.

Depressing the pushpad for less than three seconds will sound

the device siren without initiating the alarm. Depressing the

pushpad longer than three seconds will initiate an irreversible

local audible beeping tone and allow the device to release for

egress after 15 seconds. The alarm will continue until reset

by the mechanical key switch located on the device. (When

acceptable by local code agency, the delay period may be

increased to 30 seconds, or other approved amount of time.

Consult factory.)

Devices shall be 24 volts DC.

The exit device chassis shall be cold forged steel, electroplated

for corrosion resistance, and shall be architecturally finished

brass, bronze or stainless steel. The pushpad mechanism shall

be constructed of extruded aluminum and shall be scalped

with architecturally finished brass, bronze or stainless steel. The

maximum projection shall be 31/4" when the pushpad is active

and 23/4" when the pushpad is depressed. Nylon bearings and

steel springs shall be used for long life and durability. Active

case and alarm end cover shall be wrought brass, bronze or

stainless steel and shall be plated to match the exit bar. Painted

or plastic covers or end caps are not acceptable. Latchbolts

shall be steel and shall incorporate a deadlocking latch for

increased security. Devices without deadlocking latches are

not acceptable. Mounting screws shall be concealed to deter

tampering. Devices shall be closed on all sides with no pinch

points. Device active cover and end cap attaching screws shall

be security TORX®. When required, door position switches used

on rim or SquareBolt devices shall be incorporated into the

latch assembly of the device to allow added security.

Trims shall be thrubolted with concealed fasteners. Escutcheon

and pull-type trims shall be constructed of brass, bronze or

stainless steel. All lever trims shall use cast or forged levers.

On rim, SquareBolt and vertical rod trims with cylinders, the

mechanism that locks and unlocks the trim shall be housed

in the trim and not in the active head of the exit device. Lever

trims shall match those on Yale mortise and cylindrical locksets.

Lever trims (except mortise) must have a clutch or Free-

Wheeling spring assembly when in the locked mode for ideal

protection and reduced damage to the trim. Rigid lever trims are

not acceptable.

Exit devices, trims and cylinders must be from one manufacturer.

U.S.A.

Yale Locks & Hardware

Address: 225 Episcopal Road

Berlin, CT 060374004

Tel: 18004381951

Fax: 18003380965

yalelocks.com

Canada:

ASSA ABLOY Door Security Solutions Canada

Address: 160 Four Valley Drive

Vaughan, Ontario L4K 4T9

Tel: 18004613007

Fax: 18004618989

assaabloydss.ca

International:

ASSA ABLOY Americas International

Tel: 19058217775

Fax: 19058211429

assaabloyai.com

Part of ASSA ABLOY

Yale Commercial is a business associated with ASSA ABLOY Access and Egress

Reproduction in whole or in part without the express written permission of

ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent

pending and/or patent www.assaabloydss.com/patents.

THE YALE BRAND, with its unparalleled global reach and

range of products, reassures more people in more countries

than any other consumer locking solution.

THE ASSA ABLOY GROUP is the world´s leading

manufacturer and supplier of locking solutions, dedicated to

satisfying end-user needs for security, safety and convenience.

421398/20

Trusted every day

Customer Service Phone:

18004381951

Customer Service Fax:

18003380965

24/7 Support Phone:

18552135841

24/7 Support Email:

Support@YaleLock.com

Website:

US.YaleHome.com

Email for orders:

orders.yaleres@assaabloy.com

Yale 7000 Series Architectural Exit Devices Yale7000Series Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
