An ASSA ABLOY Group brand
5300LN Series
Grade 2 Cylindrical Lever Locks
ANSI/BHMA
Certified ANSI/BHMA A156.2, Series
4000 Grade 2.
Thanks to state-of-the-art engineering and innovative thinking, the 5300LN is truly
a source of inspiration. With three lever designs and a choice of thirteen different
finishes, you have the freedom and ability to match any décor.
But looks aren’t everything. This revolutionary Grade 2 cylindrical lockset boasts
design features such as a vandal-resistant Free Wheeling lever mechanism and
adjustable door thickness (Patent #6,131,970) that makes installation a breeze.
Through-bolting gives the 5300LN a secure fit that resists shaking and rattling.
And with a lifetime warranty against lever sag, you never have to worry about your
pleasing aesthetics becoming a displeasing eyesore.
2
5300LN series cylindrical lever locks
innovation and inspiration
free wheeling lever trim
All 5300LN
functions
feature
the Free
Wheeling lever mechanism. When the
outside lever is locked, it will rotate
freely up and down while remaining
securely locked.
A.D.A.
The 5300LN meets accessibility
guidelines of the Americans with
Disabilities Act and the requirements
of the Uniform Federal Accessibility
Standards and ANSI 117.1, all
requiring ease of accessibility for the
handicapped.
door thickness
Patented (patent no. 6,131,970) door
adjustable rose support plates allow
the 5300LN to easily adjust to doors
from 1-3/4" (44mm) to 2" (51mm)
thick. For 1-3/8" (35mm) or 2-1/4"
(57mm) thick doors, please specify
door thickness on order.
finishes
ANSI/
BHMA
Code
Finish Description
605 Bright Brass, Clear Coated
606 Satin Brass, Clear Coated
609 Satin Brass, Blackened, Satin
Relieved, Clear Coated
612 Satin Bronze, Clear Coated
613 Dark Oxidized Satin Bronze, Oil
Rubbed1
613E Dark Oxidized Satin Bronze -
equivalent
616 Satin Bronze, Blackened, Satin
Relieved, Clear Coated
619 Satin Nickel Plated, Clear Coated
620 Satin Nickel Plated, Blackened, Satin
Relieved, Clear Coated
625 Bright Chrome Plated
626 Satin Chrome Plated
693 Black Powder Coat
722 Black Oxidized Bronze, Oil Rubbed2
1. New May 1, 2010
2. Formerly 613 prior to May 1, 2010
fire listings
All functions are UL - cUL Fire Listed for use
on fire doors having a rating up to and
including 3 hours.
Note: Any retrofit or other field modification to a fire
rated opening can potentially impact the fire rating
of the opening, and Yale Locks & Hardware makes
no representations or warranties concerning what
such impact may be in any specific situation. When
retrofitting any portion of an existing fire rated opening,
or specifying and installing a new fire-rated opening,
please consult with a code specialist or local code
official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and ratings.
installation
5300LN series cylindrical locks
conform to ANSI/BHMA Specifications
A156.115 which cover hardware
preparations for steel doors and steel
frames and A156.115-W which cover
hardware preparations for wood doors
with wood or steel frames.
ISO 9001
Designed and manufactured under
a certified ISO 9001 quality system.
microshield®
5300LN series locks are available
with MicroShield antimicrobial
coating. MicroShield is a revolutionary
hardware finish coating, using a silver
ion based technology, which inhibits
the growth of bacteria, algae, yeast,
fungus, mold and mildew. MicroShield
is non-toxic and lasts for the lifetime
of the finish to which it is applied.
To order, suffix option code “YMS”.
Available for 626 finish, additional
finishes by special application.
Contact factory for availability.
Note: MicroShield coating may vary finish color
from architectural standards. MicroShield is not
intended as a substitute for traditional infection
control programs such as hand hygiene or
use of disinfectants. Coated products must
still be cleaned to insure the surfaces will be
free of destructive microbes. Yale makes no
representations or warranties, express or implied,
as to the efficacy of MicroShield.
contents
Introduction ............................................... 2
Features .................................................... 3
Lever Designs ............................................ 4
Functions ...............................................5-7
SecureX® ................................................... 8
SecureX® Accessories ............................... 9
Cylinders ............................................10-11
Latchbolts ............................................... 12
Strikes ..................................................... 13
Ordering Information ................................ 14
Sample Specification ............................... 15
3
5300LN series cylindrical lever locks

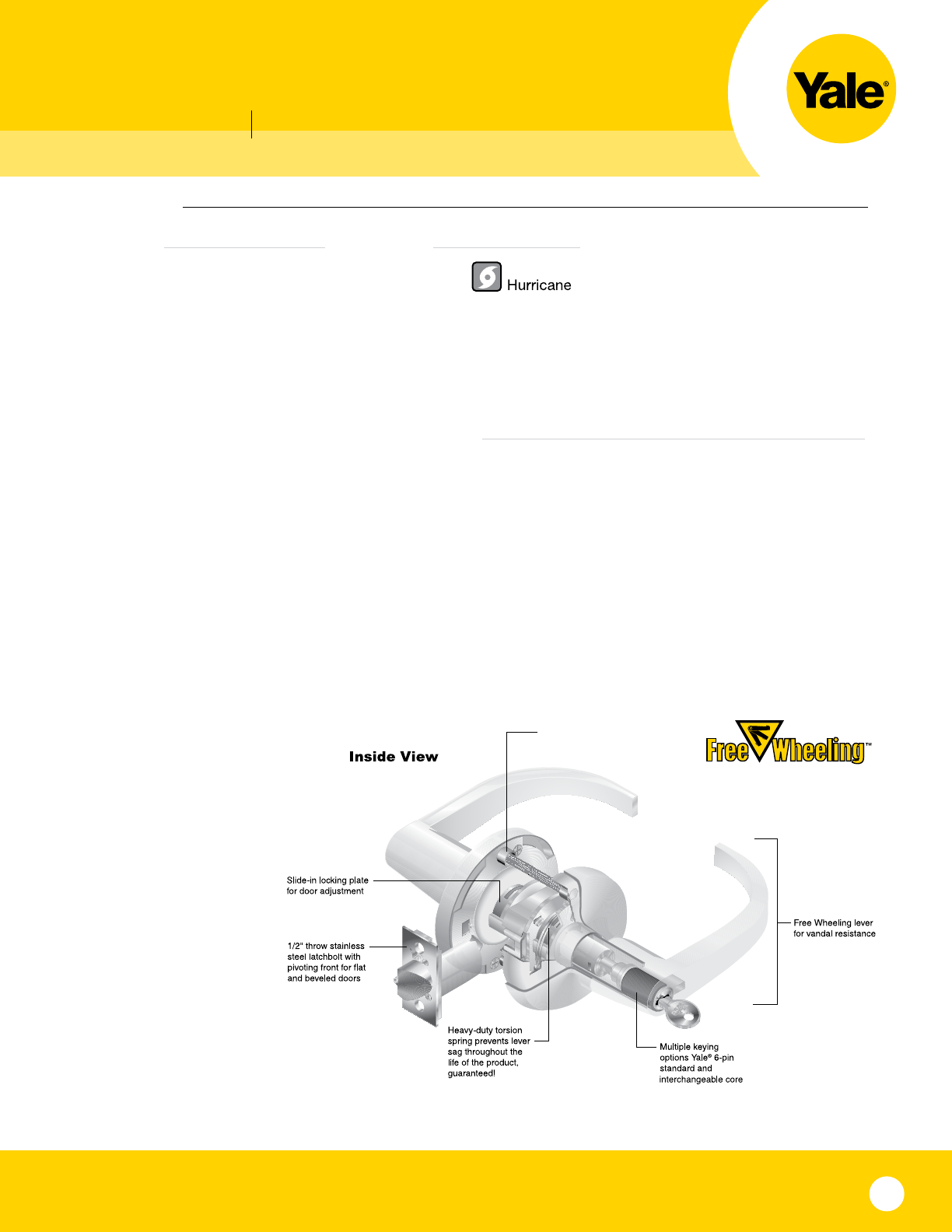

features
• FreeWheelinglevermechanismforincreasedvandal
resistance
• 13finishoptions
• 3leverdesigns
• 19mechanicalfunctions,4electrified
• Adjustabledoorthickness:(Patent#6,131,970)
- Preset at factory for 1-3/4" (44mm) to 2" (51mm)
- Special order available for 1-3/8" (35mm), 2-1/4" (57mm)
• 3-1/2"rosecoversANSI/BHMAdoorprepA156.115
“Spider Cut Out”
• Through-boltssolidlythroughthedoor,providinggreater
stability
• WiderangeofYale® 6-pin cylinder options:
- Standard, Interchangeable core, Security and Yale®
KeyMark® protected keyway cylinders (see page 10)
• Competitivekeyingoptions:
- Standard cylinders with Schlage® C and Sargent® LA
keyways
- Levers which accept interchangeable core cylinders
by Best®, Schlage®, Medeco® and ASSA®
- Levers which accept standard cylinders by Schlage®
• Lifetimewarrantyagainstleversagandleverspring
breakage
warranty
The 5300LN Series cylindrical lever
lock carries a five-year warranty.
Likewise, the 5300LN carries a
lifetime warranty against lever sag
and lever spring breakage.
Die cast rose supports with
integrated through-bolts provide
strength and reduce installation time
full featured grade 2 key-in-lever lockset offering
windstorm
Certified (refer to
local codes).
4
5300LN series cylindrical lever locks

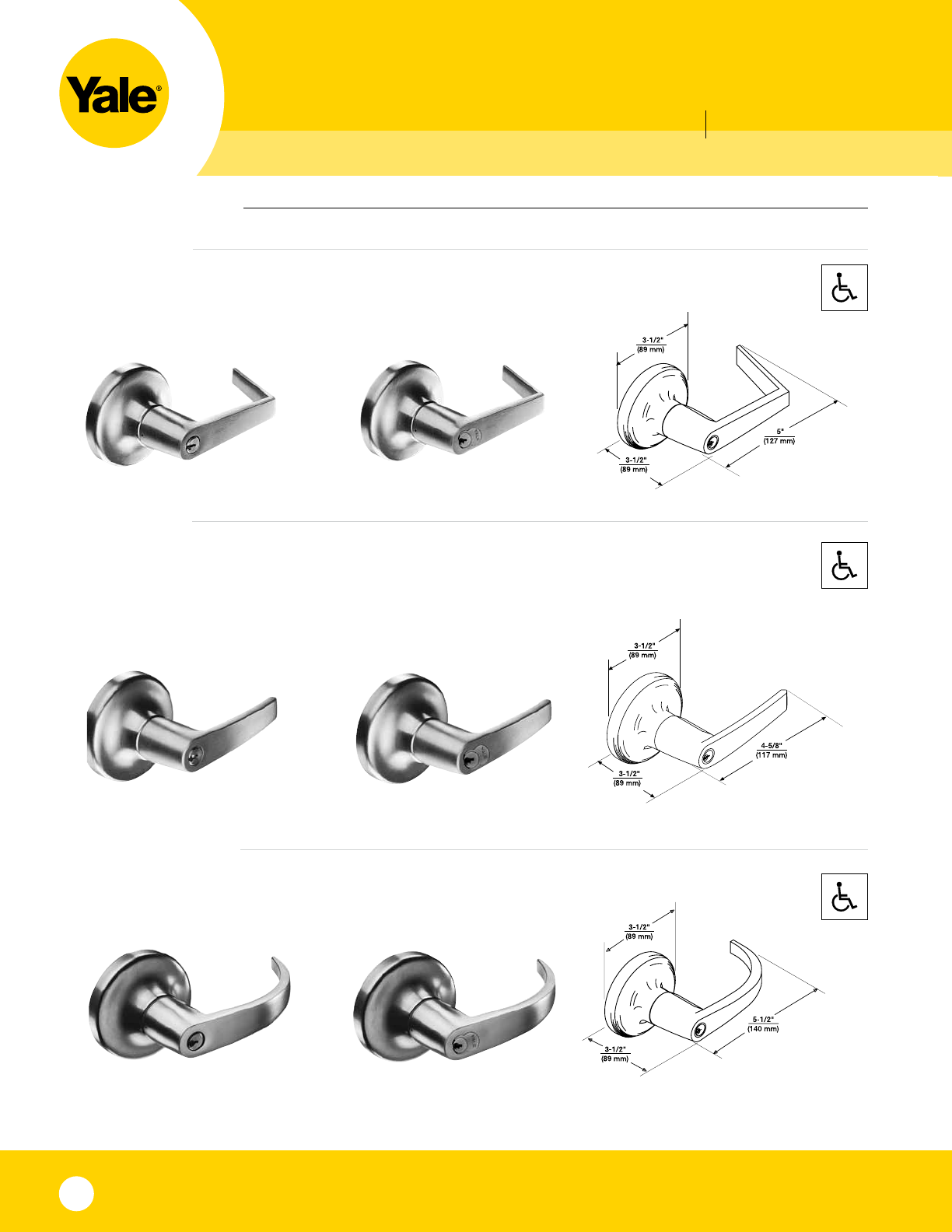

lever designs
Augusta AU
Monroe MO
Pacific Beach PB
Lever: Cast Zinc
Rose: Cold Forged Brass, Bronze
Lever: Cast Zinc
Rose: Cold Forged Brass, Bronze
Lever: Cast Zinc
Rose: Cold Forged Brass, Bronze
See page 10 & 11 to order interchangeable core cylinder.
Dimensions are in inches (millimeters).
5
5300LN series cylindrical lever locks

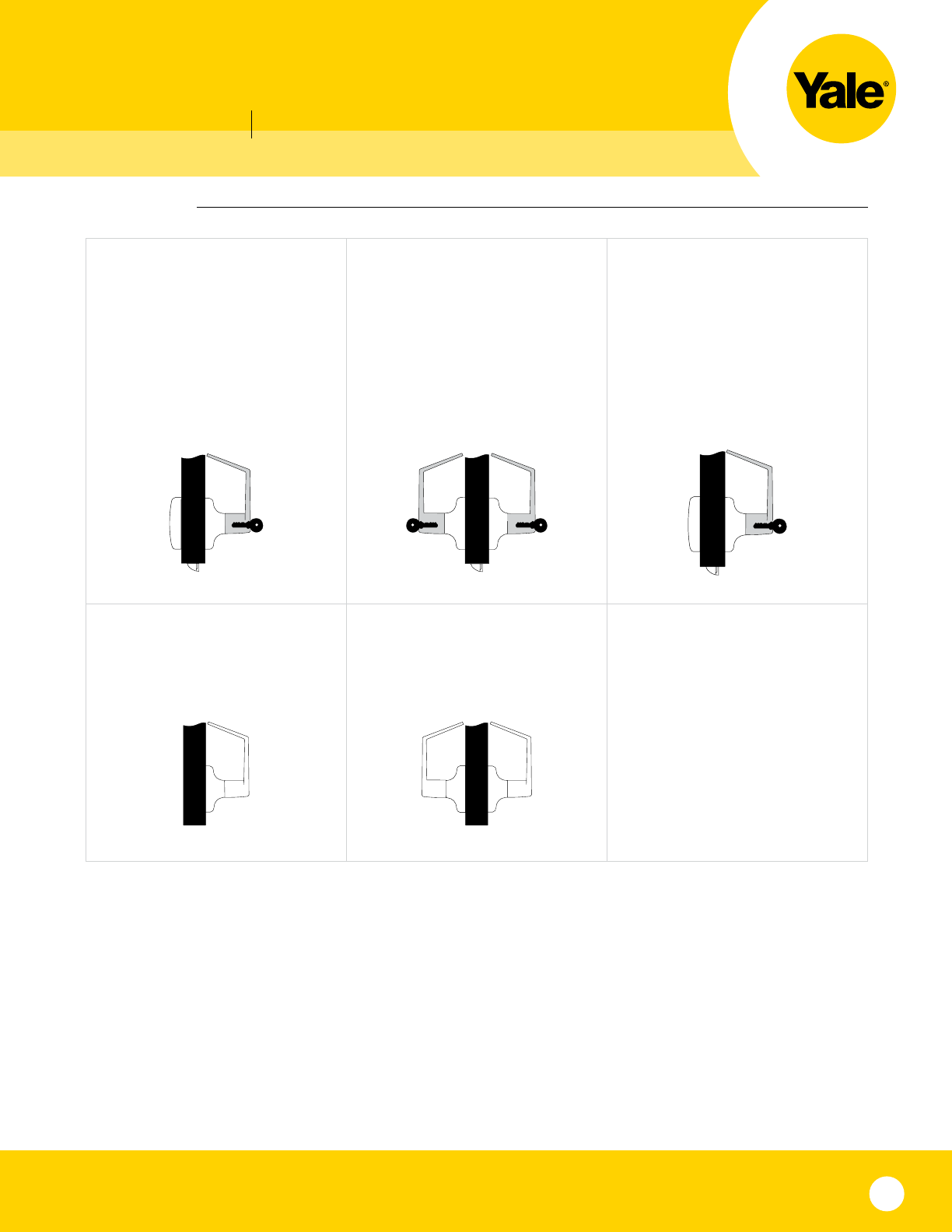

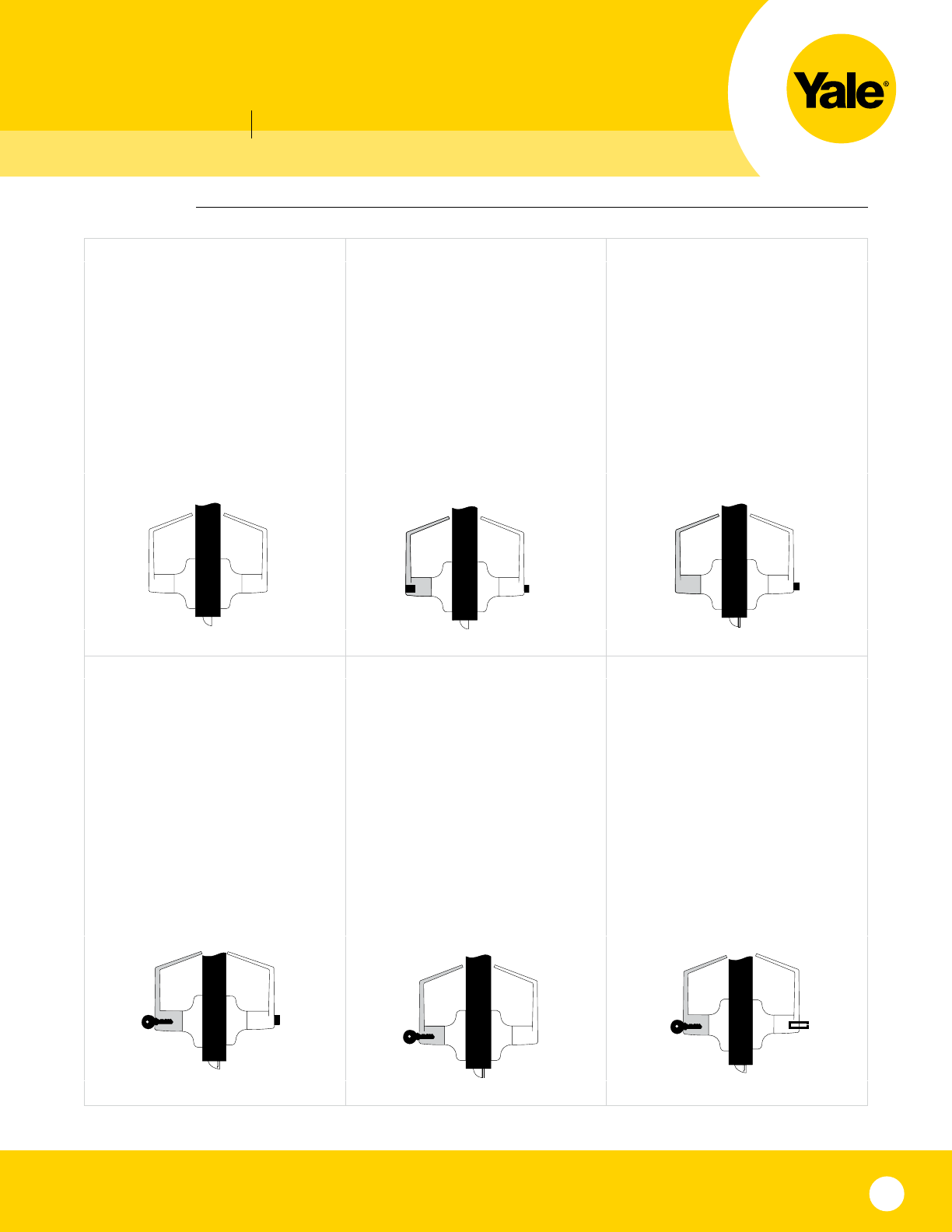

functions
5301LN (F75) 5302LN (F76A) 5303LN (F77A)
Passage or Closet Latch
•Fordoorsthatdonotrequirelocking.
•Eitherknoboperateslatchboltatalltimes.
Privacy, Bedroom or Bath Lock
• Forlavatoryorotherprivacydoors.
• Eitherleveroperateslatchboltunless
outside lever is locked by pushbutton
inside.*
• Buttonautomaticallyreleaseswheninside
lever is turned or door is closed.
• Emergencyreleaseinoutsidelever.
Emergency key supplied.
(P/N 14-5302-1053)
• Insideleveralwaysactive.
Patio or Privacy Lock
• Forexitdoorswithlimitedentry.
• Deadlockinglatchbolt.
• Eitherleveroperateslatchboltunless
outside lever is locked by pushbutton
inside.*
• Buttonautomaticallyreleaseswheninside
lever is turned or door is closed.
• Insideleveralwaysactive.
Outside Inside Outside Inside Outside Inside
5304LN (F82A) 5305LN (F86) 5306LN (F92)
Entry Lock
• Forentranceorofficedoors.
• Deadlockinglatchbolt.
• Eitherleveroperateslatchbolt(exceptwhen
outside lever is locked from inside).*
• Pushingbuttonininsideleverlocksoutside
lever. (Automatically releases when inside
lever is turned or key is rotated in locked
outside lever.)
• Latchboltisoperatedbykeyinoutside
lever or by rotating inside lever.
• Insideleveralwaysactive.
Storeroom or Closet Lock
•Foruseonstoreroom,utility,exitdoors.
•Deadlockinglatchbolt.
•Latchboltoperatedbyleverinside,keyin
outside lever.
•Outsideleveralwayslocked.*
Service Station Lock
• Deadlockinglatchbolt.
• Eitherleveroperateslatchbolt.
• Pushbuttonininsideleverlocksoutside
lever. (Automatically releases when inside
lever is turned, door is closed or key is
rotated in outside lever, except
when slotted pushbutton is rotated 90˚
clockwise to retain outside lever in locked
position.)*
• Latchboltoperatedbykeyinoutsidelever,
inside lever always active.
Outside Inside Outside Inside Outside Inside
*Lever handles are Free Wheeling in locked position. Shaded area denotes Free Wheeling lever.
Page Revised Electronically 8/15
6
5300LN series cylindrical lever locks
functions

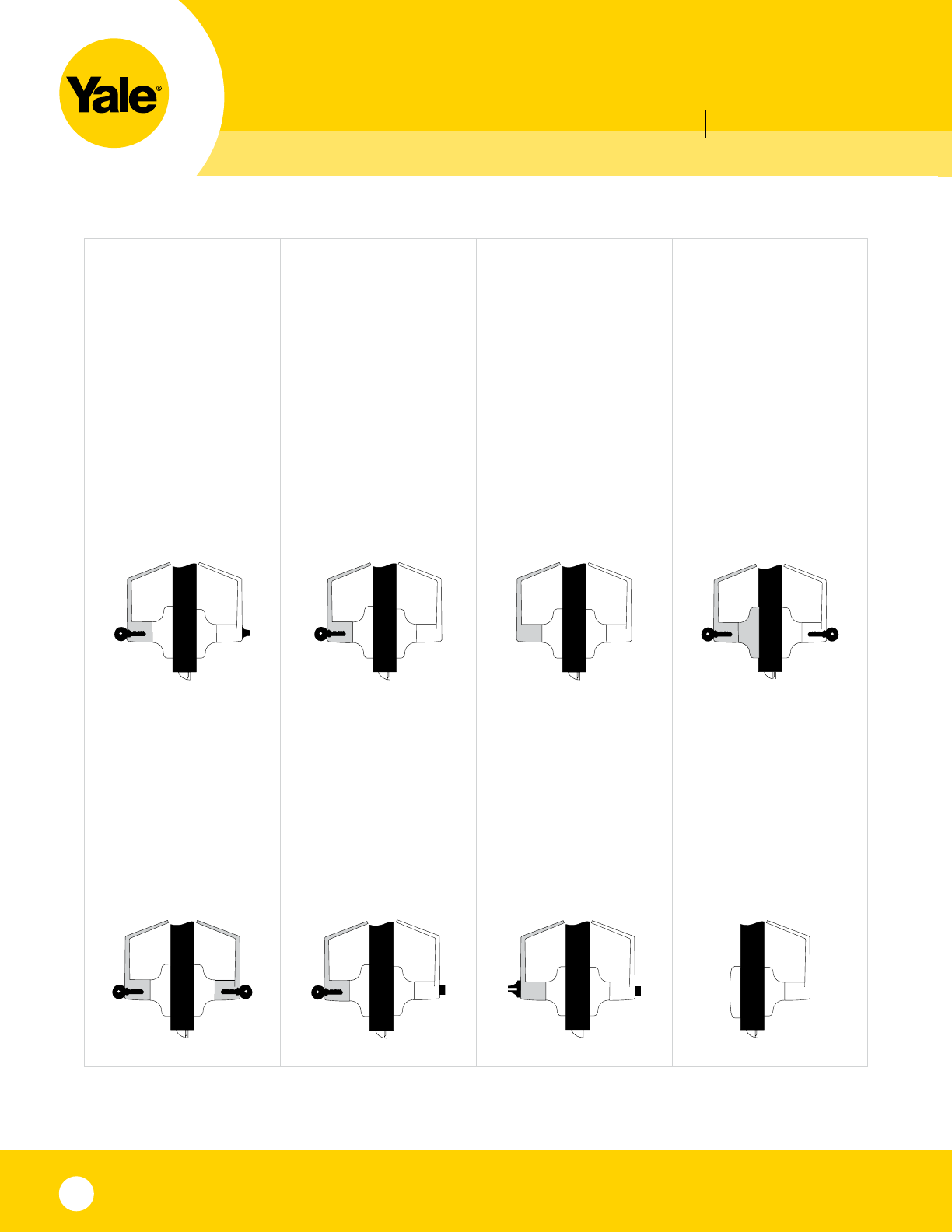

*Lever handles are Free Wheeling in locked position. Shaded area denotes Free Wheeling lever.
5307LN (F109) 5308LN (F84) 5309LN (F89) 5318LN (F110)
Entry Lock
•Forentrance,generalhomeoroffice
doors.
•Deadlockinglatchbolt.
•Eitherleveroperateslatchbolt
(except when outside lever is
locked from inside).*
•Pushingturnbuttonininsidelever
locks outside lever. (Automatically
releases when inside lever is turned
or key is rotated in locked outside
lever.)
•Outsidelevermayberetainedin
locked position by pushing and
rotating turn button 90° clockwise
to a horizontal position; not released
until turn button is manually returned
to the vertical position.
•Latchboltisoperatedbykeyin
outside lever or by rotating inside
lever.
•Insideleveralwaysactive.
Classroom Lock
•Forclassroomorutilityroomdoors.
•Deadlockinglatchbolt.
•Eitherleveroperateslatchbolt
(except when outside lever is locked
by key).*
•Insideleveralwaysactive.
•Keyreleasesoutsidelever.
Exit Latch
•Forexitdoorswithno-entrydesired.
•Deadlockinglatchbolt.
•Outsideleveralwayslocked.*
•Insideleveralwaysactive.
Intruder Classroom Lock
• Forclassroomdoors.
• Deadlockinglatchbolt.
• Eitherleveroperateslatchbolt
(except when outside lever is locked
by key from either side).
• Outsideleverremainslockedupon
egress
• Insideleveralwaysactive.
(NOTE: Not available with I.C.
core cylinders.)
Outside Inside Outside Inside Outside Inside Outside Inside
5321LN (F80) 5322LN (F90) 5325LN 5328LN (F111)
Communicating Lock
•Forcommunicatingorstore
entrance doors.
•Deadlockinglatchbolt.
•Eitherleveroperateslatchbolt
(except when key in either
lever locks or unlocks the lever
independently of the other).*
•Shouldbeusedonlyinofficesor
rooms with multiple entries.
(NOTE: Not available with I.C.
core cylinders.)
Corridor Lock
• Deadlockinglatchbolt.
• Eitherleveroperateslatchbolt
(except when outside lever is locked
by inside push-button or key in
outside lever). Inside lever always
active.
• Whenlockedbybutton,thebutton
automatically releases when inside
lever is turned or door is closed.
• Whenlockedbykey,theautomatic
release is made inoperative and
must be manually unlocked by key.
Privacy Lock
• Forlavatoryorotherprivacydoors.
• Eitherleveroperateslatchbolt
(except when outside lever is locked
by inside pushbutton).*
• Buttonautomaticallyreleasesby
turning inside lever or closing door.
• Doorcanbeunlocked,when
necessary, by operating outside
turnbutton.
• Noemergencykeyrequired.
• Optionalflushturnbuttonavailable
for outside. Specify option "FTB".
Communicating Passage Lock
• Fortwincommunicatingorexit
doors where one side operation is
required.
• Alsowhenspaceislimitedbetween
door and switch panel.
• Deadlockinglatchbolt.
• Oneleveroperation.
• Blankrose.
• Shouldbeusedonlywhererooms
have more than one entrance.
Outside Inside Outside Inside Outside Inside Outside Inside
7
5300LN series cylindrical lever locks
functions
*Lever handles are Free Wheeling in locked position. Shaded area denotes Free Wheeling lever.
5329LN (F113) 5330LN (F87) 5339LN (F112)
Communicating Classroom Lock
• Fortwincommunicatingorclosetdoorswhere
one side operation is required or space between
doors is limited.
• Deadlockinglatchbolt.
• Insideleveroperateslatchboltexceptwhenlever
is locked by key.*
• Blankrose.
• Shouldbeusedonlywhereroomshavemore
than one entrance.
(NOTE: Not available with I.C. core cylinders)
Utility, Asylum or Institutional Lock
• Deadlockinglatchbolt.
• Latchboltoperatedbykeyinleverfromeither
side.
• Bothleversalwayslocked.*
(Note: Not available with IC core cylinders)
Communicating Storeroom Lock
• Fortwincommunicatingorclosetdoorswhere
one side operation is required or space between
doors is limited.
• Deadlockinglatchbolt.
• Latchboltoperatedbykeyonlyininsidelever.
• Insideleveralwayslocked.*
• Blankrose.
• Shouldbeusedonlywhereroomshavemore
than one entrance.
(Note: Not available with I.C. core cylinders)
Outside Inside Outside Inside Outside Inside
355LN 355LN-D
Dummy Trim
• Fornon-operationalleversusefordecorativetrim.
Double Dummy Trim
• Fornon-operationalleverusedfor
decorative trim.
• Through-bolted.
Outside Inside Outside Inside
8

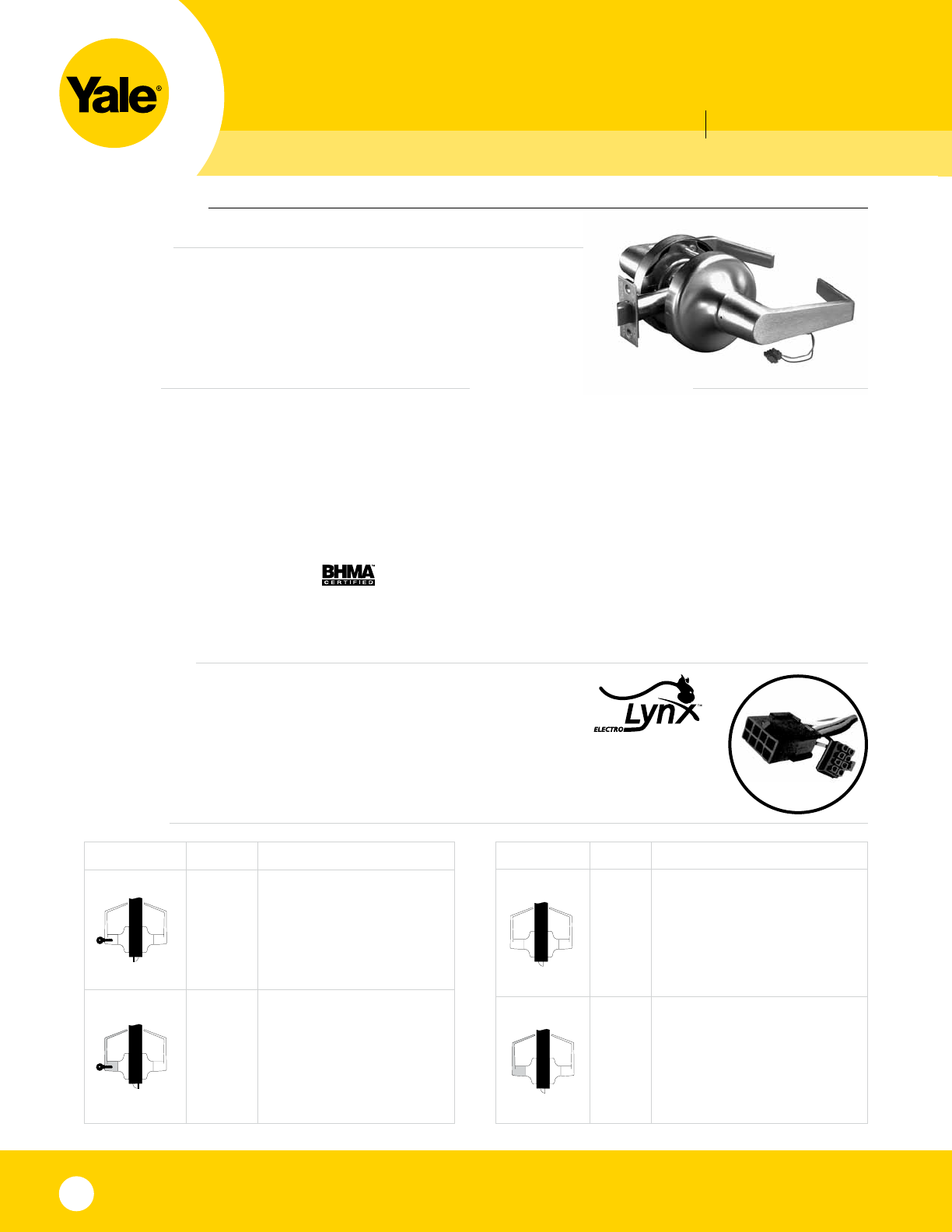

5300LN series cylindrical lever locks
securex®
features
• FreeWheelinglevermechanism.
• Self-contained,continuous-dutyintegralsolenoid
(allows installation in standard cylindrical prep).
• AvailableFailSafeorFailSecure.
• Availablein12or24voltsDC.
• ExternalrectifieravailableuponrequestforAC
operation.
• Mechanicalcylinderoverride.
• All5300LNcylinderoptions.
• CertifiedANSI/BHMAGrade2.
• ULlisted.
• 1-yearlimitedwarranty.
Outside Inside Function Function Description
5380LN
Fail Safe
• Poweronlocksoutsidelever.
• Insideleveralwaysactive.
• Latchboltretractedeitherside
except when outside lever is
locked electrically.
• FreeWheelingleverwhenlocked
electrically.
5381LN
Fail Secure
• Poweronunlocksoutsidelever.
• Insideleveralwaysactive.
• Latchboltretractedeitherside
when power is off.
• FreeWheelingleverwhenpower
is off (locked).
operation
Electric locks provide the ability to electrically lock or unlock the outside
trim from a remote location. Fail Safe locks are commonly used in stair
towers to release upon fire alarm activation. Fail Secure locks are used on
perimeter doors or security doors to allow ingress using access control
technologies (proximity cards, keypads, etc.)
electrical specifications
• Continuousdutysolenoid
150 mA @ 24VDC
300 mA @ 12VDC
functions
electrolynx®
Yale® electrified 5300LN locks are equipped with ElectroLynx
connectors. As a standard feature, these connectors link power from the
incoming source to electrified locking products, including hinges, locks, exit
devices, magnetic holders and strikes.
Note: Electrified door hardware with ElectroLynx connectors requires a
compatible number of lead wires attached to the door hinge.
Outside Inside Function Function Description
5390LN
Fail Safe
• Poweronlocksoutsidelever.
• Insideleveralwaysactive.
• Latchboltretractedbykey 
when locked electrically.
• FreeWheelingleverwhen
locked electrically.
5391LN
Fail Secure
• Poweronunlocksoutside
lever.
• Insideleveralwaysactive.
• Latchboltretractedbykey 
when power is off.
• FreeWheelingleverwhen
power is off (locked).
9
securex® accessories
BPS power supplies by securitron®
Operation
Power supplies are designed to provide reliable filtered and regulated power for long life to a variety of
electrified hardware components.
Product Features
• Individualoutputcircuitbreakers
• Regulatedandfilteredfuseprotectedoutputs
• LEDsmonitorzonestatus(voltageornovoltage)
• Slideswitchesconnectordisconnectloadfrompower(Notavailableon1Ampsupplies)
• InternalBack-Upbatterychargingcircuit
• Ruggedsteelenclosure
• Firealarminterface
Listings
• ULCLASS2
Applications (use with):
• FailSafecylindricallocks
• FailSecurecylindricallocks
Ordering
Ex: BPS-24-4, BPS-12-3
Model Input Output Application
BPS-24-1 120 VAC 1 Amp @ 24 VDC 2-5300LN
BPS-24-2 120 VAC 2 Amp @ 24 VDC 5-5300LN
BPS-24-4 120 VAC 4 Amp @ 24 VDC 11-5300LN
BPS-12-1 120 VAC 1 Amp @ 12 VDC 1-5300LN
BPS-12-3 120 VAC 2 Amp @ 12 VDC 3-5300LN
Consult factory for additional power supply applications.
Yale recommends McKinney®, Pemko and Securitron® for power transfer devices and other electronic
accessories.
5300LN series cylindrical lever locks
Securitron PowerJump™ ICPT
The Securitron PowerJump ICPT Inductive Coupling Power Transfer delivers power contactlessly and
invisibly between the frame and door to power electrified hardware on the door. The PowerJump can be
installed at the latch side or hinge side of the door and transfers up to 6 watts of power without pins or
wires across the door gap, eliminating points of vulnerability and wear … and no need to core drill the
door. The PowerJump is field selectable for 12VDC or 24VDC systems and is ideal for fail secure applications. The
unit can hold electrified latches open in continuous duty or can momentarily energize the lockset for latch retraction.
Additional information regarding this product can be found at www.securitron.com.
10

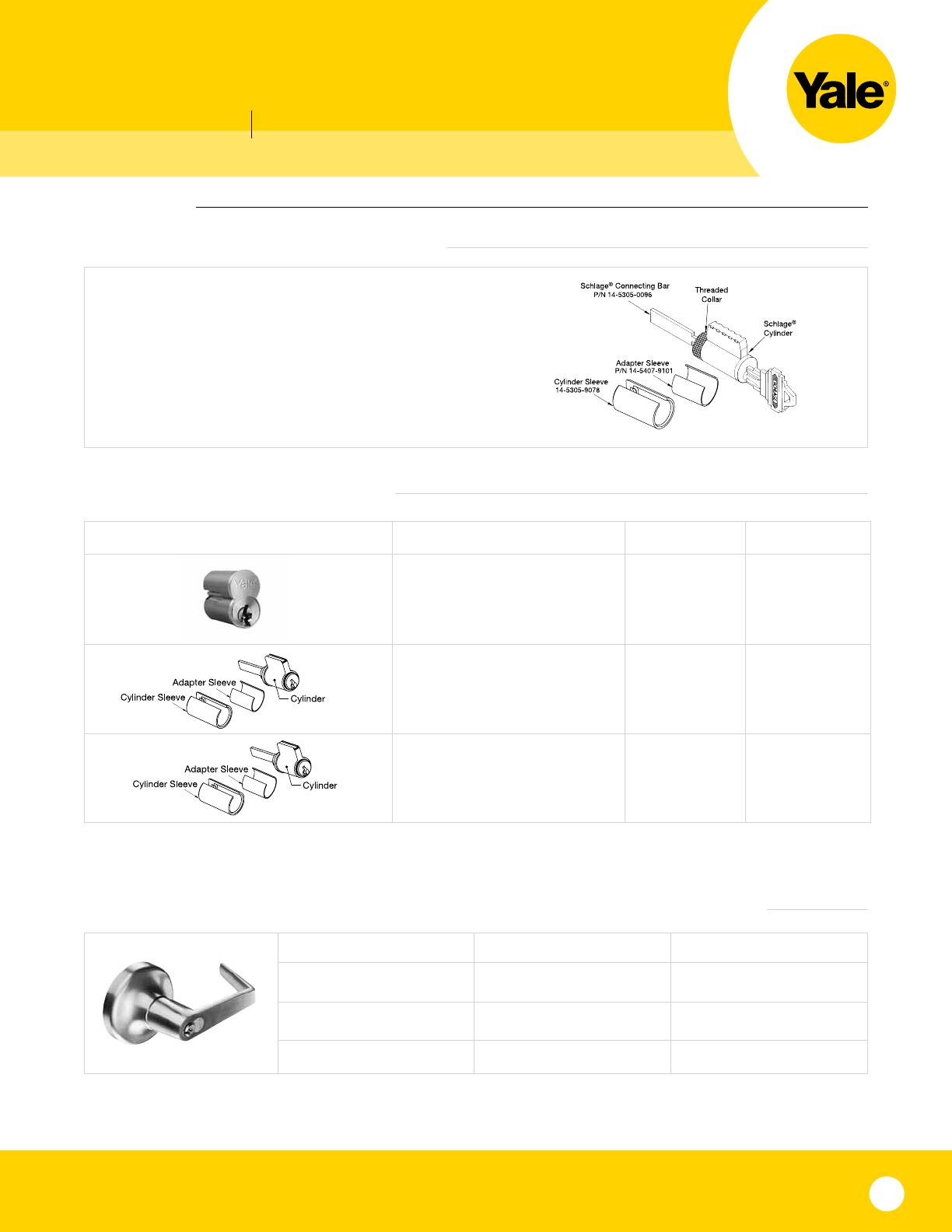

5300LN series cylindrical lever locks

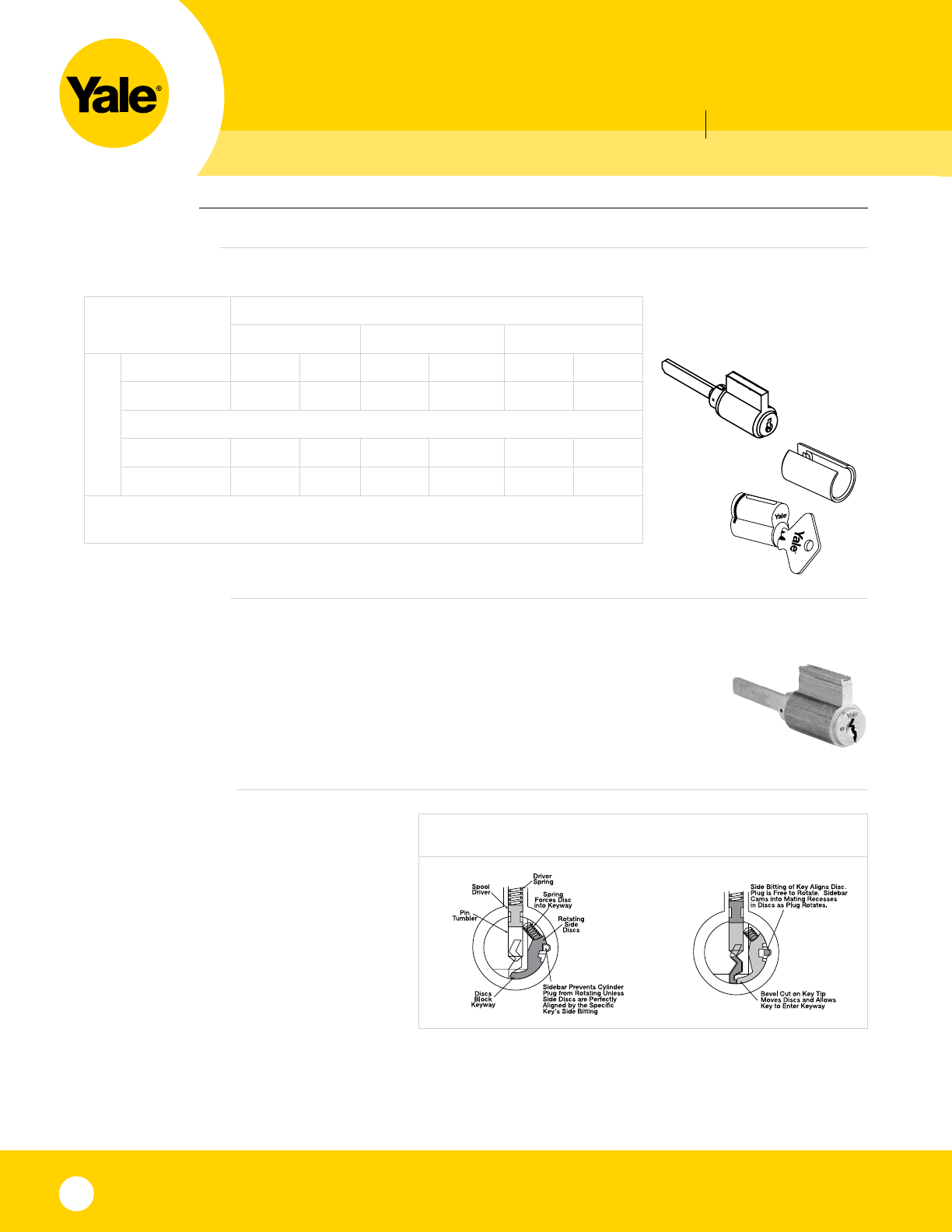

cylinders
security cylinders
Security cylinders contain two independent
locking mechanisms. The first is a
traditional 6-pin tumbler mechanism with
spool drivers for greatly increased picking
resistance.
The second is an innovative 5-tumbler
rotating disc mechanism with sidebar
engagement. The rotating discs are spring
loaded and block the bottom of the keyway.
Illustration
Lockset Series: 5300LN
Types of Cylinder Mechanisms
Conventional Protected Keyway Security
Cylinder Types
Fixed Core 6-pin 7-pin 6-pin 7-pin 6-pin 7-pin
Key-In-Lever 1802 N/A K402 N/A 5802 N/A
Interchangeable Core
LFIC 1210 N/A K800 N/A 5210 N/A
SFIC A600 A600 K600 K600 N/A N/A
Refer to Yale® KeyMark® and/or Cylinders and Keys Catalog sections for all details and
how-to-order examples.
1802
Cylinder
Sleeve
1210
Yale® KeyMark®
For those applications requiring protected key control, Yale® KeyMark® cylinders guard against unauthorized key
duplication. The Yale KeyMark Security Leg® keyway feature increases resistance against
picking and impressioning and can easily retrofit into existing systems. For further details
and availability, refer to the separate Yale KeyMark catalog.
Note: The 1802 Cylinder
requires an adapter sleeve to
fit in the 5300LN Lockset.
(P/N 14-5305-9078-999)
cylinder options
The following selection guide indicates the correct cylinder for each locking segment.
Illustration Description Model Number Number of Pins
Best® Keyway Cylinder. Available keyed
random, master keyed or uncombinated.
Specify keyway A, B, C, D, E, F, G, H, J,
K, L or M.
A600 6 or 7
Schlage® “C” Keyway.
Available 0-bitted or
keyed random.
2802/2802L* 6
Corbin Russwin “L4”, Corbin “60”,
Russwin “D1”, Sargent® “LA” or Schlage®
“E” Keyway. Specify keyway. Available
keyed random.
3804/3804L* 6
11
5300LN series cylindrical lever locks
cylinders
* 2", 2-1/4" door.
* 2", 2-1/4" door.The 2802 and 3804 cylinders require an adapter sleeve (P/N 14-5407-9101-999) and a cylinder sleeve
(P/N 14-5305-9078-999) to fit the 5300LN lockset. 3804 cylinders are not ANSI/BHMA certified.
**Medeco®, ASSA® option available only with AU lever. (Note: For Medeco 32 series cores.)
LFIC = Large Format Interchangeable Core
SFIC = Small Format Interchangeable Core
Kit used to modify Schlage® cylinder for fit in the 5300LN.
P/N 14-5407-9101-999 - 108S
P/N 14-5305-9078-999 - 108L*
Kit includes tailpiece and sleeve. To order the 108S adapter kit, use an “S”
prefix (i.e., S-AU5307LN).
108S / 108L* Schlage® cylinder adapter kit
other manufacturer keyway cylinders
levers accepting SFIC and other manufacturers' large format interchangeable cores
Description Prefix Number of Pins
SFIC (Accepts all Small Format
Interchangeable Cores)
B
(i.e. B-AU, B-MO, B-PB) 6 or 7
Medeco®, ASSA® (LFIC) M
(i.e. M-AU)** 6
Schlage® (LFIC) SI
(i.e. SI-AU, SI-PB) 6
12

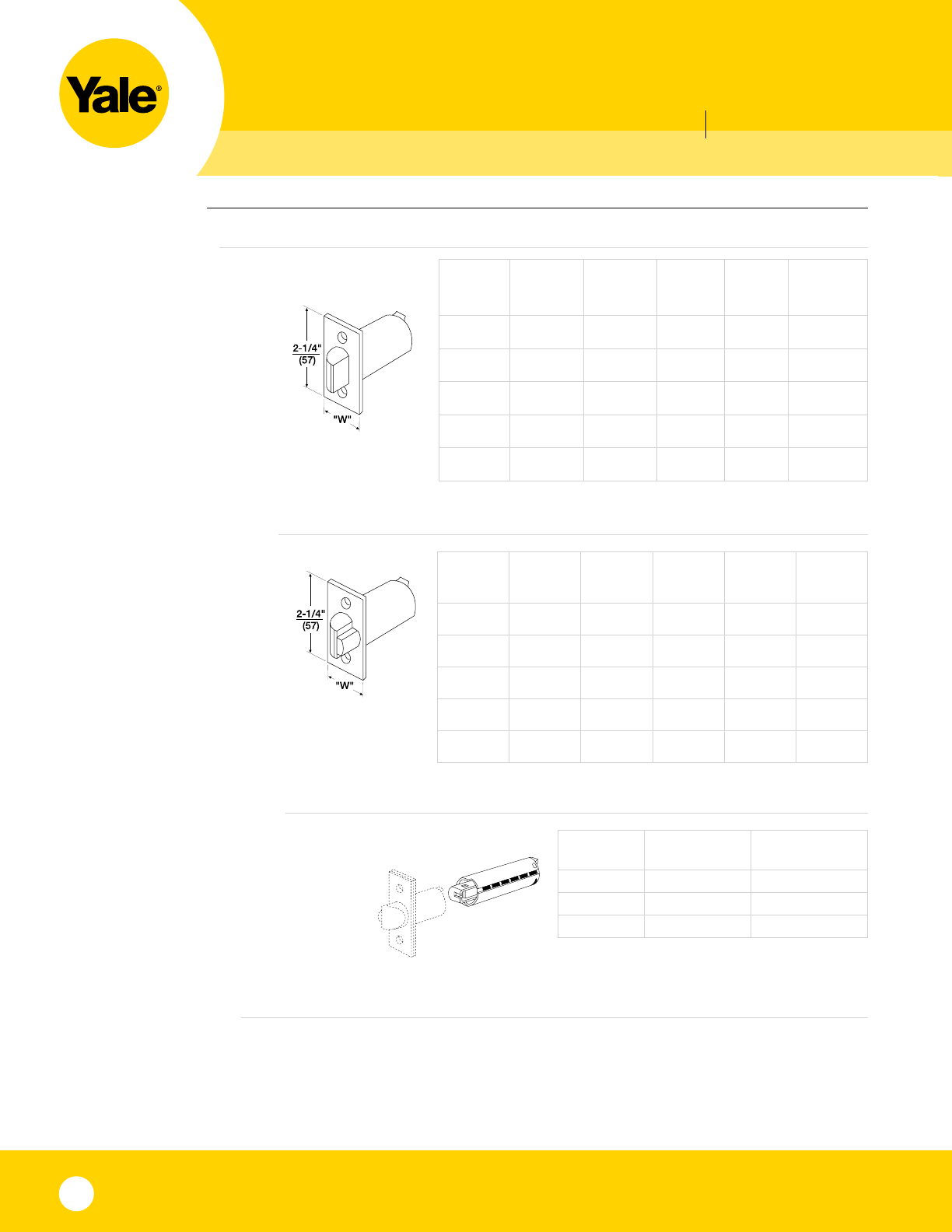

5300LN series cylindrical lever locks
latchbolts
plain latchbolts
Model No. 380BN supplied
standard with all 5300LN
series locksets without locking
function. Model No. 380BN
latchbolt has a 2-1/4" x
1-1/8" front with a 2-3/4"
backset and a 1/2" bolt
throw. Optional latchbolts with
greater backset available to
special order.
deadlocking latchbolts
Model No. Front Backset “W” Front
Width Throw Latch
Diameter*
380N Universal 2-3/8"
(60mm)
1"
(25mm)
1/2"
(13mm)
7/8"
(22mm)
380CN Universal 2-3/4"
(70mm)
1"
(25mm)
1/2"
(13mm)
7/8"
(22mm)
3380CN Universal 3-3/4"
(95mm)
1"
(25mm)
1/2"
(13mm)
7/8"
(22mm)
380AN Universal 2-3/4"
(70mm)
1-1/8"
(29mm)
1/2"
(13mm)
7/8"
(22mm)
3380AN Universal 3-3/4"
(95mm)
1-1/8"
(29mm)
1/2"
(13mm)
7/8"
(22mm)
Model No. 380AN supplied
standard with all 5300LN series
locksets with locking function.
Model No. 380AN latchbolt has
a 2-1/4" x 1-1/8" front with a
2-3/4" backset and a 1/2" bolt
throw. Optional latchbolts with
greater backset available to
special order.
*1/8" sleeve (P/N 14-0378-9001) supplied with all latchbolts to
accommodate 1" preps.
*1/8" sleeve (P/N 14-0378-9001) supplied with all latchbolts to
accommodate 1" preps.
Backset
Desired
Latchbolt
Backset
Order Extension
Model Number
5" 2-3/8" 381N
5" 2-3/4" 381AN
6" 3-3/4" 381AN
backset extension links
All 5300LN Series locksets are regularly
supplied with latchbolts with a 2-3/4"
backset. Latchbolts with 2-3/8" and 3-3/4"
backsets are available to special order.
Backset extension links are also available
for attachment to latchbolts with 2-3/8"
backsets or to latchbolts with 2-3/4" and
3-3/4" backsets to obtain popular backset
lengths.
attaching screws
(Not regularly supplied when latchbolts ordered separately).
For All Latchbolts
#8-8-32 x 3/4" Phillips flat head combination wood and machine screws. P/N 81-2012-0416
All latches have universal fronts, so they fit flat and beveled door fronts. When ordering latchbolts, specify Model No. x Finish (e.g.,
380N x 626). Available in 606, 612, 613, 626 and 722.
Model No. Front Backset “W” Front
Width Throw Latch
Diameter*
378N Universal 2-3/8"
(60mm)
1"
(25mm)
1/2"
(13mm)
7/8"
(22mm)
380DN Universal 2-3/4"
(70mm)
1"
(25mm)
1/2"
(13mm)
7/8"
(22mm)
3380DN Universal 3-3/4"
(95mm)
1"
(25mm)
1/2"
(13mm)
7/8"
(22mm)
380BN Universal 2-3/4"
(70mm)
1-1/8"
(29mm)
1/2"
(13mm)
7/8"
(22mm)
3380BN Universal 3-3/4"
(95mm)
1-1/8"
(29mm)
1/2"
(13mm)
7/8"
(22mm)
13
5300LN series cylindrical lever locks
strikes
attaching screws
For Model Nos. 371, 70S, and 71S
#8-8-32 x 3/4" (19mm) Phillips flat head combination
wood and machine screws.
P/N 81-2012-0416
For Model Nos. 497 and 497B
#12-12-24 x 1" Phillips flat head combination wood and
machine screws.
P/N 81-2012-0620

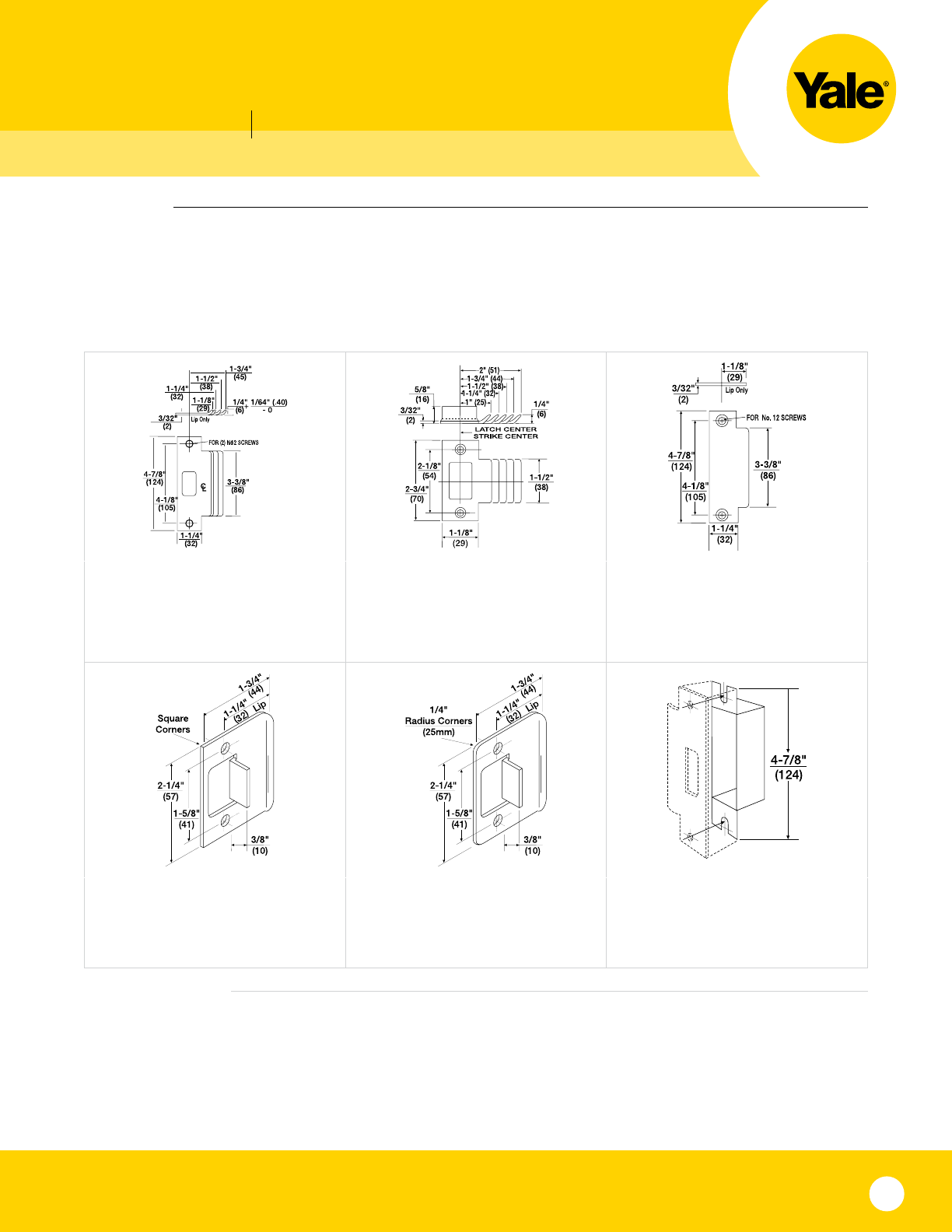

Model No. 497 ANSI Strike (Standard)
For door and frames with ANSI/BHMA
A156.115 preparations. 1-1/4" supplied
standard. 1-1/8", 1-1/2", and 1-3/4" lip
lengths available by special order.
Model No. 371 T-Strike (Optional)
1-1/4" curved lip supplied standard. 1",
1-1/2", 1-3/4", and 2" curved lip lengths
available by special order. Wrought strike box
supplied.
Model No. 497B Blank ANSI Strike
(Optional)
Available to special order. Installed in
frame with standard ANSI/BHMA A156.115
preparation to replace the strike when the
lockset has been removed from the door.
Model No. 70S Full Lip Strike (Optional)
With full lip anti-rattle tab. Wrought strike box
supplied.
Model No. 71S Full Lip Strike (Optional)
1/4" radius. Similar in dimensions and
function to the 70S Strike but with radius
corners for easy mortising by power tools.
Anti-rattle tab. Wrought strike box supplied.
Model No. 202 Strike Box for ANSI Strike
(Optional)
Specify 497 x 202
NOTE: When ordering strike or attaching screws individually, specify the finish required; i.e. 497 x 202 x 606; 81-2012-0620 x 606.
Yale® 5300LN locks are available with a variety of strike options. All strikes are located on the same vertical and horizontal
center lines as the latchbolt. Some strikes are available in a variety of lip lengths to accommodate varying thickness of doors
and frames. To determine the proper length of the lip, measure from the center line of the strike to the edge of the jamb,
accounting for any interfering trim (i.e. wood molding) and then add 1/4" (6mm) for curved lip. All strikes are reversible. Strikes
are fabricated of either brass, bronze or stainless steel, depending on the lockset trim finish. When ordering strikes separately,
specify the finish required.
(Not regularly supplied when strikes ordered separately).
14
5300LN series cylindrical lever locks
ordering information
From this outline select the Model Number for the Yale® 5300LN Series Cylindrical Lockset you require.
ordering example
Design Function Latch Strike Cylinder Door Thickness Finish
See Page 4 See Pages 5-7 See Page 12 See Page 13 See Pages 10-11 See Page 2 See Page 2
Quantity Design Function Latch Strike Cylinder Door Thickness Finish
100 AU 5307LN 380N 371 1802 1-3/4" 626
packing
Each box has a strike, paper template, combination wood and machine screws and easy-to-follow instructions.
Cylinder functions supplied with two keys and furnished right hand unless otherwise specified. Ten shelf boxes to a
case.
15
5300LN series cylindrical lever locks
sample specification
All locksets shall be 5300LN Series Grade 2 Key-in-Lever Cylindrical Locksets as assembled by Yale Locks &
Hardware.
Lockset chassis shall be constructed of heavy-gauge steel and cast components, plated to protect against rust
and corrosion. Locksets shall be adjustable for 1-3/8" (35mm) and 1-3/4" (44mm) or 2" (51mm) and 2-1/4" (57mm)
door thickness.
Locksets shall be non-handed, and shall install easily without the need for specialized installation tools.
Locksets shall have separate anti-rotation through-bolts in the 6 o’clock and 12 o’clock position outside the
2-1/8" face bore, and shall have no exposed mounting screws.
Locksets shall have solid one-piece, cast levers without plastic inserts, and shall be a minimum of 4-5/8" (117mm)
in length. Levers shall operate independently and shall have inside and outside lever return springs. Outside levers
on the keyed locksets shall be removable only when the designated key is in the cylinder.
Vandal-resistant levers shall be offered as a standard feature in all locking functions and shall be Free Wheeling in
the locked condition. Locksets that are rigid in the locked condition, or which require resetting (breakaway) are not
acceptable.
The latchbolt shall be made of stainless steel.
All locksets shall carry a five-year mechanical warranty. Locksets shall carry a lifetime warranty against lever sag or
lever spring breakage.
All locksets shall comply with the following certifications:
• UL3-HourFireRating
• ANSI/BHMAA156.2Series4000,Grade2
• ANSIA117.1AccessibilityCode
• ANSI/BHMAA156.115orA156.115-WPreparation
online literature and templates
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
Yale®, MicroShield® and SecureX® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. KeyMark® and Security Leg® are registered trademarks of Medeco
Security Locks, Inc., an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference
purposes only. These materials are protected under U.S. copyright laws. All contents current at time of publication. Yale Security Inc. reserves the right to change availability of any item in this
catalog, its design, construction, and/or its materials. Copyright © 1999, 2015, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the
express written permission of Yale Security Inc., an ASSA ABLOY Group company is prohibited.
YALE, with its unique global reach and range of products, is the world’s favorite lock.
ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
42123-8/15RE
An ASSA ABLOY Group brand
5300LN series cylindrical lever locks
For the latest information on Yale Locks & Hardware products, visit our website at: www.yalelocks.com
Click on the “Product Information” button to find:
• Catalogs
• Partsmanuals
• Templates
• Specifications
• Installationinstructions
Yale® customers can click on the ebusiness symbol on the website to register for an ebusiness account to:
• Checkthestatusoforders
• CheckavailabilityofQuickShipitems
• Trackyourorderandconfirmdelivery
• Receiveemailnotificationoftemplatechanges
And More...
Or contact us at:
U.S.A.
Yale Locks & Hardware
Address: 225 Episcopal Road, Berlin, CT 06037-4004
Tel:1-800-438-1951•Fax:1-800-338-0965•www.yalelocks.com
Canada:
ASSA ABLOY Door Security Solutions Canada
Address:160 Four Valley Drive, Vaughan, Ontario L4K 4T9
Tel:1-800-461-3007•Fax:1-800-461-8989•www.assaabloy.ca
International:
ASSA ABLOY Americas International
Tel:1-905-821-7775•Fax:1-905-821-1429•www.assaabloyai.com

Navigation menu
