An ASSA ABLOY Group brand

Condensed Catalog

condensed catalog

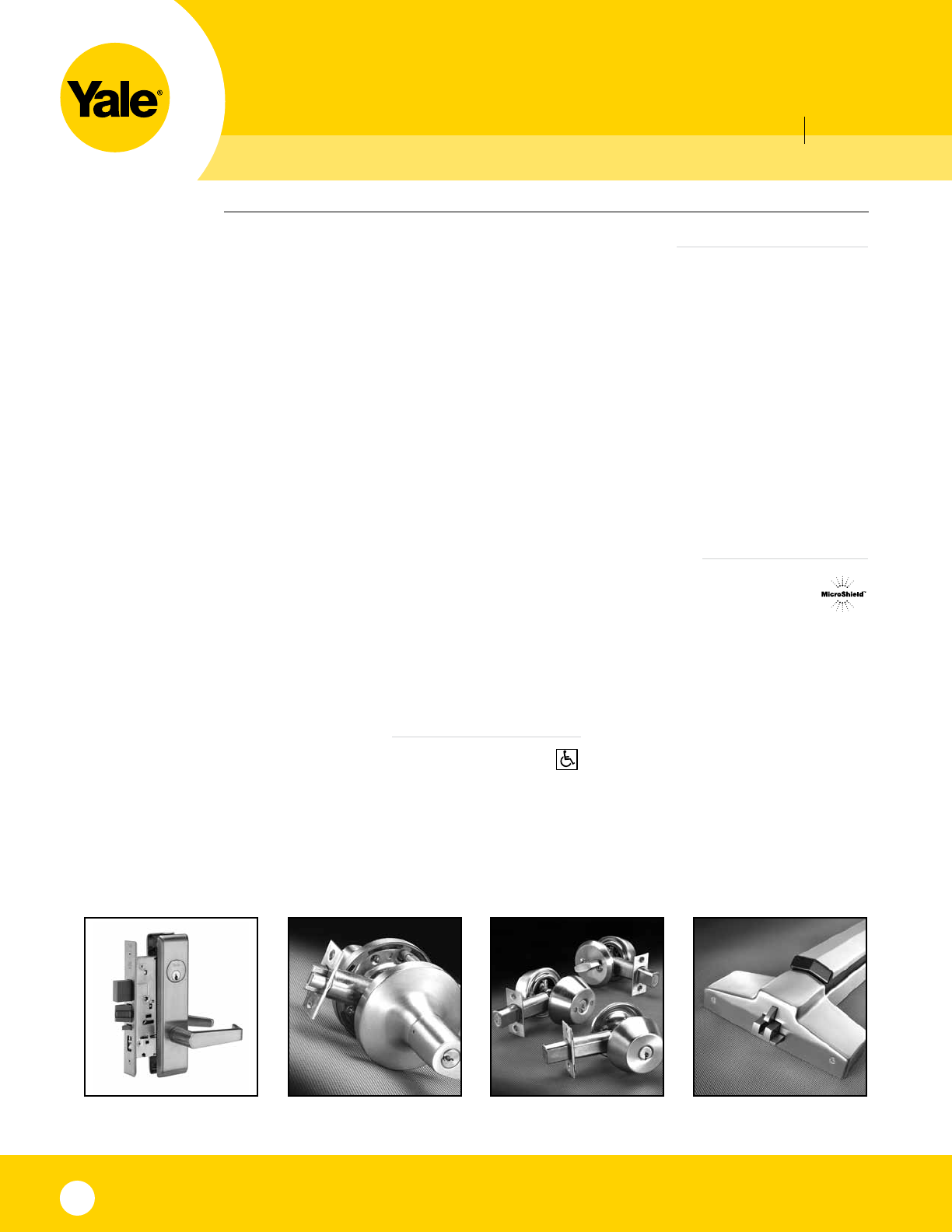

introduction

americans with disabilities act (a.d.a.)

Title III of the Americans With Disabilities Act (A.D.A.), Public Law

101-336, became effective on January 28, 1992. The A.D.A. “prohibits

discrimination on the basis of disability by private entities in places of public

accommodation and that the commercial facilities be designed and constructed

so as to be readily accessible to and usable by persons with disabilities...”

(Federal Register, Vol. 56, No. 144/7-26-91/Rules and Reg u la tions).

Yale locksets and door controls that comply with A.D.A. requirements are indicated

as such by the accessibility symbol in this catalog.

Yale Locks & Hardware is solely dedicated to the engineering, design, and

manu fac ture of builders’ hardware. Yale® offers a complete line of locksets and

door control hardware designed for the needs of the architect and end user.

In addition to superior product quality, Yale offers a mix of product expertise that

is unsurpassed in the hardware industry. A constant exchange of information

among lock specialists, exit hardware pro fession als and door closer experts

ensures comprehensive door hardware capability. It is an important reservoir of

knowledge that is available for every architectural specification you prepare.

Our Technical Product Specialists can provide answers to all your hard ware

applications questions, from a special high school exit device application to

deep frame reveals or cylinder matching in a 1920 restoration project. The Yale

Customer Service De part ment provides answers on availability and order tracking

quickly to ensure on-time delivery to the job site. A toll-free call can take care of

all your concerns.

Yale education programs, instructed by veteran hardware pro fes sion als,

are considered the best in the industry. Hundreds of dis trib u tors, specifiers,

locksmiths, and owners annually attend Yale Product Maintenance Schools,

Architectural Hardware Schools and special traveling pre sen ta tions on keying and

other hardware subjects.

This catalog is a condensed version of the Yale library of catalogs. Yale provides

complete cat a logs on more than 2,000 door opening hardware items.

For further information contact your sales representative, call

toll-free at 1-800-438-1951, or visit us at www.yalelocks.com.

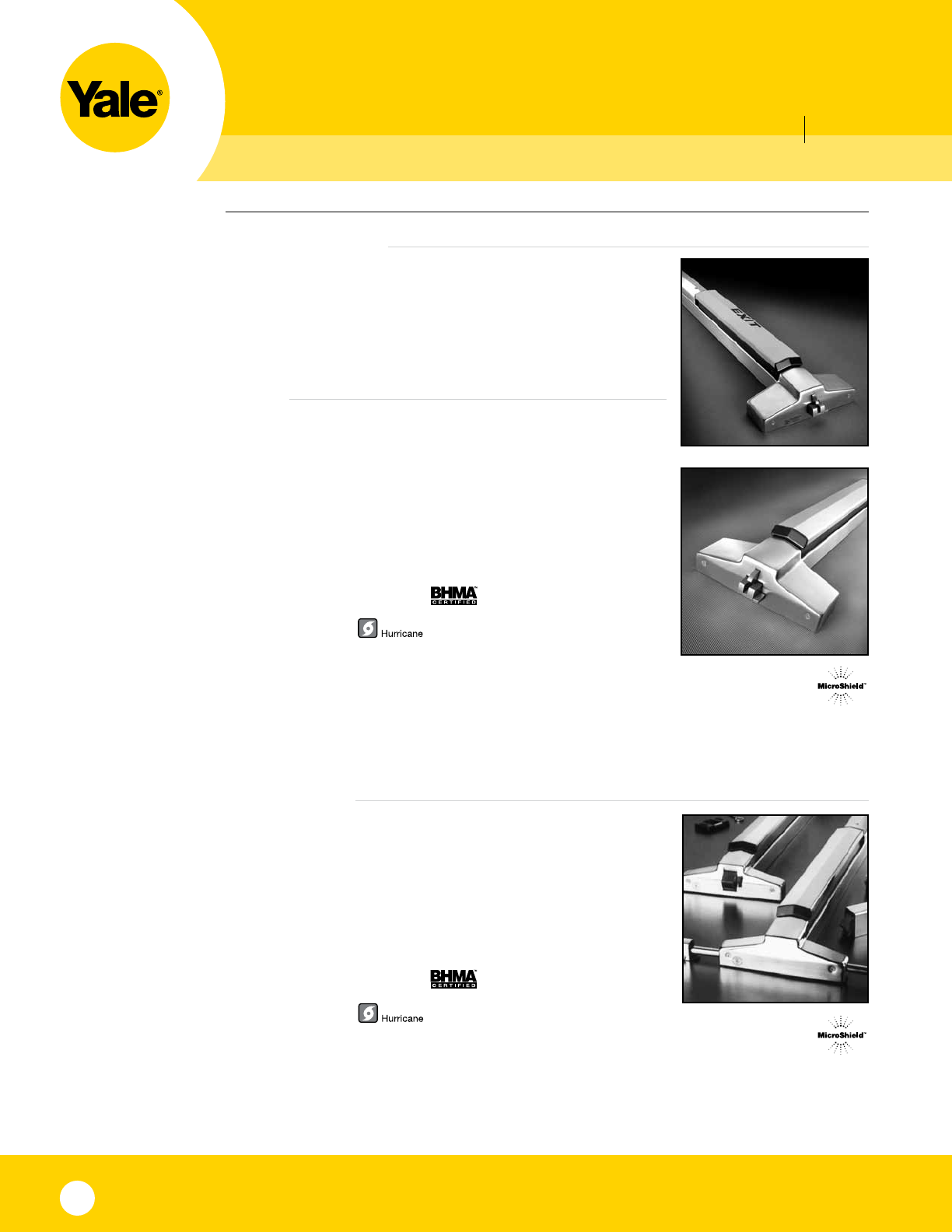

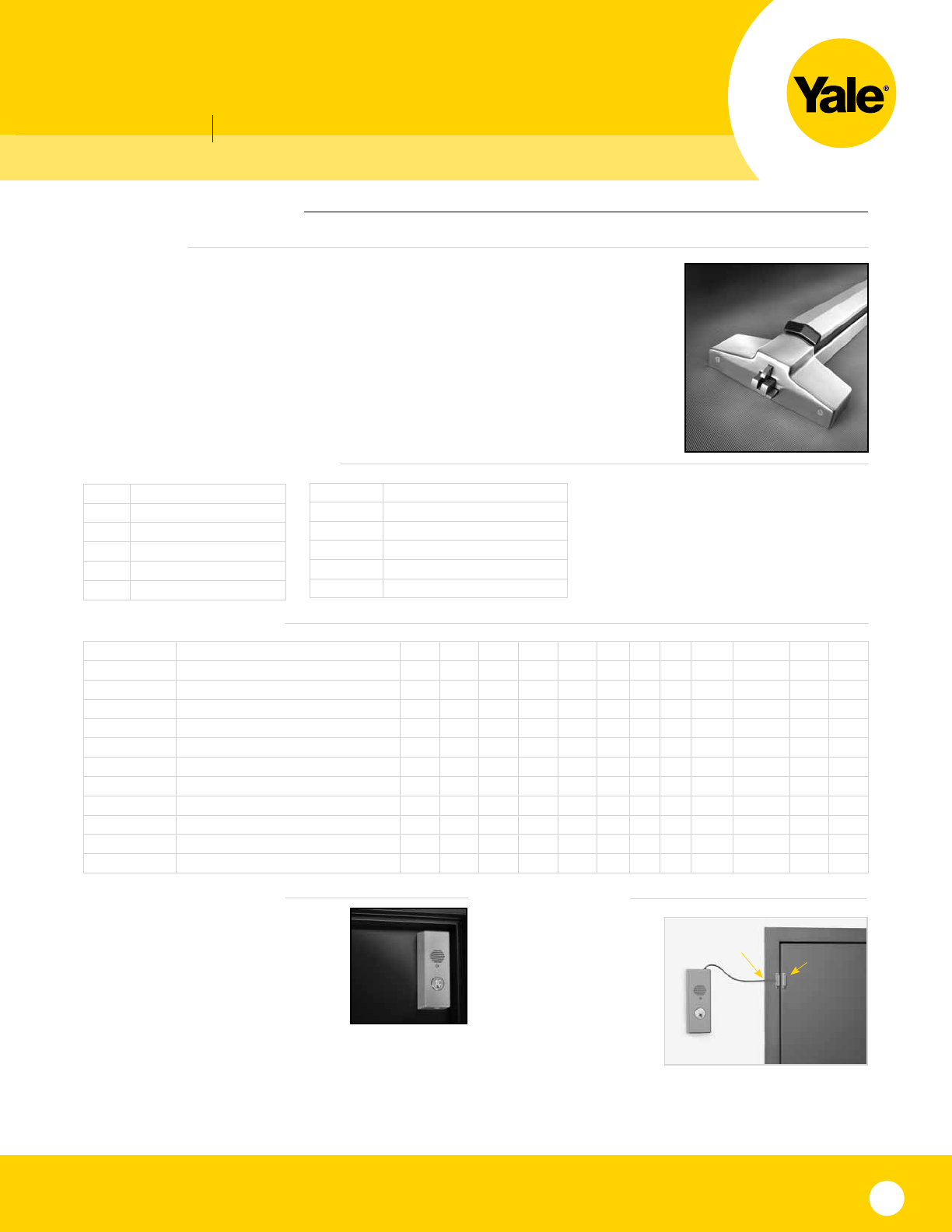

7100/7200 Series

Exit Devices

See Page 24

5400LN Series

Lever Locksets

See Page 7

8800 Series

Mortise Locksets

See Page 4

D Series

Cylindrical Deadbolts

See Page 16

contents

Introduction ........................2

Reflections® Decorative Levers .........3

Mortise Locksets ....................4

Mortise Lock Trim ................. 5-6

Cylindrical Locksets............... 7-14

Monolocks........................15

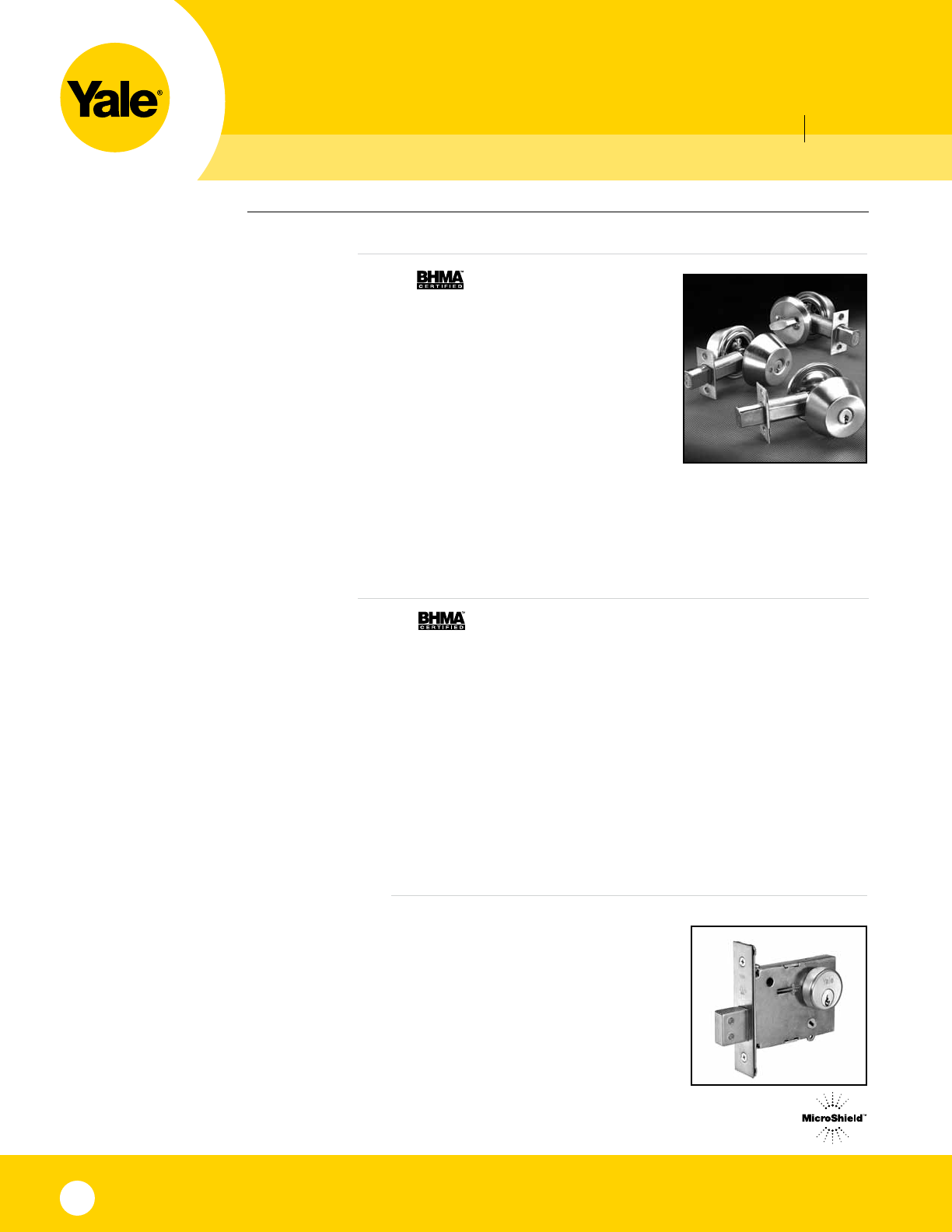

Auxiliary Locks.....................16

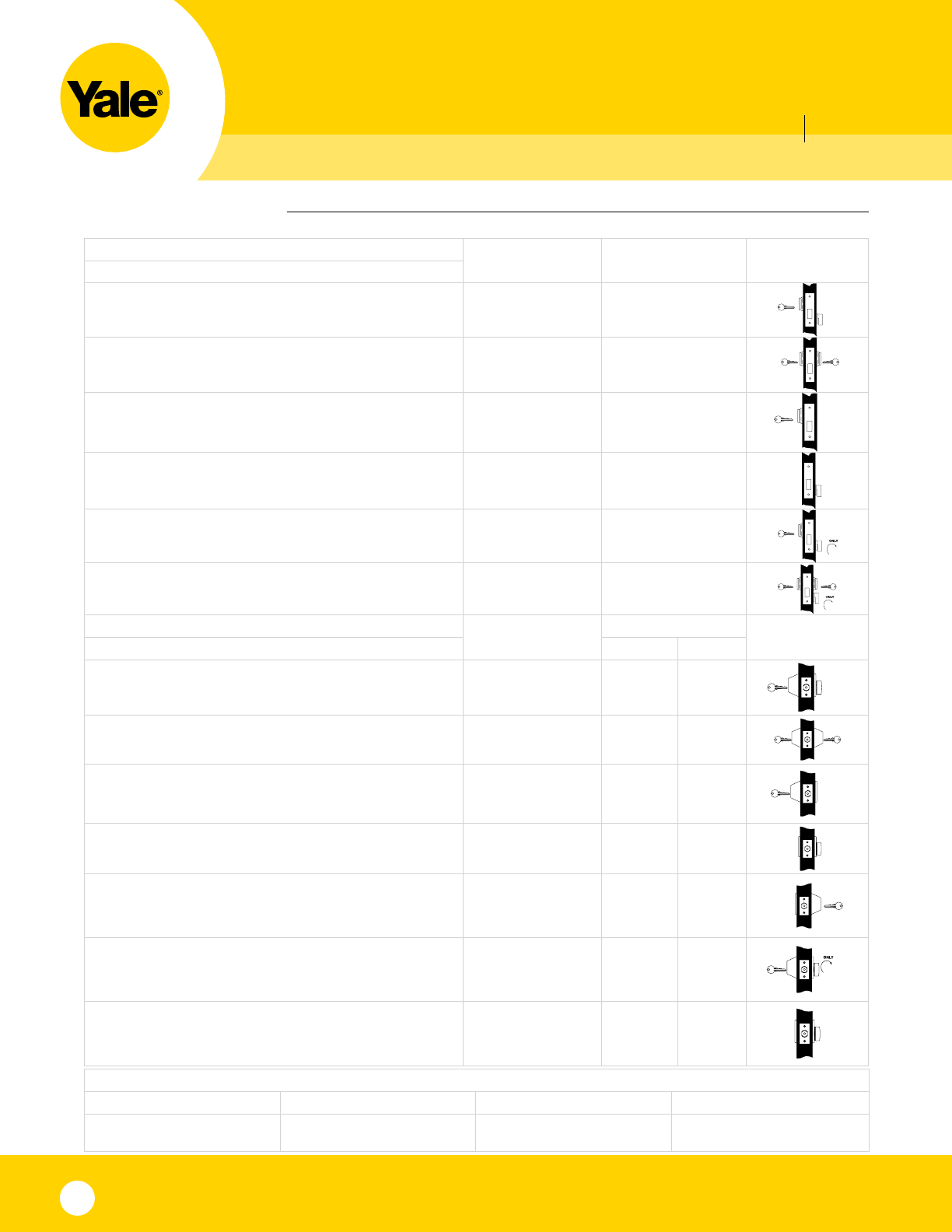

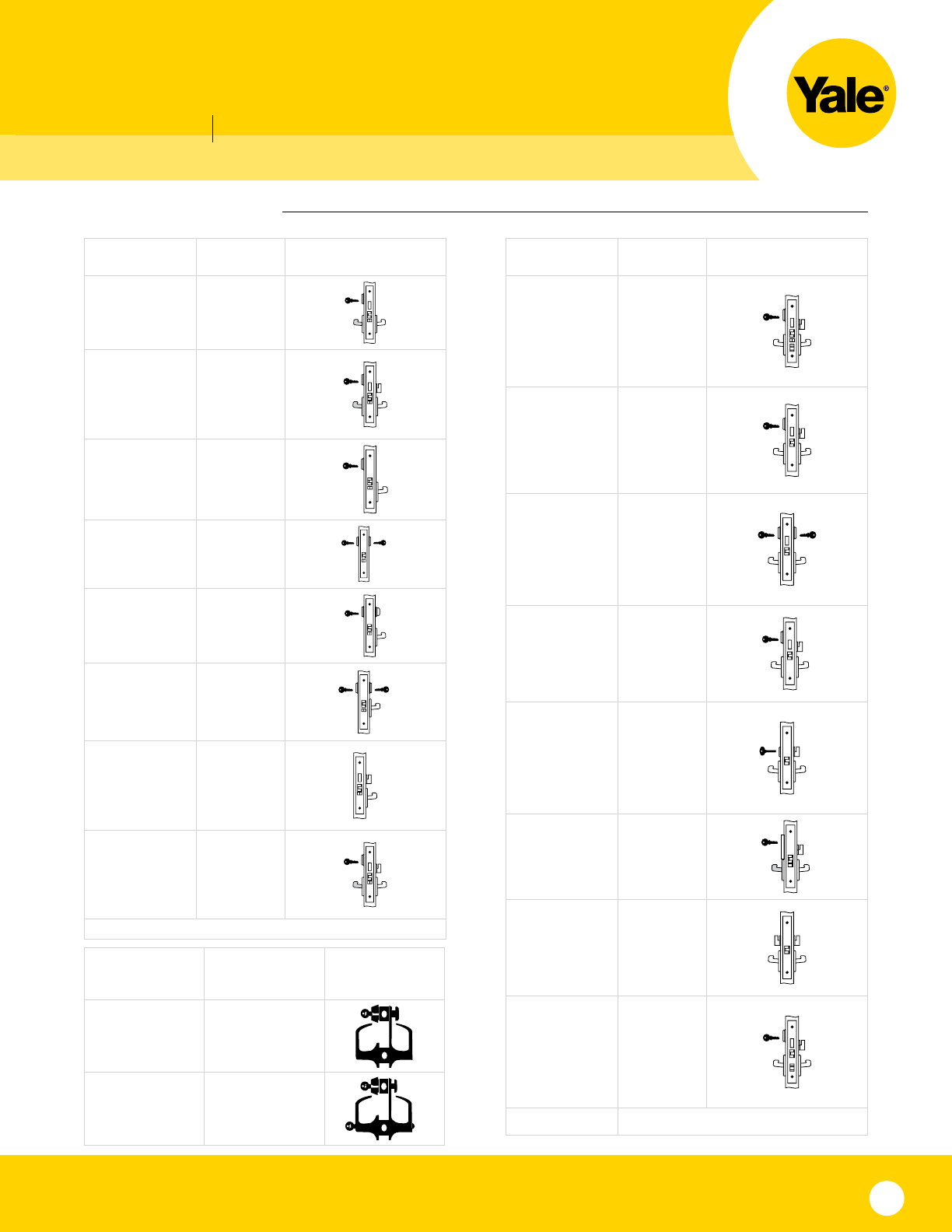

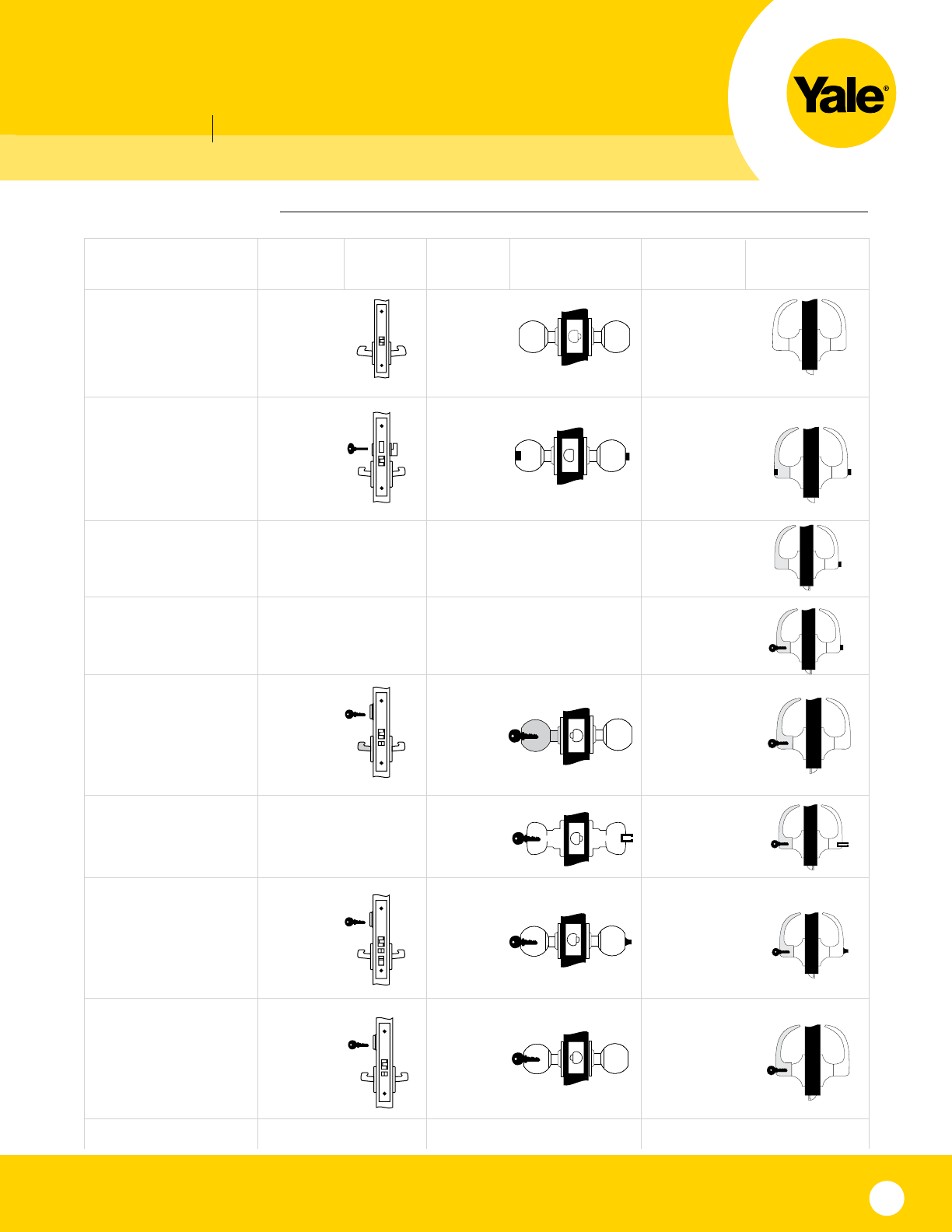

Lockset Functions ............... 17-22

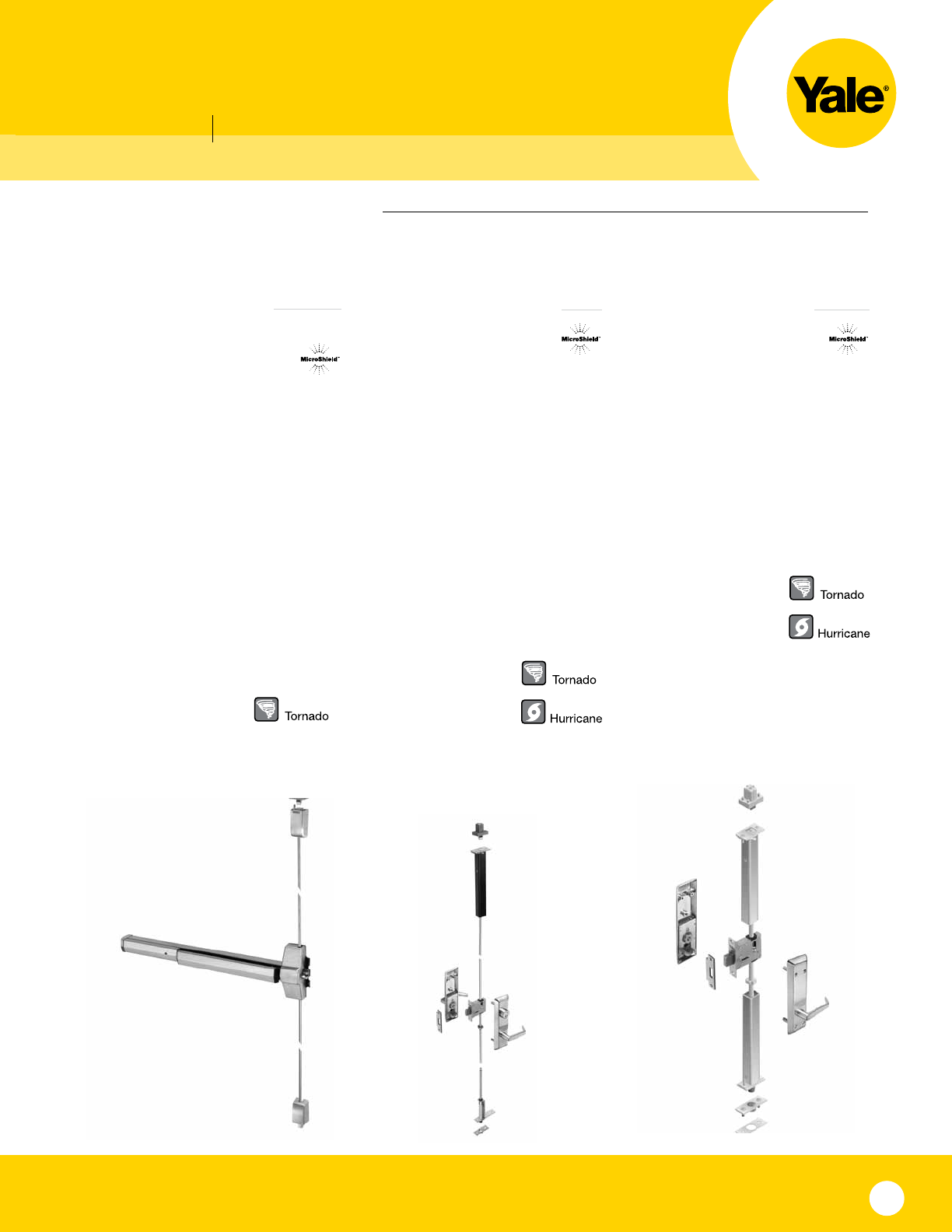

Multi-point Locking Systems ..........23

Exit Devices.................... 24-26

Exit Device Trim................. 27-28

Cylinders and Keying................29

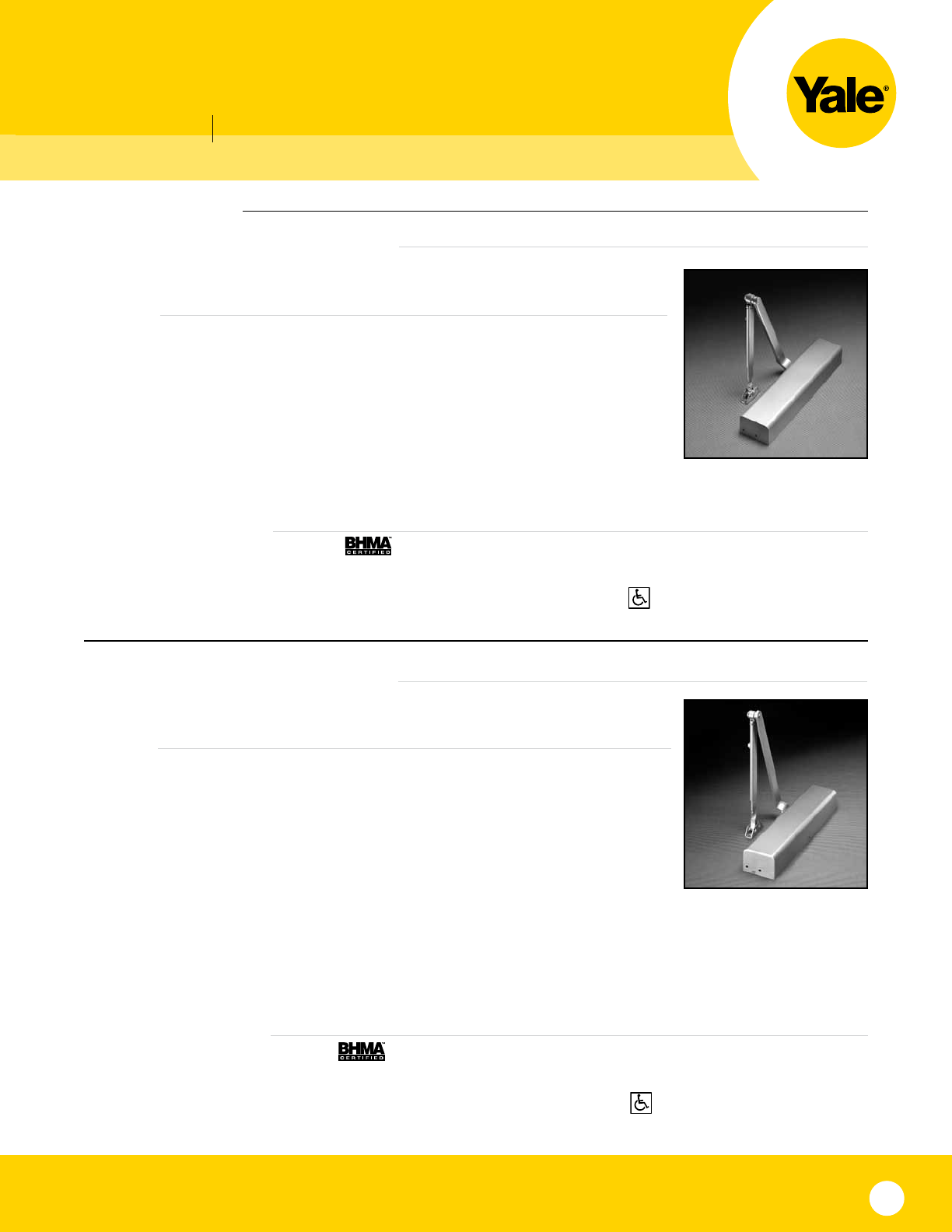

Door Controls .................. 30-32

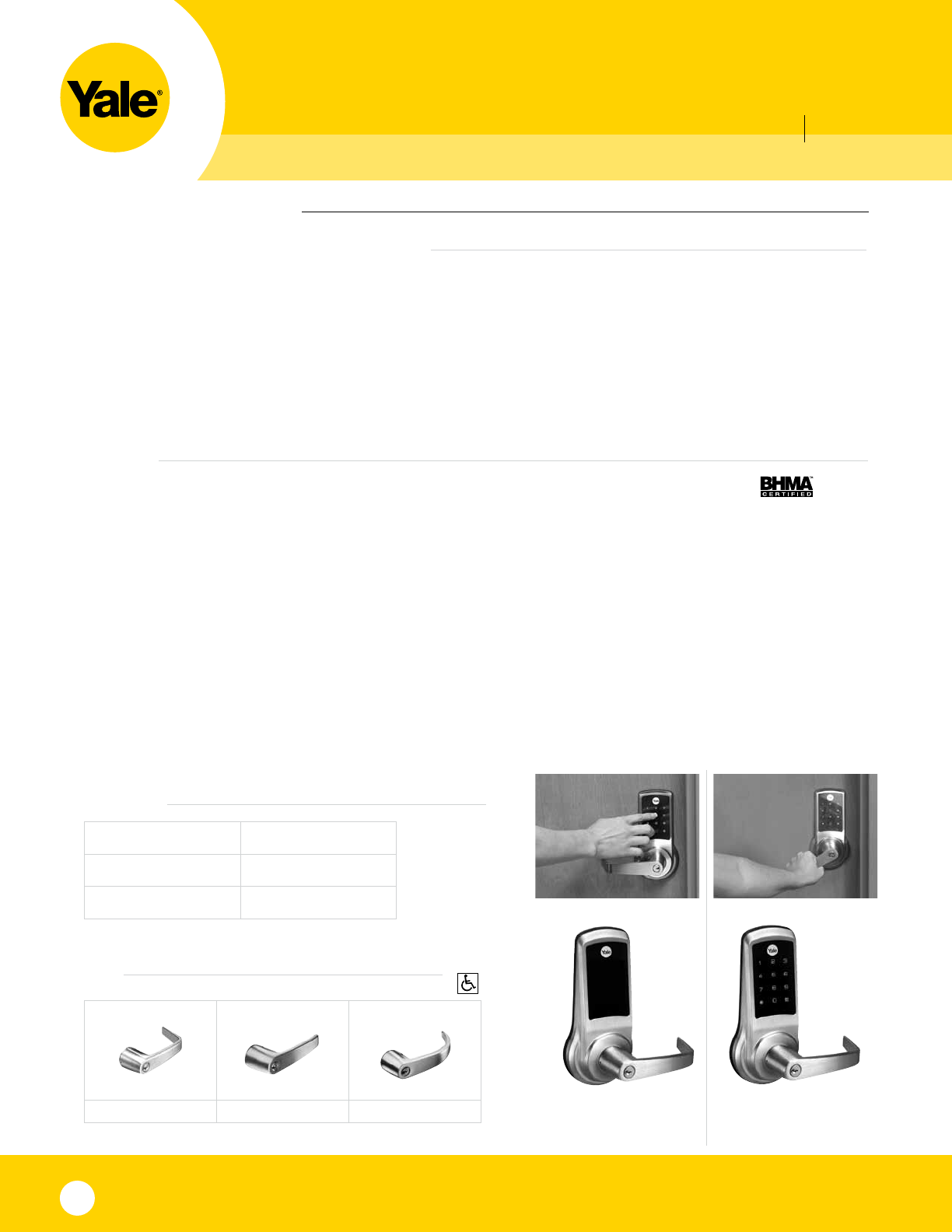

Electrified Products .............. 33-38

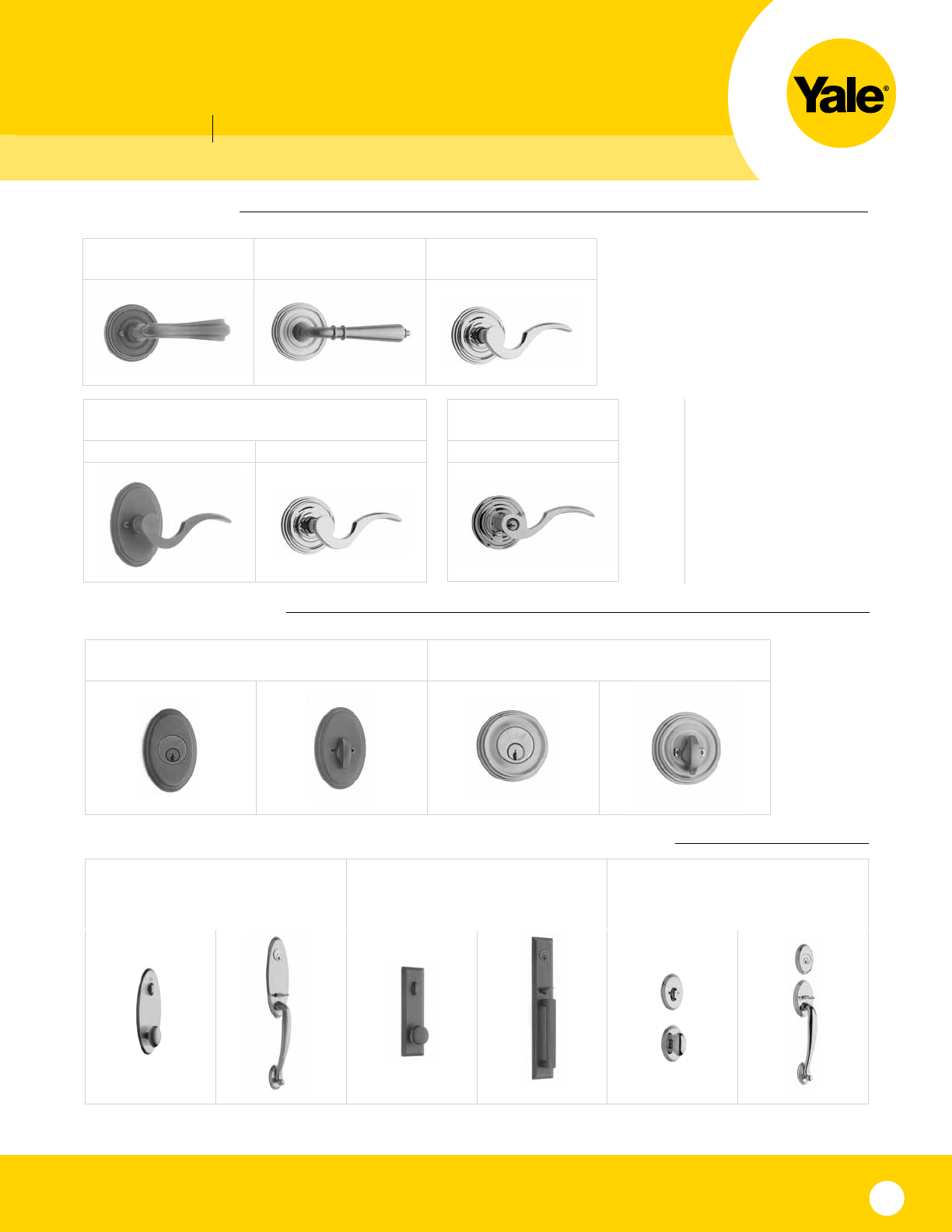

Residential..................... 39-54

microshield®

Yale locks and exit devices

are available with MicroShield

antimicrobial coating. MicroShield

is a revolutionary hardware

finish coating, using a silver ion based

technology, which inhibits the growth of

bacteria, algae, yeast, fungus, mold and

mildew. MicroShield is non-toxic and

lasts for the lifetime of the finish to which

it is applied. To order, suffix option code

“YMS”.

Note: MicroShield coating may vary finish color from

architectural standards. Locksets and exit devices

available with MicroShield will be indicated as such by

the MicroShield icon. MicroShield is not intended as

a substitute for traditional infection control programs

such as hand hygiene or use of disinfectants. Coated

products must still be cleaned to insure the surfaces

will be free of destructive microbes. Yale makes no

representations or warranties, express or implied, as to

the efficacy of MicroShield.

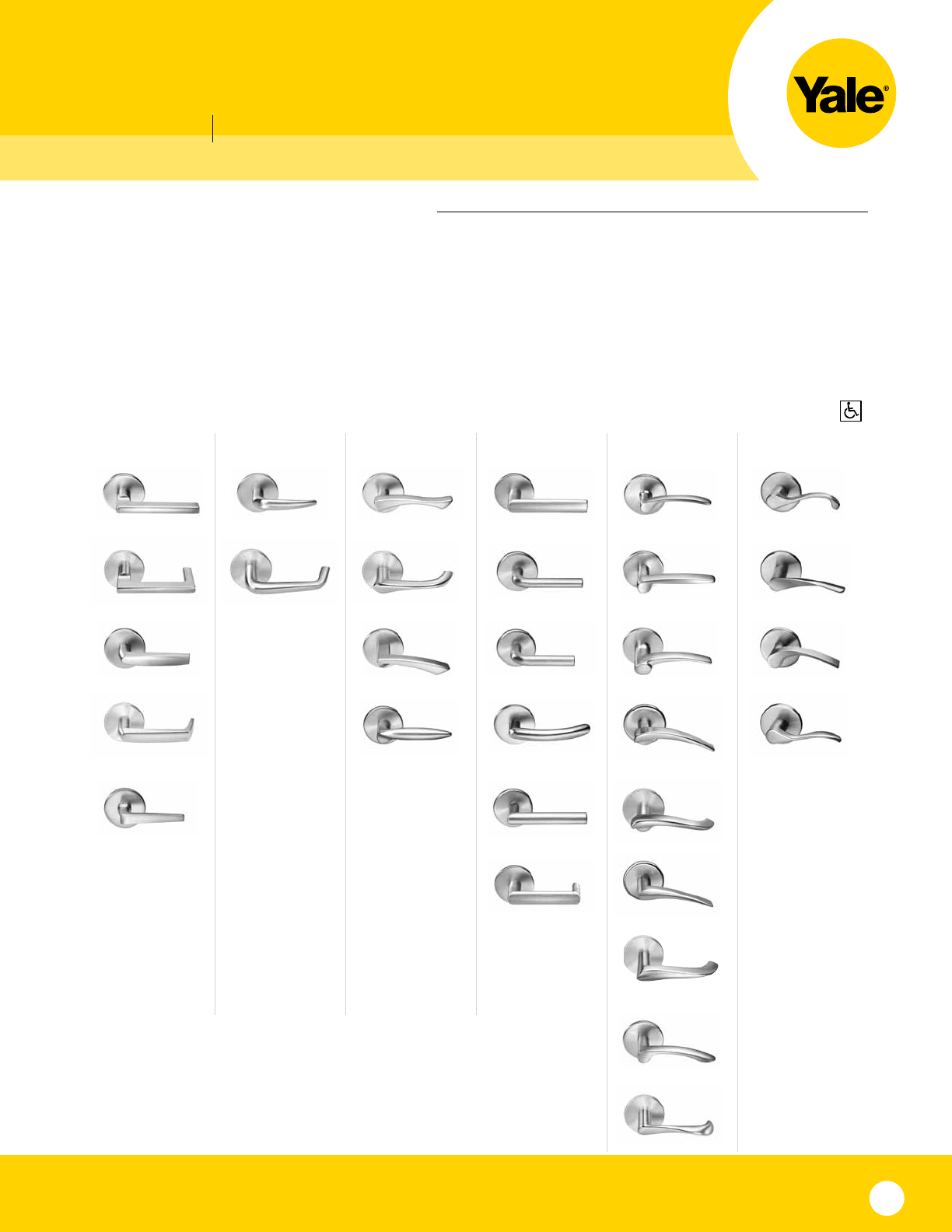

Reflections® stylized door levers

condensed catalog

For more than 150 years, Yale has distinguished itself as an innovative designer and manufacturer of locksets and door control

hardware. That tradition continues with Reflections® by Yale®, a comprehensive line of highly stylized door levers and coordinating

hardware.

This premier product series is available for Yale® 8800RL mortise locks, RL tubular locks and exit device trim, creating a continuity

of beautiful design throughout a building.

The Reflections offering consists of 30 dynamic and distinctive levers within six groups: Hudson, Danube, Seine, Thames,

Victoria and Niagara. Each captures a unique beauty and spirit of design unlike any other. These exquisite levers offer Yale quality

and exceptional elegance to a variety of high-end commercial projects, including office buildings, museums, upscale hotels and

resorts, and large multi-use projects such as apartment and condominium complexes.

Let Reflections® by Yale® inspire your vision of great design.

*Indicates levers that are handed.

hudson danube seine thames victoria niagara

TB TE TG* TM TT* MA*

UB TI TO* TN TU* RA*

TC TJ* TP TV* RB*

UC TK* TR TW* RC*

TD TS UW*

TQ TX*

UX*

TY*

TZ*

condensed catalog

mortise locksets

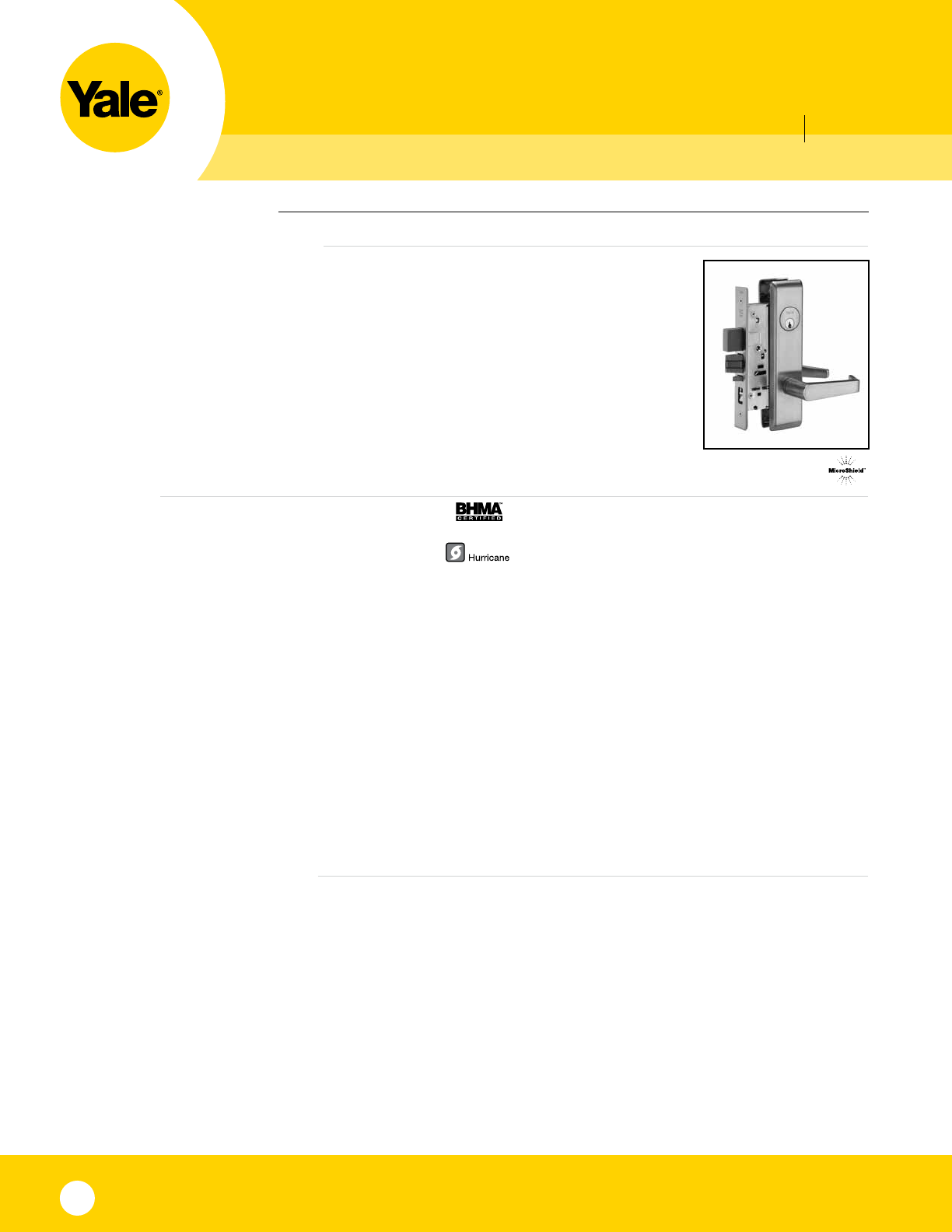

8800 series mortise locksets

The 8800 provides steadfast dependability and is the choice of architects and owners who require

superior performance in even the toughest applications. As a longtime industry standard of quality,

the Yale® steel case mortise lock continues to provide the highest level of security. This mortise lock

brings versatility as well as uncompromising strength and durability. With quick lever handing and a

tamper-proof, quick-reversible latchbolt, lockset handing takes only seconds. Options, such as an

occupancy indicator for privacy functions, provide flexibility and ease of use.

When it comes to strength, the Yale 8800 series brings a new measure of security to the door. Its

1" throw stainless steel deadbolt extends further back into the reinforced steel case when in the

locked position, providing added stability and resistance to abuse. Solid trim packages also provide

deterrence to vandalism, making the 8800 series number one in the total opening package. See

pages 33-34 for electrified information.

ANSI/BHMA: A156.13, Series 1000 Grade 1

UL-cUL: UL-cUL fire-rated up to 3 hours

Windstorm: Certified (refer to local codes)

Lock Case and Cover: Heavy-gauge wrought steel, zinc-plated, dichromated

Backset: 2-3/4" only

Deadbolt: Stainless steel, 1" throw

Latchbolt: 3/4" throw, stainless steel one-piece anti-friction

Guardbolt: Non-handed. Deadlocks latchbolt when door is closed

Armor Front: 8" x 1-1/4"

Rabbeted Doors: Non-handed for 1/2" rabbet

Lead Shielding: Available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For

other cylinder and keying options see page 29.

Reversibility: Locksets are handed and offer quick field reversibility

Strikes: 1-1/4" Non-handed curved lip standard; other curved lip and flat available to order

Finishes: Available in 17 finishes

Warranty: 10-year mechanical

heavy-duty escutcheon trim

8800 series locks with escutcheon trim are provided standard with the Camden (CN) escutcheon. This zinc die cast escutcheon

features one-piece casting for superior strength.

Locks with this escutcheon are ANSI/BHMA certified operational and security Grade 1 and will retrofit to existing Yale

escutcheon preps. The aesthetics of the CN escutcheon provide a design continuum with Yale exit device trim for a consistent

look throughout the facility.

features

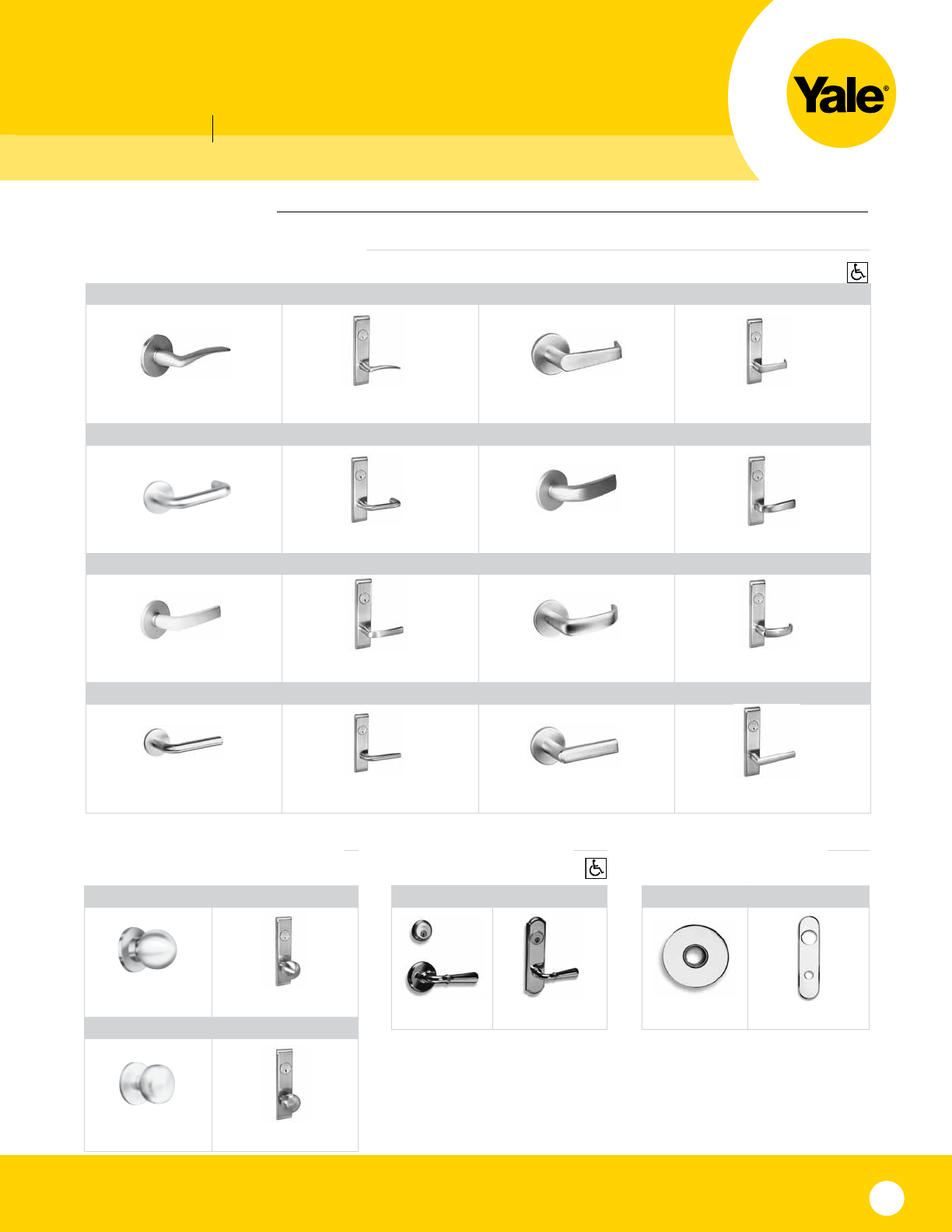

mortise lock trim

8800FL series standard lever trim

All through-bolted.

Arcadia* Augusta

ARR AR x CN AUR AU x CN

Carmel Jefferson

CRR CR x CN JNR JN x CN

Monroe Pacic Beach

MOR MO x CN PBR PB x CN

Pinehurst Virginia

PNR PN x CN VIR VI x CN

* Indicates levers that are handed.

condensed catalog

8800 series standard knob trim

All through-bolted.

8800FL designer trim

All through-bolted.

optional designer rose

and escutcheon

Copenhagen

COR CO x CN

Litchfield

LFR LF x CN

Hampton

HAR1 HAE1

R2 E2

HAR1 HAE1

Reflections® decorative levers

Yale® 8800RL mortise locks are available with Reflections lever trim, a comprehensive line of highly stylized lever handles.

Reflections lever handles are made from solid brass or stainless steel and can withstand years of abuse. Available in a multitude

of finishes, the levers complement any wood grain or other door exterior. Each lever is hand-polished and specially designed for

ergonomics and style.

features

•All8800RLserieslevertrimsfeaturethrough-boltedinstallation.Forsectionaltrims,thisensurespositivealignmentofthetrim

with the lock case.

•Alloutsidetrimisheldinplacebytreadedposts.Forsectionaltrims,thepostsfitthroughholesinthelockcaseandare

secured by through-bolts from the inside trim. For escutcheon trims, the posts fit through the door and are secured by

through-bolts from the inside trim.

•Outsideescutcheontrimshavenovisiblescrews-agreatdeterrenttovandalism.

•8800RLmortiselocksfeatureaninternalheavy-dutyspringcartridgewhichpreventsleversag.

•All8800RLtrimsareUL-cULlistedforfiredoorapplications.

•Availablefor1-3/4"to3-1/4"thickdoors.

•Leverdesignsareavailableasshownonpage3.

condensed catalog

mortise lock trim

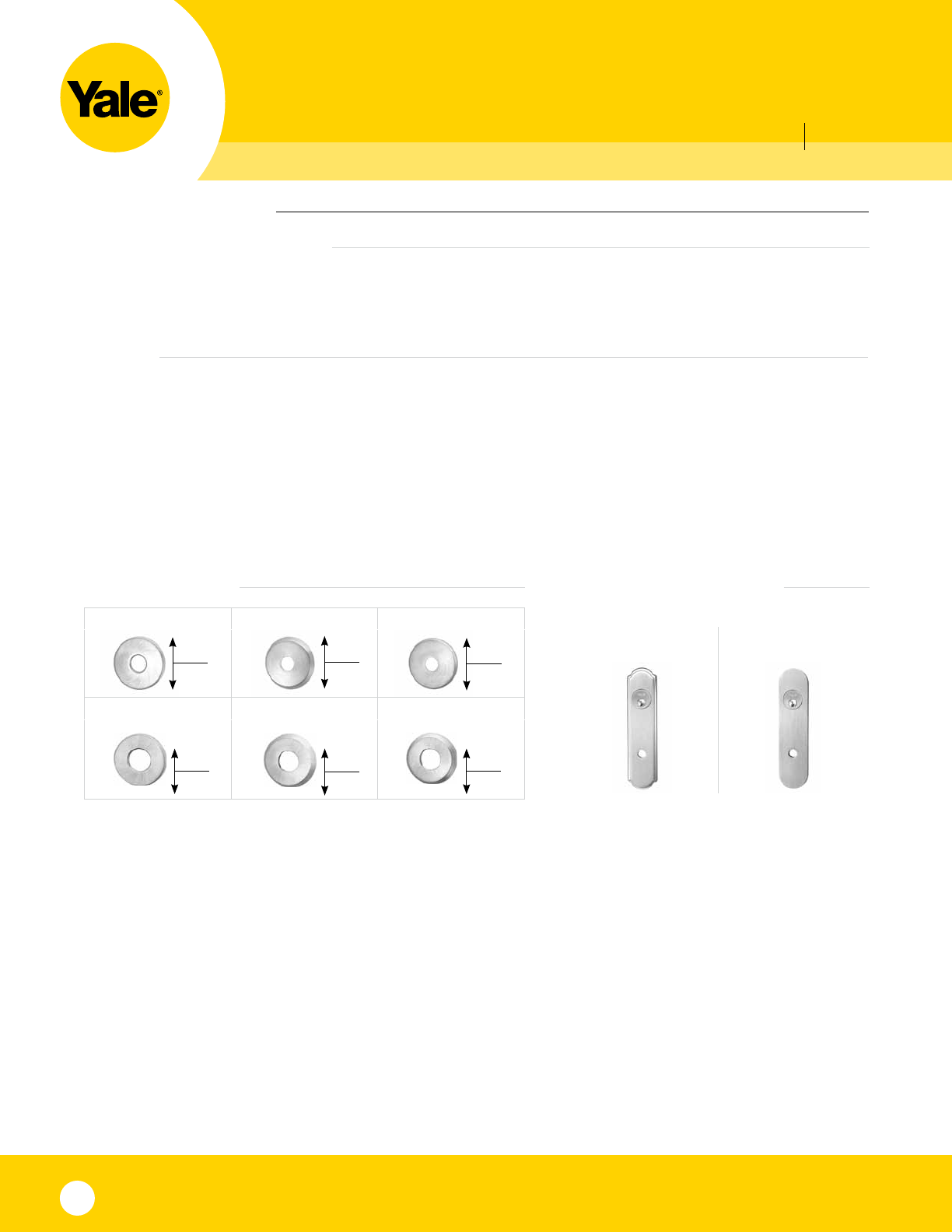

Reflections® roses

R3 R4 R5

R6 R7 R8

E3 E4

Reflections® escutcheons

2-3/4"

(69.9)

2-3/4"

(69.9)

2-3/4"

(69.9)

(50.8)

2-3/16"

(55.6)

2-3/16"

(55.6)

cylindrical locksets

condensed catalog

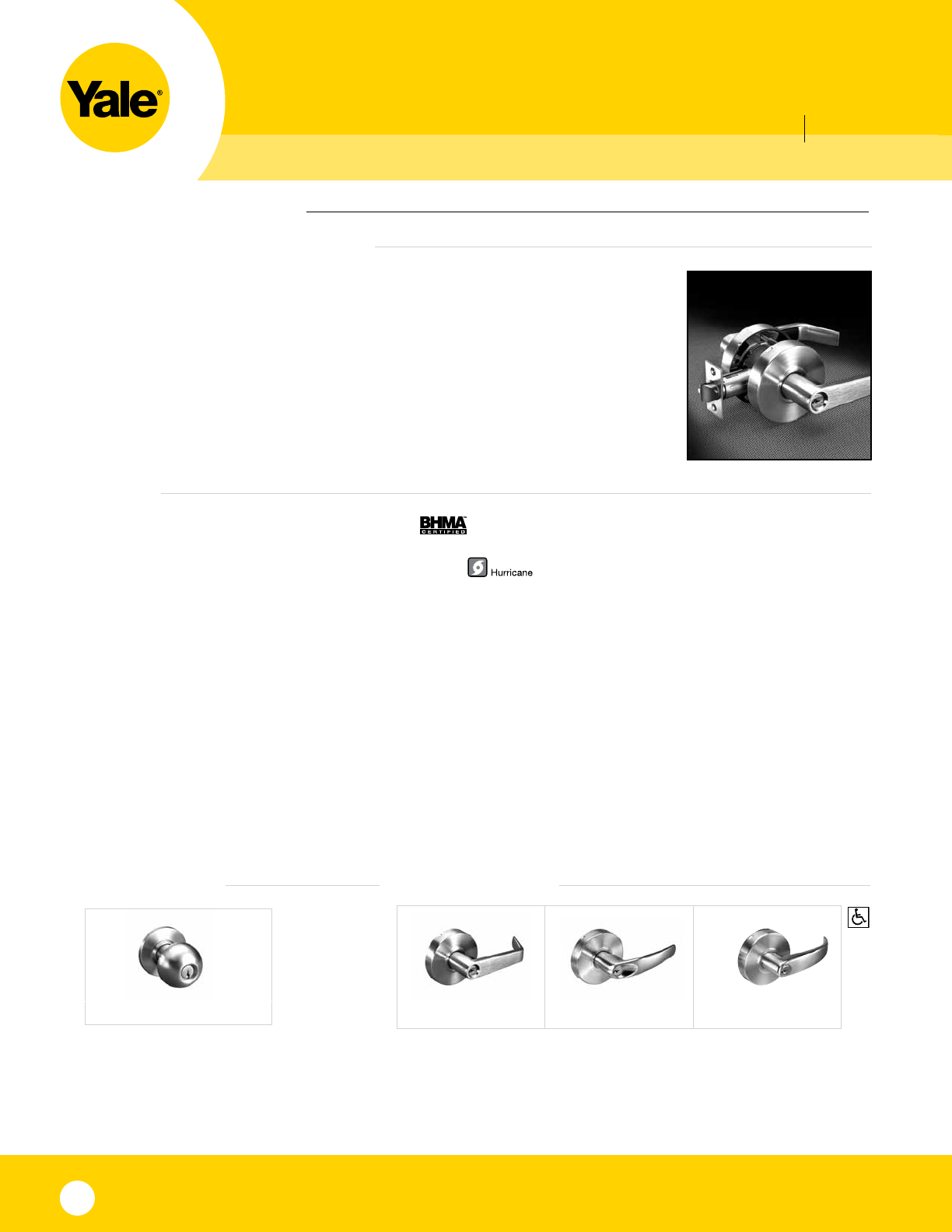

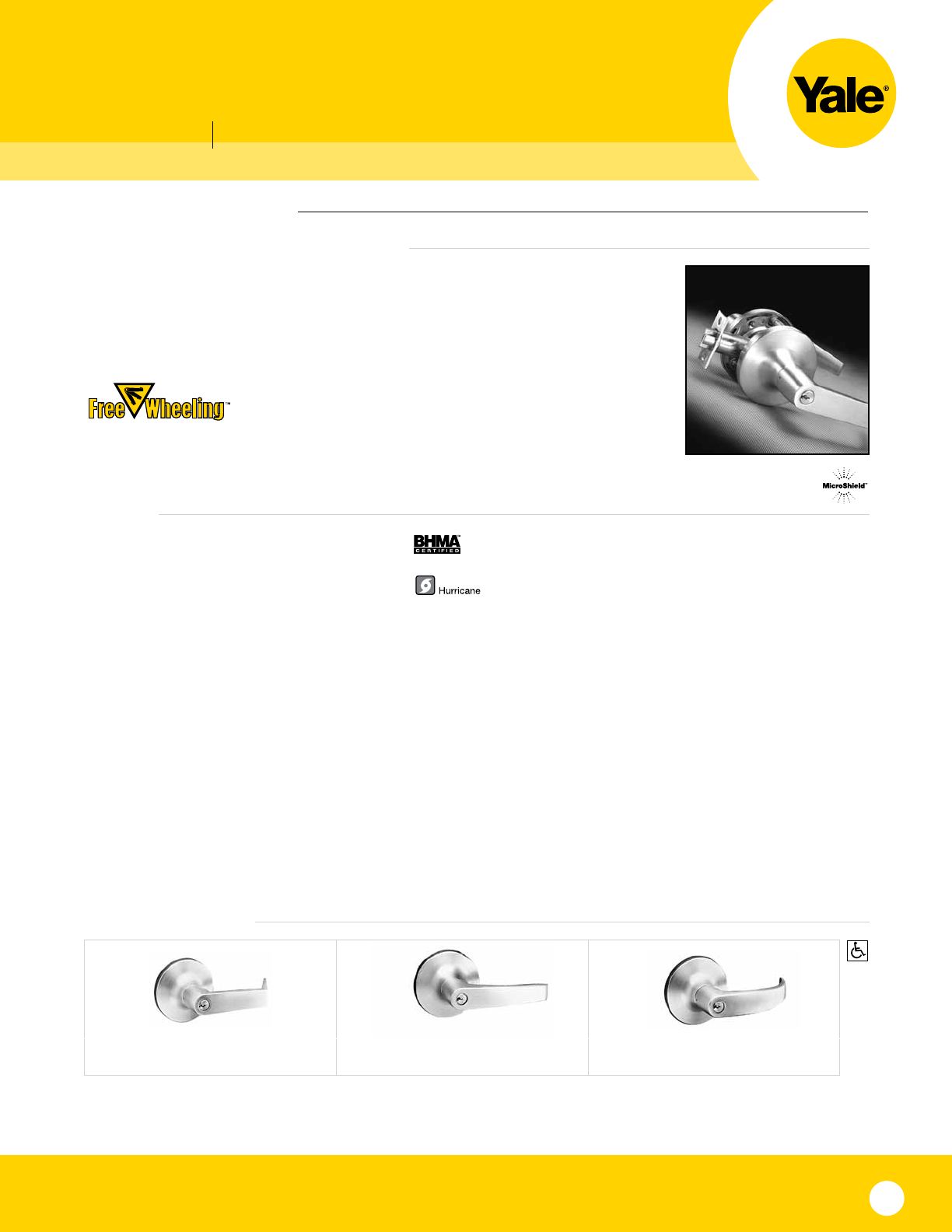

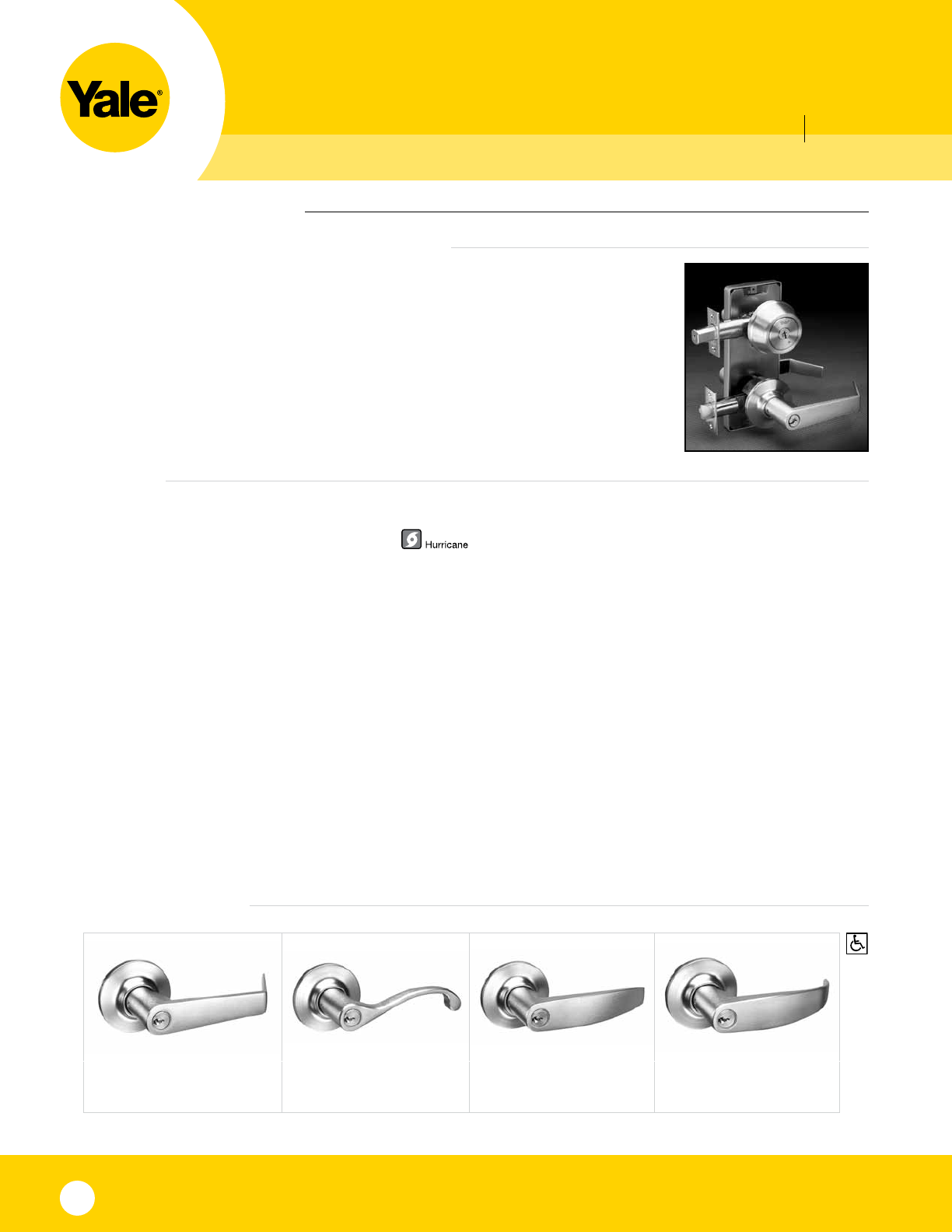

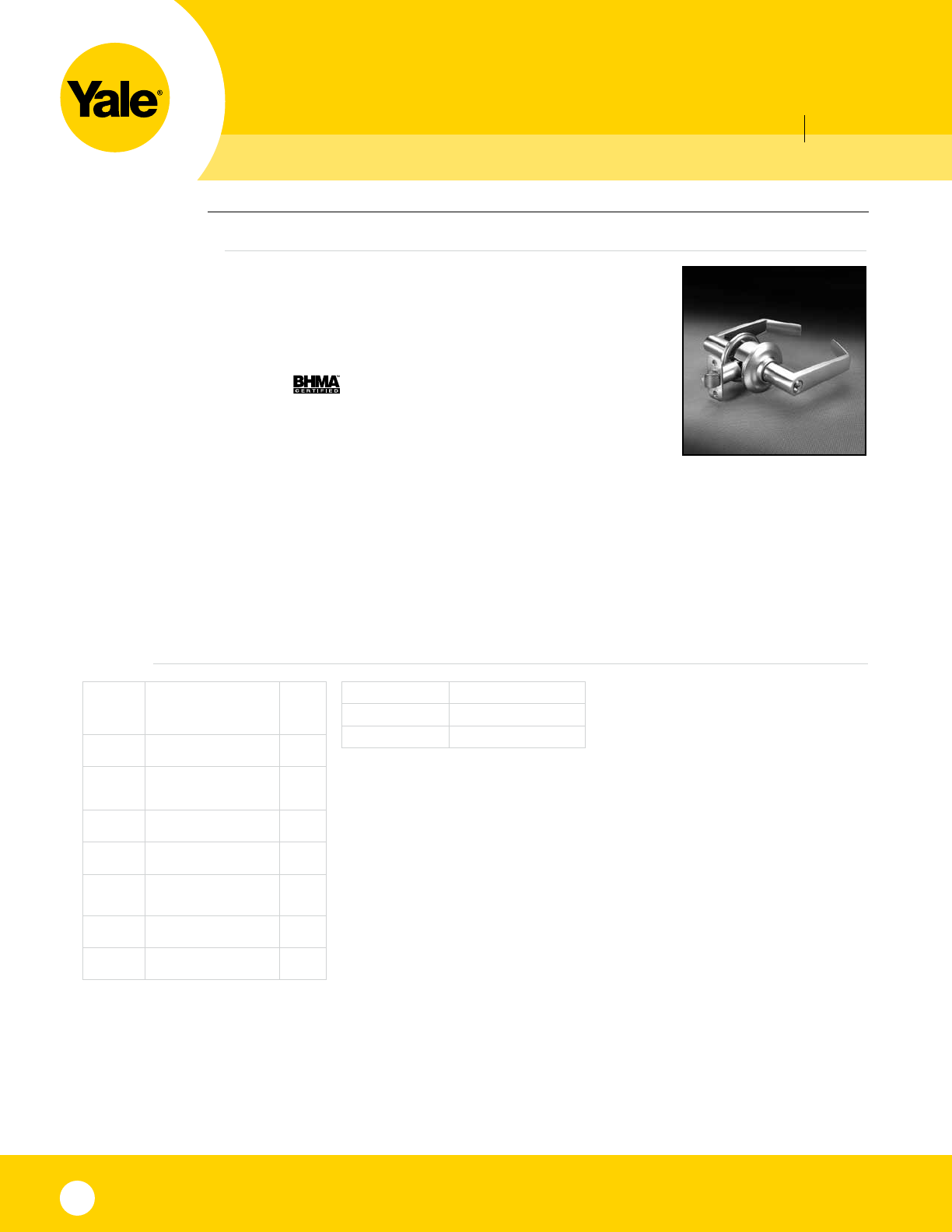

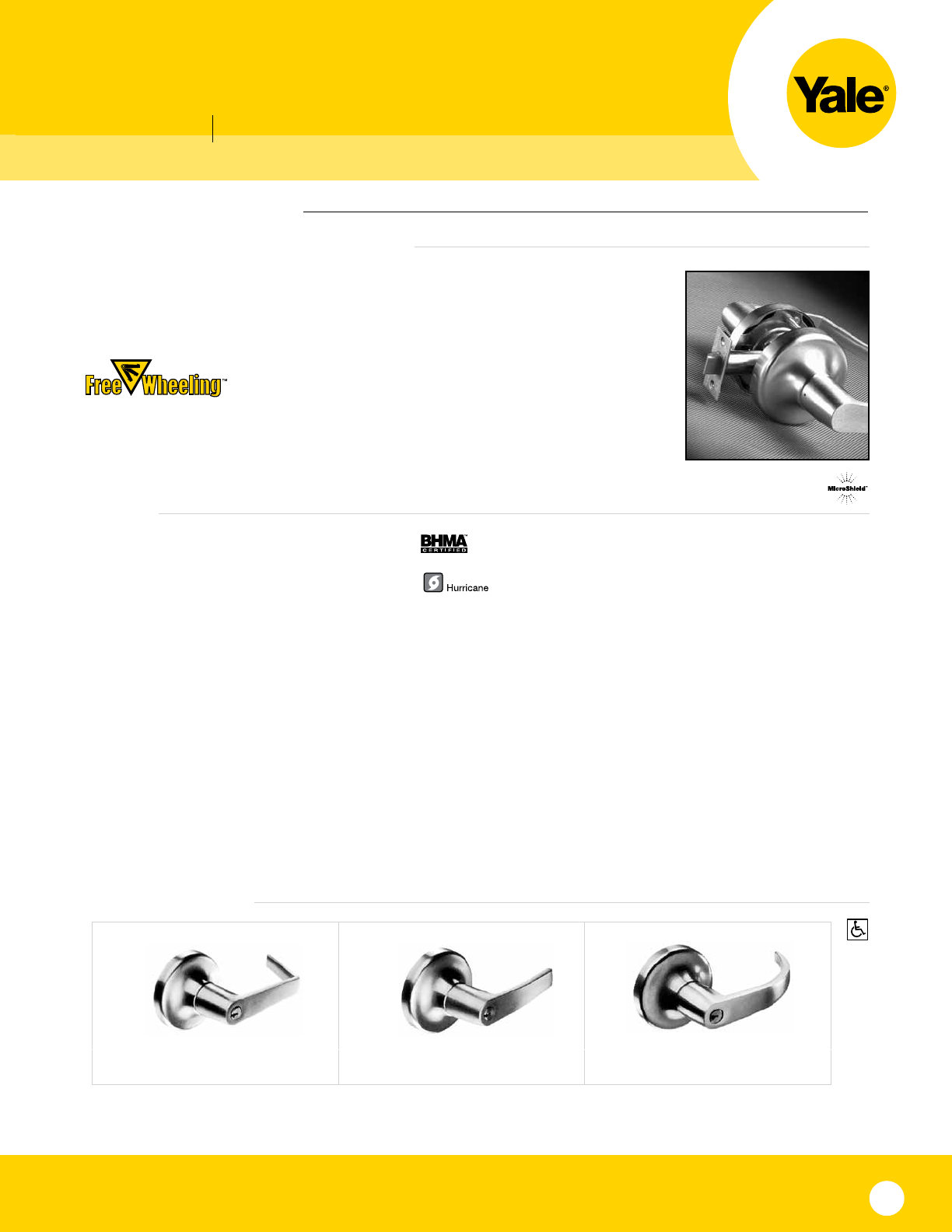

5400LN series cylindrical lever locksets

Designed for industrial, commercial and institutional use, the Yale 5400LN offers no compromise

when it comes to reliability and performance. With construction features such as our Free

Wheeling lever mechanism, wear-resistant chassis plates, heavy-duty return springs and

patented (Patent No. 6,131,970) door thickness adjustment, it's easy to see why it's a favorite

among those who demand the highest standard of product quality. See pages 33-34 for

electrified information.

All 5400LN functions feature the Free Wheeling lever mechanism.

When the outside lever is locked, it will rotate freely up and down while

remaining securely locked.

ANSI/BHMA: A156.2, Series 4000 Grade 1

UL-cUL: UL-cUL fire-rated up to 3 hours

Windstorm: Certified (refer to local codes)

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order

Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1-3/4" to 2". Available to 2-1/4" doors to order.

Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order

Lead Shielding: Available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other

cylinder and keying options, see page 29.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible

Finishes: Available in 13 finishes

Warranty: 7-year mechanical

5400LN series trim

Augusta AU Monroe MO Pacific Beach PB

features

Levers available to accept small format interchangeable cores and large format interchangeable cores from ASSA®, Medeco® and Schlage®.

Fixed core cylinders available with keyways from Corbin®, Corbin Russwin, Russwin®, Sargent® and Schlage®.

condensed catalog

cylindrical locksets

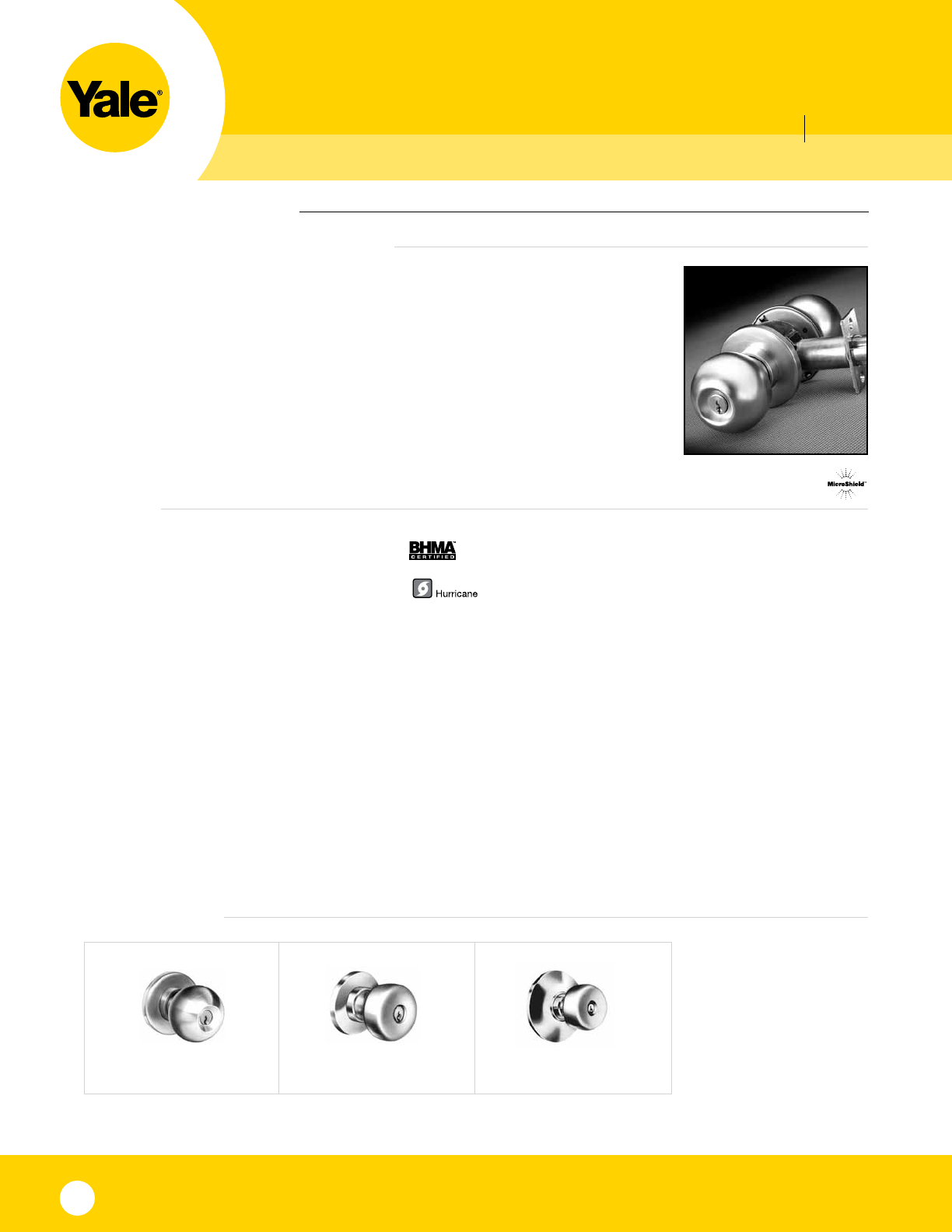

5400 series cylindrical knob locksets

Yale® highest-quality knob locksets offer the finest cylindrical lock mechanisms available.

The 5400 series is assembled with superbly engineered components of high-grade

materials for long-lasting reliability. Manufactured for the industrial, commercial and

institutional markets, this lockset features security, dependability and versatility in attractive

designs and finishes.

ANSI/BHMA: A156.2, Series 4000 Grade 1

UL-cUL: UL-cUL fire-rated up to 3 hours

Windstorm: Certified (refer to local codes)

Mechanism: 5400 series heavy-gauge steel, zinc-plat ed, dichromated

Backset: 2-3/4" stan dard; 3-3/4" or extension links thru 42" available to order

Latchbolt: 1/2" stainless steel throw stan dard; 5/8" and 3/4" throw available to order

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1-3/8" to 2" standard; 1-1/4" to 1-3/8" or 2" to 2-1/4" available to order for most trim

Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order

Lead Shielding: Available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other

cylinder and keying options, see page 29.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible

Finishes: Available in 16 finishes

Warranty: 1-year mechanical

features

5400 series trim

Carolina CA Litchfield LF Mayfair - MF Optional Rose

condensed catalog

cylindrical locksets

5300LN series cylindrical lever locksets

This revolutionary lockset boasts features such as a vandal-resistant Free Wheeling lever

mechanism and a patented adjustable door thickness design (Patent No. 6,131,970) that

makes installation a breeze. Through-bolting provides a secure fit that resists rattling and

shaking. With three lever designs and twelve finishes, you have the freedom and ability to

match any decor. See pages 33-34 for electrified information.

All 5300LN functions feature the Free Wheeling lever mechanism.

When the outside lever is locked, it will rotate freely up and down

while remaining securely locked.

features

Augusta AU Monroe MO Pacific Beach PB

ANSI/BHMA: A156.2, Series 4000 Grade 2

UL-cUL: UL-cUL fire-rated up to 3 hours

Windstorm: Certified (refer to local codes)

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/8" or 2-1/4" doors to order.

Fronts: Universal for both flat and beveled door edges

Lead Shielding: Not available

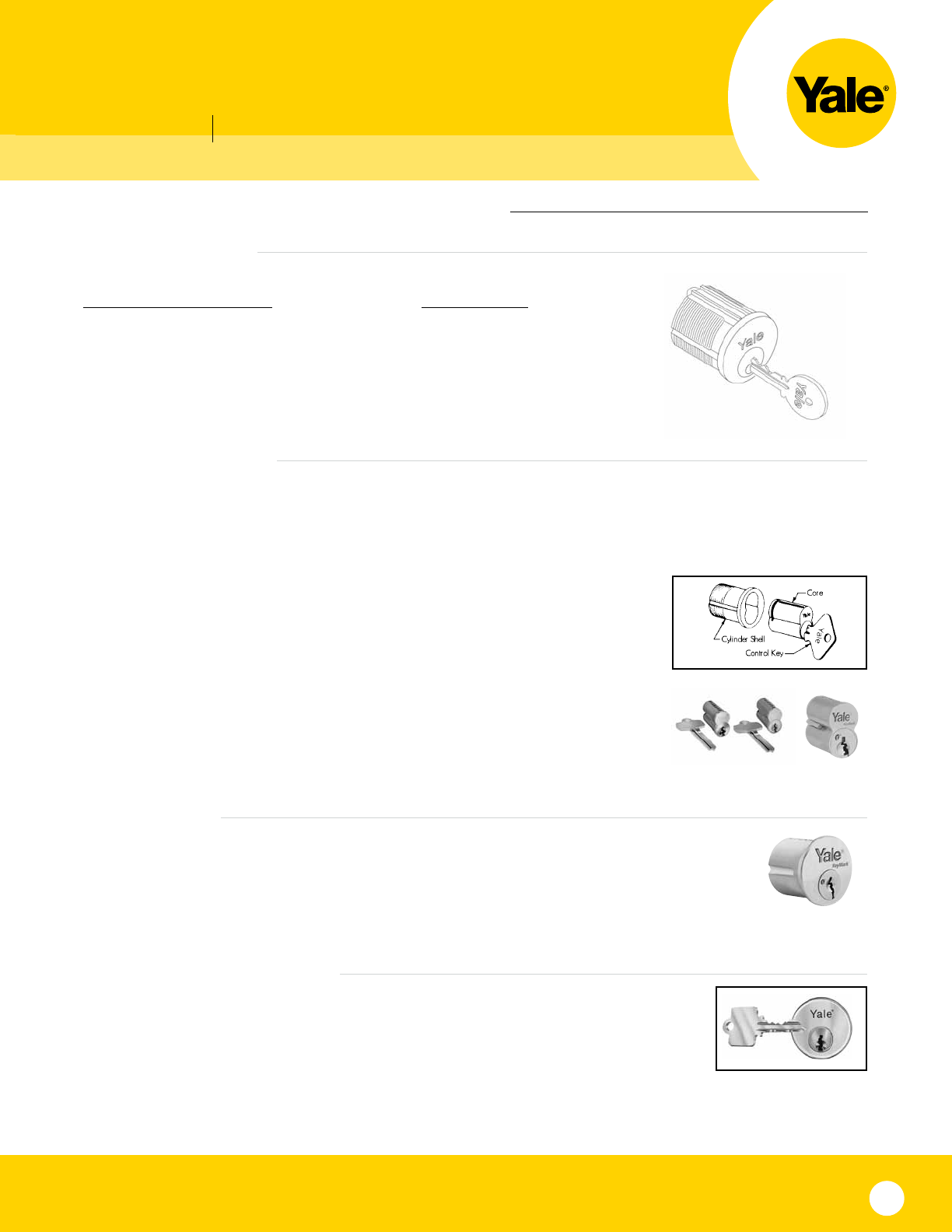

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available. For other

cylinder and keying options see page 29.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible

Finishes: Available in 13 finishes

Warranty: 5-year mechanical

5300LN series trim

Levers available to accept small format interchangeable cores and large format interchangeable cores from ASSA®, Medeco® and

Schlage®. Fixed core cylinders available with keyways from Corbin®, Corbin Russwin, Russwin®, Sargent® and Schlage®.

condensed catalog

cylindrical locksets

4800LN series lever interconnected locksets

The Yale® 4800LN series interconnected locksets combine our key-in-lever locksets with the added

safety and security of a deadbolt. From the inside, both the latchbolt and the deadbolt are retracted

simultaneously in a single motion for a quick and easy egress. The 4800LN series is ideal for multi-

family dwellings, assisted living facilities, office and light-duty commercial use.

features

UL-cUL: UL-cUL fire-rated up to 1-1/2 hours

Windstorm: Certified (refer to local codes)

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4" standard; 2-3/8" available to order

Deadbolt: Face removable standard for quick re-keying

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1-3/8" to 2"

Fronts: Square corner front standard; round corner available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available. For other

cylinder and keying options see page 29.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip T-strike standard for lockset, 1-1/8" x 2-3/4" standard for deadbolt; others available

to order

Finishes: Available in 7 finishes

Warranty: 1-year mechanical

4800LN series trim

Augusta AU Madrid MA Monroe MO Pacific Beach PB

condensed catalog

cylindrical locksets

4700(LN) series cylindrical locksets

Yale® 4700(LN) cylindrical locks are the ideal choice for a wide variety of commercial

applications where consistent quality, ease of use and installation are required at

an economical price. The 4700(LN) series is certified to ANSI/BHMA Grade 1

standards and is UL fire-listed for all functions ensuring reliability and peace of mind. See pages

33-34 for electrified information.

All 4700LN functions feature the Free Wheeling lever mechanism.

When the outside lever is locked, it will rotate freely up and down while

remaining securely locked.

4700LN series trim

Augusta AU Monroe MO Pacific Beach PB

features

Levers and knob available to accept 6- and 7- pin small format interchangeable cores.

Fixed core cylinders available with keyways from Corbin®, Corbin Russwin, Russwin®, Sargent® and Schlage®.

ANSI/BHMA: A156.2, Series 4000 Grade 1

UL-cUL: UL-cUL fire-rated up to 3 hours

Windstorm: 4700LN Certified (refer to local codes)

Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated

Backset: 2-3/4" standard

Latchbolt: 1/2" stainless steel throw standard

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: 4700LN adjustable from 1-3/4" to 2", available for 1-3/8" or 2-1/4" doors to order. 4700 adjustable

from 1-3/4" to 2"

Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available. For other

cylinder and keying options see page 29.

Reversibility: Non-handed

Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard. Optional T-strike available to order

for 4700LN.

Finishes: 4700LN available in 8 finishes, 4700 available in satin stainless steel (630) only.

Warranty: 5-year mechanical

4700 series trim

Carolina CA

condensed catalog

cylindrical locksets

4600(LN) series cylindrical locksets

Yale® 4600(LN) cylindrical locks are the ideal choice for a wide variety of commercial

applications where consistent quality, ease of use and installation are required at an

economical price. The 4600(LN) series is certified to ANSI/BHMA Grade 2 standards and is

UL fire-listed for all functions ensuring reliability and peace of mind.

4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of

through-bolts is at the discretion of the installer.

Carolina CA

4600 series trim

Levers and knob available to accept 6- and 7-pin small format interchangeable cores.

Fixed core cylinders available with keyways from Corbin®, Corbin Russwin, Russwin®, Sargent® and Schlage®.

features

ANSI/BHMA: A156.2, Series 4000 Grade 2

UL-cUL: UL-cUL fire rated up to 3 hours

Windstorm: 4600LN Certified (refer to local codes)

Mechanism: Heavy-gauge steel, zinc plated, dichromated

Backset: 2-3/4" standard; 2-3/8" to order

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1-3/8" to 1-3/4"

Fronts: Universal for both flat and beveled door edges

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available. For other

cylinder and keying options see page 29.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible

Finishes: Available in 6 finishes

Warranty: 3-year mechanical

4600LN series trim

Augusta AU Monroe MO Pacific Beach PB

condensed catalog

cylindrical locksets

4300LN series tubular lever locksets

An economical, light/medium-duty lever lockset that provides an outstanding

combination of value and performance. It is the ideal lever lockset for light

commercial and heavy-duty residential applications, including multi-family housing units,

nursing homes, retail complexes, restaurants and hotels.

ANSI/BHMA: A156.2, Series 4000 Grade 2

UL-cUL: UL-cUL fire-rated up to 1-1/2 hours

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4" standard; 2-3/8" available to order

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all functions

Door Thickness: Adjustable from 1-3/8" to 1-3/4"

Fronts: Square corner front standard; round corner available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available. For other

cylinder and keying options, see page 29.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip T-strike standard; ANSI and full lip strikes available to order

Finishes: Available in 7 finishes

Warranty: 1-year mechanical

features

4300LN series trim

Augusta AU Madrid MA Monroe MO Pacific Beach PB

condensed catalog

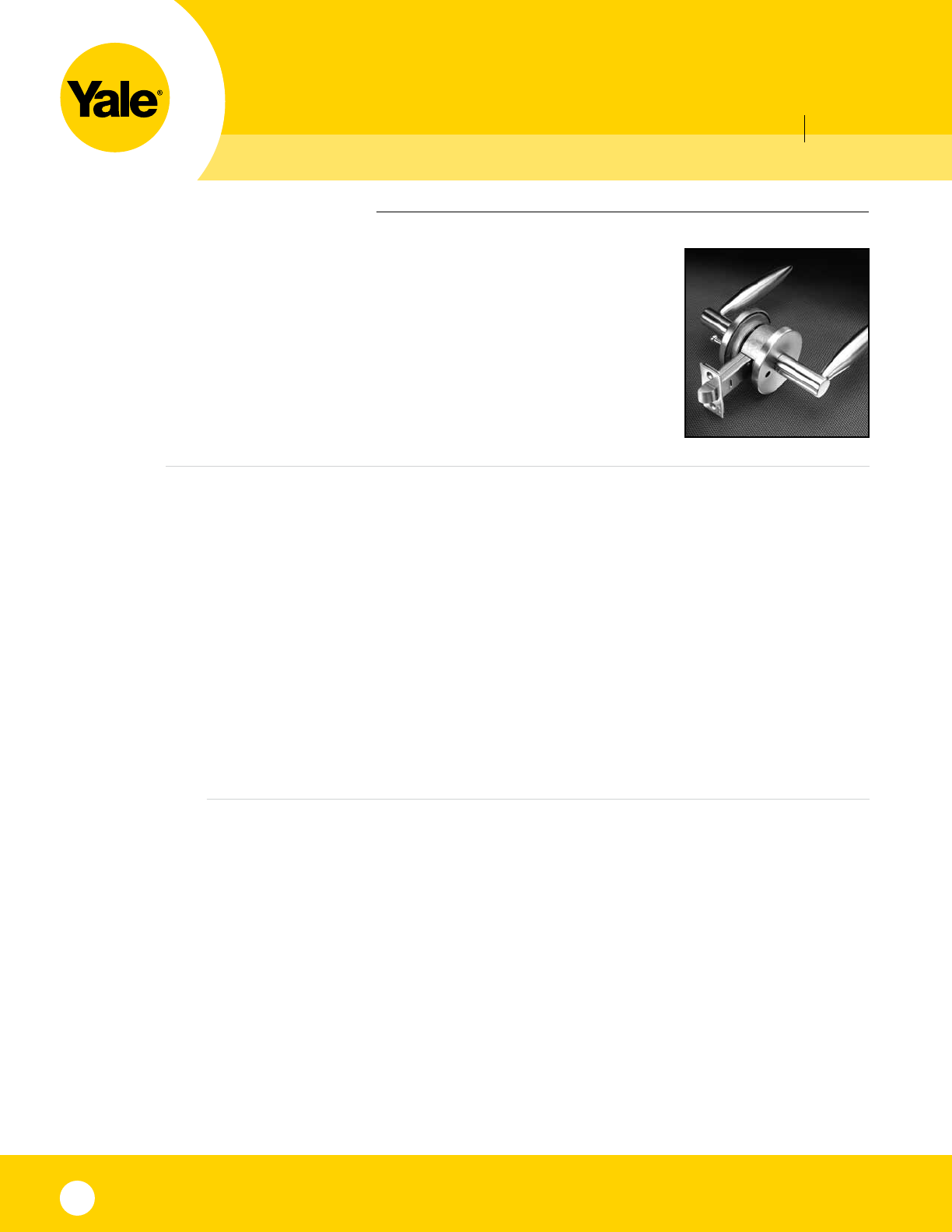

RL series tubular locksets

RL series tubular locks are designed to work with Yale® Reflections® decorative levers.

Engineered for ease of installation with the quality you expect from Yale, the RL series will meet

and exceed the expectations of the most demanding architects and design professionals. Ideal

interior applications include hospitality, multi-use facilities, apartments and condominiums.

features

UL-cUL: Available UL-cUL fire-rated up to 3 hours

Backset: 2-3/4"standard or 2-3/8" available to order

Latchbolt: 1/2" brass throw

Door Thickness: Adjustable from 1-3/8" to 1-3/4"

Fronts: 2-3/4" backset furnished standard with a 1-1/8" wide square corner front. 2-3/8" backset

furnished standard with a 1" wide square corner front.

Reversibility: Non-handed

Strikes: 1-1/4" curved lip T-strike standard; ANSI and full lip strikes available to order

Finishes: Available in 15 finishes

Warranty: 1-year mechanical

RL series trim

See page 3 for Reflections® decorative levers.

condensed catalog

6400LN series monolocks

Based on the Yale® 5400LN Grade 1 cylindrical lockset, the 6400LN Monolock continues

the tradition of quality and dependability as a preassembled lock series designed to retrofit

existing Yale® Monolock as well as Corbin Russwin Unit Lock and Falcon® Retrofit Lock

installations with 1-3/4" latch height.

All 6400LN functions feature the Free Wheeling lever mechanism.

When the outside lever is locked, it will rotate freely up and down

while remaining securely locked.

UL-cUL: UL-cUL fire-rated up to 1-1/2 hours

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2-3/4"

Latchbolt: 1/2" stainless steel throw

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: 1-3/4" only

Lead Shielding: Available to order

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other

cylinder and keying options, see page 29.

Reversibility: Handing must be specified for all functions and designs

Strikes: 1-1/4" lip ANSI strike supplied; other lip lengths and strikes available to order; all reversible

Finishes: Available in 1 finish

Warranty: 7-year mechanical

6400LN series trim

Augusta AU Monroe MO Pacific Beach PB

features

Levers available to accept small format interchangeable cores and large format interchangeable cores from ASSA®, Medeco® and Schlage®.

Fixed core cylinders available with keyways from Corbin®, Corbin Russwin, Russwin®, Sargent® and Schlage®.

monolocks

condensed catalog

auxiliary locks

350 series auxiliary mortise deadlock

UL-cUL: UL-cUL fire-rated up to and including 3 hours. cUL fire-rated for wood

doors up to 90 minutes.

Case: Heavy wrought steel, zinc-plated and dichromated

Backset: 2-3/4"

Deadbolt: Laminated stacked steel with hardened pin, 1" throw.

Door Thickness: 1-3/8" to 4" maximum, must be specified

Front: Universal for both flat and beveled door edges

Thumbturn: Brass, bronze or stainless steel. Thumbturn attaches directly to lock case

for added security.

Cylinder: Brass, 6-pin, keyed-random cylinder with two keys furnished standard,

7-pin available to order. For other cylinder and keying options, see page 29.

Reversibility: Non-handed

Finishes: Available in 16 finishes

Warranty: 1-year mechanical

ANSI/BHMA: A156.5, Grade 2

UL-cUL: UL-cUL fire-rated up to and including 3 hours. cUL fire-rated for wood doors up to 90 minutes.

Backset: 2-3/4" or 2-3/8" available to order

Door Preparation: Can be installed on metal doors pre pared to ANSI/BHMA A156.115 Specifications

Cross Bore Wood Doors: Standard - 2-1/8" diameter

Edge Bore: 1" diameter

Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

Door Thickness: 1-3/8" to 1-3/4" standard

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard. LFIC not available.

For other cylinder and keying options, see page 29.

Reversibility: Non-handed

Strikes: 2-3/4" x 1-1/8" metal and wood door strikes with strike reinforcement standard

Finishes: Available in 8 finishes

Warranty: 1-year mechanical

D100 series cylindrical deadbolts

ANSI/BHMA: A156.5, Grade 1

UL-cUL: UL-cUL fire-rated up to and including 3 hours. cUL fire-rated

for wood doors up to 90 minutes.

Backset: 2-3/4" or 2-3/8" available to order

Door Preparation: Can be installed on metal doors pre pared to ANSI/BHMA

A156.115 Specifications

Cross Bore Wood Doors: Standard - 2-1/8" diameter

Edge Bore: 1" diameter

Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning,

steel pin insert.

Door Thickness: 1-3/8" to 1-3/4" standard

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished

standard. For other cylinder and keying options, see page 29.

Reversibility: Non-handed

Strikes: 2-3/4" x 1-1/8" metal and wood door strikes with strike reinforcement standard

Finishes: Available in 8 finishes

Warranty: 1-year mechanical

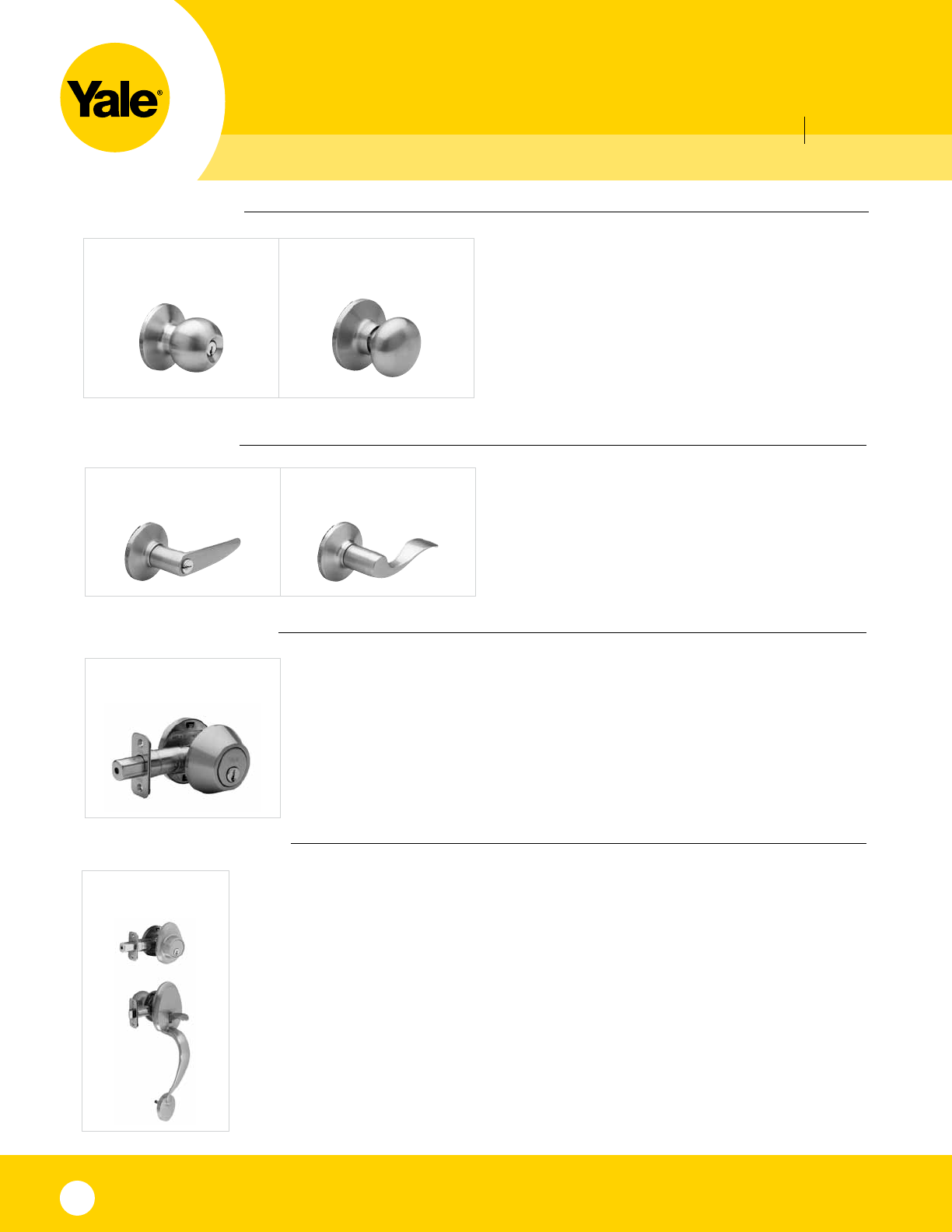

D200 series cylindrical deadbolts

condensed catalog

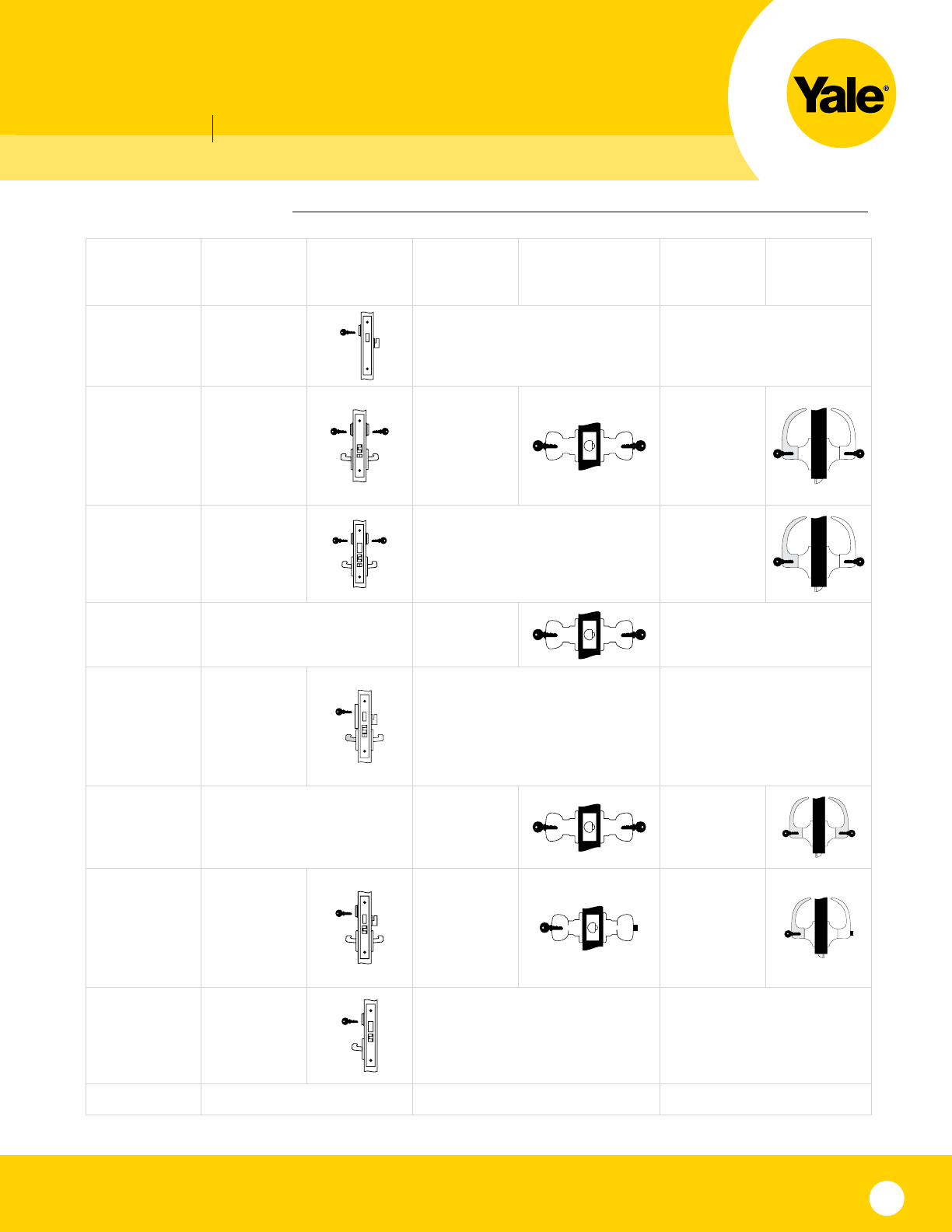

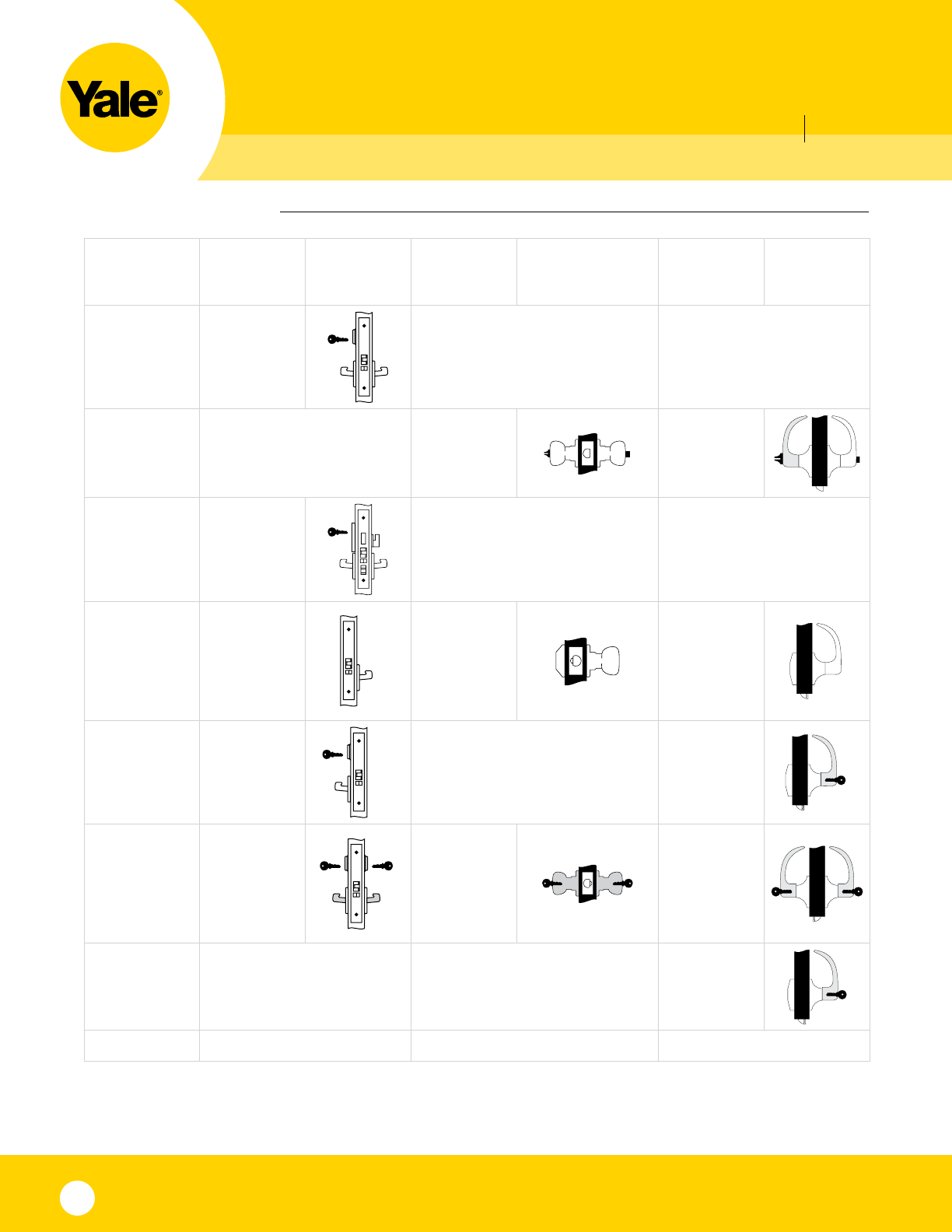

lockset functions

Function/

Application

(ANSI)

Model Nos.

Mortise

Locksets

(ANSI)

Model Nos.

Cylindrical Knob

Locksets

(ANSI)

Model Nos.

Cylindrical

Lever Locksets/

Monolocks

Passage or

Closet Latch

(F01)

Knob

8801

Levers

8801FL

SL8801FL

8801RL

(F75)

5401

4701

4601

(F75)

5401LN

5301LN

4701LN

4601LN

4301LN

6401LN

Privacy, Bedroom

or Bath Lock

(F19)

Knob

8802

Levers

8802FL

SL8802FL

8802RL

(F76A&B)

5402

4702

4602

(F76A&B)

5402LN

5302LN

4702LN

4602LN

4302LN

6402LN

Patio or Privacy Lock N/A N/A

(F77)

5403LN

5303LN

4703LN

6403LN

Entry Lock N/A N/A

(F82A&B)

5404LN

5304LN

4704LN

4604LN

6404LN

Storeroom or

Closet Lock

(F07)

Knob

8805

Levers

8805FL

SL8805FL

8805RL

(F86)

5405

4705

4605

(F86)

5405LN

5305LN

4705LN

4605LN

4305LN

6405LN

Service Station Lock N/A (F92)

5406

(F92)

5406LN

5306LN

4706LN

6406LN

Entry Lock

(F04)

Knob

8807

Levers

8807FL

SL8807FL

8807RL

(F109)

5407

4707

4607

(F109)

5407LN

5307LN

4707LN

4607LN

4307LN

6407LN

Classroom Lock

(F05)

Knob

8808

Levers

8808FL

SL8808FL

8808RL

(F84)

5408

4708

4608

(F84)

5408LN

5308LN

4708LN

4608LN

4308LN

6408LN

Note: Shaded area denotes rigid

lever or knob. Note: Shaded area denotes rigid knob. Note: Shaded area denotes Free Wheeling lever

(except 4300LN and 4600LN).

condensed catalog

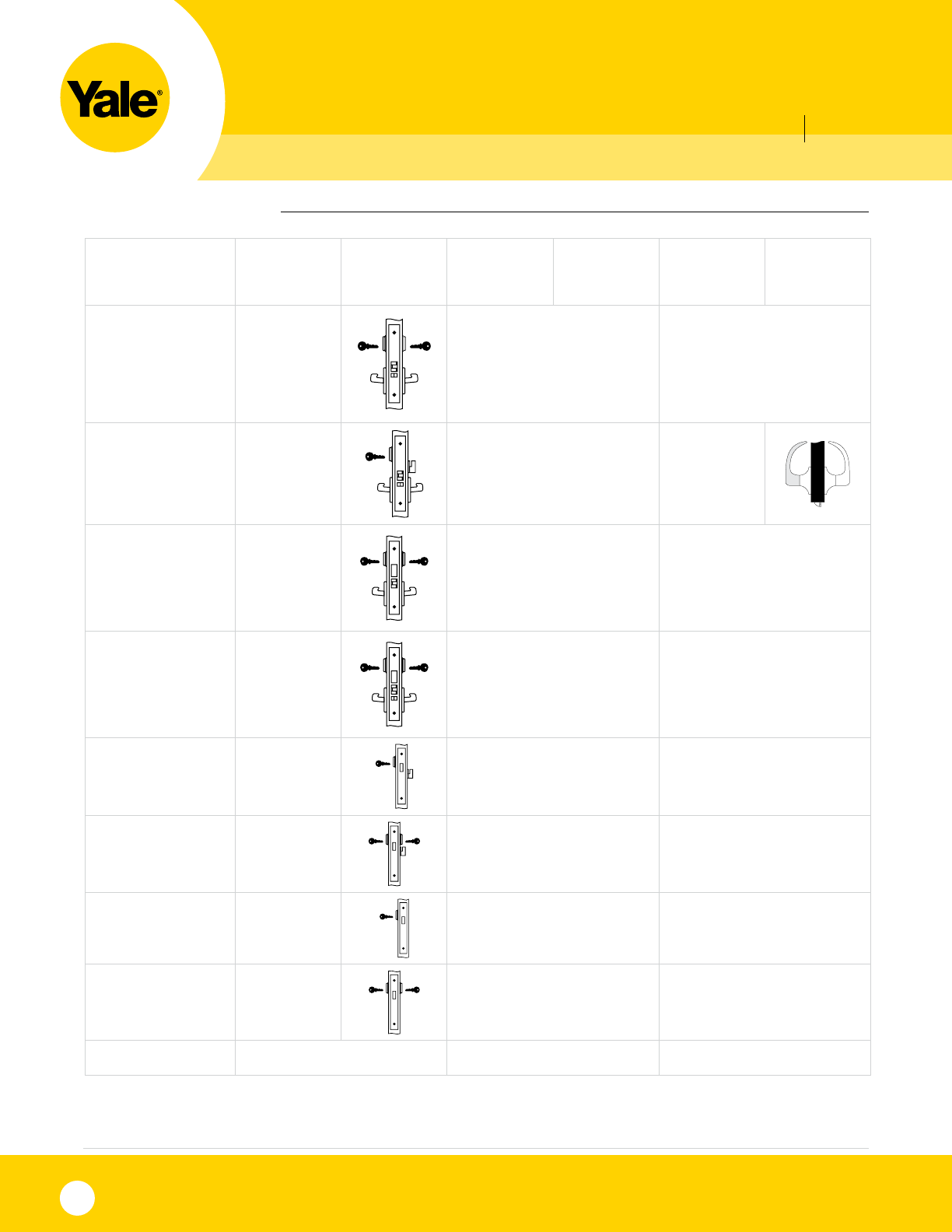

lockset functions

Function/

Application

(ANSI)

Model Nos.

Mortise

Locksets

(ANSI)

Model Nos.

Cylindrical

Knob Locksets

(ANSI)

Model Nos.

Cylindrical

Lever

Locksets/

Monolocks

Intruder

Latchbolt Lock

(F32)

Knob

8808-2

Levers

8808-2FL

SL8808-2FL

8808-2RL

N/A N/A

Classroom or Office

Lock (Mortise)

Exit Latch (Cylindrical)

Knob

8809

Levers

8809FL

SL8809FL

8809RL

N/A

(F89)

5409LN

5309LN

4709LN

6409LN

Intruder Deadbolt

Lock

(F33)

Knob

8811-2

Levers

8811-2FL

SL8811-2FL

8811-2RL

N/A N/A

Intruder Deadbolt

Lock

(F34)

Knob

8812-2

Levers

8812-2FL

SL8812-2FL

8812-2RL

N/A N/A

Classroom Deadlock

(F29)

8813ST

N/A N/A

Classroom Deadlock 8813ST-2 N/A N/A

Deadlock

(F18)

8814

N/A N/A

Deadlock

(F16)

8814-2

N/A N/A

Note: Shaded area denotes rigid lever or

knob.

Note: Shaded area denotes rigid knob. Note: Shaded area denotes Free Wheeling

lever.

condensed catalog

lockset functions

Function/

Application

(ANSI)

Model Nos.

Mortise

Locksets

(ANSI)

Model Nos.

Cylindrical Knob

Locksets

(ANSI)

Model Nos.

Cylindrical

Lever

Locksets/

Monolocks

Deadlock (F17)

8815 N/A N/A

Apartment, Exit

or Public Toilet

Lock

(F09)

Knob

8817-2

Levers

8817-2FL

SL8817-2FL

8817-2RL

(F88)

5417

(F88)

5417LN

6417LN

Classroom

Security

Intruder Lock

Knob

8818-2

Levers

8818-2FL

SL8818-2FL

8818-2RL

N/A

(F110)

5418LN

5318LN

4718LN

6418LN

Store Door Lock N/A (F91)

5419 N/A

Hotel Guest

Lock

(F15)

Knob

8820

Levers

8820FL

SL8820FL

8820RL

N/A N/A

Communicating

Lock N/A (F80)

5421

(F80)

5421LN

5321LN

4721LN

6421LN

Dormitory, Exit

or Corridor

Lock

(F13)

Knob

8822

Levers

8822FL

SL8822FL

8822RL

(F90)

5422

(F90)

5422LN

5322LN

4722LN

6422LN

Storeroom Lock

Knob

8823

Levers

8823FL

SL8823FL

8823RL

N/A N/A

Note: Shaded area denotes rigid lever or

knob.

Note: Shaded area denotes rigid knob. Note: Shaded area denotes Free Wheeling

lever.

condensed catalog

lockset functions

Function/

Application

(ANSI)

Model Nos.

Mortise

Locksets

(ANSI)

Model Nos.

Cylindrical Knob

Locksets

(ANSI)

Model Nos.

Cylindrical

Lever

Locksets/

Monolocks

Holdback Lock

Knob

8824

Levers

8824FL

SL8824FL

8824RL

N/A N/A

Privacy Lock N/A 5425

5425LN

5325LN

4725LN

6425LN

Hotel/Motel

Lock

Knob

8827

Levers

8827FL

SL8827FL

8827RL

N/A N/A

Exit or

Communciating

Passage Lock

(F31)

Knob

8828

Levers

8828FL

SL8828FL

8828RL

(F111)

5428

(F111)

5428LN

5328LN

4728LN

4628LN

4328LN

6428LN

Communicating

Classroom or

Closet Lock

Knob

8829

Levers

8829FL

SL8829FL

8829RL

N/A

(F113)

5429LN

5329LN

4729LN

6429LN

Asylum or

Institutional

Lock

(F30)

Knob

8830-2

Levers

8830-2FL

SL8830-2FL

8830-2RL

(F87)

5430

(F87)

5430LN

5330LN

4730LN

6430LN

Communicating

Storeroom Lock N/A N/A

(F112)

5439LN

5339LN

4739LN

Note: Shaded area denotes rigid lever or

knob.

Note: Shaded area denotes rigid knob. Note: Shaded area denotes Free Wheeling

lever.

condensed catalog

lockset functions

Function/

Application

(ANSI)

Model Nos. Mortise Locksets

Detention Lock

Knob

8831

Lever

SL8831FL

Hotel/Motel

Lock

Knob

8832

Levers

8832FL

SL8832FL

8832RL

Exit Lock

Knob

8833

Lever

8833FL

8833RL

All Purpose

Lock 8833-2

All Purpose

Lock

Knob

8834

Lever

8834FL

8834RL

All Purpose

Lock

Knob

8834-2

Lever

8834-2FL

8834-2RL

Exit Lock

Knob

8835

Lever

8835FL

SL8835FL

8835RL

Storeroom

Deadbolt

Knob

8840

Levers

8840FL

SL8840FL

8840RL

Note: Shaded area denotes rigid lever or knob.

Function/

Application

(ANSI)

Model Nos. Mortise Locksets

Apartment

Corridor Door

Lock

(F20)

Knob

8847

Levers

8847FL

SL8847FL

8847RL

Room Door

Lock

(F21)

Knob

8860

Levers

8860FL

SL8860FL

8860RL

Store Door Lock

(F14)

Knob

8860-2

Levers

8860-2FL

SL8860-2FL

8860-2RL

Dormitory or

Storeroom Lock

Knob

8861

Levers

8861FL

SL8861FL

8861RL

Privacy,

Bedroom or

Bath Lock

(F22)

Knob

8862

Levers

8862FL

SL8862FL

8862RL

Bathroom Lock

with Indicator

Knob

8864

Levers

8864FL

8864RL

Bathroom Lock

Knob

8865

Levers

8865FL

SL8865FL

8865RL

Dormitory or

Exit Lock

(F12)

Knob

8867

Levers

8867FL

SL8867FL

8867RL

Note: Shaded area denotes rigid lever or knob.

Function/

Application

(ANSI)

Model Nos.

Cylindrical

Interconnected

Lever Locksets

Entrance,

Single Locking

(F95)

4851LN

Entrance,

Double Locking

(F97)

4871LN

condensed catalog

lockset functions

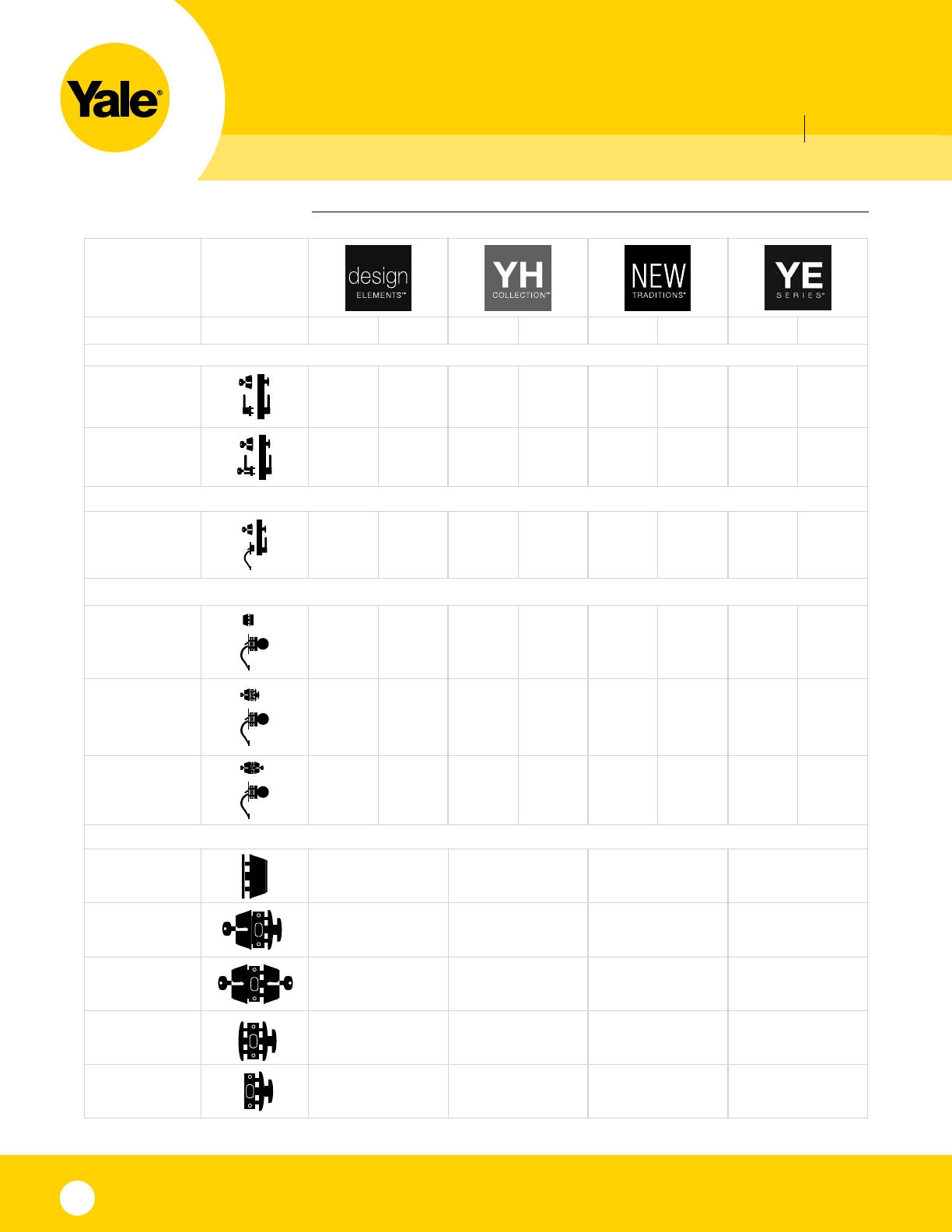

Function/Application ANSI

(Grade 1/Grade 2) Model Number Deadlocks

Mortise Deadlocks

Cylinder x Thumbturn

Deadbolt operated by key outside, thumbturn inside. — 352

Cylinder x Cylinder

Deadbolt operated by key outside, key inside. — 351

Cylinder x Blank (Rose)

Deadbolt operated by key outside only. No inside operation. — 353

Blank Plate x Thumbturn

Deadbolt operated by thumbturn inside only. No outside operation. — 354

Cylinder x Classroom Thumbturn

Deadbolt operated by key outside, deadbolt retracted by thumbturn

inside. Thumbturn will not project deadbolt.

— 357

Cylinder x Cylinder & Thumbturn

Deadbolt by key outside and inside. Inside thumbturn will retract

deadbolt but will not project it.

— 356

Function/Application ANSI

(Grade 1/Grade 2)

Model Number Deadbolts

Cylindrical Deadbolts D100 D200

Cylinder x Thumbturn

Deadbolt operated by key outside, thumbturn inside. E2151/E2152

D111

D112

B-D171

B-D172

D211

D212

Cylinder x Cylinder

Deadbolt operated by key outside, key inside. E2141/E2142 D121

D122

D221

D222

Cylinder x Blank (Rose)

Deadbolt operated by key outside only. No inside operation. E2161/E2162 D131

D132

D231

D232

Blank Plate x Thumbturn

Deadbolt operated by thumbturn inside only. No outside operation. E2191/E2192 D141

D142

D241

D242

Blank Plate x Cylinder

Deadbolt operated by key inside only. No outside operation. E2101/E2102 D151

D152

D251

D252

Cylinder x Classroom Thumbturn

Deadbolt operated by key outside, deadbolt retracted by thumbturn

inside. Thumbturn will not project deadbolt.

E2171/E2172

D161

D162

B-D181

B-D182

D261

D262

Occupancy Indicator x Thumbturn

Deadbolt operated by thumbturn inside, emergency override key

outside. Outside indicator displays "In Use" when deadbolt thrown or

"Vacant" when deadbolt retracted.

N/A N/A D291

D292

Deadbolt Model Number Description

D X X X

Model Number Grade Function Backset

“1” = 2-3/8", “2” = 2-3/4"

condensed catalog

multipoint locking systems

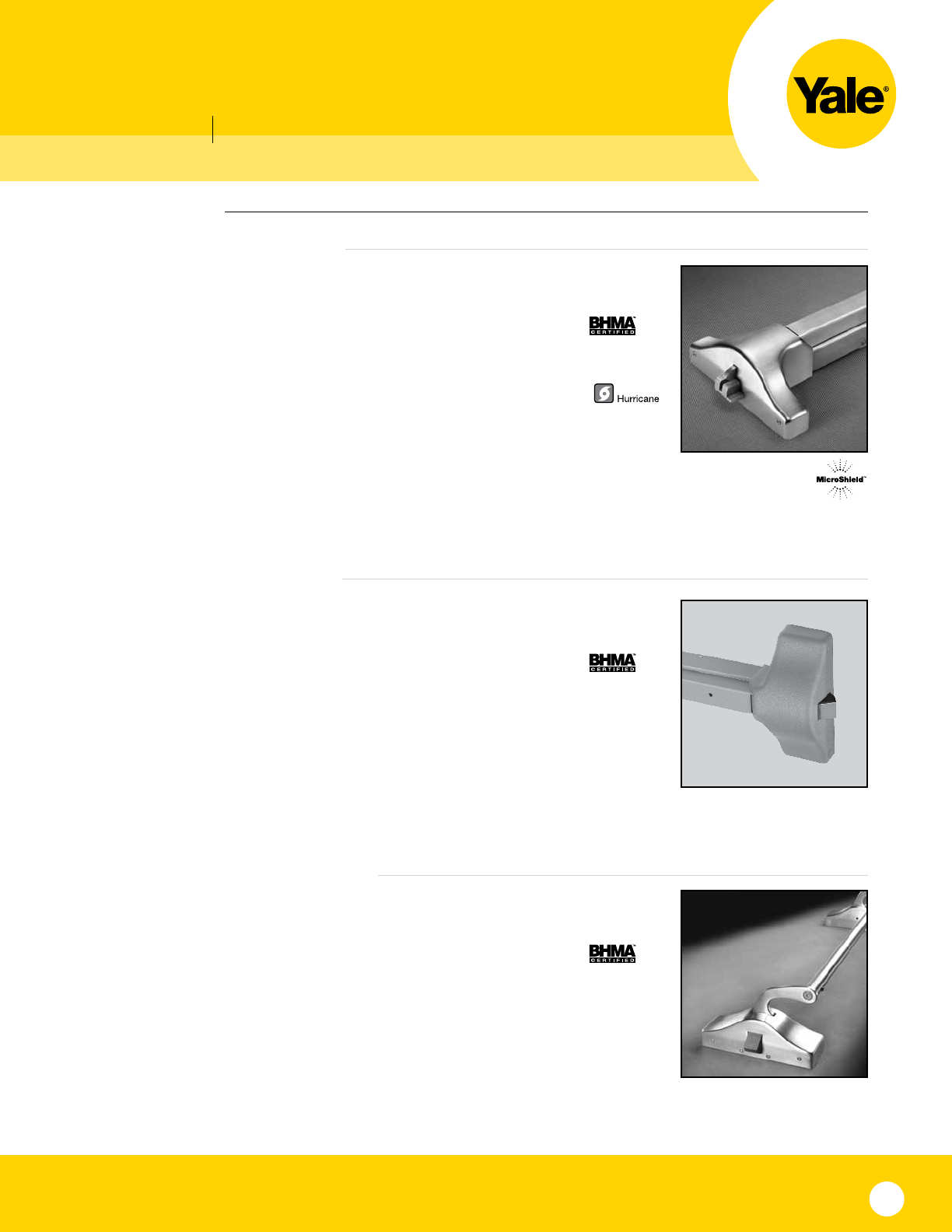

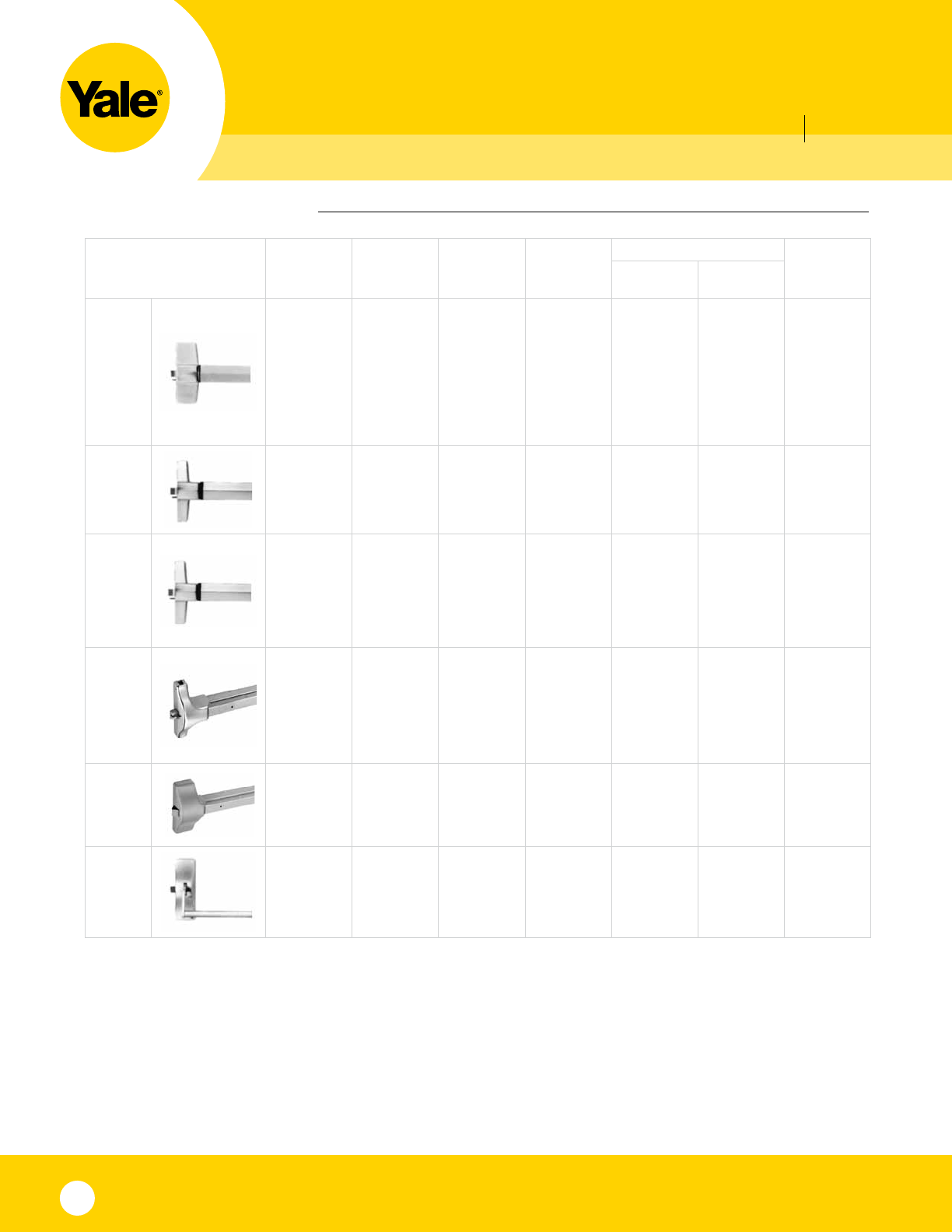

7180(F)TD three point

exit devices

7180(F)TD is a robust three-point

auto latching system engineered

to help protect lives by security

community shelter entries. Extra heavy-

duty steel components ﬁrmly fasten

the door to the frame - at top, bottom

and center latch points - reinforcing the

opening to endure severe wind speeds

and ﬂying debris.

Certiﬁcations/Compliance

Fire Listing

UL-cUL Listed for use on ﬁre doors

having a rating up to and including

3-hours.

Windstorm

Certiﬁed (refer to local codes). 7180(F)

TD series are UL certiﬁed for outswing

doors; single door 4'0" x 8'0" and pairs

8'0" x 8'0" maximum to the following

guidelines:

Tornado and

Hurricane Shelters

- FEMA 361

- ICC 500

7380(F) three-point locks

7380F series is a three-point auto

deadlocking system developed to

help protect lives while primarily

securing a community shelter and safe

room entry. Extra heavy-duty steel

components ﬁrmly fasten the door to the

frame - at top, bottom and center latch

points - reinforcing the opening to endure

severe wind speeds and ﬂying debris.

Certiﬁcations/Compliance

Fire Listing

All functions are UL-cUL Listed for use

on fire doors having a rating up to and

including 3-hours.

Windstorm

Certified (refer to local codes). 7380(F)

series are UL certified for inswing and

outswing doors; single door 4'0" x 8'0"

maximum to the following guidelines:

Tornado and

Hurricane Shelters

- FEMA 320

- FEMA 361

- ICC 500

Hurricane

- ANSI/BHMA A250.13

- ASTM E330, E1886, E1996

- TAS201, TAS202, TAS203

7370 three-point locks

7370 series is a three-point auto

deadlocking system developed to

help protect lives while primarily

securing the community shelter window

openings. Extra heavy-duty steel

components firmly fasten the shutter to

the frame - at top, bottom and center

latch points - reinforcing the opening to

endure severe wind speeds and flying

debris.

Certiﬁcations/Compliance

7370 series are UL certified for inswing

shutters 1'8"w x 3'0"h min. to 4'0"w x

6'8"h max. to the following guidelines:

Tornado and

Hurricane Shelters

- FEMA 361

- ICC 500

Hurricane

- ICC 500

- ANSI/BHMA A250.13

- ASTM E330, E1886, E1996

- TAS201, TAS202, TAS203

The 7180(F)TD, 7380(F) and 7370 multi-point locks/exit devicesare fully integrated - part of a complete ASSA ABLOY tornado and

hurricane resistant solution with CECO StormPro® 361, CURRIES StormPro® 361 and FLEMING F-5 shutters and McKINNEY® SP

hinges.

condensed catalog

exit devices

7000 series architectural exit devices

Yale® 7000 series exit devices deliver an unparalleled combination of durability, breadth of line,

innovation and aesthetics. With an architecturally inspired design that features simple clean lines,

both our wide and narrow stile devices are visually appealing and bring gracious totality to the

entire line of Yale locks and hardware.

As an option, Yale 7000 series exit devices are available with a photoluminescent touchpad

cover. Lumi-Lite® (top picture) allows for easy egress in an emergency blackout situation.

7100 series exit devices

A conventional exit device used for single swing doors or pairs of doors of metal, wood or

composite construction.

Types

• RimSquareBolt® Devices (type 28)

• RimPullmanBoltDevices(type1)

• SurfaceVerticalRodDevices(type2)

• ConcealedVerticalRodDevices(types7and8)

• MortiseDevices(type3)

Features

• CertifiedANSI/BHMAA156.3Grade1exithardware

• UL-cULlistedforfirelabeledorpanicexitdoors

• Windstormcertified(refertolocalcodes)

• Outsidetrimfitsstock161doorpreps,escutcheonoutsidefittingstock86doorpreps

• SurfaceandconcealedverticalroddevicesareavailableinLessBottomRodvarieties

• DoublecylinderdevicesareavailableforRimSquareBolt, Rim Pullman and Mortise varieties

• Availablewithcompleterangeofelectrifiedoptions,includingREX,electricdogging,outsidetrimmonitoring,latch 

pullback, bolt status monitoring or delayed egress

• Availablein15finishes

• 5-yearmechanicalwarranty

7200/7200M series exit devices

A narrow stile exit device compatible with the aesthetics and function requirements of

contemporary doors of aluminum or metal construction.

Types

• RimSquareBolt Devices (type 28)

• RimPullmanBoltDevices(type4)

• SurfaceVerticalRodDevices(type5)

• ConcealedVerticalRodDevices(types6and8)

Features

• CertifiedANSI/BHMAA156.3Grade1exithardware

• UL-cULlistedforfirelabeled(7200M)orpanicexitdoors

• Windstormcertified(refertolocalcodes)

• Optionalremovablemullions,keyedremovablemullions,raisedmoldingclearancekitsandcustomspecialtiesare

all available

• Availablewithcompleterangeofelectrifiedoptions,includingREX,electricdogging,outsidetrimmonitoring,latch 

pullback, bolt status monitoring or delayed egress

• Availablein15finishes

• 5-yearmechanicalwarranty

condensed catalog

exit devices

Types

• RimPullmanBoltDevices(type1)

• SurfaceVerticalRodDevices(type2)

• ConcealedVerticalRodDevices(type8)

• MortiseDevices(type3)

Features

• CertifiedANSI/BHMAA156.3

Grade 1 exit hardware

• ULlistedforfirelabeledorpanicexitdoors

• Mortisedevicesavailablewithfailsafeor

fail secure options

• Outsidetrimoptionsavailableformost

functions

• Optionalremovablemullions,keyed

removable mullions, Torx® security screws

and custom specialties are all available

• 1-yearmechanicalwarranty

Types

• RimPullmanBoltDevices(type1)

• SurfaceVerticalRodDevices(type2)

Features

• CertifiedANSI/BHMAA156.3

Grade 1 exit hardware

• UL-cULlistedforfirelabeledorpanicexit

doors

• Outsidetrimfitsstock161doorpreps,

escutcheon outside fitting stock 86 door

preps

• Availablein4finishes

• 3-yearmechanicalwarranty

Types

• RimSquareBolt® Devices (type 28)

• RimPullmanBoltDevices(type1)

• SurfaceVerticalRodDevices(type2)

• ConcealedVerticalRodDevices(types7

and 8)

Features

• CertifiedANSI/BHMAA156.3

Grade 1 exit hardware

• UL-cULlistedforfirelabeledorpanicexit

doors

• Windstormcertified(referto

local codes)

• Optionalremovablemullions,keyed

removable mullions, Torx® security screws

and custom specialties are all available

• Availablein9finishes

• 3-yearmechanicalwarranty

1800 series flatbar exit devices

1800 series exit devices are the ideal choice for a wide variety of commercial applications where

consistent quality, ease of use and installation are required.

2100 series flatbar exit devices

It’s no secret that the 2100 series flatbar exit device has a reputation as the right choice for

meeting the rigors of demanding industry segments.

1500 series traditional exit devices

Traditional exit devices for compliance with the exit and access demands of today’s codes,

where it is important to maintain the architectural lines of yester year.

condensed catalog

exit device functions

*Less Bottom Rod (LBR) option available (F90).

Series Application

Rim

Pullman

Bolt

Rim

SquareBolt®

Surface

Vertical

Rod

Concealed Vertical Rod

Mortise

Metal

Doors

Wood

Doors

7100

Flush

Wide Stile

Doors

Panic:

7100

7100-2

Fire:

7100F

7100F-2

Panic:

7150

7150-2

7150WS

Fire:

7150F

7150F-2

7150FWS

Panic:

7110

7170*

7170WS

Fire:

7110F

7170F*

7170WS

Panic:

7120

7160*

Fire:

7120F

7160F*

Panic:

7160*

Fire:

7160F*

Panic:

7130

7130-2

Fire:

7130F

7130F-2

7200

Narrow

Stile

Doors

Panic:

7200

Panic:

7250

Panic:

7210

Panic:

7220 — —

7200M

Flush

Wide Stile

Doors

Panic:

7200M

Fire:

7200MF

Panic:

7250M

7250MWS

Fire:

7250MF

7250MFWS

Panic:

7210M

Fire:

7210MF

Panic:

7220M

Fire:

7220MF

— —

2100

Flush

Wide Stile

Doors

Panic:

2100

2100WS

Fire:

2100F

2100FWS

Panic:

2150

2150WS

Fire:

2150F

2150FWS

Panic:

2110

2170*

Fire:

2110F

2170F*

Panic:

2120

2160*

Fire:

2120F

2160F*

Panic:

2160*

Fire:

2160F*

—

1800

Flush

Wide Stile

Doors

Panic:

1800

Fire:

1800F

—

Panic:

1810

Fire:

1810F

— — —

1500

Flush

Wide Stile

Doors

Panic:

1500

Fire:

1500F

—

Panic:

1510

Fire:

1510F

Panic:

1520

Fire:

1520F

—

Panic:

1530

Fire:

1530F

condensed catalog

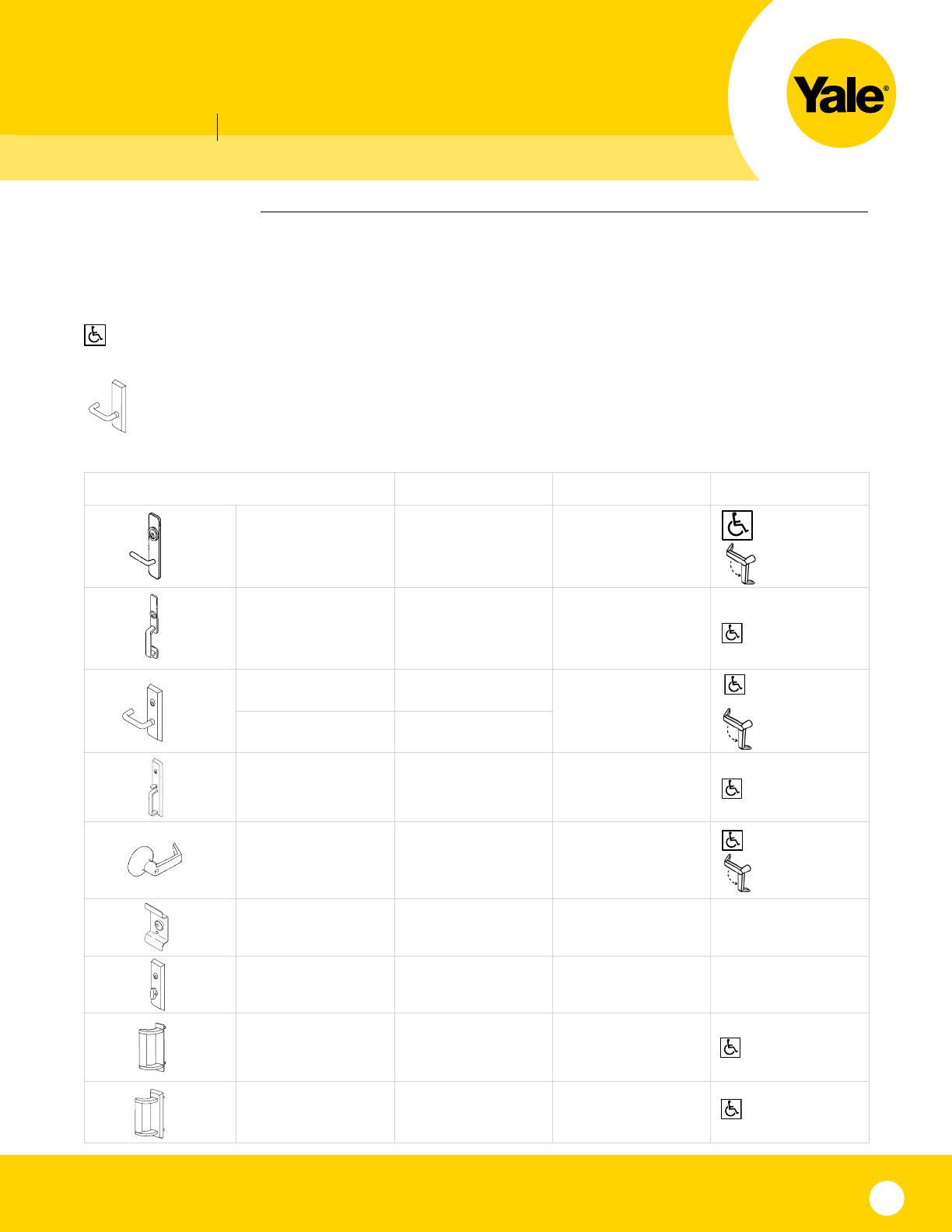

exit device trim

Entry functions, for doors equipped with Yale® exit devices,

are provided by trim with mechanisms mor tised into the doors,

and exposed components in architectural finishes. Yale keying

systems, as well as other keying, are easily integrated.

ADA compliance is maintained when Yale® exit devices

are used with lever handle or pull trims.

Vandal-Resistant Free Wheeling lever action

offers protection against forced entry, lockouts, and

damage to the hardware.

Options include outside cylinder only and

decorative lever han dles.

Cylinders: Brass, 6-pin, keyed-random cylinder with two keys

furnished standard, 7-pin available to order. For other cylinder

and keying options, see page 30.

Warranty: 5-year mechanical for all 600 series trims.

Trim Series Device Series Trim Functions Remarks

500F

Narrow Escutcheon

7200

7200M

F02, F03, F08, F09

F11, F12 Passage

Blank Plate

ADA Lever

Access

Vandal-Resistant

Lever Action

510

Narrow Escutcheon

With Pull

7200

7200M

F02, F03, F05, F06

F11, F12, F15, F16

Passage

Blank Plate

ADA Pull Access

420 (Rim, V.R.)

620F (Rim, V.R.)

650F (Mortise)

7100

2100

1800 F02, F03, F08, F09, F14

Passage Blank Plate

ADA Lever

Access

Vandal Resistant

Lever Action

(Rim V.R. Only)

350F (Mortise)

Full Escutcheon 1500

630F (Rim, V.R.)

660F/670F (Mortise)

Full Escutcheon

7100

2100

1500

F02, F03, F05, F06, F15

Passage Blank Plate ADA Pull Access

440F

540F

580F

Rose

7100

2100

1800

F02, F03, F08, F14

Passage

ADA Lever Access

Vandal-Resistant

Lever Action

210F

Plate/Finger Pull 2100 F02, F03 Baked Enamel Finishes

603F

Full Escutcheon with

Thumbturn

7100

2100

F08, F09, F14

Passage

Rim, SVR, CVR for use

with pull by others

480F

Narrow Escutcheon

with Offset Pull

7200

7200M F02, F03 ADA Pull Access

680F

Full Escutcheon

with Offset Pull

7100 F02, F03 ADA Pull Access

condensed catalog

exit device trim

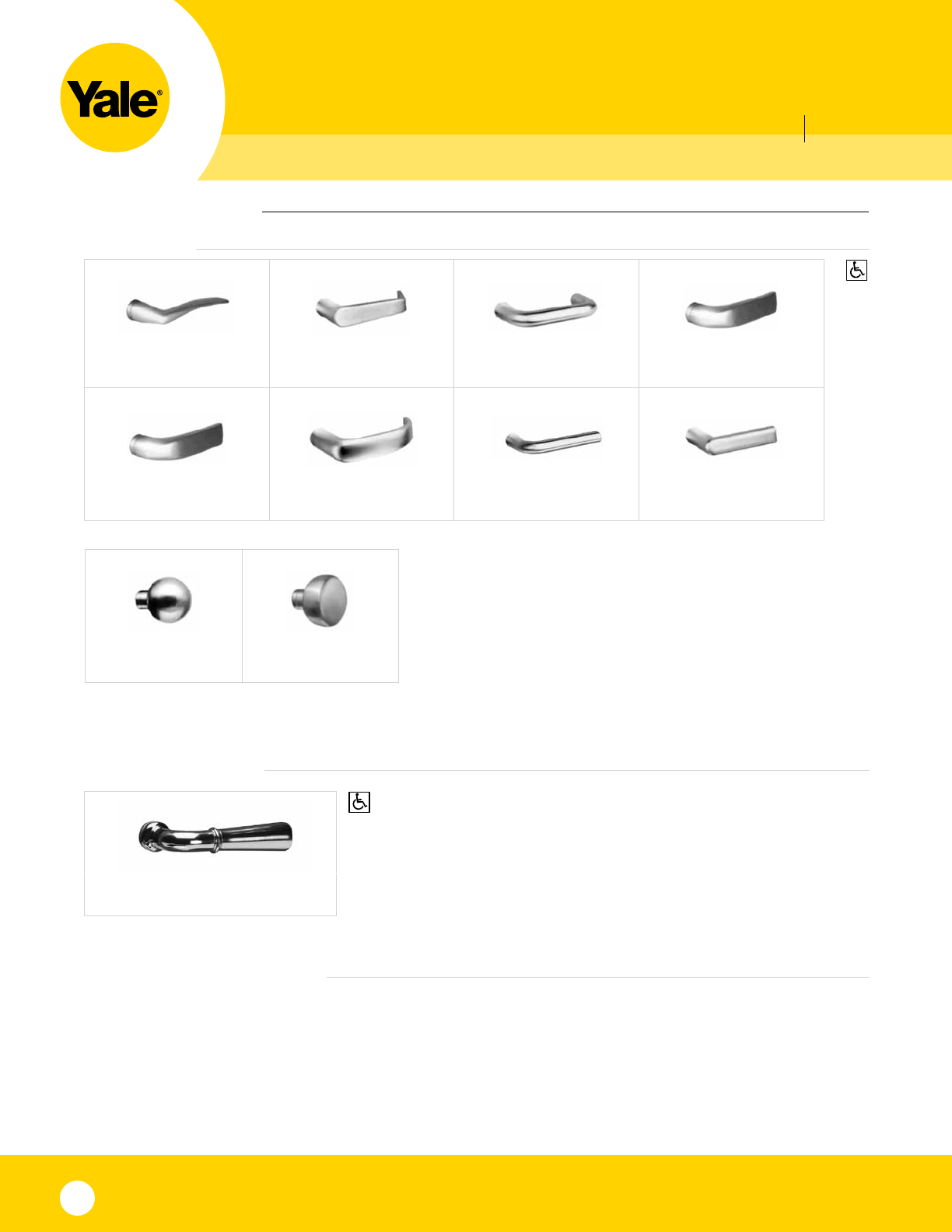

trim designs

Hampton HA

designer trim design

reflections® decorative levers

See page 3 for Reflections decorative levers.

Arcadia AR Augusta AU Carmel CR Jefferson JN

Monroe MO Pacific Beach PB Pinehurst PN Virginia VI

Copenhagen CO Litchfield LF

condensed catalog

Yale® KeyMark®

For those applications requiring protected key control, Yale® KeyMark® cylinders guard against unauthorized

key duplication. The Yale KeyMark Security Leg® keyway feature increases resistance against picking and

impressioning and can easily retrofit into existing systems. Cylinders include mortise, rim, key-in-lever,

key-in-knob, auxiliary, and interchangeable core. IC core is available in both large and small formats. All

formats can be tied into one master key system.

security/high security cylinders

Yale® security/high-security cylinders contain two independent locking mechanisms. The first is a

traditional 6 or 7-pin tumbler mechanism with spool drivers for increased picking resistance.

The second is a 5-tumbler rotating disc mechanism with sidebar engagement. The rotating discs are

spring loaded and block the bottom of the keyway. Only a specially cut key will move the discs and

allow entrance of the key. This key has a special side bitting and must align all five discs perfectly

before the cylinder plug will rotate to open the lock.

cylinders and keying

All Yale® locksets are available in a wide choice of cylinder and keying options:

Cylinder Types and Options: Keying Options:

• FixedCore(standard) •KeyedDifferent(KD)

• LargeFormatInterchangeableCore •KeyedAlike(KA)

• SmallFormatInterchangeableCore •Master-Keyed(MK)

• ConventionalKeyways •GrandMaster-Keyed(GMK)

• ProtectedKeyways •GreatGrandMaster-Keyed(GGMK)

• SecurityCylinders(NotUL437Certified) •ConstructionKeying(CMK)

• HighSecurityCylinders(UL437Certified) 

interchangeable cores

Yale® cyl in ders with in ter change able cores al low your mas ter key sys tems to be flex i ble. With the spe cial

“Con trol” key any cyl in der can have its core in ter changed quick ly. Any Yale core can be in ter changed into any other Yale lock

pro vid ed it has a in ter change able core. As a result, security for any given lock can be changed in a matter of minutes. Yale

interchangeable core cylinders can be used through out the en tire mas ter key sys tem. They can be used se lec tive ly within the

system along with Yale fixed core cyl in ders. There are two types of interchangeable cores that are offered by Yale.

1. Large Format (LFIC) - These cores are available in both standard Yale cylinders and also

Yale® KeyMark® cylinders. Note that standard Yale cylinders and Yale KeyMark cylinders

cannot be keyed to the same master key system.

2. Small Format (SFIC) - Yale offers SFIC cores in Yale KeyMark and Best® keyways A, B, C, D,

E, F, G, H, J, K, L and M. Best® keyway cores can be provide keyed random, master keyed

or uncombinated. Yale will provide master keying to new key system only. Systems can be

provided using the A2 or A4 pinning specification and can not be tied into any conventional

or Yale KeyMark key systems. All cylindrical lock small format preparations and 1-3/8"

housings accept either 6- or 7-pin cores.

K600A600

K100

cylinders and keying/security cylinders

condensed catalog

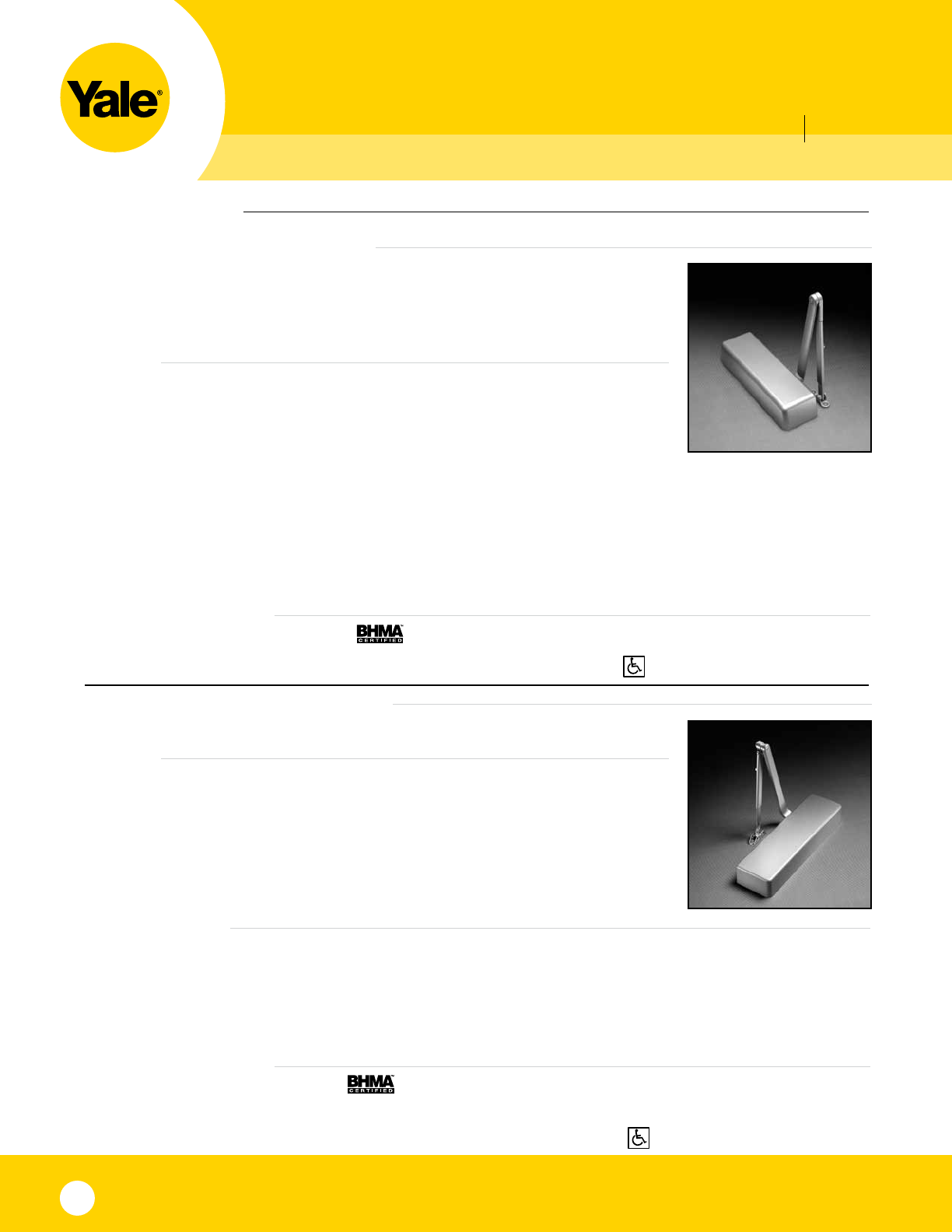

door controls

4400 series institutional door closers

The 4400 series offers customers the ideal combination of superior performance, quality and strength.

features

• Adjustable spring sizes 1 through 6

• Tri-packstandard(regulararm,topjambandparallelarmmounting)

• Non-handed

• Standard,separateandindependent,latch,sweepandbackcheckintensityvalves

• 2-3/16"(56mm)projection

• Stakedvalves

• Allstandardarmapplicationsallowdoorstoswing180°,conditionspermitting

• 25-yearlimitedwarranty

optional features

• Metalcover

• Corrosion-resistantmodel(specify4400S)

• Delayedaction

• Enhancedbackcheck

• Heavy-dutyarmsavailable:RegularRigid,ParallelRigid,Holder/Stop,Holder/StopSpringandUNIStop™

• Slidetrack–pushorpullmounting

compliance standards

• CertifiedANSI/BHMAA156.4,Grade1

• UL-cULlisted

• UL10Ccompliantforpositivepressure

• MeetsrequirementsforAmericanswithDisabilitiesAct(ADA)andANSI/BHMAA117.1

5800 series cast iron door closers

Yale® 5800 series cast iron door closers are ideal for commercial applications where ease of use,

installation and aesthetics are required at an economical price.

The 5800 series features rugged construction, adjustments for backcheck, closing and latch

speed, rack and pinion operation and a variety of arm options.

features

• Adjustable spring sizes 1 through 6

• Non-handed

• Cast iron

• Tri-packed: regular, parallel or top jamb mounting

• Adjustable backcheck valve

• Adjustable closing speed valve

• Adjustable latching speed valve

• Full plastic cover

• Spring power adjustment

• Hold-open and heavy-duty arms arm configurations

• Sleeve nuts included with all models

• Optional-Delayedaction

•10-yearlimitedwarranty

compliance standards

• CertifiedforANSI/BHMAA156.4Grade1

•ULandcULlisted.ThisincludescompliancetoUL10C.

•MeetsrequirementsforAmericanswithDisabilitiesAct(ADA)andANSI/BHMAA117.1

condensed catalog

door controls

3000 series architectural door closers

The 3000 series offers the perfect combination of reliability, appearance and durability in

today’s market.

features

• Adjustable spring sizes 1 through 6

• Tri-packstandard(regulararm,topjamborparallelarmmounting)

• Non-handed

• Stakedvalves

• Standard,separateandindependent,latch,sweepandbackcheckintensityvalves

• 2-1/8"(54mm)projection(standardcovers)

• Allstandardarmapplicationsallowdoorstoswing180°,conditionspermitting

• 25-yearlimitedwarranty

• Metal,architecturalplasticorarchitecturalmetalcovers

• Delayedaction

• Heavy-dutyarmsavailable:ParallelRigid,Holder/Stop,Holder/StopSpringandUNIStop™

compliance standards

• CertifiedANSI/BHMAA156.4,Grade1

• UL-cULlisted

• UL10Ccompliantforpositivepressure

• MeetsrequirementsforAmericanswithDisabilitiesAct(ADA)andANSI/BHMAA117.1

2700 series architectural door closers

The 2700 series features rugged construction, adjustments for backcheck, closing and latch

speed, and rack and pinion operation.

features

• Adjustablespringsizes1through6

• Non-handed

• Aluminum

• Tri-packed:regular,parallelortopjambmounting

• Adjustablebackcheckvalve

• Adjustableclosingspeedvalve

• Adjustablelatchingspeedvalve

• Fullplasticcover

• Springpoweradjustment-adjustwithadjustablewrench

• Hold-openandheavy-dutyarmsavailable

• Sleevenutsincludedwithallmodels

• Optionalfasteners:

 –Through-boltsandgrommetnuts

• Optional-Delayedaction

• 10-yearlimitedwarranty

compliance standards

• CertifiedANSI/BHMAA156.4,Grade1

• UL-cULlisted

• UL10Ccompliantforpositivepressure

• MeetsrequirementsforAmericanswithDisabilitiesAct(ADA)andANSI/BHMAA117.1

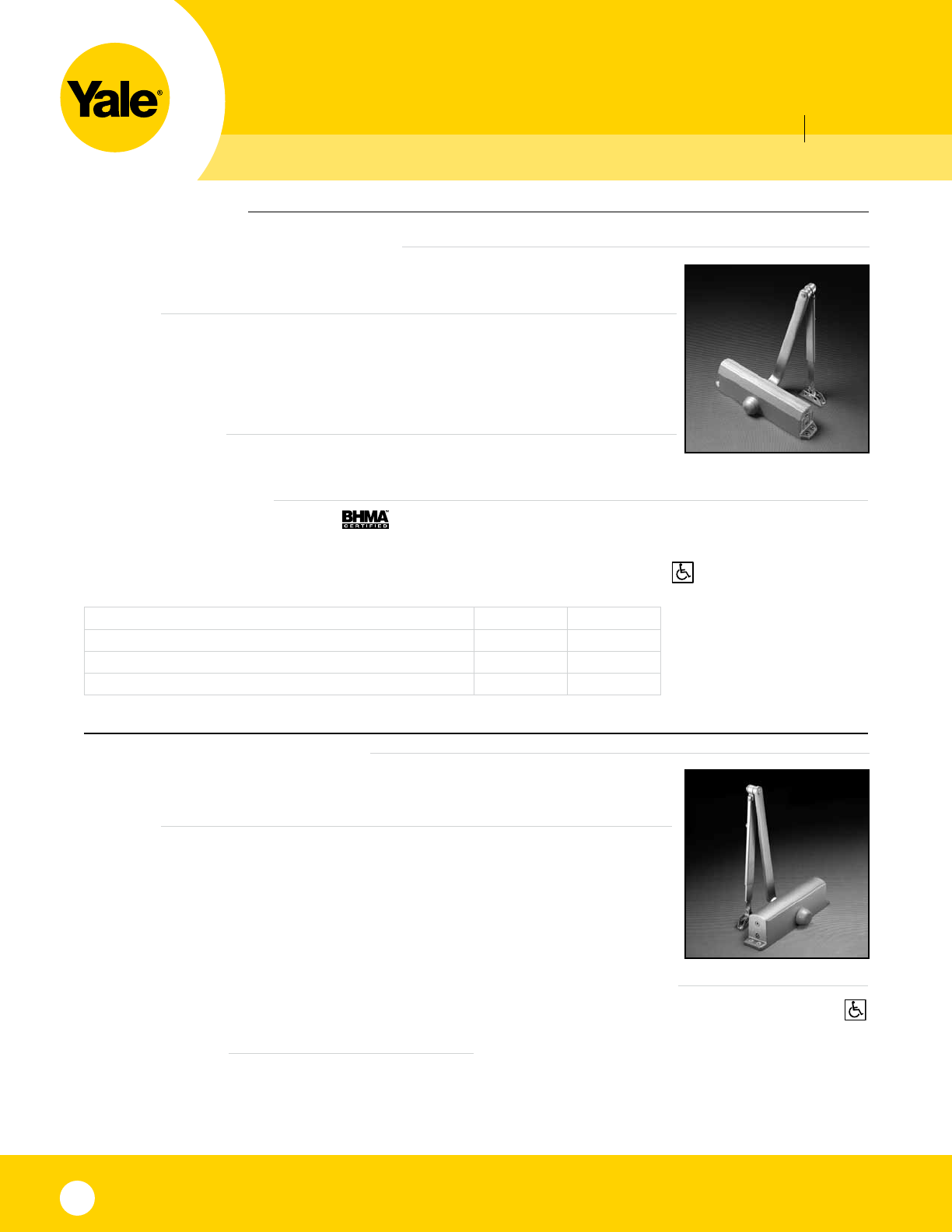

condensed catalog

door controls

compliance standards

• UL-cULlisted

• 1101BF/1111BF-designedtomeetrequirements

for ANSI/BHMA A156.4 Grade 1. Door closers meet

handicapped requirements for light to medium weight

interior doors.

• 1104BC-designedtomeetrequirementsforANSI/BHMA

A156.4 Grade 2

51 series industrial door closers

The 51 series is ideal for use with aluminum store front doors and frames, yet they also

complement wood or metal door installations.

features

• Non-handed

• Stakedvalves

• Standard,separateandindependent,latch,sweepandbackcheckintensityvalves

• 2-7/8"(73mm)projection

• 15-yearlimitedwarranty

optional features

• Delayedaction(inlieuofbackcheck)

• Moldedplasticcover

compliance standards

• CertifiedANSI/BHMAA156.4,Grade1

• UL-cULlisted

• UL10Ccompliantforpositivepressure

• MeetsrequirementsforAmericanswithDisabilitiesAct(ADA)andANSI/BHMAA117.1(51BF)

51 51BF

Adjustable spring sizes 3 through 6 X

Adjustable spring sizes 1 through 4 X

Tri-pack standard (regular arm, top jamb or parallel arm mounting) X X

1100 series industrial door closers

The 1100 series features rugged construction, adjustments for closing and latch speed, and rack

and pinion operation.

features

• 1101BF(non-holdopen)and1111BF(holdopen)doorclosersareadjustablespringsizes1

through 4

• 1104BC(non-holdopen)doorclosersarespringsize4

• Non-handed

• Fullrackandpinion

• Aluminum

• Tri-packed:regular,parallelortopjambmounting

• Adjustablebackcheckvalve

• Adjustableclosingspeedandlatchingspeedvalves

• Auxiliarydoorstoprequired

• Sleevenutsincludedwithallmodels

• 5-yearlimitedwarranty

optional features

• Cover(orderseparately)

condensed catalog

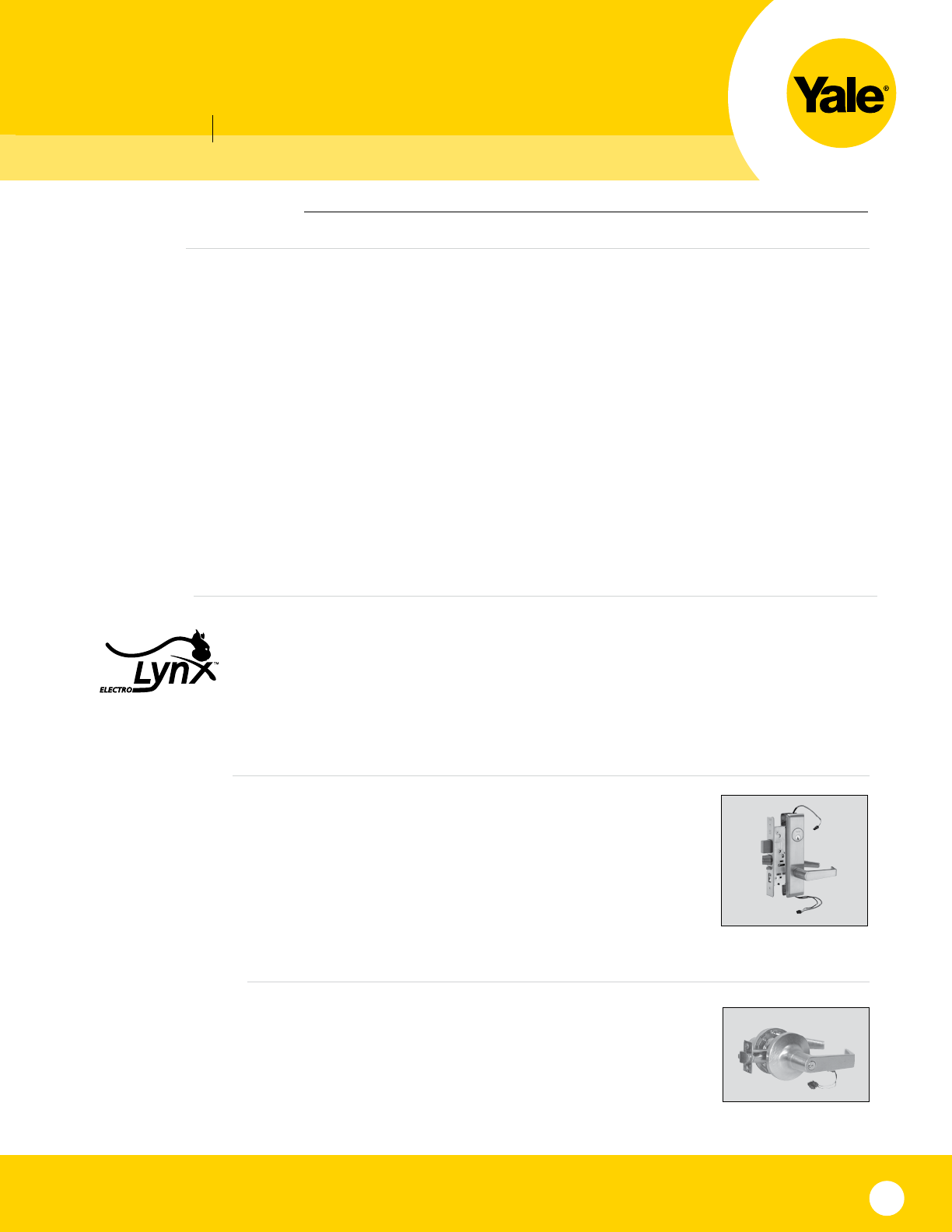

electrified products

What normally took an hour or more to connect now takes minutes. All Yale® electrified hardware is

equipped with ElectroLynx® connectors. As a standard feature, these connectors link power from the

incoming source to electrified locking products, including hinges, locks, exit devices, magnetic holders

and strikes.

Note: Electrified door hardware with ElectoLynx® connectors require a compatible hinge.

mortise locksets

electrolynx®

cylindrical locksets

• CertifiedANSI/BHMAA156.2

Series 4000, Grade 1 and 2

• ULListed

• Utilizes5400LN,5300LNor4700LN

lockset

• FreeWheelinglevermechanism

• Availablein12or24V

• ExternalrectifieracceptsACorDC

voltage

• Mechanicalcylinderoverride

• FailSafeorFailSecureOperation

• RequesttoExit(REX)optionavailable

(5400LN series only)

•CertifiedANSI/BHMAA156.13

Series 1000, Grade 1

•UL10BListedfor3-hourfire-rated 

openings

•Utilizes8800lockset

•Continuousdutyintegralsolenoid

•Availablein12or24VDC

•FailSafeorFailSecureOperation

•RequesttoExit(REX),LatchboltMonitoring

(LBM), Deadbolt Monitoring (DBM) ,

Integrated Total Security (ITS) options

available

securex®

In 2001, Yale revolutionized the exit device market with its introduction of SecureX®, a delayed egress exit device. As a

result of outstanding customer response and loyalty, Yale is proud to expand the SecureX name to include its entire line of

electromechanical hardware.

Throughout the industry, the SecureX name is synonymous with security, strength, quality and durability. The 7100D series exit

devices have evolved as premier products for retail, healthcare and assisted living applications, offering the ideal combination of

security and life safety.

The expansion of the SecureX name is yet another example of the Yale ongoing commitment to meeting the needs of its

customers. Under the Yale SecureX brand name, Yale customers can expect a range of new and exciting electromechanical

products to meet a variety of applications, ensuring a distinct “Yale Advantage.”

The Yale SecureX brand will include inTouch® standalone touchscreen access, alarms and alarmed devices, and electrified

mortise and cylindrical locking products.

SecureX products in cor po rate the high est level of se cu ri ty avail able with the added flexibility and se cu ri ty of remote electrical

control. Electrified hardware is ideal for interfacing with access control, security and fire alarm systems.

condensed catalog

electrified products

Function Description Mortise Model Number Cylindrical Model Numbers

•Poweron–outsideleverlocked

•Insideleveralwaysfree

•Nokeyoverride

8880

4780LN

5380LN

5480LN

•Poweron–bothleverslocked

•Nokeyoverride 8884 N/A

•Poweron–outsideleverlocked

•Mechanicalkeyoverridebyoutside 8890

4790LN

5390LN

5490LN

•Poweron–bothleverslocked

•Mechanicalkeyoverridebybothsides 8894-2 N/A

•Poweron–outsideleverlocked

•Deadboltbykeyoutside,thumbturninside

•Mechanicalkeyoverridebyoutside

8896 N/A

•Poweron–outsideleverlocked

•Deadboltbykeybothsides

•Mechanicalkeyoverridebybothsides

8896-2 N/A

•Poweron–bothleverslocked

•Deadboltbykeyoutside,thumbturninside

•Mechanicalkeyoverridebyoutside

8898 N/A

•Poweron–bothleverslocked

•Deadboltbykeybothsides

•Mechanicalkeyoverridebybothsides

8898-2 N/A

mortise and cylindrical functions

FailSafe–Lockedwhenpowerisonandunlockedwhenpowerisoff.

Function Description Mortise Model Number Cylindrical Model Numbers

•Poweroff–outsideleverlocked

•Insideleveralwaysfree

•Nokeyoverride

8881

4781LN

5381LN

5481LN

•Poweroff–bothleverslocked

•Nokeyoverride 8885 N/A

•Poweroff–outsideleverlocked

•Mechanicalkeyoverridebyoutside 8891

4791LN

5391LN

5491LN

•Poweroff–bothleverslocked

•Mechanicalkeyoverridebybothsides 8895-2 N/A

•Poweroff–outsideleverlocked

•Deadboltbykeyoutside,thumbturninside

•Mechanicalkeyoverridebyoutside

8897 N/A

•Poweroff–outsideleverlocked

•Deadboltbykeybothsides

•Mechanicalkeyoverridebybothsides

8897-2 N/A

•Poweroff–bothleverslocked

•Deadboltbykeyoutside,thumbturninside

•Mechanicalkeyoverridebyoutside

8899 N/A

•Poweroff–bothleverslocked

•Deadboltbykeybothsides

•Mechanicalkeyoverridebybothsides

8899-2 N/A

FailSecure–Unlockedwhenpowerisonandlockedwhenpowerisoff.

condensed catalog

electrified products

exit device option descriptions

Note: Any combination of the following

options cannot be ordered together:

1) P, G, or D 2) B or A 3) D, B or A

*Only available for rim and SquareBolt®

Devices when used with Delayed Egress

option.

AAlarm Option

BTouchbar Monitor

DDelayed Egress

GElectric Dogging

H* Security Package (DPS)

OTrim Monitor

electrified options chart

PLatch Retraction

SBolt Monitor

SAFE Fail Safe Operation (Mortise)

SECURE Fail Secure Operation (Mortise)

690F Fail Safe Electrified Trim

691F Fail Secure Electrified Trim

Model # Exit Device Description A B D G H O P S SAFE SECURE 690F 691F

7100(F) Rim Exit Device (Wide) x x x x x x x x x x

7110(F) Surface Vertical Rod (Wide) x x x x x x x x x

7120(F) Concealed Vertical Rod (Wide) x x x x x x x x x

7130(F) Mortise Exit Device (Wide) x x x x x x x x x

7150(F) Rim SquareBolt® Device (Wide) x x x x x x x x x x

7160(F) Concealed Vertical Rod (Wide) x x x x x x x x x

7170(F) Surface Vertical Rod (Wide) x x x x x x x x x

7200(M)(F) Rim Exit Device (Narrow) x x x x x x

7210(M)(F) Surface Vertical Rod (Narrow) x x x x x x

7220(M)(F) Concealed Vertical Rod (Narrow) x x x x x x

7250(M)(F) Rim SquareBolt® Device (Narrow) x x x x x x

The Yale® 7000 series exit device offers a complete range of electrical options:

Continuity in appearance, security and functions with the 7000 series mechanical exit device

is maintained. Electrified exit devices may be integrated into the monitoring security and alarm

systems of most buildings.

exit devices

•LatchRetraction

•ElectricDogging

• MortiseDeviceTrimControl

• TouchbarMonitororSignaling

• OutsideTrimMonitororSignaling

• BoltPositionMonitororSignaling

• DelayedEgress(PatentNo.7,469,942)

• ElectricTrimControl

• Alarm

stand-alone door alarm

The SDA16 stand-alone battery operated

door alarm is designed to continually

monitor the status of a door. When the

door is opened without authorization,

an alarm is triggered to alert the security

violation. This alarm features a Peizo horn

which blasts a deafening 105+ decibels to

alert the violation.

This unit is ideal for emergency doors as well as stairwell

doors and rear exit doors in retail environments. The unit,

which can also be hardwired, easily complements existing

hardware, making any opening alarmed. The SDA16 door

alarm is typically mounted on the interior of the door frame or

door and is paired with a magnet mounted on the opposing

side of the door gap.

remote mounting

The SDA16 can be

installed remotely from

the door by attaching

the contacts to the door

and frame. The unit

can be installed up to 6

feet from the door. This

provides the ideal solution

for circumstances where

exposure to weather may

be an issue. To order

specify "SDA16XL".

Note: Actual wire length is 6 feet.

Frame contact

attached to wire

Contact for door

condensed catalog

electrified products

inTouch® stand-alone touchscreen locks

Yale® inTouch® stand-alone touchscreen access lock combines robust cylindrical locksets with a contemporary electronic aesthetic.

Users benefit from an interactive touchscreen that makes day-to-day access effortless and offers voice-guided programming for

simple updates to user information in the event of staffing changes or security breaches.

Ideal for a wide variety of applications, inTouch is recommended for management offices, patient records storage, storerooms, staff

lounges, restroom doors, etc. Anywhere that requires simple controlled access is an ideal place for inTouch!

inTouch is engineered for quick & easy installation and fits into the standard ANSI/BHMA A156.115 cylindrical locks with lever door

prep with only one additional 3/4" hole and 7 screws including latchbolt and strike.

features

Electronic Elements

• Stand-alonetouchscreenaccesslockingdevice

• Menuaccesstovoiceguidedprogrammingavailablethrough

touchscreen

• Pre-programmedvoiceoptions:English(default),Spanishor

French

• 4AAalkalinebatteries

• Visualandtoneplaybackconfirmationprovidespositive

reassurance while operating

• Silentmode-availabletodisabletoneplaybackforusein

quiet areas

• Passagemode-allowscontinuousentryfornon-restricted

traffic

• Lockoutmode-restrictsuserPINcodeaccess

• Autore-lock-defaultof5seconds.AdjustableinAdvanced

operating mode

• Optionalhardwireinputfor9VDCexternalpower

• Remoteunlockavailableforallowingaccessthroughswitch

Mechanical Components

• CertifiedANSI/BHMAA156.2,Grade1

• UL-cULlistedforuseonfiredoors

• ADAcompliantlevers

•Installlock,latchboltandstrikewithonly7screws

• Optionalcylinder/keyoverride–fullrangeofYale® 6-pin

conventional, protected and security cylinders available

including large and small format interchangeable core

•ANSI/BHMAA156.115cylindricallockwithleverdoor

prep with one additional 3/4" hole

• Weatherresistant

• 3-yearlimitedwarranty

Model Number Function Description

E4760LN Without Cylinder Override

E4761LN With Cylinder Override

functions

trim

Augusta AU Monroe MO Pacific Beach PB Touchscreen as shown

when not activated

Touchscreen as shown

when activated

condensed catalog

electrified products

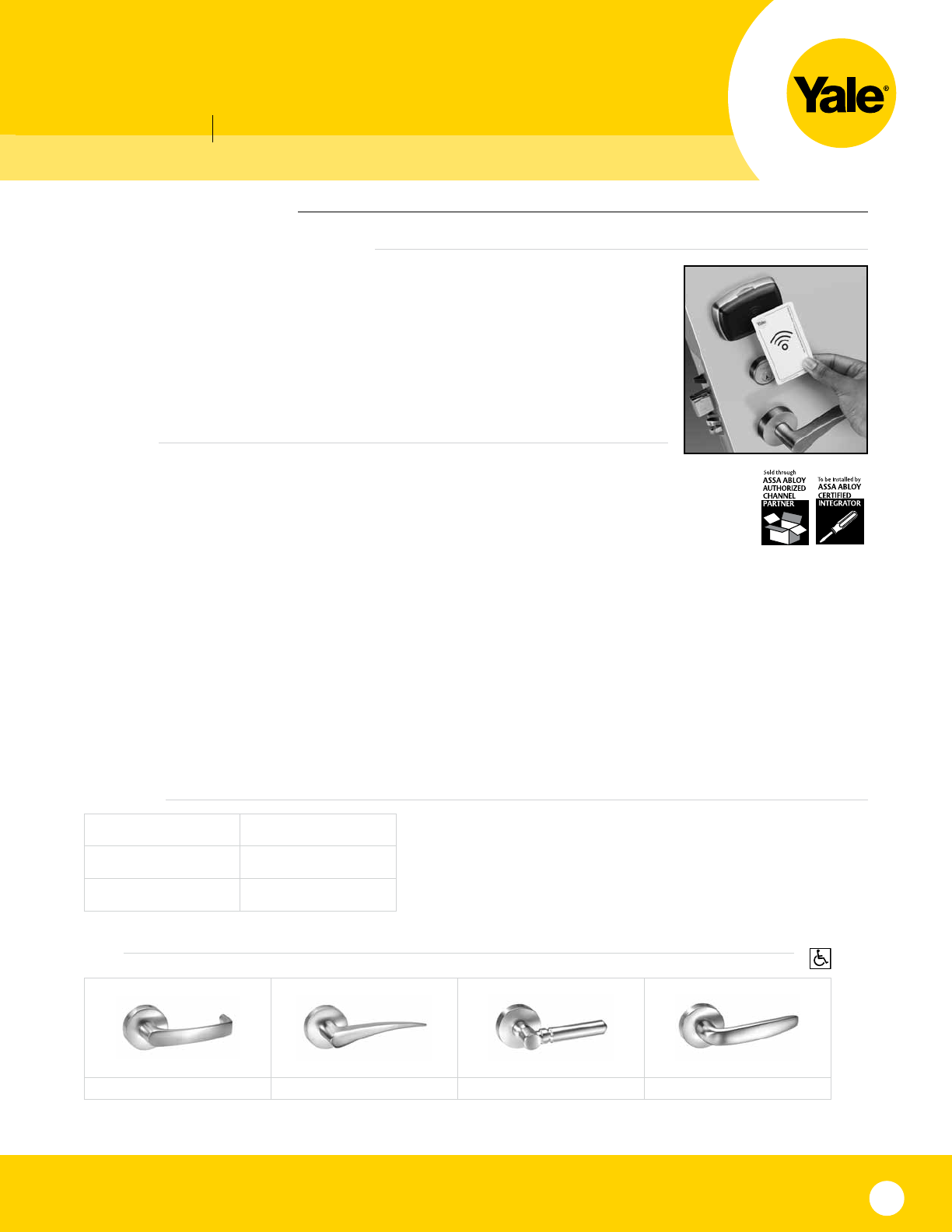

Affinity® multi-family access locks

Yale® Affinity® (RFID) Smart Card Locks combine the latest Radio Frequency Identification

technology with a flexible electronic locking system, perfect for Multi- Family, Apartment or

Condominium Housing. Designed with ease of use and resident security in mind, Yale brings

contactless identification electronic locking to the multi-family housing market.

Combined with VISION by VingCard® software, Affinity is a full-featured, functionally rich access

control system with the power, flexibility and ease of use to meet the operating needs of any

multi-family property both now and in the future.

features

Electronic Elements

•StandaloneelectroniclockwithsmartRFIDtechnology

•Futurere-programmableFLASHRAMlockmemory

•600eventaudittrail

•VISIONbyVingCard® System Software

•FCCapproved

Mechanical Components

•ULlistedforuseonfiredoors

•ADAcompliant

•Highsecuritymortiselockcase

•Solidbrasshandlewithselflubricatinglonglifebearings

•3-pointsteelantifrictionlatchconstruction

•Full1-inchthrowcasehardeneddeadbolt

•3AAbatteries–provideupto2yearsnormallifetime

•SimultaneousRetraction–thedeadboltandlatchareautomaticallyretractedbyinsidehandleforeasyegressinemergency

situations

•OptionalPassageMode–allowsAffinitytobeputinpassageforfreeaccesswithouttheuseofthekeycardwhendesired

•OptionalKeyOverride–fullrangeofYale® conventional, protected, and security cylinders available

Model Number Function Description

VCAF52 Without Cylinder Override

VCAF53 With Cylinder Override

functions

trim

VAU VAR VGH VMO

condensed catalog

electrified products

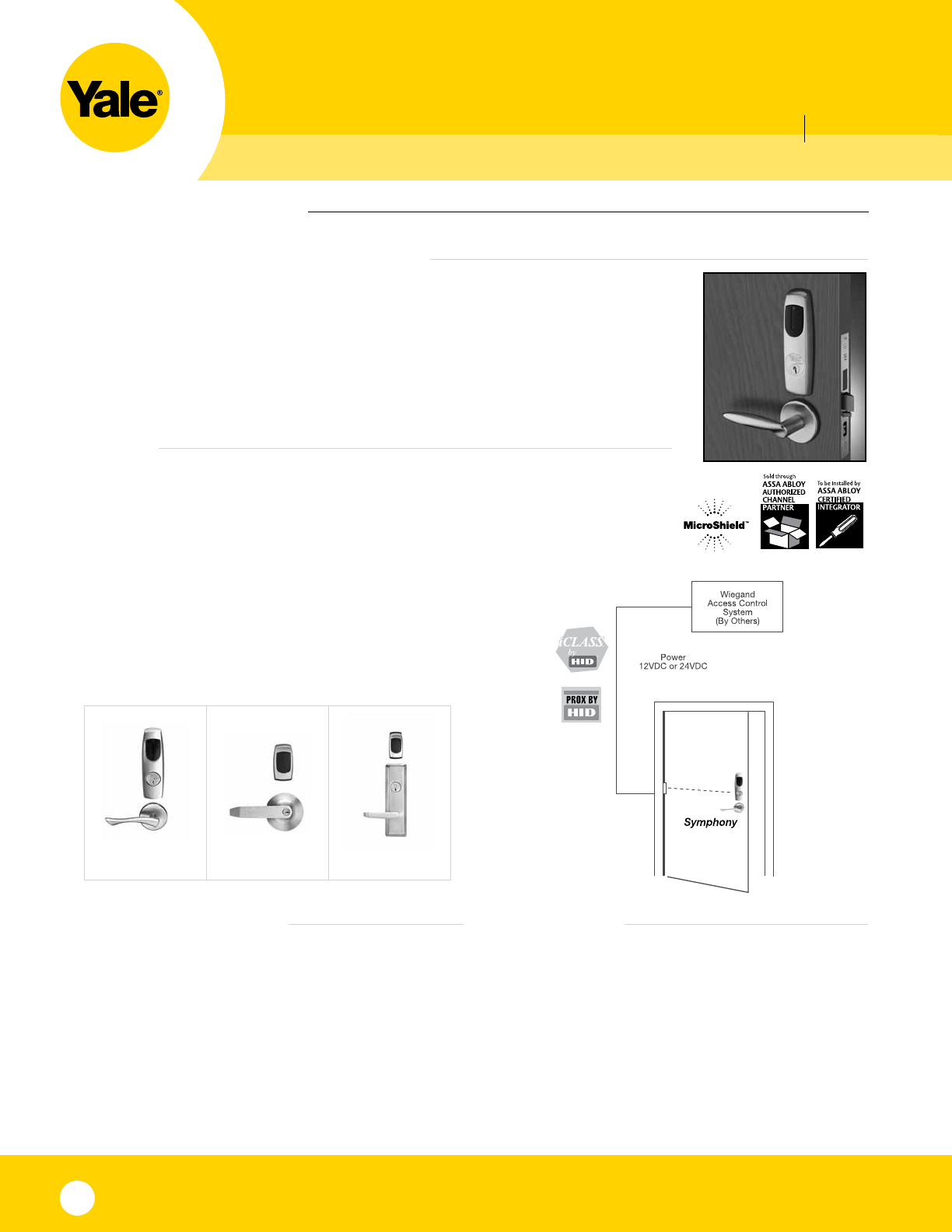

Symphony® integrated Wiegand solutions

Symphony locks and exit device trims combine a card reader, door position switch (DPS), and

request-to-exit (REX) signaling in a sleek, pleasing design backed by Yale® Grade 1 hardware.

Symphony is available in 8800 mortise locks, 5400LN cylindrical lock and a variety of 7000 series exit

devices (rim, mortise and vertical rod). Symphony offers lever trim with similar designs and finishes for

the three types of locks to create a continuity of design.

Symphony products are easily integrated into a Wiegand-compatible access control system. It

is available with 125 kHz HID proximity reader technology or 13.56 MHz HID iCLASS® reader

technology. All Symphony products offer solenoid (fail safe or fail secure) operation.

features

• StandardWiegandInterface

• Easilyintegrateswithaccesscontrolsystems

• Completemonitoringoftheopening

• Securedoorpositionmonitoring(ensureslatchboltisextendedwhendoorisclosed)

- Mortise locks - internal switch

- Cylindrical locks and exit devices - external switch provided

• Requesttoexit

• Secure-sideelectronics

• AvailablewithproximityreaderstoaccepteitherHID125kHz

(26-39 bit) or iCLASS® 13.56 MHz (2K-32K) formats

• Availablewithabroadrangeofleverdesigns

• Costeffective,expandableplatform

• Incorporatesmechanicaldoorhardwareintoexistingaccess

control platforms

Mortise Lock Cylindrical Lock Exit Device Trim

Symphony® is ideal for

• GovernmentFacilities

• Universities

• CorporateComplexes

• HealthcareFacilities

software

• Thirdpartyaccesscontrolsystemandsoftware(byothers)

• Accepts all HID 125 kHz (26-39 bit) or iCLASS®

13.56 MHz (2K-32K) proximity formats

operating power

• Mortiselock:12VDCor24VDCsolenoidoperated,available

as Fail Safe or Fail Secure

• Cylindricallock:12VDCor24VDCsolenoidoperated,

available as Fail Safe or Fail Secure

• Exitdevices:24VDCsolenoidoperated,availableas

Fail Safe or Fail Secure

• 125kHzreader:requires12VDC

• 13.56MHziCLASS® reader: will operate with either 12VDC

or 24VDC

Yale Symphony

Hard-Wired

Typical Application

condensed catalog

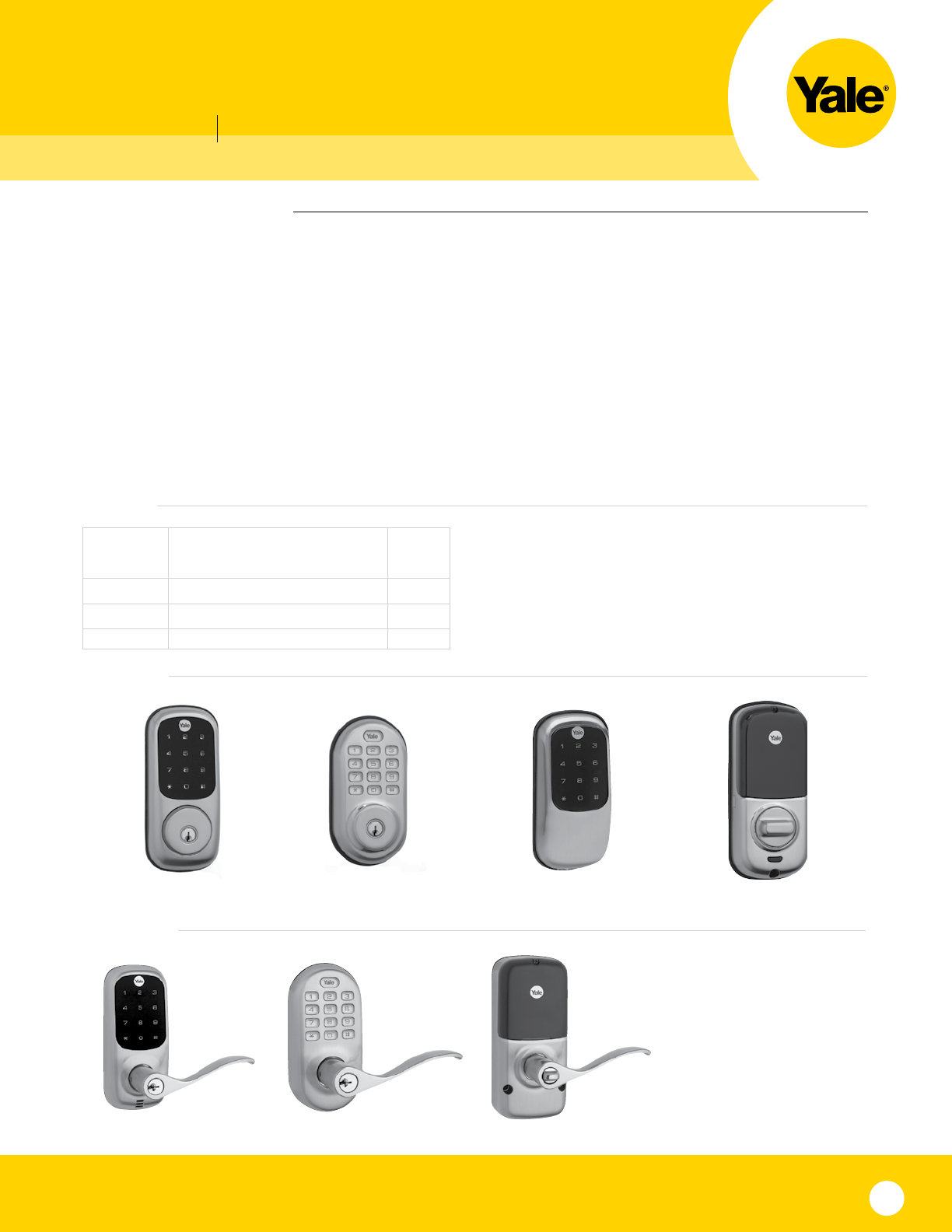

YaleRealLiving™

Withaneasy-to-useacrylictouchscreenordurablepushbuttonkeypad,theYaleRealLiving™deadboltsandleversbring

wireless access to residential home security. Available with either Z-Wave® or Zigbee®,YaleRealLiving™integratesseamlessly

into a wide range of home control and security systems, making everyday living easier and safer.

• Availableineitheradurableacrylictouchscreenorasimple,elegant,tamper-resistantkeypad

• Illuminatedtouchscreenandkeypadforconvenientnighttimeaccess

• Touchscreen–Tri-lingualinEnglish,Spanish,French

• Foruseonallstandardnon-fireratedinteriorandexteriordoors

• Motorizedtaperedbolthelpsaligndoorduringlocking

• Availableinstand-alone,Z-Wave,orZigBeeconfigurations

• UserPinCodes:

- 25 Users stand-alone without wireless

- 250 Users with wireless

• Warranty–3-yearmechanicaland1-yearelectronicsandfinishwhenusedincommercial,institutionalorindustrialapplications

finishes

ANSI/BHMA

Code Finish Description US

Code

605 Polished Brass US3

613e Oil Rubbed Bronze Permanent US10BP

619 Satin Nickel Plated, Clear Coated US15

deadbolts

Touchscreen Exterior Push Button Exterior Key Free Exterior Interior

lever locks

Touchscreen Exterior Push Button Exterior Interior

condensed catalog

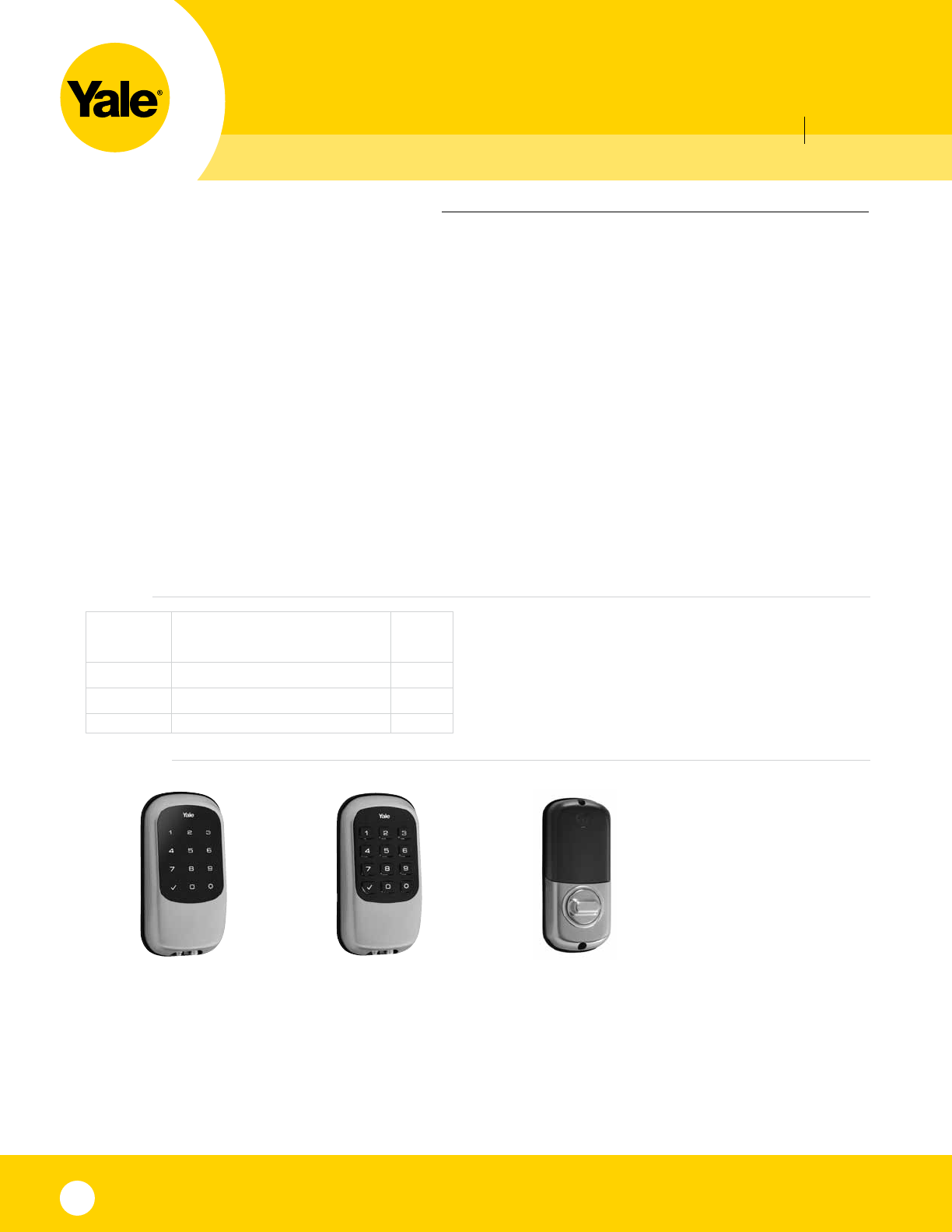

YaleRealLiving™B1LandT1L

Eliminate the keyway, eliminate the hassle. Key Free design means improved security without ever having to re-key the lock!

Yale Real Living Key Free Push Button B1L and Key Free Touchscreen T1L deadbolts add critical product options to a growing

customer demand for enhanced security with a sleek aesthetic and uncomplicated operation.

•Z-Wave® enabled, as part of a home control or home security system*

•Smallestresidentialkeypadtoenhancecurbappeal

•FastZ-Wave® enrollment with the push of a button

•Universalenterandprogramsymbolsforease-of-use

•Enhancedinteriordesigntoreducecomplexityandinstallationtime

*Z-Wave Radio Module Standard Device may also be operated Stand alone

The FeaturesYou Need with the Quality You Expect.

• Motorizedtapereddeadbolt

• Fullygasketedinstallation

• 4AAbatteriesincluded

• 9Vbatterybackup

• Illuminatedkeypad

• CertifiedANSI/BHMAGrade2

finishes

ANSI/BHMA

Code Finish Description US

Code

605 Polished Brass US3

613e Oil Rubbed Bronze Permanent US10BP

619 Satin Nickel Plated, Clear Coated US15

deadbolts

Key Free Touchscreen

Deadbolt T1L with Z-Wave®

Key Free Push Button

Deadbolt B1L with Z-Wave®

Key Free Touchscreen

Deadbolt B1L-T1L interior

condensed catalog

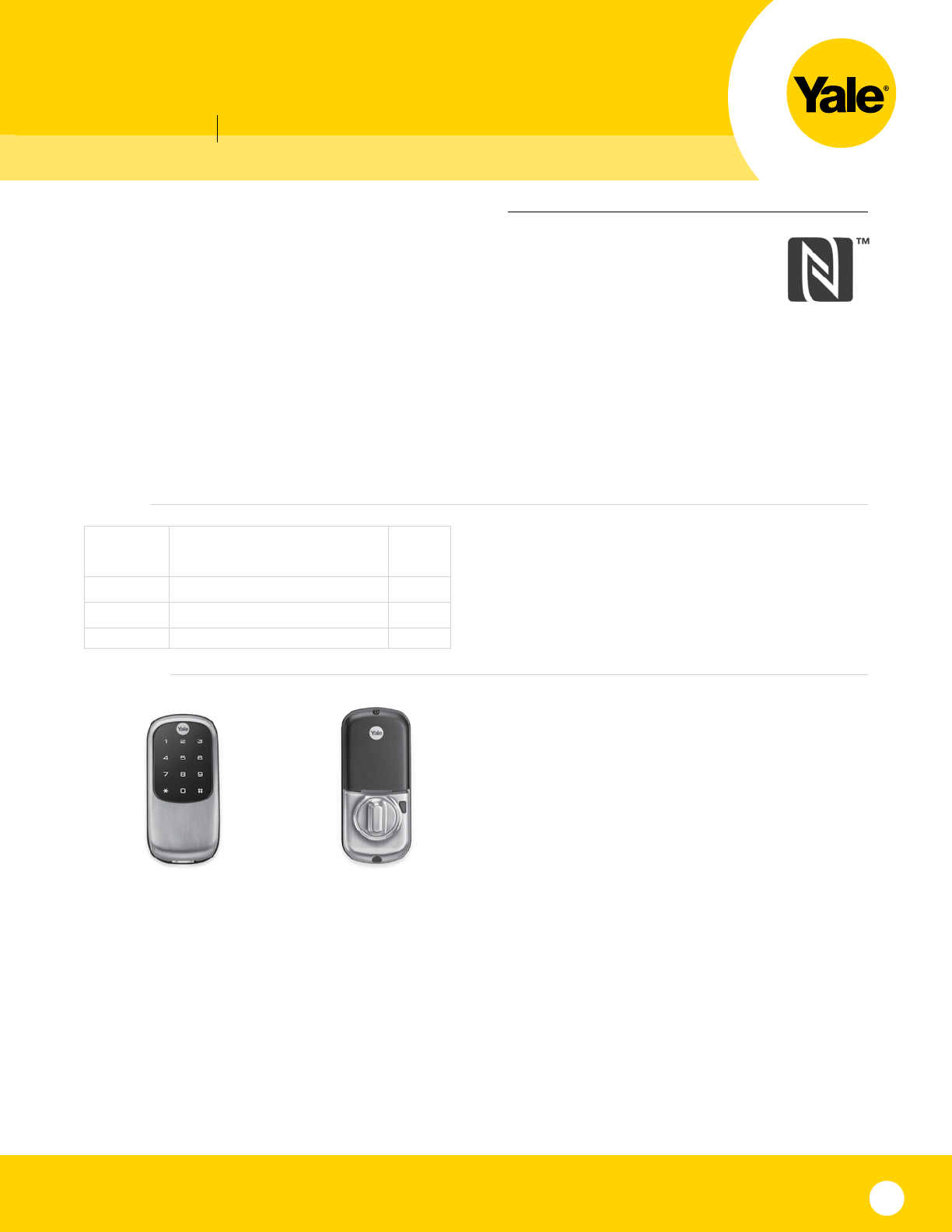

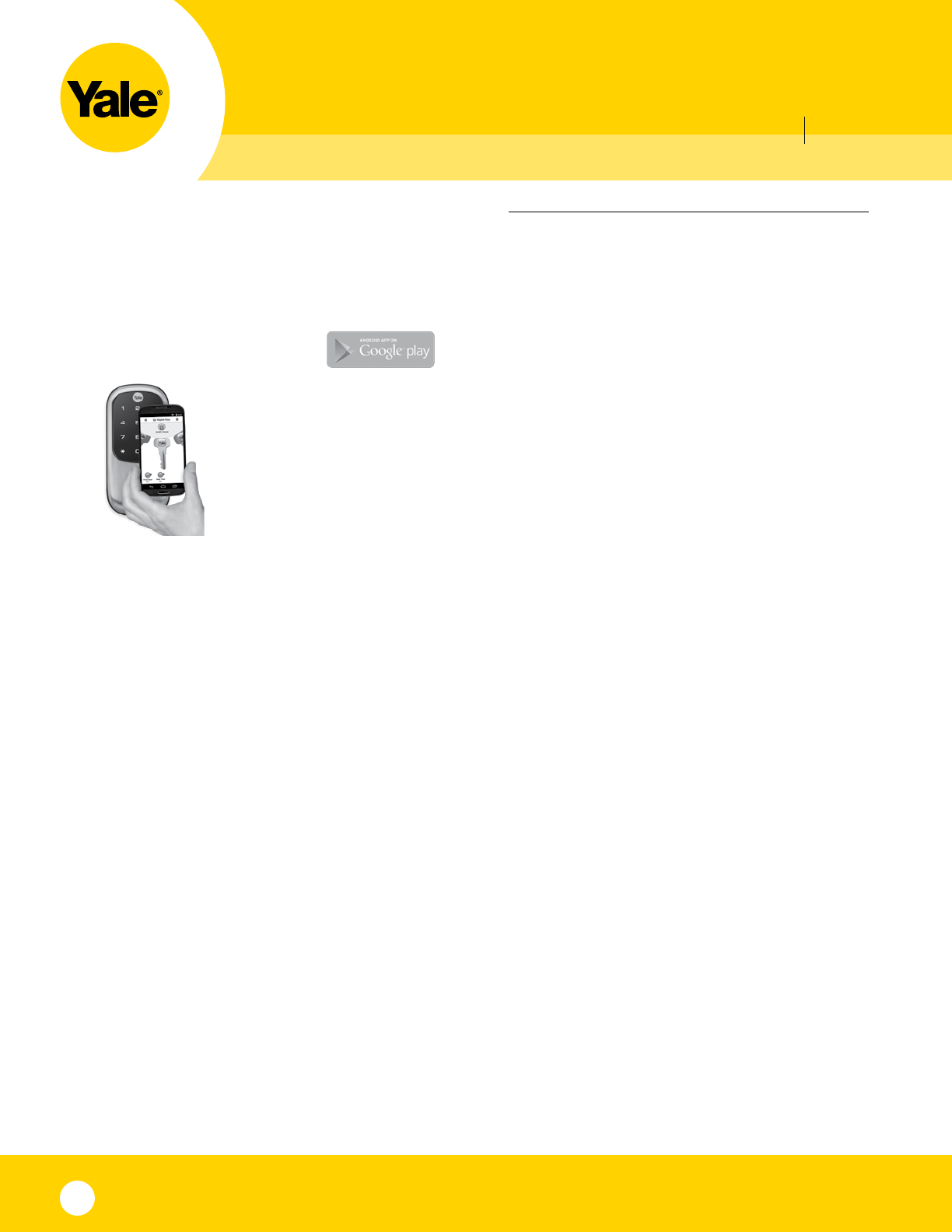

YaleRealLiving™mobilephoneentry

Your NFC phone is your key.

Truly key free locking means no keys.

When there are no keys to go missing, there are no keys to copy and no locksmiths to call, just change an entry

code. No keyhole means no cylinder to pick or bump. Low battery? Power-up with a 9V battery instead of looking

for a spare key.

Two convenient ways to access.

Use a digital key on an authorized phone or enter an entry code on the lock keypad. With the free Digital Keys App, you can share

access with friends or family whether you’re around the corner or around the world.

No phone? No problem!

No one has their phone all the time. You can always access the lock with an entry code as a backup. Even if you’ve lost your

phone, we’ve got you covered! Digital keys can be transferred or cancelled quickly and securely.

finishes

ANSI/BHMA

Code Finish Description US

Code

605 Polished Brass US3

613e Oil Rubbed Bronze Permanent US10BP

619 Satin Nickel Plated, Clear Coated US15

deadbolts

Yale Real Living™ NFC

Deadbolt Interior

condensed catalog

YaleRealLiving™mobilephoneentry

Your NFC phone is your key.

Yale Digital Keys APP

The personal keyring app that allows you to manage your keys and who has access to your locks from anywhere.

FREE APP plus 5 FREE Digital Keys

DOWNLOAD Yale Digital Keys APP

Keys - Create digital keys for family and friends to access one or more locks. Easily retrieve keys as needed.

Users - Control who can access your home and when. Get a message when someone enters or exits. Monitor

access history.

Locks - Customize auto relock times, create user entry codes, select language, and more. The app and lock will

alert you when the batteries are low.

NFC - Use your mobile phone as your key with a tap to the lock.

Simple installation

• Replacesexistingdeadboltwithjustascrewdriver

• Fitsonstandarddoors13/4"to21/4"thick

• Backset2-3/8"or2-3/4";Boreholesize21/8"

Product Information

• CompatiblewithAndroid™mobilephoneswithoperatingsystem4.4orhigherandNFC

• UnlimitednumberoflocksandkeyscanbemanagedbytheYaleDigitalKeysApp

• Createupto12codesforaccessbykeypad

• Lifetimelimitedwarrantyforfinishandmechanical,oneyearelectronics

www.yaleresidential.com/warranty

• CertifiedANSI/BHMAA156.36,Grade2

Learn more about Mobile Phone Entry

www.Yale2you.com/mobilephoneentry.aspx

condensed catalog

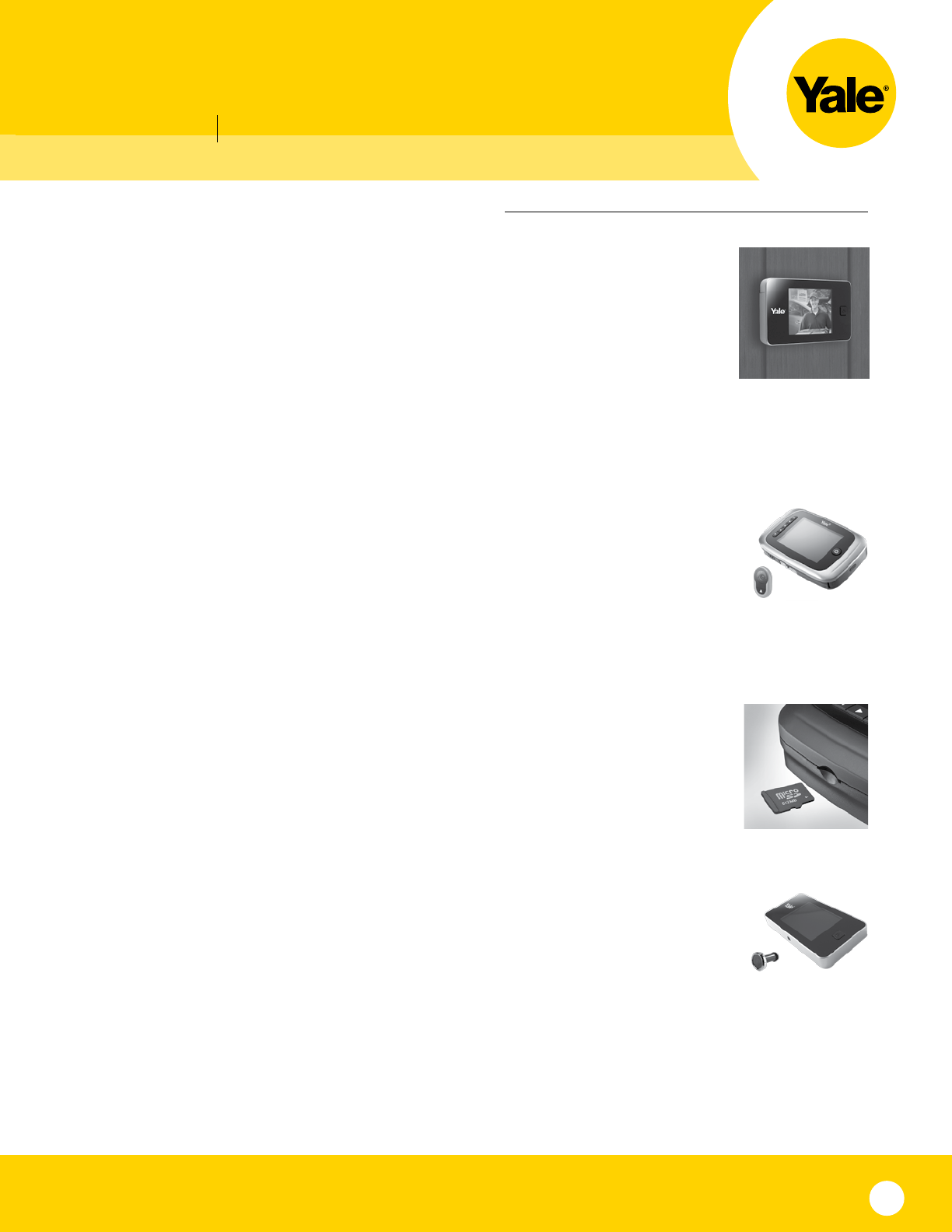

YaleRealLiving™DigitalDoorViewer

See who is at your door.

Enhance home security and skip the whole “who’s there?” routine when answering the front

doorbyinstallingaYaleRealLiving™DigitalDoorViewertoreplacethatoldfashionedpeephole.

Essentially caller ID for the front door, Yale Digital Door Viewers replace a door’s standard

peephole with a 3.2- inch screen to provide a clear view of who’s outside. It’s a simple way to

boost home security, and especially valuable for children or those in a wheelchair who typically

can’t see out a door’s peephole.

Yaleofferstwodifferentdigitaldoorviewers–aStandardversionandaPremiumversion.Bothprovidealivevideo

image of who is at the door, while the Premium version records video or still images when the included doorbell is

pressed and stores the images and video on an internal Micro SD memory card. Images and video can be watched

on the viewer or the Micro SD card can be removed and the data accessed using a card reader. The Premium model

also includes an LED to aid in night viewing.

Yale Real Living™ Digital Door Viewer | Premium

Black: AYRD-DDV7001- 693

Silver: AYRD-DDV7001- 619

Dimension, Viewer

3.54 in (H) 5.39 in (W) 1.02 in (D)

• Viewortakeclearstillimagesorvideowitha0.3megapixelcamera.

• Automaticallyrecordvisitorswhileyou’rethereoraway.

• Thecameraisarmedwithinfraredcapabilitiessoeveninreducedlightingconditions,you’llget

a clear picture in any light.

• TheYaleDigitalDoorViewerissoeasytooperate,itisanidealsolutionforchildrenand

the elderly.

• WitheverypushofthedoorbelltheDigitalDoorViewerautomaticallyrecordsanimage.

• EmbeddedSDmemorycardisremovable.Let’syoustoreyourimagesandvideos.

• Batteryoperated–noneedforspecialwiring.TheDigitalDoorViewerwillletyouknowwhen

the batteries are running low.

• 3.5"TFT(ThinFilmTransistor)LCDScreen—Letsyoucomfortablyandeasilyviewyour

entrance and who ever is standing in it.

Yale Real Living™ Digital Door Viewer | Standard

Silver: AYRD- DDV8032- 619

Black: AYRD-DDV8032-693

Dimension, Viewer

2.67 in (H) 5.03 in (W) 0.59 in (D)

• Viewclearstillimageswitha0.3megapixelcamera.

• TheYaleDigitalDoorViewerissoeasytooperate,itisanidealsolutionforchildrenandtheelderly.

• Batteryoperated–noneedforspecialwiring.TheDigitalDoorViewerwillletyouknowwhenthebatteriesare 

running low.

• 3.5"TFT(ThinFilmTransistor)LCDScreen—Letsyoucomfortablyandeasilyviewyourentranceandwhoeveris 

standing in it.

condensed catalog

residential

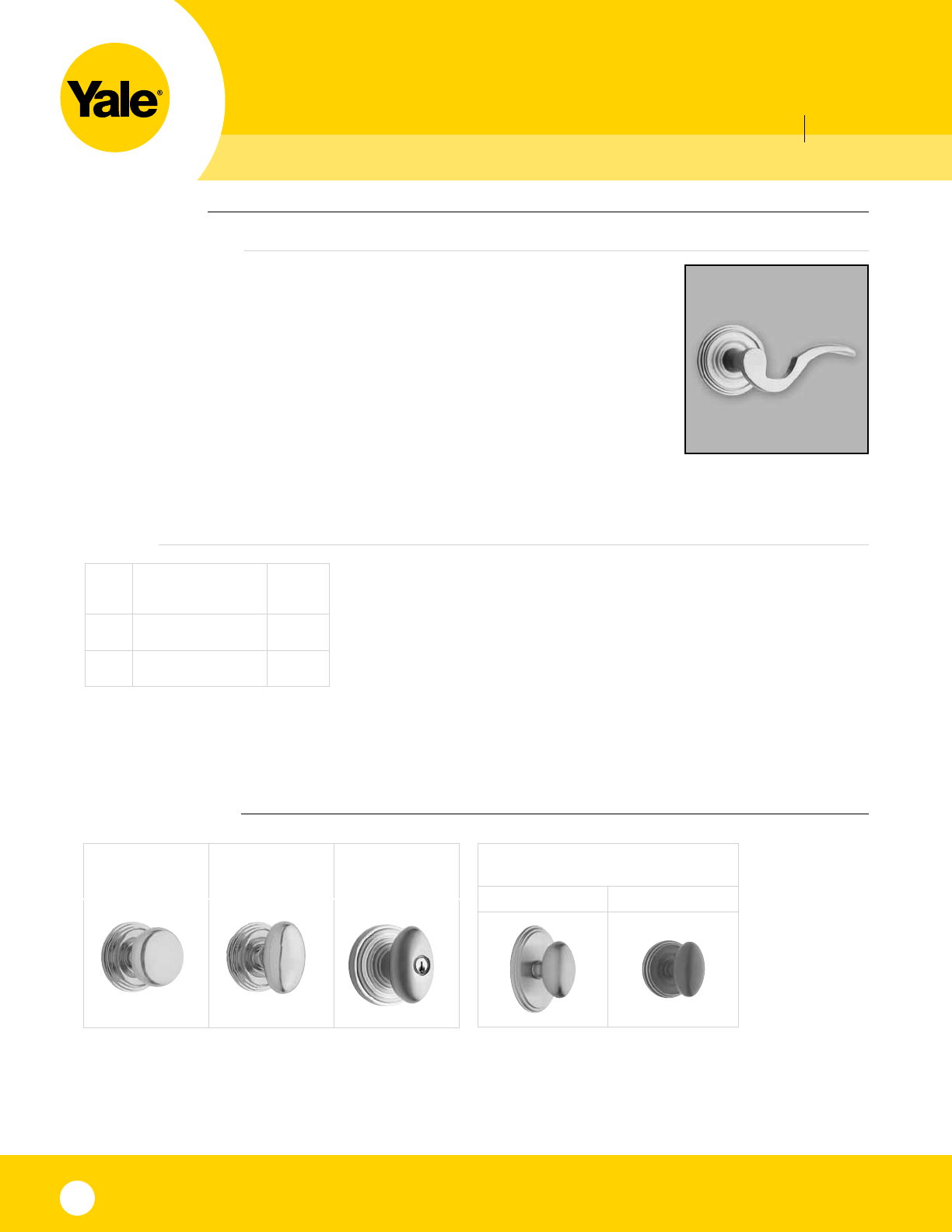

DesignElements™

Sustaining the legacy of high standards set forth by Linus Yale in the mid-19th century, Design

Elements™fromYale® artfully designed and finely crafted locksets remain unmatched in the

industry today. Made of solid brass and crafted with fine detail, Design Elements sets the

industry standard for exceptional beauty teamed with high performance.

• Solidbrasscomposition

• Availablein2distinctivefinishes

• Simpleinstallin3easysteps

• AvailableKW-1orSC-1keyway

• Push-buttonlocking–keyedentry

 Push-pinlocking–privacyfunction

• Solidbrasskeycylinderandhousing

• Springloadedrosettes–ensureknob/leversspringbacktooriginalposition

• Warranty–3-yearmechanicaland1-yearfinishwhenusedincommercial,institutionalorindustrialapplications

finishes

All Design Elements™ offering available in these finishes.

knob designs

ANSI/

BHMA

Code

Finish Description US

Code

613e Dark Oxidized Satin

Bronze, Permanent US10BP

619 Satin Nickel Plated, Clear

Coated US15

Demi Round

(DMR)

Ellipse

(ELP)

Ellipse

Keyed Entry

Rose as shown

Ellipse

Optional rose styles

Ovalette Rondel

condensed catalog

lever designs

deadbolt designs

interconnected/non-interconnected handleset designs

*Note: Interconnected or Non-Interconnected option is available on 1 Piece Handlesets

Ovation

Interconnected* with

Ellipse interior

(OVA)

Pedestal

Interconnected*

with Demi Round interior

(PED)

Acclaim

Non-Interconnected

with Ellipse interior

(ACC)

Palladian

(PAL)

Savoye

(SVY)

Wingate

(WNG)

Ovalette

(OVL)

Rondel

(RND)

Wingate

Available rose styles

Ovalette Rondel

Wingate

Keyed Entry

Rose as shown

condensed catalog

residential

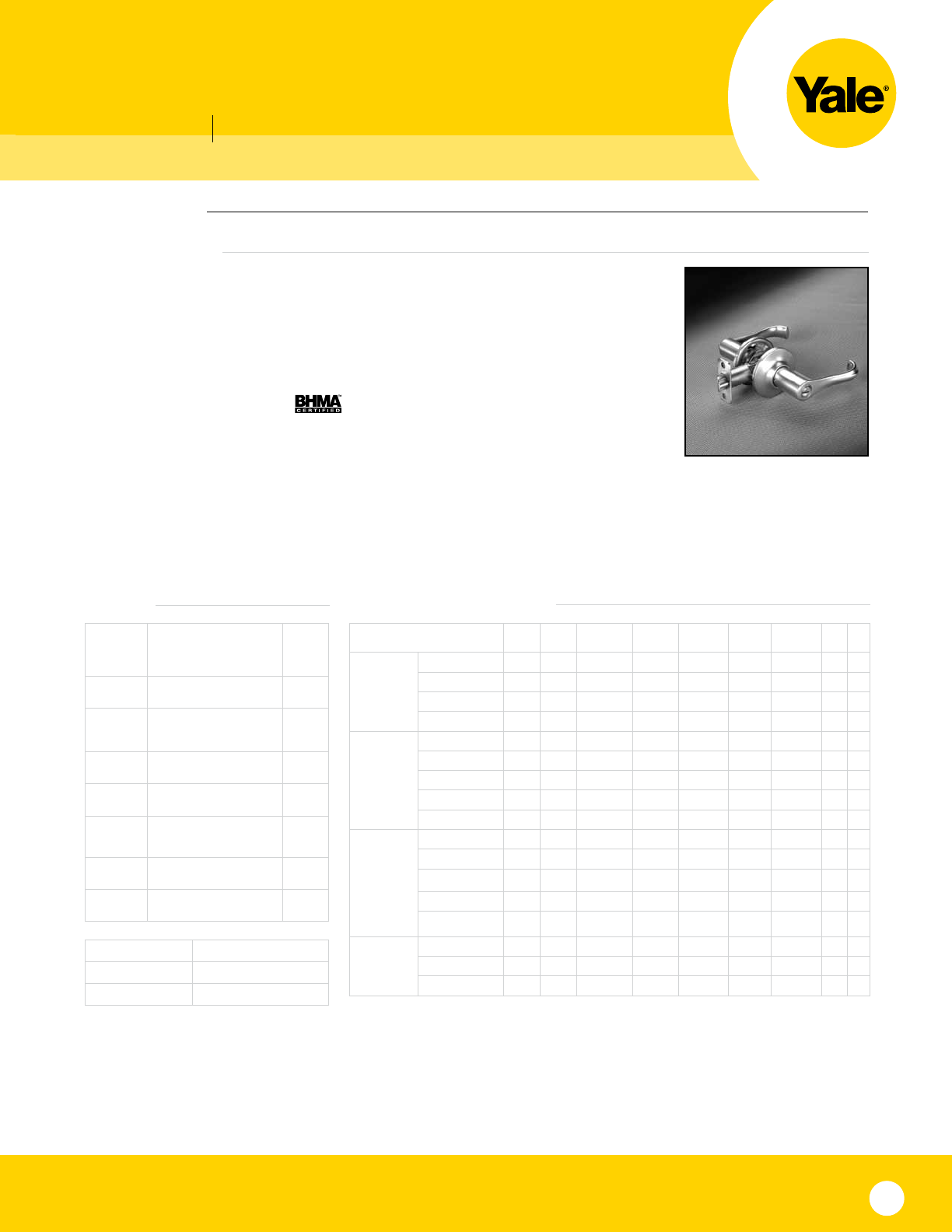

YHCollection™

TheYHCollection™fromYale® continues a legacy of distinctive design, high manufacturing

standards and demanding performance started by Linus Yale in the mid-19th century. The YH

Collection leverages years of engineering refinement with artful execution to offer a series of

ANSI/BHMA Grade 2 superior light commercial quality locks that will beautifully serve facilities

for generations. They offer superior functionality such as push-button locking, removable trim for

simple re-keying, and a lifetime limited finish and mechanical warranty.

• ANSI/BHMACertifiedGrade2

• Availablein9distinctivefinishes

• Easyinstallmountingsystem–squarespindlesimplifiesinstallation-knobs,levers

• Pre-installedmountingscrews

• Concealedmountingscrews–cleanupgradedlook

• AvailableKW-1,SC-1keyway

E1R (Para) keyway available for deadbolts and levers only

• Pushbuttonlocking–panic-freeegress

• Solidbrasskeycylinderandhousing

• Removablelever/knobandrosettes–allowsforeasyscratch-freeinstallation

• Frontremovabledeadboltcylinder–premierseries

• Heavy-dutyshroud–addedanti-prysecurity

• Four-woundspringchassis–heavy-dutyfeel,eliminatesleversag

• Warranty-3-yearmechanicaland1-yearfinishwhenusedincommercial,institutionalorindustrialapplications

finishes

ANSI/

BHMA

Code

Finish Description US

Code

605 Bright Brass US3

609

Satin Brass, Blackened,

Satin Relieved, Clear

Coated

US5

613e Dark Oxidized Satin

Bronze, Permanent US10BP

619 Satin Nickel Plated, Clear

Coated US15

620

Satin Nickel Plated,

Blackened, Satin Relieved,

Clear Coated

US15A

625 Bright Chrome Plated US26

626 Satin Chrome Plated US26D

Finish Code Description

GM Gun Metal

TB Textured Black

condensed catalog

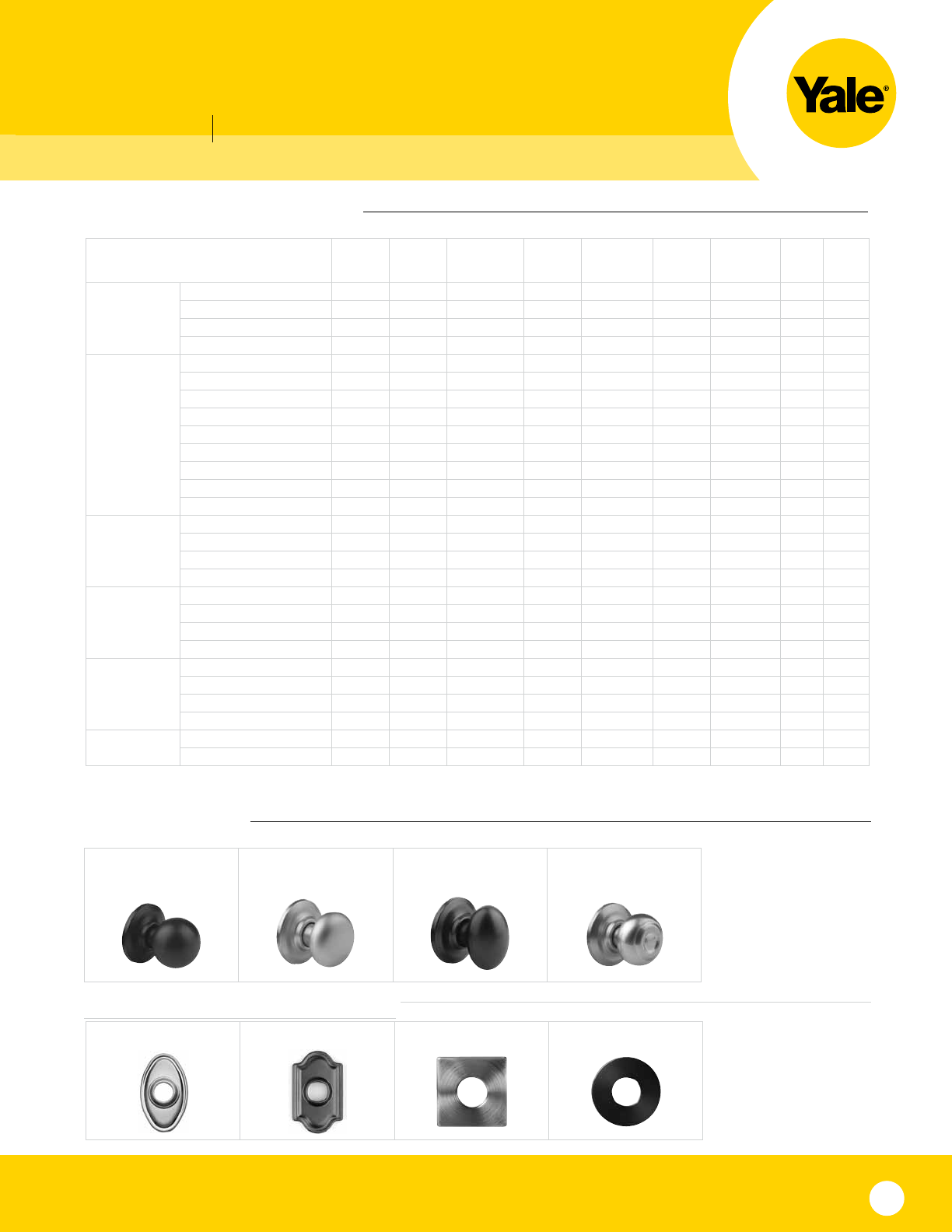

product finish availabilty*

*Check current Yale Residential Price Book for complete listing of product function and the availability in each finish listed above.

1 Victoria available in 605 (US3) with PVD coating, specify 605e.

YH Collection™ 605

(US3)

609

(US5)

613e

(US10BP)

619

(US15)

620

(US15A)

625

(US26)

626

(US26D) GM TB

Knobs

Bridgeport • • • •

Cambridge • • • • • • • • •

Dartmouth • • • •

Oxford • • • • •

Levers

Academy • • •

Cascade • • • • •

Citadel • • • • •

Marina • • • • •

McClure • • • • •

Meridian • •

Milan • • • •

Norwood • • • • • • • • •

Valdosta • • • •

Deadbolts

Premier Single Cyl • • • • • • • •

Premier Double Cyl • • • • • • •

Select Single Cyl • • • • • • • • •

Select Double Cyl • • • • • • • • •

Handlesets

Fairfield • • •

Homestead • • • • • • • • •

Jamestown • • • • • • • • •

Victoria1PVD • •

Roses

Oval • • •

Round • • •

Square • • •

Traditional • • •

Rosette

Finishes

Oval • • • • • • • • •

Traditional • • • • • • • • •

knob designs

optional rosettes for knobs and levers

Bridgeport

(BP)

Cambridge

(CB)

Dartmouth

(DM)

Oxford

(XF)

Oval Traditional Square Round

condensed catalog

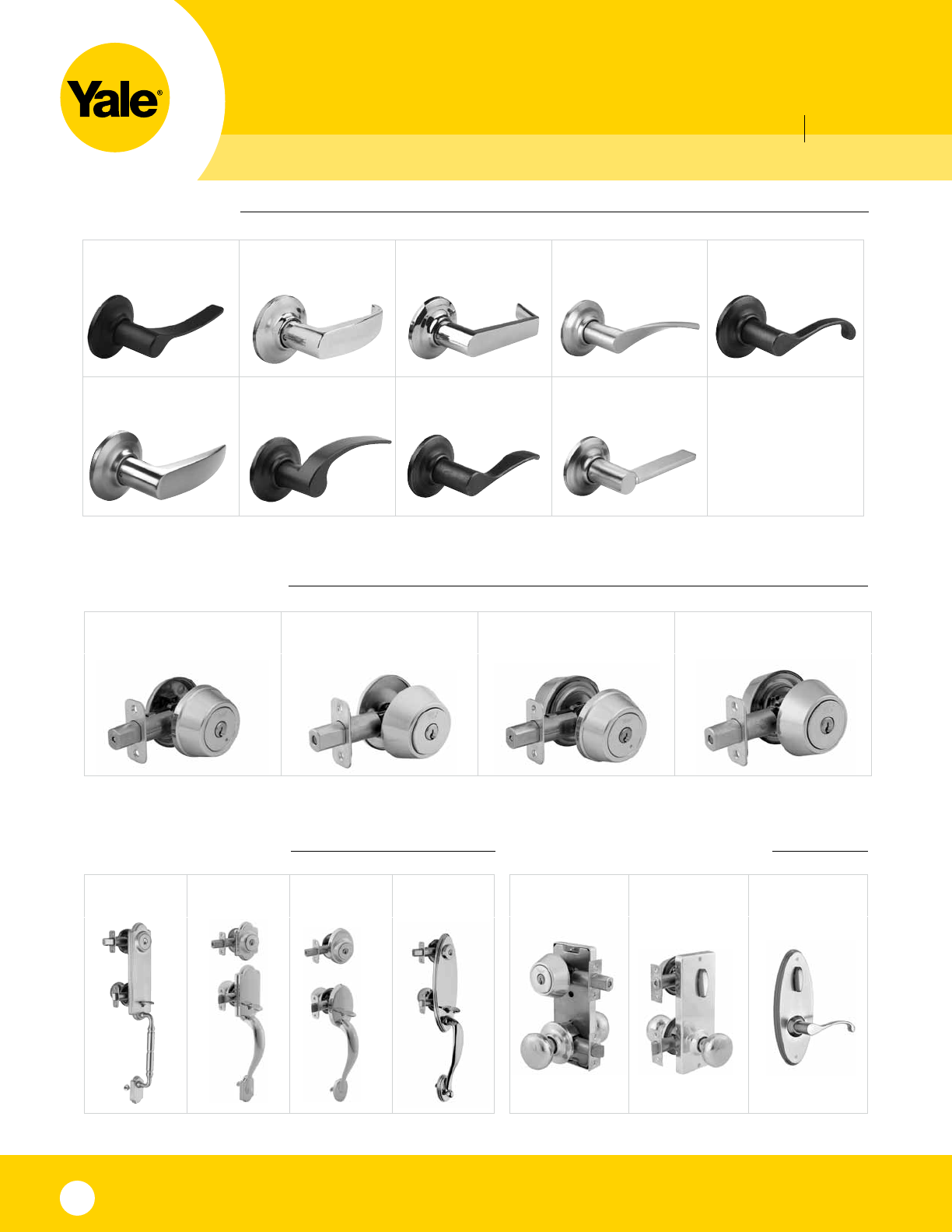

lever designs

82 Premier

Single Cylinder

83 Select

Single Cylinder

84 Premier

Double Cylinder

85 Select

Double Cylinder

deadbolt designs

handleset designs

Fairfield

(F)

Homestead

(H)

Jamestown

(J)

Victoria

(V)

interconnected designs

Exterior Square Interior Oval Interior

Academy

(AC)

Cascade

(CS)

Citadel

(CD)

Marina

(MA)

McClure

(MC)

Meridian

(ME)

Milan

(MN)

Norwood

(NW) Valdosta

condensed catalog

residential

New Traditions®

New Traditions® from Yale® offers outstanding strength, durability and simple, elegant designs

highlighted by natural curves for comfort and ease of turning. All New Traditions products are

built on a steel ANSI/BHMA Grade 3 chassis and feature concealed holding screws and solid

brass cylinder assemblies. In addition, all New TraditionsproductsfeatureQuick-Install™,a

unique chassis design, which drastically reduces installation time.

Note: New Traditions are not for use with commercial hollow metal doors.

• ANSI/BHMACertifiedGrade3

• Availablein9distinctivefinishes

• Quickinstallmountingsystem–knobs

• Pre-installedmountingscrews–knobs

• Concealedmountingscrews–cleanupgradedlook

• AvailableKW-1,SC-1keyway

E1R (Para) keyway available for deadbolts and levers only

• Solidbrasskeycylinder

• Removablelever/knobandrosettes–allowsforeasyscratch-freeinstallation

• Warranty–3-yearmechanicaland1-yearfinishwhenusedincommercial,institutionalorindustrialapplications

finishes

ANSI/

BHMA

Code

Finish Description US

Code

605 Bright Brass US3

609

Satin Brass, Blackened,

Satin Relieved, Clear

Coated

US5

613e Dark Oxidized Satin

Bronze, Permanent US10BP

619 Satin Nickel Plated, Clear

Coated US15

620

Satin Nickel Plated,

Blackened, Satin Relieved,

Clear Coated

US15A

625 Bright Chrome Plated US26

626 Satin Chrome Plated US26D

Finish Code Description

GM Gun Metal

TB Textured Black

* Check current Yale Residential Price Book for complete listing of product function and the

availability in each finish listed above.

New Traditions®605

(US3)

609

(US5)

613e

(US10BP)

619

(US15)

620

(US15A)

625

(US26)

626

(US26D) GM TB

Knobs

Cirrus • • • • • • •

Horizon • • • • • • • • •

Terra • • •

Valley • •

Levers

Mesa • • •

Niagara • • • • • • • • •

Prairie • • • •

Savannah • • • • • • • • •

Woodland • • • • • • • • •

Deadbolts

810 Dummy • • • • • •

820 Single Cyl • • • • • • • • •

840 Double Cyl • • • • • • • • •

880 One Way • • • • • • • • •

860 One Sided

w/plate • • • • • • • • •

Handlesets

McKinley • • • • • • • • •

Teton • • • •

Rainier • • • • • • •

product finish availability*

condensed catalog

knob designs

Cirrus

(C)

Horizon

(H)

Terra

(T)

Valley

(V)

lever designs

deadbolt designs

810

Dummy

820

Single Cylinder

840

Double Cylinder

860

One Sided with Plate

880

One Way

handleset designs interconnected designs

Exterior Square

Interior

Oval

Interior

McKinley

(M)

Rainier

(R)

Teton

(T)

Mesa

(ML) Niagara Prairie

(PL)

Savannah

(SL)

Woodland

(WL)

condensed catalog

residential

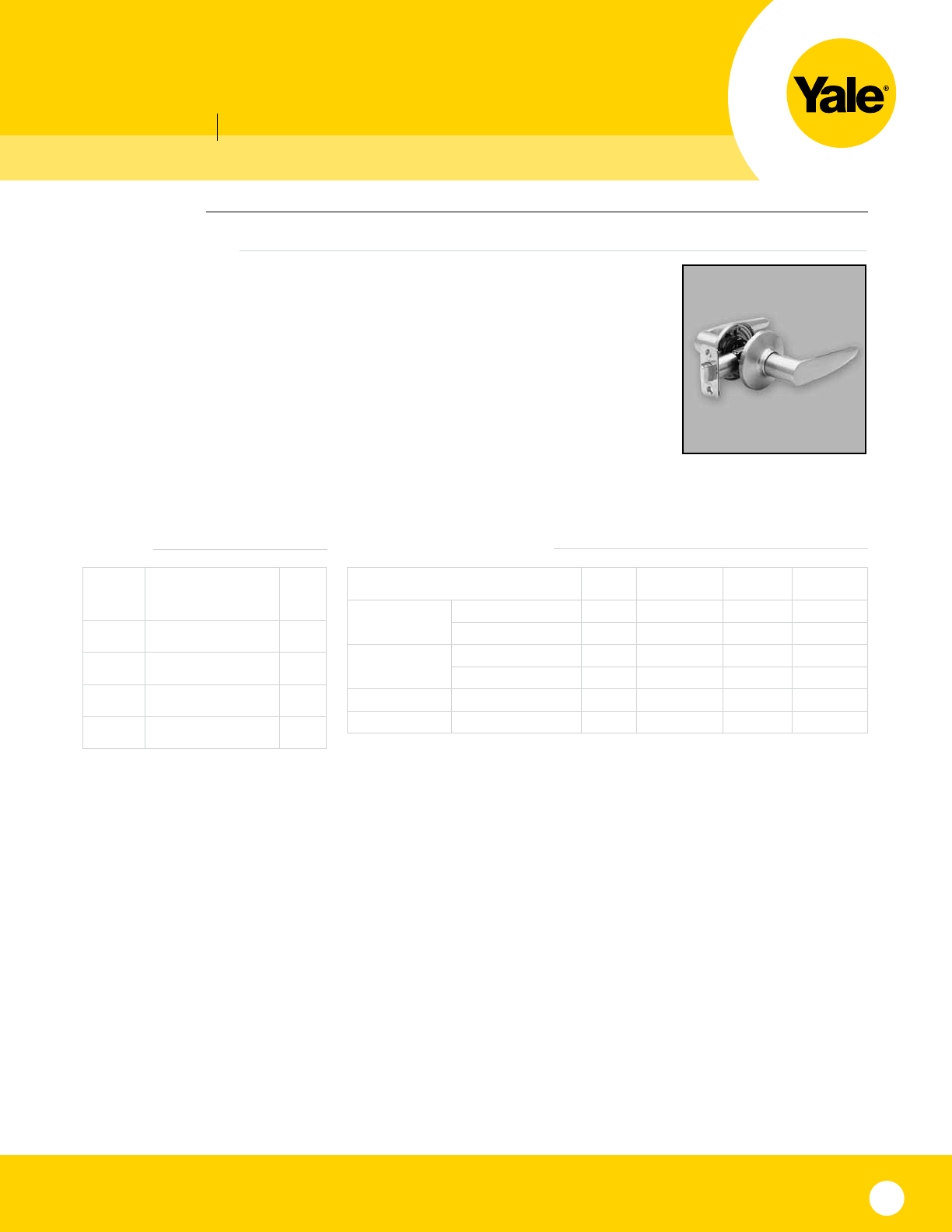

Yale Edge Series®

Yale Edge Series offers attractive designs and finishes to meet the needs of today’s housing

market. All Yale Edge Series product is constructed to meet Grade 3 standards. Designed to

fulfill the needs of the hardware market in attractive styles and current popular finishes. Whether

your project includes townhomes, condos, garden homes, or a single family home, look no

further than Yale Edge Series to fulfill your door hardware needs with the Yale brand.

Note: Yale Edge Series products are not for use with commercial hollow metal doors.

• DesignedtomeetANSI/BHMAGrade3

• Availablein4distinctivefinishes

• Removablecylinderforquickandeasyre-keyingthatrequiresnospecialtools

• Non-handedlevers

• Solidbrasskeycylinder

• Warranty–3-yearmechanicaland1-yearfinishwhenusedincommercial,institutionalorindustrialapplications

finishes

ANSI/

BHMA

Code

Finish Description US

Code

605 Bright Brass US3

613e Dark Oxidized Satin

Bronze, Permanent US10BP

619 Satin Nickel Plated, Clear

Coated US15

630 Satin Stainless Steel US32D

* Check current Yale Residential Price Book for complete listing of product function and the

availability in each finish listed above.

Edge Series®605

(US3)

613e

(US10BP)

619

(US15)

630

(US32D)

Knobs

Athens • • •

Sinclair • •

Levers

Alpharetta • • •

Keowee • •

Deadbolts 820 Single Cyl • • • •

Handlesets Lenoir • • •

product finish availability*

condensed catalog

knob designs

lever designs

deadbolt designs

handleset designs

Lenoir

(LN)

Athens

(AT)

Sinclair

(SN)

Alpharetta

(AL)

Keowee

(KW)

820

Single Cylinder

condensed catalog

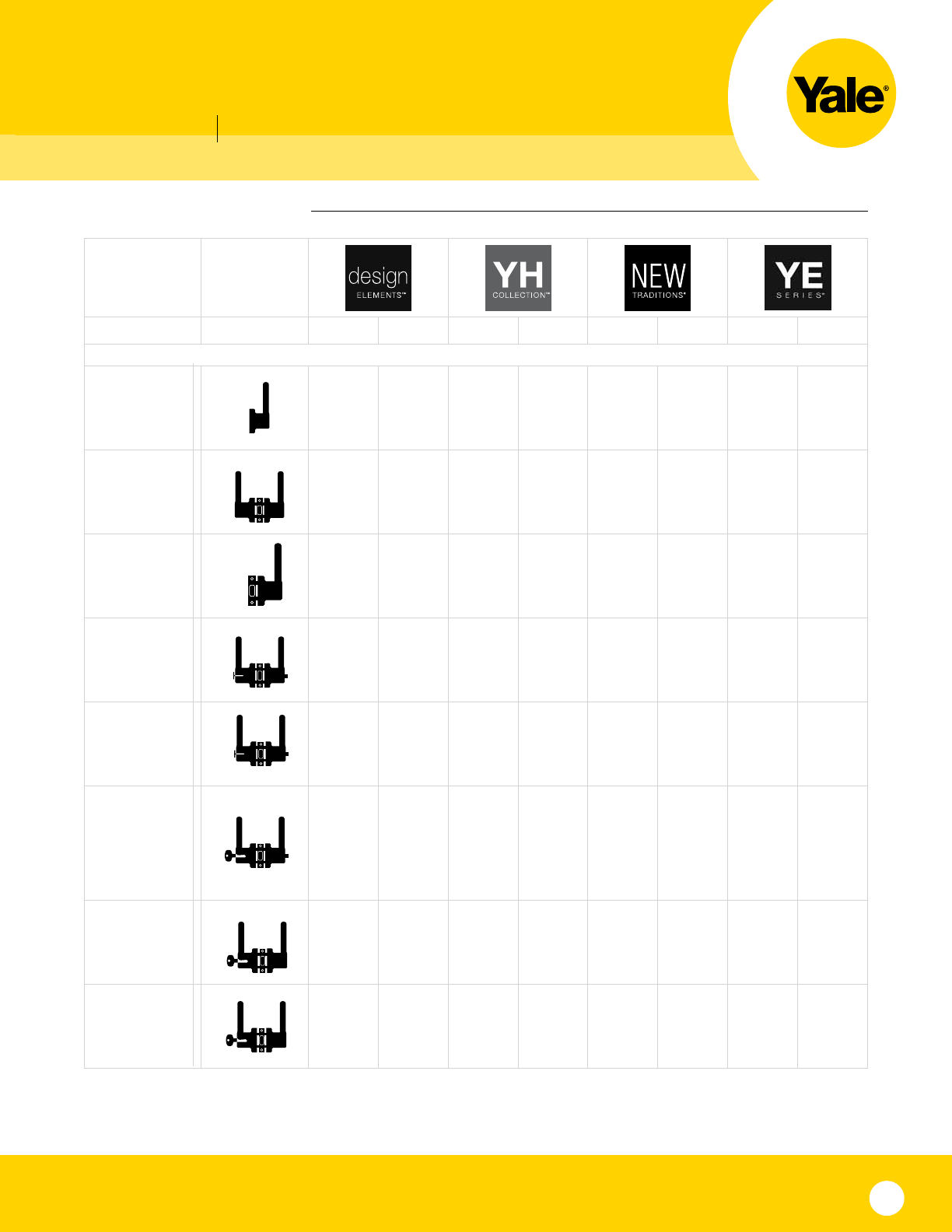

residential functions

Function/

Application

Sample

Illustration

Lever Knob Lever Knob Lever Knob Lever Knob

Locksets

Dummy 81 80 81 80 81 80 81 80

Passage 11 10 11 10 101 100 11 10

One Sided w/Plate N/A N/A 61 60 161 160 N/A N/A

Privacy 21 20 21 20 201 200 21 20

Bathroom N/A N/A 22 26 221 226 N/A N/A

Entry 71 70

(Lever/

Lever)

(Knob/

Lever)

771

(Lever/

Lever)

701

(Knob/

Lever)

700 71 70

Classroom N/A N/A 76 75 N/A N/A N/A N/A

Storeroom

N/A N/A 76 78 N/A 780 N/A N/A

Function/

Application

Sample

Illustration

Lever Knob Lever Knob Lever Knob Lever Knob

Locksets - Interconnected

Single Locking N/A N/A 851 850 851 850 N/A N/A

Double Locking N/A N/A 871 870 871 870 N/A N/A

Handlesets - Interconnected (Interior pack – style and handing must be specified.)

Single Locking 650 650 651 650 651 650 N/A N/A

Handlesets - Non-Interconnected (Interior pack – style and handing must be specified.)

Dummy 98 98

983

984

986

987

983 (V)

984 (F)

986 (H)

987(J)

681

682

683

681 (T)

682 (M)

683 (R)

N/A N/A

Single Cylinder 926 926

923

924

926

927

923 (V)

924 (F)

926 (H)

927 (J)

621

622

623

621 (T)

622 (M)

623 (R)

927 927

Double Cylinder N/A N/A

944

946

947

944 (F)

946 (H)

947 (J)

641

642

643

642 (M)

643 (R) N/A N/A

Deadbolts

Dummy N/A N/A 810 N/A

Single Cylinder 82 82 Premier

83 Select 820 82

Double Cylinder N/A 84 Premier

85 Select 840 N/A

One Sided w/Plate N/A 87 Select 860 N/A

One Way N/A N/A 880 N/A

condensed catalog

residential functions

condensed catalog

notes

online literature and templates

condensed catalog

Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.

Yale®, SecureX®, PowerTrack®, Reflections®, ElectroLynx®, Lumi-Lite®, SquareBolt®, New Traditions®, Symphony®, Affinity®, inTouch®, Yale Edge Series® and MicroShield® are

registeredtrademarksofYaleSecurityInc.,anASSAABLOYGroupcompany.YaleRealLiving™,DesignElements™,YHCollection™andUniStop™aretrademarksofYaleSecurityInc.,an

ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. These

materials are protected under U.S. copyright laws. All contents current at time of publication. Yale Security Inc. reserves the right to change availability of any item in this catalog, its design,

permission of Yale Security Inc., an ASSA ABLOY Group company is prohibited.

YALE, with its unique global reach and range of products, is the world’s favorite lock.

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.

42027-2/15R

An ASSA ABLOY Group brand

For the latest information on Yale Locks & Hardware products, visit our website at: www.yalelocks.com

Click on the “Product Information” button to find:

• Catalogs

• Partsmanuals

• Templates

• Specifications

• Installationinstructions

Yale® customers can click on the ebusiness symbol on the website to register for an ebusiness account to:

• Checkthestatusoforders

• CheckavailabilityofQuickShipitems

• Trackyourorderandconfirmdelivery

• Receiveemailnotificationoftemplatechanges

And More...

Or contact us at:

U.S.A.:

Yale Locks & Hardware

Address: 225 Episcopal Road, Berlin, CT 06037-4004

Tel: 1-800-438-1951 • Fax: 1-800-338-0965 • www.yalelocks.com

Canada:

ASSA ABLOY Door Security Solutions Canada

Address:160 Four Valley Drive, Vaughan, Ontario L4K 4T9

Tel: 1-800-461-3007 • Fax: 1-800-461-8989 • www.assaabloy.ca

International:

ASSA ABLOY Americas International

Tel: 1-905-821-7775 • Fax: 1-905-821-1429 • www.assaabloyai.com

Yale Catalog Yalecatalog1

Navigation menu

Versions of this User Manual:

Views

Navigation
