Users Manual
User Guide
Guide de l’utilisateur
Bedienungsanleitung
CRW4416SX
SERIES
EnglishFrançaisDeutsch
Responsible Party: Yamaha Systems Technology, Inc.
Address: 100 Century Center Court
San Jose, California 95112
Telephone: (408) 467-2330
FAX: (408) 437-8791
FCC INFORMATION (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not
expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s
supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC
authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class ìBî
digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a
residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio
frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to
the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in
all installations. If this product is found to be the source of interference, which can be determined by turning the product ì OFFî
and ì ONî , please try to eliminate the problem by using one of the following measures:
Relocate either this product or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the
lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of
product. If you can not locate the appropriate retailer, please contact Yamaha Systems Technology, Inc. 100 Century Center Court,
San Jose, CA95112, U.S.A.
This output is value measured at a
distance 200mm from the objective lens
surface on the optical pick-up block.
ANSI Class : Class 1
Material : GaAlAs
Wavelength : 783-789 nm
Emission Duration : Continuous
Laser Output Power : Less than 44.6 µW*
*
Laser Diode Properties
ADVARSEL
USYNLIG LASERSTRÅLING VED ÅBNING.
UNDGÅ UDSAETTELSE FOR STRÅLING.
VAROITUS
LAITTEEN KÄYTTÄMINEN MUULLA
KUIN TÄSSÄ KÄYTTÖOHJEESA
MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN
TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE
LASERSÄTEILYLLE.
VARNING
OM APPARATEN ANVÄNDS PÅ ANNAT
SÄTT ÄN I DENNABRUKSANVISNING
SPECIFICERATS, KAN ANVÄNDAREN
UTSÄTTAS FÖR OSYNLIG
LASERSTRÅLNING, SOM ÖVERSKRIDER
GRÄNSEN FÖR LASERKLASS 1.
CLASS 1 LASER PRODUCT
LASER KLASSE 1 PRODUKT
LUOKAN 1 LASERLAITE
PRODUIT LASER DE CLASSE 1
This compact disc player is
classified as a CLASS 1
LASER product.
The CLASS 1 LASER
PRODUCT label must be
located on the exterior.
Varningsanvisning för
laserstrålning.
VORSICHT : UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG
GEOFFNET. NICHT DEM STRAHL AUSSETZEN.
VARNING : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH
SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN ÄR FARLIG.
VARO! : AVATAESSA JA SUOJALUKITUS OHITETTAESSA OLET
ALTTINA NÄKYMÄTTÖMÄLLE LASERS TEILYLLE. ÄLÄ KATSO SÄTESSEN.
ADVARSEL : USYNLIG LASERSTRALNING VED ÅBNING NÄR SIKKERHETSAF-
BYDERE ER UDE AF FUNKTION. UNDGÅ UDSETTELS FOR STRÅLING.
CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
Important Precautions
i
Important Precautions
Please read the following precautions before operating
CRW4416SX.
• Do not remove the CRW4416SX’s top cover.
This device uses semiconductor laser.
Refer all servicing to qualified personnel.
• Do not attempt to touch the inside of the
CRW4416SX. Electricity may have been built up
even after you turn off the power.
• CRW4416SX is a sophisticated electronic device.
Handle it with care.
• If the fuse blows, CRW4416SX should be checked
by a qualified engineer. Do not just replace the fuse.
Replacing the fuse by yourself may cause the protec-
tion circuit to be damaged.
• The CRW4416SX uses high-density circuits and LSIs.
Even a small incident may cause malfunctions to
occur.
• If CRW4416SX operates incorrectly, See “Trouble-
shooting” on page 13.
If the problem persists, consult your CRW4416SX
dealer.
• Yamaha is not responsible for any data or information
losses resulting from the operation of CRW4416SX.
Installation Precautions
ii
Installation Precautions
• Install CRW4416SX on a level surface.
• Do not install CRW4416SX near water, in direct sunlight,
close to heating units, or in areas subject to high or low tem-
perature extremes, excessive dust, vibration, or severe shocks.
• Do not expose CRW4416SX to extremes of humidity.
• The ambient temperature where CRW4416SX is installed
should be between 5
°
C and 40
°
C (41
°
F–104
°
F).
• Using CRW4416SX close to a television or radio may cause
interference. Install CRW4416SX at least one meter away
from television and radio equipment.
• Do not block the CRW4416SX ventilation slots. Install
CRW4416SX with at least 10
cm of free space all-around.
• Make sure the CRW4416SX power cord is not located in a posi-
tion where it is likely to be walked on or pinched by other
equipment.
Operating Precautions
iii
Operating Precautions
• Do not subject CRW4416SX to impact or shock when in use.
This may impair recording or playback.
• Do not place heavy objects on CRW4416SX.
• Avoid moving CRW4416SX from cold to warm places, and
avoid sudden room temperature rises, as condensation that
could cause CRW4416SX to malfunction may occur.
If condensation does occur, wait at least one hour before oper-
ating CRW4416SX.
• Do not let liquid or other foreign objects enter CRW4416SX.
• To reduce the risk of electric shock, do not expose
CRW4416SX to rain or moisture.
• Always remove the disc before transporting CRW4416SX.
• CRW4416SX uses an optical pickup that is sensitive to dust
and dirt. Make sure that the disc tray and disc are free of dust
and dirt before loading.
• Use only the power cable supplied. Other cables may cause
interference when CRW4416SX is used near to radio and tele-
vision equipment.
• CRW4416SX should be connected only to an AC receptacle of
the type described in this User Guide or as marked on the rear
panel of CRW4416SX.
• Use a soft dry cloth to clean CRW4416SX. Stubborn dirt can
be removed using a cloth dampened with water and neutral
detergent solution. Do not use benzine or solvent based clean-
ers on CRW4416SX.
Preventing Premature Disc Failure
iv
Preventing Premature Disc Failure
The NUMBER ONE cause of premature disc failure with recordable
CDs is contamination of the recording surface before recording is
completed. To minimize disc failure, use the following disc-handling
guidelines:
• Keep the disc tray and disc as clean and dust-free as humanly
possible during the record process. DO NOT touch the recording
surface, and do not expose the disc tray and disc to dust or dirt.
• DO NOT BLOW ON THE DISC to remove dust or dirt. To
remove dust from the recording surface use a camera lens bulb.
Be sure to follow the instructions when using the cloth.
• To remove stubborn dirt or grease from the recording surface
use only nonabrasive foam-tipped swabs (such as Chemtronics
Foamtips #120) with a small amount of pure, denatured alcohol.
To avoid scratching the recording surface BE SURE TO USE
ONLY LIGHT STROKES, beginning at the disc center, pulling
directly towards the disc’s outer edge.
• Always record in a dust-free environment. If the disc must be
removed from CRW4416SX before recording is finished, store
the disc in a clean, dust-free environment.
• If a disc tray accumulates dust, DO NOT USE IT FOR DISC
RECORDING. Always use a clean, dust-free tray for disc
recording.
If CRW4416SX is vibrated while recording, the recording may
fail. To avoid such failures observe the following practices:
• Place CRW4416SX on a solid, stable surface, away from high-
traffic areas. The surface must allow CRW4416SX to operate
in a level, horizontal position.
• Avoid touching or handling CRW4416SX when recording.
Note:
Once the disc has been finalized (and no more recording is possi-
ble), it can be handled with the same care that any CD should be
handled.
Table of Contents
v
Table of Contents
Introduction
...............................................................................1
CRW4416SX Features ....................................................1
Orange Book Compatible Recording ..............................2
Chapter 1 - System Configuration
.......................................3
Computer .........................................................................3
Software ...........................................................................4
Discs ................................................................................4
Chapter 2 - Touring Around CRW4416SX
.........................5
Front Panel .......................................................................5
Rear Panel ........................................................................6
Chapter 3 - Installing the Yamaha CRW4416SX
Drive
.....................................................................7
CRW4416SX drive settings .............................................7
Cable Connection ............................................................9
Chapter 4 - Operation
...........................................................10

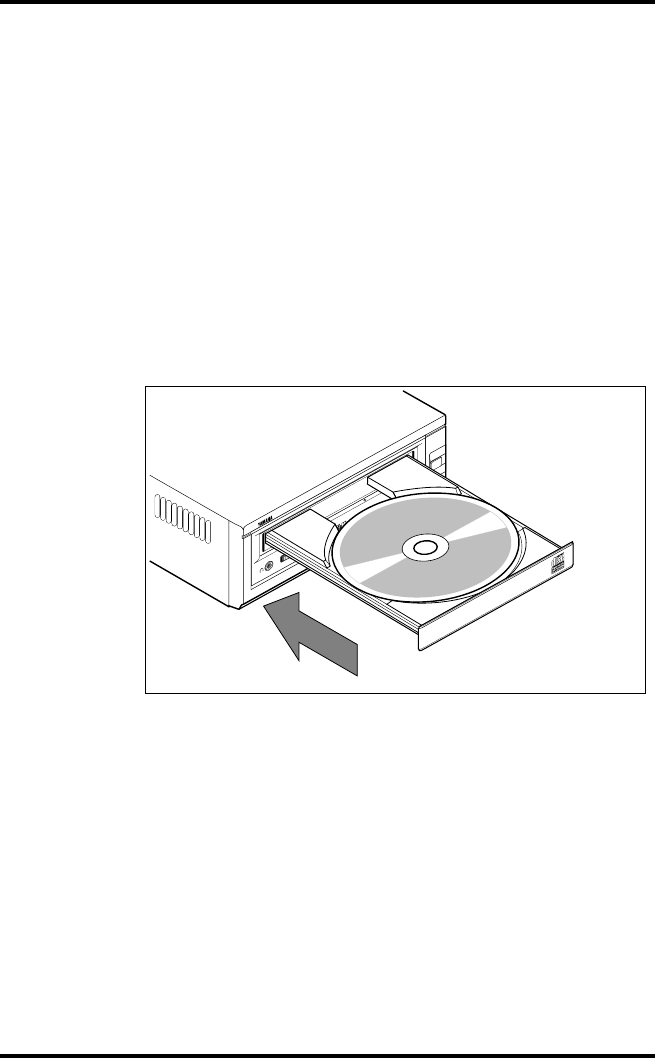

Loading a Disc ...............................................................10

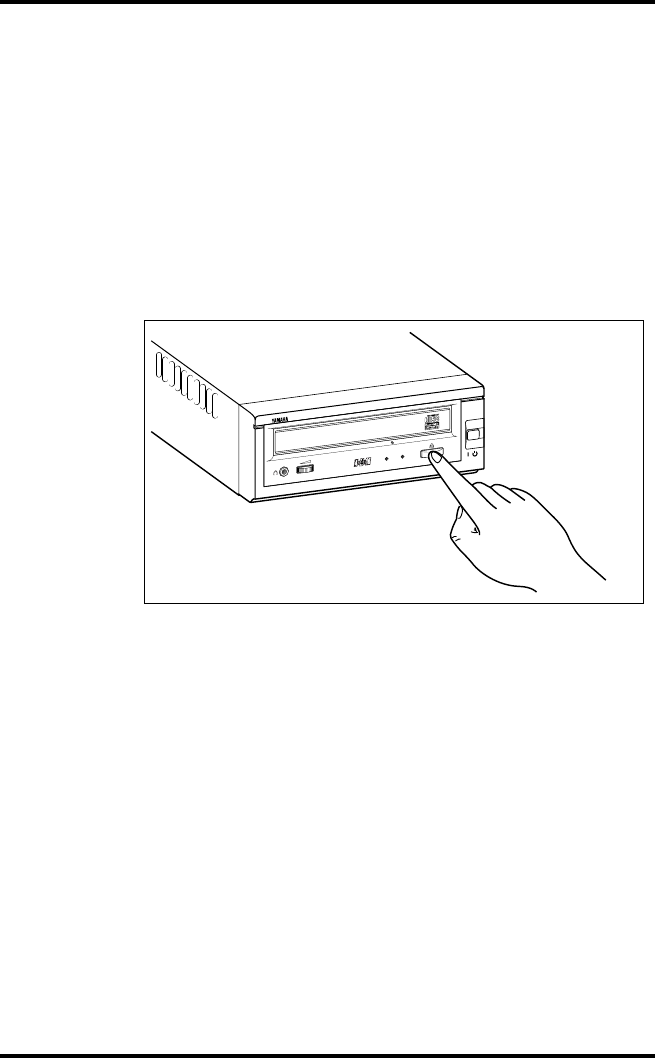

Ejecting the Disc ............................................................11
Manual Eject (emergency use) ......................................12
Troubleshooting
.....................................................................13
Appendix
...................................................................................14
Specifications .................................................................14
Front Panel Indicator Key ..............................................15
©1998
Yama
h
a
C
orporat
i
on.
All
R
i
g
h
ts Reserve
d
.
This document may not, in whole or in part, be copied, photocopied, reproduced,
translated, transmitted or reduced to any electronic medium of machine readable
form without prior consent in writing from Yamaha.
MS-DOS and Windows are registered trademarks of Microsoft, Inc.
Unix is a registered trademark of UNIX System Laboratories.
All other trademarks are the property of their respective companies.
Introduction
1
Introduction
Thank you for purchasing a Yamaha CRW4416SX drive.
Please read this manual before using the drive in order to make the best
use of the superior CRW4416SX functions.
After reading, please retain this manual for future reference.
CRW4416SX Features
■
4xS Recording (Rewritable) - 4xS Recording (Recordable) -
16xS Reading
The CRW4416SX is able to write (overwrite) CD-RW discs at quad
speed, double speed, and is able to write CD-R discs at quad speed,
double speed, or normal speed.
CD-R discs can also be read at a maximum of 16X speed.
■
Compatible with Seven Different Formats
The CRW4416SX can both record and read seven different formats:
CD-ROM, CD-ROM XA, CD-I, CD-DA, CD-Bridge (multisession),
CD-Extra, and Video CD.
The CRW4416SX is also equipped with an analog audio output termi-
nal (headphones) for CD-DA.
■
SCSI 2 Interface for Data Transfer
The CRW4416SX features SCSI 2, the second generation SCSI interface
for connecting computers and peripheral devices.
■
Compatible with Windows 95, Windows 98 Plug and Play
SCSI IDs are set automatically by the SCAM protocol (level 1).
■
Orange Book Part 2, Part 3 Compatible 5-Mode Recording
The CRW4416SX conforms to the five recording modes outlined in the
Orange Book Part 2 and 3: Track at Once, Multisession, Disc at Once,
Session at Once, and Packet Writing.
Introduction
2
Orange Book Compatible Recording
Track at Once
In this mode, data can be recorded to disc one track at a time.
Discs recorded in this mode cannot be played in CD players or CD-
ROM drives other than a CD-RW or a CD-R drive until the session is
closed.
Multisession
In this mode, data can be recorded to disc in stages (one session at a
time).
Additional data can be written later.
Disc at Once
In this mode, data can be recorded to an entire disc in one pass.
It is not possible to write additional data later.
Session at Once
In this mode, data can be recorded to disc one session at a time.
To use this mode, your software must support Session at Once recording.
New sessions can be written later.
Packet Writing
This is useful for data back-up. Smaller units of data can be added to
tracks.
To use this mode, your software must support Packet Writing.
The CRW4416SX supports both sequential and random packet writing.
Chapter 1 - System Configuration
3
Chapter 1 - System Configuration
Before using the CRW4416SX, make sure that you have all of the items
on the list of included items.
In order to use the CRW4416SX, you will require the following.
Computer
The following operating environment is required:
For an IBM-PC computer with DOS or Windows
• 166MHz or faster Pentium CPU (in order to write at 4x speed)
• A vacant slot in which to install a SCSI card or a pre-installed SCSI
card
• Windows 95, Windows 98, Windows NT4.0(Service Pack 3) or
Higher
• Sufficient hard disk space
Note:
If you wish to create an image file and write it to a CD-R or CD-RW,
you will need approximately 750 MB of free space on your hard disk as
work area.
• SCSI card
This is required in order to connect a SCSI device (the Yamaha
CRW4416SX) to your computer.
We recommend the following:
Adaptec SCSI cards: AHA-2940 (PCI), AHA-284x (VL), AHA-2740
(EISA), AHA-154x (ISA), etc.
For a Macintosh computer
• A Macintosh computer that is equipped with a 68040 CPU, or a
Power PC CPU
Note:
If you wish to create an image file and write it to a CD-R or CD-RW,
you will need approximately 750 MB of free space on your hard disk as
work area.
Chapter 1 - System Configuration
4
Software
Use writing software or packet writing software which supports the
CRW4416SX.
For software-related questions, please read the owner's manual for your
software.
Discs
On the CRW4416SX, you can use conventional CD-RW and CD-R
discs that conform to the Recordable Compact Disc Systems Part 2 and
3 (Orange Book).
Yamaha recommends the following Yamaha CD-RW discs:
• CRWM74B4X (
φ
120mm, 74 minutes)
• CRWM74R4X (
φ
120mm, 74 minutes)
Read-only Discs
You can use discs with the logo which conform to the Compact
Disc Read Only Memory standard (CD-ROM standard, Yellow Book).
If you wish to use the audio functions, use discs with the logo,
which conform to the Compact Disc Digital Audio standard (Red
Book).
Chapter 2 - Touring Around CRW4416SX
5
Chapter 2 - Touring Around CRW4416SX
Front Panel
1
Disc tray
The disc is inserted and ejected here. Pressing the eject button will
open the tray.
2
Headphone jack
This stereo mini jack allows you to connect headphones and listen to
audio.
3
Headphone volume control
This control adjusts the volume level of the headphone output. Rotating
the control clockwise will increase the volume level.
4
ON/DISC LED
This indicator lights up in orange when the CRW4416SX is powered
on, and lights up in green when the CRW4416SX contains a disc.
5
READ/WRITE LED
This indicator lights up in green when data is being read, and flashes
when data is being accessed. It also lights up in orange when data is
being recorded on a disc.
6
Manual Eject hole
This is used to manually eject a disc that cannot be ejected in the nor-
mal way. It is for emergency use only.
POWER
CRW4416SX
ON
/
DISC READ
/
WRITE
VOL
8
1
2 3 4 5
76
Chapter 2 - Touring Around CRW4416SX
6
7
Eject button
This button is used to open or close the tray.
8
POWER switch
This is the main power switch. Use it to power CRW4416SX on and
off. CRW4416SX and any other devices connected to the SCSI chain
must be powered on before the host computer is powered on.
Rear Panel
1
AC IN
Connect the included power cable here.
2CDR ID
Use this switch to set a unique SCSI ID number for the CRW4416SX.
3TERMINATOR
This switch is used to set termination. Refer to the terminator setting
section for details.
4LINE OUT (L, R)
These jacks are used to output audio to the amplifier.
5SCSI-1, SCSI-2
These connectors are used to connect the CRW4416SX in the SCSI
daisy chain.
4
123
AC I N
1
SCSI-1
SCSI-2
LINE OUT
CDR ID L
R
TERMINATOR
OFF ON
5
Chapter 3 - Installing the Yamaha CRW4416SX Drive
7
Chapter 3 -
Installing the Yamaha CRW4416SX Drive
CRW4416SX drive settings
■SCSI ID settings
The SCSI ID number is used so that the computer will recognize a con-
nected SCSI device. You can assign 0 through 7 as the SCSI ID num-
ber. Usually, “7” is reserved for the SCSI card ID number, and “0” is
reserved for the first SCSI device in the chain. Use a number between 1
and 6 for the CRW4416SX.
Use the switch on the rear panel to set a SCSI ID number. The factory
set ID number is “1”.
Caution: If you are using other SCSI devices, be sure to use a unique ID number
for each device. Be sure to turn off the power to the drive before you set
the SCSI ID number.
Note: When you are using Windows 95 or Windows 98, and if the SCSI ID
setting on the rear panel is the same as the number assigned to another
SCSI device, the Plug and Play component of Windows 95 or Windows
98 will automatically assign an unused number to the CRW4416SX
(SCAM protocol level 1).
CDR ID
1
–
+
Pressing this switch repeatedly
will decrease the SCSI ID
number by one each time.
Pressing this switch repeatedly
will increase the SCSI ID
number by one each time.
SCSI ID Number
Chapter 3 - Installing the Yamaha CRW4416SX Drive
8
■Terminator setting
The terminator setting indicates whether or not this device is the last
connected SCSI device.
Terminator ON
Use this setting if the CRW4416SX is the last device in the
SCSI daisy-chain.
Terminator OFF
Use this setting if devices other than the CRW4416SX are in
the SCSI daisy-chain and the CRW4416SX is not the last
device.
TERMINATOR
OFF ON
TERMINATOR
OFF ON
Chapter 3 - Installing the Yamaha CRW4416SX Drive
9
Cable Connection
Power cable
Insert the power cable securely to the “AC IN” connector on the rear
panel.
SCSI cable
Connect the SCSI cable to either of the CRW4416SX rear panel SCSI
connectors (1) or (2), and connect the other end of the SCSI cable to the
host computer.
The CRW4416SX is not supplied with a SCSI cable. You will need to
obtain one that will fit the drive and the host computer connectors.
AC I N
1
SCSI-1
SCSI-2
LINE OUT
CDR ID L
R
TERMINATOR
OFF ON
AC I N
1
SCSI-1
SCSI-2
LINE OUT
CDR ID L
R
TERMINATOR
OFF ON
To the next SCSI device: host
computer, hard disk drive, etc.
Chapter 4 - Operation
10
Chapter 4 - Operation
Loading a Disc
1. Press the eject button to open the tray.
2. Carefully place the disc, label-side up, on the disc tray.
3. Press the eject button again to close the disc tray.
Important: Take great care when handling CD-ROM discs. They are more sensitive
to damage than audio CDs, and the slightest scratch can render a disc
useless. Do not expose discs to dust, dirt, heat, or moisture.
CRW4416SX
POWER
ON
/
DISCREAD
/
WRITE
VOL
Chapter 4 - Operation
11

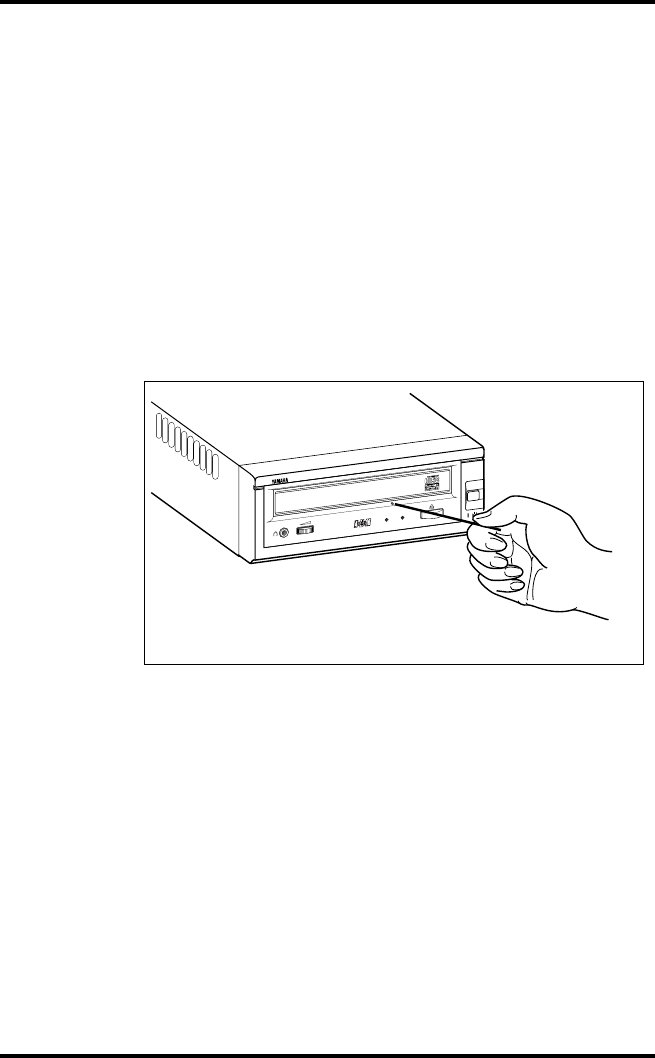

Ejecting the Disc
If the CRW4416SX is powered on:
Press the eject button to eject the disc.
Note: You cannot eject the disc if the SCSI command prohibits the eject oper-
ation while the CRW4416SX is reading data.
Caution: Be sure to remove the disc after it is completely ejected. (Trying to
remove the disc before it is completely ejected may cause the drive to
malfunction.)
If the CRW4416SX is not powered on:
Pressing the eject button will not eject the disc.
CRW4416SX
POWER
ON
/
DISCREAD
/
WRITE
VOL
Press the eject
button
Chapter 4 - Operation
12
Manual Eject (emergency use)
Here we explain how to eject the disc when it cannot be ejected in the
normal way; for example, the power is shut off inadvertently or the
loading mechanism fails. This technique should be used only as a last
resort. Frequent use may lead to malfunction.
You’ll need a pin-like object of 2 mm or less in diameter to do this. A
straightened paper clip makes an ideal tool.
1. Insert the pin-like tool into the manual eject hole and push
gently.
The spring-loaded mechanism ejects the disc.
2. After manually ejecting a disc, you must turn off the power
supplied to the CRW4416SX, then turn it on before continu-
ing.
CRW4416SX
POWER
ON
/
DISCREAD
/
WRITE
VOL
Troubleshooting
13
Troubleshooting
If CRW4416SX is not performing as expected, look up the symptoms in the following
table, and take the appropriate corrective action.
Caution: Applying physical shock or vibration to the CRW4416SX while a CD-R disc or
CD-RW disc is being written may produce writing errors.
Note: In the case of CD-RW fixed packet writing, the recordable capacity will be
approximately 100 Mbytes less than the capacity indicated on the blank disc.
This is due to differences in the recording format.
Symptoms Corrective action
The power to the CRW4416SX is off • Check the AC power cable connection.
The power to the computer is off • Check to see if the SCSI card is correctly
installed.
The CRW4416SX is not recognized by the
computer
• Check the SCSI cable connection.
• Make sure that SCSI ID numbers are
assigned exclusively.
• Make sure that the last device in the SCSI
daisy chain is terminated correctly.
The disc tray will not open • Make sure that the power to the drive is
turned on.
The disc ejects • Make sure that the disc is seated in the
tray correctly.
Incorrect operation • Make sure that the disc is seated in the
tray correctly.
• Make sure that you are using the correct
disc.
• Make sure that there is no dust, dirt, or
condensation on the disc or tray.
Appendix
14
Appendix
Specifications
Specifications are subject to change without prior notice.
Interface SCSI 2
Data Capacity 650MB (74 minutes disc)
550MB (63 minutes disc)
Record/Read Speed Writing (CD-RW): 2X, 4X speed
Writing (CD-R): Normal speed, 2X speed, 4Xspeed
Reading: Maximum 16X speed
Data Transfer Rate 150 - 2400KB/sec
Burst Transfer Rate Maximum 13.3 MB/sec
Buffer Size 2MB (666 sectors)
Access Speed 180 ms (Random access at reading)
Installation Horizontal
Disc Loading Tray
Audio Out
(normal speed)
Frequency Response
Output Level
20 - 20,000Hz (Line Out)
1 Vrms (Line Out)
Power Consumption 16W (read/write)
Power Supply 5V ±5%, 12V ±10%
Environment Temperature: +5°C - +40°C
Humidity: 25 - 80% (condensation must not occur)
Dimensions (WxHxD) 170 x 68 x 327 mm
Weight 2.6 kg
Appendix
15
Front Panel Indicator Key
● on: green flashing: green — off
❍ on: orange flashing: orange
Status ON/DISC READ/WRITE
Reset ❍ ➠ — ❍ ➠ —
Ready (no disc) ❍—
Inserting disc ➠ —
Ejecting disc —
Ready (disc inserted) ●—
Seeking ●
Preparing to write ●
Writing ●❍
Writing (test mode) ●
Playback ●●
English: If you have any questions, please contact
your dealer or one of the following companies.
French: Pour plus de détails sur les produits,
veuillez vous adresser à Yamaha ou au distributeur
le plus proche figurant dans la liste suivante :
German: Bei weiteren Fragen wenden Sie sich Sitte
an Ihren Händler oder eine der folgenden Firmen.
JAPAN
Yamaha Corporation
Electronic Systems Division
203 Matsunokijima, Toyooka-mura, Iwata-gun,
Shizuoka-ken, 438-0192 JAPAN
TEL: +81 539 62 3125
FAX: +81 539 62 5346
Internet: www.yamaha.co.jp
U.S.A
Yamaha Systems Technology, Inc.
100 Century Center Court, San Jose, CA 95112
U.S.A
TEL: +1 408 467 2330
FAX: +1 408 437 8791
Internet: www.yamahayst.com
CANADA
Yamaha Canada Music Ltd.
135 Milner Avenue, Scarborough,
Ontario M1S 3R1, CANADA
TEL: +1 416 298 1311
FAX: +1 416 292 0732
UNITED KINGDOM, BENELUX,
PORTUGAL, SPAIN, GREECE,
CYPRUS, TURKEY and EGYPT
Yamaha-Kemble Music (U.K.) Ltd.
Media Technology Division
Sherbourne Drive, Tilbrook, Milton Keynes
MK7 8BL ENGLAND
TEL: +44 1 908 366700
FAX: +44 1 908 368872
GERMANY, SWITZERLAND,
AUSTRIA, EASTERN EUROPE and
RUSSIA
Yamaha Europa GmbH
Multi Media Division
Siemensstrasse 22-34,
D-25462 Rellingen, GERMANY
TEL: +49 4101 303 200
FAX: +49 4101 303 277
Internet: www.yamaha-europe.com
FRANCE
Yamaha Musique France S.A.
B.P. 70, 77312 Marne-la Vallée Cedex 2,
FRANCE
TEL: +33 1 6461 4060
FAX: +33 1 6461 4097
ITALY
Yamaha Musica Italia s.p.a.
Keyboard & Multimedia Division
Viale Italia 88, 20020, Lainate (Milano) ITALY
TEL: +39 2 935771
FAX: +39 2 9370956
SWEDEN and SCANDINAVIA
Yamaha Scandinavia AB
J A Wettergrens Gate 1, Box 300 53,
S-400 43 Gothenburg SWEDEN
TEL: +46 31 89 34 00
FAX: +46 31 45 96 07
Internet: www.yamaha.se
SINGAPORE, MALAYSIA, INDIA,
INDONESIA and PHILIPPINES
Yamaha Systems Technology, Singapore Pte Ltd.
138 Cecil Street, #03-01A Cecil Court,
SINGAPORE 069538
TEL: +65 225 0050
FAX: +65 225 3669
YAMAHA CORPORATION
Electronic Systems Division
Printed in Japan
V325750-0
