Shells

ABD1520T

ABD1522T

ATT1510U

ATT1512U

ATT1513U

AFT1516

AFT1518

ASD0545

Additional

TB1030AA

TB1230AA

RMGW

RMCW

Hardware

TH945A x2

HS1100

CS845

SS940

DFP9410

FP9410

CH745 x4

CH740 x3

TH904

WHS860S

WS865 x2

AC910

CWH930

HSAT930

Plastic

Ring

Wing Bolt

Plastic

Covering

Air hole, YESS and

bolts on the shell

side are all positioned

at the shell’s nodal

point.

Lug Nut

Holding Plate

Bolt on Shell

In taking an entirely fresh approach to lug design,

our craftsmen have come up with an ideal design

that delivers greater sound performance and

convenience. These new lugs hook onto bolts that

are attached to the shell, which allows the lug

casings themselves to "float" eliminating any direct

contact between the lug and the shell. As this design

reduces the amount of hardware actually attached to

the drum shell, the shell is allowed to vibrate freely. On an 11-inch shell the lug bolts, as well as

the YESS mounting system, are all attached to the shell at its nodal point to greatly minimize

influence on shell resonance to deliver maximum tone.

Another benefit these lugs provide is when it comes time to change the head, it is no longer

necessary to remove the tuning bolts from the lugs to remove the hoop. Just loosen the bolts

enough to slide the lugs off of the bolts and the hoop comes right off. No more lost washers, etc.

and head changes can be done quicker and easier than before.

* Nodal point mounting is patented by the Nobel & Cooley Drum Company.

The new claw design found on the

Absolute drums offers quick tuning,

smooth head changes, and noise free

performance. The tuning bolt utilizes a

wing type bolt that aids in tuning the bass

drum. Inside of the newly designed zinc

die cast craw is a plastic ring insert that

keeps the bolt from loosening and falling

off. The inner side of the claws is given a

plastic covering that prevents noise and

offers protection to the hoop from

damage.

* Beside the Absolute Nouveau Lugs, the

Absolute lugs that were offered on

earlier models are also available.

Lug Nut

Holding Plate Light Nut

Nylon Ring

O Ring

Nouveau Lug type

(Patent Pend)

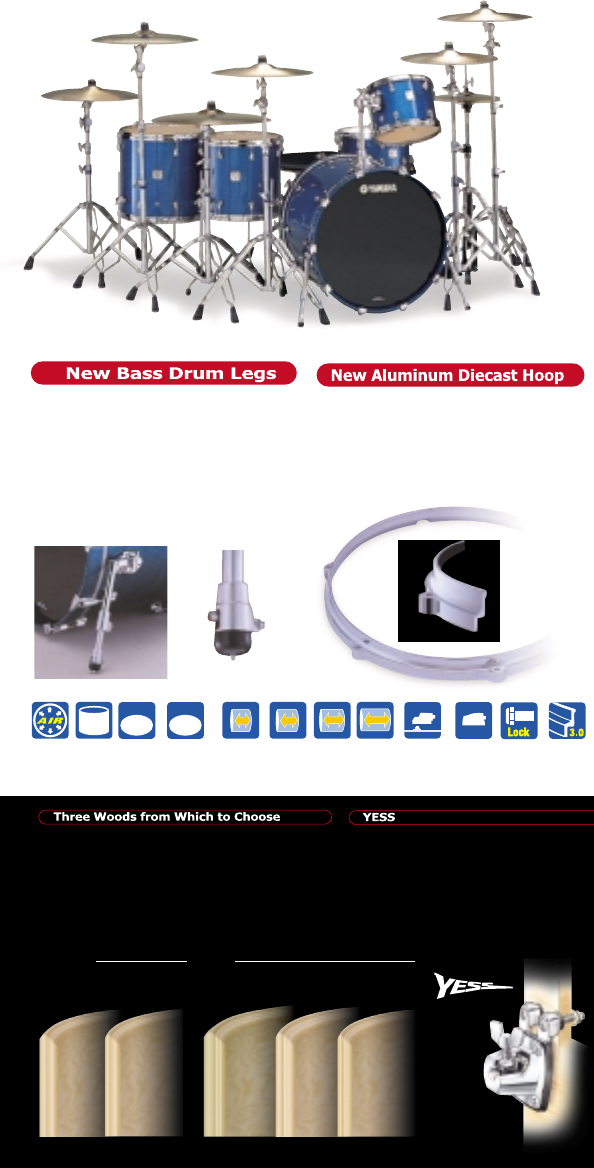

Newly designed aluminum diecast hoops are

precision designed to withstand rigorous

performance. Aluminium is light in weight and

eliminates the high frequency noise (overtones)

often found in other materials used in hoop

design. These hoops hold the head securely in

place, provide less sound loss, and deliver a

more open sound with greater focus.

New bass drum legs feature larger diameter

pipes that deliver increased stability and

durability. Height adjustment is easily secured

with a tuning key and the spur easily slides out

with a slide lever. Even with the bass drum set

up you can tell the spur's position by looking

at the lever. Along with the increase in pipe

diameter, the base section uses the same

system for securing as found on our cymbal

stands to provide more stable and secure

positioning of the legs.

Providing minimum mount to shell contact,

the Yamaha Enhanced Sustain System

(YESS) delivers increased resonance plus

maximizes dynamic range and sustain.

Mounts are attached at the drum’s nodal

point* where shell vibration is minimally

reduced while a nylon bushing in the rod

clamp offers enhanced stability. This system

is also used on our floor tom brackets to

deliver maximum sustain.

Shells in the Absolute Series Drums are available in

three different types, Maple, Birch, and Beech. All

shells, regardless of the wood type, are created using

our exclusive Air Seal System to ensure that each and

every shell is perfectly round and of uniform

thickness. All shells feature the same ply design but

ply thickness varies between the woods to bring out

the best of tone and character of each wood.

Maple / Birch

7ply (7mm)

(BD)

6ply (6mm)

(FT, TT, SD)

6ply (6mm)

(8", 10"TT)

6ply (7.5mm)

(FT, 12"~16"TT, SD)

7ply (8.0mm)

(BD)

Beech

Air-Seal

System

Maple

Birch

Beech

Lug Nut

7-ply

FT/TT

6-ply

Small Lug

(Chrome)

Nouveau

Lug

(Chrome)

Aluminium

Die-cast

(3.0mm)

Universal

Size

(FT, TT)

7mm

(Maple/Birch)

8mm

(Beech)

6mm

(Maple/Birch)

(Beech 8", 10"TT)

7.5mm

(Beech 12"~16"TT)

Power

Size

(BD, FT, TT)

Turbo

Size

(BD)

Standard

Size

(BD, TT)

Shell

Shells

BBD1524T

BTT1512U

BFT1515U

BFT1518

BSD0547

Hardware

HS1000

CS845 x6

SS940

DFP9410

CL945LA

HSAT930

DSM100

46-BUP : Blue Sparkle

(Regular Color)

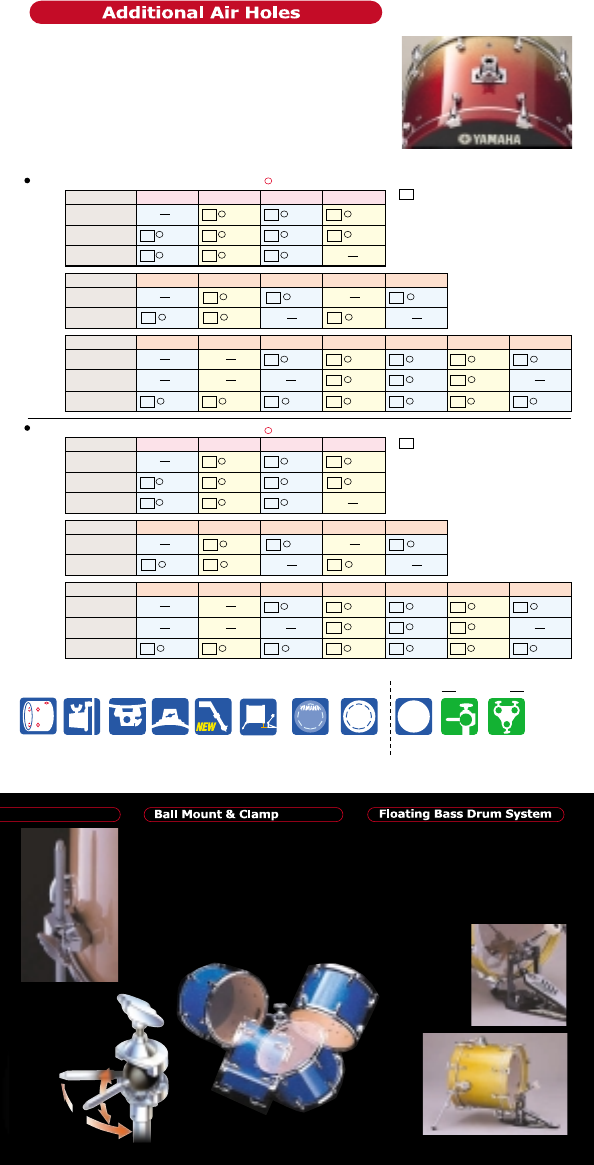

In addition to the single air hole on the top of the shell on the

beater head side, the Absolute Series provides four more holes

around the front end of the shell. The extra air holes allow air to

escape smoothly reducing backlash on the beater head as air

returns from the front. For the same reason, 16-inch and 18-inch

floor tom shells are designed with three air holes instead of the

usual one. (Only Nouveau lug model) Air holes and Nouveau

Lugs are all positioned at the shell’s nodal point to minimize

influence and deliver maximum resonance from the shell.

A pipe post stabilizer providing height

adjustment on the bass drum’s pedal

side ensures that the beater makes

contact at the head’s center. The

stabilizer fits into a pipe clamp on the

underside of the drum and is

equipped with a memory clamp for

quick and precise

setup. A pair of

supports provides

added stability.

Yamaha’s legendary ball mount &

clamp has been providing drummers

with extremely flexible and stable tom

placement for over 20 years.

Consisting of a large resin ball and

wing bolt,

this ingenious system

incorporates

an internal retaining

plate to deliver maximum stability

that will withstand the very rigorous

performance.

Bass Drum

Spurs

YESS

(TT)

Floating

BD System

18"

All Round

Ball Clamp

(Short Rod)

Pipe

Clamp

YESS

(FT)

Triple

Tom Holder

Hardware

Remo Clear

Ambassador

FT/TT

(Top/Bottom)

Remo Power

Stroke P4

Clear

(Batter 20"~24")

Remo Ebony

Power Stroke P3

(Front)

Five

Air Holes

(BD)

Standard Size

Universal Size

Power Size

Mounted

Toms

16" 15" 14"

TT1514J

13"

TT1513J

TT1513U

12"

TT1512J

TT1512U

10"

TT1510J

TT1510U

TT1508J

TT1516 TT1515 TT1514 TT1513 TT1512 TT1510

: Depth

TT1508

Standard Size

Power Size

Turbo Size

Bass

Drums

Absolute Nouveau Lug Model

24"

BD1524

BD1524T

22"

BD1522

BD1522T

20"

BD1520 BD1518F

BD1520T

18"

BD1522J BD1520J BD1518JF

Universal Size

Power Size

Floor

Toms

16"18" 15" 14"

FT1516U

13"

FT1515U

FT1518 FT1516

FT1513U

FT1514

Standard Size

Universal Size

Power Size

Mounted

Toms

16" 15" 14"

TT1114J

13"

TT1113J

TT1113U

12"

TT1112J

TT1112U

10"

TT1110J

TT1110U

TT1108J

TT1116 TT1115 TT1114 TT1113 TT1112 TT1110

: Depth

TT1108

Standard Size

Power Size

Turbo Size

Bass

Drums

Absolute Lug Model

24"

BD1124

BD1124T

22"

BD1122

BD1122T

20"

BD1120 BD1118F

BD1120T

18"

BD1122J BD1120J BD1118JF

Universal Size

Power Size

Floor

Toms

16"18" 15" 14"

FT1116U

13"

FT1115U

FT1118 FT1116

FT1113U

FT1114

10" 9"

10"

7 1/2"

14" 13" 12" 11" 10" 9" 8"

16"

18"

16"

18"

16" 16"

18"

14" 14" 14"

14"

16" 16"

10" 9"

10"

7 1/2"

14" 13" 12" 11" 10" 9" 8"

16"

18"

16"

18"

16" 16"

18"

14" 14" 14"

14"

16" 16"

* The following are used to denote material types. A (Maple) B (Birch) W (Beech)

Air-Seal

System Shells

Small

Lug

Nouveau

Lug

(FRC)

Separate

Lug

(

High Tension

Lug

Maple Custom Absolute

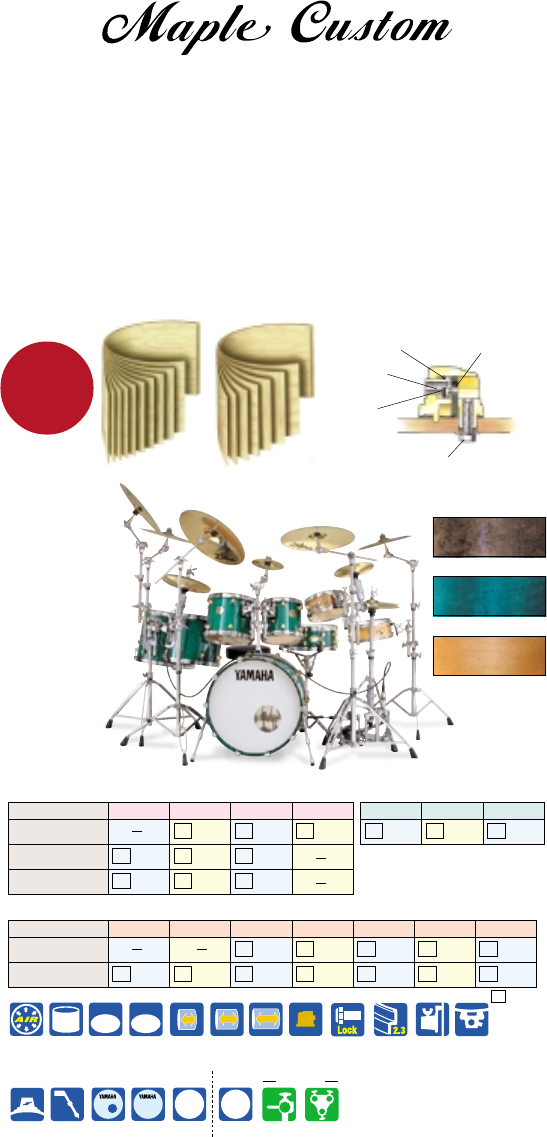

Maple Custom

Birch Custom Absolute

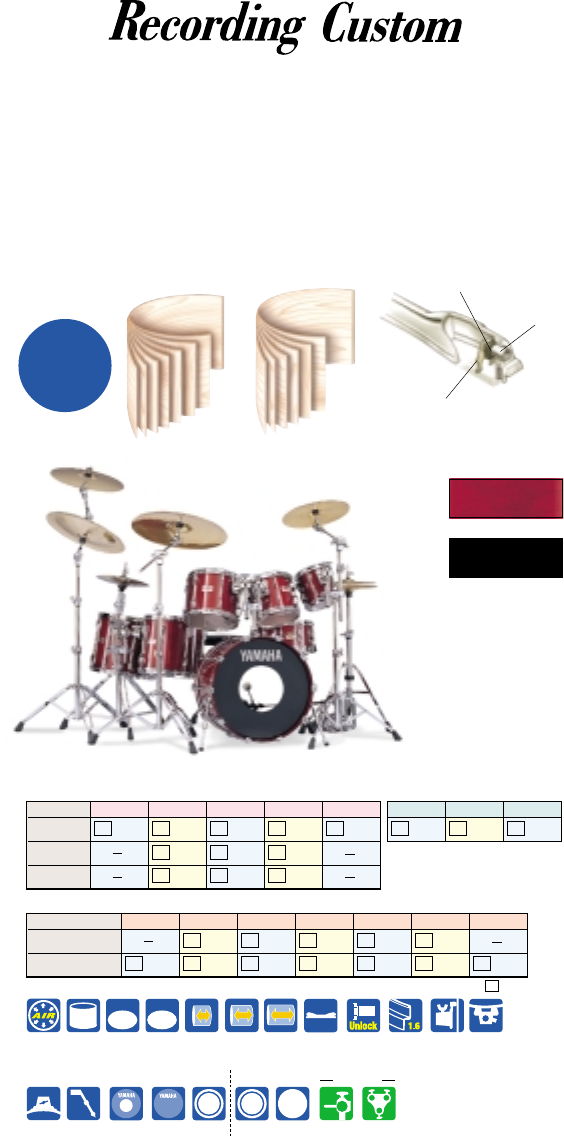

Recording Custom

Beech Custom Absolute

Stage Custom

Advantage Nouveau

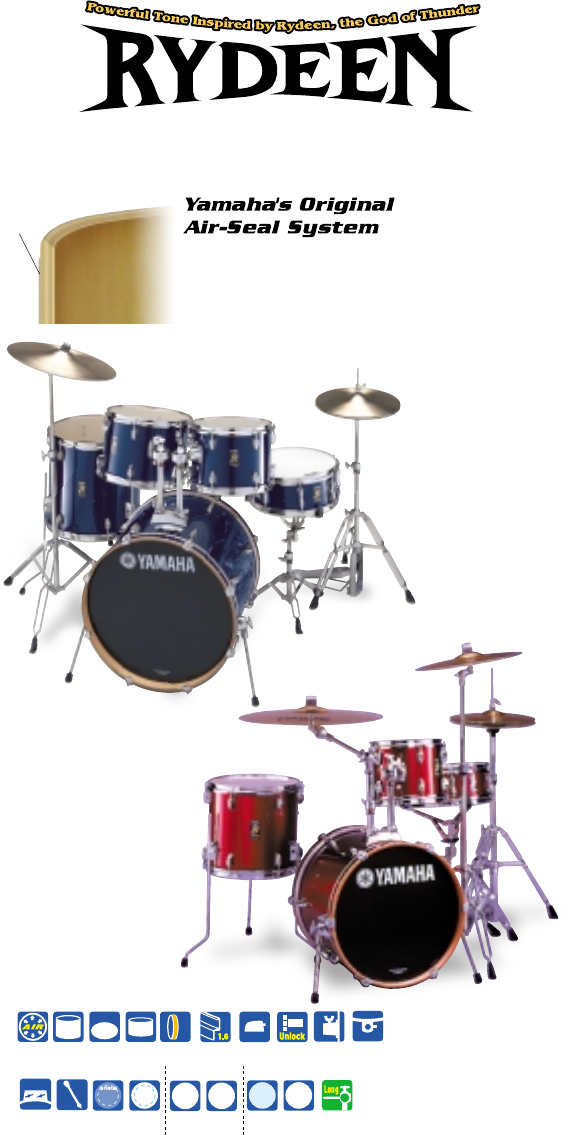

RYDEEN

Series

•

All Maple

All Birch

All Oak

All Birch

All Beech

Oak (Birch),

P.Mahogany

& Falkata

Dieca

(Ste

Trip

stee

Trip

stee

Trip

stee

•-

•

Philippine

Mahogany

Trip

stee

•

(Ste

•

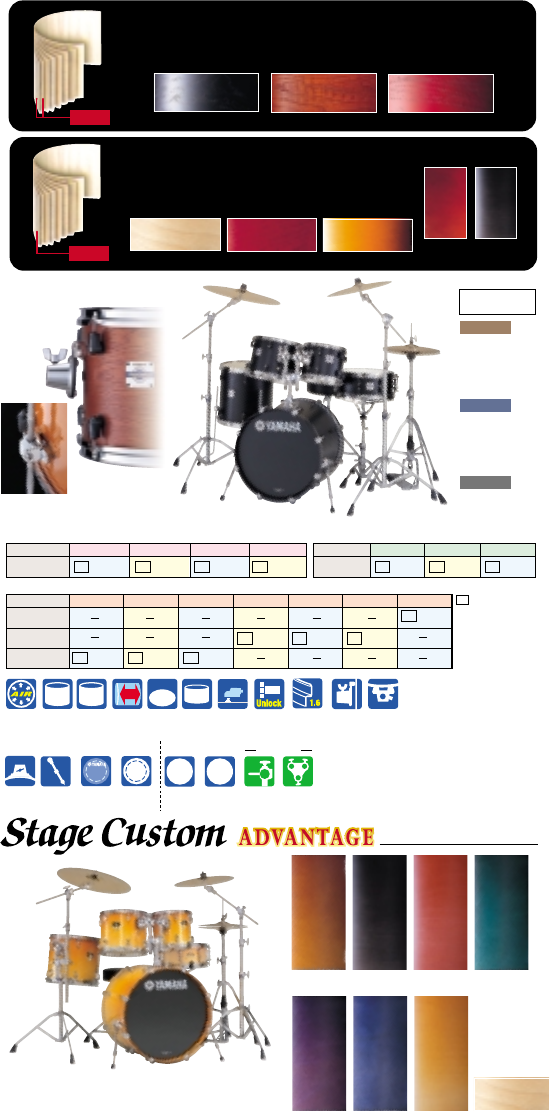

Stage Custom Advantage

•

Birch,

P.Mahogany

& Falkata

Trip

stee

-•

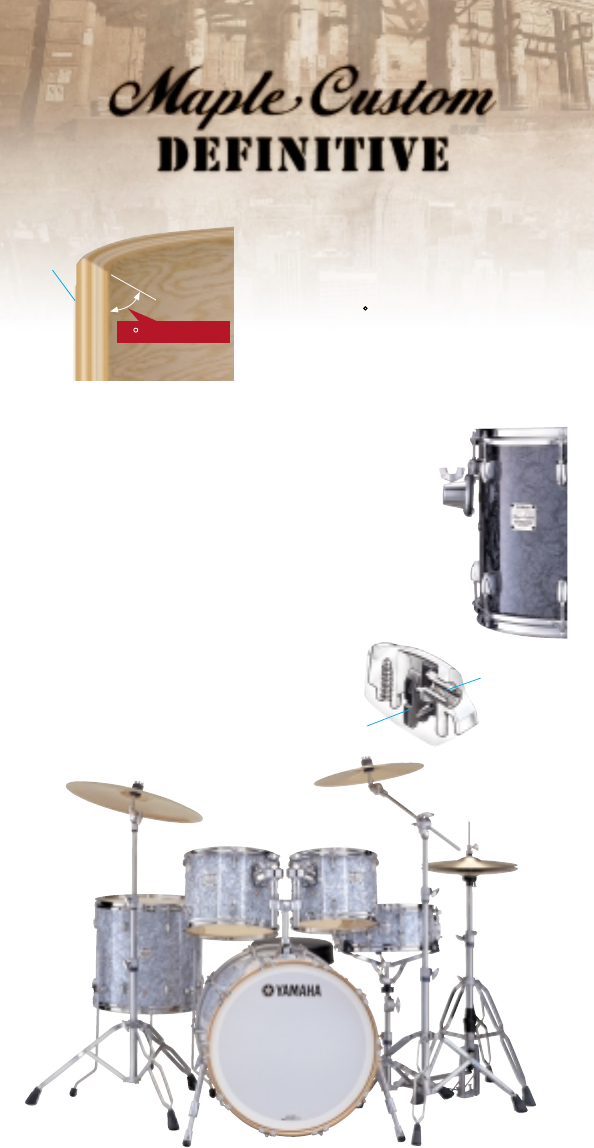

Maple Custom Definitive

•All Maple --

-•-

•

Yellow Pearl

Fade

Amber Fade

Brown Fade

Pink Pearl Fade 24

Sea Blue Fade

Green Fade 25

Black Pearl Fade 26

Purple Pearl

Fade

Purple Blue Fade

Iridescent Purple

(Covered finish)

Dark Blue Stone

(Covered finish)

Psychedelic

White

(Covered finish)

Black Marine

Pearl

(Covered finish)

Blue Oyster

(Covered finish)

Snake

(Covered finish)

BUP:

Blue Sparkle

HY:

Honey Yellow

SBU:

Sea Blue

CW:

Cherry Wood

SOB:

Solid Black

BLP:

Black Sparkle

SLS:

Silver Sparkle

WMP:

White Marine Pearl

(Covered finish)

WHM:

White Mica

RPN:

Red Pearl Natural

VB:

Vintage Black

VN:

Vintage Natural

UV Finishes

Along with 6 regular color finishes, the new Absolute Series is available in an additional 43

different color finishes. The series also uses UV cured finishes that are not available anywhere

else. These new finishes control discoloration and offer depth and brilliance that is distinctively

different from all other finishes. Yamaha has also developed new finishing techniques that

YESS

NEW NEW

oops

T, FT)

Floating

BD System

18"

Ball Clamp

(Short Rod)

Pipe Clamp

Triple

Tom Holder

Ball Clamp

(Long Rod)

minium

t (3.0mm)

minium

t (3.0mm)

minium

t (3.0mm)

aHoop

l 2.3mm)

e flange

(1.6mm)

e flange

(1.6mm)

e flange

(1.6mm)

•

••

Bass Drum Spurs

•

••

•

e flange

(1.6mm)

-----

aHoop

l 2.3mm)

•• • •••-

•

e flange

(1.6mm)

•-

•• -- ••

-- •

••• •••-----

TT FT

Apple Sparkle

Fade

Purple Sparkle

Fade

Black Sparkle

Sunburst

Black Sparkle

Fade

Blue Sparkle

Sunburst

Green Mica

Blue Marble

Green Marble 37

Embossed Blue 38

Embossed

Green

Rainbow

Sketched Orange 45

Oriental Gold

Yellow Sparkle

Fade

Gold Sparkle

Fade

Red Sparkle 48

Mint Candy

(Covered finish)

Stone Pavement

(Covered finish)

Iron Pearl

(Covered finish)

Blue Sparkle

Fade

Gold Flakes

Pink Flakes

deliver brilliant sparkle colors and textured finishes that until now, had to be applied with wraps.

In addition to the new finishes, you can choose from some unique coverings that are also

available.

SHELLS

MYA2T4

(SHELL KIT)

MBD1322

MTT1310

MTT1312

MTT1314

TH945A

CL945A

HARDWARE

TH840A

CS835

CS735

HS930

SS830

DFP880

CH735x4

CH730

CHH910

10-ply

(BD)

7-ply

(FT/TT)

WHS850

WS945A

WS903A

CL945A

AC910

HSAT920

P80SA

DS840

(ADDITIONAL)

MTT1316

MSD0105

MSD10PE

MSD12PE

COLOR FINISHES

BAM : BLACK MAPLE

TM : TURQUOISE MAPLE

VN : VINTAGE NATURAL

Air-Seal

System

All Round

Ball Clamp

(Short Rod)

Bass Drum

Spurs

Maple

10-ply

FT/TT

7-ply

Pipe

Clamp

Small Lug

(Gold)

YESS

(TT)

Lug Nut

Remo Clear

Ambassador

FT/TT

(Top/Bottom)

Triple

Tom Holder

Hardware

Remo Clear

Ambassador

(Batter)

Yamaha

250H2

(Front 20"~24")

Yamaha

250H2

(Front18")

Standard

Size

(BD, TT)

Power

Size

(BD, TT)

Turbo

Size

(BD)

DynaHoop

(Steel / 2.3mm)

YESS

(FT)

Standard Size

Power Size

Mounted Toms

16"

14"

MTT1316

15"

13"

MTT1315

14"

10"

MTT1314J

12"

MTT1314

13"

MTT1313J

11"

MTT1313

12"

MTT1312J

10"

MTT1312

10"

7 1/2"

MTT1310J

MTT1310

MTT1308J

: Depth

MTT1308

Standard Size

Power Size

Turbo Size

Bass Drums

24"

16"

MBD1324

18"

MBD1324T

22"

16"

MBD1322

18"

MBD1322T

20"

16"

MBD1320

18"

MBD1320T

18"

14"

MBD1322J

14"

MBD1320J

14"

MBD1318JF

Floor Toms

18" 16" 14"

16"

MFT1318

16"

MFT1316

14"

MFT1314

Lug Nut

Holding Plate

O Ring

Combination six-sided/

Philips (+) bolt head

Lug Nut

Nylon Ring

Soon after its introduction, the Maple Custom series quickly became the new

standard for professional maple drums.

All Maple Shell

Maple offers a warm sound with full sustain and

outstanding projection. Our original Air-Seal

System shells feature select maple wood cut in

plies, positioned with staggered diagonal seams,

and sealed together with evenly distributed air

pressure. This process ensures that every drum

shell is in round and of uniform thickness. It also

provides the shell with superior tone quality and

durability. Floor tom and tom shells use a 7-ply

design. Additional plies in the 10-ply bass drum

shells help produce a low fundamental tone.

Lugs

Yamaha's small gold lugs consist

of a precision-machined lug nut

inserted in a small springless

casing. Attached to the drum shell

at its nodal point by a single bolt,

the shell is allowed to vibrate

freely. A special nylon insert

prevents tension rods from

becoming loose during play.

100%

North

American

MAPLE

TURQUOISE MAPLE

CHERRY WOOD

SHELLS

BD922Y

TT908Y

TT910Y

TT912Y

TT915Y

TT916Y

BSD096

HARDWARE

HW845

(HARDWARE KIT)

CS835

CS830

HS830A

SS830

FP850

(OPTIONAL)

DFP865S

TH945A

WS903A

WS703A

CSAT922

CSAT920

CHH910

CH735

CL945Ax3

DS840

7-ply

(BD)

6-ply

(FT/TT)

Air-Seal

System

Bass Drum

Spurs

YESS

(TT)

Birch FT/TT

6-ply

7-ply

High Tension

Lug

(One-piece)

Lug Nut

All Round

Ball Clamp

(Short Rod)

Pipe

Clamp

Remo

Pinstripe

Remo

Pinstripe

FT/TT

(Top)

Triple

Tom Holder

Hardware

Remo Clear

Ambassador

FT/TT

(Bottom)

(Batter)

(Front 20"~26")

Yamaha

Stage Head

Yamaha

Stage Head

(Front 18")

Triple flange

(Steel / 1.6mm)

Standard

Size

(BD, TT)

Power

Size

(BD, TT)

Turbo

Size

(BD)

YESS

(FT)

COLOR FINISHES

CW : CHERRY WOOD

SOB : SOLID BLACK

Standard Size

Power Size

Mounted Toms

16"

14"

TT916Y

15"

13"

TT915Y

12"

TT915YJ

14"

10"

TT914YJ

12"

TT914Y

13"

TT913YJ

11"

TT913Y

12"

TT912YJ

10"

TT912Y

10"

7 1/2"

TT910YJ

TT910Y

: Depth

TT908Y

Standard Size

Power Size

Turbo Size

Bass Drums

26"

14"

BD926YJ

24"

16"

BD924Y

18"

BD924YT

22"

16"

BD922Y

18"

BD922YT

20"

14"

BD924YJ

14"

BD922YJ

14"

BD920YJ

16"

BD920Y

18"

BD920YT

Floor Toms

18" 16" 14"

16"

FT918Y

16"

FT916Y

14"

FT914Y

18"

14"

BD918YJ

Lug O Ring

Lug Nut

Lug Insertion Piece

Probably the most recorded drum in history, the Recording Custom has set

the benchmark for excellence for over twenty years.

All Birch Shell

Birch shells produce a lower fundamental tone than

maple. Their crisp sound quality with short attack

decay make them optimal for recording situations.

Our Air-Seal System shells feature select birch wood

cut in plies, positioned with staggered diagonal

seams, and sealed together with evenly distributed air

pressure. This process ensures that every drum shell

is in round and of uniform thickness while providing

superior tone quality and durability.

Hi-Tension Lugs

Precision-machined lug nuts

provide noise-free control due

to their springless casing design.

Manufactured as genuine one-

piece units, our high tension

lugs have established one of the

principal trends in modern

design.

100%

Japanese

BIRCH

Coverring

Sheet

Rounded Edge

Deeper Bass Drums Deliver Power and Tone

24, 22, and 20-inch bass drums are all designed with a deeper

17-inch depth to create a heavier, deeper tone and draw greater

power, and volume out of the bass drum’s shell. Likewise, the

18-inch shell uses a 15-inch depth to gain the same benefits.

Universal Size

Shells are designed deeper than thin shells, and thinner than deep

shells. This "best of both worlds" approach offers great versatility

making the drums easy to use in a wide range of musical styles.

Unique Floor Tom Sizes

Floor toms are available in 18 x 16, 16 x 15, and 14 x 13-inch

configurations. This unique size lineup makes it easier to find the

right size that fits with your tom tom selection.

Psychedelic White

SHELLS

DY2F4

MBD822U

MTT812U

MTT813U

MFT816

TH945A

(ADDITIONAL)

MSD0846

HARDWARE

CS845

CS840

HS840

SS840

FP8210

DS840

Lug Nut

Holding Plate

The 6-ply bass drum, floor tom, and tom tom shells

are all crafted with Yamaha’s original "Air Seal

System" to ensure the utmost in quality. We

revived

the once common 60 rounded edge and combined it with

a triple-flanged hoop

also an old standard

to give these

drums a thick yet mild retro tone.

Shells are available

in same four high-quality color finishes that are

found in the Absolute series drums.

All Maple Shells

The unique chrome body lug casings are fixed

to the drum shell with only a single bolt allowing

the drum to vibrate freely. They also provide

precise and secure tuning.

Small Lugs

YESS

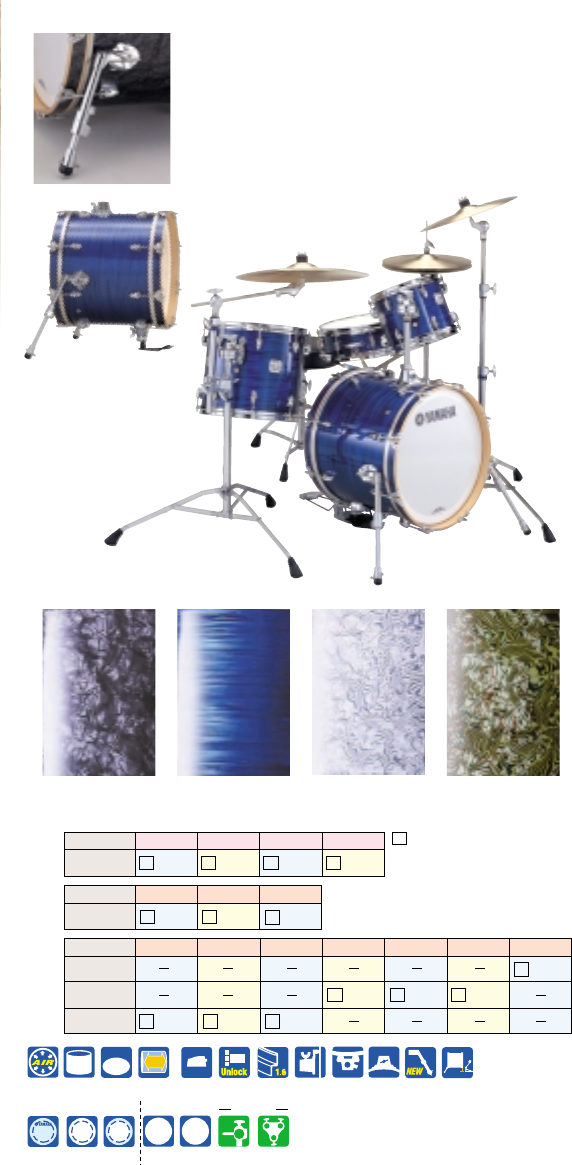

The series utilizes new large diameter legs like those found on

the Absolute Nouveau series drums. These thicker legs are

designed to provide greater stability and durability. The spur is

designed with a lever that makes sliding the spur tip in and out

easy, and height is easy to adjust and secure with a drum key.

New Designed Claws,

New Bass Drum Legs

Floating

Bass Drum

System

Blue Oyster

SHELLS

MBD818UF

MTT810U

MTT814

MSD0834

HARDWARE

CS655

CS650

CSAT926

CL945LA

CL945A

HS740

SS650

FP7210

DS640

Color Finishes

Black Marine

Pearl

(Covered finish)

Blue Oyster

(Covered finish)

Psychedelic

White

(Covered finish)

Mint Candy

(Covered finish)

Standard Size

Universal Size

Power Size

Mounted

Toms

16" 14" 13"

MTT813U

12"

MTT812U

10"

MTT810U

MTT808J

MTT816 MTT814

: Depth

Universal Size

Bass

Drums

24"

MBD824U

22"

MBD822U

20"

MBD820U MBD818UF

18"

15"

MTT815

Power Size

Floor

Toms

16"18" 14"

MFT818 MFT816 MFT814

10" 9" 8"

14" 13" 12"

17" 17" 17" 15"

13"

16" 15"

Air-Seal

System

Maple

YESS

(TT)

BD/FT/TT

6-ply

Floating

BD System

18"

Pipe

Clamp

YESS

(FT)

Lug Nut

Triple flange

(Steel / 1.6mm)

Universal Size (BD)

(except 18")

All Round

Ball Clamp

(Short Rod)

Triple

Tom Holder

Hardware

FT/TT

(Top)

Remo Clear

Ambassador

Remo Clear

Ambassador

FT/TT

(Bottom)

Remo P3

Smooth White

(Front)

Remo P3

(Batter 20"~24")

Remo P4

(Batter 18")

17"

Bass Drum

Spurs

Small Lug

(Chrome)

HARDWARE

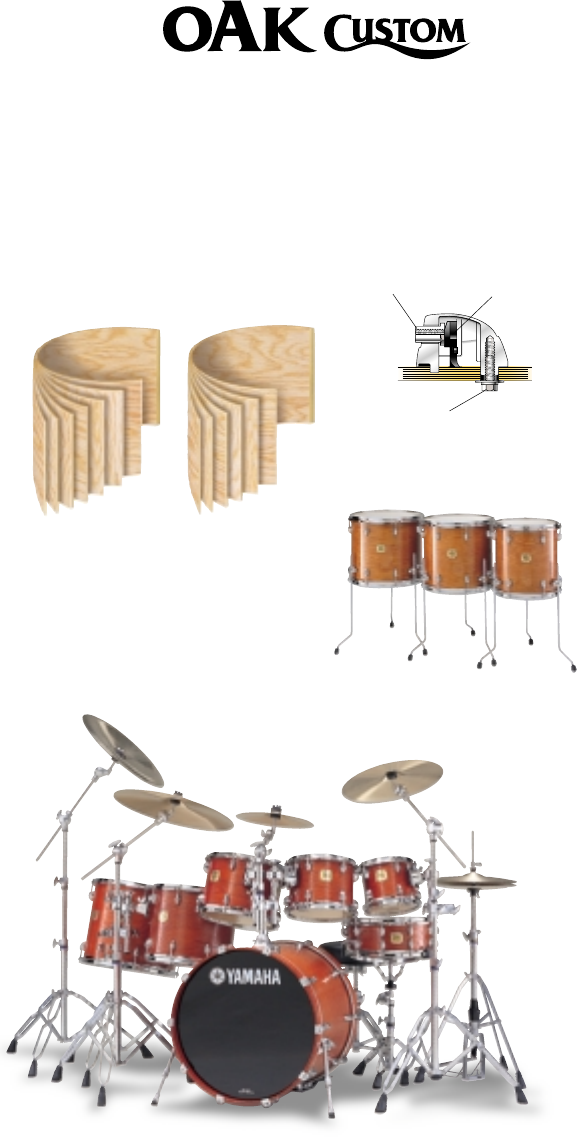

Oak Offers This New Series A Powerful Sound,

Excellent Attack And Impressive Looks

7-ply 6-ply

Newly Designed,

All Oak Shells

Utilization of Yamaha’s Air-Seal System allows

for the first time use of oak in a drum shell. As

in our Maple and Birch series, this process de-

livers a shell that’s perfectly round, with uni-

form thickness and excellent durability. The

bass drum shell uses a 7-ply design while tom

tom and floor tom shells are 6-ply. All shells

throughout the entire range deliver a solid fun-

damental and powerful sound.

CS845x3

HS740

SS840

FP750

CH740

WS865

CSAT926

DS840

SHELLS

NY2T4

NBD822U

NTT810U

NTT812U

NTT814

TH945A

CL945A

(ADDITIONAL)

NTT808J

NTT816

NSD085

Matte Sedona Red Oak

Lug Nut Lug Insertion

Plate

Combination Six-sided/

Philips (+) bolt head

New Small Lugs

These newly designed, small round

shaped lugs are easily attached to

the shell with a single bolt. Small

footprints offer minimum lug to shell

contact allowing the shell to deliver

maximum tone. They also provide

precise and secure tuning.

Unique Size Floor Tom

Due to the unique characteristics that this new

material provides, we rethought the design of

the lineup’s tom toms. The result was the addi-

tion of a 14-inch deep tom to the common 16-,

15-, and 13-inch floor toms. The new size of-

fers a unique sound that is versatile enough for

use as either a main or sub floor tom. NFT816U

(16”x14”) NFT815U

(15”x14”) NFT813U

(13”x14”)

Air-Seal

System

Bass Drum

Spurs

Oak

YESS

(TT)

7-ply

FT/TT

6-ply

Small Lug

(Chrome)

DynaHoop

(Steel / 2.3mm)

Floating

BD System

18"

Pipe

Clamp

YESS

(FT)

Universal

Size (BD) Lug Nut

New

All Round

Ball Clamp

(Short Rod)

Triple

Tom Holder

Hardware

FT/TT

(Top)

Remo Clear

Ambassador

Remo Clear

Ambassador

FT/TT

(Bottom)

Remo Ebony

Power Stroke P3

(Front)

Remo Power

Stroke P3

(Batter 20"~24")

Remo Coated

Ambassador

(Batter 18")

17"

Standard Size

Universal Size

Power Size

Mounted

Toms

16" 14" 13"

NTT813U

12"

NTT812U

10"

NTT810U

NTT808J

NTT816 NTT814

: Depth

Universal Size

Bass

Drums

24"

NBD824U

22"

NBD822U

20"

NBD820U NBD818UF

18"

Universal Size

Power Size

Floor

Toms

16"18" 15" 14"

NFT816U

13"

NFT815U

NFT818 NFT816

NFT813U

NFT814

10" 9" 8"

14" 12"

17" 17" 17" 17"

14" 14" 14"

14"

16" 16"

SHELLS

NBD818UF

NTT810U

NTT812U

NFT814

NSD085

HW665

(HARDWARE KIT)

CS655

CS650

HS650

SS650

FP700

(OPTIONAL)

TH945A

DS840

HARDWARE

Matte Natural Oak

BLO : Blue Ridge Blue Oak

BRO : Bryce Canyon Brown Oak

AMO : York Honey Amber Oak

MBN : Matte Badlands Brown Oak

MBK : Matte Ozark Black Oak

MNO : Matte Natural Oak

MRO : Matte Sedona Red Oak

*Please understand that the woods

used are natural products therefore

grain and color, such as light and

dark areas, will differ between

drums.

7 Color Finishes

The Oak Series is available in three glossy and four

matte colors. Each a high-quality finish that shows

the natural beauty of the wood’s grain.

[Glossy Finishes] [Matte Finishes]

Floating Bass Drum

System (18”)

MCR : MATTE CRANBERRY RED

NW : NATURAL WOOD

SBD622UN

STT610UN

STT612UN

STT614N

SSD065N

CS745 x 2

HS740

SS740

FP7210

TH945A

TH904

CL945A

DS640

SHELLS

HARDWARE

Optional

Yamaha has refined its Nouveau lug

design, utilizing FRC (Fiber Reinforced

Composite) on the bolt to which the lug

is hooked. The lugs incorporate a

unique floating design that eliminates

contact between the lug casing and

shell body to let the shell vibrate freely

and reduce damping. Its design also

makes for quick and easy head changes

since you no longer need to completely

remove the tuning bolts from the lugs.

This keeps your washers from getting

lost as well.

Air hole, YESS and bolts on the shell side are all

attached to the shell at its nodal point to greatly minimize

influence on shell resonance to deliver maximum tone.

*Nodal point mounting is patented by the Nobel & Cooley Drum

Company.

SCN2F5

SBD622UN

STT612UN

STT613UN

SFT616N

SSD065N

CS745 x 2

HS740

SS740

FP7210

TH945A

DS640

SHELLS

HARDWARE

Optional

MSN : MATTE SIENNA

SCN2FS5 SBD622UN

STT610UN

STT612UN

SFT616N

SSD065N

CS745 x 2

HS740

SS740

FP7210

TH945A

DS640

SHELLS

HARDWARE

Optional

SCN2T5

(Pat.Pend.)

Mounted Toms

16" 15"

13"

STT615N

14"

STT616N

14"

12"

STT614N

13"

11"

STT613UN

12"

10"

STT612UN

10"

STT610UN

STT608JN

8" : Depth

Bass Drums

Universal

size

Universal

size

Standard

size

Power size

Power

size

22"

17"

SBD622UN

20"

17"

SBD620UN

Floor Toms

18"

16"

SFT618N

16"

SFT616N

14"

SFT614N

24"

17"

SBD624UN

18"

15"

SBD618UN

FPB:Fade

Purple Blue

FSB:Fade

Sapphire Blue

FYN:Fade

Yellow Natural

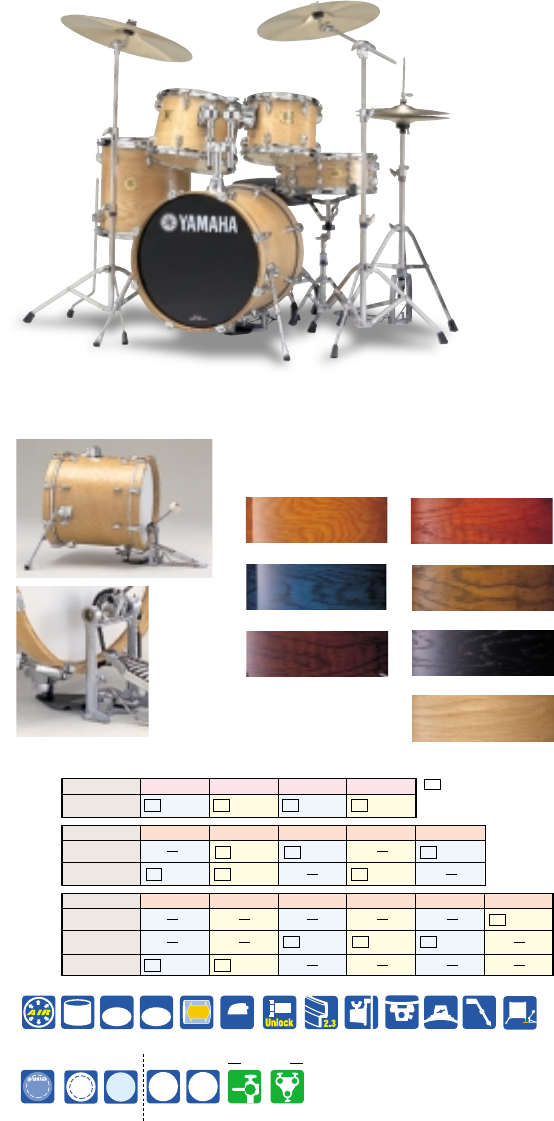

Shell Design Uses Oak Surface Plies

8-ply bass, floor tom, tom tom, and snare shells consist of plies of Oak, Philippine

Mahogany, and Falkata. Shells are available in three color matte finishes that each

show the beauty of the Oak's grain.

Shell Design Uses Birch Surface Plies

8-ply bass, floor tom, tom tom, and snare shells incorporate

plies of Birch, Philippine Mahogany, and Falkata. Shells are

available in five gloss color finishes, which include two

fade color finishes.

Birch

Oak

HA : HONEY AMBER

MBL : MATTE RAVEN BLACK

MSN : MATTE SIENNA

MCR : MATTE CRANBERRY RED

NW : NATURAL WOOD

CR : CRANBERRY RED

SCN0F5

NW :

Natural Wood

Equipped

with

YESS

FCR:Fade

Cranberry Red

FBL:Fade

Raven Black

FBA:Fade

Brown Amber

FMG:Fade

Marina Green

MBL : MATTE RAVEN BLACK

SBD620UN

STT610UN

STT612UN

SFT614N

SSD065N

CS745 x 2

HS740

SS740

FP7210

TH945A

DS640

SHELLS

HARDWARE

Optional

Air-Seal

System

Pipe

Clamp

Lug Nut

Triple flange

(Steel / 1.6mm)

Oak

P.Mahogany

& Falkata

BD/FT/TT

8-ply

Bass Drum

Spurs

FT/TT

(Top)

Remo UK

Ambassador

Clear

Remo UK

Ambassador

Clear

FT/TT

(Bottom)

Remo UK

Clear Power

Stroke 3 type

Remo UK

Ebony Power

Stroke 3 type

(Batter)

(Front)

Wood

Snare

8-plyUniversal

Size (BD)

(except 18")

17"

YESS

(TT) YESS

(FT)

All Round

Ball Clamp

(Short Rod)

Triple

Tom Holder

Hardware

Birch

P.Mahogany

& Falkata

Nouveau

Lug

(FRC)

(HARDWARE)

CS745 X2

HS740

SS740

FP7210

(SHELLS)

SBD620YS

STT610YS

STT612YS

STT614YS

SSD065A

DS750

OPTIONAL

HARDWARE

( )

SCAWS0T5

FYN:Fade Yellow Natural

TH945A

TH904

CL945A

FBA :

FADE BROWN

AMBER

FBL :

FADE RAVEN

BLACK

Coverring

Sheet

ROYAL BLUE

RD2F5

(Includes the following)

RBD522

RTT512

RTT513

RFT516

RSD1455

CS651W

HS650W

SS650W

FP6110

CL940BMx2

*Cymbals are not included

GARNET RED

RD8F4

(Includes the following)

RBD518

RTT510

RFT513

RSD1350

CS651W

HS650W

SS650W

FP6110

CL940BM

CH740

*Cymbals are not included

Air-Seal

System

Wood Hoop

Inlay type

Pipe

Clamp

Lug Nut

Triple flange

(Steel / 1.6mm)

Philippine

Mahogany

BD/FT/TT/SD

6-ply

TT Mount FT Mount

Bass Drum

Spurs

All Round

Ball Clamp

(Long Rod)

FT/TT

(Top)

Remo UM

Clear

Remo UM

Clear

FT/TT

(Bottom)

Remo UM

Clear P3

Remo UM

Ebony P3

(Batter)

(Front)

Hardware

(Top)

Remo UM

Snare

Remo UM

Coated

(Bottom)

Separate Lug

(Chrome)

WOOD

SNARE

To ensure that the 6-ply Philippine Mahogany shells are

perfectly in the round, we utilize the same Air-Seal System that is

used on our high-end drums when forming the shells. This

special process provides the Rydeen Series' 6-ply Philippine

Mahogany shells with outstanding durability. The shells are

finished with durable poly coverings and are available in five

beautiful colors.

35 Years Experience of Professional Quality Drum Making Experience

Packed Into New Series That Delivers Outstanding Cost Performance

Accompanying the Rydeen series drums is a set of

genuine Yamaha hardware designed to deliver outstanding

function similar to that found in our high-end hardware.

Stands are designed with double-braced legs, which deliver

both light weight and excellent durability.

ROB : ROYAL BLUE

RYA : RYDEEN ASH

GNR : GARNET RED

RAG : RACING GREEN

NTB : NIGHT BLACK

RD2FS5

(Includes the following)

RYDEEN ASH

RACING GREEN

RBD522

RTT510

RTT512

RFT514

RSD1455

CS651W

HS650W

SS650W

FP6110

CL940BMx2

(Optional)

DS640

RD0F5

(Includes the following)

RBD520

RTT510

RTT512

RFT514

RSD1350

CS651W

HS650W

SS650W

FP6110

CL940BMx2

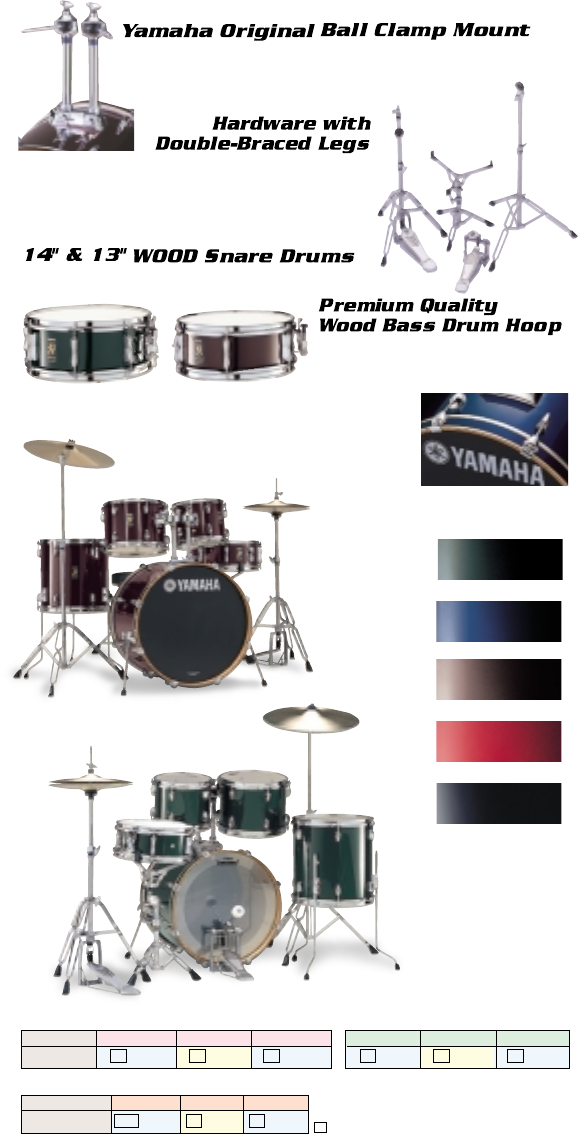

The bass drum's hoop is made of real

wood and is accented with an inlay that

is of the same color as the shell to

enhance the

overall look of

the drums.

The accompanying wood snare drum is available

in either 14"x5 1/2" or 13"x5" dimensions.

A pair of Yamaha's famed Ball Clamp Mounts and Tom Holders mounted on

the Rydeen's bass drum offer maximum freedom when setting up the drums.

RSD1455

(Size : 4"x5 1/2")

(Snare : 20 strands)

RSD1350

(Size : 13"x5")

(Snare : 14 strands)

*Cymbals are not included

COLOR FINISHES

Universal Size

Mounted Toms

13"

9 1/2"

RTT413

12"

9" RTT512

10"

8" RTT510

: Depth

Power Size

Bass Drums

22"

16" RBD522

20"

16" RBD520

18"

15" RBD518

Floor Toms

16"

16" RFT516

14"

14" RFT514

13"

12" RFT513

Thousand Foot Krutch MCA

UZEB, Gino Vannelli Band MCA

Kim Mitchell, Rik Emmit MCA

Loverboy MCA

Headstones MCA

Holly Cole Trio, Montuno Police MCA

Kittie WCA

Mike Bullard Show MCA

Treble Charger MCA

GOB MCA

Peter Cincotti, Andy Bey, Carla Cook MCA

Celine Dion WCA

5 after 4 MCA

The New Deal MCA

k.d. lang, Tom Cochrane MCA

Amanda Marshall, Colin James MCA

I Muvrini WCA

Stefano Di Battista + studio MCA/MC

Independant BCA

Patrick Bruel, Salvador + studio WCA

Pleymo OAK

Miles Davis, Sting, David Sanborn MC/DTX

Black Bomb A, Loudblast OAK

Kyo OAK

Independant WCA

Enhancer OAK/BCA/DTX

Tete, Laurent Voulzy WBC

Stephane Huchard Quintet WCA

Sting, Peter Gabriel, Gloria Este OAK

Yannick Noah OAK

Cox BCA

Julien Clerc, Alizee + studio & tour WCA

Watcha WCA

Independant WCA

La Ruda Salska OAK

Toots Thielemans, Anne Ducros WCA/RC

MCA

Die Aerzte MC

independent MCA

Peter Maffay / Udo Lindenberg MCA

Reamonn MCA

Naidoo, Sabrina Setlur, Nannini OAK

Martin Schenkel Band MCA

Chuck Loeb / Haffner Band MCA

Klostertaler MCA

Scorpians, Krunk WCA

Fury in the Slaughterhouse MCA

MCA

Modern Talking MCA

KRAKATAU SC

EA Group, Gigi Finizio MCA

Wine Spirit RC

Terence Trent D’Arby MCA

Elio e le storie tese MCA

RC/DTX

Studio, Tour MCA

Hound Dog WCA

Sex Machineguns OAK

Studio, Tour WCA

Solo MC

Studio,Tour RC

Nettai Jazz Band, Hida Jimbo, Intelligent Jazz, Casiopea,Independent

WCA

Square, Session BCA

Jazz,Session MCA

We Three MCA

Studio,Tour WCA

Fragile,Educator WCA

Studio,Tour MC

Studio,TM.Stevens OAK

Jaguares BCA

Molotov WCA

Pulp BCA

Hundred Reasons OAK

Stereophonics MCA

Coldplay MCA

The Corrs BCA

Reef MCA

Death In Vegas MCA

Small Faces, The who MC

My Vitriol OAK

Jamiroquai MCA

Courtney Pine, Pee Wee Ellis, Various Sessions

MCA

U2 WCA

Sly & The Family Stone, Roger Waters, Studio

Libertines

Travis BCA

Ronan Keating MCA

Various Sessions RC

Little Angels, Skunk Anansie, Feeder MCA

Natalie Umbruglia, Elton John, Sophie Ellis Bextor, Various Sessions

WCA

Massive Attack, Kylie, Various Sessions BCA

Seal, Paul McCartney, Sting, Studio MCA

Paul McCartney, American Idol, Studio MCA

RC/BCA

RC/OAK

RC/MC

MCA/HG

RC/MC

The Roots MCA

Latin Legend, Weather Report, LA Studio

BCA

Whitesnake MCA

B-52s, David Bowie, T.HOTEI MC

Manhattan Transfer, Michel Camilo OAK

Charles Mingus, Bud Powell MC

Whitney Houston, Bruce Hornsby WCA

Yellowjackets MCA

Dave Mathews Band RC

Marcus Miller MCA

The Gonzalo Rubalcaba Trio MC

Shania Twain, Victor Wooten MCA

The New Power Generation, Maxwell BCA

Terry Evans, Ry Cooder, LA Studio BCA

RATT WCA

Ozzy Osbourne, Faith No More RC

YAMAHA DRUMMERS

CANADA

Steve Augustine

Paul Brochu

Randy Cooke

Matt Frenette

Dale Harrison

Mark Kelso

Mercedes Lander

Wilson Laurencin

Trevor MacGregor

Gabe Mantel

Mark Mclean

Dominique Messier

Vito Rezza

Darren Shearer

Randall Stoll

Al Webster

FRANCE

Roger Biwandu

Andre Ceccarelli

Jean-Paul Ceccarelli

Regis Ceccarelli

Fred ‘Burns’ Ceraudo

Mino Cinelu

Herve ‘RV’ Coquerel

Fabien Dubos

Omar El-Barkaoui

John ‘Nejo’ Gitlis

Fabien Haimovici

Stephane Huchard

Manu Katche

Herve Koster

Eric Langlois

Loec Pontieux

Jacques ‘Keuj’ Sahuguede

Reda Samba

Manu Vincentelli

BELGIUM /AUSTRIA

Bruno Castellucci

Didi Konzett

GERMANY / SWITZ / SCANDINAVIA

Bela B.

Billy Cobham

Bertram Engel

Gomezz

Ralf Gustke

Claudio Haenggi

Wolfgang Haffner

Didi Konzett

James Kottak

Rainer Schumann

Erik Smith

Roman Storch

INDONESIA

Gilang Ramadhan

ITALY / SPAIN

Mariano Barba

Corrado Ciceri

Barbara Mavilia

Furian Max

Christian Meyer

Patti Ballinas

JAPAN

Nobuo Eguchi

Shouji Hashimoto

Himawari

Masayoshi Imaizumi

Takeshi Inomata

Masaharu Ishikawa

Akira Jimbo

Hiroyuki Noritake

Masahiko Osaka

George Otsuka

Eiji Shimamura

Kozo Suganuma

Yuichi Tokashiki

Soul Toul

MEXICO

Alfonso Andre

Randy Ebright

Nick Banks

Andy Bews

Joe Birch

Stuart Cable

Ben Carrigan

Will Champion

Caroline Corr

Ed Graham

Dominic Greensmith

Simon Hanson

Kenney Jones

Ravi Kesavaram

Derrick Mckenzie

Mark Mondesir

Larry Mullen, Jr.

Andy Newmark

Gary Powwell

Neal Primrose

Rod Quinn

Aled Richards

Mark Richardson

Chuck Sabo

Andrew Small

Ian Thomas

Neal Wilkinson

AUSTRALIA

Kere Buchanan

Mark Charters

Roby Corelli

Geoff Green

Clinton Harn

Ryan Menezes

Rudy Miranda

John Morrison

Gerry Pantazis

Brad Polain

Gordon Rytmeister

USA

?uestlove

Alex Acuna

Tommy Aldridge

Zachary Alford

Cliff Almond

Horacee Arnold

Michael Baker

Marcus Baylor

Carter Beauford

Poogie Bell

Ignacio Berroa

J.D. Blair

Michael Bland

Phil Bloch

Bobby Blotzer

Mike Bordin

Independent MCA

Hall and Oates MC

Chick Corea, Rickie Lee Jones BCA

Capital University, Conservatory of Music

MCA

Pat Benatar WCA

Stevie Wonder BCA

Pearl Jam, Sound Garden BCA

University of Kentucky MCA

George Duke, Fame, Britney Spears BCA

Sting, Steely Dan OAK

Herbie Hancock, Cassandra Wilson BCA

Educator MCA

Zwan, Smashing Pumpkins MCA

Studio Legend MCA

Ill Nino MCA

Memento OAK

Donald Fagen MCA

Ziggy Marley RC

Cave In OAK

Tribal Tech MCA

Bryan Adams MCA

Boomish, Randy Brecker, Bluth MCA

Hiram Bullock, NYC Broadway BCA

3prime, Clark Terry, Joe Henderson BCA

Studio, Expensive Winos, B-52s SC

Kansas WCA

Earth, Wind & Fire, Bette Midler OAK

Godsmack BCA

Weather Report, Steps Ahead, Independent

OAK

Wayne Brady Show MCA

Peabo Bryson, Arturo Sandoval, Nestor Torres

University of Southern California, Frank Sinatra

MCA

Late Show with David Letterman MCA

McCoy Tyner, Miles Davis, Solo HG Sr.

Nashville Studio MC

Eric Clapton, Paul Simon, James Taylor

BCA/MCA

Tower of Power BCA

Huey Lewis & The News BCA

Twisted Method OAK

Gato Barbieri MCA

Independent MCA

University of Michigan MCA

Berklee College of Music BCA

Aaron Carter, Britney Spears WCA

Luther Vandross BCA

Reba McEntire, Nashville Studio MCA

Terence Blanchard MCA

Jazz Legend MC

The Band BCA

Hoobastank MCA

Blues Traveler MC

University of Oregon MCA

University of Arizona MCA

Los Angeles Music Academy, Frank Zappa

BCA

Dianne Reeves, Joshua Redman MC

Independent MC

Something Corporate BCA

Wynton Marsalis MCA

Earth, Wind & Fire MC

Dizzy Gillespie, Andrienne Wilson, Chaka Khan

OAK

Jazz Legend MCA

Roy Hargrove, Ray Brown MCA

Rolling Stones, James Taylor, Billy Joel, Sonny Rollins

George Strait MC

TLC, Stevie Nicks RC

James Taylor, Linda Ronstadt MCA

Godsmack BCA

Nashville Studio, Shania Twain, Larry Carlton, Randy Travis

BCA/MCA

Clay Aiken, Kelly Clarkson BCA

Jimmy Buffett, Independent, Roberta Flack

Educator MCA

Doc Severinson MC

Diva, New York University MC

Carly Simon, Steely Dan, Paul Simon HG

Indigo Girls, Peter Gabriel, Carly Simon MC

Mary Chapin Carpenter, Paul McCartney, Elton John

MCA

Kirk Whalum, LeAnn Rimes BCA

Fred Hammond WCA

Aaron Carter BCA

Bobby Caldwell, Jennifer Love Hewitt OAK

Natalie Merchant MCA

T.S. Monk Sextet MC

Jane Monheit MCA

Trapt OAK

Mike Stern, Spyro Gyra, SUNY Purchase MCA

Michael McDonald, Amy Grant, Nashville Studio

BCA

Eric Clapton, Independent MCA

Sleeping At Last OAK

Kenny Chesney MCA

New Orleans & Studio Legend HG

Brecker Brothers, Miles Davis, Bob Dylan, NYC Broadway

Destiny’s Child BCA

Crane School of Music MCA

Independent MCA

Anastacia MCA

Dave Samuels’ Caribbean Jazz Project, Independent

MCA

The Tubes, Jefferson Starship, Todd Rundgren

MCA

Burning Spear MC

Roy Hargrove, Ray Brown MC

Ron Carter Quartet, Sphere MCA

Village Vanguard Orchestra, Manhattan School of Music

MCA

Studio Great, Rufus, Chaka Kahn BCA

Nicholas Payton BCA

Pat Metheny MCA

LA Studio MC

Peter Gabriel, Alice Cooper, Gloria Gainer, NY Studio

Flogging Molly OAK

Terence Blanchard, Crusaders MCA

George Benson WCA

Randy Travis BCA

The Mighty, Mighty Bostones MCA

Independent BCA

Independent MCA

University of North Texas BCA

James Brown MCA

Jo Dee Messina BCA

James Brown, John Scofield MC

Independent BCA

Tana Reid MCA

Andrew WK, Obituary BCA

Independent BCA

Saxon, Asia, Michael Lee Ferkins MC

Independent MCA

Jack Johnson MCA

Independent WCA

Smashing Pumpkins, Filter MC

Paquito D’ Rivera, Berklee College of Music

OAK

Bob Dylan, King Crimson, Don Henley MC

Dave Weckl Band, Chick Corea MC

Miles Davis, Independent MCA

Manhattan Transfer, George Benson OAK

Nashville Studio MC

MC : Maple custom MCA : Maple Custom Absolute RC : Recording Custom BCA : Birch Custom Absolute

BEECH : Beech Custom

WCA : Beech Custom Absolute OAK : Oak Custom SC : Stage Custom

HG : Hipgig HG Sr : Hipgig Sr JK : Junior Kit CJ : Club Jordan

Jimmy Branly

Mike Braun

Tom Brechtlein

Robert Breithaupt

Ray Brinker

Gerry Brown

Matt Cameron

Jim Campbell

Teddy Campbell

Keith Carlock

Terri Lyne Carrington

Gary Chaffee

Jimmy Chamberlin

Ndugu Chancler

Dave Chavarri

Steve Clark

Leroy Clouden

Wilburn “Squidly” Cole

John “JR” Conners

Kirk Covington

Mickey Curry

Zach Danziger

Clint de Ganon

Peter Donald

Charley Drayton

Phil Ehart

Sonny Emory

Sully Erna

Peter Erskine

Peter Michael Escovedo

Loraine Faina

Gregg Field

Anton Fig

Al Foster

Brian Fullen

Steve Gadd

David Garibaldi

Bill Gibson

Ben Goins

Robbie Gonzales

Art Gore

Michael Gould

Skip Hadden

Marvin (Slam G’s) Hammett

Ivan Hampden

Tommy Harden

Eric Harland

Roy Haynes

Levon Helm

Chris Hesse

Brendan Hill

Gary Hobbs

Robin Horn

Ralph Humphrey

Greg Hutchinson

Susie Ibarra

Brian Ireland

Ali Jackson

Ralph Johnson

Victor Jones

Elvin Jones

Willie Jones III

Steve Jordan

Mike Kennedy

Tom Knight

Russ Kunkel

Shannon Larkin

Paul Leim

Chris Lukes

Ralph MacDonald

Pete Magadini

David Mancini

Sherrie Maricle

Rick Marotta

Jerry Marotta

Dave Mattacks

Sean McCurley

Marvin McQuiity

Pete Merriweather

Russ Miller

Allison Miller

T. S. Monk

Rick Montalbano

Aaron Montgomery

Richie Morales

Dan Needham

Jamie Oldaker

Chad O’Neal

Sean Paddock

Earl Palmer

Chris Parker

Khari Parker

Jim Petercsak

Raul Pineda

Felix Pollard

Dafnis Prieto

Prairie Prince

Mike Ramsey

Karriem Riggins

Ben Riley

John Riley

John Robinson

Adonis Rose

Antonio Sanchez

Steve Schaeffer

Allan Schwartzberg

George Schwindt

Kendrick Scott

Oscar Seaton

Herb Shucher

Joe Sirois

Mark Slutsky

Kevin Soffera

Ed Soph

John “Jabo” Starks

Joel Stevenett

Clyde Stubblefield

Chad Szeliga

Akira Tana

Donald Tardy

Kimberly Thompson

Trevor Thornton

David Throckmorton

Adam Topol

Tony Verderosa

Matt Walker

Mark Walker

Ian Wallace

Dave Weckl

Vince Wilburn, Jr.

Buddy Williams

Lonnie Wilson

* Cymbals are not included.

SUN YELLOW

*A portion of the hardware

shown in the photograph is

that of a previous model.

Current products are

equipped with the most

recent hardware models.

Air-Seal

System

Pipe

Clamp

Lug Nut

Triple flange

(Steel / 1.6mm)

Philippine

Mahogany

6-ply9-ply

One-piece

Lug (SD)

Separate Lug

(BD/FT/TT)

FT, TT , SD

TT MOUNT

All Round

Ball Clamp

(Long Rod)

TT/FT

(Top)

Remo

UT Clear

Remo

UT Coated

TT/FT

(Bottom)

Remo

UT Ebony

Power Stroke 3

Remo

UT Clear

Power Stroke 3

(Batter)

(Front) Hardware

(Top)

Remo

Clear

Remo

Coated

(Bottom)

Bass Drum

Spurs Floating

BD System

Specification

Bass Drum

Floor Tom Mounted Tom

Philippine Mahogany 9-ply Philippine Mahogany 6-ply

16"x16" 13"x13" 10"x7" 12"x5"

Triple flange steel (1.6mm)

Remo UT Clear Power Stroke 3 (Batter)

Remo UT Ebony Power Stroke 3 (Front)

Remo UT Coated

Remo UT Clear

Remo UT Coated

Remo UT Snare

Shells

Size (DiameterxDepth)

Hoops

Head Top

Bottom

Snare Drum

SKS :

SILKY SILVER

SYW :

SUN YELLOW

NTB :

NIGHT BLACK

BD16JKMK

16"x16"

SD12JKMK

12"x5"

TT10JKMK

10"x7"

FT13JKMK

13"x13"

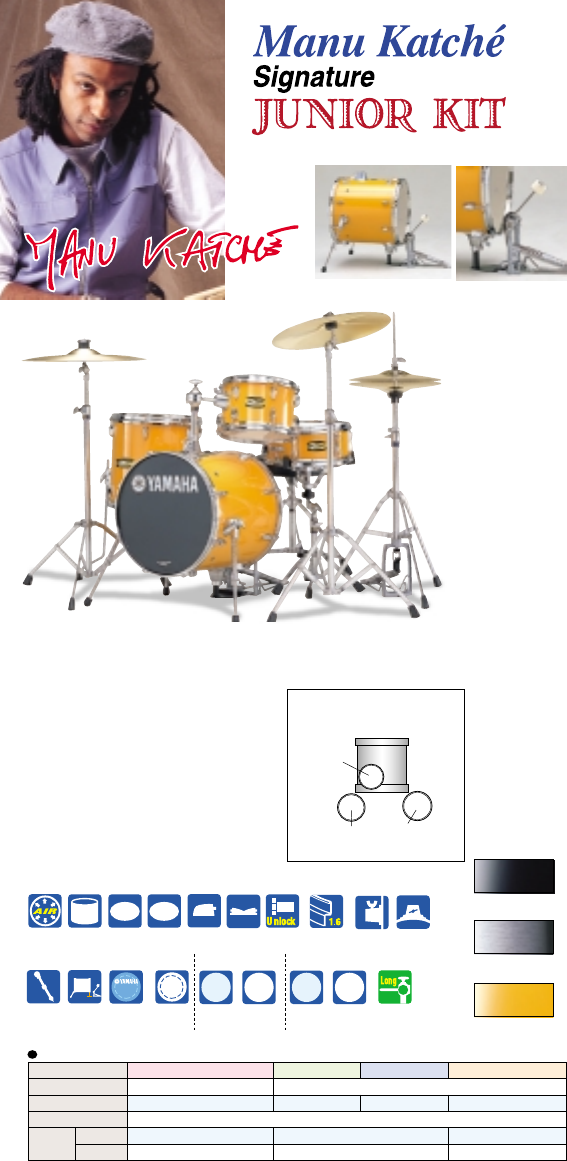

Manu Katché JUNIOR KIT

Playing Yamaha Drums since 1988

"Why don't you make a real drum kit for

kids?" That request by Manu Katché caught

our designer's ears and had them designing

this new compact drum kit. Compact, it is

designed for kids but it is far from being a

toy. A 16"x16" 9-ply bass drum with a 6-ply

13"x13" floor tom, 10"x7" tom and 12"x5"

snare are all made of quality Philippine Ma-

hogany using our original Air Seal System to

produce shells that are perfectly round.

Compact and easily transportable, these

drums deliver tone that is so unbelievably

real you might just be tempted to use it on

gigs of your own.

A Compact Drum Kit That's Great For Kids

JK6F4MK

(Shell Kit)

BD16JKMK (Bass Drum)

TT10JKMK (Tom Tom)

FT13JKMK (Floor Tom)

SD12JKMK (Snare Drum)

(Hardware)

CS651x2 (Cymbal Stand)

CL940LA (Clamp)

SS652 (Snare Stand)

HS650 (Hi-hat Stand)

FP6210 (Foot Pedal)

DS640 (Drum Stool)

New Floating Bass Drum System

* Cymbals are not included.

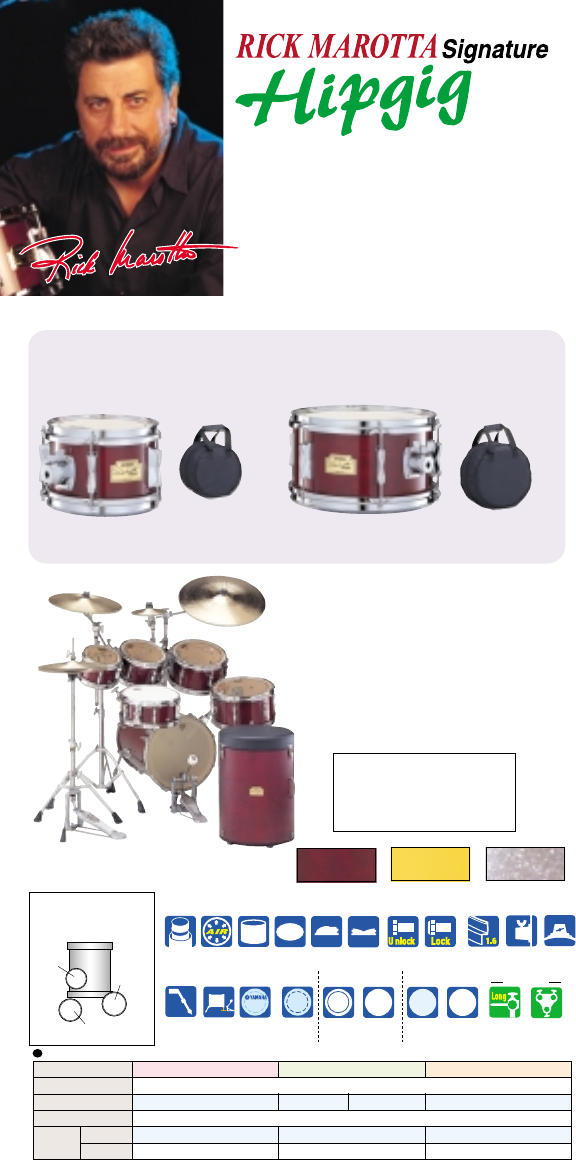

CHERRY WOOD

Compact

Packing Air-Seal

System

Pipe

Clamp

Lug Nut

(SD)

Lug Nut

(BD/TT) Triple flange

(Steel / 1.6mm)

Birch &

P.Mahogany

7-ply

One-piece

Lug

(TT/SD)

Separate

Lug

(BD)

TT MOUNT

All Round

Ball Clamp

(Long Rod)

(Top)

Remo

Clear

Ambassador

Remo

Pinstripe

(Bottom)

Remo

Renaissance

Power Stroke 3

Remo

Renaissance

Power Stroke 3

(Batter)

(Front) Hardware

(Top)

Remo

Ambassador

Snare

Remo

Ambassador

Coated

(Bottom)

Bass Drum

Spurs

Floating

BD System

Triple

Tom Holder

Specification

Bass Drum (Separate type)

Mounted Toms

Birch & Philippine Mahogany 7-ply

16"x20" 13"x7" 10"x6" 12"x5"

Triple flange steel (1.6mm)

Remo Renaissance Power Stroke 3 (Batter)

Remo Renaissance Power Stroke 3 (Front)

Remo Pinstripe

Remo Clear Ambassador

Remo Ambassador Coated

Remo Ambassador Snare

Shells

Size (DiameterxDepth)

Hoops

Head Top

Bottom

Snare Drum

WMP :

WHITE MARINE PEARL

MY :

MELLOW YELLOW

CW :

CHERRY WOOD

BD16HGARM

16"x20"

SD12HGARM

12"x5"

TT10HGARM

10"x6"

TT13HGARM

13"x7"

Playing Yamaha Drums

since 1977

Hipgig

The Rick Marotta Signature Hipgig offers drummers a

complete kit that can be packed into two compact cases

for easy transport. When setup two toms, the snare

drum and two cymbals all attach to the bass drum by

means of three pipe clamps. When packed up, the two

tom toms and the snare drum fit neatly into the two-

piece bass drum while all hardware fits into the drum

stool. Both the stool and bass drum fit into separate soft

cases for transport. The set comes complete with our

highly regarded hardware and all drums are fitted with

special Remo heads. For performance that is hard to

believe, in a kit as compact as this, take a close look at

your nearest Yamaha dealer.

HG15DCARM

(Drum stool doubles

as hardware case.)

DC Soft Case

HG6T4ARM

(Shell Kit)

BD16HGARM (Bass Drum)

TT10HGARM (Tom Tom)

TT13HGARM (Tom Tom)

SD12HGARM (Snare Drum)

TT, SD Soft Case

(Hardware)

TH-HG (Tom Holder)

CL940LAx2 (Clamp)

CH745x2 (Cymbal Holder)

HS-HGA (Hi-hat Stand)

FP6210 (Foot Pedal)

with the add-on

[optional parts]

TT08HGARM (8" Tom Tom)

TT12HGARM (12" Tom Tom)

WS770 (Double Tom Stand)

CH743 (Cymbal Holder)

TT08HGARM

size : 8” x 5 1/2”

TT12HGARM

size : 12” x 6 1/2”

* Soft case supplied.

The tom will not fit inside

the bass drum.

Add-On* 8” and 12” Toms Provide the Hipgig with

Greater Expressive Power and Versatility.

*Sold separately

* Soft case supplied.

The tom will not fit

inside the bass drum.

JAGUAR PATTERN

* Soft case supplied.

The tom will not fit

inside the bass drum.

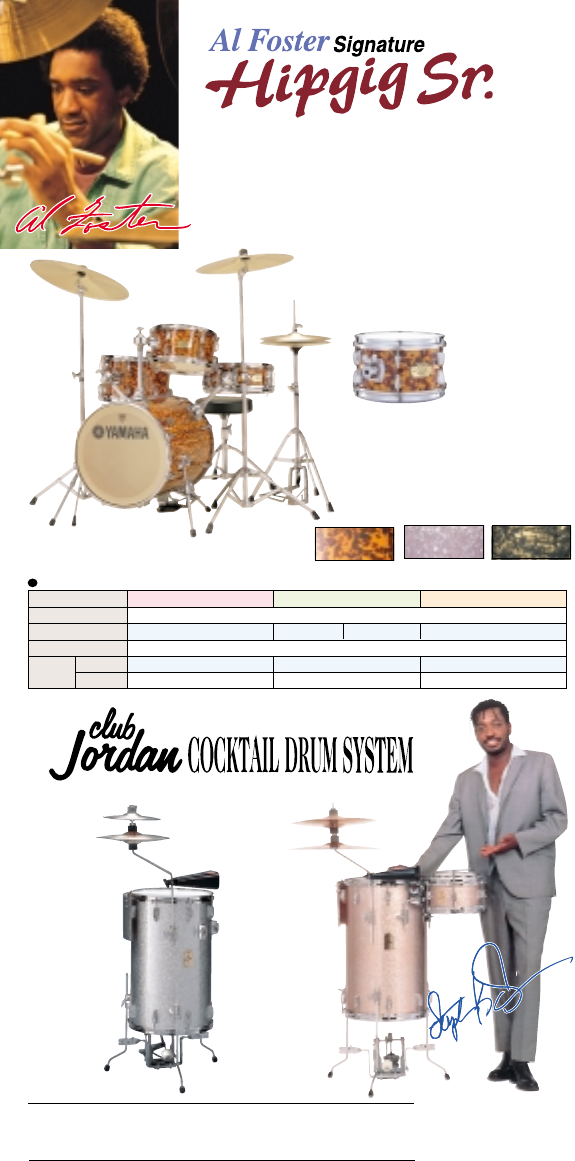

* Cymbals are not included.

Specification

Bass Drum (Separate type)

Mounted Toms

Birch & Philippine Mahogany 7-ply

18"x22" 14"x8 1/2" 12"x6 1/2" 13"x5"

Triple flange steel (1.6mm)

Remo Renaissance Power Stroke 3 (Batter)

Remo Renaissance Power Stroke 3 (Front)

Remo Ambassador Coated

Remo Clear Ambassador

Remo Ambassador Coa

Remo Ambassador Snareted

Shells

Size (DiameterxDepth)

Hoops

Head Top

Bottom

Snare Drum

COLOR

FINISHES

GMP :

GOLD MARINE PEARL

WMP :

WHITE MARINE PEARL

JGR :

JAGUAR PATTERN

BASIC SET

(*CD15CJ)

CDSET

(*CD15CJ,

SD08CJ

and TT10CJ)

* Cymbals and Cowbell are not

included.

CD15CJ consists of

• REVERSED PEDAL (FP810CJ)

• PERCUSSION BOARD

• CYMBAL HOLDER.

COLOR FINISHES

• PKS : PINK SPARKLE

• SLS : SILVER SPARKLE

Larger Diameters Offer Greater Performance

Compared to the original Hipgig, drum diameters on the new Hipgig Sr. have

all been increased to offer drummers greater tone and performance in a still

compact, easy to transport drum kit. The bass drum diameter has increased

two inches, from the original 16 inches to 18, while the 14 and 12 inch tom

toms and the 13 inch snare are all one-size larger than before.

The 7-ply shells are made of Birch and Philippine Mahogany using our origi-

nal Air-Seal System. Yamaha CS641 cymbal stands have been utilized to

allow the use of larger cymbals and greater setting variation.

HG8T4AL

(Shell Kit)

BD18HGAL (Bass Drum)

TT12HGAL (Tom Tom)

TT14HGAL (Tom Tom)

SD13HGAL (Snare Drum)

TT, SD Soft Case

(Hardware)

CS651x2 (Cymbal Stand)

CL940LAx3 (Clamp)

HS650 (Hi-hat Stand)

FP6210 (Foot Pedal)

DS750 (Drum Stool)

Hardware Soft Bag

TT10HGAL

size : 10” x 6 1/2”

Add-On* 10” Tom Provides the

Hipgig Sr. with Greater Expressive

Power.

*Sold separately

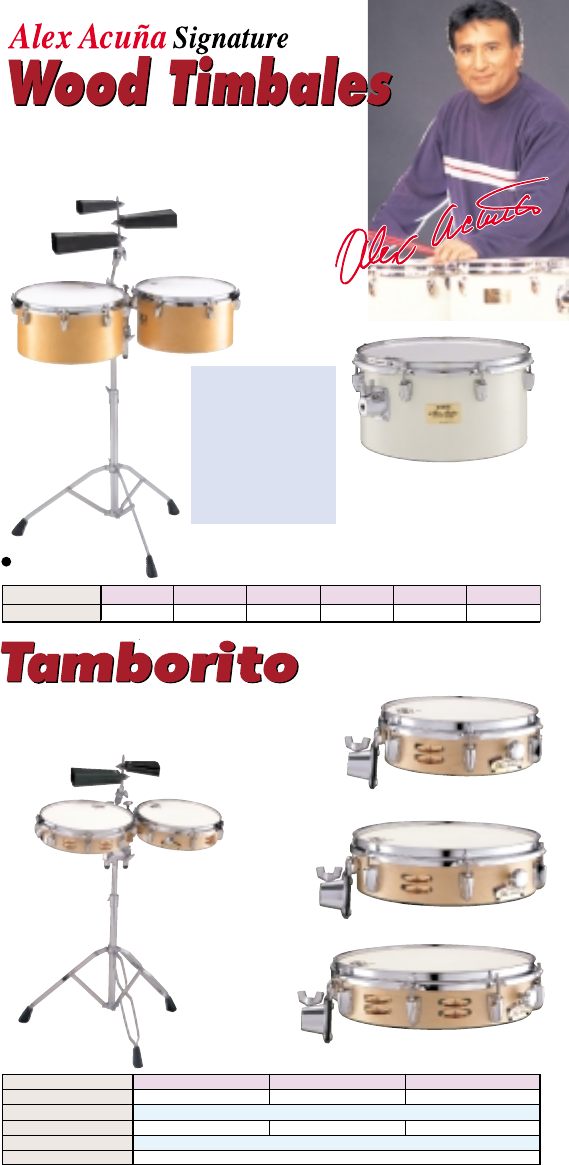

Compact, Versatile, Unique and expressive.

TM14AA

(White Sparkle)

Size : 14”x7”

* Cowbells are not included.

TB1230AA

TB1330AA

Double Tom Stand

WS865

Boom Cowbell Holder

CWH930

TB1330AA Size : 13"x3"

TB1230AA Size : 12"x3"

TB1030AA Size : 10"x3"

*Cowbells are not

included.

Specification

(White Sparkle)

TM08AA

8"x6 1/2"

TM10AA

10"x6 1/2"

TM12AA

12"x6 1/2"

TM13AA

13"x7"

TM14AA

14"x7"

TM15AA

15"x7"

Model

Size (DiameterxDepth)

Wood Shells Offer Warm, Powerful and Deep tone.

The all maple 6-ply shells are formed using our original Air Seal System to

ensure perfectly round shells. A steel ring added to the shells inner edge

adds power, tightness and excellent attack to the drum. Yamaha's small

lugs provide quick and precise tuning even during performance.

The Tamborito is equipped with our YESS tom mount for easy

attachment to a double tom stand or a tom clamp that is attached

to a cymbal stand. This allows easy integration of the tambourine's

sound into any drum kit. Use it to add just the right flavor to any

Latin, Pop, R&B or Country tune.

TM14AAS (14”x6 1/2”)

TM13AAS (13”x6 1/2”)

Boom Cowbell Holder

CWH930

Double Tom Stand

WS770

Timbales Set

TM1314AA

Natural color finish.

Only available as a set.

()

Specifications

Model TB1030AA TB1230AA TB1330AA

Size (DiameterxDepth)

10"x3" 12"x3" 13"x3"

Shells All Maple 6-ply

Tuning Bolts 6 6 8

Hoops Triple flange steel (1.6mm)

Head (Top) Remo Ambassador Coated

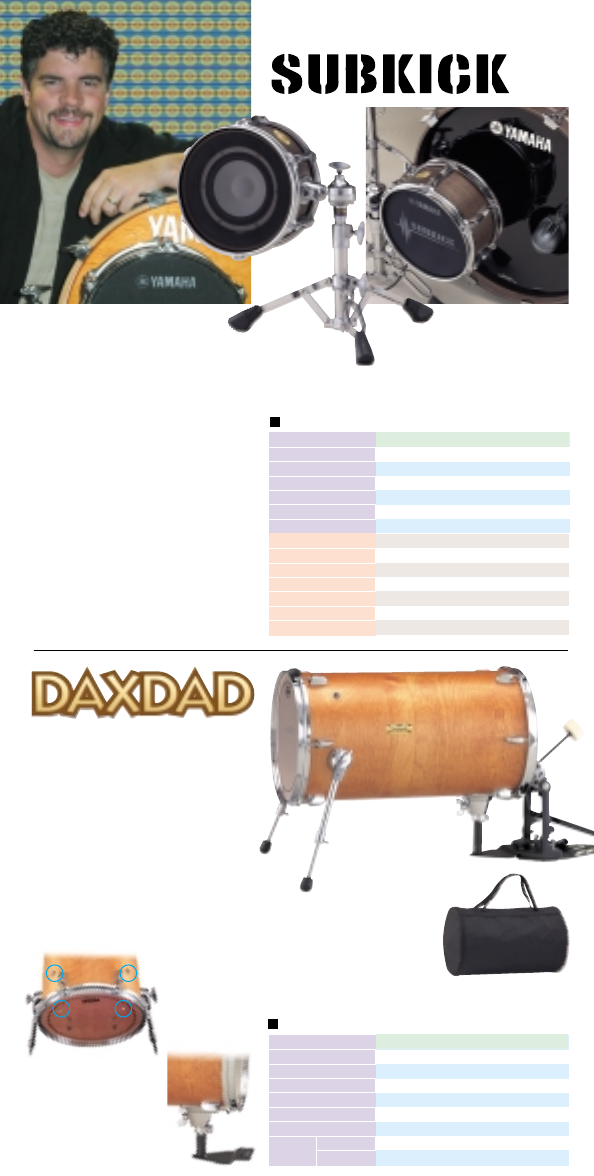

The SUBKICK consists of a 10" x 5"

birch and Philippine mahogany 7-ply

shell that houses a 16cm, 50-watt low-

frequency driver cone that acts as a

diaphragm for this sub-frequency

capture device. While its large diameter

enables the SUBKICK to capture the

natural low frequencies produced by

the bass drum it can be used in tandem

with a standard kick mic setup, to

deliver an extremely powerful bass

drum tone. The SUBKICK also works

effectively with a floor tom, bass guitar,

low brass, etc.

Size

Shell

Color Finish

Hoop

Lug (Tuning Bolts)

Head (Top & Bottom)

SKRM100

10"x5"

Birch & Philippine Mahogany 7-ply (w/ Rod Clamp)

Vintage Black

Triple Flange Steel (1.6mm)

One-piece Lug (6)

Mesh Head

Type

Polar Pattern

Output Jack

Weight

Frequency Response

Output Impedance

Front Sensitivity

Dynamic

Bi-directional

XLR-3-32 (cannon) jack

Main unit : 4kg, Stand : 3kg

50Hz~2000Hz

9‰

-47dB/ Bar (1kHz)

Model

SPECIFICATIONS

Russ Miller's idea put into reality. Large diameter diaphragm

captures bass drum sub-frequencies.

It looks a bit like a stretched out tom

laid on its side but its actually a sub

bass drum that offers an original

sound from its unique design.

Measuring 12-inches in diameter

with a 22-inch depth, the DAXDAD

is made with a 7-ply birch and

Philippine mahogany shell formed

with our original Air-Seal System. It's sound is powerful with a

long sustain, and by changing tension on the front and batter

heads, a wide range of tonal variations can be produced.

New sound widens

your tonal palette

Floating drum

system offers

stability when

performing

Four air holes

Size

Shell

Color Finish

Hoop

Lug

Tuning Bolts

Head

BD12DD

12"x22"

Birch & Philippine Mahogany 7-ply

Vintage Natural

Triple Flange Steel (1.6mm)

Separate Lug

Remo Pinstripe

Front

Batter

Model

SPECIFICATIONS

*A soft case that makes

transport easy is also

included.

BD12DD

Low Frequency Capture Device

"SUBKICK"

SKRM100

Mount Adaptor

MAS1

ClickStation

Mic Stand Cymbal Stand

Mic Stand Adaptor

BMS-10A

Cowbell Holder

CWH930

Mount Adaptor

MAS1

Mount Adaptor

MAS1

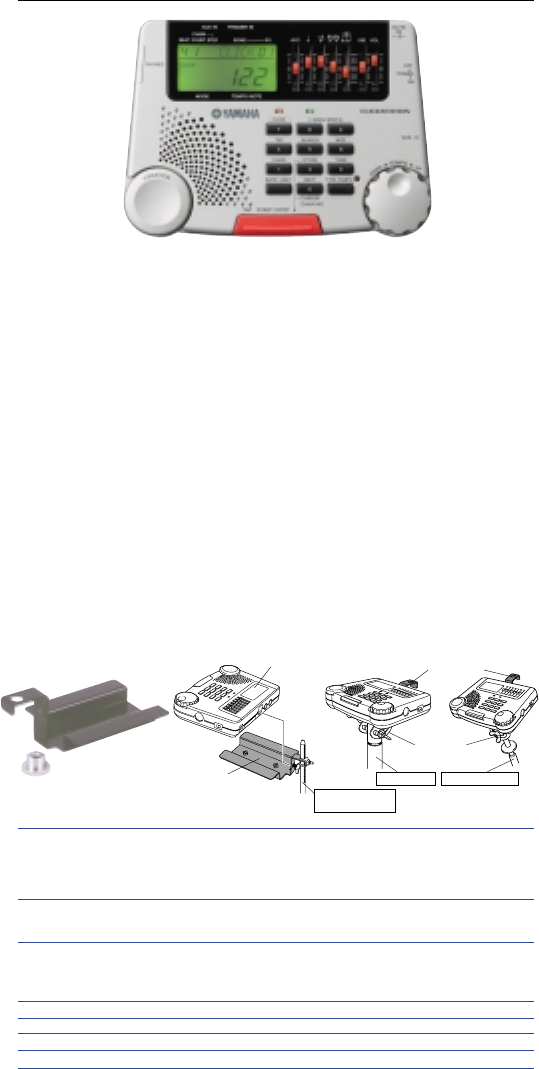

Metronome CLICKSTATION

Features and functions that make the

ClickStation much more than a metronome.

Feel the tempo

The ClickStation is equipped with a small round vibrating pad that pulsates in tempo

with the beat. In situations where audible or visual cues may be distracting, simply

press your finger on the pulsating pad to clearly feel where the tempo is.

86 memory allocations for saving time

Tempo settings can be saved as songs in the ClickStation’s internal memory for re-

call and playback later. If you need tempos for each song in a set, you can arrange up

to 20 songs into a chain for consecutive playback. The ClickStation provides memory

for up to 10 chains making it a great aid for a variety of performing situations.

Easy to read backlit LCD

Information is displayed on the LCD in an easy to read at a glance manner. A back-

light ensures that information is understandable even on a dark stage and its light

can be set to remain lit as long as the power is on, or to switch off in order to conserve

power.

MIDI IN jack offers syncing with MIDI devices

With the MIDI IN jack located on the side of the unit, the ClickStation is able to sync

with the MIDI clock from a sequencer or other such MIDI device.

Flexible mounting and placement with optional mounts

Optional mount adaptors let you mount the ClickStation on a mic stand, cymbal stand,

or cowbell holder so you can conveniently position the ClickStation where it is needed

the most.

Metronome

Memory

Input/Output

Power Supply

Dimensions

Weight

Accessories

Tempo : 35-300 beats/minute

Beats : BEAT 1 : 0~9, BEAT 2 (complex beat) : -~9

Tempo Accuracy : 0.16%

Vibration : Pulses in sync with the tempo

Tempo LED : Flashes in sync with the tempo/beat

Memory Allocations : 86

Total Number of Chain Programs : 10

Steps : 20 songs (per chain program)

TRIGGER IN : Standard Monaural Phone Jack

MIDI IN : Standard 5-Pin DIN Connector

AUX IN : Standard Stereo Phone Jack DC IN : 9V

PHONES : Standard Stereo Phone Jack x 1, Mini Stereo Phone Jack x 1

Power Adaptor (PA-3C) or 6LR61 Battery (x1)

170 x 122 x 37 mm (6-11/16" x 4-13/16" x 1-7/16")

395g (13.9 oz) (including battery)

Tilt Angle, Wing Bolt, 6LR61 Battery

Specifications

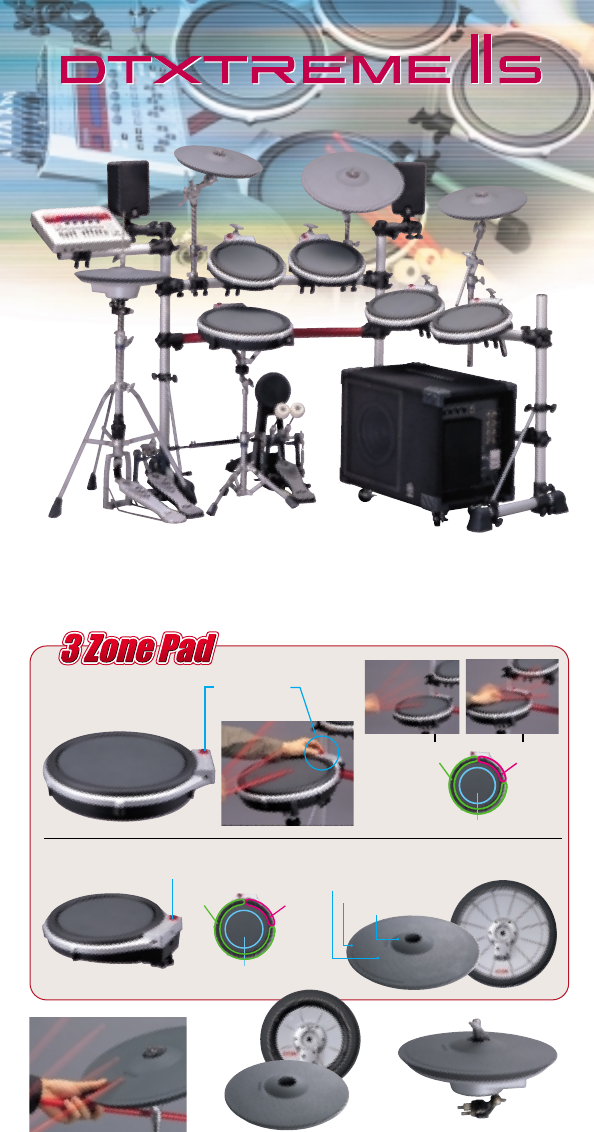

DTXTREME IIs Set

Drum Trigger Module

DTXT2s

3 Zone Snare Pad

TP120SD

3 Zone Tom Pads

TP100 x 4

Kick Pad

KP65

Real Hi-hat Pad

RHH130

3 Zone Cymbal Pad

PCY150S

Dual Zone Cymbal Pad

PCY130S

Single Zone Cymbal Pad

PCY130

Hi-hat Stand

HS740

Snare Stand

SS652

Rack System

RS150

*Foot Pedal (DFP9410) not included.

(OPTIONAL)

Monitor System

MS100DR

(1) Pad

(2)Edge

(3) Cup

Pad

Controller

Head Sound

Cross Stick

Sound

Rim Shot

Sound

Dual Zone Cymbal Pad

PCY130S

Single Zone Cymbal Pad

PCY130

Real Hi-Hat Pad (Dual Zone)

RHH130

Pad Controller

Head Sound

Rim-2

(Percussion)

Rim-1

(Rim shot)

3-Zone Snare Pad

TP120SD

3-Zone Tom Pad

TP100 3-Zone Cymbal Pad

PCY150S

Rack System

RS150

Tom Holder

TPCL150

Cymbal Attachment

CYAT150

Satellite Speakers

Speaker Attachment SPAT1

Subwoofer Unit

MS100DR

40Wx2

100W type

System MS50DR

20Wx2

50W type

The two new monitoring systems

consist of left and right side satellite

speakers (MS100DR: 40Wx2,

MS50DR: 20Wx2) attached to the

rack with the supplied SPAT1

attachment, and a bass reflex subwoofer system of 100W for the MS100DR or 50W for the

MS50DR. The MS100DR is equipped with a Line Output jack that lets you connect to a mixer

or recorder so you can use the system in live or recording situations, in addition to practice

monitoring.

Two New DTX Series Monitor Systems Incorporate

Stereo Satellite Speakers and Sub-Woofer

Satellite Speakers

Speaker

Attachment

SPAT1

100W Subwoofer Unit 50W Subwoofer Unit

Labeled Cables Make

Connection Quick and Easy

Cable ends are labeled with input jack

and pad names so you know which

cable goes where without having to

double-check. Also, a spiral tube can

be used to wrap around the cables to

keep your setup looking neat.

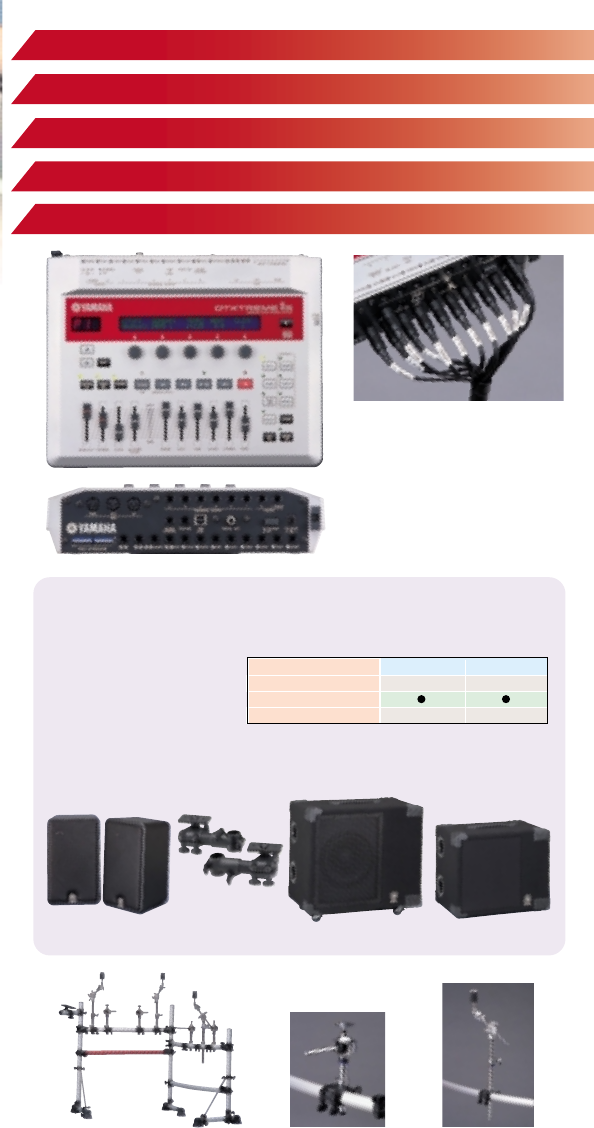

Newly Developed Pads Deliver Outstanding Sensitivity and Feel

Professional Sound Quality (New Sounds Create Huge Library of 2177 Drum Voices)

New Pad Controller Provides Snare and Tom Pads with the Utmost in Function

Sampling Capability Offers Versatile Sound Expansion

Smart Media Offers Convenient Data Storage

Newly Developed Pads Deliver Outstanding Sensitivity and Feel

Professional Sound Quality (New Sounds Create Huge Library of 2177 Drum Voices)

New Pad Controller Provides Snare and Tom Pads with the Utmost in Function

Sampling Capability Offers Versatile Sound Expansion

Smart Media Offers Convenient Data Storage

Great for Practice

Silent and Compact Design

New Cymbal &

Hi-Hat Pads Virtual Session

Sharpens Your Skills

Great for Practice

Silent and Compact Design

New Cymbal &

Hi-Hat Pads Virtual Session

Sharpens Your Skills

Folding Rack Systems Offer

Compact Storing of both

Special and Standard Sets

Great for Practice

Silent and Compact Design

New Cymbal &

Hi-Hat Pads Virtual Session

Sharpens Your Skills

*Foot Pedal (FP7210) not included.

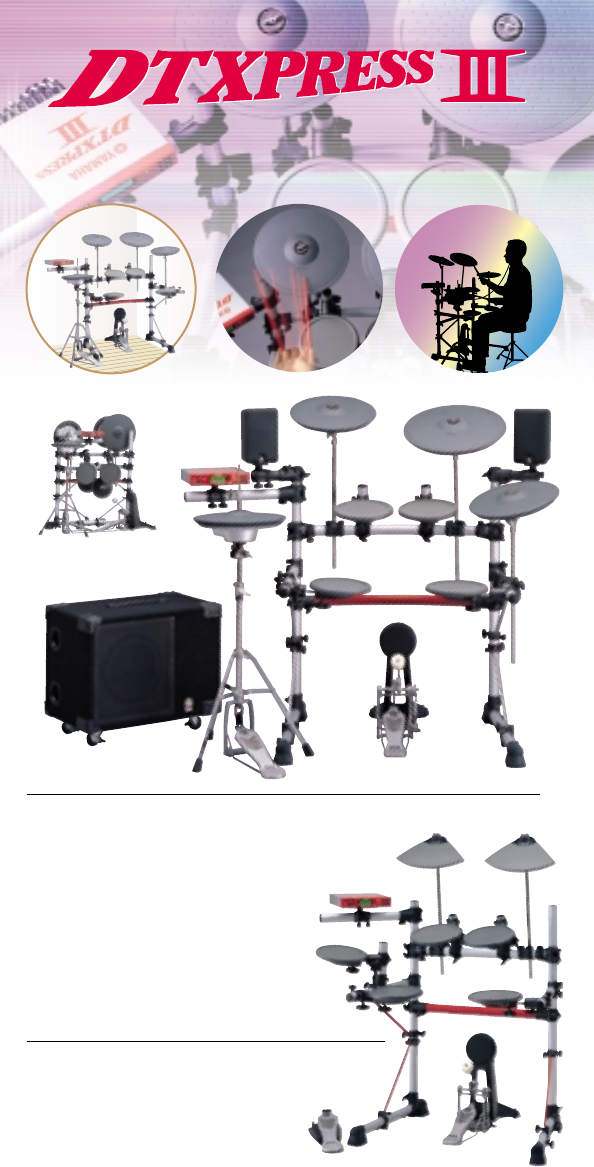

DTXPRESS III Standard Set

Drum Trigger Module

DTXP3

Pad Set

DTPK95M

3 Zone Pad

TP65S

Single Zone Pads

TP65 x 4

Dual Zone Cymbal Pad

PCY65S

Single Zone Cymbal Pad

PCY65

Kick Pad

KP65

Hi-hat Controller

HH65

Rack System

RS70

DTXPRESS III Special Set

Drum Trigger Module

DTXP3

Pad Set

DTPK95MSP

3 Zone Pad

TP65S

Single Zone Pads

TP65 x 3

3 Zone Cymbal Pad

PCY150S

Dual Zone Cymbal Pad

PCY130S

Rack System

RS75

Single Zone Cymbal Pad

PCY130

Kick Pad

KP65

Real Hi-hat Pad

RHH130

Hi-hat Stand

HS650

(OPTIONAL)

Monitor System

MS100DR

Great for Practice

Silent and Compact Design

New Cymbal &

Hi-Hat Pads Virtual Session

Sharpens Your Skills

Great for Practice

Silent and Compact Design

New Cymbal &

Hi-Hat Pads Virtual Session

Sharpens Your Skills

Great for Practice

Silent and Compact Design

New Cymbal &

Hi-Hat Pads Virtual Session

Sharpens Your Skills

Great for Practice

Silent and Compact Design

New Cymbal &

Hi-Hat Pads Virtual Session

Sharpens Your Skills

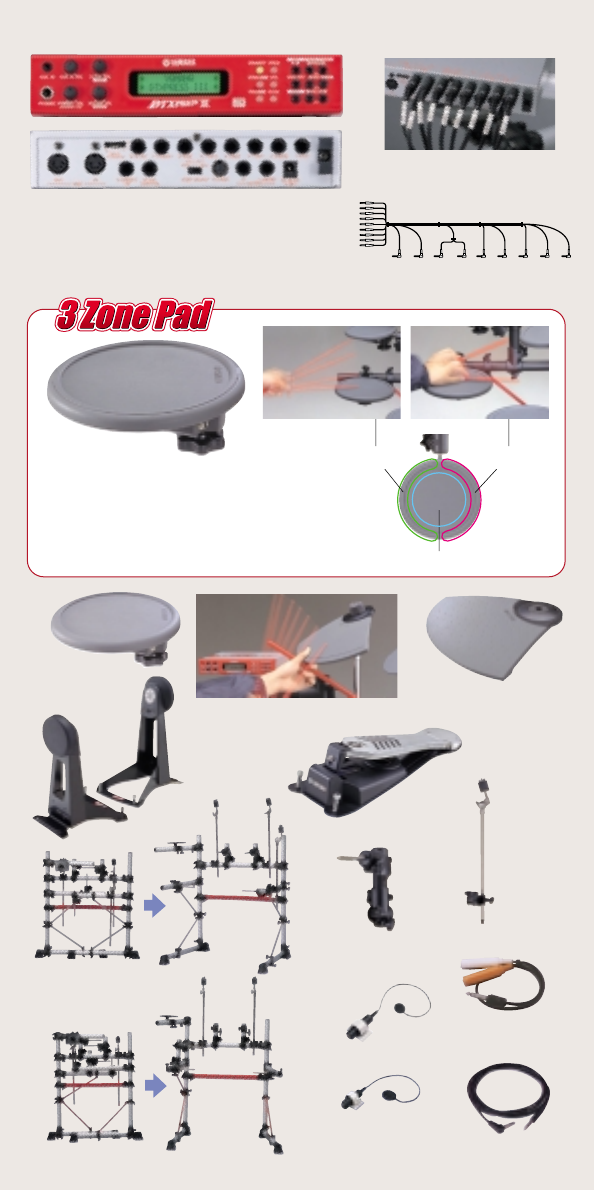

Snake Cable Offers Quick

and Easy Setup

Yamaha’s sound engineers have gone all out and

created a wealth of high-quality sound waves,

centered mostly on cymbal sounds, for the new

DTXPRESS III. In total, the DTXP3 offers 990

Drum voices with refined preset drum kits, and

preset songs.

DTXPRESS III

Head Sound

Cross Stick

Sound

Rim Shot

Sound

Dual Zone Cymbal Pad

PCY65S

Single Zone Cymbal Pad

PCY65

Single Zone Pad

TP65

Tom Holder

TPCL65

Rack System

RS75

Rack System

RS70

Drum Trigger

DT10

Stereo Cable

C03S

Parallel Cable

C04Y

Drum Trigger

DT20

*For drum shell or drum head

attachment.

Cymbal

Attachment

CYAT65

Kick Pad

KP65

Hi-Hat Controller

HH65

3-Zone Drum Pad TP65S

Supplied as standard equipment, TP65S is a 3-zone pad

which utilizes three sensors that are located in the pad,

the left rim, and right rim areas. This lets you play the

head sound, a rim shot sound, and a cross stick sound

all from the same pad. This allows for performance that

is realistically close to an acoustic snare drum.

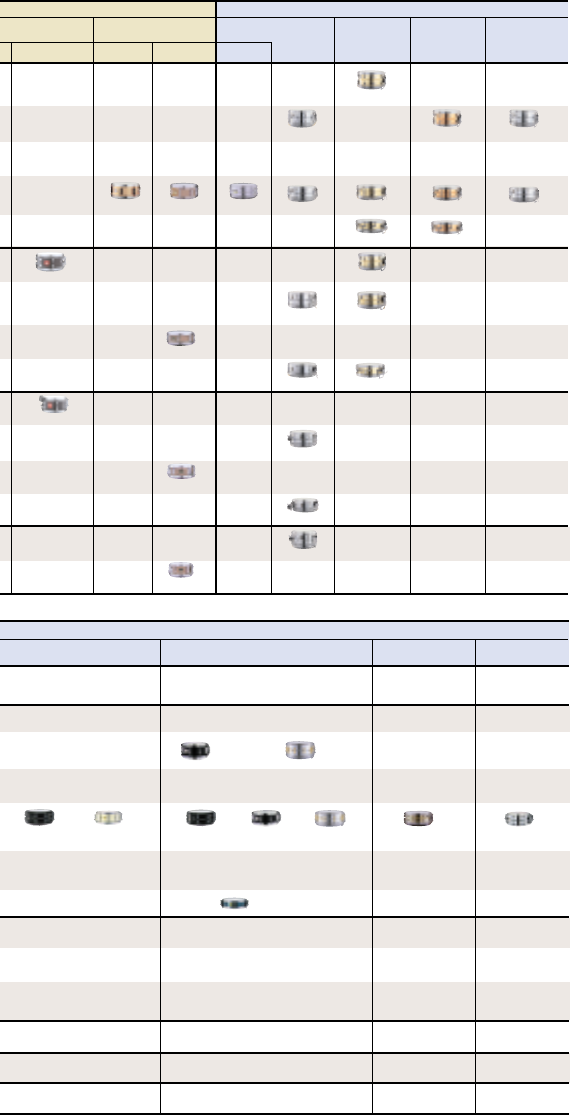

14"

6 1/2"

6 "

5 1/2"

13"

12"

10"

Diameter

Depth

Diameter

Depth

Series

MSD0106

WSD0547

ASD0547

ASD0147

BSD0547

MSD0116

MSD0846

MSD0834

MSD0105

ASD0545

ASD0145

---

----

---

NSD085

MSD0115

ASD0544

ASD0535

ASD0534

BSD0535

BSD0545

BSD0544

WSD0545

Shell

WOOD

Maple

Maple Custom

Absolute Maple Custom

Difinitive Birch Custom

Absolute Beech Custom

Absolute

Birch Beech

NSD087

---

------

----- -

Oak

Custom

14"

15"

6 1/2"

5 1/2"

3 1/2"

13"

12"

10"

MSD1470EJ

(E. Jones)

---

----

---

MSD14AF (A. Fig) ASD1460BC (B. Cobham)

MSD14SG (S. Gadd) MSD14DW (D. Weckl)

BSD14SG (S. Gadd)

BSD1550JR (J. Robinson)

BSD1455NJR

(J. Robinson)

BSD13SG (S. Gadd)

MSD1365SJ

(S. Jordan)

WSD1455SE

(S. Emory)

WSD13AJ

(A. Jimbo)

SD08CJ

(S. Jordan)

MSD13SG (S. Gadd)

MSD12PE

(P. Erskine)

MSD10PE

(P. Erskine)

MSD13DW (D. Weckl)

Shell

WOOD

Maple

6 1/2"

Birch Beech

Birch &

P.Mahogany

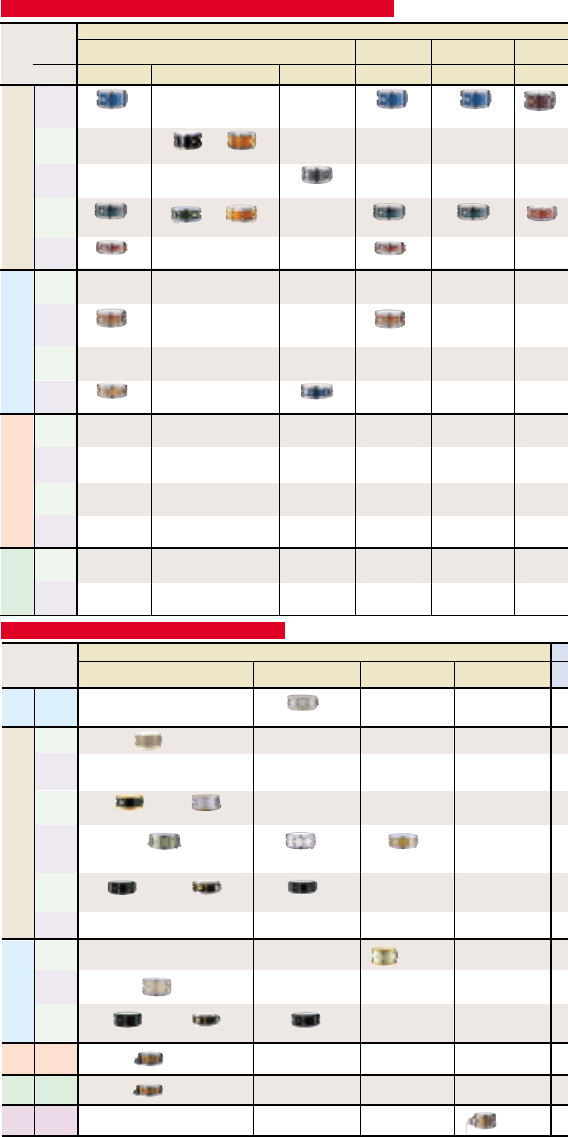

SNARE DRUMS LINEUP

Signature Model

MSD1455AC (A. Ceccarelli)

SD4470

SD4455

SD4440

SD4355

SD4365

SD4340

SD6465

SD6455

SD3465

SD3455

SD6440

SSD065ASSD065N

-- -

----

---

SD2465

SD2455

SD2355

SD2340

SD2255

SD2240

SD2055

SSD1350A

SSD1250A

SSD1050A

Stage Custom

Nouveau

Steel Brass Copper

Aluminum

----

---

SD265

Stage

Custom Stage

Custom

NSD1365M

NSD1260MBGW

Musashi

Oak

Oak (Birch)

P.Mahogany

& Falkata

METAL

---

----

---

----

SD465MK

(M. Katche)

SD465PL

(P. Leim)

SD455MK

(M. Katche)

SD455PL

(P. Leim)

SD355DW

(D. Weckl)

SD655RH

(R. Haynes)

SD435DG

(D. Garibaldi)

SD255SG

(S. Gadd) SD455SG

(S. Gadd)

SD255NC

(N. Chancler)

Steel Brass Copper

Aluminum

----

METAL

’

Recording

Custom

Components

Diameter

Bass Drums

24"26" 22" 20" 18" 16" 15"

xDepth

Model No.

Standard

Size

Power

Size

xDepth

Turbo

Size

xDepth

BD922YJ

BD920YJ

BD926YJ

BD924YJ

BD918YJ

TT915YJ

TT915Y

TT916Y

BD924Y

BD922Y

BD920Y

BD924YT

BD922YT

BD920YT

Maple

Custom

Absolute

(Nouveau Lug type)

-- --

ABD1522J

ABD1520J

ABD1518JF

ABD1518F

ATT1515

ATT1516

ABD1524

ABD1522

ABD1520

ABD1524T

ABD1522T

ABD1520T

xDepth

Model No.

Standard

Size

----- --

xDepth

Model No.

Universal

Size

Power

Size

xDepth

Turbo

Size

xDepth

Maple

Custom

Absolute

(Absolute Lug type)

-- --

ABD1122J

ABD1120J

ABD1118JF

ABD1118F

ATT1115

ATT1116

ABD1124

ABD1122

ABD1120

ABD1124T

ABD1122T

ABD1120T

xDepth

Model No.

Standard

Size

----- --

xDepth

Model No.

Universal

Size

Power

Size

xDepth

Turbo

Size

xDepth

Birch

Custom

Absolute

(Nouveau Lug type)

-- --

BBD1522J

BBD1520J

BBD1518JF

BBD1518F

BTT1515

BTT1516

BBD1524

BBD1522

BBD1520

BBD1524T

BBD1522T

BBD1520T

xDepth

Model No.

Standard

Size

----- --

xDepth

Model No.

Universal

Size

Power

Size

xDepth

Turbo

Size

xDepth

Birch

Custom

Absolute

(Absolute Lug type)

-- --

BBD1122J

BBD1120J

BBD1118JF

BBD1118F

BTT1115

BTT1116

BBD1124

BBD1122

BBD1120

BBD1124T

BBD1122T

BBD1120T

xDepth

Model No.

Standard

Size

----- --

xDepth

Model No.

Universal

Size

Power

Size

xDepth

Turbo

Size

xDepth

Beech

Custom

Absolute

(Nouveau Lug type)

-- --

WBD1522J

WBD1520J

WBD1518JF

WBD1518F

WTT1515

WTT1516

WBD1524

WBD1522

WBD1520

WBD1524T

WBD1522T

WBD1520T

xDepth

Model No.

Standard

Size

----- --

xDepth

Model No.

Universal

Size

Power

Size

xDepth

Turbo

Size

xDepth

Beech

Custom

Absolute

(Absolute Lug type)

-- --

WBD1122J

WBD1120J

WBD1118JF

WBD1118F

WTT1115

WTT1116

WBD1124

WBD1122

WBD1120

WBD1124T

WBD1122T

WBD1120T

xDepth

Model No.

Standard

Size

----- --

xDepth

Model No.

Universal

Size

Power

Size

xDepth

Maple

Custom

Definitive

-----

MBD818UF

MTT816

MTT815

MBD824U

MBD822U

MBD820U

Model No.

---

xDepth

Model No.

Universal

Size

----

xDepth

Model No.

Standard

Size

Power

Size

xDepth

Turbo

Size

xDepth

Model No.

Standard

Size

Maple

Custom

Power

Size

xDepth

-- --

MBD1322J

MBD1320J

MBD1318J

MTT1315

MTT1316

MBD1324

MBD1322

MBD1320

MBD1324T

MBD1322T

MBD1320T

Turbo

Size

x14" x14"x14" x14" x14" x12"

x13"x14"

x16" x16" x16"

x18" x18" x18"

x14" x14" x14"

x16" x13"x14"

x16" x16" x16"

x18" x18" x18"

x14" x14" x14"

x16" x13"x14"

x16" x16" x16"

x18" x18" x18"

x14" x14" x14"

x16" x13"x14"

x16" x16" x16"

x18" x18" x18"

x14" x14" x14"

x16" x13"x14"

x16" x16" x16"

x18" x18" x18"

x14" x14" x14"

x16" x13"x14"

x16" x16" x16"

x18" x18" x18"

x14" x14" x14"

x16" x13"x14"

x16" x16" x16"

x15"

x14" x13"

x17" x17" x17"

x18" x18" x18"

x14" x14" x14"

x13"x14"

x16" x16" x16"

x18" x18" x18"

SPECIFICATION

Floor Toms

Mounted Toms

18" 16" 15"

14" 13" 12" 10" 8"

-----

TT910YJ

TT912YJ

TT913YJ

TT914YJ

TT908Y

TT910Y

TT912Y

TT913Y

TT914Y

FT918Y

FT916Y

FT914Y

----

------ ----

ATT1508J

ATT1510J

ATT1512J

ATT1513J

ATT1514J

ATT1508

ATT1510

ATT1512

ATT1513

ATT1514

AFT1518

AFT1516

AFT1516U

AFT1515U

14"

AFT1514

13"

AFT1513U

---

-- -

ATT1510U

ATT1512U

ATT1513U

------ ----

ATT1108J

ATT1110J

ATT1112J

ATT1113J

ATT1114J

ATT1108

ATT1110

ATT1112

ATT1113

ATT1114

AFT1118

AFT1116

AFT1116U

AFT1115U

AFT1114

AFT1113U

---

-- -

ATT1110U

ATT1112U

ATT1113U

------ ----

BTT1508J

BTT1510J

BTT1512J

BTT1513J

BTT1514J

BTT1508

BTT1510

BTT1512

BTT1513

BTT1514

BFT1518

BFT1516

BFT1516U

BFT1515U

BFT1514

BFT1513U

---

-- -

BTT1510U

BTT1512U

BTT1513U

------ ----

BTT1108J

BTT1110J

BTT1112J

BTT1113J

BTT1114J

BTT1108

BTT1110

BTT1112

BTT1113

BTT1114

BFT1118

BFT1116

BFT1116U

BFT1115U

BFT1114

BFT1113U

---

-- -

BTT1110U

BTT1112U

BTT1113U

------ ----

WTT1508J

WTT1510J

WTT1512J

WTT1513J

WTT1514J

WTT1508

WTT1510

WTT1512

WTT1513

WTT1514

WFT1518

WFT1516

WFT1516U

WFT1515U

WFT1514

WFT1513U

---

-- -

WTT1510U

WTT1512U

WTT1513U

------ ----

-----

----

-----

---

-----

WTT1108J

WTT1110J

WTT1112J

WTT1113J

WTT1114J

WTT1108

WTT1110

WTT1112

WTT1113

WTT1114

WFT1118

WFT1116

WFT1116U

WFT1115U

WFT1114

WFT1113U

---

-- -

WTT1110U

WTT1112U

WTT1113U

----

MTT814

MFT818

MFT816

MFT814

---

MTT810U

MTT812U

MTT813U

MTT808J

-----

MTT1308J

MTT1310J

MTT1312J

MTT1313J

MTT1314J

MTT1308

MTT1310

MTT1312

MTT1313

MTT1314

MFT1318

MFT1316

MFT1314

x7 1/2"x8"x9"x10"

x8"x9"x10" x14"x16"x16"x11"x12"

x7"x7 1/2"x8"x9"x10"

x8"x9"x10"

x8"x9"x10" x16" x16"

x14"

x14"x14"

x11"x12"

x7"x7 1/2"x8"x9"x10"

x8"x9"x10"

x8"x9"x10" x16" x16"

x14"

x14"x14"

x11"x12"

x7"x7 1/2"x8"x9"x10"

x8"x9"x10"

x8"x9"x10" x16" x16"

x14"

x14"x14"

x11"x12"

x7"x7 1/2"x8"x9"x10"

x8"x9"x10"

x8"x9"x10" x16" x16"

x14"

x14"x14"

x11"x12"

x7"x7 1/2"x8"x9"x10"

x8"x9"x10"

x8"x9"x10" x16" x16"

x14"

x14"x14"

x11"x12"

x7"x7 1/2"x8"x9"x10"

x8"x9"x10"

x8"x9"x10" x16" x16"

x14"

x14"x14"

x11"x12"

x8"x9"x10"

x15" x16" x13"x12"

x7"

x7"x7 1/2"x8"x9"x10"

x8"x9"x10" x14"x16"x16"x11"x12"

Stage Custom

Advantage

RYDEEN

Components

Diameter

Bass Drums

24"26" 22" 20" 18" 16" 15"

STT615YS

STT616YS

SBD622YS

SBD618YS

SBD624YS

SBD620YS

RBD522

RBD520

RBD518

Oak Custom

----- -

NBD818UF

NTT816

NBD824U

NBD822U

NBD820U

Model No.

---

xDepth

Model No.

Universal

Size

----

xDepth

Model No.

Standard

Size

Power

Size

xDepth

Stage Custom

Advantage

Nouveau

-----

SBD618UN

STT616N

STT615N

SBD624UN

SBD622UN

SBD620UN

Model No.

---

xDepth

Model No.

Universal

Size

----

xDepth

Model No.

Standard

Size

xDepth

Model No.

Universal

Size

xDepth

Model No.

Standard

Size

Power

Size

xDepth

-----

xDepth

Universal

Size

Power

Size

xDepth

x13"x14"

x17" x15"x17" x17"

x16" x16" x15"

x17"

x14"

x17" x17" x17"

x15"

x14" x13"

x17" x17" x17"

SPECIFICATION

Maple Custom Absolute

(Nouveau Lug type)

Birch Custom Absolute

(Nouveau Lug type)

Beech Custom Absolute

(Nouveau Lug type)

Maple Custom

Recording Custom

AYN2F4A AYN2F41A

ABD1522

HW868 ASD0545

HW868

CSAT924 ASD0545

HW868

CSAT924 ASD0545

AFT1516

AYN2F42A

ATT1512 ATT1513

TH945A

AYN2T4A AYN2T41A

ABD1522 ATT1514

AYN2T42A

ATT1510 ATT1512

TH945A CL945A

CL945A

AYN0T4A AYN0T41A

ABD1520 ATT1514

AYN0T42A

ATT1510 ATT1512

TH945A

BYN2F4A BYN2F41A

BBD1522

HW868 BSD0545

HW868

CSAT924 BSD0545

HW868

CSAT924 BSD0545

BFT1516

BYN2F42A

BTT1512 BTT1513

BBD1522 BTT1514

BTT1510 BTT1512

BBD1520 BTT1514

BTT1510 BTT1512

TH945A

BYN2T4A BYN2T41A

BYN2T42A

TH945A CL945A

CL945A

BYN0T4A BYN0T41A

BYN0T42A

TH945A

WYN2F4A WYN2F41A

WBD1522 WFT1516

WYN2F42A

WTT1512 WTT1513

WBD1522 WTT1514

WTT1510 WTT1512

WBD1520 WTT1514

WTT1510 WTT1512

TH945A

WYN2T4A WYN2T41A

WYN2T42A

TH945A CL945A

CL945A

WYN0T4A WYN0T41A

WYN0T42A

TH945A

HW868 WSD0545

HW868

CSAT924 WSD0545

HW868

CSAT924 WSD0545

MYA2F4

MYA2F41 MBD1322

HW868 MSD0105

HW868

CSAT924 MSD0105

HW868

CSAT924 MSD0105

MFT1316

MYA2F42 MTT1312 MTT1313

TH945A

MYA2T4

MYA2T41 MBD1322 MTT1314

MYA2T42 MTT1310 MTT1312

TH945A CL945A

CL945A

MYA0T4

MYA0T41 MBD1320 MTT1314

MYA0T42 MTT1310 MTT1312

TH945A

RY2F4

RY2F41 BD922Y

HW868 BSD0545

HW868

CSAT924 BSD0545

HW868

CSAT924 BSD0545

FT916Y -

RY2F42 TT912Y TT913Y

BD922Y TT914Y

TT910Y TT912Y

BD920Y TT914Y

TT910Y TT912Y

TH945A

RY2T4

RY2T41 -

RY2T42 TH945A CL945A

CL945A

RY0T4

RY0T41 -

RY0T42 TH945A

Set Configuration Recommended

H/W and SD

Absolute Lug type - AY2F4A (AY2F41A+AY2F42A), AY2T4A (AY2T41A+AY2T42A),

AY0T4A (AY0T41A+AY0T42A)

Absolute Lug type - BY2F4A (BY2F41A+BY2F42A), BY2T4A (BY2T41A+BY2T42A),

BY0T4A (BY0T41A+BY0T42A)

Absolute Lug type - WY2F4A (WY2F41A+WY2F42A), WY2T4A (WY2T41A+WY2T42A),

WY0T4A (WY0T41A+WY0T42A)

Floor Toms

Mounted Toms

18" 16" 15"

14" 13" 12" 10" 8"

----

STT608YS

STT610YS

STT612YS

STT613YS

STT614YS

SFT618YS

SFT616YS

RTT510

RTT512

RTT513

SFT614YS

14" 13"

-----

----

NTT814

NFT818

NFT816

NFT816U

NFT815U

NFT814

NFT813U

---

RFT516

RFT514

RFT513

NTT810U

NTT812U

NTT813U

NTT808J

---------

----

---

STT614N

SFT618N

SFT616N

SFT614N

---

STT610UN

STT612UN

STT613UN

----

---

----

---

STT608JN

x8"x9"x10" x16"x16"x11"x12"

x8"x9"

x14"

x14" x12"x16"

x9 1/2"

x8"x9"x10"

x16" x16"

x14"

x14"x14"

x12"

x7"

x8"x9"x10"

x16" x16" x14"x12"

x7"

Maple Custom Definitive

Oak Custom

Stage Custom Advantage "Wood"

(with Hardware)

RYDEEN

(with Hardware)

Stage Custom Advantage Nouveau

(with Hardware)

DY2F4

DY2F41 MBD822U

HW868 MSD0846

HW868

CSAT924 MSD0846

HW868

CSAT924 MSD0846

MFT816

DY2F42 MTT812U MTT813U

TH945A

DY2T4

DY2T41 MBD822U MTT814

DY2T42 MTT810U MTT812U

TH945A CL945A

CL945A

DY0T4

DY0T41 MBD820U MTT814

DY0T42 MTT810U MTT812U

TH945A

SCAWS2F5

SCAWS2F51A

SBD622YS SFT616YS

SCAWS2F52A

STT613YS STT612YS

STT610YS

SCAWS0F51A

SBD620YS SFT614YS

SCAWS0F52A

STT612YS

SCAWS0T51A

SBD620YS STT614YS

SCAWS0T52A

STT612YS

SCAWS2T5

SCAWS2T51A

SBD622YS STT614YS

SCAWS2T52A

STT612YS STT610YS

HS740 SS740

----

HS740 SS740 CL945ATH904

----

HS740 SS740

----

HS740 SS740 TH904 CL945A

----

FP7210

CS745x2

FP7210

CS745x2

FP7210

CS745x2

FP7210

CS745x2

SCN2F5

SCN2F51

SBD622UN SFT616N

TH945A

SCN2F52

STT613UN STT612UN

SSD065N

SCN2FS51

SBD622UN SFT616N

TH945A

SCN2FS52

STT612UN STT610UN

SSD065N

SCN0F51

SBD620UN SFT614N

TH945A

SCN0F52

STT612UN STT610UN

SSD065N

SCN2T5

SCN2T51

SBD622UN STT614N

TH945A

SCN2T52

STT612UN STT610UN

SSD065N

SCN2FS5

SCN0F5

HS740 SS740

----

HS740 SS740 CL945ATH904

----

HS740 SS740

----

HS740 SS740

FP7210

CS745x2

FP7210

CS745x2

FP7210

CS745x2

FP7210

CS745x2

TH945A

SSD065A

TH945A

SSD065A

TH945A

SSD065A

TH945A

SSD065A

SCAWS0F5

SCAWS0T5

NY2F4

NY2F41 NBD822U

HW868 NSD085

HW868

CSAT924 NSD085

HW868

CSAT924 NSD085

NFT816 -

NY2F42 NTT812U NTT813U

NBD822U NTT814

NTT810U NTT812U

NBD820U NTT814

NTT810U NTT812U

TH945A

NY2T4

NY2T41 -

NY2T42 TH945A CL945A

CL945A

NY0T4

NY0T41 -

NY0T42 TH945A

RD2F5

RD2F51 RBD522 RFT516 RTT512

-- --

RD2F52 RTT513 RSD1455 CS651W HS650W SS650W FP6110 CL940BM x2

RBD522 RFT514 RTT510

-- --

RTT512 RSD1455 CS651W HS650W SS650W FP6110 CL940BM x2

RBD520 RFT514 RTT510

-- --

RTT512 RSD1350 CS651W HS650W SS650W FP6110 CL940BM x2

RD2FS5

RD2FS51

RD2FS52

RD0F5

RD0F51

RD0F52

RBD518 RFT513 RTT510

-- --

RSD1350 CS651W HS650W SS650W FP6110 CL940BM CH740

RD8F4

RD8F41

RD8F42

Recommended Hardware Set

HW868 FP9310CS845 x2 HS840 SS840

Set Configuration

Recommended

H/W and SD

EUROPE

http://www.yamaha-europe.com

U.K.

http://www.yamaha-music.co.uk

JAPAN (DTX, DTXPRESS)

http://www.yamaha.co.jp/english/product/drum/dtx/index.html

U.S.A.

http://www.yamahadrums.com

Printed in Japan

LDR0424 041020

*Some models may not be available in some countries.

*Colors shown in this catalog may not be represented exactly

as the original colors due to printing processes involved.

*Specifications are subject to change without notice.

This document is printed on chlo-

rine- free (ECF) paper with soy ink.

*For more information on YAMAHA Snare Drums or YAMAHA Hardware,

please refer to the Mini Catalogs.

“YAMAHA Hardware” Mini Catalog (LDR0423), “YAMAHA Snare Drums” Mini Catalog (LDR0020)

Yamaha Abd1520T Brochure

AFT1518 to the manual 95ddd17b-511f-4eba-a3fc-3f1aa739e8ba

Navigation menu

Versions of this User Manual:

Views

Navigation
