Model # Ref # Yamaha Part # Description UOM

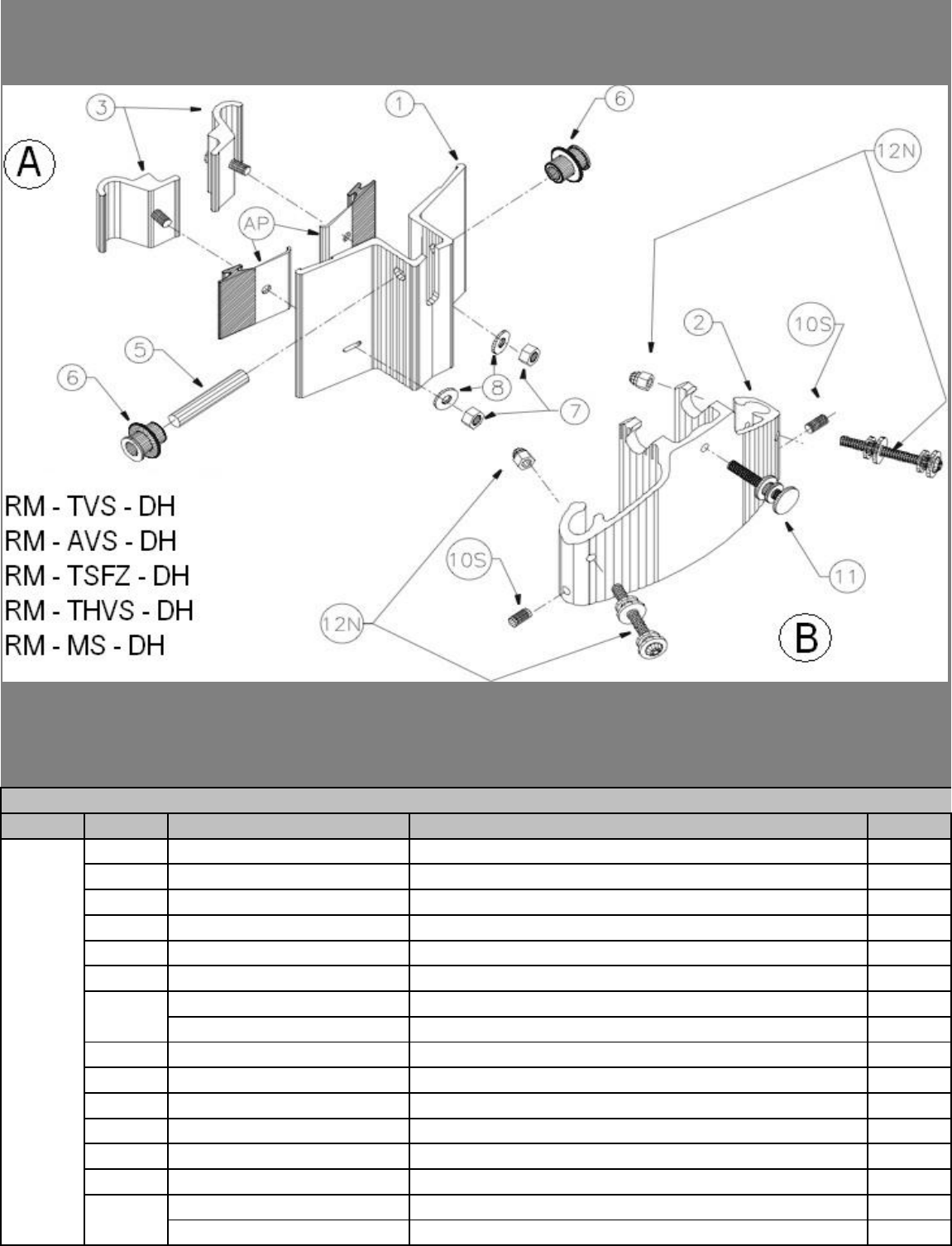

RM-SFZDH Complete SFZ Lift Front Assembly 1
A RM-SFZDHA Snare Side Lift-Front Assembly for SFZ 1
B RM-DHB Carrier Side Lift-Front Assembly 1
1 RM-SFZDH1 Snare Side Hinge Only for Sforzando 1
2 RM-DH2 Carrier Side Hinge 1
3 RM-SFZDH3 Tube Clamp 1
RM-AP Angle Plate - Dipped 1
RM-SFZDH4 Old Style - Tube Lug Protector 1
5 RM-DH5 Axle 1
6 RM-DH6 Bushing 1
7 RM-SFZDH7 Nut 1
8 RM-SFZDH8 Washer 1
10S RM-TBOLT3/8M T-Bolt 1/4-20 x 3/8" Metal 1
11 RM-DHBBOLT1-1/2 Hinge Lock Bolt 1/4-20 x 1-1/2" 1
RM-DH9N Nylon Acorn Nut Bumper w/ Bolt Assembly 1
RM-DH9 Old Style Rubber Bumper w/ Bolt Assembly 1
ALUMNI-VEST SFZ Lift Front Assembly
RM-AVS, RM-SFZ, RM-MS
AP
12N
Model # Ref # Yamaha Part # Description UOM

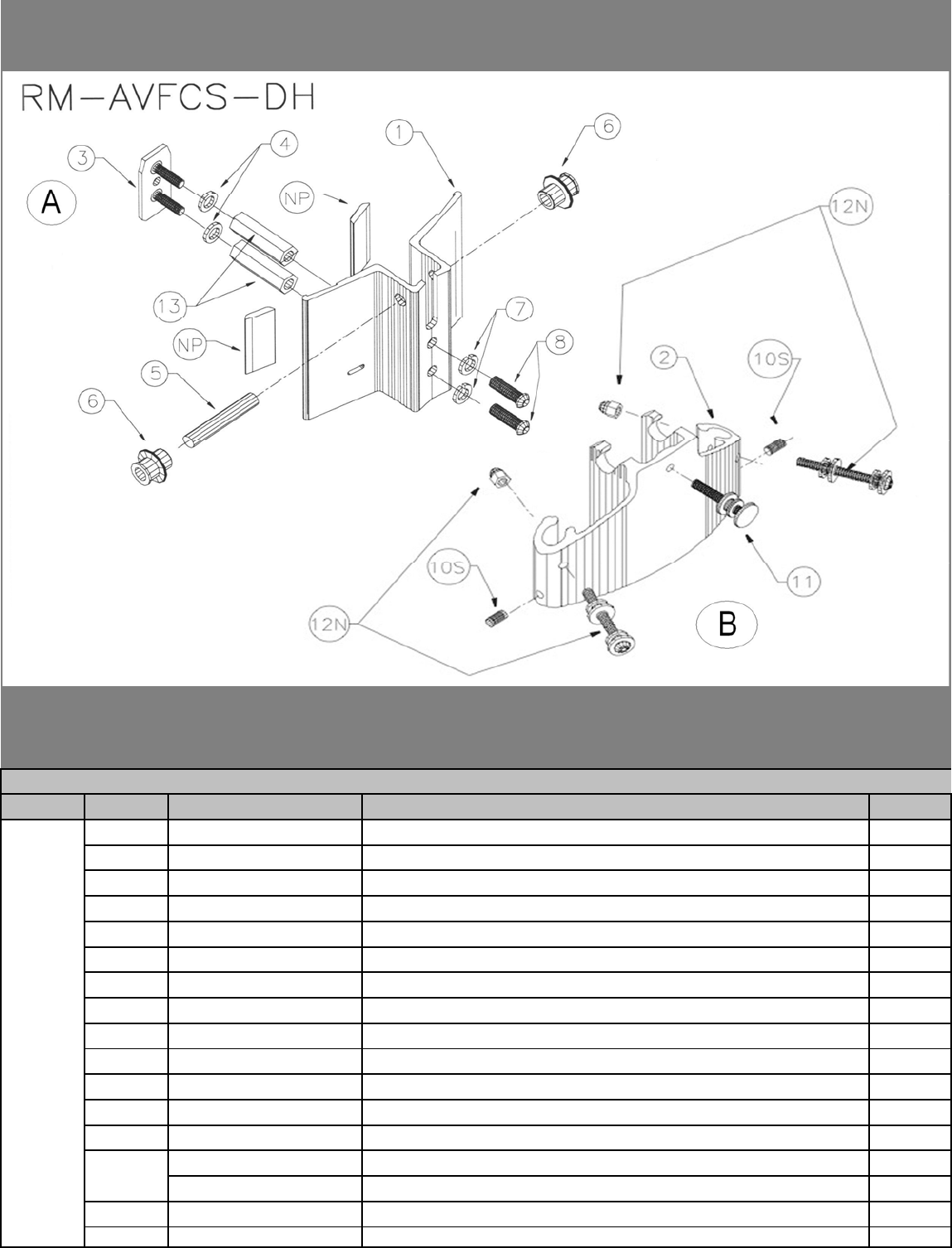

RM-FCDH Complete Field Corps Lift Front Assembly 1
A RM-FCDHA Snare Side Lift-Front Assembly for ET-Clip 1
B RM-DHB Carrier Side Lift-Front Assembly 1
1 RM-FCDH1 Snare Side Hinge Only for Field Corps 1
2 RM-DH2 Carrier Side Hinge 1
3 RM-FCDH3 Tongue for ET-Clip 1
4 RM-FCDH4 Tongue Washer 1
5 RM-DH5 Axle 1
6 RM-DH6 Bushing 1
7 RM-FCDH7 Lock Washer 1
8 RM-FCDH8 Bolt 5/16-18 1
10S RM-TBOLT3/8M T-Bolt 1/4-20 x 3/8" Metal 1
11 RM-DHBBOLT Hinge Lock Bolt 1/4-20 x 1-1/2" 1
RM-DH9N Nylon Acorn Nut Bumper w/ Bolt Assembly 1
RM-DH9 Old Style Rubber Bumper w/ Bolt Assembly 1
13 RM-FCDH12 Hex Shaft RM-FCS(DH) 1
NP RM-DHNP Nylon Pad For Snare Side Hinge 1
ALUMNI-VEST Field Corps Lift Front Assembly
RM-AVFC, RM-FCS, RM-MFC
12N
Model # Ref # Yamaha Part # Description UOM

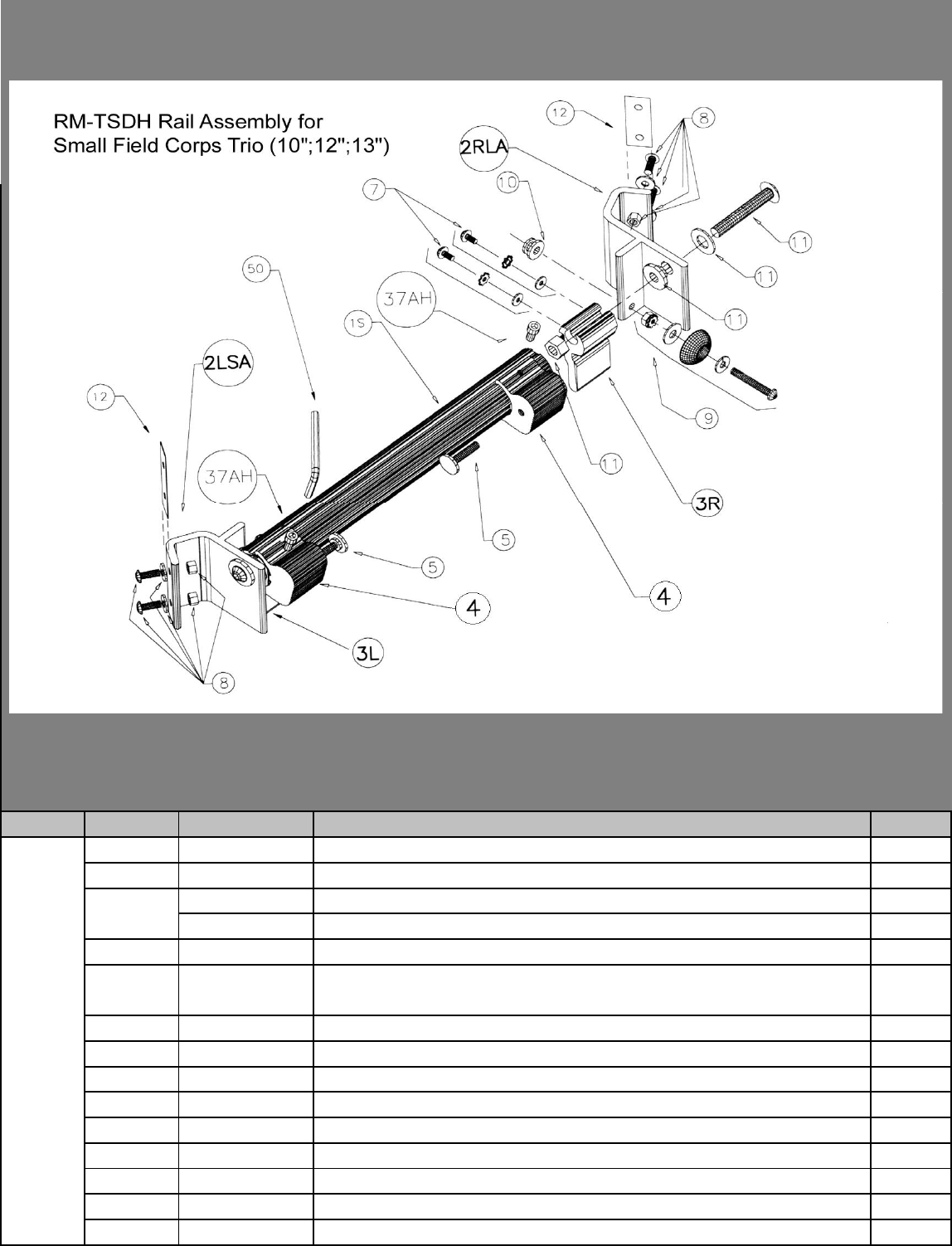

RM-TSDH Small Trio Rail Assembly (10, 12, 13) Each
1S RM-TSDH1 Small Trio Rail (10, 12, 13) 9 1/2" Long Each
2LSA RM-TDH2LSA Trio Swivel Bracket - Left (small angle) Each
2RLA RM-TDH2RLA Trio Swivel Bracket - Right (large angle) Each
3 RM-QDH3 End Plug / Swivel Each
5 RM-CBOLT1 Circle Bolt 1/4-20 x 1" Each
7 RM-FCQDH7 End Plug Fastener Set Set
8 RM-FCQDH8 Drum Mounting Fastener Set: 2ea Bolt, Nut & Washer Set
9 RM-QDH9 Rubber Bumper with Bolt for Tom Rail Set
10 RM-QDH10 Black Two-step Thumb Nut Each
11 RM-QDH11 Swivel Bolt Assembly Set
12 RM-QDH12 Swivel Bracket Isolator Each
37AH RM-SH37AH 1/4 - 20 x 3/8 STAINLESS STEEL Allen Head Each
50 RM-HK316 3/16 Short Arm Hex Key Each
Each
RM-TSDH RAIL ASSEMBLY FROR SMALL FIELD
CORPS TRIO CARRER
4 RM-QDH4 J Rod Receiver - Left or Right
Model # Ref # Yamaha Part # Description UOM

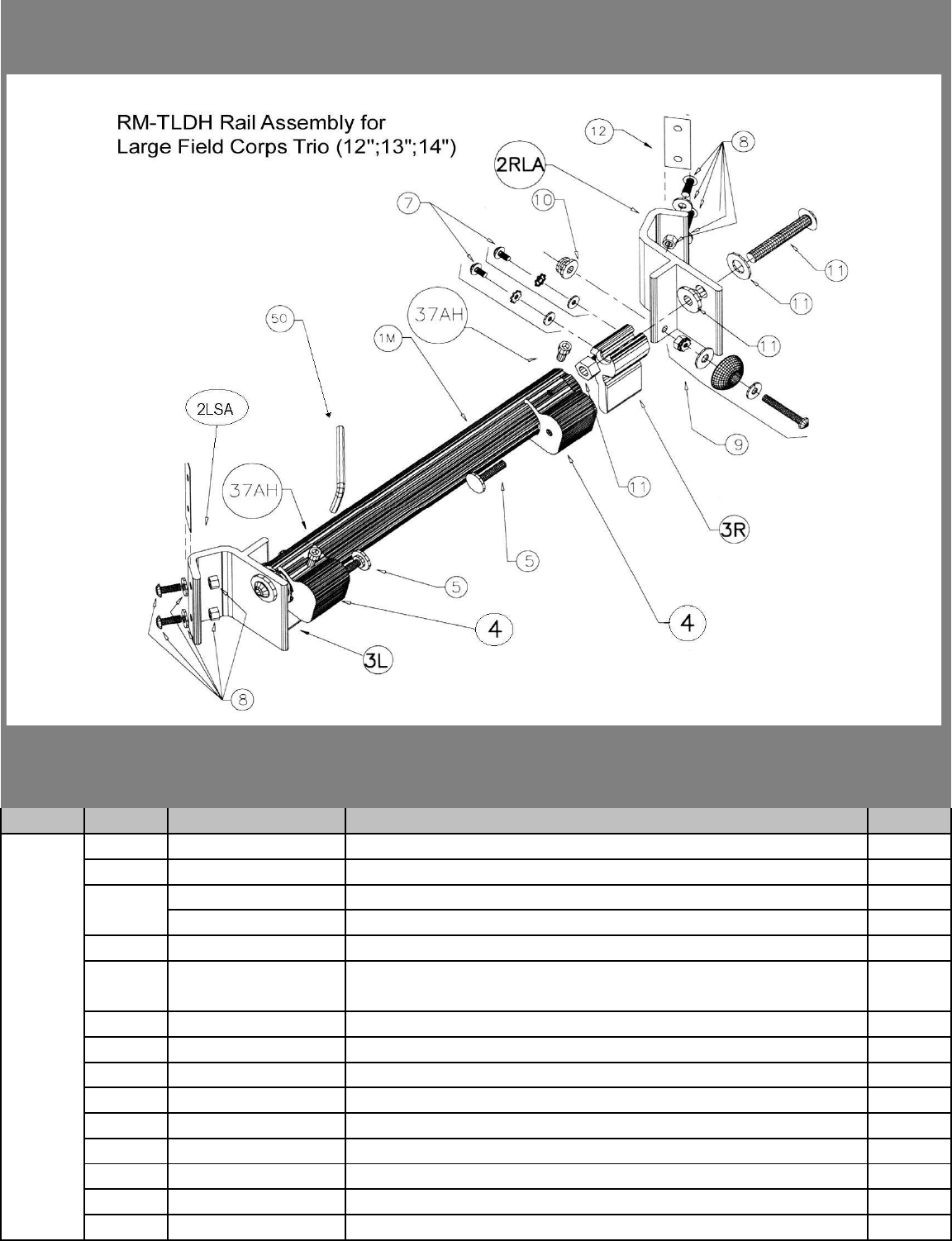

RM-TLDH Large Trio Rail Assembly (12, 13, 14) Each
1S RM-TLDH1 Large Trio Rail (12, 13, 14) 12 7/8" Long Each
2LSA RM-TDH2LSA Trio Swivel Bracket - Left (small angle) Each
2RLA RM-TDH2RLA Trio Swivel Bracket - Right (large angle) Each
3 RM-QDH3 End Plug / Swivel Each
5 RM-CBOLT1 Circle Bolt 1/4-20 x 1" Each
7 RM-FCQDH7 End Plug Fastener Set Set
8 RM-FCQDH8 Drum Mounting Fastener Set: 2ea Bolt, Nut & Washer Set
9 RM-QDH9 Rubber Bumper with Bolt for Tom Rail Set
10 RM-QDH10 Black Two-step Thumb Nut Each
11 RM-QDH11 Swivel Bolt Assembly Set
12 RM-QDH12 Swivel Bracket Isolator Each
37AH RM-SH37AH 1/4 - 20 x 3/8 STAINLESS STEEL Allen Head Each
50 RM-HK316 3/16 Short Arm Hex Key Each
Each
RM-TLDH RAIL ASSEMBLY FROR LARGE FIELD
CORPS TRIO CARRER
4 RM-QDH4 J Rod Receiver - Left or Right
Model # Ref # Yamaha Part # Description UOM

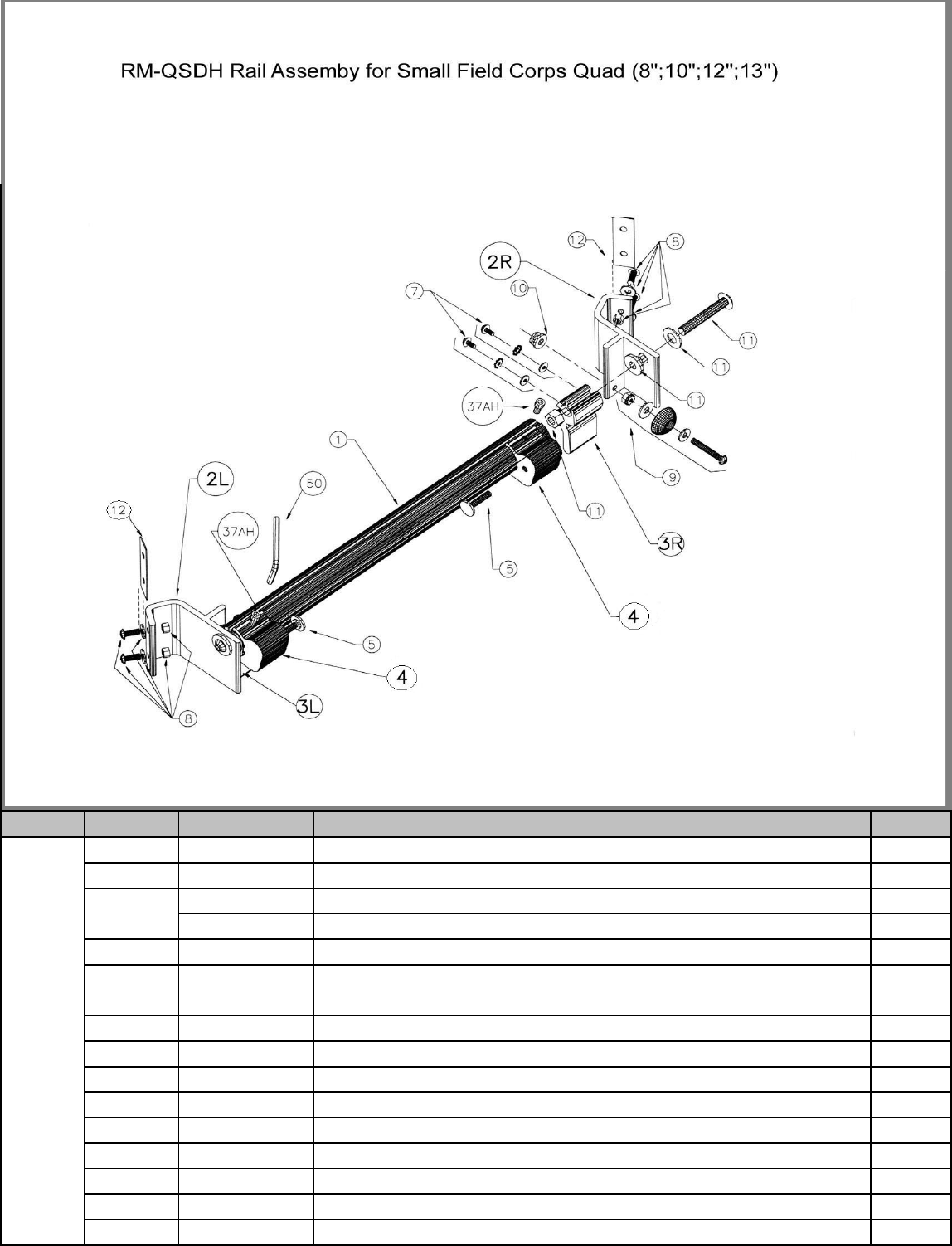

RM-QSDH Quad Rail Assembly - Small (8, 10, 12, 13) 1
1 RM-QSDH1 Quad Rail Only - for Small or Large Quad set ( 17 1/2") 1
2L RM-QSDH2L Quad-Small Swivel Bracket - Left (4 1/8") 1
2R RM-QSDH2R Quad-Small Swivel Bracket - Right (4 1/8")
3 RM-QDH3 End Plug / Swivel 1
5 RM-CBOLT1 Circle Bolt 1/4-20 x 1" 1
7 RM-FCQDH7 End Plug Fastener Set Set
8 RM-FCQDH8 Drum Mounting Fastener Set: 2ea Bolt, Nut & Washer Set
9 RM-QDH9 Rubber Bumper with Bolt for Tom Rail Set
10 RM-QDH10 Black Two-step Thumb Nut 1
11 RM-QDH11 Swivel Bolt Assembly Set
12 RM-QDH12 Swivel Bracket Isolator 1
37AH RM-SH37AH 1/4 - 20 x 3/8 STAINLESS STEEL Allen Head 1
50 RM-HK316 3/16 Short Arm Hex Key 1
1
RM-AVQS, RM-FCQS, RM-MQS
4 RM-QDH4 J Rod Receiver - Left or Right
Model # Ref # Yamaha Part # Description UOM

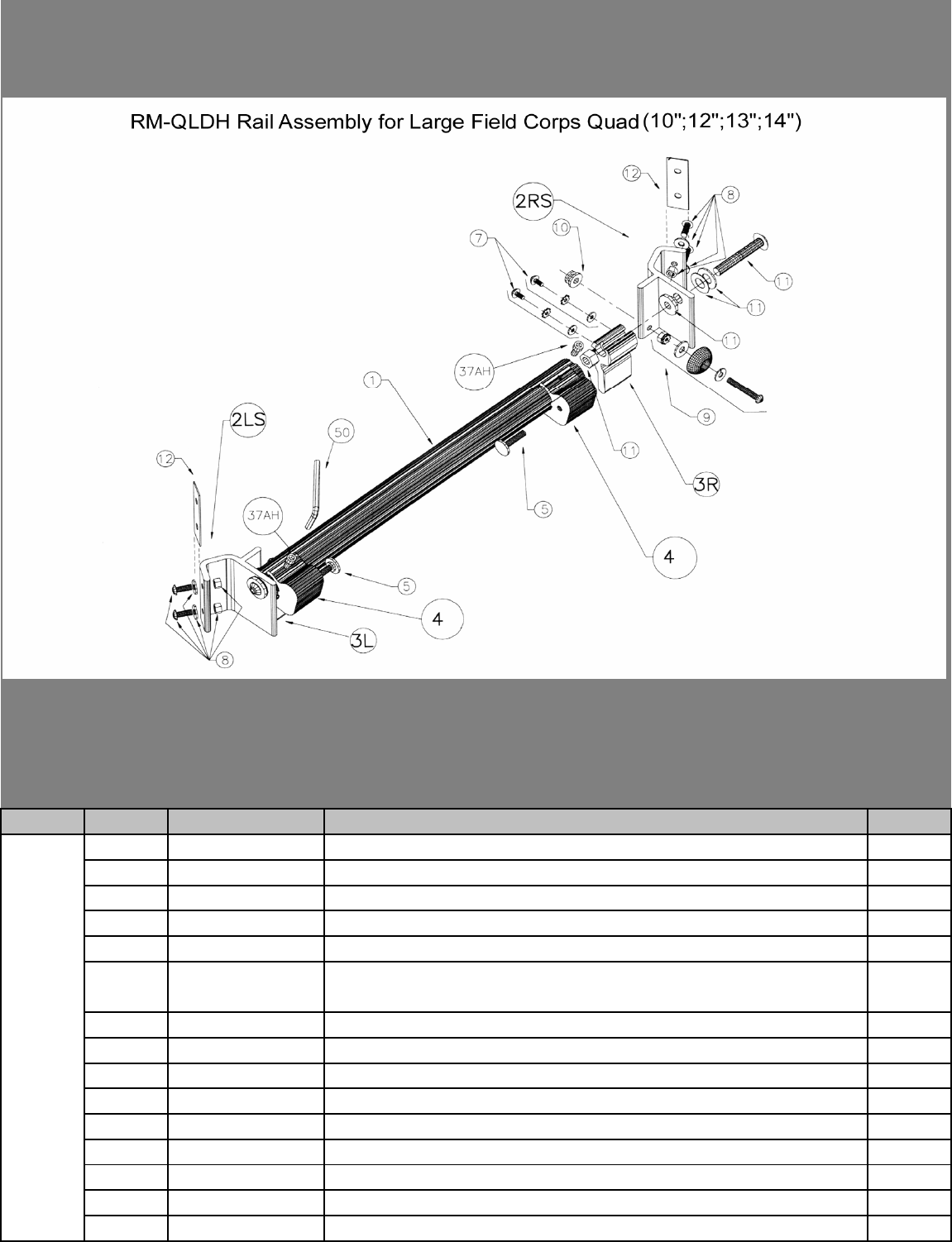

RM-QLDH Quad Rail Assembly - Large (10, 12, 13, 14) 1
1 RM-QSDH1 Quad Rail Only - for Small or Large Quad set ( 17 1/2") 1
2LS RM-QLDH2LS Quad-Large Swivel Bracket - Left (3") 1
2RS RM-QLDH2RS Quad-Large Swivel Bracket - Right (3") 1
3 RM-QDH3 End Plug / Swivel 1
5 RM-CBOLT1 Circle Bolt 1/4-20 x 1" 1
7 RM-FCQDH7 End Plug Fastener Set 1
8 RM-FCQDH8 Drum Mounting Fastener Set: 2ea Bolt, Nut & Washer 1
9 RM-QDH9 Rubber Bumper with Bolt for Tom Rail Set
10 RM-QDH10 Black Two-step Thumb Nut 1
11 RM-QDH11 Swivel Bolt Assembly Set
12 RM-QDH12 Swivel Bracket Isolator 1
37AH RM-SH37AH 1/4 - 20 x 3/8 STAINLESS STEEL Allen Head 1
50 RM-HK316 3/16 Short Arm Hex Key 1
1
RM-AVQL, RM-FCQ, RM-MQL
4 RM-QDH4 J Rod Receiver - Left or Right
Model #
Ref # Yamaha Part # Description UOM

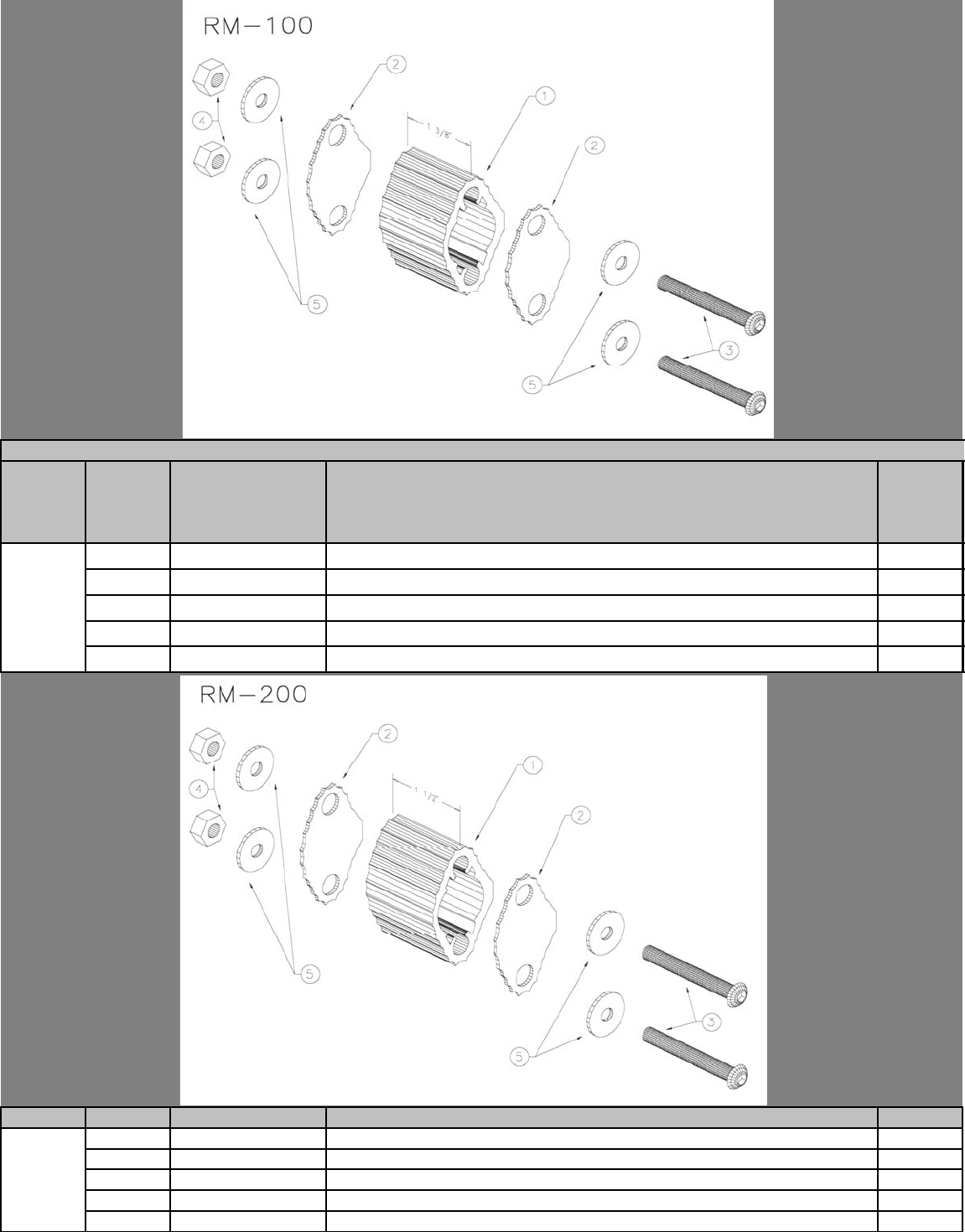

1 RM-100 1-3/8" Tom Spacer 1
2 RM-2 Spacer Isolator 1
3 RM-3 1/4-20 Hex Bolt 1
4 RM-4 1/4-20 Nut 1
5 RM-5 1/4 SAE Flat Washer 1
Model # Ref #
Y
amaha Part # Description UOM
1 RM-200 1-1/2" Tom Spacer 1
2 RM-2 Spacer Isolator 1
3 RM-3 1/4-20 Hex Bolt 1
4 RM-4 1/4-20 Nut 1
5 RM-5 1/4 SAE Flat Washer 1
FIELD-CORPS Spacers for Quads
RM-100RM-200
Model # Ref # Yamaha Part # Description UOM

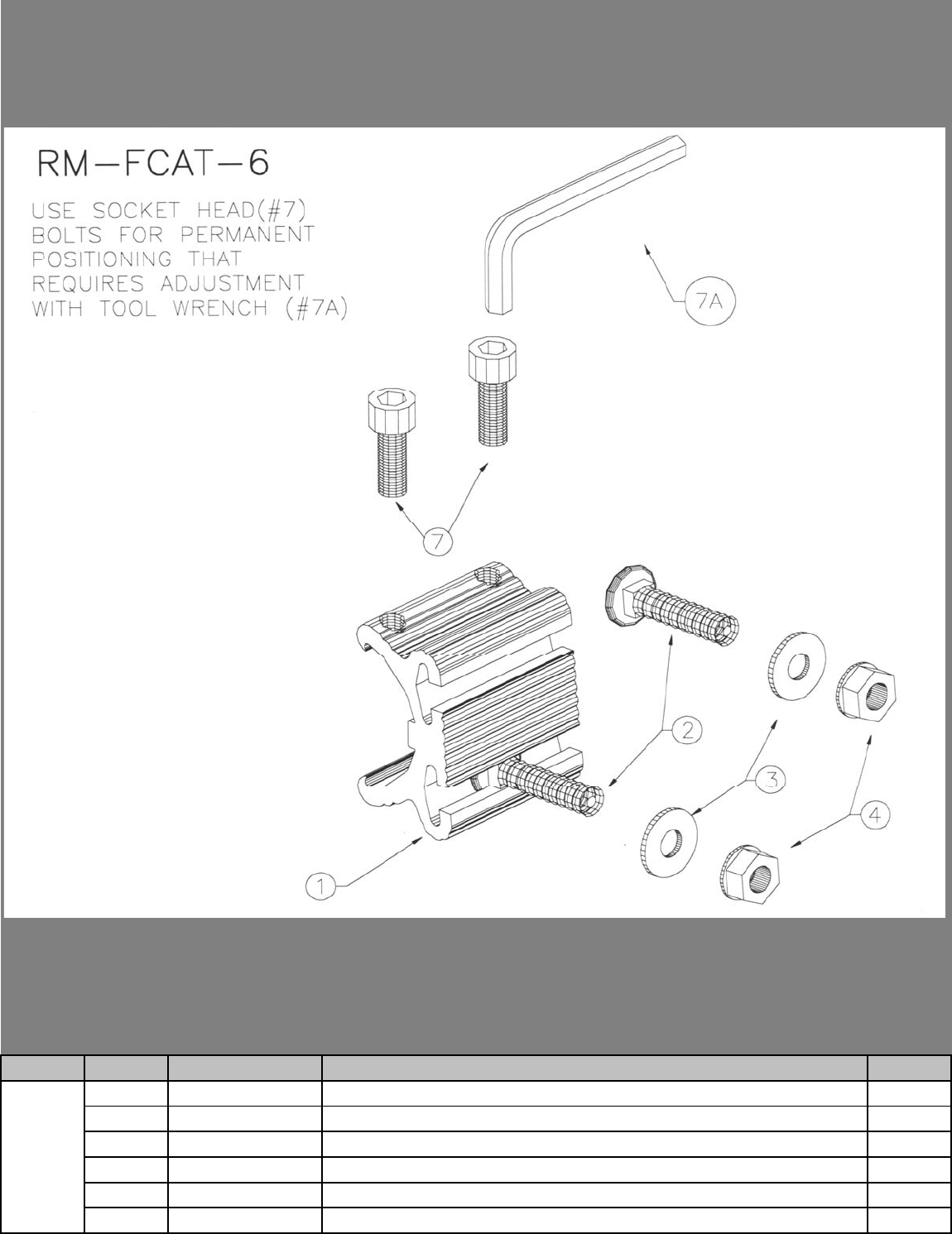

1 FCAT-6 6" Tom Attachment Assembly 1
2 RM-FCAT2 1/4-20 x 1" Carriage Bolt 1
3 RM-FCAT3 Washer 1
4 RM-FCAT4 1/4-20 Regular Nylock Nut 1
7 RM-SH37AH 1/4 - 20 x 3/8 Stainless Steel Socket Head 1
7A RM-HK316 3/16 Short Arm Hex Key 1
FCAT-6
