User Manual: Yamaha Bruin-350-Owners-Manual

Open the PDF directly: View PDF .
Page Count: 174 [warning: Documents this large are best viewed by clicking the View PDF Link!]

5UH-F8199-10LIT-11626-17-32

READ THIS MANUAL CAREFULLY!

It contains important safety information.

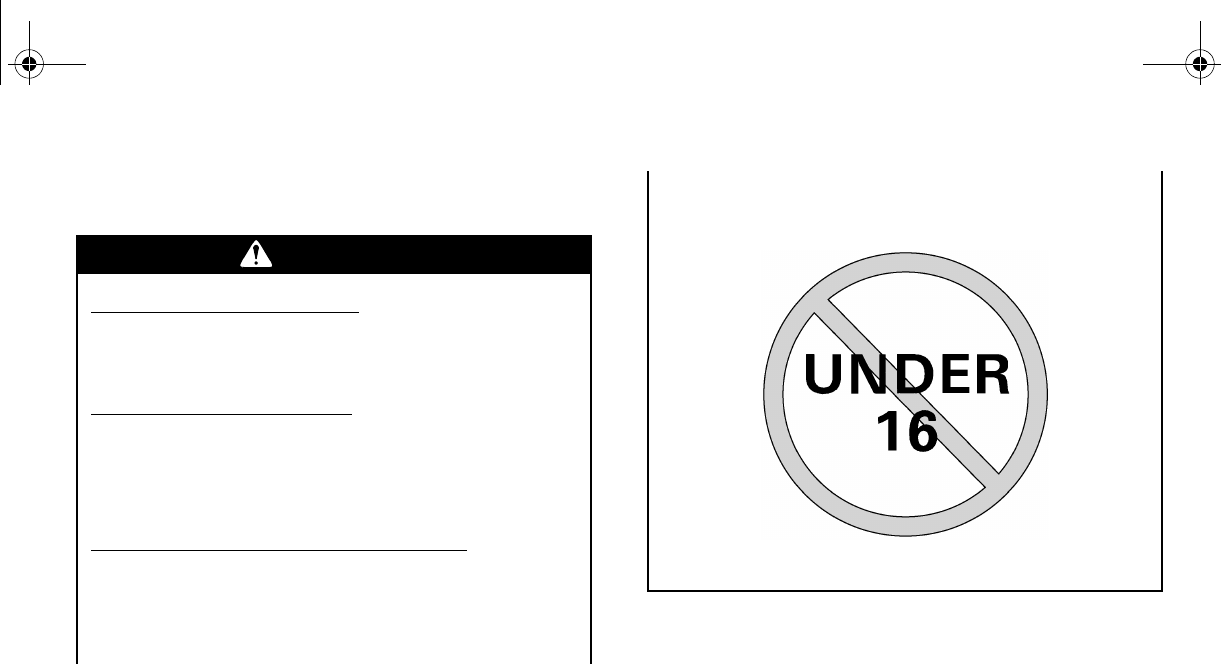

This ATV should not be ridden by anyone under 16 years of age.

WARNING

YFM350FAS

OWNER’S MANUAL

PRINTED IN USA

2003.08-5.4×1 CR

(E)

PRINTED ON RECYCLED PAPER

YAMAHA MOTOR CO., LTD.

EBU00438

LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.

(For replacement manual, call 1-800-532-1558)

WARNING

ALWAYS:

use proper riding techniques to avoid

vehicle overturns on hills and rough

terrain and in turns.

avoid paved surfaces-pavement may

seriously affect handling and control.

Improper ATV use can result in SEVERE INJURY or DEATH.

NEVER operate:

without proper training or instruction.

at speeds too fast for your skills or the

conditions.

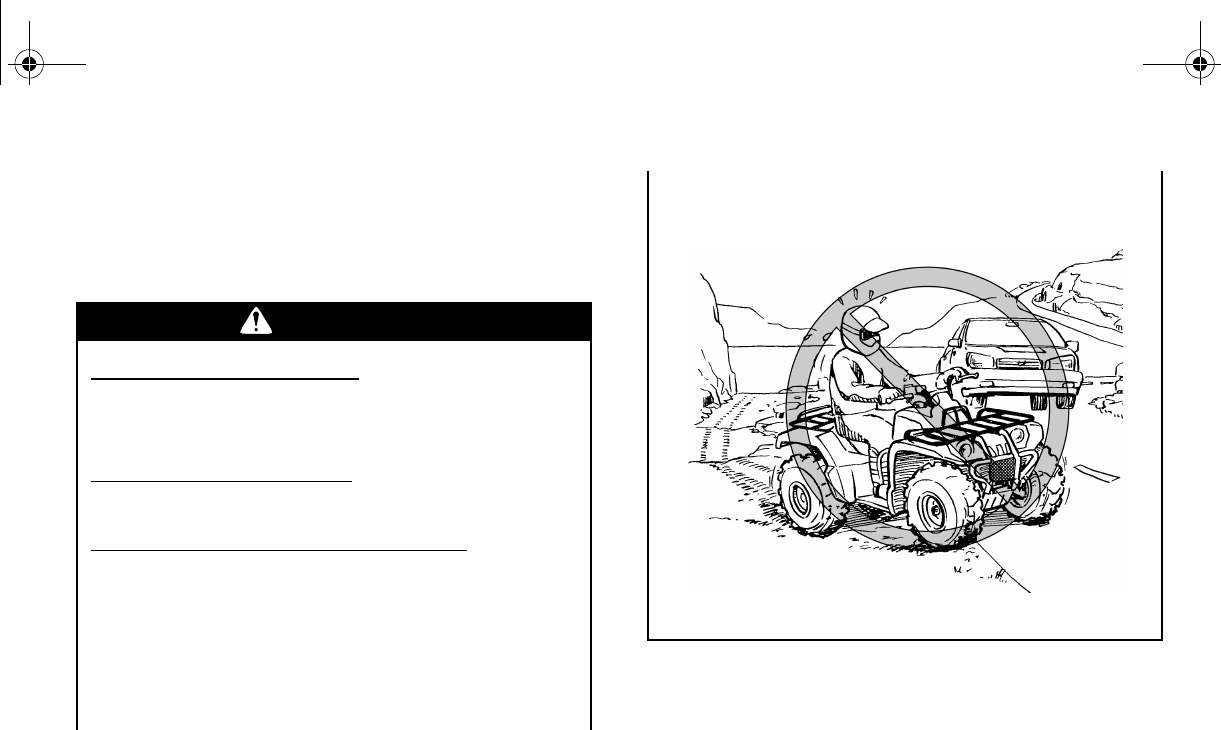

on public roads-a collision can occur with

another vehicle.

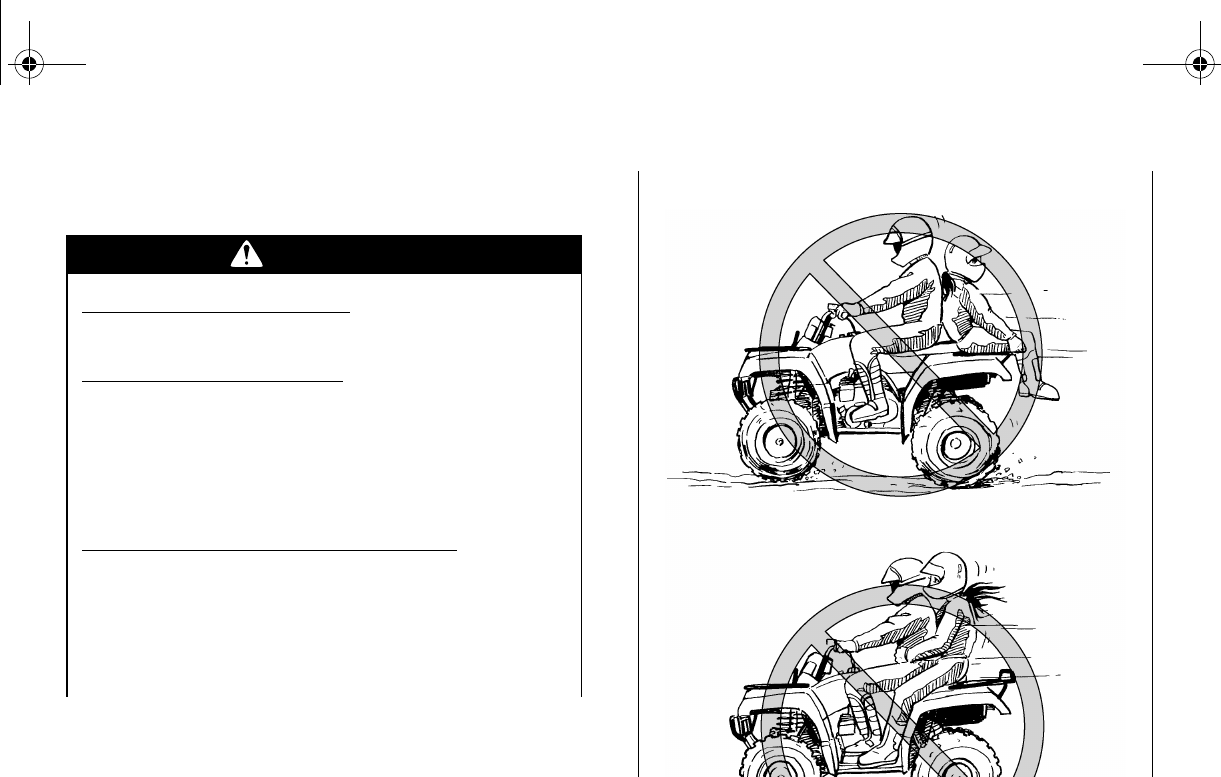

with a passenger-passengers affect

balance and steering and increase risk

of losing control.

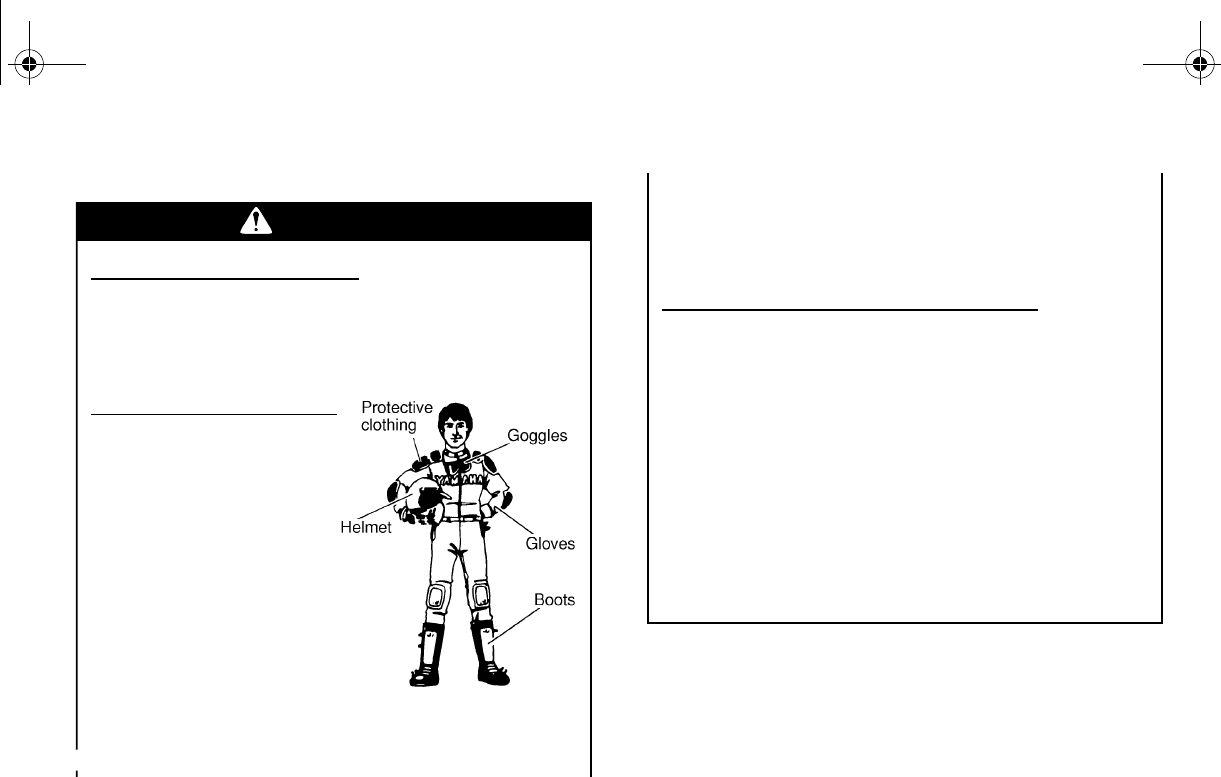

ALWAYS USE

AN APPROVED

HELMET AND

PROTECTIVE GEAR

NEVER USE

ON PUBLIC

ROADS

NEVER CARRY

PASSENGERS

NEVER USE

WITH DRUGS

OR ALCOHOL

EBU00776

EBU00941

INTRODUCTION

Congratulations on your purchase of the Yamaha YFM350FA. It represents the result of many

years of Yamaha experience in the production of fine sporting, touring, and pace-setting racing

machines. With the purchase of this Yamaha, you can now appreciate the high degree of crafts-

manship and reliability that have made Yamaha a leader in these fields.

This manual will provide you with a good basic understanding of the features and operation of this

ATV. This manual includes important safety information. It provides information about

special techniques and skills necessary to ride your ATV. It also includes basic maintenance

and inspection procedures. If you have any questions regarding the operation or maintenance of

your ATV, please consult a Yamaha dealer.

AN IMPORTANT SAFETY MESSAGE:

●READ THIS MANUAL TOGETHER WITH TIPS FOR THE ATV RIDER CAREFULLY AND

COMPLETELY BEFORE OPERATING YOUR ATV. MAKE SURE YOU UNDERSTAND ALL

INSTRUCTIONS.

●PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE ATV.

●NEVER OPERATE AN ATV WITHOUT PROPER TRAINING OR INSTRUCTION. FREE

TRAINING IS AVAILABLE TO ANYONE WHO BUYS A NEW ATV. CALL 1-800-887-2887

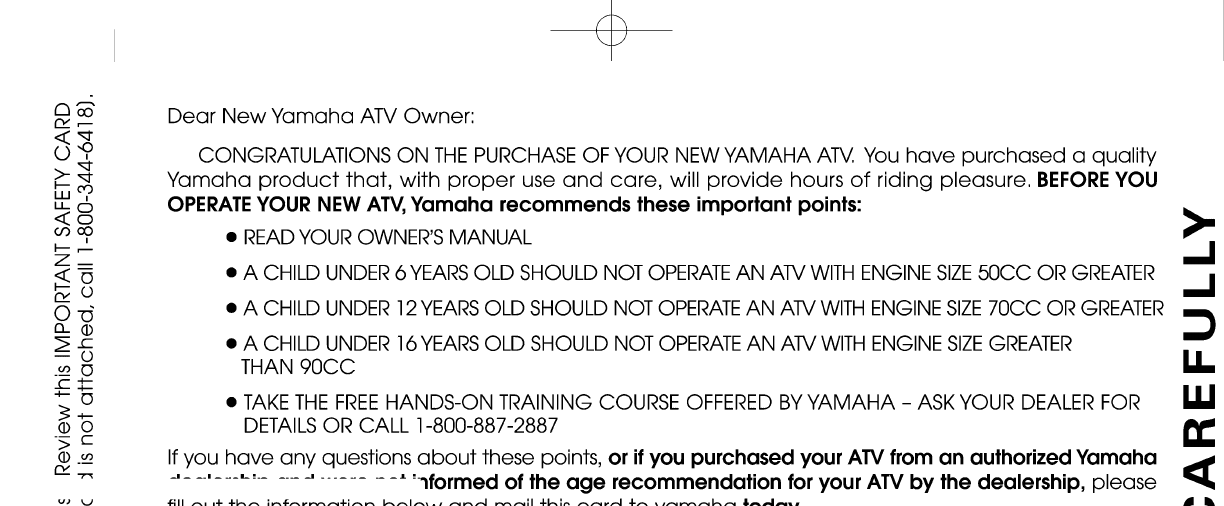

●THIS ATV, AND ANY OTHER ATV OVER 90cc, SHOULD NOT BE RIDDEN BY ANYONE

UNDER 16 YEARS OF AGE.

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

EBU00801

IMPORTANT MANUAL INFORMATION

FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SE-

RIOUS INJURY OR DEATH.

Particularly important information is distinguished in this manual by the following notations:

The Safety Alert Symbol means ATTENTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED!

WARNING

Failure to follow WARNING instructions could result in severe

injury or death to the machine operator, a bystander or a person

inspecting or repairing the machine.

CAUTION:

A CAUTION indicates special precautions that must be taken to

avoid damage to the machine.

NOTE:

A NOTE provides key information to make procedures easier or clearer.

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

AFFIX DEALER

LABEL HERE

EBU00011

IMPORTANT NOTICE

This machine is designed and manufactured for OFF-ROAD use only. It is illegal and unsafe to

operate this machine on any public street, road or highway.

This machine complies with all applicable OFF-ROAD noise level and spark arrester laws and

regulations in effect at the time of manufacture.

Please check your local riding laws and regulations before operating this machine.

EBU01067

YFM350FAS

OWNER’S MANUAL

U.S.A.

1st edition, July 2003

unauthorized use without the written

permission of

Yamaha Motor Corporation,

U.S.A. is expressly prohibited.

Printed in U.S.A.

P/N LIT-11626-17-32

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

EBU00014

WARNING

Indicates a potential hazard that could

result in serious injury or death.

CONTENTS

LOCATION OF THE WARNING

AND SPECIFICATION LABELS....... 1-1

SAFETY INFORMATION.................. 2-1

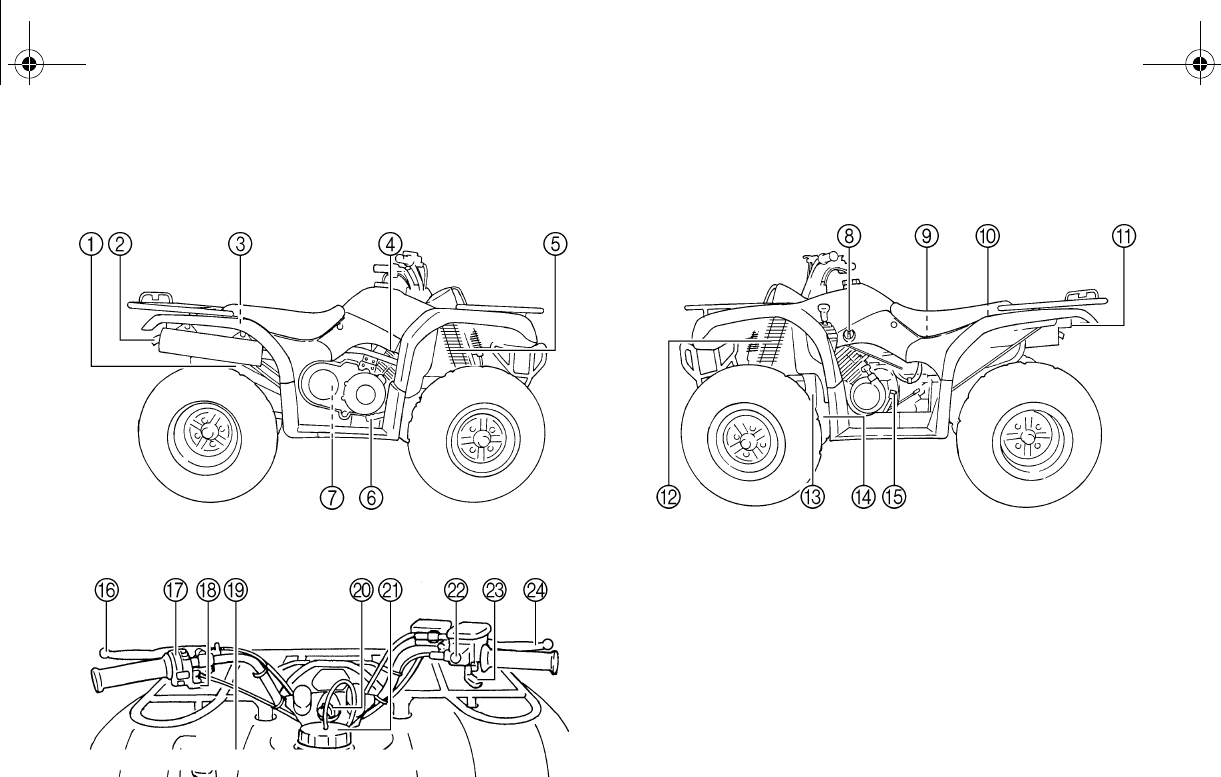

DESCRIPTION AND MACHINE

IDENTIFICATION ............................. 3-1

Identification number records.......... 3-2

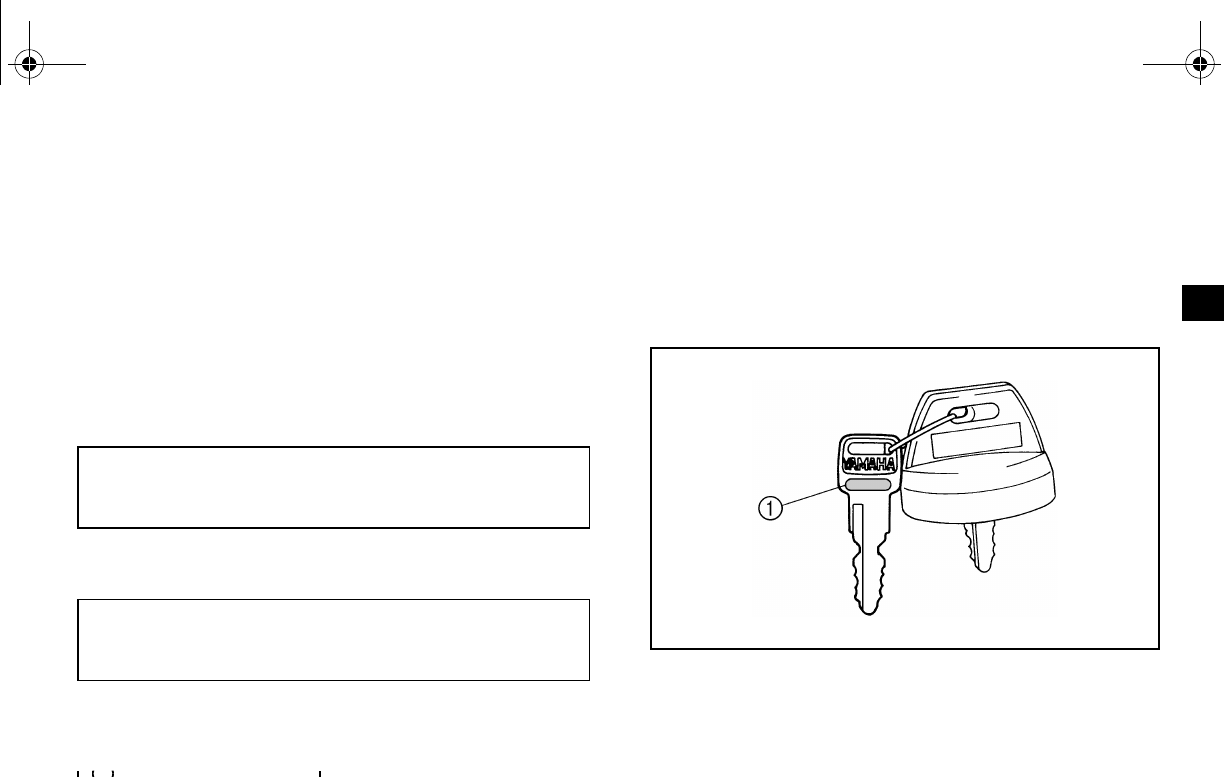

Key identification number................ 3-2

ber .......... 3-3

Model label ...................................... 3-3

CONTROL FUNCTIONS...................4-1

Main switch ......................................4-1

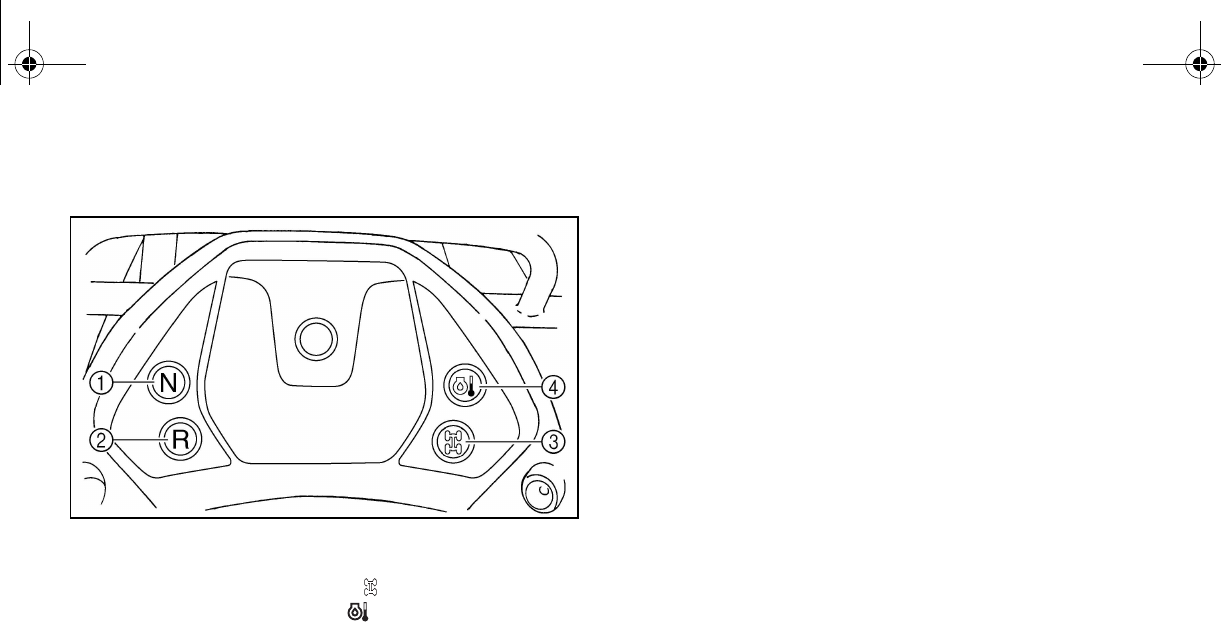

Indicator and warning lights.............4-2

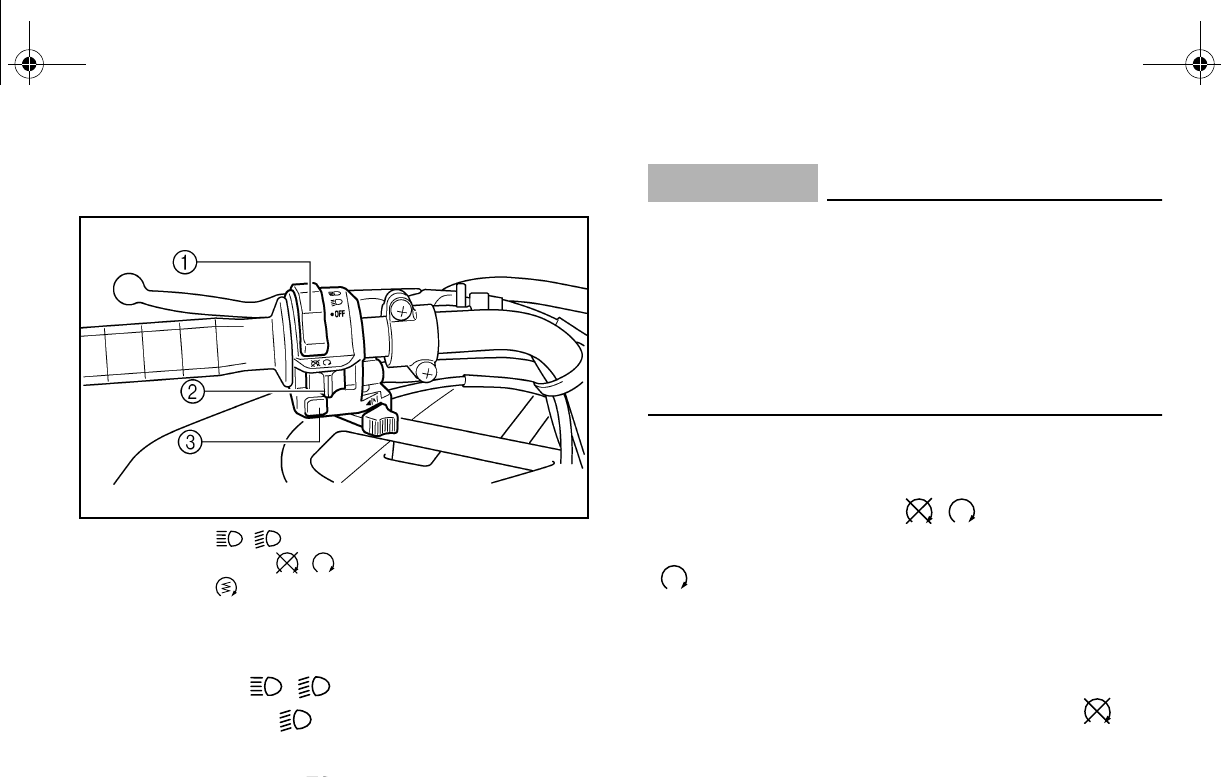

Handlebar switches .........................4-5

Throttle lever ....................................4-8

Speed limiter ....................................4-9

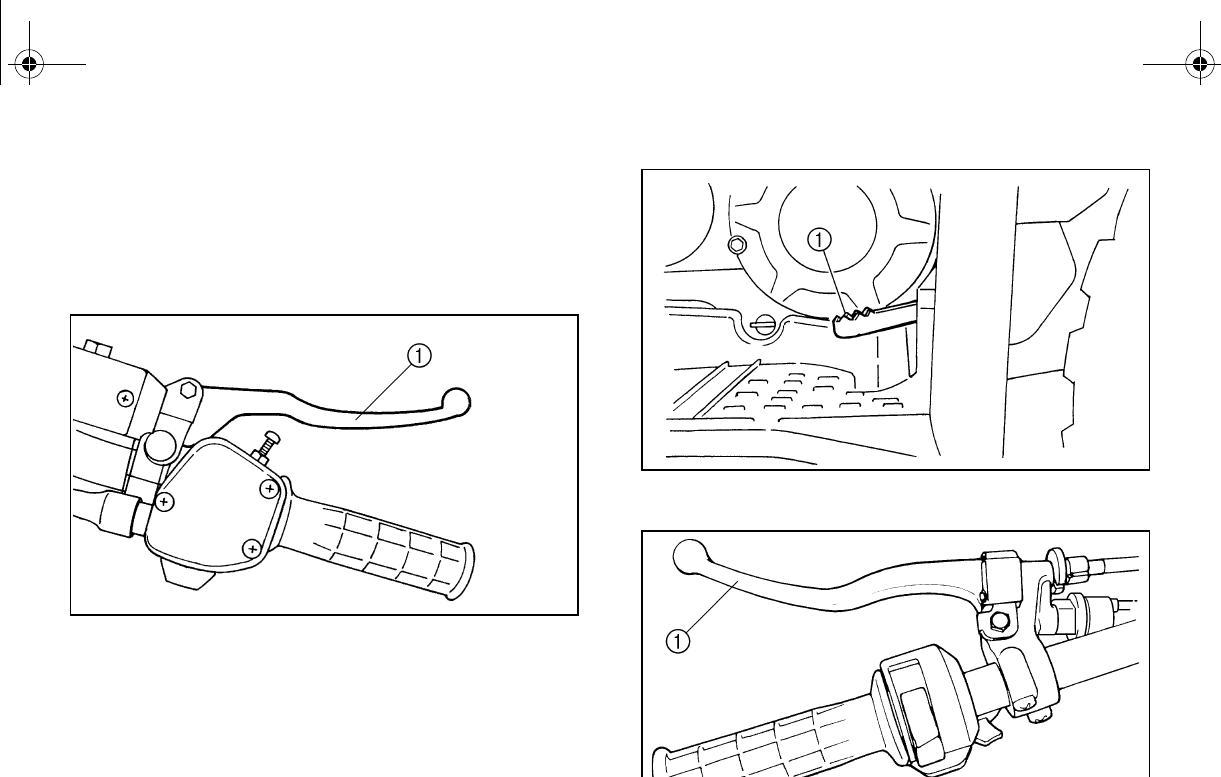

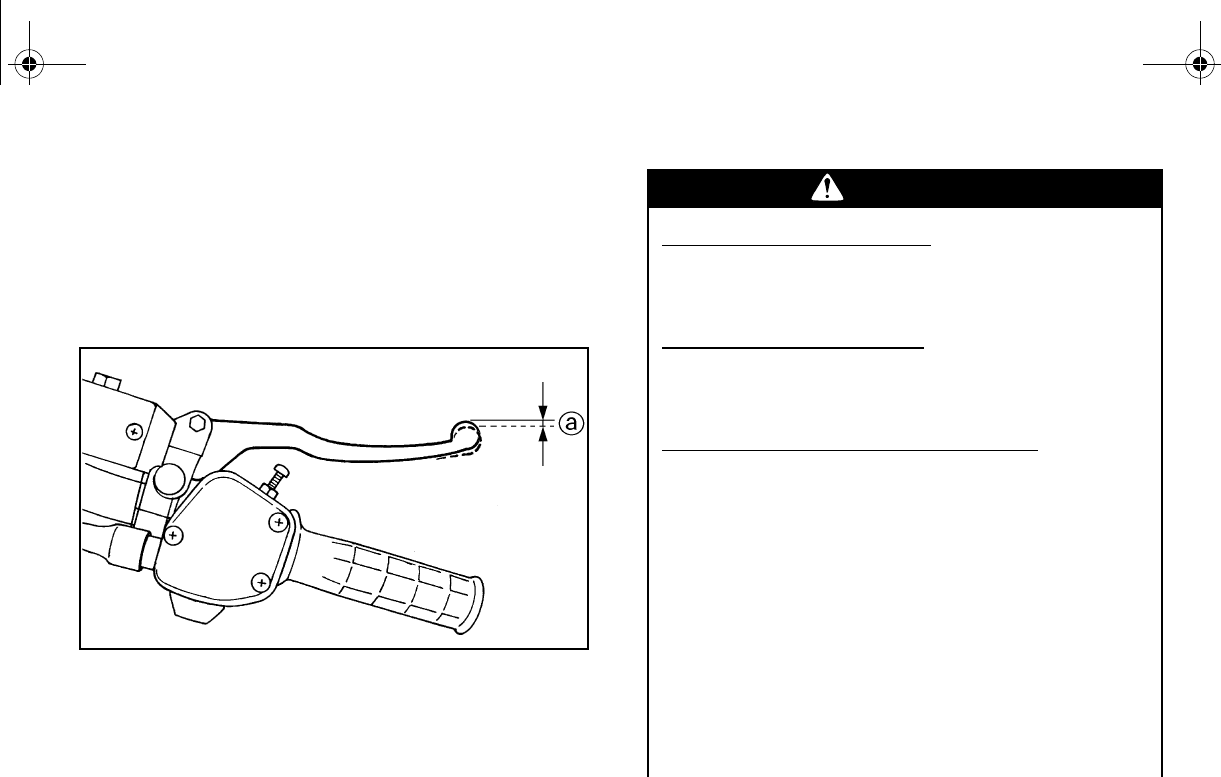

Front brake lever............................4-10

Brake pedal and rear brake

lever .............................................4-10

Parking brake.................................4-11

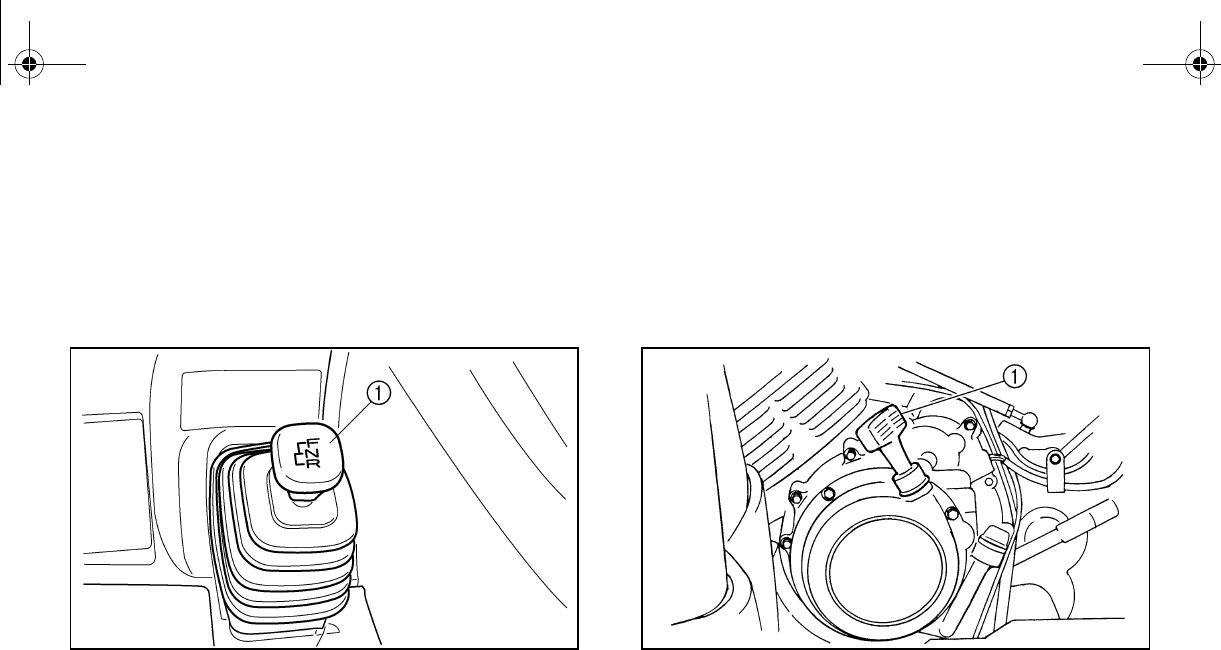

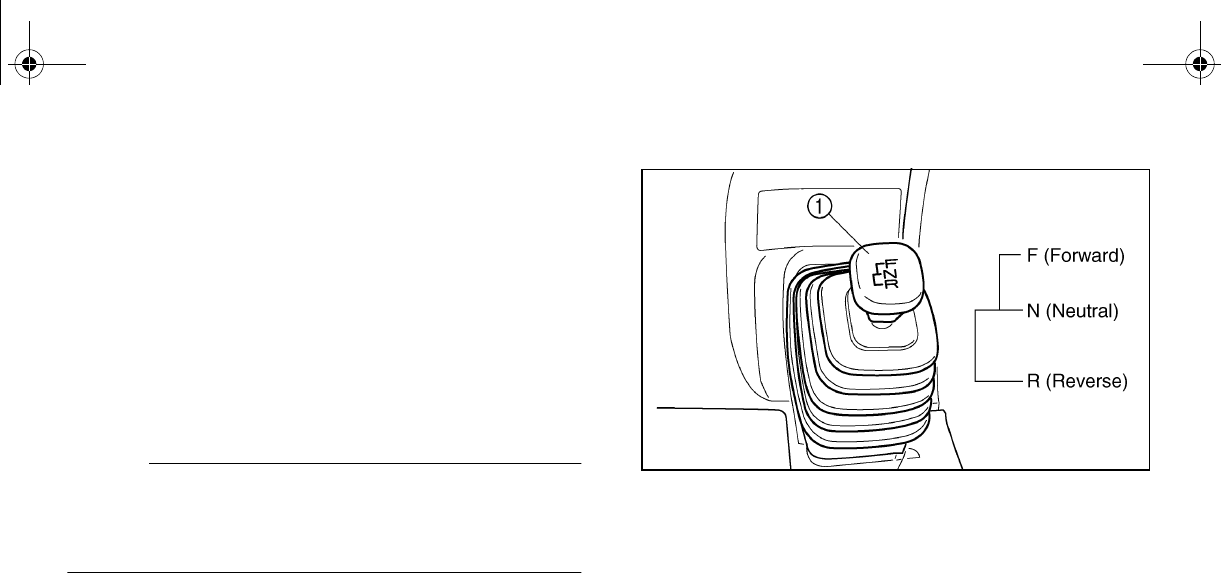

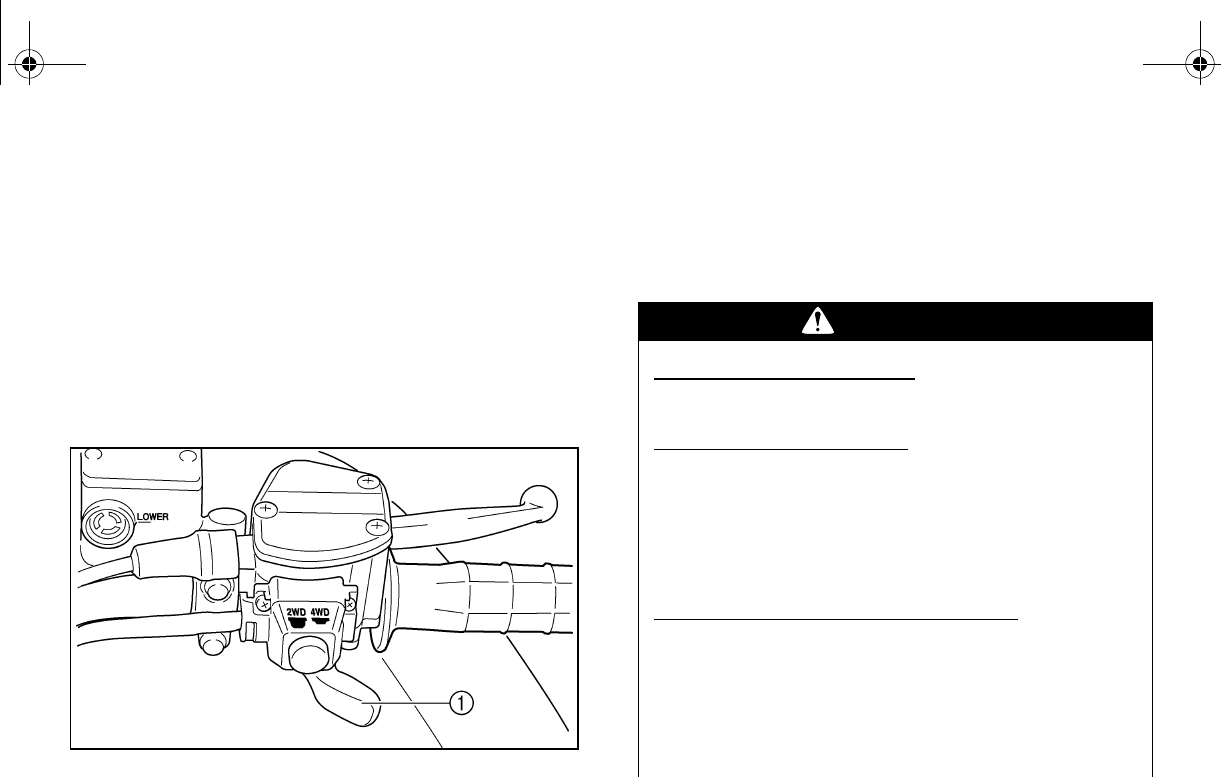

Drive select lever ...........................4-12

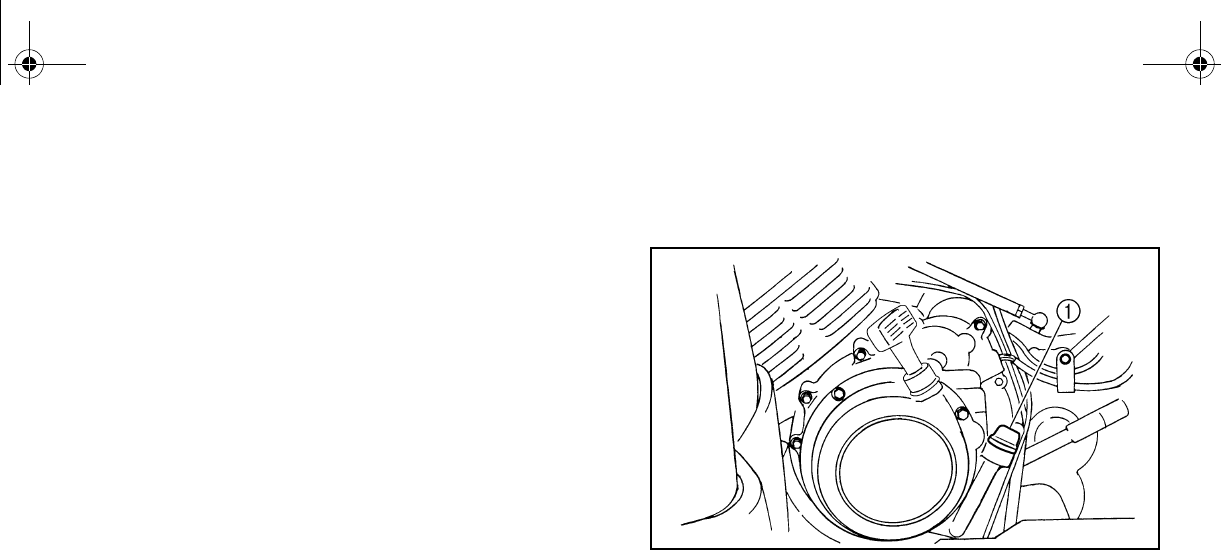

Recoil starter..................................4-12

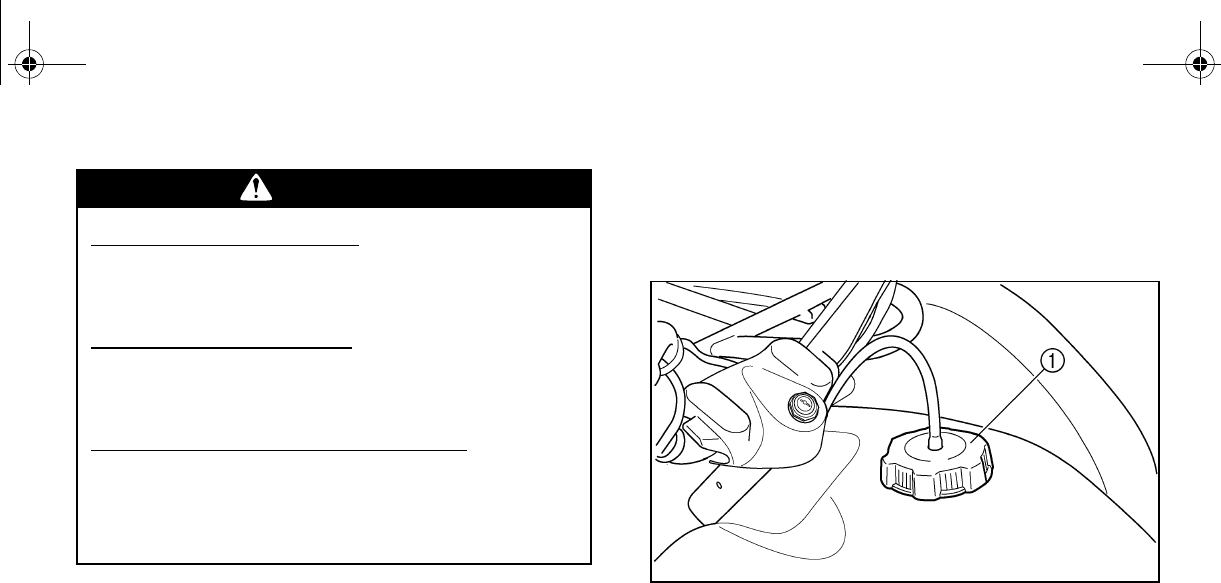

Fuel tank cap .................................4-13

Fuel cock........................................4-14

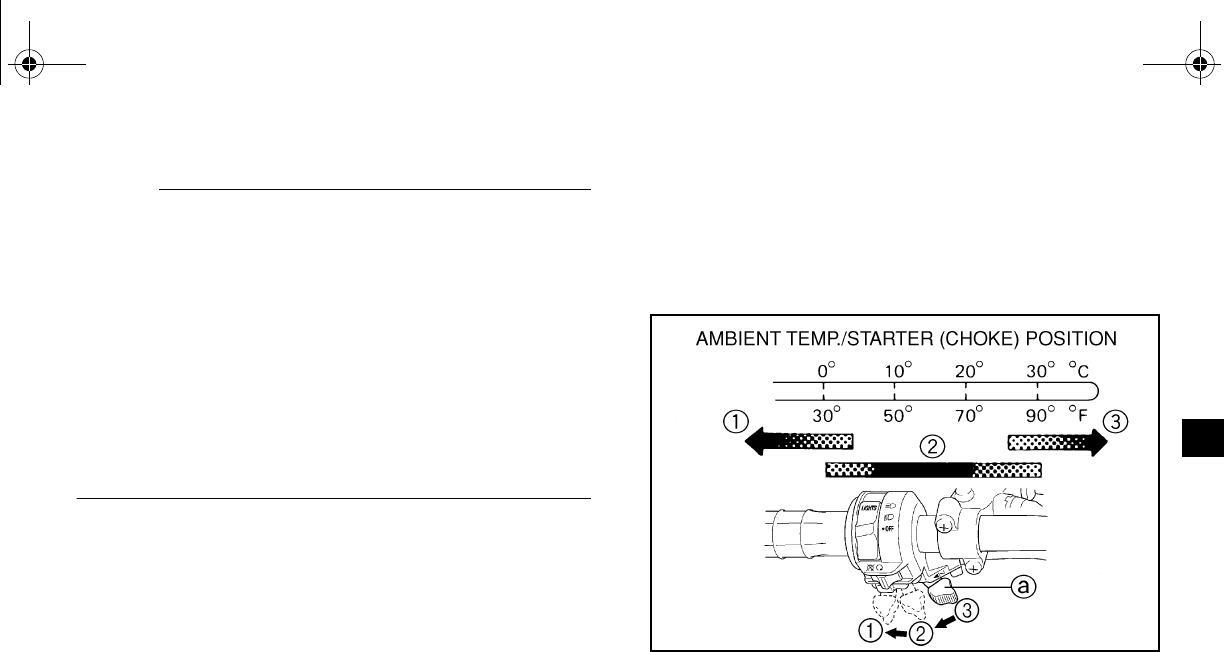

Starter (choke) ...............................4-15

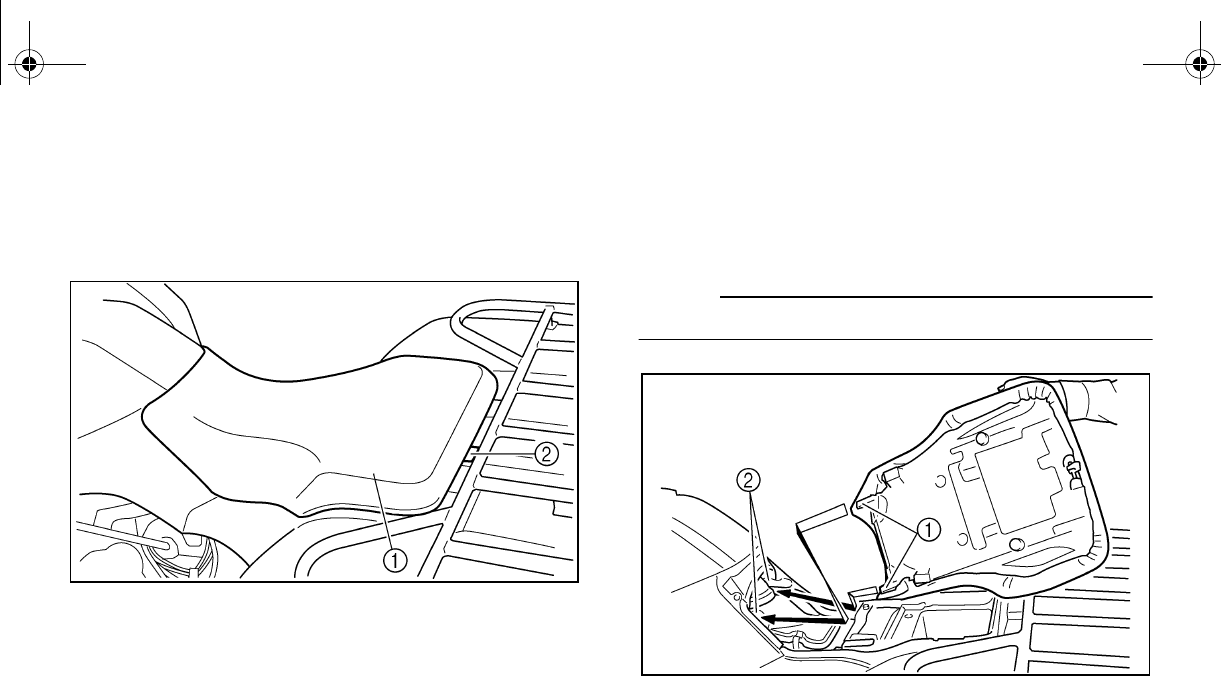

Seat................................................4-16

Storage box....................................4-17

Front carrier ...................................4-18

Rear carrier ....................................4-18

Front shock absorber

adjustment ...................................4-18

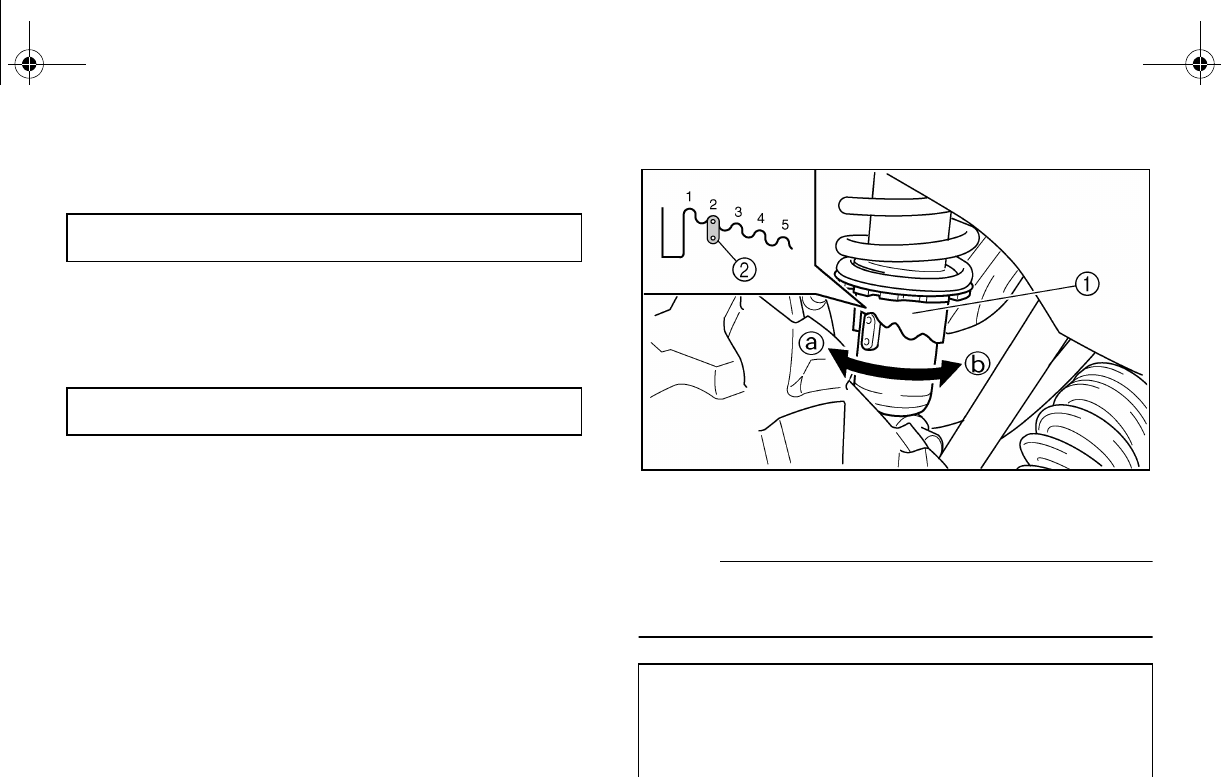

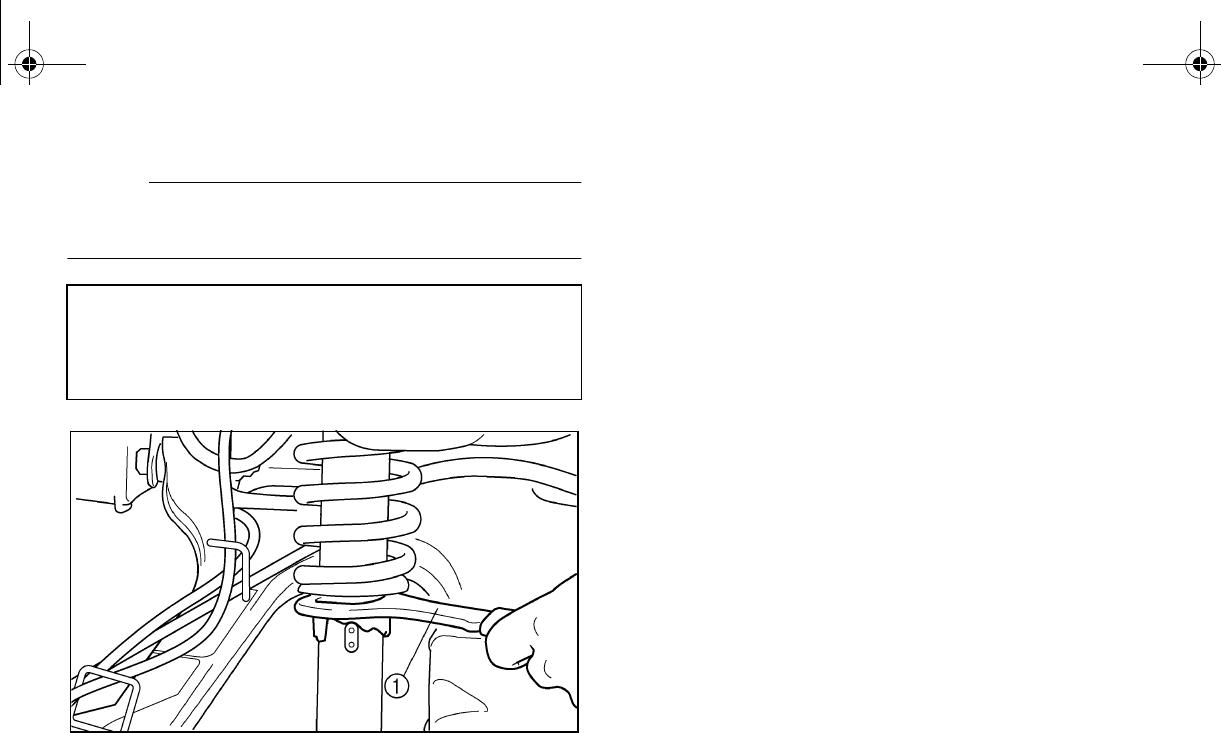

Rear shock absorber

adjustment ...................................4-19

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

PRE-OPERATION CHECKS ........... 5-1

Front and rear brakes ..................... 5-2

Fuel ................................................. 5-4

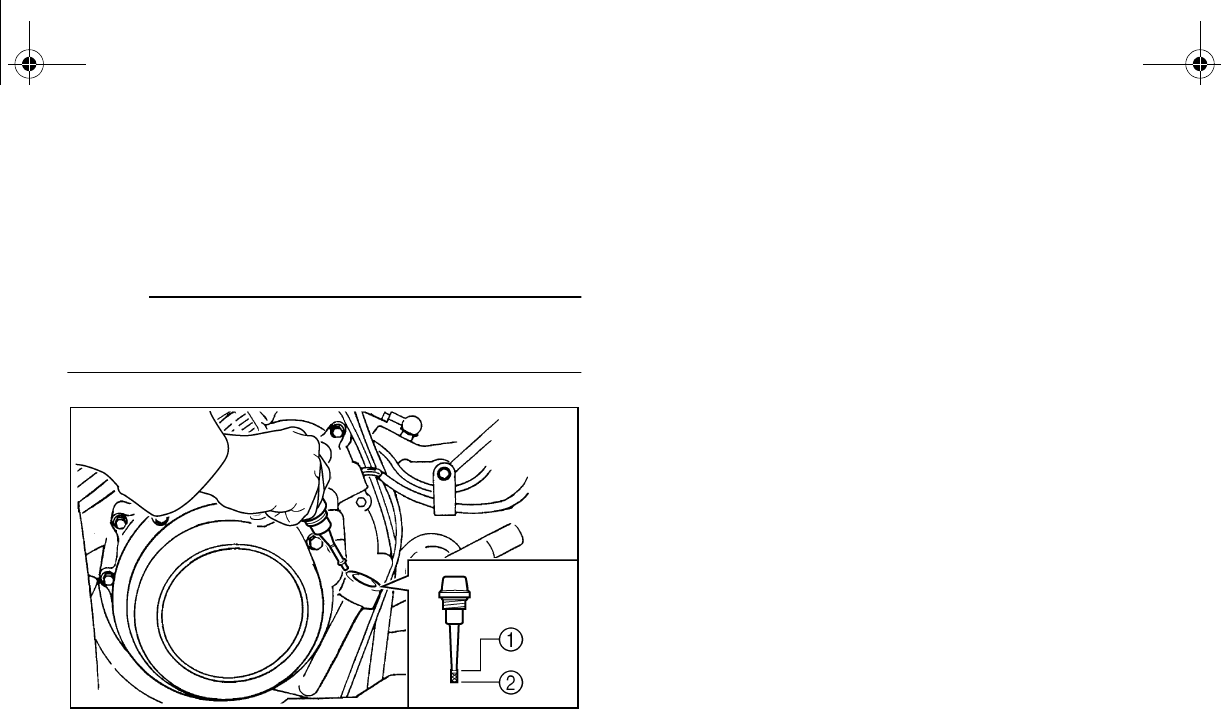

Engine oil ........................................ 5-6

Final gear oil.................................... 5-6

Differential gear oil .......................... 5-7

Throttle lever ................................... 5-7

Fittings and fasteners...................... 5-7

Lights............................................... 5-7

Switches.......................................... 5-7

Tires ................................................ 5-8

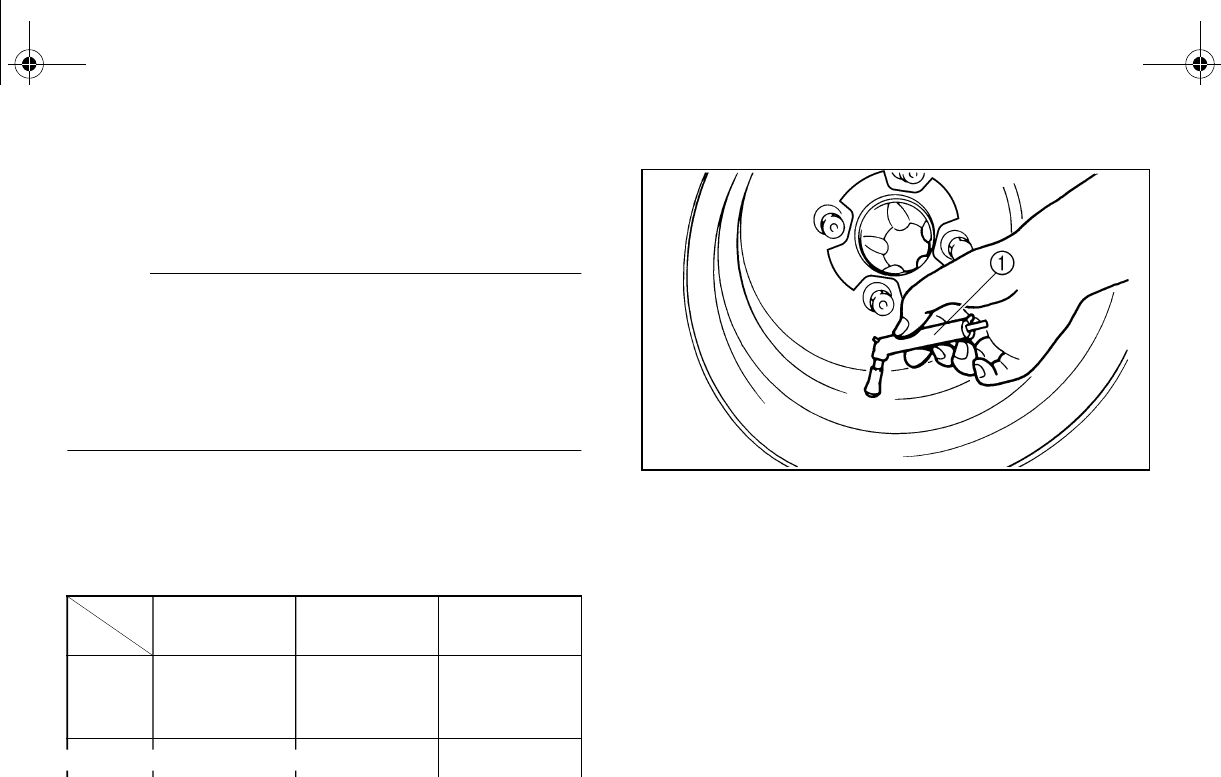

How to measure tire pressure....... 5-10

Tire wear limit................................ 5-11

OPERATION..................................... 6-1

Starting a cold engine ..................... 6-1

Starting a warm engine................... 6-3

Warming up..................................... 6-3

tion and

reverse driving............................... 6-4

Engine break-in............................... 6-7

Parking ............................................ 6-8

Parking on a slope .......................... 6-9

Accessories and loading ...............6-10

RIDING YOUR ATV .......................... 7-1

Getting to know your ATV ............... 7-3

Ride with care and good

judgement...................................... 7-4

Be careful where you ride..............7-16

Turning your ATV ..........................7-22

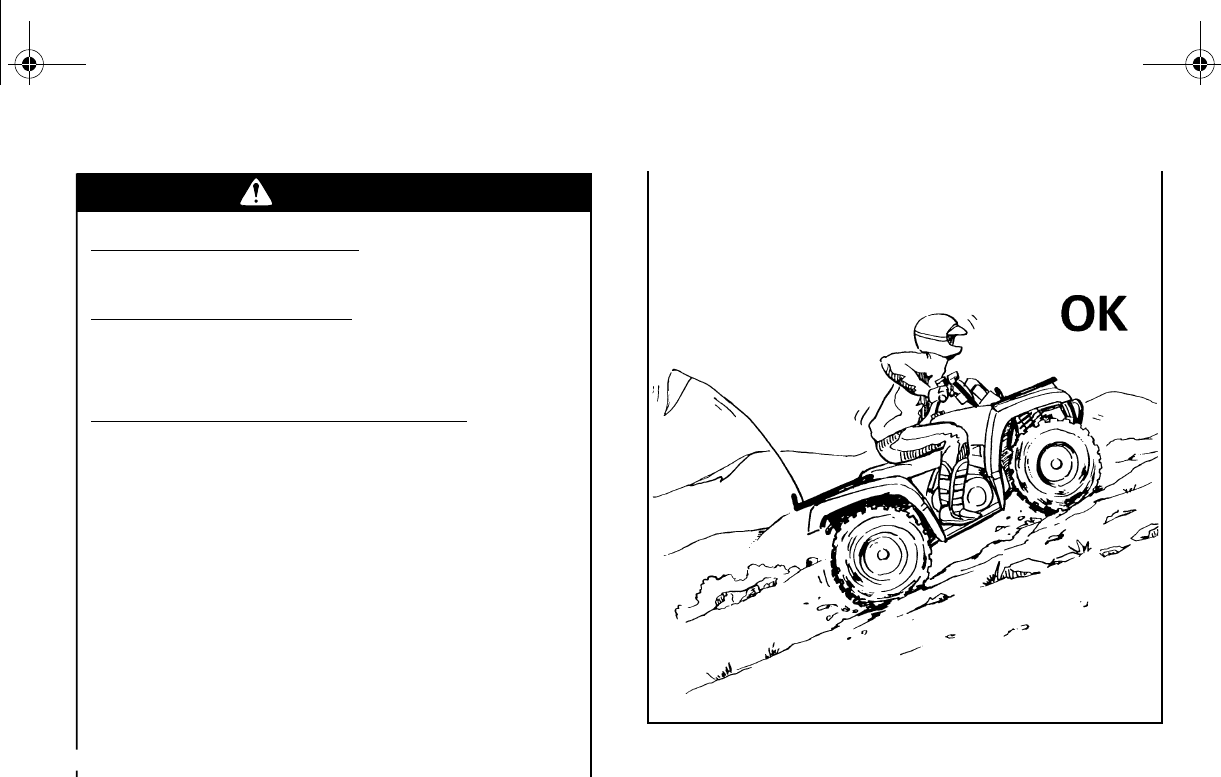

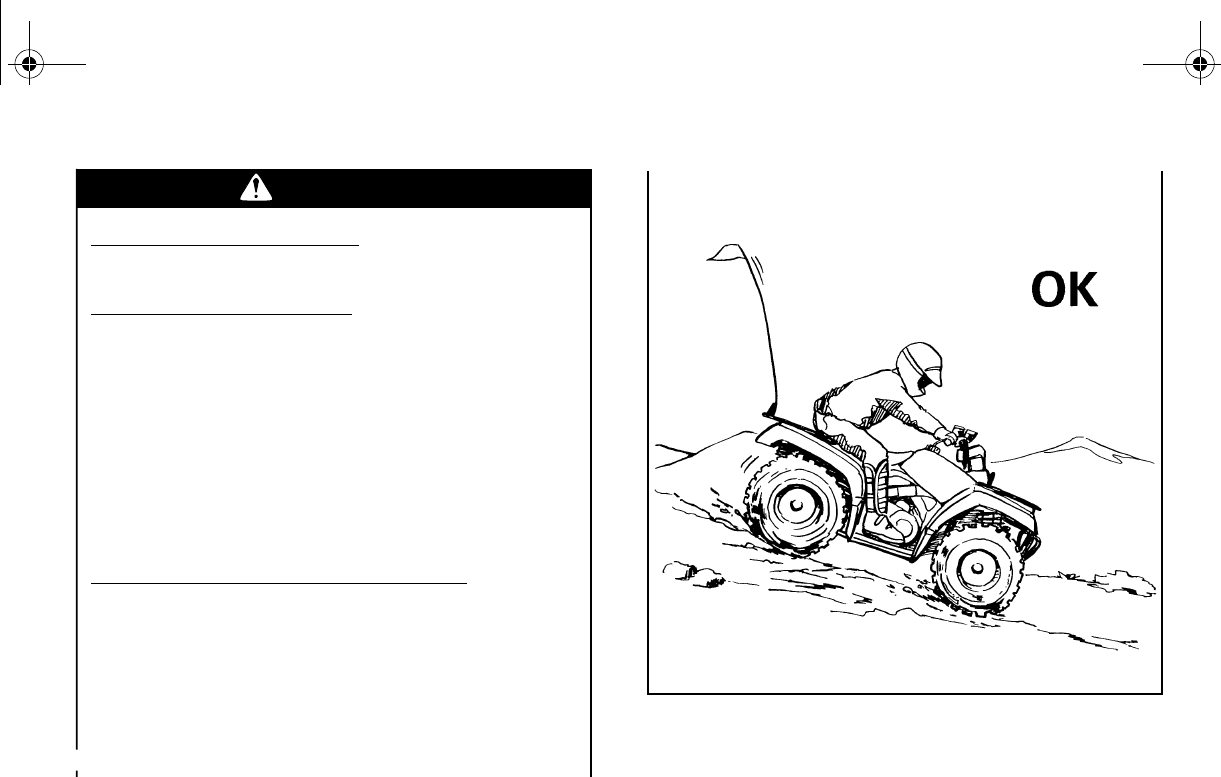

Climbing uphill ............................... 7-24

Riding downhill .............................. 7-30

Crossing a slope............................7-32

Crossing through shallow water .... 7-34

Riding over rough terrain...............7-37

Sliding and skidding.......................7-38

What to do if................................... 7-40

What to do .....................................7-40

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

PERIODIC MAINTENANCE AND

ADJUSTMENT.................................. 8-1

Owner’s manual and tool kit............ 8-1

Periodic maintenance/

lubrication ...................................... 8-3

Panel removal and installation ........ 8-5

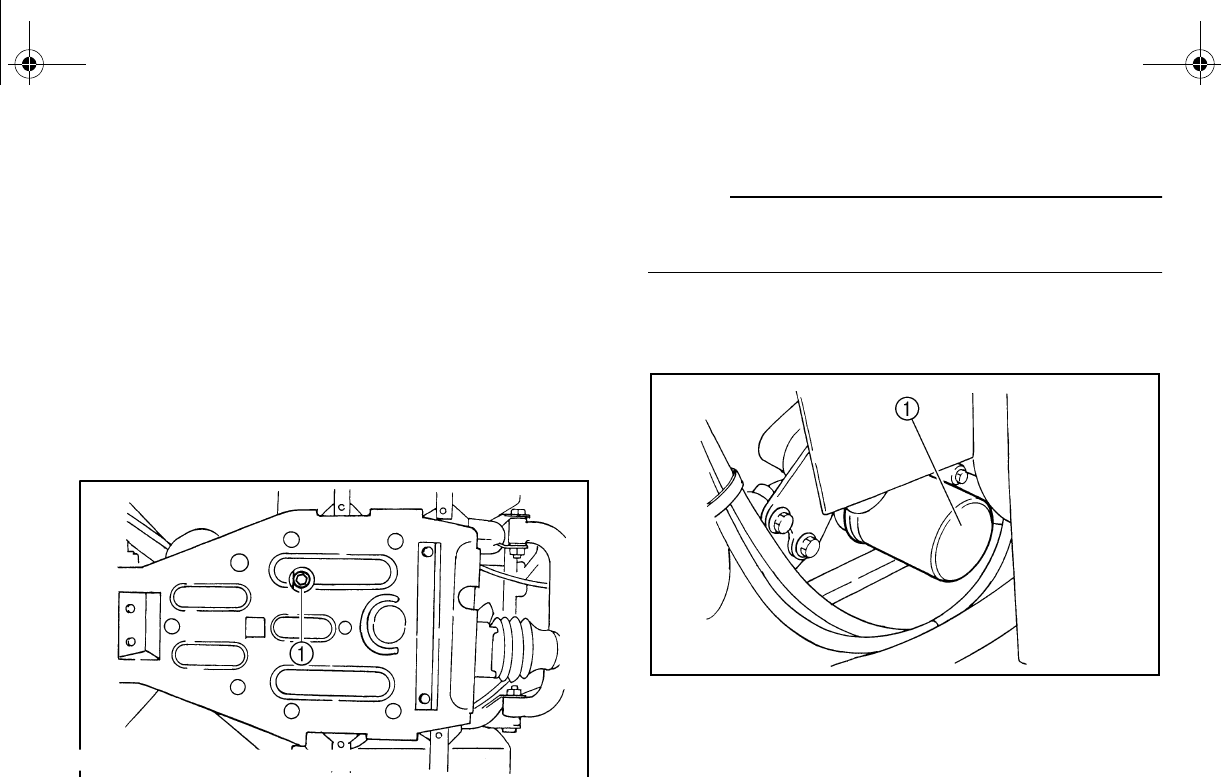

Engine oil and oil filter cartridge ...... 8-6

Final gear oil .................................. 8-11

Differential gear oil replacement ... 8-14

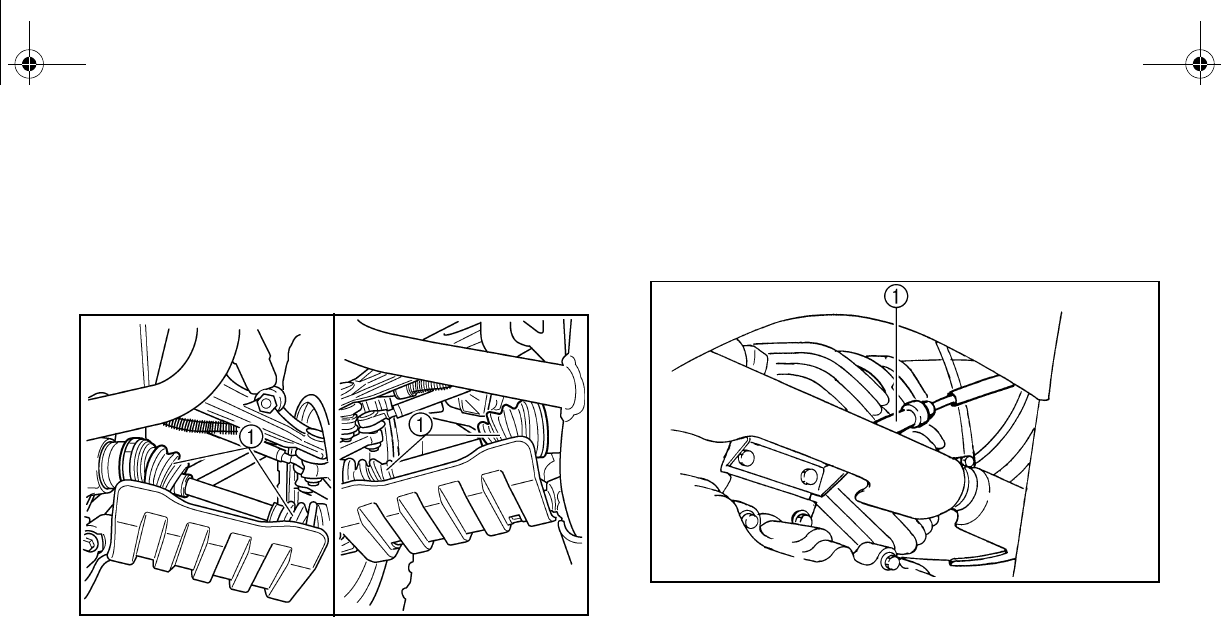

Axle boots...................................... 8-16

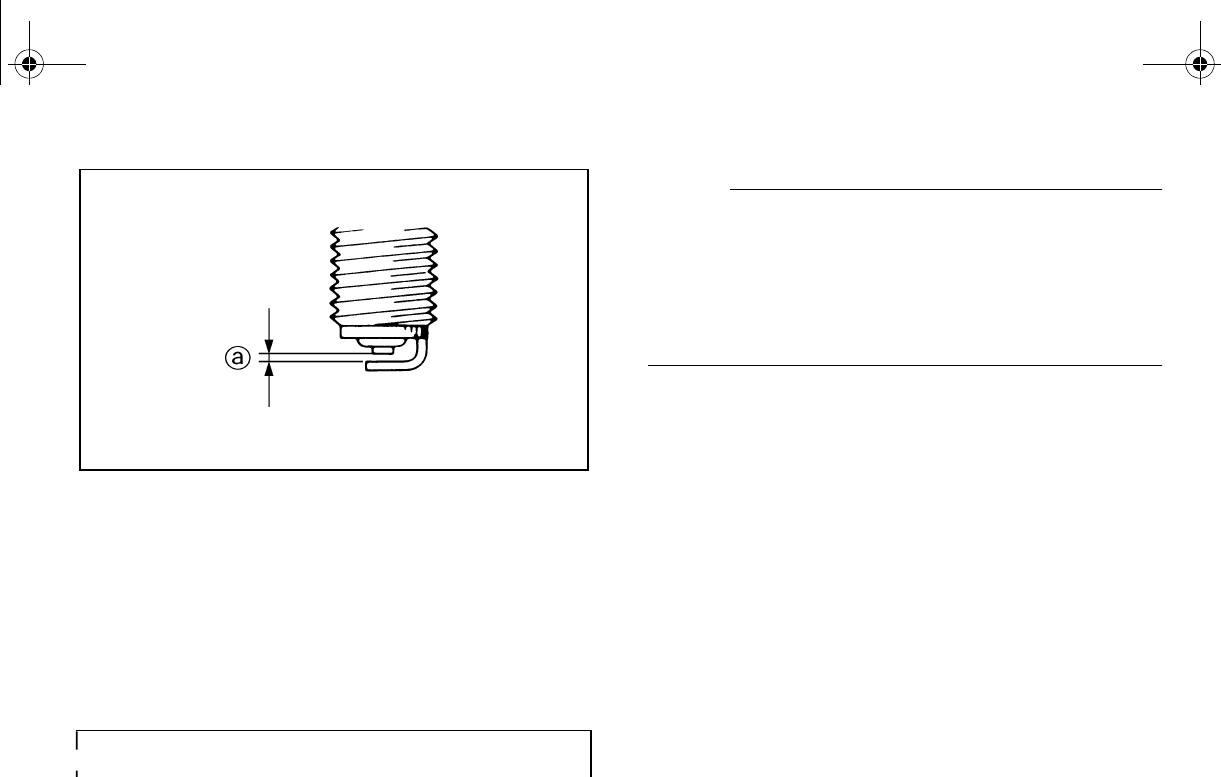

Spark plug inspection.................... 8-16

Air filter element cleaning.............. 8-19

V-belt cooling duct check hose ..... 8-22

V-belt case drain plug.................... 8-22

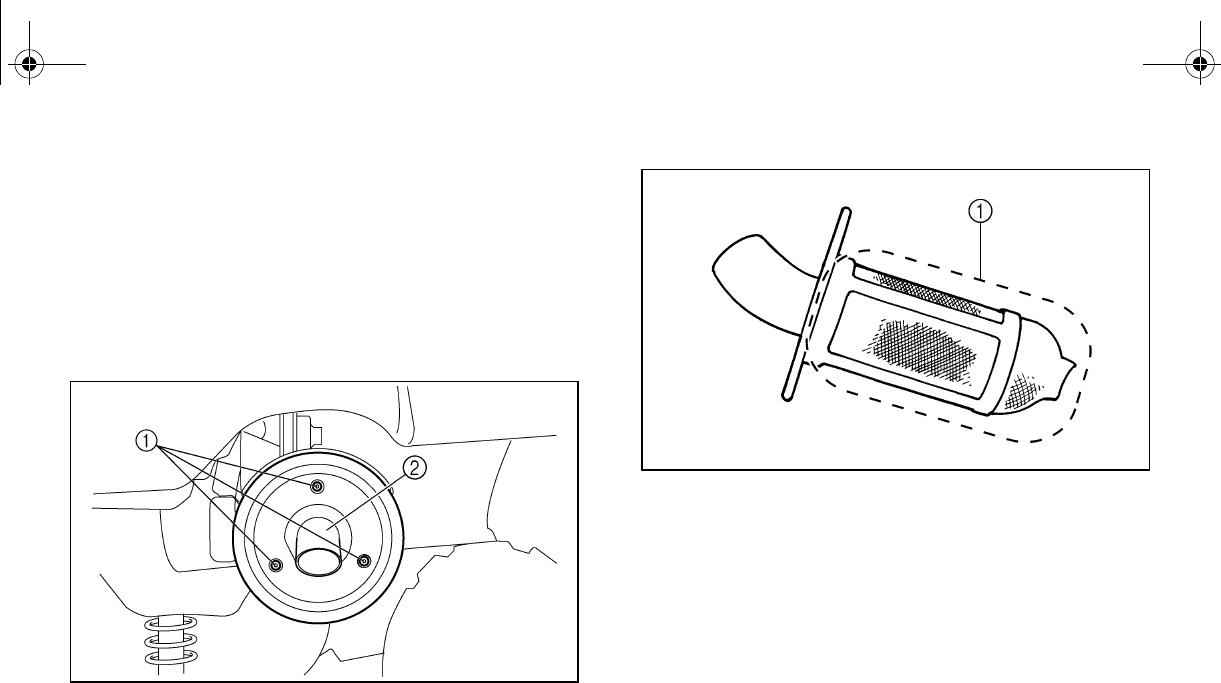

Spark arrester cleaning ................. 8-23

Carburetor adjustment................... 8-24

Idle speed adjustment ................... 8-25

Valve clearance adjustment.......... 8-25

............... 8-26

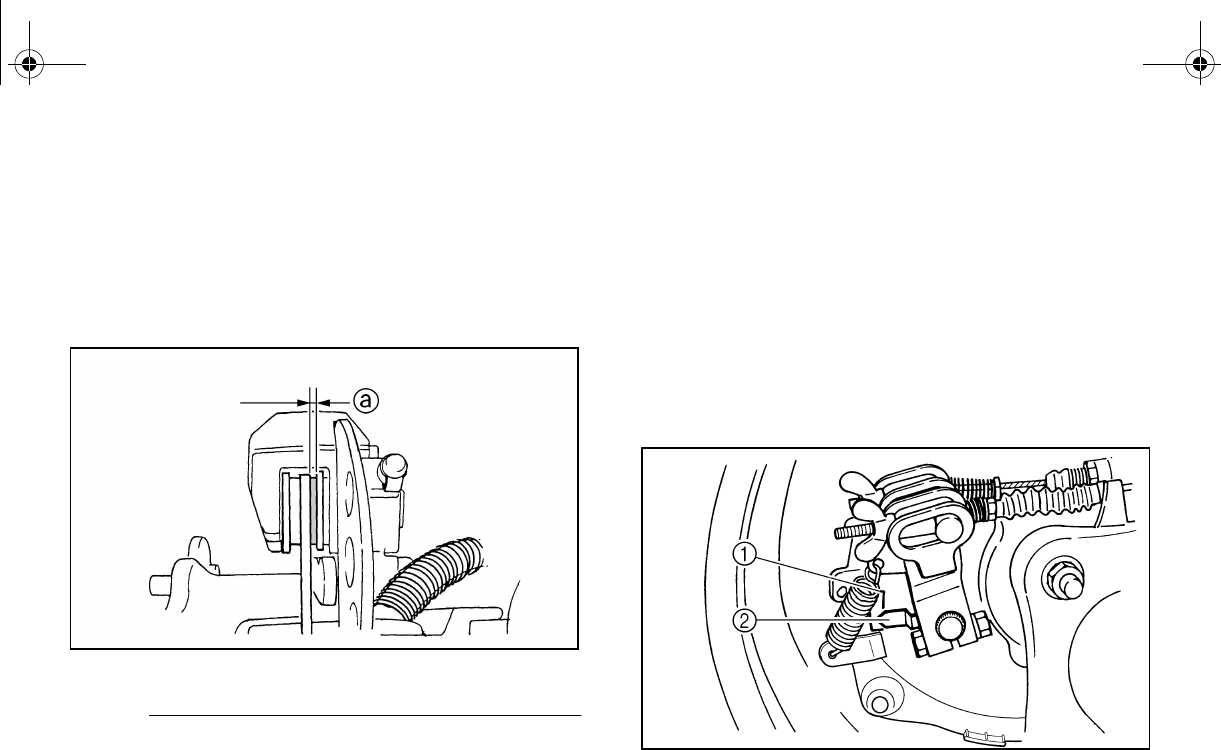

Front brake pad check .................. 8-27

Rear brake shoe inspection .......... 8-27

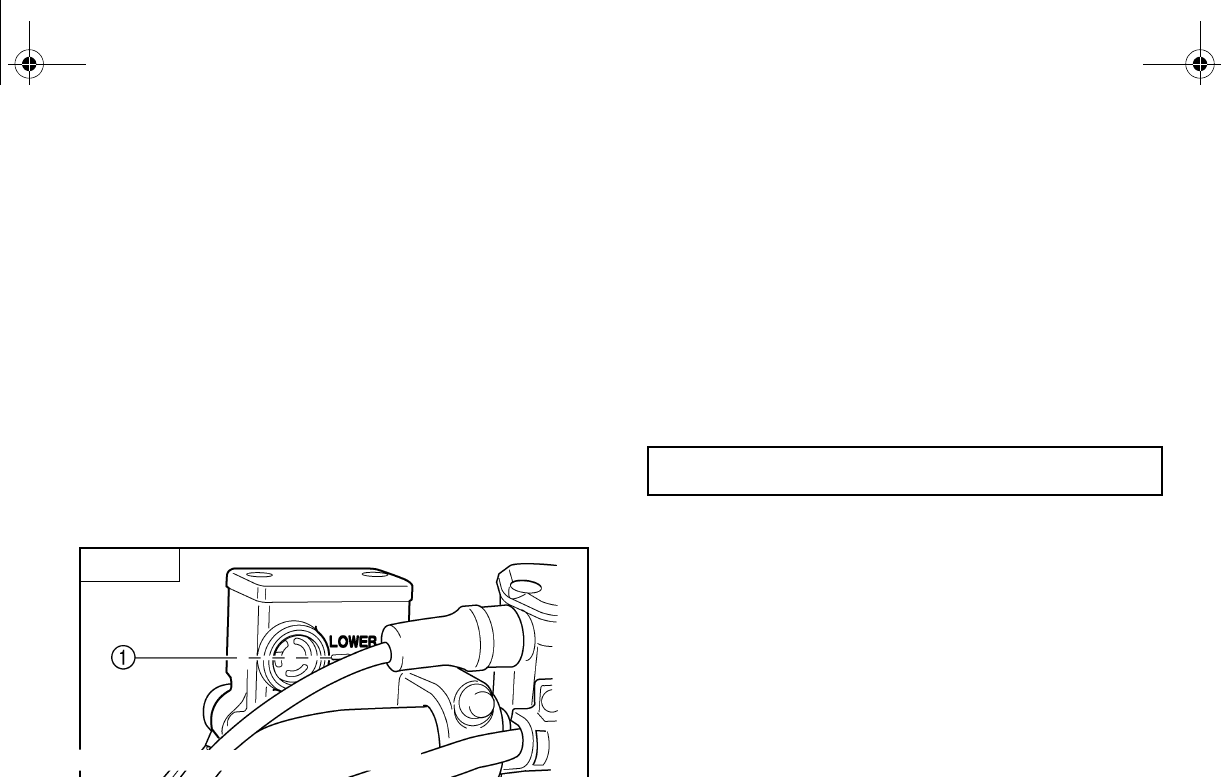

Brake fluid level check................... 8-28

Brake fluid replacement................. 8-29

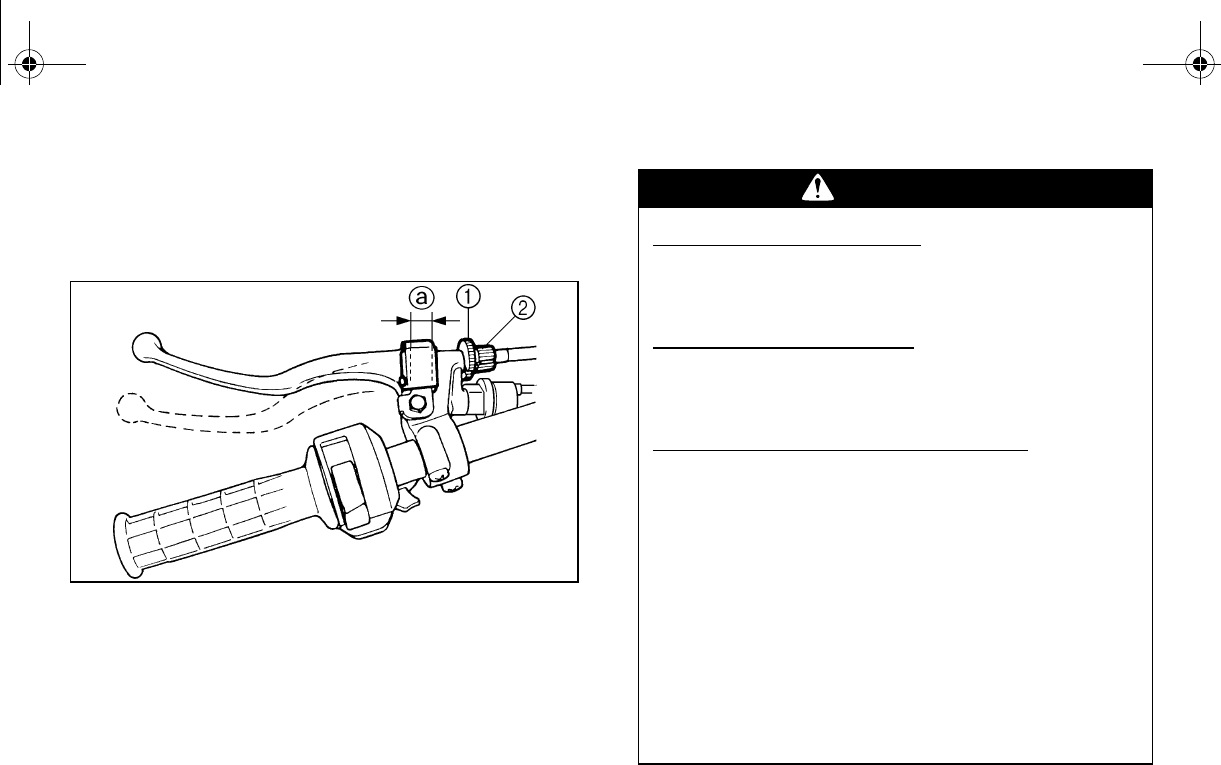

Front brake lever free play.............8-30

Rear brake pedal and lever

adjustment ...................................8-31

Adjusting the rear brake light

switch ...........................................8-34

Cable inspection and lubrication....8-35

Lubricating the brake levers and

brake pedal ..................................8-35

Wheel removal...............................8-36

Wheel installation...........................8-37

Battery............................................8-38

Battery maintenance......................8-39

Fuse replacement ..........................8-39

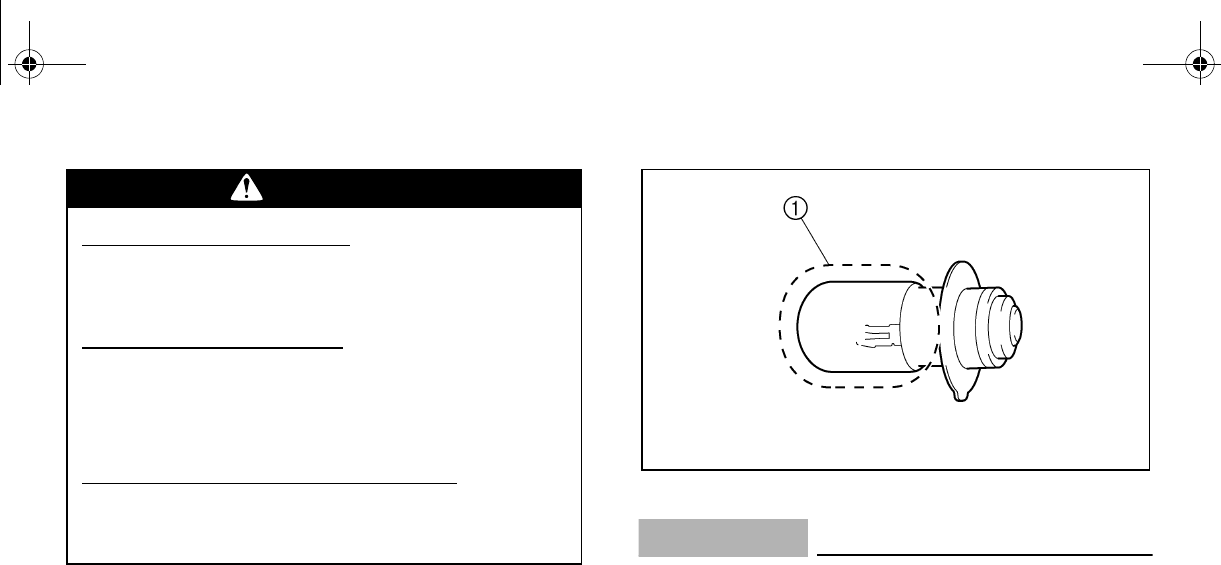

Replacing a headlight bulb ............8-41

Headlight beam adjustment...........8-44

Tail/brake light bulb

replacement .................................8-45

Troubleshooting .............................8-45

Troubleshooting chart ....................8-47

CLEANING AND STORAGE ............9-1

A. Cleaning ......................................9-1

B. Storage ........................................9-3

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

SPECIFICATIONS.......................... 10-1

NOISE REGULATION.................... 11-1

MAINTENANCE RECORD ............ 12-1

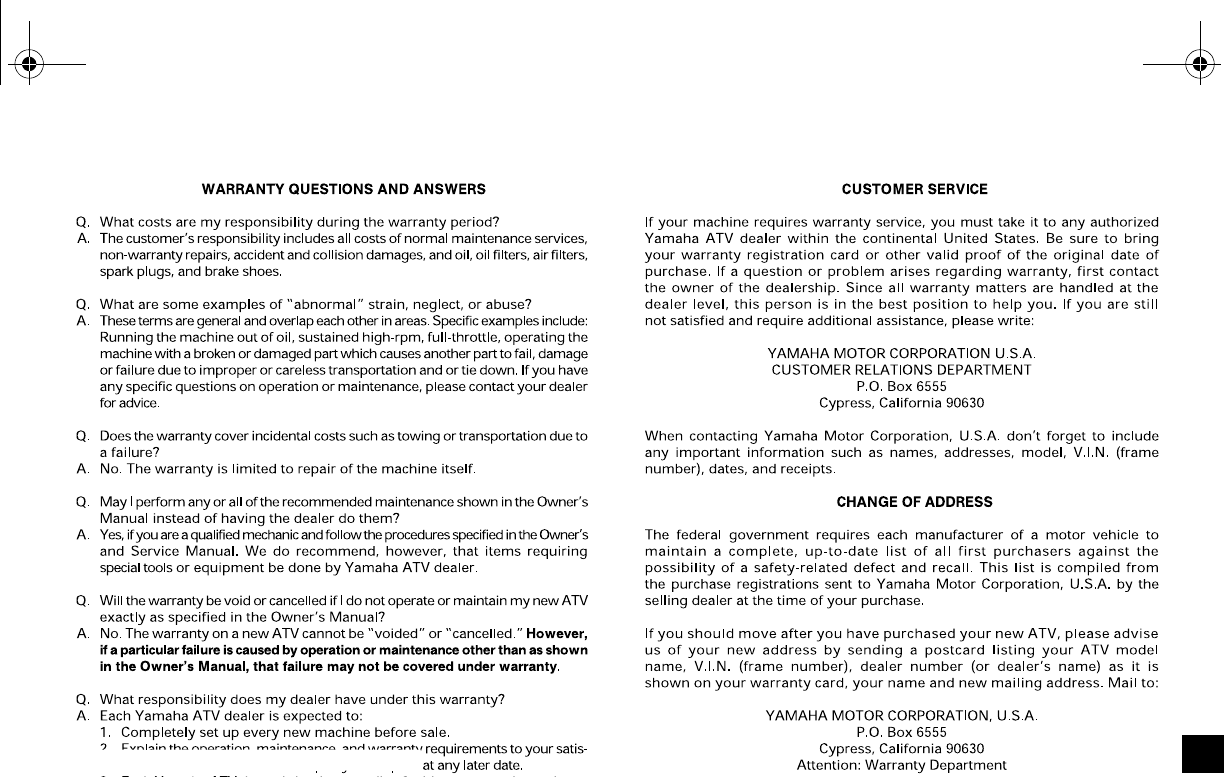

ATV LIMITED WARRANTY............ 13-1

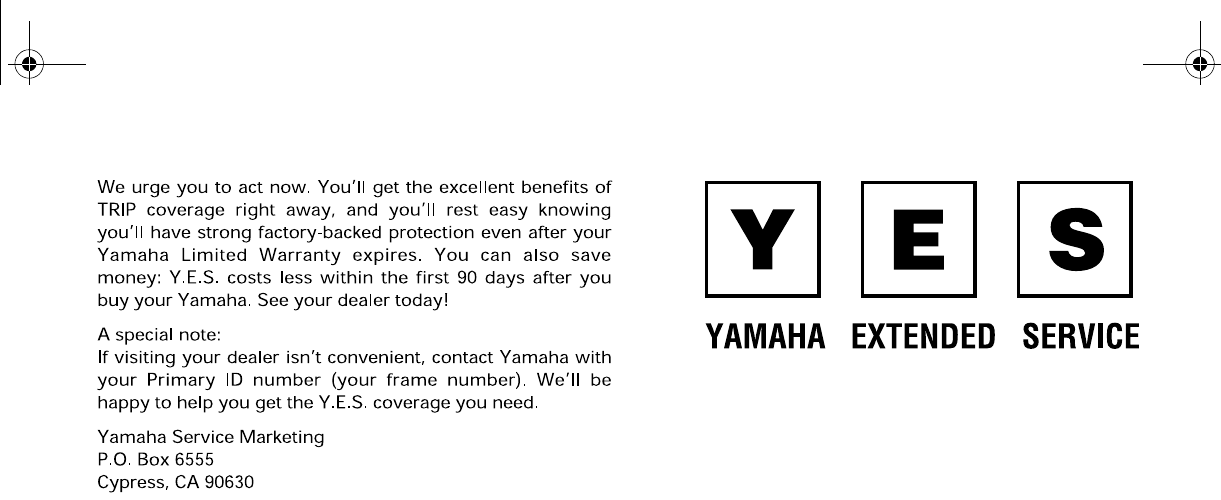

YAMAHA EXTENDED SERVICE

(Y.E.S.) ........................................... 14-1

U5UH10.book Page 4 Monday, July 28, 2003 5:15 PM

1-1

EBU00464

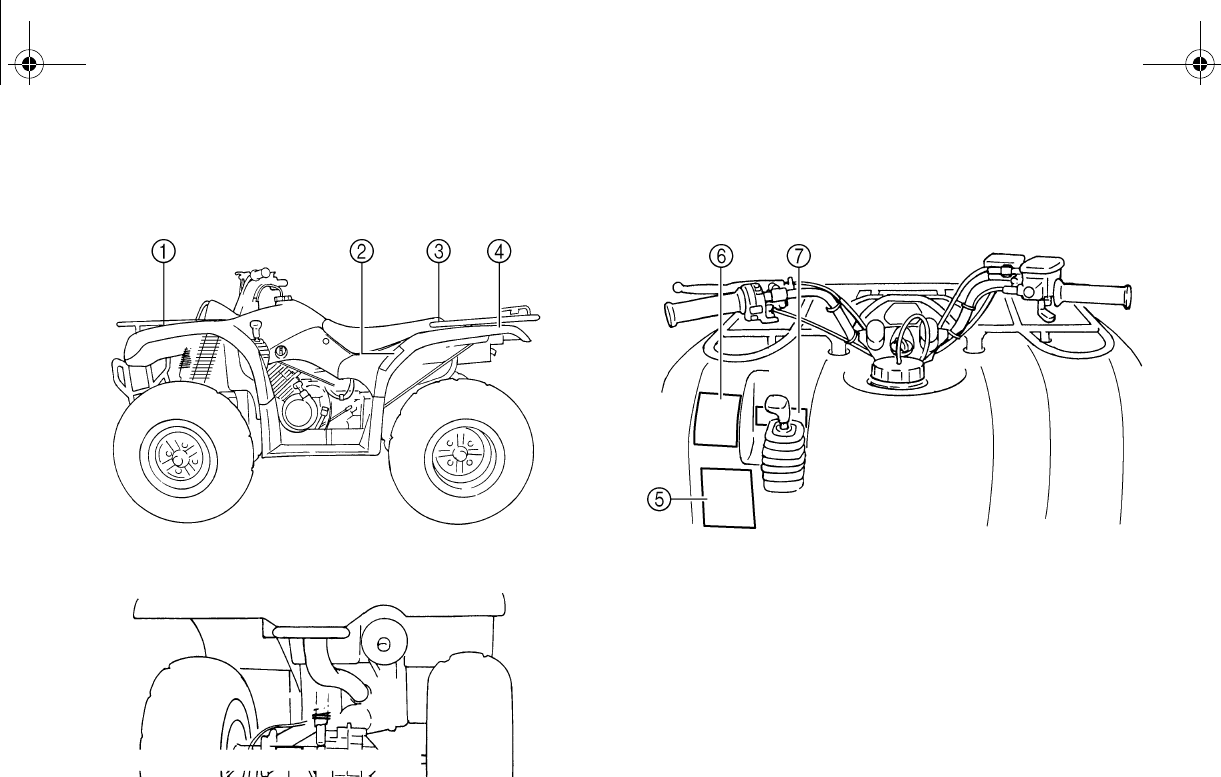

LOCATION OF THE WARNING AND

SPECIFICATION LABELS

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

1-2

Read and understand all of the labels on your

machine. They contain important information

for safe and proper operation of your ATV.

Never remove any labels from your ATV. If a

label becomes difficult to read or comes off, a

replacement label is available from your

Yamaha dealer.

Overloading this ATV or carrying cargo improperly can change

handling. stability and braking performance and can lead to an

accident. Never exceed the maximum front cargo limit of

: 40kg (88 lbs)

NEVER sit on the carrier. Refer to instructions in the Owner's

Manual.

5ND-F4877-00

WARNING

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

1-3

Overloading this ATV or carrying cargo improperly can change

handling. stability and braking performance and can lead to an

accident. Never exceed the maximum rear cargo limit of

: 80kg (176 lbs)

NEVER sit on the carrier. Refer to instructions in the Owner's

Manual.

5ND-F4897-00

WARNING

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

1-4

PULLING LOAD: 4900 N (500kgf)

1102 l b f

TONGUE WEIGHT: 147 N (15kgf)

33 lbf

5ND-F151K-00

MAXIMUM.LOADING LIMITMAXIMUM LOADING LIMIT

U5UH10.book Page 4 Monday, July 28, 2003 5:15 PM

2-1

SAFETY INFORMATION

EBU13401

AN ATV IS NOT A TOY AND CAN BE HAZARDOUS TO OPERATE. An ATV handles differently

from other vehicles including motorcycles and cars. A collision or rollover can occur quickly, even

during routine maneuvers such as turning and riding on hills or over obstacles, if you fail to take

proper precautions.

SEVERE INJURY OR DEATH can result if you do not follow these instructions:

●Read this manual and all labels carefully and follow the operating procedures described.

●Never operate an ATV without proper training or instruction. Take a Training Course. Begin-

ners should receive training from a certified instructor. Contact an authorized ATV dealer or call

1-800-887-2887 to find out about the training courses nearest you.

●Always follow the age recommendation:

- A child under 16 years old should never operate an ATV with engine size greater than 90cc.

●Never allow a child under age 16 to operate an ATV without adult supervision, and never allow

continued use of an ATV by a child if he or she does not have the abilities to operate it safely.

●Never carry a passenger on an ATV.

TV on any paved surfaces, including sidewalks, driveways, park-

ing lots and streets.

●Never operate an ATV on any public street, road or highway, even a dirt or gravel one.

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

2-2

●Never operate an ATV without wearing an approved motorcycle helmet that fits properly. You

should also wear eye protection (goggles or face shield), gloves, boots, a long-sleeved shirt or

a jacket, and long pants.

●Never consume alcohol or drugs before or while operating this ATV.

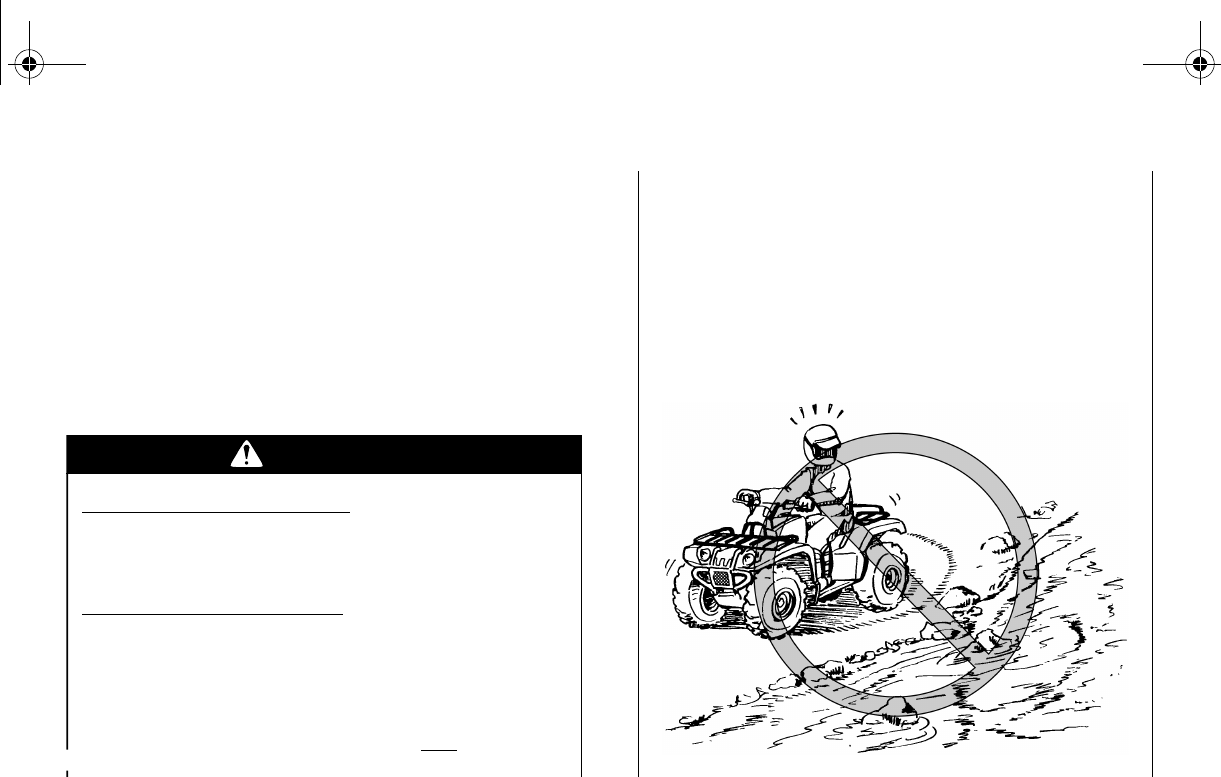

●Never operate at speeds too fast for your skills or the conditions. Always go at a speed that is

proper for the terrain, visibility, operating conditions, and your experience.

●Never attempt wheelies, jumps, or other stunts.

●Always inspect your ATV each time you use it to make sure it is in safe operating condition. Al-

ways follow the inspection and maintenance procedures and schedules described in this man-

ual.

●Always keep both hands on the handlebars and both feet on the footboards of the ATV during

operation.

●Always go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to

changing terrain conditions when operating the ATV.

●Never operate on excessively rough, slippery or loose terrain until you have learned and prac-

ticed the skills necessary to control the ATV on such terrain. Always be especially cautious on

these kinds of terrain.

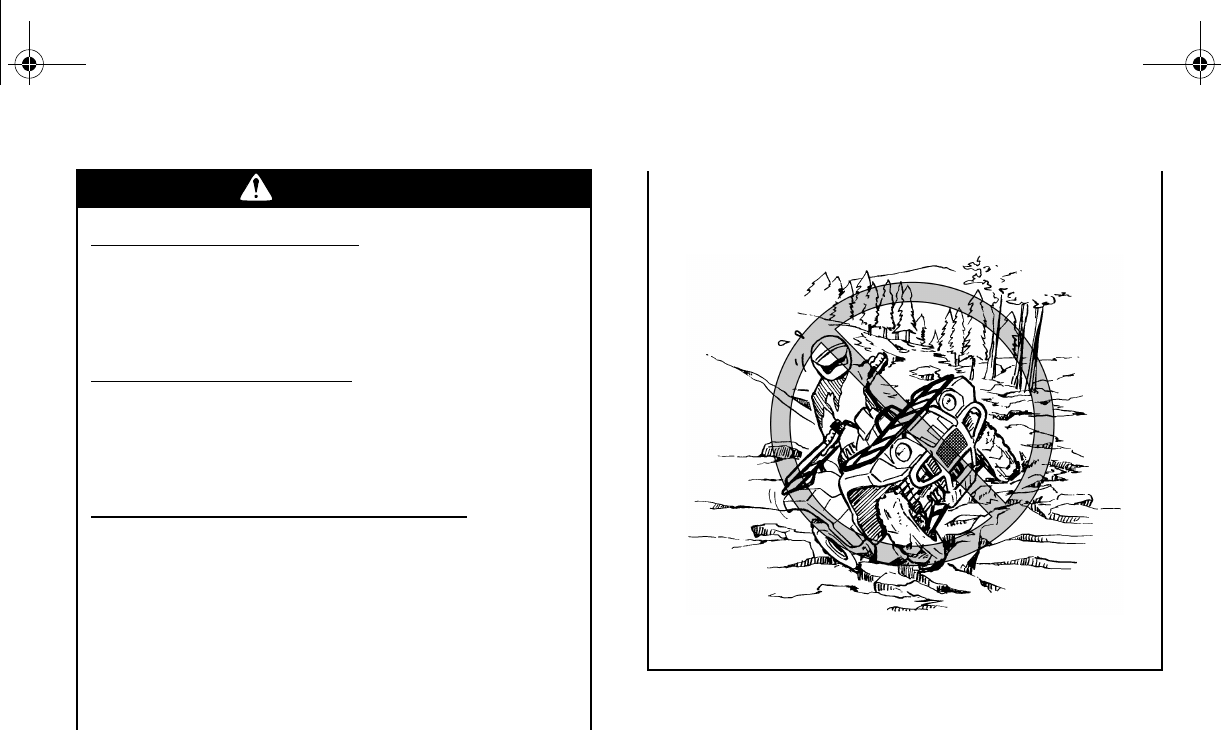

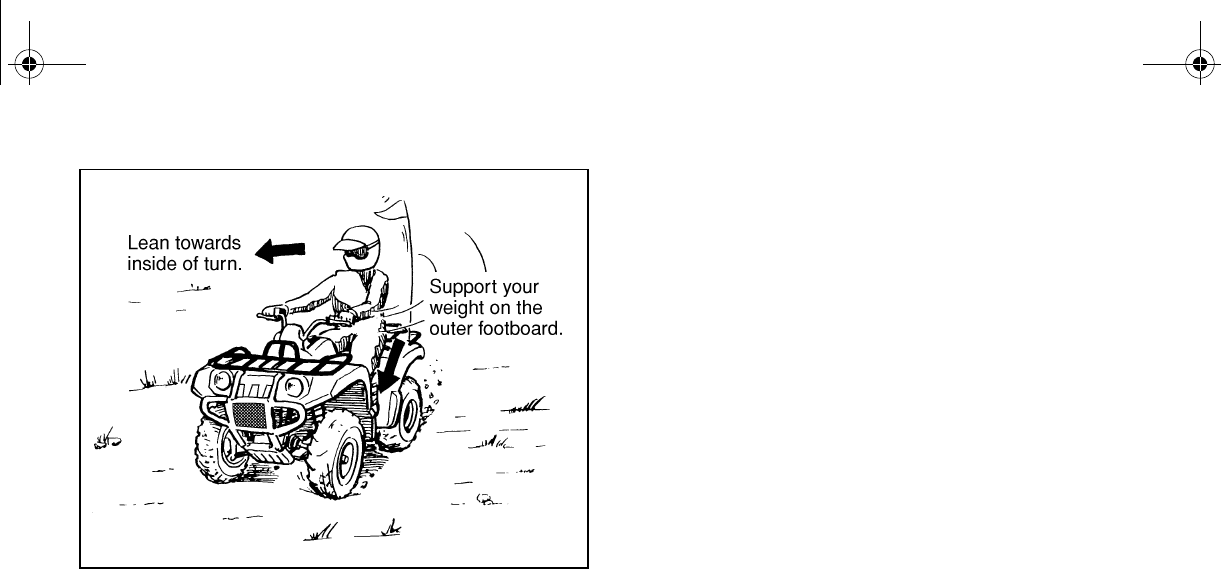

Always follow proper procedures for turning as described in this manual. Practice turning at low

o turn at faster speeds. Do not turn at excessive speed.

●Never operate the ATV on hills too steep for the ATV or for your abilities. Practice on smaller

hills before attempting larger hills.

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

2-3

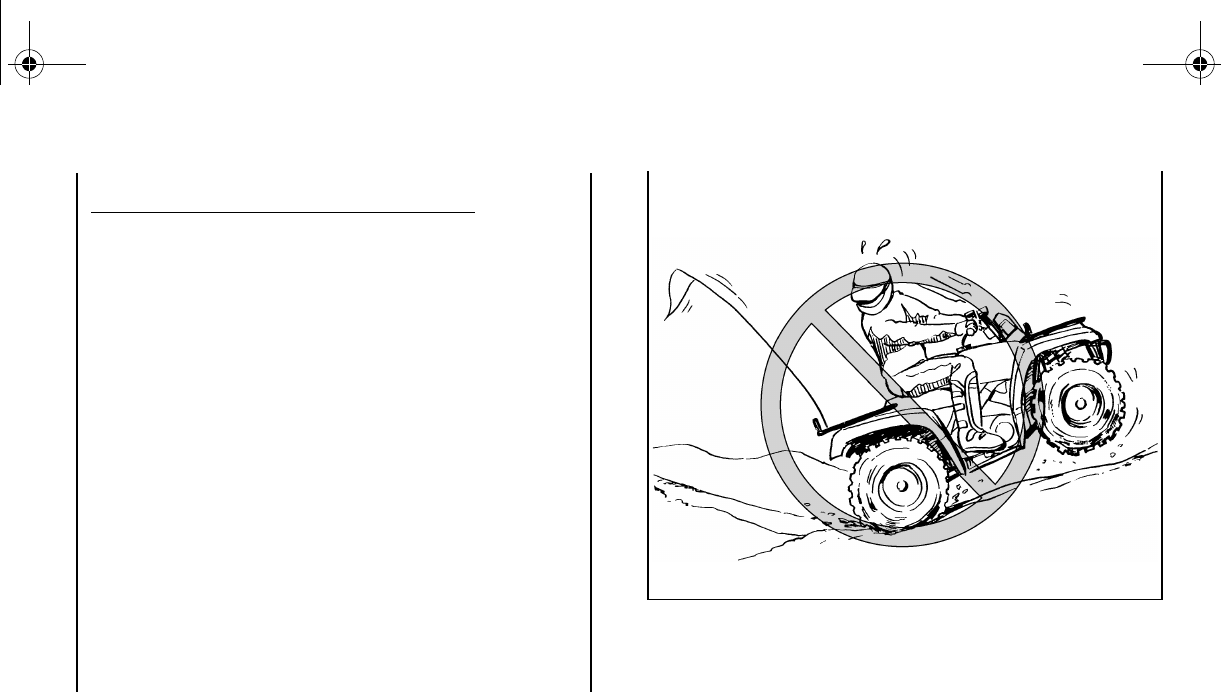

●Always follow proper procedures for climbing hills as described in this manual. Check the ter-

rain carefully before you start up any hill. Never climb hills with excessively slippery or loose

surfaces. Shift your weight forward. Never open the throttle suddenly. Never go over the top of

a hill at high speed.

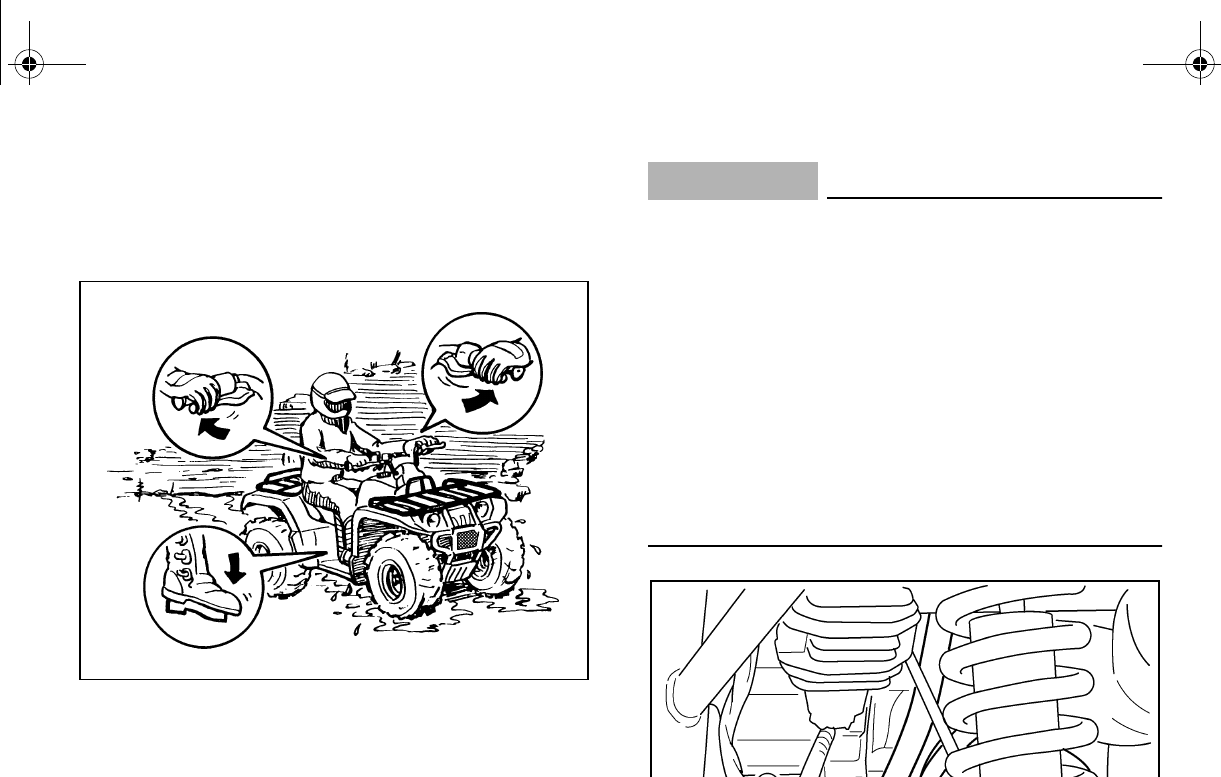

●Always follow proper procedures for going down hills and for braking on hills as described in

this manual. Check the terrain carefully before you start down any hill. Shift your weight back-

ward. Never go down a hill at high speed. Avoid going down a hill at an angle that would cause

the vehicle to lean sharply to one side. Go straight down the hill where possible.

●Always follow proper procedures for crossing the side of a hill as described in this manual.

Avoid hills with excessively slippery or loose surfaces. Shift your weight to the uphill side of the

ATV. Never attempt to turn the ATV around on any hill until you have mastered the turning

technique described in this manual on level ground. Avoid crossing the side of a steep hill if

possible.

●Always use proper procedures if you stall or roll backwards when climbing a hill. Maintain a

steady speed when climbing a hill. If you stall or roll backwards, follow the special procedure for

braking described in this manual. Dismount on the uphill side or to a side if pointed straight up-

hill. Turn the ATV around and remount, following the procedure described in this manual.

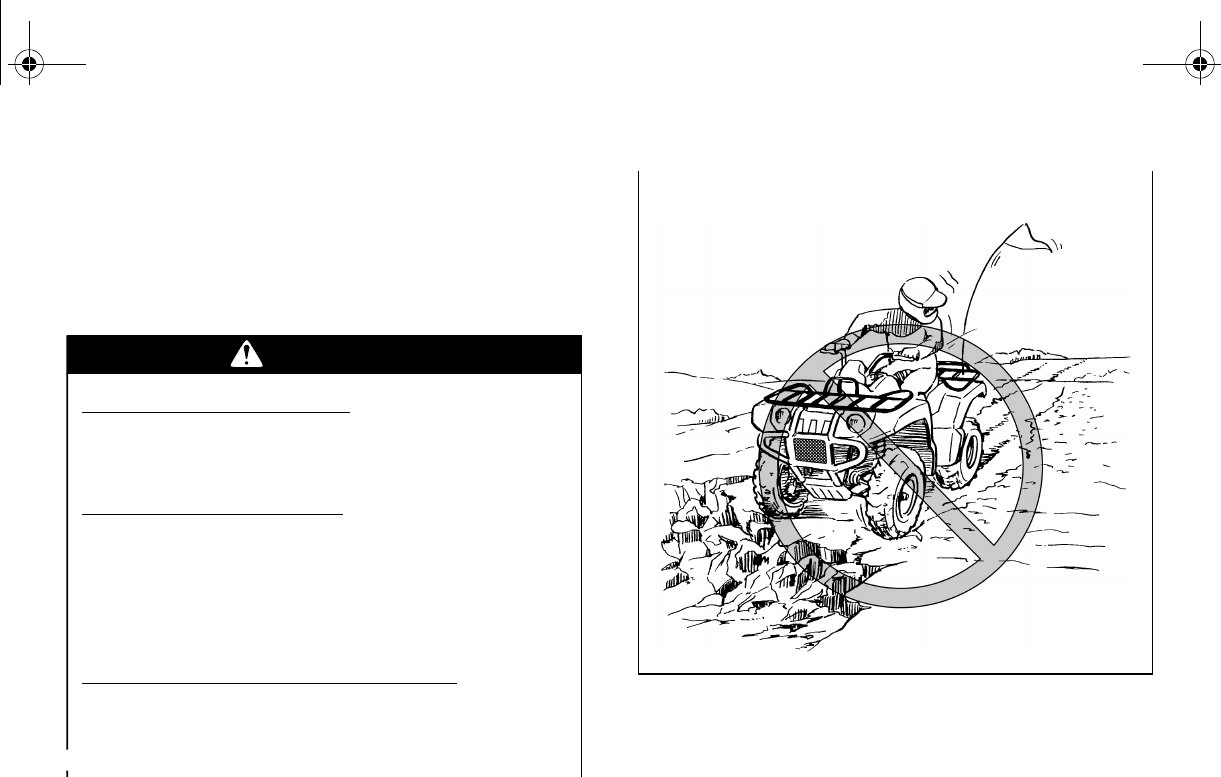

Always check for obstacles before operating in a new area. Never attempt to operate over

e rocks or fallen trees. Always follow proper procedures when op-

erating over obstacles as described in this manual.

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

2-4

●Always be careful when skidding or sliding. Learn to safely control skidding or sliding by prac-

ticing at low speeds and on level, smooth terrain. On extremely slippery surfaces, such as ice,

go slowly and be very cautious in order to reduce the chance of skidding or sliding out of con-

trol.

●Never operate an ATV in fast flowing water or in water deeper than that recommended in this

manual. Remember that wet brakes may have reduced stopping ability. Test your brakes after

leaving water. If necessary, apply them several times to let friction dry out the linings.

●Always be sure there are no obstacles or people behind you when you operate in reverse.

When it is safe to proceed in reverse, go slowly.

●Always use the size and type of tires specified in this manual.

●Always maintain proper tire pressure as described in this manual.

●Never modify an ATV through improper installation or use of accessories.

●Never exceed the stated load capacity for an ATV. Cargo should be properly distributed and

securely attached. Reduce speed and follow instructions in this manual for carrying cargo or

pulling a trailer. Allow greater distance for braking.

FOR MORE INFORMATION ABOUT ATV SAFETY, call the Consumer Products Safety Com-

mission at 1-800-638-2772, or the ATV Distributor’s Safety Hotline at 1-800-852-5344.

U5UH10.book Page 4 Monday, July 28, 2003 5:15 PM

2-5

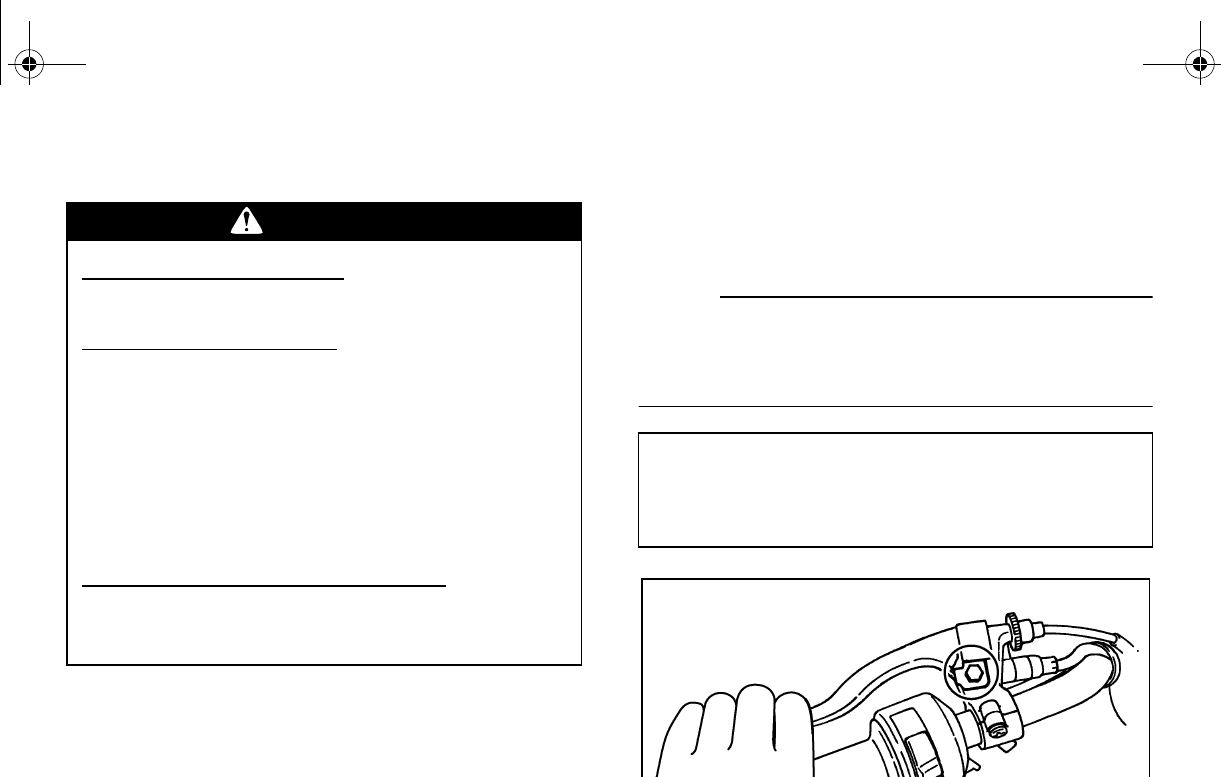

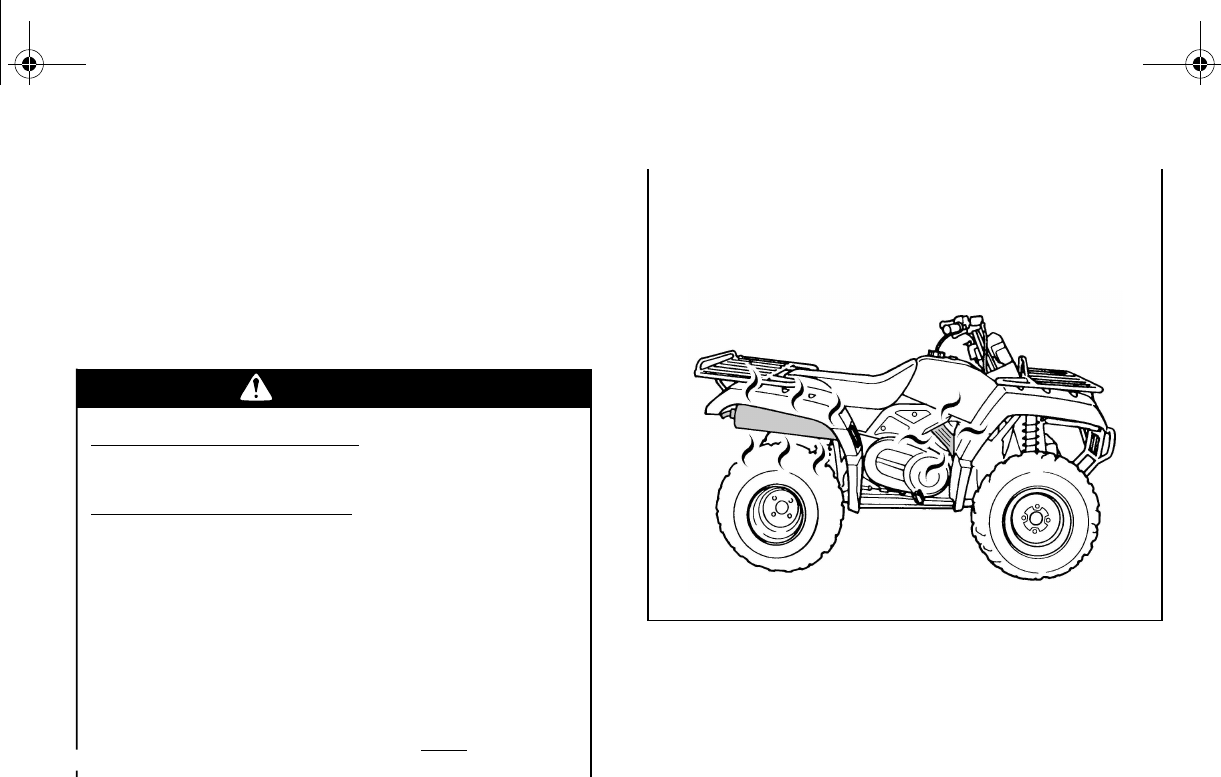

WARNING

POTENTIAL HAZARD

Improper handling of gasoline.

WHAT CAN HAPPEN

Gasoline can catch fire and you could

be burned.

HOW TO AVOID THE HAZARD

Always turn off the engine when refuel-

ing.

Do not refuel immediately after the en-

gine has been running and is still very

hot.

Do not spill gasoline on the engine or

exhaust pipe/muffler when refueling.

Never refuel while smoking, or in the vi-

cinity of sparks, open flames, or other

sources of ignition such as the pilot

clothes dry-

ers.

When transporting the ATV in another

vehicle, be sure it is kept upright and

that the fuel cock is in the “OFF” posi-

tion. Otherwise, fuel may leak out of the

carburetor or fuel tank.

WHAT CAN HAPPEN

Gasoline is poisonous and can cause

injuries.

HOW TO AVOID THE HAZARD

If you should swallow some gasoline or

inhale a lot of gasoline vapor, or get

some gasoline in your eyes, see your

doctor immediately.

If gasoline spills on your skin, wash with

soap and water. If gasoline spills on

your clothing, change your clothes.

U5UH10.book Page 5 Monday, July 28, 2003 5:15 PM

2-6

WARNING

POTENTIAL HAZARD

Starting or running the engine in a

closed area.

WHAT CAN HAPPEN

Exhaust fumes are poisonous and may

cause loss of consciousness and death

within a short time.

HOW TO AVOID THE HAZARD

Always operate your ATV in an area with

adequate ventilation.

U5UH10.book Page 6 Monday, July 28, 2003 5:15 PM

3-1

EBU00032

DESCRIPTION AND MACHINE IDENTIFICATION

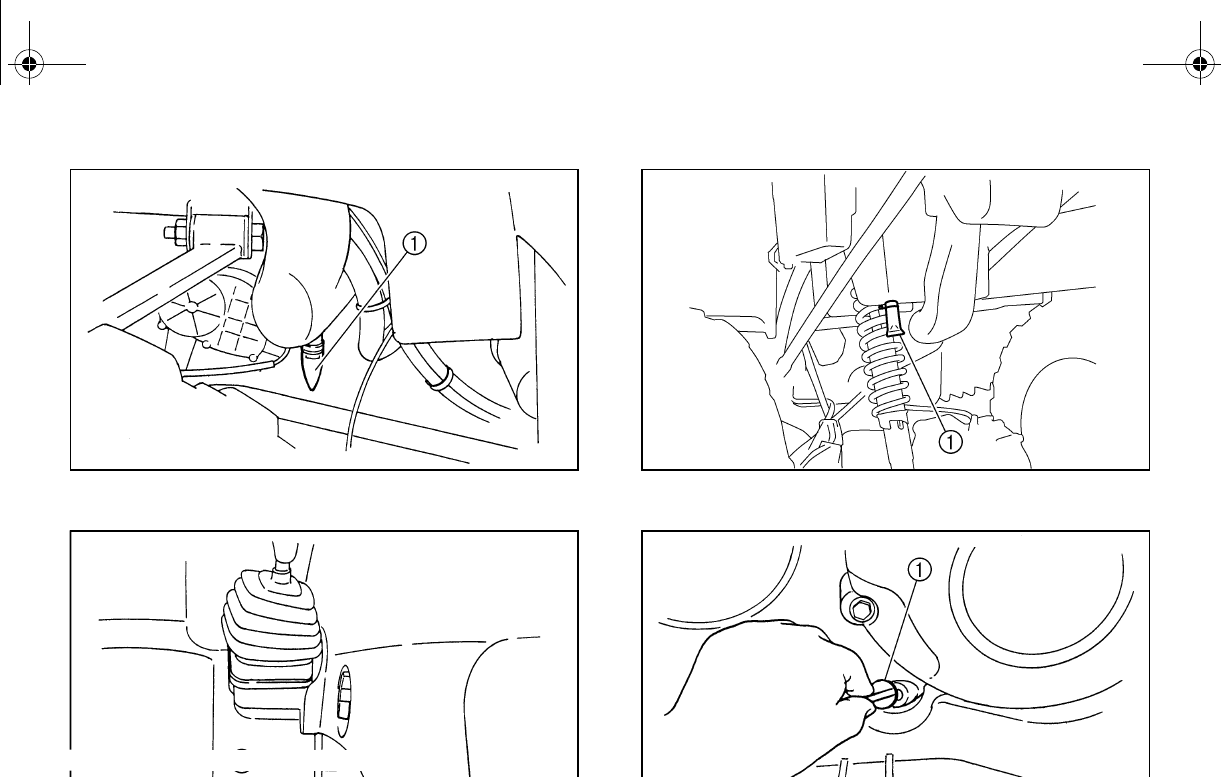

1. Rear shock absorber assembly

spring preload adjusting ring

2. Spark arrester

3. Storage box and tool kit

4. Spark plug

5. Front shock absorber assembly

spring preload adjusting ring

6. Brake pedal

7. V-belt case

8. Fuel cock

9. Air filter case

10. Fuses

11. Tail/brake light

12. Front shock absorber assembly

spring preload adjusting ring

13. V-belt cooling duct check hose

14. Oil filter cartridge

15. Engine oil dipstick

16. Rear brake lever

17. Left handlebar switches

18. Starter (choke)

19. Drive select lever

20. Main switch

21. Fuel tank cap

22. Right handlebar switch

23. Throttle lever

24. Front brake lever

TE:

The machine you have purchased may differ slightly

from those shown in the figures of this manual.

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

3-2

EBU00600

Identification number records

Record the key identification number, vehicle

identification number and model label infor-

mation in the spaces provided for assistance

when ordering spare parts from a Yamaha

dealer or for reference in case the vehicle is

stolen.

1. KEY IDENTIFICATION NUMBER:

2. VEHICLE IDENTIFICATION NUMBER:

3. MODEL LABEL INFORMATION:

EBU00035

Key identification number

The key identification number is stamped on

the key as shown in the following illustration.

This number can be used for ordering a new

key.

1. Key identification number

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

3-3

EBU00036

Vehicle identification number

The vehicle identification number is stamped

into the frame.

1. Vehicle identification number (front left side)

TE:

The vehicle identification number is used to

identify your machine.

EBU00787

Model label

The model label is affixed to the location in the

illustration. Record the information on this la-

bel in the space provided. This information will

be needed to order spare parts from your

Yamaha dealer.

1. Model label

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

4-1

EBU00039

CONTROL FUNCTIONS

WARNING

Indicates a potential hazard that could

result in serious injury or death.

EBU09420

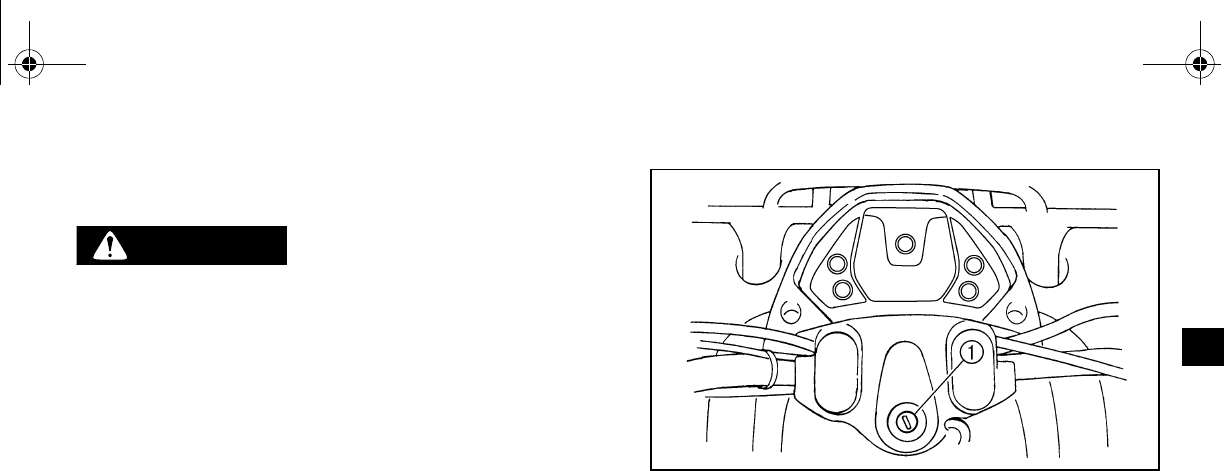

Main switch

Functions of the respective switch positions

are as follows:

ON:

The engine can be started only at this position

and the headlights and taillight come on when

the light switch is on.

OFF:

All electrical circuits are switched off. The key

can be removed in this position.

1. Main switch

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

4-2

EBU08020

Indicator and warning lights

1. Neutral indicator light “N”

2. Reverse indicator light “R”

3. Four-wheel drive indicator light “”

4. Oil temperature warning light “”

EBU09720

Neutral indicator light “N”

This indicator light comes on when the drive

select lever is in the “N” position.

EBU12500

Reverse indicator light “R”

This indicator light comes on when the drive

select lever is in the “R” position.

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

4-3

EBU00605

Four-wheel-drive indicator light “”

This indicator light comes on when the 2WD/

4WD switch is in the 4WD position.

NOTE:

Due to the synchronizing mechanism in the

differential gear case, the light may not come

on until the ATV starts moving.

EBU11400

Oil temperature warning light “”

When the oil temperature reaches a specified

level, this light comes on to warn that the en-

gine oil temperature is too hot. If the light

comes on during operation, stop the engine

as soon as it is safe to do so and allow the en-

gine to cool down for about 10 minutes.

CAUTION:

●The engine may overheat if the ATV is

overloaded. If this happens, reduce

the load to specification.

●Restart after making sure that the light

is out. Continuous use while the light

is on may cause damage to the en-

gine.

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

4-4

EBU00733

Oil temperature warning light checking method

ACB-10E

Turn the main switch to “ON” and the

engine stop switch to “”.

Oil temperature warning

light does not come on.

Oil temperature warning

light comes on.

Check engine oil temperature.

Oil temperature warning

light does not come on.

Engine oil temperature and

electrical circuit are OK. Go

Push start switch with the

transmission in neutral.

Ask a Yamaha dealer to

inspect the electrical circuit.

Oil tempera-

ture is low.

Allow to cool.

Oil tempera-

ture is high.

Oil temperature

warning light comes

on momentarily.

U5UH10.book Page 4 Monday, July 28, 2003 5:15 PM

4-5

EBU00053

Handlebar switches

1. Light switch “//OFF”

2. Engine stop switch “/”

3. Start switch “”

EBU01204

Light switch “//OFF”

Set the switch to “” to turn on the low beam

Set the switch to “” to turn on the high

beam and the taillight.

Set the switch to “OFF” to turn off all the lights.

CAUTION:

Do not use the headlights with the engine

turned off for more than thirty minutes.

The battery may discharge to the point

that the starter motor will not operate

properly. If this should happen, remove

the battery and recharge it.

EBU12050

Engine stop switch “/”

Make sure that the engine stop switch is set to

“” before starting the engine. The engine

stop switch controls ignition and can be used

at all times to stop the engine, especially in an

emergency. The engine will not start or run

when the engine stop switch is set to “”.

U5UH10.book Page 5 Monday, July 28, 2003 5:15 PM

4-6

EBU00607

Start switch “”

The starter motor cranks the engine when this

switch is pushed.

CAUTION:

See starting instructions prior to starting

the engine. (See page 6-1 for details.)

1. Four-wheel drive switch “2WD/4WD”

EBU00601

On-Command four-wheel drive switch

“2WD/4WD”

To change from two-wheel drive (2WD) to

four-wheel drive (4WD), stop the ATV and set

the switch to the 4WD position.

To change from four-wheel drive (4WD) to

two-wheel drive (2WD), stop the ATV and set

the switch to the 2WD position.

U5UH10.book Page 6 Monday, July 28, 2003 5:15 PM

4-7

WARNING

POTENTIAL HAZARD

Changing from 2WD to 4WD or from

4WD to 2WD while the ATV is moving.

WHAT CAN HAPPEN

The ATV handles differently in 2WD

than in 4WD in some circumstances.

Changing from 2WD to 4WD or from

4WD to 2WD while moving may cause

the ATV to unexpectedly handle differ-

ently. This could distract the operator

and increase the risk of losing control

and an accident.

HOW TO AVOID THE HAZARD

Always stop the ATV before changing

from 2WD to 4WD or vice-versa.

U5UH10.book Page 7 Monday, July 28, 2003 5:15 PM

4-8

EBU00062

Throttle lever

Once the engine is running, movement of the

throttle lever will increase the engine speed.

Regulate the speed of the machine by varying

the throttle position. Because the throttle is

spring-loaded, the machine will decelerate,

and the engine will return to an idle any time

the hand is removed from the throttle lever.

Before starting the engine, check the throttle

to be sure it is operating smoothly. Make sure

it returns to the idle position as soon as the le-

ver is released.

WARNING

POTENTIAL HAZARD

Malfunction of throttle.

WHAT CAN HAPPEN

The throttle could be hard to operate,

making it difficult to speed up or slow

down when you need to. This could

cause an accident.

HOW TO AVOID THE HAZARD

Check the operation of the throttle lever

before you start the engine. If it does not

work smoothly, check for the cause.

Correct the problem before riding the

ATV. Consult a Yamaha dealer if you

can’t find or solve the problem yourself.

U5UH10.book Page 8 Monday, July 28, 2003 5:15 PM

4-9

EBU01159

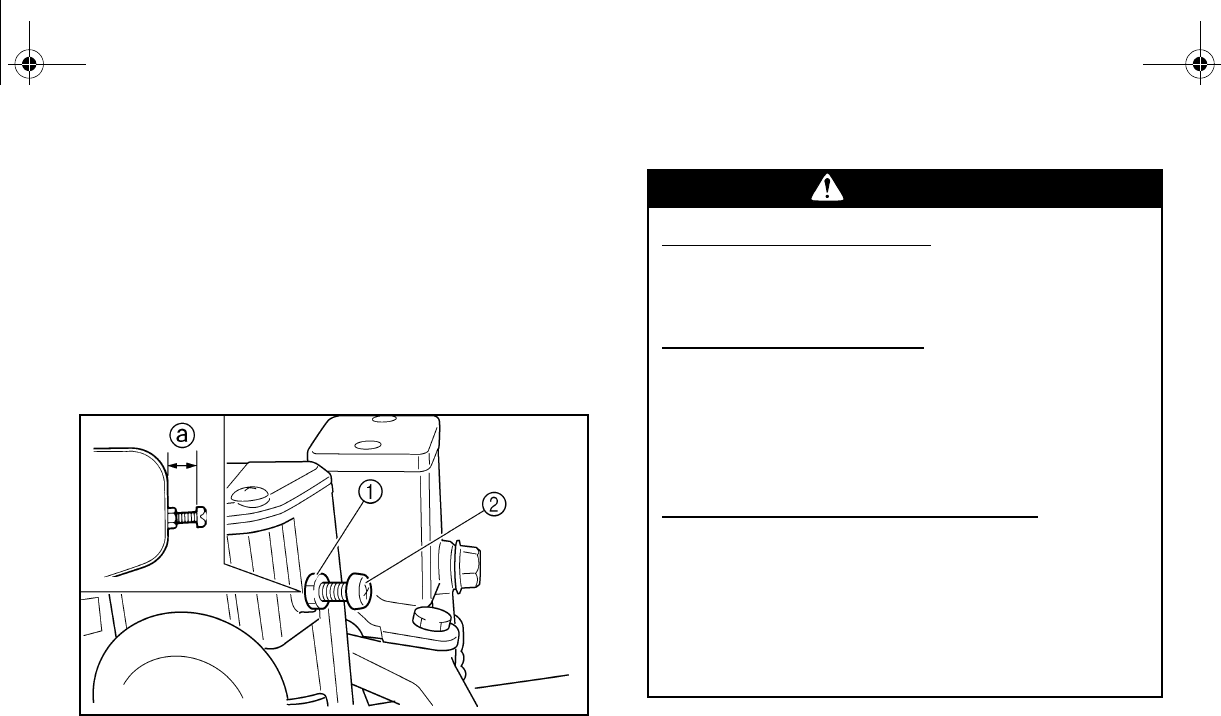

Speed limiter

The speed limiter keeps the throttle from fully

opening, even when the throttle lever is

pushed to the maximum. Turning in the ad-

justing screw limits the maximum engine pow-

er available and decreases the maximum

speed of the ATV.

1. Locknut 2. Adjusting screw

WARNING

POTENTIAL HAZARD

Improper adjustment of the speed limit-

er and throttle.

WHAT CAN HAPPEN

The throttle cable could be damaged.

Improper throttle operation could result.

You could lose control, have an acci-

dent or be injured.

HOW TO AVOID THE HAZARD

Do not turn the adjusting screw out

more than 12 mm (0.47 in). Always make

sure the throttle lever free play is adjust-

ed to 3–5 mm (0.12–0.20 in). See page

8-26.

U5UH10.book Page 9 Monday, July 28, 2003 5:15 PM

4-10

EBU00070

Front brake lever

The front brake lever is located on the right

handlebar. Pull it toward the handlebar to ap-

ply the front brake.

1. Front brake lever

EBU00732

Brake pedal and rear brake lever

he right side of

the ATV and the rear brake lever is located on

the left handlebar. Push down on the pedal or

pull the lever toward the handlebar to apply

the rear brake.

1. Brake pedal

1. Rear brake lever

U5UH10.book Page 10 Monday, July 28, 2003 5:15 PM

4-11

EBU00074

Parking brake

Use the parking brake when you have to start

the engine or park the machine, especially on

a slope. Apply the rear brake lever and push

down the lock plate to apply the parking

brake. Squeeze the rear brake lever to re-

lease the parking brake.

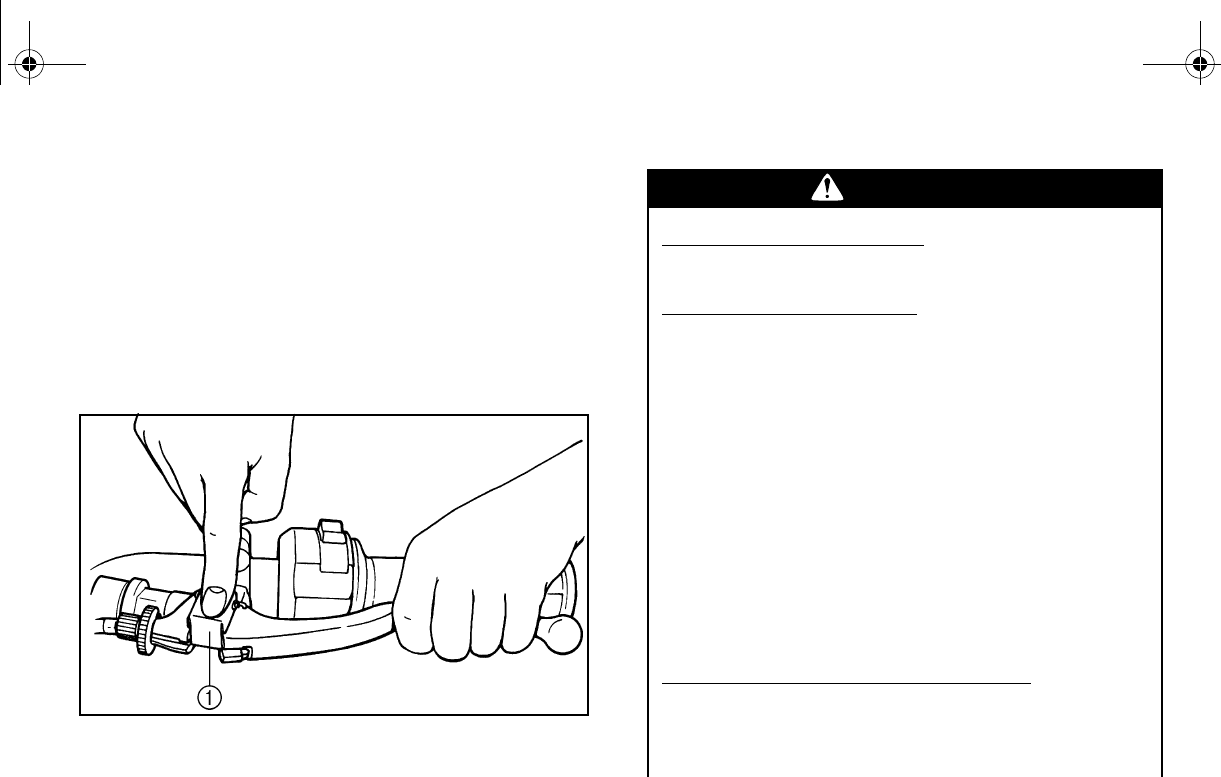

1. Lock plate

WARNING

POTENTIAL HAZARD

Improper use of the parking brake.

WHAT CAN HAPPEN

The ATV could start moving unexpect-

edly if the parking brake is not applied

before starting the engine. This could

cause loss of control or a collision.

The brake could overheat if you ride the

ATV without releasing the parking

brake. You could lose braking perfor-

mance which could cause an accident.

You could also wear out the brakes pre-

maturely.

HOW TO AVOID THE HAZARD

Always set the parking brake before

starting the engine.

Always be sure you have released the

parking brake before you begin to ride.

U5UH10.book Page 11 Monday, July 28, 2003 5:15 PM

4-12

EBU01106

Drive select lever

The drive select lever is used to shift your ma-

chine into the forward, neutral and reverse po-

sitions. (Refer to page 6-4 for the drive select

lever operation.)

1. Drive select lever

EBU01107

Recoil starter

Firmly grasp the handle and pull slightly until

engagement can be felt. Then pull forcefully,

being careful not to pull the rope all the way

out.

1. Recoil starter

U5UH10.book Page 12 Monday, July 28, 2003 5:15 PM

4-13

EBU00092

Fuel tank cap

Remove the fuel tank cap by turning it coun-

terclockwise.

1. Fuel tank cap

WARNING

POTENTIAL HAZARD

Starting the engine without shifting into

the neutral position.

WHAT CAN HAPPEN

The ATV could start to move unexpect-

edly, which could cause an accident.

HOW TO AVOID THE HAZARD

Shift the drive select lever into the neu-

tral position and apply the parking brake

before starting the engine.

U5UH10.book Page 13 Monday, July 28, 2003 5:15 PM

4-14

EBU00093

Fuel cock

The fuel cock supplies fuel from the fuel tank

to the carburetor.

The fuel cock has three positions.

OFF: With the lever in this position fuel will

not flow. Always turn the lever to this

position when the engine is not running.

ON: With the lever in this position, fuel flows

to the carburetor. Normal riding is done

with the lever in this position.

RES: This indicates reserve. If you run out of

fuel while riding, turn the lever to this

position. THEN FILL THE FUEL TANK

AT THE FIRST OPPORTUNITY. After

refuelling, return the fuel cock lever to

the “ON” position.

1. Arrow mark pointing to “OFF”

1. Arrow mark pointing to “ON”

OFF Position

ON Position

U5UH10.book Page 14 Monday, July 28, 2003 5:15 PM

4-15

1. Arrow mark pointing to “RES”

EBU00095

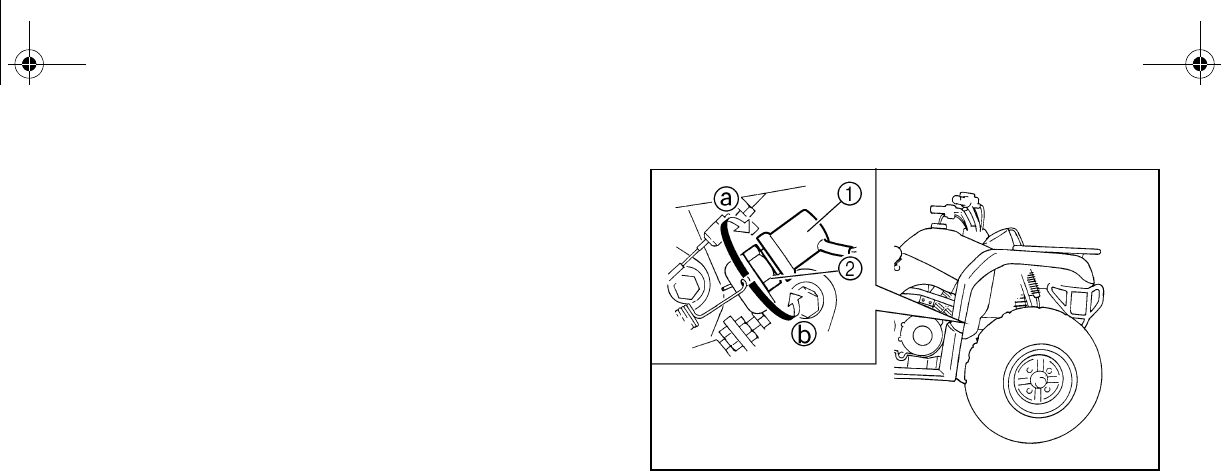

Starter (choke) “”

Starting a cold engine requires a richer air-fuel

mixture. A separate starter circuit supplies this

mixture.

Move in direction a to turn on the starter

(choke).

Move in direction b to turn off the starter

(choke).

Refer to “Starting a cold engine” for proper op-

eration. (See page 6-1.)

1. Starter (choke) “”

RES Position

U5UH10.book Page 15 Monday, July 28, 2003 5:15 PM

4-16

EBU05670

Seat

To remove the seat, pull the seat lock lever

upward and pull up the seat at the rear.

1. Seat 2. Seat lock lever

To install the seat, insert the projections on

the front of the seat into the seat holders and

push down on the seat at the rear.

NOTE:

Make sure that the seat is securely fitted.

1. Projection (× 2) 2. Seat holder (× 2)

U5UH10.book Page 16 Monday, July 28, 2003 5:15 PM

4-17

EBU14580

Storage box

CAUTION:

To protect from damage, do not put metal

products, like tools or sharply edged prod-

ucts directly in the storage box. If they

must be stored, wrap them in appropriate

cushion material.

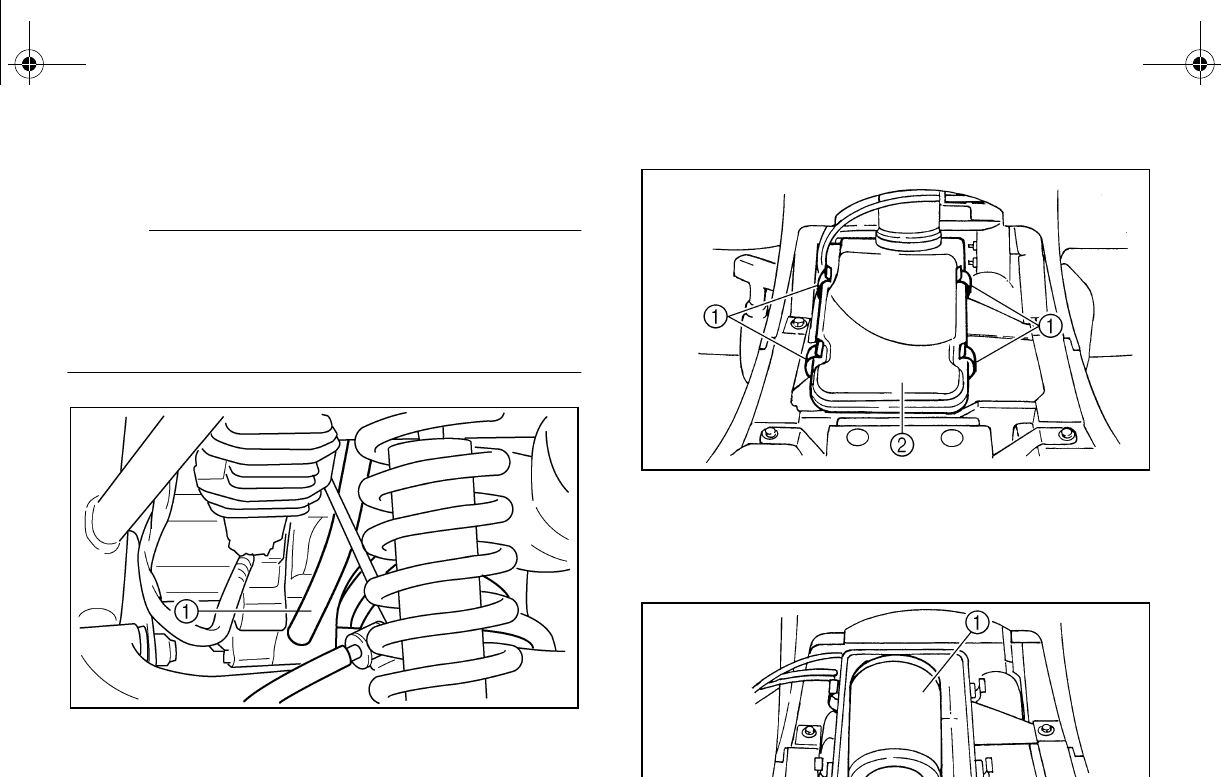

1. Storage box

NOTE:

There is a check hose at the bottom of the

storage box. If any water collects in this hose,

remove the hose, empty it, and then install it.

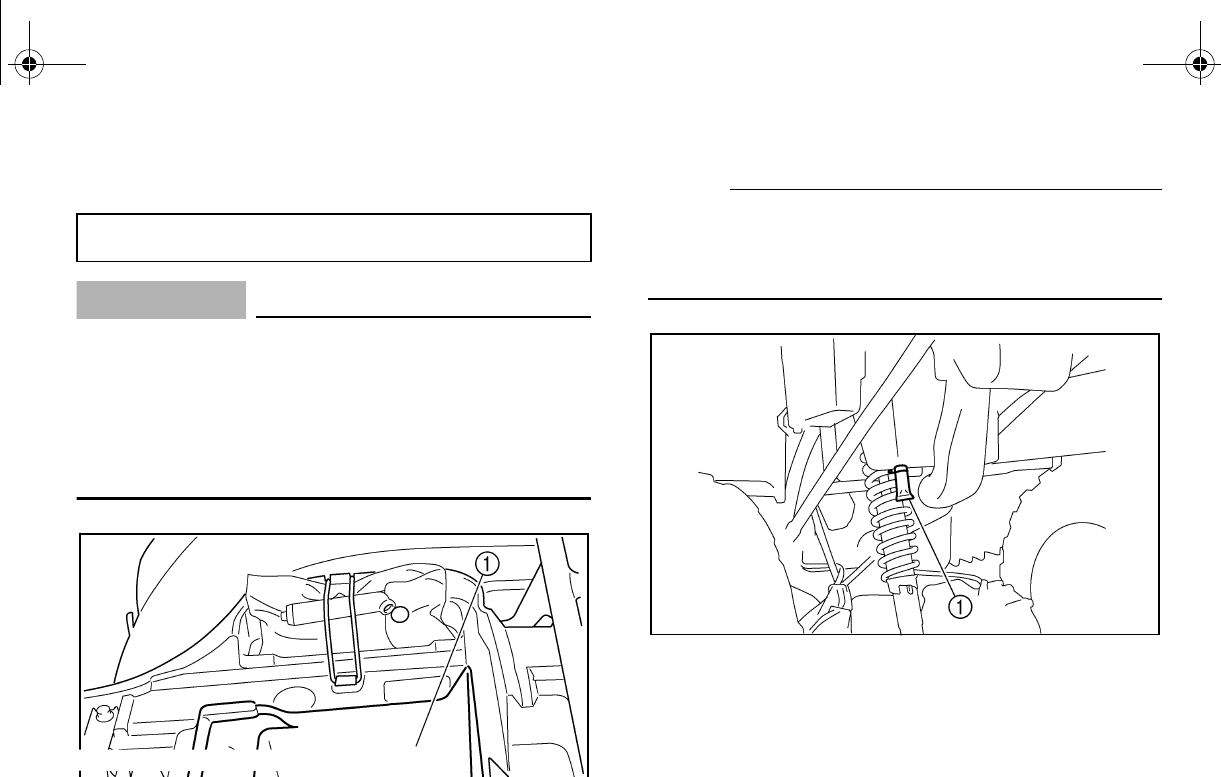

1. Storage box check hose

Maximum load limit: 2 kg (4.4 lb)

U5UH10.book Page 17 Monday, July 28, 2003 5:15 PM

4-18

EBU00582

Front carrier

EBU00583

Rear carrier

EBU01104

Front shock absorber adjustment

The spring preload can be adjusted to suit the

rider’s weight and riding conditions.

Adjust the spring preload as follows.

To increase the spring preload, turn the ad-

justing ring in direction a.

To decrease the spring preload, turn the ad-

1. Spring preload adjusting ring

2. Position indicator

NOTE:

A special wrench can be obtained at a

Yamaha dealer to make this adjustment.

Maximum load limit: 40 kg (88 lb)

Maximum load limit: 80 kg (176 lb)

Standard position: 2

1 - Minimum (soft)

5 - Maximum (hard)

U5UH10.book Page 18 Monday, July 28, 2003 5:15 PM

4-19

1. Special wrench

EBU01103

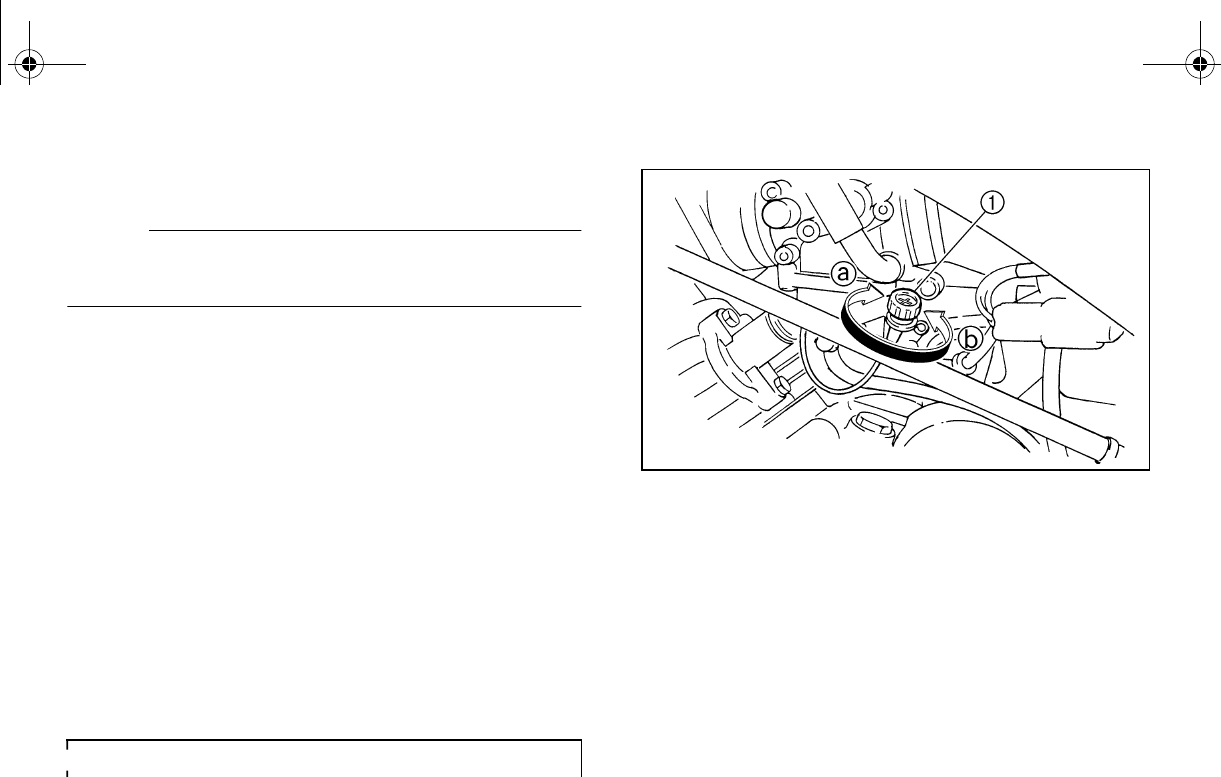

Rear shock absorber adjustment

The spring preload can be adjusted to suit the

rider’s weight and riding conditions.

Adjust the spring preload as follows:

To increase the spring preload, turn the ad-

justing ring in direction a.

To decrease the spring preload, turn the ad-

justing ring in direction b.

1. Spring preload adjusting ring

2. Position indicator

WARNING

POTENTIAL HAZARD

Improper shock absorber adjustment.

WHAT CAN HAPPEN

Uneven adjustment can cause poor

handling and loss of stability, which

HOW TO AVOID THE HAZARD

Always adjust the shock absorbers on

the left and right side to the same set-

ting.

U5UH10.book Page 19 Monday, July 28, 2003 5:15 PM

4-20

NOTE:

A special wrench can be obtained at a

Yamaha dealer to make this adjustment.

EBU00112

WARNING

Indicates a potential hazard that could

result in serious injury or death.

Standard position: 2

1 - Minimum (soft)

5 - Maximum (hard)

U5UH10.book Page 20 Monday, July 28, 2003 5:15 PM

5-1

PRE-OPERATION CHECKS

Before using this machine, check the following points:

ITEM ROUTINE PAGE

Front brake •Check operation, free play, fluid level and fluid leakage.

•Fill with DOT 4 brake fluid if necessary.

5-2–5-3,

8-27–8-30

Rear brake •Check operation, condition and free play.

•Adjust if necessary.

5-2–5-3,

8-27,8-31–8-33

Fuel •Check fuel level.

•Fill with fuel if necessary. 5-4–5-5

Engine oil •Check oil level.

•Fill with oil if necessary. 5-6, 8-6–8-11

Final gear oil/

differential gear oil •Check for leakage. 5-6–5-7,

8-11–8-15

Throttle •Check for proper throttle cable operation. 5-7, 8-26

Wheels and tires •Check tire pressure, wear and damage. 5-8–5-11,

8-36–8-37

Fittings and fasteners •Check all fittings and fasteners. 5-7

for proper operation. 5-7, 8-34,

8-41–8-45

Axle boots •Check for damage. 8-16

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

5-2

EBU12521

Front and rear brakes

Brake levers and brake pedal

●Check for correct free play in the front

brake lever. If the free play is incorrect,

have a Yamaha dealer adjust it.

●Check for correct free play in the rear brake

lever and brake pedal. If the free play is in-

correct, adjust it. (See pages 8-31–8-33.)

●Check operation of the levers and pedal.

They should move smoothly and there

should be a firm feeling when the brake is

applied. If not, have a Yamaha dealer in-

spect them.

Brake fluid level (front brake)

Check the brake fluid level. Add fluid if neces-

sary. (See pages 8-28–8-29.)

WARNING

POTENTIAL HAZARD

Failure to inspect the ATV before oper-

ating.

Failure to properly maintain the ATV.

WHAT CAN HAPPEN

Increases the possibility of an accident

or equipment damage.

HOW TO AVOID THE HAZARD

Always inspect your ATV each time you

use it to make sure the ATV is in safe op-

erating condition.

Always follow the inspection and main-

tenance procedures and schedules de-

scribed in the Owner’s Manual.

Recommended brake fluid: DOT 4

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

5-3

Brake fluid leakage (front brake)

Check to see if any brake fluid is leaking out of

the hose, joint or brake fluid reservoir of the

front brake. Apply the brake firmly for one

minute. If the lever moves slowly inward,

there may be a leak in the brake system. If

there is any leakage, the brake system should

be inspected by a Yamaha dealer.

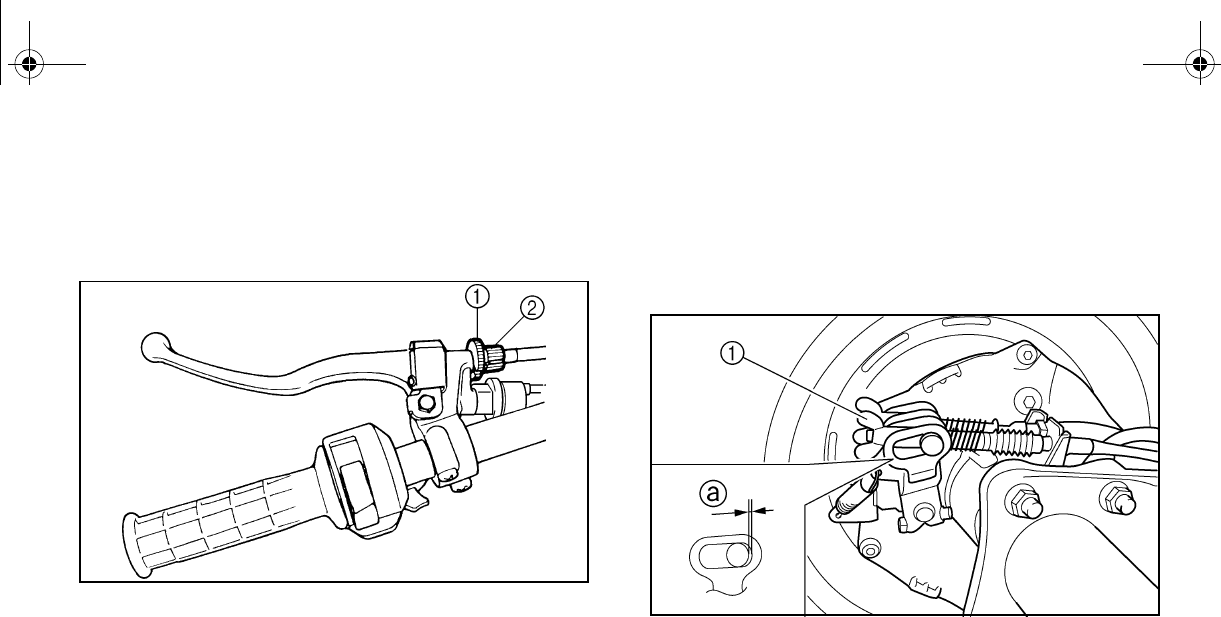

Brake operation

Test the brakes at slow speed after starting

out to make sure they are working properly. If

the brakes do not provide proper braking per-

formance, inspect the brake pads and shoes

for wear. (See page 8-27.)

WARNING

POTENTIAL HAZARD

Riding with improperly operating

brakes.

WHAT CAN HAPPEN

You could lose braking ability, which

could lead to an accident.

HOW TO AVOID THE HAZARD

Always check the brakes at the start of

every ride. Do not ride the ATV if you

find any problem with the brakes. If a

problem cannot be corrected by the ad-

justment procedures provided in this

manual, have a Yamaha dealer check for

the cause.

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

5-4

EBU01085

Fuel

Make sure there is sufficient gasoline in the

tank.

CAUTION:

Use only unleaded gasoline. The use of

leaded gasoline will cause severe damage

to internal engine parts, such as the valves

and piston rings, as well as to the exhaust

system.

Your Yamaha engine has been designed to

use regular unleaded gasoline with a pump

octane number ([R+M]/2) of 86 or higher, or

research octane number of 91 or higher. If

knocking or pinging occurs, use a different

brand of gasoline or premium unleaded fuel.

Unleaded fuel will give you longer spark plug

life and reduced maintenance cost.

Recommended fuel:

UNLEADED GASOLINE ONLY

Fuel tank capacity:

Total:

13.5 L (2.97 Imp gal, 3.57 US gal)

Reserve:

3.3 L (0.73 Imp gal, 0.87 US gal)

U5UH10.book Page 4 Monday, July 28, 2003 5:15 PM

5-5

Gasohol

There are two types of gasohol; gasohol con-

taining ethanol and that containing methanol.

Gasohol containing ethanol can be used if

ethanol content does not exceed 10%. Gaso-

hol containing methanol is not recommended

by Yamaha because it may cause fuel system

damage or vehicle performance problems.

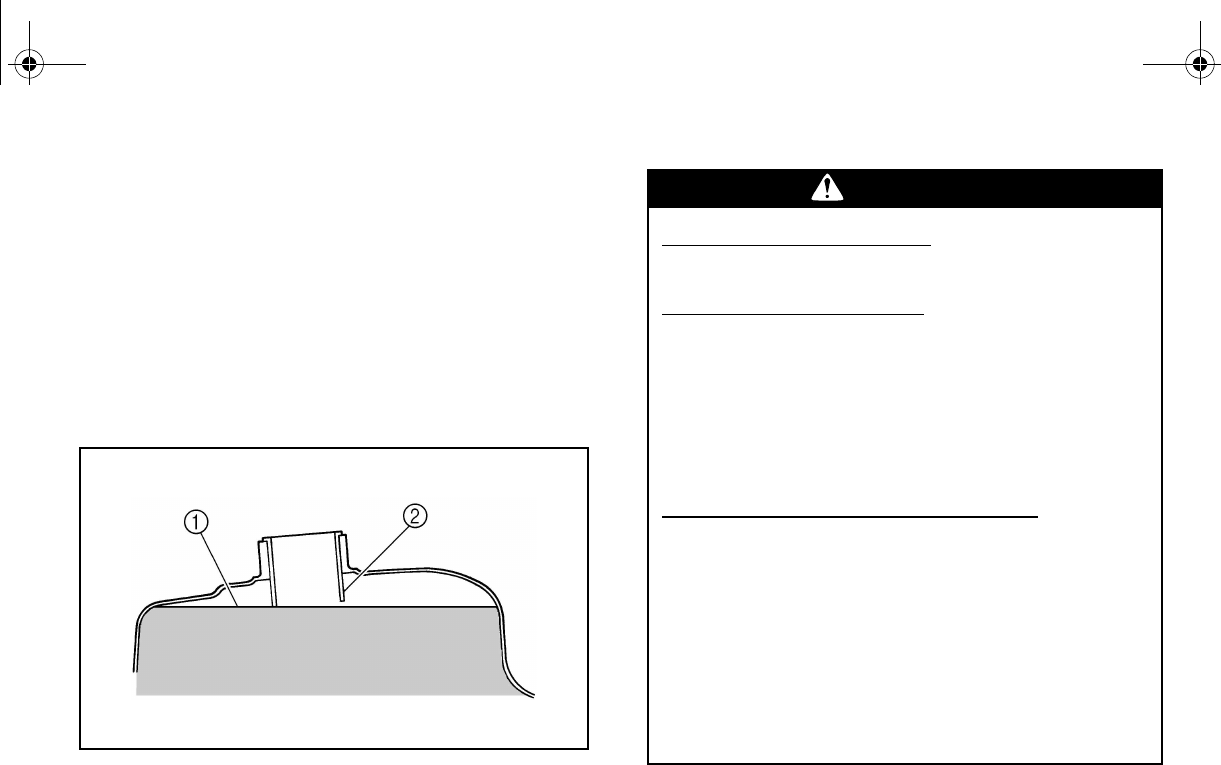

nk filler tube

WARNING

POTENTIAL HAZARD

Improper care when refueling.

WHAT CAN HAPPEN

Fuel can spill, which can cause a fire

and severe injury. Fuel expands when it

heats up. If the fuel tank is overfilled,

fuel could spill out due to heat from the

engine or the sun.

HOW TO AVOID THE HAZARD

Do not overfill the fuel tank. Be careful

not to spill fuel, especially on the engine

or exhaust pipe. Wipe up any spilled fuel

immediately. Be sure the fuel tank cap is

closed securely. Do not refuel right after

the engine has been running and is still

very hot.

U5UH10.book Page 5 Monday, July 28, 2003 5:15 PM

5-6

EBU10842

Engine oil

Make sure the engine oil is at the specified

level. Add oil as necessary. (See pages 8-6–

8-11.)

CAUTION:

●In order to prevent clutch slippage

(since the engine oil also lubricates

the clutch), do not mix any chemical

additives. Do not use oils with a diesel

specification of “CD” or oils of a high-

er quality than specified. In addition,

do not use oils labeled “ENERGY

CONSERVING II” or higher.

●Make sure that no foreign material en-

ters the crankcase.

EBU00493

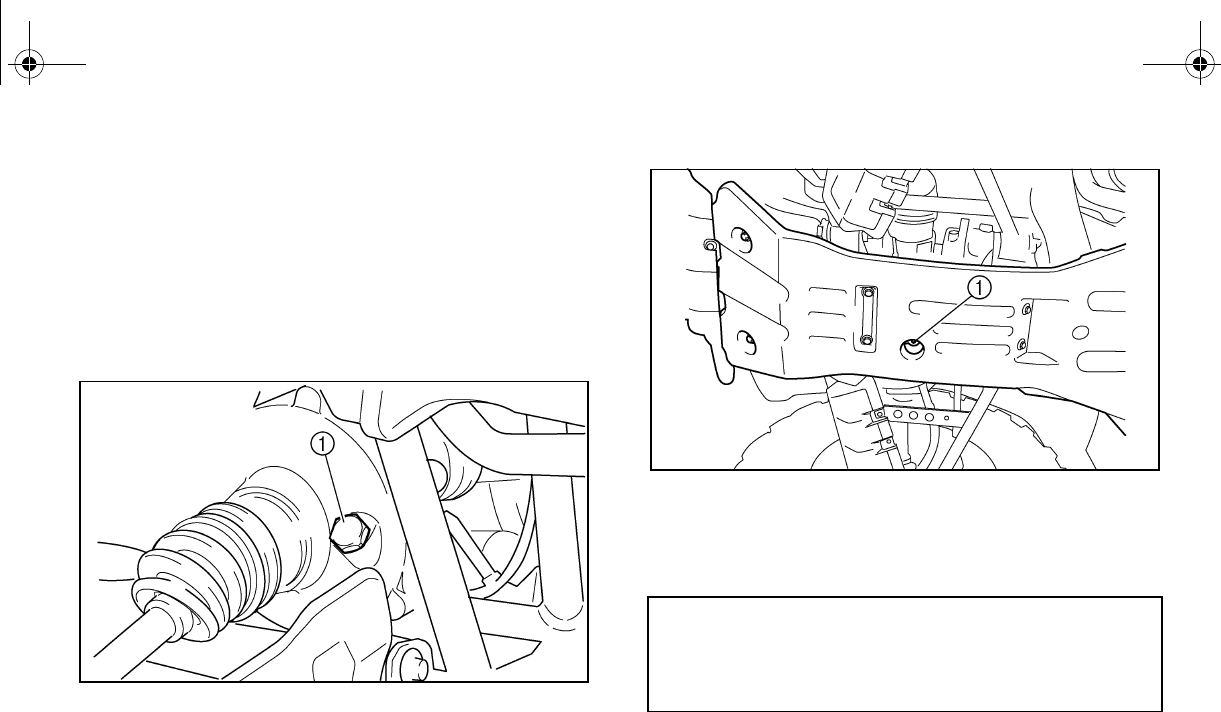

Final gear oil

Make sure the final gear oil is at the specified

level. Add oil as necessary. (See pages 8-11–

8-13 for details.)

If desired, an SAE 80W90 hypoid gear oil may

be used for all conditions.

TE:

GL-4 is a quality and additive rating, GL-5 or

GL-6 rated hypoid gear oils may also be used.

Recommended engine oil type and

See page 10-2.

Recommended oil:

SAE 80 API GL-4 Hypoid gear oil

U5UH10.book Page 6 Monday, July 28, 2003 5:15 PM

5-7

EBU00678

Differential gear oil

Make sure the differential gear oil is at the

specified level. Add oil as necessary. (See

pages 8-14–8-15 for details.)

EBU01083

Throttle lever

Check to see that the throttle lever operates

correctly. It must open smoothly and spring

back to the idle position when released. Have

a Yamaha dealer repair as necessary for

proper operation.

EBU11620

Fittings and fasteners

Always check the tightness of chassis fittings

and fasteners before a ride. Take the machine

to a Yamaha dealer or refer to the Service

Manual for correct tightening torque.

EBU10030

Lights

Check the headlights and tail/brake light to

make sure they are in working condition. Re-

pair as necessary for proper operation.

EBU11700

Switches

Check the operation of all switches. Have a

Yamaha dealer repair as necessary for proper

operation.

Recommended oil:

SAE 80 API GL-4 Hypoid gear oil

U5UH10.book Page 7 Monday, July 28, 2003 5:15 PM

5-8

EBU00157

Tires

WARNING

POTENTIAL HAZARD

Operating this ATV with improper tires,

or with improper or uneven tire pres-

sure.

WHAT CAN HAPPEN

Use of improper tires on this ATV, or op-

eration of this ATV with improper or un-

even tire pressure, may cause loss of

control, increasing your risk of acci-

dent.

HOW TO AVOID THE HAZARD

1. The tires listed below have been ap-

proved by Yamaha Motor Co., Ltd.

for this model. Other tire combina-

tions are not recommended.

Manufacturer Size Type

Front MAXXIS AT25 ×8-12 M911Y

Rear MAXXIS AT25 × 10-12 M912Y

2. The tires should be set to the rec-

ommended pressure:

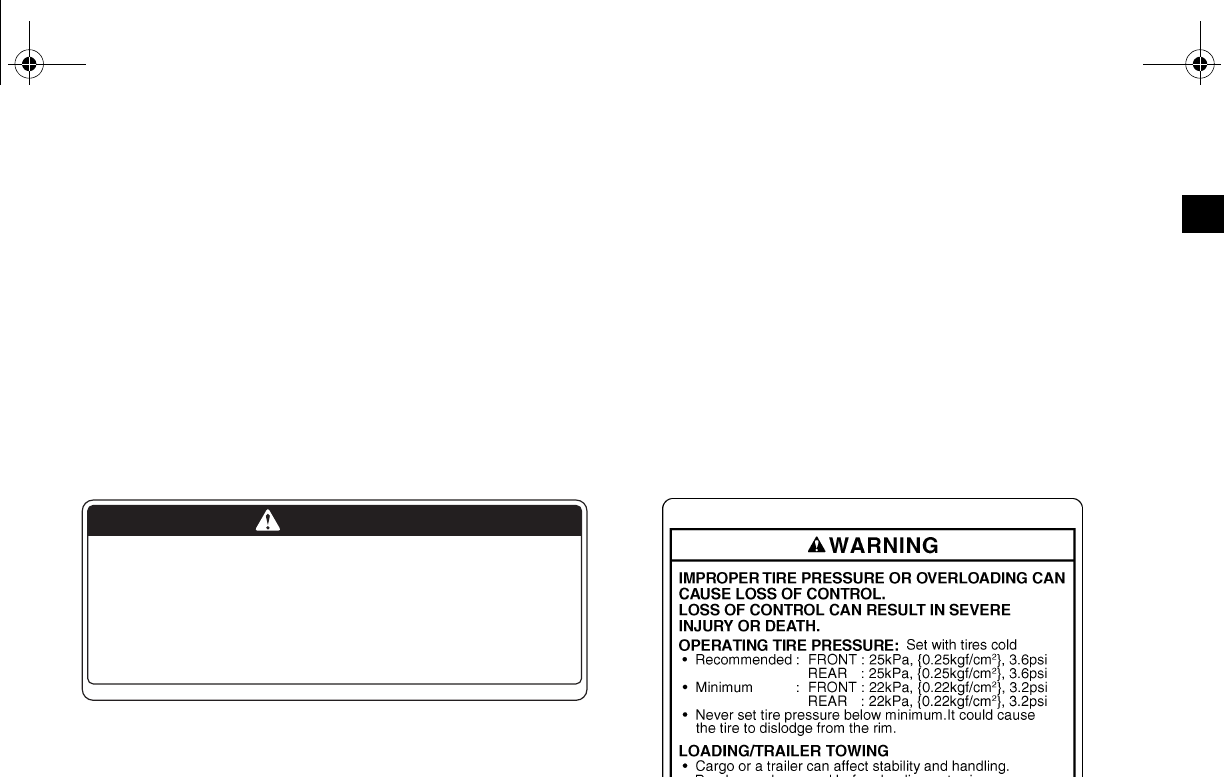

●Recommended tire pressure

Front 25 kPa (0.25 kgf/cm2, 3.6 psi)

Rear 25 kPa (0.25 kgf/cm2, 3.6 psi)

●Check and adjust tire pressures when

the tires are cold.

●Tire pressures must be equal on both

sides.

3. Tire pressure below the minimum

specified could cause the tire to

dislodge from the rim under severe

riding conditions.

The following are minimums:

Front 22 kPa (0.22 kgf/cm2, 3.2 psi)

Rear 22 kPa (0.22 kgf/cm2, 3.2 psi)

U5UH10.book Page 8 Monday, July 28, 2003 5:15 PM

5-9

4. Use no more than the following

pressures when seating the tire

beads.

Front 250 kPa (2.5 kgf/cm2, 36 psi)

Rear 250 kPa (2.5 kgf/cm2, 36 psi)

Higher pressures may cause the

tire to burst. Inflate the tires very

slowly and carefully. Fast inflation

could cause the tire to burst.

U5UH10.book Page 9 Monday, July 28, 2003 5:15 PM

5-10

EBU00159

How to measure tire pressure

Use the low-pressure tire gauge.

TE:

The low-pressure tire gauge is included as

standard equipment. Make two measure-

ments of the tire pressure and use the second

reading. Dust or dirt in the gauge could cause

the first reading to be incorrect.

Set pressure with tires cold.

Set tire pressures to the following specifica-

tions:

ACE-02EACE-02E

1. Low-pressure tire gauge

Recommended

pressure Minimum Maximum

Front

25 kPa

(0.25 kgf/cm2,

3.6 psi)

22 kPa

(0.22 kgf/cm2,

3.2 psi)

28 kPa

(0.28 kgf/cm2,

4.0 psi)

Rear (0.25 kgf/cm ,

3.6 psi)

(0.22 kgf/cm ,

3.2 psi)

28 kPa

(0.28 kgf/cm2,

4.0 psi)

U5UH10.book Page 10 Monday, July 28, 2003 5:15 PM

5-11

EBU00160

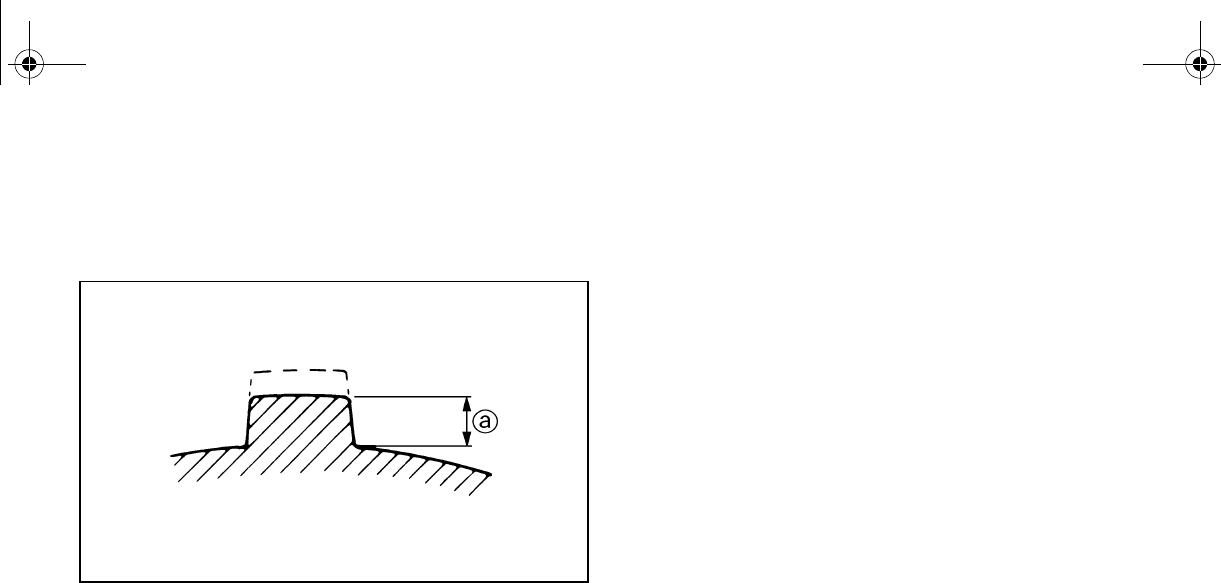

Tire wear limit

When the tire groove decreases to 3 mm

(0.12 in) due to wear, replace the tire.

a. Tire wear limit

U5UH10.book Page 11 Monday, July 28, 2003 5:15 PM

6-1

EBU00161

OPERATION

WARNING

Indicates a potential hazard that could

result in serious injury or death.

EBU14590

Starting a cold engine

1. Apply the brake pedal.

2. Turn the fuel cock to “ON”.

3. Turn the main switch to “ON” and the en-

gine stop switch to “”.

4. Shift the drive select lever into the neutral

position.

WARNING

POTENTIAL HAZARD

Operating ATV without being familiar

with all controls.

WHAT CAN HAPPEN

Loss of control, which could cause an

accident or injury.

HOW TO AVOID THE HAZARD

Read the Owner’s Manual carefully. If

there is a control or function you do not

understand, ask your Yamaha dealer.

WARNING

POTENTIAL HAZARD

Freezing control cables in cold weather.

WHAT CAN HAPPEN

You could be unable to control the ATV,

which could lead to an accident or colli-

sion.

HOW TO AVOID THE HAZARD

When riding in cold weather, always

make sure all control cables work

smoothly before you begin riding.

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

6-2

NOTE:

●When the drive select lever is in the neu-

tral position, the neutral indicator light

should come on. If it does not come on,

ask a Yamaha dealer to inspect the elec-

tric circuit.

●The engine can be started in any gear if

the brake pedal is applied. However, it is

recommended to shift into neutral before

starting the engine.

5. Use the starter (choke) in reference to

the figure:

Position 1: Cold engine start-

ambient temperature below 5 °C

(40 °F).

Position 2: Cold engine start-

ambient temperature at 0 °C

°F) and warm-

ing up position.

Position 3: Cold engine start-

ambient temperature above

25 °C (80 °F) and warm engine

start position.

a. Starter (choke) 1. Fully open

2. Half open 3. Closed

6. Completely close the throttle lever and

start the engine by pushing the start

switch.

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

6-3

NOTE:

●If the engine fails to start, release the

start switch, then push the start switch

again. Pause a few seconds before the

next attempt. Each cranking should be as

short as possible to preserve battery en-

ergy. Do not crank the engine more than

10 seconds on each attempt.

●If the battery is discharged, pull the recoil

starter to start the engine.

7. If the engine is started with the starter

(choke) in position 1, the starter (choke)

should be returned to position 2 to warm

up the engine. If the engine is started with

the starter (choke) in position 2, keep

the starter (choke) in this position to

warm up the engine.

engine until it

idles smoothly and return the starter

(choke) to position 3 before riding.

CAUTION:

See the “Engine break-in” section prior to

operating the engine for the first time.

EBU00180

Starting a warm engine

To start a warm engine, refer to the “Starting a

cold engine” section. The starter (choke)

should not be used. The throttle should be

opened slightly.

EBU00182

Warming up

To get maximum engine life, always warm up

the engine before starting off. Never acceler-

ate hard with a cold engine! To see whether or

not the engine is warm, check if it responds to

the throttle normally with the starter (choke)

turned off.

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

6-4

EBU14600

Drive select lever operation and reverse

driving

CAUTION:

Before shifting, stop the machine and re-

turn the throttle lever to its closed posi-

tion. Otherwise, the transmission may be

damaged.

Shifting: forward

1. Bring the machine to a complete stop

and return the throttle lever to the closed

position.

2. Shift the gear from neutral to forward and

vice versa by moving the drive select le-

ver along the shift guide.

NOTE:

Make sure that the drive select lever is com-

1. Drive select lever

3. Open the throttle lever gradually.

U5UH10.book Page 4 Monday, July 28, 2003 5:15 PM

6-5

Shifting: reverse

1. Bring the machine to a complete stop

and return the throttle lever to the closed

position.

2. Apply the brake pedal.

3. Shift the gear from neutral to reverse and

vice versa by moving the drive select le-

ver along the shift guide.

NOTE:

When in reverse, the reverse indicator light

should be on. If the light does not come on,

ask a Yamaha dealer to inspect the ATV.

1. Drive select lever

4. Check behind for people or obstacles,

then release the brake pedal.

5. Open the throttle lever gradually and con-

tinue to watch to the rear while backing.

U5UH10.book Page 5 Monday, July 28, 2003 5:15 PM

6-6

WARNING

POTENTIAL HAZARD

Improper operation in reverse.

WHAT CAN HAPPEN

You could hit an obstacle or person be-

hind you, resulting in serious injury.

HOW TO AVOID THE HAZARD

When you shift into reverse, make sure

there are no obstacles or people behind

you. When it is safe to proceed, go slow-

ly.

U5UH10.book Page 6 Monday, July 28, 2003 5:15 PM

6-7

EBU02101

Engine break-in

There is never a more important period in the

life of your machine than the period between

zero and 20 hours.

For this reason, we ask that you carefully read

the following material. Because the engine is

brand new, you must not put an excessive

load on it for the first several hours of running.

During the first 20 hours, the various parts in

the engine wear and polish themselves to the

correct operating clearances.

During this period, prolonged full throttle oper-

ation or any condition which might result in ex-

cessive engine heating must be avoided.

However, momentary (2–3 seconds maxi-

mum) full throttle operation under load does

not harm the engine.

Each full throttle acceleration sequence

should be followed with a substantial rest pe-

riod for the engine by cruising at lower r/min

so the engine can rid itself of the temporary

build up of heat.

If any abnormality is noticed during this peri-

od, consult a Yamaha dealer.

0–10 hours:

Avoid continuous operation above half throt-

tle. Allow a cooling off period of five to ten min-

utes after every hour of operation. Vary the

speed of the machine from time to time. Do

not operate it at one set throttle position.

U5UH10.book Page 7 Monday, July 28, 2003 5:15 PM

6-8

10–20 hours:

Avoid prolonged operation above 3/4 throttle.

Rev the machine freely but do not use full

throttle at any time.

After break-in:

Avoid prolonged full throttle operation. Vary

speeds occasionally.

EBU00211

Parking

When parking, stop the engine and shift into

neutral. Turn the fuel cock to “OFF” and apply

the parking brake.

U5UH10.book Page 8 Monday, July 28, 2003 5:15 PM

6-9

EBU13750

Parking on a slope 1. Bring the machine to a stop by applying

the brakes.

2. Stop the engine.

3. With the rear brake lever and pedal ap-

plied, apply the parking brake, and then

slowly release the brake pedal.

WARNING

POTENTIAL HAZARD

Parking on a hill or other incline.

WHAT CAN HAPPEN

The ATV could roll out of control, in-

creasing the chance of an accident.

HOW TO AVOID THE HAZARD

Avoid parking on hills or other inclines.

If you must park on an incline, place the

machine transversely across the in-

cline, apply the parking brake, and block

the front and rear wheels with rocks or

other objects.

Do not park the ATV at all on hills that

are so steep you could not walk up them

easily.

U5UH10.book Page 9 Monday, July 28, 2003 5:15 PM

6-10

EBU00221

Accessories and loading

EBU00222

Accessories

Accessories can affect the handling and con-

trol of your ATV. Keep the following in mind

when considering an accessory or operating

an ATV which has accessories.

●Choose only accessories designed for your

ATV. Your Yamaha dealer has a variety of

genuine Yamaha accessories. Other ac-

cessories may also be available on the

market. However, it is not possible for

Yamaha to test all non-Yamaha accesso-

ries, nor have any control over the quality or

suitability of them. Choose a genuine

Yamaha accessory, or one that is equiva-

lent in design and quality.

●Accessories should be rigidly and securely

mounted. An accessory which can shift po-

sition or come off while you are riding could

affect your ability to control the ATV.

●Do not mount an accessory where it could

interfere with your ability to control the ATV.

Examples include (but are not limited to) a

heavy or bulky object attached to the han-

dlebars which could make steering difficult,

an accessory that limits your ability to move

around on the seat, or one that limits your

view.

●Use extra caution when riding an ATV with

accessories. The ATV may handle differ-

ently than it does without accessories.

U5UH10.book Page 10 Monday, July 28, 2003 5:15 PM

6-11

EBU12461

Cargo or a trailer can change the stability and

handling of an ATV.

You must use common sense and good judg-

ment when carrying cargo or towing a trailer.

Keep the following points in mind:

●Never exceed the weight limits shown. An

overloaded ATV can be unstable.

●Do not exceed the maximum tongue

weight. You can measure tongue weight

with a bathroom scale. Put the tongue of

the loaded trailer on the scale with the

tongue at hitch height. Adjust the load in the

trailer, if necessary, to reduce the weight on

hitch.

If you are carrying cargo and towing a trail-

er, include the tongue weight in the maxi-

mum vehicle load limit.

●Load cargo on the carrier as close to the

center of the vehicle as possible. Put cargo

at the rear of the front carrier and at the

front of the rear carrier. Center the load

from side to side.

●Tie down cargo securely to the carriers.

Make sure cargo in the trailer cannot move

around. A shifting load can cause an acci-

dent.

●Make sure the load does not interfere with

controls or your ability to see where you are

going.

MAXIMUM LOADING LIMIT

●Vehicle loading limit (total weight of

cargo, rider and accessories, and

tongue weight): 210 kg (463 lb)

●Front carrier: 40 kg (88 lb)

●Rear carrier: 80 kg (176 lb)

●Storage box: 2.0 kg (4.4 lb)

●Trailer hitch:

Pulling load (total weight of trailer

lbf)

Tongue weight (vertical weight on

trailer hitch point): 15 kgf (33 lbf)

U5UH10.book Page 11 Monday, July 28, 2003 5:15 PM

6-12

●Ride more slowly than you would without a

load. The more weight you carry, the slow-

er you should go.

●Allow more braking distance. A heavier ve-

hicle takes longer to stop.

●Avoid making sharp turns unless at very

slow speeds.

●Avoid hills and rough terrain. Choose ter-

rain carefully. Added weight affects the sta-

bility and handling of the ATV.

WARNING

POTENTIAL HAZARD

Overloading this ATV or carrying or tow-

ing cargo improperly.

WHAT CAN HAPPEN

Could cause changes in vehicle han-

dling which could lead to an accident.

HOW TO AVOID THE HAZARD

Never exceed the stated load capacity

for this ATV.

Cargo should be properly distributed

and securely attached.

Reduce speed when carrying cargo or

pulling a trailer. Allow greater distance

for braking.

U5UH10.book Page 12 Monday, July 28, 2003 5:15 PM

6-13

EBU14610

WARNING

Indicates a potential hazard that could

result in serious injury or death.

U5UH10.book Page 13 Monday, July 28, 2003 5:15 PM

7-1

Riding

Your

ATV

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

7-2

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

7-3

WARNING

Indicates a potential hazard that could

result in serious injury or death.

GETTING TO KNOW YOUR ATV

This ATV is for recreation and utility use. This

section, Riding your ATV, provides general

ATV riding instructions for recreational riding.

The skills and techniques described in this

section, however, are appropriate for all types

of riding. Riding your ATV requires special

skills acquired through practice over a period

of time. Take the time to learn the basic tech-

niques well before attempting more difficult

maneuvers.

Riding your new ATV can be a very enjoyable

rs of pleasure.

But it is essential to familiarize yourself with

the operation of the ATV to achieve the skill

necessary to enjoy riding safely. Before you

begin to ride, be sure you have read this

Owner’s Manual completely and understand

the operation of the controls. Pay particular at-

tention to the safety information on pages

2-1–2-6. Please also read all caution and

warning labels on your ATV.

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

7-4

RIDE WITH CARE AND GOOD

JUDGEMENT

Get training if you are inexperienced.

Beginners should get training from a certified

instructor.

Become familiar with this ATV at slow speeds

first, even if you are an experienced operator.

Do not attempt to operate at maximum perfor-

mance until you are totally familiar with the

ATV’s handling and performance characteris-

tics.

Riding your ATV requires skills acquired

through practice over a period of time.

Take the time to learn the basic techniques

well before attempting more difficult maneu-

vers.

WARNING

POTENTIAL HAZARD

Operating this ATV without proper in-

struction.

WHAT CAN HAPPEN

greatly in-

creased if the operator does not know

how to operate the ATV properly in dif-

ferent situations and on different types

of terrain.

HOW TO AVOID THE HAZARD

Beginning and inexperienced operators

should complete the certified training

course offered by Yamaha. They should

then regularly practice the skills learned

in the course and the operating tech-

niques described in this Owner’s Manu-

al. For more information about the

training course, contact an authorized

ATV dealer or call 1-800-887-2887.

U5UH10.book Page 4 Monday, July 28, 2003 5:15 PM

7-5

Not recommended for children under

16 years of age.

WARNING

POTENTIAL HAZARD

Failure to follow the age recommenda-

tions for this ATV.

WHAT CAN HAPPEN

Use by children of ATVs that are not rec-

ommended for their age can lead to se-

vere injury or death of the child.

HOW TO AVOID THE HAZARD

A child under 16 should never operate

an ATV with engine size greater than

90 cc.

U5UH10.book Page 5 Monday, July 28, 2003 5:15 PM

7-6

This ATV is designed to carry operator and

cargo only – passengers prohibited.

WARNING

POTENTIAL HAZARD

Carrying a passenger on this ATV.

WHAT CAN HAPPEN

Greatly reduces your ability to balance

and control this ATV. Could cause an

accident, resulting in harm to you and/

or your passenger.

HOW TO AVOID THE HAZARD

Never carry a passenger. The long seat

is to allow the operator to shift position

as needed during operation. It is not for

carrying passengers.

U5UH10.book Page 6 Monday, July 28, 2003 5:15 PM

7-7

Apparel

WARNING

POTENTIAL HAZARD

Operating this ATV without wearing an

approved motorcycle helmet, eye pro-

tection and protective clothing.

WHAT CAN HAPPEN

Operating without

an approved motor-

cycle helmet in-

creases your

chances of a severe

head injury or death

in the event of an

accident.

Operating without eye protection can re-

sult in an accident and increases your

in the event

of an accident.

Operating without protective clothing

increases your chances of severe injury

in the event of an accident.

HOW TO AVOID THE HAZARD

Always wear an approved motorcycle

helmet that fits properly.

You should also wear:

eye protection

(goggles or face shield)

gloves

boots

long-sleeved shirt or jacket

long pants

U5UH10.book Page 7 Monday, July 28, 2003 5:15 PM

7-8

Do not operate after consuming alcohol or

drugs.

Operator’s performance capability is reduced

by the influence of alcohol or drugs.

WARNING

POTENTIAL HAZARD

Operating this ATV after consuming al-

cohol or drugs.

WHAT CAN HAPPEN

Could seriously affect your judgment.

Could cause you to react more slowly.

Could affect your balance and percep-

tion.

Could result in an accident.

HOW TO AVOID THE HAZARD

Never consume alcohol or drugs before

or while driving this ATV.

U5UH10.book Page 8 Monday, July 28, 2003 5:15 PM

7-9

Pre-operation checks

Always perform the pre-operation checks list-

ed on page 5-1 before riding for safety and

proper care of the ATV.

WARNING

POTENTIAL HAZARD

Failure to inspect the ATV before oper-

ating.

Failure to properly maintain the ATV.

WHAT CAN HAPPEN

Increases the possibility of an accident

or equipment damage.

HOW TO AVOID THE HAZARD

Always inspect your ATV each time you

use it to make sure the ATV is in safe op-

erating condition. Always follow the in-

spection and maintenance procedures

the Owner’s

Manual.

WARNING

POTENTIAL HAZARD

Operating this ATV with improper tires,

or with improper or uneven tire pres-

sure.

WHAT CAN HAPPEN

Use of improper tires on this ATV, or op-

eration of this ATV with improper or un-

even tire pressure, may cause loss of

control, increasing your risk of an acci-

dent.

HOW TO AVOID THE HAZARD

Always use the size and type tires spec-

ified in the Owner’s Manual for this vehi-

cle on pages 5-8–5-9. Always maintain

proper tire pressure as described in the

Owner’s Manual on page 5-10.

U5UH10.book Page 9 Monday, July 28, 2003 5:15 PM

7-10

WARNING

Indicates a potential hazard that could

result in serious injury or death.

Do not operate at speeds too fast for your

skills or the conditions.

Speed limiter

For riders less experienced with this model,

this model is equipped with a speed limiter in

the throttle lever housing. The speed limiter

keeps the throttle from fully opening, even

when the throttle lever is pushed to the maxi-

mum. Turning the adjusting screw in limits the

maximum engine power available and de-

creases the maximum speed of the ATV.

Turning the adjusting screw in decreases top

speed and turning it out increases top speed.

1. Locknut 2. Adjusting screw

WARNING

POTENTIAL HAZARD

Operating this ATV at speeds too fast

for your skills or the conditions.

WHAT CAN HAPPEN

Increases your chances of losing con-

trol of the ATV, which can result in an

accident.

HOW TO AVOID THE HAZARD

Always go at a speed that is proper for

erating con-

ditions, and your experience.

U5UH10.book Page 10 Monday, July 28, 2003 5:15 PM

7-11

Loading and accessories

Use extra caution when riding the ATV with

additional loads, such as accessories or car-

go. The ATV’s handling may be adversely af-

fected. Reduce your speed when adding

additional loads.

MAXIMUM LOADING LIMIT

●Vehicle loading limit: 210 kg (463 lb)

* Total weight of cargo, rider and

accessories, and trailer hitch

vertical load.

●Front carrier: 40 kg (88 lb)

●Rear carrier: 80 kg (176 lb)

●Storage box: 2.0 kg (4.4 lb)

●Trailer hitch:

Pulling load: 500 kgf (1,102 lbf)

Total weight of trailer and cargo.

lbf)

Vertical weight on trailer hitch point.

WARNING

POTENTIAL HAZARD

Overloading this ATV or carrying or tow-

ing cargo improperly.

WHAT CAN HAPPEN

Could cause changes in vehicle han-

dling which could lead to an accident.

HOW TO AVOID THE HAZARD

Never exceed the stated load capacity

for this ATV.

Cargo should be properly distributed

and securely attached.

Reduce speed when carrying cargo or

pulling a trailer. Allow greater distance

for braking.

Always follow the instructions in your

Owner’s Manual for carrying cargo or

pulling a trailer.

U5UH10.book Page 11 Monday, July 28, 2003 5:15 PM

7-12

During operation

Always keep your feet on the footboards dur-

ing operation. Otherwise your feet may con-

tact the rear wheels.

WARNING

POTENTIAL HAZARD

Removing hands from handlebars or

feet from footboards during operation.

WHAT CAN HAPPEN

Removing even one hand or foot can re-

duce your ability to control the ATV or

could cause you to lose your balance

and fall off of the ATV. If you remove a

foot from a footboard, your foot or leg

may come into contact with the rear

wheels, which could injure you or cause

an accident.

HOW TO AVOID THE HAZARD

Always keep both hands on the handle-

bars and both feet on the footboards of

your ATV during operation.

U5UH10.book Page 12 Monday, July 28, 2003 5:15 PM

7-13

Avoid wheelies and jumping. You may lose

control of the ATV or overturn.

WARNING

POTENTIAL HAZARD

Attempting wheelies, jumps, and other

stunts.

WHAT CAN HAPPEN

Increases the chance of an accident, in-

cluding an overturn.

HOW TO AVOID THE HAZARD

Never attempt stunts, such as wheelies

or jumps. Don’t try to show off.

U5UH10.book Page 13 Monday, July 28, 2003 5:15 PM

7-14

Modifications

WARNING

POTENTIAL HAZARD

Operating this ATV with improper modi-

fications.

WHAT CAN HAPPEN

Improper installation of accessories or

modification of this vehicle may cause

changes in handling which in some situ-

ations could lead to an accident.

HOW TO AVOID THE HAZARD

Never modify this ATV through improp-

er installation or use of accessories. All

parts and accessories added to this ve-

hicle should be genuine Yamaha or

equivalent components designed for

use on this ATV and should be installed

tructions. If

you have questions, consult an autho-

rized ATV dealer.

U5UH10.book Page 14 Monday, July 28, 2003 5:15 PM

7-15

Exhaust system

The exhaust system on the ATV is very hot

during and following operation. To prevent

burns, avoid touching the exhaust system.

Park the ATV in a place where pedestrians or

children are not likely to touch it.

WARNING

POTENTIAL HAZARD

Hot exhaust system.

WHAT CAN HAPPEN

Dry grass or brush or other combustible

material accumulated around the en-

gine area could catch fire.

Someone touching the exhaust system

during or after operation could be

burned.

HOW TO AVOID THE HAZARD

k the ATV in

dry grass or other dry ground cover.

Keep the engine area free of dry grass,

brush, or other combustible material.

Do not touch the hot exhaust system.

Do not park the ATV in a place where

others might be likely to touch it.

U5UH10.book Page 15 Monday, July 28, 2003 5:15 PM

7-16

BE CAREFUL WHERE YOU RIDE

This ATV is designed for off-road use only.

Riding on paved surfaces can cause loss of

control.

WARNING

POTENTIAL HAZARD

Operating this ATV on paved surfaces.

WHAT CAN HAPPEN

ATVs are designed for off-road use only.

Paved surfaces may seriously affect

handling and control of the ATV, and

may cause the vehicle to go out of con-

trol.

HOW TO AVOID THE HAZARD

Always avoid paved surfaces, including

sidewalks, driveways, parking lots and

streets.

U5UH10.book Page 16 Monday, July 28, 2003 5:15 PM

7-17

Do not ride on any public road, street, or high-

way.

Riding on public roads can result in collisions

with other vehicles.

WARNING

POTENTIAL HAZARD

Operating this ATV on public streets,

roads or highways.

WHAT CAN HAPPEN

You can collide with another vehicle.

HOW TO AVOID THE HAZARD

Never operate this ATV on any public

street, road or highway, even a dirt or

gravel one. In many states it is illegal to

operate ATVs on public streets, roads

and highways.

U5UH10.book Page 17 Monday, July 28, 2003 5:15 PM

7-18

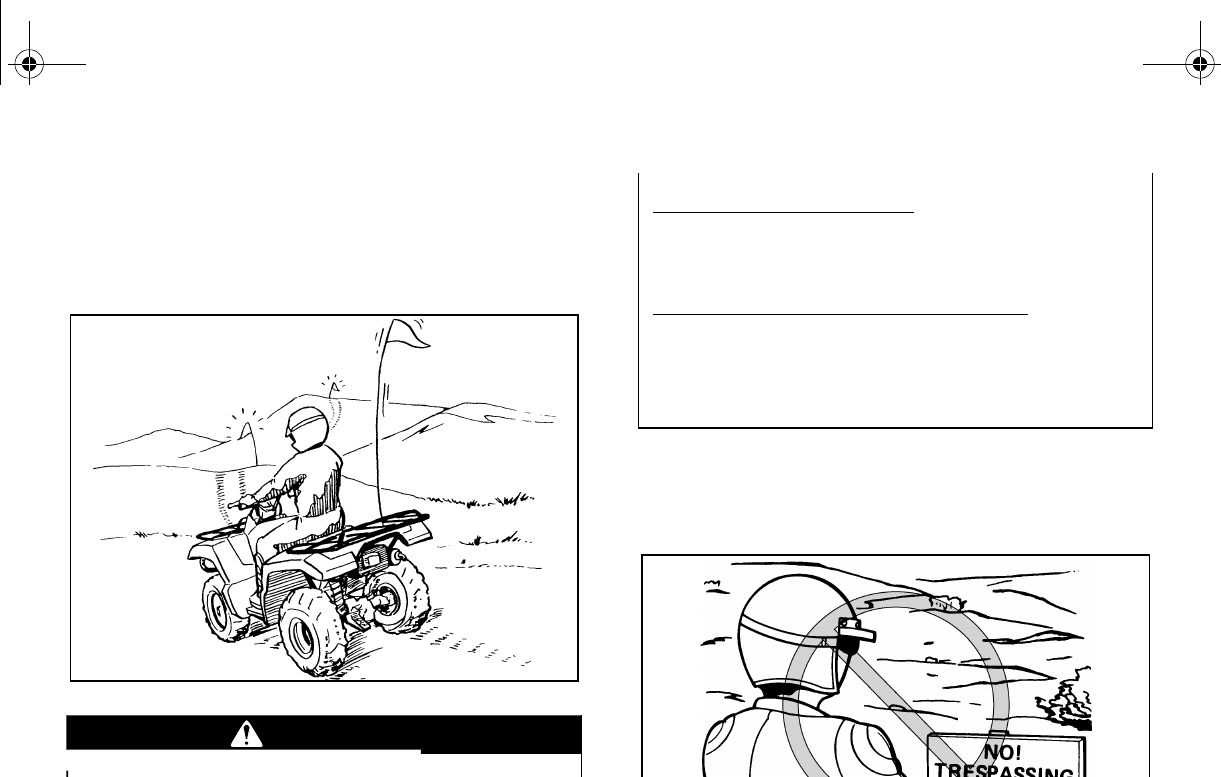

Know the terrain where you ride. Ride cau-

tiously in unfamiliar areas. Stay alert for

holes, rocks, or roots in the terrain, and oth-

er hidden hazards which may cause the ATV

to upset.

WARNING

POTENTIAL HAZARD

Failure to use extra care when operating

this ATV on unfamiliar terrain.

WHAT CAN HAPPEN

You can come upon hidden rocks,

bumps, or holes, without enough time to

react. Could result in the ATV overturn-

ing or going out of control.

HOW TO AVOID THE HAZARD

Go slowly and be extra careful when op-

erating on unfamiliar terrain. Always be

conditions

when operating the ATV.

U5UH10.book Page 18 Monday, July 28, 2003 5:15 PM

7-19

WARNING

POTENTIAL HAZARD

Failure to use extra care when operating

on excessively rough, slippery or loose

terrain.

WHAT CAN HAPPEN

Could cause loss of traction or vehicle

control, which could result in an acci-

dent, including an overturn.

HOW TO AVOID THE HAZARD

Do not operate on excessively rough,

slippery or loose terrain until you have

learned and practiced the skills neces-

sary to control the ATV on such terrain.

Always be especially cautious on these

kinds of terrain.

U5UH10.book Page 19 Monday, July 28, 2003 5:15 PM

7-20

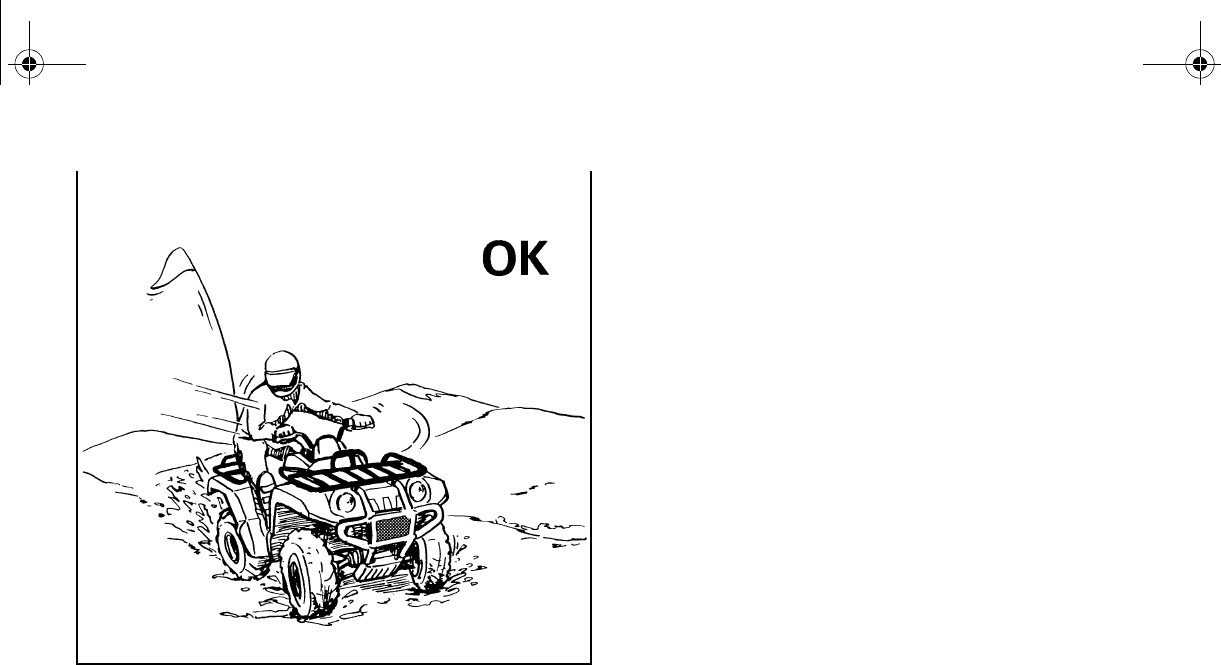

When riding in an area where you might not

easily be seen, such as desert terrain, mount

a caution flag on the ATV. DO NOT use the

flag pole bracket as a trailer hitch.

Do not ride in areas posted “no trespassing”.

Do not ride on private property without getting

permission.

WARNING

POTENTIAL HAZARD

Operating in areas where you might not

be seen by other off-road vehicles.

WHAT CAN HAPPEN

You could be in a collision. You could

be injured.

HOW TO AVOID THE HAZARD

Always mount a caution flag on the ATV

to make you more visible. Watch care-

fully for other vehicles.

U5UH10.book Page 20 Monday, July 28, 2003 5:15 PM

7-21

Select a large, flat area off-road to become fa-

miliar with your ATV. Make sure that this area

is free of obstacles and other riders. You

should practice control of the throttle, brakes,

and turning techniques in this area before try-

ing more difficult terrain.

Always avoid riding on paved surfaces: the

ATV is designed for off-road use only, and

handling maneuvers are more difficult to per-

form on pavement.

Set the parking brake and follow the instruc-

tion on page 6-1 to start the engine. Once it

has warmed up you are ready to begin riding

your ATV. Remember that the engine and ex-

haust pipe will be hot when riding and after-

wards; do not allow skin or clothing to come in

contact with these components.

With the engine idling, return the starter

(choke) to the closed position, shift the drive

select lever into the forward position, and then

release the parking brake. Apply the throttle

slowly and smoothly. The centrifugal clutch

will engage and you will start to accelerate. If

the throttle is applied too abruptly, the front

wheels may lift off the ground resulting in a

loss of directional control. Avoid higher

speeds until you are thoroughly familiar with

the operation of your ATV.

When slowing down or stopping, release the

throttle and apply the brakes smoothly and

evenly. Improper use of the brakes can cause

the tires to lose traction, reducing control and

increasing the possibility of an accident.

U5UH10.book Page 21 Monday, July 28, 2003 5:15 PM

7-22

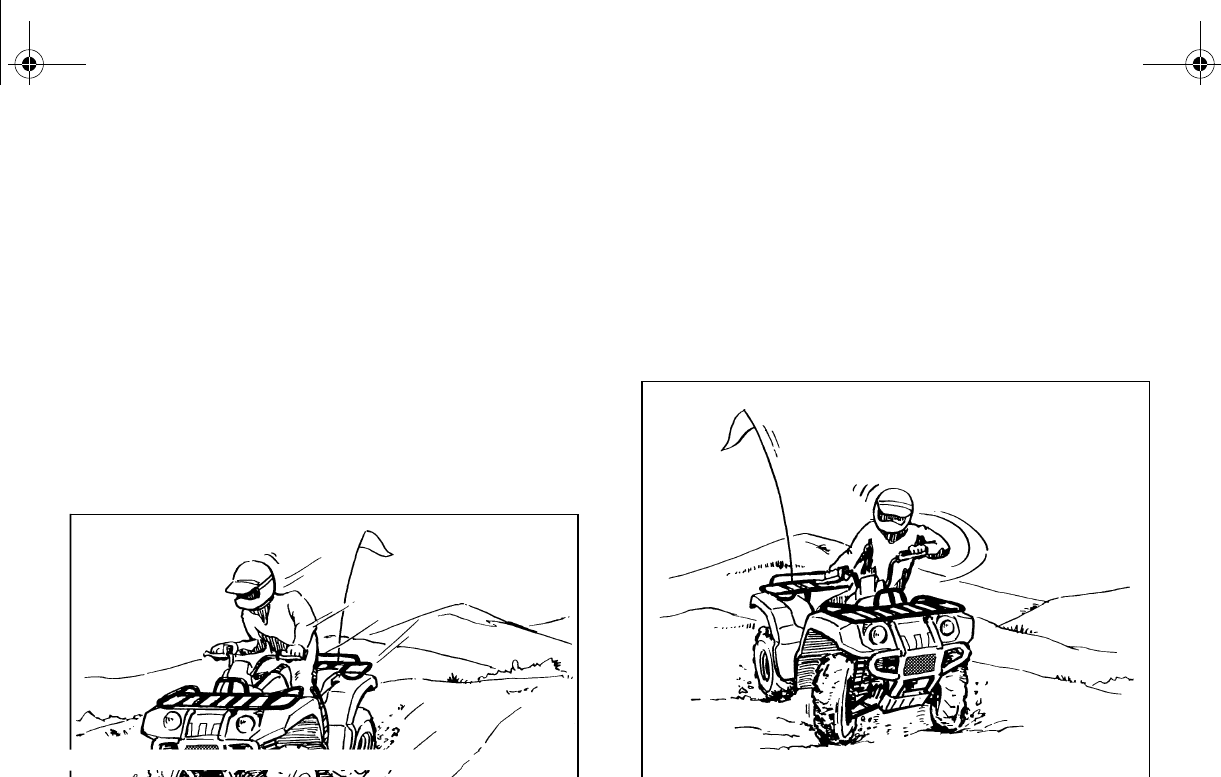

TURNING YOUR ATV

To achieve maximum traction while riding off-

road, the two rear wheels are mounted solidly

on one axle and turn together at the same

speed. Therefore, unless the wheel on the in-

side of the turn is allowed to slip or lose some

traction, the ATV will resist turning. A special

turning technique must be used to allow the

ATV to make turns quickly and easily. It is es-

sential that this skill be learned first at low

speed.

As you approach a curve, slow down and be-

gin to turn the handlebars in the desired direc-

tion. As you do so, put your weight on the

footboard to the outside of the turn (opposite

your desired direction) and lean your upper

body into the turn. Use the throttle to maintain

an even speed through the turn. This maneu-

ver will let the wheel on the inside of the turn

slip slightly, allowing the ATV to make the turn

properly.

WARNING

POTENTIAL HAZARD

Turning improperly.

WHAT CAN HAPPEN

ATV could go out of control, causing a

collision or overturn.

HOW TO AVOID THE HAZARD

Always follow proper procedures for

turning as described in this Owner’s

Manual.

Practice turning at low speeds before at-

tempting to turn at faster speeds. Do not

turn at speeds too fast for your skills or

the conditions.

U5UH10.book Page 22 Monday, July 28, 2003 5:15 PM

7-23

This procedure should be practiced at slow

speed many times in a large off-road area

with no obstacles. If an incorrect technique is

used, your ATV may continue to go straight. If

the ATV doesn’t turn, come to a stop and then

If the riding sur-

face is slippery or loose, it may help to posi-

tion more of your weight over the front wheels

by moving forward on the seat.

Once you have learned this technique you

should be able to perform it at higher speeds

or in tighter curves.

Improper riding procedures such as abrupt

throttle changes, excessive braking, incorrect

body movements, or too much speed for the

sharpness of the turn may cause the ATV to

tip. If the ATV begins to tip over to the outside

while negotiating a turn, lean more to the in-

side. It may also be necessary to gradually let

off on the throttle and steer to the outside of

the turn to avoid tipping over.

Remember: Avoid higher speeds until you are

thoroughly familiar with the operation of your

ATV.

U5UH10.book Page 23 Monday, July 28, 2003 5:15 PM

7-24

CLIMBING UPHILL

Use proper riding techniques to avoid vehicle

overturns on hills. Be sure that you can ma-

neuver your ATV well on flat ground before at-

tempting any incline and then practice riding

first on gentle slopes. Try more difficult climbs

only after you have developed your skill. In all

cases avoid inclines with slippery or loose sur-

faces, or obstacles that might cause you to

lose control.

It is important when climbing a hill to make

sure that your weight is transferred forward on

the ATV. This can be accomplished by lean-

ing forward and, on steeper inclines, standing

on the footboards and leaning forward over

the handlebars.

WARNING

POTENTIAL HAZARD

Operating on excessively steep hills.

WHAT CAN HAPPEN

The vehicle can overturn more easily on

extremely steep hills than on level sur-

faces or small hills.

HOW TO AVOID THE HAZARD

Never operate the ATV on hills too steep

for the ATV or for your abilities. Practice

on smaller hills before attempting large

hills.

U5UH10.book Page 24 Monday, July 28, 2003 5:15 PM

7-25

WARNING

POTENTIAL HAZARD

Climbing hills improperly.

WHAT CAN HAPPEN

Could cause loss of control or cause the

ATV to overturn.

HOW TO AVOID THE HAZARD

Always follow proper procedures for

climbing hills as described in this Own-

er’s Manual.

Always check the terrain carefully be-

fore you start up any hill.

Never climb hills with excessively slip-

pery or loose surfaces.

Shift your weight forward.

Never open the throttle suddenly.

The ATV could flip over backwards.

ny hill at high

speed.

An obstacle, a sharp drop, or another

vehicle or person could be on the other

side of the hill.

U5UH10.book Page 25 Monday, July 28, 2003 5:15 PM

7-26

If you are climbing a hill and you find that you

have not properly judged your ability to make

it to the top, you should turn the ATV around

while you still have forward motion (provided

you have the room to do so) and go down the

hill.

WARNING

POTENTIAL HAZARD

Improperly crossing hills or turning on

hills.

WHAT CAN HAPPEN

Could cause loss of control or cause the

ATV to overturn.

HOW TO AVOID THE HAZARD

Never attempt to turn the ATV around

on any hill until you have mastered the

turning technique as described in the

Owner’s Manual on level ground. Be

very careful when turning on any hill.

Avoid crossing the side of a steep hill if

possible.

U5UH10.book Page 26 Monday, July 28, 2003 5:15 PM

7-27

When crossing the side of a hill:

Always follow proper procedures as de-

scribed in the Owner’s Manual.

Avoid hills with excessively slippery or

loose surfaces.

Shift your weight to the uphill side of the

ATV.

U5UH10.book Page 27 Monday, July 28, 2003 5:15 PM

7-28

If your ATV has stalled or stopped and you

believe you can continue up the hill, restart

carefully to make sure you do not lift the front

wheels which could cause you to lose control.

If you are unable to continue up the hill, dis-

mount the ATV on the uphill side. Physically

turn the ATV around and then descend the

hill.

If you start to roll backwards, DO NOT apply

either brake abruptly. If you are in 2WD, apply

only the front brake. When this ATV is in

4WD, all wheels (front and rear) are intercon-

nected by the drive train. This means that ap-

plying either the front brake or the rear brake

will brake all wheels. When descending hills,

using either brake lever or the brake pedal will

brake the wheels on the downhill side. Avoid

e front or rear

brake because the wheels on the uphill side

could come off the ground. The ATV could

easily tip over backwards. Apply both the front

and rear brakes gradually, or dismount the

ATV immediately on the uphill side.

WARNING

POTENTIAL HAZARD

Stalling, rolling backwards or improper-

ly dismounting while climbing a hill.

WHAT CAN HAPPEN

Could result in ATV overturning.

HOW TO AVOID THE HAZARD

Maintain steady speed when climbing a

hill.

If you lose all forward speed:

Keep weight uphill.

Apply the brakes.

Apply the parking brake after you are

stopped.

U5UH10.book Page 28 Monday, July 28, 2003 5:15 PM

7-29

If you begin rolling backwards:

Keep weight uphill.

2WD: Never apply the rear brake

while rolling backwards. Apply the

front brake. When fully stopped, ap-

ply the rear brake as well, and then

lock the parking brake.

4WD: Apply both front and rear

brakes gradually. When fully stopped,

lock the parking brake.

Dismount on uphill side or to a side if

pointed straight uphill. Turn the ATV

around and remount, following the pro-

cedure described in the Owner’s Manu-

al.

U5UH10.book Page 29 Monday, July 28, 2003 5:15 PM

7-30

RIDING DOWNHILL

When riding your ATV downhill, shift your

weight as far to the rear and uphill side of the

ATV as possible. Move back on the seat and

sit with your arms straight. Engine compres-

sion will do most of the braking for you. For

maximum engine compression braking effect,

change to 4WD before beginning to descend

the hill. Improper braking may cause a loss of

traction. Use caution while descending a hill

with loose or slippery surfaces. Braking ability

and traction may be adversely affected by

these surfaces. Improper braking may also

cause a loss of traction.

When this ATV is in 4WD, all wheels (front

and rear) are interconnected by the drive

train. This means that applying either the front

brake or the rear brake will brake all wheels.

When descending hills, using either brake le-

ver or the brake pedal will brake the wheels

on the downhill side. Avoid sudden applica-

tion of either the front or rear brake because

the wheels on the uphill side could come off

the ground. Apply both the front and rear

brakes gradually.

Whenever possible, ride your ATV straight

downhill. Avoid sharp angles which could al-

low the ATV to tip or roll over. Carefully

choose your path and ride no faster than you

will be able to react to obstacles which may

appear.

U5UH10.book Page 30 Monday, July 28, 2003 5:15 PM

7-31

WARNING

POTENTIAL HAZARD

Going down a hill improperly.

WHAT CAN HAPPEN

Could cause loss of control or cause the

ATV to overturn.

Always follow proper procedures for go-

ing down hills as described in this Own-

er’s Manual. Note: a special technique is

required when braking as you go down

a hill.

HOW TO AVOID THE HAZARD

Always check the terrain carefully be-

fore you start down any hill.

Shift your weight backward.

Never go down a hill at high speed.

Avoid going down a hill at an angle that

lean sharply

to one side. Go straight down the hill

where possible.

U5UH10.book Page 31 Monday, July 28, 2003 5:15 PM

7-32

CROSSING A SLOPE

Traversing a sloping surface on your ATV re-

quires you to properly position your weight to

maintain proper balance. Be sure that you

have learned the basic riding skills on flat

ground before attempting to cross a sloping

surface. Avoid slopes with slippery surfaces

or rough terrain that may upset your balance.

As you travel across a slope, lean your body

in the uphill direction. It may be necessary to

correct the steering when riding on loose sur-

faces by pointing the front wheels slightly up-

hill. When riding on slopes be sure not to

make sharp turns either up or down hill.

If your ATV does begin to tip over, gradually

steer in the downhill direction if there are no

regain proper

balance, gradually steer again in the direction

you wish to travel.

WARNING

POTENTIAL HAZARD

Improperly crossing hills or turning on

hills.

WHAT CAN HAPPEN

Could cause loss of control or cause the

ATV to overturn.

HOW TO AVOID THE HAZARD

Never attempt to turn the ATV around

on any hill until you have mastered the

turning technique as described in the

Owner’s Manual on level ground. Be

very careful when turning on any hill.

Avoid crossing the side of a steep hill if

possible.

When crossing the side of a hill:

Always follow proper procedures as de-

scribed in the Owner’s Manual.

Avoid hills with excessively slippery or

loose surfaces. Shift your weight to the

uphill side of the ATV.

U5UH10.book Page 32 Monday, July 28, 2003 5:15 PM

7-33

U5UH10.book Page 33 Monday, July 28, 2003 5:15 PM

7-34

CROSSING THROUGH SHALLOW WATER

The ATV can be used to cross slow moving,

shallow water of up to a maximum of 35 cm

(14 inches) in depth. Before entering the wa-

ter, choose your path carefully. Enter where

there is no sharp drop off, and avoid rocks or

other obstacles which may be slippery or up-

set the ATV. Drive slowly and carefully.

WARNING

POTENTIAL HAZARD

Operating this ATV through deep or fast

flowing water.

WHAT CAN HAPPEN

Tires may float, causing loss of traction

and loss of control, which could lead to

an accident.

HOW TO AVOID THE HAZARD

fast flowing

water or in water deeper than that spec-

ified in your Owner’s Manual.

Remember that wet brakes may have re-

duced stopping ability. Test your brakes

after leaving water. If necessary, apply

them several times to let friction dry out

the linings.

U5UH10.book Page 34 Monday, July 28, 2003 5:15 PM

7-35

Test your brakes after leaving the water. Do

not continue to ride your ATV without verifying

that you have regained proper braking ability.

CAUTION:

After riding your ATV in water, be sure to

drain the trapped water by removing the

check hose at the bottom of the air filter

case, the V-belt cooling duct check hose,

the drive select lever box check hose and

the storage box check hose. Also, remove

the V-belt case drain plug to drain any wa-

ter that may have accumulated. Wash the

ATV in fresh water if it has been operated

in salt water or muddy conditions.

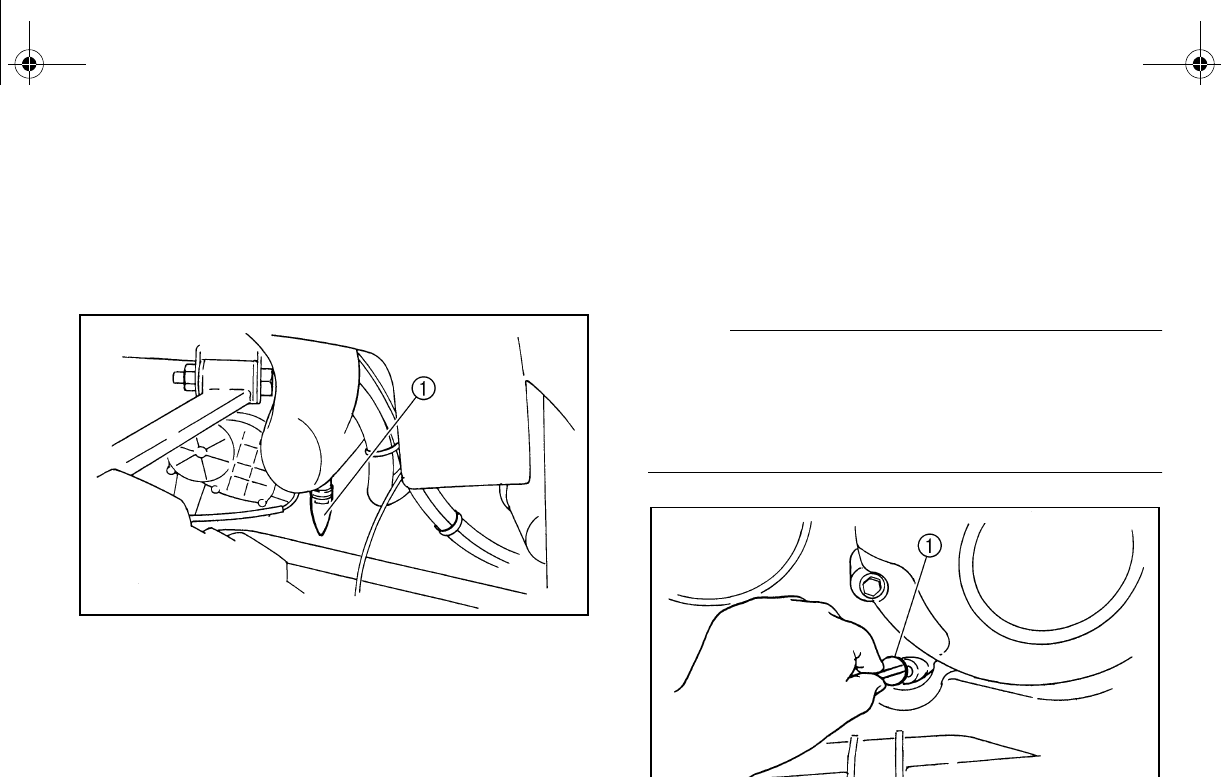

1. Air filter case check hose

U5UH10.book Page 35 Monday, July 28, 2003 5:15 PM

7-36

1. V-belt cooling duct check hose (left front side of ATV)

1. Drive select lever box check hose

1. Storage box check hose

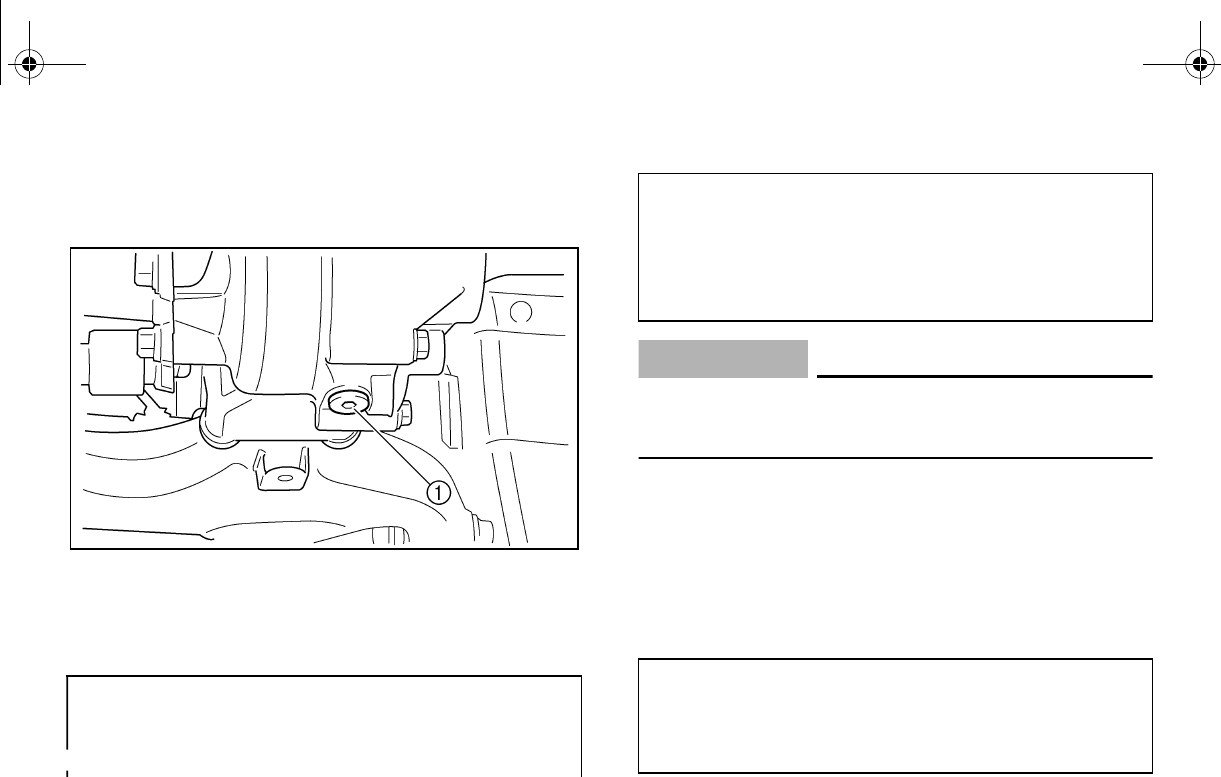

1. V-belt case drain plug

U5UH10.book Page 36 Monday, July 28, 2003 5:15 PM

7-37

RIDING OVER ROUGH TERRAIN

Riding over rough terrain should be done with

caution. Look out for obstacles which could

cause damage to the ATV or could lead to an

upset or accident. Be sure to keep your feet

firmly mounted on the footboards at all times.

Avoid jumping the ATV as loss of control and

damage to the ATV may result.

WARNING

POTENTIAL HAZARD

Improperly operating over obstacles.

WHAT CAN HAPPEN

Could cause loss of control or a colli-

sion. Could cause the ATV to overturn.

HOW TO AVOID THE HAZARD

Before operating in a new area, check

for obstacles.

Never attempt to ride over large obsta-

cles, such as large rocks or fallen trees.

When you go over obstacles, always fol-

low proper procedures as described in

the Owner’s Manual.

U5UH10.book Page 37 Monday, July 28, 2003 5:15 PM

7-38

SLIDING AND SKIDDING

Care should be used when riding on loose or

slippery surfaces since the ATV may slide. If

unexpected and uncorrected, sliding could

lead to an accident.

To reduce the tendency for the front wheels to

slide in loose or slippery conditions, position-

ing your weight over the front wheels will

sometimes help.

If the rear wheels of your ATV start to slide

sideways, control can usually be regained (if

there is room to do so) by steering in the direc-

tion of the slide. Applying the brakes or accel-

erating is not recommended until you have

corrected the slide.

U5UH10.book Page 38 Monday, July 28, 2003 5:15 PM

7-39

With practice, over a period of time, skill at

controlled sliding can be developed. The ter-

rain should be chosen carefully before at-

tempting such maneuvers, since both stability

and control are reduced. Bear in mind that

sliding maneuvers should always be avoided

on extremely slippery surfaces such as ice,

since all control may be lost.

WARNING

POTENTIAL HAZARD

Skidding or sliding improperly.

WHAT CAN HAPPEN

You may lose control of this ATV. You

may also regain traction unexpectedly,

which may cause the ATV to overturn.

HOW TO AVOID THE HAZARD

Learn to safely control skidding or slid-

ing by practicing at low speeds and on

level, smooth terrain.

On extremely slippery surfaces, such as

ice, go slowly and be very cautious in

order to reduce the chance of skidding

or sliding out of control.

U5UH10.book Page 39 Monday, July 28, 2003 5:15 PM

7-40

WHAT TO DO IF ...

This section is designed to be a reference

guide only. Be sure to read each section on

riding techniques completely.

WHAT TO DO ...

●If your ATV doesn’t turn when you want it

to:

Bring the ATV to a stop and practice the

turning maneuvers again. Be sure you are

putting your weight on the footboard to the

outside of the turn. Position your weight

over the front wheels for better control.

(See pages 7-22–7-23.)

●If your ATV begins to tip while turning:

Lean more into the turn to regain balance. If

necessary, gradually let off the throttle and/

or steer to the outside of the turn. (See pag-

●If your ATV starts to slide sideways:

Steer in the direction of the slide if you have

the room. Applying the brakes or accelerat-

ing is not recommended until you have cor-

rected the slide. (See pages 7-38–7-39.)

●If your ATV can’t make it up a hill you are

trying to climb:

Turn the ATV around if you still have for-

ward speed. If not, stop, dismount on the

uphill side of the ATV and physically turn

the ATV around. If the ATV starts to slip

backwards, DO NOT USE THE REAR

BRAKE - the ATV may tip over on top of

you. Dismount the ATV on the uphill side.

(See pages 7-24–7-29.)

U5UH10.book Page 40 Monday, July 28, 2003 5:15 PM

7-41

●If your ATV is traversing a sloping surface:

Be sure to ride with your weight positioned

towards the uphill side of the ATV to main-

tain proper balance. If the ATV starts to tip,

steer down the hill (if there are no obstacles

in your way) to regain balance. If you dis-

cover that the ATV is going to tip over, dis-

mount on the uphill side. (See pages 7-32–

7-33.)

●If your ATV encounters shallow water:

Ride slowly and carefully through slow

moving water, watching for obstacles. Be

sure to let water drain from the ATV and

CHECK YOUR BRAKES FOR PROPER

OPERATION when you come out of the

water. Do not continue to ride your ATV un-

til you have regained adequate braking

ability. (See pages 7-34–7-36.)

WARNING

Indicates a potential hazard that could

result in serious injury or death.

U5UH10.book Page 41 Monday, July 28, 2003 5:15 PM

8-1

EBU00515

PERIODIC MAINTENANCE AND

ADJUSTMENT

Periodic inspection, adjustment and lubrica-

tion will keep your machine in the safest and

most efficient condition possible. Safety is an

obligation of the machine owner. The most

important points of machine inspection, ad-

justment and lubrication are explained on the

following pages.

EBU14510

Owner’s manual and tool kit

You are recommended to put this owner’s

manual in the vinyl bag and always carry it on

the bottom of the seat as shown. Put the own-

er’s tool kit and low-pressure tire gauge under

the seat.

The service information included in this man-

ual is intended to provide you, the owner, with

the necessary information for completing your

own preventive maintenance and minor re-

pairs. The tools provided in the Owner’s tool

kit are sufficient for this purpose, except that a

torque wrench is also necessary to properly

tighten nuts and bolts.

WARNING

POTENTIAL HAZARD

Servicing an engine while it is running.

WHAT CAN HAPPEN

Moving parts can catch clothing or parts

of the body, causing injury.

Electrical components can cause

HOW TO AVOID THE HAZARD

Turn off the engine when performing

maintenance unless otherwise speci-

fied.

Have a Yamaha dealer perform service if

you are not familiar with machine ser-

vice.

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

8-2

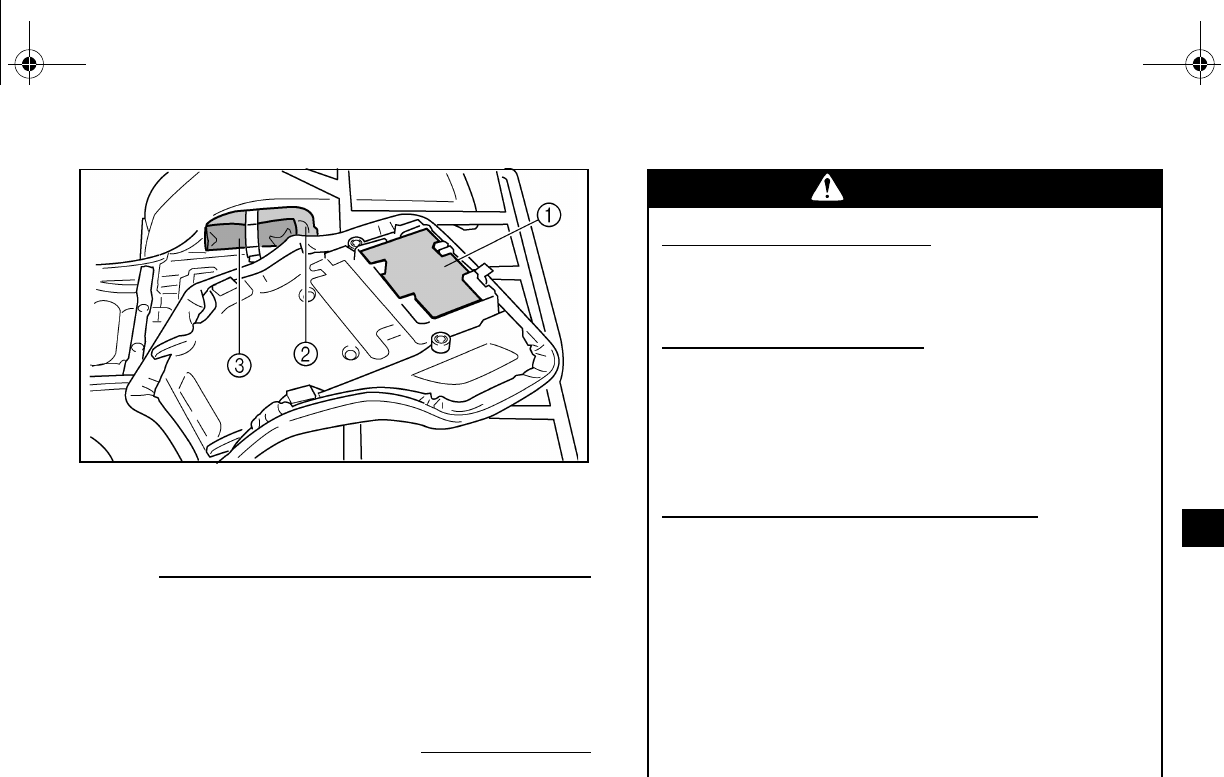

1. Owner’s manual

2. Owner’s tool kit

3. Low-pressure tire gauge

NOTE:

If you do not have a torque wrench available

during a service operation requiring one, take

your machine to a Yamaha dealer to check

the torque settings and adjust them as neces-

sary.

WARNING

POTENTIAL HAZARD

Operating this ATV with improper modi-

fications.

WHAT CAN HAPPEN

Improper installation of accessories or

modification of this vehicle may cause

changes in handling which in some situ-

ations could lead to an accident.

HOW TO AVOID THE HAZARD

Never modify this ATV through improp-

er installation or use of accessories. All

parts and accessories added to this ve-

hicle should be genuine Yamaha or

equivalent components designed for

use on this ATV and should be installed

and used according to instructions. If

you have questions, consult an autho-

rized Yamaha ATV dealer.

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

8-3

EBU00261

PERIODIC MAINTENANCE/LUBRICATION

ITEM ROUTINE

INITIAL EVERY

month

months

year

Valves* •Check valve clearance.

•Adjust if necessary.

Spark plug

•Check condition.

•Adjust gap and clean.

•Replace if necessary.

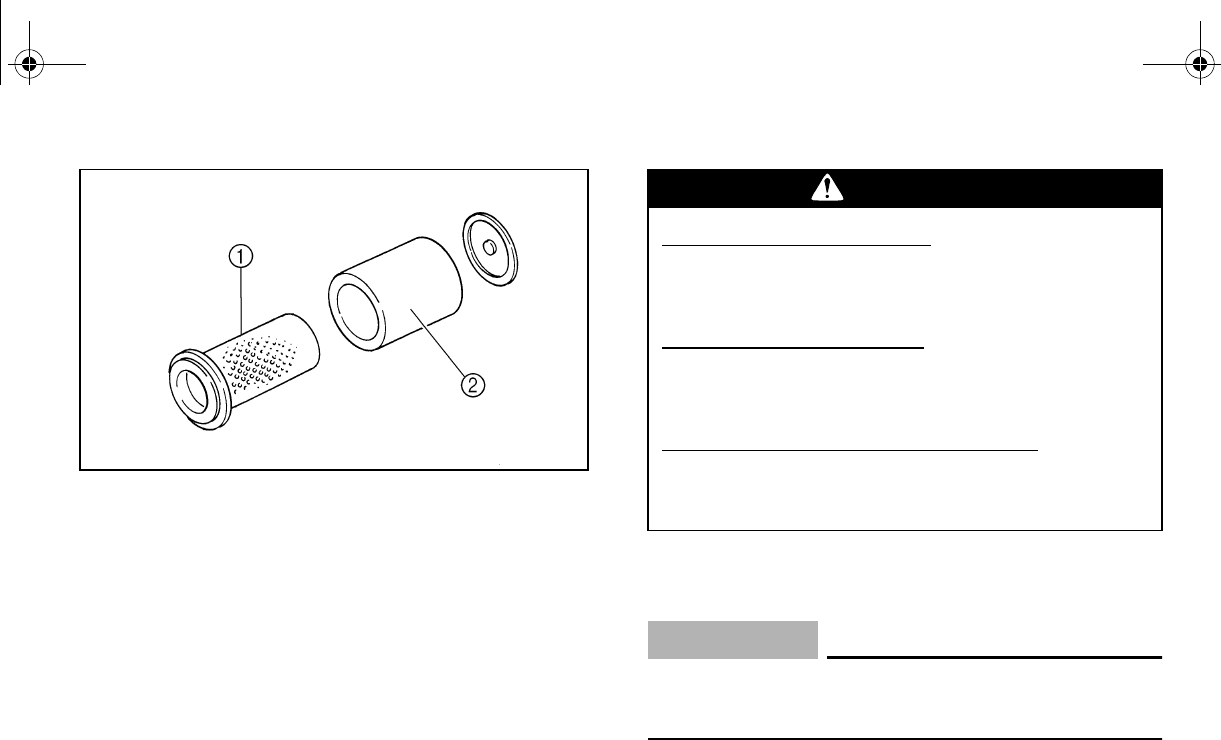

Air filter element •Clean.

•Replace if necessary.

Every 20–40 hours

(More often in wet or dusty areas.)

Carburetor* •Check and adjust idle speed/starter operation.

•Adjust if necessary.

Crankcase breather

system*

•Check breather hose for cracks or damage.

•Replace if necessary.

Exhaust system*

•Check for leakage.

•Tighten if necessary.

•Replace gasket(s) if necessary.

Spark arrester •Clean.

Fuel line* •Check fuel hose for cracks or damage.

•Replace if necessary.

Engine oil •Replace. (Warm engine before draining.)

Engine oil filter cartridge •Replace.

Engine oil strainer* •Clean.

Final gear oil •Check for oil leakage.

•Replace every 12 months.

Differential gear oil

Front brake* •Check operation/fluid leakage. (See NOTE page 8-4.)

essary.

Rear brake on.

•Adjust if necessary.

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

8-4

* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.

V-belt* •Check operation.

•Check for cracks or damage.

Wheels* •Check balance/damage/runout.

•Repair if necessary.

Wheel bearing* •Check bearing assemblies for looseness/damage.

•Replace if damaged.

Front and rear

suspension*

•Check operation.

•Correct if necessary.

Steering system* •Check operation./Replace if damaged.

•Check toe-in./Adjust if necessary.

Drive shaft universal joint* •Lubricate.

Axle boots* •Check operation.

•Replace if damaged.

Fittings and fasteners* •Check all chassis fittings and fasteners.

•Correct if necessary.

Lights and switches* •Check operation.

•Adjust headlight beams.

ITEM ROUTINE

INITIAL EVERY

month

months

year

TE:

●Recommended brake fluid: DOT 4

●Brake fluid replacement:

•When disassembling the master cylinder or cali-

ormally check the

brake fluid level and add fluid as required.

•On the inner parts of the master cylinder and cal-

iper, replace the oil seals every two years.

•Replace the brake hoses every four years, or if

cracked or damaged.

WARNING

Indicates a potential hazard that could

result in serious injury or death.

U5UH10.book Page 4 Monday, July 28, 2003 5:15 PM

8-5

EBU08070

Panel removal and installation

The panel illustrated needs to be removed to

perform some of the maintenance described

in this chapter.

Refer to this section each time the panel has

to be removed or installed.

1. Panel A

EBU01147

Panel A

To remove

Remove the bolt, and then take the panel off.

To install

Place the panel in the original position and in-

stall the bolt.

CAUTION:

When installing the panel, be sure not to

pinch the cables or wires.

1. Panel A 2. Bolt

U5UH10.book Page 5 Monday, July 28, 2003 5:15 PM

8-6

EBU14540

Engine oil and oil filter cartridge

The engine oil level should be checked before

each ride. In addition, the oil must be changed

and the oil filter cartridge replaced at the inter-

vals specified in the periodic maintenance

and lubrication chart.

To check the engine oil level

1. Place the ATV on a level surface.

2. Start the engine, warm it up for several

minutes, and then turn it off.

3. Wait a few minutes until the oil settles.

4. Remove the engine oil filler cap and wipe

off the dipstick with a clean rag.

1. Engine oil filler cap

U5UH10.book Page 6 Monday, July 28, 2003 5:15 PM

8-7

5. Insert the dipstick in the oil filler hole

(without screwing it in), and then remove

it again to check the oil level.

NOTE:

The engine oil should be between the mini-

mum and maximum level marks.

1. Maximum level mark 2. Minimum level mark

elow the mini-

mum level mark, add sufficient oil of the

recommended type to raise it to the cor-

rect level.

7. Insert the dipstick into the oil filler hole,

and then tighten the oil filler cap.

U5UH10.book Page 7 Monday, July 28, 2003 5:15 PM

8-8

To change the engine oil (with or without

oil filter cartridge replacement)

1. Start the engine, warm it up for several

minutes, and then turn it off.

2. Place an oil pan under the engine to col-

lect the used oil, and then remove the en-

gine oil filler cap.

3. Remove the engine oil drain bolt to drain

the oil from the crankcase.

1. Engine oil drain bolt

NOTE:

Skip steps 4–6 if the oil filter cartridge is not

being replaced.

4. Remove the oil filter cartridge with an oil

filter wrench.

1. Oil filter cartridge

U5UH10.book Page 8 Monday, July 28, 2003 5:15 PM

8-9

1. Oil filter wrench

NOTE:

An oil filter wrench is available at a nearby

Yamaha dealer.

5. Apply a light coat of engine oil to the

O-ring of the new oil filter cartridge.

NOTE:

properly.

1. O-ring

U5UH10.book Page 9 Monday, July 28, 2003 5:15 PM

8-10

6. Install the new oil filter cartridge with an

oil filter wrench, and then tighten it to the

specified torque with a torque wrench.

1. Torque wrench

7. Install the engine oil drain bolt, and then

tighten it to the specified torque.

8. Add the specified amount of recommend-

ed engine oil, and then install the engine

oil filler cap and tighten it.

Tightening torque:

Oil filter cartridge:

17 Nm (1.7 m·kgf, 12 ft·lbf)

Tightening torque:

Engine oil drain bolt:

23 Nm (2.3 m·kgf, 16 ft·lbf)

Recommended engine oil:

See page 10-2.

Oil quantity:

Without oil filter cartridge replacement:

2.2 L (1.94 Imp qt, 2.33 US qt)

With oil filter cartridge replacement:

2.3 L (2.02 Imp qt, 2.43 US qt)

U5UH10.book Page 10 Monday, July 28, 2003 5:15 PM

8-11

CAUTION:

●In order to prevent clutch slippage

(since the engine oil also lubricates

the clutch), do not mix any chemical

additives. Do not use oils with a diesel

specification of “CD” or oils of a high-

er quality than specified. In addition,

do not use oils labeled “ENERGY

CONSERVING II” or higher.

●Make sure that no foreign material en-

ters the crankcase.

9. Start the engine and warm it up for seve-

ral minutes. While warming up, check for

oil leakage. If oil leakage is found, turn

the engine off immediately and check for

the cause.

hen check the

oil level and correct it if necessary.

EBU11452

Final gear oil

Final gear oil measurement

1. Place the machine on a level surface.

2. Remove the oil filler bolt, and then check

the oil level in the final gear case.

TE:

The oil level should be at the brim of the filler

hole.

1. Final gear oil

2. Final gear oil filler bolt

3. Proper oil level

U5UH10.book Page 11 Monday, July 28, 2003 5:15 PM

8-12

3. If the oil is below the brim of the filler hole,

add sufficient oil of the recommended

type to raise it to the correct level.

CAUTION:

Be sure no foreign material enters the final

gear case.

4. Install the oil filler bolt.

Final gear oil replacement

1. Remove the final gear case cover by re-

moving the bolts.

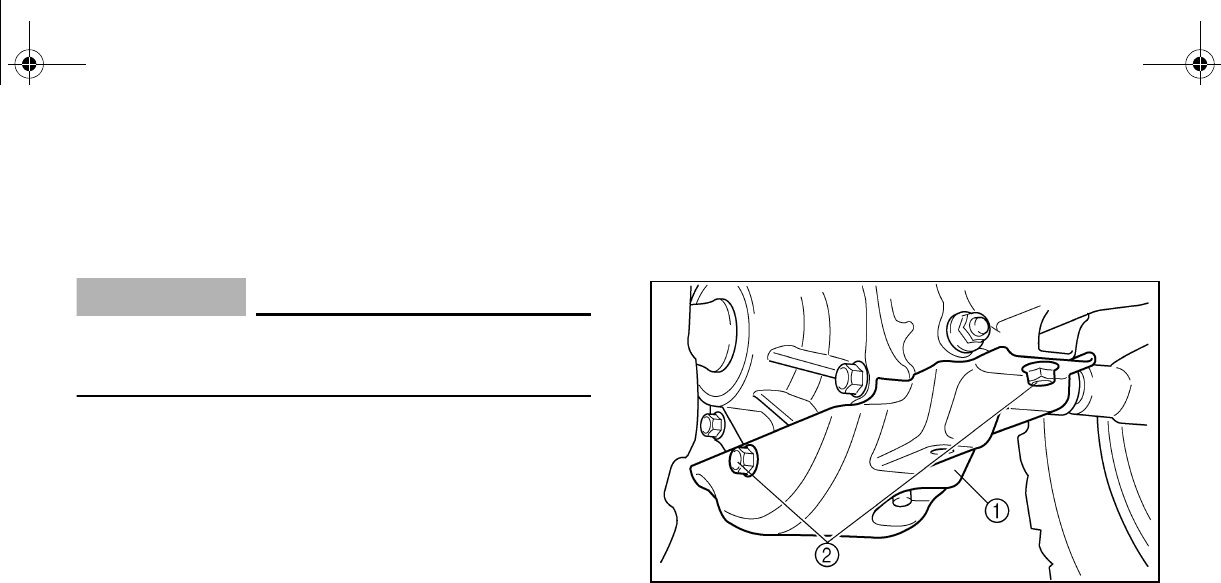

1. Final gear case cover 2. Bolt (× 2)

2. Place the machine on a level surface.

3. Place a container under the final gear

case to collect the used oil.

U5UH10.book Page 12 Monday, July 28, 2003 5:15 PM

8-13

4. Remove the oil filler bolt and the drain

bolt to drain the oil.

1. Final gear oil drain bolt

5. Install the drain bolt, and then tighten it to

the specified torque.

6. Add the recommended final gear oil to

the brim of the filler hole.

CAUTION:

Be sure no foreign material enters the final

gear case.

7. Install the oil filler bolt.

8. Check for oil leakage. If oil leakage is

found, check for the cause.

9. Install the final gear case cover bolts, and

then tighten them to the specified torque.

Tightening torque:

Final gear oil drain bolt:

bf)

Recommended oil:

SAE 80 API GL-4 Hypoid gear oil

Oil quantity:

0.23 L (0.20 Imp qt, 0.24 US qt)

Tightening torque:

Final gear case cover bolt:

16 Nm (1.6 m·kgf, 11 ft·lbf)

U5UH10.book Page 13 Monday, July 28, 2003 5:15 PM

8-14

EBU01241

Differential gear oil replacement

1. Place the machine on a level surface.

2. Place a container under the differential

gear case to catch the oil.

3. Remove the oil filler bolt and oil drain bolt

to drain the oil.

1. Differential gear oil filler bolt

1. Differential gear oil drain bolt

4. Install the oil drain bolt, and then tighten it

to the specified torque.

Tightening torque:

Drain bolt:

10 Nm (1.0 m·kgf, 7 ft·lbf)

U5UH10.book Page 14 Monday, July 28, 2003 5:15 PM

8-15

5. Fill the differential gear case with the

specified amount of the recommended

oil.

NOTE:

●Do not exceed the specified differential

gear oil quantity when filling. Overfilling

will cause the oil to seep out of the

breather hose during and after riding.

●The differential gear oil level cannot be

checked. The differential gear case ca-

pacity is greater than the recommended

oil quantity, therefore the oil level cannot

be accurately checked from the oil filler

cap hole.

CAUTION:

Be sure no foreign material enters the dif-

ferential gear case.

6. Install the oil filler bolt.

7. Check for oil leakage. If oil leakage is

found, check for the cause.

Recommended oil:

SAE 80 API “GL-4” Hypoid gear oil

0.35 L (0.31 Imp qt, 0.37 US qt)

U5UH10.book Page 15 Monday, July 28, 2003 5:15 PM

8-16

EBU00862

Axle boots

Check the protective boots for holes or tears.

If any damage is found, have them replaced

by a Yamaha dealer.

1. Axle boot (× 2 each side)

EBU14550

Spark plug inspection

Removal

1. Remove the spark plug cap.

1. Spark plug cap

U5UH10.book Page 16 Monday, July 28, 2003 5:15 PM

8-17

2. Use the spark plug wrench in the owner’s

tool kit to remove the spark plug as shown.

1. Spark plug wrench

Inspection

The spark plug is an important engine compo-

nent and is easy to inspect. The condition of

the spark plug can indicate the condition of

the engine.

sulator around

the center electrode is a medium-to-light tan

color for an ATV that is being ridden normally.

Do not attempt to diagnose such problems

yourself.

Instead, take the ATV to a Yamaha dealer.

You should periodically remove and inspect

the spark plug because heat and deposits will

cause the spark plug to slowly break down

and erode. If electrode erosion becomes ex-

cessive, or if carbon and other deposits are

excessive, you should replace the spark plug

with the specified plug.

Installation

1. Measure the electrode gap with a wire

thickness gauge and, if necessary, adjust

the gap to specification.

Specified spark plug:

DR8EA (NGK)

Spark plug gap:

0.6–0.7 mm (0.02–0.03 in)

U5UH10.book Page 17 Monday, July 28, 2003 5:15 PM

8-18

a. Spark plug gap

2. Clean the surface of the spark plug gas-

ket and its mating surface, and then wipe

off any grime from the spark plug

threads.

3. Install the spark plug and tighten it to the

specified torque.

NOTE:

If a torque wrench is not available when you

are installing a spark plug, a good estimate of

the correct torque is 1/4 to 1/2 turn past finger

tight. Have the spark plug tightened to the

specified torque as soon as possible.

4. Install the spark plug cap.

Spark plug:

17.5 Nm (1.75 m·kgf, 12.5 ft·lbf)

U5UH10.book Page 18 Monday, July 28, 2003 5:15 PM

8-19

EBU11332

Air filter element cleaning

NOTE:

There is a check hose at the bottom of the air

filter case. If dust or water collects in this

hose, empty the hose and clean the air filter

element and air filter case.

1. Air filter case check hose

page 4-16 for

seat removal and installation proce-

dures.)

2. Remove the air filter case cover by un-

hooking the holders.

1. Holder (× 4) 2. Air filter case cover

3. Remove the air filter element assembly,

and then remove the air filter element

from its frame.

1. Air filter element assembly

U5UH10.book Page 19 Monday, July 28, 2003 5:15 PM

8-20

1. Air filter element frame 2. Air filter element

4. Wash the element gently but thoroughly

in solvent. 5. Squeeze the excess solvent out of the air

filter element and let it dry.

CAUTION:

Do not twist the air filter element when

squeezing it.

6. Inspect the air filter element and replace

it if damaged.

WARNING

POTENTIAL HAZARD

Using low flash point solvents or gaso-

line to clean the air filter element.

WHAT CAN HAPPEN

Low flash point solvents or gasoline can

catch fire or explode.

HOW TO AVOID THE HAZARD

Use parts cleaning solvent to clean the

air filter element.

U5UH10.book Page 20 Monday, July 28, 2003 5:15 PM

8-21

7. Apply Yamaha foam air filter oil or other

quality foam air filter oil to the air filter el-

ement. If foam air filter oil is not available,

engine oil may be used.

NOTE:

The air filter element should be wet but not

dripping.

8. Pull the air filter element over its frame.

9. Install the air filter element assembly.

10. Install the air filter case cover by hooking

the holders.

11. Install the seat.

NOTE:

The air filter element should be cleaned every

20–40 hours. It should be cleaned and lubri-

cated more often if the machine is operated in

extremely dusty areas. Each time the air filter

element maintenance is performed, check the

air inlet to the filter case for obstructions.

Check the air filter case rubber joint to the car-

buretor and manifold fittings for an airtight

seal. Tighten all fittings securely to avoid the

possibility of unfiltered air entering the engine.

CAUTION:

Never operate the engine with the air filter

element removed. This will allow unfiltered

air to enter, causing rapid engine wear and

possible engine damage. Additionally, op-

eration without the air filter element will af-

fect carburetor jetting with subsequent

poor performance and possible engine

overheating.

U5UH10.book Page 21 Monday, July 28, 2003 5:15 PM

8-22

EBU06411

V-belt cooling duct check hose

If dust or water collects in the V-belt cooling

duct check hose, remove the hose and clean

it.

1. V-belt cooling duct check hose (Left front side of ATV)

EBU08741

V-belt case drain plug

After riding in water deep enough to allow it to

enter the V-belt case, remove this plug to

drain the water from the case.

NOTE:

If water drains from the V-belt case after re-

moving the plug, have a Yamaha dealer in-

spect the ATV as the water may affect other

engine parts.

1. V-belt case drain plug

U5UH10.book Page 22 Monday, July 28, 2003 5:15 PM

8-23

EBU01066

Spark arrester cleaning

Be sure the exhaust pipe and muffler are cool

before cleaning the spark arrester.

1. Remove the bolts.

2. Remove the tailpipe by pulling it out of

the muffler.

1. Bolt (× 3) 2. Tailpipe

3. Tap the tailpipe lightly, and then use a

carbon depos-

its from the spark arrester portion of the

tailpipe.

1. Spark arrester

4. Insert the tailpipe into the muffler and

align the bolt holes.

5. Install and tighten the bolts.

U5UH10.book Page 23 Monday, July 28, 2003 5:15 PM

8-24

EBU00296

Carburetor adjustment

The carburetor is a vital part of the engine and

requires very sophisticated adjustment. Most

adjusting should be left to a Yamaha dealer

who has the professional knowledge and ex-

perience to do so. However, the idling speed

may be performed by the owner as a part of

the usual maintenance routine.

CAUTION:

The carburetor was set at the Yamaha fac-

tory after many tests. If the settings are

disturbed by someone without sufficient

technical knowledge, poor engine perfor-

mance and damage may result.

WARNING

POTENTIAL HAZARD

Improper cleaning of the spark arrester.

Hot exhaust system

WHAT CAN HAPPEN

Could injure the eyes.

Could cause burns.

Could cause carbon monoxide poison-

ing, possibly leading to death.

Could start a fire.

HOW TO AVOID THE HAZARD

When cleaning the spark arrester:

Always let the exhaust system cool pri-

or to touching exhaust components.

Do not start the engine when cleaning

the exhaust system.

U5UH10.book Page 24 Monday, July 28, 2003 5:15 PM

8-25

EBU13020

Idle speed adjustment

NOTE:

A diagnostic tachometer must be used for this

procedure.

1. Start the engine and warm it up for a few

minutes at approximately 1,000 to

2,000 r/min. Occasionally rev the engine

to 4,000 to 5,000 r/min. The engine is

warm when it quickly responds to the

throttle.

2. Connect the tachometer to the spark plug

lead, and then set the idle to the specified

idling speed by adjusting the throttle stop

screw. Turn the screw in direction a to

increase the engine speed, and in direc-

tion b to decrease the engine speed.

1. Throttle stop screw

EBU00303

Valve clearance adjustment

The correct valve clearance changes with

use, resulting in improper fuel/air supply or

engine noise. To prevent this, the valve clear-

ance must be adjusted regularly. This adjust-

ment however, should be left to a professional

Yamaha service technician.

1,450–1,550 r/min

U5UH10.book Page 25 Monday, July 28, 2003 5:15 PM

8-26

EBU00307

Throttle lever adjustment

TE:

Adjust the engine idling speed before adjust-

ing the throttle lever free play.

1. Loosen the locknut.

2. Turn the adjusting bolt until the throttle le-

ver free play is 3–5 mm (0.12–0.20 in).

3. Tighten the locknut.

1. Locknut 2. Adjusting bolt

a. Throttle lever free play

U5UH10.book Page 26 Monday, July 28, 2003 5:15 PM

8-27

EBU13090

Front brake pad check

Check the brake pads for damage and wear.

If a brake pad thickness is less than 1 mm

(0.04 in), have a Yamaha dealer replace the

pads as a set.

a. Brake pad thickness

NOTE:

The wheels need to be removed to check the

-37 for remov-

al and installation procedures.)

EBU00313

Rear brake shoe inspection

A wear indicator is provided on the rear brake.

This indicator allows checking of brake shoe

wear without disassembling the brake. Apply

the rear brake and check the position of the in-

dicator. If the indicator reaches the wear limit

line, ask a Yamaha dealer to replace shoes as

a set.

1. Wear limit line 2. Wear indicator

U5UH10.book Page 27 Monday, July 28, 2003 5:15 PM

8-28

EBU13040

Brake fluid level check

Insufficient brake fluid may let air enter the

brake system, possibly causing the brakes to

become ineffective.

Before riding, check that the brake fluid is

above the minimum level mark and replenish

if necessary. A low brake fluid level may indi-

cate worn brake pads and/or brake system

leakage. If the brake fluid level is low, be sure

to check the brake pads for wear and the

brake system for leakage.

1. Minimum level mark

Observe these precautions:

●When checking the brake fluid level, make

sure the top of the brake fluid reservoir is

level.

●Use only the designated quality brake fluid,

otherwise, the rubber seals may deterio-

rate, causing leakage and poor brake per-

formance.

●Refill with the same type of brake fluid. Mix-

ing fluids may result in a harmful chemical

reaction and lead to poor brake perfor-

mance.

●Be careful that water does not enter the

brake fluid reservoir when refilling. Water

will significantly lower the boiling point of

the fluid and may result in vapor lock.

FRONT

Recommended brake fluid: DOT 4

U5UH10.book Page 28 Monday, July 28, 2003 5:15 PM

8-29

●Brake fluid may deteriorate painted surfac-

es or plastic parts. Always clean up spilled

fluid immediately.

●Have a Yamaha dealer check the cause if

the brake fluid level goes down.

EBU11860

Brake fluid replacement

Complete fluid replacement should be done

only by trained Yamaha service personnel.

Have a Yamaha dealer replace the following

components during periodic maintenance or

when they are damaged or leaking.

●Replace the oil seals every two years.

●Replace the brake hoses every four years.

U5UH10.book Page 29 Monday, July 28, 2003 5:15 PM

8-30

EBU11870

Front brake lever free play

The front brake lever should have a free play

of zero mm (zero in) at the lever end. If not,

have a Yamaha dealer check the brake sys-

tem.

a. Front brake lever free play

WARNING

POTENTIAL HAZARD

Operating with improperly serviced or

adjusted brakes.

WHAT CAN HAPPEN

You could lose braking ability, which

could lead to an accident.

HOW TO AVOID THE HAZARD

After servicing:

●Make sure the brakes operate

smoothly and that the free play is

correct.

●Make sure the brakes do not drag.

●Make sure the brakes are not

spongy. All air must be bled from

the brake system.

Replacement of brake components re-

quires professional knowledge. These

procedures should be performed by a

Yamaha dealer.

U5UH10.book Page 30 Monday, July 28, 2003 5:15 PM

8-31

EBU01239

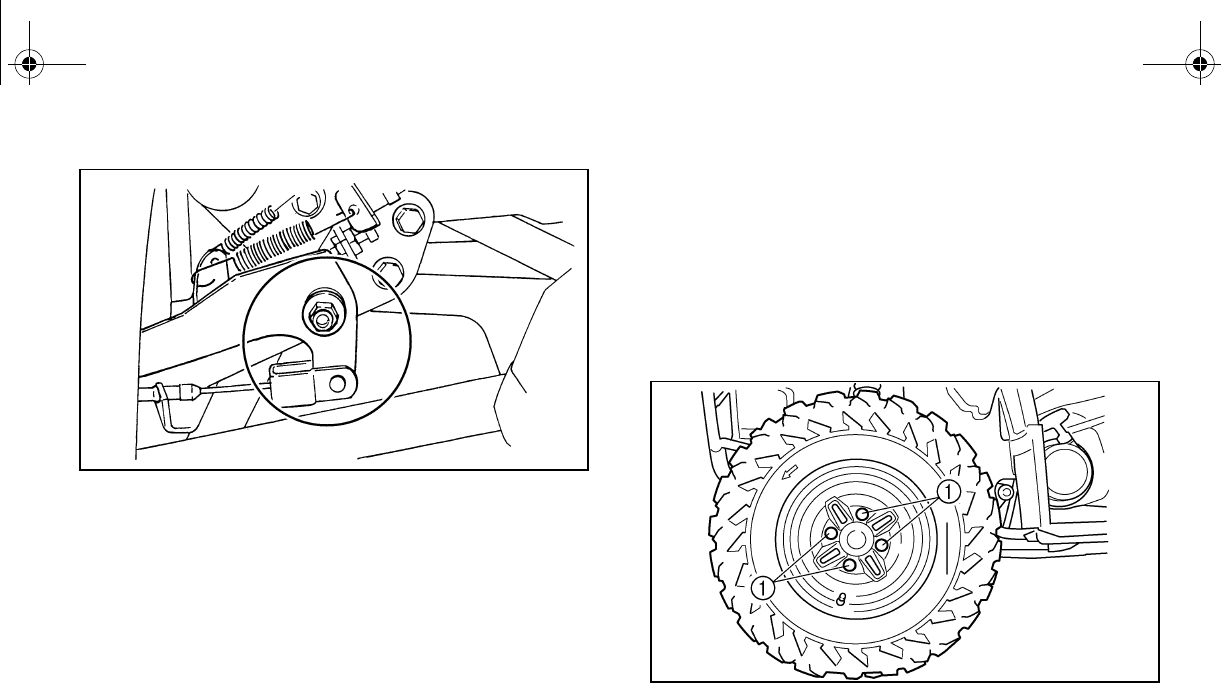

Rear brake pedal and lever adjustment

Brake pedal free play adjustment

1. Fully loosen the adjusting nut on the

brake lever cable at the rear wheel.

1. Adjusting nut (brake pedal cable)

2. Adjusting nut (brake lever cable)

2. Turn the adjusting nut on the brake pedal

cable until the free play is 20–30 mm

(0.79–1.18 in).

a. Brake pedal free play

U5UH10.book Page 31 Monday, July 28, 2003 5:15 PM

8-32

Brake lever free play adjustment

1. Loosen the locknut and fully turn in the

adjusting bolt at the brake lever.

1. Locknut 2. Adjusting bolt

2. Turn in the adjusting nut on brake cable

to provide a gap of 0–1 mm (0–0.04 in)

between the brake camshaft lever and

the pin.

1. Adjusting nut (brake lever cable) a. Gap

U5UH10.book Page 32 Monday, July 28, 2003 5:15 PM

8-33

3. Turn the adjusting bolt at the brake lever

until the free play at the brake lever pivot

is 3–5 mm (0.12–0.20 in).

1. Locknut 2. Adjusting bolt

a. Rear brake lever free play

4. Tighten the locknut.

WARNING

POTENTIAL HAZARD

Operating with improperly serviced or

adjusted brakes.

WHAT CAN HAPPEN

You could lose braking ability, which

could lead to an accident.

HOW TO AVOID THE HAZARD

After servicing:

●Make sure the brakes operate

smoothly and that the free play is

correct.

●Make sure the brakes do not drag.

Replacement of brake components re-

quires professional knowledge. These

procedures should be performed by a

Yamaha dealer.

U5UH10.book Page 33 Monday, July 28, 2003 5:15 PM

8-34

EBU12590

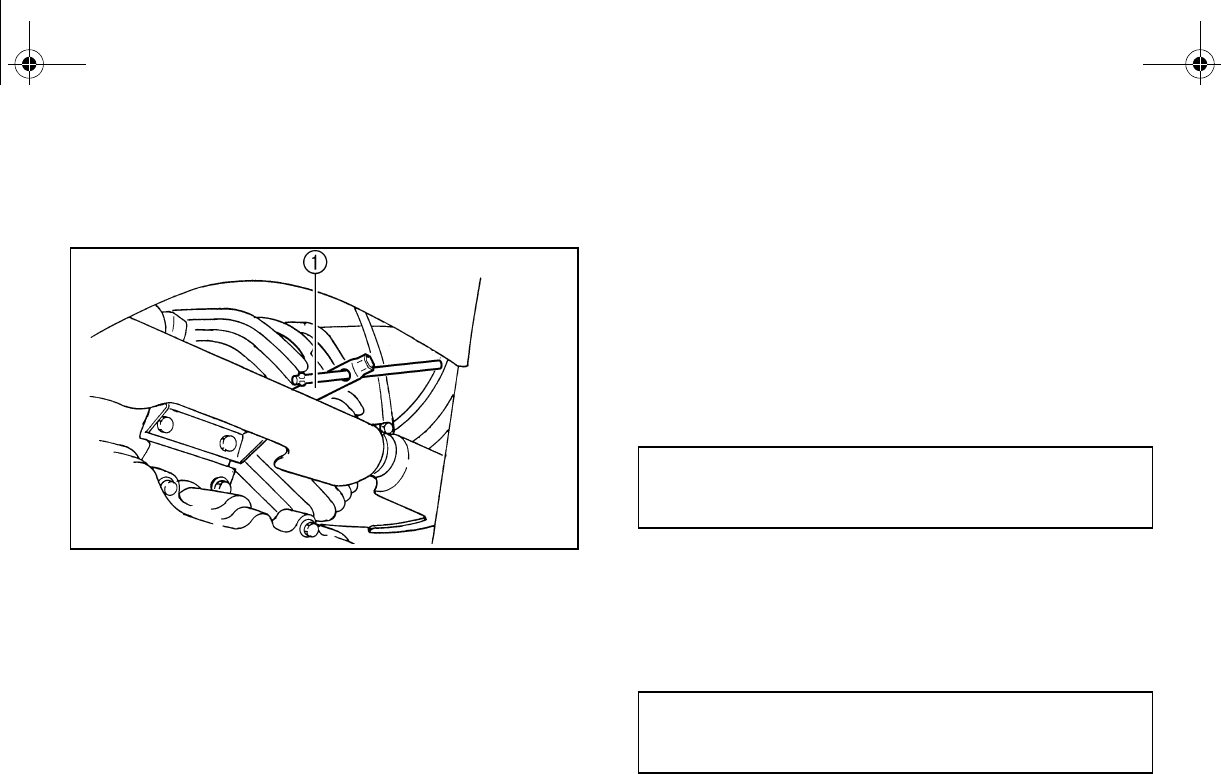

Adjusting the rear brake light switch

The rear brake light switch, which is activated

by the brake pedal and rear brake lever, is

properly adjusted when the brake light comes

on just before braking takes effect. If neces-

sary, adjust the brake light switch as follows.

1. Remove panel A. (See page 8-5 for pan-

el removal and installation procedures.)

2. Turn the adjusting nut while holding the

rear brake light switch in place. To make

the brake light come on earlier, turn the

adjusting nut in direction a. To make the

brake light come on later, turn the adjust-

ing nut in direction b.

3. Install the panel.

1. Rear brake light switch 2. Adjusting nut

U5UH10.book Page 34 Monday, July 28, 2003 5:15 PM

8-35

EBU00356

Cable inspection and lubrication

Lubricate the inner cables and the cable ends.

If the cables do not operate smoothly, ask a

EBU12600

Lubricating the brake levers and brake

pedal

Lubricate the pivoting parts.

NOTE:

To access the brake pedal pivot, remove pan-

el A. (See page 8-5 for panel removal and in-

stallation procedures.)

WARNING

POTENTIAL HAZARD

Damaged control cables.

WHAT CAN HAPPEN

Corrosion can result when the outer

covering of control cables becomes

damaged. Cables can also become

frayed or kinked. Operation of controls

could be restricted, which could cause

an accident or injury.

HOW TO AVOID THE HAZARD

Inspect cables frequently. Replace dam-

aged cables.

Recommended lubricant:

Yamaha chain and cable lube or

SAE 10W30 motor oil

Recommended lubricant:

Lithium-soap-based grease

(all-purpose grease)

U5UH10.book Page 35 Monday, July 28, 2003 5:15 PM

8-36

EBU01112

Wheel removal

1. Loosen the wheel nuts.

2. Elevate the ATV and place a suitable

stand under the frame.

3. Remove the nuts from the wheel.

4. Remove the wheel.

1. Nut (× 4)

U5UH10.book Page 36 Monday, July 28, 2003 5:15 PM

8-37

EBU01121

Wheel installation

1. Install the wheel and the nuts.

NOTE:

●Tapered nuts are used for both the front

and rear wheels. Install the nut with its ta-

pered side towards the wheel.

●The arrow mark on the tire must point

toward the rotating direction of the wheel.

1. Arrow mark

2. Lower the ATV so that the wheel is on the

ground.

1. Tapered nut

3. Tighten the wheel nuts to the specified

torque.

Wheel nut torque:

Front: 55 Nm (5.5 m·kgf, 40 ft·lbf)

Rear: 55 Nm (5.5 m·kgf, 40 ft·lbf)

U5UH10.book Page 37 Monday, July 28, 2003 5:15 PM

8-38

EBU00380

Battery

This machine is equipped with a sealed-type

battery. Therefore it is not necessary to check

the electrolyte or add distilled water in the bat-

tery. If the battery seems to have discharged,

consult a Yamaha dealer.

CAUTION:

Do not try to remove the sealing caps of

the battery cells. You may damage the bat-

tery.

WARNING

POTENTIAL HAZARD

Failure to handle batteries or battery

electrolyte carefully.

WHAT CAN HAPPEN

ou could be

severely burned by the sulfuric acid in

battery electrolyte. Batteries produce

explosive gases.

HOW TO AVOID THE HAZARD

Avoid contact with skin, eyes or cloth-

ing. Always shield eyes when working

near batteries. Keep out of reach of chil-

dren.

Antidote:

EXTERNAL: Flush with water.

INTERNAL: Drink large quantities of wa-

ter or milk. Follow with milk of magne-

sia, beaten egg or vegetable oil. Get

prompt medical attention.

EYES: Flush with water for 15 minutes

and get prompt medical attention. Keep

batteries away from sparks, flames, cig-

arettes or other sources of ignition. Ven-

tilate when charging or using in a closed

space.

U5UH10.book Page 38 Monday, July 28, 2003 5:15 PM

8-39

EBU00385

Battery maintenance

1. When the machine is not used for a

month or longer, remove the battery and

store it in a cool, dark place. Completely

recharge the battery before reinstallation.

CAUTION:

A special battery charger (constant volt-

age/ampere or constant voltage) is re-

quired for recharging a sealed-type

battery. Using a conventional battery

charger may shorten the battery life.

2. Always make sure the connections are

correct when putting the battery back in

the machine.

EBU08760*

Fuse replacement

1. The main fuse case and the fuse box are

located under the seat.

2. If a fuse is blown, turn off the main switch

and install a new fuse of the specified

amperage. Then turn on the switches. If

the fuse immediately blows again, con-

sult a Yamaha dealer.

U5UH10.book Page 39 Monday, July 28, 2003 5:15 PM

8-40

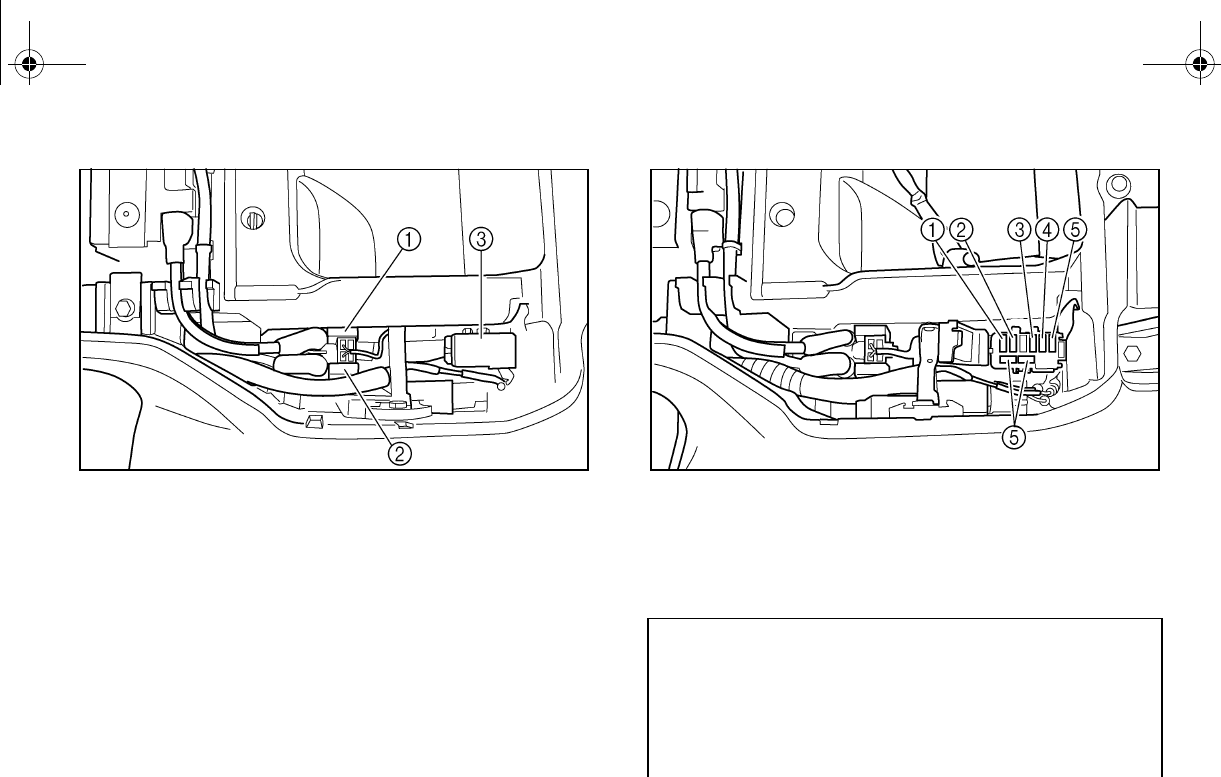

1. Main fuse 2. Spare main fuse

3. Fuse box

1. Headlight fuse

2. Ignition fuse

3. Four-wheel drive fuse

4. Signaling system fuse

5. Spare fuse (× 3)

Specified fuses:

Main fuse: 30 A

Headlight fuse: 15 A

Ignition fuse: 15 A

Four-wheel drive fuse: 3 A

Signaling system fuse: 10 A

U5UH10.book Page 40 Monday, July 28, 2003 5:15 PM

8-41

CAUTION:

To prevent accidental short-circuiting,

turn off the main switch when checking or

replacing a fuse.

EBU14560

Replacing a headlight bulb

If a headlight bulb burns out, replace it as fol-

lows.

1. Remove the bulb holder cover at the rear

of the headlight by pulling it off.

1. Headlight bulb holder cover

WARNING

POTENTIAL HAZARD

Using an improper fuse.

WHAT CAN HAPPEN

An improper fuse can cause damage to

the electrical system which could lead

to a fire.

HOW TO AVOID THE HAZARD

Always use a fuse of the specified rat-

ing. Never use a material in place of the

proper fuse.

U5UH10.book Page 41 Monday, July 28, 2003 5:15 PM

8-42

2. Remove the headlight bulb holder by

turning it counterclockwise.

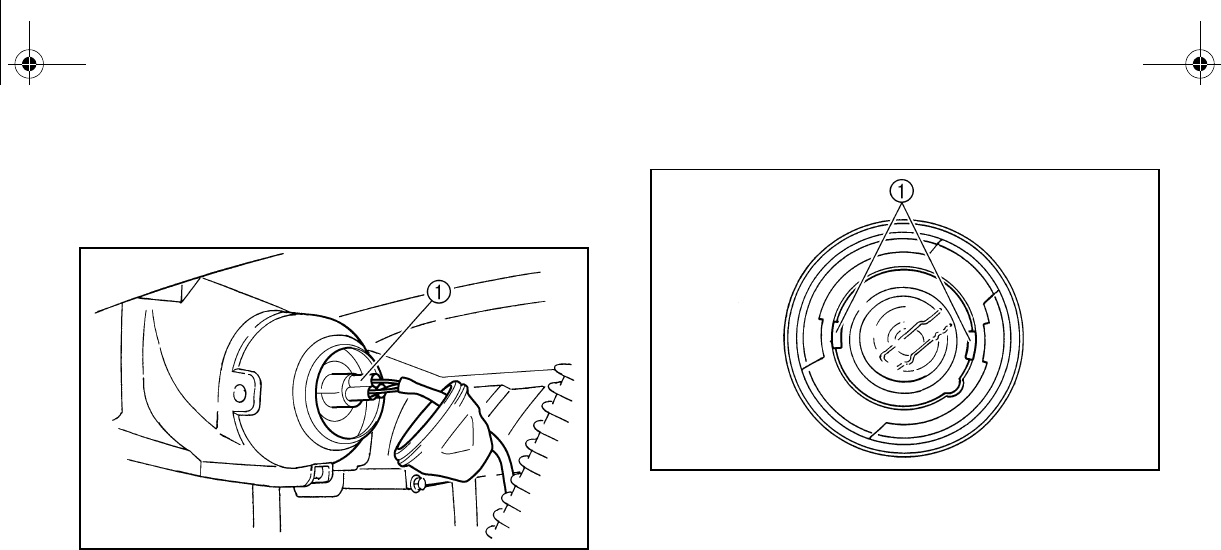

1. Headlight bulb holder

3. Remove the defective bulb by unhooking

the headlight bulb holder tabs.

1. Headlight bulb holder tab (× 2)

U5UH10.book Page 42 Monday, July 28, 2003 5:15 PM

8-43

4. Insert a new headlight bulb into the bulb

holder, and then secure the bulb by

hooking the tabs onto the bulb.

1. Do not touch the glass part of the bulb.

CAUTION:

Do not touch the glass part of the head-

light bulb to keep it free from oil, otherwise

the transparency of the glass, the luminos-

ity of the bulb, and the bulb life will be ad-

versely affected. Thoroughly clean off any

dirt and fingerprints on the headlight bulb

using a cloth moistened with alcohol or

thinner.

WARNING

POTENTIAL HAZARD

A headlight bulb is hot when it is on and

immediately after it is turned off.

WHAT CAN HAPPEN

You can be burned, or a fire could start

if the bulb touches something flamma-

ble.

HOW TO AVOID THE HAZARD

Wait for the bulb to cool before touching

or removing it.

U5UH10.book Page 43 Monday, July 28, 2003 5:15 PM

8-44

5. Install the headlight bulb holder by turn-

ing it clockwise.

6. Install the headlight bulb holder cover at

the rear of the headlight.

EBU01089

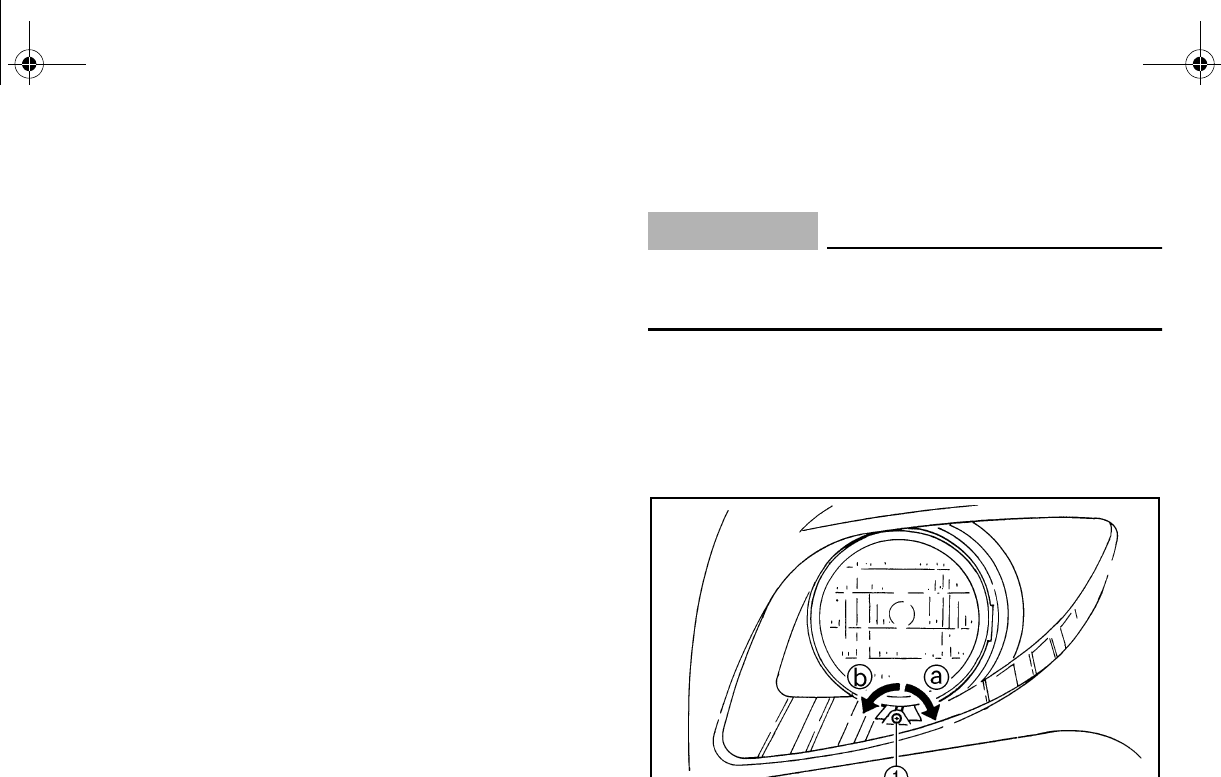

Headlight beam adjustment

CAUTION:

It is advisable to have a Yamaha dealer

make this adjustment.

To raise the beam, turn the adjusting screw in

direction a.

To lower the beam, turn the adjusting screw in

direction b.

1. Headlight beam adjusting screw

U5UH10.book Page 44 Monday, July 28, 2003 5:15 PM

8-45

EBU01105

Tail/brake light bulb replacement

If the tail/brake light bulb burns out, have a

Yamaha dealer replace it.

EBU00412

Troubleshooting

Although Yamaha machines receive a rigid in-

spection before shipment from the factory,

trouble may occur during operation. Any prob-

lem in the fuel, compression, or ignition sys-

tems can cause poor starting and loss of

power. The troubleshooting chart describes a

quick, easy procedure for making checks. If

your machine requires any repair, take it to a

Yamaha dealer.

The skilled technicians at a Yamaha dealer-

ship have the tools, experience, and know-

how to properly service your machine. Use

only genuine Yamaha parts on your machine.

Imitation parts may look like Yamaha parts,

but they are often inferior. Consequently, they

have a shorter service life and can lead to ex-

pensive repair bills.

U5UH10.book Page 45 Monday, July 28, 2003 5:15 PM

8-46

WARNING

POTENTIAL HAZARD

Checking the fuel system while smok-

ing or near an open flame.

WHAT CAN HAPPEN

Fuel can ignite or explode, causing se-

vere injury or property damage.

HOW TO AVOID THE HAZARD

Do not smoke when checking the fuel

system. Make sure there are no open

flames or sparks in the area, including

pilot lights from water heaters or furnac-

es.

U5UH10.book Page 46 Monday, July 28, 2003 5:15 PM

8-47

EBU04400

Troubleshooting chart

1. Fuel

Check if there is fuel

in the fuel tank.

There is fuel. Turn the fuel cock

lever to “OFF”.No fuel. Fuel cock is

clogged.

Clean the

fuel cock.

Some fuel. Turn the fuel cock

lever to “RES”.Restart the engine.

No fuel. Supply fuel.

2. Compression

Use the electric

starter to see if

there is compression.

There is compression. Compression normal.

No compression. Ask a Yamaha dealer to

inspect.

3. Ignition

Remove the

spark plug and

check electrodes.

Wet Wipe clean with dry cloth.

Dry Attach spark plug cap and

ground to chassis.

Use the

electric starter.

Spark is good. Ignition system is

normal.

Spark is weak.

Adjust the spark plug gap

or replace the spark plug.

No spark.

Ask a Yamaha dealer to

inspect.

Use the electric starter.

Battery is good.

Engine turns over

slowly. Check the connections.

Check the

fuel flow.

Turn the fuel cock

lever to “ON”.

Remove the fuel hose

from the fuel cock.

U5UH10.book Page 47 Monday, July 28, 2003 5:15 PM

9-1

EBU00419

CLEANING AND STORAGE

A. CLEANING

Frequent, thorough cleaning of your machine

will not only enhance its appearance but will

improve its general performance and extend

the useful life of many components.

1. Before cleaning the machine:

a. Block off the end of the exhaust pipe to

prevent water entry. A plastic bag and

strong rubber band may be used.

b. Make sure the spark plug and all filler

caps are properly installed.

2. If the engine case is excessively greasy,

apply degreaser with a paint brush. Do

not apply degreaser to the wheel axles.

3. Rinse the dirt and degreaser off with a

garden hose. Use only enough pressure

CAUTION:

Excessive water pressure may cause wa-

ter seepage and deterioration of wheel

bearings, brakes, transmission seals and

electrical devices. Many expensive repair

bills have resulted from improper high

pressure detergent applications such as

those available in coin-operated car wash-

ers.

4. Once the majority of the dirt has been

hosed off, wash all surfaces with warm

water and mild, detergent-type soap. An

old toothbrush or bottle brush is handy for

hard-to-get-at places.

5. Rinse the machine off immediately with

clean water and dry all surfaces with a

chamois, clean towel or soft absorbent

cloth.

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

9-2

6. Clean the seat with a vinyl upholstery

cleaner to keep the cover pliable and

glossy.

7. Automotive type wax may be applied to

all painted and chrome plated surfaces.

Avoid combination cleaner-waxes. Many

contain abrasives which may mar the

paint or protective finish. When finished,

start the engine and let it idle for several

minutes.

WARNING

POTENTIAL HAZARD

Operation with wet brakes after wash-

ing.

WHAT CAN HAPPEN

Wet brakes may have reduced stopping

ability, increasing the chance of an acci-

dent.

HOW TO AVOID THE HAZARD

Test the brakes after washing. Apply the

brakes several times at slow speeds to

let friction dry out the linings.

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

9-3

EBU00530

B. STORAGE

Long term storage (60 days or more) of your

machine will require some preventive proce-

dures to guard against deterioration. After

thoroughly cleaning the machine, prepare for

storage as follows:

1. Fill the fuel tank with fresh fuel and add

the specified amount of Yamaha Fuel

Stabilizer and Conditioner or an equiva-

lent product.

TE:

Use of fuel stabilizer and conditioner elimi-

l system. Con-

sult a Yamaha dealer if the fuel system needs

to be drained instead.

2. Remove the spark plug, pour about one

tablespoon of SAE 10W30 or 20W40

motor oil in the spark plug hole and rein-

stall the spark plug. Ground the spark

plug wire and turn the engine over seve-

ral times to coat the cylinder wall with oil.

3. Lubricate all control cables.

4. Block up the frame to raise all wheels off

the ground.

5. Tie a plastic bag over the exhaust pipe

outlet to prevent moisture from entering.

6. If storing in a humid or salt-air atmo-

sphere, coat all exposed metal surfaces

with a light film of oil. Do not apply oil to

any rubber parts or the seat cover.

Specified amount:

1 oz of stabilizer to each gallon of fuel

(or 7.5 cc of stabilizer to each liter of

fuel)

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

9-4

7. Remove the battery and charge it. Store

it in a dry place and recharge it once a

month. Do not store the battery in an ex-

cessively warm or cold place (less than

0°C (30 °F) or more than 30 °C (90 °F)).

TE:

Make any necessary repairs before storing

the machine.

U5UH10.book Page 4 Monday, July 28, 2003 5:15 PM

10-1

EBU00428

SPECIFICATIONS

Model YFM350FA

Dimensions:

Overall length 1,984 mm (78.1 in)

Overall width 1,085 mm (42.7 in)

Overall height 1,120 mm (44.1 in)

Seat height 827 mm (32.6 in)

Wheelbase 1,233 mm (48.5 in)

Minimum ground clearance 245 mm (9.65 in)

Minimum turning radius 3,000 mm (118.1 in)

Basic weight:

With oil and full fuel tank 258 kg (569 lb)

Engine:

Engine type Air cooled 4-stroke, SOHC

Cylinder arrangement Forward-inclined single cylinder

Displacement 348.9 cm3

83.0 × 64.5 mm (3.27 × 2.54 in)

Compression ratio 9.20 :1

Starting system Electric and recoil starter

Lubrication system Wet sump

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

10-2

Engine oil:

Type

Recommended engine oil classification: API Service SE, SF, SG type or higher

Quantity:

Without oil filter cartridge replacement 2.2 L (1.94 Imp qt, 2.33 US qt)

With oil filter cartridge replacement 2.3 L (2.02 Imp qt, 2.43 US qt)

Model YFM350FA

0˚ 10˚ 30˚ 50˚ 70˚ 90˚ 110˚ 130˚F

YAMALUBE 4 (10W30) or SAE 10W30

SAE 5W30

-20˚ -10˚ 0˚ 10˚ 20˚ 30˚ 40˚ 50˚C

YAMALUBE 4 (20W40) or SAE 20W40

CAUTION:

In order to prevent clutch slippage (since the en-

gine oil also lubricates the clutch), do not mix any

chemical additives. Do not use oils with a diesel

specification of “CD” or oils of a higher quality

than specified. In addition, do not use oils labeled

“ENERGY CONSERVING II” or higher.

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

10-3

Final gear case oil:

Type SAE80 API GL-4 Hypoid gear oil

Quantity:

Periodic oil change 0.23 L (0.20 Imp qt, 0.24 US qt)

Differential gear case oil:

Type SAE80 API GL-4 Hypoid gear oil

Quantity:

Periodic oil change 0.35 L (0.31 Imp qt, 0.37 US qt)

Air filter: Wet element

Fuel:

Type UNLEADED GASOLINE ONLY

Fuel tank capacity 13.5 L (2.97 lmp gal, 3.57 US gal)

Fuel reserve amount 3.3 L (0.73 lmp gal, 0.87 US gal)

Carburetor:

Type/quantity BSR33 / 1

Manufacturer MIKUNI

Spark plug:

DR8EA / NGK

Spark plug gap 0.6–0.7 mm (0.02–0.03 in)

Clutch type: Wet, centrifugal automatic

Model YFM350FA

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

10-4

Transmission:

Primary reduction system V-belt

Secondary reduction system Shaft drive

Secondary reduction ratio 41/21 × 24/18 × 33/9 (9.545)

Transmission type V-belt automatic

Operation Left hand operation

Forward gear 35/20 (1.750)

Reverse gear 26/15 (1.733)

Chassis:

Frame type Steel tube frame

Caster angle 4°

Trail 21 mm (0.83 in)

Tire:

Type Tubeless

Size front AT25 ×

8 - 12

rear AT25 × 10 - 12

Brake:

type Dual disc brake

operation Right hand operation

Rear brake type Drum brake

operation Left hand and right foot operation

Model YFM350FA

U5UH10.book Page 4 Monday, July 28, 2003 5:15 PM

10-5

Suspension:

Front suspension Double wishbone

Rear suspension Swingarm (monocross)

Shock absorber:

Front shock absorber Coil spring / oil damper

Rear shock absorber Coil spring / oil damper

Wheel travel:

Front wheel travel 160 mm (6.30 in)

Rear wheel travel 180 mm (7.09 in)

Electrical:

Ignition system DC-C.D.I.

Generator system A.C. magneto

Battery type YTX14AH

Battery capacity 12 V, 12 Ah

Headlight type: Krypton bulb

Model YFM350FA

U5UH10.book Page 5 Monday, July 28, 2003 5:15 PM

10-6

Bulb voltage, wattage × quantity:

Headlight 12 V, 30/30 W × 2

Tail/brake light 12 V, 5/21 W × 1

Neutral indicator light 12 V, 1.7 W × 1

Reverse indicator light 12 V, 1.7 W × 1

Oil temperature warning light 12 V, 1.7 W × 1

Four-wheel drive indicator light 12 V, 1.7 W × 1

Fuses:

Main fuse 30 A

Headlight fuse 15 A

Ignition fuse 15 A

Four-wheel drive fuse 3 A

Signaling system fuse 10 A

Model YFM350FA

U5UH10.book Page 6 Monday, July 28, 2003 5:15 PM

11-1

EBU00430

NOISE REGULATION

TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED:

Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering inop-

erative by any person other than for purposes of maintenance, repair, or replacement of any de-

vice or element of design incorporated into any new vehicle for the purpose of noise control prior

to its sale or delivery to the ultimate purchaser or while it is in use or (2) the use of the vehicle after

such device or element of design has been removed or rendered inoperative by any person.

“AMONG THOSE ACTS PRESUMED TO CONSTITUTE TAMPERING ARE THE ACTS LISTED

BELOW.”

These acts include tampering with the following systems; i.e., modification, removal, etc.

Exhaust

system

Muffler

Exhaust pipe

Silencer

Intake system

Air cleaner case

Air cleaner element

Intake duct

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

12-1

EBU13651

MAINTENANCE RECORD

Copies of work orders and/or receipts for parts you purchase and install will be required to docu-

ment maintenance done in accordance with the warranty. The chart below is printed only as a re-

minder to you that the maintenance work is required. It is not acceptable proof of maintenance

work.

ACL-04E

MAINTENANCE

INTERVAL

DATE OF

SERVICE

SERVICING DEALER

NAME AND ADDRESS REMARKS

1 Month

3 Months

6 Months

12 Months

18 Months

24 Months

30 Months

36 Months

42 Months

54 Months

60 Months

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

13-1

EBU00432

YAMAHA MOTOR CORPORATION, U.S.A.

ATV LIMITED WARRANTY

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

13-2

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

14-1

EBU00435

YAMAHA EXTENDED SERVICE (Y.E.S.)

U5UH10.book Page 1 Monday, July 28, 2003 5:15 PM

14-2

EBU00436

WARNING

Indicates a potential hazard that could

result in serious injury or death.

U5UH10.book Page 2 Monday, July 28, 2003 5:15 PM

EBU00437

U5UH10.book Page 3 Monday, July 28, 2003 5:15 PM

5UH-F8199-10LIT-11626-17-32

READ THIS MANUAL CAREFULLY!

It contains important safety information.

This ATV should not be ridden by anyone under 16 years of age.

WARNING

YFM350FAS

OWNER’S MANUAL

PRINTED IN USA

2003.08-5.4×1 CR

(E)

PRINTED ON RECYCLED PAPER

YAMAHA MOTOR CO., LTD.

EBU00438

LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.

(For replacement manual, call 1-800-532-1558)

WARNING

ALWAYS:

use proper riding techniques to avoid

vehicle overturns on hills and rough

terrain and in turns.

avoid paved surfaces-pavement may

seriously affect handling and control.

Improper ATV use can result in SEVERE INJURY or DEATH.

NEVER operate:

without proper training or instruction.

at speeds too fast for your skills or the

conditions.

on public roads-a collision can occur with

another vehicle.

with a passenger-passengers affect

balance and steering and increase risk

of losing control.

ALWAYS USE

AN APPROVED

HELMET AND

PROTECTIVE GEAR

NEVER USE

ON PUBLIC

ROADS

NEVER CARRY

PASSENGERS

NEVER USE

WITH DRUGS

OR ALCOHOL

Yamaha Bruin 350 Owners Manual ManualsLib Makes It Easy To Find Manuals Online! User 121920

Navigation menu

Versions of this User Manual:

Views

Navigation
