Concert Club V Series
Loudspeaker
• Painstaking selecon of parts and components, opmized wooden enclosures, and a thorough reevaluaon of speaker capacity take
sonic performance to a new level.
• Dual phone jacks and dual Speakon connectors for input and parallel connecon
• Protecon circuit prevents excessive tweeter input due to acousc feedback or other causes
• Durable enclosure with arced steel grille, and large metal handles for improved portability
• Angled cabinet for easy monitor placement
• All models are equipped with a pole socket for use with speaker stands.
• The YSProcessing (Yamaha Speaker Processing) switch provided on the EMX series powered mixers and P series ampliers enhances
matching for even greater sonic impact.

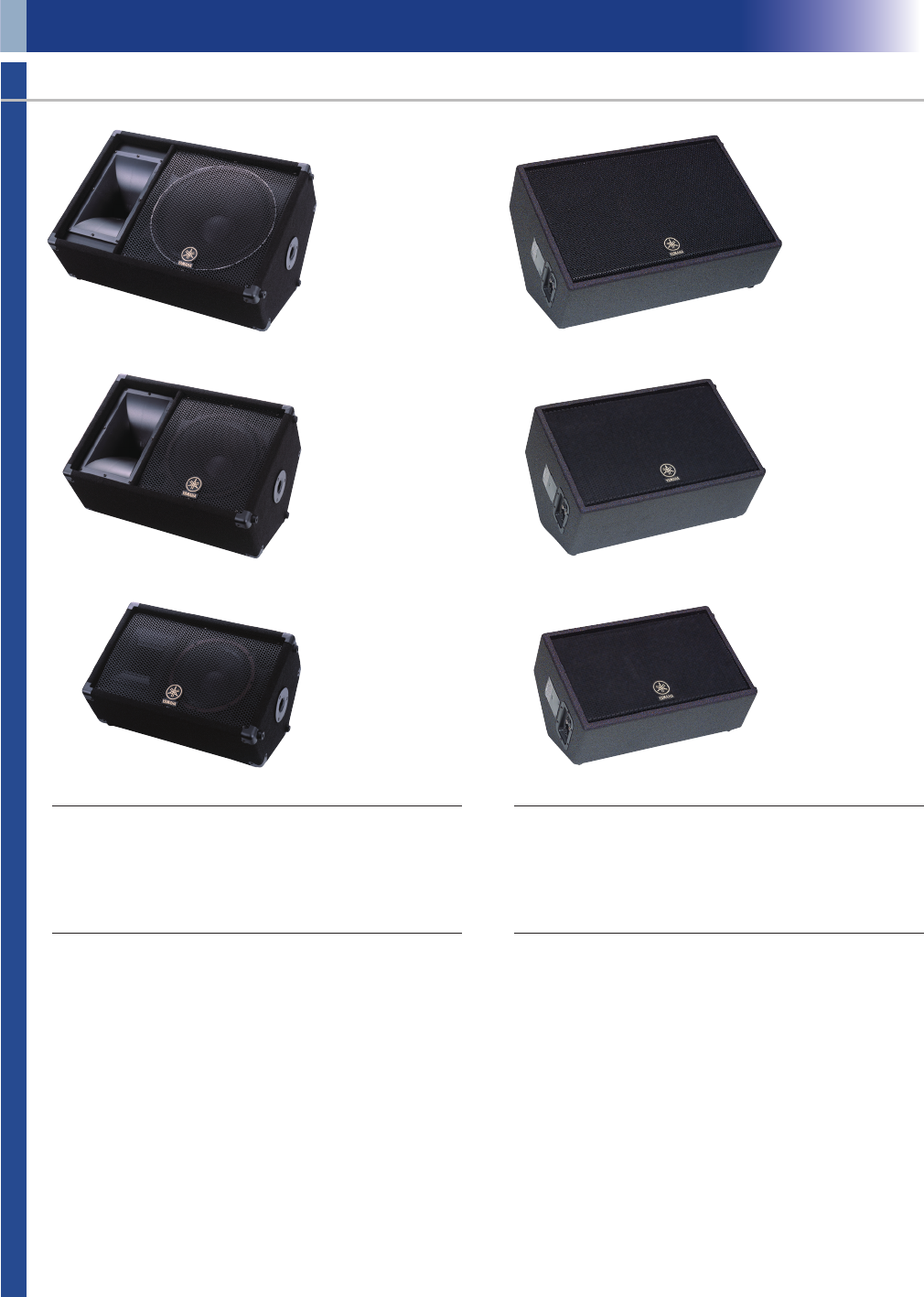

SM15V
SM12V
SM10V
CM15V
CM12V
CM10V
Monitor performance, reliability, and
exteriors optimally matched to the
Club V S series front-of-house
speakers and subs.
Perfect monitors for Club V C Series
systems.
Concert Club V Series
GENERAL SPECIFICATIONS

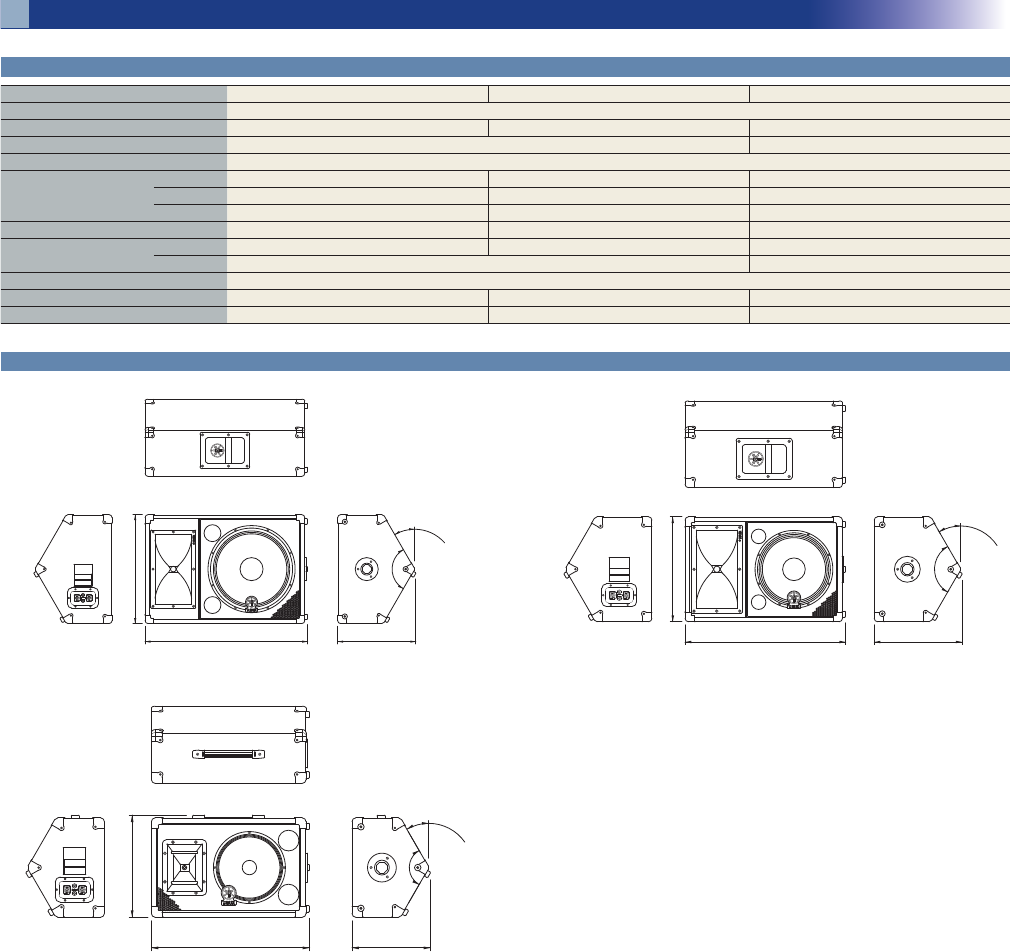

DIMENSIONS
unit : mm (inch)
Model SM15V / CM15V SM12V / CM12V SM10V / CM10V
Type 2-way bass-reflex
Frequency range (-10dB) 55Hz-16kHz 60Hz-16kHz 70Hz-20kHz
Nominal coverage (
Horizontal x Vertical
) 40° x 90° 40Hx60V
Nominal impedance 8Ω
Power rating NOISE 250W 175W 125W
PGM 500W 350W 250W
MAX 1000W 700W 500W
Sensitivity (1W,1m) 99dB SPL 97dB SPL 96dB SPL
Component LF 15" cone 12" cone 10" cone
HF CD horn + 2" voice coil compression driver Horn + 1" voice coil driver
Connectors 1/4" phone jack x 2, SPEAKON Neutrik NL4MP x 2
Dimensions (W x H x D) 719 x 483 x 343mm (28.3" x 19.0" x 13.5") 632 x 414 x 351mm (24.9" x 16.3" x 13.8") 560 x 353 x 277mm (22.0" x 13.9" x 10.9")
Weight SM15V: 28.0kg (61.7lbs) / CM15V: 28.8kg (63.5lbs) SM12V: 21.4kg (47.2lbs) / CM12V: 21.8kg (48.1lbs) SM10V: 13.4kg (29.5lbs) / CM10V: 13.3kg (29.3lbs)
SM10V/CM10V
30˚
120˚
353(13.9)
277(10.9)560(22.0)
120˚
30˚
351(13.8)
414(16.3)
632(24.9)
120˚
30˚
483(19.0)
343(13.5)719(28.3)
SM15V/CM15V SM12V/CM12V
