DSP-AX563

AV Amplifier

OWNER’S MANUAL

Karcher 1046

Kendo 1044

Kenwood 1000, 1001, 1007,

1011, 1043

KLH 1006

Kodak 1003, 1004

Korpel 1050

Leyco 1050

LG 1003, 1042, 1045,

1071

Lifetec 1044, 1048

Lloyd's 1005

Loewe 1048

Loewe Opta 1045, 1046

Logik 1006, 1050

Luxor 1047

LXI 1003

M Electronic 1042

Magnasonic 1047

Magnavox 1004, 1018, 1033

Magnin 1003, 1014

Manesth 1050

Marantz 1000, 1001, 1004,

1046, 1051

Marta 1003

Matsui 1044, 1045

Matsushita 1004

Mediator 1046

Medion 1044, 1048

MEI 1004

Memorex 1001, 1002, 1003,

1004, 1005, 1008,

1013, 1014, 1042,

1045, 1047

Memphis 1050

Metz 1048

MGA 1014

MGN Technology

1002, 1014

Micromaxx 1044, 1048

Microstar 1044, 1048

Migros 1042

Minolta 1010

Mitsubishi 1011, 1042, 1046

Montgomery Ward

1008

Motorola 1004, 1008

MTC 1002, 1014

Multitech 1002, 1005, 1006,

1042, 1046, 1050

Murphy 1042

National 1048

NEC 1000, 1001, 1007,

1011, 1043, 1051

Neckermann 1043, 1046

NEI 1046

Nesco 1050

Nikko 1003

Noblex 1002, 1014

Nokia 1043, 1047

Nordmende 1043

Oceanic 1042, 1043

Okano 1044

Olympus 1004

Optimus 1003, 1008

Orion 1012, 1013, 1044,

1065

Orson 1042

Osaki 1042, 1045, 1050

Otto Versand 1046

Palladium 1043, 1045, 1050

Panasonic 1004, 1020, 1034,

1040, 1048, 1054,

1072

Pathe Marconi 1043

Penney 1010, 1014

Pentax 1010, 1049

Perdio 1042

Philco 1004, 1051

Philips 1004, 1025, 1033,

1046, 1056, 1057,

1059, 1062, 1063

Philips Magnavox

1018

Phonola 1046

Pilot 1003

Pioneer 1011, 1046

Prinz 1042

Profex 1050

Profitronic 1014

Proline 1042

Proscan 1009

Prosonic 1044

Protec 1006

Pye 1046, 1056

Quarter 1001

Quartz 1001, 1047

Quasar 1004, 1035

Quelle 1042, 1046, 1047

Radio Shack 1003

Radio Shack/Realistic

1001, 1002, 1003,

1004, 1005, 1008

Radiola 1046

Radix 1003

Randex 1003

RCA 1002, 1004, 1009,

1010, 1014, 1015,

1022, 1032

Realistic 1001, 1002, 1003,

1004, 1005, 1008

Rex 1043

RFT 1046

Roadstar 1045, 1050, 1066

Saba 1043

Saisho 1044, 1050

Salora 1047

Samsung 1002, 1014, 1021,

1027, 1052, 1068,

1070

Sanky 1008

Sansui 1007, 1011, 1013,

1043

Sanyo 1001, 1002, 1014,

1047

SBR 1046

Schaub Lorenz 1042, 1043, 1047

Schneider 1042, 1044, 1045,

1046, 1050

Scott 1012

Sears 1001, 1003, 1004,

1010

SEG 1050

SEI-Sinudyne 1046

Seleco 1043

Sentron 1050

Sharp 1008, 1023, 1028,

1053, 1073

Shintom 1006, 1047, 1050

Shivaki 1045

Shogun 1002, 1014

Siemens 1045, 1047

Signature 2000 1008

Silva 1045

Singer 1004, 1006

Sinudyne 1046

Sontec 1045

Sony 1016, 1019, 1055,

1060, 1064, 1074

STS 1004, 1010

Sunkai 1044

Sunstar 1042

Suntronic 1042

Sunwood 1050

Sylvania 1004, 1005, 1031,

1041

Symphonic 1005

Taisho 1044

Tandy 1001

Tashiko 1003, 1042

Tatung 1007, 1042, 1043,

1046, 1066

TCM 1044, 1048

Teac 1005, 1007

Technics 1004, 1048

Teknika 1003, 1004, 1005

Teleavia 1043

Telefunken 1043

Tenosal 1050

Tensai 1042, 1045, 1050

Tevion 1044, 1048

Thomson 1043, 1058

Thorn 1043, 1047

TMK 1002, 1014

Tokai 1045, 1050

Tonsai 1050

Toshiba 1013, 1024, 1029,

1043, 1046, 1066,

1075

Totevision 1002, 1003, 1014

Towada 1050

Towika 1050

Uher 1045

Unitech 1002, 1014

Universum 1042, 1045, 1046

Vector Research 1000

Video Concepts 1000

Videon 1044, 1048

Videosonic 1002, 1014

Wards 1002, 1003, 1004,

1005, 1006, 1008,

1010, 1014

Weltblick 1045

White Westinghouse

1013

XR-1000 1004, 1005, 1006

Yamaha 1000, 1001, 1007

Yamis h i 1 0 50

Yokan 1050

Yoko 1045, 1050

Zenith 1013, 1026, 1037

DSP-AX563_B-cv.fm Page 1 Tuesday, January 8, 2008 4:32 PM

Black process 45.0° 240.0 LPI

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

1To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2Install this sound system in a well ventilated, cool, dry, clean

place – away from direct sunlight, heat sources, vibration,

dust, moisture, and/or cold. Allow ventilation space of at least

30 cm on the top, 20 cm on the left and right, and 20 cm on

the back of this unit.

3Locate this unit away from other electrical appliances, motors,

or transformers to avoid humming sounds.

4Do not expose this unit to sudden temperature changes from

cold to hot, and do not locate this unit in a environment with

high humidity (i.e. a room with a humidifier) to prevent

condensation inside this unit, which may cause an electrical

shock, fire, damage to this unit, and/or personal injury.

5Avoid installing this unit where foreign object may fall onto

this unit and/or this unit may be exposed to liquid dripping or

splashing. On the top of this unit, do not place:

– other components, as they may cause damage and/or

discoloration on the surface of this unit.

– burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– containers with liquid in them, as they may fall and liquid

may cause electrical shock to the user and/or damage to

this unit.

6Do not cover this unit with a newspaper, tablecloth, curtain,

etc. in order not to obstruct heat radiation. If the temperature

inside this unit rises, it may cause fire, damage to this unit,

and/or personal injury.

7Do not plug in this unit to a wall outlet until all connections

are complete.

8Do not operate this unit upside-down. It may overheat,

possibly causing damage.

9Do not use force on switches, knobs and/or cords.

10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cord.

11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this

unit with a higher voltage than specified is dangerous and may

cause fire, damage to this unit, and/or personal injury. Yamaha

will not be held responsible for any damage resulting from use

of this unit with a voltage other than specified.

13 To prevent damage by lightning, keep the power cord and

outdoor antennas disconnected from a wall outlet or the unit

during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact qualified

Yamaha service personnel when any service is needed. The

cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time

(i.e. vacation), disconnect the AC power plug from the wall

outlet.

16 Install this unit near the AC outlet and where the AC power

plug can be reached easily.

17 Be sure to read the “Troubleshooting” section on common

operating errors before concluding that this unit is faulty.

18 Before moving this unit, press ASTANDBY/ON to set this

unit in the standby mode, and disconnect the AC power plug

from the wall outlet.

19 The batteries shall not be exposed to excessive heat such as

sunshine, fire or like.

20 Excessive sound pressure from earphones and headphones can

cause hearing loss.

■For U.K. customers

If the socket outlets in the home are not suitable for the

plug supplied with this appliance, it should be cut off and

an appropriate 3 pin plug fitted. For details, refer to the

instructions described below.

The plug severed from the mains lead must be destroyed, as a

plug with bared flexible cord is hazardous if engaged in a live

socket outlet.

■Special Instructions for U.K. Model

Caution: Read this before operating your unit.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE.

This unit is not disconnected from the AC power

source as long as it is connected to the wall outlet, even

if this unit itself is turned off by ASTANDBY/ON.

This state is called the standby mode. In this state, this

unit is designed to consume a very small quantity of

power.

Note

IMPORTANT

THE WIRES IN MAINS LEAD ARE COLOURED IN

ACCORDANCE WITH THE FOLLOWING CODE:

Blue: NEUTRAL

Brown: LIVE

As the colours of the wires in the mains lead of this apparatus

may not correspond with the coloured markings identifying

the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the

terminal which is marked with the letter N or coloured

BLACK. The wire which is coloured BROWN must be

connected to the terminal which is marked with the letter L or

coloured RED.

Making sure that neither core is connected to the earth

terminal of the three pin plug.

This symbol mark is according to the

EU directive 2002/96/EC.

This symbol mark means that electrical

and electronic equipment, at their end-

of-life, should be disposed of separately

from your household waste.

Please act according to your local rules

and do not dispose of your old products

with your normal household waste.

01EN_DSP-AX563_B.book Page i Friday, February 1, 2008 11:08 AM

1 En

English

PREPARATIONINTRODUCTION

BASIC

OPERATION

ADVANCED

OPERATION

ADDITIONAL

INFORMATION APPENDIX

Features ................................................................... 2

Getting started ........................................................ 3

Quick start guide .................................................... 4

Preparation: Check the items ..................................... 4

Step 1: Set up your speakers...................................... 5

Step 2: Connect your DVD player and

other components .................................................. 6

Step 3: Press SCENE 1 button................................... 7

What do you want to do with this unit?..................... 8

Connections ............................................................. 9

Rear panel .................................................................. 9

Placing speakers....................................................... 10

Connecting speakers ................................................ 11

Information on jacks and cable plugs ...................... 13

Information on HDMI™.......................................... 14

Audio and video signal flow.................................... 15

Connecting video components................................. 16

Connecting other components ................................. 17

Connecting audio components................................. 19

Connecting a Yamaha iPod™ universal dock

or Bluetooth™ adapter ........................................ 20

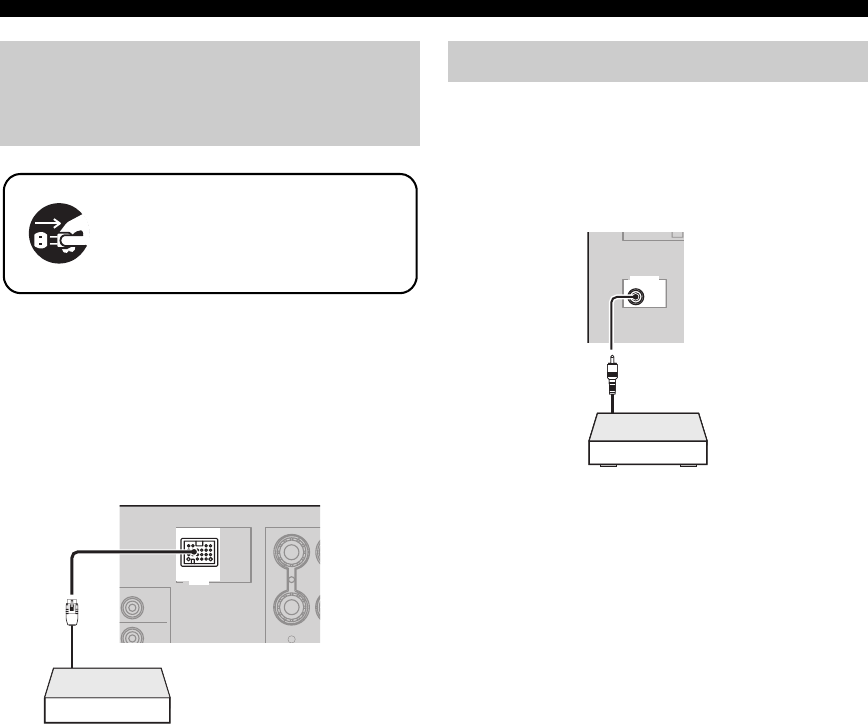

Using REMOTE OUT jack ..................................... 20

Using the VIDEO AUX jacks on the front panel .... 21

Connecting the power cable..................................... 21

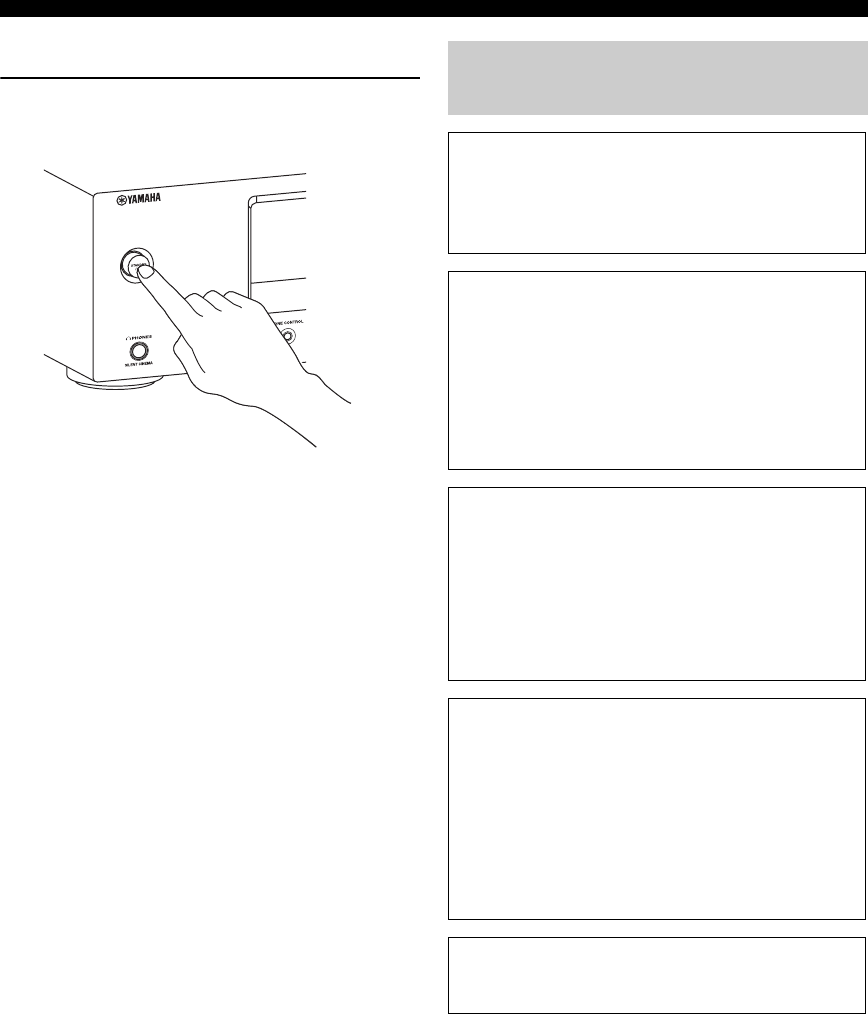

Turning on and off the power .................................. 21

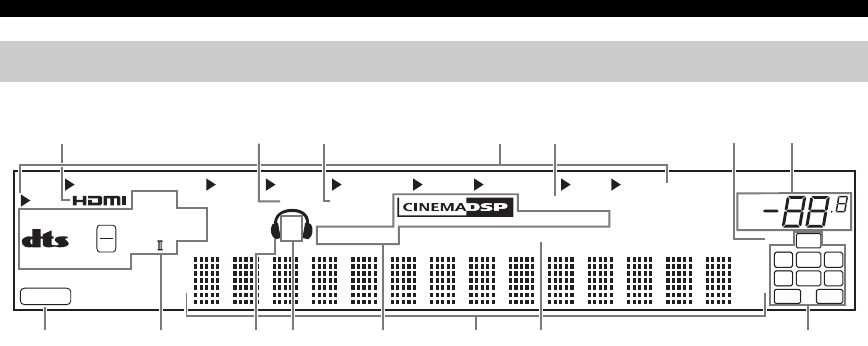

Front panel display .................................................. 22

Optimizing the speaker setting

for your listening room .................................... 24

Using AUTO SETUP .............................................. 24

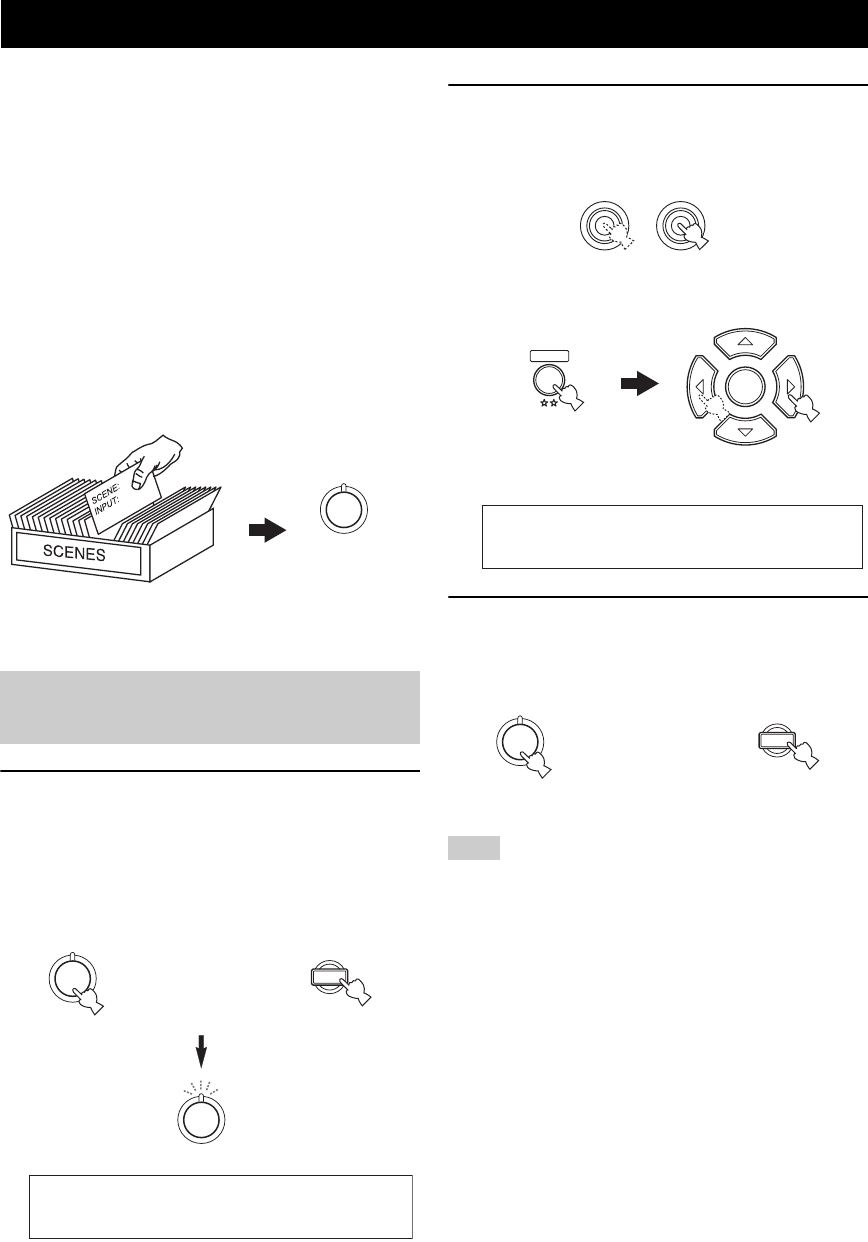

Selecting the SCENE templates........................... 28

Selecting the desired SCENE template.................... 28

Creating your original SCENE templates................ 31

Using remote control on the SCENE feature........... 32

Playback ................................................................ 33

Basic operations....................................................... 33

Selecting audio input jacks

(AUDIO SELECT).............................................. 34

Selecting the MULTI CH INPUT component......... 34

Displaying the current status of this unit

on a video monitor............................................... 35

Using your headphones............................................ 35

Muting the audio output........................................... 35

Playing video sources in the background

of an audio source................................................ 36

Displaying the input source information ................. 36

Using the sleep timer ............................................... 37

Sound field programs ........................................... 38

Sound field program descriptions............................ 38

Using audio features ............................................. 41

Enjoying high quality sound.................................... 41

Adjusting the tonal quality....................................... 41

Adjusting the speaker level...................................... 41

Selecting the night listening mode........................... 42

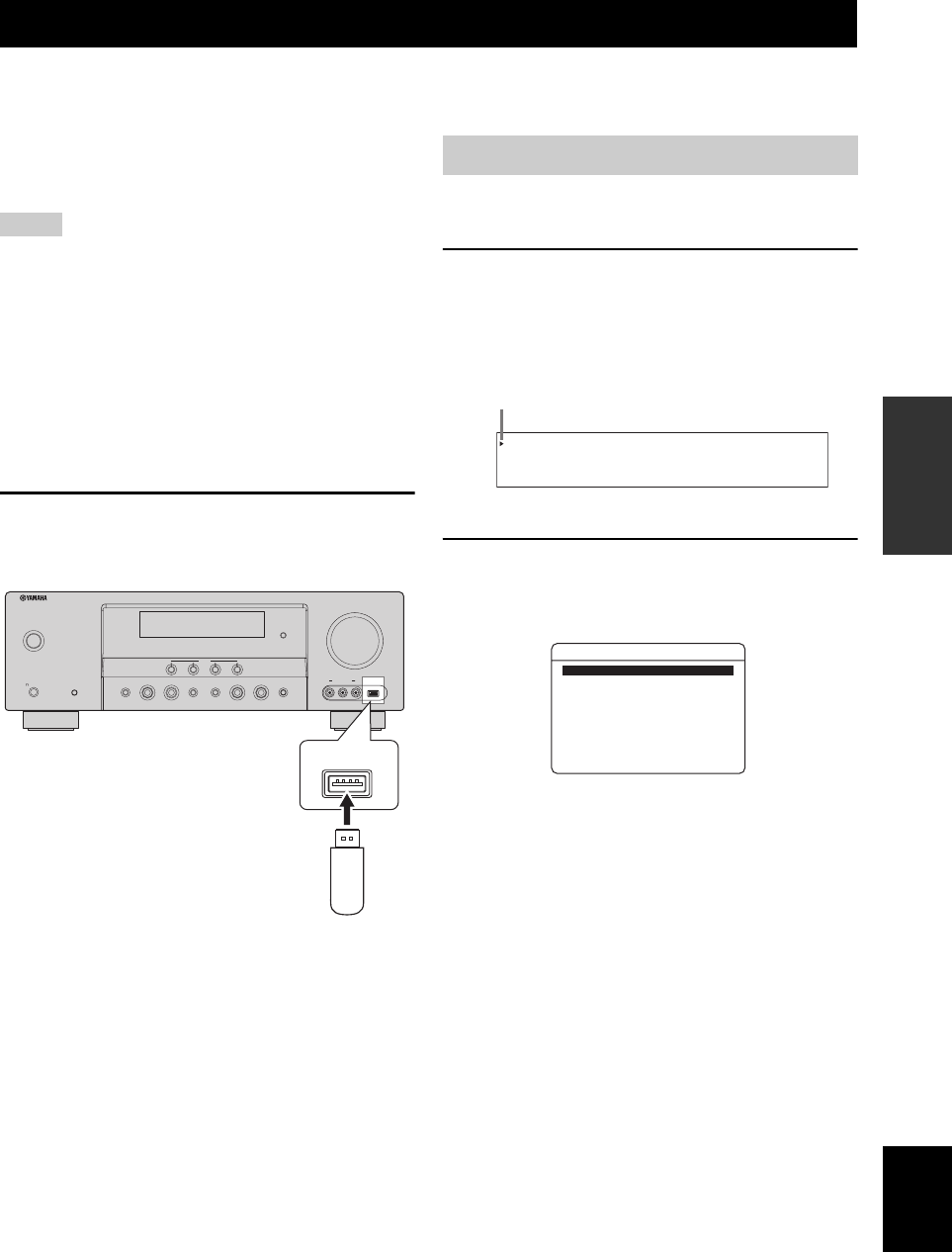

Using a USB memory device or a USB portable

audio player....................................................... 43

Playback operation................................................... 43

Using iPod™.......................................................... 45

Controlling iPod™................................................... 45

Using Bluetooth™ components ............................47

Pairing the Bluetooth™ adapter and your

Bluetooth™ component....................................... 47

Playback of the Bluetooth™ component................. 47

Recording ...............................................................48

SET MENU ............................................................49

Using SET MENU................................................... 50

1 SOUND MENU.................................................... 51

2 INPUT MENU...................................................... 57

3 OPTION MENU................................................... 59

Remote control features........................................63

Controlling this unit, a TV, or other components.... 63

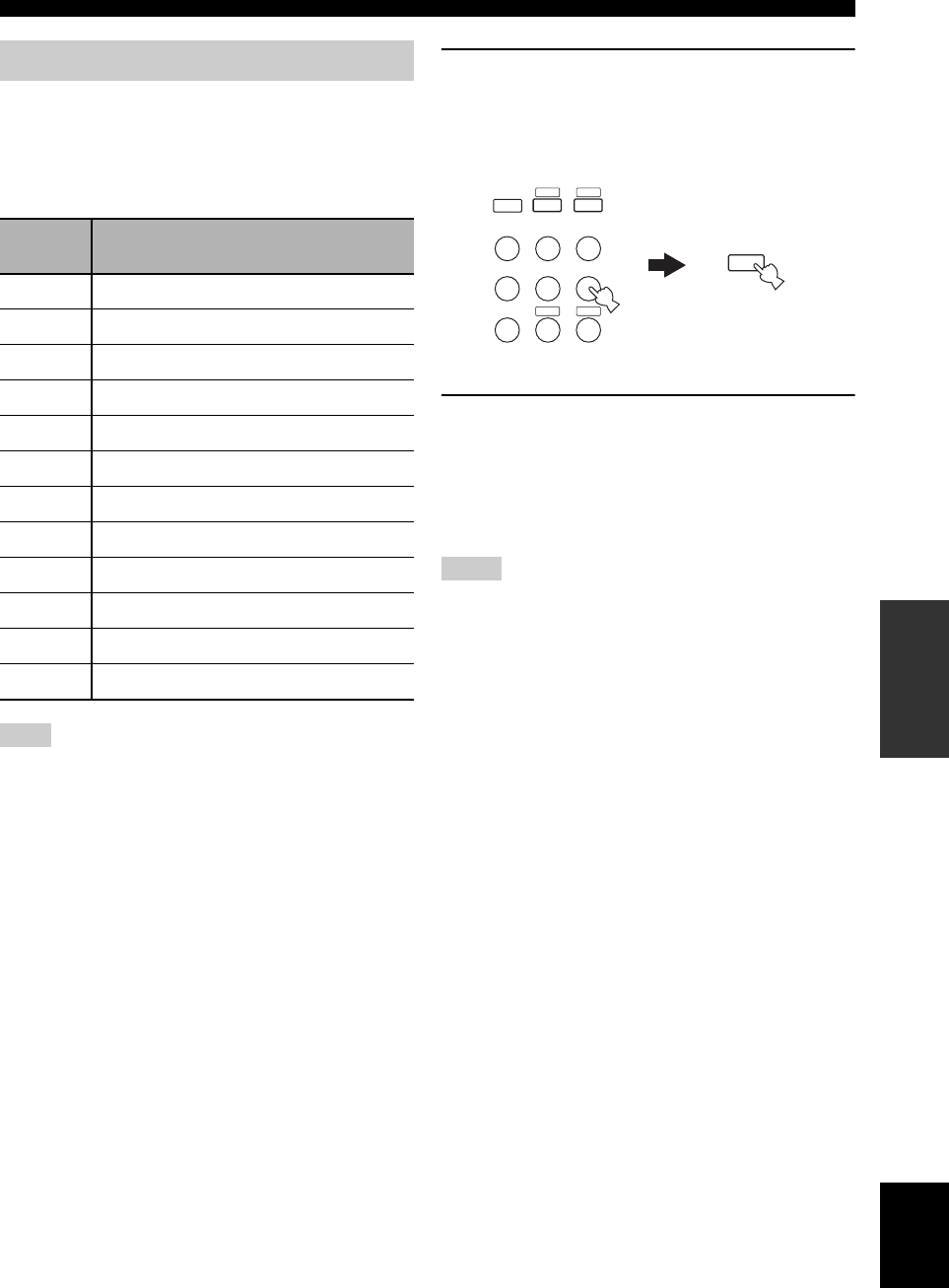

Setting remote control codes ................................... 65

Advanced setup......................................................66

Troubleshooting.....................................................67

Glossary..................................................................76

Specifications .........................................................79

Index .......................................................................80

(at the end of this manual)

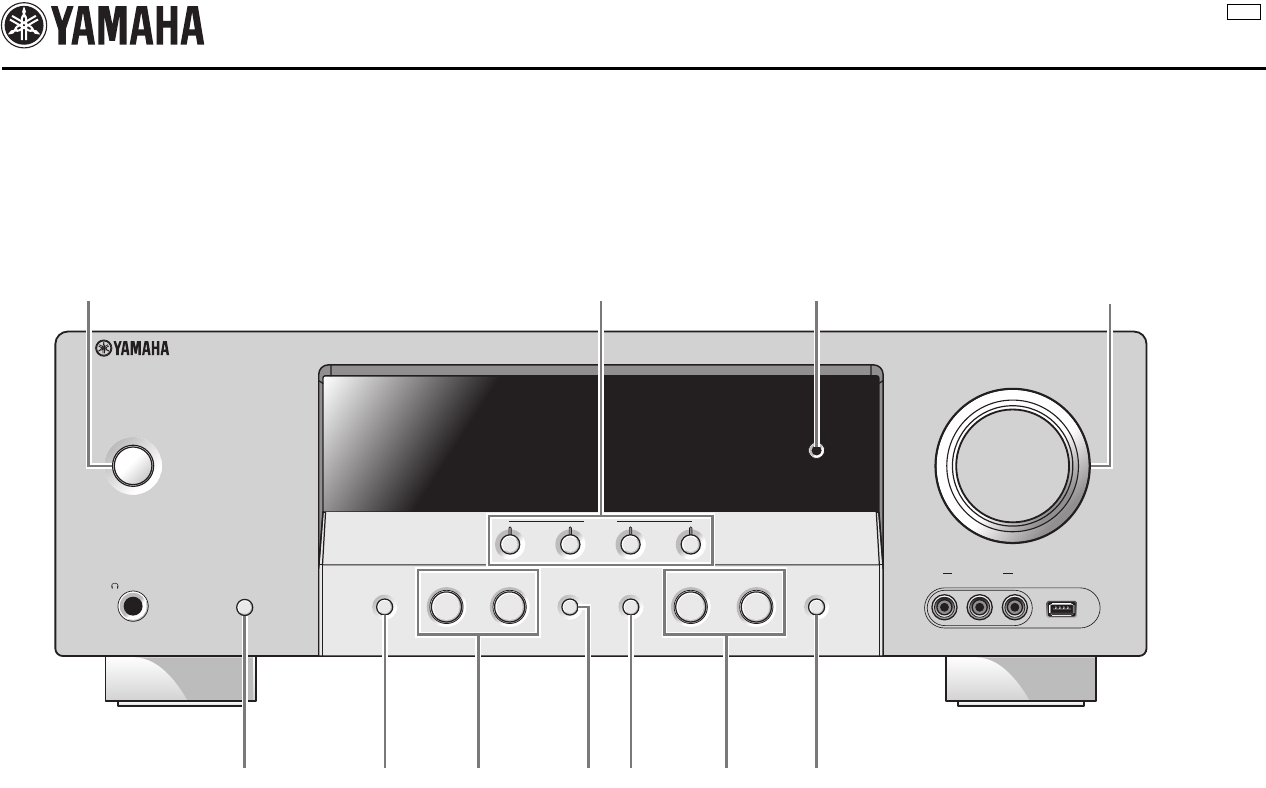

Front panel................................................................i

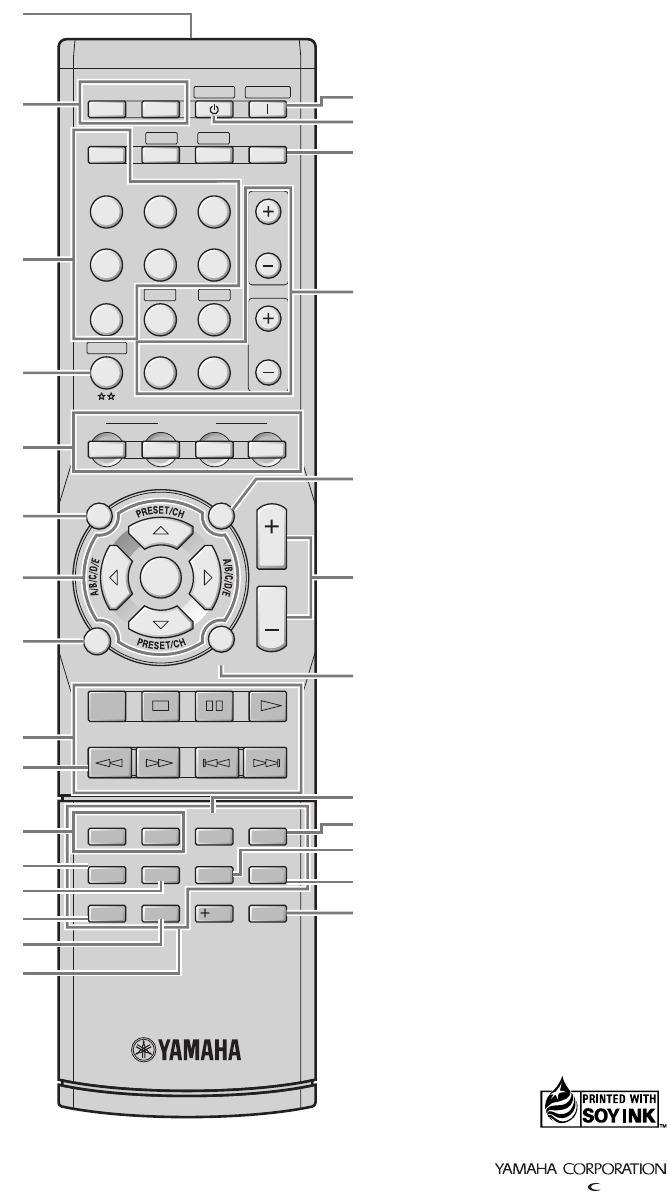

Remote control ....................................................... ii

List of remote control codes ................................. iii

Contents

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERATION

ADDITIONAL INFORMATION

APPENDIX

About this manual

•y indicates a tip for your operation.

• Some operations can be performed by using either the buttons on the

front panel or the ones on the remote control. In case the button

names differ between the front panel and the remote control, the

button name on the remote control is given in parentheses.

• This manual is printed prior to production. Design and specifications

are subject to change in part as a result of improvements, etc. In case

of differences between the manual and product, the product has

priority.

•“ESPEAKERS” or “3DVD” (example) indicates the name of the

parts on the front panel or the remote control. Refer to the attached

sheet or the pages at the end of this manual for the information about

each position of the parts.

• The symbol “☞ ” with page number(s) indicates the corresponding

reference page(s).

01EN_DSP-AX563_B.book Page 1 Friday, February 1, 2008 11:08 AM

Features

2 En

Built-in 7-channel power amplifier

◆Minimum RMS output power

1 kHz, 0.9% THD, 6 Ω

90 W/ch

SCENE select function

◆Preset SCENE templates for various situations

◆SCENE template customizing capability

Decoders and DSP circuits

◆Proprietary Yamaha technology for the creation of

multi-channel surround sound

◆Compressed Music Enhancer mode

◆Dolby Digital/Dolby Digital EX decoder

◆DTS/DTS-ES Matrix, Discrete, DTS Neo:6,

DTS 96/24 decoder

◆Dolby Pro Logic/Dolby Pro Logic II/Dolby Pro Logic IIx

decoder

◆Virtual CINEMA DSP

◆SILENT CINEMA™

HDMI (High-Definition Multimedia Interface)

◆HDMI interface for standard, enhanced or high-definition

video (includes 1080p video signal transmission) as well as

multi-channel digital audio

DOCK terminal

◆DOCK terminal to connect a Yamaha iPod universal dock

(such as YDS-10, sold separately) or Bluetooth adapter (such

as YBA-10, sold separately).

USB features

◆USB port to connect a USB memory device or a USB portable

audio player

◆MP3, WMA and WAV capability

Other features

◆YPAO (Yamaha Parametric Room Acoustic Optimizer) for

automatic speaker setup

◆192-kHz/24-bit D/A converter

◆DIRECT mode for high quality sound for all sources

◆6 additional input jacks for discrete multi-channel input

◆OSD (on-screen display) menus that allow you to optimize

this unit to suit your individual audiovisual system

◆Component video input/output capability

(3 COMPONENT VIDEO INs and 1 MONITOR OUT)

◆S-video signal input/output capability

◆Optical and coaxial digital audio signal jacks

◆Sleep timer

◆Cinema and music night listening modes

◆iPod controlling capability

◆Remote control with preset remote control codes

◆Bi-amplification connection capability

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are trademarks

of Dolby Laboratories.

“SILENT CINEMA” is a trademark of Yamaha Corporation.

iPod™

“iPod” is a trademark of Apple, Inc., registered in the U.S. and

other countries.

DTS-ES | NEO:6 | 96/24. Product “DTS” and “DTS-ES | NEO:6”

are registered trademarks of DTS, Inc.

“96/24” is a trademark of DTS, Inc.

Bluetooth™

Bluetooth is a registered trademark of the Bluetooth SIG and is

used by Yamaha in accordance with a license agreement.

“HDMI”, the “HDMI” logo and “High-Definition Multimedia

Interface” are trademarks or registered trademarks of HDMI

Licensing LLC.

Features

01EN_DSP-AX563_B.book Page 2 Friday, February 1, 2008 11:08 AM

Getting started

3 En

English

INTRODUCTION

■Supplied accessories

Check that you received all of the following parts.

❏Remote control

❏Batteries (2) (AAA, R03, UM-4)

❏Optimizer microphone

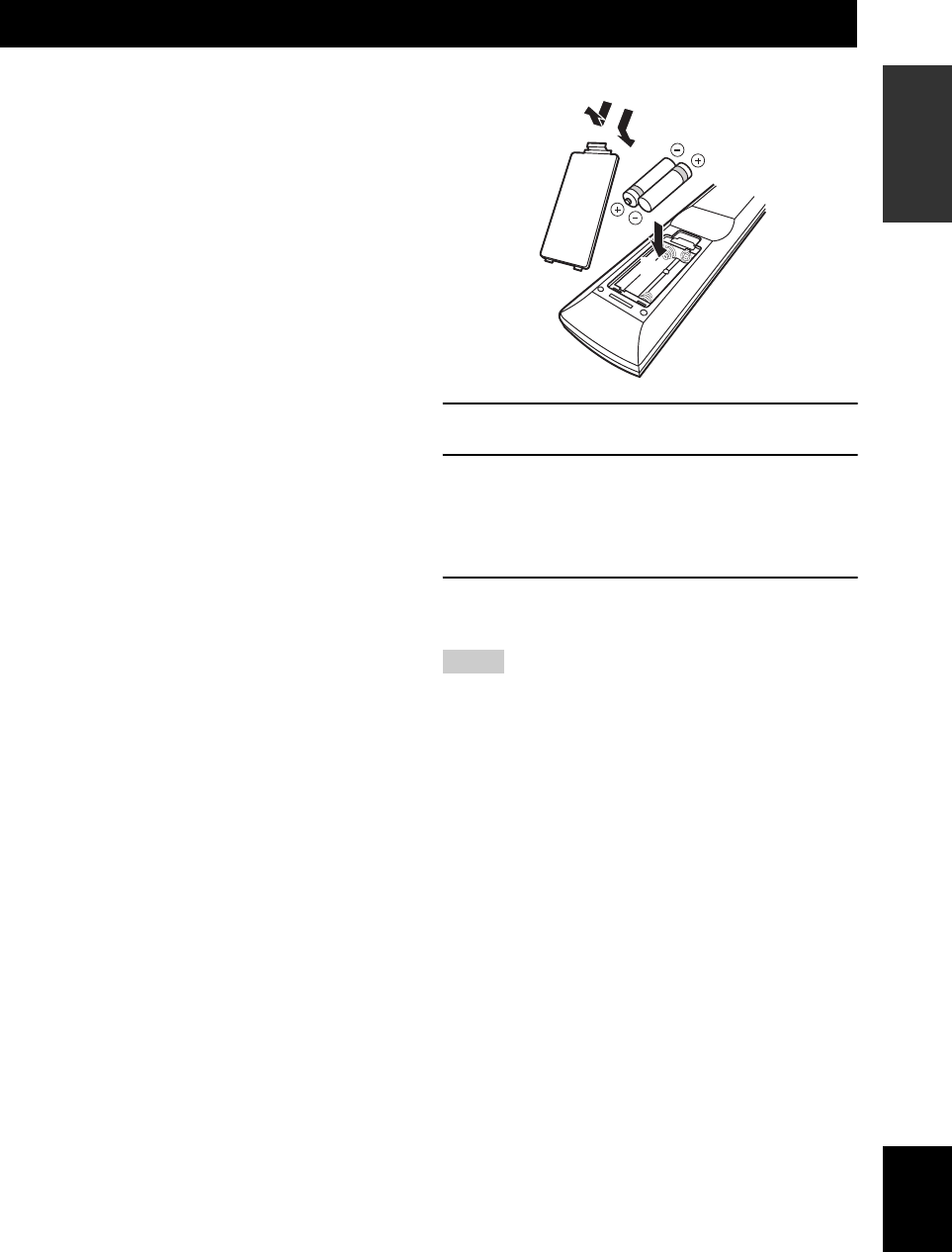

■Installing batteries in the remote control

1Take off the battery compartment cover.

2Insert the two supplied batteries

(AAA, R03, UM-4) according to the polarity

markings (+ and –) on the inside of the

battery compartment.

3Snap the battery compartment cover back

into place.

• Change all of the batteries if you notice that the operation range

of the remote control decreases.

• Do not use an old battery and a new one together.

• Do not use different types of batteries (such as alkaline and

manganese batteries) together. Read the packaging carefully as

these different types of batteries may have the same shape and

color.

• If the batteries have leaked, dispose of them immediately. Avoid

touching the leaked material or letting it come into contact with

clothing, etc. Clean the battery compartment thoroughly before

installing new batteries.

• Do not throw away batteries with general house waste; dispose

of them correctly in accordance with your local regulations.

• If the remote control is without batteries for more than 2

minutes, or if exhausted batteries remain in the remote control,

the contents of the memory may be cleared. When the memory

is cleared, insert new batteries and set up the remote control

code.

Getting started

Notes

01EN_DSP-AX563_B.book Page 3 Friday, February 1, 2008 11:08 AM

Quick start guide

4 En

The following steps describe the easiest way to enjoy

DVD movie playback in your home theater.

Prepare the following items.

❏Speakers

❏Front speaker .....................................x 2

❏Center speaker ...................................x 1

❏Surround speaker ..............................x 4

Select magnetically shielded speakers. The

minimum required speakers are two front speakers.

The priority of the requirement of other speakers is

as follows:

1. Two surround speakers

2. Center speaker

3. One (or two) surround back speaker(s)

❏Active subwoofer ...................................x 1

Select an active subwoofer equipped with an RCA

input jack.

❏Speaker cable .........................................x 7

❏Subwoofer cable .....................................x 1

Select a monaural RCA cable.

❏DVD player ..............................................x 1

Select DVD player equipped with coaxial digital

audio output jack and composite video output

jack.

❏Video monitor ..........................................x 1

Select a TV monitor, video monitor or projector

equipped with a composite video input jack.

❏Video cable .............................................x 2

Select an RCA composite video cable.

❏Digital coaxial audio cable ....................x 1

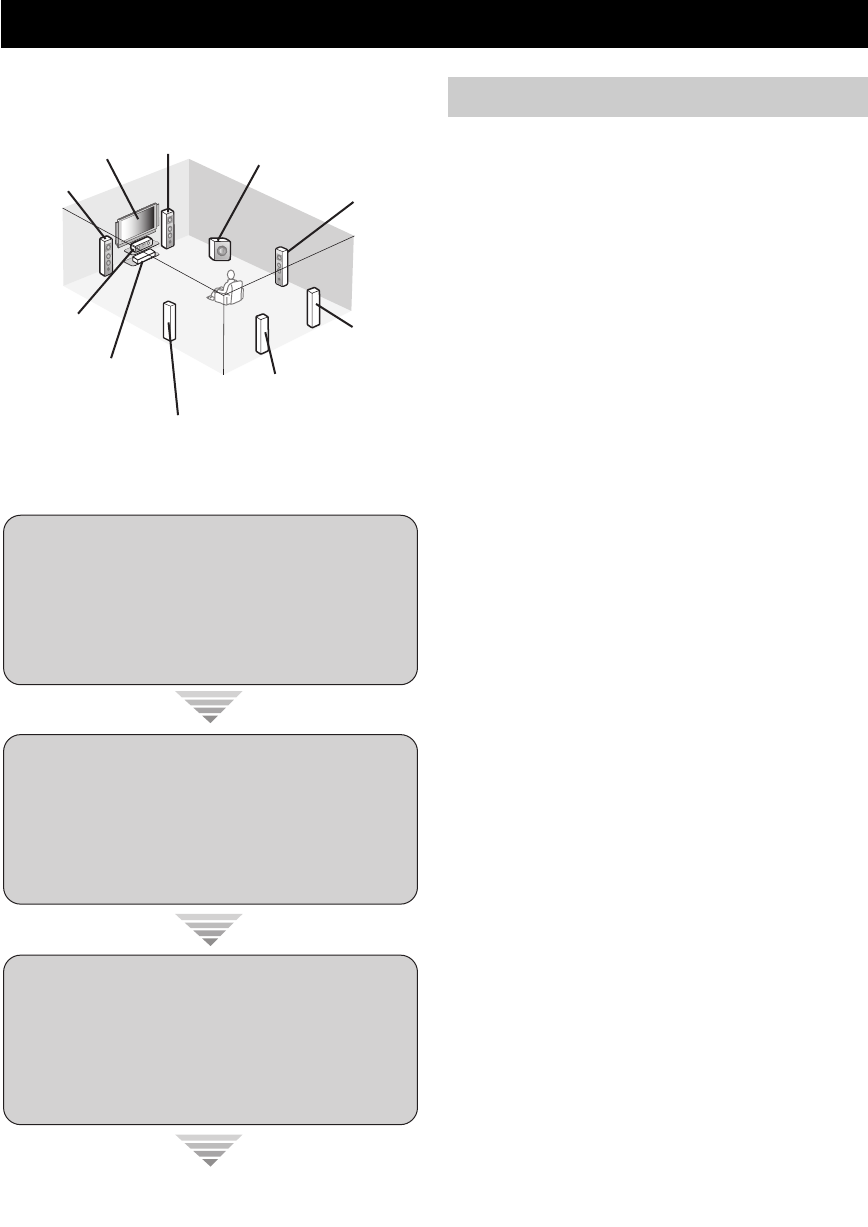

Quick start guide

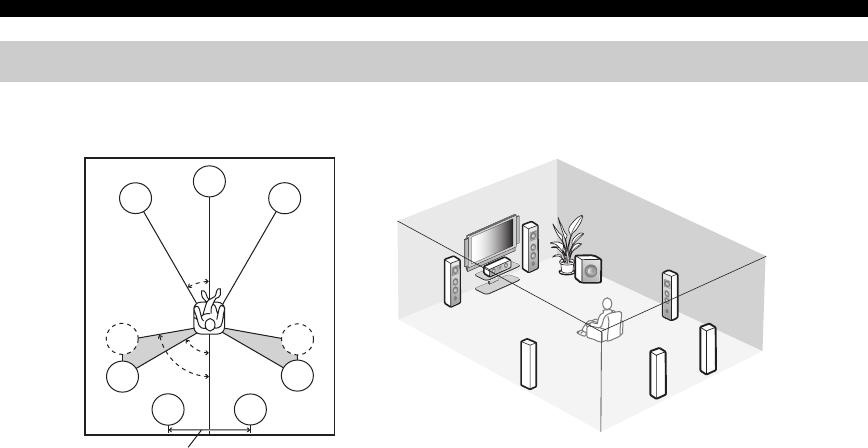

Front right

speaker Subwoofer

Surround left

speaker

Front left

speaker Surround right

speaker

Center speaker

DVD player

Video monitor

Surround back

right speaker

Surround back left

speaker

Enjoy DVD playback!

Step 1: Set up your speakers

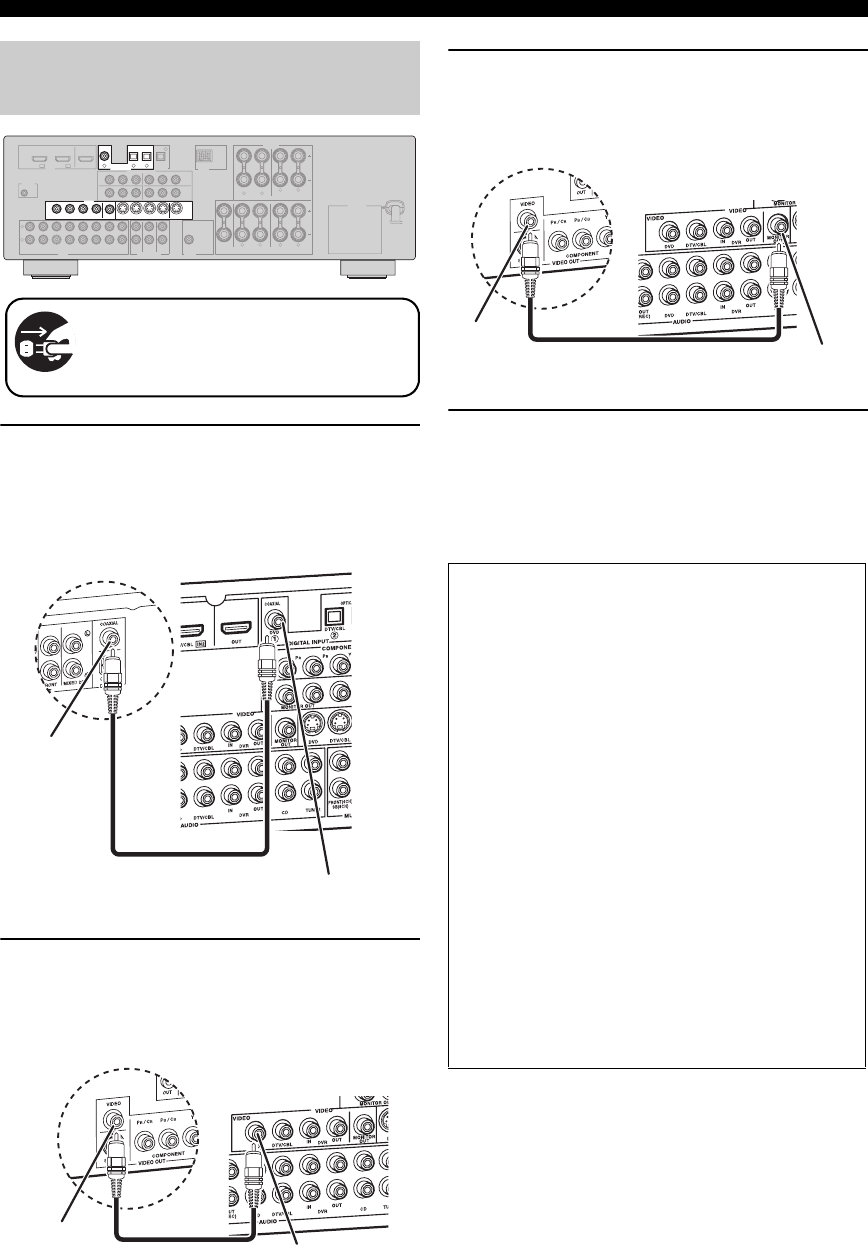

Step 2: Connect your DVD player

and other components

Step 3: Press SCENE 1 button

☞

P. 6

☞

P. 7

☞

P. 5

Preparation: Check the items

01EN_DSP-AX563_B.book Page 4 Friday, February 1, 2008 11:08 AM

Quick start guide

5 En

English

INTRODUCTION

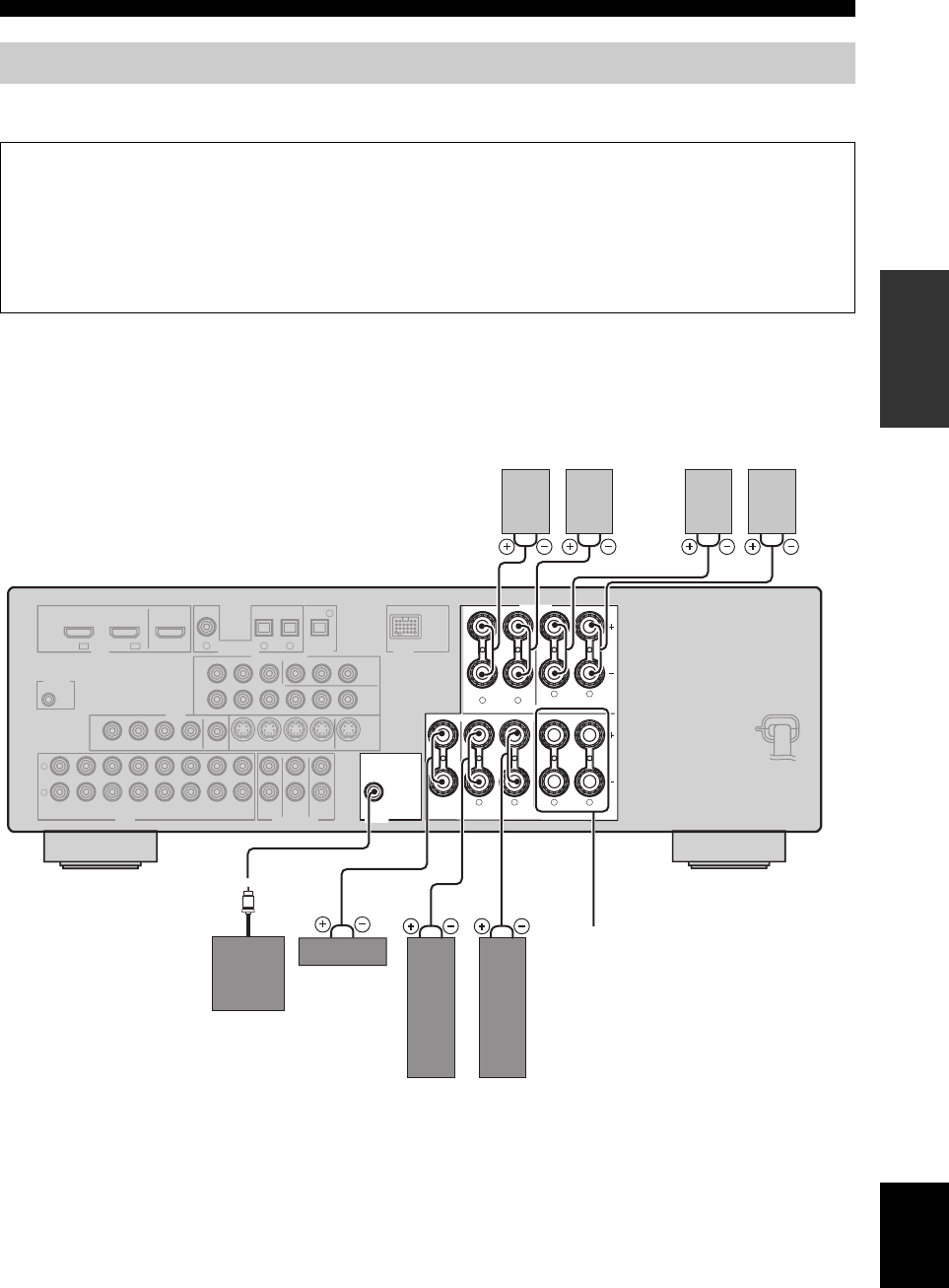

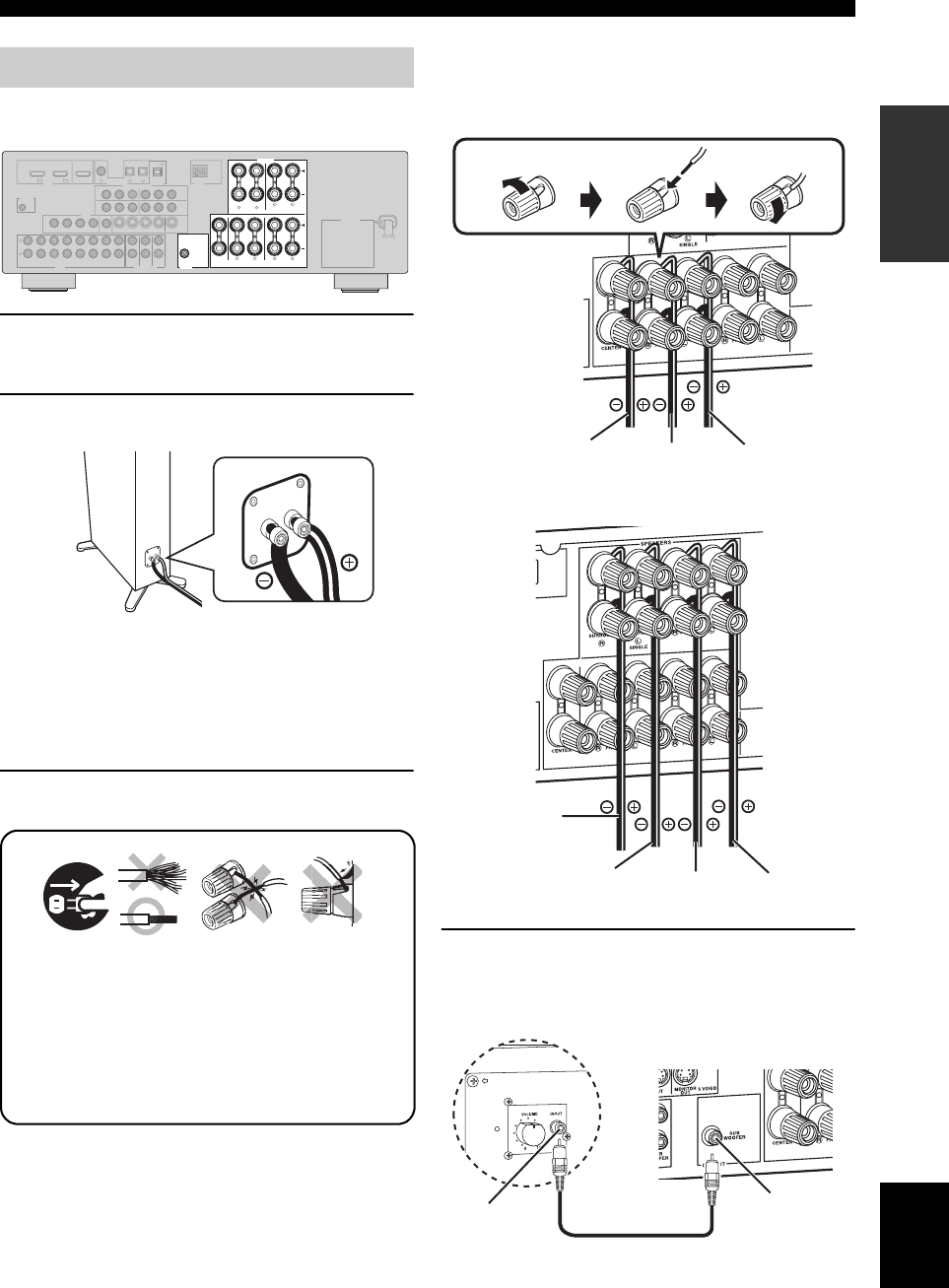

Place your speakers in the room and connect them to this

unit.

1Place your speakers and subwoofer in the

room.

2Connect speaker cables to each speaker.

Cables are colored or shaped differently, perhaps with

a stripe, groove or ridge. Connect the striped

(grooved, etc.) cable to the “+” (red) terminals of

your speaker. Connect the plain cable to the “–”

(black) terminals.

3Connect each speaker cable to the

corresponding speaker terminal of this unit.

1Make sure that this unit and the subwoofer are

unplugged from the AC wall outlets.

2Twist the exposed wires of the speaker cables

together to prevent short circuits.

3Do not let the bare speaker wires touch each other.

4Do not let the bare speaker wires touch any metal

part of this unit.

Be sure to connect the left channel (L), right channel

(R), “+” (red) and “–” (black) properly.

Front and center speakers

Surround and surround back speakers

4Connect the subwoofer cable to the input

jack of the subwoofer and the SUBWOOFER

OUTPUT jack of this unit.

Step 1: Set up your speakers

SURROUND

FRONT B

FRONT ACENTER

SURROUND BACK/BI-AMP

SINGLE

SWITCHED

MONITOR

OUT

DTV/CBL DVRDVD

MD/

CD-R

OUT

(REC)

(PLAY)

OUT

DTV/CBL DVRDVD OUT

OUT

IN MONITOR

OUT

DTV/CBL DVRDVD OUT S VIDEOIN

CD TUNER

SUB

WOOFER

SUB

WOOFER

SURROUND

CENTER

MULTI CH INPUTAUDIO

VIDEO

OUTPUT

FRONT(6CH)

SB(8CH)

123

DTV/CBL

DTV/CBL MD/CD-R

OUT

DTV/CBL

DVR

DVD

OPTICAL

MD/CD-R

COAXIAL

DVD

MONITOR OUT

COMPONENT VIDEO

SPEAKERS

HDMI

REMOTE

DIGITAL INPUT

DIGITAL

OUTPUT

VIDEO

DOCK

IN1 IN2

AC OUTLET

SURROUND

FRONT B

FRONT ACENTER

SURROUND BACK/BI-AMP

SINGLE

SUB

WOOFER

OUTPUT

SPEAKERS

12 3 4

To the front

right speaker

To the front

left speaker

Loosen Insert Tighten

To the center

speaker

To the surround

back right

speaker

To the surround

back left speaker

To the surround

left speaker

To the surround

right speaker

SUBWOOFER

OUTPUT jack

Subwoofer cable

Input jack

AV amplifier

Subwoofer

01EN_DSP-AX563_B.book Page 5 Friday, February 1, 2008 11:08 AM

Quick start guide

6 En

1Connect the digital coaxial audio cable to the

digital coaxial audio output jack of your DVD

player and the DVD DIGITAL INPUT COAXIAL

jack of this unit.

2Connect the video cable to the composite

video output jack of your DVD player and the

DVD VIDEO jack of this unit.

3Connect the video cable to the video input

jack of your video monitor and the VIDEO

MONITOR OUT jack of this unit.

4Connect the power plug of this unit and other

components into the AC wall outlet.

This unit is equipped with AC OUTLET(S) for the power supply

of the other components (except Korea model). See page 21 for

details.

Step 2: Connect your DVD player

and other components

SURROUND

FRONT B

FRONT ACENTER

SURROUND BACK/BI-AMP

SINGLE

SWITCHED

MONITOR

OUT

DTV/CBL DVRDVD

MD/

CD-R

OUT

(REC)

(PLAY)

OUT

DTV/CBL DVRDVD OUTIN MONITOR

OUT

DTV/CBL DVRDVD OUT S VIDEOIN

SUB

WOOFER

SUB

WOOFER

SURROUND

CENTER

MULTI CH INPUTAUDIO

VIDEO

OUTPUT

123

DTV/CBL

DTV/CBL CD

OUT

DTV/CBL

DVR

DVD

OPTICAL

COAXIAL

DVD

MONITOR OUT

COMPONENT VIDEO

SPEAKERS

HDMI DIGITAL INPUT

VIDEO

IN1 IN2

AC OUTLET

MD/CD-R

DIGITAL

OUTPUT DOCK

OUT

REMOTE

TUNER

FRONT(6CH)

SB(8CH)

MONITOR

OUT

DTV/CBL DVRDVD OUTIN MONITOR

OUT

DTV/CBL DVRDVD OUT S VIDEOIN

VIDEO

123

DTV/CBL CDDVD

OPTICAL

COAXIAL

DIGITAL INPUT

VIDEO

Make sure that this unit and the DVD

player are unplugged from the AC wall

outlets.

Digital coaxial

audio output jack

Digital coaxial audio

cable DVD DIGITAL INPUT

COAXIAL jack

DVD player AV amplifier

Composite video

output jack Video cable DVD VIDEO jack

DVD player AV amplifier

■For further connections

• Using the other kind of speaker

combinations ☞ P. 11

• Connecting video components ☞ P. 16

• Connecting a DVD player ☞ P. 17

• Connecting a DVD recorder ☞ P. 18

• Connecting a set-top box ☞ P. 18

• Connecting a CD player, a CD recorder

/MD recorder, and a tuner ☞ P. 19

• Connecting a multi-format player

or an external decoder ☞ P. 19

• Connecting a Yamaha iPod/Bluetooth dock

☞ P. 20

• Connecting the REMOTE OUT jack

☞ P. 20

• Using the VIDEO AUX jacks on the front

panel ☞ P. 21

• Using the USB jack on the front panel

☞ P. 43

Video monitor AV amplifier

Video input

jack

VIDEO MONITOR OUT

jack

Video cable

01EN_DSP-AX563_B.book Page 6 Friday, February 1, 2008 11:08 AM

Quick start guide

7 En

English

INTRODUCTION

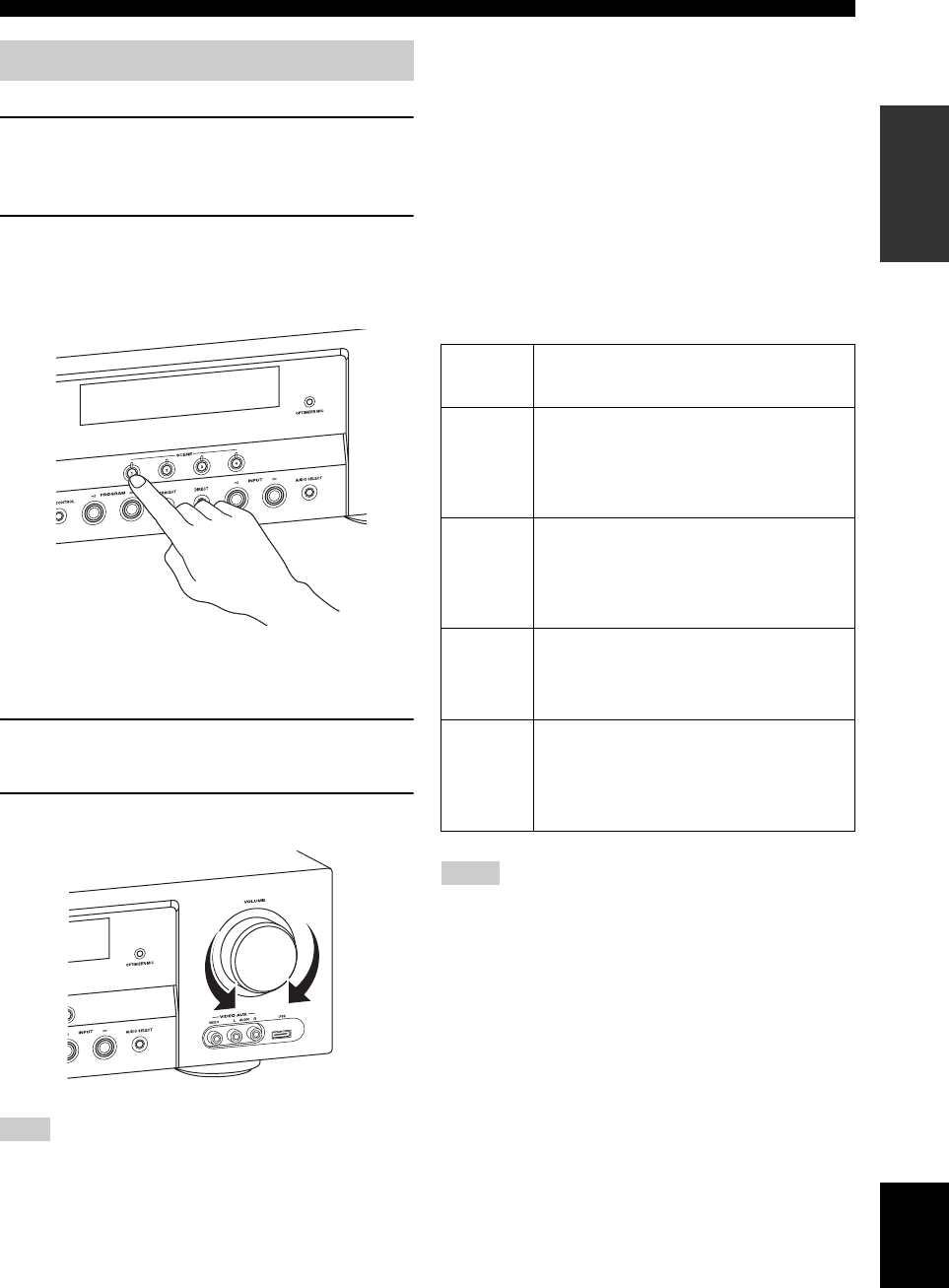

1Turn on the video monitor and then set the

input source selector of the video monitor to

this unit.

2Press BSCENE 1.

This unit is turned on. “DVD Viewing” appears in the

front panel display, and this unit automatically

optimize own status for the DVD playback.

The indicator on the selected SCENE button lights up while

this unit is in the SCENE mode.

3Start playback of the desired DVD on your

player.

4Rotate D VOLUME to adjust the volume.

When you change the input source or sound field program, the

SCENE mode is deactivated, and the indicator on the selected

SCENE button turns off.

■About SCENE function

Just by pressing one SCENE button, you can turn on this

unit and recall your favorite input source and sound field

program according to the SCENE template that has been

assigned to the SCENE button. The SCENE templates are

built combinations of input sources and sound field

programs.

If you connect a Yamaha product that has capability of the

SCENE control signals, this unit can automatically activate the

component and start playback. Refer to the instruction manual of

the DVD player for further information.

■Using the other SCENE buttons

*1 You must connect a cable TV or a satellite tuner to this unit in

advance. See page 16 for details.

*2 You must connect a FM/AM/DAB tuner to this unit in advance.

See page 19 for details.

If you cannot find the desired situation, you can select and change

the assigned SCENE template for the SCENE buttons. See

page 28 for details.

Step 3: Press SCENE 1 button

Note

Default

SCENE

button

The name of the SCENE template

and its description

SCENE

DVD Movie Viewing

– input source: DVD

– sound field program: Movie Dramatic

For when you want to enjoy a movie from the

connected DVD player.

SCENE

Music Disc Listening

– input source: DVD

– sound field program: 2ch Stereo

For when you want to listen to a music disc

from the connected DVD player.

SCENE

3TV Viewing *1

– input source: DTV/CBL

– sound field program: STRAIGHT

For when you want to watch a TV program.

SCENE

4Radio Listening *2

– input source: TUNER

– sound field program: 7ch Enhancer

For when you want to listen to a music program

from the FM radio station.

Notes

01EN_DSP-AX563_B.book Page 7 Friday, February 1, 2008 11:08 AM

Quick start guide

8 En

■After using this unit...

Press ASTANDBY/ON on the front panel to set

this unit to the standby mode.

This unit is set to the standby mode. In the standby mode,

this unit consumes a small amount of power in order to

receive infrared signals from the remote control. To turn

on this unit from the standby mode, press

ASTANDBY/ON (or GPOWER). See page 21 for

details.

What do you want to do with this

unit?

■Customizing the SCENE templates

• Using various SCENE templates ☞ P. 28

• Creating your original SCENE templates

☞ P. 31

■Using various input sources

• Basic controls of this unit ☞ P. 33

• Using your USB portable device

with this unit ☞ P. 43

• Using your iPod with this unit ☞ P. 45

• Using your Bluetooth components

with this unit ☞ P. 47

■Using various sound features

• Using various sound field programs

☞ P. 38

• Using the direct mode for the high

quality sound ☞ P. 41

• Customizing the sound field programs

☞ P. 40

■Adjusting the parameters of this unit

• Automatically optimizing the speaker

parameters for your listening room (AUTO

SETUP) ☞ P. 24

• Manually adjusting various parameters of

this unit ☞ P. 49

• Setting the remote control ☞ P. 63

• Adjusting the advanced parameters ☞ P. 66

■Additional features

Automatically turning off this unit ☞ P. 37

01EN_DSP-AX563_B.book Page 8 Friday, February 1, 2008 11:08 AM

Connections

9 En

English

PREPARATION

Connections

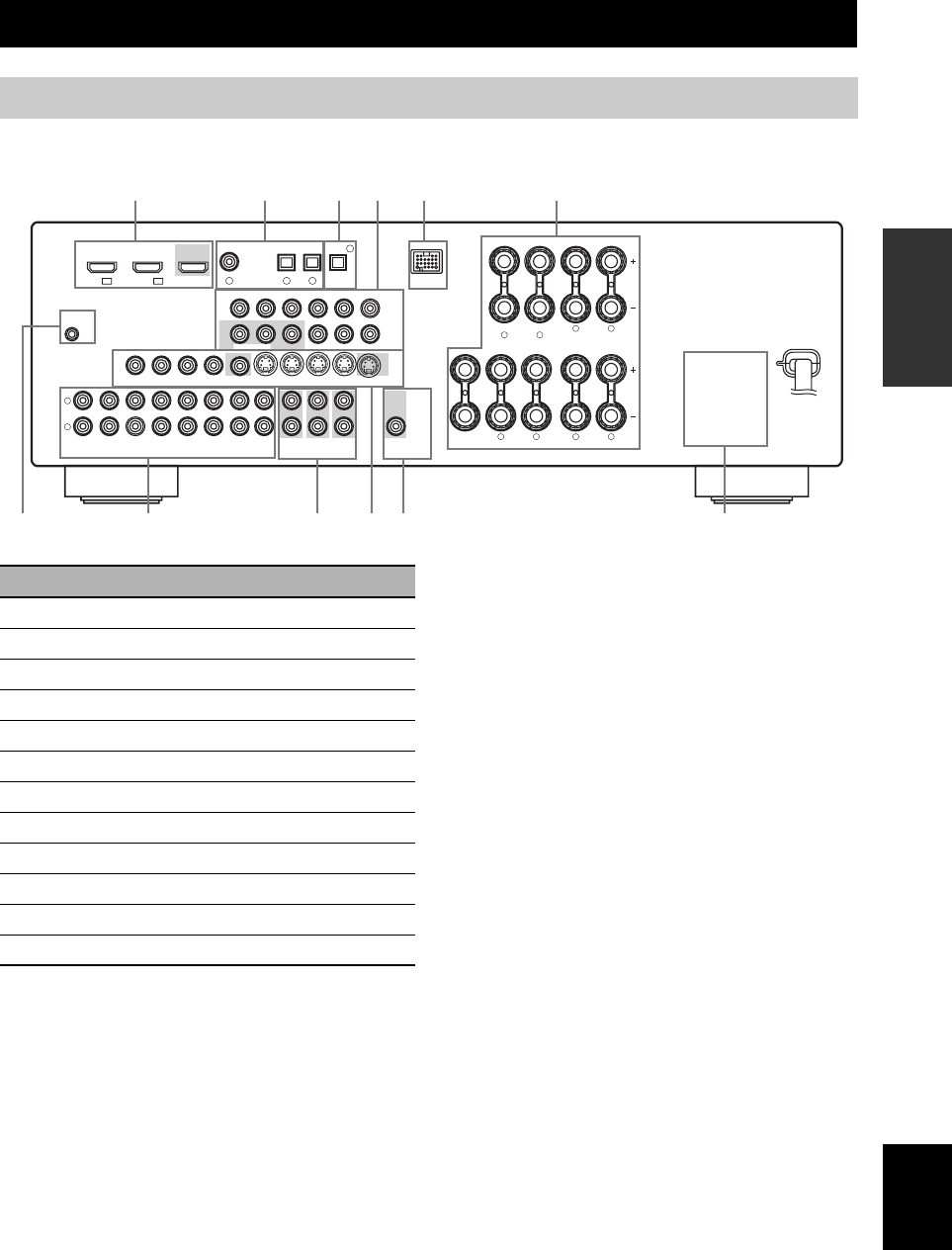

Rear panel

SURROUND

FRONT B

FRONT ACENTER

SURROUND BACK/BI-AMP

SINGLE

SWITCHED

MONITOR

OUT

DTV/CBL DVRDVD

MD/

CD-R

OUT

(REC)

(PLAY)

OUT

DTV/CBL DVRDVD OUT

OUT

IN MONITOR

OUT

DTV/CBL DVRDVD OUT S VIDEOIN

CD TUNER

SUB

WOOFER

SUB

WOOFER

SURROUND

CENTER

MULTI CH INPUTAUDIO

VIDEO

OUTPUT

FRONT(6CH)

SB(8CH)

123

DTV/CBL

DTV/CBL MD/CD-R

MD/CD-R

OUT

DTV/CBL

DVR

DVD

OPTICAL

COAXIAL

DVD

MONITOR OUT

COMPONENT VIDEO

SPEAKERS

HDMI

REMOTE

DIGITAL INPUT

DIGITAL

OUTPUT

VIDEO

DOCK

IN1 IN2

AC OUTLET

12 4 53 6

A B0987

Name Page

1HDMI jacks 14

2DIGITAL INPUT jacks 13

3DIGITAL OUTPUT jack 13

4COMPONENT VIDEO jacks 13

5DOCK terminal 20

6Speaker terminals 11

7REMOTE OUT jack 20

8AUDIO jacks 13

9MULTI CH INPUT jacks 19

0VIDEO jacks 13

ASUBWOOFER OUTPUT jack 11

BAC OUTLET(S) 21

01EN_DSP-AX563_B.book Page 9 Friday, February 1, 2008 11:08 AM

10 En

Connections

The speaker layout below shows the speaker setting we recommend. You can use it to enjoy CINEMA DSP and

multi-channel audio sources.

Front left and right speakers (FL and FR)

The front speakers are used for the main source sound plus effect sounds. Place these speakers at an equal distance from the

ideal listening position. The distance of each speaker from each side of the video monitor should be the same.

Center speaker (C)

The center speaker is for the center channel sounds (dialog, vocals, etc.). If for some reason it is not practical to use a

center speaker, you can do without it. Best results, however, are obtained with the full system.

Surround left and right speakers (SL and SR)

The surround speakers are used for effect and surround sounds.

Surround back left and right speakers (SBL and SBR)

The surround back speakers supplement the surround speakers and provide more realistic front-to-back transitions.

Subwoofer (SW)

The use of a subwoofer with a built-in amplifier, such as the Yamaha Active Servo Processing Subwoofer System, is

effective not only for reinforcing bass frequencies from any or all channels, but also for high fidelity sound reproduction

of the LFE (low-frequency effect) channel included in Dolby Digital and DTS sources. The position of the subwoofer is

not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front

speakers. Turn it slightly toward the center of the room to reduce wall reflections.

Placing speakers

SBR

SBL

60˚

30˚

SBR

SBL

80˚

30 cm (12 in) or more

01EN_DSP-AX563_B.book Page 10 Friday, February 1, 2008 11:08 AM

11 En

Connections

English

PREPARATION

Be sure to connect the left channel (L), right channel (R), “+” (red) and “–” (black) properly. If the connections are faulty,

this unit cannot reproduce the input sources accurately.

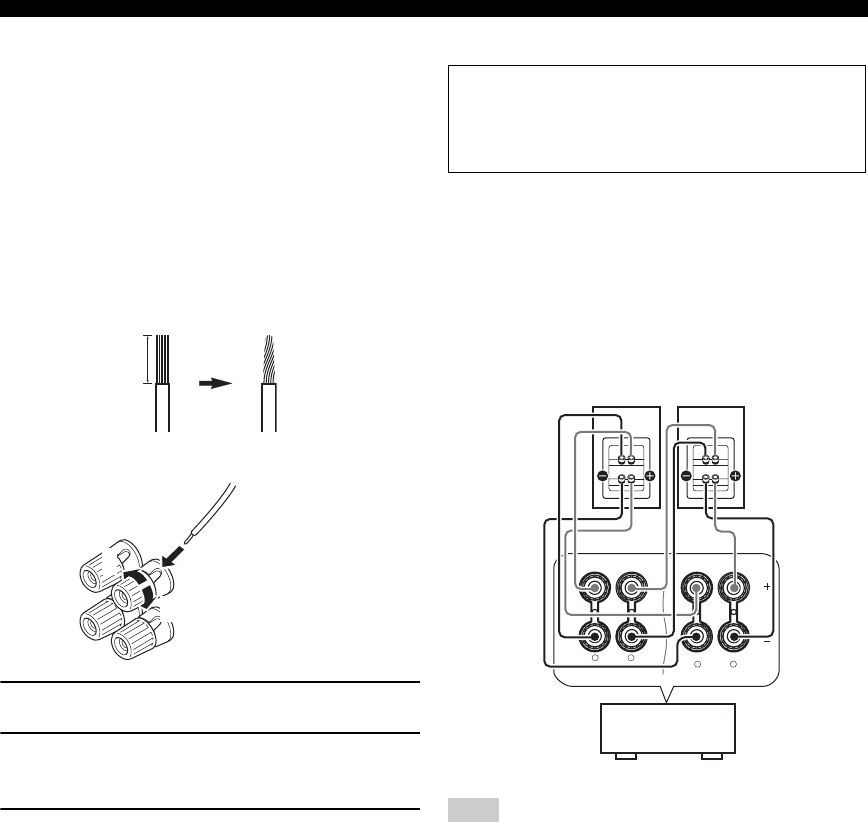

Connecting speakers

Caution

• Before connecting the speakers, make sure that the AC power plug is disconnected from the AC wall outlet.

• Do not let the bare speaker wires touch each other or let them touch any metal part of this unit. This could damage

this unit and/or the speakers. If the speaker wires are short-circuited, “CHECK SP WIRES” appears in the front

panel display when you turn on this unit.

• Use the magnetically shielded speakers. If this type of speaker still creates interference with the monitor, place the

speakers away from the monitor.

SURROUND

FRONT B

FRONT ACENTER

SURROUND BACK/BI-AMP

SINGLE

SWITCHED

MONITOR

OUT

DTV/CBL DVRDVD

MD/

CD-R

OUT

(REC)

(PLAY)

OUT

DTV/CBL DVRDVD OUTIN MONITOR

OUT

DTV/CBL DVRDVD OUT S VIDEOIN

CD TUNER

SUB

WOOFER

SUB

WOOFER

SURROUND

CENTER

MULTI CH INPUTAUDIO

VIDEO

OUTPUT

FRONT(6CH)

SB(8CH)

123

DTV/CBL

DTV/CBL MD/CD-R

OUT

DTV/CBL

DVR

DVD

OPTICAL

COAXIAL

DVD

MONITOR OUT

COMPONENT VIDEO

SPEAKERS

HDMI DIGITAL INPUT

VIDEO

IN1 IN2

AC OU TLET

MD/CD-R

DIGITAL

OUTPUT DOCK

OUT

REMOTE

Front speakers

(FRONT A)

Surround speakers

Subwoofer

Right

Center

speaker

When you use single surround

back speaker, connect the

speaker to the left SURROUND

BACK terminal (SINGLE).

Left

Right

FRONT B terminals

Connect the alternative front speaker system

(FRONT B).

Surround back speakers

01EN_DSP-AX563_B.book Page 11 Friday, February 1, 2008 11:08 AM

12 En

Connections

■Before connecting to the SPEAKERS

terminal

A speaker cord is actually a pair of insulated cables

running side by side. Cables are colored or shaped

differently, perhaps with a stripe, groove or ridges.

Connect the striped (grooved, etc.) cable to the “+” (red)

terminals of this unit and your speaker. Connect the plain

cable to the “–” (black) terminals.

Remove approximately 10 mm (3/8”) of insulation

from the end of each speaker cable and then

twist the bare wires of the cable together to

prevent short circuits.

■Connecting to the FRONT A terminals

1Loosen the knob.

2Insert the bare end of the speaker wire into

the hole on the terminal.

3Tighten the knob to secure the wire.

■Using bi-amplification connections

This unit allows you to make bi-amplification connections

to one speaker system. Check if your speakers support

bi-amplification.

To make the bi-amplification connections, use the FRONT

and SURROUND BACK terminals as shown below. To

activate the bi-amplification connections, set “BI-AMP”

to “ON” in “Advanced setup” (see page 66).

• When you make the conventional connection, make sure that

the shorting bars are put into the terminals appropriately. Refer

to the instruction manuals of the speakers for details.

• When you use bi-amplification connections, you can not use

surround back speakers.

10 mm (3/8”)

Red: positive (+)

Black: negative (–)

Caution

Remove the shorting bars or bridges to separate the

LPF (low pass filter) and HPF (high pass filter)

crossovers.

Note

FRONT A

SURROUND BACK/BI-AMP

SINGLE

This unit

Left

Right

Front speakers

01EN_DSP-AX563_B.book Page 12 Friday, February 1, 2008 11:08 AM

13 En

Connections

English

PREPARATION

Connect one of the type of the audio jack(s) and/or video jack(s) that your input components are equipped with.

■Audio jacks

This unit has three types of audio jacks. Connection

depends on the availability of audio jacks on your other

components.

AUDIO jacks

For conventional analog audio signals transmitted via left

and right analog audio cables. Connect red plugs to the

right jacks and white plugs to the left jacks.

DIGITAL AUDIO COAXIAL jacks

For digital audio signals transmitted via coaxial digital

audio cables.

DIGITAL AUDIO OPTICAL jacks

For digital audio signals transmitted via optical digital

audio cables.

• You can use the digital jacks to input PCM, Dolby Digital and

DTS bitstreams. Optical input jacks are compatible with digital

signals with up to 96 kHz of sampling frequency.

• This unit handles digital and analog signals independently. Thus

audio signals input at the digital jacks are not output at the

analog AUDIO OUT (REC) jacks.

■Video jacks

This unit has three types of video jacks. Connection

depends on the availability of input jacks on your video

monitor.

VIDEO jacks

For conventional composite video signals transmitted via

composite video cables.

S VIDEO jacks

For S-video signals, separated into the luminance (Y) and

chrominance (C) video signals transmitted on separate

wires of S-video cables.

COMPONENT VIDEO jacks

For component signals, separated into the luminance (Y)

and chrominance (PB, PR) video signals transmitted on

separate wires of component video cables.

The OSD signal is not output at the DVR OUT (REC) jacks.

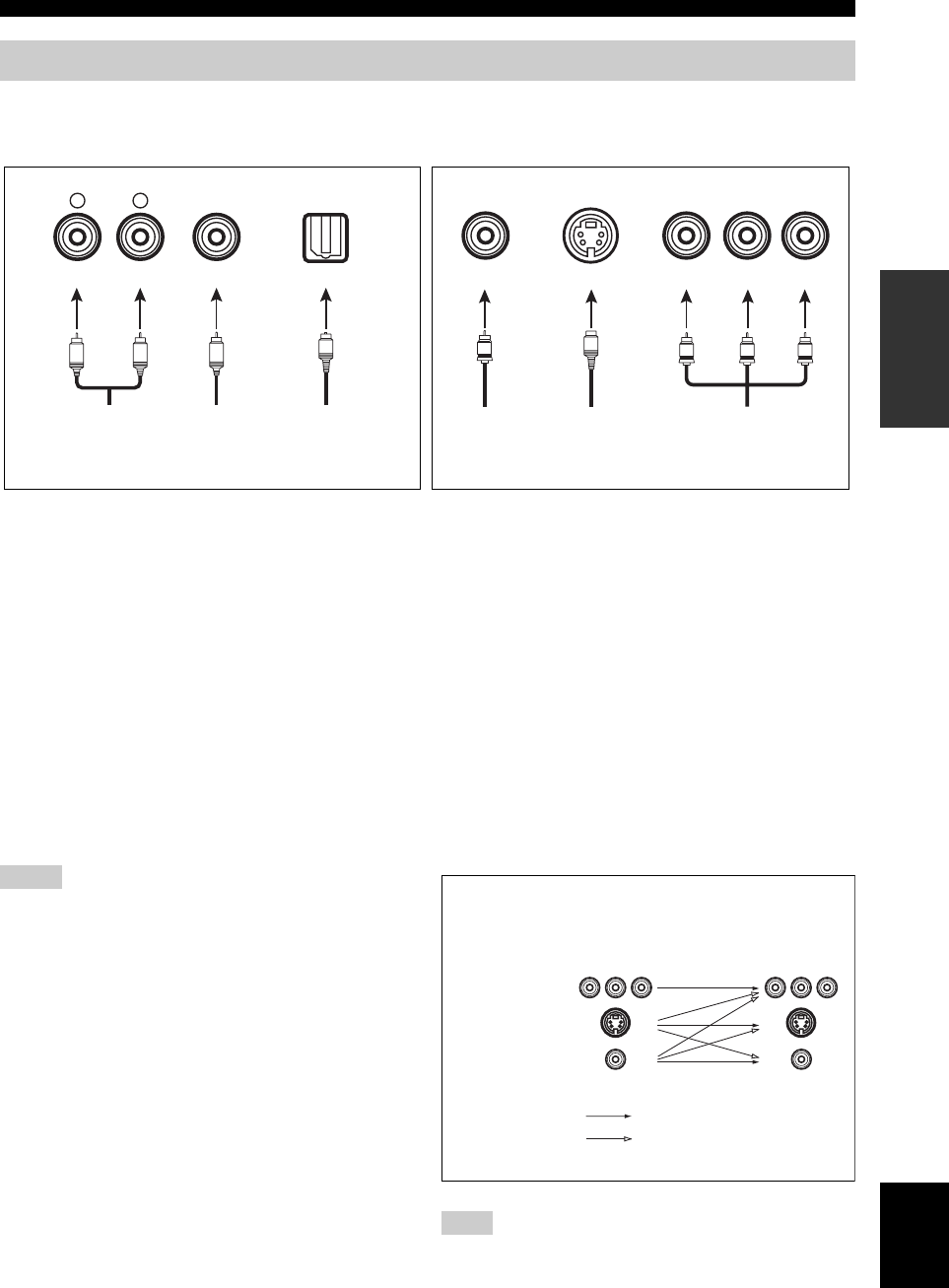

Information on jacks and cable plugs

VIDEO S VIDEO

COMPONENT VIDEO

PRY

COAXIAL

DIGITAL AUDIO

AUDIO

OPTICAL

DIGITAL AUDIO

Left and right

analog audio

cable plugs

Optical

digital

audio cable

plug

Coaxial

digital audio

cable plug

Composite

video cable

plug

Component

video cable

plugs

Audio jacks and cable plugs Video jacks and cable plugs

(Red)(White) (Orange) (Yellow) (Red) (Blue) (Green)

S-video

cable plug

Notes

Note

PR PB Y PR PB Y

Video signal flow for MONITOR OUT

Output

(MONITOR OUT)

Input

COMPONENT

VIDEO

S VIDEO

Through

Video conversion ON

(see page 59)

01EN_DSP-AX563_B.book Page 13 Friday, February 1, 2008 11:08 AM

14 En

Connections

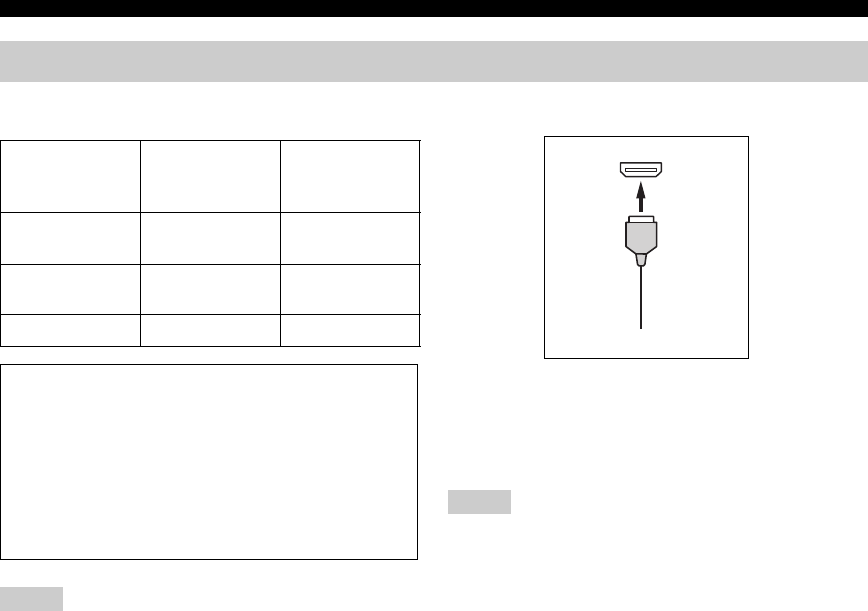

■HDMI compatibility with this unit

• When CPPM copy-protected DVD audio is played back, video

and audio signals may not be output depending on the type of

the DVD player.

• This unit is not compatible with HDCP-incompatible HDMI or

DVI components.

• You can check the potential problem about the HDMI

connection (see page 36).

■HDMI jack and cable plug

• We recommend using an HDMI cable shorter than 5 meters (16

feet) with the HDMI logo printed on it.

• Use a conversion cable (HDMI jack ↔ DVI-D jack) to connect

this unit to other DVI components.

• Do not disconnect or connect the cable or turn off the power of

the HDMI components connected to the HDMI OUT jack of

this unit while data is being transferred. Doing so may disrupt

playback or cause noise.

• Audio signals input at input jacks other than the HDMI IN DVD

or HDMI IN DTV/CBL jack of this unit cannot be digitally

output at the HDMI OUT jack.

• If you turn off the power of the video monitor connected to the

HDMI OUT jack via a DVI connection, this unit may fail to

establish the connection to the component.

Information on HDMI™

Audio signal

types

Audio signal

formats

Compatible

HDMI

components

2ch Linear PCM 2ch, 32-192 kHz,

16/20/24 bit

CD, DVD-Video,

DVD-Audio, etc.

Multi-ch Linear

PCM

8ch, 32-192 kHz,

16/20/24 bit

DVD-Audio, etc.

Bitstream Dolby Digital, DTS DVD-Video, etc.

This unit’s HDMI interface is based on the following

standards:

• HDMI Version 1.2a (High-Definition Multimedia

Interface Specification Version 1.2a) licensed by

HDMI Licensing, LLC.

• HDCP (High-bandwidth Digital Content Protection

System) licensed by Digital Content Protection,

LLC.

Notes

HDMI

HDMI cable plug

01EN_DSP-AX563_B.book Page 14 Friday, February 1, 2008 11:08 AM

15 En

Connections

English

PREPARATION

■Audio signal flow

• 2-channel as well as multi-channel PCM, Dolby Digital and

DTS signals input at the HDMI IN DVD or HDMI IN

DTV/CBL jack can be output at the HDMI OUT jack only

when “SUPPORT AUDIO” is set to “Other” (see page 56).

• Audio signals input at the HDMI IN jacks are not output at the

AUDIO output and DIGITAL OUTPUT jacks.

■Video signal flow

• When the all video signals are input at the HDMI,

COMPONENT VIDEO, S VIDEO and VIDEO jacks, the

priority order of the input signals is as follows:

1. HDMI

2. COMPONENT VIDEO

3. S VIDEO

4. VIDEO

• When some digital video signals are input at the HDMI IN

DVD or HDMI IN DTV/CBL jack, the video conversion

function does not work.

• Digital video signals input at the HDMI IN DVD or HDMI IN

DTV/CBL jack cannot be output from analog video output

jacks.

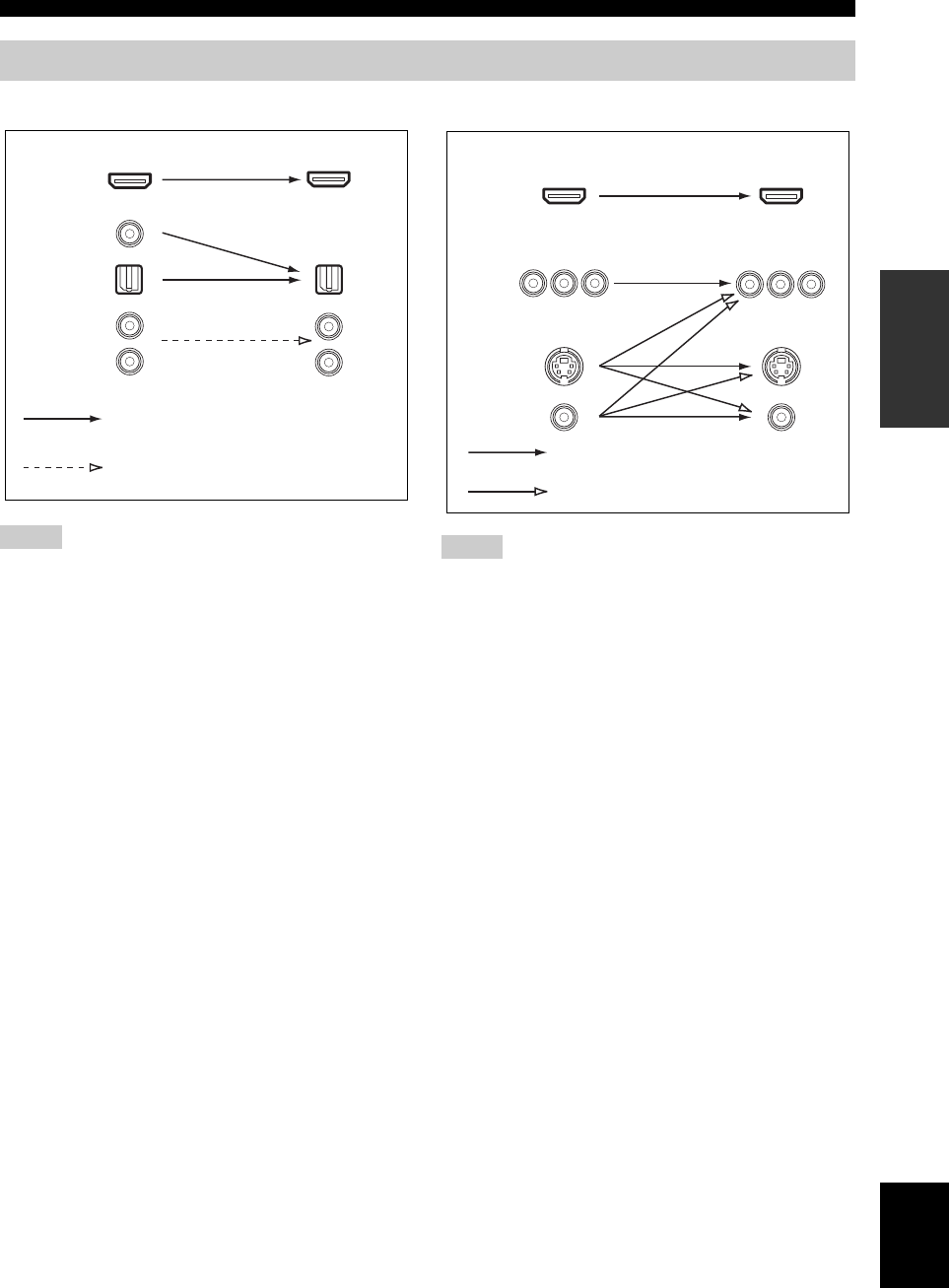

Audio and video signal flow

Notes

HDMI

AUDIO

DIGITAL AUDIO

(COAXIAL)

DIGITAL AUDIO

(OPTICAL)

OutputInput

Analog output

Digital output

Notes

S VIDEO

VIDEO

COMPONENT

VIDEO

HDMI

Through

OutputInput

Video conversion ON (see page 59)

01EN_DSP-AX563_B.book Page 15 Friday, February 1, 2008 11:08 AM

16 En

Connections

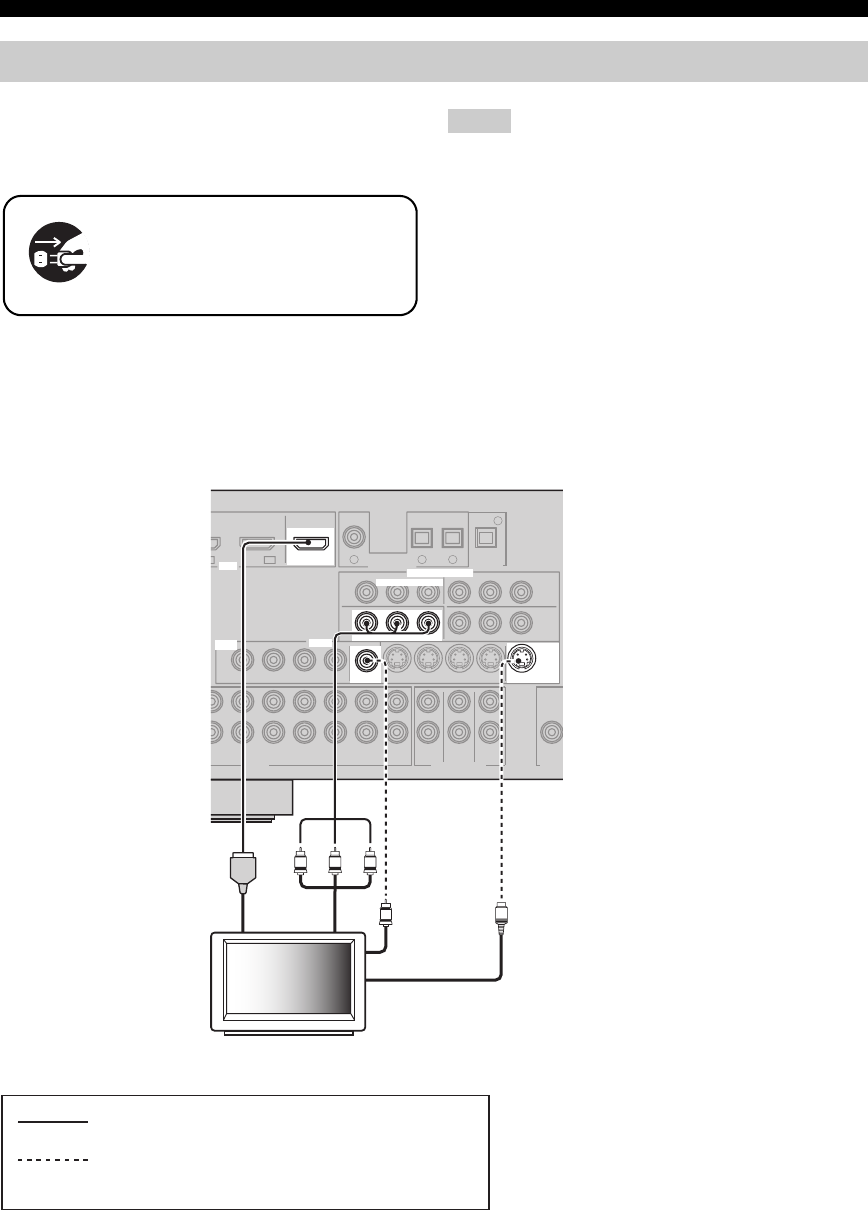

Connect your TV (or projector) to the HDMI OUT jack,

the COMPONENT VIDEO MONITOR OUT jacks, the S

VIDEO MONITOR OUT jack or the VIDEO MONITOR

OUT jack of this unit.

You can choose to play back HDMI audio signals on this unit or

on another HDMI component connected to the HDMI OUT jack

of this unit. Use the “SUPPORT AUDIO” parameter in “SOUND

MENU” to select the component to play back HDMI audio

signals (see page 56).

• Some video monitors connected to this unit via a DVI

connection fail to recognize the HDMI audio/video signals

being input if they are in the standby mode. In this case, the

HDMI indicator flashes irregularly.

• When you connect your TV monitor or projector via HDMI

connection, the OSD does not appear. In such cases, connect the

TV monitor or projector via component, S-video or video

connection.

• Connect the input source components to the HDMI IN DVD or

HDMI IN DTV/CBL jack to display the video images on the

video monitor connected to the HDMI OUT jack.

Connecting video components

Make sure that this unit and other

components are unplugged from the

AC wall outlets.

Notes

MONITOR

OUT

DTV/CBL DVRDVD

EC)

OUT

DTV/CBL DVRDVD OUTIN MONITOR

OUT

DTV/CBL DVRDVD OUT S VIDEOIN

CD TUNER

SUB

WOOFER

SURROUND

CENTER

MULTI CH INPUTAUDIO

VIDEO

OUTP

FRONT(6CH)

SB(8CH)

123

DTV/CBL

DTV/CBL MD/CD-R

OUT

DTV/CBL

DVR

DVD

OPTICAL

COAXIAL

DVD

MONITOR OUT

COMPONENT VIDEO

HDMI DIGITAL INPUT

VIDEO

IN2

MD/CD-R

DIGITAL

OUTPUT

MONITOR

OUT MONITOR

OUT S VIDEO

VIDEO

OUT

MONITOR OUT

COMPONENT VIDEO

HDMI

VIDEO

PRPB

TV (or projector)

Video in

Component

video in

S-video in

HDMI in

indicates recommended connections

indicates alternative connections

(One for the video connection,

and one for the audio connection)

01EN_DSP-AX563_B.book Page 16 Friday, February 1, 2008 11:08 AM

17 En

Connections

English

PREPARATION

• When “VIDEO CONV.” is set to “OFF” (see page 59), be sure

to make the same type of video connections as those made for

your TV (see page 16). For example, if you connected your TV

to the VIDEO MONITOR OUT jack of this unit, connect your

other components to the VIDEO jacks.

• When “VIDEO CONV.” is set to “ON” (see page 59), the

converted video signals are output only at the MONITOR OUT

jacks. To record a source, make the same type of video

connections between each component.

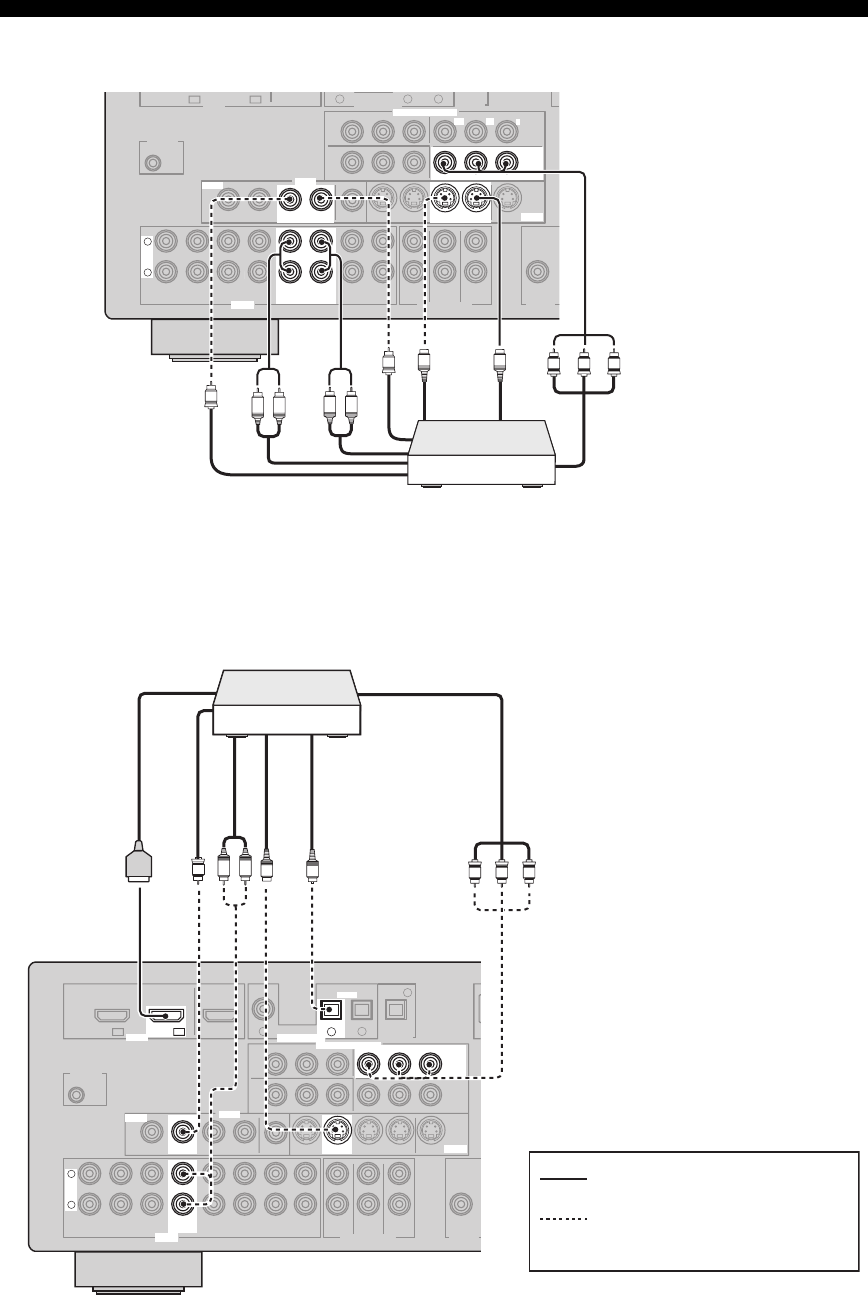

• To make a digital connection to a component other than the

default component assigned to DIGITAL INPUT jack, select

the corresponding setting for “OPTICAL IN” or “COAXIAL

IN” in “I/O ASSIGNMENT” (see page 57).

• If you connect your DVD player to both the DIGITAL INPUT

(OPTICAL) and the DIGITAL INPUT (COAXIAL) jacks,

priority is given to the signals input at the DIGITAL INPUT

(COAXIAL) jack.

■Connecting a DVD player

Connecting other components

Notes

Make sure that this unit and other

components are unplugged from the

AC wall outlets.

MONITOR

OUT

DTV/CBL DVRDVD

MD/

CD-R

OUT

(REC)

(PLAY)

OUT

DTV/CBL DVRDVD OUTIN MONITOR

OUT

DTV/CBL DVRDVD OUT S VIDEOIN

CD TUNER

SUB

WOOFER

SURROUND

CENTER

MULTI CH INPUTAUDIO

VIDEO

OUTPU

FRONT(6CH)

SB(8CH)

123

DTV/CBL

DTV/CBL MD/CD-R

OUT

DTV/CBL

DVR

DVD

OPTICAL

COAXIAL

DVD

MONITOR OUT

COMPONENT VIDEO

HDMI DIGITAL INPUT

VIDEO

IN1 IN2

MD/CD-R

DIGITAL

OUTPUT

OUT

REMOTE

DVD

DVD DVD S VIDEO

AUDIO

VIDEO

DVD

COAXIAL

DVD

COMPONENT VIDEO

HDMI DIGITAL INPUT

VIDEO

IN1

LR C

PRPBY

DVD player

HDMI out

Component

video out

S-video out

Video out

Audio out

indicates recommended connections

indicates alternative connections

(One for the video connection,

and one for the audio connection)

Coaxial out

01EN_DSP-AX563_B.book Page 17 Friday, February 1, 2008 11:08 AM

18 En

Connections

■Connecting a DVD recorder, PVR or VCR

■Connecting a set-top box

MONITOR

OUT

DTV/CBL DVRDVD

MD/

CD-R

OUT

(REC)

(PLAY)

OUT

DTV/CBL DVRDVD OUTIN MONITOR

OUT

DTV/CBL DVRDVD OUT S VIDEOIN

CD TUNER

SUB

WOOFER

SURROUND

CENTER

MULTI CH INPUTAUDIO

VIDEO

OUTPUT

FRONT(6CH)

SB(8CH)

123

DTV/CBL

DTV/CBL MD/CD-R

OUT

DTV/CBL

DVR

DVD

MONITOR OUT

COMPONENT VIDEO

HDMI DIGITAL INPUT

VIDEO

IN1 IN2

MD/CD R

DIGITAL

OUTPUT

OUT

REMOTE

DVR

OUT

DVR OUTIN DVR OUT S VIDEOIN

AUDIO

VIDEO

DVR

COMPONENT VIDEO

VIDEO

RLRL

PRPBY

S-video in

S-video out

Video out

Audio out

Audio in

Video in

Component video out

DVD recorder,

PVR or VCR

MONITOR

OUT

DTV/CBL DVRDVD

MD/

CD-R

OUT

(REC)

(PLAY)

OUT

DTV/CBL DVRDVD OUTIN MONITOR

OUT

DTV/CBL DVRDVD OUT S VIDEOIN

CD TUNER

SUB

WOOFER

SURROUND

CENTER

MULTI CH INPUTAUDIO

VIDEO

OUTPUT

FRONT(6CH)

SB(8CH)

123

DTV/CBL

DTV/CBL MD/CD-R

OUT

DTV/CBL

DVR

DVD

OPTICAL

COAXIAL

DVD

MONITOR OUT

COMPONENT VIDEO

HDMI DIGITAL INPUT

VIDEO

IN1 IN2

MD/CD-R

DIGITAL

OUTPUT

OUT

REMOTE

DTV/CBL

DTV/CBL DTV/CBL S VIDEO

AUDIO

VIDEO

DTV/CBL

COMPONENT VIDEO

HDMI DIGITAL INPUT

VIDEO

IN2

DTV/CBL

OPTICAL

L R

SPRPBY

Satellite receiver, cable TV

receiver or HDTV decoder

HDMI out Component video out

Audio out

S-video out

Video out

Optical out

indicates recommended

connections

indicates alternative connections

(One for the video connection,

and one for the audio connection)

01EN_DSP-AX563_B.book Page 18 Friday, February 1, 2008 11:08 AM

19 En

Connections

English

PREPARATION

Connect the audio components as follows.

■Connecting a CD player, a CD

recorder/MD recorder, and a tuner

• When you connect your CD player via analog and digital

connection, priority is given to the signal input at the DIGITAL

INPUT jack.

• To make a digital connection to a component other than the

default component assigned to each DIGITAL INPUT jack,

select the corresponding setting in “I/O ASSIGNMENT” (see

page 57).

■Connecting a multi-format player or an external decoder

This unit is equipped with 6 additional input jacks (left and right FRONT, CENTER, left and right SURROUND and

SUBWOOFER) for discrete multi-channel input from a multi-format player, external decoder, sound processor or

pre-amplifier.

If you set “INPUT CH” to “8ch” in “MULTI CH SET” (see page 59), you can use the input jacks assigned as “FRONT”

in “MULTI CH SET” (see page 59) together with the MULTI CH INPUT jacks to input 8-channel signals.

Connect the output jacks on your multi-format player or external decoder to the MULTI CH INPUT jacks. Be sure to

match the left and right outputs to the left and right input jacks for the front and surround channels.

• When you select the component connected to the MULTI CH INPUT jacks as the input source (see page 34), this unit automatically

turns off the digital sound field processor, and you cannot select sound field programs.

• This unit does not redirect signals input at the MULTI CH INPUT jacks to accommodate for missing speakers. We recommend that

you connect at least a 5.1-channel speaker system before using this feature.

*1 The analog audio input jacks assigned as “FRONT” in “MULTI CH SET” (see page 59).

Connecting audio components

Make sure that this unit and other

components are unplugged from the

AC wall outlets.

Note

indicates recommended connections

indicates alternative connections

Notes

MONITOR

OUT

DTV/CBL DVRDVD

MD/

CD-R

OUT

(REC)

(PLAY)

OUT

DTV/CBL DVRDVD OUTIN DTV/CBL DVRDVD OUTIN

CD TUNER

SUB

WOOFER

SURROUND

CENTER

MULTI CH INPUTAUDIO

VIDEO

FRONT(6CH)

SB(8CH)

123

DTV/CBL

DTV/CBL CD

OUTDVD

DVD

OPTICAL

COAXIAL

DVD

MONITOR OUT

COMPONENT VIDEO

HDMI

REMOTE

DIGITAL INPUT

VIDEO

IN1 IN2

MD/CD-R

DIGITAL

OUTPUT

OUT

REMOTE

MD/

CD-R

OUT

(REC)

(PLAY) CD TUNER

AUDIO

OPTICAL

DIGITAL INPUT

MD/CD-R

DIGITAL

OUTPUT

CD player

CD recorder or

MD recorder

Audio out

Optical out

Audio in

Audio out

Optical in

Audio out

Tuner

SB(8CH)

FRONT(6CH)

CENTER

SURROUND

SUB

WOOFER

SB(8CH)

FRONT(6CH)

CENTER

SURROUND

SUB

WOOFER

MULTI CH INPUT MULTI CH INPUT

L R LR L R LRL R

Subwoofer out

Multi-format player/External

decoder (5.1-channel output)

Center out

Surround out

Front out

Multi-format player/External

decoder (7.1-channel output)

Front out

Subwoofer out

Center out

Surround back out

Surround out

01EN_DSP-AX563_B.book Page 19 Friday, February 1, 2008 11:08 AM

20 En

Connections

This unit is equipped with the DOCK terminal on the rear

panel that allows you to connect a Yamaha iPod universal

dock (such as YDS-10, sold separately) or Bluetooth

adapter (such as YBA-10, sold separately). Connect a

Yamaha iPod universal dock or Bluetooth adapter to the

DOCK terminal on the rear panel of this unit using its

dedicated cable.

When the components are the Yamaha products and have

the capability of the transmission of the remote control

signals, connect the REMOTE OUT jack to the remote

control input jack with the monaural analog mini cable as

follows.

If the component connected to the REMOTE OUT jack is not the

Yamaha product, set “SCENE IR” in the advanced setup menu to

“OFF” (see page 66).

Connecting a Yamaha iPod™

universal dock or Bluetooth™

adapter

Make sure that this unit and other

components are unplugged from the

AC wall outlets.

SURROUND BA

DTV/CBL

DVR

DOCK

Yamaha iPod universal dock

or Bluetooth adapter

Using REMOTE OUT jack

OUT

DVD IN1

OUT

REMOTE

Yamaha

component

(CD or DVD

player, etc.)

Remote

control in

01EN_DSP-AX563_B.book Page 20 Friday, February 1, 2008 11:08 AM

21 En

Connections

English

PREPARATION

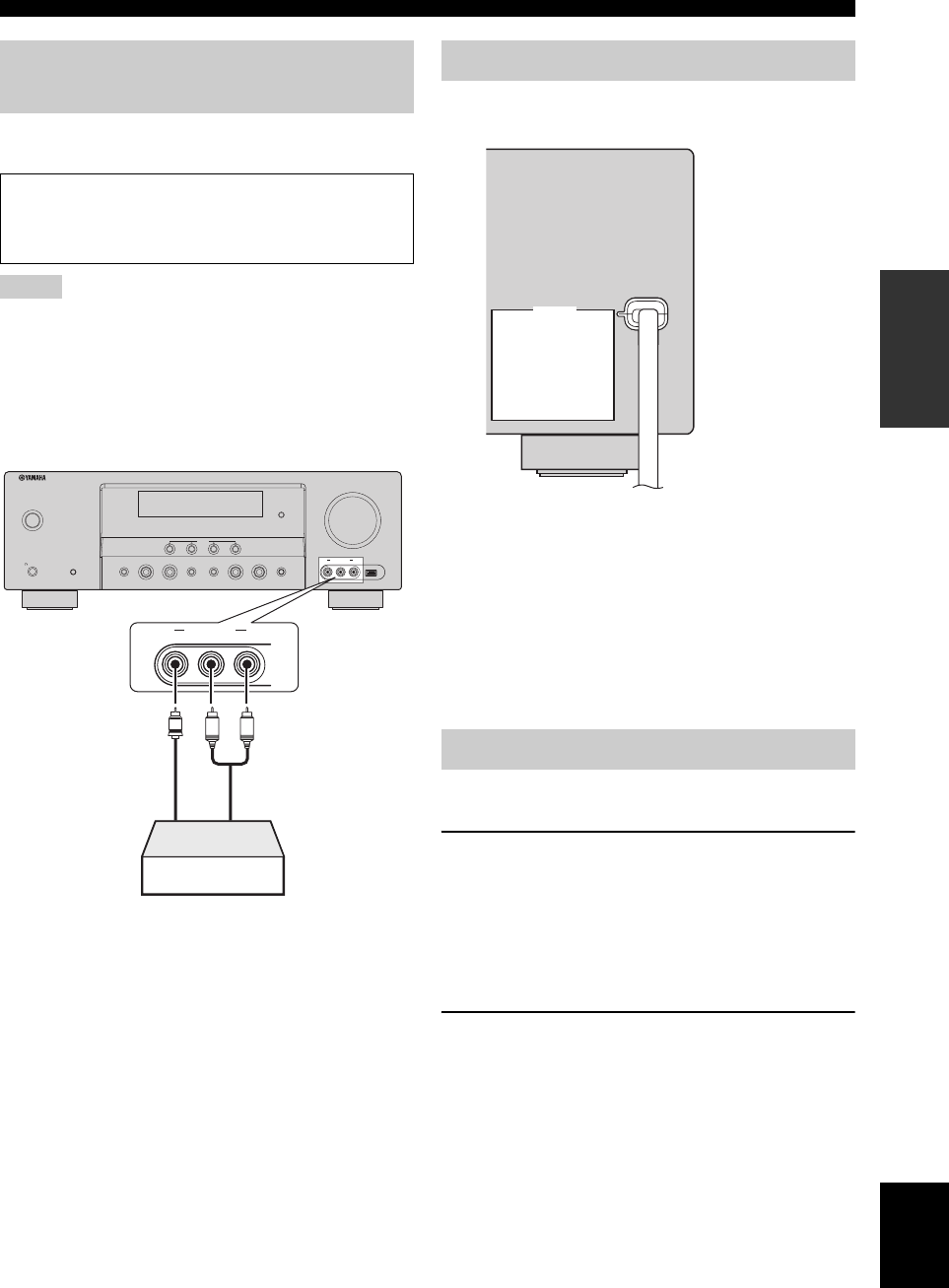

Use the VIDEO AUX jacks on the front panel to connect a

game console or a video camera to this unit.

• To reproduce the source signals input at these jacks, select

“V-AUX” as the input source.

• When audio signals are input at the AUDIO jacks and the

DOCK terminal on the rear panel, the priority order of the input

signal is as follows:

1. DOCK

2. AUDIO

Once all connections are complete, plug the power cable

into the AC wall outlet.

■AC OUTLET (SWITCHED)

Use this outlet to supply power to any connected

components. Connect the power cable of your other

components to this outlet. Power to this outlet is supplied

when this unit is turned on. However, power to this outlet

is cut off when this unit is set to the standby mode. For

information on the maximum power or the total power

consumption of the components that can be connected to

this outlet(s), see “Specifications” on page 79.

■Turning on this unit

Press ASTANDBY/ON (or GPOWER) to turn

on this unit.

When you turn on this unit, there will be a 4 to 5-second delay

before this unit can reproduce sound.

■Set this unit to the standby mode

Press ASTANDBY/ON (or HSTANDBY) to set

this unit to the standby mode.

In the standby mode, this unit consumes a small amount of

power in order to receive infrared signals from the remote

control.

Using the VIDEO AUX jacks on the

front panel

Caution

Be sure to turn down the volume of this unit and other

components before making connections.

Notes

SPEAKERS

PHONES

SILENT CINEMA

STANDBY/

A/B/OFF

OPTIMIZER MIC

AUDIO SELECT

DIRECTSTRAIGHT

EFFECT

TONE CONTROL

l INPUT hl PROGRAM h

VOLUME

SCENE

1234

VIDEO L AUDIO R

VIDEO AUX USB

VIDEO L AUDIO R

VIDEO AUX

Game console or

video camera

Video

output

Audio

output

Connecting the power cable

Turning on and off the power

SWITCHED

AC OUTLETS

SWITCHED

AC OUTLET

Power cable

01EN_DSP-AX563_B.book Page 21 Friday, February 1, 2008 11:08 AM

22 En

Connections

1HDMI indicator

Lights up when the signal of the selected input source is

input at the HDMI IN jacks (see page 14).

2DOCK indicator

• Lights up when you station your iPod in a Yamaha

iPod universal dock (such as YDS-10, sold separately)

connected to the DOCK terminal of this unit (see

page 20) and V-AUX is selected as the input source.

• Flashes while the connected Yamaha Bluetooth adapter

(such as YBA-10, sold separately) and the Bluetooth

component is in the paring (see page 47) or the

Bluetooth adapter is searching the Bluetooth

component (see page 47).

• Lights up while the connected Yamaha Bluetooth

adapter is connected to the Bluetooth component (see

page 20).

3ENHANCER indicator

Lights up when the Compressed Music Enhancer mode is

selected (see page 38).

4Input source indicators

The corresponding cursor lights up to show the currently

selected input source.

5YPAO indicator

Lights up when you run “AUTO SETUP” and when the

speaker settings set in “AUTO SETUP” are used without

any modifications (see page 24).

696/24 indicator

Lights up when a DTS 96/24 signal is input to this unit.

7MUTE indicator and VOLUME level indicator

• The MUTE indicator flashes while the MUTE function

is on (see page 35).

• Indicates the current volume level.

8PCM indicator

Lights up when this unit is reproducing PCM (Pulse Code

Modulation) digital audio signals.

9Decoder indicators

The respective indicator lights up when any of the

decoders of this unit function.

0Headphone indicator

Lights up when headphones are connected (see page 35).

ASP A B indicators

Light up according to the set of front speakers activated

(see page 33).

SP A: The FRONT A speakers are activated.

SP B: The FRONT B speakers are activated.

Front panel display

MUTE

VOL.

PCM

96/24

VIRTUAL

YPAO

SLEEP

USB

MULTI CH

DVR

V-AUX

DTV/CBL

DVD CD

MD/CD-R

TUNER

MATRIX DISCRETE

DOCK ENHANCER

SILENT

CINEMA

A B

PL x

LFE

LL C R

SL SB SR

SBRSBL

DIGITAL PLUS

EDCA B098

1234567

01EN_DSP-AX563_B.book Page 22 Friday, February 1, 2008 11:08 AM

23 En

Connections

English

PREPARATION

BCINEMA DSP indicator

Lights up when you select a sound field program (see

page 39).

VIRTUAL indicator

Lights up when Virtual CINEMA DSP is active (see

page 39).

SILENT CINEMA indicator

Lights up when headphones are connected and a

sound field program is selected (see page 39).

CMulti-information display

Shows the name of the current sound field program and

other information when adjusting or changing settings.

DSLEEP indicator

Lights up while the sleep timer is on (see page 37).

EInput channel and speaker indicators

Input channel indicators

• Indicate the channel components of the current

digital input signal.

• Light up or flash according to the settings of the

speakers when this unit is in the automatic setup

procedure (see page 24) or the speaker level setting

procedure in the “SP LEVEL” (see page 53).

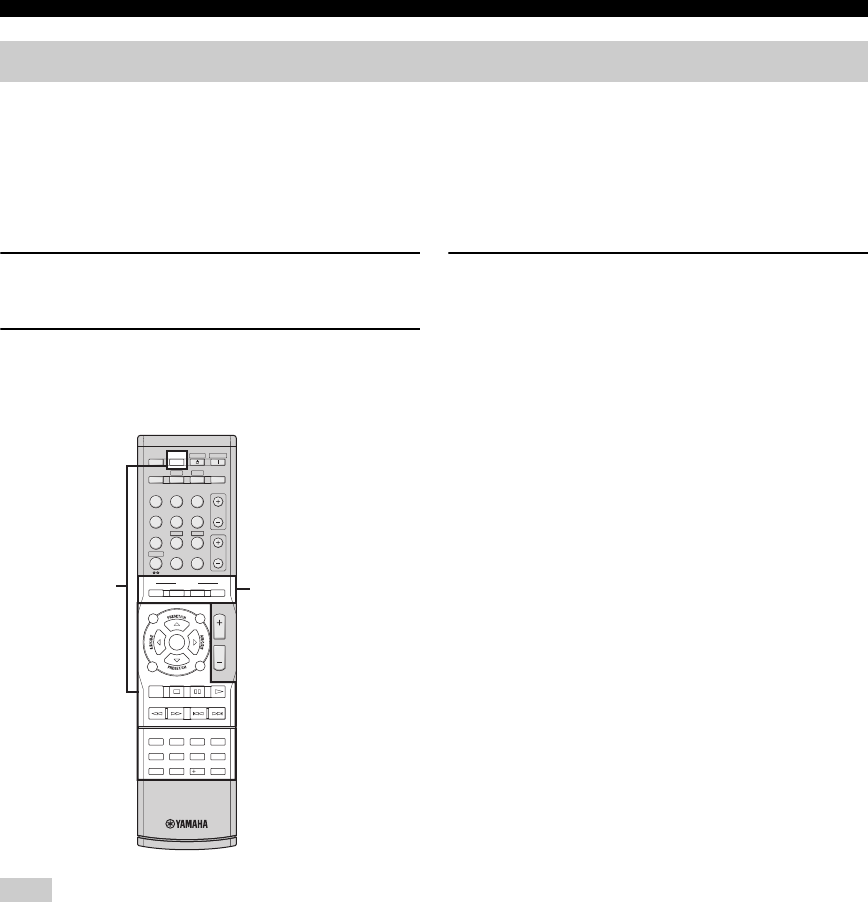

■Using the remote control

The remote control transmits a directional infrared ray.

Be sure to aim the remote control directly at the remote

control sensor on this unit during operation.

1 Infrared window

Outputs infrared control signals. Aim this window at the

component you want to operate.

To set the remote control codes for other components, see

page 65.

• Do not spill water or other liquids on the remote control.

• Do not drop the remote control.

• Do not leave or store the remote control in the following types

of conditions:

– places of high humidity, such as near a bath

– places of high temperature, such as near a heater or stove

– places of extremely low temperatures

– dusty places

Input channel indicators

LFE

LL C R

SL SB SR

SBRSBL

LFE indicator

Notes

30º 30º

Approximately 6 m (20 ft)

01EN_DSP-AX563_B.book Page 23 Friday, February 1, 2008 11:08 AM

Optimizing the speaker setting for your listening room

24 En

This unit employs the YPAO (Yamaha Parametric Room Acoustic Optimizer) technology which lets you avoid

troublesome listening-based speaker setup and achieves highly accurate sound adjustments automatically. The supplied

optimizer microphone collects and this unit analyzes the sound your speakers produce in your actual listening

environment.

• Be advised that it is normal for loud test tones to be output

during the “AUTO SETUP” procedure.

• To achieve the best results, make sure the room is as quiet as

possible while the “AUTO SETUP” procedure is in progress. If

there is too much ambient noise, the results may not be

satisfactory.

You can run “AUTO SETUP” using the system menu that appears

in the OSD or in the front panel display. This manual uses the

OSD illustrations to explain the “AUTO SETUP” procedure.

1Make sure of the following check points.

Before starting the automatic setup, check the following

check points.

❏Speakers are connected appropriately.

❏Headphones are disconnected from this unit.

❏This unit and the video monitor are turned on.

❏This unit is selected as the video input source of

the video monitor.

❏The connected subwoofer is turned on and the

volume level is set to about half way (or slightly

less).

❏The crossover frequency controls of the

connected subwoofer is set to the maximum.

❏FRONT A speakers are selected as the front

speaker system (see page 33).

❏The room is sufficiently quiet.

2Connect the supplied optimizer microphone

to the OPTIMIZER MIC jack on the front

panel.

The following display appears in the OSD.

3Place the optimizer microphone at your

normal listening position on a flat level

surface with the microphone heading

upward.

It is recommended that you use a tripod (etc.) to affix the

optimizer microphone at the same height as your ears would be

when you are seated in your listening position. You can use the

attached screw of a tripod (etc.) to fix the optimizer microphone

to the tripod (etc.).

Optimizing the speaker setting for your listening room

Using AUTO SETUP

Notes

Note

VOLUME

MIN MAX MIN MAX

CROSSOVER

HIGH CUT

Controls of a subwoofer (example)

OPTIMIZER MIC

AUDIO SELECT

VIDEO L AUDIO R

VIDEO AUX USB

Optimizer

microphone

AUTO SETUP

SETUP;;;;;;;AUTO

.START

Automatic

Processing

of all item

[ ]/[ ]:Up/Down

[ ]/[ ]:Select

Optimizer microphone

01EN_DSP-AX563_B.book Page 24 Friday, February 1, 2008 11:08 AM

25 En

Optimizing the speaker setting for your listening room

English

PREPARATION

4Make sure that “SETUP” is set to “AUTO”

and the pointer is pointing at “START”.

You can also select the following setup methods. In this

case, press 7k to select “SETUP”, press 7l / h to

select the one of the following choises and then select

“START”.

Choices: AUTO, RELOAD, UNDO, DEFAULT

• Select “AUTO” to automatically run the entire

“AUTO SETUP” procedure.

• Select “RELOAD” to reload the last “AUTO

SETUP” settings and override the previous

settings.

• Select “UNDO” to undo the last “AUTO SETUP”

settings and restore the previous settings.

• Select “DEFAULT” to reset the “AUTO SETUP”

parameters to the initial factory settings.

“RELOAD” or “UNDO” is available only when you have

previously run “AUTO SETUP” and confirmed the results.

5Press 7n to select “START” and then press

7ENTER to start the setup procedure.

The following message appears in the OSD.

6Press 7ENTER to start the setup

procedure.

This unit starts the auto setup procedure. Loud test

tones are output from each speaker during the auto

setup procedure. Once all items are set, the result

display appears in the OSD.

• During the auto setup procedure, do not perform any

operation on this unit.

• We recommend getting out of the room while this unit is in

the auto setup procedure. It takes approximately 3 minutes

for this unit to complete the auto setup procedure.

This unit performs the following checks:

Speaker wiring/volume level WIRING/LEVEL

Checks which speakers are connected and the

polarity of each speaker. Also checks and adjusts the

volume level of each speaker.

Speaker distance DISTANCE

Checks the distance of each speaker from the

listening position and adjusts the timing of each

channel.

Speaker size SIZE

Checks the frequency response of each speaker and

sets the appropriate low-frequency crossover for each

channel.

Note

Before proceeding next operation

Once you perform the next operation, this unit starts the

automatic setup procedure. For more accurate

measurements, keep quiet and move to the wall where

speakers are not around. We recommend that you leave

the listening room during the automatic setup

procedure.

NOTICE

output. 

Loudtesttonesare

 



Pleasekeepquiet

orleavetheroom.

Press[ENTER]

Notes

01EN_DSP-AX563_B.book Page 25 Friday, February 1, 2008 11:08 AM

26 En

Optimizing the speaker setting for your listening room

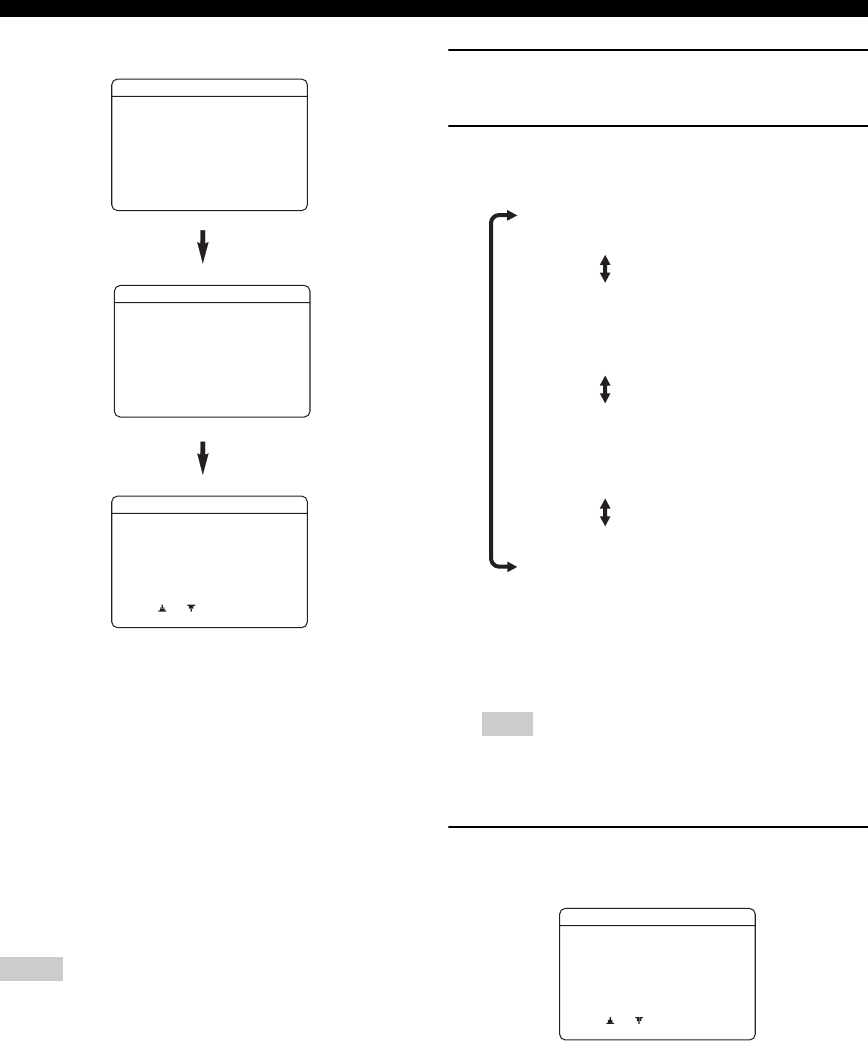

The display changes as follows.

The results displayed under “RESULT” are as follows.

Number of speakers SP

Displays the number of speakers connected to this unit in

the following order:

Front/Back/Subwoofer

Speaker distance DIST

Displays the speaker distance from the listening position

in the following order:

Closest speaker distance/Farthest speaker distance

Speaker level LVL

Displays the speaker output level in the following order:

Lowest speaker output level/Highest speaker output level

• If “E-9:INTERNAL ERROR” appears during the testing

procedure, restart from step 4.

• If you selected “RELOAD” in step 4, no test tones are output.

• If an error occurs during the “AUTO SETUP” procedure, the

setup procedure is canceled and an error screen appears. For

details, see “If an error screen appears” on page 27.

• When this unit detects potential problems during the “AUTO

SETUP” procedure, “WARNING” and the number of warning

messages appears (see page 27).

7Press 8k and 8ENTER to display the

setup results in detail.

8Press 8l / h repeatedly to toggle between

the setup result displays.

If you are not satisfied with the results or want to manually

adjust each parameter, run “MANUAL SETUP” (see

page 49).

The distances displayed in the “DISTANCE” results may be

longer than the actual distance depending on the

characteristics of your speakers.

9Press 8ENTER to return to the result

display.

Notes

AUTO SETUP

SETUP;;;;;;;AUTO

.START

Automatic

Processing

of all item

[ ]/[ ]:Up/Down

[ENTER]:Start

AUTO SETUP

RESULT

SP : 3/2/0.1

DIST: 3.2/3.5m

LVL : -2/+2dB

.SET CANCEL

[ ]/[ ]:Up/Down

[ENTER]:Enter

INITIALIZING

.WIRING/LEVEL

DISTANCE

SIZE 

WAITING;;;

;;;;;;;;;;

[]:Exit

[

AUTO SETUP

Note

Results of the speaker

connection and wiring

Results of the speaker

distance from the

listening position

Results of the speaker

size

Results of the speaker

output level

AUTO SETUP

.RESULT

SP : 3/2/0.1

DIST: 3.2/3.5m

LVL : -2/+2dB

SET CANCEL

[ ]/[ ]:Up/Down

[ENTER]:Detail

01EN_DSP-AX563_B.book Page 26 Friday, February 1, 2008 11:08 AM

27 En

Optimizing the speaker setting for your listening room

English

PREPARATION

10 Press 7n and then press 7l / h to select

“SET” or “CANCEL”.

Choices: SET, CANCEL

• Select “SET” to confirm the “AUTO SETUP”

results.

• Select “CANCEL” to cancel the “AUTO SETUP”

results.

11 Press 7ENTER to confirm your selection.

The top “SET MENU” display appears in the OSD.

12 Press KMENU to exit from “SET MENU”.

13 Disconnect the optimizer microphone from

this unit.

The optimizer microphone is sensitive to heat. Keep it

away from direct sunlight and do not place it on top

of this unit.

If you change speakers, speaker positions, or the layout of your

listening environment, run “AUTO SETUP” again to recalibrate

your system.

■If an error screen appears

Press 7k / n / l / h to select “RETRY” or

“EXIT” and then press 7ENTER.

The following display is an example where “E-8:USER

CANCEL” appears in the OSD.

Choices: RETRY, EXIT

• Select “RETRY” to retry the “AUTO SETUP”

procedure.

• Select “EXIT” to exit from the “AUTO SETUP”

procedure.

■If “WARNING” appears

When this unit detects potential problems during the

“AUTO SETUP” procedure, “WARNING” appears in the

result display. Check the warning messages to correct your

speaker settings.

Warnings differ from errors in that warnings do not cancel the

“AUTO SETUP” procedure.

1Make sure the pointer is pointing at

“WARNING” and then press 7ENTER to

display the detailed information about the

warning.

The number on the right of “WARNING” indicates

the number of warning messages.

2Press 7l / h repeatedly to toggle between

the warning displays.

• For details about each warning message, see the “AUTO

SETUP” section in “Troubleshooting” on page 70.

• When the corresponding warning message is not

applicable to a speaker, “– –” is displayed instead.

3Press 7ENTER to return to the result

display.

SET MENU

TOP MENU

.;AUTO SETUP

;MANUAL SETUP

.A;SIGNAL INFO

[ ]/[ ]:Up/Down

[ENTER]:Enter

ERROR

.E-8:USER CANCEL

Can't detect

signal at MIC

RETRY EXIT

[ ]/[ ]:Select

[ENTER]:Enter

Note

AUTO SETUP

.WARNING(2)

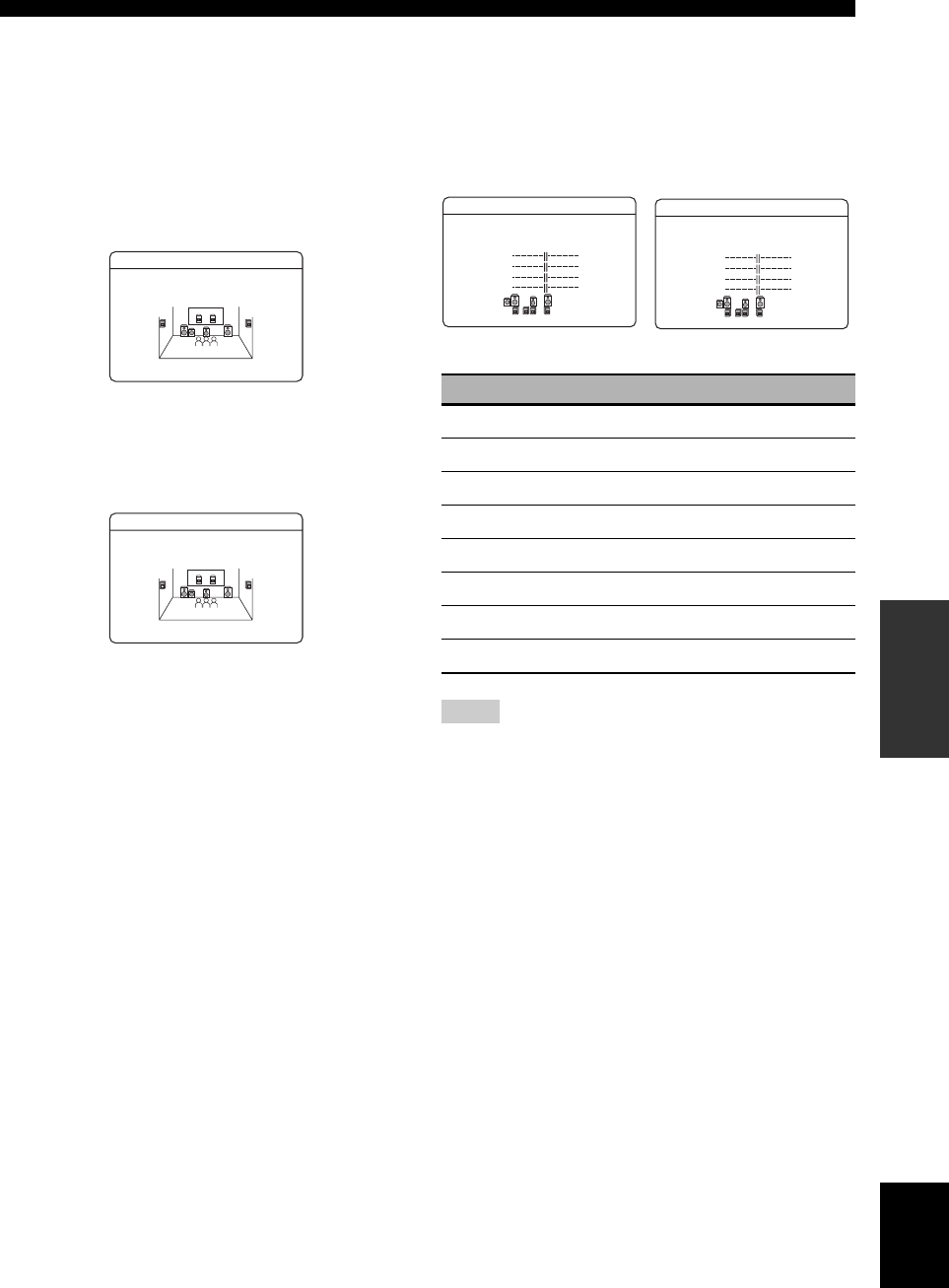

RESULT

SP : 3/2/0.1

DIST: 3.2/3.5m

LVL : -2/+2dB

SET CANCEL

[ ]/[ ]:Up/Down

[ENTER]:Detail

WARNING

W-1:OUT OF PHASE

Reverse channel

AAAAFLAAAAA---

AAACENTER

AAAASLAAAAA---

AAAASBLAAAA---

[ ]/[ ]:Select

[ENTER]:Return

01EN_DSP-AX563_B.book Page 27 Friday, February 1, 2008 11:08 AM

SELECTING THE SCENE TEMPLATES

28 En

This unit is equipped with 16 preset SCENE templates for

various situations of using this unit. As the initial factory

setting, the following SCENE templates are assigned to

each SCENE button:

SCENE 1: DVD Movie Viewing

SCENE 2: Music Disc Listening

SCENE 3: TV Viewing

SCENE 4: Radio Listening

If you want to use other SCENE templates, you can select

the desired SCENE templates from the SCENE template

library and assign the templates to the selected SCENE

buttons on the front panel and the remote control.

1Press and hold the desired BSCENE (or

5SCENE) button for 3 seconds.

The indicator on the selected SCENE button on the

front panel starts to flash, and the name of the

currently assigned SCENE template appears in the

front panel display.

2Press JINPUT l / h (or press 4AMP and

then press 7l / h) to select the desired

template.

3Press the BSCENE (or 5SCENE) button

again to confirm the selection.

The selected SCENE template is assigned to the

button.

Once the desired SCENE templates are assigned to the

corresponding SCENE buttons, you may need to set the input

source of the SCENE template on the remote control. See page 32

for details.

Selecting the SCENE templates

Selecting the desired SCENE

template

SCENE template library

(Image)

Select the desired SCENE

template

Assign the

SCENE

template to the

SCENE button

Remote control

Flashes

3 seconds 3 seconds

Front panel

DVD MovieView

Note

l INPUT h

AMP

ENTER

Front panel

Remote control

DVD Viewing

Remote controlFront panel

01EN_DSP-AX563_B.book Page 28 Friday, February 1, 2008 11:08 AM

29 En

Selecting the SCENE templates

English

BASIC

OPERATION

■Which SCENE template would you like to select?

*When iPod is connected to the Yamaha iPod universal dock or a Bluetooth component is connected to the Bluetooth adapter, this unit

plays back the audio sources input at the DOCK terminal.

You can create your original SCENE templates by editing the preset SCENE templates. See page 31 for details.

Note

Radio Listening

CD Hi-fi Listening

CD Listening

CD Music Listening

Dock Listening

DVD Live Viewing

DVD Movie Viewing

DVD Viewing

Disc Hi-fi Listening

Music Disc Listening

Disc Listening

DVR Viewing

TV Viewing

Game Playing

DVD

V-AUX*

DTV/CBL

TUNER

DOCK

DVD

DVR

Video sources

(DVD video,

Recorded video)

TV programs

Video games

iPod or Bluetooth

component

Radio programs

Music discs (CD, SACD

or DVD-Audio)

SCENE templates

Which component do you

like for playback?

Which source do you like to

play back?

Default

SCENE buttons

TV Sports Viewing

USB Audio Listening

USB

USB memory device

or USB portable

audio player

01EN_DSP-AX563_B.book Page 29 Friday, February 1, 2008 11:08 AM

30 En

Selecting the SCENE templates

■Preset SCENE templates descriptions

The illustrations of the SCENE button in the following table indicate the assigned SCENE buttons in the default setting.

*When the connected DVD player or CD player has the capability of the SCENE control signals and is connected to the REMOTE

OUT jack of this unit, this unit operates the DVD player or CD player worked with the SCENE features.

SCENE template Input source Playback mode Features

DVD Viewing DVD*STRAIGHT Select this SCENE template when you play back general

contents on the DVD player.

DVD Movie Viewing DVD*MOVIE

Movie Dramatic

Select this SCENE template when you play back movies on

your DVD player.

DVD Live Viewing DVD*MUSIC

Pop/Rock

Select this SCENE template when you enjoy the music live

video on your DVD player.

DVR Viewing DVR MOVIE

Movie Dramatic

Select this SCENE template when you play back movies on

your digital video recorder.

Disc Hi-fi Listening DVD*DIRECT Select this SCENE template when you enjoy the high fidelity

sound of the music discs on your DVD player.

Music Disc

Listening

DVD*STEREO

2ch Stereo

Select this SCENE template when you play back music discs

on your DVD player.

Disc Listening DVD*STEREO

7ch Stereo

Select this SCENE template when you play back music

sources on your DVD player as the background music.

CD Hi-fi Listening CD*DIRECT Select this SCENE template when you enjoy the high fidelity

sound of the music discs on your CD player.

CD Listening CD*STEREO

7ch Stereo

Select this SCENE template when you play back music discs

on your CD player as the background music.

CD Music Listening CD*STEREO

2ch Stereo

Select this SCENE template when you play back music source

on your CD player.

Radio Listening TUNER MUSIC ENHANCER

7ch Enhancer

Select this SCENE template when you enjoy radio programs.

Dock Listening DOCK MUSIC ENHANCER

7ch Enhancer

Select this SCENE template when you play back music on

your iPod stationed in a Yamaha iPod universal dock or

Bluetooth component that is connected to the Bluetooth

adapter.

USB Audio

Listening

USB MUSIC ENHANCER

7ch Enhancer

Select this SCENE template when you play back music on

your USB memory device or a USB portable audio player.

TV Viewing DTV/CBL STRAIGHT Select this SCENE template when you enjoy general

programs on your TV.

TV Sports Viewing DTV/CBL ENTERTAINMENT

TV Sports

Select this SCENE template when you enjoy sports programs

on your TV.

Game Playing V-AUX ENTERTAINMENT

Game

Select this SCENE template when you play video games.

01EN_DSP-AX563_B.book Page 30 Friday, February 1, 2008 11:08 AM

31 En

Selecting the SCENE templates

English

BASIC

OPERATION

You can create your original SCENE templates for each

SCENE button. You can refer to the preset 16 SCENE

templates to create the original SCENE templates.

■Customizing the preset SCENE

templates

Use this feature to customize the preset SCENE templates.

1Turn on the video monitor connected to this

unit.

2Press and hold the desired 5SCENE button

for 3 seconds.

The SCENE template customizing screen appears on

the video monitor.

When the SCENE template you want to customize is not

assigned to any of the 5SCENE buttons, press 4AMP

and then press 7l / h repeatedly to recall the desired

SCENE template on the menu screen.

3Press 4AMP and then 7k / n to select the

desired parameter of the SCENE template

and then 7l / h to select the desired value

of the selected parameter.

You can adjust the following parameters for a SCENE

template:

•INPUT: The input source component

•MODE: The active sound field programs,

STRAIGHT or DIRECT mode (see

pages 39 and 41)

•NIGHT:The night listening mode setting (see

page 42)

−SYSTEM: Keeps the current night listening

mode.

−CINEMA: Sets the night listening mode to the

CINEMA mode.

−MUSIC: Sets the night listening mode to the

MUSIC mode.

4Press the 5SCENE button again to confirm

the edit.

An asterisk mark (*) appears by the name of the original SCENE

template.

• Once the desired SCENE templates are assigned to the

corresponding 5SCENE buttons, you may need to set the

input source of the SCENE template on the remote control. See

page 32 for details.

• You can create a customized SCENE template for each

5SCENE button, and if you create another customized

SCENE template, this unit overwrites the old customized

SCENE template with the new one.

• The newly created template is only available for the assigned

5SCENE button.

■Renaming the SCENE templates

Select the name of the SCENE template at step 3

of “Customizing the preset SCENE templates”

and then press 7ENTER.

• Press 7k / n to select the desired character.

•Press 7l / h to place “_” (underscore) under the

space or the desired character.

• Press 8RETURN to cancel the new name.

• Press 7ENTER to confirm the new name.

Creating your original SCENE

templates

Note

: DVD Viewing

: DVD

SCENE

INPUT

SCENE : DVD Viewing

SCENE template library

(Image)

Select a SCENE template

Assign to the SCENE

button

Create the original SCENE

template

AMP

3 seconds

Notes

01EN_DSP-AX563_B.book Page 31 Friday, February 1, 2008 11:08 AM

32 En

Selecting the SCENE templates

■Controlling the input source

components in the SCENE mode

You can operate both this unit and the input source

component by using the remote control. You must set the

appropriate remote control code for each input source in

advance (see page 65).

1Press the desired 5SCENE button on the

remote control.

2Press the desired buttons in the * area below

to control the input source component of the

selected SCENE template.

*These buttons control the input source component. See page 64

for details of the function of each button.

■Setting input source of the customized

SCENE template on the remote control

If you customize the input source of the selected SCENE

template, you must set the input source of the SCENE

template on the remote control to operate the input source

component correctly.

Press and hold the 5SCENE button and the

desired input selector button (3) for 3 seconds.

Press the 5SCENE button again to operate the input source

component.

Using remote control on the SCENE feature

Note

REC

SUR. DECODE

NIGHT

STRAIGHT DIRECT

PARAMETER

MULTI CH IN AUDIO SEL

SLEEP

ENHANCER

l PROG h

TV MUTE

TV INPUT

TV VOL

TV CH

POWER

AMP

STANDBY

POWER

MUTE

POWER

4321

ENT

DVD

V-AUX/DOCK

DTV/CBL DVR

CD MD/CD-R TUNER

SRCH MODE

VOLUME

TITLE

ENTER

BAND LEVEL

DISPLAY

RETURN

MEMORY

AVTV

SCENE

4321

USB

C D

A B

FREQ/TEXT EON

MODE - PTY SEEK - START

SCENE buttons

01EN_DSP-AX563_B.book Page 32 Friday, February 1, 2008 11:08 AM

PLAYBACK

33 En

English

BASIC

OPERATION

1Turn on the video monitor connected to this

unit.

2Press ESPEAKERS repeatedly to select the

front speakers you want to use.

The respective speaker indicators lights up in the

front panel display.

3Press JINPUT l / h repeatedly (or press

one of the input selector buttons (3)) to

select the desired input source.

The name of the currently selected input source

appears in the front panel display for a few seconds.

4Start playback on the selected component.

Refer to the operating instructions for the source

component.

5Rotate DVOLUME (or press

LVOLUME +/–) to adjust the volume to the

desired output level.

6Press GPROGRAM l / h repeatedly (or

press 4AMP and then APROG l / h

repeatedly) to select the desired sound field

program.

The name of the selected sound field program appears

in the front panel display.

See page 38 for details about sound field programs.

• Choose a sound field program based on your listening

preference, not merely on the name of the program.

• When you select an input source, this unit automatically selects

the last sound field program used with the corresponding input

source.

• Sound field programs cannot be selected when the component

connected to the MULTI CH INPUT jacks is selected as the

input source (see page 34).

• When PCM signals with a sampling frequency higher than 48

kHz are input, this unit is automatically set to the “STRAIGHT”

mode (see page 39).

• To display information about the currently selected input source

in the OSD, see page 36 for details.

■A quick guide to contents

Playback

Caution

Extreme caution should be exercised when you play

back CDs encoded in DTS. If you play back a CD

encoded in DTS on a DTS-incompatible CD player,

you will only hear some unwanted noise that may

damage your speakers. Check whether your CD player

supports CDs encoded in DTS. Also, check the sound

output level of your CD player before you play back a

CD encoded in DTS.

Basic operations

USB

MULTI CH

DVR

V-AUX

DTV/CBL

DVD CD

MD/CD-R

TUNER

INPUT:DVD

Currently selected input

source

Available input sources

Notes

When you want to... See

page

Enjoy high quality sound 41

Adjust the tonal quality of the front speakers 41

Adjust the parameters of sound field programs 40

Enjoy the sources with a wide dynamic range at night 42

Use headphones 35

Select a decoder to play back sources with 39

Automatically set this unit to the standby mode 37

Movie Dramatic

Currently selected

surround field program

01EN_DSP-AX563_B.book Page 33 Friday, February 1, 2008 11:08 AM

34 En

Playback

This unit comes with a variety of input jacks. Use this

feature (audio input jack select) to switch between input

jacks when more than one input jack is assigned to as the

same input source.

• We recommend setting the audio input jack select to “AUTO”

in most cases.

• You can adjust the default audio input jack select of this unit by

using “AUDIO SELECT” in “OPTION MENU” (see page 60).

Press KAUDIO SELECT (or press 4AMP and

then EAUDIO SEL) repeatedly to select the

desired audio input jack select setting.

This feature is not available when no digital input jacks

(OPTICAL, COAXIAL and HDMI) are assigned. In addition,

HDMI is not available as an audio input jack select setting when

the HDMI IN DVD and HDMI IN DTV/CBL jacks are not used.

Use “I/O ASSIGNMENT” in “INPUT MENU” to reassign the

respective input jack (see page 57).

Use this feature to select the component connected to the

MULTI CH INPUT jacks (see page 19) as the input

source.

Press JINPUT l / h repeatedly (or press

4AMP and then DMULTI CH IN) to select

MULTI CH.

“MULTI CH” appears in the front panel display.

Use “MULTI CH SET” menu in “INPUT MENU” to set the

parameters for MULTI CH INPUT (see page 59).

The input signals are amplified and output directly without sound

processing. Therefore, you cannot activate sound field programs,

the night listening mode, etc. while MULTI CH is selected as the

input source.

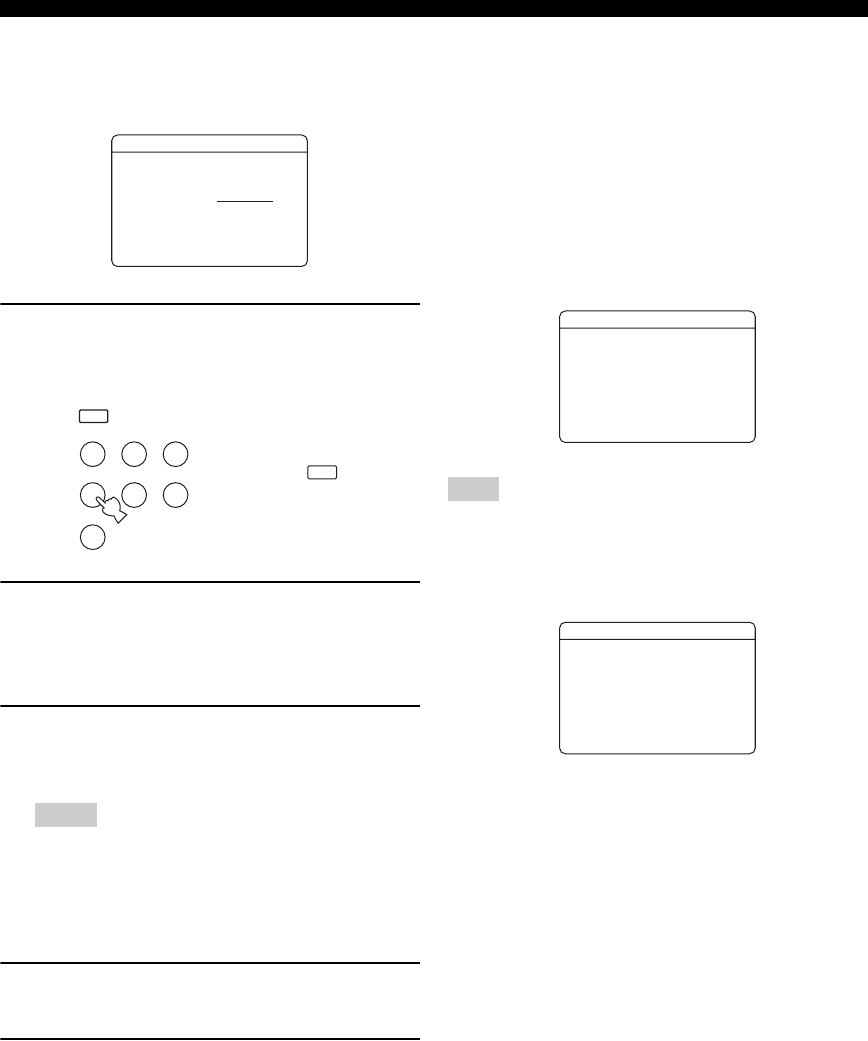

Selecting audio input jacks

(AUDIO SELECT)

AUDIO SELECT Function

AUTO Automatically selects input signals in the

following order:

(1) HDMI

(2) Digital signals

(3) Analog signals

HDMI Selects only HDMI signals. When HDMI

signals are not input, no sound is output.

COAX/OPT Selects only digital signals. When no

signals are input, no sound is output.

ANALOG Selects only analog signals. If no analog

signals are input, no sound is output.

Note

USB

MULTI CH

DVR

V-AUX

DTV/CBL

DVD CD

MD/CD-R

TUNER

A.SEL:AUTO

Currently selected audio input jack select setting

Available input sources

Selecting the MULTI CH INPUT

component

Note

01EN_DSP-AX563_B.book Page 34 Friday, February 1, 2008 11:08 AM

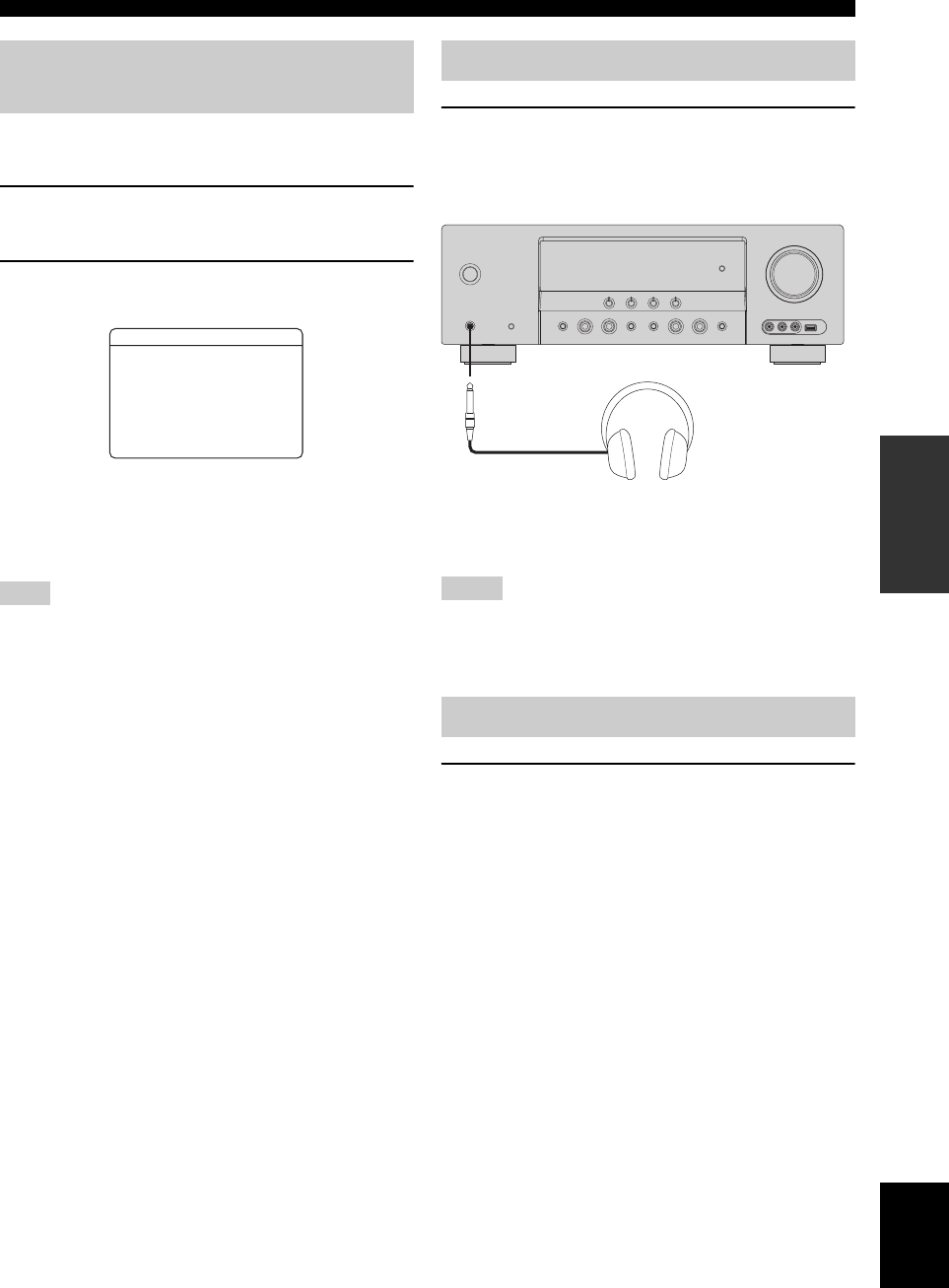

35 En

Playback

English

BASIC

OPERATION

You can display the operating information of this unit on a

video monitor.

1Turn on the video monitor connected to this

unit.

2Press MDISPLAY.

The current status screen appears in the OSD.

You can select the amount of time that the current status is

displayed in the OSD by using the “OSD-AMP” parameter in

“OPTION MENU” (see page 60).

The OSD signal is not output at the DVR VIDEO OUT jacks and

will not be recorded.

Connect a pair of headphones with a stereo

analog audio cable plug to the PHONES jack on

the front panel.

When you select a sound field program, SILENT CINEMA mode

is automatically activated (see page 39).

• When you connect headphones, no signals are output at the

speaker terminals.

• All Dolby Digital and DTS audio signals are mixed down to the

left and right headphone channels.

Press IMUTE to mute the audio output. Press

IMUTE again to resume the audio output.

• You can also rotate DVOLUME or press LVOLUME +/– to

resume the audio output.

• You can adjust the muting level by using the “MUTE TYPE”

parameter in “SOUND MENU” (see page 55).

• The MUTE indicator flashes in the front panel display when the

audio output is muted and disappears from the front panel

display when the audio output is resumed.

Displaying the current status of

this unit on a video monitor

Note



[DISPLAY]:STATUSOFF

 



NIGHT:CINEMA(MID)

A.SEL:HDMI

INPUT:DVD

MovieSpacious

MOVIE

DVDMovieViewing

STATUSVOL:-40dB

Using your headphones

Notes

Muting the audio output

01EN_DSP-AX563_B.book Page 35 Friday, February 1, 2008 11:08 AM

36 En

Playback

You can combine a video image from a video source with

sound from an audio source. For example, you can enjoy

listening to classical music while viewing beautiful

scenery from the video source on the video monitor.

Press the input selector buttons (4) to select a

video source and then an audio source.

• You can also select “MULTI CH” as the audio source (see

page 34). Press 4AMP and then press DMULTI CH IN.

• Set the “BGV” parameter in the “MULTI CH SET” menu to the

desired setting to select the default background video input

source of the MULTI CH INPUT sources (see page 59).

You can display the format, sampling frequency, channel,

bit rate and flag data of the current input signal.

1Press 4AMP and then KMENU.

The top “SET MENU” display appears in the OSD.

2Press 7n repeatedly to select “SIGNAL

INFO” and then press 7ENTER.

The audio information about the input source appears

in the OSD.

3Press 7l / h to toggle between the audio

and video information displays.

4Press KMENU again to exit from “SET

MENU”.

■Audio information

“–––” appears when this unit cannot display the corresponding

information.

■Video information

“–––” appears when this unit cannot display the corresponding

information.

HDMI error and message

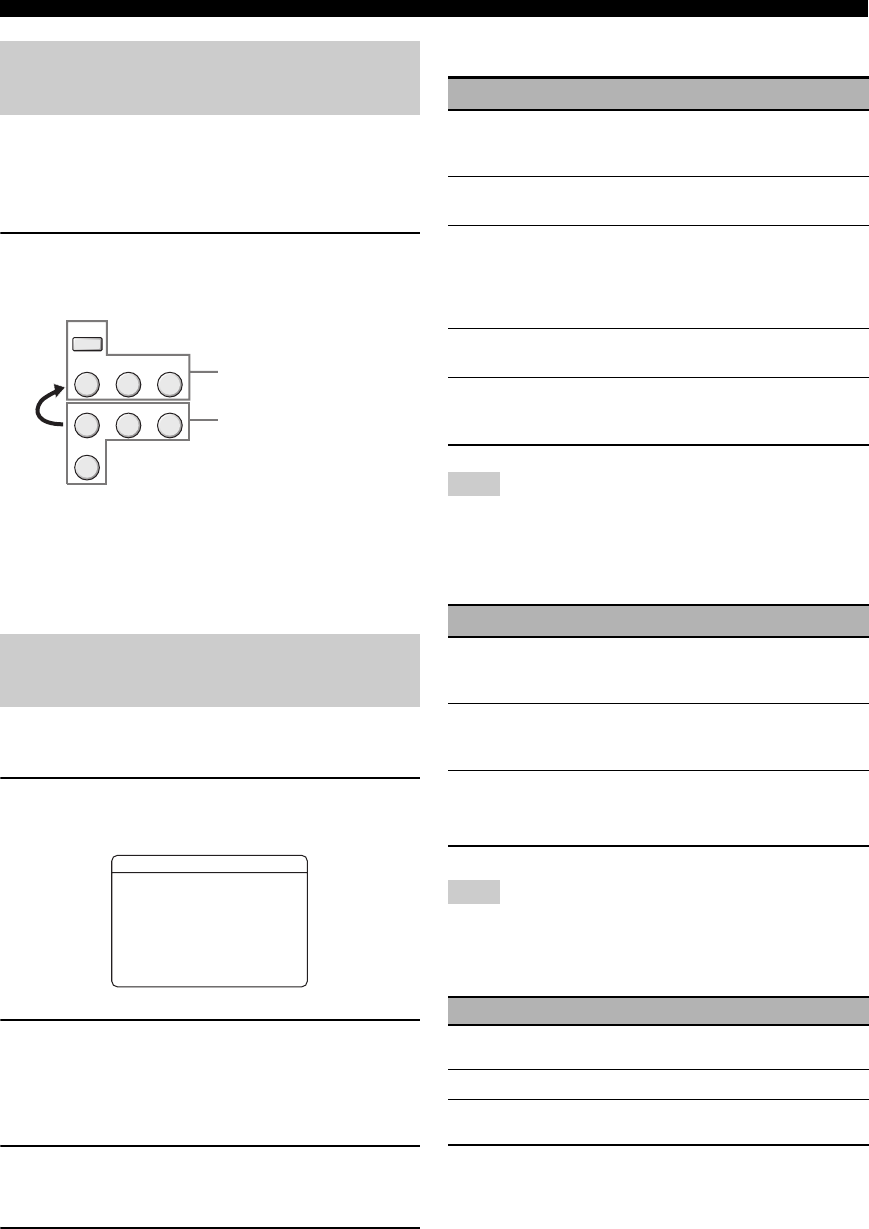

Playing video sources in the

background of an audio source

Displaying the input source

information

Audio sources

Video sources

DVD

V-AU X

DTV/CBL DVR

CD MD/CD-R TUNER

USB

DVD

SET MENU

TOP MENU

.;AUTO SETUP

;MANUAL SETUP

.A;SIGNAL INFO

[ ]/[ ]:Up/Down

[ENTER]:Enter

Information Descriptions

FORMAT Signal format. When this unit cannot detect a

digital signal, it automatically switches to

analog input.

SAMPLING The number of samples per second taken from

a continuous signal to make a discrete signal.

CHANNEL The number of source channels in the input

signal (front/surround/LFE). For example, a

multi-channel soundtrack with 3 front

channels, 2 surround channels and LFE, is

displayed as “3/2/0.1”.

BITRATE The number of bits passing a given point per

second.

FLAG Flag data encoded in DTS, Dolby Digital, or

PCM signals that cue this unit to automatically

switch decoders.

Note

Information Descriptions

HDMI SIGNAL Type of the source video signals and the

video signals output at the HDMI OUT

jack of this unit.

HDMI RES. Resolution of the HDMI signals input or

output at the HDMI IN/OUT jacks of this

unit.

HDMI ERROR

(Only when error

is detected)

Error message for HDMI sources or

connected HDMI devices. See “HDMI

error and message” for details.

Note

Message Cause

DEVICE OVER The number of the connected HDMI

components is over the limit.

HDCP ERROR HDCP authentication failed.

OUT OF RES. The connected monitor is not compatible

with the resolution of the input video signal.

01EN_DSP-AX563_B.book Page 36 Friday, February 1, 2008 11:08 AM

37 En

Playback

English

BASIC

OPERATION

Use this feature to automatically set the main zone to the

standby mode after a certain amount of time.

Press 4AMP and then press RSLEEP

repeatedly to set the amount of time.

Each time you press RSLEEP, the front panel display

changes as shown below.

The SLEEP indicator flashes while you are switching the

amount of time for the sleep timer. Once the sleep timer is

set, the SLEEP indicator lights up in the front panel

display, and the display returns to the selected sound field

program.

• To cancel the sleep timer, press 4AMP and then press

RSLEEP repeatedly until “SLEEP OFF” appears in the front

panel display.

• The sleep timer setting can also be canceled by pressing

ASTANDBY/ON (or HSTANDBY) to set this unit to the

standby mode.

Using the sleep timer

SLEEP 120min SLEEP 90min

SLEEP 60minSLEEP 30minSLEEP OFF

01EN_DSP-AX563_B.book Page 37 Friday, February 1, 2008 11:08 AM

SOUND FIELD PROGRAMS

38 En

This unit is equipped with a variety of precise digital

decoders that allow you to enjoy multi-channel playback

from almost any stereo or multi-channel sound source.

Press GPROGRAM l / h (or press 4AMP and

then press APROG l / h repeatedly).

The name of the selected sound field program appears in

the front panel display.

• When you select an input source, this unit automatically selects

the last sound field program used with the corresponding input

source.

• Sound field programs cannot be selected when the component

connected to the MULTI CH INPUT jacks is selected as the

input source (see page 34).

• When PCM signals with a sampling frequency higher than

48 kHz are input, this unit is automatically set to the

“STRAIGHT” mode (see page 39).

Choose a sound field program based on your listening preference,

not merely on the name of the program itself.

The sound field programs of this unit are recreations of real-world acoustic environments made from precise measurements taken in the

actual concert hall, music venue, movie theater, etc. Thus, you may notice variations in the strength of the reflections coming from each

direction.

Sound field programs

Notes

Sound field program descriptions

Category Program Features

MUSIC

Pop/Rock CINEMA DSP processing. This program presents an image of pop, rock, or jazz live

concert. The sound field reproduces the spaciousness of a massive pavilion with an emphasis

on the vividness of vocals on the stage and solo instruments and the beats of rhythm

instruments.

Hall CINEMA DSP processing. This sound field is suitable for classic and orchestral music. The

program uses data collected in a large concert hall in Munich. You can enjoy delicate and

beautiful reverberation and a majestic atmosphere.

Jazz CINEMA DSP processing. The sound field is suitable for jazz and fusion music. It uses data

collected in a famous jazz club in New York. You can enjoy clear reverberation.

ENTERTAINMENT

Game CINEMA DSP processing. You can enjoy dynamic and thrilling sound effects as you play

games. The program lets you feel the depth and three-dimensional surrounding sounds of the

field where you are playing, and offers cinema-like surrounding sound effects for the scenes

of movies.

TV Sports CINEMA DSP processing. You can enjoy sports relays broadcast in stereo and variety shows

with a live sound environment. For sports relays, the voices of commentators and

announcers come clearly from the center; the cheers and atmosphere in the stadium spread

around within a comfortable range, and you can feel like as if you are in the stadium.

MOVIE

Movie Spacious CINEMA DSP processing. The sound field is suitable for movies with an emphasis on

spectacular sound effects, and is a perfect fit with a wide screen. The program reproduces a

wide dynamic range from minimum sound effects to powerful sounds.

Movie Dramatic CINEMA DSP processing. This sound field is also suitable for movies with an emphasis on

three-dimensional sound effects. It restrains reverberation to an moderate extent, but

reproduces sound effects and background music in a soft, three-dimensional manner with

clarity and center orientation of voices as pivots.

STEREO

2ch Stereo Downmixes multi-channel sources to 2 channel or plays back 2-channel sources as they are.

7ch Stereo CINEMA DSP processing. Using this program increases the listening position range. This is

a sound field suitable for background music at parties.

MUSIC

ENHANCER

2ch Enhancer

7ch Enhancer

Select these programs to play back compression artifacts (such as the MP3 format) in

2-channel or 7-channel stereo. This program enhances your listening experience by

regenerating the missing harmonics in a compression artifact.

Note

01EN_DSP-AX563_B.book Page 38 Friday, February 1, 2008 11:08 AM

39 En

Sound field programs

English

BASIC

OPERATION

■Enjoying 2-channel sources using the

standard decoders

Signals input from 2-channel sources can also be played

back on multi-channels.

Press 4AMP and then press OSUR. DECODE

repeatedly to select a decoder.

You can select from the following decoders depending on

the type of source you are playing and your personal

preference.

■Using sound field programs without

surround speakers (Virtual CINEMA

DSP)

Virtual CINEMA DSP allows you to enjoy the CINEMA

DSP programs without surround speakers by creating

virtual speakers.

If you set “SUR. L/R SP” to “NONE” (see page 52),

Virtual CINEMA DSP is automatically activated

whenever you select a CINEMA DSP program (see

page 38).

Virtual CINEMA DSP will not be activated even when “SUR.

L/R SP” is set to “NONE” (see page 52) in the following cases:

– when “7ch Stereo” (see page 38) is selected.

– when headphones are connected to the PHONES jack.

■Enjoying multi-channel sources and

sound field programs with headphones

(SILENT CINEMA)

SILENT CINEMA allows you to enjoy multi-channel

music or movie sound, including Dolby Digital and DTS

sources, through ordinary headphones. SILENT CINEMA

is automatically activated whenever you connect

headphones to the PHONES jack while listening to

CINEMA DSP sound field programs (except for 7ch) (see

page 38). When activated, the SILENT CINEMA

indicator lights up in the front panel display.

■Enjoying unprocessed input sources

(Straight decoding mode)

When this unit is in the “STRAIGHT” mode,

multi-channel sources are decoded straight into the

appropriate channels without any additional effect

processing. 2-channel stereo sources are output from only

the front left and right speakers.

Press HSTRAIGHT (or press 4AMP and then

press BSTRAIGHT) to select “STRAIGHT”.

To deactivate the “STRAIGHT” mode, press

HSTRAIGHT (or press 4AMP and then

BSTRAIGHT) again so that “STRAIGHT” disappears

from the front panel display.

Decoder Functions

Pro Logic Dolby Pro Logic processing for any

sources

PLII Movie

PLIIx Movie

Dolby Pro Logic II processing for

movie sources

PLII Music

PLIIx Music

Dolby Pro Logic II processing for

music sources

PLII Game

PLIIx Game

Dolby Pro Logic II processing for

game sources

Neo:6 Cinema DTS processing for movie sources

Neo:6 Music DTS processing for music sources

Note

01EN_DSP-AX563_B.book Page 39 Friday, February 1, 2008 11:08 AM

40 En

Sound field programs

■Editing sound fields parameters

You can enjoy good quality sound with the factory default

parameters. Although you do not have to change the initial

settings, you can change some of the parameters to better

suit the input source or your listening room.

1While listening to a source, press 4AMP

and then press QPARAMETER.

2Press 7k / n to select the desired parameter

you want to change.

3Press 7l / h to change the parameter

value.

You cannot change parameter values when “MEMORY GUARD”

in “OPTION MENU” is set to “ON” (see page 60).

Initial settings are indicated in bold under each parameter.

For Pop/Rock, Hall, Jazz, Game, TV Sports,

Movie Spacious and Movie Dramatic:

DSP level DSP LEVEL

Function: Adjusts the effect level.

Choices: MIN, MID, MAX

For 2ch Enhancer and 7ch Enhancer

Effect level EFFECT LEVEL

Function: Adjusts the effect level.

Choices: LOW, HIGH

For Pro Logic II Music and Pro Logic IIx Music:

Panorama PANORAMA

Function: Sends stereo signals to the surround

speakers as well as the front speakers for

a wraparound effect.

Choices: OFF, ON

Dimension DIMENSION

Function: Gradually adjusts the sound field either

towards the front or towards the rear.

Control range: –3 (towards the rear) to +3 (towards the

front), initial setting is STD (standard).

Center width CT WIDTH

Function: Adjusts the center image from all three

front speakers to varying degrees. A

larger value adjusts the center image

towards the front left and right speakers.

Control range: 0 (center channel sound is output only

from center speaker) to 7 (center channel

sound is output only from front left and

right speakers), initial setting is 3.

For Neo:6 Music

Center image C.IMAGE

Function: Adjusts the front left and right channel

output relative to the center channel

more or less dominant as necessary.

Control range: 0.0 to 1.0, initial setting is 0.3.

Note

01EN_DSP-AX563_B.book Page 40 Friday, February 1, 2008 11:08 AM

USING AUDIO FEATURES

41 En

English

BASIC

OPERATION

Use the DIRECT mode to enjoy the high quality sounds of

the selected source. When the DIRECT mode is activated,

this unit plays back the selected source with the least

circuitry.

Press IDIRECT (or press 4AMP and then

CDIRECT) to select “DIRECT”.

• “TONE CONTROL” and “SOUND MENU” (see page 51)

settings (except for speaker level settings) are not effective.

• The front panel display automatically dims.

While DIRECT mode is activated, the front panel display turns on

momentarily when an operation is performed.

Use this feature to adjust the balance of bass and treble for

the front left and right speaker channels.

Speaker and headphone adjustments are stored independently.

1Press FTONE CONTROL repeatedly to

select the high-frequency response

(TREBLE) or the low-frequency response

(BASS).

2Press GPROGRAM l / h repeatedly to

adjust the high-frequency response

(TREBLE) or the low-frequency response

(BASS).

• If you increase or decrease the high-frequency or the

low-frequency sound to an extreme level, the tonal quality of

the surround speakers may not match.

• TONE CONTROL is not effective when this unit is in the

DIRECT mode, or when MULTI CH is selected as the input

source.

You can adjust the output level of each speaker while

listening to a music source. This is also possible when

playing sources input at the MULTI CH INPUT jacks.

This operation will override the level adjustments made in

“AUTO SETUP” (see page 24) and “SP LEVEL” (see page 53).

1Press 4AMP and then press 6LEVEL on

the remote control and then 7k / n to select

the speaker you want to adjust.

• Instead of “SB L” and “SB R”, “SUR.B” is displayed if

“SUR.B L/R SP” is set to either “SMLx1” or “LRGx1”

(see page 52).

• The available speaker channels differ depending on the

setting of the speakers.

• When the video monitor is turned on, the “SP LEVEL”

adjustment menu appears in the video monitor.

2Press 7l / h to adjust the speaker output

level.

•Press

7h to increase the value.

•Press

7l to decrease the value.

• Control range: –10 dB to +10 dB

3Press 6LEVEL to turn off the speaker level

adjustment display.

Using audio features

Enjoying high quality sound

Notes

Adjusting the tonal quality

Notes

Adjusting the speaker level

Note

Display Adjusted speaker

FRONT L Front left speaker

FRONT R Front right speaker

CENTER Center speaker

SWFR Subwoofer

SUR. L Surround left speaker

SUR. R Surround right speaker

SB L Surround back left speaker

SB R Surround back right speaker

01EN_DSP-AX563_B.book Page 41 Friday, February 1, 2008 11:08 AM

42 En

Using audio features

The night listening modes are designed to improve

listenability at lower volumes or at night.

1Press 4AMP and then PNIGHT repeatedly

to select “NIGHT:CINEMA” or

“NIGHT:MUSIC”.

Choices: NIGHT:CINEMA, NIGHT:MUSIC, OFF

• Select “NIGHT:CINEMA” when watching films to

reduce the dynamic range of film soundtracks and

make dialog easier to hear at lower volumes.

• Select “NIGHT:MUSIC” when listening to music

sources to preserve ease-of-listening for all sounds.

• Select “OFF” if you do not want to use this feature.

When a night listening mode is selected, the NIGHT

indicator lights up in the front panel display.

2Press 7l / h to adjust the effect level while

“NIGHT:CINEMA” or “NIGHT:MUSIC” is

displayed in the front panel display.

Choices: MIN, MID, MAX

• Select “MIN” for minimum compression.

• Select “MID” for standard compression.

• Select “MAX” for maximum compression.

“NIGHT:CINEMA” and “NIGHT:MUSIC” adjustments are

stored independently.

• You cannot use the night listening modes in the following cases:

– when the DIRECT mode (see page 41) is selected.

– when the component connected to the MULTI CH INPUT

jacks is selected as the input source (see page 34).

– when headphones are connected to the PHONES jack.

• The night listening modes may vary in effectiveness depending

on the input source and surround sound settings you use.

Selecting the night listening mode

Notes

Effect.Lvl:MID

01EN_DSP-AX563_B.book Page 42 Friday, February 1, 2008 11:08 AM

USING A USB MEMORY DEVICE OR A USB PORTABLE AUDIO PLAYER

43 En

English

BASIC

OPERATION

Use this feature to enjoy WAV (PCM format only), MP3 and WMA files saved on your USB memory device or USB

portable audio player connected to the USB port on the front panel of this unit.

■Supported USB devices

This unit supports USB mass storage class devices (except

USB hard disk drives) using FAT16 or FAT32 format.

• Only the first partition (32 GB or less) is displayed in the OSD.

You cannot select files in other partitions.

• Up to 8 levels of directory hierarchy and 500 music files per

directory are recognized.

• Some devices may not work properly even if they meet the

requirements.

• Some WAV, MP3 and WMA files may not be playable or may

be noisy when played.

■Connecting a USB memory device or a

USB potable audio player

Connect a USB jack of a USB memory device or

USB portable audio player to the USB port on the

front panel of this unit.

Follow the procedures below to enjoy the music stored in

your USB device or a USB portable audio player.

1Press JINPUT l / h repeatedly (or press

3USB) to select USB.

The cursor on the left of the USB indicator lights up

in the front panel display, and the contents previously

played is automatically played.

2Press MDISPLAY to display the top USB file

list.

The USB file list appears in the OSD.

•“i” in the right corner of each menu line indicates that

there is a submenu available in the next menu level.

• When this unit is in the top directory, “Root” appears

beside “USB”.

Using a USB memory device or a USB portable audio player

Notes

SPEAKERS

PHONES

SILENT CINEMA

STANDBY/

A/B/OFF

OPTIMIZER MIC

AUDIO SELECT

DIRECTSTRAIGHT

EFFECT

TONE CONTROL

l INPUT hl PROGRAM h

VOLUME

SCENE

1234

VIDEO L AUDIO R

VIDEO AUX USB

USB

USB memory device

or USB portable

audio player

Playback operation

USB

MULTI CH

DVR

V-AUX

DTV/CBL

DVD CD

MD/CD-R

TUNER

INPUT:USB

Lights up

Ellis Margellis >

Frankie Zipper >

Hall in Call >

Jackie Pastarius >

Jmiel >

Jean-Luc Ponta >

Jim Hallo >

1/7

USB Root

01EN_DSP-AX563_B.book Page 43 Friday, February 1, 2008 11:08 AM

44 En

Using a USB memory device or a USB portable audio player

3Press 7k / n / l / h on the remote control

to select the desired file.

• Press 7k / n to select the desired file/folder.

• Press 7ENTER or 7h to enter the selected

folder.

• Press 7l to return to the previous folder level.

4Press 7ENTER to play the selected file.

• You can use 0b / a to skip backward/forward and

9h / s to start/stop playback independently from the menu

in the OSD.

• You can set the settings for repeat and shuffle mode by using the

“USB PLAY STYLE” parameters in “OPTION MENU” (see

page 62).

• You can select the display mode in the front panel display by

using “FL SCROLL” in “OPTION MENU” (see page 60).

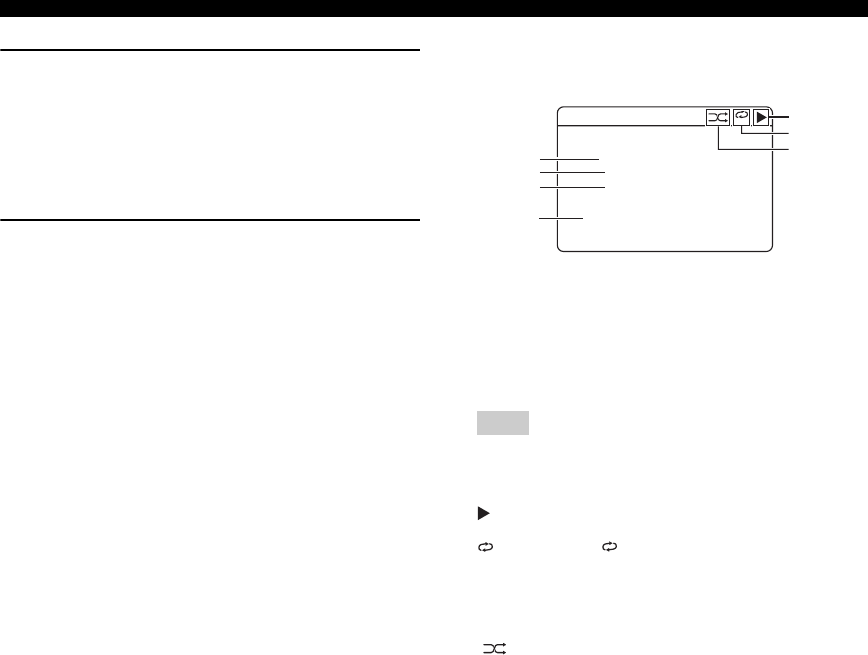

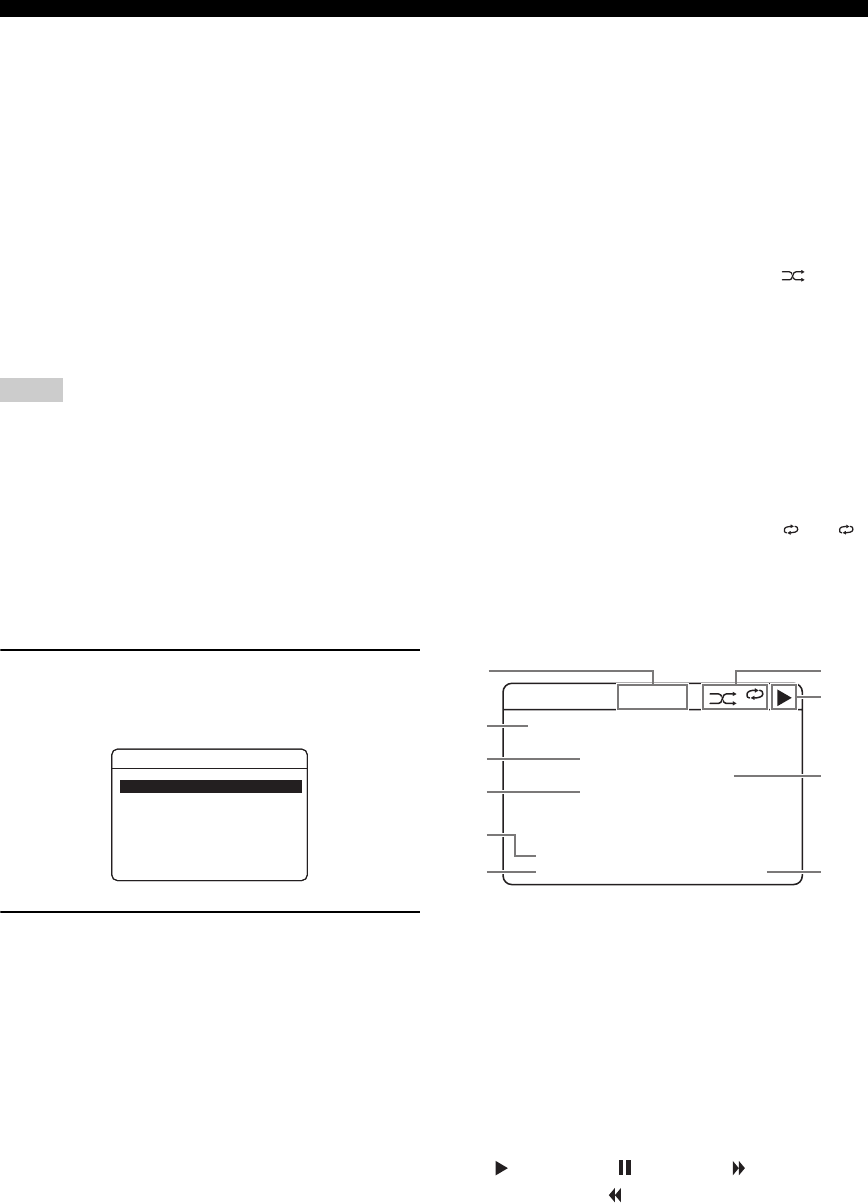

■The function of the play information

display

[1] Name of the artist

[2] Name of the album

[3] Name of the song

[4] Elapsed time

When the elapsed time exceed “99:59”, “--:--” appeared

instead of the time.

[5] (playback) icon

[6] (all repeat), (single repeat) icons

When “REPEAT” of the “USB PLAY STYLE” in “OPTION

MENU” (see page 62) is set to “OFF”, no icon appears in the

top right corner while files or folders are being played.

[7] (shuffle) icon

When “SHUFFLE” of the “USB PLAY STYLE” in

“OPTION MENU” (see page 62) is set to “OFF”, no icon

appears in the top right corner while files or holders are being

played.

Note

USB [Play]

FrankieZipper

. Made-to-orderaaaaaAA

;RoadtoIndiaaaAAAA

00:00

All

[1]

[2]

[3]

[4]

[5]

[6]

[7]

All 1

01EN_DSP-AX563_B.book Page 44 Friday, February 1, 2008 11:08 AM

USING IPOD™

45 En

English

BASIC

OPERATION

Once you have stationed your iPod in a Yamaha iPod universal dock (such as YDS-10, sold separately) connected to the

DOCK terminal of this unit (see page 20), you can enjoy playback of your iPod using the supplied remote control. You

can also use the Compressed Music Enhancer mode of this unit to improve the sound quality of the compression artifacts

(such as the MP3 format) stored on your iPod (see page 20).

• Only iPod (Click and Wheel), iPod nano, and iPod mini are supported.

• Some features may not be compatible depending on the model or the software version of your iPod.

• For a complete list of status messages that appear in the front panel display and in the OSD, see the “iPod” section in

“Troubleshooting” on page 73.

• Once your iPod is stationed in a Yamaha iPod universal dock, this unit begins signal transmission with your iPod.

• Once the connection between your iPod and this unit is complete, “iPod connected” appears in the front panel display and the DOCK

indicator lights up in the front panel display.

• Only the analog audio and video signals of your iPod are input at the DOCK terminal, and the analog audio signals can be output at the

analog AUDIO OUT (REC) jacks for recording.

You can control your iPod when “V-AUX” is selected as the input source. The operations of your iPod can be done with

the aid of the OSD of this unit (menu browse mode) or without it (simple remote mode).

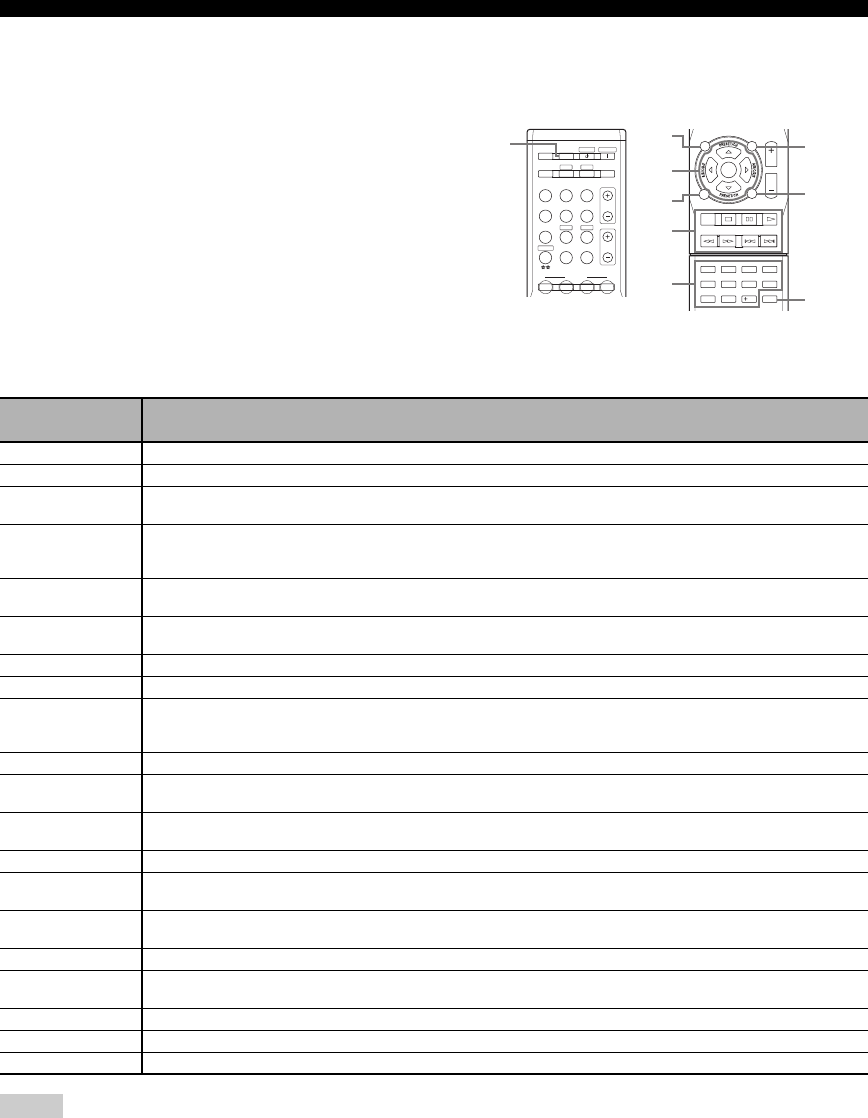

■Remote control operation ■Controlling iPod in the simple remote

mode

You can perform the basic operations of your iPod (play,

stop, skip, etc.) using the supplied remote control without

the aid of the OSD of this unit.

• You can view the photos or video clips stored on your iPod

(some models only).

• Operations can be also done with the controls on your iPod.

Using iPod™

Notes

Controlling iPod™

Before performing the following operations, press

3V-AUX/DOCK.

Button Function

7ENTER Subsequent menu

kMenu up

nMenu down

lPrevious menu

hSubsequent menu

9ll Search backward (Press and hold)

hh Search forward (Press and hold)

bSkip backward

aSkip forward

sStop

ePause (Menu browse mode)

Play/Pause (Simple remote mode)

pPlay (Menu browse mode)

Play/Pause (Simple remote mode)

KMENU Previous menu

MDISPLAY Display

01EN_DSP-AX563_B.book Page 45 Friday, February 1, 2008 11:08 AM

46 En

Using iPod™

■Controlling iPod in the menu browse

mode

You can perform the advanced operations of your iPod

using the supplied remote control when you connect this

unit and a monitor using the S VIDEO or VIDEO

connection. You can browse the songs stored on your iPod

in the OSD. Further, you can change or adjust settings for

your iPod to suit your personal preferences.

• The name of the song being played also appears in the front

panel display according to the “FL SCROLL” parameter in

“OPTION MENU” (see page 60).

• You can select the amount of time the iPod menu and play

information is displayed in the OSD by using the

“OSD-SOURCE” in “OPTION MENU” (see page 60)

• Operations cannot be done with the controls on your iPod.

• The Yamaha logo appears in the display window of your iPod.

• There are some characters that cannot be displayed in the front

panel display or in the OSD of this unit. Those characters are

replaced with underscores “_”.

• The “Settings” parameters can be changed or adjusted only in

the OSD. Press 7ENTER repeatedly to toggle between the

“Settings” parameter settings.

• You cannot browse the photos or video clips stored on your

iPod in the OSD. Use the simple remote mode to enjoy

watching the photos or video clips stored on your iPod.

1Press 3V-AUX/DOCK and then

MDISPLAY.

The following display appears in the OSD.

2Press 7k / n / l / h to navigate the iPod

menu and then press 7ENTER to begin

playback of the selected song.

Choices: Playlists (playlists), Artists (artists), Albums

(albums), Songs (songs), Genres (genres),

Composers (composers), Settings (settings)

• Playlists > Songs

• Artists > Albums > Songs

• Albums > Songs

• Songs

• Genres > Artists > Albums > Songs

• Composers > Albums > Songs

• Settings > Shuffle, Repeat

Shuffle Shuffle

Use this feature to set this unit to play songs or albums in

random order.

Choices: Off, Songs, Albums

• Select “Off” to deactivate this feature.

• Select “Songs” to set this unit to play songs in random

order.

• Select “Albums” to set this unit to play albums in

random order.

When “Shuffle” is set to a setting other than “Off ”, “ ” appears

in the top right corner while songs or albums are being shuffled.

Repeat Repeat

Use this feature to set this unit to repeat one song or a

sequence of songs.

Choices: Off, One, All

• Select “Off” to deactivate this feature.

• Select “One” to set this unit to repeat one song.

• Select “All” to set this unit to repeat a sequence of

songs.

When “Repeat” is set to a setting other than “Off ”, “ ” or “ ”

appears in the top right corner while one song or a sequence of

songs are being repeated.

■The function of the play information

display

[1] Playback status

[2] Track number/total tracks

[3] Artist name

[4] Song title

[5] Progress bar

[6] Elapsed time

[7] Shuffle and repeat icons

[8] (playback), (pausing), (search

forward) and (search backward)

[9] Name of the album

[10] Remaining time

Notes

Playlists

Artists

Albums

Songs

Genres

Composers

Settings

iPod Top

1 All

iPod[Play]

1/9



FrankieZipper

Made-to-order

RoadtoIndia



||;;;;;;;;;;;;;;;;;;

0:51-7:44

All

[2]

[7]

[8]

[9]

[10]

[3]

[4]

[5]

[6]

[1]

01EN_DSP-AX563_B.book Page 46 Friday, February 1, 2008 11:08 AM

USING BLUETOOTH™ COMPONENTS

47 En

English

BASIC

OPERATION

You can connect a Yamaha Bluetooth adapter (such as YBA-10, sold separately) to the DOCK terminal of this unit and

enjoy the music contents stored in your Bluetooth component (such as a portable music player) without wiring between

this unit and the Bluetooth component. You need to perform “pairing” the connected Bluetooth adapter and your

Bluetooth component in advance.

Pairing must be performed when using a Bluetooth

component with the Bluetooth adapter connected to this

unit for the first time or if the pairing data has been

deleted. “Pairing” refers to the operation of registering a

Bluetooth component for Bluetooth communications.

• You only need the pairing operation for the first time that you

use the Bluetooth component with the Bluetooth adapter.

• Pairing requires operations on this unit and on the other

component with which Bluetooth communications are to be

established. If necessary, refer to the other component’s

operating instructions.

There are two pairing methods: pairing by using “START

PAIRING” in “SET MENU” and quick pairing.

■Pairing by using “SET MENU”

Use this feature to perform pairing with the video monitor.

Select “START PAIRING” in “INPUT MENU”. See

page 61 for details.

■Quick pairing

1Press 3V-AUX/DOCK to select “V-AUX” as

the input source.

2Turn on the Bluetooth component you want

to pair with.

3Press and hold 6BAND for 3 seconds to

start pairing.

Once the Bluetooth adapter starts pairing,

“Searching...” appears for a moment. While the

Bluetooth adapter is in the pairing mode, DOCK

indicator flashes in the front panel display.

To cancel the pairing, press or 6BAND again.

If the Bluetooth adapter is not connected to the DOCK

terminal of this unit, “No BT adapter” appears in the front

panel display.

4Check that the Bluetooth component detects

the Bluetooth adapter.

If the Bluetooth component detects the Bluetooth

adapter, “YBA-10 YAMAHA” (example) appears in

the Bluetooth device list.

5Select the Bluetooth adapter in the Bluetooth

device list and then enter the pass key

“0000” on the Bluetooth component.

When the pairing procedure is successful,

“Completed” appears in the front panel display.

The Yamaha Bluetooth adapter can be paired with up to eight

Bluetooth components. When pairing is conducted successfully

with a ninth component and the pairing data is registered, the

pairing data for the least recently used other component is

cleared.

1Press JINPUT l / h repeatedly (or press

3V-AUX/DOCK) to select “V-AUX” as the

input source.

2Start playback of your Bluetooth component.

When the connected Bluetooth adapter detects the

Bluetooth component, “BT connected” and the

DOCK indicator appears in the front panel display.

• When you press 7ENTER, the connected Bluetooth adapter

searches and connect to the last connected Bluetooth

component. If the Bluetooth adapter cannot find the Bluetooth

component, “Not found” appears in the front panel display.

• To disconnect the Bluetooth adapter from the Bluetooth

component, press 8RETURN.

Using Bluetooth™ components

Pairing the Bluetooth™ adapter

and your Bluetooth™ component

To ensure security, a time limit of 8 minutes is set for the

pairing operation. You are recommended to read and fully

understand all the instructions before starting.

Note

Playback of the Bluetooth™

component

01EN_DSP-AX563_B.book Page 47 Friday, February 1, 2008 11:08 AM

RECORDING

48 En

Recording adjustments and other operations are performed from the recording components. Refer to the operating

instructions for those components.

• When this unit is set to the standby mode, you cannot record between other components connected to this unit.

• TONE CONTROL (see page 41) and VOLUME settings, speaker levels (see page 41) and the sound field programs (see page 38) do

not affect recorded material.

• The source connected to the MULTI CH INPUT jacks of this unit cannot be recorded.

• Digital signals input at the DIGITAL INPUT jacks are not output at the analog AUDIO OUT (REC) jacks for recording. Therefore, if

your source component is connected to provide only digital signals, you cannot record the source.

• S-video and composite video signals pass independently through the video circuits of this unit. Therefore, when recording or dubbing

video signals input from a video source component that provides only an S-video or a composite video signal, you can record only an

S-video or a composite video signal on your DVD recorder.

• A given input source is not output on the same OUT (REC) channel.

• The analog audio signals input at the DOCK terminal can be output at the analog AUDIO OUT (REC) jacks for recording.

• Once you have connected a recording component to this unit, keep the component turned on while using this unit. If the component is

turned off, this unit may distort the sound from other components.

• Check the copyright laws in your country to record from CDs, radio, etc. Recording of copyrighted material may infringe copyright

laws.

Do a test recording before you start an actual recording.

1Turn on all the connected components.

2Press JINPUT l / h repeatedly (or press

one of the input selector buttons (3)) to

select the source component you want to

record from.

3Start playback on the selected source

component or select a broadcast station.

4Start recording on the recording component.

Recording

Notes

If you play back a video source that uses scrambled or encoded signals to prevent it from being dubbed, the picture

itself may be disturbed due to those signals.

01EN_DSP-AX563_B.book Page 48 Friday, February 1, 2008 11:08 AM

SET MENU

49 En

English

ADVANCED

OPERATION

You can use the following parameters in “SET MENU” to adjust a variety of system settings and customize the way this

unit operates. Change the initial settings (indicated in bold under each parameter) to reflect the needs of your listening

environment.

■Auto setup AUTO SETUP

Use this feature to automatically adjust speaker and system parameters (see page 24).

■Manual setup MANUAL SETUP

Use this feature to manually adjust speaker and system parameters.

Sound menu 1 SOUND MENU

Input menu 2 INPUT MENU

SET MENU

Parameter Features Page

A)SPEAKER SET

Selects the size of each speaker, the speakers for low-frequency signal output, and the

crossover frequency, and the location of the front speakers connected to the FRONT B

terminals.

B)SP LEVEL Adjusts the output level of each speaker. 53

C)SP DISTANCE Adjusts the delay time of each speaker. 54

D)CENTER GEQ Adjusts the tonal quality of the center speaker. 54

E)LFE LEVEL Adjusts the output level of the LFE channel for Dolby Digital or DTS signals. 54

F)DYNAMIC RANGE Adjusts the dynamic range of Dolby Digital or DTS signals. 55

G)AUDIO SET Adjusts the muting level, audio delay, maximum volume level and initial volume level. 55

H)HDMI SET Selects whether to play back HDMI audio signals on this unit or on another HDMI

component connected to the HDMI OUT jack. 56

I)EXTD SUR.

Use this feature to enjoy 6.1/7.1-channel playback for multi-channel sources using the

Dolby Pro Logic IIx, Dolby Digital EX, or DTS-ES decoders by using the connected

surround back speakers.

Parameter Features Page

A)I/O ASSIGNMENT Assigns the input/output jacks of this unit according to the component to be used. 57

B)INPUT RENAME Changes the name of the input source. 58

C)VOLUME TRIM Adjusts the output volume of each input source. 58

D)DECODER MODE Selects the decoder mode for the sources connected to the DIGITAL INPUT jacks on the

rear panel of this unit. 58

E)MULTI CH SET Selects the video source played in the background of the sources input from the MULTI CH

INPUT jacks. 59

01EN_DSP-AX563_B.book Page 49 Friday, February 1, 2008 11:08 AM

50 En

SET MENU

Option menu 3 OPTION MENU

■Signal information SIGNAL INFO

Use this feature to check audio signal information (see page 36).

Use the remote control to access and adjust each

parameter.

You can change the “SET MENU” parameters while this unit is

reproducing sound.

1Press 4AMP and then press KMENU to

enter “SET MENU”.

The top “SET MENU” display appears in the OSD.

2Press 7k / n to select “MANUAL SETUP”.

3Press 7ENTER to enter “MANUAL SETUP”.

The “MANUAL SETUP” display appears in the

OSD.

4Press 7k / n / l / h and 7ENTER to select

and change the parameter.

•Press

7 k / n to select the desired menu or

parameter.

•Press

7 l / h to change the parameter value.

•Press

7ENTER to enter the selected menu or to

confirm the parameter.

•Press

8RETURN to return to the previous menu

level.

5Press KMENU to exit from “SET MENU”.

Parameter Features Page

A)DISPLAY SET Adjusts the brightness of the front panel display and the way in which iPod information is

displayed. 59

B)MEMORY GUARD Locks sound field program parameters and other “SET MENU” settings. 60

C)AUDIO SELECT Designates the default audio input jack select setting for the input sources connected to the

DIGITAL INPUT jacks when you turn on the power of this unit. 60

D)PARAM. INI Initializes the parameters of a group of sound field programs. 61

E)BLUETOOTH SET Pair the connected Yamaha Bluetooth adapter (such as YBA-10, sold separately) with a

Bluetooth component (see page 47). 61

F)USB PLAY STYLE Adjusts the playback style of a USB source. 62

Using SET MENU

SET MENU

TOPAMENU

.;AUTO SETUP

.A;MANUAL SETUP

;SIGNAL INFO

[ ]/[ ]:Up/Down

[ENTER]:Enter

SET MENU

TOPAMENU

;AUTO SETUP

.A;MANUAL SETUP

;SIGNAL INFO

[ ]/[ ]:Up/Down

[ENTER]:Enter

;MANUAL SETUP

.1 SOUND MENU

2 INPUT MENU

3 OPTION MENU

[ ]/[ ]:Up/Down

[ENTER]:Enter

01EN_DSP-AX563_B.book Page 50 Friday, February 1, 2008 11:08 AM

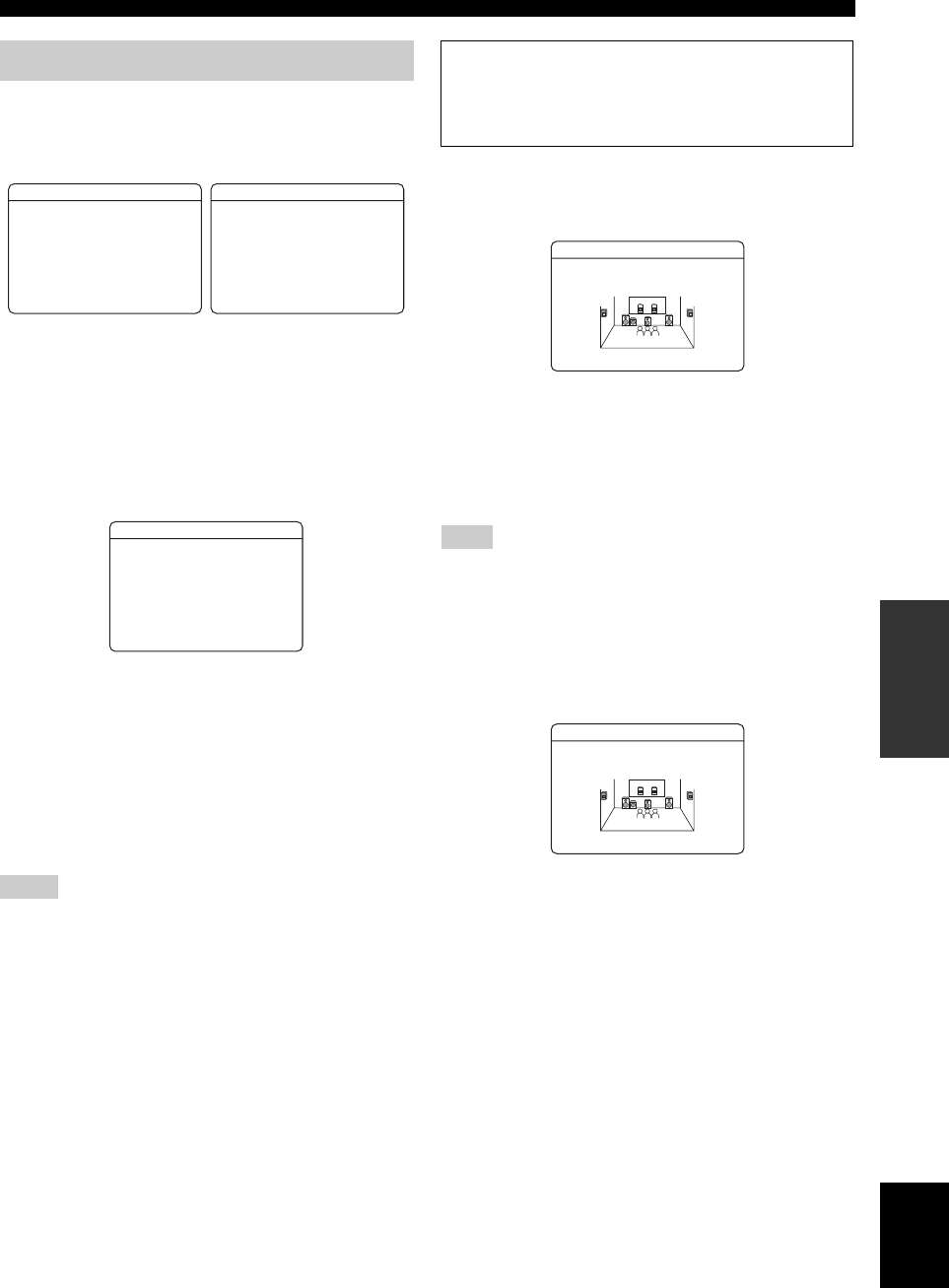

51 En

SET MENU

English

ADVANCED

OPERATION

Use this menu to manually adjust any speaker settings or

compensate for video signal processing delays when using

LCD monitors or projectors.

■Speaker settings A)SPEAKER SET

Use this feature to manually adjust any speaker settings.

FRONT B speaker setting FRONT B

Use this feature to select the location of the front speakers

connected to the FRONT B terminals.

Choices: FRONT, ZONE B

• Select “FRONT” to turn on or off SPEAKERS A and B

when the speakers connected to the FRONT B

terminals are set in the main zone.

• Select “ZONE B” if the speakers connected to the

FRONT B terminals are set in another zone. If

SPEAKERS A is turned off and SPEAKERS B is

turned on, all the speakers including the subwoofer in

the main zone are muted and this unit outputs sound at

the FRONT B terminals only.

• If you connect headphones to the PHONES jack of this unit, the

sound is output from both headphones and the FRONT B

terminals when “FRONT B” is set to “ZONE B”.

• If a DSP program is selected when “FRONT B” is set to

“ZONE B”, this unit automatically enters the Virtual CINEMA

DSP mode (see page 39).

Front speakers FRONT SP

Choices: SMALL, LARGE

When the front speakers are large

Select “LARGE” (large).

When the front speakers are small

Select “SMALL” (small).

When “LFE/BASS OUT” is set to “FRONT” (see page 52), you

can select only “LARGE” in “FRONT SP”. If the value of

“FRONT SP” is set to a setting other than “LARGE” in advance,

this unit automatically changes the value to “LARGE”.

Center speaker CENTER SP

Choices: NONE, SML, LRG

When the center speaker is large

Select “LRG” (large).

When the center speaker is small

Select “SML” (small).

When you do not use the center speaker

Select “NONE” (none). The center channel signals are

directed to the front left and right speakers.

1 SOUND MENU

Notes

;MANUAL SETUP

1 SOUND MENU 1/2

.A)SPEAKER SET

B)SP LEVEL

C)SP DISTANCE

D)CENTER GEQ

E)LFE LEVEL

[ ]/[ ]:Up/Down

[ENTER]:Enter

;MANUAL SETUP

1 SOUND MENU 2/2

.F)DYNAMIC RANGE

G)AUDIO SET

H)HDMI SET

I)EXTD SUR.

[ ]/[ ]:Up/Down

[ENTER]:Enter

1 SOUND MENU

A)SPEAKER SET

FRONT B;;;;FRONT

[ ]/[ ]:Up/Down

[ ]/[ ]:Select

Woofer section of a speaker is 16 cm (6.5 in) or larger:

large

Woofer section of a speaker is smaller than 16 cm

(6.5 in): small

Note

1 SOUND MENU

A)SPEAKER SET

FRONT SP

SMALL >LARGE

1 SOUND MENU

A)SPEAKER SET

CENTER SP

NONE >SML LRG

01EN_DSP-AX563_B.book Page 51 Friday, February 1, 2008 11:08 AM

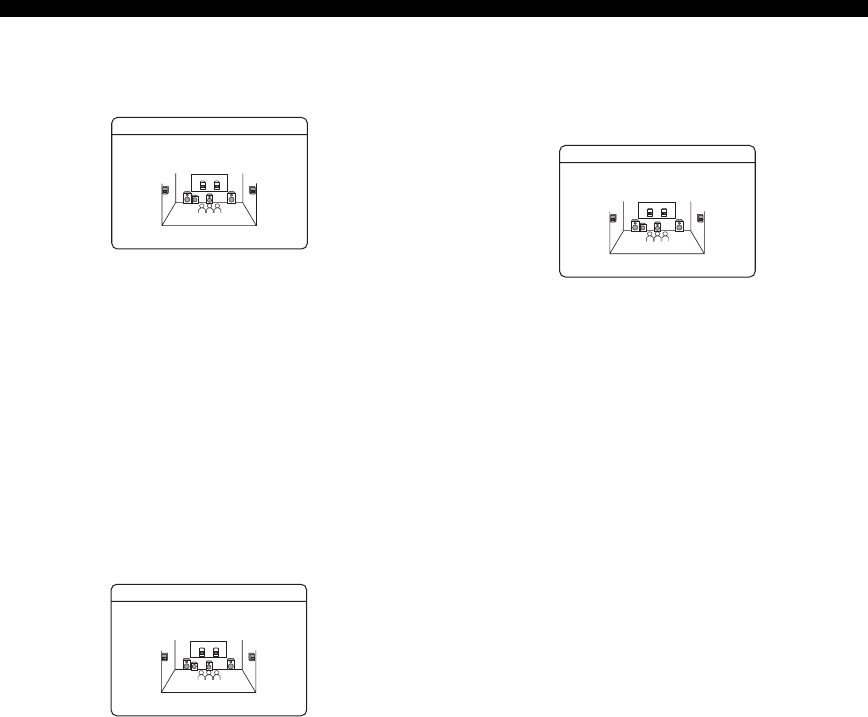

52 En

SET MENU

Surround left/right speakers SUR. L/R SP

Choices: NONE, SML, LRG

When the surround speakers are large

Select “LRG” (large).

When the surround speakers are small

Select “SML” (small).

When you do not use the surround speakers

Select “NONE” (none). This unit is set to the Virtual

CINEMA DSP mode (see page 39).

Surround back left/right speakers

SUR.B L/R SP

Choices: NONE, SMLx1, SMLx2, LRGx1, LRGx2

When the surround back left and right

speakers are large

Select “LRGx2” (large x 2).

When the single surround back speaker is

large

Select “LRGx1” (large x 1).

When the surround back left and right

speakers are small

Select “SMLx2” (small x 2).

When the single surround back speaker is

small

Select “SMLx1” (small x 1).

When you do not use the surround back

speakers

Select “NONE” (none). The surround back channel

signals are directed to the surround left and right

speakers.

LFE Bass out LFE/BASS OUT

Use this feature to select the speakers that output the LFE

(low-frequency effect) and the low-frequency signals.

Choices: SWFR, FRNT, BOTH

When a subwoofer is connected to this unit

and you want to get natural bass sound

Select “SWFR” (subwoofer). The LFE signals as well

as the low-frequency signals of other speakers set to

“SML” (or “SMALL”) are directed to the subwoofer.

When a subwoofer is connected to this unit

and you want to get rich bass sound

Select “BOTH” (both). The low-frequency signals of

any source are output from the subwoofer. The LFE

signals as well as the low-frequency signals of other

speakers set to “SML” (or “SMALL”) are directed to

the subwoofer. The low-frequency signals of the front

left and right channels are directed to the front left and

right speakers and the subwoofer regardless of the

“FRONT SP” setting (see page 51).

When you do not use a subwoofer

Select “FRNT” (front). The LFE signals, the low-

frequency signals of the front left and right channels,

and the low-frequency signals of other speakers set to

“SML” (or “SMALL”) are all directed to the front left

and right speakers regardless of the “FRONT SP”

setting (see page 51).

1 SOUND MENU

A)SPEAKER SET

SUR. L/R SP

NONE >SML LRG

1 SOUND MENU

A)SPEAKER SET

SUR.B L/R SP

NONE >SMLx1 SMLx2

1 SOUND MENU

A)SPEAKER SET

LFE/BASS OUT

SWFR FRNT>BOTH

01EN_DSP-AX563_B.book Page 52 Friday, February 1, 2008 11:08 AM

53 En

SET MENU

English

ADVANCED

OPERATION

Crossover CROSS OVER

Use this feature to select the crossover frequency of all the

speakers set to “SML” (or “SMALL”) in “SPEAKER

SET” (see page 51). All frequencies below the selected

frequency will be sent to the subwoofer or front speakers

depending on the setting of “LFE/BASS OUT” in

“SPEAKER SET” (see page 51).

Choices: 40Hz, 60Hz, 80Hz, 90Hz, 100Hz, 110Hz,

120Hz, 160Hz, 200Hz

Subwoofer phase SUBWOOFER PHASE

Use this feature to switch the phase of your subwoofer if

bass sounds are lacking or unclear.

Choices: NORMAL, REVERSE

• Select “NORMAL” if you do not want to reverse the

phase of your subwoofer.

• Select “REVERSE” to reverse the phase of your

subwoofer.

■Speaker level B)SP LEVEL

Use this feature to manually adjust the output level of each

speaker.

Control range: –10 to +10 dB

Control step: 1 dB

Initial setting: 0 dB

• The available speaker channels differ depending on the setting

of the speakers.

• Instead of “SBL” and “SBR”, “SUR.B” is displayed if “SUR.B

L/R SP” is set to either “SMLx1” or “LRGx1” (see page 52).

1 SOUND MENU

A)SPEAKER SET

CROSSOVER

FREQ;;;80Hz

1 SOUND MENU

A)SPEAKER SET

SUBWOOFER PHASE

>NORMAL REVERSE

SP LEVEL Adjusted speaker

FR.L Front left speaker

FR.R Front right speaker

CNTR Center speaker

SWFR Subwoofer

SUR.L Surround left speaker

SUR.R Surround right speaker

SBL Surround back left speaker

SBR Surround back right speaker

Notes

1 SOUND MENU

B)SP LEVEL 1/2

-__________+

.FR.L

FR.R

CNTR

SWFR

1 SOUND MENU

B)SP LEVEL 2/2

-__________+

.SUR.L

SUR.R

SBL

SBR

01EN_DSP-AX563_B.book Page 53 Friday, February 1, 2008 11:08 AM

54 En

SET MENU

■Speaker distance C)SP DISTANCE

Use this feature to manually adjust the distance of each

speaker and the delay applied to the respective channel.

Ideally, each speaker should be the same distance from the

main listening position. However, this is not possible in

most home situations. Thus, a certain amount of delay

must be applied to the sound from each speaker so that all

sounds will arrive at the listening position at the same

time.

Unit UNIT

Choices: meters (m), feet (ft)

Initial setting: meters (m)

• Select “meters” to adjust speaker distances in meters.

• Select “feet” to adjust speaker distances in feet.

Speaker distances

Control range: 0.30 to 24.00 m (1.0 to 80.0 ft)

Control step: 0.10 m (0.5 ft)

Initial setting:

FRONT L/FRONT R/SWFR: 3.00 m (10.0 ft)

CENTER: 2.60 m (8.5 ft)

SUR. L/SUR. R/SB L/SB R: 2.40 m (8.0 ft)

• The available speaker channels differ depending on the setting

of the speakers.

• Instead of “SB L” and “SB R”, “SUR.B” is displayed if

“SUR.B L/R SP” is set to either “SMLx1” or “LRGx1” (see

page 52).

■Center speaker equalizer D)CENTER GEQ

Use this feature to adjust the built-in 5-frequency band

(100Hz, 300Hz, 1kHz, 3kHz and 10kHz) graphic

equalizer for the center channel so that the tonal quality of

the center speaker matches that of the front speakers. You

can make adjustments while listening to the currently

selected source component or a test tone.

Control range: –6.0 to +6.0 dB

Control step: 0.5 dB

Initial setting: 0 dB

Test tone TEST

Use this feature to make adjustments for “CENTER GEQ”

while listening to a test tone.

Choices: OFF, ON

• Select “OFF” to stop test tones and output the currently

selected source component.

• Select “ON” to output test tones from the center and

front left speakers.

■Low-frequency effect level E)LFE LEVEL

Use this feature to adjust the output level of the LFE (low-

frequency effect) channel according to the capacity of

your subwoofer or headphones. The LFE channel carries

low-frequency special effects which are only added to

certain scenes. This setting is effective when the input

signal contains the LFE channel.

Control range: –20 to 0 dB

Control step: 1 dB

Speaker SPEAKER

Adjusts the speaker LFE level.

Headphone HEADPHONE

Adjusts the headphone LFE level.

Depending on the settings of “LFE/BASS OUT” (see page 52),

some signals may not be output at the SUBWOOFER OUTPUT

jack.

SP DISTANCE Adjusted speaker

FRONT L Front left speaker

FRONT R Front right speaker

CENTER Center speaker

SWFR Subwoofer

SUR. L Surround left speaker

SUR. R Surround right speaker

SB L Surround back left speaker

SB R Surround back right speaker

Notes

1 SOUND MENU

C)SP DISTANCE 1/2

.UNIT;;;;;;meters

FRONT L;;;;3.00m

FRONT R;;;;3.00m

CENTER;;;;;2.60m

SWFR;;;;;;;3.00m

[ ]/[ ]:Up/Down

[ ]/[ ]:Adjust

1 SOUND MENU

C)SP DISTANCE 2/2

.SUR. L;;;;;3.00m

SUR. R;;;;;3.00m

[ ]/[ ]:Up/Down

[ ]/[ ]:Adjust

Note

1 SOUND MENU

D)CENTER GEQ

TEST >OFF ON

.100Hz ;;;;;; 0dB

300Hz ;;;;;; 0dB

1kHz ;;;;;; 0dB

3kHz ;;;;;; 0dB

10kHz ;;;;;; 0dB

[ ]/[ ]:Up/Down

[ ]/[ ]:Adjust

E)LFE LEVEL

.SPEAKER;;;;;;0dB

HEADPHONE;;;;0dB

[ ]/[ ]:Up/Down

[ ]/[ ]:Adjust

1 SOUND MENU

01EN_DSP-AX563_B.book Page 54 Friday, February 1, 2008 11:08 AM

55 En

SET MENU

English

ADVANCED

OPERATION

■Dynamic range F)DYNAMIC RANGE

Use this feature to select the amount of dynamic range

compression to be applied to your speakers or

headphones. This setting is effective only when this unit is

decoding Dolby Digital and DTS signals.

Speaker SPEAKER

Adjusts the speaker compression.

Headphone HEADPHONE

Adjusts the headphone compression.

Choices: MIN, STD, MAX

• Select “MIN” (minimum) if you regularly listen at low

volume levels.

• Select “STD” (standard) for general use.

• Select “MAX” (maximum) to preserve the greatest

amount of dynamic range.

■Audio settings G)AUDIO SET

Use this feature to adjust the overall audio settings of this

unit.

Mute type MUTE TYPE

Use this feature to adjust how much the mute function

reduces the output volume (see page 35).

Choices: FULL, –20dB

• Select “FULL” to completely mute all the audio

output.

• Select “–20dB” to reduce the current volume by 20 dB.

Audio delay A.DELAY

Use this feature to delay the sound output and synchronize

it with the video image. This may be necessary when

using certain LCD monitors or projectors.

Control range: 0 to 160 ms

Control step: 1 ms

Maximum volume MAX VOL.

Use this feature to set the maximum volume level. This

feature is useful to avoid the unexpected loud sound by

mistake. For example, the original volume range is –80dB

to +16 dB. However, when “MAX VOL.” is set to –5 dB,

the volume range becomes –80 dB to –5 dB.

Control range: +10 dB to –30 dB, +16 dB

Control step: 5 dB

The “MAX VOL.” setting takes priority over the “Initial Volume”

setting. For example, if “INIT.VOL.” is set to –20 dB and “MAX

VOL.” is set to –30 dB, the volume level is automatically set to

–30 dB when you turn on the power of this unit next time.

Initial volume INIT.VOL.

Use this feature to set the volume level when the power of

this unit is turned on.

Choices: OFF, MUTE, –80 dB to +16 dB

Control step: 1 dB

The “MAX VOL.” setting takes priority over the “INIT.VOL.”

setting.

F)DYNAMIC RANGE

.SPEAKER;;;;;;MAX

HEADPHONE;;;;MAX

[ ]/[ ]:Up/Down

[ ]/[ ]:Adjust

1 SOUND MENU

G)AUDIO SET

.MUTE TYPE;;;FULL

A.DELAY;;;;;;0ms

MAX VOL.;;;+16dB

INIT.VOL.;;;;OFF

[ ]/[ ]:Up/Down

[ ]/[ ]:Select

1 SOUND MENU

Note

01EN_DSP-AX563_B.book Page 55 Friday, February 1, 2008 11:08 AM

56 En

SET MENU

■HDMI set H)HDMI SET

Use this feature to select the component to play back

HDMI audio signals.

Support audio SUPPORT AUDIO

Use this feature to select whether to play back HDMI

audio signals on this unit or on another HDMI component

connected to the HDMI OUT jack on the rear panel of this

unit.

• This unit transmits audio and video signals input at the HDMI

input jacks to the HDMI out jack only when this unit is turned

on even if “SUPPORT AUDIO” is set to “Other”.

• Available audio/video signals depend on the specification of the

connected video monitor. Refer to the instruction manual of

each connected component.

■Extended surround I)EXTD SUR.

Extended decoder select mode

Use this feature to designate the extended decoder mode

for the input sources connected to the DIGITAL INPUT

jacks when you turn on the power of this unit.

Choices: AUTO, LAST

• Select “AUTO” if you want this unit to automatically

detect the digital audio input signal and activate the

appropriate decoder.

• Select “LAST” if you want this unit to automatically

select the last decoder mode set for “EXTD SUR.”.

Extended decoder specifying

Use this feature to enjoy 6.1/7.1-channel playback for

multi-channel sources using the Dolby Pro Logic IIx,

Dolby Digital EX, or DTS-ES decoders by using the

connected surround back speakers.

Choice Functions

DSP-AX563 Plays back HDMI audio signals on this unit. The

HDMI audio signals input at the HDMI input

jacks of this unit are not output to the HDMI

component connected to the HDMI OUT jack on

the rear panel of this unit.

Other Plays back HDMI audio signals on another

HDMI component connected to the HDMI OUT

jack.

Notes

H)HDMI SET

SUPPORT AUDIO:

DSP-AX563

[ ]/[ ]:Select

[ENTER]:Return

1 SOUND MENU

Choice Functions

AUTO Activates the optimum decoder to play back

signals in 6.1/7.1 channels when this unit

recognizes a signal flag being input.

PLIIxMovie

(when 2 surround

back speakers are

used.)

Plays back Dolby Digital or DTS signals in

7.1 channels using the Pro Logic IIx movie

decoder.

PLIIxMusic Plays back Dolby Digital or DTS signals in

6.1/7.1 channels using the Pro Logic IIx

music decoder.

EX/ES Plays back Dolby Digital or DTS signals in

6.1/7.1 channels using the Dolby Digital EX

or DTS-ES decoder.

OFF Does not use any decoders to create 6.1/7.1

channels.

I)EXTD SUR.

.>AUTO LAST

EXTD SUR.;;;;;;AUTO

[ ]/[ ]:Select

[ENTER]:Return

1 SOUND MENU

01EN_DSP-AX563_B.book Page 56 Friday, February 1, 2008 11:08 AM

57 En

SET MENU

English

ADVANCED

OPERATION

Use this menu to reassign the input jacks, select the

decoder mode or rename the input source.

■Input and output assignment

A)I/O ASSIGNMENT

Use this feature to assign the input jacks according to the

component to be used if the initial settings of this unit do

not correspond to your needs. Change the following

parameters to reassign the respective jacks and effectively

connect more components.

Once the input jacks are reassigned, you can select the

corresponding component by using RINPUT l / h (or

the input selector buttons (3)).

For COAXIAL INPUT jack 1

COAXIAL IN (1)

Choices: (1) CD, MD/CD-R, DVD, DTV/CBL,

V-AUX, DVR

For OPTICAL INPUT jacks 2 and 3

OPTICAL IN (2)

OPTICAL IN (3)

Choices: (2) CD, MD/CD-R, DVD, DTV/CBL,

V-AUX, DVR

(3) CD, MD/CD-R, DVD, DTV/CBL,

V-AUX, DVR

You cannot select a specific item more than once.

For OPTICAL OUTPUT jack 4

OPTICAL OUT (4)

Choices: (4) MD/CD-R, DTV/CBL, V-AUX, DVR

For HDMI jacks 1 and 2

HDMI IN [1]

HDMI IN [2]

Choices: [1] DVD, DTV/CBL, V-AUX, DVR

[2] DVD, DTV/CBL, V-AUX, DVR

2 INPUT MENU

Note

;MANUAL SETUP

2 INPUT MENU

.A)I/O ASSIGNMENT

B)INPUT RENAME

C)VOLUME TRIM

D)DECODER MODE

E)MULTI CH SET

[ ]/[ ]:Up/Down

[ENTER]:Enter

A)I/O ASSIGNMENT

COAXIAL IN

.(1);;;;; DVD

( DVD )

[ ]/[ ]:Select

2 INPUT MENU

A)I/O ASSIGNMENT

OPTICAL IN

.(2);;;;;DTV/CBL

(DTV/CBL )

(3);;;;; CD

(CD)

[ ]/[ ]:Select

2 INPUT MENU

A)I/O ASSIGNMENT

OPTICAL OUT

.(4);;;;;MD/CD-R

(MD/CD-R )

[ ]/[ ]:Select

2 INPUT MENU

A)I/O ASSIGNMENT

HDMI IN

.[IN1];;; DVD

( DVD )

[IN2];;;DTV/CBL

(DTV/CBL )

[ ]/[ ]:Select

2 INPUT MENU

01EN_DSP-AX563_B.book Page 57 Friday, February 1, 2008 11:08 AM

58 En

SET MENU

■Input rename B)INPUT RENAME

Use this feature to change the name of the input source

that appears in the OSD and in the front panel display.

1Press one of the input selector buttons (3)

or DMULTI CH IN to select the input

source you want to change the name of.

2Press 4AMP and then press 7l / h on the

remote control to place the “_” (underscore)

under the space or the character you want to

edit.

3Press 7k / n to select the character you

want to use and then press 7l / h to move

to the next space.

• You can use up to 8 characters for each input.

•Press

7n to change the character in the following order,

or press 7k to go in the reverse order:

A to Z, a space, 0 to 9, a space, a to z, a space, symbols (#,

*, –, +, etc.)

4Repeat steps 1 through 3 to rename each

input source.

5Press 7ENTER to exit from “INPUT

RENAME”.

■Volume trim C)VOLUME TRIM

Use this feature to adjust the output volume of each

source. This is useful if you want to balance the level of

each input source to avoid sudden changes in volume

when switching between input sources.

Choices: CD, MD/CD-R, TUNER, DVD,

DTV/CBL, V-AUX, DVR, DOCK, USB,

MULTI CH

Control range: –6.0 to +6.0 dB

Control step: 1.0 dB

Initial setting: 0.0 dB

You can only adjust the value for DOCK when your iPod is

stationed in the Yamaha Universal Dock connected to this unit.

■Decoder mode D)DECODER MODE

Decoder select mode

Use this feature to designate the default decoder mode for

the input sources connected to the DIGITAL INPUT jacks

when you turn on the power of this unit.

Choices: AUTO, LAST

• Select “AUTO” if you want this unit to automatically

detect the type of input signals and select the

appropriate decoder mode.

• Select “LAST” if you want this unit to automatically

select the last decoder mode used the connected input

source.

DTS decoder prioritize setting

Choices: AUTO, DTS

• Select “AUTO” if you want this unit to automatically

detect input signal types and select the appropriate

input mode.

• Select “DTS” when you play back a DTS-CD.

Notes

B)INPUT RENAME

DVD -> DVD

[ ]/[ ]:Position

[ ]/[ ]:Chara.

2 INPUT MENU

MULTI CH IN

DVD

V-AUX/DOCK

DTV/CBL DVR

CD MD/CD-R TUNER

USB

Note

C)VOLUME TRIM

DVD

DVD ;;;;;0.0dB

[ ]/[ ]:Adjust

[RETURN]:Exit

2 INPUT MENU

D)DECODER MODE

.>AUTO LAST

CD ;;;;AUTO

DVD ;;;;AUTO

DTV/CBL ;;;;AUTO

[ ]/[ ]:Up/Down

[ ]/[ ]:Select

2 INPUT MENU

01EN_DSP-AX563_B.book Page 58 Friday, February 1, 2008 11:08 AM

59 En

SET MENU

English

ADVANCED

OPERATION

■Multi channel input setup

E)MULTI CH SET

Background Video BGV

Use this feature to select the video source played in the

background of the sources input at the MULTI CH INPUT

jacks.

Choices: DVD, DTV/CBL, V-AUX, DVR, LAST

Select “LAST” to set this unit to automatically select the last

selected video source as the background video source.

Input channels INPUT CH

Use this setting to select the number of channels input

from an external decoder (see page 19).

Choices: 6CH, 8CH

If the connected component outputs discrete

6-channel audio signals.

Select “6CH”.

If the connected component outputs discrete

8-channel audio signals.

Select “8CH”. Also set “FRONT” (see below) to the

analog audio jacks at which the front left and right

channel signals output from the connected component

are input.

Front left and right channels input jack FRONT

If you selected “8CH” in “INPUT CH”, you can select the

analog audio jacks at which the front left and right channel

signals output from the connected external decoder is

input.

Choices: DVD, DTV/CBL, DVR, V-AUX

“FRONT” parameter appears only when you set “INPUT CH” to

“8CH”.

Use this menu to adjust the optional system parameters.

■Display settings A)DISPLAY SET

Dimmer DIMMER

Use this feature to adjust the brightness of the front panel

display.

Control range: –4 to 0

Control step: 1

• Press 7l to make the front panel display dimmer.

• Press 7h to make the front panel display brighter.

Video conversion VIDEO CONV.

Use this feature to set whether to convert the video signals

input at the VIDEO and S VIDEO jacks.

Choices: ON, OFF

• Select “ON” to convert composite and S-video signals

interchangeably, or to convert composite and S-video

to component video signals.

• Select “OFF” not to convert any signals.

• This unit does not convert 480 line video signals and 576 line

video signals interchangeably.

• The converted video signals are only output at the MONITOR

OUT jacks. When recording a video source, you must make the

same type of video connections between each component.

• When composite video or S-video signals from a VCR are

converted to component video signals, the picture quality may

suffer depending on your VCR.

• Unconventional signals input at the composite video or S-video

jacks cannot be converted or may be output abnormally. In such

cases, set “VIDEO CONV.” to “OFF”.

• When non-standard video signals (such as video signals from a

game console) are input, this unit may not convert the signals

even if you set “VIDEO CONV.” to “ON”.

Note

E)MULTI CH SET

BGV;;;;;;;;;LAST

INPUT CH;;;;;6CH

[ ]/[ ]:Select

2 INPUT MENU

E)MULTI CH SET

BGV;;;;;;;;;LAST

INPUT CH;;;;;8CH

FRONT;;;;;;;;DVD

[ ]/[ ]:Select

2 INPUT MENU

3 OPTION MENU

Notes

;MANUAL SETUP

3 OPTION MENU 1/2

.A)DISPLAY SET

B)MEMORY GUARD

C)AUDIO SELECT

D)PARAM. INI

[ ]/[ ]:Up/Down

[ENTER]:Enter

;MANUAL SETUP

3 OPTION MENU 2/2

E)BLUETOOTH SET

.F)USB PLAY STYLE

[ ]/[ ]:Up/Down

[ENTER]:Enter

A)DISPLAY SET 1/2

DIMMER;;;;;;;;;0

VIDEO CONV;;;;ON

FL SCROLL;;;CONT

[ ]/[ ]:Up/Down

[ ]/[ ]:Select

3 OPTION MENU

A)DISPLAY SET 2/2

.OSD SHIFT;;;;;;0

OSD-SOURCE;;;30s

OSD-AMP;;;;;;30s

[ ]/[ ]:Up/Down

[ ]/[ ]:Select

3 OPTION MENU

01EN_DSP-AX563_B.book Page 59 Friday, February 1, 2008 11:08 AM

60 En

SET MENU

Front panel display scroll FL SCROLL

Use this feature to set whether to display the information

(such as a song title or a channel name) in the front panel

display in a continuous manner or by the first 14

alphanumeric characters after scrolling all characters once

when “DOCK” is selected as the input source.

Choices: CONT, ONCE

• Select “CONT” to display the operation status in the

front panel display in a continuous manner.

• Select “ONCE” to display the operation status in the

front panel display by the first 14 alphanumeric

characters after scrolling all characters once.

OSD shift OSD SHIFT

Use this feature to adjust the vertical position of the OSD.

Control range: –5 (dowmward) to +5 (upward)

Control step: 1

Initial setting: 0

• Press 7l to lower the position of the OSD.

• Press 7h to raise the position of the OSD.

Source feature OSD display time

OSD-SOURCE

Use this feature to set the amount of time to display the

iPod menu in the OSD after you perform a certain

operation.

Choices: ON, 10s, 30s

• Select “ON” to display the OSD unceasingly during an

operation.

• Select “10s” to turn off the OSD 10 seconds after you

perform a certain operation.

• Select “30s” to turn off the OSD 30 seconds after you

perform a certain operation.

Amplifier function OSD display time

OSD-AMP

Use this feature to set the amount of time to display the

status after you perform a certain operation.

Choices: ON, 10s, 30s

• Select “ON” to display the OSD constantly during an

operation.

• Select “10s” to turn off the OSD 10 seconds after you

perform a certain operation.

• Select “30s” to turn off the OSD 30 seconds after you

perform a certain operation.

■Memory guard B)MEMORY GUARD

Use this feature to prevent accidental changes to DSP

program parameter values and other system settings.

Choices: OFF, ON

• Select “OFF” to turn off the “MEMORY GUARD”

feature.

• Select “ON” to protect:

– sound field program parameters

– all “SET MENU” items

– all speaker levels

– SCENE template parameters

When “MEMORY GUARD” is set to “ON”, you cannot select

and adjust any other “SET MENU” items.

■Audio select C)AUDIO SELECT

Use this feature to designate the default audio input jack

select setting for the input sources when you turn on the

power of this unit.

Choices: AUTO, LAST

• Select “AUTO” if you want this unit to automatically

detect the type of input signals and select the

appropriate input mode.

• Select “LAST” if you want this unit to automatically

select the last input mode used for the connected input

source (see page 34).

Note

B)MEMORY GUARD

>OFF ON

[ ]/[ ]:Select

3 OPTION MENU

C)AUDIO SELECT

>AUTO LAST

[ ]/[ ]:Select

3 OPTION MENU

01EN_DSP-AX563_B.book Page 60 Friday, February 1, 2008 11:08 AM

61 En

SET MENU

English

ADVANCED

OPERATION

■Parameter initialization D)PARAM. INI

Use this feature to set all the parameters of the sound field

programs to the initial factory settings.

Choices: NO, YES

• Select “NO” to cancel the parameter initialization and

return to the previous menu screen.

• Select “YES” and press 7ENTER to set all the sound

field parameters to the initial factory settings.

• You cannot automatically revert to the previous parameter

settings once you initialize the sound field program parameters.

• You cannot separately initialize individual sound field

programs.

• You cannot initialize any sound field program groups when

“MEMORY GUARD” is set to “ON”.

■Bluetooth setting E)BLUETOOTH SET

Use this feature to start pairing the connected Yamaha

Bluetooth adapter (such as YBA-10, sold separately) with

your Bluetooth component. For details about the pairing,

refer to “Pairing the Bluetooth™ adapter and your

Bluetooth™ component” on page 47.

17ENTER to start pairing.

The connected Bluetooth adapter starts searching

Bluetooth components. “Searching...” appears in the

video monitor.

2Check that the Bluetooth component detects

the Bluetooth adapter.

If the Bluetooth component the Bluetooth adapter,

“YBA-10 YAMAHA” (example) appears in the

Bluetooth device list.

3Select the Bluetooth adapter in the Bluetooth

device list and then enter the pass key

“0000” on the Bluetooth component.

Once this unit completes the pairing successfully,

“Pairing completed” appears.

To cancel the pairing, press 8RETURN to exit from

“START PAIRING”.

4Press 8RETURN to exit from “START

PAIRING”.

• If the connected Bluetooth adapter cannot find any Bluetooth

components, “Not found” appears.

• If a Bluetooth adapter is not connected to this unit, “No BT

adapter” appears.

Notes

D)PARAM. INI

>NO YES

[ ]/[ ]:Select

[ENTER]:Return

3 OPTION MENU

To ensure security, a time limit of 8 minutes is set for

the pairing operation. You are recommended to read

and fully understand all the instructions before starting.

Notes

3 OPTION MENU

E)BLUETOOTH SET

.START PAIRING

[ENTER]:Enter

01EN_DSP-AX563_B.book Page 61 Friday, February 1, 2008 11:08 AM

62 En

SET MENU

■USB playback styles F)USB PLAY STYLE

Use this feature to adjust the playback style according to

your preference. You can shuffle files in a random order or

repeat one specific file or a sequence of files.

Repeat REPEAT

Use this feature to set this unit to repeat one file or a

sequence of files.

Choices: OFF, SINGLE, ALL

• Select “OFF” to deactivate this feature.

• Select “SINGLE” to set this unit to repeat one file.

• Select “ALL” to set this unit to repeat a sequence of

files.

Shuffle SHUFFLE

Use this feature to set this unit to play files or folders in a

random order.

Choices: OFF, ON

• Select “OFF” to deactivate this feature.

• Select “ON” to set this unit to play files or folders in a

random order.

F)USB PLAY STYLE

REPEAT.......OFF

.SHUFFLE......OFF

[ ]/[ ]:Up/Down

[ ]/[ ]:Select

3 OPTION MENU

01EN_DSP-AX563_B.book Page 62 Friday, February 1, 2008 11:08 AM

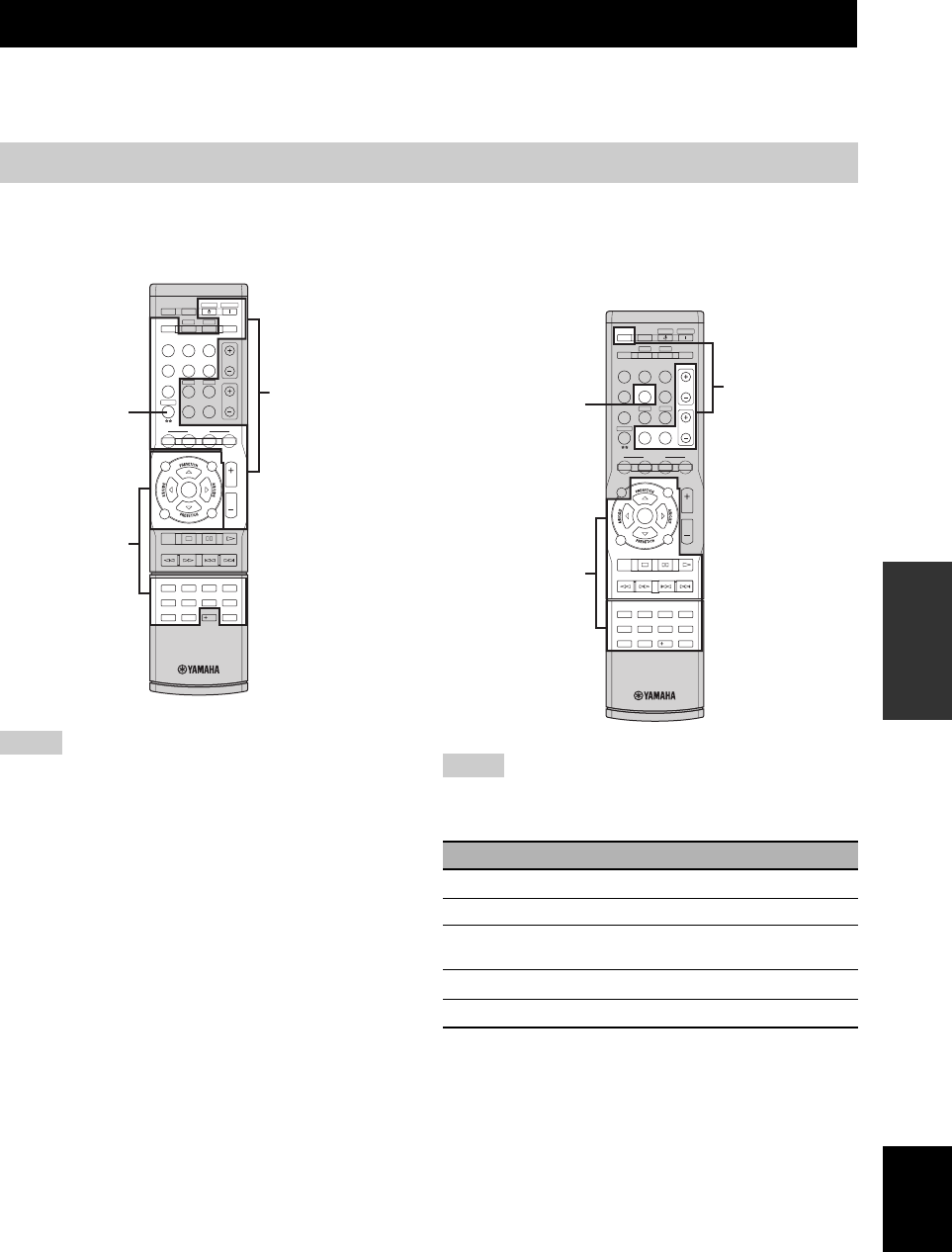

Remote control features

63 En

English

ADVANCED

OPERATION

In addition to controlling this unit, the remote control can also operate other audiovisual components made by Yamaha

and other manufacturers. To control your TV or other components, you must set up the appropriate remote control code

for each input source (see page 65).

■Controlling this unit

Press 4AMP to control this unit.

*1 These buttons always control this unit.

*2 These buttons control this unit only when 4AMP is pressed.

■Controlling a TV

Press 3DTV/CBL to control your TV. To control your

TV, you must set the appropriate remote control code for

DTV/CBL (see page 65).

*1 These buttons always control your TV regardless of whether

you press 3DTV/CBL or not.

*2 These buttons control your TV only when 3DTV/CBL is

pressed. For details, see the “Digital TV/Cable TV” column on

page 64.

You can control more than one TV by setting the appropriate

remote control code for any input source selector buttons other

than 3DTV/CBL. In such a case, you can control the buttons

highlighted above (*1 and *2) when you press the input source

selector button.

Remote control features

Controlling this unit, a TV, or other components

Notes

REC

SUR. DECODE

NIGHT

STRAIGHT DIRECT

PARAMETER

MULTI CH IN AUDIO SEL

SLEEP

ENHANCER

l PROG h

TV MUTE

TV INPUT

TV VOL

TV CH

POWER

AMP

STANDBY

POWER

MUTE

POWER

4321

ENT

DVD

V-AUX/DOCK

C D

DTV/CBL DVR

CD MD/CD-R TUNER

VOLUME

TITLE

ENTER

BAND LEVEL

DISPLAY

AVTV

SCENE

4321

USB

RETURN

MEMORY

FREQ/TEXT EON

MODE - PTY SEEK - START

AMP

Notes

Remote control Digital TV/Cable TV

TV POWER Turns on or off the power.

TV CH +/– Changes the channel number.

TV VOL +/– Increases or decreases the volume

level.

TV INPUT Changes the input source.

TV MUTE Mutes the audio output.

REC

SUR. DECODE

NIGHT

STRAIGHT

MULTI CH IN AUDIO SEL

SLEEP

ENHANCER

l PROG h

TV MUTE

TV INPUT

TV VOL

TV CH

POWER

AMP

STANDBY

POWER

MUTE

POWER

4321

ENT

DVD

V-AUX/DOCK

DTV/CBL DVR

CD MD/CD-R TUNER

VOLUME

TITLE

ENTER

BAND LEVEL

DISPLAY

AVTV

SCENE

4321

USB

DIRECT

PARAMETER

C D

RETURN

MEMORY

FREQ/TEXT EON

MODE - PTY SEEK - START

DTV/CBL

01EN_DSP-AX563_B.book Page 63 Friday, February 1, 2008 11:08 AM

64 En

Remote control features

■Controlling other components

Press one of the input selector buttons (3) or A to D

buttons to control other components. You must set the

appropriate remote control code for each input source in

advance (see page 65). The following table shows the

function of each control button used to control other

components assigned to each input selector button. Be

advised that some buttons may not correctly operate the

selected component.

• The remote control has 13 modes (input areas) to control

components so that the remote control can operate up to 13

different components.

• When you press one of the optional component control area

buttons (A to D), you can control the desired component

without changing the input source of this unit.

*1 This button is operational only when the original remote control supplied with the component has a POWER button.

*2 These buttons operate your DVD recorder only when you set the appropriate remote control code for DVR (see page 65).

TV MUTE

TV INPUT

TV VOL

TV CH

POWER

AMP

STANDBY

POWER

MUTE

POWER

DVD

V-AUX/DOCK

C D

DTV/CBL DVR

CD MD/CD-R TUNER

AVTV

SCENE

4321

USB

REC

SUR. DECODE

NIGHT

STRAIGHT DIRECT

PARAMETER

MULTI CH IN AUDIO SEL

SLEEP

ENHANCER

l PROG h

4321

ENT

VOLUME

TITLE

ENTER

BAND LEVEL

DISPLAY

RETURN

MEMORY

FREQ/TEXT EON

MODE - PTY SEEK - START

[2]

[8]

[9]

[7]

[3]

[4]

[6]

[5]

[1]

Remote control DVD player/

recorder VCR Digital TV/

Cable TV LD player CD player MD/CD

recorder Tun er

[1] AV POWER Power *1 Power *1 Power *2 Power *1 Power *1 Power *1

[2] TITLE Title Band

[3] PRESET/CH kUp VCR channel up Up Preset up (1-8)/

Tuning up

PRESET/CH nDown VCR channel

down Down

Preset down

(1-8)/Tuning

down

A/B/C/D/E l Left Left Preset down

(A-E)

A/B/C/D/E h Right Right Preset up

(A-E)

ENTER Enter Enter Hold

[4] RETURN Return Return Memory

[5] REC Disc skip

(player)

Rec (recorder)

Rec Rec *2 Disc skip Rec

pPlay Play Play *2 Play Play Play

wSearch

backward Search backward Search backward

*2 Search backward Search backward Search backward Information

fSearch forward Search forward Search forward

*2 Search forward Search forward Search forward

ePause Pause Pause *2 Pause Pause Pause

bSkip backward Skip backward Skip backward

*2 Skip backward Skip backward Skip backward Audio program

down

aSkip forward Skip forward Skip forward *2 Skip forward Skip forward Skip forward Audio program

sStop Stop Stop *2 Stop Stop Stop

[6] 1-9, 0, +10 Numeric buttons Numeric buttons Numeric buttons Numeric buttons Numeric buttons Numeric buttons Preset stations

(1-8)

[7] MENU Menu Menu Search mode

[8] DISPLAY Display Display Display Display Display Display Display

[9] ENT Title/Index Enter Enter Chapter/Time Index Index Enter

Notes

01EN_DSP-AX563_B.book Page 64 Friday, February 1, 2008 11:08 AM

65 En

Remote control features

English

ADVANCED

OPERATION

You can control other components by setting the

appropriate remote control codes. For a complete list of

available remote control codes, refer to “List of remote

control codes” at the end of this manual.

Remote control code default settings

You may not be able to operate your Yamaha component even if a

Yamaha remote control code is preset as listed above. In this case,

try setting another Yamaha remote control code.

1While pressing and holding one of the input

selector buttons (3) on the remote control to

select the input area you want to set up,

press 2AV POWER for more than 3

seconds.

2Press the numeric buttons (0 to 9) (F) to

enter the four-digit remote control code for

the component to be used.

When the setting succeeds, “RemoteSetup OK”

appears; however, when it does not, “RemoteSetup

NG” appears in the front panel display.

• If the manufacturer of your component has more than one code,

try each of them until you find the correct one.

• If you do not press any buttons within 30 seconds in step 2, the

setup process is canceled. If this happens, repeat the setup

procedure.

Setting remote control codes

Input

source

Component

category Manufacturer Default

code

CD CD Yamaha 5013

MD/CD-R CD-R Yamaha 5001

TUNER TUNER Yamaha 5007

DVD DVD Yamaha 2000

DTV/CBL — — —

V-AUX TUNER Yamaha 5011

DVR DVR Yamaha 2011

USB TUNER Yamaha 5012

A TUNER Yamaha 5009

B TUNER Yamaha 5017

C TUNER Yamaha 5009

D TUNER Yamaha 5017

Note

Notes

DVD

V-AUX/DOCK

C D

DTV/CBL DVR

CD MD/CD-R TUNER

USB

POWER

While holding down

Press for 3

seconds

01EN_DSP-AX563_B.book Page 65 Friday, February 1, 2008 11:08 AM

Advanced setup

66 En

This unit has additional menus that are displayed in the

front panel display. The advanced setup menu offers

additional operations to adjust and customize the way this

unit operates. Change the initial settings (indicated in bold

under each parameter) to reflect the needs of your

listening environment.

•Only

ASTANDBY/ON, GPROGRAM l / h, and

HSTRAIGHT are effective while you are using the advanced

setup menu.

• No other operations can be made while you are using the

advanced setup menu.

• The advanced setup menu is only available in the front panel

display.

1Press ASTANDBY/ON to set this unit to the

standby mode.

2Press and hold FTONE CONTROL and

then press ASTANDBY/ON to turn on this

unit.

This unit turns on, and the advanced setup menu

appears in the front panel display.

3Press GPROGRAM l / h to select the

parameter you want to adjust.

The name of the selected parameter appears in the

front panel display.

4Press HSTRAIGHT repeatedly to change

the selected parameter setting.

5Press ASTANDBY/ON to confirm your

selection and set this unit to the standby

mode.

The settings you made are reflected next time you turn on this

unit.

■Bi-amplifier setting BI-AMP

Use this feature to activate or deactivate the bi-amplifier

function (see page 12).

Choices: ON, OFF

• Select “ON” if you want to activate the bi-amplifier

function. “SUR.B L/R SP” is set to “NONE”

automatically, and this unit outputs the front channel

audio signals at the SURROUND BACK/BI-AMP

speaker terminals.

• Select “OFF” if you want to deactivate the bi-amplifier

function.

■SCENE IR code setting SCENE IR

Use this feature to output the remote control signals at the

REMOTE OUT jack automatically when this unit is in the

SCENE mode.

Choices: ON, OFF

• Select “ON” when the component connected to the

REMOTE OUT jack is the Yamaha component and has

the capability of the SCENE control signals. This unit

automatically sends the remote control signals to the

component.

• Select “OFF” when the component connected to the

REMOTE OUT jack is not the Yamaha component and

does not have the capability of the SCENE control

signals.

If noises are output when you operate the SCENE function, set

“SCENE IR” to “OFF”.

■Initializing INIT.

Use this feature to reset all the parameters of this unit to

the initial factory settings (see page 75).

Choices: CANCEL, RESET

• Select “CANCEL” not to reset any parameters of this

unit.

• Select “RESET” to reset the parameters of this unit.

• This setting completely resets all the parameters of this unit

including the “SET MENU” parameters. However, the

advanced setup menu parameters will not be initialized.

• The initial factory settings are activated next time you turn on

this unit.

Advanced setup

Notes

Note

Notes

01EN_DSP-AX563_B.book Page 66 Friday, February 1, 2008 11:08 AM

Troubleshooting

67 En

English

ADDITIONAL

INFORMATION

Refer to the table below when this unit does not function properly. If the problem you are experiencing is not listed below

or if the instruction below does not help, turn off this unit, disconnect the power cable, and contact the nearest authorized

Yamaha dealer or service center.

■General

Troubleshooting

Problem Cause Remedy See

page

This unit fails to turn

on or enters the

standby mode soon

after the power is

turned on.

The power cable is not connected or the

plug is not completely inserted.

Connect the power cable firmly. —

The protection circuitry has been

activated.

Make sure that all speaker wire connections on this

unit and on all speakers are secure and that the wire

for each connection does not touch anything other

than its respective connection.

This unit has been exposed to a strong

external electric shock (such as lightning

or strong static electricity).

Set this unit to the standby mode, disconnect the

power cable, plug it back in after 30 seconds and then

use it normally.

—

No sound. Incorrect input or output cable

connections.

Connect the cables properly. If the problem persists,

the cables may be defective.

13-19

No appropriate Audio input jack select has

been set.

Set an appropriate Audio input jack select. 34

Audio input jack select is set to “HDMI”,

“COAX/OPT” or “ANALOG”.

Set Audio input jack select to “AUTO”. 34

Audio input jack select is set to

“ANALOG” while playing a source

encoded in Dolby Digital or DTS.

Set Audio input jack select to “AUTO” or

“COAX/OPT”.

No appropriate input source has been

selected.

Select an appropriate input source with JINPUT

l / h (or the input selector buttons(3)).

Speaker connections are not secure. Secure the connections. 11

The front speakers to be used have not

been selected properly.

Select the front speakers with ESPEAKERS.33

The volume is turned down. Turn up the volume. —

The sound is muted. Press IMUTE or LVOLUME +/– to resume audio

output and then adjust the volume.

Signals this unit cannot reproduce are

being input from a source component,

such as a CD-ROM.

Play a source whose signals can be reproduced by this

unit.

—

The HDMI components connected to this

unit do not support the HDCP copy

protection standards.

Connect HDMI components that support the HDCP

copy protection standards.

“SUPPORT AUDIO” is set to “Other” and

“HDMI” audio signals are not being

played back on this unit.

Set “SUPPORT AUDIO” to “DSP-AX563” in

“MANUAL SETUP”.

01EN_DSP-AX563_B.book Page 67 Friday, February 1, 2008 11:08 AM

68 En

Troubleshooting

Problem Cause Remedy See

page

The sound suddenly

goes off.

The protection circuitry has been activated

because of a short circuit, etc.

Check that the speaker wires are not touching each

other and then turn this unit back on.

—

The sleep timer has turned off this unit. Turn on this unit, and play the source again. —

The sound is muted. Press IMUTE or LVOLUME +/– to resume audio

output.

Sound is heard from

the speaker on one

side only.

Incorrect cable connections. Connect the cables properly. If the problem persists,

the cables may be defective.

11-19

Incorrect settings in “SP LEVEL”. Adjust the “SP LEVEL” settings. 41

Only the center

speaker outputs

substantial sound.

When playing a monaural source with a

CINEMA DSP program, the source signal

is directed to the center channel, and the

front and surround speakers output effect

sounds.

This is not malfunction. —

No sound is heard

from the center

speaker.

“CENTER SP” in “SPEAKER SET” is set

to “NONE”.

Set “CENTER SP” to “SML” or “LRG”. 51

One of the sound fieldprograms (except

for 7ch Stereo) has been selected.

Try another sound field program. 38

No sound is heard

from the surround

speakers.

“SUR. L/R SP” in “SPEAKER SET” is

set to “NONE”.

Set “SUR. L/R SP” to “SML” or “LRG”. 52

This unit is in the “STRAIGHT” mode

and a monaural source is being played

back.

Press BSTRAIGHT so that “STRAIGHT”

disappears from the front panel display.

No sound is heard

from the surround

back speakers.

“SUR. L/R SP” in “SPEAKER SET” is

set to “NONE” and “SUR.B L/R SP” is

automatically set to “NONE”.

Set “SUR. L/R SP” and “SUR. B L/R SP” to a setting

other than “NONE”.

“SUR.B L/R SP” in “SPEAKER SET” is

set to “NONE”.

Set “SUR.B L/R SP” to a setting other than “NONE”. 52

No sound from the

center, surround or

surround back

speakers when the

FRONT B speakers

are activated.

“FRONT B” in “SPEAKER SET” is set to

“ZONE B”.

Set “FRONT B” to “FRONT”. 51

No sound is heard

from the subwoofer.

“LFE/BASS OUT” in “SPEAKER SET”

is set to “FRNT” when a Dolby Digital or

DTS signal is being played.

Set “LFE/BASS OUT” to “SWFR” or “BOTH”. 52

“LFE/BASS OUT” in “SPEAKER SET”

is set to “SWFR” or “FRNT” when a 2-

channel source is being played.

Set “LFE/BASS OUT” to “SWFR” or “BOTH”. 52

The source does not contain low-

frequency bass signals.

This is not malfunction. —

01EN_DSP-AX563_B.book Page 68 Friday, February 1, 2008 11:08 AM

69 En

Troubleshooting

English

ADDITIONAL

INFORMATION

Problem Cause Remedy See

page

Dolby Digital or DTS

sources cannot be

played. (Dolby Digital

or DTS indicator in

the front panel

display does not light

up.)

The connected component is not set to

output Dolby Digital or DTS digital

signals.

Make an appropriate setting following the operating

instructions for your component.

—

Audio input jack select is set to

“ANALOG”.

Set Audio input jack select to “AUTO”. 34

A humming sound is

heard.

Incorrect cable connections. Connect the audio cables firmly. If the problem

persists, the cables may be defective.

—

The volume level

cannot be increased,

or the sound is

distorted.

You are attempting to set the volume level

higher than the maximum volume level.

Adjust “MAX VOL.” setting. 55

The component connected to the AUDIO

OUT (REC) jacks of this unit is turned

off.

Turn on the power of the component. —

The sound effect

cannot be recorded.

It is not possible to record the sound effect

with a recording component.

This is not malfunction. —

A source cannot be

recorded by an

analog component

connected to the

AUDIO OUT (REC)

jacks.

The source component is not connected to

the analog AUDIO IN jacks of this unit.

Connect the source component to the analog AUDIO

IN jacks.

15, 19

The sound field

parameters and some

other settings of this

unit cannot be

changed.

“MEMORY GUARD” in “OPTION

MENU” is set to “ON”.

Set “MEMORY GUARD” to “OFF”. 60

This unit does not

operate properly.

The internal microcomputer has been

frozen by an external electric shock (such

as lightning or excessive static electricity)

or by a power supply with low voltage.

Disconnect the power cable from the AC wall outlet

and then plug it in again after about 30 seconds.

—

No sound is heard

from the connected

HDMI component.

The HDMI component does not accept the

multi-channel audio signals.

Convert the multi-channel audio signals to the 2-

channel audio signals at the source component such

as a DVD player.

—

“CHECK SP WIRES”

appears in the front

panel display.

Speaker cables are short-circuited. Make sure all speaker cables are connected correctly. 11

There is noise

interference from

digital or radio

frequency equipment.

This unit is too close to the digital or high-

frequency equipment.

Move this unit further away from such equipment. —

The picture is

disturbed.

The video source uses scrambled or

encoded signals to prevent dubbing.

This in not malfunction. —

This unit suddenly

enters the standby

mode.

The internal temperature is too high and

the overheat protection circuitry has been

activated.

Wait about 1 hour for this unit to cool down and then

turn it back on.

—

The video conversion

function does not

work.

Some digital signals are input via HDMI

jack.

Turn off the power of the component connected to

HDMI IN jacks.

01EN_DSP-AX563_B.book Page 69 Friday, February 1, 2008 11:08 AM

70 En

Troubleshooting

■AUTO SETUP

Before AUTO SETUP

During AUTO SETUP

Error message Cause Remedy See

page

Connect MIC! Optimizer microphone is not connected. Connect the supplied optimizer microphone

to the OPTIMIZER MIC jack on the front

panel.

Unplug HP! Headphones are connected. Unplug the headphones. —

Error message Cause Remedy See

page

E-1:NO FRONT SP Front L/R channel signals are not detected. Check the front L/R speaker connections. 11

E-2:NO SUR.SP A surround channel signal is not detected. Check the surround speaker connections. 11

E-3:SBR->SBL Only a right surround back channel signal is

detected.

Connect the surround back speaker to the

LEFT SURROUND BACK SPEAKERS

terminal if you only have one surround

back speaker.

E-4:NOISY Background noise is too loud. Try running “AUTO SETUP” in a quiet

environment.

—

Turn off noisy electric equipment like air

conditioners or move them away from the

optimizer microphone.

—

E-5:CHECK SUR. Surround back speakers are connected,

though surround L/R speakers are not.

Connect surround speakers when you use

surround back speakers.

E-6:NO MIC The optimizer microphone was unplugged

during the “AUTO SETUP” procedure.

Connect the supplied optimizer microphone

to OPTIMIZER MIC jack on the front

panel.

E-7:NO SIGNAL The optimizer microphone does not detect

test tones.

Check the microphone setting. 24

Check the speaker connections and

placement.

10, 11,

E-8:USER CANCEL The “AUTO SETUP” procedure was

cancelled due to user activity.

Run “AUTO SETUP” again. 24

E-9:INTERNAL ERROR An internal error occurred. Run “AUTO SETUP” again. 24

01EN_DSP-AX563_B.book Page 70 Friday, February 1, 2008 11:08 AM

71 En

Troubleshooting

English

ADDITIONAL

INFORMATION

After AUTO SETUP

• If the “ERROR” or “WARNING” screens appears, check the cause of the problem, then run “AUTO SETUP” again.

• If a warning message “W-1”, “W-2”, or “W-3” appears, corrections are made, but they may not be optimal.

• If an error message “E-9” occurs repeatedly, please contact a qualified Yamaha service center.

Warning message Cause Remedy See

page

W-1:OUT OF PHASE Speaker polarity is not correct. This

message may appear depending on the

speakers even when the speakers are

connected correctly.

Check the speaker connections for proper

polarity (+ or –).

W-2:OVER 24m (80ft) The distance between the nearest speaker

and the furthest speaker is out of adjustable

range.

Bring the speaker closer to the listening

position.

—

W-3:LEVEL ERROR The difference of volume level among

speakers is excessive. (No level correction

is made.)

If “SWFR:TOO LOUD” or “SWFR:TOO

LOW” appears, adjust the output volume of

the subwoofer.

24, 53

Readjust the speaker installation so that all

speakers are set in locations with similar

conditions.

—

Check the speaker connections. 11

Use speakers of similar quality. —

Notes

01EN_DSP-AX563_B.book Page 71 Friday, February 1, 2008 11:08 AM

72 En

Troubleshooting

■USB

Problem Cause Remedy See

page

The music files and

directories in the USB

device cannot be

viewed.

The music files and directories are placed

in locations other than the FAT area.

Place music files and directories in the FAT area. —

You are attempting to browse directory

hierarchies of over 8 levels or a directory

with more than 500 files.

Modify the data structure on your USB device.

—

The USB device

cannot be recognized.

The connected USB device is other than a

USB mass storage class USB memory

device or USB portable audio player.

This unit can recognize only a USB mass storage

class USB memory device (except USB hard disk

drives) or USB portable audio player. Also note that it

cannot recognize certain USB devices even when they

are devices as described above.

Some devices may become easier to recognize when

they are inserted before turning this unit on. 21

“Disconnected” is

displayed even when

a USB device is

present.

This unit recognized the USB device as an

illegal device.

Turn this unit off then on again.

Status message Cause Remedy See

page

Disconnected Your USB memory device or USB

portable audio player has been

disconnected from the USB port of this

unit.

Check the connection between this unit and your

USB memory device or USB portable audio player. —

There is a problem with the signal path

from your USB memory device or USB

portable audio player to this unit.

Turn off this unit and reconnect your USB memory

device or USB portable audio player to the USB port

of this unit.

Try resetting your USB memory device or USB

portable audio player. —

Access error This unit cannot access your USB

memory device or USB portable audio

player.

Try another USB memory device or USB portable

audio player. —

There is a problem with the signal path

from your USB memory device or USB

portable audio player to this unit.

Turn off this unit and reconnect your USB memory

device or USB portable audio player to the USB port

of this unit.

Try resetting your USB memory device or USB

portable audio player. —

Unable to play No varied data is detected. Try another USB memory device or USB portable

audio player. —

01EN_DSP-AX563_B.book Page 72 Friday, February 1, 2008 11:08 AM

73 En

Troubleshooting

English

ADDITIONAL

INFORMATION

■iPod

In case of a transmission error without a status message appearing in the front panel and in the OSD, check the connection to your iPod

(see page 20).

Note

Status message Cause Remedy See

page

Loading... This unit is in the middle of recognizing

the connection with your iPod.

This unit is in the middle of acquiring

song lists from your iPod.

Connect error There is a problem with the signal path

from your iPod to this unit.

Turn off this unit and reconnect the Yamaha iPod

universal dock to the DOCK terminal of this unit.

Try resetting your iPod. —

Unknown iPod The iPod being used is not supported by

this unit.

Only iPod (Click and Wheel), iPod nano, and iPod

mini are supported.

—

iPod connected Your iPod is properly stationed in a

Yamaha iPod universal dock (YDS-10,

sold separately) connected to the DOCK

terminal of this unit, and the connection

between your iPod and this unit is

complete.

Disconnected Your iPod was removed from a Yamaha

iPod universal dock (YDS-10, sold

separately) connected to the DOCK

terminal of this unit.

Station your iPod back in a Yamaha iPod universal

dock (YDS-10, sold separately) connected to the

DOCK terminal of this unit.

Unable to play This unit cannot play back the songs

currently stored on your iPod.

Check that the songs currently stored on your iPod

are playable.

—

Store some other playable music files on your iPod. —

01EN_DSP-AX563_B.book Page 73 Friday, February 1, 2008 11:08 AM

74 En

Troubleshooting

■Bluetooth

Status message Cause Remedy See

page

Searching... The Bluetooth adapter and the Bluetooth

component is in the middle of the pairing.

The Bluetooth adapter and the Bluetooth

component is in the middle of establishing

the connection.

Completed The paring is completed.

Not found The Bluetooth adapter cannot find the

Bluetooth component.

Canceled The paring is canceled.

BT connected The connection between the Yamaha

Bluetooth adapter (such as YBA-10, sold

separately) and the Bluetooth component

is established.

Disconnected The Bluetooth component is disconnected

from the Yamaha Bluetooth adapter (such

as YBA-10, sold separately).

No BT adapter The Bluetooth adapter is not connected to

the DOCK terminal.

Connect the Yamaha Bluetooth adapter (such as

YBA-10, sold separately) to the DOCK terminal.

01EN_DSP-AX563_B.book Page 74 Friday, February 1, 2008 11:08 AM

75 En

Troubleshooting

English

ADDITIONAL

INFORMATION

■Remote control

■Resetting the system

Use this feature to reset all the parameters of this unit to

the initial factory settings.

1Press ASTANDBY/ON on the front panel to

set this unit to the standby mode.

2Press and hold FTONE CONTROL and

then press ASTANDBY/ON to turn on this

unit.

The advanced setup menu appears in the front panel

display.

3Press GPROGRAM l / h to select “INIT.”.

4Press HSTRAIGHT repeatedly to select

“RESET”.

Select “CANCEL” to cancel the initialization

procedure without making any changes.

5Press ASTANDBY/ON to confirm your

selection and set this unit to the standby

mode.

• This procedure completely resets all the parameters of this unit

including the “SET MENU” parameters. However, the

advanced setup menu parameters will not be initialized.

• The initial factory settings are activated next time you turn on

this unit.

To cancel the initialization procedure at any time without making

any changes, press HSTRAIGHT repeatedly to select

“CANCEL” and then press ASTANDBY/ON.

Problem Cause Remedy See

page

The remote control

does not work nor

function properly.

Wrong distance or angle. The remote control functions within a maximum

range of 6 m (20 ft) and no more than 30 degrees off-

axis from the front panel.

Direct sunlight or lighting (from an

inverter type of fluorescent lamp, etc.) is

striking the remote control sensor of this

unit.

Reposition this unit. —

The batteries are weak. Replace all batteries. 3

The remote control code is not correctly

set.

Set the remote control code correctly using “List of

remote control codes” at the end of this manual.

Try setting another code for the same manufacturer

using “List of remote control codes” at the end of this

manual.

Even if the remote control code is

correctly set, there are some models that

do not respond to the remote control.

Notes

01EN_DSP-AX563_B.book Page 75 Friday, February 1, 2008 11:08 AM

Glossary

76 En

■Bi-amplification connection

A bi-amplification connection uses two amplifiers for a

speaker. One amplifier is connected to the woofer section

of a loudspeaker while the other is connected to the

combined mid and tweeter section. With this arrangement

each amplifier operates over a restricted frequency range.

This restricted range presents each amplifier with a much

simpler job and each amplifier is less likely to influence

the sound in some way. The internal crossover of the

speaker consists of a LPF (low pass filter) and a HPF (high

pass filter). As its name implies, the LPF passes

frequencies below a cutoff and rejects frequencies above

the cutoff frequency. Likewise, the HPF passes

frequencies above its cutoff.

■CINEMA DSP

Since the Dolby Surround and DTS systems were

originally designed for use in movie theaters, their effect

is best felt in a theater having many speakers designed for

acoustic effects. Since home conditions, such as room

size, wall material, number of speakers, and so on, can

differ so widely, it is inevitable that there are differences in

the sound heard. Based on a wealth of actually measured

data, Yamaha CINEMA DSP uses Yamaha original sound

field technology to combine Dolby Pro Logic, Dolby

Digital and DTS systems to provide the audiovisual

experience of a movie theater in the listening room of your

own home.

■Component video signal

With the component video signal system, the video signal

is separated into the Y signal for the luminance and the PB

and PR signals for the chrominance. Color can be

reproduced more faithfully with this system because each

of these signals is independent. The component signal is

also called the “color difference signal” because the

luminance signal is subtracted from the color signal. A

monitor with component input jacks is required in order to

output component signals.

■Composite video signal

With the composite video signal system, the video signal

is composed of three basic elements of a video picture:

color, brightness and synchronization data. A composite

video jack on a video component transmits these three

elements combined.

■Dolby Digital

Dolby Digital is a digital surround sound system that gives

you completely independent multi-channel audio. With 3

front channels (front L/R and center), and 2 surround

stereo channels, Dolby Digital provides 5 full-range audio

channels. With an additional channel especially for bass

effects, called LFE (Low Frequency Effect), the system

has a total of 5.1-channels (LFE is counted as 0.1

channel). By using 2-channel stereo for the surround

speakers, more accurate moving sound effects and

surround sound environment are possible than with Dolby

Surround. The wide dynamic range from maximum to

minimum volume reproduced by the 5 full-range channels

and the precise sound orientation generated using digital

sound processing provide listeners with unprecedented

excitement and realism. With this unit, any sound

environment from monaural up to a 5.1-channel

configuration can be freely selected for your enjoyment.

■Dolby Digital EX

Dolby Digital EX creates 6 full-bandwidth output

channels from 5.1-channel sources. This is done using a

matrix decoder that derives 3 surround channels from the

2 in the original recording. For the best results, Dolby

Digital EX should be used with movie sound tracks

recorded with Dolby Digital Surround EX. With this

additional channel, you can experience more dynamic and

realistic moving sound especially with scenes with

“fly-over” and “fly-around” effects.

■Dolby Pro Logic II

Dolby Pro Logic II is an improved technique used to

decode vast numbers of existing Dolby Surround sources.

This new technology enables a discrete 5-channel

playback with 2 front left and right channels, 1 center

channel, and 2 surround left and right channels instead of

only 1 surround channel for conventional Pro Logic

technology. There are three modes available: “Music

mode” for music sources, “Movie mode” for movie

sources and “Game mode” for game sources.

■Dolby Pro Logic IIx

Dolby Pro Logic IIx is a new technology enabling discrete

multi-channel playback from 2-channel or multi-channel

sources. There are three modes available: “Music mode”

for music sources, “Movie mode” for movie sources (for

2-channel sources only) and “Game mode” for game

sources.

Glossary

01EN_DSP-AX563_B.book Page 76 Friday, February 1, 2008 11:08 AM

77 En

Glossary

English

ADDITIONAL

INFORMATION

■Dolby Surround

Dolby Surround uses a 4-channel analog recording system

to reproduce realistic and dynamic sound effects: 2 front

left and right channels (stereo), a center channel for dialog

(monaural), and a surround channel for special sound

effects (monaural). The surround channel reproduces

sound within a narrow frequency range. Dolby Surround is

widely used with nearly all video tapes and laser discs,

and in many TV and cable broadcasts as well. The Dolby

Pro Logic decoder built into this unit employs a digital

signal processing system that automatically stabilizes the

volume on each channel to enhance moving sound effects

and directionality.

■DTS 96/24

DTS 96/24 offers an unprecedented level of audio quality

for multi-channel sound on DVD video, and is fully

backward-compatible with all DTS decoders. “96” refers

to a 96 kHz sampling rate compared to the typical 48 kHz

sampling rate. “24” refers to 24-bit word length. DTS 96/

24 offers sound quality transparent to the original 96/24

master, and 96/24 5.1-channel sound with full-quality full-

motion video for music programs and motion picture

soundtracks on DVD video.

■DTS Digital Surround

DTS digital surround was developed to replace the analog

soundtracks of movies with a 6.1-channel digital sound

track, and is now rapidly gaining popularity in movie

theaters around the world. DTS, Inc. has developed a

home theater system so that you can enjoy the depth of

sound and natural spatial representation of DTS digital

surround in your home. This system produces practically

distortion-free 6.1-channel sound (technically, front left

and right, center, surround left and right, and LFE 0.1

(subwoofer) channels for a total of 5.1 channels). This unit

incorporates a DTS-ES decoder that enables 6.1-channel

reproduction by adding the surround back channel to the

existing 5.1-channel format.

■HDMI

HDMI (High-Definition Multimedia Interface) is the first

industry-supported, uncompressed, all-digital audio/video

interface. Providing an interface between any source (such

as a set-top box or AV receiver) and an audio/video

monitor (such as a digital television), HDMI supports

standard, enhanced or high-definition video as well as

multi-channel digital audio using a single cable. HDMI

transmits all ATSC HDTV standards and supports 8-

channel digital audio, with bandwidth to spare to

accommodate future enhancements and requirements.

When used in combination with HDCP (High-bandwidth

Digital Content Protection), HDMI provides a secure

audio/video interface that meets the security requirements

of content providers and system operators. For further

information on HDMI, visit the HDMI website at

“http://www.hdmi.org/”.

■LFE 0.1 channel

This channel reproduces low-frequency signals. The

frequency range of this channel is from 20 Hz to 120 Hz.

This channel is counted as 0.1 because it only enforces a

low-frequency range compared to the full-range

reproduced by the other 5/6 channels in Dolby Digital or

DTS 5.1/6.1-channel systems.

■MP3

One of the audio compression methods used by MPEG. It

employs the irreversible compression method, which

achieves a high compression rate by thinning out the data

of hardly audible part to the human ears. It is said to be

capable of compressing the data quantity by about 1/11

(128 kbps) while maintaining a similar audio quality to

music CD.

■Neo:6

Neo:6 decodes the conventional 2-channel sources for 6-

channel playback by the specific decoder. It enables

playback with the full-range channels with higher

separation just like digital discrete signal playback. There

are two modes available: “Music mode” for music sources

and “Cinema mode” for movie sources.

■PCM (Linear PCM)

Linear PCM is a signal format under which an analog

audio signal is digitized, recorded and transmitted without

using any compression. This is used as a method of

recording CDs and DVD audio. The PCM system uses a

technique for sampling the size of the analog signal per

very small unit of time. Standing for “Pulse Code

Modulation”, the analog signal is encoded as pulses and

then modulated for recording.

■Sampling frequency and number of

quantized bits

When digitizing an analog audio signal, the number of

times the signal is sampled per second is called the

sampling frequency, while the degree of fineness when

converting the sound level into a numeric value is called

the number of quantized bits. The range of rates that can

be played back is determined based on the sampling rate,

while the dynamic range representing the sound level

difference is determined by the number of quantized bits.

In principle, the higher the sampling frequency, the wider

the range of frequencies that can be played back, and the

higher the number of quantized bits, the more finely the

sound level can be reproduced.

01EN_DSP-AX563_B.book Page 77 Friday, February 1, 2008 11:08 AM

78 En

Glossary

■SILENT CINEMA

Yamaha has developed a natural, realistic sound effect

DSP algorithm for headphones. Parameters for

headphones have been set for each sound field so that

accurate representations of all the sound field programs

can be enjoyed on headphones.

■S-video signal

With the S-video signal system, the video signal normally

transmitted using a pin cable is separated and transmitted

as the Y signal for the luminance and the C signal for the

chrominance through the S-video cable. Using the S

VIDEO jack eliminates video signal transmission loss and

allows recording and playback of even more beautiful

images.

■Virtual CINEMA DSP

Yamaha has developed a Virtual CINEMA DSP algorithm

that allows you to enjoy DSP sound field surround effects

even without any surround speakers by using virtual

surround speakers. It is even possible to enjoy Virtual

CINEMA DSP using a minimal two-speaker system that

does not include a center speaker.

■WAV

Windows standard audio file format, which defines the

method of recording the digital data obtained by

converting audio signals. It does not specify the

compression (coding) method so a desired compression

method can be used with it. By default, it is compatible

with the PCM method (no compression) and some

compression methods including the ADPCM method.

■WMA

An audio compression method developed by Microsoft

Corporation. It employs the irreversible compression

method, which achieves a high compression rate by

thinning out the data of hardly audible part to the human

ears. It is said to be capable of compressing the data

quantity by about 1/22 (64 kbps) while maintaining a

similar audio quality to music CD.

01EN_DSP-AX563_B.book Page 78 Friday, February 1, 2008 11:08 AM

Specifications

79 En

English

ADDITIONAL

INFORMATION

AUDIO SECTION

• Minimum RMS Output Power for Front, Center, Surround,

Surround Back

1 kHz, 0.9% THD, 6 Ω ......................................................... 90 W

• Dynamic Power

IHF, 6/4/2 Ω .......................................................... 100/110/125 W

• Maximum Input Signal

CD, etc. Effect On, 1 kHz, 0.5% THD ................... 2.0 V or more

• Frequency Response

CD, etc. to Front L/R ............................. 10 Hz to 100 kHz, –3 dB

• Total Harmonic Distortion

1 kHz, 50 W, Front L/R, 6 Ω ................................... 0.06% or less

• Signal to Noise Ratio (IHF-A Network)

CD (200 mV) to Front L/R, Effect Off ................... 98 dB or more

CD (250 mV) to Front L/R, Effect Off ................. 100 dB or more

• Residual Noise (IHF-A Network)

Front L/R ............................................................... 150 µV or less

• Channel Separation (1 kHz/10 kHz)

CD, etc. (5.1 kΩ shorted) to Front L/R

................................................................... 60 dB/45 dB or more

• Tone Control (Front L/R)

BASS Boost/Cut ................................................... ±10 dB/100 Hz

TREBLE Boost/Cut .............................................. ±10 dB/20 kHz

• Headphone Jack Rated Output/Impedance .............. 400 mV/470 Ω

• Input Sensitivity/Input Impedance

CD, etc. ................................................................. 200 mV/47 kΩ

MULTI CH INPUT ............................................... 200 mV/47 kΩ

• Output Level/Output Impedance

AUDIO OUT (REC) ............................................ 200 mV/1.2 kΩ

SUBWOOFER OUTPUT ............................................ 4 V/1.2 kΩ

• Filter Characteristics (fc=40/60/80/90/100/110/120/160/200 Hz)

H.P.F.

(FRONT SP, CENTER SP, SUR. L/R SP, SUR. B L/R SP:

SMALL/SML) ............................................................ 12 dB/oct.

L.P.F. (Subwoofer) ......................................................... 24 dB/oct.

VIDEO SECTION

• Video Signal Type (Gray back) .................................................. PAL

• Video Signal Type (Video Conversion) .......................... NTSC/PAL

• Signal Level

Composite ................................................................. 1 Vp-p/75 Ω

S-video ............................ 1 Vp-p/75 Ω (Y), 0.286 Vp-p/75 Ω (C)

Component ................... 1 Vp-p/75 Ω (Y), 0.7 Vp-p/75 Ω (PB/PR)

• Signal to Noise Ratio ................................................ 50 dB or more

• Maximum Input Level........................................... 1.5 Vp-p or more

• Frequency Response (MONITOR OUT)

Component Signal .................................... 5 Hz to 60 MHz, –3 dB

GENERAL

• Power Supply ........................................................ 230 V AC, 50 Hz

• Power Consumption ............................................................... 240 W

• Standby Power Consumption ...................................... 0.8 W or less

• AC Outlets...................................................... 1 (100 W maximum)

• Dimensions (W x H x D) ................................. 435 x 151 x 352 mm

(17-1/8” x 5-15/16” x 13-7/8”)

• Weight ............................................................. 9.0 kg (19 lbs 13 oz)

* Specifications are subject to change without notice.

Specifications

01EN_DSP-AX563_B.book Page 79 Friday, February 1, 2008 11:08 AM

INDEX

80 En

■Numerics

1 SOUND MENU, Manual setup ........ 49

2 INPUT MENU, Manual setup .......... 49

2ch Enhancer, Sound field program .... 38

2ch Stereo, Sound field program ......... 38

3 OPTION MENU ............................... 59

3 OPTION MENU, Manual setup ....... 50

7ch Enhancer, Sound field program .... 38

7ch Stereo, Sound field program ......... 38

96/24 indicator ..................................... 22

■A

A)DISPLAY SET, Option menu ......... 59

A)INPUT ASSIGNMENT,

Input menu ....................................... 57

A)SPEAKER SET, Sound menu ......... 51

A.DELAY, Audio settings ................... 55

AC OUTLET (SWITCHED) ............... 21

Amplifier function OSD display time,

Display settings ............................... 60

Audio components, Connection ........... 19

Audio delay, Audio settings ................. 55

Audio information ................................ 36

Audio input jacks selection .................. 34

AUDIO jacks ....................................... 13

Audio jacks .......................................... 13

AUDIO SELECT ................................. 34

Audio select, Option menu .................. 60

Audio settings, Sound menu ................ 55

Audio signal flow ................................. 15

AUTO SETUP ..................................... 24

AUTO SETUP, Error message ............ 70

■B

B)INPUT RENAME, Input menu ....... 58

B)MEMORY GUARD,

Option menu .................................... 60

B)SPEAKER LEVEL, Sound menu .... 53

Background Video,

Multi channel input setup ................ 59

BGV, Multi channel input setup .......... 59

BI-AMP, Advanced setup .................... 66

Bi-Amplifier, Advanced setup ............. 66

Bluetooth setting, Option menu ........... 61

■C

C)AUDIO SELECT, Option menu ...... 60

C)SP DISTANCE, Sound menu .......... 54

C)VOLUME TRIM, Input menu ......... 58

CD player, Connection ........................ 19

CD recorder, Connection ..................... 19

CENTER SP, Speaker settings ............ 51

Center speaker equalizer,

Sound menu ..................................... 54

Center speaker, Speaker settings ......... 51

Center width, Sound field parameter ... 40

CINEMA DSP indicator ...................... 23

COAXIAL IN (1), Input assignment ... 57

COAXIAL INPUT assignment, Input

assignment ....................................... 57

COAXIAL INPUT jacks ......................57

COMPONENT VIDEO jacks ..............13

Connect error, iPod controlling status

message ............................................73

Connect MIC!,

Auto setup error message .................70

Connecting to the FRONT A

terminals ...........................................12

Connection, Audio components ...........19

Connection, CD player .........................19

Connection, CD recorder .....................19

Connection, DVD player ......................17

Connection, DVD recorder ..................18

Connection, external decoder ...............19

Connection, HDMI ...............................14

Connection, MD recorder ....................19

Connection, Multi-format player .........19

Connection, Power cable ......................21

Connection, PVR .................................18

Connection, set-top boxes ....................18

Connection, VCR .................................18

Connection, Video components ...........16

Connection,

Yamaha iPod universal dock ...........20

Controlling a TV ..................................63

Controlling other components, Remote

control ..............................................64

Controlling this unit,

Remote control .................................63

Creating original SCENE templates ....31

CROSSOVER, Speaker settings ..........53

Crossover, Speaker settings .................53

CT WIDTH, Sound field parameter .....40

Current status display ...........................35

■D

D)CENTER GEQ, Sound menu ...........54

D)DECODER MODE, Input menu .....58

D)PARAM. INI, Option menu .............61

Decoder indicators ...............................22

Decoder mode, Input menu ..................58

Decoder select mode, Decoder mode ...58

DIGITAL AUDIO COAXIAL jacks ...13

DIGITAL AUDIO OPTICAL jacks ....13

DIMENSION,

Sound field parameter ......................40

Dimension, Sound field parameter .......40

DIMMER, Display settings ..................59

Dimmer, Display settings .....................59

DIRECT ...............................................41

Disconnected, iPod controlling status

message ............................................73

Display settings, Option menu .............59

DIST .....................................................26

DIST, Auto setup result .......................26

DISTANCE ..........................................25

DISTANCE, Auto setup ......................25

DOCK indicator ...................................22

DSP LEVEL, Sound field parameter ...40

DSP level, Sound field parameter ........40

DTS decoder prioritize setting, Decoder

mode ................................................ 58

DVD player connection ....................... 17

DVD recorder connection ................... 18

Dynamic range, Sound menu .............. 55

■E

E)EXTD SUR., Sound menu ............... 56

E)LFE LEVEL, Sound menu .............. 54

E)MULTI CH SET, Input menu .......... 59

E-1:NO FRONT SP,

Auto setup error message ................ 70

E-2:NO SURR.SP,

Auto setup error message ................ 70

E-3:SBR->SBL,

Auto setup error message ................ 70

E-4:NOISY,

Auto setup error message ................ 70

E-5:CHECK SUR.,

Auto setup error message ................ 70

E-6:NO MIC,

Auto setup error message ................ 70

E-7:NO SIGNAL,

Auto setup error message ................ 70

E-8:USER CANCEL,

Auto setup error message ................ 70

E-9:INTERNAL ERROR,

Auto setup error message ................ 70

Effect level, Sound field parameter ..... 40

ENHANCER indicator ........................ 22

Extended surround, Sound menu ......... 56

External decoder connection ............... 19

■F

F)DYNAMIC RANGE,

Sound menu ..................................... 55

Factory presets, Advanced setup ......... 66

FL SCROLL, Display settings ............ 60

FRONT B speaker setting, Speaker

settings ............................................. 51

FRONT B, Speaker settings ................ 51

Front input,

Multi-channel input setup ............... 59

Front panel display .............................. 22

Front panel display scroll,

Display settings ............................... 60

FRONT SP, Speaker settings .............. 51

Front speakers, Speaker settings ......... 51

FRONT, Multi-channel input setup ..... 59

■G

G)AUDIO SET, Sound menu .............. 55

Games, Sound field program ............... 38

■H

H) HDMI SET, Sound menu ............... 56

Hall, Sound field program ................... 38

HDMI indicator ................................... 22

HDMI set, Sound menu ....................... 56

HDMI, Connection .............................. 14

HEADPHONE, Dynamic range .......... 55

Index

01EN_DSP-AX563_B.book Page 80 Friday, February 1, 2008 11:08 AM

Index

81 En

English

ADDITIONAL

INFORMATION

Headphone, Dynamic range ................. 55

HEADPHONE, Low-frequency effect

level ................................................. 54

Headphone,

Low-frequency effect level .............. 54

Headphones .......................................... 35

Headphones indicator .......................... 22

High quality sound ............................... 41

■I

I) EXTD SUR., Sound menu ............... 56

Infrared window, Remote control ........ 23

INI.VOL., Audio settings .................... 55

Initial volume, Audio settings .............. 55

Input assignment, Input menu .............. 57

INPUT CH,

Multi-channel input setup ................ 59

Input channel and speaker indicators ... 23

Input channel indicators ....................... 23

Input channels,

Multi-channel input setup ................ 59

Input menu, Manual setup ................... 49

Input rename, Input menu .................... 58

Input source indicators ......................... 22

Input source information display ......... 36

iPod connected, iPod controlling status

message ............................................ 73

iPod control, Status message ............... 73

iPod using ............................................ 45

■J

Jazz, Sound field program ................... 38

■L

LFE/BASS OUT, Speaker settings ...... 52

LFE/Bass out, Speaker settings ........... 52

Loading..., iPod controlling status

message ............................................ 73

Low-frequency effect level,

Sound menu ..................................... 54

LVL ...................................................... 26

LVL, Auto setup result ........................ 26

■M

MANUAL SETUP, SET MENU ......... 49

Manual setup, SET MENU .................. 49

MAX VOL., Audio settings ................. 55

Maximum volume, Audio settings ....... 55

MD recorder, Connection .................... 19

Memory guard, Option menu ............... 60

Menu browse mode,

iPod controlling ............................... 46

Movie Dramatic,

Sound field program ........................ 38

Movie Spacious,

Sound field program ........................ 38

MULTI CH INPUT component

selection ........................................... 34

MULTI CH INPUT jacks .................... 19

Multi channel input setup,

Input menu ....................................... 59

Multi-channel source

with headphones .............................. 39

Multi-format player connection ........... 19

Multi-information display ....................23

MUTE ..................................................35

MUTE indicator ...................................22

MUTE TYPE, Audio settings ..............55

Muting ..................................................35

■N

Neo:6 Music .........................................39

Night listening mode ............................42

Number of speakers ..............................26

Number of speakers,

Auto setup result ..............................26

■O

OPTICAL IN (2) ..................................57

OPTICAL IN (2), Input assignment .....57

OPTICAL IN (3), Input assignment .....57

OPTICAL INPUT assignment, Input

assignment ........................................57

OPTICAL OUT (4),

Output assignment ...........................57

OPTIMIZER MIC jack, Auto setup .....24

Optimizer microphone .........................24

Optimizer microphone, Auto setup ......24

Optimizing speaker setting ...................24

Option menu, Manual setup .................50

OSD SHIFT, Display settings ..............60

OSD shift, Display settings ..................60

OSD-AMP, Display settings ................60

OSD-SOURCE, Display settings .........60

Other components controlling by remote

control ..............................................64

Other components controlling, Remote

control ..............................................64

■P

PANORAMA,

Sound field parameter ......................40

Panorama, Sound field parameter ........40

Parameter initialization,

Option menu .....................................61

PCM indicator ......................................22

PHONES jack .......................................35

Play information display,

iPod controlling ................................46

Play information display,

USB controlling ...............................44

Playing video sources

in the background .............................36

PLII Game ............................................39

PLII Movie ...........................................39

PLII Music ...........................................39

PLIIx Game ..........................................39

PLIIx Movie .........................................39

PLIIx Music .........................................39

Pop/Rock, Sound field program ...........38

Power cable, Connection ......................21

Preset SCENE templates ......................30

PRESET, Advanced setup ....................66

Pro Logic ..............................................39

PVR connection ...................................18

■R

Remote control codes ........................... iii

Remote control, Troubleshooting ........ 75

REMOTE OUT jacks .......................... 20

Rename, SCENE template ................... 31

Repeat .................................................. 46

Repeat, iPod controlling ...................... 46

Resetting the system ............................ 75

■S

S VIDEO jacks .................................... 13

SB L/R SP, Speaker settings ............... 52

SCENE IR code setting,

Advanced setup ............................... 66

SCENE IR, Advanced setup ................ 66

SCENE template selection .................. 28

Selection, Audio input jacks ................ 34

Selection,

MULTI CH INPUT component ...... 34

Selection, SCENE template ................. 28

SET MENU ......................................... 49

Setting remote control codes ............... 65

Setting SCENE template input source,

Remote control ................................ 32

Set-top box connection ........................ 18

Shuffle, iPod controlling ..................... 46

SILENT CINEMA ............................... 39

SILENT CINEMA indicator ............... 23

Simple remote mode,

iPod controlling ............................... 45

SIZE ..................................................... 25

SIZE, Auto setup ................................. 25

SLEEP indicator .................................. 23

Sleep timer ........................................... 37

Sound field programs

with headphones .............................. 39

Sound menu, Manual setup ................. 49

Source feature OSD display time,

Display settings ............................... 60

SP ......................................................... 26

SP A B indicators ................................ 22

SP, Auto setup result ........................... 26

Speaker distance ............................ 25, 26

Speaker distance, Auto setup ............... 25

Speaker distance, Auto setup result ..... 26

Speaker distance, Sound menu ............ 54

Speaker distances, Speaker distance .... 54

Speaker level ....................................... 26

Speaker level adjustment ..................... 41

Speaker level, Auto setup result .......... 26

Speaker level, Sound menu ................. 53

Speaker settings, Sound menu ............. 51

Speaker size ......................................... 25

Speaker size, Auto setup ...................... 25

Speaker wiring ..................................... 25

Speaker wiring, Auto setup ................. 25

Speaker wiring/volume level,

Auto setup ....................................... 25

SPEAKER, Dynamic range ................. 55

Speaker, Dynamic range ...................... 55

SPEAKER,

Low-frequency effect level ............. 54

Speaker, Low-frequency effect level ... 54

Specifications ...................................... 79

STRAIGHT ......................................... 39

Straight ................................................ 39

01EN_DSP-AX563_B.book Page 81 Friday, February 1, 2008 11:08 AM

Index

82 En

SUBWOOFER PHASE,

Speaker settings ............................... 53

Subwoofer phase, Speaker settings ...... 53

SUPPORT AUDIO, HDMI set ............ 56

Support audio, HDMI set ..................... 56

SUR. L/R SP, Speaker settings ............ 52

Surround back left/right speakers, Speaker

settings ............................................. 52

Surround left/right speakers, Speaker

settings ............................................. 52

■T

Test tone, Center speaker equalizer ..... 54

TEST, Center speaker equalizer .......... 54

Tonal quality adjustment ..................... 41

Troubleshooting ................................... 67

TU, Advanced setup ............................ 66

Tuner frequency step,

Advanced setup ............................... 66

Turning off the power .......................... 21

Turning on the power ........................... 21

TV Sports, Sound field program .......... 38

■U

Unable to play, iPod controlling status

message ............................................ 73

UNIT, Speaker distance ....................... 54

Unit, Speaker distance ......................... 54

Unknown iPod, iPod controlling status

message ............................................ 73

Unplug HP!,

Auto setup error message ................ 70

USB memory device using, USB portable

audio player using ............................ 43

USB playback operation ...................... 43

USB playback styles ............................ 62

USB, Troubleshooting ......................... 72

■V

VCR connection ................................... 18

VIDEO AUX jacks, Front panel .......... 21

Video components, Connection ........... 16

VIDEO CONV., Display settings ........ 59

Video conversion, Display settings ..... 59

Video information ................................ 36

VIDEO jacks ........................................ 13

Video jacks .......................................... 13

Video signal flow ................................. 15

Video sources in the background ......... 36

Virtual CINEMA DSP ......................... 39

VIRTUAL indicator ............................. 23

VOLUME level indicator .................... 22

Volume Trim, Input menu ................... 58

■W

W-1:OUT OF PHASE,

Auto setup error message ................ 71

W-2:DISTANCE ERROR,

Auto setup error message ................ 71

W-3:LEVEL ERROR,

Auto setup error message ................ 71

WIRING/LEVEL ................................. 25

WIRING/LEVEL, Auto setup ............. 25

■Y

Yamaha iPod universal dock,

Connection .......................................20

Yamaha Parametric Room Acoustic

Optimizer .........................................24

YPAO ...................................................24

YPAO (Yamaha Parametric Room

Acoustic Optimizer) .........................24

YPAO indicator ....................................22

“ESPEAKERS” or “3DVD” (example)

indicates the name of the parts on the front

panel or the remote control. Refer to the

attached sheet or the pages at the end of this

manual for the information about each

position of the parts.

01EN_DSP-AX563_B.book Page 82 Friday, February 1, 2008 11:08 AM

83 En

English

Limited Guarantee for European Economic Area (EEA) and Switzerland

Thank you for having chosen a Yamaha product. In the unlikely event that your Yamaha product needs guarantee service, please contact the dealer from

whom it was purchased. If you experience any difficulty, please contact Yamaha representative office in your country. You can find full details on our

website (http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident).

The product is guaranteed to be free from defects in workmanship or materials for a period of two years from the date of the original purchase. Yamaha

undertakes, subject to the conditions listed below, to have the faulty product or any part(s) repaired, or replaced at Yamaha’s discretion, without any charge

for parts or labour. Yamaha reserves the right to replace a product with that of a similar kind and/or value and condition, where a model has been

discontinued or is considered uneconomic to repair.

Conditions

1. The original invoice or sales receipt (showing date of purchase, product code and dealer’s name) MUST accompany the defective product, along with a

statement detailing the fault. In the absence of this clear proof of purchase, Yamaha reserves the right to refuse to provide free of charge service and the

product may be returned at the customer’s expense.

2. The product MUST have been purchased from an AUTHORISED Yamaha dealer within the European Economic Area (EEA) or Switzerland.

3. The product must not have been the subject of any modifications or alterations, unless authorised in writing by Yamaha.

4. The following are excluded from this guarantee:

a. Periodic maintenance and repair or replacement of parts due to normal wear and tear.

b. Damage resulting from:

(1) Repairs performed by the customer himself or by an unauthorised third party.

(2) Inadequate packaging or mishandling, when the product is in transit from the customer. Please note that it is the customer’s responsibility to

ensure the product is adequately packaged when returning the product for repair.

(3) Misuse, including but not limited to (a) failure to use the product for its normal purpose or in accordance with Yamaha’s instructions on the proper

use, maintenance and storage, and (b) installation or use of the product in a manner inconsistent with the technical or safety standards in force in

the country where it is used.

(4) Accidents, lightning, water, fire, improper ventilation, battery leakage or any cause beyond Yamaha’s control.

(5) Defects of the system into which this product is incorporated and/or incompatibility with third party products.

(6) Use of a product imported into the EEA and/or Switzerland, not by Yamaha, where that product does not conform to the technical or safety

standards of the country of use and/or to the standard specification of a product sold by Yamaha in the EEA and/or Switzerland.

(7) Non AV (Audio Visual) related products.

(Products subject to “Yamaha AV Guarantee Statement” are defined in our website at http://www.yamaha-hifi.com/ or

http://www.yamaha-uk.com/ for U.K. resident.)

5. Where the guarantee differs between the country of purchase and the country of use of the product, the guarantee of the country of use shall apply.

6. Yamaha may not be held responsible for any losses or damages, whether direct, consequential or otherwise, save for the repair or replacement of the

product.

7. Please backup any custom settings or data, as Yamaha may not be held responsible for any alteration or loss to such settings or data.

8. This guarantee does not affect the consumer’s statutory rights under applicable national laws in force or the consumer’s rights against the dealer arising

from their sales/purchase contract.

01EN_DSP-AX563_B.book Page 83 Friday, February 1, 2008 11:08 AM

■Front panel

SPEAKERS

PHONES

SILENT CINEMA

A/B/OFF

OPTIMIZER MIC

AUDIO SELECT

DIRECTSTRAIGHT

EFFECT

TONE CONTROL

l INPUT hl PROGRAM h

VOLUME

SCENE

1234

STANDBY

/ON

A B D

E JG I KHF

VIDEO L AUDIO R

VIDEO AUX USB

01EN_DSP-AX563_B.book Page i Friday, February 1, 2008 11:08 AM

APPENDIX

■Remote control

REC

SUR. DECODE

NIGHT

STRAIGHT DIRECT

PARAMETER

MULTI CH IN AUDIO SEL

SLEEP

ENHANCER

l PROG h

TV MUTE

TV INPUT

TV VOL

TV CH

POWER

AMP

STANDBY

POWER

MUTE

POWER

4321

ENT

DVD

V-AUX/DOCK

DTV/CBL DVR

CD MD/CD-R TUNER

VOLUME

TITLE

ENTER

BAND LEVEL

DISPLAY

RETURN

MEMORY

AVTV

SCENE

4321

USB A B

FREQ/TEXT EON

MODE - PTY SEEK - START

01EN_DSP-AX563_B.book Page ii Friday, February 1, 2008 11:08 AM

iii

List of remote control codes

Blu-ray player

Samsung 2137

CD player

Yamaha 5000, 5013

CD Recorder

Yamaha 5001

DVD

Acoustic Solutions

2078

Aiwa 2055, 2100

Akai 2096

Akura 2076

Alba 2078, 2086

Apex 2027, 2049

Awa 2078

Axion 2078

Brainwave 2096

Brandt 2073, 2085

Broksonic 2060

Bush 2075, 2078, 2112

Centrex 2077

Classic 2078

Clatronic 2075

Coby 2078

C-Tech 2074

CyberHome 2025, 2079, 2091

Daewoo 2092, 2098

Dansai 2096

Daytek 2080, 2089

DEC 2075

Denon 2030, 2102, 2103

Denver 2075, 2076

Diamond 2074

DK Digital 2094

Dual 2078

D-Vision 2096

DVX 2074

Elta 2096

Euroline 2096

Funai 2052, 2058

Global Solutions2074

Global Sphere 2074

Goodmans 2075, 2077, 2078

Grundig 2077, 2098

H&B 2075

Haaz 2074

HE 2078

Hitachi 2032, 2072

Home Electronics

2078

Innovation 2072

Irradio 2134

JDB 2078

JVC 2033, 2045, 2053,

2073, 2099

Kenwood 2030, 2097

Kingavon 2075

Koda 2075

Lawson 2074

Lenco 2075

LG 2084, 2087

Lifetec 2072

Limit 2074

LogicLab 2074

Luxor 2077

Magnavox 2037, 2073, 2075

Magnum 2072

MBO 2078

Medion 2072

Micromaxx 2072

Micromedia 2073

Microstar 2072

Mitsubishi 2035

Mizuda 2075

Mustek 2078

Naiko 2077

Onkyo 2073, 2135

Orava 2075

P&B 2075

Pacific 2074

Panasonic 2030, 2040, 2054,

2057, 2105, 2110

Philips 2019, 2026, 2046,

2073, 2081, 2090

Pioneer 2036, 2082

Proline 2077

Provision 2075

RCA 2031, 2042, 2050,

2051

Red Star 2076

Reoc 2074

Roadstar 2075, 2078, 2086

Rowa 2077

Saba 2085

Sabaki 2074

Samsung 2032, 2041, 2104,

2113

Sansui 2074

Sanyo 2095

ScanMagic 2078

Scientific Labs 2074

Scott 2088

SEG 2074, 2086

Sharp 2034, 2043, 2059,

2093, 2106

Silva 2076

Singer 2074

Skymaster 2074, 2078

Skyworth 2076

SM Electronic 2074, 2078

Sony 2028, 2029, 2039,

2083, 2107

Soundmaster 2074

Soundmax 2074

Standard 2074

Star Cluster 2074

Starmedia 2075

Supervision 2074, 2078

Sylvania 2052, 2058

Synn 2074

TCM 2072

Teac 2074

Tec 2076

Technics 2030

Technika 2096

Technosonic 2096

Tevion 2072, 2074

Thomson 2085, 2109

Tokai 2076

Toshiba 2026, 2044, 2048,

2056, 2073, 2108,

2111

United 2078

Voxson 2078

Wharfedale 2074

Xlogic 2074

Yakumo 2077

Yamada 2077

Yamaha 2000, 2001, 2003,

2030, 2101

Yukai 2078

Zenith 2038, 2047, 2073

DVD Recorder

Apex 2024

JVC 2070

LG 2071

Panasonic 2020, 2065, 2066,

2067

Philips 2019, 2061, 2062,

2063

Pioneer 2021

RCA 2018

Sony 2022, 2064

Toshiba 2068

Yamaha 2023

Yukai 2069

DVD/LD

Pioneer 2036

DVD/VCR

JVC 1017, 2045

LG 1071, 2087

Panasonic 1020, 1072, 2040,

2105

Philips 1025

RCA 1022, 2042

Samsung 1021, 2041, 2104

Sharp 1023, 1073, 2043,

2106

Sony 1019, 1074, 2039,

2107

Toshiba 1024, 1075, 2044,

2108

Zenith 1026, 2047

DVD-DVR

Panasonic 2067

Pioneer 2114

Samsung 2115

Toshiba 2068

DVR

ABS 2132

Alienware 2132

CyberPower 2132

Dell 2132

DIRECTV 2123, 2128, 2129,

2133

DISH Network 2126, 2127

Dishpro 2126

Echostar 2126, 2127

Expressvu 2126

Gateway 2132

GOI 2126

Hewlett Packard2132

Hitachi 2008

Howard Computers

2132

HTS 2126

Hughes 2123, 2128

Humax 2123

Hush 2132

iBUYPOWER 2132

JVC 2126, 2127

Linksys 2132

Media Center PC

2132

Microsoft 2132

Mind 2132

Niveus Media 2132

Northgate 2132

Panasonic 2015, 2016, 2017,

2120

Philips 2117, 2121, 2123,

2128

Pioneer 2012, 2013, 2014

Proscan 2129

RCA 2116, 2124, 2129,

2133

ReplayTV 2118, 2119, 2120

Sharp 2009, 2010

Sonic Blue 2119, 2120

Sony 2005, 2006, 2007,

2122, 2130, 2131,

2132

Stack 10 2132

Stack 9 2132

Systemax 2132

Tagar Systems 2132

Tivo 2116, 2121, 2122,

2123, 2130, 2131

Toshiba 2004, 2125, 2132

Touch 2132

UltimateTV 2133

Viewsonic 2132

Voodoo 2132

Yamaha 2011

ZT Group 2132

HD DVD

Toshiba 2136

iPod

Yamaha 5011

01EN_DSP-AX563_B.book Page iii Friday, February 1, 2008 11:08 AM

APPENDIX

LD player

Yamaha 2002

Yamaha 5002, 5003, 5004

TAPE DECK

Yamaha 5005, 5006

TUNER

Yamaha 5007, 5008, 5009,

5010, 5012, 5014,

5015, 5016, 5017,

5018

Acer 0093

Acme 0207

Acura 0208

ADA 0255

ADC 0206

Admiral 0058, 0205, 0206,

0210, 0211

Adyson 0200, 0207

Agashi 0200

Agazi 0206

AGB 0204

Aiko 0127, 0200, 0207,

0208

Aiwa 0028, 0139, 0229,

0237

Akai 0059, 0065, 0127,

0129, 0130, 0200,

0204, 0208, 0209,

0213, 0217, 0218,

0255

Akiba 0209, 0218

Akura 0206, 0209, 0218

Alaron 0200

Alba 0200, 0207, 0208,

0209, 0217, 0218

ALBIRAL 0212

Allstar 0213

Amplivision 0207

Amstrad 0204, 0206, 0208,

0209, 0218

Amtron 0062

Anam 0208

Anam National 0062

Anglo 0208

Anitech 0206, 0208

Ansonic 0203, 0208

AOC 0060, 0061

Apex 0118, 0122, 0132

Arc en Ciel 0216

Arcam 0200

Arcam Delta 0207

Aristona 0213, 0217

ASA 0205, 0211

Asberg 0213

Astra 0208

Asuka 0200, 0206, 0207,

0209, 0218

Atlantic 0200, 0207, 0213,

0217

Atori 0208

Audiosonic 0207, 0208, 0209,

0213, 0216, 0217,

0218

AudioTon 0207

Audiovox 0062

Autovox 0205, 0206, 0207

Awa 0200

Baird 0216

Bang & Olufsen 0205

Basic Line 0208, 0209, 0213,

0218

Bastide 0207

Baur 0217

Beko 0228

Belcor 0060

Bell & Howell 0058, 0064

Benq 0081

Beon 0213, 0217

Bestar 0213

Binatone 0207

Black Star 0214

Blaupunkt 0255

Blue Sky 0209, 0218

Bondstec 0214

Boots 0207

Bradford 0062

Brandt 0216, 0226

Brionvega 0205, 0213, 0217

Britannia 0200, 0207

Brockwood 0060

Broksonic 0138

Bruns 0205

BSR 0215

BTC 0209, 0218

Bush 0177, 0208, 0209,

0210, 0213, 0215,

0216, 0217, 0218,

0230, 0237

Candle 0060, 0061

Capsonic 0206

Cascade 0208

Cathay 0213, 0217

CCE 0127

Celebrity 0059

Centurion 0213, 0217

Century 0205

CGE 0214, 0215

Cimline 0208, 0218

Citizen 0060, 0061, 0062,

0064

City 0208

Clarivox 0212, 0217

Clatronic 0206, 0207, 0208,

0209, 0213, 0214,

0218

CMS 0200

Colortyme 0060, 0061

Concerto 0060, 0061

Concorde 0208

Condor 0200, 0207, 0213

Contec 0200, 0207, 0208

Contec/Cony 0062

Continental Edison

0216

Cosmel 0208

Craig 0062

Crosley 0205, 0214, 0215

Crown 0062, 0063, 0128,

0208, 0213, 0217

CS Electronics 0200, 0207, 0209,

0214, 0218

CTC 0214

Curtis Mathes 0057, 0060, 0061,

0064, 0065

CXC 0062

Cybertron 0209, 0218

Daewoo 0060, 0061, 0120,

0127, 0155, 0193,

0200, 0207, 0208,

0213, 0218, 0238

Dainichi 0200, 0209, 0218

Dansai 0200, 0206, 0213,

0217

Dantax 0217

Daytron 0060, 0061, 0208

De Graaf 0210

Decca 0204, 0207, 0213,

0217

Desmet 0213, 0217

Diamond 0200

Dimensia 0057

Dixi 0208, 0213, 0217

DTS 0208

Dual 0207, 0215, 0216

Dual-Tec 0207, 0208, 0215

Dumont 0060, 0127, 0205,

0207

Durabrand 0126

Dux 0217

Dynatron 0213, 0217

Elbe 0203, 0204, 0212,

0218

Elbe-Sharp 0204

Elcit 0204, 0205

ELECTRO TECH

0208

Electroband 0059

Electrohome 0059, 0060, 0061

Elin 0200, 0207, 0213,

0217

Elite 0209, 0213, 0218

Elman 0215

Elta 0200, 0208

Emerson 0060, 0061, 0062,

0064, 0128, 0205

Envision 0060, 0061

Erres 0213, 0217

ESA 0080

Etron 0208

Euro-Feel 0206

Euroline 0217

Euroman 0200

Euromann 0206, 0207, 0213

Europhon 0200, 0204, 0207,

0213, 0215

Fenner 0208

Ferguson 0212, 0217, 0226

Fidelity 0200, 0207, 0210

Finlandia 0210

Finlux 0204, 0205, 0207,

0213, 0215, 0217

Firstline 0200, 0207, 0208,

0213, 0214

Fisher 0064, 0127, 0128,

0205, 0207, 0215

Flint 0213, 0218

Formenti 0200, 0205, 0207,

0215, 0217

Formenti-Phoenix

0200

Fortress 0205

Frontech 0206, 0208, 0210,

0211, 0214

Fujitsu 0023, 0024, 0025,

0088, 0127

Funai 0033, 0034, 0035,

0036, 0037, 0062,

0206

Futuretech 0062

Gateway 0094

GBC 0208, 0215, 0218

GE 0057, 0060, 0061,

0122, 0147

GEC 0204, 0207, 0211,

0213, 0217

Geloso 0208, 0210, 0215

General Technic 0208

Genexxa 0209, 0211, 0213,

0218

Gibralter 0060

GoldHand 0200

GoldStar 0060, 0061, 0127,

0128, 0200, 0201,

0207, 0208, 0210,

0213, 0214, 0215,

0217

Goodmans 0171, 0201, 0204,

0206, 0208, 0213,

0217, 0240

GPM 0209, 0218

Graetz 0211

Granada 0204, 0207, 0210,

0213, 0217

Grandin 0208, 0209, 0217

Grundig 0128, 0130, 0222,

0236, 0255

Grunpy 0062

Halifax 0200, 0206, 0207

Hallmark 0060, 0061

Hampton 0200, 0207

Hanseatic 0203, 0207, 0208,

0213, 0215, 0217

Hantarex 0204, 0208

Harvard 0062

HCM 0206, 0207, 0208,

0218

Hifivox 0216

Higashi 0200

Hinari 0208, 0209, 0213,

0217, 0218

Hisawa 0209, 0218

Hitachi 0006, 0014, 0015,

0016, 0042, 0060,

0061, 0095, 0105,

0127, 0156, 0179,

0180, 0204, 0207,

0210, 0211, 0215,

0216, 0251

Hornyphon 0213

Hoshai 0209, 0218

Huanyu 0200, 0207

Hygashi 0200, 0207

Hyper 0200, 0207, 0208,

0214, 0215

Hypson 0206, 0207, 0213,

0217

ICE 0127, 0200, 0206,

0207, 0208, 0209,

0213, 0218

ICeS 0200, 0218

IMA 0062

Imperial 0211, 0213, 0214,

0215

Indiana 0213, 0217

Infinity 0063

Ingelen 0211

Ingersol 0208

Inno Hit 0201, 0204, 0207,

0208, 0209, 0213,

0217, 0218

Innovation 0206, 0208

Interbuy 0208, 0214

Interfunk 0205, 0211, 0213,

0214, 0216, 0217

International 0200

Intervision 0206, 0207, 0218

Irradio 0201, 0208, 0209,

0213, 0217, 0218

Isukai 0209, 0218

ITC 0207, 0215

ITS 0200, 0209, 0213,

0218

01EN_DSP-AX563_B.book Page iv Friday, February 1, 2008 11:08 AM

ITT 0129, 0208, 0211

ITV 0208, 0217

JBL 0063

JC Penney 0057, 0060, 0061

JCB 0059

Jensen 0060, 0061

JVC 0017, 0018, 0019,

0108, 0136, 0153,

0178, 0190, 0213,

0218

Kaisui 0200, 0207, 0208,

0209, 0218

Kamosonic 0207

Kamp 0200, 0207

Kapsch 0211

Karcher 0207, 0208, 0212,

0217

Kawasho 0059, 0060, 0061,

0200

Kendo 0128, 0210

Kennedy 0215

Kenwood 0060, 0061

Kingsley 0200, 0207

Kloss Novabeam

0062

Kneissel 0203

Kolster 0213

Konka 0209, 0218

Korpel 0213, 0217

Korting 0205

Koyoda 0208

KTV 0062, 0127, 0207

Kyoto 0200, 0212

Lenco 0208

Lenoir 0207, 0208

Lesa 0214

Leyco 0206, 0213, 0217

LG 0016, 0038, 0039,

0127, 0128, 0157,

0158, 0163, 0164,

0166, 0188, 0189,

0200, 0201, 0207,

0208, 0210, 0213,

0214, 0215, 0217

Liesenk 0217

Life 0206, 0208

Lifetec 0206, 0208, 0218

Loewe 0063, 0128, 0203,

0204, 0223, 0227

Loewe Opta 0205, 0213, 0217

Logik 0058

Luma 0210, 0217

Lumatron 0210, 0213, 0217

Lux May 0213

Luxman 0060, 0061

Luxor 0201, 0207, 0210

LXI 0057, 0061, 0063,

0064

Magnadyne 0204, 0205, 0214,

0215, 0217

Magnafon 0200, 0204, 0207

Magnavox 0060, 0061, 0063,

0102, 0103, 0150

Magnum 0206, 0208

Majestic 0058

Mandor 0206

Manesth 0206, 0207, 0213,

0217

Marantz 0060, 0061, 0063,

0090, 0213, 0217

Marelli 0205

Mark 0200, 0213, 0217

Matsui 0204, 0207, 0208,

0210, 0213, 0217

Mediator 0213, 0217

Medion 0206, 0208

Megatron 0061

Melectronic 0200, 0207, 0208,

0211, 0213, 0216,

0217

Memorex 0058, 0061, 0064,

0208

Memphis 0208

Metz 0205

MGA 0060, 0061

Micromaxx 0206, 0208

Microstar 0206, 0208

Minerva 0204

Minoka 0213

Mitsubishi 0006, 0015, 0016,

0048, 0060, 0061,

0104, 0112, 0113,

0125, 0205, 0213

Mivar 0200, 0201, 0202,

0203, 0204, 0207

Montgomery Ward

0058

MTC 0060, 0061, 0128,

0200

Multi System 0217

Multitech 0062, 0127, 0128,

0200, 0207, 0208,

0210, 0214, 0215,

0217

Murphy 0200, 0207

NAD 0061

Naonis 0210

NEC 0026, 0053, 0060,

0061, 0096, 0127

Neckermann 0205, 0207, 0210,

0213, 0217, 0255

NEI 0213, 0217

Nesco 0214

NET-TV 0082, 0101

New Tech 0208, 0213

New World 0209, 0218

Nicamagic 0200, 0207

Nikkai 0200, 0206, 0207,

0209, 0213, 0217,

0218

Nikko 0061

Nobliko 0200, 0207

Nogamatic 0216

Nokia 0129, 0211

Nordmende 0205, 0211, 0213,

0216

Nordvision 0217

Oceanic 0211

Olevia 0084

ONCEAS 0207

Onwa 0062, 0218

Orbit 0213

Orion 0126, 0204, 0208,

0213, 0217, 0235

Orline 0218

Orsowe 0204

Osaki 0127, 0206, 0207,

0209, 0218

Osio 0201

Oso 0209, 0218

Osume 0218

Otto Versand 0204, 0207, 0213,

0215, 0216, 0217,

0255

Pael 0200, 0207

Palladium 0207

Panama 0200, 0206, 0207,

0208

Panasonic 0006, 0007, 0063,

0073, 0074, 0097,

0110, 0114, 0137,

0141, 0151, 0162,

0165, 0186, 0204,

0211, 0244, 0245,

0246, 0254

Pathe Cinema 0200, 0203, 0207,

0212, 0215

Pathe Marconi 0212, 0216

Pausa 0208

Perdio 0200

Philco 0060, 0061, 0063,

0128, 0205, 0214,

0215

Philharmonic 0207

Philips 0040, 0060, 0063,

0072, 0115, 0116,

0124, 0130, 0150,

0175, 0184, 0187,

0205, 0207, 0213,

0215, 0217, 0220,

0221, 0232, 0233,

0252, 0253

Philips Magnavox

0124

Phoenix 0200, 0205, 0213,

0217

Phonola 0200, 0205, 0213,

0217

Pilot 0060

Pioneer 0012, 0013, 0060,

0061, 0098, 0109,

0117, 0128, 0181,

0182, 0194, 0195,

0211, 0213, 0216,

0217, 0250

Plantron 0206, 0213

Polaroid 0075

Poppy 0208

Portland 0060, 0061

Prandoni-Prince 0204, 0210

Precision 0207

Prima 0208, 0211

Profex 0208

Profi-Tronic 0213

Proline 0213

Proscan 0057

Prosonic 0200, 0207, 0217

Protech 0206, 0207, 0208,

0213, 0214, 0215,

0217

Proton 0060, 0061

Provision 0217

Pulsar 0060

Pye 0213, 0217

Pymi 0208

Quasar 0152, 0214

Quelle 0201, 0206, 0207,

0213, 0214, 0215,

0217

Radialva 0218

Radio Shack 0064

Radio Shack/Realistic

0057, 0060, 0061,

0062, 0064

Radiola 0213, 0217

Radiomarelli 0204, 0205, 0214

Radiotone 0213

RCA 0057, 0060, 0061,

0091, 0133, 0135,

0147, 0149

Realistic 0064

Revox 0213, 0217

Rex 0206, 0210, 0211

RFT 0203, 0205

Rhapsody 0200

R-Line 0213, 0217

Roadstar 0206, 0208, 0209,

0218, 0237

Robotron 0205

Rowa 0200

RTF 0205

Saba 0204, 0205, 0211,

0216

saccs 0212

Saisho 0204, 0206, 0207,

0208

Salora 0201, 0204, 0210,

0211, 0215

Sambers 0204

Sampo 0060, 0061, 0083,

0101

Samsung 0029, 0030, 0031,

0032, 0044, 0045,

0046, 0047, 0060,

0061, 0065, 0068,

0069, 0071, 0079,

0087, 0127, 0128,

0130, 0144, 0160,

0161, 0170, 0176,

0183, 0185, 0200,

0201, 0206, 0207,

0208, 0213, 0217,

0239, 0241, 0242,

0243

Sandra 0200, 0207

Sansui 0123, 0126, 0213

Sanyo 0020, 0021, 0022,

0049, 0060, 0064,

0127, 0128, 0200,

0203, 0207, 0215

SBR 0217

SCHAUB LORENTZ

0211

Schneider 0207, 0209, 0213,

0215, 0216, 0217,

0218

Scotch 0061

Scott 0060, 0061, 0062

Sears 0057, 0060, 0061,

0064

SEG 0200, 0206, 0207,

0214, 0215, 0217

SEI 0204

SEI-Sinudyne 0204, 0205, 0211

Seleco 0210, 0211, 0215

Sencora 0208

Sentra 0218

Serino 0200

Sharp 0009, 0010, 0011,

0060, 0061, 0066,

0070, 0087, 0111,

0143, 0145, 0167,

0168, 0169, 0198,

0204, 0224, 0247,

0248, 0249

Shogun 0060

Siarem 0204, 0205, 0215

Sicatel 0212

Siemens 0255

Sierra 0213

Signature 0058

Silva 0200

Singer 0205, 0214, 0215

Sinudyne 0204, 0205, 0215,

0217

Skantic 0211

Solavox 0211

01EN_DSP-AX563_B.book Page v Friday, February 1, 2008 11:08 AM

APPENDIX

Sonoko 0206, 0207, 0208,

0213, 0217

Sonolor 0211

Sontec 0213, 0217

Sony 0041, 0059, 0067,

0085, 0086, 0174,

0196, 0199, 0208,

0219, 0234

Sound & Vision 0209, 0218

Soundesign 0060, 0061, 0062

Soundwave 0213, 0217

SSS 0060, 0062

Standard 0207, 0208, 0209,

0213, 0218

Starlight 0217

Starlite 0062

Stenway 0218

Stern 0210, 0211

Sunkai 0208, 0218

Sunwood 0208, 0213

Superla 0200, 0204, 0207

SuperTech 0200

Supra 0208

Supreme 0059

Susumu 0209

Sutron 0208

Sydney 0200, 0207

Sylvania 0060, 0061, 0063,

0080, 0134, 0142,

0148

Symphonic 0062, 0080

Sysline 0217

Sytong 0200

Tandy 0127, 0207, 0209,

0211, 0218

Tashiko 0200, 0207, 0210

Tatung 0127, 0204, 0207,

0213, 0217, 0237

TCM 0206, 0208

Teac 0127

Tec 0207, 0208, 0214,

0215

Techwood 0060, 0061

Teknika 0058, 0060, 0061,

0062

Teleavia 0216

Telecor 0218

Telefunken 0065, 0213, 0216

Telegazi 0218

Teletech 0208, 0214, 0217

Teleton 0207

Televideon 0200

Tensai 0208, 0209, 0213,

0218

Tesmet 0213

Tevion 0206, 0208

Texet 0200, 0207

Thomson 0191, 0192, 0207,

0213, 0216, 0226

Thorn 0212, 0217

TMK 0060, 0061

Tokai 0213

Tokyo 0200, 0207

Toshiba 0027, 0043, 0053,

0054, 0064, 0078,

0089, 0090, 0106,

0107, 0127, 0131,

0140, 0146, 0159,

0197, 0225, 0231,

0237

Towada 0211, 0215

Transtec 0200

Trident 0204

Tristar 0218

Triumph 0204

Uher 0211, 0213

Ultravox 0200, 0205, 0207,

0214, 0215

United 0217

Universum 0127, 0128, 0129,

0201, 0206, 0213,

0214, 0215, 0217

Univox 0212

Vestel 0210, 0211, 0213,

0214, 0215, 0217

Vexa 0208, 0217

Victor 0213

VIDEOLOGIC 0200

Videologique 0200, 0207, 0209,

0218

Videosat 0214

VideoSystem 0213

Videotechnic 0200

Vidtech 0060, 0061

Viewsonic 0076, 0077, 0092,

0099, 0172, 0173

Visiola 0200, 0207

Vision 0213

Vortec 0213, 0217

Voxson 0205, 0210, 0211,

0213

Waltham 0207, 0212

Wards 0057, 0058, 0060,

0061, 0063

Watson 0213, 0217, 0218

Watt Radio 0200, 0207, 0212,

0215

Wega 0205

Weltblick 0213, 0217

Weston 0215

White Westinghouse

0200, 0207, 0217

Yamaha 0000, 0001, 0002,

0003, 0004, 0005,

0060, 0061

Yamishi 02 18

Yoko 0200, 0206, 0207,

0208, 0209, 0213,

0217, 0218

Yorx 0209, 0218

Zanussi 0210

Zenith 0058, 0060, 0100,

0105, 0119, 0121,

0154

TV/DVD

Aiwa 0139, 2055

Apex 0132, 2049

Broksonic 0138, 2060

Bush 0230, 2112

JVC 0136, 2053

Panasonic 0137, 0254, 2054,

2110

RCA 0133, 0135, 2050,

2051

Sylvania 0134, 2052

Thomson 0226, 2109

Toshiba 0131, 0231, 2048,

2111

TV/DVD/VCR

Panasonic 0141, 1040, 2057

Samsung 0241, 1070, 2113

Sharp 0143, 1028, 2059

Sylvania 0142, 1041, 2058

Toshiba 0140, 1029, 2056

TV/VCR

Aiwa 0237, 1066

Bush 0237, 1066

Daewoo 0155, 0238, 1038,

1067

GE 0147, 1030

Goodmans 0240, 1069

Grundig 0236, 1062

Hitachi 0156, 1039

JVC 0153, 1036

Magnavox 0150, 1033

Orion 0235, 1065

Panasonic 0151, 1034

Philips 0150, 0232, 0233,

1033, 1062, 1063

Quasar 0152, 1035

RCA 0149, 1032

Roadstar 0237, 1066

Samsung 0144, 0239, 1027,

1068

Sharp 0145, 1028

Sony 0234, 1064

Sylvania 0148, 1031

Tatung 0237, 1066

Toshiba 0146, 0237, 1029,

1066

Zenith 0154, 1037

VCR

Admiral 1008, 1013

Adventura 1005

Aiwa 1005, 1042, 1043,

1044, 1066

Akai 1007, 1043

Akiba 1050

Akura 1043, 1050

Alba 1044, 1050

American High 1004

Amstrad 1042

Anitech 1050

ASA 1045, 1046

Asha 1002, 1014

Asuka 1042, 1045, 1046,

1050

Audio Dynamics1000

Audiovox 1003

Baird 1042, 1043, 1047

Basic Line 1044, 1050

Baur 1046

Beaumark 1002, 1014

Bell & Howell 1001

Blaupunkt 1046, 1048

Broksonic 1012, 1013

Bush 1044, 1050, 1066

Calix 1003

Candle 1002, 1003

Canon 1004

CCE 1006

CGE 1042, 1043

Cimline 1044, 1050

Citizen 1002, 1003

Colortyme 1000

Colt 1006

Craig 1002, 1003, 1006,

1014

Crown 1050

Curtis Mathes 1000, 1002, 1004,

1009

Cybernex 1002, 1014

Daewoo 1005, 1038, 1061,

1067

Dansai 1050

Dantax 1044

DBX 1000

De Graaf 1046, 1049

Decca 1042, 1043, 1046

Denon 1010

Dimensia 1009

Dual 1043, 1046

Dumont 1042, 1046, 1047,

1049

Dynatech 1005

Electrohome 1003

Electrophonic 1003

Elta 1050

Emerson 1003, 1004, 1005,

1012, 1013

Etzuko 1050

Ferguson 1043

Fidelity 1042

Finlandia 1046, 1047, 1049

Finlux 1042, 1043, 1046,

1047, 1049

FIRST LINE 1044, 1045, 1049,

1050

Fisher 1001, 1047

Flint 1044

Formenti/Phoenix

1046

Fuji 1004

Fujitsu 1042

Funai 1005, 1042

Galaxy 1042

Garrard 1005

GBC 1050

GE 1002, 1004, 1009,

1014, 1030

GEC 1046

Geloso 1050

General Technic 1044, 1048

Go Video 1014

GoldHand 1050

Goldstar 1000, 1003, 1042,

1045

Goodmans 1042, 1045, 1050,

1069

Gradiente 1005

Graetz 1043, 1047

Granada 1046, 1047, 1049

Grandin 1042, 1045, 1050

Grundig 1046, 1050, 1062

Hanseatic 1045, 1046

Harley Davidson1005

Harman/Kardon 1000

Harwood 1006

HCM 1050

Headquarter 1001

Hinari 1044, 1050

Hisawa 1044

Hitachi 1007, 1010, 1039,

1042, 1043, 1046,

1049

Hughes Network Systems

1010

Hypson 1044, 1050

Imperial 1042

Inno Hit 1046, 1050

Innovation 1044, 1048

Instant Replay 1004

Interbuy 1045

Interfunk 1046, 1047

Intervision 1042

Irradio 1045, 1050

ITT 1043, 1047

ITV 1045

JC Penney 1000, 1001, 1002,

1003, 1004, 1006

JCL 1004

Jensen 1007

JVC 1000, 1001, 1007,

1011, 1017, 1036,

1043

Kaisui 1050

01EN_DSP-AX563_B.book Page vi Friday, February 1, 2008 11:08 AM

YAMAHA ELECTRONICS CORPORATION, USA

6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.

YAMAHA CANADA MUSIC LTD.

135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA

YAMAHA ELECTRONIK EUROPA G.m.b.H.

SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, GERMANY

YAMAHA ELECTRONIQUE FRANCE S.A.

RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE

YAMAHA ELECTRONICS (UK) LTD.

YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND

YAMAHA SCANDINAVIA A.B.

J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN

YAMAHA MUSIC AUSTRALIA PTY. LTD.

LEVEL 1, 99 QUEENSBRIDGE STREET, SOUTHBANK, VIC 3006, AUSTRALIA

Printed in China WN25600

DSP-AX563

AV Amplifier

OWNER’S MANUAL

Karcher 1046

Kendo 1044

Kenwood 1000, 1001, 1007,

1011, 1043

KLH 1006

Kodak 1003, 1004

Korpel 1050

Leyco 1050

LG 1003, 1042, 1045,

1071

Lifetec 1044, 1048

Lloyd's 1005

Loewe 1048

Loewe Opta 1045, 1046

Logik 1006, 1050

Luxor 1047

LXI 1003

M Electronic 1042

Magnasonic 1047

Magnavox 1004, 1018, 1033

Magnin 1003, 1014

Manesth 1050

Marantz 1000, 1001, 1004,

1046, 1051

Marta 1003

Matsui 1044, 1045

Matsushita 1004

Mediator 1046

Medion 1044, 1048

MEI 1004

Memorex 1001, 1002, 1003,

1004, 1005, 1008,

1013, 1014, 1042,

1045, 1047

Memphis 1050

Metz 1048

MGA 1014

MGN Technology

1002, 1014

Micromaxx 1044, 1048

Microstar 1044, 1048

Migros 1042

Minolta 1010

Mitsubishi 1011, 1042, 1046

Montgomery Ward

1008

Motorola 1004, 1008

MTC 1002, 1014

Multitech 1002, 1005, 1006,

1042, 1046, 1050

Murphy 1042

National 1048

NEC 1000, 1001, 1007,

1011, 1043, 1051

Neckermann 1043, 1046

NEI 1046

Nesco 1050

Nikko 1003

Noblex 1002, 1014

Nokia 1043, 1047

Nordmende 1043

Oceanic 1042, 1043

Okano 1044

Olympus 1004

Optimus 1003, 1008

Orion 1012, 1013, 1044,

1065

Orson 1042

Osaki 1042, 1045, 1050

Otto Versand 1046

Palladium 1043, 1045, 1050

Panasonic 1004, 1020, 1034,

1040, 1048, 1054,

1072

Pathe Marconi 1043

Penney 1010, 1014

Pentax 1010, 1049

Perdio 1042

Philco 1004, 1051

Philips 1004, 1025, 1033,

1046, 1056, 1057,

1059, 1062, 1063

Philips Magnavox

1018

Phonola 1046

Pilot 1003

Pioneer 1011, 1046

Prinz 1042

Profex 1050

Profitronic 1014

Proline 1042

Proscan 1009

Prosonic 1044

Protec 1006

Pye 1046, 1056

Quarter 1001

Quartz 1001, 1047

Quasar 1004, 1035

Quelle 1042, 1046, 1047

Radio Shack 1003

Radio Shack/Realistic

1001, 1002, 1003,

1004, 1005, 1008

Radiola 1046

Radix 1003

Randex 1003

RCA 1002, 1004, 1009,

1010, 1014, 1015,

1022, 1032

Realistic 1001, 1002, 1003,

1004, 1005, 1008

Rex 1043

RFT 1046

Roadstar 1045, 1050, 1066

Saba 1043

Saisho 1044, 1050

Salora 1047

Samsung 1002, 1014, 1021,

1027, 1052, 1068,

1070

Sanky 1008

Sansui 1007, 1011, 1013,

1043

Sanyo 1001, 1002, 1014,

1047

SBR 1046

Schaub Lorenz 1042, 1043, 1047

Schneider 1042, 1044, 1045,

1046, 1050

Scott 1012

Sears 1001, 1003, 1004,

1010

SEG 1050

SEI-Sinudyne 1046

Seleco 1043

Sentron 1050

Sharp 1008, 1023, 1028,

1053, 1073

Shintom 1006, 1047, 1050

Shivaki 1045

Shogun 1002, 1014

Siemens 1045, 1047

Signature 2000 1008

Silva 1045

Singer 1004, 1006

Sinudyne 1046

Sontec 1045

Sony 1016, 1019, 1055,

1060, 1064, 1074

STS 1004, 1010

Sunkai 1044

Sunstar 1042

Suntronic 1042

Sunwood 1050

Sylvania 1004, 1005, 1031,

1041

Symphonic 1005

Taisho 1044

Tandy 1001

Tashiko 1003, 1042

Tatung 1007, 1042, 1043,

1046, 1066

TCM 1044, 1048

Teac 1005, 1007

Technics 1004, 1048

Teknika 1003, 1004, 1005

Teleavia 1043

Telefunken 1043

Tenosal 1050

Tensai 1042, 1045, 1050

Tevion 1044, 1048

Thomson 1043, 1058

Thorn 1043, 1047

TMK 1002, 1014

Tokai 1045, 1050

Tonsai 1050

Toshiba 1013, 1024, 1029,

1043, 1046, 1066,

1075

Totevision 1002, 1003, 1014

Towada 1050

Towika 1050

Uher 1045

Unitech 1002, 1014

Universum 1042, 1045, 1046

Vector Research 1000

Video Concepts 1000

Videon 1044, 1048

Videosonic 1002, 1014

Wards 1002, 1003, 1004,

1005, 1006, 1008,

1010, 1014

Weltblick 1045

White Westinghouse

1013

XR-1000 1004, 1005, 1006

Yamaha 1000, 1001, 1007

Yamis h i 1 0 50

Yokan 1050

Yoko 1045, 1050

Zenith 1013, 1026, 1037

DSP-AX563_B-cv.fm Page 1 Tuesday, January 8, 2008 4:32 PM

Black process 45.0° 240.0 LPI

The circled numbers and alphabets correspond to those in the Owner’s Manual.

■Front panel

DSP-AX563

SPEAKERS

PHONES

SILENT CINEMA

A/B/OFF

OPTIMIZER MIC

AUDIO SELECT

DIRECTSTRAIGHT

EFFECT

TONE CONTROL

l INPUT hl PROGRAM h

VOLUME

SCENE

1234

STANDBY

/ON

A B D

E JG I KHF

VIDEO L AUDIO R

VIDEO AUX USB

00_sheet_DSP-AX563_B.book Page 1 Friday, February 1, 2008 11:17 AM

■Remote control

REC

SUR. DECODE

NIGHT

STRAIGHT DIRECT

PARAMETER

MULTI CH IN AUDIO SEL

SLEEP

ENHANCER

l PROG h

TV MUTE

TV INPUT

TV VOL

TV CH

POWER

AMP

STANDBY

POWER

MUTE

POWER

4321

ENT

DVD

V-AUX/DOCK

DTV/CBL DVR

CD MD/CD-R TUNER

VOLUME

TITLE

ENTER

BAND LEVEL

DISPLAY

RETURN

MEMORY

AVTV

SCENE

4321

USB A B

FREQ/TEXT EON

MODE - PTY SEEK - START

WN26160

Printed in China

00_sheet_DSP-AX563_B.book Page i Friday, February 1, 2008 11:17 AM
