Owner’s Manual
EN
Contents
Introduction .......................................................... 2
Features .....................................................................2
Accessories ................................................................3
Part names .................................................................4
Preparation ........................................................... 6
Charging .....................................................................6
Turning on ..................................................................7
Turning off ..................................................................7
Pairing with a Bluetooth device ..................................8
Establishing a Bluetooth connection ..........................9
Ending a Bluetooth connection ...................................9
Connecting to an external device
with the included cable .........................................9
Using the headphones ....................................... 10
Listening to music .....................................................10
Using the phone .......................................................11
Operating the connected Bluetooth device
by voice commands ............................................12
Troubleshooting ................................................. 13
En 2
Thank you for selecting for the Yamaha HPH-W300 Headphones. The HPH-W300 is a pair
of headphones specifically designed for use with a portable audio player or smartphone via
Bluetooth connection.
This manual explains preparations and operations for everyday users of the unit.
Features
• Enjoy music wirelessly via Bluetooth connection to a portable audio player or
smartphone.
• A built-in internal microphone lets you answer phone calls and carry on conversa-
tions.
About content in this manual and the “Safety Brochure”
• To ensure optimum performance, please read this manual carefully.
• Please read the included "Safety Brochure" before using the device.
• The illustrations in this manual are for instructional purposes only.
• The company names and product names in this manual are the trademarks or registered trade-
marks of their respective companies.
• The “ WARNING” icon indicates points that may lead to death or serious injury if not
properly observed.
• The “ CAUTION” icon indicates points that may lead to injury if not properly observed.
• The “NOTICE” sections contain points that you must observe to prevent product failure, dam-
age or malfunction and data loss.
• The “Note” sections contain important or detailed supplementary information.
Responsible Use
Do not use the headphones at high volume in a public place. Sound leakage from
the headphones may be a nuisance to people around you.
Introduction
En 3

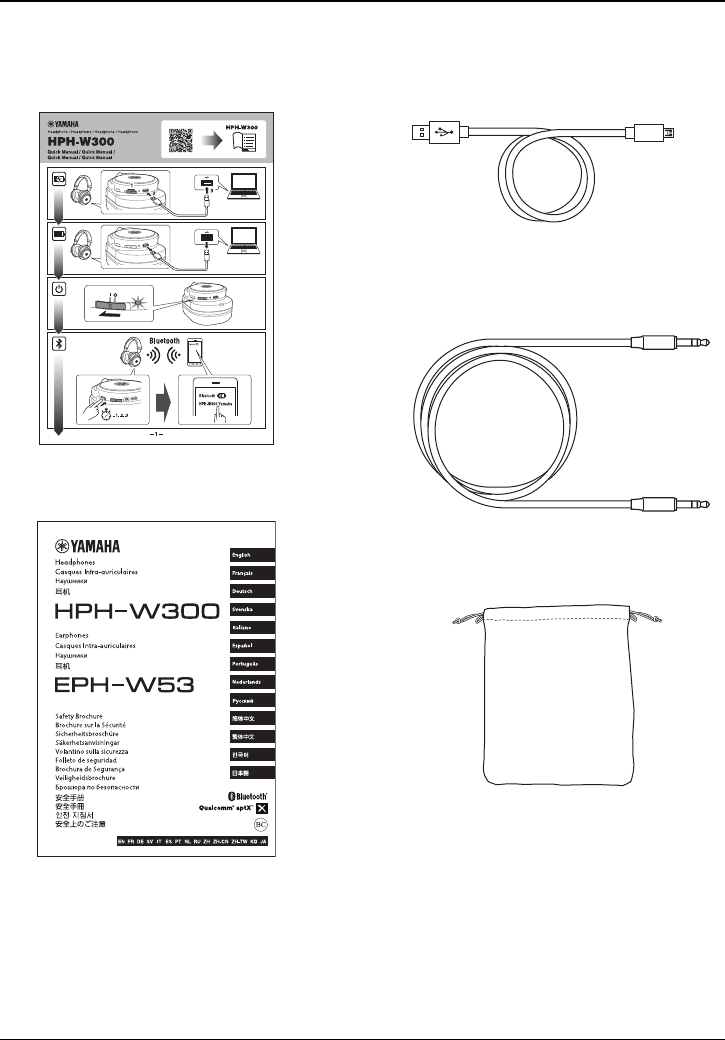

Accessories
This product includes the following accessories.
•Quick Manual
• Safety Brochure
•USB power cable
• 3.5mm stereo mini plug cable
• Carrying case
En 4
Part names
qHousing
Tapping or swiping the outside of the right housing enables you to operate playback, vol-
ume control, etc.
wBluetooth button
To start pairing with a Bluetooth device, press and hold more than three seconds.
ePower switch
Slide to turn on/off.
rIndicator
Indicates the status of the device by lighting or flashing.
*: Discontinue use immediately and have it inspected by qualified Yamaha service person-
nel.
Status Indicator Reference
page
When turning on Flashes in blue
(turns off in twenty seconds) Page 7
When turning off Lights in orange
(turns off in one second) Page 7
During Bluetooth pairing Flashes in blue and orange
alternately Page 8
When Bluetooth pairing is
completed
Lights in blue
(turns off in 20 seconds) Page 8
When the battery is less
than 10% charged Flashes in orange Page 6
During battery charging
Lights in orange
(turns off when the charging
is completed)
Page 6
An abnormality has
occurred in the battery. (*) Flashes rapidly in red. —
Right side
(R)
Left side
(L)
En 5
tCharging connector
Connects the included USB power cable for charging. This is on the underside of the right
housing.
yMicrophone
Used in conversation or voice controls. This is on the underside of the right housing.
uExternal input jack
Inputs audio signals by connecting to a portable audio player or a smartphone with the
included 3.5 mm stereo mini plug cable. This is a mini plug jack located on the underside
of the left housing.
Note
When a cable is connected to the external input jack, the headphone turns off automatically. Blu-
etooth functions such as conversation and voice control cannot be used.
En 6
Charging
Connect the charging connector to a computer, etc., with the included USB power
cable.
The indicator lights in orange.
Note
• Make sure to charge the headphones before using them for the first time.
• When charged in a place where the temperature is extremely high or low, charging may be
completed quickly or charging may not be possible.
• To maintain optimum performance, charge the headphones at least once every six months.
• Batteries have a finite lifetime. The battery capacity is reduced gradually by the number of
times it is used and the elapsed time of use.
• The actual lifetime of a battery differs depending on how it is stored, how it is used, the sur-
rounding environment, etc.
• When the battery is charging, the indicator lights in orange. When charging is completed, the
indicator turns off.
• A full charge cycle takes about three hours.
Preparation
123
HPH-W300
USB power cable
(included)
Computer,
etc.,
USB terminal
Charging
connector
Lights in orange
En 7
Turning on
Slide the power switch to the “I” position.
The indicator flushes in blue for twenty seconds.
Note
If the headphones are automatically paired, the indicator lights in blue.
Note
If the headphones are left with no Bluetooth connection for ten minutes, they automatically turn
off. To turn on again, slide the power switch to the off position once and turn on again.
Turning off
Slide the power switch to the “O” position.
The indicator lights in orange for one second.
Lights in blue
Power switch
Lights in orange
Power switch
En 8

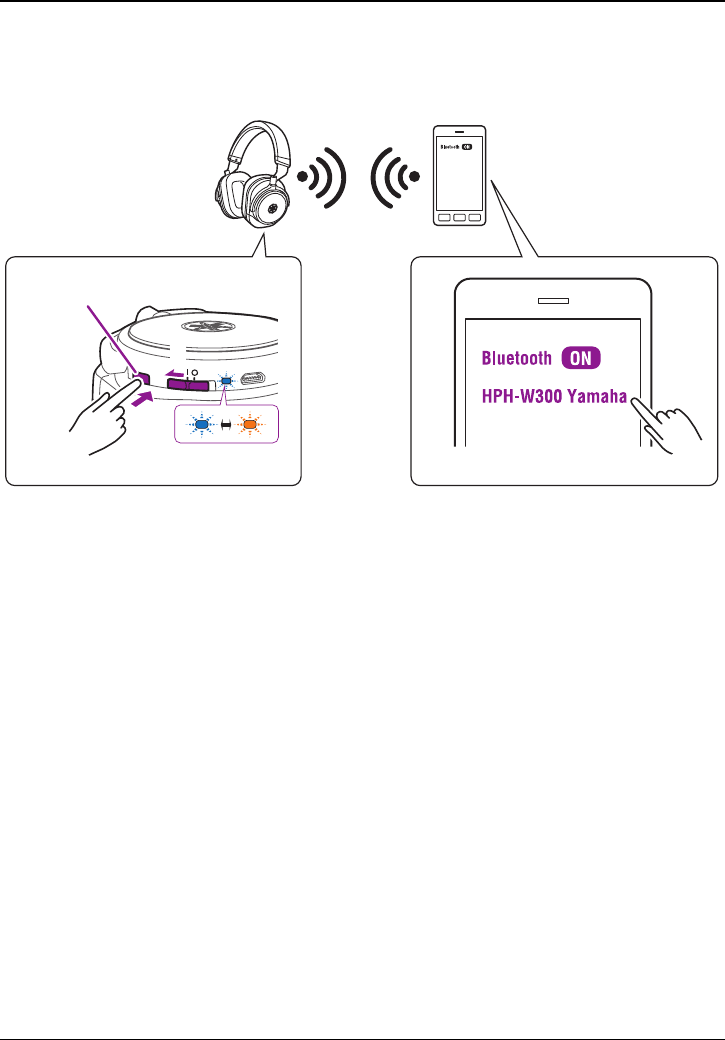

Pairing with a Bluetooth device
“Pairing” is the process of registering Bluetooth devices each other. Pairing must be per-
formed when you use a Bluetooth connection for the first time, or if the pairing data has been
deleted.
1 Turning on the headphones.
2 Press and hold the Bluetooth button until the indicator flashes in blue and orange
alternately. (more than three seconds)
The headphones are waiting for pairing.
3 Perform the pairing process on the Bluetooth device.
For details, refer to the owner's manual of the Bluetooth device.
3-1. Access the Bluetooth setting screen on the Bluetooth device.
3-2. If the Bluetooth setting is disabled, enable it.
3-3. In the list of detected devices, tap “HPH-W300 Yamaha” to select it.
Pairing is completed.
When pairing is completed, the indicator lights in blue for twenty seconds.
Note
• These headphones can be paired with up to eight Bluetooth devices. When pairing has suc-
ceeded with the ninth device, pairing data is deleted for the oldest paired device.
• If two minutes elapse before pairing is completed, the receiver stops waiting for pairing.
• If you are asked to enter a pass key, enter the numerals “0000.”
Bluetooth
1
2
HPH-W300
Bluetooth device
Bluetooth button
En 9
Establishing a Bluetooth connection
Turn on the headphones.
A Bluetooth connection is established with the most-recently connected Bluetooth device.
Note
• Some Bluetooth devices may not connect automatically.
• If the Bluetooth device does not connect to the headphones automatically, operate the device
to connect to the headphones.
• If you turn off the Bluetooth setting of the Bluetooth device, a Bluetooth connection is not
established with that device when you turn on the power of the receiver.
• The headphones can establish a Bluetooth connection with two devices simultaneously
(multi-point connection). To establish a Bluetooth connection with the second device, perform
the process also on that Bluetooth device. Audio from the connected Bluetooth devices can be
switched by playing or stopping music from the connected Bluetooth devices.
Ending a Bluetooth connection
If a Bluetooth connection exists, you can end it in either of the following ways.
- Turn off the power of the headphones.
- End the Bluetooth connection on the Bluetooth device.
Connecting to an external device with the included cable
The headphones feature an input con-
nector on the left housing, allowing you
to connect an external device (with a
3.5 mm stereo mini plug cable) and use
the headphones as you would conven-
tional ones.
Note
If a cable is connected to the input
connector while the headphones are
being turned on, the headphones
automatically turn off. To turn on
again after disconnecting the cable,
slide the power switch to the off posi-
tion once and turn on again.
HPH-W300
Left side (L)
External input jack
3.5 mm stereo mini plug cable
(included)
En 10
Wear the housing with the L mark to
your left ear, and the one with the one
with the R mark to your right ear.
Listening to music
The following operations to the right housing enable playback operation of the connected
Bluetooth device.
Using the headphones
Play Tap the center briefly.
If you want to select a specific song and play
it, perform the appropriate operations on the
Bluetooth device.
Pause While the song is playing, tap the
center briefly.
Skipping forward
to the next song
Swipe forward.
Skipping back to
the previous
song
Swipe backward.
Raising the vol-
ume
Swipe clockwise.
Lowering the vol-
ume
Swipe counterclockwise.
En 11
Using the phone
The following operation to the right housing of the headphones enables each control.
Receiving a
phone call
When a call comes in, tap the center
briefly.
Ending a call During the conversation, tap and hold
the center more than three seconds.
Ignoring a call When a call comes in, tap and hold
the center more than three seconds.
Rasing the con-
versation volume
Swipe clockwise.
Lowering the con-
versation volume
Swipe counterclockwise.
En 12
Operating the connected Bluetooth device by voice commands
If the connected Bluetooth device has a voice control feature/app (Siri, etc.), you can control
the Bluetooth device from the headphones.
Tap the center of the right housing twice briefly.
Voice control (Siri, etc.) starts and the Bluetooth device can be oper-
ated by voice commands.
Note
This works only for devices that have Siri or another voice control
feature.
En 13
If the situation does not improve even after trying the following actions, or if any abnormali-
ties not listed below are observed, contact the nearest authorized Yamaha dealer or service
center.
Troubleshooting
Symptom Action
No sound • Make sure that the volume is not set too low on the portable audio player
or smartphone.
• Make sure that the portable audio player or smartphone is not paused.
• Make sure that the portable audio player or smartphone is turned on.
• Make sure that the Bluetooth connection with the portable audio player
or smartphone is established.
• Check that the plug is inserted all the way into the headphone jack of the
portable audio player or smartphone (if the input connector is used).
Sound is heard only
from one channel
Check that the plug is inserted all the way into the headphone jack of a
portable audio player or smartphone (if the input connector is used).
Cannot be operated • Make sure that the Bluetooth connection with the portable audio player
or smartphone is established.
• An incompatible portable audio player or smartphone has been con-
nected.
Unusual sounds are
heard
Check the indicator. If the indicator flashes in orange, the battery is less
than 10% charging.
Cannot establish a
Bluetooth connec-
tion
• Make sure that the Bluetooth function of the portable audio player or
smartphone is turned on.
• If you can't establish a connection, try performing the pairing operation
once again.
Certification Statements 產品認證相關警語資訊:
I. Federal Communication Commission Interference Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for
an uncontrolled environment and are safe for intended operation as described
in this manual. The further RF exposure reduction can be achieved if the
product can be kept as far as possible from the user body or set the device to
lower output power if such function is available.
II. Industry Canada statement:
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit
accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth
for an uncontrolled environment and are safe for intended operation as
described in this manual. The further RF exposure reduction can be achieved if
the product can be kept as far as possible from the user body or set the device
to lower output power if such function is available.
Déclaration d'exposition aux radiations:
Le produit est conforme aux limites d'exposition pour les appareils portables RF
pour les Etats-Unis et le Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel.
La réduction aux expositions RF peut être augmentée si l'appareil peut être
conservé aussi loin que possible du corps de l'utilisateur ou que le dispositif est
réglé sur la puissance de sortie la plus faible si une telle fonction est disponible.
III. NCC 國家通訊委員會認證
依據低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自
變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及乾擾合法通信；經發現有乾擾現象
時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干
擾
IV. Battery Risk Statement(電池相關警語)
