Page Count: 65

Overview
Standard Features - Custom Components
Standard Features - Specs
After-Market Options
Memory
Storage
Additional Technical Specifications
Technical Specifications
Technical Specifications - Audio
Technical Specifications - Communications
Technical Specifications - Controllers
Technical Specifications - Hard Drives
Technical Specifications - Removable Storage
Technical Specifications - Input/Output Devices
Technical Specifications - Optical Devices
Technical Specifications - Graphics
Technical Specifications - Monitors

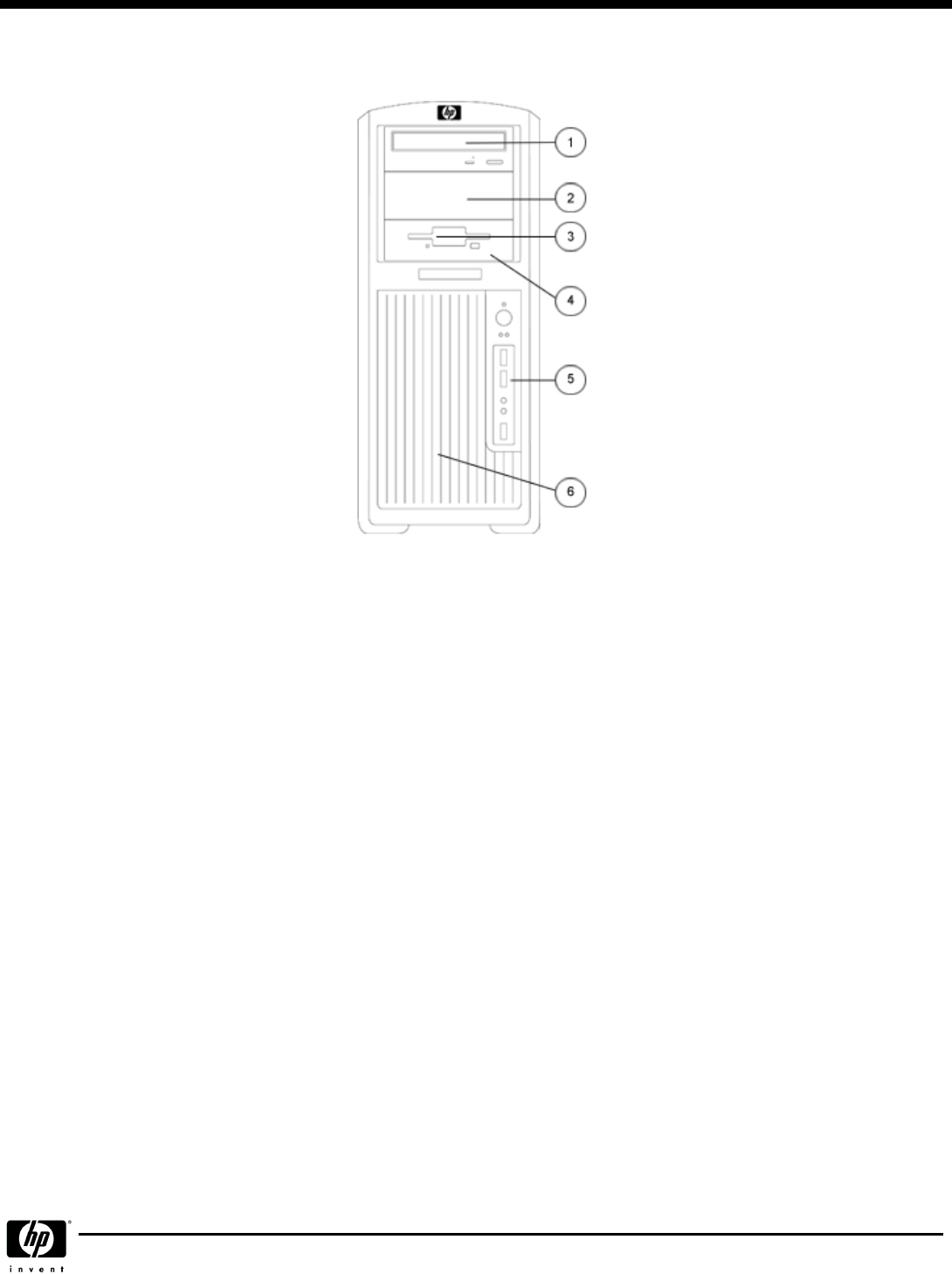

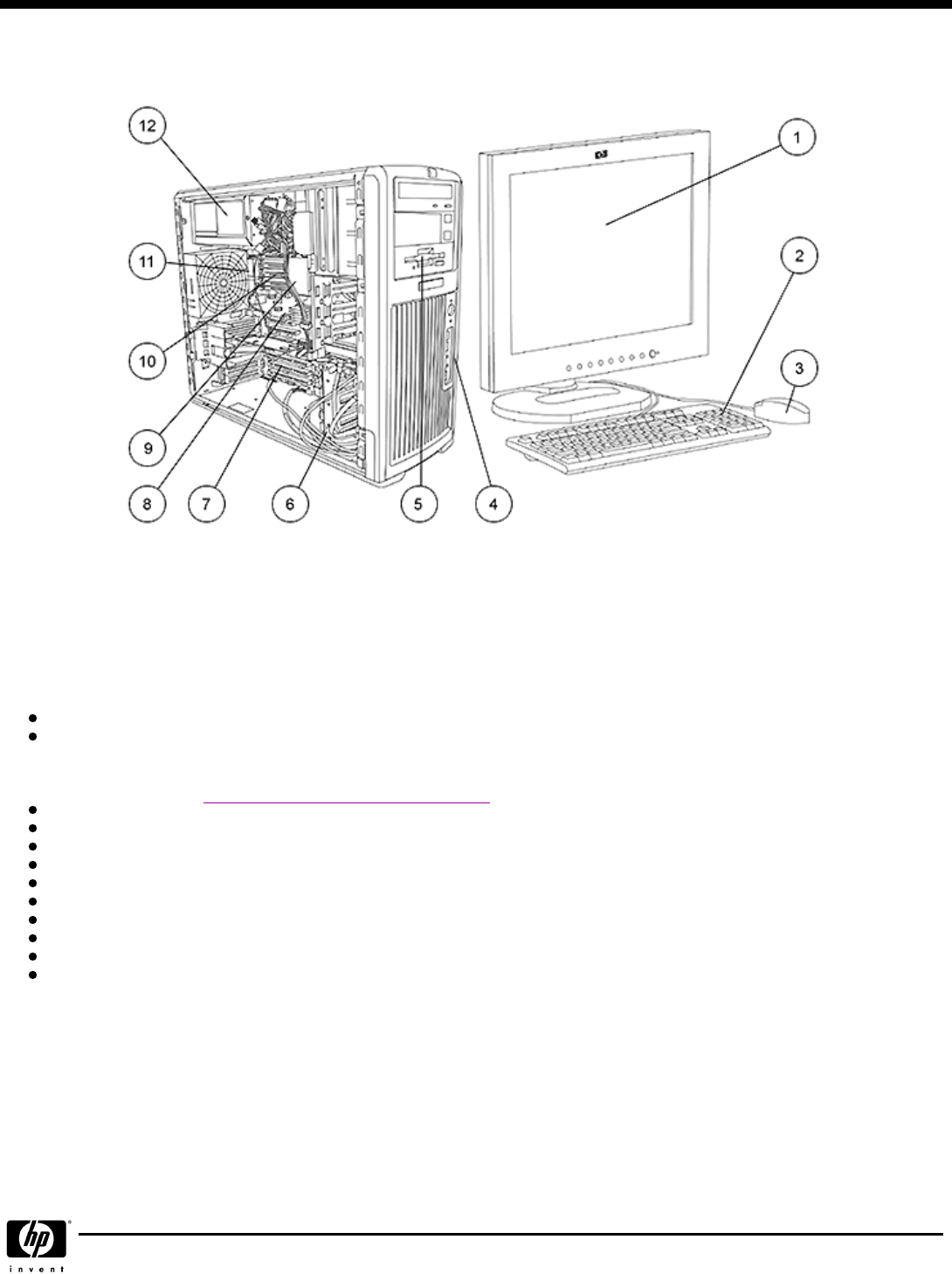

Monitor (sold separately)

2 PCI, 3 PCI-X, 1 PCI Express slots

2004 Standard Keyboard

1 PCI Express x16 Graphics Bus

2-Button Scroll Mouse

Dual 64-bit Intel® Xeon™ processors

Front IO: 2 USB 2.0, IEEE-1394 (standard), headphone and microphone

10.

8 DIMM slots for DDR-2 memory

5.25"" external bay for optional diskette drive, optical drive or other

5.25"/3.5" device

11.

6 USB 2.0, 1 standard serial port, 1 parallel port, 2 PS/2, 1 RJ-45, audio

in/out, microphone

5 internal 3.5" bays, 3 external 5.25" bays

12.

600 watt power supply

At A Glance

At A GlanceAt A Glance

At A Glance

64-bit Intel® Xeon™ processors

Choice of operating systems:

Microsoft Windows XP Professional

Red Hat Enterprise Linux Workstation 3.0 (32- or 64-bit version)

HP Linux Installer Kit (see

http://www.hp.com/workstations/software/linux/

for details)

Up to 16 GB of DDR-2 memory

PCI-Express I/O and graphics

Integrated Intel NetXtreme Gigabit ethernet

800 MHz processor front side bus support, depending on processor

Intel Hyper-Threading technology support

SATA and Ultra 320 SCSI drives

Digital AC97 integrated audio with internal speaker

Pre-loaded Manageability tools

Energy Star compliance with energy-saving features

Protected by HP Services, including a 3-3-3 standard warranty. Terms and conditions vary by country. Certain restrictions and exclusions apply.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Overview

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 1

Processor and Speed

Processor and SpeedProcessor and Speed

Processor and Speed

–

One of the following

Intel Xeon Processor with 800 MHz Front Side Bus

Intel Xeon Processor with 800 MHz Front Side BusIntel Xeon Processor with 800 MHz Front Side Bus

Intel Xeon Processor with 800 MHz Front Side Bus

2.8 GHz (1 MB L2 cache)

3.0 GHz (1 MB L2 cache)

3.0 GHz (2 MB L2 cache)

3.2 GHz (1 MB L2 cache)

3.2 GHz (2 MB L2 cache)

3.4 GHz (1 MB L2 cache)

3.4 GHz (2 MB L2 cache)

3.6 GHz (1 MB L2 cache)

3.6 GHz (2 MB L2 cache)

2nd Intel Xeon Processor with 800 MHz Front Side Bus

2nd Intel Xeon Processor with 800 MHz Front Side Bus2nd Intel Xeon Processor with 800 MHz Front Side Bus

2nd Intel Xeon Processor with 800 MHz Front Side Bus

2.8 GHz (1 MB L2 cache)

3.0 GHz (1 MB L2 cache)

3.0 GHz (2 MB L2 cache)

3.2 GHz (1 MB L2 cache)

3.2 GHz (2 MB L2 cache)

3.4 GHz (1 MB L2 cache)

3.4 GHz (2 MB L2 cache)

3.6 GHz (1 MB L2 cache)

3.6 GHz (2 MB L2 cache)

Operating System

Operating SystemOperating System

Operating System

–

One of the following

Microsoft Windows XP Professional SP1a

Red Hat Enterprise Linux Workstation 3 Update 4 (32 & 64-bit available as pre-load and as an After Market Option)

HP Installer CD for Red Hat Linux 7.2, 7.3 and Workstation 3 Box Set (64 bit)

See

http://www.hp.com/workstations/software/linux/

Click on "Hardware support matrix" under "Related links" for details.

1st Hard Disk Drive

1st Hard Disk Drive1st Hard Disk Drive

1st Hard Disk Drive

–

One of the following

40 GB 7200 rpm Serial ATA drive (2 MB cache)

80 GB 7200 rpm Serial ATA drive (8 MB cache)

160 GB 7200 rpm Serial ATA drive (8 MB cache)

250 GB 7200 rpm Serial ATA drive (8 MB cache)

400 GB 7200 rpm Serial ATA drive (8 MB cache)

74 GB 10K rpm Serial ATA drive (8 MB cache)

73 GB 10K Ultra320 SCSI drive

300 GB 10K Ultra320 SCSI drive

36 GB 15K Ultra320 SCSI drive

73 GB 15K Ultra320 SCSI drive

146 GB 15K Ultra320 SCSI drive

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Standard Features - Custom Components

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 2

2nd Hard Disk Drive

2nd Hard Disk Drive2nd Hard Disk Drive

2nd Hard Disk Drive

–

One of the following

2nd hard drive, 40 GB 7200 rpm Serial ATA drive (2 MB cache)

2nd hard drive, 80 GB 7200 rpm Serial ATA drive (8 MB cache)

2nd hard drive, 160 GB 7200 rpm Serial ATA drive (8 MB cache)

2nd hard drive, 250 GB 7200 rpm Serial ATA drive (8 MB cache)

2nd hard drive, 400 GB 7200 rpm Serial ATA drive (8 MB cache)

2nd hard drive, 74 GB 10K rpm Serial ATA drive (8 MB cache)

2nd hard drive, 73 GB 10K Ultra320 SCSI drive

2nd hard drive, 300 GB 10K Ultra320 SCSI drive

2nd hard drive, 36 GB 15K Ultra320 SCSI drive

2nd hard drive, 73 GB 15K Ultra320 SCSI drive

2nd hard drive, 146 GB 15K Ultra320 SCSI drive

3rd Hard Disk Drive

3rd Hard Disk Drive3rd Hard Disk Drive

3rd Hard Disk Drive

–

One of the following

3rd hard drive, 160 GB 7200 rpm Serial ATA drive (8 MB cache)

3rd hard drive, 400 GB 7200 rpm Serial ATA drive (8 MB cache)

3rd hard drive, 74 GB 10,000 rpm Serial ATA drive (8 MB cache)

3rd hard drive, 73 GB 10K Ultra320 SCSI drive

3rd hard drive, 300 GB 10K Ultra320 SCSI drive

3rd hard drive, 36 GB 15K Ultra320 SCSI drive

3rd hard drive, 73 GB 15K Ultra320 SCSI drive

3rd hard drive, 146 GB 15K Ultra320 SCSI drive

4th Hard Disk Drive

4th Hard Disk Drive 4th Hard Disk Drive

4th Hard Disk Drive

–

One of the following

4th hard drive, 160 GB 7200 rpm Serial ATA drive (8 MB cache)

4th hard drive, 400 GB 7200 rpm Serial ATA drive (8 MB cache)

4th hard drive, 74 GB 10,000 rpm Serial ATA drive (8 MB cache)

4th hard drive, 73 GB 10K Ultra320 SCSI drive

4th hard drive, 300 GB 10K Ultra320 SCSI drive

4th hard drive, 73 GB 15K Ultra320 SCSI drive

4th hard drive, 146 GB 15K Ultra320 SCSI drive

5th Hard Disk Drive

5th Hard Disk Drive5th Hard Disk Drive

5th Hard Disk Drive

–

One of the following

5th hard drive, 73 GB 10K Ultra320 SCSI drive

5th hard drive, 300 GB 10K Ultra320 SCSI drive

5th hard drive, 73 GB 15K Ultra320 SCSI drive

5th hard drive, 146 GB 15K Ultra320 SCSI drive

Factory Integrated

Factory IntegratedFactory Integrated

Factory Integrated

RAID

RAIDRAID

RAID

RAID 0 Configuration – Striped Array

RAID 1 Configuration – Mirrored Array

NOTE:

NOTE:NOTE:

NOTE:

Requires 2 identical hard drives (speeds, capacity, interface)

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Standard Features - Custom Components

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 3

Drive controllers

Drive controllersDrive controllers

Drive controllers

Integrated serial ATA controller

Integrated dual channel Ultra320 SCSI controller with RAID (0 or 1) capability

Optional Ultra 320 SCSI controller – basic

Optional Ultra 320 SCSI controller – advanced, with RAID support and external connector

Cable, 5 Part SCSI (required if 1st drive is SATA and any of the other drives are SCSI)

Ultra320 back panel connect (uses HDCI connectors)

Optional PCI SATA/150 Controller (SATA controller card required for 3rd and 4th SATA HDD, no SCSI drives allowed if

ordered)

Memory

MemoryMemory

Memory

–

One of the following

512 MB DDR-2 PC3200 (400 MHz) ECC Registered (2 x 256 MB)

1 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 512 MB)

2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 1 GB)

2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 512 MB)

3 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (6 x 512 MB)

3 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 1GB + 2 x 512 MB)

4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (8 x 512 GB)

4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 1 GB)

4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 2 GB)

6 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (6 x 1 GB)

8 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (8 x 1 GB)

16 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (8 x 2 GB)

Removable Storage

Removable StorageRemovable Storage

Removable Storage

1.44-MB Diskette Drive

48X CD-ROM Drive

48X/32X/48X CD-RW Drive

16X/40X DVD-ROM drive

48X/32X/48X/16X Combo CD-RW/DVD-ROM Drive

16X DVD+/-RW, Dual-Layer (Win and RHWS3)

16X DVD+/-RW, Dual-Layer, LightScribe (Windows)

2nd Removable Storage

2nd Removable Storage2nd Removable Storage

2nd Removable Storage

48X/32X/48X CD-RW Drive

16X/40X DVD-ROM drive

48X/32X/48X/16X Combo CD-RW/DVD-ROM Drive

16X DVD+/-RW, Dual-Layer (Win and RHWS3)

16X DVD+/-RW, Dual-Layer, LightScribe (Windows)

Keyboard

KeyboardKeyboard

Keyboard

–

One of the following

PS/2 Standard Keyboard

USB Standard Keyboard

Mouse

MouseMouse

Mouse

–

One of the following

PS/2 2-Button Scroll Mouse

PS/2 3-Button Mouse

USB 2-Button Optical Scroll Mouse

USB 3-Button Optical Mouse

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Standard Features - Custom Components

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 4

Audio

AudioAudio

Audio

Integrated Digital AC97 audio with internal speaker

Sound Blaster Audigy 2 ZS PCI

NIC

NICNIC

NIC

Integrated Intel Pro MT 10/100/1000 LAN

Broadcom BCM5751 NetXtreme™ Gigabit Ethernet Controller (PCI-E)

Graphics

GraphicsGraphics

Graphics

NVIDIA Quadro NVS 280 PCI Express (64 MB, VGA & DVI)

NVIDIA Quadro FX 330 PCI Express (64 MB)

ATI FireGL V3100 PCI Express (128 MB)

NVIDIA Quadro FX 540 PCI Express (128 MB)

NVIDIA Quadro FX 1300 PCI Express (128 MB)

NVIDIA Quadro FX 1400 PCI Express (128 MB)

ATI FireGL V5100 PCI-Express (128 MB)

NVIDIA Quadro FX 3400 PCI Express (256 MB)

Miscellaneous

MiscellaneousMiscellaneous

Miscellaneous

Hood intrusion sensor

Trusted Platform Module

Software

SoftwareSoftware

Software

Symantec Norton AntiVirus 2004 (optional)*

HP Performance Tuning Framework*

Altiris Recovery*

HP Client Manager Software v6.0*

*Not available with a Linux Operating System

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Standard Features - Custom Components

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 5

Operating System (choice)

Microsoft Windows XP Professional SP1a

OR Red Hat Enterprise Linux Workstation 3 Update 4 (32- or 64-bit version)

OR HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions on HP xw8200, xw6200 and xw4200

Workstations)

Form factor

Minitower

Color

Carbonite/Alloy metallic

System Board Form Factor

E- ATX (12" x 13")

Processor

Single or dual 64-bit Intel Xeon processors (Nocona) with Hyper-Threading Technology

CPU Bus Speed Supported

800 MHz FSB

Standard L2 Cache

1 MB L2 cache (non ECC) or 2 MB L2 cache

Chipset

Intel Tumwater

Memory Expansion Slots

8 DIMMs

Memory Type Supported

DDR-2 (ECC registered)

Memory Speed Supported

DDR-2 Synch DRAM PC2-3200 (400 MHz) Registered ECC

Maximum Memory

8 GB (8 DIMMs slots with 1 GB DIMMS)

Network controller

Integrated Intel Pro MT 10/100/1000 LAN

Audio

Integrated AC'97 digital audio with S/PDIF 6-channel pass-through, stereo microphone, and Yamaha XG Lite Softsynth

support

PCI slots

2 full-length PCI slots (3 full-height PCI-X slots (one 133 MHz, two 100 MHz slots)

1 PCI Express (x8 mechanically, x4 electrically)

1 PCI Express x16 graphics

AGP slot

None

Bays

Total Bays = 8

Internal Bays

Five 3.5 inch bays (4 with acoustic dampening rail assemblies)

External Bays

Three 5.25 inch full length 2003 mm maximum device depth (top bay is limited to 198 mm depth when optional

smart cover solenoid lock is installed. Bottom bay can be converted to an internal 3.5" 3rd Hard Drive bay using

optional bracket

Floppy drive bay using optional bracket

Parallel Port

Serial Port

Front I/O

2 USB 2.0, Headphone, Microphone, IEEE 1394

Rear I/O

6 USB 2.0, 1 standard serial port, 1 parallel port, PS/2 keyboard and mouse, 1 RJ-45 to integrated Gigabit LAN, Audio In,

Audio Out, Mic In

USB Keyboard

Optional

USB Mouse

Optional

PS/2 Keyboard

PS/2 Mouse

Chassis Dimensions

(H x W x D)

17.9 x 8.3 x 20.7 in (45.4 x 21.0 x 52.5 cm)

System weight

Minimum config – 42 lb (19 kg)

Standard config – 45 lb (20 kg)

Maximum config – 54 lb (24 kg)

Shipping weight

Standard config – 54 lb (24 kg)

Temperature

Operating

40° to 95° F (5° to 35° C)

Non-operating

-40° to 140° F (-40° to 60° C)

Humidity

Operating

8% to 85%

Non-operating

8% to 90%

Maximum Altitude

(nonpressurized)

Operating

10,000 ft (3,000 m)

Non-operating

30,000 ft (9,100 m)

Power Supply

600W wide-ranging, active Power Factor Correction

Interfaces Supported

2 SATA interface (2 serial-ATA connectors), 2 Ultra320 SCSI interface, 2 EIDE interface (2 EIDE connectors) supported for

optical drives, optional multi-bay interface

Hard Drive Controller (PCI)

Supported

Ultra160 or Ultra320, or SATA RAID, or Ultra320 RAID

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Standard Features - Specs

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 6

Preinstalled Software

Preinstalled SoftwarePreinstalled Software

Preinstalled Software

HP Performance Tuning Framework*

HP Client Manager Software v6.0*

Altiris Local Recovery*

Alert Standard Format specification*

CD/DVD software dependent on optical drive choices

* Not available on Linux

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Standard Features - Specs

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 7

Processors

ProcessorsProcessors

Processors

2nd 64-bit Intel Xeon™ processor with Hyper-Threading

2nd 64-bit Intel Xeon™ processor with Hyper-Threading2nd 64-bit Intel Xeon™ processor with Hyper-Threading

2nd 64-bit Intel Xeon™ processor with Hyper-Threading

64-bit Intel Xeon processor at 2.8 GHz with 800 MHz FSB & 1 MB of L2 cache

DY665A

64-bit Intel Xeon processor at 3.0 GHz with 800 MHz FSB & 1 MB of L2 cache

DY666A

64-bit Intel Xeon processor at 3.0 GHz with 800 MHz FSB & 2 MB of L2 cache

PQ903A

64-bit Intel Xeon processor at 3.2 GHz with 800 MHz FSB & 1 MB of L2 cache

DY667A

64-bit Intel Xeon processor at 3.2 GHz with 800 MHz FSB & 2 MB of L2 cache

PQ904A

64-bit Intel Xeon processor at 3.4 GHz with 800 MHz FSB & 1 MB of L2 cache

DY668A

64-bit Intel Xeon processor at 3.4 GHz with 800 MHz FSB & 2 MB of L2 cache

PQ905A

64-bit Intel Xeon processor at 3.6 GHz with 800 MHz FSB & 1 MB of L2 cache

DY669A

64-bit Intel Xeon processor at 3.6 GHz with 800 MHz FSB & 2 MB of L2 cache

PQ906A

Graphics

GraphicsGraphics

Graphics

Multi display solutions

Multi display solutionsMulti display solutions

Multi display solutions

PCI

PCIPCI

PCI

PCI-

PCI-PCI-

PCI-

Express

ExpressExpress

Express

NVIDIA Quadro NVS 280 (64 MB, VGA & DVI)

AA932A

NVIDIA Quadro NVS 400 (64 MB, quad head, VGA & DVI)

AA605A

Quadro NVS 400 DVI cables

AA606A

NVIDIA Quadro NVS 280 PCI-E (64 MB, VGA & DVI)

DY650A

DMS-59 to Dual DVI Cable for NVS cards

X X

DL139A

NVIDIA Quadro FX 330 (64 MB)

PB332A

ATI FireGL V3100 (128 MB)

PE949A

NVIDIA Quadro FX 540 (128 MB)

PH791A

NVIDIA Quadro FX 1300 (128 MB)

PB331A

NVIDIA Quadro FX 1400 (128 MB)

PM979A

ATI FireGL V5100 (128 MB)

PB330A

NVIDIA Quadro FX 3400 (256 MB)

PB329A

Hard Drives

Hard DrivesHard Drives

Hard Drives

SATA Hard Drives

SATA Hard DrivesSATA Hard Drives

SATA Hard Drives

40 GB SATA/150 Hard Drive (7200 rpm)

PB371A

80 GB SATA/150 Hard Drive (7200 rpm)

DE705A

160 GB SATA/150 Hard Drive (7200 rpm)

DE706A

250 GB SATA/150 Hard Drive (7200 rpm)

DS702A

400 GB SATA/150 Hard Drive (7200 rpm)

PM254A

74 GB SATA/150 Hard Drive (10,000 rpm)

DX760A

SCSI Hard Drives

SCSI Hard DrivesSCSI Hard Drives

SCSI Hard Drives

73 GB Ultra320 SCSI Hard Drive (10,000 rpm)

AA613A

146 GB Ultra320 SCSI Hard Drive (10,000 rpm)

AA614A

300 GB Ultra320 SCSI Hard Drive (10,000 rpm)

DY672A

36 GB Ultra320 SCSI Hard Drive (15,000 rpm)

AA616A

73 GB Ultra320 SCSI Hard Drive (15,000 rpm)

AA617A

146 GB Ultra320 SCSI Hard Drive (15,000 rpm)

DY671A

Bracket HDD 3.5 to 5.25

AA833A

Cable, 5-port SCSI 8200

AA818A

U320 SCSI Back Panel connector (Uses HDCI, HD68, or mini DB68 connectors)

AA658A

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

After-Market Options

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 8

Controllers

ControllersControllers

Controllers

SCSI Controllers

SCSI ControllersSCSI Controllers

SCSI Controllers

PCI

PCIPCI

PCI

PCI-

PCI-PCI-

PCI-

Express

ExpressExpress

Express

U320 SCSI Controller, RAID 0,1 & ext conn

DZ554A

Ultra320 SCSI RAID Adaptec 2120S (Windows only)

AA850A

Input/Output Devices

Input/Output DevicesInput/Output Devices

Input/Output Devices

Keyboards

KeyboardsKeyboards

Keyboards

HP PS/2 Standard Keyboard (Carbonite/Silver)

DT527A

HP USB Standard Keyboard (Carbonite/Silver)

DT528A

HP USB 2004 Modular keyboard

DT530A

Smartcard adapter for modular keyboard

DT531A

Pointing Devices

Pointing DevicesPointing Devices

Pointing Devices

HP PS/2 2-Button Scroll Mouse (Carbonite)

DD440B

HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)

DC172B

HP PS/2 3-Button Mouse

AA778A

HP USB Optical 3-button mouse

DY651A

USB Spaceball 5000

DV675A

USB SpaceMouse

DZ203A

Networking

NetworkingNetworking

Networking

NICs

NICsNICs

NICs

PCI

PCIPCI

PCI

PCI-

PCI-PCI-

PCI-

Express

ExpressExpress

Express

Intel Pro/1000MT

DC193A

HP Gigabit by Broadcom (BCM5782)

DC194A

Broadcom BCM5751 NetXtreme™ Gigabit Ethernet Controller (PCI-E)

DZ556A

Memory

MemoryMemory

Memory

(DIMMs)

400 MHz DDR-2 PC2-3200 ECC Registered DIMMs

400 MHz DDR-2 PC2-3200 ECC Registered DIMMs400 MHz DDR-2 PC2-3200 ECC Registered DIMMs

400 MHz DDR-2 PC2-3200 ECC Registered DIMMs

256 MB DDR-2 PC2-3200 (400 MHz) ECC Registered

DY656A

512 MB DDR-2 PC2-3200 (400 MHz) ECC Registered

DY658A

1 GB DDR-2 PC2-3200 (400 MHz) ECC Registered

DY655A

2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered – available winter 2005

PH201A

Monitors

MonitorsMonitors

Monitors

TFTs

TFTsTFTs

TFTs

HP TFT L2335 (23-inch)

P9615W#

HP TFT L2035 (20.1-inch)

P9614W#

HP TFT L1955 (19.1-inch)

PD974A5

HP TFT L1755 (17-inch)

PL777AA

CRTs

CRTsCRTs

CRTs

HP P1230 (22-inch)

P9613A

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

After-Market Options

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 9

Optical Drives

Optical DrivesOptical Drives

Optical Drives

DVD-ROM Drive

DVD-ROM DriveDVD-ROM Drive

DVD-ROM Drive

16X/40X DVD-ROM w/ +R read

AA620A

CD-ROM Drive

CD-ROM DriveCD-ROM Drive

CD-ROM Drive

48X Max CD-ROM Drive

DC143B

CD-RW Drive

CD-RW DriveCD-RW Drive

CD-RW Drive

48X/32X/48X CD-RW Drive

DE205A

Combo Drive

Combo DriveCombo Drive

Combo Drive

48X/32X Combo DVD-ROM/CD-RW Drive

DE206A

DVD+/-RW Drive

DVD+/-RW DriveDVD+/-RW Drive

DVD+/-RW Drive

16X DVD+/-RW, Dual-Layer (Win and RHWS3)

PH205A

16X DVD+/-RW, Dual-Layer, LightScribe (Windows 2K and XP only)

DZ555A

Removable Storage

Removable StorageRemovable Storage

Removable Storage

256 MB USB 2.0 II drive key

PH657A

1.44 MB Internal Floppy Drive

DY670A

HP DAT24i Internal DDS3 tape drive

C1555D

HP 1.44MB Internal floppy drive

DY670A

HP DAT24e External DDS3 tape drive

C1556D

HP DAT40i Internal DDS4 tape drive

C5686B

HP DAT40e External DDS4 tape drive

C5687C

HP DAT72i Internal DAT72 tape drive

Q1522A

HP DAT72e External DAT72 tape drive

Q1523A

Security

SecuritySecurity

Security

Chassis clamp lock, universal, no cable

DE817A

Chassis clamp lock, universal, with cable

DE818A

Brackets/Stands

Brackets/StandsBrackets/Stands

Brackets/Stands

xw8200 slide rack kit IT/Broadcast

DY664A

Fixed Rack Kit (IT/Broadcast)

AA640A

Depth Adjustable Rails (stationary)

332558-B21

Sliding Shelf kit

234672-B21

Fixed shelf kit

253449-B21

Other Devices

Other DevicesOther Devices

Other Devices

IDE Cable Kit xw62/82 (2nd)

DY660A

Front Card Guide and Fan Kit

DY648A

Operating Systems

Operating SystemsOperating Systems

Operating Systems

Red Hat Enterprise Linux Workstation 3 Update 4 (32-bit)

PD862A

Red Hat Enterprise Linux Workstation 3 Update 4 (64-bit)

PD863A

Software

SoftwareSoftware

Software

HP Remote Graphics V2 LTU for HP WS

PE672A

HP Remote Graphics V2 LTU for non-HP – available winter 2005

PE673A

HP Remote Graphics V2 Receiver LTU

PE674A

HP Remote Graphics V2 software media

PE675A

HP Remote SW for HP 1 year Update Subscription

PN680A

HP Remote SW for non-HP 1 year Update Subscription – available winter 2005

PN681A

HP Remote SW Receiver 1 year Update Subscription

PN682A

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

After-Market Options

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 10

E7525 chipset

E7525 chipsetE7525 chipset

E7525 chipset

DDR-2 SDRAM ECC REGISTERED MEMORY

DDR-2 SDRAM ECC REGISTERED MEMORYDDR-2 SDRAM ECC REGISTERED MEMORY

DDR-2 SDRAM ECC REGISTERED MEMORY

Memory must be added in pairs. This chart does not represent all possible memory configurations. The Intel E7525 chipset supports ECC Registered 400 MHz

(PC2-3200) DDR-2 memory only.

DIMM socket 1 is the furthest from the Memory Controller Hub at the top of the board. Additional DIMM slots should be populated consecutively; socket 2,

3, 4, etc. Speed mixing of memory DIMMs is not allowed. For efficient dual-channel performance, each pair of DIMMs must be same size and same DRAM

technology. If mixing single sided and double sided memory, load the double sided DIMM pairs first. ECC Registered memory must be used.

If you have unused slots within a channel, chose the sockets closest to the memory controller (e.g. Sockets 7 & 8, then 5 and 6, and so on).

MAXIMUM MEMORY

MAXIMUM MEMORYMAXIMUM MEMORY

MAXIMUM MEMORY

Supports up to 16 GB of DDR SDRAM.

POSSIBLE MEMORY CONFIGURATIONS

POSSIBLE MEMORY CONFIGURATIONSPOSSIBLE MEMORY CONFIGURATIONS

POSSIBLE MEMORY CONFIGURATIONS

Not all memory configurations possible are represented below.

DIMM Size

DIMM SizeDIMM Size

DIMM Size

Slot

SlotSlot

Slot

1 2

2 3

3 4

4 5

5 6

6 7

7 8

256 MB

512 MB

512 MB 256 MB 256 MB

1 GB

512 MB 512 MB

1 GB

2 GB 1 GB 1 GB

2 GB

512 MB 512 MB 512 MB 512 MB

4 GB 1 GB 1 GB 1 GB 1 GB

4 GB

512 MB 512 MB 512 MB 512 MB 512 MB 512 MB 512 MB 512 MB

6 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB

8 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB

16 GB

2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Memory

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 11

Tower configuration

Tower configurationTower configuration

Tower configuration

Quantity Supported

Quantity SupportedQuantity Supported

Quantity Supported

Position Supported

Position SupportedPosition Supported

Position Supported

Controller

ControllerController

Controller

Convertible Minitower

Convertible MinitowerConvertible Minitower

Convertible Minitower

Optional Diskette Drive

1 3

Diskette

5.25" Storage Drive Bays

3 1, 2, 3

IDE

3.5" Storage Drive Bays with acoustic

dampening rail assemblies

5 4, 5, 6, 7, 8

SATA or SCSI

SCSI and SATA may be mixed in a

Windows configuration, only the

primary drive may be SATA.

SATA controller card required for 3rd

and 4th SATA HDD; If SATA controller

is ordered then no SCSI HDDs

allowed; Linux does not support SATA

controller or mixing SATA and SCSI

drives.

Factory Integrated RAID*

* NOTE:

* NOTE:* NOTE:

* NOTE:

Factory Integrated RAID 0 Configuration (Striped Array) and RAID 1 Configuration (Mirrored Array) requires 2 hard drives with identical speeds,

capacity and interface.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Storage

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 12

System Board

System BoardSystem Board

System Board

Architecture

Xeon 64-bit/PCI-E

Chipset

Intel E7525/ICH5R Chipset

Super I/O Controller

SMSC LPC47B397

System Board Form Factor

E-ATX (12" x 13")

Processor Socket

Dual 604 Pin ZIF

DIMM Connectors (DDR2,

1.8V)

AGP Connector (1.5V)

None

Integrated Graphics

None

PCI Connectors (5.0V)

2 full length 33 MHz 32-bit

PCI-X Connectors

2 full length 100 MHz 64-bit

1 full length 133 MHz 64-bit

PCI card guide

Optional, tool-free support for all full-length cards with PCI extender

Flash ROM

Yes

AC97 integrated audio

Yes

CD ROM IN (Audio)

Yes

AUX IN (Audio)

Yes

Clear CMOS Button

Yes

CPU Fan Header

Yes

Chassis Fan Header

Yes

Chassis Speaker Header

Yes

CMOS Battery Holder – Lithium

Yes

Hood Lock Header

None

Hood Sensor Header

None

Multibay Header

Yes

Hard drive acoustic dampening

rails

Standard in 4 internal 3.5" bays, tool-free

Integrated SATA RAID

RAID 0 and RAID 1

Supports one RAID array on 2 ports

Creation of 2 drive HDD array

RAID 0 Configuration – Striped Array

RAID 1 Configuration – Mirrored Array

Integrated Intel Gigabit

Ethernet

Yes

Wake-On-Lan®

Yes

ASF 1.0 (Alert Standard Format)

Will be provided in a BIOS upgrade

Power Supply Header

Yes

Power Switch, Power LED

& Hard Drive LED Header

Yes

Password Clear Header

Yes

Riser Connector

None

HDD activity LED Header

Yes

PCI extender that connects to

System Board

None

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Additional Technical Specifications

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 13

Cooling

CoolingCooling

Cooling

Cooling Solutions Supported

Yes

Power Supply Fan

92 x 25 mm

Processor Fan-Heatsink

70 x 15 mm

Chassis Fan (front)

One 92 x 25 mm (optional)

Chassis Fan (rear)

One 120 mm x 28 mm (standard)

Internal Speaker

Standard

Power Supply

Power SupplyPower Supply

Power Supply

Full Ranging Input

Yes

Active Power Factor Correction

(APFC) (Input Current is nearly

1/2 a non-APFC PS)

Yes

Passive Power Factor Correction

(PFC)

Operating Voltage Range

90 – 264 VAC/118 VAC

Rated Voltage Range

100 – 240 VAC

Rated Line Frequency

50-60 Hz/400Hz

Operating Line Frequency

Range

47 – 66 Hz/393 – 407Hz

Rated Input Current

10A/8.6A

Maximum Rated Power

600 W

Heat Dissipation

Typical 1206.2 btu/hr

Maximum 2047.4 btu/hr

PS Size (wide x high x deep)

92mm variable speed

Energy Star Compliant

Yes

Surge Tolerant Full Ranging

Power Supply

Withstands power surges up to 2000V

Typical configuration power

consumption

2 processors (2x3.6GHz Xeon), 1 GB memory (2x512 MB)

Two hard drives (2xSATA 40 GB), DVD-ROM drive

PCI-Express Graphics Card (FX 1300)

Floppy, Monitor

Input Power consumption

Input Power consumptionInput Power consumption

Input Power consumption

@ 120Vac/60Hz

@ 120Vac/60Hz@ 120Vac/60Hz

@ 120Vac/60Hz

Typical operating mode

(system busy)

353.5W

= 1206.2 btu/hr

Windows XP Idle

210.3 W

= 717.6 btu/hr

Hibernate mode (S4)

5.9 W

= 20.1 btu/hr

Power Off (S5)

5.9 W

= 20.1 btu/hr

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 14

ROM Features

ROM FeaturesROM Features

ROM Features

Description

DescriptionDescription

Description

Instantly Available PC

Allows for very low power consumption with quick resume time

ROM Based F10 Setup and

diagnostics

Review and customize BIOS settings

Remote System Installation via

F12 (PXE) (Remote Boot from

Server)

Allows a new or existing system to boot over the network and download software, including the operating system

System/Emergency ROM Flash

Recovery with Video

Recovers corrupted system BIOS

ROM revision levels

Identifies system ROM revision levels and reports in ROM-based F10 setup

Version is stored in an industry standard memory location (SMBIOS) so that management SW applications can use

and report this information

System board revision level

Allows management SW to read the revision level of the system board

Revision level is digitally encoded into the hardware and cannot be modified

Auto Setup when New Hardware

Installed

System automatically detects addition of new hardware

Serial, Parallel, USB, Audio,

Network, Enable/Disable Port

Control

Enable or disables serial, parallel, USB, audio, and network ports

Removable Media Write/

Boot Control

Prevents ability to boot from removable media on supported devices (and can disable writes to media)

Power-On Password

Prevents an unauthorized person from booting up the computer

Setup Password

Prevents an unauthorized person from changing the system configuration

Replicated Setup

Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then replicate these settings

on machines being deployed without entering ROM-based F10 setup

Memory Change Alert (Requires

HP Client Manager Software)

Alerts management console if memory is removed or changed

Thermal Alert (Requires HP

Client Manager Software)

Monitors the temperature state within the chassis. Three modes:

NORMAL – normal temperature ranges

ALERTED – excessive temperatures are detected. Raises a flag so action can be taken to avoid shutdown or provide

for a smoother system shutdown

SHUTDOWN – excessive temperatures are encountered. Automatically shuts down the computer without warning

before hardware component damage occurs

Master Boot Record Security

Detects changes to MBR and optional restoration, useful in protecting from viruses

Remote ROM Flash

Provides secure, fail-safe ROM image management from a central network console

Remote Wakeup/shutdown

System administrators can power on, restart, and power off a client computer from a remote location.

Enables cost-effective power consumption when the administrator needs to distribute software, perform security

management, or update the ROM

ACPI (Advanced Configuration

and Power Interface)

Allows the system to wake from a low power mode

Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or

powered-off state without affecting other elements of the system

Supports ACPI 2.0 for full compatibility with 64-bit operating systems

Keyboard-less Operation

The system can be operated without a keyboard

SMBIOS

System Management BIOS 2.3.5, previously known as DMI BIOS, for system management information

Localized ROM Setup

Common BIOS image supports configuration (Setup) in 11 languages, with local keyboard mappings

Asset tag

Allows user or MIS to set unique tag string in ROM

Ownership tag

Allows user or MIS to set unique tag string in ROM

Memory Scrubbing

Allows memory controller to transparently correct transient ECC errors in the background

Memory Remapping

Allows system memory lost to PCI devices to be reclaimed above 4 GB, for use with operating systems that support more

than 4 GB (Windows XP 64-bit edition, Linux)

Per-slot control

Allows individual slot configuration (option ROM., latency)

Adaptive cooling

Fan control parameters are set according to detected hardware configuration for optimal acoustics

Pre-boot diagnostics

Early (pre-video) critical errors are reported via beeps and blinks on the power LED

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 15

Other deployment &

Other deployment &Other deployment &

Other deployment &

management features

management featuresmanagement features

management features

HP Client Management

Solutions

HP Client Management Solutions help simplify management of Workstations and significantly reduce total ownership costs.

These solutions share a common design and are highly integrated due to the extensive work between HP and its partner

Altiris.

HP Client Manager Software is included free with all HP business PCs and Workstations. It enables central tracking,

monitoring, and management of the hardware aspects of HP client systems:

Get valuable hardware information such as CPU, memory, video, and security settings

Monitor system health to fix problems before they occur

Install drivers and BIOS updates without visiting each PC

Remotely configure BIOS and security settings

Automate processes to quickly resolve hardware problems

Additional Altiris solutions (fee-based) are available to address Workstation management challenges through the entire IT

lifecycle including:

Inventory assessment

Software license compliance

Personality migration

Software image deployment

Software distribution

Asset management

Client backup and recovery

Problem resolution

Visit

http://www.hp.com/go/easydeploy

for more information, to download HP Client Manager Software, and to evaluate

the Altiris solutions.

System Software Manager (free)

A free utility that detects and updates BIOS, device drivers, and management agent versions on your networked PCs and

workstations

Altiris Local Recovery

Provides data and system file protection for HP business PCs to enable fast recovery of information that is accidentally

deleted or if the system becomes corrupted. Designed for disconnected or seldom-connected users, Local Recovery protects

your HP computer's data and system state by taking scheduled snapshots, which are then stored in a protected area on the

local hard disk. System backup and disaster recovery is now simple and fast for all users, regardless of connectivity

Replicated Setup

Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then replicate these settings

on machines being deployed without entering ROM-based F10 setup

Software Restore CD

Restores computer to its original factory shipping image

Asset Tag

Repository for storing company-specific property asset numbers for easy tracking

Initially set equal to the system serial number

Stored in a protected section of non-volatile memory that can be accessed and modified with the F10 Setup

program

DIMM Serial Presence Detect

Detects whether or not memory DIMMs are present and their type

Hard drive serial number,

model, and manufacturer

Hard drive manufacturer, model, and serial number is stored in the hard drive firmware and reported in ROM-based F10

setup

Memory Change Alert

(Requires HP Client Manager

Software)

Alerts management console if memory is removed or changed

Ownership Tag

A user-defined string stored in non-volatile memory that is displayed in the BIOS splash screen

Ultra ATA Integrity Monitoring

(CRC Checking)

A feature of SATA and SCSI, Cyclic Redundancy Checking provides data transfer verification and proactive notification of

hard drive data transmission problems with recommendations for enhancing system performance. It detects all the following

errors' types:

single bit errors

double bit errors

an odd number of errors

error bursts up to 32-bits long

Drive Self Tests (DPS)

Drive Protection System (Adaptec and LSI SCSI controllers do not offer DPS)

A diagnostic hard drive self test. It scans critical physical components and every sector of the hard drive for physical

faults and then reports any faults to the user.

Running independently of the operating system, it can be accessed through the computer's setup procedure. It

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 16

produces an evaluation on whether the hard drive is the source of the problem and needs to be replaced.

The system expands on the Self-Monitoring, Analysis, and Reporting Technology (SMART), a continuously running systems

diagnostic that alerts the user to certain types of failures.

DPS Access through F10 Setup during Boot (F10 diagnostic access not available with SCSI drives)

SMART Technology

(Self-Monitoring, Analysis and

Reporting Technology)

Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted

Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as re-allocated sector

count, spin retry count, calibration retry count.

By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned user downtime and

potential data loss from hard drive failure.

SMART I – Drive Failure Prediction

SMART II – Off-Line Data Collection

SMART III – Off-Line Read Scanning with Defect Reallocation

Security Features

Security FeaturesSecurity Features

Security Features

Access panel key lock (standard)

Prevents removal of the access panel and all internal components including optical and floppy drives

Padlock (optional)

Prevents entire system theft and discourages access panel removal. 7mm diameter padlock loop at rear of system.

Kensington Cable Lock

(optional)

Prevents entire system theft only. 3mm x 7mm slot at rear of system.

Universal chassis clamp lock

(optional)

The version without a cable discourages access panel removal and prevents theft of IO devices. The version with a cable

additionally prevents entire system theft and allows multiple systems to be secured with a single cable.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 17

Serviceability Features of

Serviceability Features ofServiceability Features of

Serviceability Features of

System

SystemSystem

System

Access panel

Tool-less, one-handed

Optical drives

Tool-less

Floppy drive

Tool-less

Hard drives

Tool-less

Expansion cards

Tool-less

Green user touch points

Yes, on tool-free internal chassis mechanisms

Color-coordinated cables and

connectors

Yes

Memory

Tool-less, can be upgraded without removing any internal components

CPUs

Tool-less, can be upgraded without removing any internal components

Chassis fan removal

Tool-less

Power supply diagnostic LED

Yes, dual function: AC OK & power OK

Power Button

Yes, ACPI multi-function

Power LED

Yes, dual color LED indicates normal operation and faults.

Hard drive activity LED

Yes

Internal speaker

Yes, used for pre-boot diagnostic beep codes

Dual Color Power and HD LED

on Front of Computer (Indicates

Normal Operations and Fault

Conditions)

green – normal

red – fault

System/Emergency ROM Flash

Recovery

with Video

Recovers corrupted system BIOS.

Configuration Record SW

Yes

Over-Temp Warning on Screen

(Requires IM Agents)

Yes

OS CD (Restore OS CD)

Restores computer to its original factory shipping image

Restore CD

Restores the computer to its original factory shipping image

Flash ROM

Yes

3.3V Aux Power LED on

System PCA

Yes

Dual Function 5V Aux Power

LED (ON)/PS_ON LED (OFF)

on System PCA

Yes

Clear Password Jumper

Yes

Clear CMOS Button

Yes

CMOS Battery Holder for easy

Replacement

Yes

Processor ZIF Socket for easy

Upgrade

Yes

DIMM Connectors for easy

Upgrade

Yes

NIC LEDs (integrated) (Green &

Amber)

Used to determine NIC status

ASF 1.0 support (Alert Standard

Format)

Industry-standard specification for network alerting in operating system-absent environments

Dual function front power

switch

Causes a fail-safe power off when held for 4 seconds

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 18

Service and Support

Service and SupportService and Support

Service and Support

On-site Warranty and Service

(Note 1)

: This three-year, limited warranty and service offering delivers three years of on-site,

next business-day

(Note 2)

service for parts and labor and includes free telephone support

(Note 3)

24 x 7. Global coverage

(Note 2

) ensures that any product purchased in one country and transferred to another, non-restricted country will remain

fully covered under the original warranty and service offering.

NOTE 1:

NOTE 1:NOTE 1:

NOTE 1:

Terms and conditions may vary by country. Certain restrictions and exclusions apply.

NOTE 2:

NOTE 2:NOTE 2:

NOTE 2:

On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party

provider, and is not available in certain countries. Global service response times are based on commercially reasonable best

effort and may vary by country.

NOTE 3

NOTE 3NOTE 3

NOTE 3

: Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party hardware and

software. Toll-free calling and 24 x 7 support may not be available in some countries.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 19

AC97 Integrated ADI

AC97 Integrated ADIAC97 Integrated ADI

AC97 Integrated ADI

1981B Audio

1981B Audio1981B Audio

1981B Audio

Type

TypeType

Type

Integrated

AC ‘97 Stereo Codec

AC ‘97 Stereo CodecAC ‘97 Stereo Codec

AC ‘97 Stereo Codec

Yes

FM Synthesis Support

FM Synthesis SupportFM Synthesis Support

FM Synthesis Support

Yes – Yamaha XG Lite

OPL3 FM Synthesis

OPL3 FM SynthesisOPL3 FM Synthesis

OPL3 FM Synthesis

Support

SupportSupport

Support

Yes

Sound Blaster

Sound BlasterSound Blaster

Sound Blaster

Compatibility

CompatibilityCompatibility

Compatibility

Yes

SPDIF 6-channel pass-

SPDIF 6-channel pass-SPDIF 6-channel pass-

SPDIF 6-channel pass-

through

throughthrough

through

Yes

Audio Jacks

Audio JacksAudio Jacks

Audio Jacks

Microphone-In (20-K ohm Input Impedance); rear stereo and front analog microphone

ports

Line-In (12-K ohm Input Impedance)

Line-Out * (less than 800 ohms Output Impedance, expects at least a 10-K ohm load)

Headphone-Out (2.5 Ohms Output Impedance, expects at least a 32 ohm load)

NOTE:

NOTE: NOTE:

NOTE:

*Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered externally.

Sampling

SamplingSampling

Sampling

7 kHz – 48 kHz

Wavetable Syntheses

Wavetable SynthesesWavetable Syntheses

Wavetable Syntheses

(software)

Yes – GM and FM Midi Support, Direct Music and Down Loadable Soundset (4 Meg DLS

Level 1 and 2 Support)

3D Positional Sound

3D Positional Sound3D Positional Sound

3D Positional Sound

Digital Audio

Digital AudioDigital Audio

Digital Audio

Yes

Analog Audio

Analog AudioAnalog Audio

Analog Audio

Yes

Number of Channels on

Number of Channels onNumber of Channels on

Number of Channels on

Line-Out

Line-OutLine-Out

Line-Out

(mono/stereo)

Stereo (Left & Right channels)

Internal Audio Speaker

Internal Audio SpeakerInternal Audio Speaker

Internal Audio Speaker

Power Rating

Power RatingPower Rating

Power Rating

Internal Speaker

Internal SpeakerInternal Speaker

Internal Speaker

Yes

Hardware Equalizer for

Hardware Equalizer forHardware Equalizer for

Hardware Equalizer for

Internal Speaker

Internal SpeakerInternal Speaker

Internal Speaker

Fixed 7 Band ParametricEQ

External Speaker Jack

External Speaker JackExternal Speaker Jack

External Speaker Jack

(Line-Out)

Yes

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Audio

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 20

Integrated Intel

Integrated IntelIntegrated Intel

Integrated Intel

Pro/1000MT Lan-on-

Pro/1000MT Lan-on-Pro/1000MT Lan-on-

Pro/1000MT Lan-on-

Motherboard

MotherboardMotherboard

Motherboard

Connector

ConnectorConnector

Connector

RJ-45

Controller

ControllerController

Controller

Intel 82540EM Gigabit Controller

Memory

MemoryMemory

Memory

Integrated 96Kb frame buffer memory

Data rates supported

Data rates supportedData rates supported

Data rates supported

10/100/1000 Mbps

Compliance

ComplianceCompliance

Compliance

IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,

802.3x flow control

Bus architecture

Bus architectureBus architecture

Bus architecture

PCI 2.2

Data transfer mode

Data transfer modeData transfer mode

Data transfer mode

Bus-master DMA

Hardware certifications

Hardware certificationsHardware certifications

Hardware certifications

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for European

Union

Power requirement

Power requirementPower requirement

Power requirement

1.48 watts @ +3.3V AUX supply with 5V tolerance

Boot ROM support

Boot ROM supportBoot ROM support

Boot ROM support

Yes

Network transfer rate

Network transfer rateNetwork transfer rate

Network transfer rate

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T, 1000 Mbps

Operating system driver

Operating system driverOperating system driver

Operating system driver

support

supportsupport

support

Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft Windows 2000, Microsoft

Windows XP, Linux 2.2, Linux 2.4

Management capabilities

Management capabilitiesManagement capabilities

Management capabilities

ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility

HP Gigabit by Broadcom

HP Gigabit by BroadcomHP Gigabit by Broadcom

HP Gigabit by Broadcom

(BCM5782)

NIC

NICNIC

NIC

Connector

ConnectorConnector

Connector

RJ-45

Controller

ControllerController

Controller

Broadcom 5782 PCI LAN Controller

Memory

MemoryMemory

Memory

Integrated 96Kb frame buffer memory

Data rates supported

Data rates supportedData rates supported

Data rates supported

10/100/1000 Mbps

Compliance

ComplianceCompliance

Compliance

IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,

802.3x flow control

Bus architecture

Bus architectureBus architecture

Bus architecture

PCI 2.2

Data path width

Data path widthData path width

Data path width

32-bit, 33/66 MHz bus interface

Data transfer mode

Data transfer modeData transfer mode

Data transfer mode

Bus-master DMA

Hardware certifications

Hardware certificationsHardware certifications

Hardware certifications

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for European

Union

Power requirement

Power requirementPower requirement

Power requirement

1.48 watts @ +3.3V AUX supply with 5V tolerance

Boot ROM support

Boot ROM supportBoot ROM support

Boot ROM support

Yes

Network transfer rate

Network transfer rateNetwork transfer rate

Network transfer rate

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T, 1000 Mbps

Environmental

EnvironmentalEnvironmental

Environmental

Operating temperature

Operating temperatureOperating temperature

Operating temperature

32° to 131° F (0° to 55° C)

Operating humidity

Operating humidityOperating humidity

Operating humidity

85% at 131° F (55° C)

Dimensions

DimensionsDimensions

Dimensions

4.7 x 2.0 x 0.08 in (12 x 5 x 1.9 cm)

Operating system driver

Operating system driverOperating system driver

Operating system driver

support

supportsupport

support

Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft Windows 2000, Microsoft

Windows XP, Linux 2.2, Linux 2.4

Management capabilities

Management capabilitiesManagement capabilities

Management capabilities

ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility

Alerting

AlertingAlerting

Alerting

ASF 1.0

Kit contents

Kit contentsKit contents

Kit contents

Broadcom 5782, CD, Broadcom Gigabit Ethernet for HP, drivers, quick install guide,

product warranty statement

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Communications

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 21

Broadcom BCM5751

Broadcom BCM5751Broadcom BCM5751

Broadcom BCM5751

NetXtreme Gigabit

NetXtreme GigabitNetXtreme Gigabit

NetXtreme Gigabit

Ethernet Controller

Ethernet ControllerEthernet Controller

Ethernet Controller

(PCI-E)

Connector

ConnectorConnector

Connector

RJ-45

Controller

ControllerController

Controller

Broadcom 5751 PCI-E 1.0a LAN Controller

Memory

MemoryMemory

Memory

Integrated 96Kb frame buffer memory

Data rates supported

Data rates supportedData rates supported

Data rates supported

10/100/1000 Mbps

Compliance

ComplianceCompliance

Compliance

IEEE 802.3, 802.3AB and 802.3u compliant, 802.3x flow control

Bus architecture

Bus architectureBus architecture

Bus architecture

PCI-E 1.0a

Data path width

Data path widthData path width

Data path width

Data path speed

Data path speedData path speed

Data path speed

2.5Gbit per sec per direction transfer rate

Data transfer mode

Data transfer modeData transfer mode

Data transfer mode

Bus-master DMA

Hardware certifications

Hardware certificationsHardware certifications

Hardware certifications

FCC class B, NRTL Mark Canada and United States, C-Tick for Australia, BSMI for Taiwan,

VCCI for Japan, MIC for Korea, GOST for Russia

Power requirement

Power requirementPower requirement

Power requirement

3.1 watts @ +3.3V AUX supply

Boot ROM support

Boot ROM supportBoot ROM support

Boot ROM support

Yes

Network transfer rate

Network transfer rateNetwork transfer rate

Network transfer rate

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T, 1000 Mbps

Environmental

EnvironmentalEnvironmental

Environmental

Operating temperature

Operating temperatureOperating temperature

Operating temperature

32° to 131° F (0° to 55° C)

Operating humidity

Operating humidityOperating humidity

Operating humidity

85% at 131° F (55° C)

Dimensions

DimensionsDimensions

Dimensions

4.4 x 2.2 x 0.08 in (11.2 x 5.5 x .2 cm)

Operating system driver

Operating system driverOperating system driver

Operating system driver

support

supportsupport

support

Microsoft Windows 2000 and XP, Red Hat Linux 7.2, 7.3 and Red Hat Enterprise Linux 3

Management capabilities

Management capabilitiesManagement capabilities

Management capabilities

WOL, PXE , Remote cable management

Alerting

AlertingAlerting

Alerting

ASF 2.0

Kit contents

Kit contentsKit contents

Kit contents

Broadcom 5751, CD, Broadcom NetXtreme Gigabit Ethernet PCI NIC, drivers, quick

install guide, product warranty statement

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Communications

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 22

Intel Pro 1000 MT

Intel Pro 1000 MTIntel Pro 1000 MT

Intel Pro 1000 MT

Gigabit NIC

Gigabit NICGigabit NIC

Gigabit NIC

Connector

ConnectorConnector

Connector

RJ-45

Controller

ControllerController

Controller

Intel 82540EM Gigabit Controller

Memory

MemoryMemory

Memory

Integrated 96Kb frame buffer memory

Data rates supported

Data rates supportedData rates supported

Data rates supported

10/100/1000 Mbps

Compliance

ComplianceCompliance

Compliance

IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,

802.3x flow control

Bus architecture

Bus architectureBus architecture

Bus architecture

PCI 2.2

Data path width

Data path widthData path width

Data path width

32-bit, 33/66 MHz bus interface

Data transfer mode

Data transfer modeData transfer mode

Data transfer mode

Bus-master DMA

Hardware certifications

Hardware certificationsHardware certifications

Hardware certifications

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for European

Union

Power requirement

Power requirementPower requirement

Power requirement

1.48 watts @ +3.3V AUX supply with 5V tolerance

Boot ROM support

Boot ROM supportBoot ROM support

Boot ROM support

Yes

Network transfer rate

Network transfer rateNetwork transfer rate

Network transfer rate

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T, 1000 Mbps

Environmental

EnvironmentalEnvironmental

Environmental

Operating temperature

Operating temperatureOperating temperature

Operating temperature

32° to 131° F (0° to 55° C)

Operating humidity

Operating humidityOperating humidity

Operating humidity

85% at 131° F (55° C)

Dimensions

DimensionsDimensions

Dimensions

6.4 x 4.8 x 0.8 in (16.3 x 12.1 x 1.9 cm)

Operating system driver

Operating system driverOperating system driver

Operating system driver

support

supportsupport

support

Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft Windows 2000, Microsoft

Windows XP, Linux 2.2, Linux 2.4

Management capabilities

Management capabilitiesManagement capabilities

Management capabilities

ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility

Kit contents

Kit contentsKit contents

Kit contents

The Intel Pro 1000 MT NIC, CD containing Intel PROset II NIC drivers, quick install guide,

product warranty statement

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Communications

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 23

LSI Logic LSI20320

LSI Logic LSI20320LSI Logic LSI20320

LSI Logic LSI20320

Ultra320 SCSI single

Ultra320 SCSI singleUltra320 SCSI single

Ultra320 SCSI single

channel host adapter

channel host adapterchannel host adapter

channel host adapter

Bus architecture

Bus architectureBus architecture

Bus architecture

PCI-X (backward compatible with PCI)

Number of supported

Number of supportedNumber of supported

Number of supported

devices

devicesdevices

devices

Up to 15 SCSI devices

Interface protocol

Interface protocolInterface protocol

Interface protocol

64 bit, 133MHz PCI-X

Host bus transfer rate

Host bus transfer rateHost bus transfer rate

Host bus transfer rate

Up to 1MB/s

SCSI data transfer rate

SCSI data transfer rateSCSI data transfer rate

SCSI data transfer rate

Up to 320MB/s per channel

SCSI Bus

SCSI BusSCSI Bus

SCSI Bus

Wide Ultra320, Low Voltage Differential, and Ultra Wide Single-Ended

Internal connector

Internal connectorInternal connector

Internal connector

68-pin HD

External connector

External connectorExternal connector

External connector

68 pin

Total connectors

Total connectorsTotal connectors

Total connectors

Plug and Play Support

Plug and Play SupportPlug and Play Support

Plug and Play Support

Dimensions

DimensionsDimensions

Dimensions

(H x L)

6.6 x 2.5 in (16.9 x 6.4 cm)

Approvals

ApprovalsApprovals

Approvals

CE, VCCI, Canada, C-Tick, FCC class B, UL 94VO

Operating system support

Operating system supportOperating system support

Operating system support

Microsoft® Windows® XP

Kit contents

Kit contentsKit contents

Kit contents

Controller card, driver CD, LED cables, user documentation and warranty card.

Adaptec SCSI RAID 2120S

Adaptec SCSI RAID 2120SAdaptec SCSI RAID 2120S

Adaptec SCSI RAID 2120S

Card

CardCard

Card

Dimensions

DimensionsDimensions

Dimensions

(H x D)

2.5 x 6.6 in (6.4 x 16.8 cm) Low profile card

RAID level

RAID levelRAID level

RAID level

0, 1, 10, 5, 50, JBOD

Data Transfer Rate

Data Transfer RateData Transfer Rate

Data Transfer Rate

Up to 320 MB/s

Cache Memory

Cache MemoryCache Memory

Cache Memory

64 MB (onboard)

Device Support

Device SupportDevice Support

Device Support

Up to 15 SCSI devices

Bus Type

Bus TypeBus Type

Bus Type

64-bit/66 MHz PCI

(Also support 32-bit/33 MHz PCI)

Internal Connectors

Internal ConnectorsInternal Connectors

Internal Connectors

One 68-pin high-density

External Connectors

External ConnectorsExternal Connectors

External Connectors

One 68-pin VHDCI

System Requirements

System RequirementsSystem Requirements

System Requirements

Intel PC or equivalent with available PCI slot

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

32° to 131° F (0° to 55° C)

Power Requirements

Power RequirementsPower Requirements

Power Requirements

4 amps @ +5V

Operating System Support

Operating System SupportOperating System Support

Operating System Support

Windows® 2000 Professional, Windows XP Professional

Other

OtherOther

Other

Optimized disk utilization

Online RAID Level Migration

Online capacity expansion

Immediate RAID availability (background initialization)

S.M.A.R.T. support

Kit Contents

Kit ContentsKit Contents

Kit Contents

Controller card, driver CD, LED cables, user documentation and warranty card.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Controllers

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 24

Serial ATA Hard Drives

Serial ATA Hard DrivesSerial ATA Hard Drives

Serial ATA Hard Drives

(7200 rpm)

40 GB

40 GB40 GB

40 GB

Capacity

CapacityCapacity

Capacity

40,020,664,320 bytes

Height

HeightHeight

Height

1 in (2.6 cm)

Width

WidthWidth

Width

Media diameter: 3.5 in (8.9.x cm)

Physical size: 4 in (10.2 cm)

Interface

InterfaceInterface

Interface

Serial ATA

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

150 MB/s

Buffer

BufferBuffer

Buffer

2 MB

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

1.0 ms

Average

AverageAverage

Average

8.5 ms

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

18.0 ms

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

7,200 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

78,165,360

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

32° to 140° F (0° to 60° C)

80 GB

80 GB80 GB

80 GB

Capacity

CapacityCapacity

Capacity

80,026,361,856 bytes

Height

HeightHeight

Height

1 in (2.6 cm)

Width

WidthWidth

Width

Media diameter: 3.5 in (8.9.x cm)

Physical size: 4 in (10.2 cm)

Interface

InterfaceInterface

Interface

Serial ATA

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

150 MB/s

Buffer

BufferBuffer

Buffer

8 MB

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

1.0 ms

Average

AverageAverage

Average

8.5 ms

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

18 ms

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

7,200 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

156,301,488

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

32° to 140° F (0° to 60° C)

160 GB

160 GB160 GB

160 GB

Capacity

CapacityCapacity

Capacity

160,041,885,696 bytes

Height

HeightHeight

Height

1 in (2.6 cm)

Width

WidthWidth

Width

Media diameter: 3.5 in (8.9.x cm)

Physical size: 4 in (10.2 cm)

Interface

InterfaceInterface

Interface

Serial ATA

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

150 MB/s

Buffer

BufferBuffer

Buffer

8 MB

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

1.0 ms

Average

AverageAverage

Average

8.5 ms

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

18 ms

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

7,200 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

312,581,808

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

32° to 140° F (0° to 60° C)

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Hard Drives

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 25

250 GB

250 GB250 GB

250 GB

Capacity

CapacityCapacity

Capacity

250,059,350,016 bytes

Height

HeightHeight

Height

1 in (2.6 cm)

Width

WidthWidth

Width

Media diameter: 3.5 in (8.9 cm)

Physical size: 4 in (10.2 cm)

Interface

InterfaceInterface

Interface

Serial ATA

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

150 MB/s

Buffer

BufferBuffer

Buffer

8 MB

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

0.8 ms

Average

AverageAverage

Average

<9.0 ms

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

17 ms

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

7,200 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

488,397,168

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

41° to 131°F (5° to 55°C)

400 GB

400 GB400 GB

400 GB

Capacity

CapacityCapacity

Capacity

400,088,457,216 bytes

Height

HeightHeight

Height

1 in (2.6 cm)

Width

WidthWidth

Width

Media diameter: 3.5 in (8.9.x cm)

Physical size: 4 in (10.2 cm)

Interface

InterfaceInterface

Interface

Serial ATA

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

150 MB/s

Buffer

BufferBuffer

Buffer

8 MB

Seek Time

Seek Time Seek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

0.8 ms

Average

AverageAverage

Average

<11.0 ms

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

15 ms

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

7,200 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

781,422,768

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

41° to 131°F (5° to 55°C)

SATA Hard Drives

SATA Hard DrivesSATA Hard Drives

SATA Hard Drives

(10,000

rpm)

74 GB

74 GB74 GB

74 GB

Capacity

CapacityCapacity

Capacity

74,355,769,344 bytes

Height

HeightHeight

Height

1.0 in (2.54 mm)

Width

WidthWidth

Width

Media diameter: 3.3 in (84mm)

Physical size: 4 in (10.2 cm)

Interface

InterfaceInterface

Interface

Serial ATA

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

150 MB/s

Buffer

BufferBuffer

Buffer

8 MB

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

0.3 ms

Average

AverageAverage

Average

4.5 ms

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

10.2 ms

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

10,000 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

145,226,112

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

41° to 140° F (5 to 60° C)

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Hard Drives

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 26

Ultra320 SCSI Hard

Ultra320 SCSI HardUltra320 SCSI Hard

Ultra320 SCSI Hard

Drives

DrivesDrives

Drives

(10,000 rpm)

73 GB

73 GB73 GB

73 GB

Capacity

CapacityCapacity

Capacity

73,407,865,856 bytes

Height

HeightHeight

Height

1.0 in (2.54 cm)

Width

WidthWidth

Width

3.5 in (8.9 cm)

Interface

InterfaceInterface

Interface

68 pin LVD SCSI

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

320 MB/s

Buffer

BufferBuffer

Buffer

8 Mbytes

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

0.3 msec

Average

AverageAverage

Average

<4.5 msec

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

<11.0 msec

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

10,000 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

143,374,738

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

40° to 130° F (5° to 55° C)

146 GB

146 GB146 GB

146 GB

Capacity

CapacityCapacity

Capacity

146,815,737,856 bytes

Height

HeightHeight

Height

1.0 in (2.54 cm)

Width

WidthWidth

Width

3.5 in (8.9 cm)

Interface

InterfaceInterface

Interface

68 pin LVD SCSI

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

320 MB/s

Buffer

BufferBuffer

Buffer

8 Mbytes

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

0.3 msec

Average

AverageAverage

Average

<4.5 msec

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

<11.0 msec

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

10,000 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

286,749,488

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

40° to 130° F (5° to 55° C)

300 GB

300 GB300 GB

300 GB

Capacity

CapacityCapacity

Capacity

300,000,000,000 bytes

Height

HeightHeight

Height

1.0 in (2.54 cm)

Width

WidthWidth

Width

3.5 in (8.9 cm)

Interface

InterfaceInterface

Interface

68 pin LVD SCSI

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

320 MB/s

Buffer

BufferBuffer

Buffer

8 Mbytes

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

0.3 msec

Average

AverageAverage

Average

<4.5 msec

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

<11.0 msec

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

10,000 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

585,937,500

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

40° to 130° F (5° to 55° C)

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Hard Drives

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 27

Ultra320 SCSI Hard

Ultra320 SCSI HardUltra320 SCSI Hard

Ultra320 SCSI Hard

Drives

Drives Drives

Drives

(15,000 rpm)

36 GB

36 GB36 GB

36 GB

Capacity

CapacityCapacity

Capacity

36,420,075,520 bytes

Height

HeightHeight

Height

1.0 in (2.54 cm)

Width

WidthWidth

Width

3.5 in (8.9 cm)

Interface

InterfaceInterface

Interface

68 pin LVD SCSI

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

320 MB/s

Buffer

BufferBuffer

Buffer

8 Mbytes

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

0.3 msec

Average

AverageAverage

Average

<4.5 msec

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

<11.0 msec

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

15,000 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

71,132,960

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

40° to 130°F (5° to 55°C)

73 GB

73 GB73 GB

73 GB

Capacity

CapacityCapacity

Capacity

73,407,865,856 bytes

Height

HeightHeight

Height

1.0 in (2.54 cm)

Width

WidthWidth

Width

3.5 in (8.9 cm)

Interface

InterfaceInterface

Interface

68 pin LVD SCSI

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

320 MB/s

Buffer

BufferBuffer

Buffer

8 Mbytes

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

0.3 msec

Average

AverageAverage

Average

<4.5 msec

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

<11.0 msec

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

15,000 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

143,374,738

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

40° to 130°F (5° to 55° C)

146 GB

146 GB146 GB

146 GB

Capacity

CapacityCapacity

Capacity

146,815,737,856 bytes

Height

HeightHeight

Height

1.0 in (2.5 cm)

Width

WidthWidth

Width

3.5 in (8.9 cm)

Interface

InterfaceInterface

Interface

68 pin LVD SCSI

Synchronous Transfer Rate

Synchronous Transfer RateSynchronous Transfer Rate

Synchronous Transfer Rate

(Maximum)

320 MB/s

Buffer

BufferBuffer

Buffer

8 Mbytes

Seek Time

Seek TimeSeek Time

Seek Time

(typical reads,

includes controller overhead,

including settling)

Single Track

Single TrackSingle Track

Single Track

0.3 msec

Average

AverageAverage

Average

<4.5 msec

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

<11.0 msec

Rotational Speed

Rotational SpeedRotational Speed

Rotational Speed

15,000 rpm

Logical Blocks

Logical BlocksLogical Blocks

Logical Blocks

143,374,738

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

40° to 130°F (5° to 55°C)

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Hard Drives

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 28

USB Disk on Key

USB Disk on KeyUSB Disk on Key

USB Disk on Key

Dimensions

DimensionsDimensions

Dimensions

(HxWxD)

0.9 x 0.7 x 3.9 in (2.3 x 1.8 x 9.8 cm)

Weight

WeightWeight

Weight

0.05 lb (0.02 kg)

USB Specification

USB SpecificationUSB Specification

USB Specification

2.0

Transfer Rate

Transfer RateTransfer Rate

Transfer Rate

Read-1023 KB/Sec; Write-850 KB/Sec

Storage Media

Storage MediaStorage Media

Storage Media

Solid state flash memory, no moving parts

Power Supply

Power SupplyPower Supply

Power Supply

USB Bus-powered, no external power required

Capacity

CapacityCapacity

Capacity

256 MB

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Removable Storage

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 29

PS/2 OR USB '04

PS/2 OR USB '04PS/2 OR USB '04

PS/2 OR USB '04

Standard Keyboard

Standard KeyboardStandard Keyboard

Standard Keyboard

Physical

PhysicalPhysical

Physical

characteristics

characteristicscharacteristics

characteristics

Keys

KeysKeys

Keys

104, 105, 106, 107, 109 layout (depending upon

country)

Dimensions

DimensionsDimensions

Dimensions

(L x W x H)

18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)

Weight

WeightWeight

Weight

2 lb (0.9 kg) minimum

Electrical

ElectricalElectrical

Electrical

Operating voltage

Operating voltageOperating voltage

Operating voltage

+ 5VDC ± 5%

Power consumption

Power consumptionPower consumption

Power consumption

50-mA maximum (with three LEDs ON)

ESD

ESDESD

ESD

CE level 4, 15-kV air discharge

EMI - RFI

EMI - RFIEMI - RFI

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft

MicrosoftMicrosoft

Microsoft

PC 99 - 2001

PC 99 - 2001PC 99 - 2001

PC 99 - 2001

Functionally compliant

Mechanical

MechanicalMechanical

Mechanical

Languages

LanguagesLanguages

Languages

38 available

Keycaps

KeycapsKeycaps

Keycaps

Low-profile design

Switch actuation

Switch actuationSwitch actuation

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

Switch lifeSwitch life

Switch life

20 million keystrokes (using Hasco modified tester)

Switch type

Switch typeSwitch type

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

Key-leveling mechanismsKey-leveling mechanisms

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

Cable lengthCable length

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Microsoft PC 99 - 2001Microsoft PC 99 - 2001

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

AcousticsAcoustics

Acoustics

43-dBA maximum sound pressure level

Environmental

EnvironmentalEnvironmental

Environmental

Operating temperature

Operating temperatureOperating temperature

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating

Non-operatingNon-operating

Non-operating

temperature

temperaturetemperature

temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

Operating humidityOperating humidity

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

Non-operating humidityNon-operating humidity

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

Operating shockOperating shock

Operating shock

40 g, six surfaces

Non-operating shock

Non-operating shockNon-operating shock

Non-operating shock

80 g, six surfaces

Operating vibration

Operating vibrationOperating vibration

Operating vibration

2-g peak acceleration

Non-operating vibration

Non-operating vibrationNon-operating vibration

Non-operating vibration

4-g peak acceleration

Drop

DropDrop

Drop

(out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop

DropDrop

Drop

(in box)

42 in (107 cm) on concrete, 16-drop sequence

Operating system support

Operating system supportOperating system support

Operating system support

Windows 2000 and Windows XP

Approvals

ApprovalsApprovals

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Ergonomic compliance

Ergonomic complianceErgonomic compliance

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

Kit contents

Kit contentsKit contents

Kit contents

Keyboard, keyboard software media, installation guide, warranty card, safety and comfort

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Input/Output Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 30

USB Modular Keyboard

USB Modular KeyboardUSB Modular Keyboard

USB Modular Keyboard

Physical

PhysicalPhysical

Physical

characteristics

characteristicscharacteristics

characteristics

Keys

KeysKeys

Keys

104, 105, 106, 107, 109 layout (depending upon

country)

Dimensions

DimensionsDimensions

Dimensions

(L x W x H)

18.59 x 6.73 x 0.90 in (472 x 170 x 23 mm) with numeric

pad attached

Weight

WeightWeight

Weight

2 lb (0.9 kg) minimum

Electrical

ElectricalElectrical

Electrical

Operating voltage

Operating voltageOperating voltage

Operating voltage

+ 5VDC ±5%

Power consumption

Power consumptionPower consumption

Power consumption

50-mA maximum (with three LEDs ON)

System interface

System interfaceSystem interface

System interface

USB Type A plug connector

ESD

ESDESD

ESD

CE level 4, 15-kV air discharge

EMI - RFI

EMI - RFIEMI - RFI

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft

MicrosoftMicrosoft

Microsoft

PC 99 - 2001

PC 99 - 2001PC 99 - 2001

PC 99 - 2001

Functionally compliant

Mechanical

MechanicalMechanical

Mechanical

Languages

LanguagesLanguages

Languages

38 available

Keycaps

KeycapsKeycaps

Keycaps

Low-profile design

Switch actuation

Switch actuationSwitch actuation

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

Switch lifeSwitch life

Switch life

20 million keystrokes (using Hasco modified tester)

Switch type

Switch typeSwitch type

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

Key-leveling mechanismsKey-leveling mechanisms

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

Cable lengthCable length

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Microsoft PC 99 - 2001Microsoft PC 99 - 2001

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

AcousticsAcoustics

Acoustics

43-dBA maximum sound pressure level

Environmental

EnvironmentalEnvironmental

Environmental

Operating temperature

Operating temperatureOperating temperature

Operating temperature

50° to 122°F (10° to 50°C)

Non-operating

Non-operatingNon-operating

Non-operating

temperature

temperaturetemperature

temperature

-22° to 140°F (-30° to 60°C)

Operating humidity

Operating humidityOperating humidity

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

Non-operating humidityNon-operating humidity

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

Operating shockOperating shock

Operating shock

40 g, six surfaces

Non-operating shock

Non-operating shockNon-operating shock

Non-operating shock

80 g, six surfaces

Operating vibration

Operating vibrationOperating vibration

Operating vibration

2-g peak acceleration

Non-operating vibration

Non-operating vibrationNon-operating vibration

Non-operating vibration

4-g peak acceleration

Drop

DropDrop

Drop

(out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop

DropDrop

Drop

(in box)

442 in (107 cm) on concrete, 16-drop sequence

Operating system support

Operating system supportOperating system support

Operating system support

Windows 2000 and Windows XP

Approvals

ApprovalsApprovals

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, USB-IF

Ergonomic compliance

Ergonomic complianceErgonomic compliance

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

Kit contents

Kit contentsKit contents

Kit contents

Keyboard, numerical keypad, USB cable, I/O Security Software & Documentation CD

including Modular Access Keyboard software & installation guide, warranty card, safety

and comfort guide

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Input/Output Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 31

2-Button Scroll Mouse

2-Button Scroll Mouse2-Button Scroll Mouse

2-Button Scroll Mouse

(PS/2)

Scroll Wheel

Scroll WheelScroll Wheel

Scroll Wheel

8 mm

Maximum Rotation Speed

Maximum Rotation SpeedMaximum Rotation Speed

Maximum Rotation Speed

30 mm/s

Switch Type

Switch TypeSwitch Type

Switch Type

Light force micro-switch

Switch Life

Switch LifeSwitch Life

Switch Life

1 million operations

Mechanical Life

Mechanical LifeMechanical Life

Mechanical Life

Minimum 200,000 revolutions

Environmental

EnvironmentalEnvironmental

Environmental

Operating Temperature

Operating TemperatureOperating Temperature

Operating Temperature

50° to 122° F (10° to 50° C)

Non-operating

Non-operatingNon-operating

Non-operating

Temperature

TemperatureTemperature

Temperature

-22° to 140° F (-30° to 60° C)

Operating Humidity

Operating HumidityOperating Humidity

Operating Humidity

10% to 90% (non condensing at ambient)

Non-operating Humidity

Non-operating HumidityNon-operating Humidity

Non-operating Humidity

20% to 80% (non condensing at ambient)

Operating Shock

Operating ShockOperating Shock

Operating Shock

40 g, 6 surfaces

Non-operating Shock

Non-operating ShockNon-operating Shock

Non-operating Shock

80 g, 6 surfaces

Operating Vibration

Operating VibrationOperating Vibration

Operating Vibration

2 g peak acceleration

Non-operating Vibration

Non-operating VibrationNon-operating Vibration

Non-operating Vibration

4 g peak acceleration

Mechanical

MechanicalMechanical

Mechanical

Resolution

ResolutionResolution

Resolution

400 ± 20% DPI

Tracking Speed

Tracking SpeedTracking Speed

Tracking Speed

10 in/s maximum

Acceleration

AccelerationAcceleration

Acceleration

100 in/s

Switch Actuation

Switch ActuationSwitch Actuation

Switch Actuation

85 g nominal peak force

Switch Life

Switch LifeSwitch Life

Switch Life

1,000,000 operations (using Hasco modified tester)

Cable Length

Cable LengthCable Length

Cable Length

2 m

PC98-99

PC98-99PC98-99

PC98-99

Mechanically compliant

Regulatory Approvals

Regulatory ApprovalsRegulatory Approvals

Regulatory Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick

HP Optical Scroll Mouse

HP Optical Scroll MouseHP Optical Scroll Mouse

HP Optical Scroll Mouse

(USB)

Dimensions

DimensionsDimensions

Dimensions

(H x L x W)

1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)

Weight

WeightWeight

Weight

0.27 lb (0.12 kg)

Cable length

Cable lengthCable length

Cable length

72.8 in (185 cm)

System requirements

System requirementsSystem requirements

System requirements

Microsoft Windows 95, 98, 2000, Me, and XP

HP 3-Button Mouse

HP 3-Button MouseHP 3-Button Mouse

HP 3-Button Mouse

(PS/2)

Dimensions/Weight

Dimensions/WeightDimensions/Weight

Dimensions/Weight

Height

HeightHeight

Height

1.42 in (3.6 cm)

Length

LengthLength

Length

4.17 in (10.7 cm)

Width

WidthWidth

Width

2.87 in (7.4 cm)

Weight

WeightWeight

Weight

5.20 oz (150 g)

Environmental

EnvironmentalEnvironmental

Environmental

Operating temperature

Operating temperatureOperating temperature

Operating temperature

32° to 104° F (0° to 40° C)

Non-operating

Non-operatingNon-operating

Non-operating

temperature

temperaturetemperature

temperature

-4° to 140° F (-20° to 60° C)

Operating humidity

Operating humidityOperating humidity

Operating humidity

10% to 90% (non condensing at ambient)

Mechanical

MechanicalMechanical

Mechanical

Resolution

ResolutionResolution

Resolution

400 20% DPI

Tracking speed

Tracking speedTracking speed

Tracking speed

10 in/s Maximum

Switch life

Switch lifeSwitch life

Switch life

1,000,000 operations (using Hasco modified tester)

Switch type

Switch typeSwitch type

Switch type

Micro-switches

Tracking mechanism life

Tracking mechanism lifeTracking mechanism life

Tracking mechanism life

155 miles (250 km) at average speed of 10 in/s

Cable length

Cable lengthCable length

Cable length

6 ft (1.8 m)

PC98-99

PC98-99PC98-99

PC98-99

Mechanically compliant

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Input/Output Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 32

Spaceball 5000

Spaceball 5000Spaceball 5000

Spaceball 5000

(USB)

Physical characteristics

Physical characteristicsPhysical characteristics

Physical characteristics

Dimensions

DimensionsDimensions

Dimensions

(H x W x D)

3.0 x 6.0 x 8.4 in (7.6 x 15.2 x 21.3 cm)

Ball Diameter

Ball DiameterBall Diameter

Ball Diameter

2.2 in (5.6 cm)

Weight

WeightWeight

Weight

2.1 lb (9.94 kg)

Features

FeaturesFeatures

Features

Six degrees of freedom motion control through the X, Y, Z

axis (pitch, roll, yaw)

Certified for leading CAD and DCC applications

Environmental

EnvironmentalEnvironmental

Environmental

Operating temperature

Operating temperatureOperating temperature

Operating temperature

50° to 104° F (10° to 40° C)

Non-operating

Non-operatingNon-operating

Non-operating

temperature

temperaturetemperature

temperature

43° to 140° F (6° to 60° C)

Operating humidity

Operating humidityOperating humidity

Operating humidity

8% to 80% (non-condensing at ambient)

Non-operating humidity

Non-operating humidityNon-operating humidity

Non-operating humidity

5% to 80% (non-condensing at ambient)

Mechanical

MechanicalMechanical

Mechanical

Buttons

ButtonsButtons

Buttons

12 programmable (unshifted)

Ball Force Range

Ball Force RangeBall Force Range

Ball Force Range

0.5 - 8.2N/1.8 - 29.5 oz

Ball Torque Range

Ball Torque RangeBall Torque Range

Ball Torque Range

0.085 – 0.33 oz-in. (6.91 Nmm)

Resolution

ResolutionResolution

Resolution

10 bits

Serial Specifications

Serial SpecificationsSerial Specifications

Serial Specifications

Connector

ConnectorConnector

Connector

USB 1.1 or greater

Cable Length

Cable LengthCable Length

Cable Length

12.8 ft. (3.9 m)

Data Rate

Data RateData Rate

Data Rate

USB model – 16 msec

Flow Control

Flow ControlFlow Control

Flow Control

Xon/Xoff (on PS/2 model only)

Software Drivers Available

Software Drivers AvailableSoftware Drivers Available

Software Drivers Available

USB model

USB modelUSB model

USB model

Microsoft Windows XP

System Requirements

System RequirementsSystem Requirements

System Requirements

Disk Space

Disk SpaceDisk Space

Disk Space

10 MB free disk space

Regulatory Approvals

Regulatory ApprovalsRegulatory Approvals

Regulatory Approvals

UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV, CISPR 22, EN 50082, IEC 1000

4-2, IEC 1000-4-3, AS/NZS, VCCI, BSMI, C-Tick

HP SpaceMouse Plus USB

HP SpaceMouse Plus USBHP SpaceMouse Plus USB

HP SpaceMouse Plus USB

Physical characteristics

Physical characteristicsPhysical characteristics

Physical characteristics

Dimensions

DimensionsDimensions

Dimensions

(H x W x D)

7.4 x 4.72 x 1.73 in (18.8 x 12.0 x 4.4 cm)

Cap Diameter

Cap DiameterCap Diameter

Cap Diameter

2 x 6.5 x 6.6 mm

Weight

WeightWeight

Weight

1.5 lb (0.68 kg)

Features

FeaturesFeatures

Features

Six degrees of freedom motion control through the X, Y, Z

axis (pitch, roll, yaw)

Certified for leading CAD and DCC applications

Environmental

EnvironmentalEnvironmental

Environmental

Operating temperature

Operating temperatureOperating temperature

Operating temperature

41° to 140° F (5° to 60° C)

Non-operating

Non-operatingNon-operating

Non-operating

temperature

temperaturetemperature

temperature

-13° to 158° F (-25° to 70° C)

Operating humidity

Operating humidityOperating humidity

Operating humidity

10 to 98 % RH (non-condensing)

Non-operating humidity

Non-operating humidityNon-operating humidity

Non-operating humidity

10 to 98 % RH (non-condensing)

Mechanical

MechanicalMechanical

Mechanical

Buttons

ButtonsButtons

Buttons

11 programmable (unshifted)

Cap Force Range

Cap Force RangeCap Force Range

Cap Force Range

0.2 N – 4.5 N

Cap Torque Range

Cap Torque RangeCap Torque Range

Cap Torque Range

4 Nmm to 100 Nmm

Resolution

ResolutionResolution

Resolution

8 bit

USB Specifications

USB SpecificationsUSB Specifications

USB Specifications

Connector

ConnectorConnector

Connector

USB 1.1 or greater

Cable Length

Cable LengthCable Length

Cable Length

2 m

Data Rate

Data RateData Rate

Data Rate

16 msec

Software Drivers Available

Software Drivers AvailableSoftware Drivers Available

Software Drivers Available

Microsoft Windows XP

System Requirements

System RequirementsSystem Requirements

System Requirements

Disk Space

Disk SpaceDisk Space

Disk Space

10 MB free disk space

Regulatory Approvals

Regulatory ApprovalsRegulatory Approvals

Regulatory Approvals

UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV, CISPR 22, EN 50082, IEC 1000

4-2, IEC 1000-4-3, AS/NZS, VCCI, BSMI, C-Tick

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Input/Output Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 33

48X CD-ROM Drive

48X CD-ROM Drive48X CD-ROM Drive

48X CD-ROM Drive

Capacity

CapacityCapacity

Capacity

700 MB CD disc

Dimensions

DimensionsDimensions

Dimensions

(HxWxD)

1.63 x 5.83 x 7.27 in (4.13 x 14.6 x 18.5 cm)

Weight

WeightWeight

Weight

1.76 lb (0.8 kg)

Interface

InterfaceInterface

Interface

ATAPI/EIDE

Mounting Orientation

Mounting OrientationMounting Orientation

Mounting Orientation

Horizontal or vertical

Data Transfer Rates -

Data Transfer Rates -Data Transfer Rates -

Data Transfer Rates -

Read

ReadRead

Read

Digital audio extraction (minimum) – 1,200 KB/s (8X)

CD read – up to 7,200 KB/s (48X)

Media and Formats -

Media and Formats -Media and Formats -

Media and Formats -

Read

ReadRead

Read

Formats

FormatsFormats

Formats

: CD-DA, CD-ROM (Mode 1 and 2), CD-XA Ready, Photo CD (Single and

Multi-session), Mixed Mode (Audio and Data combined), CD-I (FMV), CD Plus, CD-Extra;

Media

MediaMedia

Media

: stamped, CD-R, CD-RW

Data Transfer Modes

Data Transfer ModesData Transfer Modes

Data Transfer Modes

PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 0 (16.7

MB/s); UltraDMA Mode 2 (33.3 MB/s)

Access Times

Access TimesAccess Times

Access Times

(typical)

Random

RandomRandom

Random

< 75 ms @ 48x

Full-Stroke

Full-StrokeFull-Stroke

Full-Stroke

< 150 ms

Start-up Time

Start-up TimeStart-up Time

Start-up Time

(typical)

< 7 s (single session)

< 30 s (multisession)

Stop Time

Stop TimeStop Time

Stop Time

(typical)

< 4 s

Read Buffer size

Read Buffer sizeRead Buffer size

Read Buffer size

128 KB (minimum)

Audio Output

Audio OutputAudio Output

Audio Output

Line-Out

Line-OutLine-Out

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

Signal-to-Noise RatioSignal-to-Noise Ratio

Signal-to-Noise Ratio

80 dB

Channel Separation

Channel SeparationChannel Separation

Channel Separation

65 dB

Configuration Jumper

Configuration JumperConfiguration Jumper

Configuration Jumper

Block

BlockBlock

Block

Master, slave, and cable select modes

Operating Conditions

Operating ConditionsOperating Conditions

Operating Conditions

Temperature

TemperatureTemperature

Temperature

41° to 122° F (5° to 50° C)

Humidity

HumidityHumidity

Humidity

10% to 80%

Approvals/

Approvals/Approvals/

Approvals/

Environmental

EnvironmentalEnvironmental

Environmental

UL 1950 (US and Canada), CSA, SEMKO, TUV; CE, FDA, FCC, IC, C-TICK

Operating Systems

Operating SystemsOperating Systems

Operating Systems

Supported

SupportedSupported

Supported

Microsoft Windows 2000 and Microsoft Windows XP

Supplied Software

Supplied SoftwareSupplied Software

Supplied Software

None

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Optical Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 34

16X/40X DVD-ROM Drive

16X/40X DVD-ROM Drive16X/40X DVD-ROM Drive

16X/40X DVD-ROM Drive

with +R Read Support

with +R Read Supportwith +R Read Support

with +R Read Support

Height

HeightHeight

Height

5.25-in, half-height, tray load

Interface Type

Interface TypeInterface Type

Interface Type

ATAPI/EIDE

Dimensions

DimensionsDimensions

Dimensions

(W x H x D)

5.88 x 1.71 x 7.87 [max] in (149.5 x 43.25 x 200.0 [max] mm) (external, excluding bezel)

Disc Formats

Disc FormatsDisc Formats

Disc Formats

DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0; DVD-RW

version 1.0 and 1.1; DVD-R multi-border; DVD+RW; DVD+R ; CD-ROM Mode 1 and 2;

CD-DA; CD-ROM XA Mode 2, Form 1 and 2; CD-extra; CD-text; CD-I Mode 2, Form 1

and 2; CD-I ready; video CD, CD-bridge; PhotoCD (single and multi-session); CD-R; CD-

Disc Capacity

Disc CapacityDisc Capacity

Disc Capacity

DVD-ROM

DVD-ROMDVD-ROM

DVD-ROM

4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB (DVD-10),

3.95 GB (DVD-R version 1.0), 4.7 GB (DVD-R version

2.0), 4.7 GB (DVD-RW version 1.0 and 1.1), 4.7 GB

(DVD+RW), 4.7G (DVD+R)

CD-ROM

CD-ROMCD-ROM

CD-ROM

540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12 cm), 700

MB (80 minimum CD-R and CD-RW), 180 MB (8 cm)

Access Times

Access TimesAccess Times

Access Times

(typical reads, including

settling)

DVD-ROM Single Layer

DVD-ROM Single LayerDVD-ROM Single Layer

DVD-ROM Single Layer

120 ms

CD-ROM Mode 1

CD-ROM Mode 1CD-ROM Mode 1

CD-ROM Mode 1

90 ms

Full Stroke DVD

Full Stroke DVDFull Stroke DVD

Full Stroke DVD

240 ms (seek)

Full Stroke CD

Full Stroke CDFull Stroke CD

Full Stroke CD

160 ms (seek)

Startup Time

Startup TimeStartup Time

Startup Time

< 10 seconds (typical)

Stop Time

Stop TimeStop Time

Stop Time

< 4 seconds

Data Transfer Modes

Data Transfer ModesData Transfer Modes

Data Transfer Modes

PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6

MB/s); UltraDMA Mode 3 (44.4 MB/s)

Maximum Data Transfer

Maximum Data TransferMaximum Data Transfer

Maximum Data Transfer

Rates

RatesRates

Rates

CD-ROM Read

CD-ROM ReadCD-ROM Read

CD-ROM Read

6000 KB/s (40X) Max

DVD-ROM Read

DVD-ROM ReadDVD-ROM Read

DVD-ROM Read

21,600 KB/s (16X) Max

Digital Audio Extraction

Digital Audio ExtractionDigital Audio Extraction

Digital Audio Extraction

6000 KB/s (40X) Max

Power

PowerPower

Power

Source

SourceSource

Source

Four-pin, DC power receptacle

DC Power Requirement

DC Power RequirementDC Power Requirement

DC Power Requirement

5 VDC ± 5% – 100 mV ripple p-p

12 VDC ± 5% – 200 mV ripple p-p

DC Current

DC CurrentDC Current

DC Current

5 VDC – <800 mA typical,

< 1000 mA maximum

12 VDC – < 870 mA typical,

<1800 mA maximum

Audio Output

Audio OutputAudio Output

Audio Output

Line-Out

Line-OutLine-Out

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

Signal-to-Noise RatioSignal-to-Noise Ratio

Signal-to-Noise Ratio

85 dB

Channel Separation

Channel SeparationChannel Separation

Channel Separation

65 dB

Configuration Jumper

Configuration JumperConfiguration Jumper

Configuration Jumper

Block

BlockBlock

Block

Master, slave, and cable select modes

Data Interface Connector

Data Interface ConnectorData Interface Connector

Data Interface Connector

40-pin, shrouded and keyed, flat ribbon

Operating Environmental

Operating EnvironmentalOperating Environmental

Operating Environmental

(all conditions non-

condensing)

Temperature

TemperatureTemperature

Temperature

(operating)

41° to 122° F (5° to 50° C)

Relative Humidity

Relative HumidityRelative Humidity

Relative Humidity

(operating)

10% to 85%

Maximum Wet Bulb

Maximum Wet BulbMaximum Wet Bulb

Maximum Wet Bulb

Temperature

TemperatureTemperature

Temperature

(operating)

86° F (30° C)

Certifications, Approvals

Certifications, ApprovalsCertifications, Approvals

Certifications, Approvals

MMC II support, multi-read certification, Microsoft WHQL certification, ACA AS/NZS

3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE EN60950, EN 55022,

EN55024, EMKO EN60950, EN 60825-1, UL 60950, CSA C22.2 60950-2000, CFR 21

part 1040 class 1, CFR 47 C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992

Operating Systems

Operating SystemsOperating Systems

Operating Systems

Supported

SupportedSupported

Supported

Microsoft Windows 2000, Windows XP Professional

Kit Contents

Kit ContentsKit Contents

Kit Contents

16X/40X DVD-ROM Drive, InterVideo WinDVD MPEG Movie Playback software, audio

cable, and installation guide.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Optical Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 35

HP 48X CD-RW

HP 48X CD-RWHP 48X CD-RW

HP 48X CD-RW

Height

HeightHeight

Height

5.25-inch, half-height, tray-load

Mounting Orientation

Mounting OrientationMounting Orientation

Mounting Orientation

Horizontal or vertical

Interface

InterfaceInterface

Interface

ATAPI/EIDE

Dimensions

DimensionsDimensions

Dimensions

(HxWxD)

1.63 x 5.75 x 7.27 [max] in (4.13 x 14.6 x 18.5 [max] cm) (external, excluding bezel)

Weight

WeightWeight

Weight

(max)

2.0 lb (0.9 kg)

Read Only Disc

Read Only DiscRead Only Disc

Read Only Disc

Parameters

ParametersParameters

Parameters

Data Transfer Rates –

Data Transfer Rates –Data Transfer Rates –

Data Transfer Rates –

Read

ReadRead

Read

Digital audio extraction (minimum) – 1,800 KB/s (12X)

CD read – up to 7,200 KB/s (48X)

Media and Formats –

Media and Formats –Media and Formats –

Media and Formats –

Read

ReadRead

Read

Formats:

Formats:Formats:

Formats:

CD-DA, CD-ROM (Mode 1 and 2), CD-ROM

XA (Mode 2, Form 1 and 2), Mixed Mode, CD-Plus, CD-

Extra, CD-I FMV, Video CD, CD-Text, Photo CD (single

and multisession)

Media:

Media:Media:

Media:

stamped, CD-R, CD-RW

Writeable Disc Parameters

Writeable Disc ParametersWriteable Disc Parameters

Writeable Disc Parameters

Data Transfer Rates –

Data Transfer Rates –Data Transfer Rates –

Data Transfer Rates –

Write

WriteWrite

Write

CD-R write – 2100 KB/s (14X) to 7200 KB/s (40X)

CD-RW write – 600 KB/s (4X)

CD-RW write (high speed) – 1500 KB/s (10X) to 1800

KB/s (12X)

CD-RW write (ultra high speed) – 2400 KB/s (16X) to

4800 KB/s (32X)

Media and Formats –

Media and Formats –Media and Formats –

Media and Formats –

Write

WriteWrite

Write

Formats:

Formats:Formats:

Formats:

CD-DA, CD-ROM (Mode 1 and 2), CD-ROM

XA (Mode 2, Form 1 and 2), Mixed Mode, CD-Plus, CD-

Extra, CD-I FMV, Video CD, CD-Text

Media:

Media:Media:

Media:

CD-R, CD-RW (including ultra-speed)

Write Methods

Write MethodsWrite Methods

Write Methods

Disc-at-once, session-at-once,, track-at-once,

incremental fixed and variable packet, multisession

Access Times

Access TimesAccess Times

Access Times

(typical reads, including

settling)

CD-ROM Mode 1

CD-ROM Mode 1CD-ROM Mode 1

CD-ROM Mode 1

125 ms

Full Stroke CD

Full Stroke CDFull Stroke CD

Full Stroke CD

210 ms (seek)

Start-up Time

Start-up TimeStart-up Time

Start-up Time

(typical)

<7 s (single session), <30 s (multisession)

Stop Time

Stop TimeStop Time

Stop Time

(typical)

<4 s

Write Buffer Size

Write Buffer SizeWrite Buffer Size

Write Buffer Size

2 MB

Data Transfer Modes

Data Transfer ModesData Transfer Modes

Data Transfer Modes

PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6

MB/s); UltraDMA Mode 2 (33.3 MB/s)

Power

PowerPower

Power

Source

SourceSource

Source

Four-pin, DC power receptacle

DC Power Requirement

DC Power RequirementDC Power Requirement

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

DC CurrentDC Current

DC Current

5 VDC (< 1000 mA typical, < 1600 mA maximum)

12 VDC (< 600 mA typical, < 1400 mA maximum)

Total Drive Power

Total Drive PowerTotal Drive Power

Total Drive Power

(standby mode)

< 2.5 Watt

Audio Output

Audio OutputAudio Output

Audio Output

Line-Out

Line-OutLine-Out

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

Signal-to-Noise RatioSignal-to-Noise Ratio

Signal-to-Noise Ratio

74 dB

Channel Separation

Channel SeparationChannel Separation

Channel Separation

65 dB

Configuration Jumper

Configuration JumperConfiguration Jumper

Configuration Jumper

Block

BlockBlock

Block

Master, slave, and cable select modes

Operating Conditions

Operating ConditionsOperating Conditions

Operating Conditions

Temperature

TemperatureTemperature

Temperature

41° to 122° F (5° to 50° C)

Humidity

HumidityHumidity

Humidity

10% to 90%10% to 90%

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Optical Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 36

Approvals/

Approvals/Approvals/

Approvals/

Environmental

EnvironmentalEnvironmental

Environmental

MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI Spec SFF-8020,

ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB Bulletin No. 96A, CSA C22.2 No.

950-1995, CFR 47 C.I.S.P.R. Pub 22 Class B, DHHS/FDA, EMKO-TSE 07/94, TUV

EN60950, EN60825-1, MIC, BSMI-CNS 13438, CE, Microsoft PC2001 certification,

Microsoft Logo for Windows XP and 2000.

Operating Systems

Operating SystemsOperating Systems

Operating Systems

Supported

SupportedSupported

Supported

Microsoft Windows 2000, Windows XP Professional

Supplied software

Supplied softwareSupplied software

Supplied software

Roxio Easy CD & DVD Creator: Create or copy CDs and DVDs, including music and data

CDs, and data DVDs

Dantz Retrospect Express: Back up systems to CD, DVD, or tape media.

48X Combo CD-RW/DVD-

48X Combo CD-RW/DVD-48X Combo CD-RW/DVD-

48X Combo CD-RW/DVD-

ROM

ROMROM

ROM

Height

HeightHeight

Height

5.25-inch, half-height, tray-load

Mounting Orientation

Mounting OrientationMounting Orientation

Mounting Orientation

Either horizontal or vertical

Interface Type

Interface TypeInterface Type

Interface Type

ATAPI/EIDE

Dimensions

DimensionsDimensions

Dimensions

(W x H x D)

5.77 x 1.71 x 7.87 [max] in (14.66 x 4.34 x 20.0 [max] cm) (external, excluding bezel)

Weight

WeightWeight

Weight

(max)

2.6 lb (1.2 kg)

Read Only Disc

Read Only DiscRead Only Disc

Read Only Disc

Parameters

ParametersParameters

Parameters

Formats and Modes

Formats and ModesFormats and Modes

Formats and Modes

Supported

SupportedSupported

Supported

CD-ROM-Mode 1; CD-ROM XA-Mode 2 (forms 1 and 2);

CD-Bridge; CD digital audio; CD Extra; CD-I-Mode 2

(forms 1 and 2) and CD-I-Ready; Photo CD (single and

multi-session); video CD; DVD (single- and double-layer);

DVD-R; DVD-RW; DVD-RW Multi-Border; DVD+R;

DVD+R Multisession , and DVD+RW

Capacity

CapacityCapacity

Capacity

180 MB (mode 2, 8 cm); 540 MB (mode 1, 12 cm); 650

MB (mode 2, 12 cm); 700 MB (Mode 2, 12 cm); 4.7 GB

(DVD-5); 8.54 GB (DVD-9); 9.4 GB (DVD-10)

CD-ROM, CD-R, CD-RW

CD-ROM, CD-R, CD-RWCD-ROM, CD-R, CD-RW

CD-ROM, CD-R, CD-RW

read

readread

read

7200 KB/s (48X) Max

DVD ROM read

DVD ROM readDVD ROM read

DVD ROM read

21,632 KB/s (16X ) Max

Writeable Disc Parameters

Writeable Disc ParametersWriteable Disc Parameters

Writeable Disc Parameters

Disc Type

Disc TypeDisc Type

Disc Type

CD-R and CD-RW

Write Methods

Write MethodsWrite Methods

Write Methods

Disc at Once, Track at Once, Session at Once, Variable

Packet, Fixed Packet

Format and Modes

Format and ModesFormat and Modes

Format and Modes

Supported

SupportedSupported

Supported

CD-ROM (mode 1); CD-ROM XA (mode 2, forms 1 and

2); CD digital audio, CD-I (mode 2, forms 1 and 2);

video CD; CD-Bridge; Video CD

Capacity

CapacityCapacity

Capacity

180 MB (mode 2, 8 cm); 540 MB (mode 1, 12 cm); 650

MB (mode 2, 12 cm); 700 MB (mode 2, 12 cm)

CD-R write

CD-R writeCD-R write

CD-R write

7200 KB/s (48X) Max

CD-RW write

CD-RW writeCD-RW write

CD-RW write

4800 KB/s (32X) Max

Access Times

Access TimesAccess Times

Access Times

(typical reads, including

settling)

Random DVD

Random DVDRandom DVD

Random DVD

< 140 ms (typical)

Random CD

Random CDRandom CD

Random CD

< 125 ms, (typical)

Full Stroke DVD

Full Stroke DVDFull Stroke DVD

Full Stroke DVD

< 250 ms (seek)

Full Stroke CD

Full Stroke CDFull Stroke CD

Full Stroke CD

< 210 ms (seek)

Startup Time (single)

Startup Time (single)Startup Time (single)

Startup Time (single)

< 7 seconds (typical)

Startup Time (multi-

Startup Time (multi-Startup Time (multi-

Startup Time (multi-

session)

session)session)

session)

< 30 seconds (typical)

Stop Time

Stop TimeStop Time

Stop Time

< 4 seconds

Cache Buffer

Cache BufferCache Buffer

Cache Buffer

2 MB (minimum)

Data Transfer Modes

Data Transfer ModesData Transfer Modes

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA

mode 2 (16.7 MB/s); ATA UltraDMA Mode 3 44 Mbytes/s

(default)

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Optical Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 37

Power

PowerPower

Power

Source

SourceSource

Source

Four-pin, DC power receptacle

DC Power Requirement

DC Power RequirementDC Power Requirement

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

DC CurrentDC Current

DC Current

5 VDC (< 1000 mA typical, < 1600 mA maximum)

12 VDC (< 600 mA typical, < 1400 mA maximum)

Total Drive Power

Total Drive PowerTotal Drive Power

Total Drive Power

(standby mode)

< 2.5 Watt

Audio Output

Audio OutputAudio Output

Audio Output

Line-Out

Line-OutLine-Out

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

Signal-to-Noise RatioSignal-to-Noise Ratio

Signal-to-Noise Ratio

74 dB

Channel Separation

Channel SeparationChannel Separation

Channel Separation

65 dB

Configuration Jumper

Configuration JumperConfiguration Jumper

Configuration Jumper

Block

BlockBlock

Block

Master, slave, and cable select modes

Data Interface Connector

Data Interface ConnectorData Interface Connector

Data Interface Connector

40-pin, shrouded and keyed, flat ribbon

Operating Environmental

Operating EnvironmentalOperating Environmental

Operating Environmental

(all conditions non-

condensing)

Temperature

TemperatureTemperature

Temperature

41° to 122° F (5° to 50° C)

Relative humidity

Relative humidityRelative humidity

Relative humidity

10% to 90%

Maximum wet bulb

Maximum wet bulbMaximum wet bulb

Maximum wet bulb

temperature

temperaturetemperature

temperature

86° F (30° C)

Certifications,

Certifications,Certifications,

Certifications,

Requirements

RequirementsRequirements

Requirements

MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI Spec SFF-8020,

ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB Bulletin No. 96A, CSA C22.2 No.

950-1995, CFR 47 C.I.S.P.R. Pub 22 Class B, DHHS/FDA, EMKO-TSE 07/94, TUV

EN60950, EN60825-1, MIC, BSMI-CNS 13438, CE, Microsoft PC2001 certification,

Microsoft Logo for Windows XP and 2000.

Operating Systems

Operating SystemsOperating Systems

Operating Systems

Supported

SupportedSupported

Supported

Microsoft Windows 2000, Windows XP Professional

Option Kit Contents

Option Kit ContentsOption Kit Contents

Option Kit Contents

48X Combo CD-RW/DVD-ROM Drive, Roxio Easy CD & DVD Creator, InterVideo

WinDVD MPEG Movie Playback software, Dantz Retrospect Express Backup software,

audio cable, and installation guide.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Optical Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 38

16X DVD+/-RW, Dual-

16X DVD+/-RW, Dual-16X DVD+/-RW, Dual-

16X DVD+/-RW, Dual-

Layer

LayerLayer

Layer

(Win and RHWS3)

Height

HeightHeight

Height

5.25-inch, half-height, tray-load

Orientation

OrientationOrientation

Orientation

Either horizontal or vertical

Interface Type

Interface TypeInterface Type

Interface Type

ATAPI/EIDE

Disc Recording Capacity

Disc Recording CapacityDisc Recording Capacity

Disc Recording Capacity

4.7 GB (single-layer), 8.5 GB (double-layer)

Dimensions

DimensionsDimensions

Dimensions

(W x H x D)

5.9 x 1.7 x 7.9 in (15.0 x 4.4 x 20.0 cm)

Weight

WeightWeight

Weight

(maximum)

2.6 lb (1.2 kg)

Recording Method

Recording MethodRecording Method

Recording Method

Disc-at-once, Track-at-once, and Session-at-once; Variable Packet and Fixed Packet

Write Support

Write SupportWrite Support

Write Support

DVD+R (1.3), DVD+R DL (1.0), DVD+RW (1.2), DVD-R (2.0), DVD-RW (1.1), CD-R (OBII

Vol2.0 Rev 1.2), CD-RW (LS, HS, US)

Read Support

Read SupportRead Support

Read Support

DVD-ROM (single- and dual-layer), DVD-Video, DVD+R (include multisession),

DVD+RW, DVD-R (incl. multiborder), DVD-RW, DVD-MRW;

CD-ROM Mode 1, CD-ROM XA (Mode 2, forms 1 and 2), CD-TEXT, Photo CD single-

and multi-session), CD-DA (Audio CD), CD-Extra, CD-R, CD-RW (supports AM2), VCD,

CD-I, UDF (1.02 and 1.50), CD-MRW

Write Speed

Write Speed Write Speed

Write Speed

(maximum)

DVD+R

DVD+RDVD+R

DVD+R

16X CAV (21,600 KB/s), 8x ZCLV (10,800 KB/s), 2.4-8x

CLV (3250-10,800 KB/s)

DVD+RW

DVD+RWDVD+RW

DVD+RW

DVD-R

DVD-RDVD-R

DVD-R

DVD-RW

DVD-RWDVD-RW

DVD-RW

2.4-4X CLV (3250-5400 KB/s)

2-4X CLV (2700-5400 KB/s), 8X ZCLV (10,800 KB/s)

2-4X CLV (2700-5400 KB/s)

CD-R

CD-RCD-R

CD-R

16-40X CAV (2400-6000 KB/s)

CD-RW

CD-RWCD-RW

CD-RW

(US)

4-24X CLV (600-3600 KB/s)

Read Speed

Read Speed Read Speed

Read Speed

(maximum)

DVD-ROM

DVD-ROMDVD-ROM

DVD-ROM

5-16X CAV (6750 - 21,600 KB/s)

DVD+R, DVD+RW,

DVD+R, DVD+RW,DVD+R, DVD+RW,

DVD+R, DVD+RW,

DVD-R, DVD-RW

DVD-R, DVD-RWDVD-R, DVD-RW

DVD-R, DVD-RW

4-8X CAV (5400 - 10,800 KB/s)

CD-ROM, CD-R,

CD-ROM, CD-R,CD-ROM, CD-R,

CD-ROM, CD-R,

CD-RW, CD-Audio

CD-RW, CD-AudioCD-RW, CD-Audio

CD-RW, CD-Audio

16-40X CAV (2400 to 6000 KB/s)

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Optical Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 39

Access Time

Access TimeAccess Time

Access Time

(typical reads,

including settling)

Random DVD

Random DVDRandom DVD

Random DVD

< 130 ms (typical)

Random CD

Random CDRandom CD

Random CD

< 120 ms, (typical)

Full Stroke DVD

Full Stroke DVDFull Stroke DVD

Full Stroke DVD

< 240 ms (seek)

Full Stroke CD

Full Stroke CDFull Stroke CD

Full Stroke CD

< 200 ms (seek)

Startup Time

Startup TimeStartup Time

Startup Time

(single)

< 7 seconds (typical)

Startup Time

Startup TimeStartup Time

Startup Time

(multi-session)

< 30 seconds (typical)

Stop Timex

Stop TimexStop Timex

Stop Timex

< 4 seconds

Cache Buffer

Cache BufferCache Buffer

Cache Buffer

2 MB (minimum)

Data Transfer Modes

Data Transfer ModesData Transfer Modes

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA

mode 2 (16.7 MB/s); ATA UltraDMA Mode 3 (44.4 MB/s)

(default on most HP xw workstations)

Power

PowerPower

Power

Source

SourceSource

Source

Four-pin, DC power receptacle

DC Power Requirement

DC Power RequirementDC Power Requirement

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 10%-200 mV ripple p-p

DC Current

DC CurrentDC Current

DC Current

5 VDC (< 2000 mA typical, < 2500 mA maximum)

12 VDC (< 700 mA typical, < 2000 mA maximum)

Total Drive Power

Total Drive PowerTotal Drive Power

Total Drive Power

(standby mode)

< 2.5 Watt

Audio Output

Audio OutputAudio Output

Audio Output

Line-Out

Line-OutLine-Out

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

Signal-to-Noise RatioSignal-to-Noise Ratio

Signal-to-Noise Ratio

74 dB

Channel Separation

Channel SeparationChannel Separation

Channel Separation

65 dB

Operating Environmental

Operating EnvironmentalOperating Environmental

Operating Environmental

(all conditions non-

condensing)

Temperature

TemperatureTemperature

Temperature

41° to 122° F (5° to 50° C)

Relative humidity

Relative humidityRelative humidity

Relative humidity

10% to 90%

Maximum wet bulb

Maximum wet bulbMaximum wet bulb

Maximum wet bulb

temperature

temperaturetemperature

temperature

86° F (30° C)

System Configuration

System ConfigurationSystem Configuration

System Configuration

Intel Pentium IV Processor or later with 128 MB of memory (required); 256 MB

recommended 2-D or 3-D graphics cards on primary disk drive for operating system and

application software; second disk drive for audio and video data

Operating Systems

Operating SystemsOperating Systems

Operating Systems

Support

SupportSupport

Support

Windows XP Professional and Linux. (Red Hat Linux 7.2, 7.3, 8, 9.0 may require additional

third party software to make full use of this device)

Regulatory Approvals

Regulatory ApprovalsRegulatory Approvals

Regulatory Approvals

MPC-3 and MMC-4 compliant, multi-read certified, ATA Spec X3T9.2, ATAPI Spec

T13.1153D, ANSI C63.4-1992, UL 60950, ACA AS/NZS 3548, CB Bulletin No. 96A, CSA

C22.2 No. 60950, CFR 47 C.I.S.P.R. Pub 22 Class B, DHHS/FDA, EMKO-TSE 07/94, TUV

EN60950, EN60825-1, MIC Class B, BSMI-CNS 13438, CE EN60950, EN55022:1998

and EN55024, Microsoft Logo for Windows XP, relevant parts of IEC 61000-4.

Option Kit contents

Option Kit contentsOption Kit contents

Option Kit contents

16X DVD±R/±RW Drive, InterVideo WinDVD, InterVideo WinDVD Creator, Roxio Easy

Media Creator, Dantz Retrospect Express Backup Software, installation guide, and DVD+R

media.

NOTE:

NOTE: NOTE:

NOTE:

This DVD writer kit does not include any software for burning DVDs on Linux.

DVD burning is supported with the 'growisofs' command. CD burning is supported with the

'cdrecord' command. Red Hat Enterprise Linux WS 3 distribution includes both 'cdrecord'

and 'growisofs'. Red Hat Linux 7.2, 7.3, 8, 9.0 distributions only include 'cdrecord'.

Therefore DVD burning is only supported on WS 3.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Optical Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 40

16X DVD+/-RW

16X DVD+/-RW16X DVD+/-RW

16X DVD+/-RW

LightScribe drive

LightScribe driveLightScribe drive

LightScribe drive

Height

HeightHeight

Height

5.25-inch, half-height, tray-load

Orientation

OrientationOrientation

Orientation

Either horizontal or vertical

Interface Type

Interface TypeInterface Type

Interface Type

ATAPI/EIDE

Disc Recording Capacity

Disc Recording CapacityDisc Recording Capacity

Disc Recording Capacity

8.5 GB DL or 4.7 GB standard

Dimensions

DimensionsDimensions

Dimensions

(W x H x D)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

Weight

WeightWeight

Weight

(maximum)

2.6 lb (1.2 kg)

Write Speed

Write Speed Write Speed

Write Speed

(maximum)

DVD+R

DVD+RDVD+R

DVD+R

Up to16X

DVD+RW

DVD+RWDVD+RW

DVD+RW

Up to 4X

DVD+R DL

DVD+R DLDVD+R DL

DVD+R DL

Up to 2.4X

DVD-R

DVD-RDVD-R

DVD-R

Up to 8X

DVD-RW

DVD-RWDVD-RW

DVD-RW

Up to 4X

CD-R

CD-RCD-R

CD-R

Up to 40X

CD-RW

CD-RWCD-RW

CD-RW

Up to 24X

Read Speed

Read Speed Read Speed

Read Speed

(maximum)

DVD+R/-R/+RW/

DVD+R/-R/+RW/DVD+R/-R/+RW/

DVD+R/-R/+RW/

-RW/+R DL

-RW/+R DL-RW/+R DL

-RW/+R DL

Up to 8X

DVD-ROM

DVD-ROMDVD-ROM

DVD-ROM

Up to 16X

CD-ROM, CD-R

CD-ROM, CD-RCD-ROM, CD-R

CD-ROM, CD-R

Up to 40X

CD-RW

CD-RWCD-RW

CD-RW

Up to 32X

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Optical Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 41

Access Time

Access TimeAccess Time

Access Time

(typical reads,

including settling)

Random

RandomRandom

Random

DVD: < 130 ms (typical), CD: < 120 ms (typical)

Full Stroke

Full StrokeFull Stroke

Full Stroke

DVD: < 240 ms (seek), CD: < 200 ms (seek)

Startup Time

Startup TimeStartup Time

Startup Time

Single-session: < 15 seconds (typical), Multi-session: <

30 seconds (typical)

Stop Time

Stop TimeStop Time

Stop Time

< 4 seconds

Cache Buffer

Cache BufferCache Buffer

Cache Buffer

2 MB (minimum)

Data Transfer Modes

Data Transfer ModesData Transfer Modes

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA

mode 2 (16.7 MB/s); ATA UltraDMA Mode 3 (44.4 MB/s -

default)

Power

PowerPower

Power

Source

SourceSource

Source

Four-pin, DC power receptacle

DC Power Requirement

DC Power RequirementDC Power Requirement

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 10%-200 mV ripple p-p

DC Current

DC CurrentDC Current

DC Current

5 VDC (< 2000 mA typical, < 2500 mA maximum)

12 VDC (< 700 mA typical, < 2000 mA maximum)

Total Drive Power

Total Drive PowerTotal Drive Power

Total Drive Power

(standby mode)

< 2.5 Watt

Audio Output

Audio OutputAudio Output

Audio Output

Line-Out

Line-OutLine-Out

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

Signal-to-Noise RatioSignal-to-Noise Ratio

Signal-to-Noise Ratio

74 dB

Channel Separation

Channel SeparationChannel Separation

Channel Separation

65 dB

Operating Environmental

Operating EnvironmentalOperating Environmental

Operating Environmental

(all conditions non-

condensing)

Temperature

TemperatureTemperature

Temperature

41° to 122° F (5° to 50° C)

Relative humidity

Relative humidityRelative humidity

Relative humidity

10% to 90%

Maximum wet bulb

Maximum wet bulbMaximum wet bulb

Maximum wet bulb

temperature

temperaturetemperature

temperature

86° F (30° C)

System Configuration

System ConfigurationSystem Configuration

System Configuration

Intel® Pentium® III Processor or later with 128 MB of memory (required); 256 MB

recommended 2-D or 3-D graphics cards on primary disk drive for operating system and

application software; second disk drive for audio and video data

Operating Systems

Operating SystemsOperating Systems

Operating Systems

Support

SupportSupport

Support

Microsoft Windows 2000, Windows XP Professional, Windows XP Home

Regulatory Approvals

Regulatory ApprovalsRegulatory Approvals

Regulatory Approvals

MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI Spec T13.1153D,

ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB Bulletin No. 96A, CSA C22.2 No.

950-1995, CFR 47 C.I.S.P.R. Pub 22 Class B, DHHS/FDA, EMKO-TSE 07/94, TUV

EN60950, EN60825-1, MIC, BSMI-CNS 13438, CE, Microsoft PC2001 certification,

Microsoft Logo for Windows XP and 2000.

Option Kit contents

Option Kit contentsOption Kit contents

Option Kit contents

16X DVD+/-RW LightScribe drive, LightScribe software, InterVideo WinDVD, InterVideo

WinDVD Creator, Roxio Easy Media Creator 7, Dantz Retrospect Express Backup Software,

installation guide, and DVD+R media.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Optical Devices

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 42

NVIDIA Quadro NVS 280

NVIDIA Quadro NVS 280NVIDIA Quadro NVS 280

NVIDIA Quadro NVS 280

(PCI)

Form Factor

Form FactorForm Factor

Form Factor

ATX

Graphic Controller

Graphic ControllerGraphic Controller

Graphic Controller

Integrated Quadro 280 2-D graphics processor unit (GPU)

VGA controller

VGA controllerVGA controller

VGA controller

Integrated into the Quadro GPU

Bus type

Bus typeBus type

Bus type

PCI

RAMDAC

RAMDACRAMDAC

RAMDAC

Dual 350 MHz

Memory

MemoryMemory

Memory

64 MB DDR with frame buffer and Texture storage

Connector

ConnectorConnector

Connector

Single High-density Flex Connector

Dimensions

DimensionsDimensions

Dimensions

Low-profile, 2.586 x 6.6 in (6.57 x 16.76 cm)

Controller clock speed

Controller clock speedController clock speed

Controller clock speed

275 MHz

Color planes

Color planesColor planes

Color planes

32-bit color buffer

Overlay planes

Overlay planesOverlay planes

Overlay planes

1 16-bit Video overlay plane

Maximum vertical refresh

Maximum vertical refreshMaximum vertical refresh

Maximum vertical refresh

rate

raterate

rate

120 Hz

Maximum pixel clock

Maximum pixel clockMaximum pixel clock

Maximum pixel clock

350 MHz

Multi-monitor support

Multi-monitor supportMulti-monitor support

Multi-monitor support

Dual analog or digital monitors

Single DVI Support

Single DVI SupportSingle DVI Support

Single DVI Support

Yes

Dual DVI Support

Dual DVI SupportDual DVI Support

Dual DVI Support

Yes

High-definition Video

High-definition VideoHigh-definition Video

High-definition Video

Processor

ProcessorProcessor

Processor

(HDVP)

Full-screen, full-frame video playback of HDTV and DVD content

DVD-ready motion compensation for MPEG-2

Independent hardware color controls for video overlay

Hardware color-space conversion (YUV 4:2:2 and 4:2:0)

IDCT motion compensation

5-tap horizontal by 3-tap vertical filtering

8:1 up/down scaling

Available graphics drivers

Available graphics driversAvailable graphics drivers

Available graphics drivers

Microsoft Windows 2000 and Microsoft Windows XP (Provides full native Dual View mode,

Span or Big Desktop mode, and Clone mode)

Red Hat Linux

HP qualified drivers may be preloaded or available from the HP support web site:

http://welcome.hp.com/country/us/eng/software_drivers.html

Maximum resolution

Maximum resolutionMaximum resolution

Maximum resolution

2048 x 1536 Analog

1600 x 1200 Digital

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Graphics

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 43

NVIDIA Quadro NVS 280

NVIDIA Quadro NVS 280NVIDIA Quadro NVS 280

NVIDIA Quadro NVS 280

Graphics Card

Graphics CardGraphics Card

Graphics Card

(PCI-Express)

Form Factor

Form FactorForm Factor

Form Factor

ATX

Graphics Controller

Graphics ControllerGraphics Controller

Graphics Controller

Integrated Quadro 280 2-D graphics processor unit (GPU)

VGA controller

VGA controllerVGA controller

VGA controller

Integrated into the Quadro GPU

Bus Type

Bus TypeBus Type

Bus Type

PCI-Express x16 or PCI

RAMDAC

RAMDACRAMDAC

RAMDAC

Dual 350 MHz integrated

Memory

MemoryMemory

Memory

64 MB 000 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture storage

Connectors

ConnectorsConnectors

Connectors

Single High-density Flex Connector

Multi-monitor support

Multi-monitor supportMulti-monitor support

Multi-monitor support

Dual integrated analog display controllers supporting up to two analog displays at 1920

x1200 @ 85Hz or two digital displays at 1600x1200 @ 60Hz

Additional product

Additional productAdditional product

Additional product

features

featuresfeatures

features

Controller clock speed

Controller clock speedController clock speed

Controller clock speed

250 MHz

Color planes

Color planesColor planes

Color planes

32-bit color buffer

Overlay planes

Overlay planesOverlay planes

Overlay planes

1 16-bit Video overlay plane

Maximum vertical refresh

Maximum vertical refreshMaximum vertical refresh

Maximum vertical refresh

rate

raterate

rate

120 Hz

Maximum pixel clock

Maximum pixel clockMaximum pixel clock

Maximum pixel clock

350 MHz

Single DVI Support

Single DVI SupportSingle DVI Support

Single DVI Support

Yes

Dual DVI Support

Dual DVI SupportDual DVI Support

Dual DVI Support

Yes

High-definition Video

High-definition VideoHigh-definition Video

High-definition Video

Processor

ProcessorProcessor

Processor

(HDVP)

Full-screen, full-frame video playback of HDTV and DVD

content

DVD-ready motion compensation for MPEG-2

Independent hardware color controls for video overlay

Hardware color-space conversion (YUV 4:2:2 and 4:2:0)

IDCT motion compensation

5-tap horizontal by 3-tap vertical filtering

8:1 up/down scaling

PCI-Express

PCI-ExpressPCI-Express

PCI-Express

Supports X16 PCI-E

Available graphics drivers

Available graphics driversAvailable graphics drivers

Available graphics drivers

Microsoft Windows® XP or Windows 2000 (Provides full native Dual View mode, Span or

Big Desktop mode, and Clone mode)

HP qualified drivers may be preloaded or available from the HP support Web site:

http://welcome.hp.com/country/us/eng/software_drivers.html

Maximum resolution

Maximum resolutionMaximum resolution

Maximum resolution

2048 x 1536 Analog

1600 x 1200 Digital

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Graphics

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 44

NVIDIA Quadro FX 330

NVIDIA Quadro FX 330NVIDIA Quadro FX 330

NVIDIA Quadro FX 330

Graphics Card

Graphics CardGraphics Card

Graphics Card

Form Factor

Form FactorForm Factor

Form Factor

ATX

Graphics Controller

Graphics ControllerGraphics Controller

Graphics Controller

NVIDIA Nv37GL

Bus Type

Bus TypeBus Type

Bus Type

PCI-Express x16

Memory

MemoryMemory

Memory

64 MB 000 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture storage

Connectors

ConnectorsConnectors

Connectors

DMS-59 output supporting up to two analog or digital (with optional cable) displays

Multi-monitor support

Multi-monitor supportMulti-monitor support

Multi-monitor support

Dual integrated analog display controllers supporting up to two analog displays at 2048

x1536 @ 60Hz or two digital displays at 1600x1200 @ 60Hz

RAMDAC

RAMDACRAMDAC

RAMDAC

Dual 350 MHz integrated

Architecture features

Architecture featuresArchitecture features

Architecture features

64-bit memory interface

128-bit IEEE floating-point precision graphics pipeline

128-bit color precision

12-bit sub-pixel precision

4x FSAA at 1024x768

Hardware accelerated antialiased points and lines

Hardware OpenGL overlay planes

Hardware accelerated two-sided lighting

Hardware accelerated clipping planes

Hardware accelerated occlusion culling

3D volumetric texture support

Shading architecture

Shading architectureShading architecture

Shading architecture

Fully programmable GPU

Optimized compilers for Cg, OpenGL shading language, and Microsoft HLSL

Supported graphics APIs

Supported graphics APIsSupported graphics APIs

Supported graphics APIs

OpenGL 1.5

DirectX 9.0

Available graphics drivers

Available graphics driversAvailable graphics drivers

Available graphics drivers

HP-tested: Microsoft Windows® XP, Windows 2000, and Linux

HP qualified drivers may be preloaded or available from the HP support Web site:

http://welcome.hp.com/country/us/eng/software_drivers.html

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

Dual DVI-I output with optional cable – drives dual digital displays at resolutions up to

1600x1200 @ 60Hz

Internal 350MHz RAMDACs – drives dual analog displays up to 2048x1536 @ 60Hz each

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Graphics

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 45

ATI FireGL V3100

ATI FireGL V3100ATI FireGL V3100

ATI FireGL V3100

Graphics Card

Graphics CardGraphics Card

Graphics Card

Form Factor

Form FactorForm Factor

Form Factor

ATX

Graphics Controller

Graphics ControllerGraphics Controller

Graphics Controller

RV370

Bus Type

Bus TypeBus Type

Bus Type

PCI-Express x16

Memory

MemoryMemory

Memory

128MB 200MHz DDR unified frame buffer, Z-buffer and Texture storage

Connectors

ConnectorsConnectors

Connectors

1 DVI-I analog/digital and 1 VGA analog monitor output

Multi-monitor support

Multi-monitor supportMulti-monitor support

Multi-monitor support

Dual integrated display controllers supporting up to 2048x1536 @ 85Hz on both displays

RAMDAC

RAMDACRAMDAC

RAMDAC

Dual 400 MHz integrated

Architecture features

Architecture featuresArchitecture features

Architecture features

128-bit memory interface

128-bit IEEE floating-point precision

24-bits per RGBA color precision

4-bit sub-pixel precision

2 parallel geometry engines

4 parallel pixel pipelines

2x/4x/6x FSAA

Hardware accelerated antialiased points and lines

Hardware OpenGL overlay planes

Hardware accelerated two-sided lighting

Hardware accelerated clipping planes

Hardware accelerated occlusion culling

Hardware accelerated clip planes

Shading architecture

Shading architectureShading architecture

Shading architecture

Smartshader™ technology

Programmable pixel and vertex shaders

16 textures per pass

Pixel shaders up to 160 instructinos with 32-bit floating point precision for each RGBA

component

Multiple render target support

Shadow volume rendering acceleration

High precision 10-bit per channel frame buffer support

Supported graphics APIs

Supported graphics APIsSupported graphics APIs

Supported graphics APIs

OpenGL 1.5

DirectX 9.0

Available graphics drivers

Available graphics driversAvailable graphics drivers

Available graphics drivers

HP-tested: Microsoft Windows XP, Windows 2000, and Linux

HP qualified drivers may be preloaded or available from the HP support Web site:

http://welcome.hp.com/country/us/eng/software_drivers.html

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

DVI-I output – drives digital display at resolutions up to 1600x1200

Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536 @ 85Hz each

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Graphics

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 46

NVIDIA Quadro FX 540

NVIDIA Quadro FX 540NVIDIA Quadro FX 540

NVIDIA Quadro FX 540

PCI-Express Graphics

PCI-Express GraphicsPCI-Express Graphics

PCI-Express Graphics

Card

CardCard

Card

Form Factor

Form FactorForm Factor

Form Factor

ATX, 4.376" x 7.0"

Single slot

Graphics Controller

Graphics ControllerGraphics Controller

Graphics Controller

NVIDIA NV43GL

Bus Type

Bus TypeBus Type

Bus Type

PCI-Express x16, <75W power consumption

RAMDAC

RAMDACRAMDAC

RAMDAC

Dual 400 MHz integrated

Memory

MemoryMemory

Memory

128 MB 275 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture storage

8.8 GB/sec graphics memory bandwidth

Connectors

ConnectorsConnectors

Connectors

DVI-I + VGA + 10-pin HDTV Out (HD cable purchased separately)

Multi-monitor support

Multi-monitor supportMulti-monitor support

Multi-monitor support

Dual integrated analog display controllers supporting up to two analog displays at

2048x1536 @ 75Hz, one digital display at 1600x1200 @ 60Hz.

Additional product

Additional productAdditional product

Additional product

features

featuresfeatures

features

128 KB BIOS 3.3V Flash ROM reprogrammable by SW

Hardware accelerated Overlay Planes

Hardware accelerated two-sided lighting

Hardware accelerated antialiased points and lines

3D Volumetric Texture support

Hardware accelerated Occlusion Culling

Compliant with Microsoft/Intel PC2001 Workstation requirements

Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications

DDC2B+ Monitor support on all OS platforms

ACPI Version 1.0b Power Management support (all modes)

Shading architecture

Shading architectureShading architecture

Shading architecture

Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)

Long fragment programs (up to 65,536 instructions)

Long vertex programs (up to 65,536 instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Optimized compilers for Cg, OpenGL shading language, and Microsoft HLSL

Supported graphics APIs

Supported graphics APIsSupported graphics APIs

Supported graphics APIs

OpenGL 1.5 ICD with immediate mode support for all OGL primitive types

DirectX 9.0c

Available graphics drivers

Available graphics driversAvailable graphics drivers

Available graphics drivers

HP-tested: Microsoft Windows XP, Windows 2000, and Linux

HP qualified drivers may be preloaded or available from the HP support Web site:

http://welcome.hp.com/country/us/eng/software_drivers.html

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

DVI-I output - drives digital display at resolutions up to 1600x1200 @ 60Hz

Internal 400MHz RAMDACs - drives dual analog displays up to 2048x1536 @ 75Hz each

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Graphics

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 47

NVIDIA Quadro FX 1300

NVIDIA Quadro FX 1300NVIDIA Quadro FX 1300

NVIDIA Quadro FX 1300

Graphics Card

Graphics CardGraphics Card

Graphics Card

Form Factor

Form FactorForm Factor

Form Factor

ATX

Graphics Controller

Graphics ControllerGraphics Controller

Graphics Controller

NVIDIA NV38GL

Bus Type

Bus TypeBus Type

Bus Type

PCI-Express x16

Memory

MemoryMemory

Memory

128 MB 275 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture storage

Connectors

ConnectorsConnectors

Connectors

2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output

Multi-monitor support

Multi-monitor supportMulti-monitor support

Multi-monitor support

Dual integrated analog display controllers supporting up to two analog displays at

2048x1536 @ 60Hz on both displays or dual digital displays at 1600x1200 @ 60Hz

NVIEW advanced multi-display desktop and application management seamlessly

integrated into Microsoft Windows

RAMDAC

RAMDACRAMDAC

RAMDAC

Dual 400 MHz integrated

Architecture features

Architecture featuresArchitecture features

Architecture features

256-bit memory interface

128-bit IEEE floating-point precision graphics pipeline

128-bit color precision

12-bit sub-pixel precision

4x FSAA at 1280x1024

Hardware accelerated antialiased points and lines

Hardware OpenGL overlay planes

Hardware accelerated two-sided lighting

Hardware accelerated clipping planes

Hardware accelerated occlusion culling

3D volumetric texture support

Quad-buffered stereo

Shading architecture

Shading architectureShading architecture

Shading architecture

Fully programmable GPU

Optimized compilers for Cg, OpenGL shading language, and Microsoft HLSL

Supported graphics APIs

Supported graphics APIsSupported graphics APIs

Supported graphics APIs

OpenGL 1.5

DirectX 9.0

Available graphics drivers

Available graphics driversAvailable graphics drivers

Available graphics drivers

HP-tested: Microsoft Windows® XP, Windows 2000, and Linux

HP qualified drivers may be preloaded or available from the HP support Web site:

http://welcome.hp.com/country/us/eng/software_drivers.html

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

Dual DVI-I output – drives dual digital displays at resolutions up to 1600x1200 @ 60Hz

Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536 @ 75Hz each

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Graphics

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 48

NVIDIA Quadro FX 1400

NVIDIA Quadro FX 1400NVIDIA Quadro FX 1400

NVIDIA Quadro FX 1400

PCI-Express Graphics

PCI-Express GraphicsPCI-Express Graphics

PCI-Express Graphics

Controller

ControllerController

Controller

Form Factor

Form FactorForm Factor

Form Factor

ATX, 4.376" x 8.5"

Single slot

Graphics Controller

Graphics ControllerGraphics Controller

Graphics Controller

NVIDIA NV41GL

Bus Type

Bus TypeBus Type

Bus Type

PCI-Express x16, <75W power consumption

RAMDAC

RAMDACRAMDAC

RAMDAC

Dual 400 MHz integrated

Memory

MemoryMemory

Memory

128 MB 300 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture storage

19.2 GB/s graphics memory bandwidth

Connectors

ConnectorsConnectors

Connectors

2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output

Multi-monitor support

Multi-monitor supportMulti-monitor support

Multi-monitor support

Dual integrated analog display controllers supporting up to two analog displays at

2048x1536 @ 85Hz on both displays.

Additional product

Additional productAdditional product

Additional product

features

featuresfeatures

features

128 KB BIOS 3.3V Flash ROM reprogrammable by SW

Hardware accelerated Overlay Planes

Hardware accelerated two-sided lighting

Hardware accelerated antialiased points and lines

Quad-buffered Stereo

3D Volumetric Texture support

Hardware accelerated Occlusion Culling

Scalable Link Interface (SLI) technology

Compliant with Microsoft/Intel PC2001 Workstation requirements

Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications

DDC2B+ Monitor support on all OS platforms

ACPI Version 1.0b Power Management support (all modes)

Shading architecture

Shading architectureShading architecture

Shading architecture

Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)

Long fragment programs (up to 65,536 instructions)

Long vertex programs (up to 65,536 instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Optimized compilers for Cg, OpenGL shading language, and Microsoft HLSL

Supported graphics APIs

Supported graphics APIsSupported graphics APIs

Supported graphics APIs

OpenGL 1.5 ICD with immediate mode support for all OGL primitive types

DirectX 9.0c

Available graphics drivers

Available graphics driversAvailable graphics drivers

Available graphics drivers

HP-tested: Microsoft Windows XP, Windows 2000 and Linux

HP qualified drivers may be preloaded or available from the HP support Web site:

http://welcome.hp.com/country/us/eng/software_drivers.html

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

Dual DVI-I output – drives dual digital displays at resolutions up to 1900x1200 @ 60Hz

Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536 @ 85Hz each

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Graphics

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 49

ATI FireGL V5100

ATI FireGL V5100ATI FireGL V5100

ATI FireGL V5100

PCI-Express Graphics

PCI-Express GraphicsPCI-Express Graphics

PCI-Express Graphics

Controller

ControllerController

Controller

Form Factor

Form FactorForm Factor

Form Factor

ATX

Graphics Controller

Graphics ControllerGraphics Controller

Graphics Controller

RV423

Bus Type

Bus TypeBus Type

Bus Type

PCI-Express x16

Memory

MemoryMemory

Memory

128 MB 350MHz DDR unified frame buffer, Z-buffer and Texture storage

Connectors

ConnectorsConnectors

Connectors

2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output

Multi-monitor support

Multi-monitor supportMulti-monitor support

Multi-monitor support

Dual integrated display controllers supporting up to two analog displays at 2048x1536 @

85Hz on both displays.

RAMDAC

RAMDACRAMDAC

RAMDAC

Dual 400 MHz integrated

Architecture features

Architecture featuresArchitecture features

Architecture features

256-bit memory interface

128-bit IEEE floating-point precision

24-bits per RGBA color precision

8-bit sub-pixel precision

6 parallel geometry engines

12 parallel pixel pipelines

2x/4x/6x FSAA

Hardware accelerated antialiased points and lines

Hardware OpenGL overlay planes

Hardware accelerated two-sided lighting

Hardware accelerated clipping planes

Hardware accelerated occlusion culling

Hardware accelerated clip planes

Quad-buffered stereo

Shading architecture

Shading architectureShading architecture

Shading architecture

Smartshader™ technology

Programmable pixel and vertex shaders

16 textures per pass

Pixel shaders up to 160 instructions with 32-bit floating point precision for each RGBA

component

Multiple render target support

Shadow volume rendering acceleration

High precision 10-bit per channel frame buffer support

Supported graphics APIs

Supported graphics APIsSupported graphics APIs

Supported graphics APIs

OpenGL 1.5

DirectX 9.0

Available graphics drivers

Available graphics driversAvailable graphics drivers

Available graphics drivers

HP-tested: Microsoft Windows XP, Windows 2000, and Linux

HP qualified drivers may be preloaded or available from the HP support Web site:

http://welcome.hp.com/country/us/eng/software_drivers.html

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

DVI-I output – drives digital displays at resolutions up to 1600x1200

Internal 400MHz RAMDAC – drives dual analog displays up to 2048x1536 @ 85Hz each

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Graphics

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 50

NVIDIA Quadro FX 3400

NVIDIA Quadro FX 3400NVIDIA Quadro FX 3400

NVIDIA Quadro FX 3400

Graphics Card

Graphics CardGraphics Card

Graphics Card

Form Factor

Form FactorForm Factor

Form Factor

ATX

Graphics Controller

Graphics ControllerGraphics Controller

Graphics Controller

NVIDIA NV45GL

Bus Type

Bus TypeBus Type

Bus Type

PCI-Express x16

Memory

MemoryMemory

Memory

256 MB 450 MHz GDDR3 SDRAM unified frame buffer, Z-buffer and Texture storage

Connectors

ConnectorsConnectors

Connectors

2 DVI-I (one dual-link/one single-link) analog/digital monitor outputs,

1 3-pin Mini DIN stereo output

Multi-monitor support

Multi-monitor supportMulti-monitor support

Multi-monitor support

Dual integrated analog display controllers supporting up to two analog displays at

2048x1536 @ 85Hz on both displays or dual digital displays at 1600x1200 (single-link)

and 3840x2400 (dual-link).

NVIEW advanced multi-display desktop and application management seamlessly

integrated into Microsoft Windows

RAMDAC

RAMDACRAMDAC

RAMDAC

Dual 400 MHz integrated

Architecture features

Architecture featuresArchitecture features

Architecture features

256-bit memory interface

128-bit IEEE floating-point precision graphics pipeline

128-bit color precision

12-bit sub-pixel precision

8x FSAA at 1920x1200, 4x at 2048x1536, rotated grid FSAA sampling algorithm

Hardware accelerated antialiased points and lines

Hardware OpenGL overlay planes

Hardware accelerated two-sided lighting

Hardware accelerated clipping planes

3rd generation occlusion culling

3D volumetric texture support

Quad-buffered stereo

Dual Link DVI enabling driving digital displays up to 3840x2400 (24Hz)

Shading architecture

Shading architectureShading architecture

Shading architecture

Fully programmable GPU

Long fragment programs (up to 65,536 instructions)

Long vertex programs (up to 65,536 instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Supported graphics APIs

Supported graphics APIsSupported graphics APIs

Supported graphics APIs

OpenGL 1.5

DirectX 9.0

Available graphics drivers

Available graphics driversAvailable graphics drivers

Available graphics drivers

HP-tested: Microsoft Windows XP, Windows 2000, and Linux

HP qualified drivers may be preloaded or available from the HP support Web site:

http://welcome.hp.com/country/us/eng/software_drivers.html

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

Dual DVI-I output – drives dual digital displays at resolutions up to 1600x1200 @ 60Hz

(single-link) and 3840x2400 @ 24Hz (dual-link).

Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536 @ 75Hz each

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Graphics

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 51

HP CRT Monitor p1230

HP CRT Monitor p1230HP CRT Monitor p1230

HP CRT Monitor p1230

Tube

TubeTube

Tube

Type

TypeType

Type

Diamondtron NF Aperture Grille CRT

Tube Size

Tube SizeTube Size

Tube Size

(diagonal)

22 in (55 cm)

Viewable Image Area

Viewable Image AreaViewable Image Area

Viewable Image Area

(diagonal)

20 in (51 cm)

Aperture Grille Pitch

Aperture Grille PitchAperture Grille Pitch

Aperture Grille Pitch

0.24 mm

Screen Curvature

Screen CurvatureScreen Curvature

Screen Curvature

Flat

Signal Interface/

Signal Interface/Signal Interface/

Signal Interface/

Performance

PerformancePerformance

Performance

Horizontal Frequency

Horizontal FrequencyHorizontal Frequency

Horizontal Frequency

30 to 140 kHz

Vertical Frequency

Vertical FrequencyVertical Frequency

Vertical Frequency

50 to 160 Hz

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

2048 x 1536 @ 85 Hz (GTF)

Recommended Resolution

Recommended ResolutionRecommended Resolution

Recommended Resolution

1600 x 1200 @ 85 Hz or 1280 x 1024 @ 85 Hz

Preset VESA Graphic

Preset VESA GraphicPreset VESA Graphic

Preset VESA Graphic

Modes

ModesModes

Modes

(non-interlaced)

1920 x 1440 @ 60 Hz, 75 Hz

1792 x 1344 @ 60 Hz, 75 Hz

1600 x 1200 @ 75 Hz, 85 Hz

1280 x 1024 @ 60 Hz, 75 Hz, 85

1024 x 768 @ 75 Hz, 85 Hz

800 x 600 @ 75 Hz, 85 Hz

640 x 480 @ 60 Hz, 85 Hz

Preset MAC Mode

Preset MAC ModePreset MAC Mode

Preset MAC Mode

1152 x 870 @ 75 Hz

Preset VGA Mode

Preset VGA ModePreset VGA Mode

Preset VGA Mode

640 x 480 @ 60 Hz and 720 x 400 @ 70 Hz

Maximum Pixel Clock

Maximum Pixel ClockMaximum Pixel Clock

Maximum Pixel Clock

Speed

SpeedSpeed

Speed

420 MHz

User Programmable

User ProgrammableUser Programmable

User Programmable

Modes

ModesModes

Modes

15 (10 preset modes and 5 additional modes)

Anti-Glare

Anti-GlareAnti-Glare

Anti-Glare

Yes

Anti-Static

Anti-StaticAnti-Static

Anti-Static

Yes

AssetControl

AssetControlAssetControl

AssetControl

Yes

Default Color

Default ColorDefault Color

Default Color

Temperature

TemperatureTemperature

Temperature

9300 K

On Screen Display

On Screen DisplayOn Screen Display

On Screen Display

(OSD)

Controls

ControlsControls

Controls

Buttons or Switches

Buttons or SwitchesButtons or Switches

Buttons or Switches

OSD menu, brigthness, contrast, Super Bright, dual input,

power on/off

Languages

LanguagesLanguages

Languages

English, Spanish, French, German, Italian, Japanese

User Controls

User ControlsUser Controls

User Controls

Brightness, contrast, pincushion, pincushion balance,

trapezoid, tilt (rotation), color temperature, degauss,

parallelogram, individual color control, zoom, moiré

cancellation, convergence, corner purity, image control,

language, OSD control, factory reset

Video Input

Video InputVideo Input

Video Input

Plug and Play

Plug and PlayPlug and Play

Plug and Play

Yes, DDC/CI compatible

Input Signal

Input SignalInput Signal

Input Signal

Two 15-pin D-sub connections

Input Impedance

Input ImpedanceInput Impedance

Input Impedance

75 ohms

Sync Input

Sync InputSync Input

Sync Input

Separate sync (HSYNC/VSYNC)

Video Cable

Video CableVideo Cable

Video Cable

Detachable 15-pin D-sub mini connector (included)

Video Cable Length

Video Cable LengthVideo Cable Length

Video Cable Length

70 in (1.8 m); non-captive

Power

PowerPower

Power

Power Supply

Power SupplyPower Supply

Power Supply

Universal 100-120/220-240 VAC

Frequency

FrequencyFrequency

Frequency

50/60 Hz

Maximum

MaximumMaximum

Maximum

135 watts

Power Saving

Power SavingPower Saving

Power Saving

2 watts maximum

Off Mode

Off ModeOff Mode

Off Mode

0 watts

Power Cable Length

Power Cable LengthPower Cable Length

Power Cable Length

70 in (1.8 m); non-captive

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 52

Mechanical

MechanicalMechanical

Mechanical

Dimensions

DimensionsDimensions

Dimensions

(H x W x D)

Unpacked (including

pedestal)

19.1 x 19.5 x 18.8 in (48.6 x

49.5 x 47.7 cm)

Packaged

25.6 x 25.0 x 25.4 in (65.1 x

63.6 x 64.6 cm)

Unpacked

66.1 lb (30 kg)

Packaged

77.1 lb (35 kg)

Tilt Range

Tilt RangeTilt Range

Tilt Range

10° upward and 5° downward

Swivel Range

Swivel RangeSwivel Range

Swivel Range

90°either side of center

Environmental

EnvironmentalEnvironmental

Environmental

Temperature - Operating

Temperature - OperatingTemperature - Operating

Temperature - Operating

41° to 90° F (5° to 35° C) non-condensing

Temperature -

Temperature -Temperature -

Temperature -

Non-operating

Non-operatingNon-operating

Non-operating

-4° to 140° F (-20 to 60° C)

Humidity - Operating

Humidity - OperatingHumidity - Operating

Humidity - Operating

10% to 90% non-condensing

Humidity -

Humidity -Humidity -

Humidity -

Non-operating

Non-operatingNon-operating

Non-operating

10% to 90%

Altitude - Operating

Altitude - OperatingAltitude - Operating

Altitude - Operating

0 to 7,200 ft (0 to 2,195 m)

Altitude -

Altitude -Altitude -

Altitude -

Non-operating

Non-operatingNon-operating

Non-operating

0 to 30,000 ft (0 to 9,144 m)

Other

OtherOther

Other

Accessories Included

Accessories IncludedAccessories Included

Accessories Included

Power cable, video cable (D-sub to D-sub),

documentation kit

User Guide Languages

User Guide LanguagesUser Guide Languages

User Guide Languages

English, French, German, Spanish, Italian, Dutch,

Brazilian Portuguese, Danish, Finnish, Greek, Japanese,

Korean, Latin American Spanish, Norwegian, Polish,

Russian, Slovenian, Turkish, Swedish, Traditional Chinese,

Simplified Chinese

Warranty Languages

Warranty LanguagesWarranty Languages

Warranty Languages

English, French, Spanish, Brazilian Portuguese, Danish,

German, Castilian Spanish, French, Italian, Dutch,

Norwegian, Finnish, Swedish, Bahasa Indonesian,

Japanese, Korean, T. Chinese, S. Chinese

Color

ColorColor

Color

Carbon and silver

Certification and

Certification andCertification and

Certification and

Compliance

ComplianceCompliance

Compliance

MPR-II (Low Emissions), TCO '03, *Energy Star Compliant, UL Listing, ISO9241-3 VOT

Guidelines Approval, FCC Approval, CE Mark (including PFC), GS Mark

* Energy Star Compliant available summer of 2004.

Service and Warranty

Service and WarrantyService and Warranty

Service and Warranty

Limited three-year parts and repair labor, service provider labor, and on-site service. Next

business day advanced exchange direct replacement service available during warranty

period. Certain restrictions and exclusions apply.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 53

HP L1755 Flat Panel

HP L1755 Flat PanelHP L1755 Flat Panel

HP L1755 Flat Panel

Monitor

MonitorMonitor

Monitor

Panel

PanelPanel

Panel

Type

TypeType

Type

Active matrix, thin film transistor (TFT)

Viewable Image Area

Viewable Image AreaViewable Image Area

Viewable Image Area

(diagonal)

17 in (43.2 cm) maximum viewable

Screen Opening

Screen OpeningScreen Opening

Screen Opening

(WxH)

13.4 x 10.7 in (33.9 x 27.2 cm)

Viewing Angle

Viewing AngleViewing Angle

Viewing Angle

(typical)

176 degrees horizontal/176 degrees vertical (10:1

minimum contrast ratio)

Brightness

BrightnessBrightness

Brightness

(typical)

Up to 250 nits (cd/m

)

Contrast Ratio

Contrast RatioContrast Ratio

Contrast Ratio

(typical)

Up to 1000:1 (typical)

Response Rate

Response RateResponse Rate

Response Rate

(typical)

25 ms (typical rise + fall)

Pixel Pitch

Pixel PitchPixel Pitch

Pixel Pitch

0.264 mm

Color Depth Support

Color Depth SupportColor Depth Support

Color Depth Support

16.7 million colors

Video/Other Inputs

Video/Other InputsVideo/Other Inputs

Video/Other Inputs

Plug and Play

Plug and PlayPlug and Play

Plug and Play

Yes (supports VESA DDC2B; PC2001 compliant)

Self Powered USB 2.0 Hub

Self Powered USB 2.0 HubSelf Powered USB 2.0 Hub

Self Powered USB 2.0 Hub

One upstream, four downstream ports (cable included)

Input Signal

Input SignalInput Signal

Input Signal

Two connectors: one 15-pin mini D-sub analog VGA;

and one DVI-I (VGA analog or digital)

Input Impedance

Input ImpedanceInput Impedance

Input Impedance

75 ohms ± 2%

Sync Input

Sync InputSync Input

Sync Input

Separate sync (HSYNC/VSYNC); composite sync, Sync on

Green (activated through on-screen display)

Video Cable

Video CableVideo Cable

Video Cable

VGA to VGA, DVI-D to DVI-D, and DVI-I to VGA

Video Cable Length

Video Cable LengthVideo Cable Length

Video Cable Length

78 in (2.0 m)

Signal Interface/

Signal Interface/Signal Interface/

Signal Interface/

Performance

PerformancePerformance

Performance

Horizontal Frequency

Horizontal FrequencyHorizontal Frequency

Horizontal Frequency

30 to 82 kHz

Vertical Frequency

Vertical FrequencyVertical Frequency

Vertical Frequency

56 to 75 Hz

Native Resolution

Native ResolutionNative Resolution

Native Resolution

1280 x 1024 @ 60 Hz analog

1280 x 1024 @ 60 Hz digital

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

(Analog)

1280 x 1024 @ 75 Hz analog

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

(Digital)

1280 x 1024 @ 75 Hz digital

Preset VESA Graphic

Preset VESA GraphicPreset VESA Graphic

Preset VESA Graphic

Modes

ModesModes

Modes

(non-interlaced)

640 x 480 @ 60 Hz, 72 Hz, 75 Hz

720 x 400 @ 70 Hz

800 x 600 @ 60 Hz, 72 Hz, 75 Hz

1024 x 768 @ 60 Hz, 70 Hz, 75 Hz

1280 x 1024 @ 60 Hz, 75 Hz

Preset MAC Mode

Preset MAC ModePreset MAC Mode

Preset MAC Mode

832 x 624 @ 75 Hz

1152 x 870 @75 Hz

Preset VGA Mode

Preset VGA ModePreset VGA Mode

Preset VGA Mode

640 x 480 @ 60 Hz, 72 Hz

Preset SUN Mode

Preset SUN ModePreset SUN Mode

Preset SUN Mode

1152 x 900 @ 76 Hz

Fail Safe Mode

Fail Safe ModeFail Safe Mode

Fail Safe Mode

Yes (limits out of range signal messages)

Maximum Pixel Clock

Maximum Pixel ClockMaximum Pixel Clock

Maximum Pixel Clock

Speed

SpeedSpeed

Speed

140 MHz

User Programmable

User ProgrammableUser Programmable

User Programmable

Modes

ModesModes

Modes

Yes, 15

Anti-Glare

Anti-GlareAnti-Glare

Anti-Glare

Yes

Anti-Static

Anti-StaticAnti-Static

Anti-Static

Yes

AssetControl

AssetControlAssetControl

AssetControl

Yes (accessible on HP Compaq Business Desktops

featuring Intelligent Manageability)

Default Color

Default ColorDefault Color

Default Color

Temperature

TemperatureTemperature

Temperature

Yes (6500k, 9300k, SRGB, Custom User)

On Screen Display

On Screen DisplayOn Screen Display

On Screen Display

(OSD)

Controls

ControlsControls

Controls

Buttons or Switches

Buttons or SwitchesButtons or Switches

Buttons or Switches

Power on/off; 3-button OSD; second level OSD buttons

include dual-input switch, dedicated auto adjust switch

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 54

Languages

LanguagesLanguages

Languages

English, Spanish, French, German, Italian, Japanese,

Simplified Chinese

User Controls

User ControlsUser Controls

User Controls

Size and positioning, contrast, brightness, clock, clock

phase, selectable color temperature, serial number, mode

displayed, sleep timer, input selection, factory reset,

individual color contrast, full-screen resolution

Power

PowerPower

Power

Power Supply

Power SupplyPower Supply

Power Supply

Auto-ranging, 90 to 265 VAC; internal power supply

Input Power

Input PowerInput Power

Input Power

100 ~ 240 VAC

Nominal Current

Nominal CurrentNominal Current

Nominal Current

1.5 A maximum

Frequency

FrequencyFrequency

Frequency

50 ~ 60 Hz

Average

AverageAverage

Average

33 watts when displaying standard office software

Typical Power

Typical PowerTypical Power

Typical Power

Consumption

ConsumptionConsumption

Consumption

< 40 watts

Maximum

MaximumMaximum

Maximum

< 60 watts

Power Saving

Power SavingPower Saving

Power Saving

< 2 W

Off Mode

Off ModeOff Mode

Off Mode

0 watts (when master power switch is in the off position)

Power Cable Length

Power Cable LengthPower Cable Length

Power Cable Length

70 in (1.8 m); non-captive

Mechanical

MechanicalMechanical

Mechanical

Dimensions

DimensionsDimensions

Dimensions

(H x W x D)

Unpacked with stand

Unpacked with standUnpacked with stand

Unpacked with stand

16.1 (minimum) to 21.2

(maximum) x 14.4 x 8.3 in

(40.9 (minimum) to 42.2

(maximum) x 36.5 x 21.1

cm)

Base Area

Base AreaBase Area

Base Area

(Footprint D x W)

8.3 x 12.2 in

(21.1 x 30.9 cm)

Panel only

Panel onlyPanel only

Panel only

(without stand)

(H x W x D)

11.8 x 14.4 x 2.9 in

(30.1 x 40.9 x 7.3 cm)

Weight

WeightWeight

Weight

Unpacked with stand

Unpacked with standUnpacked with stand

Unpacked with stand

14.7 lb (6.7 kg)

Unpacked without

Unpacked withoutUnpacked without

Unpacked without

stand

standstand

stand

8.1 lb (3.7 kg)

Packaged

PackagedPackaged

Packaged

20.2 lb (9.2 kg)

Bezel Width

Bezel WidthBezel Width

Bezel Width

13 mm left and right, 14 mm top, and 15 mm bottom

Tilt Range

Tilt RangeTilt Range

Tilt Range

-5° to +35°

Swivel Range

Swivel RangeSwivel Range

Swivel Range

± 50° horizontal swivel

Height Adjustable

Height AdjustableHeight Adjustable

Height Adjustable

Yes (5.1 in/13 cm adjustment range)

Pivot Rotation

Pivot RotationPivot Rotation

Pivot Rotation

Yes, 90 °

Base

BaseBase

Base

Ships detached and is removable after installation

Environmental

EnvironmentalEnvironmental

Environmental

Temperature – Operating

Temperature – OperatingTemperature – Operating

Temperature – Operating

41° to 95° F (5° to 35° C)

Temperature – Non-

Temperature – Non-Temperature – Non-

Temperature – Non-

operating

operatingoperating

operating

-4° to 140° F (-20° to 60° C)

Humidity – Operating

Humidity – OperatingHumidity – Operating

Humidity – Operating

20% to 80%

Humidity – Non-operating

Humidity – Non-operatingHumidity – Non-operating

Humidity – Non-operating

5% to 95%

Altitude – Operating

Altitude – OperatingAltitude – Operating

Altitude – Operating

0 to 13,000 ft (0 to 4,000 m)

Altitude – Non-operating

Altitude – Non-operatingAltitude – Non-operating

Altitude – Non-operating

0 to 40,000 ft (0 to 12,192 m)

Options

OptionsOptions

Options

HP Desktop Access Center

HP Desktop Access CenterHP Desktop Access Center

HP Desktop Access Center

– Part number: DK985A

– Part number: DK985A– Part number: DK985A

– Part number: DK985A

Features integrated microphone/headset jacks, dual

function headset for phone/PC support, a MultiBay slot

for adding an optical drive (sold separately), and four USB

ports for easy integration of third-party digital solutions.

Sold separately. For more information, refer to the HP

Desktop Access Center QuickSpec document.

HP Flat Panel Speaker Bar

HP Flat Panel Speaker BarHP Flat Panel Speaker Bar

HP Flat Panel Speaker Bar

– Part number: PF804AA

– Part number: PF804AA– Part number: PF804AA

– Part number: PF804AA

Powered directly by the monitor, seamlessly attaches to the

monitor's bezel to bring full multimedia support to select

HP flat panel monitors. Features dual speakers with full

sound range and external jack for headphones. Sold

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 55

separately. For more information, refer to the HP Flat

Panel Speaker Bar QuickSpec document.

HP Compaq 7000 Series

HP Compaq 7000 SeriesHP Compaq 7000 Series

HP Compaq 7000 Series

Ultra-slim Desktop

Ultra-slim DesktopUltra-slim Desktop

Ultra-slim Desktop

Integrated Work Center

Integrated Work CenterIntegrated Work Center

Integrated Work Center

Stand – Part number:

Stand – Part number:Stand – Part number:

Stand – Part number:

DL641B

DL641BDL641B

DL641B

Allows mounting of a 15-, 17- or 19-inch HP flat panel

monitor and an HP Compaq dc7100 Ultra-slim Desktop

PC on a single stand for the convenience of an "all-in-

one" form factor. Sold separately. For more information,

refer to this product's QuickSpec document

Other

OtherOther

Other

Accessories Included

Accessories IncludedAccessories Included

Accessories Included

VGA to VGA cable, DVI-D to DVI-D cable, DVI-I to VGA

cable, USB cable, user CD-ROM with Pivot Pro software

Software

SoftwareSoftware

Software

Pivot Pro software from Portrait Displays, Inc. interacts

with your PC's native graphics driver to enable seamless

portrait screen redraws with a simple mouse-click or

keyboard command. Pivot Pro supports 90-degree portrait

and landscape views. Language support is available in

English, Japanese, French, German, Spanish, Italian, and

Traditional and Simplified Chinese.

Software

SoftwareSoftware

Software

HP Display LiteSaver feature lets you schedule Sleep mode

at preset times to help protect the display against image

retention, drastically lower power consumption and energy

costs, and extend the lifespan of the monitor.

User Guide Languages

User Guide LanguagesUser Guide Languages

User Guide Languages

English, Latin America Spanish, Brazilian Portuguese,

Danish, Dutch, Finnish, French, German, Italian,

Norwegian, Swedish, Greek, Polish, Russian, Slovenian,

Turkish, Simplified Chinese, Traditional Chinese, Korean,

and Japanese

Warranty Languages

Warranty LanguagesWarranty Languages

Warranty Languages

English, Canadian French, Latin America Spanish,

Brazilian Portuguese, Danish, Dutch, Finnish, French,

German, Italian, Norwegian, Spanish, Swedish, Bahasa

Indonesian, Simplified Chinese, Traditional Chinese, and

Korean

Color

ColorColor

Color

Carbonite, two-tone carbonite and silver (EMEA only)

VESA Mounting

VESA MountingVESA Mounting

VESA Mounting

Yes (swing arm/wall mount not included); base must be

removed for mounting options)

VESA External Mounting

VESA External MountingVESA External Mounting

VESA External Mounting

Yes (standard 4 hole pattern, 100 mm)

Kensington Lock-ready

Kensington Lock-readyKensington Lock-ready

Kensington Lock-ready

Yes

Certification and

Certification andCertification and

Certification and

Compliance

ComplianceCompliance

Compliance

Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCC

Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant, FCC

Approval, German Ergonomic (TUV and GS Mark), ISO 13406-2 Compliant (Pixel Defect

Guidelines), Mexican NOM Approval, MPR-II Compliant, PC2001 Compliant, PC99

Certified, S. Korean MIC Approval, Taiwan BSMI Approval, TCO 99 or 03 depending on

region (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals,

Microsoft Windows Certification

Compatibility

CompatibilityCompatibility

Compatibility

VESA Video Signal Standard (VSIS) Compliant video cards have been tested and proven

compatible for use with the HP L1755 Flat Panel Monitor. Recommended for use with HP

products.

Service and Warranty

Service and WarrantyService and Warranty

Service and Warranty

Limited three-year parts and repair labor, service provider labor, and on-site service. Next

business day advanced exchange direct replacement service available during warranty

period. Certain restrictions and exclusions apply. For details, contact HP Customer

Support.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 56

HP L1955 Flat Panel

HP L1955 Flat PanelHP L1955 Flat Panel

HP L1955 Flat Panel

Monitor

MonitorMonitor

Monitor

Panel

PanelPanel

Panel

Type

TypeType

Type

Active matrix, thin film transistor (TFT)

Viewable Image Area

Viewable Image AreaViewable Image Area

Viewable Image Area

(diagonal)

19 in (48.25 cm) maximum viewable

Screen Opening

Screen OpeningScreen Opening

Screen Opening

(WxH)

14.9 x 12.0 in (38.0 x 30.5 cm)

Viewing Angle

Viewing AngleViewing Angle

Viewing Angle

(typical)

176 degrees horizontal/176 degrees vertical (10:1

minimum contrast ratio)

Brightness

BrightnessBrightness

Brightness

(typical)

Up to 250 nits (cd/m

)

Contrast Ratio

Contrast RatioContrast Ratio

Contrast Ratio

(typical)

Up to 1000:1 (typical)

Response Rate

Response RateResponse Rate

Response Rate

(typical)

<16 ms (typical rise + fall)

Pixel Pitch

Pixel PitchPixel Pitch

Pixel Pitch

0.294 mm

Color Depth Support

Color Depth SupportColor Depth Support

Color Depth Support

16.7 million colors

Video/Other Inputs

Video/Other InputsVideo/Other Inputs

Video/Other Inputs

Plug and Play

Plug and PlayPlug and Play

Plug and Play

Yes (supports VESA DDC2B; PC2001 compliant)

Self Powered USB 2.0 Hub

Self Powered USB 2.0 HubSelf Powered USB 2.0 Hub

Self Powered USB 2.0 Hub

One upstream, four downstream ports (cable included)

Input Signal

Input SignalInput Signal

Input Signal

Two connectors: one 15-pin mini D-sub analog VGA;

and one DVI-I (VGA analog or digital)

Input Impedance

Input ImpedanceInput Impedance

Input Impedance

75 ohms ± 2%

Sync Input

Sync InputSync Input

Sync Input

Separate sync (HSYNC/VSYNC); composite sync, Sync on

Green (activated through on-screen display)

Video Cable

Video CableVideo Cable

Video Cable

VGA to VGA, DVI-D to DVI-D, and DVI-I to VGA

Video Cable Length

Video Cable LengthVideo Cable Length

Video Cable Length

78 in (2.0 m)

Signal Interface/

Signal Interface/Signal Interface/

Signal Interface/

Performance

PerformancePerformance

Performance

Horizontal Frequency

Horizontal FrequencyHorizontal Frequency

Horizontal Frequency

30 to 82 kHz

Vertical Frequency

Vertical FrequencyVertical Frequency

Vertical Frequency

56 to 75 Hz

Native Resolution

Native ResolutionNative Resolution

Native Resolution

1280 x 1024 @ 75 Hz analog

1280 x 1024 @ 60 Hz digital

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

(Analog)

1280 x 1024 @ 75 Hz analog

Maximum Resolution

Maximum ResolutionMaximum Resolution

Maximum Resolution

(Digital)

1280 x 1024 @ 75 Hz digital

Preset VESA Graphic

Preset VESA GraphicPreset VESA Graphic

Preset VESA Graphic

Modes

ModesModes

Modes

(non-interlaced)

640 x 480 @ 60 Hz, 72 Hz, 75 Hz

720 x 400 @ 70 Hz

800 x 600 @ 60 Hz, 72 Hz, 75 Hz

1024 x 768 @ 60 Hz, 70 Hz, 75 Hz

1280 x 1024 @ 60 Hz, 75 Hz

Preset MAC Mode

Preset MAC ModePreset MAC Mode

Preset MAC Mode

832 x 624 @ 75 Hz

1152 x 870 @75 Hz

Preset VGA Mode

Preset VGA ModePreset VGA Mode

Preset VGA Mode

640 x 480 @ 60 Hz, 72 Hz

Preset SUN Mode

Preset SUN ModePreset SUN Mode

Preset SUN Mode

1152 x 900 @ 76 Hz

Fail Safe Mode

Fail Safe ModeFail Safe Mode

Fail Safe Mode

Yes (limits out of range signal messages)

Maximum Pixel Clock

Maximum Pixel ClockMaximum Pixel Clock

Maximum Pixel Clock

Speed

SpeedSpeed

Speed

140 MHz

User Programmable

User ProgrammableUser Programmable

User Programmable

Modes

ModesModes

Modes

Yes, 15

Anti-Glare

Anti-GlareAnti-Glare

Anti-Glare

Yes

Anti-Static

Anti-StaticAnti-Static

Anti-Static

Yes

AssetControl

AssetControlAssetControl

AssetControl

Yes (accessible on HP Compaq Business Desktops

featuring Intelligent Manageability)

Default Color

Default ColorDefault Color

Default Color

Temperature

TemperatureTemperature

Temperature

Yes (6500k, 9300k, SRGB, Custom User)

On Screen Display

On Screen DisplayOn Screen Display

On Screen Display

(OSD)

Controls

ControlsControls

Controls

Buttons or Switches

Buttons or SwitchesButtons or Switches

Buttons or Switches

Power on/off; 3-button OSD; second level OSD buttons

include dual-input switch, dedicated auto adjust switch

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 57

Languages

LanguagesLanguages

Languages

English, Spanish, French, German, Italian, Japanese,

Simplified Chinese

User Controls

User ControlsUser Controls

User Controls

Size and Positioning

Contrast

Brightness

Clock, Clock Phase

Selectable Color Temperature

Serial Number

Mode Displayed

Sleep Timer

Input Selection

Factory Reset

Individual Color Contrast

Full-screen Resolution

Power

PowerPower

Power

Power Supply

Power SupplyPower Supply

Power Supply

Auto-ranging, 90 to 265 VAC; internal power supply

Input Power

Input PowerInput Power

Input Power

100 ~ 240 VAC

Nominal Current

Nominal CurrentNominal Current

Nominal Current

1.5 A maximum

Frequency

FrequencyFrequency

Frequency

50 ~ 60 Hz

Average

AverageAverage

Average

33 watts when displaying standard office software

Typical Power

Typical PowerTypical Power

Typical Power

Consumption

ConsumptionConsumption

Consumption

< 40 watts

Maximum

MaximumMaximum

Maximum

< 60 watts

Power Saving

Power SavingPower Saving

Power Saving

< 2 watts

Off Mode

Off ModeOff Mode

Off Mode

0 watts (when master power switch is in the off position)

Power Cable Length

Power Cable LengthPower Cable Length

Power Cable Length

70 in (1.8 m); non-captive

Mechanical

MechanicalMechanical

Mechanical

Dimensions

DimensionsDimensions

Dimensions

(H x W x D)

Unpacked with stand

Unpacked with standUnpacked with stand

Unpacked with stand

16.8 (minimum) to 22.3

(maximum) x 15.9 x 8.3 in

(42.7 (minimum) to 56.6

(maximum) x 40.4 x 21.1

cm)

Base Area

Base AreaBase Area

Base Area

(Footprint D x W)

8.3 x 12.2 in

(21.1 x 30.9 cm)

Panel only

Panel onlyPanel only

Panel only

(without stand)

(H x W x D)

13.2 x 15.9 x 3.1 in

(33.5 x 40.4 x 7.9 cm)

Weight

WeightWeight

Weight

Unpacked with stand

Unpacked with standUnpacked with stand

Unpacked with stand

16.5 lb (7.5 kg)

Unpacked without

Unpacked withoutUnpacked without

Unpacked without

stand

standstand

stand

10.5 lb (4.75 kg)

Packaged

PackagedPackaged

Packaged

23.5 lb (10.7 kg)

Bezel Width

Bezel WidthBezel Width

Bezel Width

13 mm left and right, 14 mm top, and 15 mm bottom

Tilt Range

Tilt RangeTilt Range

Tilt Range

-5° to +35°

Swivel Range

Swivel RangeSwivel Range

Swivel Range

± 50° horizontal swivel

Height Adjustable

Height AdjustableHeight Adjustable

Height Adjustable

Yes (5.1 in/13 cm adjustment range)

Pivot Rotation

Pivot RotationPivot Rotation

Pivot Rotation

Yes, 90 °

Base

BaseBase

Base

Ships detached and is removable after installation

Environmental

EnvironmentalEnvironmental

Environmental

Temperature – Operating

Temperature – OperatingTemperature – Operating

Temperature – Operating

41° to 95° F (5° to 35° C)

Temperature – Non-

Temperature – Non-Temperature – Non-

Temperature – Non-

operating

operatingoperating

operating

-4° to 140° F (-20° to 60° C)

Humidity – Operating

Humidity – OperatingHumidity – Operating

Humidity – Operating

20% to 80%

Humidity – Non-operating

Humidity – Non-operatingHumidity – Non-operating

Humidity – Non-operating

5% to 95%

Altitude – Operating

Altitude – OperatingAltitude – Operating

Altitude – Operating

0 to 13,000 ft (0 to 4,000 m)

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 58

Altitude – Non-operating

Altitude – Non-operatingAltitude – Non-operating

Altitude – Non-operating

0 to 40,000 ft (0 to 12,192 m)

Options

OptionsOptions

Options

Desktop Access Center

Desktop Access CenterDesktop Access Center

Desktop Access Center

Features integrated microphone/headset jacks, dual

function headset for phone/PC support, a MultiBay slot

for adding an optical drive (sold separately), and four USB

ports for easy integration of third-party digital solutions.

Sold separately; part number DK985A. For more

information, refer to the HP Desktop Access Center

QuickSpecs.

HP Flat Panel Speaker Bar

HP Flat Panel Speaker BarHP Flat Panel Speaker Bar

HP Flat Panel Speaker Bar

Powered directly by the monitor, seamlessly attaches to the

monitor's bezel to bring full multimedia support to select

HP flat panel monitors. Features dual speakers with full

sound range and external jack for headphones. Sold

separately, part number PF804AA. For more information,

refer to the HP Flat Panel Speaker Bar QuickSpecs.

Other

OtherOther

Other

Accessories Included

Accessories IncludedAccessories Included

Accessories Included

VGA to VGA cable, DVI-D to DVI-D cable, DVI-I to VGA

cable, USB cable, user CD-ROM with Pivot Pro software

Software

SoftwareSoftware

Software

Pivot Pro software from Portrait Displays, Inc. interacts

with your PC's native graphics driver to enable seamless

portrait screen redraws with a simple mouse-click or

keyboard command. Pivot Pro supports 90-degree portrait

and landscape views. Language support is available in

English, Japanese, French, German, Spanish, Italian, and

Traditional and Simplified Chinese.

Software

SoftwareSoftware

Software

HP Display LiteSaver feature lets you schedule Sleep mode

at preset times to help protect the display against image

retention, drastically lower power consumption and energy

costs, and extend the lifespan of the monitor.

User Guide Languages

User Guide LanguagesUser Guide Languages

User Guide Languages

English

Warranty Languages

Warranty LanguagesWarranty Languages

Warranty Languages

English

Color

ColorColor

Color

Carbonite, two-tone carbonite and silver (EMEA only)

VESA Mounting

VESA MountingVESA Mounting

VESA Mounting

Yes (swing arm/wall mount not included); base must be

removed for mounting options)

VESA External Mounting

VESA External MountingVESA External Mounting

VESA External Mounting

Yes (standard 4 hole pattern, 100 mm)

Kensington Lock-ready

Kensington Lock-readyKensington Lock-ready

Kensington Lock-ready

Yes

Certification and

Certification andCertification and

Certification and

Compliance

ComplianceCompliance

Compliance

Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE

Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant, FCC

Approval, German Ergonomic (TUV and GS Mark), ISO 13406-2 Compliant (Pixel Defect

Guidelines), Mexican NOM Approval, MPR-II Compliant, PC2001 Compliant, PC99

Certified, S. Korean MIC Approval, Taiwan BSMI Approval, TCO 99 or 03 depending on

region (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals,

Microsoft® Windows® Certification

Compatibility

CompatibilityCompatibility

Compatibility

VESA Video Signal Standard (VSIS) Compliant video cards have been tested and proven

compatible for use with the HP L1955 Flat Panel Monitor. Recommended for use with HP

products.

Service and Warranty

Service and WarrantyService and Warranty

Service and Warranty

Limited three-year parts and repair labor, service provider labor, and on-site service. Next

Business Day advanced exchange direct replacement service available during warranty

period. Certain restrictions and exclusions apply. For details, contact HP Customer

Support.

HP Flat Panel Monitor

HP Flat Panel MonitorHP Flat Panel Monitor

HP Flat Panel Monitor

L2035

L2035L2035

L2035

Panel

PanelPanel

Panel

Type

TypeType

Type

20-inch Active Matrix TFT (thin film transistor)

Viewable Image Area

Viewable Image AreaViewable Image Area

Viewable Image Area

(diagonal)

20.1 in (51 cm)

Screen Opening

Screen OpeningScreen Opening

Screen Opening

(W x H)

16.2 x 12.17 in (41.1 x 30.9 cm)

Viewing Angle

Viewing AngleViewing Angle

Viewing Angle

(typical)*

Up to 170° H/170° V (10:1 minimum contrast ratio)

Brightness

BrightnessBrightness

Brightness

(typical*

Up to 250 nits (cd/m

)

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 59

Contrast Ratio

Contrast RatioContrast Ratio

Contrast Ratio

(typical)*

Up to 400:1

Response Rate

Response RateResponse Rate

Response Rate

(typical)*

16 ms (typical, rise + fall)

Pixel Pitch

Pixel PitchPixel Pitch

Pixel Pitch

0.255 mm

Color Depth Support

Color Depth SupportColor Depth Support

Color Depth Support

16.7 million colors

*All specifications are provided by the component manufacturers. Performance

specifications represent the highest specification of all HP's component manufacturers'

typical level specifications for performance. Actual performance may vary either higher or

lower.

On Screen Display

On Screen DisplayOn Screen Display

On Screen Display

(OSD)

Controls

ControlsControls

Controls

Buttons or Switches

Buttons or SwitchesButtons or Switches

Buttons or Switches

PiP (Picture in Picture), Input select, auto adjust, OSD up,

OSD down, OSD menu select, power

Languages

LanguagesLanguages

Languages

English, French, German, Spanish, Italian

User Controls

User ControlsUser Controls

User Controls

Brightness, contrast, positioning, color temperature,

individual color control, serial number display, full screen

resolutions, clock, clock phase, video picture-in-picture

(size and position), input selection (includes separate

direct access key for dedicated swap between inputs 1 and

2), factory reset

Signal Interface/

Signal Interface/Signal Interface/

Signal Interface/

Performance

PerformancePerformance

Performance

Horizontal Frequency

Horizontal FrequencyHorizontal Frequency

Horizontal Frequency

30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for

modes with pixel clock less than 157 MHz)

Vertical Frequency

Vertical FrequencyVertical Frequency

Vertical Frequency

48 to 85 Hz (VGA input); 30 to 92 KHz (DVI input) (for

modes with pixel clock less than 157 MHz)

Graphics Controller

Graphics ControllerGraphics Controller

Graphics Controller

Pixelworks PW171

Native Resolution

Native ResolutionNative Resolution

Native Resolution

1600 x 1200 @ 60 Hz (recommended)

Preset VESA Graphic

Preset VESA GraphicPreset VESA Graphic

Preset VESA Graphic

Modes

ModesModes

Modes

(non-interlaced)

1600 x 1200 @ 60 Hz, 75 Hz (VGA input)

1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz

1280 x 960 @ 60 Hz

1152 x 900 @ 66 Hz

1024 x 768 @ 60 Hz, 75 Hz, 85 Hz

800 x 600 @ 60 Hz, 85 Hz

640 x 480 @ 60 Hz, 75 Hz, 85 Hz

Text Mode

Text ModeText Mode

Text Mode

720 x 400 @ 70 Hz

Mac Mode

Mac ModeMac Mode

Mac Mode

1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz

Sun Mode

Sun ModeSun Mode

Sun Mode

1152 x 900 @ 66 Hz

Maximum Pixel Clock

Maximum Pixel ClockMaximum Pixel Clock

Maximum Pixel Clock

Speed

SpeedSpeed

Speed

202 MHz (VGA input); 162 MHz (DVI input)

User Programmable

User ProgrammableUser Programmable

User Programmable

Modes

ModesModes

Modes

Yes, 10

Anti-Glare

Anti-GlareAnti-Glare

Anti-Glare

Yes

Anti-Static

Anti-StaticAnti-Static

Anti-Static

Yes

Default Color

Default ColorDefault Color

Default Color

Temperature

TemperatureTemperature

Temperature

6500 K

Video Input

Video InputVideo Input

Video Input

Plug and Play

Plug and PlayPlug and Play

Plug and Play

Yes

Input Signal

Input SignalInput Signal

Input Signal

Four connectors, including one 15-pin mini D-sub VGA,

one DVI-I (VGA analog and digital input), one composite

video, and one s-video

Input Impedance

Input ImpedanceInput Impedance

Input Impedance

75 ohms ± 10%

Sync Input

Sync InputSync Input

Sync Input

Separate sync (HSYNC/VSYNC); composite sync, Sync on

Green

Video Cable

Video CableVideo Cable

Video Cable

VGA to VGA; VGA to DVI-I; DVI-D to DVI-I

Video Cable Length

Video Cable LengthVideo Cable Length

Video Cable Length

5.9 ft (1.8 m)

Power

PowerPower

Power

Input Power

Input PowerInput Power

Input Power

Auto-Ranging, 90 to 132 VAC and 195 to 265 VAC;

internal power supply, 50 Hz/60 Hz

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 60

Frequency

FrequencyFrequency

Frequency

47.5 to 63 Hz

Maximum

MaximumMaximum

Maximum

< 75 W

Power Saving

Power SavingPower Saving

Power Saving

< 5 W

Power Cable Length

Power Cable LengthPower Cable Length

Power Cable Length

5.9 ft (1.8 m)

Mechanical

MechanicalMechanical

Mechanical

Dimensions

DimensionsDimensions

Dimensions

(H x W x D)

Unpacked with stand

Unpacked with standUnpacked with stand

Unpacked with stand

17.36 to 20.9 x 17.8 x 8.27

(44.1 to 53.1 x 45.2 x 21.0

cm)

Unpacked without

Unpacked withoutUnpacked without

Unpacked without

stand

standstand

stand

(head only)

14.29 x 17.8 x 3.19 in

(36.3 x 45.2 x 8.1 cm)

Packaged

PackagedPackaged

Packaged

11.5 x 21.9 x 23.9 in

(29.2 x 55.6 x 60.6 cm)

Weight

WeightWeight

Weight

Unpacked

UnpackedUnpacked

Unpacked

With stand: 20.28 lb (9.2

kg);

Without stand: 12.35 lb (5.6

kg)

Packaged

PackagedPackaged

Packaged

26.9 lb (12.2 kg)

Tilt Range

Tilt RangeTilt Range

Tilt Range

-5° to + 25° vertical

Swivel Range

Swivel RangeSwivel Range

Swivel Range

-35° to + 35°

Height Adjustable

Height AdjustableHeight Adjustable

Height Adjustable

Yes, range 3.54 in (9.0 cm)

Pivot Rotation

Pivot RotationPivot Rotation

Pivot Rotation

Yes

Base

BaseBase

Base

Attached

Environmental

EnvironmentalEnvironmental

Environmental

Temperature – Operating

Temperature – OperatingTemperature – Operating

Temperature – Operating

46° to 95° F (10° to 35° C)

Temperature – Non-

Temperature – Non-Temperature – Non-

Temperature – Non-

operating

operatingoperating

operating

6° to 140° F (-10° to 60° C)

Humidity – Operating

Humidity – OperatingHumidity – Operating

Humidity – Operating

20% to 80% non-condensing

Humidity – Non-operating

Humidity – Non-operatingHumidity – Non-operating

Humidity – Non-operating

5% to 85%

Altitude – Operating

Altitude – OperatingAltitude – Operating

Altitude – Operating

+12,000 ft (+3,657.6 m)

Altitude – Non-operating

Altitude – Non-operatingAltitude – Non-operating

Altitude – Non-operating

+40,000 ft (+12,192 m)

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 61

Options

OptionsOptions

Options

HP Desktop Access Center

HP Desktop Access CenterHP Desktop Access Center

HP Desktop Access Center

Sold separately, the HP Desktop Access Center features

integrated microphone/headset jacks, dual function

headset for phone/PC support, a MultiBay slot for adding

an optical drive (sold separately), and four USB ports for

easy integration of third-party digital solutions; part

number DK985A. For more information, refer to the HP

Desktop Access Center QuickSpecs.

Other

OtherOther

Other

Accessories Included

Accessories IncludedAccessories Included

Accessories Included

VGA to VGA cable – connects the graphic card's VGA

analog connector to the monitor's input #1 (VGA analog)

connector

VGA to DVI-I cable – connects the graphic card's VGA

connector to the monitor's input #2 (DVI-I analog)

connector

DVI-D to DVI-I cable – connects the graphic card's DVI-D

digital connector to the monitor's input #2 (DVI-I digital)

connector

User Guide Languages

User Guide LanguagesUser Guide Languages

User Guide Languages

English, B. Portuguese, French, LA Spanish, Korean, S.

Chinese, T. Chinese, Bahasa, Japanese, Danish, Finnish,

German, Norwegian, Spanish, Swedish, Greek, Polish,

Russian, Slovenian, Turkish

Warranty Languages

Warranty LanguagesWarranty Languages

Warranty Languages

English, Canadian French, LA Spanish, Brazilian

Portuguese, Danish, German, Castilian Spanish, French,

Italian, Dutch, Norwegian, Finnish, Swedish, Bahasa

Indonesian, Korean, T. Chinese, S. Chinese

Color

ColorColor

Color

Carbonite/Silver

VESA External Mounting

VESA External MountingVESA External Mounting

VESA External Mounting

Yes (Standard 4 hole pattern, 100 mm)

Kensington Lock-Ready

Kensington Lock-ReadyKensington Lock-Ready

Kensington Lock-Ready

Yes

Certification and

Certification andCertification and

Certification and

Compliance

ComplianceCompliance

Compliance

Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE

Approval, CISPR Requirements, Eastern European Approvals, *Energy Star Compliant,

FCC Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT Guidelines,

ISO 13406-2 Pixel Defect Guidelines, Mexican NOM Approval, MIC Requirements (New

Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko), PC2001

Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI Approval, TCO 03

(emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Windows

Certification (Microsoft® Windows® 98, Microsoft Windows 2000, and Microsoft

Windows XP)

* Energy Star Compliant available summer 2004.

Service and Warranty

Service and WarrantyService and Warranty

Service and Warranty

Limited three years parts, labor, and on-site service, including backlight. Availability varies

by region. Certain restrictions and exclusions apply. Consult HP Customer Service for

details.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 62

HP Flat Panel Monitor

HP Flat Panel MonitorHP Flat Panel Monitor

HP Flat Panel Monitor

L2335

L2335L2335

L2335

Panel

PanelPanel

Panel

Type

TypeType

Type

23-inch Active Matrix TFT (thin film transistor)

Viewable Image Area

Viewable Image AreaViewable Image Area

Viewable Image Area

(diagonal)

23 in (58.4 cm)

Screen Opening

Screen OpeningScreen Opening

Screen Opening

(W x H)

19.53 x 12.24 in (49.6 x 31.1 cm)

Viewing Angle

Viewing AngleViewing Angle

Viewing Angle

(typical)*

Up to 170° H/170° V (10:1 minimum contrast ratio)

Brightness

BrightnessBrightness

Brightness

(typical)*

Up to 250 nits (cd/m

)

Contrast Ratio

Contrast RatioContrast Ratio

Contrast Ratio

(typical)*

Up to 500:1

Response Rate

Response RateResponse Rate

Response Rate

(typical)*

16 ms (typical, rise + fall)

Pixel Pitch

Pixel PitchPixel Pitch

Pixel Pitch

0.258 mm

Color Depth Support

Color Depth SupportColor Depth Support

Color Depth Support

16.7 million colors

* All specifications are provided by the component manufacturers. Performance

specifications represent the highest specification of all HP's component manufacturers'

typical level specifications for performance. Actual performance may vary either higher or

lower.

On Screen Display

On Screen DisplayOn Screen Display

On Screen Display

(OSD)

Controls

ControlsControls

Controls

Buttons or Switches

Buttons or SwitchesButtons or Switches

Buttons or Switches

PiP (Picture in Picture), Input Select, Auto Adjust, OSD

Up, OSD Down, OSD Menu Select, Power

Languages

LanguagesLanguages

Languages

English, French, German, Spanish, Italian

User Controls

User ControlsUser Controls

User Controls

Brightness, contrast, positioning, color temperature,

individual color control, serial number display, full screen

resolutions, clock, clock phase, video picture-in-picture

(size and position), input selection (includes separate

direct access key for dedicated swap between inputs 1 and

2), factory reset

Signal Interface/

Signal Interface/Signal Interface/

Signal Interface/

Performance

PerformancePerformance

Performance

Horizontal Frequency

Horizontal FrequencyHorizontal Frequency

Horizontal Frequency

30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for

modes with pixel clock less than 157 MHz)

Vertical Frequency

Vertical FrequencyVertical Frequency

Vertical Frequency

48 to 85 Hz (VGA and DVI input)

Graphics Controller

Graphics ControllerGraphics Controller

Graphics Controller

Pixelworks PW172

Native Resolution

Native ResolutionNative Resolution

Native Resolution

1920 x 1200 @ 60 Hz (recommended)

Preset VESA Graphic

Preset VESA GraphicPreset VESA Graphic

Preset VESA Graphic

Modes

ModesModes

Modes

(non-interlaced)

1920 x 1200 @ 60Hz

1600 x 1200 @ 60 Hz, 75 Hz

1280 x 1024 @ 60 Hz, 75Hz, 85 Hz

1280 x 960 @ 60 Hz

1152 x 900 @ 66 Hz

1024 x 768 @ 60 Hz, 75 Hz, 85 Hz

800 x 600 @ 60 Hz, 75Hz

640 x 480 @ 60 Hz, 75 Hz

Text Mode

Text ModeText Mode

Text Mode

720 x 400 @ 70 Hz

Mac Mode

Mac ModeMac Mode

Mac Mode

1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz

Sun Mode

Sun ModeSun Mode

Sun Mode

1152 x 900 @ 66 Hz

Maximum Pixel Clock

Maximum Pixel ClockMaximum Pixel Clock

Maximum Pixel Clock

Speed

SpeedSpeed

Speed

202 MHz (VGA input); 162 MHz (DVI input)

User Programmable

User ProgrammableUser Programmable

User Programmable

Modes

ModesModes

Modes

Yes, 10

Anti-Glare

Anti-GlareAnti-Glare

Anti-Glare

Yes

Anti-Static

Anti-StaticAnti-Static

Anti-Static

Yes

Default Color

Default ColorDefault Color

Default Color

Temperature

TemperatureTemperature

Temperature

6500 K

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 63

Video Input

Video InputVideo Input

Video Input

Plug and Play

Plug and PlayPlug and Play

Plug and Play

Yes

Input Signal

Input SignalInput Signal

Input Signal

Five connectors, including one 15-pin mini D-sub VGA,

one DVI-I (VGA analog and digital input), one composite

video, one s-video, component video

Input Impedance

Input ImpedanceInput Impedance

Input Impedance

75 ohms ± 10%

Sync Input

Sync InputSync Input

Sync Input

Separate sync (HSYNC/VSYNC); composite sync, Sync on

Green

Video Cable

Video CableVideo Cable

Video Cable

VGA to VGA; VGA to DVI-I; DVI-D to DVI-I

Video Cable Length

Video Cable LengthVideo Cable Length

Video Cable Length

5.9 ft (1.8 m)

Power

PowerPower

Power

Input Power

Input PowerInput Power

Input Power

Auto-Ranging, 90 to 132 VAC and 195 to 265 VAC;

internal power supply, 50 Hz/60 Hz

Frequency

FrequencyFrequency

Frequency

47.5 to 63 Hz

Maximum

MaximumMaximum

Maximum

< 100 W

Power Saving

Power SavingPower Saving

Power Saving

< 5 W

Power Cable Length

Power Cable LengthPower Cable Length

Power Cable Length

5.9 ft (1.8 m)

Mechanical

MechanicalMechanical

Mechanical

Dimensions

DimensionsDimensions

Dimensions

(H x W x D)

Unpacked

UnpackedUnpacked

Unpacked

17.36 (min) to 20.9 (max) x

21.46 x 8.27 in (44.1 (min)

to 53.1 (max) x 54.5 x 21.0

cm)

Unpacked withou stand

Unpacked withou standUnpacked withou stand

Unpacked withou stand

(head only)

14.57 x 21.46 x 3.35 in

(37.0 x 54.5 x 8.5 cm)

Packaged

PackagedPackaged

Packaged

11.5 x 25.75 x 23.86 in (29.

2 x 65.4 x 60.6 cm)

Weight

WeightWeight

Weight

Unpacked

UnpackedUnpacked

Unpacked

22.27 lb (10.1 kg)

Packaged

PackagedPackaged

Packaged

30.87 lb (14.0 kg)

Tilt Range

Tilt RangeTilt Range

Tilt Range

-5° to + 25° vertical

Swivel Range

Swivel RangeSwivel Range

Swivel Range

-35° to + 35°

Height Adjustable

Height AdjustableHeight Adjustable

Height Adjustable

Yes, range 3.54 in (9.0 cm)

Pivot Rotation

Pivot RotationPivot Rotation

Pivot Rotation

Yes

Base

BaseBase

Base

Attached

Environmental

EnvironmentalEnvironmental

Environmental

Temperature –

Temperature –Temperature –

Temperature –

Operating

OperatingOperating

Operating

46° to 95° F (10° to 35° C)

Temperature –

Temperature –Temperature –

Temperature –

Non-operating

Non-operatingNon-operating

Non-operating

6° to 140° F (-10° to 60° C)

Humidity – Operating

Humidity – OperatingHumidity – Operating

Humidity – Operating

20% to 80% non-condensing

Humidity –

Humidity –Humidity –

Humidity –

Non-operating

Non-operatingNon-operating

Non-operating

5% to 85%

Altitude – Operating

Altitude – OperatingAltitude – Operating

Altitude – Operating

+12,000 ft (+3,657.6 m)

Altitude –

Altitude –Altitude –

Altitude –

Non-operating

Non-operatingNon-operating

Non-operating

+40,000 ft (+12,192 m)

Options

OptionsOptions

Options

HP Desktop Access Center

HP Desktop Access CenterHP Desktop Access Center

HP Desktop Access Center

Sold separately, the HP Desktop Access Center Features

integrated microphone/headset jacks, dual function

headset for phone/PC support, a MultiBay slot for adding

an optical drive (sold separately), and four USB ports for

easy integration of third-party digital solutions; part

number DK985A. For more information, refer to the HP

Desktop Access Center QuickSpecs.

QuickSpecs

HP xw8200 Workstation

HP xw8200 WorkstationHP xw8200 Workstation

HP xw8200 Workstation

Technical Specifications - Monitors

DA - 11976 Worldwide — Version 17 — April 1, 2005

Page 64

Other

OtherOther

Other

Accessories Included

Accessories IncludedAccessories Included

Accessories Included

VGA to VGA cable – connects the graphic card's VGA

analog connector to the monitor's input #1 (VGA analog)

connector

VGA to DVI-I cable – connects the graphic card's VGA

connector to the monitor's input #2 (DVI-I analog)

connector

DVI-D to DVI-I cable – connects the graphic card's DVI-D

digital connector to the monitor's input #2 (DVI-I digital)

connector

User Guide Languages

User Guide LanguagesUser Guide Languages

User Guide Languages

English, B. Portuguese, French, LA Spanish, Korean, S.

Chinese, T. Chinese, Bahasa, Japanese, Danish, Finnish,

German, Norwegian, Spanish, Swedish, Greek, Polish,

Russian, Slovenian, Turkish

Warranty Languages

Warranty LanguagesWarranty Languages

Warranty Languages

English, Canadian French, LA Spanish, Brazilian

Portuguese, Danish, German, Castilian Spanish, French,

Italian, Dutch, Norwegian, Finnish, Swedish, Bahasa

Indonesian, Korean, T. Chinese, S. Chinese

Color

ColorColor

Color

Carbonite/silver
