Technical Data Sheet 1/4
DA Card MY4-DA
Overview

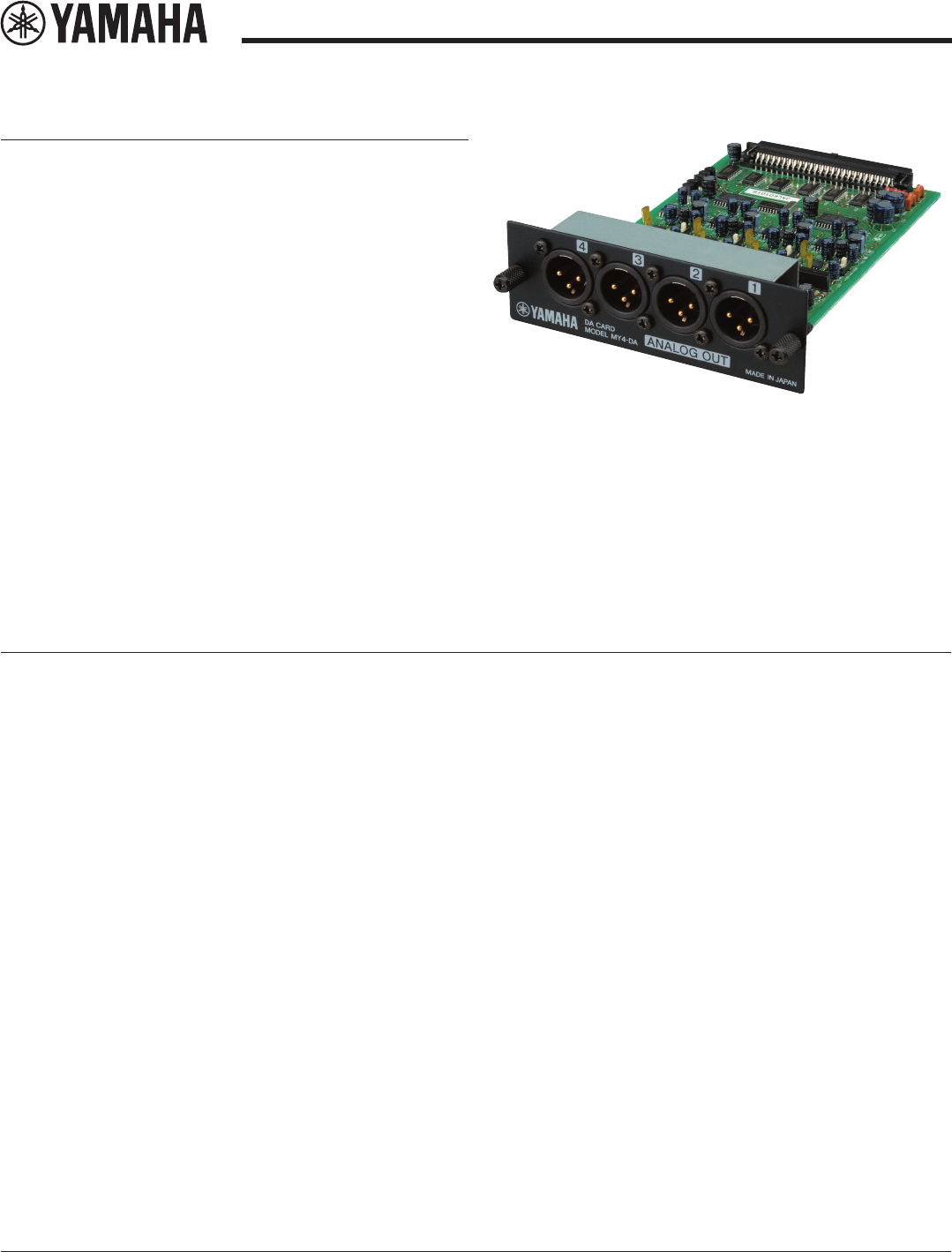

The Yamaha MY4-DA is an optional digital-to-analog output card for
compatible Yamaha digital mixing consoles and signal processors. It
have four analog outputs via four balanced XLR3-32 type connectors.
Features
• 20bit resolution, 4-out analog audio interface
• 4 x XLR3-32 connectors (balanced)
• Max onput level before clip: +18dBu (default) / +4dBV
• Cannot be used at 96kHz

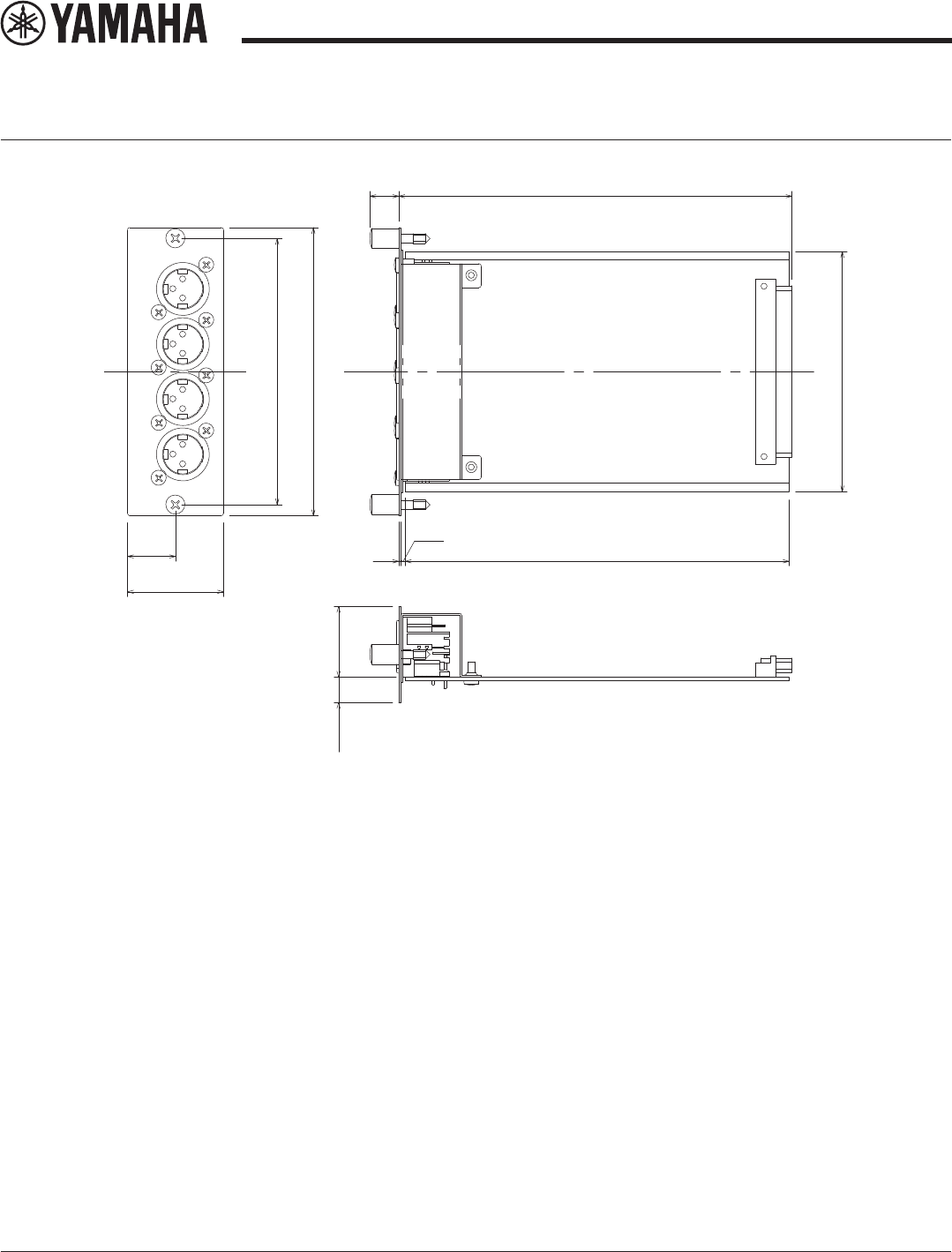

• Dimensions: 120mm x 40mm x 176mm (4.7" x 1.6" x 6.9")
Technical Data Sheet 2/4
DA Card MY4-DA
General Specifications
Channel Count 4OUT
Format Analog
Sampling Frequency 44.1/48kHz
Resolution 20bit
Connector 4 x XLR-3-32 type connectors (balanced)
Analog Output Characteristics
Output Terminals GAIN Switch Actual Source
Impedance
For Use with
Nominal
Output Level Connector
Nominal Max. before Clip
ANALOG OUTPUT 1-4 +18dB 10kΩ 600Ω Lines +4dB (1.23V)* +18dB (6.16 V )* XLR3-32 type
Balanced***
+4dB -10dBV (316mV)** +4dBV (1.58V)**
* 0 dB is referenced to 0.775 Vrms.
** 0 dBV is referenced to 1.00 Vrms.
*** 1=GND, 2=HOT, 3=COLD
Sampling rate: 30.08kHz - 50.88kHz
Specifications
Technical Data Sheet 4/4
DA Card MY4-DA
*All information subject to change without notice.
*All trademarks and registered trademarks are property of their respective owners.
Created in March, 2017
Architectural and Engineering Specifications
The Yamaha MY4-DA shall be an optional digital-to-analog output card for compatible Yamaha digital mixing consoles and signal processors. It
shall have four analog outputs via four balanced XLR3-32 type connectors. Dimensions shall be 120 (W) x 40 (H) x 176 (D) mm.
