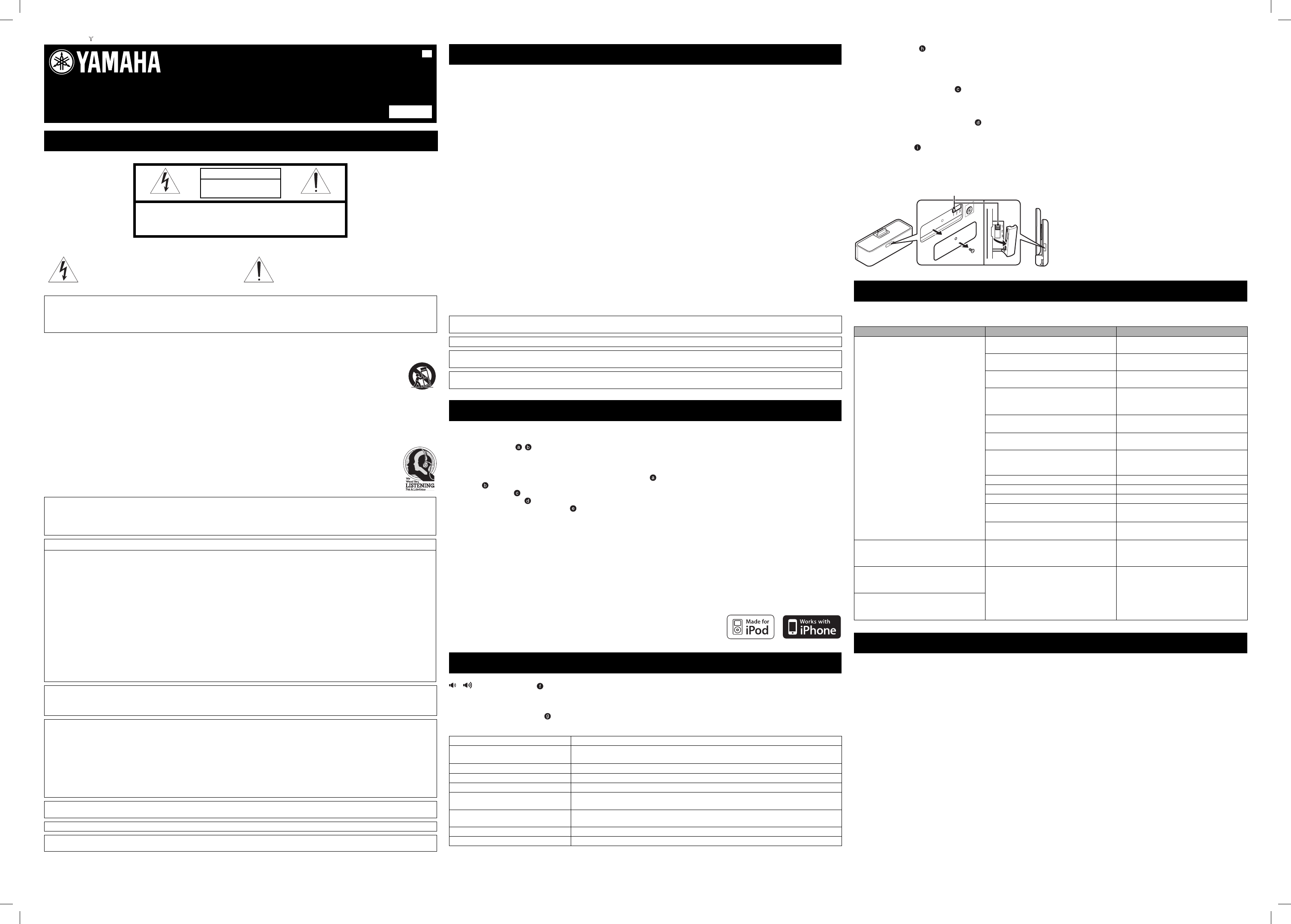

Printed in China WQ54970
U
Portable Player Dock
PDX-50 OWNER’S MANUAL English
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: Read this before operating your unit.
To assure the fi nest performance, please read this manual carefully. Keep it in a safe place for future reference.
Install this unit in a well ventilated, cool, dry, clean place - away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. (Do not use/keep this
unit in a car etc.)
Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds.
Do not expose this unit to sudden temperature changes from cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a
humidifi er) to prevent condensation inside this unit, which may cause an electrical shock, fi re, damage to this unit, and/or personal injury.
Avoid installing this unit where foreign objects may fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit,
do NOT place:
Other components, as they may cause damage and/or discoloration on the surface of this unit.
Burning objects (i.e. candles), as they may cause fi re, damage to this unit, and/or personal injury.
Containers with liquid in them, as they may fall and liquid may cause electrical shock to the user and/or damage to this unit.
Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause
re, damage to this unit, and/or personal injury.
Do not operate this unit upside-down. They may overheat, possibly causing damage.
Do not use force on switches, knobs, and/or cords.
When disconnecting the power cable/AC adaptor from the wall outlet, grasp the AC plug; do not pull the cord.
Do not clean this unit with chemical solvents; this might damage the fi nish. Use a clean, dry cloth.
Only the voltage specifi ed on this unit must be used. Using this unit with a higher voltage than specifi ed is dangerous and may cause fi re, damage to this unit,
and/or personal injury. Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than that specifi ed.
Do not attempt to modify or fi x this unit. Contact qualifi ed Yamaha service personnel when any service is needed. The cabinet should never be opened for any
reason.
When not planning to use this unit for long periods of time (i.e. when going on vacation), disconnect all AC plugs from the wall outlet.
Be sure to read the “TROUBLESHOOTING” section regarding common operating errors before concluding that the unit is faulty.
Before moving this unit, disconnect all AC plugs from the wall outlets.
Be sure to use the AC adaptors supplied with this unit. Using an AC adaptor other than those provided may cause fi re or damage to this unit.
Install this unit near the wall outlet and where the AC plugs can be reached easily.
For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet.
This will prevent damage to the product due to lightning and power-line surges.
There is a chance that placing this unit too close to a CRT-based (Braun tube) TV set might impair picture color. Should this happen, move this unit away from
the TV set.
Do not use this unit within 22 cm (9 inches) of persons with a heart pacemaker implant or defi brillator implant.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
Even if an iPhone or iPod is not connected to this unit, this unit is not disconnected from the AC power source as long as it is connected to the wall outlet.
In this state, this unit is designed to consume a very small quantity of power.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
INTRODUCTION
PDX-50 is a portable player dock designed for iPhone or iPod series. The unit can be operated wirelessly using the iPhone or iPod connected to the transmitter.
Also the charging cradle can be used for charging the iPhone or iPod, or to play music or movies for an extended time.
Alphabetical letters below ( , , etc.) can be used for reference to the illustrations on the separate sheet “Quick Manual” for details.
Supplied accessories
AC adaptor (for the speaker: DC 15V, 2.66A) (model number: NU40-2150266-I3) [ ] ...................................................................................................................... 1
Power cable [ ] ...................................................................................................................................................................................................................................... 1
Transmitter (PDX-50TX) [ ] ................................................................................................................................................................................................................. 1
Charging cradle (PDX-50BC) [ ] .......................................................................................................................................................................................................... 1
AC adaptor (for the charging cradle: DC 5V, 1A) [ ] ........................................................................................................................................................................... 1
The shape of the adaptor may vary depending on the area you purchased.
(Japan/North American model: MU12-2050100-A1)
(Chinese model: MU12-2050100-A2)
(Australian model: MU12-2050100-A3)
(U.K. model: MU12-2050100-B2)
(Korean model: MU12-2050100-C4)
(European/Southeast Asian model: MU12-2050100-C5)
Sticker ...................................................................................................................................................................................................................................................... 1
Owner’s Manual (this manual) ................................................................................................................................................................................................................. 1
Quick Manual ........................................................................................................................................................................................................................................... 1
Copyright and logo marks
iPhone, iPod
“iPhone” and “iPod” are trademarks of Apple Inc., registered in the U.S. and other countries.
DC IN 15V jack [ ]
Connect the AC adaptor (for the speaker) to this jack to supply power to the speaker. When the AC adaptor is connected, the speaker will be in standby mode,
consuming a small quantity of electricity. When an iPhone or iPod is connected to the transmitter (PDX-50TX), the speaker turns on from standby mode. When the
iPhone or iPod is disconnected from the transmitter, the speaker returns to standby mode.
Transmitter (PDX-50TX) [ ]
Connects an iPhone or iPod series. When the iPhone or iPod is disconnected, the unit will be in standby mode. The iPhone or iPod can be connected (or
disconnected) anytime.
Charging cradle (PDX-50BC) [ ]
Charges the battery of the iPhone or iPod.
DC IN 5V jack [ ]
Connect the AC adaptor (for the charging cradle) to this jack to supply power to the charging cradle.
Group selection switch
Use these switches to change the group setting for both speaker and transmitter.
Group selection switch
TROUBLESHOOTING
Refer to the table below if the unit does not function properly. If the problem you are experiencing is not listed below, or if the instruction below does not help, turn
off this unit, disconnect the power cable, and contact the nearest authorized Yamaha dealer or service center.
Problem Cause Remedy
No sound The speaker is connected to another unit. Select a different group by changing the group
selection switch of the speaker and transmitter.
The speaker and transmitter are not connected
since they are set to different groups.
Set both the speaker and transmitter to the same
group.
Distance is too far. Use the transmitter within 20 m (66 ft) from the
speaker.
There is a device (microwave oven, wireless LAN,
etc.) outputting signals in the 2.4 GHz frequency
band nearby.
Move this unit.
The iPhone or iPod is not connected to the
transmitter fi rmly.
Connect the iPhone or iPod fi rmly.
The iPhone or iPod software version has not been
updated.
Download the latest iTunes software to update the
iPhone or iPod fi rmware version to the latest.
The signal from the transmitter is blocked by your
body or metallic objects, etc.
Change the way of holding, the orientation, or the
position of the transmitter to avoid your body or
metallic objects blocking the signal.
The power of the speaker is off. Connect the AC adaptor correctly.
The battery of the iPhone or iPod is low. Charge the iPhone or iPod.
The volume is turned down. Turn up the volume.
The iPhone or iPod is in the process of connecting
with the speaker.
Please wait for a while.
The protection circuitry has been activated by
excessive volume.
Turn down the volume.
Cannot change the volume by changing
the volume of the iPhone or iPod.
The iPhone or iPod being used is not supported by
this unit, or the iPhone or iPod is not connected
rmly.
Use the supported iPhone or iPod.
Connect the iPhone or iPod fi rmly.
The power of the speaker does not turn off
after the iPhone or iPod is disconnected
from the transmitter.
The speaker is connected to another unit. Change the group setting.
Suddenly the speaker produces sound
even though an iPhone or iPod is not
connected.
CAUTION
RISK OF ELECTRIC SHOCK DO
NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
• Explanation of Graphical Symbols
The lightning fl ash with arrowhead symbol, within an
equilateral triangle, is intended to alert you to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of suffi cient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert you to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
IMPORTANT
Please record the serial number of this unit in the space below.
MODEL:
Serial No.:
The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifi ers) that produce heat.
Do not defeat the safety purpose of the polarized or groundingtype plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not
t into your outlet, consult an electrician for replacement of the obsolete
outlet.
1
2
3
4
5
6
7
8
9
Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specifi ed by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table
specifi ed by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long
periods of time.
Refer all servicing to qualifi ed service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
10
11
12
13
14
We Want You Listening For A Lifetime
Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at
a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion - and, most importantly, without affecting
your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries
Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels. Operate this unit by the
following procedure.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received including interference that may cause undesired operation.
See user manual instructions if interference to radio reception is suspected.
FCC INFORMATION (for US customers)
IMPORTANT NOTICE : DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in
this manual, meets FCC requirements.
Modifi cations not expressly approved by Yamaha may void your authority,
granted by the FCC, to use the product.
IMPORTANT : When connecting this product to accessories and/or
another product use only high quality shielded cables. Cable/s supplied
with this product MUST be used. Follow all installation instructions.
Failure to follow instructions could void your FCC authorization to use
this product in the USA.
NOTE : This product has been tested and found to comply with the
requirements listed in FCC Regulations, Part 15 for Class “B” digital
devices. Compliance with these requirements provides a reasonable level
of assurance that your use of this product in a residential environment will
not result in harmful interference with other electronic devices.
This equipment generates/uses radio frequencies and, if not installed and
used according to the instructions found in the users manual, may cause
interference harmful to the operation of other electronic devices.
1
2
3
Compliance with FCC regulations does not guarantee that interference will
not occur in all installations. If this product is found to be the source of
interference, which can be determined by turning the unit “OFF” and “ON”,
please try to eliminate the problem by using one of the following measures:
Relocate either this product or the device that is being affected by the
interference.
Utilize power outlets that are on different branch (circuit breaker or fuse)
circuits or install AC line fi lter/s.
In the case of radio or TV interference, relocate/reorient the antenna. If the
antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type
cable.
If these corrective measures do not produce satisfactory results, please contact
the local retailer authorized to distribute this type of
product. If you can not locate the appropriate retailer, please contact Yamaha
Electronics Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA 90620.
The above statements apply ONLY to those products distributed by Yamaha
Corporation of America or its subsidiaries.
This equipment compiles with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF
energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at
least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Change or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
FOR CANADIAN CUSTOMERS
This Class B digital apparatus complies with Canadian ICES-003.
SPECIFICATIONS
Supported iPod ................................................................................................................................................iPod (5th generation), iPod classic, iPod nano, iPod touch
Supported iPhone ..........................................................................................................................................................................................................iPhone, iPhone 3G
Maximum RMS output power per channel (6 Ω 1 kHz, 10% THD) .....................................................................................................................................15 W + 15 W
Power Supply
U.S.A. and Canada models ........................................................................................................................................................................................AC 120 V, 60 Hz
Other models .............................................................................................................................................................................................AC 100 to 240 V, 50/60 Hz
Power Consumption
PDX-50 ........................................................................................................................................................................................................................................ 10 W
PDX-50TX/PDX-50BC ................................................................................................................................................................................................................. 4 W
Power Consumption without connecting iPod/iPhone
PDX-50 ............................................................................................................................................................................................................................less than 1 W
PDX-50TX/PDX-50BC ...................................................................................................................................................................................................less than 1 W
Transmission range ................................................................................................................................................................Approx. 20 m (66 ft) (without interference)
Maximum playback duration .................................................................................................................................................. Approx. 10 hours (from full charged iPod)
Number of speakers which can be simultaneously transmitted to .............................................................................. Up to 7 speakers (depending on the circumstance)
Dimensions (W x D x H) ........................................................................................................................................................................................350 x 125 x 127.5 mm
(13-12/16” x 4-15/16” x 5”)
Weight (without accessories) ..............................................................................................................................................................................................1.7 kg (3.7 lbs)
iPod (4th generation or before), iPod without Dock connector, iPod photo or iPod mini are not supported by this unit.
*Specifi cations are subject to change without notice.
CONTROLS AND FUNCTIONS
/ (Volume keys) [ ]
Adjusts the volume level.
Status indicator (LED) [ ]
Indicates the current status of the unit.
LED status (speaker/transmitter) The current status of this unit
Off The unit is in standby mode. An iPhone or iPod is not connected, or has stopped playing. (However, lights
up for 30 seconds after stopping playback.)
Flashes green Connection in progress, please wait.
Flashes green once Adjusting the volume level.
Lights up green The unit turns on. An iPhone or iPod is connected.
Lights up green and fl ashes red Flashes red for 2 seconds: An unsupported iPod is connected.
Keeps fl ashing red: Connection failed. (Connect again.)
Flashes red The protection circuitry has been activated.
(Disconnect the AC adaptor and wait for a while.)
Flashes red once The volume of this unit is set to maximum or minimum.
Flashes red (regardless of green status) The battery of the iPhone or iPod is low.
PDX-50_U.indd 1PDX-50_U.indd 1 9/18/2008 11:22:07 AM9/18/2008 11:22:07 AM

Navigation menu
