PJP
-
25UR
Conference Microphone Speaker
User's Manual
1
PREPARATIONINTRODUCTION
ADDITIONAL
INFORMATIONOPERATIONS
Introduction ................................................................................2
Controls and Functions..............................................................3
Connection ..................................................................................5
Check the following before connecting this unit to the
computer...................................................................................5
Step 1: Connecting this unit .....................................................5
Step 2: Checking the connection ..............................................6
Step 3: Installing this unit.........................................................7
Basic Operations.........................................................................8
Using the PJP-25UR Controller................................................9
Installing the PJP-25UR Controller..........................................9
Basic operations of the PJP-25UR Controller ........................11
About the "PJP-25UR Controller" screen ..............................12
Checking the optimum installation method............................14
Configuring the shortcut key..................................................14
Saving the settings of this unit ...............................................15
Resetting the settings of this unit ...........................................16
Using the Latest Features ........................................................17
Software Licensing Agreement ..............................................17
Updating the firmware............................................................18
Troubleshooting........................................................................19
Q1: LED indicator does not light up ......................................19
Q2: Have an audio problem....................................................19
Specifications ............................................................................20
General ...................................................................................20
Audio ......................................................................................20
Contents
INTRODUCTION
PREPARATION
OPERATIONS
ADDITIONAL INFORMATION
2
Thank you for purchasing Yamaha PJP-25UR. This product is a microphone/speaker unit to be connected to a computer
with the USB cable for use as its audio terminal. Before operating this unit, please read this manual carefully.
■Connection with a computer
This unit can be connected to a computer for use as the microphone/speaker unit of the web conference or VoIP
telephone system. Incorporating this unit as the microphone speaker into the web conference or VoIP telephone system
provides a smoother conferencing experience for both listeners and talkers.
■Arm-type microphones for high audio quality
Depending on the using environment, the microphones can control the audio pickup area so that the clear conversation is
assured.
Introduction

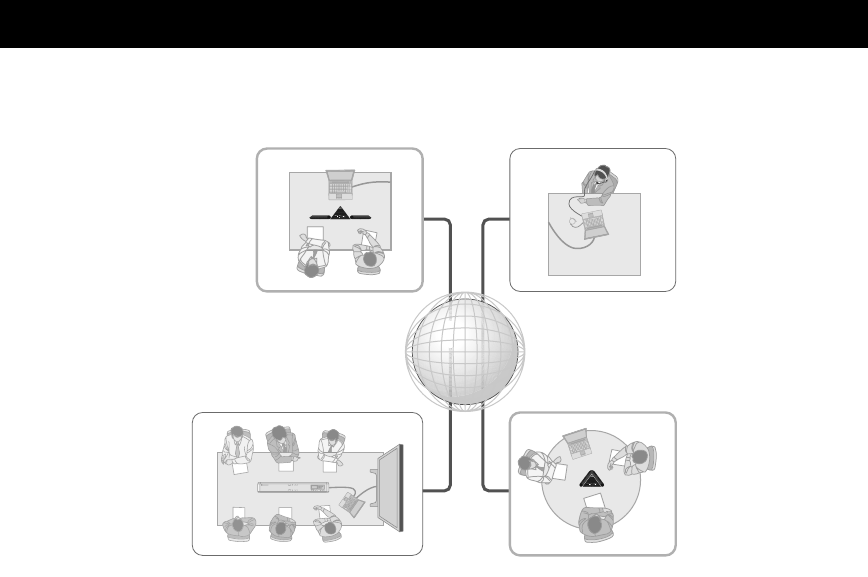

PJP-25UR (2 persons) Headset
PJP-100UH (6 persons) PJP-25UR (3 persons)
Web
conference
Web
conference
Web
conference
3
INTRODUCTION

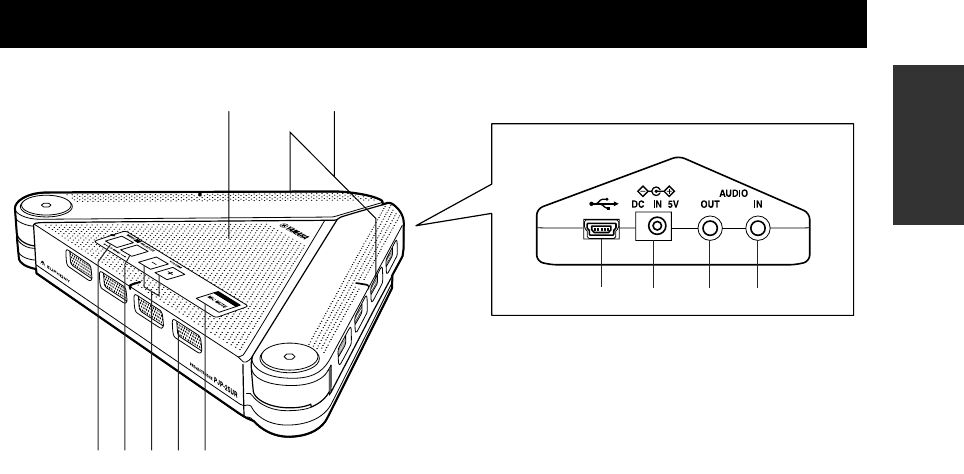

1Arrayed microphones
Picks up the talker's voice.
2Speaker
Outputs the sounds.
3MENU/PC
Press to activate the PJP-25UR Controller.
4SHORTCUT
Press to activate the function specified in the PJP-25UR
Controller.
5VOLUME +/–
Press to adjust the speaker volume. Holding either key
increases or decreases the volume continuously.
6MIC MUTE
Press to temporarily turn off (mute) the microphones. To
cancel the mute function, press it again.
7USB port
Connect to the computer using the USB cable.
8DC IN 5V terminal
Connect the AC adapter (sold separately).
9AUDIO OUT terminal
Connect to the line-in on the audio device or computer.
0AUDIO IN terminal
Connect to the line-out on the audio device or computer.
y
Holding down MENU/PC and SHORTCUT at the same time resets this unit's settings.
Controls and Functions
78 90
12
34516
4

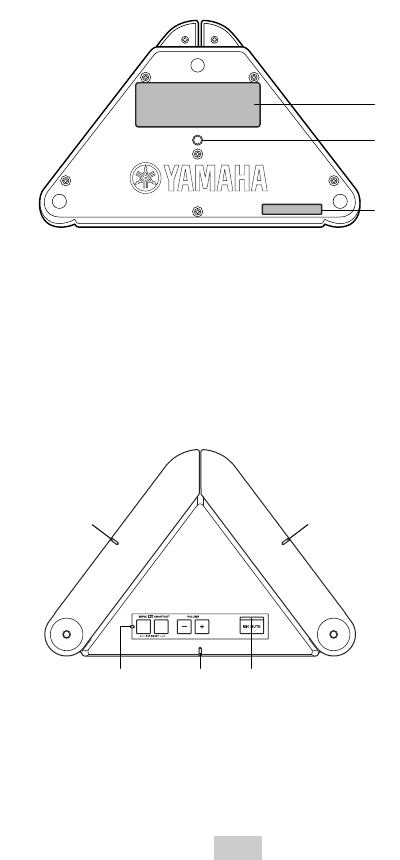

■Other
1Label
Provides the following information.
•MODEL No.: Model number of this unit
•SER.: Serial number of this unit
2Tripod socket hole
Use to connect a commercially available tripod.
■Functions of the LEDs
1Microphone LEDs
•Waiting: light in orange
•Picking up sounds: blink in orange
•MIC mute: turn off
•Reset operation: blink in orange five times
2MIC MUTE LED
•Normal: turns off
•MIC mute: lights in orange
3Information LED
•Function assigned to SHORTCUT is being used:
lights in orange
•Auto-attenuator is running: blinks in orange
Since this unit works according to the USB standard, it may turn
on the attenuator or speaker mute function automatically to
protect the system in case the unit detects high audio levels. If this
happens repeatedly, turn down the volume or use the AC adapter
(sold separately).
1
2
1
1
1
1 23
Note
5
PREPARATION
■USB cable
Use the USB cable supplied with this unit.
■System requirement
The computer connected to this unit should meet the
following system requirement.
•CPU: Intel® Pentium®/Celeron® processor with 750
MHz or higher (or equivalent)
•OS: Microsoft® Windows Vista®, Microsoft®
Windows XP Professional®/Home®, Microsoft®
Windows 2000 Professional®
•Memory: 128 MB or more (256 MB or more
recommended)
•USB port: USB 1.1 or later (USB 2.0 recommended)
•Connect this unit and the computer directly. Connecting them
through a USB hub may cause problems in operation.
•Audio reproduction may be interrupted depending on the
computer usage situations (workloads or available memory
space).
■About trademarks
•Microsoft and Windows are registered trademarks of
Microsoft Corporation in the United States and other
countries.
•EUPHONYTM is a trademark of DiMAGIC Co., Ltd.
•Intel and Celeron are trademarks or registered
trademarks of Intel Corporation and its subsidiaries in
the United States and other countries.
Follow the procedure below to connect this unit to the
computer.

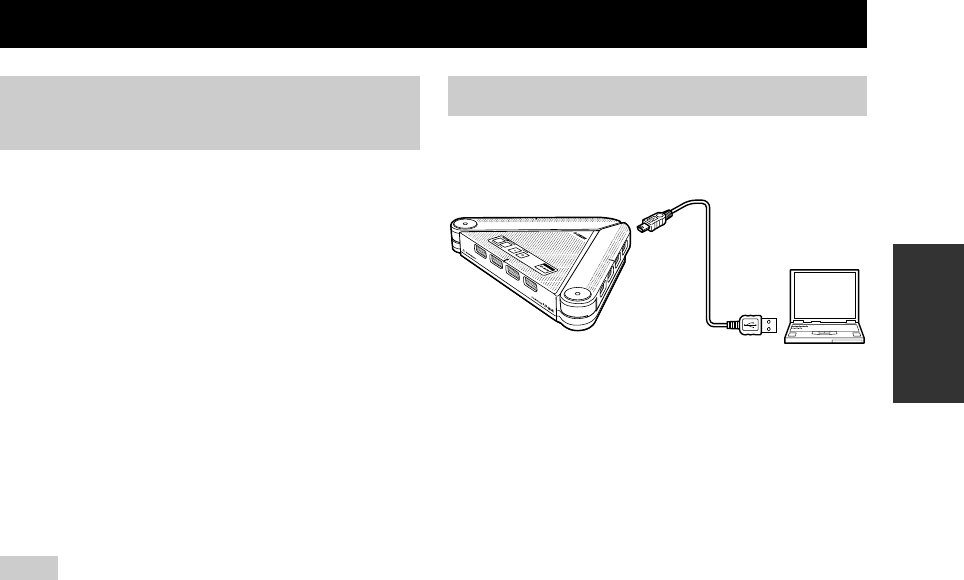

Connect this unit to the computer using the
supplied USB cable.
The USB driver is automatically installed on the
computer.
y
You do not need to install the USB driver separately
because this unit is recognized as a basic audio device by
the computer.
Installing the PJP-25UR Controller
By installing and using the PJP-25UR Controller included
in the supplied CD-ROM, you can adjust this unit's
settings such as the microphone sensitivity, which cannot
be controlled with key operations. For details, refer to
"Using the PJP-25UR Controller" (page 9).
Connection
Check the following before connecting
this unit to the computer
Notes
Step 1: Connecting this unit
6

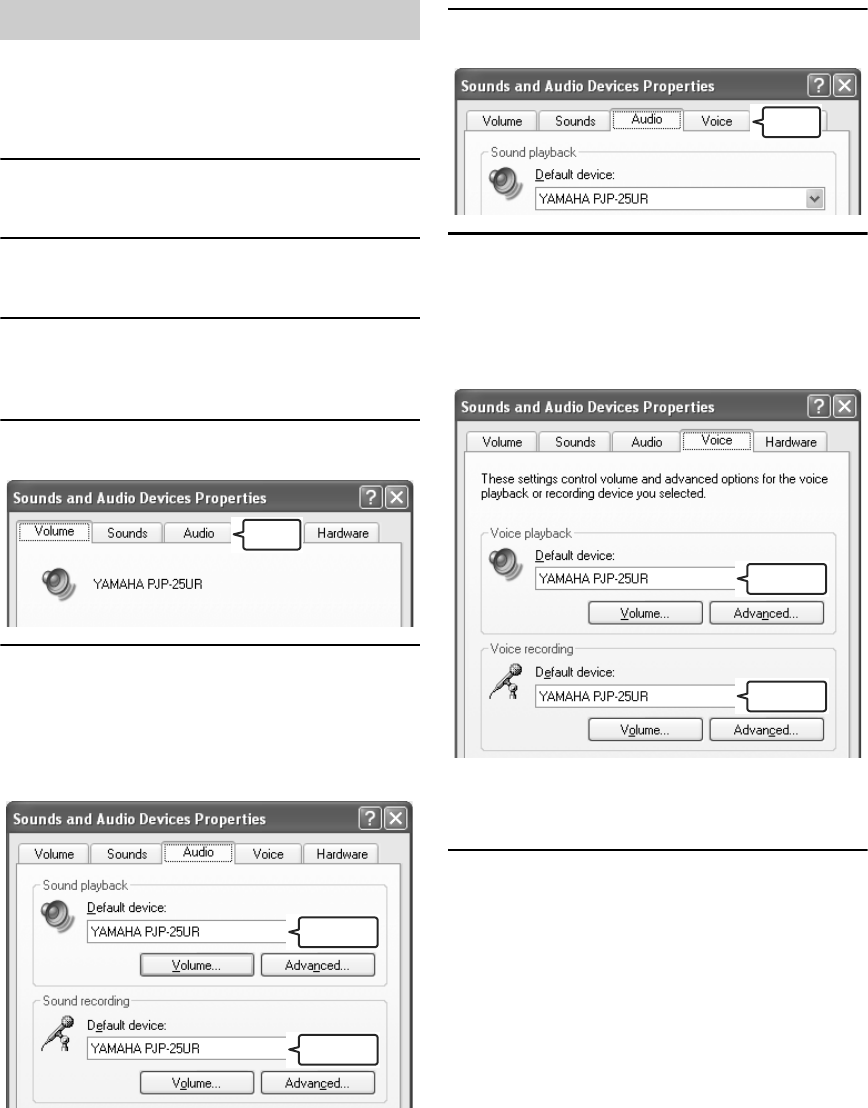

After connecting this unit to the computer, follow the
procedure below to check whether the computer
recognizes this unit properly. In this procedure, Windows
XP is used as an example.
1From the taskbar. select [Start] - [Control
Panel].
2Click "Sounds, Speech, and Audio
Devices".
3Click "Sounds and Audio Devices".
The "Sounds and Audio Devices Properties" screen
appears.
4Click the "Audio" tab.
5Configure the settings as shown below.
•"Default device" in "Sound playback":
YAMAHA PJP-25UR
•"Default device" in "Sound recording":
YAMAHA PJP-25UR
y
Normally, "YAMAHA PJP-25UR" is automatically
selected when this unit is connected to the computer.
6Click the "Voice" tab.
7Configure the settings as shown below.
•"Default device" in "Voice playback":
YAMAHA PJP-25UR
•"Default device" in "Voice recording":
YAMAHA PJP-25UR
y
Normally, "YAMAHA PJP-25UR" is automatically
selected when this unit is connected to the computer.
8Click "OK" to close the "Sounds and
Audio Devices Properties" screen.
Step 2: Checking the connection
Click
Change
Change
Click
Change
Change
7
PREPARATION
Read the following note and install this unit at a location where you want to use it.
■Note on installation

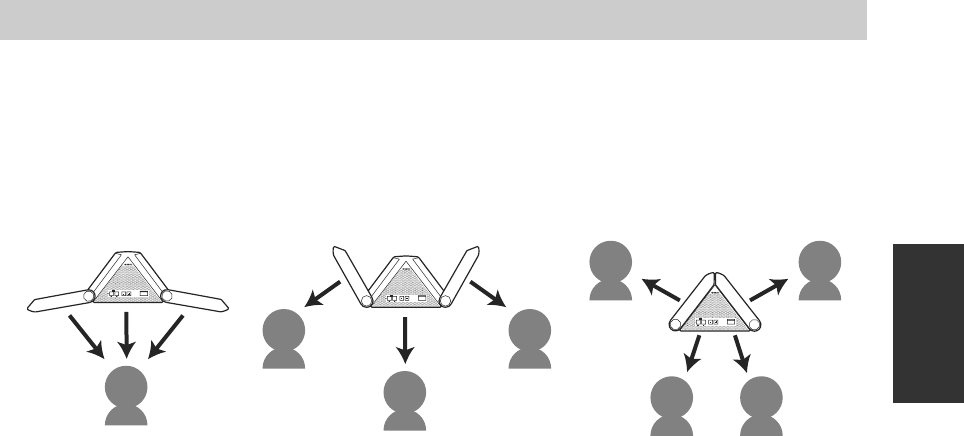

Install this unit while taking the positions of talkers into consideration.
To assure clear conversation by getting the most out of the arrayed microphones, adjust the angles of the microphones as
shown below.
Step 3: Installing this unit
MENU
PJP RESET
PCSHOTRCUT VOLUME
MIC MUTE
MENU
PJP RESET
PCSHOTRCUT VOLUME
MIC MUTE
MENU
PJP RESET
PCSHOTRCUT VOLUME
MIC MUTE
8
■Adjusting the speaker volume
Press VOLUME +/– to adjust the speaker volume. Holding either key increases or decreases the volume continuously.
■Turning off the microphones temporarily (MIC MUTE)
Press MIC MUTE to temporarily turn off (mute) the microphones. The MIC MUTE LED lights and the microphone
LEDs turn off during muting.
Pressing the key again cancels the mute function. (The MIC MUTE LED turns off and the microphone LEDs light.)
■Activating the PJP-25UR Controller
Press MENU/PC to activate the PJP-25UR Controller.
■Activating the specified function
Press SHORTCUT to activate the function specified in the PJP-25UR Controller.
■Resetting the settings of this unit
Hold down MENU/PC and SHORTCUT at the same time to reset the settings of this unit.
Basic Operations
9
OPERATIONS
By installing and using the PJP-25UR Controller included in the supplied CD-ROM, you can adjust the unit's settings
such as the microphone sensitivity, which cannot be controlled with key operations.

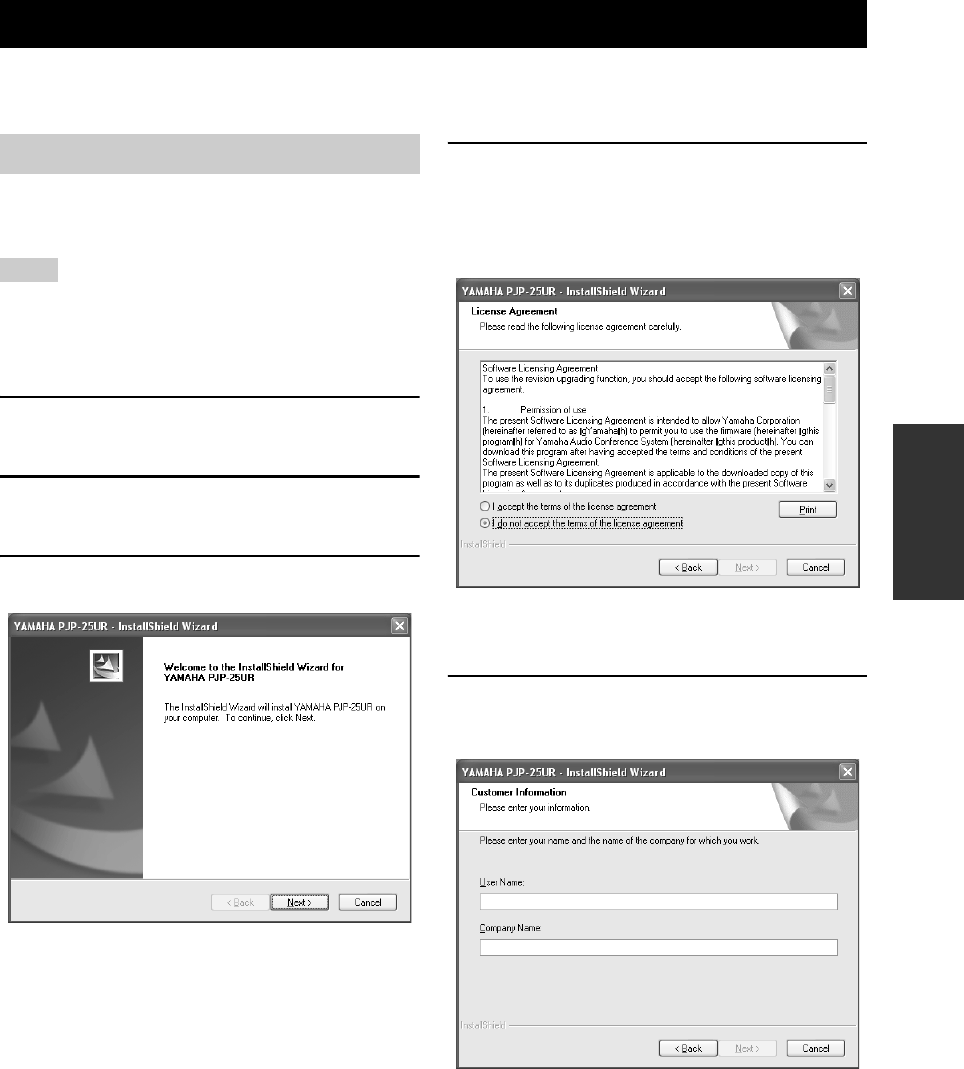

Follow the procedure below to install the PJP-25UR
Controller on the computer.
•To avoid unexpected data loss, quit all applications running on
the computer before the installation.
•Log on to the computer as an administrator when installing the
PJP-25UR Controller.
1Load the supplied CD-ROM into the
computer's CD-ROM drive.
2Click "Install".
The setup program starts.
3Click "Next".
4Read the contents of the license
agreement carefully, select "I accept the
terms of the license agreement", and
then click "Next".
If you do not agree with the contents of the license
agreement, click "I do not accept the terms of the
license agreement" to cancel the installation.
5Specify "User Name" and "Company
Name", and then click "Next".
Using the PJP-25UR Controller
Installing the PJP-25UR Controller
Notes
10

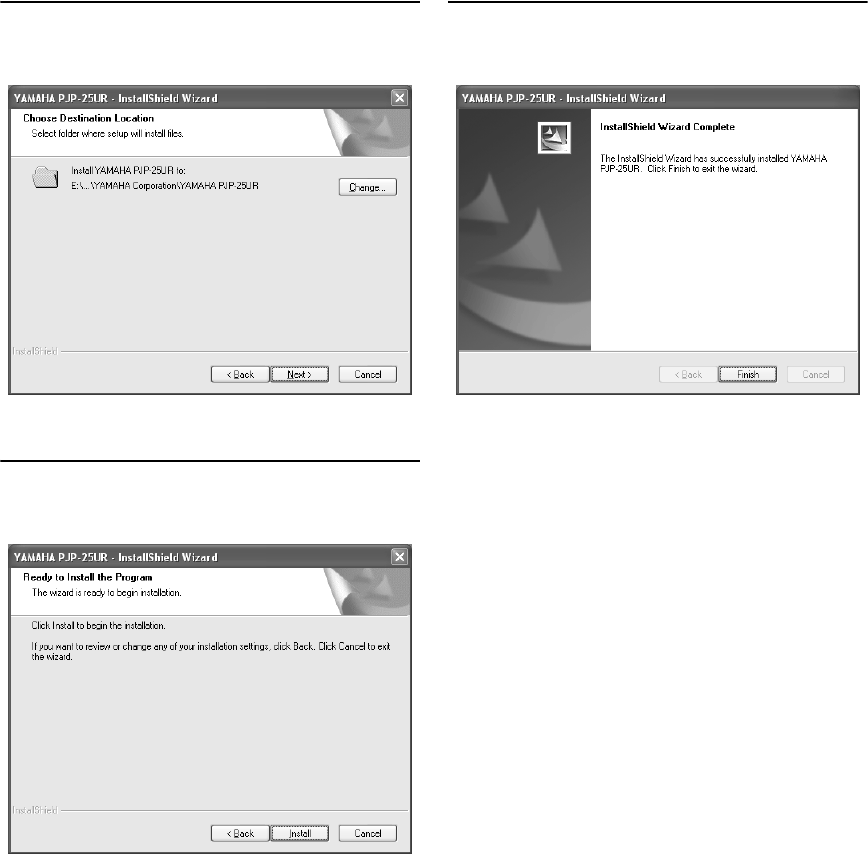

6Select the folder to which the files are
saved, and then click "Next".
To change the destination folder, click "Change" and
select a new destination.
7Click "Install".
The installation starts.
8Click "Finish".
The installation is completed.
11
OPERATIONS

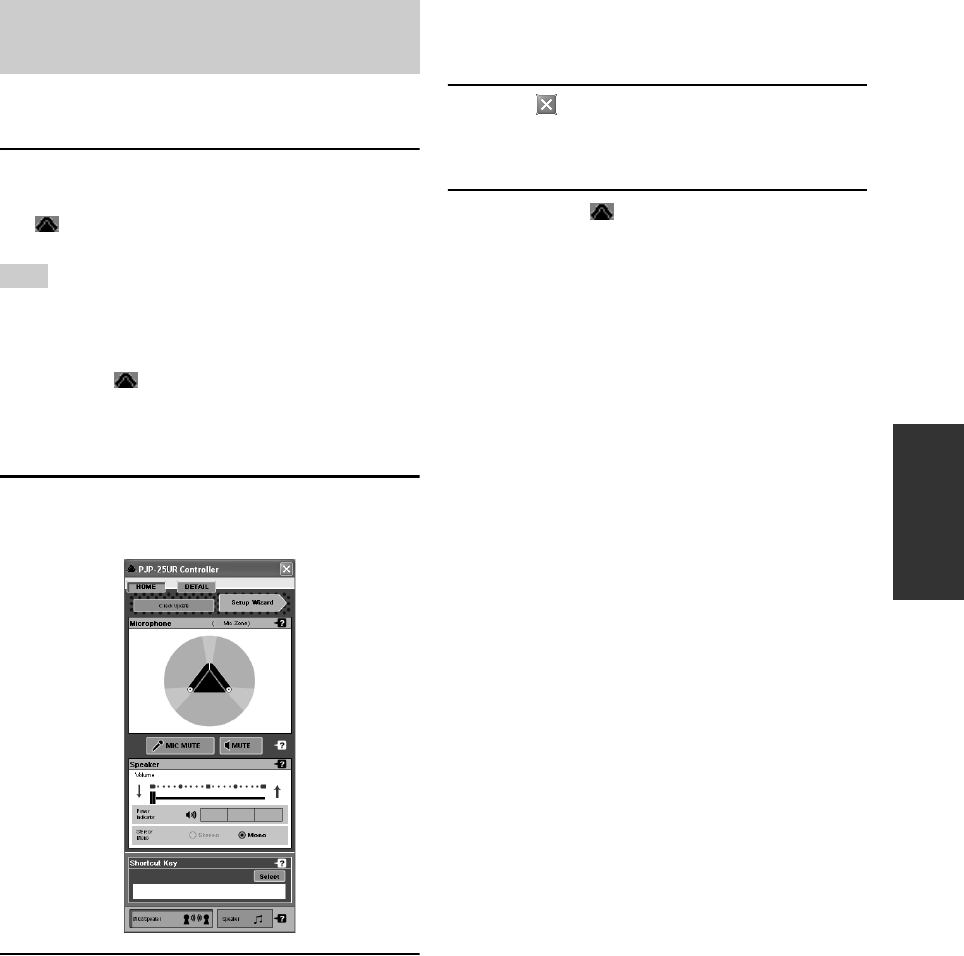

This section explains about the basic operations of the
PJP-25UR Controller.
1Connect this unit to the computer using
the supplied USB cable.
appears in the task tray (the lower right screen).
Do not connect more than one PJP-25UR to the computer at the
same time.
y
In the case that does not appear after this unit is
connected to the computer, select [Start] - [All Programs]
- [YAMAHA PJP-25UR] - [PJP-25UR Controller] to start
the PJP-25UR Controller.
2Press MENU/PC on this unit.
The "PJP-25UR Controller" screen appears.
3Configure the settings.
Configure the settings of this unit according to the
use environment.
To quit the PJP-25UR Controller
Follow the procedure below to quit the PJP-25UR
Controller.
1Click at the top right corner of the
"PJP-25UR Controller" screen.
The "PJP-25UR Controller" screen closes.
2Right-click in the task tray, and then
select "Exit".
The PJP-25UR Controller exits.
Basic operations of the PJP-25UR
Controller
Note
12
y

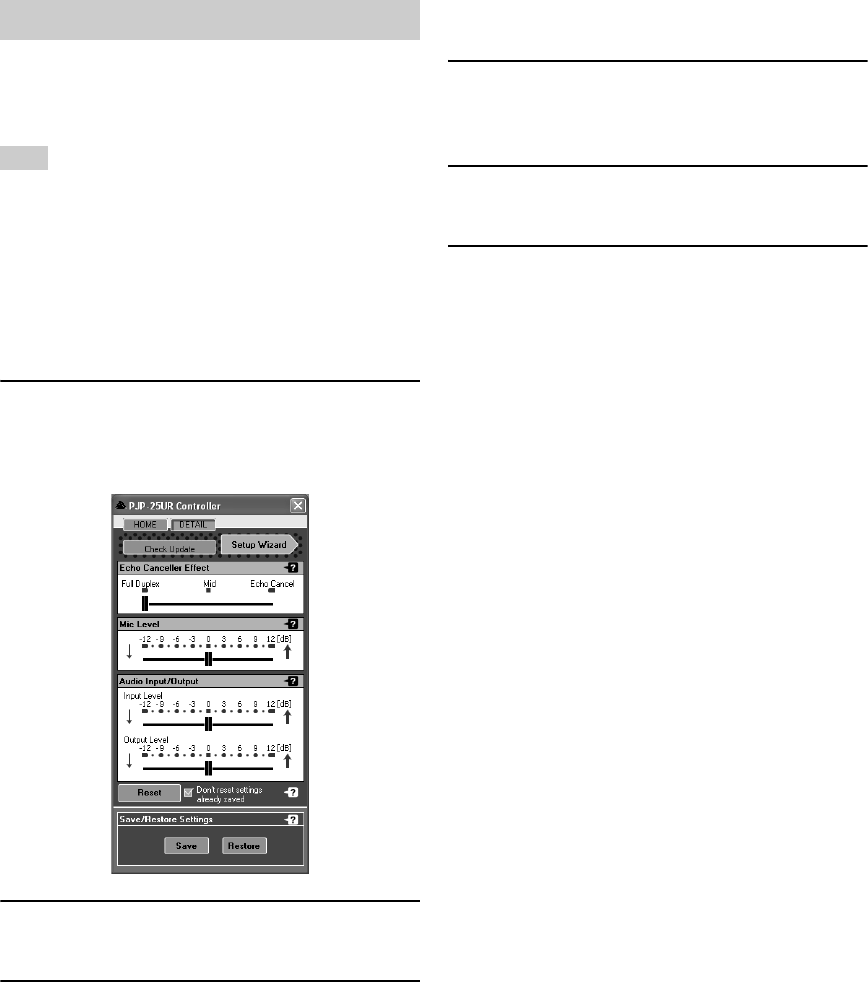

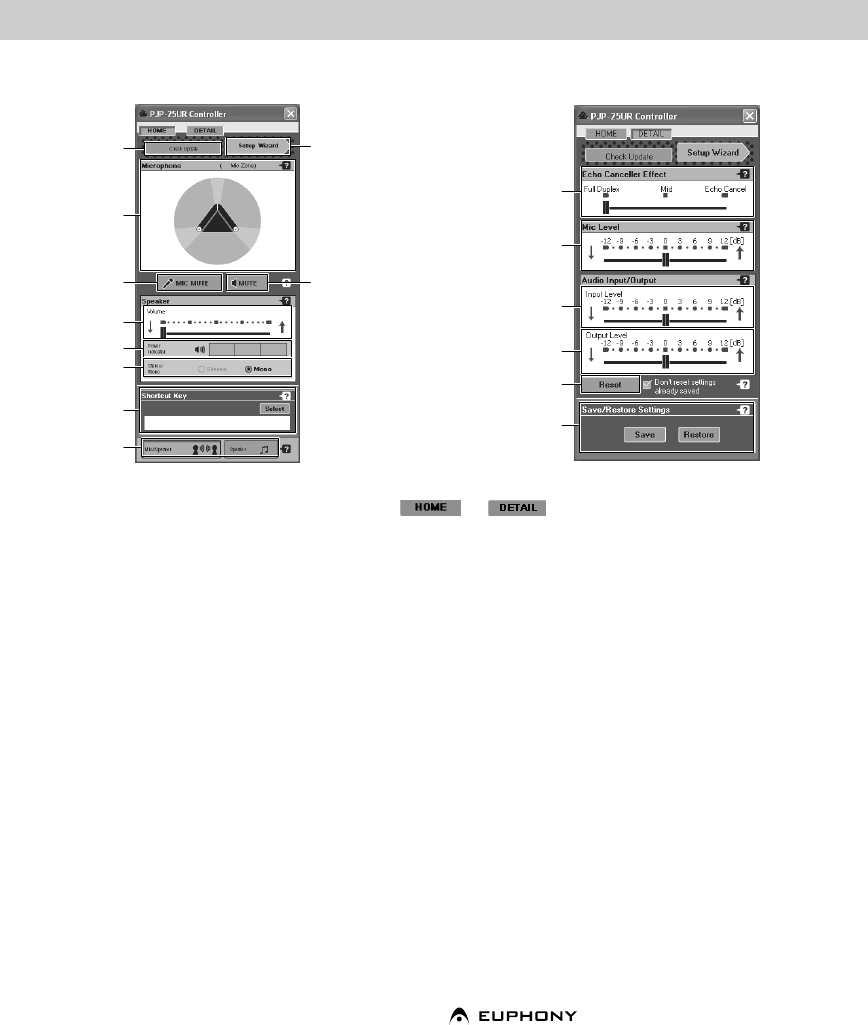

To switch between HOME and DETAIL screens, click or . When the operation mode is set to
"Speaker", the DETAIL screen is not available.
■Items in the HOME screen
1Check Update
Update the firmware of this unit. For details, refer to
"Using the Latest Features" (page 17).

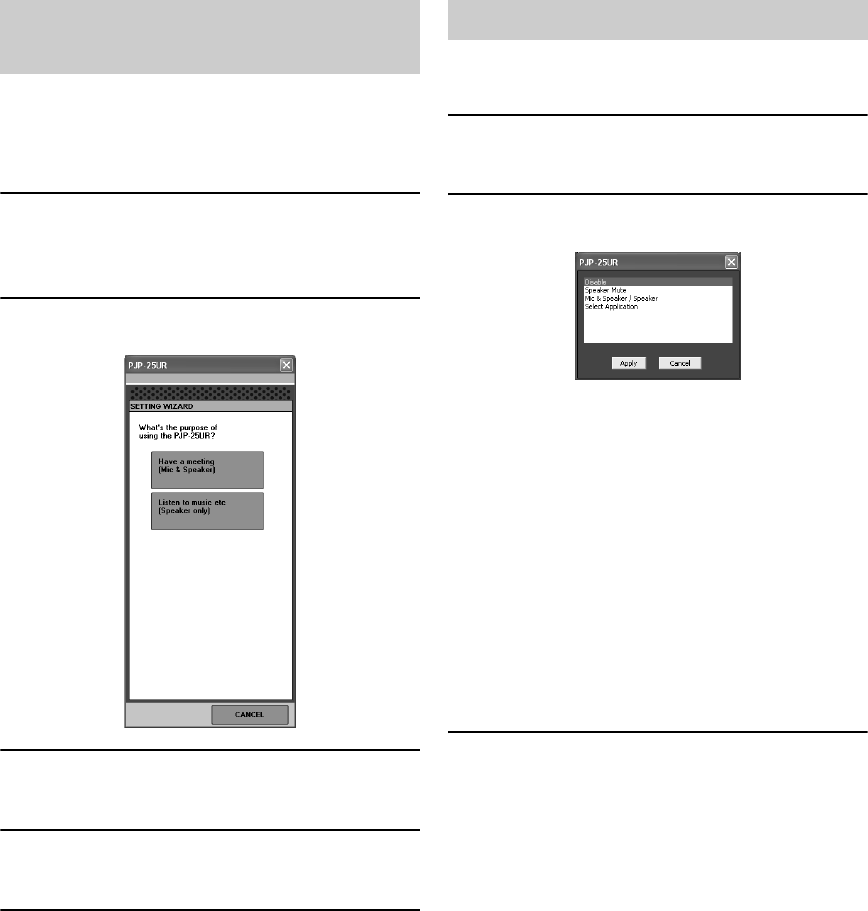

2Setup Wizard
Check the installation method suited to your purpose of
using this unit. For details, refer to "Checking the
optimum installation method" (page 14).
3Mic Zone
Shows the microphone status (speaker angles and audio
pickup area).
4MIC MUTE
Turn off (mute) the microphones of this unit temporarily.
In this mode, the microphones of this unit do not pick up
any sounds.
To cancel the mute function, click MIC MUTE again.
y
During muting, the MIC MUTE LED (above the MIC
MUTE key on this unit) lights and the microphone LEDs
turn off. If the mute function is canceled, the MIC MUTE
LED turns off and the microphone LEDs light.
You can also operate the mute function using MIC MUTE
on this unit.
5MUTE
Turn off (mute) the speaker of this unit temporarily. In this
mode, the speaker of this unit does not output sounds.
To cancel the mute function, click MUTE again.
6Volume
Adjust the speaker volume of this unit using the slider bar.
7Power Indicator
Shows the electrical power which this unit can use for
audio output.
y
Since this unit works according to the USB standard, it
may turn on the attenuator or speaker mute function
automatically to protect the system in case the unit detects
high audio levels. If this happens repeatedly, turn down
the volume or use the AC adapter (sold separately).
8Playback mode setting
Select "Stereo" or "Mono" for the playback mode. If
"Stereo" is selected, the EUPHONY system works. This
setting is available only when the operation mode is set to
"Speaker".
Euphony is a revolutionary sound field reproduction
system implemented with state-of-the-art sound
technologies developed under the basic concept of
enjoying beautiful sound.
9Shortcut Key
Select a function assigned to SHORTCUT on this unit.
For details, refer to "Configuring the shortcut key" (page
14).
About the "PJP-25UR Controller" screen
HOME screen DETAIL screen
1
3
4
6
7
8
9
@
5
2
A
E
B
D
C
F
13
OPERATIONS
@Operation mode setting
Select the operation mode of this unit. To enable both the
microphones and speaker (as in the case of a conference),
click "Mic&Speaker". To enable only the speaker (as in
the case of listening to music), click "Speaker".
If this unit is powered only through the AC adapter (sold
separately), the operation mode is set to "Mic&Speaker". In this
case, this unit outputs left-channel audio only regardless of audio
signal type.
■Items in the DETAIL screen
AEcho Canceller Effect
Adjust the effectiveness level of the echo canceller using
the slider bar.
•Full Duplex: Emphasizes the quality of simultaneous
two-way communications.
•Mid: Balances the simultaneous two-way
communication quality and the echo canceller
performance.
•Echo Cancel: Emphasizes the echo canceller
performance.
BMic Level
Adjust the microphone sensitivity in the range of -12.0 to
+12.0 dB using the slider bar.
CInput Level
Adjust the audio input level (amplification) in the range of
-12.0 to +12.0 dB using the slider bar. This setting is
applied to inputs from another device through the audio
cable.
DOutput Level
Adjust the audio output level (amplification) in the range
of -12.0 to +12.0 dB using the slider bar. This setting is
applied to outputs to another device through the audio
cable.
EReset
Reset the settings of this unit. For details, refer to
"Resetting the settings of this unit" (page 16).
FSave/Restore Settings
Save the settings of this unit. For details, refer to "Saving
the settings of this unit" (page 15).
Note
14
You can check the installation method suited to your
purpose of using this unit. In this procedure, we will check
the installation method suited to a web conference for
example.
1In the "PJP-25UR Controller" screen,
click "Setup Wizard".
The "SETTING WIZARD" screen appears.
2Click "Have a meeting".
3Select the number of conference
participants.
4Select the relative position between the
participants and this unit.
5Follow the on-screen instructions to
install this unit.
Follow the procedure below to select a function to be
activated by pressing SHORTCUT on this unit.
1In the "PJP-25UR Controller" screen,
click "Select".
2Select a function.
Disable
Select this if you want to disable SHORTCUT.
Speaker Mute:
Select this if you want to assign the speaker mute function
to SHORTCUT.
MIC & Speaker / Speaker:
Select this if you want to switch the operation mode by
pressing SHORTCUT.
Select Application:
Select this if you want to activate the specified
application.
3Click "Apply".
y
If you have selected "Select Application" in step 2, select
an application assigned to SHORTCUT.
Checking the optimum installation
method
Configuring the shortcut key
15
OPERATIONS

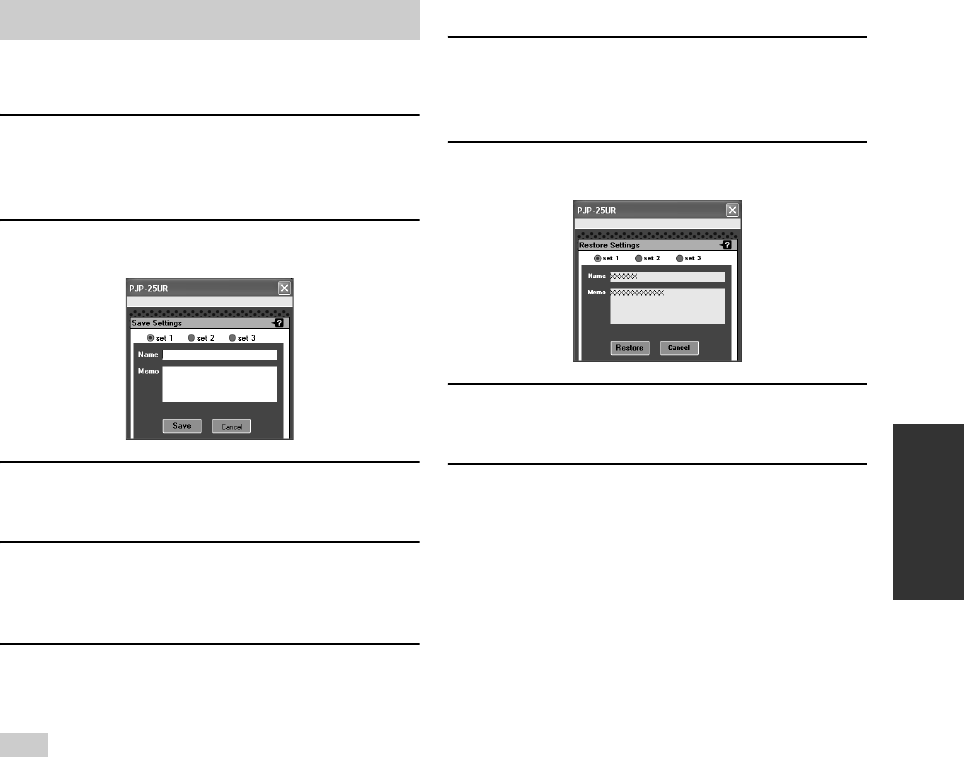

Follow the procedure below to save the settings currently
configured on this unit.
1In the "PJP-25UR Controller" screen,
click "DETAIL".
The "DETAIL" screen appears.
2Click "Save".
3Select the setting number to which the
settings are saved.
4Enter a name and memo.
Enter a given name and comment applied to the
settings to be saved.
5Click "Save".
The settings are saved.
If the number you selected in step 3 has already been used, the
confirmation message appears before executing the overwriting
process.
To restore the settings
1In the "PJP-25UR Controller" screen,
click "DETAIL".
The "DETAIL" screen appears.
2Click "Restore".
3Select the setting number of which you
want to restore the settings.
4Click "Restore".
The settings are restored.
Saving the settings of this unit
Note
16
Follow the procedure below to reset the settings of this
unit. You can specify whether to keep the settings saved to
the setting numbers.
Please note the followings when you reset the settings of this unit.
•This operation will clear all settings you changed and restore
the factory default values.
•If you reset all settings, the settings saved to the setting numbers
are also cleared.
•You cannot undo the reset operation.
■Resetting all settings
1In the "PJP-25UR Controller" screen,
click "DETAIL".
The "DETAIL" screen appears.
2Uncheck the "Don't reset settings
already saved" box.
3Click "Reset".
All settings are reset to default.
■Resetting this unit except settings saved
to the setting numbers
1In the "PJP-25UR Controller" screen,
click "DETAIL".
The "DETAIL" screen appears.
2Check the "Don't reset settings already
saved" box.
3Click "Reset".
This unit is reset to default except settings saved to
the setting numbers.
Resetting the settings of this unit
Note
17
OPERATIONS
You can download the fi rmware (program to control the functions of this unit) to use the latest features.
To use the revision upgrading function, you must accept
the following software licensing agreement.
1. Permission of use
The present Software Licensing Agreement is intended to
allow Yamaha Corporation (hereinafter referred to as
"Yamaha") to permit you to use the firmware (hereinafter
"this program") for Yamaha PJP-25UR (hereinafter "this
product"). You can download this program after having
accepted the terms and conditions of the present Software
Licensing Agreement.
The present Software Licensing Agreement is applicable
to the downloaded copy of this program as well as to its
duplicates produced in accordance with the present
Software Licensing Agreement.
2. Inhibition of redistribution
You are permitted to download this program only for the
purpose of upgrading the functions of this product.
Uploading or posting this program at a website accessible
by the general public is prohibited unless you have
permission from Yamaha.
3. Production of duplicates
You may only duplicate this program for the purpose of
backup or when upgrading multiple units of this product.
4. Inhibition of decompiling, reverse
engineering or disassembling
You may not decompile, reverse-engineer, disassemble,
alter, permit the use of, distribute or create any derivative
works of this program.
5. Limitation of liabilities
Yamaha will not assume any liabilities on the damage to
the customers caused by the present Software Licensing
Agreement.
6. Export control
You shall comply with all applicable export laws and
regulations of any relevant countries including but not
limited to Japan and your country. You shall not, directly
or indirectly, export or re-export this program except in
compliance with such laws and regulations.
7. Compliance to laws and regulations
This Software Licensing Agreement should be compliant
to the laws and regulations of Japan and your country, and
should be interpreted in accordance with the laws of
Japan.
Using the Latest Features
Software Licensing Agreement
18

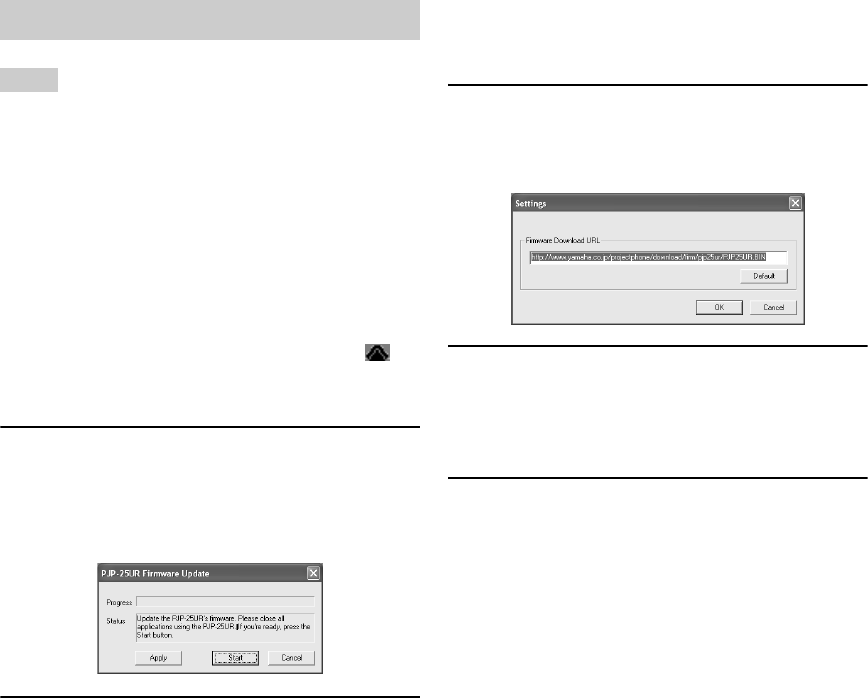

•Firmware update is available only if the computer connecting to
this unit is connected to the Internet.
•Once the firmware update is started, do not perform any other
operation until the update operation is completed. If the update
operation is interrupted, this unit may become unusable, in
which case you need to return this unit to the factory for repairs.
•Do not remove the USB cable or LAN cable during the
firmware update. Otherwise, this unit could become unusable,
in which case you need to return this unit to the factory for
repairs.
y
To check the current firmware version, right-click in
the task tray, and then select "About PJP-25UR
Controller".
1In the "PJP-25UR Controller" screen,
click "DETAIL" and then "Check
Update".
The "PJP-25UR Firmware Update" screen appears.
2Click "Start".
The firmware update starts.
To specify the firmware download URL
This feature is useful in managing the firmware versions
of multiple PJPs.
1In the "PJP-25UR Firmware Update"
screen, click "Apply".
The "Settings" screen appears.
2Enter the URL from which to download
the firmware.
y
You can restore the default URL by clicking "Default".
3Click "OK".
The firmware download URL is set.
Updating the firmware
Notes
19
ADDITIONAL
INFORMATION
Refer to the following tables when this unit does not function properly. If the problem you are experiencing is not listed
or if the instruction does not help, contact the nearest authorized YAMAHA dealer or service center (listed in the "Quick
Start Guide").
Troubleshooting
Q1: LED indicator does not light up
Problem Cause Remedy
The power is not turned on. The USB cable is not connected properly. Check that the USB cable is connected firmly.
Q2: Have an audio problem
Problem Cause Remedy
The audio from the other unit
cannot be heard.
The microphones are muted on the other unit. –
The audio is interrupted. The audio cable is not connected properly. Check that the audio cable is connected firmly.
The voltage decreases due to high volume. •Turn the volume down.
•Use the AC adapter (sold separately).
The playback volume goes
down suddenly.
The auto-attenuator function is working. Turn the volume down.
The speaker volume cannot be
turned up.
The volume setting in Windows is too low. Adjust the volume setting in Windows.
The unit generates feedback
noises.
This unit is placed near the wall. Move this unit away from the wall.
An object is placed near this unit. Avoid placing an object in front of the
microphones of this unit.
This unit is used in a room with high
reverberation.
•Place objects with high sound absorbance in
the room other than in front of the
microphones.
•Avoid talking at a loud voice to reduce
reverberations.
20
Interface:
USB 2.0 (full), Analog I/O (stereo-mini),
AC adapter (DC 5V IN)
Power consumption (max):
USB bus power: 2.5 W or less, Self power: 3.0 W or less
Radio interference standard:
FCC Part 15 (US)
EN55022 (EU)
Operating environment:
Temperature: 0 to 40°C (32 to 104°F),
Humidity: 20 to 85%
Dimensions (W x H x D):
229 x 34 x 152 mm (9-1/32" x 1-11/32" x 6")
Weight:
570 g (1.26 lbs)
Power source:
USB bus power, Self power
Accessories:
USB cable, CD-ROM, Quick Start Guide
Option:
AC adapter (sold separately)
Computer environment:
OS: Microsoft® Windows® Vista/XP Professional/
XP Home Edition/2000
CPU: 750 MHz or higher
(Intel® Pentium®/Celeron® equivalent processor)
Memory: 128 MB or more
(256 MB or more recommended)
Other:
Firmware revision upgrade
(transfer from PC through USB)
Arrayed microphones:
4 units x 3 lines
Speaker:
2 units, monaural output, stereo output (when using the
speaker only)
Frequency bandwidth:
300 to 20,000 Hz
Signal processing:
Adaptive echo canceller, Microphone array control,
Stereo output
Specifications
General Audio
(December 2007, 1st edition)

Navigation menu
