TV
BD/DVD player Cable/Satellite Box

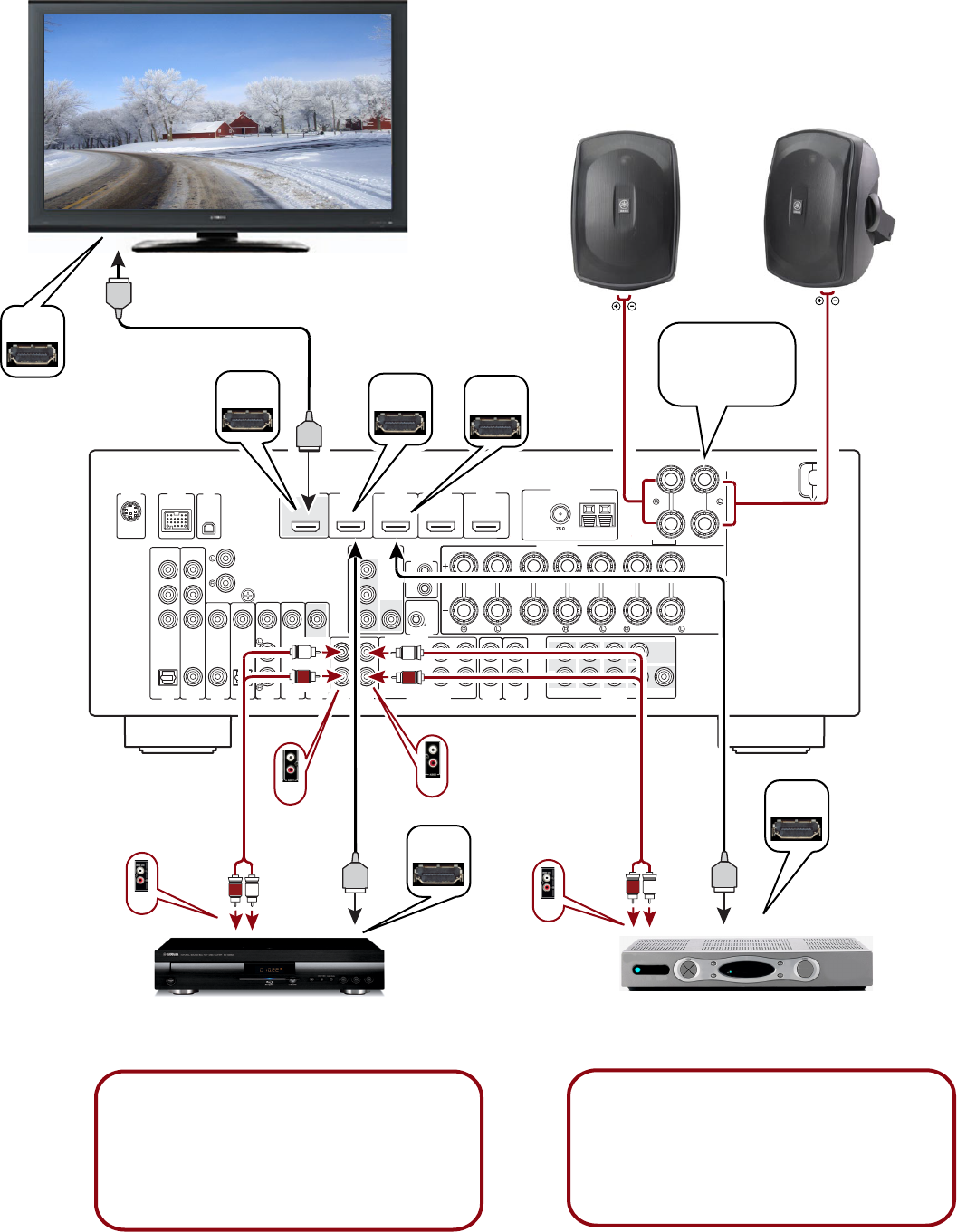

RX-V1065 Zone 2 Hookup Example
Zone 2
PREPARATION
BASIC
OPERATION
DOCK
PHONO
COMPONENT
VIDEO
PR
PB
Y
OPTICAL
( TV )
AV 1
AV 2
COAXIAL
AV 3
(CD)
COAXIAL OPTICAL
AV 4 AV 5 AV 6
AV
OUT
AUDIO1 AUDIO2
FRONT
SURROUND
SUR.BACK
SUBWOOFER
MULTI CH INPUT
AUDIO
OUT
ZONE2
OUT
FRONT
SURROUND
SUR. BACK SUBWOOFER
PRE OUT
CENTER
SINGLE
VIDEO
GND
ANTENNA
UNBAL.
FM
HD Radio
GND
AM
VIDEO
IN
OUT
MONITOR OUT
SPEAKERS
TRIGGER OUT
12V
0.1A MAX.
FRONT
CENTER
SINGLE
CLASS 2 WIRING
SURROUND
SURROUND BACK/
BI-AMP
EXTRA SP
ZONE2/PRESENCE
1 2
CENTER
PR
PB
Y
REMOTE
COMPONENT
VIDEO
SIRIUS
XM
HDMI
(BD/DVD)
OUT
HDMI 2 HDMI 3 HDMI 4
HDMI 1
TRIGGER OUT
OUT
HDMI
IN
HDMI
Analog
Output
OUT
HDMI
OUT
HDMI
Analog
Output
Audio 1
Input
Audio 2
Input
IN 1
HDMI HDMI
IN 2
To select the Cable/Satellite Box as a
source for Zone 2, the Audio 2 input
on the receiver must be selected in
NOTE:
To select the BD/DVD player as a
source for Zone 2, the Audio 1 input
on the receiver must be selected in
NOTE:
Zone 2. Zone 2
Extra SP
Zone 2/ Presence
Speaker Terminal
Zone 2 setup on the RX-V1065 using the Internal Power Amp
The RX-V1065 Extra Speaker Terminals can power one set of speakers for Zone 2 or Presence
speakers. If the Extra Speaker Terminals are utilized then the RX-V1065 cannot be set for 7.1
(Surround Back terminals.) or Bi Amp (Surround Back terminals.)
SettingtheExtra Speaker Terminals
Note: The RX-V1065 remote control will be used to access the Setup Menu of receiver.
1. Press the On Screen button on the remote control to enter the.
2. Scene BD/DVD will come up on the receiver LED Screen.
3. Arrow down to until Setup comes up in the receiver LED Screen.
4. Press the Enter Button on the remote control.
5. Setup/Speaker Setup will come up on the receiver LED Screen.
6. Press the Enter Button on the remote control.
7. SP Set/1. Auto Setup will come up on the receiver LED Screen.
8. Arrow down until 2 Manual Setup comes up in the receiver LED Screen.
9. Press the Enter Button on the remote control.
10. SP/Set, A) Config will come up on the receiver LED Screen.
11. Press the Enter Button on the remote control.
12. Config, Extra………None will come up on the receiver LED Screen.
13. Use the Left/Right Arrow buttons on the remote to change the Extra to: Extra……….Zone2.
14. Use the Return and Setup buttons on the remote to exit the Setup Menu.
15. Extra Speaker setup is complete.
To control Zone 2 using the RX-V1065 remote the switch at the upper most left hand corner of the remote
must be set to Zone 2. Once the remote has been set to Zone 2 the following commands will be
available:
1. Selecting the input source (AV5-6, AUDIO1-2, and V-AUX) of Zone 2.
2. Adjusting the volume of Zone 2 (when a Zone 2 speaker is connected to the EXTRA SP jack).
3. Tuning into FM or AM when “TUNER” is selected as the input source of Zone 2 (see page 29 of
the owner’s manual).
4. Tuning into XM Satellite Radio when “XM” is selected as the input source of Zone 2 (see page
33) (U.S.A. model only).
5. Tuning into SIRIUS Satellite Radio when “SIRIUS” is selected as the input source of Zone 2
(see page 37) (U.S.A. model only).
6. Playing back music stored on your iPod stationed in a Yamaha iPod universal dock (such as
YDS-10, YDS-11 and YDS-12 sold separately) connected to the DOCK terminal.
Note: Only Analog signals can be sent to Zone 2. If you want to output the sound from Zone 2, connect
an external component to AV 5-6 or Audio 1-2 by analog connection.
Important Safety Notice:
The EXTRA SP Speaker Terminals of this unit should not be connected to a Passive Loudspeaker
Selector Box or more than one Loudspeaker per Channel. Connection to a Passive Loudspeaker
Selector Box or Multiple Speakers per channel could create an abnormally low impedance load
resulting in amplifier damage.
