RX-V765 Owner's Manual
- English
RX-V765 Controls Diagram

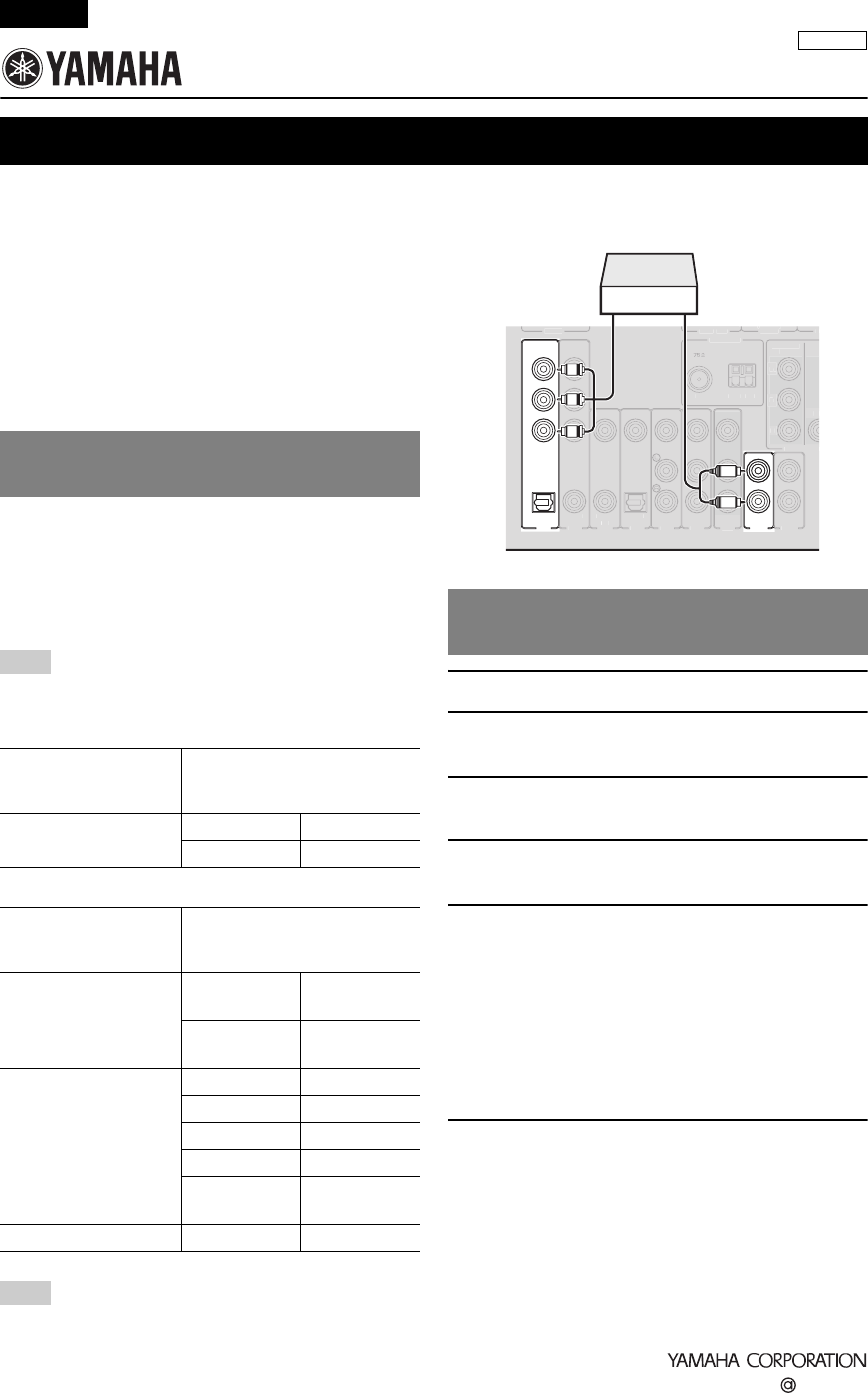

RX-V765 flyer

RX-V765

AV Receiver

OWNER’S MANUAL

Caution-i En

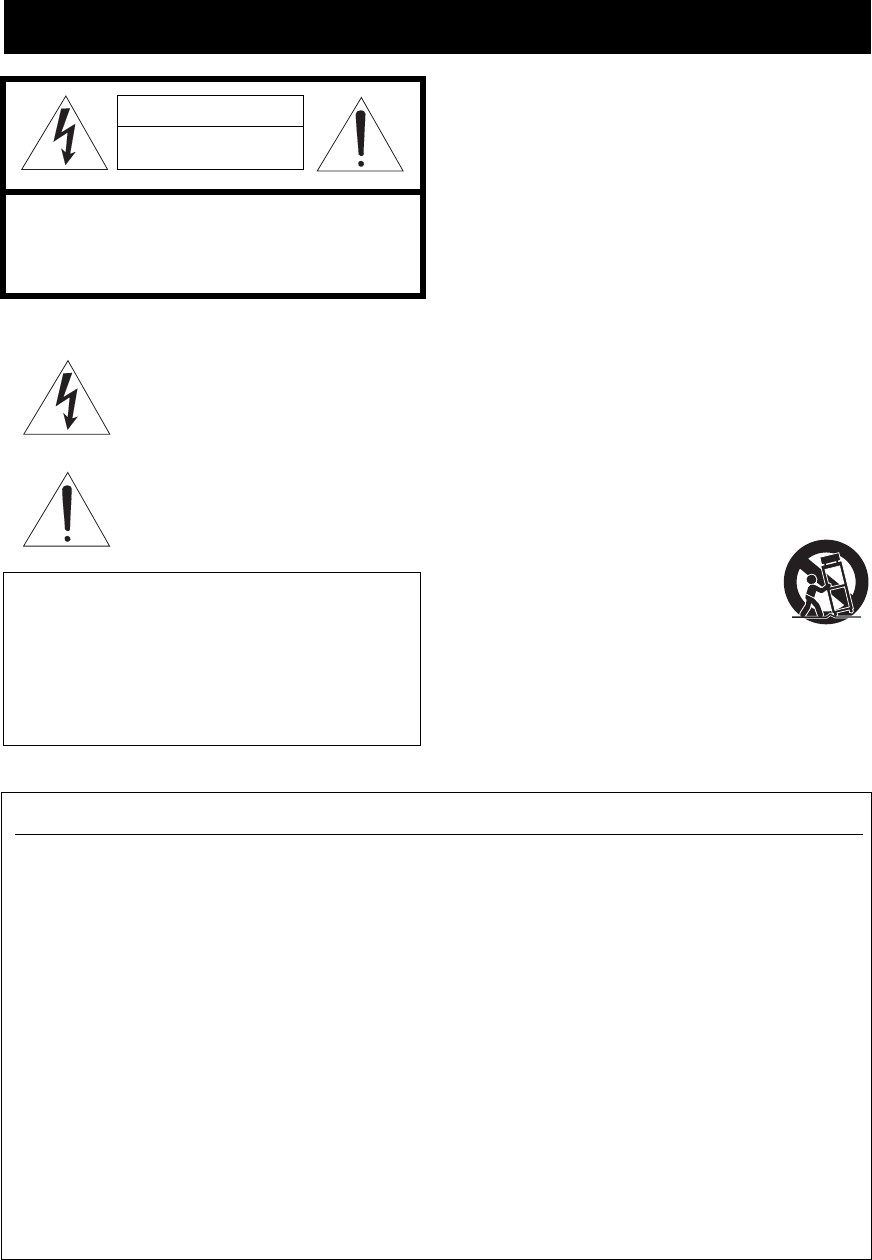

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert you to the

presence of uninsulated “dangerous voltage” within

the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle

is intended to alert you to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use this apparatus near water.

6Clean only with dry cloth.

7Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers)

that produce heat.

9Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided plug

does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

IMPORTANT SAFETY INSTRUCTIONS

Note to CATV system installer:

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical.

FCC INFORMATION (for US customers)

1 IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions

contained in this manual, meets FCC requirements. Modifications

not expressly approved by Yamaha may void your authority,

granted by the FCC, to use the product.

2 IMPORTANT:

When connecting this product to accessories

and/or another product use only high quality shielded cables.

Cable/s supplied with this product MUST be used. Follow all

installation instructions. Failure to follow instructions could void

your FCC authorization to use this product in the USA.

3NOTE:

This product has been tested and found to comply with

the requirements listed in FCC Regulations, Part 15 for Class “B”

digital devices. Compliance with these requirements provides a

reasonable level of assurance that your use of this product in a

residential environment will not result in harmful interference with

other electronic devices.

This equipment generates/uses radio frequencies and, if not

installed and used according to the instructions found in the users

manual, may cause interference harmful to the operation of other

electronic devices.

Compliance with FCC regulations does not guarantee that

interference will not occur in all installations. If this product is

found to be the source of interference, which can be determined by

turning the unit “OFF” and “ON”, please try to eliminate the

problem by using one of the following measures:

Relocate either this product or the device that is being affected by

the interference.

Utilize power outlets that are on different branch (circuit breaker or

fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the

antenna. If the antenna lead-in is 300 ohm ribbon lead, change the

lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results,

please contact the local retailer authorized to distribute this type of

product. If you can not locate the appropriate retailer, please

contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe

Ave, Buena Park, CA 90620.

The above statements apply ONLY to those products distributed by

Yamaha Corporation of America or its subsidiaries.

CAUTION

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Caution-ii En

1To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2Install this sound system in a well ventilated, cool, dry, clean

place – away from direct sunlight, heat sources, vibration,

dust, moisture, and/or cold. Allow ventilation space of at least

30 cm on the top, 20 cm on the left and right, and 20 cm on

the back of this unit.

3Locate this unit away from other electrical appliances, motors,

or transformers to avoid humming sounds.

4Do not expose this unit to sudden temperature changes from

cold to hot, and do not locate this unit in an environment with

high humidity (i.e. a room with a humidifier) to prevent

condensation inside this unit, which may cause an electrical

shock, fire, damage to this unit, and/or personal injury.

5Avoid installing this unit where foreign objects may fall onto

this unit and/or this unit may be exposed to liquid dripping or

splashing. On the top of this unit, do not place:

– Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and liquid

may cause electrical shock to the user and/or damage to

this unit.

6Do not cover this unit with a newspaper, tablecloth, curtain,

etc. in order not to obstruct heat radiation. If the temperature

inside this unit rises, it may cause fire, damage to this unit,

and/or personal injury.

7Do not plug in this unit to a wall outlet until all connections

are complete.

8Do not operate this unit upside-down. It may overheat,

possibly causing damage.

9Do not use force on switches, knobs and/or cords.

10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this

unit with a higher voltage than specified is dangerous and may

cause fire, damage to this unit, and/or personal injury. Yamaha

will not be held responsible for any damage resulting from use

of this unit with a voltage other than specified.

13 To prevent damage by lightning, keep the power cord and

outdoor antennas disconnected from a wall outlet or the unit

during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact qualified

Yamaha service personnel when any service is needed. The

cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time

(i.e. vacation), disconnect the AC power plug from the wall

outlet.

16 Install this unit near the AC outlet and where the AC power

plug can be reached easily.

17 Be sure to read the “Troubleshooting” section on common

operating errors before concluding that this unit is faulty.

18 Before moving this unit, press AMAIN ZONE ON/OFF

to set this unit to the standby mode, and disconnect the AC

power plug from the wall outlet in the main room.

19 VOLTAGE SELECTOR (Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit

must be set for your local main voltage BEFORE plugging

into the AC wall outlet. Voltages are:

.......AC 110/120/220/230–240 V, 50/60 Hz (General model)

.......................... AC 220/230–240 V, 50/60 Hz (Asia model)

20 The batteries shall not be exposed to excessive heat such as

sunshine, fire or like.

21 Excessive sound pressure from earphones and headphones can

cause hearing loss.

22 When replacing the batteries, be sure to use batteries of the

same type. Danger of explosion may happen if batteries are

incorrectly replaced.

Caution: Read this before operating your unit.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE.

As long as this unit is connected to the AC wall outlet,

it is not disconnected from the AC power source even

if you turn off this unit by AMAIN ZONE ON/

OFF. In this state, this unit is designed to consume a

very small quantity of power.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to

wide slot and fully insert.

This Class B digital apparatus complies with Canadian

ICES-003.

POUR LES CONSOMMATEURS CANADIENS

Pour éviter les chocs électriques, introduire la lame la

plus large de la fiche dans la borne correspondante de

la prise et pousser jusqu’au fond.

Cet appareil numérique de la classe B est conforme à

la norme NMB-003 du Canada.

IMPORTANT

Please record the serial number of this unit in the space

below.

MODEL:

Serial No.:

The serial number is located on the rear of the unit.

Retain this Owner’s Manual in a safe place for future

reference.

1 En

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Features.................................................................... 2

About this manual................................................... 3

Supplied accessories................................................ 3

Part names and functions....................................... 4

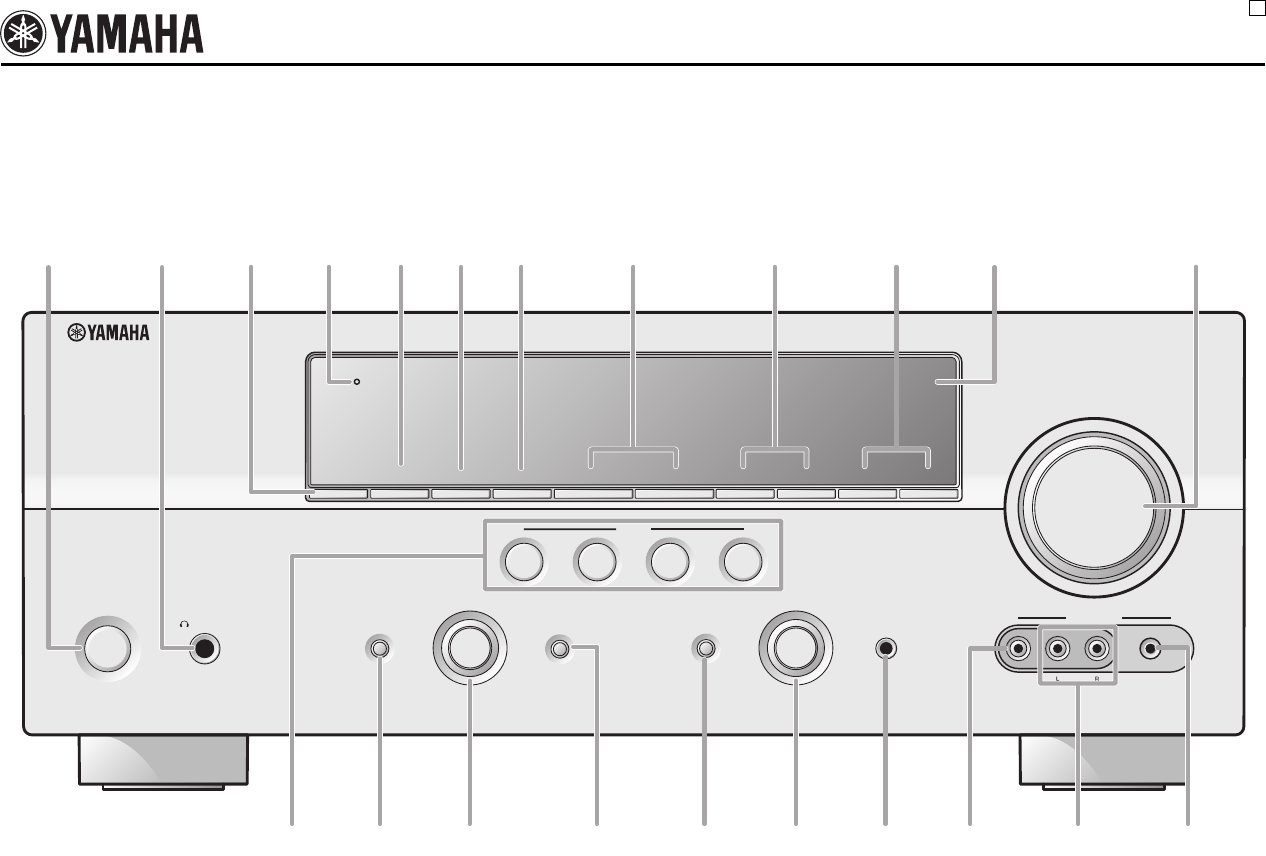

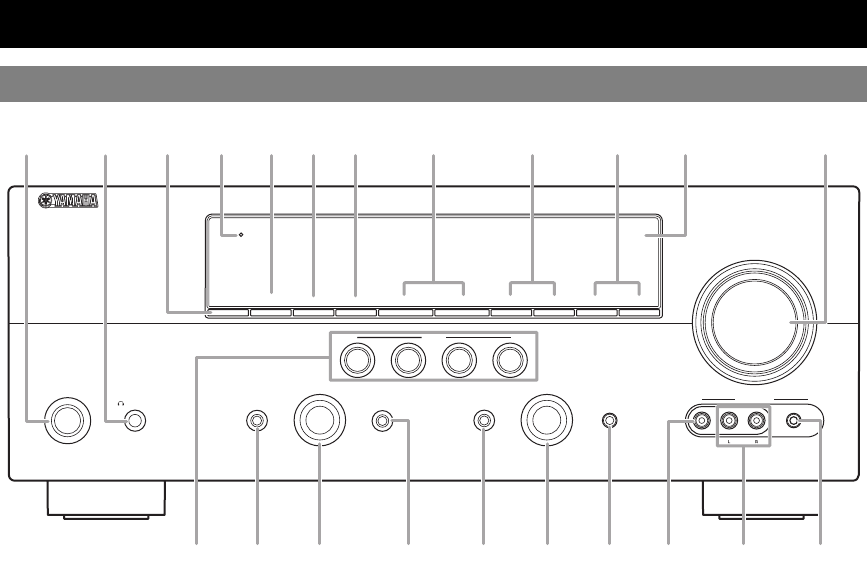

Front panel ................................................................. 4

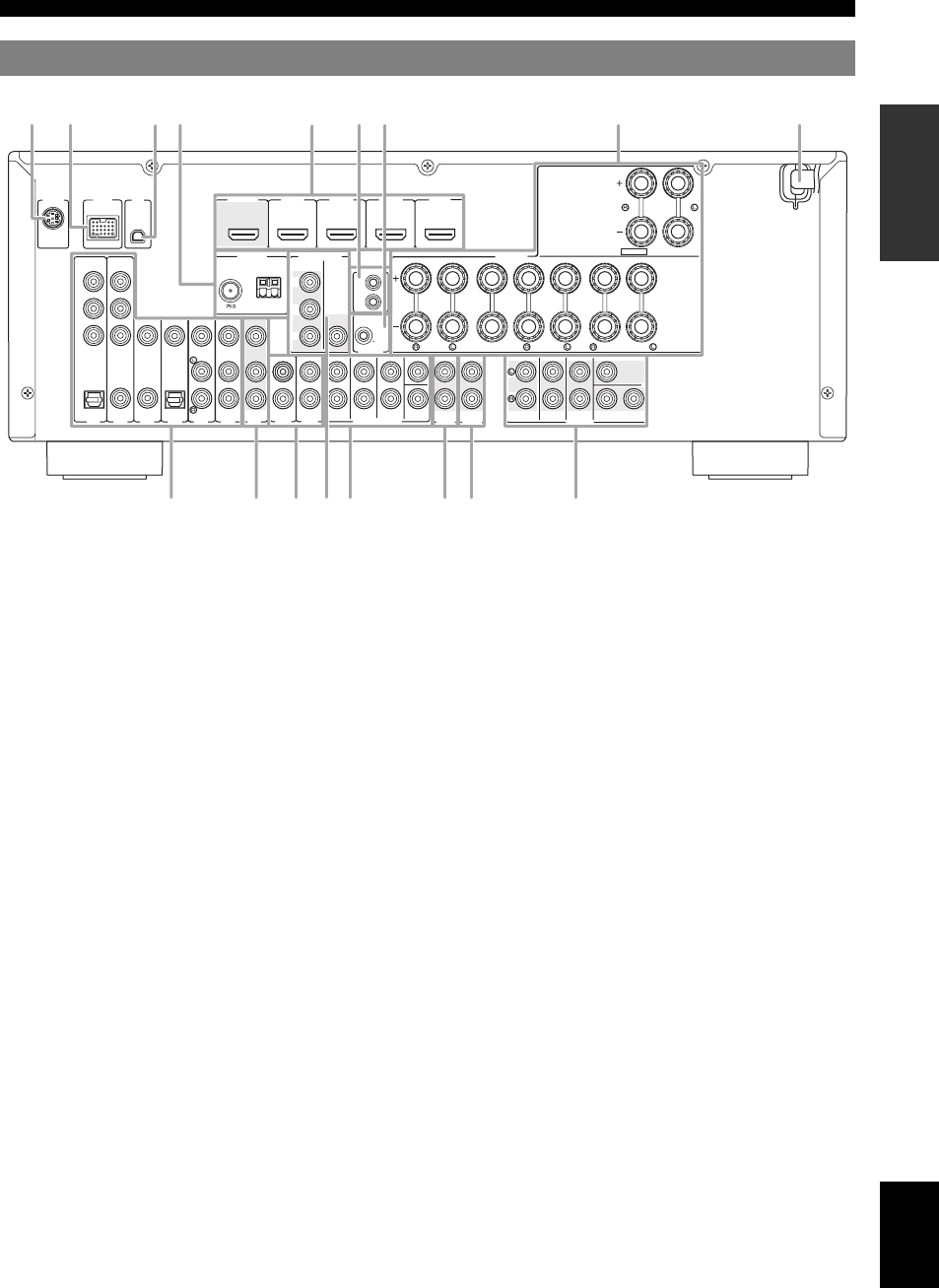

Rear panel .................................................................. 5

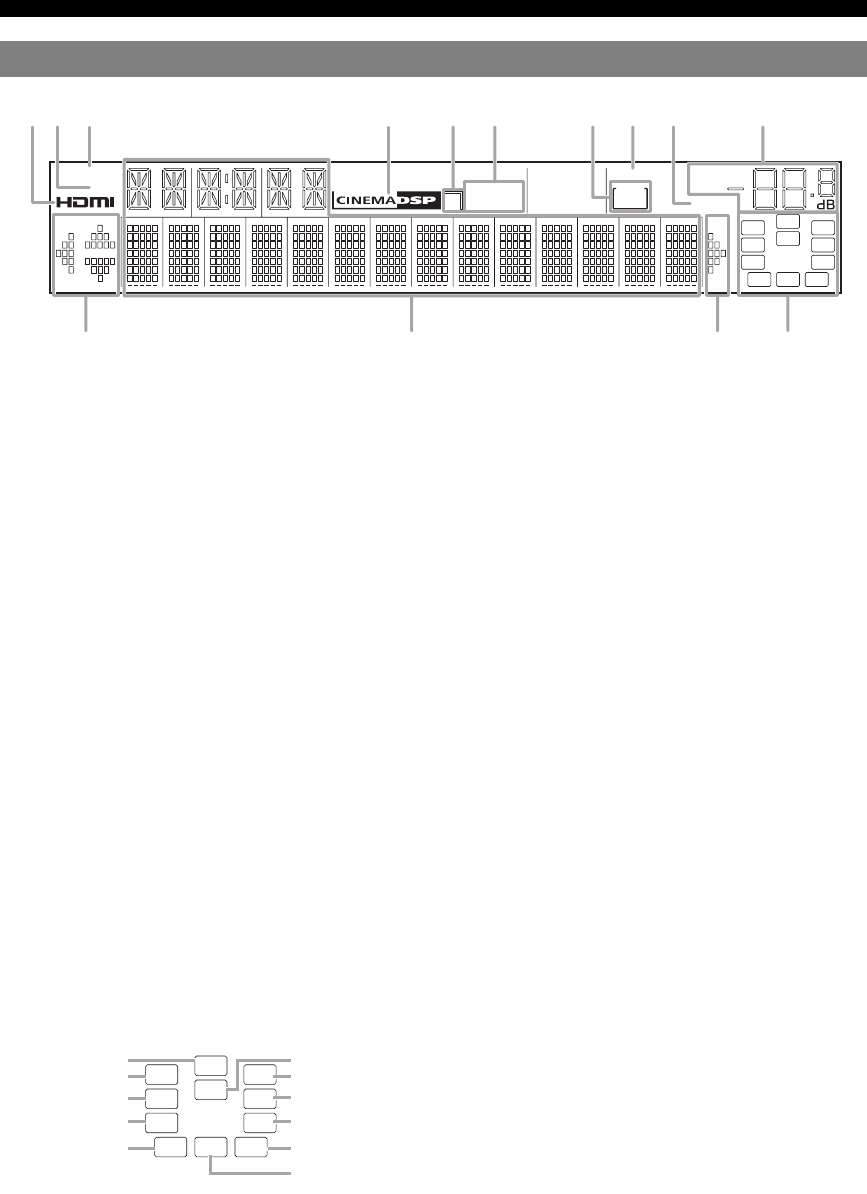

Front panel display..................................................... 6

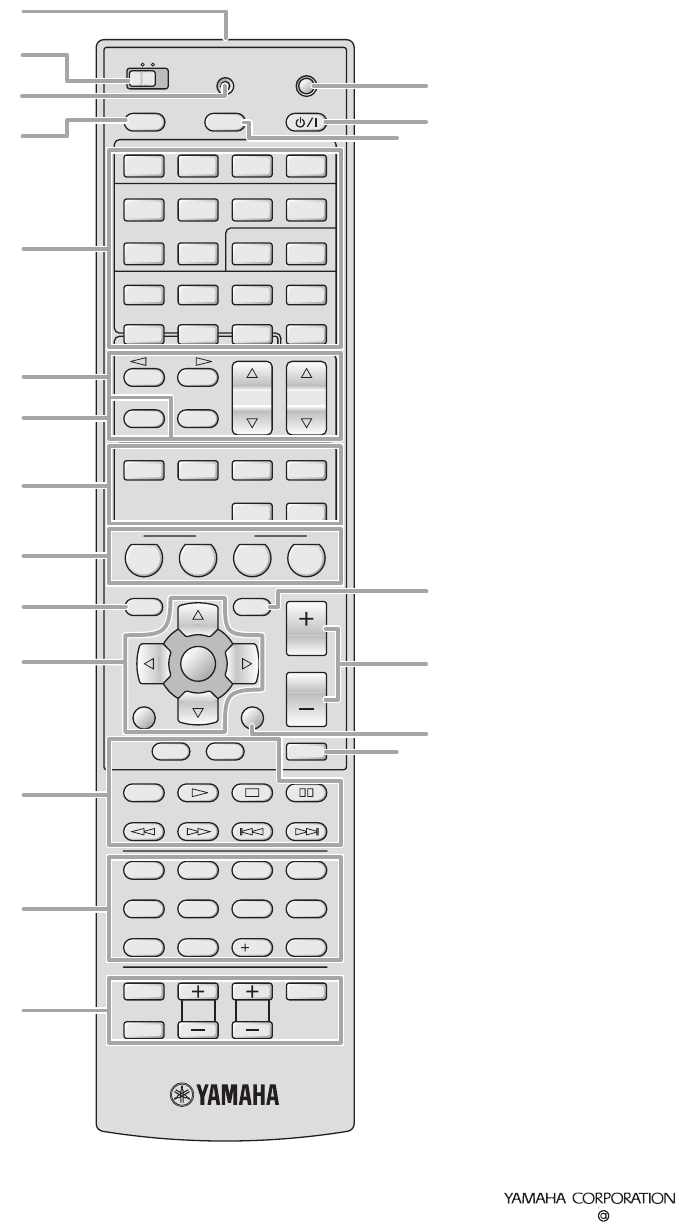

Remote control........................................................... 7

Quick start guide.....................................................8

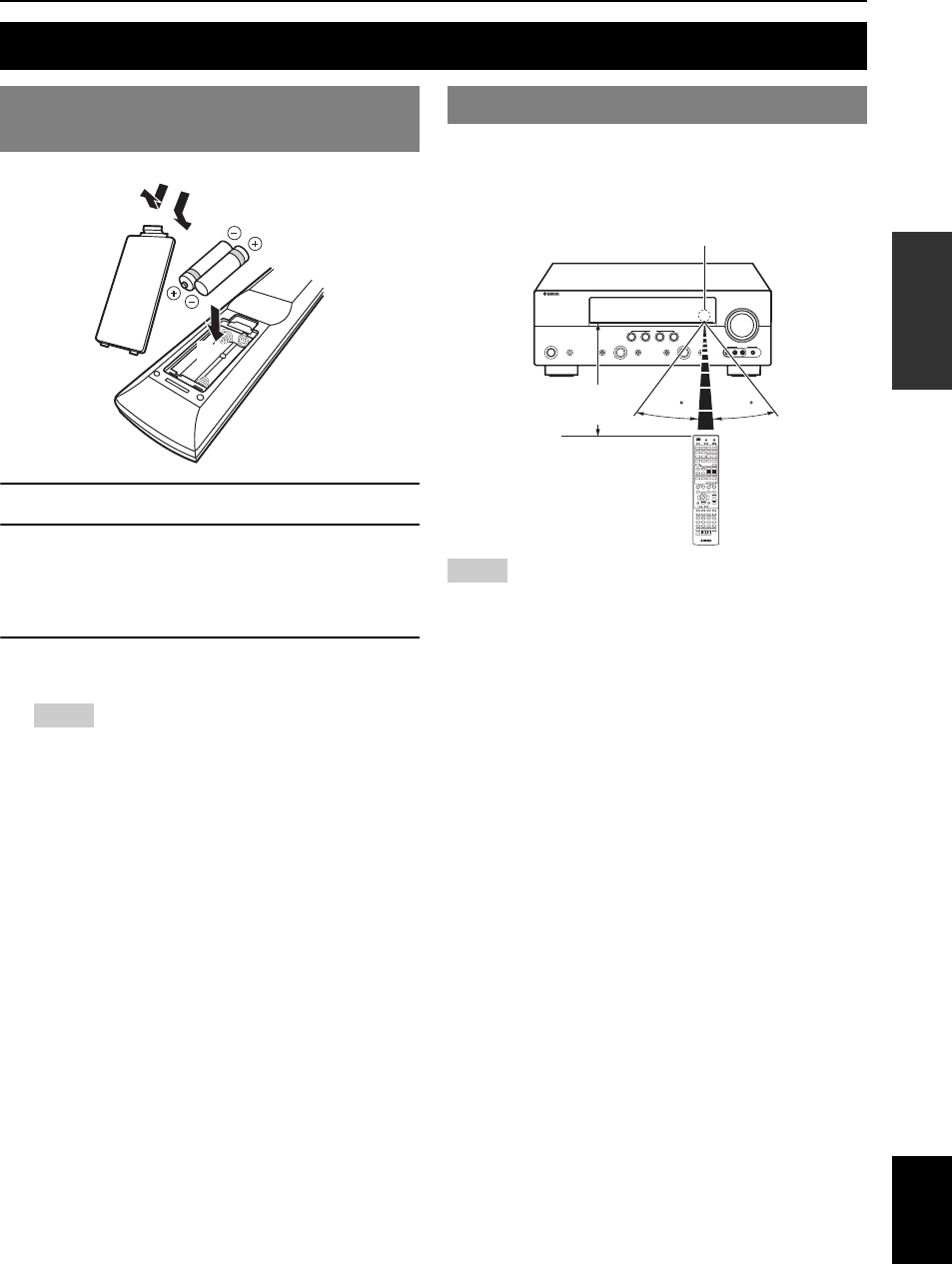

Preparing remote control ....................................... 9

Installing batteries in the remote control ................... 9

Using the remote control............................................ 9

Connections ...........................................................10

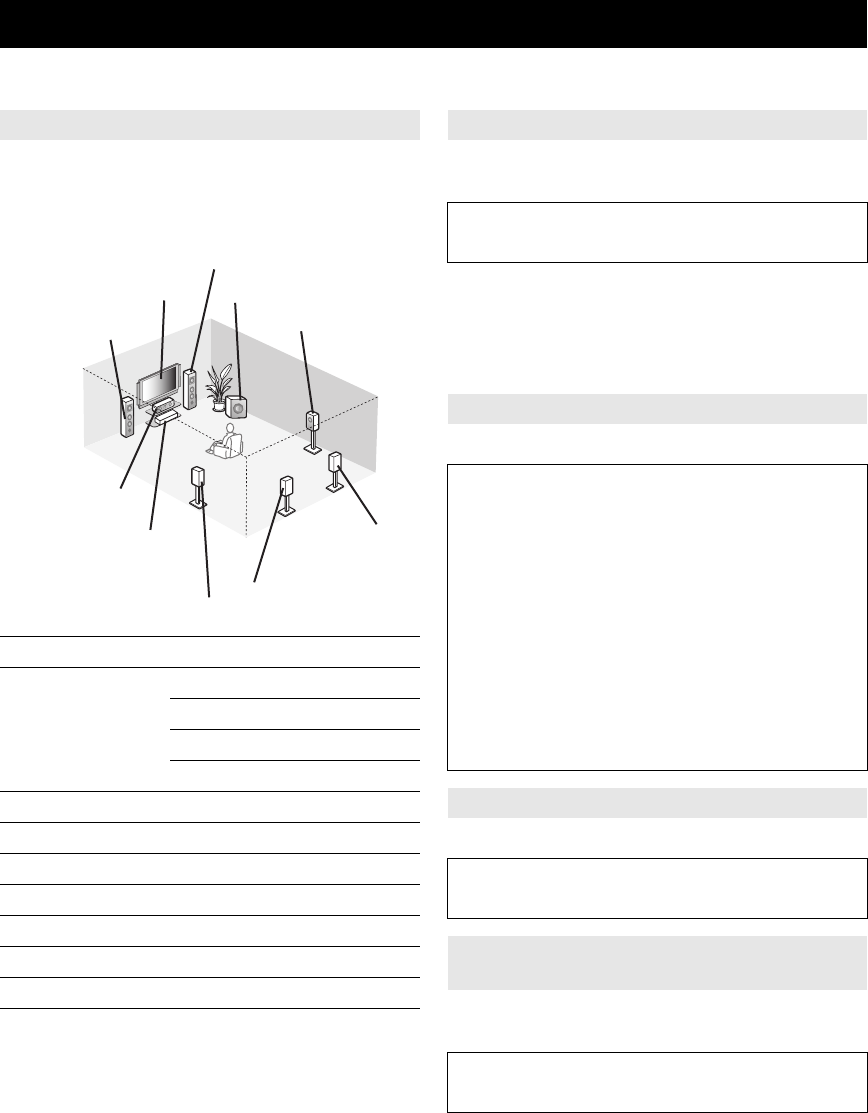

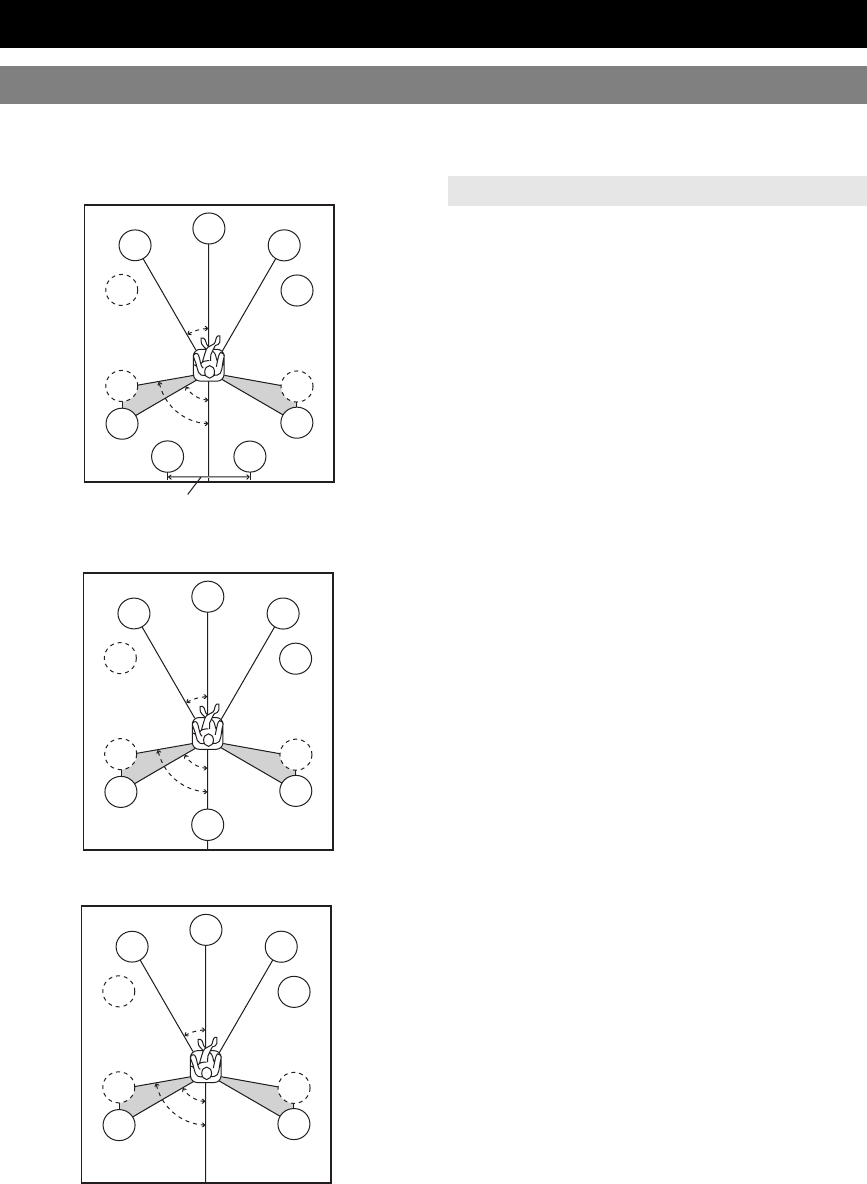

Placing speakers....................................................... 10

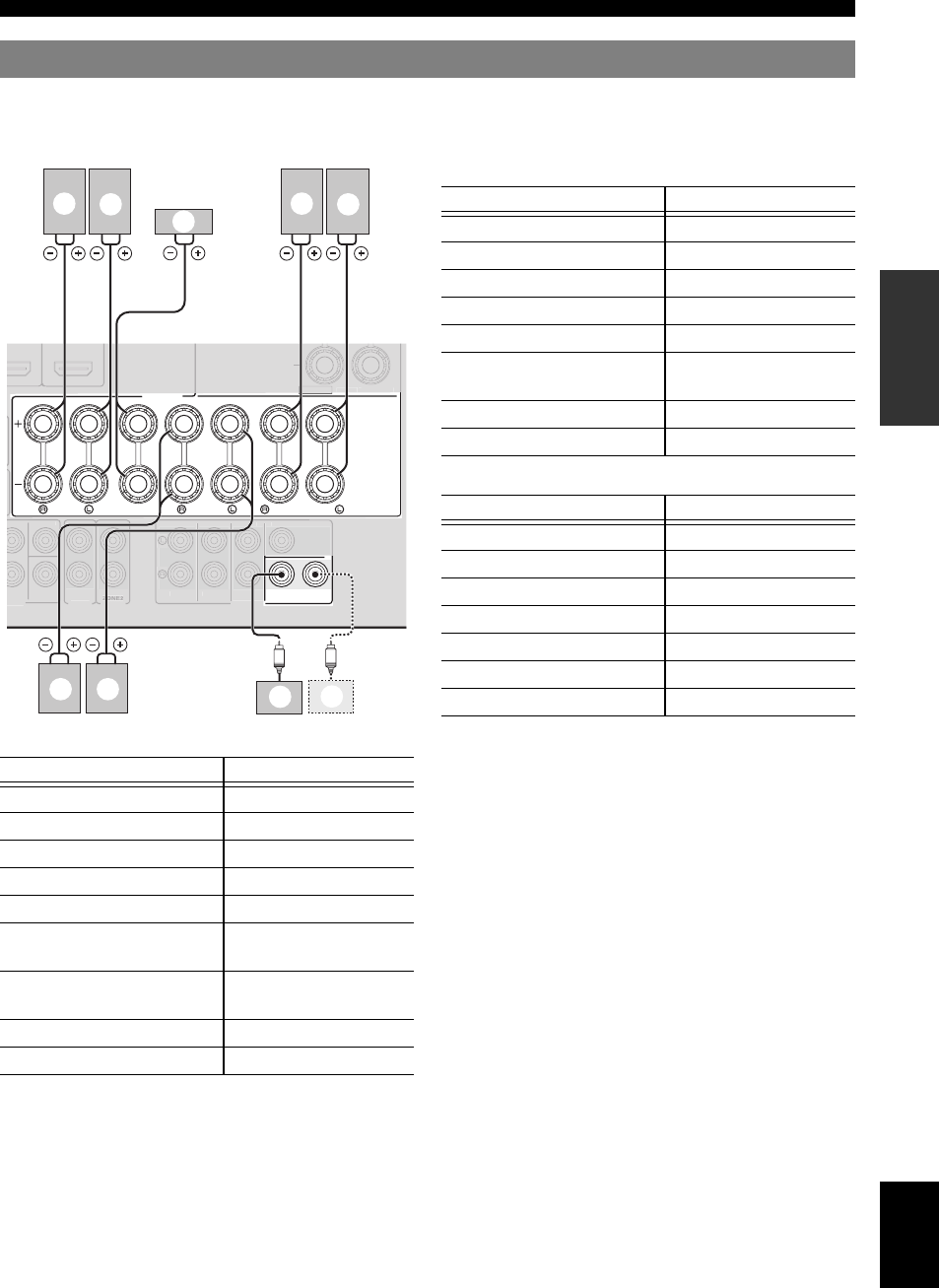

Connecting speakers ................................................ 11

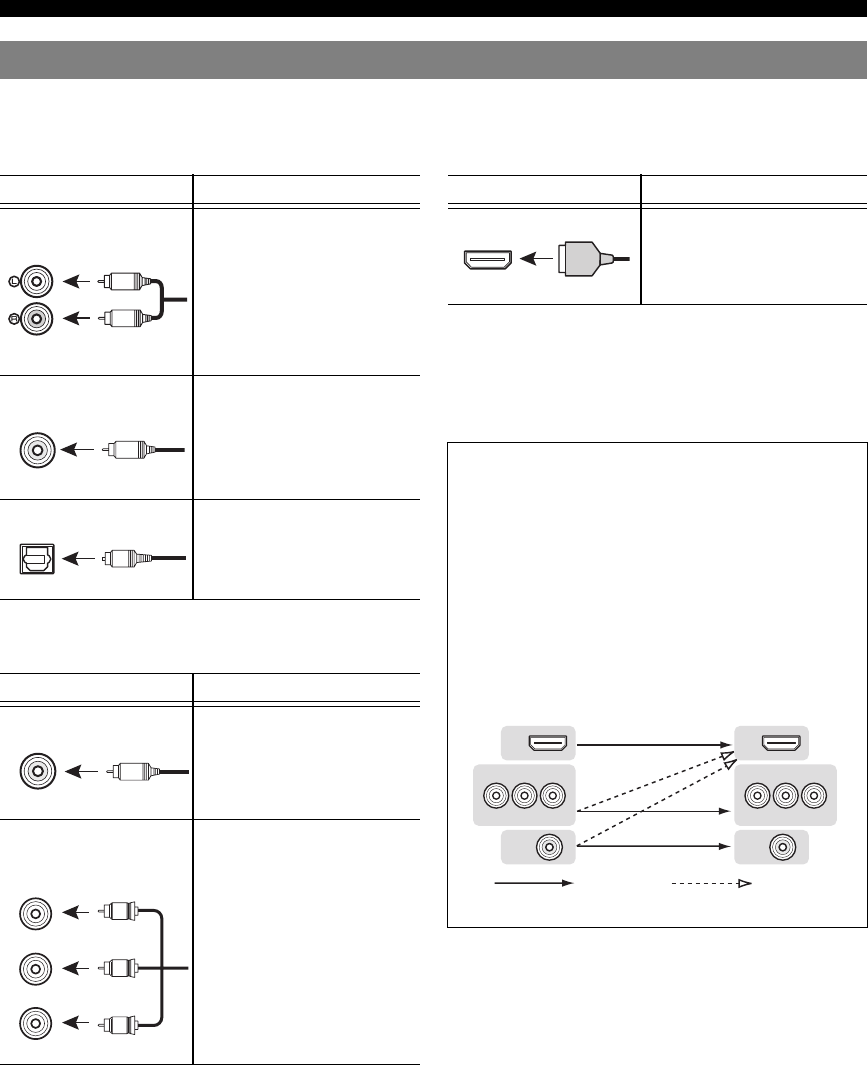

Information on jacks and cable plugs ...................... 14

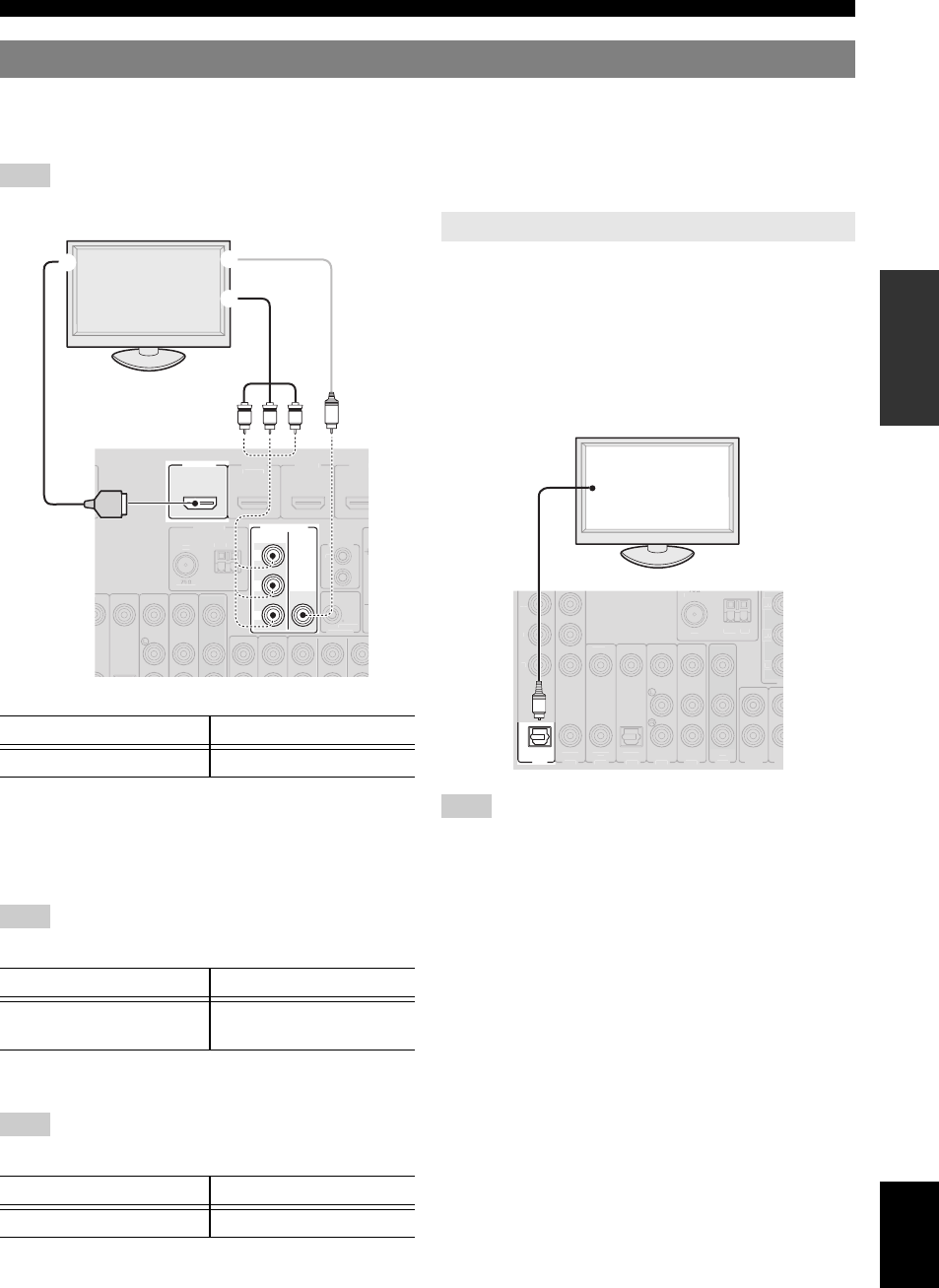

Connecting a video monitor..................................... 15

Connecting other components ................................. 16

Connecting a multi-format player or an external

decoder................................................................. 18

Connecting an external amplifier............................. 18

Using REMOTE IN/OUT jacks............................... 19

Connecting a Yamaha iPod universal dock or

Bluetooth™ wireless audio receiver.................... 19

Connecting a camcorder or portable audio player ... 19

Connecting the FM and AM antennas ..................... 20

Connecting the power cable..................................... 20

Turning this unit on and off ..................................... 20

Optimizing the speaker setting for your

listening room (YPAO) .....................................21

Using Auto Setup..................................................... 21

When an error message is displayed during

measurement ........................................................ 23

When a warning message is displayed after

measurement ........................................................ 23

Playback.................................................................24

Basic procedure........................................................ 24

Using the SCENE function ...................................... 24

Muting audio output temporarily (MUTE).............. 25

Adjusting high/low frequency sound

(tone control) ....................................................... 25

Enjoying pure hi-fi sound (Pure Direct mode) ........ 25

Using your headphones............................................ 26

Displaying input signal information ........................ 26

Changing information on the front panel display .... 26

Enjoy the sound field programs .......................... 27

Selecting sound field programs................................ 27

Enjoying unprocessed input sources

(Straight decoding mode) .................................... 30

Enjoying sound field programs without surround

speakers (Virtual CINEMA DSP) ....................... 30

Enjoy sound field programs with headphones

(SILENT CINEMA™) ........................................ 30

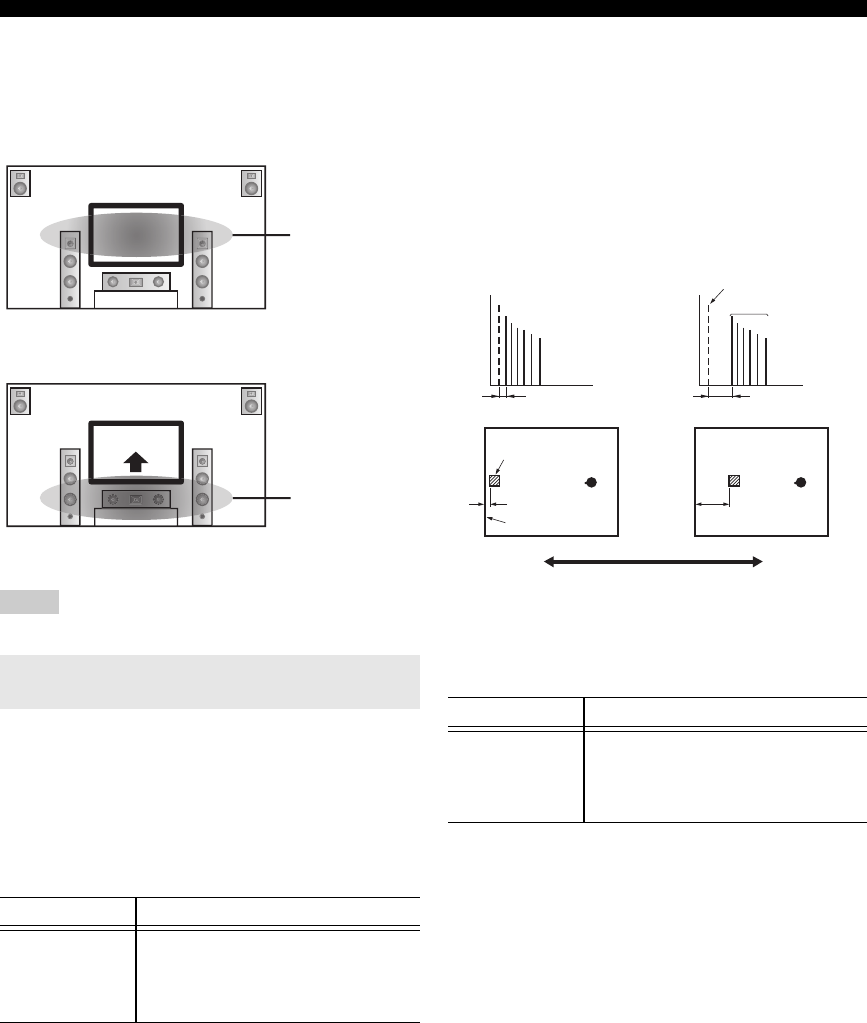

Enjoying more spatial sound fields

(CINEMA DSP 3D mode)................................... 30

FM/AM tuning ......................................................31

Tuning into the desired FM/AM station

(Frequency tuning mode)..................................... 31

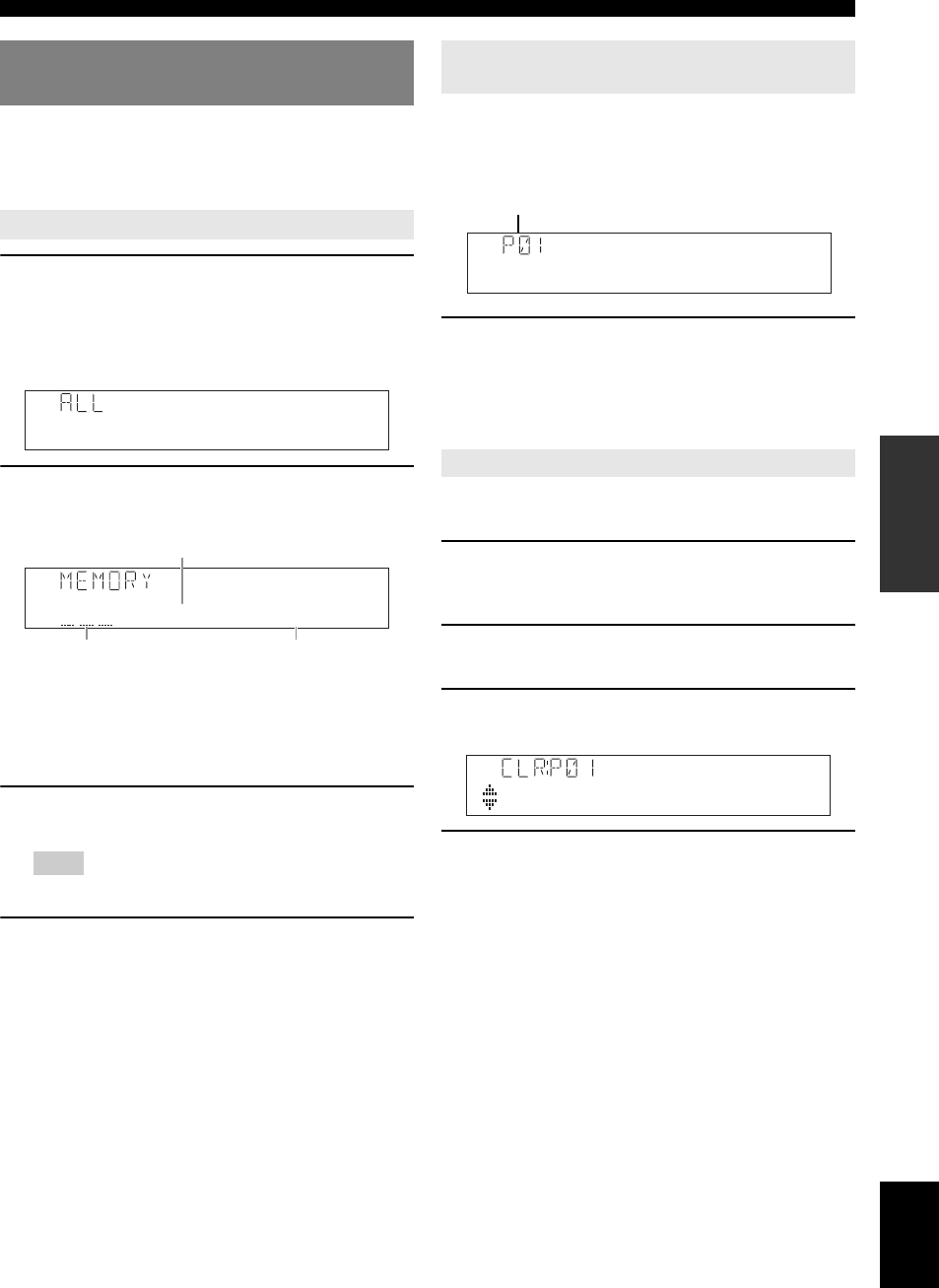

Registering FM/AM stations and tuning in

(Preset tuning mode)............................................ 31

XM® Satellite Radio tuning

(U.S.A. model only) ........................................... 33

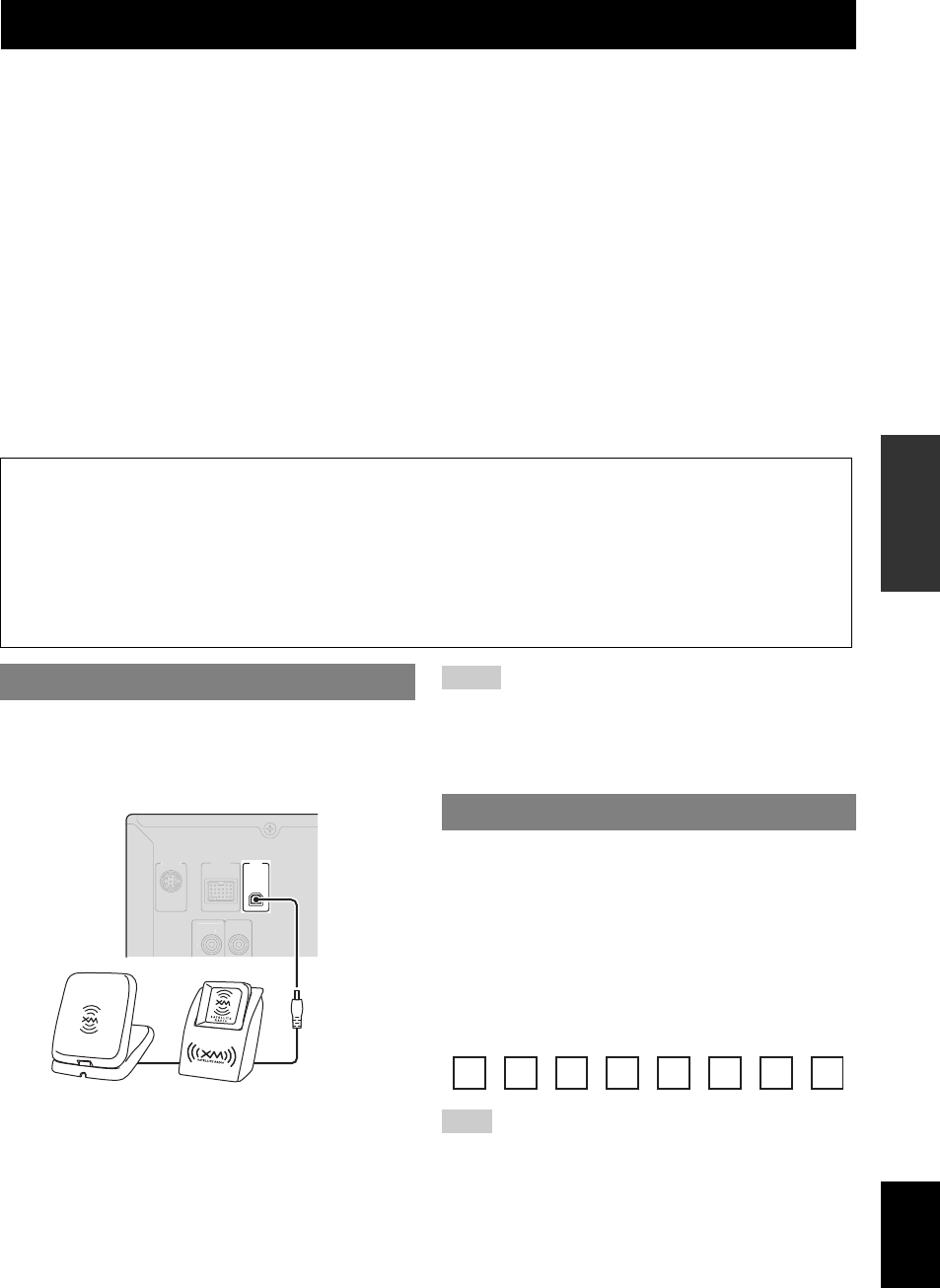

Connecting XM Mini-Tuner Home Dock ............... 33

Activating XM Satellite Radio ................................ 33

XM Satellite Radio operations................................. 34

Registering XM Satellite Radio channels ................ 35

Displaying the XM Satellite Radio information ...... 36

SIRIUS Satellite Radio™ tuning

(U.S.A. model only)........................................... 37

Connecting the SiriusConnect™ tuner .................... 37

Activating SIRIUS Satellite Radio™

subscription.......................................................... 37

SIRIUS Satellite Radio™ operations....................... 37

Registering the SIRIUS Satellite Radio™

channels ............................................................... 39

Setting the Parental Lock......................................... 40

Displaying the SIRIUS Satellite Radio™

information .......................................................... 41

Using iPod™.......................................................... 42

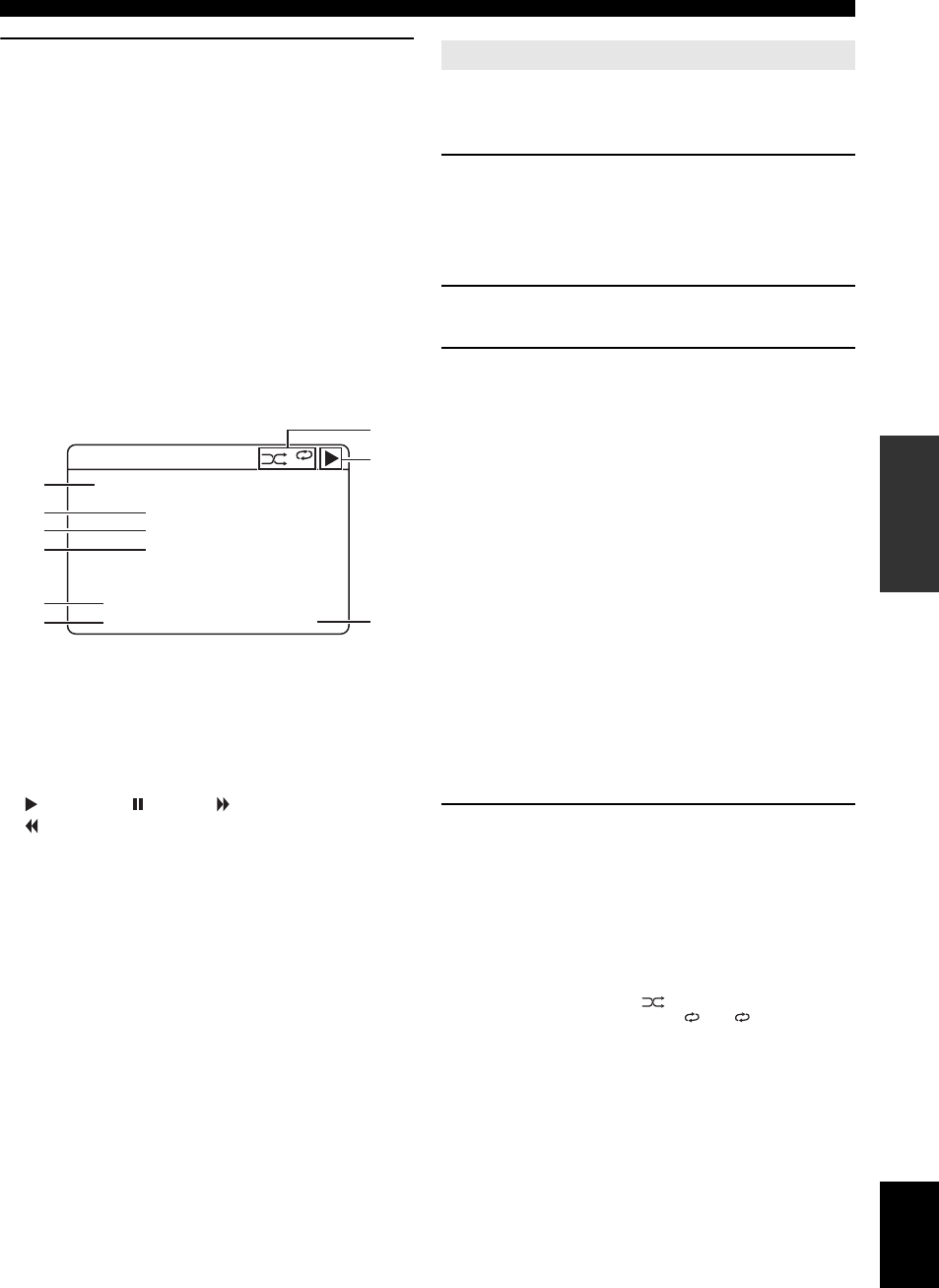

Controlling iPod™................................................... 42

Using Bluetooth™ components ........................... 44

Pairing the Bluetooth™ wireless audio receiver

and your Bluetooth™ component........................ 44

Playback of the Bluetooth™ component ................. 44

Other functions ..................................................... 45

Using the sleep timer ............................................... 45

Using the HDMI™ control function........................ 45

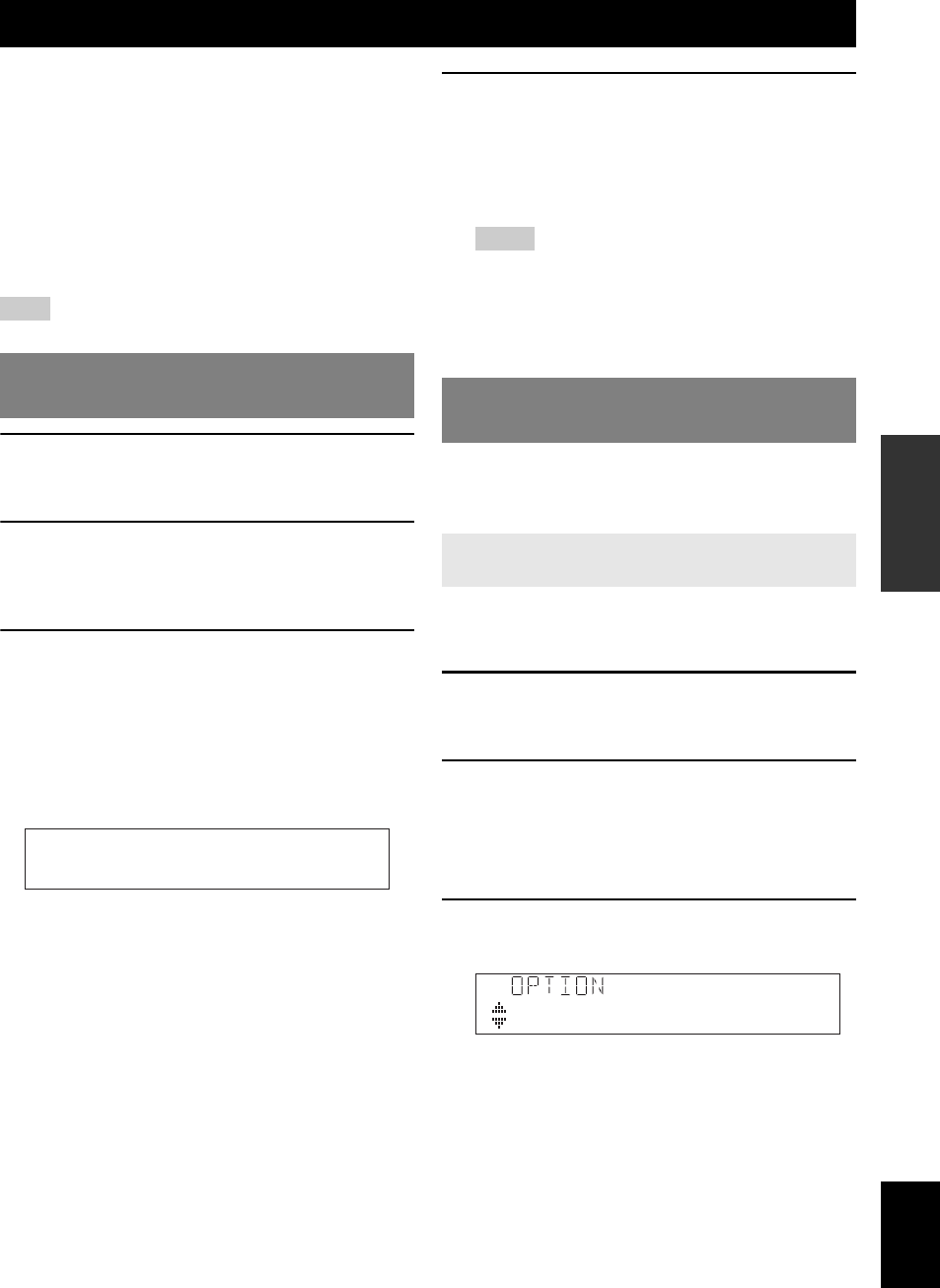

Setting the option menu for each input source

(OPTION menu) ............................................... 46

OPTION menu items ............................................... 46

Outputting a video signal input from another

input source during reproducing a multi-channel

audio signal.......................................................... 48

Editing surround decoders/sound field

programs ........................................................... 49

Setting sound field parameters................................. 49

Sound field parameters ............................................ 49

Changing various settings of this unit

(SETUP menu) .................................................. 53

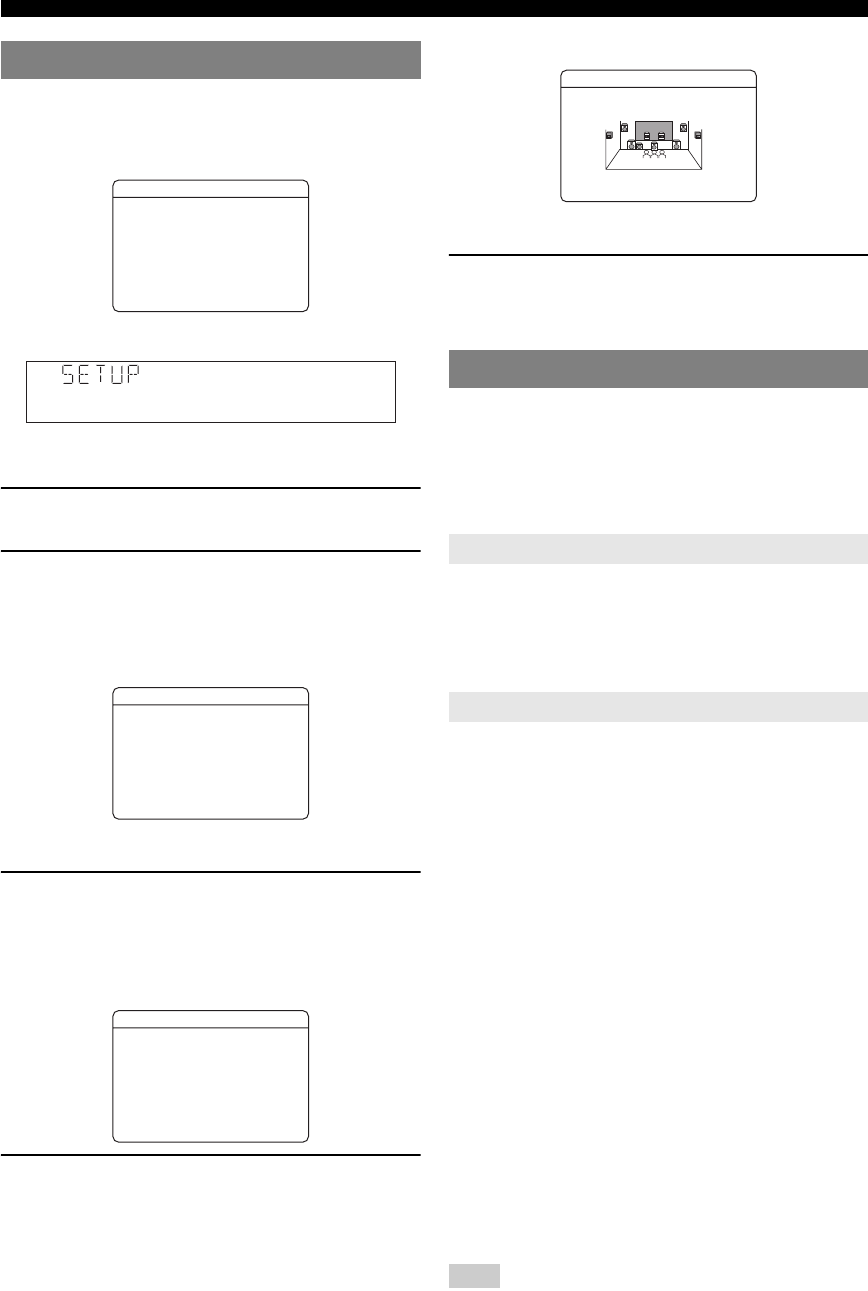

Basic operation of the SETUP menu ....................... 54

Speaker Setup .......................................................... 54

Sound Setup ............................................................. 56

Function Setup ......................................................... 57

DSP Parameter ......................................................... 59

Memory Guard......................................................... 59

Using multi-zone configuration ........................... 60

Connecting Zone2.................................................... 60

Controlling Zone2.................................................... 61

Controlling other components with the remote

control................................................................ 62

Setting remote control codes.................................... 63

Resetting all remote control codes........................... 63

Advanced setup..................................................... 64

Troubleshooting.................................................... 66

General..................................................................... 66

HDMI™................................................................... 69

Tuner (FM/AM) ....................................................... 70

XM Satellite Radio (U.S.A. model only)................. 70

SIRIUS Satellite Radio™ (U.S.A. model only) ...... 71

Remote control......................................................... 72

iPod™ ...................................................................... 73

Bluetooth™.............................................................. 74

Auto Setup (YPAO)................................................. 74

Glossary ................................................................. 77

Sound field program information ....................... 79

Information on HDMI™...................................... 79

Specifications......................................................... 80

Index ...................................................................... 81

(at the end of this manual)

Contents

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERATION

APPENDIX

List of remote control codes...................................i

2 En

INTRODUCTION

■Built-in 7-channel power amplifier

•Minimum RMS Output Power (20 Hz-20 kHz, 0.08%

THD, 8 Ω)

•FRONT L/R: 95 W + 95 W

•CENTER: 95 W

•SURROUND L/R: 95 W + 95 W

•SURROUND BACK L/R: 95 W + 95 W

■Speaker/Preout outputs

•Speaker jacks (7-channel + presence 2-channel), preout

output jacks (7-channel, and subwoofer preout jack x 2)

■Input/Output terminals

Input terminals

•HDMI input x 4

•Audio/Video input

[Audio] Digital input (coaxial) x 2, digital input

(optical) x 2, analog input x 2

[Video] Component video x 2, composite video x 4

•Audio input (analog) x 2

•Multi-channel audio input x 1

•Dock input x 1

•V-AUX input

[Audio] Analog x 1, stereo mini jack x 1

[Video] Composite video x 1

Output terminals

•Monitor output

[Audio/Video] HDMI x 1

[Video] Component video x 1, Composite video x 1

•Audio/Video output

[Audio] Analog x 1

[Video] Composite video x 1

•Audio output

Analog x 1

•Zone2 output

Analog x 1

Other terminals

Remote input x 1, Remote output x 1

Trigger output x 1

■Proprietary Yamaha technology for the

creation of sound fields

•CINEMA DSP 3D

•Compressed Music Enhancer mode

•Virtual CINEMA DSP

•SILENT CINEMA™

■Digital audio decoders

•Dolby TrueHD, Dolby Digital Plus

•DTS-HD Master Audio, DTS-HD High Resolution

Audio, DTS Express

•Dolby Digital, Dolby Digital EX

•DTS, DTS 96/24, DTS-ES Matrix 6.1,

DTS-ES Discrete 6.1

•Dolby Pro Logic, Dolby Pro Logic II,

Dolby Pro Logic IIx

•DTS NEO:6

•Neural Surround (U.S.A. model only)

•DSD

■Radio tuners

•FM/AM tuning capability

•XM Satellite Radio tuning capability, using XM Mini-

Tuner and Home Dock, sold separately (U.S.A. model

only)

•SIRIUS Satellite Radio tuning capability, using

SiriusConnect tuner, sold separately (U.S.A. model

only)

■HDMI™

(High-Definition Multimedia Interface)

•HDMI interface for standard, enhanced or high-

definition video as well as multi-channel digital audio

–Automatic audio and video synchronization (lip sync)

information capability

–Deep Color video signal (30/36 bit) transmission

capability

–“x.v.Color” video signal transmission capability

–High refresh rate and high resolution video signals

capability

–High definition digital audio format signals capability

•Analog video to HDMI digital video up-conversion

(composite video → HDMI, component video →

HDMI) capability for monitor out

•Analog video input up-scaling for HDMI digital video

output 480i or 480p → 720p, 1080i or 1080p

•HDMI control capability

■DOCK jack

•DOCK jack to connect a Yamaha iPod universal dock

(such as YDS-11, sold separately) or Bluetooth wireless

audio receiver (such as YBA-10, sold separately)

■Automatic speaker setup features

•“YPAO” (Yamaha Parametric Room Acoustic

Optimizer) for automatically optimizing speaker

outputs suitable for listening environments

■Other features

•192-kHz/24-bit D/A converter

•OSD (on-screen display) menus that allow you to

optimize this unit to suit your individual audiovisual

system

•Pure Direct mode for pure hi-fi sound for all sources

•Adaptive dynamic range controlling capability

•SCENE function that allows you to change input

sources and sound field programs with one key

•Sleep timer

•Multi-zone function

Features

3 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic and the double-D symbol are trademarks of Dolby

Laboratories.

Manufactured under license under U.S. Patent No’s:

5,451,942;5,956,674;5,974,380;5,978,762;6,226,616;6,487,535 &

other U.S. and worldwide patents issued & pending. DTS is a

registered trademark and the DTS logos, Symbol, DTS-HD and DTS-

Neural Surround™ name and related logos are trademarks owned

by Neural Audio Corporation.

iPod™

“iPod” is a trademark of Apple Inc., registered in the U.S. and other

countries.

Bluetooth™

Bluetooth is a registered trademark of Bluetooth SIG and is used by

Yamaha in accordance with a license agreement.

“HDMI,” the “HDMI” logo and “High-Definition Multimedia

Interface” are trademarks, or registered trademarks of HDMI

Licensing LLC.

x.v.Color™

“x.v.Color” is a trademark of Sony Corporation.

“SILENT CINEMA” is a trademark of Yamaha Corporation.

SIRIUS, XM and all related marks and logos are trademarks of Sirius

available in Alaska and Hawaii.

Check that you received all of the following parts.

•Remote control (see page 9)

•Batteries (AAA, R03, UM-4) x 2 (see page 9)

•Optimizer microphone (see page 21)

•AM loop antenna (see page 20)

•Indoor FM antenna (see page 20)

•Controls diagram

About this manual

•Some operations can be performed by using either the keys on the front panel or the ones on the remote control. In case the key names differ between

the front panel and the remote control, the key name on the remote control is given in parentheses.

•This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In case of

differences between the manual and product, the product has priority.

•“AMAIN ZONE ON/OFF” or “eHDMI 1” (example) indicates the name of the parts on the front panel or the remote control. Refer to the

“Controls diagram” or “Part names and functions” on page 4 for the information about each position of the parts.

•y indicates a tip for your operation.

•☞ indicates the page describing the related information.

Supplied accessories

4 En

AMAIN ZONE ON/OFF

Turns this unit on and off (see page 20).

BPHONES jack

For connecting headphones (see page 26).

CZONE2 ON/OFF

Switches Zone2 between on and off (see page 61).

DHDMI THROUGH

During standby, lights up under the following conditions:

• the HDMI control function is enabled (see page 57).

• an HDMI signal input to this unit passes through this unit and

output (see page 57).

EZONE2 CONTROL

Enables operation of a receiver set in Zone2, including input

source switching, volume control and tuner operation, with the

main amplifier or remote control after this key is pressed.

FINFO

Changes information on the front panel display, such as input

source and sound field program name (see page 26).

GMEMORY

Registers FM/AM stations as preset stations (see page 32) or

XM/SIRIUS channels as preset channels (see page 35).

HPRESET l/h

Selects an FM/AM preset station (see page 32) or an XM/

SIRIUS preset channel (see page 35).

IFM/AM (CATEGORY l/h)

Changes the tuner bands between FM and AM.

Select a channel category for a XM/SIRIUS.

JTUNING/CH l/h

Changes FM/AM frequencies or XM/SIRIUS tuner channels.

KFront panel display

Displays information on this unit (see page 6).

LVOLUME control

Controls the volume of this unit (see page 24).

MSCENE

Switches between linked sets of input sources and sound field

programs (see page 24).

NTONE CONTROL

Adjusts high-frequency/low-frequency output of speakers/

headphones (see page 24).

OPROGRAM selector

Changes sound field programs (see page 27).

PSTRAIGHT

Toggles between the selected sound field program and straight

decoding mode (see page 30).

QPURE DIRECT

Changes mode to Pure Direct mode (see page 25). This key

lights up when Pure Direct mode is on.

RINPUT selector

Selects an input source (see page 24).

SOPTIMIZER MIC jack

For connecting the supplied optimizer microphone and adjusting

output characteristics of speakers (see page 21).

TVIDEO (VIDEO AUX) jack

For connecting the video output cable of a camcorder or game

console (see page 19).

UAUDIO L/R (VIDEO AUX) jack

For connecting the audio output cable of a camcorder or game

console (see page 19).

VPORTABLE (VIDEO AUX) jack

For connecting the audio output cable of a portable music player

(see page 19).

Part names and functions

Front panel

TUNING/CH

PHONES

SILENT

CINEMA

TONE

CONTROL

STRAIGHT

PROGRAM INPUT

PURE DIRECT

OPTIMIZER

MIC

VIDEO

AUDI O

PORTABLE

THROUGH

INFO

MEMORY

VIDEO

AUX

VOLUME

HDMI

EFFECT

PRESET

lhlh

BD/DVD

RADIO

SCENE

ZONE2

ON/OFF

ZONE2

CONTROL

CATEGORY

FM AM

ON/OFF

MAIN ZONE

N Q SO R

GF JIH

MU VTP

5 En

Part names and functions

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

aSIRIUS jack

For connecting a SiriusConnect tuner (sold separately)

(see page 37).

bDOCK jack

For connecting a Yamaha iPod universal dock (YDS-11, sold

separately) or a Bluetooth wireless audio receiver (YBA-10,

sold separately) (see page 19).

cXM jack

For connecting XM Mini-Tuner in XM Mini-Tuner Home Dock

(separately sold) (see page 33).

dANTENNA jacks

For connecting supplied FM and AM antennas (see page 20).

eHDMI OUT/HDMI 1-4 jacks

For connecting an HDMI-compatible video monitor or external

components for HDMI inputs 1-4 (see page 16).

fREMOTE IN/OUT jacks

For connecting an external component that supports the remote

control function (see page 19).

gTRIGGER OUT jack

For connecting an external terminal with a trigger input terminal

to operate it linked with operation of this unit. For example,

when an electric screen that supports a trigger input is

connected, it opens and closes linked with operation of an input

source selected in this unit.

hSPEAKERS terminals

For connecting front right and left, center, surround and

surround back speakers (see page 11). Connect the presence

speakers (see page 12) or the speakers for Zone2 (see page 60)

to the EXTRA SP jacks.

iPower Cable

Connect this cable to an AC wall outlet (see page 20).

jAV 1-6 jacks

For connecting external components for audio/video inputs 1-6

(see page 16).

kAV OUT jacks

Outputs audio/video signals from a selected analog input source

to an external component (see page 17).

lAUDIO 1/2 jacks

For connecting external components for audio inputs 1-2

(see page 17).

mMONITOR OUT terminals

Outputs video signals from this unit to a video monitor, such as

a TV (see page 15).

nMULTI CH INPUT terminals

For connecting a player that supports a multi-channel output

(see page 18).

oAUDIO OUT jacks

Outputs audio signals from a selected analog input source to an

external component (see page 17).

pZONE2 OUT jacks

Outputs sound of this unit to an external amplifier set in a

different zone.

qPRE OUT terminals

For connecting a subwoofer with built-in amplifier (see page 11)

or an external power amplifier (see page 18).

Rear panel

ZONE2

OUT

TRIGGER OUT

12V

0.1A MAX.

SIRIUS

ANTENNA MONITOR OUT

UNBAL.

GND

COMPONENT

VIDEO

OUT

REMOTE

EXTRA SP

ZONE2

PRESENCE

SPEAKERS

ZONE2

OPTICAL

( TV )

AV 1

AV 2

COAXIAL

AV 3

(CD)

COAXIAL OPTICAL

AV 4 AV 5

AV 6

OUT

AUDIO1

AUDIO2

FRONT

SURROUND

SUR.BACK

SUBWOOFER

MULTI CH INPUT

AUDIO

OUT

FRONT

SURROUND

SUR. BACK SUBWOOFER

PRE OUT

CENTERSINGLE

VIDEO

HDMI HDMI 1 HDMI 2 HDMI 3 HDMI 4

(BD/DVD)

VIDEO

FRONT

CENTER

SURROUND

SURROUND BACK/

BI-AMP

SINGLE

CENTER

OUT

DOCK

a b e

jk n

lopq

COMPONENT

VIDEO

6 En

Part names and functions

aHDMI indicator

Lights up during normal communication when HDMI is

selected as an input source.

bXM indicator

Lights up when an XM tuner is selected as an input source.

cSIRIUS indicator

Lights up when a SiriusConnect tuner is selected as an input

source.

dCINEMA DSP indicator

Lights up when a sound field program that uses CINEMA DSP

is selected.

eCINEMA DSP 3D indicator

Lights up when CINEMA DSP 3D is activated.

fTuner indicator

Lights up during receiving radio broadcast signals from an FM/

AM station (see page 31).

gZONE2 indicator

Lights up when Zone2 is turned on (see page 60).

hSLEEP indicator

Lights up when the sleep timer is activated (see page 45).

iMUTE indicator

Flashes when audio is muted.

jVOLUME indicator

Displays volume levels.

kCursor indicators

Light up when corresponding cursors on the remote control are

available for operations.

lMulti information display

Displays menu items and settings for the current operation.

mSpeaker indicators

Indicate speaker terminals from which signals are currently

output.

Front panel display

STEREO

SLEEP

VOL.

TUNED

PL PR

SL SR

SBL SB SBR

MUTE

SIRIUS

ZONE

cbadefhgji

kl mk

SL SR

SBL SB SBR

PL PR

Subwoofer

Front L

Surround L

Surround back L

Center

Front R

Surround R

Surround back R

Surround back

Presence L Presence R

7 En

Part names and functions

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

aRemote control signal transmitter

Transmits infrared signals.

bMAIN/ZONE2

Switches the zone to be operated by the remote control between

the Main zone and Zone2 (see page 61).

cTRANSMIT

Lights up when a signal is output from the remote control.

dSOURCE POWER

Switches an external component on and off.

eInput selection keys

fTuner keys

gINFO

Changes information on the front panel display, such as input

source and sound field program name (see page 26).

hSound selection keys

Selects sound field programs (see page 27).

iSCENE

Switches between linked sets of input sources and sound field

programs (see page 24).

jSETUP

Displays the SETUP menu (see page 54).

kCursors k/n / l/h/ENTER/RETURN

lExternal component operation keys

Operate recording, playback etc. of external components

(see page 62).

mNumeric keys

Enter numbers.

nTV control keys

Enables operations of a monitor such as a TV and a projector.

oCODE SET

Sets remote control codes for external component operations

(see page 63).

pPOWER

Switches this unit on and standby.

qSLEEP

Switches the sleep timer operations (see page 45).

rOPTION

Displays the OPTION menu (see page 46).

sVOLUME +/–

Adjust the volume of this unit (see page 24).

tDISPLAY

When XM or SIRIUS is selected as an input source: Displays or

does not display the OSD on the video monitor.

When an iPod is connected: Changes the operation mode of the

iPod connected to the Yamaha iPod universal dock (see page 42).

uMUTE

Turns the mute function of the sound output on and off (see page 25).

Remote control

HDMI 1-4 Selects HDMI inputs 1 through 4.

AV 1-6 Selects AV inputs 1 through 6.

AUDIO 1/2 Selects AUDIO inputs 1 and 2.

V-AUX Selects the V-AUX jack on the front panel of this

unit.

MAIN

POWER

1234

1256

1234

7856

1234

POWER

SOURCE

V-AU X

[ A ] [ B ] DOCK

MULTI

SIRIUS

TUNER

MOVIE

DVD

TOP

MUSIC

SCENE

OPTIONSETUP

RETURN

REC

ENT

POWER

TV VOL

INPUT

MUTE

TV CH

ENTER

VOLUME

DISPLAY

MUTE

RADIO

STEREO

ENHANCER SUR. DECODE

PURE DIRECT

STRAIGHT

INFO

MEMORY

CATEGORY

PRESET

TUN./CH

SLEEP

HDMI

AUDIO

ZONE2

TRANSMIT

CODE SET

dqp

[A]/[B] To control external components using the

lExternal component operation

keys separately from operations of this unit

(see page 62).

DOCK Selects a Yamaha iPod universal dock/Bluetooth

wireless audio receiver connected to the DOCK

jack.

TUNER Selects the FM/AM tuner.

SIRIUS Selects a SiriusConnect tuner as an input source.

XM Selects an XM tuner as an input source.

MULTI Selects a signal input from the MULTI CH

INPUT jack on the rear panel as an input source.

FM Select the FM band or AM band.

(CATEGORY l/h)Select a channel category for a XM/

SIRIUS.

MEMORY Presets radio stations.

PRESET k/nSelect a preset station.

TUN./CH k/nChange FM/AM frequencies or

XM/SIRIUS tuner channels.

Cursors k/n / l/hSelect menu items displayed on the

front panel display or on a video

monitor, or change settings.

ENTER Confirms a selected item.

RETURN Returns to the previous screen or

ends the menu display.

8 En

When you use this product for the first time, perform the steps below. See the related pages for details of operations and

settings.

Prepare speakers, DVD player, cables, and other items

necessary for setup.

For example, prepare the following items for setting up a

7.1-channel sound system.

•Prepare at least two (front) speakers. Speakers other than front speakers

may be used in the following order of preference:

1 Two surround speakers

2 One center speaker

3 One or two surround back speakers

•If your video monitor is a CRT, we recommend that you use magnetically

shielded speakers.

•An audio cable is not required when you use an HDMI cable.

Place your speakers in the room and connect them to this

unit.

•This unit has a YPAO (Yamaha Parametric Room Acoustic Optimizer)

that automatically optimizes this unit based on room acoustic

characteristics (audio characteristics of the speakers, speaker positions,

and room acoustics, etc.).

You can enjoy good balanced sound without special knowledge by using

the YPAO technology (see page 21).

Connect your TV, DVD player, or other components.

Connect the power cable and turn on this unit.

Select the component connected in the step 3 as an input

source and start playback.

•This unit supports the SCENE function that changes the input source and

sound field program at one time. Four SCENES are preset for different

purposes for Blu-ray disc, DVD and CD. You can select a SCENE from

those just by pressing a remote control key. See page 24 for details.

Quick start guide

Step 1: Prepare items for setup

Requirements qty.

Speakers Front speaker 2

Center speaker 1

Surround speaker 2

Surround back speaker 2

Active subwoofer 1

Speaker cable 5

Subwoofer cable 1

Reproduction component such as DVD player 1

Video monitor such as TV 1

Video cable or HDMI cable 2

Audio cable 2

Components

(such as DVD player)

Center speaker

Front left speaker

Front right speaker

Subwoofer

Video monitor

Surround right speaker

Surround left speaker

Surround back right

speaker

Surround back left

speaker

Step 2: Set up your speakers

•Placing speakers ☞P. 10

•Connecting speakers ☞P. 11

Step 3: Connect your components

•Connecting a video monitor ☞P. 15

•Connecting other components ☞P. 16

•Connecting a multi-format player or an

external decoder ☞P. 1 8

•Connecting an external amplifier ☞P. 18

•Connecting a Yamaha iPod universal

dock or Bluetooth wireless audio receiver ☞P. 1 9

•Connecting the FM and AM antennas ☞P. 20

•Connecting an XM Mini-Tuner Home

Dock ☞P. 33

•Connecting a SiriusConnect tuner ☞P. 37

Step 4: Turn on the power

•Connecting the power cable ☞P. 20

•Turning this unit on and off ☞P. 20

Step 5: Select the input source and start

playback

•Basic procedure ☞P. 24

•Selecting sound field programs ☞P. 27

9 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

PREPARATION

1Take off the battery compartment cover.

2Insert the two supplied batteries (AAA, R03,

UM-4) according to the polarity markings (+

and –) on the inside of the battery

compartment.

3Snap the battery compartment cover back

into place.

Notes

•Change all batteries if you notice the following conditions:

–the operation range of the remote control narrows.

–the transmit indicator does not flash or is dim.

•Do not use old batteries together with new ones.

This may shorten the life of the new batteries or cause old batteries

to leak.

•Do not use different types of batteries (such as alkaline and

manganese batteries) together. Specification of batteries may be

different even though they look the same.

•If you find leaking batteries, discard the batteries immediately,

taking care not to touch the leaked material. If the leaked material

comes into contact with your skin or gets into your eyes or mouth,

rinse it away immediately and consult a doctor. Clean the battery

compartment thoroughly before installing new batteries.

•Dispose of the old batteries correctly in accordance with your local

regulations.

•If the remote control is without batteries for more than 2 minutes,

or if exhausted batteries remain in the remote control, the contents

of the memory may be cleared. In such a case, install new batteries

and set the remote control code.

The remote control transmits a directional infrared ray. Be

sure to aim the remote control directly at the remote

control sensor on this unit during operation.

Notes

•Do not spill water or other liquids on the remote control.

•Do not drop the remote control.

•Do not leave or store the remote control in the following conditions:

–places of high humidity, such as near a bath

–places of high temperatures, such as near a heater or stove

–places of extremely low temperatures

–dusty places

•You can operate external components with this remote control by setting

the remote control code. See page 62 for details.

Preparing remote control

Installing batteries in the remote

control

Using the remote control

30 30

Remote control sensor window

within 6 m (20 ft)

10 En

This unit supports up to 7.1-channel surround playback. We recommend the following speaker layout in order to obtain

the optimum surround effect.

7.1-channel speaker layout

6.1-channel speaker layout

5.1-channel speaker layout

■Front left and right speakers (FL and FR)

The front speakers output the front channel sounds (stereo

sound) and effect sounds. Place these speakers at an equal

distance from the ideal listening position. When using a

screen, the appropriate top positions of the speakers are

about 1/4 of the screen from the bottom.

■Center speaker (C)

The center speaker outputs the center channel sounds

(dialog, vocals, etc.). Place it halfway between the left and

right speakers. When using a TV, place the speaker just

above or just under the center of the TV with the front

surfaces of the TV and the speaker aligned. When using a

screen, place it just under the center of the screen.

■Surround left and right speakers (SL and SR)

The surround speakers output effect sounds and surround

sounds. Place them at the rear left and rear right facing the

listening position.

To obtain a natural sound flow in the 5.1-channel speaker

layout, place them slightly further back than in the 7.1-

channel speaker layout.

■Surround back left and right speakers (SBL

and SBR) / Surround back speaker (SB)

The surround back left and right speakers output rear

effect sounds. Place them at the rear of the room facing the

listening position at least 30 cm away from each other,

ideally at the same distance as that between the front left

and right speakers.

In the 6.1-channel speaker layout, surround back left and

right channel sound signals are mixed down and output

from the single surround back speaker.

In the 5.1-channel speaker layout, surround back left and

right channel sound signals are output from the surround

left and right speakers.

■Subwoofer (SW)

The subwoofer speaker outputs bass sounds and low-

frequency effect (LFE) sounds included in Dolby Digital

and DTS signals. Use a subwoofer with a built-in

amplifier, such as the Yamaha Active Servo Processing

Subwoofer System. Place it exterior to the front left and

right speakers facing slightly inward to reduce reflections

from a wall.

Connections

Placing speakers

60˚

30˚

SBR

SBL

80˚

30 cm (12 in) or more

60˚

30˚

80˚

60˚

30˚

80˚

Speaker channels

11 En

Connections

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

When you connect speakers, connect them to the respective jacks as follows, according to your speaker layout.

•You can connect up to two subwoofers. When two subwoofers are connected, the same sound is output from them.

■7.1-channel

■6.1-channel

■5.1-channel

Connecting speakers

Speakers Jacks on this unit

aFront speaker L FRONT (L)

bFront speaker R FRONT (R)

cCenter speaker CENTER

dSurround speaker L SURROUND (L)

eSurround speaker R SURROUND (R)

fSurround back speaker L SURROUND

BACK/BI-AMP (L)

gSurround back speaker R SURROUND

BACK/BI-AMP (R)

hSubwoofer 1 SUBWOOFER 1

iSubwoofer 2 (optional) SUBWOOFER 2

PEAKER

SUBWOOFER

FRONT

CENTER

SURROUND

SURROUND BACK/

BI-AMP

SINGLE

XTRA SP

ZONE2

NE2

ZONE2

.BA

NPUT

URROUN

UR. BAC

PRE

CENTE

INGLE

ENTER

e d

bagf

Speakers Jacks on this unit

aFront speaker L FRONT (L)

bFront speaker R FRONT (R)

cCenter speaker CENTER

dSurround speaker L SURROUND (L)

eSurround speaker R SURROUND (R)

fSurround back speaker SURROUND

BACK/BI-AMP (SINGLE)

hSubwoofer 1 SUBWOOFER 1

iSubwoofer 2 (optional) SUBWOOFER 2

Speakers Jacks on this unit

aFront speaker L FRONT (L)

bFront speaker R FRONT (R)

cCenter speaker CENTER

dSurround speaker L SURROUND (L)

eSurround speaker R SURROUND (R)

hSubwoofer 1 SUBWOOFER 1

iSubwoofer 2 (optional) SUBWOOFER 2

12 En

Connections

You can connect presence speakers (PL/PR) that output

front effect sounds to this unit. With CINEMA DSP sound

field programs (see page 27) and their CINEMA DSP 3D

functions, a sound with a richer and more spacial presence

can be created. You can adjust the vertical position of

center sound such as a dialog (see page 54).

To use the presence speakers, connect them to the EXTRA

SP jacks and set “Extra SP Assign” in “Speaker Setup” in

the SETUP menu to “Presence” (see page 54).

•Although you can connect both surround back speakers and presence

speakers to this unit, you cannot output sounds from those speakers at the

same time. This unit automatically selects speakers to output sounds

according to the selected input source and sound field program.

•You can connect Zone2 speakers with a multi-zone function to the

EXTRA SP jacks. For details, see page 60.

Presence speakers

PRPL

0.5 to 1 m (1 to 3 ft)0.5 to 1 m (1 to 3 ft)

1.8 m

(6 ft)

1.8 m

(6 ft)

EXTRA SP

ZONE2

PRESENCE

PEAKER

DMI

HDMI 4

ENTE

URR

UND

URR

UND BA

AMP

PR PL

Presence

speaker L

Presence

speaker R

13 En

Connections

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

1Remove approximately 10 mm (0.4 in) of

insulation from the end of each speaker

cable and then twist bare wires of the cable

together so that they will not cause a short

circuits.

2Loosen the knob, insert the twisted bare

wires into the hole, and then tighten the

knob.

•You can connect the presence speakers (see page 12) or the speakers in

the second zone (Zone2) (see page 60) to the EXTRA SP jacks.

You can connect speakers that support bi-amplification

connections to this unit. To connect the speakers via a bi-

amp connection, connect them to the FRONT jacks and

SURROUND BACK/BI-AMP jacks as illustrated.

To enable the bi-amp connection, connect the power cable

to the wall outlet, display the ADVANCED SETUP menu

and set “BI AMP” to “ON” (see page 64).

Note

•You cannot use surround back speakers or extra speakers (presence and

Zone2 speakers) when bi-amplification connections are made.

Connecting the speaker cable

Caution

•A speaker cable is a pair of insulated cables running side by side in general. One of the cables is colored differently

or striped to indicate a polarity. Connect one end of the colored/striped cable to the “+” (red) terminal of this unit

and the other end to that of your speaker, and connect one end of the other cable to the “–” (black) terminal of this

unit and the other end to that of your speaker.

•Before connecting the speakers, be sure to disconnect the power cable.

•Do not let the bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/or

speakers. If the circuit shorts out, “CHECK SP WIRES!” appears on the front panel display when this unit is turned

on.

•If your video monitor is a CRT, use magnetically shielded speakers. If images on the monitor are still distorted even

when you use the magnetically shielded speakers, place the speakers away from the monitor.

•Use speakers with an impedance of 6-ohm or larger. Set speaker impedance in “ADVANCED SETUP” before

connecting the speakers. You can also use 4-ohm speakers as the front speakers when you set “SP IMP.” to

“6ΩMIN” (see page 64).

Connecting the banana plug (Except U.K.,

Europe, Russian, Asia and Korea models)

Tighten the knob, and then insert the banana plug into

the end of the terminal.

10 mm (0.4 in)

Red: positive (+)

Black: negative (–)

Banana plug

Using bi-amplification connections

Caution

Before making bi-amplification connections, remove

any brackets or cables that connect a woofer with a

tweeter. Refer to the instruction manuals of speakers for

details.

When not making bi-amplification connections, make

sure that the brackets or cables are connected before

connecting the speaker cables.

FRONT

SURROUND BACK/

BI-AMP

SINGLE

Front speakers

Right Left

This unit

14 En

Connections

This unit has the following input and output jacks. Use jacks and cables appropriate for components that you are

connecting.

■Audio jacks

■Video jacks

■Video/audio jacks

•We recommend that you use a commercially available 19-pin HDMI

cable no longer than 5 meters (16 feet) with the HDMI logo printed on it.

•If you connect this unit to a component that has a DVI jack, an HDMI/

DVI-D cable is required.

•You can check error information on HDMI connections (see page 79).

Information on jacks and cable plugs

Jack and cables Description

AUDIO jacks To transmit conventional analog

(stereo) signals. Use stereo pin

cables. Connect red plugs to red

jacks (R) and white plugs to white

jacks (L).

COAXIAL jacks To transmit coaxial digital audio

signals. Use pin cables for digital

audio signals.

OPTICAL jacks To transmit optical digital audio

signals. Use optical fiber cables for

optical digital audio signals.

Jack and cables Description

VIDEO jacks To transmit conventional

composite video signals. Use video

pin cables.

COMPONENT VIDEO

jacks

To transmit component video

signals that include luminance (Y),

chrominance blue (PB) and

chrominance red (PR) components.

Use component video cables.

AUD IO

(white)

(red)

COAXIAL

(orange)

OPTICAL

VIDEO

(yellow)

COMPONENT

VIDEO

(red)

(blue)

(green)

Jack and cables Description

HDMI jacks To transmit digital video and

digital audio signals. Use HDMI

cables.

A video signal input to this unit is output from the jacks

in MONITOR OUT for the same kind of signal as the

input signal.

For example, if a VCR with a composite output signal

and a DVD player with a component video output

signal are connected, connect both VIDEO jack and

COMPONENT VIDEO jack in MONITOR OUT to the

video monitor.

If an HDMI input compatible monitor is connected, this

unit automatically converts an analog signal that is

input from a video input jack to a digital video signal,

and then outputs it from the HDMI OUT jack.

HDMI

VIDEO

COMPONENT

VIDEO

HDMI

VIDEO

COMPONENT

VIDEO

Input Output

Not converted Converted

15 En

Connections

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Connect a video monitor such as a TV or projector to an output jack of this unit. You can select one of the following three

types according to the input signal format supported by the video monitor: HDMI OUT, COMPONENT VIDEO and

VIDEO (composite video).

Note

•Make sure that this unit and video monitor are unplugged from the AC wall outlets.

■To connect an HDMI video monitor

•This unit supports the HDMI control function. By connecting a TV that

supports the HDMI control, operations of this unit can be controlled with

the remote control of the TV. For details, see page 45.

■To connect component video monitor

Note

•Only video signals input from this unit via the COMPONENT VIDEO

jack are output from the COMPONENT VIDEO jack.

■To connect composite video monitor

Note

•Only video signals input from this unit via the VIDEO jacks are output

from the VIDEO jacks.

To output sound of a TV from this unit, connect an audio

output terminal of the TV to any of the AV 1-6 jacks.

If the TV supports an optical digital output, we

recommend that you use the AV 1. Connecting to the AV 1

allows you to switch an input source to the AV input 1

with a just a single key operation using the SCENE

function (see page 24).

Note

•If the video monitor connected to this unit supports the HDMI control

function, we recommend that you connect its audio output jack to the

OPTICAL jack of the AV1 jacks of this unit. By doing so, this unit

automatically turns on and “TV” of SCENE is automatically selected

when you turn on the video monitor. You can obtain the same result even

if you connect the audio output jacks to the AV2-6, AUDIO1-2 or V-

AUX jacks by assigning those jacks to TV in advance (see page 24).

Connecting a video monitor

Jacks on components Jacks on this unit

aHDMI input HDMI OUT

Jacks on components Jacks on this unit

bComponent video output MONITOR OUT

(COMPONENT VIDEO)

Jacks on components Jacks on this unit

cVideo input (composite) MONITOR OUT (VIDEO)

MONITOR OUT

HDMI

VIDEO

OUT

COMPONENT

VIDEO

12V

MAX.

ANTENNA

UNBAL.

HDMI 1 HDMI

DMI

(

DVD

)

HDMI

TV or projector Outputting sound of a TV from this unit

OPTICAL

(

)

AV 1

AXIAL

(

)

AXIA

PTI

VIDE

UNBAL

Digital output

(optical)

TV or projector

16 En

Connections

This unit has input and output jacks for respective input and output sources. You can reproduce sound and movies from

input sources selected with the front panel display or remote control.

Note

•Make sure that this unit and other components are unplugged from the AC wall outlets.

■Audio and video player/Set-top box

•Input sources in parentheses are recommended to connect to the respective jacks. If a component is compatible with the SCENE function, you can switch

the input source to that component with a single key operation using the SCENE function (see page 24).

•You can change the name of the input source displayed on the front panel display or the video monitor as necessary (see page 59).

•See page 60 on how to use ZONE2 OUT jack.

Connecting other components

Output jacks on the connected external component

Input sources/jacks of this unit

External

components Signals Output jacks

External component

with HDMI output

Audio/Video HDMI output HDMI1 (BD/DVD) HDMI 1

HDMI2 HDMI 2

HDMI3 HDMI 3

HDMI4 HDMI 4

External component

with component video

output

Audio Optical digital output AV1 (TV) OPTICAL

Video Component video output COMPONENT VIDEO

Audio Coaxial digital output AV2 COAXIAL

Video Component video output COMPONENT VIDEO

External component

with composite video

output

Audio Coaxial digital output AV3 (CD) COAXIAL

Video Composite video output VIDEO

Audio Optical digital output AV4 OPTICAL

Video Composite video output VIDEO

Audio Analog audio output AV5 AUDIO

Video Composite video output VIDEO

Audio Analog audio output AV6 AUDIO

Video Composite video output VIDEO

COMPONENT

VIDEO

OPTICAL

( TV )

AV 1

AV 2

COAXIAL

AV 3

(CD)

COAXIAL OPTICAL

AV 4 AV 5

AV 6

OUT

AUDIO1

AUDIO2

FRONT

SURROUND

SUR.BACK

SUBWOOFER

MULTI CH INPUT

AUDIO

OUT

VIDEO

HDMI 1 HDMI 2 HDMI 3 HDMI 4

(BD/DVD)

CENTER

OUT

MAX.

SIRIUS

ANTENNA

NIT

OUT

UNBAL

GND

REM

NE2

ZONE2

HDMI

VIDE

OUT

DOCK

NENT

IDE

Audio/video input (AV 1-6) Audio/video output (AV OUT)

Audio input (AUDIO 1-2)

HDMI input

(HDMI 1-4)

Audio output

(AUDIO OUT)

Multi channel audio input (MULTI CH)

17 En

Connections

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■Audio player

•We recommend connecting the coaxial digital output terminal of a CD player to the AV3 jack.

Output jacks on the connected external component

Input sources/jacks of this unit

External components Output jacks

External component with optical digital

output

Optical digital output AV 1 (TV) OPTICAL

AV 4 OPTICAL

External component with coaxial digital

output

Coaxial digital output AV 2 COAXIAL

AV 3 (CD) COAXIAL

External component with analog audio

output

Analog audio output AV 5 AUDIO

AV 6 AUDIO

AUDIO 1 AUDIO

AUDIO 2 AUDIO

About audio/video output jacks

Among the analog audio and analog video signals input to this unit via input terminals, the audio/video signals of the

selected input sources are output from the AV OUT jack and AUDIO OUT jack. An HDMI input signal,

COMPONENT VIDEO input signal or digital audio input signal cannot be output. When using the AV OUT jacks or

AUDIO OUT jacks, connect them as follows:

When using the AV OUT jacks: connect them to composite video and analog audio input jacks of an external

component.

When using the AUDIO OUT jacks: connect them to analog audio jacks of an external component.

18 En

Connections

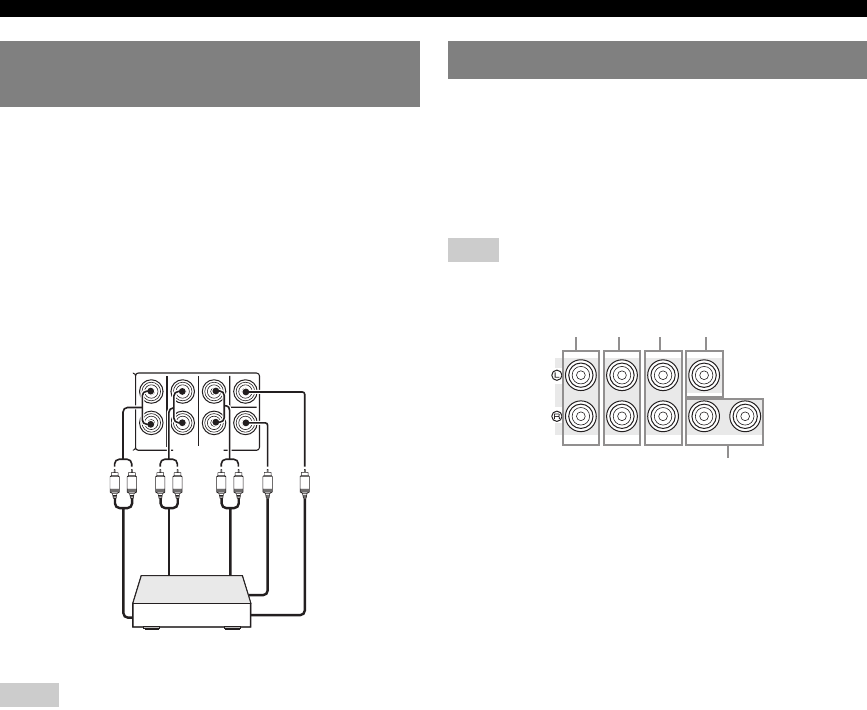

This unit has 8 sets of input jacks (FRONT L/R,

CENTER, SURROUND L/R, SUR. BACK and

SUBWOOFER) to input multi-channel analog sound

signals. If your playback component, such as a DVD

player or SACD player, has multi-channel analog output

capability, you can enjoy up to 7.1-channel multi-channel

sound. To output multi-channel sound, connect the audio

output jacks of your playback component to the MULTI

CH INPUT jacks of this unit, and set the input source of

this unit to “MULTI CH.” For details on how to change

input sources, see page 24.

Notes

•When you select “MULTI CH” as the input source, the digital sound field

processor is automatically disabled.

•Since this unit does not redirect signals input at the MULTI CH INPUT

jacks to accommodate for missing speakers, connect at least a 5.1-

channel speaker system when using this feature.

•When the input source is switched to “MULTI CH,” images input from a

component connected to “AV1-6” or “V-AUX” can be displayed on a

video monitor (see page 48). If your DVD player does not support multi-

channel digital output, connect it to these input jacks.

The same channel signals are output from the jacks of the

PRE OUT terminals as from their corresponding

SPEAKERS terminals. When connecting an external

power amplifier (pre-main amplifier) to enhance speaker

output, connect the input terminals of the power amplifier

to the PRE OUT terminals of this unit.

Note

•When a component is connected to the PRE OUT terminals, do not

connect speakers to the SPEAKERS terminals corresponding to those

PRE OUT terminals.

aFRONT (PRE OUT) jacks

Front channel output jacks.

bSURROUND (PRE OUT) jacks

Surround channel output jacks.

cSUR. BACK (PRE OUT) jacks

Surround back output jacks. When you only connect one

external amplifier for the surround back channel, connect it to

the SUR. BACK (SINGLE) jack.

•To output surround back channel signals through these jacks, set

“Sur.B L/R SP” to any parameter except for “None” in “Speaker

Setup” (see page 55).

dCENTER (PRE OUT) jack

Center channel output jack.

eSUBWOOFER (PRE OUT) 1/2 jack

Connect a subwoofer with a built-in amplifier. When two

subwoofers are connected, the same sound is output from them.

Connecting a multi-format player or an

external decoder

FRONT

SURROUND

SUR.BACK

SUBWOOFER

MULTI CH INPUT

CENTER

LRLR LR

Surround

back out

Surround

out

Front out

Subwoofer out

Center out

Multi-format player/External decoder

(7.1-channel output)

Connecting an external amplifier

FRONT

SURROUND

SUR. BACK SUBWOOFER

PRE OUT

CENTERSINGLE

abc d

19 En

Connections

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

When the components are the Yamaha products and have

the capability of the transmission of the remote control

signals, connect the REMOTE IN and REMOTE OUT

jacks to the remote control input and output jack with the

monaural analog mini cable as follows.

•If your Yamaha component supports the SCENE link playback function,

remote connection automatically starts playback when you press

MSCENE (or iSCENE) to select a SCENE.

•If the component connected to the REMOTE OUT jack is not a Yamaha

product, set “SCENE IR” in the ADVANCED SETUP menu to “OFF”

(see page 64).

This unit has the DOCK jack, to which you can connect a

Yamaha iPod universal dock (YDS-11, sold separately) or

a Bluetooth wireless audio receiver (YBA-10, sold

separately). You can play an iPod or a Bluetooth

component with this unit by connecting it to the DOCK

jack.

Use a dedicated cable for connection between the dock/

receiver and this unit.

The V-AUX terminals on the front panel are useful for

connecting a camcorder, a game console or a portable

music player to this unit. Be sure to turn down the volume

of this unit and other components before making

connections.

•To connect a component to the PORTABLE jack, use a 3.5 mm stereo

mini plug cable.

•When external components are connected both the PORTABLE jack and

AUDIO jack, sound input from the PORTABLE jack is output.

Using REMOTE IN/OUT jacks

Connecting a Yamaha iPod universal

dock or Bluetooth™ wireless audio

receiver

OUT

REMOTE

NIT

HDMI 1

HDMI 2

HDMI

HDMI 4

D/DV

)

VIDE

NENT

IDE

Remote

control out

Remote

control in

Infrared signal

receiver or Yamaha

component

Yamaha component

(CD or DVD player, etc.)

DOCK

IRIU

ANTENNA

NEN

VIDE

HDMI

OUT

Yamaha iPod universal

dock/Bluetooth wireless

audio receiver

Connecting a camcorder or portable

audio player

VIDEO

AUDIO

PORTABLE

VIDEO

AUX

NIN

G/CH

TRAI

URE DIRE

PTIMIZER

EFFECT

PRESET

ADI

ENE

ATEGOR

VIDEO

AUDI O

PORTABLE

VIDEO

AUX

Game console/Camcorder Music player

Analog audio

output

Analog audio

output

Video output

20 En

Connections

An indoor FM antenna and an AM loop antenna are

supplied with this unit. Connect these antennas properly to

the respective jacks.

•The supplied antennas are normally sensitive enough to obtain good

reception.

•Position the AM loop antenna away from this unit.

•If you cannot get good reception, we recommend that you use an outdoor

antenna. For more details, consult the nearest authorized Yamaha dealer

or service center.

•Always use the AM loop antenna even when the outdoor antenna is

connected.

Assembling the AM loop antenna

Connecting the AM loop antenna

The wires of the AM loop antenna have no polarity. You

can connect either wire to the AM terminal and the other

to the GND terminal.

After all connections are complete, plug the AC power

cable of this unit into an AC wall outlet.

1Press AMAIN ZONE ON/OFF (or

pPOWER) to turn on this unit.

2Press AMAIN ZONE ON/OFF (or

pPOWER) again to turn off this unit

(standby).

•The unit needs a few seconds until ready to play back.

•You can also turn on this unit by pressing MSCENE (or iSCENE).

•This unit consumes a small amount of electricity even during standby.

We recommend disconnecting the power cable from the AC wall outlet.

Connecting the FM and AM antennas

ANTENNA

UNBAL.

GND

DOC

NENT

IDEO

VIDE

HDMI

HDMI 1

(

DVD

)

DMI 2 HDMI

IDE

NIT

TRI

OUT

0.1

MAX

CENTER

NENT

IDE

Outdoor AM antenna

Connect a 5 to 10 m (16 to

33 ft) vinyl-covered wire,

and extend it outdoors

(use the AM loop antenna

together with this

antenna).

Ground (GND terminal)

The GND terminal is not for earth grounding.

To reduce noises, connect a ground bar or a

vinyl-covered wire with a copper plate at its tip,

and place it in the moist ground.

Indoor FM antenna AM loop

antenna

Press and hold ReleaseInsert

Connecting the power cable

Turning this unit on and off

Caution

Do not unplug this unit while it is turned on. Doing so

may damage this unit or cause the settings of this unit

to be saved incorrectly.

To the AC wall outlet

Power cable

21 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

This unit has a Yamaha Parametric Room Acoustic Optimizer (YPAO). With the YPAO, this unit automatically adjusts the

output characteristics of your speakers based on speaker position, speaker performance, and the acoustic characteristics of

the room. We recommend that you first adjust the output characteristics with the YPAO when you use this unit.

1Check the following points.

Before starting the automatic setup, check the

following.

•All speakers and subwoofer are connected

properly.

•Headphones are disconnected from this unit.

•The video monitor is connected properly.

•This unit and the video monitor are turned on.

•This unit is selected as the video input source of the

video monitor.

•The connected subwoofer is turned on and the

volume level is set to about half way (or slightly

less).

•The crossover frequency controls of the connected

subwoofer are set to the maximum.

2Connect the supplied optimizer microphone

to the OPTIMIZER MIC jack on the front

panel.

“MIC ON. View OSD MENU” appears on the front panel

display. The following menu screen appears on the video

monitor.

•You can bring up the above menu screen from the SETUP menu

(see page 54).

3Place the optimizer microphone at your

normal listening position on a flat level

surface with the omni-directional

microphone heading upward.

•It is recommended that you use a tripod or something similar to fix the

optimizer microphone at the same height as your ears would be when

seated in your listening position. You can fix the optimizer microphone to

the tripod with the attaching screw of the tripod.

4When the speakers are connected to EXTRA

SP jacks, press kCursor k repeatedly to

select “Extra SP Assign,” and then press

kCursor l/h to select how to use EXTRA

SP jacks from “Zone2,” “Presence” or

“None.”

If this unit does not work when you press kCursor,

press jSETUP once and then operate this unit.

Optimizing the speaker setting for your listening room (YPAO)

Notes

•Loud test tones may be output during the automatic

setup procedure. Do not allow small children to enter

the room during the procedure.

•To achieve the best results, make sure the room is as

quiet as possible while the automatic setup procedure

is in progress. If there is too much ambient noise, the

results may not be satisfactory.

•You can manually adjust the output characteristics of your speakers

with “2 Manual Setup” in the SETUP menu. For details, see page 54.

Using Auto Setup

VOLUME

MIN MAX

CROSSOVER/

HIGH CUT

MIN MAX

Subwoofer

VIDEO

AUDI

RTABL

VIDE

OPTIMIZER

MIC

Optimizer microphone

1 AutoSetup

>Zone2Presence

ExtraSPAssign

[ENTER]:Start

None

EQ Type;;;;Natural

.Start

[]/[]:Up/Down

[

Optimizer microphone

22 En

Optimizing the speaker setting for your listening room (YPAO)

5To select a sound character for adjustment,

press kCursor n to select “EQ Type” and

then press kCursor l/h.

If this unit does not work when you press kCursor,

press jSETUP once and then operate this unit.

This unit has a parametric equalizer that adjusts the

output levels for each frequency range. The equalizer

is adjusted to produce a cohesive sound field based on

automatically measured speaker characteristics.

In “EQ Type,” you can select the following

parametric equalizer characteristics suitable for the

desired sound characteristics.

Natural

Adjusts all speakers to achieve natural sound. Select

this if sounds in the high frequency range seem too

strong when “EQ Type” is set to “Flat.”

Flat

Adjusts each speaker to obtain the same

characteristics. Select this if your speakers have

similar qualities.

Front

Adjusts each speaker to obtain the same

characteristics as the front left and right speakers.

Select this if your front left and right speakers have

significantly better qualities than the other speakers.

6Press kCursor n to select “Start” and then

press kENTER to start the setup procedure.

A countdown starts and a measurement starts in 10

seconds. A loud test tone is output during

measurement.

Notes

•During the automatic setup procedure, do not perform any

operation on this unit.

•To cancel the automatic setup procedure, press kCursor k.

When measurement is successfully completed,

“YPAO Complete” appears on the front panel display

and the results appear on the video monitor.

Displays the number of speakers connected to this unit in

the following order:

Total of Front, Center, and Presence/Total of Surround and

Surround Back/Subwoofer

DIST

Displays the speaker distance from the listening position

in the following order:

Closest speaker distance/Farthest speaker distance

LVL

Displays the speaker output levels in the following order:

Lowest speaker output level/Highest speaker output level

Notes

•If “ERROR” appears on the video monitor during the automatic setup

procedure, measurement is canceled and the type of error is displayed.

For details, see “When an error message is displayed during

measurement” (see page 23).

•If problems occur during measurement, “WARNING (XX)” (xx indicates

the number of warning) appears above “RESULT” (see page 23).

7Press kENTER.

The speaker characteristics are adjusted according to

measurement results.

To cancel the operation, press kCursor l/h to

select “Cancel” and press kENTER.

When the following screen appears, remove the

optimizer microphone. The automatic setup

procedure is now complete.

•If you do not want to apply the measurement results, select “Cancel.”

•Perform the automatic setup procedure again if you change the number

or positions of speakers.

•If you press kENTER before removing the optimizer microphone,

“1 Auto Setup” of “Speaker Setup” in the SETUP menu (see page 54) is

displayed.

Measurement takes about 3 minutes. To obtain

precise results, stay where you will not disturb the

measurement, such as to the side of or behind the

speakers or outside the room.

1 AutoSetup

RESULT

[ENTER]:Finish

SP:3/4/0.1

DIST:8.0/8.5ft

LVL:-3.5/+4.5dB

.>Set Cancel

[]/[]:Select

The optimizer microphone is sensitive to heat. Store it

in a cool place and away from direct sunlight after

measurement. Do not leave it in a place where it will be

subjected to high temperatures such on an AV

component.

1 AutoSetup

AUTOSETUPComplete

[SETUP]:Exit



DisconnectMicrophone

PRESS[ENTER]

23 En

Optimizing the speaker setting for your listening room (YPAO)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Press kCursor n once, and select “Retry” or

“Exit” using kCursor l/h and then press

kENTER.

Retry

Performs the automatic setup procedure again.

Exit

Terminates the measurement and the automatic setup

procedure.

•See page 74 for details on error messages.

•When “E-5:NOISY” appears, you can continue measurement. To

continue measurement, select “Proceed.” However, we recommend that

you solve the problem first and then perform measurement again.

If a problem occurs during measurement, “WARNING” is

displayed on the result display screen. Check the error and

solve the problems.

•See page 75 for details on warning messages.

•Optimization will not be performed while a warning message is

displayed. We recommend that you solve the problem and perform the

automatic setup procedure again.

1If “→” is displayed on the left of “WARNING”

on the result display screen, press

kENTER.

Details of the warning message are displayed. If there

are multiple warning messages, you can display the

next message using kCursor h.

2To return to the top result display, press

kENTER again.

When an error message is displayed

during measurement

ERROR

Don't



operate

.E-9:USER CANCEL

[ENTER]:Return

any function

>RetryExit

[]/[]:Select

When a warning message is displayed

after measurement

WARNING

Reversechannel

W-1:OUTOFPHASE

[ENTER]:Return

FL---

CENTER

------

SBL---

SL---

[]/[]:Select

24 En

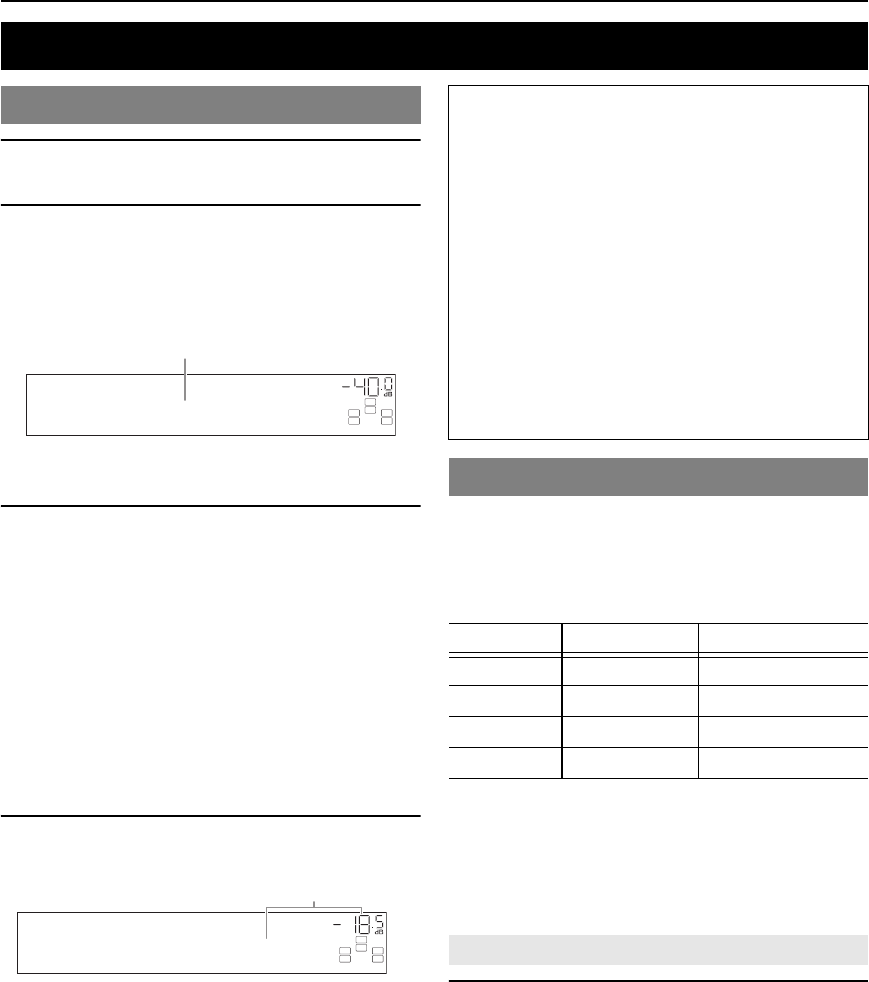

BASIC OPERATION

1Turn on external components (TV, DVD

player, etc.) connected to this unit.

2Rotate the RINPUT selector (or press the

eInput selection keys) to select an input

source.

The name of the selected input source is displayed for

a few seconds.

•You can change the input source name displayed on the front panel

display or on the video monitor as necessary (see page 59).

3Play the external component that you have

selected as the source input, or select a radio

station on the tuner.

Refer to the instruction manuals provided with the

external component for details on playback. For

selecting radio stations or playback of an iPod or

Bluetooth component using this unit, see the

following.

•FM/AM radio tuning (see page 31)

•XM/SIRIUS Satellite Radio tuning (see page 33

and 37)

•Using iPod (see page 42)

•Using Bluetooth components (see page 44)

4Turn the LVOLUME control to adjust the

volume (or press sVOLUME +/–).

This unit has four SCENE keys that allow you to change

input sources and sound field programs with one key. A

set of input source and sound program suitable for a

certain situation, such as playing back movies or music, is

assigned to each key by default.

•This unit turns on when MSCENE (or iSCENE) is pressed during

standby.

•If a Yamaha DVD player that can receive SCENE control signals is

connected to the REMOTE OUT jack of this unit, the DVD player

automatically turns on and starts playback when MSCENE (or

iSCENE) is pressed (see page 19). For details, refer to the instruction

manual of the DVD player.

Press MSCENE (or iSCENE).

Playback

Basic procedure

VOL.

SL SR

AV1

Input source name

VOL.

SL SR

Volume-18.5dB

Volume

Note

When you play back a DTS-CD, noise may be output in some

conditions, which may cause a speaker malfunction. Make sure

that the volume is set to low before starting playback. If noise is

output, do the following.

1) When only noise is output

If a DTS bitstream signal is not properly input to this unit,

only noise is output. Connect the playback component to this

unit by digital connection and play back the DTS-CD. If the

condition is not improved, the problem may results from the

playback component. Consult the manufacturer of the

playback component.

2) When noise is output during playback or skip operation

Before playing back the DTS-CD, display the OPTION

menu after selecting the input source and set “Decoder

Mode” to “DTS” (see page 47).

Using the SCENE function

Input source Sound field program

BD/DVD HDMI1 Straight

TV AV1 Straight

CD AV3 Straight

RADIO TUNER 7ch Enhancer

Selecting a SCENE

25 En

Playback

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Select the desired input source/sound field

program, and press down MSCENE (or

iSCENE) until “SET Complete” appears on the

front panel display.

When the OSD is displayed on the video monitor,

“SCENE Setting Complete” appears on the video monitor.

•If you are using the remote control for an external component, set that

external component too whenever SCENE setting is performed. For more

details, see the next section.

You can operate an external component with the remote

control of this unit by setting a remote control code for the

external component for each input source. Setting remote

control codes for desired input sources allows you to

switch between external components linked to SCENE

selections.

When you change the SCENE key settings, change

settings of the external component as well by following

the steps below.

1Register the remote control code of an

external component to the desired input

source (see page 62).

Note

•Remote control codes cannot be registered to TUNER, SIRIUS, or

XM input sources.

2Press eInput selection keys on the

remote control for the input source whose

remote control code was registered in step 1

for about 3 seconds while pressing down

iSCENE key whose assignment you want

to change.

The external component can now be controlled

remotely just by selecting the iSCENE key.

1Press uMUTE on the remote control to mute

the audio output.

The MUTE indicator on the front panel display

flashes while audio output is muted.

2Press uMUTE again to resume audio

output.

You can adjust the balance of the high frequency range

(Treble) and low frequency range (Bass) of sounds output

from the front left and right speakers to obtain desired

tone.

•The tone control of the speakers or headphones can be set separately. Set

the headphone tone control with the headphones connected.

1Press NTONE CONTROL on the front panel

repeatedly to select “Treble” or “Bass.”

The current setting is displayed on the front panel

display.

2Rotate the OPROGRAM selector to adjust

the output level in those frequency ranges.

Adjustable range: –10.0 dB to +10.0 dB

The display returns to the previous screen soon after

you release the selector.

Notes

•The tone control settings are not effective during playback in Pure Direct

mode.

•If you set the balance extremely off, sounds may not match those from

other channels well.

Use Pure Direct mode to enjoy the pure high fidelity

sound of the selected source. When Pure Direct mode is

activated, this unit plays back the selected source with the

least circuitry.

Press QPURE DIRECT (or hPURE DIRECT)

to turn the Pure Direct mode on or off.

The following features are disabled in Pure Direct mode.

–sound field program and tone control

–display and operation of the OPTION menu and

SETUP menu

–multi-zone function

•The front panel display turns off in Pure Direct mode. It turns on again

when Pure Direct mode is turned off.

Registering input source/sound field

program

Switching remotely controlled external

components linked to SCENE selections

Muting audio output temporarily

(MUTE)

Adjusting high/low frequency sound

(tone control)

Enjoying pure hi-fi sound

(Pure Direct mode)

Treble

0.0dB

26 En

Playback

Plug your headphones in the BPHONES jack on

the front panel.

When you select a sound field program while using the

headphones, the mode is automatically set to SILENT

CINEMA mode.

Notes

•When you connect headphones, no signals are output from the

SPEAKERS terminals.

•When multi-channel signals are processed, sounds in all channels are

divided to left and right channels. When the input source is set to

“MULTI CH,” only front L/R sound is output from the headphones.

When HDMI1-4 or AV1-4 is selected as the input source,

you can display audio/video signal information.

•Input signal information is displayed on both a video monitor and the

front panel display.

1Select the desired input source, and press

rOPTION.

The OPTION menu for the selected input source is

displayed (see page 46).

2Press kCursor k/n to select “Signal Info,”

and press kENTER.

Information on input signals is displayed. See

page 47 on information displayed on the screen.

•You can change items of information displayed on the front panel

display using kCursor k/n.

•If an HDMI related error occurs, error information is displayed at

the bottom of the screen.

3To end the information display, press

rOPTION.

You can display information on the front panel display

such as the names of the currently selected sound field

program and surround decoders on the front panel display.

To change the display, press FINFO (or gINFO)

repeatedly. The following information can be displayed on

the front panel display.

•Currently selected input source name (Input)

•Currently selected sound field program name (DSP

Program)

•Currently selected surround decoder (Audio Decoder)

•Currently set FM/AM tuner frequency (Frequency)

•XM/SIRIUS tuner information (Channel, Category,

Artist/Song, Antenna, Composer)

•iPod playback information (Song, Album, Artist, List)

For example, if you select HDMI1 and display “DSP

Program,” the following screen appears on the front panel

display.

The information on each input source that can be

displayed is shown in the table below.

Using your headphones

Displaying input signal information

Changing information on the front

panel display

Input source Items

HDMI1-4

AV 1 - 6

AUDIO1-2

V-AUX

Input

DSP Program

Audio Decoder

MULTI CH Input

FM/AM Frequency

DSP Program

Audio Decoder

SIRIUS

Channel

Category

Artist/Song

Composer (SIRIUS only)

Antenna

DSP Program

Audio Decoder

iPod

(Simple remote mode)

Input

DSP Program

Audio Decoder

iPod

(Menu browse mode)

(Play information display)

Artist

Album

Song

DSP Program

Audio Decoder

(Play menu display)

List

Bluetooth Input

DSP Program

Audio Decoder

Straight

Input source

Sound field program (DSP program)

27 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

This unit is also equipped with a Yamaha digital sound field processing (DSP) chip. You can enjoy multi-channel sounds

for almost all input sources using various sound field programs stored on the chip and a variety of surround decoders.

■Selecting a sound field program on the front panel

Rotate the OPROGRAM selector to select a desired sound field program.

■Selecting a sound field program with the remote control

Perform the following operations depending on the category of the sound field programs.

Sound field programs for movies/TV programs............................... Press hMOVIE repeatedly.

Sound field programs for music ....................................................... Press hMUSIC repeatedly.

Stereo reproduction .......................................................................... Press hSTEREO repeatedly.

Multi-channel stereo reproduction ................................................... Press hSTEREO repeatedly.

Compressed Music Enhancer ........................................................... Press hSTEREO repeatedly.

Surround decoder ............................................................................. Press hSUR. DECODE repeatedly.

For example, if you select “Sci-Fi” in “MOVIE,” the following screen appears on the front panel display.

Notes

•Sound field programs are stored for each input source. When you change the input source, the sound field program previously selected for that input

source is applied again.

•When you play back the Dolby Digital Plus, Dolby TrueHD, DTS Express, DTS-HD Master Audio, or DTS-HD High Resolution Audio sources, sound is

reproduced in straight decode mode.

•If the sampling frequency of an input source is higher than 96 kHz, this unit does not apply any sound field programs.

This unit provides sound field programs for multiple categories including music, movies and stereo reproduction. Select

a sound field program based on your listening preference, not merely on the name of the program, etc.

•You can check what speakers are currently outputting signals with the speaker indicators on the front panel display (see page 6).

•Each program can adjust sound field elements (sound field parameters). For details, see page 49.

• in the table indicates the sound field program with CINEMA DSP.

Enjoy the sound field programs

Selecting sound field programs

Sound field program descriptions

For movie/TV program sources (MOVIE)

Program Descriptions

Standard Creates a sound field that emphasizes the surrounding feeling without disturbing the original acoustic positioning

of multi-channel audio such as Dolby Digital and DTS. The design concept of this sound field is “an ideal movie

theater,” in which the audience is surrounded by beautiful reverberations from the left, right and rear.

Spectacle Creates a spectacular sound field that produces a sense of magnificent scale. This sound field program features a

wide dynamic range that reproduces a broad theater sound field matching cinemascope and wider-screen movies,

from tiny sound effects to big acoustics.

Sci-Fi Creates a clear sound field that allows you to enjoy the finely elaborated sound design of the latest science fiction

and SFX movies. Different atmospheres can be vividly reproduced while dialog, sound effects and background

music are clearly separated.

Adventure Creates a sound field ideal for action and adventure movies, reproducing a sense of power by reducing

reverberations and emphasizing a horizontal soundscape. A clear and powerful atmosphere is reproduced while

maintaining separation of audio channels and sound clarity with a shallower depth of feeling.

Sci-Fi

Program name

Sound field program category

28 En

Enjoy the sound field programs

•When multi-channel signals are input, they are downmixed to 2 channels and output from the front left and right speakers.

Drama Creates a calm sound field suitable for different genres of movies, from serious dramas to musicals and comedies.

Sound is produced with discreet reverberation yet with a three-dimensional feeling. Spatial sound effects and

background music are reproduced with soft reverberations around the center position, which reduces fatigue from

watching movies for a long time.

Mono Movie Creates a sound field that allows you to enjoy old monaural movies in an atmosphere of a movie theater of those

days. A comfortable space with a feeling of depth is reproduced by adding soundscape and reasonable

reverberation to the original sound.

Sports Creates a lively sound field suitable for stereo sports broadcasts and TV studio shows. In sports broadcasts, the

voices of sports commentators and analysts are output from the center while the crowd’s cheers and other sounds

are suitably spread out, creating a realistic stadium atmosphere that makes you feel as if you are really there.

Action Game Creates a sound field designed for action games such as car racing and FPS games. The presence of various sound

effects is enhanced while maintaining a clear feeling of direction by limiting each channel’s sound effect range

using reflection data, which produces a realistic and powerful playing environment.

Roleplaying Game Creates a sound field designed for roleplaying games and adventure games. Depth and a three-dimensional feel to

the game are produced by combining movie sound field effects and the sound design used in “Action Game.” In

movie scenes, movie-like surround effects are produced.

For audio music sources (MUSIC)

Program Descriptions

Hall in Munich Creates a sound field designed by simulating a concert hall with about 2,500 seat in Munich, which is a typical

European concert venue with elegant wooden interior walls. A rich, delicate and beautiful sound is produced,

creating a relaxing atmosphere. The seat setting is a left center orchestra seat.

Hall in Vienna Creates a sound field designed by simulating a concert hall with about 1,700 seats in Vienna, which is a traditional

middle-size shoebox type concert venue. In this hall, complex omnidirectional reflections bounce off pillars and

carvings to produce a characteristically rich sound.

Chamber Creates a sound field designed by simulating a relatively large room with a high ceiling such as a palace chamber.

It produces pleasant reverberations suitable for court music and chamber music.

Cellar Club Creates a realistic live sound field designed by simulating a live house with a low ceiling and intimate atmosphere.

It features a powerful sound that makes you feel as if you are right in front of a small stage.

The Roxy Theatre Creates a sound field designed by simulating a rock music live house with up to about 460 seats in Los Angeles.

The seat setting is a left center seat.

The Bottom Line Creates a sound field designed by simulating “The Bottom Line,” a famous New York jazz club which has a floor

occupied by 300 wide seats. It produces clear reverberations. The seat setting is in front of the stage.

Music Video Creates a sound field designed by simulating a concert venue where live performances of pop, rock and jazz music

take place. You can indulge yourself in a hot live atmosphere created by a presence sound field that emphasizes the

vividness of vocals and solos and the beat of the drums, and by a surround sound field that reproduces a big live

venue atmosphere.

For stereo reproduction (STEREO)

Program Descriptions

2ch Stereo Produces front stereo sound. This is standard playback mode.

For multi-channel stereo reproduction (STEREO)

Program Descriptions

7ch Stereo Produces front and rear sound for a large area. This playback mode is suitable for BGM at a house party. Sound is

output from a maximum of seven speakers.

Program Descriptions

29 En

Enjoy the sound field programs

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Reproduces sound from 2-channel sound sources in up to 7 channels using a surround decoder.

•When multi-channel sound is input, sound is reproduced in straight decoding mode (see page 30).

The Compressed Music Enhancer (ENHNCR)

Program Descriptions

Straight Enhancer Dynamically reproduces sound from 2-channel or multi-channel compressed sound data with the same number of

channels as its source sound.

7ch Enhancer Dynamically reproduces sound from compressed sound data in 7 channels regardless of the source sound channels.

Surround decode mode (SUR.DEC)

Decoder Descriptions

Pro Logic Reproduces sound using the Dolby Pro Logic decoder. This is suitable for all kinds of sound sources.

PLIIx Movie /

PLII Movie

Reproduces sound using the Dolby Pro Logic IIx (or Dolby Pro Logic II) decoder. This is suitable for movies. You

cannot select the Dolby Pro Logic IIx decoder in the following conditions:

•When no surround back speakers are connected

•When headphones are connected

PLIIx Music /

PLII Music

Reproduces sound using the Dolby Pro Logic IIx (or Dolby Pro Logic II) decoder. This is suitable for music. You

cannot select the Dolby Pro Logic IIx decoder in the following conditions:

•When no surround back speakers are connected

•When headphones are connected

PLIIx Game /

PLII Game

Reproduces sound using the Dolby Pro Logic IIx (or Dolby Pro Logic II) decoder. This is suitable for games. You

cannot select the Dolby Pro Logic IIx decoder in the following conditions:

•When no surround back speakers are connected

•When headphones are connected

Neo:6 Cinema Reproduces sound using the DTS Neo:6 decoder. This is suitable for movies.

Neo:6 Music Reproduces sound using the DTS Neo:6 decoder. This is suitable for music.

Neural Sur.

(U.S.A. model only)

Performs Neural Surround processing for all sound sources.

The Neural Surround decoder supports PCM (sampling rate of 96 kHz or lower), Dolby Digital, DTS Digital

Surround (except for DTS 96/24), DSD and analog 2-channel input sources. When the Neural Surround decoder is

selected and an unsupported signal is input, a multi-channel sound source is directly decoded to an appropriate

channel without performing any additional effect processing. A Neural Surround incompatible PCM sound source

is reproduced in stereo. The Neural Surround decoder is especially suitable for the XM HD Surround program of

XM Satellite Radio.

30 En

Enjoy the sound field programs

In straight decoding mode, sounds are reproduced without

sound field effect. 2-channel stereo sources are output

from only the front left and right speakers. Multi-channel

input sources are decoded straight into the appropriate

channels and multi-channel sounds are reproduced

without a sound field effect.

1To enable straight decoding mode, press

PSTRAIGHT (or hSTRAIGHT).

“Straight” appears on the front panel display.

2To cancel straight decoding mode, press

PSTRAIGHT (or hSTRAIGHT) again.

A sound field program name appears on the front

panel display, and sound is reproduced with that

sound field effect.

Virtual CINEMA DSP allows you to enjoy DSP sound

field surround effects even without any surround speakers

by using virtual surround speakers. You can even enjoy

Virtual CINEMA DSP using a minimal two-speaker

system that does not include a center speaker.

When “Sur. L/R SP” in the SETUP menu is set to “None”

(see page 55), this unit operates in Virtual CINEMA DSP

mode.

Note

•Virtual CINEMA DSP is not available in the following conditions even if

you set “Sur. L/R SP” to “None” (see page 55).

–headphone plug is connected to the PHONES jack.

–7ch Stereo of the field sound program is selected.

–Pure Direct mode or straight decoding mode is used.

SILENT CINEMA allows you to enjoy multi-channel

sources with your headphones. SILENT CINEMA mode

is automatically selected when you connect the headphone

plug to the PHONES jack.

Note

•SILENT CINEMA mode is not available in the following conditions.

–2ch Stereo of the sound field program is selected.

–Pure Direct mode or straight decoding mode is selected.

CINEMA DSP 3D mode creates an intensive and accurate

stereoscopic sound field in the listening room.

To use this unit in CINEMA DSP 3D mode, presence

speakers are required. Do the following steps and then

select a CINEMA DSP sound field program. When a

sound field program runs in CINEMA DSP 3D mode, the

CINEMA DSP 3D indicator on the front panel lights up.

•Connect the presence speakers to the EXTRA SP jacks

(see page 12).

•Set “Extra SP Assign” to “Presence” (see page 54).

•Enable CINEMA DSP 3D in the SETUP menu

(see page 49).

Note

•If headphones are connected to this unit, this unit plays back in SILENT

CINEMA mode so CINEMA DSP 3D mode cannot be enabled.

Enjoying unprocessed input sources

(Straight decoding mode)

Enjoying sound field programs without

surround speakers

(Virtual CINEMA DSP)

Enjoy sound field programs with

headphones (SILENT CINEMA™)

Enjoying more spatial sound fields

(CINEMA DSP 3D mode)

31 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

The FM/AM tuner of this unit provides the following two

modes for tuning.

■Frequency tuning mode

You can tune into a desired FM/AM station by searching

or specifying its frequency.

■Preset tuning mode

You can preset the frequencies of FM/AM stations by

registering them to specific numbers, and later just select

those numbers to tune in.

Note

•Adjust the FM/AM antennas connected to this unit for the best reception.

1Rotate the RINPUT selector (or press

eTUNER) to switch the input source to

“TUNER.”

2Press IFM (fFM) or IAM (fAM) to select

a band.

“FM” or “AM” appears on the front panel display

according to the band that you have selected.

3Press JTUNING/CH l/h (or fTUN./CH

k/n) to specify the frequency.

To adjust the frequency to a higher range, press h (or

k). To adjust it to the lower range, press l (or n).

The TUNED indicator on the front panel display

lights up when the tuner is tuned into a station. The

STEREO indicator also lights up if the program being

broadcasted is in stereo.

The frequency changes in the following manner according

to how you press JTUNING/CH l/h (or fTUN./

CH k/n).

When you press the key more than 1 second

The tuner searches the frequency of a station that is

detectable around the current frequency. This is effective

when the tuner can receive strong signals without any

interference. Once the search starts, release the key.

When you press and release the key

The tuner increases or decreases the frequency in steps.

Use this method when the tuner cannot receive strong

signals and stations are skipped during the search.

•You can switch between stereo and monaural for FM broadcast in the

OPTION menu (see page 48).

4To tune in by direct frequency tuning, enter

the frequency of the desired station using

mNumeric keys on the remote control.

Enter only integers. For example, if you want to set

the frequency to 88.9 MHz, enter “889” using

mNumeric keys.

Notes

•When you press mNumeric keys during preset tuning, a

preset number is selected. Set tuning mode to frequency tuning

mode using JTUNING/CH l/h (or fTUN./CH k/n)

prior to the operation.

•“Wrong Station!” appears on the front panel display when you

enter a frequency that is out of receivable range. Make sure that the

entered frequency is correct.

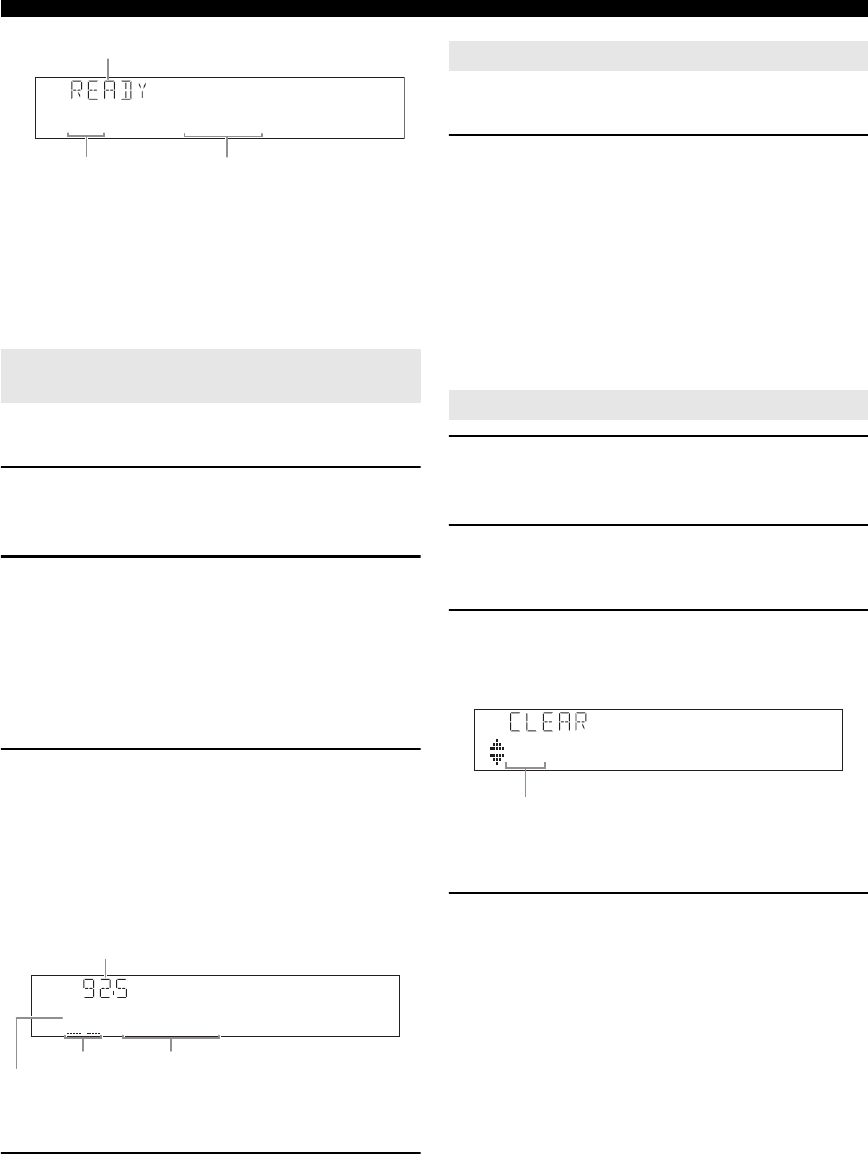

You can register up to 40 FM/AM stations (Preset) using

the automatic station preset feature or manual station

preset feature.

The tuner automatically detects FM stations with strong

signals and registers up to 40 stations. AM stations cannot

be automatically registered. Use manual station preset.

1Rotate the RINPUT selector (or press

eTUNER) to switch the input source to

“TUNER.”

2Press rOPTION on the remote control.

The OPTION menu screen for setting options of

tuner input appears on the front panel display.

•For details on the OPTION menu, see page 46.

•The OPTION menu is displayed on the video monitor.

3Select “Auto Preset,” using kCursor k/n

and press kENTER.

Automatic station preset starts about 5 seconds later

from the lowest frequency upwards.

•You can select the preset number at which the preset starts by

pressing fPRESET k/n or kCursor k/n on the remote

control while “READY” is displayed on the front panel display.

•To cancel registration, press kRETURN on the remote control.

FM/AM tuning

Tuning into the desired FM/AM station

(Frequency tuning mode)

STEREO

TUNED

FM92.5MHz

Registering FM/AM stations and

tuning in (Preset tuning mode)

Registering stations by automatic station

preset

Auto Preset

32 En

FM/AM tuning

During the automatic station preset, the upper area of

the screen changes as follows: SEARCH →

MEMORY each time a station is registered.

When registration is complete, “FINISH” appears

and the OPTION menu screen automatically

reappears. When you press rOPTION on the

remote control, the screen returns to the original state.

You can manually register AM stations or FM stations

with weak signals.

1Tune into a station referring to “Tuning into

the desired FM/AM station

(Frequency tuning mode)” (see page 31).

2Press GMEMORY (or fMEMORY).

“Manual Preset” appears on the front panel display,

followed soon by the preset number to which the

station will be registered.

•By pressing down GMEMORY (or fMEMORY) for more

than 2 seconds, you can skip step 3 and register the station to the

lowest empty preset number or a preset number one higher than the

last preset number.

3Press HPRESET l/h (or fPRESET k/

n) to select the preset number to which the

station will be registered.

When you select a preset number to which no station

is registered, “Empty” appears on the display. When

you select a registered preset number, a registered

frequency is displayed on the right of the preset

number.

•You can select a preset number using the mNumeric keys.

4Press GMEMORY (or fMEMORY) again to

When registration is complete, the screen returns to

the original state.

•To cancel registration, press kRETURN on the remote control

or leave the tuner without any operations for about 30 seconds.

You can call preset stations registered by automatic station

preset or manual station preset.

Press HPRESET l/h (or fPRESET k/n) to

select a preset number.

•Preset numbers to which no stations are registered will be skipped.

•If no stations are registered, “No Presets” or “No Presets in Memory”

appears on the display. See page 31 and register stations.

•You can directly select a preset number by pressing a mNumeric

keys while calling a preset station. “Empty” appears on the display if

you enter a preset number to which no station is registered. “Wrong

Num.” appears if you enter an invalid number.

•When you press mNumeric keys during normal tuning, a preset

number is selected. Set tuning mode to preset tuning mode using

HPRESET l/h (or fPRESET k/n) prior to the operation.

1Rotate the RINPUT selector (or press

eTUNER) to switch the input source to

“TUNER.”

2Press rOPTION on the remote control.

The OPTION menu screen for setting options of

tuner input appears on the front panel display.

3Display “Clear Preset” using the kCursor

k/n and press kENTER.

The following screen appears on the display.

•You can cancel the operation and return to the OPTION menu

screen by pressing kRETURN on the remote control.

4Select the preset number of the registered

station you want to clear using the kCursor

k/n and press kENTER.

The preset station registered to the selected preset

number is cleared. To clear the registration of

multiple preset numbers, repeat the above steps.

To end the operation, press rOPTION.

Registering stations by manual station

preset

01:FM87.5MHz

Preset number Frequency

Status

01:Empty

Flashing

Frequency to be registered

Empty (or frequency that is currently

registered to the preset number)

Preset

number

Calling a preset station (Preset tuning)

Clearing the preset station

01:FM92.5MHz

Preset number of the registered station you want to clear.

33 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Listening to Satellite Radio

To listen to Satellite Radio, you’ll need to connect either a SIRIUS or XM Satellite Radio tuner (sold separately) to your

satellite-ready receiver. Satellite Radio is available to residents of the US (except Alaska and Hawaii).

Satellite Radio delivers a variety of commercial-free music from categories ranging from Pop, Rock, Country, R&B,

Dance, Jazz, Classical and many more plus coverage of all the top professional and college sports including play by play

games from select leagues and teams. Additional programming includes expert sports talk, uncensored entertainment,

comedy, family programming, local traffic and weather and news from your most trusted sources.

Whether you purchase a SIRIUS or XM tuner, you’ll need to activate and subscribe to begin enjoying the service. Easy to

follow installation and setup instructions are provided with the satellite tuners. Whichever service you choose, there are a

variety of programming packages available, including the option of adding “The Best of SIRIUS” programming to your

XM tuner or “The Best of XM” programming to your SIRIUS tuner, enabling you to enjoy the most popular

programming among both services. The “Best of” packages are not available to SIRIUS or XM Canada subscribers at

this time. Family friendly packages are also available to restrict channels featuring content that may be inappropriate for

children.

To subscribe to XM, U.S. customers should visit xmradio.com or call 1-800-XMRADIO (1-800-967-2346).

To subscribe to SIRIUS, U.S. customers can call 1-888-539-SIRI (1-888-539-7474) or visit sirius.com (US).

Connect XM Mini-Tuner and XM Mini-Tuner Home

Dock (sold separately) to the XM jack on the rear panel of

this unit. For details, see the instruction manuals provided

with the XM Mini-Tuner Home Dock.

•To ensure optimal reception of the XM Satellite Radio signals, the XM

Mini-Tuner Home Dock must be placed at or near a southerly facing

window with no obstacles in the path to the sky. You can mount it indoors

or outdoors. Use the “Antenna” information on the front panel display or

on the video monitor (see page 36) to check the antenna reception level

and adjust the orientation of the antenna.

Notes

•If “CHECK ANTENNA,” “CHECK XM TUNER” or “NO SIGNAL”

appears on the front panel display, the connection and setting of the

antenna, XM Mini-Tuner Home Dock, or XM Mini-Tuner may not be

correct.

•When “UPGRADE XM TUNER” is displayed, it means that the

connected antenna is old. See page 70 for details.

Once you have installed the XM Mini-Tuner Home Dock,

inserted the XM Mini-Tuner, connected the XM Mini-

Tuner Home Dock to your XM Ready® home audio

system, and installed the antenna, you are ready to

subscribe and begin receiving XM programming. You can

find your eight character XM Radio ID on the XM Mini-

Tuner, on the XM Mini-Tuner package, or on XM Channel

0. Write down the XM Radio ID in the eight squares

provided below for future reference.

Note

•The XM Radio ID does not use the letters “I,” “O,” “S” or “F.” Activate

your XM Satellite Radio service in the U.S. online at http://

activate.xmradio.com/ or call 1-800-XM-RADIO (1-800-967-2346). You

will need a major credit card. XM will send a signal from the satellites to

activate the full channel lineup. Activation normally takes 10 to 15

minutes, but during peak busy periods you may need to keep your XM

Ready home audio system on for up to an hour. When you can access the

full lineup on your XM Ready home audio system you are done.

XM® Satellite Radio tuning (U.S.A. model only)

SIRIUS XM Radio Legal

SIRIUS, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All other

separately. Taxes and a one-time activation fee may apply. XM tuners and home docks or SIRIUS tuners (each sold

separately) are required to receive the SIRIUS or XM satellite radio service. All programming and fees subject to

change. It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate or otherwise make

available any technology or software incorporated in receivers compatible with the SIRIUS or XM Satellite Radio

Systems. Service not available in Alaska and Hawaii.

Connecting XM Mini-Tuner Home Dock

IRI

NENT

VIDE

XM Mini-Tuner and XM Mini-Tuner Home Dock

(sold separately)

Activating XM Satellite Radio

34 En

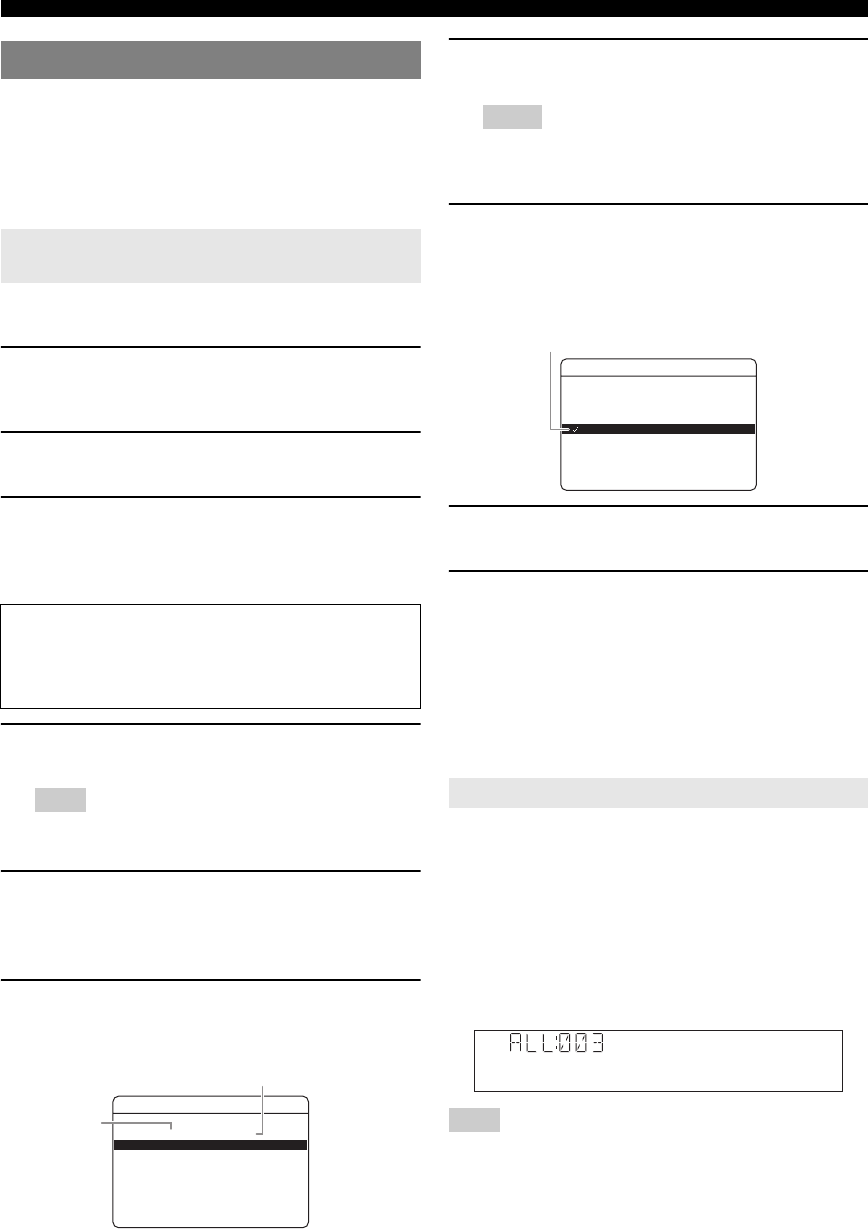

XM® Satellite Radio tuning (U.S.A. model only)

1Rotate the RINPUT selector (or press

eXM) to select “XM” as the input source.

The XM Satellite Radio information (such as channel

number, channel name, category, artist name and

song title) for the currently selected channel appears

on the front panel display and video monitor

(see page 36).

•When you select “XM” as the input source, this unit automatically

calls the previously selected channel.

Note

•If a status message or an error message appears on the front panel

display or on the video monitor, see “XM Satellite Radio”

(see page 70).

2Search for a channel by using one of the XM

Satellite Radio search modes.

•To select a channel from the all channel list, see

“All Channel Search mode” on this page.

•To select a channel by category, see “Category

Search mode” on this page.

•To select a channel directly by entering the channel

number, see “Direct number access mode” on this

page.

•To select a channel from the preset channels, see

“Calling a preset channel (Preset Search mode)”

(see page 35).

•You can display the XM Satellite Radio information on the front

panel display or on the OSD (see page 36).

•You can set the XM Satellite Radio preset channels (see page 35).

■All Channel Search mode

Press JTUNING/CH l/h (or fTUN./CH k/

n) repeatedly to search for a channel within all

channels.

•You can search for a channel quickly by pressing and holding

JTUNING/CH l/h (or fTUN./CH k/n).

•You can skip channels to the previous or next category by pressing

ICATEGORY l/h (or fCATEGORY l/h).

■Category Search mode

1Press ICATEGORY l/h (or

fCATEGORY l/h) to select the channel

category.

“CAT” is displayed on the front panel display during

the channel category selection. When you select the

category, the first channel in the category is selected.

Note

•If you don’t operate within 10 seconds, the category search mode

returns to “ALL” (All Channel Search mode).

2While “CAT” is displayed on the front panel

display, press JTUNING/CH l/h (or

fTUN./CH k/n) repeatedly to search for a

channel within the selected channel

category.

•You can search for a channel quickly by pressing and holding

JTUNING/CH l/h (or fTUN./CH k/n).

Note

•This unit skips the following channels in All Channel Search mode

or Category Search mode. This is not a malfunction.

–channels that are not currently in service

–channels that you do not subscribe to

■Direct number access mode

Press the mNumeric keys on the remote

control to enter the desired three-digit channel

number.

For example, to enter the number 123, press “1,” “2” and

then “3” of the mNumeric keys.

•To display the Radio ID number on the front panel display, select channel

“0.”

•When entering a one-digit or two-digit channel number, enter the number

using the mNumeric keys and then press mENT on the remote

control to confirm your entry.

•This unit automatically accepts your entry if you do not press mENT

within a few seconds after entering the number.

•If the selected channel is not available, an advisory message may appear.

For details, see “XM satellite radio” on page 70.

•If this unit is in preset search mode (see next page), a preset number is

selected instead of a channel number when you press the mNumeric

keys. To switch to direct number access mode, press JTUNING/CH

l/h (or fTUN./CH k/n).

XM Satellite Radio operations

001Preview

Search mode

Channel number Channel name

00880's

Pop

Category

search mode The first channel in the category

Category name

35 En

XM® Satellite Radio tuning (U.S.A. model only)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

You can use this feature to store up to 40 XM Satellite

Radio channels. You can call any preset channel just by

selecting a preset number as described in “Calling a preset

channel (Preset Search mode)” on this page.

1Search for a channel you want to set as a

preset channel in one of the XM Satellite

Radio search modes.

For details, see “XM Satellite Radio operations”

(see page 34).

2Press GMEMORY (or fMEMORY).

The front panel display changes as follows.

•To register the selected channel under an empty preset number

automatically, press and hold GMEMORY (or fMEMORY)

for more than 2 seconds instead of doing step 2. In this case, steps

3 and 4 are unnecessary.

•To cancel the preset operation, press kRETURN.

3Press HPRESET l/h (or fPRESET k/

n) to select the preset number.

Note

•You can also select a preset number by pressing the mNumeric

keys.

4Press GMEMORY (or fMEMORY).

The channel is registered to the selected preset

number.

Prior to selecting a preset number in Preset Search mode,

you must register an XM Satellite Radio channel to the

preset number. For details, see “Registering preset

channels” on this page.

Press HPRESET l/h (or fPRESET k/n)

repeatedly to change preset numbers (1 to 40).

•You can directly enter the preset number using the mNumeric keys

instead of selecting it using HPRESET l/h (or fPRESET k/

n).

You can clear the assignments of preset XM Satellite

Radio channels.

1Press rOPTION on the remote control.

The OPTION menu is displayed on the front panel

display.

2Press kCursor n repeatedly to select “Clear

Preset” and then press kENTER.

3Press kCursor k/n to select the preset

channel that you want to clear.

4Press kENTER to execute the clearing of

the selected preset channel.

To clear the registration of multiple preset channels,

repeat the above steps. To end the operation, press

rOPTION.

Registering XM Satellite Radio

channels

Registering preset channels

00880's

P01:---<<008

Currently registered channel

(or “---” if empty)

Preset number Channel to be registered to the

selected preset number

Calling a preset channel (Preset Search

mode)

Clearing preset channels

00880's

Preset number

008 80's

36 En

XM® Satellite Radio tuning (U.S.A. model only)

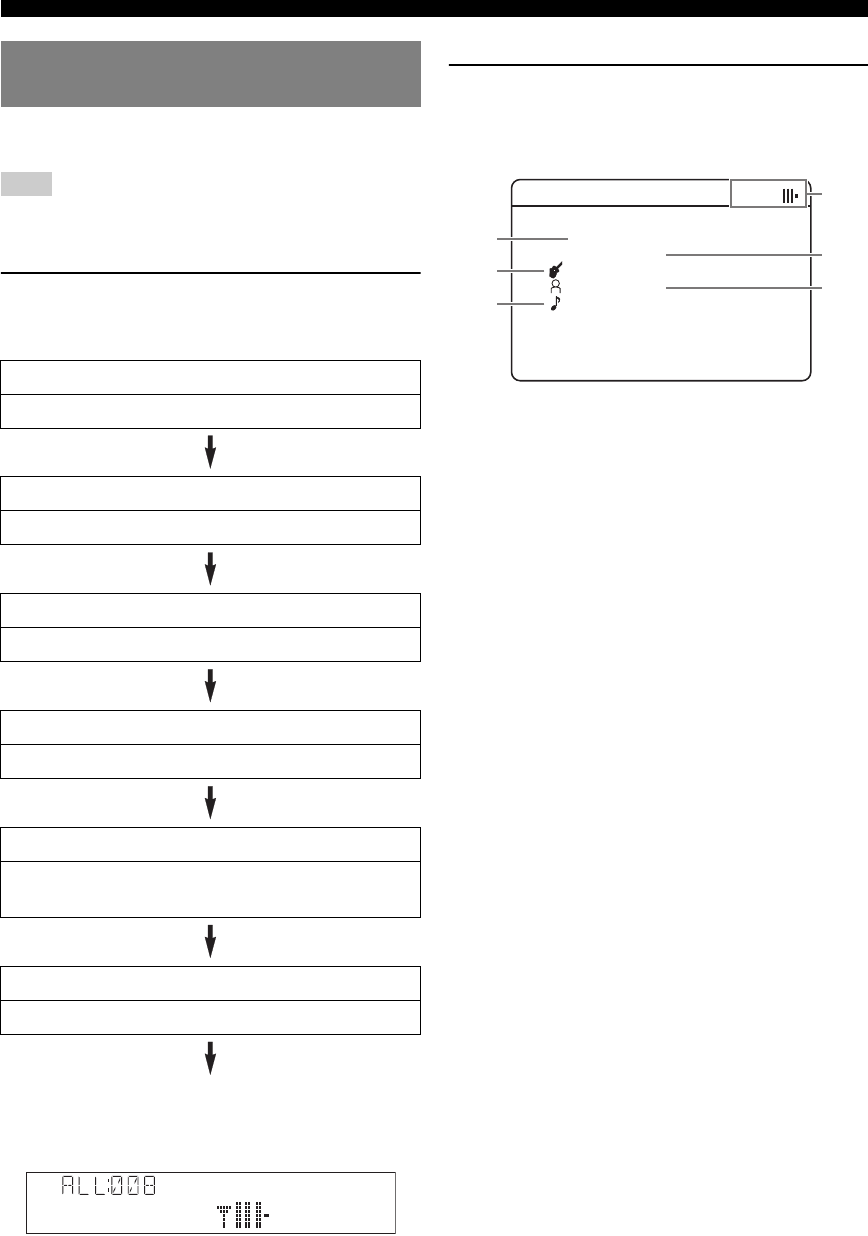

You can display the XM Satellite Radio information on

the front panel display or on the video monitor.

Note

•If a status message or an error message appears on the front panel display

or the video monitor, see “XM Satellite Radio” (see page 70).

■Front panel display

Press FINFO (or gINFO) repeatedly to toggle

the XM Satellite Radio information display modes

as shown below.

Back to “Channel”

Front Panel Display (example)

•If the XM Satellite Radio information contains a character that this unit

cannot recognize, the character is replaced by a blank.

•When an information is unavailable, “––––” appears.

■Video monitor (OSD)

Press tDISPLAY on the remote control to turn

on or off the information display.

The following information is displayed on the video

monitor.

aSearch mode (see page 34)

bChannel category

cSong title

dAntenna reception level

eChannel number/name

fArtist name

•To turn off the OSD, press tDISPLAY.

•You can hold the music information screen or release it by kENTER.

Displaying the XM Satellite Radio

information

Channel

Channel number, channel name

Category

Channel category, channel number

Artist / Song

Artist name, song title, channel number

Antenna

Antenna reception level, channel number

DSP Program

Current sound field program (see page 27), channel

number

Audio Decoder

Current Audio Decoder (see page 29), channel number

Antenna

XMANT:

AllCHSearch

008:'80s

:Decades

:Sanumemo

:RoadtoIndia

37 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Connect the SiriusConnect tuner (sold separately) to the

SIRIUS jack on the rear panel of this unit. For details, see

the instruction manuals provided with the SiriusConnect

tuner.

•To ensure optimal reception of the SIRIUS Satellite Radio signals, the

antenna of the SiriusConnect tuner must be placed at or near a window

with no obstacles in the path to the sky. The orientation of the antenna for

the best reception differs depending on the area. Refer to the instruction

manuals provided with the SiriusConnect tuner for the installation of the

antenna. You can mount it indoors or outdoors.

•Use the Antenna information on the front panel display or the SIRIUS

information screen on the video monitor (see page 41) to check the

antenna reception level and adjust the orientation of the antenna.

•You need to connect the SiriusConnect tuner to the AC wall outlet.

Notes

•If “CHECK SR TUNER” or “ANTENNA ERROR” appears on the front

panel display, the connection of the SiriusConnect tuner or antenna is

incorrect. In such cases, check the connection of the SiriusConnect tuner

and the antenna.

•If “NOT SUPPORTED” appears on the front panel display, this unit does

not support the connected SiriusConnect tuner.

Before using the SIRIUS Satellite Radio feature, you need

to activate your SIRIUS Satellite Radio subscription. To

activate the subscription you need the Sirius ID which is

uniquely assigned to the SiriusConnect tuner. Sirius ID is

12-digit number and it appears on the package of the

SiriusConnect tuner, on the label of the SiriusConnect

tuner, and when you tune into the SIRIUS Satellite Radio

channel “0” (see next section).

1Rotate the RINPUT selector (or press

eSIRIUS) to select “SIRIUS” as the input

source.

2Press m0 and then mENT to display the

Sirius ID of your SiriusConnect tuner.

“000 Sirius ID” and “xxxxxxxxxxxx”

(“xxxxxxxxxxxx” indicates the 12-digit Sirius ID of

your SiriusConnect tuner) appears alternately on the

front panel display.

Write down the Sirius ID in the space provided

below.

ID:________________________________________

3Contact SIRIUS Satellite Radio to activate

your subscription.

•Status messages appear on the front panel display or the video

monitor during the activation. For details, see “SIRIUS Satellite

Radio” (see page 71). Once the activation is finished, “SUB

UPDATED” appears.

1Rotate the RINPUT selector (or press

eSIRIUS) to select “SIRIUS” as the input

source.

The cursor on the left of the SIRIUS indicator lights

up on the front panel display and the SIRIUS Satellite

Radio information (such as channel number, channel

name, category, artist name, or song title) for the

currently selected channel appears on the front panel

display.

•When you select “SIRIUS” as the input source, this unit

automatically calls the previously selected channel.

Notes

•Before activating your subscription, you can only select “184” or

“000.”

•If a status message or an error message appears on the front panel

display or on the OSD on the video monitor, see “SIRIUS Satellite

Radio” (see page 71).

SIRIUS Satellite Radio™ tuning (U.S.A. model only)

Connecting the SiriusConnect™ tuner

Activating SIRIUS Satellite Radio™

subscription

SIRIUS

DC 5V

ANT

SiriusConnect Tuner and the antenna

(sold separately)

To the AC wall outlet

Displaying the Sirius ID of your

SiriusConnect tuner

SIRIUS Satellite Radio online information

Contact for activation

URL: https://activate.siriusradio.com/

Phone: 1-888-539-SIRIUS (1-888-539-7474)

SIRIUS Satellite Radio™ operations

184Weather

SIRIUS

Search mode

Channel number Channel name

38 En

SIRIUS Satellite Radio™ tuning (U.S.A. model only)

2Search for a channel by using one of the

SIRIUS Satellite Radio search modes.

•To select a channel from the all channel list, see

“All Channel Search mode” on this page.

•To select a channel by category, see “Category

Search mode” on this page.

•To select a channel directly by entering the channel

number, see “Direct number access mode” on this

page.

•To select a channel from the preset channels, see

“Calling a preset channel (Preset Search mode)”

(see page 39).

•You can display the SIRIUS Satellite Radio information on the

front panel display or the video monitor (see page 41).

•If you tune into a channel that you do not subscribe, “CALL

SIRIUS on the front panel display” or “CALL 888-539-SIRIUS

TO SUBSCRIBE” on the video monitor appears.

•You can register SIRIUS Satellite Radio channels to the preset

numbers (see page 39).

■All Channel Search mode

Press JTUNING/CH l/h (or fTUN./CH k/

n) repeatedly to search for a channel within all

channels.

•You can search for a channel quickly by pressing and holding

JTUNING/CH l/h (or fTUN./CH k/n).

•You can skip channels to the previous or next category by pressing

ICATEGORY l/h (or fCATEGORY l/h).

■Category Search mode

1Press ICATEGORY l/h (or

fCATEGORY l/h) to select the channel

category.

“CAT” is displayed on the front panel display during

channel category selection. When you select the

category, the first channel in the category is selected.

Note

•If you don’t operate within 10 seconds, the category search mode

returns to “ALL (All Channel Search).”

2While “CAT” is displayed on the front panel

display, press JTUNING/CH l/h (or

fTUN./CH k/n) repeatedly to search for a

channel within the selected channel

category.

•You can search for a channel quickly by pressing and holding

JTUNING/CH l/h (or fTUN./CH k/n).

Note

•This unit skips the following channels in All Channel Search mode

or Category Search mode. This is not a malfunction.

–channels that are locked (see page 40)

–channels that are not currently in service

–channels that you do not subscribe to

■Direct number access mode

Press the mNumeric keys on the remote

control to enter the desired three-digit channel

number.

For example, to enter the number 123, press “1,” “2” and

then “3” of the mNumeric keys.

•To display the SIRIUS ID number on the front panel display, select

channel “0.”

•When entering a one-digit or two-digit channel number, enter the number

using the mNumeric keys and then press mENT on the remote

control to confirm your entry.

•This unit automatically accepts your entry if you do not press mENT

within a few seconds after entering the number.

•If the selected channel is locked, “PIN:___” appears on the front panel

display. Enter the four-digit Parental Lock code number by using the

mNumeric keys or press mENT to cancel (see page 40).

•If the selected channel is not available, an advisory message may appear.

For details, see “SIRIUS Satellite Radio” on page 71.

•If this unit is in preset search mode (see next page), a preset number is

selected instead of a channel number when you press the mNumeric

keys. To switch to direct number access mode, press JTUNING/CH

l/h (or fTUN./CH k/n).

001Hits1

SIRIUS

Pop

SIRIUS

Category

search mode The first channel in the category

Category name

39 En

SIRIUS Satellite Radio™ tuning (U.S.A. model only)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

You can use this feature to store up to 40 SIRIUS Satellite

Radio channels. You can then call any preset channel just

by selecting preset channel group and number as described

in “Calling a preset channel (Preset Search mode)” on this

page.

1Search for a channel you want to set as a

preset channel in one of the SIRIUS Satellite

Radio search modes.

For details, see “SIRIUS Satellite Radio operations”

(see page 37).

2Press GMEMORY (or fMEMORY).

The front panel display changes as follows.

•To register the selected channel under an empty preset number

automatically, press and hold GMEMORY (or fMEMORY)

for more than 2 seconds instead of doing step 2. In this case, steps

3 and 4 are unnecessary.

•To cancel the preset operation, press kRETURN.

3Press HPRESET l/h (or fPRESET k/

n) to select the preset number.

Notes

•You can also select a preset number by pressing the mNumeric

keys.

•If you select a preset number being used (“*” appears next to the

preset number), the current preset channel will be overwritten.

4Press GMEMORY (or fMEMORY).

The channel is registered to the selected preset

number.

Prior to selecting a preset number in Preset Search mode,

you must register a SIRIUS Satellite Radio channel to the

preset number. For details, see “Registering preset

channels” on this page.

Press HPRESET l/h (or fPRESET k/n)

repeatedly to change the preset numbers (1 to

40).

You can clear the assignments of preset SIRIUS Satellite

Radio channels.

1Press rOPTION on the remote control.

The OPTION menu is displayed on the front panel

display.

2Press kCursor n repeatedly to select “Clear

Preset” and then press kENTER.

3Press kCursor k/n to select the preset

channel that you want to clear.

4Press kENTER to execute the clearing of

the selected preset channel.

To clear the registration of multiple preset channels,

repeat the above steps. To end the operation, press

rOPTION.

Registering the SIRIUS Satellite

Radio™ channels

Registering preset channels

001Hits1

SIRIUS

P01:---<<001

SIRIUS

Currently registered channel

(or “---” if empty)

Preset number Channel to be registered to the

selected preset number

Calling a preset channel (Preset Search

mode)

Clearing preset channels

001Hits1

SIRIUS

001 Hits 1

SIRIUS

40 En

SIRIUS Satellite Radio™ tuning (U.S.A. model only)

You can use the Parental Lock feature to limit the access

to the desired SIRIUS Satellite channels. This unit

automatically skips the locked channels when this unit is

in the All Channel Search mode or Category Search mode

and you search for a channel by pressing JTUNING/

CH l/h (or fTUN./CH k/n).

You can set the Parental Lock code number (PIN) and

select the channels to be locked.

1Press rOPTION on the remote control.

The OPTION menu is displayed on the front panel

display and video monitor.

2Press kCursor n repeatedly to select

“Parental Lock” and then press kENTER.

3Enter the desired 4-digit code number by

using the kCursor k/n / l/h.

If you have entered a code number before, enter the

same code number.

4Press kENTER.

A confirmation screen appears.

Note

•If a code number is already registered and you enter the different

number, “Wrong” appears and the screen returns to step 3. Enter

the correct code number.

5Press kENTER again to confirm the code

number.

“OK” appears and then the SIRIUS Satellite Radio

channel list is displayed.

6Press kCursor l/h to select a category

of that channel and a channel you want to

lock.

7Press kCursor k/n to select a channel you

want to lock.

Notes

•You can also select a channel by using fCATEGORY l/h or

fTUN./CH k/n.

•While the SIRIUS Satellite Radio channel list screen is displayed,

sound of the selected channel is output even the channel is locked.

8Press kENTER to lock the selected

channel.

A check mark appears next to the locked channel on

the video monitor. You can toggle channel lock and

unlock as you press kENTER.

9Repeat steps 5 through 7 to lock all the

desired channels.

10 Press kRETURN repeatedly to exit the

“PARENTAL LOCK” screen.

This unit is tuned into the last channel you select in

the PARENTAL LOCK screen. If the channel is

locked, this unit is tuned into “184 SIRIUS Weather

& Emergency” or “000 Sirius ID.”

•If you forget the Parental lock code or want to change it, reset it using

“SR PIN” (see page 64).

If you want to tune in the locked channels, set this unit to

Direct number access mode or preset tuning mode. When

you tune into the locked channel, “LOCKED” appears on

the front panel display and video monitor, “LOCKED”

appears on the front panel display and video monitor and

then the screens change to the Parental Lock code input

screen. Enter the Parental Lock code using the

mNumeric keys. To cancel this operation, press

mENT.

Note

•If an incorrect number is entered, “Wrong” appears on the front panel

display or the video monitor and this unit is tuned into the previously

selected channel.

Setting the Parental Lock

Setting the code number and the locking

channels

The entered code number is needed for tuning in the

channel or unlocking the channel. Write it down in the

space provided below.

Code number: ________________________________

PARENTALLOCK

CAT:Pop1/3

[ENTER]:Lock/Unlock

002:TheBlend

003:SiriusXMLove

004:The40son4

[]/[]:Channel

005:The50son5

[]/[]:Category

[

001:SiriusHits1

Channel

Category

Channel category, channel number

Artist/Song

Artist name, song title, channel number

Composer

Composer name, channel number

Antenna

Antenna reception level, channel number

DSP Program

Current sound field program (see page 27), channel

number

Audio Decoder

Current Audio Decoder (see page 29), channel number

Antenna

SIRIUS

SIRIUS ANT:

AllCHSearch

001:SIRIUSHits1

:Pop

:Sanumemo

:RoadtoIndia

C:FrankieZipper

42 En

Once you have stationed your iPod in a Yamaha iPod universal dock (such as the YDS-11, sold separately) connected to

the DOCK jack on the rear panel of this unit (see page 19), you can operate your iPod with the remote control of this unit

using a menu displayed on the video monitor. You can also use the Compressed Music Enhancer mode of this unit to

improve the sound quality of the compression artifacts (such as MP3 format) stored on your iPod (see page 29).

Notes

•iPod touch, iPod (Click and Wheel including iPod classic), iPod nano, and iPod mini are supported.

•Some features may not be compatible depending on the model or the software version of your iPod.

•Some features may not be available depending on the model of Yamaha iPod universal dock. The following sections describe the procedure when using

the YDS-11.

•Once the connection between your iPod and this unit is complete, “iPod connected” appears on the front panel display.

•For a complete list of status messages that appear on the front panel display and video monitor, see the “iPod” section on page 73.

You can control your iPod when you set it in the iPod

universal dock and switch the input source to DOCK. The

operations of your iPod can be done with the aid of the

video monitor (menu browse mode) or without it (simple

remote mode).

When you connect your iPod to this unit, you can perform

the following operations with the remote control.

You can perform basic iPod operations (play, stop, skip,

etc.) using the supplied remote control without displaying

the menu on the video monitor. You can also directly

control your iPod in this mode.

You can perform advanced iPod operations using the

remote control while looking at the menu displayed on the

video monitor. You can browse the song files or video files

stored on your iPod and displayed on the monitor. You

cannot directly control your iPod in this mode.

•“_”(underscore) is displayed for characters that this unit cannot display.

1Rotate the RINPUT selector (or press

eDOCK repeatedly) to select “iPod (DOCK)”

as the input source.

2Press tDISPLAY on the remote control.

The following screen appears on the video monitor.

3Press kCursor k/n to select “Music” or

“Videos” and press kCursor h.

•Select “Music” to browse music files.

•Select “Videos” to browse video files.

Note

•“Videos” will not be displayed when your iPod or Yamaha iPod

universal dock do not support the browser function for browsing

video files.

Using iPod™

Controlling iPod™

Key Function

ENTER Subsequent menu

kMenu up

nMenu down

lPrevious menu

hSubsequent menu

wSearch backward (Press and hold)

fSearch forward (Press and hold)

aSkip forward

bSkip backward

sStop

ePause (Menu browse mode)

Play/Pause (Simple remote mode)

pPlay (Menu browse mode)

Play/Pause (Simple remote mode)

tDISPLAY Switch between Menu browse mode and

Simple remote mode

Controlling iPod in simple remote mode

Controlling iPod in menu browse mode

iPodTop

Videos>

Music>



43 En

Using iPod™

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

4Press kCursor k/n / l/h to select a

menu item and then kENTER to start

playback.

Menu items of “Music”

Playlists, Artists, Albums, Songs, Genres, Composers

•Playlists > Songs

•Artists > Albums > Songs

•Albums > Songs

•Songs

•Genres > Artists > Albums > Songs

•Composers > Albums > Songs

Menu items of “Videos”

Menu items vary depending on the files stored on your

iPod.

■Description of the play information display

a Track number/total tracks

b Artist name

c Album title

d Song title

e Progress bar

f Elapsed time

g Shuffle and repeat icons

h (playback), (pause), (search forward) and

(search backward)

i Remaining time

•You can change information screens on the front panel display using

FINFO (or gINFO) (see page 26). Items displayed on the front panel

display vary depending on mode that is currently selected.

You can use a special playback function such as shuffle

playback and repeat playback by setting the OPTION

menu.

1Press tDISPLAY to switch to menu browse

mode while “iPod (DOCK)” is selected as the

input source.

To use the shuffle or repeat playback function in

simple remote mode, set your iPod from its menu.

2Press rOPTION.

The OPTION menu is displayed.

3Press kCursor k/n to select the desired

playback function, “Shuffle” or “Repeat,”

then press kENTER.

The following playback styles are available

depending on the playback function selected.

Shuffle: Plays back songs or albums in random

order (Choices: Off, Songs, Albums).

•Select “Off” if you do not want to play back in

random order.

•Select “Songs” to play back songs in random order.

•Select “Albums” to play back albums in random

order.

Repeat: Plays back songs or albums repeatedly

(Choices: Off, One, All).

•Select “Off” if you do not want to play back

repeatedly.

•Select “One” to repeat each song.

•Select “All” to repeat all songs.

4Select the desired style using kCursor l/

The style is selected. Playback starts with the

function selected in step 3.

To return to the previous screen, press kRETURN.

To return to the previous playback function, redo the

above steps.

•When the shuffle function is on, “ ” appears on the video monitor.

•When “Repeat” is set to “One” or “All,” “ ” or “ ” appears on the

video monitor.

iPod[Play]

1/9



FrankieZipper

Made-to-order

RoadtoIndia



|||||;;;;;;;;;;;;;;;

0:51-7:44

All

Shuffle/repeat playback

1 All

44 En

This unit supports A2DP (Advanced Audio Distribution Profile) of the Bluetooth profile. You can connect a Yamaha

Bluetooth wireless audio receiver (such as YBA-10, sold separately) to the DOCK jack of this unit and enjoy the music

contents stored in your Bluetooth component (such as a portable music player) without wiring between this unit and the

Bluetooth component. You need to perform “Pairing” the connected Bluetooth wireless audio receiver and your

Bluetooth component in advance.

“Pairing” refers to the operation of registering a Bluetooth

component for Bluetooth communications. Pairing must

be performed when using a Bluetooth component with the

Bluetooth wireless audio receiver connected to this unit

for the first time or if the pairing data has been deleted.

•You only need the pairing operation for the first time that you use the

Bluetooth component with the Bluetooth wireless audio receiver.

•Pairing requires operations on this unit and on the other component with

which Bluetooth communications are to be established. If necessary,

refer to the instruction manuals provided with other component.

■Pairing the Bluetooth wireless audio receiver

and your Bluetooth component

1Rotate the RINPUT selector (or press

eDOCK repeatedly) to select “Bluetooth

(DOCK)” as the input source.

2Turn on the Bluetooth component you want

to pair with and set it to pairing mode.

For details on operation of the Bluetooth component,

refer to its instruction manuals.

3Press rOPTION.

The OPTION menu for DOCK input appears on the

video monitor.

4Press kCursor n to select “Pairing” and

press kENTER.

“Searching” appears on the front panel display and

the pairing operation starts.

•To cancel pairing, press kRETURN.

•You can also start pairing operation by pressing and holding

GMEMORY on the front panel.

5Make sure the Bluetooth component

recognizes the Bluetooth wireless audio

receiver.

If the Bluetooth have recognized the Bluetooth

wireless audio receiver, “YBA-10 YAMAHA,” for

instance, is displayed in the Bluetooth device list.

6Select the Bluetooth wireless audio receiver

from the Bluetooth device list, and enter a

path key “0000” into the Bluetooth

component.

When pairing is complete, “Completed” appears on

the front panel display.

•The Yamaha Bluetooth wireless audio receiver can be paired with up to

eight Bluetooth components. When pairing is conducted successfully

with a ninth component and the pairing data is registered, the pairing data

for the least recently used other component is cleared.

1Rotate the RINPUT selector (or press

eDOCK repeatedly) to select “Bluetooth

(DOCK)” as the input source.

2Press rOPTION.

3Press kCursor n repeatedly to select

“Connect” and press kENTER.

After you execute “Connect,” communication with

the Bluetooth component is established. When the

connected Bluetooth wireless audio receiver

recognizes the Bluetooth component, “BT

Connected” appears on the front panel display.

•When you press kENTER on the remote control, the connected

Bluetooth wireless audio receiver searches and connects to the last

connected Bluetooth component. If the Bluetooth wireless audio

receiver cannot find the Bluetooth component, “Not found”

appears on the front panel display.

•To disconnect the Bluetooth wireless audio receiver from the

Bluetooth component, display the OPTION menu again, select

“Disconnect,” and press kENTER.

4Start playback of the Bluetooth component.

Using Bluetooth™ components

Pairing the Bluetooth™ wireless audio

receiver and your Bluetooth™

component

To ensure security, a time limit of 8 minutes is set for

the pairing operation. We recommend that you read the

instructions so that you fully understand them before

starting.

DOCKOPTION

Connect

.VolumeTrim

[ENTER]:Select

Pairing

[]/[]:Up/Down

[

Playback of the Bluetooth™

component

45 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

You can set this unit to automatically return to standby

after a set time has passed.

The sleep timer is useful if you want to go to sleep while

this unit is playing or recording a source.

Press qSLEEP repeatedly to set the amount of

time.

Each time you press the key, the front panel display

changes as shown below.

When the sleep timer is set, the SLEEP indicator on the

front panel display lights up.

Press qSLEEP on the remote control repeatedly until

“Sleep Off” appears on the front panel display.

This unit supports the HDMI control function.

When a TV that supports the HDMI control function is

connected with this unit via the HDMI connection, the

following operations of this unit can be controlled with the

TV remote control (except for some TVs).

•Switching between on and standby (linked to the TV)

•Volume control (up/down, mute)

•Switching the sound output between a TV and this unit.

•The HDMI control-compatible components include Panasonic VIERA

Link compatible TV, DVD player/recorder and Blu-ray Disc player.

•When a DVD recorder/Blu-ray recorder/HD DVD recorder that supports

the HDMI control function is connected via the HDMI connection, its

operations are also linked to those of this unit. For details, refer to its

instruction manuals.

•We recommend that you use a TV, DVD recorder, Blu-ray recorder and

HD DVD recorder of the same manufacturer.

1Connect a TV that supports the HDMI control

function to this unit via the HDMI connection.

2Turn on all components connected to this

unit via the HDMI connection.

For details on operations of external components,

refer to instruction manuals provided with them.

3Check the settings of those components and

enable the HDMI control function.

This unit: Set “Control (SETUP menu → Function

Setup → 1 HDMI)” to “On” in the SETUP menu

(see page 57).

External components: Refer to their instruction

manuals.

4Turn off the TV.

All external components that support the HDMI

control function turn off linked to the TV being turns

off. If any component does not turn off, turn it off

manually.

5Turn on the TV.

Make sure that this unit turns on linked to the TV

being turned on. If it does not turn on, turn it on

manually.

6Set the input of the TV according to the

component connected to this unit such as

[HDMI].

7If a DVD recorder or Blu-ray recorder that

supports the HDMI control function is

connected to this unit, turn it on.

This unit: Make sure that the input source to which

the DVD recorder or Blu-ray recorder is connected is

selected. If another input source is selected, select the

input source manually.

External component: Make sure that you can see

images properly on the video monitor.

•You do not need to do step 1 through 7 from the second time.

8Perform the following operations with the TV

remote control to check the link.

•Turning on and off

•Adjusting volume

•Switching sound output components

Notes

•If this unit does not work linked with the TV, turn the TV off and

back on or unplug the AC power plug and plug back in. Doing so

may solve the problem.

•If the problem still persists, check the following:

–This unit: Is the HDMI control function set to “On”?

(see page 57)

–TV: Is the HDMI control function is enabled?

•If the TV connected to this unit supports the HDMI control function, you

only need to connect its audio output jacks to the AV1 jacks of this unit,

which are optical digital input jacks, and turn on the video monitor. TV

of SCENE is automatically selected when you turn on the TV, and you

can enjoy TV sound right away. When connecting the audio output jacks

to the AV2-6, AUDIO1-2 or V-AUX jacks, assign those jacks to the TV

beforehand (see page 24).

Other functions

Using the sleep timer

Using the HDMI™ control function

When you use the HDMI control function, do the

following referring to the instruction manuals of the TV.

•Turn on the HDMI control function on the TV.

•Connect the TV to this unit following the instructions

for connecting the TV to an AV amplifier.

Sleep 120min. Sleep 90min.

Sleep 60min.Sleep 30min.Sleep Off

46 En

ADVANCED OPERATION

This unit has the OPTION menu of frequently used menu items for input sources compatible with this unit. The

procedure for setting the OPTION menu items is described below.

1Select an input source using the RINPUT

selector (or eInput selection keys).

2Press rOPTION on the remote control.

The OPTION menu appears. The displayed OPTION

menu items differ depending on the input source. For

details, see next section.

3Select the desired menu item using

kCursor k/n, and press kENTER.

Parameters of the selected menu item are displayed.

4Change the setting of the selected menu item

(or enable a function) using kCursor k/n /

l/h and kENTER.

Details of the selected menu item are displayed.

Parameters you can set differ depending on the menu

items.

5To close the OPTION menu, press

rOPTION.

You can also use kRETURN to return to the

previous screen or close the OPTION menu.

•If kCursor or other keys do not work after closing the OPTION

menu, select the input source again using the eInput

selection keys.

The following menu items are provided for each input

source.

Below is a detailed explanation of the menu items in this

table.

•The default settings are marked with “*.”

■Volume Trim

Reduces any change in volume when switching input

sources by correcting volume differences between input

sources.

You can set this parameter for each input source.

Setting the option menu for each input source (OPTION menu)

HDMI1OPTION

DecoderMode

.VolumeTrim

[ENTER]:Select

ExtendedSurround

SignalInfo

[]/[]:Up/Down

[

OPTION menu items

Input

Source Menu item

HDMI1-4 Volume

Trim

Decoder

Mode

Extended

Surround

Signal Info

AV1-4 Volume

Trim

Decoder

Mode

Extended

Surround

Signal Info

AV5-6 Volume

Trim

AUDIO1-2 Volume

Trim

V-AUX Volume

Trim

iPod

(DOCK)

Vo l u m e

Trim

Shuffle Repeat

Bluetooth

(DOCK)

Vo l u m e

Trim

Connect/

Disconnect

Pairing

TUNER Volume

Trim

FM Mode Auto

Preset

Clear

Preset

XM Volume

Trim

Clear

Preset

SIRIUS Volume

Trim

Parental

Lock

Clear

Preset

MULTI

Vo l u m e

Trim

Video Out

Input source: All

Adjustable range: -6.0 dB to 0.0 dB* to +6.0 dB

(in 0.5 dB steps)

47 En

Setting the option menu for each input source (OPTION menu)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■Decoder Mode

Selects DTS digital audio signals for reproduction.

■Extended Surround

Selects whether to reproduce multi-channel input signals

in 6.1- or 7.1-channel when surround back speakers are

used.

■Signal Info

Displays information on audio and video signals on the

video monitor and front panel display. You can change

items to be displayed using kCursor k/n.

■Audio information

Notes

•“No Signal” is displayed when no signals are input and “---” is displayed

when signals that this unit cannot recognize are input.

•The bit rate may vary during playback.

■Video information

HDMI error message

(appears only when an error has occurred)

Input source: HDMI1-4, AV1-4

Choices: Auto*/DTS

Auto Automatically selects audio input signals.

DTS Selects DTS signals only. Other input signals

are not reproduced.

Input source: HDMI1-4, AV1-4

Choices: Auto*/PLIIx Movie/PLIIx Music/EX/ES/

Off

Auto Automatically selects the most suitable

decoder according to whether a flag for

reproducing surround back channel is present,

and reproduces the signals in 6.1- or 7.1-

channel.

PLIIx

Movie

Always reproduces signals in 6.1- or 7.1-

channel using the PLIIx Movie decoder

whether or not surround back channel signals

are contained. You can select this parameter

when two surround back speakers are

connected.

PLIIx

Music

Always reproduces signals in 6.1- or 7.1-

channel using the PLIIx Music decoder

whether or not surround back channel signals

are contained. You can select this parameter

when one or two surround back speakers are

connected.

EX/ES Automatically selects the most suitable

decoder for input signals whether or not the

flag for reproducing surround back channel is

present, and always reproduces signals in 6.1-

channel.

Off Always reproduces signals in 5.1-channel

when 5.1-channel sound is input, whether or

not the flag for reproducing surround back

channel is present.

Input source: HDMI1-4, AV1-4

Signal Info parameters

Information Description

Format Format of digital audio signals.

Channel The number of input signal channels (front/

surround/LFE).

For example, if input signal channels are 3

front channels, 2 surrounds and LFE, “3/2/

0.1” is displayed.

If a channel that cannot be expressed as the

above, a total number of channels such as

“5.1ch” may be displayed.

Sampling The sampling frequency of digital input

signal.

Bitrate The bit rate of input signal per second.

Information Description

In Format and resolution of video input signal.

Out Format and resolution of video output signal.

Message Error messages about HDMI signals and

HDMI components. See the following for

details of the error messages.

HDCP Error HDCP authentication failed.

Device Over The number of HDMI components connected is

over the limit.

Out of Res. The connected monitor is not compatible with

the video input signal.

48 En

Setting the option menu for each input source (OPTION menu)

■FM Mode

Sets FM broadcasting receiving mode.

■Auto Preset

Automatically detects radio stations in the FM frequency

band and registers them as preset stations (see page 31).

■Clear Preset

When TUNER is selected:See page 32.

When XM is selected: See page 35.

When SIRIUS is selected: See page 39.

■Parental Lock

Sets the Parental Lock (see page 40).

■Shuffle

Changes the shuffle playback style (see page 43).

■Repeat

Changes the repeat playback style (see page 43).

■Connect / Disconnect

Switches communication with a Bluetooth component on

and off (see page 44).

■Pairing

Performs pairing of this unit and a Bluetooth component

(see page 44).

■Video Out

When the multi-channel input is selected, outputs a signal

input from another terminal to the video monitor. See

“Outputting a video signal input from another input source

during reproducing a multi-channel audio signal” on this

page.

When “MULTI CH” is selected as the input source, a

video signal input from another terminal can be output to

the video monitor. For example, even if an audio and

video component such as a DVD player that does not

support a multi-channel digital audio output, the video

signal can be output to the video monitor while

reproducing a multi-channel analog audio signal.

1Rotate the RINPUT selector (or press

eMULTI) to change the input source to

“MULTI CH.”

2Press rOPTION on the remote control.

The OPTION menu appears.

3Press kCursor k/n to display “Video Out,”

and press kENTER.

The following screen appears.

4Press kCursor l/h to select a video input

jack to which a component to be used as a

video input source is connected.

–AV1-2 (COMPONENT VIDEO jacks)

–AV3-6 (VIDEO jack)

–V-AUX (VIDEO jack)

–Off (no video input)

5To end the setting, press rOPTION.

Input source: TUNER

Choices: Stereo*/Mono

Stereo Receives in stereo mode.

Mono Receives in monaural mode. You can get a

better reception in monaural mode.

Input source: TUNER

Input source: TUNER, XM, SIRIUS

Input source: SIRIUS

Input source: iPod (DOCK)

Choices: Off*/Songs/Albums

Input source: iPod (DOCK)

Choices: Off*/One/All

Input source: Bluetooth (DOCK)

Input source: MULTI CH

Choices: AV1 to 6/V-AUX/Off*

Outputting a video signal input from

another input source during

reproducing a multi-channel audio

signal

MULTI CHOPTION

Video Out;;;;Off

[Return]:Return

[]/[]:Video

[

49 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Although the sound field programs would satisfy you as

they are with the default parameters, you can arrange

sound effect or decoders suitable for acoustical conditions

of sources or rooms by setting the parameters (sound field

elements).

•You can protect the sound field against the changes of parameters the

sound filed parameters when “Memory Guard” of the SETUP menu is set

to “On” (see page 59). To change the parameters, set it to “Off.”

1Turn on the video monitor connected to this

unit.

2Press jSETUP on the remote control.

The SETUP menu appears on the monitor.

3Press kCursor k/n to select “DSP

Parameter” and press kENTER.

The screen changes as follows.

4Press kCursor k/n to move “→” to the

sound field program and press kCursor l/

h to select the sound field program.

5Press kCursor k/n to select the parameter

that you want to change, and press kCursor

l/h to change the parameter.

An asterisk (*) appears on the left of the sound field

parameter name displayed on the monitor when you

change the parameter from its default setting. For

details on functions and adjustable ranges of the

sound field parameters, see “Sound field parameters”

on this page.

•Repeat steps 4 and 5 to change other sound field program

parameters.

•A complete list of the parameters of some sound field programs

may exceed one page. In this case, press kCursor k/n to

scroll through pages.

6To end the edit, press jSETUP.

•The default settings are marked with “*.”

SUR.

Selects a surround decoder to be used with a sound field

program in the MOVIE category.

PLIIx Movie: Selects the Dolby Pro Logic IIx (Movie)

decoder.

Neo:6 Cinema: Selects the Neo:6 (Cinema) decoder.

Note

•Surround decoders cannot be changed when used with the following

MOVIE sound field programs.

–Mono Movie

–Sports

–Action Game

–Roleplaying Game

3D DSP

When CINEMA DSP 3D is enabled, sets whether to use

sound field programs in CINEMA DSP 3D mode.

Note

•When the presence speakers are not used, the 3D DSP parameters are not

displayed.

DSP Level

Fine adjusts an effect level (level of the sound field effect

to be added). You can adjust the level of the sound field

effect while checking sound levels. Adjust “DSP Level” as

follows.

•The effect sound is too soft.

•There is no difference in effects between the sound field

programs.

→Increase the effect level.

•The sound is dull.

•The sound field effect is added too much.

→Reduce the effect level.

Editing surround decoders/sound field programs

Setting sound field parameters

MOVIE1/2

3DDSP;;;;;;;;;ON

.Sci-Fi

SUR.;;;;PLI

 []/[]:Select

DSPLevel;;;;;0dB



S.Init.DLY;;;;2ms

P.Init.Dly;;;16ms

P.RoomSize;;;1.0

Movie

Sound field program

Sound field parameters

Cursor

Set values

Page number

To initialize the parameters of the selected sound field

program, kCursor n repeatedly to select “Initialize”

and then press, kCursor h. When the confirmation

screen appears on the monitor, press kCursor h to

confirm the initialization or kCursor l to cancel it.

Sound field parameters

CINEMA DSP basic parameters

Choices: PLIIx Movie*/Neo:6 Cinema

Choices: On*/Off

Adjustable range: -6 dB to 0 dB* to +3 dB

50 En

Editing surround decoders/sound field programs

Dialog Lift

Adjusts the vertical position of center sound such as

dialogues when presence speakers are used. Increasing

this parameter raises the position.

If the dialog seems to come out from a lower position than

the video monitor screen, increase this parameter.

“0” (default) corresponds to the lowest position and “5” to

the highest position.

Notes

•“Dialog Lift” is displayed only when the presence speakers are available.

•You cannot move the dialog position lower than the default setting.

•Some sound field programs have parameters for adjusting specific sound

fields. The following letters are displayed next to the names of those

parameters.

–P (presence sound field)

–S (surround sound field)

–SB (surround back sound field)

■Parameters for adjusting early-reflected

sound

Adjust attenuation characteristics of early-reflected sound.

You can create a lively sound field (with a high

reverberant sound level) as you increase the value, and a

dead sound field (with a low reverberant sound level) as

you decrease the value. Creating either a lively sound field

or a dead sound field in an actual music hall is determined

by the acoustic absorption characteristics of reflection

surfaces. A dead sound field is created when the

attenuation time is short while a lively sound field is

created when the attenuation time is long.

•We recommend that you adjust the size of corresponding sound field

when you adjust the delay time.

■Parameters for specifying room size

Produce different senses of sound expansion according to

room sizes specified. In a large size room such as a music

hall, the duration from when reflected sound is heard until

when the next reflected sound is heard is long. Thus,

different senses of sound expansion can be created by

changing the duration. 1.0 is the original room size. When

this parameter is set to 2.0, each side of the room is

defined as twice larger than the original room size.

Choices: 0* to 5

Sound field parameters for the advanced

configurations

Parameter Adjustable range

Init.Dly

P.Init.Dly

S.Init.Dly

SB Init.Dly

1 to 99ms

1 to 49ms

The ideal dialog

position

Move up to the ideal

dialog position

Parameter Adjustable range

Room Size

P.Room Size

S.Room Size

SB Room Size

0.1 to 2.0

Delay

Time

Level

Delay

Time

Level

Early-reflected

sound

Original source sound

Sound source

Reflecting

surface

Small = 1ms Large = 99ms

51 En

Editing surround decoders/sound field programs

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■Parameters for defining attenuation

characteristics of early-reflected sound

Adjust the attenuation of reflected sound. You can create a

lively sound field (with a high reverberant sound level) as

you increase the value, and a dead sound field (with a low

reverberant sound level) as you decrease the value.

Creating either a lively sound field or a dead sound field in

an actual music hall is determined by the acoustic

absorption characteristics of reflection surfaces. A dead

sound field is created when the attenuation time is short

while a lively sound field is created when the attenuation

time is long.

■Parameters for adjusting reverberant sound

Rev.Time parameter adjusts the attenuation time of the

rear reverberant sound based on the time that about 1kHz

reverberant sound takes for 60dB of attenuation.

Reverberant sound attenuates faster as you decrease the

value. Rev.Time adjustment allows you to create a natural

reverberant sound, by setting the attenuation time longer

for a sound source or room with less echo, or shorter for a

sound source or room with more echo.

Rev.Delay parameter adjusts the time difference between

the beginning of the direct sound and the beginning of the

reverberation sound. The larger the value, the later the

reverberation sound begins. Increasing the value of

Rev.Delay allows you to create a reverberant sound in a

wider area for the same Rev.Time.

Parameter Adjustable range

Liveness

S.Liveness

SB Liveness

0 to 10

Parameter Adjustable range

Rev.Time

Rev.Delay

Rev.Level

1.0 to 5.0s

0 to 250ms

0 to 100%

Time

Level

Time

Early reflections

Source sound

Sound source

Small = 0.1 Large = 2.0

Time

Level

Small = 0 Large = 10

Time

Level

Source sound

Live

Dead

Large reflected

sound

Small reflected

sound

Time Time

Small = 1.0s Large = 5.0s

Source sound

Rear reverberation

Rear

reverberation

Early reflections

Short

reverberation

Long

reverberation

Sound source

Rev.Time Rev.Time

60dB 60dB

Time

Level

Source sound

Reverberation

(dB)

Rev.Delay Rev.Time

60dB

52 En

Editing surround decoders/sound field programs

Rev.Level parameter adjusts the reverberation sound level.

Increasing the value of Rev.Level makes the reverbration

sound level higher, which allows you to create more echo.

2ch Stereo only

Direct

Automatically bypasses the DSP circuit and tone control

circuit when an analog sound source is selected as the

input source. This creates a higher quality sound.

•See page 56 for equalizers that can be used with this unit.

7ch Stereo only

CT Level/SL Level/SR Level/

SB Level/PL Level/PR Level

Adjusts the volume ofthe center (CT), surround L (SL),

surround R (SR), surround back (SB), presence L (PL)

and presence R (PR) channels in the 7ch Stereo program.

The available parameters differ depending on the setting

of the speakers.

Straight Enhancer/7ch Enhancer only

Effect Level

Adjusts the Compressed Music Enhancer effect level. To

reduce the effect, set this parameter to “Low.”

You can customize decoder effects by setting the

following parameters. For kinds of decoders, see page 29.

When PLIIx Music/PLII Music is selected

Panorama

Adjusts the soundscape of the front sound field. A small

value increases the soundscape and a large value narrows

it (makes the center more dominant).

Dimension

Adjusts the difference in level between the front sound

field and the surround sound field. You can adjust the

difference in level created by the software being played

back to obtain the preferred sound balance. The surround

sound gets stronger as you make the value more negative

and the front sound gets stronger as you make the value

more positive.

Center Width

Spreads the center sound toward left and right according

to your preference. Set this parameter to 0 for outputting

the center sound from the center speaker only, or to 7 for

outputting it from the front left/right speaker.

When Neo:6 Music is selected

C.Image

Adjusts the front left and right channel output relative to

the center channel to make the center channel more or less

dominant as necessary.

Parameters only usable in certain sound

field programs

Choices: Auto*/Off

Auto Outputs sound by bypassing the DSP circuit and

tone control circuit when the “Bass” and “Treble”

tone controls are both set to 0 dB.

Off Does not bypass the circuits.

Adjustable range: 0 to 100%

Choices: High*/Low

Time

Level

Source sound

Rev.Level

(dB) Rear reverberation

Decoder parameters

Choices: Off*/On

Adjustable range: -3 to STD* to +3

Adjustable range: 0 to 3* to 7

Adjustable range: 0.0 to 0.3* to 1.0

53 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

You can change various settings of this unit using the SETUP menu. See “Basic operation of the SETUP menu” on the

next page, and other respective pages to change the settings.

■List of SETUP menu items

Changing various settings of this unit (SETUP menu)

Menu/Submenu Function Page

Speaker Setup Sets items for speakers. 54

1 Auto Setup (YPAO) Automatically adjusts output characteristics of speakers. 54

2 Manual Setup Manually adjusts output characteristics of speakers. 54

A)Config Sets speaker configurations, such as connection status of speaker and a size of the

connected speaker (sound reproduction capacity), suitable for the listening

environment.

B)Level Separately adjusts volume of each speaker. 56

C)Distance Adjusts timing at which each speaker outputs sound based on distances between

speakers and the listening position.

D)Equalizer Selects an equalizer that adjusts speaker output characteristics. 56

E)Test Tone Generates test tones. 56

Sound Setup Sets various items for sound outputs. 56

1 Dynamic Range Adjusts dynamic ranges of speakers and headphones. 56

2 Lipsync Adjusts delay in output timing between video signals and audio signals. 57

HDMI Auto Sets on or off of automatic adjustments for delay between output timing between

video signals input from the HDMI jack and audio signals.

Auto Delay Fine adjusts a delay time of HDMI Auto. 57

Manual Delay Manually fine adjusts the delay of audio and video output. 57

Function Setup Set various items for HDMI and display. 57

1 HDMI Sets various items for input sources. 57

Control Selects on or off of HDMI control functions. 57

Standby Through Selects on or off of output of HDMI signals input from the HDMI 1-4 jacks to the

HDMI OUT jack when this unit is on standby.

Audio Output Selects this unit or a component connected to this unit via the HDMI OUT jack of

this unit for reproducing sound signals input from the HDMI 1-4 jacks.

Resolution Sets resolution of the HDMI output that is converted from analogy video input

signals.

Aspect Set an aspect ratio of images reproduced by HDMI signals converted from analog

video input signals.

2 Display Set items for a monitor or the front panel display. 58

Dimmer Sets brightness of the front panel display. 58

FL Scroll Selects the way to display characters on the front panel display. 58

OSD Shift Adjusts top and bottom positions of the OSD (on-screen display) menus. 58

3 Volume Sets items for volumes. 58

Adaptive DRC Adjusts the dynamic range (difference between the maximum volume and the

minimum volume) in conjunction with the volume level.

Max Volume Sets the maximum volume level so that the volume will not be accidentally

increased.

Init. Volume Sets the volume at the time this unit is turned on. 58

4 Input Rename Changes input source names to be displayed on a video monitor or the front panel

display.

5 Zone2 Sets the maximum volume level and initial volume level of Zone2. 59

Max Volume Sets the maximum volume level so that the volume will not be accidentally

increased.

Init. Volume Sets the volume at the time this unit is turned on. 59

DSP Parameter Sets parameters for the sound field programs. 59

Memory Guard Protects some settings against accidental alteration. 59

54 En

Changing various settings of this unit (SETUP menu)

The SETUP menu screen appears on both video display

(OSD) and front panel display.

Video display (OSD)

Front panel display

In this section, procedures of setting menus displayed on

the video monitor are described.

1Press jSETUP on the remote control.

The SETUP menu screen appears.

2Select a menu using kCursor k/n, and

press kENTER.

Items of the selected menu are displayed. For

example, the following screen appears when you

select “Function Setup.”

•You can return to the previous screen by pressing kRETURN.

3To display submenus, select a menu that you

want to set using kCursor k/n, and press

kENTER.

For example, the following screen appears when you

select “2 Display.”

4Select an item using kCursor k/n, and

change the setting of the item using

kCursor l/h.

Some items in the Manual Setup menu of Speaker

Setup take up a full screen. To display other items in

the Manual Setup menu, press kCursor k/n.

Example: A)Config

•You can change other items by repeating step 4.

5To finish setting, press jSETUP.

•If kCursor or other keys do not work after exiting the SETUP menu,

select the input source again using eInput selection keys.

You can set various items for speakers. Two kinds of

adjustments are available. One is “1 Auto Setup (YPAO)”

for automatic adjustment and another is “2 Manual Setup”

for manual adjustment.

•The default settings are marked with “*.”

Automatically adjusts output characteristics of speakers to

obtain optimum balance for the output sound based on

positions and performances of the speakers and acoustic

characteristics or the room, which are automatically

measured. For details on operations, see page 21.

Adjusts output characteristics of speakers based on

manually set parameters.

After Auto Setup (YPAO) is performed, you can check

automatically adjusted parameters in the Manual Setup

menu. Fine adjust the parameters for your preference if

necessary.

■A)Config

Sets speaker configurations, such as connection status of

speaker and a size of the connected speaker (sound

reproduction capacity), suitable for the listening

environment.

•The speaker configuration includes items for defining a speaker size:

Large or Small. Large and Small refer to speakers with woofer diameters

16 cm or larger and smaller than 16 cm, respectively.

Extra SP Assign

Selects the application for EXTRA SP jacks.

Note

•

When setting “Extra SP Assign” to “Zone2” or “Presence,” the surround back

channel signals for main output is separately output from other channels.

Basic operation of the SETUP menu

SetupMenu

;SoundSetup

.;SpeakerSetup

[ENTER]:Enter

;FunctionSetup

;DSPParameter

;MemoryGuard

[]/[]:Up/Down

[

;SpeakerSetup

;FunctionSetup

2Display

.1HDMI

[ENTER]:Enter

3Volume

4InputRename

[]/[]:Up/Down

[

5Zone2

2Display

FLScroll;;Continue

.Dimmer;;;;;;;;;;;;0

OSDShift;;;;;;;;;0

[]/[]:Up/Down

[

[]/[]:Adjust

[

Speaker Setup

1 Auto Setup

2Manual Setup

Choices: Zone2*/Presence/None

Zone2 Assigns the EXTRA SP jacks for the speakers

in the second zone.

Presence Assigns the EXTRA SP jacks for the

Presence speaker.

None Disables the EXTRA SP jacks.

A)Config

Center SP

None >Small Large



55 En

Changing various settings of this unit (SETUP menu)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

LFE/Bass Out

Selects speaker(s) for outputting low-frequency

components of the LFE (low-frequency effect sound)

channel or other channels. The output status is as follows.

LFE channel signals

Low-frequency components of other channel signals

Front SP

Sets the sizes of front left and right speakers.

Note

•When “LFE/Bass Out” is set to “Front,” you can only select “Large.” If

“LFE/Bass Out” is changed to “Front,” this parameter automatically

switches to “Large” even when it is set to “Small.”

Center SP

Sets the size of center speaker.

Sur. L/R SP

Sets sizes of left and right surround speakers.

•When “None” is selected, the sound field programs automatically enter

the Virtual CINEMA DSP mode.

Sur.B L/R SP

Sets sizes of left and right surround back speakers.

Note

•When “None” is selected, “PLIIx Movie,” “PLIIx Music,” and “PLIIx

Game” cannot be selected.

Choices: SWFR/Front/Both*

Parameter Subwoofer Front

speakers

Other

speakers

Both Output Not output Not output

SWFR Output Not output Not output

Front Not output Output Not output

Parameter Subwoofer Front

speakers

Other

speakers

Both [1] [2] [3]

SWFR [4] [3] [3]

Front Not output [1] [3]

[1] Outputs low-frequency components of the front left and right

channels and the channel of speaker, the size of which is set to

“Small.”

[2] Outputs low-frequency components of the front left and right

channels.

[3] Outputs low frequency components when the sizes of speakers

are set to “Large.”

[4] Outputs low-frequency components of the channel of speaker,

the size of which is set to “Small.”

Choices: Small/Large*

Small Select this when small speakers are

connected. Low-frequency components of the

front left and right channels are output from a

subwoofer.

Large Select this when large speakers are

connected.

Choices: None/Small*/Large

None Select this when no center speaker is

connected. Center channel signals are spread

to front left and right speakers.

Small Select this when a small center speaker is

connected. Low-frequency components of

center channel are output from a subwoofer.

If a subwoofer is not connected they are

output from front speakers.

Large Select this when a large center speaker is

connected.

Choices: None/Small*/Large

None Select this when no surround speakers are

connected. Surround channel signals are

spread to front left and right speakers. “Sur.B

L/R SP” automatically switches to “None”

when this is selected.

Small Select this when small surround speakers are

connected. Low-frequency components of

surround channels are output from a

subwoofer. If a subwoofer is not connected

they are output from front speakers.

Large Select this when large surround speakers are

connected.

Choices: None/SMLx1/SMLx2*/LRGx1/LRGx2

None Select this when no surround back speaker

are connected. Surround back channel signals

are output from the surround L/R speakers

and subwoofer. If the subwoofer is disabled,

they are output from the surround L/R

speakers and front speakers.

SMLx1 Select this when one small surround back

speaker is connected.

SMLx2 Select this when two small surround back

speakers are connected.

LRGx1 Select this when one large surround back

speaker is connected.

LRGx2 Select this when two large surround back

speakers are connected.

56 En

Changing various settings of this unit (SETUP menu)

Crossover Freq.

Sets the lower limit of the low frequency component

output from a speaker with a size set to “Small (SMLx1/

SMLx2).” Sound with a frequency below that limit is

output from a subwoofer or front speakers.

•If your subwoofer has a volume control or a crossover frequency control,

set the volume to half or the crossover frequency at the maximum.

Subwoofer Phase

Sets the phase of your subwoofer if bass sounds are

lacking or unclear.

■B)Level

Separately adjusts volume of each speaker so that the

sounds from speakers are at the same volume at the

listening position. Items to be displayed vary depending

on the number of speakers connected.

•When only one surround back speaker is connected, “SB” appears

instead of “SBL” and “SBR.”

•You can adjust the volume listening to test tones when you set “E)Test

Tone” to “On” (see page 56).

•If your subwoofer has a volume control or a crossover frequency control,

set the volume to half or the crossover frequency at the maximum.

■C)Distance

Adjusts timing at which each speaker outputs sound so

that sounds from speakers reach the listening position at

the same time. Set the unit (Unit) first and then the

distance of each speaker.

Unit

Front L / Front R / Center / Sur. L /

Sur. R / Sur.B L / Sur.B R / SWFR/

PRNS L/ PRNS R

•Different items are displayed depending on settings of “A)Config”

(see page 54).

•When only one surround back speaker is connected, “Sur.B” appears

instead of “Sur.B L” and “Sur.B R.”

■D)Equalizer

Adjusts sound quality and tone using a parametric graphic

equalizer.

EQ Type Select

Select an equalizer type.

GEQ

Adjusts sound quality of each speaker using a graphic

equalizer. The graphic equalizer of this unit can adjust

signal levels in 7 frequency ranges.

To adjust the signal level within each range, select the

desired speaker with kCursor l/h while “→” is

displayed next to “Channel,” then the desired frequency

band with kCursor k/n, and adjust the signal level

with kCursor l/h.

■E)Test Tone

Switches test tones on and off. To generate test tones

select “On” using kCursor l/h. When “On” is

selected, you can adjust the settings of “2 Manual Setup”

while listening to a test tone.

You can set various items for sound outputs.

•The default settings are marked with “*.”

■1 Dynamic Range

Selects the dynamic range adjustment method for

reproducing bitstream signals.

Choices: 40Hz/60Hz/80Hz*/90Hz/100Hz/110Hz/120Hz/

160Hz/200Hz

Choices: Normal*/Reverse

Normal Select this not to change the phase of your

subwoofer.

Reverse Select this to reverse the phase of your

subwoofer.

Adjustable range: -10.0dB to +10.0dB (0.5 dB steps)

Defaults: “FR.L/FR.R/SWFR/PR.L/PR.R” 0dB

“CNTR/SUR.L/SUR.R/SBL/SBR” -1.0dB

Choices: meters (m)/feet (ft)*

meters (m) Displays the speaker distance in meters.

feet (ft) Displays the speaker distance in feet.

Adjustable range: 0.30m to 24.00m (1.0ft to 80.0ft)

Defaults: 3.00m (10.0ft) “Front L/Front R/

SWFR/PRNS L/PRNS R”

2.60m (8.5ft) “Center”

2.40m (8.0ft) “Sur. L/Sur. R/

Sur.B L/Sur.B R/PRNS L/PRNS R”

Choices: Auto PEQ/GEQ*/Off

Auto PEQ Uses a parametric equalizer selected in

“1 Auto Setup.” Characteristics of the

currently used parametric equalizer

(see page 21) are displayed below “Auto

PEQ.”

If Auto Setup is not executed, this

parameter is not displayed.

GEQ Adjusts tone using a graphic equalizer. To

display the adjustment menu, press

kENTER.

Off Not use a graphic equalizer.

Choices: 63Hz/160Hz/400Hz/1kHz/2.5kHz/

6.3kHz/16kHz

Adjustable range: -6.0dB to 0dB* to +6.0dB (0.5 dB steps)

Choices: Off*/On

Off Does not generate test tones.

On Generates test tones.

Sound Setup

Choices: Min/Auto/STD/Max*

Min/Auto (Min) Sets the dynamic range suitable for

low volume or a quiet environment, such as

at night, for bitstream signals except for

Dolby TrueHD signals.

(Auto) Adjusts the dynamic range for Dolby

TrueHD signals based on input signal

information.

STD Sets the standard dynamic range

recommended for regular home use.

Max Outputs sound without adjusting the

dynamic range of the input signals.

57 En

Changing various settings of this unit (SETUP menu)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■2 Lipsync

Adjusts delay between video output and audio output.

HDMI Auto

Automatically adjusts output timing of audio and video

signals when a monitor that supports an automatic lip-

sync function is connected to this unit.

Auto Delay

Fine adjusts the correction time when “HDMI Auto” is set

to “On.” The actual correction time is displayed under in

“Auto Delay” field and an offset time set by the user in

“offset” field.

Manual Delay

Manually fine adjusts the correction time. Select this when

the connected monitor does not support the automatic lip-

sync function or you set “HDMI Auto” to “Off.”

You can set various items for HDMI and display.

•The default settings are marked with “*.”

You can set items for HDMI.

■Control

Selects on or off of HDMI control functions when a

component that supports the HDMI control functions is

connected with this unit.

When this is set to “On,” signals input from the HDMI 1-4

jacks are output to a monitor component even when this

unit is on standby.

■Standby Through

Selects on or off of output of HDMI signals input from the

HDMI 1-4 jacks to the HDMI OUT jack when this unit is

on standby. When this parameter is set to “On” signals

input from the HDMI 1-4 jacks can be output to a monitor

component.

This item is not displayed when “Control” is set to “On.”

•To enables pass-through output, any one of the input sources connected

to the HDMI 1-4 jacks must be selected before switching to standby.

•During pass-through output, the HDMI THROUGH indicator on the

front panel display lights up. While the indicator lights up, it consumes 1

to 3W of power depending on a condition of an HDMI signal passing

through this unit.

■Audio Output

Selects this unit or a component connected to this unit via

the HDMI OUT jack of this unit for reproducing sound

signals input from the HDMI 1-4 jacks.

This item is not displayed when “Control” is set to “On.”

Note

•When “TV” or “Amp+TV” is selected, signal formats of audio and video

signals output from this unit to the monitor vary depending on

specifications of the monitor.

■Resolution

Upscales the resolution of HDMI output that is converted

from analog video input signals and output from the

HDMI OUT jack.

Notes

•Resolution of the HDMI output converted from 720p or 1080i video

signals cannot be upscaled.

•When a video monitor is connected to this unit via the HDMI jack, this

unit automatically detects a resolution that the monitor supports. An

asterisk (*) appears on the left of the detected resolution.

•If this unit cannot detect the resolution that the monitor supports, set

“MON.CHK” in the ADVANCED SETUP menu to “SKIP”

(see page 64) and try it again.

Choices: Off*/On

Off Select this when the connected monitor does

not support the automatic lip-sync function or

that function is not to be used. Set the

correction time in “Manual Delay.”

On Select this when the connected monitor

supports the automatic lip-sync function. Fine

adjust the correction time in “Auto Delay.”

Adjustable range: 0* to 240ms (1 ms steps)

Function Setup

1HDMI

Choices: On/Off*

On Enables the HDMI control function.

Off Disables the HDMI control function.

Choices: On/Off*

On Outputs the HDMI signals to the HDMI OUT

jack.

Off Does not output the HDMI signals to the

HDMI OUT jack.

Choices: Amp*/TV/Amp+TV

Amp Outputs HDMI sound signals form the

speakers connected to this unit.

TV Outputs HDMI sound signals from the

speakers of a TV connected to this unit.

Sound output from the speakers connected to

this unit is muted.

Amp+TV Outputs HDMI sound signals from the

speakers connected to this unit and the

speakers of a TV connected to this unit.

Choices: Through*/480p/720p/1080i/1080p

58 En

Changing various settings of this unit (SETUP menu)

■Aspect

Set a horizontal to vertical ratio (aspect ratio) of images

reproduced by HDMI signals output from the HDMI OUT

jack when the HDMI signals are converted from analog

video input signals by a video conversion function.

Notes

•You cannot change the aspect ratio of the screen when “Resolution” is set

to “Through.”

•The setting is not effective for inputs with the aspect ratio other than 4:3.

•You cannot obtain an effect of the aspect ratio when video signals are

input from the HDMI 1-4 jacks or 720p, 1080i or 1080p signals are input.

You can change some parameters for a monitor or the

front panel display.

■Dimmer

Sets brightness of the front panel display. As the value is

lowered, the brightness of the front panel display is

darkened.

Note

•The brightness of display does not become bright in Pure Direct mode

even if the value is increased.

■FL Scroll

Selects the way to scroll the screen when a total number of

characters exceed a display area of the front panel display.

■OSD Shift

Adjusts top and bottom positions of the OSD (on-screen

display) menus. To move up the screen, set this value

larger. To move down the screen, set it smaller.

You can change some parameters for volumes.

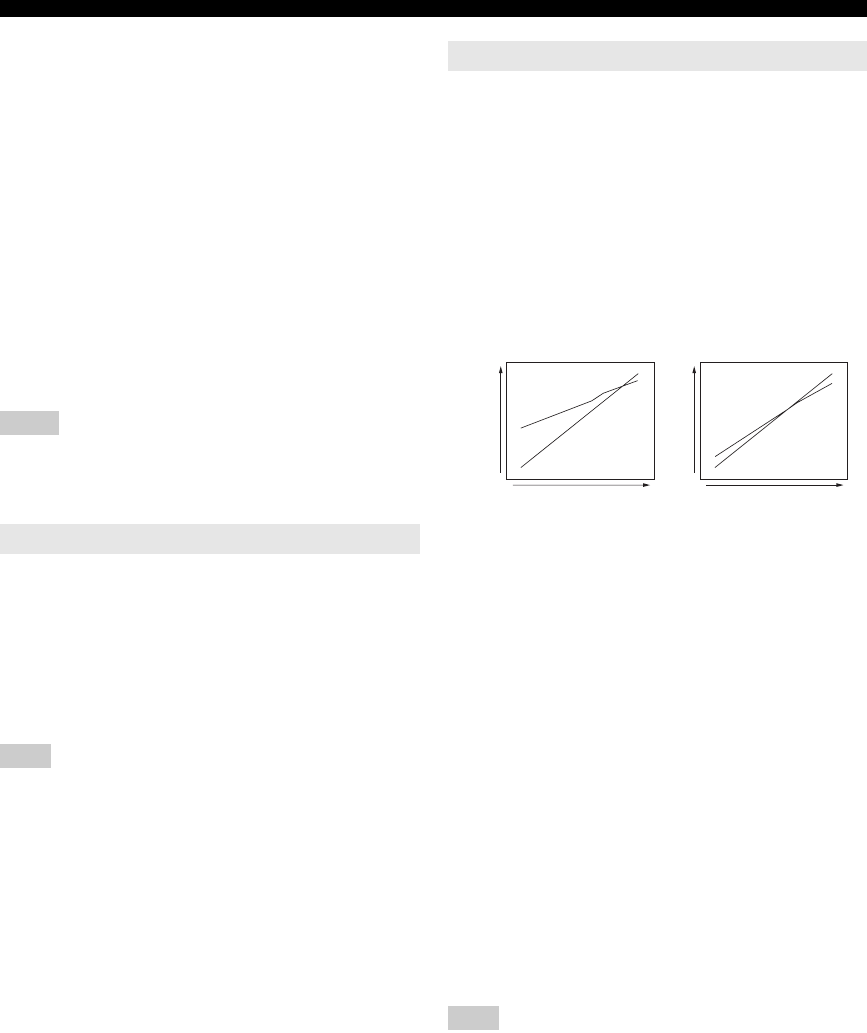

■Adaptive DRC

Adjusts the dynamic range in conjunction with the volume

level. This function is useful when you are listening at

lower volumes or at night. When this function is enabled,

the dynamic range is adjusted as follows.

If the volume setting is low:

the dynamic range is narrow

If the volume setting is high:

the dynamic range is wide

•The “Adaptive DRC” setting is effective for headphones.

■Max Volume

Sets the maximum volume level so that the volume will

not be accidentally increased. For example, you can adjust

the volume between –80.0 dB and –5.0 dB or mute when

you set this parameter to “–5.0dB.” The volume increases

to the maximum level when this parameter is set to

+16.5 dB (default).

■Init. Volume

Sets the volume at the time this unit is turned on. When

this parameter is set to “Off,” the volume is set to a level

that last time this unit is set to standby.

Note

•If the setting of “Max Volume” is lower than the setting of “Init.

Volume,” the setting of “Max Volume” becomes effective. For example,

when you set “Max Volume” to “–30.0dB” and “Init. Volume” to

“0.0dB,” the volume is automatically set to “–30.0dB” at the next time

this unit is turned on.

Choices: Thrgh*/16:9/Smart

Thrgh Outputs the video signals without changing

the aspect ratio.

16:9 Outputs the video signals that displays 4:3

images on a 16:9 monitor with black bands

on the right and left sides of the monitor

screen.

Smart Outputs the video signals that displays 4:3

images on a 16:9 monitor by stretching right

and left of images to fit on the monitor

screen.

2Display

Adjustable range: -4 to 0*

Choices: Continue*/Once

Continue Repeatedly displays all characters by

scrolling.

Once Displays all characters by scrolling once,

halts scrolling, and then displays first 14

characters.

Adjustable range: -5 to 0* to +5

3 Volume

Choices: Auto/Off*

Auto Adjusts the dynamic range automatically.

Off Does not adjust the dynamic range

automatically.

Adjustable range: -30.0dB to +15.0dB/+16.5dB* (5.0 dB

steps)

Choices: Off*/Mute/-80.0dB to +16.5dB (0.5 dB steps)

Volume: highVolume: low

Input levelInput level

Output level

Auto

Off Off

Auto

59 En

Changing various settings of this unit (SETUP menu)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

You can change input source names to be displayed on the

front panel display.

You can select an input source that you want to change the

name to be displayed using kCursor.

Selecting a name to be displayed from templates

Select an input source that you want to change the name,

and select a name from the following templates using

kCursor.

•If you change the display name of an input source to your original one

and select the input source, the current input source name and the

template name are displayed. This is convenient if you want to cancel

name change operation.

Entering an original name

Select an input source that you want to name, and press

kENTER. You can enter up to 9 characters by selecting

one character at a time with the following keys according

to the following operation.

The following characters are available for input.

A to Z, 0 to 9, a to z, symbols (#, *, –, +, etc.) and space

You can set the maximum volume level and initial volume

level of Zone2.

•This item is displayed only when “Extra SP Assign” is set to “Zone2.”

■Max Volume

Sets the maximum volume level of Zone2 so that the

volume will not be accidentally increased. For example,

you can adjust the volume between –80.0 dB and –5.0 dB

or mute when you set this parameter to “–5.0dB.”

■Init. Volume

Sets the volume level of Zone2 when the power of Zone2

unit is turned on.

Note

•If the setting of “Max Volume” is lower than the setting of “Init.

Volume,” the setting of “Max Volume” becomes effective. For example,

when you set “Max Volume” to “–30.0dB” and “Init. Volume” to

“0.0dB,” the volume is automatically set to “–30.0dB” at the next time

this unit is turned on.

You can change some parameters for the sound field

programs. For details, see page 49.

•The default settings are marked with “*.”

Protects settings of SETUP menu against accidental

alteration.

Note

•When this parameter is switched to “On,” “G” appears while the SETUP

menu is displayed on the video monitor.

4 Input Rename

–Blu-ray –Satellite

–DVD –VCR

–SetTopBox –Tape

–Game –MD

–TV –PC

–DVR –iPod

–CD –HD DVD

–CD-R –“blank”

kCursor l/hFor selecting characters that you

want to change

kCursor k/nFor selecting characters to be

entered

kENTER For entering the selected characters

5 Zone2

Adjustable range: -30.0dB to +15.0dB / +16.5dB*

(5.0 dB steps)

Choices: Off*/Mute/-80.0dB to +16.5dB (0.5 dB steps)

DSP Parameter

Memory Guard

Choices: Off*/On

Off Does not protect settings.

On Protects the settings of the SETUP menu

(except for the Memory Guard setting).

60 En

This unit allows you to configure a multi-zone audio system. The Zone2 feature allows you to set this unit to reproduce

separate input sources in the main zone and the second zone (Zone2). You can control this unit from the second zone

using the supplied remote control.

You need the following additional equipment to use the

multi-zone functions of this unit:

•An infrared signal receiver in the second zone.

•An infrared signal emitter in the main zone. This emitter

transmits infrared signals from the remote control to a

CD player or a DVD player, etc. in the main zone via

the infrared signal receiver in the second zone.

•An amplifier and speakers in the second zone.

•Since there are many possible ways to connect and use this unit in a

multi-zone configuration, we recommend that you consult with your

nearest authorized Yamaha dealer or service center about the Zone2

connections that best meet your requirements.

•Some Yamaha models can be directly connected to the REMOTE jacks

of this unit. These models may not require an infrared signal emitter. Up

to 6 Yamaha components can be connected as shown below.

You can connect the amplifier/receiver in the second zone

and other components to this unit as follows.

Note

•To avoid unexpected noise, DO NOT USE the Zone2 feature with CDs

encoded in DTS.

Connect the speakers in the second zone to the EXTRA

SP jacks and then set the “Extra SP Assign” to “Zone2”

(see page 54).

•You can use the speakers connected to the EXTRA SP jacks as the front

speaker system of another zone. Set “Extra SP Assign” to “Zone2”

(see page 54).

•When you use the internal amplifiers for the Zone2 speakers, you can

adjust the volume level and set the initial volume and maximum volume

of the Zone2 speakers (see page 59).

Using multi-zone configuration

Only analog signal can be sent to Zone2. If you want to output sound from Zone2, connect an external component to

AV5-6 or AUDIO1-2 by analog connection. For example, if you want to output sound from an HDMI DVD player in

Zone2, you must connect the component to this unit by both HDMI and analog connections.

Connecting Zone2

Using the external amplifier

This unit Yamaha

component

Infrared signal

receiver

To the REMOTE IN jack

Infrared signal

emitter

DVD player (etc.)

Amplifier

Remote control

Second zone

(Zone2)

Main zone

This unit

From the ZONE2 OUT jacks

Infrared signal

receiver

From the REMOTE OUT jack

Using the internal amplifier of this unit

Important safety notice

The EXTRA SP jacks of this unit should not be

connected to a Passive Loudspeaker Selector Box or

more than one loudspeaker per channel.

Connection to a Passive Loudspeaker Selector Box or

multiple speakers per channel could create an

abnormally low impedance load resulting in amplifier

damage. See this owner’s manual for correct usage.

Compliance with minimum speaker impedance

information for all channels must be maintained at all

times. This information is found on the back panel of

this unit.

ZONE2

OUT

TRIGGER OUT

12V

0.1A MAX.

SIRIUS

ANTENNA MONITOR OUT

UNBAL.

GND

COMPONENT

VIDEO

OUT

REMOTE

EXTRA SP

ZONE2

PRESENCE

SPEAKERS

ZONE2

OPTICAL

( TV )

AV 1

AV 2

COAXIAL

AV 3

(CD)

COAXIAL OPTICAL

AV 4 AV 5

AV 6

OUT

AUDIO1

AUDIO2

FRONT

SURROUND

SUR.BACK

SUBWOOFER

MULTI CH INPUT

AUDIO

OUT

FRONT

SURROUND

SUR. BACK SUBWOOFER

PRE OUT

CENTERSINGLE

VIDEO

HDMI HDMI 1 HDMI 2 HDMI 3 HDMI 4

(BD/DVD)

VIDEO

FRONT

CENTER

SURROUND

SURROUND BACK/

BI-AMP

SINGLE

CENTER

OUT

DOCK

COMPONENT

VIDEO

EXTRA SP

ZONE2

PRESENCE

Second zone

(Zone2)

This unit

Main zone

61 En

Using multi-zone configuration

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

You can select and control Zone2 by using the control

keys on the front panel or on the remote control. The

available operations are as follows:

•Selecting the input source (AV5-6, AUDIO1-2, V-AUX)

of Zone2.

•Adjusting the volume of Zone2 (when a Zone2 speaker

is connected to the EXTRA SP jack).

•Tuning into FM or AM when “TUNER” is selected as

the input source of Zone2 (see page 31).

•Tuning into XM Satellite Radio when “XM” is selected

as the input source of Zone2 (see page 33) (U.S.A.

model only).

•Tuning into SIRIUS Satellite Radio when “SIRIUS” is

selected as the input source of Zone2 (see page 37)

(U.S.A. model only).

•Playing back music stored on your iPod stationed in a

Yamaha iPod universal dock (such as YDS-11 sold

separately) connected to the DOCK jack.

•You can play back music stored on a Bluetooth

component via a Bluetooth wireless audio receiver (sold

separately) connected to the DOCK jack (see page 44).

Note

•You must complete each step while the ZONE2 indicator is flashing on

the front panel display. Otherwise, the Zone2 mode is automatically

canceled and this unit returns to the normal operation mode. In this case,

repeat the Zone2 selection procedure.

■Turning on Zone2

Press CZONE2 ON/OFF to turn on Zone2.

■Activating the Zone2 operation mode

Press EZONE2 CONTROL to control Zone2.

The ZONE2 indicator flashes on the front panel display

for approximately 10 seconds.

■Operating Zone2

Rotate the RINPUT selector to select the

desired input source while the ZONE2 indicator

on the front panel display is flashing.

•When AV5-6, AUDIO1-2 or V-AUX is selected, you

can listening to the input source in Zone2.

•Select “TUNER” as the input source to use the TUNER

features in Zone2. For details about the TUNER

operations, see “FM/AM tuning” on page 31.

•Select “XM” as the input source to use the XM Satellite

Radio features in Zone2. For details about the XM

Satellite Radio operations, see “XM Satellite Radio

tuning” on page 33.

•Select “SIRIUS” as the input source to use the SIRIUS

Satellite Radio features in Zone2. For details about the

SIRIUS Satellite Radio operations, see “SIRIUS

Satellite Radio tuning” on page 37.

•Select “DOCK” as the input source to use iPod features

in Zone2. For details about the iPod operations, see

“Using iPod” on page 42.

•Select “DOCK” as the input source to use Bluetooth

component features in Zone2. For details about the

Bluetooth component operations, see “Using Bluetooth

components” on page 44.

■Setting Zone2 to standby

Press CZONE2 ON/OFF to set Zone2 to

standby.

■Turning on Zone2

Set bMAIN/ZONE2 to the ZONE2 position, and

press pPOWER.

■Operating Zone2

Set bMAIN/ZONE2 to the ZONE2 position, and

press one of the input selection keys to select

the desired input source of Zone2.

Note

•uMUTE and sVOLUME +/– are available to control Zone2 with

same procedure as mentioned above.

■Setting Zone2 to standby

Set bMAIN/ZONE2 to the ZONE2 position, and

press pPOWER, then set ZONE2 to standby.

Controlling Zone2

Controlling Zone2 with the front panel

ZONE

Flashes

Controlling Zone2 with the remote control

62 En

You can control external components for a selected input source with the remote control. The keys available for

controlling external components are as follows:

dSOURCE POWER

Turns on and off an external component.

kCursor, ENTER, RETURN

Operates the menus of external components.

tDISPLAY

Switches between the screens of external components.

lExternal component operation keys

Function as a recording or playback key of an external

component, or a menu display key.

mNumeric keys

Function as numeric keys of an external component.

nTV control keys

•You need to set the remote control code first to control external

components.

•The remote control keys for controlling external components are

available only when the external components have corresponding control

keys.

The following remote control codes are assigned to input

sources as factory default settings. For a complete list of

available remote control codes, refer to “List of remote

control codes” at the end of this manual.

■Default remote control code settings

“—” indicates no assignment

•An external component that is controlled by the remote control can be

automatically selected according to the iSCENE key selection

(see page 25).

Controlling other components with the remote control

INPUT Switches video inputs of TV

MUTE Mute audio of TV

TV VOL +/– Controls the volume of TV

TV CH +/– Switches channels of TV

POWER Turns on and off TV

Input source Category Manufacturer Default

code

[HDMI1] Blu-ray Disc Yamaha 2018

[HDMI2] — — —

[HDMI3] — — —

[HDMI4] — — —

[AV1] — — —

[AV2] — — —

[AV3] CD Yamaha 5013

[AV4] — — —

[AV5] — — —

[AV6] — — —

[AUDIO1] — — —

[AUDIO2] — — —

[V-AUX] — — —

[A]/[B] — — —

[DOCK] DOCK Yamaha 5011

[TUNER] Tuner Yamaha 5007

[XM] Tuner Yamaha 5017

[SIRIUS] Tuner Yamaha 5009

[MULTI CH] — — —

63 En

Controlling other components with the remote control

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

You can control other components by setting the

appropriate remote control codes. For a complete list of

available remote control codes, refer to “List of remote

control codes” at the end of this manual.

•Each of the steps described in this section should be performed within

one minute. Setting operation is automatically canceled when one minute

has passed since the last step. If the operation is cancelled, start again

from the beginning.

1Press oCODE SET on the remote control

using a pointed object such as the tip of a

ballpoint pen.

cTRANSMIT on the remote control blinks twice.

2Press eInput selection keys

corresponding to the input source whose

remote control code you want to register.

3Enter a remote control code using

mNumeric keys.

Once the remote control code is registered,

cTRANSMIT on the remote control blinks twice.

If it fails, cTRANSMIT blinks six times. Repeat

from step 1.

You can clear all the remote control codes previously set,

and reset all of them to the initial factory settings.

•Each of the steps described in this section should be performed within

one minute. Setting operation is automatically canceled when one minute

has passed since the last step. If the operation is cancelled, start again

from the beginning.

1Press oCODE SET on the remote control

using a pointed object such as a tip of a

ballpoint pen.

cTRANSMIT on the remote control blinks twice.

2Press jSETUP on the remote control.

3Enter “9981” using mNumeric keys.

Once the initialization is complete, cTRANSMIT

on the remote control blinks twice. If it fails,

cTRANSMIT blinks six times. Repeat from

step 1.

Setting remote control codes Resetting all remote control codes

64 En

The advanced setup includes more parameters for basic

operation of this unit such as turning a bi-amp connection

on and off and initializing user settings. This section

describes what those parameters are and how to change

them.

1Set this unit to standby.

2Press AMAIN ZONE ON/OFF while

pressing and holding PSTRAIGHT on the

front panel.

The ADVANCED SETUP menu appears on the front

panel display.

3Rotate the OPROGRAM selector to select

the parameter you want to change.

•Set values are placed in XXX of the following parameters on an

actual display screen.

•The default setting are marked with “*.”

SP IMP. -XXX

Selects output impedance of this unit according to

connected speakers. When you connect 4-ohm

speakers to the FRONT jacks of the SPEAKERS

terminals, set “SP IMP.” to “6ΩMIN.”

REMOTE ID -XXX

Selects a remote control ID for this unit. When using

multiple Yamaha AV receivers, you can operate them

with a single remote control by setting them to have

the same remote control ID. By setting the receivers

to have different remote control IDs, you can operate

them with their respective remote controls.

SR PIN -XXX

Resets Parental lock cord when using SIRIUS

Satellite tuner.

BI AMP - XXX

Switches on and off of bi-amp connection of main

speakers. For bi-amp connection, see page 13.

SCENE IR -XXX

Selects whether or not to transmit the SCENE control

signals to an external component connected to the

REMOTE jacks on this unit when BD/DVD or CD

SCENE function is selected. If “ON” is selected and a

playback component that supports the SCENE link

playback, such as a Yamaha DVD player, is

connected to the REMOTE OUT jack of this unit,

remote connection automatically starts playback

when a different SCENE key is selected.

MON.CHK - XXXX

Adds upscaling limitation on output signals to a video

monitor connected to this unit via the HDMI OUT

jack.

INIT-XXXXXXXXX

Initializes various settings stored in this unit. You can

select an initialization method from the following.

DSP PARAM: Resets all parameters of sound field

programs.

VIDEO: Resets video conversion settings

(resolution/aspect) in the SETUP

menu and the OSD menus display

position.

ALL: Resets this unit to initial factory

settings.

CANCEL: Initialization.

4Press PSTRAIGHT a few times to select the

value you want to change.

The value selected here becomes effective when this

unit is turned on the next time. You can change

multiple settings by repeating steps 3 and 4.

5Press AMAIN ZONE ON/OFF, turns off this

system, and press AMAIN ZONE ON/OFF

again.

The value set in step 4 becomes effective, and this

unit turns on. When you select initialization in step 3,

the initialization is performed.

Advanced setup

Choices: 6ΩMIN/8ΩMIN*

Choices: ID1*/ID2

Choices: RESET/CANCEL*

Choices: ON/OFF*

ADVANCEDSETUP

Choices: ON*/OFF

Choices: YES*/SKIP

Choices: DSP PARAM/VIDEO/ALL/CANCEL*

65 En

Advanced setup

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Two IDs are provided for the remote control of this unit. If

another Yamaha amplifier is in the same room, setting a

different remote control ID to this unit prevents unwanted

operation of the other amplifier.

•Each of the steps described in this section should be performed within

one minute. Setting operation is automatically canceled when one minute

has passed since the last step. If the operation is cancelled, start again

from the beginning.

1Press oCODE SET on the remote control

using a pointed object such as the tip of a

ballpoint pen.

cTRANSMIT blinks twice.

2Press jSETUP on the remote control.

3Enter the desired remote control ID code.

To switch to ID1:

Enter “5019” using mNumeric keys.

To switch to ID2:

Enter “5020” using mNumeric keys.

Once the remote control code is registered,

cTRANSMIT blinks twice.

If it fails, cTRANSMIT blinks six times. Repeat

from step 1.

•Initializing the remote control code (see page 63) returns it to ID1.

Setting a remote control ID

ID1 is set for both remote control and amplifier by

default.

When you change the remote control ID, display

“ADVANCED SETUP” (see the previous section) and

change the ID for the amplifier too.

66 En

APPENDIX

Refer to the table below when this unit does not function properly. If the problem you are experiencing is not listed below

or if the instruction below does not help, turn off this unit, disconnect the power cable, and contact the nearest authorized

Yamaha dealer or service center.

Troubleshooting

General

Problem Cause Remedy See

page

This unit turns off

soon after being

turned on, or does not

turn on after AMAIN

ZONE ON/OFF (or

pPOWER) is

pressed.

The power cable is not connected or the

plug is not completely inserted.

Connect the power cable properly to an AC wall

outlet.

—

The speaker impedance setting is

incorrect.

Set the speaker impedance to match your speakers. 64

(When this unit is turned back on and

“CHECK SP WIRES!” is displayed.) The

protection circuitry has been activated

because this unit was turned on while a

speaker cable was shorted.

Make sure that all speaker cables between this unit

and speakers are connected properly.

This unit cannot be

turned off or does not

work properly.

The internal microcomputer is frozen due

to an external electric shock (such as

lightning or excessive static electricity) or

by a drop in power supply voltage.

Disconnect the power cable from the AC wall outlet,

wait about 30 seconds and then plug it in again.

—

This unit suddenly

enters the standby

mode.

The internal temperature becomes too

high and the overheat protection circuitry

has been activated.

Wait about 1 hour for this unit to cool down and then

turn it back on.

—

Sound/images

suddenly go off.

The protection circuitry has been activated

because of a short circuit, etc.

Check that the speaker impedance setting is correct. 64

Check that the speaker wires are not touching each

other and then turn this unit back on.

—

The sleep timer has turned off this unit. Turn on this unit, and play the source again. —

“CHECK SP WIRES!”

appears on the front

panel display.

Speaker cables are short-circuited. Make sure all speaker cables are connected correctly. 13

“Memory Guard!” is

displayed on the front

panel display and the

setting cannot be

changed.

“Memory Guard” in the SETUP menu is

set to “On.”

Set “Memory Guard” to “Off.” 59

The picture is

disturbed.

The video software is copy-protected.

67 En

Troubleshooting

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

No sound. Incorrect input or output cable

connections.

Connect the cables properly. If the problem persists,

the cables may be defective.

15-19

Speaker connections are not secure. Secure the connections. 11

The HDMI components connected to this

unit do not support the HDCP copy

protection standards.

Connect HDMI components that support the HDCP

copy protection standards.

The HDMI audio output parameter in the

SETUP menu (Function Setup →

1HDMI → Audio Output) is set to “TV.”

Set the parameter to an item other than “TV.” 57

No appropriate input source has been

selected.

Select an appropriate input source with the

RINPUT selector (or eInput selection

keys).

The volume is turned down or muted. Turn up the volume. —

Signals that this unit cannot reproduce are

being input from a source component,

such as a CD-ROM.

Use an input source whose signals are reproducible

on this unit.

—

A proper audio decoder is not selected. Display the OPTION menu and set “Decoder Mode”

to “Auto.”

No picture. The video signal output from this unit is

not supported by a monitor connected to

this unit via the HDMI OUT jack.

Displays the ADVANCED SETUP menu and select

“VIDEO” in “INIT” to reset the video parameters.

Displays the ADVANCED SETUP menu and set

“MON.CHK” to “YES.”

The VIDEO jack is used to output a

component video signal, or the

COMPONENT VIDEO jacks are used to

output a composite video signal.

If your video monitor does not support the HDMI

connection, connect it to the COMPONENT VIDEO

jacks and the VIDEO jack and select an appropriate

video input on the monitor.

Non-standard video signals are input. Connect the monitor to this unit via the

COMPONENT VIDEO jacks or the VIDEO jack.

An appropriate video input is not selected

on the video monitor.

Select an appropriate video input on the video

monitor.

—

Problem Cause Remedy See

page

68 En

Troubleshooting

No sound is output

from a specific

speaker.

The speaker is in malfunction. Check the Speaker indicators on the front panel

display. If the corresponding indicator lights up,

connect another speaker and check if sound is output.

If sound is not output, this unit may be malfunction.

6, 10

The playback component or speakers are

not connected properly.

Connect the cables properly. If the problem persists,

the cables may be defective.

Output from that speaker is disabled. Check the Speaker indicators on the front panel

display. If the corresponding indicator is turned off,

try the following.

1) Change the input source to another one.

2) With the selected sound field program, sound is not

output from that speaker.

Select another sound field program.

3) “None” may have been selected for that speaker on

this unit. Display Speaker Setup in the SETUP menu

and set respective parameters to enable output from

that speaker (Speaker Setup → 2 Manual Setup →

A)Config).

6, 24, 27,

The volume of that speaker is set to the

minimum in Speaker Setup in the SETUP

menu.

Display Speaker Setup in the SETUP menu and

adjust the volume (2 Manual Setup → B)Level).

(If hardly any sound comes from one

channel)

Speaker output balance is not properly set.

Set the volume of each speaker to be balanced from

“B)Level” in the SETUP menu (Speaker Setup →

2 Manual Setup → B)Level).

Sound may not be output from certain

channels depending on the input source or

sound field program.

Try another sound field program. 27

Only the center

speaker outputs

substantial sound.

When a monaural source sound field

program is applied, sound of all channels

are output from the center speaker for

some surround decoders.

Try another sound field program. 27

No sound is heard

from the presence

speakers.

This unit is in “STRAIGHT” mode. Press PSTRAIGHT (or hSTRAIGHT) to exit

“STRAIGHT” mode.

No sound is heard

from the surround

speakers.

This unit is in STRAIGHT mode and a

monaural source is being played back.

Press PSTRAIGHT (or hSTRAIGHT) to exit

STRAIGHT mode.

Sound may not be output from certain

channels depending on input sources or

sound field programs.

Try another sound field program. 27

No sound is heard

from the subwoofer.

A Dolby Digital or DTS signal is

reproduced while the LFE channel setting

(LFE/Bass Out) of the Speaker Setup in

the SETUP menu is set to “Front.”

Set “LFE/Bass Out” to “SWFR” or “Both.” 55

A 2-channel signal is reproduced while

the LFE channel setting (LFE/Bass Out)

of the Speaker Setup in the SETUP menu

is set to “SWFR” or “Front.”

Set “LFE/Bass Out” to “Both.” 55

The source does not contain LFE or low

frequency signals.

Problem Cause Remedy See

page

69 En

Troubleshooting

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

No sound is heard

from the surround

back speakers.

“Extended Surround” in the OPTION

menu is set to “Off,” or an input signal

does not contain a surround back flag with

“Extended Surround” set to “Auto.”

Set “Extended Surround” other than “Off” or “Auto.” 47

The audio input

sources cannot be

played in the desired

digital audio signal

format.

The connected component is not set to

output the desired digital audio signals.

Set the playback component properly referring to its

instruction manuals.

—

There is noise

interference from

digital or radio

frequency equipment.

This unit is too close to other digital or

radio frequency equipment.

Move this unit further away from such equipment. —

Noise/hum noise is

heard.

Incorrect cable connection. Connect the audio cables properly. If the problem

persists, the cables may be defective.

—

A DTS-CD is being played back. 1) When only noise is output

If a DTS bitstream signal is not properly input to this

unit, only noise is output. Connect the playback

component to this unit by digital connection and play

back the DTS-CD. If the condition is not improved,

the problem may results from the playback

component. Consult the manufacturer of the playback

component.

2) When noise is output during playback or skip

operation

Before playing back the DTS-CD, display the

OPTION menu after selecting the input source and

set “Decoder Mode” to “DTS.”

16, 47

The volume cannot be

increased or the

sound is distorted.

The component connected to the output

jacks of this unit is not turned on.

When the component connected to the output jacks of

this unit is not turned on, the sound may be distorted

or the volume may decrease due to the nature of AV

receivers. Turn on all components connected to this

unit.

—

“Max Volume” is set to a low value. Set it to a higher value. 58

HDMI™

Problem Cause Remedy See

page

No picture or sound. The number of the connected HDMI

components is over the limit.

Disconnect some of the HDMI components. —

The connected HDMI component does not

support high-bandwidth digital copyright

protection (HDCP).

Connect an HDMI component that supports HDCP. 16

Problem Cause Remedy See

page

70 En

Troubleshooting

If an operation takes longer than usual or an error occurs, one of the following messages may appear on the front panel

display. In this case, read the cause and follow the corresponding remedies.

Tuner (FM/AM)

Problem Cause Remedy See

page

FM stereo reception is

noisy.

You are too far from the station

transmitter or the input from the

antenna is weak.

Check the antenna connections. 20

Replace the outdoor antenna with a more

sensitive multi-element antenna.

—

Switch to monaural mode. 48

There is distortion, and

clear reception cannot

be obtained even with a

good FM antenna.

There is multi-path interference. Adjust the antenna height or orientation, or

place it in a different location.

—

The desired station

cannot be tuned into

with the automatic

tuning method.

You are in an area far from a station or

an input from the antenna is weak.

Replace an outdoor antenna with more

sensitive multi element antenna.

—

Tune in manually or by direct frequency

tuning.

The desired station

cannot be tuned into

with the automatic

tuning method.

The signal is weak or the antenna

connections are loose.

Adjust the AM loop antenna orientation. 20

Use the manual tuning method. 31

Automatic station preset

does not work.

Automatic station preset is not

available for AM stations.

Use manual station preset. 32

There are continuous

crackling and hissing

noises.

Supplied AM loop antenna is not

connected.

Connect the AM loop antenna correctly even

if you use an outdoor antenna.

The noises may be caused by lightning,

fluorescent lamps, motors, thermostats

and other electrical equipment.

It is difficult to completely eliminate noise,

but it can be reduced by installing and

properly grounding an outdoor AM antenna.

There are buzzing and

whining noises.

A TV set is being used nearby. Move this unit away from the TV set. —

XM Satellite Radio (U.S.A. model only)

Status message Cause Remedy See

page

CHECK XM TUNER The XM Mini-Tuner is not installed in the

XM Mini-Tuner Home Dock or the XM

Mini-Tuner Home Dock is not connected

to this unit.

Confirm the XM Mini-Tuner is fully seated in the

dock and check the XM Mini-Tuner Home Dock

cable is connected to this unit.

CHECK ANTENNA The XM antenna is not connected to the

XM Mini-Tuner Home Dock or the XM

antenna cable has become damaged.

Check that the XM antenna is securely connected to

the XM Mini-Tuner Home Dock and check the

antenna cable for damage. Replace the XM antenna if

the cable is damaged.

LOADING XM The XM Mini-Tuner is acquiring audio or

program information from the XM

satellite signal. This message can also

occur in weak XM signal conditions. Note

that this unit may not respond to some

operations while this message is

displayed.

This message should disappear in a few seconds in

good signal conditions. If you see this message often,

reposition the XM antenna to get better signal

reception. Check the antenna reception level from the

“Antenna” information on the front panel display or

“ANT” or “XM Information” on the video monitor.

71 En

Troubleshooting

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

If an operation takes longer than usual or an error occurs, one of the following messages may appear on the front panel

display. In this case, read the cause and follow the corresponding remedies.

NO SIGNAL The XM Mini-Tuner is not receiving the

XM satellite signal. Something may be

blocking the XM antenna’s view of the

satellites or the antenna is not properly

aimed.

Check for antenna obstructions and reposition the

XM antenna to get better signal reception. Check the

antenna reception level from the “Antenna”

information on the front panel display, or “ANT” or

“XM Information” on the video monitor. See

instructions supplied with the XM Mini-Tuner and

Dock for antenna installation information.

CH OFF AIR The XM channel you selected is not

currently broadcasting.

Check back at a later time; in the meantime, select

another channel.

—

CH UNAUTH You may be attempting to tune to an XM

channel that is blocked or that you cannot

receive with your XM subscription

package.

Consult the latest channel guide at

http://www.xmradio.com/ for the current list of

channels. For information on receiving this channel,

visit http://www.xmradio.com/ or contact XM

Satellite Radio at 1-800-967-2346.

CH UNAVAIL The selected channel is not available. The

channel may have been reassigned to a

different channel number. This message

may occur initially with a new XM Mini-

Tuner or an XM Mini-Tuner that has not

received XM’s signal for an extended

period.

Consult the latest channel guide at

http://www.xmradio.com/ for the current list of

channels. For cases of a new XM Mini-Tuner or an

XM Mini-Tuner that has not received XM’s signal for

an extended period, allow the XM Mini-Tuner to

receive the XM satellite signal for at least 5 minutes

and then try to select the channel again.

—

UPGRADE XM TUNER This unit has detected a XM CNP1000

which is not compatible with this unit.

If you have connected the XM Mini-Tuner

(CNP2000) and see this message, set this unit to

standby, disconnect and reconnect the XM Mini-

Tuner Home Dock and re-install the Mini-Tuner in

the Home Dock and turn on this unit.

If you continue to see this message with the XM

Mini-Tuner, contact XM Satellite Radio at

http://xmradio.com/ or 1-800-XMRADIO (1-800-

967-2346).

If you have an incompatible XM CNP1000, contact

XM for information on upgrading to the XM Mini-

Tuner.

—

- - - - No artist name or song title is available for

this selection.

No action required. —

SIRIUS Satellite Radio™ (U.S.A. model only)

Status message Cause Remedy See

page

ANTENNA ERROR The antenna is not connected to the

SiriusConnect tuner properly.

Check the connection of the antenna and

SiriusConnect tuner.

SIRIUS LOADING This unit is communicating with the

SiriusConnect tuner.

The message disappears normally within several tens

of seconds.

—

CHECK SR TUNER The SiriusConnect tuner is not connected

to the SIRIUS jack of this unit correctly.

Check the connection of the SiriusConnect tuner and

this unit.

The SiriusConnect tuner is not connected

to the AC wall outlet.

Connect the power cable of the SiriusConnect tuner to

the AC wall outlet.

NOT SUPPORTED This unit does not support the connected

SIRIUS Satellite Radio tuner.

Connect the SiriusConnect tuner that this unit

supports,

Status message Cause Remedy See

page

72 En

Troubleshooting

ACQUIRING The signal is too weak. Adjust the orientation of the antenna of the

SiriusConnect tuner. Check the antenna reception

level from the “Antenna” information on the front

panel display, or “ANT” or “SIRIUS Information” on

the video monitor.

UPDATING The SiriusConnect tuner is updating the

channel list.

Wait until the updating is complete. —

The period of the subscription is end. Contact SIRIUS Satellite Radio to renew the

subscription.

F/W UPDATING The SiriusConnect tuner is updating the

firmware.

Wait until the updating is complete. —

CALL SIRIUS

(CALL 888-539-

SIRIUS TO

SUBSCRIBE)

The selected channel is not subscribed. Contact SIRIUS Satellite Radio to subscribe the

selected channel.

URL: https://activate.siriusradio.com/

Phone: 1-888-539-SIRIUS (1-888-539-7474)

Select another channel. 37

SUB UPDATED The subscription information is updated.

INVALID The selected channel is currently out of

service.

Select another channel. 37

Not Available The operation you made is not available.

Remote control

Problem Cause Remedy See

page

The remote control

does not work or

function properly.

Wrong distance or angle. The remote control will function within a maximum

range of 6 m (20 ft) and no more than 30 degrees

offaxis from the front panel.

Direct sunlight or lighting (from an

inverter type of fluorescent lamp, strobe

light, etc.) is striking the remote control

sensor of this unit.

Adjust the lighting angle or reposition this unit. —

The batteries are weak. Replace all batteries. 9

The remote control ID of the remote

control and this unit do not match.

Match the remote control ID of this unit and the

remote control.

Status message Cause Remedy See

page

73 En

Troubleshooting

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Note

•In case of a transmission error without a status message appearing on the front panel display and on the OSD, check the connection of your iPod

(see page 19).

External components

cannot be controlled

by the remote control.

The remote control code is not correctly

set.

Set the remote control code correctly using “List of

remote control codes” at the end of this manual.

Try setting another code of the same manufacturer

using “List of remote control codes” at the end of this

manual.

If this unit does not work when you press kCursor,

do the following.

When the key does not work during DVD disc menu

operation: press the eInput selection keys on

the remote control again.

When the key does not work during OPTION menu/

SETUP menu operation: press the key applicable for

the current menu operation again.

—

Even if the remote control code is

correctly set, there are some models that

do not respond to the remote control.

iPod™

Problem Cause Remedy See

page

Loading... This unit is in the middle of recognizing

the connection with your iPod.

This unit is in the middle of acquiring

song lists from your iPod.

Connect error There is a problem with the signal path

from your iPod to this unit.

Turn off this unit and reconnect the Yamaha iPod

universal dock to the DOCK jack of this unit.

Remove your iPod in the Yamaha iPod universal dock

and then place it back in the dock.

Unknown iPod The iPod being used is not supported by

this unit.

Connect an iPod supported by this unit. —

iPod Connected Your iPod is properly placed in the

Yamaha iPod universal dock.

Disconnected Your iPod is removed from the Yamaha

iPod universal dock.

Unable to play This unit cannot play back the songs

currently stored on your iPod.

Check that the songs currently stored on your iPod

are playable.

—

Problem Cause Remedy See

page

74 En

Troubleshooting

Notes

•If an error or warning message is displayed, resolve the problem and run the automatic setup procedure again.

•Warning message “W-2” or “W-3” indicates that the adjusted settings may not be optimal.

•Depending on the speakers, warning message “W-1” may appears even if the speaker connections are correct.

•If error message “E-10” occurs repeatedly, contact a qualified Yamaha service center.

Bluetooth™

Problem Cause Remedy See

page

Searching... The Bluetooth wireless audio receiver and

the Bluetooth component are in the

middle of the pairing.

The Bluetooth wireless audio receiver and

the Bluetooth component are in the

middle of establishing the connection.

Completed The pairing is completed.

Canceled The pairing is canceled.

BT Connected The connection between the Yamaha

Bluetooth wireless audio receiver and the

Bluetooth component is established.

Disconnected The Bluetooth component is disconnected

from the Yamaha Bluetooth wireless

audio receiver.

Not found The Bluetooth component is not found. During pairing:

–pairing must be performed on the Bluetooth

component and this unit simultaneously. Check if

the Bluetooth component is in pairing mode.

During connecting:

–check if the Bluetooth component is turned on.

–check if the Bluetooth component is within 10 m

of the Yamaha Bluetooth wireless audio receiver.

—

Auto Setup (YPAO)

Before Auto Setup

Error message Cause Remedy See

page

Connect MIC! Optimizer microphone is not connected. Connect the supplied optimizer microphone to the

OPTIMIZER MIC jack on the front panel.

Unplug HP! Headphones are connected. Unplug the headphones. —

Memory Guard! The parameters of this unit are protected. Set “Memory Guard” to “Off.” 59

During Auto Setup

Error message Cause Remedy See

page

E-1:NO FRONT SP Front L/R channel signals are not

detected.

Check the front L/R speaker connections. 11

E-2:NO SUR. SP Only one surround channel signal is

detected.

Check the surround L/R speaker connections. 11

75 En

Troubleshooting

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

E-3:NO PRNS SP Only one presence channel signal is

detected.

Check the presence L/R speaker connections. 11

E-4:SBR->SBL Only right surround back channel signal

is detected.

If you connect only one surround back speaker,

connect it to the L-side (SINGLE) jack.

E-5:NOISY Measurement cannot be performed

accurately due to loud ambient noise.

Run the automatic setup procedure again during a

time when the environment is quiet.

—

Turn off noisy electric equipment like air

conditioners or move them away from the optimizer

microphone.

—

E-6:CHECK SUR. Surround back speakers are connected,

though surround L/R speakers are not.

When using surround back speakers, you need to

connect surround L/R speakers.

E-7:NO MIC The optimizer microphone was

unplugged during the “Auto Setup”

procedure.

Do not touch the optimizer microphone during the

automatic setup procedure.

E-8:NO SIGNAL The optimizer microphone does not

detect test tones.

Check whether the microphone is properly placed. 21

Check whether the speakers are properly placed and

connected.

The optimizer microphone or OPTIMIZER MIC

jack may be defective. Contact the nearest Yamaha

dealer or service center.

If a monitor such as a TV is connected to this unit

via HDMI connection, sound may not be output

from this unit due to the HDMI control function. In

such a case, change the monitor setting, for example,

change the sound output setting to an amplifier so

that sound is output from this unit.

—

E-9:USER CANCEL The automatic setup procedure was

cancelled due to an inappropriate user

operation.

Run the automatic setup procedure. Do not adjust the

volume or do other operations during the procedure.

E-10:INTERNAL ERROR An internal error occurred. Run the automatic setup procedure again. 21

After Auto Setup

Error message Cause Remedy See

page

W-1:OUT OF PHASE Speaker polarity is not correct. This

message may appear depending on the

speakers even when the speakers are

connected correctly.

Check the polarities (+, –) of the displayed speaker.

If they are correct, the speakers work properly even

when this message is displayed.

W-2:OVER 24m (80ft) The distance between the speaker and the

listening position is over 24 m (80 ft).

Bring the speaker within 24 m (80 ft.) area around

the listening position.

—

W-3:LEVEL ERROR The difference of volume level among

speakers is excessive.

Recheck the speaker positions and make sure all

speakers are placed in a similar environment.

—

Check the polarities (+, –) of the speakers. 11

We recommend that you use speakers with the same

or similar specifications.

—

Adjust the output volume of the subwoofer. —

Error message Cause Remedy See

page

76 En

Troubleshooting

W-4:CHECK PRNS Presence speakers were not detected

during measurement with “Extra SP

Assign” set to “Presence.”

Check the presence speaker connections and perform

measurement again.

If presence speakers are not connected, set the

“Extra SP Assign” to other than “Presence.”

If presence speakers are connected, set the “Extra SP

Assign” to “Presence,” and retry the automatic setup

procedure.

Error message Cause Remedy See

page

77 En

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■Audio and video synchronization (lip sync)

Lip sync, an abbreviation for lip synchronization, is a technical term

that involves both a problem and a capability of maintaining audio and

video signals synchronized during post-production and transmission.

Whereas the audio and video latency requires complex end-user

adjustments, HDMI version 1.3 incorporates an automatic audio and

video syncing capability that allows devices to perform this

synchronization automatically and accurately without user interaction.

■Bi-amplification connection

A bi-amplification connection uses two amplifiers for a speaker.

One amplifier is connected to the woofer section of a loudspeaker

while the other is connected to the combined mid and tweeter section.

With this arrangement each amplifier operates over a restricted

frequency range. This restricted range presents each amplifier with a

much simpler job and each amplifier is less likely to influence the

sound in some way.

■Component video signal

With the component video signal system, the video signal is separated

into the Y signal for the luminance and the PB and PR signals for the

chrominance. Color can be reproduced more faithfully with this

system because each of these signals is independent. The component

signal is also called the “color difference signal” because the

luminance signal is subtracted from the color signal. A monitor with

component input jacks is required in order to output component

signals.

■Composite video signal

With the composite video signal system, the video signal is composed

of three basic elements of a video picture: color, brightness and

synchronization data. A composite video jack on a video component

transmits these three elements combined.

■Deep Color

Deep Color refers to the use of various color depths in displays, up

from the 24-bit depths in previous versions of the HDMI specification.

This extra bit depth allows HDTVs and other displays go from

millions of colors to billions of colors and eliminate on-screen color

banding for smooth tonal transitions and subtle gradations between

colors. The increased contrast ratio can represent many times more

shades of gray between black and white. Also Deep Color increases

the number of available colors within the boundaries defined by the

RGB or YCbCr color space.

■Dolby Digital

Dolby Digital is a digital surround sound system that gives you

completely independent multi-channel audio. With 3 front channels

(front L/R and center), and 2 surround stereo channels, Dolby Digital

provides 5 full-range audio channels. With an additional channel

especially for bass effects, called LFE (Low Frequency Effect), the

system has a total of 5.1-channels (LFE is counted as 0.1 channel). By

using 2-channel stereo for the surround speakers, more accurate

moving sound effects and surround sound environment are possible

than with Dolby Surround. The wide dynamic range from maximum

to minimum volume reproduced by the 5 full-range channels and the

precise sound orientation generated using digital sound processing

provide listeners with unprecedented excitement and realism.

With this unit, any sound environment from monaural up to a 5.1-

channel configuration can be freely selected for your enjoyment.

■Dolby Digital Surround EX

Dolby Digital EX creates 6 full-bandwidth output channels from 5.1-

channel sources.

For the best results, Dolby Digital EX should be used with movie

sound tracks recorded with Dolby Digital Surround EX. With this

additional channel, you can experience more dynamic and realistic

moving sound especially with scenes with “fly-over” and “fly-

around” effects.

■Dolby Digital Plus

Dolby Digital Plus is an advanced audio technology developed for

high-definition programming and media including HD broadcasts,

and Blu-ray Disc. Selected as an optional audio standard for Blu-ray

Disc, this technology delivers multichannel sound with discrete

channel output. Supporting bitrates up to 6.0 Mbps, Dolby Digital

Plus can carry up to 7.1 discreet audio channels simultaneously.

Supported by HDMI version 1.3 and designed for the optical disc

players and AV receivers/amplifiers of the future, Dolby Digital Plus

also remains fully compatible with the existing multichannel audio

systems that incorporate Dolby Digital.

■Dolby Pro Logic II

Dolby Pro Logic II is an improved technique used to decode vast

numbers of existing Dolby Surround sources. This new technology

enables a discrete 5-channel playback with 2 front left and right

channels, 1 center channel, and 2 surround left and right channels

instead of only 1 surround channel for conventional Pro Logic

technology. There are three modes available: “Music mode” for music

sources, “Movie mode” for movie sources and “Game mode” for

game sources.

■Dolby Pro Logic IIx

Dolby Pro Logic IIx is a new technology enabling discrete

multichannel playback from 2-channel or multi-channel sources.

There are three modes available: “Music mode” for music sources,

“Movie mode” for movie sources (for 2-channel sources only) and

“Game mode” for game sources.

■Dolby Surround

Dolby Surround is widely used with nearly all video tapes and laser

discs, and in many TV and cable broadcasts as well. Dolby Surround

uses a 4-channel analog recording system to reproduce realistic and

dynamic sound effects: 2 front left and right channels (stereo), a

center channel for dialog (monaural), and a surround channel for

special sound effects (monaural). The surround channel reproduces

sound within a narrow frequency range. The Dolby Pro Logic decoder

built into this unit employs a digital signal processing system that

automatically stabilizes the volume on each channel to enhance

moving sound effects and directionality.

■Dolby TrueHD

Dolby TrueHD is an advanced lossless audio technology developed

for high-definition disc-based media including Blu-ray Disc. Selected

as an optional audio standard for Blu-ray Disc, this technology

delivers sound that is bit-for-bit identical to the studio master, offering

a high-definition home theater experience.

Supporting bitrates up to 18.0 Mbps, Dolby TrueHD can carry up to 8

discrete channels of 24-bit/96 kHz audio simultaneously.

Dolby TrueHD also remains fully compatible with the existing

multichannel audio systems and retains the metadata capability of

Dolby Digital, allowing dialog normalization and dynamic range

control.

Glossary

78 En

Glossary

■DSD

Direct Stream Digital (DSD) technology stores audio signals on

digital storage media, such as Super Audio CDs. Using DSD, signals

are stored as single bit values at a high-frequency sampling rate of

2.8224 MHz, while noise shaping and oversampling are used to

reduce distortion, a common occurrence with very high quantization

of audio signals. Due to the high sampling rate, better audio quality

can be achieved than that offered by the PCM format used for normal

audio CDs. The frequency is equal to or higher than 100 kHz and the

dynamic range is 120 dB. This unit can transmit or receive DSD

signals via the HDMI jack.

■DTS 96/24

DTS 96/24 offers an unprecedented level of audio quality for multi-

channel sound on DVD video, and is fully backward-compatible with

all DTS decoders. “96” refers to a 96 kHz sampling rate compared to

the typical 48 kHz sampling rate. “24” refers to 24-bit word length.

DTS 96/24 offers sound quality transparent to the original 96/24

master, and 96/24 5.1-channel sound with full-quality full-motion

video for music programs and motion picture soundtracks on DVD

video.

■DTS Digital Surround

DTS Digital Surround was developed to replace the analog

soundtracks of movies with a 5.1-channel digital sound track, and is

now rapidly gaining popularity in movie theaters around the world.

DTS, Inc. has developed a home theater system so that you can enjoy

the depth of sound and natural spatial representation of DTS Digital

Surround in your home. This system produces practically distortion-

free 6-channel sound (technically, front left and right, center, surround

left and right, and LFE 0.1 (subwoofer) channels for a total of 5.1

channels). This unit incorporates a DTS-ES decoder that enables 6.1-

channel reproduction by adding the surround back channel to the

existing 5.1-channel format.

■DTS Express

This is an audio format for next-generation optical discs such as Blu-

ray discs. It uses optimized low bit rate signals for network streaming.

In the case of a Blu-ray disc, this format is used with secondary audio,

enabling you to enjoy the commentary of the movie producer via the

Internet while playing the main program.

■DTS-HD High Resolution Audio

DTS-HD High Resolution Audio is a high resolution audio

technology developed for high-definition disc-based media including

Blu-ray Disc. Selected as an optional audio standard for Blu-ray Disc,

this technology delivers sound that is virtually indistinguishable from

the original, offering a high-definition home theater experience.

Supporting bitrates up to 6.0 Mbps for Blu-ray Disc, DTS-HD High

Resolution Audio can carry up to 7.1 discrete channels of 24-bit/96

kHz audio simultaneously.

DTS-HD High Resolution Audio also remains fully compatible with

the existing multichannel audio systems that incorporate DTS Digital

Surround.

■DTS-HD Master Audio

DTS-HD Master Audio is an advanced lossless audio technology

developed for high-definition disc-based media including Blu-ray

Disc. Selected as an optional audio standard for Blu-ray Disc, this

technology delivers sound that is bit-for-bit identical to the studio

master, offering a high-definition home theater experience.

Supporting bitrates up to 24.5 Mbps for Blu-ray Disc, DTS-HD

Master Audio can carry up to 7.1 discrete channels of 24-bit/96 kHz

audio simultaneously. Supported by HDMI version 1.3 and designed

for the optical disc players and AV receivers/amplifiers of the future,

DTS-HD Master Audio also remains fully compatible with the

existing multichannel audio systems that incorporate DTS Digital

Surround.

■HDMI

HDMI (High-Definition Multimedia Interface) is the first industry-

supported, uncompressed, all-digital audio/video interface. Providing

an interface between any source (such as a set-top box or AV receiver)

and an audio/video monitor (such as a digital television), HDMI

supports standard, enhanced or high-definition video as well as multi-

channel digital audio using a single cable. HDMI transmits all ATSC

HDTV standards and supports 8-channel digital audio, with

bandwidth to spare to accommodate future enhancements and

requirements.

When used in combination with HDCP (High-bandwidth Digital

Content Protection), HDMI provides a secure audio/video interface

that meets the security requirements of content providers and system

operators. For further information on HDMI, visit the HDMI website

at “http://www.hdmi.org/.”

■LFE 0.1 channel

This channel reproduces low-frequency signals. The frequency range

of this channel is from 20 Hz to 120 Hz. This channel is counted as

0.1 because it only enforces a low-frequency range compared to the

full-range reproduced by the other 5/6 channels in Dolby Digital or

DTS 5.1/6.1-channel systems.

■Neural Surround

Neural Surround represents the latest advancement in surround

technology and has been adopted by XM Satellite Radio for digital

radio broadcast of surround recordings and live events in surround

sound. Neural Surround employs psychoacoustic frequency domain

processing which allows delivery of a more detailed sound stage with

superior channel separation and localization of audio elements.

System playback is scalable from 5.1 to 7.1 multi-channel surround

playback.

■Neo:6

Neo:6 decodes the conventional 2-channel sources for 6- channel

playback by the specific decoder. It enables playback with the full-

range channels with higher separation just like digital discrete signal

playback. There are two modes available: “Music mode” for music

sources and “Cinema mode” for movie sources.

■PCM (Linear PCM)

Linear PCM is a signal format under which an analog audio signal is

digitized, recorded and transmitted without using any compression.

This is used as a method of recording CDs and DVD audio. The PCM

system uses a technique for sampling the size of the analog signal per

very small unit of time. Standing for “Pulse Code Modulation,” the

analog signal is encoded as pulses and then modulated for recording.

■Sampling frequency and number of

quantized bits

When digitizing an analog audio signal, the number of times the

signal is sampled per second is called the sampling frequency, while

the degree of fineness when converting the sound level into a numeric

value is called the number of quantized bits. The range of rates that

can be played back is determined based on the sampling rate, while

the dynamic range representing the sound level difference is

determined by the number of quantized bits. In principle, the higher

the sampling frequency, the wider the range of frequencies that can be

played back, and the higher the number of quantized bits, the more

finely the sound level can be reproduced.

■“x.v.Color”

A color space standard supported by HDMI version 1.3. It is a more

extensive color space than sRGB, and allows the expression of colors

that could not be expressed before. While remaining compatible with

the color gamut of sRGB standards, “x.v.Color” expands the color

space and can thus produce more vivid, natural images. It is

particularly effective for still pictures and computer graphics.

79 En

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■CINEMA DSP

Since the Dolby Surround and DTS systems were originally designed

for use in movie theaters, their effect is best felt in a theater having

many speakers designed for acoustic effects. Since home conditions,

such as room size, wall material, number of speakers, and so on, can

differ so widely, it is inevitable that there are differences in the sound

heard.

Based on a wealth of actually measured data, Yamaha CINEMA DSP

provides the audiovisual experience of a movie theater in the listening

room of your own home by using the Yamaha original sound field

technology combined with various digital audio systems.

■CINEMA DSP 3D

The actually measured sound field data contain the information of the

height of the sound images. CINEMA DSP 3D feature achieves the

reproduction of the accurate height of the sound images so that it

creates the accurate and intensive stereoscopic sound fields in a

listening room.

■SILENT CINEMA

Yamaha has developed a natural, realistic sound effect DSP algorithm

for headphones. Parameters for headphones have been set for each

sound field so that accurate representations of all the sound field

programs can be enjoyed on headphones.

■Virtual CINEMA DSP

Yamaha has developed a Virtual CINEMA DSP algorithm that allows

you to enjoy DSP sound field surround effects even without any

surround speakers by using virtual surround speakers. It is even

possible to enjoy Virtual CINEMA DSP using a minimal two-speaker

system that does not include a center speaker.

■Compressed Music Enhancer

The Compressed Music Enhancer feature of this unit enhances your

listening experience by regenerating the missing harmonics in a

compression artifact. As a result, flattened complexity due to the loss

of high-frequency fidelity as well as lack of bass due to the loss of

low-frequency bass is compensated, providing improved performance

of the overall sound system.

■HDMI signal compatibility

Audio signals

•If the input source component can decode the bitstream audio signals of audio commentaries, you can play back the audio sources with the audio

commentaries mixed down by using the following connections:

–multi-channel analog audio input (see page 18)

–DIGITAL INPUT OPTICAL (or COAXIAL)

•Refer to the supplied instruction manuals of the input source component, and set the component appropriately.

Notes

•When CPPM copy-protected DVD-Audio is played back, video and audio signals may not be output depending on the type of the DVD player.

•This unit is not compatible with HDCP-incompatible HDMI or DVI components.

•To decode audio bitstream signals on this unit, set the input source component appropriately so that the component outputs the bitstream audio signals

directly (does not decode the bitstream signals on the component). Refer to the supplied instruction manuals for details.

•This unit is not compatible with the audio commentary features (for example, the special audio contents downloaded via Internet) of Blu-ray Disc or HD

DVD. This unit does not play back the audio commentaries of the Blu-ray Disc or HD DVD contents.

Video signals

This unit is compatible with the video signals of the following resolutions:

•480i/60 Hz

•576i/50 Hz

•480p/60 Hz

•576p/50 Hz

•720p/60 Hz, 50 Hz

•1080i/60 Hz, 50 Hz

•1080p/60 Hz, 50 Hz, 24 Hz

Sound field program information

Information on HDMI™

Audio signal types Audio signal formats Compatible media

2ch Linear PCM 2ch, 32-192 kHz, 16/20/24 bit CD, DVD-Video, DVD-Audio, etc.

Multi-ch Linear PCM 8ch, 32-192 kHz, 16/20/24 bit DVD-Audio, Blu-ray Disc, HD DVD, etc.

DSD 2/5.1ch, 2.8224 MHz, 1 bit SACD, etc.

Bitstream Dolby Digital, DTS DVD-Video, etc.

Bitstream (High definition audio) Dolby TrueHD, Dolby Digital Plus, DTS-HD

Master Audio, DTS-HD High Resolution Audio,

DTS Express

Blu-ray Disc, HD DVD, etc.

80 En

AUDIO SECTION

• Minimum RMS Output Power for Front, Center, Surround,

Surround back

20 Hz - 20 kHz, 0.08% THD, 8 Ω......................................... 95 W

• Dynamic Power (IHF)

Front Speakers 8/6/4/2 Ω................................ 130/165/195/240 W

• Maximum Useful Output Power (JEITA)

[China, Korea, General and Asia models]

1 kHz, 10% THD, 8 Ω......................................................... 135 W

• Maximum Output Power

[U.K., Europe, Russia and Asia models]

1 kHz, 0.7% THD, 4 Ω........................................................ 145 W

• Dynamic Headroom [U.S.A. and Canada models]

8 Ω.........................................................................................1.4 dB

• IEC Output Power [U.K., Europe, Russia and Asia models]

Front Speakers 1 kHz, 0.08% THD, 8 Ω............................. 105 W

• Input Sensitivity/Input Impedance

PHONO

[China, Korea, U.K., Europe, Russia, Australia,

General and Asia models] ..................................... 3.5 mV/47 kΩ

AV5, etc................................................................... 200 mV/47 kΩ

MULTI CH INPUT ................................................. 200 mV/47 kΩ

• Maximum Input Voltage

PHONO (1 kHz, 0.1% THD)

[China, Korea, U.K., Europe, Russia, Australia,

General and Asia models] ....................................60 mV or more

AV5, etc. (1 kHz, 0.5% THD) ...................................2.3 V or more

• Rated Output Voltage/Output Impedance

AUDIO OUT.......................................................... 200 mV/1.2 kΩ

PRE OUT ................................................................... 1.0 V/1.2 kΩ

SUBWOOFER (2ch Stereo & FRONT: Small)

................................................................................. 1.0 V/1.2 kΩ

ZONE2 OUT.......................................................... 200 mV/1.2 kΩ

• Headphone Jack Rated Output/Impedance

AV5, etc. (1 kHz, 50 mV, 8 Ω) ................................ 100 mV/470 Ω

• Frequency Response

AV5, etc. to FRONT...........................10 Hz to 100 kHz, +0/–3 dB

• RIAA Equalization Deviation

[China, Korea, U.K., Europe, Russia, Australia,

General and Asia models]

PHONO .......................................................................... 0 ± 0.5 dB

• Total Harmonic Distortion

PHONO to AUDIO OUT

[China, Korea, U.K., Europe, Russia, Australia,

General and Asia models]

(20 Hz to 20 kHz, 1 V)............................................0.02% or less

AV5, etc. to FRONT, Pure Direct

(20 Hz to 20 kHz, 50 W, 8 Ω) .................................0.06% or less

• Signal to Noise Ratio (IHF-A Network)

PHONO Input Shorted (5.0 mV to AUDIO OUT)

[China and General models]

............................................................................... 86 dB or more

PHONO Input Shorted (5.0 mV to AUDIO OUT)

[Korea, U.K., Europe, Russia, Australia and Asia models]

............................................................................... 81 dB or more

AV5, etc. (Pure Direct) Input Shorted (250 mV to Front Speakers)

............................................................................. 100 dB or more

• Residual Noise (IHF-A Network)

Front Speakers..........................................................150 µV or less

• Channel Separation (1 kHz/10 kHz)

PHONO (Input Shorted)

[China, Korea, U.K., Europe, Russia, Australia,

General and Asia models] .......................... 60 dB/55 dB or more

AV5, etc. (5.1 kΩ shortened)......................... 60 dB/45 dB or more

• Volume Control ................................... MUTE / –80 dB to +16.5 dB

• Tone Control (Front Speakers)

BASS Boost/Cut....................................................±10 dB at 50 Hz

BASS Turnover Frequency ..................................................350 Hz

TREBLE Boost/Cut ............................................±10 dB at 20 kHz

TREBLE Turnover Frequency ............................................3.5 kHz

• Filter Characteristics (fc=40/60/80/90/100/110/120/160/200 Hz)

H.P.F. (Front, Center, Surround, Surround back: Small)

..................................................................................... 12 dB/oct.

L.P.F. (Subwoofer).......................................................... 24 dB/oct.

VIDEO SECTION

• Video Signal Type (Gray Back)

[U.S.A., Canada, Korea and General models] .......................NTSC

[Other models]..........................................................................PAL

• Signal Level

Composite................................................................... 1 Vp-p/75 Ω

S-video [U.K., Europe and Russia models]

....................................... 1 Vp-p/75 Ω (Y), 0.286 Vp-p/75 Ω (C)

Component.................... 1 Vp-p/75 Ω (Y), 0.7 Vp-p/75 Ω (CB/CR)

• Maximum Input Level ............................................ 1.5 Vp-p or more

• Signal to Noise Ratio...................................................50 dB or more

• Frequency Response [MONITOR OUT]

Component................................................. 5 Hz to 60 MHz, –3 dB

FM SECTION

• Tuning Range

[U.S.A. and Canada models] ............................ 87.5 to 107.9 MHz

[Asia and General models] ......... 87.5/87.50 to 108.0/108.00 MHz

[Other models].............................................. 87.50 to 108.00 MHz

• 50 dB Quieting Sensitivity (IHF)

Mono................................................................... 3.0 µV (20.8 dBf)

• Signal to Noise Ratio (IHF)

Mono/Stereo ............................................................... 74 dB/70 dB

• Harmonic Distortion (1 kHz)

Mono/Stereo ..................................................................... 0.3/0.3%

• Antenna Input (unbalanced) .......................................................75 Ω

AM SECTION

• Tuning Range

[U.S.A. and Canada models] ................................ 530 to 1710 kHz

[Asia and General models] ...................530/531 to 1710/1611 kHz

[Other models]...................................................... 531 to 1611 kHz

GENERAL

• Power Supply

[U.S.A. and Canada models] ............................... AC 120 V, 60 Hz

[General model] .................AC 110/120/220/230–240 V, 50/60 Hz

[China model] ...................................................... AC 220 V, 50 Hz

[Korea model]...................................................... AC 220 V, 60 Hz

[Australia model]................................................. AC 240 V, 50 Hz

[U.K., Europe and Russia models] ...................... AC 230 V, 50 Hz

[Asia model] .................................... AC 220/230–240 V, 50/60 Hz

• Power Consumption

[U.S.A. and Canada models] ...................................400 W/500 VA

[Other models]...................................................................... 400 W

• Standby Power Consumption

HDMI control off/Standby through off ......................0.2 W or less

HDMI control on/Standby through on/No Repeat .....1.2 W or less

HDMI control on/Standby through on/Repeat ..............3 W or less

• Maximum Power Consumption

[Asia and General models] ................................................... 590 W

• Dimensions (W x H x D)...................................435 x 171 x 365 mm

(17-1/8 x 6-3/4 x 14-3/8 in)

• Weight.................................................................... 11.0 kg (24.3 lbs)

* Specifications are subject to change without notice.

Specifications

81 En

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■Numerics

1 Dynamic Range, sound setup ......................56

1 HDMI, function setup .................................57

2 Display, function setup ................................58

2 Lipsync, sound setup ...................................57

2ch Stereo, sound field program ....................28

3 Volume, function setup ...............................58

3D DSP, sound field parameter ......................49

4 Input Rename, function setup .....................59

5.1-channel speaker layout .............................10

6.1-channel speaker layout .............................10

7.1-channel speaker layout .............................10

7ch Enhancer, sound field program ...............29

7ch Stereo, sound field program ....................28

■A

A)Config, speaker setup .................................54

Action Game, sound field program ................28

Adaptive DRC, 3 Volume, function setup .....58

Adjusting high frequency sound ....................25

Adjusting low frequency sound .....................25

ADVANCED SETUP ....................................64

Adventure, sound field program ....................27

All Channel Search mode,

SIRIUS satellite radio ................................38

All Channel Search mode,

XM satellite radio ......................................34

AM antenna connection .................................20

AM tuning ......................................................31

ANTENNA jacks, rear panel ...........................5

Aspect, 1 HDMI, function setup ....................58

AUDIO 1/2 jacks, rear panel ............................5

Audio and video player connection ................16

AUDIO jack ...................................................14

Audio jack ......................................................14

AUDIO L/R jack, front panel ...........................4

AUDIO OUT jacks, rear panel .........................5

Audio Output, 1 HDMI, function setup .........57

Audio player connection ................................17

Auto Delay, 2 Lipsync, sound setup ..............57

Auto Preset, OPTION menu ..........................48

Auto Setup (YPAO), troubleshooting ............74

Automatic setup .............................................21

AV 1-6 jacks, rear panel ...................................5

AV OUT jacks, rear panel ................................5

■B

B)Level, speaker setup ...................................56

Basic operation, SETUP menu .......................54

BI-AMP connection switch,

ADVANCED SETUP ...............................64

Bluetooth component playback ......................44

Bluetooth wireless audio receiver

connection .................................................19

Bluetooth, troubleshooting .............................74

■C

C)Distance, speaker setup ..............................56

C.Image, decoder parameter ..........................52

Category Search mode,

SIRIUS satellite radio ................................38

Category Search mode, XM satellite radio ....34

Cellar Club, sound field program ...................28

Center SP, A)Config, speaker setup ...............55

Center speaker ................................................10

Center width, decoder parameter ...................52

Center, C)Distance, speaker setup .................56

Chamber, sound field program .......................28

Changing information on the front panel

display .......................................................26

CINEMA DSP 3D indicator,

front panel display .......................................6

CINEMA DSP basic parameter .....................49

CINEMA DSP indicator,

front panel display .......................................6

Clear Preset, OPTION menu ..........................48

COAXIAL jack .............................................. 14

CODE SET, remote control ............................. 7

COMPONENT VIDEO jack ......................... 14

Connect, OPTION menu ............................... 48

Connecting AM antenna ................................ 20

Connecting audio and video player ............... 16

Connecting audio player ................................ 17

Connecting Bluetooth wireless audio

Receiver .................................................... 19

Connecting external amplifier ....................... 18

Connecting external decoder ......................... 18

Connecting FM antenna ................................. 20

Connecting iPod universal dock .................... 19

Connecting multi-format player .................... 18

Connecting power cable ................................ 20

Connecting projector ..................................... 15

Connecting set-top box .................................. 16

Connecting speaker ........................................ 11

Connecting speaker cable .............................. 13

Connecting the SiriusConnect ....................... 37

Connecting the SiriusConnect tuner .............. 37

Connecting TV monitor ................................. 15

Connecting XM Mini-Tuner Home Dock .....33

Connecting Zone2 .......................................... 60

Connection ..................................................... 10

Control, 1 HDMI, function setup ................... 57

Controlling other component,

remote control ........................................... 62

Controlling Zone2 .......................................... 61

Crossover Freq., A)Config, speaker setup ..... 56

CT Level, sound field parameter ................... 52

Cursor indicator, front panel display ............... 6

Cursors k / n / l / h, remote control ........... 7

■D

D)Equalizer, speaker setup ............................ 56

Decoder Mode, OPTION menu ..................... 47

Decoder parameter ......................................... 52

Dialog Lift, sound field parameter ................. 50

Dimension, decoder parameter ...................... 52

Dimmer, 2 Display, function setup ................ 58

Direct number access mode,

SIRIUS satellite radio ............................... 38

Direct number access mode,

XM satellite radio ..................................... 34

Direct, sound field parameter ........................ 52

Disconnect, OPTION menu ........................... 48

DISPLAY, remote control ............................... 7

Displaying input signal information .............. 26

Displaying the SIRIUS Satellite Radio

information ................................................ 41

Displaying the XM Satellite Radio

information ................................................ 36

DOCK jack, rear panel .................................... 5

Drama, sound field program .......................... 28

DSP Level, sound field parameter ................. 49

DSP Parameter, SETUP menu ....................... 59

■E

E)Test Tone, speaker setup ............................ 56

Editing sound field program .......................... 49

Editing surround decoder ............................... 49

Effect Level, sound field parameter ............... 52

ENTER, remote control ................................... 7

EQ Type Select, D)Equalizer,

speaker setup ............................................. 56

Extended Surround, OPTION menu .............. 47

External component operation key,

remote control ............................................. 7

Extra SP Assign, A)Config, speaker setup .... 54

■F

FL Scroll, 2 Display, function setup .............. 58

FM antenna connection .................................. 20

FM Mode, OPTION menu ............................. 48

FM tuning ...................................................... 31

FM/AM (CATEGORY l / h), front panel ... 4

Frequency tuning mode ................................. 31

Front L, C)Distance, speaker setup ............... 56

Front left speaker ........................................... 10

Front panel ....................................................... 4

Front panel display .......................................... 6

Front panel display, front panel ....................... 4

Front R, C)Distance, speaker setup ............... 56

Front right speaker ........................................ 10

Front SP, A)Config, speaker setup ................ 55

Function Setup, SETUP menu ...................... 57

■H

Hall in Munich, sound field program ............ 28

Hall in Vienna, sound field program ............. 28

HDMI Auto, 2 Lipsync, sound setup ............ 57

HDMI indicator, front panel display ............... 6

HDMI information ........................................ 79

HDMI jack ..................................................... 14

HDMI OUT/HDMI 1-4 jacks, rear panel ........ 5

HDMI THROUGH, front panel ...................... 4

HDMI, troubleshooting ................................. 69

Headphones using ......................................... 26

Hi-fi sound playback ..................................... 25

High frequency sound adjustment ................. 25

■I

INFO, front panel ............................................ 4

INFO, remote control ...................................... 7

INIT, ADVANCED SETUP ......................... 64

Init. Volume, 3 Volume, function setup ........ 58

Initialize setting, ADVANCED SETUP ....... 64

Input selection key, remote control ................. 7

INPUT selector, front panel ............................ 4

Input signal information displaying .............. 26

Input source registration ................................ 25

Installing batteries, remote control .................. 9

iPod playback ................................................ 42

iPod universal dock connection ..................... 19

iPod, troubleshooting .................................... 73

■L

LFE/Bass Out, A)Config, speaker setup ....... 55

Low frequency sound adjustment ................. 25

■M

MAIN ZONE ON/OFF, front panel ................ 4

MAIN/ZONE2, remote control ....................... 7

Manual Delay, 2 Lipsync, sound setup ......... 57

Max Volume, 3 Volume, function setup ....... 58

Memory guard, SETUP menu ....................... 59

MEMORY, front panel ................................... 4

MON.CHK, ADVANCED SETUP .............. 64

MONITOR OUT terminals, rear panel ........... 5

Mono Movie, sound field program ............... 28

MULTI CH INPUT terminals, rear panel ....... 5

Multi information display,

front panel display ...................................... 6

Multi-zone configuration ............................... 60

Music Video, sound field program ................ 28

MUTE indicator, front panel display .............. 6

MUTE, remote control .................................... 7

■N

Numeric key, remote control ........................... 7

■O

OPTICAL jack .............................................. 14

OPTIMIZER MIC jack, front panel ................ 4

OPTION menu .............................................. 46

OPTION, remote control ................................. 7

OSD Shift, 2 Display, function setup ............ 58

■P

Pairing Bluetooth components ...................... 44

Pairing, OPTION menu ................................. 48

Index

82 En

Panorama, decoder parameter ........................ 52

Parental Lock, OPTION menu ...................... 48

PHONES jack, front panel ............................... 4

PL Level, sound field parameter .................... 52

Placing speaker .............................................. 10

PORTABLE jack, front panel ......................... 4

Power cable connection ................................. 20

Power Cable, rear panel ................................... 5

POWER, remote control .................................. 7

PR Level, sound field parameter ................... 52

PRE OUT terminals, rear panel ....................... 5

PRESET l / h, front panel ........................... 4

Preset Search mode,

SIRIUS satellite radio ............................... 39

Preset Search mode, XM satellite radio ......... 35

Preset tuning mode ........................................ 31

PRNS L, C)Distance, speaker setup .............. 56

PRNS R, C)Distance, speaker setup .............. 56

PROGRAM selector, front panel ..................... 4

Projector connection ...................................... 15

PURE DIRECT, front panel ............................ 4

■R

Registering input source ................................ 25

Registering sound field program ................... 25

Registering the SIRIUS Satellite Radio

channels .................................................... 39

Registering XM Satellite Radio channels ...... 35

Remote control ................................................ 7

Remote control code resetting ....................... 63

Remote control code setting .......................... 63

Remote control ID, ADVANCED SETUP .... 64

Remote control signal transmitter,

remote control ............................................. 7

Remote control, controlling other

component ................................................. 62

Remote control, preparation ............................ 9

Remote control, troubleshooting ................... 72

REMOTE ID, ADVANCED SETUP ............ 64

REMOTE IN/OUT jacks, rear panel ............... 5

Repeat playback, iPod ................................... 43

Repeat, OPTION menu .................................. 48

Resetting Parental lock cord,

ADVANCED SETUP ............................... 64

Resetting remote control code ....................... 63

Resolution, 1 HDMI, function setup ............. 57

RETURN, remote control ................................ 7

Roleplaying Game, sound field program ....... 28

■S

SB Level, sound field parameter ................... 52

SCENE function ............................................ 24

SCENE IR, ADVANCED SETUP ................ 64

SCENE, front panel ......................................... 4

SCENE, remote control ................................... 7

Sci-Fi, sound field program ........................... 27

Selecting SCENE ........................................... 24

Setting remote control code ........................... 63

Setting the Parental Lock,

SIRIUS satellite radio ............................... 40

Set-top box connection .................................. 16

SETUP menu ................................................. 53

SETUP menu basic operation ........................ 54

SETUP, remote control ................................... 7

Shuffle playback, iPod ................................... 43

Shuffle, OPTION menu ................................. 48

Signal Info parameter .................................... 47

Signal Info, OPTION menu ........................... 47

SILENT CINEMA ......................................... 30

SIRIUS indicator, front panel display ............. 6

SIRIUS jack, rear panel ................................... 5

SIRIUS Satellite Radio tuning ....................... 37

SIRIUS Satellite Radio, troubleshooting ....... 71

SL Level, sound field parameter .................... 52

SLEEP indicator, front panel display .............. 6

Sleep timer ..................................................... 45

SLEEP, remote control .................................... 7

Sound field parameter .................................... 49

Sound field program editing .......................... 49

Sound field program registration ...................25

Sound selection key, remote control ................7

Sound Setup, SETUP menu ...........................56

SOURCE POWER, remote control .................7

SP IMP., ADVANCED SETUP ....................64

Speaker cable connection ...............................13

Speaker connection ........................................11

Speaker impedance, ADVANCED SETUP ...64

Speaker indicator, front panel display ..............6

Speaker layout ................................................10

Speaker placement .........................................10

Speaker setup .................................................54

SPEAKERS terminals, rear panel ....................5

Specifications .................................................80

Spectacle, sound field program ......................27

Sports, sound field program ...........................28

SR Level, sound field parameter ....................52

SR PIN, ADVANCED SETUP ......................64

Standard, sound field program .......................27

Standby Through, 1 HDMI, function setup ...57

Straight decoding mode .................................30

Straight Enhancer, sound field program .........29

STRAIGHT, front panel ..................................4

Subwoofer ......................................................10

Subwoofer Phase, A)Config, speaker setup ...56

Sur. L, C)Distance, speaker setup ..................56

Sur. L/R SP, A)Config, speaker setup ...........55

Sur. R, C)Distance, speaker setup ..................56

SUR., sound field parameter ..........................49

Sur.B L, C)Distance, speaker setup ...............56

Sur.B L/R SP, A)Config, speaker setup .........55

Sur.B R, C)Distance, speaker setup ...............56

Surround back left speaker .............................10

Surround back right speaker ...........................10

Surround back speaker ...................................10

Surround decoder editing ...............................49

Surround left speaker .....................................10

Surround right speaker ...................................10

SWFR, C)Distance, speaker setup .................56

■T

The Bottom Line, sound field program ..........28

The Roxy Theatre, sound field program ........28

Tone control ...................................................25

TONE CONTROL, front panel ........................4

TRANSMIT, remote control ............................7

TRIGGER OUT jack, rear panel ......................5

Troubleshooting .............................................66

Tuner indicator, front panel display .................6

Tuner key, remote control ................................7

Tuner, troubleshooting ...................................70

Tuning, AM ....................................................31

Tuning, FM ....................................................31

TUNING/CH l / h, front panel ....................4

Turning off .....................................................20

Turning on ......................................................20

TV control key, remote control ........................7

TV monitor connection ..................................15

■U

Using the remote control ..................................9

■V

VIDEO jack ....................................................14

Video jack ......................................................14

VIDEO jack, front panel ..................................4

Video Out, OPTION menu ............................48

Video/audio jack ............................................14

Virtual CINEMA DSP ...................................30

VOLUME +/–, remote control .........................7

VOLUME control, front panel .........................4

VOLUME indicator, front panel display .........6

Volume Trim, OPTION menu .......................46

■X

XM indicator, front panel display ....................6

XM jack, rear panel ..........................................5

XM Satellite Radio tuning .............................33

XM Satellite Radio, troubleshooting .............70

■Y

YPAO ............................................................ 21

YPAO, troubleshooting ................................. 74

■Z

ZONE2 CONTROL, front panel ..................... 4

ZONE2 indicator, front panel display ............. 6

ZONE2 ON/OFF, front panel .......................... 4

ZONE2 OUT jacks, rear panel ........................ 5

“AMAIN ZONE ON/OFF” or

“pPOWER” (example) indicates

the name of the parts on the front

panel or the remote control. Refer

to the “Controls diagram” or “Part

names and functions” on page 4.

List of remote control codes

A.R. Systems 0274

Acme 0260

Acura 0261, 0273

ADC 0259

Admiral 0100, 0224, 0257,

0258, 0259, 0264,

0265

Advent 0204

Adventura 0107

Adyson 0260, 0327, 0328

Agashi 0327, 0328

Agazi 0259

Aiko 0260, 0261, 0273,

0274, 0327, 0328

Aim 0274

Aiwa 0028, 0297

Akai 0063, 0096, 0101,

0205, 0231, 0261,

0262, 0268, 0271,

0273, 0274, 0327,

0328

Akiba 0262, 0274

Akura 0259, 0262, 0273,

0274

Alaron 0327

Alba 0243, 0260, 0261,

0262, 0266, 0269,

0271, 0273, 0274,

0294, 0300, 0327

Albatron 0222

Alcyon 0249

Alleron 0105

Allorgan 0328

Allstar 0268, 0274

America Action

0225

AMOi 0326

Amplivision 0243, 0260, 0275,

0328

Amstrad 0259, 0261, 0262,

0273, 0274

Amtron 0104

Anam 0225, 0261

Anam National

0102, 0104

Anglo 0261, 0273

Anitech 0249, 0259, 0261,

0273, 0274

Ansonic 0243, 0250, 0261,

0263, 0273, 0274

AOC 0072, 0090, 0096,

0103

Apex 0061, 0117, 0139

Arcam 0327, 0328

Arcam Delta 0260

Aristona 0268, 0271, 0274

Arthur Martin 0275

ASA 0257, 0265

Asberg 0249, 0268, 0274

Astra 0261

Asuka 0259, 0260, 0262,

0327, 0328

Atlantic 0260, 0268, 0271,

0274, 0327

Atori 0261, 0273

Auchan 0275

Audiosonic 0243, 0260, 0261,

0262, 0268, 0271,

0274, 0328

AudioTon 0243, 0260, 0328

Audiovox 0104, 0144, 0225

Ausind 0249

Autovox 0249, 0257, 0259,

0260, 0328

Aventura 0097

Awa 0327, 0328

Axion 0206

Baird 0328

Bang & Olufsen

0230, 0257

Basic Line 0261, 0262, 0268,

0273, 0274, 0328

Bastide 0260, 0328

Baur 0271, 0274

Bazin 0328

Beko 0243, 0269, 0274,

0282, 0351, 0357,

0372, 0380

Belcor 0090

Bell & Howell

0065, 0100

Benq 0051, 0160, 0315

Beon 0268, 0271, 0274

Best 0243

Bestar 0243, 0268, 0274

Binatone 0260, 0328

Blue Sky 0262, 0274

Blue Star 0270

Boots 0260, 0328

BPL 0270, 0274

Bradford 0104, 0225

Brandt 0267, 0272

Brillian 0228

Brinkmann 0274

Brionvega 0257, 0268, 0271,

0274

Britannia 0260, 0327, 0328

Brockwood 0090

Broksonic 0063, 0225

Bruns 0257

BTC 0262

Bush 0261, 0262, 0264,

0266, 0268, 0270,

0271, 0273, 0274,

0282, 0286, 0294,

0300, 0328, 0329,

0351, 0388, 0394,

0413

Candle 0072, 0090, 0096,

0107

Capsonic 0259

Carena 0274

Carnivale 0096

Carrefour 0266

Carver 0088

Cascade 0261, 0273, 0274

Casio 0317

Cathay 0268, 0271, 0274

CCE 0229, 0328

Celebrity 0057, 0101

Celera 0117

Centurion 0268, 0271, 0274

Century 0257

CGE 0243, 0249

Changhong 0117

Chimei 0323

Cimline 0261, 0273

Citizen 0072, 0085, 0090,

0096, 0104

City 0261, 0273

Clarion 0225

Clarivox 0271

Clatronic 0243, 0249, 0259,

0260, 0261, 0262,

0268, 0269, 0273,

0274, 0328

CMS 0327

CMS Hightec 0328

Coby 0151

Colortyme 0072, 0090

Commercial Solutions

0071

Concerto 0072, 0090

Concorde 0261, 0273

Condor 0243, 0260, 0268,

0269, 0273, 0274,

0327

Contec 0225, 0260, 0261,

0266, 0273, 0327

Contec/Cony 0094, 0104

Continental Edison

0267

Cosmel 0261, 0273

Craig 0104, 0225

Crosley 0088, 0119, 0249,

0257

Crown 0104, 0225, 0243,

0249, 0261, 0268,

0269, 0271, 0273,

0274

CS Electronics

0260, 0262, 0327

CTC Clatronic

0263

CTX 0159

Curtis Mathes 0065, 0071, 0072,

0085, 0088, 0090,

0096, 0099, 0224

CXC 0104, 0225

Cybertron 0262

Cytron 0202

Daewoo 0072, 0085, 0090,

0103, 0119, 0245,

0260, 0261, 0268,

0273, 0274, 0281,

0285, 0303, 0321,

0327, 0328, 0344,

0361, 0387

Dainichi 0262, 0327

Dansai 0259, 0268, 0271,

0274, 0327, 0328

Dantax 0243, 0271

Dawa 0274

Daytron 0072, 0085, 0090,

0261, 0273

De Graaf 0264

Decca 0260, 0268, 0271,

0274, 0328

Dell 0167, 0195

Denver 0308, 0312

Desmet 0268, 0271, 0274

Diamant 0274

Diamond 0327

DiamondVision

0213, 0221

Dimensia 0099

Disney 0137

Dixi 0261, 0268, 0271,

0273, 0274, 0328

Dream Vision 0415, 0416

DTS 0261, 0273

Dual 0260, 0274, 0328

Dual-Tec 0260, 0261

Dumont 0076, 0090, 0108,

0257, 0260, 0263,

0328

Durabrand 0077, 0097, 0133,

0225

Dux 0271

Dwin 0224

Dynatron 0268, 0271, 0274

Dynex 0181, 0182

Elbe 0243, 0250, 0274,

0328

Elcit 0257

Electa 0270

ELECTRO TECH

0261

Electroband 0057, 0101

Electrograph 0226

Electrohome 0072, 0090, 0101,

0102

Element 0180

Elin 0260, 0268, 0271,

0273, 0274, 0327

Elite 0262, 0268, 0274

Elman 0263

Elta 0261, 0273, 0327

Emerson 0065, 0072, 0077,

0082, 0085, 0090,

0094, 0095, 0097,

0104, 0105, 0119,

0225, 0243, 0257,

0274

Emprex 0200

Envision 0072, 0090, 0096

Epson 0156, 0201, 0309

Erres 0268, 0271, 0274

ESA 0097

ESC 0328

Etron 0261

Eurofeel 0328

Euro-Feel 0259

Euroline 0271

Euroman 0243, 0327, 0328

Euromann 0259, 0260, 0268,

0274

Europhon 0260, 0263, 0268,

0274, 0327, 0328

Expert 0275

Exquisit 0274

Fenner 0261, 0273

Ferguson 0267, 0271, 0272

Fidelity 0260, 0264, 0274,

0327

Filsai 0328

Finlandia 0264

Finlux 0249, 0257, 0260,

0263, 0268, 0271,

0274, 0328

FIRST LINE 0260, 0261, 0268

Firstline 0273, 0274, 0327,

0328

Fisher 0065, 0243, 0257,

0260, 0266, 0269,

0328

Flint 0268, 0274

Formenti 0249, 0257, 0258,

0260, 0271, 0327

Formenti/Phoenix

0327

Fortress 0257, 0258

Fraba 0243, 0274

Friac 0243

Frontech 0259, 0261, 0264,

0265, 0273, 0328

Fujitsu 0023, 0024, 0025,

0105, 0328

Fujitsu General

0328

Fujitsu Siemens

0425, 0426, 0427,

0428, 0429

Funai 0033, 0034, 0035,

0036, 0037, 0097,

0104, 0105, 0225,

0259

Futuretech 0104, 0225

Galaxi 0269, 0274

Galaxis 0243, 0274

Gateway 0163, 0226, 0227

GBC 0261, 0266, 0273

GE 0069, 0071, 0072,

0073, 0077, 0090,

0099, 0102, 0106,

0112, 0131

Geant Casino 0275

GEC 0260, 0265, 0268,

0271, 0274, 0328

Geloso 0261, 0264, 0273

General Technic

0261, 0273

Genexxa 0262, 0265, 0268,

0274

GFM 0177, 0210

Giant 0328

Gibralter 0076, 0090, 0096,

0108

GoldHand 0327

Goldline 0274

GoldStar 0072, 0077, 0085,

0090, 0094, 0096,

0103, 0243, 0260,

0261, 0264, 0268,

0271, 0273, 0274,

0327, 0328

Goodmans 0164, 0259, 0261,

0266, 0268, 0271,

0273, 0274, 0322,

0328, 0395, 0399,

0412

Gorenje 0243, 0269

GPM 0262

GPX 0211

Gradiente 0162

Graetz 0265

Granada 0249, 0260, 0264,

0266, 0268, 0271,

0274, 0275, 0328

Grandin 0261, 0262, 0270,

0271

Gronic 0328

Grundig 0242, 0243, 0249,

0274, 0356

Grunpy 0104, 0105, 0225

Haier 0187, 0207

Halifax 0259, 0260, 0327,

0328

Hallmark 0072, 0077, 0090

Hampton 0260, 0327, 0328

Hanseatic 0243, 0250, 0260,

0261, 0266, 0268,

0271, 0273, 0274,

0328

Hantarex 0261, 0273, 0274

Hantor 0274

Harman/Kardon

0088

Harvard 0104, 0225

Harwood 0273, 0274

Havermy 0224

HCM 0259, 0260, 0261,

0270, 0273, 0274,

0328

Hema 0273, 0328

Hewlett Packard

0146

Higashi 0327

HiLine 0274

Hinari 0261, 0262, 0266,

0268, 0271, 0273,

0274

Hisawa 0262, 0270, 0275

Hisense 0165

Hitachi 0006, 0014, 0015,

0016, 0042, 0072,

0090, 0094, 0173,

0254, 0255, 0256,

0260, 0264, 0265,

0266, 0274, 0285,

0300, 0319, 0328,

0348, 0349, 0385,

0402, 0410

Hornyphon 0268, 0274

Hoshai 0262

Huanyu 0260, 0327

Hygashi 0260, 0327, 0328

Hyper 0260, 0261, 0273,

0327, 0328

Hypson 0259, 0260, 0268,

0270, 0271, 0274,

0275, 0328

Hyundai 0223

Iberia 0274

ICE 0259, 0260, 0261,

0262, 0268, 0273,

0274, 0327, 0328

ICeS 0327

Ilo 0198, 0203

IMA 0104

Imperial 0243, 0249, 0265,

0268, 0269, 0274

Indiana 0268, 0271, 0274

Infinity 0088

InFocus 0168, 0277, 0313,

0397, 0430

Ingelen 0265

Ingersol 0261, 0273

Initial 0203

Inno Hit 0249, 0260, 0261,

0262, 0268, 0271,

0273, 0274, 0328

Innovation 0259, 0261

Insignia 0182, 0188, 0190,

0209

Inteq 0076

Interactive 0243

Interbuy 0261, 0273

Interfunk 0243, 0257, 0265,

0268, 0271, 0274

International 0327

Intervision 0243, 0259, 0260,

0263, 0274, 0328

Irradio 0249, 0261, 0262,

0268, 0271, 0273,

0274

Isukai 0262, 0274

ITC 0260, 0328

ITS 0262, 0268, 0270,

0274, 0327

ITT 0261, 0265

ITV 0261, 0271, 0274

Janeil 0107

JBL 0088

JC Penney 0072, 0073, 0085,

0090, 0099, 0103,

0106

JCB 0057, 0101

Jensen 0072, 0090

JVC 0017, 0018, 0019,

0092, 0093, 0094,

0106, 0251, 0252,

0266, 0268, 0293,

0360, 0379

Kaisui 0260, 0261, 0262,

0270, 0273, 0274,

0327, 0328

Kamosonic 0260

Kamp 0260, 0327

Kapsch 0265

Karcher 0243, 0260, 0261,

0271, 0274

Kawasho 0072, 0090, 0101,

0327

KEC 0225

Kendo 0243, 0263, 0264,

0274

Kenwood 0072, 0090, 0096

KIC 0328

Kingsley 0260, 0327

KLH 0117

Kloss Novabeam

0104, 0107

Kneissel 0243, 0250, 0274

Kolster 0268, 0274

Konka 0262

Korpel 0268, 0271, 0274

Korting 0243, 0257

Kosmos 0274

Koyoda 0261

KTV 0085, 0096, 0104,

0225, 0229, 0260,

0328

Kyoto 0327, 0328

Lasat 0243

Lenco 0261, 0273

Lenoir 0260, 0261, 0273

Leyco 0259, 0268, 0271,

0274

LG 0016, 0038, 0039,

0077, 0103, 0145,

0222, 0243, 0246,

0253, 0260, 0261,

0264, 0268, 0271,

0273, 0274, 0282,

0290, 0299, 0316,

0327, 0328, 0351,

0359, 0367, 0382,

0384, 0389, 0396

LG/GoldStar 0246

Liesenk 0271

Liesenkotter 0274

Life 0259, 0261

Lifetec 0259, 0261, 0273,

0274

Lloyds 0273

Loewe 0243, 0250, 0274,

0280, 0306, 0347

Loewe Opta 0257, 0268, 0271

Logik 0100

Luma 0264, 0271, 0273,

0274

Lumatron 0264, 0268, 0271,

0274, 0328

Lux May 0268

Luxman 0072, 0090

Luxor 0260, 0264, 0328

LXI 0061, 0065, 0071,

0072, 0073, 0077,

0088, 0099

M Electronic 0260, 0261, 0265,

0267, 0268, 0271

MAG 0050

Magnadyne 0257, 0263, 0271

Magnafon 0249, 0260, 0263,

0327

Magnavox 0072, 0088, 0090,

0091, 0095, 0096,

0098, 0114, 0115,

0129, 0134, 0176,

0178, 0189, 0210

Magnum 0259, 0261

Majestic 0100

Mandor 0259

Manesth 0259, 0260, 0268,

0271, 0274, 0328

Marantz 0072, 0088, 0090,

0096, 0158, 0268,

0271, 0274

Marelli 0257

Mark 0268, 0271, 0273,

0274, 0327, 0328

Masuda 0328

Matsui 0260, 0261, 0264,

0266, 0268, 0271,

0273, 0274, 0328,

0405

Matsushita 0067

Maxent 0193, 0226

Mediator 0268, 0271, 0274

Medion 0259, 0261, 0274

Megapower 0222

Megatron 0072, 0077

MElectronic 0273, 0274, 0327,

0328

Melvox 0275

Memorex 0065, 0072, 0077,

0100, 0103, 0133,

0219, 0261, 0273

Memphis 0261, 0273

Mercury 0273, 0274

Metz 0257

MGA 0072, 0077, 0090,

0096, 0103

Micromaxx 0259, 0261

Microstar 0259, 0261

Midland 0069, 0071, 0073,

0076, 0085, 0106,

0108

Minerva 0249

Minoka 0268, 0274

Mintek 0203

Mitsubishi 0006, 0015, 0016,

0048, 0072, 0077,

0090, 0103, 0196,

0224, 0257, 0266,

0268, 0274, 0298,

0371

Mivar 0243, 0249, 0250,

0260, 0327, 0328

Monivision 0222

Montgomery Ward

0100

Motion 0249

Motorola 0102, 0224

MTC 0072, 0090, 0096,

0103, 0243, 0327

Multi System 0271

Multitech 0104, 0225, 0229,

0243, 0260, 0261,

0263, 0264, 0266,

0271, 0273, 0274,

0327, 0328

Murphy 0260, 0327

NAD 0061, 0072, 0077

Naonis 0264

NEC 0026, 0053, 0072,

0090, 0096, 0102,

0103, 0266, 0328

iii

Neckermann 0243, 0257, 0260,

0264, 0268, 0269,

0271, 0274, 0328

NEI 0268, 0271, 0274

Net-TV 0226

Neufunk 0273, 0274

New Tech 0261, 0268

New World 0262

NewTech 0273, 0274, 0328

Nicamagic 0260, 0327

Nikkai 0259, 0260, 0262,

0268, 0271, 0273,

0274, 0327, 0328

Nikko 0072, 0077, 0096

Nobliko 0249, 0260, 0263,

0327

Nokia 0265

Norcent 0155

Nordic 0328

Nordmende 0257, 0265, 0267,

0268

Nordvision 0271

Novatronic 0274

Oceanic 0265, 0275

Okano 0243, 0269, 0274

Olevia 0052, 0140, 0149,

0154, 0157

ONCEAS 0260

Onwa 0104, 0225

Opera 0274

Oppo 0208

Optimus 0065, 0067

Optoma 0194

Optonica 0224

Orbit 0268, 0274

Orion 0121, 0192, 0261,

0268, 0271, 0273,

0274, 0282, 0329

Orline 0274

Osaki 0259, 0260, 0262,

0274, 0328

Oso 0262

Otto Versand 0258, 0260, 0266,

0268, 0270, 0271,

0274, 0328

Pael 0260, 0327

Palladium 0243, 0260, 0269,

0274, 0328

Palsonic 0328

Panama 0259, 0260, 0261,

0273, 0274, 0327,

0328

Panasonic 0006, 0007, 0066,

0067, 0068, 0069,

0070, 0102, 0106,

0113, 0147, 0215,

0241, 0265, 0274,

0279, 0310, 0332,

0334, 0368, 0374

Panavision 0274

Pathe Cinema 0243, 0250, 0260,

0275, 0327

Pausa 0261, 0273

Penney 0061, 0069, 0071,

0077, 0096

Perdio 0274, 0327

Perfekt 0274

Philco 0072, 0088, 0090,

0091, 0094, 0096,

0102, 0103, 0243,

0249, 0257, 0274

Philharmonic 0260, 0328

Philips 0040, 0088, 0089,

0090, 0091, 0094,

0098, 0099, 0102,

0114, 0135, 0143,

0176, 0178, 0189,

0210, 0212, 0232,

0233, 0257, 0260,

0268, 0271, 0274,

0278, 0287, 0301,

0302, 0307, 0311,

0314, 0330, 0331,

0333, 0337, 0338,

0339, 0341, 0343,

0345, 0355, 0363,

0365, 0377, 0378,

0381, 0383, 0406,

0409, 0414

Philips Magnavox

0089, 0114, 0115

Phoenix 0243, 0257, 0268,

0271, 0274, 0327

Phonola 0257, 0268, 0271,

0274, 0327

Pilot 0085, 0090, 0096

Pioneer 0012, 0013, 0072,

0090, 0243, 0265,

0267, 0268, 0271,

0274, 0408

Plantron 0259, 0268, 0273,

0274

Playsonic 0328

Polaroid 0117, 0152, 0184,

0220

Poppy 0261, 0273

Portland 0072, 0085, 0090,

0103

Prandoni-Prince

0249, 0264

Precision 0260, 0328

Prima 0161, 0207, 0261,

0265, 0273

Princeton 0222

Prism 0069, 0106

Profex 0261, 0273

Profi-Tronic 0268, 0274

Proline 0268, 0274

Proscan 0071, 0073, 0099

Prosonic 0243, 0260, 0271,

0274, 0327, 0328

Protech 0259, 0260, 0261,

0263, 0268, 0271,

0328

Proton 0072, 0077, 0090,

0094

Protron 0150

PROVIEW 0050, 0164

Provision 0271, 0274

Pulsar 0076, 0090, 0108

Pye 0268, 0271, 0274,

0296, 0338

Pymi 0261, 0273

Quandra Vision

0275

Quasar 0067, 0069, 0102,

0106

Quelle 0259, 0260, 0268,

0271, 0274, 0328

Questa 0266

Radialva 0274

RadioShack 0065, 0071, 0077,

0096, 0225, 0274

RadioShack/Realistic

0072, 0085, 0090,

0094, 0099, 0104

Radiola 0268, 0271, 0274,

0328

Radiomarelli 0257, 0274

Radiotone 0243, 0268, 0273,

0274

Rank 0266

RCA 0071, 0072, 0073,

0074, 0075, 0090,

0099, 0102, 0103,

0109, 0120, 0179,

0218

Realistic 0065, 0077, 0096,

0225

Recor 0274

Redstar 0274

Reflex 0274

Revox 0243, 0268, 0271,

0274

Rex 0259, 0264, 0265

RFT 0243, 0250, 0257

Rhapsody 0327

R-Line 0268, 0271, 0274

Roadstar 0259, 0261, 0262,

0273

Robotron 0257

Rowa 0327, 0328

Royal Lux 0243

RTF 0257

Runco 0076, 0096, 0108

Saba 0257, 0265, 0267,

0272, 0376

Saisho 0259, 0260, 0261,

0273, 0328

Salora 0264, 0265

Sambers 0249, 0263

Sampo 0072, 0085, 0090,

0096, 0226

Samsung 0029, 0030, 0031,

0032, 0044, 0045,

0046, 0047, 0072,

0077, 0084, 0085,

0086, 0087, 0090,

0094, 0096, 0103,

0118, 0217, 0229,

0235, 0236, 0237,

0243, 0259, 0260,

0261, 0268, 0269,

0271, 0273, 0274,

0284, 0295, 0327,

0328, 0336, 0346,

0390, 0407

Sandra 0260, 0327, 0328

Sansui 0063, 0121, 0268,

0274

Sanyo 0020, 0021, 0022,

0049, 0065, 0090,

0141, 0191, 0243,

0250, 0260, 0266,

0273, 0291, 0327,

0328, 0370, 0373,

0391

SBR 0271, 0274

Sceptre 0166, 0185

Schaub Lorenz

0265

Schneider 0260, 0262, 0268,

0271, 0274, 0287,

0300, 0328, 0364,

0366

Scotch 0072, 0077

Scott 0072, 0077, 0090,

0094, 0104, 0105,

0199, 0225

Sears 0061, 0065, 0071,

0072, 0073, 0077,

0088, 0090, 0097,

0099, 0105

SEG 0259, 0260, 0263,

0266, 0271, 0273,

0274, 0300, 0327,

0328

SEI 0274

SEI-Sinudyne 0257, 0263, 0265

Seleco 0264, 0265, 0266

Sencora 0261, 0273

Sentra 0273

Serino 0327

Sharp 0009, 0010, 0011,

0072, 0080, 0081,

0082, 0083, 0085,

0090, 0094, 0110,

0148, 0183, 0216,

0224, 0247, 0248,

0258, 0266, 0288,

0304, 0324, 0325,

0340, 0358, 0362,

0369, 0386, 0392,

0398, 0400, 0401,

0403

Sheng Chia 0224

Shogun 0090

Siarem 0257, 0263, 0274

Sierra 0268, 0274

Siesta 0243

Signature 0100

Silva 0327

Silver 0266

Singer 0257, 0263, 0275

Sinudyne 0257, 0263, 0271,

0274

Skantic 0265

Solavox 0265

Sonitron 0243, 0328

Sonoko 0259, 0260, 0261,

0268, 0271, 0273,

0274, 0328

Sonolor 0265, 0275

Sontec 0243, 0268, 0271,

0274

Sony 0041, 0057, 0058,

0059, 0060, 0101,

0116, 0125, 0126,

0127, 0142, 0169,

0170, 0171, 0172,

0174, 0234, 0261,

0266, 0276, 0289,

0292, 0393, 0411

Sound & Vision

0262, 0263

Soundesign 0072, 0077, 0090,

0104, 0105, 0225

Soundwave 0268, 0271, 0274

Squareview 0097

SSS 0090, 0104, 0225

Standard 0260, 0261, 0262,

0268, 0273, 0274,

0328

Starlite 0104, 0225, 0271,

0273, 0274

Stenway 0270

Stern 0264, 0265

Strato 0273, 0274

Stylandia 0328

Sunkai 0261

Sunstar 0273, 0274

Sunwood 0261, 0268, 0273,

0274

Superla 0260, 0327, 0328

Superscan 0095, 0224

SuperTech 0273, 0274, 0327

Supra 0261, 0273

Supre-Macy 0107

Supreme 0057, 0101

Susumu 0262

Sutron 0261, 0273

SVA 0197

Sydney 0260, 0327, 0328

Sylvania 0072, 0088, 0089,

0090, 0091, 0095,

0096, 0097, 0098,

0175, 0177, 0210

Symphonic 0097, 0104, 0108,

0133, 0210, 0225

Syntax 0149

Syntax-Brillian

0149

Sysline 0271

Sytong 0327

Tandy 0224, 0258, 0260,

0262, 0265, 0328

Tashiko 0260, 0264, 0266,

0327, 0328

Tatung 0102, 0227, 0260,

0268, 0271, 0274,

0328

TCM 0259, 0261

Teac 0274, 0328

Tec 0260, 0261, 0273,

0328

Technics 0067, 0069, 0106

TechniSat 0320, 0417, 0418,

0419

Techwood 0069, 0072, 0090,

0106

TEDELEX 0328

Teknika 0072, 0085, 0088,

0090, 0094, 0100,

0103, 0104, 0105,

0225

Teleavia 0267

Telecor 0274, 0328

Telefunken 0267, 0268, 0272,

0274

Telegazi 0274

Telemeister 0274

Telesonic 0274

Telestar 0274

Teletech 0261, 0271, 0273,

0274

Teleton 0260, 0328

Televideon 0327

Televiso 0275

Tensai 0261, 0262, 0268,

0273, 0274, 0328

Tesmet 0268

Tevion 0259, 0261

Texet 0260, 0273, 0327,

0328

Thomson 0238, 0239, 0240,

0260, 0267, 0268,

0272, 0274, 0335

Thorn 0271, 0274

TMK 0072, 0077, 0090

TNCi 0076

Tokai 0268, 0274, 0328

Tokyo 0260, 0327

Tomashi 0270

Toshiba 0027, 0043, 0053,

0054, 0061, 0062,

0063, 0064, 0065,

0122, 0123, 0124,

0128, 0130, 0132,

0139, 0214, 0244,

0266, 0283, 0305,

0328, 0329, 0342,

0350, 0352, 0353,

0354, 0375, 0404

Totevision 0085

Towada 0265, 0328

Trakton 0328

Trans Continens

0274, 0328

Transtec 0327

Trident 0328

Triumph 0274

Uher 0243, 0249, 0265,

0268, 0274

Ultravox 0257, 0260, 0263,

0274, 0327

Unic Line 0274

United 0271

Universum 0243, 0249, 0259,

0268, 0269, 0271,

0274, 0328

Univox 0274

Vector Research

0096

Vestel 0264, 0265, 0268,

0269, 0271, 0274,

0328

Vexa 0261, 0271, 0273,

0274

Victor 0093, 0266, 0268

VIDEOLOGIC

0327

Videologique 0260, 0262, 0327,

0328

VideoSystem 0268, 0274

Videotechnic 0327, 0328

Vidikron 0088

Vidtech 0072, 0077, 0090,

0103

Viewsonic 0153, 0186, 0226,

0318

Viking 0107

Viore 0198

Visiola 0260, 0327

Vision 0268, 0274, 0328

Vizio 0090, 0136, 0160,

0227, 0420, 0421,

0422, 0423, 0424

Vortec 0268, 0271, 0274

Voxson 0249, 0257, 0264,

0265, 0268, 0274

Waltham 0260, 0274, 0328

Wards 0072, 0077, 0088,

0090, 0091, 0096,

0098, 0099, 0100,

0103, 0105

Watson 0268, 0271, 0274

Watt Radio 0260, 0263, 0327

Waycon 0061

Wega 0257, 0266, 0274

Wegavox 0273

Weltblick 0268, 0271, 0274,

0328

Westinghouse 0057, 0138, 0142

White Westinghouse

0008, 0119, 0260,

0263, 0271, 0274,

0327

Wincom 0055, 0056

Xrypton 0274

Yamaha 0000, 0001, 0002,

0003, 0004, 0005,

0072, 0090, 0096,

0103

Yamishi 0274, 0328

Yokan 0274

Yoko 0243, 0259, 0260,

0261, 0262, 0268,

0271, 0273, 0274,

0327, 0328

Yorx 0262

Zanussi 0264, 0328

Zenith 0076, 0077, 0078,

0079, 0090, 0100,

0108, 0111

VCR

ABS 1066

Adventura 1023

Adyson 1090

Aiwa 1023, 1072, 1073,

1074

Akai 1071, 1073

Akiba 1079, 1090

Akura 1073, 1079, 1090

Alba 1074, 1075, 1076,

1079, 1090, 1091

Alienware 1066

Ambassador 1076

American High

1022

Amstrad 1072, 1090, 1091

Anitech 1079, 1090

Apex 1010

ASA 1077, 1078

Asha 1020

Asuka 1072, 1077, 1078,

1079, 1090

Audio Dynamics

1018

Audiosonic 1091

Audiovox 1021

Baird 1072, 1073, 1075,

1091

Bang & Olufsen

1067

Basic Line 1074, 1075, 1076,

1079, 1090, 1091

Baur 1078

Beaumark 1020

Bell & Howell

1019

Bestar 1075, 1076, 1091

Black Panther Line

1075, 1091

Blaupunkt 1078

Bondstec 1076, 1090

Broksonic 1054

Bush 1074, 1075, 1079,

1090, 1091, 1097,

1099, 1109, 1139

Calix 1021

Candle 1020, 1021

Canon 1022

Cathay 1091

Catron 1076

CGE 1072, 1073

Cimline 1074, 1079, 1090

CineVision 1058

Citizen 1020, 1021

Clatronic 1076, 1090

Colortyme 1018

Condor 1075, 1076, 1091

Craig 1020, 1021

Crown 1075, 1076, 1079,

1090, 1091

Curtis Mathes 1018, 1020, 1022

Cybernex 1020

CyberPower 1066

Daewoo 1023, 1075, 1076,

1091, 1116, 1141

Dansai 1079, 1090, 1091

Dantax 1074

Daytron 1075, 1091

DBX 1018

De Graaf 1078

Decca 1072, 1073, 1078

Dell 1066

Denko 1090

DiamondVision

1050

DigiFusion 1092

DIRECTV 1035, 1038, 1040,

1059, 1060, 1061,

1065

Dish Network 1064

Dishpro 1064

Dual 1073, 1078, 1091

Dumont 1072, 1078

Durabrand 1032

Dynatech 1023

Echostar 1064

Elbe 1091

Elcatech 1090

Electrohome 1021

Electrophonic 1021

Elsay 1090

Elta 1079, 1090, 1091

Emerson 1021, 1022, 1023,

1070, 1090

ESC 1075, 1091

Etzuko 1079, 1090

Expressvu 1064

Ferguson 1073

Fidelity 1072, 1090

Finlandia 1078

Finlux 1072, 1073, 1078

Firstline 1074, 1077, 1079,

1090

Fisher 1019

Flint 1074

Formenti/Phoenix

1078

Frontech 1076

Fuji 1022

Fujitsu 1072

Funai 1023, 1072

Galaxy 1072

Garrard 1023

Gateway 1066

GBC 1076, 1079

GE 1020, 1022

GEC 1078

Geloso 1079

General 1076

General Technic

1074

GOI 1064

GoldHand 1079, 1090

Goldstar 1018, 1021, 1072,

1077

Goodmans 1072, 1075, 1076,

1077, 1079, 1090,

1091

Gradiente 1023

Graetz 1073

Granada 1078

Grandin 1072, 1075, 1076,

1077, 1079, 1090,

1091

Grundig 1078, 1079

Hanseatic 1077, 1078, 1091

Harley Davidson

1023

Harman/Kardon

1018

Harwood 1090

HCM 1079, 1090

Headquarter 1019

Hewlett Packard

1066

Hinari 1074, 1079, 1090,

1091

Hisawa 1074

Hitachi 1072, 1073, 1078,

1089, 1108, 1124

HNS 1060

Howard Computers

1066

HP 1066

HTS 1064

Hughes 1035, 1040, 1061

Hughes Network Systems

1038, 1060

Humax 1035, 1060, 1094

Hush 1066

Hypson 1074, 1079, 1090,

1091

iBUYPOWER 1066

Impego 1076

Imperial 1072

Inno Hit 1075, 1076, 1078,

1079, 1090, 1091

Innovation 1074

Instant Replay 1022

Interbuy 1077, 1090

Interfunk 1078

Intervision 1072, 1091

Irradio 1077, 1079, 1090

ITT 1073

ITV 1075, 1077, 1091

JC Penney 1018, 1019, 1020,

1021, 1022

JCL 1022

JVC 1011, 1012, 1013,

1014, 1015, 1016,

1017, 1018, 1019,

1028, 1035, 1064,

1073, 1085, 1117,

1130, 1131, 1133,

1134, 1135, 1136

Kaisui 1079, 1090

Karcher 1078

Kendo 1074, 1075, 1076,

1090

Kenwood 1018, 1019, 1073

Kodak 1021, 1022

Korpel 1079, 1090

Kyoto 1090

Lenco 1075

Leyco 1079, 1090

LG 1021, 1053, 1072,

1077, 1088, 1100,

1106, 1125, 1143

Lifetec 1074

Linksys 1066

Lloyd’s 1023

Loewe Opta 1077, 1078

Logik 1079, 1090

Lumatron 1075, 1091

Luxor 1090

LXI 1021

M Electronic 1072

Magnavox 1022, 1032, 1044,

1070

Magnin 1021

Manesth 1079, 1090

Marantz 1018, 1019, 1022,

1078

Mark 1091

Marta 1021

Matsui 1074, 1077

Matsushita 1022

Media Center PC

1066

Mediator 1078

Medion 1074

MEI 1022

Memorex 1019, 1020, 1021,

1022, 1023, 1032,

1048, 1069, 1072,

1077

Memphis 1079, 1090

MGN Technology

1020

Micromaxx 1074

Microsoft 1066

Microstar 1074

Migros 1072

Mind 1066

Mitsubishi 1029, 1072, 1078

Motorola 1022

MTC 1020

Multitech 1020, 1023, 1072,

1076, 1078, 1079,

1090

Murphy 1072

NEC 1018, 1019, 1073

Neckermann 1073, 1078

NEI 1078

Nesco 1079, 1090

Nikkai 1076, 1090, 1091

Nikko 1021

Niveus Media 1066

Noblex 1020

Nokia 1073, 1091

Nordmende 1073

Northgate 1066

Oceanic 1072, 1073

Okano 1074, 1090, 1091

Olympus 1022

Optimus 1021

Orion 1033, 1069, 1074,

1097, 1139

Orson 1072

Osaki 1072, 1077, 1079,

1090

Otto Versand 1078

Palladium 1073, 1077, 1079,

1090

Panasonic 1007, 1008, 1009,

1022, 1026, 1042,

1043, 1068, 1082,

1101, 1126, 1132

Pathe Marconi 1073

Perdio 1072

Philco 1022, 1090

Philips 1022, 1030, 1035,

1038, 1039, 1040,

1044, 1055, 1060,

1078, 1084, 1095,

1096, 1104, 1105,

1111, 1113, 1122,

1124, 1127, 1128,

1129

Philips Magnavox

1030

Phonola 1078

Pilot 1021

Pioneer 1078, 1118

Polaroid 1010, 1049

Portland 1075, 1076, 1091

Prinz 1072

Profex 1079

Proline 1072

Proscan 1065

Prosonic 1074, 1091

Pulsar 1032

Pye 1052, 1078

Quarter 1019

Quartz 1019

Quasar 1022

Quelle 1072, 1078

Radialva 1090

RadioShack 1021

RadioShack/Realistic

1019, 1020, 1021,

1022, 1023

Radiola 1078

Radix 1021

Randex 1021

RCA 1020, 1022, 1025,

1035, 1040, 1047,

1060, 1065

Realistic 1019, 1020, 1021,

1022, 1023

ReplayTV 1041, 1068

Rex 1073

RFT 1076, 1078, 1090

Ricavision 1066

Roadstar 1075, 1077, 1079,

1090, 1091

Royal 1090

Runco 1032

Saba 1073

Saisho 1074, 1079

Samsung 1006, 1020, 1038,

1040, 1046, 1060,

1080, 1107, 1110,

1112, 1121, 1123,

1140, 1142

Samurai 1076, 1090

Sanky 1032

Sansui 1033, 1056, 1069,

1073

Sanyo 1019, 1020, 1114

Saville 1091

SBR 1078

Schaub Lorenz

1072, 1073

Schneider 1072, 1074, 1075,

1076, 1077, 1078,

1079, 1090, 1091

Sears 1019, 1021, 1022

SEG 1079, 1090, 1091

SEI-Sinudyne 1078

Seleco 1073

Sentra 1076, 1090

Sentron 1079, 1090

Sharp 1031, 1045, 1057,

1081, 1115, 1137

Shintom 1079, 1090

Shivaki 1077

Shogun 1020

Siemens 1077

Silva 1077

Silver 1091

Singer 1022

Sinudyne 1078

Solavox 1076

Sonic Blue 1041, 1068

Sonneclair 1090

Sonoko 1075, 1091

Sontec 1077

Sony 1000, 1001, 1002,

1003, 1024, 1027,

1036, 1062, 1066,

1083, 1098, 1103,

1138

Stack 1066

Stack 9 1066

Standard 1075, 1091

Stern 1091

STS 1022

Sunkai 1074

Sunstar 1072

Suntronic 1072

Sunwood 1079, 1090

Superscan 1070

Sylvania 1022, 1023, 1044,

1052, 1070

Symphonic 1023, 1044, 1090

Systemax 1066

Tagar System s 1066

Taisho 1074

Tandberg 1091

Tandy 1019

Tashiko 1021, 1072

Tatung 1072, 1073, 1078

TCM 1074, 1093, 1120

Teac 1023, 1091

Tec 1076, 1090, 1091

Technics 1022

Teknika 1021, 1022, 1023

Teleavia 1073

Telefunken 1073

Teletech 1090, 1091

Tenosal 1079, 1090

Tensai 1072, 1077, 1079,

1090

Tevion 1074

Thomson 1073, 1087

Thorn 1073

Tivo 1035, 1036, 1037,

1039, 1040, 1060,

1061, 1062

TMK 1020

Tokai 1077, 1079, 1090

Tonsai 1079

Toshiba 1004, 1005, 1034,

1051, 1063, 1066,

1073, 1078, 1086,

1099, 1102, 1119,

1144

Totevision 1020, 1021

Touch 1066

Towada 1079, 1090

Towika 1079, 1090

TVA 1076

Uher 1077

UltimateTV 1065

Ultravox 1091

Unitech 1020

United Quick Star

1075, 1091

Universum 1072, 1077, 1078

Vector Research

1018

Video Concepts

1018

Videon 1074

Videosonic 1020

Viewsonic 1066

Voodoo 1066

Wards 1020, 1021, 1022,

1023

Weltblick 1077

XR-1000 1022, 1023

Yamaha 1018, 1019

Yamishi 1079, 1090

Yokan 1079, 1090

Yoko 1076, 1077, 1079,

1090

Zenith 1032

ZT Group 1066

DVD

4Kus 2097

Accurian 2220

Advent 2169, 2201

AEG 2312

Airis 2318

Aiwa 2272

Akai 2170, 2195, 2225,

2227

Akura 2310

Alba 2018, 2232, 2247,

2259, 2264

Alco 2199

Alize 2315

Allegro 2215

Amitech 2312

Amphion MediaWorks

2145

AMW 2145, 2313

Apex 2044, 2045, 2046,

2047, 2076, 2208,

2209

Apple 2163

Arrgo 2216

Asono 2318

Aspire 2140, 2202

Astar 2162

ATACOM 2318

Audiovox 2111, 2199

Avious 2317

Awa 2313

Axion 2171

Bang & Olufsen

2210

Baze 2317

BBK 2318

Bellagio 2313

Best Buy 2309

Blaupunkt 2209

Blue Parade 2207

Boghe 2300

Brainwave 2312

Brandt 2198, 2238

Broksonic 2192, 2195

Bush 2018, 2060, 2248,

2264, 2301, 2308,

2317, 2350, 2368

California Audio Labs

2197

Cambridge Audio

2304

CAT 2306, 2307

CAVS 2146

Centrum 2307

CGV 2304, 2312

Changhong 2222

Cinetec 2313

CineVision 2191, 2215

Clatronic 2308, 2317

Coby 2077, 2124, 2314

Conia 2301

Continental Edison

2313

Crown 2312

C-Tech 2305

Curtis Mathes 2217

CVG 2299

CyberHome 2048, 2068, 2216,

2233, 2258

Cytron 2166

Daenyx 2313

Daewoo 2083, 2215, 2280,

2299, 2312, 2313,

2326, 2376

Daewoo International

2313

Dalton 2311

Dansai 2303, 2312

Daytek 2145, 2234, 2313

Dayton 2313

DEC 2308

Decca 2312

Denon 2105, 2147, 2197,

2286

Denver 2288, 2308, 2310,

2314

Denzel 2302

Desay 2159

Diamond 2304, 2305

DiamondVision

2179, 2186

Disney 2078, 2088

DK Digital 2257

Dmtech 2226

Dual 2302

Durabrand 2218

DVX 2305

Easy Home 2309

Eclipse 2304

E-Dem 2318

Electrohome 2312

Elin 2312

Elta 2263, 2312, 2315

Emerson 2196, 2211, 2219

Enterprise 2211

Enzer 2302

Epson 2165

ESA 2219

Finlux 2304, 2312, 2317

Fintec 2299

Fisher 2212

Funai 2219

Gateway 2097

GE 2079, 2206, 2209

Gericom 2269

GFM 2176

Giec 2300

Global Solutions

2305

Global Sphere 2305

Go Video 2135, 2215

Goodmans 2247, 2289, 2298,

2300, 2308, 2330,

2369

GPX 2177

Gradiente 2197

Graetz 2302

Greenhill 2209

Grundig 2271

Grunkel 2312, 2316

GVG 2299

H&B 2308

H_her 2318

Haaz 2304, 2305

Haier 2172

Harman/Kardon

2125, 2213

HiMAX 2309

Hitachi 2008, 2033, 2108,

2302, 2309, 2320,

2366

Hiteker 2208

Home Tech Industries

2318

Hyundai 2316

Ilo 2167

Initial 2167, 2209

Innovation 2228

Insignia 2080, 2175, 2219

Integra 2207

Irradio 2103

iSymphony 2164

JBL 2213

JVC 2049, 2050, 2051,

2052, 2053, 2054,

2055, 2056, 2057,

2070, 2242, 2261,

2275, 2276, 2277,

2278, 2339, 2340,

2341, 2342, 2386,

2387, 2389, 2390,

2391

Jwin 2148

Kansai 2314

Kawasaki 2199

Kennex 2312

Kenwood 2123, 2197, 2270

KeyPlug 2312

Kiiro 2312

Kingavon 2308

Kiss 2302

KLH 2199, 2209

Koda 2308

Koss 2095, 2198, 2204

KXD 2309

Landel 2221

Lasonic 2214

Lawson 2305

Lecson 2303

Lenco 2308, 2312, 2317

Lenoxx 2203, 2218

LG 2080, 2107, 2115,

2116, 2141, 2188,

2211, 2215, 2237,

2239, 2285, 2293,

2295, 2348, 2370

Life 2228

Lifetec 2228

Limit 2305

Liquid Video 2204

Liteon 2097, 2121, 2220

Loewe 2274

LogicLab 2305

Magnavox 2075, 2096, 2178,

2180, 2196, 2205,

2219, 2308

Magnex 2317

Majestic 2314

Marantz 2282

Marquant 2312

Matsui 2198, 2296

McIntosh 2149

Mecotek 2312

Medion 2228

Memorex 2078, 2184, 2195

MiCO 2300, 2304

Micromaxx 2228

Microsoft 2206

Microstar 2228

Minoka 2312

Minowa 2317

Mintek 2167, 2209

Mitsubishi 2081

Mizuda 2308, 2309

Monyka 2302

Mustek 2232

Mx Onda 2304

Mystral 2316

Naiko 2312

Nesa 2209

Neufunk 2302

Nevir 2312

Next Base 2221

Nexxtech 2161

NU-TEC 2301

Onkyo 2205, 2290

Oopla 2097

Oppo 2150, 2173

Optim 2303

Optimus 2230

Orava 2308

Orbit 2313

Orion 2027, 2060

Oritron 2198, 2204

P&B 2308

Pacific 2305

Panasonic 2015, 2016, 2017,

2036, 2037, 2038,

2039, 2040, 2041,

2042, 2043, 2074,

2089, 2104, 2108,

2112, 2120, 2131,

2132, 2197, 2205,

2244, 2245, 2246,

2253, 2254, 2255,

2292, 2321, 2324,

2327, 2328, 2329,

2331, 2383, 2388

Parasound 2151

peeKTON 2318

Philips 2026, 2061, 2062,

2075, 2090, 2094,

2096, 2097, 2103,

2110, 2126, 2180,

2193, 2205, 2231,

2235, 2241, 2251,

2252, 2256, 2260,

2268, 2282, 2332,

2333, 2343, 2344,

2345, 2367, 2371,

2373, 2380, 2382,

2385

Phonotrend 2317

Pioneer 2012, 2013, 2014,

2063, 2064, 2065,

2066, 2067, 2113,

2134, 2207, 2230,

2236, 2265, 2266,

2267, 2297, 2322,

2351, 2352, 2353,

2354, 2355, 2356,

2357, 2358, 2359,

2377

Pointer 2312

Polaroid 2047, 2133, 2185

Portland 2312

Powerpoint 2313

Prima 2174

Proceed 2208

Proscan 2206

Prosonic 2299, 2314

Protron 2152

Provision 2308

Pye 2194

Qwestar 2198

Raite 2302

RCA 2058, 2059, 2071,

2079, 2183, 2199,

2206, 2207, 2209

RedStar 2310, 2312, 2314

Regent 2203

Reoc 2305

Rimax 2315

Rio 2215

Roadstar 2281, 2308

Ronin 2313

Rotel 2153

Rowa 2200, 2301

Rownsonic 2307

Saba 2198, 2238

Sabaki 2305

Saivod 2312

Sampo 2223

Samsung 2031, 2032, 2033,

2034, 2035, 2082,

2127, 2137, 2138,

2154, 2182, 2197,

2283, 2319, 2325,

2346, 2347, 2349,

2372, 2381

Sansui 2027, 2195, 2304,

2305, 2312

Sanyo 2139, 2195, 2212,

2374

ScanMagic 2232

Schaub Lorenz

2312

Schneider 2226

Scientific Labs

2305

Scott 2243, 2311

Seeltech 2318

SEG 2240, 2302, 2305,

2313

Sharp 2009, 2010, 2084,

2122, 2142, 2143,

2144, 2181, 2190,

2228, 2262, 2375

Shinsonic 2167

Sigmatek 2309, 2318

Silva 2310

Singer 2304, 2305

Skymaster 2279, 2305

vii

Skyworth 2310

Slim Art 2312

SM Electronic 2305

Sonic Blue 2215

Sontech 2316

Sony 2005, 2006, 2007,

2020, 2021, 2022,

2023, 2024, 2025,

2069, 2072, 2073,

2085, 2086, 2087,

2091, 2092, 2093,

2102, 2128, 2129,

2130, 2249, 2250,

2323, 2334, 2335,

2336, 2360, 2361,

2362, 2363, 2364,

2365, 2384

Soundmaster 2305

Soundmax 2305

Spectra 2313

Spectroniq 2155

Standard 2305

Star Cluster 2305

Starmedia 2308, 2318

Sungale 2158

Sunkai 2312

Superscan 2196

Supervision 2305

Sylvania 2094, 2180, 2189,

2196, 2219, 2224

Symphonic 2062, 2180

Synn 2305

T.D. E. Systems

2316

Tatung 2083, 2312

TCM 2228, 2379

Teac 2199, 2287, 2301,

2305

Tec 2310

Technics 2197

Technika 2312, 2317

Telefunken 2307

Tensai 2312

Tevion 2228, 2305, 2311

Theta Digital 2207

Thomson 2229, 2238, 2284,

2294

Tokai 2302, 2310

Top Suxess 2318

Toshiba 2004, 2026, 2027,

2028, 2029, 2030,

2098, 2099, 2100,

2101, 2114, 2117,

2118, 2119, 2136,

2187, 2195, 2205,

2291, 2337, 2338,

2378

TRANScontinents

2313, 2317

Transonic 2317

Trio 2312

Trutech 2160

TruVision 2309

TSM 2318

Umax 2315

United 2317

Urban Concepts

2205

US Logic 2167

Venturer 2199

Viewmaster 2318

Vocopro 2156

VocoStar 2157

Waitec 2318

Welltech 2300

Westinghouse 2109, 2168

Wharfedale 2304, 2305

Woxter 2315, 2318

Xbox 2206, 2229

Xlogic 2305, 2312

XMS 2312

Xoro 2300

Yamada 2097, 2313, 2315

Yamaha 2000, 2001, 2002,

2003, 2011, 2018,

2019, 2036, 2106,

2197, 2273

Yamakawa 2302, 2313

Yukai 2232

Zenith 2080, 2141, 2205,

2211, 2215

Blu-ray Disc

LG 2115

Panasonic 2089, 2131, 2132

Pioneer 2134

Samsung 2035, 2127

Sharp 2142, 2143, 2144

Sony 2025

Yamaha 2018

DVR

Bush 2060

Panasonic 2037, 2038, 2039,

2040, 2041, 2042

Philips 2061, 2062

Pioneer 2063, 2064, 2065,

2066, 2067

RCA 2059

Samsung 2035

Yamaha 2036

DVD Recorder

Aspire 2140

Astar 2162

Broksonic 2192

Go Video 2135

Hitachi 2108

Insignia 2080

Irradio 2103

JVC 2054, 2055, 2056,

2057

LG 2107, 2115, 2141,

2188

Liteon 2121

Panasonic 2037, 2038, 2039,

2041, 2042, 2043,

2089, 2104, 2108,

2112

Philips 2090, 2096, 2097,

2126, 2193

Pioneer 2067, 2113

Pye 2194

Samsung 2034, 2082, 2138

Sansui 2027

Sanyo 2139

Sony 2022, 2023, 2024,

2085, 2086, 2087,

2102, 2128, 2129,

2130

Sylvania 2189

Toshiba 2030, 2099, 2100,

2101, 2114, 2117,

2118, 2119

Yamaha 2106

Cable

ABC 3004, 3015, 3016,

3017, 3037, 3040,

3067, 3080, 3081

ADB 3070

Adelphia 3003

Alcatel 3066

Americast 3046

Amstrad 3048, 3068

Antronix 3019, 3020

Archer 3020

Arcon 3048

AT&T 3013

Axis 3048

Bell South 3046

Cable Vision 3014

Cabletenna 3019

Cabletime 3058

Cableview 3005

Clearmaster 3045

ClearMax 3045

Clyde Cablevision

3059

Colour Voice 3022

Comcast 3006, 3010, 3039

Comcrypt 3057

Comtronics 3023

Contec 3024

Coolmax 3045

COX 3006

Cryptovision 3060

Director 3006

Eastern 3025

Everquest 3041

Fidelity 3048

Filmnet 3057

Filmnet Cablecrypt

3061

Filmnet Comcrypt

3061

Finlux 3051

Focus 3044

Foxtel 3068

France Telecom

3054, 3055

Freebox 3069

GC Electronics

3020

GE 3015, 3016

GEC 3059

Gemini 3026, 3041

General Instrument

3006, 3008, 3016,

3039, 3050, 3067,

3075

Goldstar 3042

Gooding 3049

Grundig 3048, 3049

Hamlin 3027, 3028

Hirschmann 3051

Hitachi 3016

HomeChoice 3056

Humax 3001, 3002, 3071

ITT Nokia 3051

Jasco 3041

Jerrold 3006, 3008, 3016,

3026, 3037, 3041,

3050, 3064, 3067,

3075

JVC 3049

Kabel Deutschland

3043, 3073, 3074

Macab 3055

Magnavox 3029

Maspro 3049

Matsui 3049

MegaCable 3039

Memorex 3030, 3040

Minerva 3049

Mnet 3057

Motorola 3006, 3008, 3010,

3013, 3039, 3072,

3075

Movie Time 3031, 3063

Mr Zapp 3055

Multichoice 3057

Multitech 3045

NEC 3018

NET Brazil 3007

Nokia 3051

Noos 3055

NSC 3031

Oak 3024

Pace 3011, 3043, 3084

Palladium 3049

Panasonic 3034, 3036, 3040

Paragon 3040

Philips 3021, 3022, 3029,

3049, 3053, 3054,

3055

Pioneer 3012, 3032, 3038,

3042, 3048, 3083,

3084

Popular Mechanics

3044

Proscan 3015, 3016

Pulsar 3040

PVP Stereo Visual Matrix

3064

Quasar 3040

RadioShack 3041, 3045

RCA 3005, 3036, 3076,

3077

Realistic 3020

Recoton 3044

Regal 3028

Regency 3025

Rembrandt 3016

Runco 3040

Sagem 3055

Samsung 3011, 3023, 3032,

3042

SAT 3048

Scientific Atlanta

3003, 3004, 3011,

3012, 3013, 3062,

3078, 3079, 3080,

3081, 3082, 3083,

3084

Signal 3026, 3041

Signature 3016

Sony 3014, 3047

Sprucer 3036

Standard Component

3033

Starcom 3026, 3037, 3041,

3067

Stargate 3026, 3041

Starquest 3026, 3041

Supercable 3008

Supermax 3045

Tele+1 3057, 3061

Telepiu 3057

Thomson 3000, 3009

TIME WARNER

3006

Tocom 3017

Torx 3067

Toshiba 3040

Tristar 3045

Tudi 3052

Tusa 3026, 3041

TV86 3031

Unika 3019, 3020

United Cable 3037, 3064

Universal 3019, 3020

Universum 3049, 3051

V2 3045

Videoway 3065

View Star 3024, 3029, 3031

viii

Viewmaster 3045

Vision 3045

Visiopass 3051, 3054, 3055

Vortex View 3045

Wittenberg 3048

Zenith 3035, 3040, 3046

Zentek 3044

Sattelite

AB Sat 4138, 4139

AccessHD 4058

ADB 4142

AGS 4138

Akai 4101, 4103

Alba 4083, 4084, 4085,

4086, 4108, 4139

Aldes 4085, 4087, 4088

Allsat 4098, 4101, 4103

Allsonic 4074, 4087, 4090

Alltech 4139

Alpha 4103

Alpha Digital 4058

Alphastar 4031

Amitronica 4139

Amstrad 4089, 4113, 4136,

4139

Anglo 4139

Ankaro 4074, 4087, 4090,

4139

Anttron 4083, 4086

Apollo 4083

Armstrong 4089, 4103

Artec 4054

Asat 4101, 4103

ASLF 4139

Astacom 4138

Astra 4089, 4091, 4100,

4137, 4139

Astro 4074, 4086, 4088,

4090, 4093, 4135,

4136, 4137

AudioTon 4086, 4098

Aurora 4140

Austar 4140

Axiel 4138

Axis 4074, 4090, 4091,

4096

Best 4074, 4090

Blaupunkt 4093

Blue Sky 4139

Boca 4089, 4100, 4105,

4139

Boston 4138

Brain Wave 4095

Broadcast 4094

Broco 4139

BSkyB 4113, 4123

BT 4138

Bubu Sat 4139

Bush 4084, 4127

Cambridge 4136

Canal Satellite 4135

Canal+ 4135

CaptiveWorks 4049

Channel Master

4060, 4085

Chaparral 4025

CHEROKEE 4138

Chess 4134, 4139

CityCom 4084, 4133, 4137

Clatronic 4095

CNT 4088

Comag 4000, 4001, 4002,

4003, 4004

Commlink 4087

Comtech 4096

Condor 4074, 4090, 4137

Connexions 4074, 4092

Conrad 4074, 4133, 4136,

4137

Conrad Electronic

4137, 4139

Contec 4096

Coolsat 4050

Cosat 4098

Coship 4063

Crown 4089

Daeryung 4092

Daewoo 4107, 4139

DDC 4085

Delega 4085

Dew 4096

Diamond 4097

Digiality 4137

Digital Stream 4059

DIRECTV 4017, 4018, 4020,

4021, 4022, 4024,

4037, 4038, 4040,

4041, 4043, 4045,

4057, 4106, 4143,

4144, 4145, 4146,

4147, 4148, 4149,

4150, 4151, 4152,

4153, 4154, 4155,

4156, 4157

Discoverer 4134

Discovery 4138

Diseqc 4138

Dish Network 4011, 4012, 4013,

4014, 4019, 4039,

4064

Dishpro 4039, 4064

Distrisat 4103

Ditristrad 4098

DNT 4092, 4101, 4103

Drake 4026

DStv 4140

Dune 4074

Echostar 4011, 4019, 4039,

4064, 4092, 4139

Einhell 4083, 4087, 4089,

4136, 4139

Elap 4138, 4139

Elekta 4088

Elsat 4139

Elta 4074, 4083, 4090,

4098, 4101, 4103

Emanon 4083

Emme Esse 4074, 4090

Engel 4139

Ep Sat 4084

EURIEULT 4077

Eurodec 4102

Europa 4103, 4136, 4137

Europhon 4137

Eurosat 4089

Eurosky 4074, 4089, 4090,

4133, 4136, 4137

Eurostar 4089, 4133, 4137

Eutelsat 4139

Exator 4083, 4086

Expressvu 4039

Fenner 4074, 4134, 4139

Ferguson 4084, 4102, 4132

Fidelity 4136

Finlandia 4084

Finlux 4084

FinnSat 4096, 4102

Flair Mate 4139

Foxtel 4140

Freecom 4083, 4099, 4136

FTEmaximal 4074, 4139

Fuba 4074, 4083, 4090,

4092, 4093, 4101,

4133

Galaxis 4074, 4087, 4090,

4091, 4096, 4098,

4133, 4140

GE 4015, 4016, 4061,

4151

General Instrument

4027, 4065

GMI 4089

GOI 4039

Goldbox 4135

GoldStar 4099

Goodmans 4079, 4080, 4084

Goodmind 4061

Grandin 4077

Grothusen 4083, 4099

Grundig 4084, 4086, 4093,

4113, 4129, 4136,

4140

Hänsel & Gretel

4137

Hantor 4083, 4095

Hanuri 4088

Hauppauge 4126

Heliocom 4137

Helium 4137

Hinari 4085

Hirschmann 4074, 4093, 4128,

4136, 4137, 4138

Hisawa 4095

Hisense 4066

Hitachi 4032, 4084, 4149,

4153

Homecast 4005, 4006, 4007

Houston 4098

HTS 4039

Hughes 4018, 4022, 4144,

4146, 4150, 4152

Hughes Network Systems

4021

Humax 4051, 4075, 4076,

4110

Huth 4087, 4089, 4094,

4095, 4096, 4098,

4137, 4141

Hypson 4077

Ilo 4066

Imex 4077

Innovation 4090

Insignia 4057

Intertronic 4089

Intervision 4098, 4137

ITT Nokia 4084

Jerrold 4065

Johansson 4095

JOK 4138

JSR 4098

JVC 4011, 4019, 4039,

4079

Kamm 4139

Kathrein 4093, 4101, 4103,

4109, 4112, 4120,

4133, 4138, 4139

Kathrein Eurostar

4133

Klap 4138

Konig 4137

Kosmos 4099

KR 4086

Kreiselmeyer 4093

K-SAT 4139

Kyostar 4083

L&S Electronic

4074

Lasat 4074, 4088, 4090,

4100, 4133, 4134,

4137

Lasonic 4062

Lenco 4074, 4083, 4099,

4133, 4137, 4139

Leng 4095

Lennox 4098

Lenson 4136

Lexus 4103

LG 4053, 4057, 4099

Lifesat 4074, 4090, 4134,

4139

Lifetec 4090

Lorenzen 4137

Lorraine 4099

Lupus 4074, 4090

Luxor 4136

Lyonnaise 4102

Macab 4102

Magnavox 4045, 4055

Manata 4077, 4138, 4139

Manhattan 4084, 4088, 4098,

4138

Marantz 4101

Mascom 4088

Maspro 4084, 4139

Matsui 4138

Max 4137

Mediabox 4135

Mediamarkt 4089

Mediasat 4091, 4135, 4136

Medion 4074, 4090, 4139

Medison 4139

Mega 4101, 4103

Memorex 4045

Metronic 4077, 4078, 4083,

4086, 4087, 4088,

4139

Metz 4093

Micro electronic

4136, 4137, 4139

Micro Technology

4139

MicroGem 4056

Micromaxx 4074, 4090

Microstar 4090

Microtec 4139

Minerva 4093

Mitsubishi 4084, 4093, 4152

Mitsumi 4100

Morgan’s 4089, 4100, 4101,

4103, 4139

Motorola 4008, 4009, 4010,

4065

Multichoice 4140

Multitec 4134

Muratto 4099

Mysat 4139

Navex 4095

Neuhaus 4091, 4098, 4136,

4137, 4139

Neusat 4139

Next Level 4065

NextWave 4141

Nikko 4089, 4139

Nokia 4084, 4122

Nordmende 4083, 4084, 4085,

4088, 4102

Nova 4140

Novis 4095

Oceanic 4097

Octagon 4083, 4086, 4096

Okano 4089

Optex 4098

Optus 4135, 4140, 4141

Orbitech 4083, 4134, 4135,

4136

OSat 4086

Otto Versand 4093

Pace 4084, 4093, 4113,

4121, 4125, 4138

Pacific 4097

Packsat 4138

Palcom 4085

Palladium 4089, 4136

Palsat 4134, 4136

Panasat 4140

Panasonic 4043, 4044, 4046,

4084, 4113, 4118,

4143, 4148

Panda 4084, 4137

Pansat 4047

Patriot 4138

Paysat 4045

PCT 4060

Philco 4055

Philips 4021, 4022, 4045,

4084, 4101, 4103,

4111, 4115, 4135,

4138, 4150, 4152,

4153, 4155, 4156

Phoenix 4096

Phonotrend 4084, 4087, 4098

Pioneer 4124, 4135

Polsat 4102

Predki 4095

Premiere 4098, 4135

Priesner 4089

Primestar 4030

Profile 4138

Promax 4084

Prosat 4085, 4087

Proscan 4015, 4016, 4040,

4151

Protek 4097

Proton 4066

Provision 4088

Quadral 4074, 4085, 4087,

4090, 4138

Quelle 4093, 4133, 4137

Quiero 4102

RadioShack 4065

Radiola 4101, 4103

Radix 4092, 4119

Rainbow 4086

RCA 4015, 4016, 4034,

4035, 4036, 4037,

4038, 4040, 4151,

4157

Realistic 4028

Redpoint 4091

Redstar 4074, 4090

RFT 4087, 4101, 4103

Roadstar 4139

Roch 4077

Rover 4074, 4139

Saba 4088, 4133, 4137,

4138

Sabre 4084

Sagem 4069, 4102

Sakura 4096

Samsung 4018, 4021, 4023,

4041, 4042, 4081,

4082, 4083, 4114,

4150, 4154

SAT 4085, 4136

Sat Cruiser 4141

Sat Partner 4083, 4086, 4088,

4095, 4099, 4136

Sat Team 4139

Satcom 4094, 4137

Satec 4139

Satelco 4074

Satford 4094

Satmaster 4094

Satplus 4134

Schneider 4090, 4134, 4138

Schwaiger 4097, 4134, 4137

SCS 4133

Seemann 4089, 4091, 4092

SEG 4074, 4083, 4090,

4095

Seleco 4098

Servi Sat 4077, 4139

Siemens 4093

Silva 4099

Skantin 4139

Skardin 4091

Skinsat 4136

SKR 4139

Skymaster 4067, 4068, 4087,

4134, 4139

Skymax 4101, 4103

SkySat 4134, 4136, 4137,

4139

Skyvision 4098

SM Electronic 4134, 4139

Smart 4133, 4139

Sony 4017, 4020, 4135

SR 4089, 4100

Star Choice 4065

Starland 4139

Starring 4095

Start Trak 4083

Strong 4074, 4083, 4086,

4090, 4099, 4140

STS 4033

STVI 4077

Sumida 4089

Sunny Sound 4074

Sunsat 4139

Sunstar 4074, 4089, 4100

Supermax 4141

Tandberg 4102

Tandy 4086

Tantec 4084

TCM 4090

Techniland 4094

TechniSat 4071, 4072, 4073,

4092, 4103, 4116,

4117, 4134, 4135,

4136

Technology 4140

Technosat 4141

Technowelt 4137

Teco 4089, 4100

Telanor 4085

Telasat 4133, 4137

Telecom 4139

Telefunken 4067, 4083, 4138

Teleka 4086, 4089, 4092,

4136, 4137

Telemaster 4088

Telesat 4137

Telestar 4134, 4135, 4136

Televes 4084, 4136

Telewire 4098

Tempo 4141

Tevion 4090, 4139

Thomson 4070, 4084, 4102,

4104, 4130, 4133,

4135, 4137, 4138,

4139

Thorens 4097

Thorn 4084

Tivax 4058

Tivo 4150

Tokai 4103

Tonna 4084, 4094, 4098,

4136, 4139

Toshiba 4144, 4152, 4153

Triad 4099

Triasat 4136

Triax 4093, 4133, 4136,

4139

Turnsat 4139

Tvonics 4132

Twinner 4077, 4139

UEC 4140

Uher 4134

UltimateTV 4020

Uniden 4029, 4045

Unisat 4089, 4096, 4103

Unitor 4095

Universum 4093, 4133, 4137

US Digital 4066

Variosat 4093

Vega 4074

Ventana 4101, 4103

Viewsat 4048

Visiosat 4095, 4098, 4138,

4139

Voom 4065

Vortec 4083

Welltech 4134

WeTeKom 4134, 4136

Wevasat 4084

Wewa 4084

Winersat 4095

Wisi 4084, 4092, 4093,

4136, 4137

Woorisat 4088

Worldsat 4138

Xrypton 4074

XSat 4139

Zehnder 4074, 4088, 4090,

4131, 4133

Zenith 4052, 4057, 4145

Zodiac 4086

Yamaha 5000, 5013

CD Recoder

Yamaha 5001

Yamaha 5002, 5003, 5004

Tape

Yamaha 5005, 5006

Tuner

Yamaha 5007, 5008, 5009,

5010, 5014, 5015,

5016, 5017, 5018

USB

Yamaha 5012, 5021

DOCK

Yamaha 5011, 5022

Yamaha 2002

The letters in circles and the numbers in squares correspond to those in the Owner’s Manual.

■Front panel

RX-V765

PHONES

SILENT

CINEMA

TONE

CONTROL

STRAIGHT

PROGRAM INPUT

PURE DIRECT

OPTIMIZER

MIC

VIDEO

AUDIO

PORTABLE

THROUGH

INFO

MEMORY

VIDEO

AUX

VOLUME

HDMI

EFFECT

PRESET

lhlh

BD/DVD

RADIO

SCENE

ZONE2

ON/OFF

ZONE2

CONTROL

CATEGORY

FM AM

ON/OFF

MAIN ZONE

TUNING/CH

N Q SO R

GF JIH

MU VTP

WQ95220

Printed in Malaysia

■Remote control

MAIN

POWER

1234

1256

1234

7856

1234

POWER

SOURCE

V-AUX

[ A ] [ B ] DOCK

MULTI

SIRIUS

TUNER

MOVIE

DVD

TOP

MUSIC

SCENE

OPTIONSETUP

RETURN

REC

ENT

POWER

TV VOL

INPUT

MUTE

TV CH

ENTER

VOLUME

DISPLAY

MUTE

RADIO

STEREO

ENHANCER SUR. DECODE

PURE DIRECT

STRAIGHT

INFO

MEMORY

CATEGORY

PRESET

TUN./CH

SLEEP

HDMI

AUDIO

ZONE2

TRANSMIT

CODE SET

dqp

RX-V765

When AUDIO1 or AUDIO2 is selected as the input

source, an analog video signal input from an external

component connected to the AV1-6 or V-AUX jack can be

output to the video monitor. For example, you can use this

connection for an external component whose audio output

is an analog signal and outputs a video signal via

component jacks, such as a game console.

To connect such a component, do the following

connection/setting.

Part 1: Connecting an external component

Part 2: Assigning the video input jacks to the audio input

•Audio output jacks: Connect the audio output jacks of

the external component to the AUDIO1 or AUDIO2

audio input jacks.

•Video output jacks: Connect the video output jacks of

the external component to the AV1-6 or VIDEO AUX

video input jacks.

Note

•Make sure that this unit and other components are unplugged from the

AC wall outlets.

■Audio connection

■Video connection

* Some models only.

Note

•If the video monitor is connected to this unit via an analog video

connection (component video or composite video connection), connect

the external component to this unit via the same analog connection.

Example of connection

1Turn on this unit.

2Press AUDIO1 or AUDIO2 on the remote

control to select the input source.

3Press OPTION on the remote control.

The OPTION menu appears.

4Press Cursor k / n to display “Video Out,”

and press ENTER.

5Press Cursor l / h to select the video input

terminal connected to the video output jacks

of the external component.

•AV1-2 (COMPONENT VIDEO)

•AV3-6 (VIDEO)

•AV5 (S-VIDEO)*

•V-AUX (VIDEO)

•Off (no video input)

* Some models only.

6To end the setting, press OPTION.

English

Additional information for audio/video connection

UCRABGLEF

Part 1: Connecting an external

component

Output jacks on the

connected source

component

Input sources/jacks of this unit

Analog audio output AUDIO1 AUDIO

AUDIO2 AUDIO

Output jacks on the

connected source

component

Jacks of this unit

Component video output AV1 (TV) COMPONENT

VIDEO

AV2 COMPONENT

VIDEO

Composite video output AV3 (CD) VIDEO

AV 4 V I D E O

AV 5 V I D E O

AV 6 V I D E O

VIDEO AUX

(Front panel)

VIDEO

S-Video output AV5 S-VIDEO*

Part 2: Assigning the video input

jacks to the audio input

VIDEO

OPTICAL

( TV )

AV 1

AUDIO1

COMPONENT

UNBAL.

GND

ANTENNA

COMPONENT

VIDEO

DOCK

AV 2

COAXIAL

AV 3

(

)

COAXIAL

OPTICAL

AV 4

AV 5

OUT

AUDIO2

VIDEO

HDMI

HDMI 1

(

BD/DVD

)

OUT

AV 6

VID

MONITOR OU

External component

(such as game console)

Audio outputVideo output

(RX-V665 U.S.A.model)

01EN_RX-V765_AddSheet_Flyer.fm Page 1 Friday, May 1, 2009 2:30 PM
