Yamaha Rx V561 Owners Manual
Rx-V561-Owners-Manual yamaha-rx-v561-owners-manual-132447
RX-V561 to the manual 15c95c8a-bfbc-4d88-ab52-d648dfd0741e
2014-12-13
: Yamaha Rx-V561-Owners-Manual yamaha-rx-v561-owners-manual-132447 pdf
Open the PDF directly: View PDF .
Page Count: 86
- English
- Important safety instructions
- Caution: Read this before operating your unit.
- Contents
- Features
- Getting started
- Quick start guide
- Connections
- Rear panel
- Placing speakers
- Connecting speakers
- Setting the speaker impedance
- Information on jacks and cable plugs
- Information on HDMI™
- Connecting video components
- Connecting audio components
- Using the VIDEO AUX jacks on the front panel
- Connecting the FM and AM antennas
- Connecting the power cable
- Turning on and off the power
- Front panel display
- Optimizing the speaker setting for your listening room
- Selecting the SCENE templates
- Playback
- Sound field programs
- FM/AM tuning
- Using a USB memory device or a USB portable audio player
- Recording
- SET MENU
- Remote control features
- Advanced setup
- Troubleshooting
- Glossary
- Specifications
- Index
- Control Diagram
![](asset-1.png)
YAMAHA ELECTRONICS CORPORATION, USA
6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.
YAMAHA CANADA MUSIC LTD.
135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA
YAMAHA ELECTRONIK EUROPA G.m.b.H.
SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, GERMANY
YAMAHA ELECTRONIQUE FRANCE S.A.
RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE
YAMAHA ELECTRONICS (UK) LTD.
YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND
YAMAHA SCANDINAVIA A.B.
J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN
YAMAHA MUSIC AUSTRALIA PTY, LTD.
17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA
©
2007 All rights reserved.
RX-V561
Printed in China WK65610
RX-V561
AV Receiver
Ampli-tuner audio-vidéo
OWNER’S MANUAL
MODE D’EMPLOI
C
GLOBAL SPHERE
2074
GOODMANS 2075, 2077, 2078
GRUNDIG 2077, 2098
H&B 2075
HAAZ 2074
HE 2078
HITACHI 2032, 2072
HOME ELECTRONICS
2078
INNOVATION 2072
IRRADIO 2134
JDB 2078
JVC 2033, 2045, 2053,
2073, 2099
KENWOOD 2030, 2097
KINGAVON 2075
KODA 2075
LAWSON 2074
LENCO 2075
LG 2084, 2087
LIFETEC 2072
LIMIT 2074
LOGICLAB 2074
LUXOR 2077
MAGNAVOX 2037, 2073, 2075
MAGNUM 2072
MBO 2078
MEDION 2072
MICROMAXX
2072
MICROMEDIA
2073
MICROSTAR 2072
MITSUBISHI 2035
MIZUDA 2075
MUSTEK 2078
NAIKO 2077
ONKYO 2073, 2135
ORAVA 2075
P&B 2075
PACIFIC 2074
PANASONIC 2030, 2040, 2054,
2057, 2105, 2110
PHILIPS 2019, 2026, 2046,
2073, 2081, 2090
PIONEER 2036, 2082
PROLINE 2077
PROVISION 2075
RCA 2031, 2042, 2050,
2051
RED STAR 2076
REOC 2074
ROADSTAR 2075, 2078, 2086
ROWA 2077
SABA 2085
SABAKI 2074
SAMSUNG 2032, 2041, 2104,
2113
SANSUI 2074
SANYO 2095
SCANMAGIC 2078
SCIENTIFIC LABS
2074
SCOTT 2088
SEG 2074, 2086
SHARP 2034, 2043, 2059,
2093, 2106
SILVA 2076
SINGER 2074
SKYMASTER 2074, 2078
SKYWORTH 2076
SM ELECTRONIC
2074, 2078
SONY 2028, 2029, 2039,
2083, 2107
SOUNDMASTER
2074
SOUNDMAX 2074
STANDARD 2074
STAR CLUSTER
2074
STARMEDIA 2075
SUPERVISION
2074, 2078
SYLVANIA 2052, 2058
SYNN 2074
TCM 2072
TEAC 2074
TEC 2076
TECHNICS 2030
TECHNIKA 2096
TECHNOSONIC
2096
TEVION 2072, 2074
THOMSON 2085, 2109
TOKAI 2076
TOSHIBA 2026, 2044, 2048,
2056, 2073, 2108,
2111
UNITED 2078
VOXSON 2078
WHARFEDALE
2074
XLOGIC 2074
YAKUMO 2077
YAMADA 2077
YAMAHA 2000, 2001, 2003,
2030, 2101
YUKAI 2078
ZENITH 2038, 2047, 2073
DVD-DVR
PANASONIC 2067
PIONEER 2114
SAMSUNG 2115
TOSHIBA 2068
DVD/LD COMBO
PIONEER 2036
DVD RECORDER
APEX 2024
JVC 2070
LG 2071
PANASONIC 2020, 2065, 2066,
2067
PHILIPS 2019, 2061, 2062,
2063
PIONEER 2021
RCA 2018
SONY 2022, 2064
TOSHIBA 2068
YAMAHA 2023
YUKAI 2069
DVR
ABS 2132
ALIENWARE 2132
CYBERPOWER
2132
DELL 2132
DIRECTV 2123, 2128, 2129,
2133
DISH NETWORK
2126, 2127
DISHPRO 2126
ECHOSTAR 2126, 2127
EXPRESSVU 2126
GATEWAY 2132
GOI 2126
HEWLETT PACKARD
2132
HITACHI 2008
HOWARD COMPUTERS
2132
HTS 2126
HUGHES 2123, 2128
HUMAX 2123
HUSH 2132
IBUYPOWER 2132
JVC 2126, 2127
LINKSYS 2132
MEDIA CENTER PC
2132
MICROSOFT 2132
MIND 2132
NIVEUS MEDIA
2132
NORTHGATE 2132
PANASONIC 2015, 2016, 2017,
2120
PHILIPS 2117, 2121, 2123,
2128
PIONEER 2012, 2013, 2014
PROSCAN 2129
RCA 2116, 2124, 2129,
2133
REPLAYTV 2118, 2119, 2120
SHARP 2009, 2010
SONIC BLUE 2119, 2120
SONY 2005, 2006, 2007,
2122, 2130, 2131,
2132
STACK 9 2132
SYSTEMAX 2132
TAGAR SYSTEMS
2132
TIVO 2116, 2121, 2122,
2123, 2130, 2131
TOSHIBA 2004, 2125, 2132
TOUCH 2132
ULTIMATETV 2133
VIEWSONIC 2132
VOODOO 2132
YAMAHA 2011
ZT GROUP 2132
LD PLAYER
YAMAHA 2002
CD PLAYER
YAMAHA 5000, 5013
CD RECORDER
YAMAHA 5001
MD
YAMAHA 5002, 5003, 5004
TAPE DECK
YAMAHA 5005, 5006
TUNER
YAMAHA 5007, 5008, 5009,
5010, 5012, 5014
RX-V561_C-cv.fm Page 1 Friday, May 25, 2007 11:05 PM
![](asset-2.png)

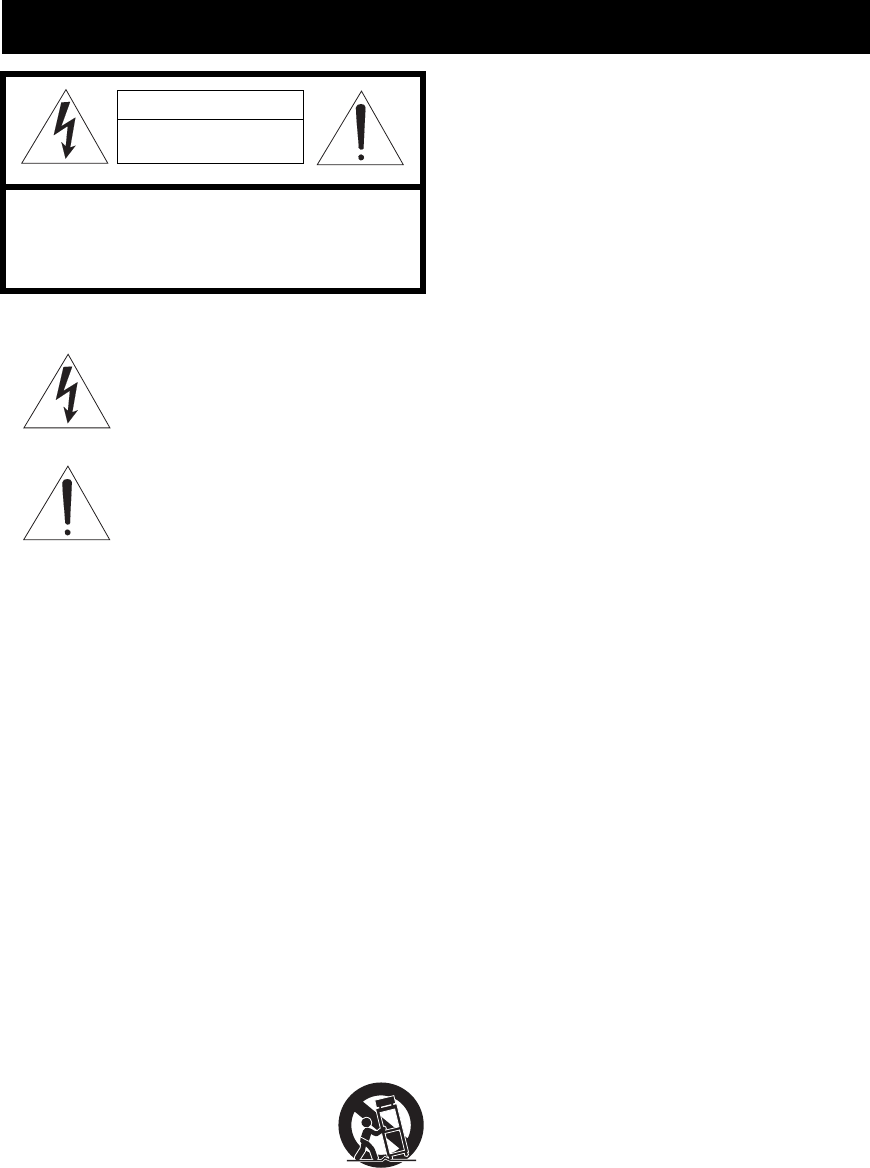

IMPORTANT SAFETY INSTRUCTIONS
Caution-i En
• Explanation of Graphical Symbols
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert you to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle
is intended to alert you to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
1Read Instructions – All the safety and operating instructions
should be read before the product is operated.
2Retain Instructions – The safety and operating instructions
should be retained for future reference.
3Heed Warnings – All warnings on the product and in the
operating instructions should be adhered to.
4Follow Instructions – All operating and use instructions
should be followed.
5Cleaning – Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners.
6Attachments – Do not use attachments not recommended by
the product manufacturer as they may cause hazards.
7Water and Moisture – Do not use this product near water –
for example, near a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a swimming pool;
and the like.
8Accessories – Do not place this product on an unstable cart,
stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious
damage to the product. Use only with a cart, stand, tripod,
bracket, or table recommended by the manufacturer, or sold
with the product. Any mounting of the product should
follow the manufacturer’s instructions, and should use a
mounting accessory recommended by the manufacturer.
9A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the product and cart combination to
overturn.
10 Ventilation – Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of the
product and to protect it from overheating, and these
openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed,
sofa, rug, or other similar surface. This product should not
be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer’s
instructions have been adhered to.
11 Power Sources – This product should be operated only from
the type of power source indicated on the marking label. If
you are not sure of the type of power supply to your home,
consult your product dealer or local power company. For
products intended to operate from battery power, or other
sources, refer to the operating instructions.
12 Grounding or Polarization – This product may be equipped
with a polarized alternating current line plug (a plug having
one blade wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you
are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
13 Power-Cord Protection – Power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the
point where they exit from the product.
14 Lightning – For added protection for this product during a
lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line
surges.
15 Power Lines – An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touching
such power lines or circuits as contact with them might be
fatal.
16 Overloading – Do not overload wall outlets, extension
cords, or integral convenience receptacles as this can result
in a risk of fire or electric shock.
17 Object and Liquid Entry – Never push objects of any kind
into this product through openings as they may touch
dangerous voltage points or short-out parts that could result
in a fire or electric shock. Never spill liquid of any kind on
the product.
18 Servicing – Do not attempt to service this product yourself
as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
19 Damage Requiring Service – Unplug this product from the
wall outlet and refer servicing to qualified service personnel
under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the
product,
c) If the product has been exposed to rain or water,
Important safety instructions
CAUTION
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
![](asset-3.png)
Important safety instructions
Caution-ii En

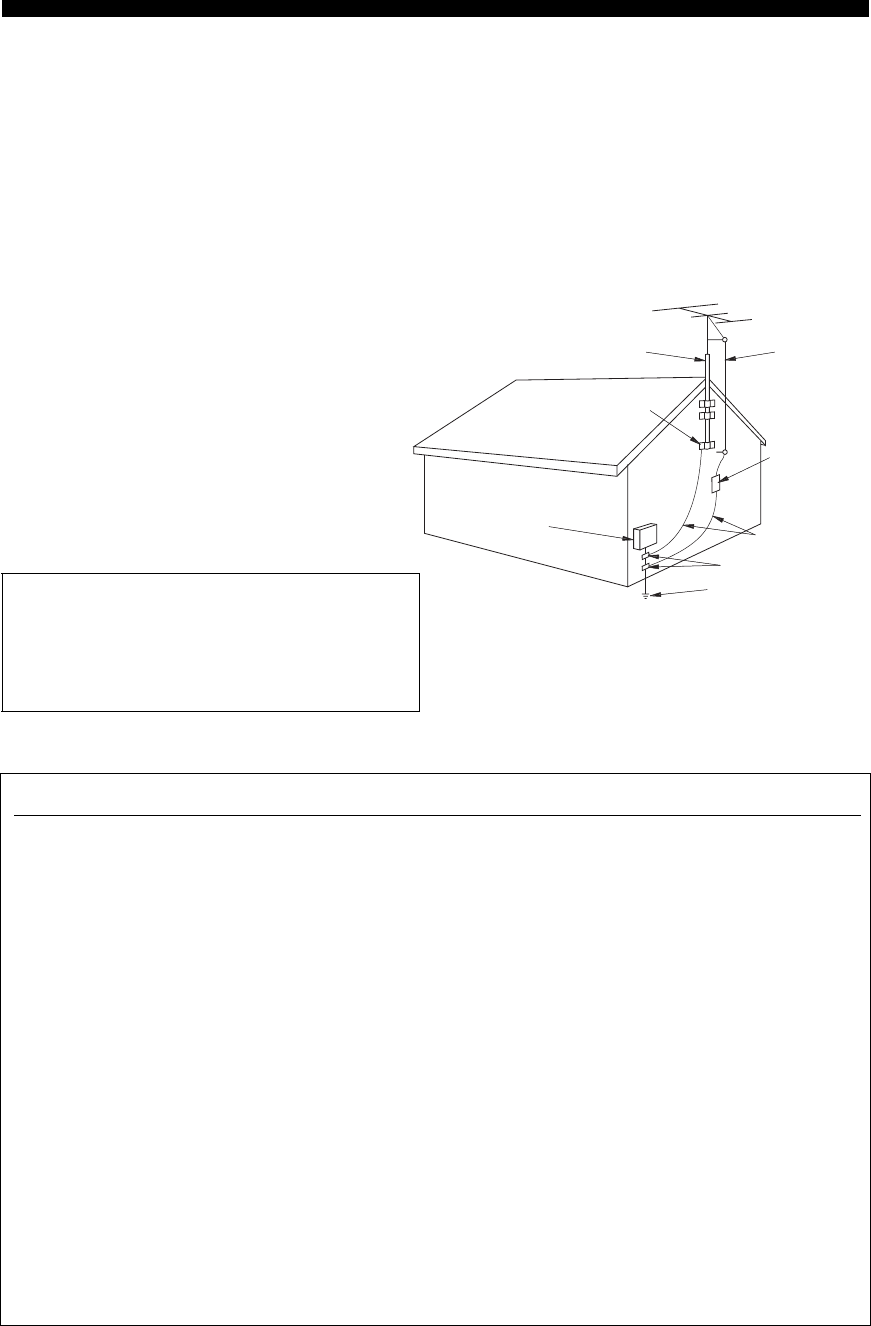

EXAMPLE OF ANTENNA GROUNDING
MAST
GROUND
CLAMP
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810–20)
GROUNDING CONDUCTORS
(NEC SECTION 810–21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC
SERVICE
EQUIPMENT
NEC – NATIONAL ELECTRICAL CODE
d) If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to its normal
operation,
e) If the product has been dropped or damaged in any
way, and
f) When the product exhibits a distinct change in perfor-
mance - this indicates a need for service.
20 Replacement Parts – When replacement parts are required,
be sure the service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other
hazards.
21 Safety Check – Upon completion of any service or repairs to
this product, ask the service technician to perform safety
checks to determine that the product is in proper operating
condition.
22 Wall or Ceiling Mounting – The unit should be mounted
to a wall or ceiling only as recommended by the
manufacturer.
23 Heat – The product should be situated away from heat
sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
24 Outdoor Antenna Grounding – If an outside antenna or
cable system is connected to the product, be sure the antenna
or cable system is grounded so as to provide some
protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSI/NFPA 70,
provides information with regard to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as
practical.
FCC INFORMATION (for US customers)
1 IMPORTANT NOTICE: DO NOT MODIFY THIS
UNIT!
This product, when installed as indicated in the
instructions contained in this manual, meets FCC
requirements. Modifications not expressly approved by
Yamaha may void your authority, granted by the FCC, to
use the product.
2 IMPORTANT: When connecting this product to
accessories and/or another product use only high quality
shielded cables. Cable/s supplied with this product MUST
be used. Follow all installation instructions. Failure to
follow instructions could void your FCC authorization to
use this product in the USA.
3 NOTE: This product has been tested and found to comply
with the requirements listed in FCC Regulations, Part 15
for Class “B” digital devices. Compliance with these
requirements provides a reasonable level of assurance that
your use of this product in a residential environment will
not result in harmful interference with other electronic
devices.
This equipment generates/uses radio frequencies and, if
not installed and used according to the instructions found
in the users manual, may cause interference harmful to the
operation of other electronic devices.
Compliance with FCC regulations does not guarantee that
interference will not occur in all installations. If this
product is found to be the source of interference, which
can be determined by turning the unit “OFF” and “ON”,
please try to eliminate the problem by using one of the
following measures:
Relocate either this product or the device that is being
affected by the interference.
Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient
the antenna. If the antenna lead-in is 300 ohm ribbon lead,
change the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory
results, please contact the local retailer authorized to
distribute this type of product. If you can not locate the
appropriate retailer, please contact Yamaha Electronics
Corp., U.S.A. 6660 Orangethorpe Ave., Buena Park, CA
90620.
The above statements apply ONLY to those products
distributed by Yamaha Corporation of America or its
subsidiaries.
![](asset-4.png)
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.
Caution-iii En
1To assure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
2Install this sound system in a well ventilated, cool, dry, clean
place – away from direct sunlight, heat sources, vibration,
dust, moisture, and/or cold. Allow ventilation space of at least
30 cm on the top, 20 cm on the left and right, and 20 cm on
the back of this unit.
3Locate this unit away from other electrical appliances, motors,
or transformers to avoid humming sounds.
4Do not expose this unit to sudden temperature changes from
cold to hot, and do not locate this unit in a environment with
high humidity (i.e. a room with a humidifier) to prevent
condensation inside this unit, which may cause an electrical
shock, fire, damage to this unit, and/or personal injury.
5Avoid installing this unit where foreign object may fall onto
this unit and/or this unit may be exposed to liquid dripping or
splashing. On the top of this unit, do not place:
– Other components, as they may cause damage and/or
discoloration on the surface of this unit.
– Burning objects (i.e. candles), as they may cause fire,
damage to this unit, and/or personal injury.
– Containers with liquid in them, as they may fall and liquid
may cause electrical shock to the user and/or damage to
this unit.
6Do not cover this unit with a newspaper, tablecloth, curtain,
etc. in order not to obstruct heat radiation. If the temperature
inside this unit rises, it may cause fire, damage to this unit,
and/or personal injury.
7Do not plug in this unit to a wall outlet until all connections
are complete.
8Do not operate this unit upside-down. It may overheat,
possibly causing damage.
9Do not use force on switches, knobs and/or cords.
10 When disconnecting the power cable from the wall outlet,
grasp the plug; do not pull the cord.
11 Do not clean this unit with chemical solvents; this might
damage the finish. Use a clean, dry cloth.
12 Only voltage specified on this unit must be used. Using this
unit with a higher voltage than specified is dangerous and may
cause fire, damage to this unit, and/or personal injury. Yamaha
will not be held responsible for any damage resulting from use
of this unit with a voltage other than specified.
13 To prevent damage by lightning, keep the power cord and
outdoor antennas disconnected from a wall outlet or the unit
during a lightning storm.
14 Do not attempt to modify or fix this unit. Contact qualified
Yamaha service personnel when any service is needed. The
cabinet should never be opened for any reasons.
15 When not planning to use this unit for long periods of time
(i.e. vacation), disconnect the AC power plug from the wall
outlet.
16 Install this unit near the AC outlet and where the AC power
plug can be reached easily.
17 Be sure to read the “Troubleshooting” section on common
operating errors before concluding that this unit is faulty.
18 Before moving this unit, press STANDBY/ON to set this unit
in the standby mode, and disconnect the AC power plug from
the wall outlet.
19 The batteries shall not be exposed to excessive heat such as
sunshine, fire or like.
20 Excessive sound pressure from earphones and headphones can
cause hearing loss.
Caution: Read this before operating your unit.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
This unit is not disconnected from the AC power
source as long as it is connected to the wall outlet, even
if this unit itself is turned off by STANDBY/ON. This
state is called the standby mode. In this state, this unit
is designed to consume a very small quantity of power.
FOR CANADIAN CUSTOMERS
To prevent electric shock, match wide blade of plug to
wide slot and fully insert.
This Class B digital apparatus complies with Canadian
ICES-003.
IMPORTANT
Please record the serial number of this unit in the space
below.
MODEL:
Serial No.:
The serial number is located on the rear of the unit.
Retain this Owner’s Manual in a safe place for future
reference.
![](asset-5.png)
1 En
English
PREPARATIONINTRODUCTION
BASIC
OPERATION ADVANCED
OPERATION
ADDITIONAL
INFORMATION APPENDIX
Features ................................................................... 2
Getting started ........................................................ 3
Quick start guide .................................................... 4
Preparation: Check the items ..................................... 4

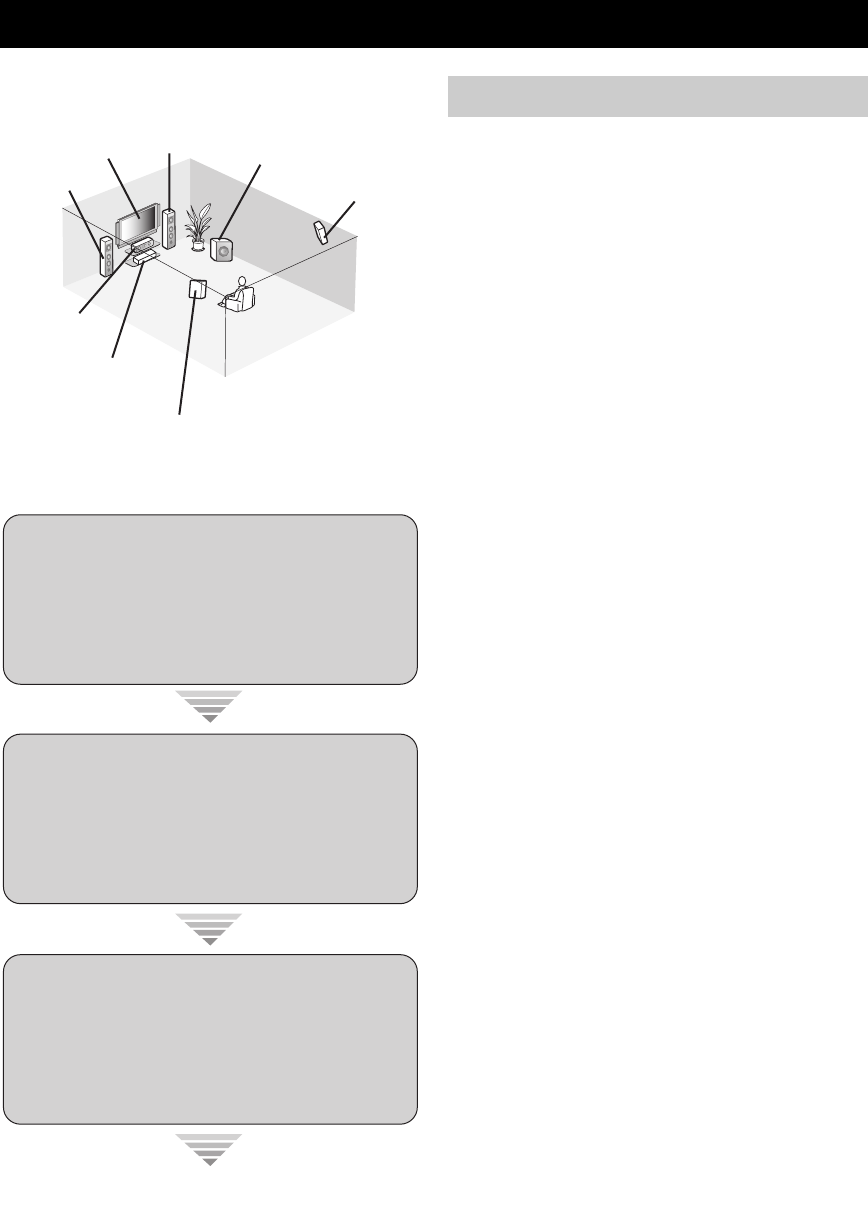

Step 1: Set up your speakers...................................... 5
Step 2: Connect your DVD player
and other components............................................ 6
Step 3: Turn on the power
and press SCENE 1 button .................................... 8
What do you want to do with this unit?..................... 9
Connections........................................................... 10

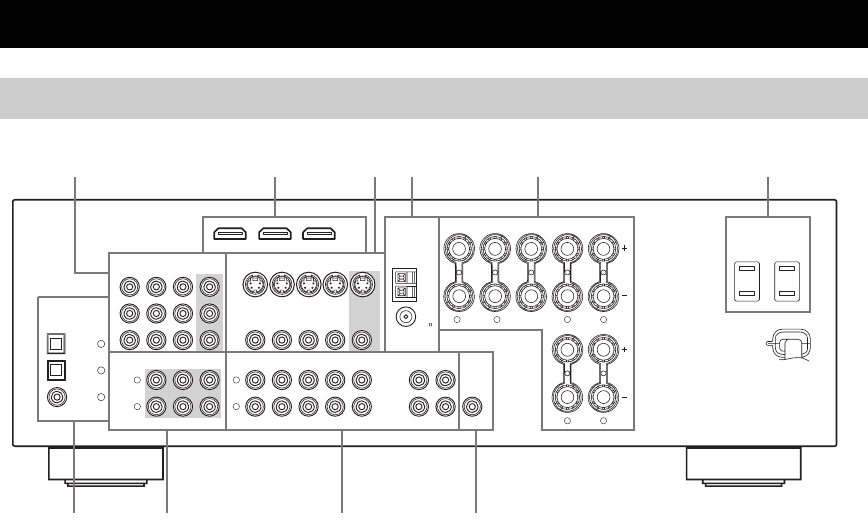

Rear panel ................................................................ 10
Placing speakers....................................................... 11

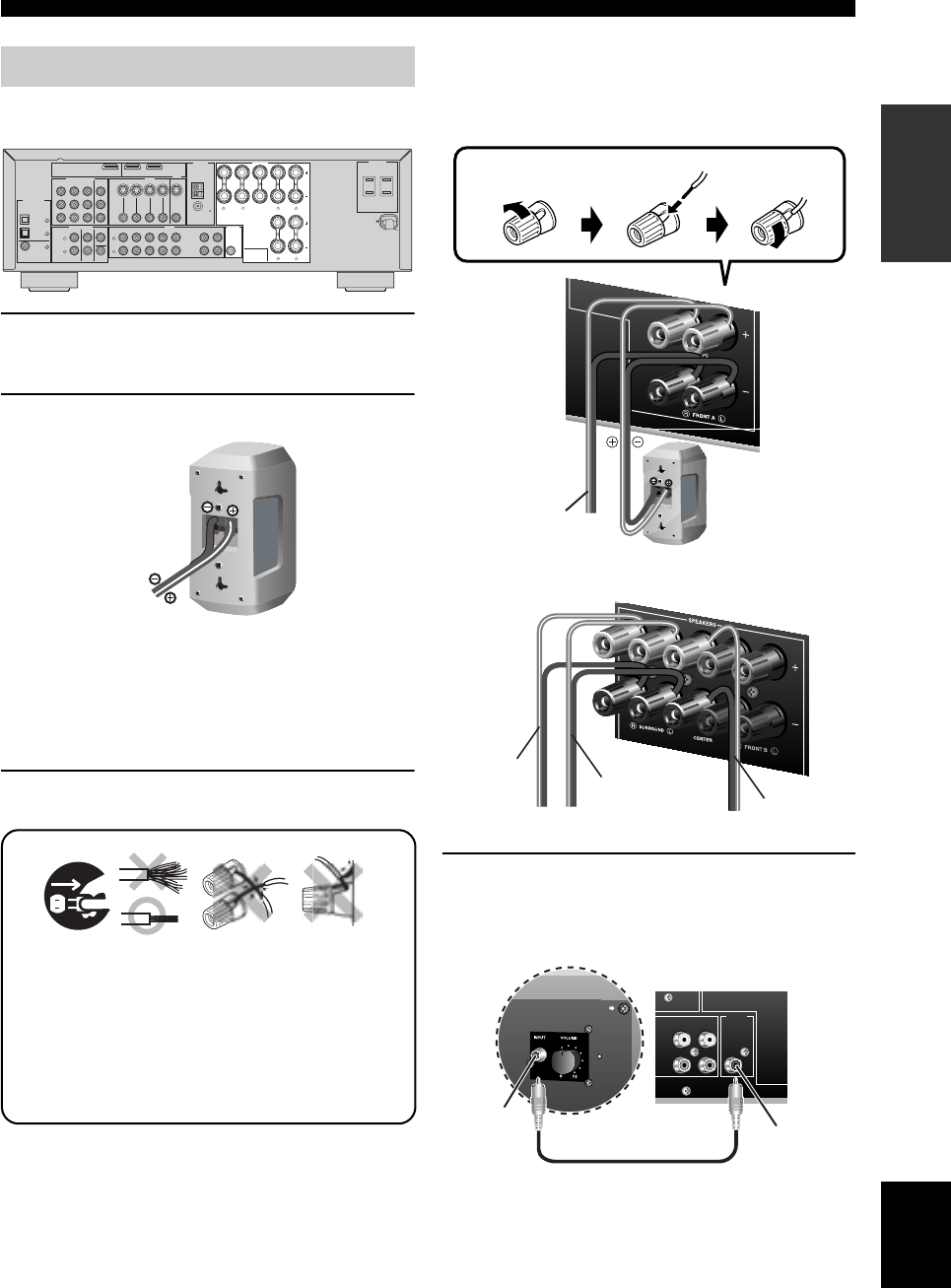

Connecting speakers ................................................ 12
Setting the speaker impedance................................. 13
Information on jacks and cable plugs ...................... 14

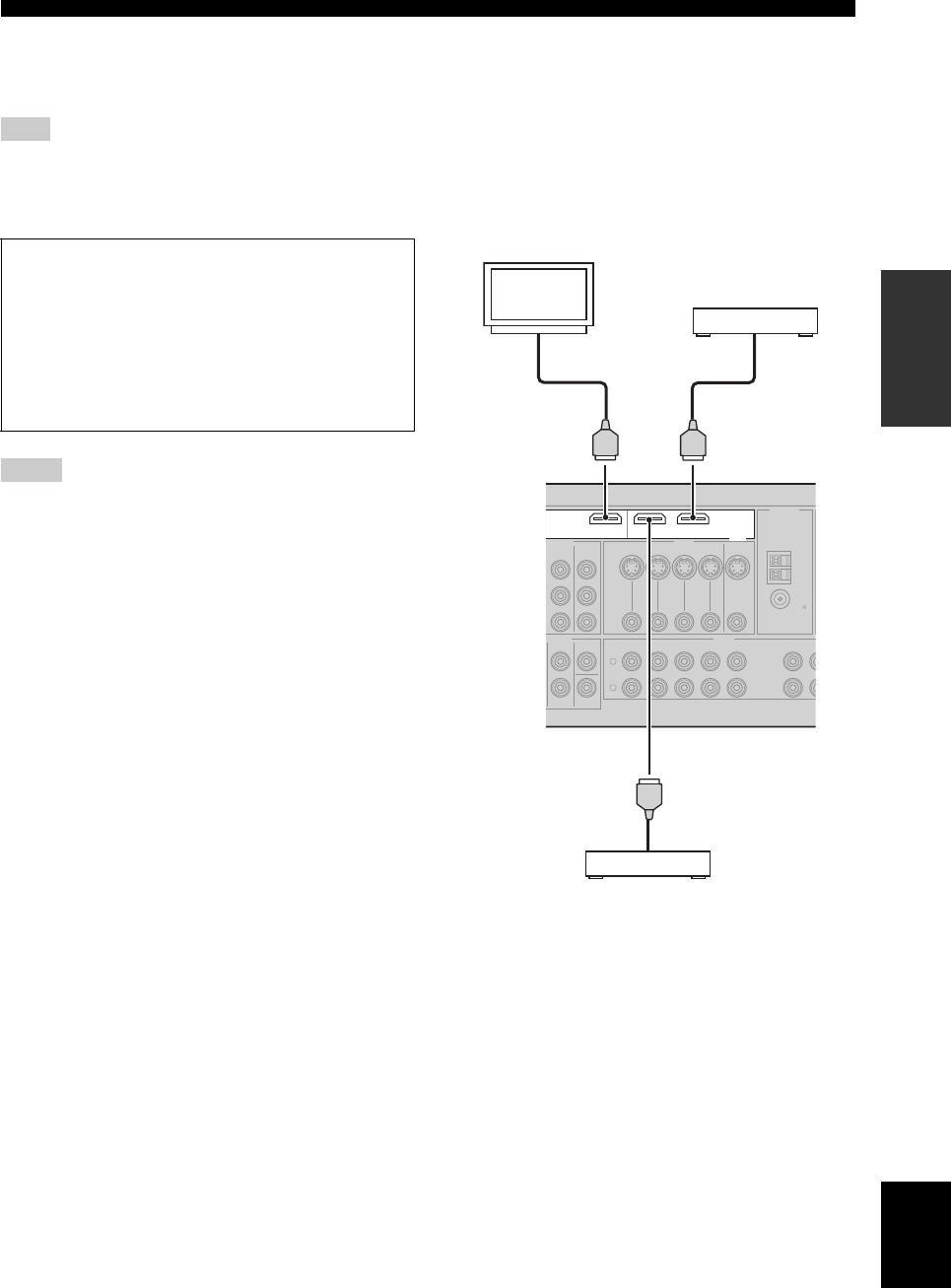

Information on HDMI™.......................................... 15

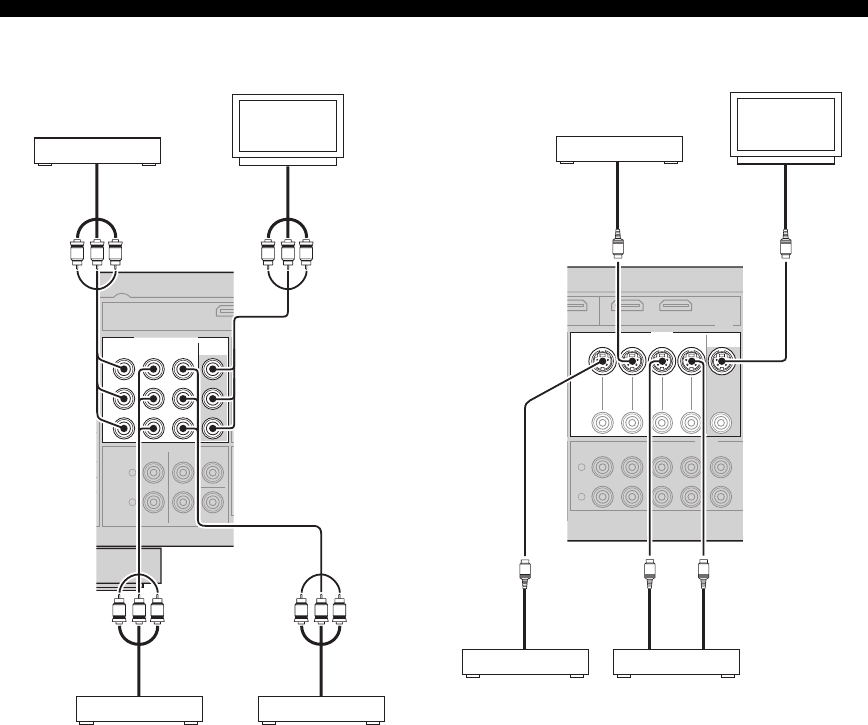

Connecting video components................................. 16
Connecting audio components................................. 19
Using the VIDEO AUX jacks on the front panel
........ 20

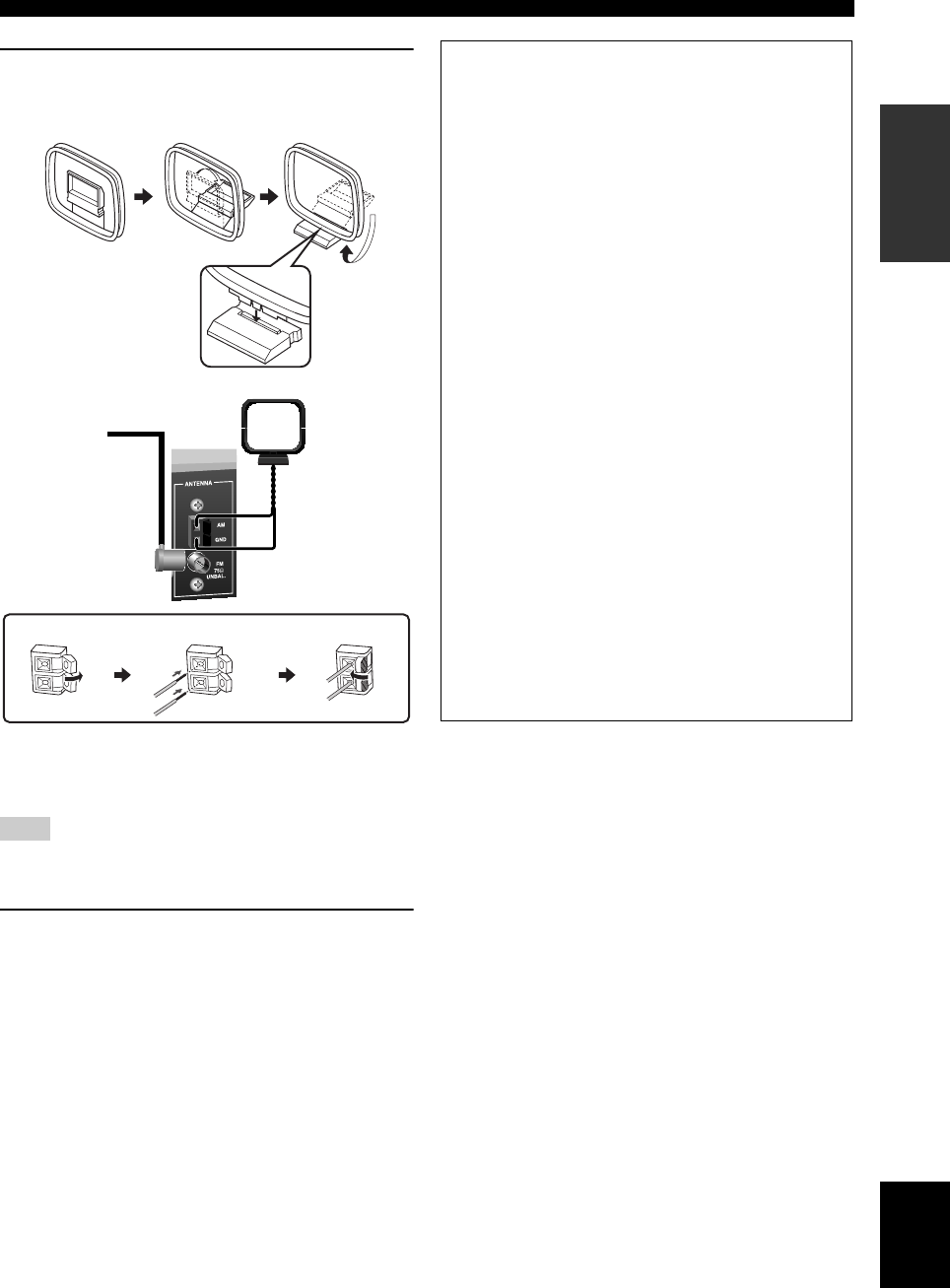

Connecting the FM and AM antennas ..................... 20
Connecting the power cable..................................... 21
Turning on and off the power .................................. 21
Front panel display .................................................. 22
Optimizing the speaker setting
for your listening room .................................... 24

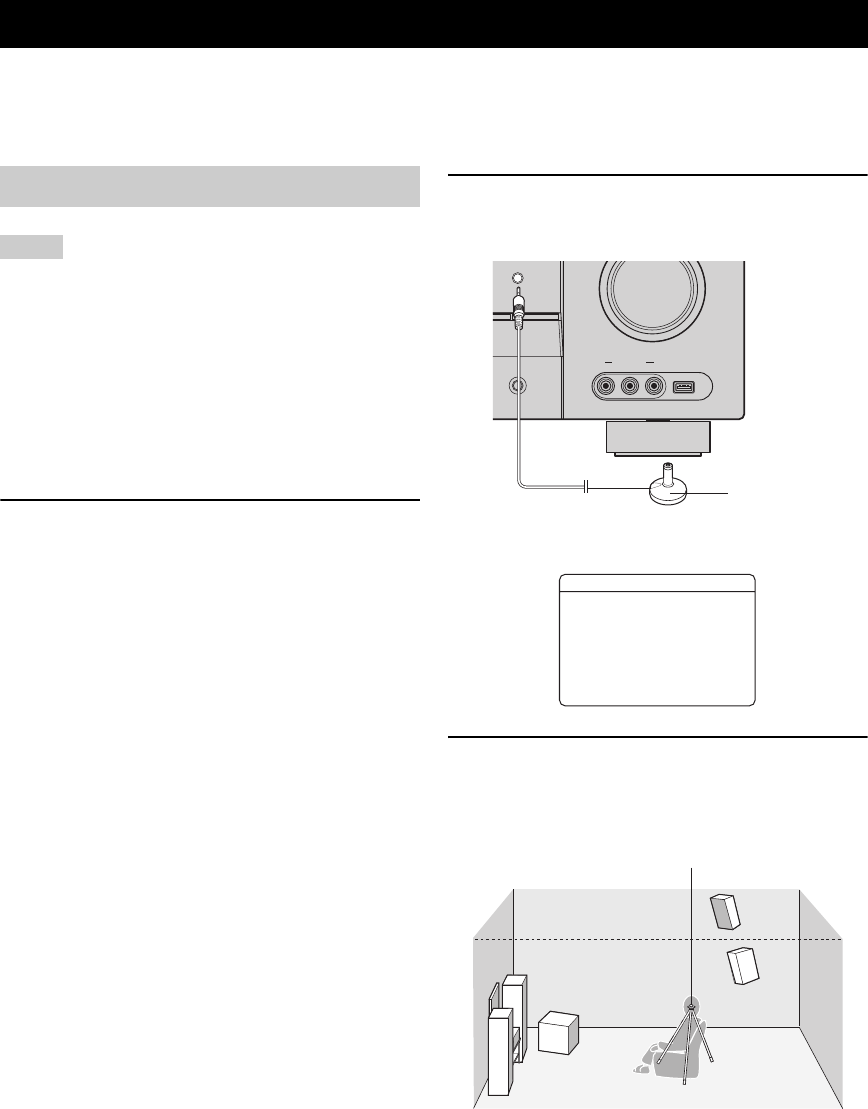

Using AUTO SETUP .............................................. 24
Selecting the SCENE templates........................... 28
Selecting the desired SCENE template.................... 28
Creating your original SCENE templates................ 31
Playback ................................................................ 32
Basic operations....................................................... 32
Additional operations............................................... 33
Sound field programs ........................................... 37
Sound field program descriptions............................ 37
FM/AM tuning ...................................................... 40
Automatic tuning ..................................................... 40
Manual tuning.......................................................... 40
Automatic preset tuning........................................... 41
Manual preset tuning ............................................... 41
Selecting preset stations........................................... 42
Exchanging preset station ........................................ 42

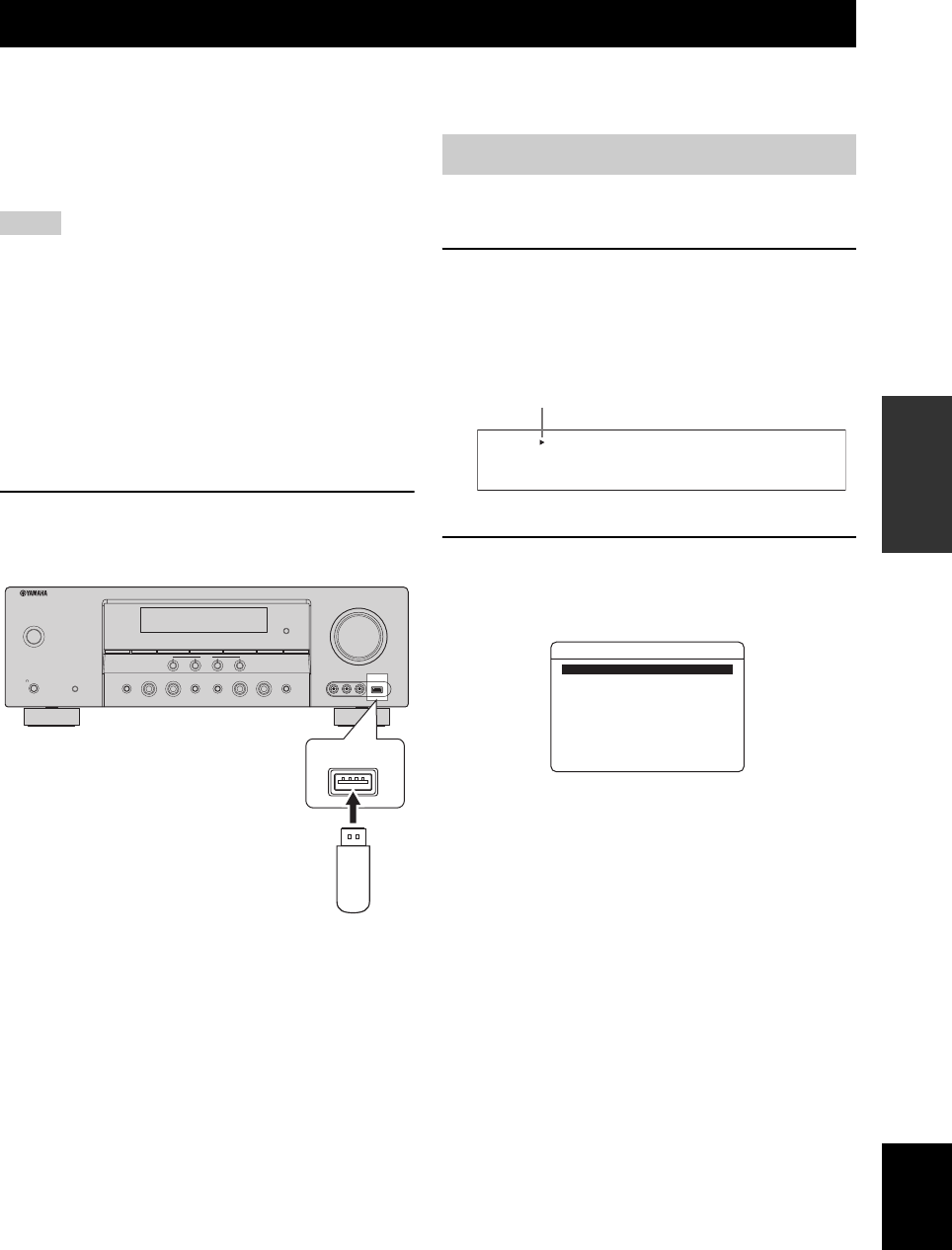

Using a USB memory device or
a USB portable audio player ........................... 43
Playback operation................................................... 43
Recording .............................................................. 45
SET MENU ............................................................46
Using SET MENU................................................... 47
1 SOUND MENU.................................................... 48
2 INPUT MENU...................................................... 52
3 OPTION MENU................................................... 54
Remote control features........................................56
Using remote control on the SCENE feature........... 56
Controlling this unit, a TV, or other components
........ 57
Setting remote control codes ................................... 59
Advanced setup......................................................60
Troubleshooting.....................................................61
Glossary..................................................................68
Specifications .........................................................70
Index.......................................................................71
(at the end of this manual)

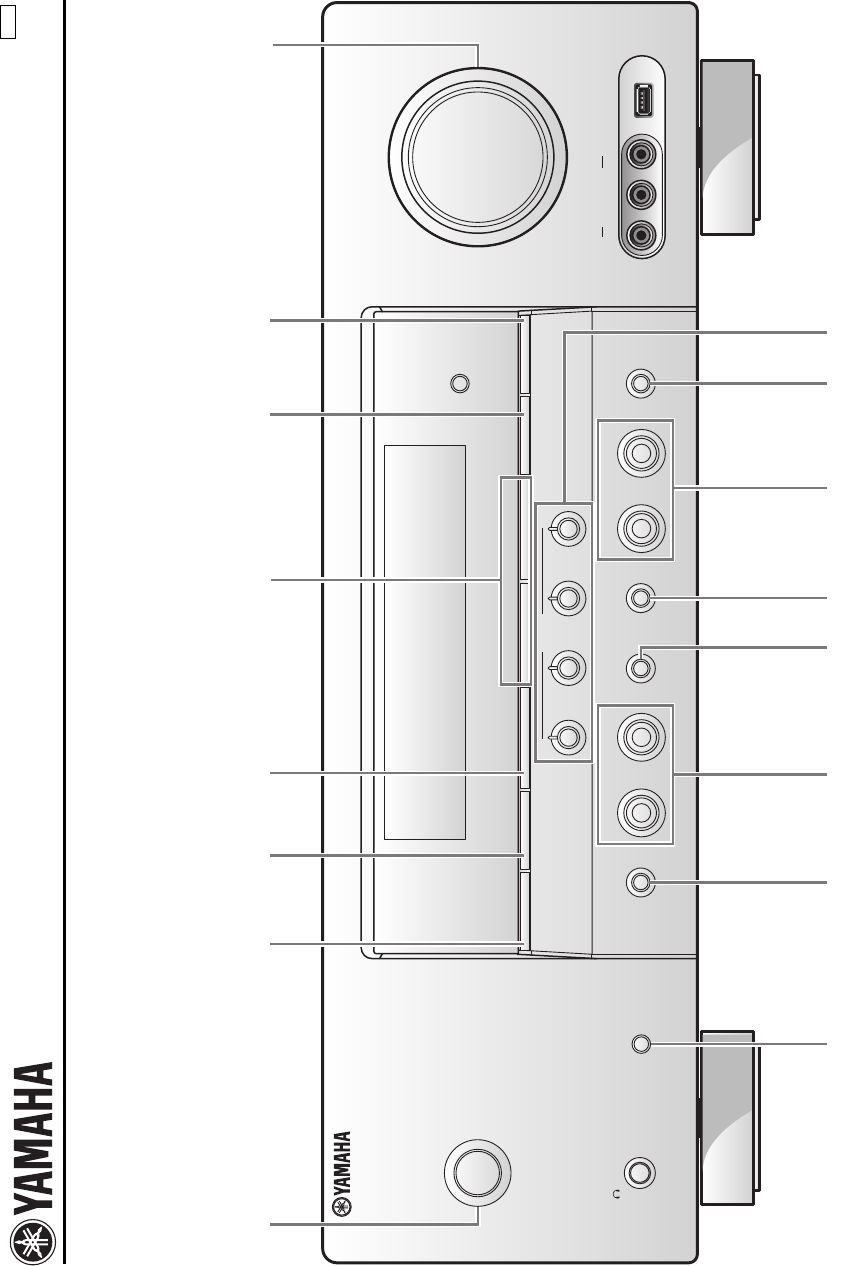

Front panel................................................................i
Remote control ....................................................... ii
List of remote control codes ................................. iii
Contents
INTRODUCTION
PREPARATION
BASIC OPERATION
ADVANCED OPERATION
ADDITIONAL INFORMATION
APPENDIX
About this manual
•y indicates a tip for your operation.
• Some operations can be performed by using either the
buttons on the front panel or the ones on the remote control.
In case the button names differ between the front panel and
the remote control, the button name on the remote control is
given in parentheses.
• This manual is printed prior to production. Design and
specifications are subject to change in part as a result of
improvements, etc. In case of differences between the
manual and product, the product has priority.
•“
9SPEAKERS” or “AMULTI CH IN” (example)
indicates the name of the parts on the front panel or the
remote control. Refer to the attached sheet or the appendix
pages at the end of this manual for the information about
each position of the parts.
•The symbol “☞ ” with page number(s) indicates the
corresponding reference page(s).
![](asset-6.png)
Features
2 En
Built-in 5-channel power amplifier
◆Minimum RMS output power
[Front, Center, Surround channels]
100 W (1 kHz, 0.9% THD, 6 Ω)
SCENE select function
◆Preset SCENE templates for various situations
◆SCENE template customizing capability
Decoders and DSP circuits
◆Proprietary Yamaha technology for the creation of multi-
channel surround sound
◆Compressed Music Enhancer mode to improve the sound
quality of compression artifacts (such as the MP3 format) to
that of a high-quality stereo
◆Dolby Digital decoder
◆Dolby Pro Logic/Dolby Pro Logic II decoder
◆DTS decoder
◆Virtual CINEMA DSP
◆SILENT CINEMA™
Sophisticated FM/AM tuner
◆40-station random and direct preset tuning
◆Automatic preset tuning
HDMI (High-Definition Multimedia Interface)
◆HDMI interface for standard, enhanced or high-definition
video (includes 1080p video signal transmission)
USB features
◆USB port to connect a USB memory device or a USB portable
audio player
◆MP3, WMA and WAV capability
Other features
◆YPAO (Yamaha Parametric Room Acoustic Optimizer) for
automatic speaker setup
◆192-kHz/24-bit D/A converter
◆Direct Stereo mode for pure hi-fi sound for analog and PCM
2-channel sources
◆6 additional input jacks for discrete multi-channel input
◆OSD (on-screen display) menus that allow you to optimize
this unit to suit your individual audiovisual system
◆Component video input/output capability
(3 COMPONENT VIDEO INs and 1 MONITOR OUT)
◆S-video signal input/output capability
◆Optical and coaxial digital audio signal jacks
◆Sleep timer
◆Cinema and music night listening modes
◆Remote control with preset remote control codes
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks
of Dolby Laboratories.
“SILENT CINEMA” is a trademark of YAMAHA
CORPORATION.
“HDMI”, the “HDMI” logo and “High-Definition Multimedia
Interface” are trademarks or registered trademarks of HDMI
Licensing LLC.
“DTS” and “DTS Digital Surround” are registered trademarks of
DTS, Inc.
This unit is equipped with the technologies developed by Analog
Devices, Inc. and others. It is strictly prohibited to use this unit
for use other than audiovisual purposes.
We Want You Listening For A Lifetime
Yamaha and the Electronic Industries Association’s Consumer
Electronics Group want you to get the most out of your
equipment by playing it at a safe level. One that lets the sound
come through loud and clear without annoying blaring or
distortion – and, most importantly, without affecting your
sensitive hearing.
Since hearing damage from loud sounds is often
undetectable until it is too late, Yamaha and the
Electronic Industries Association’s Consumer
Electronics Group recommend you to avoid
prolonged exposure from excessive volume levels.
Features
![](asset-7.png)
Getting started
3 En
English
INTRODUCTION
■Checking the supplied accessories
Check that you received all of the following parts.
The form of the supplied accessories varies depending on the
models.
■Installing batteries in the remote control
1Take off the battery compartment cover.
2Insert the two supplied batteries
(AAA, R03, UM-4) according to the polarity
markings (+ and –) on the inside of the
battery compartment.
3Snap the battery compartment cover back
into place.
• Change all of the batteries if you notice the following condition:
– the operation range of the remote control decreases.
• Do not use an old battery and a new one together.
• Do not use different types of batteries (such as alkaline and
manganese batteries) together. Read the packaging carefully as
these different types of batteries may have the same shape and
color.
• If the batteries have leaked, dispose of them immediately. Avoid
touching the leaked material or letting it come into contact with
clothing, etc. Clean the battery compartment thoroughly before
installing new batteries.
• Do not throw away batteries with general house waste; dispose
of them correctly in accordance with your local regulations.
• If the remote control is without batteries for more than 2
minutes, or if exhausted batteries remain in the remote control,
the contents of the memory may be cleared. When the memory
is cleared, insert new batteries and set up the remote control
code.
Getting started
Note
REC
SUR.DECODE NIGHT
STRAIGHTENHANCERl PROG h
TV MUTE
TV INPUT
TV VOL
TV CH
POWER
AMP
STANDBY
POWER
AUDIO SEL
SLEEP MUTE
MULTI CH IN
POWER
8
10
7
09
65
4321
ENT
DVD DTV/CBL DVR
CD MD/CD-R TUNER
MENU
VOLUME
TITLE
ENTER
BAND LEVEL
DISPLAY
RETURN
AVTV
SCENE
4321
MODE – PTY SEEK – START
FREQ/TEXT
DIRECT ST.
EON
V-AUX USB
Remote control Batteries (2)
(AAA, R03, UM-4)
Indoor FM antenna
AM loop antenna
Optimizer
microphone
Notes
13
2
![](asset-8.png)
Quick start guide
4 En
The following steps describe the easiest way to enjoy
DVD movie playback in your home theater.
In these steps, you need the following supplied
accessories.
❏Indoor FM antenna
❏AM loop antenna
The following items are not included in the package of this
unit.
❏Speakers
❏Front speakers ...................................... 2
❏Center speaker ...................................... 1
❏Surround speakers ............................... 2
Select magnetically shielded speakers. The
minimum required speakers are two front speakers.
❏Active subwoofer ...................................... 1
Select an active subwoofer equipped with an RCA
input jack.
❏Speaker cables .......................................... 5
❏Subwoofer cable ........................................ 1
Select a monaural RCA cable.
❏DVD player ................................................. 1
Select DVD player equipped with coaxial digital
audio output jack and composite video output
jack.
❏Video monitor............................................. 1
Select a TV monitor, video monitor or projector
equipped with a composite video input jack.
❏Video cable ................................................ 2
Select an RCA composite video cable.
❏Digital coaxial audio cable .......................1
Quick start guide
Front right
speaker Subwoofer
Surround left
speaker
Front left
speaker Surround right
speaker
Center speaker
DVD player
Video monitor
Enjoy DVD playback!
Step 1: Set up your speakers
Step 2: Connect your DVD player
and other components
Step 3: Turn on the power and
press SCENE 1 button
☞
P. 6
☞
P. 8
☞
P. 5
Preparation: Check the items
![](asset-9.png)
Quick start guide
5 En
English
INTRODUCTION
Place your speakers in the room and connect them to this
unit.
1Place your speakers and subwoofer in the
room.
2Connect speaker cables to each speaker.
Cables are colored or shaped differently, perhaps with
a stripe, groove or ridge. Connect the striped
(grooved, etc.) cable to the “+” (red) terminals of
your speaker. Connect the plain cable to the “–”
(black) terminals.
3Connect each speaker cable to the
corresponding speaker terminal of this unit.
1Make sure that this unit and the subwoofer are
unplugged from the AC wall outlets.
2Twist the exposed wires of the speaker cables
together to prevent short circuits.
3Do not let the bare speaker wires touch each other.
4Do not let the bare speaker wires touch any metal
part of this unit.
Be sure to connect the left channel (L), right channel
(R), “+” (red) and “–” (black) properly.
Front speakers
Center and surround speakers
4Connect the subwoofer cable to the input
jack of the subwoofer and the SUBWOOFER
OUTPUT jack of this unit.
Step 1: Set up your speakers
MULTI CH INPUT
COMPONENT VIDEO
DIGITAL INPUT
VIDEO
ANTENNA
SPEAKERS
LR LR
SURROUND CENTER FRONT B
AUDIO OUTPUT
L
1
2
3
R
L
R
L
R
DVD
DTV/CBL
DVR
CD
SUB
WOOFER
IN
OUT
CENTER
SUBWOOFER
SURROUNDFRONT
DVD
OPTICAL
COAXIAL
CD
DTV/
CBL
DVD
P
R
P
B
DTV/CBL DVR DVD
S VIDEO
VIDEO
DVR
AM
FRONT A
GND
FM
UNBAL.
75
IN OUT
DTV/CBLMONITOR
OUT MONITOR
OUT
MD/
CD-R
OUT
(REC)
IN
(PLAY)
HDMI
DVDOUT DTV/CBL
AC OUTLETS
12 3 4
To the front
right speaker Front left speaker
Loosen Insert Tighten
To the
surround
right speaker To the surround
left speaker To the center
speaker
OUTPUT
SUB
WOOFER
IN
(PLAY) OUT
(REC)
MD/
CD-R
SUBWOOFER
OUTPUT jack
Subwoofer cable
Input jack
AV receiver
Subwoofer
![](asset-a.png)
Quick start guide
6 En

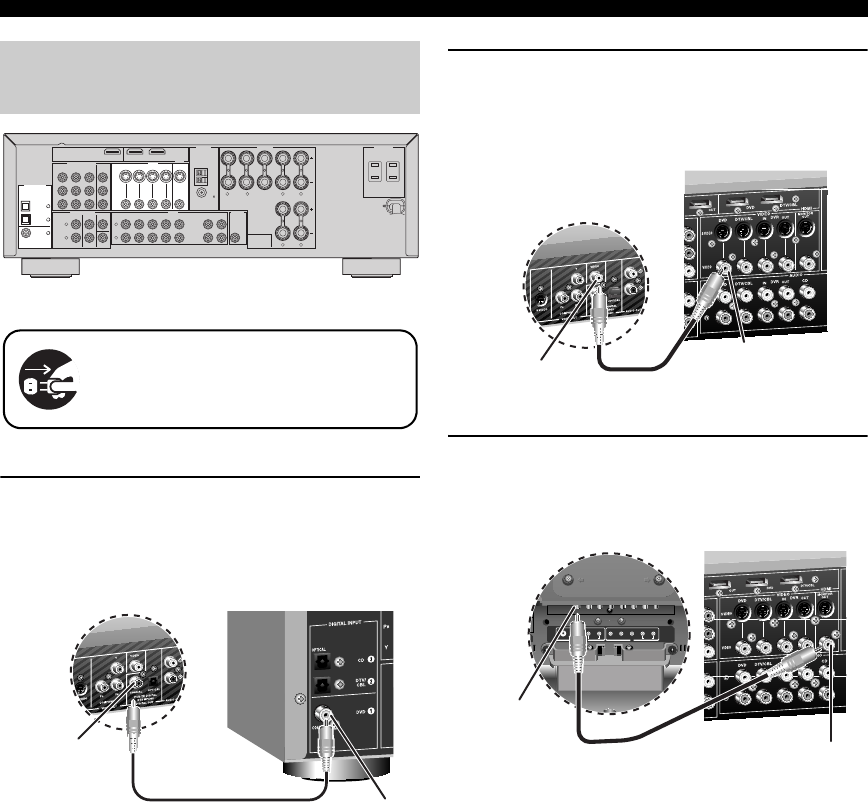

1Connect the digital coaxial audio cable to the
digital coaxial audio output jack of your DVD
player and the DVD DIGITAL INPUT COAXIAL
jack of this unit.
2Connect the video cable to the composite
video output jack of your DVD player and the
DVD VIDEO jack of this unit.
3Connect the video cable to the video input
jack of your video monitor and the VIDEO
MONITOR OUT jack of this unit.
Step 2: Connect your DVD player
and other components
MULTI CH INPUT
COMPONENT VIDEO
DIGITAL INPUT
VIDEO
ANTENNA
SPEAKERS
LR LR
SURROUND CENTER FRONT B
AUDIO OUTPUT
L
1
2
3
R
L
R
L
R
DVD
DTV/CBL
DVR
CD
SUB
WOOFER
IN
OUT
CENTER
SUBWOOFER
SURROUNDFRONT
DVD
OPTICAL
COAXIAL
CD
DTV/
CBL
DVD
P
R
P
B
Y
DTV/CBL DVR DVD
S VIDEO
VIDEO
DVR
AM
FRONT A
GND
FM
UNBAL.
75
IN OUT
DTV/CBLMONITOR
OUT MONITOR
OUT
MD/
CD-R
OUT
(REC)
IN
(PLAY)
HDMI
DVDOUT DTV/CBL
AC OUTLETS
Make sure that this unit and the DVD
player are unplugged from the AC wall
outlets.
Digital coaxial
audio output jack
Digital coaxial audio
cable DVD DIGITAL INPUT
COAXIAL jack
DVD player AV receiver
Composite video
output jack Video cable
DVD VIDEO jack
DVD player
AV receiver
L/MONO
AUDIO AUDIO
COLOR STREAM HD
VIDEO
VIDEO-1 IN IN
S-VIDEO
RYP
B
P
R
RL/MONO
Video monitor AV receiver
Video input jack
VIDEO MONITOR OUT
jack
Video cable
![](asset-b.png)
Quick start guide
7 En
English
INTRODUCTION
4Connect the FM and AM antennas to this
unit.
See page 20 for the details.
y
The wire of the AM loop antenna does not have any polarity and
you can connect either end of the wire to AM and GND terminal.
The shape of the AM and GND terminals may vary depending on
the unit.
5Connect the power plug of this unit and other
components into the AC wall outlet.
y
This unit is equipped with AC OUTLETS for the power supply of
the other components. See page 21 for details.
Note
Indoor FM antenna
AM loop antenna
Open the lever Insert Close the lever
■For further connections
• Using the other kind of speaker
combinations
☞ P. 12
• Connecting a video monitor
☞ P. 16
• Connecting a DVD player
☞ P. 16
• Connecting a DVD recorder
☞ P. 16
• Connecting a cable TV or a satellite tuner
☞ P. 16
• Connecting a CD player and an MD
recorder
☞ P. 19
• Connecting a DVD player via analog
multi-channel audio connection
☞ P. 19
• Using the VIDEO AUX jacks on the front
panel
☞ P. 20
• Connecting an outdoor FM/AM antenna
☞ P. 20
• Using the USB jack on the front panel
☞ P. 43
![](asset-c.png)
Quick start guide
8 En

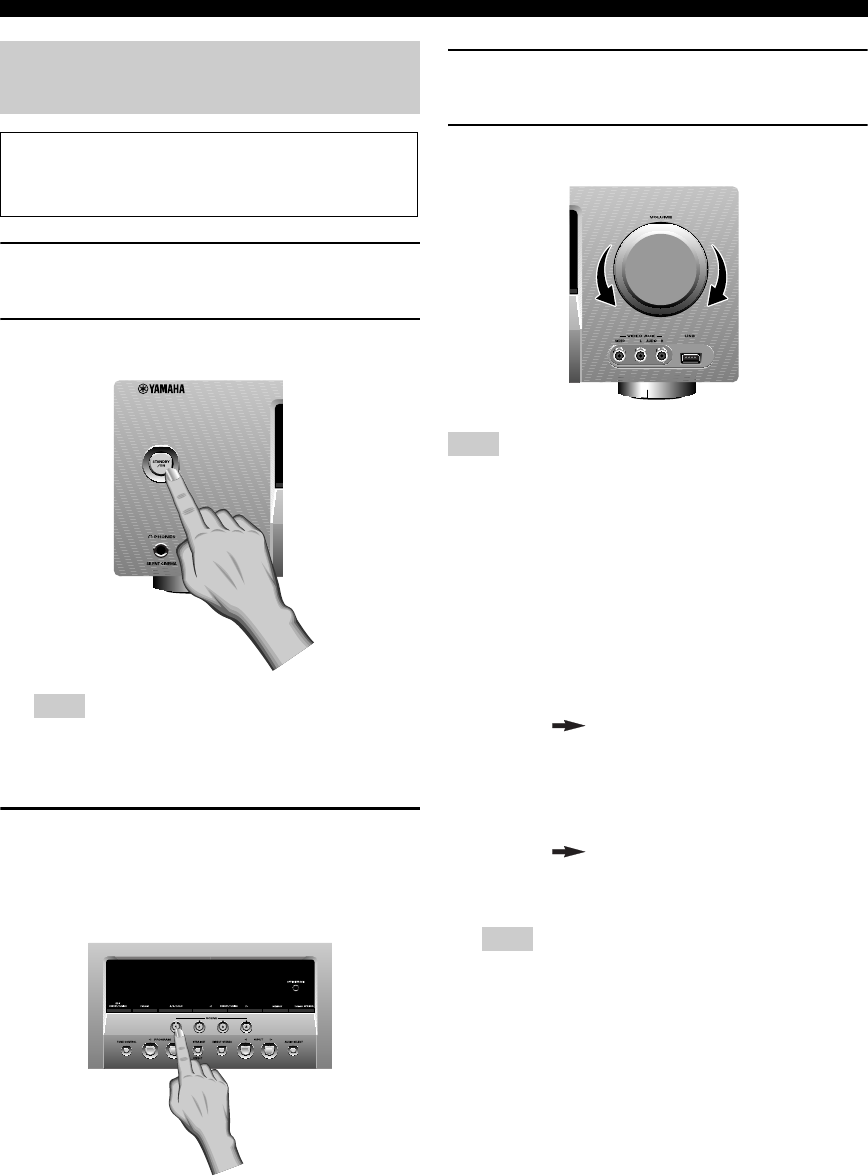

1Turn on the video monitor connected to this
unit.
2Press 1STANDBY/ON on the front panel.
In the standby mode, this unit consumes a small amount of
power in order to receive infrared signals from the remote
control.
3Press FSCENE 1.
“DVD Viewing” appears in the front panel display,
and this unit automatically optimize own status for
the DVD playback.
y
The indicator on the selected SCENE button lights up while
this unit is in the SCENE mode.
4Start playback of the desired DVD on your
player.
5Rotate 8VOLUME to adjust the volume.
When you change the input source or sound field program, the
SCENE mode is deactivated, and the indicator on the selected
SCENE button turns off.
■Using the other SCENE buttons
In the following cases, try pressing the corresponding
SCENE button to enjoy playback of the desired sources.
Case A: “I want to listen to a music disc from the
connected DVD player as the back ground
music for this room...”
Press FSCENE 2 (or
ESCENE 2) to select
“Disc Listening”.
Case B: “I want to watch a TV program...”
Press FSCENE 3 (or
ESCENE 3) to select
“TV Viewing”.
To use the “TV Viewing” template, you must connect a
cable TV or a satellite tuner to this unit in advance. See
page 16 for details.
Step 3: Turn on the power and
press SCENE 1 button
Check the type of the connected speakers.
If the speakers are 6 ohm speakers, set “SP IMP.” to
“6Ω MIN” before using this unit (see page 13).
Note
Note
Note
![](asset-d.png)
Quick start guide
9 En
English
INTRODUCTION
Case C: “I want to listen to a music program from
the FM radio station...”
Press FSCENE 4 (or
ESCENE 4) to select
“Radio Listening”.
• To use the “Radio Listening” template, you must tune into
the desired radio station in advance. See pages 40 to 42 for
tuning information.
• To achieve the best possible reception, orient the
connected AM loop antenna, or adjust the position of the
end of the indoor FM antenna.
y
If you cannot find the desired situation, you can select and change
the assigned SCENE template for the SCENE buttons. See
page 28 for details.
■After using this unit...
Press 1STANDBY/ON on the front panel to set
this unit to the standby mode.
This unit is set to the standby mode. To turn on this unit
from the standby mode, press 1STANDBY/ON (or
MPOWER). See page 21 for details.
In the standby mode, this unit consumes a small amount of power
in order to receive infrared signals from the remote control.
Notes
Note
What do you want to do with this
unit?
■Customizing the SCENE templates
• Using various SCENE templates
☞ P. 28
• Creating your original SCENE templates
☞ P. 31
■Using various input sources
• Basic controls of this unit
☞ P. 32
• Enjoying FM/AM radio programs
☞ P. 40
• Using your USB portable device with this
unit
☞ P. 43
■Using various sound features
• Using various sound field programs
☞ P. 37
• Using the pure direct mode for the high
fidelity sound
☞ P. 34
• Customizing the sound field programs
☞ P. 39
■Adjusting the parameters of this unit
• Automatically optimizing the speaker
parameters for your listening room
(AUTO SETUP)
☞ P. 24
• Manually adjusting various parameters of
this unit
☞ P. 46
• Setting the remote control
☞ P. 56
• Adjusting the advanced parameters
☞ P. 60
■Additional features
Automatically turning off this unit
☞ P. 36
![](asset-e.png)
Connections
10 En
1COMPONENT VIDEO jacks
See page 18 for connection information.
2HDMI jacks
See page 17 for connection information.
3VIDEO jacks
See pages 16 and 18 for connection information.
4ANTENNA terminals
See page 20 for connection information.
5SPEAKERS terminals
See page 12 for connection information.
6AC OUTLETS
See page 21 for connection information.
7DIGITAL INPUT jacks
See pages 16 and 19 for connection information.
8MULTI CH INPUT jacks
See page 19 for connection information.
9AUDIO jacks
See pages 16 and 19 for connection information.
0SUBWOOFER OUTPUT jack
See page 12 for connection information.
Connections
Rear panel
MULTI CH INPUT
COMPONENT VIDEO
DIGITAL INPUT
VIDEO
ANTENNA
SPEAKERS
L
RLR
SURROUND CENTER FRONT B
AUDIO OUTPUT
L
1
2
3
R
L
R
LR
DVD
DTV/CBL
DVR
CD
SUB
WOOFER
IN
OUT
CENTER
SUBWOOFER
SURROUNDFRONT
DVD
OPTICAL
COAXIAL
CD
DTV/
CBL
DVD
P
R
P
B
Y
DTV/CBL DVR DVD
S VIDEO
VIDEO
DVR
AM
FRONT A
GND
FM
UNBAL.
75
IN OUT
DTV/CBLMONITOR
OUT MONITOR
OUT
HDMI
MD/
CD-R
OUT
(REC)
IN
(PLAY)
DVDOUT DTV/CBL
AC OUTLETS
7 8 9 0
12 3 4 5 6
![](asset-f.png)
11 En
Connections
English
PREPARATION
The speaker layout below shows the speaker setting we recommend. You can use it to enjoy CINEMA DSP and multi-
channel audio sources.
Front left and right speakers (FL and FR)
The front speakers are used for the main source sound plus effect sounds. Place these speakers at an equal distance from the
ideal listening position. The distance of each speaker from each side of the video monitor should be the same.
Center speaker (C)
The center speaker is for the center channel sounds (dialog, vocals, etc.). If for some reason it is not practical to use a
center speaker, you can do without it. Best results, however, are obtained with the full system.
Surround left and right speakers (SL and SR)
The surround speakers are used for effect and surround sounds.
Subwoofer (SW)
The use of a subwoofer with a built-in amplifier, such as the Yamaha Active Servo Processing Subwoofer System, is
effective not only for reinforcing bass frequencies from any or all channels, but also for high fidelity sound reproduction
of the LFE (low-frequency effect) channel included in Dolby Digital and DTS sources. The position of the subwoofer is
not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front
speakers. Turn it slightly toward the center of the room to reduce wall reflections.
Placing speakers
60˚
30˚
FL
FR
C
SL
SR
SR
80˚
SL
FR
FL
CSL
SR
SW
1.8 m (6 ft)
![](asset-10.png)
12 En
Connections
Be sure to connect the left channel (L), right channel (R), “+” (red) and “–” (black) properly. If the connections are faulty,
this unit cannot reproduce the input sources accurately.
A speaker cable is actually a pair of insulated cables running side by side. Cables are colored or shaped differently, perhaps with a stripe,
groove or ridge. Connect the striped (grooved, etc.) cable to the “+” (red) terminals of this unit and your speaker. Connect the plain cable
to the “–” (black) terminals.
Connecting speakers
Caution
• Before connecting the speakers, make sure that this unit is turned off (see page 21).
• Do not let the bare speaker wires touch each other or let them touch any metal part of this unit. This could damage
this unit and/or the speakers.
• Use the magnetically shielded speakers. If this type of speaker still creates interference with the monitor, place the
speakers away from the monitor.
• If you are to use 6 ohm speakers, be sure to set “SP IMP.” to “6Ω MIN” before using this unit (see page 13).
Note
Subwoofer
Center speaker
MULTI CH INPUT
COMPONENT VIDEO
DIGITAL INPUT
VIDEO
ANTENNA
SPEAKERS
L
RLR
SURROUND CENTER FRONT B
AUDIO OUTPUT
L
1
2
3
R
L
R
LR
DTV/CBL
DVR
CD
SUB
WOOFER
IN
OUT
CENTER
SUBWOOFER
SURROUNDFRONT
DVD
OPTICAL
COAXIAL
CD
DTV/
CBL
DVD
P
R
P
B
Y
DTV/CBL DVR DVD
DVD
S VIDEO
VIDEO
DVR
AM
FRONT A
GND
FM
UNBAL.
75
IN OUT
DTV/CBLMONITOR
OUT MONITOR
OUT
MD/
CD-R
OUT
(REC)
IN
(PLAY)
HDMI
DVDOUT DTV/CBL
AC OUTLETS
Subwoofer
Front speakers (A)
LeftRight
Center
speaker
Front speakers (B)
LeftRight
Surround speakers LeftRight
![](asset-11.png)
13 En
Connections
English
PREPARATION
■Before connecting to the SPEAKERS
terminal
A speaker cord is actually a pair of insulated cables
running side by side. Cables are colored or shaped
differently, perhaps with a stripe, groove or ridges.
Connect the striped (grooved, etc.) cable to the “+” (red)
terminals of this unit and your speaker. Connect the plain
cable to the “–” (black) terminals.
Remove approximately 10 mm (3/8”) of insulation
from the end of each speaker cable and then
twist the bare wires of the cable together to
prevent short circuits.
■Connecting to the SPEAKERS terminals
1Loosen the knob.
2Insert the bare end of the speaker wire into
the hole on the terminal.
3Tighten the knob to secure the wire.
Connecting the banana plug
The banana plug is a single-pole electrical connector
widely used to terminate speaker cables. First, tighten the
knob and then insert the banana plug connector into the
end of the corresponding terminal.
1Make sure this unit is turned off.
See page 21 for details about turning on or off this
unit.
2Press and hold 0TONE CONTROL and
then press 1STANDBY/ON to turn on this
unit.
This unit turns on, an the advanced setup menu
appears in the front panel display.
3Press APROGRAM l / h repeatedly to
select “SP IMP.”.
The following display appears in the front panel
display.
4Press BSTRAIGHT repeatedly to select “6Ω
MIN”.
The following display appears in the front panel
display.
5Press 1STANDBY/ON to confirm your
selection and set this unit to the standby
mode.
The setting you made is reflected next time you turn on this unit.
10 mm (3/8”)
12
3
Red: positive (+)
Black: negative (–)
Banana plug
Setting the speaker impedance
Caution
If you are to use 6 ohm speakers, set “SP IMP.” to “6Ω
MIN” as follows BEFORE using this unit.
Note
SP IMP.- 8 MIN
SP IMP.- 6 MIN
![](asset-12.png)
14 En
Connections
■Audio jacks
This unit has three types of audio jacks. Connection
depends on the availability of audio jacks on your other
components.
AUDIO jacks
For conventional analog audio signals transmitted via left
and right analog audio cables. Connect red plugs to the
right jacks and white plugs to the left jacks.
DIGITAL AUDIO COAXIAL jacks
For digital audio signals transmitted via coaxial digital
audio cables.
DIGITAL AUDIO OPTICAL jacks
For digital audio signals transmitted via optical digital
audio cables.
• You can use the digital jacks to input PCM, Dolby Digital and
DTS bitstreams. All digital input jacks are compatible with
digital signals with up to 96 kHz of sampling frequency.
• This unit handles digital and analog signals independently. Thus
audio signals input at the digital jacks are not output at the
analog AUDIO OUT (REC) jacks.
• Pull out the cap from the optical jack before you connect the
optical digital audio cable. Do not discard the cap. When you
are not using the optical jack, be sure to put the cap back in
place. This cap protects the jack from dust.
■Video jacks
This unit has three types of video jacks. Connection
depends on the availability of input jacks on your video
monitor.
VIDEO jacks
For conventional composite video signals transmitted via
composite video cables.
S VIDEO jacks
For S-video signals, separated into the luminance (Y) and
chrominance (C) video signals transmitted on separate
wires of S-video cables.
COMPONENT VIDEO jacks
For component signals, separated into the luminance (Y)
and chrominance (PB, PR) video signals transmitted on
separate wires of component video cables.
The OSD signal is not output at the DVR OUT (REC) jacks.
Information on jacks and cable plugs
VIDEO S VIDEO
COMPONENT VIDEO
Y P
B
P
R
PB
YPR
S
V
COAXIAL
DIGITAL AUDIO
AUDIO
OPTICAL
DIGITAL AUDIO
R
L
CO
R
L
Left and right
analog audio
cable plugs
Optical
digital
audio cable
plug
Coaxial
digital audio
cable plug
Composite
video cable
plug
Component
video cable
plugs
Audio jacks and cable plugs Video jacks and cable plugs
(Red)(White) (Orange) (Yellow) (Green) (Blue) (Red)
S-video
cable plug
Notes
Note
PR
PB
Y
PR
PB
Y
Video signal flow for MONITOR OUT
Output
(MONITOR OUT)
Input
COMPONENT
VIDEO
VIDEO
S VIDEO
![](asset-13.png)
15 En
Connections
English
PREPARATION
You can play back pictures by connecting your video monitor and video source component to this unit using HDMI
connections.
At that time, audio/video signals output from the connected component (such as DVD player etc.) are output to the
connected video monitor only when this unit is turned on and set to the input source (DVD or DTV/CBL).
Furthermore, available audio/video signals depend on the specification of the connected video monitor. Refer to the
instruction manual of each connected component.
■HDMI jack and cable plug
y
• We recommend using an HDMI cable shorter than 5 meters
(16 feet) with the HDMI logo printed on it.
• Use a conversion cable (HDMI jack ↔ DVI-D jack) to connect
this unit to other DVI components.
Information on HDMI™
Audio signals input at the HDMI jack are not output from any speaker terminals but output from the connected video
monitor.
To enjoy the sound from speakers connected to this unit,
–make an analog or digital connection besides the HDMI connection (see page 16).
–mute the volume of the connected video monitor.
HDMI cable plug
HDMI
![](asset-14.png)
16 En
Connections
Connect the video components as follows.
y
You can also connect a video monitor, DVD player, digital TV,
and cable TV to this unit using the S VIDEO or COMPONENT
VIDEO connections (see page 17).
■Connecting a video monitor and a DVD
player
■Connecting a cable TV/satellite tuner
and a DVD recorder
Connecting video components
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
MULTI CH INPUT
COMPONENT VIDEO
DIGITAL INPUT
VIDEO
AUDIO
L
1
2
3
R
L
R
DTV/CBL
DVR
CD
IN
OUT
CENTER
SUBWOOFER
SURROUNDFRONT
DVD
OPTICAL
COAXIAL
CD
DTV/
CBL
DVD
P
R
P
B
Y
DTV/CBL DVR DVD
DVD
S VIDEO
VIDEO
DVR
IN OUT
DTV/CBLMONITOR
OUT MONITOR
OUT
HDMI
DVDOUT DTV/CBL
C
LRVV
DVD player
Video monitor
Video in
Video out
Audio out
Audio out
indicates recommended connections
indicates alternative connections
MULTI CH INPUT
COMPONENT VIDEO
DIGITAL INPUT
VIDEO
AUDIO
L
1
3
R
L
R
DTV/CBL
DVR
CD
IN
OUT
CENTER
SUBWOOFER
SURROUNDFRONT
DVD
OPTICAL
COAXIAL
CD
DTV/
CBL
DVD
P
R
P
B
Y
DTV/CBL DVR DVD
DVD
S VIDEO
VIDEO
DVR
IN OUT
DTV/CBLMONITOR
OUT MONITOR
OUT
2
HDMI
DVDOUT DTV/CBL
LRLR
LRVVV
O
Cable TV or
Satellite tuner DVD recorder
Audio out
Video out
Audio out
Audio in
Audio out
Video in
Video out
indicates recommended connections
indicates alternative connections
![](asset-15.png)
17 En
Connections
English
PREPARATION
■Connecting to the HDMI, COMPONENT VIDEO or S VIDEO jacks
You can enjoy high-quality pictures by connecting your video monitor and video source components to this unit using
HDMI, COMPONENT VIDEO or S VIDEO connections.
Be sure to connect your video components in the same way you connect your video monitor to this unit. For example, if you connect
your video monitor to this unit using a HDMI connection, connect your video components to this unit using the HDMI connection.
HDMI connection
• When you connect your TV monitor or projector via HDMI
connection, the OSD does not appear. In such cases, connect the
TV monitor or projector via component, S-video or video
connection.
• Connect the input source components to the HDMI DVD or
HDMI DTV/CBL jack to display the video images on the video
monitor connected to the HDMI OUT jack.
• Audio/video signals output from the connected component
(such as DVD player etc.) are output to the connected video
monitor only when this unit is turned on and set to the input
source (DVD or DTV/CBL).
• Available audio/video signals depend on the specification of the
connected video monitor. Refer to the instruction manual of
each connected component.
Note
Audio signals input at the HDMI jack are not output
from any speaker terminals but output from the
connected video monitor.
To enjoy the sound from speakers connected to this
unit,
–make an analog or digital connection besides the
HDMI connection (see page 16).
–mute the volume of the connected video monitor.
Notes
C
H INPUT
E
NT VIDEO VIDEO
ANTENNA
AUDIO
L
R
DTV/CBL
DVR
CD
IN
OUT
CENTER
SUBWOOFER
SURROUND
DVR DVD
DVD
S VIDEO
VIDEO
DVR
AM
GND
FM
UNBAL.
75
IN OUT
DTV/CBLMONITOR
OUT MONITOR
OUT
MD/
CD-R
(
IN
(PLAY)
HDMI
DVDOUT DTV/CBL
Video monitor
Cable TV or
satellite tuner
DVD player
![](asset-16.png)
18 En
Connections
COMPONENT VIDEO connection S VIDEO connection
MULTI CH INPUT
COMPONENT VIDEO
L
R
CENTER
SUBWOOFER
SURROUNDFRONT
DVD
P
R
P
B
Y
DTV/CBL DVR MONITOR
OUT
P
R
P
B
Y
P
R
P
B
Y
P
R
P
B
Y
P
R
P
B
Y
DVD player
Video monitor
Video out
Video out
Video out
Video in
Cable TV or
satellite tuner
DVD recorder
VIDEO
AUDIO
L
R
DTV/CBL
DVR
CD
IN
OUT
DVD
DVD
S VIDEO
VIDEO
DVR
IN OUT
DTV/CBL MONITOR
OUT
HDMI
DVDOUT DTV/CBL
S S
S
S S
DVD player
Video monitor
Video out
Video out
Video out
Video in
Cable TV or
satellite tuner
DVD recorder
Video in
![](asset-17.png)
19 En
Connections
English
PREPARATION
Connect the audio components as follows.
■Connecting a CD player and a CD
recorder/MD recorder
When you connect your CD player via analog and digital
connection, priority is given to the signal input at the DIGITAL
INPUT jack.
■Connecting to the MULTI CH INPUT jacks
This unit is equipped with 6 additional input jacks (FRONT L/R, SURROUND L/R, CENTER and SUBWOOFER) for
discrete multi-channel input from a multi-format player, external decoder or sound processor. Connect the output jacks
on your multi-format player or external decoder to the MULTI CH INPUT jacks. Be sure to match the left and right
output jacks to the left and right input jacks for the front and surround channels.
• When you select the component connected to the MULTI CH
INPUT jacks as the input source (see page 33), this unit
automatically turns off the digital sound field processor, and
you cannot select sound field programs.
• This unit does not redirect signals input at the MULTI CH
INPUT jacks to accommodate for missing speakers. We
recommend that you connect a 5.1-channel speaker system
before using this feature.
Connecting audio components
Note
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
MULTI CH INPUT
DIGITAL INPUT
R
SURROU
N
AUDIO OUTPU
T
L
1
3
R
L
R
DTV/CBL
DVR
CD
SUB
WOOFER
IN
OUT
CENTER
SUBWOOFER
SURROUNDFRONT
OPTICAL
COAXIAL
CD
DTV/
CBL
DVD
P
B
Y
DVD
VIDEO
FM
UNBAL.
75
MD/
CD-R
OUT
(REC)
IN
(PLAY)
2
LRLR
LR
O
CD player CD recorder or
MD recorder
Audio outAudio out Audio inAudio out
indicates recommended connections
indicates alternative connections
MULTI CH INPUT
L
1
R
SUBWOOFER
COAXIAL
DTV/
CBL
DVD
2
CENTERSURROUNDFRONT
LRLR
Multi-format player or
external decoder
Surround out
Center out
Subwoofer out
Front out
Notes
![](asset-18.png)
20 En
Connections

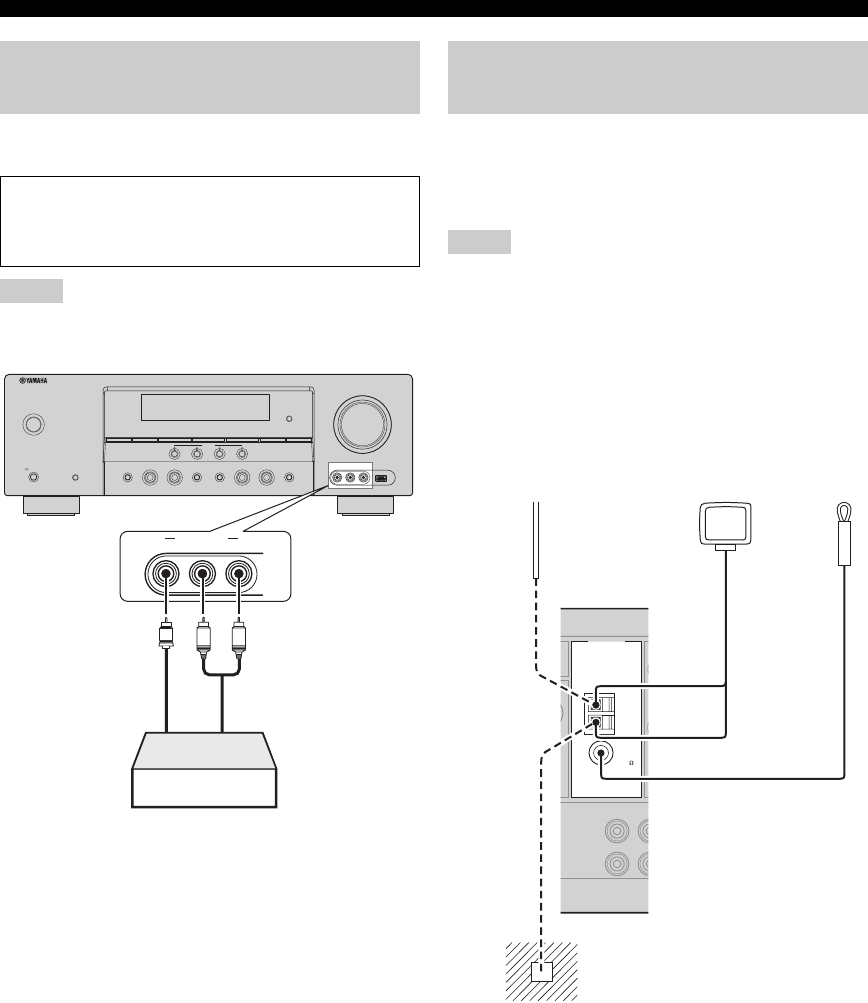

Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit.
To reproduce the source signals input at these jacks, select
“V-AUX” as the input source.
Both FM and AM indoor antennas are supplied with this
unit. In general, these antennas should provide sufficient
signal strength. Connect each antenna correctly to the
designated terminals.
• The AM loop antenna should be placed away from this unit.
• A properly installed outdoor antenna provides clearer reception
than an indoor one. If you experience poor reception quality,
install an outdoor antenna. Consult the nearest authorized
Yamaha dealer or service center about outdoor antennas.
• The AM loop antenna should always be connected, even if an
outdoor AM antenna is connected to this unit.
Using the VIDEO AUX jacks on the
front panel
Caution
Be sure to turn down the volume of this unit and other
components before making connections.
Notes
SPEAKERS
PHONES
SILENT CINEMA
STANDBY
/ON
A/B/OFF
l
PRESET/TUNING
h
A/B/C/D/E
FM/AM
EDIT
PRESET/TUNING
MEMORY
TUNING AUTO/MAN'L
OPTIMIZER MIC
AUDIO SELECT
DIRECT STEREOSTRAIGHT
EFFECT
TONE CONTROL
l INPUT hl PROGRAM h
VOLUME
SCENE
1234
VIDEO L AUDIO R
VIDEO AUX USB
VIDEO L AUDIO R
VIDEO AUX
V
L
R
Game console or
video camera
Video
output
Audio
output
Connecting the FM and AM
antennas
Notes
ANTENNA
AM
GND
FM
UNBAL.
75
R
MD/
CD-R
O
(
R
IN
(PLAY)
AM loop
antenna
(supplied)
Ground
For maximum safety and minimum
interference, connect the antenna GND
terminal to a good earth ground. A good
earth ground is a metal stake driven into
moist earth.
Indoor FM
antenna
(supplied)
Outdoor AM antenna
Use a 5 to 10 m (16 to 32 ft) of
vinyl-covered wire extended
outdoors from a window.
![](asset-19.png)
21 En
Connections
English
PREPARATION
Once all connections are complete, plug the power cable
into the AC wall outlet.
■AC OUTLETS (SWITCHED)
Use these outlets to supply power to any connected
components. Connect the power cable of your other
components to these outlets. Power to these outlets is
supplied when this unit is turned on. However, power to
these outlets is cut off when this unit is set to the standby
mode. For information on the maximum power or the total
power consumption of the components that can be
connected to these outlets, see “Specifications” on
page 70.
■Turning on this unit
Press 1STANDBY/ON (or MPOWER) to turn
on this unit.
y
When you turn on this unit, there will be a 4 to 5-second delay
before this unit can reproduce sound.
■Set this unit to the standby mode
Press 1STANDBY/ON (or NSTANDBY) to set
this unit to the standby mode.
In the standby mode, this unit consumes a small amount of
power in order to receive infrared signals from the remote
control.
Connecting the power cable
AC OUTLETS
Power cable
Turning on and off the power
![](asset-1a.png)
22 En
Connections
1Decoder indicator
The respective indicator lights up when any of the
decoders of this unit functions.
2ENHANCER indicator
Lights up when the Compressed Music Enhancer mode is
selected (see page 37).
3VIRTUAL indicator
Lights up when Virtual CINEMA DSP is active (see
page 38).
4SILENT CINEMA indicator
Lights up when headphones are connected and a sound
field program is selected (see page 38).
5Input source indicators
The corresponding cursor lights up to show the currently
selected input source.
6YPAO indicator
Lights up when you run “AUTO SETUP” and when the
speaker settings set in “AUTO SETUP” are used without
any modifications (see page 24).
7Tuner indicators
Lights up when this unit is in the FM or AM tuning mode
(see pages 40).
8MUTE indicator
Flashes while the MUTE function is on (see page 36).
9VOLUME level indicator
Indicates the current volume level.
0PCM indicator
Lights up when this unit is reproducing PCM (Pulse Code
Modulation) digital audio signals.
AHeadphones indicator
Lights up when headphones are connected (see page 36).
BSP A B indicators
Light up according to the set of front speakers selected
(see page 33).
CNIGHT indicator
Lights up when you select a night listening mode (see
page 35).
DCINEMA DSP indicator
Lights up when you select a CINEMA DSP sound
field program (see page 37).
HiFi DSP indicator
Lights up when you select a HiFi DSP sound field
program (see page 37).
EMulti-information display
Shows the name of the current sound field program and
other information when adjusting or changing settings.
FSLEEP indicator
Lights up while the sleep timer is on (see page 36).
GInput channel and speaker indicators
LFE indicator
Lights up when the input signal contains the LFE
signal.
Input channel indicators
Indicate the channel components of the current digital
input signal.
Front panel display
DVR DVD CD
V-AUX DTV/CBL
MD/CD-R
TUNER
USB
q PL
q PL
ENHANCER
SILENT CINEMA
NIGHT
AUTO
YPAO
PRESET
TUNED
MUTE
VOLUME
MEMORY
SLEEP
VIRTUAL
PCM
A B
SP
mS
ft
dB
HiFi DSP
LFE
LCR
SL SR
q
DIGITAL
t
dB
STEREO
A0 C FE G
D
54 6 7 91 2 3 8
B
Input channel indicators
LFE
LCR
SL SR
LFE indicator
![](asset-1b.png)
23 En
Connections
English
PREPARATION
■Using the remote control
The remote control transmits a directional infrared ray.
Be sure to aim the remote control directly at the remote
control sensor on this unit during operation.
YInfrared window
Outputs infrared control signals. Aim this window at the
component you want to operate.
y
To set the remote control codes for other components, see
page 59.
• Do not spill water or other liquids on the remote control.
• Do not drop the remote control.
• Do not leave or store the remote control in the following types
of conditions:
– places of high humidity, such as near a bath
– places of high temperature, such as near a heater or stove
– places of extremely low temperatures
– dusty places
Notes
SPEAKERS
PHONES
SILENT CINEMA
STANDBY
/ON
A/B/OFF
l
PRESET/TUNING
h
A/B/C/D/E
FM/AM
EDIT
PRESET/TUNING
MEMORY
TUNING AUTO/MAN'L
AUDIO SELECT
NIGHTSTRAIGHT
EFFECT
TONE CONTROL
l INPUT hl PROGRAM h
VOLUME
SCENE
1234
VIDEO L AUDIO R
VIDEO AUX USB
30º 30º
OPTIMIZER MIC
Approximately 6 m (20 ft)
![](asset-1c.png)
Optimizing the speaker setting for your listening room
24 En
This unit employs the YPAO (Yamaha Parametric Room Acoustic Optimizer) technology which lets you avoid
troublesome listening-based speaker setup and achieves highly accurate sound adjustments automatically. The supplied
optimizer microphone collects and this unit analyzes the sound your speakers produce in your actual listening
environment.
• Be advised that it is normal for loud test tones to be output
during the “AUTO SETUP” procedure.
• To achieve the best results, make sure the room is as quiet as
possible while the “AUTO SETUP” procedure is in progress. If
there is too much ambient noise, the results may not be
satisfactory.
y
You can run “AUTO SETUP” using the system menu that appears
in the OSD or in the front panel display. This manual uses the
OSD illustrations to explain the “AUTO SETUP” procedure.
1Make sure of the following check points
before starting the AUTO SETUP operations.
❏Speakers are connected appropriately.
❏Headphones are disconnected from this unit.
❏This unit and the video monitor are turned on.
❏The connected subwoofer is turned on and the
volume level is set to about half way (or slightly
less).
❏The crossover frequency controls of the
connected subwoofer is set to the maximum.
❏FRONT A speakers are selected as the front
speaker system (see page 33).
❏The room is sufficiently quiet.
2Connect the supplied optimizer microphone
to the OPTIMIZER MIC jack on the front
panel.
The following display appears in the OSD.
3Place the optimizer microphone at your
normal listening position on a flat level
surface with the microphone heading
upward.
y
It is recommended that you use a tripod (etc.) to affix the
optimizer microphone at the same height as your ears would be
when you are seated in your listening position. You can use the
attached screw of a tripod (etc.) to fix the optimizer microphone
to the tripod (etc.).
Optimizing the speaker setting for your listening room
Using AUTO SETUP
Notes
Y
TUNING AUTO/MAN'L
OPTIMIZER MIC
AUDIO SELECT
VIDEO L AUDIO R
VIDEO AUX USB
Optimizer
microphone
AUTO:MENU
SETUP;;;;;;;AUTO
.START
Automatic
processing
of all item
[ ]/[ ]:Up/Down
[ENTER]:Start
p
p
Optimizer microphone
![](asset-1d.png)
25 En
Optimizing the speaker setting for your listening room
English
PREPARATION
4Make sure that “SETUP” is set to “AUTO”
and the pointer is pointing at “START”.
y
You can also select the following setup methods. In this
case, press Gk to select “SETUP”, press Gl / h to
select the one of the following choises and then select
“START”.
Choices: AUTO, RELOAD, UNDO, DEFAULT
• Select “AUTO” to automatically run the entire
“AUTO SETUP” procedure.
• Select “RELOAD” to reload the last “AUTO
SETUP” settings and override the previous
settings.
• Select “UNDO” to undo the last “AUTO SETUP”
settings and restore the previous settings.
• Select “DEFAULT” to reset the “AUTO SETUP”
parameters to the initial factory settings.
“RELOAD” or “UNDO” is available only when you have
previously run “AUTO SETUP” and confirmed the results.
5Press DAMP and then press GENTER to
start the setup procedure.
This unit starts the auto setup procedure. Loud test
tones are output from each speaker during the auto
setup procedure. Once all items are set, the
“AUTO:RESULT” display appears in the OSD.
• During the auto setup procedure, do not perform any
operation on this unit.
• We recommend getting out of the room while this unit is in
the auto setup procedure. It takes approximately 3 minutes
for this unit to complete the auto setup procedure.
This unit performs the following checks:
Speaker wiring/volume level WIRING/LEVEL
Checks which speakers are connected and the
polarity of each speaker. Also checks and adjusts the
volume level of each speaker.
Speaker distance DISTANCE
Checks the distance of each speaker from the
listening position and adjusts the timing of each
channel.
Speaker size SIZE
Checks the frequency response of each speaker and
sets the appropriate low-frequency crossover for each
channel.
The display changes as follows.
The results displayed under “RESULT” are as follows.
Number of speakers SP
Displays the number of speakers connected to this unit in
the following order:
Front/Back/Subwoofer
Speaker distance DIST
Displays the speaker distance from the listening position
in the following order:
Closest speaker distance/Farthest speaker distance
Speaker level LVL
Displays the speaker output level in the following order:
Lowest speaker output level/Highest speaker output level
• If “E-6:INTERNAL ERROR” appears during the testing
procedure, restart from step 4.
• If you selected “RELOAD” in step 4, no test tones are output.
• If an error occurs during the “AUTO:CHECK” procedure, the
setup procedure is canceled and an error screen appears. For
details, see “If an error screen appears” on page 27.
• When this unit detects potential problems during the “AUTO
SETUP” procedure, “WARNING” and the number of warning
messages appears in the above of “RESULT” (see page 27).
Note
Notes
Notes
AUTO:MENU
SETUP;;;;;;;AUTO
.START
Automatic
processing
of all item
[ ]/[ ]:Up/Down
[ENTER]:Start
p
p
AUTO:RESULT
NO WARNING
RESULT
SP : 3/2/0.1
DIST: 3.2/3.5m
LVL : -2/+2dB
.SET CANCEL
[ ]/[ ]:Up/Down
[ENTER]:Enter
>
INITIALIZING
.WIRING/LEVEL
DISTANCE
SIZE
WAITING;;;
;;;;;;;;;;
[]:Exit
[
AUTO:CHECK
![](asset-1e.png)
26 En
Optimizing the speaker setting for your listening room
6Press GENTER to display the setup results
in detail.
7Press Gl / h repeatedly to toggle between
the setup result displays.
y
If you are not satisfied with the results or want to manually
adjust each parameter, run “MANUAL SETUP” (see
page 46).
The distances displayed in the “DISTANCE” results may be
longer than the actual distance depending on the
characteristics of your speakers.
8Press GENTER to return to the
“AUTO:RESULT” display.
9Make sure the pointer is pointing at “SET”
and “CANCEL” and then press Gl / h to
select “SET” or “CANCEL”.
Choices: SET, CANCEL
• Select “SET” to confirm the “AUTO SETUP”
results.
• Select “CANCEL” to cancel the “AUTO SETUP”
results.
10 Press GENTER to confirm your selection.
The top “SET MENU” display appears in the OSD.
11 Press QMENU to exit from “SET MENU”.
12 Disconnect the optimizer microphone from
this unit.
The optimizer microphone is sensitive to heat. Keep it
away from direct sunlight and do not place it on top
of this unit.
y
If you change speakers, speaker positions, or the layout of
your listening environment, run “AUTO SETUP” again to
recalibrate your system.
Note
Results of the speaker
connection and wiring
Results of the speaker
distance from the
listening position
Results of the speaker
size
Results of the speaker
output level
AUTO:RESULT
NO WARNING
RESULT
SP : 3/2/0.1
DIST: 3.2/3.5m
LVL : -2/+2dB
.SET CANCEL
[ ]/[ ]:Up/Down
[ENTER]:Enter
>
SET MENU
TOP MENU
.;AUTO SETUP
;MANUAL SETUP
.A;SIGNAL INFO
[ ]/[ ]:Up/Down
[ENTER]:Enter
p
p
![](asset-1f.png)
27 En
Optimizing the speaker setting for your listening room
English
PREPARATION
■If an error screen appears
Press Gk / n / l / h to select “RETRY” or
“EXIT” and then press GENTER.
The following display is an example where “E-5:USER
CANCEL” appears in the OSD.
Choices: RETRY, EXIT
• Select “RETRY” to retry the “AUTO SETUP”
procedure.
• Select “EXIT” to exit from the “AUTO SETUP”
procedure.
■If “WARNING” appears
When this unit detects potential problems during the
“AUTO SETUP” procedure, “WARNING” appears in the
“RESULT:EXIT” display. Check the warning messages to
correct your speaker settings.
Warnings differ from errors in that warnings do not cancel the
“AUTO SETUP” procedure.
1Make sure the pointer is pointing at
“WARNING” and then press GENTER to
display the detailed information about the
warning.
The number on the right of “WARNING” indicates
the number of warning messages.
2Press Gl / h repeatedly to toggle between
the warning displays.
y
• For details about each warning message, see the “AUTO
SETUP” section in “Troubleshooting” on page 65.
• When the corresponding warning message is not
applicable to a speaker, “– –” is displayed instead.
3Press GENTER to return to the top
“RESULT:EXIT” display.
AUTO:ERROR
.E-5:USER CANCEL
Don't operate
any function
RETRY EXIT
[ ]/[ ]:Select
[ENTER]:Return
>
Note
AUTO:RESULT
.WARNING(1)
RESULT
SP : 3/2/0.1
DIST: 3.2/3.5m
LVL : -2/+2dB
SET CANCEL
[ ]/[ ]:Up/Down
[ENTER]:Enter
>
WARNING:W-1
<OUT OF PHASE>
Reverse Channel
-- FR
CENTER
-- --
[p]/[[]:Select
[ENTER]:Return
![](asset-20.png)
SELECTING THE SCENE TEMPLATES
28 En
This unit is equipped with 15 preset SCENE templates for
various situations of using this unit. As the initial factory
setting, the following SCENE templates are assigned to
each SCENE button:
SCENE 1: DVD Viewing
SCENE 2: Disc Listening
SCENE 3: TV Viewing
SCENE 4: Radio Listening
If you want to use other SCENE templates, you can select
the desired SCENE templates from the SCENE template
library and assign the templates to the selected SCENE
buttons on the front panel and the remote control.
1Press and hold the desired FSCENE (or
ESCENE) button for 3 seconds.
The indicator on the selected SCENE button on the
front panel starts to flash, and the name of the
currently assigned SCENE template appears in the
front panel display.
2Press DINPUT l / h (or press DAMP and
then press Gl / h) to select the desired
template.
3Press the FSCENE (or ESCENE) button
again to confirm the selection.
The selected SCENE template is assigned to the
button.
• If you do not carry out any operation within 30 seconds from
the last operation in these steps, this procedure is automatically
canceled.
• Once the desired SCENE templates are assigned to the
corresponding SCENE buttons, you may need to set the input
source of the SCENE template on the remote control. See
page 56 for details.
Selecting the SCENE templates
Selecting the desired SCENE
template
1
SCENE template library
(Image)
Select the desired SCENE
template
Assign the
SCENE
template to the
SCENE button
1
1
1
or
Remote control
Flashes
3 seconds 3 seconds
Front panel
DVD Viewing
Notes
l INPUT h
AMP
ENTER
or
Front panel
Remote control
DVD MovieView
1
1
or
Remote controlFront panel
![](asset-21.png)
29 En
Selecting the SCENE templates
English
BASIC
OPERATION
■Which SCENE template would you like to select?
y
You can create your original SCENE templates by editing the preset SCENE templates. See page 31 for details.
2
1
3
4
Radio Listening
CD HiFi Listening
CD Listening
CD Music Listening
USB Audio Listening
DVD Live Viewing
DVD Movie Viewing
DVD Viewing
Disc HiFi Listening
Music Disc Listening
Disc Listening
DVR Viewing
TV Viewing
TV Sports Viewing
Game Playing
DVD
V-AUX
DTV/CBL
TUNER (FM/AM)
USB
CD
DVD
DVR
Video sources
(DVD video,
Recorded video)
TV programs
Video games
USB memory device
or USB portable
audio player
Radio programs
Music discs (CD,
SACD or DVD-Audio)
SCENE template
Which source do you like to
play back? Which component do you
like for playback? Default SCENE
buttons
![](asset-22.png)
30 En
Selecting the SCENE templates
■Preset SCENE templates descriptions
\
SCENE template
Features
Input source Playback mode
DVD Viewing
(SCENE 1 as the default setting)
Select this SCENE template when you play back general contents
on your DVD player.
DVD STRAIGHT
DVD Movie Viewing
Select this SCENE template when you play back movies on your
DVD player.
DVD Movie Dramatic
DVD Live Viewing
Select this SCENE template when you enjoy music live video on
your DVD player.
DVD Pop/Rock
DVR Viewing
Select this SCENE template when you play back movies on your
digital video recorder.
DVR Movie Dramatic
Disc HiFi Listening
Select this SCENE template when you enjoy the high fidelity
sound of the music discs on your DVD player.
DVD DIRECT STEREO
Music Disc Listening
Select this SCENE template when you play back music discs on
your DVD player.
DVD 2ch Stereo
Disc Listening
(SCENE 2 as the default setting)
Select this SCENE template when you play back music sources on
your DVD player as the background music.
DVD 5ch Stereo
CD HiFi Listening
Select this SCENE template when you enjoy the high fidelity
sound of the music discs on your CD player.
CD DIRECT STEREO
CD Listening
Select this SCENE template when you play back music discs on
your CD player.
CD 2ch Stereo
CD Music Listening
Select this SCENE template when you play back the music source
on your CD player as the background music.
CD 5ch Stereo
Radio Listening
(SCENE 4 as the default setting)
Select this SCENE template when you enjoy FM or AM radio
programs.
TUNER MUSIC ENHANCER
5ch STEREO
USB Audio Listening
Select this SCENE template when you play back music on your
USB memory device or a USB portable audio player.
USB MUSIC ENHANCER
5ch STEREO
TV Viewing (SCENE 3 as the default setting)
Select this SCENE template when you enjoy TV programs.
DTV/CBL STRAIGHT
TV Sports Viewing
Select this SCENE template when you enjoy sports programs on
TV.
DTV/CBL TV Sports
Game Playing
Select this SCENE template when you play video games.
V-AUX Game
![](asset-23.png)
31 En
Selecting the SCENE templates
English
BASIC
OPERATION
You can create your original SCENE templates for each
SCENE button. You can refer to the preset 15 SCENE
templates to create the original SCENE templates.
■Customizing the preset SCENE
templates
Use this feature to customize the preset SCENE templates.
1Turn on the video monitor connected to this
unit.
2Press and hold the desired ESCENE button
for 3 seconds and then press DAMP.
The SCENE template customizing screen appears on
the video monitor.
When the SCENE template you want to customize is not
assigned to any of the ESCENE button, press Gl / h
repeatedly to recall the desired SCENE template on the
menu screen.
3Press Gk / n to select the desired parameter
of the SCENE template and then Gl / h to
select the desired value of the selected
parameter.
You can adjust the following parameters for a SCENE
template:
•INPUT: The input source component
•MODE: The active sound field programs,
STRAIGHT or DIRECT STEREO
mode (see pages 34 and 38)
•NIGHT: The night listening mode setting (see
page 35)
−SYSTEM: Keeps the current night listening
mode.
−CINEMA: Sets the night listening mode to the
CINEMA mode.
−MUSIC: Sets the night listening mode to the
MUSIC mode.
4Press the ESCENE button again to confirm
the edit.
y
An asterisk mark (*) appears by the name of the original SCENE
template.
• Once the desired SCENE templates are assigned to the
corresponding ESCENE buttons, you may need to set the
input source of the SCENE template on the remote control. See
page 56 for details.
• You can create a customized SCENE template for each
ESCENE button, and if you create another customized
SCENE template, this unit overwrites the old customized
SCENE template with the new one.
• The newly created template is only available for the assigned
ESCENE button.
■Renaming the SCENE templates
Select “SCENE” in step 3 of “Customizing the
preset SCENE templates” and then press
GENTER.
• Press Gk / n to select the desired character.
•Press
Gl / h to place “_” (underscore) under the
space or the desired character.
• Press HRETURN to cancel the new name.
• Press GENTER to confirm the new name.
Creating your original SCENE
templates
Note
1
SCENE template library
(Image)
Select a SCENE template
Assign to the SCENE
button
Create the original SCENE
template
AMP
1
3 seconds
Notes
1
![](asset-24.png)
PLAYBACK
32 En
1Turn on the video monitor connected to this
unit.
2Press DINPUT l / h repeatedly (or press
one of the input selector buttons (C)) to
select the desired input source.
The name of the currently selected input source
appears in the front panel display for a few seconds.
3Start playback on the selected component or
select a broadcast station.
• Refer to the operating instructions for the source
component.
• See page 40 for details about FM/AM tuning
instructions.
4
Rotate
8VOLUME
(or press
RVOLUME +/–
)
to adjust the volume to the desired output
level.
5Press APROGRAM l / h (or press DAMP
and then JPROG l / h) repeatedly to
select the desired sound field program.
The name of the selected sound field program appears
in the front panel display.
See page 37 for details about sound field programs.
• Choose a sound field program based on your listening
preference, not merely on the name of the program.
• When you select an input source, this unit automatically
selects the last sound field program used with the
corresponding input source.
• Sound field programs cannot be selected when the
component connected to the MULTI CH INPUT jacks is
selected as the input source (see page 33).
• When PCM signals with a sampling frequency higher than
48 kHz are input, this unit is automatically set to the
“STRAIGHT” mode (see page 38).
• To display information about the currently selected input
source in the OSD, see page 35 for details.
■A quick guide to contents
Playback
Caution
Extreme caution should be exercised when you play
back CDs encoded in DTS. If you play back a CD
encoded in DTS on a DTS-incompatible CD player,
you will only hear some unwanted noise that may
damage your speakers. Check whether your CD player
supports CDs encoded in DTS. Also, check the sound
output level of your CD player before you play back a
CD encoded in DTS.
Basic operations
INPUT:DVD
DVR DVD CD
V-AUX DTV/CBL
MD/CD-R
TUNER
USB
Currently selected input source
Available input source
Notes
When you want to... See
page
Enjoy pure hi-fi stereo sound 34
Adjust the tonal quality of the front speakers 34
Adjust the parameters of sound field programs 39
Enjoy the sources with a wide dynamic range at night 35
Use headphones 36
Select a decoder to play back sources with 38
Automatically set this unit to the standby mode 36
Movie Dramatic
Currently selected
surround field program
![](asset-25.png)
33 En
Playback
English
BASIC
OPERATION
■Selecting the component connected to
the MULTI CH INPUT jacks as the input
source
Press DINPUT l / h repeatedly (or press
AMULTI CH IN) so that “MULTI CH” appears in
the front panel display.
y
Use “MULTI CH SET” menu in “INPUT MENU” to set the
parameter for MULTI CH INPUT (see page 54).
• Sound field programs cannot be selected when the component
connected to the MULTI CH INPUT jacks is selected as the
input source.
• When headphones are used, signals are output only from the
front left and right channels.
■Selecting the front speaker set
Use this feature to select the front speaker system
(FRONT A or FRONT B).
Press 9SPEAKERS on the front panel
repeatedly to turn on or off the set of front
speakers connected to the FRONT A or FRONT B
speaker terminals.
The activate front speaker set changes as follows:
Turn off the volume level of this unit when you switch the front
speaker setting.
■Using the Zone B feature
When you set “FRONT B” to “ZONE B” (see page 48),
you can use the speakers connected to the FRONT B
speaker terminals in another room (Zone B).
Press 9SPEAKERS on the front panel
repeatedly to turn on or off the Zone B speakers.
When you activate the Zone B speakers, all the speakers in
the main room are muted.
• You cannot activate both the main room and Zone B speakers
simultaneously.
• If you select CINEMA DSP sound field program and activate
the Zone B speakers, Virtual CINEMA DSP activates
automatically (see page 38).
■Selecting audio input jacks
(AUDIO SELECT)
This unit comes with a variety of input jacks. Use this
feature (audio input jack select) to switch between input
jacks when more than one input jack is assigned to the
same input source.
y
• We recommend setting audio input jack select to “AUTO” in
most cases.
• You can adjust the default audio input jack select of this unit by
using “AUDIO SELECT” in “OPTION MENU” (see page 55).
Press EAUDIO SELECT (or BAUDIO SEL)
repeatedly to select the desired audio input jack
select setting.
AUTO Automatically selects input signals in the
following order:
(1) Digital signals
(2) Analog signals
ANALOG Selects only analog signals. If no analog
signals are input, no sound is output.
This feature is not available when no digital input jacks are
assigned to the currently selected input source.
Additional operations
Notes
Note
FRONT A FRONT B
Off
Notes
Note
A.SEL:AUTO
DVR DVD CD
V-AUX DTV/CBL
MD/CD-R
TUNER
USB
Audio input jack
select setting
![](asset-26.png)
34 En
Playback
■Enjoying pure hi-fi stereo sound
The DIRECT STEREO mode allows sources to bypass the
decoders and DSP processors of this unit so that you can
enjoy pure hi-fi sound from 2-channel PCM and analog
sources.
Press CDIRECT STEREO (or press DAMP and
then press VDIRECT ST.) to select “DIRECT
STEREO”.
• To avoid unexpected noise, do not play CDs encoded in DTS
when the DIRECT STEREO mode is selected.
• When multi-channel signals (Dolby Digital and DTS) are input,
this unit automatically switches to the corresponding analog
input.
• No sound will be output from the subwoofer.
• “TONE CONTROL” (on this page) and “SOUND MENU” (see
page 48) settings (except for speaker level settings) are not
effective.
• The front panel display automatically dims.
■Adjusting the tonal quality
Press 0TONE CONTROL repeatedly to select
“BASS” or “TREBLE” and then press
APROGRAM l / h (or JPROGl / h) to
adjust the corresponding frequency response
level.
• Select “BASS” to adjust the low-frequency response.
• Select “TREBLE” to adjust the high-frequency
response.
• Speaker and headphone adjustments are stored independently.
• If you increase or decrease the high-frequency or low-frequency
sound to an extreme level, the tonal quality of the surround
speakers may not match that of the front left and right speakers.
■Adjusting speaker levels during
playback
You can adjust the output level of each speaker while
listening to a music source.
This operation will override the level adjustments made in
“AUTO SETUP” (see page 24) and “SP LEVEL” (see page 50).
1Press DAMP and then press FLEVEL
repeatedly to select the speaker you want to
adjust.
y
Once you press FLEVEL on the remote control, you can
also select the speaker by pressing Gk / n.
2Press Gl / h on the remote control to
adjust the speaker output level.
The control range is from +10 dB to –10 dB.
y
You can press 4A/B/C/D/E to select a speaker and then
5PRESET/TUNING l / h to adjust the speaker output
level.
Notes
Notes
Note
Display Adjusted speaker
FRONT L Front left speaker
FRONT R Front right speaker
CENTER Center speaker
SWFR Subwoofer
SUR.L Surround left speaker
SUR.R Surround right speaker
![](asset-27.png)
35 En
Playback
English
BASIC
OPERATION
■Selecting the night listening mode
The night listening modes are designed to improve
listenability at lower volumes or at night.
1Press DAMP and then press LNIGHT
repeatedly to select “NIGHT:CINEMA” or
“NIGHT:MUSIC”.
Choices: NIGHT:CINEMA, NIGHT:MUSIC, OFF
• Select “NIGHT:CINEMA” to reduce the dynamic
range of film soundtracks and make dialog easier to
hear at lower volumes.
• Select “NIGHT:MUSIC” to preserve ease-of-
listening for all sounds.
• Select “OFF” if you do not want to use this feature.
y
When a night listening mode is selected, the NIGHT
indicator lights up in the front panel display.
2Press Gl / h to adjust the effect level while
“NIGHT:CINEMA” or “NIGHT:MUSIC” is
displayed in the front panel display.
Choices: MIN, MID, MAX
• Select “MIN” for minimum compression.
• Select “MID” for standard compression.
• Select “MAX” for maximum compression.
y
“NIGHT:CINEMA” and “NIGHT:MUSIC” adjustments are
stored independently.
• You cannot use the night listening modes in the following cases:
– when the DIRECT STEREO mode (see page 34) is selected.
– when the component connected to the MULTI CH INPUT
jacks is selected as the input source.
– when headphones are connected to the PHONES jack.
– when the sound field program is selected while you enjoy
music contents in a USB memory device etc.
• The night listening modes may vary in effectiveness depending
on the input source and surround sound settings you use.
■Displaying signal information
You can display the format, sampling frequency, channel,
bit rate and flag data of the current input signal.
1Press DAMP and then press QMENU on
the remote control.
The top “SET MENU” display appears in the OSD.
2Press Gn repeatedly to select “SIGNAL
INFO” and then press GENTER.
The following information about the input source
appears in the OSD.
y
The information indicated by the cursor is also displayed in
the front panel display.
3Press QMENU again to exit from “SET
MENU”.
Notes
Display Description
FORMAT Signal format.
SAMPLING
The number of samples per second taken
from a continuous signal to make a
discrete signal.
CHANNEL The number of source channels in the
input signal (front/surround/LFE).
BITRATE The number of bits passing a given point
per second.
FLAG
Flag data encoded in DTS, Dolby Digital,
or PCM signals that cue this unit to
automatically switch decoders.
SET MENU
TOP MENU
.;AUTO SETUP
;MANUAL SETUP
.A;SIGNAL INFO
[ ]/[ ]:Up/Down
[ENTER]:Enter
p
p
;SIGNAL INFO
.FORMAT DolbyD
SAMPLING 48kHz
CHANNEL 3/2/0.1
BITRATE 384kbps
FLAG None
[RETURN]:Exit
![](asset-28.png)
36 En
Playback
■Playing video sources in the
background
You can combine a video image from a video source with
sound from an audio source. For example, you can enjoy
listening to classical music while viewing beautiful
scenery from the video source on the video monitor.
Press the input selector buttons on the remote
control to select a video source and then an
audio source.
■Using your headphones
Connect a pair of headphones with a stereo
analog audio cable plug to the PHONES jack on
the front panel.
y
When you select a sound field program, SILENT CINEMA mode
activates automatically (see page 38).
• When you connect headphones, no signals are output at the
speaker terminals.
• All Dolby Digital and DTS audio signals are mixed down to the
left and right headphone channels.
■Muting the audio output
Press OMUTE to mute the audio output.
Press OMUTE again to resume the audio output.
y
• You can also rotate 8VOLUME (or press RVOLUME +/–) to
resume the audio output.
• You can adjust the muting level by using “MUTE TYPE” in
“SOUND MENU” (see page 51).
• The MUTE indicator flashes in the front panel display when the
audio output is muted and disappears from the front panel
display when the audio output is resumed.
■Using the sleep timer
Use this feature to automatically set this unit to the
standby mode after a certain amount of time. The sleep
timer also automatically turns off any external
components connected to the AC OUTLETS (see
page 21).
Press DAMP and then press PSLEEP
repeatedly to set the amount of time.
Each time you press PSLEEP, the front panel display
changes as shown below.
The SLEEP indicator flashes while you are switching the
amount of time for the sleep timer. Once the sleep timer is
set, the SLEEP indicator lights up in the front panel
display, and the display returns to the selected sound field
program.
y
• To cancel the sleep timer, press PSLEEP on the remote
control repeatedly until “SLEEP OFF” appears in the front
panel display.
• You can also cancel the sleep timer setting by pressing
1STANDBY/ON (or NSTANDBY) to set this unit to the
standby mode.
Notes
Audio sources
Video sources
DVD DTV/CBL DVR
CD MD/CD-R TUNER
MULTI CH IN
DVD
V-AUX
SPEAKERS
PHONES
SILENT CINEMA
STANDBY
/ON
A/B/OFF
l
PRESET/TUNING/CH
h
CATEGORY
A/B/C/D/E
FM/AM
EDIT
PRESET/TUNING
MEMORY
TUNING AUTO/MAN'L
OPTIMIZER MIC
AUDIO SELECT
DIRECT STEREOSTRAIGHT
EFFECT
TONE CONTROL
l INPUT hl PROGRAM h
VOLUME
SCENE
1234
VIDEO L AUDIO R
VIDEO AUX USB
SLEEP 90min
SLEEP 60minSLEEP 30minSLEEP OFF
SLEEP 120min
![](asset-29.png)
SOUND FIELD PROGRAMS
37 En
English
BASIC
OPERATION
This unit is equipped with a variety of precise digital
decoders that allow you to enjoy multi-channel playback
from almost any stereo or multi-channel sound source.
Press APROGRAM l / h (or press DAMP and
then press JPROG l / h repeatedly).
The name of the selected sound field program appears in
the front panel display.
y
• Choose a sound field program based on your listening
preference, not merely on the name of the program itself.
• You can select “Music Enh. 2ch” and “Music Enh. 5ch” by
pressing UENHANCER on the remote control repeatedly.
• When you select an input source, this unit automatically selects
the last sound field program used with the corresponding input
source.
• Sound field programs cannot be selected when the component
connected to the MULTI CH INPUT jacks is selected as the
input source (see page 33).
• When PCM signals with a sampling frequency higher than 48
kHz are input, this unit is automatically set to the “STRAIGHT”
mode.
• The sound field program is canceled when the night listening
mode is selected while you enjoy music contents in a USB
memory device etc.
The sound field programs of this unit are recreations of real-world acoustic environments made from precise measurements taken in the
actual concert hall, music venue, movie theater, etc. Thus, you may notice variations in the strength of the reflections coming from each
direction.
Sound field programs
Notes
Sound field program descriptions
Category Program Features
MUSIC
Pop/Rock CINEMA DSP processing. This program presents an image of pop, rock, or jazz live concert. The
sound field reproduces the spaciousness of a massive pavilion with an emphasis on the vividness of
vocals on the stage and solo instruments and the beats of rhythm instruments.
Hall HiFi DSP processing. This sound field is suitable for classic and orchestral music. The program
uses data collected in a large concert hall in Munich. You can enjoy delicate and beautiful
reverberation and a majestic atmosphere.
Jazz HiFi DSP processing. The sound field is suitable for jazz and fusion music. It uses data collected in
a famous jazz club in New York. You can enjoy clear reverberation.
ENTERTAIN
Game CINEMA DSP processing. You can enjoy dynamic and thrilling sound effects as you play games.
The program lets you feel the depth and three-dimensional surrounding sounds of the field where
you are playing, and offers cinema-like surrounding sound effects for the scenes of movies.
TV Sports
CINEMA DSP processing. You can enjoy sports relays broadcast in stereo and variety shows with
a live sound environment. For sports relays, the voices of commentators and announcers come
clearly from the center; the cheers and atmosphere in the stadium spread around within a
comfortable range, and you can feel like as if you are in the stadium.
MOVIE
Movie Spacious CINEMA DSP processing. The sound field is suitable for movies with an emphasis on spectacular
sound effects, and is a perfect fit with a wide screen. The program reproduces a wide dynamic
range from minimum sound effects to powerful sounds.
Movie Dramatic
CINEMA DSP processing. This sound field is also suitable for movies with an emphasis on three-
dimensional sound effects. It restrains reverberation to an moderate extent, but reproduces sound
effects and background music in a soft, three-dimensional manner with clarity and center
orientation of voices as pivots.
STEREO
2ch Stereo Downmixes multi-channel sources to 2 channel or plays back 2-channel sources as they are.
5ch Stereo HiFi DSP processing. Using this program increases the listening position range. This is a sound
field suitable for background music at parties.
ENHANCER Music Enh. 2ch
Music Enh. 5ch
Select these programs to play back compression artifacts (such as the MP3 format) in
2-channel or 5-channel stereo. This program enhances your listening experience by regenerating
the missing harmonics in a compression artifact.
Note
![](asset-2a.png)
38 En
Sound field programs
■Enjoying 2-channel sources using the
standard decoders
Signals input from 2-channel sources can also be played
back on multi-channels.
Press DAMP and then press KSUR. DECODE
repeatedly to select a decoder.
You can select from the following decoders depending on
the type of source you are playing and your personal
preference.
■Using sound field programs without
surround speakers
(Virtual CINEMA DSP)
Virtual CINEMA DSP allows you to enjoy the CINEMA
DSP programs without surround speakers by creating
virtual speakers.
If you set “SUR. L/R SP” to “NONE” (see page 49),
Virtual CINEMA DSP activates automatically whenever
you select a CINEMA DSP or HiFi DSP program (see
page 37).
Virtual CINEMA DSP will not activate even when “SUR. L/R
SP” is set to “NONE” (see page 49) in the following cases:
– When “5ch Stereo” (see page 37) is selected.
– When headphones are connected to the PHONES jack.
■Enjoying multi-channel sources and
sound field programs with headphones
(SILENT CINEMA)
SILENT CINEMA allows you to enjoy multi-channel
music or movie sound, including Dolby Digital and DTS
sources, through ordinary headphones. SILENT CINEMA
activates automatically whenever you connect headphones
to the PHONES jack while listening to CINEMA DSP or
HiFi DSP sound field programs (see page 37). When
activated, the SILENT CINEMA indicator lights up in the
front panel display.
SILENT CINEMA does not activate when the component
connected to the MULTI CH INPUT jacks is selected as the input
source (see page 33).
■Enjoying unprocessed input sources
(Straight decoding mode)
When this unit is in the “STRAIGHT” mode, multi-
channel sources are decoded straight into the appropriate
channels without any additional effect processing. 2-
channel stereo sources are output from only the front left
and right speakers.
Press BSTRAIGHT (or press DAMP and then
press TSTRAIGHT) to select “STRAIGHT”.
To deactivate the “STRAIGHT” mode, press
BSTRAIGHT (or TSTRAIGHT) again so that
“STRAIGHT” disappears from the front panel display.
STANDARD Functions
PRO LOGIC Dolby Pro Logic processing for any
sources
PLII Movie Dolby Pro Logic II processing for
movie sources
PLII Music Dolby Pro Logic II processing for
music sources
PLII Game Dolby Pro Logic II processing for
game sources
Note
Note
![](asset-2b.png)
39 En
Sound field programs
English
BASIC
OPERATION
■Editing sound fields parameters
You can enjoy good quality sound with the factory preset
parameters. Although you do not have to change the initial
settings, you can change some of the parameters to better
suit the input source or your listening room.
1While listening to a source, press DAMP
and then press Gk / n to select the desired
parameter.
2Press Gl / h to change the parameter
value.
You cannot change parameter values when “MEMORY GUARD”
in “OPTION MENU” is set to “ON” (see page 55).
y
Initial settings are indicated in bold under each parameter.
For Pop/Rock, Hall, Jazz, Game, TV Sports,
Movie Spacious and Movie Dramatic:
DSP level DSP LEVEL
Function: Adjusts the effect level.
Choices: MIN, MID, MAX
For PRO LOGIC II Music:
Panorama PANORAMA
Function: Sends stereo signals to the surround
speakers as well as the front speakers for
a wraparound effect.
Choices: OFF, ON
Dimension DIMENSION
Function: Gradually adjusts the sound field either
towards the front or towards the rear.
Control range: –3 (towards the rear) to +3 (towards the
front), initial setting is STD (standard).
Center width CT WIDTH
Function: Adjusts the center image from all three
front speakers to varying degrees. A
larger value adjusts the center image
towards the front left and right speakers.
Control range: 0 (center channel sound is output only
from center speaker) to 7 (center channel
sound is output only from front left and
right speakers), initial setting is 3.
For Music Enh. 2ch and Music Enh. 5ch
Effect level
Function: Adjusts the effect level.
Choices: LOW, HIGH
Note
![](asset-2c.png)
FM/AM TUNING
40 En
There are 2 tuning methods: automatic and manual. Automatic tuning is effective when station signals are strong and
there is no interference. If the signal from the station you want to select is weak, tune into it manually. You can also use
the automatic and manual preset tuning features to store up to 40 stations.
Automatic tuning is effective when station signals are
strong and there is no interference.
1Press DINPUT l / h repeatedly so that
“TUNER” is displayed in the front panel
display.
2Press 3FM/AM to select the reception band
(FM or AM).
3Press 7TUNING AUTO/MAN’L so that the
AUTO indicator lights up in the front panel
display.
If a colon (:) appears in the front panel display,
automatic tuning is not possible. Press 2PRESET/
TUNING to turn the colon (:) off.
4Press 5PRESET/TUNING l / h once to
begin automatic tuning.
When this unit is tuned into a station, the TUNED
indicator lights up and the frequency of the received
station is shown in the front panel display.
If the signal received from the station you want to select is
weak, tune into it manually.
Manually tuning into an FM station automatically switches the
tuner to monaural reception to increase the signal quality.
1Press DINPUT l / h repeatedly so that
“TUNER” is displayed in the front panel
display.
2Press 3FM/AM to select the reception band
(FM or AM).
3Press 7TUNING AUTO/MAN’L so that the
AUTO indicator disappears from the front
panel display.
If a colon (:) appears in the front panel display,
manual tuning is not possible. Press 2PRESET/
TUNING to turn the colon (:) off.
4Press 5PRESET/TUNING l / h to tune
into the desired station manually.
y
Hold down the button to continue searching.
FM/AM tuning
Automatic tuning
AUTO
AAM 1440 kHz
Lights up
No colon (:)
AUTO
TUNED
AAM 1530 kHz
Lights up
Manual tuning
Note
AAM 1440 kHz
No colon (:)
![](asset-2d.png)
41 En
FM/AM tuning
English
BASIC
OPERATION
You can use the automatic preset tuning feature to store
FM stations with strong signals up to 40 (A1 to E8: 8
preset station numbers in each of the 5 preset station
groups) of those stations in order. You can then recall any
preset station easily by selecting the preset station number.
1Press DINPUT l / h repeatedly so that
“TUNER” is displayed in the front panel
display.
2Press 3FM/AM to select “FM” as the
reception band.
3Press and hold 6MEMORY for more than 3
seconds.
The preset station number as well as the MEMORY
and AUTO indicators flashes. After approximately 5
seconds, automatic presetting starts from the current
frequency and proceeds toward the higher
frequencies.
When automatic preset tuning is completed, the front
panel display shows the frequency of the last preset
station.
y
You can select the preset station group and the preset station
number where the first received station will be stored by pressing
4A/B/C/D/E and then 5PRESET/TUNING l / h.
• Any stored station data existing under a preset station number is
cleared when you store a new station under the same preset
station number.
• Only FM stations with sufficient signal strength are stored
automatically by automatic preset tuning. If the station you
want to store is weak in signal strength, tune into it manually
and store it as described in “Manual preset tuning” on this page.
You can also store up to 40 stations (A1 to E8: 8 preset
station numbers in each of the 5 preset station groups)
manually.
1Tune into a station automatically or manually.
See page 40 for tuning instructions.
2Press 6MEMORY.
The MEMORY indicator flashes in the front panel
display for approximately 10 seconds.
3Press 4A/B/C/D/E and 5PRESET/
TUNING l / h repeatedly to select a preset
station group (A1 to E8) while the MEMORY
indicator is flashing.
Check that the colon (:) appears in the front panel
display.
4Press 6MEMORY while the MEMORY
indicator is flashing.
The station band and frequency appear in the front
panel display with the preset station group and
number you have selected.
• Any stored station data existing under a preset station number is
cleared when you store a new station under the same preset
station number.
• The reception mode (stereo or monaural) is stored along with
the station frequency.
Automatic preset tuning
Notes
Flashes
Flash
AUTO
MEMORY
A1:FM 87.5 MHz
Manual preset tuning
Notes
TUNED
MEMORY
:
C3 AM 630 kHz
Preset station number
Flashes
The displayed station has been stored as C3.
TUNED
:
C3 AM 630 kHz
![](asset-2e.png)
42 En
FM/AM tuning
You can tune into any desired station simply by selecting
the preset station group and number under which it was
stored.
y
When performing this operation with the remote control, press
CTUNER to select “TUNER” as the input source.
1Press 4A/B/C/D/E (or GA/B/C/D/E l / h)
repeatedly to select the desired preset
station group (A to E).
The preset station group letter appears in the front
panel display and changes each time you press the
button.
2Press 5PRESET/TUNING l / h (or
GPRESET/CH k / n) to select the desired
preset station number (1 to 8).
The preset station group and number appear in the
front panel display along with the station band and
frequency.
y
You can select the desired preset station number (1 to 8) directly
by pressing the numeric buttons on the remote control.
You can exchange the assignments of two preset stations
with each other. The example below describes the
procedure to exchange preset station “E1” with “A5”.
1Select preset station “E1” using 4A/B/C/D/E
and 5PRESET/TUNING l / h.
See “Selecting preset stations” on this page.
2Press and hold 2PRESET/TUNING for
more than 3 seconds.
“E1” and the MEMORY indicator flash in the front
panel display.
3Select preset station “A5” using 4A/B/C/D/
E and 5PRESET/TUNING l / h.
“A5” and the MEMORY indicator flash in the front
panel display.
See “Selecting preset stations” on this page.
4Press 2PRESET/TUNING again.
“EDIT E1–A5” appears in the front panel display and
the assignments of the two preset stations are
exchanged.
Selecting preset stations
:
E1 FM 87.5 MHz
Exchanging preset station
MEMORY
:
E1 FM 87.5 MHz
Flashes
Flashes
MEMORY
:
A5 FM 90.7 MHz
Flashes
Flashes
![](asset-2f.png)

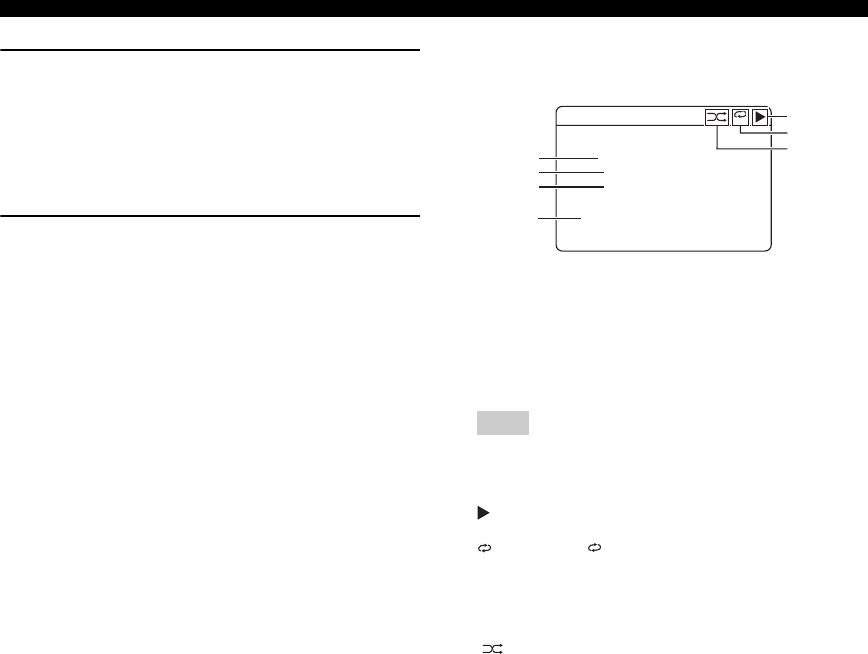

USING A USB MEMORY DEVICE OR A USB PORTABLE AUDIO PLAYER
43 En
English
BASIC
OPERATION
Use this feature to enjoy WAV (PCM format only), MP3 and WMA files saved on your USB memory device or USB
portable audio player connected to the USB port on the front panel of this unit.
■Supported USB devices
This unit supports USB mass storage class devices (except
USB hard disk drives) using FAT16 or FAT32 format.
• Only the first partition (32 GB or less) is displayed in the OSD.
You cannot select files in other partitions.
• Up to 8 levels of directory hierarchy and 500 music files per
directory are recognized.
• Some devices may not work properly even if they meet the
requirements.
• Some WAV, MP3 and WMA files may not be playable or may
be noisy when played.
■Connecting a USB memory device or a
USB potable audio player
Connect a USB jack of a USB memory device or
USB portable audio player to the USB port on the
front panel of this unit.
Follow the procedures below to enjoy the music stored in
your USB device or a USB portable audio player.
1Press DINPUT l / h repeatedly (or press
CUSB) to select USB.
The cursor on the left of the USB indicator lights up
in the front panel display, and the contents previously
played is automatically played.
2Press SDISPLAY to display the top USB file
list.
The USB file list appears in the OSD.
y
•“i” in the right corner of each menu line indicates that
there is a submenu available in the next menu level.
• When this unit is in the top directory, “Root” appears
beside “USB”.
Using a USB memory device or a USB portable audio player
Notes
SPEAKERS
PHONES
SILENT CINEMA
STANDBY
/ON
A/B/OFF
l
PRESET/TUNING
h
A/B/C/D/E
FM/AM
EDIT
PRESET/TUNING
MEMORY
TUNING AUTO/MAN'L
OPTIMIZER MIC
AUDIO SELECT
DIRECT STEREOSTRAIGHT
EFFECT
TONE CONTROL
l INPUT hl PROGRAM h
VOLUME
SCENE
1234
VIDEO L AUDIO R
VIDEO AUX USB
USB
USB memory device
or USB portable
audio player
Playback operation
INPUT:USB
DVR DVD CD
V-AUX DTV/CBL
MD/CD-R
TUNER
USB
Lights up
Ellis Margellis >
Frankie Zipper >
Hall in Call >
Jackie Pastarius >
Jmiel >
Jean-Luc Ponta >
Jim Hallo >
1/7
USB Root
![](asset-30.png)
44 En
Using a USB memory device or a USB portable audio player
3Press Gk / n / l / h on the remote control
to select the desired file.
• Press Gk / n to select the desired file/folder.
• Press GENTER or Gh to enter the selected
folder.
• Press Gl to return to the previous folder level.
4Press GENTER to play the selected file.
y
• You can use Ib / a to skip backward/forward and
Ih / s to start/stop playback independently from the menu
in the OSD.
• You can set the settings for repeat and shuffle mode by using the
“USB PLAY STYLE” parameters in “OPTION MENU” (see
page 55).
• You can select the display mode in the front panel display by
using “FL SCROLL” in “OPTION MENU” (see page 54).
■The function of the play information
display
1Name of the artist
2Name of the album
3Name of the song
4Elapsed time
When the elapsed time exceed “99:59”, “--:--” appeared
instead of the time.
5 (playback) icon
6 (all repeat), (single repeat) icons
When “REPEAT” of the “USB PLAY STYLE” in “OPTION
MENU” (see page 55) is set to “OFF”, no icon appears in the
top right corner while files or folders are being played.
7 (shuffle) icon
When “SHUFFLE” of the “USB PLAY STYLE” in
“OPTION MENU” (see page 55) is set to “OFF”, no icon
appears in the top right corner while files or holders are being
played.
Note
USB [Play]
FrankieZipper
. Made-to-orderaaaaaAA
;RoadtoIndiaaaAAAA
.A
00:00
All
1
2
3
4
5
6
7
All 1
![](asset-31.png)
RECORDING
45 En
English
BASIC
OPERATION
Recording adjustments and other operations are performed from the recording components. Refer to the operating
instructions for those components.
• When this unit is set to the standby mode, you cannot record between other components connected to this unit.
• TONE CONTROL (see page 34) and VOLUME settings, speaker levels (see page 34) and the sound field programs (see page 37) do
not affect recorded material.
• The source connected to the USB jack or the MULTI CH INPUT jacks of this unit cannot be recorded.
• Digital signals input at the DIGITAL INPUT jacks are not output at the analog AUDIO OUT (REC) jacks for recording. Therefore, if
your source component is connected to provide only digital signals, you cannot record the source.
• S-video and composite video signals pass independently through the video circuits of this unit. Therefore, when recording or dubbing
video signals input from a video source component that provides only an S-video or a composite video signal, you can record only an
S-video or a composite video signal on your DVD recorder.
• A given input source is not output on the same OUT (REC) channel.
• Once you have connected a recording component to this unit, keep the component turned on while using this unit. If the component is
turned off, this unit may distort the sound from other components.
• Check the copyright laws in your country to record from CDs, radio, etc. Recording of copyrighted material may infringe copyright
laws.
y
Do a test recording before you start an actual recording.
1Turn on all the connected components.
2Press DINPUT l / h repeatedly (or press
one of the input selector buttons (C)) to
select the source component you want to
record from.
3Start playback on the selected source
component or select a broadcast station.
4Start recording on the recording component.
Recording
Notes
If you play back a video source that uses scrambled or encoded signals to prevent it from being dubbed, the picture
itself may be disturbed due to those signals.
![](asset-32.png)
SET MENU
46 En
You can use the following parameters in “SET MENU” to adjust a variety of system settings and customize the way this
unit operates. Change the initial settings (indicated in bold under each parameter) to reflect the needs of your listening
environment.
■Auto setup AUTO SETUP
Use this feature to automatically adjust speaker and system parameters (see page 24).
■Manual setup MANUAL SETUP
Use this feature to manually adjust speaker and system parameters.
Sound menu 1 SOUND MENU
Use this menu to manually adjust any speaker settings, alter the quality and tone of the sound output by the system or
compensate for video signal processing delays when using LCD monitors or projectors.
Input menu 2 INPUT MENU
Use this menu to manually reassign the input jacks, select the input mode or rename the input source.
SET MENU
Parameter Features Page
A)SPEAKER SET
Selects the size of each speaker, the speakers for low-frequency signal output, and the
crossover frequency, and the location of the front speakers connected to the FRONT B
terminals.
48
B)SP LEVEL Adjusts the output level of each speaker. 50
C)SP DISTANCE Adjusts the distance of each speaker. 50
D)CENTER GEQ Adjusts the tonal quality of the center speaker. 51
E)LFE LEVEL Adjusts the output level of the LFE channel for Dolby Digital or DTS signals. 51
F)D.RANGE Adjusts the dynamic range of Dolby Digital or DTS signals. 51
G)AUDIO SET Adjusts the muting level, audio delay, maximum volume level and initial volume level. 51
Parameter Features Page
A)INPUT ASSIGN Assigns the input jacks of this unit according to the component to be used. 52
B)INPUT RENAME Changes the name of the input source. 53
C)VOLUME TRIM Adjusts the output volume of each input source. 53
D)DECODER MODE Selects the decoder mode for the sources connected to the DIGITAL INPUT jacks on the
rear panel of this unit. 53
E)MULTI CH SET Selects the video source played in the background of the sources input from the MULTI CH
INPUT jacks. 54
![](asset-33.png)
47 En
SET MENU
English
ADVANCED
OPERATION
Option menu 3 OPTION MENU
Use this menu to manually adjust the optional system parameters.
■Signal information SIGNAL INFO
Use this feature to check audio signal information (see page 35).
Use the remote control to access and adjust each
parameter.
y
You can change the “SET MENU” parameters while this unit is
reproducing sound.
1Press DAMP and then press QMENU to
enter “SET MENU”.
The top “SET MENU” display appears in the OSD.
2Press Gk / n to select “MANUAL SETUP”.
3Press GENTER to enter “MANUAL SETUP”.
The “MANUAL SETUP” display appears in the
OSD.
4Press Gk / n / l / h and GENTER to select
and change the parameter.
•Press
Gk / n to select the desired menu or
parameter.
•Press
Gl / h to change the parameter value.
•Press
GENTER to enter the selected menu or to
confirm the parameter.
•Press
HRETURN to return to the previous menu
level.
5Press QMENU to exit from “SET MENU”.
Parameter Features Page
A)DISPLAY SET Adjusts the brightness of the front panel display. 54
B)MEMORY GUARD Locks sound field program parameters and other “SET MENU” settings. 55
C)AUDIO SELECT Designates the default audio input jack select setting for the input sources connected to the
DIGITAL INPUT jacks when you turn on the power of this unit. 55
D)PARAM. INI Sets all the parameters of the sound field programs to the factory settings. 55
E)USB PLAY STYLE Adjusts the playback style of a USB source. 55
Using SET MENU
SET MENU
TOPAMENU
.;AUTO SETUP
.A;MANUAL SETUP
;SIGNAL INFO
[ ]/[ ]:Up/Down
[ENTER]:Enter
p
p
SET MENU
TOPAMENU
;AUTO SETUP
.A;MANUAL SETUP
;SIGNAL INFO
[ ]/[ ]:Up/Down
[ENTER]:Enter
p
p
;MANUAL SETUP
.1 SOUND MENU
2 INPUT MENU
3 OPTION MENU
[ ]/[ ]:Up/Down
p
p
[ENTER]:Enter
![](asset-34.png)
48 En
SET MENU
Use this menu to manually adjust any speaker settings or
compensate for video signal processing delays.
■Speaker settings A)SPEAKER SET
Use this feature to manually adjust any speaker settings.
FRONT B speaker setting FRONT B
Use this feature to select the location of the front speakers
connected to the FRONT B terminals.
Choices: FRONT, ZONE B
• Select “FRONT” to turn on or off SPEAKERS A and B
when the speakers connected to the FRONT B
terminals are set in the main zone.
• Select “ZONE B” if the speakers connected to the
FRONT B terminals are set in another zone. If
SPEAKERS A is turned off and SPEAKERS B is
turned on, all the speakers including the subwoofer in
the main zone are muted and this unit outputs sound at
the FRONT B terminals only.
• If you connect headphones to the PHONES jack of this unit, the
sound is output from both headphones and the FRONT B
terminals when “FRONT B” is set to “ZONE B”.
• If a DSP program is selected when “FRONT B” is set to
“ZONE B”, this unit automatically enters the Virtual CINEMA
DSP mode (see page 38).
Front speakers FRONT SP
Choices: SMALL, LARGE
When the front speakers are large
Select “LARGE” (large).
When the front speakers are small
Select “SMALL” (small).
When “LFE/BASS OUT” is set to “FRONT” (see page 49), you
can select only “LARGE” in “FRONT SP”. If the value of
“FRONT SP” is set to a setting other than “LARGE” in advance,
this unit automatically changes the value to “LARGE”.
Center speaker CENTER SP
Choices: NONE, SML, LRG
When the center speaker is large
Select “LRG” (large).
When the center speaker is small
Select “SML” (small).
When you do not use the center speaker
Select “NONE” (none). The center channel signals are
directed to the front left and right speakers.
1 SOUND MENU
Notes
;MANUAL SETUP
1 SOUND MENU 1/2
.A)SPEAKER SET
B)SP LEVEL
C)SP DISTANCE
D)CENTER GEQ
E)LFE LEVEL
[ ]/[ ]:Up/Down
p
p
[ENTER]:Enter
;MANUAL SETUP
1 SOUND MENU 2/2
.F)D.RANGE
G)AUDIO SET
[ ]/[ ]:Up/Down
p
p
[ENTER]:Enter
1 SOUND MENU
A)SPEAKER SET
FRONT B;;;;FRONT
[ ]/[ ]:Up/Down
[ ]/[ ]:Select
p[
p
p
Woofer section of a speaker is 16 cm (6.5 in) or larger:
large
Woofer section of a speaker is smaller than 16 cm
(6.5 in): small
Note
1 SOUND MENU
A)SPEAKER SET
FRONT SP
SMALL >LARGE
1 SOUND MENU
A)SPEAKER SET
CENTER SP
NONE >SML LRG
![](asset-35.png)
49 En
SET MENU
English
ADVANCED
OPERATION
Surround left/right speakers SUR. L/R SP
Choices: NONE, SML, LRG
When the surround speakers are large
Select “LRG” (large).
When the surround speakers are small
Select “SML” (small).
When you do not use the surround speakers
Select “NONE” (none). This unit is set to the Virtual
CINEMA DSP mode (see page 38).
LFE Bass out LFE/BASS OUT
Use this feature to select the speakers that output the LFE
(low-frequency effect) and the low-frequency signals.
Choices: SWFR, FRONT, BOTH
When a subwoofer is connected to this unit
and you want to get natural bass sound
Select “SWFR” (subwoofer). The LFE signals as well
as the low-frequency signals of other speakers set to
“SML” (or “SMALL”) are directed to the subwoofer.
When a subwoofer is connected to this unit
and you want to get rich bass sound
Select “BOTH” (both). The low-frequency signals of
any source are output from the subwoofer. The LFE
signals as well as the low-frequency signals of other
speakers set to “SML” (or “SMALL”) are directed to
the subwoofer. The low-frequency signals of the front
left and right channels are directed to the front left and
right speakers and the subwoofer regardless of the
“FRONT SP” setting (see page 48).
When you do not use a subwoofer
Select “FRONT” (front). The LFE signals, the low-
frequency signals of the front left and right channels,
and the low-frequency signals of other speakers set to
“SML” (or “SMALL”) are all directed to the front left
and right speakers regardless of the “FRONT SP”
setting (see page 48).
Crossover CROSSOVER
Use this feature to select a crossover frequency of all the
speakers set to “SML” (or “SMALL”) or to “NONE” in
“SPEAKER SET” (see pages 47 and 48). All frequencies
below the selected frequency will be sent to the subwoofer
or to the speakers set to “LRG” (or “LARGE”) in
“SPEAKER SET” (see pages 47 and 48).
Choices: 40Hz, 60Hz, 80Hz, 90Hz, 100Hz, 110Hz,
120Hz, 160Hz, 200Hz
Subwoofer phase SUBWOOFER PHASE
Use this feature to switch the phase of your subwoofer if
bass sounds are lacking or unclear.
Choices: NORMAL, REVERSE
• Select “NORMAL” if you do not want to reverse the
phase of your subwoofer.
• Select “REVERSE” to reverse the phase of your
subwoofer.
1 SOUND MENU
A)SPEAKER SET
SUR. L/R SP
NONE >SML LRG
1 SOUND MENU
A)SPEAKER SET
LFE/BASS OUT
SWFR FRONT>BOTH
1 SOUND MENU
A)SPEAKER SET
CROSSOVER
FREQ;;;80Hz
1 SOUND MENU
A)SPEAKER SET
SUBWOOFER PHASE
>NORMAL REVERSE
![](asset-36.png)
50 En
SET MENU
■Speaker level B)SP LEVEL
Use this feature to manually adjust the output level of each
speaker.
Control range: –10 to +10 dB
Control step: 1 dB
Initial setting: 0 dB
The available speaker channels differ depending on the setting of
the speakers.
■Speaker distance C)SP DISTANCE
Use this feature to manually adjust the distance of each
speaker and the delay applied to the respective channel.
Ideally, each speaker should be the same distance from the
main listening position. However, this is not possible in
most home situations. Thus, a certain amount of delay
must be applied to the sound from each speaker so that all
sounds will arrive at the listening position at the same
time.
Unit UNIT
Choices: meters (m), feet (ft)
Initial setting: feet (ft)
• Select “feet” to adjust speaker distances in feet.
• Select “meters” to adjust speaker distances in meters.
Speaker distances
Control range: 0.30 to 24.00 m (1.0 to 80.0 ft)
Control step: 0.10 m (0.5 ft)
Initial setting: 3.00 m (10.0 ft)
The available speaker channels differ depending on the setting of
the speakers.
SP LEVEL Adjusted speaker
FL Front left speaker
FR Front right speaker
CCenter speaker
SL Surround left speaker
SR Surround right speaker
SWFR Subwoofer
Note
1 SOUND MENU
B)SP LEVEL 1/2
-__________+
.FL
FR
C
[ ]/[ ]:Up/Down
[ ]/[ ]:Adjust
p[
p
p
SP DISTANCE Adjusted speaker
FRONT L Front left speaker
FRONT R Front right speaker
CENTER Center speaker
SUR. L Surround left speaker
SUR. R Surround right speaker
SWFR Subwoofer
Note
1 SOUND MENU
C)SP DISTANCE 1/2
.UNIT;;;;;;;;feet
FRONT L;;;10.0ft
FRONT R;;;10.0ft
CENTER;;;;10.0ft
[ ]/[ ]:Up/Down
[ ]/[ ]:Adjust
p
p
p[
![](asset-37.png)
51 En
SET MENU
English
ADVANCED
OPERATION
■Center speaker equalizer D)CENTER GEQ
Use this feature to adjust the built-in 5-frequency band
(100Hz, 300Hz, 1kHz, 3kHz and 10kHz) graphic
equalizer for the center channel so that the tonal quality of
the center speaker matches that of the front speakers. You
can make adjustments while listening to the currently
selected source component or a test tone.
Control range: –6.0 to +6.0 dB
Control step: 0.5 dB
Initial setting: 0 dB
Test tone TEST
Use this feature to make adjustments for “CENTER GEQ”
while listening to a test tone.
Choices: OFF, ON
• Select “OFF” to stop test tones and output the currently
selected source component.
• Select “ON” to output test tones from the center and
front left speakers.
■Low-frequency effect level E)LFE LEVEL
Use this feature to adjust the output level of the LFE (low-
frequency effect) channel according to the capacity of
your subwoofer or headphones. The LFE channel carries
low-frequency special effects which are only added to
certain scenes. This setting is effective only when this unit
decodes Dolby Digital or DTS signals.
Control range: –20 to 0 dB
Control step: 1 dB
Speaker SPEAKER
Adjusts the speaker LFE level.
Headphone HEADPHONE
Adjusts the headphone LFE level.
Depending on the settings of “LFE/BASS OUT” (see page 49),
some signals may not be output at the SUBWOOFER OUTPUT
jack.
■Dynamic range F)D.RANGE
Use this feature to select the amount of dynamic range
compression to be applied to your speakers or
headphones. This setting is effective only when this unit is
decoding Dolby Digital and DTS signals.
Speaker SP
Adjusts the speaker compression.
Headphone HP
Adjusts the headphone compression.
Choices: MIN, STD, MAX
• Select “MIN” (minimum) if you regularly listen at low
volume levels.
• Select “STD” (standard) for general use.
• Select “MAX” (maximum) to preserve the greatest
amount of dynamic range.
■Audio settings G)AUDIO SET
Use this feature to adjust the overall audio settings of this
unit.
Mute type MUTE TYPE
Use this feature to adjust how much the mute function
reduces the output volume (see page 36).
Choices: FULL, –20dB
• Select “FULL” to completely mute all the audio
output.
• Select “–20dB” to reduce the current volume by 20 dB.
Audio delay A.DELAY
Use this feature to delay the sound output and synchronize
it with the video image. This may be necessary when
using certain LCD monitors or projectors.
Control range: 0 to 160 ms
Control step: 1 ms
Note
1 SOUND MENU
D)CENTER GEQ
TEST >OFF ON
.100Hz ;;;;;; 0.0dB
300Hz ;;;;;; 0.0dB
1kHz ;;;;;; 0.0dB
3kHz ;;;;;; 0.0dB
10kHz ;;;;;; 0.0dB
[ ]/[ ]:Up/Down
p
p
p[
[ ]/[ ]:Adjust
E)LFE LEVEL
.SPEAKER;;;;;;0dB
HEADPHONE;;;;0dB
[ ]/[ ]:Up/Down
p
p
p[
[ ]/[ ]:Adjust
1 SOUND MENU
F)D.RANGE
.SP D.R;;;;MAX
HP D.R;;;;MAX
[ ]/[ ]:Up/Down
p
p
p[
[ ]/[ ]:Adjust
1 SOUND MENU
G)AUDIO SET
.MUTE TYPE;;;FULL
A.DELAY;;;;;;0ms
MAX VOL.;;;+16dB
INI.VOL.;;;;;OFF
[ ]/[ ]:Up/Down
p
p
p[
[ ]/[ ]:Adjust
1 SOUND MENU
![](asset-38.png)
52 En
SET MENU
Maximum volume MAX VOL.
Use this feature to set the maximum volume level. This
feature is useful to avoid the unexpected loud sound by
mistake. For example, the original volume range is 16 dB
to –80 dB. However, when “MAX VOL.” is set to –5 dB,
the volume range becomes –5.0 dB to –80.0 dB.
Control range: 16 dB, 10 dB to –30 dB
Control step: 5 dB
The “MAX VOL.” setting takes priority over the “INI.VOL.”
setting. For example, if “INI.VOL.” is set to –20 dB and “MAX
VOL.” is set to –30 dB, the volume level is automatically set to
–30 dB when you turn on the power of this unit next time.
Initial volume INI.VOL.
Use this feature to set the volume level when the power of
this unit is turned on.
Choices: OFF, –80 dB to +16 dB
Control step: 1 dB
The “MAX VOL.” setting takes priority over the “INI.VOL.”
setting.

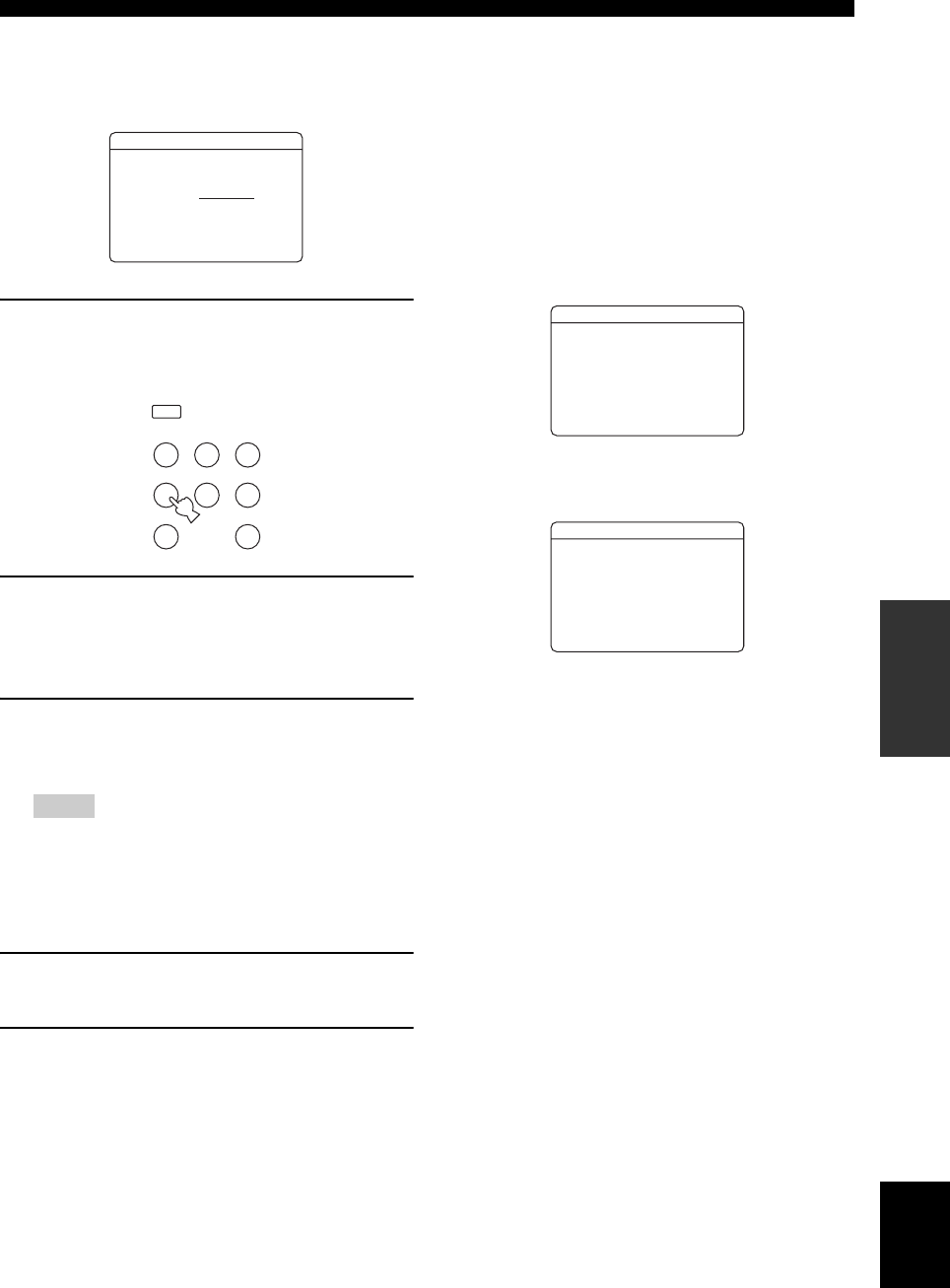

Use this menu to reassign the input jacks, select the
decoder mode or rename the input source.
■Input assignment
A)INPUT ASSIGN
Use this feature to assign the input jacks according to the
component to be used if the initial settings of this unit do
not correspond to your needs. Change the following
parameters to reassign the respective jacks and effectively
connect more components.
Once the input jacks are reassigned, you can select the
corresponding component by using DINPUT l / h (or
the input selector buttons (C)).
For COAXIAL INPUT jack 1
COAXIAL IN (1)
Choices: (1) CD, MD/CD-R, DVD, DTV/CBL,
V-AUX, DVR
For OPTICAL INPUT jacks 2 and 3
OPTICAL IN (2)
OPTICAL IN (3)
Choices: (2) CD, MD/CD-R, DVD, DTV/CBL,
V-AUX, DVR
(3) CD, MD/CD-R, DVD, DTV/CBL,
V-AUX, DVR
You cannot select a specific item more than once.
Note
Note
2 INPUT MENU
Note
;MANUAL SETUP
2 INPUT MENU
.A)INPUT ASSIGN
B)INPUT RENAME
C)VOLUME TRIM
D)DECODER MODE
E)MULTI CH SET
[ ]/[ ]:Up/Down
p
p
[ENTER]:Enter
A)INPUT ASSIGN
COAXIAL IN
.(1);;;;; DVD
( DVD )
[ ]/[ ]:Select
p[
2 INPUT MENU
A)INPUT ASSIGN
OPTICAL IN
.(2);;;;;DTV/CBL
(DTV/CBL )
(3);;;;; CD
(CD)
[ ]/[ ]:Select
p[
2 INPUT MENU
![](asset-39.png)
53 En
SET MENU
English
ADVANCED
OPERATION
■Input rename B)INPUT RENAME
Use this feature to change the name of the input source
that appears in the OSD and in the front panel display.
1Press one of the input selector buttons (C)
or AMULTI CH IN to select the input
source you want to change the name of.
2Press DAMP and then press Gl / h on the
remote control to place the “_” (underscore)
under the space or the character you want to
edit.
3Press Gk / n to select the character you
want to use and then press Gl / h to move
to the next space.
• You can use up to 8 characters for each input.
• Press Gn to change the character in the following order,
or press Gk to go in the reverse order:
A to Z, a space, 0 to 9, a space, a to z, a space, symbols (#,
*, –, +, etc.)
4Repeat steps 1 through 3 to rename each
input source.
5Press GENTER to exit from “INPUT
RENAME”.
■Volume trim C)VOLUME TRIM
Use this feature to adjust the output volume of each
source. This is useful if you want to balance the level of
each input source to avoid sudden changes in volume
when switching between input sources.
Choices: CD, MD/CD-R, TUNER, DVD,
DTV/CBL, V-AUX, DVR, USB,
MULTI CH IN
Control range: –6.0 to +6.0 dB
Control step: 1.0 dB
Initial setting: 0.0 dB
■Decoder mode D)DECODER MODE
Decoder select mode
Use this feature to designate the default decoder mode for
the input sources connected to the DIGITAL INPUT jacks
when you turn on the power of this unit.
Choices: AUTO, LAST
• Select “AUTO” if you want this unit to automatically
detect the type of input signals and select the
appropriate decoder mode.
• Select “LAST” if you want this unit to automatically
select the last decoder mode used the connected input
source.
DTS decoder prioritize setting
Choices: AUTO, DTS
• Select “AUTO” if you want this unit to automatically
detect input signal types and select the appropriate
input mode.
• Select “DTS” when you play back a DTS-CD.
Notes
B)INPUT RENAME
DVD -> DVD
[ ]/[ ]:Position
p[
[ ]/[ ]:Chara.
p
p
2 INPUT MENU
MULTI CH IN
DVD DTV/CBL DVR
CD MD/CD-R TUNER
V-AUX USB
C)VOLUME TRIM
DVD
DVD ;;;;;;0.0dB
[ ]/[ ]:Adjust
p[
[RETURN]:Exit
2 INPUT MENU
D)DECODER MODE
.>AUTO LAST
CD ;;;;AUTO
DVD ;;;;AUTO
DTV/CBL ;;;;AUTO
[ ]/[ ]:Up/Down
p
p
[ ]/[ ]:Select
p[
2 INPUT MENU
![](asset-3a.png)
54 En
SET MENU
■Multi channel input setup
E)MULTI CH SET
Background Video BGV
Use this feature to select the video source played in the
background of the sources input at the MULTI CH INPUT
jacks.
Choices: DVD, DTV/CBL, V-AUX, DVR, LAST
y
Select “LAST” to set this unit to automatically select the last
selected video source as the background video source.
Use this menu to adjust the optional system parameters.
■Display settings A)DISPLAY SET
Dimmer DIMMER
Use this feature to adjust the brightness of the front panel
display.
Control range: – 4 to 0
Control step: 1
• Press Gl to make the front panel display dimmer.
• Press Gh to make the front panel display brighter.
Front panel display scroll FL SCROLL
Use this feature to set whether to display the information
(such as a song title or a channel name) in the front panel
display in a continuous manner or by the first 14
alphanumeric characters after scrolling all characters once
when “USB” is selected as the input source.
Choices: CONT, ONCE
• Select “CONT” to display the operation status in the
front panel display in a continuous manner.
• Select “ONCE” to display the operation status in the
front panel display by the first 14 alphanumeric
characters after scrolling all characters once.
OSD shift OSD SHIFT
Use this feature to adjust the vertical position of the OSD.
Control range: –5 (upward) to +5 (downward)
Control step: 1
Initial setting: 0
•Press
Gl to raise the position of the OSD.
•Press
Gh to lower the position of the OSD.
Source feature OSD display time
OSD-SOURCE
Use this feature to set the amount of time to display the
USB file list and the play information in the OSD after
you perform a certain operation.
Choices: ON, 10s, 30s
• Select “ON” to display the OSD continuously during
an operation.
• Select “10s” to turn off the OSD 10 seconds after you
perform a certain operation.
• Select “30s” to turn off the OSD 30 seconds after you
perform a certain operation.
Amplifier function OSD display time
OSD-AMP
Use this feature to set the amount of time to display the
status and sound field parameters information screen after
you perform a certain operation.
Choices: ON, 10s, 30s
• Select “ON” to display the OSD constantly during an
operation.
• Select “10s” to turn off the OSD 10 seconds after you
perform a certain operation.
• Select “30s” to turn off the OSD 30 seconds after you
perform a certain operation.
3 OPTION MENU
E)MULTI CH SET
BGV;;;;;;;;;LAST
[ ]/[ ]:Select
p[
2 INPUT MENU
;MANUAL SETUP
3 OPTION MENU
E)USB PLAY STYLE
p
p
.A)DISPLAY SET
B)MEMORY GUARD
C)AUDIO SELECT
D)PARAM. INI
[ ]/[ ]:Up/Down
[ENTER]:Enter
A)DISPLAY SET
.DIMMER;;;;;;;;;0
FL SCROLL;;;CONT
OSD SHIFT;;;;;;0
OSD-SOURCE;;;30s
OSD-AMP;;;;;;30s
[ ]/[ ]:Up/Down
p
p
p[
[ ]/[ ]:Select
3 OPTION MENU
![](asset-3b.png)
55 En
SET MENU
English
ADVANCED
OPERATION
■Memory guard B)MEMORY GUARD
Use this feature to prevent accidental changes to DSP
program parameter values and other system settings.
Choices: OFF, ON
• Select “OFF” to turn off the “MEMORY GUARD”
feature.
• Select “ON” to protect:
– sound field program parameters
– all “SET MENU” items
– all speaker levels
– SCENE template parameters
When “MEMORY GUARD” is set to “ON”, you cannot select
and adjust any other “SET MENU” items.
■Audio select C)AUDIO SELECT
Use this feature to designate the default audio input jack
select setting for the input sources when you turn on the
power of this unit.
Choices: AUTO, LAST
• Select “AUTO” if you want this unit to automatically
detect the type of input signals and select the
appropriate input mode.
• Select “LAST” if you want this unit to automatically
select the last input mode used for the connected input
source (see page 33).
■Parameter initialization D)PARAM. INI
Use this feature to set all the parameters of the sound field
programs to the initial factory settings.
Choices: NO, YES
• Select “NO” to cancel the parameter initialization and
return to the previous menu screen.
• Select “YES” and then press GENTER to set all the
sound field parameters to the initial factory settings.
• You cannot automatically revert to the previous parameter
settings once you initialize the sound field program parameters.
• You cannot separately initialize individual sound field
programs.
• You cannot initialize any sound field program groups when
“MEMORY GUARD” is set to “ON”.
■USB playback styles E)USB PLAY STYLE
Use this feature to adjust the playback style according to
your preference. You can shuffle files in a random order or
repeat one specific file or a sequence of files.
Repeat REPEAT
Use this feature to set this unit to repeat one file or a
sequence of files.
Choices: OFF, SINGLE, ALL
• Select “OFF” to deactivate this feature.
• Select “SINGLE” to set this unit to repeat one file.
• Select “ALL” to set this unit to repeat a sequence of
files.
Shuffle SHUFFLE
Use this feature to set this unit to play files or folders in a
random order.
Choices: OFF, ON
• Select “OFF” to deactivate this feature.
• Select “ON” to set this unit to play files or folders in a
random order.
Note
B)MEMORY GUARD
>OFF ON
[ ]/[ ]:Select
p[
3 OPTION MENU
C)AUDIO SELECT
>AUTO LAST
[ ]/[ ]:Select
p[
3 OPTION MENU
Notes
D)PARAM. INI
>NO YES
[ ]/[ ]:Select
[ENTER]:Return
p[
3 OPTION MENU
E)USB PLAY STYLE
.REPEAT.......OFF
SHUFFLE......OFF
[ ]/[ ]:Up/Down
[ ]/[ ]:Select
p[
3 OPTION MENU
p
p
![](asset-3c.png)
Remote control features
56 En
In addition to controlling this unit, the remote control can also operate other audiovisual components made by Yamaha
and other manufacturers. To control your TV or other components, you must set up the appropriate remote control code
for each input source (see page 59).
■Controlling the input source
components in the SCENE mode
You can operate both this unit and the input source
component by using the remote control. You must set the
appropriate remote control code for each input source in
advance (see page 59).
1Press the desired ESCENE button on the
remote control.
2Press the desired buttons in the * area below
to control the input source component of the
selected SCENE template.
*These buttons control the input source component. See page 58
for details of the function of each button.
■Setting input source of the customized
SCENE template on the remote control
If you customize the input source of the selected SCENE
template, you must set the input source of the SCENE
template on the remote control to operate the input source
component correctly.
Press and hold the ESCENE button and the
desired input selector button (C) for 3 seconds.
y
Press the ESCENE button again to operate the input source
component.
Remote control features
Using remote control on the SCENE feature
Note
REC
SUR.DECODE NIGHT
STRAIGHTENHANCERl PROG h
TV MUTE
TV INPUT
TV VOL
TV CH
POWER
AMP
STANDBY
POWER
AUDIO SEL
SLEEP MUTE
MULTI CH IN
POWER
8
10
7
09
65
4321
ENT
DVD
V-AUX USB
DTV/CBL DVR
CD MD/CD-R TUNER
MENU
VOLUME
TITLE
ENTER
BAND LEVEL
DISPLAY
RETURN
AVTV
SCENE
4321
MODE – PTY SEEK – START
FREQ/TEXT EON
DIRECT ST.
*SCENE
buttons
![](asset-3d.png)
57 En
Remote control features
English
ADVANCED
OPERATION
■Controlling this unit
Press DAMP to control this unit.
*1 These buttons always control this unit regardless of the
operation mode selector position.
*2 These buttons control this unit only when DAMP is pressed.
■Controlling a TV
Press CDTV/CBL to control your TV. To control your
TV, you must set the appropriate remote control code for
DTV/CBL (see page 59).
*1 These buttons always control your TV regardless of whether
you press CDTV/CBL or not.
*2 These buttons control your TV only when the operation mode
selector is set to TV. For details, see the “Digital TV/Cable
TV” column on page 58.
Controlling this unit, a TV, or other components
Notes
REC
SUR.DECODE NIGHT
STRAIGHTENHANCERl PROG h
TV MUTE
TV INPUT
TV VOL
TV CH
POWER
AMP
STANDBY
POWER
AUDIO SEL
SLEEP MUTE
MULTI CH IN
POWER
8
10
7
09
65
4321
ENT
DVD
V-AUX USB
DTV/CBL DVR
CD MD/CD-R TUNER
MENU
VOLUME
TITLE
ENTER
BAND LEVEL
DISPLAY
RETURN
AVTV
SCENE
4321
MODE – PTY SEEK – START
FREQ/TEXT EON
DIRECT ST.
*1
*2
AMP
Notes
Remote control Digital TV/Cable TV
TV POWER Turns on or off the power.
TV CH +/– Changes the channel number.
TV VOL +/– Increases or decreases the volume
level.
TV MUTE Mutes the audio output.
TV INPUT Changes the input source.
REC
SUR.DECODE NIGHT
STRAIGHTENHANCERl PROG h
TV MUTE
TV INPUT
TV VOL
TV CH
POWER
AMP
STANDBY
POWER
AUDIO SEL
SLEEP MUTE
MULTI CH IN
POWER
8
10
7
09
65
4321
ENT
DVD
V-AUX USB
DTV/CBL DVR
CD MD/CD-R TUNER
MENU
VOLUME
TITLE
ENTER
BAND LEVEL
DISPLAY
RETURN
AVTV
SCENE
4321
MODE – PTY SEEK – START
FREQ/TEXT EON
DIRECT ST.
*1
*2
DTV/CBL
![](asset-3e.png)

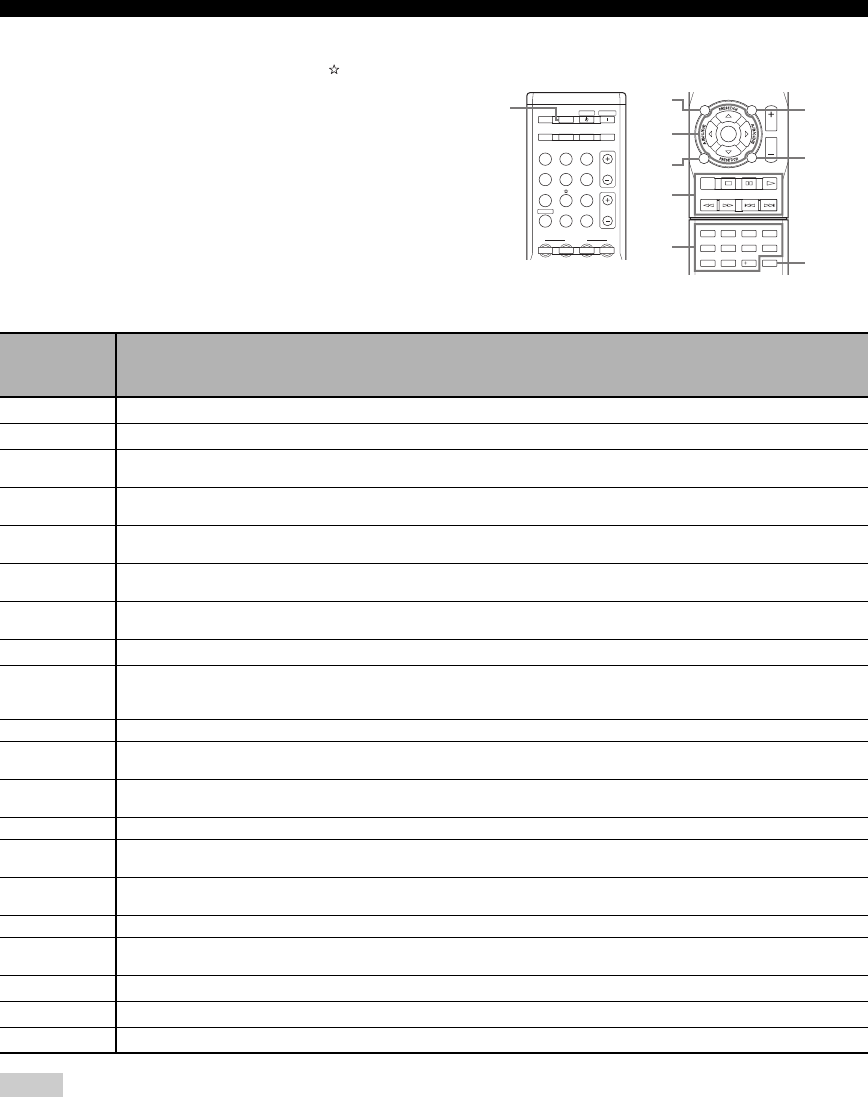

58 En
Remote control features
■Controlling other components
Press one of the input selector buttons (C) or to control
other components. You must set the appropriate remote
control code for each input source in advance (see
page 59). The following table shows the function of each
control button used to control other components assigned
to each input selector button. Be advised that some buttons
may not correctly operate the selected component.
y
The remote control has 10 modes (input areas) to control
components so that the remote control can operate up to 10
different components.
*1 This button is operational only when the original remote control supplied with the component has a POWER button.
*2 These buttons operate your DVD recorder only when you set the appropriate remote control code for DVR (see page 59).
TV MUTE
TV INPUT
TV VOL
TV CH
POWER
AMP
STANDBY
POWER
AUDIO SEL
SLEEP MUTE
MULTI CH IN
POWER
DVD
V-AUX USB
DTV/CBL DVR
CD MD/CD-R TUNER
AVTV
SCENE
4321
REC
SUR.DECODE NIGHT
STRAIGHTENHANCER
l PROG h
8
10
7
09
65
4321
ENT
MENU
VOLUME
TITLE
ENTER
BAND LEVEL
DISPLAY
RETURN
MODE – PTY SEEK – START
FREQ/TEXT EON
DIRECT ST.
2
8
9
7
3
4
6
5
1
Remote
control
DVD
player/
recorder
VCR Digital TV/
Cable TV LD player CD player MD/CD
recorder Tuner USB
1AV POWER Power *1 Power *1 Power *2 Power *1 Power *1 Power *1
2TITLE Title Band
3
PRESET/CH
k
Up VCR channel
up Up Preset up (1-8) Up
PRESET/CH
n
Down VCR channel
down Down Preset down
(1-8) Down
A/B/C/D/E
l
Left Left Preset down
(A-E) Previous menu
A/B/C/D/E
h
Right Right Preset up
(A-E)
Subsequent
menu
ENTER Enter Enter Subsequent
menu
4RETURN Return Return Previous menu
5REC/
DISC SKIP
Disc skip
(player)
Rec (recorder)
Rec Rec *2 Disc skip Rec
pPlay Play Play *2 Play Play Play Play
wSearch
backward
Search
backward
Search
backward *2
Search
backward
Search
backward
Search
backward
fSearch forward Search forward Search forward
*2 Search forward Search forward Search forward
ePause Pause Pause *2 Pause Pause Pause
bSkip backward Skip backward Skip backward
*2 Skip backward Skip backward Skip backward Skip backward
aSkip forward Skip forward Skip forward
*2 Skip forward Skip forward Skip forward Skip forward
sStop Stop Stop *2 Stop Stop Stop Stop
61-9, 0, +10 Numeric
buttons
Numeric
buttons
Numeric
buttons
Numeric
buttons
Numeric
buttons
Numeric
buttons
Preset stations
(1-8)
7MENU Menu Menu
8DISPLAY Display Display Display Display Display Display Display
9ENT Title/Index Enter Enter Chapter/Time Index Index
Notes
![](asset-3f.png)

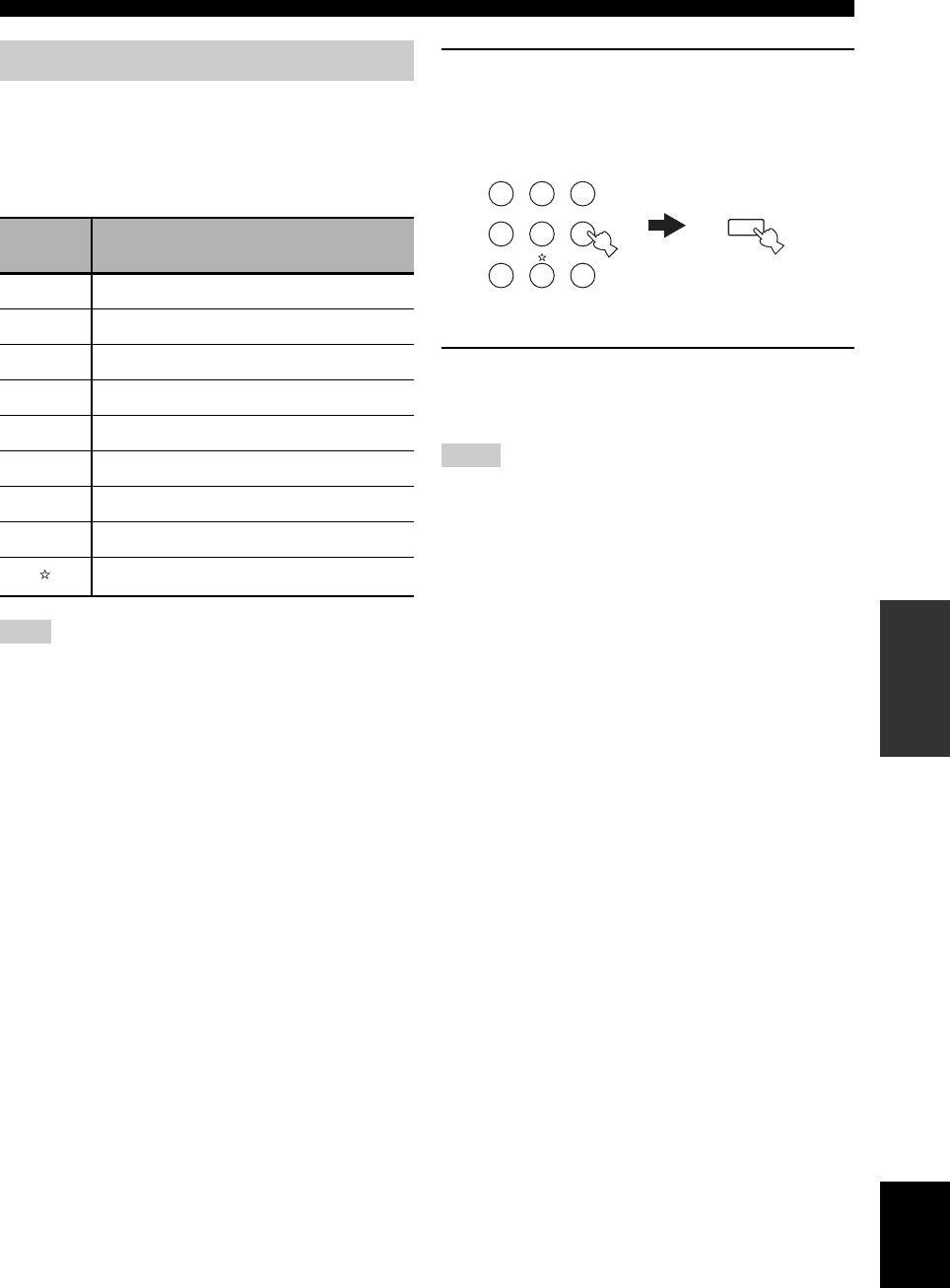

59 En
Remote control features
English
ADVANCED
OPERATION
You can control other components by setting the
appropriate remote control codes. For a complete list of
available remote control codes, refer to “List of remote
control codes” at the end of this manual.
Remote control code default settings
You may not be able to operate your Yamaha component even if a
Yamaha remote control code is preset as listed above. In this case,
try setting another Yamaha remote control code.
1While pressing and holding one of the input
selector buttons (C) on the remote control to
select the input area you want to set up,
press AV POWER for more than 3 seconds.
2Press the numeric buttons (0 to 9) (W) to
enter the four-digit remote control code for
the component to be used.
• If the manufacturer of your component has more than one code,
try each of them until you find the correct one.
• If you do not press any buttons within 30 seconds in step 2, the
setup process is canceled. If this happens, repeat the setup
procedure.
Setting remote control codes
Input
source
Component
category Manufacturer Default
code
CD CD YAMAHA 5013
MD/CD-R CD-R YAMAHA 5001
DVD DVD YAMAHA 2000
DTV/CBL – – –
TUNER TUNER YAMAHA 5007
V-AUX – – –
USB USB YAMAHA 5012
DVR DVR YAMAHA 2011
–––
Note
Notes
DVD
V-AUX USB
DTV/CBL DVR
CD MD/CD-R TUNER
POWER
AV
While holding down Press for 3 seconds
![](asset-40.png)
Advanced setup
60 En
This unit has additional menus that are displayed in the
front panel display. The advanced setup menu offers
additional operations to adjust and customize the way this
unit operates. Change the initial settings (indicated in bold
under each parameter) to reflect the needs of your
listening environment.
•Only
1STANDBY/ON and BSTRAIGHT are effective while
you are using the advanced setup menu.
• No other operations can be made while you are using the
advanced setup menu.
• The advanced setup menu is only available in the front panel
display.
1Press 1STANDBY/ON on the front panel to
set this unit to the standby mode.
2Press and hold 0TONE CONTROL and
then press 1STANDBY/ON to turn on this
unit.
This unit turns on, and the advanced setup menu
appears in the front panel display.
3Press BSTRAIGHT repeatedly to change
the selected parameter setting.
4Press 1STANDBY/ON to confirm your
selection and set this unit to the standby
mode.
y
The settings you made are reflected next time you turn on this
unit.
■Speaker impedance SP IMP.
Use this feature to set the speaker impedance of this unit
so that it matches that of your speakers.
Choices: 8Ω MIN, 6Ω MIN
• Select “8Ω MIN” to set the speaker impedance to 8 Ω .
• Select “6Ω MIN” to set the speaker impedance to 6 Ω .
■Factory presets PRESET
Use this feature to reset all the parameters of this unit to
the initial factory settings (see page 67).
Choices: CANCEL, RESET
• Select “CANCEL” not to reset any parameters of this
unit.
• Select “RESET” to reset the parameters of this unit.
• This setting completely resets all the parameters of this unit
including the “SET MENU” parameters. However, the
advanced setup menu parameters will not be initialized.
• The initial factory settings are activated next time you turn on
this unit.
Advanced setup
Notes SP IMP. Speaker Impedance level
8Ω MIN
Front (A or B)
The impedance of each
speaker must be 8 Ω or
higher.
Center
Surround
6Ω MIN
Front (A or B)
The impedance of each
speaker must be 6 Ω or
higher.
Center
Surround
Notes
![](asset-41.png)
Troubleshooting
61 En
English
ADDITIONAL
INFORMATION
Refer to the table below when this unit does not function properly. If the problem you are experiencing is not listed below
or if the instruction below does not help, turn off this unit, disconnect the power cable, and contact the nearest authorized
Yamaha dealer or service center.
■General
Troubleshooting
Problem Cause Remedy See
page
This unit fails to turn
on or enters the
standby mode soon
after the power is
turned on.
The power cable is not connected or the
plug is not completely inserted.
Connect the power cable firmly. —
The speaker impedance setting is
incorrect.
Set the speaker impedance to match your speakers. 13
The protection circuitry has been
activated.
Make sure that all speaker wire connections on this
unit and on all speakers are secure and that the wire
for each connection does not touch anything other
than its respective connection.
12
This unit has been exposed to a strong
external electric shock (such as lightning
or strong static electricity).
Set this unit to the standby mode, disconnect the
power cable, plug it back in after 30 seconds and then
use it normally.
—
No sound Incorrect input or output cable
connections.
Connect the cables properly. If the problem persists,
the cables may be defective. 14-20
No appropriate Audio input jack select has
been set.
Set an appropriate Audio input jack select. 33
No appropriate input source has been
selected. Select an appropriate input source with DINPUT
l / h on the front panel (or the input selector
buttons (C) on the remote control).
32, 33
Speaker connections are not secure. Secure the connections. 12
The front speakers to be used have not
been selected properly. Select the front speakers with 9SPEAKERS on the
front panel. 33
The volume is turned down. Turn up the volume. —
The sound is muted. Press OMUTE or RVOLUME +/– on the remote
control to resume audio output and then adjust the
volume.
36
Signals this unit cannot reproduce are
being input from a source component,
such as a CD-ROM.
Play a source whose signals can be reproduced by this
unit. —
Audio signals input at the HDMI jack are
not output from any speaker terminals.
Make an analog or digital connection beside the
HDMI connection. —
The setting of the connected component is
improper.
Make an appropriate setting following the instruction
manual of the connected component. —
![](asset-42.png)
62 En
Troubleshooting
Problem Cause Remedy See
page
The sound suddenly
goes off.
The protection circuitry has been activated
because of a short circuit, etc.
Check that the impedance setting is correct. 13
Check that the speaker wires are not touching each
other and then turn this unit back on. —
The sleep timer has turned off this unit. Turn on this unit, and play the source again. —
The sound is muted. Press OMUTE or RVOLUME +/– on the remote
control to resume audio output. 36
Sound is heard from
the speaker on one
side only.
Incorrect cable connections. Connect the cables properly. If the problem persists,
the cables may be defective. 14-20
Incorrect settings in “SP LEVEL”. Adjust the “SP LEVEL” settings. 34
Only the center
speaker outputs
substantial sound.
When playing a monaural source with a
CINEMA DSP program, the source signal
is directed to the center channel, and the
front and surround speakers output effect
sounds.
This is not malfunction.
—
No sound is heard
from the center
speaker.
“CENTER” in “SET MENU” is set to
“NONE”.
Set “CENTER” to “SML” or “LRG”. 48
One of the HiFi DSP programs (except for
5ch Stereo) has been selected.
Try another sound field program. 37
No sound is heard
from the surround
speakers.
“SUR. L/R SP” in “SPEAKER SET” is
set to “NONE”.
Set “SUR. L/R SP” to “SML” or “LRG”. 49
This unit is in the “STRAIGHT” mode
and a monaural source is being played
back.
Press BSTRAIGHT on the front panel so that
“STRAIGHT” disappears from the front panel
display.
38
No sound is heard
from the subwoofer.
“LFE/BASS OUT” in “SPEAKER SET”
is set to “FRONT” when a Dolby Digital
or DTS signal is being played.
Set “LFE/BASS OUT” to “SWFR” or “BOTH”.
49
“LFE/BASS OUT” in “SPEAKER SET”
is set to “SWFR” or “FRONT” when a 2-
channel source is being played.
Set “LFE/BASS OUT” to “SWFR” or “BOTH”.
49
The source does not contain low-
frequency bass signals.
This is not malfunction. —
![](asset-43.png)
63 En
Troubleshooting
English
ADDITIONAL
INFORMATION
Problem Cause Remedy See
page
Dolby Digital or DTS
sources cannot be
played. (Dolby Digital
or DTS indicator in
the front panel
display does not light
up.)
The connected component is not set to
output Dolby Digital or DTS digital
signals.
Make an appropriate setting following the operating
instructions for your component. —
Audio input jack select is set to
“ANALOG”.
Set Audio input jack select to “AUTO”.
33
A humming sound is
heard.
Incorrect cable connections. Connect the audio cables firmly. If the problem
persists, the cables may be defective. —
The volume level
cannot be increased,
or the sound is
distorted.
You are attempting to set the volume level
higher than the maximum volume level.
Adjust “MAX VOL.” setting. 52
The component connected to the AUDIO
OUT (REC) jacks of this unit is turned
off.
Turn on the power of the component.
—
The sound effect
cannot be recorded.
It is not possible to record the sound effect
with a recording component.
This is not malfunction. —
A source cannot be
recorded by an
analog component
connected to the
AUDIO OUT (REC)
jacks.
The source component is not connected to
the analog AUDIO IN jacks of this unit.
Connect the source component to the analog AUDIO
IN jacks.
16, 19
The sound field
parameters and some
other settings of this
unit cannot be
changed.
“MEMORY GUARD” in “OPTION
MENU” is set to “ON”.
Set “MEMORY GUARD” to “OFF”.
55
This unit does not
operate properly.
The internal microcomputer has been
frozen by an external electric shock (such
as lightning or excessive static electricity)
or by a power supply with low voltage.
Disconnect the power cable from the AC wall outlet
and then plug it in again after about 30 seconds. —
“CHECK SP WIRES”
appears in the front
panel display.
Speaker cables are short-circuited. Make sure all speaker cables are connected correctly.
12
There is noise
interference from
digital or radio
frequency equipment.
This unit is too close to the digital or high-
frequency equipment.
Move this unit further away from such equipment.
—
The picture is
disturbed.
The video source uses scrambled or
encoded signals to prevent dubbing.
This is not malfunction. —
This unit suddenly
enters the standby
mode.
The internal temperature is too high and
the overheat protection circuitry has been
activated.
Wait about 1 hour for this unit to cool down and then
turn it back on. —
![](asset-44.png)
64 En
Troubleshooting
■Tuner
■AUTO SETUP
Before AUTO SETUP
Problem Cause Remedy See
page
FM
FM stereo reception is
noisy.
The characteristics of FM stereo
broadcasts may cause this problem
when the transmitter is too far away or
the antenna input is poor.
Check the antenna connections. 20
Try using a high-quality directional FM
antenna. —
Use the manual tuning method. 40
There is distortion, and
clear reception cannot
be obtained even with a
good FM antenna.
There is multi-path interference. Adjust the antenna position to eliminate
multi-path interference. —
The desired station
cannot be tuned into
with the automatic
tuning method.
The signal is too weak. Use a high-quality directional FM antenna. —
Use the manual tuning method. 40
Previously preset
stations can no longer
be tuned into.
This unit has been disconnected for a
long period.
Set preset stations.
41
AM
The desired station
cannot be tuned into
with the automatic
tuning method.
The signal is weak or the antenna
connections are loose.
Tighten the AM loop antenna connections
and orient it for the best reception. —
Use the manual tuning method. 40
There are continuous
crackling and hissing
noises.
Noise can result from lightning,
fluorescent lamps, motors, thermostats
and other electrical equipment.
Use an outdoor antenna and a ground wire.
This will help somewhat, but it is difficult to
eliminate all noise.
—
There are buzzing and
whining noises.
A TV set is being used nearby. Move this unit away from the TV set. —
Error message Cause Remedy See
page
Connect MIC! Optimizer microphone is not connected. Connect the supplied optimizer microphone
to the OPTIMIZER MIC jack on the front
panel.
24
Unplug HP! Headphones are connected. Unplug the headphones. —
![](asset-45.png)
65 En
Troubleshooting
English
ADDITIONAL
INFORMATION
During AUTO SETUP
After AUTO SETUP
• If the “ERROR” or “WARNING” screens appears, check the cause of the problem, then run “AUTO SETUP” again.
• If a warning message “W-1” appears, corrections are made, but they may not be optimal.
• If a warning message “W-2” or “W-3” appears, no corrections are made.
• If an error message “E-6” occurs repeatedly, please contact a qualified Yamaha service center.
Error message Cause Remedy See
page
E-1:NO FRONT SP Front L/R channel signals are not detected. Check the front L/R speaker connections. 12
E-2:NO SUR.SP A surround channel signal is not detected. Check the surround speaker connections. 12
E-3:NOISY Background noise is too loud. Try running “AUTO SETUP” in a quiet
environment. —
Turn off noisy electric equipment like air
conditioners or move them away from the
optimizer microphone.
—
E-4:NO MIC The optimizer microphone was unplugged
during the “AUTO SETUP” procedure.
Connect the supplied optimizer microphone
to OPTIMIZER MIC jack on the front
panel.
24
E-5:USER CANCEL The “AUTO SETUP” procedure was
cancelled due to user activity.
Run “AUTO SETUP” again. 24
E-6:INTERNAL ERROR An internal error occurred. Run “AUTO SETUP” again. 24
Warning message Cause Remedy See
page
W-1:OUT OF PHASE Speaker polarity is not correct. This
message may appear depending on the
speakers even when the speakers are
connected correctly.
Check the speaker connections for proper
polarity (+ or –). 12
W-2:OVER 24m (80ft) The distance between the nearest speaker
and the furthest speaker is out of adjustable
range.
Bring the speaker closer to the listening
position. —
W-3:LEVEL ERROR The difference of volume level among
speakers is excessive. (No level correction
is made.)
If “SWFR:TOO LOUD” or “SWFR:TOO
LOW” appears, adjust the output volume of
the subwoofer.
24
Readjust the speaker installation so that all
speakers are set in locations with similar
conditions.
—
Check the speaker connections. 12
Use speakers of similar quality. —
Notes
![](asset-46.png)
66 En
Troubleshooting
■USB
Problem Cause Remedy See
page
The music files and
directories in the USB
device cannot be
viewed.
The music files and directories are placed
in locations other than the FAT area.
Place music files and directories in the FAT area. —
You are attempting to browse directory
hierarchies of over 8 levels or a directory
with more than 500 files.
Modify the data structure on your USB device.
—
The USB device
cannot be recognized.
The connected USB device is other than a
USB mass storage class USB memory
device or USB portable audio player.
This unit can recognize only a USB mass storage
class USB memory device (except USB hard disk
drives) or USB portable audio player. Also note that it
cannot recognize certain USB devices even when they
are devices as described above.
43
Some devices may become easier to recognize when
they are inserted before turning this unit on. 21
“Disconnected” is
displayed even when
a USB device is
present.
This unit recognized the USB device as an
illegal device.
Turn this unit off then on again.
21
Status message Cause Remedy See
page
Disconnected Your USB memory device or USB
portable audio player has been
disconnected from the USB port of this
unit.
Check the connection between this unit and your
USB memory device or USB portable audio player. —
There is a problem with the signal path
from your USB memory device or USB
portable audio player to this unit.
Turn off this unit and reconnect your USB memory
device or USB portable audio player to the USB port
of this unit.
43
Try resetting your USB memory device or USB
portable audio player. —
Access error This unit cannot access your USB
memory device or USB portable audio
player.
Try another USB memory device or USB portable
audio player. —
There is a problem with the signal path
from your USB memory device or USB
portable audio player to this unit.
Turn off this unit and reconnect your USB memory
device or USB portable audio player to the USB port
of this unit.
43
Try resetting your USB memory device or USB
portable audio player. —
Unable to play No varied data is detected. Try another USB memory device or USB portable
audio player. —
![](asset-47.png)
67 En
Troubleshooting
English
ADDITIONAL
INFORMATION
■Remote control
■Resetting the system
Use this feature to reset all the parameters of this unit to
the initial factory settings.
1Press 1STANDBY/ON on the front panel to
set this unit to the standby mode.
2Press and hold 0TONE CONTROL and
then press 1STANDBY/ON to turn on this
unit.
The advanced setup menu appears in the front panel
display.
3Press BSTRAIGHT repeatedly to select
“RESET”.
Select “CANCEL” to cancel the initialization
procedure without making any changes.
4Press 1STANDBY/ON to confirm your
selection and set this unit to the standby
mode.
• This procedure completely resets all the parameters of this unit
including the “SET MENU” parameters. However, the
advanced setup menu parameters will not be initialized.
• The initial factory settings are activated next time you turn on
this unit.
y
To cancel the initialization procedure at any time without making
any changes, press BSTRAIGHT repeatedly to select
“CANCEL” and then press 1STANDBY/ON.
Problem Cause Remedy See
page
The remote control
does not work nor
function properly.
Wrong distance or angle. The remote control functions within a maximum
range of 6 m (20 ft) and no more than 30 degrees off-
axis from the front panel.
23
Direct sunlight or lighting (from an
inverter type of fluorescent lamp, etc.) is
striking the remote control sensor of this
unit.
Reposition this unit.
—
The batteries are weak. Replace all batteries. 3
The remote control code is not correctly
set.
Set the remote control code correctly using “List of
remote control codes” at the end of this manual. 59
Try setting another code for the same manufacturer
using “List of remote control codes” at the end of this
manual.
59
Even if the remote control code is
correctly set, there are some models that
do not respond to the remote control.
Notes
![](asset-48.png)
Glossary
68 En
■Audio information
Dolby Digital
Dolby Digital is a digital surround sound system that gives
you completely independent multi-channel audio. With 3
front channels (front L/R and center), and 2 surround
stereo channels, Dolby Digital provides 5 full-range audio
channels. With an additional channel especially for bass
effects, called LFE (Low Frequency Effect), the system
has a total of 5.1-channels (LFE is counted as 0.1
channel). By using 2-channel stereo for the surround
speakers, more accurate moving sound effects and
surround sound environment are possible than with Dolby
Surround. The wide dynamic range from maximum to
minimum volume reproduced by the 5 full-range channels
and the precise sound orientation generated using digital
sound processing provide listeners with unprecedented
excitement and realism. With this unit, any sound
environment from monaural up to a 5.1-channel
configuration can be freely selected for your enjoyment.
Dolby Pro Logic II
Dolby Pro Logic II is an improved technique used to
decode vast numbers of existing Dolby Surround sources.
This new technology enables a discrete 5-channel
playback with 2 front left and right channels, 1 center
channel, and 2 surround left and right channels instead of
only 1 surround channel for conventional Pro Logic
technology. There are three modes available: “Music
mode” for music sources, “Movie mode” for movie
sources and “Game mode” for game sources.
Dolby Surround
Dolby Surround uses a 4-channel analog recording system
to reproduce realistic and dynamic sound effects: 2 front
left and right channels (stereo), a center channel for dialog
(monaural), and a surround channel for special sound
effects (monaural). The surround channel reproduces
sound within a narrow frequency range. Dolby Surround is
widely used with nearly all video tapes and laser discs,
and in many TV and cable broadcasts as well. The Dolby
Pro Logic decoder built into this unit employs a digital
signal processing system that automatically stabilizes the
volume on each channel to enhance moving sound effects
and directionality.
DTS Digital Surround
DTS digital surround was developed to replace the analog
soundtracks of movies with a 5.1-channel digital sound
track, and is now rapidly gaining popularity in movie
theaters around the world. DTS, Inc. has developed a
home theater system so that you can enjoy the depth of
sound and natural spatial representation of DTS digital
surround in your home. This system produces practically
distortion-free 5.1-channel sound (technically, left, right
and center channels, 2 surround channels, plus an LFE 0.1
channel as a subwoofer, for a total of 5.1-channels).
LFE 0.1 channel
This channel reproduces low-frequency bass signals. The
frequency range of this channel is from 20 Hz to 120 Hz.
This channel is counted as 0.1 because it only enforces a
low-frequency range compared to the full-range
reproduced by the other 5 channels in Dolby Digital or
DTS 5.1-channel systems.
PCM (Linear PCM)
Linear PCM is a signal format under which an analog
audio signal is digitized, recorded and transmitted without
using any compression. This is used as a method of
recording CDs and DVD audio. The PCM system uses a
technique for sampling the size of the analog signal per
very small unit of time. Standing for “Pulse Code
Modulation”, the analog signal is encoded as pulses and
then modulated for recording.
Sampling frequency and number of quantized
bits
When digitizing an analog audio signal, the number of
times the signal is sampled per second is called the
sampling frequency, while the degree of fineness when
converting the sound level into a numeric value is called
the number of quantized bits. The range of rates that can
be played back is determined based on the sampling rate,
while the dynamic range representing the sound level
difference is determined by the number of quantized bits.
In principle, the higher the sampling frequency, the wider
the range of frequencies that can be played back, and the
higher the number of quantized bits, the more finely the
sound level can be reproduced.
Glossary
![](asset-49.png)
69 En
Glossary
English
ADDITIONAL
INFORMATION
■Sound field program information
CINEMA DSP
Since the Dolby Surround and DTS systems were
originally designed for use in movie theaters, their effect
is best felt in a theater having many speakers designed for
acoustic effects. Since home conditions, such as room
size, wall material, number of speakers, and so on, can
differ so widely, it is inevitable that there are differences in
the sound heard. Based on a wealth of actually measured
data, Yamaha CINEMA DSP uses Yamaha original DSP
technology to combine Dolby Pro Logic, Dolby Digital
and DTS systems to provide the audiovisual experience of
movie theater in the listening room of your own home.
SILENT CINEMA
Yamaha has developed a natural, realistic sound effect
DSP algorithm for headphones. Parameters for
headphones have been set for each sound field program so
that accurate representations of all the sound field
programs can be enjoyed on headphones.
Virtual CINEMA DSP
Yamaha has developed a Virtual CINEMA DSP algorithm
that allows you to enjoy DSP surround effects even
without any surround speakers by using virtual surround
speakers. It is even possible to enjoy Virtual CINEMA
DSP using a minimal two-speaker system that does not
include a center speaker.
■Video information
Component video signal
With the component video signal system, the video signal
is separated into the Y signal for the luminance and the PB
and PR signals for the chrominance. Color can be
reproduced more faithfully with this system because each
of these signals is independent. The component signal is
also called the “color difference signal” because the
luminance signal is subtracted from the color signal. A
monitor with component input jacks is required in order to
output component signals.
Composite video signal
With the composite video signal system, the video signal
is composed of three basic elements of a video picture:
color, brightness and synchronization data. A composite
video jack on a video component transmits these three
elements combined.
S-video signal
With the S-video signal system, the video signal normally
transmitted using a pin cable is separated and transmitted
as the Y signal for the luminance and the C signal for the
chrominance through the S-video cable. Using the S
VIDEO jack eliminates video signal transmission loss and
allows recording and playback of even more beautiful
images.
■HDMI
HDMI (High-Definition Multimedia Interface) is the first
industry-supported, uncompressed, all-digital audio/video
interface. Providing an interface between any source (such
as a set-top box or AV receiver) and an audio/video
monitor (such as a digital television), HDMI supports
standard, enhanced or high-definition video as well as
multi-channel digital audio using a single cable. HDMI
transmits all ATSC HDTV standards and supports
8-channel digital audio, with bandwidth to spare to
accommodate future enhancements and requirements.
When used in combination with HDCP (High-bandwidth
Digital Content Protection), HDMI provides a secure
audio/video interface that meets the security requirements
of content providers and system operators. For further
information on HDMI, visit the HDMI website at
“http://www.hdmi.org/”.
■MP3
One of the audio compression methods used by MPEG. It
employs the irreversible compression method, which
achieves a high compression rate by thinning out the data
of hardly audible part to the human ears. It is said to be
capable of compressing the data quantity by about 1/11
(128 kbps) while maintaining a similar audio quality to
music CD.
■WAV
Windows standard audio file format, which defines the
method of recording the digital data obtained by
converting audio signals. It does not specify the
compression (coding) method so a desired compression
method can be used with it. By default, it is compatible
with the PCM method (no compression) and some
compression methods including the ADPCM method.
■WMA
An audio compression method developed by Microsoft
Corporation. It employs the irreversible compression
method, which achieves a high compression rate by
thinning out the data of hardly audible part to the human
ears. It is said to be capable of compressing the data
quantity by about 1/22 (64 kbps) while maintaining a
similar audio quality to music CD.
![](asset-4a.png)
Specifications
70 En
AUDIO SECTION
• Minimum RMS Output Power for Front, Center, Surround
1 kHz, 0.9% THD, 8 Ω ...................................................... 100 W
• Maximum Power for Front, Center, Surround (JEITA)
1kHz, 10% THD, 8 Ω ........................................................ 135 W
• Dynamic Power
(IHF, 8/6/4/2 Ω) ............................................. 110/130/160/180 W
• Dynamic Headroom
8 Ω ..................................................................................... 0.41 dB
• Maximum Input Signal
CD, etc. Effect On, 1 kHz, 0.5% THD .................... 2.0 V or more
• Frequency Response
CD, etc. to Front L/R ............................ 10 Hz to 100 kHz, –3 dB
• Total Harmonic Distortion
(1 kHz, 50 W, Front L/R, 8 Ω ) ................................ 0.06% or less
• Signal to Noise Ratio (IHF-A Network)
CD (200 mV) to Front L/R, Effect Off ................... 98 dB or more
CD (250 mV) to Front L/R, Effect Off ................. 100 dB or more
• Residual Noise (IHF-A Network)
Front L/R ................................................................ 150 µV or less
• Channel Separation (1 kHz/10 kHz)
CD, etc. (5.1 kΩ terminated) to Front L/R
................................................................... 60 dB/45 dB or more
• Tone Control (Front L/R)
BASS Boost/Cut .................................................... ±10 dB/100 Hz
TREBLE Boost/Cut .............................................. ±10 dB/20 kHz
• Phones Output .......................................................... 400 mV/470 Ω
• Input Sensitivity/Input Impedance
CD, etc. ................................................................. 200 mV/47 kΩ
MULTI CH INPUT ............................................... 200 mV/47 kΩ
• Output Level/Output Impedance
AUDIO OUT (REC) ............................................ 200 mV/1.2 kΩ
SUBWOOFER OUTPUT ........................................... 4 V/1.2 kΩ
• Filter Characteristics (fc=40/60/80/90/100/110/120/160/200 Hz)
H.P.F.
(FRONT SP, CENTER SP, SUR. L/R SP: SMALL/SML)
......................................................................................12 dB/oct.
L.P.F. (Subwoofer) .........................................................24 dB/oct.
VIDEO SECTION
• Video Signal Type (Gray back) .............................................. NTSC
• Signal Level
Composite ................................................................. 1 Vp-p/75 Ω
S-video ............................ 1 Vp-p/75 Ω (Y), 0.286 Vp-p/75 Ω (C)
Component ................... 1 Vp-p/75 Ω (Y), 0.7 Vp-p/75 Ω (PB/PR)
• Signal to Noise Ratio ................................................. 50 dB or more
• Maximum Input Level........................................... 1.5 Vp-p or more
• Frequency Response (MONITOR OUT)
Component Signal ................................... 5 Hz to 60 MHz, –3 dB
FM SECTION
• Tuning Range ..................................................... 87.5 to 107.9 MHz
• 50 dB Quieting Sensitivity (IHF, 100% mod.)
Mono ................................................................. 2.8 µV (20.2 dBf)
• Signal to Noise Ratio (IHF)
Mono/Stereo ............................................................. 73 dB/70 dB
• Harmonic Distortion (1 kHz)
Mono/Stereo ................................................................ 0.5%/0.5%
• Antenna Input (unbalanced) ..................................................... 75 Ω
AM SECTION
• Tuning Range ......................................................... 530 to 1710 kHz
GENERAL
• Power Supply ........................................................ 120 V AC, 60 Hz
• Power Consumption .................................................. 240 W/320 VA
• Standby Power Consumption ...................................... 0.8 W or less
• AC Outlets ............................................ 2 (Total 100 W maximum)
• Dimensions (W x H x D).................................. 435 x 151 x 318 mm
(17-1/8” x 5-15/16” x 12-1/2”)
• Weight .............................................................. 8.1 kg (17 lbs 14 oz)
* Specifications are subject to change without notice.
Specifications
![](asset-4b.png)
71 En
English
ADDITIONAL
INFORMATION
■Numerics
1 SOUND MENU, Manual setup ........ 46
2 INPUT MENU, Manual setup ..........46
2ch Stereo, Sound field program ......... 37
3 OPTION MENU ............................... 54
3 OPTION MENU, Manual setup .......47
5ch Stereo, Sound field program ......... 37
■A
A)DISPLAY SET, Option menu .........54
A)INPUT ASSIGNMENT,
Input menu .......................................52
A)SPEAKER SET, Sound menu .........48
A.DELAY, Audio settings ................... 51
AC OUTLETS (SWITCHED) .............21
AC OUTLETS, Rear panel .................. 10
AM antenna, Connection ..................... 20
AM tuning ............................................ 40
Amplifier function OSD display time,
Display settings ................................ 54
Audio components, Connection ........... 19
Audio delay, Audio settings .................51
AUDIO jacks ....................................... 14
Audio jacks .......................................... 14
AUDIO jacks, Rear panel ....................10
AUDIO SELECT ................................. 33
Audio select, Option menu ..................55
Audio settings, Sound menu ................51
AUTO SETUP ..................................... 24
AUTO SETUP, Error message ............ 64
AUTO: RESULT display,
Auto setup ........................................ 26
Automatic preset tuning,
FM/AM tuning ................................. 41
Automatic tuning, FM/AM tuning .......40
■B
B)INPUT RENAME, Input menu .......53
B)MEMORY GUARD,
Option menu .................................... 55
B)SPEAKER LEVEL,
Sound menu ..................................... 50
Background Video,
Multi channel input setup ................ 54
BGV, Multi channel input setup .......... 54
BITRATE,
Input source information .................35
■C
C)AUDIO SELECT, Option menu ......55
C)SP DISTANCE, Sound menu ..........50
C)VOLUME TRIM, Input menu .........53
Cable TV, Connection ......................... 16
CD player, Connection ........................ 19
CD recorder, Connection .....................19
CENTER SP, Speaker settings ............ 48
Center speaker equalizer,
Sound menu ..................................... 51
Center speaker, Speaker settings .........48
Center width,
Sound field parameter ......................39
CHANNEL,
Input source information ..................35
CINEMA DSP indicator,
Front panel display ...........................22
COAXIAL IN (1),
Input assignment ..............................52
COAXIAL INPUT assignment,
Input assignment ..............................52
COAXIAL INPUT jacks ......................52
COMPONENT VIDEO jacks ..............14
COMPONENT VIDEO jacks,
Connection .......................................18
COMPONENT VIDEO jacks,
Rear panel ........................................10
Connect MIC!,
Auto setup error message .................64
Connecting to the HDMI ......................17
Connection, AM antenna .....................20
Connection, Audio components ...........19
Connection, Cable TV ..........................16
Connection, CD player .........................19
Connection, CD recorder .....................19
Connection,
COMPONENT VIDEO jacks ..........18
Connection, DVD player ......................16
Connection, DVD recorder ..................16
Connection, FM antenna ......................20
Connection, MD recorder .....................19
Connection,
MULTI CH INPUT jacks ................19
Connection, Power cable ......................21
Connection, S VIDEO jacks ................18
Connection, Satellite tuner ...................16
Connection, Speaker ............................12
Connection, Video components ...........16
Connection, Video monitor ..................16
Controlling a TV, Remote control .......57
Controlling other components,
Remote control .................................58
Controlling this unit,
Remote control .................................57
Creating original SCENE templates .....31
CROSSOVER, Speaker settings ..........49
Crossover, Speaker settings .................49
CT WIDTH, Sound field parameter .....39
■D
D)CENTER GEQ, Sound menu ...........51
D)DECODER MODE, Input menu ......53
D)PARAM. INI, Option menu .............55
Decoder mode, Input menu ..................53
Decoder select mode,
Decoder mode ..................................53
Default setting,
Remote control code ........................59
DIGITAL AUDIO COAXIAL jacks ...14
DIGITAL AUDIO OPTICAL jacks .....14
DIGITAL INPUT jacks, Rear panel ....10
DIMENSION,
Sound field parameter ..................... 39
Dimension, Sound field parameter ...... 39
DIMMER, Display settings ................. 54
Dimmer, Display settings .................... 54
DIRECT STEREO ............................... 34
Direct Stereo ........................................ 34
Display settings, Option menu ............ 54
Display, Input source information ....... 35
DIST .................................................... 25
DIST, Auto setup result ....................... 25
DISTANCE ......................................... 25
DISTANCE, Auto setup ...................... 25
DSP LEVEL,
Sound field parameter ..................... 39
DSP level, Sound field parameter ....... 39
DTS decoder prioritize setting,
Decoder mode ................................. 53
DVD player, Connection ..................... 16
DVD recorder, Connection .................. 16
Dynamic range, Sound menu .............. 51
■E
E)LFE LEVEL, Sound menu .............. 51
E)MULTI CH SET, Input menu .......... 54
E-1:NO FRONT SP,
Auto setup error message ................ 65
E-2:NO SURR.SP,
Auto setup error message ................ 65
E-3:NOISY,
Auto setup error message ................ 65
E-4:NO MIC,
Auto setup error message ................ 65
E-5:USER CANCEL,
Auto setup error message ................ 65
E-6:INTERNAL ERROR,
Auto setup error message ................ 65
Effect level, Sound field parameter ..... 39
ENHANCER indicator,
Front panel display .......................... 22
Exchange, Preset station,
FM/AM tuning ................................ 42
■F
F)D. RANGE, Sound menu ................. 51
Factory presets, Advanced setup ......... 60
FL SCROLL, Display settings ............ 54
FLAG, Input source information ......... 35
FM antenna, Connection ..................... 20
FM tuning ............................................ 40
FORMAT, Input source information ... 35
FRONT B speaker setting,
Speaker settings ............................... 48
FRONT B, Speaker settings ................ 48
Front panel display .............................. 22
Front panel display scroll,
Display settings ............................... 54
FRONT SP, Speaker settings .............. 48
Front speakers, Speaker settings .......... 48
Index
![](asset-4c.png)
72 En
■G
G)AUDIO SET, Sound menu .............. 51
Game .................................................... 37
■H
Hall ....................................................... 37
HDMI ................................................... 15
HDMI jack, HDMI cable plug ............. 15
HDMI jacks, Rear panel ...................... 10
Headphone, Dynamic range ................. 51
HEADPHONE,
Low-frequency effect level .............. 51
Headphone,
Low-frequency effect level .............. 51
Headphones indicator,
Front panel display .......................... 22
Headphones, use .................................. 36
HiFi DSP indicator,
Front panel display .......................... 22
HP, Dynamic range .............................. 51
■I
Infrared window, Remote control ........ 23
INI.VOL., Audio settings .................... 52
Initial volume, Audio settings .............. 52
Input assignment, Input menu .............. 52
Input channel and speaker indicators,
Front panel display .......................... 22
Input channel indicators,
Front panel display .......................... 22
Input menu, Manual setup ................... 46
Input rename, Input menu .................... 53
Input source indicators,
Front panel display .......................... 22
Input source information display ......... 35
■J
Jazz ....................................................... 37
■L
LFE indicator, Front panel display ...... 22
LFE/BASS OUT, Speaker settings ...... 49
LFE/Bass out, Speaker settings ........... 49
Low-frequency effect level, Sound menu
51
LVL ...................................................... 25
LVL, Auto setup result ........................ 25
■M
Manual preset tuning,
FM/AM tuning ................................. 41
MANUAL SETUP, SET MENU ......... 46
Manual setup, SET MENU .................. 46
Manual tuning, FM/AM tuning ........... 40
MAX VOL., Audio settings ................. 52
Maximum volume, Audio settings ....... 52
MD recorder, Connection .................... 19
Memory guard, Option menu ............... 55
Movie Dramatic ................................... 37
Movie Spacious .................................... 37
MULTI CH INPUT jacks,
Connection ....................................... 19
MULTI CH INPUT jacks,
Rear panel ........................................ 10
Multi channel input setup,
Input menu .......................................54
Multi-channel source
with headphones ..............................38
Multi-information display,
Front panel display ...........................22
Music Enh. 2ch,
Sound field program ........................37
Music Enh. 5ch,
Sound field program ........................37
MUTE indicator,
Front panel display ...........................22
MUTE TYPE, Audio settings ..............51
Muting ..................................................36
■N
NIGHT indicator,
Front panel display ...........................22
Night listening mode ............................35
Number of speakers .............................25
Number of speakers,
Auto setup result ..............................25
■O
OPTICAL IN (2) ..................................52
OPTICAL IN (2), Input assignment ....52
OPTICAL IN (3), Input assignment ....52
OPTICAL INPUT assignment,
Input assignment ..............................52
OPTIMIZER MIC jack, Auto setup .....24
Optimizer microphone .........................24
Optimizer microphone, Auto setup ......24
Optimizing speaker setting ...................24
Option menu, Manual setup .................47
OSD SHIFT, Display settings ..............54
OSD shift, Display settings ..................54
OSD-AMP, Display settings ................54
OSD-SOURCE, Display settings .........54
Other components controlling
by remote control .............................58
Other components controlling,
Remote control .................................58
■P
PANORAMA,
Sound field parameter ......................39
Panorama, Sound field parameter ........39
Parameter initialization,
Option menu ....................................55
PCM indicator, Front panel display .....22
PHONES jack ......................................36
Play information display,
USB controlling ...............................44
Playing video sources
in the background .............................36
PLII Game ............................................38
PLII Movie ...........................................38
PLII Music ...........................................38
Pop/Rock ..............................................37
Power cable, Connection ......................21
Preset station exchange,
FM/AM tuning .................................42
Preset station selection,
FM/AM tuning .................................42
PRESET, Advanced setup ................... 60
Pro Logic ............................................. 38
Pure hi-fi stereo sound ......................... 34
■R
Remote control code default setting .... 59
Remote control code setting ................ 59
Remote control codes ........................... iii
Remote control codes setting .............. 59
Remote control, Troubleshooting ........ 67
Rename, SCENE template .................. 31
Resetting the system ............................ 67
■S
S VIDEO jacks .................................... 14
S VIDEO jacks, Connection ................ 18
SAMPLING,
Input source information ................. 35
Satellite tuner, Connection .................. 16
SCENE 1 ............................................... 8
SCENE 2 ............................................... 8
SCENE 3 ............................................... 8
SCENE 4 ............................................... 9
SCENE template selection .................. 28
Selection, Audio input jack ................. 33
Selection, Preset station,
FM/AM tuning ................................ 42
Selection, SCENE template ................. 28
SET MENU ......................................... 46
Setting remote control code ................. 59
Setting SCENE template input source,
Remote control ................................ 56
Setting the speaker impedance ............ 13
SIGNAL INFO, SET MENU .............. 35
SILENT CINEMA .............................. 38
SILENT CINEMA indicator,
Front panel display .......................... 22
SIZE ..................................................... 25
SIZE, Auto setup ................................. 25
SLEEP indicator,
Front panel display .......................... 22
Sleep timer ........................................... 36
Sound field programs
with headphones .............................. 38
Sound menu, Manual setup ................. 46
Source feature OSD display time,
Display settings ............................... 54
SP ......................................................... 25
SP A B indicators,
Front panel display .......................... 22
SP IMP., Advanced setup .................... 60
SP, Auto setup result ........................... 25
SP, Dynamic range .............................. 51
Speaker distance .................................. 25
Speaker distance, Auto setup ............... 25
Speaker distance, Auto setup result ..... 25
Speaker distance, Sound menu ............ 50
Speaker distances,
Speaker distance .............................. 50
Speaker impedance,
Advanced setup ............................... 60
Speaker level ....................................... 25
Speaker level adjustment ..................... 34
Speaker level, Auto setup result .......... 25
![](asset-4d.png)
73 En
English
ADDITIONAL
INFORMATION
Speaker level, Sound menu .................. 50
Speaker settings, Sound menu ............. 48
Speaker size .........................................25
Speaker size, Auto setup ...................... 25
Speaker wiring ..................................... 25
Speaker wiring, Auto setup .................. 25
Speaker wiring/volume level,
Auto setup ........................................ 25
Speaker, Connection ............................12
Speaker, Dynamic range ...................... 51
SPEAKER,
Low-frequency effect level .............. 51
Speaker,
Low-frequency effect level .............. 51
SPEAKERS terminals, Rear panel ...... 10
Specifications ....................................... 70
STRAIGHT .......................................... 38
Straight ................................................. 38
SUBWOOFER OUTPUT jack,
Rear panel ........................................10
SUBWOOFER PHASE,
Speaker settings ............................... 49
Subwoofer phase, Speaker settings ......49
Supplied accessories .............................. 3
SUR. L/R SP, Speaker settings ............ 49
Surround left/right speakers,
Speaker settings ............................... 49
■T
Test tone, Center speaker equalizer ..... 51
TEST, Center speaker equalizer ..........51
Tonal quality adjustment .....................34
Troubleshooting ................................... 61
Tuner (FM/AM), Troubleshooting ...... 64
Tuner indicators,
Front panel display .......................... 22
Turning off the power ..........................21
Turning on the power ...........................21
TV controlling by remote control ........57
TV controlling, Remote control ...........57
TV Sports .............................................37
■U
UNIT, Speaker distance ....................... 50
Unit, Speaker distance .........................50
Unplug HP!,
Auto setup error message ................ 64
USB memory device using,
USB portable audio player using .....43
USB playback operation ......................43
USB playback styles ............................ 55
USB, Troubleshooting ......................... 66
■V
VIDEO AUX jacks, Front panel .......... 20
Video components, Connection ........... 16
VIDEO jacks ........................................14
Video jacks .......................................... 14
VIDEO jacks, Rear panel .....................10
Video monitor, Connection ..................16
Virtual CINEMA DSP ......................... 38
VIRTUAL indicator,
Front panel display .......................... 22
VOLUME level indicator,
Front panel display ...........................22
Volume Trim, Input menu ....................53
■W
W-1:OUT OF PHASE,
Auto setup error message .................65
W-2:DISTANCE ERROR,
Auto setup error message .................65
W-3:LEVEL ERROR,
Auto setup error message .................65
WIRING/LEVEL .................................25
WIRING/LEVEL, Auto setup ..............25
■Y
Yamaha Parametric Room Acoustic
Optimizer .........................................24
YPAO ...................................................24
YPAO (Yamaha Parametric Room
Acoustic Optimizer) .........................24
YPAO indicator,
Front panel display ...........................22
■Z
Zone B ..................................................33
![](asset-4e.png)
i
Front panel/Face avant
SPEAKERS
PHONES
SILENT CINEMA
STANDBY
/ON
A/B/OFF
l
PRESET/TUNING
h
A/B/C/D/E
FM/AM
EDIT
PRESET/TUNING
MEMORY
TUNING AUTO/MAN'L
OPTIMIZER MIC
AUDIO SELECT
DIRECT STEREOSTRAIGHT
EFFECT
TONE CONTROL
l INPUT hl PROGRAM h
VOLUME
SCENE
1234
VIDEO L AUDIO R
VIDEO AUX USB
134 5 8
9 DA C E FB
2
0
76
![](asset-4f.png)
ii
APPENDIX
Remote control/Boîtier de télécommande
REC
SUR.DECODE NIGHT
STRAIGHTENHANCERl PROG h
TV MUTE
TV INPUT
TV VOL
TV CH
POWER
AMP
STANDBY
POWER
AUDIO SEL
SLEEP MUTE
MULTI CH IN
POWER
8
10
7
09
65
4321
ENT
DVD DTV/CBL DVR
CD MD/CD-R TUNER
MENU
VOLUME
TITLE
ENTER
BAND LEVEL
DISPLAY
RETURN
AVTV
SCENE
4321
MODE – PTY SEEK – START
FREQ/TEXT
DIRECT ST.
EON
V-AUX USB
R
K
O
J
H
A
P
U
V
W
N
B
L
C
E
D
I
F
G
Q
T
S
M
Y
X
![](asset-50.png)
iii
List of remote control codes
Liste des codes de commande
TV
ACER 0093
ACME 0207
ACURA 0208
ADA 0255
ADC 0206
ADMIRAL 0058, 0205, 0206,
0210, 0211
ADYSON 0200, 0207
AGASHI 0200
AGAZI 0206
AGB 0204
AIKO 0127, 0200, 0207,
0208
AIWA 0028, 0139, 0229,
0237
AKAI 0059, 0065, 0127,
0129, 0130, 0200,
0204, 0208, 0209,
0213, 0217, 0218,
0255
AKIBA 0209, 0218
AKURA 0206, 0209, 0218
ALARON 0200
ALBA 0200, 0207, 0208,
0209, 0217, 0218
ALBIRAL 0212
ALLSTAR 0213
AMPLIVISION
0207
AMSTRAD 0204, 0206, 0208,
0209, 0218
AMTRON 0062
ANAM 0208
ANAM NATIONAL
0062
ANGLO 0208
ANITECH 0206, 0208
ANSONIC 0203, 0208
AOC 0060, 0061
APEX 0118, 0122, 0132
ARC EN CIEL 0216
ARCAM 0200
ARCAM DELTA
0207
ARISTONA 0213, 0217
ASA 0205, 0211
ASBERG 0213
ASTRA 0208
ASUKA 0200, 0206, 0207,
0209, 0218
ATLANTIC 0200, 0207, 0213,
0217
ATORI 0208
AUDIOSONIC 0207, 0208, 0209,
0213, 0216, 0217,
0218
AUDIOTON 0207
AUDIOVOX 0062
AUTOVOX 0205, 0206, 0207
AWA 0200
BAIRD 0216
BANG & OLUFSEN
0205
BASIC LINE 0208, 0209, 0213,
0218
BASTIDE 0207
BAUR 0217
BEKO 0228
BELCOR 0060
BELL & HOWELL
0058, 0064
BENQ 0051, 0081
BEON 0213, 0217
BESTAR 0213
BINATONE 0207
BLACK STAR 0214
BLAUPUNKT 0255
BLUE SKY 0209, 0218
BONDSTEC 0214
BOOTS 0207
BRADFORD 0062
BRANDT 0216, 0226
BRIONVEGA 0205, 0213, 0217
BRITANNIA 0200, 0207
BROCKWOOD
0060
BROKSONIC 0138
BRUNS 0205
BSR 0215
BTC 0209, 0218
BUSH 0177, 0208, 0209,
0210, 0213, 0215,
0216, 0217, 0218,
0230, 0237
CANDLE 0060, 0061
CAPSONIC 0206
CASCADE 0208
CATHAY 0213, 0217
CCE 0127
CELEBRITY 0059
CENTURION 0213, 0217
CENTURY 0205
CGE 0214, 0215
CIMLINE 0208, 0218
CITIZEN 0060, 0061, 0062,
0064
CITY 0208
CLARIVOX 0212, 0217
CLATRONIC 0206, 0207, 0208,
0209, 0213, 0214,
0218
CMS 0200
COLORTYME 0060, 0061
CONCERTO 0060, 0061
CONCORDE 0208
CONDOR 0200, 0207, 0213
CONTEC 0200, 0207, 0208
CONTEC/CONY
0062
CONTINENTAL EDISON
0216
COSMEL 0208
CRAIG 0062
CROSLEY 0205, 0214, 0215
CROWN 0062, 0063, 0128,
0208, 0213, 0217
CS ELECTRONICS
0200, 0207, 0209,
0214, 0218
CTC 0214
CURTIS MATHES
0057, 0060, 0061,
0064, 0065
CXC 0062
CYBERTRON 0209, 0218
DAEWOO 0060, 0061, 0120,
0127, 0155, 0193,
0200, 0207, 0208,
0213, 0218, 0238
DAINICHI 0200, 0209, 0218
DANSAI 0200, 0206, 0213,
0217
DANTAX 0217
DAYTRON 0060, 0061, 0208
DE GRAAF 0210
DECCA 0204, 0207, 0213,
0217
DESMET 0213, 0217
DIAMOND 0200
DIMENSIA 0057
DIXI 0208, 0213, 0217
DTS 0208
DUAL 0207, 0215, 0216
DUAL-TEC 0207, 0208, 0215
DUMONT 0060, 0127, 0205,
0207
DURABRAND
0126
DUX 0217
DYNATRON 0213, 0217
ELBE 0203, 0204, 0212,
0218
ELBE-SHARP 0204
ELCIT 0204, 0205
ELECTRO TECH
0208
ELECTROBAND
0059
ELECTROHOME
0059, 0060, 0061
ELIN 0200, 0207, 0213,
0217
ELITE 0209, 0213, 0218
ELMAN 0215
ELTA 0200, 0208
EMERSON 0060, 0061, 0062,
0064, 0128, 0205
ENVISION 0060, 0061
ERRES 0213, 0217
ESA 0080
ETRON 0208
EURO-FEEL 0206
EUROLINE 0217
EUROMAN 0200
EUROMANN 0206, 0207, 0213
EUROPHON 0200, 0204, 0207,
0213, 0215
FENNER 0208
FERGUSON 0212, 0217, 0226
FIDELITY 0200, 0207, 0210
FINLANDIA 0210
FINLUX 0204, 0205, 0207,
0213, 0215, 0217
FIRSTLINE 0200, 0207, 0208,
0213, 0214
FISHER 0064, 0127, 0128,
0205, 0207, 0215
FLINT 0213, 0218
FORMENTI 0200, 0205, 0207,
0215, 0217
FORMENTI-PHOENIX
0200
FORTRESS 0205
FRONTECH 0206, 0208, 0210,
0211, 0214
FUJITSU 0023, 0024, 0025,
0088, 0127
FUNAI 0033, 0034, 0035,
0036, 0037, 0062,
0206
FUTURETECH
0062
GATEWAY 0094
GBC 0208, 0215, 0218
GE 0057, 0060, 0061,
0122, 0147
GEC 0204, 0207, 0211,
0213, 0217
GELOSO 0208, 0210, 0215
GENERAL TECHNIC
0208
GENEXXA 0209, 0211, 0213,
0218
GIBRALTER 0060
GOLDHAND 0200
GOLDSTAR 0060, 0061, 0127,
0128, 0200, 0201,
0207, 0208, 0210,
0213, 0214, 0215,
0217
GOODMANS 0171, 0201, 0204,
0206, 0208, 0213,
0217, 0240
GPM 0209, 0218
GRAETZ 0211
GRANADA 0204, 0207, 0210,
0213, 0217
GRANDIN 0208, 0209, 0217
GRUNDIG 0128, 0130, 0222,
0236, 0255
GRUNPY 0062
HALIFAX 0200, 0206, 0207
HALLMARK 0060, 0061
HAMPTON 0200, 0207
HANSEATIC 0203, 0207, 0208,
0213, 0215, 0217
HANTAREX 0204, 0208
HARVARD 0062
HCM 0206, 0207, 0208,
0218
HIFIVOX 0216
HIGASHI 0200
HINARI 0208, 0209, 0213,
0217, 0218
HISAWA 0209, 0218
HITACHI 0006, 0014, 0015,
0016, 0042, 0060,
0061, 0095, 0105,
0127, 0156, 0179,
0180, 0204, 0207,
0210, 0211, 0215,
0216, 0251
HORNYPHON 0213
HOSHAI 0209, 0218
HUANYU 0200, 0207
HYGASHI 0200, 0207
HYPER 0200, 0207, 0208,
0214, 0215
HYPSON 0206, 0207, 0213,
0217
ICE 0127, 0200, 0206,
0207, 0208, 0209,
0213, 0218
ICES 0200, 0218
IMA 0062
IMPERIAL 0211, 0213, 0214,
0215
INDIANA 0213, 0217
INFINITY 0063
INGELEN 0211
INGERSOL 0208
INNO HIT 0201, 0204, 0207,
0208, 0209, 0213,
0217, 0218
INNOVATION 0206, 0208
INTERBUY 0208, 0214
INTERFUNK 0205, 0211, 0213,
0214, 0216, 0217
![](asset-51.png)
iv
APPENDIX
INTERNATIONAL
0200
INTERVISION 0206, 0207, 0218
IRRADIO 0201, 0208, 0209,
0213, 0217, 0218
ISUKAI 0209, 0218
ITC 0207, 0215
ITS 0200, 0209, 0213,
0218
ITT 0129, 0208, 0211
ITV 0208, 0217
JBL 0063
JC PENNEY 0057, 0060, 0061
JCB 0059
JENSEN 0060, 0061
JVC 0017, 0018, 0019,
0108, 0136, 0153,
0178, 0190, 0213,
0218
KAISUI 0200, 0207, 0208,
0209, 0218
KAMOSONIC 0207
KAMP 0200, 0207
KAPSCH 0211
KARCHER 0207, 0208, 0212,
0217
KAWASHO 0059, 0060, 0061,
0200
KENDO 0128, 0210
KENNEDY 0215
KENWOOD 0060, 0061
KINGSLEY 0200, 0207
KLOSS NOVABEAM
0062
KNEISSEL 0203
KOLSTER 0213
KONKA 0209, 0218
KORPEL 0213, 0217
KORTING 0205
KOYODA 0208
KTV 0062, 0127, 0207
KYOTO 0200, 0212
LENCO 0208
LENOIR 0207, 0208
LESA 0214
LEYCO 0206, 0213, 0217
LG 0016, 0038, 0039,
0127, 0128, 0157,
0158, 0163, 0164,
0166, 0188, 0189,
0200, 0201, 0207,
0208, 0210, 0213,
0214, 0215, 0217
LIESENK 0217
LIFE 0206, 0208
LIFETEC 0206, 0208, 0218
LOEWE 0063, 0128, 0203,
0204, 0223, 0227
LOEWE OPTA 0205, 0213, 0217
LOGIK 0058
LUMA 0210, 0217
LUMATRON 0210, 0213, 0217
LUX MAY 0213
LUXMAN 0060, 0061
LUXOR 0201, 0207, 0210
LXI 0057, 0061, 0063,
0064
MAG 0050
MAGNADYNE
0204, 0205, 0214,
0215, 0217
MAGNAFON 0200, 0204, 0207
MAGNAVOX 0060, 0061, 0063,
0102, 0103, 0150
MAGNUM 0206, 0208
MAJESTIC 0058
MANDOR 0206
MANESTH 0206, 0207, 0213,
0217
MARANTZ 0060, 0061, 0063,
0090, 0213, 0217
MARELLI 0205
MARK 0200, 0213, 0217
MATSUI 0204, 0207, 0208,
0210, 0213, 0217
MEDIATOR 0213, 0217
MEDION 0206, 0208
MEGATRON 0061
MELECTRONIC
0200, 0207, 0208,
0211, 0213, 0216,
0217
MEMOREX 0058, 0061, 0064,
0208
MEMPHIS 0208
METZ 0205
MGA 0060, 0061
MICROMAXX 0206, 0208
MICROSTAR 0206, 0208
MINERVA 0204
MINOKA 0213
MITSUBISHI 0006, 0015, 0016,
0048, 0060, 0061,
0104, 0112, 0113,
0125, 0205, 0213
MIVAR 0200, 0201, 0202,
0203, 0204, 0207
MONTGOMERY WARD
0058
MTC 0060, 0061, 0128,
0200
MULTI SYSTEM
0217
MULTITECH 0062, 0127, 0128,
0200, 0207, 0208,
0210, 0214, 0215,
0217
MURPHY 0200, 0207
NAD 0061
NAONIS 0210
NEC 0026, 0053, 0060,
0061, 0096, 0127
NECKERMANN
0205, 0207, 0210,
0213, 0217, 0255
NEI 0213, 0217
NESCO 0214
NET-TV 0082, 0101
NEW TECH 0208, 0213
NEW WORLD 0209, 0218
NICAMAGIC 0200, 0207
NIKKAI 0200, 0206, 0207,
0209, 0213, 0217,
0218
NIKKO 0061
NOBLIKO 0200, 0207
NOGAMATIC 0216
NOKIA 0129, 0211
NORDMENDE
0205, 0211, 0213,
0216
NORDVISION 0217
OCEANIC 0211
OLEVIA 0052, 0084
ONCEAS 0207
ONWA 0062, 0218
ORBIT 0213
ORION 0126, 0204, 0208,
0213, 0217, 0235
ORLINE 0218
ORSOWE 0204
OSAKI 0127, 0206, 0207,
0209, 0218
OSIO 0201
OSO 0209, 0218
OSUME 0218
OTTO VERSAND
0204, 0207, 0213,
0215, 0216, 0217,
0255
PAEL 0200, 0207
PALLADIUM 0207
PANAMA 0200, 0206, 0207,
0208
PANASONIC 0006, 0007, 0063,
0073, 0074, 0097,
0110, 0114, 0137,
0141, 0151, 0162,
0165, 0186, 0204,
0211, 0244, 0245,
0246, 0254
PATHE CINEMA
0200, 0203, 0207,
0212, 0215
PATHE MARCONI
0212, 0216
PAUSA 0208
PERDIO 0200
PHILCO 0060, 0061, 0063,
0128, 0205, 0214,
0215
PHILHARMONIC
0207
PHILIPS 0040, 0060, 0063,
0072, 0115, 0116,
0124, 0130, 0150,
0175, 0184, 0187,
0205, 0207, 0213,
0215, 0217, 0220,
0221, 0232, 0233,
0252, 0253
PHILIPS MAGNAVOX
0124
PHOENIX 0200, 0205, 0213,
0217
PHONOLA 0200, 0205, 0213,
0217
PILOT 0060
PIONEER 0012, 0013, 0060,
0061, 0098, 0109,
0117, 0128, 0181,
0182, 0194, 0195,
0211, 0213, 0216,
0217, 0250
PLANTRON 0206, 0213
POLAROID 0075
POPPY 0208
PORTLAND 0060, 0061
PRANDONI-PRINCE
0204, 0210
PRECISION 0207
PRIMA 0208, 0211
PROFEX 0208
PROFI-TRONIC
0213
PROLINE 0213
PROSCAN 0057
PROSONIC 0200, 0207, 0217
PROTECH 0206, 0207, 0208,
0213, 0214, 0215,
0217
PROTON 0060, 0061
PROVIEW 0050
PROVISION 0217
PULSAR 0060
PYE 0213, 0217
PYMI 0208
QUASAR 0152, 0214
QUELLE 0201, 0206, 0207,
0213, 0214, 0215,
0217
RADIALVA 0218
RADIO SHACK
0064
RADIO SHACK/REALISTIC
0057, 0060, 0061,
0062, 0064
RADIOLA 0213, 0217
RADIOMARELLI
0204, 0205, 0214
RADIOTONE 0213
RCA 0057, 0060, 0061,
0091, 0133, 0135,
0147, 0149
REALISTIC 0064
REVOX 0213, 0217
REX 0206, 0210, 0211
RFT 0203, 0205
RHAPSODY 0200
R-LINE 0213, 0217
ROADSTAR 0206, 0208, 0209,
0218, 0237
ROBOTRON 0205
ROWA 0200
RTF 0205
SABA 0204, 0205, 0211,
0216
SACCS 0212
SAISHO 0204, 0206, 0207,
0208
SALORA 0201, 0204, 0210,
0211, 0215
SAMBERS 0204
SAMPO 0060, 0061, 0083,
0101
SAMSUNG 0029, 0030, 0031,
0032, 0044, 0045,
0046, 0047, 0060,
0061, 0065, 0068,
0069, 0071, 0079,
0087, 0127, 0128,
0130, 0144, 0160,
0161, 0170, 0176,
0183, 0185, 0200,
0201, 0206, 0207,
0208, 0213, 0217,
0239, 0241, 0242,
0243
SANDRA 0200, 0207
SANSUI 0123, 0126, 0213
SANYO 0020, 0021, 0022,
0049, 0060, 0064,
0127, 0128, 0200,
0203, 0207, 0215
SBR 0217
SCHAUB LORENTZ
0211
SCHNEIDER 0207, 0209, 0213,
0215, 0216, 0217,
0218
SCOTCH 0061
SCOTT 0060, 0061, 0062
SEARS 0057, 0060, 0061,
0064
SEG 0200, 0206, 0207,
0214, 0215, 0217
SEI 0204
SEI-SINUDYNE
0204, 0205, 0211
SELECO 0210, 0211, 0215
SENCORA 0208
SENTRA 0218
SERINO 0200
![](asset-52.png)
v
SHARP 0009, 0010, 0011,
0060, 0061, 0066,
0070, 0087, 0111,
0143, 0145, 0167,
0168, 0169, 0198,
0204, 0224, 0247,
0248, 0249
SHOGUN 0060
SIAREM 0204, 0205, 0215
SICATEL 0212
SIEMENS 0255
SIERRA 0213
SIGNATURE 0058
SILVA 0200
SINGER 0205, 0214, 0215
SINUDYNE 0204, 0205, 0215,
0217
SKANTIC 0211
SOLAVOX 0211
SONOKO 0206, 0207, 0208,
0213, 0217
SONOLOR 0211
SONTEC 0213, 0217
SONY 0041, 0059, 0067,
0085, 0086, 0174,
0196, 0199, 0208,
0219, 0234
SOUND & VISION
0209, 0218
SOUNDESIGN 0060, 0061, 0062
SOUNDWAVE 0213, 0217
SSS 0060, 0062
STANDARD 0207, 0208, 0209,
0213, 0218
STARLIGHT 0217
STARLITE 0062
STENWAY 0218
STERN 0210, 0211
SUNKAI 0208, 0218
SUNWOOD 0208, 0213
SUPERLA 0200, 0204, 0207
SUPERTECH 0200
SUPRA 0208
SUPREME 0059
SUSUMU 0209
SUTRON 0208
SYDNEY 0200, 0207
SYLVANIA 0060, 0061, 0063,
0080, 0134, 0142,
0148
SYMPHONIC 0062, 0080
SYSLINE 0217
SYTONG 0200
TANDY 0127, 0207, 0209,
0211, 0218
TASHIKO 0200, 0207, 0210
TATUNG 0127, 0204, 0207,
0213, 0217, 0237
TCM 0206, 0208
TEAC 0127
TEC 0207, 0208, 0214,
0215
TECHWOOD 0060, 0061
TEKNIKA 0058, 0060, 0061,
0062
TELEAVIA 0216
TELECOR 0218
TELEFUNKEN
0065, 0213, 0216
TELEGAZI 0218
TELETECH 0208, 0214, 0217
TELETON 0207
TELEVIDEON 0200
TENSAI 0208, 0209, 0213,
0218
TESMET 0213
TEVION 0206, 0208
TEXET 0200, 0207
THOMSON 0191, 0192, 0207,
0213, 0216, 0226
THORN 0212, 0217
TMK 0060, 0061
TOKAI 0213
TOKYO 0200, 0207
TOSHIBA 0027, 0043, 0053,
0054, 0064, 0078,
0089, 0090, 0106,
0107, 0127, 0131,
0140, 0146, 0159,
0197, 0225, 0231,
0237
TOWADA 0211, 0215
TRANSTEC 0200
TRIDENT 0204
TRISTAR 0218
TRIUMPH 0204
UHER 0211, 0213
ULTRAVOX 0200, 0205, 0207,
0214, 0215
UNITED 0217
UNIVERSUM 0127, 0128, 0129,
0201, 0206, 0213,
0214, 0215, 0217
UNIVOX 0212
VESTEL 0210, 0211, 0213,
0214, 0215, 0217
VEXA 0208, 0217
VICTOR 0213
VIDEOLOGIC 0200
VIDEOLOGIQUE
0200, 0207, 0209,
0218
VIDEOSAT 0214
VIDEOSYSTEM
0213
VIDEOTECHNIC
0200
VIDTECH 0060, 0061
VIEWSONIC 0076, 0077, 0092,
0099, 0172, 0173
VISIOLA 0200, 0207
VISION 0213
VORTEC 0213, 0217
VOXSON 0205, 0210, 0211,
0213
WALTHAM 0207, 0212
WARDS 0057, 0058, 0060,
0061, 0063
WATSON 0213, 0217, 0218
WATT RADIO 0200, 0207, 0212,
0215
WEGA 0205
WELTBLICK 0213, 0217
WESTON 0215
WHITE WESTINGHOUSE
0008, 0200, 0207,
0217
WINCOM 0055, 0056
YAMAHA 0000, 0001, 0002,
0003, 0005, 0060,
0061
YAMISHI 0218
YOKO 0200, 0206, 0207,
0208, 0209, 0213,
0217, 0218
YORX 0209, 0218
ZANUSSI 0210
ZENITH 0058, 0060, 0100,
0105, 0119, 0121,
0154
TV/DVD COMBO
AIWA 0139, 2055
APEX 0132, 2049
BROKSONIC 0138, 2060
BUSH 0230, 2112
JVC 0136, 2053
PANASONIC 0137, 2054, 0254,
2110
RCA 0133, 0135, 2050,
2051
SYLVANIA 0134, 2052
THOMSON 0226, 2109
TOSHIBA 0131, 2048, 0231,
2111
TV/DVD/VCR COMBO
PANASONIC 0141, 1040, 2057
SAMSUNG 0241, 1070, 2113
SHARP 0143, 1028, 2059
SYLVANIA 0142, 1041, 2058
TOSHIBA 0140, 1029, 2056
TV/VCR COMBO
AIWA 0237, 1066
BUSH 0237, 1066
DAEWOO 0155, 0238, 1038,
1067
GE 0147, 1030
GOODMANS 0240, 1069
GRUNDIG 0236, 1062
HITACHI 0156, 1039
JVC 0153, 1036
MAGNAVOX 0150, 1033
ORION 0235, 1065
PANASONIC 0151, 1034
PHILIPS 0150, 0232, 0233,
1033, 1062, 1063
QUASAR 0152, 1035
RCA 0149, 1032
ROADSTAR 0237, 1066
SAMSUNG 0144, 0239, 1027,
1068
SHARP 0145, 1028
SONY 0234, 1064
SYLVANIA 0148, 1031
TATUNG 0237, 1066
TOSHIBA 0146, 0237, 1029,
1066
ZENITH 0154, 1037
DVD/VCR COMBO
JVC 1017, 1017, 2045,
2045
LG 1071, 2087
PANASONIC 1020, 1072, 2040,
2105
PHILIPS 1025, 2046
RCA 1022, 2042
SAMSUNG 1021, 1021, 2041,
2104
SHARP 1023, 1073, 2043,
2106
SONY 1019, 1074, 2039,
2107
TOSHIBA 1024, 1075, 2044,
2108
ZENITH 1026, 2047
VCR
ADMIRAL 1008, 1013
ADVENTURA
1005
AIWA 1005, 1042, 1043,
1044, 1066
AKAI 1007, 1043
AKIBA 1050
AKURA 1043, 1050
ALBA 1044, 1050
AMERICAN HIGH
1004
AMSTRAD 1042
ANITECH 1050
ASA 1045, 1046
ASHA 1002, 1014
ASUKA 1042, 1045, 1046,
1050
AUDIO DYNAMICS
1000
AUDIOVOX 1003
BAIRD 1042, 1043, 1047
BASIC LINE 1044, 1050
BAUR 1046
BEAUMARK 1002, 1014
BELL & HOWELL
1001
BLAUPUNKT 1046, 1048
BROKSONIC 1012, 1013
BUSH 1044, 1050, 1066
CALIX 1003
CANDLE 1002, 1003
CANON 1004
CCE 1006
CGE 1042, 1043
CIMLINE 1044, 1050
CITIZEN 1002, 1003
COLORTYME 1000
COLT 1006
CRAIG 1002, 1003, 1006,
1014
CROWN 1050
CURTIS MATHES
1000, 1002, 1004,
1009
CYBERNEX 1002, 1014
DAEWOO 1005, 1038, 1061,
1067
DANSAI 1050
DANTAX 1044
DBX 1000
DE GRAAF 1046, 1049
DECCA 1042, 1043, 1046
DENON 1010
DIMENSIA 1009
DUAL 1043, 1046
DUMONT 1042, 1046, 1047,
1049
DYNATECH 1005
ELECTROHOME
1003
ELECTROPHONIC
1003
ELTA 1050
EMERSON 1003, 1004, 1005,
1012, 1013
ETZUKO 1050
FERGUSON 1043
FIDELITY 1042
FINLANDIA 1046, 1047, 1049
FINLUX 1042, 1043, 1046,
1047, 1049
FIRST LINE 1044, 1045, 1049,
1050
FISHER 1001, 1047
FLINT 1044
FORMENTI/PHOENIX
1046
FUJI 1004
FUJITSU 1042
FUNAI 1005, 1042
GALAXY 1042
GARRARD 1005
GBC 1050
![](asset-53.png)
vi
APPENDIX
GE 1002, 1004, 1009,
1014, 1030
GEC 1046
GELOSO 1050
GENERAL TECHNIC
1044, 1048
GO VIDEO 1014
GOLDHAND 1050
GOLDSTAR 1000, 1003, 1042,
1045
GOODMANS 1042, 1045, 1050,
1069
GRADIENTE 1005
GRAETZ 1043, 1047
GRANADA 1046, 1047, 1049
GRANDIN 1042, 1045, 1050
GRUNDIG 1046, 1050, 1062
HANSEATIC 1045, 1046
HARLEY DAVIDSON
1005
HARMAN/KARDON
1000
HARWOOD 1006
HCM 1050
HEADQUARTER
1001
HINARI 1044, 1050
HISAWA 1044
HITACHI 1007, 1010, 1039,
1042, 1043, 1046,
1049
HUGHES NETWORK SYSTEMS
1010
HYPSON 1044, 1050
IMPERIAL 1042
INNO HIT 1046, 1050
INNOVATION 1044, 1048
INSTANT REPLAY
1004
INTERBUY 1045
INTERFUNK 1046, 1047
INTERVISION 1042
IRRADIO 1045, 1050
ITT 1043, 1047
ITV 1045
JC PENNEY 1000, 1001, 1002,
1003, 1004, 1006
JCL 1004
JENSEN 1007
JVC 1000, 1001, 1007,
1011, 1017, 1036,
1043
KAISUI 1050
KARCHER 1046
KENDO 1044
KENWOOD 1000, 1001, 1007,
1011, 1043
KLH 1006
KODAK 1003, 1004
KORPEL 1050
LEYCO 1050
LG 1003, 1042, 1045,
1071
LIFETEC 1044, 1048
LLOYD'S 1005
LOEWE 1048
LOEWE OPTA 1045, 1046
LOGIK 1006, 1050
LUXOR 1047
LXI 1003
M ELECTRONIC
1042
MAGNASONIC
1047
MAGNAVOX 1004, 1018, 1033
MAGNIN 1003, 1014
MANESTH 1050
MARANTZ 1000, 1001, 1004,
1046, 1051
MARTA 1003
MATSUI 1044, 1045
MATSUSHITA 1004
MEDIATOR 1046
MEDION 1044, 1048
MEI 1004
MEMOREX 1001, 1002, 1003,
1004, 1005, 1008,
1013, 1014, 1042,
1045, 1047
MEMPHIS 1050
METZ 1048
MGA 1014
MGN TECHNOLOGY
1002, 1014
MICROMAXX 1044, 1048
MICROSTAR 1044, 1048
MIGROS 1042
MINOLTA 1010
MITSUBISHI 1011, 1042, 1046
MONTGOMERY WARD
1008
MOTOROLA 1004, 1008
MTC 1002, 1014
MULTITECH 1002, 1005, 1006,
1042, 1046, 1050
MURPHY 1042
NATIONAL 1048
NEC 1000, 1001, 1007,
1011, 1043, 1051
NECKERMANN
1043, 1046
NEI 1046
NESCO 1050
NIKKO 1003
NOBLEX 1002, 1014
NOKIA 1043, 1047
NORDMENDE
1043
OCEANIC 1042, 1043
OKANO 1044
OLYMPUS 1004
OPTIMUS 1003, 1008
ORION 1012, 1013, 1044,
1065
ORSON 1042
OSAKI 1042, 1045, 1050
OTTO VERSAND
1046
PALLADIUM 1043, 1045, 1050
PANASONIC 1004, 1020, 1034,
1040, 1048, 1054,
1072
PATHE MARCONI
1043
PENNEY 1010, 1014
PENTAX 1010, 1049
PERDIO 1042
PHILCO 1004, 1051
PHILIPS 1004, 1025, 1033,
1046, 1056, 1057,
1059, 1062, 1063
PHILIPS MAGNAVOX
1018
PHONOLA 1046
PILOT 1003
PIONEER 1011, 1046
PRINZ 1042
PROFEX 1050
PROFITRONIC
1014
PROLINE 1042
PROSCAN 1009
PROSONIC 1044
PROTEC 1006
PYE 1046, 1056
QUARTER 1001
QUARTZ 1001, 1047
QUASAR 1004, 1035
QUELLE 1042, 1046, 1047
RADIO SHACK
1003
RADIO SHACK/REALISTIC
1001, 1002, 1003,
1004, 1005, 1008
RADIOLA 1046
RADIX 1003
RANDEX 1003
RCA 1002, 1004, 1009,
1010, 1014, 1015,
1022, 1032
REALISTIC 1001, 1002, 1003,
1004, 1005, 1008
REX 1043
RFT 1046
ROADSTAR 1045, 1050, 1066
SABA 1043
SAISHO 1044, 1050
SALORA 1047
SAMSUNG 1002, 1014, 1021,
1027, 1052, 1068,
1070
SANKY 1008
SANSUI 1007, 1011, 1013,
1043
SANYO 1001, 1002, 1014,
1047
SBR 1046
SCHAUB LORENZ
1042, 1043, 1047
SCHNEIDER 1042, 1044, 1045,
1046, 1050
SCOTT 1012
SEARS 1001, 1003, 1004,
1010
SEG 1050
SEI-SINUDYNE
1046
SELECO 1043
SENTRON 1050
SHARP 1008, 1023, 1028,
1053, 1073
SHINTOM 1006, 1047, 1050
SHIVAKI 1045
SHOGUN 1002, 1014
SIEMENS 1045, 1047
SIGNATURE 2000
1008
SILVA 1045
SINGER 1004, 1006
SINUDYNE 1046
SONTEC 1045
SONY 1016, 1019, 1055,
1060, 1064, 1074
STS 1004, 1010
SUNKAI 1044
SUNSTAR 1042
SUNTRONIC 1042
SUNWOOD 1050
SYLVANIA 1004, 1005, 1031,
1041
SYMPHONIC 1005
TAISHO 1044
TANDY 1001
TASHIKO 1003, 1042
TATUNG 1007, 1042, 1043,
1046, 1066
TCM 1044, 1048
TEAC 1005, 1007
TECHNICS 1004, 1048
TEKNIKA 1003, 1004, 1005
TELEAVIA 1043
TELEFUNKEN
1043
TENOSAL 1050
TENSAI 1042, 1045, 1050
TEVION 1044, 1048
THOMSON 1043, 1058
THORN 1043, 1047
TMK 1002, 1014
TOKAI 1045, 1050
TONSAI 1050
TOSHIBA 1013, 1024, 1029,
1043, 1046, 1066,
1075
TOTEVISION 1002, 1003, 1014
TOWADA 1050
TOWIKA 1050
UHER 1045
UNITECH 1002, 1014
UNIVERSUM 1042, 1045, 1046
VECTOR RESEARCH
1000
VIDEO CONCEPTS
1000
VIDEON 1044, 1048
VIDEOSONIC 1002, 1014
WARDS 1002, 1003, 1004,
1005, 1006, 1008,
1010, 1014
WELTBLICK 1045
WHITE WESTINGHOUSE
1013
XR-1000 1004, 1005, 1006
YAMAHA 1000, 1001, 1007
YAMISHI 1050
YOKAN 1050
YOKO 1045, 1050
ZENITH 1013, 1026, 1037
DVD
ACOUSTIC SOLUTIONS
2078
AIWA 2055, 2100
AKAI 2096
AKURA 2076
ALBA 2078, 2086
APEX 2027, 2049
AWA 2078
AXION 2078
BRAINWAVE 2096
BRANDT 2073, 2085
BROKSONIC 2060
BUSH 2075, 2078, 2112
CENTREX 2077
CLASSIC 2078
CLATRONIC 2075
COBY 2078
C-TECH 2074
CYBERHOME
2025, 2079, 2091
DAEWOO 2092, 2098
DANSAI 2096
DAYTEK 2080, 2089
DEC 2075
DENON 2030, 2102, 2103
DENVER 2075, 2076
DIAMOND 2074
DK DIGITAL 2094
DUAL 2078
D-VISION 2096
DVX 2074
ELTA 2096
EUROLINE 2096
FUNAI 2052, 2058
GLOBAL SOLUTIONS
2074
![](asset-54.png)
YAMAHA ELECTRONICS CORPORATION, USA
6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.
YAMAHA CANADA MUSIC LTD.
135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA
YAMAHA ELECTRONIK EUROPA G.m.b.H.
SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, GERMANY
YAMAHA ELECTRONIQUE FRANCE S.A.
RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE
YAMAHA ELECTRONICS (UK) LTD.
YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND
YAMAHA SCANDINAVIA A.B.
J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN
YAMAHA MUSIC AUSTRALIA PTY, LTD.
17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA
©
2007 All rights reserved.
RX-V561
Printed in China WK65610
RX-V561
AV Receiver
Ampli-tuner audio-vidéo
OWNER’S MANUAL
MODE D’EMPLOI
C
GLOBAL SPHERE
2074
GOODMANS 2075, 2077, 2078
GRUNDIG 2077, 2098
H&B 2075
HAAZ 2074
HE 2078
HITACHI 2032, 2072
HOME ELECTRONICS
2078
INNOVATION 2072
IRRADIO 2134
JDB 2078
JVC 2033, 2045, 2053,
2073, 2099
KENWOOD 2030, 2097
KINGAVON 2075
KODA 2075
LAWSON 2074
LENCO 2075
LG 2084, 2087
LIFETEC 2072
LIMIT 2074
LOGICLAB 2074
LUXOR 2077
MAGNAVOX 2037, 2073, 2075
MAGNUM 2072
MBO 2078
MEDION 2072
MICROMAXX
2072
MICROMEDIA
2073
MICROSTAR 2072
MITSUBISHI 2035
MIZUDA 2075
MUSTEK 2078
NAIKO 2077
ONKYO 2073, 2135
ORAVA 2075
P&B 2075
PACIFIC 2074
PANASONIC 2030, 2040, 2054,
2057, 2105, 2110
PHILIPS 2019, 2026, 2046,
2073, 2081, 2090
PIONEER 2036, 2082
PROLINE 2077
PROVISION 2075
RCA 2031, 2042, 2050,
2051
RED STAR 2076
REOC 2074
ROADSTAR 2075, 2078, 2086
ROWA 2077
SABA 2085
SABAKI 2074
SAMSUNG 2032, 2041, 2104,
2113
SANSUI 2074
SANYO 2095
SCANMAGIC 2078
SCIENTIFIC LABS
2074
SCOTT 2088
SEG 2074, 2086
SHARP 2034, 2043, 2059,
2093, 2106
SILVA 2076
SINGER 2074
SKYMASTER 2074, 2078
SKYWORTH 2076
SM ELECTRONIC
2074, 2078
SONY 2028, 2029, 2039,
2083, 2107
SOUNDMASTER
2074
SOUNDMAX 2074
STANDARD 2074
STAR CLUSTER
2074
STARMEDIA 2075
SUPERVISION
2074, 2078
SYLVANIA 2052, 2058
SYNN 2074
TCM 2072
TEAC 2074
TEC 2076
TECHNICS 2030
TECHNIKA 2096
TECHNOSONIC
2096
TEVION 2072, 2074
THOMSON 2085, 2109
TOKAI 2076
TOSHIBA 2026, 2044, 2048,
2056, 2073, 2108,
2111
UNITED 2078
VOXSON 2078
WHARFEDALE
2074
XLOGIC 2074
YAKUMO 2077
YAMADA 2077
YAMAHA 2000, 2001, 2003,
2030, 2101
YUKAI 2078
ZENITH 2038, 2047, 2073
DVD-DVR
PANASONIC 2067
PIONEER 2114
SAMSUNG 2115
TOSHIBA 2068
DVD/LD COMBO
PIONEER 2036
DVD RECORDER
APEX 2024
JVC 2070
LG 2071
PANASONIC 2020, 2065, 2066,
2067
PHILIPS 2019, 2061, 2062,
2063
PIONEER 2021
RCA 2018
SONY 2022, 2064
TOSHIBA 2068
YAMAHA 2023
YUKAI 2069
DVR
ABS 2132
ALIENWARE 2132
CYBERPOWER
2132
DELL 2132
DIRECTV 2123, 2128, 2129,
2133
DISH NETWORK
2126, 2127
DISHPRO 2126
ECHOSTAR 2126, 2127
EXPRESSVU 2126
GATEWAY 2132
GOI 2126
HEWLETT PACKARD
2132
HITACHI 2008
HOWARD COMPUTERS
2132
HTS 2126
HUGHES 2123, 2128
HUMAX 2123
HUSH 2132
IBUYPOWER 2132
JVC 2126, 2127
LINKSYS 2132
MEDIA CENTER PC
2132
MICROSOFT 2132
MIND 2132
NIVEUS MEDIA
2132
NORTHGATE 2132
PANASONIC 2015, 2016, 2017,
2120
PHILIPS 2117, 2121, 2123,
2128
PIONEER 2012, 2013, 2014
PROSCAN 2129
RCA 2116, 2124, 2129,
2133
REPLAYTV 2118, 2119, 2120
SHARP 2009, 2010
SONIC BLUE 2119, 2120
SONY 2005, 2006, 2007,
2122, 2130, 2131,
2132
STACK 9 2132
SYSTEMAX 2132
TAGAR SYSTEMS
2132
TIVO 2116, 2121, 2122,
2123, 2130, 2131
TOSHIBA 2004, 2125, 2132
TOUCH 2132
ULTIMATETV 2133
VIEWSONIC 2132
VOODOO 2132
YAMAHA 2011
ZT GROUP 2132
LD PLAYER
YAMAHA 2002
CD PLAYER
YAMAHA 5000, 5013
CD RECORDER
YAMAHA 5001
MD
YAMAHA 5002, 5003, 5004
TAPE DECK
YAMAHA 5005, 5006
TUNER
YAMAHA 5007, 5008, 5009,
5010, 5012, 5014
