2005

Yamaha

Digital Home Theater

Components

Natural Sound Audio Components

Yamaha’s involvement with sound began with the production of our first reed organ in 1887. Shortly thereafter, we began making pianos and other

instruments, and today we are the world’s largest producer of musical instruments. We also operate a worldwide music school, design concert halls and

produce innovative electronic instruments. Our audio components have long been recognized as the standard bearers of fine quality, and with the

development of Digital Sound Field Processing in 1986, we opened a new era in home entertainment. All of our acoustic and audio expertise is now

engineered into LSIs that we design and manufacture ourselves, and these powerful chips are

expanding and enhancing entertainment possibilities in the exciting new field of home theater.

Recently, we’ve also introduced state-of-the-art video components, and now offer everything

necessary for the finest in music and movie enjoyment at home.

Dedicated to the Creation of Fine Sound for Over a Century.

Image and Sound Quality Worthy of the Name “Home Theater.”

Digital Home Theater Systems

Digital Sound Projector

Digital Home Theater Technology

Projectors / Plasma Display Monitors

Digital Home Theater Receivers

Slim-Line Components / CinemaStation

DVD Players

Digital Home Theater Speakers / Subwoofers

HTiB (Home Theater in a Box)

MusicCAST

PianoCraft

Natural Sound Audio Components

CONTENTS

Welcome to a World of Total Quality

YSP-1 System

Digital Sound Projector

The YSP-1 has a slim design that perfectly complements

the PDM-4210 Plasma Display Monitor. It can be wall

mounted below the monitor or located in the front or

corners of the room. As all-in one sound solution, there

is no need to find locations for multiple speakers or run

cables across the room. These two components are an

ideal combination for elegant home theater.

YSP-1 System:

Maximum Convenience

The YSP-1 provides true multi-

channel surround sound from a

single unit! Using proprietary

technology featuring a multi-

driver array, it precisely aims

sound beams to create a

realistic five-channel effect.

Home theater has never been

this elegant and convenient.

YSP-1 System Two Ways to Maximize Your

RX-Z9 System:

Maximum Quality

What should high-end home

theater look and sound like?

Yamaha supplies the answer

with the RX-Z9 System. An

unrivaled combination of top-

class components for stunning

visual clarity and stupendous

surround sound. Get ready to

explore the full possibilities of

home theater entertainment.

YSP-1/RX-Z9 System

Home Theater Enjoyment

RX-Z9 System

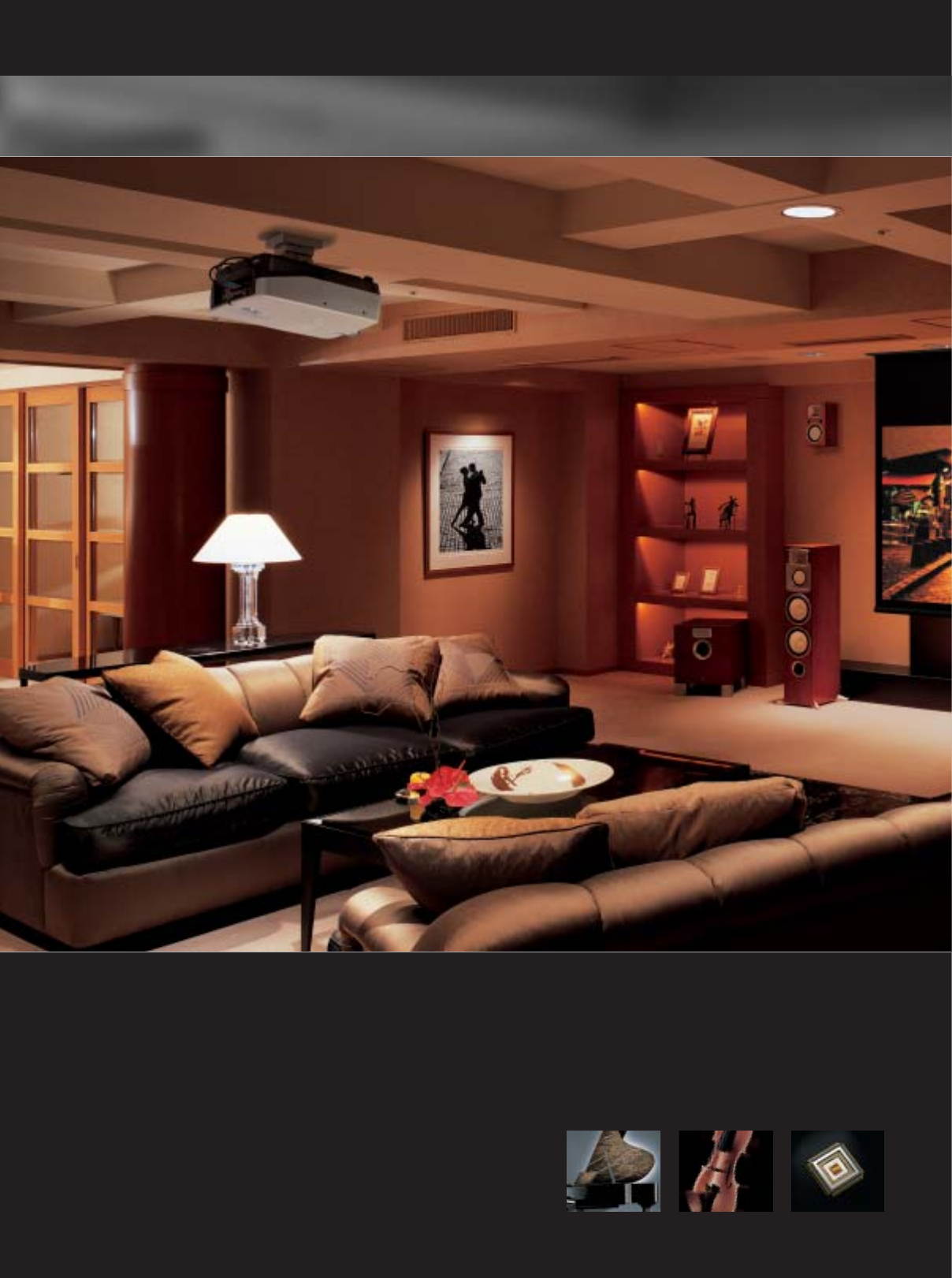

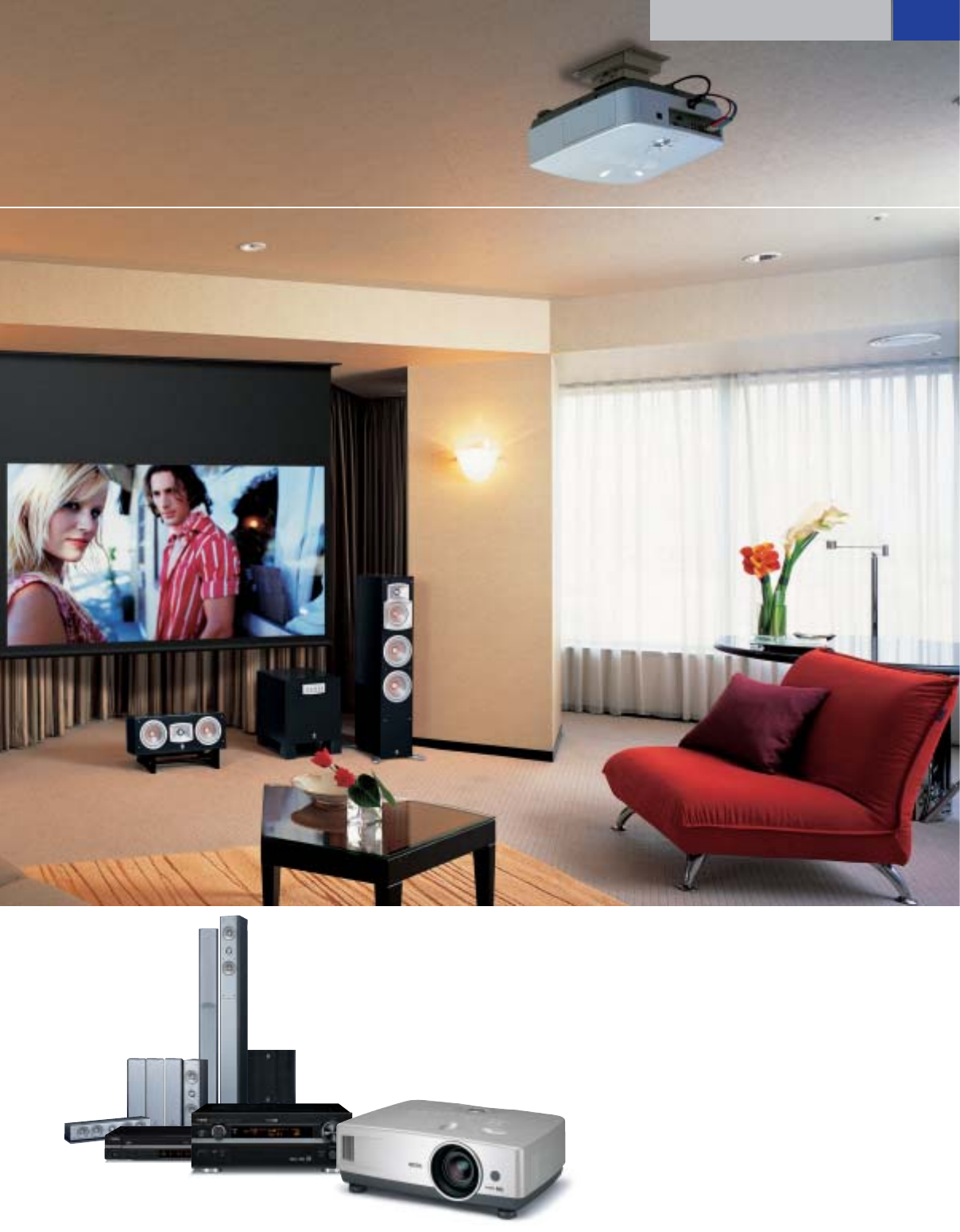

The DPX-1200 (P.22) is a DLP projector that provides images of

stunning clarity and rich, natural color. You’ve never seen movies

look this good in a home before. Matched with Yamaha’s top

quality home theater audio components, the RX-Z9 Receiver

(P.24), the DVD-S2500 DVD Player (P.32), EF Series Speakers

(P.34) and YST-SW315 Subwoofer (P.35), you have a system that

offers a breathtaking cinematic experience.

RX-Z9 System

9.1-Channel Digital Home Theater System

RX-V1500 System

RX-V2500 System

High Performance Systems Designed for

Genuine Movie Fans.

These two home theater systems let you

enjoy movies at home the way you’ve

always wished you could – with a high

clarity, widescreen picture and rich,

powerful sound all around you. They offer a

huge selection of surround sound programs

to perfectly match every type of movie (and

music, too!), with Yamaha’s most advanced

technology ensuring that both sound and

images are sharp and clear. They also

feature the amazing YPAO system that

automatically analyzes the sound field and

optimizes various settings to provide the

best possible sound for that room and

speaker setup. Discover just how good home

theater can be.

Taking advantage of innovative Yamaha technologies like

Natural Black and 3D Linear Color Balance, as well as DCDi

processing, the LPX-510 LCD Projector (P.22) delivers

beautiful picture quality with exceptionally high contrast.

Team it with the RX-V2500 Receiver (P.26), the DVD-S2500

DVD Player (P.32), EF Series Speakers (P.34) and YST-SW315

Subwoofer (P.35), and start really enjoying movies at home.

RX-V2500 System

7.1-Channel Digital Home Theater System

RX-V2500/RX-V1500 Systems

This system also features the superb video performance of

the compact and convenient LPX-510 LCD Projector (P.22).

The RX-V1500 Receiver (P.26) and DVD-C950 DVD Changer

(P.32) both provide extremely high quality, and you get the

benefits of Yamaha’s advanced speaker technology with

225 PMD Series Speakers (P.34).

RX-V1500 System

7.1-Channel Digital Home Theater System

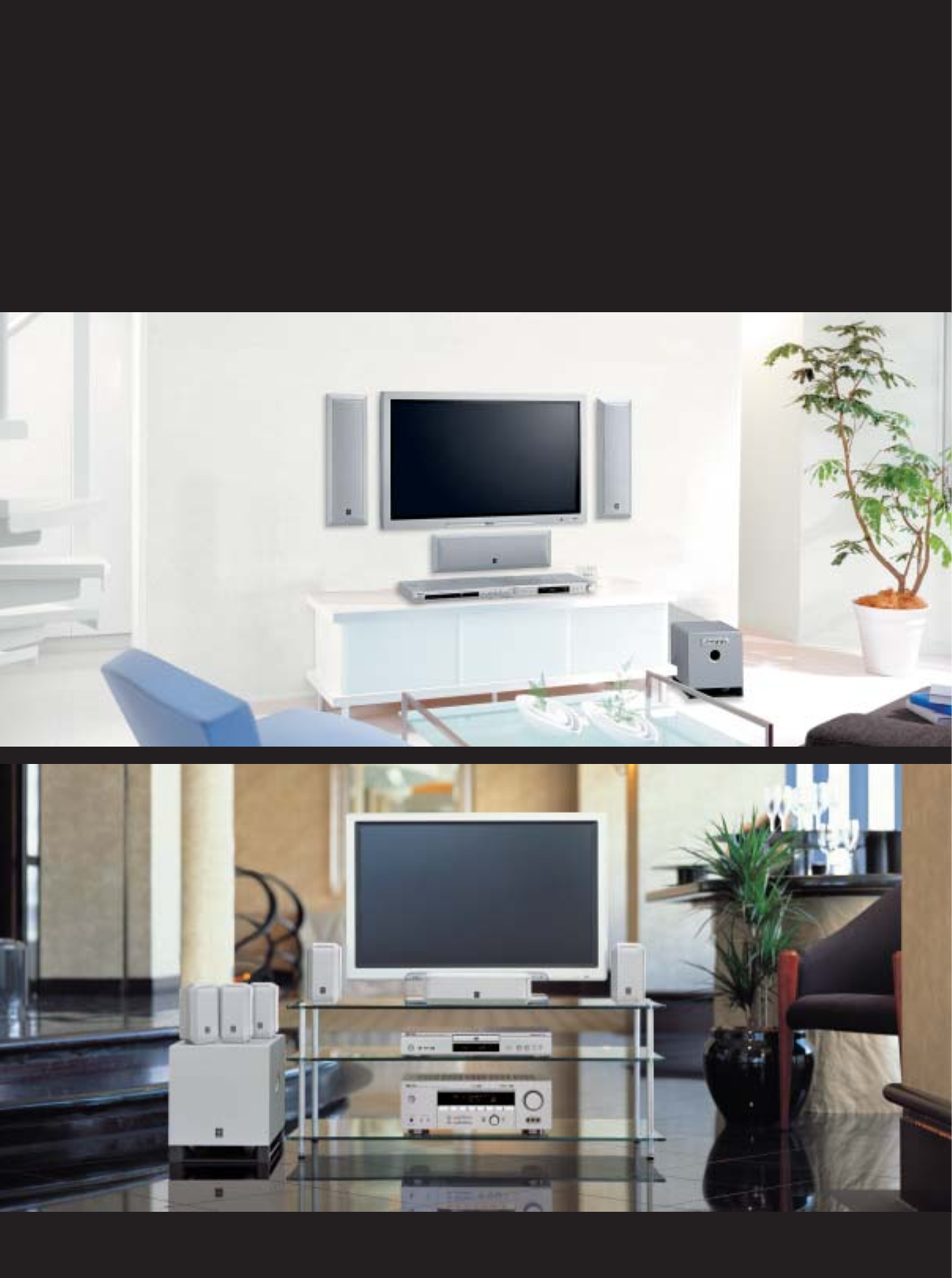

RX-V757 System

7.1-Channel Digital Home Theater System

RX-V657 System

The RX-V757 (P.26) provides everything you need (and a lot

more) for a versatile, high quality home theater system.

Combined with the high-performance DVD-S1500 DVD Player

(P.32), the result is a system that any movie fan will be

delighted to own. The 225 PMD Series Speakers (P.34) are an

elegant match for any monitor.

RX-V757 System

Sound with Awesome Depth and Clarity,

Plus the Advantage of YPAO.

Both of the receivers in these systems use

Yamaha’s leading-edge CINEMA DSP

technology to deliver the very best in

surround sound, with a wide selection of

program choices. And the YPAO calibration

system automatically adjusts setup

parameters for you to ensure that the

system will sound its best. The DVD Changer

lets you switch quickly between five

sources.

RX-V757/RX-V657 Systems

RX-V657 System

7.1-Channel Digital Home Theater System

The RX-V657 (P.27) is nearly the equal of the RX-V757 and will

provide all the power, versatility and convenience that a high

quality home theater system should have. This system also

includes the DVD-C750 DVD Changer (P.32) and the impressive

125 Series Speakers (P.34) and YST-SW215 Subwoofer (P.35) for

thrilling surround sound.

RX-V557 System

6.1-Channel Digital Home Theater System

RX-V457 System

RX-V557 System

Superb Video Quality Is Complemented by

Dynamic CINEMA DSP Audio.

These two systems give new meaning to the

phrase “value-packed.” The receivers use

CINEMA DSP technology for astoundingly

rich, deep and clear surround sound and

have a much wider range of features than

you expect. Choose one and start

discovering what a difference high quality

surround sound makes to movie enjoyment.

The RX-V557 System has surprisingly high performance

capabilities and versatility, thanks to a host of advanced

Yamaha features like Quad-Field CINEMA DSP and a wide

selection of surround programs. The DVD-S657 DVD Player

(P.33) is first rate, and the NS-BP4500 Speaker Package

(P.35) is designed for optimum performance with

multi-channel movies.

RX-V557/RX-V457 Systems

RX-V457 System

6.1-Channel Digital Home Theater System

With most of the capabilities and nearly the same power as

the RX-V557, the RX-V457 Receiver (P.27) is ready to serve as

the central component of a full-function home theater

system. The DVD-S550 DVD Player (P.33) and the NS-436

Speaker Package (P.35) deliver beautiful sound from both

movie and music DVDs.

Multi-Channel Surround Sound Enjoyment from A Single Component.

The YSP-1 is a genuine multi-channel home theater system — all in one unit! A true breakthrough in audio technology, it delivers sound from the

five front, surround and center channels to listeners just as though they were surrounded by five speakers. It can be positioned in the front center

or corners of the room. The thin design is an elegant match for flat panel monitors and simplifies placement. And naturally, there is no need to

find locations for multiple speakers or to run cables across the room. YSP-1: the elegant, all-in-one solution for home theater sound.

YSP-1 Digital Sound Projector

The Yamaha Digital Sound Projector YSP-1 is an

exciting breakthrough in home theater technology.

Now you can get optimum multi-channel sound

directivity to enjoy the full benefits of home

theater all from one easily installed component.

No more multiple speakers, no more clutter,

no more hiding wires... just the pure excitement of

bringing your movies and music to life.

The YSP-1 is designed to be an ideal, slim

design match for your video display set. Although

it is only one component, there are actually 40

speaker drivers inside that project precisely

focused beams of sound aimed for optimum

surround sound effect.

Multi-Source Enjoyment

As a home theater sound system,

the YSP-1 will generally be used for

movies on DVD, but it also brings

greater enjoyment to digital audio,

satellite TV, cable TV and other

multi-channel sources. It has built-

in decoders for Dolby Digital, DTS,

Dolby Pro Logic II and DTS Neo:6.

Thin Profile Designed to Match Flat Panel Displays

If you own or are planning to purchase a flat panel

monitor, you probably wish you could also have thin

speakers, rather than the usual boxes on the front

and sides. The YSP-1 has a long, slim profile and

nicely matches the styling of thin monitors.

Revolutionary Surround Sound True Multi-Channel Sound

As amazing as it seems, the YSP-1 can actually

deliver five channels of sound that surround

listeners the same way that sound from five front,

center and surround speakers does. Hear it and you

will believe it!

Simple Connection and

Flexible Placement

DVD

Satellite TV

Cable TV

Digital Sound Projection Technology

Precisely Focused Beams of Sound

Although it is one component, there are actually

40 small drivers and 2 woofers inside. The delay time

of each driver is controlled by a Digital Sound

Processing circuit, enabling the system to project

“beams” of sound which are precisely aimed for

optimum surround sound

effect. Naturally, high quality

two-channel (stereo) sound can

also be reproduced, as well as

three-channel sound if desired.

Beam Mode Selection

Five-Beam: All five

channels—L , R, C, Ls and

Rs—are given separate

orientations. Sound is

beamed off the walls to

create the effect of a

surround system with rear

speakers. Stereo: The left

and right woofers, with

the multiple beam

speakers acting as

tweeters, reproduce the

effect of conventional

stereo speakers. Stereo +

Three-Beam: The L and R

channels are produced

using stereo mode while C,

Ls and Rs are produced

using beaming. This mode

is effective when the

YSP-1 placed in a corner.

Three-Beam: Three beams

are produced: L+ Ls, R+ Rs

and C. A surround sound

effect is created by

reflecting the sound off

the walls.

Precise Calibration Produces Accurate

Multi-Channel Sound

You input a variety of parameters (once only)

to obtain the correct surround sound field.

First, you select room size (large, medium or

small), room shape (square or rectangular) and

speaker position (wall or corner). You can also

make fine adjustments with precise distances

from the listening position. Test tones are

provided to adjust beam angles via the remote

control for maximum surround effect. If you

will be moving the YSP-1, there are three

memory locations for storing different groups

of settings.

The YSP-1 applies sophisticated Digital Sound Projection

Technology to precisely control the orientation of the sound by

focusing it into beams. The result is true 5.1-channel surround

sound without the need for extra speakers! With 42 digital

amplifiers driving 40 1-5/8” full-range drivers and two 4-3/8”

woofers, the Digital Sound Projector delivers 120W of total power

with dynamic bass response.

Multiple channels (two channels in the figure) are superimposed to

create the sound. In a 5.1-channel configuration, the beam

speakers together create the sound of 5.1 superimposed channels.

Sound is projected at the

listener from five directions:

straight ahead, reflected off one

wall, and reflected off two walls

(so it is heard from the rear).

Video Signal

Analog Signal

Video Signal

Digital Signal

YSP-1 Rear Panel

Digital

Signal

On-Screen

Display

Analog

Signal

The YSP-1 rear panel offers 2 optical/1 coaxial digital and

2 analog inputs, subwoofer output and RS-232C interface.

VCR

DVD Player

Flat Display

Connection

with Display, VCR

and DVD Player

Digital Sound Projector

Option

SPM-K1 Wall Hanging Bracket

Main Specifications

•Speakers Section : 1-5/8” x 40 beam drivers,

4-3/8” x 2 woofers • Digital Amplifier : 120 W total

power: 2 W x 40 + 20 W x 2 • Dimensions (W x H

x D) : 40-9/16” x 7-5/8” x 4-5/8”

•Weight : 28.7 lbs.

Listening

Position

L R

Even if the YSP-1 cannot

be positioned flat against

the front wall (leaving

“dead” space), the quality

of the surround sound

will not be affected.

If the room has an alcove

or other irregularity, the

settings can be adjusted

to compensate, so the

surround enjoyment can

be assured.

Delay Control

Digital Amplifiers

Virtual Speaker

Positions

Speaker Array

Sound is focused

into beams.

Listening

Position

L R

Five Beam Mode

Stereo Mode

Stereo + Three Beam Mode

Three Beam Mode

sections of the receiver, the High Performance Digital

Circuitry and High Current Amplification (explained

below) and the High Definition CINEMA DSP circuitry

(explained on P.18), each of which employs the

world’s highest grade parts and most sophisticated

LSIs. Digital ToP-ART enables Yamaha receivers to

deliver superb sound quality and bring out the full

potential of Yamaha’s amazing CINEMA DSP

technology.

High Performance Digital Circuitry (RX-Z9)

This section exemplifies the Digital

ToP-ART concept of maximizing the quality of the

digital circuitry while minimizing analog circuitry,

and also maintains a straight and logical circuit

layout for optimum signal purity. It includes a variety

of sophisticated technology, beginning with Burr-

Brown 192kHz/24-bit digital-to-analog converters

for all channels with DSD (Direct Stream Digital)

compatibility. Accurate-Touch Volume Control LSIs

(Yamaha YAC520) are also used for all channels. The

Highest Sound Quality

Yamaha presents advanced solutions for

maximum home theater enjoyment.

Yamaha has taken home theater audio and video technologies to new levels of achievement.

Long world-renowned for our CINEMA DSP surround sound technology, we now offer both

projectors and plasma display monitors for superlative visual enjoyment as well. Here’s a brief

introduction to our major technologies.

digital bass and treble tone controls have turnover

frequencies for the front L/R and center channels.

Eight-channel analog input signals are processed by

96kHz A/D conversion for highest quality. All

circuitry is on a four-layer processing board in a

fully shielded cabinet for reduced digital

interference.

High Current Amplification

Although power rating is often the first thing

people look at in a receiver, high power output does

not necessarily mean good sound. High current

level is a much more important factor, so Yamaha

developed the High Current Amplification system,

which overcomes two problems common to

ordinary receivers. The first is a difference in

voltage between the power supply and amplifier

circuits caused by current fluctuations. This was

solved by using custom-made, high-grade block

electrolytic capacitors and a copper grip for one-

point grounding. Another current drop is generally

seen between the amplifier circuit and the speaker

terminals, caused by the cables, speaker output

relays, copper circuit boards, and so on. To avoid

this problem, we used an extra-large, low-

impedance toroidal transformer and gold-plated

speaker relay contacts. As a result, Yamaha

receivers achieve low impedance, high current

power from input (power supply circuit) to output

(speaker terminals). This drives the speakers much

more smoothly and dynamically, for better sound

from all sources, including 2-channel audio.

Choice of Signal Paths for Optimum Quality

Yamaha receivers give you a choice of specialized

signal paths, ensuring that you can obtain the

Yamaha has a genuine commitment to providing

absolutely the finest sound quality possible in every

component we create. With over a century of

experience in sound production (we made our first

reed organ in 1887) and our status as a world

leader in acoustic and electronic musical

instruments, we are passionate about creating and

reproducing sound in the most beautiful and

natural way. Over the years, with each new series

of receivers, we have improved and refined audio

performance, and Yamaha Digital Home Theater

Receivers maintain this tradition with an impressive

array of technology and features.

Digital ToP-ART Concept

Digital ToP-ART (Total

Purity Audio Reproduction

Technology) is a Yamaha

product development philosophy that combines

advanced digital engineering and circuit design to

maximize audio signal purity. It is used in three

Digital

Input

High-Definition CINEMA DSP Circuitry High Performance

Digital Circuitry

High Current

Amplification

Selector

Minimal

Analog

Processing

Direct Stereo

SEL

DAC

192 kHz/24-Bit

DACs for

11 Channels

VOL

Accurate Touch Volume Control

(-80—+16.5dB)

YAC-520 LSIs for 11 Channels

• Front L

• Front R

• Center

• Surround L

• Surround R

• Surround Back L

• Surround Back R

• Presence L

• Presence R

• Subwoofer L

• Subwoofer R

Multi (8)-

Channel

Input

i.LINK

Decoder

DIR

96 kHz/

24-Bit

ADC

SEL

YPAO

(Yamaha

Parametric

Room Acoustic

Optimizer)

(YSS-930 x 4)

CINEMA DSP

and HiFi DSP

(YSS-930 x 4)

Highest Sound Quality Advanced Facilities Best Surround Realism Highest Picture Quality Video Technology

highest slew rate (rate at which signal changes;

affects high frequency response). Furthermore, the

massive toroidal transformer and large capacity

block electrolytic capacitors (28,000µF) ensure a

consistently stable power supply.

Effective Linear Damping

Level variations due to high impedance tend to

reduce an amplifier’s damping factor (ability to

control unwanted speaker cone movement at low

frequencies), and frequency variations cause it to

fluctuate. Yamaha’s Linear Damping circuit cancels

the effect of these variations, maintaining a high,

stable damping factor for superior sound

articulation and frequency response.

High Grade Construction with Independent

Chambers and Anti-Vibration Design (RX-Z9)

The RX-Z9 uses a heavy-duty, rigid chassis

construction with separate individual chambers for

left and right power amplifiers, power supply and

control section to prevent any chance of

interference. This thick chassis has electromagnetic

shielding. The extremely large aluminum-extruded

heat sinks have anti-resonance characteristics and

ensure effective heat dissipation. Yamaha’s

ToP-ART base and feet provide stability and further

vibration-damping. The other receivers use many of

these same design features.

Only the Finest Parts are Used

At this degree of extreme sound quality, each and

every part in the receiver makes a difference.

Yamaha technicians tested, selected and in many

cases custom-designed all parts, and then tested

them in groups to ensure that they sounded good

together. Particularly noteworthy parts, in addition

to the transformer and capacitors, include:

䡲Schottky Barrier diodes that allow fast switching

for high S/N ratio (RX-Z9/RX-V2500).

䡲High performance FE Mica capacitors and Metric

Mylar Film capacitors using polypropylene

material.

䡲Thick PC board wiring with 5/8”φdiameter

copper jumper cables.

䡲Two direct signal path speaker relays with gold-

plated crossover connections and shielding.

purest signal quality possible. Pure Direct provides

the shortest possible signal path for two-channel or

multi-channel analog inputs, with no signal

processing and no display. Straight outputs the

original analog or digital signal without any post-

processing. i.LINK provides a digital connection for

DVD-Audio Linear PCM, Super Audio CD DSD

(Direct Stream Digital) and other high quality audio

sources. Direct provides a direct connection for

analog stereo/multi-channel input and digital

stereo/multi-channel (via i.LINK) input, with a

dimmed display.

Symmetrical Power Amplifier Circuitry (RX-Z9)

The High Current Amplification system uses a

symmetrical, full push-pull circuit configuration

with a complementary FET input stage. This ensures

balanced output with no signal interference and

DSP

Analog/DSP

High-sound quality, high

reliability gold-plated relays

Balanced signal transmission

for lower noise and distortion.

Multi-Channel In

Pure

Direct

(2ch)

YAC-520

Volume Control

Preout

Pure Direct

(2 Channels, L/R)

Pure Direct

(Multi-channel, L/R)

Analog

L/R Input

Selector

In NFB

Bias Circuit

Speaker Out

Control Section

Power Amplifier

(Right) with Large,

Anti-Resonance,

Aluminum-Extruded

Heat Sink (Right)

Providing Effective

Heat Dissipation

Gold-Plated

Extruded, Extra-

Large Speaker

Terminals

Two Direct Signal

Path Speaker Relays

with Gold-Plated

Crossover

Connection and

Shielding

Power Supply Chamber with Extra-Large Toroidal Transformer and Extra-Large Custom-Made

Block Electrolytic Capacitors (28,000µF)

Power Amplifier

(Left) with Large,

Anti-Resonance,

Aluminum-Extruded

Heat Sink (Left)

Providing Effective

Heat Dissipation

(1) Extra-Large Toroidal Transformer, (2) Extra-Large

Custom-Made Block Electrolytic Capacitors (28,000 µF),

(3) Gold-Plated Extruded, Extra-Large Speaker Terminals,

(4) Two Direct Signal Path Speaker Relays, (5) High Sound

Quality Schottky Barrier Diode and (6) High Quality Selected

Parts (RX-Z9)

RX-Z9 Front Channel Signal Flow

Basic Circuit Diagram

DSP Chamber

Video Chamber

Preamp Chamber

Digital Home Theater Technology

Advanced Facilities

On-Screen Display with GUI and Dedicated

Remote Control (RX-Z9)

The RX-Z9 and RX-V2500 have the best looking

and easiest to use on-screen display you’ve ever

seen. This is due in part to the high quality video

circuitry, which provides sharp, clear images. The

GUI (Graphical User Interface) includes extensive

yet easily understandable setup menus and has

been designed to make it easy to

select and adjust desired

functions.

And to further simplify

operation, The RX-Z9 has

provided a second remote control

dedicated to GUI use. The large

round cursor control in the

center makes it easy to navigate

the on-screen menus and enter

desired commands. It also has

power, volume and mute buttons.

acoustics of the room.

It comes supplied with a small Optimizer

Microphone, which you simply place in the

position where you most frequently listen.

Activating the YPAO function causes test tones

to be emitted from the speakers. These tones are

analyzed and based on the results, a variety of

audio parameters are precisely calibrated to

optimize the sound at the listening position.

Among the factors analyzed are speaker

connections and phasing, speaker size, sound

pressure levels and speaker frequency response.

In short, the RX-Z9 not only delivers better

sound, it delivers the BEST sound for each and

every room.

The RX-V2500 has an improved system that

is faster (less than three minutes), also adjusts

frequency response, and provides three

programed EQ patterns, plus the ability to

manually adjust parametric EQ settings. Six

YPAO settings can be held in memory and

recalled via two system memory buttons on the

remote control. YPAO is available with the

RX-Z9, RX-V2500, RX-V1500, RX-V757,

RX-V657 and DVX-S650.

Each generation of Yamaha receivers brings an

evolution of our popular features while adding

innovative enhancements to improve the

operating experience. This is why even though

our receivers are the most technologically

advanced, they remain remarkably easy to use

and enjoy. Although these receivers look like

formidable machines, you’ll soon appreciate just

how convenient and enjoyable they are to use.

YPAO Sets the Best Sound for Your Room —

Automatically!

Some receivers have a graphic equalizer (in fact,

this one does too) which admittedly, can be a bit

difficult to use. Parametric equalizers are even

more effective, but only audio professionals can

use them. The RX-Z9 is the first receiver to give

you the benefits of a 10-band parametric

equalizer, which automatically adjusts the audio

output to provide precisely the best sound for the

ON OFF

ON ON

Small

Small Small

Large Large

Large

Small

+0.5dB 0dB

+0.5dB 0dB +1.5dB 0dB

0dB +3dB 0dB

-2.5dB 0dB

+1.5dB 0dB

+4.5dB

+3dB +2.5dB

+0.5dB +0.5dB

-0.5dB

+4.5dB

YPAO Acoustic Customization: 5 Tuning Fuctors

1) Speaker Connections

Checks for missing connections and

subwoofer phase control (here the right

surround speaker is not connected).

2) Speaker Distance

Measures speaker distances from

the listening point and corrects

for differences down to 5cm.

3) Speaker Size

Checks speaker sizes (large or

small) and subwoofer

crossover frequency.

4) Speaker Frequency Response

Measures and optimizes each

speaker’s frequency response using

the parametric equalizer.

5) Sound Pressure Level

Measures and aligns the

sound pressure levels of all

speakers.

RX-Z9 YPAO Optimizer

Microphone

These receivers are XM Satellite Radio Ready,

allowing you to hear over 130 digital channels of

music, news, sports, talk and entertainment from

America's number one

Satellite Radio service.

With the addition of the

XM Connect and Play

digital antenna accessory

(sold seperately) just

subscribe to XM Satellite

Radio and hear radio as it

was meant to be!

XM Satellite Radio Ready

(RX-V757, RX-V657, RX-V557

and RX-V457)

XM Play Digital Antenna

(Sold Separately)

RX-Z9 GUI

Remote Unit

Optimizer Micrphone

Digital Home Theater Technology

Main Zone Zone 2

Main Zone Second Room

5.1ch

Off

Main Zone Second Room

7.1ch Off

Zone 2 Power Amplifier Assignment

Custom Installation Compatibility (RX-Z9,

RX-V2500, RX-V1500, RX-V757, RX-V657 and

RX-V557)

• Multi-Zone Capabilities

These receivers have a variety of features that

allow flexible custom installation for enjoying

sound in two or three rooms (zones) of your

home. The RX-V2500 and RX-V1500 provide

audio output to Zones 2 and 3, and the

RX-V2500 offers video output (including

S-Video) for Zone 2 as well. The RX-Z9/

RX-V757/RX-V657/RX-V557 deliver audio output

to Zone 2. Zone 2 power amplifier assignability

and speaker terminals mean that Zone 2 can be

fully independent with its own 2-channel power,

while you still enjoy 5.1-channel sound in the

main room (except RX-V557).

• Convenient Control

A switch for selecting Main Zone or Zone 2

power is conveniently located on the front panel

(except RX-V1500). All five receivers provide a

remote control for Zone 2, and the RX-V2500

also offers Zone 2 and 3 volume control, mute

and input selection.

• Other Features

All six receivers include trigger output for

automatic powering of other components

(RX-Z9/RX-V2500 has two), remote control IR

code input and output (RX-Z9/RX-V2500 has

two), and an RS-232C interface for using a PC or

touch-screen controller to configure the receiver.

They also provide speaker A, B or A+B selection.

Subwoofer Crossover and Phase Selection

(RX-Z9, RX-V2500, RX-V1500, RX-V757,

RX-V657, RX-V557 and RX-V457)

Adjusting the balance between the subwoofer

and the other speakers can result in significantly

better sound quality. By selecting the proper

crossover frequency, the subwoofer can

compensate for the low-range deficiencies of the

other speakers. These receivers allow you to

select nine crossover frequencies: 40, 60, 80, 90,

100, 110, 120, 160 and 200 Hz. In addition

providing a wider choice than most other

receivers, the steps between 80 and 120 Hz are

only 10 Hz apart for more precise adjustment.

There may be cases where the low

frequency output from the front speakers

Since the surround back amplifiers are automati-

cally assigned, no physical re-wiring is necessary.

For example, while Zone 2 is switched off, the

Main Zone can enjoy 7.1 surround sound. When

Zone 2 is switched on, the Main Zone can still

enjoy 5.1 surround sound, plus Zone 2 can enjoy

stereo playback. No need for re-wiring!

Anytime Easy Switch!

No Re-Wiring Necessary!

When Zone 2 is turned on.

When Zone 2 is turned off.

overlaps with the higher end of the subwoofer

output, meaning that part of the frequency

range will be output by both the front speakers

and the subwoofer. This is not a problem as

long as the phases of the sound waves from

the two sources match, but if they are out of

phase, they will cancel each other out,

resulting in those frequencies being lost. In this

case, the phase switch can be used to

eliminate the problem (except RX-V1500).

Easy-Operation Learning-Capable

Control Unit with LCD Dispaly

(RX-V2500, RX-V1500 and

RX-V757)

The remote control can “learn” the

functions of other components, so

you can use it as a single remote

for the entire system. It can be

preset with control codes for TV,

DVD, VCR, CDR, and other

components. They also are all

controllable from the remote, and

Volume, Mute, Input Select controls

are available for each zone as well.

Power Control for Each Zone on the Remote

(RX-Z9, RX-V2500, RX-V1500, RX-V757,

RX-V657 and RX-V557)

Main Zone Power On/Off

Zone 2 Power On/Off

Zone 3 Power On/Off

(RX-V2500/RX-V1500 only)

Switches for Main Zone and Zone 2 Power are

available on the Front Panel (RX-V2500,

RX-V757, RX-V657 and RX-V557)

RX-V2500 Hidden Panel

RX-V757 Front Panel

System Power On/Off

7.1ch program is played back in Main Zone while Zone 2 is tumed off.

Surround back amps are automatically assigned as Zone 2 amps.

Main Zone Zone 2

How Sound Propagates

(Previous Models)

䡲Direct Sound

䡲Early Reflections

How Sound Propagates

(RX-Z9)

Double the Speed

Triple the Density

0—44kHz (RX-Z9)

0—22kHz (Previous)

Expanding Frequency Response

Yamaha was able to fit all the High Definition

CINEMA DSP circuitry (that’s a lot of

processing power!) on a single board in its

own chamber, for greater efficiency and

isolation from possible interference.

Best Surround Realism

localization, smooth movement across the sound

space, exceptional clarity and remarkably realistic

presence. It will seem as if the walls of your room

have disappeared and you are in the middle of

your own immense theater!

Yamaha Uses Actual Sound Field Data

Yamaha developed a technique called Single Point

Quad Miking to precisely capture the acoustic

patterns of sound spaces. This complex data is

stored and processed on extremely sophisticated

LSIs designed and manufactured by Yamaha.

4-Layer DSP Processing Board

All of the DSP IC chips and related circuitry are

located together on a 4-layer board, which

provides a number of advantages. The dimensions

are smaller (2/3 previous types), so signal paths

are shorter and there is more space for the large

power supply components. Digital interference is

reduced and impedance is lower as well.

Yamaha’s Exclusive YSS-930 32-Bit Floating

Point Quantization LSI

(RX-Z9, RX-V2500 and RX-V1500)

This powerful LSI performs all Dolby Digital and DTS

decoding with extreme accuracy, as well as all

digital sound field

processing,

capabilities that

previously required

two or more chips. It

also outperforms

other chips in

the precise

synchronization of images and sound.

Audio Delay for Adjusting Lip-Sync

A Yamaha LSI provides synchronization of images

and sound, which is called lip-sync. The video

signal goes through the video processor circuit

before it is displayed, which takes time, so it lags

behind the audio. The LSI accurately aligns them

Conventional multi-channel systems base their

sound on Dolby Digital and DTS decoding, using

relatively simple matrix and steering techniques

to create surround sound effects. Yamaha’s

CINEMA DSP Digital technology is much more

sophisticated. It naturally decodes the Dolby

Digital and DTS movie sound formats, but it also

draws on a huge memory of real-world data from

actual venues (especially for the music programs)

and input from movie sound technicians. This

data is stored and processed on Yamaha-

developed LSIs, the most powerful audio chips in

the world.

Way Beyond Ordinary Surround Sound

Our latest technology, Quad-Field CINEMA DSP

actually creates four independent sound fields

(front, surround left, surround right and surround

back) that merge to envelop you in an

unmatched surround sound experience. You hear

movies and music with accurate sound

Fs: 96kHz

Fs: 48kHz

Double the Signal Capacity

RX-Z9 0—44kHz

Previous 0—22kHz

Expanding Frequency Response

䡲Direct Sound

䡲Early Reflections

High Definition CINEMA DSP Technology (RX-Z9)

The RX-Z9 has six times greater DSP capacity than previous models, thanks to an increase from 48kHz to 96kHz/24-bit A/D converters that can accept 96kHz signals for

direct digital conversion and processing. Higher density processing enables approximately triple the amount of early reflection data to be handled, for significantly richer

surround sound performance.

The RX-Z9 also employs 192kHz/24-bit D/A conversion and DSP processing and Yamaha’s 32-Bit Floating-Point Quantization System LSIs (four YSS-930s) for high

precision decoding of Dolby Digital, DTS Digital Surround, DTS 96/24, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Neo:6 and Dolby Pro Logic IIx formats.

Conventional

7.1-Channel Systems

Quad-Field CINEMA DSP Dialogue MusicEffect

Presence (Front Line) Sound Field

Surround Left

Sound Field

Surround Back

Sound Field

and even allows the lip-sync parameters to be

adjusted using the Audio Delay mode.

CINEMA DSP Programs and THX Programs

One of the main advantages of CINEMA DSP is the

large choice of sound field programs available. The

basic program for movies is Enhanced, which

greatly improves the sound of the surround fields.

The "largest" of these sound fields is Spectacle,

which recreates the open feeling of large-scale,

epic motion pictures. The Sci-Fi, Adventure and

General programs provide the optimum sound fields

for those movie genres. There are also THX

programs*.

* THX Ultra2/Select are the surround programs for home use,

based on the THX Theater processing developed for movie

theater surround sound.

New Night Listening Enhancer

During low-volume listening, such as late at night,

dynamic range suffers and you may miss some

sounds. The Night Listening Enhancer offers two

modes, Cinema and Music, with three-level

selectability, which will ensure that you don’t miss

movie dialogue or quiet passages, or lose overall

surround spaciousness. It works for all surround

programs, including Dolby Pro Logic IIx.

Enjoy Surround Sound through Headphones

SILENT CINEMA makes it possible to hear large-

scale surround sound through ordinary headphones!

This is a variation of CINEMA DSP technology that

Yamaha developed to let you listen in private to

movies and other multi-channel sources for hours

without listening fatigue.

Surround Sound from Only Two Speakers

With just two left and right speakers, the Virtual

CINEMA DSP mode will create two additional

“virtual” rear speakers, giving you the sense of

being in a full-scale surround sound field. So even

in rooms with no space for rear speakers, you can

enjoy the exciting effects of Dolby Digital and DTS

movie sound formats.

Surround Right

Sound Field

Digital Home Theater Technology

Output

Dialogue

Filter

Center

Compressor

Decode

DSP

Output

Loudness

Filter

Front

Channel

Compressor

Decode

DSP

Night Listening Enhancer

Cinema Mode

Equalizes center channel frequency response for clear dialogue.

Music Mode

Uses loudness filter for clear musical sound.

As one of the first companies to popularize

“home theater” and a leader in the field,

Yamaha is naturally committed to visual as well

as audio excellence. We want our customers’

enjoyment of movies and other video sources to

be totally satisfying. Our home theater line

includes a number of high performance

products, including projectors, DVD players and

a plasma monitor, but in terms of our home

theater receivers, we design them to deliver the

finest possible video signal to the display

component.

Video Up Conversion

(RX-Z9, RX-V2500, RX-V1500, RX-V757,

RX-V657 and RX-V557)

One way of ensuring the highest video quality

for your home theater system is to use the best

possible video signal. The receiver automatically

upgrades the input signal (composite to S-Video

or component, S-Video to component) to the

one that your monitor/TV can accept. This

means that you simply use the best possible

cable between the receiver and the monitor/TV,

and then whatever the source is, you are

assured of getting the highest possible quality.

DCDi Processing

(RX-Z9)

The RX-Z9 is the first receiver

to offer Faroudja’s DCDi

Processing, which is

selectable and ensures that

images are smooth and

natural, without staircasing

or jaggies.

Noise Shaped Video™ (RX-Z9)

This technology, from Analog Devices, uses

oversampling and advanced techniques such as

multi-bit sigma-delta processing and bit-

shuffling to improve converter performance by

Highest Picture Quality

moving converter noise to an

area of the spectrum where it

can be removed by an analog filter. This improves

the accuracy of signal representation, allowing

images to be displayed at much higher resolutions.

Progressive Scan Video Output and Other Video

Technologies (RX-Z9)

The RX-Z9 is the first receiver to provide Progressive

Scan Video Output, for use with high definition

monitors. With almost twice as much video data, it

provides a sharper, noise-

free picture with clearer

details. The progressive

circuit is an 3:2 Pull-Down

Detection type, and gives

you the benefit of

progressive scanning even if

your DVD player does not have it. Other video

technologies include 216MHz/12-bit Video D/A

Conversion, Motion Adaptive Noise Reduction, Cross

Color Suppression, Aspect Ratio Conversion, a Time

Base Corrector that prevents the wavy distortion

seen in video tapes and TrueLife Enhancer by

Faroudja that brings out details in the picture

producing a more lifelike image.

HDTV (720p/1080i) Compatible

Component Video Monitor Out

The frequency response of the component video

monitor out signal is an extremely wide

5Hz–100MHz (RX-Z9; RX-V2500, RX-V1500,

RX-V757, RX-V657, RX-V557 and RX-V457 are

5Hz–60MHz), ensuring compatibility with HDTV

(720p, 1080i) monitors.

Image Adjustment (RX-Z9)

To ensure that the high quality image looks precisely

the way you want it to, the RX-Z9 includes an

extremely detailed Image Adjustment function. You

can select three modes, Cinema, Standard or

Dynamic, and within those modes, you can “fine-

tune” five parameters: Enhancer, 3D NR, Contrast,

Brightness and

Saturation. You

can then store

your final

adjustments in the

user memory for

recall at any time.

Before TrueLife Enhancer (Left) vs. After TrueLife Enhancer (Right)

DCDi Off (Left) vs. DCDi On (Right)

Time Base Corrector Off (Left) vs. Time Base Corrector On (Right)

Without Film Mode (Left) vs. With Film Mode (Right)

Digital Video Processing Board

All digital video processing circuitry is on a single

board, housed in its own separate chamber to

completely avoid interference from other circuitry.

Digital Video Up and Down Conversion (RX-Z9)

Faroudja DCDi

processing LSI (FLI 2310)

Above images are simulated.

YGV-619 video processor LSI

(Yamaha original)

Component

Video

S-Video

S1/S2 compatible

Composite

Video

Component

Video

S-Video

Composite

Video

sharp, clear picture with the smooth, high-definition

quality you see in a movie theater. The ALIS Method

employs a screen surface comprised of vertical channels

of continuous phosphor material. The pixels are defined

electronically rather than physically, allowing each

picture element to be smaller than normal. This creates a

higher pixel count for a smoother, seamless picture, with

edges and curves clearly defined. The PDM-4210 uses the

latest ALIS Method technology, which features new

plasma gas and luminescent material that are more

effective than previous types. The result is a brighter

picture (1,100 cd/m2) and higher color temperature,

which makes white areas such as clouds in the sky stand

out more vividly. The panel can also display a wider range

of colors (16.7 million), with enhanced color purity.

Natural Black Drive System

The Natural Black Drive System automatically

determines the brightness of the screen and applies the

gray scale (contrast) best suited to the scene in order to

reproduce both bright and dark areas with small details

clearly visible. The contrast ratio is an outstanding

1,000:1 under daylight condition, making it possible for

the PDM-5520/PDM-4210 to deliver sharp, natural-

looking images.

Digital Linear Color Control

Digital Linear Color Control continually maintains the

ideal balance between the three main colors (red,

green, blue) for optimum color reproduction in every

scene from very dark to very bright. The sharpness and

tint of each color are independently controlled, so you

can adjust the tint more precisely.

Long Life of 60,000 Hours

Another benefit of the e-ALIS/ALIS Method Panel

technologies are lower power consumption and longer

panel life. The Yamaha Plasma Display Monitors will

provide high quality images for 60,000 hours,* about

twice as long as a typical CRT monitor.

* Until panel brightness reduced to 40%. Yamaha measurement.

Video Technology

Digital Home Theater Technology

DPX-1200: Advanced technologies

deliver extraordinary performance.

"Natural Black" Concept

To provide superior

contrast, Yamaha has developed the Natural Black

concept, combining advanced technologies, parts and

functions to achieve truer, deeper levels of black than

ever before.

Taking Projector Performance to a New Level

The DPX-1200 makes use of a wide range of new

technologies to deliver extraordinary video

performance. Contrast is an incredible 5,000:1,

brightness is 800 ANSI lumens, picture sharpness is

outstanding and color reproduction is stunningly

natural.

Newest Light Engine: 720P

DarkChip3™

This DLP chip is Texas Instruments

newest and most advanced Digital

Micro Mirror Device. As the name

implies, it provides deeper blacks and

improved contrast in dark areas.

Seven-Segment Color Wheel

The DPX-1200 incorporates a

seven-segment color wheel, with

an ND filter-equipped green

segment, resulting in excellent

color reproduction. The seven-

segment structure reduces dither,

while color reproduction is excellent, with greens

being more true to life than ever (achieving the HD

monitor “green” standard). Green resolution is 10-bit,

which also improves the representation of black tones.

LPX-510: “Natural Black” and

advanced functions for enjoying

widescreen movies.

High Performance LCD Panels

The LPX-510 uses LCD panels capable of projecting

high resolution 720p HDTV images and 10-bit video

processing gives it the ability to reproduce 1.07 billion

colors. 16:9 aspect ratio compatibility means that

widescreen movies can be viewed in their entirety.

3D Linear Color Balance

The 3D Linear Color Balance function maintains the

proper balance between the three signals from the

LCD panels, adjusting color irregularities through a

range of 15,360 correction points for accurate color

in any type of scene.

Lens Shift, Motorized Iris and Zoom

Vertical and horizontal

lens shift capability means

that the projector does

not have to be positioned

directly in front of the

screen. The motorized iris

control can be used to

improve contrast and

focusing, and the motor-

ized Zoom will expand the

image up to 1.5 times.

PDM-5520 and PDM-4210: Yamaha

Plasma Display Monitors use the most

advanced technologies to deliver

superb performance.

e-ALIS Method Panel Technology (PDM-5520)

The PDM-5520 uses a highly advanced e-ALIS

Method (extended Alternate Lighting of Surface)

panel whose pixels are defined electronically rather

than physically, allowing each picture element to be

smaller than normal. This creates a higher pixel count

for a smoother, seamless picture. The panel employs

new plasma gas and luminescent material that are

more effective than previous types, and the area

coated with the luminescent material is greater. This

results in the industry’s highest level of brightness,

1,000 cd/m2, with the ability to display 1.07 billion

colors for spectacular color richness and purity.

ALIS Method Panel Technology

This plasma display panel uses an advanced ALIS

(Alternate Lighting of Surface) Method to deliver a

Black reproduction by DPX-1200 and conventional projectors.

Yamaha Natural Black makes

subtle degrees of black in

textures, shadows stand out

more clearly.

With other projectors, black

contrast may be soft and

fuzzy rather than sharp

and clear.

720P DarkChip3

Conventional Panel

Electric

Discharge

Electrode

Two rows of phosphors

emit light together.

Phosphor rows emit light alternatively,

doubling the life of the panel.

Electrode

1/60 sec 1/60 sec 1/60 sec 1/60 sec

Electric

Discharge

ALIS Method Panel

Picture position

at lens shift zero.

Picture position

adjustable by lens shift.

Seven-Segment

Colour Wheel

e-ALIS Method Panel

765

766

767

768

Address Display

Odd Line Even Line Address Electrodes

Display Electrodes

Scanning Display

electrodes (384)

Displays 768 lines with 384 scanning electrodes

e-ALIS Method Panel Technology

The e-ALIS (extended ALIS) Method Panel technology was developed

to enable the use of the ALIS Method on large screens. Adopting

the shared electrode structure that is a special feature of ALIS on

the front panel permits the display of highly detailed images of 768

lines with 384 electrodes. 1/60 second (1 field) is divided twice into

odd number lines and even number lines to perform address, then

emits all pixels. During the next 1/60 second, the same operation is

done to display a 1/30 second image (1 frame).

The Natural Black Drive System allows the PDM-5520/PDM-4210

to outperform other plasma displays with deeper blacks and

sharper overall contrast.

Incorporating the most advanced technology

and numerous convenient functions, this

projector offers the highest performance in

its class.

• Yamaha Natural Black concept • 5,000:1

contrast ratio • Latest DMD 720P DarkChip3™

device • High resolution lens • Motorized iris

control for higher contrast • 7-segment color

wheel • Faroudja TrueLife Enhancer • Natural

color adjustment system • Lamp power selector • Faroudja DCDi*

processing • Silent operation • HDMI compatibility • Motorized

vertical lens shift, iris, focus and zoom controls • One-line menu

with graphical menu configuration

<Accessories> • PJL-427: Optional lamp cartridge • PMT-L31:

Optional installation brackets for low ceiling

* DCDi is not applicable to images from film sources.

With the LPX-510, Yamaha makes it easy to

enjoy widescreen movies at home with

beautiful film-like picture quality.

• High contrast film-like picture quality with

“Natural Black” • Latest 0.7” 720p liquid crystal

panel • 720p HDTV format compatibility, 16:9

widescreen display • 3D Linear Color Balance

• Cinema Balance Filter • Motorized iris control

• Vertical/horizontal lens shift • Faroudja DCDi* processing

• Short focus lens with high power zoom • Yamaha Cinema Filter

• 1.5x motorized zoom • 15° vertical keystone correction

• Motorized focus control • 6 user preset memories • Smart

Zoom for projecting 4:3 sports broadcasts onto a full 16:9 screen

• Automatic aspect conversion • Six-step lamp power control

• HDMI terminal • RS-232C interface and trigger out

(12V/200mA) • Low-noise operation

<Accessory> • PJL-520: Optional lamp cartridge

* DCDi is not applicable to images from film sources.

LPX-510 Home Cinema Projector

DPX-1200 Digital Cinema Projector

The previous DPX-1000 has been honored with an EISA Award for High-End AV Product 2003-2004.

The prestigious EISA Awards are chosen by media representatives from up to 20 European countries.

Control Panel

Projectors

Projectors DPX-1200 LPX-510

Panel 0.8 inch DMD 720P DarkChip3™ x 1 0.7 inch HTPS TFT active matrix LCD x 3

Resolution 1,280 x 720 pixels 1,280 x 720 pixels

Brightness 800 ANSI lumens (iris off) 1,000 ANSI lumens (iris: off, Cinema Balance Filter: off)

350 ANSI lumens (iris: fully on, Cinema Balance Filter: on)

Contrast Ratio 5,000:1 (iris on) 1,200:1 (iris: 75%, Cinema Balance Filter: off)

1,000:1 (iris: 100%, Cinema Balance Filter: on)

Projection Lens F=2.7 – 5.0, f=24.3 – 38.9 mm F=2.06–2.79, f=21.4 mm–31.7 mm

Lamp 270 W SHP 200 W–150 W UHP lamp, 1,500 hours (200W continuous)

Acceptable Input YPbPr 480i/480p, 576i/576p, 720p, 1035i, 1080i 480i/480p, 576i/576p, 720p, 1035i, 1080i

RGB VGA, SVGA, XGA VGA, SVGA, XGA

Color Format NTSC, PAL, SECAM, NTSC4.43, PAL60, PAL-M and PAL-N NTSC, PAL, SECAM, NTSC4.43, PAL60, PAL-M and PAL-N

Power Consumption 375 W (standby: 0.1 W) 290 W (eco standby: 0.4 W)

Dimensions (W x H x D) 19-1/2” x 7-9/16” x 18-5/16” 17-11/16” x 4-11/16” x 13-9/16”

Weight 30.4 lbs. 13.7 lbs.

Projectors / Plasma Display Monitors

Delivers incredibly smooth, high-definition image quality for an

exceptional home cinema viewing experience.

• ALIS Method panel technology • Natural Black Drive System for 1,000:1

contrast ratio • High brightness: 1,100 cd/m2• High resolution: 1,024 x

1,024 pixels • HDTV capability • Digital Linear Color Control • Long life:

60,000 hours* • Two picture modes • Four white balance modes • Low

power consumption • Side-by-side picture • Picture-in-picture • Multi-

language on-screen display • 2 x 12W audio power • Timer functions

• Five video and five PC size modes • RS-232C interface • Simple remote

control unit

<Options> • PDS-242: Stand • PWK-242: Optional wall-hanging brackets

* Until panel brightness reduced to 40%. Yamaha measurement.

PDM-4210 Plasma Display Monitor

The world’s most advanced PDP technologies give the PDM-5520

performance capabilities unmatched by conventional plasma monitors.

• e-ALIS Method panel technology • Natural Black Drive System for

1,000:1 contrast ratio • High brightness: 1,000 cd/m2• High resolution:

1,366 x 768 pixels • Digital Linear Color Control • Long life: 60,000 hours*

• 1.07 billion colors • Two picture modes • Four white balance modes

• Low power consumption • Side-by-side picture • Picture-in-picture

• Multi-language on-screen display • 2 x 12W audio power • Timer

functions • Five video and six PC size modes • RS-232C interface

• Simple remote control unit

<Option> • PDS-355: Stand

* Until panel brightness reduced to 40%. Yamaha measurement.

Plasma Display Monitors

Plasma Display Monitors PDM-5520 PDM-4210

Effective Display Area (H x V) 1,229 mm x 691 mm, 1,410 mm diagonal 922mm x 522mm, 1,060 mm diagonal

Aspect Ratio 16 : 9 16 : 9

Number of Pixels (H x V) 1,366 x 768 pixels (e-ALIS Method panel) 1,024 x 1,024 pixels (ALIS Method panel)

Pixel Pitch (H x V) 0.90 x 0.51 mm 0.90 x 0.51 mm

Transmission of Front Filter Dark tint face 32% Dark tint face 32%

Brightness White Peak Panel brightness : 1,000 cd/m2Panel brightness : 1,100 cd/m2

Contrast Ratio (Panel) 1,000:1 1,000:1

Acceptable Input YPbPr 480i/480p, 576i/576p, 720p (60), 1080i (50/60), 1035i (60) 480i/480p, 576i/576p, 720p, 1035i, 1080i

RGB VGA-UXGA, 1080i (50/60) VGA, SVGA, XGA, SXGA, UXGA (compressed)

Color Format PAL, SECAM, PAL60, NTSC4.43, NTSC3.58, PAL-M, PAL-N NTSC, PAL, SECAM, PAL60, Modified NTSC

Wide Mode (Picture Size) Video: 5-modes — Panoramic, Zoom, Cinema, Full, 4:3 TV/Video: 8 modes — Panoramic, Zoom, Cinema, Full, 4:3, 14:9L, 14:9Zoom,

14:9 (WSS available)

PC: 6-modes — 4:3, Full, Real, Normal, Zoom 1, Zoom 2, Zoom 3 PC: 6 modes —Full, Real, Normal, Zoom1, Zoom2, Zoom3

Power Consumption 520 W 365 W

Dimensions (W x H x D); Weight 54-7/8” x 33-3/4” x 4-1/8”; 140 lbs. 40-9/16” 25-1/16”x 7-5/8”; 77.6 lbs. (monitor only)

PDM-5520 Plasma Display Monitor

Wine

Brown Black

Yellow

Four Color Variations

YWB-4210 Optional Wooden Bezel for PDM-4210

9-Channel Amplifier Capable of Delivering 1,290W

When you power up your carefully assembled, top-

class home theater system, you expect beautiful sound

and video quality, but you also want plenty of raw

power. Especially at dynamic peaks, such as explosions

or the climax of rock songs, you want to be thrilled

and awed, without a hint of distortion marring the

moment. The RX-Z9 is built to satisfy your urge for

power, surrounding you front, sides and rear with

seven channels capable of outputting a huge 170 W

each, plus another 50W from the two presence (front

effect) channels. That’s a total of 1,290W. Movies will

sound as if you’re in the director’s chair, and you can

even enjoy multi-channel sources from only four or

five speakers (even without a subwoofer, although

this is not recommended), thanks to an analog

mixdown mode. Another point to consider is that

because of this high power capability, at normal

listening levels the amplifier won’t be working as

hard, so distortion levels are virtually zero.

Superior Digital-to-Analog Converter System

For the important digital-to-analog converters,

Yamaha has chosen the PCM1792 manufactured by

the high-end audio expert, Burr-Brown. The RX-Z9

uses these DACs for all channels. The PCM1792 is a

high-performance, precision 24-bit DAC with ultra-

low distortion of only 0.0004% (THD + N) and S/N

Only Yamaha could set these goals for a home theater receiver

This flagship RX-Z9 goes beyond the capabilities of previous high-end Yamaha models with High-Definition

CINEMA DSP technology, the ability to automatically optimize the sound for the listening room, superior

audio and video quality, and the operating ease that Yamaha is famous for. The high end moved up a step.

ratio of 129dB. It offers superior low level linearity,

with excellent full-scale performance under varying

operating conditions. Its major benefit is

performing accurate sound field processing for high

quality multi-channel reproduction such as Dolby

Digital and DTS. For two-channel stereo, the

PCM1792 provides outstanding separation and

accurate musical delineation. An additional

advantage is its 192kHz/24-bit conversion

capability, making it compatible with the latest

(and future) high resolution digital audio sources.

39 Surround Sound Programs

The RX-Z9 offers a huge range of 39 surround

RX-Z9 Rear Panel Connections

•7 Optical, 4 Coaxial Digital Inputs (fixed and assignable)

•3 Optical Digital Outputs (fixed and assignable)

•7 A/V and 4 Audio Inputs, 3 A/V and 2 Audio (Audio Signal)

Outputs, and Zone 2 Audio Outputs

•6 Component Video Inputs (fixed and assignable) and 2 Monitor

Component Video Outputs

•2 Monitor (with S-Video) Outputs, 7 Video Inputs /3 Video

Outputs (with S-Video), and Zone 2 Video (with S-Video) Output

•Pre-Main and Center Couplers, Surround, Surround Back and

Presence Preouts, and Subwoofer Outputs

•8-Channel External Decoder Input

•RS-232C Interface for Custom Installation

•2 Trigger Outputs for Automatic Power on of Other Components

(+12V, 15mA)

•Remote Control IR Code Input/Output

•Zone 2 Coaxial Digital Output Terminal

•i.LINK (IEEE 1394) Digital Audio Interface

•Pure Direct 2-Channel Inputs

RX-Z9 Digital Home Theater Receiver

The RX-Z9 has been honored with

an EISA Award for Home Theater

High End Component 2004-2005.

The prestigious EISA Awards are

chosen by media representatives

from up to 20 European countries.

—and achieve them!

•Fixed (䡲), Fixed/Assignable (䡵) and Assignable (䡲) Terminals.

•RF (AC-3) terminal for LD input (䢇) is assignable as coaxial

digital terminal.

䡲*:HDTV (720p/1080i) Compatible Component Video Out

The frequency response of the component video monitor

out signal is 5Hz – 200MHz, making it compatible with

HDTV monitors.

RX-Z9 Inputs and Outputs

Analog Digital Video

Coaxial Optical Composite S Video

Component Video

In Out In Out In Out In Out In Out In Out

PHONO 䡲䡲䡲䡲

CD 䡲䡵䡵䡲

MD/TAPE 䡲䡲䡲䡲䡵

CD-R 䡲䡲䡲䡵䡵

DVD 䡲䢇䡵䡲䡲䡲䡵

DTV/LD 䡲䡵䡵䡲䡲䡲䡵

CBL 䡲䡲䡵䡲䡲䡲䡵

SAT 䡲䡲䡵䡲䡲䡲䡵

VCR 1 䡲䡲䡲䡲䡲䡲䡲䡲䡲䡵

VCR 2 䡲䡲䡲䡲䡲䡲䡲䡲䡲䡲

DVR 䡲䡲䡵䡵䡵䡲䡲䡲䡲䡵

Video Aux 䡲䡲䡲䡲

Monitor Out 1 䡲䡲䡲*

Monitor Out 2 䡲䡲䡲*

ZONE 2 䡲䡲䡲䡲

Multi-Ch 䡲

Pure Direct 2 Ch 䡲

sound programs to choose from. For video material,

you can select the program that matches your video

source, with 12 choices from games and TV sports to

Sci-Fi movies. For music, you have 21 choices

ranging from European concert halls to disco

ambience. Each sound field is created from acoustic

data recorded at the actual venues, stored and

processed by highly sophisticated Yamaha

technology. There are also 16 straight movie format

decoding programs and 6 THX programs, including

Ultra2. Naturally, you can experiment with different

programs for each source, and you can also use the

GUI menus to adjust numerous parameters for each

program. With CINEMA DSP, you will never be bored

or dissatisfied with the sound of your system!!

YPAO (Yamaha Automatic Parametric Room

Acoustic Optimizer)

Some components have a

graphic equalizer (in fact, this

one does too) which admittedly,

can be a bit difficult to use.

Parametric equalizers are even

more effective, but only audio

professionals can use them. The RX-Z9 is the first

amplifier to give you the benefits of a 10-band

parametric equalizer, which automatically adjusts

the audio output to provide precisely the best sound

for the acoustics of the room.

How does it work? The amplifier comes supplied

with a small Optimizer Microphone, which you

simply place in the position where you most

frequently listen. Activating the YPAO function

causes test tones to be emitted from the speakers.

These tones are analyzed and based on the results, a

variety of audio parameters are precisely calibrated

to optimize the sound at the listening position.

Among the factors analyzed are speaker connections

and phasing, speaker size, sound pressure levels and

speaker frequency response. In short, the RX-Z9 not

only delivers better sound, it delivers the BEST sound

for each and every room.

Ideal for Use in Custom Installations

The RX-Z9 has numerous features designed to

facilitate use in customized multi-room installations.

These include Zone 2 coaxial, video (including S-

Video) and audio outputs for multi-room control

capability, two trigger outputs for automatic power-

on of other components, speaker A/B and A+B

selection, an RS-232C interface and remote control

IR code input/output compatibility. In addition, the

Rec Out Selector also functions as a Zone 2 selector.

Extensive Connections for All the Components

You Want!

As shown here, the range of connections on the

RX-Z9’s rear panel is large enough to meet all of

your system building needs. Note that a number of

these terminals are fixed and assignable, meaning

that they can be independently assigned to sources

of your choice or defaulted to fixed settings.

Video Inputs on Front Panel

A panel on the front of the receiver flips up to

reveal a number of controls and video input

terminals. These include video and audio terminals

as well as optical digital and S-Video inputs. This

makes it convenient to connect a game machine for

DVD games or even movies, or other devices such as

a camcorder.

Subwoofer Crossover Selection

The RX-Z9 provides a choice of nine subwoofer

crossover frequencies: 40, 60, 80, 90, 100, 110, 120,

160 and 200 Hz. In addition to providing a wider

range than other receivers, the steps from 80 to

120 Hz are only 10 Hz apart for more precise

selection. This choice of crossovers lets you “fine-

tune” the audio system by selecting the optimum

frequency to maximize receiver/speaker efficiency

and also ensures best performance from a wider

variety of speakers (small to large).

Dialogue Lift

Clear dialogue is important for movie enjoyment,

however, when using front and center speakers

positioned below the screen, dialogue may not be

heard with maximum clarity. The Dialogue Lift

function causes part of the front and center

channel sound to be output from the presence

speakers, so you hear the dialogue more clearly.

Other Notable Features

䡲High Current Amplification

䡲High dynamic power, low impedance drive

capability

䡲Linear Damping

䡲A/V Rec Out/Zone 2 selector

䡲8-channel external decoder

input terminals

䡲Audio Delay for

adjusting lip-sync

䡲S-Video 1/2 wide

selective signal

compatibility

䡲Digital tone controls

䡲40-station preset

tuning

䡲Direct-access

(macro-command,

learning and preset capable) remote unit

RX-Z9 YPAO Optimizer

Microphone

Oil-Damped Hidden Control Panel

Digital Home Theater Receivers

YPAO room sound optimization makes the most of this receiver’s high

sound quality and surround realism.

• 7-channel 910W powerful surround sound (130W x 7) • YPAO with 6

system memories • YPAO PEQ manual setting • GUI On-screen display • Pure

Direct • 192kHz/24-bit DACs for all channels • RS-232C interface/2 trigger

outputs/2 IR ports • Zone 2/presence speaker out (power assignment) and

Zone 3 volume • 3 component video inputs • Dolby Pro Logic IIx and DTS

96/24 compatibility • Audio Delay for adjusting lip-sync • Selectable 9-band

subwoofer crossover / Subwoofer phase select • Night Listening Enhancer

• 19 surround programs with 2 THX Select programs • Component video up

conversion • 9-channel speaker outputs and Dialogue Lift • Rec

out/Zone 2 selector • Main/Zone 2 direct on/off • Direct-access

(macro-command, learning and preset capable) remote control unit

with macro-command buttons and illuminated buttons

Top-class 7.1-channel receiver delivering 700W of sound power and superb

picture quality, as well as outstanding features like YPAO, Quad-Field

CINEMA DSP, Night Listening Enhancer and XM Satellite Radio ready.

• 7-channel 700W powerful surround sound (100W x 7) • XM Satellite Radio

ready • Digital ToP-ART and High Current Amplification • YPAO for

automatically optimizing the sound in your room • Component video up

conversion (full) • On-screen display • Pure Direct for high quality sound

reproduction • Zone 2 out (assignable power amplifier), IR port and speaker B

for custom installation • Dialogue Lift for enhanced dialogue sound output

• Quad-Field CINEMA DSP and 14 surround programs • Phono input

• Learning-capable remote control unit with LCD indication

• Night Listening Enhancer (Cinema/Music) and SILENT CINEMA

RX-V757 7.1-Channel Digital Home Cinema Receiver

A high-performance, high-value receiver featuring Yamaha’s unique

CINEMA DSP and YPAO acoustic optimization, plus much more.

• 7-channel 840W powerful surround sound (120W x 7) • YPAO • Pure Direct

• 192kHz/24-bit DACs for all channels • RS-232C interface/trigger output/IR

port • Zone 2/presence speaker out (power assignment) and Zone 3 volume

• Dolby Pro Logic IIx and DTS 96/24 compatibility • Audio Delay for adjusting

lip-sync • Selectable 9-band subwoofer crossover • Night Listening Enhancer

• 16 surround programs with 2 THX programs • Component video up

conversion • 9-channel speaker outputs and Dialogue Lift • Front panel Video

Aux inputs • 8 digital inputs (5 optical/3 coaxial) • Digital tone

controls for front, center, presence and subwoofer

• Direct-access (macro-command, learning and preset capable)

remote control unit with macro-command buttons

RX-V1500 7.1-Channel Digital Home Theater Receiver

Oil-Damped Hidden Control Panel includes S-video input and

optical digital input terminals for connecting game machines,

digital equipment, and so on.

RX-V2500 7.1-Channel Digital Home Theater Receiver

Oil-Damped Hidden Control Panel includes S-video input and

optical digital input terminals for connecting game machines,

digital equipment, and so on.

YPAO Optimizer

Microphone

YPAO Optimizer

Microphone

YPAO Optimizer

Microphone

Receivers

Full-function, 510W high-power 6.1-channel receiver with special

features like Quad-Field CINEMA DSP and Night Listening Enhancer.

XM Satellite Radio ready, too.

• 6-channel 510W powerful surround sound (85W x 6) • XM Satellite Radio

ready • Digital ToP-ART and High Current Amplification • Dolby Digital EX,

DTS-ES, Dolby Pro Logic IIx and DTS 96/24 compatibility • Direct Stereo for

high quality two-channel sound reproduction • Night Listening Enhancer

(Cinema/Music) and SILENT CINEMA • Quad-Field CINEMA DSP and 14

surround programs • 192kHz/24-bit DACs for all channels • Selectable 9-

band subwoofer crossover / Subwoofer phase select • Audio Delay for

adjusting lip-sync (0–160ms) • 2 component video inputs and 3 digital

inputs • Preset remote unit • 3 S-Video inputs

Digital Home Theater Receivers

7.1-channel receiver offering many exclusive Yamaha functions including

YPAO automatic optimization, Quad-Field CINEMA DSP, XM Satellite

Radio ready and component video up conversion.

• 7-channel 665W powerful surround sound (95W x 7) • XM Satellite Radio

ready • Digital ToP-ART and High Current Amplification • YPAO for

automatically optimizing the sound in your room • Component video up

conversion (full) • On-screen display • Pure Direct for high quality sound

two-channel or multi-channel reproduction • Zone 2 out (assignable power

amplifier), IR port and speaker B for custom installation • Dialogue Lift for

enhanced dialogue sound output • Quad-Field CINEMA DSP and 14 surround

programs • Night Listening Enhancer (Cinema/Music) and SILENT CINEMA

• 8-channel external decoder input • 6 digital (4 optical and 2

coaxial) inputs • Preset remote control unit

RX-V657 7.1-Channel Digital Home Thaeter Receiver

6.1-channel receiver offering outstanding sound and picture quality, with a

wide range of desirable features such as 540W power, Quad-Field

CINEMA DSP, XM Satellite Radio ready and component video up conversion.

• 6-channel 540W powerful surround sound (90W x 6) • XM Satellite Radio

ready • Digital ToP-ART and High Current Amplification • Component video up

conversion (full) • Zone 2 out, IR port and speaker B for custom Iinstallation

• Dolby Digital EX, DTS-ES, Dolby Pro Logic IIx and DTS 96/24 compatibility

• Quad-Field CINEMA DSP and 14 surround programs • Night Listening

Enhancer (Cinema/Music) and SILENT CINEMA • 192 kHz/24-bit DACs for all

channels • Selectable 9-band subwoofer crossover / Subwoofer phase select

• Audio Delay for adjusting lip-sync (0–160 ms) • Aluminum

front panel

RX-V557 6.1-Channel Digital Home Theater Receiver

YPAO Optimizer

Microphone

The previous RX-V440 has been honoured with an EISA

Award for Best Home Theater Receivier 2003-2004. The

prestigious EISA Awards are chosen by media representatives

from up to 20 European countries.

RX-V457 6.1-Channel Digital Home Theater Receiver

Elegantly Slim-Line DVD Player with advanced technology and features

for outstanding performance

• Progressive Scan (NTSC/PAL) • DVD-Video, SVCD, VCD, Audio CD and

JPEG/MP3 (multisession) playback • DVD+RW/+R, DVD-R/-RW and CD-

R/RW playback • 54MHz/12-bit video D/A conversion for high picture

quality • Picture CD playback with display • Audio equalizer and 3D

reverb • MP3 fast forward/rewind/special playback • Playback of discs

with both JPEG and MP3 tracks • NTSC/PAL Conversion

A Slim-Line receiver whose performance is as sophisticated as its design.

• High power 100W x 6 (Max) Yamaha original digital amplifier

• Convenient setup on-screen display with GUI (Graphical User Interface)

• Easy setup and operation • Compatibility with latest movie sound

formats including Dolby Pro Logic IIx, Dolby Digital EX, DTS-ES Discrete

6.1, and DTS Neo:6 • Powerful 32-bit Yamaha LSI (YSS-938) for

CINEMA DSP processing • 14 surround programs with SILENT CINEMA

and Night Listening mode

The DV-SL100 rear panel offers optical/coaxial digital

audio output, mixed 2-channel audio output, composite,

and S-video and component video output terminals .

(Specifications are on pg.33).

The RX-SL100 rear panel offers 2 optical and

1 coaxial digital input (fixed and assignable) ,

and subwoofer output terminal.

Hidden Control Panel includes

headphone terminal for SILENT

CINEMA enjoyment and optical

digital input terminal.

Easy Connections

Six one-touch speaker terminals are furnished

in a slim space, colored for easy connection.

RX-SL100 Digital Home Theater Receiver

DV-SL100 DVD Player

NS-P236 6.1-Channel Speaker Package

GUI (Graphical User Interface) for Easy Use

Basic Menu Speaker Size

You’ll barely notice these small speakers, but their clean, powerful

sound will make every movie a memorable experience.

• 7-speaker package consisting of 5-satellite (front L/R, surround L/R and

surround back), center speakers and subwoofer

• Advanced YST subwoofer for powerful bass

response • Dual 2” full-range drivers for high

sound quality (5 satellites and center)

• Flexible placement • Magnetic shielding

(all speakers) 6.1-Channel Speaker Setting

Presenting the home theater systems that will impress your friends even when the power is off.

When the power is on, you’ll enjoy movies and music with surround sound that is unrivalled for a realistic sense of presence and overall depth

and clarity. When it’s off, you’ll be proud to own a system that sets the standard for contemporary design elegance.

Slim-Line Components / CinemaStation

Home theater has evolved into an advanced species, and it’s called CinemaStation. Elegantly styled, they’re

also supremely easy to use. The DVX-S650: proof that evolution is a good thing.

Home theater has evolved into an advanced species. www.CinemaStation.com

This is the home theater system you’ve been waiting for!

Impressive performance from beautifully slim, stylish components.

[Receiver] • YPAO: Automatically optimizing the sound in your room

• 4 DSP program icon buttons on remote unit • On-screen display

with GUI (Graphical User Interface) • 55W x 5 Yamaha original

digital amplifier • Powerful 32-bit Yamaha LSI for CINEMA DSP

processing • 12 surround programs plus SILENT CINEMA and Night

Listening mode • Quad-Field CINEMA DSP for enjoying formats such

as Dolby Digital Matrix 6.1 and DTS-ES Matrix 6.1 • Component

video output • 40-station FM/AM preset tuner

[DVD player] • Progressive Scan • 192kHz/24-bit audio

D/A conversion • Wide disc compatibility: DVD-Video,

DVD+RW/+R, DVD-R/RW, Audio CD, CD-R/RW, VCD,

SVCD, MP3 and JPEG

[Speakers] • Advanced YST and QD-Bass technology

subwoofer for powerful bass response • 8” 130W high

power cube subwoofer • High-grade MDF speaker

cabinets • Magnetic shielding (all speakers)

Dimensions (W x H x D); Weight: • Center Unit : 14-3/16” x 21-5/16” x 14-3/16”; 13.2

lbs. • Front Speakers: 13” x 71-1/2” x 7-1/8”; 8.8 lbs. • Center Speaker: 4-7/8” x 14-5/8” x

4-3/4”; 5.3 lbs. • Surround Speakers: 8-1/4” x 5-1/2” x 3-3/4”; 2.6 lbs. • Subwoofer: 11-

7/16” x 14-3/16” x 12-1/4”; 22 lbs.

Professional sound equalization with just one

microphone in 3 minutes

You just place the small microphone at

the listening position and touch a

button. In less than 3

minutes, the system

analyzes the

acoustics of the

room and adjusts

various speaker

parameters to provide

the best surround sound.

One touch to the ideal surround sound.

Yamaha makes it quick and easy to select the 4

most popular surround sound programs: Movie,

Music, Sports and Game. Just touch a button on the

remote control and you’ll hear the sound field

change as that program takes effect.

Easy access to the functions you want

The compact, well-designed remote control

makes operating your system a simple matter.

You have fast access to all the GUI (Graphical

User Interface) on-screen menus, as well as

one-touch selection of four surround programs

via the icon buttons.

MOVIE

MUSIC SPORTS GAME

CinemaStation DVX-S650 DVD Home Theater System

RX-Z9 RX-V2500 RX-V1500 RX-V757 RX-V657 RX-V557 RX-V457 RX-SL100

Channels 9 7 7 7 7 6 6 6

RMS Power (8 ohms, 20Hz–20 kHz) 170W x 7 + 50W x 2 130W x 7 120W x 7 100W x 7 95W x 7 90W x 6 85W x 6 100W x 6 (Max)

Amp Configuration Discrete Discrete Discrete Discrete Discrete Discrete Discrete Digital

Digital ToP-ART 䡲䡲䡲䡲䡲䡲䡲

High Current Amplification 䡲䡲䡲䡲䡲䡲䡲

Accurate Touch Volume Control 䡲䡲䡲䡲䡲

High Dynamic Power 䡲䡲䡲䡲䡲䡲䡲

Linear Damping 䡲䡲䡲䡲䡲䡲䡲

Analog Mixdown 䡲䡲䡲䡲䡲䡲䡲

Rotary Input Selector 䡲䡲䡲䡲䡲䡲䡲

High Definition CINEMA DSP 䡲

Dolby Pro Logic IIx 䡲䡲䡲䡲䡲䡲䡲䡲

DTS 96/24 䡲䡲䡲䡲䡲䡲䡲

DTS Neo:6 䡲䡲䡲䡲䡲䡲䡲䡲

192kHz/24-Bit DACs For all channels For all channels For all channels For all channels For all channels For all channels For all channels

Tone Controls Digital (L/C/R) Digital (L/C/R/Pr/Sw) Digital (L/C/R/Pr/Sw) Digital Digital 䡲䡲

Pure Direct 䡲䡲䡲䡲䡲

Direct Stereo 䡲䡲䡲

2-Channel Stereo 䡲䡲䡲䡲䡲䡲䡲

Straight / Effect Switch 䡲䡲䡲䡲䡲䡲䡲

Audio Delay 䡲(0–240 ms) 䡲(0–240 ms) 䡲(0–240 ms) 䡲(0–160 ms) 䡲(0–160 ms) 䡲(0–160 ms) 䡲(0–160 ms)

YPAO with Optimizer Microphone 䡲䡲

(with 6 memories)

䡲䡲䡲

Set Menu Auto/Manual Auto/Manual Auto/Manual Auto/Manual Auto/Manual Basic/Manual Basic/Manual

Surround Program 39 19 16 14 14 14 14 14

THX Processing Ultra2 Select Select

i.LINK Digital Audio Interface 䡲

SILENT CINEMA 䡲䡲䡲䡲䡲䡲䡲䡲

Virtual CINEMA DSP 䡲䡲䡲䡲䡲䡲䡲䡲

Night Listening Enhancer 䡲䡲䡲䡲䡲䡲

Selectable Subwoofer Crossover 9-band 9-band 9-band 9-band 9-band 9-band 9-band

Subwoofer Phase Select 䡲䡲䡲䡲䡲

9-Channel Speaker Outputs 䡲䡲䡲䡲䡲

Dialogue Lift 䡲䡲䡲䡲䡲

Multi-Channel External Decoder Input 8ch 8ch 8ch 8ch 8ch 6ch 6ch

Pre-Main Couplers 2 front and 1 center

Preout Terminals 6 (2S/2SB/2Pre) 7 (2F/C/2S/2SB) 7 (2F/C/2S/2SB) 7 (2F/C/2S/2SB) 7 (2F/C/2S/2SB)

Subwoofer Out 2 (front/rear) 䡲䡲䡲䡲䡲䡲䡲

On-Screen Display 䡲(with GUI) 䡲(with GUI) 䡲䡲䡲䡲(with GUI)

Component Video Inputs/Outputs 6/2 3/1 2/1 2/1 2/1 2/1 2/1

Video (S-Video) Inputs 8 (8) 6 (6) 7 (7) 5 (5) 5 (5) 4 (3) 4 (3)

Component Video Up Conversion Digital, up/down 䡲䡲䡲䡲䡲

Progressive Scan Processing DCDi

Assignable Power-Amp 䡲䡲䡲䡲

RS-232C Interface 䡲䡲䡲

Zone 2 Out 䡲(with coaxial) 䡲(with S-Video) 䡲(audio only) 䡲(audio only) 䡲(audio only) 䡲(audio only)

Zone 3 Out 䡲(audio only) 䡲(audio only)

Zone 3 Volume 䡲䡲

Main/Zone2 Direct On/Off Switch 䡲䡲䡲

+12V Trigger Outputs 䡲(x 2) 䡲(x 2) 䡲䡲䡲䡲

IR Ports 䡲(x 2) 䡲(x 2) 䡲䡲䡲䡲

Speaker A, B or A+B Selection (Via remote)

䡲䡲䡲䡲䡲䡲䡲

Digital Inputs (Optical/Coaxial) 12 (8/4*) 8 (5/3) 8 (5/3) 6 (4/2) 6 (4/2) 4 (3/1) 3 (2/1) 4 (3/1)

Front Panel Video Aux Terminals With optical/S-Video With optical/S-Video With optical/S-Video With optical/S-Video With optical/S-Video 䡲䡲With optical

Phono Input 䡲䡲䡲䡲

Sleep Timer 䡲䡲䡲䡲䡲䡲䡲

Remote Control Direct access Direct access Direct access Learning-capable Preset Preset Preset Preset

Front Panel Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Plastic Aluminum

Volume Knob Aluminum Aluminum Aluminum Aluminum Plastic Plastic Plastic Plastic

Dynamic Power/Channel (8/6/4/2 ohms) 210/260/340/580 W 165/205/260/340 W 155/195/250/330 W 135/170/200/245 W 130/165/195/240 W 120/155/190/235 W 115/150/185/230 W

Damping Factor (8 ohms, 20 Hz–20 kHz)

200 (front/center) 140 (front, speaker A) 140 (front, speaker A) 120 (front, speaker A) 120 (front, speaker A) 120 (front, speaker A)120 (front, speaker A)

Frequency Response

10Hz–100kHz +0, -3dB 10Hz–100kHz +0, -3dB 10Hz–100kHz +0, -3dB 10Hz–100kHz +0, -3dB 10Hz–100kHz +0, -3dB 10Hz–100kHz +0, -3dB 10Hz–100kHz +0, -3dB 20Hz–50kHz +0, -3 dB

Total Harmonic Distortion (20 Hz–20 kHz, CD)

0.005% (85W/8ohms) 0.04% (65W/8ohms) 0.04% (60W/8ohms) 0.06% (50W/8ohms) 0.06% (50W/8ohms) 0.06% (40W/8ohms) 0.06% (40W/8ohms) 0.04% (35W/6ohms)

Signal-to-Noise Ratio (CD, 250 mV) 100dB 100dB 100dB 100dB 100dB 100dB 100dB 98dB

Component Video Monitor Out Frequency Response

5Hz–100MHz -3 dB 5 Hz–60 MHz -3 dB 5 Hz–60 MHz -3 dB 5 Hz–60 MHz -3 dB 5 Hz–60 MHz -3 dB 5 Hz–60 MHz -3 dB 5 Hz–60 MHz -3 dB

Dimensions (W x H x D) 171/8”x 85/16”x 189/16”171/8”x 63/4”x 171/16”171/8”x 63/4”x 171/16”171/8”x 63/4”x 169/16”171/8”x 63/4”x 169/16”171/8”x 63/4”x 163/8”171/8”x 65/16”x 163/8”171/8”x 23/16”x 13”

Weight 66.1 lbs. 34.2 lbs. 34.2 lbs. 27.6 lbs. 27.6 lbs. 24.2 lbs. 24.2 lbs. 14.1 lbs.

* Including AC-3 (LD): fixed and assignable to coaxial digital input

Digital Home Theater Receiver Comparison

Digital Home Theater Components

䢇:HiFi DSP Programs 䢇:CINEMA DSP 䢇:Tri-Field CINEMA DSP Capable 䢇:Quad-Field CINEMA DSP Capable 䢇:THX Programs

RX-Z9 RX-V2500 RX-V1500 RX-V757 RX-V657 RX-V557 RX-V457 RX-SL100 DVX-S650

Compatible Decoding Formats

Dolby Digital 䢇䢇䢇䢇䢇䢇䢇䢇䢇

Dolby Digital EX 䢇䢇䢇䢇䢇䢇䢇䢇䢇

(Matrix 6.1)

DTS Digital Surround 䢇䢇䢇䢇䢇䢇䢇䢇䢇

DTS 96/24 䢇䢇䢇䢇䢇䢇䢇䢇

DTS-ES Matrix 6.1 䢇䢇䢇䢇䢇䢇䢇䢇䢇

(Matrix 6.1)

DTS 96/24 ES (6.1) 䢇

DTS-ES Discrete 6.1 䢇䢇䢇䢇䢇䢇䢇

Dolby Pro Logic 䢇䢇䢇䢇䢇䢇䢇䢇䢇

Dolby Pro Logic II Music 䢇䢇䢇䢇䢇䢇䢇䢇䢇

Dolby Pro Logic II Movie 䢇䢇䢇䢇䢇䢇䢇䢇䢇

Dolby Pro Logic II Game 䢇䢇䢇䢇䢇䢇䢇䢇

Dolby Pro Logic IIx Music 䢇䢇䢇䢇䢇䢇䢇䢇

Dolby Pro Logic IIx Movie 䢇䢇䢇䢇䢇䢇䢇䢇

Dolby Pro Logic IIx Game 䢇䢇䢇䢇䢇䢇䢇䢇

DTS Neo:6 Music 䢇䢇䢇䢇䢇䢇䢇䢇

DTS Neo:6 Cinema 䢇䢇䢇䢇䢇䢇䢇䢇

HiFi DSP Programs

Munich A 䢇䢇䢇

(Classic Hall)

Frankfurt 䢇

Stuttgart 䢇

Munich B 䢇

HALL Vienna 䢇䢇䢇

Amsterdam 䢇

Hall G in U.S.A 䢇

Hall H in USA 䢇

Live Concert 䢇䢇䢇䢇䢇䢇

Tokyo 䢇

CHURCH Freiburg 䢇䢇

Royaumont 䢇

Village Gate 䢇

JAZZ CLUB Village Vanguard 䢇

The Bottom Line 䢇䢇䢇䢇䢇䢇䢇䢇䢇

The Roxy Theatre 䢇䢇䢇䢇䢇䢇䢇䢇䢇

ROCK CONCERT Warehouse Loft 䢇

Arena 䢇

CLASSICAL/OPERA Classical/Opera 䢇

Disco 䢇䢇䢇䢇䢇䢇䢇䢇

ENTERTAINMENT Party 䢇

9 Ch Stereo 䢇䢇

(7/5 Ch Stereo)

䢇

(7/5 Ch Stereo)

䢇

(7 Ch Stereo)

䢇

(7 Ch Stereo)

䢇

(6 Ch Stereo)

䢇

(6 Ch Stereo)

䢇

(6 Ch Stereo)

䢇

(5 Ch Stereo)

HiFi DSP Subtotal 21 8 5 5 5 5 5 5 4

CINEMA DSP Programs

ENTERTAINMENT Game 䢇䢇䢇䢇䢇䢇䢇䢇䢇

TV THEATER TV Sports 䢇䢇

(Variaty/Sports)

䢇

(Variaty/Sports)

䢇

(Variaty/Sports)

䢇

(Variaty/Sports)

䢇

(Variaty/Sports)

䢇

(Variaty/Sports)

䢇

(Variaty/Sports)

䢇

(Live Sports)

Mono Movie 䢇䢇䢇䢇䢇䢇䢇䢇

Pop/Rock 䢇䢇䢇䢇䢇䢇䢇䢇䢇

(Music Video)

MUSIC VIDEO DJ 䢇

Classical/Opera 䢇

Pavilion 䢇

MOVIE THEATER 1 Spectacle 䢇䢇䢇䢇䢇䢇䢇䢇䢇

Sci-Fi 䢇䢇䢇䢇䢇䢇䢇䢇䢇

MOVIE THEATER 2 Adventure 䢇䢇䢇䢇䢇䢇䢇䢇䢇

(Action)

General 䢇䢇䢇䢇䢇䢇䢇䢇䢇

(Drama)

ENHANCED Enhanced 䢇䢇䢇䢇䢇䢇䢇䢇䢇

(Theater)

CINEMA DSP Subtotal 12 9 9 9 9 9 9 9 8

THX Programs

Cinema 䢇䢇䢇

Ultra 2 Cinema 䢇

Music 䢇

ES Matrix 6.1 䢇

ES Discrete 6.1 䢇

Surround EX 䢇䢇䢇

THX Program Subtotal 6 2 2

Programme Total 39 19 16 14 14 14 14 14 12

Digital Home Theater Component Surround Programs

High quality DVD-Audio/Super Audio CD player will be the focal point of

an impressive home theater system.

• Progressive Scan (NTSC/PAL) • DVD-Audio and Super Audio CD playback

• Faroudja DCDi processing • HDMI + HDCP compatibility: 480p, 576p,

720p, 1080i digital video out capability • Dual i.LINK (IEEE1394): DVD-Audio

and Super Audio CD digital audio data transfer capability • 216MHz/12-bit

video DAC • 192kHz/24-bit (DVD-Audio) and Super Audio CD compatible

audio DAC • Video Off mode • RS-232C interface • MP3 (multisession and

ID3Tag) playback • Picture CD and JPEG (multisession) playback

• Gold-plated terminals for all pin jacks • Aluminum front panel

DVD-S2500 DVD Player

The DVD-S2500 rear panel offers optical and coaxial digital audio output terminals,

component video output terminals (progressive/interlace), S-Video and composite

video output terminals, mixed 2-channel audio output terminals, 5.1-channel

discrete audio output terminals, HDMI terminal, dual i.LINK (IEEE1394) terminals, RS-

232C interface, remote control IR code input/output and a terminal for a detachable

power cable.

HDMI LSI (left) and i.LINK (IEEE1394) LSI

Uses new video and audio technologies for superior performance and

allows playback of both DVD-Audio and Super Audio CD discs.

• DVD-Audio and Super Audio CD playback • Progressive Scan (NTSC/PAL)

• CD upsampling • Audio Direct mode • Faroudja DCDi processing for

smooth and natural images without staircasing or jaggies • 192kHz/24-bit

audio DAC for high sound quality • 108MHz/12-bit video DAC for high

picture quality • On-Screen Display with GUI (Graphical User Interface)

• DVD-Video, SVCD, VCD, JPEG (multisession), Audio CD and MP3

(multisession) playback • DVD+RW/+R*, DVD-R/-RW* and

CD-R/RW*,**,*** playback • Gold-plated terminals for all pin jacks

• NTSC/PAL conversion • Aluminum front panel

DVD-S1500 DVD Player

The DVD-S1500 rear panel offers optical and coaxial digital audio output, component

video output (progressive/interlace), S-Video and composite video output, mixed 2-

channel audio output, 5.1-channel audio output terminals and a terminal for a

detachable power cable.

GUI (Graphical User Interface) for Easy Use

Designed for extremely high sound and picture quality, the DVD-C750

also offers a wide range of advanced features for greater movie and

music enjoyment.

• Progressive Scan (NTSC/PAL) • 108MHz/12-bit video DAC • Video picture

mode • CD upsampling • DVD-Audio and Super Audio CD playback

• 192kHz/24-bit audio DAC • Yamaha Patented “PlayXchange” • Versatile

format and disc compatibility • On-screen display • MP3, JPEG,

DivX and WMA multisession playback with navigation display

• Picture CD (such as JPEG) playback • JPEG/MP3 simultaneous

playback • Multiple zoom • CD Text display • NTSC/PAL conversion

DVD-C750 DVD Changer

The DVD-C750 rear panel offers optical and

coaxial digital audio output, component video

output, S-Video and composite video output,

mixed 2-channel audio output and 5.1-

channel audio output terminals.

Yamaha Patented PlayXchange

The DVD-C750 gives you the

benefits of extended playing time

and direct selection from all

discs. And with PlayXchange, you

can change discs while the

current one continues to play.

5-disc changer featuring Yamaha’s PlayXchange, wide media compatibility

and advanced technologies for top-class sound and picture quality.

• Progressive Scan (NTSC/PAL) • Faroudja DCDi processing for smooth and

natural images without staircasing or jaggies • HDMI interface with indicator

• 216MHz/12-bit video DAC • DVD-Audio and Super Audio CD compatibility

• 192kHz/24-bit audio DAC • CD Upsampling • Yamaha patented

“PlayXchange” • On-screen display • MP3, JPEG, DivX and WMA

multisession playback with navigation display • Picture CD (such as

JPEG) playback • JPEG/MP3 simultaneous playback for slide show

DVD-C950 DVD Changer

Yamaha Patented PlayXchange

The DVD-C950 gives you the

benefits of extended playing time

and direct selection from all

discs. And with PlayXchange, you

can change discs while the

current one continues to play.

DVD Players

The DVD-C950 rear panel offers optical and coaxial digital audio output, component

video output, S-Video and composite video output, mixed 2-channel audio output

and 5.1-channel audio output terminals. It also provides HDMI interface, RS-232C

interface and IR port.

Yamaha Patented PlayXchange

The DVC6760 gives you the benefits

of extended playing time and direct

selection from all discs. And with

PlayXchange, you can change discs

while the current one continues to play.

The DVD-S550 rear panel offers optical and coaxial digital audio outputs, component

video output, mixed 2-channel audio output, and S-Video and composite video

output terminals.

Exceptionally good image and sound quality, with wide-ranging

format and disc compatibility.

• Progressive Scan (NTSC/PAL) • CD upsampling • 108MHz/12-bit video DAC

• 192kHz/24-bit audio DAC • DVD-Video, SVCD, VCD, Audio CD,

DVD+RW/+R*, DVD-R/-RW* and CD-R/RW*,**,*** playback • MP3, JPEG, DivX

and WMA multisession playback with navigation display • Picture CD (such

as JPEG) playback • JPEG/MP3 simultaneous playback • 6-step multiple

zoom • Easy operation with GUI (Graphical User Interface) • CD Text display

• 4 video picture modes • Screen saver • 3-step dimmer • Sleep

functions • Night mode • NTSC/PAL conversion

DVD-S550 DVD Player

Silver finish available

* Only compatible with discs that have been finalized when recording is completed. Some discs may not

play due to disc characteristics or recording conditions. ** Only compatible with discs that have been

recorded in CD-DA format or Video CD format and Super Video CD format. *** Some MP3, JPEG, DivX or

WMA discs may not play due to disc characteristics or recording conditions.

DVD Players

Non-stop home theater enjoyment from five discs loaded at once.

• Progressive Scan (NTSC/PAL) • 108MHz/12-bit video DAC • Video picture

mode • CD upsampling • Super Audio CD playback • 192kHz/24-bit audio

DAC • Yamaha Patented “PlayXchange” • Versatile format and disc

compatibility • On-screen display • MP3, JPEG, DivX and WMA

multisession playback with navigation display • Picture CD (such

as JPEG) playback • JPEG/MP3 simultaneous playback for slide

show • Multiple zoom • CD Text display • NTSC/PAL conversion

Slim Progressive Scan DVD player with outstanding picture and sound

quality, plus DVD-Audio/Super Audio CD playback.

• Progressive Scan (NTSC/PAL) • 108MHz/12-bit video DAC • DVD-

Audio/Super Audio CD playback • CD upsampling • 192kHz/24-bit audio

DAC • Audio Direct • Versatile format and disc compatibility such as VR

format recorded DVD-RW (with CPRM) and DVD+R Double Layer (DL)

playback • MP3, JPEG, DivX and WMA multisession playback with

navigation display • Picture CD (such as JPEG) playback with

thumbnail display • JPEG/MP3 simultaneous playback for

slide show

DVD-S657 DVD Player

DVC6760 DVD Changer The DVC6760 rear panel offers optical and

coaxial digital audio output, component video

output, S-Video and composite video output,

mixed 2-channel audio output and 5.1-

channel audio output terminals.

DVD Players DVD-S2500 DVD-S1500 DVD-C950 DVD-C750 DVC6760 DVD-S657 DVD-S550 DV-SL100

Super Audio CD Playback Yes Yes Yes Yes Yes Yes

DVD-Audio Playback Yes Yes Yes Yes Yes

MP3 Playback Multisession Multisession Multisession Multisession Multisession Multisession Multisession Multisession

JPEG Playback Multisession Multisession Multisession Multisession Multisession Multisession Multisession Multisession

DivX Playback Multisession Multisession Multisession Multisession Multisession

WMA Playback Multisession Multisession Multisession Multisession Multisession

DVD+R DL Playback Yes

VR Format Recorded DVD-RW Playback

Yes

Video D/A Converter 216 MHz/12-bit 108 MHz/12-bit 216 MHz/12-bit 108 MHz/12-bit 108 MHz/12-bit 108 MHz/12-bit 108 MHz/12-bit 54 MHz/12-bit

Audio D/A Converter 192 kHz/24-bit 192 kHz/24-bit 192 kHz/24-bit 192 kHz/24-bit 192 kHz/24-bit 192 kHz/24-bit 192 kHz/24-bit 192 kHz/24-bit

Signal-to-Noise Ratio (CD) 115 dB 115 dB 105 dB 105 dB 105 dB 110 dB 105 dB 105 dB

Dynamic Range (DVD 48 kHz, 24 Bit) 107 dB 107 dB 95 dB 95 dB 95 dB 100 dB 100 dB 100 dB

Harmonic Distortion + Noise (1 kHz) 0.0017% 0.0017% 0.0035% 0.003% 0.003% 0.003% 0.003% 0.003%

Dimensions (W x H x D) 171/8”x 315/16”x 123/8”171/8”x 23/16”x 123/8”171/8”x 215/16”x 163/4”171/8”x 215/16”x 163/4”171/8”x 215/16”x 163/4”171/8”x 2”x 123/16”171/8”x 2”x 123/16”171/8”x 23/16”x 117/8”

Weight 12.3 lbs. 7.1 lbs. 12.1 lbs. 12.1 lbs. 12.1 lbs. 5.7 lbs. 5.7 lbs. 7.1 lbs.

The DVD-S657 rear panel offers optical and coaxial digital audio outputs, component

video output, mixed 2-channel audio output, and S-Video and composite video

output terminals.

225 PMD/125 Series Speakers NS-225F NS-M225P NS-C225 NS-125FP NS-M125P NS-C125

Woofers Dual 31/8”PMD cone Quad 21/2”PMD cone Dual 31/8”PMD cone Dual 31/8”white cone Dual 31/8”white cone Dual 31/8”white cone

Tweeter 11/8”aluminum- 11/8”aluminum- 11/8”aluminum- 7/8”balanced-dome 7/8”balanced-dome 7/8”balanced-dome

magnesium dome magnesium dome magnesium dome

Magnetic Shielding Yes Yes Yes Yes Yes Yes

Twin Bass Reflex Ports Yes Yes

Round-Shaped Bass Anchor Yes Yes

Input Power (Max/Nominal) 120 W/40 W 120 W/40 W 120 W/40 W 120 W/40 W 120 W/40 W 120 W/40 W

Frequency Response 60 Hz–50, kHz 65 Hz–50 kHz 65 Hz–50 kHz 60 Hz–35 kHz 70 Hz–35 kHz 70 Hz–35 kHz

Sensitivity 86 dB/2.83 V/1 m 86 dB/2.83 V/1 m 86 dB/2.83 V/1 m 86 dB/2.83 V/1 m 86 dB/2.83 V/1 m 86 dB/2.83 V/1 m

Impedance 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms

Dimensions (W x H x D) 95/16”x 415/16”x 95/16”43/16” x 143/16”x 51/4”175/16”x 311/16”x 51/4”95/16”x 415/16”x 95/16”41/8”x 133/8”x 51/4”33/8”x 41/8”x 55/16”

Weight 17 lbs./unit 5.3 lbs./unit 6.2 lbs. 15.9 lbs./unit 4.4 lbs./unit 4.4 lbs.

These slim, high-performance speaker systems are exactly what today’s home theater

enthusiasts are looking for. Their luxurious open pore finish is matched by powerful,

accurate sound reproduction from PMD cone woofers and aluminum-magnesium

dome tweeters with DC-Diaphram™ (integrated diaphragm and voice coil).

The EF (Elliptical Form) Series feature Waveguide horns, PMD cone woofers

and highest quality internal Monster Cable wiring for total enjoyment of

digital movie sound and music sources, plus elegant Yamaha traditional piano

finish cabinets.

NS-777

3-Way, 4-Speaker

Bass-Reflex Speaker

System

NS-555

3-Way, 4-Speaker

Bass-Reflex Speaker

System

NS-333

2-Way Bass-Reflex

Speaker System

NS-C444

2-Way Acoustic Suspension

Center Channel Speaker

System

EF Series Speakers NS-777 NS-555 NS-333 NS-C444

Woofers Dual 8” PMD cone Dual 61/2”PMD cone 5” PMD cone Dual 5” PMD cone

Midrange Driver

5” cone with Waveguide horn 5” cone with Waveguide horn

Tweeter 1” aluminum dome 1” aluminum dome 1” aluminum dome 1” aluminum dome

with Waveguide horn with Waveguide horn with Waveguide horn with Waveguide horn

Magnetic Shielding Yes Yes Yes Yes

Bi-Wiring Connectivity Yes Yes

Input Power (Max/Nominal) 250 W/100 W 250 W/100 W 150 W/60 W 250 W/100 W

Frequency Response 30 Hz–35 kHz 35 Hz–35 kHz 60 Hz–35 kHz 55 Hz–35 kHz

Sensitivity 89 dB/2.83 V/1 m 88 dB/2.83 V/1 m 87 dB/2.83 V/1 m 89 dB/2.83 V/1 m

Impedance 6 ohms 6 ohms 6 ohms 6 ohms

Dimensions (W x H x D) 107/8”x43

5/16”x15

3/8”83/4”x38

9/16”x13

9/16”77/8”x12

5/8”x8

3/8”201/4”x7

1/2”x8

3/8”

Weight 53.7 lbs./unit 44.1 lbs./unit 12.1 lbs./unit 16.1 lbs.

225 PMD Series Home Theater Speaker Systems

The 125 Series sports thin styling to match flat TVs and plasma displays.

Excellent sound quality is assured through the use of dual 31/8”white cone

woofers and a 7/8”balanced dome tweeter, along with twin bass reflex ports

in the tower speakers.

125 Series Home Theater Speaker Systems

EF Series Home Theater Speaker Systems

NS-225F

2-Way Bass-Reflex

Speaker System

NS-M225P

2-Way Acoustic

Suspension

Speaker System

NS-C225

2-Way Dual-Woofer

Acoustic Suspension Center

Speaker System

NS-125FP

2-Way Bass-Reflex

Speaker System

NS-C125

2-Way Bass-Reflex

Center Speaker System

NS-M125P

2-Way Bass-Reflex

Speaker System

NS-6490

3-Way Acoustic Suspension

Speaker System (High Gloss

Piano Finish)

NS-AW150

All Weather Speaker

System (Black finish)

(White finish available.

Model number:

NS-AW150W)

NS-IW760

2-Way In-Wall

Speaker System

NS-IW360C

2-Way Ceiling

Speaker System

NS-AW350

All Weather Speaker

System (Black finish)

(White finish available.

Model number:

NS-AW350W)

Speaker Packages NS-FP9500 NS-FP4600 NS-SP1600 NS-P436

System Frequency Response 28 Hz–40 kHz 30 Hz–40 kHz 30 Hz–50 kHz 30 Hz–60 kHz

Magnetic Shielding All speakers All speakers All speakers All speakers

Front Speakers 3-way acoustic suspension 3-way acoustic suspension 2-way acoustic suspension 2-way acoustic suspension

Drivers Quad 4" woofers, 3/4" tweeter

Quad 4” woofers, 3/4” soft-dome tweeter

21/2”

cone, 1/2” dome tweeter

1 coaxial, 1 full-range drivers

Surround Speakers 3-way acoustic suspension 2-way acoustic suspension 2-way acoustic suspension 2-way acoustic suspension

Drivers Quad 4" woofers, 1/2" tweeter 3” woofer, 1/2” balanced-dome tweeter 21/2” cone, 1/2” dome tweeter 1 coaxial, 1 full-range drivers

Center Speaker 3-way acoustic suspension 2-way acoustic suspension 2-way acoustic suspension 2-way acoustic suspension

Drivers Quad 4" Woofers, 3/4" Tweeter Dual 4” Woofers, 3/4” soft-dome tweeter Dual 21/2” cone woofers, 1/2” dome tweeter 1 coaxial, 1 full-range drivers

Subwoofer Advanced YST/QD-Bass Advanced YST/QD-Bass Advanced YST/QD-Bass Advanced YST/QD-Bass

Drivers 8” 6.5” 6.5” 6.5”

Output Power 130 W 100 W 100 W 120 W

NS-P436

Home Theater 6.1-Channel

Speaker Package

(High Gloss Piano Finish)

YST-SW215

Advanced YST and

QD-Bass Subwoofer

NS-FP9500

Home Theater 6.1-Channel

Speaker Package (Front

Speaker Stands Included)

NS-FP4600

Home Theater 5.1-Channel

Speaker Package

NS-SP1600

Home Theater 5.1-Channel

Speaker Package

YST-SW315

Advanced YST and

QD-Bass Subwoofer

Yamaha subwoofers use sophisticated technologies

such as QD-Bass (Quatre Dispersion Bass, down-

firing drivers that radiate the sound in four

directions) and Advanced YST (Yamaha Active Servo

Technology) to ensure the highest levels of sound

pressure and overall performance.

To meet varied system requirements, Yamaha has developed a variety of speakers from 3-way type to all

weather speakers. They are available singly and in convenient packages. Your Yamaha dealer can

recommend the ideal speakers to bring out the full potential of your home theater system.

Subwoofers YST-SW315 YST-SW215

Advanced YST Yes Yes

QD-Bass Technology Yes Yes

High-Efficiency Power Amplifier Yes

Multi-Range Drivers 10” cone 8” cone

Magnetic Shielding Yes Yes

High Cut Filter (Continuously Variable) 40–140 Hz 40–140 Hz

Phase Control (Normal or Reverse) Yes Yes

Auto Standby Yes Yes

BASS (Bass Action Selector System) Yes Yes

Dynamic Power 270 W 150 W

Frequency Response 20–160 Hz (–10 dB) 28–200 Hz (–10 dB)

Dimensions (W x H x D) 133/4”x 1615/16”x 151/16”117/16”x 143/16”x 1211/16”

Weight 41.9 lbs. 25.3 lbs.

Other Speakers NS-6490 NS-AW350/W NS-AW150/W NS-IW760 NS-IW360C

Woofers 8”long-throw cone

61/2" high compliance

5" high compliance Dual 6.5” cone 8” cone

Midrange Driver 4”cone

Tweeters 7/8”balanced-dome 1”PEI dome 1/2" PEI dome 1” soft-dome 1” soft-dome

Magnetic Shielding Yes

Input Power (Max/Nom.)

140 W/70 W 130 W/40 W 120 W/35 W 130 W/40 W 120 W/35 W

Sensitivity 90 dB/2.83 V/1 m 87 dB/2.83 V/1 m 85 dB/2.83 V/1 m 88 dB/2.83 V/1 m 88 dB/2.83 V/1 m

Frequency Response 45 Hz–23 kHz 45 Hz–40 kHz 55 Hz–40 kHz 50 Hz–24 kHz 45 Hz–24 kHz

Impedance 8 ohms 6 ohms 6 ohms 6 ohms 6 ohms

Dimensions (W x H x D)

101/2”x 1613/16”x 131/4”71/8”x 131/2”x 83/16”53/16”x 10”x 6”711/16” x 237/16” x 3”101/4”φx 4”

Mounting Depth

23/4”33/4”

Weight 13.2 lbs./unit 6.4 lbs./unit 3.7 lbs./unit 5.1 lbs./unit 4.3 lbs./unit

Digital Home Theater Speakers / Subwoofers

Subwoofers A Must for Home Theater Other Speakers Home Theater Speaker Systems and Packages

Digital Home Theater Packages Sensational movie

sound as only Yamaha can deliver it.

You’ll be amazed at how much more fun watching movies is with realistic and dynamic surround sound. Yamaha receivers feature the CINEMA DSP

system for perfectly realized theater sound. The subwoofers use QD-Bass technology and the Advanced YST system for extra bass power. The speakers

are extremely high quality AND conveniently compact. Best of all, the receivers and speakers are “fine-tuned” to sound their best together.

HTiB (Home Theater in a Box)

DTX-5000 Digital Home Theater 6.1-Channel Package

DTX-1000 Digital Home Theater 6.1-Channel Package

DTX-3000 Digital Home Theater 6.1-Channel Package

䡲DVD-Audio/Super Audio CD

Playback

䡲DCDi Progressive Scan with 3:2

Pull-Down

䡲6.1ch Powerful Surround Sound

(105W x 6)

䡲DTS 96/24, Dolby Digital EX, Dolby

Pro Logic IIx

䡲S-Video Up Conversion

䡲Front A/V Input

䡲Flat Designed Speaker System to

Match Plasma Monitors

䡲Quad 4” Woofers and 1” Tweeter

— 3-Way Speaker System

䡲Aluminum Extruded Front Speaker

Stand Included

䡲5-Disc Progressive Scan DVD

Changer

䡲6.1ch Powerful Surround Sound

(100W x 6)

䡲DTS 96/24, Dolby Digital EX, Dolby

Pro Logic IIx

䡲Component Video Input

䡲Adjustable Subwoofer Crossover

䡲Front A/V Input

䡲Direct Stereo

䡲2.5” Dual Woofers and 1/2”

Tweeter for All Channels

䡲Floor Standing Speaker System for

All Channels (except center

speaker)

䡲Progressive Scan Single DVD

Player

䡲6.1ch Powerful Surround Sound

(100W x 6)

䡲DTS 96/24, Dolby Digital EX,

Dolby Pro Logic IIx

䡲Component Video Input

䡲Direct Stereo

䡲Adjustable Subwoofer Crossover

䡲2-Way Speaker System with

Removable Grille

䡲Silver Glossy Finish Cabinet

NS-AP9500

Digital Home Theater

6.1-Channel Speaker Package

6.1ch System

Total760

HTR-5750

6-Channel Digital Home

Theater Receiver

DV-S5770

DVD-Audio/Video and

Super Audio CD Player

HTR-5740

6.1-Channel Digital Home Theater Receiver

DV-C6660

Progressive Scan DVD-

Video 5-Disc Changer

NS-AP8500

Digital Home Theater

6-Channel Speaker

Package

YST-SW030

Advanced YST

and QD-Bass

Subwoofer with

130 W

6.1ch System

Total730

HTR-5740

6.1-Channel Digital Home

Theater Receiver

DV-S5650

DVD Progressive Scan

Player

NS-AP3500

Digital Home Theater

6-Channel Speaker Package

YST-SW010

Advanced YST and QD-Bass

Subwoofer with 100 W

6.1ch System

Total700

Yamaha’s first HTIB series designed exclusively for the Home Theater lovers!

An increasing number of home theater lovers want the look, features and performance of

separate components, but simply don’t have the interest, time or expertise to select the proper

equipment. Yamaha has the Home Theater solutions for this growing consumer segment. Easy to

set up and easy to use, Yamaha HTIB’s offer ideal choices for you that demand easy to buy, yet

high performance Home Theater systems

5.1ch System

Total720

5.1ch System

Total650

5.1ch System

Total720

5.1ch System

Total750

YHT-F1500 Digital Home Theater 6.1-Channel Package YHT-860 Digital Home Theater 5.1-Channel Package

䡲Progressive Scan Single DVD Player

(New Slim Design)

䡲Yamaha Original Digital

Amplification

䡲6-Channel Powerful Surround

Sound (100W x 6)

䡲GUI On-Screen Display

䡲Front Digital Input

䡲Flat Designed Speaker System to

Match Plasma Monitors

䡲Quad 4” Woofers and 1” Tweeter —

3-Way Speaker System

䡲Aluminum Extruded Front Speaker

Stand Included

䡲For DVD User or Purchaser

䡲105W per Channel Powerful

Surround Sound

䡲XM Satellite Radio Ready

䡲Component Video Up Conversion

䡲S-Video Input / Output

䡲Direct Stereo

䡲4 Tower/On-Wall and Center

Speakers equipped with Quad 2"

Woofers with 7/8" Tweeter

䡲Extruded-Aluminum Stands

䡲8" 120W Powerful Subwoofer

RX-SL100

6-Channel Digital

Home Theater Receiver

(see pg.28)

DV-SL100

Progressive Scan DVD

Player (see pg.28)

NS-AP9500

Digital Home Theater

6-Channel Speaker

Package

HTR-5850

Digital Home Theater

Receiver

NS-AP7400/NS-P187

Digital Home Theater

5-Channel Speaker

Package

SPS-7400

Speaker

Stands

YHT-760 Digital Home Theater 5.1-Channel Package

䡲5-Disc Progressive Scan DVD

Changer

䡲Super Audio CD Playback

䡲XM Satellite Radio Ready

䡲5-Channel Powerful Sound

(120W x 5)

䡲S-Video Input / Output

䡲CD Upsampling

䡲2-Way Front Speakers

(6.5" Woofers)

䡲MDF Wooden Satellite Speakers

䡲Removable Grill Cloth (Subwoofer)

䡲10" 120W Powerful Cube

Subwoofer

HTR-5835

5-Channel Digital Home

Theater Receiver

HTR-5830

5-Channel Digital Home

Theater Receiver

NS-AP6500M/NS-AP6500E

Digital Home Theater

5-Channel Speaker Package

NS-AP2600

Digital Home Theater

5-Channel Speaker Package

SW-P3600

Advanced YST

Subwoofer with

120 W

YST-SW011

Advanced YST and

QD-Bass Subwoofer

with 100 W

DV-C6761

DVD Progressive

Scan Changer

DV-S5750

DVD Progressive

Scan Player

YHT-560 Digital Home Theater 5.1-Channel Package

䡲Single Progressive Scan DVD Player

䡲5-Channel Powerful SurroundSound

(110W x 5)

䡲DTS, Dolby Digital, Dolby Pro Logic ll

䡲Component Video Input

䡲4 Video Input / 1 Video Output

䡲14 Surround Programs

䡲5.1-Channel External Input for

DVD-Audio and Super Audio CD

䡲2-Way Gloss Painted Satellite

Speakers

䡲Removable Grill Cloth

䡲6.5" 100W Cube Subwoofer

䡲5-Channel Powerful Surround

Sound (110W x 5)

䡲DTS, Dolby Digital, Dolby

Pro Logic ll

䡲Component Video Input

䡲Preset Remote Control

䡲4 Video Input / 1 Video Output

䡲5.1-Channel External Input for

DVD-Audio and Super Audio CD

䡲14 Surround Programs

䡲Speaker A or B Selection

䡲New 2.5" Speaker Driver with

Aluminum Dust Cap

䡲8" 100W New Cube Subwoofer

YHT-160 Digital Home Theater 5.1-Channel Package

HTR-5835

5-Channel Digital Home

Theater Receiver

NS-AP6500M/NS-AP6500E

Digital Home Theater

5-Channel Speaker Package

SW-P3600

Advanced YST

Subwoofer with 120 W

䡲5-Channel Powerful Surround

Sound (120W x 5)

䡲XM Satellite Radio Ready

䡲DTS 96/24, Dolby Digital EX, Dolby

Pro Logic llx

䡲Front A/V Input

䡲S-Video Input / Output

䡲Direct Stereo

䡲2-Way Front Speakers (6.5"

Woofers)

䡲MDF Wood Satellite Speakers

䡲Removable Grill Cloth (Subwoofer)

䡲10" 120W Powerful Cube

Subwoofer

YHT-360 Digital Home Theater 5.1-Channel Package

HTR-5830

5-Channel Digital Home

Theater Receiver

NS-AP2600

Digital Home Theater

5-Channel Speaker Package

YST-SW010

Advanced YST and

QD-Bass Technology

Subwoofer with 100 W

6.1ch System

Total730

5.1ch System

Total650

DTX-5000 DTX-3000 DTX-1000 YHT-F1500 YHT-860 YHT-760 YHT-560 YHT-360 YHT-160

Channels 6.1 6.1 6.1 6.1 5.1 5.1 5.1 5.1 5.1

RMS Output Power 105W x 6 100W x 6 100W x 6 100W x 6 105W x 5 120W x 5 110W x 5 120W x 5 110W x 5

Yamaha Original Digital Amplification 

5-Disc DVD Changer 

Single Disc DVD Player    

DVD-Audio / Super Audio CD Playback

Dolby Pro Logic IIx / DTS 96/24 

Surround Program 14 14 14 14 14 14 14 14 14

Component Video Up Conversion 

Digital Inputs (Optical / Coaxial) 3 / 1 2 / 1 2 / 1 3 / 1 3 / 1 2 / 1 2 / 1 2 / 1 2 / 1

Front Panel Digital Input 

Front Panel A/V Input  

Component Video Inputs 2 2 2 2 2 2 2 2

S-Video Inputs 3 3

Speaker A/B, or A+B Selection  Speaker A or B Speaker A or B

Front Speakers (Woofer) Quad 4" Dual 2.5" 2.5" Quad 4" Quad 2” 6.5" 2.5" 6.5" 2.5"

(Midrange) 3"

(Tweeter) 3/4" Soft Dome 1/2" Dome 1/2" Dome 3/4" Soft Dome 1/2" Soft Dome 3/4" Dome 1/2" Dome 1" Soft Dome 1/2” Dome

Center Speaker (Woofer) Quad 4" Dual 2.5" Dual 2.5" Quad 4" Quad 2” Dual 3" Dual 2.5" Dual 3" Dual 2.5"

(Tweeter) 3/4" Soft Dome 1/2" Dome 1/2" Dome 3/4" Soft Dome 7/8" Dome 3/4" Dome 1/2" Dome 3/4" Dome 1/2” Dome

Surround Speakers (Woofer) Quad 4" Dual 2.5" 2.5" Quad 4" Quad 2” 3" 2.5" 3" 2.5"

(Tweeter) 3/4" Soft Dome 1/2" Dome 1/2" Dome 3/4" Soft Dome 7/8" Dome 1/2" Dome 1/2" Dome 1/2" Dome 1/2” Dome

Subwoofer Output Power 130W 130W 100W 130W 120W 120W 100W 120W 100W

Subwoofer Driver 8" 8" 8" 6.5" 8" 10" 6.5" 10" 8"

DV-S5770 Single Player DV-C6660 5-Disc Changer DV-S5650 Singe Player DV-C6761 5-Disc Changer DV-S5750 Single Player

Super Audio CD Playback  

DVD-Audio Playback  

MP3 Playback Multisession Multisession Multisession Multisession Multisession

JPEG Playback Multisession Multisession Multisession Multisession

DviX Playback Multisession Multisession

WMA Playback Multisession Multisession

Progressive Scan 

CD Upsampling 

Video D/A Converter 108 MHz/12-bit 54 MHz/10-bit 54 MHz/12-bit 108 MHz/12-bit 108 MHz/12-bit

Audio D/A Converter 192 kHz/24-bit 96 kHz/24-bit 96 kHz/24-bit 192 kHz/24-bit 192 kHz/24-bit

Signal-to-Noise Ratio (CD) 115 dB 105 dB 105 dB 105 dB 105 dB

Dynamic Range

(DVD 48 kHz, 24 Bit)

103 dB 100 dB 100 dB 95 dB 100 dB

Harmonic Distortion + Noise (1 kHz) 0.0017% 0.003% 0.003% 0.003% 0.003%

Dimensions (W x H x D); Weight 171/8” x 23/16”x 123/8”; 7.1 lbs. 171/8” x 49/16”x 163/4”; 13.2 lbs. 171/8”x 215/16”x 117/8”6.2 lbs. 171/8” x 215/16”x 163/4”; 12.1 lbs. 171/8”x 2”x 123/16”; 5.7 lbs.

HTR-5890 HTR-5860 HTR-5850 HTR-5840 HTR-5835 HTR-5830

Product Color Black Black/Silver Black/Silver Black Silver/Black Black/Silver

Channels 7 7 6 6 5 5

RMS Power (8 ohms, 1 kHz, 0.7% THD) 140 W x 7 110 W x 7 105 W x 6 100 W x 6

120W x 5 (6 ohms, 0.9% THD)+120W

110 W x 5 (8/6 ohms, 0.9% THD)

Digital ToP-ART 

High Current Amplification 

Dolby Digital EX/DTS-ES Full Decode Full Decode Full Decode Full Decode Matrix 6.1 Matrix 6.1

Dolby Pro Logic IIx 

DTS Neo:6 

DTS 96/24 

D/A Converters 192kHz/24-bit 192kHz/24-bit 192kHz/24-bit 192kHz/24-bit 192kHz/24-bit 192kHz/24-bit

Selectable Subwoofer Crossover 9-step 9-step 9-step 9-step

Subwoofer Phase Select 

Audio Delay (0–240 ms) (0–160 ms) (0–160 ms) (0–160 ms)

YPAO with Optimizer Microphone 

Surround Program 14 14 14 14 14 14

SILENT CINEMA  

Night Listening Enhancer Night Listening Mode

Speaker Terminals 9ch 9ch 6ch 6ch 5ch + Subwoofer 5ch

Dialogue Lift 

Multi-Channel External Decoder Input 6ch (8ch compatible) 8ch 6ch 6ch 6ch 6ch

Preout Terminals 7 (2F/C/2S/2SB) 7 (2F/C/2S/2SB)

Component Video Up Conversion 

Dimensions (W x H x D) 171/8”x 63/4”x 1611/16”171/8”x 63/4” x 169/16”171/8”x 63/4” x 169/16”171/8”x 63/4” x 169/16”171/8”x 65/16”x 163/8”171/8”x 515/16”x 123/8”

Weight 33.1 lbs. 27.6 lbs. 24.2 lbs. 24.2 lbs. 24.2 lbs. 19.8 lbs.

DVD Players

Digital Home Theater Receivers

HTiB (Home Theater in a Box)

Interactive Home Music Network System

Give Everyone in the Family Instant Access to Their Favorite Music in

Their Own Room — or Anywhere Else in the House!

Finally! A multi-room home entertainment system that you

can easily set up yourself. MusicCAST will store your entire

family’s favorite music on a high-capacity hard disk and let

each person select and listen to their own music in any of

eight different locations.

In addition to the normal portable Clients, MusicCAST is

now also available with In-Wall Clients for custom installation.

With outstanding convenience and new features, this system

takes family music enjoyment to a whole new level.

MCX-1000 Digital Audio Server

Dimensions (W x H x D): 17-1/8” x 5-3/8” x

17-1/16”  Weight: 25.3 lbs.

MCX-A10 Digital Audio Terminal

Dimensions (W x H x D): 8-1/4” x 9-5/8” x

3-1/8”  Weight: 4.4 lbs.

Dimensions (W x H x D): 8-1/4” x 8-1/4” x

3-1/8”  Weight: 2.6 lbs.

MCX-SP10 Optional Speaker System

Clients are used to

retrieve music content

stored on the

MusicCAST server, for

instant access to music

in any location within

your home.

High sound quality exclusive MusicCAST speaker system.

The MusicCAST server stores and broadcasts music content

wirelessly to any location within your home.

THE SERVER

THE CLIENT THE IN-WALL CLIENT

In-wall mountable,

network ready Clients add

versatility to the

MusicCAST system with

great new featutes such as

Favorite Function buttons,

IR Flasher Support and

Yamaha AV Link.

This multipurpose in-

wall amplifier is

perfectly matched to

the MCX-C15 Client. It

provides high quality

power to speakers, as

well as subwoofer and

video OSD outputs.

MusicCAST

MCX-C15 Distributed Audio Controller

䡲Dimensions (W x H x D): 4-3/4” x 4-3/4” x 4-3/16”

MCX-CA15 Distributed Audio Amplifier

䡲Dimensions (W x H x D): 4-3/4” x 4-3/4” x 4-3/16”

Remote

Control Unit

MCX-C15 Family

In/Out Box

䡲Simply wireless: You can enjoy and control music in

as many as eight locations: one Server and seven Clients

(wireless plus wired).

䡲Store 1000 hours of music: A huge amount of

music is at your fingertips. The hard disk stores up to

1,000 hours of music in MP3 format.

䡲User friendly: Operating the system is easy for

everyone in the family. The Server has a GUI (graphical

user interface) with on-screen menus and the Clients

have large panel displays.

䡲Multiple sources: You can also enjoy music, etc.

from other connected sources, such as digital radio, FM,

LP or tape.

䡲Create your own CDs: You can even make your

own CDs from playlists composed of songs you have

selected, by using the built-in CD recorder. For extra-

high sound quality, record CDs with the Advanced

Audio Master Quality Recording function.

䡲Use your amplifier / receiver: You can control your

Yamaha AV amplifier / receiver by connecting it via the

RS-232C port to certain Yamaha amplifier/receivers.

䡲Instant music information: The built-in Gracenote

CDDB® Music Recognition ServiceSM features full on-

screen display of information, such as artist, album,

and track names along with music genre. The latest

information is available via internet access.

Wireless, Multi-Room, Multi-Selectable Music Library.

THE SERVER THE CLIENT

MCX-C15 / MCX-CA15

New MusicCAST Client System, MCX-C15 and MCX-CA15,

Offers New Features and Enhanced Flexibility.

THE IN-WALL CLIENT

䡲In-wall installation: Great control within

reach, yet out of the way...bring home the

convenience of this intelligently integrated in-wall

mountable MusicCAST Client into your living

environment. With variety of installation

configuration available, now every room is fully

customizable to enjoy the benefits the MusicCAST

music distribution system can provide.

䡲Favorites selection: The four Favorites buttons

allow direct playback of various sources. Each can

be assigned the following functions: playlist,

analog or digital inputs from Server, tuner presets,

local Aux input from MCX-CA15. Favorite

selections can be made even when the MCX-C15

is in sleep mode.

䡲IR flasher support: The MCX-C15 supports

limited IR transmission functions for custom

installation. IR signals from the MCX-C15 can be

transmitted to the MCX-CA15 or the I/O Box, and

can drive an IR flasher for remote control of other

components. The function works on only 38kHz

modulation frequency.

* IR flasher units are not available from Yamaha.

䡲Yamaha AV link: The MCX-C15 can generate

extended IR commands to control a Yamaha AV

amplifier / receiver, if more power than the

MCX-CA15 is desired. The following functions can

be controlled via the MCX-C15 remote control:

volume, input selection, tuner preset selection,

sleep and standby modes. RX-V2500

MCX-1000 MCX-A10 / MCX-SP10

PianoCraft: Natural Sound Enjoyment from a High Performance, Elegant System.

A lot of fine craftsmanship goes into Yamaha’s world-renowned pianos, and that same dedication to sound and design excellence is

behind the creation of the award-winning PianoCraft series. You have a choice of compact, high quality systems, each of which includes

two speakers and the capability of adding a subwoofer.

The PianoCraft E100 System won the EISA award for Best Compact System 2000-2001. The prestigious EISA awards are chosen by media representatives from 19 European countries.

䡲Auto reverse

䡲Music search

䡲4-digit tape counter

䡲12-segment peak level meter

䡲Frequency response (metal tape):

30 Hz-18 kHz ±3 dB

䡲Wow and flutter (W RMS): 0.09%

䡲89/16”x 37/16”x 117/16”(W x H x D); 6.6 lbs.

PianoCraft Option (Not available in some areas)

KX-E300 Auto-Reverse Cassette Deck

MCR-E600 Micro Component System MCR-E300 Micro Component System

RX-E600 Receiver

• High power output: 40 W x 2 (RMS)

• Linear Damping • High dynamic

power, low-impedance drive capability

• Discrete configuration amplifier

• Subwoofer out • Tone controls

• Versatile timer functions • 40-

station preset tuning • 61/2”x 1113/16”x

83/4”(W x H x D); 9.5 lbs./unit

DVD-E600 CD/DVD Player

• Progressive Scan processing

(NTSC/PAL) • 54MHz/12-bit video DAC

• Picture CD playback • MP3

navigation display • 89/16”x 41/4”x

1311/16”(W x H x D); 7.7 lbs.

NX-E400

2-Way Bass-Reflex Speaker System

• 110W maximum input power • High

gloss piano finish • 61/2”x 1113/16”x

83/4”(W x H x D); 9.5 lbs./unit

CRX-E300 CD Receiver

[RECEIVER SECTION]

• High power output: 25 W x 2 (RMS)

• Linear Damping • High dynamic

power, low-impedance drive capability

• Discrete configuration amplifier

• Subwoofer out • Tone controls

• Versatile timer functions • 40-

station preset tuning

[CD PLAYER SECTION]

• CD Text display • CD-R/CD-RW

playback • Copy time control • Optical

digital out • 89/16”x 65/8”x 125/16”(W x

H x D); 11 lbs.

NX-E300

2-Way Bass-Reflex Speaker System

• 110W maximum input power • High

gloss piano finish • 61/2”x 10”x 73/16”

(W x H x D); 7.5 lbs./unit

PianoCraft / Natural Sound Audio Components

Cassette Deck KX-W321

Wow and Flutter W RMS 0.08%

W Peak ±0.15%

Frequency Response

Metal

20 Hz-19 kHz, ±3 dB

Signal-to-Noise Ratio

Dolby B NR 66 dB

Dolby C NR 74 dB

Dimensions (W x H x D) 171/8”x 53/4”x 11”

Weight 11 lbs.

CD Changers CDC-685 CDC-585

Yamaha Patented PlayXchange 5-disc 5-disc

CD-R/CD-RW Playback Playback Playback

CD Text Display Yes Yes

I/O Port for Custom Installation Yes

Harmonic Distortion + Noise 0.003% 0.003% 0.003%

Frequency Response 2 Hz-20 kHz ±0.5 dB 2 Hz-20 kHz ±0.5 dB

Signal-to-Noise Ratio 106 dB 106 dB

Dynamic Range 96 dB 96 dB

Dimensions (W x H x D) 171/8”x 49/16”x 157/8”171/8”x 49/16”x 157/8”

Weight 12.7 lbs. 12.7 lbs.

Tuner TX-492

THD 0.3% (1 kHz)

Frequency Response 30 Hz-13 kHz ±0.5 dB

Signal-to-Noise Ratio

Mono 82 dB

Stereo 76 dB

Dimensions

(W x H x D) 171/8” x 33/8” x 155/8”

Weight 7.1 lbs.

Receivers/Amplifier RX-777 RX-596 RX-496 RX-396 AX-596

ToP-ART Yes Yes Yes

CD Direct Amplification with Switch Discrete configuration Yes Discrete configuration

Min. RMS Output Power/Channel 100 W 80 W 75 W 50 W 100 W

(8 ohms, 20 Hz-20 kHz) [THD] [0.019%] [0.025%] [0.04%] [0.04%] [0.015%]

High Dynamic Power, Low Impedance Drive Capability

Yes Yes Yes Yes Yes

Dynamic Power/Ch (8/4/2 ohms) 140/220/290 W 120/180/200W 105/150/178 W 70/89/100 W 140/220/290 W

Linear Damping Yes Yes Yes Yes Yes

Damping Factor (8 ohms, 20 Hz-20 kHz) 240 (speaker A) 240 100 100 320 (speaker A)

Remote Controllable Master Volume Control Motor-driven Motor-driven Motor-driven Motor-driven Motor-driven

THD (CD, 20 Hz-20 kHz) 0.012% (50 W/8 ohms) 0.01% (40 W/8 ohms) 0.02% (35 W/8 ohms) 0.02% (35 W/8 ohms) 0.008% (50 W/8 ohms)

Frequency Response 20 Hz-100 kHz ±1 dB 20 Hz-20 kHz ±0.5 dB 20 Hz-20 kHz ±0.5 dB 20 Hz-20 kHz ±0.5 dB 20 Hz-100 kHz +0.5/–3 dB

Signal-to-Noise Ratio (CD) 110 dB 110 dB 108 dB 108 dB 110 dB

Dimensions (W x H x D) 171/8” x 6” x 153/8”17

1/8” x 6” x 153/8”17

1/8” x 53/4” x 123/8”17

1/8” x 6” x 155/8”

Weight 21.6 lbs 20.9 lbs. 18.1 lbs 14.1 lbs. 23.4 lbs.

PlayXchange is a registered trademark in the U.S. Yamaha has received

a patent for PlayXchange technology in the U.S. (Patent No. 5,115,419).

"SILENT" is a trademark of Yamaha Corporation.

d-cinema” is the slogan of Yamaha A/V products and technology,

reflecting our focus on digital technology and our leadership in

creating and refining digital home theater.

Yamaha’s unique technology for the creation of sound fields is

capable of powerfully reproducing the three-dimensional

environment that movie sound engineers aim to convey, in any audio

format from monaural to the latest 6.1-channel digital surround. It is

compatible with DVD and all other A/V sources.

Yamaha CINEMA DSP technology has received a patent in the

U.S. (Patent No. 5,261,005).

RX-777

AM/FM Stereo Receiver

• ToP-ART • CD Direct Amplification with

switch • DVD-Audio/SA-CD ready • Gold-

plated input terminals (all terminals)

AX-596

Integrated Amplifier

• ToP-ART • CD/DVD Direct Amplification

with Switch • DVD-Audio/SA-CD ready

• Gold-plated input terminals

(all terminals)

KX-W321

Auto-Reverse Double Cassette Deck

• Two (normal/high) speed dubbing

• Relay play • Dolby B/C NR

• Auto tape type selection

TX-492

AM/FM Stereo Tuner

• 40-station random access preset tuning

• Auto preset tuning • Absolute Linear

Phase IF Amplifier circuitry

CDC-685

CD Changer

• Yamaha patented PlayXchange

• CD-R/CD-RW playback compatibility

• CD Text display • I/O port for custom

installation

CDC-585

CD Changer

• Yamaha patented PlayXchange

• CD-R/CD-RW playback compatibility

• CD Text display • Peak search and

tape edit

RX-596

AM/FM Stereo Receiver

• ToP-ART • CD Direct Amplification with

switch • DVD-Audio/SA-CD ready

• Remote controllable motor-driven input

selector and volume control

RX-496

AM/FM Stereo Receiver

• Pure Direct switch • 5 audio inputs

with 2 tape monitor positions • I/O port

• 40-station random access preset tuning

RX-396

AM/FM Stereo Receiver

• 3 audio inputs with tape monitor

position • I/O port for custom installation

• 40-station random access preset tuning

MX-D1

Stereo Digital Power Amplifier

• Yamaha original power engine chipset: modulator LSI and power MOS-FET Drive LSIs • Constant gain PLL

modulator circuit • Cross feedback loop circuit • Advanced analogue feedback circuit • Active power control

system • High-speed protection circuits • PWM digital drive high-efficiency power supply • 500W x 2 output

power with ultra-low (0.002%) distortion • 4-layer epoxy resin coated PC board containing fiberglass with

highest performance parts • Gigantic WBT input and speaker terminals • Discrete SEPP amplifier circuit

• Output filter (large effect on sound quality): custom-made double core, low-impedance toroidal coil and

extra-large custom-made block electrolytic capacitors • Yamaha piano-finish

MX-D1 Main Specifications

[AUDIO SECTION] • Min. RMS power (8/6/4 ohms , 1 kHz, 0.1% THD): 500 W + 500 W • Dynamic power/channel (2/4/6/8 ohms):

1,000/1,000/850/700 W • Input sensitivity/impedance (500 W/8 ohms, unbalance; balance): 1.3 V/25 k-ohms; 2.2 V/10 k-ohms • Frequency

response: 1 Hz-100 kHz ±3 dB • Total harmonic distortion (1 kHz, 10 W/8 ohms, 20 kHz LPF): 0.002% • Signal-to-noise ratio (20 kHz LPF): 120 dB

[GENERAL] • Standby power consumption: Less than 0.1 W • Dimensions (W x H x D): 17-1/8” x 2-15/16” x 17-3/16” • Weight: 22.9 lbs.

Audio Components

For details please contact:

YAMAHA CORPORATION

P.O.Box 1, Hamamatsu, Japan

Yamaha Electronics Corporation

USA, P.O. Box 6660 Buena Park, CA 90622

Visit us at our website : http://www.yamaha.com

UEN 10503 T Printed in Japan

Product Area Publication Issue Recommendation

Video Projectors / Plasma Display Monitor

DPX-1100 Germany AudioVision Sept. ’04 audiovision Highlight

DPX-1100 UK What HI-FI? Sound & Vision Nov. ’04  (in a group test)

DPX-1100 Australia Sound & Image ’04 Projector Winner

DPX-1000 Europe EISA '03/'04 European High-End AV Product 2003–2004

DPX-1000 France Son Video Jul./Aug. ’03 

LPX-500 U.S. E-Gear ’03 Editors’ Choice Top 40 Award

LPX-500 Brazil HOME THEATER ’04 Best LCD Projector Award

PDM-4210 Australia Audio & Video Lifestyle Magazine ’05 2005 Best Buy Awards, Best Plasma Screen.

A/V Receivers / Amplifiers

DSP-Z9* Europe EISA ’04/’05 European Home Theater High-End AV Component 2004-2005

RX-Z9 Australia Audio & Video Lifestyle Magazine ’05 2005 Best Buy Awards, Best Home Theatre Receiver over A$2,000—3,999

RX-Z9 U.S. Sound & Vision ’04 The Winner of Annual Reviewer’s Choice Awards

RX-Z9 Australia Sound & Image ’04 Winner: AV Amplifier/Receiver over A$4,000

DSP-Z9* Taiwan PRIME AV Jan. ’05 Best Performance in 2005

RX-V2500 Germany Internet Magazine areaDVD Jan. ’05 

RX-V2500 Germany AudioVision Mar. ’05 Sehr gut / Preistipp

RX-V2500 Germany streoplay Mar. ’05 HIGHLIGHT

RX-V2500 Norway DVD & Hjemmekino Aug. ’04 Completely Control

RX-V1500 UK What HI-FI? Sound and Vision Dec. ’04  (in a group test)

RX-V1500 Germany DVD vision Jan. ’05 KAUFTIPP

RX-V1500 Germany areaDVD Dec. ’04 

RX-V1500 Taiwan PRIME AV Feb. ’05 Best Recommended

RX-V750 Germany VIDEO Nov. ’04 TEST WINNER

RX-V650 UK What HI-FI? Sound & Vision Nov. ’04  (in a first test)

RX-V650 Germany AudioVideo Foto Bild Dec. ’04 Best Cost Performance (Preis-Leistungs-Sieger)

RX-V650 Germany VIDEO Nov. ’04 TEST WINNER among 5 Models

RX-V650 Taiwan PRIME AV Dec. ’04 Best Recommended

RX-V450 U.S. Sound & Vision ’04 The Winner of Annual Reviewer’s Choice Awards

RX-V450 Germany AUDIO Sept. ’04 Best Buy

RX-V450 Germany stereoplay Dec. ’04 Sehr gut

RX-V450 Taiwan Hometheater Feb. ’05 Best Value

RX-V440 Europe EISA ’03/'04 European Home Theater Receiver 2003–2004

RX-V450 Taiwan Hometheater Feb. ’05 Best Value

Digital Sound Projectors

YSP-1 Germany stereoplay Mar. ’05 HIGHLIGHT

YSP-1 Germany AUDIO Mar. ’05 Sehr gut

DVD Players

DVD-S1500 Germany AUDIO Mar. ’05 Test Winner

DVD-S1500 Sweden HiFi Musik Feb. ’05 Pure, Elegant Sound

DVD-S550 Sweden Hemmabio Nov. ’04 Test Winner

DVD-S550 Norway Lyd&Bilde Nov. ’04 Superb Player

Subwoofers

YST-SW1500 Germany Heimkino Aug. ’03 Very Good

YST-SW315/YST-SW215 Germany VIDEO Aug. ’03 Recommended Model: Deep Bass

Systems

DVX-S120 Japan HiVi Dec. ’03 No.1 in Home Theater Subcategory Surround System

DVX-S650 U.S. TIME ’04 One of the Most Amazing inVentions of 2004

MusicCAST U.S. Electronic House ’03 Product of the Year

MusicCAST U.S. Sound & Vision Dec. ’03 Winner: Sound & Vision Reviewer’s Choice Award

MusicCAST UK What HI-FI? Sound & Vision Nov. ’03 

MusicCAST (MC-X1000) Australia Smart House Magazine ’05 Best of the Best Awards, Best Music Server

PianoCraft (MCR-E500) Australia Smart House Magazine ’05 Best of the Best Awards, Best Micro System

PianoCraft (RDX-E600) Sweden Hifi Musik Dec. ’04 Best Sound

HTIB (DSP-AX750SE+DVD) UK Stuff Nov. ’04  Hot Buy

HTIB (DVD-S550/RX-V650) UK What HI-FI? Sound & Vision Mar. ’05  Supertest WINNERS

Recorders

CDR-HD1300E Europe EISA ’02/’03 Best CD Recorder of ’02/’03

Amplifiers

MX-D1 Germany stereo Mar. ’05  Excellent

* The DSP-Z9 provides the same performance and features as the RX-Z9 except for tuner functions.

MAIN AWARDS (June 2003–Mar. 2005)

•The XM Satellite radio service is only available in the 48 contiguous United States (not available

in Alaska and Hawaii).

•XM name, XM Ready and related logos are registered trademarks of XM Satellite Radio, Inc.

•Dolby, Pro Logic and Double D are trademarks of Dolby Laboratories Corporation.

•DTS, DTS-ES and Neo:6 are trademarks of Digital Theater Systems, Inc.

•THX and the THX logo are registered trademarks of THX Ltd.

•Surround EX is a jointly developed technology of THX and Dolby Laboratories, Inc. and is a

trademark of Dolby Laboratories, Inc.

•Burr-Brown products are trademarks of Texas Instruments, Inc.

•"DCDi " is a trademark of Faroudja, a division of Genesis Microchip Inc.

•NSV is a trademark of Analog Devices Inc.

•“i.LINK” and the “i.LINK” logo are trademarks of Sony Corporation.

•Digital Light Processing, DLP, Digital Micromirror Device and DMD are trademarks of

Texas Instruments, Inc.

•HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing LLC.

•VCR Plus+ is a trademark of Gemstar Development Corp.

•TruBass and the SRS symbol are trademarks of SRS Labs., Inc.

•Screen images are simulated.

•Product designs and specifications are subject to change without notice.

Yamaha Rxv457 Users Manual

RXV457 to the manual 5231e1c0-6c71-4c87-addf-58531255feb6

Navigation menu

Versions of this User Manual:

Views

Navigation
