INTRODUCTION
PREPARATION
- CONNECTIONS
BASIC OPERATION
ADVANCED OPERATION
ADDITIONAL INFORMATION
- SPECIFICATIONS
- TROUBLESHOOTING

Receiver

OWNER’S MANUAL

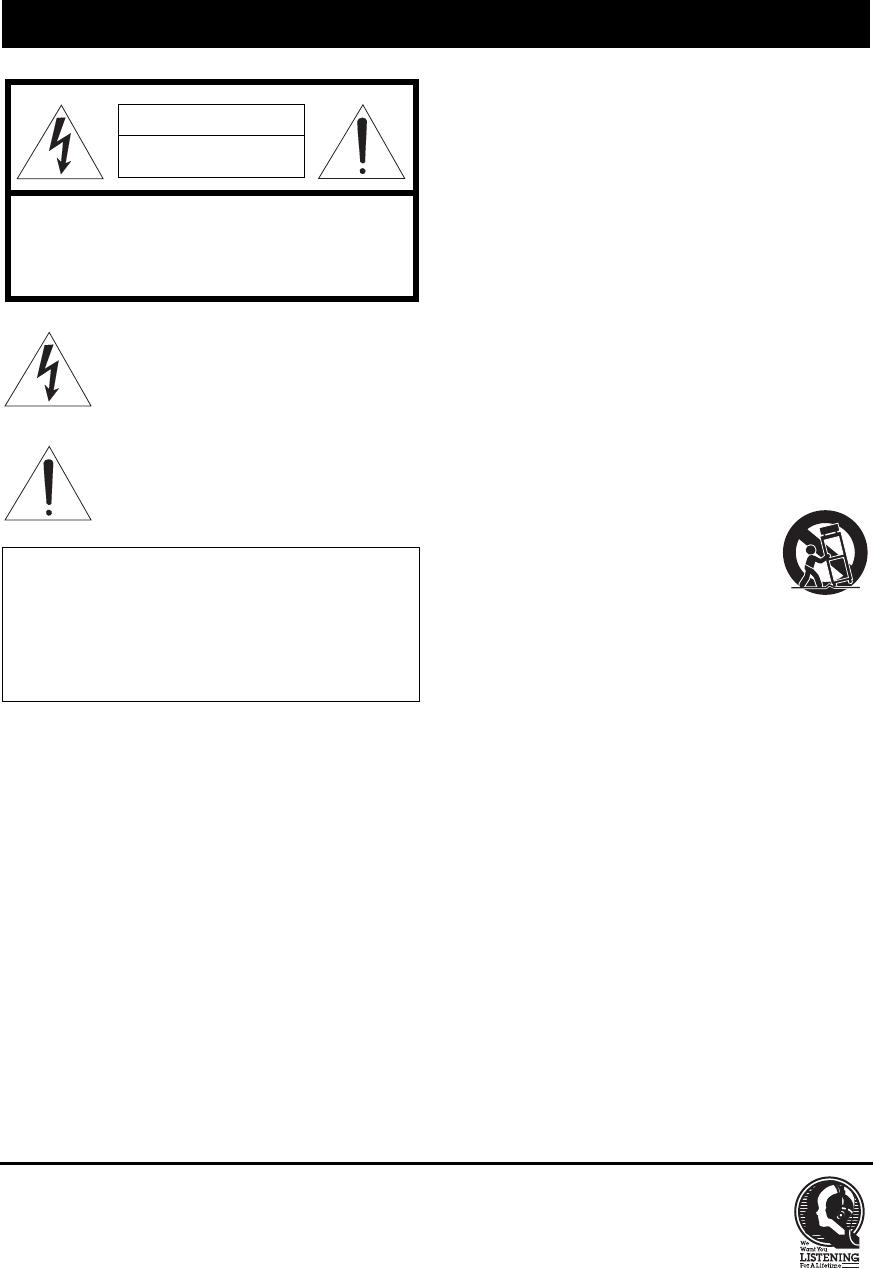

IMPORTANT SAFETY INSTRUCTIONS

i En

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert you to the

presence of uninsulated “dangerous voltage” within

the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle

is intended to alert you to the presence of important

operating and maintenance (servicing) instructions

in the literature accompanying the appliance.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has

two blades and a third grounding prong. The wide blade

or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug

is damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to rain

or moisture, does not operate normally, or has been

dropped.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT

Please record the serial number of this unit in the space

below.

MODEL:

Serial No.:

The serial number is located on the rear of the unit. Retain

this Owner’s Manual in a safe place for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

We Want You Listening For A Lifetime

Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your

equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or

distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is

often undetectable until it is too late, Yamaha and the Electronic Industries Association’s Consumer Electronics Group

recommend you to avoid prolonged exposure from excessive volume levels.

IMPORTANT SAFETY INSTRUCTIONS

ii En

FCC INFORMATION (for US customers)

1IMPORTANT NOTICE: DO NOT MODIFY THIS

UNIT!

This product, when installed as indicated in the

instructions contained in this manual, meets FCC

requirements. Modifications not expressly approved by

Yamaha may void your authority, granted by the FCC,

to use the product.

2IMPORTANT: When connecting this product to

accessories and/or another product use only high quality

shielded cables. Cable/s supplied with this product MUST

be used. Follow all installation instructions. Failure to

follow instructions could void your FCC authorization to

use this product in the USA.

3NOTE: This product has been tested and found to comply

with the requirements listed in FCC Regulations, Part 15

for Class “B” digital devices. Compliance with these

requirements provides a reasonable level of assurance that

your use of this product in a residential environment will

not result in harmful interference with other electronic

devices.

This equipment generates/uses radio frequencies and,

if not installed and used according to the instructions

found in the users manual, may cause interference

harmful to the operation of other electronic devices.

Compliance with FCC regulations does not guarantee

that interference will not occur in all installations. If

this product is found to be the source of interference,

which can be determined by turning the unit “OFF”

and “ON”, please try to eliminate the problem by using

one of the following measures:

Relocate either this product or the device that is being

affected by the interference.

Utilize power outlets that are on different branch

(circuit breaker or fuse) circuits or install AC line

filter/s.

In the case of radio or TV interference, relocate/

reorient the antenna. If the antenna lead-in is 300 ohm

ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce

satisfactory results, please contact the local retailer

authorized to distribute this type of product. If you can

not locate the appropriate retailer, please contact

Yamaha Electronics Corp., USA 6660 Orangethorpe

Ave., Buena Park, CA 90620.

The above statements apply ONLY to those products

distributed by Yamaha Corporation of America or its

subsidiaries.

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

iii En

1 To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2 Install this sound system in a well ventilated, cool, dry,

clean place - away from direct sunlight, heat sources,

vibration, dust, moisture, and/or cold. For proper

ventilation, allow the following minimum clearances

around this unit.

Top: 30 cm (11-3/4 in)

Rear: 20 cm (7-7/8 in)

Sides: 20 cm (7-7/8 in)

3 Locate this unit away from other electrical appliances,

motors, or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes

from cold to hot, and do not locate this unit in an

environment with high humidity (i.e. a room with a

humidifier) to prevent condensation inside this unit,

which may cause an electrical shock, fire, damage to this

unit, and/or personal injury.

5 Avoid installing this unit where foreign object may fall

onto this unit and/or this unit may be exposed to liquid

dripping or splashing. On the top of this unit, do not

place:

– Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and

liquid may cause electrical shock to the user and/or

damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth,

curtain, etc. in order not to obstruct heat radiation. If the

temperature inside this unit rises, it may cause fire,

damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all

connections are complete.

8 Do not operate this unit upside-down. It may overheat,

possibly causing damage.

9 Do not use force on switches, knobs and/or cords.

10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using

this unit with a higher voltage than specified is dangerous

and may cause fire, damage to this unit, and/or personal

injury. Yamaha will not be held responsible for any

damage resulting from use of this unit with a voltage

other than specified.

13 To prevent damage by lightning, keep the power cable

and outdoor antennas disconnected from a wall outlet or

this unit during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact

qualified Yamaha service personnel when any service is

needed. The cabinet should never be opened for any

reasons.

15 When not planning to use this unit for long periods of

time (i.e. vacation), disconnect the AC power plug from

the wall outlet.

16 Be sure to read the “TROUBLESHOOTING” section on

common operating errors before concluding that this unit

is faulty.

17 Before moving this unit, press A to set this unit to the

standby mode, and disconnect the AC power plug from

the wall outlet.

18 Condensation will form when the surrounding

temperature changes suddenly. Disconnect the power

cable from the outlet, then leave this unit alone.

19 When using this unit for a long time, this unit may

become warm. Turn the power off, then leave this unit

alone for cooling.

20 Install this unit near the AC outlet and where the AC

power plug can be reached easily.

21 The batteries shall not be exposed to excessive heat such

as sunshine, fire or the like.

22 Excessive sound pressure from earphones and

headphones can cause hearing loss.

This label is required to be attached to a product of which

the temperature of the top cover may be hot during

operation.

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

As long as this unit is connected to the AC wall outlet, it is not

disconnected from the AC power source even if you set this unit to

standby mode by A. In this state, this unit is designed to consume a

very small quantity of power.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

1 En

PREPARATIONINTRODUCTION

BASIC

OPERATION

ADDITIONAL

INFORMATION

ADVANCED

OPERATION

USEFUL FEATURES ............................................ 2

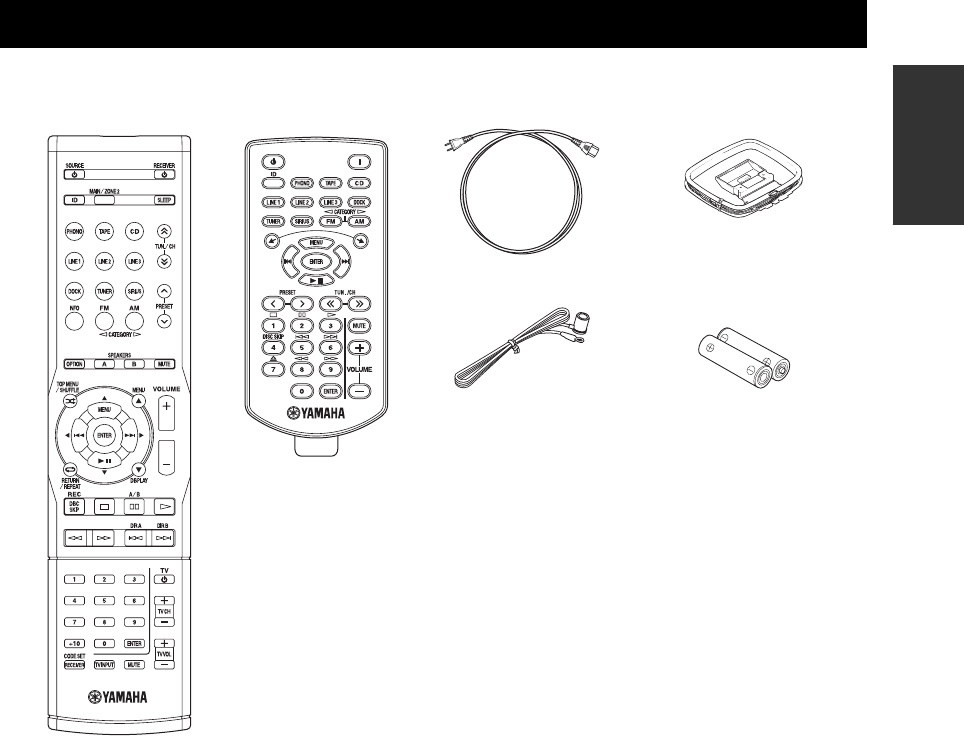

SUPPLIED ACCESSORIES ................................. 3

CONTROLS AND FUNCTIONS ......................... 4

Front panel ................................................................. 4

Front panel display .................................................... 6

Rear panel .................................................................. 7

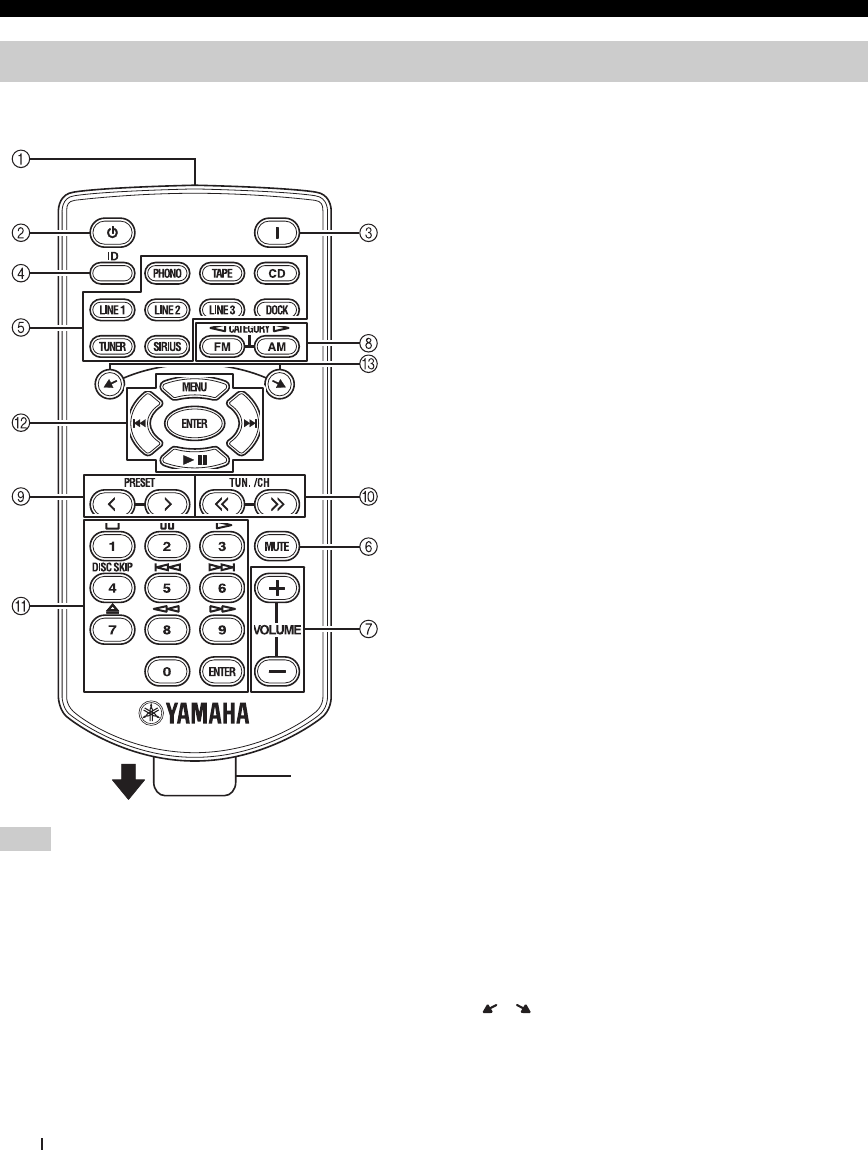

Remote control........................................................... 8

Zone 2 remote control (R-S700 only)...................... 10

Using the remote controls........................................ 11

CONNECTIONS .................................................. 12

Connecting speakers and source components.......... 12

Connecting the FM and AM antennas ..................... 14

Using COUPLER jacks (R-S700 only) ................... 15

Connecting power cable .......................................... 15

PLAYING AND RECORDING .......................... 16

Playing a source....................................................... 16

Adjusting the tonal quality....................................... 17

Recording a source .................................................. 19

Using the sleep timer ............................................... 19

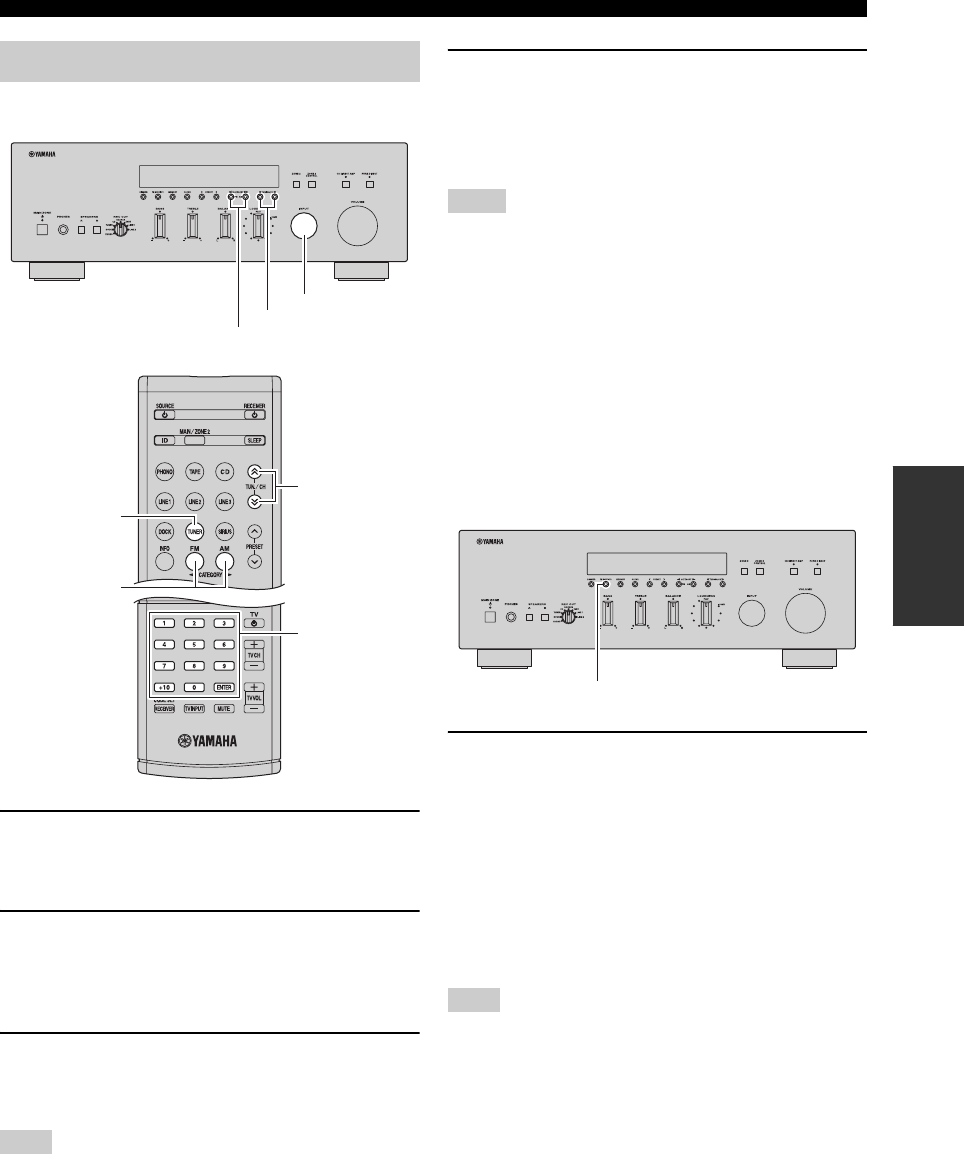

FM/AM TUNING ................................................. 20

Automatic tuning ..................................................... 20

Manual tuning .......................................................... 21

Automatic station preset (FM stations only) ........... 22

Manual station preset............................................... 23

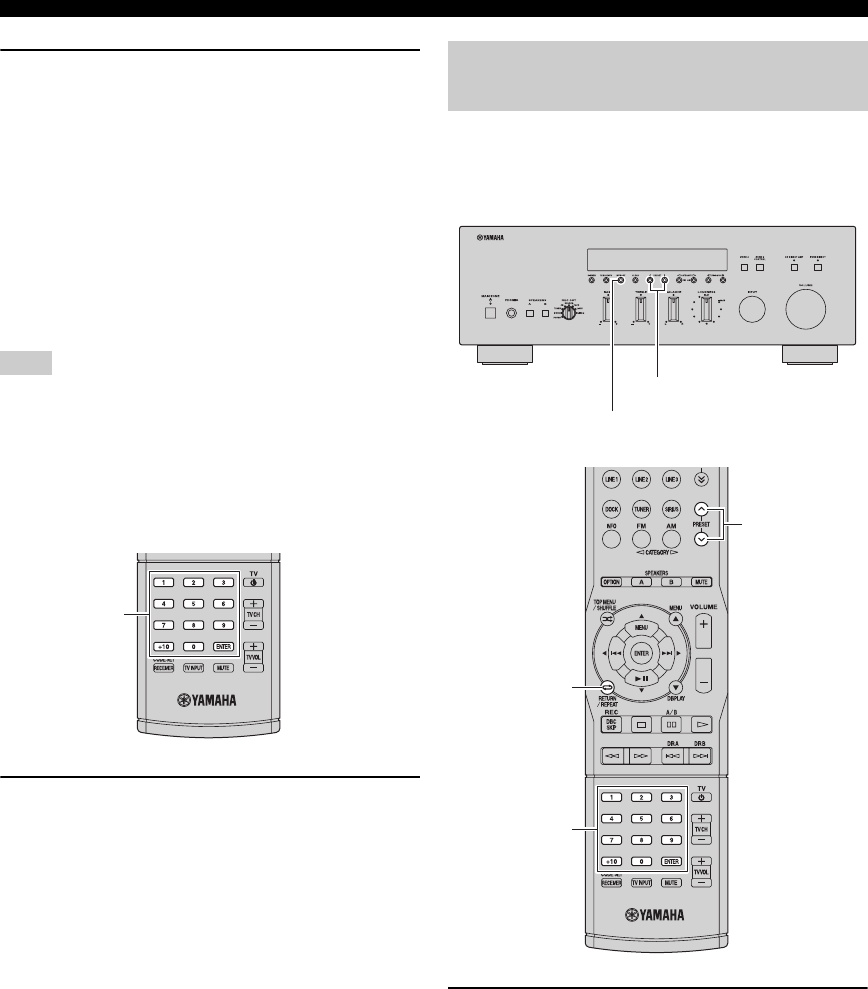

Recalling a preset station ......................................... 24

Clearing a preset station........................................... 24

Clearing all preset stations....................................... 25

LISTENING TO SIRIUS Satellite Radio™....... 26

Connecting the SiriusConnect™ tuner .................... 27

Activating SIRIUS Satellite Radio™

subscription ......................................................... 27

SIRIUS Satellite Radio™ operations ...................... 28

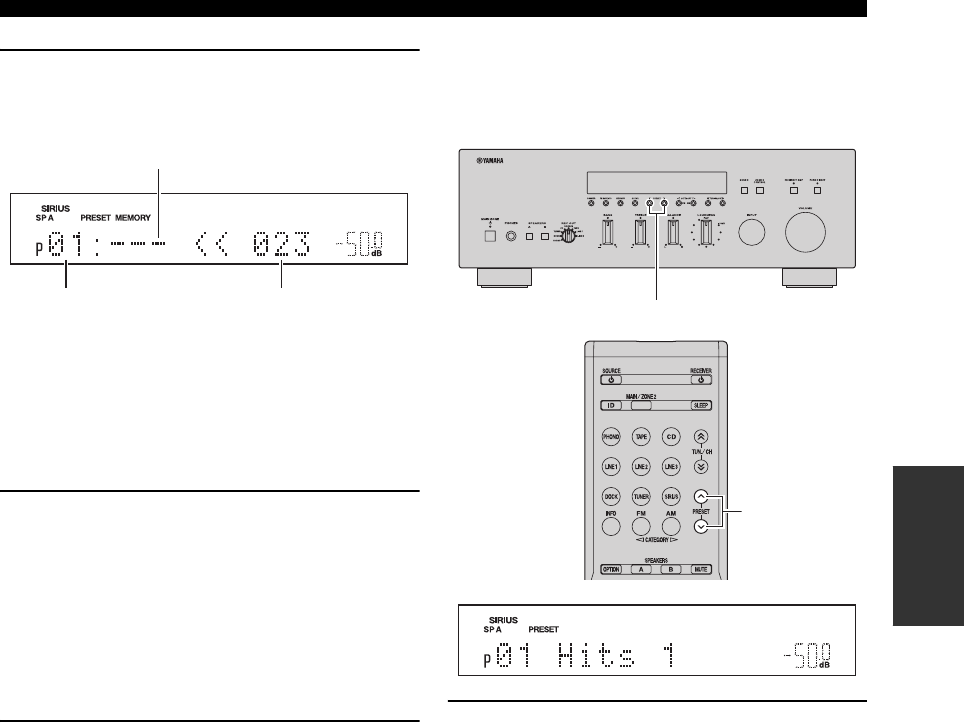

Registering and recalling SIRIUS

Satellite Radio™ channels .................................. 30

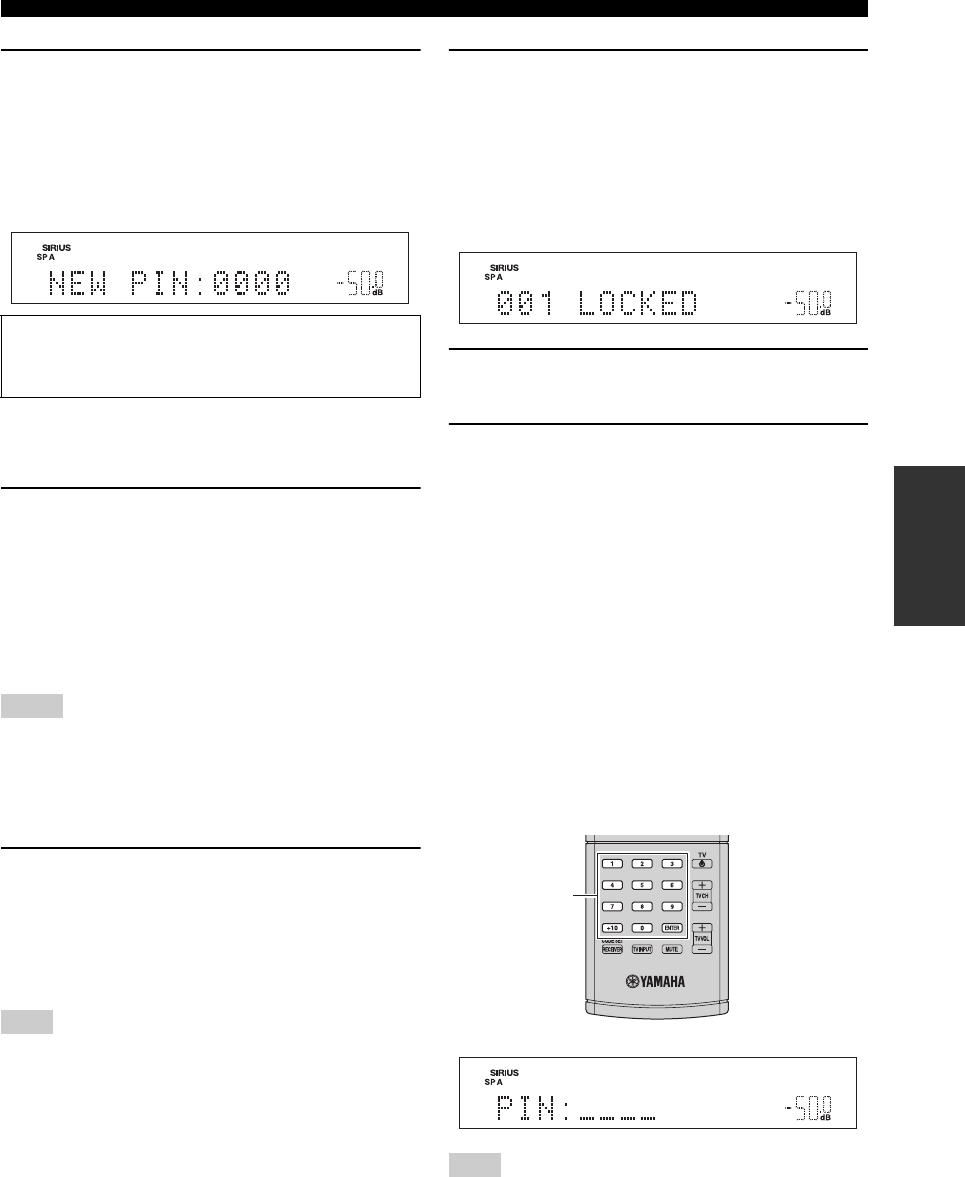

Setting the Parental Lock......................................... 32

Displaying the SIRIUS Satellite Radio™

information .......................................................... 34

PLAYING BACK TUNES

FROM YOUR iPhone/iPod/

Bluetooth™ COMPONENT ............................ 35

Using a Universal Dock for iPod............................. 36

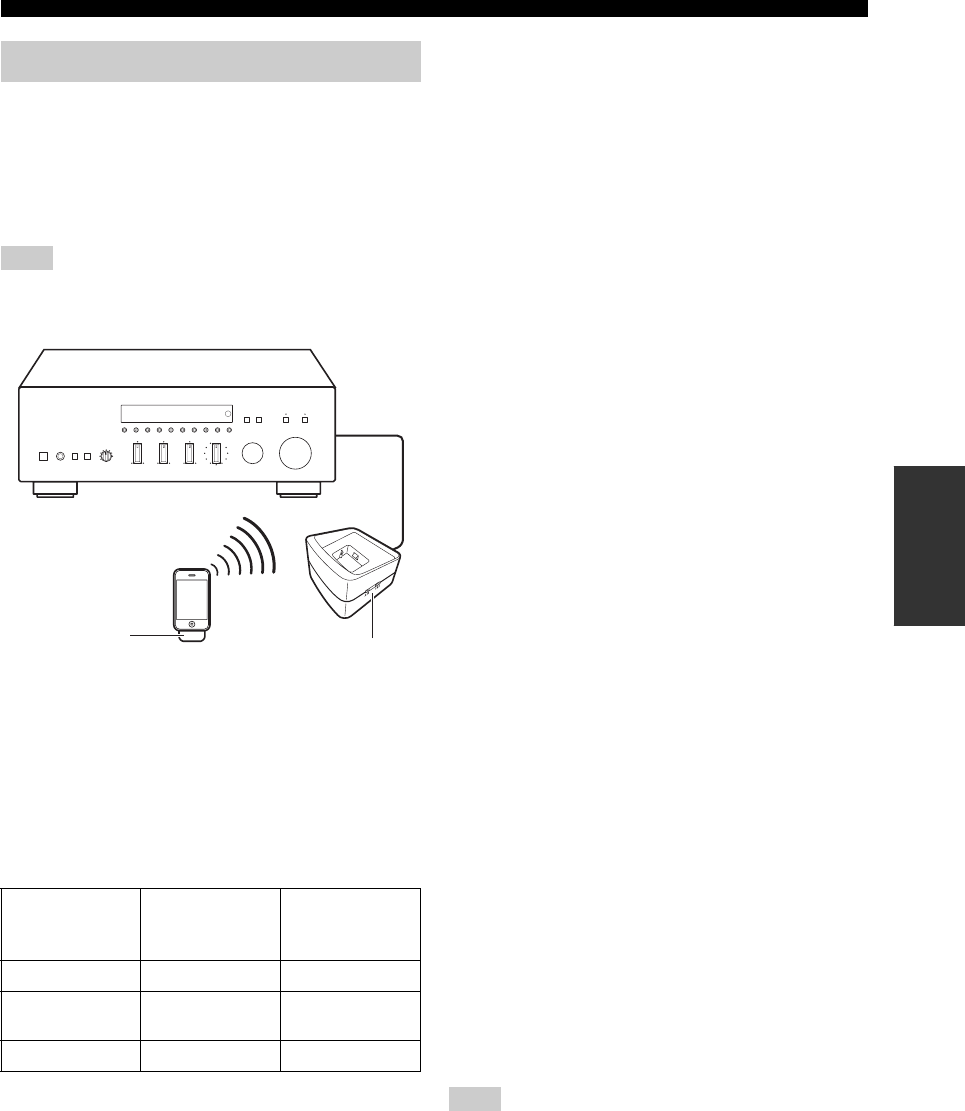

Using a Wireless System for iPod ........................... 37

Using a Bluetooth Wireless Audio Receiver........... 38

SETTING THE OPTION MENU

FOR EACH INPUT SOURCE.........................40

Option menu items................................................... 40

ADVANCED SETUP ............................................43

Changing the ADVANCED SETUP

menu parameters.................................................. 43

Switching the remote control ID ............................. 44

ZONE 2 ..................................................................45

Connecting Zone 2 components .............................. 45

Controlling Zone 2................................................... 46

REMOTE CONTROL FEATURES ...................47

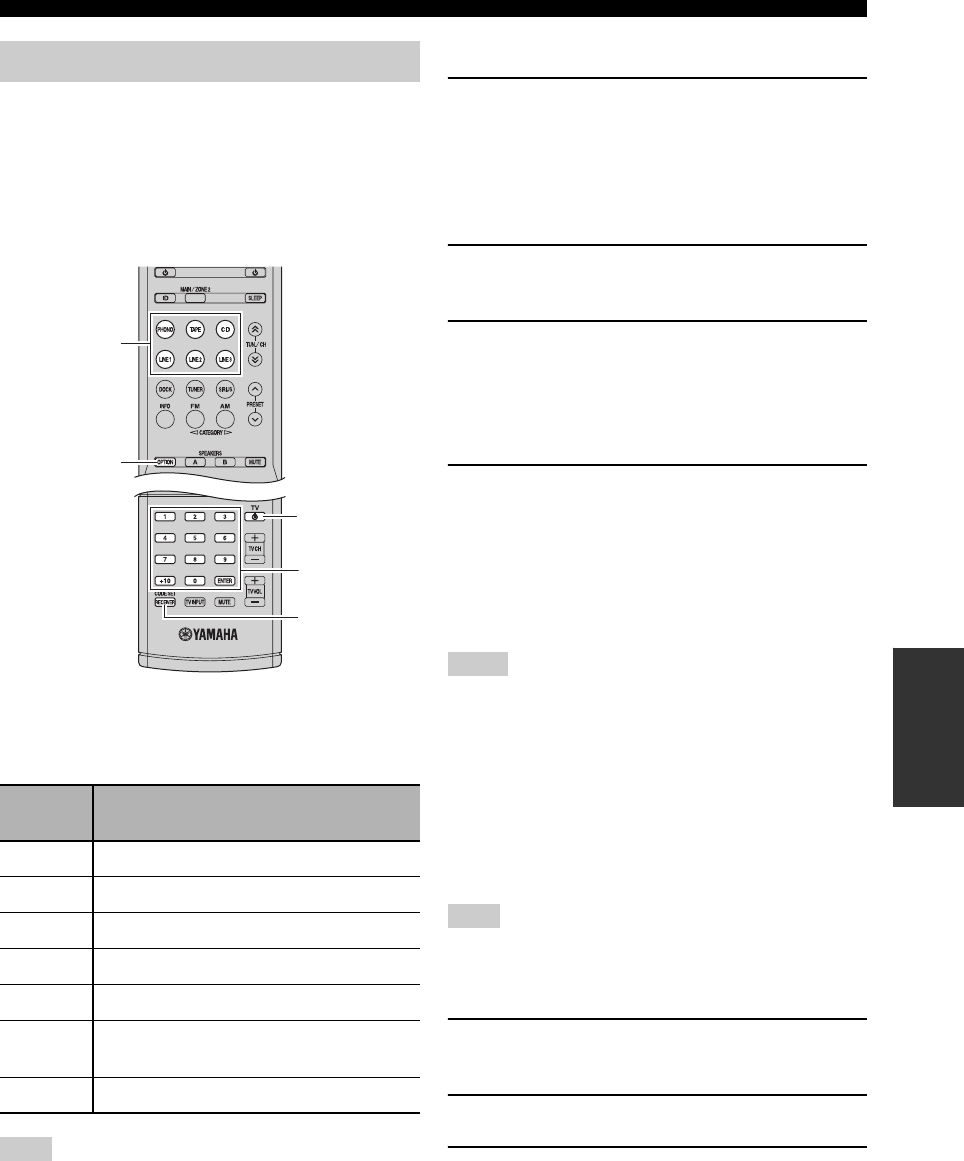

Controlling this unit, a TV, or other components.... 47

Configuring the remote control ............................... 49

TROUBLESHOOTING .......................................50

SPECIFICATIONS...............................................57

CONTENTS

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERATION

ADDITIONAL INFORMATION

USEFUL FEATURES

2 En

This unit allows you to:

*1 R-S700 only

*2 Optional Yamaha product required

*3 Optional SiriusConnect tuner required

SIRIUS, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All rights

reserved. Service not available in Alaska and Hawaii.

iPhone, iPod

iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other

countries.

Bluetooth™

Bluetooth is a registered trademark of the Bluetooth SIG and is used by Yamaha in accordance with a license agreement.

•y indicates a tip for your operation.

• This manual is the owner’s manual for both the R-S700 and the R-S500. Model names are given where the details of functions are

unique to each model. Generally, illustrations of the R-S700 are used for explanations.

• Some operations can be performed by using either the buttons on the front panel of this unit or those on the remote controls. In case

the button names differ between this unit and the remote controls, the names of the buttons on the remote controls are given in

parentheses.

• In case the buttons on the remote control and the Zone 2 remote control have certain functions in common, the illustrations of the

buttons on the remote control are used for explanation throughout the manual.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In

case of differences between the manual and the product, the product has priority.

USEFUL FEATURES

Improve sound quality by using the CD Direct Amp*1 and Pure

Direct functions ➡p. 17

Play back music from your iPhone/iPod*2 or Bluetooth

component*2 ➡p. 35

Play back video content from your iPhone/iPod*1 *2 ➡p. 36

Listen to SIRIUS Satellite Radio channels*3 ➡p. 26

Listen to FM and AM radio stations ➡p. 20

Boost bass sounds by connecting a subwoofer ➡p. 12

Connect an external device*1 such as a graphic equalizer or a

surround-sound processor ➡p. 15

Use this unit’s remote control to operate other components such

as a CD player, BD/DVD player or TV ➡p. 47

Save power by using the automatic power down function ➡p. 43

Use this unit to listen to another input source in two different

rooms ➡p. 45

SUPPLIED ACCESSORIES

3 En

INTRODUCTION

Please check that you received all of the following parts.

■Notes on remote controls and batteries

• Do not spill water or other liquids on the remote control.

• Do not drop the remote control.

• Do not leave or store the remote control in the following conditions:

– places of high humidity, such as near a bath

– places of high temperatures, such as near a heater or stove

– places of extremely low temperatures

– dusty places

• Use AAA, R03, UM-4 batteries for the remote control.

• Use a CR2025 battery for the Zone 2 remote control (R-S700 only).

• Insert batteries according to the polarity markings (+ and -).

• Change all batteries if you notice the operation range of the remote control narrows.

• If the batteries run out, immediately remove them from the remote control to prevent an explosion or acid leak.

• If you find leaking batteries, discard the batteries immediately, taking care not to touch the leaked material. If the leaked material

comes into contact with your skin or gets into your eyes or mouth, rinse it away immediately and consult a doctor. Clean the battery

compartment thoroughly before installing new batteries.

• Do not use old batteries together with new ones. This may shorten the life of the new batteries or cause old batteries to leak.

• Do not use different types of batteries (such as alkaline and manganese batteries) together. Batteries that look the same may have a

different specification.

• Before inserting new batteries, wipe the battery compartment clean.

• Dispose of batteries according to your regional regulations.

SUPPLIED ACCESSORIES

Remote control

Indoor FM antenna

AM loop antenna

Zone 2 remote control

(R-S700 only)

Power cable

(R-S700 only)

Batteries (x2)

(AAA, R03, UM-4)

CONTROLS AND FUNCTIONS

4 En

indicates buttons and controls that can also be used to

control Zone 2. For more information about Zone 2, see pages 45

and 46.

1MAIN ZONE A

Turns on this unit’s Main Zone unit or sets the Main Zone

to standby mode (see page 16).

In standby mode, this unit consumes a small amount of power to

receive infrared signals from the remote control.

2MAIN ZONE indicator

Lights up as follows:

Brightly lit: Power is on

Dimly lit: Standby mode

The MAIN ZONE indicator is brightly lit while an iPhone/iPod is

charging.

3SPEAKERS A/B

Turns on or off the speaker set connected to the

SPEAKERS A and/or SPEAKERS B terminals on the rear

panel each time the corresponding button is pressed (see

page

4DIMMER

Changes the brightness level of the front panel display.

Choose brightness from 3 levels by pressing this button

repeatedly.

This setting is retained even if you turn off this unit.

5FM MODE/INFO

Changes the FM radio wave reception mode (stereo or

monaural) when TUNER is selected as the input source

(see page 21).

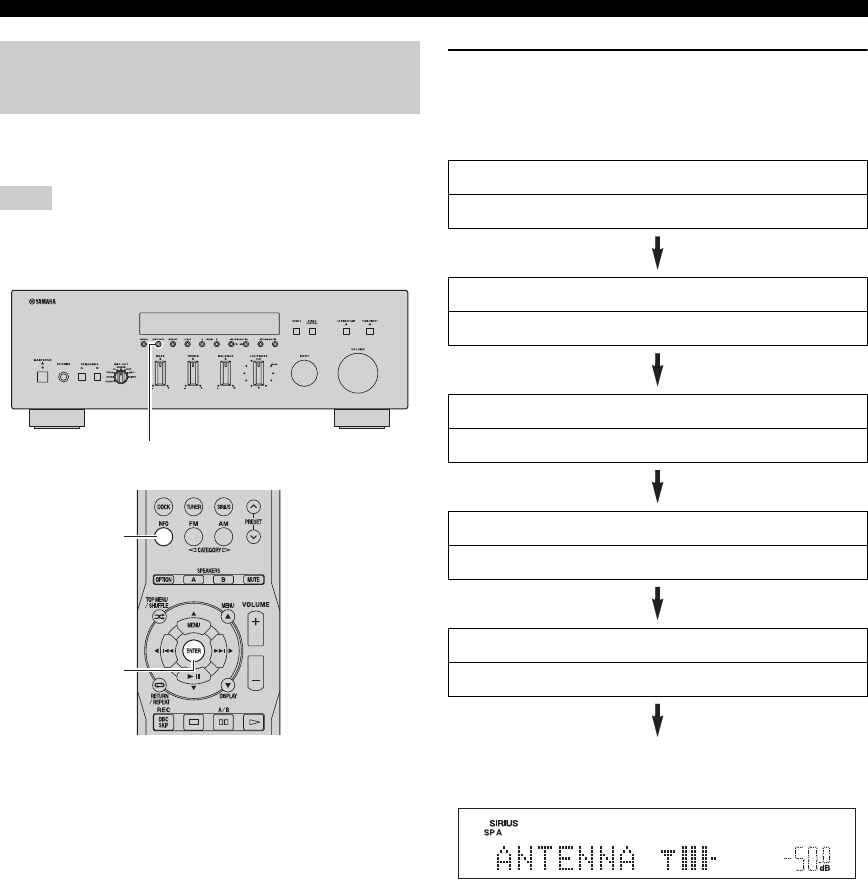

Changes the SIRIUS Satellite Radio information

displayed on the front panel display when SIRIUS is

selected as the input source (see page 34).

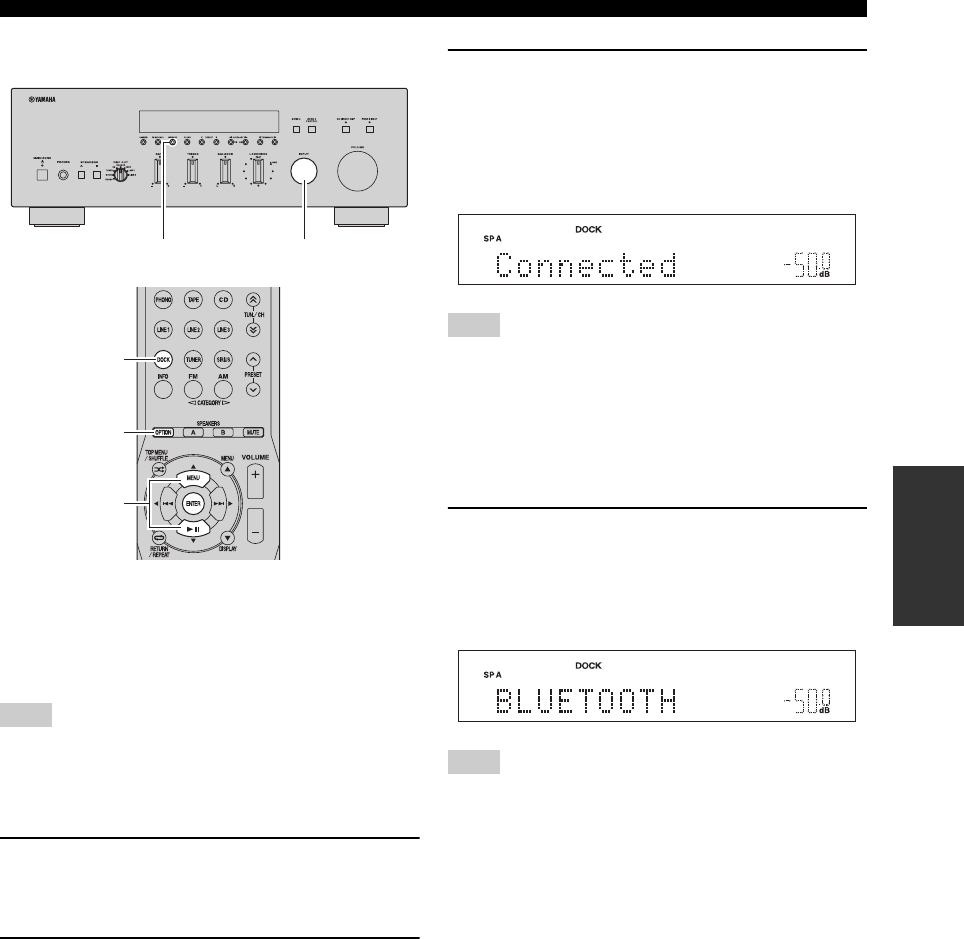

Changes the playback information displayed about the

song playing on the iPhone/iPod when DOCK is selected

as the input source (see page 36).

Playback information can only be displayed for an iPhone/iPod

that is connected using a Universal Dock for iPod.

6MEMORY

Stores the current FM/AM station as a preset when

TUNER is selected as the input source (see page 23).

Stores the current SIRIUS channel as a preset when

SIRIUS is selected as the input source (see page 30).

7CLEAR

Clears the current FM/AM preset station when TUNER is

selected as the input source (see page 24).

Clears the current SIRIUS preset channel when SIRIUS is

selected as the input source (see page 32).

8Front panel display

Shows information about the operational status of this

unit.

CONTROLS AND FUNCTIONS

Front panel

(R-S700)

Note

CONTROLS AND FUNCTIONS

5 En

INTRODUCTION

9PRESET j / i

Selects a preset FM/AM station when TUNER is selected

as the input source (see page 24).

Selects a preset SIRIUS channel when SIRIUS is selected

as the input source (see page 31).

0FM/CATEGORY l, AM/CATEGORY h

Sets the FM/AM tuner band to FM or AM when TUNER

is selected as the input source (see page 20).

Selects a channel category when SIRIUS is selected as the

input source (see page 29).

ATUNING/CH jj / ii

Selects the tuning frequency when TUNER is selected as

the input source (see page 20).

Searches for a SIRIUS channel when SIRIUS is selected

as the input source (see page 29).

BRemote control sensor

Receives infrared signals from the remote control.

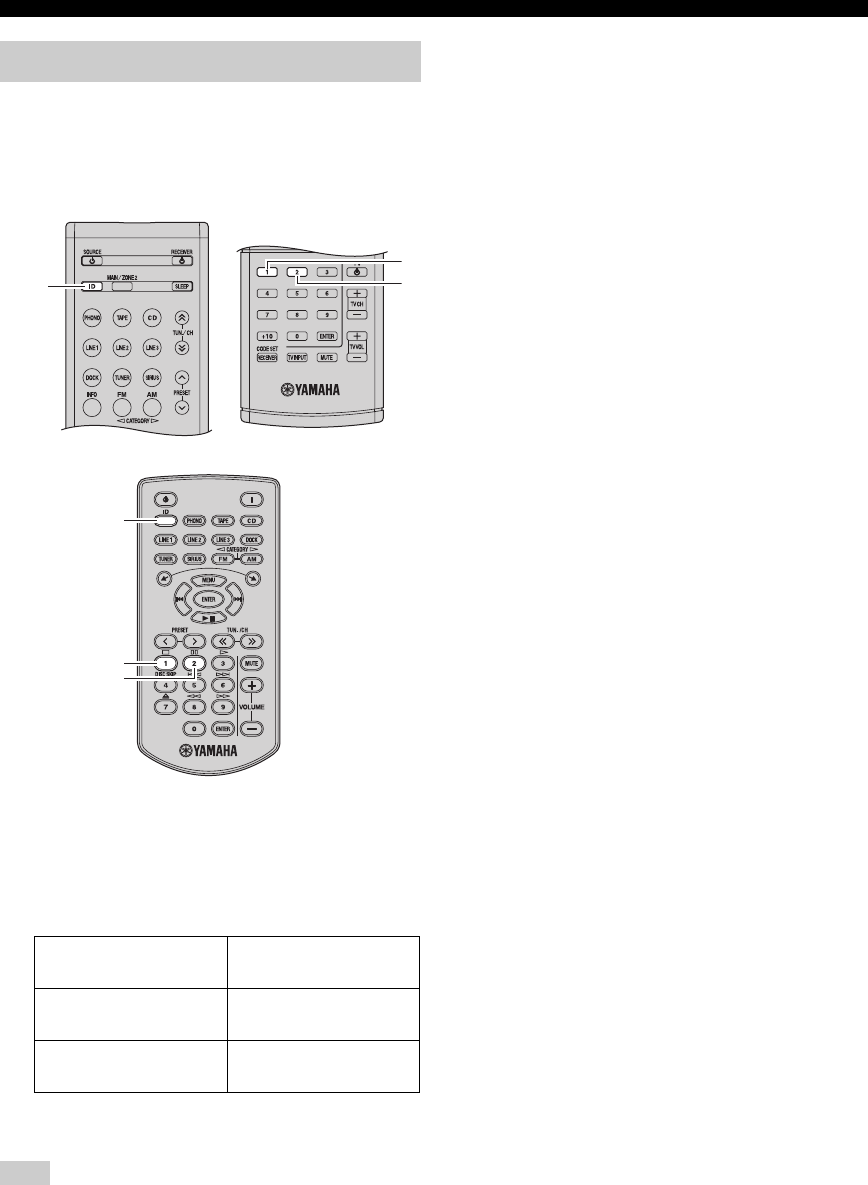

Switch the remote control ID between ID1 and ID2 when using

multiple Yamaha receivers or amplifiers (see page 44).

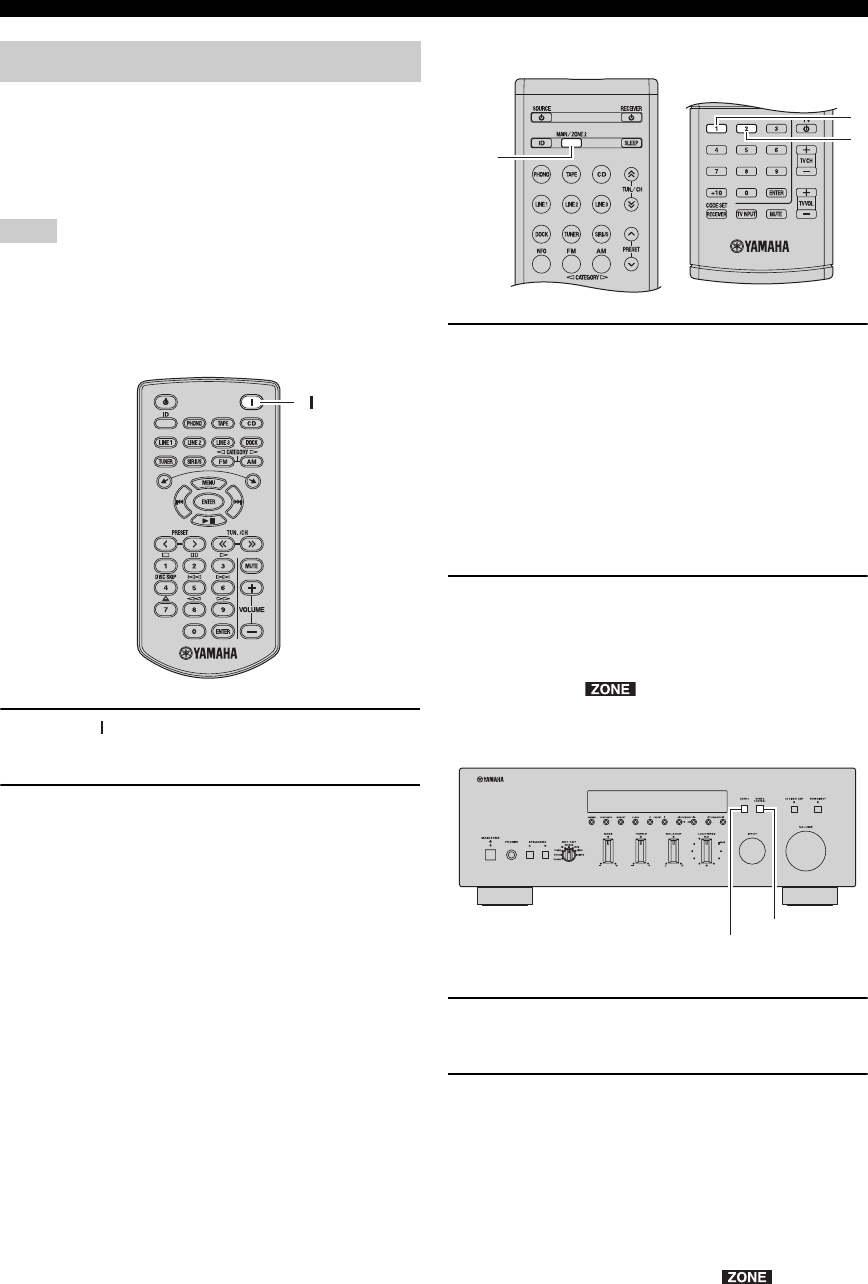

CZONE 2

Turns on Zone 2 or sets ZONE 2 to standby mode. When

Zone 2 is turned on, signals are output to the ZONE 2

OUT jacks (see page 45).

DZONE 2 CONTROL

Allows buttons and controls on the front panel to be used

to control Zone 2. For more information about controlling

Zone 2, see page 46.

ECD DIRECT AMP and indicator (R-S700 only)

Allows you to listen to a CD source in the purest possible

sound (see page 17). The indicator lights up and the front

panel display turns off when this function is turned on.

• If both the CD DIRECT AMP and the PURE DIRECT are

turned on, only the CD DIRECT AMP will function.

• Zone 2 cannot be used while this function is turned on.

FPURE DIRECT and indicator

Allows you to listen to a source in the purest possible

sound (see page 17). The indicator above it lights up and

the front panel display turns off when this function is

turned on.

Zone 2 cannot be used while this function is turned on.

GPHONES jack

Outputs audio to your headphones for private listening.

Press SPEAKER A/B so that the SP A/B indicators turn off

before you connect your headphones to the PHONES jack.

HREC OUT selector

Selects a source for recording to a CD recorder or to a tape

deck independently of the INPUT selector setting,

allowing you to record the selected source while listening

to another source (see page 19).

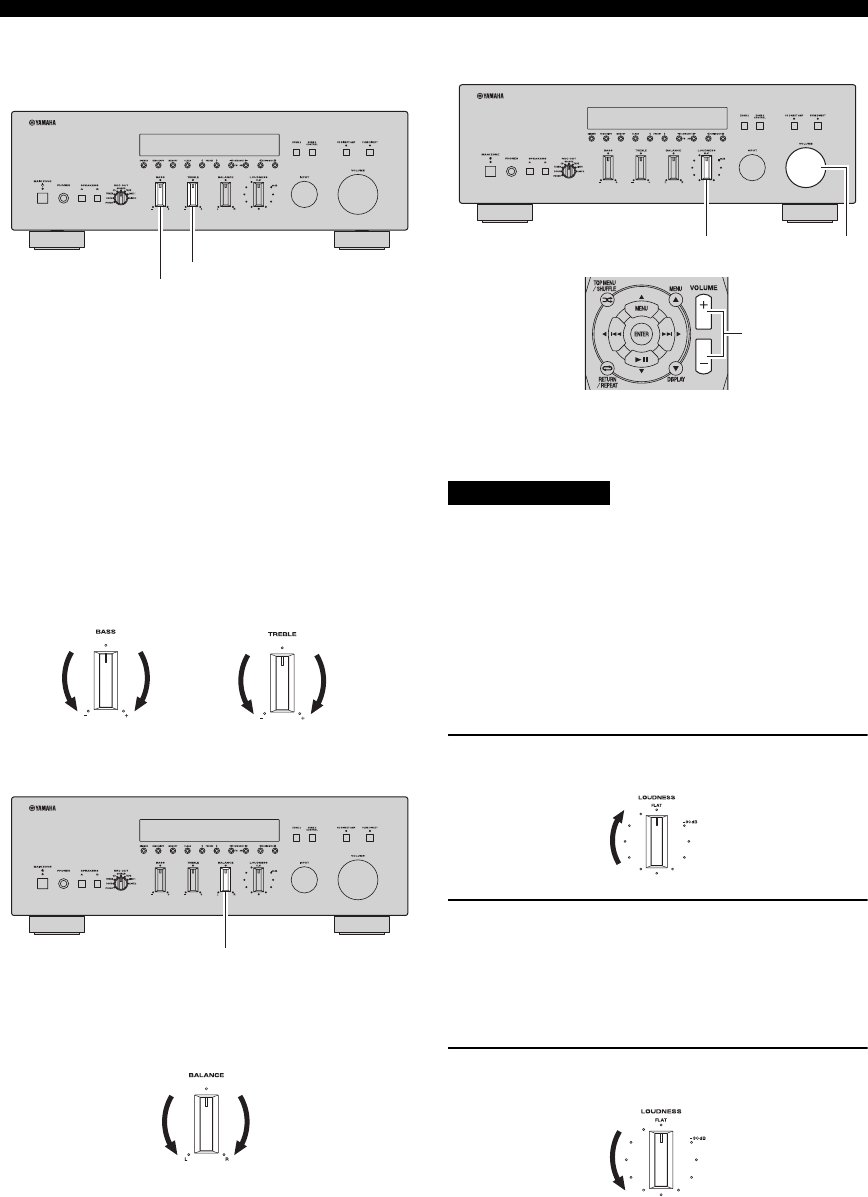

IBASS control

Increases or decreases the low frequency response. The

center position produces a flat response (see page 18).

JTREBLE control

Increases or decreases the high frequency response. The

center position produces a flat response (see page 18).

KBALANCE control

Adjusts the sound output balance of the left and right

speakers to compensate for sound imbalances caused by

speaker locations or listening room conditions (see page

18).

LLOUDNESS control

Retains a full tonal range at any volume level to

compensate for the human ears’ loss of sensitivity to high

and low-frequency ranges at a low volume level (see page

18).

MINPUT selector

Selects the input source you want to listen to.

NVOLUME control ( R-S700 only)

Increases or decreases the sound output level.

This does not affect the output level of the REC jacks.

Note

Notes

Note

CONTROLS AND FUNCTIONS

6 En

1SP (SPEAKERS) A/B indicators

Light up according to the set of speakers selected.

Both indicators light up when both sets of speakers are

selected.

2Input source indicators

Light up brightly to indicate the input source that is

currently selected.

3PRESET indicator

Lights up when you recall a preset radio station or SIRIUS

channel. Blinks while the automatic station preset feature

is scanning for FM stations to register as presets.

4MEMORY indicator

Lights up or blinks when an FM/AM station or SIRIUS

channel is being stored as a preset.

5CATEGORY indicator

Lights up when searching for a SIRIUS channel by

category.

6TUNED indicator

Lights up when this unit is tuned in to an FM or AM

station.

7STEREO indicator

Lights up when this unit is receiving a strong signal for an

FM stereo broadcast.

8HOLD indicator

Blinks when the hold function is used to display the artist

name, song title, etc. while listening to a SIRIUS channel.

9ZONE 2 indicator

Lights up when Zone 2 is turned on.

0SLEEP indicator

Lights up when the sleep timer is turned on.

AMUTE indicator

Blinks while the MUTE function is turned on.

BP indicator

Lights up when a preset number is selected. Blinks while

you are registering a preset radio station or SIRIUS

channel.

CMulti-information display

Shows information when adjusting or changing settings.

DVolume indicator

Displays the current volume level.

Front panel display

CONTROLS AND FUNCTIONS

7 En

INTRODUCTION

CONTROLS AND FUNCTIONS

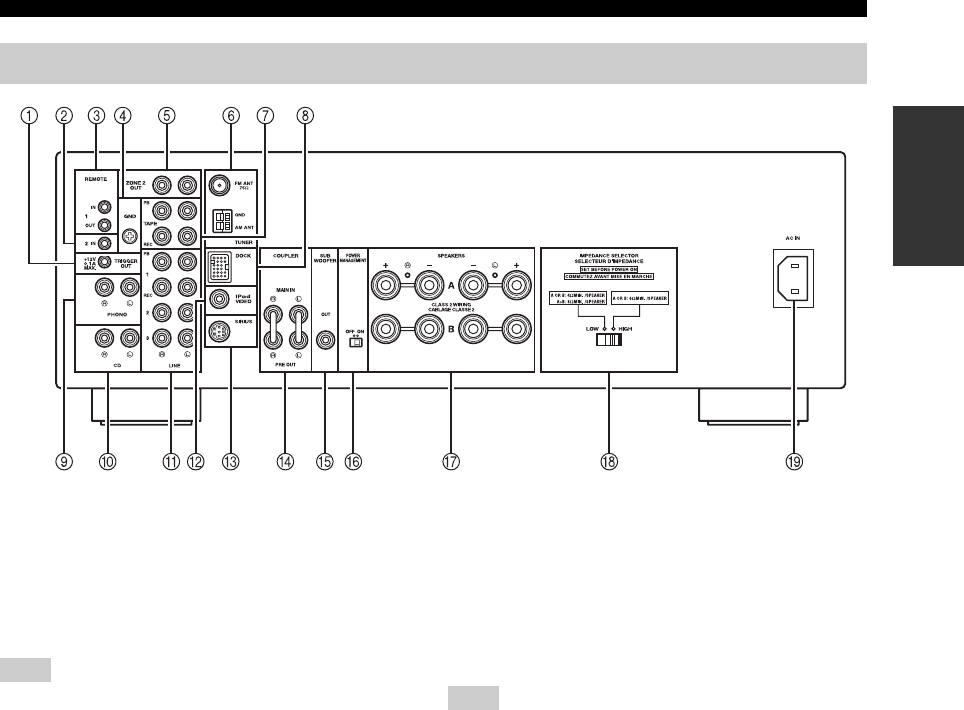

Rear panel

(R-S700)

1TRIGGER OUT jack (R-S700 only)

When this unit is turned on or when a certain input source

is selected, this unit can send a 12 V/100 mA direct

electric current via the TRIGGER OUT jack that can be

used to control an external component. The current is sent

according to the “Trigger out” setting in the Option menu

(see page 40).

Do not connect a component that requires more than 100 mA of

electric current, otherwise the component may not perform

consistently or properly due to insufficient power.

2REMOTE 2 IN jack (R-S700 only)

Used to receive remote control signals (see page 45).

3REMOTE 1 IN/OUT jacks

Used to send and receive remote control signals (see page

45).

4GND terminal

Used to connect a turntable (see page 12).

5ZONE 2 OUT jacks

Used to connect a Zone 2 component (see page 45).

6Antenna terminals

Used to connect FM and AM antennas (see page 14).

7TAPE jacks

Used to connect a tape deck (see page 12).

8DOCK jack

Used to connect an optional Yamaha Universal Dock for

iPod (such as the YDS-12), Wireless System for iPod

(YID-W10), or Bluetooth Wireless Audio Receiver

(YBA-10) (see page 35).

9PHONO jacks

Used to connect a turntable (see page 12).

0CD jacks

Used to connect a CD player (see page 12).

ALINE 1-3 jacks

Used to connect audio components (see page 12).

BiPod VIDEO output jack (R-S700 only)

Used to send iPhone/iPod video content to a video

monitor, such as a TV (see page 35).

Video content output is possible only when an iPhone/iPod is

connected this unit using a Universal Dock for iPod (such as the

YDS-12).

CSIRIUS jack

Used to connect SiriusConnect tuner (sold separately) (see

page 27).

DCOUPLER jacks (R-S700 only)

Used to connect an external unit (see page 15).

ESUBWOOFER OUT jack

Used to connect a subwoofer with built-in amplifier (see

page 12).

FPOWER MANAGEMENT switch

Used to enable or disable the automatic power down

function. When this function is enabled, this unit’s Main

zone and Zone 2 automatically enters standby mode if this

unit is not operated for a certain amount of time (3 settings

are available; see page 43).

GSPEAKERS terminals

Used to connect speakers (see page 12).

HIMPEDANCE SELECTOR switch

Used to select the impedance setting (see page 13).

IAC IN (R-S700 only)

Used to plug in the supplied power cable (see page 15).

Note

CONTROLS AND FUNCTIONS

8 En

This section describes the function of each button on the

remote control used to control this unit or other

components made by Yamaha or other manufacturers.

indicates buttons that can also be used to control Zone 2.

For more information about Zone 2, see pages 45 and 46.

■Common controls

The following buttons can be used no matter which input

source is selected.

1Infrared signal transmitter

Sends infrared signals.

2RECEIVER A

Turns this unit on, or sets it to standby mode.

3ID

Changes the remote control ID (see page 44).

4MAIN/ZONE 2

Switches the zone to be operated by the remote control

between the Main Zone and Zone 2 (see page 46).

5SLEEP

Sets the sleep timer (see page 19).

6Input selector buttons

Selects the input source and changes the control area (see

page 47).

7OPTION

Turns the OPTION menu on and off (see page 40).

8SPEAKERS A/B

Turns on and off the set of speakers connected to the

SPEAKERS A and/or SPEAKERS B terminals on the rear

panel of this unit when the corresponding button is

pressed.

9MUTE

Mutes the sound output. Press again to restore the sound

output to the previous volume level.

0VOLUME +/– ( R-S700 only)

Increases or decreases the sound output level.

This does not affect the output level of the REC jacks.

ARETURN

Returns to the previous menu or ends the menu display

when using the Option menu (see page 40).

BB / C / D / E / ENTER

Selects and confirms items in the Option menu (see page

40).

CCODE SET/RECEIVER

Used to program the remote control so that it can control

your other external components (see page 49).

After using the remote control to control one of your

components, this button is used to switch the remote

control to receiver mode so that remote control commands

will be sent to this unit (see page 48).

Remote control

Note

CONTROLS AND FUNCTIONS

9 En

INTRODUCTION

■SIRIUS and FM/AM controls

The following buttons can be used when SIRIUS or

TUNER is selected as the input source.

DTUN./CH H / I

Selects the tuning frequency when TUNER is selected as

the input source (see page 20).

Searches for a SIRIUS channel when SIRIUS is selected

as the input source (see page 29).

EPRESET F / G

Selects a preset FM/AM station when TUNER is selected

as the input source (see page 24).

Select a preset SIRIUS channel when SIRIUS is selected

as the input source (see page 31).

FFM/CATEGORY l, AM/CATEGORY h

Sets the FM/AM tuner band to FM or AM when TUNER

is selected as the input source (see page 20).

Selects a channel category when SIRIUS is selected as the

input source (see page 29).

GNumeric buttons, ENTER

Specifies the frequency or the preset number of the FM/

AM station when TUNER is selected as the input source

(see page 21).

Specifies the channel number or preset number of the

SIRIUS channel when SIRIUS is selected as the input

source (see page 30).

HINFO

Changes the SIRIUS Satellite Radio information

displayed on the front panel display when SIRIUS is

selected as the input source (see page 34).

■iPod controls

The following buttons can be used when DOCK is

selected as the input source for listening to an iPhone/

iPod. For more information, see page 35.

AREPEAT

BMENU/ Ee / b / a / ENTER

HINFO

ISHUFFLE

■External component controls

The following buttons can be used to control external

audio/video components when CD, TAPE, PHONO,

LINE1, LINE2, or LINE3 is selected as the input source.

For more information, see page 47.

ARETURN

BB / C / D / E / ENTER

GNumeric buttons, ENTER

ITOP MENU

JMENU

KDISPLAY

LSOURCE A

MExternal component control buttons

NTV control buttons

CONTROLS AND FUNCTIONS

10 En

This section describes the function of each button on the

Zone 2 remote control, which is used to control Zone 2.

The Zone 2 remote control comes with a battery already installed.

Before using the Zone 2 remote control for the very first time,

pull out the insulation sheet, as shown.

■Common controls for Zone 2

The following buttons can be used no matter which input

source is selected for Zone 2.

1Infrared signal transmitter

Sends infrared signals.

2A (Zone 2 standby)

Sets Zone 2 to standby mode.

3 (Zone 2 on)

Turns on Zone 2.

4ID

Changes the Zone 2 remote control ID (see page 44).

5Zone 2 input selector buttons

Selects the desired input source for Zone 2.

6MUTE

Mutes the sound output to Zone 2. Press again to restore

the sound output to the previous volume level.

7VOLUME +/–

Increases or decreases the sound output level of Zone 2.

■SIRIUS and FM/AM controls

The following buttons can be used when SIRIUS or

TUNER is selected as the input source for Zone 2.

8FM/CATEGORY l, AM/CATEGORY h

Sets the FM/AM tuner band to FM or AM when TUNER

is selected as the input source (see page 20).

Selects a channel category when SIRIUS is selected as the

input source (see page 29).

9PRESET j / i

Selects a preset FM/AM station when TUNER is selected

as the input source (see page 24).

Selects a preset SIRIUS channel when SIRIUS is selected

as the input source (see page 31).

0TUN./CH jj / ii

Selects the tuning frequency when TUNER is selected as

the input source (see page 20).

Searches for a SIRIUS channel when SIRIUS is selected

as the input source (see page 29).

ANumeric buttons, ENTER

Specifies the frequency or the preset number of the FM/

AM station when TUNER is selected as the input source

(see page 21).

Specifies the channel number or preset number of the

SIRIUS channel when SIRIUS is selected as the input

source (see page 30).

■iPod controls

The following buttons can be used when DOCK is

selected as the input source for Zone 2, for listening to an

iPhone/iPod. For more information, see page 35.

BMENU/ Ee / b / a / ENTER

Zone 2 remote control (R-S700 only)

Note

Insulation sheet

CONTROLS AND FUNCTIONS

11 En

INTRODUCTION

■Yamaha CD player controls

The following buttons can be used to control a Yamaha

CD player when CD is selected as the input source for

Zone 2.

AYamaha CD player control buttons

•sStops playback

•ePauses playback

•pStarts playback

• DISC SKIP Skips to the next disc in a CD changer

•bSkips backward

•aSkips forward

• Ejects the disc

•wRewinds playback

•fFast-forwards playback

Not all Yamaha CD players can be controlled by the Zone 2

remote control.

■Installing batteries

■Replacing the battery in the Zone 2

remote control

Change the battery when the operation range of the Zone 2

remote control decreases.

■Operation range

The remote controls transmit a directional infrared beam.

Be sure to aim the remote controls directly at the remote

control sensor on the front panel of this unit or on the

infrared signal receiver in Zone 2 during operation.

Note

Using the remote controls

AAA, R03, UM-4 batteries

Straight pin

CR2025 battery

Approximately

6 m (20 ft)

Remote control or Zone 2

remote control

CONNECTIONS

12 En

• Do not connect this unit or other components to the main power until all connections between components are

complete.

• All connections must be correct: L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. If the connections are faulty,

no sound will be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be

unnatural and lack bass. Refer to the owner’s manual for each of your components.

• Use RCA cables for audio components (except for speaker connections and DOCK jack connections).

• The IMPEDANCE SELECTOR must be set to the appropriate position before connecting speakers. See page 13 for

details.

• Do not let bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/or the

speakers.

• The PHONO jacks are designed for connecting a turntable with an MM cartridge.

• Connect your turntable to the GND terminal to reduce noise in the signal. However, for some turntables, you may hear less noise

without the GND connection.

CONNECTIONS

Connecting speakers and source components

CAUTION

Turntable

VCR, etc.

Audio

out

CD recorder,

etc.

DVD player,

etc.

Tape deck

GND

Audio

out

Speakers A

Subwoofer

For information about

other components that

can be connected to

this unit, see page 35.

Audio

out

Audio

out

Audio

out

Audio

out

Speakers B

CD player

13 En

CONNECTIONS

PREPARATION

■IMPEDANCE SELECTOR switch

Do not change the IMPEDANCE SELECTOR switch

while the power of this unit is turned on, as doing so may

damage the unit.

If the unit fails to turn on, the IMPEDANCE SELECTOR

switch may not be fully slid to either position. If this is the

case, remove the power cable and slide the switch all the

way to either position.

Select the switch position (LOW or HIGH) according to

the impedance of the speakers in your system.

■Connecting speaker cables

When inserting speaker cables into the speaker terminals, insert

only the bare speaker wire. If insulated cable is inserted, the

connection may be poor and sound may not be heard.

■Connecting via banana plug

Tighten the knob and then insert the banana plug into the

end of the corresponding terminal.

■Bi-wire connection

Bi-wire connection separates the woofer from the

combined midrange and tweeter section. A bi-wire

compatible speaker has four binding post terminals. These

two sets of terminals allow the speaker to be split into two

independent sections. With these connections, the mid and

high frequency drivers are connected to one set of

terminals and the low frequency driver to another set of

terminals.

Connect the other speaker to the other set of terminals in

the same way.

When making bi-wire connections, set the IMPEDANCE

SELECTOR switch to HIGH or LOW depending on the

impedance of your speakers:

6 Ω or higher: HIGH (R-S700)

8 Ω or higher: HIGH (R-S500)

4 Ω or higher: LOW

See page 13 for more information about the

IMPEDANCE SELECTOR switch.

When making bi-wire connections, remove the shorting bridges

or cables on the speaker.

To use the bi-wire connections, press SPEAKERS A and

SPEAKERS B on the front panel or on the remote control so that

both SP A and B light up on the front panel display.

CAUTION

Switch

position Impedance level

HIGH

• If you use one set (A or B), the impedance of

each speaker must be 6 Ω or higher (R-S700)

or 8 Ω or higher (R-S500).

• If you make bi-wire connections, the

impedance of each speaker must be 6 Ω or

higher (R-S700) or 8 Ω or higher (R-S500).

See page 13 for Bi-wire connection.

LOW

• If you use one set (A or B), the impedance of

each speaker must be 4 Ω or higher.

• If you use two sets (A and B) simultaneously,

the impedance of each speaker must be 8 Ω or

higher.

• If you make bi-wire connections, the

impedance of each speaker must be 4 Ω or

higher. See page 13 for Bi-wire connection.

Note

Remove

approximately

10 mm (3/8 in)

of insulation

from the end of

each speaker

cable.

Banana plug

CAUTION

Note

This unit

Speaker

SPEAKERS A/B

14 En

CONNECTIONS

Indoor antennas for receiving FM and AM broadcasts are included with this unit. In general, these antennas should

provide sufficient signal strength. Connect each antenna correctly to the designated terminals.

If you experience poor reception quality, install an outdoor antenna. Consult the nearest authorized Yamaha dealer or service center

about outdoor antennas.

■Assembling the supplied AM loop

antenna

■Connecting the wire of the AM loop

antenna

Connecting the FM and AM antennas

Note

Indoor FM antenna

(included)

Outdoor AM antenna

Use 5 to 10 m of vinyl-

covered wire extended

outdoors from a window.

Outdoor FM antenna

Ground (GND terminal)

For maximum safety and minimum interference, connect

the antenna GND terminal to a good earth ground. A

good earth ground is a metal stake driven into moist earth.

• The AM loop antenna

should always be connected,

even if an outdoor AM

antenna is connected to this

unit.

• The AM loop antenna

should be placed away from

this unit.

AM loop antenna

(included)

15 En

CONNECTIONS

PREPARATION

Removing the jumper pins from the PRE OUT/MAIN IN

jacks enables this unit to operate separately as a control

amplifier or a power amplifier. These jacks are used to

connect a signal-processing system such as a graphic

equalizer or a surround-sound processor to this unit. If an

external unit is connected to these jacks, the VOLUME

control of this unit can be used to adjust the overall sound

output level.

To connect an external unit, first remove the jumper pins

from the PRE OUT/MAIN IN jacks and then connect the

input jacks of that external unit to the PRE OUT jacks or

its output jacks to the MAIN IN jacks. For details, refer to

the owner’s manual included with the external unit to be

connected.

• If you do not use the COUPLER jacks, never remove the

jumper pins from these jacks. If removed, no sound will be

output from this unit.

• Before installing or removing the jumper pins, be sure to

disconnect the power cable of the unit. Leaving the power cable

connected could cause noise to be emitted from the speakers or

damage the unit.

• When you use this unit as a power amplifier, connect the output

jacks of the external control amplifier, etc. to the MAIN IN

jacks of this unit. In this case, the controls of this unit will not

function except the PHONES jack and the SPEAKERS A/B

buttons. Use the controls on the external control amplifier to

make volume adjustments, etc.

Plug the power cable into the AC IN on the rear panel of

this unit (R-S700 only).

Plug the power cable into the AC wall outlet after all other

connections are complete.

Using COUPLER jacks

(R-S700 only)

Notes

Jumper pins

Connecting power cable

Power cable

(R-S700 only)

PLAYING AND RECORDING

16 En

Extreme caution should be exercised when you play back CDs encoded in DTS.

If you play back a CD encoded in DTS on a CD player that does not support DTS, only noise will be heard, and this noise

may damage your speakers. Check whether your CD player supports CDs encoded in DTS. Also, check the sound output

level of your CD player before you play back a CD encoded in DTS.

1Press MAIN ZONE A on the front panel (or

RECEIVER A on the remote control) to turn

on this unit.

2Rotate the INPUT selector on the front panel

(or press one of the input selector buttons on

the remote control) to select the input source

you want to listen to.

3Press SPEAKERS A and/or SPEAKERS B on

the front panel or on the remote control to

select speakers A and/or speakers B.

When speaker set A or speaker set B are turned on,

SP A or SP B is displayed on the front panel display

accordingly (see page 6).

• When one set of speakers is connected using bi-wire

connections, or when using two sets of speakers simultaneously

(A and B), make sure SP A and SP B are displayed on the front

panel display.

• When listening with headphones, turn off the speakers.

4Play the source.

5Rotate the VOLUME control on the front

panel (or press VOLUME +/– on the remote

control) to adjust the sound output level.

You can adjust the tonal quality by using the BASS, TREBLE,

BALANCE and LOUDNESS controls, the CD DIRECT AMP

switch (R-S700 only), or the PURE DIRECT switch on the front

panel (see page 17).

6Press MAIN ZONE A on the front panel again

(or RECEIVER A on the remote control) to

finish using this unit and set it to standby

mode.

PLAYING AND RECORDING

CAUTION

Playing a source

MAIN ZONE A

SPEAKERS A/B INPUT selector

VOLUME

RECEIVER A

Input selector

buttons

SPEAKERS A/B

VOLUME +/–

Notes

17 En

PLAYING AND RECORDING

BASIC

OPERATION

■Using the CD DIRECT AMP switch

(R-S700 only)

Routes input signals from your CD player directly to the

specially built-in amplifier for the CD player. As a result,

the input signals bypass the INPUT selector and the

BASS, TREBLE, BALANCE and LOUDNESS controls

and then sent to the power amplifier, thus eliminating any

alterations to the CD signals and creating the purest

possible sound. The CD DIRECT AMP indicator lights up

and the front panel display turns off after a few seconds.

• If both the CD DIRECT AMP and the PURE DIRECT switches

are turned on, only the CD DIRECT AMP switch will function.

• Zone 2 cannot be used while the CD DIRECT AMP feature is

turned on.

• The INPUT selector and the BASS, TREBLE, BALANCE, and

LOUDNESS controls do not function while the CD DIRECT

AMP feature is turned on.

• A CD player must be connected to the CD jacks in order to use

the CD DIRECT AMP feature.

• This setting is retained even if you turn off this unit.

■Using the PURE DIRECT switch

Routes input signals from your audio sources so that the

input signals bypass the BASS, TREBLE, BALANCE and

LOUDNESS controls, thus eliminating any alterations to

the audio signals and creating the purest possible sound.

The PURE DIRECT indicator lights up and the front panel

display turns off after a few seconds.

• Zone 2 cannot be used while the PURE DIRECT feature is

turned on.

• The BASS, TREBLE, BALANCE, and LOUDNESS controls

do not function while the PURE DIRECT feature is turned on.

• This setting is retained even if you turn off this unit.

Adjusting the tonal quality

CD Direct Amp feature

Generates a normal phase and reverse phase signal for

both the left and right channels from the input signal

and uses the four electronic volumes to send a

balanced signal to the amplifying circuit. This feature

provides clearer sound as a result of:

• improved signal-to-noise ratio

• external noise canceling

• reduced distortion

Notes

CD DIRECT AMP switch

Notes

PURE DIRECT switch

18 En

PLAYING AND RECORDING

■Adjusting the BASS and TREBLE

controls

The BASS and TREBLE controls adjust high and low

frequency response.

The center position produces a flat response.

BASS

When you feel there is not enough bass (low frequency

sound), rotate clockwise to boost. When you feel there is

too much bass, rotate counterclockwise to suppress.

Control range: –10 dB to +10 dB (20 Hz)

TREBLE

When you feel there is not enough treble (high frequency

sound), rotate clockwise to boost. When you feel there is

too much treble, rotate counterclockwise to suppress.

Control range: –10 dB to +10 dB (20 kHz)

■Adjusting the BALANCE control

The BALANCE control adjusts the sound output balance

of the left and right speakers to compensate for sound

imbalance caused by speaker locations or listening room

conditions.

■Adjusting the LOUDNESS control

Retain a full tonal range at any volume level, thus

compensating for the human ears’ loss of sensitivity to

high and low-frequency ranges at low volume.

If the CD DIRECT AMP switch (R-S700 only) or the

PURE DIRECT switch is turned on with the LOUDNESS

control set at a certain level, the input signals bypass the

LOUDNESS control, resulting in a sudden increase in the

sound output level. To prevent your ears or the speakers

from being damaged, be sure to press the CD DIRECT

AMP switch (R-S700 only) or the PURE DIRECT switch

after lowering the sound output level or after checking that

the LOUDNESS control is properly set.

1Set the LOUDNESS control to the FLAT

position.

2Rotate the VOLUME control on the front

panel (or press VOLUME +/– on the remote

control) to set the sound output level to the

loudest listening level that you would listen

to.

3Rotate the LOUDNESS control until the

desired volume is obtained.

After setting the LOUDNESS control, enjoy listening to music at

your preferred volume level. If the effect of the LOUDNESS

control setting is too strong or weak, readjust the LOUDNESS

control.

BASS

TREBLE

BALANCE

CAUTION

LOUDNESS VOLUME

VOLUME +/–

19 En

PLAYING AND RECORDING

BASIC

OPERATION

• Audio signals are not output to the TAPE REC or LINE 1 REC

output jacks when TAPE or LINE 1 is selected with the REC

OUT selector.

Audio signals are output to both the TAPE REC and the LINE 1

REC output jacks if when PHONO, DOCK, TUNER, CD,

SOURCE or LINE 2 is selected with the REC OUT selector.

• This unit must be turned on in order to record.

• The VOLUME, BASS, TREBLE, BALANCE and

LOUDNESS controls and the CD DIRECT AMP switch (R-

S700 only) and the PURE DIRECT switch have no effect on the

source being recorded.

• Check the copyright laws in your country before recording from

records, CDs, radio, etc. Recording copyright-protected

material may infringe on copyright laws.

1Rotate the REC OUT selector on the front

panel to select the source you want to

record.

When SOURCE is selected, the current input source

is output.

SIRIUS Satellite Radio broadcasts cannot be recorded.

2Play the source and begin recording using

the recording device connected to the REC

jacks (TAPE and/or LINE 1) on the rear panel.

See page 12.

Use this feature to automatically set this unit to standby

mode after a certain amount of time. The sleep timer is

useful when you are going to sleep while this unit is

playing or recording a source.

• The sleep timer can only be set with the remote control.

• The sleep timer automatically turns off Zone 2. However, Zone

2 components are not turned off.

1Press SLEEP repeatedly to set the amount of

time before this unit is set to standby mode.

Each time you press SLEEP, the front panel display

changes as shown below.

The SLEEP indicator blinks while setting the amount

of time for the sleep timer.

If the sleep timer is set, the SLEEP indicator on the

front panel display lights up.

• To disable the sleep timer, select “Sleep Off”.

• The sleep timer setting can also be canceled by pressing

RECEIVER A on the remote control (or MAIN ZONE A on

the front panel) to set this unit to standby mode.

Recording a source

Notes

Note

INPUT selectorREC OUT selector

Using the sleep timer

Notes

RECEIVER A

MAIN ZONE A

SLEEP

FM/AM TUNING

20 En

There are 2 tuning methods; automatic and manual. Select either method according to your preference and the strength of

station signals.

Automatic tuning is effective when station signals are

strong and there is no interference.

1Rotate the INPUT selector on the front panel

(or press TUNER on the remote control) to

select TUNER as the input source.

2Press FM or AM on the front panel (or FM or

AM on the remote control) to select the

reception band (FM or AM).

FM or AM is displayed on the front panel display.

3Press and hold TUNING/CH jj / ii on the

front panel (or TUN./CH H / I on the remote

control) for more than 1 second to begin

automatic tuning.

Press ii (or H) to tune in to a higher frequency.

Press jj (or I) to tune in to a lower frequency.

• When you tune in to a station, the frequency of the station is

displayed on the front panel display.

• If the tuning search does not stop at the desired station because

the station signals are weak, try using the manual tuning

method.

■Auto Mute feature

When listening to an FM radio station, the output will

automatically be muted when the radio signal is weak if

the station was tuned in to by:

• using the automatic tuning feature

• recalling a preset that was registered using the

automatic preset registration feature

If you want to listen to a station that has a weak signal,

tune in to the station manually.

FM/AM TUNING

Automatic tuning

FM, AM

TUNING/CH jj / ii

INPUT selector

TUN./CH H / I

FM, AM

TUNER

Notes

21 En

FM/AM TUNING

BASIC

OPERATION

Manual tuning is effective when station signals are weak.

1Rotate the INPUT selector on the front panel

(or press TUNER on the remote control) to

select TUNER as the input source.

2Press FM or AM on the front panel (or FM or

AM on the remote control) to select the

reception band (FM or AM).

FM or AM is displayed on the front panel display.

3Press TUNING/CH jj / ii on the front panel

(or TUN./CH H / I on the remote control) to

manually tune in to the desired station.

When you tune in to a station, the frequency of the received

station is shown in the front panel display.

4To tune in by direct frequency tuning, press

the numeric buttons on the remote control to

enter the frequency of the station.

Enter only integers. For example, if you want to set

the frequency to 88.9 MHz, enter “889”.

• When you press the numeric buttons on the remote control

during preset tuning, a preset number is selected. Set the tuning

mode to frequency tuning mode using TUNING/CH jj / ii on

the front panel (or TUN./CH H / I on the remote control)

before pressing the numeric buttons.

• “WRONG STATION!” is displayed on the front panel display if

you enter a frequency that is out of receivable range. Make sure

that the entered frequency is correct.

BASIC OPERATION

■Improving FM reception

If the signal from the station is weak and the sound quality

is not good, set the FM band reception mode to monaural

mode to improve reception.

1Press FM MODE/INFO on the front panel

repeatedly to select “STEREO” (automatic

stereo mode) or “MONO” (monaural mode)

when this unit is tuned in to an FM radio

station.

• When MONO is selected, FM broadcasts will be

heard in monaural sound.

• When STEREO is selected and an FM station with

a stereo broadcast is tuned in, the broadcast will be

heard in stereo.

The STEREO indicator on the front panel lights up while

listening to a station in stereo.

The FM band reception mode (monaural or stereo) can also be

changed by selecting FM Mode in the Option menu (see page 40).

Manual tuning

Note

FM, AM

TUNING/CH jj / ii

INPUT selector

TUN./CH H / I

Numeric

buttons

TUNER

FM, AM

Notes

Note

FM MODE/INFO

22 En

FM/AM TUNING

You can use the automatic station preset function to

automatically register FM stations as presets. This

function enables this unit to automatically tune in to FM

stations that have a strong signal and store up to 40 of

those stations in order. You can then easily recall any

preset station by selecting its preset number.

• If a station is registered to a preset number that already has a

station registered to it, the previously registered station is

overwritten.

• If the station you want to store is weak in signal strength, try

using the manual preset tuning method.

FM stations registered as presets using the automatic preset

registration feature will be heard in stereo.

1Rotate the INPUT selector on the front panel

(or press TUNER on the remote control) to

select TUNER as the input sourse.

2Press FM on the front panel (or FM on the

remote control) to select FM as the reception

band.

FM is displayed on the front panel display.

3Press OPTION on the remote control.

The Option menu for TUNER is displayed (see page

40).

4Press B / C on the remote control to select

“Auto Preset”, and then press ENTER.

This unit starts scanning the FM band about 5

seconds later from the lowest frequency upwards.

• Before scanning begins, you can specify the first preset number

to be used by pressing PRESET j / i on the front panel (or

PRESET F/G or B/C on the remote control).

• To cancel scanning, press FM or AM on the front panel (or FM

or AM or RETURN on the remote control).

When presets are registered, information is displayed

on the front panel display as shown in the illustration

above.

When scanning is complete, “FINISH” is displayed

and then the display returns to the Option menu.

To return the display to the original state, press

OPTION or RETURN on the remote control.

Automatic station preset

(FM stations only)

Notes

PRESET j / i

FM INPUT selector

TUNER

PRESET F / G

OPTION

RETURN

B / C

ENTER

Preset number Frequency

23 En

FM/AM TUNING

BASIC

OPERATION

You can manually register up to 40 FM/AM stations

(40 total). You can then easily recall any preset station by

selecting its preset number.

1Tune in to the desired FM/AM station.

See pages 20 and 21 for tuning instructions.

2Press MEMORY on the front panel.

“MANUAL PRESET” is displayed briefly on the

front panel display, and then the preset number to

which the station will be registered is displayed.

By holding down MEMORY on the front panel for more than

2 seconds, you can skip the following steps and automatically

preset number following the last preset number used).

3Press PRESET j / i on the front panel (or

PRESET F / G on the remote control) to

select the preset number to which the station

will be registered.

When you select a preset number to which no station

is registered, “EMPTY” is displayed. When you

select a preset number to which a station has already

been registered, the frequency of the station is

displayed.

You can also select a preset number using the numeric buttons on

the remote control.

4Press MEMORY on the front panel.

When registration is complete, the display returns to

the original state.

To cancel registration, RETURN on the remote control or do not

perform any operations for about 30 seconds.

Manual station preset

MEMORY

PRESET j / i

PRESET F / G

RETURN

Numeric

buttons

Preset number

24 En

FM/AM TUNING

You can recall preset stations that were registered using

automatic station preset or manual station preset.

1Press PRESET j / i on the front panel (or

PRESET F / G on the remote control) to

select a preset number.

• Preset numbers to which no stations are registered are skipped.

• “NO PRESETS” is displayed if no stations are registered.

• You can directly select a preset number by pressing the numeric

buttons on the remote control while recalling a preset station.

“EMPTY” is displayed on the display if you enter a preset

number to which no station is registered. “WRONG NUM.” is

displayed if you enter an invalid number.

• When you press the numeric buttons on the remote control

during normal tuning, a frequency is entered. Set the tuning

mode to preset tuning mode using PRESET j / i on the front

panel (or PRESET F / G on the remote control) before

pressing numeric buttons.

Follow the steps below to clear a preset station.

1Select the desired preset station number.

See “Recalling a preset station” on page 24.

2Press CLEAR on the front panel.

The selected preset number flashes on the front panel

display.

To cancel clearing the preset station, press RETURN on the

remote control or leave this unit without any operations for about

30 seconds.

3Press CLEAR on the front panel to confirm.

“PXX: CLEARED” (XX indicates the preset

number) is displayed on the front panel display, and

then the display returns to its original state.

Recalling a preset station

PRESET j / i

PRESET F / G

Clearing a preset station

CLEAR

RETURN

25 En

FM/AM TUNING

BASIC

OPERATION

Follow the steps below to clear all preset stations.

1Rotate the INPUT selector on the front panel

(or press TUNER on the remote control) to

select TUNER as the input sourse.

2Press OPTION on the remote control.

The Option menu for TUNER is displayed (see

page 40).

3Press B / C on the remote control to select

“Clr All Preset”, and then press ENTER.

To cancel the operation and return to the Option menu, press

RETURN on the remote control.

4Press D / E on the remote control to select

“YES”, and then press ENTER.

To cancel without clearing the presets, select “NO”.

When all presets have been cleared, “PRESET

CLEARED” is displayed, and then the display returns

to the Option menu.

5To exit the Option menu, press OPTION or

RETURN on the remote control.

Clearing all preset stations

INPUT selector

TUNER

RETURN

B / C / D / E

ENTER

OPTION

LISTENING TO SIRIUS SATELLITE RADIO™

26 En

Listening to Satellite Radio

To listen to Satellite Radio, you’ll need to connect a SIRIUS Satellite Radio tuner (sold separately) to your Sirius-Ready

receiver. SIRIUS Satellite Radio is available to residents of the US (except Alaska and Hawaii) and Canada.

Satellite Radio delivers a variety of commercial-free music from categories ranging from Pop, Rock, Country, R&B,

Dance, Jazz, Classical and many more plus coverage of all the top professional and college sports including play by play

games from select leagues and teams. Additional programming includes expert sports talk, uncensored entertainment,

comedy, family programming, local traffic and weather and news from your most trusted sources.

Once you’ve purchased a SIRIUS tuner you’ll need to activate it and subscribe to begin enjoying the service. Easy to

follow installation and setup instructions are provided with the SIRIUS tuner. There are a variety of programming

packages available, including the option of adding “The Best of XM” programming to the SIRIUS service. The “Best of

XM” service is not available to SIRIUS Canada subscribers at this time. Please check with SIRIUS Canada for any

updates using the numbers and web address below.

Family friendly packages are also available to restrict channels featuring content that may be inappropriate for children.

To subscribe to SIRIUS, U.S. and Canadian customers can call 1-888-539-SIRI (1-888-539-7474) or visit sirius.com

(US) or siriuscanada.ca (Canada).

LISTENING TO SIRIUS Satellite Radio™

SIRIUS Radio Legal

SIRIUS and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All other marks

and a one-time activation fee may apply. SIRIUS tuner required (sold separately) to receive the SIRIUS service. All

programming and fees subject to change. It is prohibited to copy, decompile, disassemble, reverse engineer, hack,

manipulate or otherwise make available any technology or software incorporated in receivers compatible with the

SIRIUS Satellite Radio System. Service not available in Alaska or Hawaii.

27 En

LISTENING TO SIRIUS Satellite Radio™

BASIC

OPERATION

Connect the SiriusConnect tuner (sold separately) to the

SIRIUS jack on the rear panel of this unit. For details, see

the instruction manuals provided with the SiriusConnect

tuner.

• To ensure optimal reception of SIRIUS Satellite Radio signals,

the antenna of the SiriusConnect tuner must be placed at or near

a window with no obstacles in the path to the sky. You can

mount it indoors or outdoors. The orientation of the antenna for

the best reception differs depending on the area. Refer to the

instruction manuals provided with the SiriusConnect tuner for

information about antenna installation.

• Use the “Antenna” information on the front panel display (see

page 34) to check the antenna reception level and adjust the

orientation of the antenna.

• You need to connect the SiriusConnect tuner to the AC wall

outlet.

• If “CHECK SR TUNER” or “ANTENNA ERROR” is

displayed on the front panel display, the SiriusConnect tuner or

antenna is not connected correctly. In such cases, check the

connection of the SiriusConnect tuner and the antenna.

• If “NOT SUPPORTED” is displayed on the front panel display,

this unit does not support the connected SiriusConnect tuner.

Before using the SIRIUS Satellite Radio feature, you need

to activate your SIRIUS Satellite Radio subscription. To

activate the subscription you need the Sirius ID which is

uniquely assigned to the SiriusConnect tuner. A Sirius ID

is 12-digit number which is indicated on the package of

the SiriusConnect tuner and on the label of the

SiriusConnect tuner. The Sirius ID is also displayed on the

front panel display when you tune in to the SIRIUS

Satellite Radio channel “0”.

■Displaying the Sirius ID of your

SiriusConnect tuner

Connecting the SiriusConnect™

tuner

Notes

SiriusConnect Tuner and the

antenna (sold separately)

To the AC wall outlet

Activating SIRIUS Satellite

Radio™ subscription

INPUT selector

SIRIUS

ENTER

28 En

LISTENING TO SIRIUS Satellite Radio™

1Rotate the INPUT selector on the front panel

(or press SIRIUS on the remote control) to

select SIRIUS as the input source.

2Press 0 on the remote control and then

ENTER to display the Sirius ID of your

SiriusConnect tuner.

“000 Sirius ID” and “xxxxxxxxxxxx” is displayed

alternately on the front panel display.

(“xxxxxxxxxxxx” indicates the 12-digit Sirius ID of

your SiriusConnect tuner.)

Write the Sirius ID below.

ID:________________________________________

3Contact SIRIUS Satellite Radio to activate

your subscription.

Status messages are displayed on the front panel display during

the activation. For details, see “SIRIUS Satellite Radio™” on

page 53. Once the activation is finished, “SUB UPDATED”

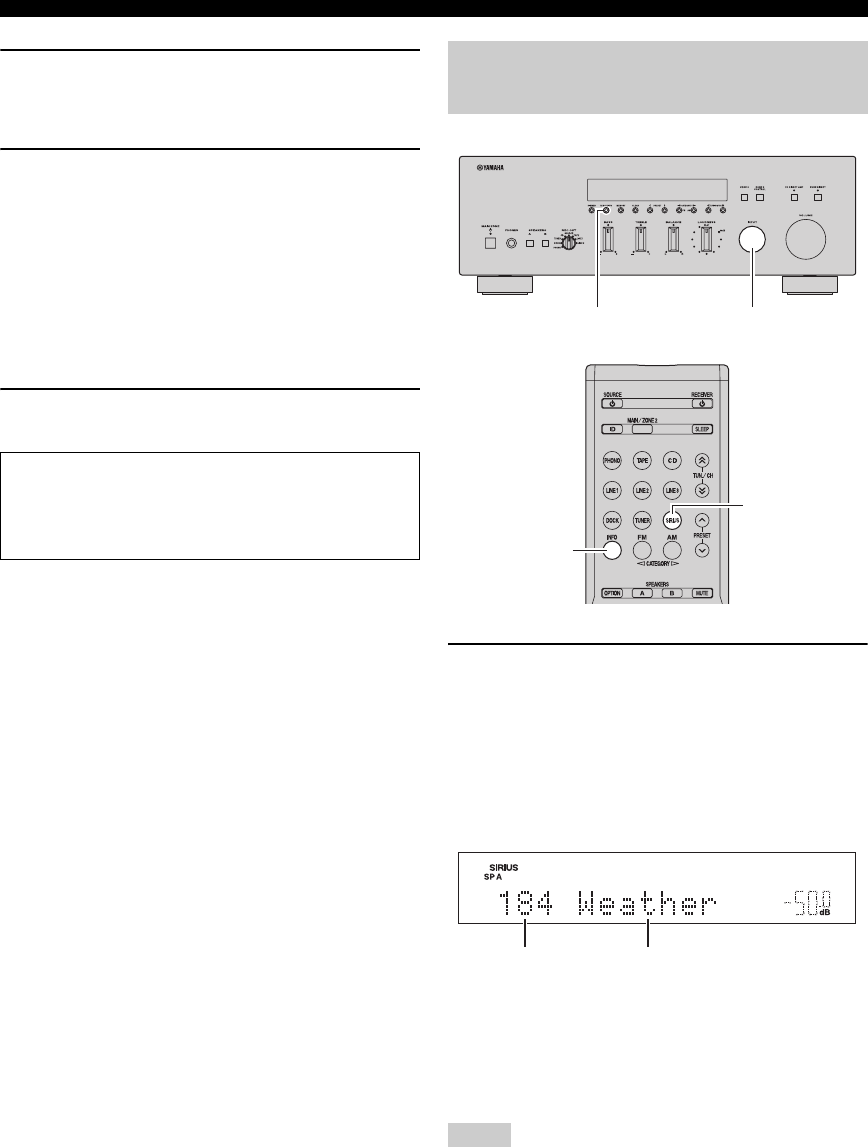

appears. 1Rotate the INPUT selector on the front panel

(or press SIRIUS on the remote control) to

select SIRIUS as the input source.

The SIRIUS indicator lights up on the front panel

display and the SIRIUS Satellite Radio information

(such as channel number, channel name, category,

artist name, or song title) for the currently selected

channel is displayed on the front panel display.

• When you select SIRIUS as the input source, this unit

automatically recalls the previously selected channel.

• You can change the SIRIUS Satellite Radio information that is

displayed by pressing FM MODE/INFO on the front panel (or

INFO on the remote control) (see page 34).

• If you have not activated your subscription yet, you can only

select “184” or “000”.

• If a status message or an error message is displayed on the front

panel display, see “SIRIUS Satellite Radio™” (see page 53).

SIRIUS Satellite Radio online information

Contact for activation

URL: https://activate.siriusradio.com/

Phone: 1-888-539-SIRIUS (1-888-539-7474)

SIRIUS Satellite Radio™

operations

Notes

INPUT selectorFM MODE/INFO

SIRIUS

INFO

Channel number Channel name

29 En

LISTENING TO SIRIUS Satellite Radio™

BASIC

OPERATION

2Search for a channel by using one of the

SIRIUS Satellite Radio search modes.

• All channel search mode

Selects a channel from a list of all channels (see

page 29).

• Category search mode

Selects a channel by category (see page 29).

• Direct number access mode

Selects a channel directly by channel number (see

page 30).

• Preset search mode

Selects a channel from the preset channels (see

page 31).

You can register channels as presets and then easily

recall any preset channel by selecting its preset

number.

• You can display SIRIUS Satellite Radio information on the

front panel display (see page 34).

• If you tune in to a channel that you do not subscribe to, “CALL

888-539-SIRIUS TO SUBSCRIBE” scrolls across the front

panel display, and then “CALL SIRIUS” is displayed.

• You can register SIRIUS Satellite Radio channels as presets

(see page 30).

■All channel search mode

1Press TUNING/CH jj / ii on the front panel

(or TUN./CH H / I on the remote control)

repeatedly to search for a channel from a list

of all channels.

• You can search for a channel quickly by holding down

TUNING/CH jj / ii on the front panel (or TUN./CH H / I on

the remote control).

• You can skip to channels in the previous or next category by

pressing CATEGORY l / h on the front panel (or

CATEGORY l / h on the remote control).

■Category search mode

1Press CATEGORY l / h on the front panel

(or CATEGORY l / h on the remote control)

to select a channel category.

The CATEGORY indicator lights up in the front

panel display when selecting a category. When you

select a category, the first channel in the category is

selected.

You can search for a channel category quickly by pressing and

holding CATEGORY l / h on the front panel (or CATEGORY

l / h on the front panel).

If no operations are performed for 10 seconds, the search mode

returns to the all channel search mode.

TUNING/CH jj / ii

TUN./CH H / I

CATEGORY l / h

Note

TUNING/CH jj / ii

TUN./CH H / I

CATEGORY l / h

Category name

30 En

LISTENING TO SIRIUS Satellite Radio™

2While the CATEGORY indicator on the front

panel display is lit, press TUNING/CH jj / ii

on the front panel (or TUN./CH H / I on the

remote control) repeatedly to search for a

channel within the selected channel

category.

• You can search for a channel quickly by pressing and holding

TUNING/CH jj / ii on the front panel (or TUN./CH H / I on

the remote control).

• In the category search mode, you can only search for a channel

within the selected channel category.

This unit skips the following channels in all channel search mode

or category search mode. This is not a malfunction.

• channels that are locked (see page 32)

• channels that are not currently in service

• channels that you do not subscribe to

■Direct number access mode

1Press the numeric buttons on the remote

control to enter the desired three-digit

channel number.

For example, to enter the number 123, press the

numeric buttons “1,” “2” and then “3”.

• To entering a one-digit or two-digit channel number, enter the

number using the numeric buttons and then press ENTER on

the remote control to confirm your entry.

• This unit automatically accepts your entry if you do not press

ENTER on the remote control within a few seconds after

entering the number.

• If the selected channel is locked, “PIN:___” is displayed on the

front panel display. Enter the 4-digit Parental Lock code

number by using the numeric buttons or press ENTER on the

remote control to cancel (see page 32).

• If the selected channel is not available, an advisory message

may be displayed. For details, refer to “SIRIUS Satellite

Radio™” (see page 53).

• If this unit is in preset search mode, a preset number is selected

instead of a channel number when you press the numeric

buttons on the remote control. To switch to direct number

access mode, press TUNING/CH jj / ii on the front panel (or

TUN./CH H / I on the remote control).

Up to 40 SIRIUS Satellite Radio channels can be

registered as preset channels.

■Registering preset channels

1Search for a channel to be registered.

For details on searching channels, refer to the

following pages.

• All channel search mode (see page 29)

• Category search mode (see page 29)

• Direct number access mode (see page 30)

Note

Numeric

buttons,

ENTER

Registering and recalling SIRIUS

Satellite Radio™ channels

PRESET j / i

PRESET F / G

RETURN

MEMORY

Numeric

buttons

31 En

LISTENING TO SIRIUS Satellite Radio™

BASIC

OPERATION

2Press MEMORY on the front panel.

The indicator on the front panel display changes as

follows.

• By holding down MEMORY on the front panel for more than

2 seconds, you can skip the following steps and automatically

preset number following the last preset number used).

• To cancel registration, press RETURN on the remote control or

do not perform any operations for about 30 seconds.

3Press PRESET j / i on the front panel (or

PRESET F / G on the remote control) to

select preset number.

• You can also select a preset number using the numeric buttons

on the remote control.

• If you select a preset number that is being used (i.e., if the

currently registered channel number is displayed next to the

preset number), the current preset will be overwritten.

4Press MEMORY on the front panel.

■Recalling a preset channel (Preset

Search mode)

You can recall preset channels by specifying their preset

numbers.

1Press PRESET j / i on the front panel (or

PRESET F / G on the remote control)

repeatedly to change the preset number

(1 to 40).

Currently registered channel number

(or “---” if empty)

Channel number to be

registered

Preset number to which new

channel number is registered PRESET j / i

PRESET F / G

32 En

LISTENING TO SIRIUS Satellite Radio™

■Clearing a preset channel

Follow the steps below to clear a preset channel one at a

time.

1Select the desired preset.

See “Recalling a preset channel (Preset Search

mode)” on page 31.

2Press CLEAR on the front panel.

The selected preset number flashes on the front panel

display.

To cancel clearing the preset channel, press RETURN on the

remote control or leave this unit without any operations for

about 30 seconds.

3Press CLEAR on the front panel to confirm.

“PXX: CLEARED” (XX indicates the preset

number) is displayed on the front panel display, and

then the display returns to its original state.

You can use the Parental Lock feature to limit access to

certain SIRIUS Satellite channels. This unit automatically

skips the locked channels when this unit is in the all

channel search mode or category search mode and you

search for a channel by pressing TUNING/CH jj / ii on

the front panel (or TUN./CH H / I on the remote

control).

■Setting the code number and locking/

unlocking channels

Use this feature to set the Parental Lock code number

(PIN) and select the channels to be locked or unlocked.

1Press OPTION on the remote control.

The Option menu for SIRIUS is displayed.

2Press B / C on the remote control to select

“Parental Lock”, and then press ENTER.

CLEAR

RETURN

Setting the Parental Lock

RETURN

OPTION

D / E / B / C

ENTER

Numeric

buttons

33 En

LISTENING TO SIRIUS Satellite Radio™

BASIC

OPERATION

3Use D / E (to select a digit to edit) and B / C

(to select a number) on the remote control to

enter the 4-digit code number.

• If you are entering a code number for the first time,

enter the desired code number.

• If you have entered a code number before, enter the

same code number.

You can also enter the code number using the numeric buttons on

the remote control.

4Press ENTER on the remote control.

If the code number was entered for the first time, a confirmation

message is displayed. Press ENTER again to confirm the code

number.

The SIRIUS channel number and channel name are

displayed on the front panel display.

• If a code number is already registered and you enter a different

number, “WRONG” is displayed and the display returns to step

3. Enter the correct code number.

• If you forget the Parental lock code or want to change it, reset it

using “SR PIN” (see page 43).

5Search for a channel to be locked or

unlocked.

For details on searching channels, refer to the

following pages.

• All channel search mode (see page 29)

• Category search mode (see page 29)

When searching for a channel, the sound of the selected channel

can be heard even if the channel is locked.

6Press ENTER on the remote control to lock

or unlock the selected channel.

• If the selected channel is locked, the channel

number and “LOCKED” are displayed on the front

panel display.

• If the selected channel is unlocked, the front panel

display changes from “LOCKED” to the channel

name.

7Repeat steps 5 and 6 to lock or unlock other

channels as desired.

8Press OPTION once or press RETURN

repeatedly on the remote control to exit the

“Parental Lock”.

• If the last channel you selected was locked, the unit

tunes in to “184 Weather/Emergency” or “000

SIRIUS ID”.

• If the last channel you selected was unlocked, the

unit tunes in to that channel.

■Tuning in to the locked channels

Tune in to the channel using direct number access mode

(see page 30) or preset search mode (see page 31). When

you tune in to a locked channel “LOCKED” is displayed

on the front panel display, followed by the following

message. Enter the Parental lock code set previously by

using the numeric buttons on the remote control. To cancel

this operation, press ENTER on the remote control.

If the number you entered does not match the code number,

“WRONG” is displayed on the front panel display and this unit

tunes in to the previously selected channel.

The entered code number is needed for tuning in the

channel or unlocking the channel. Write it down below.

Code number: ________________________________

Notes

Note

Numeric

buttons,

ENTER

34 En

LISTENING TO SIRIUS Satellite Radio™

Use this feature to display the SIRIUS Satellite Radio

information on the front panel display.

If a status message or an error message is displayed on the front

panel display, see “SIRIUS Satellite Radio™” on page 53.

1Press FM MODE/INFO on the front panel (or

INFO on the remote control) repeatedly to

switch between the following SIRIUS Satellite

Radio information display modes.

Back to “CHANNEL”

Display example (ANTENNA)

• If the SIRIUS Satellite Radio information contains a character

that cannot be recognized by this unit, the character will be

displayed as a space.

• When the antenna of the SiriusConnect tuner cannot receive the

signals, “ACQUIRING” is displayed on the front panel display.

• When an information is unavailable, “––––” is displayed.

• To hold or release the displayed information, press ENTER on

the remote control. While it is held, the “HOLD” indicator

flashes on the front panel display.

Displaying the SIRIUS Satellite

Radio™ information

Note

INFO

FM MODE/INFO

ENTER

CHANNEL

Channel number, channel name

CATEGORY

Channel category

ARTIST/SONG

Artist name, song title

COMPOSER

Composer name

ANTENNA

Antenna reception level

PLAYING BACK TUNES FROM YOUR IPHONE/IPOD/BLUETOOTH™ COMPONENT

35 En

BASIC

OPERATION

Once you have connected an optional Yamaha Universal Dock for iPod (such as the YDS-12), Wireless System for iPod

(YID-W10), or Bluetooth Wireless Audio Receiver (YBA-10) to the DOCK jack on the rear panel of this unit, you can

enjoy playback of your iPhone/iPod or Bluetooth component using the remote control supplied with this unit.

To prevent accidents, unplug the power cable of this unit before connecting a Universal Dock for iPod, a Wireless

System for iPod or a Bluetooth Wireless Audio Receiver.

If the iPhone connected to the YID-W10 receives a call while this unit is in standby mode, the unit turns on automatically and the

ringtone is heard through this unit. If you do not want this unit to turn on when a call is received, set the iPhone to silent mode.

PLAYING BACK TUNES FROM YOUR iPhone/iPod/

Bluetooth™ COMPONENT

Universal Dock for iPod Wireless System for iPod Bluetooth Wireless Audio

Receiver

Model

(As of July 2010)

• YDS-12

• YDS-11

• YDS-10

YID-W10 YBA-10

This unit can play back Audio and video Only audio Only audio

Operated by

• Remote control

• Zone 2 Remote control

(R-S700 only)

• iPhone/iPod connected to the

dock

• iPhone/iPod connected to the

YID-W10 transmitter

• Remote control

• Zone 2 Remote control

(R-S700 only)

Bluetooth components

Supported iPhone/iPod

(As of July 2010)

•iPod touch

•iPod (4th Gen/

5th Gen/

classic)

• iPod nano

•iPod mini

•iPhone

•iPhone 3G

•iPhone 3GS

• iPod touch

•iPod (5th Gen/

classic)

• iPod nano

•iPhone

•iPhone 3G

•iPhone 3GS

Remarks

• Only the R-S700 supports video

output.

• The YDS-10 does not support

video playback.

• iPhone/iPod charging also

supported.

• The YDS-10/YDS-11 does not

support iPhone connection.

iPhone/iPod charging also

supported.

CAUTION

Note

Position the connected

device as far as possible

from the unit.

(R-S700)

Such as the

YDS-12

Video in

YID-W10 YBA-10

36 En

PLAYING BACK TUNES FROM YOUR iPhone/iPod/Bluetooth™ COMPONENT

■Controlling your iPhone/iPod

After setting your iPhone/iPod in your dock, rotate the INPUT selector on the front panel (or press DOCK on the remote

control) to select DOCK as the input source to play your iPhone/iPod.

While viewing the information displayed on your iPhone/iPod, use the following remote control buttons to operate

(playback, pause, skip, etc.) your iPhone/iPod.

• “*” indicates buttons that can be used to control the Main zone only.

• Some shuffle modes and repeat modes may not be available depending on the model or the software version of your iPhone/iPod.

When this unit is turned on or is in standby mode, your iPhone/iPod can be charged automatically if it is connected to a Universal Dock

for iPod. The MAIN ZONE indicator remains brightly lit when an iPhone/iPod is being charged.

■Playing videos from your iPhone/iPod (R-S700 only)

If a video monitor, such as a TV, is connected to this unit’s iPod VIDEO jack using a composite video cable, you can use

the video monitor to watch videos stored on or streamed from your iPhone/iPod.

iPhone/iPod operation screens are not displayed on the video monitor.

Using a Universal Dock for iPod

Remote control Zone 2 remote control

(R-S700 only) Operation

MENU MENU Displays the menu.

ENTER ENTER • If an item is selected: Confirms the item and displays the next screen.

• If a song is selected: Plays the selected song.

BScroll up.

CScroll down.

Ee Ee • If a song is playing: Pauses the song.

• If a song is paused: Plays the song.

• If a song is playing or paused: Skips to the beginning of the next song.

• If pressed and held: Searches forward.

• If a song is playing or paused: Skips to the beginning of the current song.

• Pressing repeatedly skips one song backwards with each press.

• If pressed and held: Searches backward.

*Switches between shuffle modes (Off → Songs → Albums → Off).

*Switches between repeat modes (Off → One → All → Off).

INFO*

Switches between items displayed on the front panel display of this unit (Song

number and elapsed time → Songs → Artists → Albums → Song number and

elapsed time).

Notes

Note

DOCK

INFO

MENU/ Ee / b / a

ENTER

DOCK

MENU/ Ee / b / a

ENTER

37 En

PLAYING BACK TUNES FROM YOUR iPhone/iPod/Bluetooth™ COMPONENT

BASIC

OPERATION

By connecting a Wireless System for iPod to this unit, you

can play songs on your iPhone/iPod and listen to them

using a wireless connection.

You can use the remote control to control the iPhone/iPod. For

more information, see page 36.

When playing an iPhone/iPod using a Wireless System for iPod,

playback information is not displayed on the front panel display.

■Establishing a wireless connection

Once the iPhone/iPod is connected to the YID-W10

transmitter and playback begins, it takes about 5 seconds

for audio to be heard. During this time the wireless

connection between the YID-W10 transmitter and

receiver is established.

The status of the wireless connection between the

YID-W10 transmitter and receiver is indicated by the

respective indicator.

■Controlling this unit with your iPhone/

iPod

• When playback begins on an iPhone/iPod that is

connected to a YID-W10 transmitter, and if the

YID-W10 transmitter is within range of the YID-W10

receiver, this unit performs as follows:

– If this unit is already turned on when playback

begins: The input source switches to DOCK.

– If this unit is in standby mode when playback

begins: This unit turns on and the input source

switches to DOCK.

• In the following situations, the wireless connection

between the transmitter and receiver is disconnected.

After 30 seconds this unit automatically enters standby

mode.

– The iPhone/iPod is not operated for about 30–120

seconds after the playback is paused.

– The sleep timer of the iPhone/iPod is activated.

– The iPhone/iPod is disconnected from the

YID-W10 transmitter.

– The iPhone/iPod battery level decreases to a level

where it cannot provide enough power to the

YID-W10 transmitter.

– The YID-W10 transmitter is moved outside of the

wireless communication range of the YID-W10

receiver.

– Communication between the YID-W10 transmitter

and receiver becomes disrupted due to interference

from other wireless LAN devices, cordless

telephones, microwave ovens, etc.

These features can be disabled by setting “Interlock” to “OFF” in

the Option menu (see page 42).

• Adjusting the volume on the iPhone/iPod also adjusts

the volume of this unit. The iPhone/iPod can increase

the volume to up to 0 dB (or the value set for the

“MaxVol” setting in the Option menu). To further

increase the volume, adjust the volume using this unit’s

VOLUME control or the remote control.

• When this unit is turned on or is in standby mode, your iPhone/

iPod can be charged automatically if the YID-W10 transmitter

connected to your iPhone/iPod is stationed in the YID-W10

receiver. The MAIN ZONE indicator remains brightly lit when

an iPhone/iPod is being charged.

• Refer to the operating instructions of the YID-W10 for more

information.

When the iPhone/iPod is used in Zone 2, these features are not

available.

Using a Wireless System for iPod

Note

Status of

Connection

YID-W10

transmitter

indicator

YID-W10

receiver

indicator

No connection Off Off

Confirming

connection

Green, flashing Blue, flashing

Connected Green, lit Blue, lit

YID-W10 receiver

YID-W10

transmitter

Note

38 En

PLAYING BACK TUNES FROM YOUR iPhone/iPod/Bluetooth™ COMPONENT

This unit supports A2DP (Advanced Audio Distribution Profile)

and AVRCP (Audio and Video Remote Control Profile) of the

Bluetooth profile.

■Pairing Bluetooth™ components

Be sure to pair the Bluetooth Wireless Audio Receiver and

the Bluetooth component when connecting for the first

time or when settings have been deleted.

Refer to the operating instructions of your Bluetooth

component as necessary when carrying out pairing.

The Bluetooth Wireless Audio Receiver can be paired with up to

eight Bluetooth components. When the ninth device is paired, the

pairing settings for the device which has not been used for the

longest period of time will be deleted.

1Rotate the INPUT selector on the front panel

(or press DOCK on the remote control) to

select DOCK as the input source.

2Turn on the Bluetooth component you want

to pair and set it to pairing mode.

3Press OPTION on the remote control.

The Option menu for DOCK displayed (see page 40).

4Press B / C on the remote control to select

“Pairing”, and then press ENTER.

“Searching...” is displayed and pairing begins.

To cancel pairing, press RETURN on the remote control.

5Make sure the Bluetooth component

recognizes the Bluetooth Wireless Audio

Receiver.

When the component is recognized, it will be

displayed in the Bluetooth component list, for

example as “YBA-10 YAMAHA”.

6Select the Bluetooth Wireless Audio

Receiver from the Bluetooth component list,

and enter a pass key “0000” using the

Bluetooth component.

When pairing is complete, “Completed” is displayed

on the front panel display.

To exit the Option menu, press OPTION on the

remote control.

When the input source is set to DOCK, you can also begin pairing

by pressing and holding MEMORY on the front panel (or

ENTER on the remote control).

Using a Bluetooth Wireless Audio

Receiver

Note

INPUT selector

DOCK

MEMORY

OPTION

RETURN

B / C

ENTER

39 En

PLAYING BACK TUNES FROM YOUR iPhone/iPod/Bluetooth™ COMPONENT

BASIC

OPERATION

■Playing back BluetoothTM components

When pairing is complete, carry out the following

procedure to achieve a wireless connection between this

unit and the Bluetooth component.

When the wireless connection is complete, you can enjoy

playback from Bluetooth components.

Depending on the Bluetooth component, a wireless connection is

established automatically or when the Bluetooth component is

operated. In these cases, it is not necessary to carry out the

following procedure.

1Rotate the INPUT selector on the front panel

(or press DOCK on the remote control) to

select DOCK as the input source.

2Press OPTION on the remote control.

The Option menu for DOCK displayed (see page 40).

3Press B / C on the remote control to select

“Connect”, and then press ENTER.

When wireless connection is complete, “Connected”

is displayed on the front panel display.

To exit the Option menu, press OPTION on the

remote control.

“Not found” is displayed if there is a connection error. Check that

the following conditions have been satisfied, and try to establish a

wireless connection again.

• Both this unit and the Bluetooth component are paired.

• The Bluetooth component is switched on.

• The Bluetooth component is within 32 feet/10 meters of the

Bluetooth wireless audio receiver.

4Operate the Bluetooth component for

playback.

While the Bluetooth component is playing,

“BLUETOOTH” is displayed on the front panel

display.

To disconnect a wireless connection, repeat these steps and select

“Disconnect” in step 3.

When the input source is set to DOCK, you can also establish a

wireless connection by pressing MEMORY on the front panel (or

ENTER on the remote control).

Note

INPUT selector

DOCK

MEMORY

OPTION

B / C

ENTER

Note

SETTING THE OPTION MENU FOR EACH INPUT SOURCE

40 En

The Option menu allows you to configure various settings for each input source and recall those settings automatically

when an input source is selected. Also, you can view the signal information for certain input sources.

The procedure for setting the Option menu items is described below.

1Rotate the INPUT selector on the front panel

(or press one of the input selector buttons on

the remote control) to select the desired

input source.

2Press OPTION on the remote control.

If the input source is changed while the Option menu is displayed,

the front panel display exits the Option menu and the display for

the selected input source is displayed.

3Press B / C on the remote control to select

the desired menu item, and then press

ENTER.

4Press B / C / D / E on the remote control to

change the settings.

For certain menu items, you must press ENTER to save the new

setting.

5To exit the Option menu, press OPTION on

the remote control.

To return to the previous menu, press RETURN on

the remote control.

If B / C / D / E on the remote control or other buttons do not

work after closing the Option menu, rotate the INPUT selector on

the front panel (or press one of the input selector buttons on the

remote control) to select the current input source again.

The following menu items are provided for each input

source.

*1 “Zone2 Volume” and “Trigger Out” are available on the R-S700

only.

*2 “Interlock” is displayed in the Option menu only when using a

Wireless System for iPod.

SETTING THE OPTION MENU FOR EACH INPUT SOURCE

Note

INPUT selector

Input selector

buttons

OPTION

B / C / D / E

ENTER

RETURN

Note

Option menu items

Input source Menu items

PHONO, CD, TAPE 1,

LINE 1-3

Volume, Zone2 Volume*1, Trigger

Out*1

TUNER Volume, Zone2 Volume*1, Trigger

Out*1, FM Mode, Auto Preset, Clr

All Preset

SIRIUS Volume, Zone2 Volume*1, Trigger

Out*1, Parental Lock

DOCK (iPhone/iPod) Volume, Zone2 Volume*1, Trigger

Out*1, Interlock*2

DOCK (Bluetooth) Volume, Zone2 Volume*1, Trigger

Out*1, Connect, Disconnect, Pairing

Notes

41 En

SETTING THE OPTION MENU FOR EACH INPUT SOURCE

ADVANCED

OPERATION

Details of the menu items are as follows. The

configuration will be reflected to the input source

currently selected.

The default settings are marked with “*”.

Volu me

Sets items for volumes.

MaxVol (Maximum volume)

Sets the maximum volume level so that the volume will not

be accidentally increased above a certain level. For

example, you can adjust the volume between –89.5 dB and

–5.0 dB (or Mute) when you set this parameter to “–5.0dB”.

The volume can be increased to the maximum level when

this parameter is set to +16.5 dB (default).

IniVol (Initial volume)

Sets the volume at the time this unit is turned on. When

this parameter is set to “Off”, the volume level used when

this unit was set to standby is applied.

If “MaxVol” is set to a value lower than the “IniVol” setting, the

setting for “MaxVol” overrides the “IniVol” setting. For

example, if you set “MaxVol” to “–30.0dB” and “IniVol” to

“0.0dB”, the volume is automatically set to “–30.0dB” the next

time this unit is turned on.

Zone2 Volume (R-S700 only)

Sets the maximum volume level and initial volume level

of Zone 2.

MaxVol (Maximum volume)

Sets the maximum volume level for Zone 2. Refer to

“MaxVol (Maximum volume)” above.

IniVol (Initial volume)

Sets the volume at the time Zone 2 is turned on. Refer to

“IniVol (Initial volume)” above.

The “ZONE 2” indicator on the front panel display flashes when

the Zone2 volume is adjusted.

If “MaxVol” is set to a value lower than the “IniVol” setting, the

setting for “MaxVol” overrides the “IniVol” setting. For

example, if you set “MaxVol” to “–30.0dB” and “IniVol” to

“0.0dB”, the volume is automatically set to “–30.0dB” the next

time this unit is turned on.

Trigger Out (R-S700 only)

Use this feature to select the functions of the TRIGGER

OUT jack of this unit.

Power

Select this setting to send the voltage signals while the

selected zone is turned on.

Source

Select this setting to send the voltage signals while the

input source is selected.

Manual

Select this setting to send the voltage signals manually.

The settings that are available depend on the mode (Power,

Source, or Manual) that is selected.

Power: Zone

Source: Zone and Output level for each input source

Manual: Manual test

Zone

Select the zone to apply the setting you selected in

“Mode”.

All

The “Mode” setting is applied to the Main zone and

Zone 2.

Main

The “Mode” setting is applied to the Main zone only.

Zone 2

The “Mode” setting is applied to Zone 2 only.

Submenus: MaxVol, IniVol

Adjustable range

(MaxVol): –30.0dB to +15.0dB, +16.5dB* (5.0 dB step)

Adjustable range

(IniVol): Off*, Mute, –89.5dB to +16.5dB (0.5 dB step)

Note

Submenus: MaxVol, IniVol

Adjustable range

(MaxVol): –30.0dB to +15.0dB, +16.5dB* (5.0 dB step)

Adjustable range

(IniVol): Off*, Mute, –89.5dB to +16.5dB (0.5 dB step)

Note

Submenu: Mode

Choices: Power*, Source, Manual

Note

Choices: All*, Main, Zone 2

42 En

SETTING THE OPTION MENU FOR EACH INPUT SOURCE

Output level for each input source

Select the function of the TRIGGER OUT jack when

the corresponding input source is selected.

High

Send the voltage signals when you select the input

source you set in “Source”.

Low

Stop sending the voltage signals when you select the

input source you set in “Source”.

Manual test (Manual)

Confirm that the component connected to the

TRIGGER OUT jack operates when voltage signals

are sent to the component. This setting is available

only when “Mode” is set to “Manual”.

High

Send the voltage signals.

Low

Stop sending the voltage signals.

FM Mode

Sets the FM broadcast receiving mode.

“FM Mode” is displayed in the Option menu only when

TUNER is selected as the input source.

Auto Preset

Automatically detects FM radio stations and registers

them as preset stations (see page 22).

“Auto Preset” is displayed in the Option menu only when

TUNER is selected as the input source.

Clr All Preset

Clears all preset stations (see page 25).

“Clr All Preset” is displayed in the Option menu only

when TUNER is selected as the input source.

Parental Lock

Sets the Parental Lock (see page 32).

“Parental Lock” is displayed in the Option menu only

when SIRIUS is selected as the input source.

Interlock

When an iPhone/iPod is connected to this unit wirelessly

using a Wireless System for iPod, the iPhone/iPod can be

used to turn this unit on, set it to standby mode or select

DOCK as the input source.

“Interlock” is displayed in the Option menu only when

using a Wireless System for iPod and DOCK is selected as

the input source.

Connect/Disconnect

Connects to or disconnects from a Bluetooth component

(see page 39).

“Connect/Disconnect” is displayed in the Option menu

only when DOCK (Bluetooth) is selected as the input

source.

Pairing

Pairs the Bluetooth Wireless Audio Receiver and a

Bluetooth component (see page 38).

“Pairing” is displayed in the Option menu only when

DOCK (Bluetooth) is selected as the input source.

Choices: High*, Low

Choices: STEREO*, MONO

STEREO Receives in automatic stereo mode by priority.

MONO Receives in monaural mode. You can get a

better reception in monaural mode.

Choices: ON*, OFF

ON This unit responds to certain iPhone/iPod

operations.

OFF Disables this feature.

ADVANCED SETUP

43 En

ADVANCED

OPERATION

■ADVANCED SETUP menu parameters

Change the initial settings to reflect the needs of your

listening environment.

The default settings are marked with “*”.

REMOTE ID

Choices: ID1, ID2*

Changes the remote control ID of this unit.

• Select ID1 to operate this unit using an alternative

code.

• Select ID2 to operate this unit using the default code.

The remote control’s ID (see page 44) must be set to the same ID

as this unit.

SR PIN (SIRIUS Personal Identification Number)

Choices: CANCEL*, RESET

Resets the Parental Lock code used to lock/unlock

SIRIUS satellite radio channels.

APD (Automatic Power Down) TIMER

Choices: 4H (4 hours), 8H* (8 hours), 12H (12 hours)

When the POWER MANAGEMENT switch on the rear

panel of this unit (see page 7) is set to ON, this unit’s Main

zone and Zone 2 automatically enters standby mode if this

unit is not operated for the specified amount of time.

When the POWER MANAGEMENT switch is set to OFF, “APD

TIMER -OFF” is displayed.

INITIALIZE

Choices: NO*, YES

Resets all parameters to their factory presets.

• Select NO to cancel without resetting all parameters to

their factory presets.

• Select YES to reset all parameters to their factory

presets.

If “YES” is selected the parameters are reset the next time you

turn on the power of this unit.

The ADVANCED SETUP menu is displayed in the front

panel display.

• Audio output is muted while setting parameters in the

ADVANCED SETUP menu.

• While setting parameters in the ADVANCED SETUP menu,

most controls on the front panel are disabled; only MAIN

ZONE A, the INPUT selector and FM MODE/INFO are

operational.

1Press and hold FM MODE/INFO on the front

panel, and then press MAIN ZONE A.

This unit turns on, and the ADVANCED SETUP

menu is displayed on the front panel display.

2Rotate the INPUT selector on the front panel

to select the parameter you want to change.

See “ADVANCED SETUP menu parameters” on

page 43 for a complete list of available parameters.

3Press FM MODE/INFO on the front panel

repeatedly to change the selected parameter

setting.

To change other settings, repeat steps 2 and 3.

4Press MAIN ZONE A to set this unit to

standby mode to confirm your setting.

The settings you made take effect the next time you turn on this

unit.

ADVANCED SETUP

Note

Changing the ADVANCED SETUP

menu parameters

Note

MAIN ZONE A FM MODE/INFO INPUT selector

44 En

ADVANCED SETUP

When using multiple Yamaha receivers or amplifiers with

the same default code setting, you may unintentionally

operate those components simultaneously. In this case, set

one of the alternative codes for this unit to operate this

unit separately.

• Switching to ID1

Press and hold the ID button and the numeric button

“1” on the remote control together for about 3 seconds.

• Switching to ID2

Press and hold the ID button and the numeric button

“2” on the remote control together for about 3 seconds.

*When you change the remote control ID, you must

change the remote control ID of this unit (see page 43).

If the remote control batteries are weak or removed, the remote

control ID will switch to the default setting (ID2). In this case,

replace the batteries and set the remote control ID again.

Switching the remote control ID

Remote control ID*

(this unit’s setting) Function

ID1 To operate this unit using

an alternative code.

ID2

(default setting)

To operate this unit using

the default code.

Note

ZONE 2

45 En

ADVANCED

OPERATION

This unit allows you to configure a multi-room audio system. The Zone 2 feature enables you to set this unit to reproduce

separate input sources in the main room and in Zone 2 (the second room) simultaneously. You can control this unit from

the second room using the supplied remote control.

The R-S700 can also be operated using the supplied Zone 2 remote control.

You need the following additional equipment to use the multi-room system of this unit:

• An infrared signal receiver for the second room.

• An infrared emitter for the main room. This emitter transmits the infrared signals sent by the remote control in Zone 2

to the components in the main room.

• An amplifier and speakers for the second room.

Some Yamaha models are able to connect directly to the REMOTE OUT jack on the rear panel of this unit. If you own one of these

products, you may not need to use an infrared emitter. Up to six Yamaha components can be connected as shown below.

■Multi-room configuration and connections

The following illustration shows an example of a multi-room system configuration and connections.

Since there are many possible ways to connect and use this unit in a multi-room configuration, we recommend that you consult with

your nearest authorized Yamaha dealer or service center for the Zone 2 connections that best meet your requirements.

If you want to adjust the Zone 2 volume level by using the amplifier in the second room, we recommend setting the Zone 2 volume level

to or near 2.5 dB.

ZONE 2

Connecting Zone 2 components

Note

OUTOUT IN

REMOTE

OUT IN

REMOTE REMOTE

This unit Yamaha component Yamaha component

Infrared signal

receiver

Infrared emitter

CD changer

(or other components)

Amplifier

Zone 2

Remote control

(R-S700 only) Infrared signal

receiver

Second room (Zone 2)

Main room (Main Zone)

This unit

46 En

ZONE 2

Use the supplied remote control, Zone 2 remote control

(R-S700 only) or front panel to control the input source or

adjust the sound output level of Zone 2 independently of

the listening conditions in the main room.

*Sound output level can be adjusted on the R-S700 only.

When using the R-S500, follow the procedure described in

“Using the remote control” and “Using the front panel”.

■Using the Zone 2 remote control (R-S700

only)

1Press (Zone 2 on) on the Zone 2 remote

control to turn on Zone 2.

2Use the Zone 2 remote control as desired.

For information about each of the buttons on the

Zone 2 remote control, see “Zone 2 remote control

(R-S700 only)” on page 10.

■Using the remote control

1Change the zone that is operated by the

remote control.

• To control the Main zone

Press and hold the MAIN/ZONE 2 button and the

numeric button 1 on the remote control together for

about 3 seconds.

• To control Zone 2

Press and hold the MAIN/ZONE 2 button and the

numeric button 2 on the remote control together for

about 3 seconds.

2Use the remote control as desired.

For information about the buttons that can be used to

control Zone 2, see “Remote control” on page 8.

Buttons that can be used to control Zone 2 are

indicated by “ ” on page 8.

■Using the front panel

1Press ZONE 2 on the front panel to turn on

Zone 2.

2Press ZONE 2 CONTROL on the front panel

to control Zone 2.

The ZONE 2 indicator on the front panel display

blinks for about 10 seconds. During this time, you

can control Zone 2 from the front panel.

For information about the buttons and controls that

can be used to control Zone 2, see “Front panel” on

page 4. Buttons and controls that can be used to

control Zone 2 are indicated by “ ” on page 4.

Controlling Zone 2

Note

(Zone 2 on)

MAIN/

ZONE 2

ZONE 2 CONTROL

REMOTE CONTROL FEATURES

47 En

ADVANCED

OPERATION

The remote control can be used to control not only this unit, but also seven other audio-visual components (TV, DVD

player, VCR, etc.) made by Yamaha and other manufacturers. To control other components with this unit’s remote

control, you must first configure the remote control to control each component (see page 49).

■Controlling this unit

*1 These buttons always control this unit.

*2 These buttons control this unit only when OPTION is pressed.

■Controlling a TV

To use this unit’s remote control to control your TV,

determine the remote control code that corresponds to

your TV and assign that code to the TV A button or to

another input selector button on the remote control. For

details about assigning remote control codes, see page 49.

*1 These buttons control your TV if your TV’s remote control

code has been assigned to an input selector button.

*2 These buttons (described below) control your TV if your TV’s

remote control code has been assigned to the TV A button or to

an input selector button.

REMOTE CONTROL FEATURES

Controlling this unit, a TV, or other components

OPTION

TV control button Function

TV A Turns the TV on and off.

TV CH +/– Changes the TV’s channel.

TV VOL +/– Adjusts the TV’s volume.

TV INPUT Changes the TV’s input source.

MUTE Mutes the TV’s audio output.

TV A

48 En

REMOTE CONTROL FEATURES

• When using only one TV: Assign the TV’s remote control code

to the TV A button. The TV control buttons always control your

TV, regardless of the selected input source.

• To use other buttons (*1, above) to control your TV: Assign the

TV’s remote control code to the TV A button, and also to an

input selector button. The TV control buttons always control

your TV, regardless of the selected input source. You can use

the other buttons to operate the TV by first pressing the input

selector button to which the TV is assigned.

• To control more than one TV: Assign one TV to the TV A

button and the other TVs to other input selector buttons. You

can control the other TVs assigned by first pressing the input

selector button to which a TV is assigned. You can use the TV

control buttons to control the first TV whenever an input

selector button with no TV assigned to it is selected.

■Controlling other components

To use this unit’s remote control to control other

components (DVD player, VCR, etc.), determine the

remote control code that corresponds to the component

and assign that code to the desired input selector button on

the remote control. For details about assigning remote

control codes, see page 49.

To switch the input source and control the corresponding

component, press the input selector button on the remote

control, and then press the desired control button.

If you are unable to operate this unit after using the remote

control to operate an external component, press RECEIVER and

then try operating the remote control again.

The following table is an example of the component

features that may be controlled using this remote control.

Note that some features of the corresponding component

may not be supported, and that some buttons may not

correctly control the selected component.

Notes

[1]

[2]

[4]

[5]

[6]

[9]

[8]

[7]

Input selector

buttons

RECEIVER

[3]

Remote control Feature (example)

[1] SOURCE A Power

[2] TOP MENU Title

[3] B Up

C Down

D Left

E Right

ENTER Enter

[4] RETURN Return

[5] DISC SKIP/REC Disc skip (player)

Rec (recorder)

pPlay

wSearch backward

fSearch forward

e /A/B Pause (player, recorder)

Deck A/B (tape deck)

b /DIR A Skip backward (player, recorder)

Direction A (tape deck)

a /DIR B Skip forward (player, recorder)

Direction B (tape deck)

sStop

[6] 1-9, 0, +10 Numeric buttons

[7] MENU Menu

[8] DISPLAY Display

[9] ENTER Title/Index

49 En

REMOTE CONTROL FEATURES

ADVANCED

OPERATION

To use this unit’s remote control to control other

components (TV, DVD player, VCR, etc.), determine the

remote control code that corresponds to the component

and assign that code to the desired input selector button on

the remote control. Remote control codes are listed in the

“LIST OF REMOTE CONTROL CODES” at the end of

this manual.

■Default remote control configuration

The remote control is configured at the factory as shown

below.

If you cannot operate a Yamaha component when the remote

control is configured using the remote control code listed above,

refer to the “LIST OF REMOTE CONTROL CODES” at the end

of manual and try assigning a different Yamaha remote control

code.

■Assigning remote control codes

1Refer to the “LIST OF REMOTE CONTROL

CODES” at the end of this manual and

determine the remote control code that

corresponds to each of your components.

Components are listed by category (TV, VCR, DVD

player, etc.) and manufacturer.

2Press and hold CODE SET on the remote

control for more than 3 seconds.

3Press an input selector button on the remote

control to select the input source you want to

configure.

You can also press TV A to configure the TV control

buttons (see page 47).

4Use the numeric buttons on the remote

control to enter the four-digit remote control

code corresponding to the component you

want to assign.

When the component has been assigned, “OK” is

displayed on the front panel display. If an error

occurs, “NG” is displayed.

• If the manufacturer of your component has more than one

remote control code, assign each code one at a time until you

find the code that successfully controls your component.

• You can only assign one remote control code to each input

selector button.

■Resetting the remote control

Use this procedure to reset the remote control codes

assigned to each input selector to the factory default (see

“Default remote control configuration” above).

This procedure will be cancelled if you do not press any buttons

for 1 minute. If the procedure is cancelled, repeat from step 1 if

necessary.

1Press and hold CODE SET on the remote

control for more than 3 seconds.

2Press OPTION on the remote control.

3Use the numeric buttons on the remote

control to enter “9981”.

The remote control code assigned to each input

selector button will be reset to its factory default

code.

Configuring the remote control

Button Component

category Manufacturer Default

code

CD CD player Yamaha 5082

TAPE TAPE deck Yamaha 5087

PHONO — — —

LINE 1 CD recorder Yamaha 5083

LINE 2 DVD player Yamaha 2082

LINE 3 Blu-ray disc

player Yamaha 2064

TV A ———

Note

Input selector

buttons

Numeric

buttons

CODE SET

OPTION

TV A

Notes

Note

TROUBLESHOOTING

50 En

Refer to the chart below if this unit does not function properly. If the problem you are experiencing is not listed below or

if the instructions below do not help, set this unit to standby mode, disconnect the power cable, and contact the nearest

authorized Yamaha dealer or service center.

■General

TROUBLESHOOTING

Problem Cause Remedy See

page

This unit fails to turn

on.

The power cable is not connected or the

plug is not completely inserted.

Connect the power cable firmly. —

The impedance setting is incorrect. Set the impedance to match your speakers. 13

The protection circuitry has been activated

because of a short circuit, etc.

Check that the speaker wires are not touching each

other and then turn the power of this unit back on. 12

The IMPEDANCE SELECTOR switch on

the rear panel is not set to either end.

Set the IMPEDANCE SELECTOR switch to either

end when the power of this unit is turned off. 13

This unit has been exposed to a strong

external electric shock (such as lightning

or strong static electricity).

Set this unit to standby mode, disconnect the power

cable, plug it back in after 30 seconds, then use it

normally.

—

No sound Incorrect input or output cable

connections.

Connect the cables properly. If the problem persists,

the cables may be defective. 12

No appropriate input source has been

selected.

Select an appropriate input source with the INPUT

selector on the front panel (or one of the input

selector buttons on the remote control).

The SPEAKERS A/B switches are not set

properly.

Turn on the corresponding SPEAKERS A or

SPEAKERS B. 16

Speaker connections are not secure. Secure the connections. 12

Output has been muted. Turn off the mute. 8

The MaxVol or IniVol setting is set too

low.

Set the setting to a higher value. 40

The component corresponding to the

selected input source is turned off or is not

playing.

Turn the component on and make sure it is playing.

—

The sound suddenly

goes off.

The protection circuitry has been activated

because of a short circuit, etc.

Check that the IMPEDANCE SELECTOR switch is

set to the correct position. 13

Check that the speaker wires are not touching each

other and then turn the power of this unit back on. 12

This unit has become too hot. Make sure the openings on the top panel are not

blocked. —

The automatic power down function has

turned this unit off.

Change the automatic power down setting (“APD

TIMER” in the Advanced Setup menu) to a longer

setting, or disable the automatic power down function

by setting the POWER MANAGEMENT switch on

the rear panel to OFF.

Only the speaker on

one side can be

heard.

Incorrect cable connections. Connect the cables properly. If the problem persists,

the cables may be defective. 12

Incorrect setting for the BALANCE

control.

Set the BALANCE control to the appropriate

position. 18

There is a lack of bass

and no ambience.

The + and – wires are connected in

reverse at the amplifier or the speakers.

Connect the speaker wires to the correct + and –

phase. 12

51 En

TROUBLESHOOTING

ADDITIONAL

INFORMATION

A “humming” sound

can be heard.

Incorrect cable connections. Connect the audio plugs firmly. If the problem

persists, the cables may be defective. 12

No connection from the turntable to the

GND terminal.

Make the GND connection between the turntable and

this unit. 12

The volume level is

low while playing a

record.

The record is being played on a turntable

with an MC cartridge.

The turntable should be connected to this unit through

the MC head amplifier. —

The volume level

cannot be increased,

or the sound is

distorted.

The component connected to the TAPE

REC or LINE 1 REC output jacks of this

unit is turned off.

Turn on the power of the component.

—

The sound is

degraded when

listening with the

headphones

connected to the CD

player or the tape

deck connected to

this unit.

The power of this unit is turned off, or this

unit is set to standby mode.

Turn on the power of this unit.

The sound level is

low.

The loudness control function is

operating.

Turn down the volume, set the LOUDNESS control

to the FLAT position, and then adjust the volume

again.

The input source

cannot be changed

although the INPUT

selector is rotated.

The CD DIRECT AMP switch is turned

on (R-S700 only).

Turn off the CD DIRECT AMP switch.

Using the BASS,

TREBLE, BALANCE

and LOUDNESS

controls does not

affect the tonal

quality.

The CD DIRECT AMP (R-S700 only) or

the PURE DIRECT switch is turned on.

The CD DIRECT AMP or the PURE DIRECT switch

must be turned off to use those controls.

Problem Cause Remedy See

page

52 En

TROUBLESHOOTING

■Tuner

Problem Cause Remedy See

page

FM stereo

reception is

noisy.

The particular characteristics of the FM

stereo broadcasts being received may

cause this problem when the transmitter is

too far away or the antenna input is poor.

Check the antenna connections.

Try using a high-quality directional FM antenna. 14

Switch to monaural mode. 21

There is

distortion, and

clear reception

cannot be

obtained even

with a good FM

antenna.

There is multipath interference. Adjust the antenna position to eliminate the multipath

interference.

—

The desired

station cannot

be tuned in

with the

automatic

tuning method.

The signal is too weak. Try using a high-quality directional FM antenna. 14

Try using the manual tuning method.

FM/

NO PRESETS

is displayed.

No preset stations are registered. Register stations you want to listen to as preset

stations before operation. 22

WRONG

STATION is

displayed.

An invalid FM/AM frequency has been

input.

Input a frequency that can be received.

The desired

station cannot

be tuned in

with the

automatic

tuning method.

The signal is weak or the antenna

connections are loose.

Tighten the AM loop antenna connections and orient

it for the best reception. —

Try using the manual tuning method.

Automatic

station preset

does not work.

Automatic station preset is not available

for AM stations.

Use manual station preset.

There are

continuous

crackling and

hissing noises.

The noises may result from lightning,

fluorescent lamps, motors, thermostats or

other electrical equipment.

Try using an outdoor antenna and a ground wire.

This will help somewhat, but it is difficult to

eliminate all noise. —

There are

buzzing and

whining noises.

A TV set is being used nearby. Move this unit away from the TV set.

—

53 En

TROUBLESHOOTING

ADDITIONAL

INFORMATION

■SIRIUS Satellite RadioTM

The following messages may be displayed on the front panel display in certain situations.

Message Status/Cause Remedy See

page

ANTENNA ERROR The antenna is not connected to the

SiriusConnect tuner properly.

Check the connection of the antenna and

SiriusConnect tuner. 27

SIRIUS LOADING This unit is communicating with the

SiriusConnect tuner.

The message disappears normally within several tens

of seconds. —

CHECK SR TUNER The SiriusConnect tuner is not connected

to the SIRIUS jack of this unit correctly.

Check the connection of the SiriusConnect tuner and

this unit. 27

The SiriusConnect tuner is not connected

to the AC wall outlet.

Connect the power cable of the SiriusConnect tuner

to the AC wall outlet. —

NOT SUPPORTED This unit does not support the connected

SIRIUS Satellite Radio tuner.

Connect the SiriusConnect tuner that this unit

supports, —

ACQUIRING The signal is too weak. Adjust the orientation of the antenna of the

SiriusConnect tuner. Check the antenna reception

level from the Antenna information on the front

panel display.

UPDATING The SiriusConnect tuner is updating the

channel list.

Wait until the updating is complete. —

The period of the subscription is end. Contact SIRIUS Satellite Radio to renew the

subscription. —

F/W UPDATING The SiriusConnect tuner is updating the

firmware.

Wait until the updating is complete. —

CALL SIRIUS

(CALL 888-539-

SIRIUS TO

SUBSCRIBE)

The selected channel is not subscribed. Contact SIRIUS Satellite Radio to subscribe the

selected channel.

URL: https://activate.siriusradio.com/

Phone: 1-888-539-SIRIUS (1-888-539-7474)

—

Select another channel. 28

SUB UPDATED The subscription information is updated. —

INVALID The selected channel is currently out of

service.

Select another channel. 28

NOT AVAILABLE The operation you made is not available. —

54 En

TROUBLESHOOTING

■iPhone/iPod

The following messages may be displayed on the front panel display in certain situations.

Message Status/Cause Remedy See

page

Connect error There is a problem with the signal path

from your iPhone/iPod to the unit.

Turn off the unit and reconnect the Universal Dock

for iPod to the DOCK jack of the unit. 35

Remove your iPhone/iPod from the Universal Dock

for iPod and then place it back in the dock. 35

Unknown iPod The iPhone/iPod being used is not

supported by the unit.

Connect an iPhone/iPod supported by the unit. 35

Connected Your iPhone/iPod is properly placed in

the Universal Dock for iPod. —

Your iPhone/iPod is properly placed in

the Wireless System for iPod and

connected with this unit via wireless

transmission.

Disconnected Your iPhone/iPod is removed from the

Universal Dock for iPod. —

Your iPhone/iPod is disconnected with

this unit via wireless transmission. —

The wireless connection is poor. Place the YID-W10 receiver as far away from this

unit as possible. 35

Problem Cause Remedy See

page

When using the

Universal Dock for

iPod:

Your iPhone/iPod is

not being charged

even though it is

connected to the

Universal Dock for

iPod.

The iPhone/iPod is not connected

securely.

Connect the iPhone/iPod securely to the Universal

Dock for iPod.

—

When using the

Wireless System for

iPod:

Your iPhone/iPod is

not being charged

even though the YID-

W10 transmitter

connected to your

iPhone/iPod is

stationed in the YID-

W10 receiver.

The YID-W10 transmitter is not stationed

securely in the YID-W10 receiver.

Station the YID-W10 transmitter connected to your

iPhone/iPod securely in the YID-W10 receiver.

—

55 En

TROUBLESHOOTING

ADDITIONAL

INFORMATION

■Bluetooth™

The following messages may be displayed on the front panel display in certain situations.

Message Status/Cause Remedy See

page

Searching... The Bluetooth Wireless Audio Receiver

and the Bluetooth component are in the

process of pairing.

—

The Bluetooth Wireless Audio Receiver

and the Bluetooth component are in the

process of establishing a connection.

—

Completed The pairing is completed. —

Canceled The pairing is canceled. —

Connected The connection between the Bluetooth

Wireless Audio Receiver and the

Bluetooth component is established.

—

Disconnected The Bluetooth component is

disconnected from the Bluetooth Wireless

Audio Receiver.

—

Not found The Bluetooth component is not found. During pairing:

– pairing must be performed on the Bluetooth

component and this unit simultaneously. Check if

the Bluetooth component is in pairing mode.

During connecting:

– check if the Bluetooth component is turned on.

– check if the Bluetooth component is within 10 m

(32 feet) of the Bluetooth Wireless Audio

Receiver.

—

Pairing may not have been achieved. Try pairing again. 38

56 En

TROUBLESHOOTING

■Remote control

Problem Cause Remedy See

page

The remote control

does not work nor

function properly.

Wrong distance or angle. The remote control will function within a maximum

range of 6 m (20 ft) and no more than 30 degrees off-

axis from the front panel.

Direct sunlight or lighting (from an

inverter type of fluorescent lamp, etc.) is

striking the remote control sensor of this

unit.

Reposition this unit.

—

The batteries are weak. Replace all batteries. 11

The remote control ID and this unit’s ID

do not match.

Switch the remote control ID or this unit’s ID. 44

The remote control code was not correctly

set.

Try setting another code of the same manufacturer

using “LIST OF REMOTE CONTROL CODES” at

the end of this manual.

Even if the remote control code is

correctly set, there are some models that

do not respond to the remote control.

Use the supplied remote control for the components.

—

You did not press the input selector button

corresponding to the component you are

trying to control.

Press the input selector button corresponding to the

component you are trying to control, and then press

the desired remote control button(s).

—

The remote control is not set to the correct

zone.

Set the remote control to the correct zone, the Main

zone or Zone 2, and then operate the remote control. 46

If the remote control batteries are weak or

removed, the remote control ID and zone

will switch to the default settings (ID2 and

Main zone).

Replace all batteries, and then set the remote control

ID and zone again. 44, 46

SPECIFICATIONS

57 En

ADDITIONAL

INFORMATION

AUDIO SECTION

• Minimum RMS output power

[R-S700]

(8 Ω, 20 Hz to 20 kHz, 0.019% THD) .............. 100 W + 100 W

(6 Ω, 20 Hz to 20 kHz, 0.03% THD) ................ 120 W + 120 W

[R-S500]

(8 Ω, 20 Hz to 20 kHz, 0.04% THD) .................... 75 W + 75 W

• Dynamic power per channel (IHF)

(8/6/4/2 Ω)

[R-S700] ..................................................... 140/170/220/290 W

[R-S500] ..................................................... 105/125/150/178 W

• Maximum power per channel [Europe model only]

(1 kHz, 0.7% THD, 4 Ω)

[R-S700] .......................................................................... 160 W

[R-S500] .......................................................................... 105 W

• IEC power [Europe model only]

[R-S700] (1 kHz, 0.019% THD, 8 Ω) ................................ 115 W

[R-S500] (1 kHz, 0.04% THD, 8 Ω) .................................... 84 W

• Power band width

[R-S700] (0.06% THD, 50 W, 8 Ω) .................... 10 Hz to 50 kHz

[R-S500] (0.06% THD, 37.5 W, 8 Ω) ................. 10 Hz to 50 kHz

• Damping factor (SPEAKERS A)

1 kHz, 8 Ω

[R-S700] ................................................................. 240 or more

[R-S500] ................................................................. 150 or more

• Maximum effective output power (JEITA)

[Asia (R-S500 only) and Central/South America models only]

[R-S700] (1 kHz, 10% THD, 8/6 Ω) ........................ 145/170 W

[R-S500] (1 kHz, 10% THD, 8 Ω) .................................. 115 W

• Input sensitivity/Input impedance

PHONO (MM) ....................................................... 3.5 mV/47 kΩ

CD, etc. ................................................................. 200 mV/47 kΩ

[R-S700] MAIN IN .................................................... 1.0 V/47 kΩ

• Maximum input signal

PHONO (MM) (1 kHz, 0.003% THD) ................. 60 mV or more

CD, etc. (1 kHz, 0.5% THD) .................................. 2.2 V or more

• Output level/Output impedance

CD, etc. (Input 1 kHz, 200 mV)

REC .................................................................. 200 mV/1.0 kΩ

CD, etc. (Input 1 kHz, 200 mV, 8 Ω)

PHONES ............................................................ 410 mV/470 Ω

• Frequency response

CD, etc. (20 Hz to 20 kHz) ........................................... 0 ± 0.5 dB

[R-S700] CD, etc., PURE DIRECT on/MAIN IN

(10 Hz to 100 kHz) .................................................... 0 ± 1.0 dB

[R-S500] CD, etc., PURE DIRECT on

(10 Hz to 100 kHz) .................................................... 0 ± 1.0 dB

• RIAA equalization deviation

PHONO (MM) ................................................................. ± 0.5 dB

• Total harmonic distortion

PHONO (MM) to REC

(20 Hz to 20 kHz, 3 V) .......................................... 0.025% or less

[R-S700]

CD, etc. to PRE OUT

(20 Hz to 20 kHz, 1 V) ....................................... 0.005% or less

CD, etc. to SPEAKERS

(20 Hz to 20 kHz, 50 W, 8 Ω) ............................. 0.015% or less

[R-S500]

CD, etc. to SPEAKERS

(20 Hz to 20 kHz, 37.5 W, 8 Ω) .......................... 0.015% or less

• Signal to noise ratio (IHF-A network)

PHONO (MM) (5 mV input shorted) .................... 87 dB or more

CD, etc., PURE DIRECT on

(200 mV input shorted) ..................................... 100 dB or more

[R-S700] CD, CD DIRECT AMP on

(200 mV input shorted) ..................................... 107 dB or more

• Residual noise (IHF-A network) ........................................... 30 µV

• Channel separation

CD, etc. (5.1 kΩ input shorted, 1/10 kHz) ........ 65/50 dB or more

• Tone control characteristics

BASS

Boost/Cut (50 Hz) ......................................................... ± 10 dB

Turnover Frequency ........................................................ 350 Hz

TREBLE

Boost/Cut (20 kHz) ....................................................... ± 10 dB

Turnover Frequency ....................................................... 3.5 kHz

• Continuous loudness control

Attenuation (1 kHz) ............................................................ –30 dB

• Gain tracking error (0 to –99 dB) ............................... 0.5 dB or less

FM SECTION

• Tuning range

[U.S.A. and Canada models] ........................... 87.5 to 107.9 MHz

[Asia (R-S500 only) and Central/South America models]

................................................. 87.5/87.50 to 107.9/108.00 MHz

[Europe, Russia and Australia models] ....... 87.50 to 108.00 MHz

• 50 dB quieting sensitivity (IHF, 1 kHz, 100% MOD.)

Mono ................................................................ 3.0 µV (20.8 dBf)

• Signal to noise ratio (IHF)

Mono/Stereo .............................................................. 74 dB/70 dB

• Harmonic distortion (1 kHz)

Mono/Stereo ................................................................ 0.3%/0.3%

AM SECTION

• Tuning range

[U.S.A. and Canada models] .............................. 530 to 1710 kHz

[Asia (R-S500 only) and Central/South America models]

.......................................................... 530/531 to 1710/1611 kHz

[Europe, Russia and Australia models] ............... 531 to 1611 kHz

GENERAL

• Power supply

[U.S.A. and Canada models] .............................. AC 120 V, 60 Hz

[Central/South America models]

............................................... AC 110-120/220-240 V, 50/60 Hz

[Australia model] ............................................... AC 240 V, 50 Hz

[Europe and Russia models] ............................... AC 230 V, 50 Hz

[Asia model (R-S500 only)]................... AC 220-240 V, 50/60 Hz

• Power consumption

[R-S700]

[U.S.A. and Canada models] .............................. 270 W, 370 VA

[Other models] ................................................................ 270 W

[R-S500]

[Asia model] .................................................................... 170 W

[Other models] ................................................................ 190 W

• Standby power consumption ....................................... 0.5 W or less

• YID-W10 standby power consumption

(YID-W10 connect) ................................................. 1.2 W or less

• iPod charge power consumption

[R-S700] .................................................................... 40 W or less

[R-S500] .................................................................... 35 W or less

• Maximum power consumption [Central/South America models

only]

[R-S700] (6 Ω , 1 kHz, 10% THD) ..................................... 570 W

[R-S500] (8 Ω , 1 kHz, 10% THD) .................................... 380 W

• Dimensions (W x H x D) ................................ 435 × 151 × 387 mm

(17-1/8" × 6" × 15-1/4")

•Weight

[R-S700] ............................................................ 11.2 kg (24.7 lbs)

[R-S500] ............................................................ 10.2 kg (22.5 lbs)

* Specifications are subject to change without notice.

SPECIFICATIONS

LIST OF REMOTE CONTROL CODES

A.R. Systems 0320

Acme 0342

Acura 0323, 0343

ADC 0337

Admiral 0054, 0178, 0336,

0337, 0339, 0346,

0347

Advent 0158

Adventura 0057

Adyson 0277, 0282, 0342

Agashi 0277, 0282

Agazi 0337

Aiko 0277, 0282, 0320,

0323, 0342, 0343

Aim 0320

Aiwa 0078, 0379

Akai 0050, 0055, 0109,

0159, 0181, 0277,

0282, 0320, 0323,

0340, 0343, 0349,

0350

Akiba 0320, 0340

Akura 0320, 0323, 0337,

0340

Alaron 0277

Alba 0161, 0277, 0320,

0323, 0340, 0342,

0343, 0344, 0349,

0351, 0372, 0382

Albatron 0140

Alcyon 0171

Alleron 0059

Allorgan 0282

Allstar 0320, 0350

America Action 0179

AMOi 0276

Amplivision 0161, 0282, 0321,

0342

Amstrad 0320, 0323, 0337,

0340, 0343

Amtron 0058

Anam 0179, 0343

Anam National 0052, 0058

Anglo 0323, 0343

Anitech 0171, 0320, 0323,

0337, 0343

Ansonic 0161, 0168, 0320,

0323, 0341, 0343

AOC 0008, 0026, 0050,

0053

Apex 0039, 0111, 0217

Arcam 0277, 0282

Arcam Delta 0342

Aristona 0320, 0349, 0350

Arthur Martin 0321

ASA 0339, 0347

Asberg 0171, 0320, 0350

Astra 0343

Asuka 0277, 0282, 0337,

0340, 0342

Atlantic 0277, 0320, 0342,

0349, 0350

Atori 0323, 0343

Auchan 0321

Audiosonic 0161, 0282, 0320,

0340, 0342, 0343,

0349, 0350

AudioTon 0161, 0282, 0342

Audiovox 0058, 0179, 0194

Ausind 0171

Autovox 0171, 0282, 0337,

0339, 0342

Aventura 0051

Awa 0277, 0282

Axion 0156

Baird 0282

Bang & Olufsen 0180, 0339

Basic Line 0282, 0320, 0323,

0340, 0343, 0350

Bastide 0282, 0342

Baur 0320, 0349

Bazin 0282

Beko 0161, 0269, 0294,

0302, 0311, 0320,

0328, 0351

Belcor 0008

Bell & Howell 0019, 0054

Benq 0097, 0242, 0361

Beon 0320, 0349, 0350

Best 0161

Bestar 0161, 0320, 0350

Binatone 0282, 0342

Blue Sky 0320, 0340

Blue Star 0348

Boots 0282, 0342

BPL 0320, 0348

Bradford 0058, 0179

Brandt 0322, 0345

Brillian 0182

Brinkmann 0320

Brionvega 0320, 0339, 0349,

0350

Britannia 0277, 0282, 0342

Brockwood 0008

Broksonic 0109, 0179

Bruns 0339

BTC 0340

Bush 0269, 0282, 0283,

0304, 0320, 0323,

0328, 0332, 0340,

0343, 0344, 0346,

0348, 0349, 0350,

0372, 0382, 0463,

0470, 0472

Candle 0008, 0026, 0050,

0057

Capsonic 0337

Carena 0320

Carnivale 0050

Carrefour 0344

Carver 0010

Cascade 0320, 0323, 0343

Casio 0367

Cathay 0320, 0349, 0350

CCE 0183, 0282

Celebrity 0055, 0107

Celera 0039

Centurion 0320, 0349, 0350

Century 0339

CGE 0161, 0171

Changhong 0039

Chimei 0273

Cimline 0323, 0343

Citizen 0007, 0008, 0026,

0050, 0058

City 0323, 0343

Clarion 0179

Clarivox 0349

Clatronic 0161, 0171, 0282,

0320, 0323, 0337,

0340, 0342, 0343,

0350, 0351

CMS 0277

CMS Hightec 0282

Coby 0197

Colortyme 0008, 0026

Commercial Solutions

0021

Concerto 0008, 0026

Concorde 0323, 0343

Condor 0161, 0277, 0320,

0323, 0342, 0350,

0351

Contec 0179, 0277, 0323,

0342, 0343, 0344

Contec/Cony 0012, 0058

Continental Edison

0345

Cosmel 0323, 0343

Craig 0058, 0179

Crosley 0010, 0037, 0171,

0339

Crown 0058, 0161, 0171,

0179, 0320, 0323,

0343, 0349, 0350,

0351

CS Electronics 0277, 0340, 0342

CTC Clatronic 0341

CTX 0205

Curtis Mathes 0007, 0008, 0010,

0019, 0021, 0026,

0049, 0050, 0178

CXC 0058, 0179

Cybertron 0340

Cytron 0152

Daewoo 0007, 0008, 0026,

0037, 0053, 0167,

0266, 0275, 0277,

0282, 0315, 0320,

0323, 0331, 0335,

0342, 0343, 0350,

0381, 0465

Dainichi 0277, 0340

Dansai 0277, 0282, 0320,

0337, 0349, 0350

Dantax 0161, 0349

Dawa 0320

Daytron 0007, 0008, 0026,

0323, 0343

De Graaf 0346

Decca 0282, 0320, 0342,

0349, 0350

Dell 0145, 0245

Denver 0358, 0362

Desmet 0320, 0349, 0350

Diamant 0320

Diamond 0277

DiamondVision 0135, 0143

Dimensia 0049

Disney 0219

Dixi 0282, 0320, 0323,

0343, 0349, 0350

Dream Vision 0461, 0498

DTS 0323, 0343

Dual 0282, 0320, 0342

Dual-Tec 0342, 0343

Dumont 0008, 0030, 0062,

0282, 0339, 0341,

0342

Durabrand 0031, 0051, 0179,

0215

Dux 0349

Dwin 0178

Dynatron 0320, 0349, 0350

Dynex 0228, 0231

Elbe 0161, 0168, 0282,

0320

Elcit 0339

Electa 0348

ELECTRO TECH

0343

Electroband 0055, 0107

Electrograph 0176

Electrohome 0008, 0026, 0052,

0055

Element 0230

Elin 0277, 0320, 0323,

0342, 0349, 0350

Elite 0320, 0340, 0350

Elman 0341

Elta 0277, 0323, 0343

Emerson 0000, 0007, 0008,

0012, 0013, 0019,

0026, 0031, 0037,

0051, 0058, 0059,

0161, 0179, 0320,

0339

Emprex 0154

Envision 0008, 0026, 0050

Epson 0155, 0206, 0359

Erres 0320, 0349, 0350

ESA 0051

ESC 0282

Etron 0343

Eurofeel 0282

Euro-Feel 0337

Euroline 0349

Euroman 0161, 0277, 0282

Euromann 0320, 0337, 0342,

0350

Europhon 0277, 0282, 0320,

0341, 0342, 0350

Expert 0321

Exquisit 0320

Fenner 0323, 0343

Ferguson 0322, 0345, 0349

Fidelity 0277, 0320, 0342,

0346

Filsai 0282

Finlandia 0346

Finlux 0171, 0282, 0320,

0339, 0341, 0342,

0349, 0350

FIRST LINE 0342, 0343, 0350

Firstline 0277, 0282, 0320,

0323

Fisher 0019, 0161, 0282,

0339, 0342, 0344,

0351

Flint 0320, 0350

Formenti 0171, 0277, 0336,

0339, 0342, 0349

Formenti/Phoenix

0277

Fortress 0336, 0339

Fraba 0161, 0320

Friac 0161

Frontech 0282, 0323, 0337,

0343, 0346, 0347

Fujitsu 0059, 0069, 0074,

0075, 0282

Fujitsu General 0282

Fujitsu Siemens 0504, 0505, 0507,

0510, 0511

Funai 0051, 0058, 0059,

0112, 0113, 0115,

0118, 0119, 0179,

0337

Futuretech 0058, 0179

Galaxi 0320, 0351

Galaxis 0161, 0320

Gateway 0176, 0177, 0241

GBC 0323, 0343, 0344

GE 0008, 0021, 0023,

0026, 0027, 0031,

0034, 0049, 0052,

0056, 0209

Geant Casino 0321

GEC 0282, 0320, 0342,

0347, 0349, 0350

Geloso 0323, 0343, 0346

General Technic 0323, 0343

Genexxa 0320, 0340, 0347,

0350

GFM 0128, 0227

Giant 0282

Gibralter 0008, 0030, 0050,

0062

GoldHand 0277

Goldline 0320

GoldStar 0007, 0008, 0012,

0026, 0031, 0050,

0053, 0161, 0277,

0282, 0320, 0323,

0342, 0343, 0346,

0349, 0350

Goodmans 0246, 0272, 0282,

0320, 0323, 0337,

0343, 0344, 0349,

0350, 0462, 0473,

0477

Gorenje 0161, 0351

GPM 0340

GPX 0129

Gradiente 0240

Graetz 0347

Granada 0171, 0282, 0320,

0321, 0342, 0344,

0346, 0349, 0350

Grandin 0340, 0343, 0348,

0349

Gronic 0282

Grundig 0160, 0161, 0171,

0310, 0320

Grunpy 0058, 0059, 0179

Haier 0157, 0233

Halifax 0277, 0282, 0337,

0342

Hallmark 0008, 0026, 0031

Hampton 0277, 0282, 0342

Hanseatic 0161, 0168, 0282,

0320, 0323, 0342,

0343, 0344, 0349,

0350

Hantarex 0320, 0323, 0343

Hantor 0320

Harman/Kardon 0010

Harvard 0058, 0179

Harwood 0320, 0323

Havermy 0178

HCM 0282, 0320, 0323,

0337, 0342, 0343,

0348

Hema 0282, 0323

Hewlett Packard 0192

Higashi 0277

HiLine 0320

Hinari 0320, 0323, 0340,

0343, 0344, 0349,

0350

Hisawa 0321, 0340, 0348

Hisense 0247

Hitachi 0008, 0012, 0026,

0066, 0084, 0092,

0093, 0120, 0172,

0173, 0255, 0270,

0271, 0282, 0320,

0335, 0338, 0342,

0344, 0346, 0347,

0365, 0382, 0448,

0456, 0467

Hornyphon 0320, 0350

Hoshai 0340

Huanyu 0277, 0342

Hygashi 0277, 0282, 0342

Hyper 0277, 0282, 0323,

0342, 0343

Hypson 0282, 0320, 0321,

0337, 0342, 0348,

0349, 0350

Hyundai 0141

Iberia 0320

ICE 0277, 0282, 0320,

0323, 0337, 0340,

0342, 0343, 0350

ICeS 0277

Ilo 0148, 0153

IMA 0058

Imperial 0161, 0171, 0320,

0347, 0350, 0351

Indiana 0320, 0349, 0350

Infinity 0010

InFocus 0250, 0327, 0363,

0479, 0508

Ingelen 0347

Ingersol 0323, 0343

Initial 0153

Inno Hit 0171, 0282, 0320,

0323, 0340, 0342,

0343, 0349, 0350

Innovation 0337, 0343

Insignia 0131, 0228, 0236,

0238

Inteq 0030

Interactive 0161

Interbuy 0323, 0343

Interfunk 0161, 0320, 0339,

0347, 0349, 0350

International 0277

Intervision 0161, 0282, 0320,

0337, 0341, 0342

Irradio 0171, 0320, 0323,

0340, 0343, 0349,

0350

Isukai 0320, 0340

ITC 0282, 0342

ITS 0277, 0320, 0340,

0348, 0350

ITT 0343, 0347

ITV 0320, 0343, 0349

Janeil 0057

JBL 0010

JC Penney 0007, 0008, 0026,

0027, 0049, 0053,

0056

JCB 0055, 0107

Jensen 0008, 0026

JVC 0012, 0014, 0015,

0056, 0064, 0065,

0067, 0169, 0174,

0297, 0314, 0344,

0350, 0375

Kaisui 0277, 0282, 0320,

0323, 0340, 0342,

0343, 0348

Kamosonic 0342

Kamp 0277, 0342

Kapsch 0347

Karcher 0161, 0320, 0342,

0343, 0349

Kawasho 0008, 0026, 0055,

0277

KEC 0179

Kendo 0161, 0320, 0341,

0346

Kenwood 0008, 0026, 0050

KIC 0282

Kingsley 0277, 0342

KLH 0039

Kloss Novabeam

0057, 0058

Kneissel 0161, 0168, 0320

Kolster 0320, 0350

Konka 0340

Korpel 0320, 0349, 0350

Korting 0161, 0339

Kosmos 0320

Koyoda 0343

KTV 0007, 0050, 0058,

0179, 0183, 0282,

0342

Kyoto 0277, 0282

Lasat 0161

Lenco 0323, 0343

Lenoir 0323, 0342, 0343

Leyco 0320, 0337, 0349,

0350

LG 0031, 0053, 0066,

0116, 0117, 0140,

0161, 0164, 0175,

0195, 0269, 0277,

0282, 0300, 0309,

0317, 0320, 0323,

0328, 0342, 0343,

0346, 0349, 0350,

0366, 0368, 0377,

0466, 0471, 0478

LG/GoldStar 0164

Liesenk 0349

Liesenkotter 0320

Life 0337, 0343

Lifetec 0320, 0323, 0337,

0343

Lloyds 0323

Loewe 0161, 0168, 0265,

0320, 0330, 0352

Loewe Opta 0339, 0349, 0350

Logik 0054

Luma 0320, 0323, 0346,

0349

Lumatron 0282, 0320, 0346,

0349, 0350

Lux May 0350

Luxman 0008, 0026

Luxor 0282, 0342, 0346

LXI 0010, 0019, 0021,

0026, 0027, 0031,

0049, 0111

M Electronic 0342, 0343, 0345,

0347, 0349, 0350

MAG 0096

Magnadyne 0339, 0341, 0349

Magnafon 0171, 0277, 0341,

0342

Magnavox 0008, 0009, 0010,

0013, 0026, 0032,

0033, 0048, 0050,

0128, 0211, 0212,

0224, 0226, 0239

Magnum 0337, 0343

Majestic 0054

Mandor 0337

Manesth 0282, 0320, 0337,

0342, 0349, 0350

Marantz 0008, 0010, 0026,

0050, 0204, 0320,

0349, 0350

Marelli 0339

Mark 0277, 0282, 0320,

0323, 0349, 0350

Masuda 0282

Matsui 0282, 0320, 0323,

0342, 0343, 0344,

0346, 0349, 0350,

0455

Matsushita 0017

Maxent 0147, 0176

Mediator 0320, 0349, 0350

Medion 0320, 0337, 0343

Megapower 0140

Megatron 0026, 0031

MElectronic 0277, 0282, 0320,

0323

Melvox 0321

Memorex 0019, 0026, 0031,

0053, 0054, 0137,

0215, 0323, 0343

Memphis 0323, 0343

Mercury 0320, 0323

Metz 0339

MGA 0008, 0026, 0031,

0050, 0053

Micromaxx 0337, 0343

Microstar 0337, 0343

Midland 0007, 0021, 0023,

0027, 0030, 0056,

0062

Minerva 0171

Minoka 0320, 0350

Mintek 0153

Mitsubishi 0008, 0026, 0031,

0053, 0066, 0084,

0093, 0098, 0150,

0178, 0289, 0320,

0339, 0344, 0350,

0376

Mivar 0161, 0168, 0171,

0277, 0282, 0342

Monivision 0140

Montgomery Ward

0054

Motion 0171

Motorola 0052, 0178

MTC 0008, 0026, 0050,

0053, 0161, 0277

Multi System 0349

Multitech 0058, 0161, 0179,

0183, 0277, 0282,

0320, 0323, 0341,

0342, 0343, 0344,

0346, 0349

Murphy 0277, 0342

NAD 0026, 0031, 0111

Naonis 0346

NEC 0008, 0026, 0050,

0052, 0053, 0072,

0103, 0282, 0344

Neckermann 0161, 0282, 0320,

0339, 0342, 0346,

0349, 0350, 0351

NEI 0320, 0349, 0350

Net-TV 0176

Neufunk 0320, 0323

New Tech 0343, 0350

New World 0340

NewTech 0282, 0320, 0323

Nicamagic 0277, 0342

iii

Nikkai 0277, 0282, 0320,

0323, 0337, 0340,

0342, 0349, 0350

Nikko 0026, 0031, 0050

Nobliko 0171, 0277, 0341,

0342

Nokia 0347

Norcent 0201

Nordic 0282

Nordmende 0339, 0345, 0347,

0350

Nordvision 0349

Novatronic 0320

Oceanic 0321, 0347

Okano 0161, 0320, 0351

Olevia 0102, 0199, 0200,

0207, 0222

ONCEAS 0342

Onwa 0058, 0179

Opera 0320

Oppo 0130

Optimus 0017, 0019

Optoma 0144

Optonica 0178

Orbit 0320, 0350

Orion 0043, 0146, 0283,

0320, 0323, 0328,

0343, 0349, 0350

Orline 0320

Osaki 0282, 0320, 0337,

0340, 0342

Oso 0340

Otto Versand 0282, 0320, 0336,

0342, 0344, 0348,

0349, 0350

Pael 0277, 0342

Palladium 0161, 0282, 0320,

0342, 0351

Palsonic 0282

Panama 0277, 0282, 0320,

0323, 0337, 0342,

0343

Panasonic 0016, 0017, 0020,

0022, 0023, 0035,

0052, 0056, 0084,

0085, 0133, 0163,

0193, 0284, 0286,

0290, 0292, 0320,

0325, 0347, 0356

Panavision 0320

Pathe Cinema 0161, 0168, 0277,

0321, 0342

Pausa 0323, 0343

Penney 0021, 0023, 0031,

0050, 0111

Perdio 0277, 0320

Perfekt 0320

Philco 0008, 0009, 0010,

0012, 0026, 0050,

0052, 0053, 0161,

0171, 0320, 0339

Philharmonic 0282, 0342

Philips 0008, 0009, 0010,

0011, 0012, 0032,

0048, 0049, 0052,

0122, 0128, 0134,

0186, 0187, 0213,

0221, 0224, 0226,

0239, 0256, 0257,

0259, 0261, 0263,

0267, 0280, 0281,

0287, 0296, 0299,

0301, 0303, 0305,

0313, 0319, 0320,

0324, 0333, 0339,

0342, 0349, 0350,

0353, 0357, 0360,

0380, 0383, 0452,

0459, 0460

Philips Magnavox

0011, 0032, 0033

Phoenix 0161, 0277, 0320,

0339, 0349, 0350

Phonola 0277, 0320, 0339,

0349, 0350

Pilot 0007, 0008, 0050

Pioneer 0008, 0026, 0094,

0095, 0161, 0320,

0345, 0347, 0349,

0350, 0458

Plantron 0320, 0323, 0337,

0350

Playsonic 0282

Polaroid 0039, 0142, 0202,

0234

Poppy 0323, 0343

Portland 0007, 0008, 0026,

0053

Prandoni-Prince 0171, 0346

Precision 0282, 0342

Prima 0157, 0243, 0323,

0343, 0347

Princeton 0140

Prism 0023, 0056

Profex 0323, 0343

Profi-Tronic 0320, 0350

Proline 0320, 0350

Proscan 0021, 0027, 0049

Prosonic 0161, 0277, 0282,

0320, 0342, 0349

Protech 0282, 0337, 0341,

0342, 0343, 0349,

0350

Proton 0008, 0012, 0026,

0031

Protron 0196

PROVIEW 0096, 0246

Provision 0320, 0349

Pulsar 0008, 0030, 0062

Pye 0256, 0320, 0349,

0350, 0378

Pymi 0323, 0343

Quandra Vision 0321

Quasar 0017, 0023, 0052,

0056

Quelle 0282, 0320, 0337,

0342, 0349, 0350

Questa 0344

Radialva 0320

RadioShack 0019, 0021, 0031,

0050, 0179, 0320

RadioShack/Realistic

0007, 0008, 0012,

0026, 0049, 0058

Radiola 0282, 0320, 0349,

0350

Radiomarelli 0320, 0339

Radiotone 0161, 0320, 0323,

0350

Rank 0344

RCA 0008, 0021, 0024,

0025, 0026, 0027,

0042, 0049, 0052,

0053, 0063, 0136,

0225

Realistic 0019, 0031, 0050,

0179

Recor 0320

Redstar 0320

Reflex 0320

Revox 0161, 0320, 0349,

0350

Rex 0337, 0346, 0347

RFT 0161, 0168, 0339

Rhapsody 0277

R-Line 0320, 0349, 0350

Roadstar 0323, 0337, 0340,

0343

Robotron 0339

Rowa 0277, 0282

Royal Lux 0161

RTF 0339

Runco 0030, 0050, 0062

Saba 0298, 0322, 0339,

0345, 0347

Saisho 0282, 0323, 0337,

0342, 0343

Salora 0346, 0347

Sambers 0171, 0341

Sampo 0007, 0008, 0026,

0050, 0176

Samsung 0004, 0005, 0006,

0007, 0008, 0012,

0026, 0031, 0036,

0050, 0053, 0076,

0077, 0079, 0114,

0124, 0125, 0126,

0127, 0139, 0161,

0183, 0185, 0190,

0191, 0258, 0264,

0277, 0282, 0320,

0323, 0334, 0337,

0342, 0343, 0349,

0350, 0351, 0373,

0453, 0468

Sandra 0277, 0282, 0342

Sansui 0043, 0109, 0320,

0350

Sanyo 0008, 0019, 0068,

0070, 0071, 0099,

0161, 0168, 0223,

0237, 0277, 0282,

0288, 0295, 0323,

0342, 0344, 0369,

0469

SBR 0320, 0349

Sceptre 0235, 0244

Schaub Lorenz 0347

Schneider 0282, 0316, 0318,

0320, 0333, 0340,

0342, 0349, 0350,

0382

Scotch 0026, 0031

Scott 0008, 0012, 0026,

0031, 0058, 0059,

0149, 0179

Sears 0008, 0010, 0019,

0021, 0026, 0027,

0031, 0049, 0051,

0059, 0111

SEG 0277, 0282, 0320,

0323, 0337, 0341,

0342, 0344, 0349,

0382

SEI 0320

SEI-Sinudyne 0339, 0341, 0347

Seleco 0344, 0346, 0347

Sencora 0323, 0343

Sentra 0323

Serino 0277

Sharp 0000, 0001, 0002,

0003, 0007, 0008,

0012, 0026, 0060,

0088, 0089, 0091,

0138, 0165, 0170,

0178, 0198, 0229,

0262, 0278, 0279,

0291, 0308, 0312,

0336, 0344, 0354,

0370, 0449, 0450,

0451, 0464, 0474,

0476

Sheng Chia 0178

Shogun 0008

Siarem 0320, 0339, 0341

Sierra 0320, 0350

Siesta 0161

Signature 0054

Silva 0277

Silver 0344

Singer 0321, 0339, 0341

Sinudyne 0320, 0339, 0341,

0349

Skantic 0347

Solavox 0347

Sonitron 0161, 0282

Sonoko 0282, 0320, 0323,

0337, 0342, 0343,

0349, 0350

Sonolor 0321, 0347

Sontec 0161, 0320, 0349,

0350

Sony 0038, 0044, 0045,

0047, 0055, 0104,

0105, 0107, 0110,

0123, 0184, 0220,

0248, 0249, 0251,

0252, 0254, 0326,

0343, 0344, 0371,

0374, 0457, 0475

Sound & Vision 0340, 0341

Soundesign 0008, 0026, 0031,

0058, 0059, 0179

Soundwave 0320, 0349, 0350

Squareview 0051

SSS 0008, 0058, 0179

Standard 0282, 0320, 0323,

0340, 0342, 0343,

0350

Starlite 0058, 0179, 0320,

0323, 0349

Stenway 0348

Stern 0346, 0347

Strato 0320, 0323

Stylandia 0282

Sunkai 0343

Sunstar 0320, 0323

Sunwood 0320, 0323, 0343,

0350

Superla 0277, 0282, 0342

Superscan 0013, 0178

SuperTech 0277, 0320, 0323

Supra 0323, 0343

Supre-Macy 0057

Supreme 0055, 0107

Susumu 0340

Sutron 0323, 0343

SVA 0151

Sydney 0277, 0282, 0342

Sylvania 0008, 0009, 0010,

0011, 0013, 0026,

0048, 0050, 0051,

0128, 0227, 0253

Symphonic 0051, 0058, 0062,

0128, 0179, 0215

Syntax 0199

Syntax-Brillian 0199

Sysline 0349

Sytong 0277

Tandy 0178, 0282, 0336,

0340, 0342, 0347

Tashiko 0277, 0282, 0342,

0344, 0346

Tatung 0052, 0177, 0282,

0320, 0342, 0349,

0350

TCM 0337, 0343

Teac 0282, 0320

Tec 0282, 0323, 0342,

0343

Technics 0017, 0023, 0056

TechniSat 0274, 0496, 0497,

0499

Techwood 0008, 0023, 0026,

0056

TEDELEX 0282

Teknika 0007, 0008, 0010,

0012, 0026, 0053,

0054, 0058, 0059,

0179

Teleavia 0345

Telecor 0282, 0320

Telefunken 0320, 0322, 0345,

0350

Telegazi 0320

Telemeister 0320

Telesonic 0320

Telestar 0320

Teletech 0320, 0323, 0343,

0349

Teleton 0282, 0342

Televideon 0277

Televiso 0321

Tensai 0282, 0320, 0323,

0340, 0343, 0350

Tesmet 0350

Tevion 0337, 0343

Texet 0277, 0282, 0323,

0342

Thomson 0162, 0188, 0189,

0285, 0320, 0322,

0342, 0345, 0350

Thorn 0320, 0349

TMK 0008, 0026, 0031

TNCi 0030

Tokai 0282, 0320, 0350

Tokyo 0277, 0342

Tomashi 0348

Toshiba 0018, 0019, 0040,

0041, 0046, 0073,

0100, 0103, 0108,

0109, 0111, 0121,

0132, 0166, 0208,

0210, 0214, 0217,

0260, 0268, 0282,

0283, 0293, 0304,

0306, 0307, 0329,

0344, 0355, 0454

Totevision 0007

Towada 0282, 0347

Trakton 0282

Trans Continens 0282, 0320

Transtec 0277

Trident 0282

Triumph 0320

Uher 0161, 0171, 0320,

0347, 0350

Ultravox 0277, 0320, 0339,

0341, 0342

Unic Line 0320

United 0349

Universum 0161, 0171, 0282,

0320, 0337, 0349,

0350, 0351

Univox 0320

Vector Research 0050

Vestel 0282, 0320, 0346,

0347, 0349, 0350,

0351

Vexa 0320, 0323, 0343,

0349

Victor 0015, 0344, 0350

VIDEOLOGIC 0277

Videologique 0277, 0282, 0340,

0342

VideoSystem 0320, 0350

Videotechnic 0277, 0282

Vidikron 0010

Vidtech 0008, 0026, 0031,

0053

Viewsonic 0176, 0203, 0232,

0364

Viking 0057

Viore 0148

Visiola 0277, 0342

Vision 0282, 0320, 0350

Vizio 0008, 0177, 0218,

0242, 0500, 0501,

0502, 0503, 0506

Vortec 0320, 0349, 0350

Voxson 0171, 0320, 0339,

0346, 0347, 0350

Waltham 0282, 0320, 0342

Wards 0008, 0009, 0010,

0026, 0031, 0048,

0049, 0050, 0053,

0054, 0059

Watson 0320, 0349, 0350

Watt Radio 0277, 0341, 0342

Waycon 0111

Wega 0320, 0339, 0344

Wegavox 0323

Weltblick 0282, 0320, 0349,

0350

Westinghouse 0107, 0216, 0220

White Westinghouse

0037, 0090, 0277,

0320, 0341, 0342,

0349

Wincom 0101, 0106

Xrypton 0320

Yamaha 0008, 0026, 0050,

0053, 0080, 0081,

0082, 0083, 0086,

0087

Yamishi 0282, 0320

Yokan 0320

Yoko 0161, 0277, 0282,

0320, 0323, 0337,

0340, 0342, 0343,

0349, 0350

Yorx 0340

Zanussi 0282, 0346

Zenith 0008, 0028, 0029,

0030, 0031, 0054,

0061, 0062

VCR

ABS 1016

Adventura 1069

Adyson 1008

Aiwa 1024, 1026, 1027,

1069

Akai 1021, 1027

Akiba 1008, 1029

Akura 1008, 1027, 1029

Alba 1008, 1009, 1024,

1025, 1029, 1030

Alienware 1016

Ambassador 1030

American High 1068

Amstrad 1008, 1009, 1026

Anitech 1008, 1029

Apex 1088

ASA 1028, 1031

Asha 1070

Asuka 1008, 1026, 1028,

1029, 1031

Audio Dynamics

1064

Audiosonic 1009

Audiovox 1071

Baird 1009, 1025, 1026,

1027

Bang & Olufsen 1017

Basic Line 1008, 1009, 1024,

1025, 1029, 1030

Baur 1028

Beaumark 1070

Bell & Howell 1065

Bestar 1009, 1025, 1030

Black Panther Line

1009, 1025

Blaupunkt 1028

Bondstec 1008, 1030

Broksonic 1100

Bush 1008, 1009, 1024,

1025, 1029, 1049,

1051, 1063, 1217

Calix 1071

Candle 1070, 1071

Canon 1068

Cathay 1009

Catron 1030

CGE 1026, 1027

Cimline 1008, 1024, 1029

CineVision 1104

Citizen 1070, 1071

Clatronic 1008, 1030

Colortyme 1064

Condor 1009, 1025, 1030

Craig 1070, 1071

Crown 1008, 1009, 1025,

1029, 1030

Curtis Mathes 1064, 1068, 1070

Cybernex 1070

CyberPower 1016

Daewoo 1009, 1025, 1030,

1038, 1069, 1223

Dansai 1008, 1009, 1029

Dantax 1024

Daytron 1009, 1025

DBX 1064

De Graaf 1028

Decca 1026, 1027, 1028

Dell 1016

Denko 1008

DiamondVision 1096

DigiFusion 1014

DIRECTV 1019, 1105, 1110,

1111, 1113, 1116,

1122

Dish Network 1018

Dishpro 1018

Dual 1009, 1027, 1028

Dumont 1026, 1028

Durabrand 1114

Dynatech 1069

Echostar 1018

Elbe 1009

Elcatech 1008

Electrohome 1071

Electrophonic 1071

Elsay 1008

Elta 1008, 1009, 1029

Emerson 1008, 1020, 1068,

1069, 1071

ESC 1009, 1025

Etzuko 1008, 1029

Expressvu 1018

Ferguson 1027

Fidelity 1008, 1026

Finlandia 1028

Finlux 1026, 1027, 1028

Firstline 1008, 1024, 1029,

1031

Fisher 1065

Flint 1024

Formenti/Phoenix

1028

Frontech 1030

Fuji 1068

Fujitsu 1026

Funai 1026, 1069

Galaxy 1026

Garrard 1069

Gateway 1016

GBC 1029, 1030

GE 1068, 1070

GEC 1028

Geloso 1029

General 1030

General Technic 1024

GOI 1018

GoldHand 1008, 1029

Goldstar 1026, 1031, 1064,

1071

Goodmans 1008, 1009, 1025,

1026, 1029, 1030,

1031

Gradiente 1069

Graetz 1027

Granada 1028

Grandin 1008, 1009, 1025,

1026, 1029, 1030,

1031

Grundig 1028, 1029

Hanseatic 1009, 1028, 1031

Harley Davidson

1069

Harman/Kardon 1064

Harwood 1008

HCM 1008, 1029

Headquarter 1065

Hewlett Packard 1016

Hinari 1008, 1009, 1024,

1029

Hisawa 1024

Hitachi 1011, 1026, 1027,

1028, 1046, 1062

HNS 1110

Howard Computers

1016

HP 1016

HTS 1018

Hughes 1111, 1113, 1122

Hughes Network Systems

1110, 1116

Humax 1012, 1110, 1113

Hush 1016

Hypson 1008, 1009, 1024,

1029

iBUYPOWER 1016

Impego 1030

Imperial 1026

Inno Hit 1008, 1009, 1025,

1028, 1029, 1030

Innovation 1024

Instant Replay 1068

Interbuy 1008, 1031

Interfunk 1028

Intervision 1009, 1026

Irradio 1008, 1029, 1031

ITT 1027

ITV 1009, 1025, 1031

JC Penney 1064, 1065, 1068,

1070, 1071

JCL 1068

JVC 1007, 1018, 1027,

1039, 1064, 1065,

1066, 1067, 1078,

1089, 1092, 1093,

1094, 1095, 1113,

1208, 1209, 1212,

1213, 1215, 1218

Kaisui 1008, 1029

Karcher 1028

Kendo 1008, 1024, 1025,

1030

Kenwood 1027, 1064, 1065

Kodak 1068, 1071

Korpel 1008, 1029

Kyoto 1008

Lenco 1025

Leyco 1008, 1029

LG 1010, 1026, 1031,

1047, 1054, 1056,

1071, 1103, 1221

Lifetec 1024

Linksys 1016

Lloyd’s 1069

Loewe Opta 1028, 1031

Logik 1008, 1029

Lumatron 1009, 1025

Luxor 1008

LXI 1071

M Electronic 1026

Magnavox 1020, 1068, 1114,

1126

Magnin 1071

Manesth 1008, 1029

Marantz 1028, 1064, 1065,

1068

Mark 1009

Marta 1071

Matsui 1024, 1031

Matsushita 1068

Media Center PC

1016

Mediator 1028

Medion 1024

MEI 1068

Memorex 1023, 1026, 1031,

1065, 1068, 1069,

1070, 1071, 1098,

1114

Memphis 1008, 1029

MGN Technology

1070

Micromaxx 1024

Microsoft 1016

Microstar 1024

Migros 1026

Mind 1016

Mitsubishi 1026, 1028, 1079

Motorola 1068

MTC 1070

Multitech 1008, 1026, 1028,

1029, 1030, 1069,

1070

Murphy 1026

NEC 1027, 1064, 1065

Neckermann 1027, 1028

NEI 1028

Nesco 1008, 1029

Nikkai 1008, 1009, 1030

Nikko 1071

Niveus Media 1016

Noblex 1070

Nokia 1009, 1027

Nordmende 1027

Northgate 1016

Oceanic 1026, 1027

Okano 1008, 1009, 1024

Olympus 1068

Optimus 1071

Orion 1023, 1024, 1051,

1115, 1217

Orson 1026

Osaki 1008, 1026, 1029,

1031

Otto Versand 1028

Palladium 1008, 1027, 1029,

1031

Panasonic 1000, 1022, 1044,

1055, 1068, 1072,

1085, 1090, 1091,

1120, 1121, 1214

Pathe Marconi 1027

Perdio 1026

Philco 1008, 1068

Philips 1006, 1013, 1028,

1035, 1040, 1045,

1046, 1050, 1058,

1059, 1061, 1068,

1076, 1101, 1110,

1113, 1116, 1117,

1122, 1126, 1210,

1211

Philips Magnavox

1076

Phonola 1028

Pilot 1071

Pioneer 1028, 1036

Polaroid 1088, 1099

Portland 1009, 1025, 1030

Prinz 1026

Profex 1029

Proline 1026

Proscan 1019

Prosonic 1009, 1024

Pulsar 1114

Pye 1028, 1102

Quarter 1065

Quartz 1065

Quasar 1068

Quelle 1026, 1028

Radialva 1008

RadioShack 1071

RadioShack/Realistic

1065, 1068, 1069,

1070, 1071

Radiola 1028

Radix 1071

Randex 1071

RCA 1019, 1068, 1070,

1075, 1110, 1113,

1122, 1125

Realistic 1065, 1068, 1069,

1070, 1071

ReplayTV 1022, 1123

Rex 1027

RFT 1008, 1028, 1030

Ricavision 1016

Roadstar 1008, 1009, 1025,

1029, 1031

Royal 1008

Runco 1114

Saba 1027

Saisho 1024, 1029

Samsung 1002, 1034, 1041,

1043, 1057, 1060,

1070, 1084, 1110,

1116, 1122, 1124,

1220, 1222

Samurai 1008, 1030

Sanky 1114

Sansui 1023, 1027, 1106,

1115

Sanyo 1032, 1065, 1070

Saville 1009

SBR 1028

Schaub Lorenz 1026, 1027

Schneider 1008, 1009, 1024,

1025, 1026, 1028,

1029, 1030, 1031

Sears 1065, 1068, 1071

SEG 1008, 1009, 1029

SEI-Sinudyne 1028

Seleco 1027

Sentra 1008, 1030

Sentron 1008, 1029

Sharp 1003, 1033, 1077,

1107, 1127, 1219

Shintom 1008, 1029

Shivaki 1031

Shogun 1070

Siemens 1031

Silva 1031

Silver 1009

Singer 1068

Sinudyne 1028

Solavox 1030

Sonic Blue 1022, 1123

Sonneclair 1008

Sonoko 1009, 1025

Sontec 1031

Sony 1001, 1016, 1048,

1053, 1073, 1074,

1080, 1081, 1082,

1083, 1108, 1118,

1216

Stack 1016

Stack 9 1016

Standard 1009, 1025

Stern 1009

STS 1068

Sunkai 1024

Sunstar 1026

Suntronic 1026

Sunwood 1008, 1029

Superscan 1020

Sylvania 1020, 1068, 1069,

1102, 1126

Symphonic 1008, 1069, 1126

Systemax 1016

Tagar Systems 1016

Taisho 1024

Tandberg 1009

Tandy 1065

Tashiko 1026, 1071

Tatung 1026, 1027, 1028

TCM 1015, 1024, 1042

Teac 1009, 1069

Tec 1008, 1009, 1030

Technics 1068

Teknika 1068, 1069, 1071

Teleavia 1027

Telefunken 1027

Teletech 1008, 1009

Tenosal 1008, 1029

Tensai 1008, 1026, 1029,

1031

Tevion 1024

Thomson 1005, 1027

Thorn 1027

Tivo 1108, 1110, 1111,

1113, 1117, 1118,

1119, 1122

TMK 1070

Tokai 1008, 1029, 1031

Tonsai 1029

Toshiba 1004, 1016, 1027,

1028, 1037, 1049,

1052, 1086, 1087,

1097, 1109, 1112,

1194

Totevision 1070, 1071

Touch 1016

Towada 1008, 1029

Towika 1008, 1029

TVA 1030

Uher 1031

UltimateTV 1019

Ultravox 1009

Unitech 1070

United Quick Star

1009, 1025

Universum 1026, 1028, 1031

Vector Research 1064

Video Concepts 1064

Videon 1024

Videosonic 1070

Viewsonic 1016

Voodoo 1016

Wards 1068, 1069, 1070,

1071

Weltblick 1031

XR-1000 1068, 1069

Yamaha 1064, 1065

Yamishi 1008, 1029

Yokan 1008, 1029

Yoko 1008, 1029, 1030,

1031

Zenith 1114

ZT Group 1016

DVD player

4Kus 2051

Accurian 2142

Advent 2155, 2251

AEG 2362

Airis 2364

Aiwa 2322

Akai 2145, 2177, 2179,

2248

Akura 2356

Alba 2064, 2165, 2186,

2337, 2346

Alco 2149

Alize 2361

Allegro 2133

Amitech 2362

Amphion MediaWorks

2195

AMW 2195, 2363

Apex 2030, 2124, 2125,

2126, 2127, 2130,

2131

Apple 2241

Arrgo 2138

Asono 2364

Aspire 2152, 2222

Astar 2240

ATACOM 2364

Audiovox 2061, 2149

Avious 2367

Awa 2363

Axion 2249

Bang & Olufsen 2128

Baze 2367

BBK 2364

Bellagio 2363

Best Buy 2359

Blaupunkt 2131

Blue Parade 2157

Boghe 2382

Brainwave 2362

Brandt 2148, 2188

Broksonic 2145, 2146

Bush 2064, 2110, 2170,

2268, 2290, 2346,

2358, 2367, 2383

California Audio Labs

2151

Cambridge Audio

2354

CAT 2352, 2353

CAVS 2192

Centrum 2353

CGV 2354, 2362

Changhong 2140

Cinetec 2363

CineVision 2133, 2237

Clatronic 2358, 2367

Coby 2031, 2046, 2360

Conia 2383

Continental Edison

2363

Crown 2362

C-Tech 2355

Curtis Mathes 2139

CVG 2377

CyberHome 2022, 2098, 2138,

2187, 2336

Cytron 2244

Daenyx 2363

Daewoo 2001, 2133, 2276,

2298, 2330, 2362,

2363, 2377

Daewoo International

2363

Dalton 2357

Dansai 2362, 2381

Daytek 2184, 2195, 2363

Dayton 2363

DEC 2358

Decca 2362

Denon 2059, 2151, 2193,

2332

Denver 2356, 2358, 2360,

2370

Denzel 2380

Desay 2205

Diamond 2354, 2355

DiamondVision 2225, 2232

Disney 2010, 2028

DK Digital 2339

Dmtech 2176

Dual 2380

Durabrand 2136

DVX 2355

Easy Home 2359

Eclipse 2354

E-Dem 2364

Electrohome 2362

Elin 2362

Elta 2341, 2361, 2362

Emerson 2129, 2137, 2150

Enterprise 2129

Enzer 2380

Epson 2247

ESA 2137

Finlux 2354, 2362, 2367

Fintec 2377

Fisher 2134

Funai 2137

Gateway 2051

GE 2029, 2131, 2156

Gericom 2351

GFM 2226

Giec 2382

Global Solutions2355

Global Sphere 2355

Go Video 2133, 2213

Goodmans 2165, 2280, 2291,

2358, 2371, 2376,

2382

GPX 2227

Gradiente 2151

Graetz 2380

Greenhill 2131

Grundig 2349

Grunkel 2362, 2366

GVG 2377

H&B 2358

H_her 2364

Haaz 2354, 2355

Haier 2254

Harman/Kardon 2047, 2135

HiMAX 2359

Hitachi 2062, 2090, 2115,

2274, 2282, 2316,

2359, 2380

Hiteker 2130

Home Tech Industries

2364

Hyundai 2366

Ilo 2245

Initial 2131, 2245

Innovation 2182

Insignia 2002, 2137, 2253

Integra 2157

Irradio 2053

iSymphony 2246

JBL 2135

JVC 2020, 2096, 2097,

2099, 2100, 2101,

2102, 2103, 2106,

2107, 2160, 2257,

2260, 2262, 2263,

2321, 2324, 2326,

2327, 2343, 2464,

2465, 2468, 2469,

2471

Jwin 2198

Kansai 2360

Kawasaki 2149

Kennex 2362

Kenwood 2041, 2151, 2348

KeyPlug 2362

Kiiro 2362

Kingavon 2358

Kiss 2380

KLH 2131, 2149

Koda 2358

Koss 2013, 2148, 2158

KXD 2359

Landel 2143

Lasonic 2132

Lawson 2355

Lecson 2381

Lenco 2358, 2362, 2367

Lenoxx 2136, 2153

LG 2002, 2033, 2038,

2057, 2129, 2133,

2189, 2191, 2223,

2238, 2270, 2288,

2335, 2373, 2375

Life 2182

Lifetec 2182

Limit 2355

Liquid Video 2158

Liteon 2043, 2051, 2142

Loewe 2320

LogicLab 2355

Magnavox 2025, 2050, 2137,

2150, 2159, 2224,

2230, 2358

Magnex 2367

Majestic 2360

Marantz 2328

Marquant 2362

Matsui 2148, 2378

McIntosh 2199

Mecotek 2362

Medion 2182

Memorex 2028, 2145, 2234

MiCO 2354, 2382

Micromaxx 2182

Microsoft 2156

Microstar 2182

Minoka 2362

Minowa 2367

Mintek 2131, 2245

Mitsubishi 2003

Mizuda 2358, 2359

Monyka 2380

Mustek 2186

Mx Onda 2354

Mystral 2366

Naiko 2362

Nesa 2131

Neufunk 2380

Nevir 2362

Next Base 2143

Nexxtech 2243

NU-TEC 2383

Onkyo 2159, 2368

Oopla 2051

Oppo 2196, 2255

Optim 2381

Optimus 2180

Orava 2358

Orbit 2363

Orion 2073, 2110

Oritron 2148, 2158

P&B 2358

Pacific 2355

Panasonic 2011, 2024, 2034,

2042, 2058, 2062,

2066, 2067, 2093,

2116, 2117, 2118,

2119, 2120, 2121,

2122, 2123, 2151,

2159, 2164, 2166,

2167, 2172, 2173,

2175, 2209, 2214,

2275, 2277, 2278,

2281, 2282, 2283,

2301, 2374, 2470

Parasound 2197

peeKTON 2364

Philips 2008, 2012, 2025,

2044, 2050, 2051,

2053, 2060, 2072,

2108, 2111, 2147,

2159, 2163, 2169,

2174, 2181, 2185,

2230, 2261, 2266,

2267, 2286, 2287,

2289, 2295, 2300,

2302, 2317, 2328,

2338, 2342, 2350,

2467

Phonotrend 2367

Pioneer 2016, 2017, 2018,

2019, 2035, 2092,

2094, 2095, 2109,

2157, 2180, 2190,

2212, 2269, 2272,

2299, 2304, 2305,

2306, 2307, 2308,

2309, 2310, 2311,

2344, 2345, 2347,

2379

Pointer 2362

Polaroid 2125, 2215, 2235

Portland 2362

Powerpoint 2363

Prima 2252

Proceed 2130

Proscan 2156

Prosonic 2360, 2377

Protron 2202

Provision 2358

Pye 2144

Qwestar 2148

Raite 2380

RCA 2021, 2029, 2104,

2105, 2131, 2149,

2156, 2157, 2229

RedStar 2356, 2360, 2362

Regent 2153

Reoc 2355

Rimax 2361

Rio 2133

Roadstar 2331, 2358

Ronin 2363

Rotel 2203

Rowa 2154, 2383

Rownsonic 2353

Saba 2148, 2188

Sabaki 2355

Saivod 2362

Sampo 2141

Samsung 2000, 2045, 2077,

2112, 2113, 2114,

2115, 2151, 2200,

2216, 2219, 2228,

2264, 2265, 2271,

2279, 2294, 2303,

2329, 2365

Sansui 2073, 2145, 2354,

2355, 2362

Sanyo 2134, 2145, 2217,

2292

ScanMagic 2186

Schaub Lorenz 2362

Schneider 2176

Scientific Labs 2355

Scott 2161, 2357

Seeltech 2364

SEG 2162, 2355, 2363,

2380

vii

Sharp 2006, 2040, 2088,

2091, 2182, 2194,

2220, 2221, 2231,

2236, 2293, 2340

Shinsonic 2245

Sigmatek 2359, 2364

Silva 2356

Singer 2354, 2355

Skymaster 2325, 2355

Skyworth 2356

Slim Art 2362

SM Electronic 2355

Sonic Blue 2133

Sontech 2366

Sony 2004, 2005, 2007,

2009, 2014, 2015,

2023, 2026, 2027,

2052, 2068, 2069,

2070, 2071, 2074,

2075, 2084, 2085,

2087, 2168, 2171,

2208, 2210, 2211,

2258, 2273, 2284,

2285, 2312, 2313,

2314, 2315, 2318,

2319, 2466

Soundmaster 2355

Soundmax 2355

Spectra 2363

Spectroniq 2201

Standard 2355

Star Cluster 2355

Starmedia 2358, 2364

Sungale 2204

Sunkai 2362

Superscan 2150

Supervision 2355

Sylvania 2012, 2137, 2150,

2178, 2230, 2239

Symphonic 2108, 2230

Synn 2355

T.D.E. Systems 2366

Tatung 2001, 2362

TCM 2182, 2297

Teac 2149, 2333, 2355,

2383

Tec 2356

Technics 2151

Technika 2362, 2367

Telefunken 2353

Tensai 2362

Tevion 2182, 2355, 2357

Theta Digital 2157

Thomson 2183, 2188, 2334,

2372

Tokai 2356, 2380

Top Suxess 2364

Toshiba 2032, 2036, 2037,

2039, 2048, 2049,

2054, 2055, 2072,

2073, 2076, 2078,

2079, 2086, 2145,

2159, 2218, 2233,

2256, 2259, 2296,

2369

TRANScontinents

2363, 2367

Transonic 2367

Trio 2362

Trutech 2242

TruVision 2359

TSM 2364

Umax 2361

United 2367

Urban Concepts 2159

US Logic 2245

Venturer 2149

Viewmaster 2364

Vocopro 2206

VocoStar 2207

Waitec 2364

Welltech 2382

Westinghouse 2063, 2250

Wharfedale 2354, 2355

Woxter 2361, 2364

Xbox 2156, 2183

Xlogic 2355, 2362

XMS 2362

Xoro 2382

Yamada 2051, 2361, 2363

Yamaha 2056, 2064, 2065,

2080, 2081, 2082,

2083, 2089, 2118,

2151, 2323

Yamakawa 2363, 2380

Yukai 2186

Zenith 2002, 2129, 2133,

2159, 2223

Blu-ray disc player

LG 2033

Panasonic 2011, 2209, 2214

Pioneer 2212

Samsung 2045, 2113

Sharp 2194, 2220, 2221

Sony 2075

Yamaha 2064, 2474

DVR

Bush 2110

Hitachi 2090

Panasonic 2066, 2067, 2093,

2116, 2117, 2119,

2120, 2122, 2123

Philips 2108, 2111

Pioneer 2016, 2017, 2018,

2019, 2092, 2094,

2095, 2109

RCA 2105

Samsung 2113, 2219

Sharp 2088, 2091

Sony 2084, 2085, 2087

Tos hiba 2086

Yamaha 2089, 2118

DVD recorder

Aspire 2222

Astar 2240

Broksonic 2146

Go Video 2213

Hitachi 2062

Insignia 2002

Irradio 2053

JVC 2100, 2101, 2106,

2107

LG 2033, 2057, 2223,

2238

Liteon 2043

Panasonic 2011, 2034, 2058,

2062, 2116, 2117,

2119, 2120, 2121,

2123

Philips 2008, 2044, 2050,

2051, 2147

Pioneer 2017, 2035

Pye 2144

Samsung 2000, 2112, 2216

Sansui 2073

Sanyo 2217

Sony 2004, 2005, 2007,

2052, 2068, 2069,

2074, 2208, 2210,

2211

Sylvania 2239

Toshiba 2032, 2036, 2037,

2039, 2049, 2054,

2055, 2076

Yamaha 2056

Cable TV

ABC 3002, 3003, 3017,

3066, 3067, 3086,

3093, 3119, 3122

ADB 3020

Adelphia 3081

Alcatel 3016

Americast 3124

Amstrad 3022, 3098

Antronix 3065, 3070

Archer 3070

Arcon 3098

AT&T 3095

Axis 3098

Bell South 3124

Cable Vision 3092

Cabletenna 3065

Cabletime 3104

Cableview 3087

Clearmaster 3127

ClearMax 3127

Clyde Cablevision

3105

Colour Voice 3068

Comcast 3084, 3088, 3117

Comcrypt 3107

Comtronics 3069

Contec 3074

Coolmax 3127

COX 3084

Cryptovision 3110

Director 3084

Eastern 3075

Everquest 3123

Fidelity 3098

Filmnet 3107

Filmnet Cablecrypt

3111

Filmnet Comcrypt

3111

Finlux 3097

Focus 3126

Foxtel 3022

France Telecom 3100, 3101

Freebox 3023

GC Electronics 3070

GE 3066, 3093

GEC 3105

Gemini 3072, 3123

General Instrument

3017, 3025, 3066,

3084, 3090, 3096,

3117

Goldstar 3120

Gooding 3099

Grundig 3098, 3099

Hamlin 3073, 3078

Hirschmann 3097

Hitachi 3066

HomeChoice 3106

Humax 3021, 3080, 3083

ITT Nokia 3097

Jasco 3123

Jerrold 3017, 3018, 3025,

3066, 3072, 3084,

3090, 3096, 3119,

3123

JVC 3099

Kabel Deutschland

3024, 3027, 3121

Macab 3101

Magnavox 3079

Maspro 3099

Matsui 3099

MegaCable 3117

Memorex 3076, 3122

Minerva 3099

Mnet 3107

Motorola 3025, 3026, 3084,

3088, 3090, 3095,

3117

Movie Time 3077, 3109

Mr Zapp 3101

Multichoice 3107

Multitech 3127

NEC 3064

NET Brazil 3085

Nokia 3097

Noos 3101

NSC 3077

Oak 3074

Pace 3006, 3089, 3121

Palladium 3099

Panasonic 3112, 3118, 3122

Paragon 3122

Philips 3068, 3071, 3079,

3099, 3100, 3101,

3103

Pioneer 3001, 3006, 3094,

3098, 3114, 3116,

3120

Popular Mechanics

3126

Proscan 3066, 3093

Pulsar 3122

PVP Stereo Visual Matrix

3018

Quasar 3122

RadioShack 3123, 3127

RCA 3030, 3031, 3087,

3118

Realistic 3070

Recoton 3126

Regal 3078

Regency 3075

Rembrandt 3066

Runco 3122

Sagem 3101

Samsung 3069, 3089, 3114,

3120

SAT 3098

Scientific Atlanta

3000, 3001, 3002,

3003, 3006, 3028,

3029, 3081, 3086,

3089, 3094, 3095,

3108

Signal 3072, 3123

Signature 3066

Sony 3092, 3125

Sprucer 3118

Standard Component

3115

Starcom 3017, 3072, 3119,

3123

Stargate 3072, 3123

Starquest 3072, 3123

Supercable 3090

Supermax 3127

viii

Tele+1 3107, 3111

Telepiu 3107

Thomson 3082, 3091

TIME WARNER

3084

Tocom 3067

Torx 3017

Toshiba 3122

Tristar 3127

Tudi 3102

Tusa 3072, 3123

TV86 3077

Unika 3065, 3070

United Cable 3018, 3119

Universal 3065, 3070

Universum 3097, 3099

V2 3127

Videoway 3019

View Star 3074, 3077, 3079

Viewmaster 3127

Vision 3127

Visiopass 3097, 3100, 3101

Vortex View 3127

Wittenberg 3098

Zenith 3113, 3122, 3124

Zentek 3126

Satellite TV

AB Sat 4216, 4217

AccessHD 4104

ADB 4220

AGS 4216

Akai 4053, 4055

Alba 4001, 4004, 4006,

4007, 4062, 4217

Aldes 4005, 4007, 4010

Allsat 4048, 4053, 4055

Allsonic 4005, 4008, 4024

Alltech 4217

Alpha 4053

Alpha Digital 4104

Alphastar 4077

Amitronica 4217

Amstrad 4011, 4035, 4217,

4218

Anglo 4217

Ankaro 4005, 4008, 4024,

4217

Anttron 4001, 4004

Apollo 4001

Armstrong 4011, 4053

Artec 4100

Asat 4053, 4055

ASLF 4217

Astacom 4216

Astra 4009, 4011, 4054,

4217, 4219

Astro 4004, 4008, 4010,

4015, 4024, 4213,

4218, 4219

AudioTon 4004, 4048

Aurora 4222

Austar 4222

Axiel 4216

Axis 4008, 4009, 4024,

4050

Best 4008, 4024

Blaupunkt 4015

Blue Sky 4217

Boca 4011, 4054, 4059,

4217

Boston 4216

Brain Wave 4013

Broadcast 4012

Broco 4217

BSkyB 4035, 4041

BT 4216

Bubu Sat 4217

Bush 4006, 4045

Cambridge 4218

Canal Satellite 4213

Canal+ 4213

CaptiveWorks 4099

Channel Master 4007, 4110

Chaparral 4075

CHEROKEE 4216

Chess 4212, 4217

CityCom 4006, 4215, 4219

Clatronic 4013

CNT 4010

Comag 4080, 4081, 4082,

4083, 4086

Commlink 4005

Comtech 4050

Condor 4008, 4024, 4219

Connexions 4014, 4024

Conrad 4024, 4215, 4218,

4219

Conrad Electronic

4217, 4219

Contec 4050

Coolsat 4096

Cosat 4048

Coship 4109

Crown 4011

Daeryung 4014

Daewoo 4057, 4217

DDC 4007

Delega 4007

Dew 4050

Diamond 4051

Digiality 4219

Digital Stream 4105

DIRECTV 4056, 4064, 4067,

4068, 4070, 4071,

4074, 4107, 4116,

4119, 4121, 4122,

4123, 4127, 4192,

4193, 4194, 4195,

4196, 4197, 4198,

4199, 4200, 4201,

4202, 4203, 4206,

4207, 4221

Discoverer 4212

Discovery 4216

Diseqc 4216

Dish Network 4018, 4065, 4089,

4092, 4094, 4095,

4117

Dishpro 4018, 4117

Distrisat 4053

Ditristrad 4048

DNT 4014, 4053, 4055

Drake 4072

DStv 4222

Dune 4024

Echostar 4014, 4018, 4065,

4089, 4117, 4217

Einhell 4001, 4005, 4011,

4217, 4218

Elap 4216, 4217

Elekta 4010

Elsat 4217

Elta 4001, 4008, 4024,

4048, 4053, 4055

Emanon 4001

Emme Esse 4008, 4024

Engel 4217

Ep Sat 4006

EURIEULT 4031

Eurodec 4052

Europa 4053, 4218, 4219

Europhon 4219

Eurosat 4011

Eurosky 4024, 4011, 4008,

4215, 4218, 4219

Eurostar 4011, 4215, 4219

Eutelsat 4217

Exator 4001, 4004

Expressvu 4117

Fenner 4024, 4212, 4217

Ferguson 4006, 4052, 4214

Fidelity 4218

Finlandia 4006

Finlux 4006

FinnSat 4050, 4052

Flair Mate 4217

Foxtel 4222

Freecom 4001, 4049, 4218

FTEmaximal 4024, 4217

Fuba 4024, 4001, 4008,

4014, 4015, 4055,

4215

Galaxis 4024, 4005, 4008,

4009, 4050, 4048,

4215, 4222

GE 4093, 4066, 4111,

4197

General Instrument

4073, 4019

GMI 4011

GOI 4117

Goldbox 4213

GoldStar 4049

Goodmans 4029, 4002, 4006

Goodmind 4111

Grandin 4031

Grothusen 4001, 4049

Grundig 4006, 4004, 4015,

4035, 4211, 4218,

4222

Hänsel & Gretel 4219

Hantor 4001, 4013

Hanuri 4010

Hauppauge 4044

Heliocom 4219

Helium 4219

Hinari 4007

Hirschmann 4024, 4015, 4210,

4218, 4219, 4216

Hisawa 4013

Hisense 4016

Hitachi 4114, 4006, 4199,

4203

Homecast 4087, 4084, 4085

Houston 4048

HTS 4117

Hughes 4064, 4068, 4194,

4192, 4196, 4202

Hughes Network Systems

4071

Humax 4097, 4025, 4030,

4060

Huth 4005, 4011, 4012,

4013, 4050, 4048,

4219, 4223

Hypson 4031

Ilo 4016

Imex 4031

Innovation 4008

Insignia 4107

Intertronic 4011

Intervision 4048, 4219

ITT Nokia 4006

Jerrold 4019

Johansson 4013

JOK 4216

JSR 4048

JVC 4089, 4065, 4117,

4029

Kamm 4217

Kathrein 4015, 4055, 4053,

4063, 4034, 4042,

4215, 4216, 4217

Kathrein Eurostar

4215

Klap 4216

Konig 4219

Kosmos 4049

KR 4004

Kreiselmeyer 4015

K-SAT 4217

Kyostar 4001

L&S Electronic 4024

Lasat 4024, 4010, 4008,

4054, 4215, 4212,

4219

Lasonic 4108

Lenco 4024, 4001, 4049,

4215, 4219, 4217

Leng 4013

Lennox 4048

Lenson 4218

Lexus 4053

LG 4103, 4107, 4049

Lifesat 4024, 4008, 4212,

4217

Lifetec 4008

Lorenzen 4219

Lorraine 4049

Lupus 4024, 4008

Luxor 4218

Lyonnaise 4052

Macab 4052

Magnavox 4127, 4101

Manata 4031, 4216, 4217

Manhattan 4006, 4010, 4048,

4216

Marantz 4055

Mascom 4010

Maspro 4006, 4217

Matsui 4216

Max 4219

Mediabox 4213

Mediamarkt 4011

Mediasat 4009, 4213, 4218

Medion 4024, 4008, 4217

Medison 4217

Mega 4055, 4053

Memorex 4127

Metronic 4031, 4028, 4001,

4004, 4005, 4010,

4217

Metz 4015

Micro electronic

4218, 4219, 4217

Micro Technology

4217

MicroGem 4106

Micromaxx 4024, 4008

Microstar 4008

Microtec 4217

Minerva 4015

Mitsubishi 4006, 4015, 4202

Mitsumi 4054

Morgan’s 4011, 4054, 4055,

4053, 4217

Motorola 4090, 4091, 4088,

4019

Multichoice 4222

Multitec 4212

Muratto 4049

Mysat 4217

Navex 4013

Neuhaus 4009, 4048, 4218,

4219, 4217

Neusat 4217

Next Level 4019

NextWave 4223

Nikko 4011, 4217

Nokia 4006, 4040

Nordmende 4001, 4006, 4007,

4010, 4052

Nova 4222

Novis 4013

Oceanic 4051

Octagon 4001, 4004, 4050

Okano 4011

Optex 4048

Optus 4213, 4222, 4223

Orbitech 4001, 4212, 4213,

4218

OSat 4004

Otto Versand 4015

Pace 4006, 4015, 4035,

4043, 4047, 4216

Pacific 4051

Packsat 4216

Palcom 4007

Palladium 4011, 4218

Palsat 4212, 4218

Panasat 4222

Panasonic 4121, 4126, 4124,

4006, 4035, 4036,

4221, 4198

Panda 4006, 4219

Pansat 4125

Patriot 4216

Paysat 4127

PCT 4110

Philco 4101

Philips 4071, 4068, 4127,

4006, 4055, 4053,

4061, 4033, 4213,

4216, 4196, 4202,

4203, 4201, 4206

Phoenix 4050

Phonotrend 4006, 4005, 4048

Pioneer 4046, 4213

Polsat 4052

Predki 4013

Premiere 4048, 4213

Priesner 4011

Primestar 4076

Profile 4216

Promax 4006

Prosat 4007, 4005

Proscan 4093, 4066, 4122,

4197

Protek 4051

Proton 4016

Provision 4010

Quadral 4024, 4007, 4005,

4008, 4216

Quelle 4015, 4215, 4219

Quiero 4052

RadioShack 4019

Radiola 4055, 4053

Radix 4014, 4037

Rainbow 4004

RCA 4093, 4066, 4112,

4113, 4118, 4119,

4116, 4122, 4197,

4207

Realistic 4078

Redpoint 4009

Redstar 4024, 4008

RFT 4005, 4055, 4053

Roadstar 4217

Roch 4031

Rover 4024, 4217

Saba 4010, 4215, 4219,

4216

Sabre 4006

Sagem 4023, 4052

Sakura 4050

Samsung 4064, 4071, 4069,

4123, 4120, 4003,

4000, 4001, 4032,

4196, 4200

SAT 4007, 4218

Sat Cruiser 4223

Sat Partner 4001, 4004, 4010,

4013, 4049, 4218

Sat Team 4217

Satcom 4012, 4219

Satec 4217

Satelco 4024

Satford 4012

Satmaster 4012

Satplus 4212

Schneider 4008, 4212, 4216

Schwaiger 4051, 4212, 4219

SCS 4215

Seemann 4011, 4009, 4014

SEG 4024, 4001, 4008,

4013

Seleco 4048

Servi Sat 4031, 4217

Siemens 4015

Silva 4049

Skantin 4217

Skardin 4009

Skinsat 4218

SKR 4217

Skymaster 4017, 4022, 4005,

4212, 4217

Skymax 4055, 4053

SkySat 4212, 4218, 4219,

4217

Skyvision 4048

SM Electronic 4212, 4217

Smart 4215, 4217

Sony 4067, 4070, 4213

SR 4011, 4054

Star Choice 4019

Starland 4217

Starring 4013

Start Trak 4001

Strong 4024, 4001, 4004,

4008, 4049, 4222

STS 4115

STVI 4031

Sumida 4011

Sunny Sound 4024

Sunsat 4217

Sunstar 4024, 4011, 4054

Supermax 4223

Tandberg 4052

Tandy 4004

Tantec 4006

TCM 4008

Techniland 4012

TechniSat 4021, 4026, 4027,

4014, 4053, 4038,

4039, 4212, 4213,

4218

Technology 4222

Technosat 4223

Technowelt 4219

Teco 4011, 4054

Telanor 4007

Telasat 4215, 4219

Telecom 4217

Telefunken 4017, 4001, 4216

Teleka 4004, 4011, 4014,

4218, 4219

Telemaster 4010

Telesat 4219

Telestar 4212, 4213, 4218

Televes 4006, 4218

Telewire 4048

Tempo 4223

Tevion 4008, 4217

Thomson 4020, 4006, 4052,

4058, 4208, 4215,

4213, 4219, 4216,

4217

Thorens 4051

Thorn 4006

Tivax 4104

Tivo 4196

Tokai 4053

Tonna 4006, 4012, 4048,

4218, 4217

Toshiba 4194, 4202, 4203

Triad 4049

Triasat 4218

Triax 4015, 4215, 4218,

4217

Turnsat 4217

Tvonics 4214

Twinner 4031, 4217

UEC 4222

Uher 4212

UltimateTV 4070

Uniden 4079, 4127

Unisat 4011, 4050, 4053

Unitor 4013

Universum 4015, 4215, 4219

US Digital 4016

Variosat 4015

Vega 4024

Ventana 4055, 4053

Viewsat 4098

Visiosat 4013, 4048, 4216,

4217

Voom 4019

Vortec 4001

Welltech 4212

WeTeKom 4212, 4218

Wevasat 4006

Wewa 4006

Winersat 4013

Wisi 4006, 4014, 4015,

4218, 4219

Woorisat 4010

Worldsat 4216

Xrypton 4024

XSat 4217

Zehnder 4024, 4010, 4008,

4209, 4215

Zenith 4102, 4107, 4195

Zodiac 4004

CD player

Yamaha 5082, 5095

CD recorder

Yamaha 5083

MD recorder

Yamaha 5080, 5081, 5086

Tape deck

Yamaha 5084, 5087

LD player

Yamaha 2080

Printed in Malaysia

WV17360
