WR11780 Application Note Version 0.9.3
2008-11-26
11. Installation Guide for Representative model

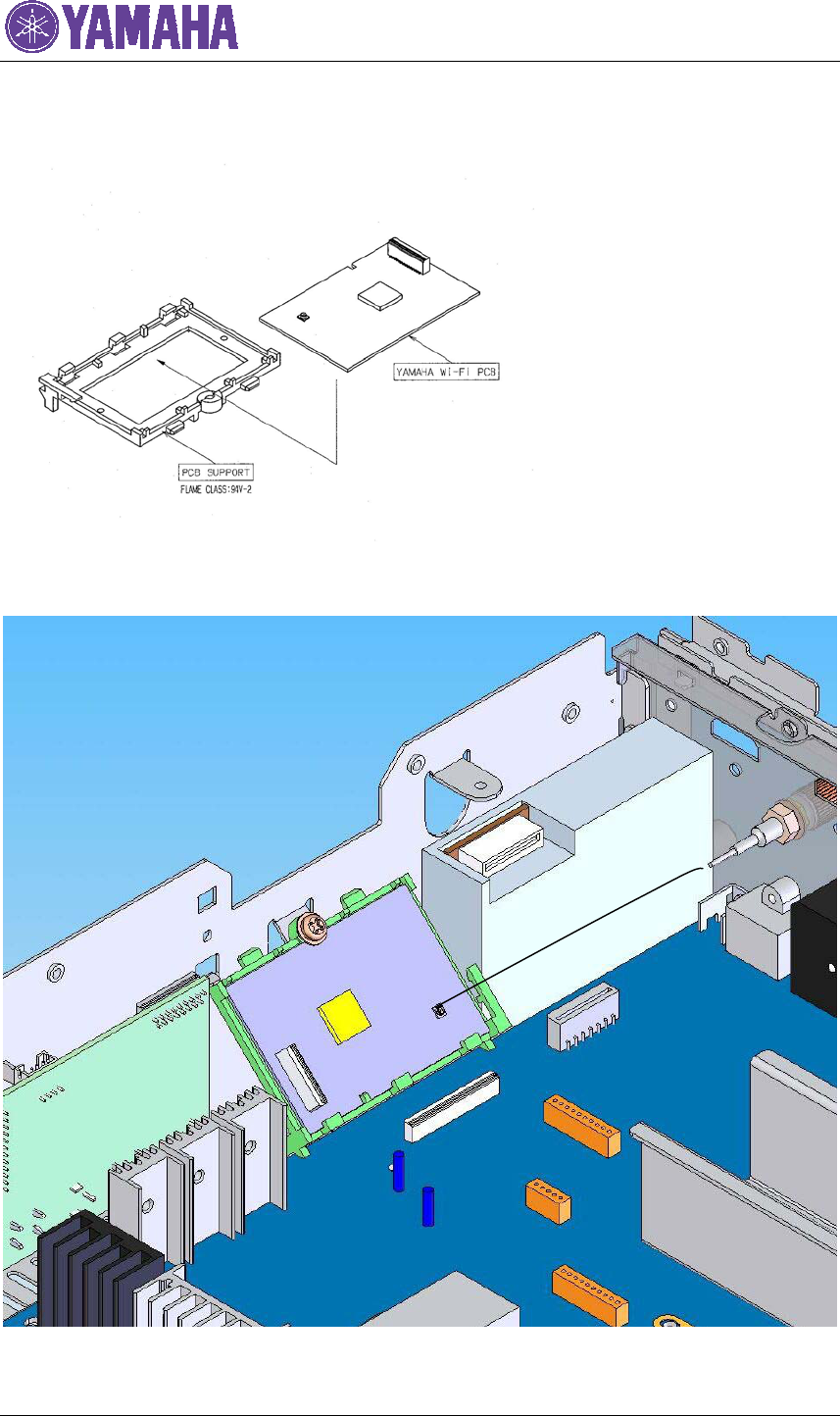

11.1 YAMAHA Wi-Fi PCB is installed in the support parts
11.2 YAMAHA Wi-Fi PCB is installed in the main body.
Special Antenna is installed in AV-Receiver’s rear Panel.
It connected with HOST CPU with the FFC card electric wire.
Confidential Page 16 12/9/2008
WR11780 Application Note Version 0.9.3
2008-11-26

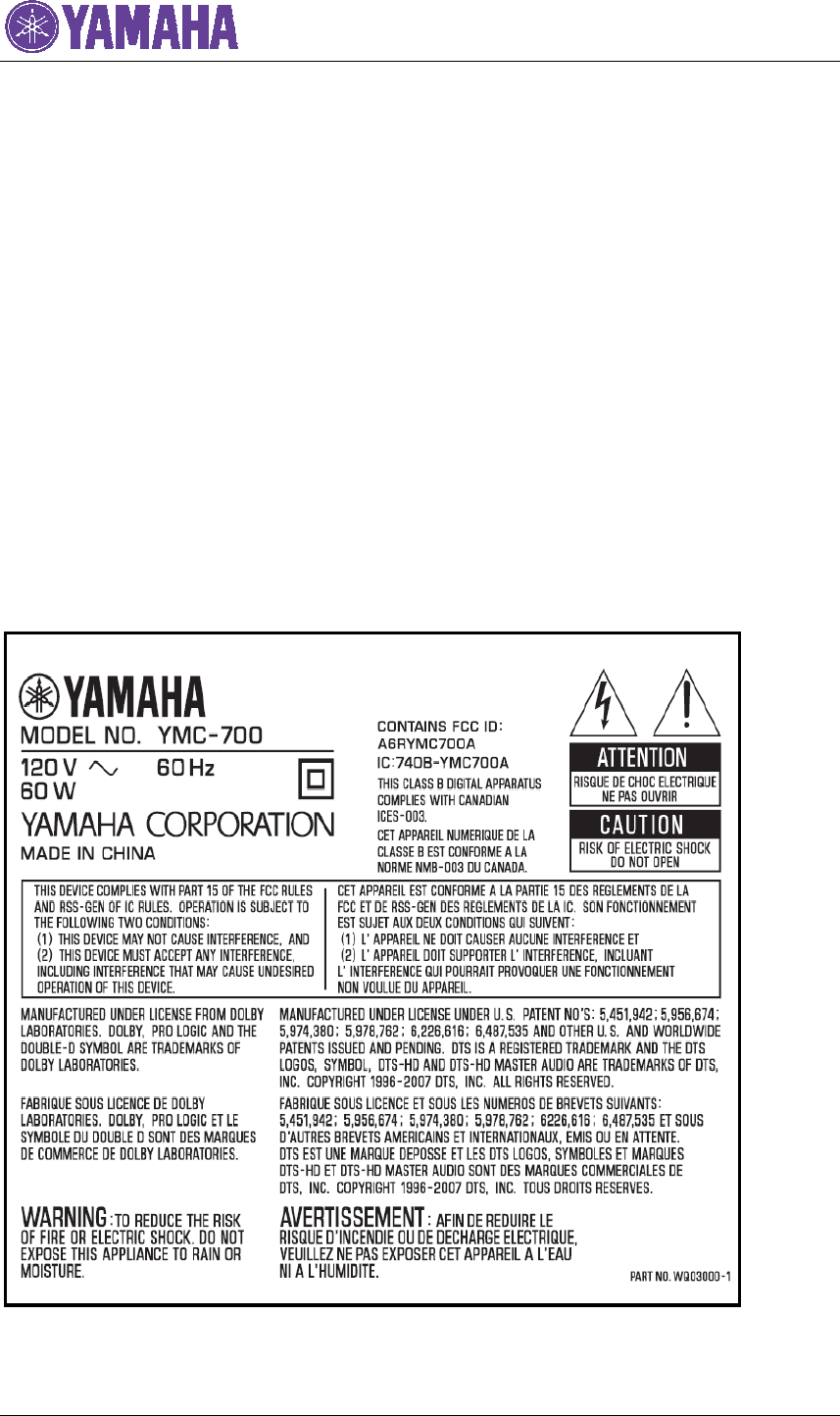

11.3 The following label print is added to the main body of AV-Receiver.
11.3.1 FCC ID and IC Number
“Contains Transmitter Module FCC ID” or “Contains”
FCC ID : A6RYMC700A
IC : 740B-YMC700A
11.3.2 FCC Par15 Subpart C manual demands
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation of this device.
11.3.3 Industrial Canada manual demands for Province of Quebec
Cet appareil est conforme à la partie 15 des règlements de la FCC et de RSS-Gen des
règlements de la IC.
Son fonctionnement est sujet aux deux conditions qui suivent:
(1) l'appareil ne doit causer aucune interférence et
(2) l'appareil doit supporter l' interférence , incluant l' interférence qui pourrait
provoquer une fonctionnement non voulue du appareil.
Ex Model. YAMAHA Media Controller YMC-700
Confidential Page 17 12/9/2008
WR11780 Application Note Version 0.9.3
Confidential Page 18 12/9/2008
2008-11-26
11.4 The following specification statement is needed for the owner’s manual.
11.4.1 「COMPLIANCE INFORMATION STATEMENT」
This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received including interference that may
cause undesired operation of this device. See user manual instructions if interference to
radio reception is suspected.
11.4.2 Description requested for mobile device of 24mW or more
This equipment compiles with FCC/IC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines
in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
This equipment should be installed and operated with at least 20 cm and more between
the radiator and person’s body
(excluding extremities: hands, wrists, feet and ankles).
11.4.3 「NOTICE」
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
－ Reorient or relocate the receiving antenna.
－ Increase the separation between the equipment and receiver.
－ Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
－ Consult the dealer or an experienced radio/TV technician for help.
11.4.4 「FCC WARNING」
Change or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
11.4.5 Co-Location
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
11.4.6 At the use of the shielded cable and the ferrite core
Properly shielded a grounded cables and connectors must be used for connection to host
computer and / or peripherals in order to meet FCC emission limits. （AC adaptor）
with ferrite core must be used for RF interference suppression.
