INTRODUCTION
PREPARATION
- INSTALLATION
  - Before installing this unit
  - Installing this unit
- CONNECTIONS
SETUP
BASIC OPERATION
ADVANCED OPERATION
ADDITIONAL INFORMATION
- TROUBLESHOOTING
- GLOSSARY
  - Audio formats
  - Audio information
- INDEX
  - A
  - B
  - C
  - D
  - E
  - L
  - M
  - N
  - O
  - P
  - R
  - S
  - T
- SPECIFICATIONS
LIST OF REMOTE CONTROL CODES
QUICK REFERENCE GUIDE

YAMAHA ELECTRONICS CORPORATION, USA

6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.

YAMAHA CANADA MUSIC LTD.

135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA

YAMAHA ELECTRONIK EUROPA G.m.b.H.

SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, GERMANY

YAMAHA ELECTRONIQUE FRANCE S.A.

RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE

YAMAHA ELECTRONICS (UK) LTD.

YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND

YAMAHA SCANDINAVIA A.B.

J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN

YAMAHA MUSIC AUSTRALIA PTY, LTD.

17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA

Printed in Malaysia WF72220

YSP-800

Digital Sound Projector

OWNER’S MANUAL

This product mainly uses lead-free solder.

YSP-800_UB-cv.fm Page 1 Monday, July 25, 2005 11:15 AM

IMPORTANT SAFETY INSTRUCTIONS

■Explanation of Graphical Symbols

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert you to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral

triangle is intended to alert you to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers)

that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10 Protect the power cable from being walked on or pinched

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT SAFETY INSTRUCTIONS

FCC INFORMATION (for US customers)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS

UNIT!

This product, when installed as indicated in the instructions

contained in this manual, meets FCC requirements.

Modifications not expressly approved by YAMAHA may

void your authority, granted by the FCC, to use the product.

2. IMPORTANT:

When connecting this product to accessories and/or another

product use only high quality shielded cables. Cable/s

supplied with this product MUST be used. Follow all

installation instructions. Failure to follow instructions could

void your FCC authorization to use this product in the USA.

3. NOTE:

This product has been tested and found to comply with the

requirements listed in FCC Regulations, Part 15 for Class

“B” digital devices. Compliance with these requirements

provides a reasonable level of assurance that your use of

this product in a residential environment will not result in

harmful interference with other electronic devices.

This equipment generates/uses radio frequencies and, if not

installed and used according to the instructions found in the

users manual, may cause interference harmful to the

operation of other electronic devices.

Compliance with FCC regulations does not guarantee that

interference will not occur in all installations. If this product

is found to be the source of interference, which can be

determined by turning the unit “OFF” and “ON”, please try

to eliminate the problem by using one of the following

measures:

Relocate either this product or the device that is being

affected by the interference.

Utilize power outlets that are on different branch (circuit

breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the

antenna. If the antenna lead-in is 300 ohm ribbon lead,

change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory

results, please contact the local retailer authorized to

distribute this type of product. If you can not locate the

appropriate retailer, please contact YAMAHA Electronics

Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA

90620.

The above statements apply ONLY to those products

distributed by YAMAHA Corporation of America or its

subsidiaries.

We Want You Listening For A Lifetime

YAMAHA and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of

your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying

blaring or distortion – and, most importantly, without affecting your sensitive hearing.

Since hearing damage from loud sounds is often undetectable until it is too late, YAMAHA and the Electronic Industries

Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

CAUTION: READ THIS BEFORE OPERATING THIS UNIT.

iii

1 To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2 Install this sound system in a well ventilated, cool, dry, clean

place with at least 5 cm of space above (or below) this unit –

away from direct sunlight, heat sources, vibration, dust, moisture,

and/or cold.

3 Locate this unit away from other electrical appliances, motors, or

transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes from cold

to hot, and do not locate this unit in an environment with high

humidity (i.e. a room with a humidifier) to prevent condensation

inside this unit, which may cause an electrical shock, fire,

damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign object may fall onto this

unit and/or this unit may be exposed to liquid dripping or

splashing. On the top of this unit, do not place:

– Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire, damage

to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and liquid

may cause electrical shock to the user and/or damage to this

unit.

6 Do not cover this unit with a newspaper, tablecloth, curtain, etc.

in order not to obstruct heat radiation. If the temperature inside

this unit rises, it may cause fire, damage to this unit, and/or

personal injury.

7 Do not plug in this unit to a wall outlet until all connections are

complete.

8 Do not operate this unit upside-down. It may overheat, possibly

causing damage.

9 Do not use force on switches, knobs and/or cords.

10 When disconnecting the power cable from the wall outlet, grasp

the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might damage

the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this unit

with a higher voltage than specified is dangerous and may cause

fire, damage to this unit, and/or personal injury. YAMAHA will

not be held responsible for any damage resulting from use of this

unit with a voltage other than specified.

13 Do not attempt to modify or fix this unit. Contact qualified

YAMAHA service personnel when any service is needed.

The cabinet should never be opened for any reasons.

14 When not planning to use this unit for long periods of time (i.e.

vacation), disconnect the AC power plug from the wall outlet.

15 Be sure to read the “TROUBLESHOOTING” section on

common operating errors before concluding that this unit is

faulty.

16 Before moving this unit, press STANDBY/ON to set this unit in

standby mode, and disconnect the AC power plug from the wall

outlet.

17 Condensation will form when the surrounding temperature

changes suddenly. Disconnect the power cable from the outlet,

then leave the unit alone.

18 When using the unit for a long time, the unit may become warm.

Turn the power off, then leave the unit alone for cooling.

19 Install this unit near the AC outlet and where the AC power plug

can be reached easily.

CAUTION: READ THIS BEFORE OPERATING THIS UNIT.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

This unit is not disconnected from the AC power source as

long as it is connected to the AC wall outlet, even if this unit

itself is turned off. This state is called the standby mode. In

this state, this unit is designed to consume a very small

quantity of power.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to wide

slot and fully insert.

This Class B digital apparatus complies with Canadian ICES-

003.

IMPORTANT

Please record the serial number of this unit in the space below.

MODEL:

Serial No.:

The serial number is located on the rear of the unit. Retain this

Owner’s Manual in a safe place for future reference.

FOR U.K. CUSTOMERS

If the socket outlets in the home are not suitable for the plug

supplied with this appliance, it should be cut off and an

appropriate 3 pin plug fitted. For details, refer to the

instructions described below. Note that the plug severed from

the mains lead must be destroyed, as a plug with bared

flexible cord is hazardous if engaged in a live socket outlet.

IMPORTANT

THE WIRES IN MAINS LEAD ARE COLOURED IN

ACCORDANCE WITH THE FOLLOWING CODE:

Blue: NEUTRAL

Brown: LIVE

As the colours of the wires in the mains lead of this apparatus

may not correspond with the coloured markings identifying

the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the

terminal which is marked with the letter N or coloured

BLACK. The wire which is coloured BROWN must be

connected to the terminal which is marked with the letter L or

coloured RED. Make sure that neither core is connected to the

earth terminal of the three pin plug.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace

only with the same or equivalent type.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous radi-

ation exposure.

PREPARATIONINTRODUCTION

BASIC

OPERATION

ADVANCED

OPERATION

ADDITIONAL

INFORMATION

SETUP English

OVERVIEW ........................................................... 2

FEATURES............................................................. 3

USING THIS MANUAL ........................................ 4

SUPPLIED ACCESSORIES ................................. 5

CONTROLS AND FUNCTIONS ......................... 6

Front panel ................................................................. 6

Front panel display .................................................... 7

Rear panel .................................................................. 8

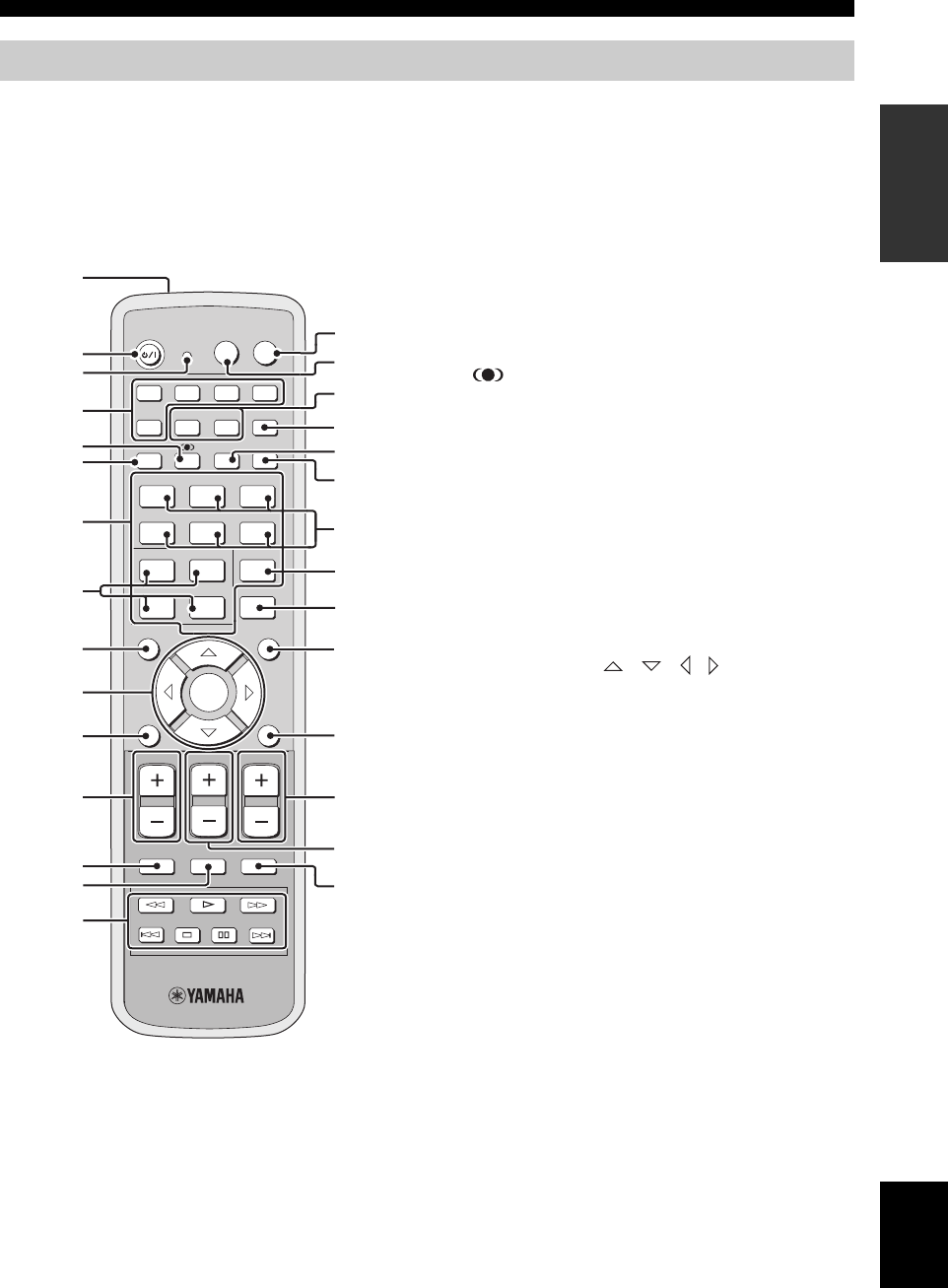

Remote control........................................................... 9

INSTALLATION ................................................. 11

Before installing this unit......................................... 11

Installing this unit .................................................... 11

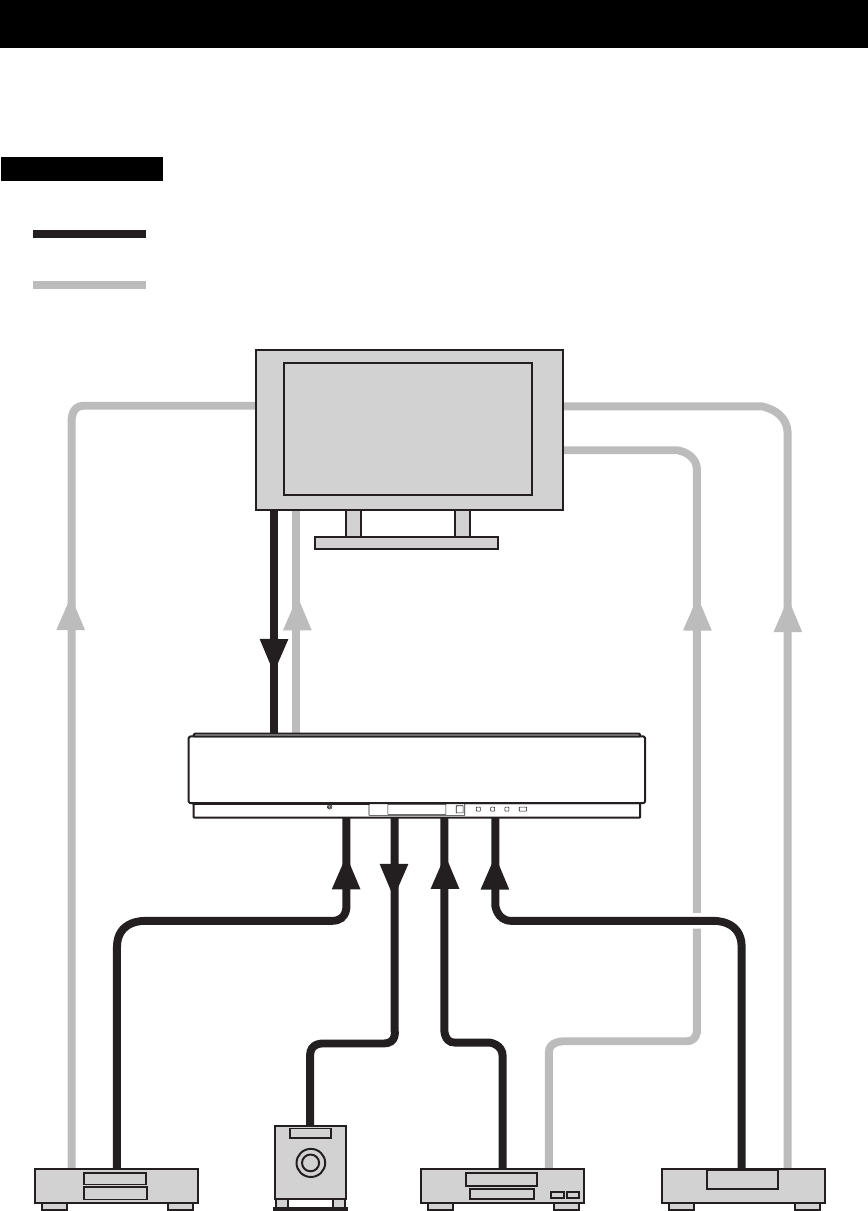

CONNECTIONS .................................................. 14

Connecting a TV...................................................... 15

Connecting a DVD player/recorder ......................... 16

Connecting a VCR................................................... 17

Connecting a digital satellite tuner

or a cable TV tuner .............................................. 18

Connecting other external components ................... 19

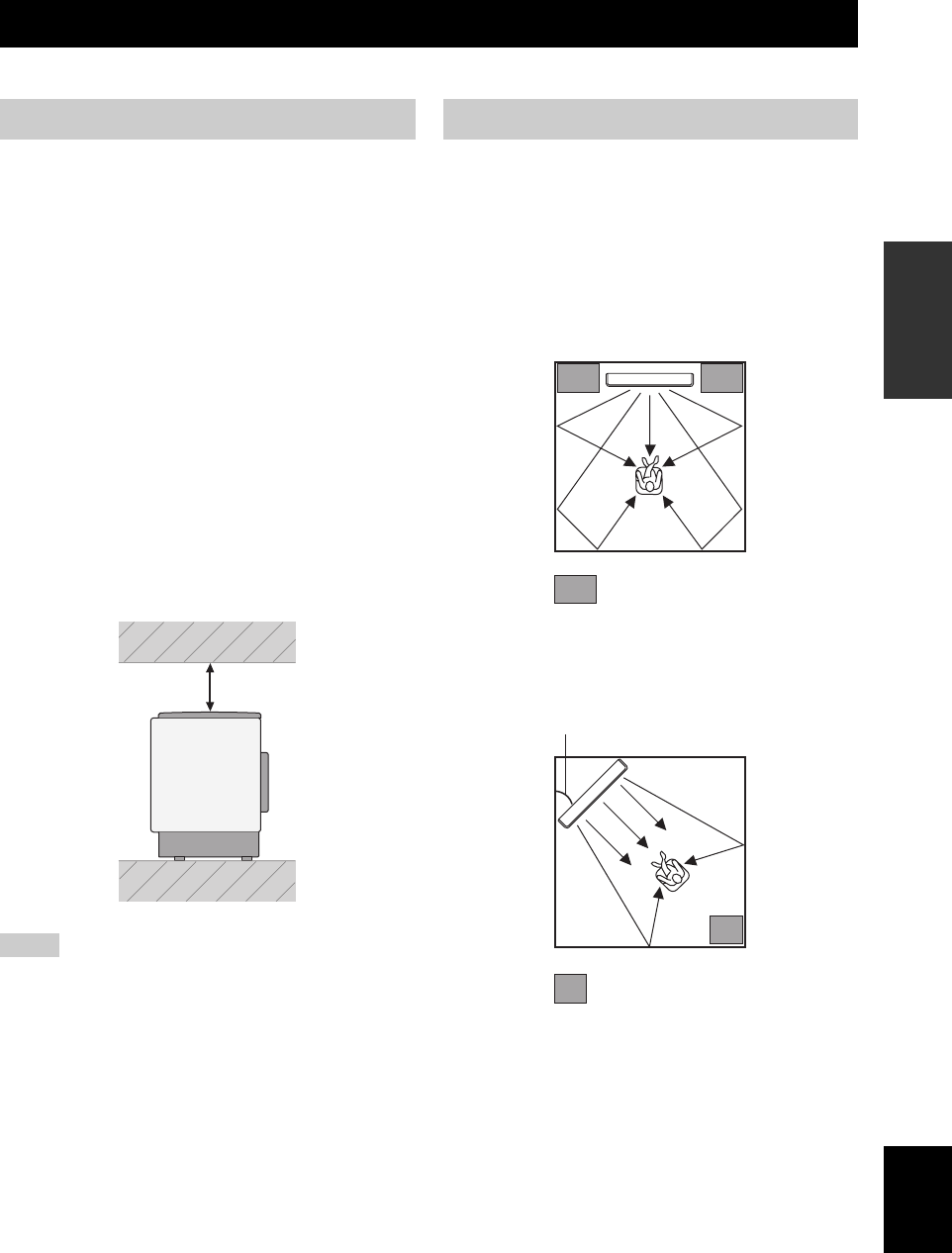

Connecting a subwoofer .......................................... 20

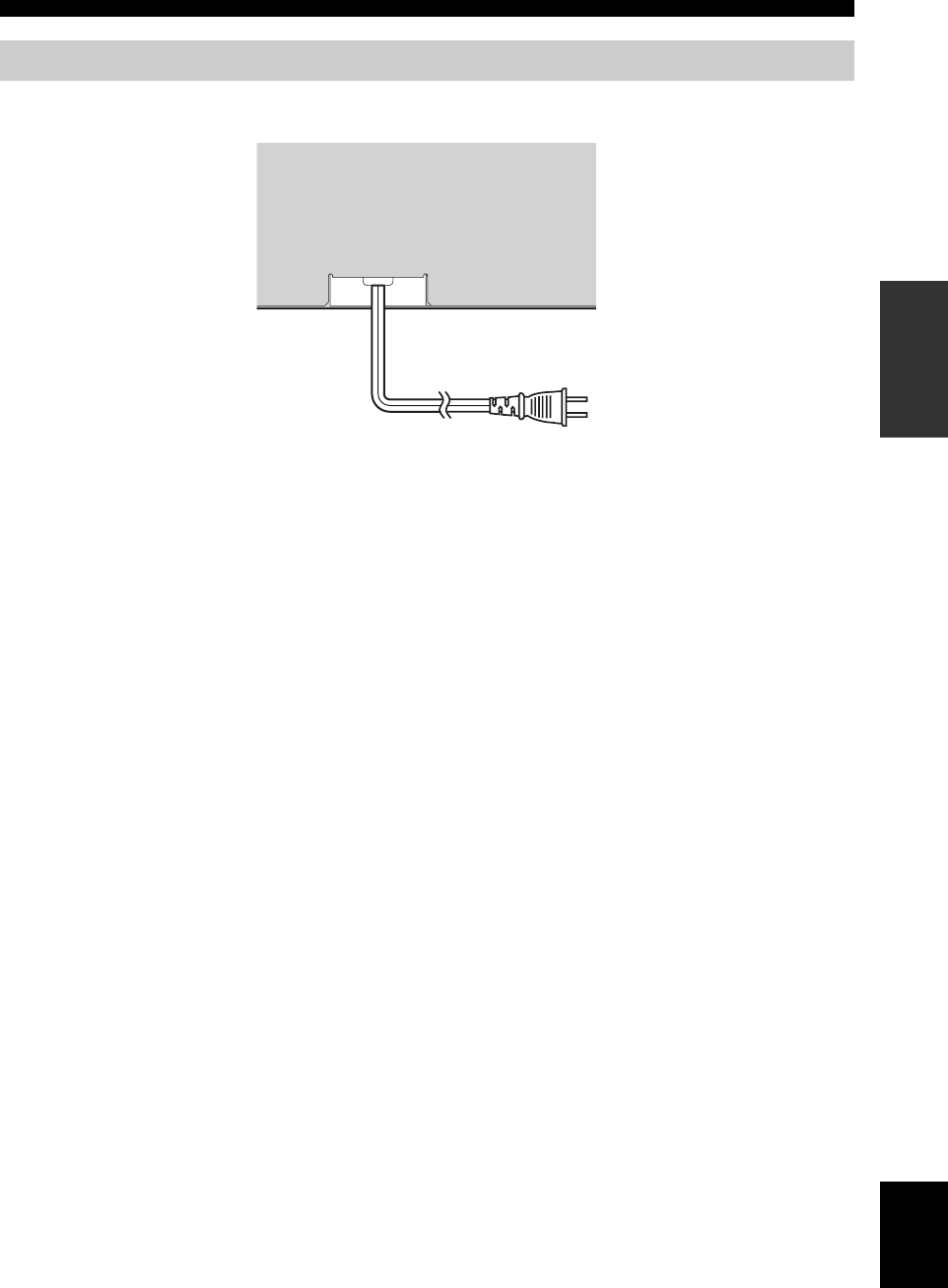

Connecting the power supply cable ......................... 21

GETTING STARTED.......................................... 22

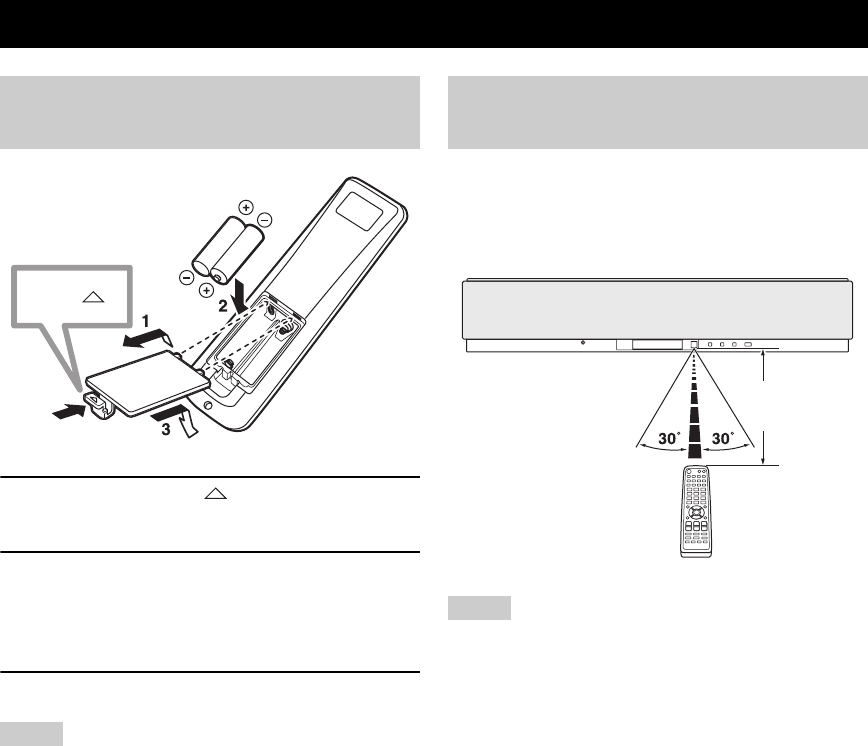

Installing batteries in the remote control ................. 22

Operation range of the remote control..................... 22

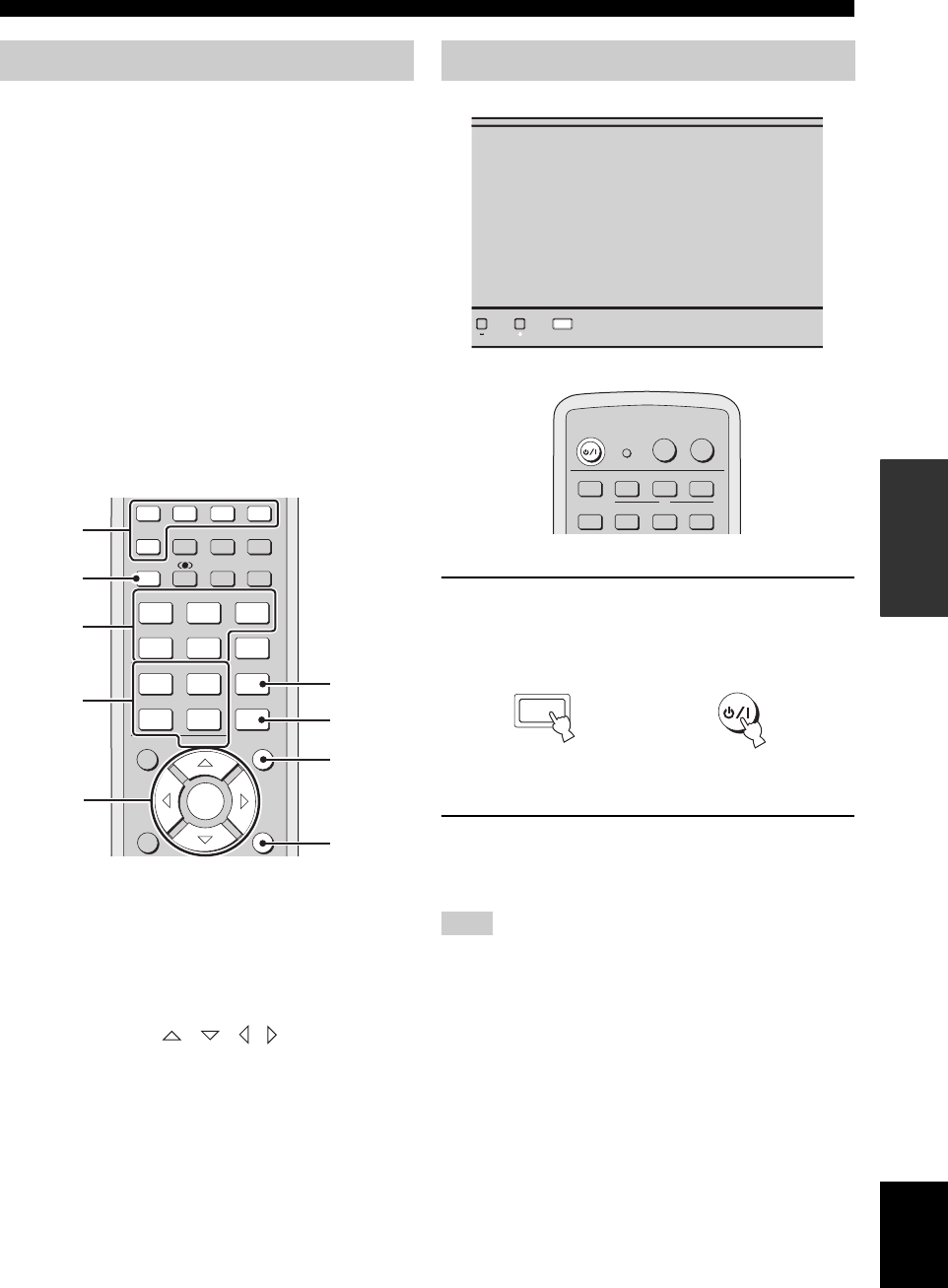

Using the remote control ......................................... 23

Turning on the power............................................... 23

USING SET MENU.............................................. 24

Displaying the OSD ................................................. 24

The flow chart of SET MENU................................. 25

AUTO SETUP....................................................... 26

The flow chart of AUTO SETUP ............................ 26

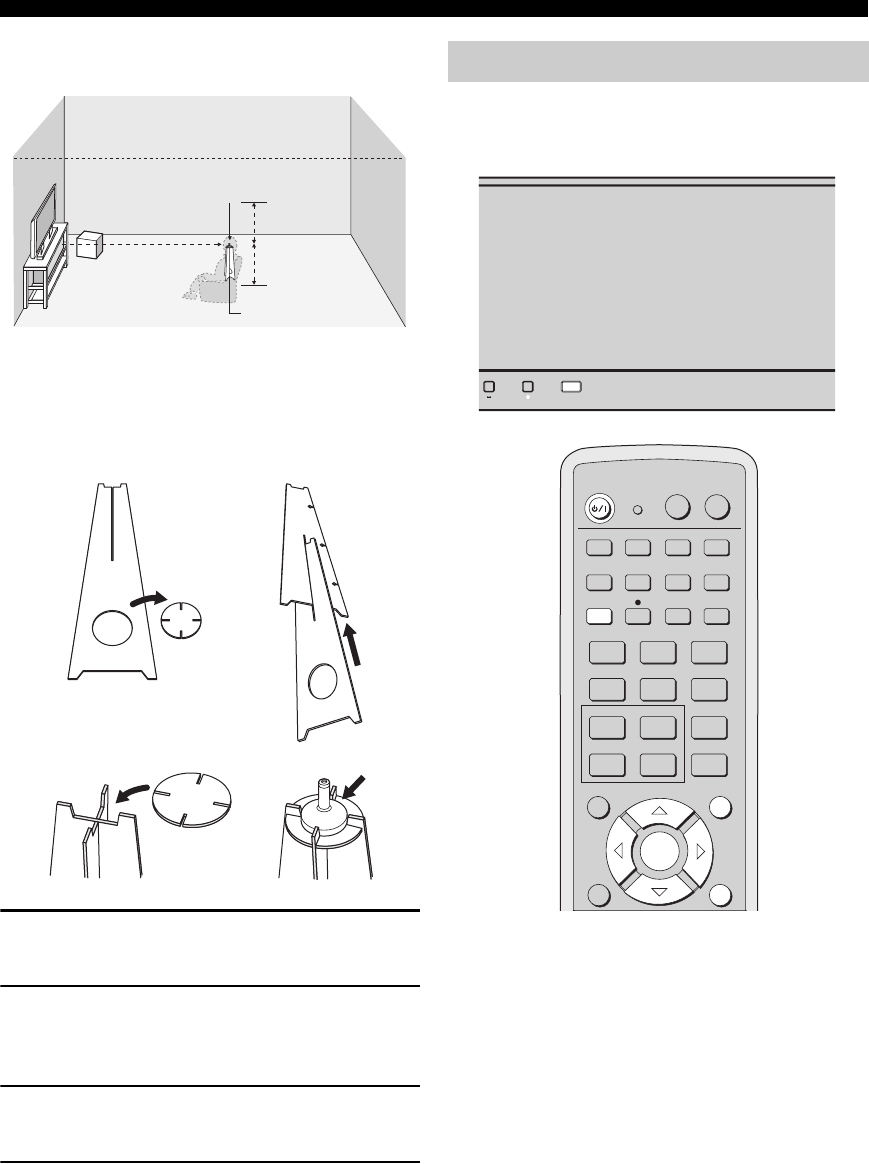

Installing the optimizer microphone ........................ 27

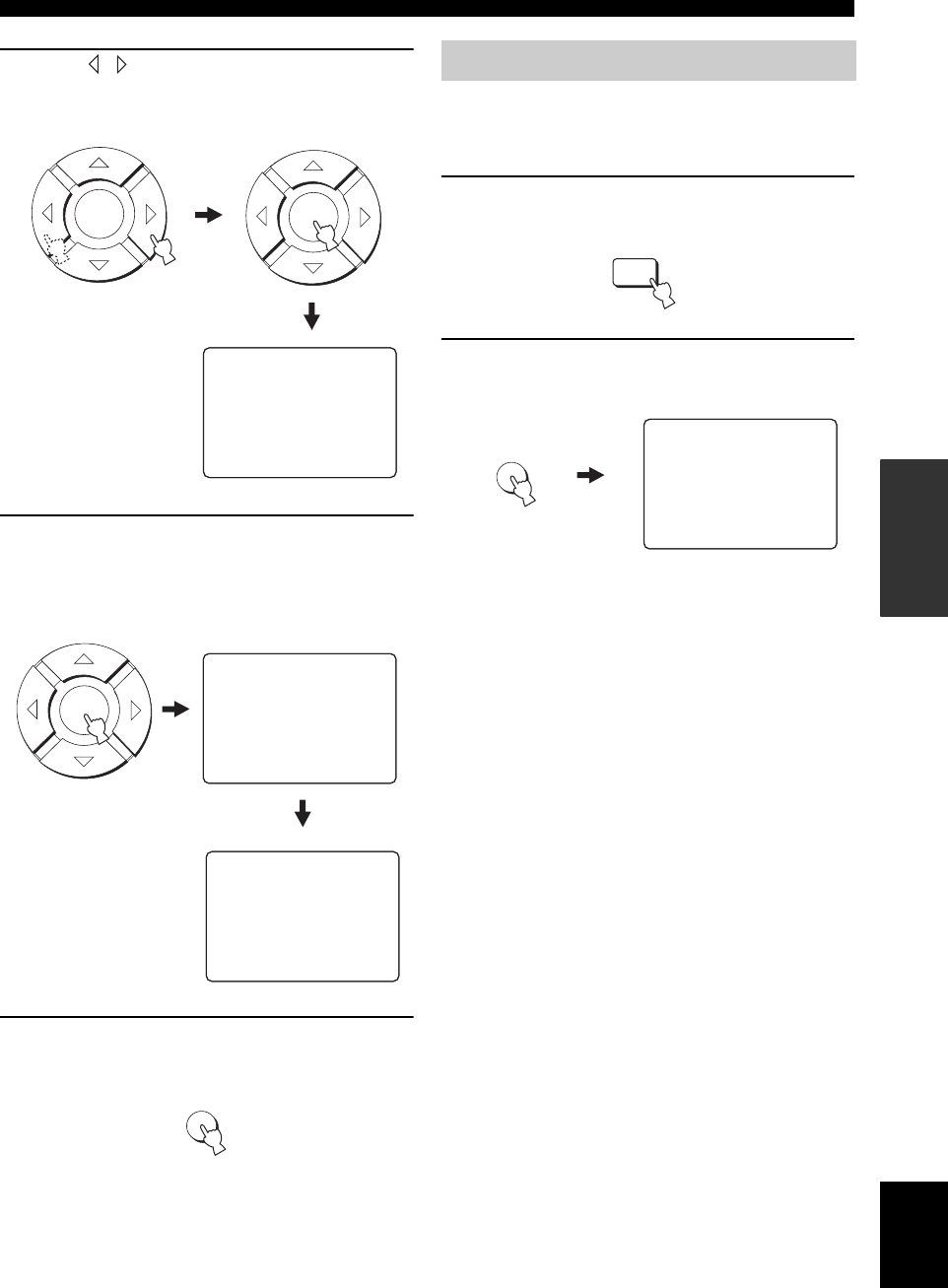

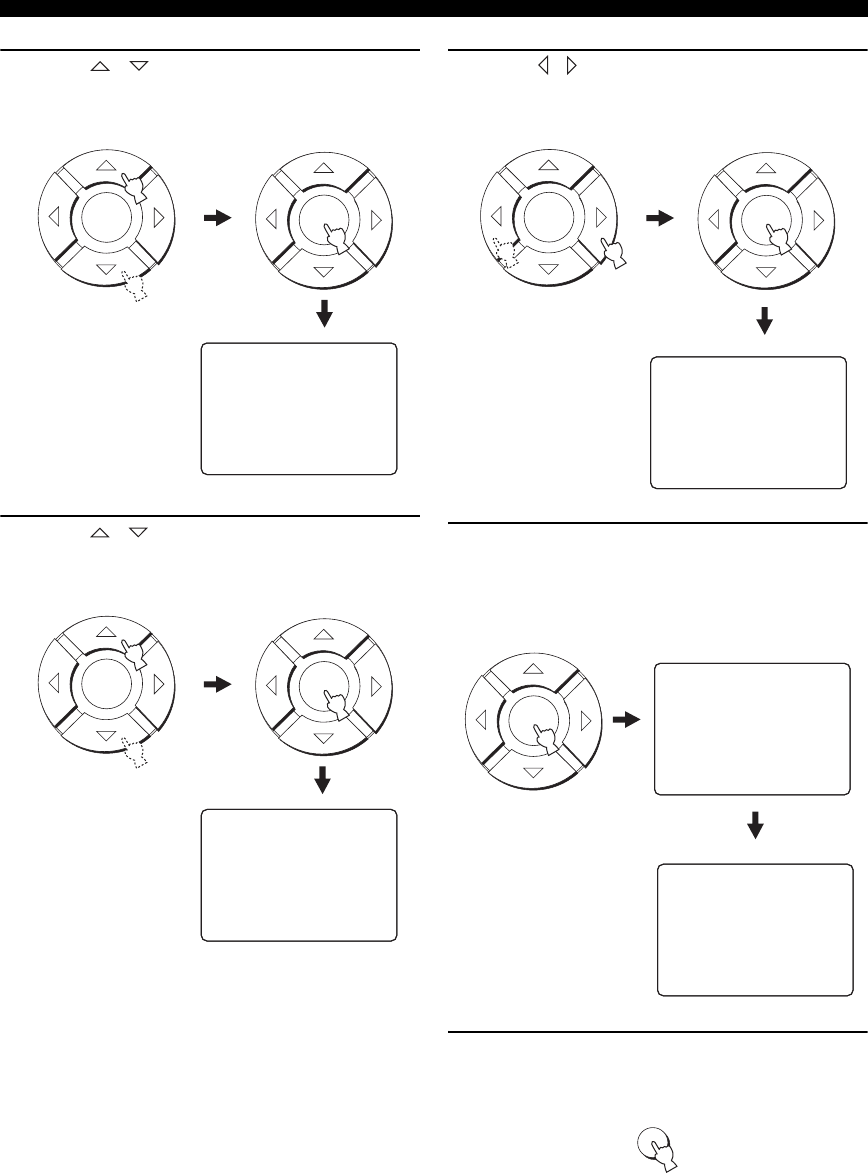

Using AUTO SETUP .............................................. 28

USING THE SYSTEM MEMORY .................... 34

Saving settings ......................................................... 34

Loading settings....................................................... 35

PLAYBACK ..........................................................37

Selecting the input source........................................ 37

Playing back sources ............................................... 38

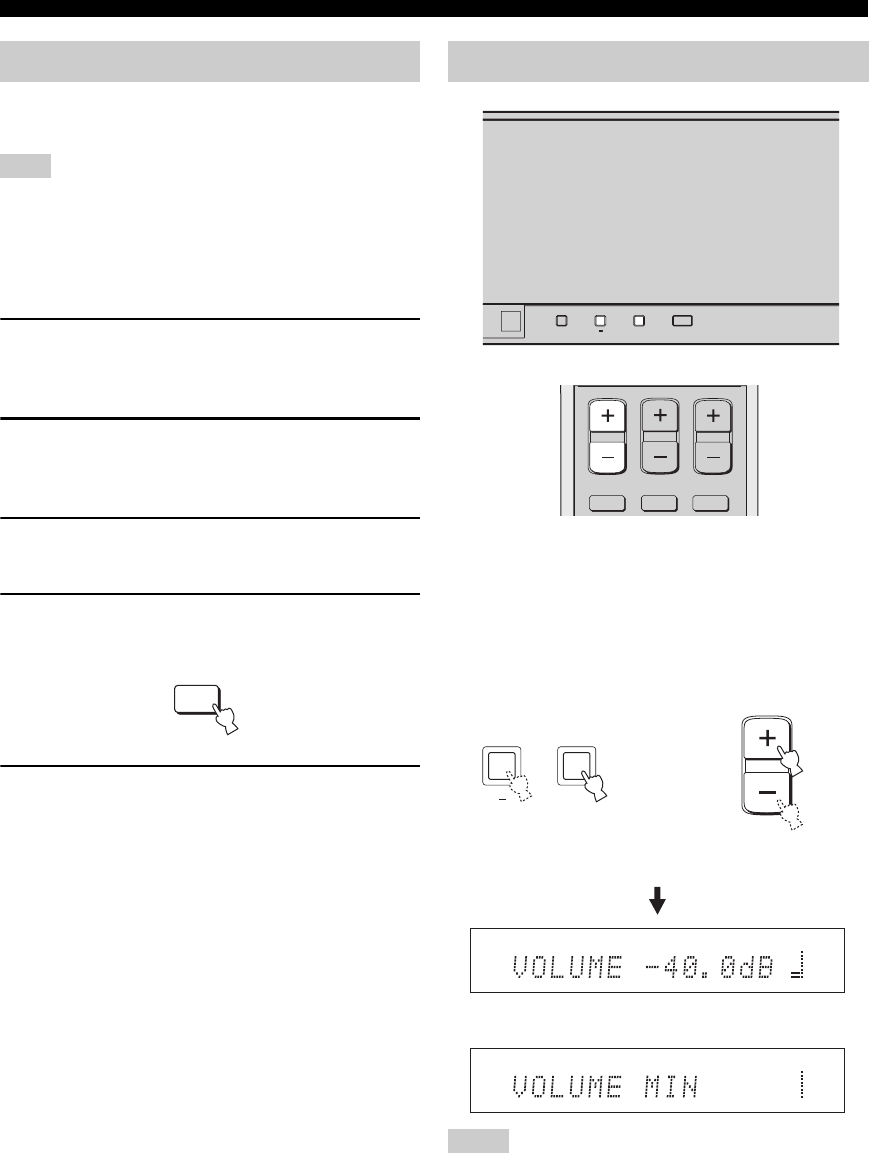

Adjusting the volume............................................... 38

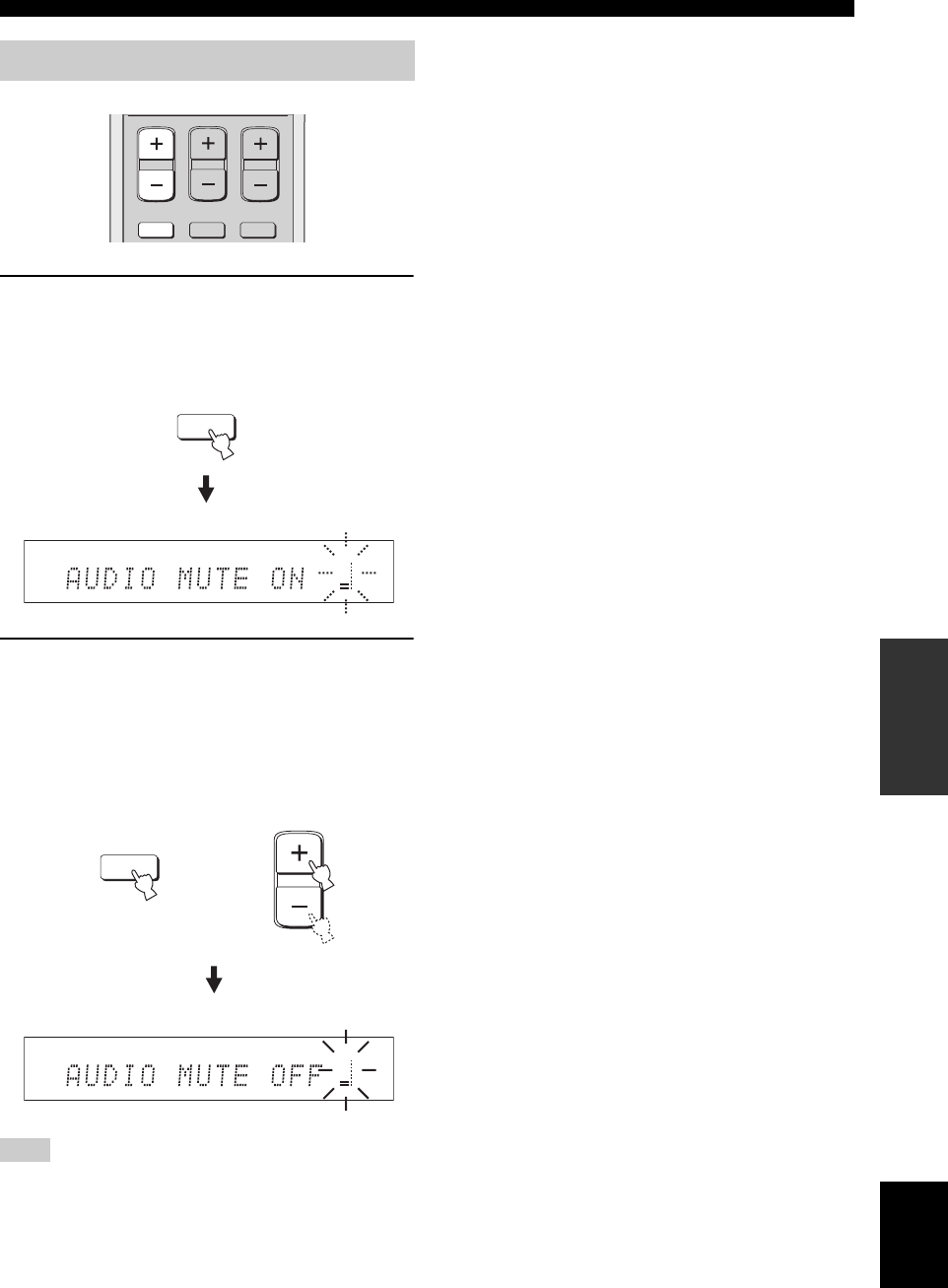

Muting the sound ..................................................... 39

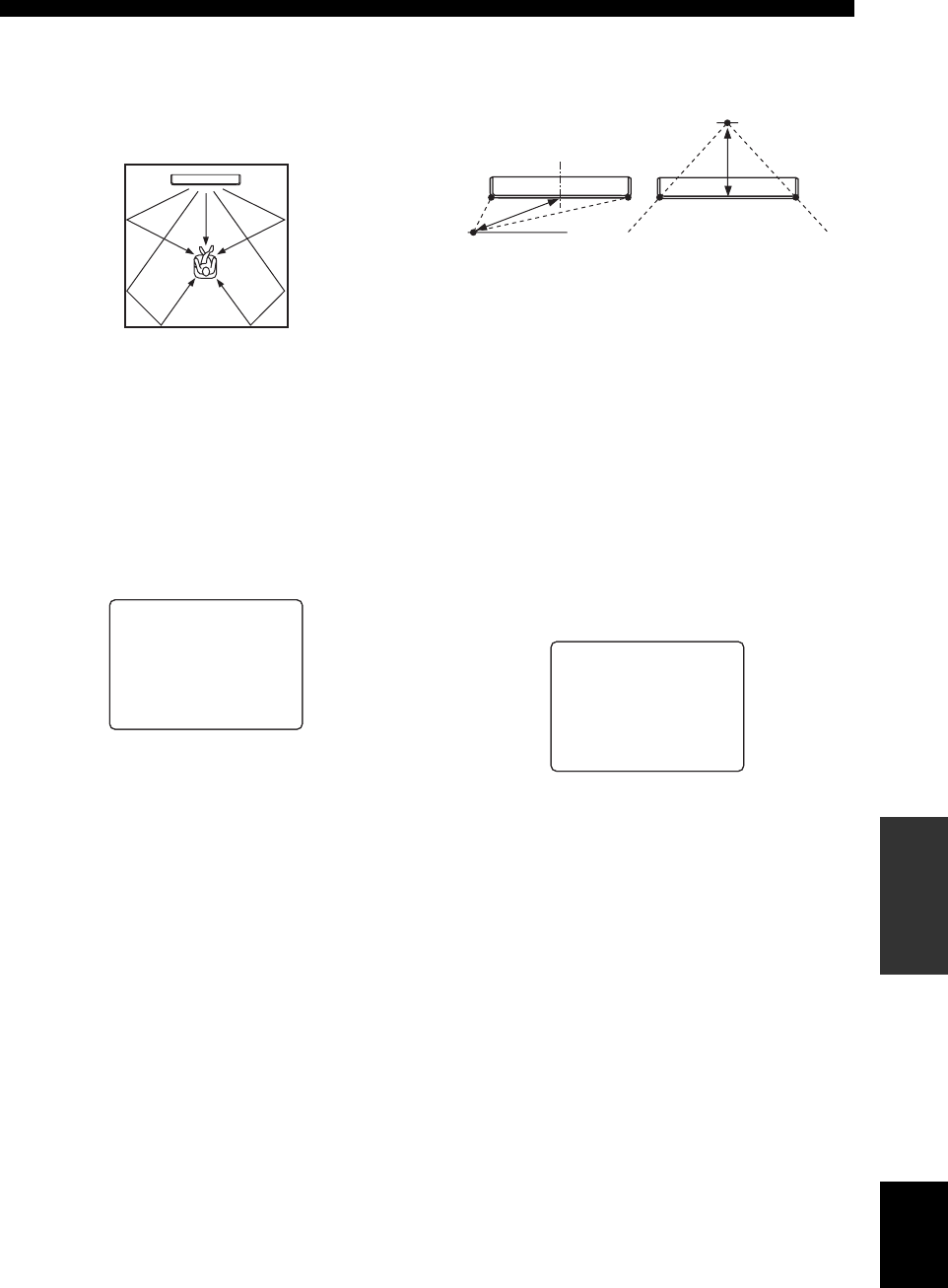

BEAM MODE .......................................................40

5 beam mode............................................................ 41

Stereo plus 3 beam mode ......................................... 41

3 beam mode............................................................ 42

Stereo mode ............................................................. 42

Target mode ............................................................. 43

ENJOYING SURROUND SOUND .....................44

Enjoying 2-channel sources

in surround sound ................................................ 45

Enjoying TV in surround sound .............................. 46

Adjusting surround mode parameters ...................... 47

USING SOUND FIELD PROGRAMS................49

What is a sound field? ............................................. 49

Turning on CINEMA DSP programs ...................... 50

Turning off CINEMA DSP programs ..................... 51

Adjusting CINEMA DSP levels .............................. 51

USING THE VOLUME MODE ..........................52

USING TruBass.....................................................54

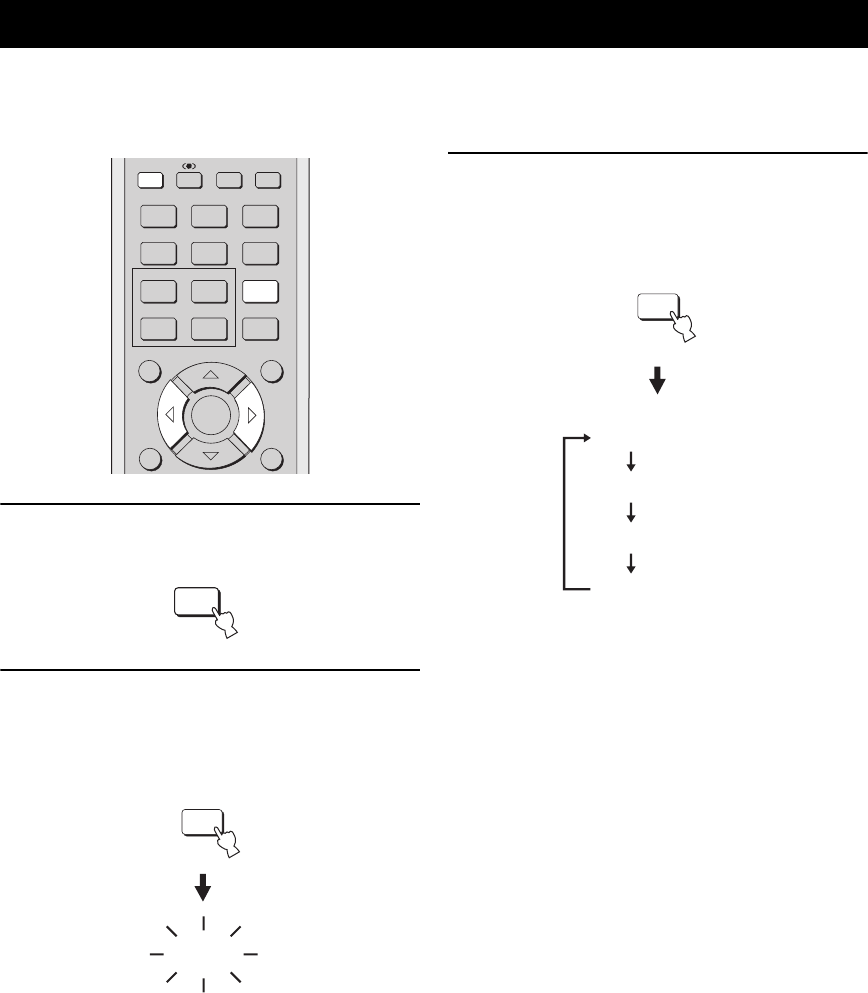

USING THE SLEEP TIMER ..............................55

Setting the sleep timer ............................................. 55

Canceling the sleep timer ........................................ 56

BASIC SETUP.......................................................57

MANUAL SETUP .................................................63

Using MANUAL SETUP........................................ 64

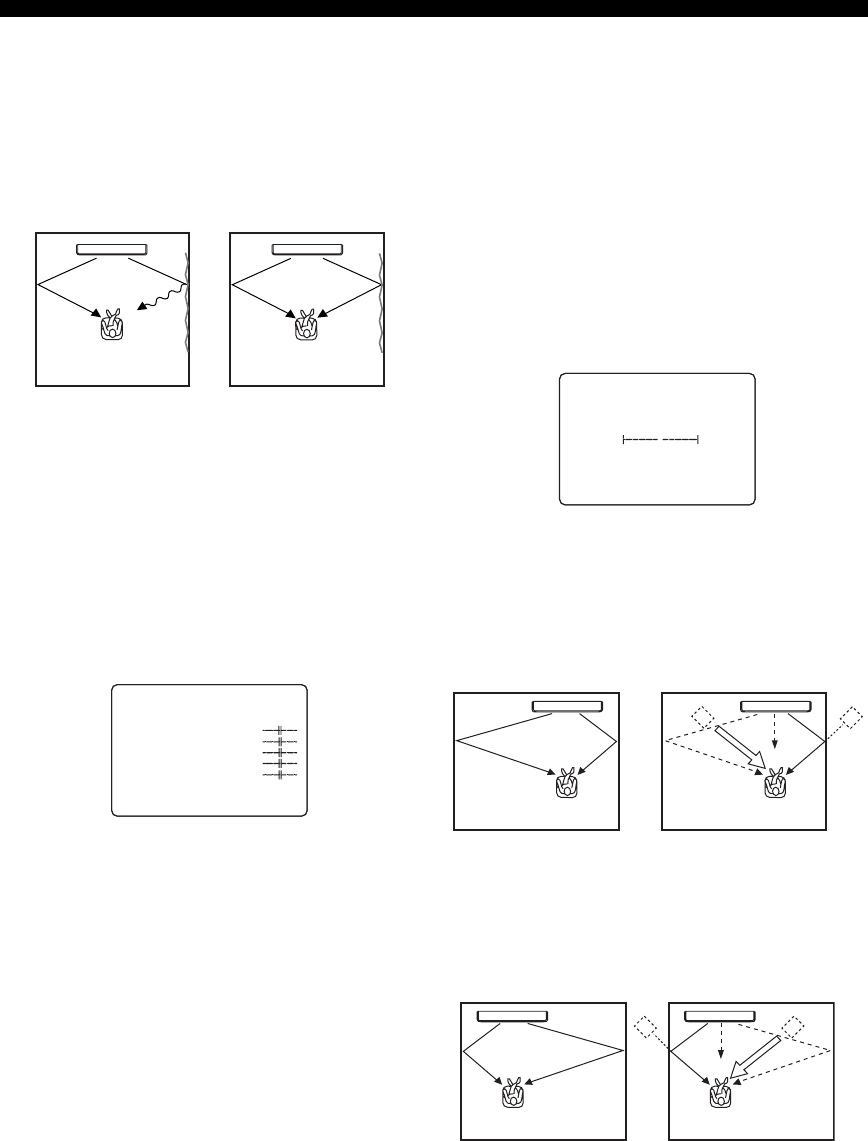

BEAM MENU ......................................................... 65

SOUND MENU....................................................... 69

INPUT MENU......................................................... 71

DISPLAY MENU.................................................... 73

ADJUSTING SYSTEM PARAMETERS ...........75

Setting the maximum volume level ......................... 75

Protecting the current settings ................................. 76

Initializing the current settings ................................ 77

Adjusting the audio balance .................................... 78

SELECTING THE INPUT MODE .....................81

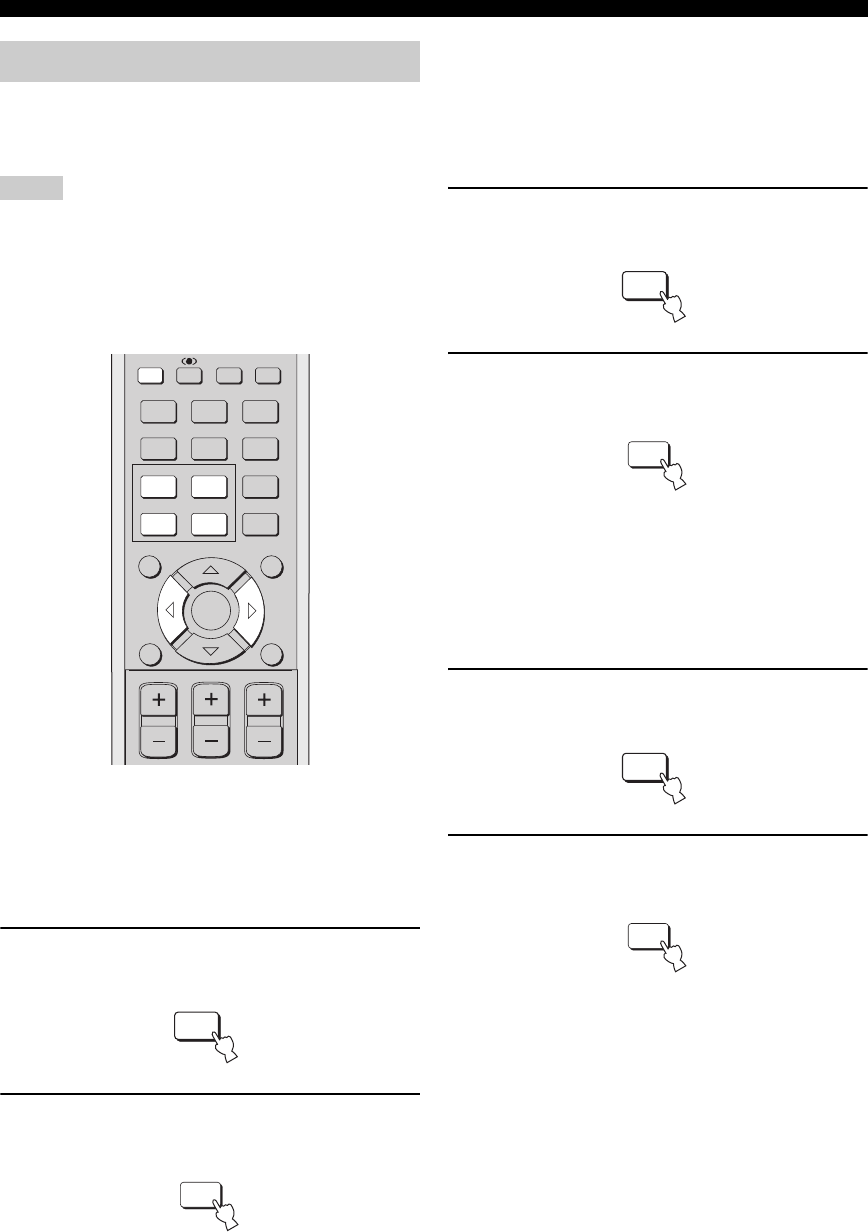

REMOTE CONTROL FEATURES ...................82

Setting remote control codes ................................... 82

Controlling other components ................................. 83

Using the TV macro ................................................ 85

TROUBLESHOOTING .......................................87

GLOSSARY...........................................................90

Audio formats .......................................................... 90

Audio information ................................................... 90

INDEX....................................................................91

SPECIFICATIONS...............................................92

CONTENTS

INTRODUCTION

PREPARATION

SETUP

BASIC OPERATION

ADVANCED OPERATION

ADDITIONAL INFORMATION

OVERVIEW

It is generally accepted that in order to fully enjoy the benefits of surround sound at home, you must endure the agony of

wiring and installing a great number of speakers in the hope that your listening room will give you the same kind of

surround sound experience as your local movie theater.

YAMAHA YSP-800 Digital Sound Projector challenges this preconception that complicated speaker setup and

troublesome wiring go hand-in-hand with the enjoyment of multi-channel surround sound.

This slimline unit does away with the need for complicated wiring and installation worries, leaving you with a unit that is

not only easy to set up, but which is also capable of reproducing the kind of powerful surround sound you have been

waiting for from its built-in subwoofers (2) and individual speakers (21).

You can fine-tune the parameters of this unit to adjust the delay time for separate sound beams, resulting in highly

directional sound that comes in on the listening position from all directions.

The YSP-800 projects sound beams containing surround sound information for the front right (R), front left (L), surround

right (SR) and surround left (SL) speaker positions, which are reflected off the walls of your listening room before

reaching the actual listening position. With the addition of center (C) sound beams, this Digital Sound Projector creates

true-to-life 5.1 channel surround sound that makes you feel as if there are actual speakers around the room.

Sit back and enjoy the real sound experience of this simple, yet stylish Digital Sound Projector.

OVERVIEW

Listening position

Imaginary

surround left

speaker

Imaginary

surround right

speaker

Imaginary

front left

speaker

Imaginary

front right

speaker

Imaginary

center

speaker

FEATURES

INTRODUCTION English

Digital Sound Projector

This unit employs the digital sound projector technology

that allows one slim unit to control and steer multiple

channels of sound to generate full, physical 5.1 channel

surround sound, thus eliminating the need for satellite

loudspeakers and cabling normally associated with

conventional surround sound systems. This unit is also

equipped with the following 5 beam modes so that you can

choose the behavior of sound beams that best matches

your listening environment.

◆5 beam mode

◆ST(STEREO)+3 beam mode

◆3 beam mode

◆Stereo mode

◆Target mode

Cinema DSP Digital

This unit employs the Cinema DSP Digital technology

developed by YAMAHA Electronics Corp. so that you can

experience movies at home with all the dramatic sound

impact that the director intended to convey.

OSD (on-screen display)

This unit employs the OSD which is basically a

superimposed screen image displayed on your video

monitor. The OSD is used to display the system

information or adjust settings for the system parameters.

Versatile Remote Control

The supplied remote control come with preset remote

control codes to be used to control the DVD player, VCR,

cable TV tuner and digital satellite tuner connected to this

unit. In addition, the remote control is equipped with the

macro capability so that you can perform a series of

operations with the press of a single button.

AUTO SETUP

This unit employs the automatic sound beam optimization

using the YAMAHA Parametric Room Acoustic

Optimizer (YPAO) technology with the aid of the supplied

optimizer microphone so that you can avoid troublesome

listening-based speaker setup and achieve highly accurate

sound beam adjustments that best match your listening

environment.

Compatibility with the Newest Technologies

This unit employs decoders compatible with Dolby

Digital, DTS (Digital Theater Systems), Dolby Pro Logic,

Dolby Pro Logic II and DTS Neo:6.

◆Dolby Digital

This is the standard audio signal format used on DVDs and

other purely digital media. This surround technology deliver

high-quality digital audio for up to 5.1 discrete channels to

produce a directional and more realistic effect.

◆DTS (Digital Theater Systems)

This is an audio signal format used on DVDs and other purely

digital media. This surround technology deliver high-quality

digital audio for up to 5.1 discrete channels to produce a

directional and more realistic effect.

◆Dolby Pro Logic

This sophisticated, matrix decoding technology up-converts

any 2 channel source audio to a 5.1 channel full bandwidth

playback, resulting in a surround sound experience.

◆Dolby Pro Logic II

This is fundamentally a redesigned version of Dolby Pro

Logic that employs 2 stereo surround channels, a subwoofer

and a greatly enhanced steering logic. As a result, this

improved technology provides an exceptionally stable sound

field that simulates 5.1 to a much greater degree than the

original Dolby Pro Logic. In addition, Dolby Pro Logic II

features Movie, Music and Game modes specifically designed

for movies, music and games respectively.

◆DTS Neo:6

This technology decodes the conventional 2 channel sources

for 6 channel playback, enabling playback with the full-range

channels with higher separation. Music mode and Cinema

mode are available to play back music and movie sources

respectively.

The “ ” logo and “Cinema DSP” are registered

trademarks of YAMAHA Corporation.

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are trademarks

of Dolby Laboratories.

“DTS”, and “Neo:6” are trademarks of Digital Theater Systems,

Inc.

Manufactured under license from 1 Ltd. Worldwide patents

applied for.

The ‘ ’ logo and ‘Digital Sound Projector™’ are trademarks

of 1 Ltd.

TruBass, SRS and the “ ” symbol are registered trademarks

of SRS Labs, Inc. TruBass technology is incorporated under

license from SRS Labs, Inc.

FEATURES

USING THIS MANUAL

• This manual describes how to connect and operate this unit. For details regarding the operation of external components, refer to the

supplied owner’s manual for the component.

• Some operations can be performed by using either the buttons on the main unit or on the remote control. In such cases, the operation is

described using remote control operation.

•y indicates a tip for your operation.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In

case of differences between the manual and product, the product has priority.

1Install this unit in your listening room.

See “INSTALLATION” on page 11.

2Connect this unit to your TV and other external components.

See “CONNECTIONS” on page 14.

3Prepare the remote control and turn on the power of this unit.

See “GETTING STARTED” on page 22.

4Run AUTO SETUP.

See “AUTO SETUP” on page 26.

5Play back a source and enjoy surround sound.

See “PLAYBACK” on page 37.

6Run MANUAL SETUP and set remote control codes to fine-tune settings.

See “MANUAL SETUP” on page 63 and “REMOTE CONTROL FEATURES” on page 82.

USING THIS MANUAL

Notes

If you want to make additional settings

and adjustments

SUPPLIED ACCESSORIES

INTRODUCTION English

Check that you have received all of the following parts.

SUPPLIED ACCESSORIES

POWER

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

TV VOL

VOLUME

MUTE TV INPUT TV MUTE

ENTER

SURROUND

OFF

CODE SET

SPORTS

POWER

STANDBY/ON

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

Remote control (×1) Batteries (×2)

(AA, R6, UM-3)

OSD video pin cable (×1)

Optimizer microphone (×1)

Fastener (×4)

Audio pin cable (×1)

Digital audio pin cable (×1)

Optical cable (×1)

Cable clamp (×1)

Cardboard microphone

stand (×1)

(Orange)

(White/Red)

(Yellow)

CONTROLS AND FUNCTIONS

1OPTIMIZER MIC jack

Use to connect the supplied optimizer microphone to be

used to run AUTO SETUP (see page 27).

2Front panel display

Shows information about the operational status of this

unit.

3Remote control sensor

Receives infrared signals from the remote control.

4INPUT

Press repeatedly to switch between input sources (TV,

VCR, DVD or AUX). See page 37 for details.

5VOLUME –/+

Controls the volume level of all audio channels (see

page 38).

6STANDBY/ON

Turns on the power of this unit or sets it to the standby

mode (see page 23).

• When you turn on the power of this unit, you will hear a click

and there will be a 4 to 5-second delay before it can reproduce

sound.

• In the standby mode, this unit consumes a small amount of

power in order to receive infrared-signals from the remote

control.

CONTROLS AND FUNCTIONS

Front panel

1 2 3

4 5 6

STANDBY/ONVOLUME +

INPUT

Notes

CONTROLS AND FUNCTIONS

INTRODUCTION English

1NIGHT indicator

Lights up when you select a volume mode (see page 52).

2SLEEP indicator

Lights up when the sleep timer is turned on (see page 55).

3Decoder indicators

Light up when the corresponding decoder of this unit is in

operation (see page 44).

4Volume level indicator

Shows the current volume level (see page 38).

5Multi-information display

Shows information when you adjust the parameters of this

unit.

You can adjust the brightness of the front panel display using the

DISPLAY MENU parameters in MANUAL SETUP (see

page 73).

Front panel display

NIGHT SLEEP PCM PL

VOLDIGITAL

412 3

CONTROLS AND FUNCTIONS

1VCR analog audio input jacks

Use to make an analog connection to your VCR

(see page 17).

2TV/STB analog audio input jacks

Use to make an analog connection to your TV, digital

satellite tuner and cable TV tuner (see pages 15 and 18).

3SUBWOOFER OUT jack

Use to connect a subwoofer (see page 20).

4VIDEO OUT jack

Use to connect to the video input terminal of your TV to

display the OSD of this unit (see page 15).

5TV/STB OPTICAL DIGITAL INPUT jack

Use to connect a TV, digital satellite tuner and cable TV

tuner via an optical digital connection (see pages 15 and

18).

6AUX OPTICAL DIGITAL INPUT jack

Use to connect an external component via an optical

digital connection (see page 19).

7DVD COAXIAL DIGITAL INPUT jack

Use to connect a DVD player via a coaxial digital

connection (see page 16).

8SYSTEM CONNECTOR jack

(U.S.A. and Canada models only)

Use to connect a YAMAHA subwoofer equipped with a

SYSTEM CONNECTOR jack to this unit (see page 20).

9AC power supply cable

Use to connect to the AC wall outlet (see page 21).

Rear panel

1234 5 6 7 8

VCR

SUBWOOFER

TV/STB

AUDIO INPUT OUT

OPTICAL

DIGITAL INPUT

TV/STB VIDEO AUX SYSTEM

CONNECTOR

DVD

COAXIAL

(U.S.A. and Canada models)

CONTROLS AND FUNCTIONS

INTRODUCTION English

This section describes the function of each control on the

remote control used to control this system.

You can also control other components using the remote control

once you set the appropriate remote control codes. See

“Controlling other components” on page 83 for details.

1Infrared window

Outputs infrared control signals. Aim this window at the

component you want to operate.

2STANDBY/ON

Sets this system to the standby mode (see page 23).

3Transmission indicator

Lights up when infrared control signals are being output.

4Input selector buttons

Use to select an input source (TV, STB, VCR, DVD or

AUX) and change the control area (see page 37).

5 TruBass

Use to effectively reproduce the bass sound (see page 54).

6YSP

Switches to the operation mode of this unit.

7Numeric buttons

Use to enter numbers.

8Sound field program buttons

Use to select sound field programs (see page 49).

9CH LEVEL

Adjusts the volume level of each channel (see page 79).

0Cursor buttons / / / , ENTER

Use to select and adjust SET MENU items.

ATEST

Outputs a test tone when adjusting the output level of each

speaker (see page 78).

BVOLUME +/–

Increases or decreases the volume level of this unit (see

page 38).

CMUTE

Mutes the sound. Press again to restore the audio output to

the previous volume level (see page 39).

DTV INPUT

Switches the input source of the TV (see page 83).

EDVD player/VCR control buttons

Use to control the DVD player of the VCR (see pages 83

and 84).

FTV POWER

Turns on the power of the TV or sets it to the standby

mode (see page 83).

GAV POWER

Turns on the power of the selected component or sets it to

the standby mode (see pages 83 and 84).

HINPUT1/INPUT2

Selects the input source of the TV.

Remote control

POWER

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

TV VOL

VOLUME

MUTE TV INPUT TV MUTE

ENTER

SURROUND

OFF

CODE SET

SPORTS

POWER

STANDBY/ON

456

789

+10

5BEAM

ST+3BEAM

3BEAM

MUSIC MOVIE VOL MODE

INPUTMODE

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

TARGET

CONTROLS AND FUNCTIONS

IMACRO

Use to set the TV macro (see page 85).

JINPUTMODE

Switches between input modes (AUTO, DTS or

ANALOG). See page 37 for details.

KSLEEP

Sets the sleep timer (see page 55).

LBeam mode buttons

Change the beam mode settings (see page 40).

MVOL MODE

Turns on or off the volume modes (see page 52).

NSURROUND

Selects the surround mode for playback (see page 44).

OMENU

Displays the setup menu on your TV monitor (see

pages 28, 57 and 64).

The DVD menu is displayed when DVD is selected as the input

source.

PRETURN

Use to select sleep timer settings or return to the previous

SET MENU screen.

QTV VOL +/–

Adjusts the volume level of the TV (see page 83).

RCH +/–

Switches between channels of the TV or the VCR (see

pages 83 and 84).

STV MUTE, CODE SET

Mutes the audio output of the TV (see page 83).

Use to set up remote control codes (see page 82).

Note

INSTALLATION

PREPARATION English

This section describes a suitable installation location to install the unit using a metal wall bracket, a rack or a stand.

This unit creates surround sound by reflecting projected

sound beams off the walls of your listening room. The

surround sound effects produced by this unit may not be

sufficient when the unit is installed in the following

locations.

• Rooms with surfaces inadequate for reflecting sound

beams

• Rooms with acoustically absorbent surfaces

• Rooms with measurements outside the following range

W (3 to 7 m) x H (2 to 3.5 m) x D (3 to 7 m)

• Rooms with less than 2 m from the listening position to

the speaker positions

• Rooms where objects such as furniture are likely to

obstruct the path of sound beams

• Rooms where the listening position is close to the walls

• Rooms where the listening position is not in front of

this unit

Make sure you leave an adequate amount of ventilation

space so that heat can escape. Make at least 5 cm of space

above or below this unit.

• We do not recommend installing this unit so that it is positioned

directly on the floor of your listening room. Please install this

unit using a metal wall bracket, rack or stand.

• This unit weighs 9.0 kg (19.8 lbs). Be sure to install this unit

where it will not fall subject to vibrations, such as from an

earthquake, and where it is out of the reach of children.

• When using a cathode-ray tube (CRT) TV, do not install this

unit directly above your TV.

• This unit is shielded against magnetic rays. However, if the

picture on your TV screen becomes blurred or distorted, we

recommend moving the speakers away from your TV.

Install this unit where there are no obstacles such as

furniture obstructing the path of sound beams. Otherwise,

the desired surround sound effects may not be achieved.

You may install this unit in parallel with the wall or in the

corner.

Parallel installation

Install this unit in the exact center of the wall when it is

measured from the left and right corners.

Corner installation

Install this unit in the corner at a 40º to 50º angle from the

adjacent walls.

The availability of the beam mode depends on the installation

location of this unit (see page 40). All five beam modes are

available for the parallel installation whereas the 3 beam and 5

beam modes are not available for the corner installation.

INSTALLATION

Before installing this unit

Notes

5 cm or more

Rear

Front

Side view

Installing this unit

An object, such as furniture

40° to 50°

An object, such as furniture

INSTALLATION

■Using a metal wall bracket

You can use the optional metal wall bracket to mount this

unit on the wall in your listening room.

Refer to the instructions supplied with the metal bracket for

details on how to attach the metal bracket to the wall or how to

attach this unit to the metal bracket.

This unit is the model that the metal apparatuses are not attached

to the rear panel. If there is the section of “Detach the metal

apparatuses from the Sound Projector” in the instructions

supplied with the metal bracket, skip the section and proceed to

the next. Also, use the supplied projector mounting screws (M4,

spare) instead if there is the information about using screws of the

metal apparatus (M4) in the section of “Attach the small wall

mount brackets to the Sound Projector”.

■Using a stand

You can mount your TV on the stand placed on a

commercially available rack to install this unit under your

TV.

Refer to the instructions supplied with the stand for details on

how to install the stand or how to mount this unit and the TV on

the stand.

■Using a rack

You can install this unit either above or under your TV in a

commercially available rack.

Make sure that the rack is large enough to allow adequate

ventilation space around this unit (see page 11) and that it is

strong enough to support the weight of both this unit and your TV.

Note

This unit

Metal wall bracket

Note

This unit

Stand

When this unit is installed above your TV

When this unit is installed under your TV

01EN_02_Prep_YSP-800_UB.fm Page 12 Tuesday, May 30, 2006 3:35 PM

INSTALLATION

PREPARATION English

■Affixing this unit

Peel off the film from each of the four supplied fasteners

and then secure them to the bottom four corners of this

unit and the top of the rack, etc.

• Do not install this unit on top of a slanted surface. This unit may

fall over and cause injury.

• Make sure you wipe the surface of the rack, etc. before securing

the fasteners. Applying the tape to a dirty or wet surface will

weaken the sticking power of the tape, and this unit may fall as

a result.

Notes

This unit

Peel off

the film

Fasteners

CONNECTIONS

This unit is equipped with two optical digital jacks, one coaxial digital jack and two types of analog jacks for connecting

external components such as your TV, DVD player, VCR, digital satellite tuner, cable TV tuner and game console.

Further, by connecting a subwoofer to this unit, you can enjoy reinforced low bass sounds. For details on how to connect

various types of external components to this unit, see pages 15 to 20.

Do not connect this unit or other components to the main power until all connections between components are complete.

CONNECTIONS

CAUTION

Audio connection

Video connection

DVD player Subwoofer

This unit

VCR Digital satellite tuner, cable TV

tuner or game console

CONNECTIONS

PREPARATION English

You can connect a TV to this unit and display the OSD for easy viewing when you adjust the system parameters in SET

MENU.

If you connect this unit to the analog audio and optical digital audio output jacks at the same time as shown in the left illustration below,

the digital audio signals output at the optical digital output jack take priority over the analog audio signals output at the analog audio

output jacks.

■Digital and analog audio connections

Cables used for connections

■Video connections

Cables used for connections

Connecting a TV

Note

VCR

SUBWOOFER

TV/STB

AUDIO INPUT OUT

OPTICAL

DIGITAL INPUT

TV/STB VIDEO AUX SYSTEM

CONNECTOR

DVD

COAXIAL

Rear panel of this unit

Analog audio

output Optical digital

output

(U.S.A. and Canada models)

Optical cable (supplied)

Audio pin cable

(White)

(Red)

(White)

(Red)

VCR

SUBWOOFER

TV/STB

AUDIO INPUT OUT

OPTICAL

DIGITAL INPUT

TV/STB VIDEO AUX SYSTEM

CONNECTOR

DVD

COAXIAL

Video

input

Rear panel of this unit

(U.S.A. and Canada models)

OSD video pin cable (supplied)

(Yellow)(Yellow)

CONNECTIONS

To connect a DVD player/recorder, connect the coaxial digital output jack on your DVD player to the coaxial digital

input jack (DVD COAXIAL) on this unit.

If there is no coaxial digital output jack on your DVD player/recorder, use them with optical digital connection.

Cables used for connections

Connecting a DVD player/recorder

VCR

SUBWOOFER

TV/STB

AUDIO INPUT OUT

OPTICAL

DIGITAL INPUT

TV/STB VIDEO AUX SYSTEM

CONNECTOR

DVD

COAXIAL

Rear panel of this unit

Video signal to a TV

Coaxial digital

output

Analog audio

output Coaxial digital

output

DVD/VCR combo

player/recorder DVD player/recorder

Video signal to a TV

(U.S.A. and Canada models)

Audio pin cable

(White)

(Red)

(White)

(Red)

Digital audio pin cable (supplied)

(Orange)(Orange)

CONNECTIONS

PREPARATION English

To connect a VCR, connect the analog audio output jacks on your VCR to the analog audio input jacks (VCR R/L) on

this unit.

Connect red plugs to the right jacks and white plugs to the left jacks.

Cables used for connections

Connecting a VCR

VCR

SUBWOOFER

TV/STB

AUDIO INPUT OUT

OPTICAL

DIGITAL INPUT

TV/STB VIDEO AUX SYSTEM

CONNECTOR

DVD

COAXIAL

Video signal to a TV

Rear panel of this unit

Analog audio

output

VCR

(U.S.A. and Canada models)

Audio pin cable

(White)

(Red)

(White)

(Red)

CONNECTIONS

To connect a digital satellite tuner or a cable TV tuner, connect the optical digital output jack on your digital satellite

tuner or cable TV tuner to the optical digital input jack (TV/STB OPTICAL) on this unit. In addition, connect the analog

audio output jacks on your VCR to the analog audio input jacks (TV/STB R/L) on this unit.

Connect red plugs to the right jacks and white plugs to the left jacks.

If your TV and tuner connected to this unit do not support digital broadcasting, connect the analog audio output jacks (TV/STB R/L) on

this unit to the analog audio output jacks on your TV.

Cables used for connections

Connecting a digital satellite tuner or a cable TV tuner

Note

VCR

SUBWOOFER

TV/STB

AUDIO INPUT OUT

OPTICAL

DIGITAL INPUT

TV/STB VIDEO AUX SYSTEM

CONNECTOR

DVD

COAXIAL

Video signal to a TV

Rear panel of this unit

Digital satellite tuner or a cable TV tuner

Optical digital

output

Analog audio

output

Analog audio

output

(U.S.A. and Canada models)

Optical cable (supplied) Audio pin cable

(White)

(Red)

(White)

(Red)

CONNECTIONS

PREPARATION English

To connect other external components, connect the optical digital output jack on the component to the optical digital

input jack (AUX OPTICAL) on this unit.

You can connect a DVD player/recorder or a component that supports optical digital connections.

Cables used for connections

Connecting other external components

VCR

SUBWOOFER

TV/STB

AUDIO INPUT OUT

OPTICAL

DIGITAL INPUT

TV/STB VIDEO AUX SYSTEM

CONNECTOR

DVD

COAXIAL

Optical digital

output

Video signal to a TV

Game console, etc.

Rear panel of this unit

(U.S.A. and Canada models)

Attach to this unit

Optical fiber cable

To prevent cables from becoming

unplugged, place the supplied

cable clamp with the open side

facing upward, attach it to the

rear panel of this unit in a suitable

position and then affix cables in

the cable clamp.

Optical cable (supplied)

CONNECTIONS

To connect a subwoofer, connect the monaural input jack on your subwoofer to the monaural audio output jack

(SUBWOOFER OUT) on this unit.

If a subwoofer is connected to this unit, turn on the power of your subwoofer and then run AUTO SETUP (see page 26)

or select SWFR for BASS OUT in SUBWOOFER SET (see page 70).

Connecting to the SYSTEM CONNECTOR jack (U.S.A. and Canada models only)

When connecting a YAMAHA subwoofer equipped with a SYSTEM CONNECTOR jack, connect it to the SYSTEM

CONNECTOR jack on this unit. If the subwoofer is connected using a system type connection, changing the power mode

of this unit controls the power mode of the subwoofer.

Cables used for connections

Connecting a subwoofer

VCR

SUBWOOFER

TV/STB

AUDIO INPUT OUT

OPTICAL

DIGITAL INPUT

TV/STB VIDEO AUX SYSTEM

CONNECTOR

DVD

COAXIAL

Monaural

input System

connector

Subwoofer

Rear panel of this unit

(U.S.A. and Canada models)

(U.S.A. and Canada models only)

Subwoofer pin cable System connector cable

(supplied with the YAMAHA subwoofer with

the SYSTEM CONNECTOR jack)

CONNECTIONS

PREPARATION English

Once all other connections are complete, plug the power supply cable into the AC wall outlet.

Connecting the power supply cable

To the AC outlet

GETTING STARTED

1Press and hold the mark on the battery

cover and then slide off the cover.

2Insert the two supplied batteries (AA, R6,

UM-3) into the battery compartment.

Make sure you insert the batteries according to the

polarity markings (+/–).

3Close the battery cover.

• Change all of the batteries if you notice the following

conditions; the operation range of the remote control decreases,

the indicator does not blink or its light becomes dim.

• Do not use old batteries together with new ones.

• Do not use different types of batteries (such as alkaline and

manganese batteries) together. Read the packaging carefully as

these different types of batteries may have the same shape and

color.

• Exhausted batteries may leak. If the batteries have leaked,

dispose of them immediately. Avoid touching the leaked

material or letting it come into contact with clothing, etc. Clean

the battery compartment thoroughly before installing new

batteries.

• Do not throw away batteries with general house waste. Dispose

of them correctly in accordance with your local regulations.

• The contents of the memory stored in the remote control may be

erased in the following cases:

– The remote control is left without batteries for more than 2

minutes.

– Exhausted batteries remain in the remote control.

– The buttons on the remote control are accidentally pressed

when you change batteries.

• If the memory stored in the remote control is unwantedly

erased, insert new batteries and reset the remote control codes

again.

The remote control transmits a directional infrared beam.

Use the remote control within 6 m of this unit and point it

toward the remote control sensor on this unit during

operation.

• Do not spill water or other liquids on the remote control.

• Do not drop the remote control.

• Do not leave or store the remote control in the following types

of conditions:

– places of high humidity, such as near a bath

– places of high temperatures, such as near a heater or a stove

– places of extremely low temperatures

– dusty places

• Do not expose the remote control sensor on this unit to direct

sunlight or lighting such as inverted fluorescent lamps.

• If the batteries grow old, the effective operation distance of the

remote control decreases considerably. If this happens, replace

the batteries with two new ones as soon as possible.

GETTING STARTED

Installing batteries in the remote

control

Notes

Press

Operation range of the remote

control

Notes

Approximately

6 m (20 ft)

GETTING STARTED

SETUP English

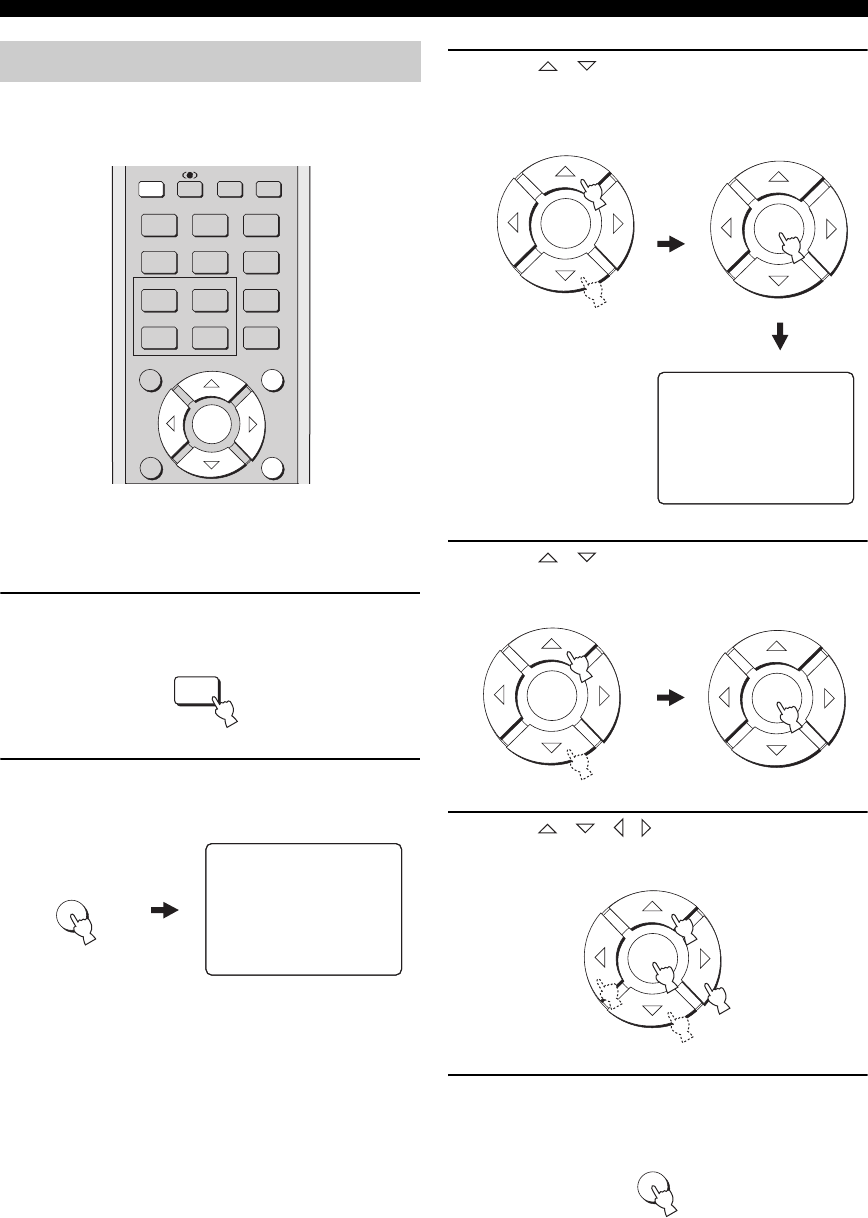

The control area and the corresponding functions of the

remote control change depending on the currently selected

input source. Press the input selector buttons (TV, STB,

VCR, DVD or AUX) to select an input source and switch

to the operation mode of the corresponding input source.

Press YSP to switch to the operation mode of this unit.

The buttons on the remote control numbered 3 to 9 are

operational only after you press YSP to switch to the

operation mode of this unit.

You can control other components by setting the appropriate

remote control codes (see page 82). Once the remote control code

for each input source (TV, STB, VCR, DVD or AUX) is set, see

“Controlling other components” on page 83 for further

information on the specific functions of the available remote

control buttons for each input source. Note that the buttons on the

remote control numbered 3 to 9 have different functions

depending on the currently selected input source.

1 Input selector buttons

2 YSP

3 Beam mode buttons

4 Sound field program buttons

5 Cursor buttons / / / , ENTER

6 VOL MODE

7 SURROUND

8MENU

9 RETURN

1Press STANDBY/ON on the front panel or on

the remote control to turn on the power of

this unit.

2Press STANDBY/ON on the front panel or on

the remote control again to set this unit to

the standby mode.

When the unit is in the standby mode, only STANDBY/ON on the

front panel or on the remote control is operational, and the other

control buttons on the front panel or on the remote control are not

operational until the power of this unit is turned on.

Using the remote control

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

Turning on the power

Note

STANDBY/ONVOLUME ++

POWER

STANDBY/ON

MACROINPUT2INPUT1

STBVCRDVD

AUX

STANDBY/ON

Front panel Remote control

USING SET MENU

This section simply describes how to display the OSD (on-

screen display) of this unit on your TV screen and set the

parameters for your listening room. Once this is complete,

you can enjoy real surround sound while watching TV in

the comfort of your own home.

1Check that the video input jack on your TV is

connected to the VIDEO OUT jack of this unit

to display the OSD of this unit.

2Press STANDBY/ON on the front panel or on

the remote control to turn on the power of

this unit.

3Turn on the power of your TV.

4Press TV on the remote control to display the

OSD of this unit on your TV screen.

It may take a few seconds before this unit’s OSD

appears on your TV screen.

If the OSD does not appear, use the remote control

provided with your TV to switch the video input until

the OSD appears.

■Other buttons that display the OSD

USING SET MENU

Displaying the OSD

STANDBY/ON

Front panel Remote control

OSD screen example





 TV

AUTO:ANALOG

Remote control buttons that

display the OSD Page

1Input selector buttons 37

2 TruBass 54

3Beam mode buttons 40

4Sound field program buttons 49

5CH LEVEL 79

6VOLUME +/– 38

7MUTE 39

8INPUTMODE 81

9SLEEP 55

0VOL MODE 52

ASURROUND 44

BMENU 28, 57, 64

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

TV VOL

VOLUME

MUTE TV INPUT TV MUTE

ENTER

SURROUND

OFF

CODE SET

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

USING SET MENU

SETUP English

The following diagram illustrates the overall flow of the setup procedure.

The flow chart of SET MENU

Run AUTO SETUP.

See “AUTO SETUP” on page 26.

Look for a remedy.

See “Error messages for AUTO SETUP” on page 33 for a complete list of error

messages and possible remedies.

Run BASIC SETUP.

See “BASIC SETUP” on page 57.

Play back audio signals or adjust the settings for the beam mode and the cinema DSP.

See “PLAYBACK” on page 37.

Run MANUAL SETUP.

See “MANUAL SETUP” on page 63.

• If you cannot clearly hear a sound beam from a specific speaker channel, adjust settings for

SETTING PARAMETERS (see page 65) or for BEAM ADJUSTMENT (see page 66) in

BEAM MENU.

• If there are acoustically absorbent objects such as curtains in the path of the sound beams,

adjust settings for TREBLE GAIN in BEAM MENU (see page 68).

If an error occurs

If the problem persists

If you want to make additional settings

and adjustments

AUTO SETUP

This unit creates a sound field by reflecting sound beams on the walls of your listening room and broadening the

cohesion between speaker channels. Just as you would arrange the speaker position of other audio systems, you need to

set the beam angle to enjoy the best possible sound from this unit.

This unit employs the beam optimization feature and the YAMAHA Parametric Room Acoustic Optimizer (YPAO)

technology with the aid of the supplied optimizer microphone, allowing you to avoid troublesome listening-based

speaker setup and achieving highly accurate sound adjustments that best match your listening environment.

The beam optimization is the automated feature of BASIC SETUP, which creates the best possible surround sound field

without manually setting the parameters for your listening room.

The YAMAHA Parametric Room Acoustic Optimizer (YPAO) technology performs the following checks and

automatically makes appropriate sound adjustments.

DISTANCE:

Checks the phase and the distance of each beam from this unit and adjusts the delay of each channel so that each sound

beam reaches the listening position at the same time.

EQUALIZING:

Adjusts frequency and levels of each channel’s parametric equalizer to reduce coloration across the channels and create a

cohesive sound field. YPAO equalizing calibration incorporates three parameters (frequency, level and Q factor) for each

of the seven bands in its parametric equalizer to provide highly precise automatic adjustment of frequency characteristics.

LEVEL:

Checks and adjusts the sound output level of each channel.

This unit performs a series of checks to optimize the beam angle, delay, volume and quality. You can choose to optimize

all or part of the parameters.

*1 The subwoofer checking procedure is skipped if BEAM

OPTIMZ only is selected.

*2 The beam angle checking procedure is skipped if SOUND

OPTIMZ only is selected.

*3 The YPAO sound optimization procedure is skipped if BEAM

OPTIMZ only is selected.

AUTO SETUP

The flow chart of AUTO SETUP

Checking the environment

of your listening room

Checking the subwoofer

Optimizing the beam angle

Optimizing the beam delay,

frequency and volume

Beam

optimization

YPAO sound

optimization

Notes

AUTO SETUP

SETUP English

The supplied optimizer microphone collects and analyzes the sound that this unit produces in your actual listening

environment. Follow the procedure below to connect the optimizer microphone to this unit and make sure that the

optimizer microphone is placed in a proper location and that there are no large obstacles between the optimizer

microphone and the walls in your listening room.

• After you have completed the AUTO SETUP procedure, be sure to disconnect the optimizer microphone.

• The optimizer microphone is sensitive to heat.

– Keep it away from direct sunlight.

– Do not place it on top of this unit.

• Do not connect the optimizer microphone to an extension cable as doing so may result in an inaccurate sound optimization.

• An error may occur during the AUTO SETUP procedure if the optimizer microphone is not properly placed in your listening room. To

avoid the possibility of an error:

– Do not place the optimizer microphone to the extreme right or left from the center of this unit.

– Do not place the optimizer microphone within 2 m from the front of this unit.

– Do not place the optimizer microphone more than 1 m from the center height of this unit.

• Make sure that there are no obstacles between the optimizer microphone and the walls in your listening room as these objects obstruct

the path of sound beams. However, any objects that are in contact with the walls will be regarded as a protruding part of the walls.

• The best possible results are achieved if the optimizer microphone is placed at the same height as your ears would be when you are

seated in your listening position. However, if this is not possible, you can manually fine-tune the sound beam angle and balance the

sound beam output levels using MANUAL SETUP (see page 63) once the AUTO SETUP procedure is completed.

• If a subwoofer with adjustable volume and crossover/high cut frequency controls is connected to this unit, set the volume between 9

and 12 o’clock as viewed on a conventional clockface and set the crossover/high cut frequency to the maximum.

1Connect the supplied optimizer microphone

to the OPTIMIZER MIC jack on the front

panel.

2Place the optimizer microphone on a flat

level surface more than 2 m from the front of

the unit and within 1 m from the center height

of the unit with the optimizer microphone

head upward at your normal listening

position.

Be sure to place the optimizer microphone on an imaginary

center line drawn from this unit.

You may want to use a tripod or the supplied cardboard

microphone stand to affix the optimizer microphone at the

same height as your ears would be when you are seated in

your listening position.

Example of using a tripod

Installing the optimizer microphone

Notes

VOLUME

MIN MAX MIN MAX

CROSSOVER

HIGH CUT

Subwoofer

Note

OPTIMIZER MIC

Optimizer microphone position

More than 2 m

(6.5 ft)

Within 1 m

(3.3 ft)

Within 1 m

(3.3 ft)

Tripod

AUTO SETUP

Example of using the supplied cardboard

microphone stand

■Assembling the supplied cardboard

microphone stand

You will find three separate parts (one circular-shaped part

and two longitudinal-shaped parts) of the cardboard

microphone stand originally put together.

1Disassemble the three parts of the cardboard

microphone stand originally put together.

2Insert one of the longitudinal-shaped part

into the crevice of the other longitudinal-

shaped part.

3Place the circular-shaped part on top of the

two combined longitudinal-shaped parts.

4Place the supplied optimizer microphone on

top of the circular-shaped part.

Once the optimizer microphone is firmly connected to this

unit and properly placed in your listening room, follow the

procedure below to start the AUTO SETUP procedure.

Optimizer microphone position

Cardboard

microphone stand

More than 2 m

(6.5 ft)

Within 1 m

(3.3 ft)

Within 1 m

(3.3 ft)

Using AUTO SETUP

POWER

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

POWER

STANDBY/ON

456

789

+10

5BEAM

ST+3BEAM

3BEAM

UNIVERSAL

MUSIC MOVIE NIGHT

INPUTMODE

( )

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

STANDBY/ONVOLUME ++

AUTO SETUP

SETUP English

• If your listening room has curtains, open the curtains before

starting the BEAM OPT+SOUND OPTIMZ or the BEAM

OPTIMZ only procedure.

• Make sure that your listening room is as quiet as possible while

this unit is performing the AUTO SETUP procedure.

• Once the AUTO SETUP procedure has started, position

yourself beside or behind this unit so that you may not obstruct

the path of sound beams. To achieve the best results possible,

however, it is strongly recommended that you should evacuate

yourself from your listening room until the AUTO SETUP

procedure is completed.

• Be advised that it is normal for loud test tones to be output

during the AUTO SETUP procedure.

• The AUTO SETUP procedure may not be run successfully if

this unit is installed in one of the rooms described in “Before

installing this unit” on page 11. In such cases, run BASIC

SETUP (see page 57) or MANUAL SETUP (see page 63) to

manually adjust the corresponding parameters.

• If the AUTO SETUP procedure stops and an error message

appears on the screen, see “Error messages for AUTO SETUP”

on page 33 for appropriate remedies.

You can save the settings optimized by the AUTO SETUP

procedure (see page 34). A set of settings optimized according to

specific conditions of your listening environment can be recalled

later depending on the varying conditions of your listening

environment (see page 35).

1Press STANDBY/ON on the front panel or on

the remote control to turn on the power of

this unit.

2Press YSP on the remote control to switch to

the operation mode of this unit.

3Press MENU on the remote control.

The SET MENU screen appears on your TV.

• The control buttons used for SET MENU are displayed on

the bottom of the screen.

• To return to the previous screen while using SET MENU,

press RETURN on the remote control.

• To resume cursor button operations after changing the

control area by pressing an input selector button, press

TEST on the remote control.

• To cancel the SET MENU screen, press MENU once

more.

• You can also perform the following operations in the front

panel display.

• If you press an input selector button during the SET

MENU operations, the cursor buttons become ineffective.

In this case, press TEST once.

4Press / on the remote control to select

AUTO SETUP and then press ENTER.

The following screen appears on your TV.

Notes

STANDBY/ON

Front panel Remote control

YSP

.;MEMORY

;AUTO SETUP

;BASIC SETUP

;MANUAL SETUP

[]/[]:Up/Down

[ENTER]:Enter

SET MENU

.BEAM+SOUND OPTIMZ

BEAM OPTIMZ only

SOUND OPTIMZ only

[]/[]:Up/Down

[ENTER]:Enter

;

AUTO SETUP

ENTER ENTER

AUTO SETUP

5Press / to select BEAM OPT+SOUND

OPTIMZ, BEAM OPTIMZ only or SOUND

OPTIMZ only and then press ENTER.

The following screen appears on your TV.

BEAM OPT+SOUND OPTIMZ

(Beam optimization and YPAO sound

optimization)

Use to optimize the beam angle, delay, volume and quality

so that the parameters best match your listening

environment.

It is recommended that you should select this optimization

feature in the following cases:

• If you make settings for the first time.

• If the unit has been relocated.

• If your listening room has been restructured.

• If the objects in your listening room (furniture, etc.)

have been rearranged.

BEAM OPTIMZ only

(Beam optimization only)

Use to optimize the beam angle so that the parameter best

matches your listening environment.

SOUND OPTIMZ only

(YPAO sound optimization only)

Use to optimize the beam delay, volume and quality so

that the parameters best match your listening environment.

It is recommended that you should select this optimization

feature in the following cases:

• If you have opened or closed the curtains in your

listening room before using this unit.

• If you have manually set the beam angle.

You must optimize the beam angle in the BEAM OPTIMZ only

procedure before starting the SOUND OPTIMZ only procedure.

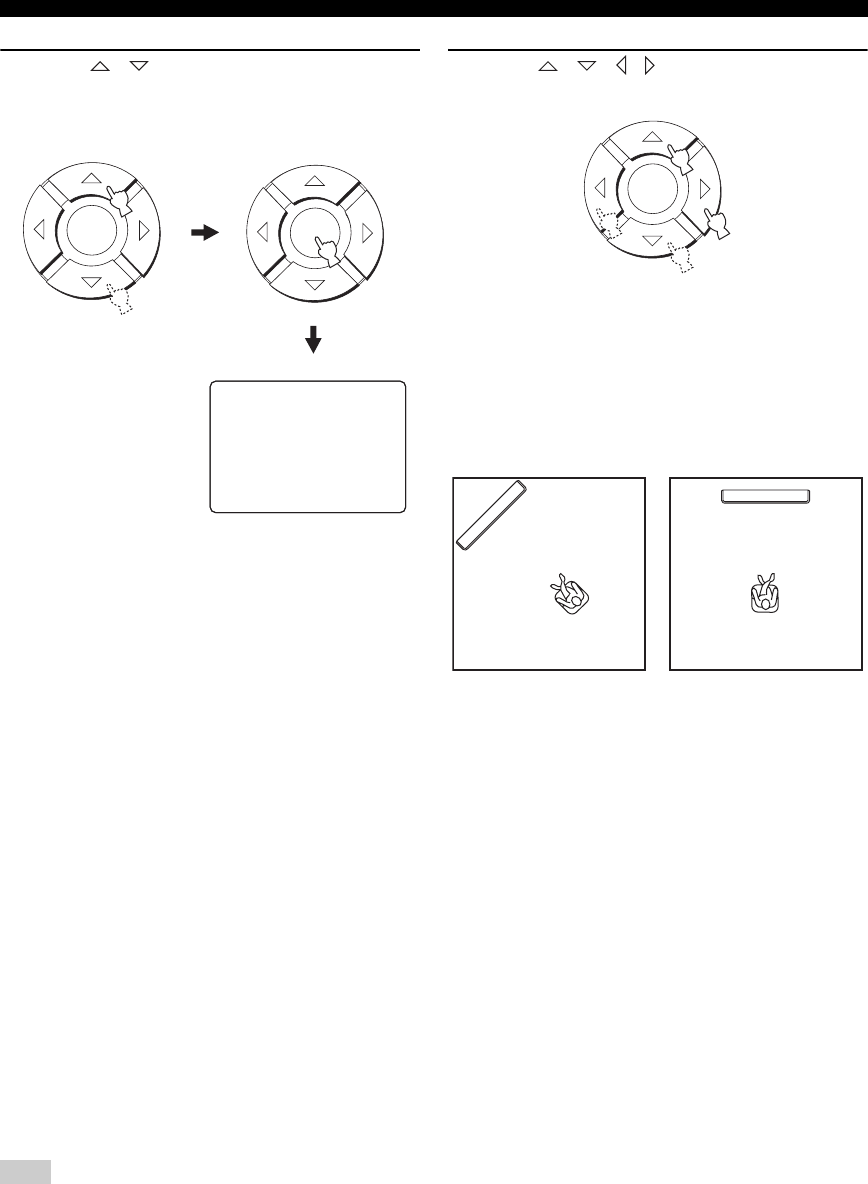

6Press / / / to select and configure

each parameter and then press ENTER.

INSTALLING (Installing)

Use to select the installed position of the unit in your

listening room.

Choices: Parallel to Wall (Parallel with wall

installation),

Angle to Wall or corner (Corner installation)

• Select Angle to Wall or corner if the unit is installed in

the corner. The beam mode is set to ST+3BEAM (see

page 41).

• Select Parallel to Wall if the unit is installed in parallel

with the wall. The beam mode is set to 5BEAM (see

page 41).

Note

ENTER ENTER

.INSTALLING;;Parallel to Wall

MOUNTING;;;;SHELF

REFLECTING;;NORMAL

Set MIC in front of YSP

 MIN 2m/6.5ft

[]/[]:Up/Down/[ ]/[ ]:Sel

[ENTER]:Start

PREPARATION

ENTER

Angle to Wall or corner Parallel to Wall

AUTO SETUP

SETUP English

MOUNTING (Mounting)

Use to select the mounted position of the unit in your

listening room.

Choices: SHELF (Shelf mount), WALL (Wall mount)

• Select WALL if the unit is mounted on the wall.

• Select SHELF if the unit is mounted on the shelf.

REFLECTING (Reflecting)

Use to select the reflectivity of your listening room.

Choices: NORMAL (Normal), HI ECHO (High echo)

• Select NORMAL if your listening room has a normal

reflectivity.

• Select HI ECHO if your listening room has highly

reflective surfaces such as concrete walls.

7Check the following points once again before

starting the AUTO SETUP procedure.

• Is the optimizer microphone firmly connected to

this unit?

• Is the optimizer microphone placed in a proper

location?

• Are there any large obstacles in between the

optimizer microphone and the walls in your

listening room?

8Press ENTER to start the AUTO SETUP

procedure.

The following screen appears on your TV.

ENVIRONMENT CHECK (Environmental noise

check), SUB WOOFER CHECK (Subwoofer check)

and WILL START in 10 SEC (Will start in 10 sec) are

displayed in order as the PREPARATION procedure

is in progress.

If an error occurs, an error message is displayed. See

“Error messages for AUTO SETUP” on page 33 for a

complete list of error messages and their proper

remedies. Follow the instructions and perform the

AUTO SETUP procedure again.

SHELF

WALL

.ENVIRONMENT CHECK

 ;;;[OK]

SUB WOOFER CHECK

 ;;;[NOT IN USE]

WILL START in 10 SEC

Move aside or behind YSP

*****-----

PREPARATION

AUTO BEAM MEASUREMENT/SET

AUTO BEAM OPTIMIZATION

.SETTING VOLUME

MEASURE DISTANCE

MEASURE FREO CHAR

MEASURE VOLUME

ACOUSTIC OPTIMIZATION

If you selected BEAM

OPT+SOUND OPTIMZ or

SOUND OPTIMZ only in

step 5.

If you selected BEAM

OPTIMZ only in step 5.

.ENVIRONMENT CHECK

 ;;;[OK]



WILL START in 10 SEC

Move aside or behind YSP

*****-----

PREPARATION

Skipped if you selected

SOUND OPTIMZ only in

step 5.

Skipped if you selected

BEAM OPTIMZ only in

step 5.

ENTER

AUTO SETUP

9Check that the following screen is displayed

on your TV.

The results of the AUTO SETUP procedure are

displayed on your TV.

10 Press ENTER to confirm the results or press

RETURN to cancel the results.

The following screen is displayed temporarily for a

few seconds and then disappear from your TV.

BEAM MODE: 5BEAM

SUBWOOFER: NOT APPLICABLE



[ENTER]:Enter

[RETURN]:Cancel

SHOW RESULT

Example of the

SHOW RESULT screen

AUTO SETTING COMPLETED

ENTER

AUTO SETUP

SETUP English

■Error messages for AUTO SETUP

Before the AUTO SETUP procedure starts

While the AUTO SETUP procedure is in progress-

Error message Cause Remedy See

page

ERROR E-2

No MIC Detected. Please check

MIC connection and re-try.

The optimizer microphone is not

connected to this unit.

Connect the optimizer microphone to

this unit.

Error message Cause Remedy See

page

ERROR E-1

Please test in more quiet

environment.

There is too much unwanted noise in

your listening room.

Make sure that your listening room is as

quiet as possible. You may want to

choose certain hours during the day

when there is not much noise coming

from outside.

—

ERROR E-2

No MIC detected. Please check

MIC connection and re-try.

The optimizer microphone was

disconnected while the AUTO SETUP

procedure was in progress.

Make sure that the optimizer microphone

is firmly connected to this unit.

ERROR E-3

Unexpected control is detected.

Please re-try.

Some other operations were performed

on this unit while the AUTO SETUP

procedure was in progress.

Do not perform any other operations

while the AUTO SETUP procedure is in

progress.

—

ERROR E-4

Please check MIC position. MIC

should be set in front of YSP.

The optimizer microphone is not placed

in front of this unit.

Make sure that the optimizer microphone

is installed in front of this unit.

ERROR E-5

Please check MIC position. MIC

should be set above 2m/6.5ft.

The optimizer microphone is not placed

in the right distance from this unit.

Make sure that the optimizer microphone

is installed more than 2 m from the front

of this unit and within 1 m from the

center height of this unit.

ERROR E-6

Volume level is smaller than

expected. Please check MIC

position/connection and re-try.

The optimizer microphone cannot collect

the sound produced by this unit because

the sound output level is too low.

Make sure that the optimizer microphone

is firmly connected to this unit and

placed in a proper location. If the

problem persists, contact the nearest

YAMAHA service center for assistance.

ERROR E-7

Unexpected Error Happened.

Please re-try.

An internal system error occurred. Repeat the AUTO SETUP procedure. —

USING THE SYSTEM MEMORY

You can save the current settings adjusted in SET MENU

in the system memory of this unit. It is handy to save

certain settings according to the varying conditions of

your listening environment. For example, if there are

curtains in the path of beams, the effectiveness of the

beams will vary depending on whether the curtains are

open or closed.

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press MENU on the remote control.

The SET MENU screen appears on your TV.

• The control buttons used for SET MENU are displayed on

the bottom of the screen.

• To return to the previous screen while using SET MENU,

press RETURN on the remote control.

• To resume cursor button operations after changing the

control area by pressing an input selector button, press

TEST on the remote control.

• To cancel the SET MENU screen, press MENU once

more.

• You can also perform the following operations in the front

panel display.

• If you press an input selector button during the SET

MENU operations, the cursor buttons become ineffective.

In this case, press TEST once.

3Press / to select MEMORY and then

press ENTER.

The following screen appears on your TV.

4Press / to select SAVE and then press

ENTER.

The following screen appears on your TV.

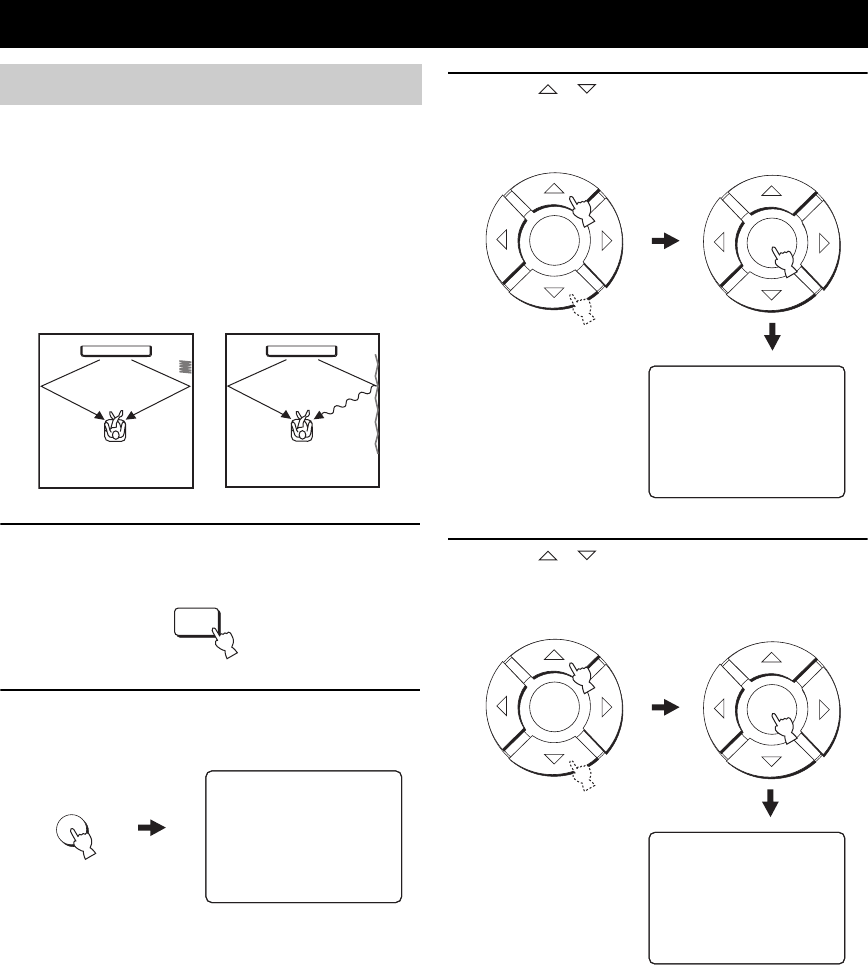

USING THE SYSTEM MEMORY

Saving settings

When the curtains are

open When the curtains are

closed

YSP

.;MEMORY

;AUTO SETUP

;BASIC SETUP

;MANUAL SETUP

[]/[]:Up/Down

[ENTER]:Enter

SET MENU

ENTER

1)LOAD

2)SAVE

[]/[]:Up/Down

[ENTER]:Enter



;

MEMORY

ENTER

USER1 USER2 USER3

[]/[]:Select





2)MEMORY SAVE

ENTER

USING THE SYSTEM MEMORY

SETUP English

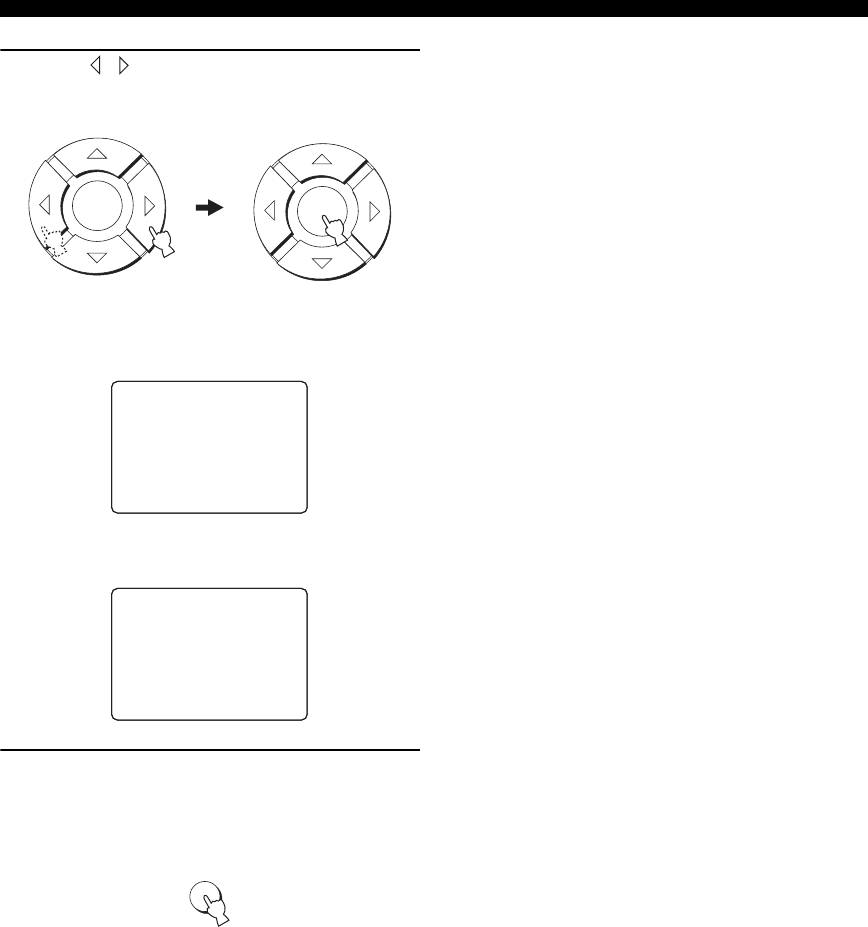

5Press / to select USER1, USER2 or

USER3 and then press ENTER.

The following screen appears on your TV.

6Press ENTER again.

The new parameters are saved as USER1, USER2 or

USER3. Once the parameters are saved, the display

returns to the SET MENU screen.

7Press MENU to exit.

The SET MENU screen disappears from your TV.

You can recall the settings saved in “Saving settings” on

page 34 according to the varying conditions of your

listening environment.

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press MENU on the remote control.

The SET MENU screen appears on your TV.

• The control buttons used for SET MENU are displayed on

the bottom of the screen.

• To return to the previous screen while using SET MENU,

press RETURN on the remote control.

• To resume cursor button operations after changing the

control area by pressing an input selector button, press

TEST on the remote control.

• To cancel the SET MENU screen, press MENU once

more.

• You can also perform the following operations in the front

panel display.

• If you press an input selector button during the SET

MENU operations, the cursor buttons become ineffective.

In this case, press TEST once.

USER1 Save Now?

[ENTER]:Enter





2)MEMORY SAVE

ENTER



USER1 Saving !

[<]/[>]:Select



2)MEMORY SAVE

ENTER

.;MEMORY

;AUTO SETUP

;BASIC SETUP

;MANUAL SETUP

[]/[]:Up/Down

[ENTER]:Enter

SET MENU

Loading settings

YSP

.;MEMORY

;AUTO SETUP

;BASIC SETUP

;MANUAL SETUP

[]/[]:Up/Down

[ENTER]:Enter

SET MENU

USING THE SYSTEM MEMORY

3Press / to select MEMORY and then

press ENTER.

The following screen appears on your TV.

4Press / to select LOAD and then press

ENTER.

The following screen appears on your TV.

5Press / to select USER1, USER2 or

USER3 and then press ENTER.

The following screen appears on your TV.

6Press ENTER again.

The new parameters are saved as USER1, USER2 or

USER3. Once the parameters are saved, the display

returns to the SET MENU screen.

7Press MENU to exit.

The SET MENU screen disappears from your TV.

ENTER

1)LOAD

2)SAVE

[]/[]:Up/Down

[ENTER]:Enter



;

MEMORY

ENTER

USER1 USER2 USER3

[]/[]:Select





1)MEMORY LOAD

ENTER

USER1 Load Now?

[ENTER]:Enter





1)MEMORY LOAD

ENTER



USER1 Loading !

[<]/[>]:Select



1)MEMORY LOAD

ENTER

.;MEMORY

;AUTO SETUP

;BASIC SETUP

;MANUAL SETUP

[]/[]:Up/Down

[ENTER]:Enter

SET MENU

PLAYBACK

BASIC

OPERATION English

You can play back sound from the components connected

to this unit simply by pressing INPUT on the front panel

repeatedly or pressing one of the input selector buttons

(TV, STB, VCR, DVD or AUX) on the remote control.

The name of the selected input source and the type of the

corresponding input mode appear in the front panel

display.

■Front panel operations

Press INPUT on the front panel repeatedly to

toggle between TV, STB, DVD, VCR and AUX.

The name of the corresponding input source and the type

of the current input mode are shown in the front panel

display.

■Remote control operations

Press TV on the remote control to play back a TV

program.

Press STB on the remote control to play back a

satellite broadcast.

Press DVD on the remote control to play back a

DVD.

Press VCR on the remote control to play back a

video tape.

Press AUX on the remote control to play back a

component connected to the AUX jack on the

rear panel of this unit.

PLAYBACK

Selecting the input source

POWER

STANDBY/ON

MACROINPUT2INPUT1

STBVCRDVD

AUX

STANDBY/ONVOLUME +

INPUT

VOL

Name of the selected

input source Type of the selected

input mode

STB

VOL

DVD

VOL

VCR

VOL

AUX

VOL

PLAYBACK

Once an input source is selected (see page 37), you can

play back the selected input source.

This section uses a DVD player as an example of the playback

source.

For details on the TV and the DVD player you are using, refer to

the owner’s manual supplied with the TV and the DVD player.

1Turn on the power of your DVD player using

the remote control supplied with the DVD

player.

2Switch to the video input on your TV using

the remote control supplied with the TV so

that the DVD menu screen is displayed.

3If necessary, turn down the volume of your

TV until you cannot hear any sound.

4Press DVD on the remote control to select

DVD as the input source.

5Play back the DVD on your DVD player using

the supplied remote control.

Audio signals from your DVD player are output from

the speakers of this unit.

• If the output volume is too low, increase the volume on this unit

to around –25 dB.

• If you have set the appropriate remote control codes for your

TV and DVD player, you can use the remote control supplied

with this unit to operate these components. For details on how

to set remote control codes, see page 82.

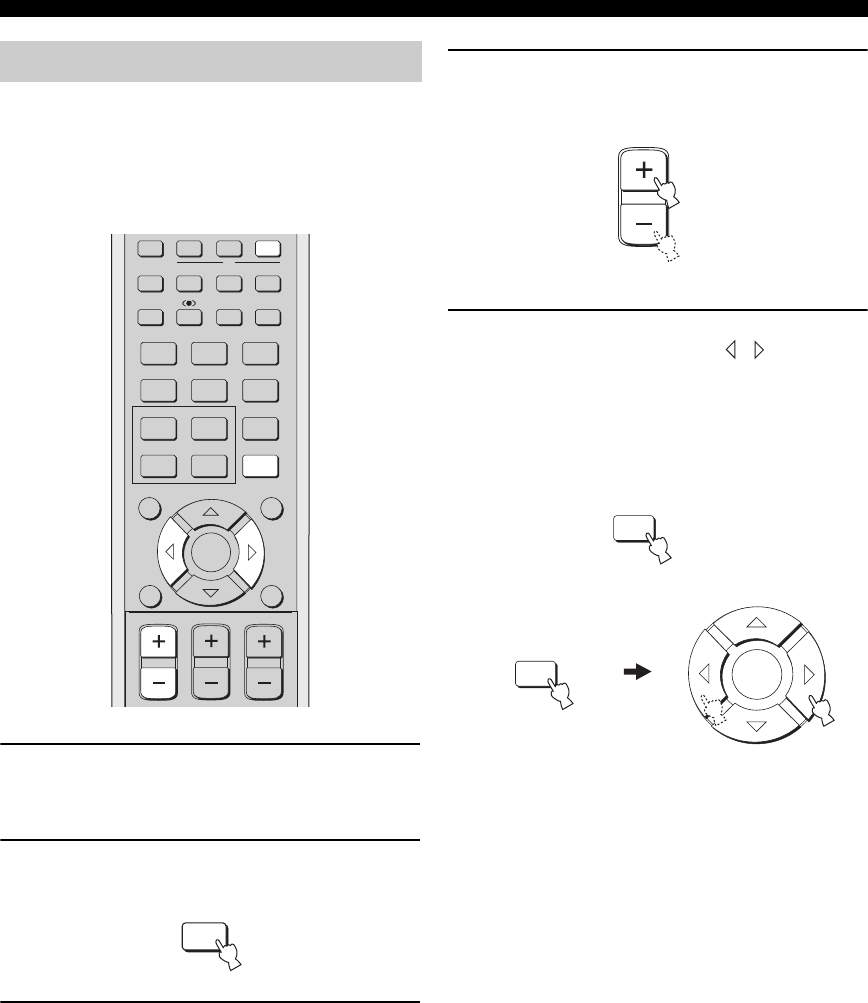

Press VOLUME +/– on the front panel or on the

remote control to increase or decrease the

volume level.

The numeric value of the volume level appears in the front

panel display.

Control range: 0.0 dB to –99.5 dB, MIN (minimum)

VOLUME MUTE appears at the minimum volume level.

• The volume level of all input sources (including multi-channel

as well as stereo sources) changes at the same time.

• 0.5 dB of the volume level increases or decreases each time you

press VOLUME +/–.

• You can continuously increase or decrease the volume level if

you press and hold VOLUME +/–.

Playing back sources

Note

DVD

Adjusting the volume

Notes

STANDBY/ONVOLUME +

INPUT

TV VOL

VOLUME

MUTE TV INPUT TV MUTE

VOLUME

VOL

Front panel Remote control

VOL

PLAYBACK

BASIC

OPERATION English

1Press MUTE on the remote control to mute

the sound.

AUDIO MUTE ON appears in the front panel

display, and the volume level indicator flashes.

2Press MUTE on the remote control again (or

press VOLUME +/–) to resume the sound

output.

AUDIO MUTE OFF appears temporarily in the front

panel display (or the numeric value of the current

volume level appears if you press VOLUME +/–),

and the volume level indicator lights up.

The sound output of all input sources (including multi-channel as

well as stereo sources) is muted at the same time.

You can select whether the sound output is to be muted

completely or by 20 dB when you press MUTE (see page 70).

Muting the sound

Note

TV VOL

VOLUME

MUTE TV INPUT TV MUTE

VOL

MUTE

Flashes

VOL

VOLUME

Lights up

MUTE

BEAM MODE

You can change the beam mode to suit the input source of this unit using the beam mode buttons on the remote control

(STEREO, 3BEAM, 5BEAM, ST+3BEAM or TARGET). Select stereo mode for 2-channel sources, 3 beam mode, 5

beam mode and stereo plus 3 beam mode for 5.1-channel playback.

All the beam modes are available in the following cases:

• If you selected Parallel to Wall for INSTALLING in AUTO SETUP (see page 30)

• If you selected settings other than CORNER RIGHT or CORNER LEFT for INSTALLED POSITION in BASIC

SETUP (see page 59)

• If you selected FLAT TO WALL for INSTALLED POSITION in MANUAL SETUP (see page 65)

Only stereo, stereo plus 3 beam and target modes are available in the following cases:

• If you selected Angle to Wall or corner for INSTALLING in AUTO SETUP (see page 30)

• If you selected CORNER RIGHT or CORNER LEFT for INSTALLED POSITION in BASIC SETUP (see page 59)

• If you selected ANGLE TO WALL OR CORNER for INSTALLED POSITION in MANUAL SETUP (see page 65)

Yes: the corresponding beam mode is available.

No: the corresponding beam mode is not available.

BEAM MODE

Beam

mode

AUTO SETUP BASIC SETUP MANUAL SETUP

INSTALLING

(see page 30)

INSTALLED POSITION

(see page 59)

INSTALLED POSITION

(see page 65)

Parallel to

Wall

Angle to Wall

or corner

CORNER

RIGHT

CORNER

LEFT

Other settings FLAT TO

WA L L

ANGLE TO

WA LL O R

CORNER

STEREO Yes Ye s Yes Yes Ye s Yes

3BEAM Yes No No Yes Yes No

5BEAM Yes No No Yes Yes No

ST+3BEAM Yes Yes Yes Yes Yes Yes

TARGET Yes Yes Yes Yes Yes Yes

Note

BEAM MODE

BASIC

OPERATION English

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press one of the beam mode buttons to

select the desired beam mode.

Outputs sound beams from the front left and right, center,

and surround left and right speakers. This mode is ideal

for enjoying surround sound effects to the fullest when

watching DVDs recorded in a multi-channel format or

playing back 2-channel sources in a multi-channel format.

Press 5BEAM on the remote control to select the

5 beam mode.

• To achieve the best surround sound effect, make sure that there

are no obstacles placed in the path of sound beams in that the

objects may prevent the beams from rebounding directly off the

walls in your listening room.

• The front left and right sound beams are output towards the

walls in your listening room.

Outputs sound beams from the front left and right, center,

and surround left and right speakers. This mode is ideal

for watching live recordings on a DVD. Vocals and

instrumental sounds can be heard close to the center of the

listening position while sound reflections from the venue

itself can be heard on your right and left, giving you the

feeling that you are sitting right in front of the stage.

Press ST+3BEAM on the remote control to select

the stereo plus 3 beam mode.

The front left and right sound beams are output directly to the

listening position.

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

YSP

CINEMA DSP

YSP

STEREO

5BEAM

ST+3BEAM

3BEAM

TARGET

5 beam mode

Notes

Stereo plus 3 beam mode

Note

5BEAM

ST+3BEAM

BEAM MODE

Outputs sound beams from the front left and right and

center speakers. This mode is ideal for enjoying movies

with the whole family. Because the listening position area

is widened, you can enjoy excellent quality surround

sound over a wider area.

Press 3BEAM on the remote control to select the

3 beam mode.

You can achieve a more realistic surround effect if you adjust

settings for IMAGE LOCATION in BEAM MENU (see page 68).

• When you play back multi-channel sources, surround left and

right signals are mixed down and output from the front left and

right speakers.

• The front left and right sound beams are output towards the

walls in your listening room.

Outputs sound beams from the front left and right

speakers in the 2-channel stereo mode. This mode is ideal

for playing back hi-fi sources, such as CDs, and can be

used to replace your TV speakers.

Press STEREO on the remote control to select

the stereo mode.

• When you play back multi-channel sources, all signals except

those for the front left and right speakers are mixed down and

output from the front left and right speakers. No audio is output

from the center and rear channels.

• The surround mode becomes disabled when the stereo mode is

selected.

• When you play back Dolby Digital audio signals in the stereo

mode, the dynamic range becomes compressed. If the volume

level decreases to the extreme, use other beam modes except the

target mode.

• If the stereo mode is selected as the beam mode, the surround

modes (see page 44) and the CINEMA DSP programs (see

page 49) become ineffective.

3 beam mode

Notes

3BEAM

Stereo mode

Notes

STEREO

BEAM MODE

BASIC

OPERATION English

Outputs sound beams in a single channel. This mode is

ideal if you do not want the sound beams to be reflected

on the walls in your listening room or if you do not disturb

others asleep while enjoying music or movies at night.

In addition, you can adjust the horizontal angle of the

sound beams so that you can hear dialogues clearly even

from a distant location such as the kitchen area in your

listening room.

Press TARGET on the remote control to select

the target mode and then press / to adjust

the angle.

Control range: L90° to R90°

• Press repeatedly to increase the horizontal angle on

the left side.

• Press repeatedly to increase the horizontal angle on

the right side.

• The sound beams are not rebounded off the walls in your

listening room.

• If the target mode is selected as the beam mode, the surround

modes (see page 44), the CINEMA DSP programs (see

page 49) and the TruBass (see page 54) become ineffective. In

addition, no audio is output from the subwoofer connected to

this unit.

Target mode

Notes

TARGET

ENTER

VOL

ENJOYING SURROUND SOUND

■Decoder indicators

Depending on the input source and the selected surround

mode, the indicators in the front panel display light up as

follows:

• You can select an input mode (AUTO, DTS or ANALOG) by

pressing INPUTMODE on the remote control repeatedly (see

page 81).

• Discs encoded in DTS-ES or Dolby Digital 5.1 EX will be

played back in DTS or Dolby Digital.

■Surround modes and recommended

sources

• Surround modes are available when the beam mode is set to a

setting other than the stereo or the target mode.

• When you select an input source (see page 37), the surround

mode used for the previously selected input source is selected.

• If the power of this unit is turned off and on again, the surround

mode used for the previously selected input source before the

power was turned off is selected.

• The surround modes are available only when the CINEMA DSP

programs are turned off (see page 51) or when the movie

program is selected as the CINEMA DSP program (see

page 50).

• Only Dolby Pro Logic, Dolby Pro Logic II Movie and DTS

Neo:6 Cinema are available when the movie program is selected

as the CINEMA DSP program (see page 50).

• If the surround modes are not available, “Prohibit” appears in

the front panel display when you press SURROUND on the

remote control.

• The surround modes are available only when 2-channel signals

are being input. If you try to switch between the surround

modes when 5.1 channel signals are being input, “Prohibit”

appears in the front panel display.

ENJOYING SURROUND SOUND

Status Indicator

When PCM signals are being

input

When DTS digital signals are

being input or when DTS Neo:6

is selected

When Dolby Digital signals are

being input

When Dolby Pro Logic is

selected

When Dolby Pro Logic II is

selected

PCM

DIGITAL

Surround mode Recommended

source

Dolby Pro Logic – All sources

Dolby Pro Logic II

Movie

Music

Game

Movies

Music

Games

DTS Neo:6 Cinema

Music

Movies

Music

Notes

ENJOYING SURROUND SOUND

BASIC

OPERATION English

This unit can decode 2-channel sources for 5.1 channel

playback so that you can enjoy a variety of surround sound

effects by switching the surround mode.

The surround modes are available only when the CINEMA DSP

programs are turned off (see page 51) or when the movie program

is selected as the CINEMA DSP program (see page 50). In

addition, the beam mode must be set to the 5 beam mode, the

stereo plus 3 beam mode or the 3 beam mode (see page 40).

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press SURROUND on the remote control

repeatedly (or press SURROUND and then

press / ) to switch between surround

modes.

Enjoying 2-channel sources

in surround sound

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

YSP

CINEMA DSP

YSP

SURROUND

ENTER

PRO LOGIC

PLII Movie

PLII Music

PLII Game

Neo:6 Cinema

Neo:6 Music

Example of the surround

mode display in the front

panel display when the

CINEMA DSP program is

turned off

ENJOYING SURROUND SOUND

You can enjoy analog audio signals output from your TV

in real surround sound.

Before performing the steps below, set the volume of this unit to

–40 dB. If necessary, adjust the volume level in step 4 below.

1Select the TV channel you want to watch.

To select a TV channel, use the remote control

supplied with your TV.

2Press TV on the remote control.

This unit outputs audio signals from your TV.

3If you hear sound from your TV speakers,

reduce the volume level of your TV until you

can no longer hear any audio being output.

To reduce the TV volume level, use the remote

control supplied with your TV.

4Press VOLUME +/– on the remote control to

adjust the volume level.

5Press SURROUND repeatedly (or press

SURROUND and then press / ) on the

remote control to select a surround mode.

Signals input from 2-channel sources are played back

on multiple channels.

For more information on surround modes, see

page 44.

Enjoying TV in surround sound

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

TV VOL

VOLUME

ENTER

SURROUND

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

VOLUME

SURROUND

ENTER

ENJOYING SURROUND SOUND

BASIC

OPERATION English

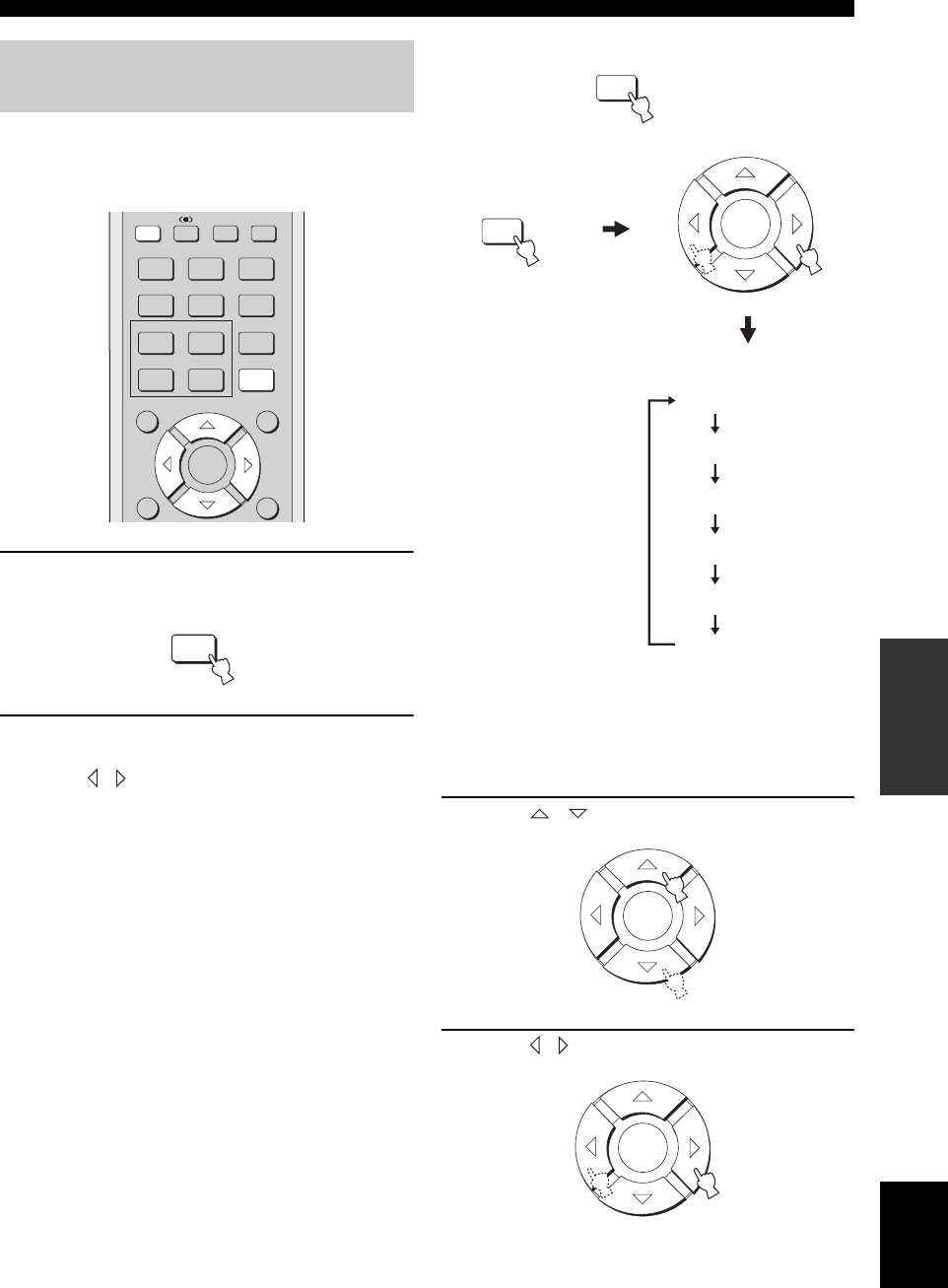

You can configure the parameters for Dolby Pro Logic II

Music and DTS Neo:6 Music to fine-tune the surround

sound effect.

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press SURROUND on the remote control

repeatedly (or press SURROUND and then

press / ) to select PL II Music or Neo:6

Music. 3Press / to select the parameter.

4Press / to configure the parameter.

Adjusting surround mode

parameters

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

YSP

CINEMA DSP

YSP

SURROUND

ENTER

PRO LOGIC

PLII Movie

PLII Music

PLII Game

Neo:6 Cinema

Neo:6 Music

Example of the surround

mode display in the front

panel display when the

CINEMA DSP program is

turned off

ENTER

ENJOYING SURROUND SOUND

■When Dolby Pro Logic II Music is

selected

PANORAMA

Gives front left and right channel sound a wraparound

effect, distributed throughout the entire surround

sound field to give you an expansive feeling.

Choices: ON/OFF

Default setting: OFF

DIMENSION

Adjusts the difference in volume between front and

surround channels to the volume balance you desire.

Control range: –3 (toward the surround direction) to

+3 (toward the front direction)

Default setting: STD

CT WIDTH

Distributes the center channel sound to the left and

right. If set to 0, center channel sounds output only

from the center speaker.

Control range: 0 to 7

Default setting: 3

■When DTS Neo:6 Music is selected

C. IMAGE

Adjusts the center image from three speakers (front

and center) to varying degrees.

Control range: 0.0 (wider) to 1.0 (toward the center)

Default setting: 0.3

USING SOUND FIELD PROGRAMS

BASIC

OPERATION English

This unit is equipped with a variety of precise digital decoders that allow you to enjoy multi-channel playback from

stereo or multi-channel sources. This unit is also equipped with a YAMAHA CINEMA DSP (digital sound field

processing) chip containing several sound field programs which you can use to enhance your playback experience. Most

of the sound field programs are precise digital recreations of actual acoustic environments found in famous concert halls,

music venues and movie theaters.

The YAMAHA CINEMA DSP modes are compatible with all Dolby Digital, DTS and Dolby Surround sources.

Choose a sound field program based on your listening preference and do not purely rely on the name of the sound field program itself.

A significant factor that creates the rich, full tones of a live instrument are the multiple reflections from the walls of the

room. In addition to making the sound live, these reflections enable the listener to tell where the player is situated as well

as the size and shape of the room in which the listening is sitting.

■Elements of a sound field

In any environment, there are two distinct types of sound reflections that combine with the direct sound coming straight

to our ears from the player’s instrument to make up the sound field.

Early reflections

Reflected sounds reach our ears extremely rapidly (50 ms to 100 ms after the direct sound) after reflecting from one

surface only (from the ceiling or a wall, for example). Early reflections help add clarity to the direct sound.

Reverberations

These are caused by reflections from more than one surface (i.e. wall, ceiling, the back of the room, etc.) so numerous

that they merge together to form a continuous sonic afterglow. They are non-directional and lessen the clarity of the direct

sound.

Direct sound, early reflections and subsequent reverberation taken together help us to determine the subjective size and

shape of the room, and it is this information that the digital sound field processor reproduces in order to create sound

fields.

If you could create the appropriate early reflections and subsequent reverberations in your listening room, you would be

able to create your own listening environment. The acoustics in your room could be changed to those of a concert hall, a

dance floor or a listening room of virtually any size at all. This ability to create sound fields at will is exactly what

YAMAHA has done with the CINEMA DSP technology.

USING SOUND FIELD PROGRAMS

Note

What is a sound field?

USING SOUND FIELD PROGRAMS

You can select from three different sound field programs

(MUSIC, MOVIE and SPORTS) depending on the type of

sources you want to enjoy.

• The CINEMA DSP programs are not available if the stereo

mode (see page 42) or the target mode (see page 43) is selected

as the beam mode.

• If the CINEMA DSP programs are not available, “Prohibit”

appears in the front panel display when you press one of the

sound field program buttons on the remote control.

■Music program

Select this sound field program when you play music

sources. This program produces a vibrant atmosphere and

lets you feel as if you are seated in an actual rock or jazz

concert hall.

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press MUSIC on the remote control to select

the music sound field program.

■Movie program

Select this sound field program when you play movie

sources, especially the ones encoded in Dolby Digital,

DTS or Dolby Surround. This program clearly reproduces

dialog and sound effects, thus creating a broad and

expansive cinematic space amid silence.

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press MOVIE on the remote control to select

the movie sound field program.

■Sports program

Select this sound field program when you play sports

sources. This program densely concentrates the vocal

sound of the commentator in the center while broadening

the sound from the audience or the environment all around

your listening room.

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press SPORTS on the remote control to

select the sports sound field program.

Turning on CINEMA DSP programs

Notes

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

TV VOL

VOLUME

ENTER

SURROUND

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

YSP

CINEMA DSP

YSP

MUSIC

YSP

MOVIE

YSP

SPORTS

USING SOUND FIELD PROGRAMS

BASIC

OPERATION English

Turn off the CINEMA DSP programs if you want to enjoy

the original sound without the sound field program effect.

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press OFF on the remote control to turn off

the sound field programs.

You can enjoy good quality sound with the factory preset

parameters. However, you can also adjust the effect level

of the CINEMA DSP programs relative to the level of the

direct sound so that each sound field program can reflect

your listening environment and your preference even more

accurately.

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press MUSIC, MOVIE or SPORTS on the

remote control to select the desired sound

field program.

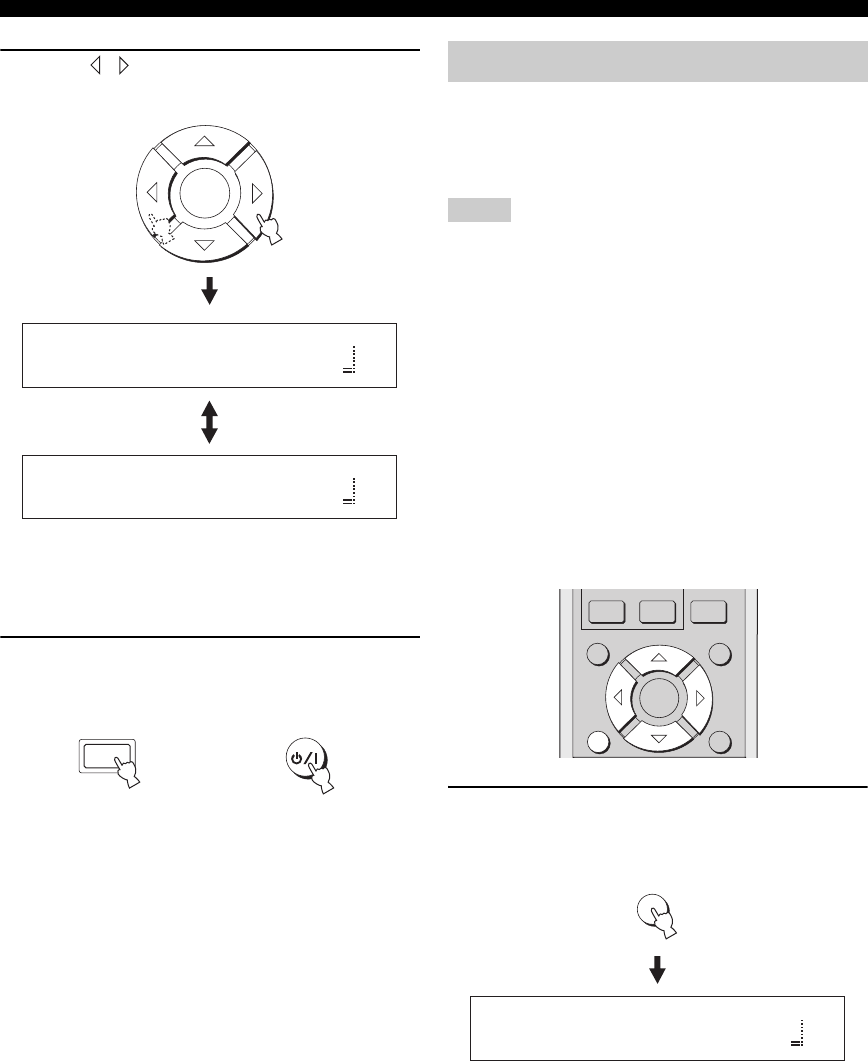

3Press / on the remote control.

DSP LEVEL is shown in the front panel display.

4Press / on the remote control to adjust

the effect level of the CINEMA DSP programs.

Control range: –6 dB to +3 dB

• A larger value increases the effect level.

• A smaller value decreases the effect level.

Turning off CINEMA DSP programs

YSP

+10

OFF

Adjusting CINEMA DSP levels

YSP

SPORTS

MOVIE

MUSIC

or or

VOL

ENTER

USING THE VOLUME MODE

The night listening modes are designed to improve listenability at lower volumes or at night. In addition, you can limit

the volume level of the TV so that it will not vary suddenly to a great extent whenever the contents being broadcast

change (i.e. due to commercials, etc.).

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press VOL MODE on the remote control to

switch to the volume mode.

The NIGHT indicator lights up in the front panel

display.

3Press VOL MODE on the remote control

repeatedly to select NIGHT:CINEMA,

NIGHT:MUSIC, TV EQUAL VOL or NIGHT

OFF.

• Select NIGHT:CINEMA when watching films to

reduce the dynamic range of film soundtracks and

make dialog easier to hear at lower volumes.

• Select NIGHT:MUSIC when listening to music

sources to preserve ease-of-listening for all sounds.

• Select TV EQUAL VOL when watching TV

programs.

• Select NIGHT OFF to turn off the night listening

modes.

USING THE VOLUME MODE

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

YSP

CINEMA DSP

YSP

VOL MODE

NIGHT

Lights up

NIGHT:CINEMA

NIGHT:MUSIC

TV EQUAL VOL

NIGHT OFF

VOL MODE

USING THE VOLUME MODE

BASIC

OPERATION English

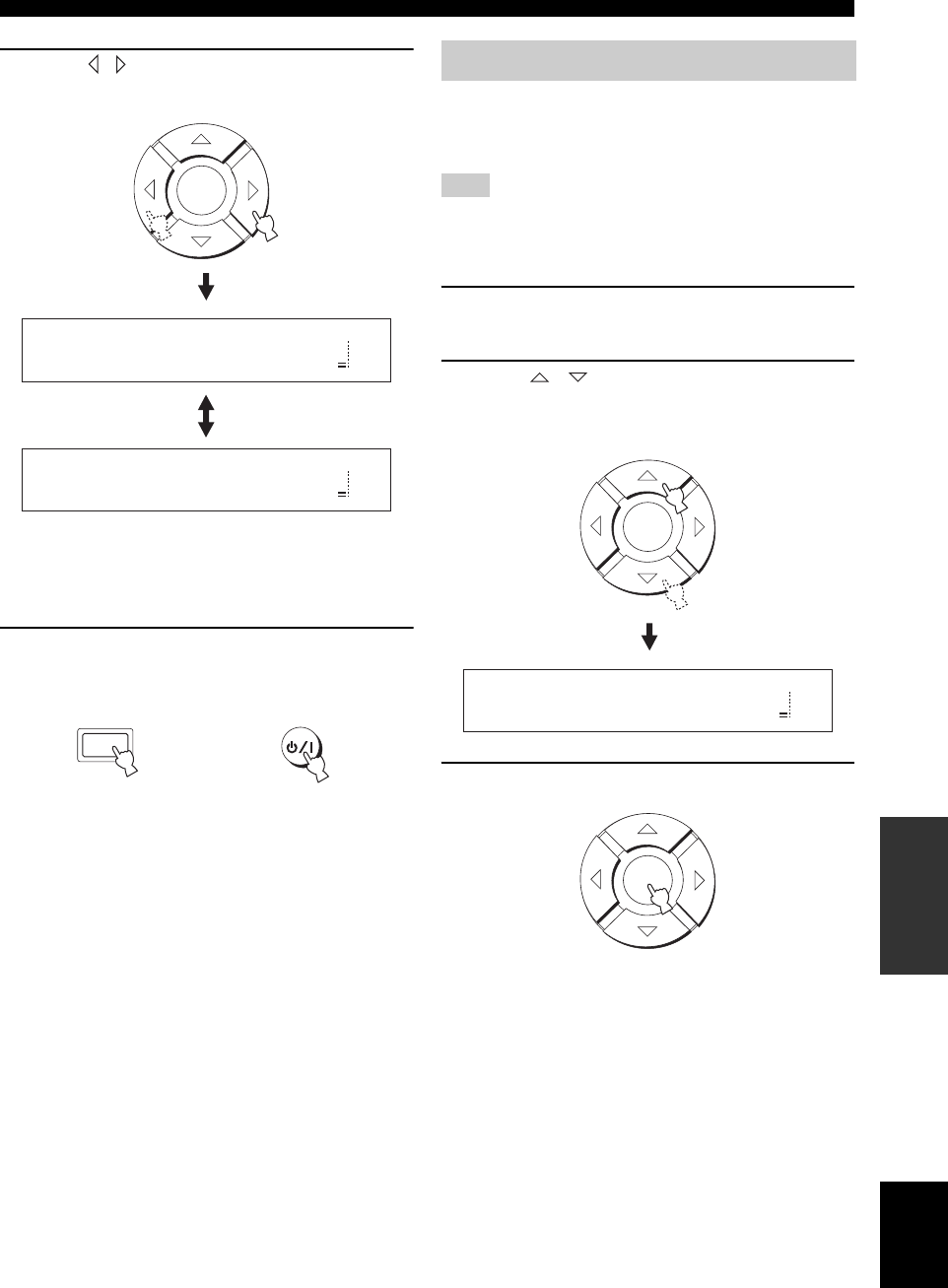

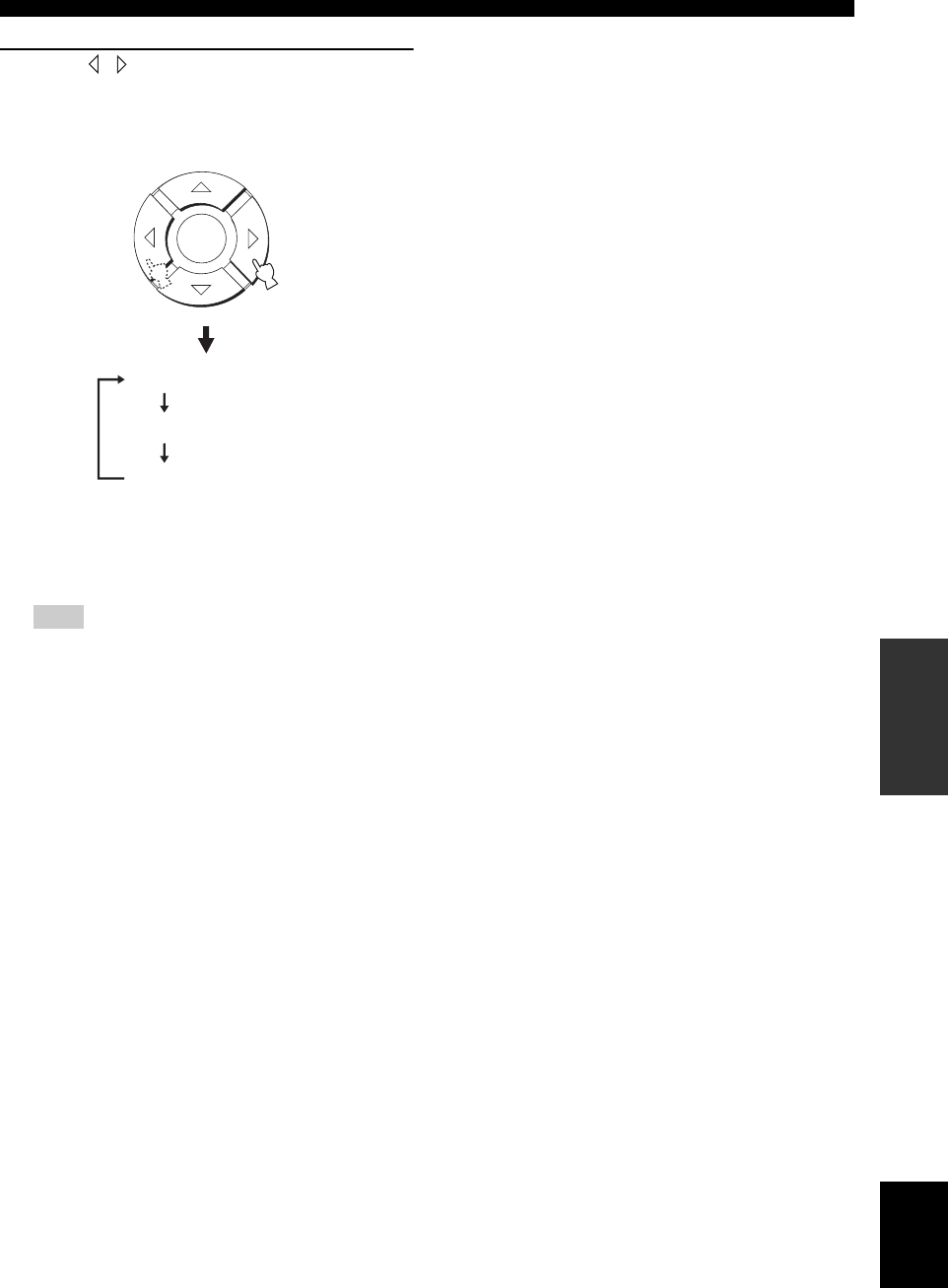

4Press / on the remote control to adjust

the effect level of compression while

NIGHT:CINEMA, NIGHT:MUSIC or TV EQUAL

VOL is displayed.

• Select Effect.Lvl:MIN for minimum compression.

• Select Effect.Lvl:MID for standard compression.

• Select Effect.Lvl:MAX for maximum

compression.

The volume mode settings are canceled if you press

STANDBY/ON on the front panel or on the remote control

or if you disconnect the power supply cable from the AC

wall outlet.

Note

Effect.Lvl:MIN

Effect.Lvl:MID

Effect.Lvl:MAX

ENTER

USING TRUBASS

This unit can produce the perception of an improved low frequency performance with the aid of the SRS TruBass

technology, which improves bass even without a subwoofer and provides deeper, richer bass in the presence of a

subwoofer.

The TruBass is not available when the target mode is selected as the beam mode (see page 43).

1Press on the remote control.

The current setting (TruBass ON or TruBass OFF) is

shown in the front panel display.

2Press on the remote control repeatedly

to turn on SRS TruBass.

TruBass ON is shown in the front panel display.

3Press on the remote control repeatedly

to turn off SRS TruBass.

TruBass OFF is shown in the front panel display.

USING TruBass

Note

POWER

SLEEP

POWER

STANDBY/ON

INPUTMODE

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

VOL

TruBass ON

TruBass OFF

VOL

TruBass ON

TruBass OFF

USING THE SLEEP TIMER

BASIC

OPERATION English

Use this feature to automatically set this unit to the standby mode after a specified time period. The sleep timer is useful

if you are going to sleep after a certain amount of time while this unit is still playing back a source.

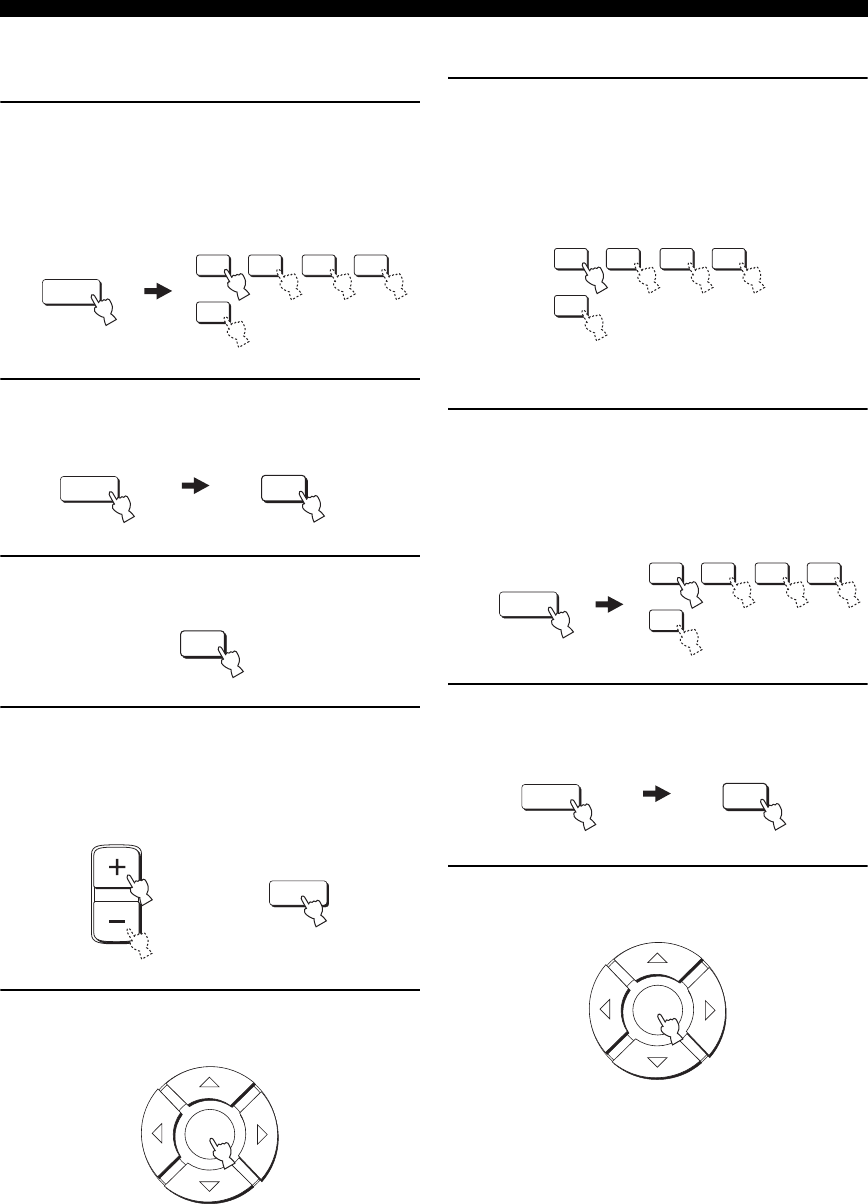

1Press SLEEP on the remote control

repeatedly to set the amount of time for the

sleep timer.

Choices: 120 min, 90 min, 60 min, 30 min, OFF

The SLEEP indicator in the front panel display

flashes while switching the amount of time for the

sleep timer.

Each time you press SLEEP on the remote control,

the front panel display changes as shown below.

2Wait for a few seconds without operating this

unit to confirm the setting for the sleep timer.

The SLEEP indicator lights up in the front panel

display, indicating that the sleep timer is activated.

USING THE SLEEP TIMER

Setting the sleep timer

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

UNIVERSAL

MUSIC MOVIE VOL MODE

INPUTMODE

YSP

CINEMA DSP

SLEEP

Flashes

SLEEP

SLEEP 120min

SLEEP 90min

SLEEP 60min

SLEEP 30min

SLEEP OFF

SLEEP

Lights up

USING THE SLEEP TIMER

1Press SLEEP on the remote control

repeatedly so that SLEEP OFF appears in the

front panel display.

2Wait for a few seconds without operating this

unit to confirm the setting for the sleep timer.

The SLEEP indicator disappears from the front panel

display, indicating that the sleep timer is deactivated.

The previous setting for the sleep timer before you deactivate it is

stored in the system memory and automatically restored when

you make a new setting next time.

The sleep timer setting can also be deactivated if you press

STANDBY/ON on the front panel or on the remote control to set

this unit to the standby mode or unplug the power cable from the

AC outlet.

Canceling the sleep timer

Note

SLEEP

VOL

SLEEP OFF

SLEEP

Disappears

BASIC SETUP

ADVANCED

OPERATION English

If you cannot run AUTO SETUP successfully or if an error occurs during the AUTO SETUP procedure, you can use

BASIC SETUP to individually set the parameters of this unit in the following order:

1) ROOM TYPE (Room type)

2) INSTALLED POSITION (Installed position of this unit)

3) ROOM SIZE (Room size)

• You can save the settings optimized by the AUTO SETUP procedure (see page 34). A set of settings optimized according to specific

conditions of your listening environment can be recalled later depending on the varying conditions of your listening environment (see

page 35).

• In order to fine-tune the listening environment parameters, as well as to make advanced settings for speaker positions, sound beams,

digital input and the OSD, see MANUAL SETUP (see page 63).

• Items with an asterisk (*) appearing next to them may be displayed differently on your screen depending on your individual settings.

Each listening environment parameter must be set before the next parameter in order is set.

■Displaying the SET MENU screen

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press MENU on the remote control.

The SET MENU screen appears on your TV.

• The control buttons used for SET MENU are displayed on

the bottom of the screen.

• To return to the previous screen while using SET MENU,

press RETURN on the remote control.

• To resume cursor button operations after changing the

control area by pressing an input selector button, press

TEST on the remote control.

• To cancel the SET MENU screen, press MENU once

more.

• You can also perform the following operations in the front

panel display.

• If you press an input selector button during the SET

MENU operations, the cursor buttons become ineffective.

In this case, press TEST once.

3Press / to select BASIC SETUP and

then press ENTER.

The following screen appears on your TV.

BASIC SETUP

Note

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

YSP

CINEMA DSP

YSP

.;MEMORY

;AUTO SETUP

;BASIC SETUP

;MANUAL SETUP

[]/[]:Up/Down

[ENTER]:Enter

SET MENU

ENTER

.1 ROOM TYPE ?

PUSH [ENTER] Key.



;

BASIC SETUP

ENTER

BASIC SETUP

■ROOM TYPE (Room type)

4Check that the following screen is displayed

on your TV.

If this screen is not displayed, repeat steps 1 to 3.

5Press ENTER.

6Press / to switch between the SQUARE

and RECTANGLE selection screens and then

press ENTER to select the desired setting.

• Select SQUARE if the shape of your listening

room is nearest to a square.

• Select RECTANGLE if the shape of your listening

room is nearest to a rectangle.

If the shape of your listening room is irregular, select the

shape that most closely resembles your room.

In Example 1, the shape that best describes the listening

room is RECTANGLE. In Example 2, it is SQUARE.

7Press ENTER to confirm the setting for the

room type.

The following screen appears in the front panel

display.

.1 ROOM TYPE ?

PUSH [ENTER] Key.



;

BASIC SETUP

ENTER

 SQUARE

[ ]/[ ]:Select

[ENTER]:Enter



1 ROOM TYPE ?

RECTANGLE

[ ]/[ ]:Select

[ENTER]:Enter



1 ROOM TYPE ?

Example 1:

Rectangular

room

Example 2:

Square

room

ENTER

LE.E* SQUARE

EQ. 2 INSTALLED POSITION ?

LE.E3

.E4

PUSH [ENTER] Key.



;

BASIC SETUP

ADVANCED

OPERATION English

■INSTALLED POSITION

(Installed position of this unit)

8Check that the following screen is displayed

on your TV.

If this screen is not displayed, make settings for

ROOM TYPE.

9Press ENTER.

If you selected SQUARE for ROOM TYPE (see

page 58), four different installed position types in a

square room are displayed.

If you selected RECTANGLE, eight different

installed position types in a rectangular room are

displayed.

If SQUARE is selected for ROOM TYPE

Select LEFT, CENTER, RIGHT or CORNER that

best matches the installed position of this unit in your

listening room.

If RECTANGLE is selected for ROOM TYPE

Select WIDE LEFT, WIDE CENTER, WIDE

RIGHT, CORNER RIGHT, CORNER LEFT,

NARROW LEFT, NARROW CENTER or

NARROW RIGHT that best matches the installed

position of this unit in your listening room.

LE.E* SQUARE

EQ. 2 INSTALLED POSITION ?

LE.E3

.E4

PUSH [ENTER] Key.



;

BASIC SETUP

ENTER

 - 

CENTER

[ ]/[ ]:Select

[ENTER]:Enter



2 INSTALLED POSITION ?

ENTER

LEFT

(Left) CENTER

(Center)

CORNER

(Corner left or right) RIGHT

(Right)

- WIDE

CENTER

[ ]/[ ]:Select

[ENTER]:Enter



2 INSTALLED POSITION ?

ENTER

WIDE LEFT

(Wide wall left)

WIDE CENTER

(Wide wall center)

WIDE RIGHT

(Wide wall right)

CORNER RIGHT

(Corner right)

CORNER LEFT

(Corner left)

NARROW LEFT

(Narrow wall left)

NARROW CENTER

(Narrow wall center)

NARROW RIGHT

(Narrow wall right)

BASIC SETUP

10 Press / to select the installed position

type that best suits the installed position of

this unit in your listening room and then

press ENTER.

The following screen appears in the front panel

display.

■ROOM SIZE (Room size)

11 Check that the following screen is displayed

on your TV.

If this screen is not displayed, make settings for

INSTALLED POSITION.

12 Press ENTER.

Three different room sizes (SMALL, MID or

LARGE) are displayed for both SQUARE and

RECTANGLE.

If SQUARE is selected for ROOM TYPE

ENTER ENTER

ENTER

LE.E* SQUARE

EQ.>* CENTER

LE.E3 ROOM SIZE ?

LE.E4

PUSH [ENTER] Key.



;

BASIC SETUP

LE.E* SQUARE

EQ.>* CENTER

LE.E3 ROOM SIZE ?

LE.E4

PUSH [ENTER] Key.



;

BASIC SETUP

ENTER



[ ]/[ ]:Select

[ENTER]:Enter



3 ROOM SIZE ?

--+

5.0m

MID

ENTER

3.8 m (13 ft)

SMALL

(Small)

MID

(Medium)

LARGE

(Large)

5.0 m (17 ft)

5.8 m (19 ft)

BASIC SETUP

ADVANCED

OPERATION English

If RECTANGLE is selected for ROOM TYPE

13 Press / to select the room size that best

suits your listening room and then press

ENTER.

■SETUP OK (Confirming settings)

14 Check that the following screen is displayed

on your TV.

If this screen is not displayed, make settings for

ROOM SIZE.

15 Press ENTER.

The following screen appears in the front panel

display.





[ ]/[ ]:Select

[ENTER]:Enter



3 ROOM SIZE ?

MID

--+

5.8m

4.2m

---

ENTER

4.2 m (14 ft)

5.8 m (19 ft)

3.4 m (11 ft)

4.2 m (14 ft)

5.0 m (17 ft)

6.8 m (23 ft)

SMALL

(Small)

MID

(Medium)

LARGE

(Large)

ENTER ENTER

ENTER

LE.E* SQUARE

EQ..* CENTER

LE.E* MID

. 4 SETUP OK ?

PUSH [ENTER] Key.



;

BASIC SETUP

DATA SETUP

YES NO

[ ]/[ ]:Select

[ENTER]:Enter



4 SETUP OK?

ENTER

BASIC SETUP

16 Press / to select YES or NO and then

press ENTER.

• Select YES to register the settings if they are

satisfactory. The following screen appears, and

your BASIC SETUP settings are registered.

• Select NO to cancel the settings and return to the

initial SET MENU screen.

17 Press MENU to complete the BASIC SETUP

procedure.

The SET MENU display disappears from your TV

screen.

This completes the parameter settings for BASIC SETUP.

To select a playback source and enjoy surround sound on

this unit, see “PLAYBACK” on page 37.

ENTER ENTER

Data Setting !

Please wait.



4 SETUP OK?

;MEMORY

;AUTO SETUP

.;BASIC SETUP

;MANUAL SETUP

[]/[]:Up/Down

[ENTER]:Enter

SET MENU

MANUAL SETUP

ADVANCED

OPERATION English

To achieve the best quality surround sound, you can use MANUAL SETUP to fine-tune the listening environment

parameters, as well as to make advanced settings for speaker positions, sound beams, digital input and the OSD. Change

the initial settings (indicated in bold under each parameter) to reflect the needs of your own listening environment.

• You can save the settings optimized by the AUTO SETUP procedure (see page 34). A set of settings optimized according to specific

conditions of your listening environment can be recalled later depending on the varying conditions of your listening environment (see

page 35).

• Most of the parameters in SOUND MENU and BEAM MENU are automatically set when you run AUTO SETUP (see page 26). Use

SOUND MENU and BEAM MENU to make additional adjustments.

• BEAM MENU allows you to make settings for the surround sound effects normally available in the speaker settings menu.

• Make settings for the parameters in BEAM MENU first before you make settings for the parameters in SOUND MENU, INPUT

MENU and DISPLAY MENU.

SOUND MENU

Use to manually adjust various parameters related to the sound output.

BEAM MENU

Use to manually adjust various parameters related to the sound beam output.

INPUT MENU

Use to manually adjust various parameters related to the audio and video input.

DISPLAY MENU

Use to manually adjust various parameters related to the display.

MANUAL SETUP

Item Features Page

TONE CONTROL Adjusts the output level of high-frequency or low-frequency sound. 69

BEAM LEVEL Adjusts the output level of each beam. 69

SUBWOOFER SET Adjusts the various subwoofer settings. 70

MUTE LEVEL Adjusts the muting level. 70

AUDIO DELAY Adjusts audio delay. 70

ROOM EQ Adjusts the tonal quality of the listening room. 70

DD/DTS Dynamic Range Adjusts the dynamic range of Dolby Digital or DTS signals. 71

Item Features Page

SETTING PARAMETERS Adjusts listening room and listening position settings. 65

BEAM ADJUSTMENT Adjusts various beam settings. 66

IMAGE LOCATION Adjusts the position of the front left and right speakers. 68

Item Features Page

INPUT ASSIGNMENT Assigns jacks according to the component to be used. 71

INPUT MODE Selects the initial input of the source. 72

INPUT TRIM Adjusts the input level of the source. 72

INPUT RENAME Renames the displayed input source. 72

Item Features Page

DIMMER SET Adjusts the brightness of the display. 73

OSD SET Adjusts the display position and the background color of the OSD. 74

UNIT SET Changes the display unit of measurement. 74

MANUAL SETUP

Use the remote control to access and adjust each

parameter.

You can adjust the SET MENU parameters while the unit is

reproducing sound.

1Press YSP on the remote control to switch to

the operation mode of this unit.

2Press MENU on the remote control.

The SET MENU screen appears on your TV.

• The control buttons used for SET MENU are displayed on

the bottom of the screen.

• To return to the previous screen while using SET MENU,

press RETURN on the remote control.

• To resume cursor button operations after changing the

control area by pressing an input selector button, press

TEST on the remote control.

• To cancel the SET MENU screen, press MENU once

more.

• You can also perform the following operations in the front

panel display.

• If you press an input selector button during the SET

MENU operations, the cursor buttons become ineffective.

In this case, press TEST once.

3Press / to select MANUAL SETUP and

then press ENTER.

The following screen appears on your TV.

4Press / to select a sub menu and then

press ENTER.

5Press / / / and ENTER to configure

each parameter.

6Press MENU to exit.

The OSD disappears from your TV screen.

Using MANUAL SETUP

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

YSP

CINEMA DSP

YSP

MENU .;MEMORY

;AUTO SETUP

;BASIC SETUP

;MANUAL SETUP

[]/[]:Up/Down

[ENTER]:Enter

SET MENU

ENTER ENTER

.1 SOUND MENU

2 BEAM MENU

3 INPUT MENU

4 DISPLAY MENU

[]/[]:Up/Down

[ENTER]:Enter



;

MANUAL SETUP

ENTER ENTER

ENTER

MANUAL SETUP

ADVANCED

OPERATION English

Use to manually adjust various parameters related to the

sound beam output.

SET MENU → MANUAL SETUP → BEAM MENU

■SETTING PARAMETERS

(Setting parameters)

Use to set the position of this unit in your listening room

and the distance of this unit from the listening position.

When you make settings for each parameter, other related

parameters are automatically adjusted to best match your

listening environment.

If you make adjustments in SETTING PARAMETERS, the beam

optimization settings made in the AUTO SETUP procedure will

be lost. If you want to keep the beam optimization settings made

in the AUTO SETUP and make further adjustments, adjust

settings in BEAM ADJUSTMENT first (see page 66).

INSTALLED POSITION

(Installed position of this unit)

Use to adjust the installed position of this unit.

Choices: FLAT TO WALL (Parallel to wall installation),

ANGLE TO WALL OR CORNER

(Corner installation)

• Select FLAT TO WALL if this unit is installed in

parallel with the wall in your listening room. Adjust the

width and length of your listening room as well as the

distance of the listening position from this unit and the

distance of the center of this unit from the left wall.

Choices for the room width and length:

2.0 m to 12.0 m (6.5 ft to 40.0 ft)

Choices for the listening position from this unit:

2.0 m to 9.0 m (6.5 ft to 30.0 ft)

Choices for the listening position from the left wall:

0.6 m to 11.4 m (2.0 ft to 38.0 ft)

BEAM MENU

Note



.A)SETTING PARAMETERS



 B)BEAM ADJUSTMENT



 C)IMAGE LOCATION











 []/[]:Up/Down



 [SELECT]:Enter



2 BEAM MENU



.INSTALLED POSITION

;;;;;FLAT TO WALL





[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

A)SETTING PARAMETER



1/3

FLAT TO WALL ANGLE TO WALL

OR CORNER

Listening position

from the left wall

Listening position

from the unit

Room width

Room length

A)SETTING PARAMETERS 2/3

12.0m

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

A)SETTING PARAMETERS 3/3

12.0m

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

Room width and length

Listening position from the

unit and the left wall

MANUAL SETUP

• Select ANGLE TO WALL OR CORNER if this unit is

installed in the corner in your listening room. Adjust

the width and length of your listening room as well as

the distance of the listening position from this unit and

the distance of the center of this unit from the left wall.

Choices for the room width and length:

2.0 m to 12.0 m (6.5 ft to 40.0 ft)

Choices for the listening position from this unit:

2.0 m to 9.0 m (6.5 ft to 30.0 ft)

Choices for the listening position from the left wall:

0.6 m to 11.4 m (2.0 ft to 38.0 ft)

When you set the INSTALLED POSITION parameter in BASIC

SETUP (see page 59) or MANUAL SETUP (see page 65), the

parameters newly set for the width and length of your listening

room are automatically set as the factory default value.

■BEAM ADJUSTMENT (Beam adjustment)

Use to manually adjust the various speaker beam angles.

We recommend that you select 5 beam mode before

adjusting these parameters.

• When INSTALLED POSITION is adjusted in BASIC SETUP

(see page 59) or MANUAL SETUP (see page 65), the factory

default value is automatically set for this parameter except when

FOCAL LENGTH is set to CENTER (see page 67).

• Depending on the beam mode settings (see page 40), some

speaker positions may not be available for selection. In this

case, “– –” is displayed. When using the stereo plus 3 beam

mode, set the surround left and right signals to be output from

the front left and right speakers.

HORIZONTAL ANGLE (Horizontal angle)

Use to adjust the horizontal angle of beams for each

speaker. By adjusting the horizontal angle of the beams,

you can optimize the sound beam paths. A test tone is

automatically output.

Choices: L90° to R90°

Adjust towards L (left) to move the direction of the output

to the left and adjust towards R (right) to move it to the

right.

Note

Listening position

from the unit

Room length

Room width

A)SETTING PARAMETERS 2/3

12.0m

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

A)SETTING PARAMETERS 3/3

12.0m

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

Room width and length

Listening position from

the unit and the left wall

Notes

.a)HORIZONTAL ANGLE

b)BEAM TRAVEL LENGTH

c)FOCAL LENGTH

d)TREBLE GAIN

[]/[]:Up/Down

[SELECT]:Enter



B)BEAM ADJUSTMENT

(−)

(+)

(−)

a)HORIZONTAL ANGLE 1/5

0(deg)

3BEAM

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

L90 R90

Front L

L60deg

MANUAL SETUP

ADVANCED

OPERATION English

BEAM TRAVEL LENGTH (Beam travel length)

Use to set the distance that sound beams travel after being

output and reflected off the wall until they arrive at the

listening position for each speaker.

The lines in the illustration below indicate the distance.

Choices: 0.3 m to 24.0 m (1.0 ft to 80.0 ft)

•Front L adjusts the distance the front left speaker

sound beams travel.

•Front R adjusts the distance the front right speaker

sound beams travel.

•Center adjusts the distance the center speaker sound

beams travel.

•Surround L adjusts the distance the surround left

speaker sound beams travel.

•Surround R adjusts the distance the surround right

speaker sound beams travel.

FOCAL LENGTH (Focal length)

Use to set the distance from the front of this unit to the

focal point of output for each speaker.

Choices: –1.0 m to +13.0 m (–3.5 ft to +43.5 ft)

Adjust towards – (minus) to move the focus outward and

adjust towards + (plus) to move the focus towards the

normal position.

•Front L adjusts the focal length for the front left sound

beams.

•Front R adjusts the focal length for the front right

sound beams.

•Center adjusts the focal length for the center sound

beams. Initial setting: –0.5 m (–1.5 ft)

•Surround L adjusts the focal length for the surround

left sound beams.

•Surround R adjusts the focal length for the surround

right sound beams.

We recommend that you use the initial setting (–0.5 m) for the

center speaker.

Front L;;;;;;;7.1m

Front R;;;;;;;7.1m

Center;;;;;;;;3.0m

Surround L;;;;10.0m

Surround R;;;;10.0m



b)BEAM TRAVEL LENGTH

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

3Beam

Front L;;;;;;;+6.0m

Front R;;;;;;;+6.0m

Center;;;;;;;;-1.0m

Surround L;;;;+13.0m

Surround R;;;;+13.0m



c)FOCAL LENGTH

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

3Beam

MANUAL SETUP

TREBLE GAIN (Treble gain)

Use to adjust the high frequency output level of each

speaker.

If the reflection point of the front left and right or surround left

and right sound beams is a curtain or other acoustically absorbent

surface, you can achieve more effective surround sound by

increasing the treble level for those sound beams.

Choices: –12.0 dB to +12.0 dB

Initial setting: 0 dB

•FL adjusts the high frequency output level of the front

left speaker.

•FR adjusts the high frequency output level of the front

right speaker.

•C adjusts the high frequency output level of the center

speaker.

•SL adjusts the high frequency output level of the

surround left speaker.

•SR adjusts the high frequency output level of the

surround right speaker.

■IMAGE LOCATION (Image location)

Use to adjust the direction from which the front left and

right speaker sound is heard by directing these audio

signals so that they are also output from the center

speaker.

Use this feature to redirect audio signals if the sound

coming from the left and right speakers seems unnatural,

such as when your listening position is not the center of

your listening room.

You can only adjust this parameter when 3 beam mode or

5 beam mode is selected as the beam mode (see page 42).

Choices: ON, OFF

Setting range: 0% to 95%

Initial setting: 0%

LEFT (Left)

Adjusts audio signals towards the left.

The higher the percentage, the louder the output from the

center.

RIGHT (Right)

Adjusts audio signals towards the right.

The higher the percentage, the louder the output from the

center.

Surround L;;;;;0dB

Surround R;;;;;0dB

Center;;;;;;;;;0dB

Front L;;;;;;;;0dB

Front R;;;;;;;;0dB



d)TREBLE GAIN

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

. OFF ) ON

LEFT;;;;;;;;;;0%

RIGHT;;;;;;;;;0%



C)IMAGE LOCATION

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

Without adjustment With the front left

speaker adjusted

Without adjustment

With the front right

speaker adjusted

MANUAL SETUP

ADVANCED

OPERATION English

Use to manually adjust various parameters related to the

sound output.

SET MENU → MANUAL SETUP → SOUND MENU

■TONE CONTROL (Tone control)

You can adjust the tonal quality of your speakers.

TREBLE (Treble)

Use to adjust the high frequency response.

Choices: –12 dB to +12 dB

Initial setting: 0 dB

BASS (Bass)

Use to adjust the low frequency response.

Choices: –12 dB to +12 dB

Initial setting: 0 dB

■BEAM LEVEL (Beam level)

Use to manually balance the speaker levels between the

front left or surround left speakers and each speaker

selected.

When setting the front right, center or surround left

speakers or the subwoofer, the test tone is output from the

front left speakers and the selected speaker position.

When setting the surround right speaker, the test tone is

output alternately from the surround left and right

speakers.

The factory default value is automatically set for this

parameter depending on the parameters set in AUTO

SETUP, BASIC SETUP or ROOM EQ in MANUAL

SETUP.

Depending on the beam mode settings, some channels

may not be available for selection. In this case, NONE is

displayed.

•FR adjusts the balance of the front left and front right

speakers.

•C adjusts the balance of the front left and center

speakers.

•SL adjusts the balance of the front left and surround

left speakers.

•SR adjusts the balance of the surround left and

surround right speakers.

•SWFR adjusts the balance of the front left speaker and

subwoofer.

SOUND MENU



. A)TONE CONTROL



B)BEAM LEVEL



C)SUBWOOFER SET



D)MUTE LEVEL



E)AUDIO DELAY



F)ROOM EQ



G)DD/DTS Dynamic Range

[]/[]:Up/Down

[ENTER]:Enter



1 SOUND MENU

 



. TREBLE;;;;0dB



BASS;;;;;;0dB

A)TONE CONTROL

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

 -  +

.FR

C

SL

SR

SWFR

B)BEAM

LEVEL

*OUT : FL )FR

*MODE: 5 BEAM

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

MANUAL SETUP

■SUBWOOFER SET (Subwoofer set)

Use to manually adjust various subwoofer settings.

BASS OUT (Bass out)

Low-frequency (bass) signals can be directed to the

subwoofer and/or the front left and right speaker positions.

This setting also determines the routing of LFE (low-

frequency effect) signals found in Dolby Digital or DTS

sources.

Choices: SWFR (subwoofer), FRONT, BOTH

• Select SWFR if you connect a subwoofer. LFE and

low-frequency signals from other channels are directed

to the subwoofer according to the speaker settings.

• Select FRONT if you do not use a subwoofer. LFE and

low-frequency signals from other channels are directed

to the front speakers according to the speaker settings

(even if you have previously set the front speakers to

SMALL).

• Select BOTH if you connect a subwoofer and you want

to output low-frequency signals from front channels to

both the front speakers and subwoofer. LFE and low-

frequency signals from other channels are also directed

to the woofers of this unit.

CROSS OVER (Cross over)

When BASS OUT is set to SWFR, you can use this

feature to select a cross-over (cut-off) frequency for all

low-frequency signals. All frequencies below the selected

frequency will be sent to the subwoofer speaker position.

Choices: 80Hz, 100Hz, 120Hz

LFE LEVEL (Low-frequency effect level)

Select to adjust the output level of the LFE (low-frequency

effect) channel according to the capacity of your

subwoofer. The LFE channel carries low-frequency

special effects which are only added to certain scenes.

This setting is effective only when this unit decodes Dolby

Digital or DTS signals.

Choices: –20 to 0 dB

DISTANCE (Distance)

Select to adjust the distance of the subwoofer from the

listening position.

Choices: 0.3 to 15.0 m (1 to 50 ft)

Initial setting: 3.0 m (10 ft)

■MUTE LEVEL (Muting level)

Use to adjust how much the mute function reduces the

volume level.

Choices: MUTE, –20 dB

• Select MUTE to completely halt all sound output.

• Select –20 dB to reduce the current volume level by 20

dB.

■AUDIO DELAY (Audio delay)

Use to delay the sound output and synchronize it with the

video image. This may be necessary when using certain

LCD monitors or projectors.

Choices: 0 to 160 msec

■ROOM EQ (Room equalizer)

Use to change the tonal qualities of your listening room

when the unit is mounted on the wall.

Choices: MOUNT (Mount),

REFLECTING (Reflectivity type)

MOUNT (Mount)

Use to enhance medium to low range sounds.

Choices: WALL (Wall mount), SHELF (Shelf mount)

• Select WALL if this unit is mounted on the wall in your

listening room.

• Select SHELF if this unit is mounted on the shelf in

your listening room.

REFLECTING (Reflectivity type)

Use to select the reflectivity of your listening room.

Choices: NORMAL (Normal), HI ECHO (High echo)

• Select NORMAL if your listening room has a normal

reflectivity.

• Select HI ECHO if your listening room has highly

reflective surfaces such as concrete walls.

.BASS OUT;;;;;FRONT

CROSS OVER;;;120Hz

LFE LEVEL;;;;-20dB

DISTANCE;;;;;15.0m

[]/[]:Up/Down[ ]/[ ]:Select

[ENTER]:Return



C)SUBWOOFER



SET

)MUTE -20dB



[ ]/[ ]:Select

[ENTER]:Return

D)MUTE LEVEL



AUDIO DELAY;;;30msec



[ ]/[ ]:Select

[ENTER]:Return

E)AUDIO DELAY

 

MOUNTING;;;;;WALL/SHELF

 

REFLECTING;;;NORMAL/HI ECHO





F)ROOM EQ

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

MANUAL SETUP

ADVANCED

OPERATION English

■DD/DTS Dynamic Range

(Dynamic range of Dolby Digital and

DTS signals)

Use to select the amount of dynamic range compression to

be applied to the speakers. This setting is effective only

when the unit is decoding Dolby Digital and DTS signals.

Dynamic range is the difference between the smallest

sound that can be heard above the noise of the equipment

and the biggest sound that can be heard without distortion.

Choices: MIN (minimum), STD (standard),

MAX (maximum)

Select to adjust the speaker compression.

• Select MIN for listening to sources at low volume

levels.

• Select STD for general use.

• Select MAX for feature films.

Use to manually adjust various parameters related to the

audio and video input.

SET MENU → MANUAL SETUP → INPUT MENU

■INPUT ASSIGNMENT (Input assignment)

Use to assign the optical and coaxial digital input jacks of

this unit to other components if the initial settings of this

unit do not correspond to your needs. By assigning other

components to the input jacks on this unit, you can display

the name of the connected component in the front panel

display and OSD, and operate the component with the

input selector button of the same name. If you connect a

component to the input jacks of this unit and do not assign

it, the default component name for that input jack is

displayed in the front panel and OSD when selected.

• Select OPTICAL IN (1) to assign components to the

TV OPTICAL IN jack of this unit.

Choices: TV, VCR

• Select OPTICAL IN (2) to assign components to the

AUX OPTICAL IN jack of this unit.

Choices: AUX, DVD

• Select COAX IN (3) to assign components to the

COAXIAL IN jack of this unit.

Choices: DVD, AUX

MIN STD )MAX



[ ]/[ ]:Select

[ENTER]:Retern

G)DD/DTS Dynamic Range

INPUT MENU

.A)INPUT ASSIGNMENT

B)INPUT MODE

C)INPUT TRIM

D)INPUT RENAME



[]/[]:Up/Down

[ENTER]:Enter



3 INPUT MENU

OPTICAL IN

(. (1);;;;; TV

(. (1);;;;( TV )

(. (2);;;;; AUX

(. (1);;;;( AUX )

A)INPUT ASSIGNMENT 1/2

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

COAX IN

(. (3);;;;; DVD

(. (1);;;;( DVD )

A)INPUT ASSIGNMENT 2/2

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

MANUAL SETUP

■INPUT MODE (Input mode)

Use to designate the input mode for the input sources

connected to the DIGITAL INPUT jacks when you turn on

the power of this unit. For information on the types of

audio signals that can be output by this unit, see “Surround

modes and recommended sources” on page 44.

Choices: AUTO, LAST

• Select AUTO to allow this unit to automatically detect

the type of input signal and select the appropriate input

mode.

• Select LAST to set this unit to automatically select the

last input mode used for that input source. If the type of

input signal is different from the setting, no sounds will

be produced.

■INPUT TRIM (Input trim)

Use to adjust the input level of the input source.

• Select TV ANALOG to adjust the level of audio and

video signals input at the TV/STB analog audio input

jacks of this unit.

Control range: –6.0 dB to 0.0 dB

Initial setting: –3.0 dB

• Select TV OPTICAL to adjust the level of audio and

video signals input at the TV OPTICAL IN jack of this

unit.

Control range: –6.0 dB to 0.0 dB

Initial setting: –3.0 dB

• Select VCR ANALOG to adjust the level of audio and

video signals input at the VCR analog audio input

jacks of this unit.

Control range: –6.0 dB to 0.0 dB

Initial setting: –3.0 dB

• Select AUX OPTICAL to adjust the level of audio and

video signals input at the AUX OPTICAL IN jack of

this unit.

Control range: –6.0 dB to 0.0 dB

Initial setting: –3.0 dB

• Select DVD COAXIAL to adjust the level of audio and

video signals input at the COAXIAL IN jack of this

unit.

Control range: –6.0 dB to 0.0 dB

Initial setting: –3.0 dB

■INPUT RENAME (Input rename)

Use to change the name of the input source in the OSD

and the front panel display. Press an input selector button

(TV, STB, DVD, VCR, or AUX) to select the component

you want to change the name for and then perform the

following procedure.

1Press TEST on the remote control.

2Press / to place the _ (underbar) under

the space or the character you want to edit.

The _ (underbar) flashes.

3Press / to select the desired character.

• You can use up to 8 characters for each input.

• Press to change the character in the following

order or press to go in the reverse order:

A to Z, a space, 0 to 9, a space, a to z, a space, #, *,

+, etc.

)AUTO LAST



[ ]/[ ]:Select

[ENTER]:Retern

B)INPUT MODE

(. TV ANALOG;;;;;-3.0dB

(. OPTICAL;;;;-3.0dB

(. VCR ANALOG;;;;;-3.0dB

(. AUX OPTICAL;;;;-3.0dB

(. DVD COAXIAL;;;;-3.0dB

C)INPUT TRIM

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return



AUX -> AUX

[ ]/[ ]:Position

[]/[]:Character

[ENTER]:Return



D)INPUT



RENAME

TEST

ENTER

MANUAL SETUP

ADVANCED

OPERATION English

4Repeat steps 1 to 3 to rename each input.

5Press ENTER to exit.

The new names are registered, and the display returns

to the previous screen.

Use to manually adjust various parameters related to the

display.

SET MENU → MANUAL SETUP → OPTION MENU

■DIMMER SET (Dimmer settings)

Use to adjust the brightness of the front panel display.

STANDARD DIMMER (Standard dimmer)

Use to adjust the brightness of the front panel display

when you operate this unit by using the control buttons on

the front panel or on the remote control.

Choices: –2, –1, OFF

AUTO DIMMER (Auto dimmer)

If no operation is performed for a specified period, the

front panel display dims. Use to adjust the brightness of

the front panel display in this case.

Choices: DISPLAY OFF, –3 to –1 (based on the

STANDARD DIMMER setting), OFF

ENTER

DISPLAY MENU

.A)DIMMER SET

B)OSD SET

C)UNIT SET



[]/[]:Up/Down

[ENTER]:Enter



4 DISPLAY MENU



.STANDARD DIMMER;;;OFF



 AUTO DIMMER;;;;;;;OFF





A)DIMMER SET

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

MANUAL SETUP

■OSD SET (OSD settings)

Use to adjust the display position and the background

color of the OSD.

OSD SHIFT (OSD shift)

Use to adjust the vertical position of the OSD. Adjust

towards the – (minus) direction to raise the position of the

OSD, and adjust towards the + (plus) direction to lower it.

Choices: –5 to +5

Initial setting: 0

OSD BACK COLOR (OSD background color)

Use to select the background color of the OSD.

Choices: BLUE, GRAY

■UNIT SET (Unit settings)

(U.S.A. and Canada models only)

Use this to change the display unit of measurement.

Choices: METERS, FEET

• Select METERS to input speaker distances in meters.

• Select FEET to input speaker distances in feet.



.OSD SHIFT;;;;;;;;0



OSD BACK COLOR;;;BLUE





B)OSD SET

[]/[]:Up/Down[ ]/[ ]:Sel

[ENTER]:Return

)METERS FEET



[ ]/[ ]:Select

[ENTER]:Retern

C)UNIT SET

ADJUSTING SYSTEM PARAMETERS

ADVANCED

OPERATION English

You can set the maximum volume level so that this unit

will not output sound beyond the limited volume level.

1Press STANDBY/ON on the front panel or on

the remote control to turn off the power of

this unit.

2Press and hold INPUT on the front panel and

then press STANDBY/ON on the front panel

to turn on the power of this unit.

MAX VOLUME SET is shown in the front panel

display.

3Release INPUT on the front panel.

4Press ENTER on the front panel.

ADJUSTING SYSTEM PARAMETERS

Setting the maximum volume level

STANDBY/ONVOLUME ++

INPUT

POWER

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

POWER

STANDBY/ON

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

STANDBY/ON

Front panel Remote control

INPUT STANDBY/ON

VOL

MAX VOLUME SET

INPUT

ENTER

ADJUSTING SYSTEM PARAMETERS

5Press / to adjust the maximum volume

level.

Control range: 0 dB to –99.0 dB

Control step: 1 dB

6Press STANDBY/ON on the front panel or on

the remote control to set this unit to the

standby mode.

The new setting for the maximum volume level will

be activated when you turn on the power of this unit

next time.

You can protect the current settings from being

accidentally erased or unwantedly changed.

1Repeat steps 1 to 3 in “Setting the maximum

volume level” on page 75.

2Press / on the remote control so that

MEMORY PROTECT is shown in the front

panel display.

3Press ENTER.

ENTER

STANDBY/ON

Front panel Remote control

Protecting the current settings

ENTER

VOL

MEMORY PROTECT

ENTER

ADJUSTING SYSTEM PARAMETERS

ADVANCED

OPERATION English

4Press / to switch between PROTECT: ON

and PROTECT: OFF.

• Select PROTECT: ON to activate the protection

feature.

• Select PROTECT: OFF to deactivate the protection

feature.

5Press STANDBY/ON on the front panel or on

the remote control to set this unit to the

standby mode.

The new setting will be activated when you turn on

the power of this unit next time.

You can reset all of the parameters of this unit to the

factory presets. This procedure completely resets ALL the

parameters in SET MENU.

After performing the following procedure you must reset the

ROOM TYPE, SP POSITION and ROOM SIZE parameters to

match your surround sound environment.

1Repeat steps 1 to 3 in “Setting the maximum

volume level” on page 75.

2Press / on the remote control so that

FACTORY PRESET is shown in the front

panel display.

3Press ENTER.

ENTER

VOL

PROTECT: ON

VOL

PROTECT: OFF

STANDBY/ON

Front panel Remote control

Initializing the current settings

Note

ENTER

VOL

FACTORY PRESET

ENTER

ADJUSTING SYSTEM PARAMETERS

4Press / to switch between PRESET:

RESET and PRESET: CANCEL.

• Select PRESET: RESET to reset all of the current

settings.

• Select PRESET: CANCEL to cancel the resetting

procedure.

5Press STANDBY/ON on the front panel or on

the remote control to set this unit to the

standby mode.

The new setting will be activated when you turn on

the power of this unit next time.

You can adjust the sound beam output level of each

speaker by using the test tone or the audio output being

played back in each beam mode to achieve a more true-to-

life surround sound experience.

• All the speaker levels cannot be adjusted when the stereo mode

is selected as the beam mode (see page 42).

• FRONT L/R cannot be adjusted when the stereo plus 3 mode is

selected as the beam mode (see page 41).

• Only CENTER can be adjusted when the target mode is

selected as the beam mode (see page 43).

If the level of a particular speaker cannot be adjusted, – –dB

appears in the front panel display.

■Using the test tone

You can use the test tone feature to output a test tone from

each speaker to manually balance the speaker levels.

Use the test tone to set speaker levels so that the volume

level of each speaker is identical when heard from your

listening position.

1Press TEST on the remote control.

TEST LEFT appears in the front panel display and a

test tone is output from the front left speaker.

ENTER

VOL

PRESET: RESET

VOL

PRESET: CANCEL

STANDBY/ON

Front panel Remote control

Adjusting the audio balance

Notes

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

+10

CINEMA DSP

TEST

VOL

TEST LEFT

ADJUSTING SYSTEM PARAMETERS

ADVANCED

OPERATION English

2Press / to select the speaker you want

to adjust.

The front panel display changes as follows.

TEST SUBWOOFER is only available when a subwoofer is

connected to this unit and SWFR is selected for BASS OUT in

SOUND MENU (see page 70).

3Press / to adjust speaker volumes.

Control range: –10 dB to +10 dB

4Press VOLUME +/– on the remote control to

adjust the volume level of this unit.

5Press TEST when you have completed all

your adjustments.

To adjust the output level of your subwoofer, set BASS OUT to

BOTH or SWFR (page 70).

■Using the audio output being played

back

You can also manually adjust the speaker levels while

playing back an input source such as a DVD.

1Press CH LEVEL repeatedly (or press CH

LEVEL and then / ) to select the

speaker you want to adjust.

The front panel display changes as follows.

Note

ENTER

TEST LEFT

TEST CENTER

TEST RIGHT

TEST SUR.R

TEST SUR.L

TEST SUBWOOFE

ENTER

VOLUME

TEST

CH LEVEL MENU

RETURN

TEST

ENTER

SURROUND

OFF

SPORTS

+10

CINEMA DSP

CH LEVEL

ENTER

CH LEVEL

FRONT L +1.0dB

CENTER -2.5dB

FRONT R +1.0dB

SUR.R +2.0dB

SUR.L +2.0dB

SWFR --dB

ADJUSTING SYSTEM PARAMETERS

2Press / to adjust speaker volumes.

Control range: –10 dB to +10 dB

3Press CH LEVEL (or wait for a few seconds

without operating this unit) when you have

completed your adjustment.

ENTER

CH LEVEL

SELECTING THE INPUT MODE

ADVANCED

OPERATION English

You can select the type of audio input signals of the selected input source according to your preference or the conditions

of the input source.

We recommend setting the input mode to AUTO in most cases.

1Press one of the input selector buttons on

the remote control to select the desired input

source.

2Press INPUTMODE on the remote control

repeatedly to toggle between input modes.

• The input mode of VCR is fixed to ANALOG. However, if the

TV OPTICAL IN jack of this unit is assigned to VCR, AUTO,

DTS and ANALOG become available as the input mode of

VCR (see page 71).

• ANALOG is not available as the input mode of DVD and AUX.

•AUTO

Automatically selects audio input signals in the following

priority order:

1) Dolby Digital or DTS

2) PCM

3) Analog

Use this input mode in most cases.

•DTS

Selects only digital signals encoded in DTS.

Compared to AUTO, this input mode provides greater

stability during playback.

Use this input mode when playing back CDs or LDs

encoded in DTS.

• ANALOG

Selects only analog signals.

Even when both digital and analog signals are input

simultaneously, only analog signals are selected.

• When the input mode is set to AUTO, this unit automatically

plays back multi-channel sources n the selected input mode.

• ANALOG cannot be selected as an input mode if analog signals

are not being input from the selected input source.

You can adjust the default input mode to be selected when the

power of this unit is turned on (see page 72).

SELECTING THE INPUT MODE

Notes

POWER

SLEEP

POWER

STANDBY/ON

INPUTMODE

( )

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

STBVCRDVD

AUX

TV AUTO

TV DTS

TV ANALOG

DVD AUTO

DVD DTS

AUX AUTO

AUX DTS

INPUTMODE

When TV or STB

is selected as

the input source

When DVD is

selected as the

input source

When AUX is

selected as the

input source

Notes

REMOTE CONTROL FEATURES

In addition to controlling this unit, the remote control can also operate other A/V components made by YAMAHA and

other manufacturers. To control other components, you must set up the remote control with the appropriate remote

control codes.

Depending on the external A/V component you are using, you may not be able to operate the component with the remote control, even

if a remote control code is set. In this case, operate the component using the supplied remote control.

You can control other components by setting the

appropriate remote control codes. Codes can be set up for

each input area (TV, STB, DVD, VCR and AUX).

For a complete list of available remote control codes, refer

to “LIST OF REMOTE CONTROL CODES” at the end of

this manual.

1While holding down CODE SET, press the

input selector button for the component you

want to set up and then without releasing

CODE SET, enter the remote control code

using the numeric buttons.

The following illustrations show an example of

setting the remote control code for a DVD player

made by YAMAHA.

2Refer to “Controlling other components” on

page 83 to operate the external component

using the remote control.

If the external component functions correctly, the

remote control code setup was successful.

If the external component does not function correctly,

the remote control code may be incorrect. Confirm

that the remote control code is correct (see “LIST OF

REMOTE CONTROL CODES” at the end of this

manual) and start over from step 1.

If the manufacturer of your component has more than one code,

try each of them until you find the correct one.

REMOTE CONTROL FEATURES

Note

Setting remote control codes

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

TV VOL

VOLUME

MUTE TV INPUT TV MUTE

ENTER

SURROUND

OFF

CODE SET

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

( )

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

Note

If the remote control is without batteries for more than

2 minutes, or if exhausted batteries remain in the

remote control, the contents of the memory may be

cleared. When the memory is cleared, insert new

batteries and reset the remote control codes.

When changing the batteries, be careful not to press

any of the buttons on the remote control. Doing so will

clear the contents of the memory.

TV MUTE

CODE SET

DVD

VOL MODE

While holding

down, press

Setting example: YAMAHA DVD input area

REMOTE CONTROL FEATURES

ADVANCED

OPERATION English

■Operating your TV

Press TV to select TV as the input source.

1TV POWER

Turns on or off the power of your TV.

2Numeric buttons

Selects a TV channel for playback.

3CH +/–

Switches between the available TV channels.

4TV VOL +/–

Adjusts the audio output level of the TV.

5TV MUTE

Temporarily mutes audio output from the TV.

6TV INPUT

Switches the input source for the TV.

■Operating your DVD player

Press DVD to select DVD as the input source.

1AV POWER

Turns on or off the power of your DVD player.

2Numeric buttons

Use to enter numeric digits.

3Operation buttons for DVD and VCR players

Use to perform DVD player operations, such as play and

stop.

4MENU

Displays the DVD menu.

5Cursor buttons

Use to select DVD menu items.

6RETURN

Use to return to the previous DVD menu screen or exit the

DVD menu.

Controlling other components

POWER

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

TV VOL

VOLUME

MUTE TV INPUT TV MUTE

ENTER

SURROUND

OFF

CODE SET

SPORTS

POWER

STANDBY/ON

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

( )

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

DVD

POWER

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

TV VOL

VOLUME

MUTE TV INPUT TV MUTE

ENTER

SURROUND

OFF

CODE SET

SPORTS

POWER

STANDBY/ON

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

( )

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

REMOTE CONTROL FEATURES

■Operating your VCR player

Press VCR to select VCR as the input source.

1AV POWER

Turns on or off the power of your VCR.

2Numeric buttons

Use to enter numeric digits.

3CH +/–

Switches between the available VCR channels.

4Operation buttons for DVD and VCR players

Use to perform VCR player operations, such as play and

stop.

Press YSP on the remote control to return to the operation

mode of this unit.

VCR

POWER

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

TV VOL

VOLUME

MUTE TV INPUT TV MUTE

ENTER

SURROUND

OFF

CODE SET

SPORTS

POWER

STANDBY/ON

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

( )

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

YSP

REMOTE CONTROL FEATURES

ADVANCED

OPERATION English

The TV macro feature makes it possible to perform a

series of operations with the press of a single button. For

example, when you want to play a DVD, you would

normally turn on the component, select DVD as the input

source and press the play button to start playback. The TV

macro feature lets you perform all of these operations

simply by pressing the DVD macro button.

• The ways to set macros differ if your TV does not have the

tuning capability.

• If you press any control buttons on the remote control other than

the ones used to set macros while setting macros, the setting

procedure is automatically canceled.

• If it takes more than 10 seconds in steps 2 and 3, the setting

procedure is automatically canceled. In this case, repeat from

step 1.

■Setting macros for the TV with the

tuning capability

1Press and hold CODE SET on the remote

control and then press one of the input

selector buttons to select the input source

you want to set macros for.

Proceed to step 2 while holding down CODE SET.

2Press MACRO on the remote control while

holding down CODE SET.

3Press CH +/– or the numeric buttons to select

the TV channel.

Check that the TV screen changes to the tuner screen.

4Press TV INPUT on the remote control

repeatedly so that the screen changes to the

display of the input source selected in step 1.

5Press ENTER on the remote control to

confirm the macro setting.

Using the TV macro

Notes

POWER

STEREO

SLEEP

CH LEVEL MENU

RETURN

TEST

TV VOL

VOLUME

MUTE TV INPUT TV MUTE

ENTER

SURROUND

OFF

CODE SET

SPORTS

POWER

STANDBY/ON

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

INPUTMODE

MACROINPUT2INPUT1

STBVCRDVD

AUX

YSP

CINEMA DSP

TV MUTE

CODE SET

STBVCRDVD

AUX

TV MUTE

CODE SET

MACRO

STEREO

OFF

SPORTS

456

789

+10

5BEAM

ST+3BEAM

3BEAM

TARGET

MUSIC MOVIE VOL MODE

CINEMA DSP

TV INPUT

ENTER

REMOTE CONTROL FEATURES

■Setting macros for the TV without the

tuning capability

1Press and hold CODE SET on the remote

control and then press one of the input

selector buttons to select the input source

you want to set macros for.

Proceed to step 2 while holding down CODE SET.

2Press MACRO on the remote control while

holding down CODE SET.

3Press INPUT1 on the remote control.

4Press CH +/– or TV INPUT on the remote

control repeatedly so that the screen

changes to the display of the input source

selected in step 1.

5Press ENTER on the remote control to

confirm the setting.

■Operating macros

1Press and hold one of the input selector

buttons for approximately 2 seconds to

select the input source you want to operate

macros for.

The TV input changes at the same time the input

mode changes.

■Canceling the macros

1Press and hold CODE SET on the remote

control and then press one of the input

selector buttons to select the input source

you want to cancel the macros for.

Proceed to step 2 while holding down CODE SET.

2Press MACRO on the remote control while

holding down CODE SET.

3Press ENTER on the remote control to cancel

the macros.

STBVCRDVD

AUX

TV MUTE

CODE SET

TV MUTE

CODE SET

MACRO

INPUT1

TV INPUT

ENTER

STBVCRDVD

AUX

TV MUTE

CODE SET

STBVCRDVD

AUX

TV MUTE

CODE SET

MACRO

ENTER

TROUBLESHOOTING

ADDITIONAL

INFORMATION English

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below

or if the instruction below does not help, set this unit to the standby mode, disconnect the power cord and contact the

nearest authorized YAMAHA dealer or service center.

■General

TROUBLESHOOTING

Problem Cause Remedy See

page

This unit fails to turn on when

STANDBY/ON is pressed, or enters

the standby mode soon after the

power has been turned on.

The power supply cable is not firmly

connected to the AC wall outlet.

Connect the power supply cable firmly to

the AC wall outlet.

This unit has been exposed to a strong

external electric shock (such as lightning

and strong static electricity).

Set this unit to the standby mode,

disconnect the power cable, plug it back

in after 30 seconds, then use it normally.

—

This unit suddenly enters the

standby mode.

The internal temperature becomes too

high and the overheat protection circuitry

has been activated.

Wait about 1 hour for this unit to cool

down and then turn it back on.

—

The sleep timer has turned the unit off. Turn on the power, and play the source

again.

—

No sound Incorrect input or output cable

connections.

Connect the cables properly. If the

problem persists, the cables may be

defective.

No appropriate input source has been

selected.

Select an appropriate input source with

INPUT or the input selector buttons.

The volume is turned down. Turn up the volume. 38

The sound is muted. Press MUTE or VOLUME +/– on the

remote control to resume audio output

and then adjust the volume level.

Signals this unit cannot reproduce (such

as PCM signals with more than 96 kHz

of sampling frequency) are being

received froma source component.

Play a source whose signals can be

reproduced by this unit.

—

Change the system settings of the source

component.

—

The sound suddenly goes off. The sleep timer has turned the unit off. Turn on the power, and play the source

again.

—

The sound is muted. Press MUTE or VOLUME +/– on the

remote control to resume audio output

and then adjust the volume level.

No sound from the effect

speakers.

You are playing back the source or

program in the stereo mode.

Press one of the beam mode buttons on

the remote control to select a multi-

channel playback mode and then try to

play back the source or program once

more.

No sound from the center speaker. The output level of the center speaker is

set to minimum.

Raise the level of the center speaker. 78

No sound from the surround

speakers.

The output level of the surround speakers

is set to minimum.

Raise the output level of the surround

speakers.

No sound from the subwoofer. BASS OUT in SUBWOOFER SET is set

to FRONT when a Dolby Digital or DTS

signal is being played.

Select SWFR or BOTH. 70

The source does not contain low bass

signals.

TROUBLESHOOTING

Problem Cause Remedy See

page

Surround sound effects are

insubstantial.

The listening room is not a regular shape. Install this unit in a square or rectangular

shaped room.

—

There is no wall in the path of the sound

beam.

Try placing a flat object, such as a board,

in the path of the sound beam.

—

Dolby Digital or DTS sources

cannot be played. (Dolby Digital or

DTS indicator does not light up in

the front panel display.)

The connected component is not set to

output Dolby Digital or DTS digital

signals.

Make an appropriate setting following

the operating instructions for your

component.

—

The input mode is set to ANALOG. Set the input mode to AUTO. 81

There is noise interference when a

subwoofer is not connected to this

unit.

The protection circuitry was in operation

because a source with strong bass

elements was played back.

Turn down the volume level. 38

Select SWFR for BASS OUT. 70

Connect a subwoofer and adjust settings

for SUBWOOFER SET.

Low frequency sounds are

distorted.

CROSS OVER in SUBWOOFER SET is

set incorrectly.

Set CROSS OVER correctly. 70

On-screen display does not

appear.

The OSD video pin cable is not

connected properly.

Connect the cable properly. 15

TV is not selected as the input source. Select TV as the input source. 37

No picture is displayed for

external components, such as a

DVD player.

The video cable is not connected

properly.

Connect the cable properly. 15

TV is not selected as the input source. Select TV as the input source. 37

This unit does not operate

properly.

The internal microcomputer has been

frozen by an external electric shock

(such as lightning or excessive static

electricity) or by a power supply with

low voltage.

Disconnect the AC power cable from the

outlet and then plug it in again after

about 30 seconds.

—

There is noise interference from

digital or high-frequency

equipment.

This unit is too close to the digital or

high-frequency equipment.

Move this unit further away from such

equipment.

—

This unit does not output effect

sounds properly.

The original source includes surround

effects.

Disable surround effect settings on this

unit.

—

TROUBLESHOOTING

ADDITIONAL

INFORMATION English

■Remote control

Problem Cause Remedy See

page

The remote control does not work

and/or function properly.

Wrong distance or angle. The remote control will function within a

maximum range of 6 m (20 ft) and no

more than 30 degrees off-axis from the

front panel.

Direct sunlight or lighting (from an

inverter type of fluorescent lamp, etc.) is

striking the remote control sensor of this

unit.

Reposition this unit. —

The batteries are weak. Replace all batteries. 22

You cannot operate external

components with this unit’s

remote control.

The external component you want to

operate is not selected as the input

source.

Press INPUT on the front panel or the

input selector buttons on the remote

control to select the external component

you want to operate.

The remote control code was not

correctly set.

Set the remote control code correctly or

try another code for the same

manufacturer using the “LIST OF

REMOTE CONTROL CODES” at the

end of this manual.

Even if the remote control code is

correctly set, there are some models that

do not respond to the remote control.

Use the remote control supplied with the

external component.

—

The cursor buttons do not work

during SET MENU operation.

You pressed an input selector button. Press TEST once. —

GLOSSARY

■Dolby Digital

Dolby Digital is a digital surround sound system that gives

you completely independent multi-channel audio. With 3

front channels (left, center, and right), and 2 surround

stereo channels, Dolby Digital provides 5 full-range audio

channels. With an additional channel especially for bass

effects, called LFE (low frequency effect), the system has

a total of 5.1-channels (LFE is counted as 0.1 channel). By

using 2-channel stereo for the surround speakers, more

accurate moving sound effects and surround sound

environment are possible than with Dolby Surround. The

wide dynamic range (from maximum to minimum

volume) reproduced by the 5 full-range channels and the

precise sound orientation generated using digital sound

processing provide listeners with previously unheard of

excitement and realism.

With this unit, any sound environment from monaural up

to a 5.1-channel configuration can be freely selected for

your enjoyment.

■Dolby Pro Logic II

Dolby Pro Logic II is an improved technique used to

decode vast numbers of existing Dolby Surround software.

This new technology enables a discrete 5-channel

playback with 2 front left and right channels, 1 center

channel, and 2 surround left and right channels (instead of

only 1 surround channel for conventional Pro Logic

technology). Music and Game modes are also available for

2-channel sources in addition to the Movie mode.

■Dolby Surround

Dolby Surround uses a 4 channel analog recording system

to reproduce realistic and dynamic sound effects: 2 front

left and right channels (stereo), a center channel for dialog

(monaural), and a surround channel for special sound

effects (monaural). The surround channel reproduces

sound within a narrow frequency range.

Dolby Surround is widely used with nearly all video tapes

and laser discs, and in many TV and cable broadcasts as

well. The Dolby Pro Logic decoder built into this unit

employs a digital signal processing system that

automatically stabilizes the volume on each channel to

enhance moving sound effects and directionality.

■DTS (Digital Theater Systems)

Digital Surround

DTS digital surround was developed to replace the analog

soundtracks of movies with a 6-channel digital sound

track, and is now rapidly gaining popularity in movie

theaters around the world. Digital Theater Systems Inc.

has developed a home theater system so that you can enjoy

the depth of sound and natural spatial representation of

DTS digital surround in your home. This system produces

practically distortion-free 6-channel sound (technically, a

left, right and center channels, 2 surround channels, plus

an LFE 0.1 channel as a subwoofer, for a total of 5.1-

channels). The unit incorporates a DTS-ES decoder that

enables 6.1- channel reproduction by adding the surround

back channel to existing 5.1-channel format.

■Neo:6

Neo:6 decodes the conventional 2-channel sources for 6

channel playback by the specific decoder. It enables

playback with the full-range channels with higher

separation just like digital discrete signal playback. Two

modes are available; Music mode for playing music

sources and Cinema mode for movies.

■PCM (Linear PCM)

Linear PCM is a signal format under which an analog

audio signal is digitized, recorded and transmitted without

using any compression. This is used as a method of

recording CDs and DVD audio. The PCM system uses a

technique for sampling the size of the analog signal per

very small unit of time. Standing for pulse code

modulation, the analog signal is encoded as pulses and

then modulated for recording.

■LFE 0.1 channel

This channel is for the reproduction of low bass signals.

The frequency range for this channel is 20 Hz to 120 Hz.

This channel is counted as 0.1 because it only enforces a

low frequency range compared to the full-range

reproduced by the other 5/6 channels in Dolby Digital or

DTS 5.1/6.1-channel systems.

GLOSSARY

Audio formats

Audio information

INDEX

ADDITIONAL

INFORMATION English

Audio Pin Cable..................................................... 15 to 18

Beam modes.................................................................... 40

Coaxial digital output jack................................................ 8

Coaxial digital input jack.................................................. 8

Digital Audio Pin Cable.................................................. 16

Display ........................................................................ 7, 24

Dolby Digital .................................................................. 44

Dolby Pro Logic.............................................................. 44

Dolby Pro Logic II.......................................................... 44

DTS................................................................................. 44

Dynamic range................................................................ 71

BASIC SETUP ............................................................... 57

LFE 0.1 channel........................................................ 70, 90

MANUAL SETUP.......................................................... 63

MEMORY................................................................. 34, 35

Night listening modes ..................................................... 52

On-screen display (OSD) ................................................24

OSD video pin cable .......................................................15

Optical cable .......................................................15, 18, 19

PCM ................................................................................81

Power cable .....................................................................21

Remote control ............................................................9, 22

Remote control code .......................................................82

Surround mode................................................................44

Sleep timer ......................................................................55

SET MENU.....................................................................24

Test tone ..........................................................................78

INDEX

SPECIFICATIONS

AMP SECTION

• Maximum Output Power (EIAJ)

.................................................. 2 W (1 kHz, 10% THD, 4 Ω) × 21

20 W (100 Hz, 10% THD, 4 Ω) × 2

SPEAKER SECTION

Small dia. speakers

............................4 cm (1.5”)-cone magnetic shielding type × 21

Woofers

............................10 cm (3.9”)-cone magnetic shielding type × 2

• Frequency response .................................................. 60 Hz – 20 kHz

• Crossover frequency..................................... 400 Hz (Beam channel)

1 kHz (Stereo channel)

• Input Jacks

AUDIO VCR, TV/STB (Analog) (1 V, 32 kΩ) .... 2 pairs (Analog)

AUDIO TV/STB, AUX (Optical) ................................ 2 (Digital)

AUDIO DVD (Coaxial) ................................................ 1 (Digital)

• Output Jacks

SUBWOOFER OUT (1.5 V, less than 120 Hz) ...... 1 (Subwoofer)

VIDEO OUT (1 Vp-p, 75 Ω) ............................................1 (OSD)

• System Connector Jack

OPTIMIZER MIC ........................................1 (Microphone input)

SYSTEM CONNECTOR ................................. 1 (System control)

GENERAL

• Power Supply

[U.S.A. and Canada models] ............................. AC 120 V, 60 Hz

[Australia model] ............................................... AC 240 V, 50 Hz

[U.K. and Europe models] ................................. AC 230 V, 50 Hz

[China model] .................................................... AC 220 V, 50 Hz

[Korea model] .................................................... AC 220 V, 60 Hz

[General model] .................................... AC 110–120 V, 50/60 Hz

[Asia model] ..........................................AC 220–240 V, 50/60 Hz

• Power Consumption .................................................................. 30 W

• Standby Power Consumption ...................................... 0.1 W or less

• Dimensions (W x H x D) ................................ 800 × 153 × 115 mm

(31-1/2” x 6” x 4-1/2”)

• Weight ............................................................... 9.0 kg (19 lbs 14oz)

*Specifications are subject to change without notice.

SPECIFICATIONS

LIST OF REMOTE CONTROL CODES

LISTE DES CODES DE COMMANDE

LISTE DER FERNBEDIENUNGSCODES

LISTA ÖVER FJÄRRSTYRNINGSKODER

LISTA DEI CODICI DI TELECOMANDO

LISTA DE CÓDIGOS DE MANDO A DISTANCIA

LIJST MET AFSTANDSBEDIENINGSCODES

ADMIRAL 292, 293, 216

AIWA 294, 276, 283, 284

AKAI 295, 296

ALBA

296

AOC 297

BELL &

HOWELL 292

BESTAR 298

BLAUPUNKT 229, 222

BLUE SKY 298

BRANDT 223

BROC SONIC 297

BUSH 296

BYD:SIGN 201, 202

CLATRONIC 298

CRAIG 224

CROSLEX 225

CURTIS MATHIS

297, 226

DAEWOO 297, 298, 224,

227, 228

DAYTRON 239

DUAL 298

DWIN 293, 281

EMERSON 297, 224, 239, 232

FURGUSON 223, 265, 266

FIRST LINE 298

FISHER 295, 233

FRABA 298

FUJITSU 289

FUNAI 277, 278

GE 293, 297, 234,

235, 236

GOODMANS 296, 298, 223

GRUNDIG 229, 238, 249

HITACHI 297, 239, 242,

243, 285

ICE 296

IRRADIO 296

ITT/NOKIA 244, 245

JC PENNY 293, 297, 234, 237

JVC 296, 246, 247, 286

KENDO 298

KTV 297, 239

LG/GOLDSTAR

297, 298, 239, 237

LOEWE 298, 248

LXI 293, 297, 225,

226, 233

MAGNAVOX 297, 225, 239

MARANTZ 298, 210

MATSUI 295

MEDION 203, 204, 205

MEMOREX 297, 216

MITSUBISHI 299, 297, 259, 287

NAD 226, 255

NEC 297, 252, 282

NOKIA 244, 245

NOKIA OCEANIC

245

NORDMENDE 265, 266

ONWA 296

PANASONIC 234, 235, 236,

253, 288, 211

PHILCO 297, 225, 239

PHILIPS 298, 225, 205

PIONEER 226, 235, 254,

255, 268

PORTLAND 297, 256

PROSCAN 293, 221

PROSCAN 231, 241, 251

PROTON 297, 250, 260, 270

QUASAR 234, 235

RADIO SHACK299, 293, 297

RCA 293, 297, 234,

256, 257, 258, 221

RUNCO 220, 230, 271

SABA 223, 269, 265, 266

SAMPO 281, 297, 280

SAMSUNG 297, 239, 248,

262, 275

SANYO 295, 233, 279,

272, 273, 274, 212

SCHNEIDER 296

SCOTT 297

SHARP 292, 239, 232, 213

SIEMENS 229

SIGNATURE 216

SIGNATURE 292

SONY 263, 214

SYLVANIA 297, 225

SYNPHONIC 217, 218, 219

TELEFUNKUN 269, 264, 265, 266

THOMSON 223, 266

TOSHIBA 292, 226, 267, 215

VIDECH 297, 242

WARDS 297, 239, 232, 216

YAMAHA 299, 292, 242,

285, 287, 253

ZENITH 216, 261, 271

DVD PLAYER

AIWA 648, 649

APEX DIGITAL

652, 653, 654

BYD:SIGN 678, 679

DAEWOO 655

DENON 623, 624

FUNAI 625

HARMAN/KARDON

656, 657

HITACHI 626

JVC 627

KENWOOD 628

KLH 658

LG/GOLDSTAR

645, 663, 664

MARANTZ 699, 659

MITSUBISHI 629

ONKYO 632, 633, 634

PANASONIC 623, 635, 668, 672

PHILIPS 699, 647, 659

PIONEER 636, 637, 638,

673, 674, 675

RCA 639

SAMSUNG 642

SHARP 643

SONY 644, 676, 677

SYLVANIA 662

SYMPHONIC 662

THOMSON 646

TOSHIBA 634, 665, 666, 667

YAMAHA 699, 622, 623, 647

ZERITH 663, 664

VCR

ADMIRAL 395

AIWA 396, 397, 398, 329

AKAI 322, 323, 324

AUDIO DYNAMIC

392, 394

BELL & HOWELL

393

BLAUPUNKT 325, 326

BROC SONIC 327

BUSH 322

CANON 325, 328

CGM 396, 332

CITIZEN 396

CRAIG 396, 363

CURTHIS MATHIS

397, 328, 333

DAEWOO 328, 334, 335

DBX 392, 394

DIMENSIA 333

DYNATECH 397

EMERSON 327, 334, 396, 397

FISHER 393, 336

FUNAI 397

GE 328, 333, 387

GO VIDEO 321, 331, 341,

351, 353, 363

GOODMANS 334, 337

GRUNDIG 332, 338

HITACHI 325, 333, 349,

342, 343

INSTANT REPLAY

325, 328

ITT/NOKIA 393

JC PENNY 392, 393, 394,

328, 333, 349,

396, 363

JVC 392, 394, 344,

345, 346, 347

KENDO 396

KENWOOD 392, 394, 396

LG/GOLDSTAR

396, 388

LOEWE 396, 337

LUXOR 395

LXI 393, 396, 397,

336, 349

MAGNAVOX 325, 326, 328

MARANTZ 392, 394

MARTA 396

MATSUI 396

MEMOREX 328, 336, 396, 397

MINOLTA 333, 349

MITSUBISHI 399, 344, 348,

359, 352, 353

MTC 363, 397

MULTITECH 397, 348, 354

NEC 392, 394, 344, 383

NOKIA 393, 395

NOKIA OCEANIC

395

OKANO 323

OLYMPIC 325, 328

ORION 327

PANASONIC 325, 328, 339,

355, 378, 384,

385, 386

PENTAX 333, 349

PHILCO 325, 328, 397

PHILLIPS 325, 326, 328,

337, 356, 357

PHONOLA 337

PILOT 396

PIONEER 325

QUASAR 325, 328

RCA/PROSCAN

325, 326, 328,

333, 335, 349,

358, 369, 363, 397

REALISTIC 393, 397, 328,

336, 359, 362,

396, 363

SAMSUNG 354, 358, 363,

364, 365, 366

SANSUI 394

SANYO 393, 336, 367

SCHNEIDER 337

SCOTT 399, 335, 336,

348, 359, 352,

354, 358

SELECO 322

SHARP 395, 362, 382

SIEMENS 393

SIGNATURE 2000

395, 397

SONY 368, 379, 372,

373, 374, 375

SYLVANIA 397, 325, 326, 328

SYMPHONIC 397

TANDBERG 334

TANDY 397

TASHIRO 396

TATUNG 392, 394

TEAC 392, 394, 397

TECHNICS 325, 328

TEKNIKA 396

TELEFUNKUN

376, 377

THOMAS 397

THORN 393, 396

TOSHIBA 335, 369, 389

TOTEVISION 363, 396

UNITECH 363

UNIVERSUM 396, 327, 376

VIDEOSONIC 363

W.WHOUSE 396

WARDS 395, 396, 336,

362, 397, 363

YAMAHA 399, 392, 393, 394

ZERITH 344, 361, 368,

371, 379, 396, 397

CABLE TV TUNER

ABC 739, 752, 753,

755, 758, 759, 762

GENERAL INSTRUMENT

722

HAMIN 723, 724, 725,

726, 727

HITACHI 722

JEROLD 722, 728, 729,

732, 733, 734,

735, 736, 737

MAGNAVOX 738

MOTOROLA 748

OAK 739, 742, 743

PANASONIC 744, 745, 746,

747, 783, 784

PHILLIPS 763, 764, 765,

766, 767, 768

PIONEER 748, 785

RADIO SHACK749

SCIENTIFIC ATLANTA

752, 753, 754

SONY 756, 757

TOCOM 755

UNIVERSAL 769, 772, 773,

774, 775

VIEWSTAR 764, 766, 776,

777, 778, 779, 782

SATELLITE TUNER

ECHOSTAR 822

GE 837, 838, 839

GENERAL INSTRUMENT

823

HITACHI 824

HUGHES 843, 844, 845, 846

JVC 822

MAGNAVOX 825

PANASONIC 826, 829

PHILLIPS 825, 843, 844,

845, 846, 847,

848, 849

PRIMESTAR 827

PROSCAN 837, 838, 839, 842

RADIO SHACK

828

RCA 837, 838, 839, 842

SAMSUNG 852

SONY 832, 835

TOSHIBA 833, 836

UNIDEN 825

ZENITH 834

YAMAHA ELECTRONICS CORPORATION, USA

6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.

YAMAHA CANADA MUSIC LTD.

135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA

YAMAHA ELECTRONIK EUROPA G.m.b.H.

SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, GERMANY

YAMAHA ELECTRONIQUE FRANCE S.A.

RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE

YAMAHA ELECTRONICS (UK) LTD.

YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND

YAMAHA SCANDINAVIA A.B.

J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN

YAMAHA MUSIC AUSTRALIA PTY, LTD.

17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA

Printed in Malaysia WJ02460

YSP-800

Digital Sound Projector

OWNER’S MANUAL

YSP-800_UB-cv.fm Page 1 Tuesday, May 30, 2006 3:57 PM

Printed in Malaysia WG29100

2005 All ri

hts reserved.

This quick reference guide explains steps to connect a TV and a DVD player to this unit and achieve the surround sound effects in a quick, easy manner.

This unit creates surround sound by reflecting projected sound beams off the walls of your listening room.

The surround sound effects produced by this unit may not be sufficient when the unit is installed in the following locations.

• Rooms with surfaces inadequate for reflecting sound beams

• Rooms with acoustically absorbent surfaces

• Rooms with measurements outside the following range W (3 to 7 m) x H (2 to 3.5 m) x D (3 to 7 m)

• Rooms with less than 2 m from the listening position to the speaker positions

• Rooms where objects such as furniture are likely to obstruct the path of sound beams

• Rooms where the listening position is close to the walls

• Rooms where the listening position is not in front of this unit

Make sure you leave an adequate amount of ventilation space so that heat can escape. Make at least 5 cm of space above or below this unit.

Install this unit where there are no obstacles such as furniture obstructing the path of sound beams. Otherwise, the desired surround sound effects may not be achieved.

You may install this unit in parallel with the wall or in the corner.

Connect this unit to external components such as your TV, DVD player, VCR, digital satellite tuner, cable TV tuner, game console and a subwoofer.

■Connecting a TV and a DVD player

Connect a TV and a DVD player to this unit. If you connect a subwoofer to this unit, you can enjoy reinforced low bass sounds.

For further information on connecting other components, see pages 14 to 20 in the supplied Owner’s Manual.

■Installing the optimizer microphone

The supplied optimizer microphone collects and analyzes the sound that this unit produces in your actual listening environment. Refer to the following two diagrams to install the optimizer

microphone in a proper location once it is connected to this unit. If you use a tripod or the supplied cardboard microphone stand to affix the optimizer microphone, try to place the optimizer

microphone at the same height as your ears would be when you are seated in your listening position.

Before installing this unit

1. Installing this unit

YSP-800 QUICK REFERENCE GUIDE

5 cm or more

RearFront

Side view

40° to 50°

An object, such as furniture

Corner installation

Install this unit in the corner at a 40º to 50º angle from

the adjacent walls.

An object, such as furniture

Parallel installation

Install this unit in the exact center of the wall when it

is measured from the left and right corners.

Installation example

Install this unit so that the sound beams

can be reflected off the walls.

Wrong Correct Correct

2. Connecting external components to this unit

Note

OPTIMIZER MIC

VCR

SUBWOOFER

TV/STB

AUDIO INPUT OUT

OPTICAL

DIGITAL INPUT

TV/STB VIDEO AUX SYSTEM

CONNECTOR

DVD

COAXIAL

Rear panel of this unit

(U.S.A. and Canada models)

This unit

DVD player TV

DVD video pin cable

Optimizer microphone (supplied)

Optical

digital

output

Video

output

Video

input

Analog

audio

output

Optical

digital

output

OSD video pin cable (supplied)

Subwoofer pin cable

(in case you connect a subwoofer)

Optical cable (supplied)

To the AC outlet

Audio pin cable (supplied)

Optical cable

(in case of an optical digital connection)

Subwoofer

Monaural

input

Using the supplied cardboard microphone standUsing a tripod

Optimizer microphone position

More than 2 m Within 1 m

Within 1 m

Tripod

Optimizer microphone position

Within 1 m

Cardboard

microphone stand

More than 2 m

YSP-800 Quick Reference Guide.fm Page 1 Wednesday, July 27, 2005 8:59 PM

This unit employs the beam optimization feature and the YAMAHA Parametric Room

Acoustic Optimizer (YPAO) technology with the aid of the supplied optimizer

microphone, allowing you to avoid troublesome listening-based speaker setup and achieve

highly accurate sound adjustments that best match your listening environment.

• Be advised that it is normal for loud test tones to be output during the AUTO SETUP procedure.

Make sure that there are no children around in the listening room while the AUTO SETUP

procedure is in progress.

• Make sure that your listening room is as quiet as possible while the AUTO SETUP procedure is in

progress.

• Once the AUTO SETUP procedure has started, position yourself beside or behind this unit so that

you may not obstruct the path of sound beams. To achieve the best results possible, however, it is

strongly recommended that you should evacuate yourself from your listening room until the AUTO

SETUP procedure is completed.

• Once the AUTO SETUP procedure has completed, be sure to disconnect the optimizer microphone

and keep it in a safe place for future usage.

• The optimizer microphone is sensitive to heat. Keep it away from direct sunlight and do not place it

on top of this unit or other A/V components.

1Press STANDBY/ON on the remote control to turn on the power of this

unit.

If a subwoofer with adjustable volume and crossover/high cut frequency controls is

connected to this unit, set the volume between 9 and 12 o’clock as viewed on a

conventional clockface and set the crossover/high cut frequency to the maximum.

2Turn on the power of your TV.

3Switch to the video input on your TV using the remote control supplied

with the TV.

For example, if you connect the supplied OSD video pin cable to the video input 2

jack of your TV, switch to video input 2 on your TV.

4Press MENU on the remote control.

The SET MENU screen appears on your TV.

5Press / on the remote control to select AUTO SETUP and then

press ENTER.

The following screen appears on your TV.

6Press / to select BEAM OPT+SOUND OPTIMZ and then press

ENTER.

The following screen appears on your TV.

7Press / / / to select and configure each parameter and then

press ENTER.

INSTALLING (Installing)

Use to select the installed position of the unit in your listening room.

Choices: Parallel to Wall (Parallel with wall installation), Angle to Wall or corner

(Corner installation)

• Select Angle to Wall or corner if the unit is installed in the corner.

• Select Parallel to Wall if the unit is installed in parallel with the wall.

MOUNTING (Mounting)

Use to select the mounted position of the unit in your listening room.

Choices: SHELF (Shelf mount), WALL (Wall mount)

• Select WALL if the unit is mounted on the wall.

• Select SHELF if the unit is mounted on the shelf.

REFLECTING (Reflecting)

Use to select the reflectivity of your listening room.

Choices: NORMAL (Normal), HI ECHO (High echo)

• Select NORMAL if your listening room has a normal reflectivity.

• Select HI ECHO if your listening room has highly reflective surfaces such as concrete

walls.

8Check the following points once again before starting the AUTO SETUP

procedure.

• Is the optimizer microphone firmly connected to this unit?

• Is the optimizer microphone placed in a proper location?

• Are there any large obstacles in between the optimizer microphone and the walls in

your listening room?

9Press ENTER to start the AUTO SETUP procedure.

The following screen appears on your TV.

ENVIRONMENT CHECK (Environmental noise check), SUB WOOFER CHECK

(Subwoofer check) and WILL START in 10 SEC (Will start in 10 sec) are displayed

in order as the PREPARATION procedure is in progress.

If an error occurs, an error message is displayed. See “Error messages for AUTO SETUP” on

page 33 in the Owner’s Manual for a complete list of error messages and their proper remedies.

Follow the instructions and perform the AUTO SETUP procedure again.

10 Check that the following screen is displayed on your TV.

The results of the AUTO SETUP procedure are displayed on your TV.

11 Press ENTER to confirm the results.

The following screen is displayed temporarily for a few seconds and then disappear

from your TV.

■Enjoying TV in surround sound

You can enjoy audio signals output from your TV in real surround sound.

Before performing the steps below, set the volume of this unit to –40 dB. If necessary, adjust the

volume level in step 4 below.

1Select the TV channel you want to watch using the remote control

supplied with your TV.

2Press TV on the remote control to select TV as the input source.

3If you hear sound output from your TV speakers, turn down the volume

level using the remote control supplied with your TV until you cannot

hear any sound.

4Press VOLUME +/– on the remote control to adjust the volume level.

5Press YSP on the remote control to switch to the operation mode of this

unit.

6Press one of the beam mode buttons on the remote control to select the

desired beam mode.

Select one of the five beam modes that best matches the current input source of this

unit.

For further details about the beam modes, see page 40 in the supplied Owner’s

Manual.

The target mode outputs sound beams in a single channel and is ideal if you do not want the

sound beams to be reflected on the walls in your listening room or if you do not disturb others

asleep while enjoying music or movies at night. In addition, you can adjust the horizontal angle

of the sound beams so that you can hear dialogues clearly even from a distant location such as

the kitchen area in your listening room.

7Press VOL MODE on the remote control repeatedly to select the desired

volume mode.

The volume modes are designed to improve listenability at lower volumes and limit

the volume level of the TV so that it will not vary suddenly to a great extent.

For further details about the volume modes, see page 52 in the supplied Owner’s

Manual.

■Enjoying DVDs in surround sound

You can enjoy audio signals output from your DVD player in real surround sound.

Before performing the steps below, set the volume of this unit to –40 dB. If necessary, adjust the

volume level in step 4 below.

1Switch to the video input on your TV using the remote control supplied

with your TV so that the DVD menu screen is displayed.

2Press DVD on the remote control to select DVD as the input source and

then start playback on the DVD player.

3If you hear sound output from your TV speakers, turn down the volume

level using the remote control supplied with your TV until you cannot

hear any sound.

4Press VOLUME +/– on the remote control to adjust the volume level.

5Press YSP on the remote control to switch to the operation mode of this

unit.

6Press one of the beam mode buttons on the remote control to select the

desired beam mode.

Select one of the five beam modes that best matches the current input source of this

unit. For further details about the beam modes, see page 40 in the supplied Owner’s

Manual.

3. Automatically setting up the listening environment 4. Enjoying surround sound

Notes

POWER

STANDBY/ON

STBVCRDVD

CH LEVEL MENU

RETURN

TEST

ENTER

CINEMA DSP

.;MEMORY

;AUTO SETUP

;BASIC SETUP

;MANUAL SETUP

[]/[]:Up/Down

[ENTER]:Enter

SET MENU

CH LEVEL MENU

RETURN

TEST

ENTER

CINEMA DSP

.BEAM+SOUND OPTIMZ

BEAM OPTIMZ only

SOUND OPTIMZ only

[]/[]:Up/Down

[ENTER]:Enter

;

AUTO SETUP

CH LEVEL MENU

RETURN

TEST

ENTER

CINEMA DSP

.INSTALLING;;Parallel to Wall

MOUNTING;;;;SHELF

REFLECTING;;NORMAL

Set MIC in front of YSP

 MIN 2m/6.5ft

[]/[]:Up/Down/[ ]/[ ]:Sel

[ENTER]:Start

PREPARATION

CH LEVEL MENU

RETURN

TEST

ENTER

CINEMA DSP

CH LEVEL MENU

RETURN

TEST

ENTER

CINEMA DSP

.ENVIRONMENT CHECK

 ;;;[OK]

SUB WOOFER CHECK

 ;;;[NOT IN USE]

WILL START in 10 SEC

Move aside or behind YSP

*****-----

PREPARATION

BEAM MODE: 5BEAM

SUBWOOFER: NOT APPLICABLE



[ENTER]:Enter

[RETURN]:Cancel

SHOW RESULT

Example of the

SHOW RESULT screen

CH LEVEL MENU

RETURN

TEST

ENTER

CINEMA DSP

AUTO SETTING COMPLETED

POWER

STANDBY/ON

MACROINPUT2INPUT1

STBVCRDVD

AUX

TV VOL

VOLUME CH

SLEEP

INPUTMODE

MACROINPUT2INPUT1

AUX

YSP

STEREO

456

5BEAM

ST+3BEAM

3BEAM

TARGET

SURROUND

OFF

SPORTS

789

+10

MUSIC MOVIE VOL MODE

POWER

STANDBY/ON

MACROINPUT2INPUT1

STBVCRDVD

AUX

TV VOL

VOLUME CH

SLEEP

INPUTMODE

MACROINPUT2INPUT1

AUX

YSP

STEREO

456

5BEAM

ST+3BEAM

3BEAM

TARGET

YSP-800 Quick Reference Guide.fm Page 2 Wednesday, July 27, 2005 8:59 PM
