EN

Owner’s Manual

Before using the instrument, be sure to read “PRECAUTIONS” on page 5–6.

Digital Percussion

DD-75 Owner’s Manual

2

SPECIAL MESSAGE SECTION

This product utilizes batteries or an external power supply

(adapter). DO NOT connect this product to any power supply or

adapter other than one described in the manual, on the name

plate, or specifically recommended by Yamaha.

WARNING: Do not place this product in a position where any-

one could walk on, trip over, or roll anything over power or con-

necting cords of any kind. The use of an extension cord is not

recommended! If you must use an extension cord, the minimum

wire size for a 25’ cord (or less) is 18 AWG. NOTE: The smaller

the AWG number, the larger the current handling capacity. For

longer extension cords, consult a local electrician.

This product should be used only with the components supplied

or; a cart, rack, or stand that is recommended by Yamaha. If a

cart, etc., is used, please observe all safety markings and instruc-

tions that accompany the accessory product.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be correct

at the time of printing. However, Yamaha reserves the right to

change or modify any of the specifications without notice or obli-

gation to update existing units.

This product, either alone or in combination with an amplifier and

headphones or speaker/s, may be capable of producing sound

levels that could cause permanent hearing loss. DO NOT operate

for long periods of time at a high volume level or at a level that is

uncomfortable. If you experience any hearing loss or ringing in the

ears, you should consult an audiologist.

IMPORTANT: The louder the sound, the shorter the time period

before damage occurs.

Some Yamaha products may have benches and / or accessory

mounting fixtures that are either supplied with the product or as

optional accessories. Some of these items are designed to be

dealer assembled or installed. Please make sure that benches

are stable and any optional fixtures (where applicable) are well

secured BEFORE using.

Benches supplied by Yamaha are designed for seating only. No

other uses are recommended.

NOTICE:

Service charges incurred due to a lack of knowledge relating to

how a function or effect works (when the unit is operating as

designed) are not covered by the manufacturer’s warranty, and

are therefore the owners responsibility. Please study this manual

carefully and consult your dealer before requesting service.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are both user safe and

environmentally friendly. We sincerely believe that our products

and the production methods used to produce them, meet these

goals. In keeping with both the letter and the spirit of the law, we

want you to be aware of the following:

Battery Notice:

This product MAY contain a small non-rechargeable battery which

(if applicable) is soldered in place. The average life span of this

type of battery is approximately five years. When replacement

becomes necessary, contact a qualified service representative to

perform the replacement.

This product may also use “household” type batteries. Some of

these may be rechargeable. Make sure that the battery being

charged is a rechargeable type and that the charger is intended

for the battery being charged.

When installing batteries, never mix old batteries with new ones,

and never mix different types of batteries. Batteries MUST be

installed correctly. Mismatches or incorrect installation may result

in overheating and battery case rupture.

Warning:

Do not attempt to disassemble, or incinerate any battery. Keep all

batteries away from children. Dispose of used batteries promptly

and as regulated by the laws in your area. Note: Check with any

retailer of household type batteries in your area for battery dis-

posal information.

Disposal Notice:

Should this product become damaged beyond repair, or for some

reason its useful life is considered to be at an end, please

observe all local, state, and federal regulations that relate to the

disposal of products that contain lead, batteries, plastics, etc. If

your dealer is unable to assist you, please contact Yamaha

directly.

NAME PLATE LOCATION:

The name plate is located on the bottom of the product. The

model number, serial number, power requirements, etc., are

located on this plate. You should record the model number, serial

number, and the date of purchase in the spaces provided below

and retain this manual as a permanent record of your purchase.

Model

Serial No.

Purchase Date

PLEASE KEEP THIS MANUAL

92-BP (bottom)

For DD-75

DD-75 Owner’s Manual 3

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions

contained in this manual, meets FCC requirements. Modifica-

tions not expressly approved by Yamaha may void your author-

ity, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories

and/or another product use only high quality shielded cables.

Cable/s supplied with this product MUST be used. Follow all

installation instructions. Failure to follow instructions could void

your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with

the requirements listed in FCC Regulations, Part 15 for Class

“B” digital devices. Compliance with these requirements pro-

vides a reasonable level of assurance that your use of this

product in a residential environment will not result in harmful

interference with other electronic devices. This equipment gen-

erates/uses radio frequencies and, if not installed and used

according to the instructions found in the users manual, may

cause interference harmful to the operation of other electronic

devices. Compliance with FCC regulations does not guarantee

that interference will not occur in all installations. If this product

is found to be the source of interference, which can be deter-

mined by turning the unit “OFF” and “ON”, please try to elimi-

nate the problem by using one of the following measures:

Relocate either this product or the device that is being affected

by the interference.

Utilize power outlets that are on different branch (circuit breaker

or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the

antenna. If the antenna lead-in is 300 ohm ribbon lead, change

the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory

results, please contact the local retailer authorized to distribute

this type of product. If you can not locate the appropriate

retailer, please contact Yamaha Corporation of America, Elec-

tronic Service Division, 6600 Orangethorpe Ave, Buena Park,

CA90620

The above statements apply ONLY to those products distrib-

uted by Yamaha Corporation of America or its subsidiaries.

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B)

FCC INFORMATION (U.S.A.)

For AC adaptor and DD-75

OBSERVERA!

Apparaten kopplas inte ur växelströmskällan (nätet) så länge som den

ar ansluten till vägguttaget, även om själva apparaten har stängts av.

ADVARSEL: Netspændingen til dette apparat er IKKE afbrudt,

sålænge netledningen sidder i en stikkontakt, som er tændt — også

selvom der er slukket på apparatets afbryder.

VAROITUS: Laitteen toisiopiiriin kytketty käyttökytkin ei irroita koko

laitetta verkosta.

(standby)

The model number, serial number, power requirements, etc., may be

found on or near the name plate, which is at the bottom of the unit.

You should note this serial number in the space provided below and

retain this manual as a permanent record of your purchase to aid

identification in the event of theft.

Model No.

Serial No.

(bottom_en_01)

DD-75 Owner’s Manual

4

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol

within an equilateral triangle is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient magni-

tude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and main-

tenance (servicing) instructions in the liter-

ature accompanying the product.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tri-

pod, bracket, or table specified by

the manufacturer, or sold with the

apparatus. When a cart is used,

use caution when moving the

cart/apparatus combination to

avoid injury from tip-over.

13 Unplug this apparatus during

lightning storms or when unused for long periods of

time.

14 Refer all servicing to qualified service personnel. Ser-

vicing is required when the apparatus has been dam-

aged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has

been dropped.

(UL60065_03)

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT SAFETY INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

For AC adaptor

CAN ICES-3 (B)/NMB-3(B)

(can_b_02)

(fcc_sengen_C)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

DD-75 Owner’s Manual 5

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe and handy place for future reference.

For AC adaptor

WARNING

• This AC adaptor is designed for use with only Yamaha electronic instruments. Do

not use for any other purpose.

• Indoor use only. Do not use in any wet environments.

• Do not put burning items, such as candles, on the unit. A burning item may fall

over and cause a fire.

CAUTION

• When setting up, make sure that the AC outlet is easily accessible. If some

trouble or malfunction occurs, immediately turn off the power switch of the

instrument and disconnect the AC adaptor from the outlet. When the AC adaptor

is connected to the AC outlet, keep in mind that electricity is flowing at the

minimum level, even if the power switch is turned off. When you are not using

the instrument for a long time, make sure to unplug the power cord from the wall

AC outlet.

For DD-75

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical

shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

• Do not place the power cord near heat sources such as heaters or radiators. Also,

do not excessively bend or otherwise damage the cord, or place heavy objects on

it.

• Only use the voltage specified as correct for the instrument. The required voltage

is printed on the name plate of the instrument.

• Use the specified adaptor (page 54) only. Using the wrong adaptor can result in

damage to the instrument or overheating.

• Check the electric plug periodically and remove any dirt or dust which may have

accumulated on it.

• This instrument contains no user-serviceable parts. Do not open the instrument

or attempt to disassemble or modify the internal components in any way. If it

should appear to be malfunctioning, discontinue use immediately and have it

inspected by qualified Yamaha service personnel.

• Do not expose the instrument to rain, use it near water or in damp or wet

conditions, or place on it any containers (such as vases, bottles or glasses)

containing liquids which might spill into any openings. If any liquid such as

water seeps into the instrument, turn off the power immediately and unplug the

power cord from the AC outlet. Then have the instrument inspected by qualified

Yamaha service personnel.

• Never insert or remove an electric plug with wet hands.

• Do not put burning items, such as candles, on the unit. A burning item may fall

over and cause a fire.

• Follow the precautions below. Failure to do so might result in explosion, fire,

overheating or battery fluid leakage.

- Do not tamper with or disassemble batteries.

- Do not dispose of batteries in fire.

- Do not attempt to recharge batteries that are not designed to be charged.

- Keep the batteries separate from metallic objects such as necklaces, hairpins,

coins, and keys.

- Use the specified battery type (page 54) only.

- Use new batteries, all of which are the same type, same model, and made by

the same manufacturer.

- Always make sure all batteries are inserted in conformity with the +/- polarity

markings.

- When the batteries run out, or if the instrument is not to be used for a long

time, remove the batteries from the instrument.

- When using Ni-MH batteries, follow the instructions that came with the

batteries. Use only the specified charger device when charging.

• Keep batteries away from small children who might accidentally swallow them.

• If the batteries do leak, avoid contact with the leaked fluid. If the battery fluid

should come in contact with your eyes, mouth, or skin, wash immediately with

water and consult a doctor. Battery fluid is corrosive and may possibly cause loss

of sight or chemical burns.

• When one of the following problems occur, immediately turn off the power switch

and disconnect the electric plug from the outlet. (If you are using batteries,

remove all batteries from the instrument.) Then have the device inspected by

Yamaha service personnel.

- The power cord or plug becomes frayed or damaged.

- It emits unusual smells or smoke.

- Some object has been dropped into the instrument.

- There is a sudden loss of sound during use of the instrument.

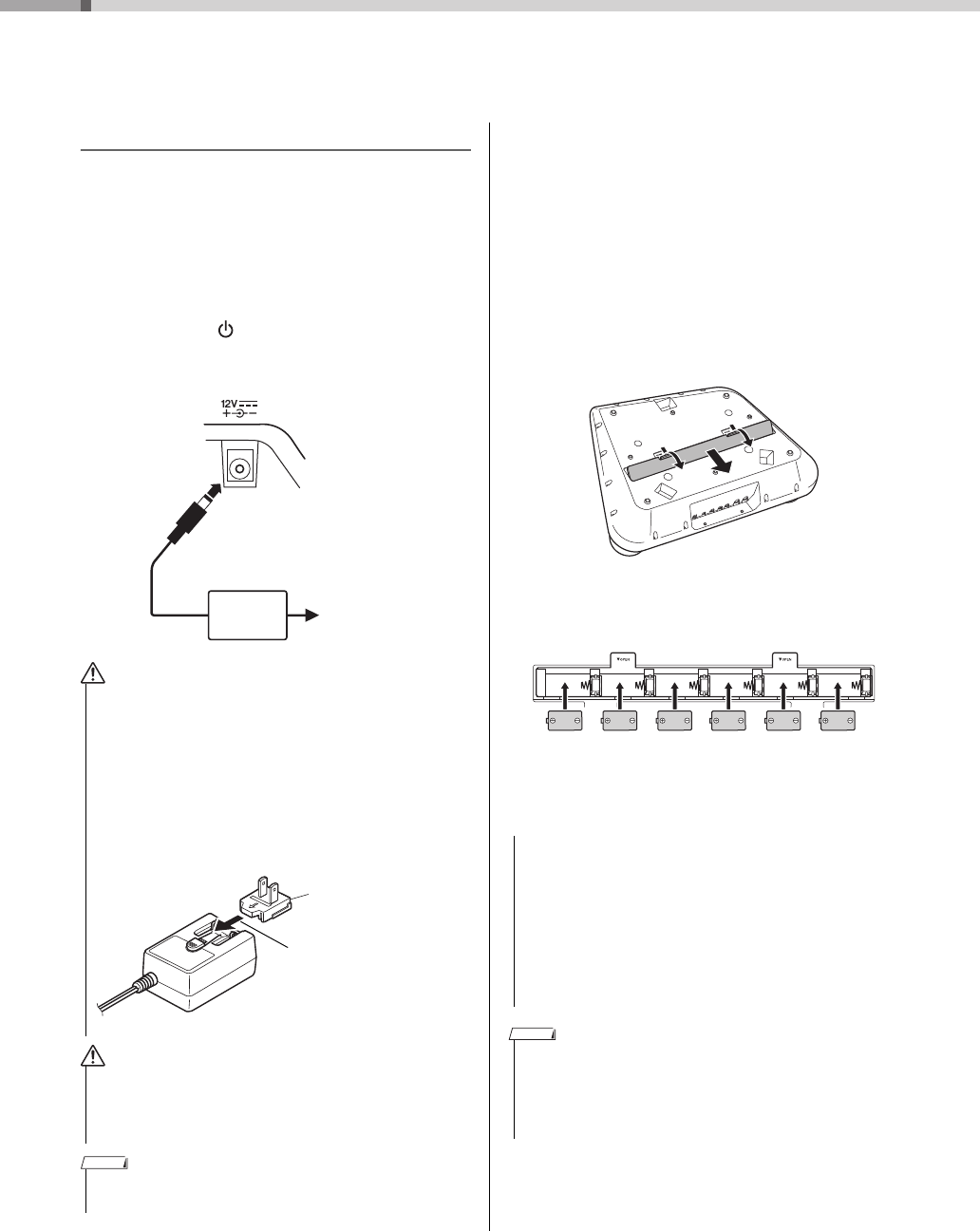

Power supply/AC adaptor

Do not open

Water warning

Fire warning

Battery

If you notice any abnormality

DMI-5 1/2

DD-75 Owner’s Manual

6

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage

to the instrument or other property. These precautions include, but are not limited to, the following:

•

Do not connect the instrument to an electrical outlet using a multiple-connector. Doing so

can result in lower sound quality, or possibly cause overheating in the outlet.

• When removing the electric plug from the instrument or an outlet, always hold

the plug itself and not the cord. Pulling by the cord can damage it.

• Remove the electric plug from the outlet when the instrument is not to be used for

extended periods of time, or during electrical storms.

• Do not place the instrument in an unstable position where it might accidentally

fall over.

• Before moving the instrument, remove all connected cables, to prevent damage

to the cables or injury to anyone who might trip over them.

• When setting up the product, make sure that the AC outlet you are using is easily

accessible. If some trouble or malfunction occurs, immediately turn off the power

switch and disconnect the plug from the outlet. Even when the power switch is

turned off, electricity is still flowing to the product at the minimum level. When

you are not using the product for a long time, make sure to unplug the power

cord from the wall AC outlet.

• Before connecting the instrument to other electronic components, turn off the

power for all components. Before turning the power on or off for all components,

set all volume levels to minimum.

• Be sure to set the volumes of all components at their minimum levels and

gradually raise the volume controls while playing the instrument to set the

desired listening level.

• Do not insert a finger or hand in any gaps on the instrument.

• Never insert or drop paper, metallic, or other objects into the gaps on the panel.

This could cause physical injury to you or others, damage to the instrument or

other property, or operational failure.

• Do not rest your weight on, or place heavy objects on the instrument, and do not

use excessive force on the buttons, switches or connectors.

•

Do not use the instrument/device or headphones for a long period of time at a high or

uncomfortable volume level, since this can cause permanent hearing loss. If you

experience any hearing loss or ringing in the ears, consult a physician.

Always turn the power off when the instrument is not in use.

Even when the [ ] (Standby/On) switch is in standby status (display is off), electricity is still flowing to the instrument at the minimum level.

When you are not using the instrument for a long time, make sure you unplug the power cord from the wall AC outlet.

Make sure to discard used batteries according to local regulations.

NOTICE

To avoid the possibility of malfunction/ damage to the product, damage to data, or

damage to other property, follow the notices below.

Handling

• Do not use the instrument in the vicinity of a TV, radio, stereo equipment, mobile

phone, or other electric devices. Otherwise, the instrument, TV, or radio may

generate noise. When you use the instrument along with an application on your

iPad, iPhone or iPod touch, we recommend that you set “Airplane Mode” to “ON”

on that device in order to avoid noise caused by communication.

• Do not expose the instrument to excessive dust or vibrations, or extreme cold or

heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent

the possibility of panel disfiguration, damage to the internal components or

unstable operation. (Verified operating temperature range: 5° – 40°C, or 41° –

104°F.)

• Do not place vinyl, plastic or rubber objects on the instrument, since this might

discolor the panel or pads.

Maintenance

• When cleaning the instrument, use a soft cloth. Do not use paint thinners,

solvents, alcohol, cleaning fluids, or chemical-impregnated wiping cloths.

Saving data

• The saved data may be lost due to some failure, an operation mistake, etc. Save

your important data onto an external device such as a computer (page 38).

Information

About copyrights

• Copying of the commercially available musical data including but not limited to

MIDI data and/or audio data is strictly prohibited except for your personal use.

• This product incorporates and bundles contents in which Yamaha owns copyrights

or with respect to which Yamaha has license to use others' copyrights. Due to

copyright laws and other relevant laws, you are NOT allowed to distribute media in

which these contents are saved or recorded and remain virtually the same or very

similar to those in the product.

* The contents described above include a computer program, Accompaniment

Style data, MIDI data, WAVE data, voice recording data, a score, score data, etc.

* You are allowed to distribute medium in which your performance or music

production using these contents is recorded, and the permission of Yamaha

Corporation is not required in such cases.

About this manual

• The illustrations as shown in this manual are for instructional purposes only, and

may appear somewhat different from those on your instrument.

• iPhone, iPad, iPod touch are trademarks of Apple Inc., registered in the U.S. and

other countries.

• The company names and product names in this manual are the trademarks or

registered trademarks of their respective companies.

Power supply/AC adaptor

Location

Connections

Handling caution

Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

DMI-5 2/2

DD-75 Owner’s Manual 7

Thank you for purchasing this Yamaha Digital Percussion!

We recommend that you read this manual carefully so that you can fully take advantage

of the advanced and convenient functions of the instrument. We also recommend that

you keep this manual in a safe and handy place for future reference.

About the Manuals

This instrument has the following documents and instructional materials.

Included Documents

Owner’s Manual (this book)

This document explains how to use the instrument.

Online Materials (downloadable from the Internet)

iPhone/iPad Connection Manual

Explains how to connect the instrument to smart devices, such as iPhone, iPad, etc.

Computer-related Operations

Includes instructions on connecting this instrument to a computer, and operations related to transferring song

data.

MIDI Reference

Contains MIDI-related information.

To obtain these manuals, access the Yamaha Downloads, and then the model name for searching the desired

files.

Included Accessories

• Owner’s Manual (this book)

• Drum stick (1 pair)

• Foot Pedal 1 & 2

• AC adaptor

• Warranty*1

• Online Member Product Registration*2

*1: May not be included depending on your particular locale. Check with your Yamaha dealer.

*2: The PRODUCT ID on the sheet will be needed when you fill out the User Registration form.

Yamaha Downloads http://download.yamaha.com/

DD-75 Owner’s Manual

8

Main Features

Designed for comfortable playing

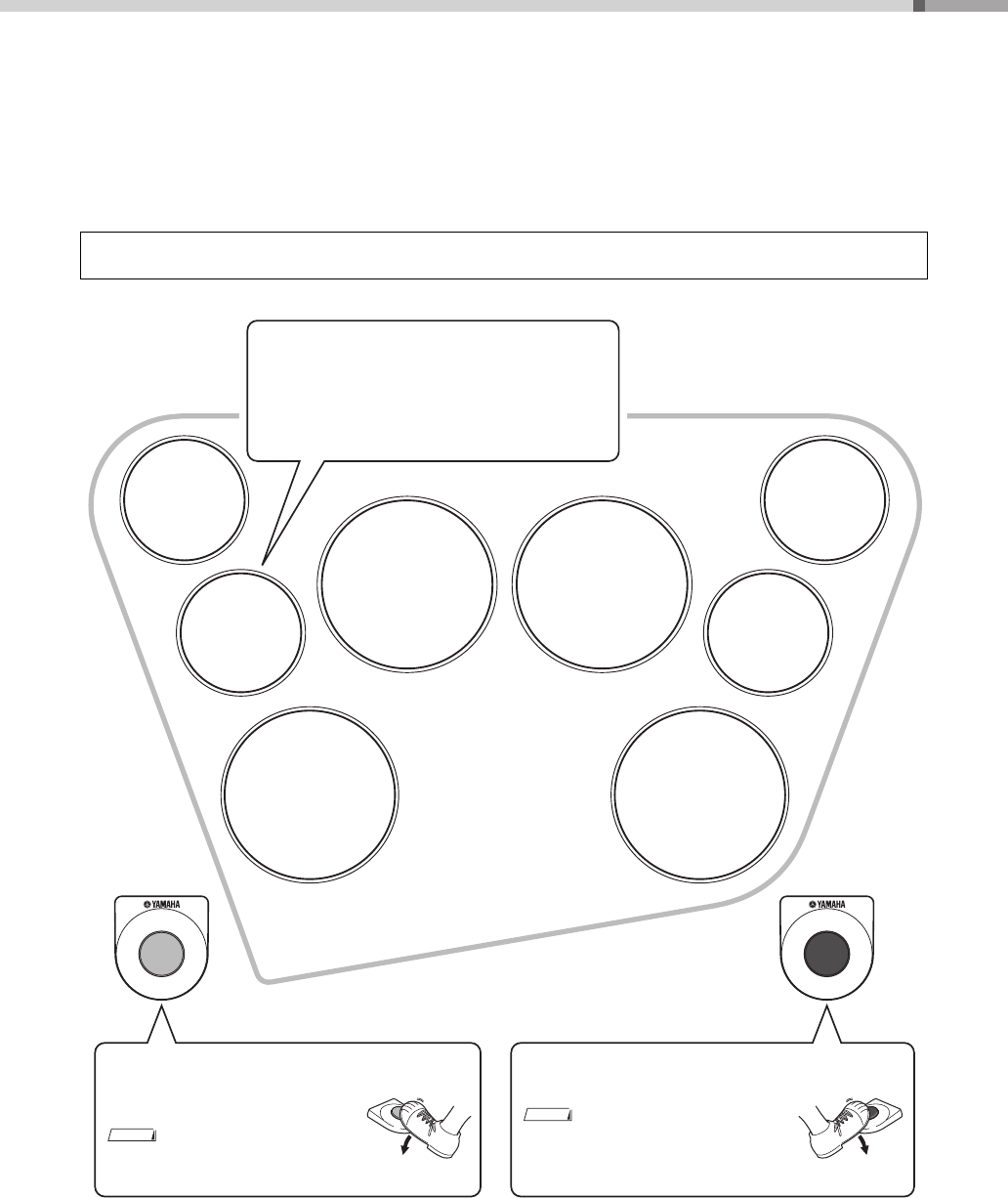

Each of the drum pads are angled and positioned on the panel for optimum playability and comfort. The

pads and pedal 1 can be adjusted independently over four levels, allowing for expressive drumming—not

only with the supplied sticks, but also for playing with your hands, by simply setting it to Hand Percussion

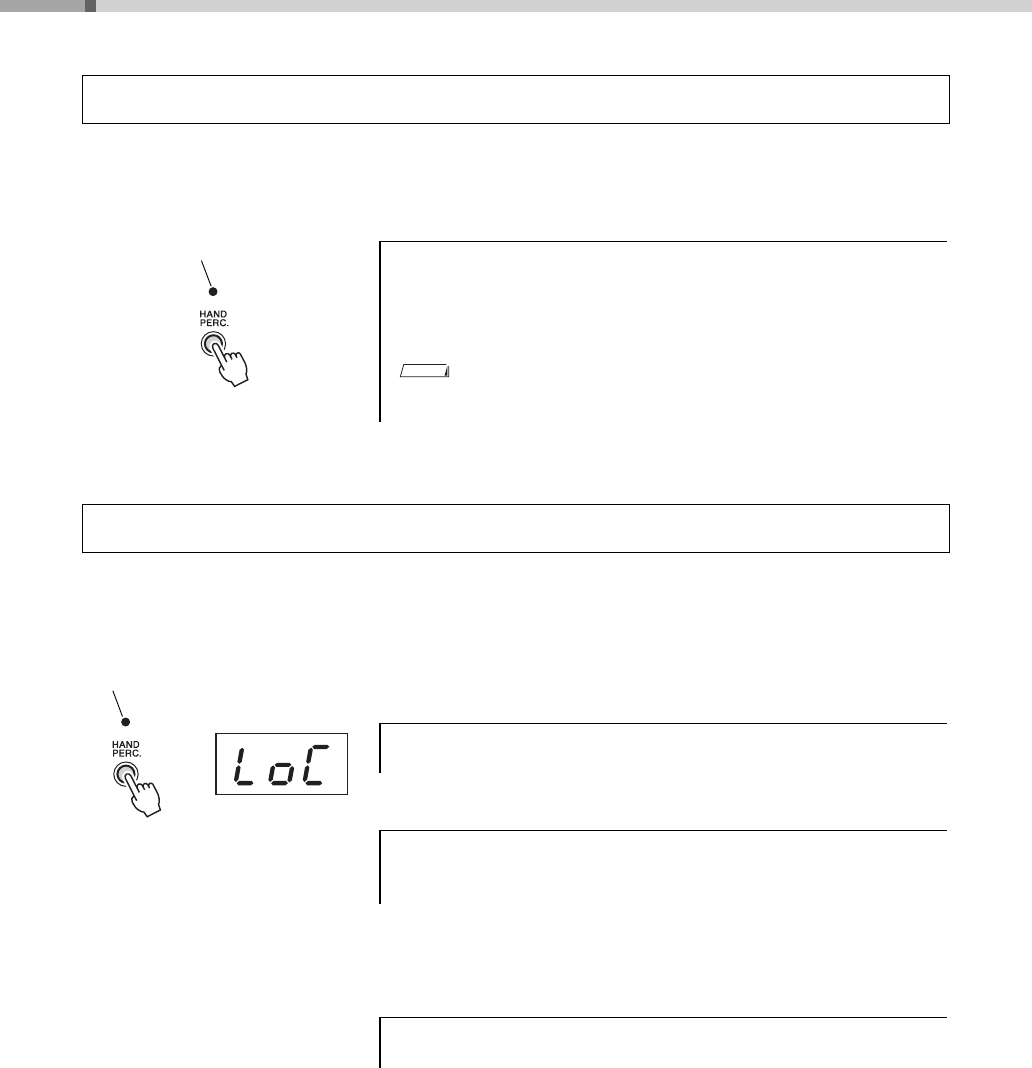

mode (page 18).

Realistic drum sound – Stereo Sampling

You can choose and play with 570 Voices, which provide for a variety of percussion sounds, from realistic

drum sounds (created with Stereo Sampling) to ethnic percussion sound of Japanese drum, Asia, Latin

America and beyond.

75 Drum kits

The instrument contains 75 drum kits of different genres for you to choose from. Moreover, the Voices

can be assigned to each drum pads and pedals to create your own original drum kits.

105 Songs

The instrument features 22 Songs including the Demos, and 83 Patterns that cover a wide variety of

music genres. You can play along with the full playback, or mute tracks and play the missing parts.

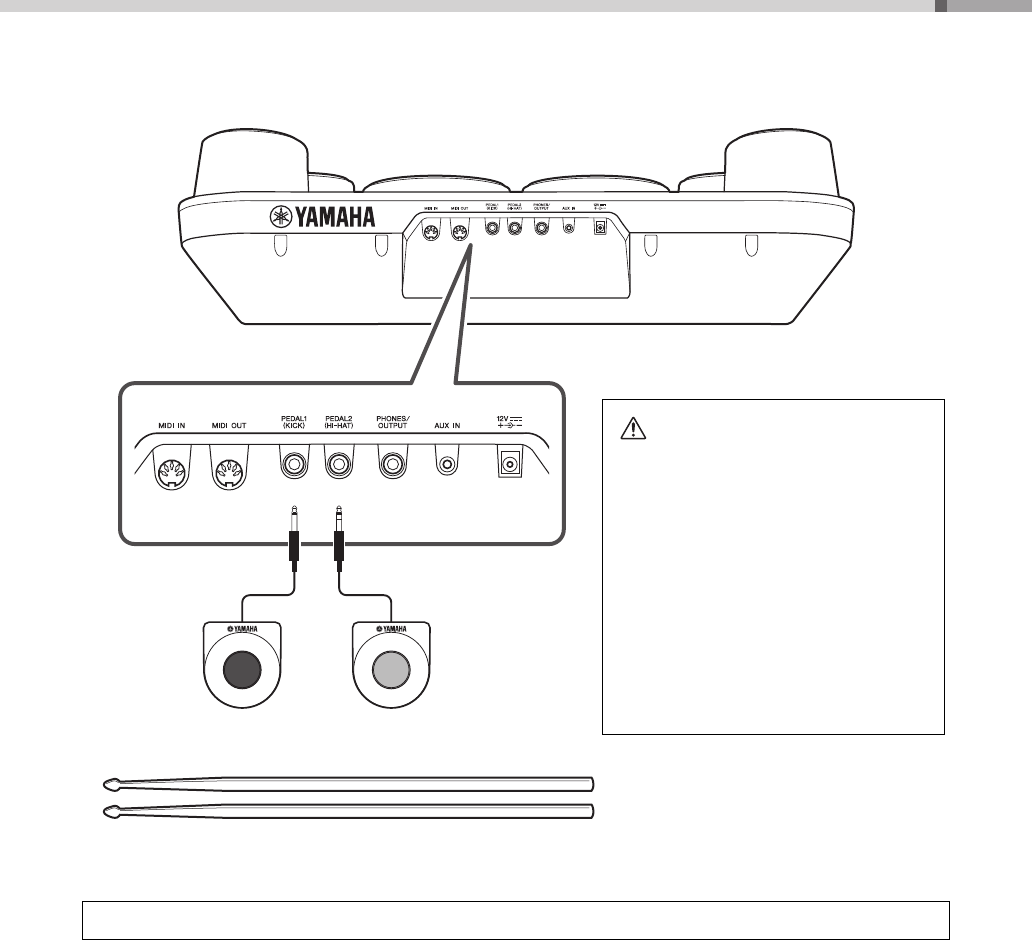

AUX IN Jack

This jack is for connection to an external audio source, letting you play the instrument with music and

accompaniment.

Compatible Formats and Functions

GM System Level 1

“GM System Level 1” is an addition to the MIDI standard which ensures that any GM-com-

patible music data can be accurately played by any GM-compatible tone generator, regard-

less of manufacturer. The GM mark is affixed to all software and hardware products that

support GM System Level.

XGlite

As its name implies, “XGlite” is a simplified version of Yamaha’s high-quality XG tone gener-

ation format. Naturally, you can play back any XG song data using an XGlite tone generator.

However, keep in mind that some songs may play back differently compared to the original

data, due to the reduced set of control parameters and effects.

DD-75 Owner’s Manual 9

Contents

PRECAUTIONS .............................................. 5

NOTICE .......................................................... 6

Information ...................................................... 6

About the Manuals .......................................... 7

Included Accessories ...................................... 7

Main Features ................................. 8

Panel Controls ............................. 10

Setting Up ..................................... 12

Power Requirements .................................... 12

Connecting Pedals 1 and 2 ........................... 13

Turning the Power On/Off ............................. 13

Setting the Battery Type ............................... 13

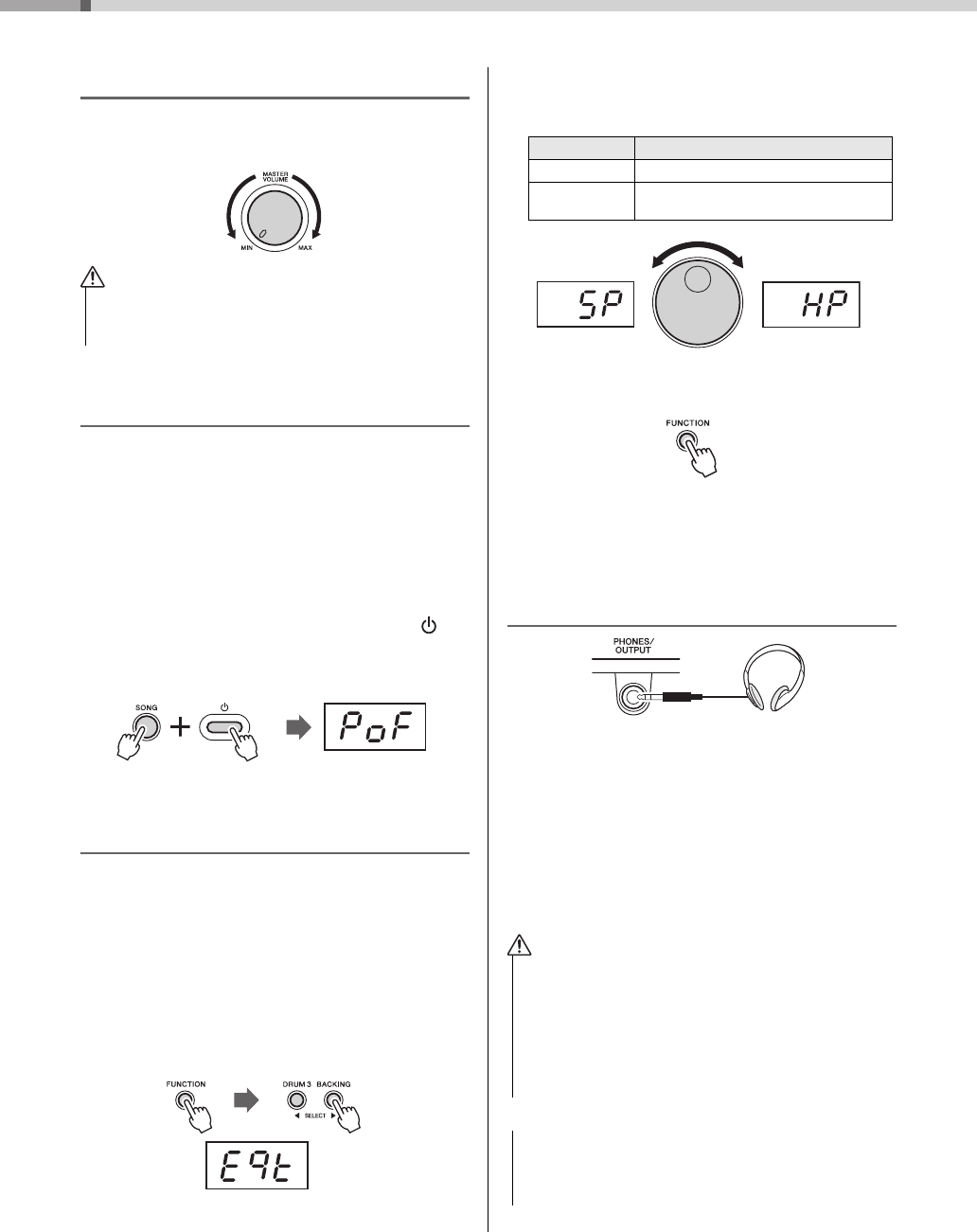

Adjusting the Master Volume ........................ 14

Setting the Auto Power Off function .............. 14

Setting the Master EQ Type ......................... 14

Connecting Headphones or

External Speaker ..................................... 14

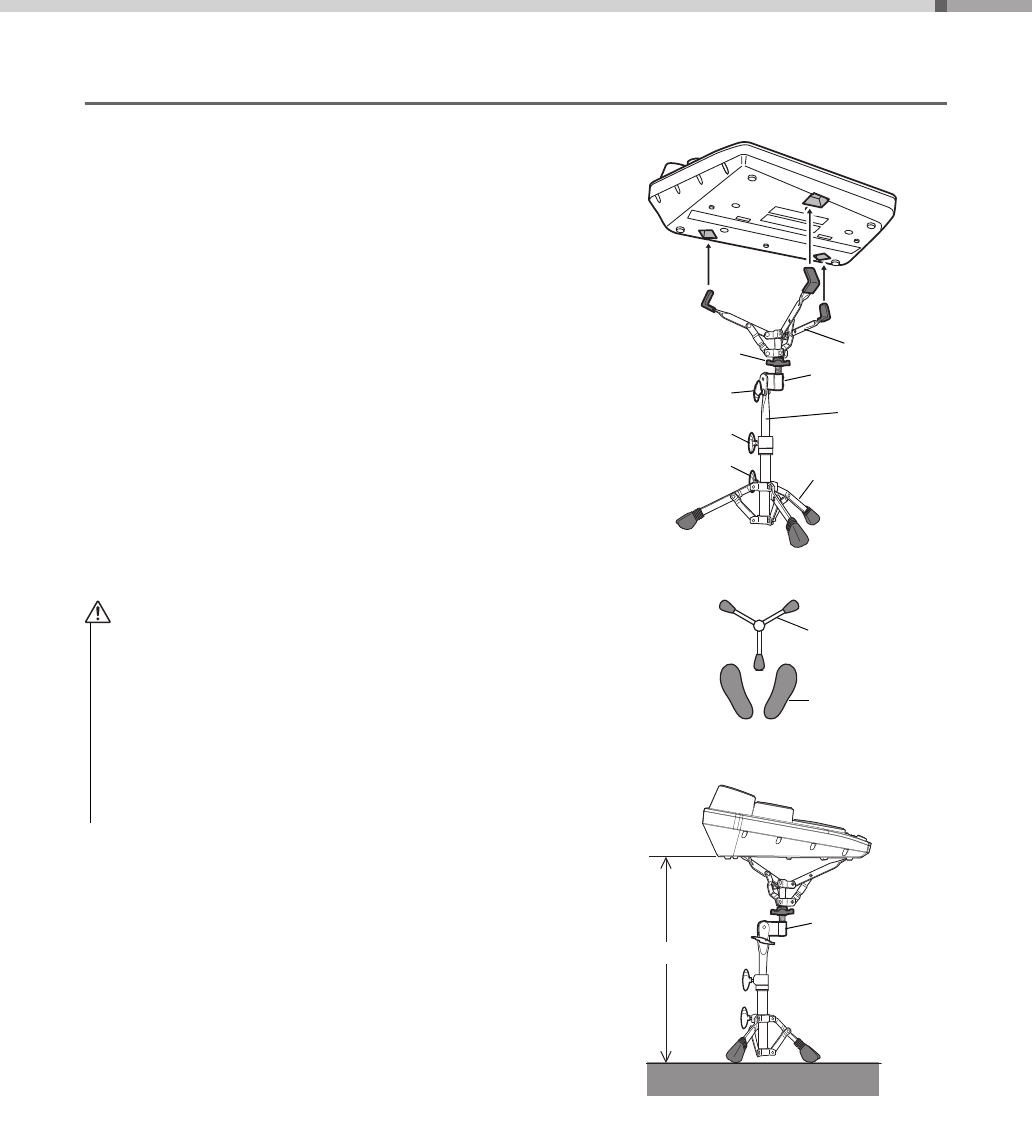

Using a Snare Drum Stand ........................... 15

Playing the Demo Song ............... 16

Play the Pads/Pedals ................... 17

Pad Names ................................................... 17

Setting the Hand Percussion ON/OFF .......... 18

Hand Percussion Lock .................................. 18

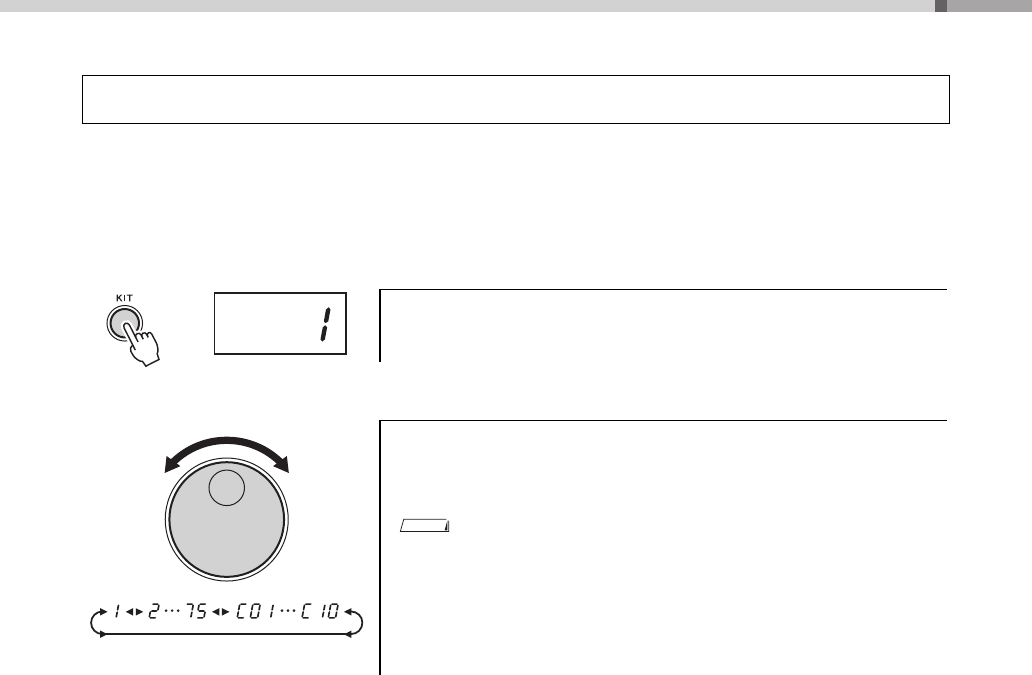

Selecting and Playing a Drum Kit ................. 19

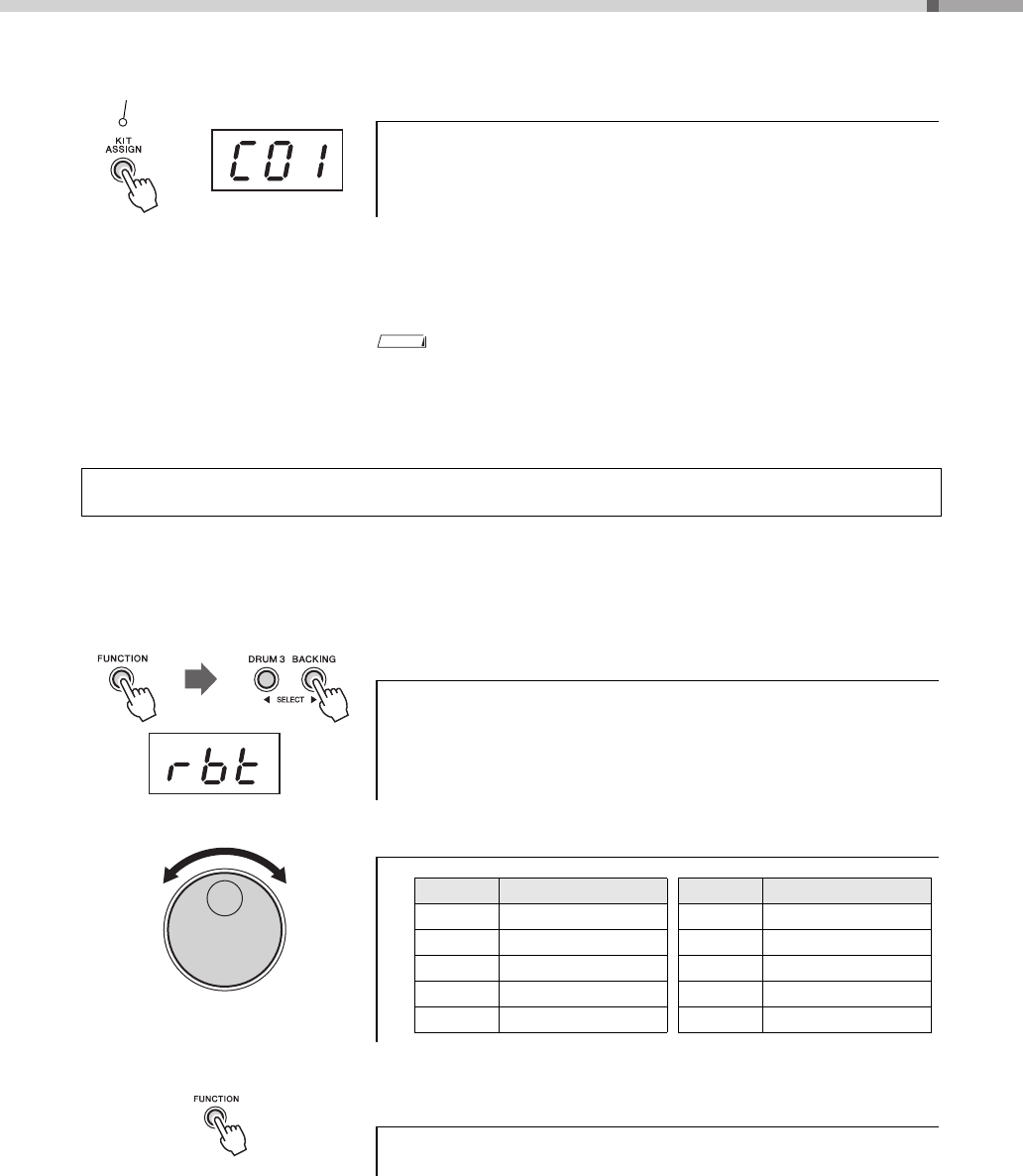

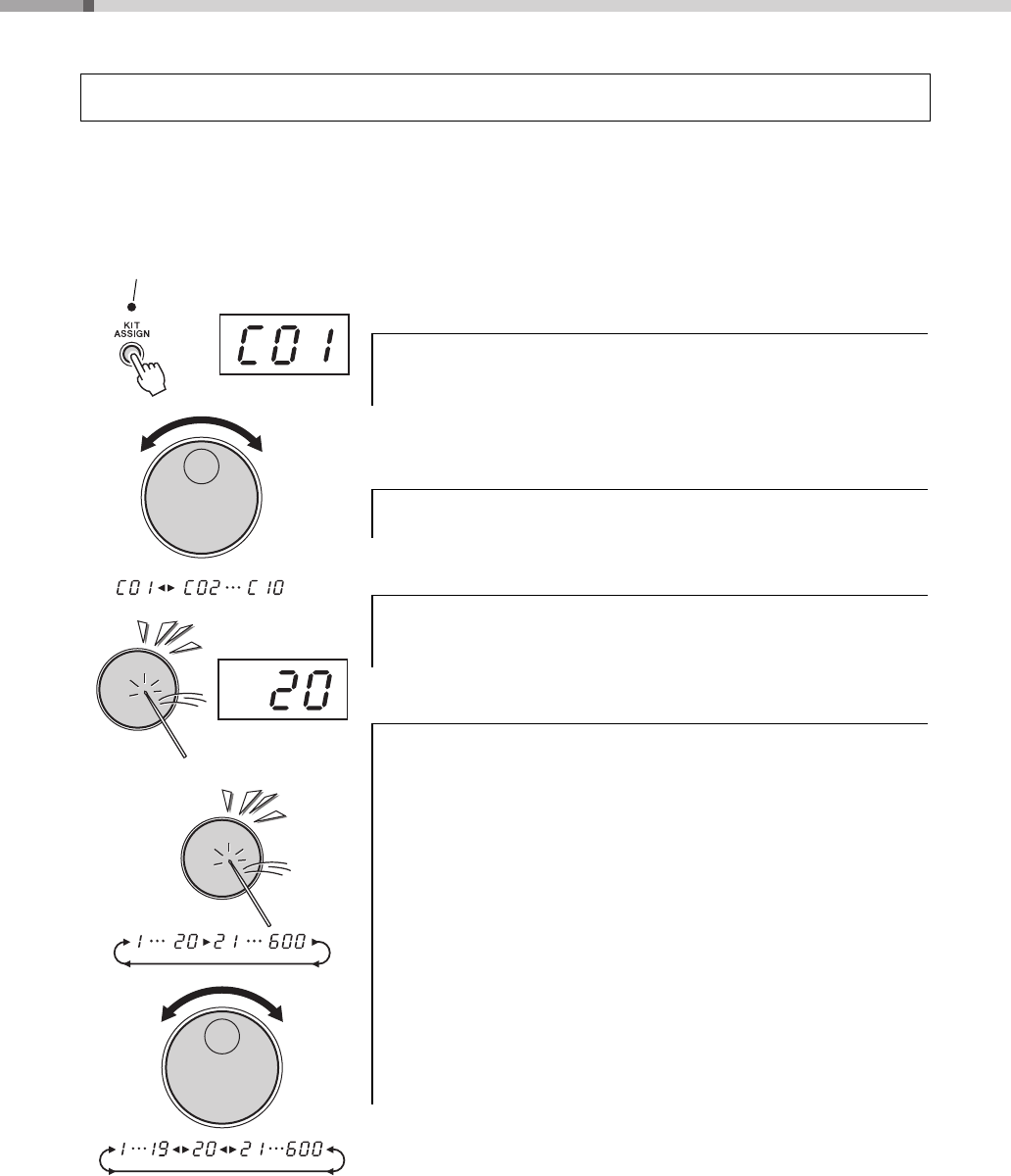

Assigning Voices to Individual Pads and Pedals

and Saving to a Custom Kit (“

C01

”–“

C10

”)

... 20

Setting the Reverb type ................................ 21

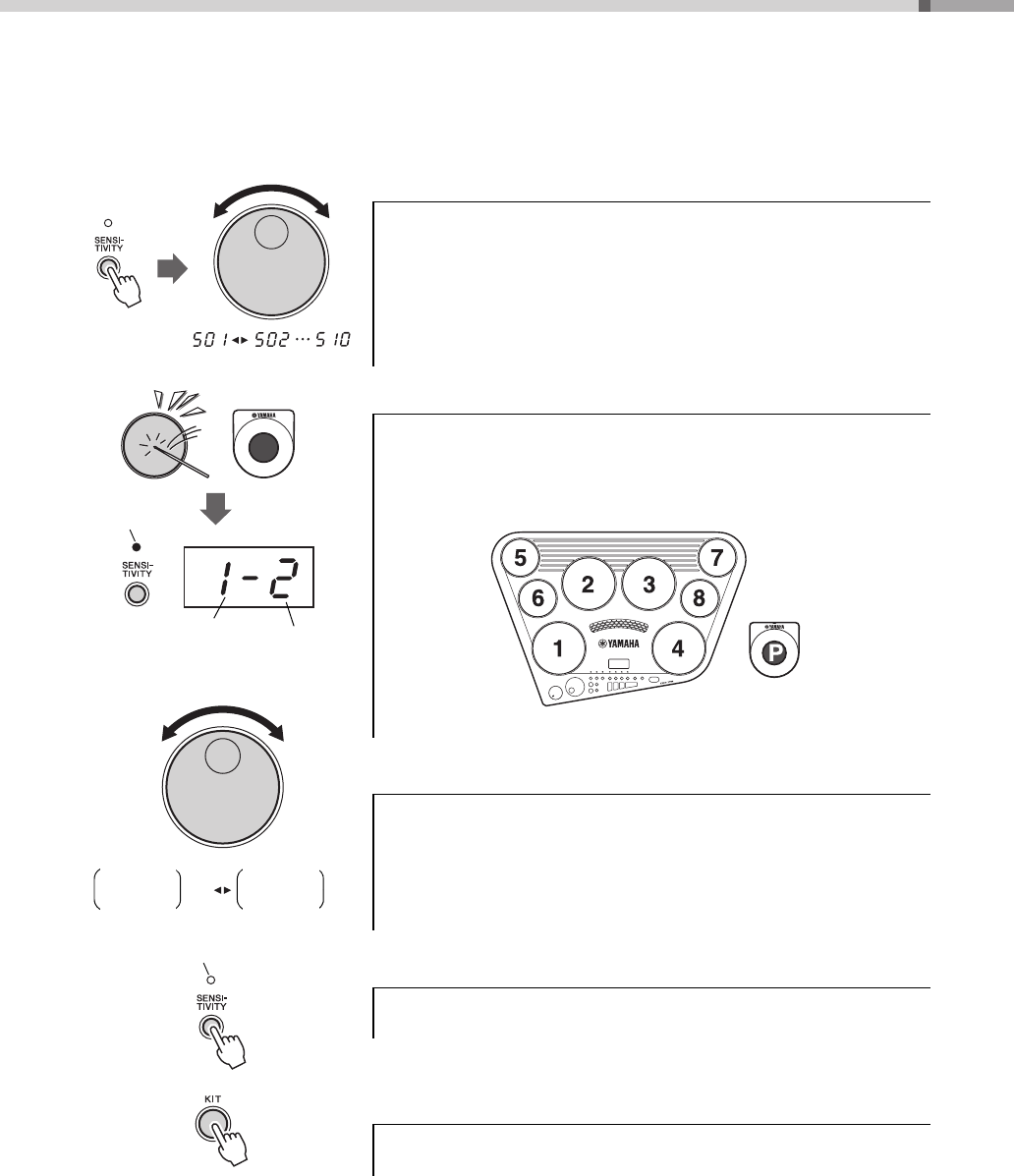

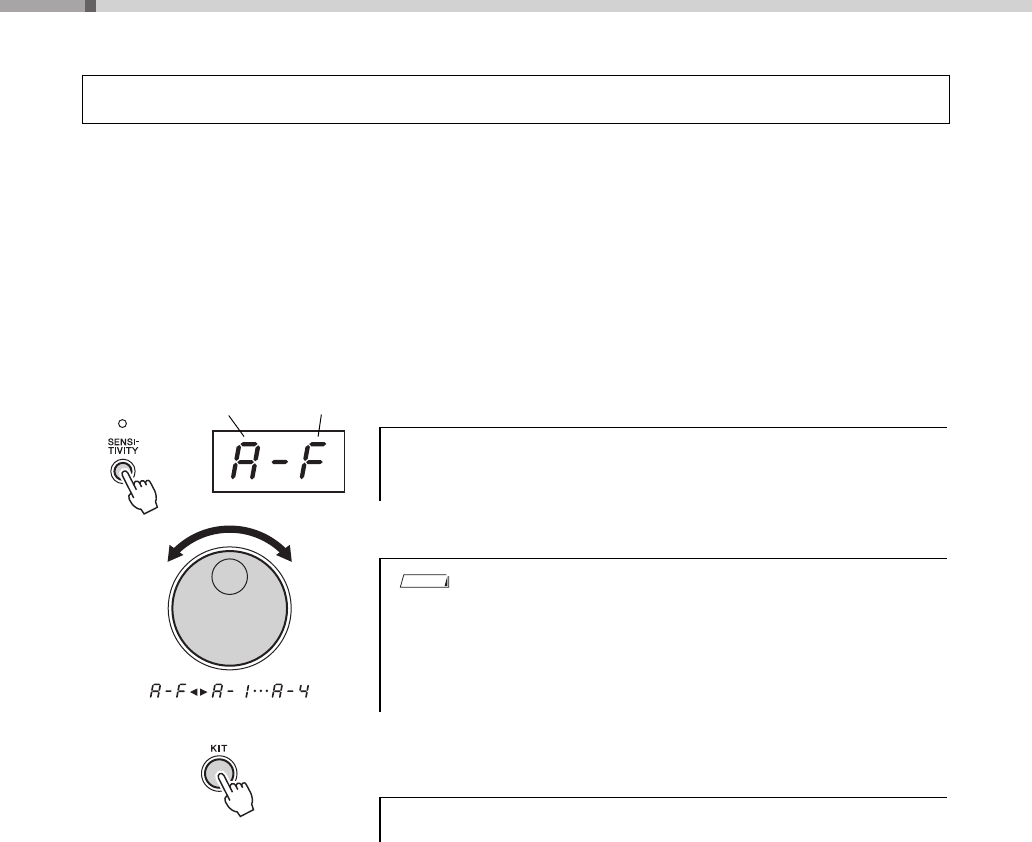

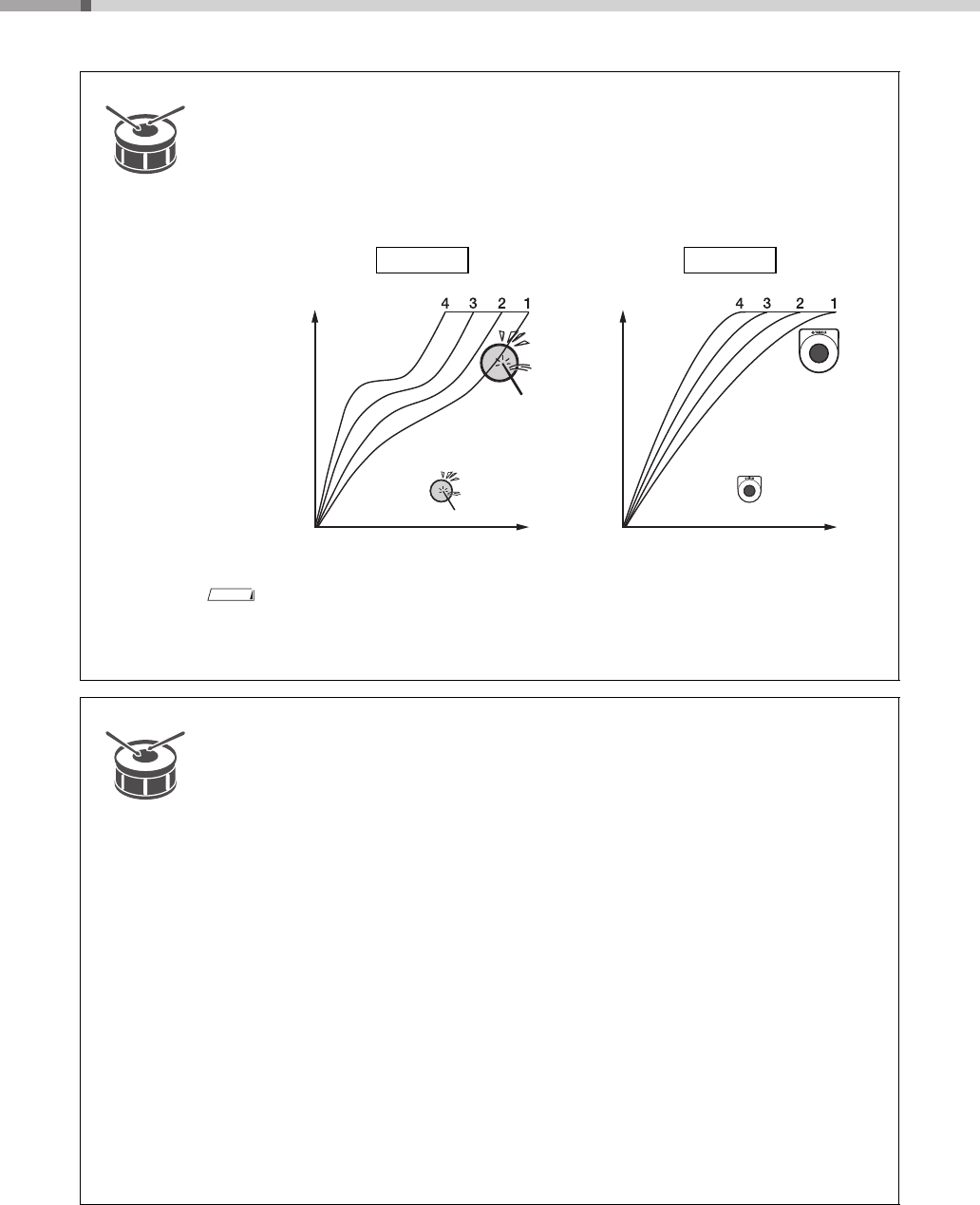

Setting the Pad Sensitivity ............................ 22

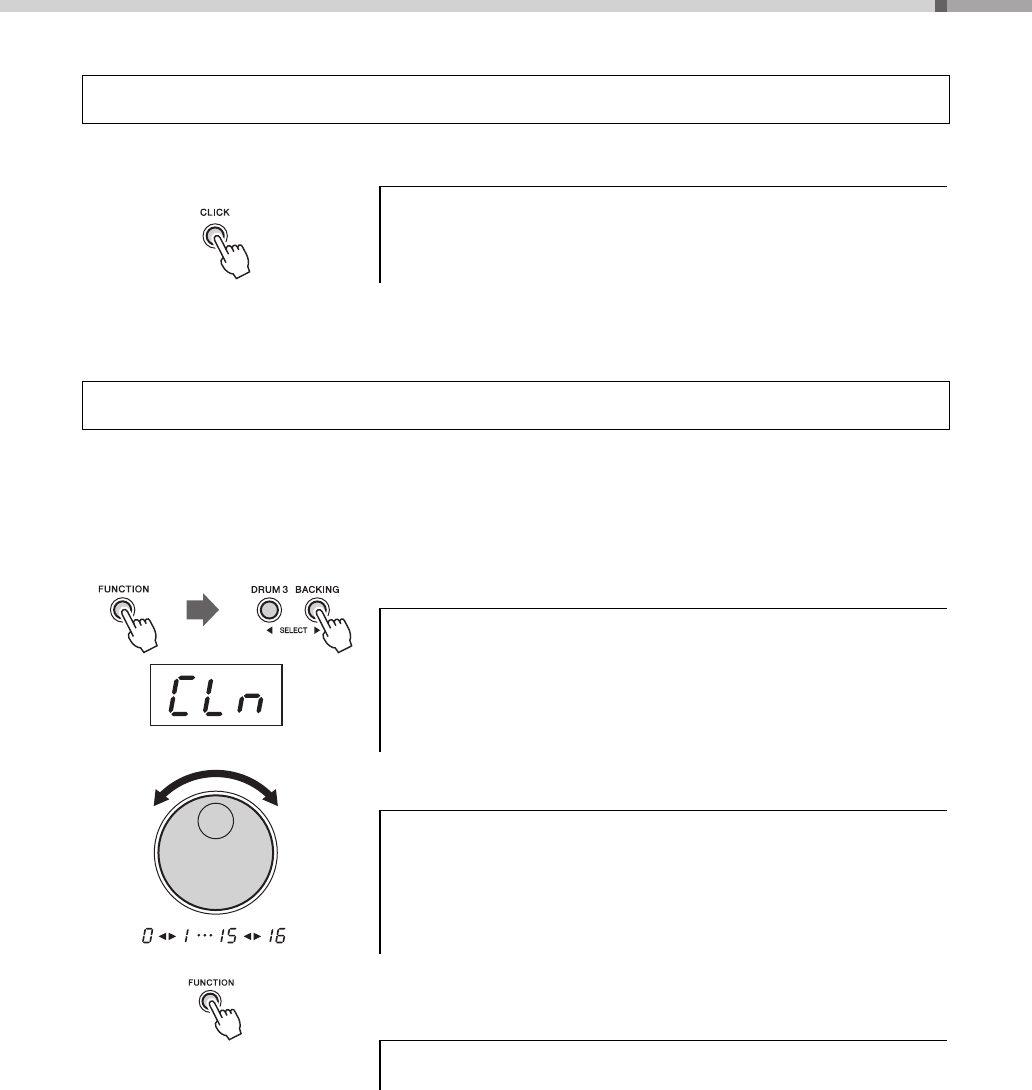

Setting the Click ON/OFF ............................. 25

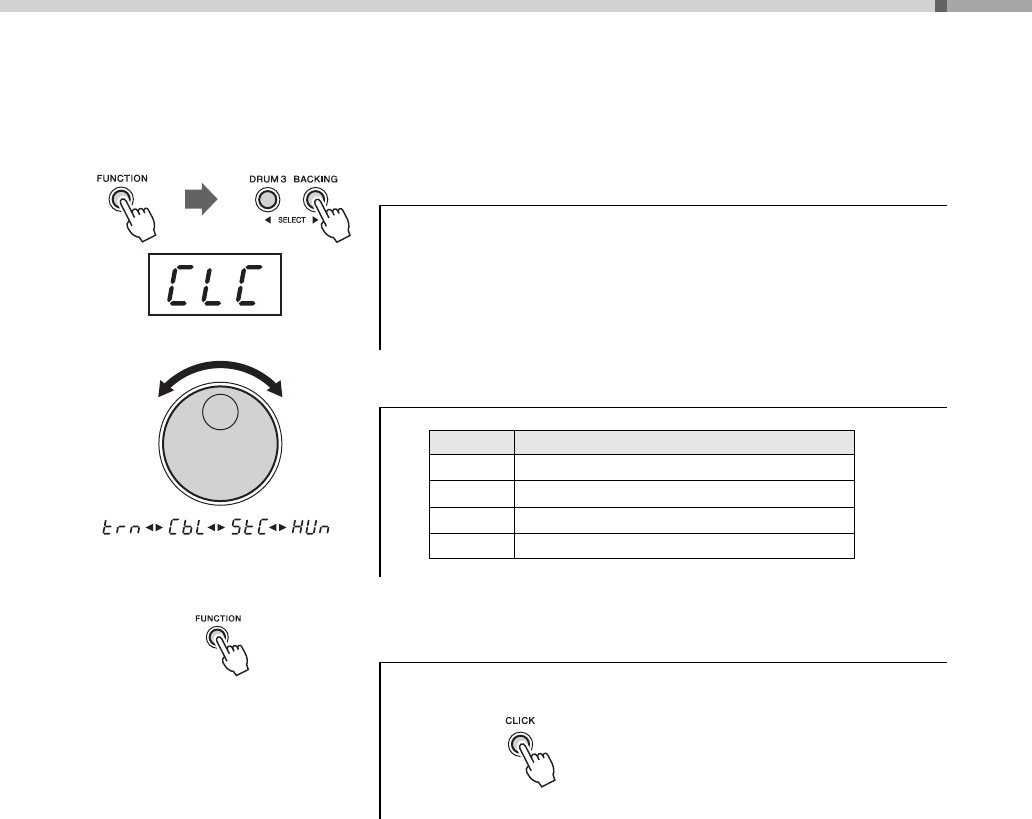

Click Settings ................................................ 25

Playing a Song ............................. 28

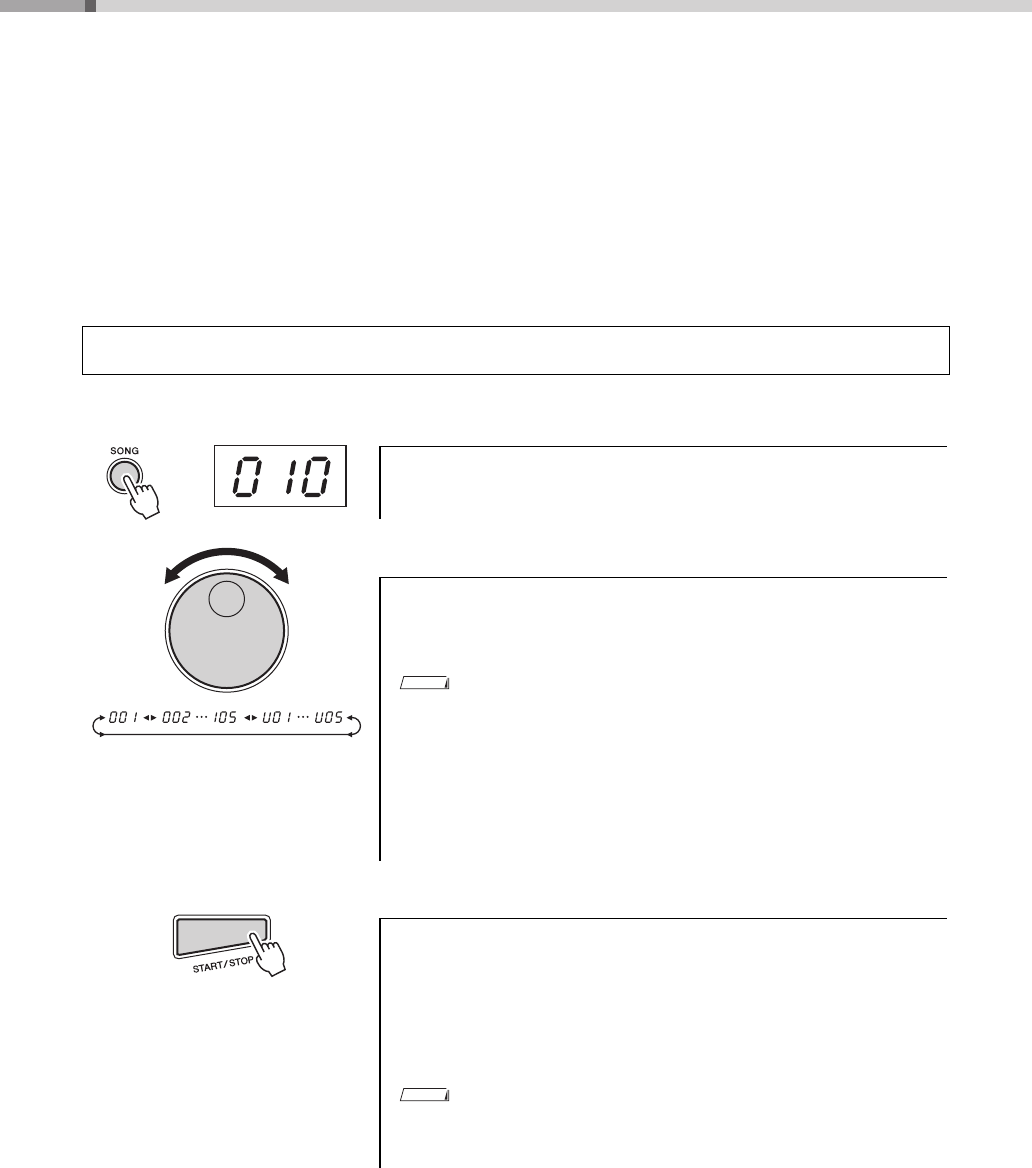

Selecting and Playing a Song ....................... 28

Tap Start ....................................................... 29

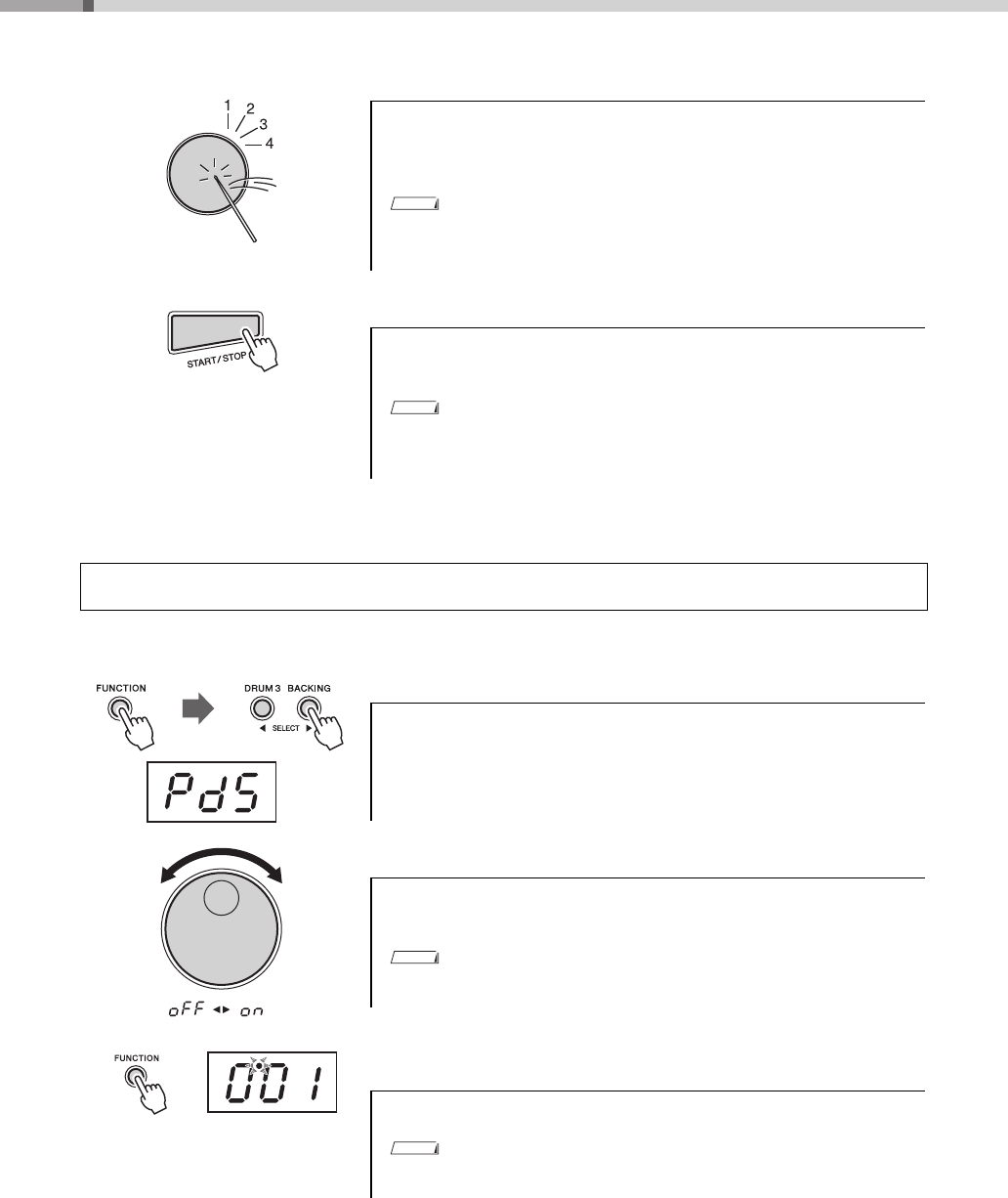

Pad Start ....................................................... 30

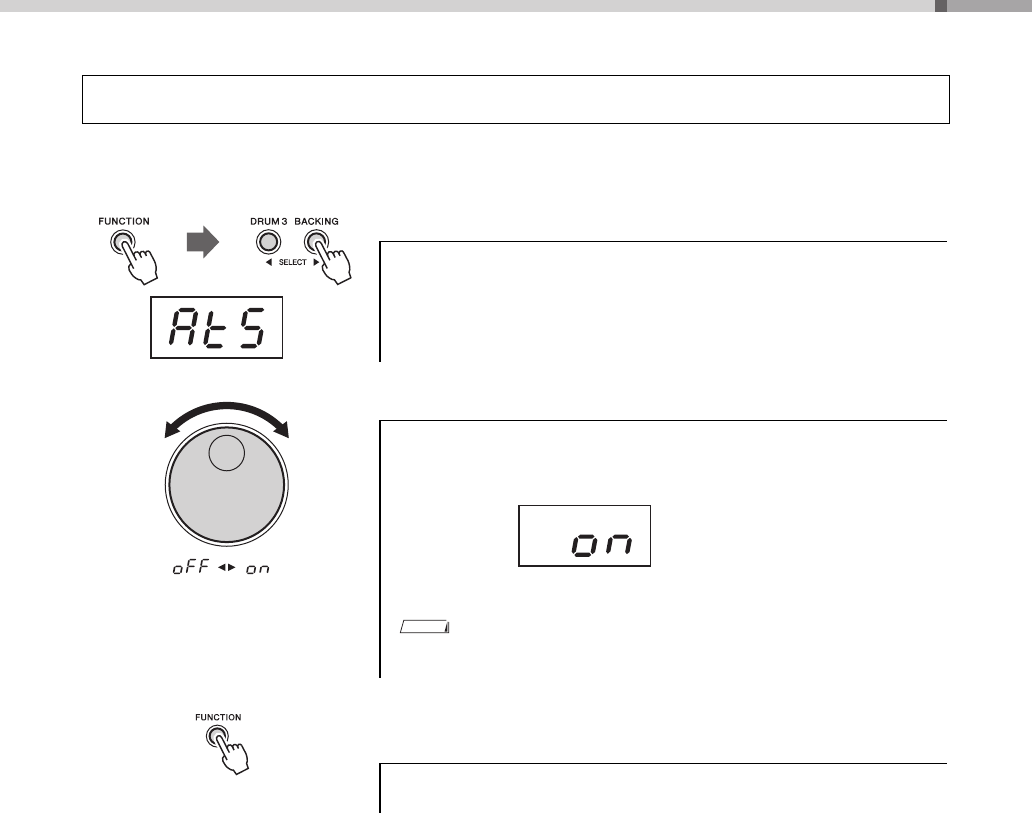

Setting the Auto Kit Select ON/OFF ............. 31

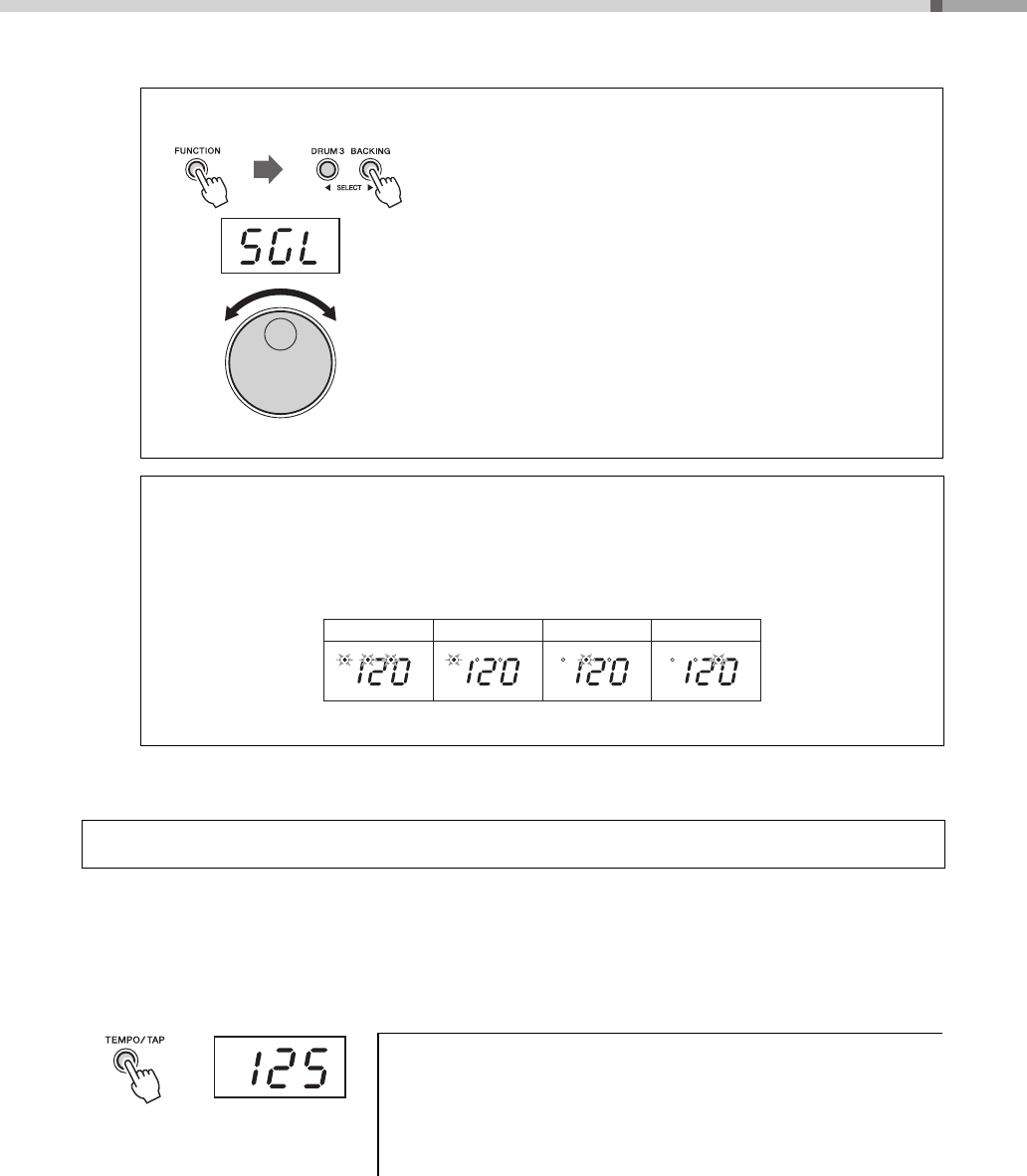

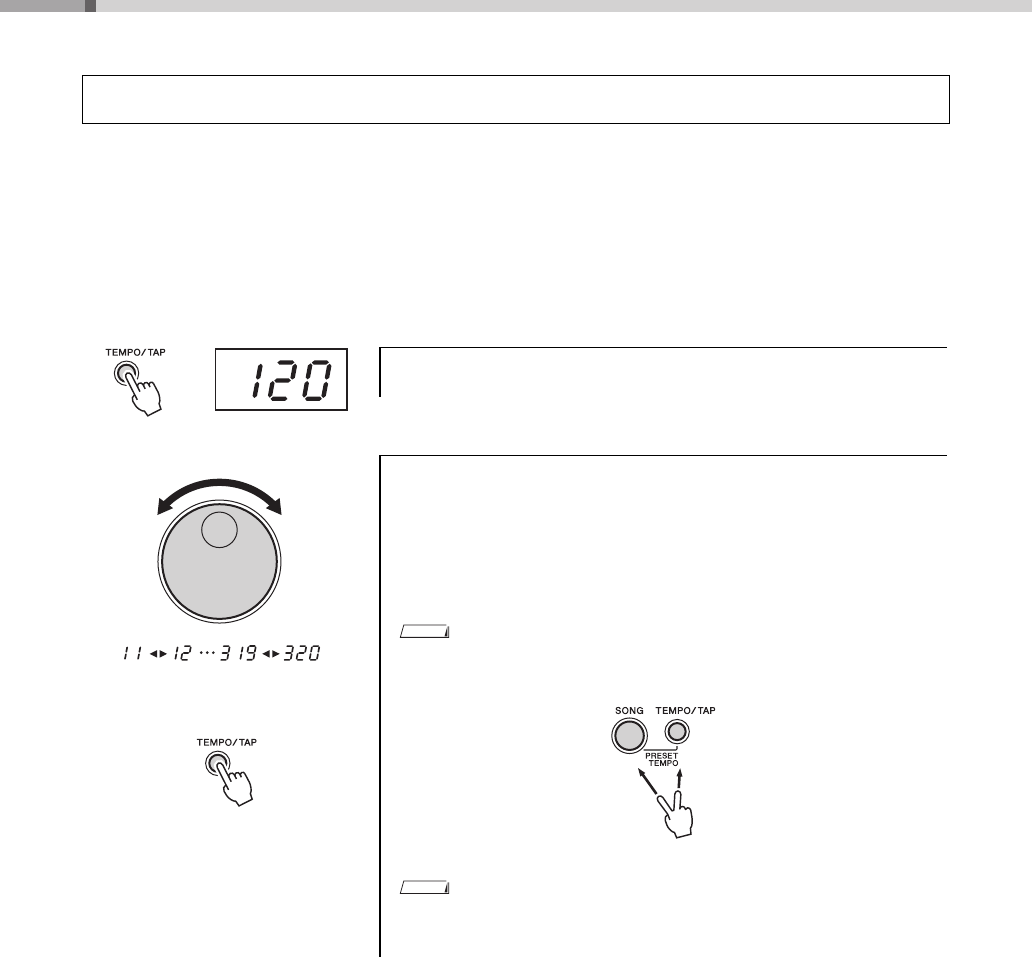

Adjusting the Tempo ..................................... 32

Play along with a Song ................ 33

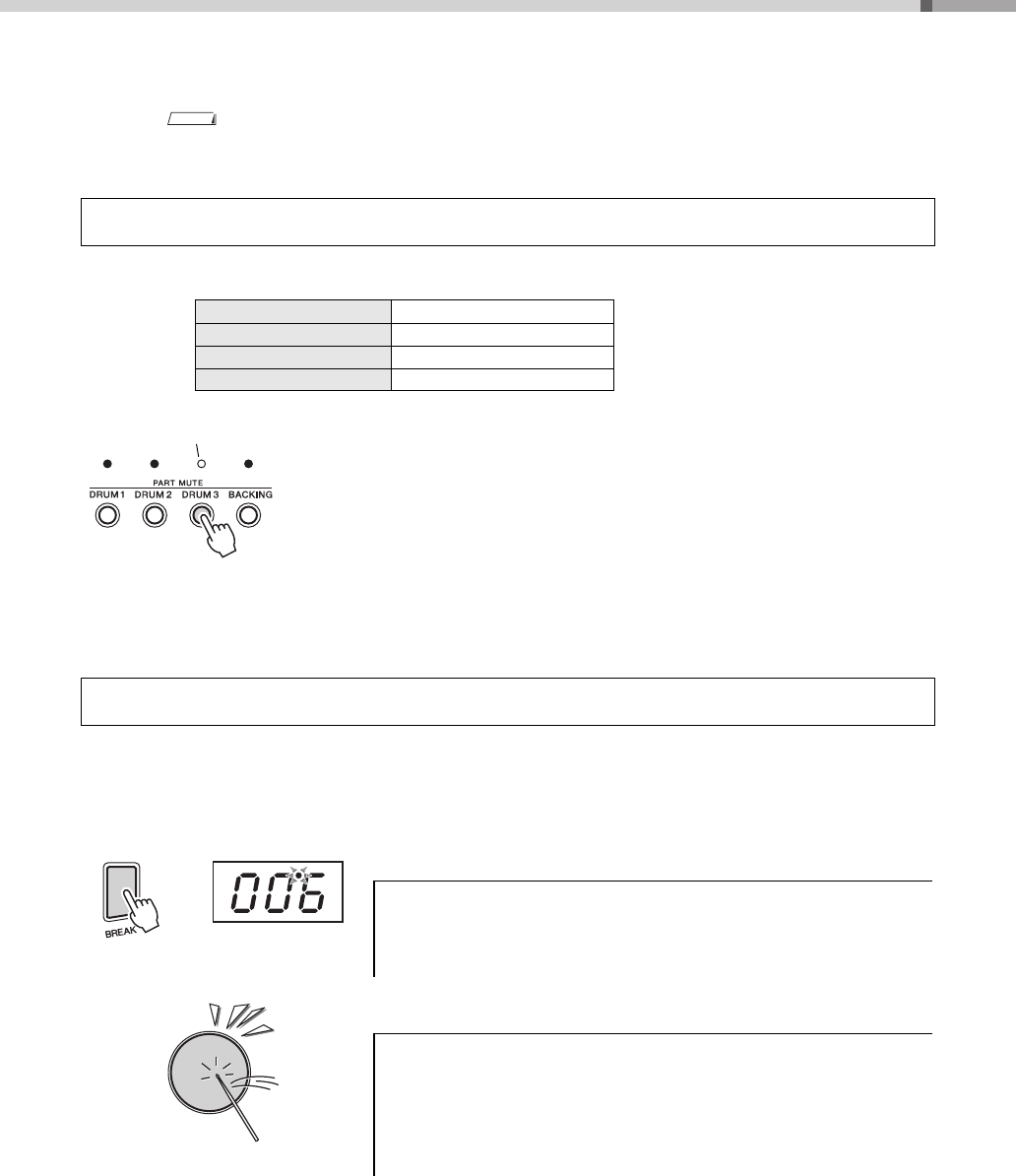

Setting the Track ON/OFF ............................ 33

Break ............................................................ 33

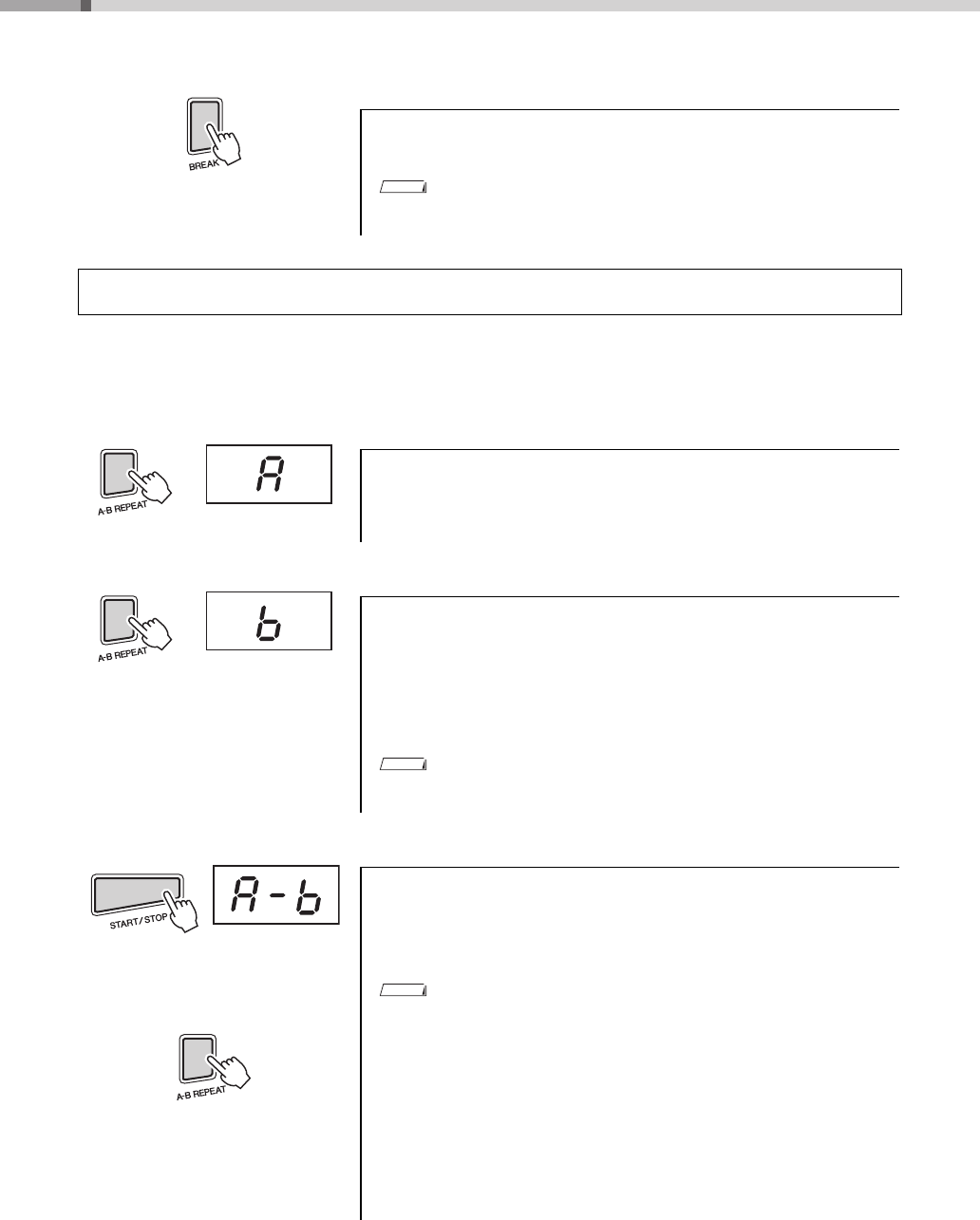

Using A-B Repeat ......................................... 34

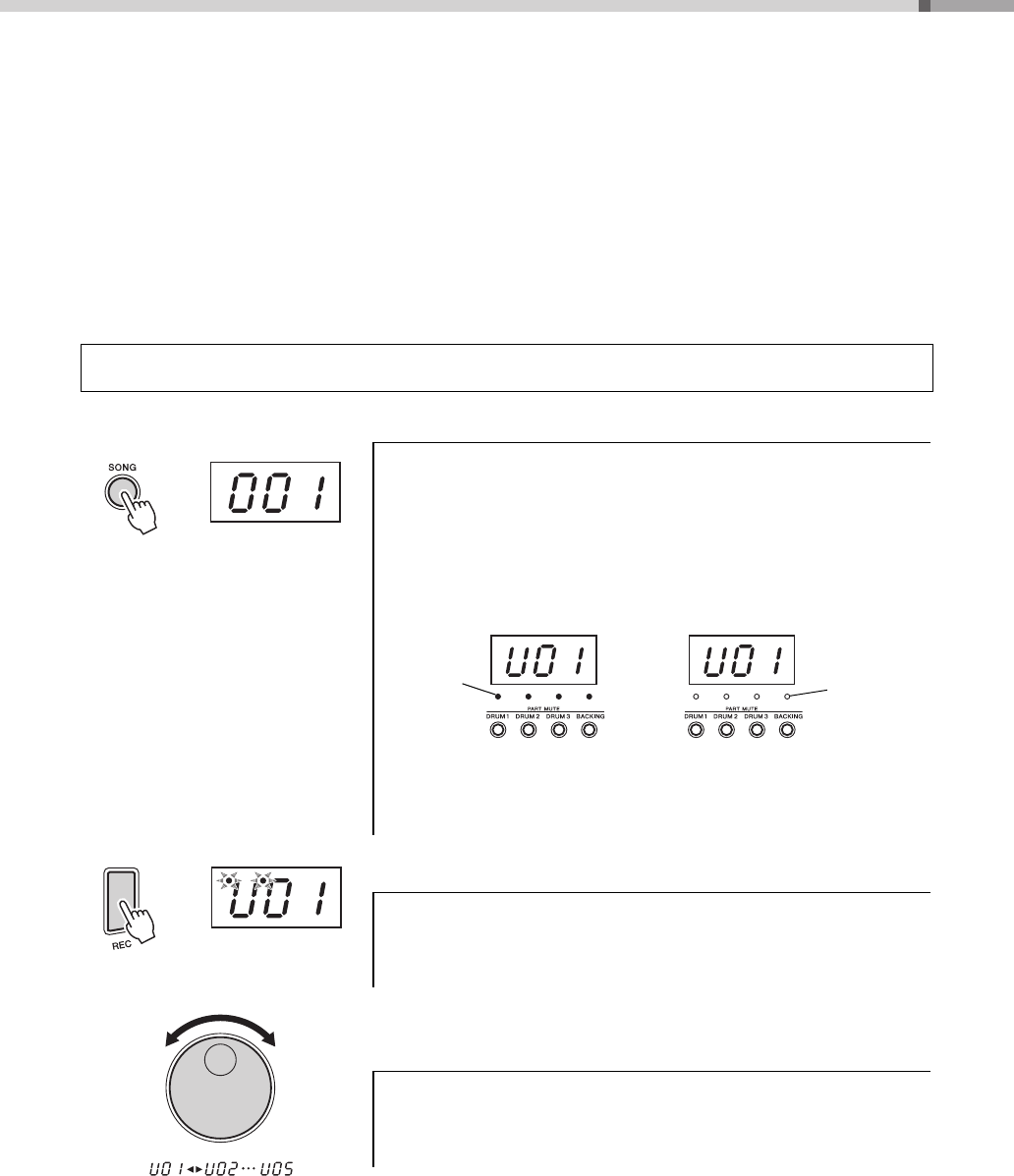

Recording a Song ........................ 35

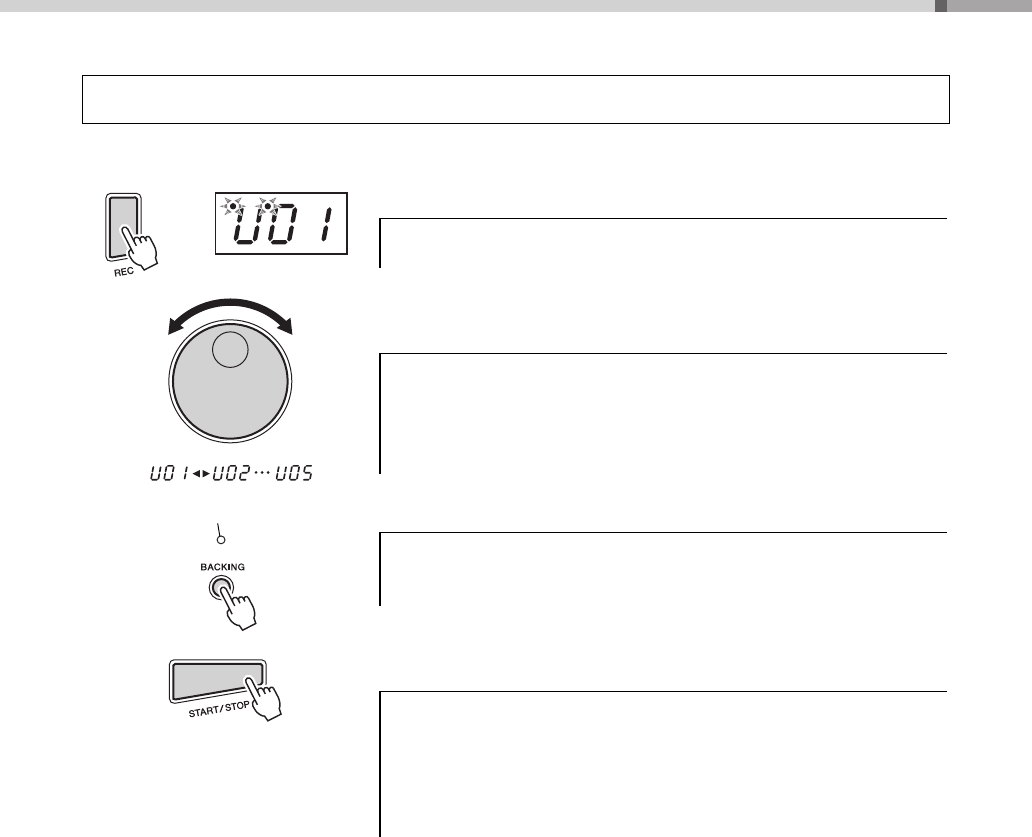

Recording ..................................................... 35

Playing the recorded song ............................ 36

Song Clear .................................................... 37

Connecting to External Devices

... 38

Connecting to External MIDI Devices ........... 38

Connecting to a Computer ............................ 38

Playing an External Audio Device

with the Built-in Speakers ....................... 39

The Functions ............................... 40

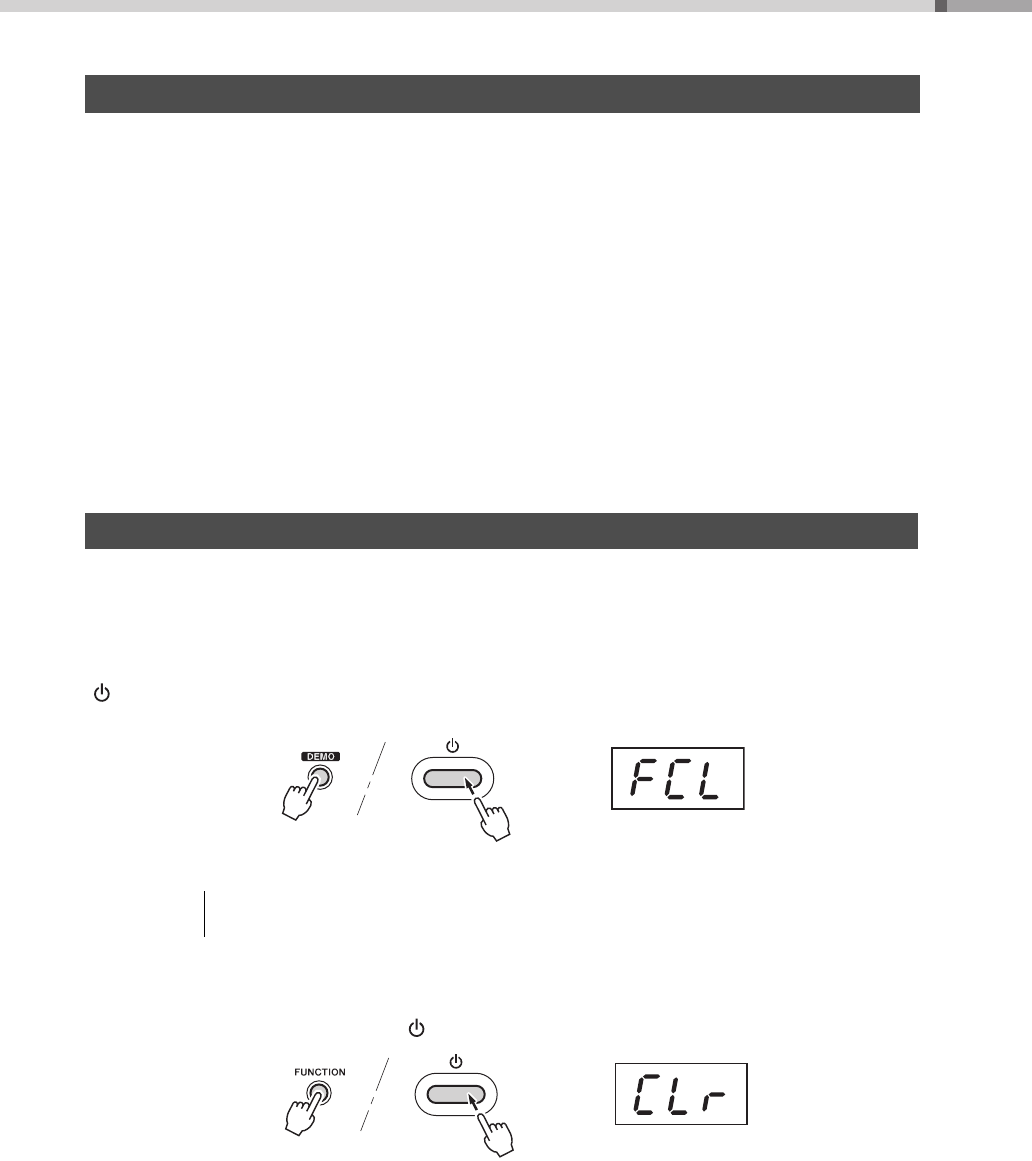

Backup and Initialization ............. 41

Troubleshooting ........................... 42

Drum Voice List ............................ 43

Song List ....................................... 47

Drum Kit List ................................. 48

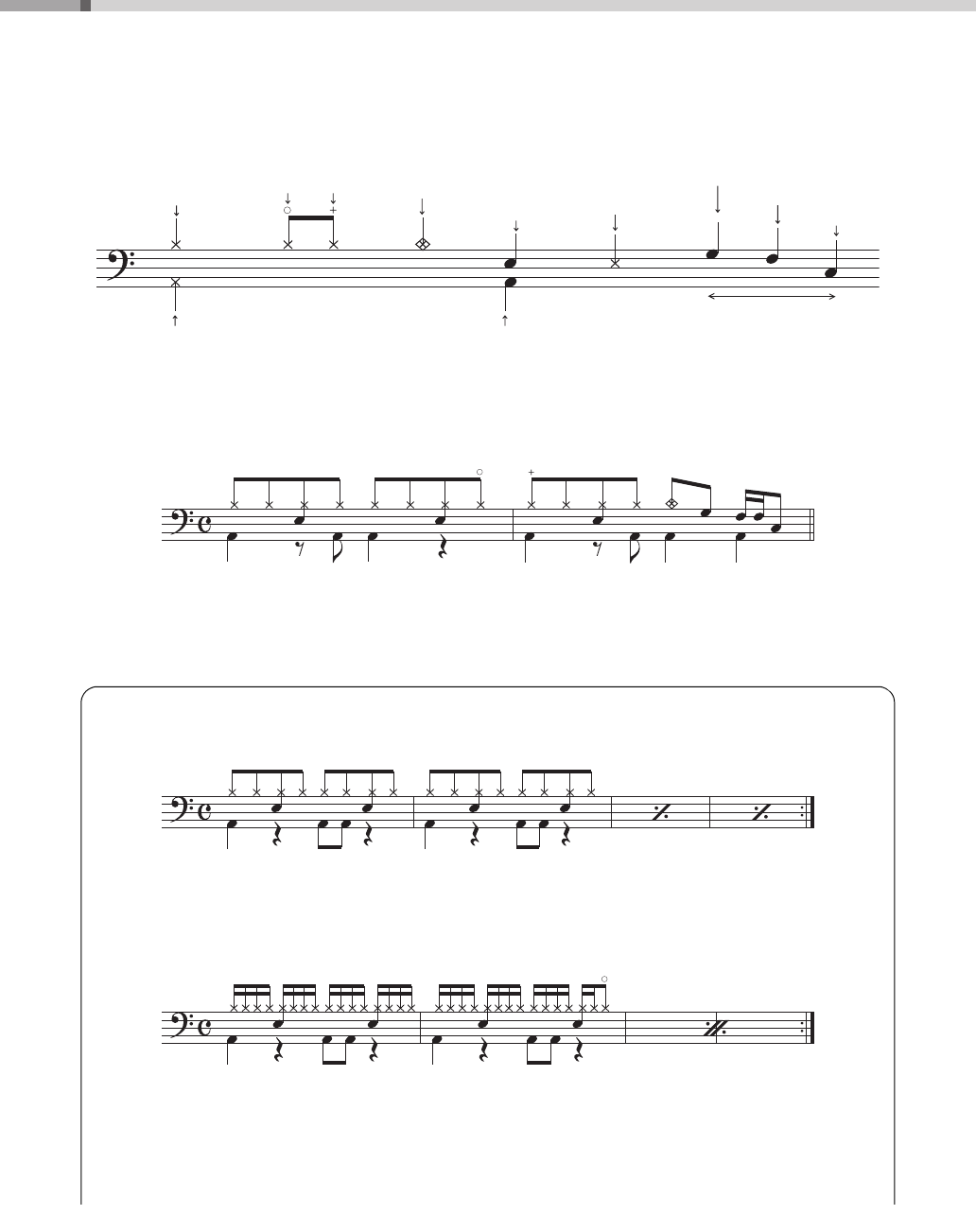

Drum Score ................................... 52

Specifications ............................... 54

Index .............................................. 55

Setting Up

Basic Operations

Appendix

DD-75 Owner’s Manual

10

Panel Controls

qMASTER VOLUME control.............................14

wDial ..................................................................13

eKIT ASSIGN button.........................................20

rSENSITIVITY button .......................................22

tHAND PERC. button.......................................18

yKIT button .......................................................19

uCLICK button ..................................................25

iSONG button ..................................................28

oTEMPO/TAP button ........................................29

!0

PART MUTE DRUM 1–3, BACKING buttons

.....33

!1 FUNCTION button .......................................... 40

!2 DEMO button .................................................. 16

!3 [ ] (Standby/On) switch............................... 13

!4 REC button .....................................................35

!5 BREAK button ................................................33

!6 A-B REPEAT button ....................................... 34

!7 START/STOP button....................................... 28

!8 Display ............................................................ 13

!9 Drum pads (8)................................................. 17

Front Panel

Front Panel

Indicates the song number when power is turned on.

Panel Controls

DD-75 Owner’s Manual 11

@0 DC IN 12V (AC Adaptor) jack.........................12

@1 AUX IN jack .....................................................39

@2 PHONES/OUTPUT jack ..................................14

@3 PEDAL 2 • HI-HAT jack................................... 13

@4 PEDAL 1 • KICK jack...................................... 13

@5 MIDI IN/OUT terminals ...................................38

@0@1@2@3@4@5

Rear Panel

Drum Sticks

• Use the sticks with caution. Do not use

them for anything other than playing the

instrument. Also, to avoid damage or injury,

refrain from waving them recklessly or

throwing them.

• Since speakers are built into this instru-

ment, you should be careful to never leave

any watches, credit cards or any kind of

magnetic storage media on the panel—

doing so may result in data loss or damage

to the items. Also avoid using this instru-

ment near a television or computer moni-

tor, since interference may result.

CAUTION

NOTICE

Pedal 2Pedal 1

Rear Panel

DD-75 Owner’s Manual

12

Setting Up

Be sure to do the following operations BEFORE turning on the power.

Power Requirements

Although the instrument will run either from an AC adaptor

or batteries, Yamaha recommends use of an AC adaptor

whenever possible. An AC adaptor is more environmen-

tally friendly than batteries and does not deplete

resources.

Using an AC Adaptor

Make sure that the [ ] (Standby/On) switch is off, then

connect the AC adaptor in the order shown in the illustra-

tion.

Using Batteries

This instrument requires C size, Alkaline (LR14)/Manga-

nese (R14) batteries, or rechargeable nickel-metal hydride

batteries (rechargeable Ni-MH batteries). The Alkaline bat-

teries or rechargeable Ni-MH batteries are recommended

for this instrument, since other types may result in poorer

battery performance.

1Make sure that the power of the instrument is off.

2Open the battery compartment cover located on

the instrument’s bottom panel.

3Insert the six new batteries, being careful to follow

the polarity markings on the inside of the compart-

ment.

4Replace the compartment cover, making sure that

it locks firmly in place.

• Use only the specified AC adaptor (page 54). Using the

wrong AC adaptor can result in damage to the instrument

or overheating.

• When using the AC adaptor with a removable plug, make

sure to keep the plug attached to the AC adaptor. Using the

plug alone can cause electric shock or fire.

• Never touch the metallic section when attaching the plug.

To avoid electric shock, short circuit or damage, also be

careful that there is no dust between the AC adaptor and

plug.

• When setting up the product, make sure that the AC outlet

you are using is easily accessible. If some trouble or mal-

function occurs, immediately turn the power off and dis-

connect the plug from the outlet.

• Follow the order shown above in reverse when disconnecting

the AC adaptor/power cord.

AC outlet

AC

adaptor

2

1

DC IN jack

(page 11)

WARNING

Plug

Slide the plug as indicated.

The shape of the plug differs

depending on your area.

CAUTION

NOTE

• Connecting or disconnecting the power adaptor with bat-

teries installed may turn the power off, resulting in loss of

data being recorded or transferred at the time.

• Make sure to set the battery type correctly (page 13).

• When battery power becomes too low for proper operation,

the volume may be reduced, the sound may be distorted,

and other problems may occur. When this happens, make

sure to replace all batteries with new ones or already

recharged ones.

• This instrument cannot charge the batteries. Use only an

appropriate charger device when charging.

• Power will be automatically drawn from the AC adaptor if an

AC adaptor is connected while batteries are installed in the

instrument.

NOTICE

NOTE

Setting Up

Setting Up

DD-75 Owner’s Manual 13

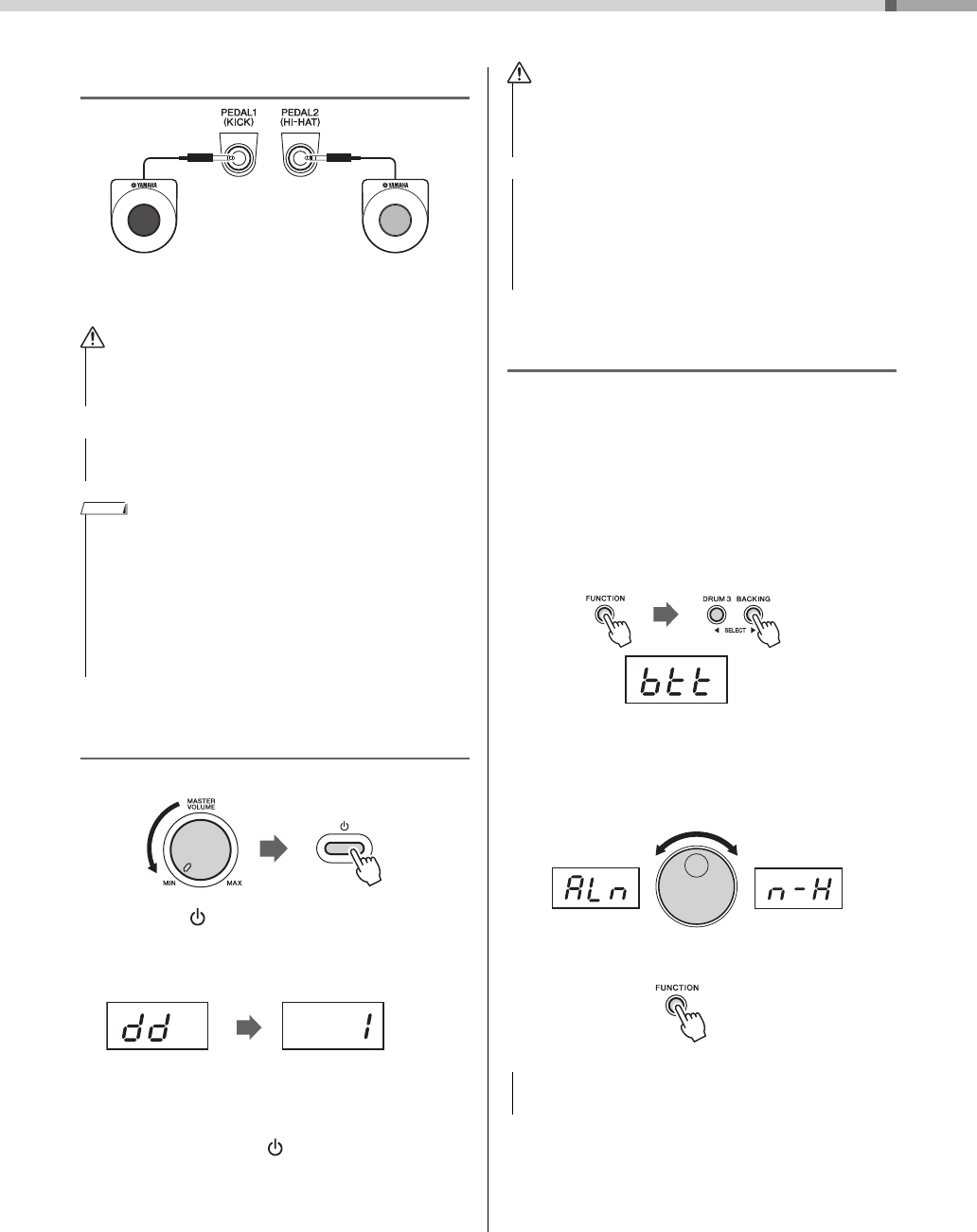

Connecting Pedals 1 and 2

Connect the supplied Pedal 1 to the [PEDAL 1 (KICK)] jack

and Pedal 2 to the [PEDAL 2 (HI-HAT)] jack.

Turning the Power On/Off

1

Turn down the [MASTER VOLUME] dial to “MIN.”

2Press the [ ] (Standby/On) switch to turn the

power on.

The display lights up. Adjust the volume as desired

while striking the pads.

3Press and hold the [ ] (Standby/On) switch

for about a second to turn the power off.

Setting the Battery Type

Depending on the battery type to be used, you may need

to change the battery type setting on this instrument. To

change the setting, first turn on the power to the instru-

ment, then choose the battery type you would like to use.

Alkaline (and manganese) batteries are chosen by default.

1Press the [FUNCTION] button.

Press the [DRUM 3] or [FUNCTION] button a number of

times until the “btt” item appears. The currently

selected battery type appears next to the “btt” indica-

tion.

2Change the battery type by turning the dial.

To select Ni-MH, turn the dial to the right (clockwise)

until the “n-H” item appears, and to select Alkaline/

Manganese, turn the dial to the left (counter-clockwise)

until the “ALn” item appears.

3

Press the [FUNCTION] button to exit.

• Avoid getting caught in or tripping over the pedal cords;

this may cause the instrument to fall and result in damage

or injury.

• Avoid using the pedals directly on a soft floor, since they

may scratch the surface of the floor.

• Make sure that the pedal plugs are properly connected to the

PEDAL jacks before turning on the power.

• Do not press the pedals while turning the power on. Doing

this changes the recognized polarity of the pedal, resulting in

reversed pedal operation.

• You can use an Electronic drum pad KP65 (sold separately) or

an Electronic kick unit KU100 (sold separately) and hi-hat con-

troller HH65 or HH40 (sold separately) plugging into the

[PEDAL 1 (KICK)] jack and [PEDAL 2(HI-HAT)].

Pedal 1 Pedal 2

CAUTION

NOTICE

NOTE

When the power is turned on, Drum Kit number will

appear after the “dd” item appears. Drum Kit num-

ber “1” is normally selected.

• Even when the power switch is turned off, electricity is still

flowing to the product at the minimum level. When you are

not using the product for a long time, make sure to unplug

the power cord from the wall AC outlet.

• Do not attempt any other operations, such as pressing but-

tons or the pedal. Doing so may cause the instrument to

malfunction.

• Do not turn off the power while saving data (a “-” mark

appears and moves from left to right on the display). Doing

so can result in loss of data.

• Failure to set the appropriate battery type may shorten the

battery life. Make sure to set the battery type correctly.

CAUTION

NOTICE

NOTICE

Setting Up

DD-75 Owner’s Manual

14

Adjusting the Master Volume

To adjust the volume of the entire pad/pedal sound, use

the [MASTER VOLUME] dial while striking the pads or

pressing the pedals.

Setting the Auto Power Off function

To prevent unnecessary power consumption, this instru-

ment features an Auto Power Off function that automati-

cally turns the power off if the instrument is not operated

for a specified period of time. The amount of time that

elapses before the power is automatically turned off is 30

minutes by default; however, you can change the setting

as desired (page 40).



Disabling Auto Power Off (simple method)

While holding down the [SONG] button, press the [ ]

(Standby/On) switch to turn the instrument on. The “PoF”

item appears after the “dd” to indicate the Auto Power Off

function has been disabled.

Setting the Master EQ Type

Master equalizer (EQ) settings give you the best possible

sound when listening through different reproduction sys-

tems—the instrument’s internal speakers, headphones, or

an external speaker system.

1Enter the master EQ type setting function.

Press the [FUNCTION] button once, then press the

[DRUM 3] or [BACKING] button a number of times until

the “Eqt” item appears.

After a while, the current master EQ type appears next

to the “Eqt” indiction.

2Select the desired master EQ type.

Turn the dial clockwise to set to “HP” (Headphone), and

turn it counter-clockwise to set to “SP” (Speaker).

3Press the [FUNCTION] button to exit from the

Function mode.

Connecting Headphones or

External Speaker

Connect a pair of headphones to the [PHONES/OUTPUT]

jack. This jack also functions as an external output. By

connecting to a computer, recorder, or other audio device,

you can output the audio signal of this instrument to that

external device. The speakers of this instrument are auto-

matically shut off when a plug is inserted into this jack. You

may also want to change the master EQ type setting to

enjoy the optimum sound for either way of listening.

• Do not use the instrument for a long period of time at a

high or uncomfortable volume level, since this can cause

permanent hearing loss.

CAUTION

• Do not use the instrument/device or headphones for a long

period of time at a high or uncomfortable volume level,

since this can cause permanent hearing loss.

• Before connecting the instrument to other electronic com-

ponents, turn off the power of all the components. Also,

before turning any components on or off, make sure to set

all volume levels to minimum. Otherwise, damage to the

components or electrical shock may occur.

• To avoid possible damage to the external device, first turn on

the power to the instrument, then to the external device. When

turning off the power, do so in reverse order: first turn off the

power to the external device, then to the instrument.

Display Master EQ type

HP for headphones or external speakers

SP

(Default)

for internal speakers

Standard stereo

phone plug

CAUTION

NOTICE

Setting Up

DD-75 Owner’s Manual 15

Using a Snare Drum Stand

This instrument can be installed on a snare drum stand (sold separately)

for convenience and ease in playing.

Snare drum stand (sold separately): SS662, SS740A



Setting Up

• Open the legs wide enough so that the snare drum stand is stable, but

not so much that the pipe touches the floor. Tighten the wing nut E.

• As shown in the illustration, make sure to always position the snare

drum stand so that one of the legs extends toward the player.

• Use wing nut D to adjust the height, and turn B so that it faces the

player.

• Use wing nut C to adjust the angle of B so that the instrument is

installed horizontally.

• Use rotary nut A to loosen the three arm basket to fit the three inden-

tations on the bottom of the instrument.

• Make sure all the nuts are securely tightened.



To install the snare drum stand

Put the arm covers into the indentations on the bottom of the instrument,

and tighten rotary nut A until the arms are secured. Make sure all the

nuts are securely tightened.

Be sure to handle the snare drum stand with care. Follow the important

precautions below. If not, the snare drum stand may overturn, causing the

instrument to drop and damage, possibly resulting in personal injury.

• Always place the snare drum stand on a flat, stable surface.

• Do not apply excessive force to the instrument.

• Do not adjust the height of snare drum stand with the instrument

installed.

• Remove the snare drum stand from the instrument before moving the

instrument.

• Do not use the snare drum stand other than designated ones (page 54).

A

C

Arms

Pipe

Legs

Snare drum stand

Player

B: Faces the player

Keep horizontal

D

E

B

CAUTION

DD-75 Owner’s Manual

16

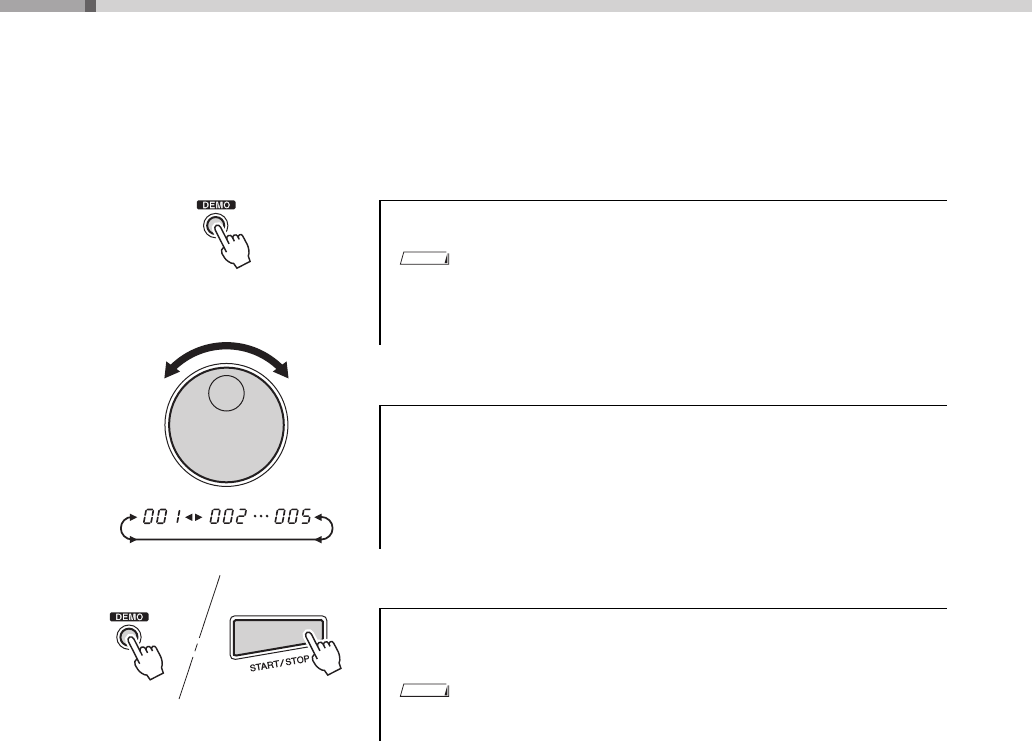

Playing the Demo Song

This instrument features several demonstration songs (“001”–“005”), specially created

to show you the dynamic possibilities of the instrument.

1Start the Demo Song.

2Select a Demo Song Number.

3Stop the Demo Song.

Press the [DEMO] button and the demo song starts playing.

• With the Auto Kit Select feature turned on, the best suited Drum Kit for the song will

automatically be selected. (See the “Setting the Auto Kit Select ON/OFF” on

page 31.)

Use the dial to select a demo song number. Demo song numbers will

increase as the dial is turned to the right (clockwise), and decrease as

the dial is turned to the left (counter-clockwise).

To stop playback, press the [DEMO] button again or press the

[START/STOP] button.

• Song volume cannot be adjusted during demo song playback.

NOTE

NOTE

Basic Operations

DD-75 Owner’s Manual 17

Play the Pads/Pedals

Strike the pad with the supplied drum sticks or your hands to play the drum voices.

When playing the pads with your hands, turn the Hand Percussion feature on by press-

ing the [HAND PERC.] button (the lamp lights).

The sound volume of the pads responds to your playing; when you play soft the vol-

ume is soft, and when you play strongly the volume is loud.

Pad Names

A hi-hat sound is assigned to Pad 6 (Drum Kit 1). Striking

Pad 6 while pressing Pedal 2 produces a closed hi-hat

sound.

Striking Pad 2 without pressing the pedal produces an

open hi-hat sound. Pressing Pedal 2 produces a hi-hit

pedal sound.

Press Pedal 2 to control the Hihat.

(This is in the case of Drum Kit 1; for other

kits, this may control a different sound.)

• When using Pedal 2, touch response

does not function.

NOTE

Pedal 1 features touch response; the volume

responds to how hard you press the pedal.

• If your pressing of the pedal is too slow

or soft, there may be no sound.

NOTE

Pedal 2

180: Hi-Hat Pedal Bright

Pedal 1

3: Maple Bass Drum 3

Pad 1

40: Maple Snare

Open Rim

Pad 4

105: Maple Tom 2

Pad 3

103: Maple Tom 4

Pad 2

102: Maple Tom 5

Pad 6

179: Hi-Hat

Closed

Bright

Pad 5

211: Crash

Cymbal Dark

Pad 8

208:

Ride

Cymbal

Warm 1

Pad 7

210:

Ride

Cymbal Cup

Warm

- Ex. shown, Drum Kit 1

Play the Pads/Pedals

DD-75 Owner’s Manual

18

You can play the pads of the instrument either with the supplied sticks or with your hands. Press and set the fol-

lowing button when you play the instrument with your hands.

1Press the [HAND PERC.] button.

If you perform on the instrument solely with your hands, we recommend that you use this operation to lock the

Hand Percussion so that it is always on. This protects the instrument from being inadvertently changed during

your performance.

1Make sure that Hand Percussion is set to on (the lamp

is lit).

2Set the Hand Percussion Lock to ON.

3To turn off Hand Percussion Lock, press and hold the

[HAND PERC.] button until the “LoC” is no longer

shown on the display.

Setting the Hand Percussion ON/OFF

When you press the [HAND PERC.] button, the button’s lamp lights,

and the pad sensitivity is automatically adjusted for optimum playing

by hand. At the same time, an appropriate song (057) and drum kit

(51) are automatically called up.

• Be sure to strike the pads only with your hands when HAND PERCUSSION is on.

Hand Percussion Lock

Press and hold the [HAND PERC.] button until “LoC” appears on the

display.

Lit

NOTE

Press and hold

Lit

Play the Pads/Pedals

DD-75 Owner’s Manual 19

The instrument allows you to choose from 75 different Drum Kits, which are preset voice combinations set to the

the eight pads and two pedals. (See “Drum Kit List” on page 48.)

The instrument also has ten Custom Drum Kits allowing you to assign the desired voices to the pads or pedals.

(See “Assigning Voices to Individual Pads and Pedals and Saving to a Custom Kit (“C01”–“C10”)” on page 20.)

1Press the [KIT] button.

2Select a Drum Kit Number.

Selecting and Playing a Drum Kit

When you press the [KIT] button, the currently selected Drum Kit

number appears on the display.

Turn the dial to select a Drum Kit number. Drum Kit numbers will

increase as the dial is turned to the right (clockwise), and decrease as

the dial is turned to the left (counter-clockwise).

• Drum Kit number “1” is normally selected when the power is turned on.

• Drum Kits “C01”–“C10” are Custom Kits.

* Custom Kits are those that you’ve assigned the desired voices to each pad and

pedal, then saved the entire assignments as a Kit. The initial settings of “C01”–

“C10” are Drum Kit number 1. (See “Assigning Voices to Individual Pads and

Pedals and Saving to a Custom Kit (“C01”–“C10”)” on page 20.)

NOTE

Play the Pads/Pedals

DD-75 Owner’s Manual

20

Drum Kit Voices can be changed and saved as a Custom Kit “C01”–“C10.” The instrument contains a total of

570 high quality drum sounds plus 30 drum phrases (see the “Drum Voice List” on page 43)—and you can

assign these freely to each of the 8 drum pads and 2 pedals. To call up the saved Custom Kit, press the [KIT]

button and use the dial to select a Custom Kit number.

1Select a Drum Kit (“1”–“75”) you desired to change,

then press the [KIT ASSIGN] button.

2Turn the dial and select a Custom Kit “C01”–“C10” for

saving.

3Select a pad or pedal to be assigned.

4Select a Voice Number.

Repeat the previous steps 3 and 4 for any or all of the pads and pedals.

Assigning Voices to Individual Pads and Pedals and Saving to a Custom Kit

(“

C01

”–“

C10

”)

When you press the [KIT ASSIGN] button, the button’s lamp lights,

and “C01” appears on the display.

Strike any pad one time (or press a pedal), and the voice number of

currently assigned Drum Kit is shown in the display.

You can select the voice by repeatedly striking the pad or repeatedly-

pressing the pedal (while listening to the voice), or by turning the dial.

-Striking the pad or pressing the pedal to select a voice.

Every time the pad is struck or a pedal is pressed, voice numbers will

increase by a value of one (1). In this method, you can hear and

select an assigned voice.

-Using the dial to select a voice.

Turn the dial to the right (clockwise), and voice numbers will increase.

Turn the dial to the left (counter-clockwise), and voice numbers will

decrease.

To cancel, simply press the [KIT] button.

See the “Drum Voice List” on page 43.

Lit

Play the Pads/Pedals

DD-75 Owner’s Manual 21

5Save to a Custom kit.

You can now play the voice you have assigned to the pad/pedal.

To call up the saved Custom Kit, press the [KIT] button and use the dial to

select a Custom Kit number.

• The Reverb Type of the currently assigned Drum Kit will be carried over. To change the

Reverb type, please refer to “Setting the Reverb type.”

This control adds reverberation to the sound by simulating the natural reverberation of a concert hall. The ideal

Reverb type is automatically selected whenever you select a Kit, but you can change to any of the available

Reverb types, if desired.

1Enter the Reverb type setting function.

2Change the reverb type by turning the dial.

3Press the [FUNCTION] button to exit from the Function

mode.

Press the [KIT ASSIGN] button to save to a Custom Kit (the lamp

turns off).

Setting the Reverb type

Press the [FUNCTION] button once, then press the [DRUM 3] or

[BACKING] button a number of times until the “rbt” item appears.

The currently selected Reverb type appears next to the “rbt” indica-

tion.

Unlit

NOTE

Display Reverb Type Display Reverb Type

oFF Off ro2 Room 2

HA1 Hall 1 St1 Stage 1

HA2 Hall 2 St2 Stage 2

HA3 Hall 3 PL1 Plate 1

ro1 Room 1 PL2 Plate 2

Play the Pads/Pedals

DD-75 Owner’s Manual

22

The instrument allows you to custom-set the sensitivity of the pads and pedal 1 (excluding pedal 2).

-Setting all pads and pedal to the same value ..................... page 22

-Setting each pad and pedal to different values .................. page 23

Setting All Pads and Pedal to the Same Value..............................................

The sensitivity value of pads and pedal can be set from F (Fix) and 1 to 4. The sensitivity value of pad 2 cannot

be adjusted. The sensitivity increase according as the number. When you set to F, the sensitivity is stable, and is

not affected by strength of your drumming. The default setting is 2.

1Press the [SENSITIVITY] button.

2Turn the dial and select a sensitivity value.

3Press the [KIT] button to exit from the Sensitivity set-

ting mode.

Setting the Pad Sensitivity

When you press the [SENSITIVITY] button, the current sensitivity

value appears in the display.

• Default value is “A-2” (2).

• The settings “S01” to “S10” let you set the sensitivity for each of the pads and

pedal.

Sensitivity

ALL

NOTE

Play the Pads/Pedals

DD-75 Owner’s Manual 23

Setting each pad and pedal to different values.............................................

The instrument allows you to custom-set the sensitivity of the pads and pedal. The sensitivity value of pad 2 can

not be adjusted.

1Press the [SENSITIVITY] button.

2Strike a pad or press pedal 1.

3Turn the dial to change the value.

4Press the [SENSITIVITY] button to save the setting.

5Press the [KIT] button to exit from the Sensitivity set-

ting mode.

Turn the dial to select the destination to save from “S01” to “S10”.

To display the currently assigned sensitivity value for the pad or pedal 1.

Make sure that the Pad number or Pedal number for which you wish to

change the sensitivity value is shown on the display.

Value range is from F (Fix) and 1 to 4.

To cancel the setting, press the [KIT] button.

Sensitivity

Pad number/

Pedal number

Lit

-F

Pad number/

Pedal number

-4

Pad number/

Pedal number

Unlit

Pad number

Pedal number

Pedal 1

Play the Pads/Pedals

DD-75 Owner’s Manual

24

About the Sensitivity Setting

For beginning percussionists, we recommend setting the sensitivity level higher, in order to

give a more consistent sound volume, even if the pads are hit weakly. For experienced per-

cussionists, we recommend setting it to lower levels. The strength at which pads are hit is

reflected directly, and more intense power is required to make a larger sound.

• If the pedal sound volume is unstable, we recommend that you set the value to “P-F”.

• With an Electronic drum pad KP65 (sold separately) or Electronic kick unit KU100 (sold separately), the sound

volume might seem low. Try increasing the volume setting sensitivity value.

About the Pad Sound Mechanism

Each time you strike a pad, the sensor which is located at the bottom of the pad triggers an

electronic signal and makes a drum sound.

If you strike a pad too strongly, nearby sensors may also respond to the hit and trigger

unwanted sounds. This instrument is set to ignore weak signals from the pads in order to

prevent inadvertent, unwanted sounds. However, this may result in problems when intention-

ally striking two pads simultaneously. If one pad is struck strongly and the other weakly, the

pad struck weakly may not sound (even though you want it to).

To solve this, you can change the settings or alter your playing technique (as described

below).

-Striking two pads simultaneously results in one of the pads not sounding.

Increase the pad sensitivity level. This may solve the problem if you strike one of the

pads weakly.

Better yet, take care to strike both pads with equal force.

-Striking one pad results in other pads also sounding, even though they were not

struck.

Lower the pad sensitivity level. With this setting, pads that are not struck are effec-

tively kept from responding to strong hits on nearby pads.

Pressure

Sound volume

Sensitivity

Pressure

Min. Max Min. Max.

Max. Max. Sensitivity

Pads Pedal

Sound volume

Max.

NOTE

Play the Pads/Pedals

DD-75 Owner’s Manual 25

The instrument includes a click sound with adjustable tempo and time signature.

Setting the numerator of the time signature .................................................

The range is 0 to 16. (The numerator is the top value; for example, in the time signature 6/8, “6” is the numera-

tor.)

1Enter the numerator value setting function.

2Set the numerator value of the time signature.

3Press the [FUNCTION] button to exit from the Function

mode.

Setting the Click ON/OFF

Press the [CLICK] button.

The click sounds in rhythm at the current tempo.

To turn the click off, press the button once again.

Click Settings

Press the [FUNCTION] button once, then press the [DRUM 3] or

[BACKING] button a number of times until the “CLn” indication

appears.

After a while, the current numerator value appears next to the “CLn”

indication.

To raise the value, turn the dial to the right (clockwise), and to lower it,

turn the dial to the left (counter-clockwise).

Play the Pads/Pedals

DD-75 Owner’s Manual

26

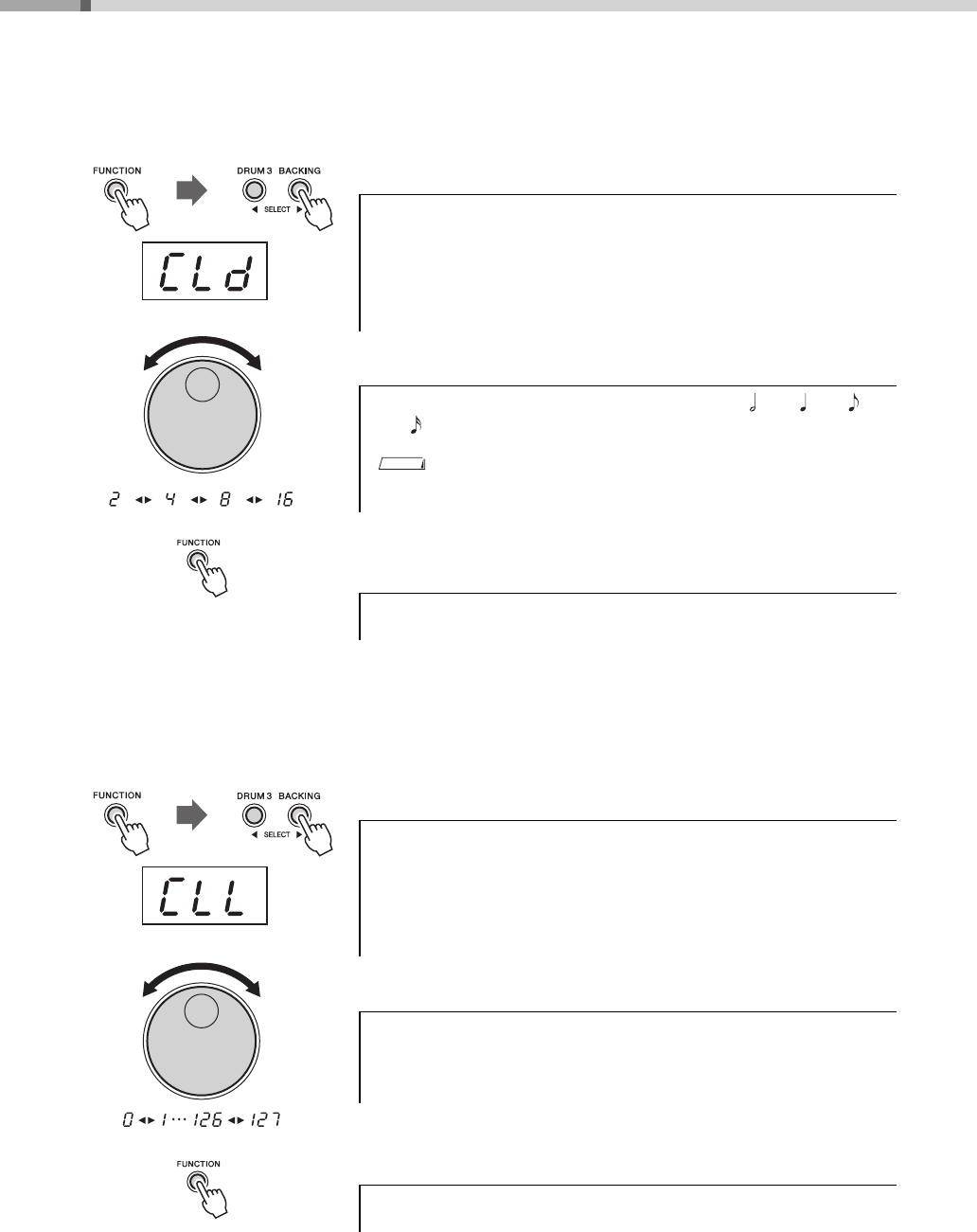

Setting the denominator of the time signature .............................................

Determines the basic note value for each measure; for example, in the time signature 6/8, “8” is the denomina-

tor, or basic note value.

1Enter the denominator value setting function.

2Set the denominator value of the time signature.

3Press the [FUNCTION] button to exit from the Function

mode.

Setting the click volume..................................................................................

Sets the click volume (range: 0–127).

1Enter the click volume setting function.

2Set the click volume by using the dial.

3Press the [FUNCTION] button to exit from the Function

mode.

Press the [FUNCTION] button once, then press the [DRUM 3] or

[BACKING] button a number of times until the “CLd” indication

appears.

After a while, the current denominator value appears next to the

“CLd” indication.

Set the denominator value to one of the values 2 ( ), 4 ( ), 8 ( ),

16 ( ) by using the dial.

• Default value is 4.

Press the [FUNCTION] button once, then press the [DRUM 3] or

[BACKING] button a number of times until the “CLL” indication

appears.

After a while, the current click volume will appear next to the “CLL”

indication.

NOTE

Play the Pads/Pedals

DD-75 Owner’s Manual 27

Setting the click voice .....................................................................................

Set the click voice to Metronome, Cowbell, Stick or Human voice.

1Enter the click voice setting function.

2Turn the dial and select a click voice.

3Press the [FUNCTION] button to exit from the function

mode.

Press the [FUNCTION] button once, then press the [DRUM 3] or

[BACKING] button a number of time until the “CLC” indication

appears.

After a while, the current click voice appears next to the “CLC” indica-

tion.

Press the [CLICK] button to listen to the click voice.

Item Click Voice

trn Metronome

CbL Cowbell

StC Stick (default)

HUn Human voice (one, two, three, four...)

DD-75 Owner’s Manual

28

Playing a Song

This instrument features a wide variety of songs to choose and play: 105 songs, includ-

ing 5 demos, 83 rhythm/fill-in patterns and 17 full songs. (See the “Song List” on page

47.)

Selections “U01”–“U05” can also be used to playback songs you’ve recorded yourself

and/or loaded from computer. Refer to the section “Transferring song files between the

computer and instrument” on page 38 for details. Select one of the songs and listen to

it.

1Press the [SONG] button.

2Select a Song Number.

3Press the [START/STOP] button.

Selecting and Playing a Song

When you press the [SONG] button, the current song number

appears in the display.

Use the dial to select a song number. Song numbers will increase as

the dial is turned to the right (clockwise), and decrease as the dial is

turned to the left (counter-clockwise).

• Song number “001” is automatically selected whenever the power is turned ON.

• With the Auto Kit Select feature turned on, selecting a song will also automatically

select the best suited Drum Kit for that song. (See “Setting the Auto Kit Select ON/

OFF” on page 31.)

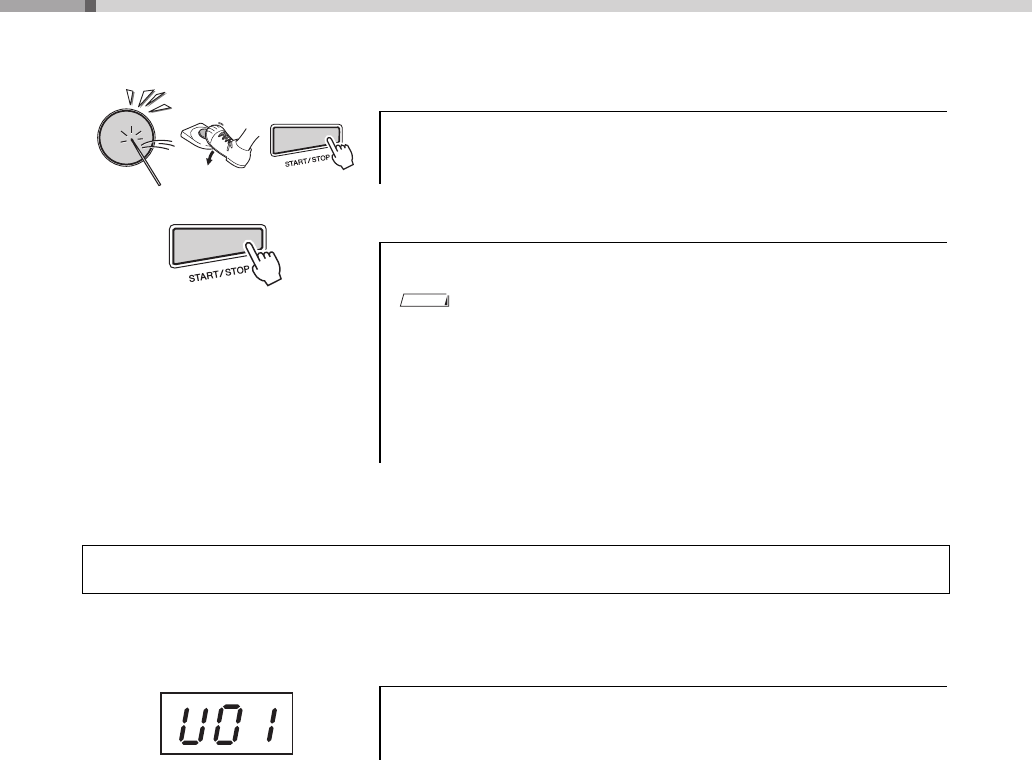

When you press the [START/STOP] button, a one- or two-measure

lead-in plays, and the song starts playing.

As the song is playing, the Song’s current measure will be shown in

the display. Try playing the pads and pedals along with the song.

To stop playback of the song, press the [START/STOP] button once

again.

•Songs “001”–“005” have no lead-ins.

• You can also use the Tap Start function to start songs (page 29).

“U01”–“U05” are User Songs which

you’ve recorded yourself and/or loaded

from computer.

Note that when you press [START/STOP]

button, no sounds are played or LED

lamps beneath the display remain unlit, if

there is no data.

NOTE

NOTE

Playing a Song

DD-75 Owner’s Manual 29

The Tap Start function allows you to set the song’s overall tempo as well as start the accompaniment—simply by

tapping out the rhythm.

The accompaniment will playback at the tempo with which the pads are struck or the pedals are pressed. The

song tempo can be set anywhere from 32 to 320 beats per minute.

1Press the [TEMPO/TAP] button.

-Song Volume

The Song Volume can be used to adjust the balance

between the song accompaniment and your own perfor-

mance.

Enter the Function mode by pressing the [FUNCTION] but-

ton, then press the [DRUM 3] or [BACKING] button a number

of times until the “SGL” item appears. The current Song vol-

ume value appears when it is released.

To raise the value, turn the dial to the right (clockwise), and to

lower it, turn the dial to the left (counter-clockwise). Volume

range is from 0 to 127.

Exit from the Function mode by pressing the [FUNCTION]

button.

-About the Beat Indicator

During song playback, the three beat lamps in the display will flash in a specific pattern to help you

in keeping the beat.

Tap Start

While song playback is stopped, press the [TEMPO/TAP] button. All

three of the beat lamps flash, indicating the instrument is set to Tap

Start standby.

To cancel the Tap Start mode, simply press the [SONG] button once

again.

For a song in 4/4 time at a tempo of 120 bpm (page 32):

1st beat 2nd beat 3rd beat 4th beat

Tempo: 125

Playing a Song

DD-75 Owner’s Manual

30

2Play an appropriate Tap Start.

3Stop the Song playback.

The Pad Start function allows you to start the song simply by striking a pad or pressing a pedal.

1Enter the Pad Start setting function.

2Turn Pad Start On/Off.

3Press the [FUNCTION] button to exit from the Function

mode.

In the case of a song in 4/4, strike any pad or press any pedal (or the

[TEMPO/TAP] button) four times, at a constant tempo, and the

accompaniment will start at the desired tempo.

• The number of times needed to strike the pad will change according to the follow-

ing time signatures; 5/4, 5 times; 4/4, 4 times; 3/4, 3 times; 6/8, 2 times.

Press the [START/STOP] button and the song accompaniment will

stop.

• If External Clock is ON, Tap Start is not effective.

• External Clock On/Off can be set from the [FUNCTION] button (page 40).

Pad Start

Press the [FUNCTION] button once, then press the [DRUM 3] or

[BACKING] button a number of times until the “PdS” item appears.

After a while, the current On/Off status appears next to the “PdS” indi-

cation.

Turn the dial clockwise to set to ON, and turn it counter-clockwise to

set it to OFF.

• Default setting is OFF.

The dot flashes, indicating Pad Start is enabled.

• To stop the song, press the [START/STOP] button.

NOTE

NOTE

NOTE

NOTE

Playing a Song

DD-75 Owner’s Manual 31

With the Auto Kit Select feature turned on, the best suited Drum Kit for the song will automatically be selected.

If Auto Kit Select is OFF, the Drum Kit does not change even if the song number is changed.

1Enter the Auto Kit Select function.

2Turn Auto Kit Select On/Off.

3Press the [FUNCTION] button to exit from the Function

mode.

Setting the Auto Kit Select ON/OFF

Press the [FUNCTION] button once, then press the [DRUM 3] or

[BACKING] button a number of times until the “AtS” item appears.

After a while, the current On/Off status will appear next to the “AtS”

indication.

Turn the dial clockwise to set to ON, and turn it counter-clockwise to

set it to OFF.

• Default setting is ON.

Auto Kit Select on

NOTE

Playing a Song

DD-75 Owner’s Manual

32

The song tempo and Click tempo can be set by using the dial or the [TEMPO/TAP] button. The higher the tempo

value, the faster the tempo.

Tempo value range

• dial : 11–320 beats per minute

• [TEMPO/TAP] button : 32–320 beats per minute

1Press the [TEMPO/TAP] button.

2Set the Tempo.

Adjusting the Tempo

The current tempo value (11–320) appears in the display.

When you use the dial to select the TEMPO, turn the dial to the right

(clockwise) to increase the Tempo value, and turn it to the left (coun-

ter-clockwise) to decrease the value.

When you use the [TEMPO/TAP] button to change the TEMPO in the

case of a song in 4/4, press the [TEMPO/TAP] button four times, and

the accompaniment will start at the desired tempo.

• To reset the tempo to the original preset setting, simultaneously press both the

[SONG] and [TEMPO/TAP] buttons.

• The tempo value cannot be changed during demo playback, recording, or when

external clock is set to on.

NOTE

NOTE

DD-75 Owner’s Manual 33

Play along with a Song

Use the pads and pedals to play along with the song accompaniment.

• The instrument can play a total of 32 notes simultaneously. That includes notes produced by song accompani-

ment, pads, foot pedals, and note data received through the [MIDI IN] jack.

The instrument’s song accompaniment consists of 4 tracks: Drum tracks 1, 2, and 3, and the Backing track.

Pressing a Track button ([DRUM 1], [DRUM 2], [DRUM 3], [BACKING] )

will mute (turn off the sound) the corresponding track

and its indicator lamp will turn off.

Muting DRUM 1, DRUM 2 and DRUM 3 tracks allows you to play along

with the song and practice the missing part.

With the Break function, you can liven up songs by adding your own solos or fills, whenever you want.

Striking a pad while in the Break mode, the song’s accompaniment will be muted until the end of the measure

you have finished your fill or solo.

1During song playback or while song playback is

stopped, press the [BREAK] button.

2Play the Break.

Setting the Track ON/OFF

DRUM 1 Bass Drum*

DRUM 2 Snare Drum*

DRUM 3 Cymbal*

BACKING Backing

Break

The three beat lamps in the display flash, indicating the instrument is

in Break standby mode. To cancel the Break mode, simply press the

[BREAK] button once again.

Strike any pad or pedal during song playback, and the accompani-

ment will mute until the end of the measure you played in. You can

play a drum fill or drum solo during this break.

The instrument plays back the song from the next measure when the

Break measure is completed.

NOTE

* Includes sounds other than bass drum,

snare drum, or cymbal, depending on

the selected song.

Unlit

When drum 3 is muted.

Play along with a Song

DD-75 Owner’s Manual

34

3Exit the Break mode.

If you want to practice a particular section of a song, you can specify that section’s “A” (start repeat) and “B” (end

repeat) points. The accompaniment will continuously repeat between points “A” and “B” allowing you to practice

between those points for as long as you like.

1Set the “A” (start repeat) point.

2Set the “B” (end repeat) point.

3Stop the A-B REPEAT.

To exit the Break mode, press the [BREAK] button.

The Break mode is also exited when the song is stopped.

• The Break does not function if DEMO is started.

Using A-B Repeat

When the song playback has reached the start of the section you

want to practice, press the [A-B REPEAT] button and the “A” repeat

point is set. An “A

” will appear in the display.

When the song playback has reached the end point of the section you

want to practice, press the [A-B REPEAT] button once again to set the

“B” point (“b” appears in the display). A one-measure count-in plays

(“A-b” appears in the display), then the specified section plays back

repeatedly. The current measure number will appear in the display

during repeat playback.

• The A-B Repeat start and end points can only be set in measure steps.

Press the [START/STOP] button and the song accompaniment will

stop.

Press the [START/STOP] button once again and the accompaniment

will again repeat between the set points.

• Repeat is canceled when a different song is selected.

-Exit the Repeat

To exit the A-B Repeat function, press the [A-B REPEAT] button dur-

ing playback, and the A-B Repeat mode will be canceled (the A-B

Repeat points will also be canceled) and normal playback of the

accompaniment will continue.

When the song is stopped, pressing the [A-B REPEAT] button cancels

the A-B Repeat points.

NOTE

NOTE

NOTE

DD-75 Owner’s Manual 35

Recording a Song

The User Songs feature (song numbers “U01”–“U05”) allows you to record and play-

back five original songs. The data capacity is approximately 7,000 notes per song. The

recording will automatically stop when it reaches the capacity.

Data that can be recorded in the User Song Mode

• Drum pad and pedal played data

• Song data (the number cannot be changed while in the RECORD Mode)

• Track On/Off settings

• Tempo setting (the tempo cannot be changed while in the RECORD mode)

• Song Volume setting

1Prepare to Record.

2

Press the [RECORD] button to enter the recording mode.

3Turn the dial and select a User song “U01”–“U05” for

saving.

Recording

Select a desired song (“

001

”–“

105

”), drum kit and tempo setting.

Select one of the User Songs (

“

U01

”–“

U05

”

) when you want to

record your performance from scratch, without using a preset song.

When you select a previously recorded User Song, all the track indi-

cator lamps will light up. When you select an unrecorded User Song,

all the track indicator lamps will light off.

• Note that if you select a User Song which has been recorded or contains data,

it will be overwritten with your newly recorded data.

The dots flash, indicating recording is set to standby.

When you select a preset song or a recorded User Song, the track

indicator lamps of DRUM 1/DRUM 2/DRUM 3 will light off.

Go to step 4 if you have selected a User Song at step 1.

To cancel the recording, press the [REC] button.

Unlit

Lit

Recorded User Song Unrecorded User Song

NOTICE

Recording a Song

DD-75 Owner’s Manual

36

4Start recording.

5Stop Recording.

The recorded User Songs (“U01”–“U05” ) can be played back in the same manner as any song (song num-

bers “001”–“100”).

Press the [START/STOP] button or simply play your performance to

start recording.

To stop recording, press the [START/STOP] button.

• If the memory becomes full while recording is in progress, a “FUL” indication

appears in the display and recording will automatically stop.

• While the data is being recorded (a “–” mark appears and moves from left to

right on the display), never interrupt the power supply (e.g., remove the batter-

ies or unplug the AC adaptor). Doing so can result in a loss of data.

Playing the recorded song

The user songs (“U01”–“U05”) are located to next to the number

“105” (before “001”).

NOTE

NOTICE

Recording a Song

DD-75 Owner’s Manual 37

The Song clear operation completely erases all recorded data on all tracks of a selected user song.

1Press the [REC] button.

2Turn the dial to select the desired song (“U01”–“U05”)

to be cleared.

3Press the [BACKING] button to mute the track.

4Press the [START/STOP] button two times in quick suc-

cession.

Song Clear

To cancel the Clear operation, press the [REC] button again.

The Clear operation will be executed.

• While the data is being cleared (a “–” mark appears and moves from left to right

on the display), never interrupt the power supply (e.g., by removing the batter-

ies or unplugging the AC adaptor). Doing so can result in loss of data.

Press twice

Unlit

NOTICE

DD-75 Owner’s Manual

38

Connecting to External Devices

Use the [MIDI] terminals and standard MIDI cables to connect external MIDI

devices (keyboard, sequencer, etc.).

The MIDI related settings can be can be configured using the corresponding

Function parameter. For details, refer to the “MIDI Reference.”

By connecting this instrument to other MIDI devices or a computer via commercially available USB-MIDI inter-

face, the performance data of the instrument can be used on those other MIDI devices or computer, and also

the performance data from other MIDI devices and computer can be received and sounded with this instrument.

Transferring song files between the computer and instrument ..................

You can transmit song files from your computer to this instrument’s flash memory. Since the area in flash mem-

ory is shared between User songs (“U01”–“U05”) and loaded songs, you may need to erase some User

songs to load the data. Files of SMF format 0 that you’ve loaded to the instrument can be played.

For details about how to transmit the data using the Musicsoft Downloader application, refer to the Online help

topic “Transfering Data Between the Computer and Instrument (for unprotected data)” of the Musicsoft Down-

loader.

- Data that can be loaded to the instrument from a computer

• Songs: 5 Songs max (“U01”–“U05”)

• Data: 7,000 notes per song

• Song data Format: SMF Format 0 (Extention: mid)

- Data that can be transferred to a computer from the instrument

• User songs (“U01”(SONG001.mid)–“U05”(SONG005.mid))

Connecting to External MIDI Devices

Connecting to a Computer

MIDI instrument

USB-MIDI

interface

USB terminal

DD-75

Connecting to External Devices

DD-75 Owner’s Manual 39

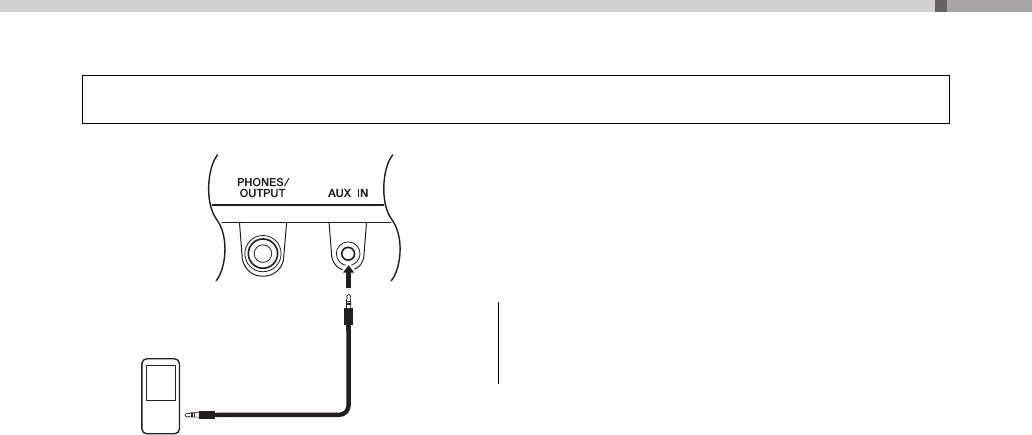

By connecting an audio device such as a portable music

player to the instrument’s [AUX IN] jack, you can output the

sound of the audio device through the built-in speakers of

this instrument. This lets you play the instrument along with

the playback of your audio player.

Playing an External Audio Device with the Built-in Speakers

• To avoid damage to the devices, first turn on the power to the

external device, and then to the instrument. When turning off the

power, first turn off the power to the instrument, and then to the

external device.

Audio device (portable

music player, etc.)

Stereo mini plug

Stereo

mini plug

Audio cable

Headphone jack

NOTICE

Appendix

DD-75 Owner’s Manual

40

The Functions

The “Functions” provide access to a range of detailed instrument parameters. Find the desired item in this Func-

tion List.

1 Press the [FUNCTION] button.

2 Press the [DRUM 3] or [BACKING] button a number of times until desired item appears.

3 Use the dial to set.

4 Press the [FUNCTION] button to exit from the mode.

* The appropriate value is automatically set for each song or kit.

Display Function Range/Settings Default Value Description Page

Click

CLn Time Signature

Numerator 0–16 * Determines the numerator for the time signature

of the Click. 25

CLd Time Signature

Denominator 2/4/8/16 * Determines the basic note value for each mea-

sure. 26

CLL Click Volume 0–127 100 Determines the volume of the Click. 26

CLC Click Voice

Metronome (trn)/

Cowbell (CbL)/

Stick (StC)/

Human voice (Hun)

Stick (StC) Determines the Click sound. 27

Kit

rbt Reverb Type

Off (oFF)/

Hall 1 (HA1)/

Hall 2 (HA2)/

Hall 3 (HA3)/

Room 1 (ro1)/

Room 2 (ro2)/

Stage 1 (St1)/

Stage 2 (St2)/

Plate 1 (PL1)/

Plate 2 (PL2)

* Selects a Reverb type. 21

AtS Auto Kit Select ON (on)

OFF (oFF)ON (on)Determines whether the Auto Kit Select function

is on or off. 31

Song

SGL Song Volume 0–127 100 Determines the volume of Songs. 29

PdS Pad Start ON (on)

OFF (oFF)OFF (oFF)Determines whether the Pad Start function is on

or off. 30

MIDI

LCL Local Control ON (on)

OFF (oFF)ON (on)

Determines whether the instrument's pads and

pedals controls the internal tone generator (ON)

or not (OFF).

Refer to

“MIDI

Refer-

ence

Manual”

ECL External Clock ON (on)

OFF (oFF)OFF (oFF)

Determines whether the instrument synchronizes

to the internal clock (OFF) or an external clock

(ON).

AnS MIDI Note Number

Auto Selection

ON (on)

OFF (oFF)ON (on)Determines whether to assign MIDI note number

automatically (ON) or manually (OFF).

not MIDI Note Number -C2–G8 (0–127) - Assigns MIDI note numbers for each pads and

pedals.

Others

Eqt Master EQ Type Speaker (SP)/

Headphone (HP)Speaker (SP)

Determines whether the sound is heard through

internal speakers (SP), or headphones or an

external speaker system (HP).

14

APt Auto Power Off Time

OFF/5/10/15/30/60/120

(min.) 30 (min.)

Specifies the time that will elapse before the

instrument’s power is automatically turned off. 14

btt Battery Type

Alkaline-manganese

(ALn)/Nickel hydride

(n-H)

Alkaline-

manganese

(ALn)

Selects the type of batteries you have installed to

this instrument. 13

DD-75 Owner’s Manual 41

Backup and Initialization

Some internal parameters will be backed up to internal memory even if the power is turned off.

You can initialize all internal memory to the default settings or initialize the memory with the exception of the

Songs.

* Value selected when the power is turned off and values assigned to Custom Kit “S01”–“S10.”

This function erases all backup data in the instrument’s flash memory and restores the initial default settings.

The following initialization procedures are provided.

Initial Clear

To clear all data backed up to the internal flash memory (described above), turn the power on by pressing the

[ ] (Standby/On) switch while holding the [DEMO] button. The backed up data will be erased and the default

values restored.

Back Up Clear

To clear all backed up data that has been memorized to the internal flash memory (with the exception of song

data), turn the power on by pressing the [ ] (Standby/On) switch while holding the [FUNCTION] button.

Backup

Initialization

• When you execute the Initial Clear operation, all backup data will be cleared. You can save the

data of the five built-in User Songs to a computer by using Musicsoft Downloader.

Following parameters remain in memory

• User Songs (including songs loaded from

computer)

•Custom Kit “C01”–“C10”

• Pad/Pedal Sensitivity*

• Click Volume

• Click Voice

• Auto Kit Select ON/OFF

• Song Volume

• Pad Start ON/OFF

• MIDI Note Number Auto Selection ON/

OFF

• MIDI Note Number

• Master EQ Type

• Auto Power Off Time

• Battery Type

“FCL” appears, followed by song

number “001”

NOTICE

“Clr” appears, followed by

song number “001”

DD-75 Owner’s Manual

42

Troubleshooting

Problem Cause/Solution

Power suddenly and unexpectedly turns off. This is normal and the Auto Power Off function may

have been activated (page 14). If desired, disable the

Auto Power Off function.

When the instrument is turned on, power is turned

off suddenly and unexpectedly.

The protection circuit has been activated due to over

current. This may occur when an AC adaptor other than

the one specified is used, or an AC adaptor is damaged.

Use the specified adaptor (page 54) only. If it should

appear to be malfunctioning, discontinue use immedi-

ately and have it inspected by qualified Yamaha service

personnel.

A buzz or click occurs momentarily when the

instrument is turned ON or OFF

This is a normal power surge noise that occurs when

the POWER switch is operated.

The LED display is completely dark. The batteries are low and should be replaced with a

complete set of six new batteries immediately. Ideally,

an optional AC adaptor should be used to power the

instrument.

When the pads are struck (or pedals are pressed),

the display is dark and returns to “1”.

The Custom Kit voice assignments or sensitivity

settings of each pads and pedals have disap-

peared or defaulted.

When using a mobile phone, noise is produced. Using a mobile phone in close proximity to the instru-

ment may produce interference. To prevent this, turn off

the mobile phone or use it further away from the instru-

ment.

Noise is heard from the instrument’s speakers or

headphones when using the instrument with the

application on iPhone/iPad.

When you use the instrument along with the application

on your iPhone/iPad, we recommend that you set “Air-

plane Mode” to “ON” on your iPhone/iPad in order to

avoid noise caused by communication.

No sound comes from the instrument. • The volume is set too low. Adjust the volume (page

29).

• A plug is inserted into the [PHONES/OUTPUT] jack

and should be taken out (page 14).

• The LOCAL ON/OFF is set to OFF. Set the LOCAL

ON/OFF to ON (page 40).

Suddenly “FUL” appears and recording is stopped. The amount of recorded data has exceeded the limit of

7,000 notes per song.

Song is automatically started when pad is struck

(or pedal is pressed).

Pad Start is set to ON. Set Pad Start to OFF (page 30).

DD-75 Owner’s Manual 43

Drum Voice List

-

Panel Voice List

Vocie

No. Voice name

1 Maple Bass Drum 1

2 Maple Bass Drum 2

3 Maple Bass Drum 3

4 Oak Bass Drum

5 Bass Drum Hard Rock 1

6 Bass Drum Hard Rock 2

7 Bass Drum Hard Rock 3





8 Bass Drum Ambient+





9 Bass Drum Open Power

10 Bass Drum Close Power

11 Bass Drum Soft

12 Bass Drum Hard

13 Bass Drum

14 Bass Drum 2

15 Bass Drum H

16 Bass Drum Rock

17 Bass Drum Gate

18 Bass Drum Analog L

19 Bass Drum Analog H

20 Kick Techno Q

21 Kick Techno L

22 Kick Techno

23 Bass Drum Jazz

24 Bass Drum Soft L

25 Kick T8 1

26 Kick T8 2

27 Kick T8 3

28 Kick T8 4

29 Kick Tek Power

30 Kick Zap Hard

31 T8 Kick Bass

32 Kick Blip

33 Kick Fx Hammer

34 Bass Drum Vox 1

35 Bass Drum Vox 2

36 Kick Slimy

37 Gran Cassa

38 Gran Cassa Mute

39 Maple Snare Head

40 Maple Snare Open Rim

41 Maple Side Stick

42 Oak Snare Head

43 Oak Snare Open Rim

44 Oak Side Stick

45 Snare Head Hard Rock

46

Snare Open Rim Hard Rock

47 Side Stick Hard Rock

48 Snare Soft Power

49 Snare Power

50 Snare Rough

51 Open Rim Shot Power

52 Snare Power 2

53 Snare Rough 2

54 Snare Soft

55 Snare

56 Snare Tight

57 Open Rim Shot

58 Snare Soft 2

59 Snare 2

60 Snare Tight 2

61 Open Rim Shot 2

62 Snare Room L

63 Snare Room H

64 Snare Noisy

65 Snare Rock

66 Snare Rock Rim

67 Snare Snappy Electronic

68 Snare Noisy 2

69 Snare Analog 1

70 Snare Techno

71 Snare Clap

72 Snare Dry

73 Rim Gate

74 Snare Jazz L

75 Snare Jazz M

76 Band Snare 1

77 Band Snare 2

78 Orchestra Snare Left Hand

79

Orchestra Snare Right Hand

80 Brush Tap

81 Brush Slap

82 Snare T8 1

83 Snare T8 2

84 Snare T8 3

85 Snare T8 4

86 Snare T8 5

87 Snare T8 6

88 Snare T8 7

89 Snare Garage L

90 Snare Hammer

91 Snare Clap Analog

92 Snare T8 Rim

93 Snare Analog CR

94 Snare Hip 1

95 Snare Hip 2

96 Snare Hip Gate

97 Snare Break 1

98 Snare Fx 1

99 Snare Vox

100 Snare Open Rim Vox

101 Maple Tom 6

102 Maple Tom 5

103 Maple Tom 4

104 Maple Tom 3

105 Maple Tom 2

106 Maple Tom 1

107 Oak Tom 6

108 Oak Tom 5

109 Oak Tom 4

110 Oa k To m 3

Vocie

No. Voice name

111 Oak Tom 2

112 Oa k To m 1

113 Tom Hard Rock 6

114 Tom Hard Rock 5

115 Tom Hard Rock 4

116 Tom Hard Rock 3

117 Tom Hard Rock 2

118 Tom Hard Rock 1

119 To m Po we r 6

120 Tom Power 5

121 Tom Power 4

122 Tom Power 3

123 Tom Power 2

124 Tom Power 1

125 High Tom

126 Mid Tom H

127 Mid Tom L

128 Low Tom

129 Floor Tom H

130 Floor Tom L

131 Tom Room 6

132 Tom Room 5

133 Tom Room 4

134 Tom Room 3

135 Tom Room 2

136 Tom Room 1

137 Tom Rock 6

138 Tom Rock 5

139 Tom Rock 4

140 Tom Rock 3

141 Tom Rock 2

142 Tom Rock 1

143 Tom Electronic 6

144 Tom Electronic 5

145 Tom Electronic 4

146 Tom Electronic 3

147 Tom Electronic 2

148 Tom Electronic 1

149 Tom Analog 6

150 Tom Analog 5

151 Tom Analog 4

152 Tom Analog 3

153 Tom Analog 2

154 Tom Analog 1

155 Tom Jazz 6

156 Tom Jazz 5

157 Tom Jazz 4

158 Tom Jazz 3

159 Tom Jazz 2

160 Tom Jazz 1

161 Tom Brush 6

162 Tom Brush 5

163 Tom Brush 4

164 Tom Brush 3

165 Tom Brush 2

Vocie

No. Voice name

Drum Voice List

DD-75 Owner’s Manual

44

166 Tom Brush 1

167 Tom T8 7

168 Tom T8 6

169 Tom T8 4

170 Tom T8 3

171 Tom T8 2

172 Tom T8 1

173 Tom Vox 6

174 Tom Vox 5

175 Tom Vox 4

176 Tom Vox 3

177 Tom Vox 2

178 Tom Vox 1

179 Hi-Hat Closed Bright

180 Hi-Hat Pedal Bright

181 Hi-Hat Open Bright

182 Hi-Hat Closed Dark

183 Hi-Hat Pedal Dark

184 Hi-Hat Open Dark

185 Hi-Hat Closed Dark 2

186 Hi-Hat Pedal Dark 2

187 Hi-Hat Open Dark 2

188 Hi-Hat Closed Power

189 Hi-Hat Pedal Power

190 Hi-Hat Open Power

191 Hi-Hat Closed Power 2

192 Hi-Hat Closed

193 Hi-Hat Pedal

194 Hi-Hat Open

195 Hi-Hat Closed Analog 1

196 Hi-Hat Closed Analog 2

197 Hi-Hat Open Analog

198 Hi-Hat Closed Analog 3

199 Hi-Hat Closed Analog 4

200 Hi-Hat Open Analog 2

201 Hi-Hat Closed T8

202 Hi-Hat Pedal T8

203 Hi-Hat Open T8

204 Hi-Hat Closed Vox

205 Hi-Hat Pedal Vox

206 Hi-Hat Open Vox

207 Crash Cymbal Warm

208 Ride Cymbal Warm 1

209 Ride Cymbal Warm 2

210 Ride Cymbal Cup Warm

211 Crash Cymbal Dark

212 Chinese Cymbal 2

213 Splash Cymbal 2

214 Crash Cymbal Bright

215 Ride Cymbal Bright

216 Ride Cymbal Cup Bright

217 Crash Cymbal Dark 2

218 Crash Cymbal Warm 2

219 Ride Cymbal Warm 3

220 Ride Cymbal Cup Warn 2

221 Crash Cymbal Dark 3

Vocie

No. Voice name

222 Crash Cymbal Power 1

223 Crash Cymbal Power 2

224 Ride Cymbal Power 1

225 Ride Cymbal Power 2

226 Ride Cymbal Cup Power

227 Chinese Cymbal Power

228 Splash Cymbal Power

229 Crash Cymbal 1

230 Crash Cymbal 2

231 Ride Cymbal 1

232 Ride Cymbal 2

233 Ride Cymbal Cup

234 Chinese Cymbal

235 Splash Cymbal

236 Cymbal Analog

237 Hand Cymbal 1

238 Hand Cymbal 1 Short

239 Hand Cymbal 2

240 Hand Cymbal 2 Short

241 Crash Cymbal T8

242 Crash Cymbal Vox 1

243 Ride Cymbal Vox

244 Ride Cymbal Cup Vox

245 Crash Cymbal Vox 2

246 Side Stick Power

247 Side Stick

248 Side Stick Analog

249 Hand Clap

250 Hand Clap 2

251 Clap T9

252 Khaligi Clap 1

253 Hand Clap Vox

254 Sticks

255 Castanet

256 Tambourine 2

257 Tambourine

258 Finger Snap

259 Vibraslap

260 Metronome Click

261 Metronome Bell

262 Timpani D1

263 Timpani D#1

264 Timpani E1

265 Timpani F1

266 Timpani F#1

267 Timpani G1

268 Timpani G#1

269 Timpani A1

270 Timpani A#1

271 Timpani B1

272 Timpani C2

273 Timpani C#2

274 Timpani D2

275 Timpani D#2

276 Timpani E2

277 Timpani F2

Vocie

No. Voice name

278 Timpani F#2

279 Timpani G2

280 Timpani G#2

281 Conga H Open

282 Conga H Mute

283 Conga H Slap Open

284 Conga H Slap

285 Conga H Slap Mute

286 Conga H Tip

287 Conga H Heel

288 Conga L Open

289 Conga L Mute

290 Conga L Slap Open

291 Conga L Slap

292 Conga L Tip

293 Conga L Heel

294 Conga L Slide

295 Conga Open

296 Conga Mute

297 Conga Slap

298 Conga Tip

299 Conga Heel

300 Conga Open-Slap

301 Conga 2 H Open

302 Conga 2 H Mute

303 Conga 2 H Slap

304 Conga 2 H Tip

305 Conga 2 H Heel

306 Conga 2 H Open-Slap

307 Conga 2 L Slap

308 Conga 2 L Open

309 Conga 2 L Mute

310 Conga 2 L Tip

311 Conga 2 L Heel

312 Conga T8 1

313 Conga T8 2

314 Conga T8 3

315 Bongo H Open 1 Finger

316 Bongo H Open 3 Fingers

317 Bongo H Rim

318 Bongo H Slap

319 Bongo H Tip

320 Bongo H Heel

321 Bongo L Open 1 Finger

322 Bongo L Open 3 Fingers

323 Bongo L Rim

324 Bongo L Slap

325 Bongo L Tip

326 Bongo L Heel

327 Bongo 2 H Mute

328 Bongo 2 L Open 1 Finger

329 Quinto Slap

330 Quinto Open

331 Quinto Mute

332 Quinto Heel

333 Quinto Tip

Vocie

No. Voice name

Drum Voice List

DD-75 Owner’s Manual 45

334 Quinto Open-Slap

335 Tumba Open

336 Tumba Mute

337 Tumba Slap

338 Timbale H Open

339 Timbale L Open

340 Paila H

341 Paila L

342 Timbale 2 H Rim

343 Timbale 2 L Rim

344 Timbale H Rim

345 Timbale L Rim

346 Timbale 2 H

347 Timbale 2 L

348 Cowbell Top

349 Cowbell 2

350 Cowbell T8

351 Mambo Cowbell

352 Agogo H

353 Agogo L

354 Cabasa

355 Maracas

356 Guiro Short

357 Guiro Long

358 Metal Guiro Short

359 Metal Guiro Long

360 Claves

361 African Claves

362 Wood Block H

363 Wood Block L

364 Cuica Mute

365 Cuica Open

366 Cuica H Short

367 Cuica M Short

368 Cuica L Short

369 Triangle Mute

370 Triangle Open

371 Shaker

372 Jingle Bells

373 Wind Chime

374 Cajon 2 L

375 Cajon 2 Mute

376 Cajon 2 Slap

377 Surdo 2 Mute

378 Surdo 2 Open

379 Surdo 2 Stop

380 Surdo 2 Side Stick

381 Surdo 1 Mute

382 Surdo 1 Open

383 Surdo 1 Stop

384 Tamborim 2 Rim

385 Tamborim 2 Open

386 Tamborim 2 Finger Back

387 Tamborim 3 Down

388 Tamborim 3 Up

389 Tamborim 1 Open

Vocie

No. Voice name

390 Tamborim 1 Mute

391 Zabumba Open Right Hand

392 Zabumba Mute Right Hand

393 Zabumba Stick Left Hand

394 Timbau Open

395 Timbau Mute

396 Whistle Short

397 Whistle Long

398

Tan Tan 1 Closed Right Hand

399 Tan Tan 1 Open Right Hand

400 Tan Tan 1 Slap Right Hand

401 Tan Tan 1 Body Left Hand

402 Pandeiro L Thumb Closed

403 Pandeiro L Thumb Open

404 Pandeiro L Toe Rim

405 Pandeiro L Heel

406 Pandeiro L Slap

407 Pandeiro Open

408 Pandeiro Tip

409 Pandeiro Slap

410 Repique Anel Thumb Rim

Left Hand

411 Repique Anel Thumb Rim

Right Hand

412 Repique Anel Mute

413 Repique Anel Open

414 Repique de Mao Slap

415 Repique de Mao Thmb Rim

416 Repique de Mao Open

417 Caixa Open Rim

418 Caxixi Shake

419 Cabasa Roll

420 Caixa

421 Chajchas

422 Agogo Bell 1

423 Agogo Bell 2

424 Agogo Click 1

425 Agogo Click 2

426 Ganza

427 Reco-Reco

428 Darbuka Open

429 Darbuka Mute

430 Darbuka Slap

431 Tablah Tak 3

432 Tablah Tak 1

433 Tablah Tak 4

434 Tablah Tak 2

435 Tablah Sak 2

436 Tablah Sak 1

437 Tablah Dom 1

438 Tablah Tak Finger 4

439 Tablah Tak Trill 1

440 Tablah Tak Finger 3

441 Tablah Tak Trill 2

442 Tablah Prok

443 Daholla Sak 2

444 Daholla Sak 1

Vocie

No. Voice name

445 Daholla Tak 1

446 Daholla Dom

447 Daholla Tak 2

448 Katem Tak Doff

449 Katem Dom

450 Katem Sak 1

451 Katem Tak 1

452 Katem Sak 2

453 Katem Tak 2

454 Zarb Back mf

455 Zarb Tom f

456 Zarb Eshareh

457 Zarb Whipping

458 Tombak Tom f

459 Tombak Back f

460 Tombak Snap f

461 Neghareh Tom f

462 Neghareh Back f

463 Neghareh Pelang f

464 Riq Snouj 2

465 Riq Snouj 1

466 Riq Sak

467 Riq Snouj 3

468 Riq Snouj 4

469 Riq Tak 1

470 Riq Brass 1

471 Riq Tak 2

472 Riq Brass 2

473 Riq Dom

474 Sagat 1

475 Sagat 2

476 Sagat 3

477 Baya ge

478 Baya ke

479 Baya ghe

480 Baya ka

481 Tabla na

482 Tabla tin

483 Tablabaya dha

484 Chipri

485 Khanjira Open

486 Khanjira Slap

487 Khanjira Mute

488 Khanjira Bend Up

489 Khanjira Bend Down

490 Hatheli Long

491 Hatheli Short

492 Manjira Open

493 Manjira Closed

494 Jhanji Open

495 Jhanji Closed

496 Mondira Open

497 Mondira Closed

498 Dafli Open

499 Dafli Rim

500 Dhol 1 Open

Vocie

No. Voice name

Drum Voice List

DD-75 Owner’s Manual

46

-Phrase List/

501 Dhol 1 Slap

502 Dhol 2 Open

503 Dhol 2 Slap

504 Dhol 2 Rim

505 Dholak 1 Open

506 Dholak 1 Mute

507 Dholak 1 Slap

508 Dholak 2 Open

509 Dholak 2 Slide

510 Dholak 2 Rim 1

511 Dholak 2 Rim 2

512 Dholki H Open

513 Dholki H Mute

514 Dholki L Open

515 Dholki H Slap

516 Dholki L Slide

517 Mridangam na

518 Mridangam din

519 Mridangam ki

520 Mridangam ta

521 Mridangam Chapu

522 Mridangam L Closed

523 Mridangam L Open

524 Dandia Short

525 Dandia Long

526 Bangu

527 Paigu M

528 Dagu Heavy

529 Zhongcha Open

530 Zhongcha Mute

531 Luo Big

532 Luo H

533 Zhongluo Open

534 Xiaoluo Open

535 Xiaocha Mute

Vocie

No. Voice name

536 Muyu M

537 Djembe L

538 Djembe Mute

539 Djembe Slap

540 Pot Drum Open

541 Pot Drum Closed

542 Talking Drum Open

543 Talking Drum Bend Up

544 Talking Drum Slap

545

Talking Drum Left Hand Open

546 Oodaiko

547 Oodaiko Rim

548 Yaguradaiko

549 Yaguradaiko Rim

550 Atarigane

551 Shimedaiko

552 Tsudumi

553 Ainote

554 Scratch H

555 Scratch L

556 Yo!

557 Go!

558 Get up!

559 Whoow!

560 Huuaah!

561 Uh!+Hit

562 Footsteps

563 Frog

564 Rooster

565 Dog

566 Cat

567 Owl

568 Horse Neigh

569 Cow

570 Lion

Vocie

No. Voice name Voice

No. Voice Name

571 Rock 1

572 Rock 2

573 Rock 3

574 Rock 4

575 Rock’n Roll

576 16 beat

577 Hard Shuffles

578 Blues Shuffle

579 Contemporary 1

580 Contemporary 2

581 Soul

582 ClubMix

583 House

584 Jazz Funk

585 Ballad

586 R & B

587 Motown

588 Urban Funk

589 Jazz

590 Samba 1

591 Samba 2

592 Samba 3

593 Arabic 1

594 Arabic 2

595 Indian 1

596 Indian 2

597 African

598 Conga

599 Bongo

600 Timbal

 The voice is recorded in stereo.

By assigning Closed and Open Hi-Hat voices to both the Pad and Foot Pedal 2,

those voices can be controlled with the Foot Pedal 2 as follows:

• Strike the pad while pressing the Foot Pedal 2, the “Closed” Hi- Hat voice

will sound.

• Strike the pad without pressing the Foot Pedal 2, the “Open” Hi- Hat voice

will sound.

• Press the Foot Pedal 2 without striking the pad, the Hi-Hat “Pedal” voice will

sound.

NOTE:

• Phrase data cannot be transmitted.

• The pan data for each voice is fixed and cannot be changed, regardless of the pad

assignments. For example, if a voice containing a “left” pan setting is assigned to a right

pad, the actual sound will come from the left.

DD-75 Owner’s Manual 47

Song List

Song

No. Song Name

Demo

001 Rockadelic

002 16 Beat Ballad

003 Latin Pop

004 DD Funk

005 World Beat

Pattern

006 Hard Rock 1

007 Hard Rock 2

008 Hard Rock 3

009 Hard Rock 4

010 Hard Rock 5

011 Heavy Metal 1

012 Heavy Metal 2

013 Heavy Metal 3

014 Southern Rock

015 Latin Rock

016 Groovy Rock

017 8 Beat 1

018 8 Beat 2

019 8 Beat 3

020 8 Beat 4

021 8 Beat Pop

022 8 Beat Rock’n Roll

023 16 Beat 1

024 16 Beat 2

025 16 Beat Dance

026 8 Beat Ballad 1

027 8 Beat Ballad 2

028 16 Beat Ballad 1

029 16 Beat Ballad 2

030 16 Beat Ballad 3

031 16 Beat Shuffle

032 6/8 Ballad

033 6/8 Slow Rock

034 Pop Shuffle 1

035 Pop Shuffle 2

036 Rock’n Roll Shuffle

037 Electro Dance

038 Dance Soul

039 Dance Beat

040 Hip Hop Shuffle 1

041 Hip Hop Shuffle 2

042 Techno Pop

043 Disco 1

044 Disco 2

045 4 Beat

046 Swing Jazz

047 5/4 Jazz

048 7/8 Jazz

049 Funky NYC

050 Soul

051 Soul Funk

052 Rock’n Roll

053 6/8 Blues

054 Country

055 Samba

056 Bossa Nova

057 Conga Bossa Nova

058 Soul Bossa Nova

059 Mambo

060 Cha Cha Cha

061 Rumba

062 Salsa

063 Beguine

064 Reggae

065 Waltz

066 Jazz Waltz

067 March

068 6/8 March

069 Saeidy

070 Maksoum

Song

No. Song Name

071 Baladi

072 Laff

073 Ayoub

074 Brazilian Samba

075 Chorinho

076 Partido Alto

077 Forro

078 Baiao

079 Bhangra

080 Bhajan

081 Bollywood Mix

082 Rajasthan

083 Dandiya

084 African

085 Folklore

086 Japanese 1

087 Japanese 2

088 Chinese

Song

089 Hard Rock

090 8 Beat Pop

091 8 Beat Rock

092 16 Beat Pop

093 16 Beat Ballad

094 6/8 Ballad

095 Pop Rock

096 Pop Shuffle

097 Fusion Shuffle

098 Rock’n Roll

099 Club Mix

100 Disco

101 Jazz Funk

102 Blues Shuffle

103 Funk

104 Bossa Nova

105 Latin Fusion

Song

No. Song Name

Demo: These songs demonstrate the drum sounds and rhythms.

Pattern: These are special loop-repeating patterns for drum practice.

Song: These include drum and fill-in patterns. There is no loop playback.

DD-75 Owner’s Manual

48

Drum Kit List

Kit

No. Kit Name Voice

No. Pedal 1 Voice

No. Pedal 2 Voi ce

No. Pad 1 Voi ce

No. Pad 2 Voice

No. Pad 3

1Maple Kit 1 3Maple Bass

Drum 3 180 Hi-Hat Pedal

Bright 40 Maple Snare

Open Rim 102 Maple Tom 5 103 Maple Tom 4

2Maple Kit 2 3Maple Bass

Drum 3 180 Hi-Hat Pedal

Bright 40 Maple Snare

Open Rim 102 Maple Tom 5 103 Maple Tom 4

3Maple Kit 3 3Maple Bass

Drum 3 180 Hi-Hat Pedal

Bright 40 Maple Snare

Open Rim 102 Maple Tom 5 208 Ride Cymbal

Warm 1

4Maple Kit 4 3Maple Bass

Drum 3 180 Hi-Hat Pedal

Bright 39 Maple Snare

Head 103 Maple Tom 4 105 Maple Tom 2

5Oak Kit 1 4Oak Bass Drum 183 Hi-Hat Pedal

Dark 43 Oak Snare Open

Rim 108 Oak Tom 5 109 Oak Tom 4

6Oak Kit 2 4Oak Bass Drum 183 Hi-Hat Pedal

Dark 43 Oak Snare Open

Rim 108 Oak Tom 5 109 Oak Tom 4

7Oak Kit 3 4Oak Bass Drum 183 Hi-Hat Pedal

Dark 43 Oak Snare Open

Rim 108 Oak Tom 5 215 Ride Cymbal

Bright

8Oak Kit 4 4Oak Bass Drum 183 Hi-Hat Pedal

Dark 42 Oak Snare Head 108 Oak Tom 5 111 Oak Tom 2

9Hard Rock Kit 1 7Bass Drum Hard

Rock 3 186 Hi-Hat Pedal

Dark 2 46 Snare Open Rim

Hard Rock 114 To m H a r d Rock 5 115 Tom Hard Rock 4

10 Hard Rock Kit 2 10 Bass Drum Close

Power 189 Hi-Hat Pedal

Power 45 Snare Head Hard

Rock 115 Tom H a r d Ro ck 4 219 Ride Cymbal

Warm 3

11 Hard Rock Kit 3 8Bass Drum

Ambient+ 189 Hi-Hat Pedal

Power 46 Snare Open Rim

Hard Rock 114 To m H a r d Rock 5 115 Tom Hard Rock 4

12 Hard Rock Kit 4 16 Bass Drum Rock 193 Hi-Hat Pedal 66 Snare Rock Rim 137 Tom Rock 6 139 To m Rock 4

13 Hard Rock Kit 5 16 Bass Drum Rock 193 Hi-Hat Pedal 65 Snare Rock 132 Tom Roo m 5 134 To m R o o m 3

14 Analog T8 Kit 1 28 Kick T8 4 202 Hi-Hat Pedal T8 87 Snare T8 6 168 Tom T 8 6 170 To m T 8 3

15 Analog T8 Kit 2 36 Kick Slimy 202 Hi-Hat Pedal T8 91 Snare Clap

Analog 167 To m T8 7 169 To m T 8 4

16 Analog T8 Kit 3 25 Kick T8 1 202 Hi-Hat Pedal T8 84 Snare T8 3 314 Conga T8 3 313 Conga T8 2

17 Vox Kit 34 Bass Drum Vox 1 205 Hi-Hat Pedal Vox 100 Snare Open Rim

Vox 176 Tom Vox 3 177 Tom Vox 2

18 Stereo Kit 1 10 Bass Drum Close

Power 189 Hi-Hat Pedal

Power 49 Snare Power 119 Tom Po w e r 6 121 Tom Power 4

19 Stereo Kit 2 9Bass Drum Open

Power 189 Hi-Hat Pedal

Power 52 Snare Power 2 120 Tom Po w e r 5 122 Tom Power 3

20 Stereo Kit 3 8Bass Drum

Ambient+ 189 Hi-Hat Pedal

Power 53 Snare Rough 2 119 Tom Power 6 121 Tom Power 4

21 Stereo Kit 4 8Bass Drum

Ambient+ 189 Hi-Hat Pedal

Power 48 Snare Soft Power 121 To m Po w e r 4 123 Tom Power 2

22 Stereo Kit 5 10 Bass Drum Close

Power 189 Hi-Hat Pedal

Power 50 Snare Rough 119 Tom Power 6 121 Tom Power 4

23 Stereo Ballad Kit 8Bass Drum

Ambient+ 189 Hi-Hat Pedal

Power 49 Snare Power 120 To m Powe r 5 122 Tom Power 3

24 Ballad Kit 1 13 Bass Drum 193 Hi-Hat Pedal 55 Snare 127 Mid Tom L 129 Floor Tom H

25 Ballad Kit 2 14 Bass Drum 2 193 Hi-Hat Pedal 58 Snare Soft 2 127 Mid Tom L 129 Floor Tom H

26 Analog Ballad Kit 1 19 Bass Drum

Analog H 196 Hi-Hat Closed

Analog 2 69 Snare Analog 1 149 Tom Analog 6 151 Tom Analog 4

27 Analog Ballad Kit 2 18 Bass Drum

Analog L 196 Hi-Hat Closed

Analog 2 69 Snare Analog 1 149 Tom Analog 6 151 Tom Analog 4

28 Stereo Shuffle Kit 1 9Bass Drum Open

Power 189 Hi-Hat Pedal

Power 50 Snare Rough 119 Tom Power 6 121 Tom Power 4

29 Stereo Shuffle Kit 2 10 Bass Drum Close

Power 189 Hi-Hat Pedal

Power 53 Snare Rough 2 119 Tom Power 6 121 Tom Power 4

30 Stereo Shuffle Kit 3 10 Bass Drum Close

Power 189 Hi-Hat Pedal

Power 53 Snare Rough 2 119 Tom Power 6 121 Tom Power 4

31 Stereo Slow Rock

Kit 10 Bass Drum Close

Power 189 Hi-Hat Pedal

Power 48 Snare Soft Power 119 To m Pow e r 6 121 Tom Power 4

32 Electric Kit 1 17 Bass Drum Gate 193 Hi-Hat Pedal 68 Snare Noisy 2 143 Tom Electronic 6 145 Tom Electronic 4

33 Electric Kit 2 17 Bass Drum Gate 193 Hi-Hat Pedal 67 Snare Snappy

Electronic 143 Tom Electronic 6 145 Tom Electronic 4

34 Dance Kit 1 21 Kick Techno L 199 Hi-Hat Closed

Analog 4 71 Snare Clap 149 Tom Analog 6 151 Tom Analog 4

35 Dance Kit 2 22 Kick Techno 199 Hi-Hat Closed

Analog 4 70 Snare Techno 149 Tom Analog 6 151 Tom Analog 4

Pad 2 Pad 3

Pad 1 Pad 4

Pedal 1Pedal 2

Pad 7Pad 5

Pad 8Pad 6

Drum Kit List

DD-75 Owner’s Manual 49

Kit

No.

Voice

No. Pad 4 Voic e

No. Pad 5 Vo ice

No. Pad 6 Voi ce

No. Pad 7 Voice

No. Pad 8

1105

Maple Tom 2 211 Crash Cymbal Dark 179 Hi-Hat Closed Bright 210 Ride Cymbal Cup

Warm 208 Ride Cymbal Warm 1

2105

Maple Tom 2 211 Crash Cymbal Dark 179 Hi-Hat Closed Bright 213 Splash Cymbal 2 208 Ride Cymbal Warm 1

3105

Maple Tom 2 211 Crash Cymbal Dark 179 Hi-Hat Closed Bright 212 Chinese Cymbal 2 210 Ride Cymbal Cup

Warm

441

Maple Side Stick 211 Crash Cymbal Dark 179 Hi-Hat Closed Bright 210 Ride Cymbal Cup

Warm 208 Ride Cymbal Warm 1

5111

Oak Tom 2 217 Crash Cymbal Dark 2 182 Hi-Hat Closed Dark 216 Ride Cymbal Cup

Bright 215 Ride Cymbal Bright

6111

Oak Tom 2 217 Crash Cymbal Dark 2 182 Hi-Hat Closed Dark 213 Splash Cymbal 2 215 Ride Cymbal Bright

7111

Oak Tom 2 217 Crash Cymbal Dark 2 182 Hi-Hat Closed Dark 212 Chinese Cymbal 2 216 Ride Cymbal Cup

Bright

844

Oak Side Stick 217 Crash Cymbal Dark 2 107 Oak Tom 6 215 Ride Cymbal Bright 182 Hi-Hat Closed Dark

9117

Tom Hard Rock 2 221 Crash Cymbal Dark 3 185 Hi-Hat Closed Dark 2 220 Ride Cymbal Cup

Warn 2 219 Ride Cymbal Warm 3

10 117 Tom Hard Rock 2 222

Crash Cymbal Power 1

185 Hi-Hat Closed Dark 2 220 Ride Cymbal Cup

Warn 2 218

Crash Cymbal Warm 2

11 117 Tom Ha rd Ro c k 2 222

Crash Cymbal Power 1

185 Hi-Hat Closed Dark 2 234 Chinese Cymbal 225 Ride Cymbal Power 2

12 141 To m Rock 2 229 Crash Cymbal 1 192 Hi-Hat Closed 348 Cowbell Top 231 Ride Cymbal 1

13 136 To m Room 1 229 Crash Cymbal 1 192 Hi-Hat Closed 234 Chinese Cymbal 231 Ride Cymbal 1

14 172 To m T8 1 241 Crash Cymbal T8 201 Hi-Hat Closed T8 350 Cowbell T8 251 Clap T9

15 171 To m T8 2 241 Crash Cymbal T8 201 Hi-Hat Closed T8 92 Snare T8 Rim 93 Snare Analog CR

16 312 Conga T8 1 241 Crash Cymbal T8 201 Hi-Hat Closed T8 92 Snare T8 Rim 251 Clap T9

17 178 Tom Vox 1 242 Crash Cymbal Vox 1 204 Hi-Hat Closed Vox 244 Ride Cymbal Cup Vox 245 Crash Cymbal Vox 2

18 123 Tom Power 2 222

Crash Cymbal Power 1

188 Hi-Hat Closed Power 228 Splash Cymbal Power 225 Ride Cymbal Power 2

19 124 Tom Power 1 222

Crash Cymbal Power 1

191

Hi-Hat Closed Power 2

228 Splash Cymbal Power 225 Ride Cymbal Power 2

20 123 Tom Power 2 222

Crash Cymbal Power 1

191

Hi-Hat Closed Power 2

228 Splash Cymbal Power 225 Ride Cymbal Power 2

21 246 Side Stick Power 228 Splash Cymbal Power 256 Tambourine 2 222

Crash Cymbal Power 1

188 Hi-Hat Closed Power

22 123 Tom Power 2 222

Crash Cymbal Power 1

188 Hi-Hat Closed Power 228 Splash Cymbal Power 225 Ride Cymbal Power 2

23 124 Tom Power 1 222

Crash Cymbal Power 1

188 Hi-Hat Closed Power 228 Splash Cymbal Power 225 Ride Cymbal Power 2

24 247 Side Stick 230 Crash Cymbal 2 192 Hi-Hat Closed 233 Ride Cymbal Cup 231 Ride Cymbal 1

25 247 Side Stick 229 Crash Cymbal 1 192 Hi-Hat Closed 257 Ta m bo u r i n e 231 Ride Cymbal 1

26 153 Tom Analog 2 236 Cymbal Analog 195

Hi-Hat Closed Analog 1

360 Claves 232 Ride Cymbal 2

27 153 Tom Analog 2 236 Cymbal Analog 195

Hi-Hat Closed Analog 1

360 Claves 232 Ride Cymbal 2

28 123 Tom Power 2 222

Crash Cymbal Power 1

188 Hi-Hat Closed Power 228 Splash Cymbal Power 225 Ride Cymbal Power 2

29 123 Tom Power 2 222

Crash Cymbal Power 1

191

Hi-Hat Closed Power 2

228 Splash Cymbal Power 225 Ride Cymbal Power 2

30 123 Tom Power 2 222

Crash Cymbal Power 1

191

Hi-Hat Closed Power 2

256 Tambo u r i n e 2 225 Ride Cymbal Power 2

31 123 Tom Power 2 222

Crash Cymbal Power 1

188 Hi-Hat Closed Power 228 Splash Cymbal Power 225 Ride Cymbal Power 2

32 147 Tom E l e c t r onic 2 229 Crash Cymbal 1 192 Hi-Hat Closed 234 Chinese Cymbal 231 Ride Cymbal 1

33 147 Tom E l e c t r onic 2 229 Crash Cymbal 1 192 Hi-Hat Closed 234 Chinese Cymbal 231 Ride Cymbal 1

34 153 Tom Analog 2 236 Cymbal Analog 198

Hi-Hat Closed Analog 3

370 Triangle Open 369 Triangle Mute

35 153 Tom Analog 2 236 Cymbal Analog 198

Hi-Hat Closed Analog 3

249 Hand Clap 257 Ta m b o u r i n e

Drum Kit List

DD-75 Owner’s Manual

50

36 Analog Kit 19 Bass Drum

Analog H 196 Hi-Hat Closed

Analog 2 69 Snare Analog 1 249 Hand Clap 151 Tom Analog 4

37 DJ Kit 20 Kick Techno Q 199 Hi-Hat Closed

Analog 4 73 Rim Gate 556 Yo ! 557 Go!

38 Disco Kit 1 13 Bass Drum 193 Hi-Hat Pedal 56 Snare Tight 126 Mid Tom H 128 Low Tom

39 Disco Kit 2 21 Kick Techno L 199 Hi-Hat Closed

Analog 4 70 Snare Techno 249 Hand Clap 151 Tom Analog 4

40 Jazz Kit 23 Bass Drum Jazz 193 Hi-Hat Pedal 74 Snare Jazz L 155 Tom Jazz 6 157 Tom Jazz 4

41 Brush Kit 12 Bass Drum Hard 193 Hi-Hat Pedal 81 Brush Slap 161 To m B r u s h 6 163 To m B r u s h 4

42 5/4 Jazz Kit 11 Bass Drum Soft 193 Hi-Hat Pedal 58 Snare Soft 2 125 High Tom 127 Mid Tom L

43 Dixieland Kit 12 Bass Drum Hard 193 Hi-Hat Pedal 58 Snare Soft 2 80 Brush Tap 81 Brush Slap

44 Soul Kit 9Bass Drum Open

Power 189 Hi-Hat Pedal

Power 53 Snare Rough 2 120 To m Power 5 122 Tom Power 3

45 R & R Kit 13 Bass Drum 193 Hi-Hat Pedal 54 Snare Soft 125 High Tom 127 Mid Tom L

46 6/8 Blues Kit 8Bass Drum

Ambient+ 189 Hi-Hat Pedal

Power 48 Snare Soft Power 120 To m Po w e r 5 122 Tom Power 3

47 Country Kit 13 Bass Drum 193 Hi-Hat Pedal 62 Snare Room L 133 To m R o o m 4 135 To m R o o m 2

48 Samba Kit 13 Bass Drum 355 Maracas 364 Cuica Mute 352 Agogo H 353 Agogo L

49 Bossa Nova Kit 1 12 Bass Drum Hard 193 Hi-Hat Pedal 247 Side Stick 162 Tom B r u s h 5 164 To m B r u s h 3

50 Bossa Nova Kit 2 4Oak Bass Drum 183 Hi-Hat Pedal

Dark 42 Oak Snare Head 108 Oak Tom 5 111 Oak Tom 2

51 Conga Kit 294 Conga L Slide 348 Cowbell Top 285 Conga H Slap

Mute 281 Conga H Open 288 Conga L Open

52 Conga & Bongo

Kit 1 14 Bass Drum 2 348 Cowbell Top 281 Conga H Open 288 Conga L Open 315 Bongo H Open 1

Finger

53 Conga & Bongo

Kit 2 14 Bass Drum 2 348 Cowbell Top 301 Conga 2 H Open 308 Conga 2 L Open 327 Bongo 2 H Mute

54 Salsa Kit 13 Bass Drum 362 Wood Block H 322 Bongo L Open 3

Fingers 339 Timbale L Open 338 Timbale H Open

55 Beguine Kit 12 Bass Drum Hard 193 Hi-Hat Pedal 247 Side Stick 126 Mid Tom H 128 Low Tom

56 Reggae Kit 8Bass Drum

Ambient+ 189 Hi-Hat Pedal

Power 50 Snare Rough 339 Timbale L Open 338 Timbale H Open

57 Waltz Kit 23 Bass Drum Jazz 193 Hi-Hat Pedal 80 Brush Tap 81 Brush Slap 162 To m Br u s h 5

58 March Kit 37 Gran Cassa 193 Hi-Hat Pedal 76 Band Snare 1 362 Wood Block H 363 Wood Block L

59 Timpani Kit 37 Gran Cassa 193 Hi-Hat Pedal 264 Timpani E1 269 Timpani A1 274 Timpani D2

60 Arabic Kit 1 449 Katem Dom 451 Katem Tak 1 437 Tab l a h D o m 1 436 Tablah Sak 1 433 Ta bla h Ta k 4

61 Arabic Kit 2 449 Katem Dom 451 Katem Tak 1 446 Daholla Dom 444 Daholla Sak 1 447 Daholla Tak 2

62 Arabic Kit 3 474 Sagat 1 476 Sagat 3 449 Katem Dom 450 Katem Sak 1 451 Katem Tak 1

63 Brazil Kit 1 399 Tan Tan 1 Open

Right Hand 398 Tan Ta n 1 C lo s e d

Right Hand 402 Pandeiro L

Thumb Closed 404 Pandeiro L Toe

Rim 405 Pandeiro L Heel

64 Brazil Kit 2 378 Surdo 2 Open 377 Surdo 2 Mute 402 Pandeiro L

Thumb Closed 404 Pandeiro L Toe

Rim 405 Pandeiro L Heel

65 Brazil Kit 3 391 Zabumba Open

Right Hand 392 Zabumba Mute

Right Hand 402 Pandeiro L

Thumb Closed 404 Pandeiro L Toe

Rim 405 Pandeiro L Heel

66 Indian Kit 1 510 Dholak 2 Rim 1 491 Hatheli Short 479 Baya ghe 477 Baya ge 481 Tabl a na

67 Indian Kit 2 502 Dhol 2 Open 504 Dhol 2 Rim 508 Dholak 2 Open 510 Dholak 2 Rim 1 511 Dholak 2 Rim 2

68 Indian Kit 3 498 Dafli Open 499 Dafli Rim 502 Dhol 2 Open 504 Dhol 2 Rim 513 Dholki H Mute

69 Indian Kit 4 498 Dafli Open 499 Dafli Rim 500 Dhol 1 Open 501 Dhol 1 Slap 503 Dhol 2 Slap

70 African Kit 13 Bass Drum 354 Cabasa 539 Djembe Slap 537 Djembe L 545 Talking Drum Left

Hand Open

71 Folklore Kit 13 Bass Drum 372 Jingle Bells 376 Cajon 2 Slap 374 Cajon 2 L 373 Wind Chime

72 Japanese Kit 548 Yaguradaiko 549 Yaguradaiko Rim 546 Oodaiko 551 Shimedaiko 550 Atarigane

73 Chinese Kit 528 Dagu Heavy 530 Zhongcha Mute 527 Paigu M 526 Bangu 535 Xiaocha Mute

74 SE Kit 1 562 Footsteps 562 Footsteps 564 Rooster 568 Horse Neigh 569 Cow

75 SE Kit 2 557 Go! 562 Footsteps 556 Yo ! 560 Huuaah! 561 Uh!+Hit

Kit

No. Kit Name Voice

No. Pedal 1 Voice

No. Pedal 2 Voi ce

No. Pad 1 Voi ce

No. Pad 2 Voice

No. Pad 3

Drum Kit List

DD-75 Owner’s Manual 51

36 153 Tom Analog 2 236 Cymbal Analog 195

Hi-Hat Closed Analog 1

348 Cowbell Top 257 Ta m b o u r i n e

37 558 Get up! 236 Cymbal Analog 198

Hi-Hat Closed Analog 3

554 Scratch H 555 Scratch L

38 130 Floor Tom L 229 Crash Cymbal 1 192 Hi-Hat Closed 235 Splash Cymbal 231 Ride Cymbal 1

39 153 Tom Analog 2 236 Cymbal Analog 198

Hi-Hat Closed Analog 3

257 Ta m b o u ri n e 230 Crash Cymbal 2

40 159 Tom Jazz 2 229 Crash Cymbal 1 192 Hi-Hat Closed 233 Ride Cymbal Cup 231 Ride Cymbal 1

41 165 Tom B r ush 2 229 Crash Cymbal 1 192 Hi-Hat Closed 233 Ride Cymbal Cup 232 Ride Cymbal 2

42 129 Floor Tom H 229 Crash Cymbal 1 192 Hi-Hat Closed 257 Ta m b o u r i ne 231 Ride Cymbal 1

43 130 Floor Tom L 229 Crash Cymbal 1 192 Hi-Hat Closed 235 Splash Cymbal 231 Ride Cymbal 1

44 124 Tom Power 1 222

Crash Cymbal Power 1

188 Hi-Hat Closed Power 249 Hand Clap 225 Ride Cymbal Power 2

45 129 Floor Tom H 229 Crash Cymbal 1 192 Hi-Hat Closed 235 Splash Cymbal 231 Ride Cymbal 1

46 124 Tom Power 1 222

Crash Cymbal Power 1

188 Hi-Hat Closed Power 249 Hand Clap 225 Ride Cymbal Power 2

47 247 Side Stick 229 Crash Cymbal 1 192 Hi-Hat Closed 235 Splash Cymbal 231 Ride Cymbal 1

48 365 Cuica Open 390 Tamborim 1 Mute 389 Tamborim 1 Open 397 Whistle Long 396 Whistle Short

49 81 Brush Slap 229 Crash Cymbal 1 192 Hi-Hat Closed 373 Wind Chime 231 Ride Cymbal 1

50 247 Side Stick 217 Crash Cymbal Dark 2 182 Hi-Hat Closed Dark 235 Splash Cymbal 215 Ride Cymbal Bright

51 289 Conga L Mute 287 Conga H Heel 286 Conga H Tip 356 Guiro Short 357 Guiro Long

52 322 Bongo L Open 3

Fingers 287 Conga H Heel 285 Conga H Slap Mute 356 Guiro Short 357 Guiro Long

53 328 Bongo 2 L Open 1

Finger 299 Conga Heel 297 Conga Slap 356 Guiro Short 357 Guiro Long

54 288 Conga L Open 360 Claves 315 Bongo H Open 1

Finger 373 Wind Chime 281 Conga H Open

55 130 Floor Tom L 229 Crash Cymbal 1 192 Hi-Hat Closed 231 Ride Cymbal 1 360 Claves

56 122 Tom Power 3 222

Crash Cymbal Power 1

188 Hi-Hat Closed Power 230 Crash Cymbal 2 231 Ride Cymbal 1

57 165 Tom B r ush 2 229 Crash Cymbal 1 192 Hi-Hat Closed 233 Ride Cymbal Cup 232 Ride Cymbal 2

58 77 Band Snare 2 229 Crash Cymbal 1 192 Hi-Hat Closed 257 Ta m b o u ri n e 231 Ride Cymbal 1

59 279 Timpani G2 222

Crash Cymbal Power 1

192 Hi-Hat Closed 373 Wind Chime 231 Ride Cymbal 1

60 432 Tablah Tak 1 474 Sagat 1 476 Sagat 3 471 Riq Tak 2 473 Riq Dom

61 445 Daholla Tak 1 474 Sagat 1 476 Sagat 3 471 Riq Tak 2 473 Riq Dom

62 453 Katem Tak 2 471 Riq Tak 2 473 Riq Dom 472 Riq Brass 2 470 Riq Brass 1

63 403 Pandeiro L Thumb

Open 414 Repique de Mao Slap 415 Repique de Mao

Thmb Rim 426 Ganza 406 Pandeiro L Slap

64 403 Pandeiro L Thumb

Open 422 Agogo Bell 1 423 Agogo Bell 2 366 Cuica H Short 368 Cuica L Short

65 403 Pandeiro L Thumb

Open 422 Agogo Bell 1 424 Agogo Click 1 426 Ganza 406 Pandeiro L Slap

66 482 Tabl a t i n 480 Baya ka 478 Baya ke 497 Mondira Closed 496 Mondira Open

67 509 Dholak 2 Slide 513 Dholki H Mute 515 Dholki H Slap 495 Jhanji Closed 494 Jhanji Open

68 512 Dholki H Open 510 Dholak 2 Rim 1 511 Dholak 2 Rim 2 490 Hatheli Long 491 Hatheli Short

69 504 Dhol 2 Rim 524 Dandia Short 525 Dandia Long 490 Hatheli Long 491 Hatheli Short

70 543 Talking Drum Bend

Up 229 Crash Cymbal 1 538 Djembe Mute 544 Talking Drum Slap 542 Talking Drum Open

71 258 Finger Snap 371 Shaker 375 Cajon 2 Mute 256 Tam b o u r i n e 2 235 Splash Cymbal

72 372 Jingle Bells 552 Tsudumi 547 Oodaiko Rim 553 Ainote 360 Claves

73 531 Luo Big 533 Zhongluo Open 529 Zhongcha Open 532 Luo H 534 Xiaoluo Open

74 570 Lion 566 Cat 565 Dog 563 Frog 567 Owl

75 559 Whoow! 249 Hand Clap 558 Get up! 554 Scratch H 555 Scratch L

Kit

No.

Voice

No. Pad 4 Voic e

No. Pad 5 Vo ice

No. Pad 6 Voi ce

No. Pad 7 Voice

No. Pad 8

DD-75 Owner’s Manual

52

Drum Score

There are many different types of drum score commercially available, but we’ve chosen the following common

format for the examples below.

The following is an actual rhythm pattern using the notation.

8 Beat (song No.021)

16 Beat (song No.023)

Hi-Hat Cymbal (H.H.)

Ride Cymbal (RIDE)

Hi-Hat (H.H.)

Open Close Crash Cymbal

Hi-Hat Cymbal (PEDAL)

Snare Drum

Bass Drum

Snare Drum

(Brush Slap)

High Tom

Mid Tom

Low Tom

High Low

Drum Score

DD-75 Owner’s Manual 53



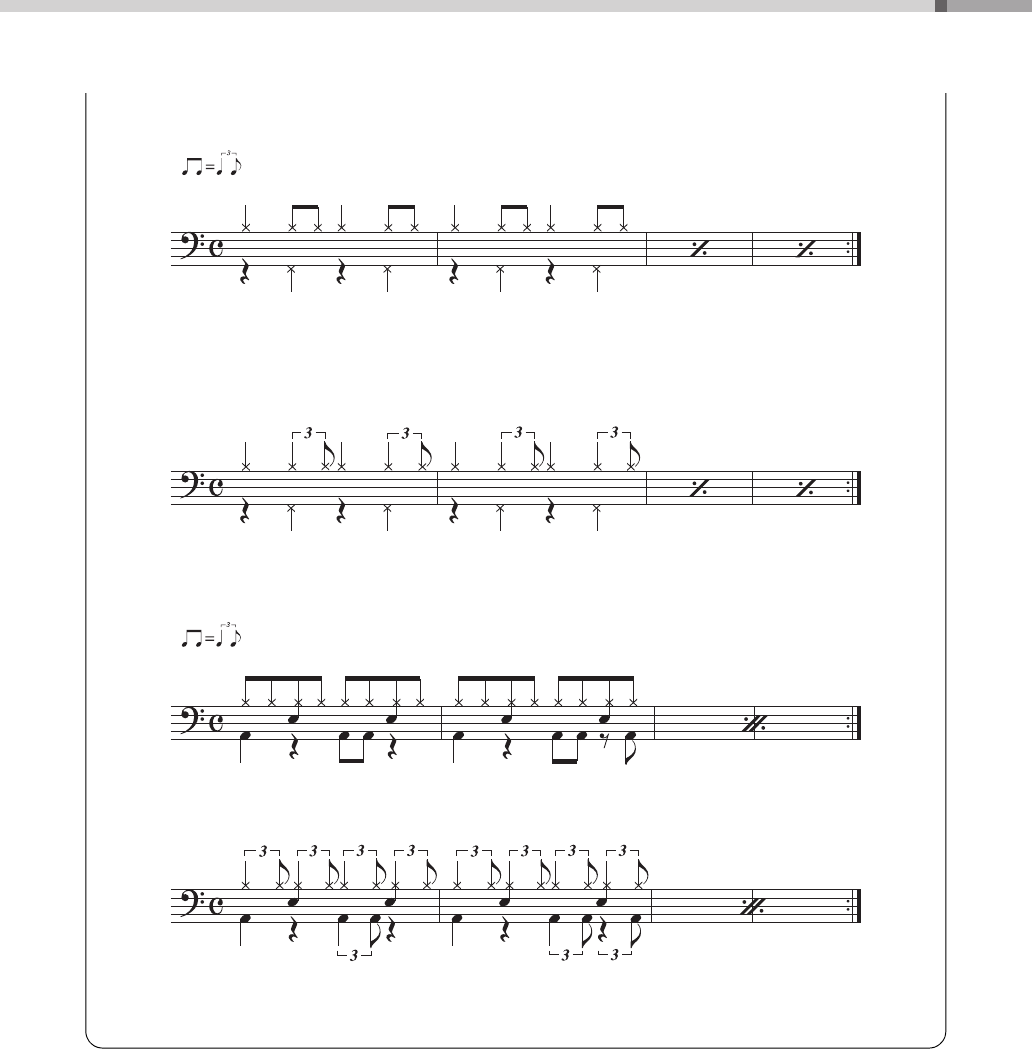

4 Beat (song No.045)

In the notation above, eighth notes are to be played with a triplet feel (as shown in the nota-

tion below). For swing and shuffle rhythms, this straight notation is preferable to the triplet

indication since it is easier to read.

Shuffle (song No.034)

Play the above pattern with a swing feel.

(RIDE)

DD-75 Owner’s Manual

54

Specifications

* The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha

website then download the manual file. Since specifications, equipment or separately sold accessories may not be the same in every

locale, please check with your Yamaha dealer.

Product Name Digital Percussion

Size/Weight Dimensions (W x D x H) 602mm x 411mm x 180mm

(23-11/16” x 16-3/16” x 7-1/16”)

Weight 4.2kg (9 lb 4 oz) (not including batteries)

Pads/Pedals

Number of Pads 8

Number of Pedals 2

Hand Percussion Mode Yes

Pad/Pedal Sensitivity Preset: 5 types (Fix, 1-4)

Custom Setting: 10

Display Type 7-Segment LED

Panel Language English

Voices

Tone Generation Technology AWM Stereo Sampling

Polyphony 32 (max.)

Compatibility GM, XGlite

Number of Voices 570 Voices + 30 Phrases

Number of Drum

Kits

Preset Kit 75

Custom Kit 10

Effects Ty p e s Reverb 9 types

Master EQ 2 types

Song

Preset Number of Preset Songs 105

Recording

Number of Songs 5

Number of Tracks 4 (DRUM 1/DRUM 2/DRUM 3/BACKING)

Data Capacity Approx. 7,000 notes per song

Format Playback SMF (Format 0), (MIDI data only; audio not supported.)

Recording SMF (Format 0), (MIDI data only; audio not supported.)

Other Features

Auto Kit Select Yes

Tap Start Yes

Break Yes

Click Tempo Range 11–320

Click Voice 4 types (Metronome/Cowbell/Stick/Human Voice)

Storage and

Connectivity

Storage Internal Memory Approx. 370KB

Connections

DC IN 12V

Headphones Standard stereo phone jack

AUX IN Stereo mini jack

PEDAL 1, 2

MIDI IN, OUT

Amplifiers/

Speakers

Amplifiers 5W + 5W

Speakers 8cm x 2

Power Supply

Adaptor PA-150

Battery Size C battery (alkaline dry cell/manganese-by-cell/

rechargeable Ni-MH battery) x 6

Power Consumption 18W

Auto Power Off Yes

Included Accessories

• Owner’s Manual

• AC adaptor x 1 (PA-150 or an equivalent

recommended by Yamaha)

• Drum Sticks

• Foot Pedal 1 & 2

• Online Member Product Registration x 1

Separately Sold Accessories

(May not be available depending on your locale.)

• AC adaptor:

Users within U.S or Europe: PA-150 or an equivalent

recommended by Yamaha

Others: PA-150 or an equivalent

• Headphones: HPH-50/HPH-100/HPH-150

• Wireless MIDI adaptor: MD-BT01

• Hi-hat controller: HH40/HH65

• Electronic kick unit: KU100

• Electronic drum pad: KP65

• Snare drum stand: SS662/SS740A

DD-75 Owner’s Manual 55

Index

A

A-B Repeat ......................................................................... 34

AC Adaptor ......................................................................... 12

Auto Kit Select ................................................................... 31

Auto Power Off ................................................................... 14

B

Backup ................................................................................ 41

Battery ........................................................................... 12, 13

Beat Indicator .................................................................... 29

Break ................................................................................... 33

C

Click ..................................................................................... 25

Click Voice .......................................................................... 27

Click Volume ...................................................................... 26

Compatible Formats and Functions ................................. 8

Computer ............................................................................ 38

Computer-related Operations ............................................ 7

Custom Kit .......................................................................... 20

D

Demo Song ........................................................................ 16

Drum Kit ............................................................................. 19

Drum Kit List ...................................................................... 48

Drum Score ........................................................................ 52

Drum Voice List ................................................................. 43

E

External Audio Device ...................................................... 39

F

Function .............................................................................. 40

H

Hand Percussion ............................................................... 18

Headphone ........................................................................ 14

I

Initialization ........................................................................ 41

iPhone/iPad Connection Manual ...................................... 7

M

Master EQ Type ................................................................. 14

Master Volume ................................................................... 14

MIDI Device ....................................................................... 38

MIDI Reference .............................................................7, 38

Musicsoft Downloader ...................................................... 38

O

Online Member Product Registration ............................... 7

P

Pad ...................................................................................... 17

Pad Start ............................................................................ 30

Pedal ............................................................................. 13, 17

R

Recording ........................................................................... 35

Reverb type ........................................................................ 21

S

Sensitivity ........................................................................... 22

Song Clear ......................................................................... 37

Song List ............................................................................ 47

Song Volume ..................................................................... 29

Specifications ..................................................................... 54

T

Tap Start ............................................................................. 29

Tempo ................................................................................. 32

Time Signature .................................................................. 25

Tra ck .................................................................................... 33

Troubleshooting ................................................................. 42

DD-75

56

Information for users on collection and disposal of old equipment and used batteries:

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should

not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with

your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human

health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service

or the point of sale where you purchased the items.

For business users in the European Union:

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union:

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the

correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the EU Battery Directive for the

chemical involved.

(weee_battery_eu_en_02)

DD-75 57

LIMITED 1-YEAR WARRANTY ON

PORTABLE DIGITAL DRUMS

Thank you for selecting a Yamaha product. Yamaha products are designed and manufactured to provide a high level of defect-free

performance. Yamaha Corporation of America (“Yamaha”) is proud of the experience and craftsmanship that goes into each and

every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer

you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from

Yamaha’s authorized dealers in the fifty states of the USA and District of Columbia (the “Warranted Area”) and (2) used exclusively in

the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized

Yamaha dealer or Yamaha Customer Service if you have any questions.

Coverage: Yamaha will, at its option, repair or replace the product covered by this warranty if it becomes defective, malfunctions or

otherwise fails to conform with this warranty under normal use and service during the term of this warranty, without charge for labor

or materials. Repairs may be performed using new or refurbished parts that meet or exceed Yamaha specifications for new parts. If

Yamaha elects to replace the product, the replacement may be a reconditioned unit. You will be responsible for any installation or

removal charges and for any initial shipping charges if the product(s) must be shipped for warranty service. However, Yamaha will

pay the return shipping charges to any destination within the USA if the repairs are covered by the warranty. This warranty does not

cover (a) damage, deterioration or malfunction resulting from accident, negligence, misuse, abuse, improper installation or operation

or failure to follow instructions according to the Owner’s Manual for this product; any shipment of the product (claims must be

presented to the carrier); repair or attempted repair by anyone other than Yamaha or an authorized Yamaha Service Center; (b) any

unit which has been altered or on which the serial number has been defaced, modified or removed; (c) normal wear and any periodic

maintenance; (d) deterioration due to perspiration, corrosive atmosphere or other external causes such as extremes in temperature

or humidity; (e) damages attributable to power line surge or related electrical abnormalities, lightning damage or acts of God; or (f)

RFI/EMI (Interference/noise) caused by improper grounding or the improper use of either certified or uncertified equipment, if

applicable or (g) drum sticks. Any evidence of alteration, erasing or forgery of proof-of-purchase documents will cause this warranty

to be void. This warranty covers only the Original Owner and is not transferable.

In Order to Obtain Warranty Service: Warranty service will only be provided for defective products within the Warranted

Area. Contact your local authorized Yamaha dealer who will advise you of the procedures to be followed. If this is not successful,

contact Yamaha at the address, telephone number or website shown below. Yamaha may request that you send the defective product

to a local authorized Yamaha Servicer or authorize return of the defective product to Yamaha for repair. If you are uncertain as to

whether a dealer has been authorized by Yamaha, please contact Yamaha’s Service Department at the number shown below, or

check Yamaha’s website at www.Yamaha.com. Product(s) shipped for service should be packed securely and must be accompanied

by a detailed explanation of the problem(s) requiring service, together with the original or a machine reproduction of the bill of sale or

other dated, proof-of-purchase document describing the product, as evidence of warranty coverage. Should any product submitted

for warranty service be found ineligible therefore, an estimate of repair cost will be furnished and the repair will be accomplished only

if requested by you and upon receipt of payment or acceptable arrangement for payment.

Limitation of Implied Warranties and Exclusion of Damages: ANY IMPLIED WARRANTIES, INCLUDING

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE SHALL BE LIMITED IN DURATION TO

THE APPLICABLE PERIOD OF TIME SET FORTH ABOVE. YAMAHA SHALL NOT BE RESPONSIBLE FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES OR FOR DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE, DAMAGE TO ANY OTHER

EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE OR INTERRUPTION OF PERFORMANCES OR ANY CONSEQUENCES.

YAMAHA’S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, AT

YAMAHA’S OPTION. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION

MAY NOT APPLY TO YOU. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to

state. This is the only express warranty applicable to the product specified herein; Yamaha neither assumes nor authorizes anyone to

assume for it any other express warranty.

If you have any questions about service received or if you need assistance in locating an authorized Yamaha

Servicer, please contact:

CUSTOMER SERVICE

Yamaha Corporation of America

6600 Orangethorpe Avenue, Buena Park, California 90620-1373

Telephone: 800-854-1569

www.yamaha.com

Do not return any product to the above address without a written Return Authorization issued by YAMAHA.

©2009 Yamaha Corporation of America. Effective: 11/01/09

DD-75

58

For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below.

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Toronto, Ontario M1S 3R1,

Canada

Tel: +1-416-298-1311

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Avenue, Buena Park, CA 90620,

U.S.A.

Tel: +1-714-522-9011

MEXICO

Yamaha de México, S.A. de C.V.

Av. Insurgentes Sur 1647 Piso 9, Col. San José

Insurgentes, Delegación Benito Juárez, México,

D.F., C.P. 03900, México

Tel: +52-55-5804-0600

BRAZIL

Yamaha Musical do Brasil Ltda.

Rua Fidêncio Ramos, 302 – Cj 52 e 54 – Torre B –

Vila Olímpia – CEP 04551-010 – São Paulo/SP,

Brazil

Tel: +55-11-3704-1377

ARGENTINA

Yamaha Music Latin America, S.A.,

Sucursal Argentina

Olga Cossettini 1553, Piso 4 Norte,

Madero Este-C1107CEK,

Buenos Aires, Argentina

Tel: +54-11-4119-7000

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Edif. Torre Banco General, F7, Urb. Marbella,

Calle 47 y Aquilino de la Guardia, Panama,

P.O.Box 0823-05863, Panama, Rep.de Panama

Tel: +507-269-5311

THE UNITED KINGDOM/IRELAND

Yamaha Music Europe GmbH (UK)

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, U.K.

Tel: +44-1908-366700

GERMANY

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany

Tel: +49-4101-303-0

SWITZERLAND/LIECHTENSTEIN

Yamaha Music Europe GmbH, Branch

Switzerland in Thalwil

Seestrasse 18a, 8800 Thalwil, Switzerland

Tel: +41-44-3878080

AUSTRIA/CZECH REPUBLIC/

HUNGARY/ROMANIA/SLOVAKIA/

SLOVENIA

Yamaha Music Europe GmbH, Branch Austria

Schleiergasse 20, 1100 Wien, Austria

Tel: +43-1-60203900

POLAND

Yamaha Music Europe GmbH

Sp.z o.o. Oddział w Polsce

ul. Wielicka 52, 02-657 Warszawa, Poland

Tel: +48-22-880-08-88

BULGARIA

Dinacord Bulgaria LTD.

Bul.Iskarsko Schose 7 Targowski Zentar Ewropa

1528 Sofia, Bulgaria

Tel: +359-2-978-20-25

MALTA

Olimpus Music Ltd.

Valletta Road, Mosta MST9010, Malta

Tel: +356-2133-2093

NETHERLANDS/BELGIUM/

LUXEMBOURG

Yamaha Music Europe, Branch Benelux

Clarissenhof 5b, 4133 AB Vianen, The Netherlands

Tel: +31-347-358040

FRANCE

Yamaha Music Europe

7 rue Ambroise Croizat, Zone d'activités de Pariest,

77183 Croissy-Beaubourg, France

Tel: +33-1-6461-4000

ITALY

Yamaha Music Europe GmbH, Branch Italy

Via Tinelli N.67/69 20855 Gerno di Lesmo (MB),

Italy

Tel: +39-039-9065-1

SPAIN/PORTUGAL

Yamaha Music Europe GmbH Ibérica, Sucursal

en España

Ctra. de la Coruna km. 17,200, 28231

Las Rozas de Madrid, Spain

Tel: +34-91-639-88-88

GREECE

Philippos Nakas S.A. The Music House

19th klm. Leof. Lavriou 190 02 Peania – Attiki,

Greece

Tel: +30-210-6686260

SWEDEN

Yamaha Music Europe GmbH Germany filial

Scandinavia

JA Wettergrensgata 1, 400 43 Göteborg, Sweden

Tel: +46-31-89-34-00

DENMARK

Yamaha Music Denmark,

Fillial of Yamaha Music Europe GmbH, Tyskland

Generatorvej 8C, ST. TH., 2860 Søborg, Denmark

Tel: +45-44-92-49-00

FINLAND

F-Musiikki Oy

Antaksentie 4

FI-01510 Vantaa, Finland

Tel: +358 (0)96185111

NORWAY

Yamaha Music Europe GmbH Germany -

Norwegian Branch

Grini Næringspark 1, 1332 Østerås, Norway

Tel: +47-6716-7800

ICELAND

Hljodfaerahusid Ehf.

Sidumula 20

IS-108 Reykjavik, Iceland

Tel: +354-525-5050

CROATIA

Euro Unit D.O.O.

Slakovec 73

40305 Nedelisce

Tel: +38540829400

RUSSIA

Yamaha Music (Russia) LLC.

Room 37, entrance 7, bld. 7, Kievskaya street,

Moscow, 121059, Russia

Tel: +7-495-626-5005

OTHER EUROPEAN COUNTRIES

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany

Tel: +49-4101-303-0

Yamaha Music Gulf FZE

JAFZA-16, Office 512, P.O.Box 17328,

Jebel Ali FZE, Dubai, UAE

Tel: +971-4-801-1500

TURKEY

Yamaha Music Europe GmbH

Merkezi Almanya Türkiye İstanbul Şubesi

Maslak Meydan Sodak, Spring Giz Plaza Bagimsiz

Böl. No:3, Sariyer Istanbul, Turkey

Tel: +90-212-999-8010

CYPRUS

Nakas Music Cyprus Ltd.

Nikis Ave 2k

1086 Nicosia

Tel: + 357-22-511080

Major Music Center

21 Ali Riza Ave. Ortakoy

P.O.Box 475 Nicosia, Cyprus

Tel: (392) 227 9213

OTHER COUNTRIES

Yamaha Music Gulf FZE

JAFZA-16, Office 512, P.O.Box 17328,

Jebel Ali FZE, Dubai, UAE

Tel: +971-4-801-1500

THE PEOPLE’S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co., Ltd.

2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,
