683
563
721
355
398
M20 (Depth 25mm)
Ø35mm Pole Socket
(Depth 80mm)
681
721
40
M6×16
82

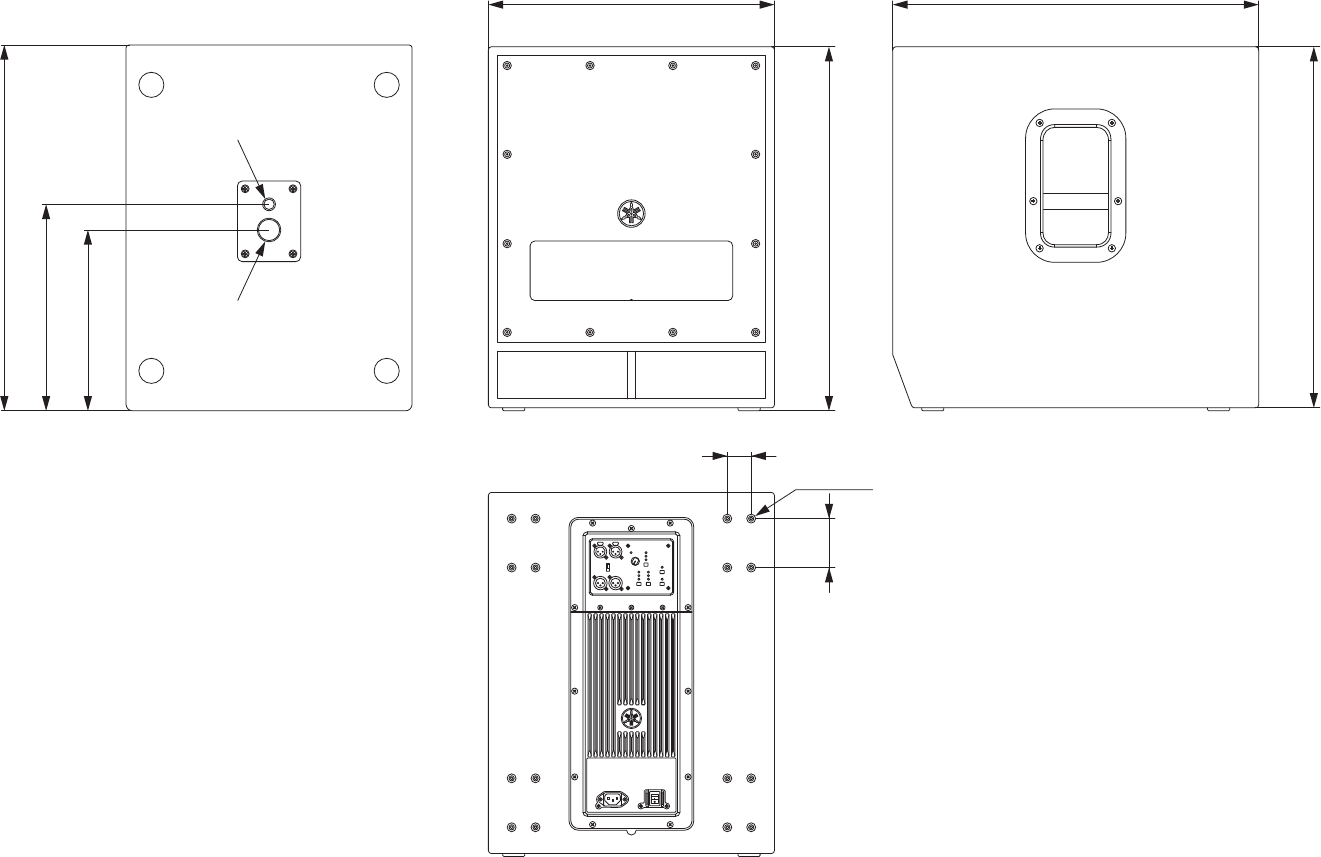

DXS18
Unit: mm
Dimensions / (1/3)
寸法図
614
347
304
M20 (Depth 25mm)
Ø35mm Pole Socket
(Depth 80mm)
611
480
609
614
40
M6×16
82

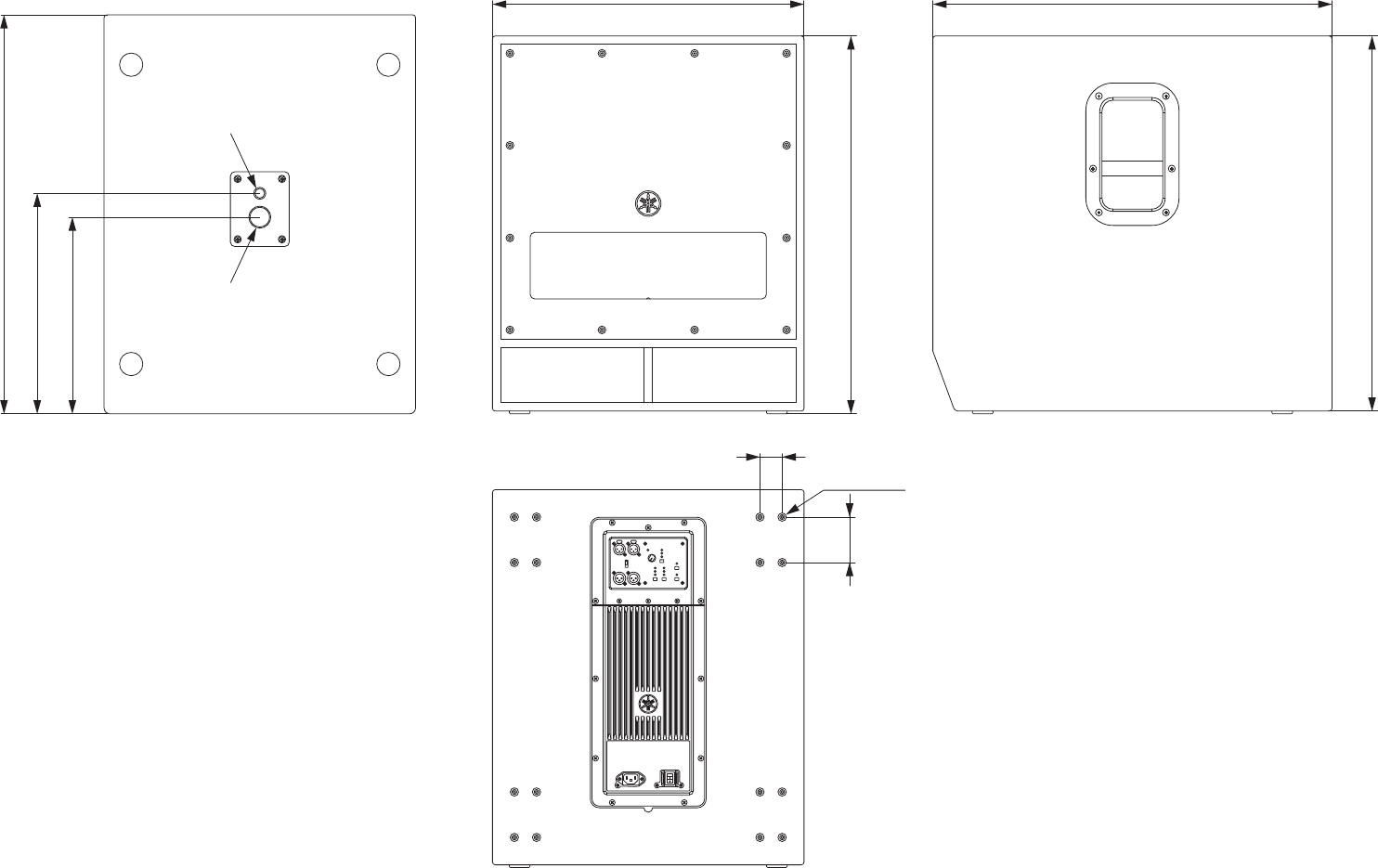

DXS15mkll
Unit: mm
Dimensions / (2/3)
寸法図
567
400
570
271
314
M20 (Depth 25mm)
Ø35mm Pole Socket
(Depth 80mm)
565
570
40
M6×16
82

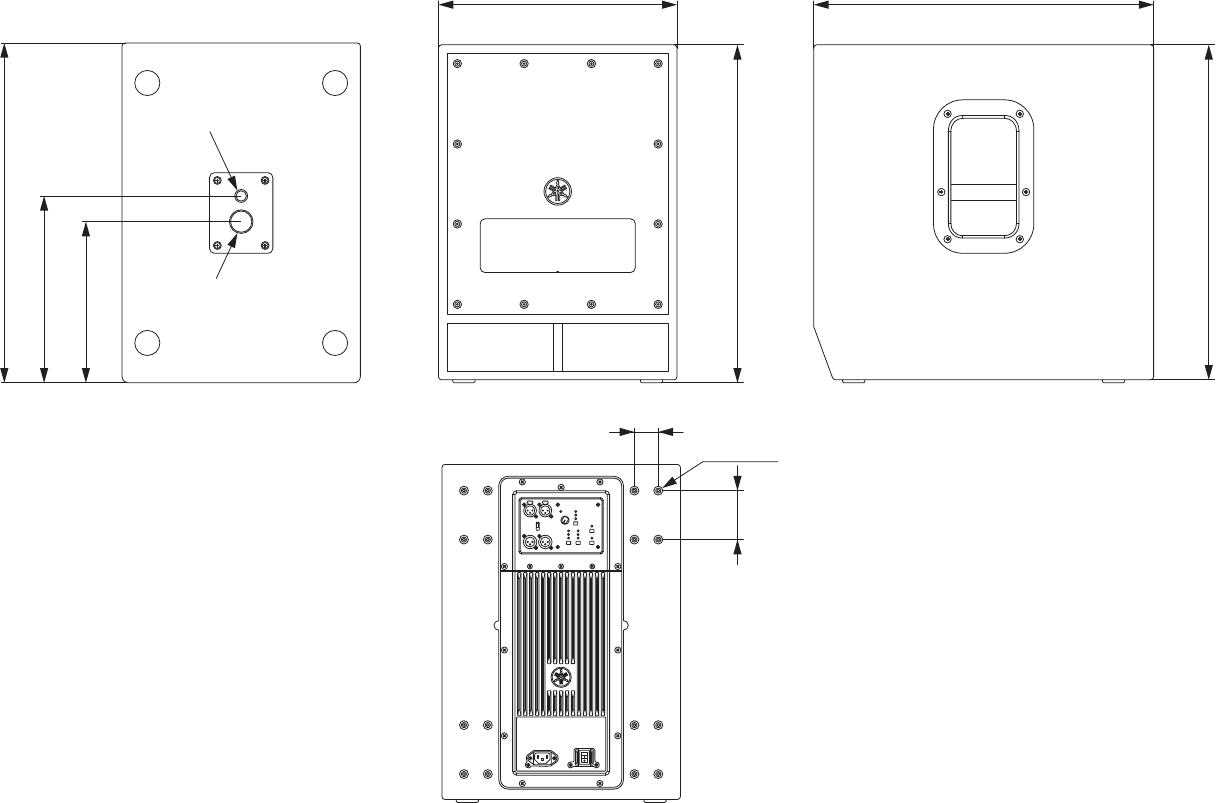

DXS12mkll
Unit: mm
Dimensions / (3/3)
