ELB-01

Playing the ELB-01

Tutorial

Playing the ELB-01 — Tutorial

About This Manual

(Read this ﬁrst!)

This manual is made up of two sections, Part 1 and Part 2. Part 1

covers basic information about playing the Electone, including the

proper playing posture, and selecting Voices and Rhythms. Part 2

focuses on more advanced topics, including reading music scores,

and detailed instructions on actually performing with two separate

scores.

After learning about the basic Electone functions in Part 1, try

performing with the two scores in Part 2. The ﬁrst score is very easy

to play, even if you have little or no previous keyboard experience.

The second, on the other hand, is more difﬁcult—so if you’re a

beginner you may want to start out with the ﬁrst song.

When you need more speciﬁc instructions or want to explore a

feature or function in greater detail, refer to the separate Owner’s

Manual. In addition, the Owner’s Manual contains basic

information such as the Panel Layout and Quick Introductory

Guide (pages 9 – 20)—helpful sections you should read before

working through this booklet.

Dive in now, and let’s start!

Playing the ELB-01 — Tutorial 3

Contents

About This Manual ........................................................ 2

Part 1 Using the Electone ...........................4

Turning on the power .................................................... 4

Sounds .......................................................................... 6

Play the Rhythm.......................................................... 10

Play the Voice and Rhythm at the same time ............. 12

Other fun features ....................................................... 14

After playing ................................................................ 14

Part 2 Playing the Scores .........................15

When the Saints Go Marching In.................... 18

Selecting the Registration for performing from the

Registration Menu ....................................................... 20

Playing “When the Saints Go Marching In” ................. 21

Jupiter............................................................... 24

Selecting the Registrations for performing from the

Registration Menu ....................................................... 27

Playing “Jupiter” .......................................................... 37

Electone Chords .............................................. 40

Playing the ELB-01 — Tutorial

Part 1 Using the Electone

Turning on the power

Sitting

Sit on the bench so that you’re roughly at the center of the Electone.

Position yourself so that your ‘belly button’ is roughly in line with the central “E” key on

the Lower keyboard.

The posture

Put your hands on the keyboards.

Put your left foot on the Pedalboard, and your right foot on the Expression Pedal—and

sit up straight.

Both hands

Put your right hand on the Upper Keyboard, and your left on the Lower Keyboard.

Again, sit up straight, but don’t be too tight. Relax, you’re going to have fun!

(center E)

This is the Upper Keyboard.

This is the Lower Keyboard.

Playing the ELB-01 — Tutorial 5

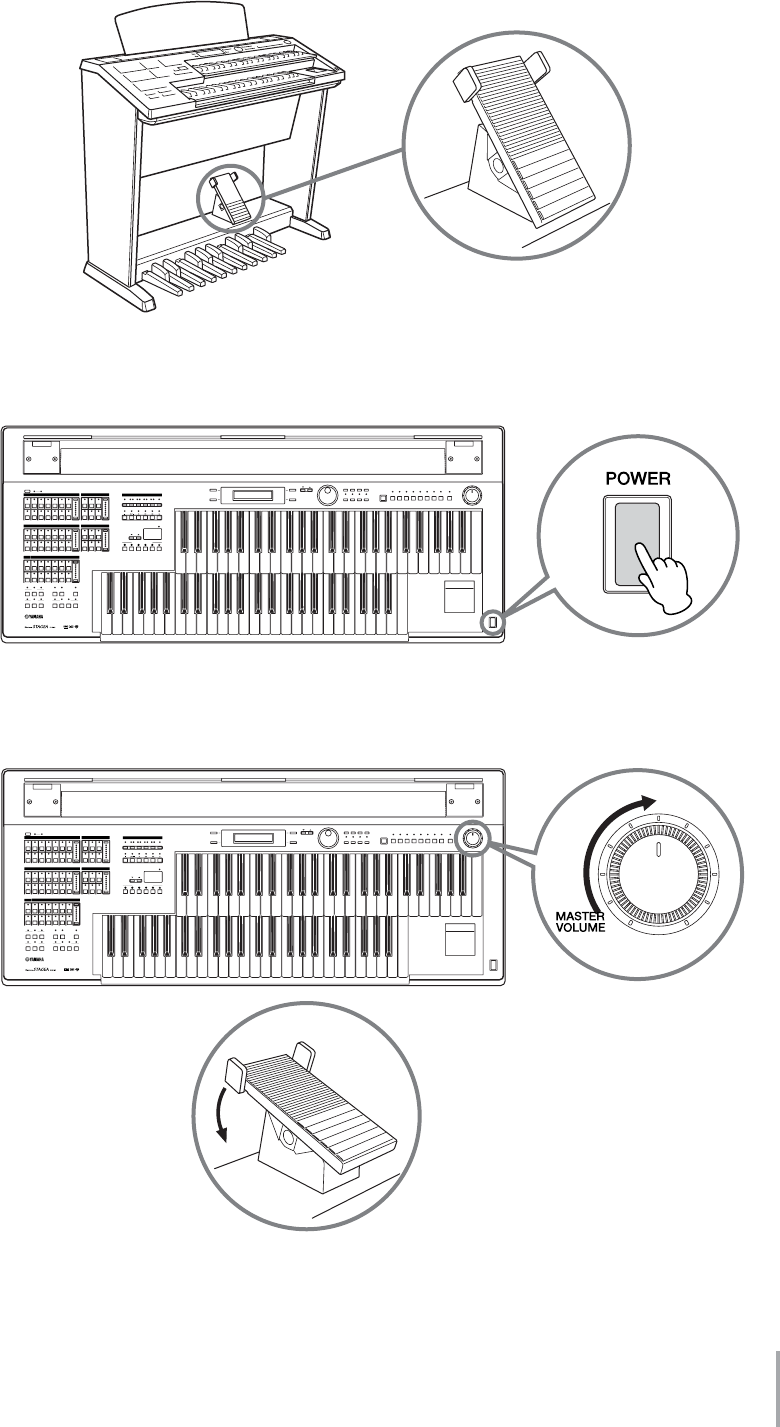

Right foot

Put your right foot on the Expression pedal. Be careful to keep your original posture

when you use the pedal, since moving the pedal with your foot may throw your body

slightly off balance.

Turn on the Electone by pressing the [POWER] switch.

Set the MASTER VOLUME control and press the Expression pedal down with your

foot. The more you press down, the greater the volume.

That’s it! Now, you’re ready to play the Electone.

Expression pedal

Playing the ELB-01 — Tutorial

Sounds

Tr y out any one of the keyboards!

Keep in mind that the sounds made by each of the keyboards may be different.

You can select the desired Voice for each of the keyboards—the Upper Keyboard, Lower

Keyboard and Pedalboard.

The secret behind the Upper Keyboard sounds

If you listen closely to the sound of the Upper Keyboard, you may notice that it sounds

‘fatter’ and more richly textured than the sounds of the other keyboard. The reason is that

the Upper Keyboard actually produces two different sounds: the Upper Keyboard Voice

and the Lead Voice.

Think of the Lead Voice as a solo instrument, such as Trumpet or Flute—in other words,

an instrument that plays the solo or lead part in an orchestra. The Lead Voice sounds

together in a layer with the Upper Keyboard Voice, thus enriching the overall sound.

Turn the Lead Voice volume to minimum and to listen only to the Upper Keyboard

Voice.

Tr y out the keys on the Upper Keyboard now and listen to the Upper Keyboard Voice by

itself!

Increases

the volume

Decreases

the volume

Playing the ELB-01 — Tutorial 7

To begin with, select a Upper Keyboard Voice

Press the [STRINGS] button in the Upper Keyboard Voice 1/2 section.

Tr y playing some of the keys on the Upper Keyboard, and check out the Strings sound.

Take a look at the display on the panel

You may not be able to notice it right away, but the [STRINGS] button actually has a

variety of “hidden” Strings and Violin sounds in it.

Since the Voice name “Strings 1” is shown at the bottom of the display, you know that

the “Strings 1” Voice sounds when you play the keys on the Upper Keyboard.

<STRINGS/VIOLIN> ¨1

¿01:Strings 1

Playing the ELB-01 — Tutorial

Naturally, you can select any of the other Strings or Violin Voices hidden away in the

[STRINGS] button. These hidden Voices can be displayed and selected by turning the

DATA CONTROL dial.

For example, we’ll call up the Voice “19: Viola” here.

Tr y out keys on the Upper Keyboard now and listen to the Viola sound.

Select the hidden Voices by turning the DATA CONTROL dial clockwise. When the last

Voice is called up, the display doesn’t change, even when you turn the DATA

CONTROL dial clockwise. To go back and select Voices in reverse, turn the DATA

CONTROL dial counter-clockwise.

<STRINGS/VIOLIN> ¨1

¿19:Viola

Currently selected Voice is displayed here

Playing the ELB-01 — Tutorial 9

Next, try playing a Piano Voice

Press the [PIANO] button and try playing the keys on the Upper Keyboard. Now, the

Electone sounds just like a piano.

The [PIANO] button also has various hidden Piano sounds in it.

Select the desired Piano Voice by using the DATA CONTROL dial.

There are various other Voice buttons in the Upper Keyboard Voice 1/2 section—so try

them out now and ﬁnd some of your favorite Voices!

If you want to know more about each Voice and its characteristics, take a look at the

Voice List on page 34 in the Owner’s Manual.

Keep in mind that you can select Voices for the Lower Keyboard and the Pedalboard,

just as you did for the Upper Keyboard. For the Lower Keyboard, press the Voice button

in the Lower Keyboard Voice 1/2 section. For the Pedalboard, press the Voice button in

the Pedal Voice 1/2 section.

If you want to select the Lead Voice for the Upper Keyboard, press the Voice button in

the Lead Voice section.

Playing the ELB-01 — Tutorial

Play the Rhythm

Your Electone is also a rhythm expert, and there are various Rhythm buttons on the

panel. Let’s play one of the Rhythm patterns now.

Press the [POPS] button.

Press the [START] button to start the Rhythm!

Hidden in the [POPS] button are many different Pop music rhythms.

You can select the desired Pops rhythm by using the DATA CONTROL dial.

Playing the ELB-01 — Tutorial 11

Want to slow down the rhythm, or speed it up? You can adjust the Rhythm tempo with

the TEMPO buttons.

Pressing the [▲] button increases the tempo, while pressing the [▼] button decrease it.

To instantly restore the original tempo setting, press the [▲][▼] buttons simultaneously.

Just as with the Voices, there are various rhythm buttons on the panel—so try them out

and check out the different rhythm patterns!

Press the [START] button again to stop the rhythm.

Increase the tempo

Decrease the tempo

Playing the ELB-01 — Tutorial

Play the Voice and Rhythm at the same time

Thanks to the Registration Menu buttons, you can call up both Voices and a Rhythm at

the same time—with one simple button press.

Here, we’ll select a March Registration with one of the Registration Menu buttons.

Press the [1] button in the Registration Menu button section.

Select the Registration “09: Symphonic March 1” at the bottom of the display by using

the DATA CONTROL dial.

Press the [SYNCHRO START] button.

Play a C chord with your left hand on the Lower Keyboard—and the rhythm playback

starts immediately!

¸˛˝<KIDS>

¿09:Symphn.March 1

Playing the ELB-01 — Tutorial 13

Did you know that you can add your own bass notes sounds to the rhythm playback?

Play the C pedal in rhythm on the ﬁrst and third beats with your left foot on the

Pedalboard while holding down the C chord with your left hand on the Lower Keyboard.

Can you hear the bass sounds?

Now, play the melody written below with your right hand on the Upper Keyboard, while

playing the Lower Keyboard and Pedalboard. Notice how the sounds of the Lower and

Upper Keyboards match the overall feel of the March rhythm. It’s a simple phrase, but try

playing spiritedly with feeling along with the rhythm.

A “Registration” is combination of panel settings that can be called up together—

including Upper Keyboard Voices, Lower Keyboard Voices, Pedal Voices, a rhythm and

so on.

There are many different Registrations—try them out!

Playing the ELB-01 — Tutorial

Other fun features

The Electone Voices can also be enhanced with effects, such as Reverb, Phaser and so on.

What’s more, you can play speciﬁc Keyboard Percussion sounds—such as snare drum,

toms and congas—assigned to the individual keys of the Upper and Lower Keyboards.

Plug in your own USB ﬂash memory device, then record your Electone performance and

save it to the USB device. For details, see “Recording” on page 117 in the Owner’s

Manual.

After playing

After you’re ﬁnished playing, make sure to turn off the Electone by pressing the

[POWER] switch.

Close the protective cover of the Electone to keep the instrument free from dust and

other possible damage.

Playing the ELB-01 — Tutorial 15

Part 2 Playing the Scores

In Part1, you learned how to start playing your Electone. Now in Part 2, you can actually perform on the

instrument using the scores.

First, we’ll show you how to play the speciﬁc keys for the notes written in the score, and tell you a little

bit more about how to read the scores. Two scores are given here: “When the Saints Go Marching In”

and “Jupiter.” The ﬁrst selection is very easy to play, even if you have never touched an electronic

keyboard in your life, but the second one requires a bit more skill. Both scores need Registration settings.

Before performing, see “Selecting the Registration for performing from the Registration Menu” and store

the appropriate Registrations to the numbered buttons on the panel.

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

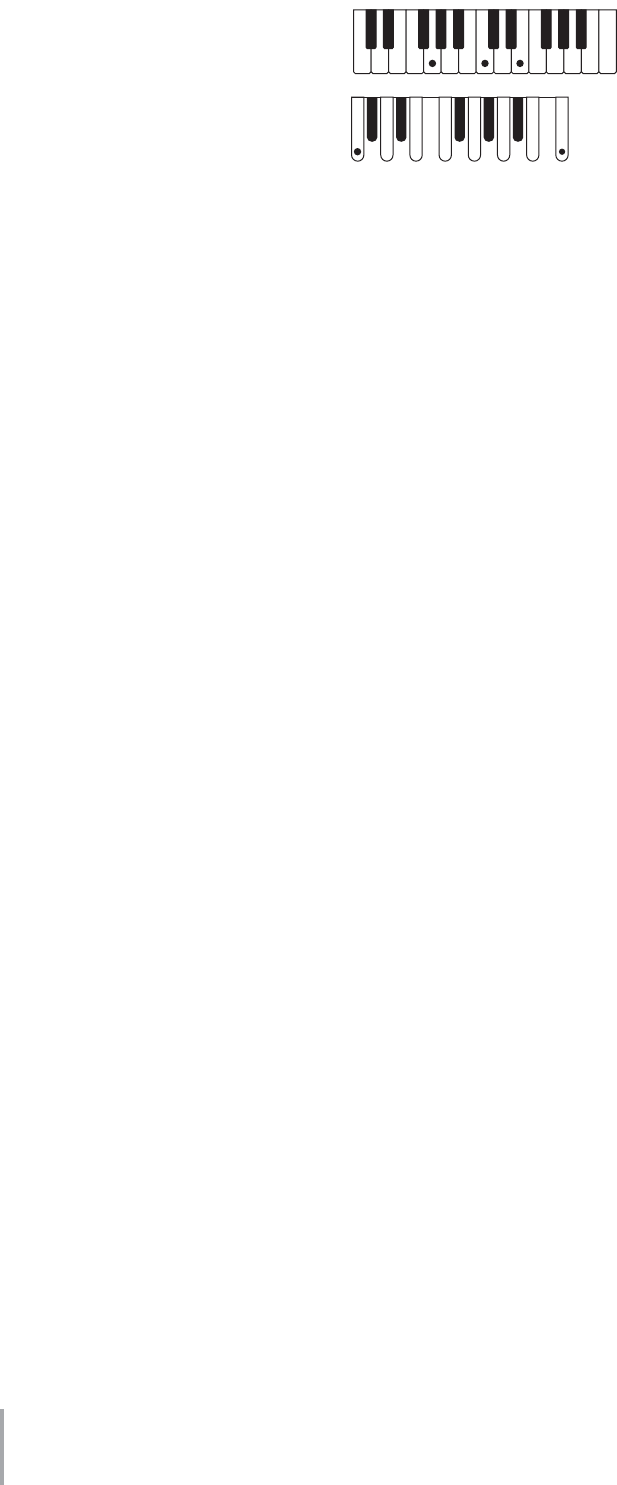

Pitch

To help you play the notes in the scores, we’ve shown here what keys you’ll need to play on each

keyboard to match the notes in the score.

The actual notes produced will depend on the selected Voices.

(Middle C)

C D E F G

CDEF G

Right hand

Left hand

Upper Keyboard

Lower Keyboard

Playing the ELB-01 — Tutorial

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Scores

Below are some score examples for the Electone.

Melody Score (one staff)

Play the melody with your right hand. The letters printed above the score (in this case, “C”) indicates

what chords and notes you should play on the Lower Keyboard and Pedalboard. (Refer to “Electone

Chords” on pages 40 – 41.)

Full Score (three staffs)

Shows all notes to be played on the Upper Keyboard, Lower Keyboard and Pedalboard.

To play C on the Pedalboard, play the leftmost pedal.

CDEF G

CDEFG

Left foot

Pedalboard

Chord

Upper Keyboard

Lower Keyboard

Pedalboard

Playing the ELB-01 — Tutorial 17

Performance Marks on the Score

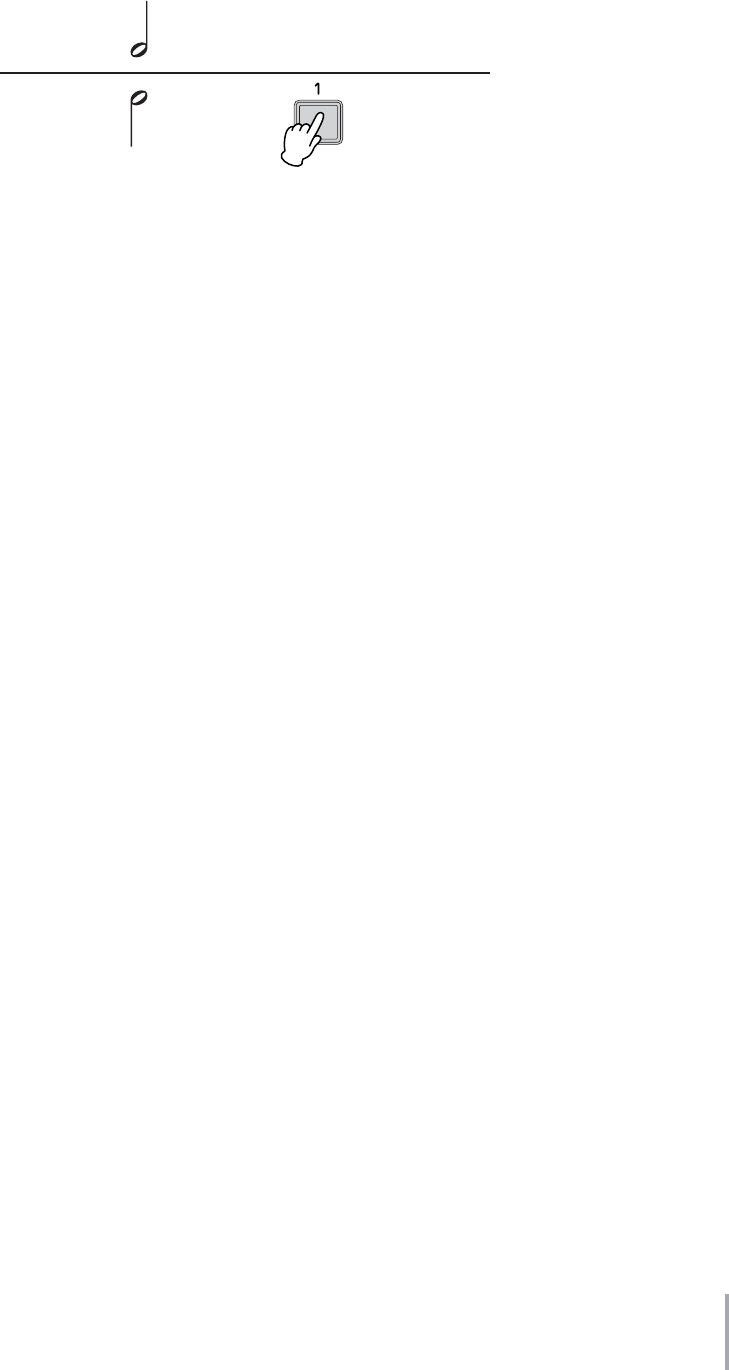

These special performance marks indicate which buttons you should press on the panel and when you

should press them while playing the Electone. In the example below, ﬁrst press the INTRO [3] button,

then press the [SYNCHRO START] button.

Octave

This “8va” mark indicates that the part underneath should be played one octave higher than written.

Backing Pattern

An example of an appropriate backing pattern is given below. For melody scores, the chord letters above

the notation indicate the notes to be played on the Lower keyboard and the Pedalboard. These chord

indications show you what notes to play, but give limited information on the timing for playing the keys

or how long the keys should be held down in a measure. The example below is more speciﬁc, and allows

you to play the backing pattern with the appropriate timing.

The notes above the dividing line indicate the rhythm pattern to be played on the Lower Keyboard,

while the notes below indicate the timing for the Pedalboard. In this case, play the whole notes with your

left hand on the ﬁrst beat in each measure on the Lower Keyboard and play the half note with your foot

on the ﬁrst and third beats in each measure on the Pedalboard.

INTRO 3 + RHYTHM SYNCHRO START

(Middle C) C

8va

CDEF G

Upper Keyboard

Playing the ELB-01 — Tutorial

INTRO 3 + RHYTHM SYNCHRO START

ENDING 2 (with right hand)

When the Saints Go Marching In

American Folk Song

Playing the ELB-01 — Tutorial 19

“When the Saints Go Marching In” is an traditional American spiritual, and is most closely associated

with the birthplace of jazz, New Orleans. Performed in parades, blues and jazz festivals and

popularized by many—most notably, Louis Armstrong—it is a well-loved tune all over the world. The

bright brass sounds used here in this arrangement match well with the joyful rhythm.

Helpful Hint

The tempo of this piece is fast, so play it energetically keeping with the feel of the double-time rhythm.

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Chords

( )

ConG F

Playing the ELB-01 — Tutorial

Selecting the Registration for performing from the

Registration Menu

Simply select the Registration from the Registration Menu and play the song.

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Selecting the Registration

Press the Registration Menu [3] button on the panel.

The selected registration is shown at the bottom of the display.

Select the Registration “20: Jive” by using the DATA CONTROL dial.

Now, you have completed the setting.

¸˛˝<DANCE&BALLAD>

¿01:Organ Ballad

Registration Genre

Registration

¸˛˝<DANCE&BALLAD>

¿20:Jive

¸˛˝<DANCE&BALLAD>

¿01:Organ Ballad

Playing the ELB-01 — Tutorial 21

Playing “When the Saints Go Marching In”

Press the INTRO [3] button in the Rhythm section.

Press the [SYNCHRO START] button.

The lamp above the [SYNCHRO START] button will light, indicating that the Synchro Start

standby mode has been engaged.

What is Synchro Start standby?

The [SYNCHRO START] button puts the rhythm in “standby” condition. When the Synchro Start

standby mode is engaged, rhythm playback will begin as soon as you play a note on the Lower

Keyboard or Pedalboard.

INTRO 3 + RHYTHM SYNCHRO START

ENDING 2 (with right hand)

Playing the ELB-01 — Tutorial

Play a C chord with your left hand on the Lower Keyboard and a C note with

your foot on the Pedalboard, referring as needed to “Chords” on page 19.

As soon as you play the C chord, a gorgeous introduction with full accompaniment will begin

playing. Let the introduction continue for twelve bars, then start playing the melody with your

right hand on the Upper Keyboard from the second beat in the thirteenth bar. You can visually

conﬁrm the beginning of the introduction with the “-13.1” indication in the Bar/Beat display on

the panel. The display counts forward to “1.1,” indicating the beginning of the main section. To

actually start the tune, play the melody right at “-1.2”.

Make sure to play the melody one octave higher on the keyboard for notes having the “8va” mark.

After you’ve played the melody to its end, press the ENDING [2] button with your

right hand—at the point in the score marked “ENDING 2 (with right hand).”

The ending pattern matching with the selected rhythm automatically starts playing. Keep holding

down the keys with your left hand while the ending pattern is playing.

( )

Playing the ELB-01 — Tutorial 23

Memo

Playing the ELB-01 — Tutorial

MEMORY

INTRO 1 + RHYTHM START

FILL IN B

Jupiter

Composer

Gustav Holst

Playing the ELB-01 — Tutorial 25

MEMORY

FILL IN B (with left hand)

ENDING 1 (with left hand)

Playing the ELB-01 — Tutorial

“Jupiter” is one of the seven movements in the magniﬁcent orchestral suite “The Planets” by the British

composer Gustav Holst. This suite was completed in 1916 and is based on the concept of the planets of

our solar system. “Jupiter” is one of the more well-known and popular pieces from this suite among

classical music fans, because of its majestic, beautiful melody.

Helpful Hint

In this tune, the Lower Memory function is turned on. When the Lower Memory is set to on, the Lower

keyboard Voices and chord accompaniment keep playing (along with the rhythm) even after you release

your ﬁngers from the Lower keyboard. This means that if you hit a wrong note by mistake, the “wrong”

accompaniment will continue sounding until you re-play the chord. Be very careful to press the correct

keys when you play chords with your left hand.

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Chords

( )

ConE F

GGonB Am

Am7

Playing the ELB-01 — Tutorial 27

Selecting the Registrations for performing from the

Registration Menu

To play this tune, you’ll need to use two registrations, Memory 1 and Memory 2. For Memory 1, select

one of the Registration Menu buttons (as you did in “When the Saints Go Marching In”). For Memory

2, ﬁrst select a Registration (to serve as a ‘template’), then create a new Registration from it by changing

the original settings. You can store your created Registrations to the Registration Memory buttons ﬁrst,

then save them for safekeeping to a USB ﬂash memory device.

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Setting the Registrations

Selecting a registration

Press the Registration Menu [3] button.

The registration of “Dance & Ballad” genre is displayed.

Select “42: Love Song ✽B” by using the DATA CONTROL dial.

MEMORY

¸˛˝<DANCE&BALLAD>

¿01:Organ Ballad

Registration Genre

Registration

¸˛˝<DANCE&BALLAD>

¿42:Love Song *B

¸˛˝<DANCE&BALLAD>

¿01:Organ Ballad

Playing the ELB-01 — Tutorial

Store the setting to the Registration Memory [1] button.

While holding down the [M.] (Memory) button in the Registration Memory section, press the [1]

button—to which the Registration will be stored.

When the Registration is stored, the LED above the [1] button ﬂashes momentarily.

This completes the settings for Registration Memory 1.

Go on to create the second Registration

Select Registration “44: Love Song ✽D” by using the DATA CONTROL dial.

1. While holding down [M.] button...

2. Press the desired numbered button.

MEMORY

¸˛˝<DANCE&BALLAD>

¿44:Love Song *D

Playing the ELB-01 — Tutorial 29

The Upper Keyboard Voice of the Registration selected in step 1 above is a

Strings Voice. You can create a richer, more dramatic sound by changing the

feet of the Strings Voice—to better bring out the melody played on the Upper

keyboard.

2-1 Press the [STRINGS] button in the Upper Keyboard 1/2 Voice section.

“Strings 2” is displayed at the bottom of the display, indicating that the Voice originally set

in Registration “Love Song ✽D” (selected in step 1) is “Strings 2.”

2-2 Press the [STRINGS] button again to call up the Voice Condition display,

in which you can tweak the settings for “Strings 2.”

The Feet setting is shown at the bottom right of the display.

2-3 Change the feet setting to “16’” by pressing the [D] button successively.

This makes the sound of the Upper Keyboard richer and warmer.

<STRINGS/VIOLIN> ¨1

¿02:Strings 2

VOL.¿24 REV.÷24 ¨1⁄

TOUCH¿ 8 FEET÷PRESET

VOL.¿24 REV.÷24 ¨1⁄

TOUCH¿ 8 FEET÷16'

Playing the ELB-01 — Tutorial

“Timpani 1” is set for the Pedal Voice 2 in the selected registration. Make it a

little more simple and sparse, by muting Pedal Voice 2.

3-1 Press the [VOICE SECTION] button at the top left on the panel to light up

lamp [2] in the Voice Section as shown below.

When the Voice Section lamp [2] lights up, you can select a Voice from Voice Section 2 for

each Keyboard, or visually conﬁrm the Voices selected from Voice Section 2 for each

Keyboard.

What is Voice Section 2?

For the Pedalboard, you can play two Voices from a single pedal by selecting Pedal

Voice 1 from the Pedal Voice 1 section and Pedal Voice 2 from the Pedal Voice 2

section. To switch between the available Pedal Voice sections, press the [VOICE

SECTION] button. For details, see “Switching between Voice section 1 and Voice

section 2” on page 29 in the Owner’s Manual.

3-2 Press the [VOICE DISPLAY] button in the DISPLAY SELECT section.

The current Voices selected from Voice section 2 for each keyboard are shown.

3-3 Press the [D] button corresponding to “Timpani 1” in the display to mute

the Timpani 1 Voice.

The indicator “”” changes to “’.” Now, the Timpani 1 sound will be off even if you play

the Pedalboard.

¨”Strings3

Ò”Sm.Pad6 ∏”Timpani1

¨”Strings3

Ò”Sm.Pad6 ∏’Timpani1

Mute (Off)

Playing the ELB-01 — Tutorial 31

Set the Auto Bass Chord (A.B.C.) function

What is the A.B.C. function?

The A.B.C. function works with the Rhythm section of the Electone to automatically produce

bass accompaniment as you play. It adds an entirely new dimension to your performance by

effectively putting a full backing band at your disposal.

4-1 Press the [A.B.C./ M.O.C.] button in the DISPLAY SELECT section to call

up the A.B.C. display.

The selected A.B.C. function mode is displayed (in this case, off is selected) at the bottom

left of the display.

4-2 Select “CUSTOM” by using the DATA CONTROL dial.

This allows you to determine what bass notes will be played in the accompaniment by

playing a note on the Pedalboard during rhythm playback.

4-3 Press the [B] button to turn Lower Memory on.

What is Lower Memory?

When Lower Memory is set to on, the Lower keyboard Voices and chord

accompaniment keep playing even after you release your ﬁngers from the Lower

keyboard, while the rhythm plays. This is useful when you play while using the A.B.C.

function.

<ABC> ’L.MEMORY⁄

¿OFF ’P.MEMORY

<ABC> ’L.MEMORY⁄

¿CUSTOM ’P.MEMORY

<ABC> ”L.MEMORY⁄

¿CUSTOM ’P.MEMORY

Playing the ELB-01 — Tutorial

4-4 Press the [D] button to turn Pedal Memory on.

What is Pedal Memory?

When Pedal Memory is set to on, the Pedalboard Voices and bass accompaniment

keep playing even after you release your foot from the Pedalboard, while the rhythm

plays. This is useful when you play while using the A.B.C. function.

Store the setting to the Registration Memory [2] button.

While holding down the [M.] (Memory) button in the Registration Memory section, press the [2]

button—to which the Registration will be stored.

When the Registration is stored, the LED above the [2] button ﬂashes momentarily.

This completes the settings for Registration Memory 2.

<ABC> ”L.MEMORY⁄

¿CUSTOM ”P.MEMORY

1. While holding down [M.] button...

2. Press the desired numbered button.

Playing the ELB-01 — Tutorial 33

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Saving the Registrations to a USB ﬂash memory device

Now that you’ve stored the created registrations to the numbered buttons on the panel, you should save

them to an optional USB ﬂash memory device. Once saved to a USB device, you can easily connect it to

the Electone and load back the saved data anytime you wish.

Before purchasing a USB ﬂash memory device, please consult your Yamaha dealer, or an authorized

Yamaha distributor for advice and possible compatibility issues.

Insert the USB ﬂash memory device into the USB TO DEVICE terminal.

Press the [MDR] button to call up the Song Select display.

Save

Load/Play USB flash memory

Registrations

<SONG SELECT> ⁄

¿Ã001:USB 01 [Õ]

Playing the ELB-01 — Tutorial

Select a blank song “new song” to which you want to save the Registration

data.

To select a “new song,” press the [D] button to enter the media, and the selected new song is

shown at the bottom of the display. If “new song” is not displayed, turn the DATA CONTROL

dial or press the [C] button successively to select a new song.

You have selected a new song for saving the Registration data.

What is a Song?

You can think of a Song as being a special container (within certain storage media) for storing

recorded Electone data for a piece of music. A single song can contain both the recorded

performance and Registrations.

Use the PAGE buttons to select Page 9.

The Registration Save display appears.

ÃUSB 01 [˜] ⁄

¿ ___:new song

<SONG SELECT> ⁄

¿Ã001:USB 01 [Õ]

Select the new song

<REG.SAVE> [EXE] ·

___:new song ¸:__

Playing the ELB-01 — Tutorial 35

Press the [B] button corresponding to [EXE] in the display.

A message appears, indicating the Registration data is currently being saved. After the message

disappears, the song to which the Registration is recorded is automatically named “SONG XX” (xx

indicates the number).

Now you have saved your Registrations to the USB ﬂash memory device.

You can change the song name as desired. For details on how to edit the song name, see page

122 in the Owner’s Manual. In this case, giving it the song title “Jupiter” amy make it easier to

ﬁnd the song in the future.

ÃUSB 01 [˜] ⁄

¿ 001:Jupiter

Playing the ELB-01 — Tutorial

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Recalling Recorded Registrations

Load back the Registrations in the media to the Electone so that you can use the settings for performing

“Jupiter.”

Insert the USB ﬂash memory into the USB TO DEVICE terminal.

Press the [MDR] button and select the song to which the Registrations of

“Jupiter” have been saved.

For details on selecting a song, see pages 111 – 117 in the Owner’s Manual.

Press the [PLAY/PAUSE] button.

A message appears, indicating that the Registrations are being loaded. After loading the

Registration data, the message closes.

The Registrations are loaded to the numbered buttons on the panel.

ÃUSB 01 [˜] ⁄

¿ 001:SONG 1

Playing the ELB-01 — Tutorial 37

Playing “Jupiter”

Press the Registration Memory [1] button

Press the INTRO [1] button in the Rhythm section.

MEMORY

FILL IN B (with left hand)

ENDING 1 (with left hand)

MEMORY

INTRO 1 + RHYTHM START

FILL IN B

4 6

Playing the ELB-01 — Tutorial

Press the [START] button in the Rhythm section.

Start playing from the fourth beat in the ﬁrst bar.

Press the FILL IN [B] button in the Rhythm section with your left hand at the

point in the score marked “FILL IN B.”

Press the FILL IN [B] button in the Rhythm section with your left hand at the

point marked “FILL IN B (with left hand)” in the seventeenth measure on the

score, and then press the [2] button in the Registration Memory section with

your right hand at the point marked “Memory 2” in the same measure on the

score.

At the seventeenth measure, you’ll need to call up the ﬁll in pattern and change the Registration

Memory number by pressing the appropriate buttons with the proper timing as you perform.

Play the notes on the ﬁrst beat with both hands, and on the second beat, take your left hand from

the keyboard and use it to press the FILL IN [B] button, while holding down the keys with your

right hand. On the third beat, lift your right hand from the keyboard and use it to press the

Registration Memory [2] button. Finally, on the fourth beat, play the melody with right hand

while playing the Pedalboard.

Right hand

Left hand

Playing the ELB-01 — Tutorial 39

After playing the melody, press the ENDING [1] button with your left hand at the

point marked “ENDING 1 (with left hand)” in the score.

Press the ENDING [1] button with your left hand at the third beat in the last measure. The

rhythm will automatically stop after the ending phrase is played. While the ending phrase is

played, hold down the keys on the Upper Keyboard.

Right hand

Left hand

Playing the ELB-01 — Tutorial

Electone Chords

( ) ( ) ( ) ( ) ( ) ( )

CCmC6

C7Cm7Cm7

E (D)

D (C)

B (A)

Cm(Dm)

Dm(Em)

D6(C6)

E6(D6)

D7(C7)Cm7(Dm7)Cm7 (Dm7 )

DDmD7Dm7Dm7

E7(D7)Dm7(Em7)Dm7 (Em7 )

EEmE6E7Em7Em7

FFmF6F7Fm7Fm7

Fm(Gm)G6(F6)

G (F)G7(F7)Fm7(Gm7)Fm7 (Gm7 )

GGmG6G7Gm7Gm7

Gm(Am)A6(G6)

A (G)A7(G7)Gm7(Am7)Gm7 (Am7 )

AAmA6A7Am7Am7

Bm(Am)B6(A6)B7(A7)Bm7(Am7)Bm7 (Am7 )

BBmB6B7Bm7Bm7

–5

–5 –5

–5

–5 –5

–5

–5–5

–5

Major Minor Sixth Seventh Minor seventh Minor seventh

flatted fifth

Playing the ELB-01 — Tutorial 41

This chord chart shows the notes you should play when Auto Bass Chord (A.B.C.) is set to Custom. When the

accompaniment mode is set to Off or Fingered, make sure to also play the proper root note on the lower keyboard,

which is indicated here in the Pedalboard graphic.

Seventh

suspended

fourth

Minor major

seventh

Suspended

fourth

DiminishedAugmentedMajor seventh

( ) ( ) ( ) ( ) ( ) ( )

CM7 Caug Cdim

Ddim

Csus4C

7sus4

CmM7

EM7 (DM7)

DM7 (CM7)

BM7 (AM7)

Daug(Caug)

Eaug(Daug)

Cdim(Ddim)

Edim(Ddim)

Dsus4(Csus4)

D7sus4(C7sus4)

CmM7(DmM7)

DM7 Daug Dsus4D

7sus4

DmM7

Esus4(Dsus4)

E7sus4(D7sus4)

DmM7(EmM7)

EM7 Eaug Edim Esus4E7sus4EmM7

FM7 Faug Fdim Fsus4F7sus4FmM7

Gaug(Faug)

GM7(FM7)

AM7(GM7)

Fdim(Gdim)Fsus4(Gsus4)

F7sus4(G7sus4)

FmM7(GmM7)

GM7 Gaug Gdim Gsus4G7sus4GmM7

Aaug(Gaug)Adim(Gdim)Gsus4(Asus4)

G7sus4(A7sus4)

GmM7(AmM7)

AM7 Aaug Adim Asus4A7sus4AmM7

Baug(Aaug)Bdim(Adim)Bsus4(Asus4)

B7sus4(A7sus4)

BmM7(AmM7)

BM7 Baug Bdim Bsus4B7sus4BmM7

Playing the ELB-01 — Tutorial

Memo

Playing the ELB-01 — Tutorial 43

Memo

U.R.G., Digital Musical Instruments Division

WF12610 209MWAP*.*-01A1

Printed in China

Yamaha ELB 01 Tutorial Elb01 En Tu A1

Navigation menu

Versions of this User Manual:

Views

Navigation
