Yamaha MONTAGE Supplementary Manual 6/7/8 En Sm H0

User Manual: Yamaha MONTAGE 6/7/8 Supplementary Manual

Open the PDF directly: View PDF .
Page Count: 133 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Contents
New Functions in MONTAGE Version 3.50
New Functions in MONTAGE Version 3.00
New Functions in MONTAGE Version 2.50
New Functions in MONTAGE Version 2.00
New Functions in MONTAGE Version 1.60
New Functions in MONTAGE Version 1.50
New Functions in MONTAGE Version 1.20
New Functions in MONTAGE Version 1.10

Contents

New Functions in MONTAGE Version 3.50 ..... 3

Additional New Performances............................4

New Smart Morph function ................................5

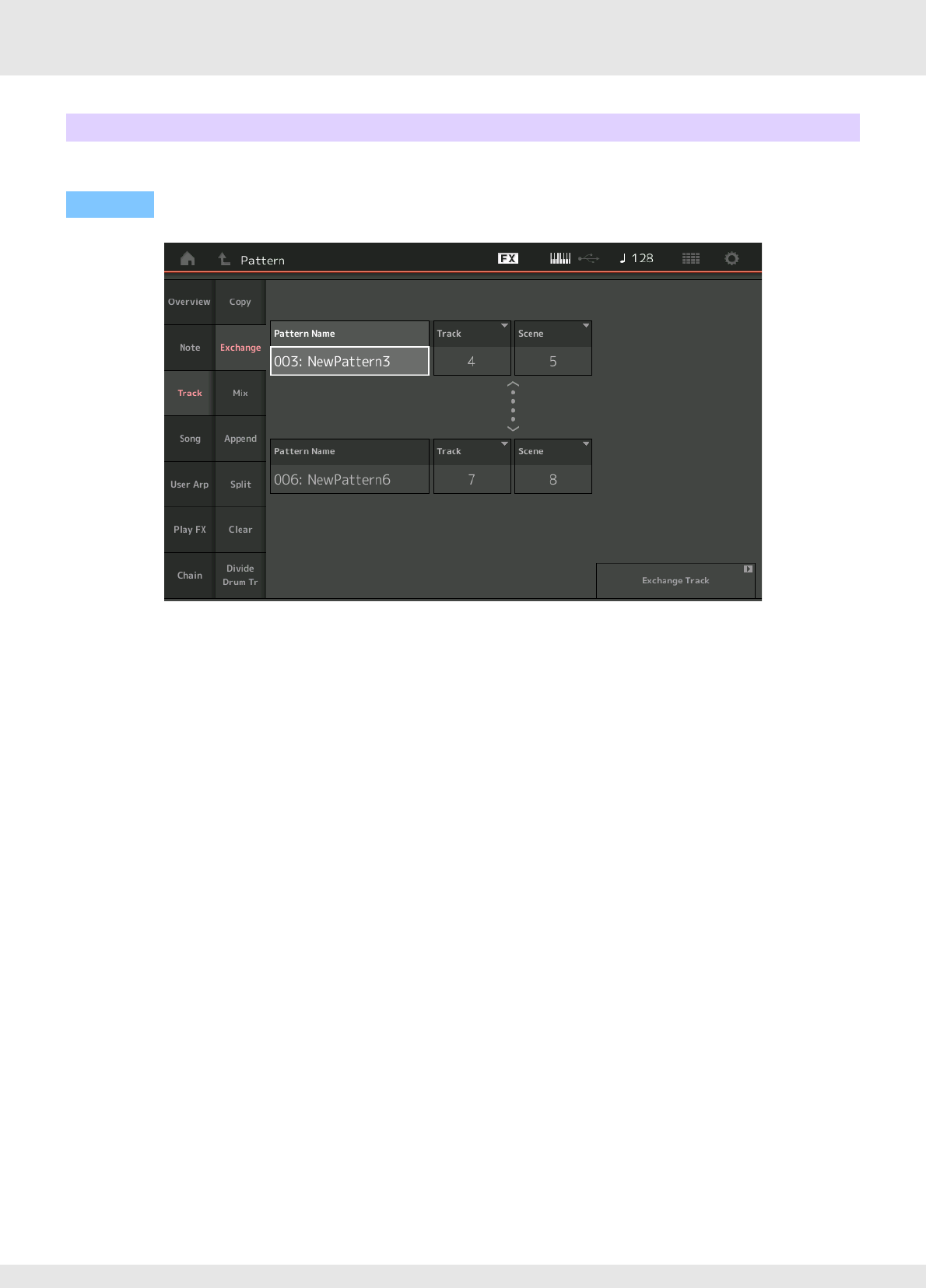

Additional Pattern functions .............................13

User interface enhancements for Patterns ......17

Importing of MODX files...................................19

Improved Controllability ...................................20

Other ................................................................22

New Functions in MONTAGE Version 3.00 ... 23

Additional New Effect types .............................24

Additional New Performances..........................25

New Pattern Sequencer function .....................26

New Rhythm Pattern function ..........................49

Live Set ............................................................52

Scene...............................................................54

Edit...................................................................56

Utility ................................................................58

MIDI Data Reception with USB TO DEVICE ...62

User Interface Enhancements .........................63

Sequencer Block..............................................64

New Functions in MONTAGE Version 2.50 ... 65

Additional New Performances..........................66

DAW Remote function .....................................67

Play/Rec...........................................................70

Part Edit (Edit)..................................................71

Utility ................................................................72

Control Assign dialog .......................................73

Panel Lock Function ........................................74

New Functions in MONTAGE Version 2.00 ... 75

Additional New Performances......................... 76

Common/Audio Edit (Common/Audio)............ 77

Part Edit (Edit)................................................. 79

Utility ............................................................... 80

Envelope Follower........................................... 85

Control Assign dialog ...................................... 86

New Functions in MONTAGE Version 1.60 ... 87

Additional New Effect Types ........................... 88

Additional New Performances......................... 89

Motion Control................................................. 90

Common/Audio Edit (Common/Audio)............ 91

Part Edit (Edit)................................................. 93

New Functions in MONTAGE Version 1.50 ... 94

Additional New Effect Types ........................... 95

Additional New Performances......................... 97

Category Search ............................................. 98

Performance Play (Home)............................. 100

Motion Control............................................... 104

Utility ............................................................. 105

Edit................................................................ 112

New Functions in MONTAGE Version 1.20...113

Motion Control............................................... 114

Play/Rec........................................................ 115

Category Search ........................................... 117

Utility ............................................................. 118

Common/Audio Edit (Common/Audio).......... 120

Part Edit (Edit)............................................... 122

MUSIC SYNTHESIZER

Supplementary Manual

MONTAGE Supplementary Manual 2

New Functions in MONTAGE Version 1.10 .. 124

New Performances ........................................125

Performance Play (Home) .............................125

Category Search ............................................126

Utility ..............................................................128

Part Edit (Edit)................................................131

Live Set Edit (Edit) .........................................132

Live Set ..........................................................133

MONTAGE Supplementary Manual 3

New Functions in MONTAGE Version 3.50

Yamaha has upgraded the MONTAGE firmware, adding the following new functions.

This manual describes additions and changes with respect to the Reference Manual that came with your instrument.

• New Performances have been added.

• The Smart Morph function has been added.

• New functions have been added to the Pattern Sequencer.

• MODX files can now be imported.

• Controllability and playability have been improved.

MONTAGE Supplementary Manual 4

Additional New Performances

The MONTAGE offers 32 new Performances.

For information on the added Performances, refer to the Data List.

MONTAGE Supplementary Manual 5

New Smart Morph function

The Smart Morph function uses machine learning for morphing FM-X sounds. MONTAGE learns the sounds assigned to Parts 9

to 16 by sophisticated logic and plots each sound as a point on the Map. The distance of points indicates similarity of the

sounds. This function automatically creates interpolated FM-X sounds to fill in the gaps on the map.

Touch a position on the map to assign the sound to Part 1. By selecting points you like in this way and saving the results, you

can use this as a powerful tool for creating new FM-X sounds. You can also drag points on the map, or assign the behavior

between any two points to the Super Knob—giving you unprecedented real-time control for expressively morphing the FM-X

sound as you perform.

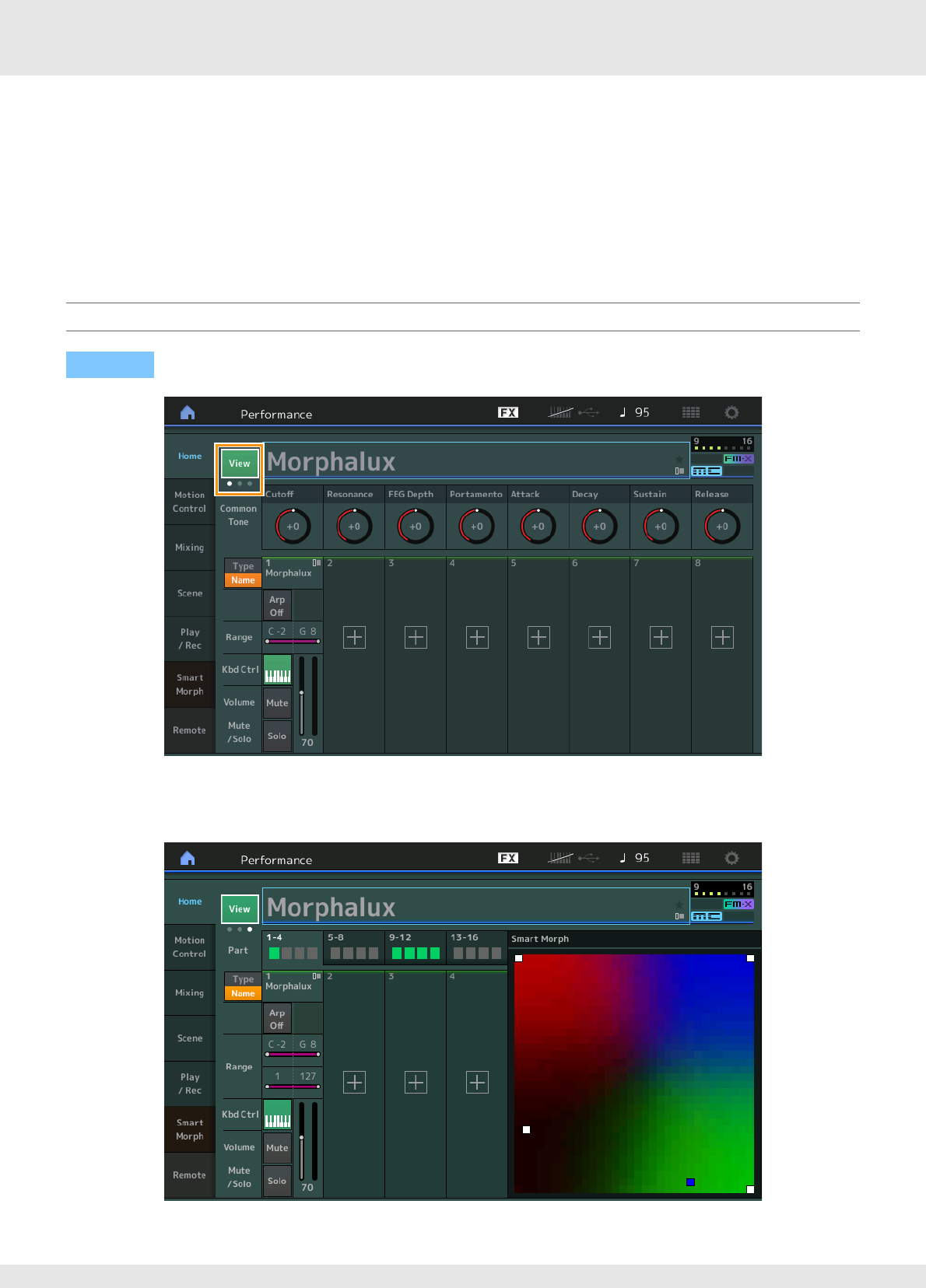

View

Use this to switch among three displays: the default screen display of eight Parts, a display of four Parts with various data, and

a display of four Parts and the Smart Morph map.

NOTE You can also use the [PERFORMANCE] button for the same operation.

Home

Operation [PERFORMANCE]  [Home]

MONTAGE Supplementary Manual 6

NOTE When the current View is the Smart Morph display and the Performance does not yet have Smart Morph data, four Parts with various

data is shown.

NOTE On the Live Set display, a special FM-X icon indicates if the assigned Performance has Smart Morph data or not.

: Displayed for a Performance with an FM-X Part.

: Displayed for a Performance with an FM-X Part and Smart Morph data.

MONTAGE Supplementary Manual 7

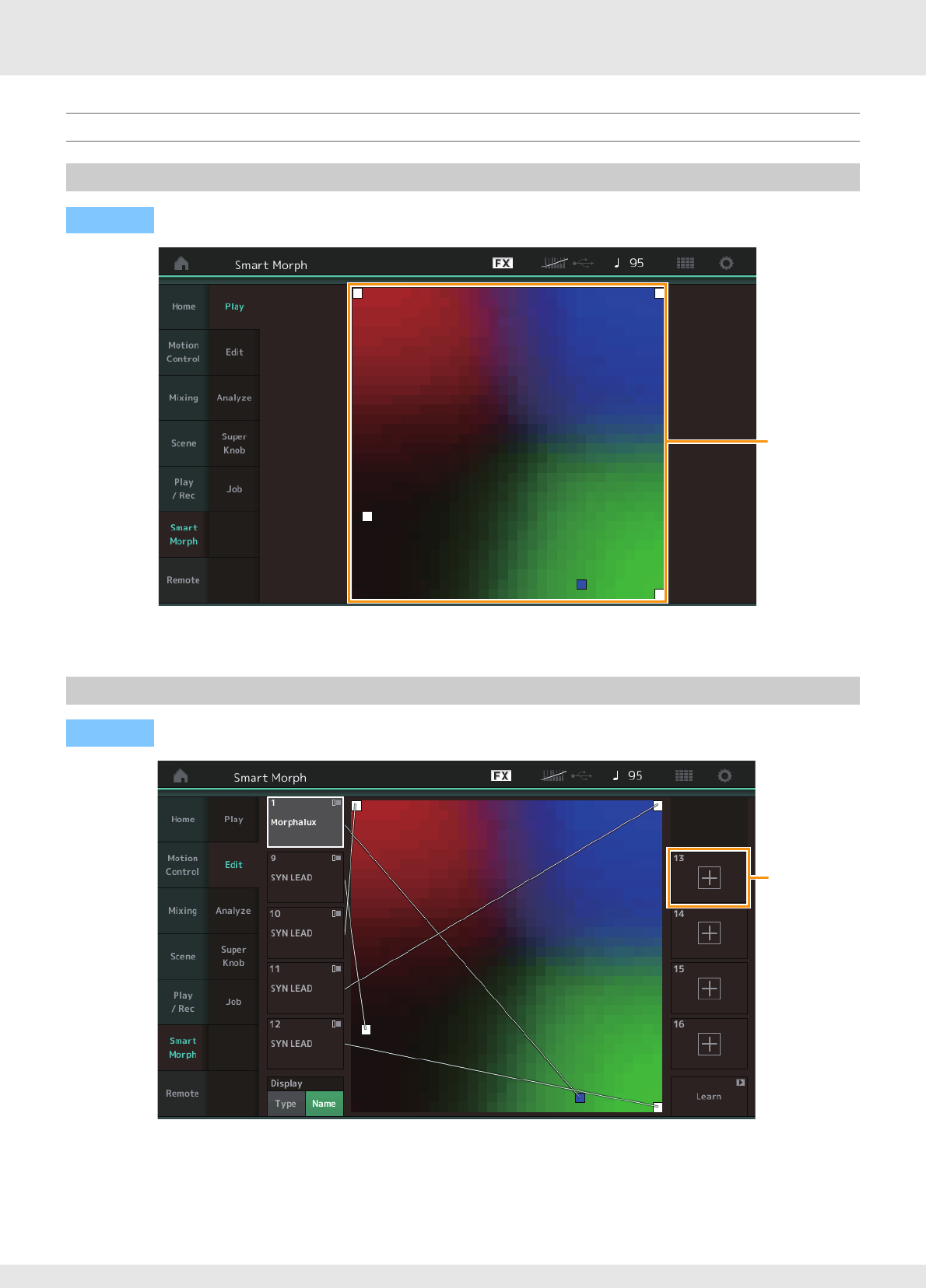

On this display, tap the Smart Morph map to change the FM-X sound for Part 1.

Part not in use

Calls up the Part Category Search display for selecting an FM-X sound when you tap one of the plus (+) buttons.

Part in use

Calls up the context menu (Category Search, Edit, Copy, Delete) when you tap this.

Smart Morph

Play

Operation [PERFORMANCE]  [Smart Morph]  [Play]

Edit

Operation [PERFORMANCE]  [Smart Morph]  [Edit]

Map

Part not in use

MONTAGE Supplementary Manual 8

Display

Determines whether each Part is indicated by its Main Category or by its Part Name.

Learn

Begins learning (map creation) by tapping. During processing, some interface operations are disabled and the [Cancel] button

is shown in place of [Learn]. If you cancel processing, the map will return to its status before learning. You can also play the

instrument during the learning operation.

ETA (Estimated Time of Action)

Displays the estimated time remaining for the learning operation.

Undo/Redo

After operating the learning function, the [Undo] button is shown at the upper right. Press Undo to cancel your edits and return

the map to its pre-learning state. After you use Undo, [Redo] is shown, letting you restore the edits you’ve made.

Analyze

Operation [PERFORMANCE]  [Smart Morph]  [Analyze]

MONTAGE Supplementary Manual 9

Red

Displays the size of the value for the selected parameter as a shade of red. For setting values, refer to “Parameters that can be

set for Red, Green, and Blue” (page 10).

Green

Displays the size of the value for the selected parameter as a shade of green. For setting values, refer to “Parameters that can

be set for Red, Green, and Blue” (page 10).

Blue

Displays the size of the value for the selected parameter as a shade of blue. For setting values, refer to “Parameters that can be

set for Red, Green, and Blue” (page 10).

ETA (Estimated Time of Action)

Displays the estimated time remaining for the learning operation.

Coloring

Resets Red, Green, and Blue automatically when Learn is executed, if this is set to Auto. If this is set to Manual, then Red,

Green, and Blue are not automatically reset when Learn is executed.

Settings: Auto, Manual

Learn

Begins learning (map creation) when you tap this. During processing, some interface operations are disabled and the [Cancel]

button is shown in place of [Learn]. If you cancel processing, the map will return to the pre-learning status.

Undo/Redo

After operating the learning function, the [Undo] button is shown at the upper right. Press Undo to cancel your edits and return

the map to its pre-learning state. After you use Undo, [Redo] is shown, letting you restore the edits you’ve made.

MONTAGE Supplementary Manual 10

Parameters that can be set for Red, Green, and Blue

FM Common

Parameter Name Display Name Parameter Name Display Name

Random Pan Depth Random Pan Filter Cutoff Key Follow

Sensitivity

Flt Cutoff/Key

Alternate Pan Depth Alternate Pan Filter Cutoff Scaling

Break Point 1

Flt Break Point 1

Scaling Pan Depth Scaling Pan Filter Cutoff Scaling

Break Point 2

Flt Break Point 2

Key On Delay Time

Length

Delay Length Filter Cutoff Scaling

Break Point 3

Flt Break Point 3

Key On Delay Tempo

Sync Switch

KeyOnDly Sync Filter Cutoff Scaling

Break Point 4

Flt Break Point 4

Key On Delay Note

Length

Delay Length Filter Cutoff Scaling

Offset 1

Flt Cutoff Offset 1

Pitch Velocity

Sensitivity

Pitch/Vel Filter Cutoff Scaling

Offset 2

Flt Cutoff Offset 2

Random Pitch Depth Random Pitch Filter Cutoff Scaling

Offset 3

Flt Cutoff Offset 3

Pitch Key Follow

Sensitivity

Pitch/Key Filter Cutoff Scaling

Offset 4

Flt Cutoff Offset 4

Pitch Key Follow

Sensitivity Center Note

Pitch/Key Center HPF Cutoff Key Follow

Sensitivity

HPF Cutoff/Key

Filter Type Filter Type PEG Attack Time PEG Attack Tm

Filter Cutoff Frequency Cutoff PEG Decay 1 Time PEG Decay 1 Tm

Filter Cutoff Velocity

Sensitivity

Cutoff/Vel PEG Decay 2 Time PEG Decay 2 Tm

Filter Resonance/Width Resonance/ Width PEG Release Time PEG Release Tm

Filter Resonance

Velocity Sensitivity

Res/Vel PEG Initial Level PEG Initial Lvl

HPF Cutoff Frequency HPF Cutoff PEG Attack Level PEG Attack Lvl

Distance Distance PEG Decay 1 Level PEG Decay 1 Lvl

Filter Gain Filter Gain PEG Decay 2 Level PEG Decay 2 Lvl

FEG Hold Time FEG Hold Tm PEG Release Level PEG Release Lvl

FEG Attack Time FEG Attack Tm PEG Depth Velocity

Sensitivity

PEG Depth/Vel

FEG Decay 1 Time FEG Decay 1 Tm PEG Depth PEG Depth

FEG Decay 2 Time FEG Decay 2 Tm PEG Time Key Follow

Sensitivity

PEG Time/Key

FEG Release Time FEG Release Tm 2nd LFO Wave LFO Wave

FEG Hold Level FEG Hold Lvl 2nd LFO Speed LFO Speed

FEG Attack Level FEG Attack Lvl 2nd LFO Phase LFO Phase

FEG Decay 1 Level FEG Decay 1 Lvl 2nd LFO Delay Time LFO Delay

FEG Decay 2 Level FEG Decay 2 Lvl 2nd LFO Key On Reset

LFO Key On Reset

FEG Release Level FEG Release Lvl 2nd LFO Pitch

Modulation Depth

LFO Pitch Mod

FEG Depth FEG Depth 2nd LFO Amplitude

Modulation Depth

LFO Amp Mod

FEG Time Velocity

Sensitivity Segment

FEG Segment 2nd LFO Filter

Modulation Depth

LFO Filter Mod

FEG Time Velocity

Sensitivity

FEG Time/Vel Algorithm Number Algorithm

FEG Depth Velocity

Sensitivity

FEG Depth/Vel Feedback Level Feedback

FEG Depth Velocity

Sensitivity Curve

FEG Curve LFO Speed Range Extended LFO

FEG Time Key Follow

Sensitivity

FEG Time/Key LFO Extended Speed LFO Ex Speed

FEG Time Key Follow

Sensitivity Center Note

FEG Center

FM Operator (op1 – op8)

Parameter Name Display Name

Oscillator Key On

Reset

Key On Reset

Oscillator Frequency

Mode

Freq Mode

Tune Coarse Coarse

Tune Fine Fine

Detune Detune

Pitch Key Follow

Sensitivity

Pitch/Key

Pitch Velocity

Sensitivity

Pitch/Vel

Spectral Form Spectral

Spectral Skirt Skirt

Spectral Resonance Resonance

PEG Initial Level PEG Initial Lvl

PEG Attack Level PEG Attack Lvl

PEG Attack Time PEG Attack Tm

PEG Decay Time PEG Decay Tm

AEG Hold Time AEG Hold Tm

AEG Attack Time AEG Attack Tm

AEG Decay 1 Time AEG Decay 1 Tm

AEG Decay 2 Time AEG Decay 2 Tm

AEG Release Time AEG Release Tm

AEG Attack Level AEG Attack Lvl

AEG Decay 1 Level AEG Decay 1 Lvl

AEG Decay 2 Level AEG Decay 2 Lvl

AEG Release(Hold)

Level

AEG Release Lvl

AEG Time Key Follow

Sensitivity

AEG Time/Key

Operator Level Level

Level Scaling Break

Point

Lvl Break Point

Level Scaling Low

Depth

Lvl/Key Lo

Level Scaling High

Depth

Lvl/Key Hi

Level Scaling Low

Curve

Curve Lo

Level Scaling High

Curve

Curve Hi

Level Velocity

Sensitivity

Level/Vel

2nd LFO Pitch

Modulation Depth

Offset

LFO PM Depth

2nd LFO Amplitude

Modulation Depth

Offset

LFO AM Depth

Pitch Controller

Sensitivity

Pitch/Ctrl

Level Controller

Sensitivity

Level/Ctrl

MONTAGE Supplementary Manual 11

Super Knob Link

Adds an effect to the Super Knob from start to end when this is set to ON.

Settings: On, Off

Start

Determines the position on the map corresponding to the minimum value of the Super Knob. With the cursor on Start, touch the

map to set the start position.

End

Determines the position on the map corresponding to the maximum value of the Super Knob. With the cursor on End, touch the

map to set the end position.

Super Knob

Operation [PERFORMANCE]  [Smart Morph]  [Super Knob]

MONTAGE Supplementary Manual 12

Load Smart Morph

Opens the Load display. Select another Performance on the Load display to load the Smart Morph data contained in that

Performance to the current Performance.

Delete Smart Morph

Deletes the Smart Morph data contained in the current Performance.

Delete Part 9 – 16

Sets Part 9 to Part 16 to unused status all at once.

When Parts 9 –16 are set to unused status, SSS is enabled.

Smart Morph uses Parts 9 –16 for making a map. However, deleting Parts 9 –16 has no effect on the sound of Part 1, making it

unnecessary to edit the map again.

Job

Operation [PERFORMANCE]  [Smart Morph]  [Job]

MONTAGE Supplementary Manual 13

Additional Pattern functions

Recording, Playing

You can now select a sound on the Part Category Search display while recording Patterns.

Overdubbing

You can now use real-time overdubbing to record your Controller actions while deleting previous Controller events. This makes it

easier to perform overdubbing using the Controller.

NOTE You can now perform the same operation for overdubbing MIDI songs as well.

Play/Rec

Pattern

Operation [PERFORMANCE]  [Play/Rec]  [Pattern]  [I] (Record) button  [R] (Play) button  Touch the Part name  Select

[Category Search] from the displayed menu

Operation [PERFORMANCE]  [Play/Rec]  [Pattern]  (indicated Pattern has been recorded already)  [I] (Record) button  Touch

[Record Type]  Select [Overdub] from the displayed menu  [R] (Play) button

MONTAGE Supplementary Manual 14

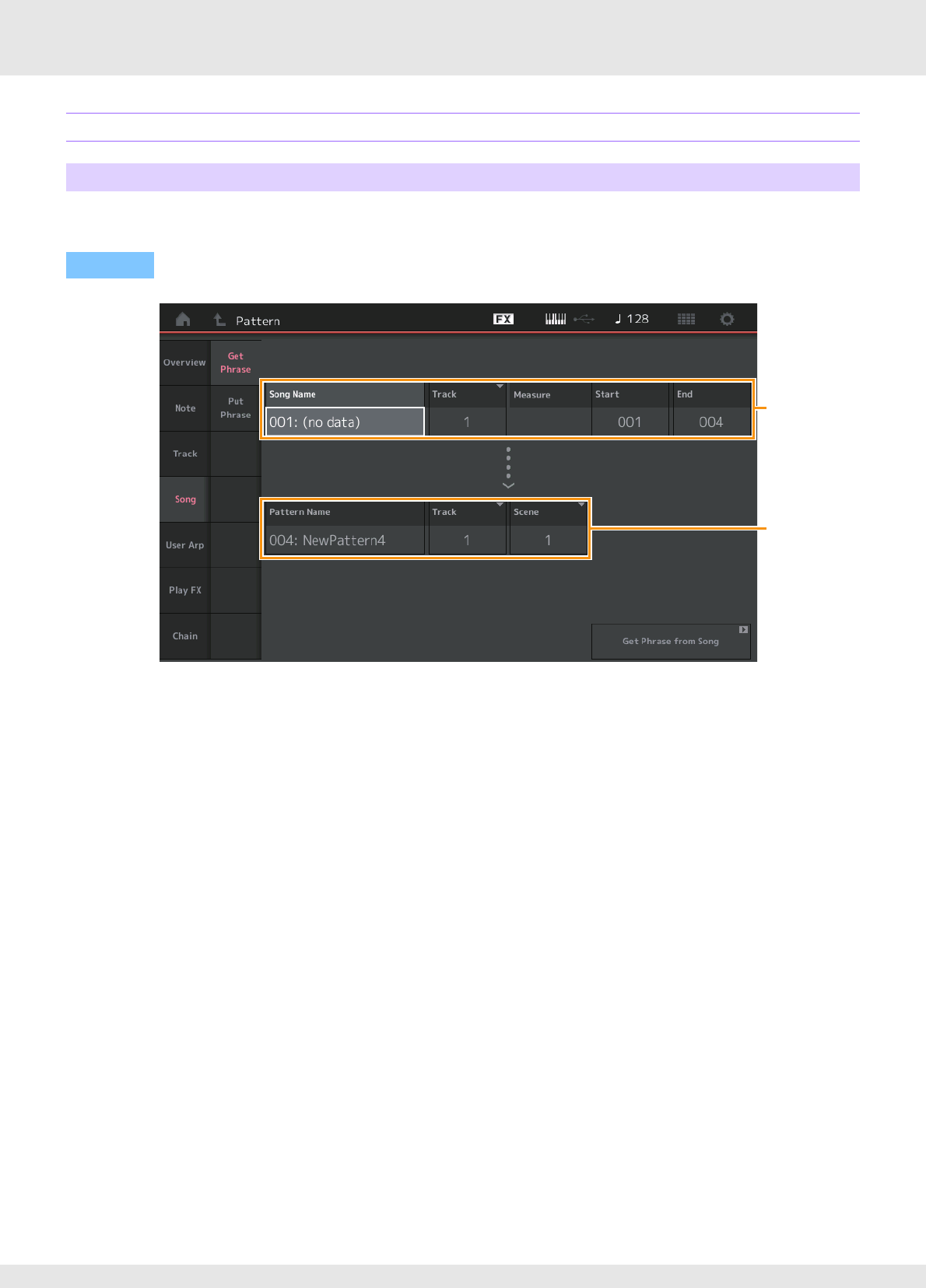

On the Get Phrase display, you can now specify “All” for the source and destination Tracks.

Track *1 Source

Determines the Track to get (copy).

Track *2 Destination

Determines the copy destination Track.

You can now delete MIDI events in a Pattern according to event type along with specifying the range (Measure, Beat and Clock).

Song/Event

Get Phrase

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Song/Event]  [Get Phrase]

Erase Event

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Song/Event]  [Erase Event]

MONTAGE Supplementary Manual 15

Track

Determines the Track to be erased.

Scene

Determines the Scene to be erased.

Start Measure

Determines the starting measure position at which the Job is applied.

Range: 001 – 257

Start Beat

Determines the starting beat position at which the Job is applied.

Settings: Depends on selected Time Signature

Start Clock

Determines the starting clock position at which the Job is applied.

Settings: Depends on selected Time Signature

End Measure

Determines the ending measure position at which the Job is applied.

Range: 001 – 257

End Beat

Determines the ending beat position at which the Job is applied.

Settings: Depends on selected Time Signature

End Clock

Determines the ending clock position at which the Job is applied.

Settings: Depends on selected Time Signature

Auto Select

When turned on, this enables you to determine the type of Event to be erased using panel controls, such as the Pitch Bend

wheel or Knob.

Settings: Off, On

Event Type

Determines the type of Event to be erased.

Settings: Note, Poly, CC, NRPN, RPN, PC, AfterTouch, PitchBend, SysEx, All

CC Number (Control Change Number)

Displayed when the Event type is set to CC. Determines the Control Change Number to be erased.

Range: Range: All, 1 – 127

System Exclusive

Displayed when the Event type is set to SysEx. Determines the System Exclusive to be erased.

Settings: All, Common Cutoff, Common Resonance, Common FEG Depth, Common Portamento, Common Attack Time, Common Decay Time, Common

Sustain Level, Common Release Time, Common EQ Low Gain, Common EQ Lo Mid Gain, Common EQ Mid Gain, Common EQ Mid Freq,

Common EQ Hi Mid Gain, Common EQ High Gain, Common Pan, Common Var Return, Common Rev Return, Common Swing, Common Unit

Multiply, Common Gate Time, Common Velocity, Common MS Amplitude, Common MS Shape, Common MS Smooth, Common MS Random,

Common Assign Knob 1, Common Assign Knob 2, Common Assign Knob 3, Common Assign Knob 4, Common Assign Knob 5, Common

Assign Knob 6, Common Assign Knob 7, Common Assign Knob 8, Common Super Knob, Part FEG Depth, Part Sustain Level, Part EQ Low

Gain, Part EQ Mid Freq, Part EQ Mid Gain, Part EQ Mid Q, Part EQ High Gain, Part Swing, Part Unit Multiply, Part Gate Time, Part Velocity, Part

MS Amplitude, Part MS Shape, Part MS Smooth, Part MS Random, Element 1 Level, Element 2 Level, Element 3 Level, Element 4 Level,

Element 5 Level, Element 6 Level, Element 7 Level, Element 8 Level, Operator 1 Level, Operator 2 Level, Operator 3 Level, Operator 4 Level,

Operator 5 Level, Operator 6 Level, Operator 7 Level, Operator 8 Level, Drum BD Level, Drum SD Level, Drum HH Close Level, Drum HH

Pedal Level, Drum HH Open Level, Drum Low Tom Level, Drum High Tom Level, Drum Crash Level

NOTE When Common parameters and Super Knob are specified, the System Exclusive is deleted irrespective of the Track settings.

MONTAGE Supplementary Manual 16

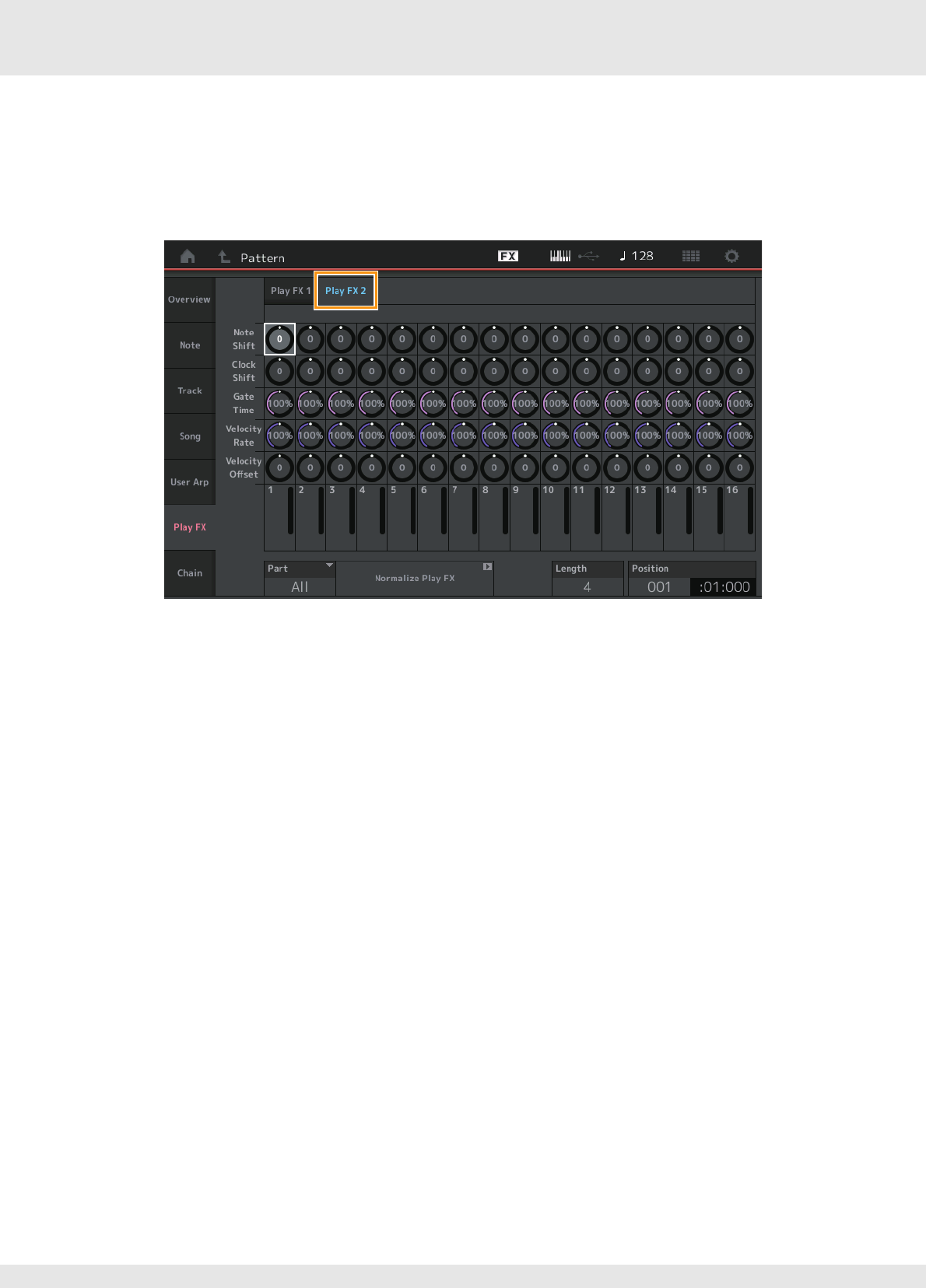

You can now specify applicable Scenes when Normalize Play FX is executed.

Scene

Determines the Scene to which the Job is to be applied.

Range: All, 1 – 8

Play FX

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Play FX]

MONTAGE Supplementary Manual 17

User interface enhancements for Patterns

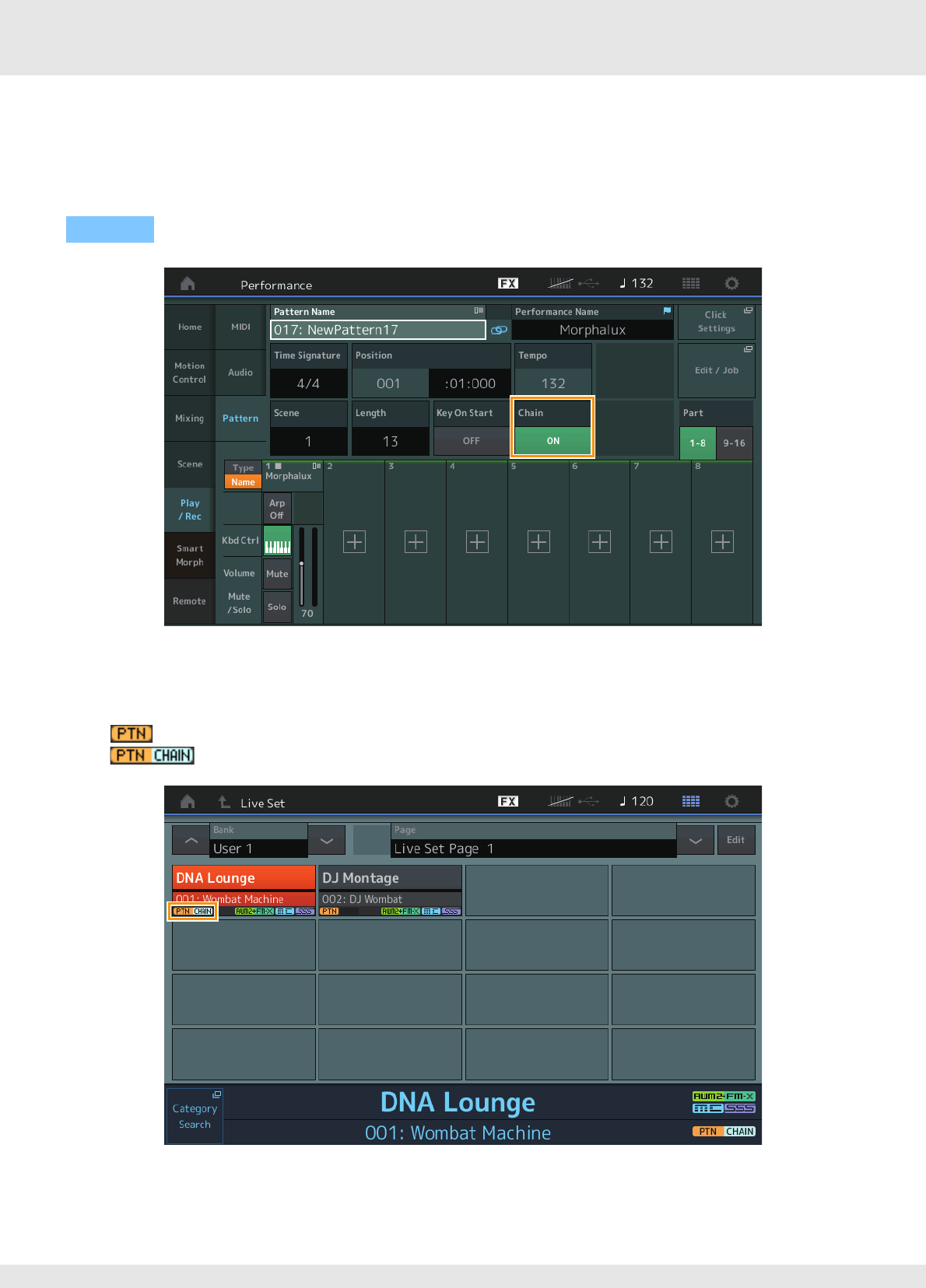

Addition of the Pattern Chain Switch

You can now store Chain playback settings for each pattern on the Pattern display and Chain display.

Chain

Determines whether Chain playback can be used outside the Chain display or not.

Settings: Off, On

NOTE If a Pattern for which Chain is set to on is assigned to a Slot on the Live Set display, the PTN icon changes to PTN CHAIN.

: Displayed for slots having a Pattern.

: Displayed for slots having a Pattern for which Chain is ON.

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]

MONTAGE Supplementary Manual 18

Icon display in Chain Playback Position

An icon is now shown beside the Scene in playback on the Chain display.

Addition of Undo/Redo

You can now use Undo/Redo for Jobs on each display.

* This function operates over several displays. The Copy display is used here as an example.

Undo

Cancels the most recently made change and restores the state prior to the most recent change. This is available only when a

sequence already exists and you have performed some operation.

Redo

Restores the change canceled by Undo. Redo is available only after using Undo.

Operation [PERFORMANCE]  [Play/Rec]  [Pattern] or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Chain]

Operation [PERFORMANCE]  [Play/Rec]  [Pattern] or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  respective

displays

MONTAGE Supplementary Manual 19

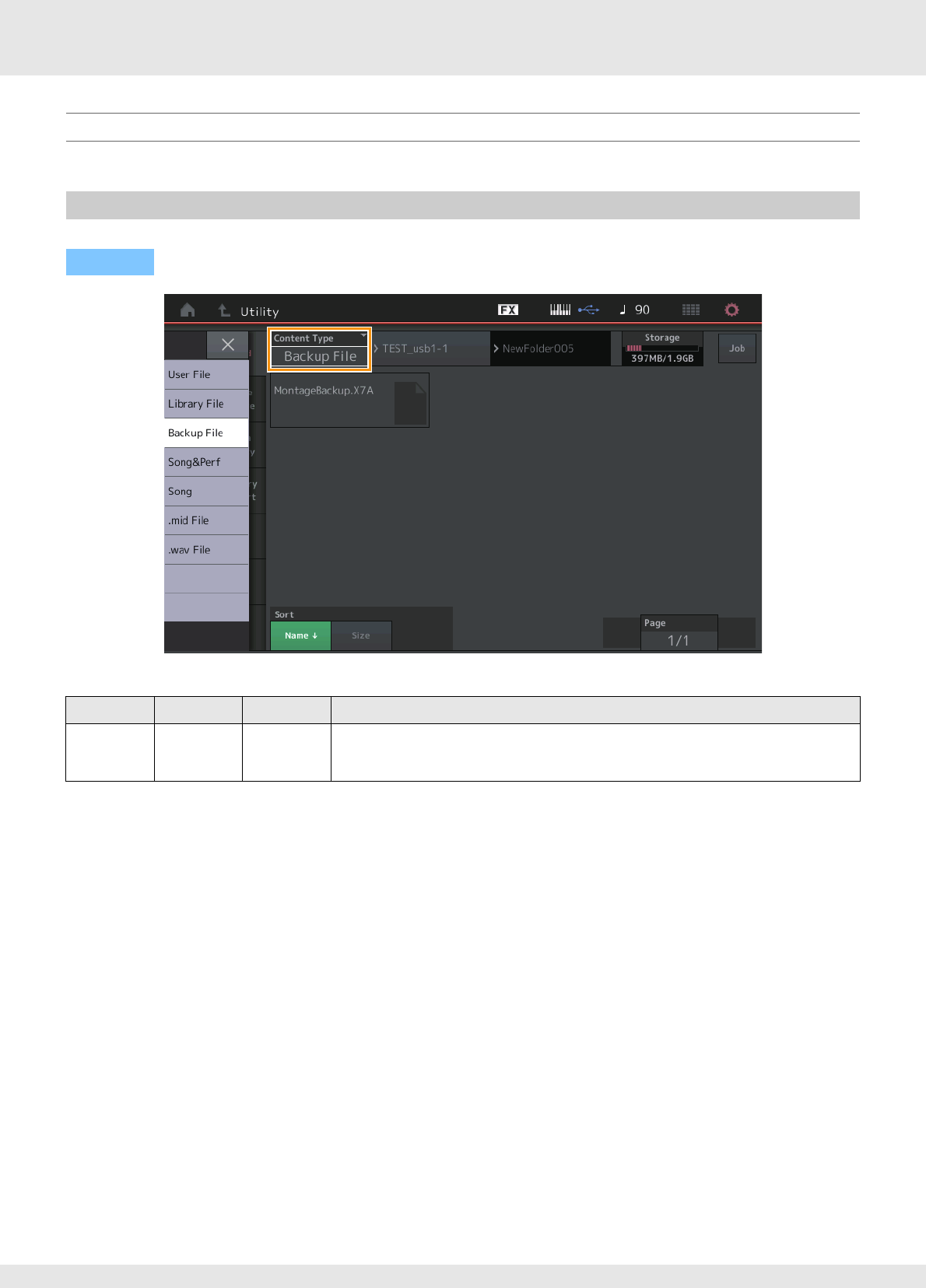

Importing of MODX files

You can now load “.X8U” and “.X8L” MODX files.

NOTE You cannot load “.X8A” MODX backup files.

MONTAGE Supplementary Manual 20

Improved Controllability

Signal Flow shortcuts

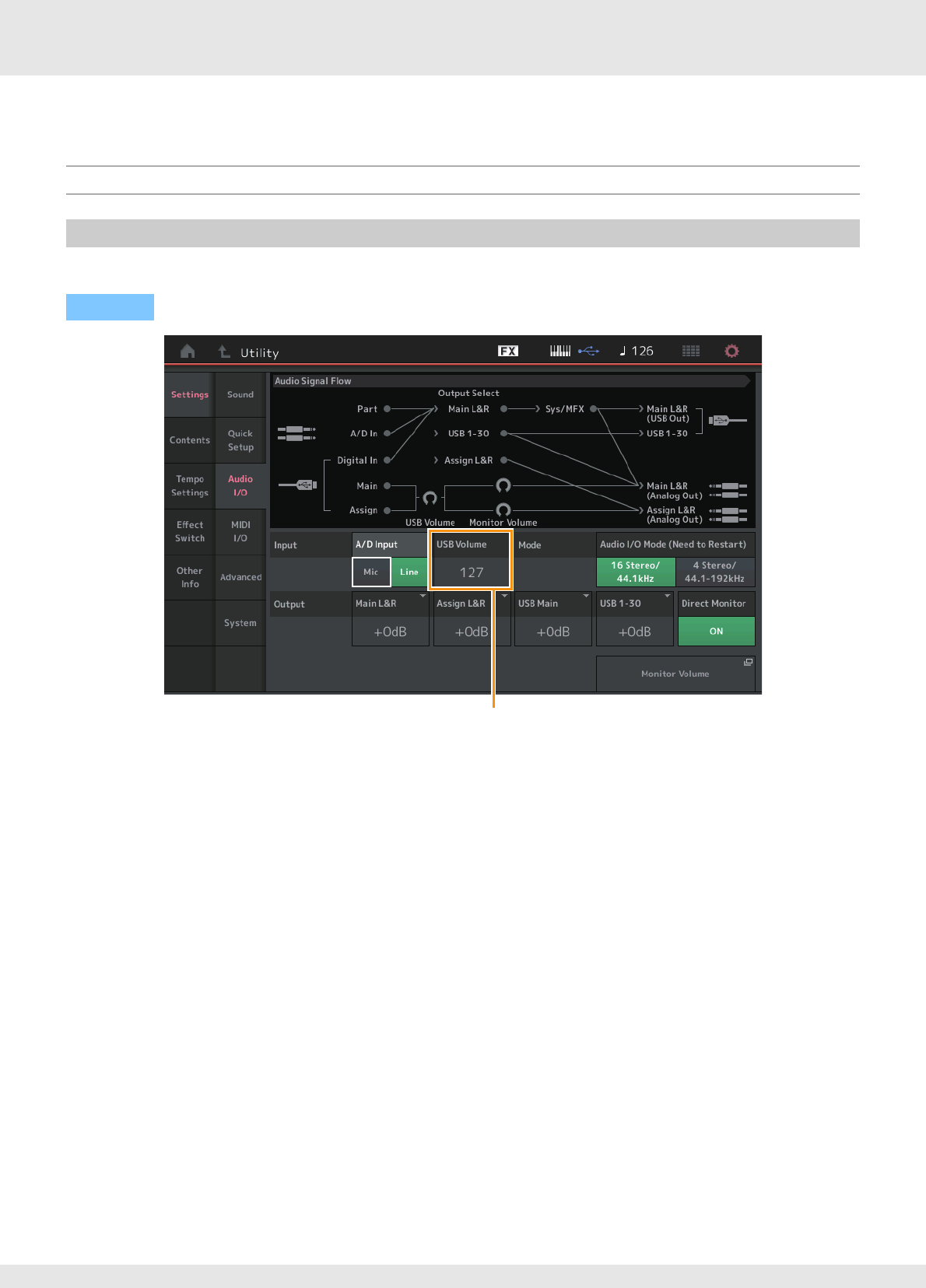

You can now call up the Audio I/O display by tapping near USB Volume in the Audio Signal Flow. The cursor jumps automatically

to USB Volume on the Audio I/O display.

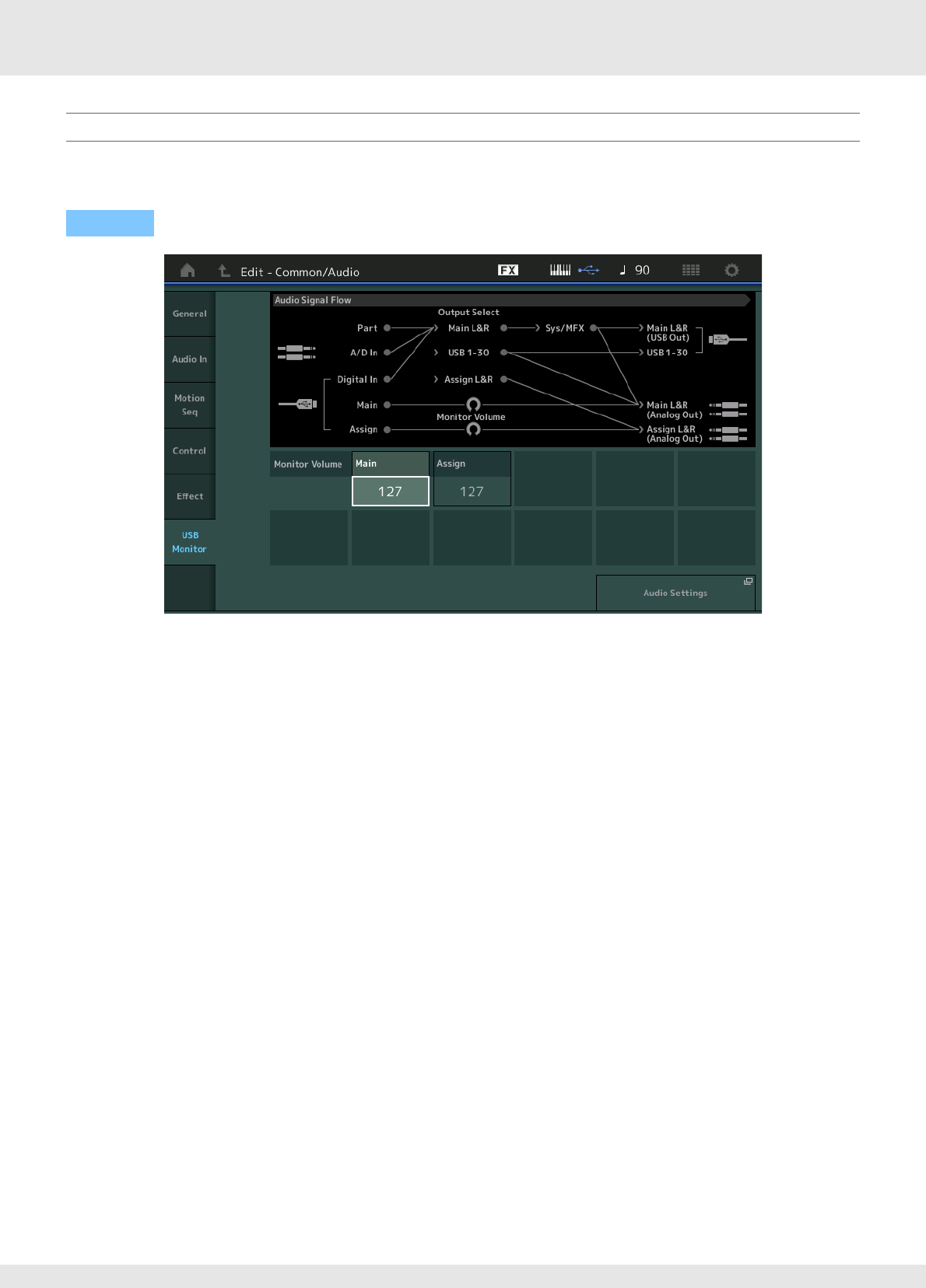

You can now call up the USB Monitor display by tapping near Monitor Volume in the Audio Signal Flow. The cursor jumps

automatically to Main on the USB Monitor display.

Operation [PERFORMANCE]  [EDIT]  [COMMON]  [USB Monitor]

Operation [Utility]  [Settings]  [Audio I/O]

MONTAGE Supplementary Manual 21

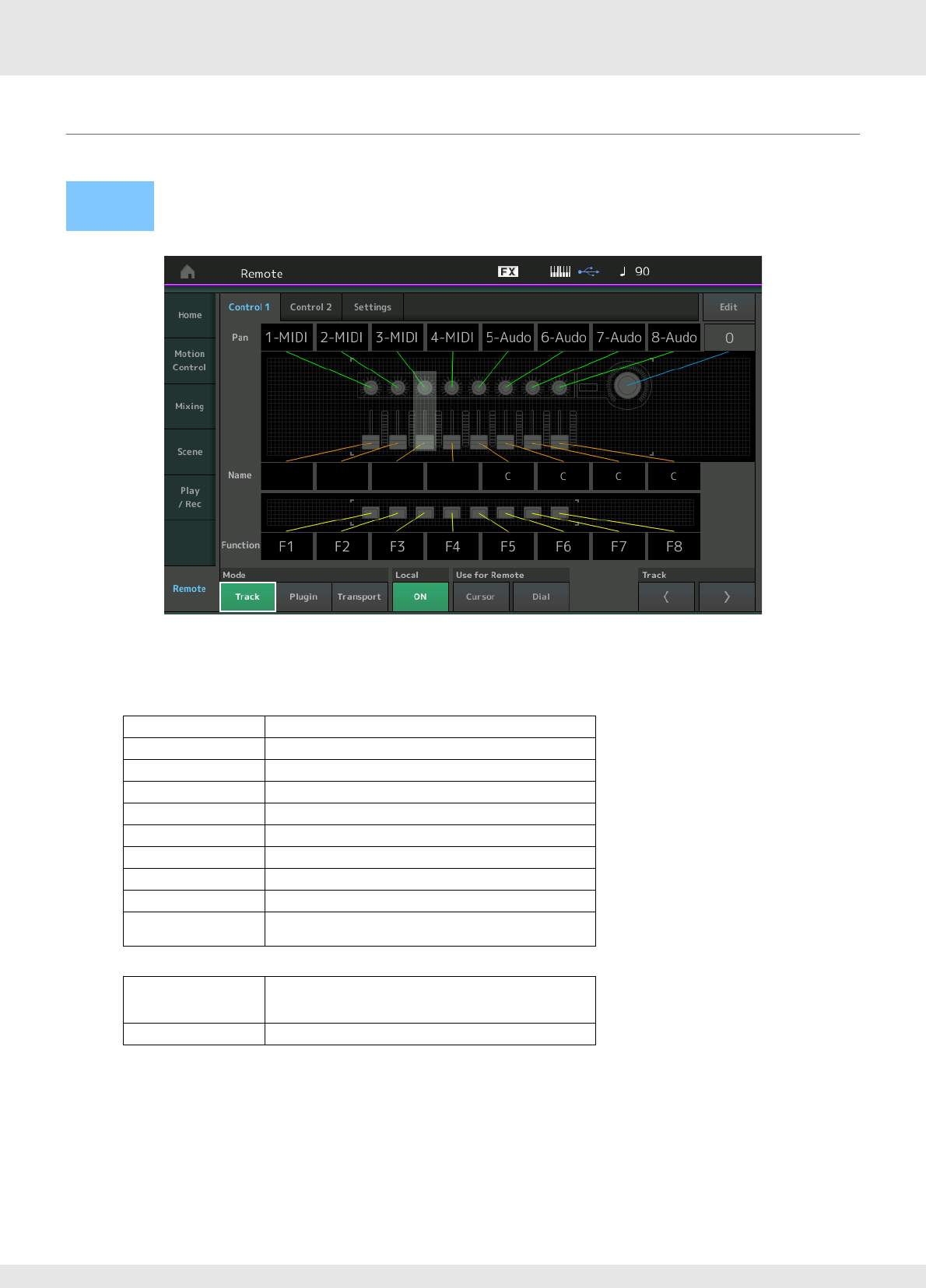

You can now turn Local Control on and off by tapping near the Local Control switch in the MIDI Signal Flow.

Using the footswitch to set the Tempo

Tap Tempo was added to the Footswitch Assign Control Number setting, allowing you to conveniently set the tempo by using the

footswitch.

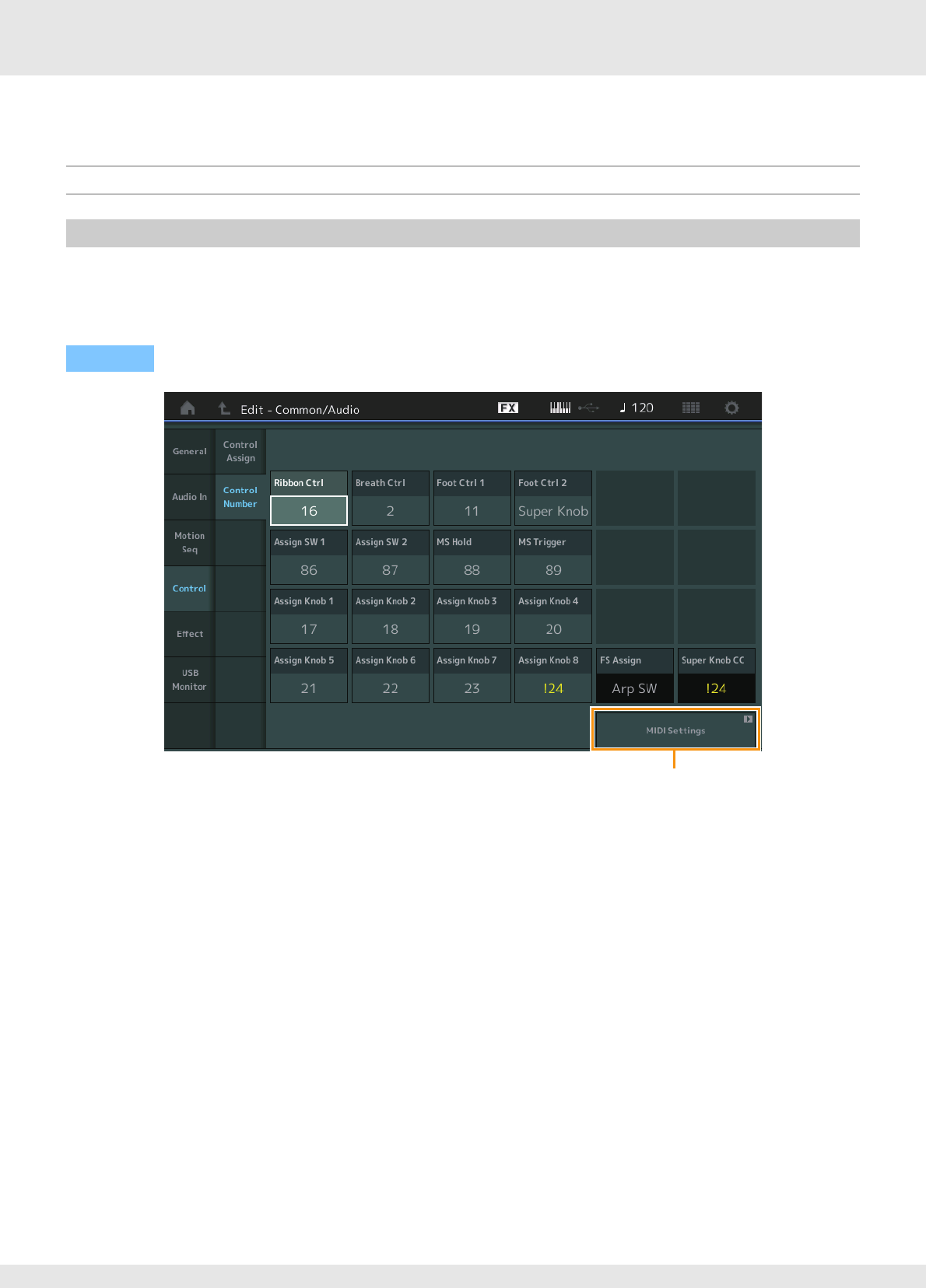

FS Assign (Footswitch Assign Control Number)

This sets the Control Change Number used by a foot switch connected to the FOOT SWITCH [ASSIGNABLE] jack. Even when

the instrument receives MIDI messages with the same Control Change Number specified here from external MIDI equipment,

the MONTAGE assumes that the message was generated by using the footswitch.

Settings: Off, 1 – 95, Arp SW, MS SW, Play/Stop, Live Set+, Live Set-, Oct Reset, Tap Tempo

Operation [Utility]  [Settings]  [MIDI I/O]

MONTAGE Supplementary Manual 22

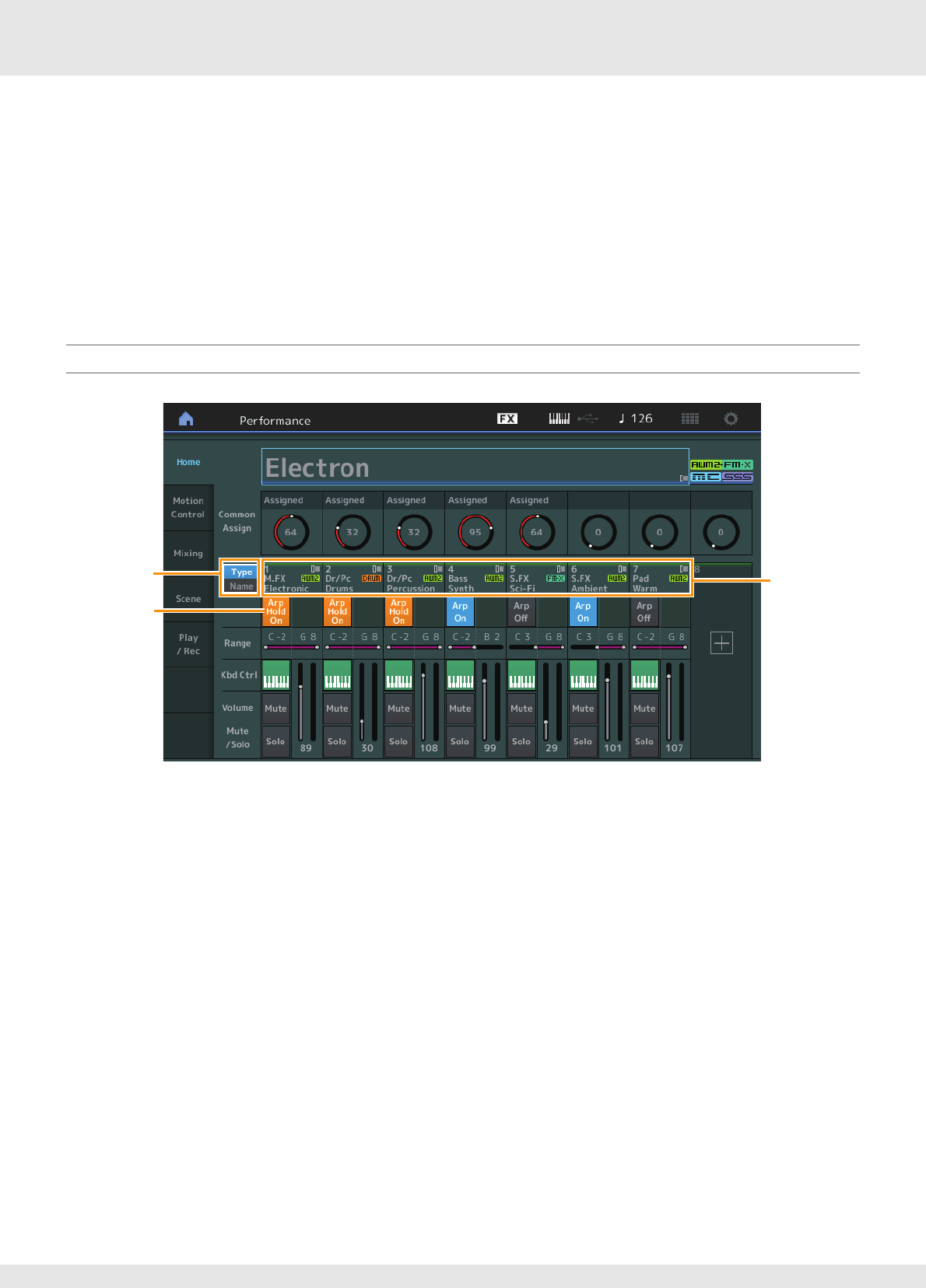

Setting for Part Name display after startup

You can now set the display status of the Type and Name switches that are shown after the MONTAGE is started up.

Part Display

Determines what is automatically shown in the Part Display when the MONTAGE is started up: Category and Part Types (Type)

or Part names (Name).

Settings: Type, Name

Specification changes for Note Limit when a WAVE file or AIFF file is loaded with Key

assignment

Specifications have been changed so that the initial value for the note limit range is C-2 to G8 when a WAVE file or AIFF file is

loaded with Drum Part Key or AWM2 Part Element set to Key.

MONTAGE Connect supports Patterns

MONTAGE Connect can now handle Patterns. For details, refer to the MONTAGE Connect Owner’s Manual.

Other

Improved Pitch Bend Resolution

The Pitch Bend Resolution has been improved so that you can now control the pitch in even greater detail.

Operation [Utility]  [Settings]  [System]

MONTAGE Supplementary Manual 23

New Functions in MONTAGE Version 3.00

Yamaha has upgraded the MONTAGE firmware, adding the following new functions.

This manual describes additions and changes with respect to the Reference Manual that came with your instrument.

• New effect types have been added.

• New Performances have been added.

• The Pattern Sequencer function has been added.

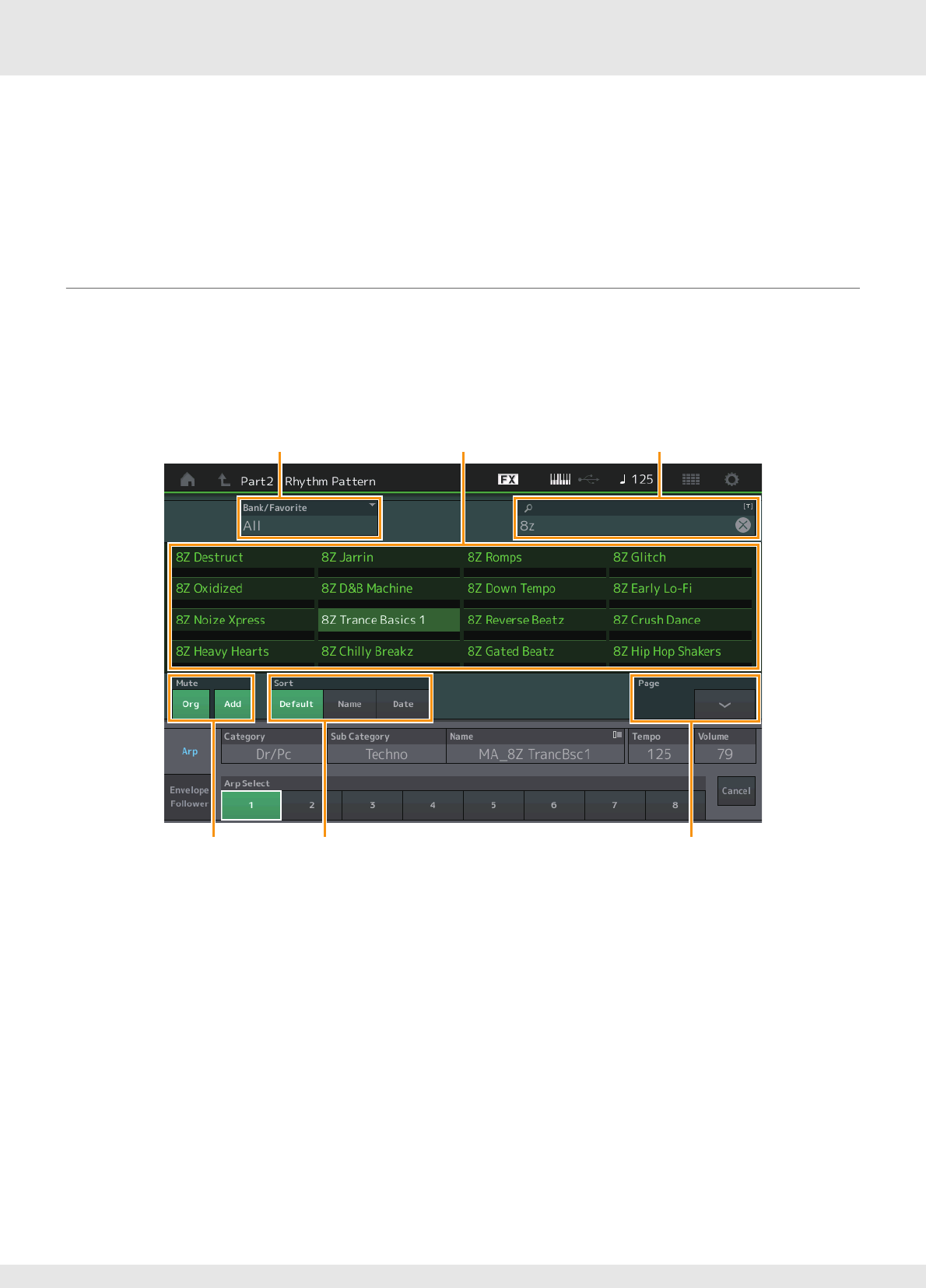

• The Rhythm Pattern function has been added.

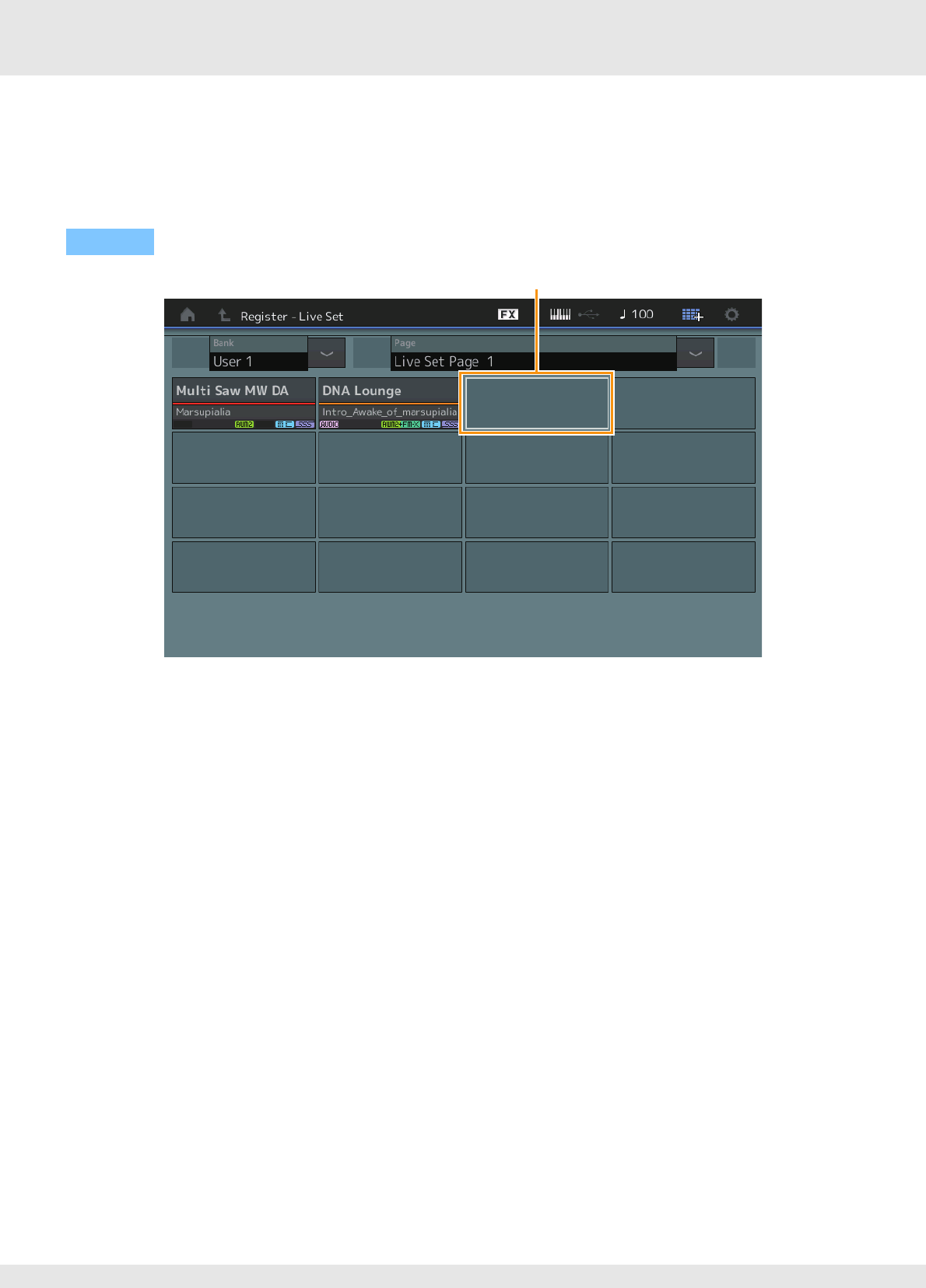

• You can now play songs, patterns and audio files from the Live Set display.

• Super Knob Link has been added to the data that is recorded in the Scene function.

• Keyboard Control has been added to the data that is recorded in the Scene function.

• Increased the range of the LFO Speed parameter.

• You can now connect MIDI equipment via the USB TO DEVICE terminal.

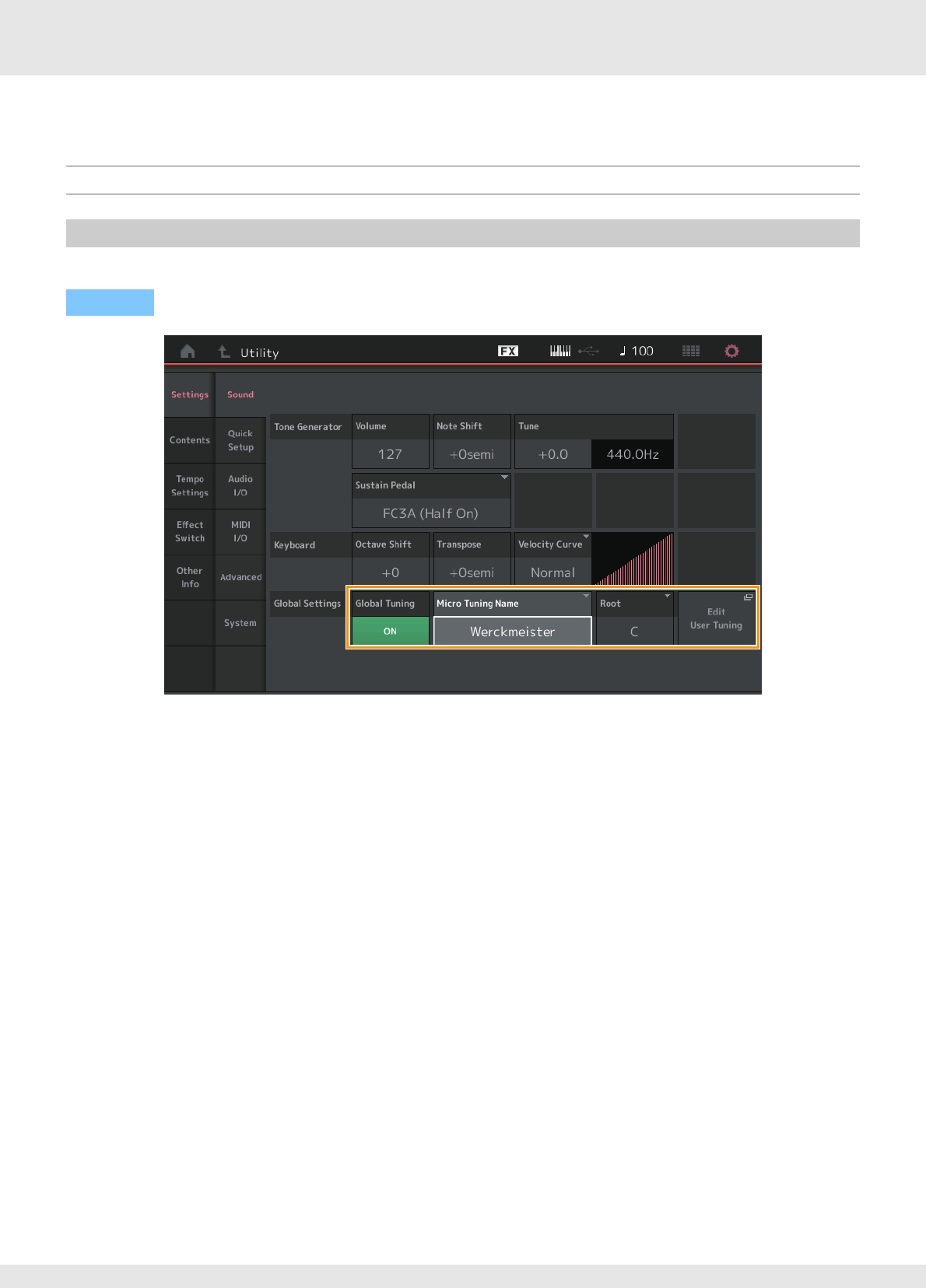

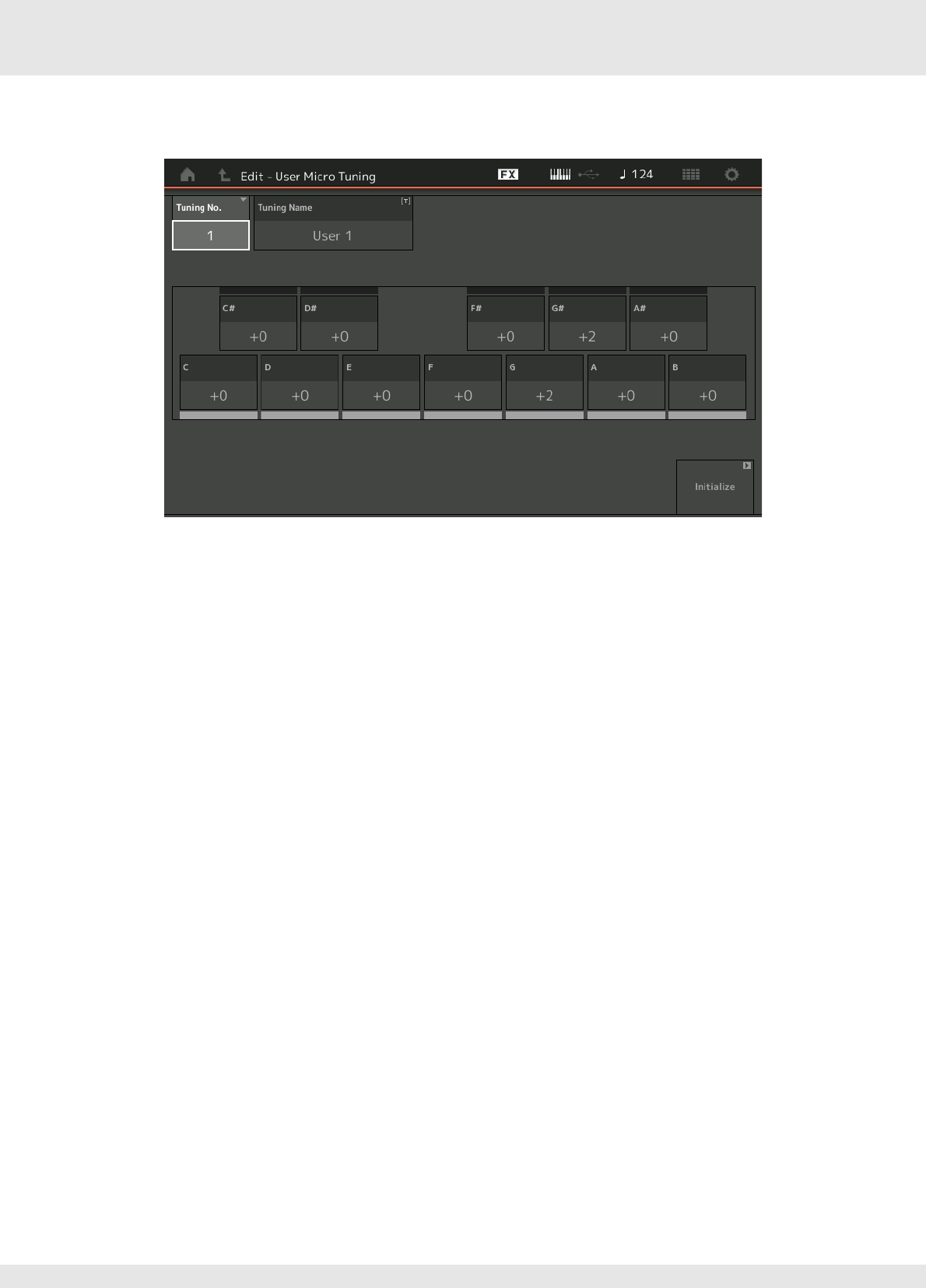

• The Global Micro Tuning settings have been added.

• The Audition Loop setting has been added.

• Improvements have been made to the user interface.

• The Note capacity (total area in Store) has been increased from 130,000 to 520,000 (for Songs) and 520,000 (for Patterns).

MONTAGE Supplementary Manual 24

Additional New Effect types

The following new Effect types have been added in the Misc Category.

Effect type Description Parameter Description

VCM Mini Filter Makes the sound “fatter”

and tighter.

This effect emulates the

characteristics of analog

synthesizers.

Cutoff Determines the Cutoff Frequency of the Filter.

Resonance Determines the Resonance of the filter.

Type Determines the type of the filter.

Texture Adds various changes to the texture of the sound effect.

Input Level Determines the input level of the signal.

Dry/Wet Determines the balance of the dry sound and the effect sound.

Output Level Determines the level of the signal output from the effect block.

Effect type Description Parameter Description

VCM Mini Booster Creates a unique sonic

texture.

This effect emulates the

characteristics of analog

synthesizers.

EQ Frequency Determines the Frequency of the EQ.

Resonance Determines the Resonance of the EQ.

EQ Gain Determines the level gain of the EQ.

Type Determines the type of the booster effect.

Texture Adds various changes to the texture of the sound effect.

Input Level Determines the input level of the signal.

Output Level Determines the level of the signal output from the effect block.

Effect type Description Parameter Description

Wave Folder Makes various changes to

the sound over time by

varying and controlling

the harmonic content.

Fold Determines the degree of the distortion effect.

Fold Type Determines the sonic texture of the distortion.

LFO Depth Determines the depth of the modulation.

LFO Speed Determines the frequency of the modulation.

LFO Shape Alters the wave shape for modulation.

Input Level Determines the input level of the signal.

Dry/Wet Determines the balance of the dry sound and the effect sound.

Output Level Determines the level of the signal output from the effect block.

SEQ Depth Determines the depth of the built-in sequencer in the effect.

SEQ Clock Determines the speed of the built-in sequencer in the effect.

SEQ Pattern Selects the pattern of the built-in sequencer in the effect.

SEQ Variation Changes the motion of the built-in sequencer in the effect.

SEQ Ph Reset Sets the mode for resetting the pattern of the built-in sequencer in the

effect.

MONTAGE Supplementary Manual 25

Additional New Performances

The MONTAGE offers 52 new Performances.

For information on the added Performances, refer to the Data List.

MONTAGE Supplementary Manual 26

New Pattern Sequencer function

This new function lets you record pattern sequences to each Scene.

Playback/Waiting for Playback

Pattern Name

Indicates the selected pattern name. Touching the parameter calls up the menu to Load, Rename and create a New Pattern.

Link icon

Indicates that the Pattern data and Performance data contained in the Pattern data match.

When the Pattern data and Performance data contained in the Pattern data do not match, a broken Link icon is shown.

Performance Name

Indicates the selected performance name.

NOTE When you change the parameters in Performance, a blue flag indication appears at the right side of the Performance Name.

Time Signature

Indicates the meter of the Pattern.

Position

Determines the starting position of Recording/Playback. The indicator also shows the current position during playback.

The measure number is in the left cell and the beat number and clock value are in the right cell.

Tempo

Determines the tempo to playback the Pattern.

Range: 5 – 300

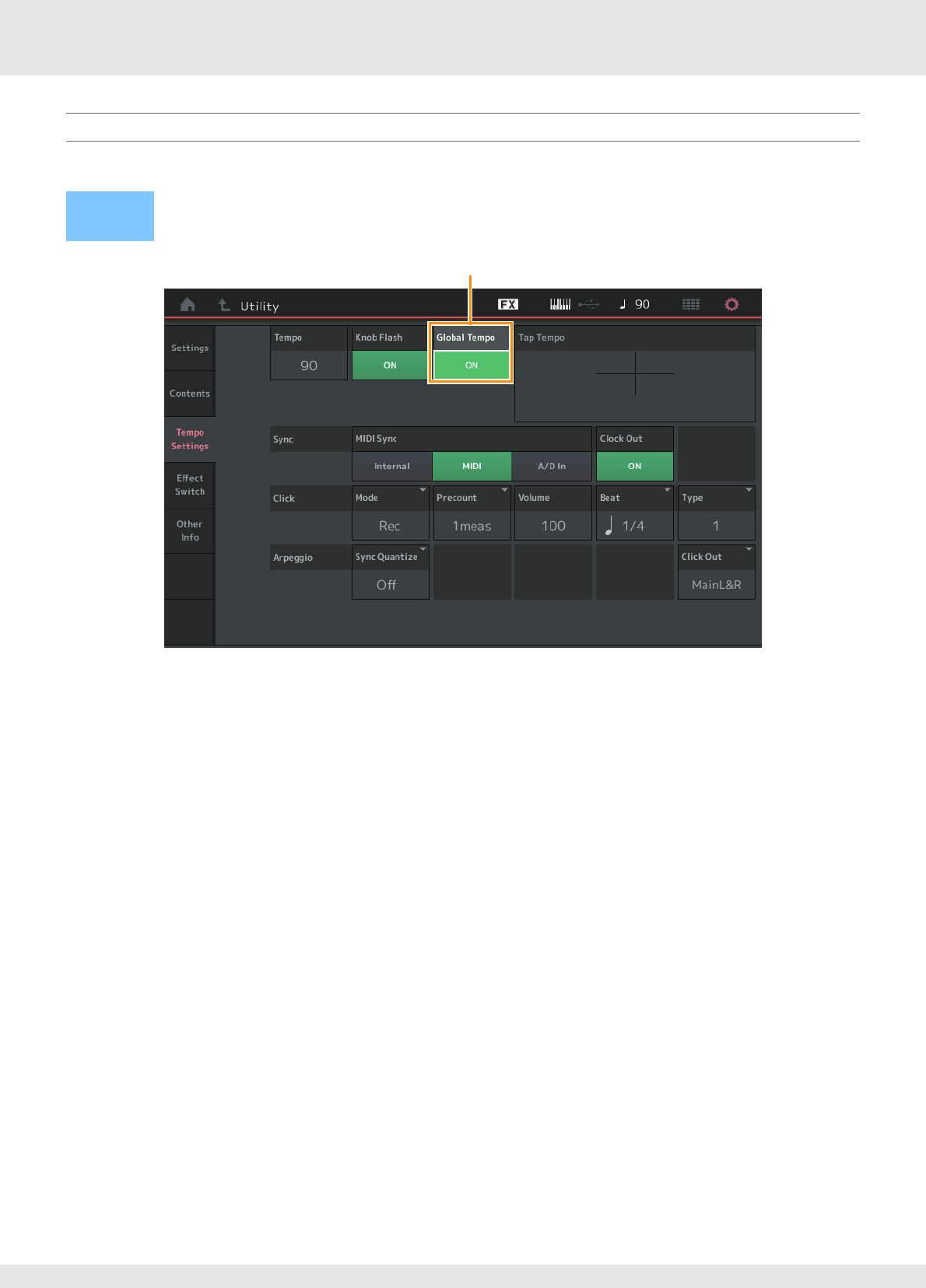

Click Settings

Opens the Tempo Settings display.

Scene

Indicates the selected scene number.

Play/Rec

Pattern

Operation [PERFORMANCE]  [Play/Rec]  [Pattern]

MONTAGE Supplementary Manual 27

Length

Determines the length of the entire sequence in the selected Scene.

Range: 1 – 256

Key On Start

Determines whether or not recording or playback of the Pattern starts when you play the keyboard.

Settings: Off, On

Store Pattern & Perf Settings

Stores the edited pattern data and the link to the selected Performance.

NOTE After you’ve edited parameters in the Performance, you will need to Store the Performance data.

Edit/Job

Opens the display for editing the pattern and related jobs.

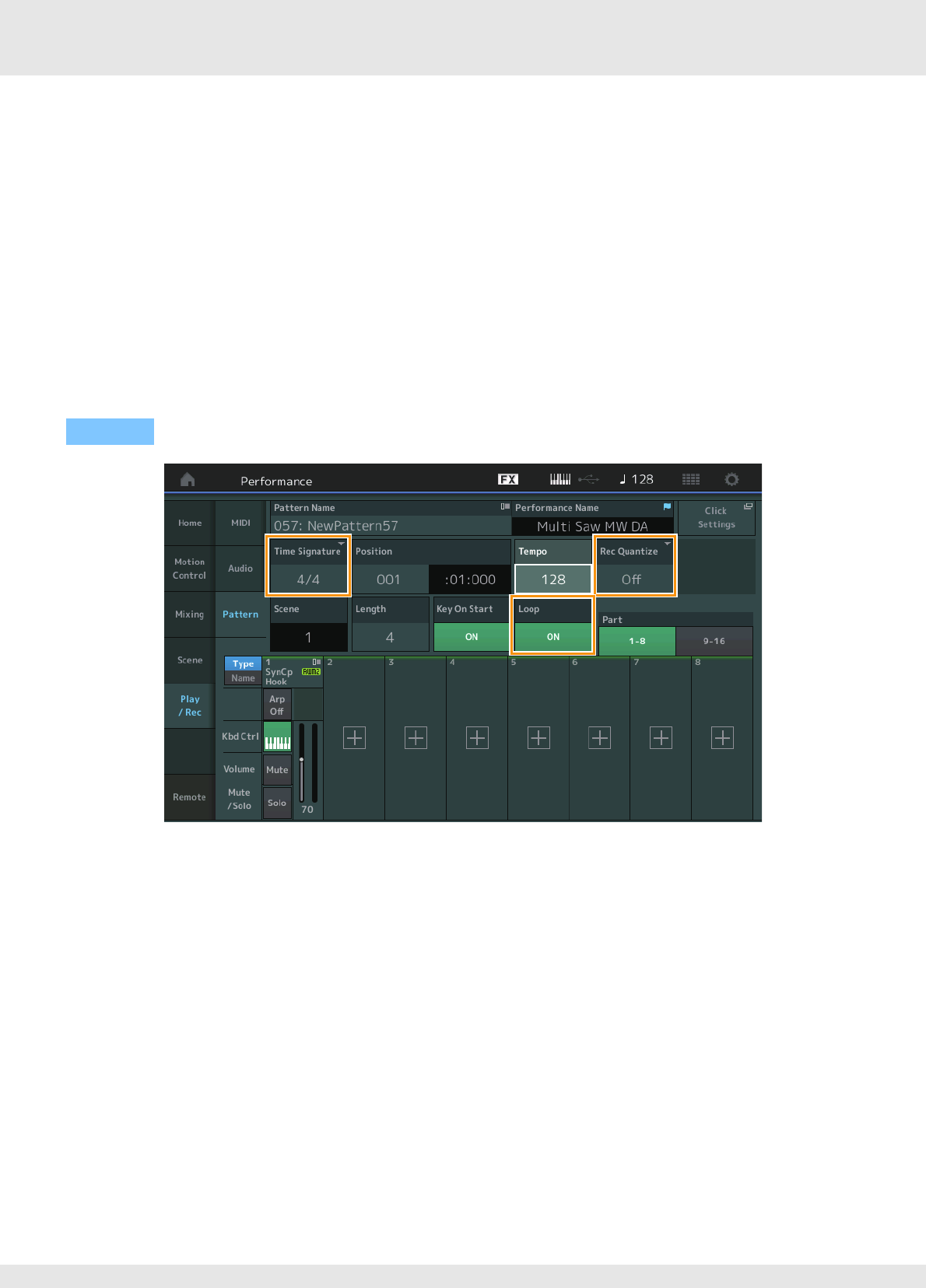

Waiting for New Recording

Time Signature

Determines the meter/time signature of the Scene.

Settings: 1/16 – 16/16, 1/8 – 16/8, 1/4 – 8/4

Rec Quantize

Quantization is the process of adjusting the timing of note events by moving them closer to the nearest exact beat. You can use

this feature, for example, to improve the timing of a performance recorded in real time. Record quantize aligns the timing of

notes automatically, as you record.

Settings: Off, 60 (32nd note), 80 (16th note triplet), 120 (16th note), 160 (8th note triplet), 240 (8th note), 320 (1/4 note triplet), 480 (1/4 note)

Loop

When Loop is set to On, recording does not stop at the end of the Pattern, but continues in a “loop” by returning to the top of the

pattern.

Settings: Off, On

NOTE To temporarily disengage the record mode and enter the Rehearsal mode, simply press the [I] (Record) button during realtime

recording. The [I] (Record) indicator flashes and playback will continue uninterrupted, but no data will be recorded. This convenient

Rehearsal mode feature lets you easily and temporarily disable recording in order to practice a Part or try out various ideas (while

listening to the other tracks) without actually recording. To return to the record mode press the [I] (Record) button again so that the

[I] (Record) indicator lights continuously.

Operation [PERFORMANCE]  [Play/Rec]  [Pattern]  [I] (Record) button

MONTAGE Supplementary Manual 28

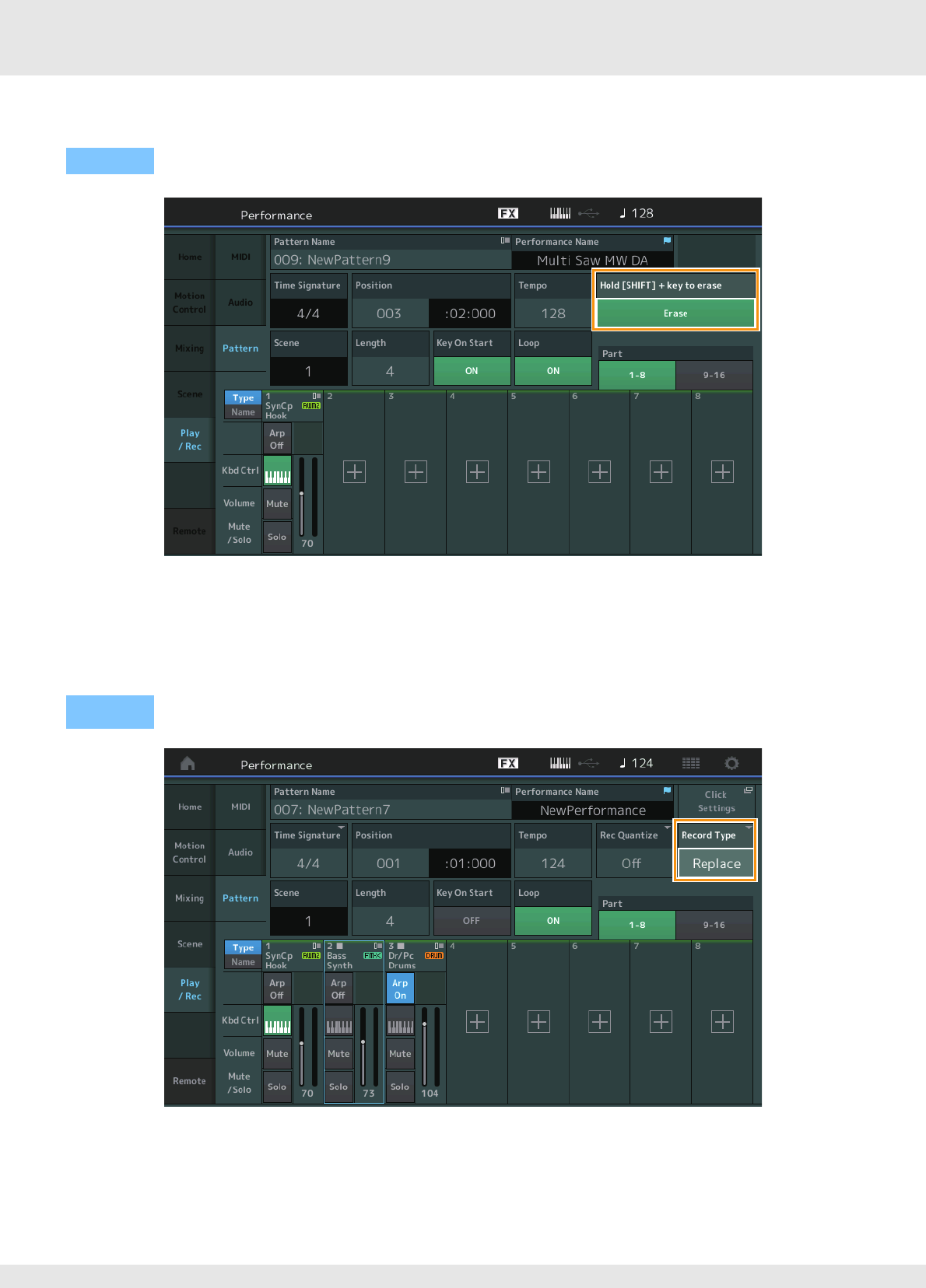

Recording

Hold [SHIFT] + key to erase

You can delete specific note events by pressing the [SHIFT] button and playing the keys corresponding to the notes you want to

delete.

Re-recording

Record Type

Determines whether a pattern will be replaced or overdubbed when recording.

Settings: Replace, Overdub

Operation [PERFORMANCE]  [Play/Rec]  [Pattern]  [I] (Record) button  [R] (Play) button

Operation [PERFORMANCE]  [Play/Rec]  [Pattern]  (indicated Pattern has been recorded already) [I] (Record) button 

[R](Play) button

MONTAGE Supplementary Manual 29

Type

Touching this button changes the Part’s displayed text to Main Category and Sub Category.

This button is synchronized with the corresponding button on the Play/Rec display. Changing one changes the other.

Name

Touching this button changes the Part’s displayed text to Part Name.

This button is synchronized with the corresponding button on the Play/Rec display. Changing one changes the other.

Scene

Indicates the selected scene number.

Undo

Cancels the most recently made changes and restores to the state prior to the last changes. This job is available only when a

recorded sequence already exists and you have performed some job on the sequence data.

Redo

Restores the changes performed by Undo. Redo is available only after using Undo.

Save As .mid File

Opens the Store/Save display. You can save the selected Scene’s sequence as a MIDI file.

Load .mid File

Opens the Load display for loading MIDI files. You can select the Pattern and Scene to load after you have selected a MIDI file.

Length

Indicates the length of the entire sequence in the selected Scene.

Position

Shows the current position during Scene playback, and lets you set the starting position of playback.

Range: 001 – 256

Overview

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]

MONTAGE Supplementary Manual 30

Quantization is the process of adjusting the timing of note events by moving them closer to the nearest exact beat.

You can use this feature, for example, to improve the timing of a performance recorded in real time.

Track

Determines the track to which the Job is applied.

Scene

Determines the scene to which the Job is applied.

Start Measure

Determines the starting measure position at which the Job is applied.

Range: 001 – 257

Start Beat

Determines the starting beat position at which the Job is applied.

Settings: Depends on selected Time Signature

Start Clock

Determines the starting Clock position at which the Job is applied.

Settings: Depends on selected Time Signature

End Measure

Determines the ending measure position at which the Job is applied.

Range: 001 – 257

End Beat

Determines the ending beat position at which the Job is applied.

Settings: Depends on selected Time Signature

End Clock

Determines the ending Clock position at which the Job is applied.

Settings: Depends on selected Time Signature

Quantize (Resolution)

Determines to what beats the note data in the specified track will be aligned.

Settings: 32nd note, 16th note triplet, 16th note, 8th note triplet, 8th note, 1/4 note triplet, 1/4 note, 16th note + 16th note triplet, 8th note + 8th note triplet

Note

Quantize

Operation [R](Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Note]  [Quantize]

MONTAGE Supplementary Manual 31

Strength

Sets the degree or “magnetic strength” to which Quantize is applied. A setting of 100% produces exact timing. A setting of 0%

results in no quantization.

Range: 0% – 100%

Swing Rate

This selectively delays the notes on even-numbered beats (backbeats) to produce a swing feel. For example, if the meter is 4/4

and the Quantize value is quarter notes, the 2nd and 4th beats of the measure will be delayed.

Settings: Depends on specified Quantize value

If the Quantize value is 1/4 note, 8th note, 16th note, 32nd note: 0 – half of the triplet grid

If the Quantize value is 1/4 note triplet, 8th note triplet, 16th note triplet: 0 – half of the triplet grid

If the Quantize value is 8th note + 8th note triplet, 16th note + 16th note triplet: 0 – half of the triplet grid

Gate Time

Determines the gate time (the length of time a note sounds) of the even-numbered backbeat notes for enhancing the swing feel.

Range: 0% – 200%

Execute

Executes the Job on the MIDI sequence data.

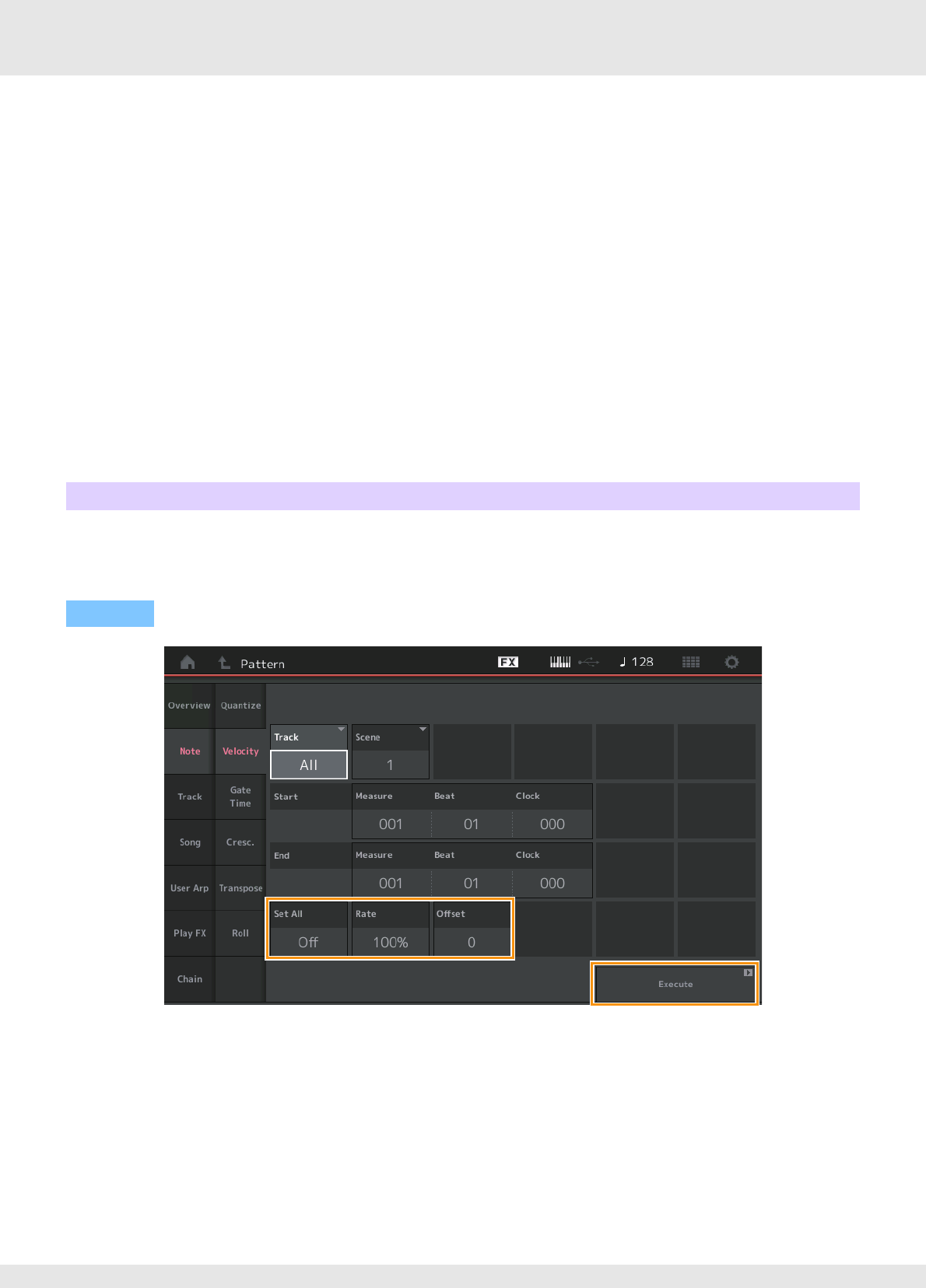

This Job alters the velocity values of a specified range of notes, letting you selectively boost or cut the volume of those notes.

NOTE Velocity changes are calculated as follows

Adjusted Velocity = (Original Velocity x Rate) + Offset

If the result is 0 or less, the value is set to 1. If the result is higher than 127, the value is set to 127.

Set All

Sets the velocities of all target notes to the same fixed value. When set to “Off,” the Set All parameter has no effect. When set to

a value other than “Off,” the Rate and Offset parameters are unavailable.

Range: Off, 001 – 127

Rate

Determines the percentage by which the target notes will be shifted from their original velocities. Range below 100% reduce the

velocities, and Range above 100% increase the velocities proportionately. When the Set All parameter is set to something other

than “Off,” this parameter cannot be changed.

Range: 0% – 200%

Velocity

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Note]  [Velocity]

MONTAGE Supplementary Manual 32

Offset

Adds a fixed value to the Rate-adjusted velocity values. A setting of 0 produces no change. Range below 0 reduce the

velocities, and Range above 0 increase the velocities. When the Set All parameter is set to something other than “Off,” this

parameter cannot be changed.

Range: -127 – +127

Execute

Executes the Job to the MIDI sequence data.

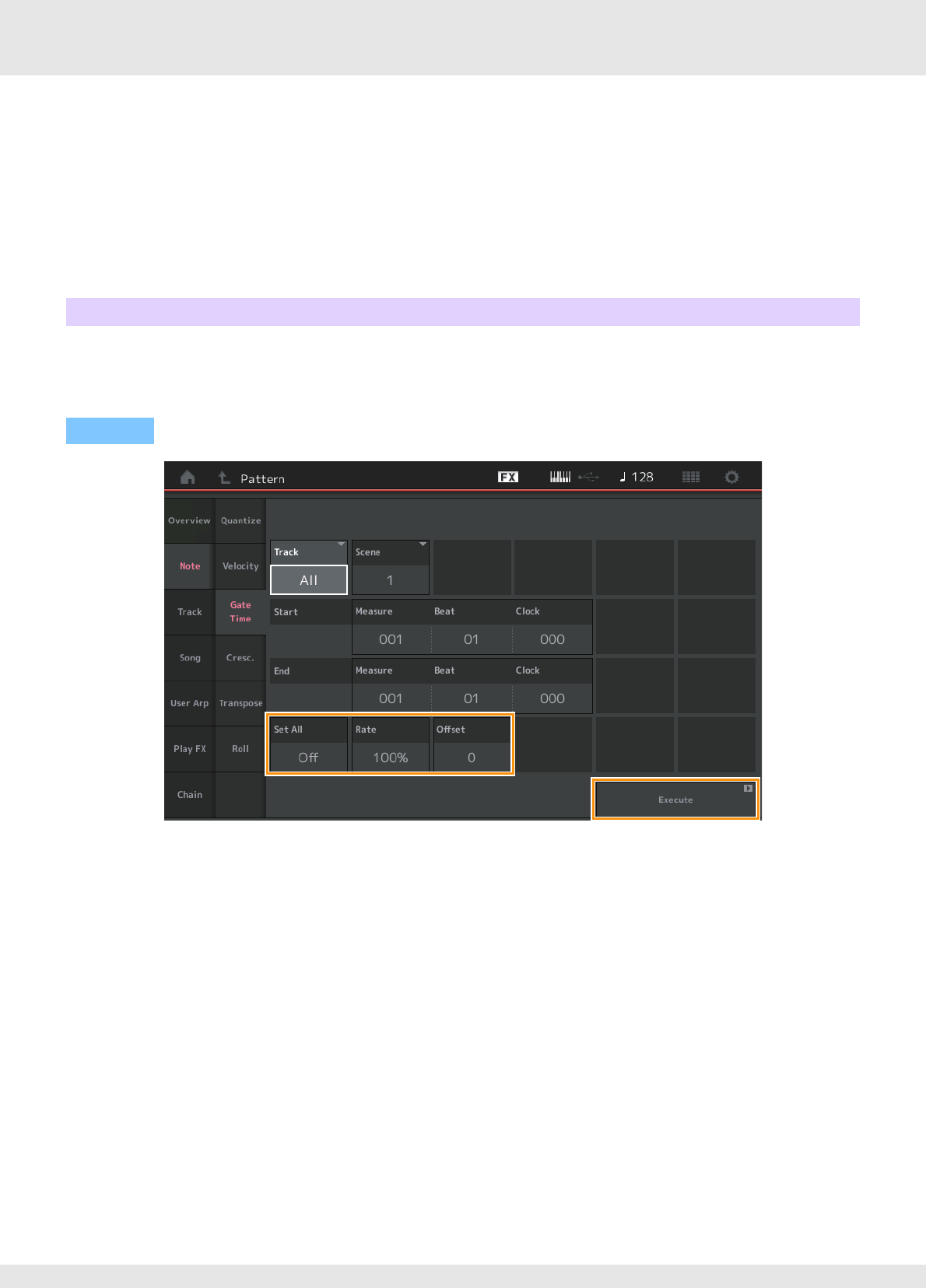

This Job alters the gate times of a specified range of notes.

NOTE Gate time changes are calculated as follows:

Adjusted Gate Time = (Original Gate Time x Rate) + Offset

If the result is 0 or less, the value is rounded off to 1.

Set All

Sets the gate times of all target notes to the same fixed value. When set to “Off,” the Set All parameter has no effect. When set to

a value other than “Off,” the Rate and Offset parameters are unavailable.

Range: Off (0), 001 – 9999

Rate

Determines the percentage by which the gate time of the target notes will be changed. Range below 100% shorten the notes,

and Range above 100% lengthen the notes proportionately. When the Set All parameter is set to something other than “Off,” this

parameter cannot be changed.

Range: 0% – 200%

Offset

Adds a fixed value to the Rate-adjusted gate time values. A setting of 0 produces no change. Range below 0 shorten the gate

time, and Range above 0 lengthen the gate time. When the Set All parameter is set to something other than “Off,” this parameter

cannot be changed.

Range: -9999 – +9999

Execute

Executes the Job to the MIDI sequence data.

Gate Time

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Note]  [Gate Time]

MONTAGE Supplementary Manual 33

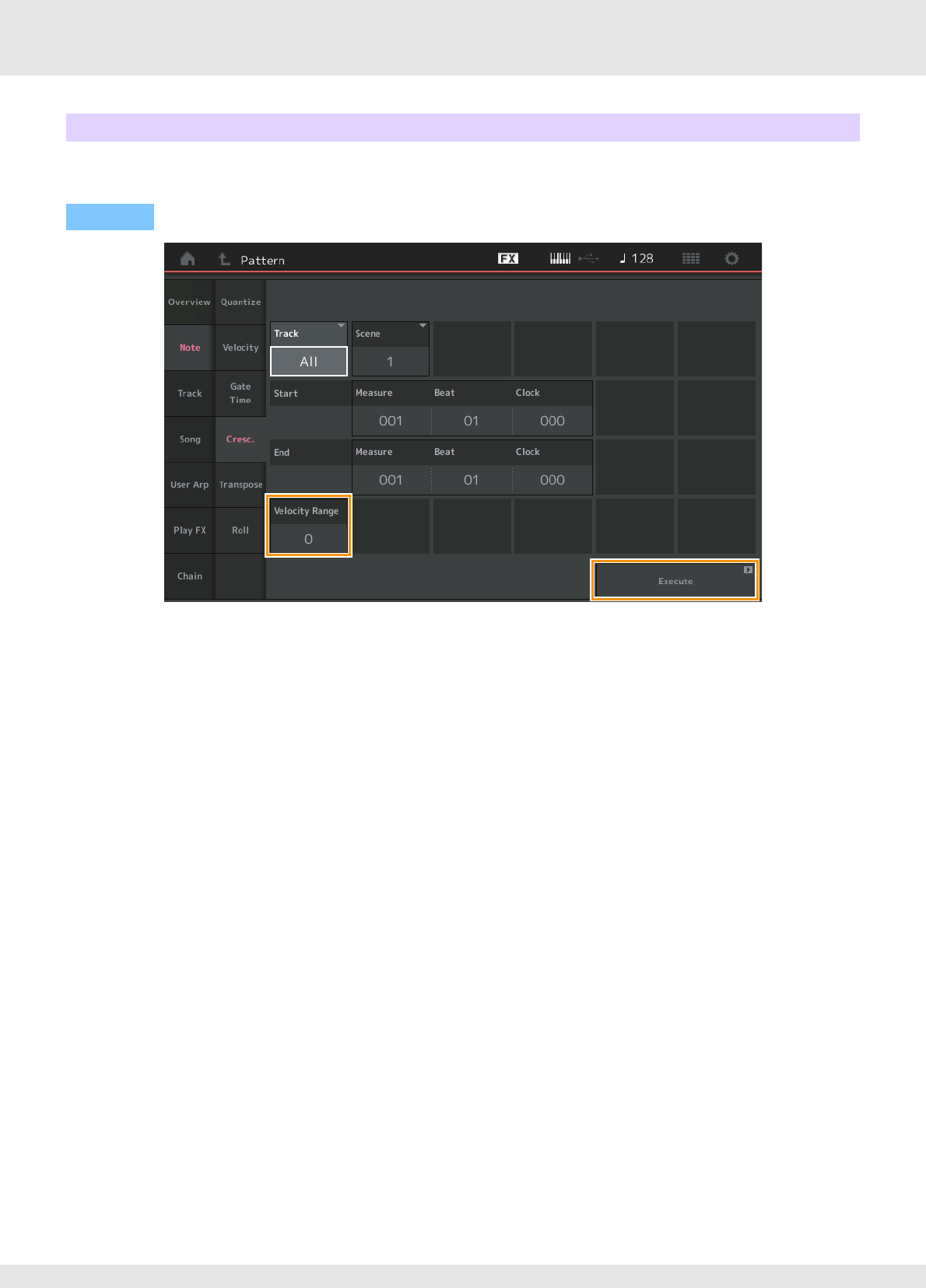

This Job lets you create a crescendo or decrescendo over a specified range of notes. (Crescendo is a gradual increase in

volume, and decrescendo is a gradual decrease.)

Velocity Range

Determines the intensity of the crescendo or decrescendo. The velocity values of the notes in the specified range are gradually

increased or decreased starting at the first note in the range. The velocity of the last note in the range becomes the original

velocity of the note plus the Velocity Range value. If the resultant velocity is outside the 1 – 127 range, it is set to 1 or 127

accordingly. Range greater than 0 produce a crescendo, and Range less than 0 produce a decrescendo. A setting of 0

produces no effect.

Range: -127 – +127

Execute

Executes the Job to the MIDI sequence data.

Cresc. (Crescendo)

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Note]  [Cresc.]

MONTAGE Supplementary Manual 34

This Job lets you change the key or pitch of the notes in the specified range.

NOTE When you execute this Job and change notes outside the allowed range of C-2 – G8, the notes are automatically set to the octave below

(or above).

Note

Determines the range of notes over which the Job is applied. You can set the Note directly from the Keyboard by touching the

[Keyboard] button.

Range: C -2 – G8

Transpose

Transposes notes in the specified range (in semitones). A setting of +12 transposes up one octave, while a setting of -12

transposes down an octave. A setting of 0 produces no change.

Range: -127 – +127

Execute

Executes the Job on the MIDI sequence data.

Transpose

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Note]  [Transpose]

MONTAGE Supplementary Manual 35

This Job creates a series of repeated notes (like a drum roll) over the specified range.

Start Step

Determines the size of the step (i.e., the number of clocks) between each note in the roll. You can create subdivided rolls by

setting small values between Start Step and End Step. This corresponds to the first clock value in the range that you specified.

Range: 015 – 999

End Step

Determines the size of the step (i.e. the number of clocks) between each note in the roll. You can create subdivided rolls by

setting small values between Start Step and End Step. This corresponds to the last clock value in the range that you specified.

Range: 015 – 999

Note

Determines the note pitches over which the Job is applied. You can set the Note directly from the Keyboard by touching the

[Keyboard] button.

Range: C -2 – G8

Start Velocity

Determines the velocity of the notes in the roll. This is the first Velocity value in the range that you specified.

Range: 001 – 127

End Velocity

Determines the velocity of the notes in the roll. This is the last Velocity value in the range that you specified.

Settings: 001 – 127

NOTE Determining the Start Velocity and End Velocity lets you create rolls that gradually increase or decrease in volume (crescendo/

decrescendo).

Execute

Executes the Job on the MIDI sequence data.

Roll

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Note]  [Roll]

MONTAGE Supplementary Manual 36

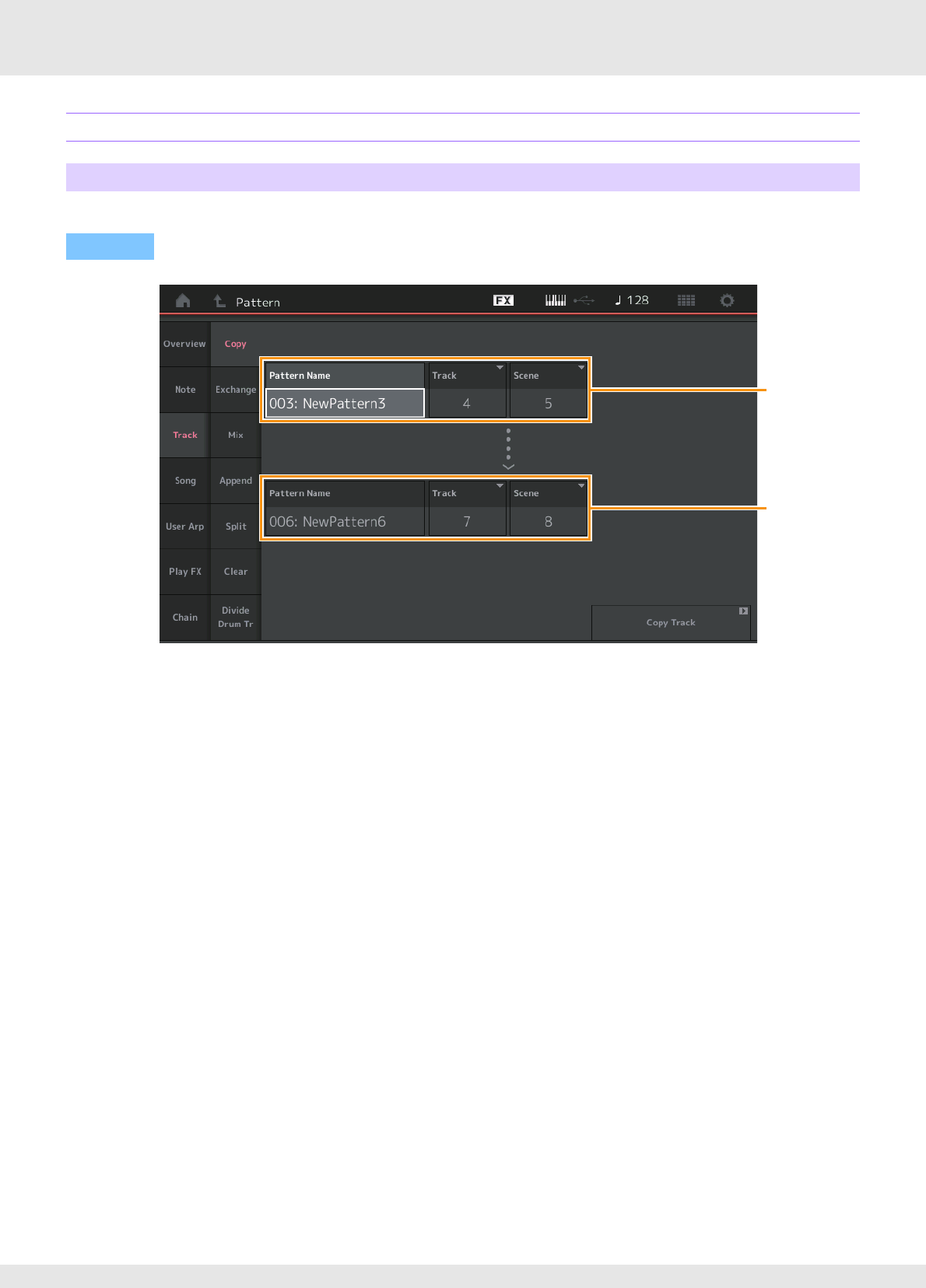

This Job copies all data from a specified source track to the specified destination track.

Pattern Name *1 Source

Determines the source Pattern.

Track *1 Source

Determines the source Track.

Scene *1 Source

Determines the source Scene.

Pattern Name *2 Destination

Determines the destination Pattern.

Track *2 Destination

Determines the destination Track.

Scene *2 Destination

Determines the destination Scene.

Copy Track

Executes the Copy Job.

NOTE When you execute Copy Track with Track set to All and Scene set to All, Chain data (page 48) is copied automatically.

Track

Copy

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Track]  [Copy]

*1 Source

*2 Destination

MONTAGE Supplementary Manual 37

This Job swaps all data from one specified track to another specified track and vice versa.

Pattern Name

Determines one of the Patterns for data exchange.

Track

Determines the Track to exchange.

Scene

Determines the Scene to exchange.

Pattern Name

Determines the other Pattern for data exchange.

Track

Determines the Track to exchange.

Scene

Determines the Scene to exchange.

Exchange Track

Executes the exchange job.

NOTE When you execute Exchange Track with Track set to All and Scene set to All, Chain data (page 48) is copied automatically.

Exchange

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Track]  [Exchange]

MONTAGE Supplementary Manual 38

This Job mixes all data from two selected tracks (“A” and “B”), and places the result in track B.

Pattern Name *1 Source A

Determines the source for Pattern A.

Track *1 Source A

Determines the Track to mix.

Scene *1 Source A

Determines the Scene to mix.

Pattern Name *2 Source B

Determines the source for Pattern B.

Track *2 Source B

Determines the Track to mix.

Scene *2 Source B

Determines the Scene to mix.

Pattern Name *3 Destination B

Indicates the destination Pattern.

Track *3 Destination B

Indicates the destination Track.

Scene *3 Destination B

Indicates the destination Scene.

Mix Track

Executes the mix job.

Mix

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Track]  [Mix]

*1 Source A

*3 Destination B

*2 Source B

MONTAGE Supplementary Manual 39

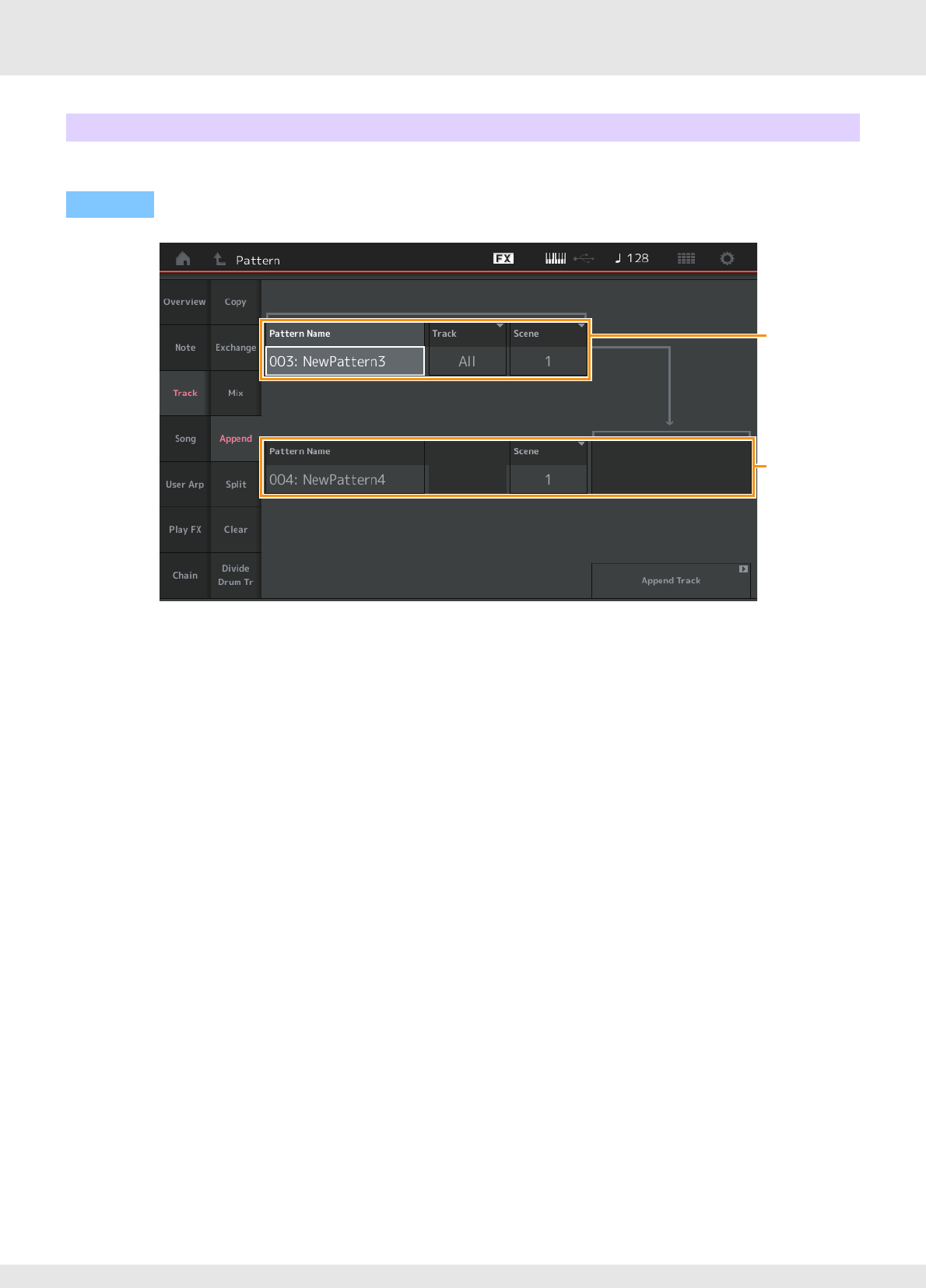

This Job adds all data from a specified source track to the end of a specified destination track.

Pattern Name *1 Source

Determines the source Pattern.

Track *1 Source

Determines the source Track.

Scene *1 Source

Determines the source Scene.

Pattern Name *2 Destination

Determines the destination Pattern.

Track *2 Destination

Determines the destination Track.

Scene *2 Destination

Determines the destination Scene.

Append Track

Executes the append job.

Append

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Track]  [Append]

*1 Source

*2 Destination

MONTAGE Supplementary Manual 40

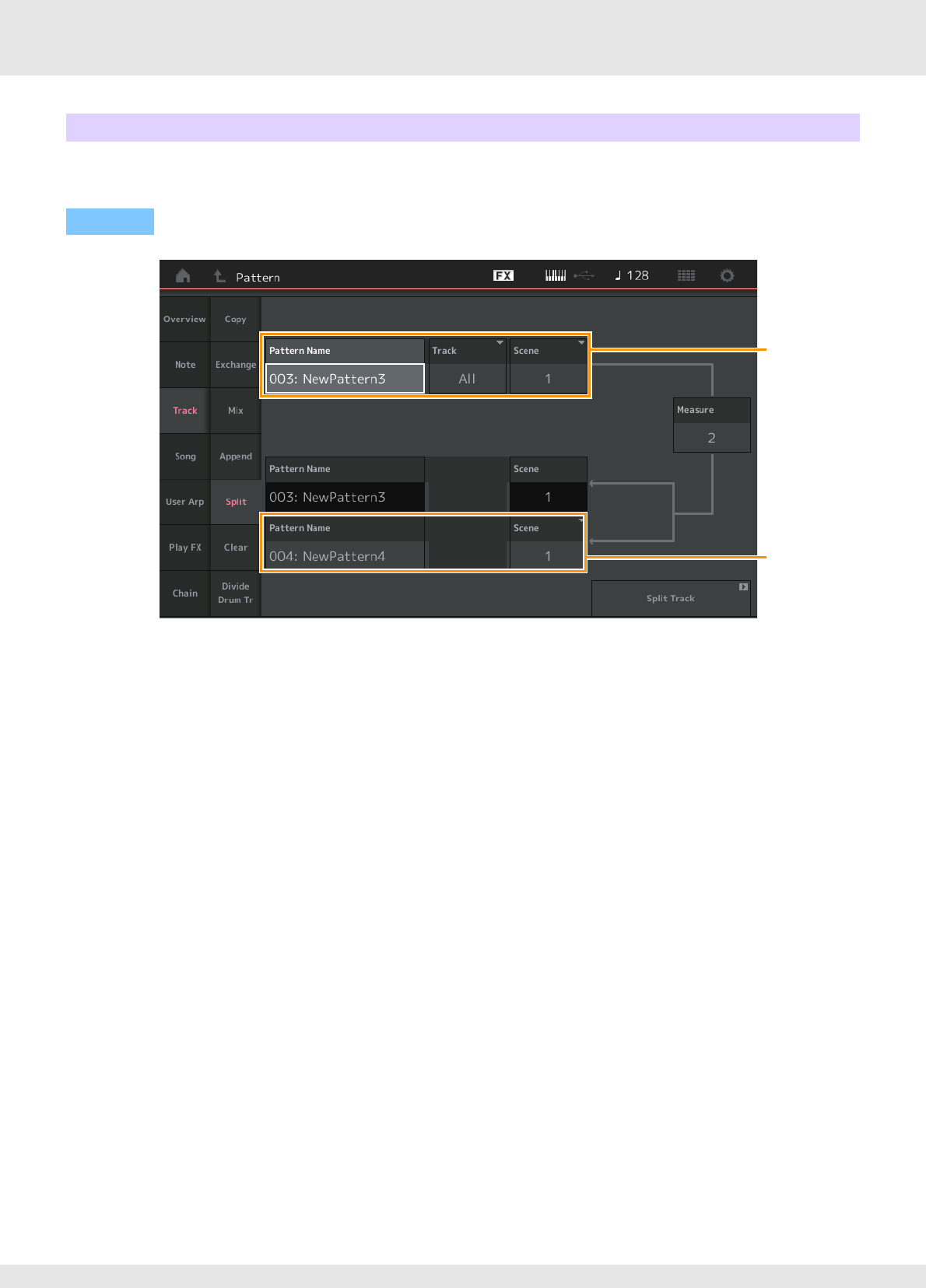

This Job moves the latter half of data divided at a specified measure from a specified source track to the specified destination

track.

Pattern Name *1 Source

Determines the source Pattern.

Track *1 Source

Determines the source Track.

Scene *1 Source

Determines the source Scene.

Measure *1 Source

Determines the measure at which the data is divided.

Pattern Name

Indicates the destination Pattern.

Track

Indicates the destination Track.

Scene

Indicates the destination Scene.

Pattern Name *2 Destination

Determines the destination Pattern.

Track *2 Destination

Determines the destination Track.

Scene *2 Destination

Determines the destination Scene.

Spilt Track

Executes the split job.

Split

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Track]  [Split]

*1 Source

*2 Destination

MONTAGE Supplementary Manual 41

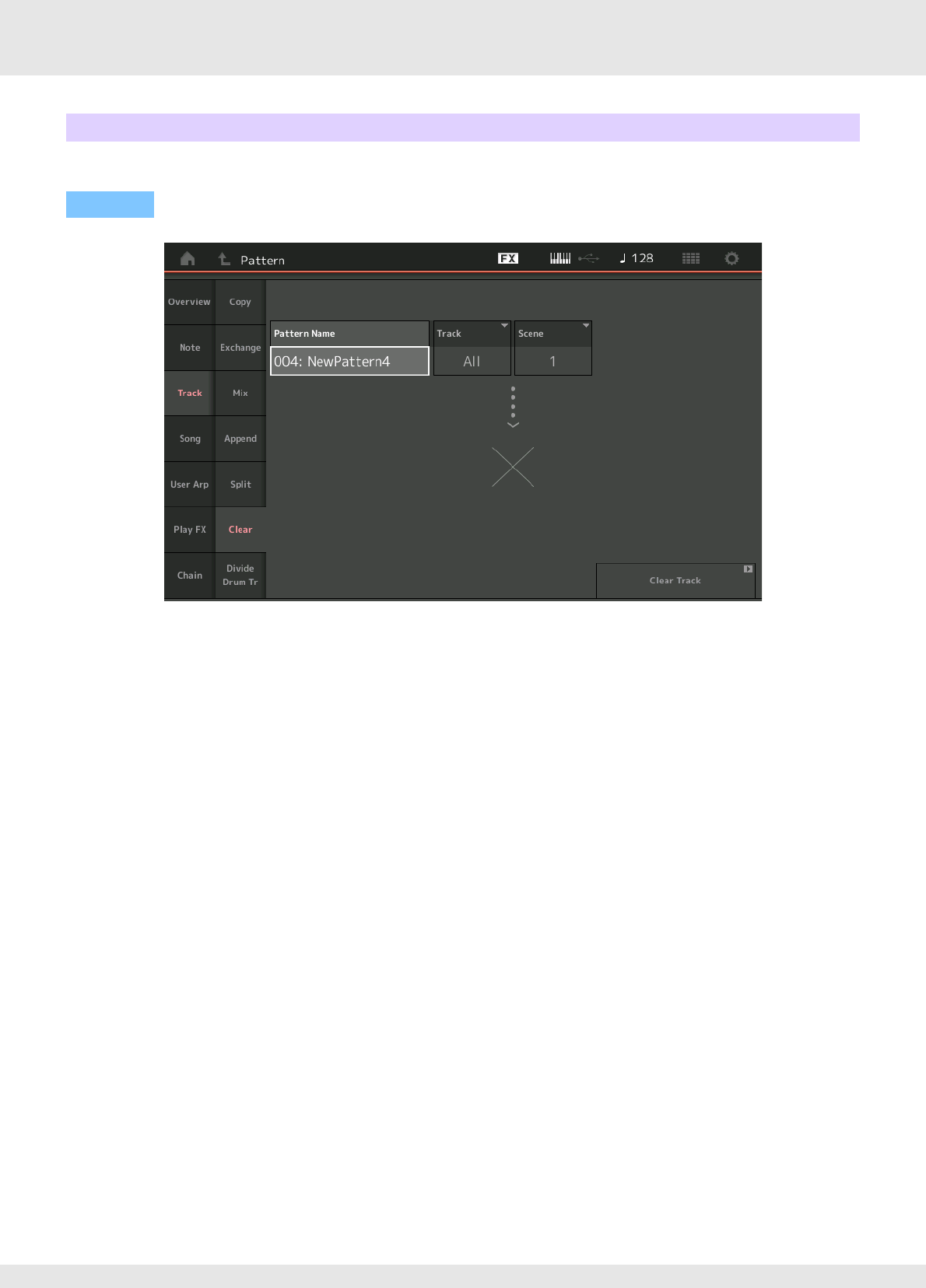

This Job clears all data from a specified track.

Pattern Name

Determines the Pattern to clear.

Track

Determines the Track to clear.

Scene

Determines the Scene to clear.

Clear Track

Executes the Clear job.

NOTE When you execute Clear Track with Track set to All and Scene set to All, Chain data (page 48) is deleted too.

Clear

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Track]  [Clear]

MONTAGE Supplementary Manual 42

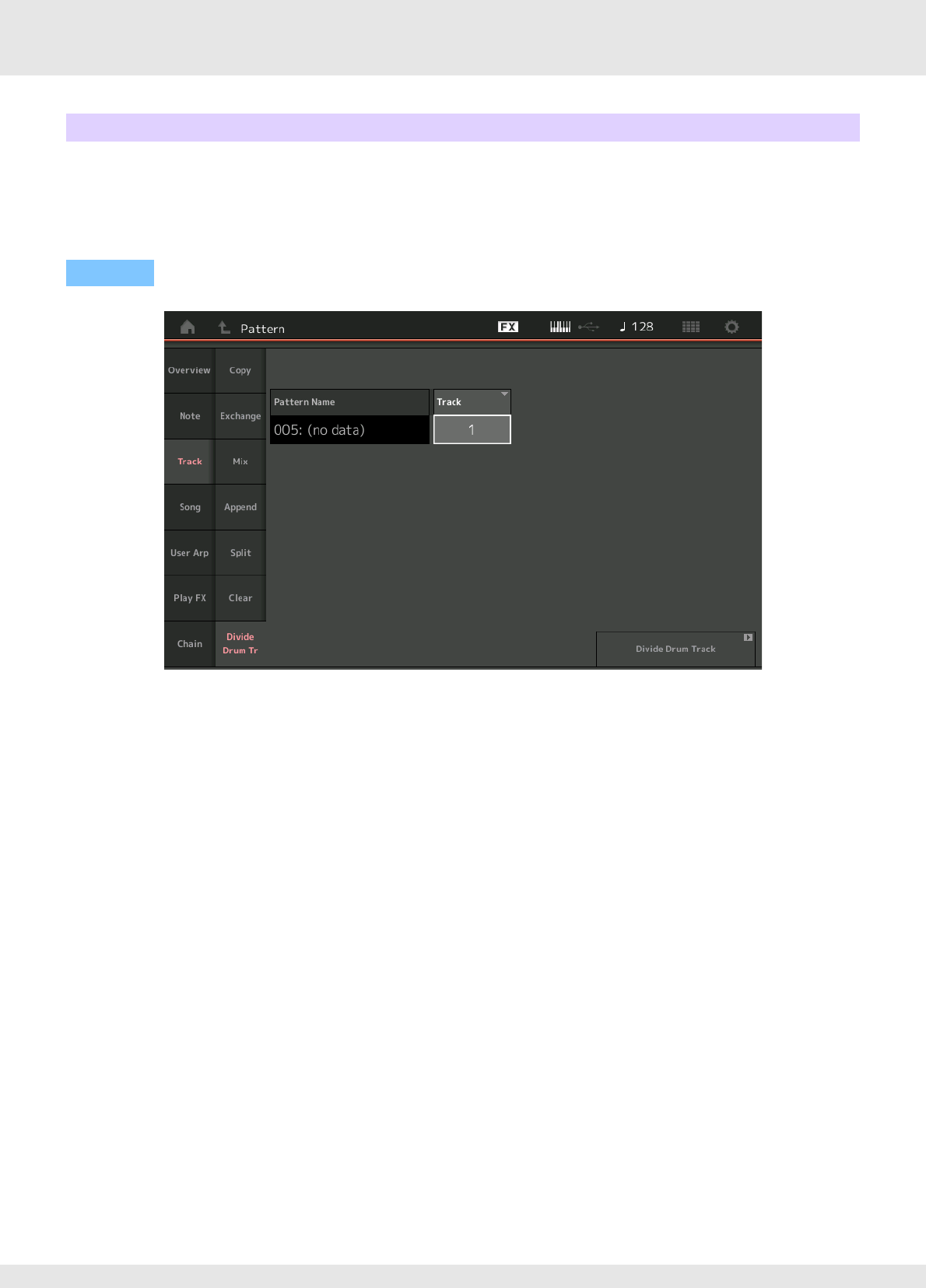

This Job allows you to separate drum note data from a specified track.

This separates the note events in a drum track assigned to a specified track, and places the notes corresponding to different

drum instruments in separate tracks (Tracks 9 – 16).

NOTE The data previously existing on Tracks 9 – 16 and Parts 9 – 16 are replaced when you execute Divide Drum Tr. You cannot Undo this

edit.

Pattern Name

Determines the Pattern containing the drum track to be divided.

Track

Determines the Track for which the drum note data will be separated.

Divide Drum Track

Executes the Divide Job.

Divide Drum Tr (Divide Drum Track)

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Track]  [Divide Drum Tr]

MONTAGE Supplementary Manual 43

This Job copies specified data from a specified source Song to a specified destination track.

NOTE The data previously existing on the specified destination track is replaced when you execute Get Phrase.

Song Name

Determines the source Song.

Track *1 Source

Determines the source track.

Start Measure

Determines the starting measure position at which the Job is applied.

Range: 001 – 998

End Measure

Determines the ending measure position at which the Job is applied.

Range: 002 – 999

Pattern Name

Determines the destination Pattern.

Track *2 Destination

Determines the destination Track.

Scene

Determines the destination Scene.

Get Phrase from Song

Executes the copy job.

Song

Get Phrase

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Song]  [Get Phrase]

*1 Source

*2 Destination

MONTAGE Supplementary Manual 44

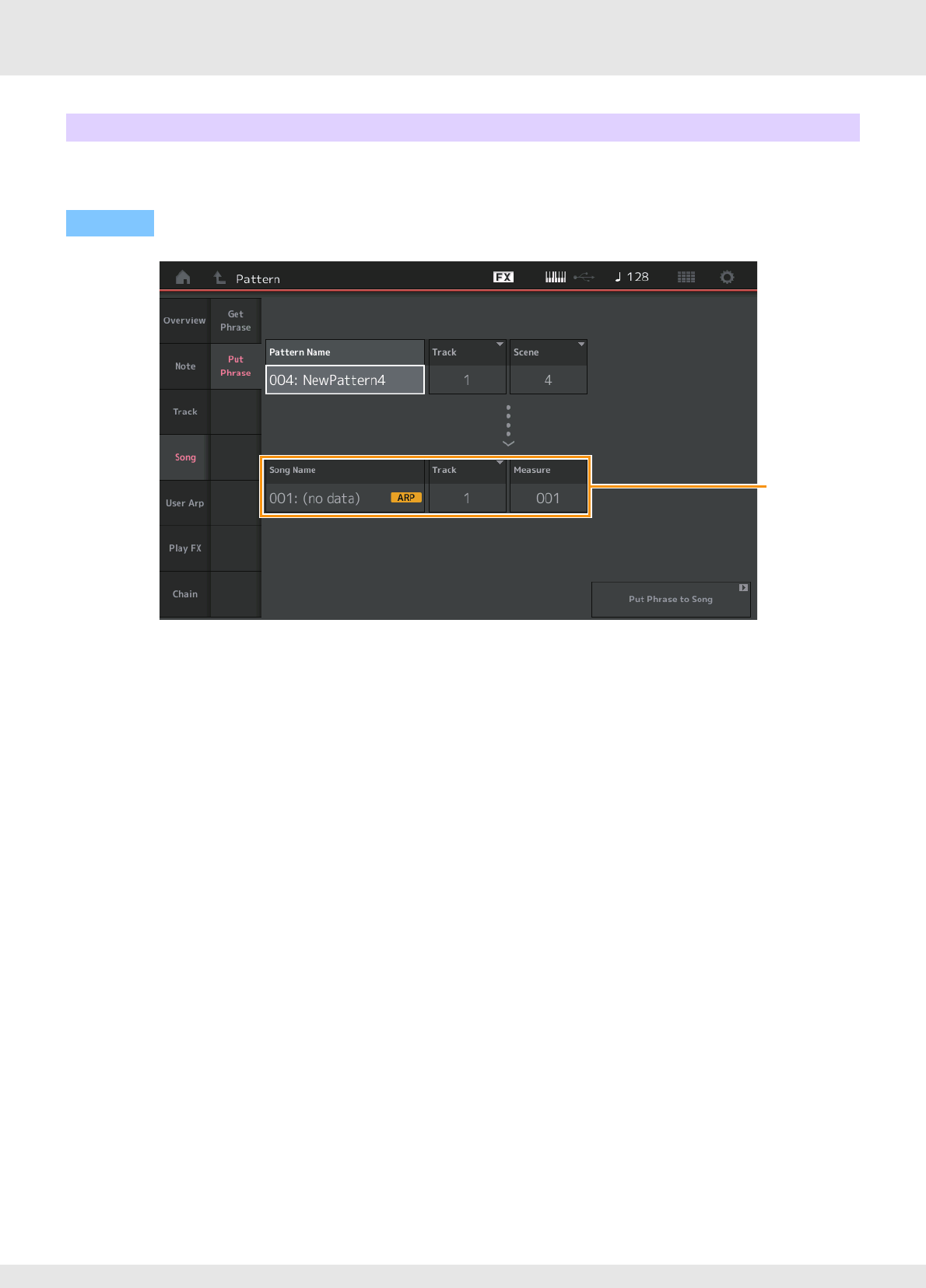

This Job copies all data from a specified source Pattern to a specified measure on the destination Song.

NOTE The specified source Pattern is merged into previously existing data on the specified destination Song when you execute Put Phrase.

Pattern Name

Determines the source Pattern.

Track

Determines the source track.

Scene

Determines the source Scene.

Song Name

Determines the destination Pattern.

Track *Destination

Determines the destination track.

Measure

Determines the measure position at which the Job is applied.

Range: 001 – 999

Put Phrase to Song

Executes the Copy Job.

Put Phrase

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Song]  [Put Phrase]

Destination

MONTAGE Supplementary Manual 45

This Job copies data in the specified measures of a track for creating Arpeggio data.

NOTE The previously existing data on the specified destination track is replaced when you execute User Arp.

Scene

Determines the source Scene.

Range: 1 – 8

Start Measure

Determines the starting measure position at which the Job is applied.

Range: 1 – 256

End Measure

Determines the ending measure position at which the Job is applied.

Range: 2 – 257

Arp (Arpeggio Number)

Indicates the number of the Arpeggio Type.

Category

Indicates the Main Category that the selected Arpeggio Type will be assigned to.

Settings: For the Arpeggio Type Category list, refer to the Reference Manual.

Sub Category

Indicates the Sub Category that the selected Arpeggio Type will be assigned to.

Settings: For the Arpeggio Type Sub Category list, refer to the Reference Manual.

Name

Determines the Arpeggio Type name.

Track

Determines the source Track number for each Arpeggio Track.

User Arp (User Arpeggio)

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [User Arp]

MONTAGE Supplementary Manual 46

Convert Type

Determines how the MIDI sequence data will be converted to Arpeggio data from one of the three ways below. This parameter

can be set for each track.

Settings: Normal, Fixed, Org Notes

Normal: The Arpeggio is played back using only the played note and its octave notes.

Fixed: Playing any note(s) will trigger the same MIDI sequence data.

Org Notes (Original Notes): Basically same as “Fixed” with the exception that the Arpeggio playback notes differ according to the played

chord.

Store As User Arp

Executes the Store Job.

This Job adds effects to the MIDI sequence data in a Pattern when it is played back. You can determine the range and strength

for each parameter on the Track you’ve specified.

Play FX1

Operates the Qntz Value, Qntz Str, Swing Vel, Swing Gate and Swing Rate parameter.

Qntz Value (Quantize Value)

Determines to what beats the note data in the sequence data will be aligned.

Settings: Off, 60 (32nd note), 80 (16th note triplet), 120 (16th note), 160 (8th note triplet), 240 (8th note), 320 (1/4 note triplet), 480 (1/4 note)

Qntz Str (Quantize Strength)

Sets the degree or “magnetic strength” to which Quantize is applied. A setting of 100% produces exact timing. A setting of 0%

results in no quantization.

Range: 0% – 100%

Swing Vel (Swing Velocity)

Adjusts the velocity of the corresponding notes to accentuate the swing rhythmic feel.

Range: 0% – 200%

Swing Gate

Adjusts the gate time of the corresponding notes to accentuate the swing rhythmic feel.

Range: 0% – 200%

Play FX (Play Effect)

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Play FX]

MONTAGE Supplementary Manual 47

Swing Rate

This selectively delays the notes on even-numbered beats (backbeats) to produce a swing feel.

Settings: Depends on specified Qntz Value

If the Quantize value is 1/4 note, 8th note, 16th note, 32nd note: 0 – half of the grid

If the Quantize value is 1/4 note triplet, 8th note triplet, 16th note triplet: 0 – half of the grid

Play FX2

Operates the Note Shift, Clock Shift, Gate Time, Velocity Rate and Velocity Offset parameters.

Note Shift

Raises or lowers the pitch of all notes in the selected track in semitones.

Range: -99 – +99

Clock Shift

Shifts the timing of all notes in the selected track forward or backward in clock increments.

Range: -120 – +120

Gate Time

Raises the gate time of all notes in the selected track.

Range: 0% – 200%

Velocity Rate

Alters the velocity of notes by the specified percentage.

Range: 0% – 200%

Velocity Offset

Increases or decreases the velocity of notes by the specified offset value.

Range: -99 – +99

Part

Determines the destination Part to normalize.

Range: All, 1– 16

Normalize Play FX

Applies the effects set in Play FX to the MIDI data.

Length

Indicates the length of the entire sequence in the selected Scene.

Position

Shows the current position during Scene playback, and lets you set the starting position of playback.

Range: 001 – 256

MONTAGE Supplementary Manual 48

This Job chains Scenes and playback chained Scenes.

Measure

Determines the measure position from which the Scene is played back.

Range: 001 – 999

Scene

Determines the Scene that is played back from the specified measure position.

Range: 1 – 8, End

Page

Indicated by the up and down buttons, when the Measure-Scene line exceeds 8. Touching this button calls up the next/previous

page.

Convert to Song

Stores the Chain as a Song.

Length

Indicates the length of the entire sequence.

Position

Shows the current position during Chain playback, and lets you set the starting position of playback.

Range: 001 – 999

Chain

Operation [R] (Play) button or [PERFORMANCE]  [Play/Rec]  [Pattern]  [Edit/Job]  [Chain]

MONTAGE Supplementary Manual 49

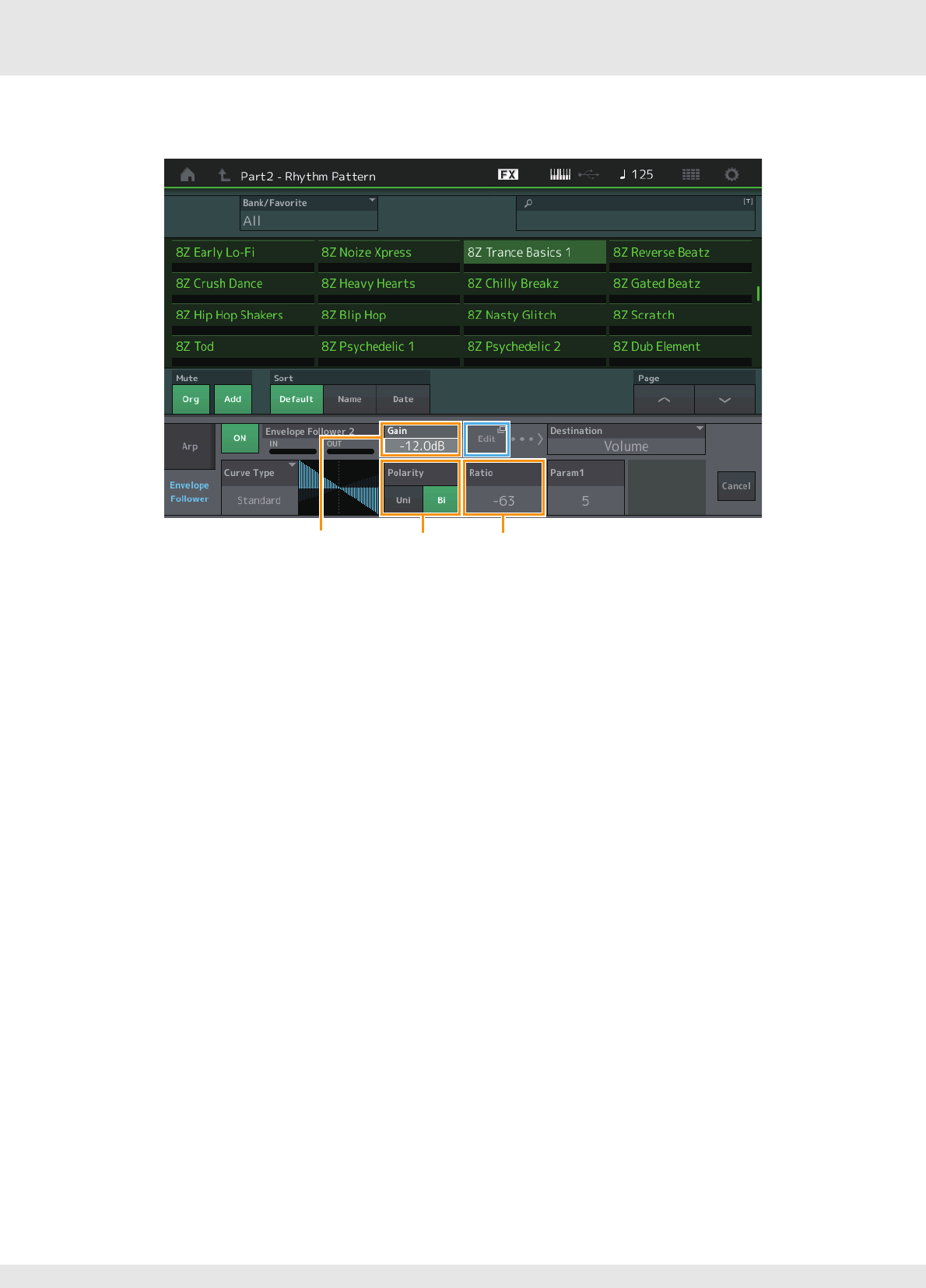

New Rhythm Pattern function

The Rhythm Pattern function provides a simple way to add a rhythm part to the current Performance.

By combining rhythm patterns and the Envelope Follower, you can modify the patterns even further.

As an example, the following steps show how to add the rhythm pattern “8Z Trance Basics 1” to the Performance “Supertrance,”

and then modify the sound with the Envelope Follower.

Adding a Rhythm Part (simple way)

1Select the desired Performance for adding the rhythm part.

Select “Supertrance.”

2Press the [SHIFT] button + the [CONTROL ASSIGN] button.

The Rhythm Pattern display appears.

When all of the parts in Part 1 to 8 are already in use, the message “Part Full” appears and the rhythm pattern cannot be

added.

3From the Rhythm Pattern List, touch the Rhythm Pattern kit you want to use.

Here, touch “8Z Trance Basics 1.”

A rhythm part is added.

4Play the keyboard and the rhythm pattern starts playing.

5Press the [PERFORMANCE (HOME)] button or [EXIT] button to set the Rhythm Pattern.

The Rhythm Pattern display closes.

NOTE You can also touch the HOME icon to confirm the selection.

6To stop the rhythm pattern, press the [ARP ON/OFF] button or the [J] (Stop) button.

NOTE You can also stop the rhythm pattern by touching the [Arp Hold On] button on the display.

Bank/Favorite Name SearchKit Selection

Mute Sort Switching pages

MONTAGE Supplementary Manual 50

Setting the Envelope Follower

Envelope Follower is a feature that extracts the envelope (or amplitude envelope) of a waveform from the input signals, and then

lets you use that envelope as a controller for modifying sounds. For example, by assigning a rhythm pattern to a Part and setting

the Envelope Follower of the Part as a “Source,” the sound of the other Parts are modified accordingly. This is especially useful

for automatic “ducking,” where you want to lower the volume of other instruments while a certain instrument sound is being

played.

1Touch the [Envelope Follower] tab at the bottom of the Rhythm Pattern display.

The Envelope Follower display appears.

2Turn the Envelope Follower switch “ON.”

Here, you can play the keyboard to hear the sound with the Envelope Follower enabled.

Envelope Follower tab

MONTAGE Supplementary Manual 51

3Adjust settings as needed.

Here, in this example, set the Curve Polarity (Polarity) to “Bi,” the Curve Ratio (Ratio) to “-63,” and the Gain (Gain) to “-12dB.”

For setting other parameters, touch the [EDIT] button on the screen, and open the Envelope Follower Setting display.

When you want to change the Rhythm Pattern kit or the Arpeggio Type, press the [SHIFT] button + the [CONTROL ASSIGN]

button to go back to the Rhythm Pattern display. The Envelope Follower settings are retained even after the new kit or the

Arpeggio type is selected.

Curve Polarity Curve RatioGain

MONTAGE Supplementary Manual 52

Live Set

The Live Set function now lets you combine Songs, Patterns and Audio files, and play them back from the Live Set display.

Combine Songs, Patterns and Audio files within the Live Set display

Slot Type

Indicates the selected slot type.

Settings: Perform (Performance), Song, Audio, Pattern

NOTE The Audition function is available only when Perform is selected in the Slot Type.

Slot Name

Indicates the selected Slot name. Touching Slot Name (when is available and indicated) calls up the input character display.

When the Slot Type is set to Song, Audio or Pattern, this indicates Song Name, Audio Name or Pattern Name, and touching it

calls up the Load display.

NOTE You can change the Slot Name only when Perform is selected on Slot Type.

Performance

Indicates the Performance Name specified on the selected Slot. Touching the Performance calls up the Category Search

display.

Color

Determines the color of the selected Slot.

Settings: Black, Red, Yellow, Green, Blue, Azure, Pink, Orange, Purple, Sakura, Cream, Lime, Aqua, Beige, Mint, Lilac

Volume

Determines the volume on the selected Slot.

Swap

Touching Swap when one Slot is selected and touching another Slot swaps the respective Slot contents with each other.

Copy

Touching Copy with the source Slot selected and then touching the destination Slot copies the Slot contents.

Operation Press the [LIVE SET] button, or touch the LIVE SET icon  Select the User Bank  [EDIT]

MONTAGE Supplementary Manual 53

Playing back Songs, Patterns and Audio files from the Live Set display

NOTE When a Song or Pattern is playing back, you cannot change the Performance or the Slot. An error message appears when you try to

change it.

NOTE When a Song, Pattern or Audio file is playing back, you can open the corresponding playback display on the Performance by pressing

the [R] (Play) button.

Operation Press the [LIVE SET] button, or touch the LIVE SET icon  Select the User Bank  [R] (Play) button

MONTAGE Supplementary Manual 54

Scene

Super Knob Link and Keyboard Control have been added to the data that is recorded in the Scene function.

Super Knob (Super Knob Memorize Switch)

Determines whether Super Knob states are memorized in a Scene or not.

Settings: Off, On

Link (Link Memorize Switch)

Determines whether Super Knob Link states are memorized in a Scene or not.

Settings: Off, On

Super Knob Link

Determines whether the Assignable Knobs 1-8 on the selected Scene are affected by Super Knob operations or not. Assignable

Knobs set to Off are not affected by Super Knob operations.

Settings: Off, On

Scene

Operation [PERFORMANCE]  [Scene]

MONTAGE Supplementary Manual 55

Kbd Ctrl (Keyboard Control Memorize Switch)

Determines whether Keyboard Control operations are memorized in a Scene or not.

Settings: Off, On

Kbd Ctrl (Keyboard Control)

Determines the Keyboard Control Switch on each Part on the selected Scene. Parts set to Off are not affected by playing the

keyboard.

Settings: Off (gray), On (green)

MONTAGE Supplementary Manual 56

Edit

Increased the parameter range of the Part LFO Speed.

Normal Part (AWM2)

Speed

Adjusts the speed of LFO variation. The parameter range has been increased from 0 – 63 to 0 – 415.

Range: 0 – 415

Extended LFO

This lets you select between the old parameter range (Off: 0 – 63) or the new parameter range (On: 0 – 415). If you want to

maintain compatibility with settings made in the old parameter, set this to Off.

Settings: Off, On

Element LFO

Operation [EDIT]  Select the Part from [Common]  Select the Element  [Element LFO]

MONTAGE Supplementary Manual 57

Normal Part (FM-X)

Speed (2nd LFO Speed)

Adjusts the speed of LFO variation. The parameter range has been increased from 0 – 99 to 0 – 415.

Range: 0 – 415

Extended LFO

This lets you select between the old parameter range (Off: 0 – 99) or the new parameter range (On: 0 – 415). If you want to

maintain compatibility with settings made in the old parameter, set this to Off.

Settings: Off, On

Mod/Control (Modulation/Control)

2nd LFO

Operation [EDIT]  Select the Part from [Common]  ELEMENT/OPERATOR [COMMON]  [Mod/Control]  [2nd LFO]

MONTAGE Supplementary Manual 58

Utility

The Global Micro Tuning settings have been added.

Global Tuning

When this function is on, Micro Tuning in the Global Settings has priority over the Micro Tuning settings that the Performance has

on each Part. This function is applied to all parts except for the Drum Part.

Settings: Off, On

NOTE The Global Tuning Setting automatically returns to Off every time you reboot the instrument.

Micro Tuning Name

Indicates the selected Micro Tuning Name. Touching this button calls up the menu page for selecting Preset or User.

Settings: Preset  Equal Temperament, Pure Major, Pure Minor, Weckmeister, Kirnberger, Valloti & Young, 1/4 Shift, 1/4 tone, 1/8 tone, Indian, Arabic1,

Arabic2, Arabic3

User  User1 – 8

Micro Tuning Root

Determines the root note for the Micro Tuning function. Depending on the Micro Tuning Name, this setting may not be necessary,

and therefore will not appear.

Range: C – B

Settings

Sound

Operation [UTILITY]  [Settings]  [Sound]

MONTAGE Supplementary Manual 59

Edit User Tuning

Calls up the User Micro Tuning Settings display.

Tuning No.

Indicates the selected User Micro Tuning Number.

Range: 1 – 8

Tuning Name

Determines the name of the selected User Micro Tuning. Touching the parameter calls up the input character display.

C, C#, D, D#, E, F, F#, G, G#, A, A#, B

Adjust the pitch of each note in 1-cent steps to determine the desired Micro Tuning.

Range: -99 – +99

Initialize

Initializes the selected User Micro Tuning.

MONTAGE Supplementary Manual 60

You can cancel Audition Loop.

Audition Loop

When this function is set to On and the Audition Phrase is played back to the end, the Audition Phrase replays from the

beginning of the Audition Phrase automatically. When this function is set to Off, Audition Phrase playback stops when the end is

reached. You can switch between On and Off while playing back the Audition Phrase.

Settings: Off, On

Advanced

Operation [UTILITY]  [Settings]  [Advanced]

MONTAGE Supplementary Manual 61

Hybrid has been added to the Settings in the MIDI I/O Mode.

When MIDI I/O Mode is set to Hybrid:

Receiving MIDI Data

• MIDI data received via the channel that is set in the MIDI I/O Channel parameter is received on Parts with Keyboard Control

Switch set to ON.

• MIDI data received via a channel other than that set in the MIDI I/O Channel parameter or on Parts with Keyboard Control

Switch set to Off, is received via the corresponding Part.

Sending MIDI Data

• When Common/Audio is selected and the Part with Keyboard Control Switch set to ON is selected, MIDI data is sent from the

channel that is set in the MIDI I/O Channel parameter.

• When a Part with Keyboard Control Switch set to Off is selected, MIDI data is sent from the channel corresponding to the Part.

Operation [UTILITY]  [Settings]  [Advanced]

MONTAGE Supplementary Manual 62

MIDI Data Reception with USB TO DEVICE

This function now enables this instrument to receive MIDI data from an external MIDI keyboard / controller connected to the

[USB TO DEVICE].

Supported MIDI equipment:MIDI devices that are USB MIDI class compliant and devices tested by Yamaha

* For a list of devices tested by Yamaha, refer to the link below

https://www.yamaha.com/2/montage

NOTE The maximum rated value of the [USB TO DEVICE] is 5V/500mA. Do not connect to USB devices that exceed the rated value, since

such devices may cause damage to the instrument.

NOTE This function does not support MIDI data transmission to a connected device via the [USB TO DEVICE] on this instrument.

When MIDI I/O Mode is set to Multi

• Channel events, received through channels corresponding to Parts with Keyboard Control Switch set to On, are received in

parallel by all Parts with Keyboard Control Switch set to On. After receiving, when this instrument transmits MIDI data, all note

data of the channel corresponding to parts with Keyboard Control Switch set to On are transmitted.

• Channel events received via the channel that corresponds to the Part with Keyboard Control Switch set to Off affect the

corresponding Part. After receiving, when this instrument transmits MIDI data, the same channels used for receiving are used

to transmit the channel data.

When the MIDI I/O Mode is set to Single or Hybrid

• Channel events, received through channels corresponding to Parts with Keyboard Control Switch set to On, are received in

parallel by all Parts with Keyboard Control Switch set to On. However, when this instrument receives Control Change

messages regarded as Common parameters and the MIDI I/O mode is set to Single, this instrument does not send Control

Change messages to the Part and instead treats them as Common parameters. After receiving, Sending of Control Change

messages is done according to the MIDI I/O Channel setting.

• Channel events received via the channel that corresponds to the Part with Keyboard Control Switch set to Off are received by

the corresponding Parts. The received MIDI data is not re-transmitted when the MIDI I/O mode is set to Single.

MONTAGE Supplementary Manual 63

User Interface Enhancements

Selecting Songs with [INC/YES] and [DEC/NO] buttons

You can now select Songs with the [INC/YES] and [DEC/NO] buttons when the cursor is on the Song Name on MIDI display. The

Song Number is now displayed in front of the Song name.

Memorizing the Bank and Attribute selected in the Performance Category Search

This instrument can now memorize the last setting of Bank and Attribute on the Performance Category Search display even after

moving to another display.

Operation [R] (Play) button or  [PERFORMANCE]  [Play/Rec]  [MIDI]

Operation [PERFORMANCE]  [CATEGORY] or touch the [Performance Name]  Selects the [Category Search] from the menu

Song Name

Bank Attribute

MONTAGE Supplementary Manual 64

Open the Home display with the [EXIT] button

You can now easily go back to the Home display with the [EXIT] button when a Performance display (excepting the Home

display) is opened.

Easy method to select a target slot on the Register display

When Preset or Library is selected in Bank

The lowest numbered empty Slot in the grid is automatically selected from User Bank 1. When the User Bank has no empty

Bank, no slot is selected when opening the User Bank 1 display.

When User is selected in Bank

The lowest numbered empty Slot in the grid after the current page is selected automatically. When the User Bank is not empty,

the lowest numbered empty Slot in the lowest numbered available page is selected. When the User Bank has no empty Bank,

no slot is selected.

Sequencer Block

The Note capacity (total area in Store) has been increased from 130,000 to 520,000 (for Songs) and 520,000 (for Patterns).

Operation [SHIFT] + [LIVE SET] (except when Live Set display is selected)

Selected automatically

MONTAGE Supplementary Manual 65

New Functions in MONTAGE Version 2.50

Yamaha has upgraded the MONTAGE firmware, adding the following new functions.

This manual describes additions and changes with respect to the Reference Manual that came with your instrument.

• New Performances have been added.

• The DAW Remote function has been added.

• A new function has been added that allows you to selectively enable (or disable) recording of Arpeggio data, when recording

MIDI songs.

• You can now set a Center note in the Edit Waveform display.

• You can now set a key for assignment when loading WAV files or AIFF files as waveforms.

• You can now select the Assignable Knob for Common Parts, by pressing the [PART COMMON] in the dialog displayed when

selecting the Part parameter and pressing the [CONTROL ASSIGN] button.

• The Panel Lock function has been added to prevent inadvertent operations during your performance.

MONTAGE Supplementary Manual 66

Additional New Performances

The MONTAGE offers 512 new Performances in MOTIF XF Bank.

For the added Performances, refer to the Data List.

MONTAGE Supplementary Manual 67

DAW Remote function

You can now control DAW software on your computer from MONTAGE.

The DAW Remote function can be used only when the computer is connected via USB cable. MIDI cables cannot be used.

Setting up the DAW Remote function

Refer to the Owner’s Manual for use with a computer.

[Remote]  Call up the setting display of DAW Remote function in [Settings]  Set the DAW type to your particular DAW

software.

This section explains the specific operations for each DAW software type.

NOTE Once the connection between the computer and the MONTAGE is lost, the DAW software may occasionally fail to recognize MONTAGE,

even when reconnecting while power is on. If this happens, reconnect the computer and the MONTAGE, then reboot the DAW software.

IMPORTANT

Depending on the version of your DAW software, the setting procedure may differ from the following instructions, or the setup may not

be successful. For details, refer to the owner’s manual of the DAW software.

Cubase

1[Device]/[Studio]  [Device Settings...]/[Studio Setup...] to call up the dialog.

2[MIDI]  select [MIDI Port Setup]  uncheck the [In All MIDI Inputs] field of MONTAGE-2 or MONTAGE Port 2.

3Press the [+] button on the top left of the dialog, then, select [Mackie Control] from the list.

4[Remote Devices]  select [Mackie Control].

5Set the [MIDI Input] and the [MIDI Output] to MONTAGE-2 or MONTAGE Port2.

6(Optional) Assign desired functions to [F1] – [F8] of [User Commands].

Logic Pro

1[Logic Pro X]  [Preferences]  [Advanced]  checkmark [Show Advanced Tools].

2[Logic Pro X]  [Control Surfaces]  [Setup…] to call up the dialog.

3[New]  [Install…] to select [Mackie Control] of [Mackie Designs].

4Set the [Output Port] and the [Input Port] of [Mackie Control] to MONTAGE Port2.

5(Optional) [Logic Pro X]  [Control Surfaces]  [Controller Assignments...] to set [Zone] to [Control Surface:

Mackie Control] and assign functions to [Control] [F1] – [F8].

Ableton Live

1[Live]  [Preferences…] to open the dialog.

2Select the [Link/MIDI] tab.

3Select [MackieControl] for the [Control Surface].

4Set the [Input] and the [Output] to MONTAGE-2 or MONTAGE Port2.

5(Optional) Assign desired functions to [F1] – [F8] by setting the operation of MIDI notes F#2 – C#3 in the [Edit

MIDI Map] of the [Options] menu.

Pro Tools

1[Setup]  [Peripherals…] to open the dialog.

2Select the [MIDI Controllers] tab.

3Set the Type to [HUI], and set the [Receive From] and [Send To] to MONTAGE-2 or MONTAGE Port2 of

[Predefined].

Settings on MONTAGE

Setting up DAW software

MONTAGE Supplementary Manual 68

Controlling DAW Software from MONTAGE

In the Remote display, the DAW Remote Function will apply and the panel operations will be changed.

Mode

Select a behavior of the DAW Remote function from three Modes.

Settings: Track, Plugin, Transport

Track: Mode for operating multiple tracks on DAW software at the same time.

Plugin: Mode for detailed control of a specific plug-in in DAW software.

Transport: Mode for performing on MONTAGE while playing back DAW software, and recording your keyboard performance on MONTAGE to

DAW software. Using the Transport panel controls, you can control playback, stop, etc. on the DAW software. Operations other than the

Transport panel controls will be the same as normal.

Local

Determines whether to set Local Control on or off. This can also be set from the MIDI I/O display in the Utility.

Operation

[PERFORMANCE]  [Remote]

[PERFORMANCE]  [SHIFT] + Number A [7] button

Assignable Knob Track Pan will be output from Port 2.

Slider Track Volume will be output from Port 2.

SCENE button Assigned functions for F1 – F8 will be output from Port 2.

Other controllers CC assigned in Remote Mode will be output.

Number A [1] – [8] Track Select will be output from Port 2.

Number A [9] – [16] Mute will be output from Port 2.

Number B [1] – [8] Solo will be output from Port 2.

Number C [1] – [8] Rec Enable will be output from Port 2.

PART [MUTE]/[SOLO] Track Group Select will be output (by eight tracks) from Port 2.

ELEMENT/OPERATOR

[MUTE]/[SOLO]

Track Group Select will be output (by track) from Port 2.

Knob, Slider,

SCENE button,

Other controllers

Output the CC which is set in the Remote Mode.

Right panel Same as the Track Mode.

MONTAGE Supplementary Manual 69

Use for Remote

Determines whether to use the Dial and the Cursor buttons on MONTAGE panel for controlling DAW software or not.

On: Use for DAW operation.

Off: Use for MONTAGE display operation.

Track

The operation is the same as the PART [MUTE]/[SOLO].

Edit

Determines the control number of CC output from Port 1, and the operation mode of the controllers.

MONTAGE Supplementary Manual 70

Play/Rec

When recording Songs, you can select whether to record only the keyboard performance, or to record the output of the

Arpeggiator.

Arp Rec

When this is set to on, the Arpeggiator output can be recorded. When this is set to off, only the keyboard performance is

recorded. This can only be set when recording a new song. The setting cannot be changed after the recording. Also, when

recording additional parts to previously recorded songs with this set to off, the Record Type can only be set to Replace.

Settings: Off, On

NOTE Songs recorded with this set to off, can be played back with a different Arpeggio from the recorded one by changing to another

Arpeggio set in Performance.

Play/Rec

MIDI

Operation

[R] (Play) button

[PERFORMANCE]  [Play/Rec]  [MIDI]

Arp Rec

MONTAGE Supplementary Manual 71

Part Edit (Edit)

Element Edit (Element)

Edit Waveform

Center Note setting has been added.

Center Note

Determines the key for playback to match the pitch of the original waveform data.

Settings: C-2 – G8

Osc/Tune (Oscillator/Tune)

Operation [PERFORMANCE]  [EDIT]  Part selection  Select Element or Key  [Osc/Tune]  [Edit Waveform]

MONTAGE Supplementary Manual 72

Utility

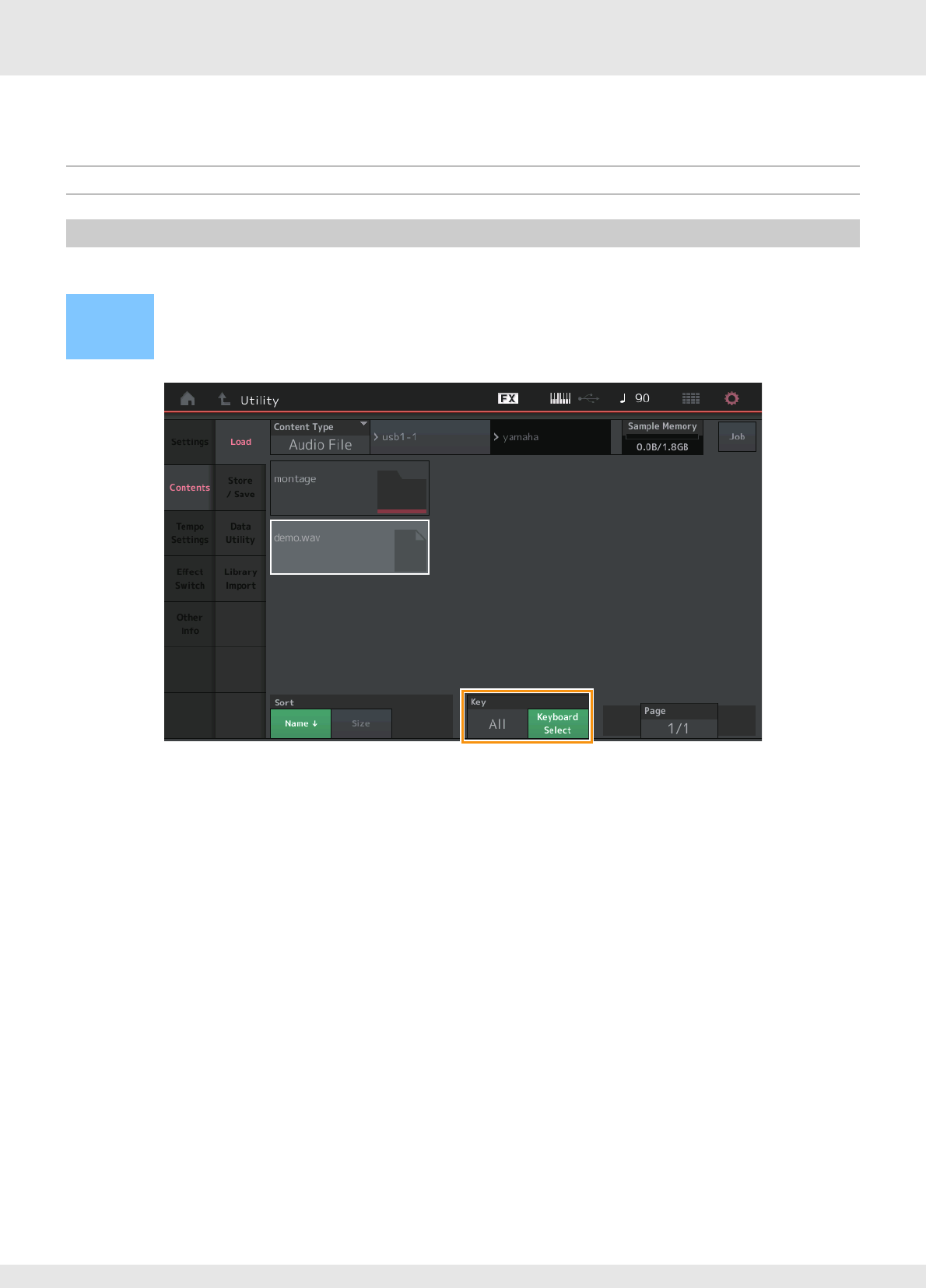

Added a Key setting function when loading WAV files and AIFF files as waveforms.

Key

Select the key to which the loaded WAV file or AIFF file will be assigned.

Settings: Keyboard Select (C-2 – G8), All

Contents

Load

Operation

[PERFORMANCE]  [EDIT]  Part selection (Normal Parts only)  Select Element  [Osc/Tune]  [New Waveform]

[PERFORMANCE]  [EDIT]  Part selection (Normal Parts only)  Select Element  [Osc/Tune]  [Edit Waveform] 

[Add Keybank]

MONTAGE Supplementary Manual 73

Control Assign dialog

In the dialog displayed when the Part parameter is selected and the [CONTROL ASSIGN] button is pressed, you can now select

the Assignable Knob of Common by operating the Assignable knob by pressing the [PART COMMON].

While pressing the [PART COMMON] button, operate the Knob you wish to use when operating the target parameter.

NOTE An error message appears when you turn the Super Knob and there are no more Assignable Knobs or Control Assigns available for

assigning a Source.

Operation Point the cursor to the control destination parameter of the Part  Press the [CONTROL ASSIGN] button.

MONTAGE Supplementary Manual 74

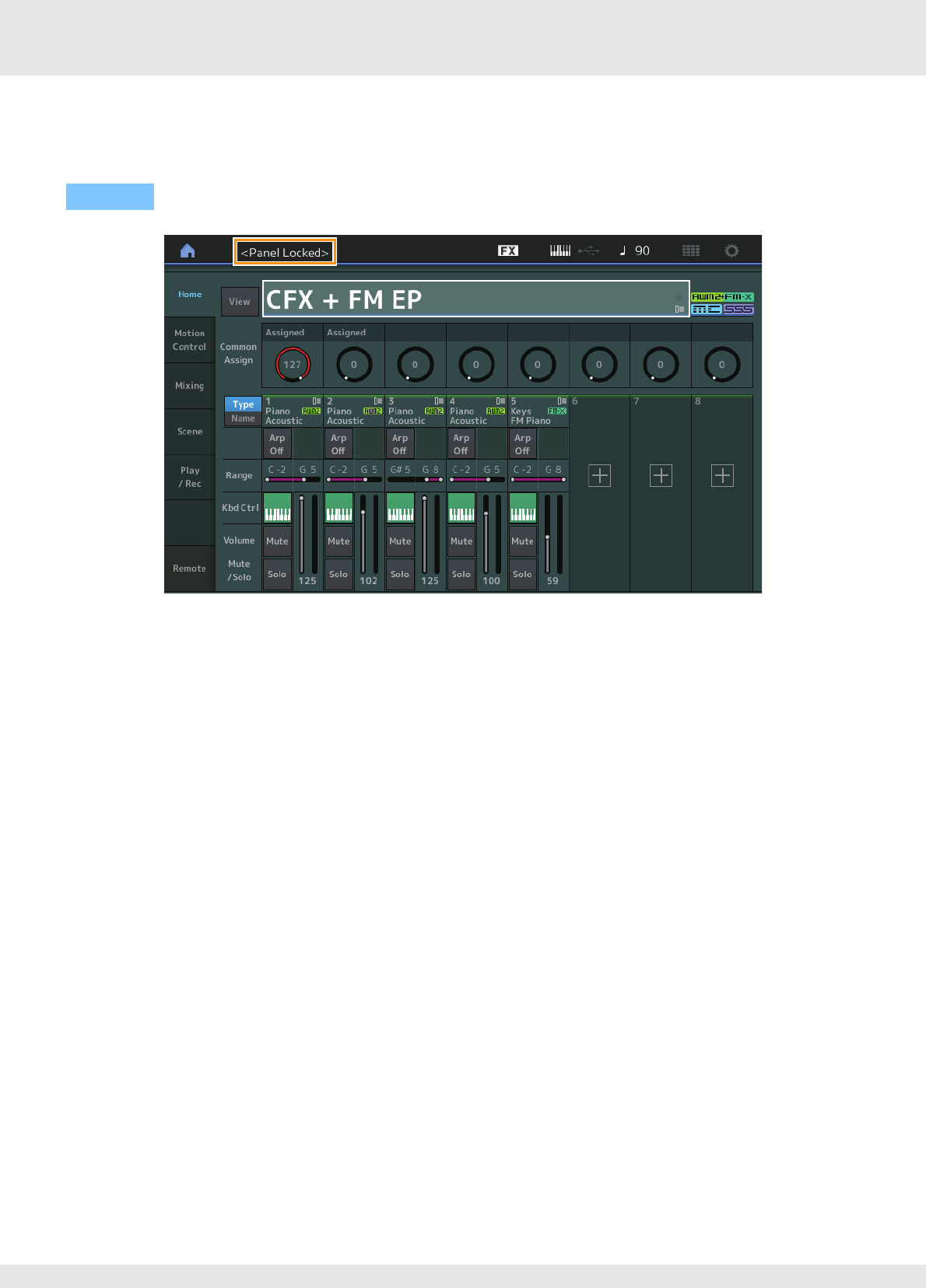

Panel Lock Function

The Panel Lock function has been added to prevent inadvertent operations during your performance.

To unlock the panel, press [SHIFT] + [ELEMENT COMMON] again. When the Panel Lock Function is engaged, all operations will

be unavailable, except the keyboard, pedals, Master Volume, Super Knob, Pitch Bend wheel, Modulation wheel, Ribbon

controller, and the unlock operation. This lock also applies to touch panel operations.

Operation [SHIFT] + [ELEMENT COMMON] in Home display or Live Set display.

MONTAGE Supplementary Manual 75

New Functions in MONTAGE Version 2.00

Yamaha has upgraded the MONTAGE firmware, adding the following new functions.

This manual describes additions and changes with respect to the Reference Manual that came with your instrument.

• New Performances have been added.

• You can now create User Audition Phrases.

• New functions have been added in some displays for simplifying Super Knob settings.

• Transitioning of displays during edits have been improved.

• You can now set the Live Set slot as a startup display.

• You can now apply the Live Set Font Size to the Category Names in the Category Search display.

• You can now load MOXF files.

• You can now load Performance data for the MOTIF XS, MOTIF XF, and MOXF.

• You can now set to keep the current tempo after switching to a different Performance.

• You can now set to keep the current A/D Part volume after switching to a different Performance.

• The shortcuts for opening the Control Assign display have been added in the Envelope Follower display.

• You can now select the Super Knob, Motion Sequencer Lane, or Envelope Follower as a source in the dialog that appears

when the [CONTROL ASSIGN] button is pressed.

• New function that emphasize the connected lines in the Overview display to indicate the controller you are operating and its

destinations has been added.

• Increased the number of Songs that can be recorded in the MIDI tab of the Play/Rec display from 64 to 128.

MONTAGE Supplementary Manual 76

Additional New Performances

The MONTAGE offers 99 new Performances.

For the added Performances, refer to the Data List.

MONTAGE Supplementary Manual 77

Common/Audio Edit (Common/Audio)

You can now create User Audition Phrases.

Bank

Indicates the Bank to be used for Audition.

Settings: Preset, User, Library names (when the Library files are loaded)

Update User Auditions

Converts all of the songs recorded on the MONTAGE to User Auditions. If the User Auditions already exist, all User Auditions will

be overwritten.

General

Operation [PERFORMANCE]  [EDIT]  PART [COMMON]  [General]

Bank Update User Auditions

MONTAGE Supplementary Manual 78

When Assignable Knobs are set to Source and Destination but the control destination is not yet selected, a new control

destination parameter can be added in this display.

Touching the [+] button adds a new Part parameter for the Destination.

Control

Control Assign

Operation

[PERFORMANCE]  [EDIT]  PART [COMMON]  [Control]  [Control Assign]

Touch [Edit Super Knob] in the Super Knob display.

MONTAGE Supplementary Manual 79

Part Edit (Edit)

When the Display Filter is set to “Super Knob,” a new parameter can be added by touching the [+] button and will immediately

be available for control with the Super Knob.

When the Display Filter is set to “Super Knob,” touching the [+] button shows a message on the upper part of the display, and

the Control Assign setting for Common/Audio Edit is automatically added.

NOTE When there are no more Assignable knobs available, the [+] button does not appear on the display.

Mod/Control (Modulation/Control)

Control Assign

Operation [PERFORMANCE]  [EDIT]  Part selection  ELEMENT/OPERATOR [COMMON]  [Mod/Control]  [Control Assign]

MONTAGE Supplementary Manual 80

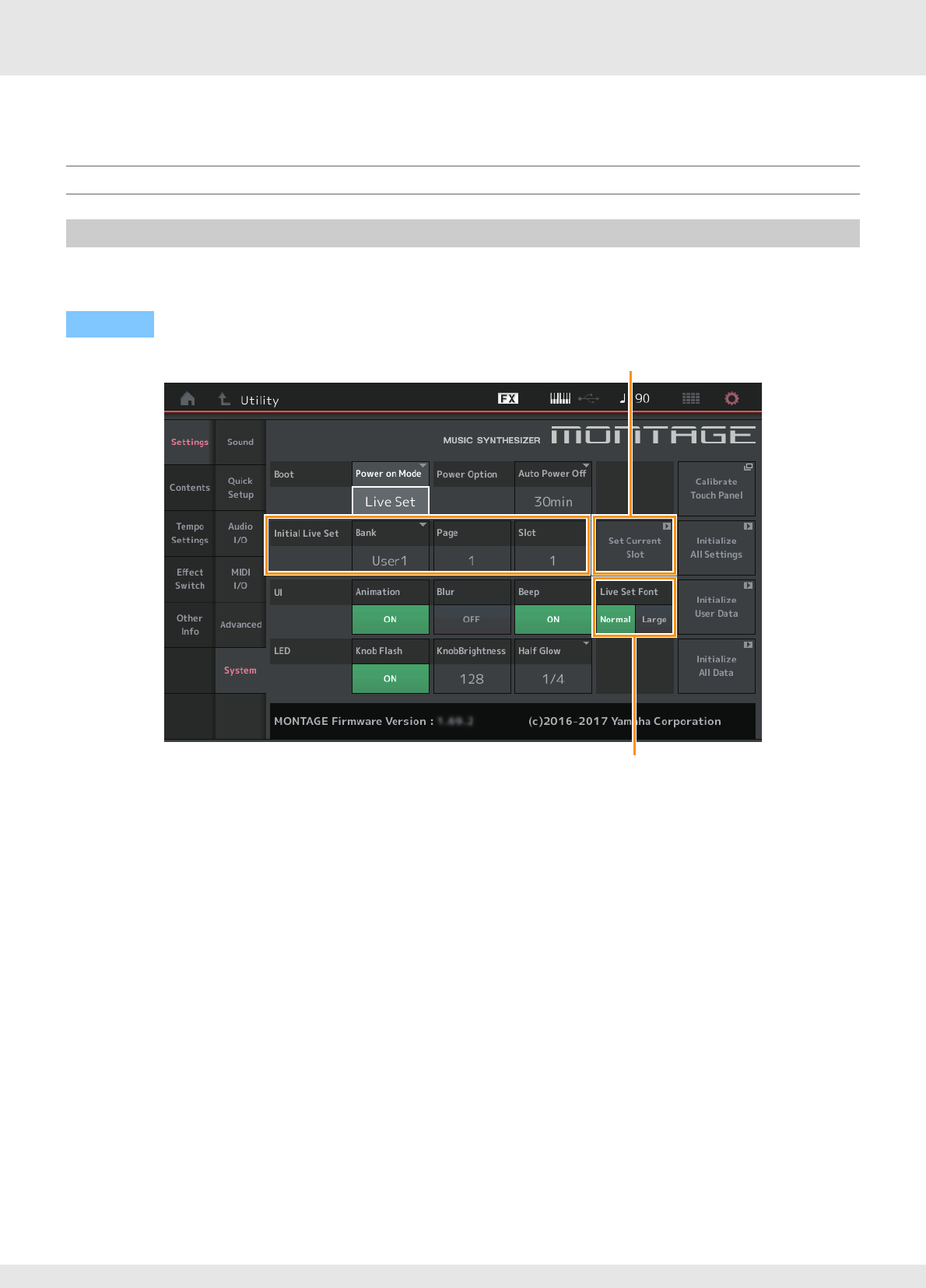

Utility

Added the capability for Live Set slot to be selected as a startup display. Also, enabled the Live Set Font Size to be applied to

the Category Names in the Category Search display.

Initial Live Set

Bank

Page

Slot

Determines the Live Set slot as a startup display when Power On Mode is set to “Live Set.”

NOTE You can also set the Live Set slot as a startup display by first selecting a Performance in the Live Set display and then touching the “Set

Current Slot” button in this display.

Settings

System

Operation [UTILITY]  [Settings]  [System]

Set Current Slot

Live Set Font

MONTAGE Supplementary Manual 81

Live Set Font (Live Set Font Size)

Determines the font size of the contents names and category names on the Live Set display and the Category Search display.

Settings: Normal, Large

Category Search display

•Normal

•Large

MONTAGE Supplementary Manual 82

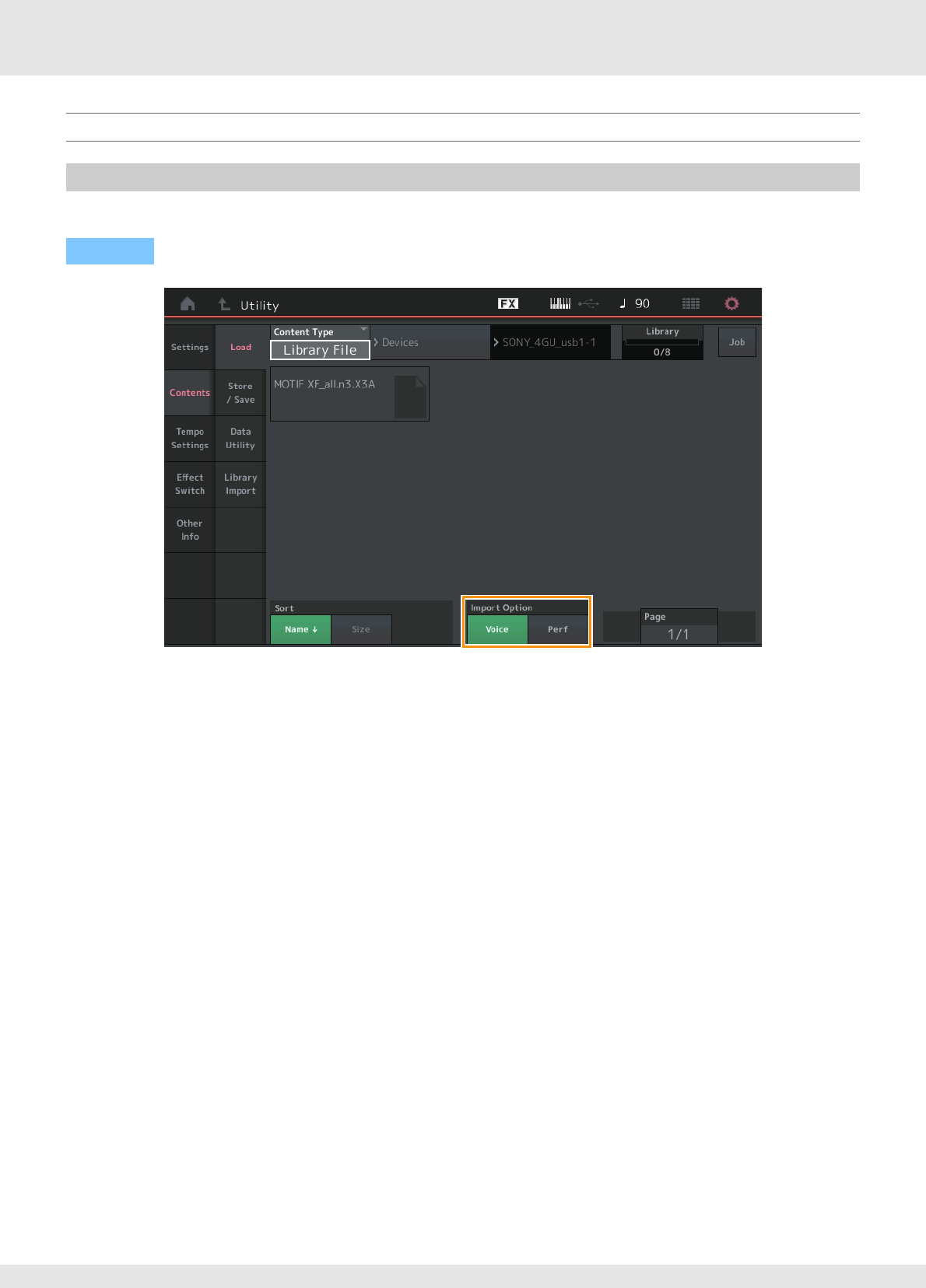

Enabled compatibility with MOXF files. Also, enabled compatibility with Performance data for MOTIF XS, MOTIF XF, and MOXF.

Import Option

Selects the Voice data or the Performance data to load. The Import Option appears when “All” files for MOTIF XS, MOTIF XF or

MOXF are in the folder.

Settings: Voice, Perf

Contents

Load

Operation [UTILITY]  [Contents]  [Load]

MONTAGE Supplementary Manual 83

Added a setting for keeping the current tempo after switching to a different Performance.

Global Tempo

When set to OFF, the tempo changes according to the Performance tempo. When set to ON, the current tempo is retained even

after switching to a different Performance.

Settings: Off, On

Tempo Settings

Operation

[UTILITY]  [Tempo Settings] or [SHIFT] + [ENTER]

TEMPO SETTINGS icon

Global Tempo

MONTAGE Supplementary Manual 84

Added a setting for keeping the current A/D Part volume after switching to a different Performance.

Global A/D

When set to ON, neither the A/D Part volume nor other related parameters are retained even after switching to a different

Performance. When set to OFF, the A/D Part volume and other related parameters change according to the Volume setting in the

Performance.

Settings: Off, On

Effect Switch

Operation

[UTILITY]  [Effect Switch]

Effect icon

Global A/D

MONTAGE Supplementary Manual 85

Envelope Follower

The shortcuts for opening the Control Assign display has been added in the Envelope Follower display.

Edit

Calls up the Control Assign display for the Destination Part.

Operation [PERFORMANCE]  [EDIT]  Part Selection  ELEMENT/OPERATOR [COMMON]  [Effect]  [Routing]  Envelope

Follower

MONTAGE Supplementary Manual 86

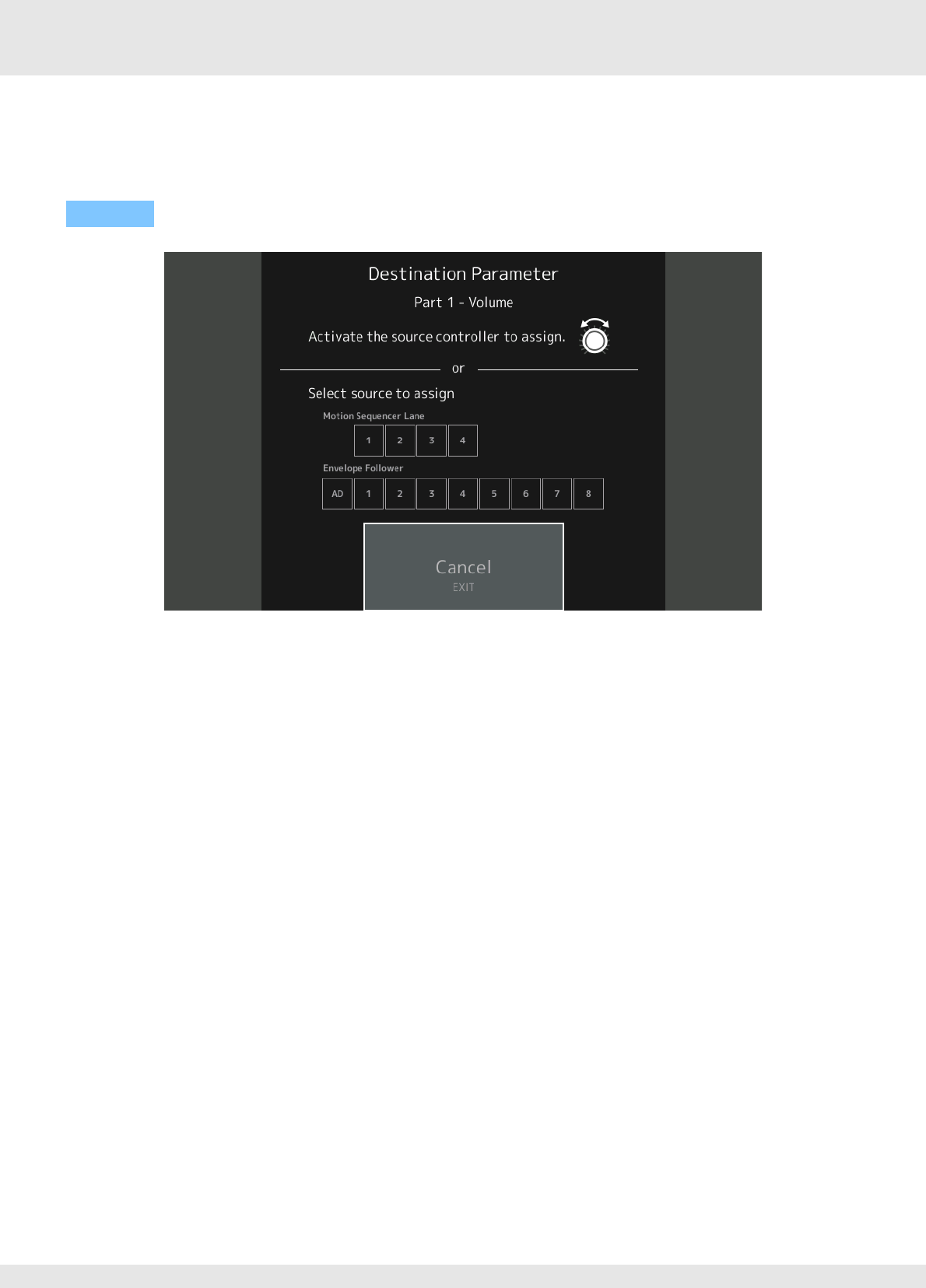

Control Assign dialog

You can now select the Super Knob, Motion Sequencer Lane, or Envelope Follower as a source in the dialog that appears when

the [CONTROL ASSIGN] button is pressed.

Operate the controller you want to set as a Destination parameter or touch a number under “Motion Sequencer Lane” or

“Envelope Follower.”

NOTE An error message appears when you turn the Super Knob and there are no more Assignable Knobs available for assigning a Source.

Operation Press the [CONTROL ASSIGN] button when the cursor is on the parameter to be the control destination.

MONTAGE Supplementary Manual 87

New Functions in MONTAGE Version 1.60

Yamaha has upgraded the MONTAGE firmware, adding the following new functions.

This manual describes additions and changes with respect to the Reference Manual that came with your instrument.

• New effect types have been added.

• New Performances have been added.

• New functions have been added in some displays for simplifying Super Knob settings.

MONTAGE Supplementary Manual 88

Additional New Effect Types

The MONTAGE offers following new effect types.

Effect Type Description Parameter Description

Spiralizer P,

Spiralizer F

Unique filter applying

Phaser (for Spiralizer

P)/ Flanger (for

Spiralizer F)

processing with

seemingly endless up/

down pitch change.

Spiral Speed Determines the speed of the pitch shift.

Offset Determines the starting pitch in semitones.

Feedback Determines the level of the sound signal output from the effect block and

returned to its own input.

Step Mode Determines whether the pitch shifts smoothly or step by step.

Semitones Determines the pitch shift range when “Step Mode” is set to “Semitone.”

Scale Type Determines how the pitch changes when “Step Mode” is set to “Scale.”

Spiral Sync Determines the basic time period over which the pitch shifts step by step.

Ofs Transition Determines the time that elapses after the Offset value changes.

Step Transition Determines how long it takes for the pitch to change to the next pitch

when the pitch shifts step by step.

Dry/Wet Determines the balance of the dry sound and the effect sound.

Spiral Turn the LFO On/Off.

Effect Type Description Parameter Description

Tempo Spiralizer P,

Tempo Spiralizer F

Spiralizer with tempo-

synchronized LFO.

Spiral Speed Determines the speed of the pitch shift.

Offset Determines the starting pitch in semitones.

Feedback Determines the level of the sound signal output from the effect block and

returned to its own input.

Step Mode Determines whether the pitch shifts smoothly or step by step.

Semitones Determines the pitch shift range when “Step Mode” is set to “Semitone.”

Scale Type Determines how the pitch changes when “Step Mode” is set to “Scale.”

Spiral Sync Determines the basic time period over which the pitch shifts step by step.

Ofs Transition Determines the time that elapses after the Offset value changes.

Step Transition Determines how long it takes for the pitch to change to the next pitch

when the pitch shifts step by step.

Dry/Wet Determines the balance of the dry sound and the effect sound.

Direction Determines the direction of the pitch shift.

Spiral Turn the LFO On/Off.

MONTAGE Supplementary Manual 89

Additional New Performances

The MONTAGE offers 8 new Performances.

For the added Performances, refer to the Data List.

MONTAGE Supplementary Manual 90

Motion Control

Shortcut buttons have been added for simplifying Super Knob settings.

Edit Super Knob Motion Seq (Edit Super Knob Motion Sequencer)

Calls up the Knob Auto display for editing the Motion Sequencer applied to the Super Knob (Super Knob Motion Sequencer).

Edit Super Knob

Calls up the Control Assign display in Common/Audio Edit for setting parameters controlled with the Super Knob.

Motion Control

Super Knob

Operation [PERFORMANCE]  [Motion Control]  [Super Knob]

Edit Super Knob Motion Seq (Edit Super Knob Motion Sequencer)

Edit Super Knob

MONTAGE Supplementary Manual 91

Common/Audio Edit (Common/Audio)

You can now set Super Knob to “Display Filter.” You can also check the parameters for Parts which are controlled by using

Assignable Knobs common to all Parts in this display.

Display Filter

Determines the Controller to be displayed. When “Super Knob” is selected, all Assignable Knob settings in which “Super Knob

Link” is set to On are displayed.

Settings: AsgnKnob 1 – 8, Super Knob, MS Lane 1 – 4, EnvFollow 1 – 16, EnvFollowAD, EnvFollowMst, All

The following parameters are displayed only when “Destination 1 – 16” is set to “Part 1 – 16 Assign 1 – 8.” Also, when

Destination is not set to any Assignable Knobs for the Part, only the shortcut buttons are available.

Destination

Determines the controller settings for the Part to be displayed.

Settings: 1 – 16 (The number of Destinations for the Assignable Knobs for the Part which is selected in “Destination 1 – 16” is displayed.)

Parameter

Determines the parameters for the Part to be controlled.

Settings: Refer to the “Control List” in the Data List.

Edit Part Control Settings

Calls up the Control Assign display for the currently selected Part.

Curve Type

Determines the specific curve for changing the parameter which is set in “Destination.” The horizontal axis indicates the value of

the controller set in “Source” and the vertical axis indicates the parameter values.

Settings: Standard, Sigmoid, Threshold, Bell, Dogleg, FM, AM, M, Discrete Saw, Smooth Saw, Triangle, Square, Trapezoid, Tilt Sine, Bounce,

Resonance, Sequence, Hold

For User Bank: User 1 – 32

When a Library file is read: Curves in Library 1 – 8

Control

Control Assign

Operation

[PERFORMANCE]  [EDIT]  PART [COMMON]  [Control]  [Control Assign]

Touch [Edit Super Knob] in the Super Knob display.

Display Filter

MONTAGE Supplementary Manual 92

Polarity (Curve Polarity)

Determines the Curve Polarity of the Curve type set in “Curve Type.”

Settings: Uni, Bi

Uni: Unipolar changes only in a positive direction or in a negative direction from a base parameter value according to the Curve shape.

Bi: Bipolar changes in both of positive and negative directions from a base parameter value.

Ratio (Curve Ratio)

Determines the Curve Ratio.

Settings: -64 – +63

MONTAGE Supplementary Manual 93

Part Edit (Edit)

You can now set Super Knob to “Display Filter.”

Display Filter

Determines the Controller to be displayed. When “Super Knob” is selected, all Assignable Knob settings to be affected by using

the Super Knob are displayed.

Settings: PitchBend, ModWheel, AfterTouch, FootCtrl 1, FootCtrl 2, FootSwitch, Ribbon, Breath, AsgnKnob 1 – 8, Super Knob, AsgnSw 1, AsgnSw 2,

MS Lane 1 – 4, EnvFollow 1 – 16, EnvFollowAD, EnvFollowMst, All

Edit Common Control Settings

Calls up the Control Assign display for Common/Audio Edit.

Mod/Control (Modulation/Control)

Control Assign

Operation [PERFORMANCE]  [EDIT]  Part selection  ELEMENT/OPERATOR [COMMON]  [Mod/Control]  [Control Assign]

Edit Common Control Settings

Display Filter

MONTAGE Supplementary Manual 94

New Functions in MONTAGE Version 1.50

Yamaha has upgraded the MONTAGE firmware, adding the following new functions.

This manual describes additions and changes with respect to the Reference Manual that came with your instrument.

• New effect types have been added.

• New Performances have been added.

• The Favorite function has been added.

• “Mixing” has been added for the “Parameter with Part” setting of the Part Category Search.

• From the Performance Play (Home) display, you can now see various information.

• The Super Knob Link function has been added.

• You can now control the monitor volume of the Audio signal input from the [USB TO HOST] terminal.

• You can now switch Scenes by Control Change messages.

• You can now make partial changes to the font size on the Live Set display and the Category Search display.

• You can now save/load backup files in which the entire User Memory data (including Songs and Libraries) is stored.

• Each Edit display has been improved by allowing touch selection of Parts from the display.

MONTAGE Supplementary Manual 95

Additional New Effect Types

The MONTAGE offers following new effect types.

Effect Type Description Parameter Description

Rotary Speaker 2 Simulator of a rotary

speaker including

the amp block.

Speed Control Switches the rotary speed.

Drive Controls the amount of the distortion.

Tone Adjusts the tone level.

R/H Balance Determines the volume balance of the horn (higher range) and rotor (lower range).

Output Level Determines the output level of the effected sounds.

Mic L-R Angle Determines the L/R angle of the microphone.

Input Level Determines the input level.

Mod Depth Determines the depth of the modulation.

Horn Slow/Fast Determines how long it takes for the rotation speed of the horn (higher range) to change from

Slow to Fast when the rotation speed is switched.

Horn Fast/Slow Determines how long it takes for the rotation speed of the horn (higher range) to change from

Fast to Slow when the rotation speed is switched.

Rotor Slow Determines the frequency of the rotor (lower range) when the Speed Control is set to Slow.

Horn Slow Determines the frequency of the horn (higher range) when the Speed Control is set to Slow.

Rotor Fast Determines the frequency of the rotor (lower range) when the Speed Control is set to Fast.

Horn Fast Determines the frequency of the horn (higher range) when the Speed Control is set to Fast.

Rtr Slow/Fast Determines how long it takes for the rotation speed of the rotor (lower range) to change from

Slow to Fast when the rotation speed is switched.

Rtr Fast/Slow Determines how long it takes for the rotation speed of the rotor (lower range) to change from

Fast to Slow when the rotation speed is switched.

Effect Type Description Parameter Description

Uni Comp Down Compressor using

“downward”

algorithm for making

loud sounds quieter.

Threshold Determines the minimum input level at which the compressor effect is applied.

Knee Determines how the transition range changes around the threshold. The higher the value, the

shallower the transition curve.

Attack Determines the amount of time it takes for the effect to reach its maximum compression.

Release Determines the amount of time it takes for the compressor effect to diminish or fade out.

Ratio Determines the ratio of the compressor.

Side Chain EQ When this is turned on, the EQ is applied for the corresponding input level range of the Side

Chain.

SC EQ Q Determines the Side Chain EQ bandwidth.

SC EQ Freq Determines the center frequency of the Side Chain EQ.

SC EQ Gain Determines the level gain of the Side Chain EQ.

Dry/Wet Determines the balance of the dry sound and the effect sound.

Output Level Determines the output level of the effected sounds.

Make Up Gain Determines the output gain of the compressor block.

Post-comp HPF Determines the Cutoff Frequency of the High-Pass Filter which follows the compressor.

Clipper Determines the extent to which the Clipper is applied for forcibly reducing the gain.

Clipper Source Determines the signal to which the Clipper effect is applied for forcibly reducing the gain.

Side Chain Lvl Determines the Side chain input level.

Uni Comp Down Ratio: 1.0

Ratio: 2.0

Ratio: 4.0

Threshold

Input

Output

MONTAGE Supplementary Manual 96

Effect Type Description Parameter Description

Uni Comp Up Compressor using

“upward” algorithm

for making quiet

sounds louder.

Threshold Determines the maximum input level at which the compressor effect is applied.

Knee Determines how the transition range changes around the threshold. The higher the value, the

shallower the transition curve.

Attack Determines the amount of time it takes for the effect to reach its maximum compression.

Release Determines the amount of time it takes for the compressor effect to diminish or fade out.

Ratio Determines the ratio of the compressor.

Side Chain EQ When this is turned on, the EQ is applied for the corresponding input level range of the Side

chain.

SC EQ Q Determines the Side chain EQ bandwidth.

SC EQ Freq Determines the center frequency of the Side chain EQ.

SC EQ Gain Determines the level gain of the Side chain EQ.

Dry/Wet Determines the balance of the dry sound and the effect sound.

Output Level Determines the output level of the effected sounds.

Make Up Gain Determines the output gain of the compressor block.

Post-comp HPF Determines the Cutoff Frequency of the High-Pass Filter which follows the compressor.

Clipper Determines the extent to which the Clipper is applied for forcibly reducing the gain.

Clipper Source Determines the signal to which the Clipper effect is applied for forcibly reducing the gain.

Gain Limit Determines the maximum gain level.

Side Chain Lvl Determines the Side chain input level.

Effect Type Description Parameter Description

Parallel Comp Compressor

applying parallel

processing of the

compressed sounds

and dry sounds.

Type Determines the compressor type.

Compression Determines the extent to which the compressor is applied.

Texture Determines the texture of the compressor effect.

Output Level Determines the output level of the effected sounds.

Input Level Determines the input level.

Effect Type Description Parameter Description

Presence Effect for bringing

out the hidden

presence in the

input sounds.

Presence Determines the extent to which the effect is applied.

Texture Determines the texture of the sound effect.

Output Level Determines the output level of the effected sounds.

Uni Comp Up

Ratio

Gain Limit

Threshold

Input

Output

MONTAGE Supplementary Manual 97

Additional New Performances

The MONTAGE offers 52 new Performances.

For the added Performances, refer to the Data List.

MONTAGE Supplementary Manual 98

Category Search

Performance Category Search, Arpeggio Category Search, Waveform Category Search

The Favorite function has been added, giving you quick access to the sounds and Arpeggios you want has been added. This

section explains an example of the Favorite function for Performance Category Search.

NOTE You can filter the Performance List by Favorite in the Part Category Search and in the Performance Merge, but you cannot turn the

Favorite icon on/off from the search displays.

Favorite Set / Unset

Enters (Sets) or cancels (Unsets) the Favorite icon to the currently selected Performance. This is not available when the cursor is

not on the Performance List.

NOTE You can also set/unset the Favorite icon from the menu which is displayed by touching the Performance name on the Performance Play

(Home) display.

Favorite All Clear

Clears all Favorite icons on Performances. This is available only when at least one Performance has a Favorite icon.

Bank/Favorite (Performance Bank Select/Favorite)

Filters the Performance List by Bank or Favorite. When Favorite is selected, only Performances having a Favorite icon are listed.

Settings: All, Favorite, Preset, User, Library Name (when the Library file is read)

NOTE When the Category Search display is selected, pressing the [CATEGORY] button repeatedly switches Banks among All, Favorite,

Preset, User, Library (when the Library file is read). Holding down the [CATEGORY] button lets you go back to All.

Operation

[PERFORMANCE]  [CATEGORY] (Performance Category Search)

Touch the Performance Name  Select [Search] from the displayed menu

Favorite icon

Favorite Set/Unset Favorite All Clear

Performance Bank Select/Favorite

MONTAGE Supplementary Manual 99

Part Category Search

When “Mixing” of the “Parameter with Part” (Param. with Part) setting is set to off, you can change sounds continuously, using

the current setting values for the Part such as Volume, Pan and Note shift.

Param. with part (Parameter with Part)

Determines whether or not to read and use the parameter values for the next Performance. When the set of parameters is set to

off, the current setting values are continuously used even when the next Performance is selected.

Settings: Off, On

Operation

[PERFORMANCE]  (When the Part to which any sounds are assigned is selected) Select the Part Name 

[SHIFT]+[CATEGORY] (Part Category Search)

(When the Part to which any sounds are assigned is selected) Touch the Part Name



Select [Search] from the displayed menu

Parameter with Part

MONTAGE Supplementary Manual 100

Performance Play (Home)

You can now see various information by turning “View” on.

View

Determines whether the detailed information of each Part is displayed (On) or not displayed (Off). The displayed information

differs depending on the cursor position or the Control function settings.

Settings: Off, On

NOTE When the cursor is on the Performance name on the Performance Play (Home) display, you can also switch the information views by

pressing the [PERFORMANCE] button.

This section explains when “View” is turned on.

Home

Operation

Press the [PERFORMANCE] button

Touch the [HOME] icon

View

MONTAGE Supplementary Manual 101

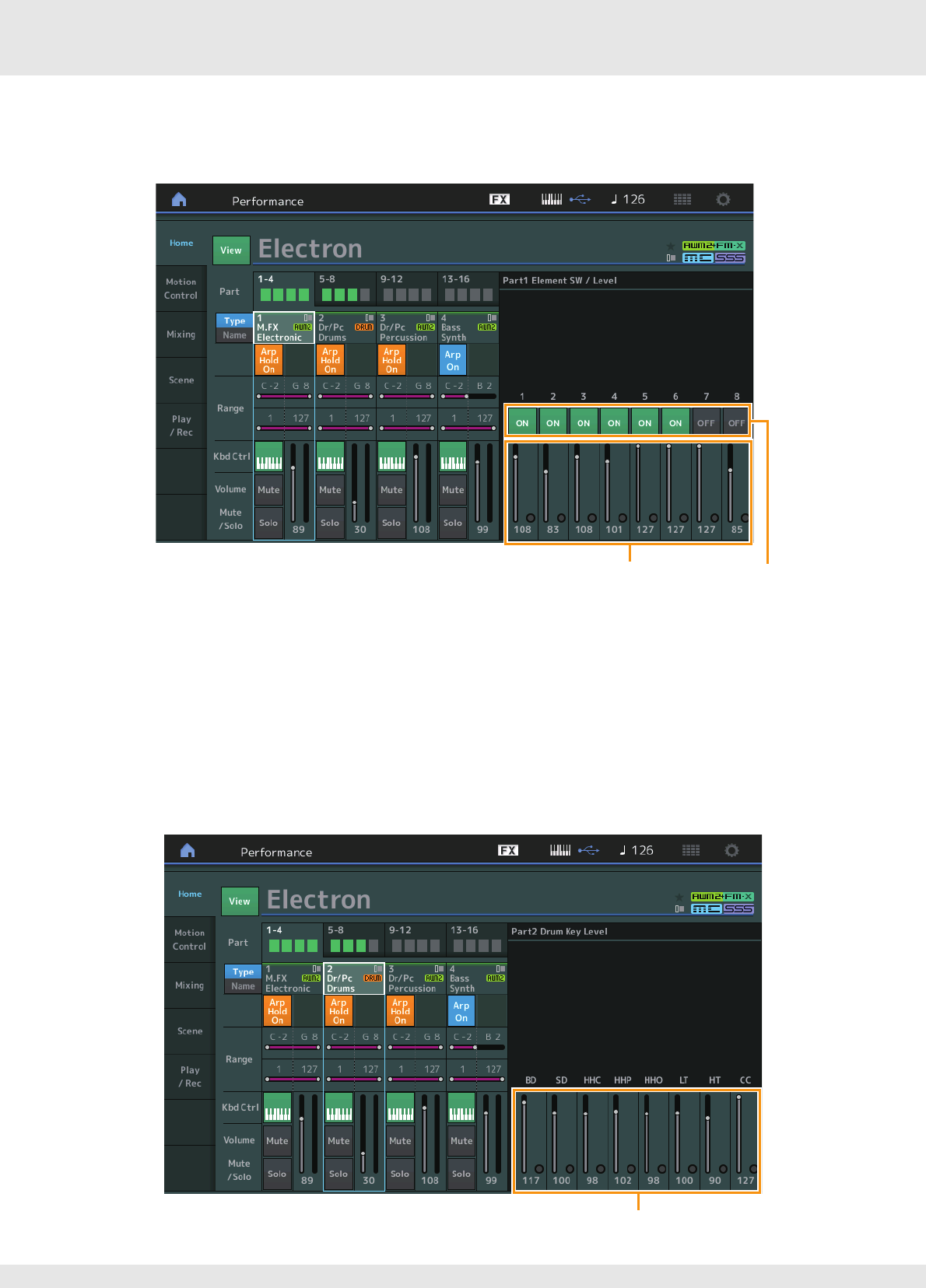

Element view

This appears only when the currently selected Part is the Normal Part (AWM2), and the [PERFORMANCE CONTROL] button or

“Element/Operator control” is turned on.

Element SW (Element switch)

Determines whether each Element is active or not.

Settings: Off, On

Element Level

Determines the output level of the Element.

Settings: 0 – 127

Drum Key view

This appears only when the currently selected Part is the Drum Part, and the [PERFORMANCE CONTROL] button or “Element/

Operator Control” is turned on.

Element SwitchElement Level

Drum Key Level

MONTAGE Supplementary Manual 102

Drum Key Level

Determines the output level of the Drum Key.

Settings: 0 – 127

Algorithm view

This appears only when the currently selected Part is the Normal Part (FM-X), and the [PERFORMANCE CONTROL] button or

“Element/Operator Control” is turned on.

Algorithm (Algorithm Number)

Changes Algorithms.

Settings: See the Data List PDF document.

NOTE Tapping the Algorithm image calls up the Algorithm Search display.

Feedback (Feedback Level)

Waveforms can be changed by feeding some of the signal generated by an operator back through that operator. This allows

you to set the feedback level.

Settings: 0 – 7

Operator Level

Determines the output level of the Operator.

Settings: 0 – 99

Algorithm

Number

Feedback

Level

Operator Level

MONTAGE Supplementary Manual 103

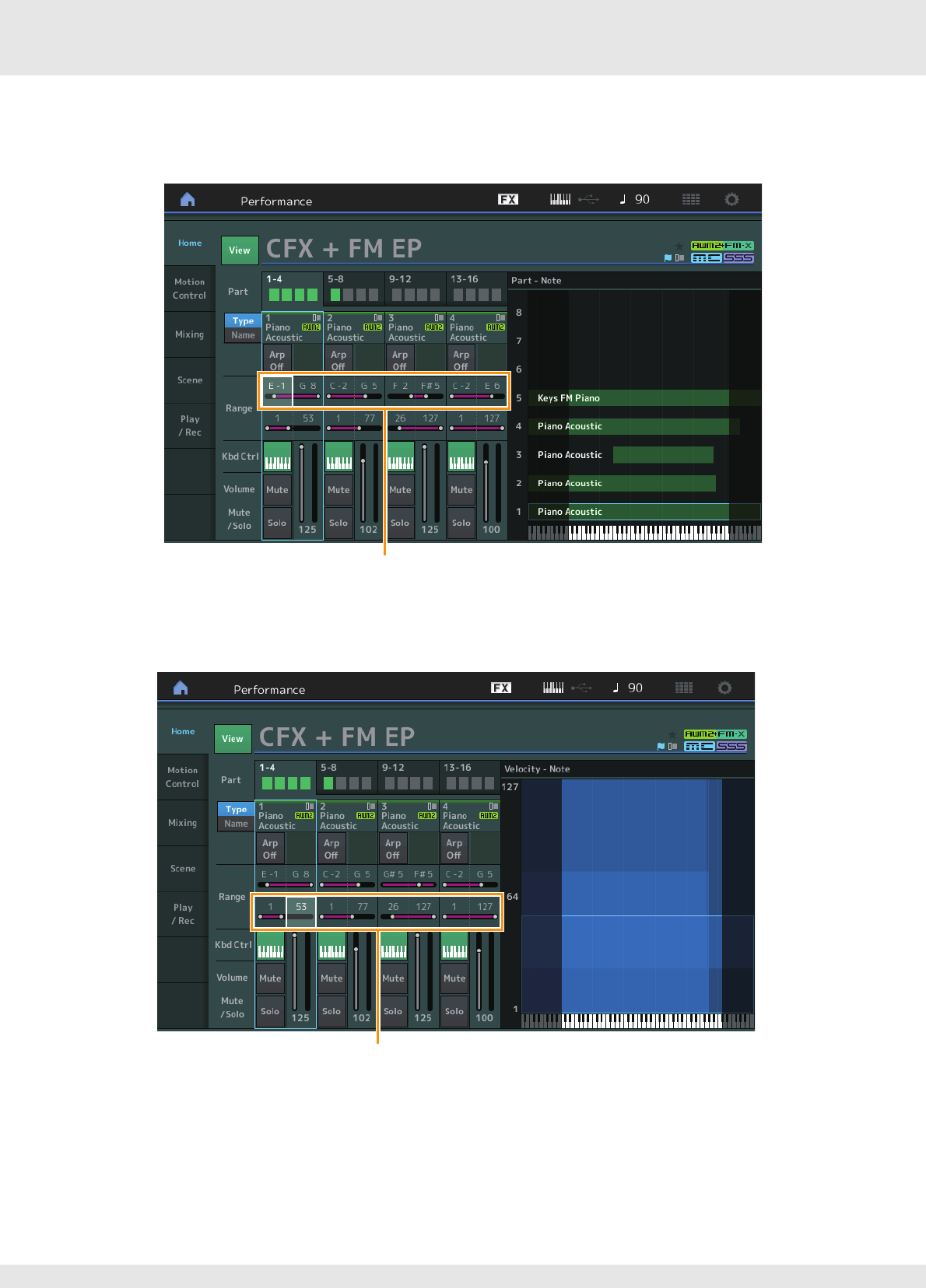

Part – Note view

This appears only when the [PART CONTROL] button is turned on or the cursor is on the Note Limit. This is useful for checking

the Layer/Split settings among Parts.

Velocity – Note view

This appears only when the cursor is on any velocity limit of Parts. This is useful for setting Velocity split among Parts.

Note Limit

Velocity Limit

MONTAGE Supplementary Manual 104

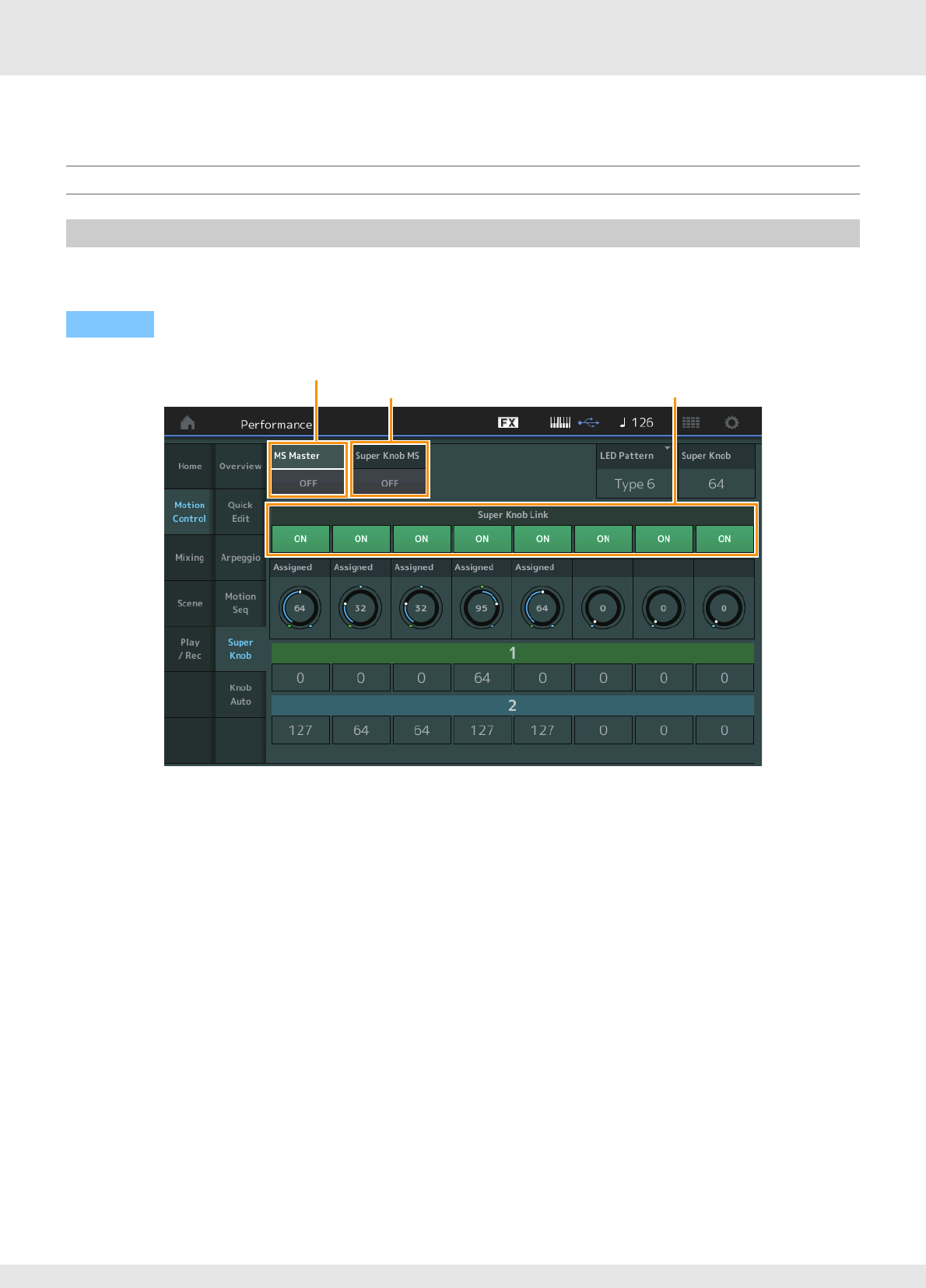

Motion Control

You can now make individual link setting of Assignable Knobs, to which functions commonly effective for all Parts are assigned,

with the Super Knob.

MS Master (Motion Sequencer Master Switch)

Turns the Motion Sequencer for the entire Performance on/off. This setting is applied to the [MOTION SEQ ON/OFF] button on

the panel.

Settings: Off, On

Super Knob MS (Super Knob Motion Sequencer Switch)

Turns the Motion Sequencer applied to the Super Knob on/off.

Settings: Off, On

Super Knob Link

Turns the link between the Assignable Knob and the Super Knob on/off. When this is set to off, the function value assigned to the

corresponding knob does not change even if the Super Knob is controlled.

Settings: Off, On

Motion Control

Super Knob

Operation [PERFORMANCE]  [Motion Control]  [Super Knob]

Motion Sequencer Master Switch

Super Knob Motion Sequencer Switch Super Knob Link

MONTAGE Supplementary Manual 105

Utility

You can now control the monitor volume of the Audio signal input from the [USB TO HOST] terminal.

USB Volume (USB Input Volume)

Adjusts the volume of the Audio signal input from the [USB TO HOST] terminal. This setting is applied to the output gain of the

OUTPUT (BALANCED) [L/MONO]/[R] jacks and the ASSIGNABLE OUTPUT (BALANCED) [L]/[R] jacks.

Settings: 0 – 127

NOTE USB Input Volume is stored as part of the general system settings, not as Performance data.

Settings

Audio I/O

Operation [UTILITY]  [Settings]  [Audio I/O]

USB Input Volume

MONTAGE Supplementary Manual 106

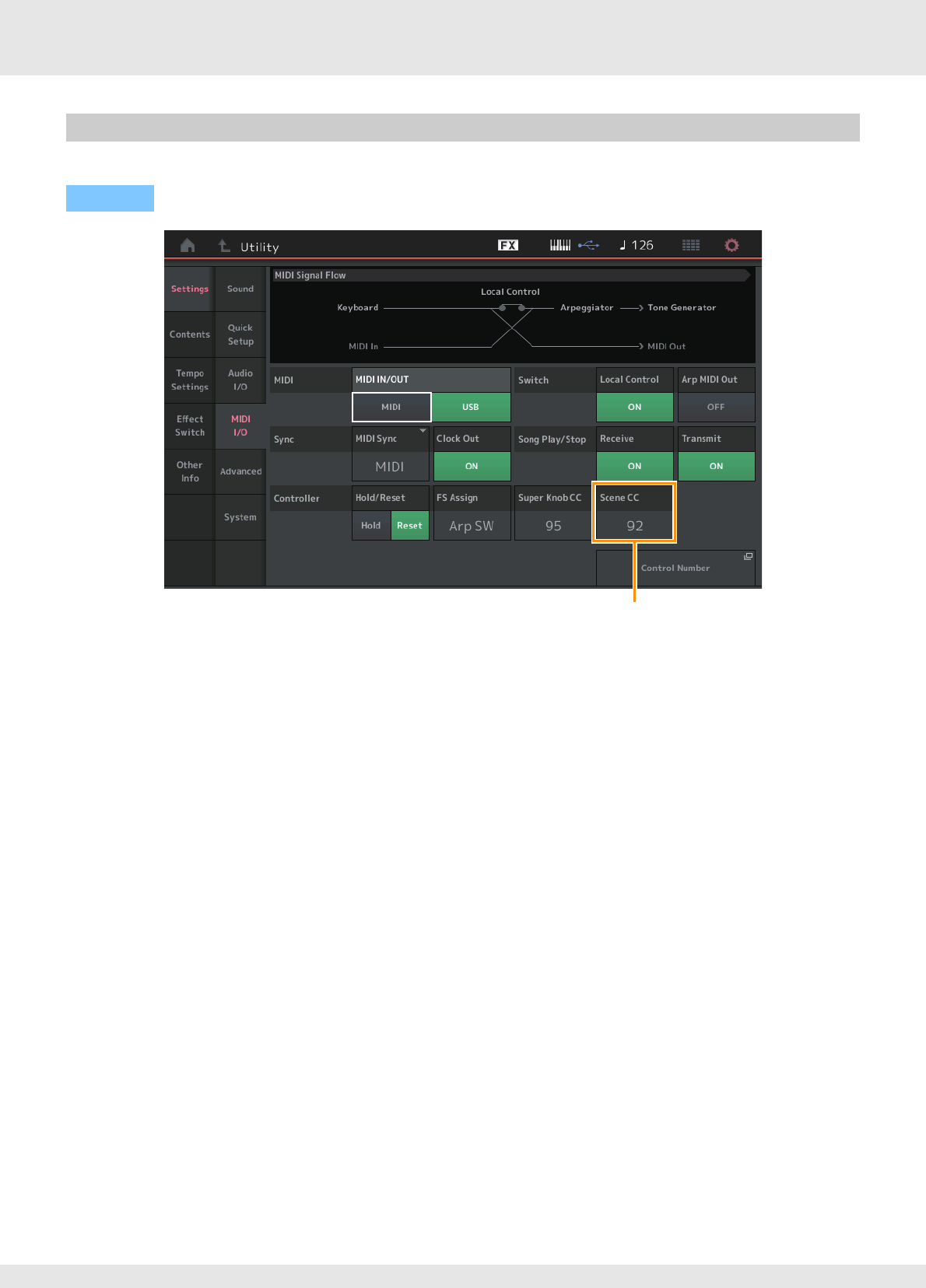

You can now switch Scenes by Control Change messages.

Scene CC (Scene Control Change Number)

Determines the Control Change Number generated by switching Scenes. Even when the instrument receives MIDI message

with the same Control Change Number specified here from the external equipment, the instrument assumes that the message is

generated by switching Scenes.

Settings: Off, 1 – 95

NOTE Scene 1 – 8 is selected depending on the Control Change value.

0 – 15: Scene 1, 16 – 31: Scene 2, 32 – 47: Scene 3, 48 – 63: Scene 4, 64 – 79: Scene 5, 80 – 95: Scene 6, 96 – 111: Scene 7, 112 – 127:

Scene 8

NOTE When the same Control Change Number is set to both of the Super Knob Control Change and the Scene Control Change, an

exclamation mark (!) is shown before the value. In such a case, changes to Scene Control have priority and changes to the Super Knob

Control are ignored.

MIDI I/O

Operation [UTILITY]  [Settings]  [MIDI I/O]

Scene Control Change Number

MONTAGE Supplementary Manual 107

You can now change the font size partially on the Live Set display and the Category Search display.

Live Set Font (Live Set Font Size)

Determines the font size of the contents name on the Live Set display and the Category Search display.

Settings: Normal, Large

System

Operation [UTILITY]  [Settings]  [System]

Live Set Font Size

MONTAGE Supplementary Manual 108

Live Set display

•Normal

•Large

MONTAGE Supplementary Manual 109

Category Search display

•Normal

•Large

MONTAGE Supplementary Manual 110

You can now save/load backup files in which the entire User Memory data (including Songs and Libraries) is stored.

Content Type

Contents

Load

Operation [UTILITY]  [Contents]  [Load]

File Type Device Type Extension Description

Backup File File .X7A Data that is saved to USB flash memory as a backup file can be loaded to the User Memory

again.

A backup file includes all User data, Library data, and Song data.

MONTAGE Supplementary Manual 111

Content Type

Store/Save

Operation [UTILITY]  [Contents]  [Store / Save]

File Type Device Type Extension Description

Backup File File .X7A Data that is stored to the User Memory can be saved to USB flash memory.

A backup file includes all User data, Library data, and Song data.

MONTAGE Supplementary Manual 112

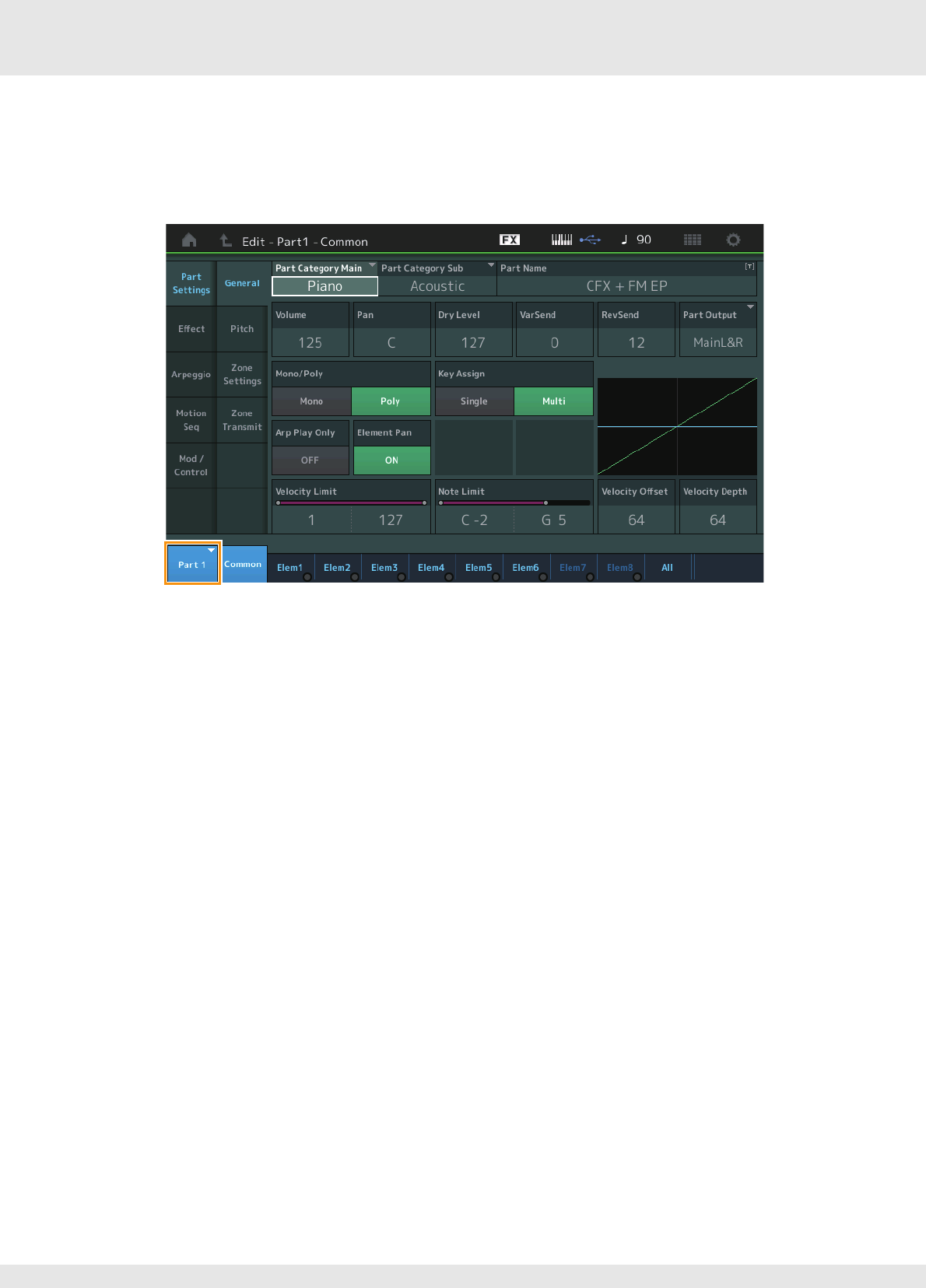

Edit

Each of the following Edit displays has been improved and you can now select the desired Part by touching the Part name on

the display: Normal Part (AWM2) Edit display, Drum Part Edit display, Normal Part (FM-X) Edit display, and Common/Audio Edit

display. Here is an example of the Normal Part (AWM2) Edit display.

Part

Indicates the selected Part. Touching this calls up a pop-up list to switch the Part to be edited.

Settings: Common, Part 1 – 16

MONTAGE Supplementary Manual 113

New Functions in MONTAGE Version 1.20

Yamaha has upgraded the MONTAGE firmware, adding the following new functions. This manual describes additions and

changes with respect to the Reference Manual that came with your instrument.

• Element / Operator Control has been added for “Control Function.”

• You can now store Control Function settings as Performance data.

• Song Loop playback function has been added.

• User Arpeggio function has been added.

• You can now separately mute original Parts and newly added Parts by Performance Merge.

• Monitor Volume settings for USB connection have been added.

• You can now control the Super Knob by MIDI Control Change messages.

• You can now copy or exchange Arpeggio Types.

• You can now copy or exchange Motion Sequences.

• Arp Bypass and Kbd Ctrl Lock functions have been added for “Effect Switch.”

MONTAGE Supplementary Manual 114

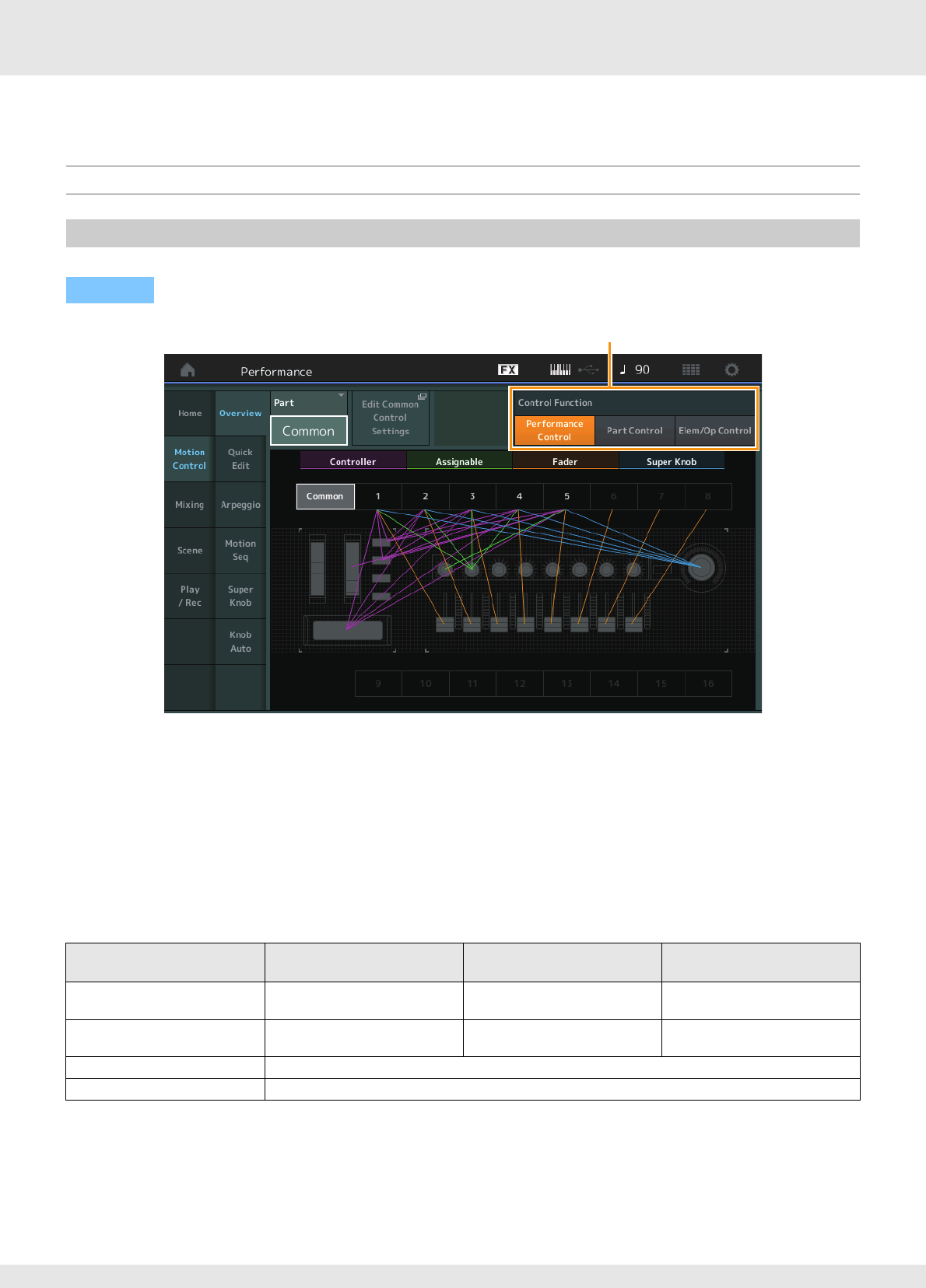

Motion Control

Control Function

Switches among Performance Control, Part Control, and Element/Operator Control.

Settings: Performance Control, Part Control, Elem/Op Control

NOTE You can now store Control function operations as Performance data.

NOTE Element/Operator Control can also be selected by simultaneously holding down the [SHIFT] button and using the [PART CONTROL]

buttons.

When “Element/Operator Control” is selected

The Number A [1] – [16], Number B [1] – [8], and the Number C [1] – [8] buttons function the same as when “Part Control” is

selected.

When “Element/Operator Control” is selected and the PART [COMMON] button is ON, the Control Sliders 1 – 8 control the levels

of the Elements/Operators of Part 1.

NOTE Element/Operator Control is useful for playing Performances, for example, that contain single Organ Parts, because controlling the

volume of Elements in the Live Set display changes the harmonics of the Organ sound, just as with an actual organ.

Motion Control

Overview

Operation [PERFORMANCE]  [Motion Control]  [Overview] or [SHIFT] + [PERFORMANCE]

Number buttons PART [MUTE] button and

PART [SOLO] button are OFF

PART [MUTE] button ON PART [SOLO] button ON

Number A [1] – [8] buttons

(upper line)

Part select (1 – 8) Part mute (1 – 8) Part select (1 – 8)

Number A [9] – [16] buttons

(lower line)

Part select (9 – 16) Part mute (9 – 16) Part solo (9 – 16)

Number B [1] – [8] buttons Motion Sequencer for each Part ON/OFF (1 – 8 / 9 – 16)

Number C [1] – [8] buttons Arpeggio for each Part ON/OFF (1 – 8 / 9 – 16)

Control Function

MONTAGE Supplementary Manual 115

Play/Rec

You can now loop Song playback.

Playback and Playback Standby

Song Name

Indicates the selected Song name. Touching the Song Name calls up a menu for selecting Load, Rename, and User Arpeggio.

Loop

Determines whether the Song plays through a single time or continuously. When this is set to on, the Song is repeatedly played

back between the “Loop Start” and “Loop End” points (below).

Settings: Off, On

Loop Start / End

Determines the start position and the end position of Loop playback. The measure number is in the left cell and the beat number

is in the right cell. This is not available when “Loop” is set to off.

Play/Rec

MIDI

Operation [R] (Play) button, or

[PERFORMANCE]  [Play/Rec]  [MIDI]

Song Name

Loop Loop Start / End

MONTAGE Supplementary Manual 116

Put Track to Arpeggio

This function copies data in the specified measures of a track for creating Arpeggio data. Up to 16 unique note numbers can be

recorded to the Arpeggio track. If more than 16 different note numbers have been recorded to the MIDI sequence data, the

Convert operation reduces the notes in excess of the limit. Because of this, be careful to record only up to 16 different notes

when you create an Arpeggio, especially when using multiple tracks.

Arp (Arpeggio Number)

Determines the User Arpeggio number. One of the numbers currently not in use is automatically assigned by default. When a

number already in use is selected, the previous Arpeggio data in the selected number will be overwritten.

Settings: 1 – 256

Category (Arpeggio Category)

Determines the Category setting (Main Category and Sub Category) for the created Arpeggio data.

Settings: Refer to the Arpeggio Type Category List in the Reference Manual PDF document.

Name (Arpeggio Name)

Determines the User Arpeggio name. The Arpeggio name can contain up to 20 characters.

Song Track

Determines the track of the source Song for each Arpeggio track.

Convert Type

Determines how the MIDI sequence data (of Song tracks) will be converted to Arpeggio data from the three ways below. This

parameter can be set for each track.

Settings: Normal, Fixed, Org Notes

Normal: The Arpeggio is played back using only the played note and its octave notes.

Fixed: Playing any note(s) will trigger the same MIDI sequence data.

Org Notes

(original notes): Basically same as “Fixed” with the exception that the Arpeggio playback notes differ according to the played chord.

Original Notes Root

Determines the root note when the Convert Type of any track is set to “Org Notes.” This is available only when any track is set to

“Org Notes.”

Settings: C-2 – G8

Measure

Determines the range of measures to be copied to the Arpeggio data.

Settings: 001 – 999

Store As User Arp (Store As User Arpeggio)

Stores as User Arpeggio following all settings made in this display. This is not available when all tracks are set to off.

Operation [R] (PLAY) button or [PERFORMANCE]  [Play/Rec]  [MIDI]  Touch the Song Name to call up the menu  [User Arp] in

the menu

MONTAGE Supplementary Manual 117

Category Search

Performance Merge

This allows you to separately mute original Parts and newly added Parts.

Original Part Mute

Mutes the original Parts.

Settings: Off, On

Additional Part Mute

Mutes newly added Parts in the Performance Merge display.

Settings: Off, On

Operation [PERFORMANCE]  (the selected Part and all Parts that follow must not be assigned)  [SHIFT] + [CATEGORY] or touch the

“+” icon

Additional Part Mute

Original Part Mute

MONTAGE Supplementary Manual 118

Utility

You can now control the Super Knob by MIDI Control Change messages.

Super Knob CC (Super Knob Control Change Number)

Determines the Control Change number generated by using the Super Knob. Even when the instrument receives MIDI

messages with the same Control Change Number specified here from the external equipment, the instrument assumes that the

message is generated by using the Super Knob. When “MIDI I/O Mode” is set to “Multi,” Channel 1 is used for transmitting MIDI

data. When “MIDI I/O Mode” is set to “Single,” the channel specified in “MIDI I/O Ch.” is used for transmitting MIDI data.

Settings: Off, 1 – 95

NOTE When this parameter is set to off, MIDI data is transmitted by SysEx (System Exclusive) messages.

Control Number

Calls up the Control Number display in the Common/Audio Edit.

Settings

MIDI I/O

Operation [UTILITY]  [Settings]  [MIDI I/O]

Super Knob CC (Super Knob Control Change Number)

Control Number

MONTAGE Supplementary Manual 119

Arp Bypass and Kbd Ctrl Lock functions have been added for “Effect Switch.”

Arp Bypass (Arpeggio Bypass Switch)

Determines whether the Arpeggio Bypass is active or not. When this is set to on, all Arpeggiator operations are disabled.

Settings: Off, On

NOTE Arpeggio Bypass can also be turned on/off by simultaneously holding down the [SHIFT] button and using the [ARP ON/OFF] button.

The [ARP ON/OFF] button flashes when Arpeggio Bypass is turned on.

NOTE When the Part Arpeggio Switch setting is changed, Arpeggio Bypass is automatically turned off even if it has been set to on.

NOTE You can edit arpeggios in Song data generated by the arpeggiator with using DAW software. By turning Arpeggio Bypass on, you can

prevent Song data edited on the DAW software from being affected again by the arpeggiator when routed back to the MONTAGE.

Kbd Ctrl Lock (Keyboard Control Lock)

Determines whether Keyboard Control Lock is active or not. When this is set to on, the Keyboard Control is turned on only for

Part 1 and off for the other Parts.

When this is set to off, Keyboard Control settings for all Parts are returned to the original status.

Settings: Off, On

NOTE When you use the MONTAGE as a 16-part multi-timbral sound module with DAW software, the Keyboard Control Lock function is useful

for creating or editing MIDI tracks one by one.

Effect Switch

Operation [UTILITY]  [Effect Switch] or touch the Effect icon

Arp Bypass

(Arpeggio Bypass Switch)

Kbd Ctrl Lock

(Keyboard Control Lock)

MONTAGE Supplementary Manual 120

Common/Audio Edit (Common/Audio)

When the same control number is assigned to the Super Knob and any Assignable Knob, the Super Knob takes priority and

operation of the Assignable Knob may be ignored. A warning message appears in that case.

NOTE The Control Number set in this display is stored as Performance data. However, “FS Assign” and “Super Knob CC” are stored as

general system settings, not as Performance data.

MIDI Settings

Calls up the MIDI I/O display in Utility.

Control

Control Number

Operation [PERFORMANCE]  [EDIT]  PART [COMMON]  [Control]  [Control Number]

MIDI Settings

MONTAGE Supplementary Manual 121

From the USB Monitor display, you can adjust the Audio Input level from the [USB TO HOST] terminal.

NOTE USB Main Monitor Volume and USB Assign Monitor Volume are stored as Performance Data.

USB Main Monitor Volume

Adjusts the Audio signal level which is input from the [USB TO HOST] terminal and output to the OUTPUT (BALANCED) [L/

MONO]/[R] jacks.

Settings: 0 – 127

USB Assign Monitor Volume

Adjusts the Audio signal level which is input from the [USB TO HOST] terminal and output to the ASSIGNABLE OUTPUT

(BALANCED) [L]/[R] jacks.

Settings: 0 – 127

Audio Settings

Calls up the Audio I/O display in Utility.

USB Monitor

Operation [PERFORMANCE]  [EDIT]  PART [COMMON]  [USB Monitor]

MONTAGE Supplementary Manual 122

Part Edit (Edit)

You can now copy (or exchange) between Arpeggio types.

NOTE You can select “All” for Arp Select when copying between different Parts.

Copy

Touching this button activates the Arpeggio Type Copy function.

Exchange

Touching this button activates the Arpeggio Type Exchange function.

1Part to be copied (or exchanged)

2Arpeggio Select to be copied (or exchanged)

3Copy (or exchange) destination Part

4Copy (or exchange) destination Arpeggio Select

Operation

[PERFORMANCE]  [EDIT]  Select Part to be copied  [Arpeggio]  [Individual]  [SHIFT] + [EDIT]

[PERFORMANCE]  [Motion Control]  [Arpeggio]  Select Part to be copied  [SHIFT] + [EDIT]

1 3

2 4

Copy Exchange

MONTAGE Supplementary Manual 123

You can now copy (or exchange) between Motion Sequences.

NOTE You can select “All” for “Lane” and “MS Select” when copying between different Parts.

Copy

Touching this button activates the Motion Sequence Copy function.

Exchange

Touching this button activates the Motion Sequence Exchange function.

1Part to be copied (or exchanged)

2Lane to be copied (or exchanged)

3Motion Sequence Select to be copied (or exchanged)

4Copy (or exchange) destination Part

5Copy (or exchange) destination Lane

6Copy (or exchange) destination Motion Sequence Select

Operation

[PERFORMANCE]  [EDIT]  Select Part to be copied  [Motion Seq]  [Lane]  [SHIFT] + [EDIT]

[PERFORMANCE]  [Motion Control]  [Motion Seq]  Select Part to be copied  [SHIFT] + [EDIT]

[PERFORMANCE]  [Motion Control]  [Knob Auto]  [SHIFT] + [EDIT]

1 4

2 5

3 6

Copy Exchange

MONTAGE Supplementary Manual 124

New Functions in MONTAGE Version 1.10

Yamaha has upgraded the MONTAGE firmware, adding the following new functions. This manual describes additions and

changes with respect to the Reference Manual that came with your instrument.

• New Performances have been added.

• From the Performance Play (Home) display, you can now view Part types and categories of each Part.

• From the Performance Play (Home) and the Mixing displays, you can now turn the Arpeggio Hold function on/off.

• In the Part Category Search, you can now specify any Part other than Part 1 as the Part to be copied.

• Performance Merge function has been added.

• MIDI single channel mode has been added.

• From the Data Utility display (in the Utility display) you can now delete multiple contents together.

• You can now copy Performances from the Library memory to the User memory.

• You can now copy or exchange Elements/Operators/Drum Keys.

• You can now copy or exchange Live Sets on a Bank or page basis.

• Live Set pages and slots can now be controlled by MIDI Bank Select and Program Change messages.

MONTAGE Supplementary Manual 125

New Performances

64 Performances have been added.

For details about the new Performances, refer to the Data List PDF document.

Performance Play (Home)

From the Performance Play (Home) display, you can view Part types and Arpeggio Hold function status.

1Type/Name Switch

Switches between the displays of Part Type/Category and Part Name.

Settings: Type, Name

2Part Types / Part Names

Indicates the Part types and categories or the Part names.

Touching the parameter calls up the menu for Category Search, Edit, and Copy.

To add another Part, touch the “+” icon.

3Part Arpeggio On/Off switch

Determines whether the Arpeggio of each Part is on or off. When the Arpeggio and the Arpeggio Hold are set to on, “Arp Hold

On” is displayed.

NOTE In the Part Control status, you can turn the Arpeggio Hold for the Part on or off by pressing the corresponding Number C [1] – [8] button

while holding down the [SHIFT] button.

Settings: Off, On

Home

MONTAGE Supplementary Manual 126

Category Search

Part Category Search

You can now select any Part in a Performance and assign the sound of the Part to another.

<V1.10 New function>

When the selected Part and all succeeding Parts have no sound assigned (or are empty), executing the operation above opens

the Performance Merge display.

Source

Determines which Part of the selected Performance will be assigned to the Performance being edited. Part 1 is selected by

default, which has the same behavior as the older version.

Settings: Part 1 – 16

Operation

[PERFORMANCE]  Part selection  [SHIFT]+[CATEGORY]

(When the Part to which any sounds are assigned is selected) Touch the Part Name  Select [Search] from the displayed

(When the Part to which no sound is assigned is selected) Touch the “+” icon

Source

MONTAGE Supplementary Manual 127

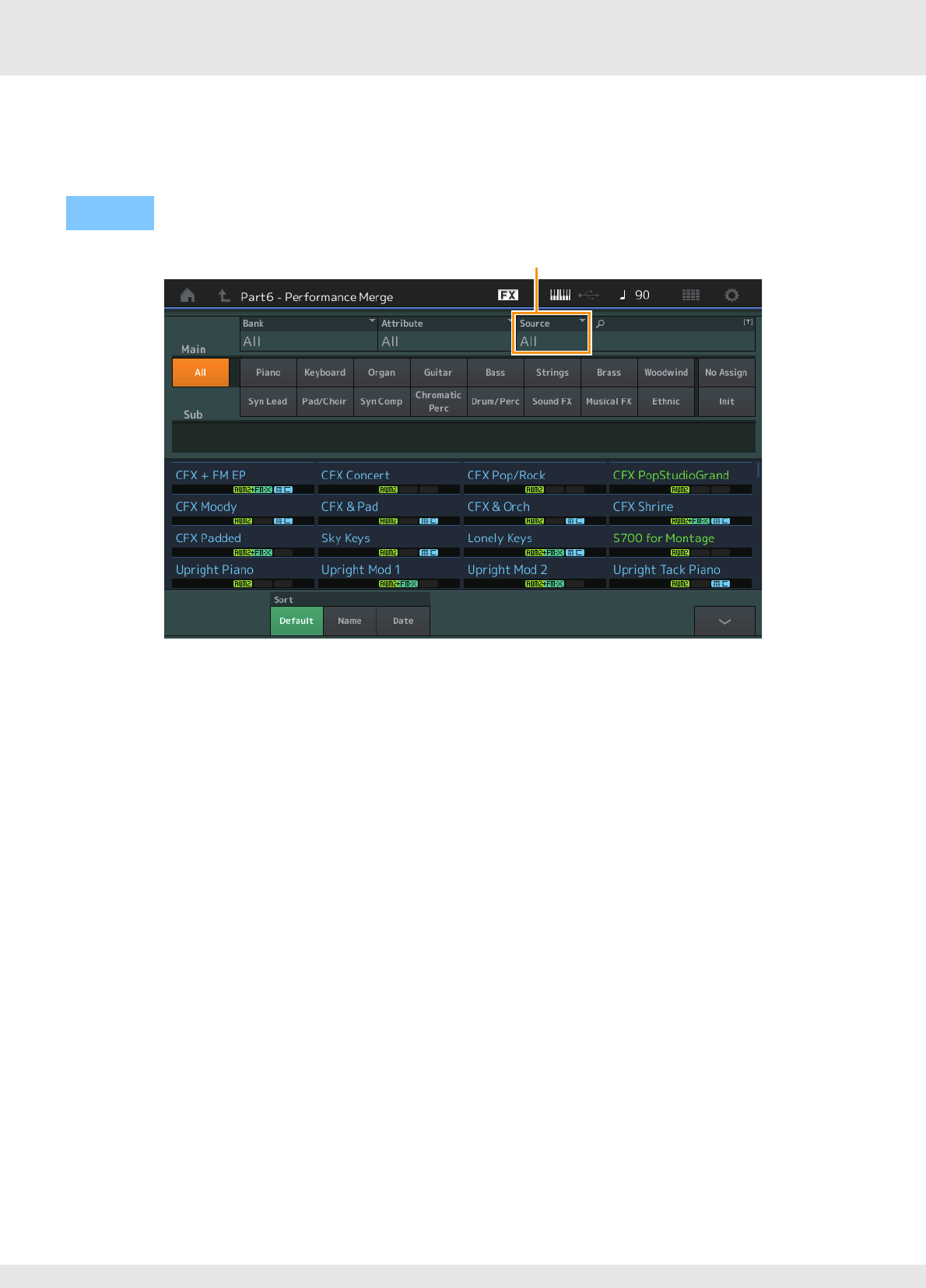

Performance Merge

From the Performance Merge display, you can collectively assign multiple Parts from the selected Performance to empty Parts

in the Performance currently being edited. For example, you can merge four Piano Parts in one Performance and two Strings

Parts in another Performance to create even more richly textured, layered sounds.

Source

Determines which Part of the selected Performance will be assigned to the Performance being edited.

Settings: All, Part 1 – 16

All: All non-empty Parts of the selected Performance are assigned to available empty Parts.

Part 1 – 16: Only the sound from the specified Part is assigned to the selected Part.

Operation [PERFORMANCE]  (the selected Part and all Parts that follow must not be assigned)  [SHIFT] + [CATEGORY] or touch the

“+” icon

Source

MONTAGE Supplementary Manual 128

Utility

Data communication between this instrument and an external device using only the specified MIDI channel is now available.

MIDI I/O Mode

Determines which MIDI I/O mode is used for data communication between this instrument and an external device.

Settings: Multi, Single

Multi: Transmits MIDI data such as Note On/Off messages for each Part.

Single: Transmits MIDI data using only the channel specified in “MIDI I/O Ch.”

MIDI I/O Ch. (MIDI I/O channel)

Determines the MIDI channel to be used for data communication when “MIDI I/O Mode” is set to “Single.”

Settings: Ch1 – 16

NOTE When this parameter is set to “Single,” Arpeggio data is not transmitted to the external device. When the Zone function is active, the

Zone setting for the Performance is given priority over the “MIDI I/O Mode” setting. You can see which setting is active from the MIDI

Signal Flow in the MIDI I/O display.

Settings

Advanced

Operation [UTILITY]  [Settings]  [Advanced]

MIDI I/O Ch. (MIDI I/O channel)MIDI I/O Mode

MONTAGE Supplementary Manual 129

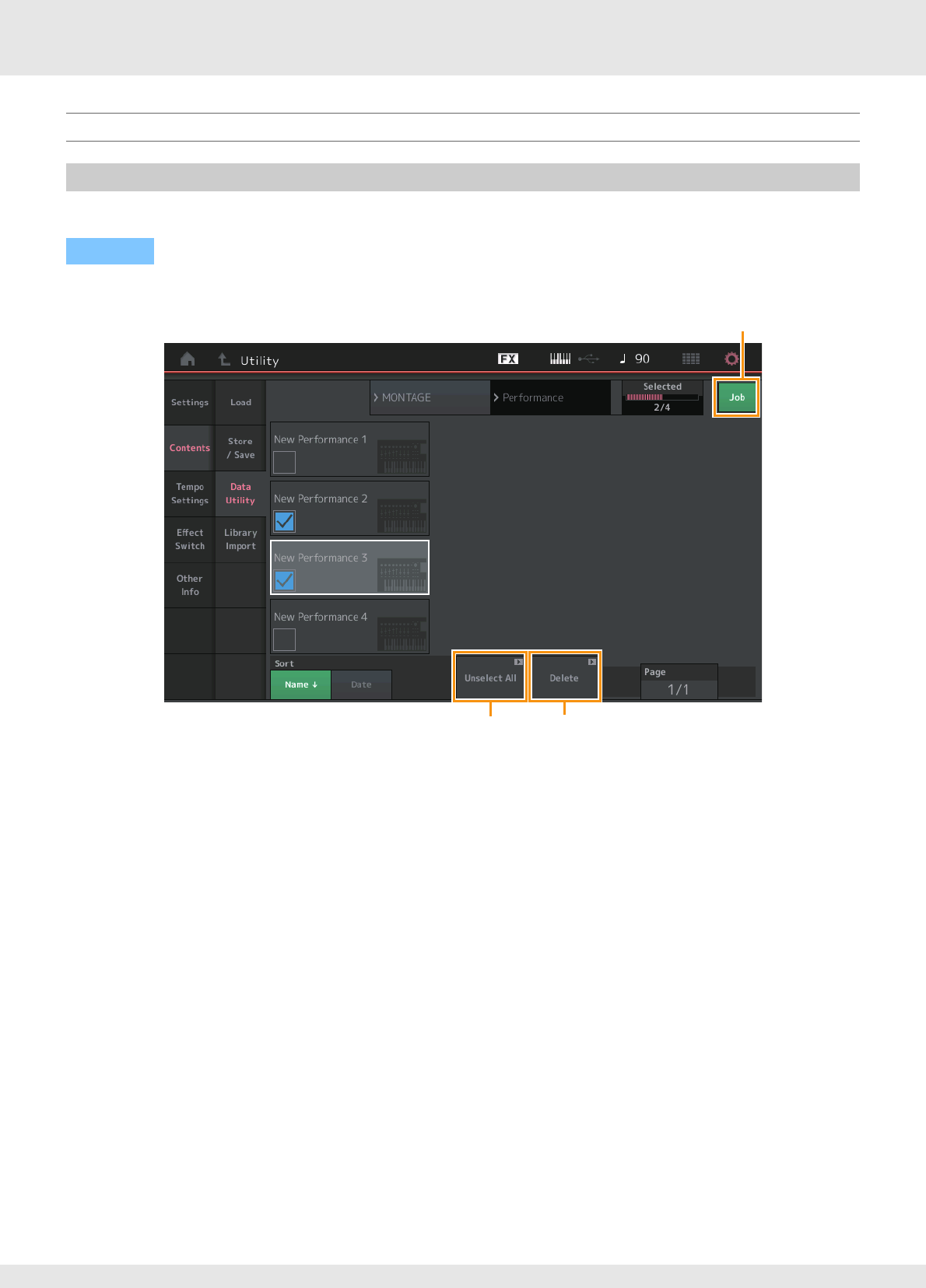

You can now collectively delete multiple contents such as Performances in the User Memory.

When the selected Folder is opened

Job (Job Switch)

Determines whether the Job function is active (On) or not (Off). When this function is active, you can select multiple contents

collectively from this display.

Settings: Off, On

Select All

Selects all contents in the folder. This button is displayed only when no content is selected.

Unselect All

Unselects all contents in the folder. This button is displayed only when any of contents is selected.

Delete

Deletes the selected content(s). This button is displayed only when any of contents is selected.

Contents

Data Utility

Operation [UTILITY]  [Contents]  [Data Utility]

Job (Job Switch)

Unselect All Delete

MONTAGE Supplementary Manual 130

You can now select a desired Performance in the Library file which is loaded to the User Memory and copy the Performance to

the User Bank.

Library Folder List

Library Folder Select

Indicates the Libraries as folders. Touching the Folder opens it. These folders are displayed only when Library files are loaded in

the Load display.

When the selected Library Folder is opened

Library Import

Operation [UTILITY]  [Contents]  [Library Import]

Library Folder Select

Performance Select Unselect All Import to User Bank

MONTAGE Supplementary Manual 131

Performance Select

Indicates the Performances in the selected Library. Touching the name switches between being selected or unselected.

Select All

Selects all Performances in the selected Library folder. This button is displayed only when no Performance is selected.

Unselect All

Unselects all Performances in the Library folder. This button is displayed only when any of Performances is selected.

Import to User Bank

Copies the selected Performance in the User Bank. User Waveforms and User Arpeggio which are used in the selected

Performance are copied to the User Bank as well. This button is displayed only when any of the Performances is selected.

Part Edit (Edit)

You can now copy (or exchange between) Elements/Operators/Drum Keys.

NOTE Copying or exchanging between different Part types (for example, between Elements and Operators) cannot be executed.

Copy

Touching this button activates the Copy function between Elements/Operators/Drum Keys.

Exchange

Touching this button activates the Exchange function between Elements/Operators/Drum Keys.

1Part to be copied (or exchanged)

2Element/Operator/Drum Key to be copied (or exchanged)

3Copy (or exchange) destination Part

4Copy (or exchange) destination Element/Operator/Drum Key

Operation [PERFORMANCE]  [EDIT]  Select Element/Operator/Drum Key to be copied  [SHIFT] + [EDIT]

1 3

2 4

Copy Exchange

MONTAGE Supplementary Manual 132

Live Set Edit (Edit)

You can now copy (or exchange) between Live Sets on a Bank or page basis.

NOTE Page copy (or exchange) between different Banks cannot be executed.

Copy

Touching this button activates the Bank/Page Copy function.

Exchange

Touching this button activates the Bank/Page Exchange function.

1Bank to be copied (or exchanged)

2Page to be copied (or exchanged)

3Copy (or exchange) destination Bank

4Copy (or exchange) destination Page

Operation [LIVE SET]  User Bank selection  [EDIT]  Select Bank/Page to be copied  [SHIFT] + [EDIT]

Copy Exchange

MONTAGE Supplementary Manual 133

Live Set

You can now select a desired Live Set Slot by sending the appropriate program change message from an external device. The

Live Set Slots to be selected and the corresponding Bank Select MSBs/LSBs and Program Change Numbers are as follows.

MSB (HEX) LSB (HEX) Program No. Live Set Slot

62 3E 00 00 0 – 15 Page 1, Slot 1 – 16

1 01 0 – 15 Page 2, Slot 1 – 16

2 02 0 – 15 Page 3, Slot 1 – 16

3 03 0 – 15 Page 4, Slot 1 – 16

4 04 0 – 15 Page 5, Slot 1 – 16

5 05 0 – 15 Page 6, Slot 1 – 16

6 06 0 – 15 Page 7, Slot 1 – 16

7 07 0 – 15 Page 8, Slot 1 – 16

8 08 0 – 15 Page 9, Slot 1 – 16

9 09 0 – 15 Page 10, Slot 1 – 16

10 0A 0 – 15 Page 11, Slot 1 – 16

11 0B 0 – 15 Page 12, Slot 1 – 16

12 0C 0 – 15 Page 13, Slot 1 – 16

13 0D 0 – 15 Page 14, Slot 1 – 16

14 0E 0 – 15 Page 15, Slot 1 – 16

15 0F 0 – 15 Page 16, Slot 1 – 16

Manual Development Group

Published 05/2020 MW-H0

Yamaha MONTAGE Supplementary Manual 6/7/8 En Sm H0

Navigation menu

Versions of this User Manual:

Views

Navigation
