Yamaha MX49/MX61 Owner’s Manual Owner's Mx49mx61 En Om B0

User Manual: Yamaha MX49/MX61 Owner's Manual

Open the PDF directly: View PDF .
Page Count: 48

PRECAUTIONS
Introduction
Accessories
About the Accessory Disk
Using the MX49/MX61 Manual
MX49/MX61 Main Features
Contents
Controls and Functions
- Front Panel
- Rear Panel
Setting Up
Basic Operation and Displays
Quick Guide
Appendix

Owner’s Manual

2MX49/MX61 Owner’s Manual

SPECIAL MESSAGE SECTION

This product utilizes batteries or an external power supply

(adapter). DO NOT connect this product to any power supply

or adapter other than one described in the manual, on the

name plate, or specifically recommended by Yamaha.

WARNING: Do not place this product in a position where

anyone could walk on, trip over, or roll anything over power or

connecting cords of any kind. The use of an extension cord is

not recommended! If you must use an extension cord, the min-

imum wire size for a 25’ cord (or less ) is 18 AWG. NOTE: The

smaller the AWG number, the larger the current handling

capacity. For longer extension cords, consult a local electri-

cian.

This product should be used only with the components sup-

plied or; a cart, rack, or stand that is recommended by

Yamaha. If a cart, etc., is used, please observe all safety mark-

ings and instructions that accompany the accessory product.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be cor-

rect at the time of printing. However, Yamaha reserves the

right to change or modify any of the specifications without

notice or obligation to update existing units.

This product, either alone or in combination with an amplifier

and headphones or speaker/s, may be capable of producing

sound levels that could cause permanent hearing loss. DO

NOT operate for long periods of time at a high volume level or

at a level that is uncomfortable. If you experience any hearing

loss or ringing in the ears, you should consult an audiologist.

IMPORTANT: The louder the sound, the shorter the time

period before damage occurs.

Some Yamaha products may have benches and / or accessory

mounting fixtures that are either supplied with the product or as

optional accessories. Some of these items are designed to be

dealer assembled or installed. Please make sure that benches

are stable and any optional fixtures (where applicable) are well

secured BEFORE using.

Benches supplied by Yamaha are designed for seating only.

No other uses are recommended.

NOTICE:

Service charges incurred due to a lack of knowledge relating to

how a function or effect works (when the unit is operating as

designed) are not covered by the manufacturer’s warranty, and

are therefore the owners responsibility. Please study this man-

ual carefully and consult your dealer before requesting service.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are both user safe

and environmentally friendly. We sincerely believe that our

products and the production methods used to produce them,

meet these goals. In keeping with both the letter and the spirit

of the law, we want you to be aware of the following:

Battery Notice:

This product MAY contain a small non-rechargeable battery

which (if applicable) is soldered in place. The average life span

of this type of battery is approximately five years. When

replacement becomes necessary, contact a qualified service

representative to perform the replacement.

This product may also use “household” type batteries. Some of

these may be rechargeable. Make sure that the battery being

charged is a rechargeable type and that the charger is

intended for the battery being charged.

When installing batteries, never mix old batteries with new

ones, and never mix different types of batteries. Batteries

MUST be installed correctly. Mismatches or incorrect installa-

tion may result in overheating and battery case rupture.

Warning:

Do not attempt to disassemble, or incinerate any battery. Keep

all batteries away from children. Dispose of used batteries

promptly and as regulated by the laws in your area. Note:

Check with any retailer of household type batteries in your

area for battery disposal information.

Disposal Notice:

Should this product become damaged beyond repair, or for

some reason its useful life is considered to be at an end,

please observe all local, state, and federal regulations that

relate to the disposal of products that contain lead, batteries,

plastics, etc. If your dealer is unable to assist you, please con-

tact Yamaha directly.

NAME PLATE LOCATION:

The name plate is located on the bottom of the product. The

model number, serial number, power requirements, etc., are

located on this plate. You should record the model number,

serial number, and the date of purchase in the spaces provided

below and retain this manual as a permanent record of your

purchase.

Model

Serial No.

Purchase Date

PLEASE KEEP THIS MANUAL

92-BP (bottom)

MX49/MX61 Owner’s Manual 3

1. IMPORTANT NOTICE: DO NOT MODIFY THIS

UNIT!

This product, when installed as indicated in the instructions

contained in this manual, meets FCC requirements. Modifi-

cations not expressly approved by Yamaha may void your

authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accesso-

ries and/or another product use only high quality shielded

cables. Cable/s supplied with this product MUST be used.

Follow all installation instructions. Failure to follow instruc-

tions could void your FCC authorization to use this product

in the USA.

3. NOTE: This product has been tested and found to comply

with the requirements listed in FCC Regulations, Part 15 for

Class “B” digital devices. Compliance with these require-

ments provides a reasonable level of assurance that your

use of this product in a residential environment will not result

in harmful interference with other electronic devices. This

equipment generates/uses radio frequencies and, if not

installed and used according to the instructions found in the

users manual, may cause interference harmful to the opera-

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B)

tion of other electronic devices. Compliance with FCC regula-

tions does not guarantee that interference will not occur in all

installations. If this product is found to be the source of inter-

ference, which can be determined by turning the unit “OFF”

and “ON”, please try to eliminate the problem by using one of

the following measures:

Relocate either this product or the device that is being affected

by the interference.

Utilize power outlets that are on different branch (circuit

breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the

antenna. If the antenna lead-in is 300 ohm ribbon lead,

change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory

results, please contact the local retailer authorized to distribute

this type of product. If you can not locate the appropriate

retailer, please contact Yamaha Corporation of America, Elec-

tronic Service Division, 6600 Orangethorpe Ave, Buena Park,

CA90620

The above statements apply ONLY to those products distrib-

uted by Yamaha Corporation of America or its subsidiaries.

FCC INFORMATION (U.S.A.)

* This applies only to products distributed by

YAMAHA CORPORATION OF AMERICA.

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY

PROCEDURE)

Responsible Party: Yamaha Corporation of America

Address: 6600 Orangethorpe Ave., Buena Park,

Calif. 90620

Telephone: 714-522-9011

Type of Equipment: Music Synthesizer

Model Name: MX49/MX61

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received includ-

ing interference that may cause undesired operation.

See user manual instructions if interference to radio recep-

tion is suspected.

(FCC DoC)

The model number, serial number, power requirements, etc.,

may be found on or near the name plate, which is at the bottom

of the unit. You should note this serial number in the space pro-

vided below and retain this manual as a permanent record of

your purchase to aid identification in the event of theft.

Model No.

Serial No.

(bottom_en_01)

OBSERVERA!

Apparaten kopplas inte ur växelströmskällan (nätet) så länge

som den ar ansluten till vägguttaget, även om själva apparaten

har stängts av.

ADVARSEL: Netspændingen til dette apparat er IKKE

afbrudt, sålænge netledningen sidder i en stikkontakt, som er

tændt — også selvom der er slukket på apparatets afbryder.

VAROITUS: Laitteen toisiopiiriin kytketty käyttökytkin ei irroita

koko laitetta verkosta.

(standby)

(weee_eu_en_01)

Information for Users on Collection and Disposal of Old Equipment

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic

products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in

accordance with your national legislation and the Directives 2002/96/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative

effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your

waste disposal service or the point of sale where you purchased the items.

[For business users in the European Union]

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer

and ask for the correct method of disposal.

4MX49/MX61 Owner’s Manual

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe and handy place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical

shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

• Do not place the power cord near heat sources such as heaters or

radiators. Also, do not excessively bend or otherwise damage the

cord, or place heavy objects on it.

• Only use the voltage specified as correct for the instrument. The

required voltage is printed on the name plate of the instrument.

• Use the specified adaptor (page 44) only. Using the wrong adaptor

can result in damage to the instrument or overheating.

• Check the electric plug periodically and remove any dirt or dust

which may have accumulated on it.

• This instrument contains no user-serviceable parts. Do not open the

instrument or attempt to disassemble or modify the internal

components in any way. If it should appear to be malfunctioning,

discontinue use immediately and have it inspected by qualified

Yamaha service personnel.

• Do not expose the instrument to rain, use it near water or in damp or

wet conditions, place on it any containers (such as vases, bottles or

glasses) containing liquids which might spill into any openings. If

any liquid such as water seeps into the instrument, turn off the

power immediately and unplug the power cord from the AC outlet.

Then have the instrument inspected by qualified Yamaha service

personnel.

• Never insert or remove an electric plug with wet hands.

• Do not put burning items, such as candles, on the unit.

A burning item may fall over and cause a fire.

• When one of the following problems occur, immediately turn off the

power switch and disconnect the electric plug from the outlet. Then

have the device inspected by Yamaha service personnel.

- The power cord or plug becomes frayed or damaged.

- It emits unusual smells or smoke.

- Some object has been dropped into the instrument.

- There is a sudden loss of sound during use of the instrument.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage

to the instrument or other property. These precautions include, but are not limited to, the following:

• Do not connect the instrument to an electrical outlet using a

multiple-connector. Doing so can result in lower sound quality, or

possibly cause overheating in the outlet.

• When removing the electric plug from the instrument or an outlet,

always hold the plug itself and not the cord. Pulling by the cord can

damage it.

• Remove the electric plug from the outlet when the instrument is not

to be used for extended periods of time, or during electrical storms.

• Do not place the instrument in an unstable position where it might

accidentally fall over.

• Before moving the instrument, remove all connected cables, to

prevent damage to the cables or injury to anyone who might trip

over them.

• When setting up the product, make sure that the AC outlet you are

using is easily accessible. If some trouble or malfunction occurs,

immediately turn off the power switch and disconnect the plug from

the outlet. Even when the power switch is turned off, electricity is

still flowing to the product at the minimum level. When you are not

using the product for a long time, make sure to unplug the power

cord from the wall AC outlet.

• Before connecting the instrument to other electronic components,

turn off the power for all components. Before turning the power on

or off for all components, set all volume levels to minimum.

• Be sure to set the volumes of all components at their minimum

levels and gradually raise the volume controls while playing the

instrument to set the desired listening level.

Power supply/AC power adaptor

Do not open

Water warning

Fire warning

If you notice any abnormality

Power supply/AC power adaptor

Location

Connections

DMI-5 1/2

MX49/MX61 Owner’s Manual 5

• Do not insert a finger or hand in any gaps on the instrument.

• Never insert or drop paper, metallic, or other objects into the gaps

on the panel. This could cause physical injury to you or others,

damage to the instrument or other property, or operational failure.

• Do not rest your weight on, or place heavy objects on the

instrument, and do not use excessive force on the buttons, switches

or connectors.

• Do not use the instrument/device or headphones for a long period of

time at a high or uncomfortable volume level, since this can cause

permanent hearing loss. If you experience any hearing loss or

ringing in the ears, consult a physician.

Always turn the power off when the instrument is not in use.

Even when the [ ] (Standby/On) switch is in standby status (display

is off), electricity is still flowing to the instrument at the minimum

level.

When you are not using the instrument for a long time, make sure you

unplug the power cord from the wall AC outlet

NOTICE

To avoid the possibility of malfunction/ damage to the product, damage to data, or damage to other property, follow the notices

below.

Handling and Maintenance

• Do not use the instrument in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the

instrument, TV, or radio may generate noise. When using the iPad/iPhone/iPod Touch with this instrument, you should enable the Airplane

mode of the iPad/iPhone/iPod Touch to avoid possible wireless communication noise.

• Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car

during the day) to prevent the possibility of panel disfiguration, damage to the internal components or unstable operation.

• Do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel or keyboard.

• When cleaning the instrument, use a soft, cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping

cloths.

Saving data

• The data in the instrument’s Edit Buffer (memory location for edited data) is lost when the instrument is turned off. Save your important

data to the user memory (internal storage memory)/a USB flash memory/external device such as a computer. Keep in mind that saved

data may be lost due to malfunction or incorrect operation.

• To protect against data loss through media damage, we recommend that you save your important data onto two USB flash memories or

external media.

Information

About copyrights

• Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited except

for your personal use.

• This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to which it

has license to use others’ copyrights. Such copyrighted materials include, without limitation, all computer software, style files, MIDI files,

WAVE data, musical scores and sound recordings. Any unauthorized use of such programs and contents outside of personal use is not

permitted under relevant laws. Any violation of copyright has legal consequences. DON’T MAKE, DISTRIBUTE OR USE ILLEGAL

COPIES.

About functions/data bundled with the instrument

• This device is capable of using various types/formats of music data by optimizing them to the proper format music data for use with the

device in advance. As a result, this device may not play them back precisely as their producers or composers originally intended.

About this manual

• The illustrations and LCD screens as shown in this manual are for instructional purposes only, and may appear somewhat different from

those on your instrument.

• Windows is a registered trademark of Microsoft® Corporation in the United States and other countries.

• Apple, Mac, iPhone, iPad, and iPod Touch are trademarks of Apple Inc., registered in the U.S. and other countries.

• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

Handling caution

Yamaha cannot be held responsible for damage caused by

improper use or modifications to the instrument, or data that is lost

or destroyed.

About the latest Firmware Version

Yamaha may from time to time update firmware of the product and the other associated software without notice for improvement. We

recommend that you check our web site for the latest releases and upgrade your firmware of the MX49/MX61 or the associated software.

http://download.yamaha.com/

Note that the explanations in this Owner’s Manual apply to the version of firmware when this Owner’s Manual was produced. For details

about additional functions included in later releases, refer to the above website.

DMI-5 2/2

6MX49/MX61 Owner’s Manual

Introduction

Thank you for purchasing the Yamaha MX49/MX61 Music Synthesizer. Please read this owner’s manual carefully before

using the instrument in order to take full advantage of its various features. When you have finished reading the manual

keep it in a safe, accessible place, and refer to it when you need to better understand an operation or function.

Accessories

• Owner’s Manual (this book)

• Online Manual CD-ROM x 1 (Reference Manual, Synthesizer Parameter Manual, and Data List)

• DVD-ROM x 1 (containing DAW software)

•AC adaptor*

*May not be included in your area. Please check with your Yamaha dealer.

About the Accessory Disk

SPECIAL NOTICE

• The software included in the accessory disk and the copyrights thereof are under exclusive ownership by Steinberg Media

Technologies GmbH.

• Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the

written consent of the manufacturer.

• Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held

responsible for the results of the use of this manual and the software.

• This disk is NOT for audio/visual purposes. Do not attempt to play the disk on an audio/visual CD/DVD player. Doing so may

result in irreparable damage to your player.

• Note that Yamaha does not offer technical support for the DAW software in the accessory disk.

About the DAW software in the accessory disk

The accessory disk contains DAW software both for Windows and Mac.

NOTE

• Make sure to install DAW software under the “Administrator” account.

• Insert the Accessory Disk into the disk drive, then execute the “Start_Center” file to install the DAW software.

• In order to have continuous use of the DAW software in the accessory disk, including support and other benefits, you will

need to register the software and activate your software license by starting the software while the computer is connected to

the Internet. Click the “Register Now” button shown when the software is started, then follow the onscreen instructions. If you

do not register the software, you will be unable to use it after a limited period of time expires.

For information about the minimum system requirements and latest information on the software in the disk, check the web

site below.

http://www.steinberg.net

About software support

Support for the DAW software in the accessory disk is provided by Steinberg on its website at the following address.

http://www.steinberg.net

You can visit the Steinberg site also via the Help menu of the included DAW software. (The Help menu also includes the

PDF manual and other information on the software.)

MX49/MX61 Owner’s Manual 7

Using the MX49/MX61 Manual

Your MX49/MX61 synthesizer comes with four different reference guides—the Owner’s Manual (this book), the Reference

Manual, the Synthesizer Parameter Manual, and the Data List. While the Owner’s Manual is packaged together with the

synthesizer as a hardcopy booklet, the Reference Manual, Synthesizer Parameter Manual, and Data List are provided as

PDF documents on the bundled CD-ROM.

-Owner’s Manual (hardcopy booklet)

Describes how to set up your MX49/MX61 and how to perform basic operations. This is the document you should

read first when you start playing and using the MX49/MX61.

-Reference Manual (PDF document)

Describes the internal design of your MX49/MX61, how to use a connected computer, and all parameters that can be

adjusted and set. The manual includes the following contents.

Basic Structure

• Structure of the MX49/MX61

• Controller block

• Tone Generator block

• Effect block

• Arpeggio block

• Song/ Pattern playing block

• Internal memory

• MIDI/Audio signal flow

Using a Connected Computer

• Connecting to a computer

• Creating a Song with a computer

Using iOS Applications

Reference

• Performance

• Song/Pattern settings

•File

• Utility

• Remote mode

-Synthesizer Parameter Manual (PDF document)

Explains the voice parameters, effect types, effect parameters, and MIDI messages that are used for synthesizers

incorporating the Yamaha AWM2 sound generators. Read the Owner’s Manual and Reference Manual first and then

use this parameter manual, if necessary, to learn more about parameters and terms that relate to Yamaha

synthesizers.

-Data List (PDF document)

Provides lists such as the Voice List, Performance List, Arpeggio Type List, Effect Type List, as well as reference

materials such as the MIDI Data table and MIDI Implementation Chart.

How to use the PDF manuals

The Reference Manual, the Synthesizer Parameter Manual, and the Data List are provided as data documents in

PDF format. These PDF files can be viewed and read on a computer. When using Adobe® Reader® to view a PDF

file, you can search for specific words, print a specific page or link to open a desired section in the manual. The

term search and link functions are especially convenient methods of navigating through a PDF file, and we

recommend that you use them. The latest version of Adobe Reader can be downloaded from the following URL.

http://www.adobe.com/products/reader

8MX49/MX61 Owner’s Manual

MX49/MX61 Main Features

Dynamic, MOTIF-based Sounds

The MX49/MX61 contains a wide range of dynamic and authentic waveforms derived directly from the world famous

Yamaha MOTIF (including the realistic instrument sounds of acoustic piano, electric piano, synthesizer, drums, and many

others). These give you exceptionally high-quality sound for playing and recording in various musical genres. Moreover,

you can easily play back phrases of each instrument—even complex phrases impossible to play live—by using the

Arpeggio function. The instrument also features an extensive effect system—including VCM (Virtual Circuitry Modeling)

Effects, REV-X (high grade Reverb) Effects, and Master EQ. In a wide variety of ways, the MX49/MX61 truly enhances

and inspires your music performance and creation.

Easy-to-use user interface

This instrument has been designed for easy playability and simple, intuitive operation. For example, the Category

buttons let you quickly select a desired Voice from easy-to-understand groups, based on the general instrument type or

sound characteristics. The useful and popular Layer function (playing two Voices together) and Split function (playing

two separate Voices with your left and right hands) can also be set instantly. What’s more, four Knobs are available on the

panel—letting you control twelve aspects of the sound, and tweak them in real time as you play.

Highly portable, with easy-to-carry design

This instrument can go virtually wherever you go, thanks to its light weight and compact size. The MX49 is designed slim

and trim, so that it easily fits on your desk or in front of your computer. The MX61 has a indented handle at the bottom,

allowing you to easily carry it with one hand.

Jam along with the Rhythm Patterns and Songs

The MX49/MX61 features a wealth of dynamic Rhythm Patterns in wide variety of musical genres. You can play the

keyboard along with Rhythm Pattern playback—a truly inspiring way to perform! The instrument also conveniently lets

you play back MIDI and Audio data contained in USB flash memory—letting you easily use Song data created on

computer during live performance, without needing a computer! Plus, an [AUX IN] jack allows you to connect a portable

music player, so that you can play the keyboard along with your favorite songs.

Full music production capabilities—with just the MX49/MX61!

Both MIDI and audio data can be transferred to and from a computer via USB—without the need for a separate audio

interface or a MIDI interface. You can record and play MIDI data, record digital audio data from this instrument directly,

and monitor the DAW sound from the OUTPUT [L/MONO] jack/ [PHONES] jack.

Integration with Cubase

This instrument is specially designed to work seamlessly with Cubase series software (version 6 or later*), Steinberg’s

full-featured DAW program—giving you a comprehensive, all-in-one music production system, in which hardware and

software are fully integrated. The MX49/MX61 Remote Tools makes integration with Cubase even more convenient, letting

you control transport operations and VSTi parameters directly from the instrument. Simply download the MX49/MX61

related software from the following Yamaha website.

http://download.yamaha.com/

* For information on Cubase series software that supports the MX49/MX61, see the website above.

MX49/MX61 Owner’s Manual 9

PRECAUTIONS ......................................................4

Introduction .............................................................6

Accessories.............................................................6

About the Accessory Disk .......................................6

Using the MX49/MX61 Manual ...............................7

MX49/MX61 Main Features ....................................8

Controls and Functions 10

Front Panel ...........................................................10

Rear Panel ............................................................12

Setting Up 13

Power supply.........................................................13

Connecting speakers or headphones ...................13

Powering up the system........................................13

Auto Power Off function ........................................14

Adjusting the volume and the brightness of the

display ...................................................................14

Playing the Demo Songs.......................................14

Resetting User Memory to the initial factory

settings..................................................................15

Basic Operation and Displays 16

Moving the cursor..................................................16

Changing (editing) parameter values ....................16

Selecting an item from a List.................................16

Selecting a page ...................................................17

Note settings .........................................................17

Naming (inputting characters) ...............................17

Leaving the current display ...................................17

Quick Guide 18

Playing the Voices.................................................18

Selecting a Voice for Part 1...................................... 18

Selecting a Voice for Part 2...................................... 19

Combining Voices (Layer) ....................................... 19

Playing separate Voices with your left and right hands

(Split)........................................................................ 20

Changing the tonal qualities of the Voice with the

controllers..............................................................21

Controllers on the front panel................................... 21

External Controllers ................................................. 22

Using the Arpeggio function ................................. 22

Playing back the Arpeggio ...................................... 22

Changing the Arpeggio tempo ................................ 23

Changing the Arpeggio type ................................... 23

Keyboard Octave/Transpose settings .................. 24

Octave...................................................................... 24

Transpose ................................................................ 24

Storing the edited settings.................................... 24

Playing the Performances .................................... 24

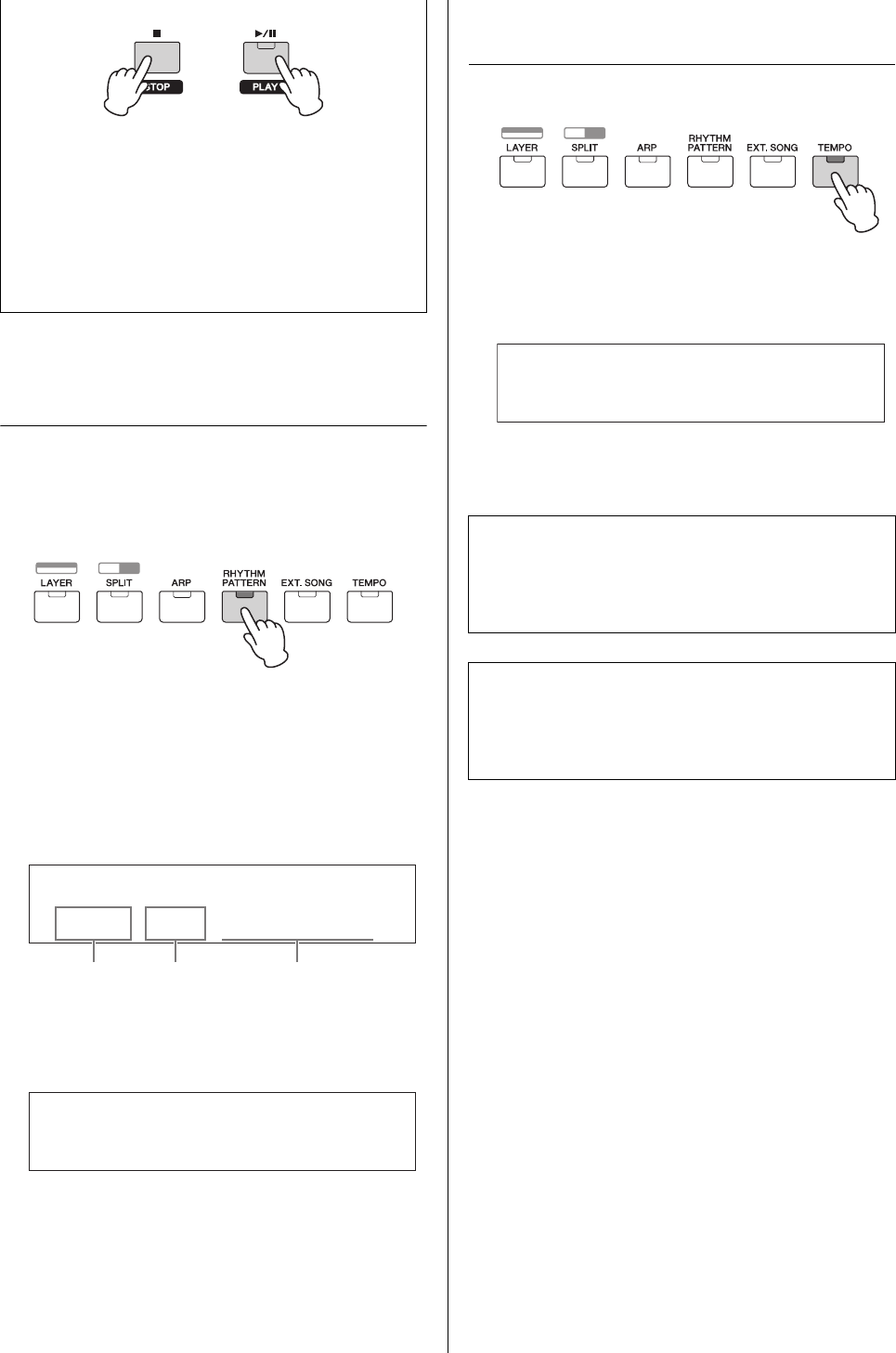

Playing back Rhythm Patterns ............................. 25

Playing the keyboard with the Rhythm Pattern ........ 25

Changing the Rhythm Pattern type and sound........ 26

Changing the tempo for the Rhythm Pattern ........... 26

Playing the keyboard along with Songs ............... 27

Songs compatible with this instrument .................... 27

Playing back MIDI data of the USB flash memory... 27

Playing back audio data of the USB flash memory . 28

Playing back song data of a portable music player 29

Creating an original Performance......................... 29

Selecting the Reverb/Chorus type

(Common Edit/Part Edit) .......................................... 29

Changing the Insertion Effect of the Voice

(Voice Edit)............................................................... 31

Changing the Controller Set for the Voice

(Voice Edit)............................................................... 32

Storing a Voice (Voice Store) ................................... 33

Storing a Performance (Performance Store)............ 33

Changing Voices smoothly while performing ....... 34

Making Global System Settings (Utility settings).. 35

Changing the Master Tune setting........................... 35

Adjusting the brightness of the display

(LCD Contrast) ......................................................... 35

Saving/loading files on USB flash memory

(File settings)........................................................ 35

Formatting the USB flash memory ........................... 35

Saving settings to USB flash memory...................... 36

Loading the settings from a USB flash memory ...... 36

Connecting an external MIDI instrument .............. 37

Controlling the MX49/MX61 from an external MIDI

keyboard or synthesizer........................................... 37

Controlling an external MIDI keyboard or synthesizer

from the MX49/MX61................................................ 38

Appendix 39

Shift Function List................................................. 39

Display Messages ................................................ 39

Troubleshooting.................................................... 41

Specifications ....................................................... 44

Index .................................................................... 45

Contents

10 MX49/MX61 Owner’s Manual

Front Panel

1[MASTER VOLUME] knob (page 14)

Adjusts the volume of the overall sound.

2Pitch Bend Wheel (page 21)

Bends the pitch of the notes up or down while playing

the keyboard.

3Modulation Wheel (page 21)

Controls vibrato applied to the sound.

4Knobs [A] – [D] (page 21)

These four highly versatile knobs let you adjust various

aspects or parameters of Parts 1 and 2.

5[KNOB FUNCTION] button (page 21)

Changes the functions assigned to Knobs [A] – [D].

6[PART 1-2 LINK] button (page 21)

Determines the sound which is applied to the Knob

effects.

7[DAW REMOTE] button (See Reference

Manual)

Turning on this button enters the Remote mode. The

Remote mode lets you control DAW software on your

computer from the panel controls of the instrument.

8TRANSPOSE [-]/[+] buttons (page 24)

Use these buttons to raise or lower the pitch of the notes

in semitone steps.

9OCTAVE [-]/[+] buttons (page 24)

Use these buttons to change the note range of the

keyboard.

)Transport buttons (pages 25 and 27)

[J] (Stop) button

Press to stop playback of Rhythm Pattern or Song data.

[R/K] (Play/Pause) button

Press to alternately start/pause playback of a Rhythm

Pattern or Song data from the current point.

![FILE] button (page 35)

Calls up the File display from which you can transfer files

between this instrument and USB flash memory.

@[UTILITY] button (page 35)

Calls up the Utility display from which you can set

parameters that apply to the entire system of this

instrument.

#[EDIT] button

Calls up the display from which you can edit a

Performance (page 24).

$[JOB] button (Refer to the Reference Manual)

Calls up the Performance Job or Utility Job display.

%[STORE] button

Stores the Performance/Voice/Utility settings.

^[PERFORMANCE NUMBER] display

Indicates the number of the selected Performance.

Controls and Functions

C2 D2 E2 F2 G2 A2 B2 C3 C4

46#%&$7)

5@^*!89

(The illustration is of the MX49; however, the controls and terminals of the MX61 are the same.)

MX49/MX61 Owner’s Manual

Controls and Functions

&[SELECT] button (page 24)

Calls up the display from which you can select a

Performance.

*LCD (Liquid Crystal Display) (page 14)

The backlit LCD indicates the parameters and values

related to the currently selected operation or function.

([DATA] dial (page 16)

Changes the selected value in the display.

A[SHIFT] button (page 39)

Pressing this button along with another button enables

you to execute various alternate commands of the

respective buttons.

B[INC/YES]/[DEC/NO] buttons (page 16)

For increasing/decreasing the value of the currently

selected parameter.

CCursor buttons (page 16)

These move the “cursor” around the display, and scroll

through the pages of the edited display.

D[EXIT] button

The menus and displays of the MX49/MX61 are

organized according to a hierarchical structure. Press

this button to exit from the current display and return to

the previous level in the hierarchy.

E[ENTER] button

Use this button to select the display to be edited, to

define the value, and to execute a Job or a Store

operation.

F[LAYER] button (page 19), [SPLIT] button

(page 20)

These buttons respectively layer different Voices of Parts

1 and 2, and split the keyboard into left and right parts.

G[ARP] button (page 22)

Determines whether the Arpeggio function is applied to

the entire Performance or not.

H[RHYTHM PATTERN] button (page 25)

Calls up the display from which you can select a Rhythm

Pattern.

I[EXT. SONG] (External Song) button (page 27)

Calls up the display from which you can select Song

data of the USB flash memory connected to the USB [TO

DEVICE] terminal.

J[TEMPO] button (pages 23, 26 and 27)

Calls up the display from which you can set the tempo

for the Arpeggio/ Rhythm Pattern/ Song.

KVoice Category button (page 18)

Selects a Voice category for Part 1/Part2.

L[PART SELECT] button

Calls up the display from which you can select a Part

from Parts 1 – 16 and play it.

C5 C6

AD LCK

GHI(B F J

12 MX49/MX61 Owner’s Manual

Controls and Functions

Rear Panel

1DC IN jack (page 13)

Connect the supplied power adaptor to this connector.

2P (Standby/On) switch (page 13)

Press to turn the power On (O) or set to Standby (N).

3MIDI [IN]/[OUT] terminals (page 37)

MIDI [IN] is for receiving control or performance data

from another MIDI device.

MIDI [OUT] is for transmitting all control, performance

and playback data from this instrument to another MIDI

device.

4USB terminals

There are two different types of USB terminals, and the

rear panel of the instrument features both.

The USB [TO HOST] terminal is used to connect this

instrument to the computer via a USB cable and allows

you to transfer MIDI data and audio data between the

devices. For information about the Port handled by the

MX49/MX61, refer to the “Reference Manual” PDF

document.

The USB [TO DEVICE] terminal is used to connect this

instrument to a USB flash memory via a USB cable. For

details, see pages 27 and 35.

[SUSTAIN] jack (page 22)

For connection of an optional FC3/FC4/FC5 Footswitch.

When connecting a FC4/FC5, this also enables

footswitch control over various other functions.

6[FOOT CONTROLLER] jack (page 22)

For connection of an optional FC7 Foot controller. This

jack lets you continuously control one of various different

assignable functions—including volume, tone, pitch, or

other aspects of the sound.

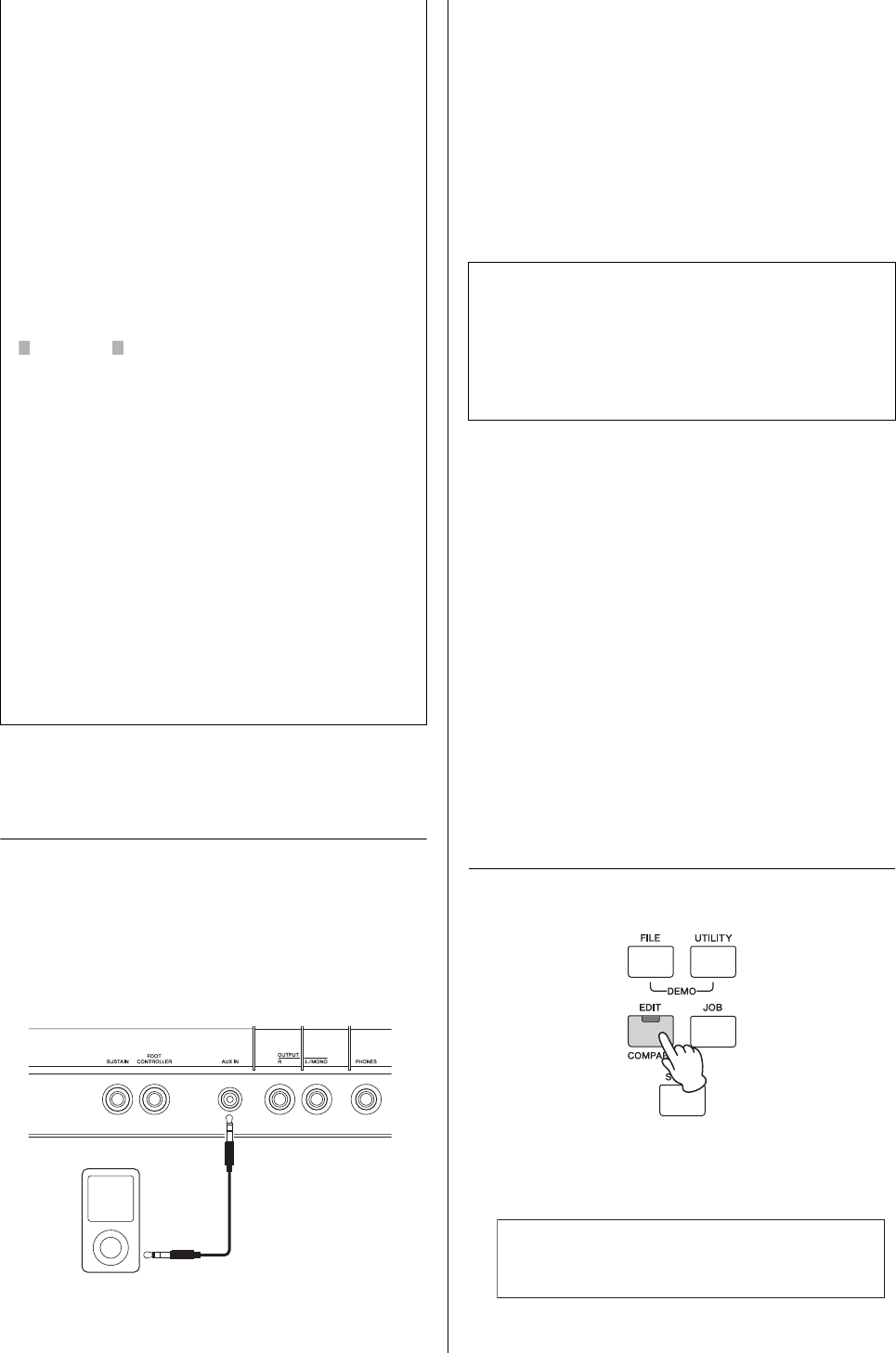

7[AUX IN] (Auxiliary Input) jack (page 29)

The Auxiliary Input stereo mini-jack is used to input audio

from an external audio device. For example, you can use

this jack to connect a portable music player and play

along with your favorite music.

NOTE Use the external device’s volume control to adjust the

desired level balance with this instrument.

8OUTPUT [L/MONO]/[R] jacks

Line level audio signals are output via these phone jacks.

For monophonic output, use only the [L/MONO] jack.

9[PHONES] (Headphone) jack

This standard stereo phones jack is for connection to a

set of stereo headphones. The audio output is identical

to that of the OUTPUT [L/MONO]/[R] jack.

1 2 5 6 7 93 4 8

MX49/MX61 Owner’s Manual 13

Power supply

Make connections for the supplied power adaptor

(page 44) in the following order. Before you connect the

power adaptor, make sure that the power of this

instrument is set to Standby status (N).

1Wrap the DC output cable of the power

adaptor around the cable clip (as shown

below), then connect the plug of the adaptor

to the DC IN jack on the rear panel.

NOTE Use of the cable clip prevents accidental unplugging of the

cable during operation. Make sure to avoid tightening the

cord more than necessary or pulling on the cord strongly

while it is wrapped around the cable clip to prevent wear on

the cord or possible breakage of the clip.

2Connect the other end of the power adaptor

to an AC outlet.

NOTE Follow this procedure in reverse order when disconnecting

the power adaptor.

WARNING

Use only the specified adaptor (page 44). The use of other

adaptors may result in irreparable damage to both the

adaptor and the instrument.

CAUTION

Even when the power of this instrument is in the Standby

status, electricity is still flowing to the instrument at the

minimum level. When you are not using the instrument for a

long time, make sure you unplug the power adaptor from the

wall AC outlet.

Connecting speakers or

headphones

Since this instrument has no built-in speakers, you will

need to monitor the sound of the instrument by using

external equipment. Connect a set of headphones,

powered speakers, or other playback equipment as

illustrated below. When making connections, be sure that

your cables have the appropriate ratings.

NOTICE

Before connecting this instrument to external devices, turn

off the power to all the devices.

Powering up the system

Make sure the volume settings of this instrument and

external devices such as powered speakers are turned

down to the minimum before turning the power on. When

connecting this instrument to the powered speakers, turn

on the power switch of each device in the following order.

When turning the power on:

First, turn the power of the MX49/MX61 on with the P

(Standby/On) switch, then turn the power of the

connected powered speakers on.

When turning the power off:

First, turn the power of the connected powered speakers

off, then turn the power of the MX49/MX61 off with the P

(Standby/On) switch.

Setting Up

Power adaptor

AC outlet

MX49/MX61

Powered speaker

(Left)

Powered speaker

(Right)

OUTPUT [L/MONO] OUTPUT [R]

Headphones

[PHONES]

Standard mono phone

plugs

Standard stereo phone plug

MX49/MX61

Standby/On switch DC IN

MX49/MX61 Owner’s Manual

Setting Up

Auto Power Off function

To prevent unnecessary power consumption, this

instrument features an Auto Power Off function that

automatically turns the power off if the instrument is not

operated for a specified period of time. In the default

settings, the power will be turned off if this instrument is

not operated for 30 minutes.

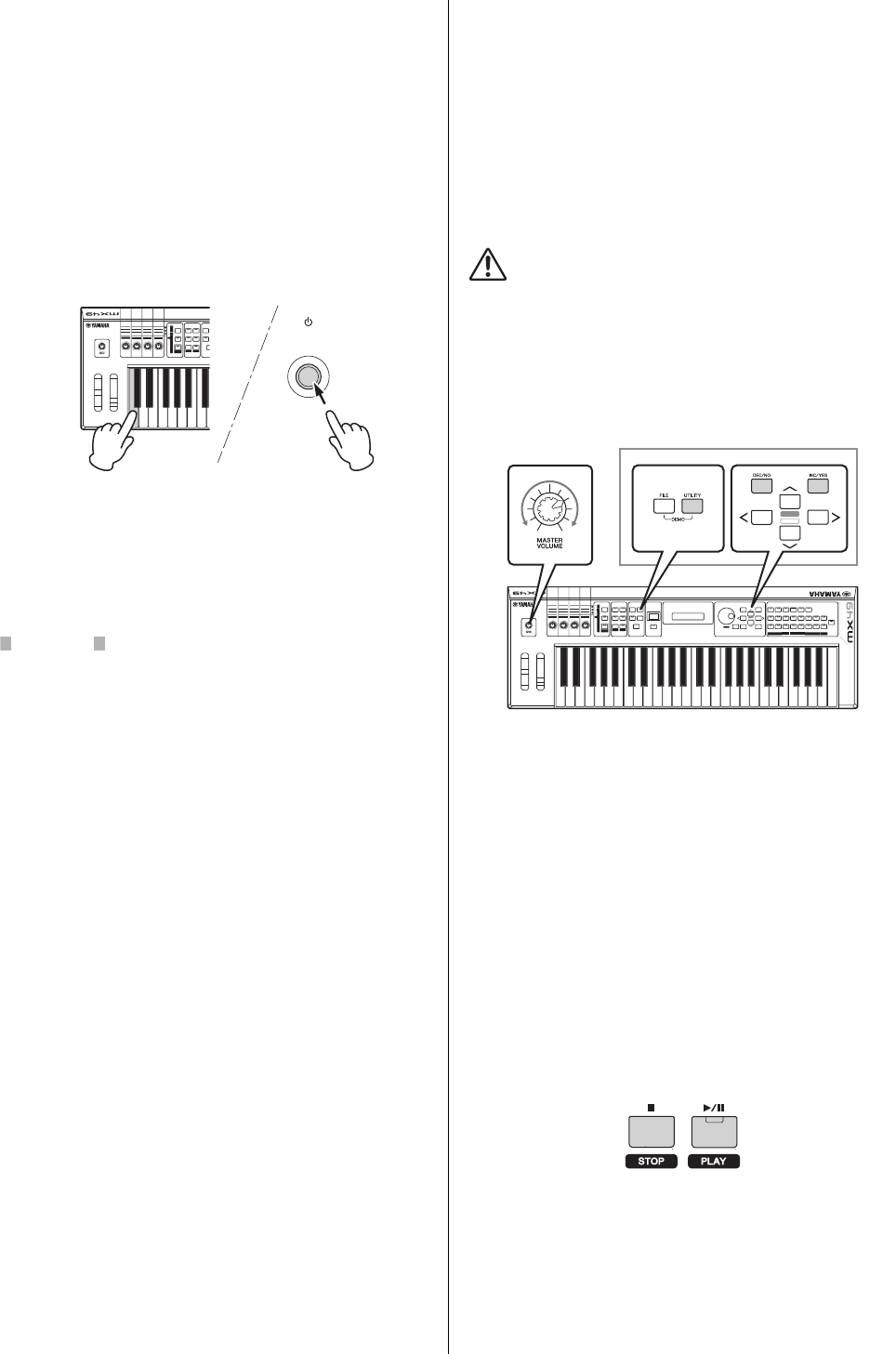

If you wish to disable the Auto Power Off function, turn the

power on while holding down the lowest key on the

keyboard. An “Auto power off disabled” message

appears briefly and Auto Power Off is disabled. The

setting is retained even if the power is turned off.

The amount of time that elapses before the power is

automatically turned off can be set by the following

operation.

[UTILITY]  Select “01:General” with Cursor [u] button

 [ENTER]  Select “AutoOff” with Cursor [d] button,

then change the value with [DATA] dial  [STORE]

NOTICE

• Depending on the instrument status (for example, the

settings have been modified but not yet stored), the power

may not turn off automatically, even after the elapse of the

specified period of time. Always turn off the power

manually when the instrument is not in use.

• When the instrument is not operated for a specified period

of time while connected to an external device such as an

amplifier, speaker or computer, make sure to follow the

instructions in the Owner’s Manual to turn off the power to

the instrument and the connected devices, in order to

protect the devices from damage. If you do not want the

power to turn off automatically when a device is

connected, disable Auto Power Off.

• When Auto Power Off is set to “off,” the value will be

retained even if the backup data saved on another device

is loaded to the instrument. When Auto Power Off is set to

something other than “off,” the value will be overwritten

with loaded data.

• Keep in mind that the amount of time that elapses before

the power automatically turns off is reset to 30 minutes if

you execute the Factory Set function (page 15).

NOTE • The setting time is approximate.

•To turn the power on after Auto Power Off has been exe-

cuted, press the Standby/On switch once to set it to

Standby, and then press it again to set to On.

Adjusting the volume and

the brightness of the

display

Adjust the volume levels of this instrument and the

connected amplifier/speaker system.

NOTE When connecting to a set of powered speakers or PA

equipment, set the Master Volume to about 70%, then raise

the volume of the powered speakers or PA equipment to the

appropriate level.

CAUTION

Do not listen with the headphones at high volume for long

periods of time. Doing so may cause hearing loss.

If the display is not easily visible, while holding down

[UTILITY], press [INC/YES]/[DEC/NO] to adjust for

optimum visibility.

Playing the Demo Songs

The MX49/MX61 features a variety of Demo Songs,

showcasing its dynamic sound and sophisticated

functions.

Here’s how to play them back.

Press [FILE] and [UTILITY] at the same time.

The DEMO display is called up.

Rotate the [DATA] dial to select a Demo Song.

3Press [F/ K] (Play/Pause) to play back the

Demo Song.

The Demo Song currently shown on the display starts.

NOTE To adjust the volume level of the Demo Songs, use the

[MASTER VOLUME] Knob.

4Press [J] (Stop) to stop the Demo Song.

In order to leave the DEMO display, press

[EXIT].

MX49/MX61

Adjust the volume

with the [MASTER

VOLUME] knob.

Adjust the display contrast.

MX49/MX61 Owner’s Manual

Setting Up

Resetting User Memory to

the initial factory settings

The original factory settings of this synthesizer’s User

Memory can be restored as described here. The

Performances, User Voices, and Utility settings of the

User Memory will be reset to the initial factory settings.

This operation is especially handy when you’ve

unintentionally deleted or overwritten the Performances

or Utility settings.

NOTICE

When the factory settings are restored, all the Performance,

User Voice, and system settings in the Utility display you

created will be erased. Make sure you are not overwriting any

important data. Be sure to save all important data to your

USB flash memory before executing this procedure

(page 36).

1Press [UTILITY], then press [JOB].

The Utility Job Select display is called up.

2Use the Cursor [u]/[d] buttons to select the

“02:FactrySet,” then press [ENTER].

The Factory Set display is called up.

3Press [ENTER].

The display prompts you for confirmation. To cancel

this operation, press [DEC/NO] here. In this case, in

order to return to the top display, press [EXIT]

repeatedly if necessary after canceling.

NOTICE

When setting the “Power On Auto” to on and executing

Factory Set, the Factory Set operation will automatically be

executed each time you turn the power on. Keep in mind that

this also means that your original data in the User Memory

will be erased each time you turn on the power. Therefore,

the parameter normally is set to off. If you set it to off and

execute Factory Set, the Factory Set operation will not be

executed when turning the power on the next time.

4Press [INC/YES].

The Factory Set operation is executed.

NOTICE

For Factory Set operations that take longer to process, you

will see a message during processing. While such a

message is shown on the display, do not turn off the power.

Turning the power off in this state results in loss of all user

data and may cause the system to freeze (due to corruption

of data in the User Memory). This could also result in the

instrument not being able to start up properly, even when

turning the power on next time.

5Press [EXIT] several times to return to the top

display.

JOB*Factory*Set

****PowerOn*Auto=off

qw**Are*you*sure?***

e****[NO]/[YES]****r

MX49/MX61 Owner’s Manual

Moving the cursor

The display cursor indicates a selected item and is

shown in the three following types.

Arrow type

This flashing triangular cursor indicates the selected

item’s line. You can move the cursor up or down by using

the Cursor [u]/[d] buttons.

Flash type

The selected item itself flashes. You can move the cursor

indication up/down/left/right by using the Cursor [u]/[d]/

[l]/[r] buttons.

Underline type

This flashing underline indicates the selected item. This

display actually has two cursor indicators: the underline

and the flash type. You can move the flash type cursor by

using the Cursor [u]/[d] buttons in this display, and

move the underline type cursor by using the Cursor [l]/

[r] buttons.

Changing (editing)

parameter values

Rotating the [DATA] dial to the right (clockwise) increases

the value, while rotating it to the left (counter-clockwise)

decreases it. Pressing the [INC/YES] button increases a

parameter value by one step, and pressing [DEC/NO]

decreases it. Pressing and holding either button

continuously increases or decreases the value. For

parameters with large value ranges, you can increase the

value by 10 by while holding down the [SHIFT] button

and pressing the [INC/YES] button. To decrease by 10,

simultaneously hold down the [SHIFT] button and press

the [DEC/NO] button.

Selecting an item from a

List

When there are multiple displays to be edited, the name

of each display is indicated in a scrollable list as a

selected item.

In order to switch the selected item, use the Cursor [u]/

[d] buttons, then press [ENTER] to define the selection.

The icon displayed to the left of number indicates that

other items are available up (s) or down (a) in the list.

Basic Operation and Displays

STR:081:Amb*Pizza

001:CncrtGrandc

Selected item

DrumKit

*Insert*Eff*

***

REV:

****

SPX

Hall

Selected item

AP*:*001:CncrtGrand

a3tyuiop@000123456789

Selected item

Increases

number

Decreases

number

Decreases

number

Increases

number

Common

a01:Chorus*Eff

Number of the

selected item

Name of the selected item

(display to be edited)

Other selected item(s) available

further down

Other selected items available

either up or down

Other selected item(s) available

further up

MX49/MX61 Owner’s Manual

Basic Operation and Displays

Selecting a page

The display to be edited may consist of multiple pages.

In this case, the upper (s)/ lower (a) icons are indicated

at the bottom left of the display. You can select a page by

using the Cursor [u]/[d] buttons.

Note settings

Pressing a key lets you set a note value for the Split Point

parameter (page 20). You can set the desired Split Point

by holding down [SPLIT] and pressing the corresponding

key (only when [SPLIT] is set to on; the lamp lights).

Naming (inputting

characters)

You can freely name the data you’ve created, such as

that of Voices and Performances. First, move the cursor

to the desired location in the name with the Cursor [l]/

[r] buttons, and select the character by using the

[DATA] dial or the [INC/YES]/[DEC/NO] buttons.

Leaving the current

display

If you wish to return to the previous display from the

current display, press [EXIT]. In order to return to the top

display, press [EXIT] repeatedly.

NOTE If you wish to leave the Remote mode (refer to the

“Reference Manual” PDF document), you need to press

[DAW REMOTE] instead of [EXIT].

DrumKit

*Insert*Eff*

***

REV:

****

SPX

Hall

Indicates availability

of other pages

Parameter which can be edited

Split Point

Common*Name

a*******[Simple*Bld]

Selected location flashes

MX49/MX61 Owner’s Manual

Playing the Voices

The MX49/MX61 consists of 16 Parts. Voices, which are

the basic sounds and building blocks of the MX49/MX61,

are assigned to each Part. After the instrument is turned

on, the top display which appears shows the Voices of

only Parts 1 and 2. With the default settings, playing the

keyboard will sound only the Voice for Part 1. Select the

desired Voice from the various preset Voices and play it.

Top display

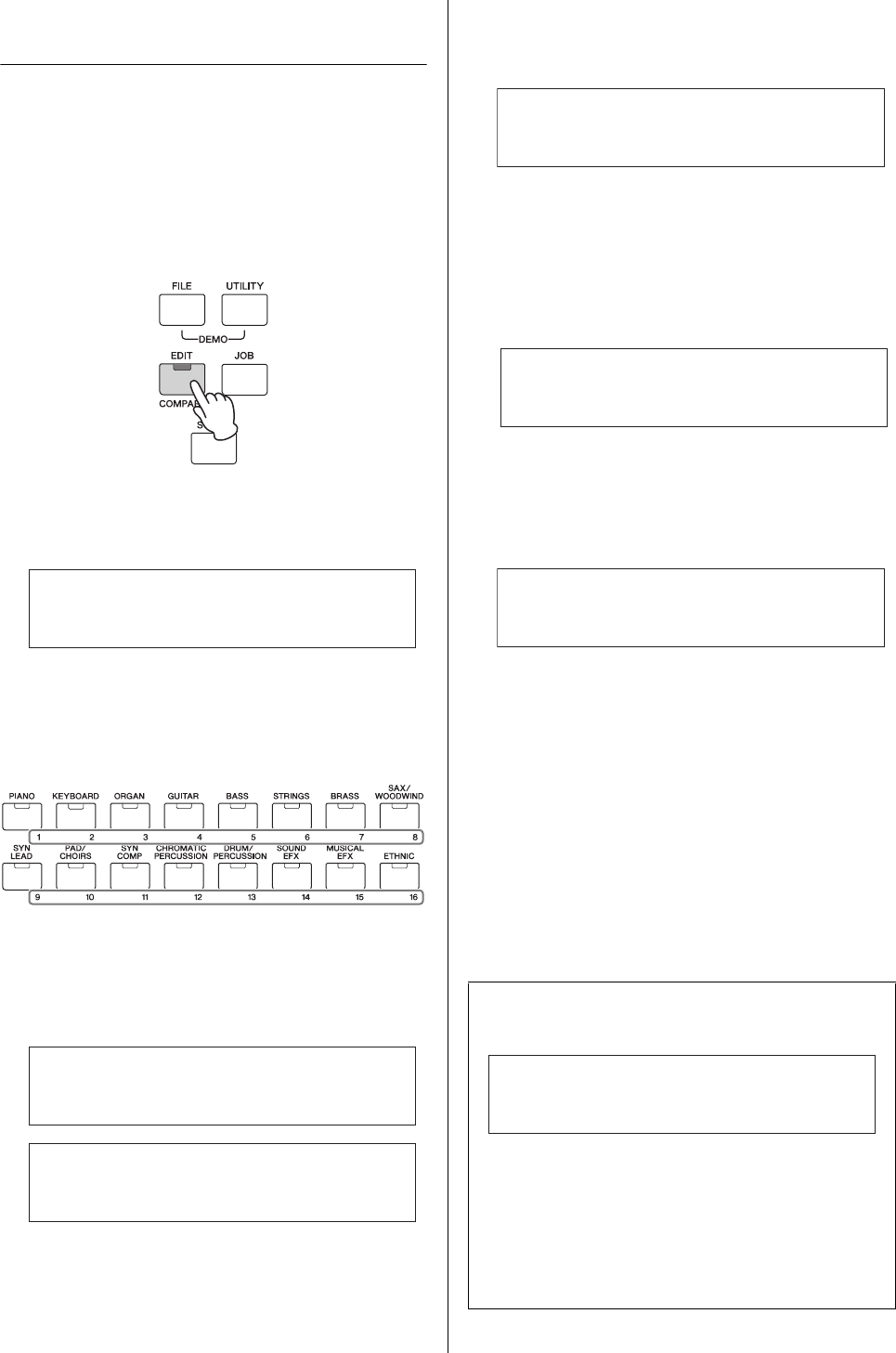

Selecting a Voice for Part 1

The Voices of the MX49/MX61 are conveniently divided

into specific categories, each based on a general

instrument type or sound characteristic. In order to select

a Voice, first select a category.

Here, you’ll learn how to change Voices and play a Voice

while Part 1 is selected.

NOTE For lists of the Voices and categories, see the “DATA LIST”

PDF document.

1Press the desired Voice Category button.

2Rotate the [DATA] dial to select the desired

Voice in the selected category.

3Play the keyboard.

4Repeat steps 1 – 3 to play the various Voices.

Quick Guide

HINT

The instructions of the “Playing the Voices” section

assume that you are starting from the top display

with the default settings immediately after turning

this instrument on. If the instrument is in a different

status, or for some reason you cannot return to the

top display with the default settings, simultaneously

hold down [SHIFT] and press [SELECT]. This is the

Quick Reset function and allows you to return

operation to the same top display as when the

instrument is first turned on.

NOTICE

Executing the Quick Reset function above erases any

edited data. Be sure to store important data to internal

memory (page 33).

NOTE For details about this function, see the “Shift Function

List” (page 39).

STR:081:Amb

Pizza

AP 001:CncrtGrandc

001:CncrtGrandcAP

Voice for Par t 1

Voice for Par t 2

Voice

category

Arpeggio

number

Arpeggio name

Part01*Arp*Select

Hold=******on

MX49/MX61 Owner’s Manual

Quick Guide

Keyboard Octave/

Transpose settings

Octave

The OCTAVE [-]/[+] button lets you shift the pitch of the

keyboard in octaves, up to a maximum of three. For

example, you may want to shift the pitch down lower to

get extra bass notes, or shift up to get higher notes for

leads and solos. Pressing the [-] and the [+] buttons

together at the same time will return the setting to the

initial value (0).

The current octave range can be confirmed via the status

of the lamp of the OCTAVE [-]/[+] buttons. When set to

one octave down or up, the corresponding lamp lights.

When set to two octaves down or up, the corresponding

lamp flashes slowly. When set to three octaves down or

up, the corresponding lamp flashes quickly.

Transpose

The TRANSPOSE [-]/[+] button lets you shift the pitch of

the keyboard in semitones (up to 11 semitones). This

function allows you to play in the same position and with

the same fingering, even if the Song data or another

instrument player is playing in a different key. Pressing

the [-] and the [+] buttons together at the same time will

return the setting to the initial value (0). When set to one

semitone down or up, the corresponding lamp lights.

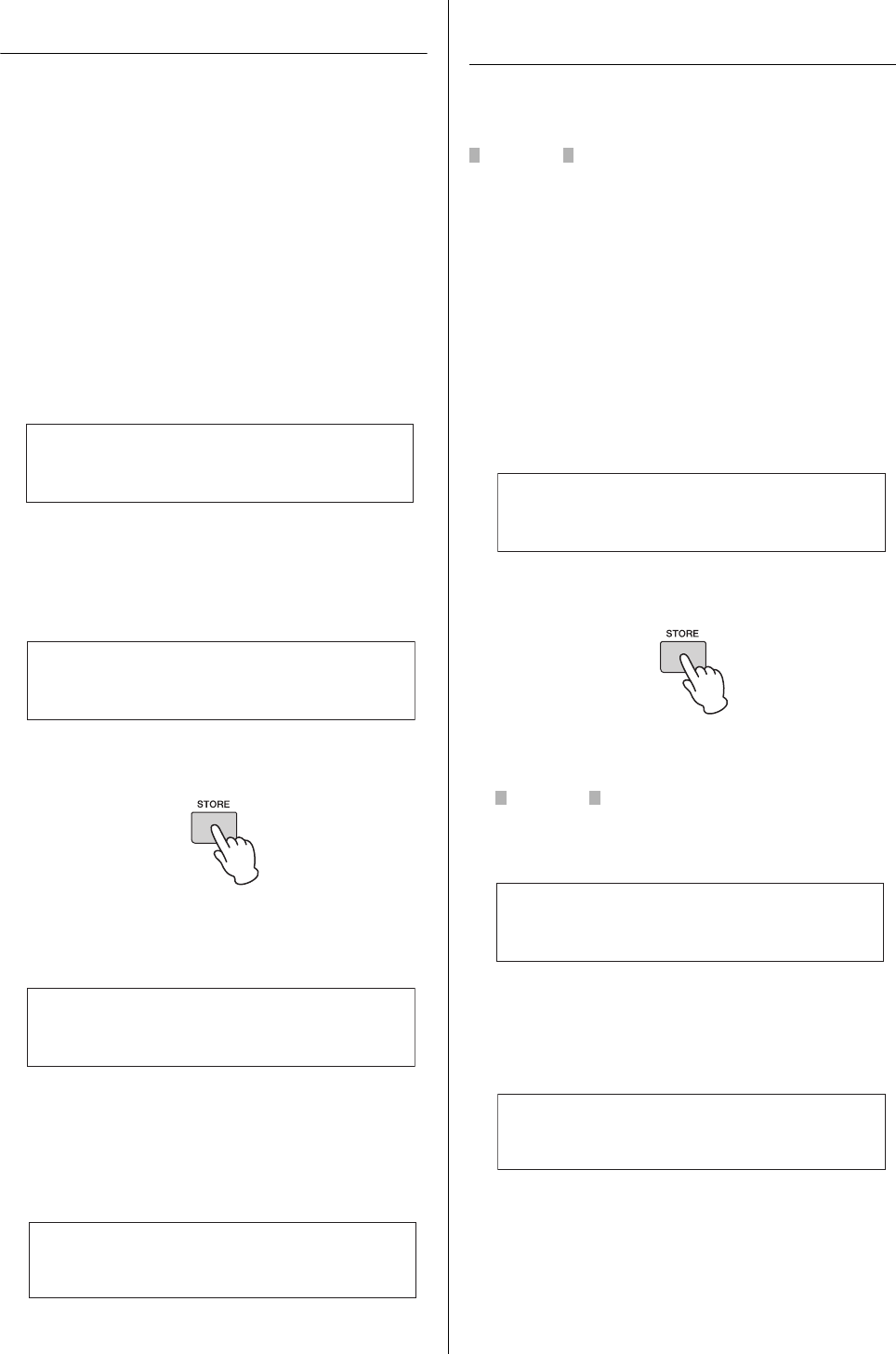

Storing the edited settings

When you are satisfied with the results, store the settings

you’ve made to internal memory (as a Performance) so

that they can be recalled after turning off the power.

Press [STORE], then press [ENTER]. Finally, press [INC/

YES] to store the settings to Performance 1.

NOTE For detailed instructions on the Store operation, see “Storing

the Performance” (page 33).

Playing the Performances

A program in which multiple Voices (parts) are combined

is referred to as a “Performance,” and the instrument has

a total of 128 Performances. A Performance consists of

up to 16 Parts. The Parts which you normally use for

playing the keyboard are Parts 1 and 2.

When turning on this instrument with the factory settings,

Performance 1 is called up. In the instructions covered so

far (pages 18 – 24), you’ve played and edited Parts 1 and

2 of Performance 1, which is simply designed for playing

one or two Voices. Performances 2 – 128 are provided for

enjoying a powerful and thick sound which consists of

multiple various Voices. In the instructions below, we’ll

change the Performance to one of Performances 2 – 128

and play it.

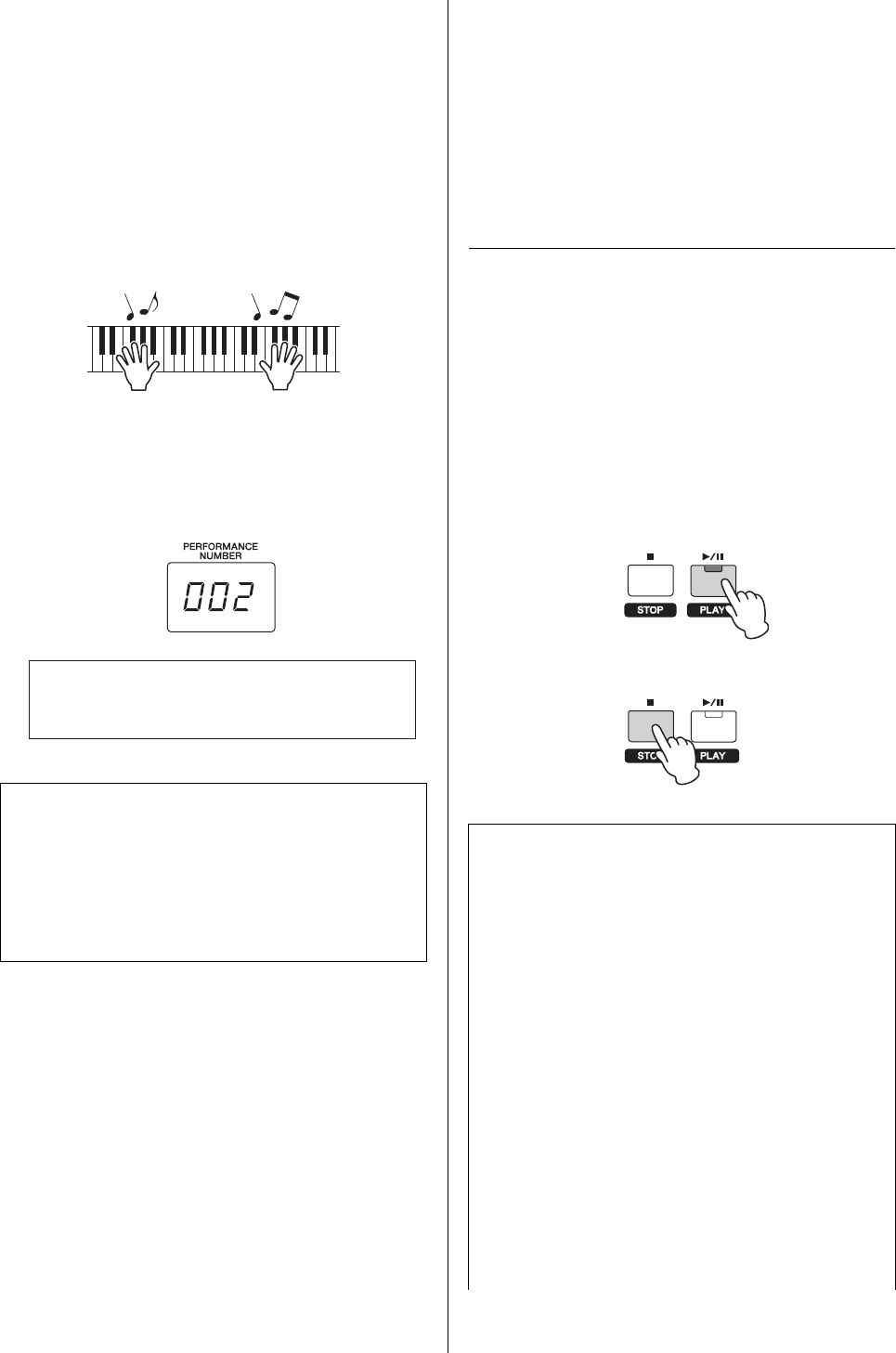

1Press [SELECT].

The Performance Select display is called up.

2Rotate the [DATA] dial to select a

Performance.

The selected Performance number is shown in the

[PERFORMANCE NUMBER] display.

NOTE For a detailed list of all Performances, see the

“Performance List” of the “Data List” PDF document.

Performance 128

Performance 1

Normally used Parts

Part 1

Voice

Part 2

Part 3

Voice

Part 10

Voice

Part 16

Voice

Performance*Select

001(A01):MXCategory

Performance Select display

Performance

number

Performance

group

Performance name

MX49/MX61 Owner’s Manual

Quick Guide

NOTE The 128 Performances are divided into eight groups (A

– H), each of which consist of sixteen Performances. To

select these groups of Performances, simultaneously

hold down [SHIFT] and use the [DATA] dial or [INC/

YES]/[DEC/NO] buttons.

3Play the keyboard.

If the lamp of the [R/K] (Play/Pause) button flashes

before playing the keyboard, playing the keyboard

starts the Rhythm Pattern (Key On Start function). In

this case, play the keyboard with the Rhythm Pattern.

To stop the Rhythm Pattern, press [J] (Stop).

Also, if the Arpeggio playback continues after you’ve

finished playing, press [ARP] to stop the Arpeggio.

4When you’re done trying out the various

Performances, press [EXIT] to return to the

Top display.

The display showing the currently selected Part 1 and

Part 2 is called up.

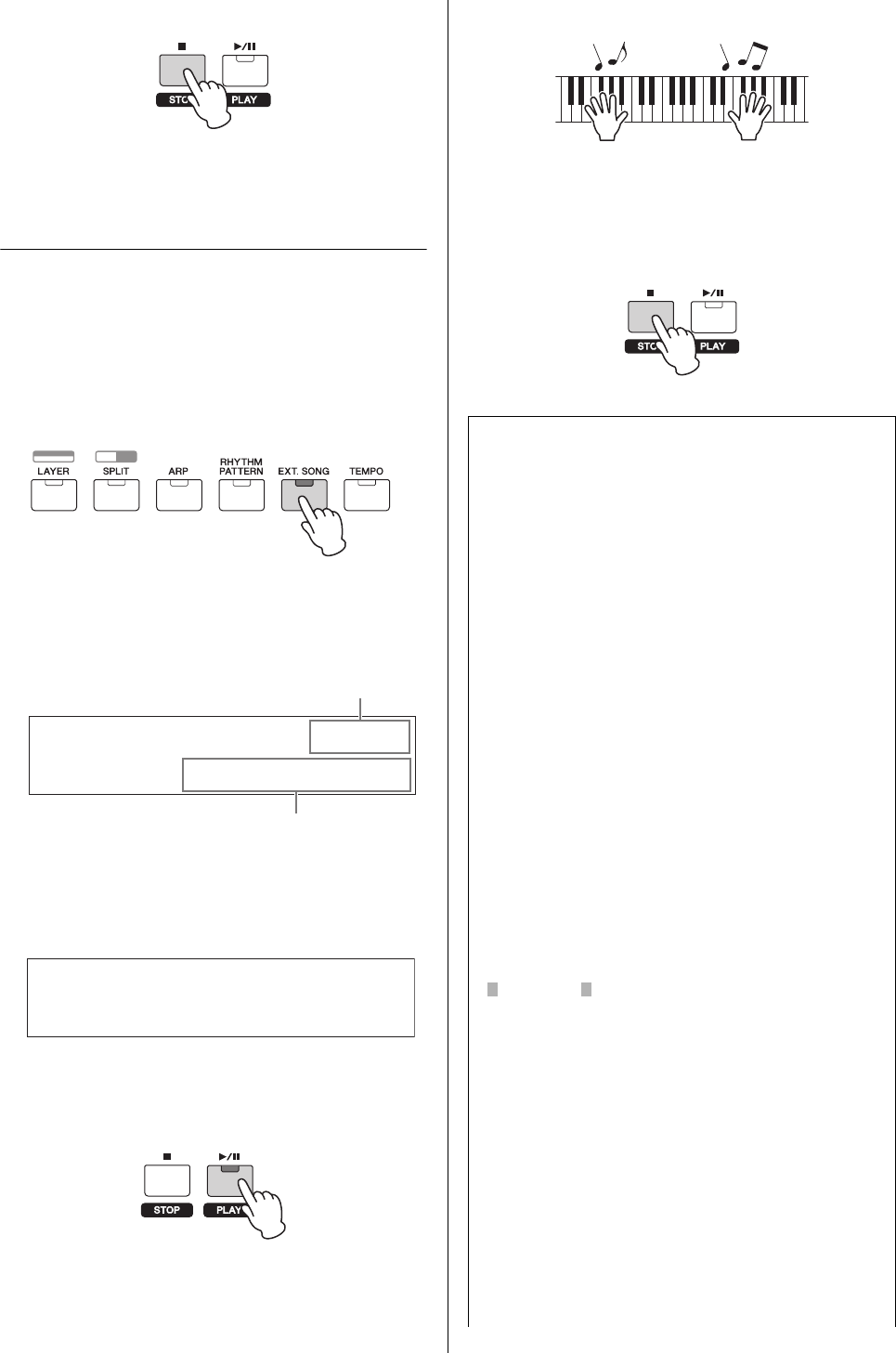

Playing back Rhythm

Patterns

The MX49/MX61 features a wide variety of Rhythm

Patterns. An appropriate Rhythm Pattern is assigned to

each Performance.

Playing the keyboard with the

Rhythm Pattern

1After selecting a Performance, with the [R/K]

(Play/Pause) lamp flashing, play the

Keyboard.

If the [R/K] (Play/Pause) lamp is turned off,

press [R/K] (Play/Pause), then play the

keyboard.

The lamp of [R/K] (Play/Pause) flashes quickly and

the Rhythm Pattern plays back.

2To pause the Rhythm Pattern, press [R/K]

(Play/Pause). To resume playback, press [R/

K] (Play/Pause) again.

3Press [J] (Stop) to stop the Rhythm Pattern.

HINT

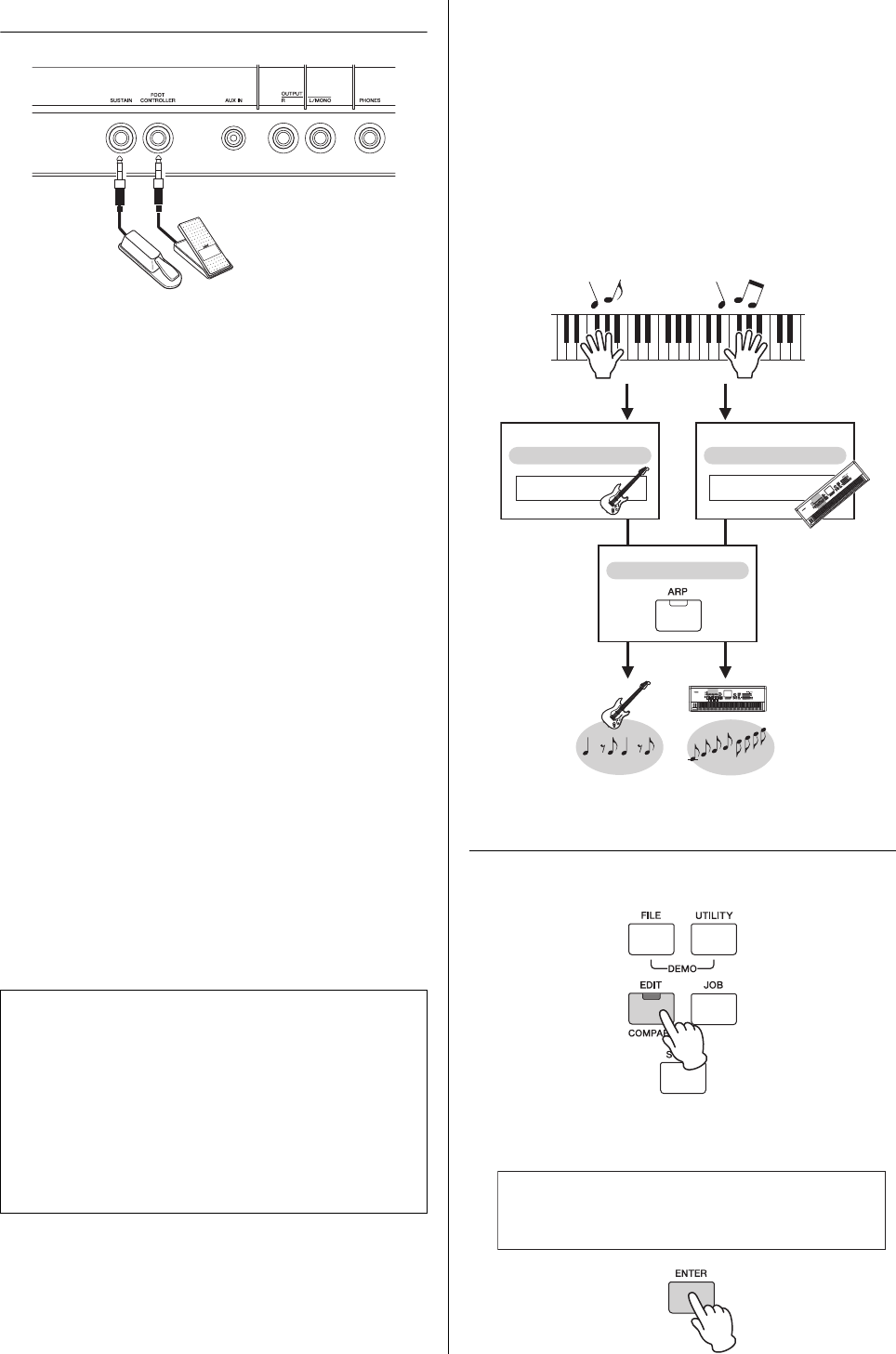

You can select Performances in sequence with a

footswitch by connecting an FC4/FC5 to the

[SUSTAIN] jack and setting as follows. Keep in mind

that the sustain function cannot be used in this case.

[UTILITY]  Select “03:Controller”  [ENTER] 

“FS” = “PC inc” / “PC dec.”

LD*:073:BuzzAround

LD*:012:Rap*Lead*1

HINT

Using the Key On Start function

The Key On Start function automatically starts a

Rhythm Pattern when you play a key on the

keyboard. Especially convenient in live performance

situations, this allows you to start playing the

keyboard and have the Rhythm Pattern instantly

start playback at the same time. There are some

Performances which are automatically set to

standby condition for the Key On Start function. In

this case, you can automatically use the Key On

Start function simply by playing the keyboard. For

other Performances, enable the function as

described below.

1While holding down [J] (Stop) press [R/

K] (Play/Pause).

The lamp of [R/K] (Play/Pause) flashes slowly,

and the selected Performance is set to standby

status for the Key On Start function.

MX49/MX61 Owner’s Manual

Quick Guide

Changing the Rhythm Pattern type

and sound

You can select a different Rhythm Pattern to be assigned

to the Performance, and even change the Drum Voice

used for the Pattern.

1Press [RHYTHM PATTERN].

2Press the Cursor [u] button repeatedly if

necessary to call up the 1st page (similar to

the one shown below), then press [R/K]

(Play/Pause) and change the Rhythm Pattern

type.

Move the cursor to the category or number of the

Rhythm Pattern with the Cursor [l]/[r] buttons.

3Press the Cursor [d] button to call up the 2nd

page, then rotate the [DATA] dial to change

the Drum Voice.

NOTE You can set additional parameters related to the Rhythm

Pattern in other pages. For details about these

parameters, see the “Reference Manual” PDF

document.

4When you have finished making the desired

Rhythm Pattern settings, press [J] (Stop) to

stop the Rhythm Pattern.

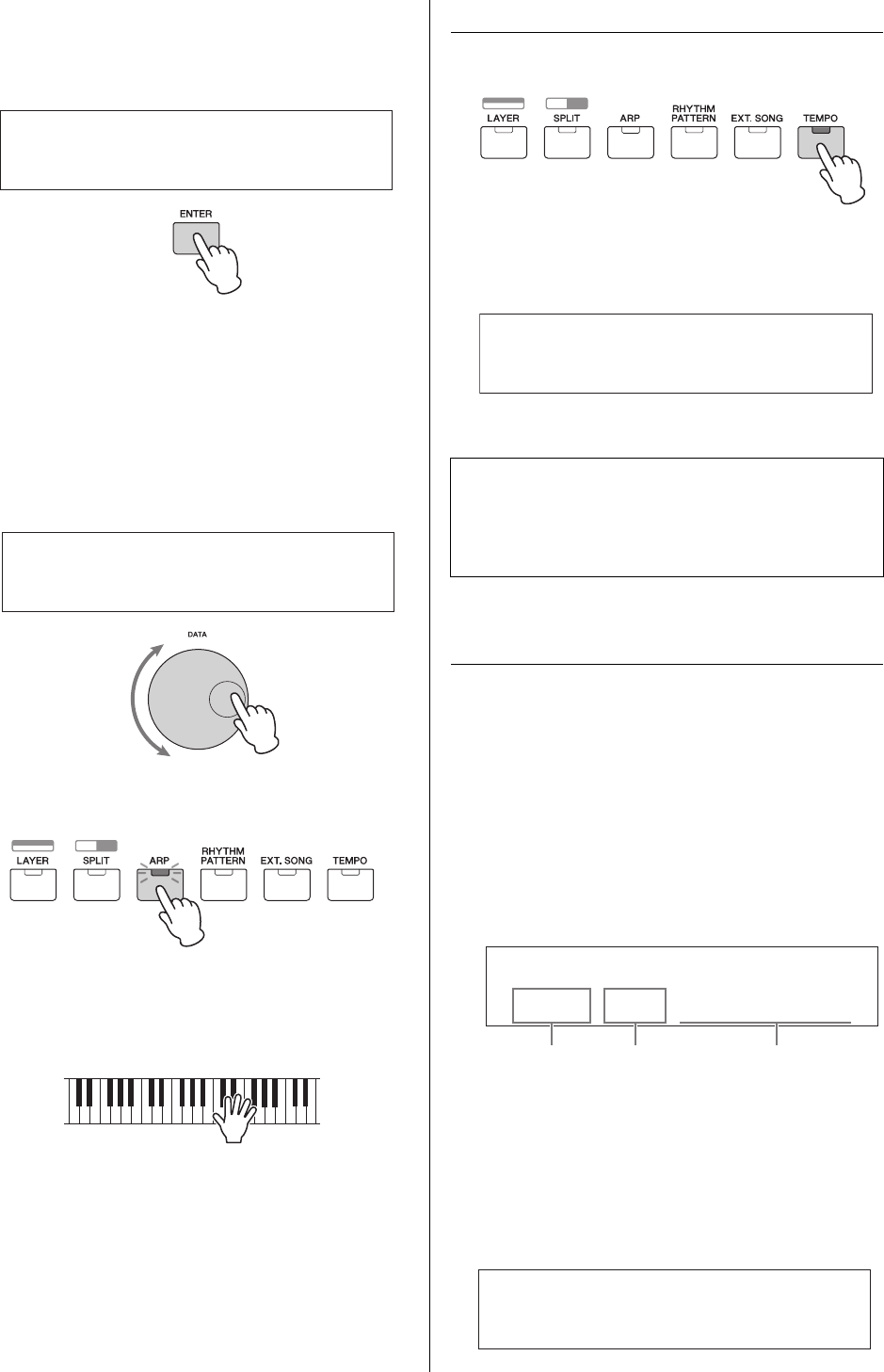

Changing the tempo for the

Rhythm Pattern

1Press [TEMPO].

2Press [R/K] (Play/Pause) to play back the

Rhythm Pattern, then rotate the [DATA] dial to

change the tempo.

NOTE This tempo setting is automatically reflected to the

Arpeggio tempo and can be set for each Performance.

NOTE If you wish to cancel this standby status, press

[J] (Stop).

2Play the keyboard.

The Rhythm Pattern starts at the same time.

3Press [J] (Stop) to stop the Rhythm

Pattern.

PATTERN*****01:01/04

*R&B:091:Smooth*2

Category Number Name

PATTERN*****01:01/04

*DR*:073:Hard*Kit

Tap Tempo function

The tempo can also set by “playing” or tapping the

[TEMPO] button several times repeatedly at the

desired tempo.

Storing the Rhythm Pattern

You can store the changed Rhythm Pattern settings

as Performance data. For instructions on storing a

Performance, see page 33.

*******Tempo

**********90

MX49/MX61 Owner’s Manual

Quick Guide

Playing the keyboard

along with Songs

MIDI data and audio data contained in the USB flash

memory can be played back as a “Song” on the MX49/

MX61.

Songs compatible with this

instrument

Data formats of MIDI data and audio data that can be

played on this instrument are as follows.

MIDI data

Only SMF (Standard MIDI File) MIDI data of format 0 can

be used for playback on this instrument. The file

extension is “.MID.” This instrument is equipped with a

16-track sequencer for playback and a 16-part multi-

timbral tone generator, allowing you to play back MIDI

data of up to 16 tracks.

Audio data

Only 44.1kHz/16-bit stereo Wave file audio data can be

used for playback on this instrument. The file extension is

“.WAV.”

Playing back MIDI data of the USB

flash memory

1Connect the USB flash memory in which the

MIDI data is stored.

NOTE Make sure that the desired MIDI data is stored in the

root directory (which is called up when you first open

the memory location) of the USB flash memory.

2Press [SELECT], then select an appropriate

Performance for playing back the MIDI data.

3Press [EXT. SONG].

4Press the Cursor [u] button repeatedly if

necessary to call up the 1st page, then rotate

the [DATA] dial to select the desired MIDI

data.

5Press [R/K] (Play/Pause).

The lamp of [R/K] (Play/Pause) flashes and the

selected MIDI data is played back with the selected

Performance sounds.

6Play the keyboard along with the MIDI data.

The selected Part is sounded. To change the Part for

playing, press [PART SELECT] to select one of the 16

Parts with the numbered Category buttons.

7To pause the MIDI data, press [R/K] (Play/

Pause). To resume playback, press [R/K]

(Play/Pause) again.

8If you wish to change the tempo, press

[TEMPO], then rotate the [Data] dial to select

the desired value.

NOTE This tempo setting is automatically reflected to the

Arpeggio tempo and Rhythm Pattern tempo, and can

be set for each Performance.

MIDI and audio data

MIDI data is comprised of your keyboard

performance information and is not a recording of

the actual sound itself. The performance information

refers to which keys are played, at what timing, and

at what strength—just as in a musical score. Based

on the recorded performance information, the tone

generator outputs the corresponding sound. Audio

data, on the other hand, is a recording of the

performed sound itself. This data is recorded in the

same way as that used in recording with voice

recorders, etc. This data can be played with a

portable music player, etc., allowing you to easily let

other people hear your performance.

Performance*Select

001(A01):MXCategory

Tap Tempo function

The tempo can also set by “playing” or tapping the

[TEMPO] button several times repeatedly at the

desired tempo.

SONG**********001:01

**File=MYSONG01.MID

Current measure and beat for the MIDI data

Name of the MIDI data

*******Tempo

**********90

MX49/MX61 Owner’s Manual

Quick Guide

9Press [J] (Stop) to stop the MIDI data.

Playing back audio data of the

USB flash memory

1Connect the USB flash memory in which the

audio data is stored.

NOTE Make sure that the desired audio data is stored in the

root directory (which is called up when you first open

the memory location) of the USB flash memory.

2Press [EXT. SONG].

3Press the Cursor [u] button repeatedly if

necessary to call up the 1st page, then rotate

the [DATA] dial to select the desired audio

data.

4Press the Cursor [d] button repeatedly if

necessary to call up the 2nd page, then rotate

the [DATA] dial to adjust the volume for the

audio data.

5Press [R/K] (Play/Pause).

The lamp of [R/K] (Play/Pause) flashes and the

selected audio data is played back.

6Play the keyboard along with the audio data.

7To pause the audio data, press [R/K] (Play/

Pause). To resume playback, press [R/K]

(Play/Pause) again.

8Press [J] (Stop) to stop the audio data.

SONG***********00:00

**File=BACK_001.WAV

Current elapsed time of audio data (in minutes and seconds)

Name of the audio data

SONG**********

*****WAV*Volume=100

Precautions when using the USB [TO

DEVICE] terminal

This instrument features a built-in USB [TO DEVICE]

terminal. When connecting a USB flash memory to

the terminal, be sure to handle the USB flash

memory with care. Follow the important precautions

below.

NOTE For more information about the handling of USB flash

memories, refer to the owner’s manual of your

particular USB flash memory.

Compatible USB devices

Only USB memory devices of the flash-memory

variety can be used with the MX49/MX61.

Furthermore, the instrument does not necessarily

support all commercially available USB flash

memories, nor can Yamaha guarantee operation of

USB devices that you purchase. Before purchasing

a USB flash memory for use with this instrument,

please visit the following web page:

http://download.yamaha.com/

Connecting USB flash memories

When connecting a USB flash memory to the USB

[TO DEVICE] terminal, make sure that the connector

on the device is appropriate and that it is connected

in the proper direction.

NOTICE

• Avoid connecting or disconnecting the USB flash

memory during playback, file management (such as

Save, Copy, Delete and Format operations) or while

the instrument is accessing the USB flash memory in

any way. Failure to do so may result in “freezing” of

the operation of the instrument or corruption of the

USB flash memory and the data.

• When connecting then disconnecting the USB flash

memory (and vice versa), make sure to wait a few

seconds between the two operations.

NOTE • When connecting a USB cable, make sure that the

length is less than 3 meters.

•Though the instrument supports the USB 1.1

standard, you can connect and use a USB 2.0 flash

memory with the instrument. However, note that the

transfer speed is that of USB 1.1.

MX49/MX61 Owner’s Manual

Quick Guide

Playing back song data of a

portable music player

1Connect a portable music player to the [AUX

IN] jack of this instrument.

NOTE • Whenever connecting other devices, ensure that the

cables you use have plugs that match the input or output

connectors on those devices.

•Before making connections, you should also turn the

volume on the other devices to the minimum.

2Press the play button on the connected music

player.

The song data of the music player is played back

from the instrument.

NOTE Use the external device’s volume control to adjust the

desired level balance with this instrument.

3Play the keyboard along with the song data.

4After finishing, press the stop button on the

music player.

Creating an original

Performance

In Performance Edit, you can edit both the parameters

unique to each Part (Part Edit) and parameters common

to all Parts (Common Edit). You can also edit the Voice

parameters which are assigned to each Part of the

Performance (Voice Edit). Edit these parameters to

create an original Performance.

NOTE For details about all parameters, see the “Reference

Manual” PDF document.

Selecting the Reverb/Chorus type

(Common Edit/Part Edit)

1Press [EDIT].

2Press the Cursor [u] button if necessary to

select “01: Common,” then press [ENTER].

The Performance Common Edit display is called up.

Using USB flash memories

By connecting the instrument to a USB flash

memory, you can save data you’ve created to the

connected device, as well as read data from the

connected device.

Number of USB flash memories that can

be used

Only one USB flash memory can be connected to

the [USB TO DEVICE] terminal simultaneously.

Formatting USB flash memories

When a USB flash memory is connected, a message

may appear prompting you to format the device/

media. If so, execute the Format operation

(page 35).

NOTICE

The Format operation overwrites any previously

existing data. Make sure that the media you are

formatting does not contain important data.

To protect your data (write-protect)

To prevent important data from being inadvertently

erased, apply the write-protect provided with the

flash memory device. If you want to save data to the

USB flash memory, make sure to disable write-

protect.

Turning off the instrument

When turning off the instrument, make sure that the

instrument is NOT accessing the USB flash memory

by playback or file management (such as during

Save, Copy, Delete and Format operations). Failure

to do so may corrupt the USB flash memory and the

data.

Rear Panel

1/8" stereo-mini cable

Portable music player, etc.

HINT

You can use the convenient Tap Tempo function to

match Arpeggio tempo to the song data being

played back from the portable music player. To do

this, simply “play” or tap the [TEMPO] button several

times repeatedly with the song data.

EDIT

01:Common

MX49/MX61 Owner’s Manual

Quick Guide

3Press the Cursor [u] button if necessary to

select “01:Chorus Eff,” then press [ENTER].

The Chorus effect setting display is called up.

4Press the Cursor [u] buttons repeatedly if

necessary to call up the 1st page, then use

the Cursor [l]/[r] buttons and the [DATA]

dial to change the Chorus effect category/

type.

5Press the Cursor [d] button to call up the 2nd

page, then rotate the [DATA] dial to select a

preset for the effect parameters of the

selected effect type.

Each preset type contains optimum settings for

various parameters, letting you select a general “feel”

you want and have the parameters set accordingly.

NOTE You can also edit each effect parameter in the 3rd or

later pages. For details about each parameter, see the

“Synthesizer Parameter Manual” PDF document.

6When you have finished making Chorus

effect settings, press [EXIT], then press the

Cursor [d] button to select “02:Reverb Eff.”

Finally, press [ENTER].

The Reverb effect display is called up.

7Press the Cursor [u] button to call up the 1st

page, then rotate the [DATA] dial to change

the Reverb effect type

8Press the Cursor [d] button to call up the 2nd

page, then rotate the [DATA] dial to select a

preset for the effect parameters of the

selected effect type.

NOTE You can also edit each effect parameter in the 3rd or

later pages. For details about each parameter, see the

“Synthesizer Parameter Manual” PDF document.

9When you have finished making Reverb effect

settings, press [EXIT] two times, then press

the Cursor [d] button to select “02:Part.”

Finally, press [ENTER].

The Performance Part Edit display is called up.

10 Press the Cursor [u] button repeatedly if

necessary to select “01:Play Mode,” then

press [ENTER].

11 Press the desired Category button to select

the edited Part.

The selected Part number is shown in the upper left

corner of the display.

12 Use the Cursor [u]/[d] buttons to select

“ChoSend” and “RevSend” in 5th and 6th

pages, then rotate the [DATA] dial to adjust

the parameter settings.

These parameters set the depth of Chorus/Reverb

effects applied to the selected Part sound.

Common

a01:Chorus*Eff

Common*Chorus*Eff

a***CHO:****G*Chorus

Effect category Effect type

Common*Chorus*Eff

dPreset=*******Basic

Common

d02:Reverb*Eff

Common*Reverb*Eff

a****Type=Rev]X*Hall

HINT

Performance Edit indicator

When editing Performance

parameters, a dot (.) is shown in the

lower right of the [PERFORMANCE

NUMBER] display. This provides a

quick confirmation that the current Performance has

been modified but not yet stored. When you want to

store the current status, execute the Performance

store function (page 33). After storing, this indication

will be gone.

Common*Reverb*Eff

dPreset=*******Basic

EDIT

02:Part

Part01

a01:Play*Mode

MX49/MX61 Owner’s Manual

Quick Guide

Changing the Insertion Effect of

the Voice (Voice Edit)

You can edit parameters of the Voice assigned to each

Part. The Voice parameters are in the Voice Edit displays

(those having “Voice” or “DrumKit” indications in the

display names). In this example, we’ll change the

Insertion effect settings.

1Press [EDIT].

2Press the Cursor [d] button to select

“02:Part,” then press [ENTER].

The Part Edit display is called up.

3Press a Category button to select the desired

Part.

The selected Part number is shown in the upper left of

the display.

4Press the Cursor [u] button to select

“01:Play Mode,” then press [ENTER].

5Use the Cursor [u]/[d] buttons to select

“InsSw,” then rotate the [DATA] dial to set the

parameter to on.

NOTE This instrument features four Insertion Effects, which

can be applied to up to four Parts of the Performance.

6Press [EXIT], then use the Cursor [u]/[d]

buttons to select “05:Voice Insert Eff”/

”06:Drumkit Ins Eff.” Finally, press [ENTER].

The Insertion effect display of the Voice Edit is called

up.

7Press the Cursor [u] button repeatedly if

necessary to call up the 1st page, then use

the Cursor [l]/[r] buttons and the [DATA]

dial to change the effect type.

8Press the Cursor [d] button to call up the 2nd

page, then select a preset for the Effect

parameters of the selected Effect type.

Each preset type contains optimum settings for

various parameters, letting you select a general “feel”

you want and have the parameters set accordingly.

NOTE You can also edit each effect parameter in the 3rd or

later pages. For details about each parameter, see the

“Synthesizer Parameter Manual” PDF document.

9If you want to change the Insertion effect of

another Part, press a numbered Category

button to select the desired Part (as in step 3

above), then follow steps 4 to 8 again after

pressing [EXIT].

NOTE You can also change Parts by pressing a numbered

Category button on the Insertion effect display of Voice

Edit.

EDIT

02:Part

Part01*Play*Mode

d**********InsSw=*on

Part01

d05:Voice*Insert*Eff

Part10

d05:DrumKit*Ins*Eff

Voice*Insert*Eff

a***MSC:*Damper*Reso

Effect category Effect type

Voice*Insert*Eff

dPreset=*******Basic

MX49/MX61 Owner’s Manual

Quick Guide

Changing the Controller Set for

the Voice (Voice Edit)

You can assign different functions for the controllers

(Knobs, Modulation Wheel, etc.) to each Voice. Each

Voice can have up to six sets which determine the

available controllers for the Voice and their functions. The

controller assignments are called a “Controller Set.” In

this example, we’ll change the Controller Set of the Voice

assigned to the Part.

1Press [EDIT].

2Press the Cursor [d] button to select

“02:Part,” then press [ENTER].

The Performance Part Edit display is called up.

3Press a Category button to select the desired

Part.

The selected Part number is shown in the upper left of

the display.

4Use the Cursor [u]/[d] buttons to select

“07:Voice Ctrl Set” or ”06:Drumkit Ctrl Set,”

then press [ENTER].

The Voice Edit Controller Set display is called up.

5Use the Cursor [u]/[d] buttons to select a

Controller Set from Controller Sets 1 – 6, then

press [ENTER].

6Press the Cursor [u] button repeatedly if

necessary to call up the 1st page, then rotate

the [DATA] dial to select the desired

Controller.

NOTE For details about the settings, see the “Reference

Manual” PDF document.

7Press the Cursor [d] button to call up the 2nd

page, then rotate the [DATA] dial to select the

desired function to be assigned to the

selected Controller.

8Press the Cursor [d] button to call up the 3rd

page, then adjust the depth for the

Controller’s function.

9If you wish to change other Controller Sets,

repeat steps 5 to 8 above after pressing

[EXIT].

10 If you wish to change Controller Sets for

other Parts, press a numbered Category

button to select the desired Part, then follow

steps 5 to 9 above again.

EDIT

02:Part

Part01

d07:Voice*Ctrl*Set

Part10

d06:DrumKit*Ctrl*Set

HINT

Voice Edit indicator

When editing Voice parameters, an E (Edit)

indicator is shown in the upper right of the display.

This provides a quick confirmation that the Voice

assigned to a Part has been modified but not yet

stored. When you want to store the current status,

execute the Voice Store function (page 33). After

storing, this indication disappears.

Voice*Ctrl*Set

a01:Set1

Voice*Ctrl*Set1

a*****Source=*MW(01)

Voice*Ctrl*Set1

a**Dest=*****ELFO]PM

Voice*Insert*Eff

a***MSC:*Damper*Reso

MX49/MX61 Owner’s Manual

Quick Guide

Storing a Voice (Voice Store)

The edited Voice parameters can be stored as a User

Voice separately from a Performance. Moreover, these

stored User Voices can be assigned to a different Part or

Performance.

NOTE If you execute Performance Store, the edited Voice data will

not be stored; make sure to store the Voice using Voice

Store.

1When the Voice Edit display is shown, press

[EXIT], then press the Cursor [d] button to

select “08:Voice Name.” After that, press

[ENTER].

When the top display is shown, follow the instructions

below.

[EDIT]  Select “02:Part”  [ENTER]  Select

“08:Voice Name”  [ENTER]

2Enter an original name for the Voice before

storing it.

For instructions on entering a name, see “Naming”

(page 17) in “Basic Operations and Displays.”

3Press [STORE].

4Determine the User Voice number as the

store destination, and press [ENTER].

5Press [INC/YES].

The Voice data is stored, and operation returns to the

Part Edit display. To return to the top display, press

[EXIT] several times. To cancel the Store operation,

press [DEC/NO].

Storing a Performance

(Performance Store)

When you are satisfied with the Performance you’ve

created, store the new settings to internal memory (as a

Performance).

NOTICE

If you execute Performance Store while the Voice has been

modified but not yet stored, the edited Voice and all recent

changes you made to it will be erased. Make sure to store

important Voice data as a User Voice (Voice Store) before

storing the Performance.

1Press [EDIT] to select “01:Common,” then

press [ENTER]. After that, select “06:Name,”

then press [ENTER].

2Enter an original name for the Performance

before storing it.

For instructions on entering a name, see “Naming”

(page 17) in “Basic Operations and Displays.”

3Press [STORE].

4Determine the Performance number as the

store destination, and press [ENTER].

NOTICE

Keep in mind that the destination Performance will be

overwritten and lost by executing Performance Store.

5Press [INC/YES].

The Performance data is stored, and operation

returns to the top display. To cancel the Store

operation, press [DEC/NO].

Part01

s08:Voice*Name

Voice*Name

a*******[CncrtGrand]

STORE*Voice

*****U001:Initialize

Voice Store display

qw**Are*you*sure?***

e****[NO]/[YES]****r

Common*Name

a*******[MXPerf01**]

STORE*Performance

*001(A01):MXCategory

Performance Store display

qw**Are*you*sure?***

e****[NO]/[YES]****r

MX49/MX61 Owner’s Manual

Quick Guide

Changing Voices smoothly

while performing

When you change a Voice assigned to a Part or select a

different Performance, the sound of the previous Voice/

Performance will be cut off, replaced abruptly by the

newly selected Voice/Performance.

In live performance situations, you probably want to

avoid this. To change Voices as you play without having

them cut off, assign the Voices you intend to play

beforehand to Parts 1 – 16 of a Performance, then select

the corresponding Part (with the numbered Category

buttons) as you play.

1Press [PART SELECT].

2Press the Cursor [u] button several times to

call up the 1st page.

3Use the Category buttons or the Cursor [l]/

[r] buttons to select the desired Part from

Parts 1 – 16.

4Rotate the [DATA] dial to change the Voice

category for the selected Part.

5Press the Cursor [d] button to call up the 2nd

page, then rotate the [DATA] dial to select the

Voice from the current Voice category.

NOTE You can also edit other Part parameters in the 3rd or

subsequent pages. For details about each parameter,

see the “Reference Manual” PDF document.

6To change Voices for other Parts, repeat

steps 2 to 5 above.

NOTE You can also change Parts with the Category buttons or

the Cursor [l]/[r] button in pages other than the 1st

page.

7When you have finished making settings for

the Parts, select different Voices (Parts) by

using the Category buttons or the Cursor [l]/

[r] buttons, while playing the keyboard.

8Store the Voice assignments as a

Performance to internal memory so you can

instantly call them up whenever you want.

For details about storing, see the “Storing the

Performance” (page 33).

AP*:*001:CncrtGrand

a3tyuiop@000123456789

Voice

category

Voice

number Voice name

Part 1 – 16

AP*:*001:CncrtGrand

a3tyuiop@000123456789

Cursor indicates the selected Part

AP*:*001:CncrtGrand

d3tyuiop@000123456789

HINT

Applying Insertion effects to desired Parts

Insertion effects can be independently applied to up

to four Parts (maximum) to which the desired Voices

for live performance are assigned. For details about

the settings, see “Changing the Insertion Effect of

the Voice” (page 31).

MX49/MX61 Owner’s Manual

Quick Guide

Making Global System

Settings (Utility settings)

Pressing [UTILITY] calls up the Utility display, from which

you can make global system settings.

Changing the Master Tune setting

This function sets the overall tuning of the instrument.

1Press the Cursor [u] button repeatedly if

necessary to select “01:General,” then press

[ENTER].

2Use the Cursor [u]/[d] buttons to select the

“Tune” parameter, then rotate the [DATA] dial

to change the value.

The pitch is changed in cent increments.

NOTE The frequency of the basic pitch (note A3) is 440 Hz. An

increase of 3 or 4 cents corresponds to a frequency

increase of about 1 Hz.

3Press [STORE].

All Utility settings are stored.

Adjusting the brightness of the

display (LCD Contrast)

1Press the Cursor [u] button repeatedly if

necessary to select “01:General,” then press

[ENTER].

2Use the Cursor [u]/[d] buttons to select the

“LCD Contrast” parameter, then rotate the

[DATA] dial to change the value.

3Press [STORE].

All Utility settings are stored.

NOTE Adjusting the display brightness

To adjust the brightness of the display, simultaneously

hold down [UTILITY] and press [INC/YES]/[DEC/NO].

Saving/loading files on

USB flash memory (File

settings)

You can save the created Performances and Voices to

USB flash memory, and load data from the USB flash

memory.

Formatting the USB flash memory

Some USB flash memories may not be supported by this

instrument. In this case, follow the instructions below to

format the memory before using it.

NOTICE

If data is already saved to the USB flash memory, be careful

not to format it. If you format the device, all previously

recorded data will be deleted. Make sure to check

beforehand whether or not the device contains important

data.

1Connect the USB flash memory to the USB

[TO DEVICE] terminal.

2Press [FILE] to call up the File display.

3Use the Cursor [u]/[d] buttons to select “05:

Format,” then press [ENTER].

A confirmation message appears. If you wish to

cancel the Format operation, press [EXIT].

4Press [INC/YES] to execute the Format

operation.

After formatting has been completed, a “Completed”

message appears and operation returns to the

original display.

NOTICE

While formatting is in process, do not remove or

disconnect the USB flash memory from the instrument.

Also, make sure to keep the power of the instrument on

until the operation is finished.

NOTE By executing the Format operation in the File mode, the

USB flash memory will be formatted to MS-DOS or

Windows format. The formatted device may not be

compatible with other devices, such as a Mac computer

or digital camera.

UTILITY*General

dTune=+**0.0/440.0Hz

UTILITY*General

d*****LCD*Contrast=5

For details about the Utility settings, see the

“Reference Manual” PDF document.

MX49/MX61 Owner’s Manual

Quick Guide

Saving settings to USB flash

memory

You can save all data of the User memory—containing

Performances, created User Voices, and Utility settings—

to USB flash memory as an “All” file (extension: .X5A).

1Connect a USB flash memory to the USB [TO

DEVICE] terminal.

2Press [FILE].

3Press the Cursor [u] buttons several times to

select “01:Save,” then press [ENTER].

4Assign a name to the file.

For instructions on entering a name, see “Naming”

(page 17) in “Basic Operations and Displays.”

5Press [ENTER].

6Press [INC/YES].

The file is saved to the USB flash memory. To cancel

the Save operation, press [EXIT] while the “Now

saving...” message is still displayed.

7Press [EXIT] several times to exit from the

File display.

Loading the settings from a USB

flash memory

1Connect the USB flash memory to the USB

[TO DEVICE] terminal.

2Press [FILE].

3Use the Cursor [u]/[d] buttons to select

“02:Load,” then press [ENTER].

Any “All” files that are contained in the USB flash

memory appear in the display.

NOTE If no “All” files are stored in the root directory of the USB

flash memory, a “File not found” message appears and

the Load display cannot be called up.

4Select the desired file, then press [ENTER].

5Select the desired data type of the selected

“All” file, then press [ENTER].

Select the desired type: all data (All), all data except

for the Utility settings (All without Sys), or

Performance data only (Performance).

FILE

a01:Save

FILE*Save

*****Name=[********]

qw**Are*you*sure?***

e****[NO]/[YES]****r

FILE

d02:Load

FILE*Load

*******File=MX01

FILE*Load

Type=****Performance

MX49/MX61 Owner’s Manual

Quick Guide

6If you’ve set “Type” to “Performance” in step

5, select the desired Performance number,

then press [ENTER].

If you’ve set “Type” to something other than

“Performance” in step 5, go on to step 8.

7Select the destination Performance number

(for loading), then press [ENTER].

8Press [INC/YES].

The data is loaded from the USB flash memory. To

cancel the Load operation, press [EXIT] while the

“Now loading...” message is still displayed.

9Press [EXIT] repeatedly if necessary to exit

from the File display.

Connecting an external

MIDI instrument

With a standard MIDI cable (available separately), you

can connect an external MIDI instrument, and transmit

MIDI data between the MX49/MX61 and the connected

instrument.

Either the MIDI connectors or the USB [TO HOST]

terminal can be used for MIDI data transmission/

reception; however, they cannot be used at the same

time. Select the desired connector for use in the “MIDI IN/

OUT” parameter of the [UTILITY]  “02:MIDI” display. As

you work through the explanations in this chapter, set

“MIDI IN/OUT” to “MIDI” since MIDI is used as the

example connection here.

Controlling the MX49/MX61 from

an external MIDI keyboard or

synthesizer

Here, we’ll use an external keyboard or synthesizer to

remotely select and play the Voices of the MX49/MX61.

Src*Performance

001(A01):MXCategory

Dst*Performance

003(A03):Sirius

qw**Are*you*sure?***

e****[NO]/[YES]****r

MIDI [IN]

MIDI OUT

MX49/MX61

External MIDI keyboard (for example, an 88-key synthesizer)

MX49/MX61 Owner’s Manual

Quick Guide

Controlling an external MIDI

keyboard or synthesizer from the

MX49/MX61

This connection lets you sound an external MIDI tone

generator (synthesizer, tone generator module, etc.) by

playing the MX49/MX61 or playing back a Song or

Pattern of the MX49/MX61. Use this connection when you

wish to sound the other instrument along with the MX49/

MX61.

HINT

MIDI Transmit and Receive channels –

Changing the Performances remotely

The MIDI Receive channels for Parts 1 – 16 of the

MX49/MX61 are fixed to 1 – 16. Make sure to match

the MIDI Transmit channels of the external MIDI

instrument with the MIDI Receive channels of the

MX49/MX61. For details on setting the MIDI Transmit

channels of the external MIDI instrument, refer to the

owner’s manual of that instrument.

You can also use an external MIDI instrument to

change MX49/MX61 Performances with the proper

program change messages. To do this, you’ll need

to match the MIDI Transmit channel of the external

MIDI instrument with the basic MIDI Receive

channel of the MX49/MX61. For details on setting

the basic MIDI Receive channel of the MX49/MX61,

follow the instructions below.

1Press [UTILITY].

2Use the Cursor [u]/[d] buttons to select

“02:MIDI,” then press [ENTER].

3Use the Cursor [u]/[d] buttons to select

“BasicCh (Basic Channel),” then check

the channel.

If necessary, change the channel to the same

channel as the MIDI transmit channel of the

external MIDI instrument.

MIDI IN

MIDI [OUT]

MX49/MX61

External MIDI tone generator (for example, MOTIF-RACK XS)

HINT

MIDI Transmit and Receive Channels –

Sounding only an external tone generator

The MIDI Receive channels for Parts 1 – 16 of the

MX49/MX61 are fixed to 1 – 16. Make sure to match

the MIDI Receive channels of the external MIDI

instrument with the MIDI Transmit channels of the

MX49/MX61. For details on setting the MIDI Transmit

channels of the external MIDI instrument, refer to the

owner’s manual of that instrument.

You can also control an external tone generator from

the MX49/MX61 and have only that device sound. To

do this, set the [MASTER VOLUME] knob to “0” or

set the Local Control to “off” with the following

operation: [UTILITY]  Select “02:MIDI”  [ENTER]

 “LocalCtrl” = “off.”

MX49/MX61 Owner’s Manual 39

Shift Function List

Some of the important functions and operations on the instrument can be executed with convenient panel control

shortcuts. Simply hold down the [SHIFT] button and press the indicated button (as described below).

Display Messages

Appendix

Operation Function

[SHIFT] + [INC]/[DEC]/[DATA] dial Increases/decreases the value by 10. (Program number in the Play mode; parameter

value in the Edit mode)

In the Performance Select display, this switches among the Performance groups.

[SHIFT] + [SPLIT] In the Performance top display, this replaces Part 1 with Part 2 (Invert function).

[SHIFT] + [LAYER] In the Performance top display, this copies a selected Part (Part 1 or Part 2) to the

other Part (Unison function).

[SHIFT] + [EXIT] Calls up the Performance top display.

[SHIFT] + [SELECT] Resets Performance 1 to the factory settings, and calls up the top display of

Performance 1 (Quick Reset function).

[SHIFT] + [KNOB FUNCTION] Instantly resets Knobs [A] – [D] to Function 1.

[SHIFT] + [PART 1-2 LINK] Resets [PART 1-2 LINK] to on.

[SHIFT] + [ARP] Calls up the Arpeggio display of Performance Part Edit.

[SHIFT] + desired Category button In the Performance top display, this instantly calls up the Voice in the next Sub

Category of the selected Category. Perform this operation with the same Category

button repeatedly to select the subsequent Sub Categories.

In the Performance Select display, this selects the corresponding Performance

among Performances 1 – 16 in the selected Performance group.

NOTE For details about Sub Categories, see the “DATA LIST” PDF document

LCD indication Description

All remote templates stored. Appears when you store the Control Template in the Remote mode.

Are you sure? Confirms whether you want to execute a specified operation or not.

Auto power off disabled. Appears when Auto Power Off is disabled (by simultaneously holding down the lowest key on the

keyboard and turning the power on).

Bulk protected. Bulk data cannot be received because of the Utility setting.

Clear edit Voice? Appears when executing Performance Store while modifying but not yet having stored a Voice.

Make sure to confirm whether the edited Voice data should be erased or not.

Completed. The specified load, save, format, or other Job has been completed.

Connecting USB device . . . Currently recognizing the USB flash memory connected to the USB [TO DEVICE] terminal.

Device number is off. Bulk data cannot be transmitted/received since the device number is off.

Device number mismatch. Bulk data cannot be transmitted/received since the device numbers don’t match.

Executing . . . A Format operation or Job is being executed. Please wait.

FactorySet . . . The Factory Set operation is automatically being executed when you turn the power on.

File already exists. A file having the same name as the one you are about to save already exists.

File not found. The file of the specified type cannot be found.

Illegal file name. The specified file name is invalid. Try entering a different name.

40 MX49/MX61 Owner’s Manual

Appendix

Illegal file. The file specified for loading is unusable by this instrument or cannot be loaded in the current

status.

Illegal format. The format of the file specified for playback is SMF Format 1 or an audio data format other than

WAV. Use SMF Format 0 MIDI data or WAV format audio data.

Incompatible USB device. A USB device which cannot be used with this instrument has been connected to the USB [TO

DEVICE] terminal.

Invert Appears when replacing Part 1 with Part 2 by while holding down [SHIFT] and pressing [SPLIT]

(Invert function).

MIDI buffer full. Failed to process the MIDI data because too much data was received at one time.

MIDI checksum error. An error occurred when receiving bulk data.

MIDI data error. An error occurred when receiving MIDI data.

No response from USB device. There is no response from the USB device connected to the USB [TO DEVICE] terminal.

Now loading . . . [EXIT] to cancel Indicates that a file is being loaded. If you wish to cancel this operation, press [EXIT] while this

message appears.

Now saving . . . [EXIT] to cancel Indicates that a file is being saved. If you wish to cancel this operation, press [EXIT] while this

message appears.

Now working. . . Canceling the Load/Save operation, after the [EXIT] button has been pressed.

Overwrite? A Save operation will overwrite data on the USB flash memory, and this message prompts you to

confirm whether it is OK to continue or not.

Please keep power on . . . The data is being written to User memory. Never attempt to turn off the power while data is being

written to User memory. Turning the power off while this message is shown results in loss of all

user data and may cause the system to freeze (due to corruption of data in the User memory).

This may also result in this instrument being unable to properly start up the next time the power is

turned on.

Please stop sequencer. The operation you have attempted to execute cannot be done during Song/Pattern playback.

Quick reset Appears when while holding down [SHIFT] and pressing [SELECT]. Performance 1 is set to the

factory settings, and the top display of Performance 1 is called up (Quick Reset function).

Receiving MIDI bulk . . . This instrument is receiving MIDI bulk data.

System memory crashed. Failed to write the data to the internal memory of this instrument.

This Performance uses User

Voices.

Appears when the Performance specified for loading contains User Voices. User Voices cannot

be loaded with the Performance. Make sure that the same User Voices used when you saved the

Performance are stored at the same User Voice numbers or not, since the User Voices are not

loaded with the Performance.

Transmitting MIDI bulk . . . This instrument is transmitting MIDI bulk data.

Unison Appears when copying Part 1/Part 2 to another Part by while holding down [SHIFT] and pressing

[LAYER] (Unison function).

USB connection terminated. A break in the connection with the USB flash memory has occurred because of an abnormal

electric current. Disconnect the device from the USB [TO DEVICE] terminal, then press the

[ENTER] button.

USB device full. The USB flash memory is full and no more data can be saved. Use a new USB flash memory, or

make space by erasing unwanted data from the device.

USB device not ready. A USB flash memory is not properly inserted in or connected to the USB [TO DEVICE] terminal.

USB device read/write error. An error occurred while reading or writing to/from a USB flash memory or attempting to delete or

overwrite a read-only file.

USB device unformatted. Appears when the connected USB flash memory is either unformatted or formatted in a way that

this instrument does not support. In such a case, check the content of the USB flash memory.

USB device write protected. The USB flash memory is write protected, or you have attempted to write to read-only media.

USB power consumption

exceeded.

Appears when the current being drawn by the USB flash memory exceeds the level supported by

this instrument.

USB transmission error. An error occurred while communicating with a USB flash memory.

Utility stored. The Utility settings have been stored.

LCD indication Description

MX49/MX61 Owner’s Manual

Appendix

Troubleshooting

No sound? Wrong sound? When a problem like this occurs, please check the following points before assuming that the

product is faulty. Many problems can be solved by executing the Factory Set operation (page 15), after backing up your

data to an USB flash memory (page 36). If the problem persists, consult your Yamaha dealer.

No Sound.

Is this instrument properly connected to related external equipment (e.g., amplifier, speaker, headphone) via audio cables?

Since this instrument has no built-in speakers, you will need an external audio system or a set of stereo headphones to properly monitor it

(page 13*).

Is the power of this synthesizer and any external equipment connected to it turned on?

Have you made all the appropriate level settings—including the Master Volume on this instrument and the volume settings on any

connected external equipment?

If a Foot Controller is connected to the [FOOT CONTROLLER] jack, operate the Foot Controller and check the sound volume.

Check the Local Control parameter in the Utility display.

When this instrument is used by itself and this parameter is set to off, no sound is produced even if you play the keyboard.

Check the Direct Monitor Switch parameter in the Utility display.

When this instrument is used by itself and this parameter is set to off, no sound is produced even if you play the keyboard.

Are the MIDI volume or MIDI expression settings too low when using an external controller?

Are the effect and filter settings appropriate?

If you are using the filter, try changing the cutoff frequency. Some cutoff settings may filter out all of the sound.

Are the volume or expression settings too low?

No sound from the [AUX IN] jack.

Is the volume of the connected audio device set to a value other than “0”?

Cannot play audio data.

Is the volume for the audio data set to a value other than “0”?

Is the format of the audio data correct?

This instrument can play only stereo WAVE (.wav) files of 44.1kHz/16-bit.

Playback continues without stopping.

When the [ARP] button is turned on, press it so that its lamp is turned off.

When playing back Rhythm Pattern or Song data of the USB flash memory, press the [J] (Stop) button.

The instrument is automatically turned off even if no operation is done.

Is the Auto Power Off function enabled?

If necessary, disable this function or change the amount of time that elapses before the power is automatically turned off.

[UTILITY]  Select “02:MIDI”  [ENTER]  “LocalCtrl”

[UTILITY]  Select “01:General”  [ENTER]  “DirectMonitor”

[EDIT]  Select “02:Part”  [ENTER]  Select “02:Filter/EG”  [ENTER]

[EDIT]  Select “02:Part”  [ENTER]  Select “05:Voice Insert Eff”/“05:DrumKit Insert Eff”  [ENTER]

[UTILITY]  Select “01:General”  [ENTER]  “MasterVolume”

[EDIT]  Select “01:Common”  [ENTER]  Select “05:General”  [ENTER]  “Volume”

[PART SELECT]  “Volume”

[UTILITY]  Select “01:General”  [ENTER]  “WAV Volume”

[UTILITY]  Select “01:General”  [ENTER]  “AutoOff”

42 MX49/MX61 Owner’s Manual

Appendix

Distorted sound.

Are the effect settings appropriate?

Use of certain effects at certain settings may produce distortion.

Are the filter settings appropriate?

Excessively high filter resonance settings can cause distortion.

Are any of the following volume parameters set so high that clipping is occurring?

Sound is cut off.

Is the entire amount of notes played (via your keyboard playback and Song/Pattern/Arpeggio playback) exceeding the maximum

polyphony of this instrument?

The maximum number of simultaneous notes may be less than 128 depending on the Voices used.

Only one note sounds at a time.

When this situation occurs, the Mono/Poly parameter in the current mode is set to “mono.” If you wish to play chords, set this parameter

to “poly.”

Pitch or intervals are wrong.

Is the Master Tune parameter in the Utility display set to a value other than “0”?

Is the Note Shift parameter in the Utility display set to a value other than “0”?

Are the Note Shift and Detune parameters of each Part set to values other than “0”?

No effect is applied.

Check the on/off status of the Insertion Effect switch.

Is the Reverb Send or Chorus Send set to a value other than “0”?

Has the Insertion Effect type for the Part been set to “thru”?

The Edit Indicator appears, even when parameters are not being edited.

Keep in mind that even though the Edit mode is not active, simply moving a Knob or playing back the MIDI data of the USB flash

memory may cause the Edit Indicator to appear.

[EDIT]  Select “02:Part”  [ENTER]  Select “05:Voice Insert Eff”/“05:DrumKit Insert Eff”  [ENTER]

[EDIT]  Select “02:Part”  [ENTER]  Select “02:Filter/EG”  [ENTER]

[UTILITY]  [EDIT]  Select “01:Common”  [ENTER]  Select “05:General”  [ENTER]  “Volume”

[PART SELECT]  “Volume”

[UTILITY]  Select “01:General”  [ENTER]  “WAV Volume”

[EDIT]  Select “02:Part”  [ENTER]  Select “01:PlayMode”  [ENTER]  “Mono/Poly”

[UTILITY]  Select “01:General”  [ENTER]  “Tune”

[UTILITY]  Select “01:General”  [ENTER]  “NoteShift”

[EDIT]  Select “01:Part”  [ENTER]  Select “01:PlayMode”  [ENTER]  “NoteShift”/“Detune”

[EDIT]  Select “02:Part”  [ENTER]  Select “01:PlayMode”  [ENTER]  “InsSw”

[PART SELECT]  “InsSw”

[EDIT]  Select “02:Part”  [ENTER]  Select “01:PlayMode”  [ENTER]  “ChoSend”/“RevSend”

[EDIT]  Select “02:Part”  [ENTER]  Select “05:Voice Insert Eff”/“05:DrumKit Insert Eff”  [ENTER]

MX49/MX61 Owner’s Manual

Appendix

Cannot start the Arpeggio.

Check whether [ARP] is turned on or off.

Are the Arpeggio switches for both Part and Common set to on?

Is the MIDI Sync parameter set to “internal” or “auto” (using internal clock)?

Cannot stop the Arpeggio.

When Arpeggio playback does not stop even if you release the key, set the Arpeggio Hold parameter to “off.”

The Voice produces a different sound depending on the assign destination Part or

Performance.

Depending on the effect (and other) settings for the Performance or Part, the Voice assigned to the Performance or Part may produce

a different sound. If necessary, change the following parameter settings.

The Song/Pattern cannot be started even when pressing the [R/K] (Play/Pause) button.

When you attempt to play back the Song data, is the USB flash memory containing the data connected to this instrument?

Is the [DAW REMOTE] button turned off?

Is the current display something other than Utility or File?

Is the MIDI Sync parameter set to “internal” or “auto” (using internal clock)?

Data communication between the computer and this instrument does not work properly.

Check whether the Port settings on the computer are appropriate or not.

Check whether the MIDI IN/OUT parameter is set to the appropriate value or not.

MIDI bulk data transmission/reception does not work properly.

Is the Receive Bulk parameter set to on?

When receiving MIDI bulk data transmitted via the Bulk Dump function and recorded to the external MIDI device, you need to set the

MIDI Device Number to the same value as when transmitting.

When transmission does not work properly, is the device number of the MIDI instrument connected to this instrument set to match the

Device Number Parameter in the Utility display?

Cannot save data to the USB flash memory.

Is the USB flash memory being used write protected? (Write-protect should be set to off for saving data.)

Is the USB flash memory being used properly formatted?

[EDIT]  Select “02:Part”  [ENTER]  Select “03:Arp Select”  [ENTER]  “Switch”

[EDIT]  Select “01:Common”  [ENTER]  Select “04:Arp Switch”  [ENTER]  “Switch”

[UTILITY]  Select “02:MIDI”  [ENTER]  “MIDI Sync”

[EDIT]  Select “02:Part”  [ENTER]  Select “03:Arp Select”  [ENTER]  “Hold”

[EDIT]  Select “02:Part”  [ENTER]  Select “01:PlayMode”  [ENTER]  “ChoSend”/“RevSend”

[EDIT]  Select “01:Common”  [ENTER]  Select “01:Chorus Eff”/“02:Reverb Eff”  [ENTER]

[PART SELECT]  “InsSw”

[EDIT]  Select “02:Part”  [ENTER]  Select “02:Filter/EG”  [ENTER]

[UTILITY]  Select “02:MIDI”  [ENTER]  “MIDI Sync”

[UTILITY]  Select “02:MIDI”  [ENTER]  “MIDI IN/OUT”

[UTILITY]  Select “02:MIDI”  [ENTER]  “RcvBulk”

[UTILITY]  Select “02:MIDI”  [ENTER]  “DeviceNo.”

[FILE]  Select “05:Format”  [ENTER]  [INC/YES]

44 MX49/MX61 Owner’s Manual

Appendix

Specifications

Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify

products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale,

please check with your Yamaha dealer.

Keyboard MX49 49 keys (Initial touch)

MX61 61 keys (Initial touch)

Tone

Generator

block

Tone Generator AWM2

Polyphony 128 notes

Multi-timbral Capacity 16 parts (Internal)

Wave Approx.166 MB (when converted to 16-bit linear format)

Voice Preset: 1,106 Normal Voices + 61 Drum Kits (GM: 128 Normal Voices + 1 Drum Kit)

User: 128 Normal Voices + 8 Drum Kits

Performance User: 128 (16 parts)

Effect System Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48

types (267 presets) x 4, Master EQ (5 bands)

Sequencer

block

Sequence Play SMF Format 0 (playback only)

Tempo (BPM) 5 – 300

Rhythm Pattern 208 Patterns

Song 27 Demo Songs

Arpeggio 999 types

Others Sequence software

compatible with the

Remote Control function

For Windows®: Cubase 6 or later, SONAR X1 Producer

For Mac®: Cubase 6 or later, Logic Pro 9, Digital Performer 7

*Functions to be controlled differ depending on the software

Controllers Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1

Display 3 digit LED + 20 x 2 line character LCD (backlit)

Connectors OUTPUT [L/MONO]/[R] (standard phone jack), [PHONE] (standard stereo phone

jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN]/[OUT], USB [TO HOST]/[TO

DEVICE], [AUX IN], DC IN

Power Consumption 9 W

Dimensions, Weight MX49: 830(W) x 298(D) x 91(H) mm, 3.8kg

MX61: 984(W) x 299(D) x 112(H) mm, 4.8kg

Accessories AC adaptor (PA-150 or an equivalent recommended by Yamaha), Owner’s Manual

(this book), Online Manual CD-ROM x 1 (containing Reference Manual, Synthesizer

Parameter Manual, and Data List), DVD-ROM x 1 (containing DAW software)

GM Voice

GM (General MIDI) is a worldwide standard for Voice organization and MIDI functions of synthesizers and tone generators. It was

designed primarily to ensure that any Song data created with a specific GM device would sound virtually the same on any other

GM device—no matter the manufacturer or the model. The GM Voice bank on this synthesizer is designed to appropriately play

back GM Song data. However, keep in mind that the sound may not be exactly the same as played by the original tone generator.

MX49/MX61 Owner’s Manual

Appendix

Index

[ARP] button ..................................................................... 11, 23

Arpeggio ................................................................................. 22

Audio data .............................................................................. 27

Auto Power Off function .......................................................... 14

[AUX IN] jack .................................................................... 12, 29

Brightness of the display .................................................. 14, 35

Category ................................................................................. 18

Chorus .................................................................................... 29

Common Edit .......................................................................... 29

Connection (External MIDI instrument) ................................... 37

Controller Set .......................................................................... 32

Controllers ............................................................................... 21

Cursor ..................................................................................... 16

Cursor buttons .................................................................. 11, 16

[DATA] dial ....................................................................... 11, 16

[DAW REMOTE] button ........................................................... 10

DC IN jack ......................................................................... 12, 13

[DEC/NO] button ............................................................... 11, 16

Demo Song ............................................................................. 14

[EDIT] button ......................................................... 10, 29, 31, 32

Edit indicator ..................................................................... 30, 32

Effect ................................................................................. 29, 31

[ENTER] button ....................................................................... 11

[EXIT] button ..................................................................... 11, 17

[EXT. SONG] button .......................................................... 11, 27

Factory settings ...................................................................... 15

[FILE] button ..................................................................... 10, 35

File settings ............................................................................. 35

Foot controller ......................................................................... 22

[FOOT CONTROLLER] jack .............................................. 12, 22

Footswitch ............................................................................... 22

Formatting the USB flash memory .......................................... 35

Half-damper function .............................................................. 22

Headphones ........................................................................... 13

[INC/YES] button ............................................................... 11, 16

Initial factory settings .............................................................. 15

Inputting characters ................................................................ 17

Insertion Effect ........................................................................ 31

Invert function ......................................................................... 39

[JOB] button ............................................................................10

Key On Start function ..............................................................25

[KNOB FUNCTION] button ................................................10, 21

Knobs [A] – [D] ..................................................................10, 21

Layer .......................................................................................19

[LAYER] button ..................................................................11, 19

LCD .........................................................................................11

LCD Contrast .....................................................................14, 35

List ...........................................................................................16

Load ........................................................................................36

Master Tune .............................................................................35

[MASTER VOLUME] knob .................................................10, 14

MIDI data .................................................................................27

MIDI [IN]/[OUT] terminals ..................................................12, 37

MIDI Transmit and Receive channels .....................................38

Modulation wheel ..............................................................10, 21

Naming ....................................................................................17

OCTAVE [-]/[+] buttons .....................................................10, 24

OUTPUT [L/MONO]/[R] jacks ............................................12, 13

Page ........................................................................................17

Part ..........................................................................................24

[PART 1-2 LINK] button .....................................................10, 21

Part Edit ...................................................................................29

[PART SELECT] button ......................................................11, 34

Pedal .......................................................................................22

Performance ............................................................................24

[PERFORMANCE NUMBER] display .................................10, 24

Performance Select display ....................................................24

Performance Store ...................................................................33

[PHONES] jack ..................................................................12, 13

Pitch Bend wheel ...............................................................10, 21

[R/K] (Play/Pause) button ..........................................10, 25, 27

Power supply ...........................................................................13

Quick Reset function .........................................................18, 39

Reverb .....................................................................................29

Rhythm Pattern ........................................................................25

[RHYTHM PATTERN] button .............................................11, 26

46 MX49/MX61 Owner’s Manual

Appendix

Save ........................................................................................ 36

[SELECT] button ............................................................... 11, 24

[SHIFT] button ................................................................... 11, 39

SMF ......................................................................................... 27

Song ........................................................................................ 27

Speaker ................................................................................... 13

Split ......................................................................................... 20

[SPLIT] button ................................................................... 11, 20

Standby/On switch ............................................................ 12, 13

[J] (Stop) button .................................................................... 10

Stopping Arpeggio playback .................................................. 19

Store ........................................................................................ 33

[STORE] button ................................................................. 10, 33

Storing the Rhythm Pattern ..................................................... 26

Sustain function ...................................................................... 22

[SUSTAIN] jack ................................................................. 12, 22

Tap Tempo function .................................................... 23, 26, 27

Tempo ......................................................................... 23, 26, 27

[TEMPO] button .................................................... 11, 23, 26, 27

Transport buttons .................................................................... 10

TRANSPOSE [-]/[+] buttons .............................................. 10, 24

Unison function ....................................................................... 39

USB flash memory ...................................................... 27, 28, 35

USB [TO DEVICE] terminal ......................................... 12, 28, 35

[UTILITY] button ................................................................ 10, 35

Utility settings .......................................................................... 35

Voice ....................................................................................... 18

Voice Category ....................................................................... 18

Voice Category button ...................................................... 11, 18

Voice Edit .......................................................................... 31, 32

Voice Store .............................................................................. 33

Volume .................................................................................... 14

WAV Volume ........................................................................... 28

Wave file ................................................................................. 27

ZA72800

Yamaha Web Site (English)

http://www.yamahasynth.com/

Yamaha Downloads

http://download.yamaha.com/

Yamaha Manual Library

http://www.yamaha.co.jp/manual/

U.R.G., Digital Musical Instruments Division

210MWTY*.*- 01B0

Printed in China
