Yamaha NU1X Owner’s Manual Owner's En Om A0

User Manual: Yamaha NU1X Owner's Manual

Open the PDF directly: View PDF .
Page Count: 52

PRECAUTIONS
Table of Contents
Setting Up
- Panel Controls and Terminals
- Playing the Keyboard
Main Operations
Appendix

FRANÇAIS

ESPAÑOL

Owner’s Manual

Mode d'emploi

Manual de instrucciones

Before using this instrument, be sure to read “PRECAUTIONS”

on pages 5–6.

Avant d'utiliser cet instrument, lisez attentivement la section

« PRÉCAUTIONS D'USAGE » aux pages 5-6.

Antes de utilizar el instrumento, lea la sección

“PRECAUCIONES”, en las páginas 5-6.

ENGLISH

Manual Development Group

Published 07/2017 POSC*.*- **A0

Printed in China

Yamaha Global Site

https://www.yamaha.com/

Yamaha Downloads

http://download.yamaha.com/

Owner’s Manual

ZW14240

2•NU1X

PRODUCT SAFETY MARKINGS: Yamaha electronic

products may have either labels similar to the graphics

shown below or molded/stamped facsimiles of these

graphics on the enclosure. The explanation of these graph-

ics appears on this page. Please observe all cautions indi-

cated on this page and those indicated in the safety

instruction section.

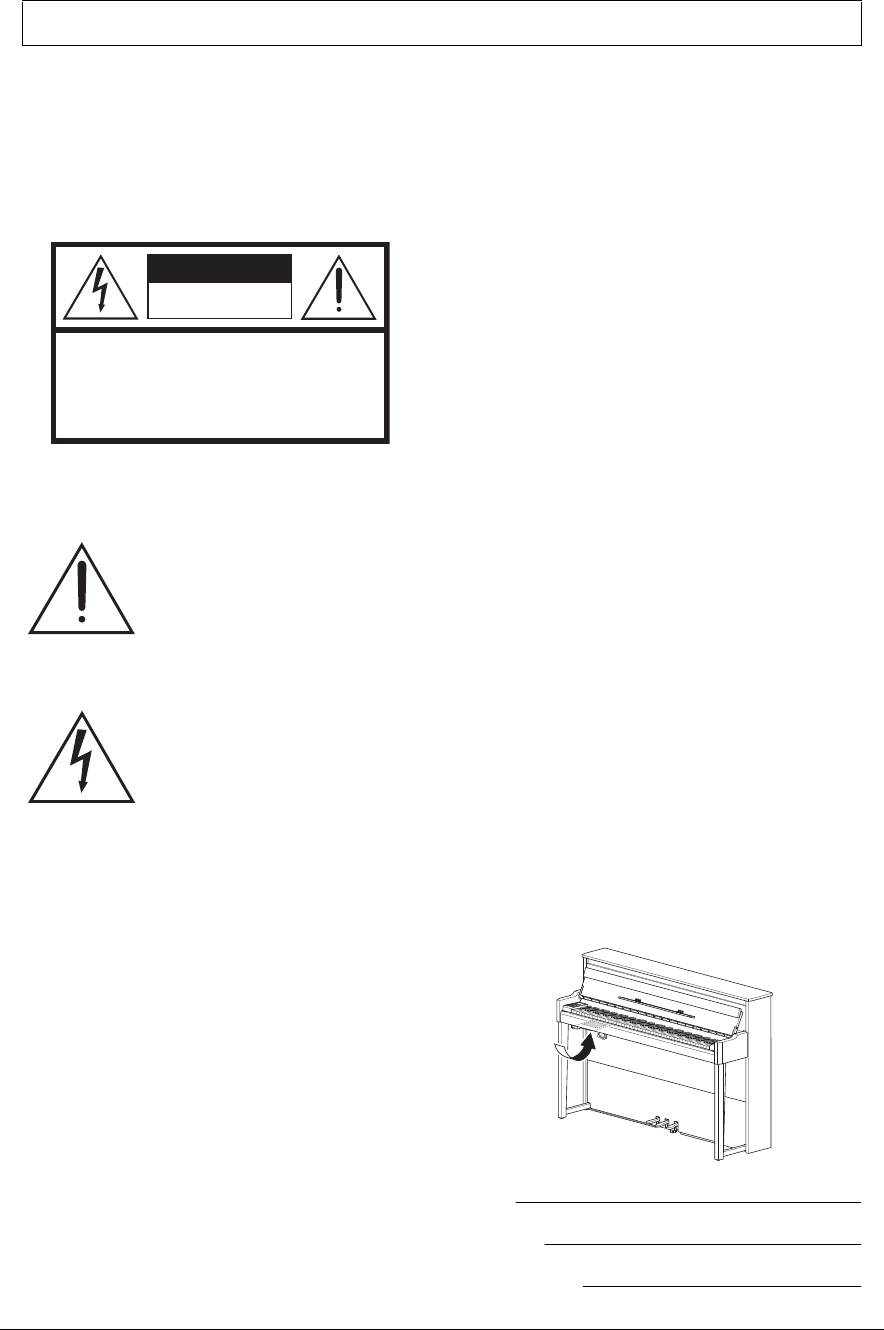

See bottom of Keyboard enclosure for graphic symbol

markings.

The exclamation point within the equi-

lateral triangle is intended to alert the

user to the presence of important operat-

ing and maintenance (servicing) instruc-

tions in the literature accompanying the

product.

The lightning flash with arrowhead

symbol, within the equilateral triangle,

is intended to alert the user to the pres-

ence of uninsulated “dangerous volt-

age” within the product’s enclosure that

may be of sufficient magnitude to con-

stitute a risk of electrical shock.

IMPORTANT NOTICE: All Yamaha electronic products

are tested and approved by an independent safety testing

laboratory in order that you may be sure that when it is

properly installed and used in its normal and customary

manner, all foreseeable risks have been eliminated. DO

NOT modify this unit or commission others to do so unless

specifically authorized by Yamaha. Product performance

and/or safety standards may be diminished. Claims filed

under the expressed warranty may be denied if the unit is/

has been modified. Implied warranties may also be

affected.

SPECIFICATIONS SUBJECT TO CHANGE: The

information contained in this manual is believed to be cor-

rect at the time of printing. However, Yamaha reserves the

right to change or modify any of the specifications without

notice or obligation to update existing units.

ENVIRONMENTAL ISSUES: Yamaha strives to pro-

duce products that are both user safe and environmentally

friendly. We sincerely believe that our products and the

production methods used to produce them, meet these

goals. In keeping with both the letter and the spirit of the

law, we want you to be aware of the following:

Battery Notice: This product MAY contain a small non-

rechargeable battery which (if applicable) is soldered in

place. The average life span of this type of battery is

approximately five years. When replacement becomes nec-

essary, contact a qualified service representative to per-

form the replacement.

Warning: Do not attempt to recharge, disassemble, or

incinerate this type of battery. Keep all batteries away from

children. Dispose of used batteries promptly and as regu-

lated by applicable laws. Note: In some areas, the servicer

is required by law to return the defective parts. However,

you do have the option of having the servicer dispose of

these parts for you.

Disposal Notice: Should this product become damaged

beyond repair, or for some reason its useful life is consid-

ered to be at an end, please observe all local, state, and fed-

eral regulations that relate to the disposal of products that

contain lead, batteries, plastics, etc.

NOTICE: Service charges incurred due to lack of knowl-

edge relating to how a function or effect works (when the

unit is operating as designed) are not covered by the manu-

facturer’s warranty, and are therefore the owners responsi-

bility. Please study this manual carefully and consult your

dealer before requesting service.

NAME PLATE LOCATION: The graphic below indi-

cates the location of the name plate. The model number,

serial number, power requirements, etc., are located on this

plate. You should record the model number, serial number,

and the date of purchase in the spaces provided below and

retain this manual as a permanent record of your purchase.

Model

Serial No.

Purchase Date

SPECIAL MESSAGE SECTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

92-469-q (bottom)

NU1X •3

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions

contained in this manual, meets FCC requirements. Modifica-

tions not expressly approved by Yamaha may void your author-

ity, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories

and/or another product use only high quality shielded cables.

Cable/s supplied with this product MUST be used. Follow all

installation instructions. Failure to follow instructions could void

your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with

the requirements listed in FCC Regulations, Part 15 for Class

“B” digital devices. Compliance with these requirements pro-

vides a reasonable level of assurance that your use of this

product in a residential environment will not result in harmful

interference with other electronic devices. This equipment gen-

erates/uses radio frequencies and, if not installed and used

according to the instructions found in the users manual, may

cause interference harmful to the operation of other electronic

devices. Compliance with FCC regulations does not guarantee

that interference will not occur in all installations. If this product

is found to be the source of interference, which can be deter-

mined by turning the unit “OFF” and “ON”, please try to elimi-

nate the problem by using one of the following measures:

Relocate either this product or the device that is being affected

by the interference.

Utilize power outlets that are on different branch (circuit breaker

or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the

antenna. If the antenna lead-in is 300 ohm ribbon lead, change

the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory

results, please contact the local retailer authorized to distribute

this type of product. If you can not locate the appropriate

retailer, please contact Yamaha Corporation of America, Elec-

tronic Service Division, 6600 Orangethorpe Ave, Buena Park,

CA90620

The above statements apply ONLY to those products distrib-

uted by Yamaha Corporation of America or its subsidiaries.

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B)

FCC INFORMATION (U.S.A.)

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party : Yamaha Corporation of America

Address : 6600 Orangethorpe Ave., Buena Park, Calif. 90620

Telephone : 714-522-9011

Type of Equipment : Hybrid Piano

Model Name : NU1X

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference

that may cause undesired operation.

See user manual instructions if interference to radio reception is suspected.

* This applies only to products distributed by YAMAHA

CORPORATION OF AMERICA.

(FCC DoC)

OBSERVERA!

Apparaten kopplas inte ur växelströmskällan (nätet) så länge som den ar

ansluten till vägguttaget, även om själva apparaten har stängts av.

ADVARSEL: Netspændingen til dette apparat er IKKE afbrudt, sålænge

netledningen sidder i en stikkontakt, som er tændt — også selvom der er

slukket på apparatets afbryder.

VAROITUS: Laitteen toisiopiiriin kytketty käyttökytkin ei irroita koko laitetta

verkosta.

(standby)

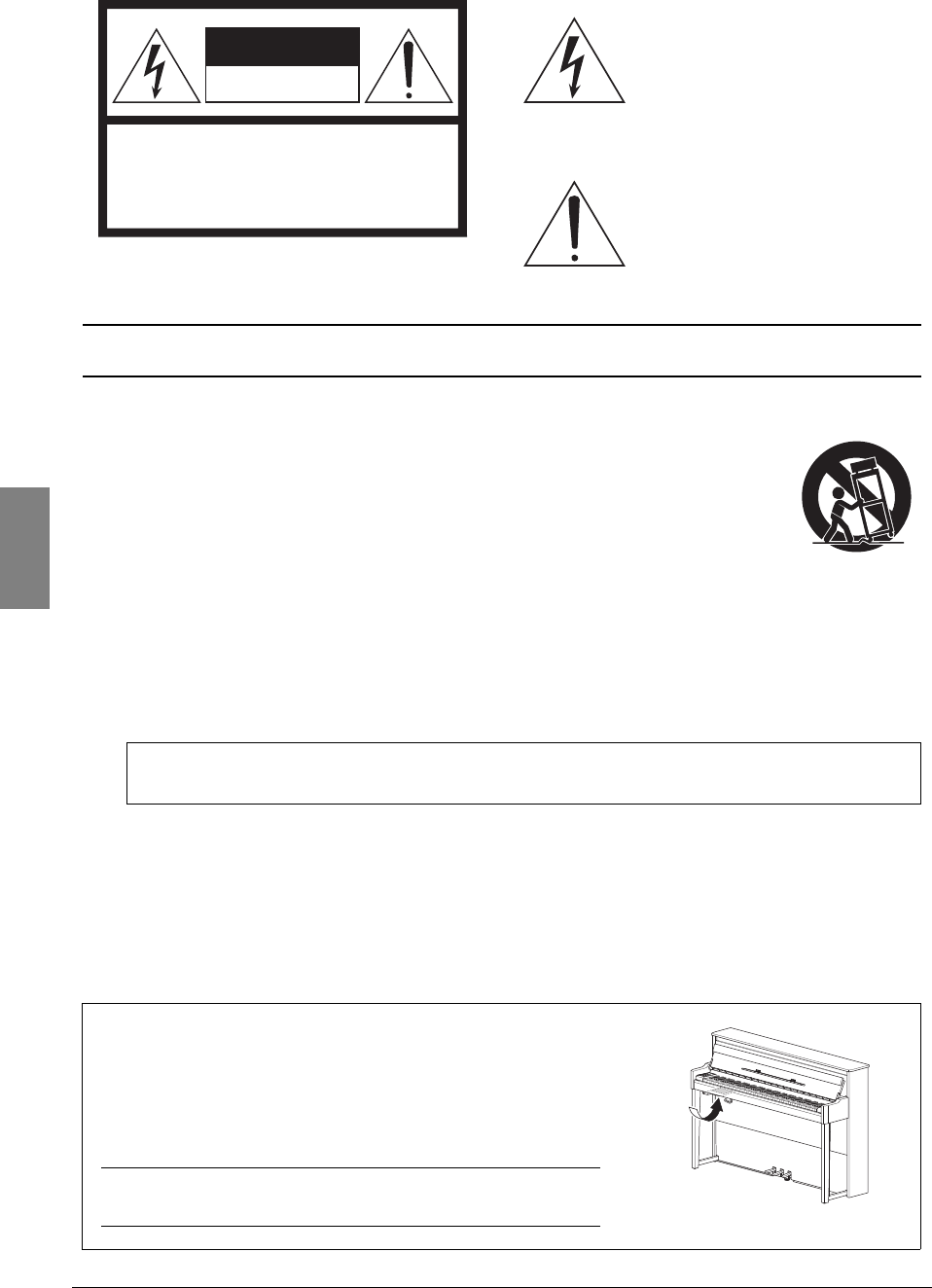

4•NU1X Owner’s Manual

The above warning is located on the bottom of the unit.

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol

within an equilateral triangle is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient magni-

tude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and main-

tenance (servicing) instructions in the liter-

ature accompanying the product.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tri-

pod, bracket, or table specified by

the manufacturer, or sold with the

apparatus. When a cart is used,

use caution when moving the

cart/apparatus combination to

avoid injury from tip-over.

13 Unplug this apparatus during

lightning storms or when unused for long periods of

time.

14 Refer all servicing to qualified service personnel. Ser-

vicing is required when the apparatus has been dam-

aged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has

been dropped.

(UL60065_03)

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT SAFETY INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

The model number, serial number, power requirements, etc., may be found

on or near the name plate, which is at the bottom of the unit. You should

note this serial number in the space provided below and retain this manual

as a permanent record of your purchase to aid identification in the event of

theft.

Model No.

Serial No.

(bottom_en_01)

The name plate is located

on the bottom of the unit.

NU1X Owner’s Manual •5

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe and handy place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical

shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the

following:

• Do not place the power cord near heat sources such as heaters or radiators. Also,

do not excessively bend or otherwise damage the cord, or place heavy objects on

it.

• Only use the voltage specified as correct for the instrument. The required voltage

is printed on the name plate of the instrument.

• Use only the supplied power cord/plug.

• Check the electric plug periodically and remove any dirt or dust which may have

accumulated on it.

• This instrument contains no user-serviceable parts. Do not open the instrument

or attempt to disassemble or modify the internal components in any way. If it

should appear to be malfunctioning, discontinue use immediately and have it

inspected by qualified Yamaha service personnel.

(For information on whether Bluetooth functionality is included or not, refer to page

40.)

• Radio waves may affect electro-medical devices.

- Do not use this product near medical devices or inside areas in which the use

of radio waves is restricted.

- Do not use this product within 15cm (6 in.) of persons with a heart pacemaker

implant.

• Do not expose the instrument to rain, use it near water or in damp or wet

conditions, or place on it any containers (such as vases, bottles or glasses)

containing liquids which might spill into any openings. If any liquid such as water

seeps into the instrument, turn off the power immediately and unplug the power

cord from the AC outlet. Then have the instrument inspected by qualified Yamaha

service personnel.

• Never insert or remove an electric plug with wet hands.

• Do not put burning items, such as candles, on the unit. A burning item may fall

over and cause a fire.

• When one of the following problems occur, immediately turn off the power switch

and disconnect the electric plug from the outlet. Then have the device inspected

by Yamaha service personnel.

- The power cord or plug becomes frayed or damaged.

- It emits unusual smells or smoke.

- Some object has been dropped into the instrument.

- There is a sudden loss of sound during use of the instrument.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage

to the instrument or other property. These precautions include, but are not limited to, the following:

• Do not connect the instrument to an electrical outlet using a multiple-connector.

Doing so can result in lower sound quality, or possibly cause overheating in the

outlet.

• When removing the electric plug from the instrument or an outlet, always hold the

plug itself and not the cord. Pulling by the cord can damage it.

• Remove the electric plug from the outlet when the instrument is not to be used for

extended periods of time, or during electrical storms.

• Do not place the instrument in an unstable position where it might accidentally

fall over.

• When transporting or moving the instrument, always use two or more people.

Attempting to lift the instrument by yourself may damage your back, result in

other injury, or cause damage to the instrument itself.

• Before moving the instrument, remove all connected cables, to prevent damage to

the cables or injury to anyone who might trip over them.

• When setting up the product, make sure that the AC outlet you are using is easily

accessible. If some trouble or malfunction occurs, immediately turn off the power

switch and disconnect the plug from the outlet. Even when the power switch is

turned off, electricity is still flowing to the product at the minimum level. When

you are not using the product for a long time, make sure to unplug the power cord

from the wall AC outlet.

Power supply/Power cord

Do not open

Location (if

Bluetooth

functionally is included)

Water warning

Fire warning

If you notice any abnormality

Power supply/Power cord

Location

DMI-5 1/2

6•NU1X Owner’s Manual

• Though the wooden parts of this instrument have been designed and produced

with care concerning the environment and human health, in some rare instances

customers may sense an unusual odor or develop imitation in the eyes, due to the

coating material and adhesive.

To avoid this, we recommend that you observe the following:

1. Specially ventilate the room for several days after unpacking and installing

this instrument, since it has been packed in airtight conditions in order to

maintain quality during transportation.

2. If the room housing the instrument is small, continue to ventilate it normally,

either daily or periodically.

3. If you have left the instrument in a closed room for a long time under high

temperature, ventilate the room, then lower the temperature if possible before

using the instrument.

• Before connecting the instrument to other electronic components, turn off the

power for all components. Before turning the power on or off for all components,

set all volume levels to minimum.

• Be sure to set the volumes of all components at their minimum levels and

gradually raise the volume controls while playing the instrument to set the desired

listening level.

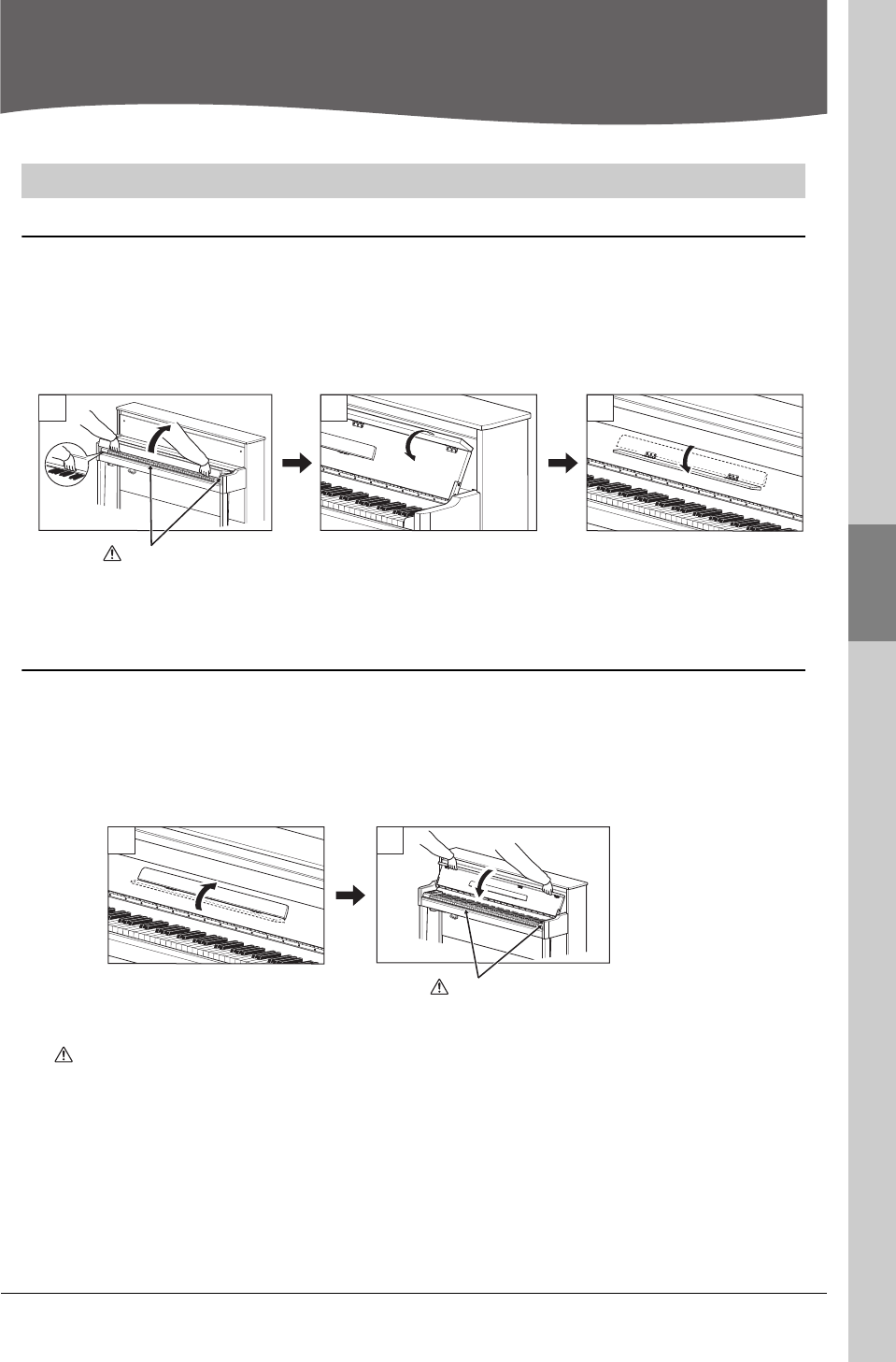

• Do not insert a finger or hand in any gaps on the fallboard or instrument. Also

take care that the fallboard does not pinch your finger.

• Do not apply excessive force when closing the fallboard.

A fallboard equipped with the SOFT-CLOSE™ mechanism closes the cover

slowly. Applying excessive force to the fallboard when closing it could damage

the SOFT-CLOSE™ mechanism, and possibly result in injury to your hands and

fingers caught under the closing the fallboard.

• Never insert or drop paper, metallic, or other objects into the gaps on the

fallboard, panel or keyboard. This could cause physical injury to you or others,

damage to the instrument or other property, or operational failure.

• Do not rest your weight on, or place heavy objects on the instrument, and do not

use excessive force on the buttons, switches or connectors.

• Do not use the instrument/device or headphones for a long period of time at a

high or uncomfortable volume level, since this can cause permanent hearing loss.

If you experience any hearing loss or ringing in the ears, consult a physician.

• Do not place the bench in an unstable position where it might accidentally fall

over.

• Do not play carelessly with or stand on the bench. Using it as a tool or stepladder

or for any other purpose might result in accident or injury.

• Only one person should sit on the bench at a time, in order to prevent the

possibility of accident or injury.

• For benches that can be adjusted, do not adjust the bench height while sitting on

the bench, since this can cause excessive force to be imposed on the adjustment

mechanism, possibly resulting in damage to the mechanism or even injury.

• If the bench screws become loose due to extensive long-term use, tighten them

periodically using the specified tool in order to prevent the possibility of accident

or injury.

• Keep special watch over any small children so that they don’t fall off the rear of the

bench. Since the bench does not have a backrest, unsupervised use may result in

accident or injury.

Always turn the power off when the instrument is not in use.

Even when the [ ] (Standby/On) switch is in standby status (power lamp is off), electricity is still flowing to the instrument at the minimum level.

NOTICE

To avoid the possibility of malfunction/ damage to the product, damage to data, or damage to other property, follow the notices below.

Handling

• Do not use the instrument in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio

may generate noise. When you use the instrument along with an application on your iPad, iPhone or iPod touch, we recommend that you set “Airplane

Mode” to “ON” on that device in order to avoid noise caused by communication.

• Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day)

to prevent the possibility of panel disfiguration, damage to the internal components or unstable operation. (Verified operating temperature range: 5° –

40°C, or 41° – 104°F.)

• Do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel or keyboard.

• In the case of a model with a polished finish, bumping the surface of the instrument with metal, porcelain, or other hard objects can cause the finish to

crack or peel. Use caution.

Maintenance

• When cleaning the instrument, use a soft and dry/slightly damp cloth. Do not use paint thinners, solvents, alcohol, cleaning fluids, or chemical-

impregnated wiping cloths.

• In the case of a model with a polished finish, gently remove dust and dirt with a soft cloth. Do not wipe too hard since small particles of dirt can scratch

the instrument's finish.

• During extreme changes in temperature or humidity, condensation may occur and water may collect on the surface of the instrument. If water is left, the

wooden parts may absorb the water and be damaged. Make sure to wipe any water off immediately with a soft cloth.

Connections

Handling caution

Using the bench (If included)

Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

DMI-5 2/2

NU1X Owner’s Manual •7

Saving data

• Some of the data of this instrument (page 34) and the Song data saved to the internal memory of this instrument (page 28) are retained when the power is

turned off. However, the saved data may be lost due to some failure, an operation mistake, etc.

Save the Song data onto USB flash drive/an external device such as a computer (pages 33, 37).

Before using a USB flash drive, make sure to refer to page 31.

• To protect against data loss through USB flash drive damage, we recommend that you save your important data onto spare USB flash drive or an external

device such as a computer as backup data.

Information

About copyrights

• Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited except for your personal

use.

• This product incorporates and bundles contents in which Yamaha owns copyrights or with respect to which Yamaha has license to use others' copyrights.

Due to copyright laws and other relevant laws, you are NOT allowed to distribute media in which these contents are saved or recorded and remain virtually

the same or very similar to those in the product.

* The contents described above include a computer program, Accompaniment Style data, MIDI data, WAVE data, voice recording data, a score, score

data, etc.

* You are allowed to distribute medium in which your performance or music production using these contents is recorded, and the permission of Yamaha

Corporation is not required in such cases.

About functions/data bundled with the instrument

• Some of the preset songs have been edited for length or arrangement, and may not be exactly the same as the original.

About this manual

• The illustrations and LCD screens as shown in this manual are for instructional purposes only, and may appear somewhat different from those on your

instrument.

• iPhone, iPad, iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Yamaha Corporation is under

license.

• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

About Bluetooth

• For information on handling Bluetooth communications, refer to “About Bluetooth” on page 40.

Tuning

• Unlike an acoustic piano, this instrument does not need to be tuned by an expert (although the pitch can be user-adjusted to match other instruments).

However, since the keyboard mechanism of this instrument is the same as that of an actual piano, the mechanism may change over years of use. If this

occurs or causes problems in performance, contact your Yamaha dealer.

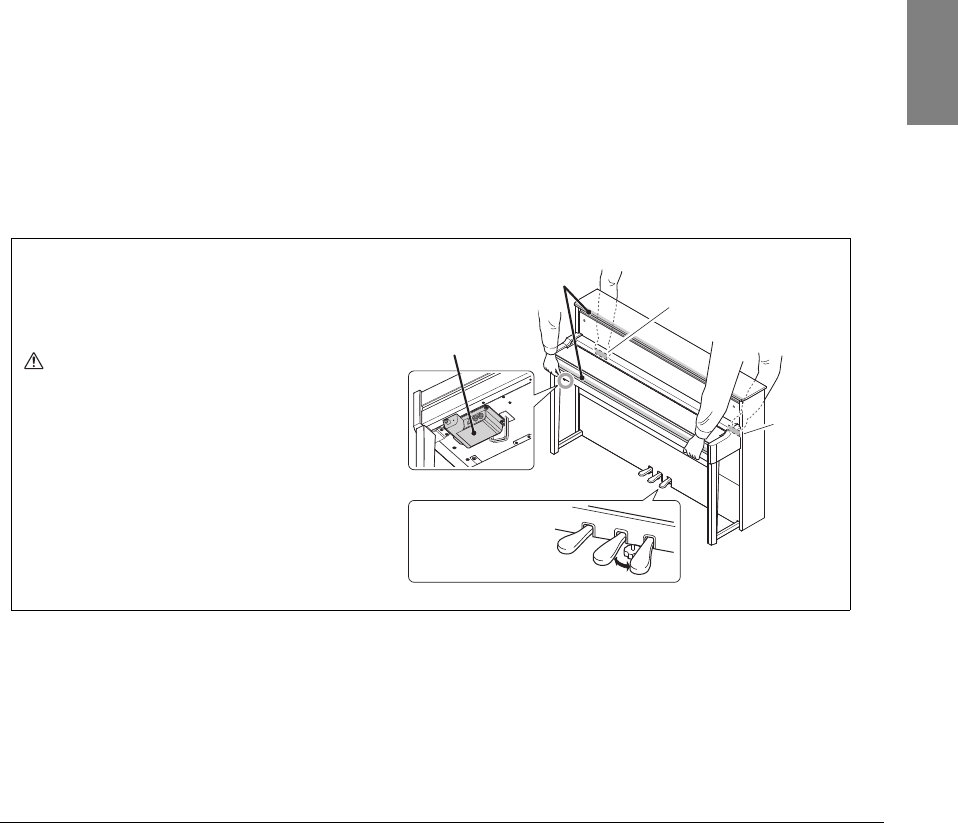

Transporting / Installing

If you move to another location, transport the

instrument horizontally. Do not subject the

instrument to excessive vibration or shock.

CAUTION

When moving the instrument, always hold the bottom

of the keyboard unit and the handgrips of the rear

side. Be sure not to hold the headphone jack box.

Improper handling can result in damage to the instru-

ment or personal injury.

Place the instrument away from the wall by at least

10 cm to optimize and enhance the sound effect. If

you find the instrument shaky or unstable after

installing, insert the included felt strips. For details,

refer to the instructions supplied with the felt strips.

Do not hold here.

Do not

hold here.

Rear handgrip

Rear

handgrip

Rotate the adjuster

until it comes in firm

contact with the floor

surface.

8•NU1X Owner’s Manual

Hybrid Piano

NU1X

Combining over a century of experience in crafting world-class pianos with the latest in advanced

technology, Yamaha proudly introduces an instrument that is closer than ever to an actual acoustic

piano—equipped with every essential element pianists demand.

Authentic acoustic piano touch with special upright piano action and piano keyboard

The AvantGrand NU1X features a specially designed mechanism in which the keyboard action and the hammer

workings realistically reproduce those of an acoustic piano.

Moreover, the wood construction of the keyboard is the same as on an upright piano, giving the instrument even a

more realistic acoustic piano-like touch response.

Enjoy performing and practicing with the sound of famous grand pianos

This instrument puts the sound of several different renowned grand pianos at your fingertips, including the CFX,

Yamaha’s flagship concert grand piano—which delivers dynamic sound, from a brilliant high-range to powerful

bass—and the Bosendorfer* Imperial, a flagship grand piano known for its subtle and warm sound.

* Bosendorfer is a subsidiary company of Yamaha.

Natural sound distance sensation for headphone play  Page 15

This instrument features a binaural sampling sound designed especially for use with headphones. Binaural sampling

is a method which uses two microphones placed where the ears of a performer would be and records that piano

sound. Listening to the sound created through this method with headphones gives the impression of being immersed

in the sound, as if it was actually emanating from the piano.

Always in optimum condition, no need for tuning

Unlike acoustic pianos, this instrument does not need to be tuned. It always stays perfectly in tune even after long-

time use.

Playback and Recording functions to support your lessons and practice



Page 26, 28, 39

You can record your performance to this instrument and a USB flash drive, and improve your performance by

listening to the recording. Furthermore, this instrument has a Bluetooth audio function, letting you play back audio

data on this instrument by connecting with a Bluetooth-equipped device via Bluetooth.

NU1X Owner’s Manual •9

Table of Contents

About Manuals

This instrument has the following documents and instructional materials.

 Included Documents

Owner’s Manual (this book)

This manual describes how to use this instrument.

 Online Materials (from Yamaha Downloads)

iPhone/iPad Connection Manual (only in English,

French, German and Spanish)

Explains how to connect the instrument to smart

devices, such as an iPhone, iPad, etc.

Computer-related Operations

Includes instructions on connecting this instrument to a

computer, and operations related to transferring files

and MIDI data.

MIDI Reference

Contains MIDI related information such as MIDI Data

Format and the MIDI Implementation Chart.

MIDI Basics (only in English, French, German and

Spanish)

Contains basic explanations about MIDI.

To obtain these manuals, access the Yamaha Downloads, enter the

model name for searching the desired files.

Included Accessories

Owner’s Manual (this book) ×1

“50 Classical Music Masterpieces” (Music Book) ×1

Online Member Product Registration ×1

The “PRODUCT ID” on the sheet will be needed when you fill out the

User Registration form.

Warranty* ×1

Felt key cover ×1

Power cord ×1

Bench* ×1

* May not be included depending on your area. Check with your Yamaha

dealer.

Felt strip set ×1

Yamaha Downloads http://download.yamaha.com/

PRECAUTIONS ....................................................... 5

Setting Up

Panel Controls and Terminals .................................. 10

Playing the Keyboard ................................................ 11

Opening/Closing the Fallboard and the Music Rest ....11

Turning the Power On/Off............................................12

Confirming the firmware version of this instrument .....13

Adjusting the Master Volume.......................................14

Using Headphones......................................................15

Using the Pedals .........................................................16

Main Operations

Basic Operations and More ...................................... 17

Selecting a Voice.........................................................17

Listening to the Voice Demo Songs ............................18

Using the Metronome ..................................................19

Adjusting the Tempo....................................................20

Changing the Touch Sensitivity...................................20

Playing the Realistic Resonance-enhanced VRM

Voices..........................................................................21

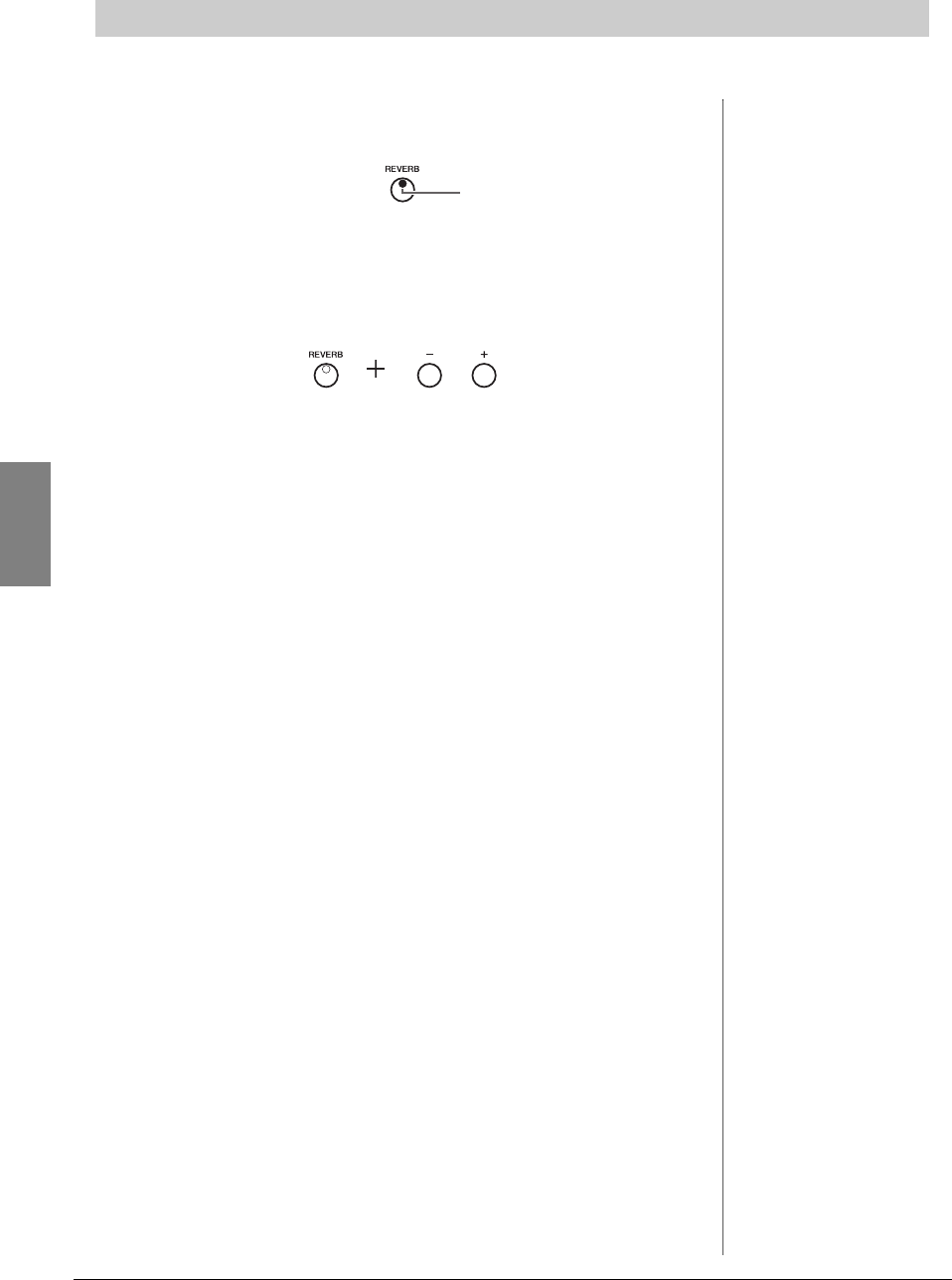

Enhancing the Sound with Reverb ..............................22

Transposing the Pitch in Semitones ............................23

Fine-tuning the Pitch....................................................23

Setting the Scale Tuning .............................................24

Playing Back Songs .................................................. 25

Songs compatible with this instrument ........................25

Playing Back Songs.....................................................26

Recording Your Performance ...................................28

Deleting a Song file..................................................... 30

Using USB Flash Drives ............................................31

About USB Devices .................................................... 31

Formatting USB Flash Drive ....................................... 32

Managing files on a USB flash drive ........................... 32

Copying User Songs in the Instrument to USB Flash

Drive............................................................................ 33

Backup Data and Initialization ..................................34

Backup Data in Internal Memory................................. 34

Initializing the Backup Data......................................... 34

Connections ............................................................... 35

Jacks and Terminals ................................................... 35

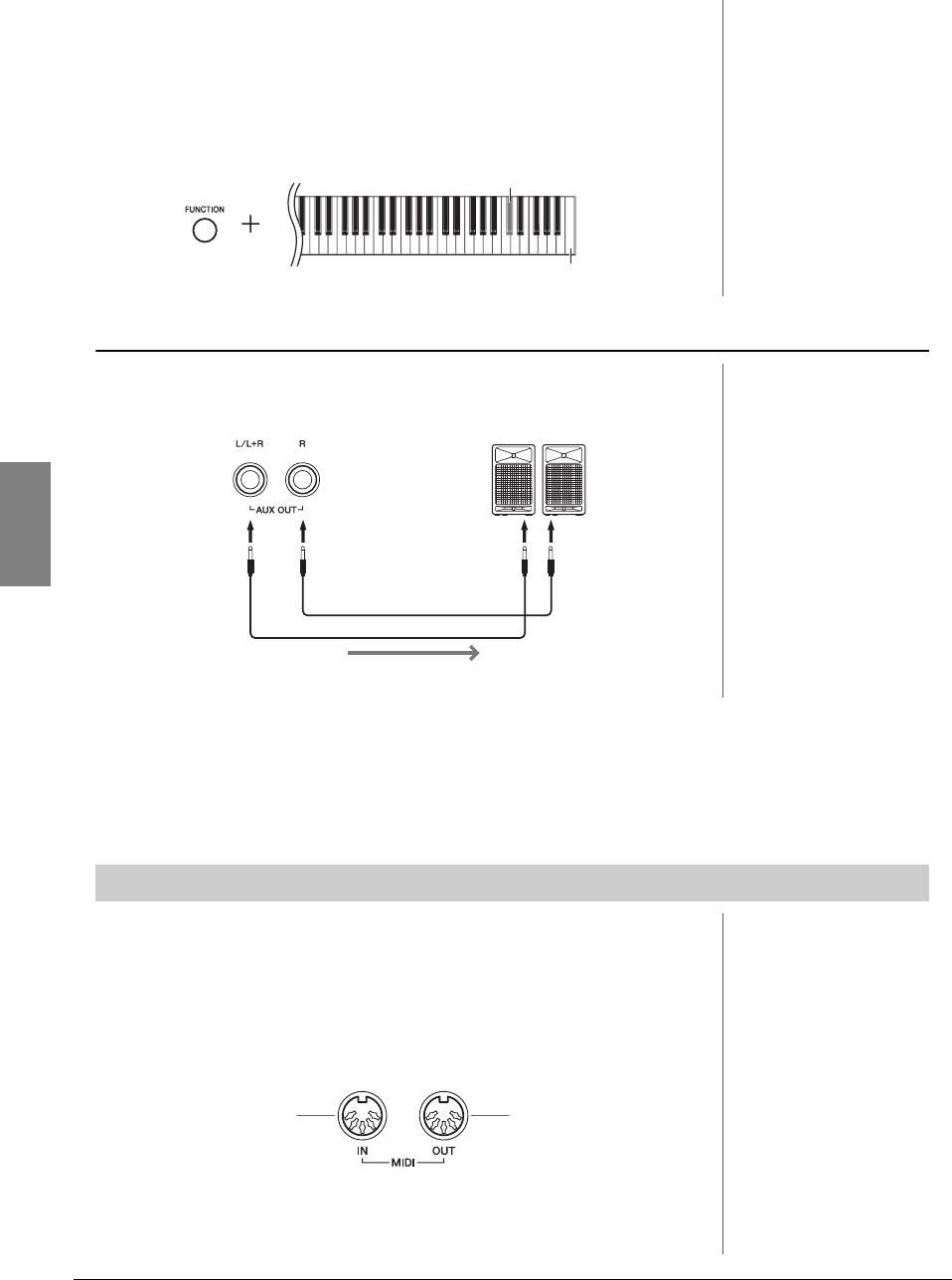

Connecting Audio Devices ([AUX IN] jack,

AUX OUT [L/L+R] [R] jacks) ....................................... 35

Connecting External MIDI Devices (MIDI [IN] [OUT]

terminals) .................................................................... 36

Connecting to a Computer ([USB TO HOST] terminal)

... 37

Connecting to a smart device such as iPhone/iPad

([USB TO DEVICE]/ [USB TO HOST],

MIDI [IN][OUT] terminals)............................................ 38

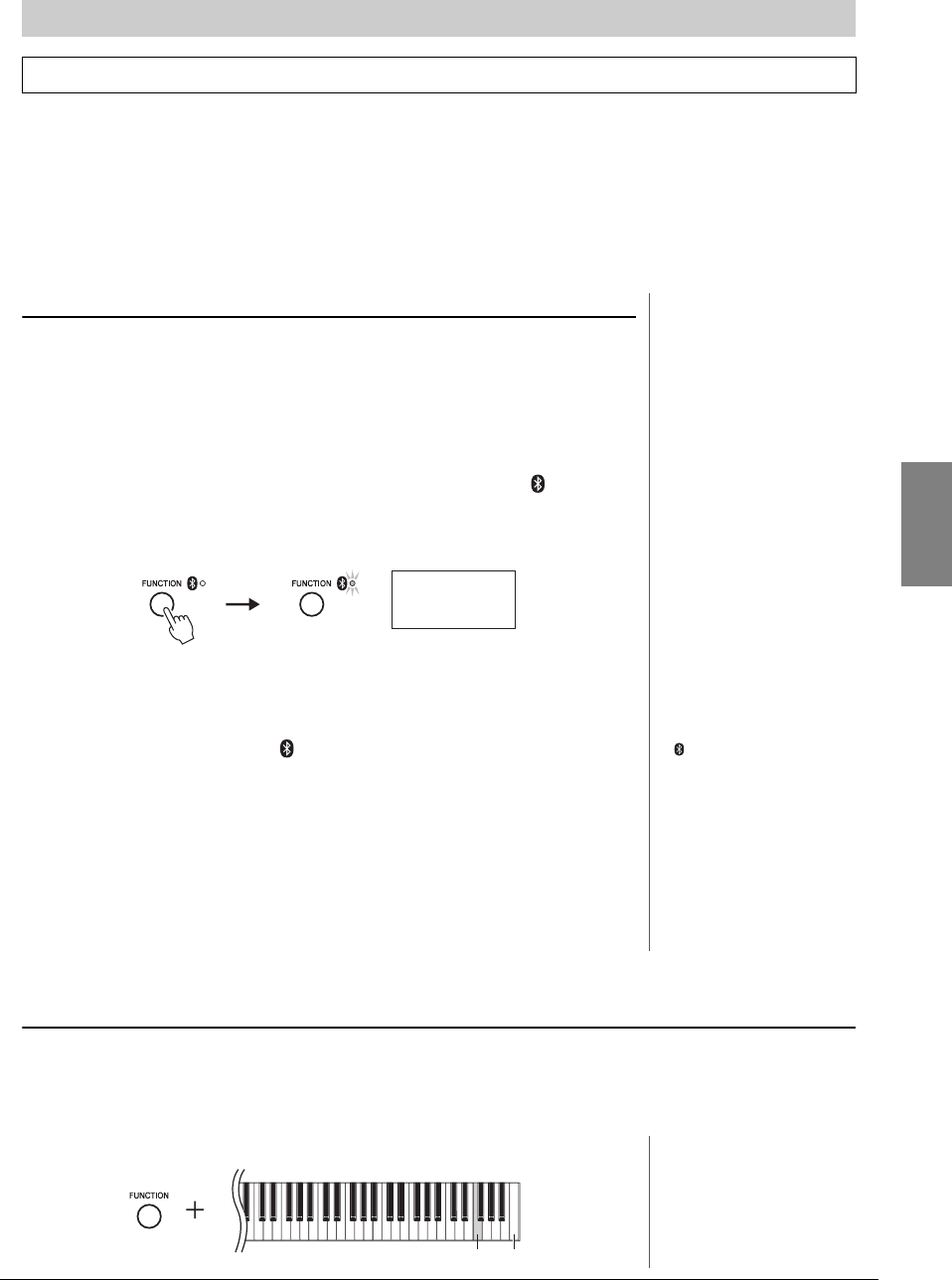

Using the Bluetooth audio function ............................. 39

About Bluetooth* ......................................................... 40

Appendix

Message List .............................................................. 41

Troubleshooting......................................................... 42

Preset Song List (50 Classical Music Masterpieces)

.. 43

Specifications.............................................................44

Index............................................................................45

Quick Operation Guide** ...........................................46

* For information on whether Bluetooth functionality is included or not, refer to page 40.

** This is a quick reference for operation of the functions assigned to the buttons and

keyboard.

Getting started playing your new Avant Grand!

This section explains how to make detailed settings for the

instrument’s various functions.

This section includes a list of display messages, Quick

Operation Guide and other information.

10 • NU1X Owner’s Manual

Setting Up

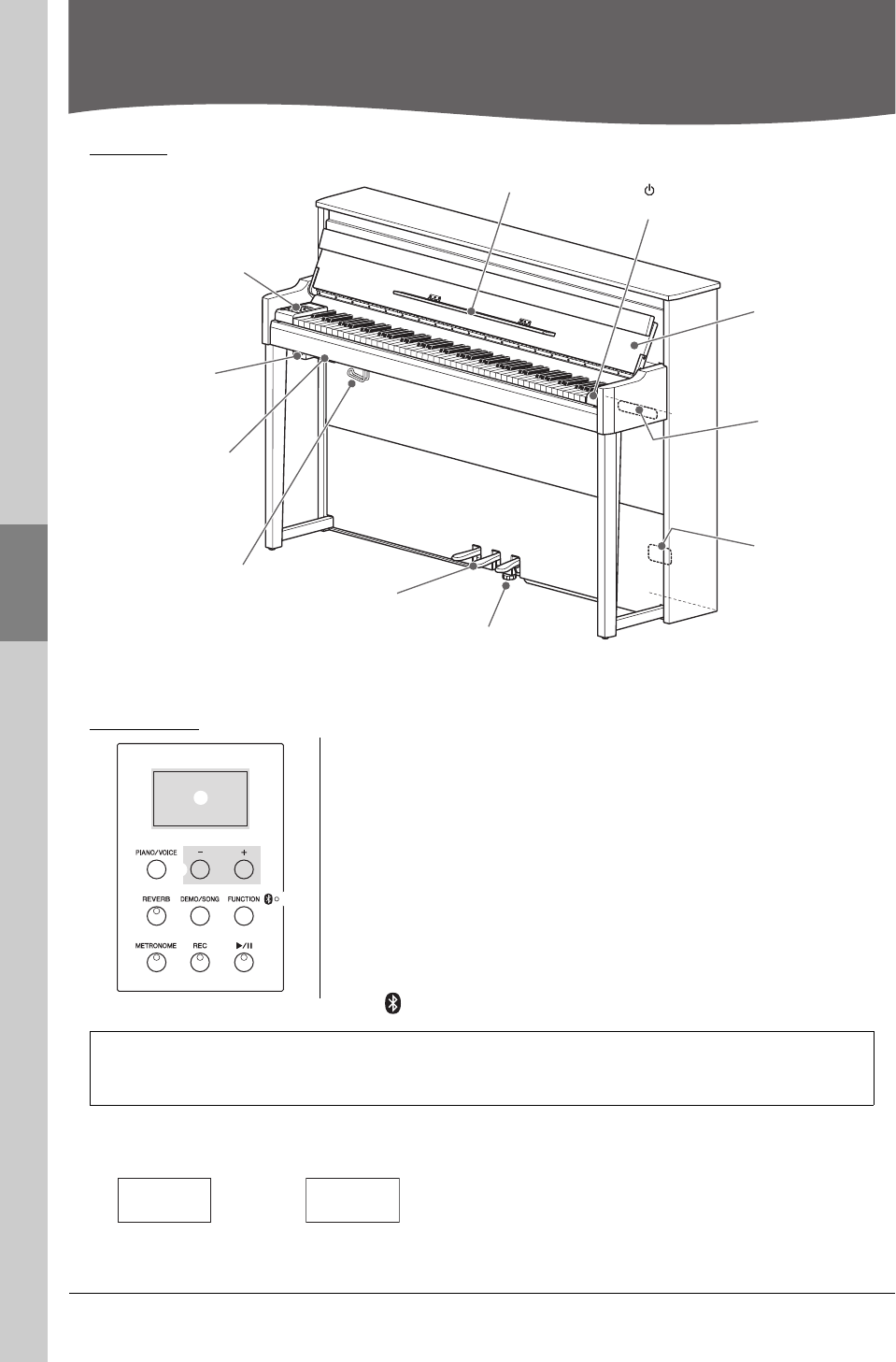

Panel Controls and Terminals

Overview

Control Panel

qDisplay ................................................................See below.

w[PIANO/VOICE] button .................. pages 15, 16, 17, 20, 21

e[REVERB] button .................................................... page 22

r[METRONOME] button ....................................pages 19, 20

t[+]/[-] button

y[DEMO/SONG] button ...............................pages 18, 26, 28

u[REC] button............................................................ page 29

i[FUNCTION] button..........................................pages 23, 46

o[>/o] (PLAY/PAUSE) button.............................pages 26, 29

!0 (Bluetooth lamp) ............................................... page 39

Display

Indicates various values such as Song number and Parameter value. Note that the display turns dark after the value is set.

This display also indicates various messages with the three characters. For details, refer to page 41.

Square brackets [ ]

The names of panel buttons, jacks, connectors, and so on are enclosed in square brackets. Also, the word “button” is

omitted throughout this manual (for example, the PIANO/VOICE button is expressed as [PIANO/VOICE]).

Music Rest (page 11)

Fallboard

(page 11)

Rear surface

[AC IN] jack

(page 12)

[ ] (Standby/On) switch

(page 12)

Pedals (page 16)

Control panel

(see below)

Front surface

Jacks and

Te r m i n a l s

(page 35)

[MASTER VOLUME]

control (page 14)

[USB TO DEVICE]

terminal (page 31)

[PHONES] jacks

(page 15)

Adjuster

(page 7)

Headphone hanger

(page 15)

d.01

Song number

Parameter value

NU1X Owner’s Manual •11

Playing the Keyboard

To raise the fallboard and the music rest

1With both hands, hold the hand grip, then lift and open the fallboard.

2Fold down the top of the fallboard.

3Open the music rest.

To lower the fallboard and the music rest

1Close the music rest.

If you omit this operation and close the fallboard, the music rest will hit the keyboard and may result in damage.

2With both hands, open the folded top of the fallboard, and close it gently.

The fall board is equipped with the special SOFT-CLOSE™ mechanism which closes the cover slowly.

CAUTION

• Hold the fallboard with both hands when opening or closing it. Do not release it until it is fully opened or closed. Be care-

ful to avoid catching fingers (yours or others, especially children’s) between the fallboard and the unit.

• Do not apply excessive force when closing the fallboard. Applying excessive force to the fallboard when closing it could

damage the SOFT-CLOSE™ mechanism, and possibly result in injury to your hands and fingers caught under the clos-

ing fallboard.

• Do not place anything (such as metal objects or pieces of paper) on top of the fallboard. Small objects placed on the fall-

board may fall inside the unit when the fallboard is opened and may be nearly impossible to remove. Once inside, they

could cause electric shock, short circuit, fire or other serious damage to the instrument.

Opening/Closing the Fallboard and the Music Rest

1 2 3

CAUTION

Be careful to avoid catching your fingers

between the fallboard and the instrument.

CAUTION

Be careful to avoid catching your fingers

between the fallboard and the instrument.

Playing the Keyboard

12 • NU1X Owner’s Manual

1Connect the power cord in the order shown in the illustration.

Refer to the “Panel Controls and Terminals” on page 10 for information on the location of the [AC IN] jack.

WARNING

Use only the AC power cord supplied with the instrument. If the supplied power cord is lost or damaged and needs to be

replaced, contact your Yamaha dealer. The use of an inappropriate replacement can pose a fire and shock hazard!

WARNING

The type of AC power cord provided with the instrument may be different depending on the country in which the instru-

ment was purchased. (In some areas a plug adaptor may be provided to match the pin configuration of the AC wall outlets

in your area.) Do NOT modify the plug provided with the instrument. If the plug will not fit the outlet, have a proper outlet

installed by a qualified electrician.

CAUTION

When setting up the product, make sure that the AC outlet you are using is easily accessible. If some trouble or malfunc-

tion occurs, immediately turn off the power switch and disconnect the plug from the outlet.

2Turn down the [MASTER VOLUME] control to “MIN.”

3Press the [ ] (Standby/On) switch on the right of the keyboard to turn the power on.

The power indicator located on the right of the [MASTER VOLUME] control lights up. The display indicators

flash in a pattern, indicating the instrument is currently starting up, and stop flashing when startup is completed.

NOTICE

Do not press any keys, buttons or pedals until the instrument has completely started up (roughly five seconds after turn-

ing on the switch). Doing so may cause some keys to not play normally or some other malfunction to occur.

4Play the keyboard.

While playing the keyboard, adjust the volume level by using the [MASTER VOLUME] control located at the

left of the panel.

Turning the Power On/Off

wAC outlet

When disconnecting the power cord, first turn off the power, then follow this procedure in reverse order.

[AC IN] connector

(page 10)

MAXMIN

MASTER VOLUME

The power indicator lights up. [ ] (Standby/On) switch

MAX

USB TO

MIN

MASTER VOLUME

The level

increases.

The level

decreases.

Playing the Keyboard

NU1X Owner’s Manual •13

5Turn off the power by pressing the [ ] (Standby/On) switch for about a second.

The power gradually turns off.

CAUTION

Even after the power switch is turned off, electricity is still flowing to the instrument at the minimum level. Remove the

electric plug from the outlet when the instrument is not to be used for extended periods of time, or during electrical

storms.

Auto Power Off function

To prevent unnecessary power consumption, this instrument features an Auto Power Off function that

automatically turns the power off if the instrument is not operated for approximately 30 minutes.

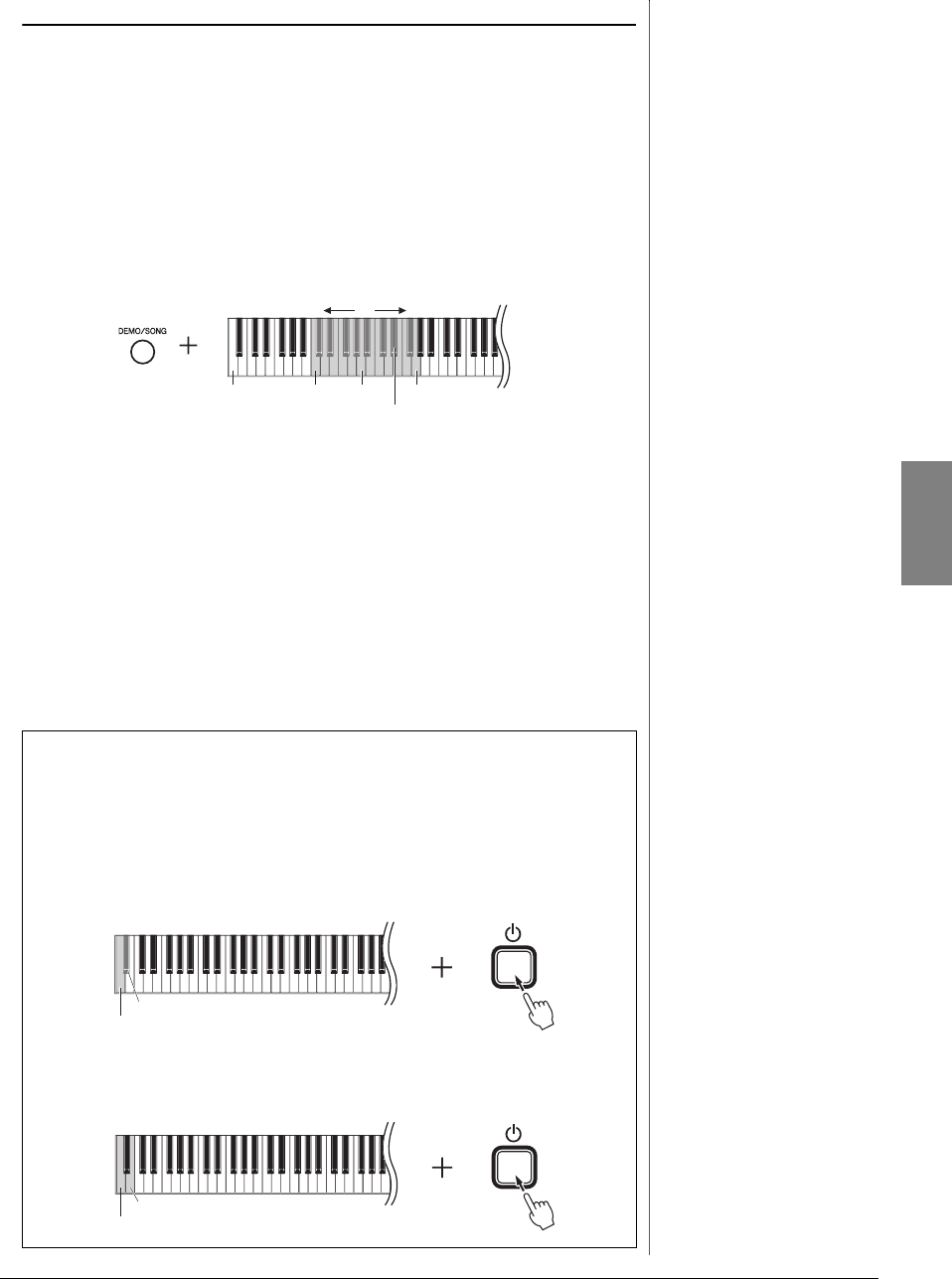

Disabling Auto Power Off (simple method)

Turn the power on while holding down the lowest key on the keyboard.

The indication “PoF” appears on the display briefly and Auto Power Off is disabled.

Disabling or enabling the Auto Power Off setting

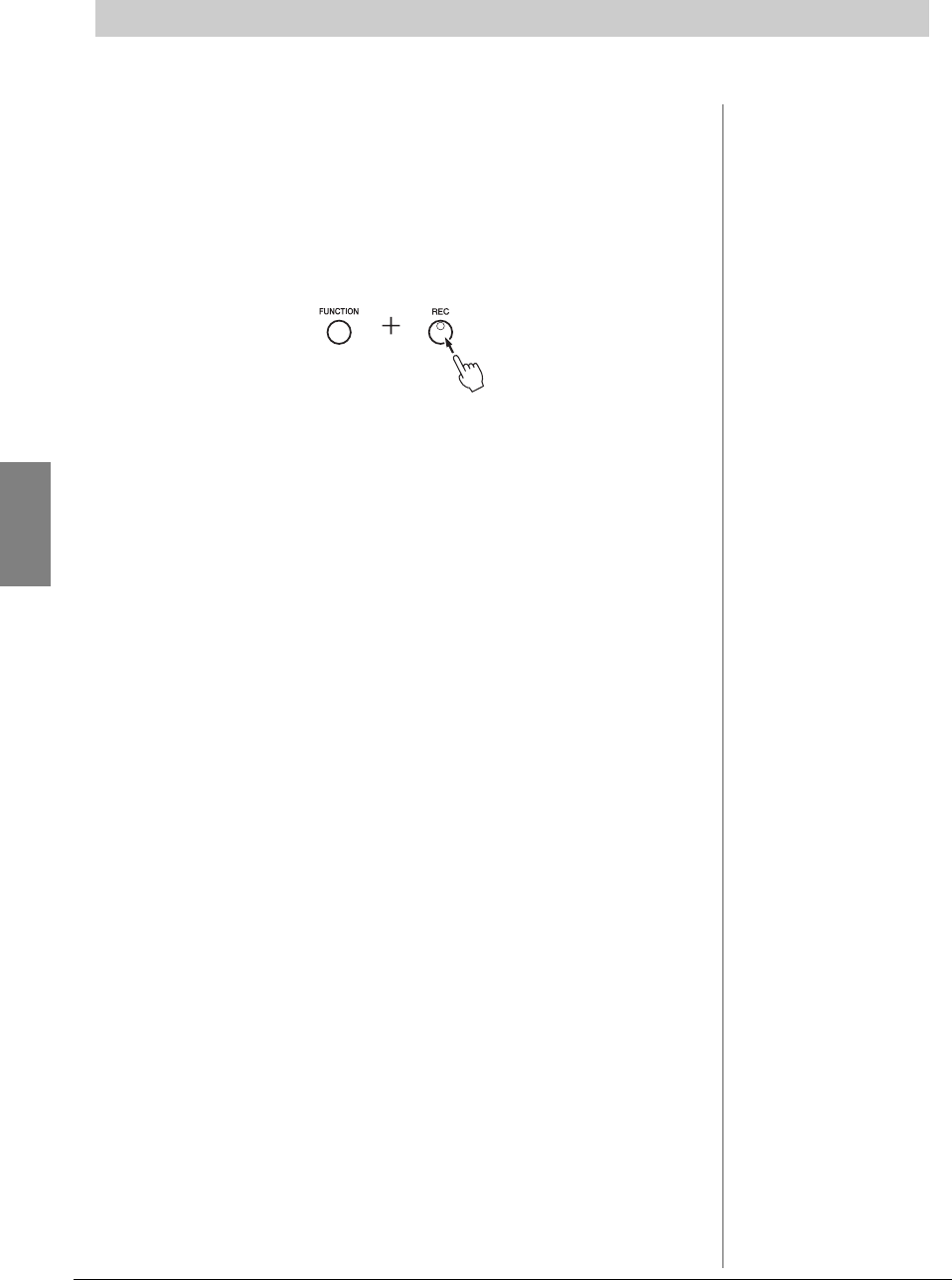

While the power is on, simultaneously hold down [FUNCTION] and press the A5 key. Pressing the A5 key repeat-

edly in this condition toggles between “OFF” (disabled) and “On” (enabled), and the setting appears on the display.

You can confirm the firmware version of your instrument.

While holding down [FUNCTION], press the B5 key. The current version appears on the display.

About the latest Firmware Version

Yamaha may from time to time update firmware of the product without notice for improvement.

Make sure to check our website for information of the latest release and upgrade the firmware for your instrument.

Confirming the firmware version of this instrument

Lowest key (A-1)

PoF

Highest key (C7)

Playing the Keyboard

14 • NU1X Owner’s Manual

To adjust the volume level by using the [MASTER VOLUME] control located at the front left, just below

the keyboard while playing the keyboard.

CAUTION

Do not use this instrument at a high volume level for a long period of time, or your hearing may be damaged.

Intelligent Acoustic Control (IAC)

This function automatically adjusts and controls the sound quality according to the overall volume of the instrument.

Even when the volume is low, it permits both low sounds and high sounds to be clearly heard. Note that the IAC is

effective only from the sound output of the instrument speakers.

-To turn on/off the IAC:

While holding down [FUNCTION], press the C0 key repeatedly (if necessary).

Default setting: On

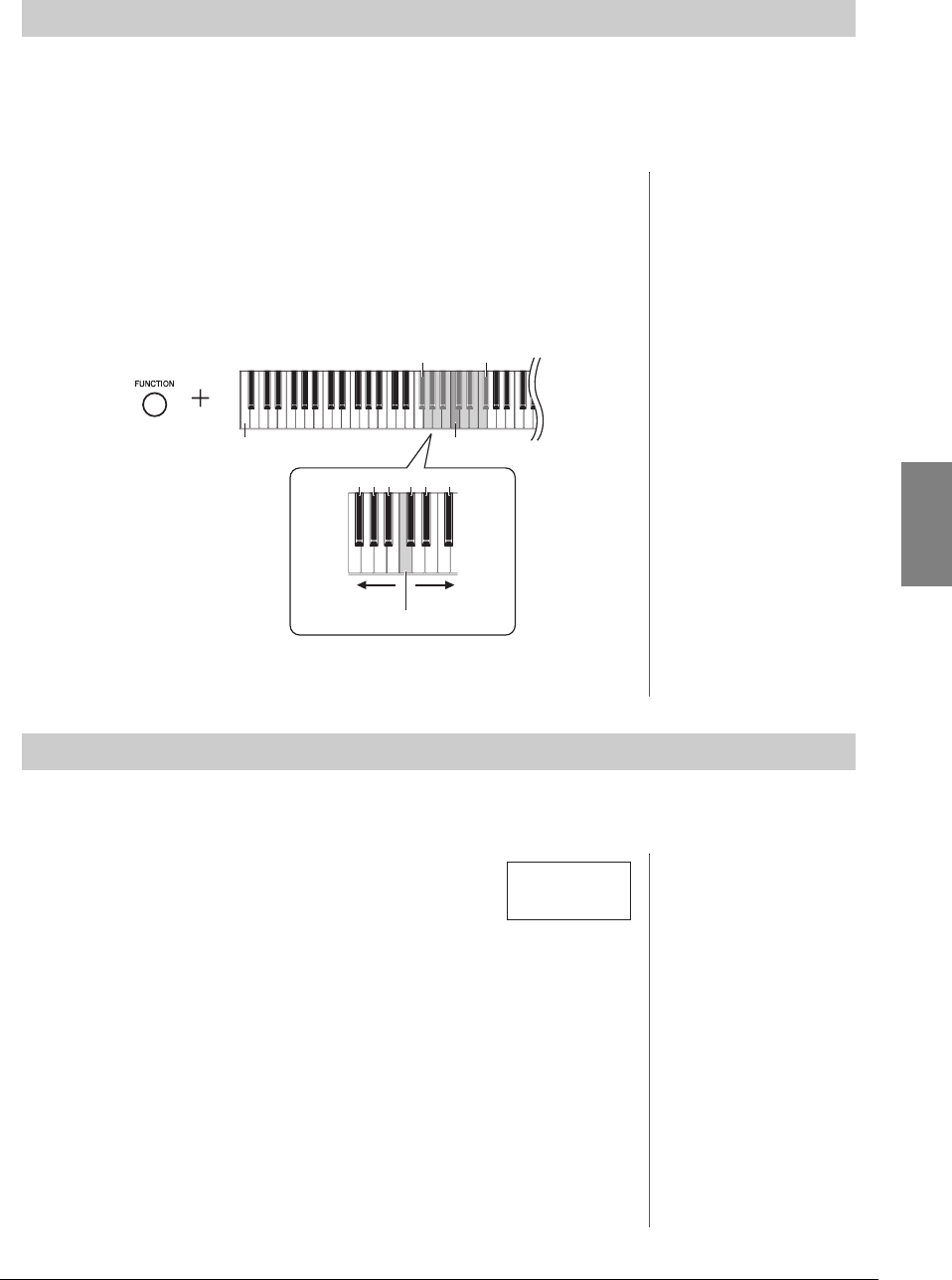

-To adjust the IAC Depth:

While holding down [FUNCTION], press one of the keys between A0–D#1.

Setting range: -3 (A0) – 0 (C1) – 3 (D#1)

Default setting: 0 (C1)

The higher the value, the more clearly that low and high sounds are heard at lower volume levels.

Adjusting the Master Volume

MAX

USB T

MIN

MASTER VOLUME

The level

increases.

The level

decreases.

C0 C1

(0)

(-3)

D#1 (3)

Lowest

key (A-1)

Playing the Keyboard

NU1X Owner’s Manual •15

Since this instrument is equipped with two

[PHONES] jacks, you can connect two sets of

standard stereo headphones. If you are using only

one set of headphones, insert a plug into either

jack; this automatically shuts off the speakers.

CAUTION

Avoid listening to the instrument at a high volume level

through headphones for a long period of time, to prevent

hearing damage.

NOTICE

Do not hang anything other than the headphones on the

hanger. Otherwise, the instrument or the hanger may be dam-

aged.

Reproducing the Natural Sound Distance Sensation (when using Headphones)—Binaural Sampling

and Stereophonic Optimizer

This instrument features two advanced technologies that allow you to enjoy exceptionally realistic, natural sound,

even though listening on headphones.

-Binaural Sampling (“CFX Grand” Voice only)

Binaural sampling is a method that uses two special microphones set at the ear position of a performer and records

the sound from a piano as it is. Listening to the sound with this effect through headphones gives the impression of

being immersed in the sound, as if it was actually emanating from the piano. Moreover, you can enjoy the sound

naturally for a long time without ear strain. When the default Voice, “CFX Grand” (page 17) is selected, connect-

ing the headphones automatically enables the binaural sampling sound.

-Stereophonic Optimizer (Piano Voices other than “CFX Grand”)

The Stereophonic Optimizer is an effect which reproduces natural sound distance like the sound of binaural sam-

pling even though you hear it on headphones. When one of the Piano Voices other than “CFX Grand” (Display

numbers 2–5; page 17) is selected, connecting headphones enable the Stereophonic Optimizer.

Turning the Binaural Sampling and Stereophonic Optimizer function on/off

When headphones are connected, the sound from this instrument changed to the sound of Binaural Sampling or the

sound enhanced with the Stereophonic Optimizer. Since these sounds are optimized for listening with headphones,

we recommend that you set this function to “OFF” (as described below).

While holding down [PIANO/VOICE], press the C6 key repeatedly (if necessary) to turn this function on/off. The

specified value is shown on the display while both controls are held.

Default setting: On

Using Headphones

You should turn these functions off when:

• Playing the sound of this instrument with an external powered speaker system or a mixer, while monitoring the sound

output from this instrument on connected headphones.

• Making an audio recording (page 28) and then playing that recorded audio Song through speakers.

(Make sure to turn off these functions before audio recording.)

NOTE

Before connecting an external powered speaker system, be sure to read “Using an External Stereo System for Playback—AUX OUT [L/L+R] [R] jacks” (page 36).

MAX

PHONES USB TO DEVICE

MIN

MASTER VOLUME

Headphone hanger

Standard stereo

phone plug

Highest key (C7)

Playing the Keyboard

16 • NU1X Owner’s Manual

The instrument has three pedals that produce a range of

expressive effects similar to those produced by the pedals on

an acoustic piano.

Damper Pedal (Right)

Pressing this pedal will sustain notes longer. Releasing this pedal immediately stops

(damps) any sustained notes. The damper pedal features a half-pedal function.

-Half-pedal function

This function allows the sustain length to vary depending on how far the pedal is

pressed. The farther you press the pedal, the more the sound sustains. For example, if

you press the damper pedal and all notes you are playing sound a bit murky and loud

with too much sustain, you can release the pedal half way to subdue the sustain (murk-

iness).

-To set the Half Pedal Point:

While holding down [PIANO/VOICE], press one of the A#4–E5 keys. This operation

sets the degree to which pressing the damper pedal applies the half-pedal effect. The

smaller the value, the shallower the half-pedal point. The larger the value, the deeper

the half-pedal point.

Sostenuto Pedal (Center)

Pressing this pedal while holding the notes will sustain the pressed notes (as if the

damper pedal had been pressed), but all subsequently played notes will not be sus-

tained. This makes it possible to sustain a chord, for example, while the other notes are

played “staccato.”

Soft Pedal (Left)

Pressing this pedal will reduce the volume and slightly change the timbre of the notes.

The notes played before this pedal is pressed are not affected.

Using the Pedals

If you press and hold the damper pedal here,

all the notes shown will be sustained.

Setting range: -2 (A#4) – 4 (E5)

Default Setting: 0

GP Responsive Damper Pedal

This special pedal has been designed to provide enhanced tactile response and, when

pressed, is much closer in feel to the pedal of an actual grand piano. It makes it easier

to physically experience the half-pedal point and more easily apply the half-pedal

effect than other pedals.

A#4

NOTE

While the sostenuto pedal is held, the

Organ (Display numbers 12–14; page 17)

or Piano + Strings (Display number 15)

Voices sound continuously without decay

after the notes have been released.

If you press and hold the sostenuto pedal here, only

the notes held at this timing will be sustained.

NU1X Owner’s Manual •17

Basic Operations and More

-To select the CFX Grand Voice:

Simply press [PIANO/VOICE]. “1” will appear on the display.

-To select a different Voice:

While holding down [PIANO/VOICE], press [+] or [-]. Pressing the buttons switches

through the 15 Voices in numerical order, as indicated in the Voice List below.

Voice List

*VRM: Simulated string resonance sound with physical modeling when the damper pedal is pressed or keys

are pressed. Refer to page 21 for details.

Selecting a Voice

NOTE

To understand the characteristics of various

Voices, listen to Demo Songs for each

Voice (page 18).

Display Voice name Descriptions VRM*

CFX Grand

Yamaha’s CFX concert grand piano sound with a wide dynamic

range for maximum expressive control. It is suitable for playing in

any music genre and style. When headphones are connected,

this Voice is automatically changed to “Binaural CFX Grand”

(below).



Binaural CFX

Grand

Yamaha’s CFX concert grand piano sound sampled by Binaural

Sampling, the method optimized for headphone use. Listening

this through headphones gives the impression of being immersed

in the sound, as if it was actually emanating from the piano. This

Voice is selected automatically when headphones are connected.

Refer to page 18 for details. (This Voice cannot be selected fol-

lowing the procedure of “Selecting a Voice” instructions above.)



2Bösendorfer

Imperial

The famed sound of the Vienna-made Bösendorfer Imperial con-

cert grand piano. Its spacious sound evokes the size of the instru-

ment, and is ideal for expressing tenderness in compositions.



3Studio Grand

The sound of Yamaha’s C7 grand piano, which is often used in

recording studios. Its bright and clear sound is good for popular

styles.



4Ballad Grand Grand piano sound with a soft and warm tone. Good for playing

ballads. 

5Upright Piano The sound sampled from an upright piano, the Yamaha SU7.

Enjoy the unique tonal character and a lighter, more casual feel. 

6Stage E.Piano

The sound of an electric piano using hammer-struck metallic

“tines.” Soft tone when played lightly, and an aggressive tone

when played hard.

7DX E.Piano

An electronic piano sound produced by an FM synthesizer. The

tone will change as you vary your playing touch. Ideal for popular

music.

8Vintage E.Piano A different type of electric piano sound than Stage E.piano.

Widely used in rock and popular music. -

9Harpsichord 8’

The sound of the instrument frequently used in baroque music.

Variations in playing touch will not affect the volume, and a char-

acteristic sound will be heard when you release the key.

10 Harpsi. 8’+4’ A harpsichord with an added upper octave. Produces a more bril-

liant sound. -

11 Celesta

The sound of a celesta (a percussion instrument in which ham-

mers strike metallic bars to produce sound). This instrument is

well-known for its appearance in “Dance of the Sugarplum Fair-

ies” from Tchaikovsky’s “Nutcracker Suite.”

12 Organ Principal

This Voice features the combination of pipes (8’+4’+2’) of a princi-

pal (brass instrument) organ. It is suitable for Baroque church

music.

13 Organ Tutti This Voice features a full coupler of a pipe organ, famous for the

sound used in “Toccata and Fugue” by Bach. -

14 Jazz Organ

The sound of a “tonewheel” type electric organ. Sampled with

Rotary SP effect, its rotation speed is slow. Often heard in jazz

and rock idioms.

15 Piano + Strings

Combination of piano and strings ensemble Voices, giving you a

richly textured sound as if you were playing the piano with orches-

tral accompaniment.

Main Operations

Basic Operations and More

18 • NU1X Owner’s Manual

Demo Songs effectively demonstrate each of this instrument’s Voices.

1Select the Voice for the Demo Song that you want to listen to.

2Press [DEMO/SONG].

The Demo Song for the Voice selected in Step 1 starts.

To change the Demo Song during playback:

Press [+] or [-].

To adjust the playback tempo:

While holding down [METRONOME], press [+] or [-].

To pause playback:

During playback, press [>/o] (Play/Pause) to pause playback. Pressing it again

resumes Demo Song playback from the current position.

3Press [DEMO/SONG] again to stop playback.

Demo Song List

tion).

Listening to the Voice Demo Songs

NOTE

You can play the keyboard along with the

Demo Song.

NOTE

No MIDI data will be output during Voice

Demo playback.

NOTE

The Binaural CFX Grand Voice is automati-

cally selected when you select the CFX

Grand Voice while headphones are con-

nected. Refer to the “Voice List” on page 17

for details.

Display Voi c e N a m e Song Name Composer

d.01 CFX Grand Variations brillantes op.12 F. F. Chopin

Binaural CFX Grand

d.02 Bösendorfer Mädchens Wunsch (6 Chants polonaise

S.480 R.145) F. L i s z t / F. F. C h o p i n

d.03 Studio Grand Original -

d.04 Ballad Grand Original -

d.05 Upright Piano Italienisches Konzert, BWV 971 1st mov. J. S. Bach

d.06 Stage E.Piano Original -

d.07 DX E.Piano Original -

d.08 Vintage E.Piano Original -

d.09 Harpsichord 8’ Concerto a cembalo obbligato, 2 violini, viola e

continuo No.7, BWV 1058 J. S. Bach

d.10 Harpsi. 8’+4’ Gigue, Französische Suiten No.5, BWV 816 J. S. Bach

d.11 Celesta Danse de la Fée Dragée P. I. Tchaikovsky

d.12 Organ Principal Herr Christ, der ein'ge Gottes-Sohn, BWV 601 J. S. Bach

d.13 Organ Tutti Original -

d.14 Jazz Organ Original -

d.15 Piano + Strings Original -

Basic Operations and More

NU1X Owner’s Manual •19

The metronome feature is convenient for practicing with an accurate tempo.

1Press [METRONOME] to start the metronome.

While the metronome sounds, a dot at the right side of the LED display and the

lamp of the metronome button flash on and off to the tempo.

2Press [METRONOME] again to stop the metronome.

Selecting the Beat

While holding down [METRONOME], press one of the C3–F3

keys. The selected value is shown on the display while both

controls are held.

Only the first beat is accented with a bell sound when set to a value other than 0.

Adjusting the Metronome volume

While holding down [METRONOME], press one of the C1–G2 keys to set the vol-

ume. The specified value is shown on the display while both controls are held.

Using the Metronome

120.

The beat lamp

flashes at the current

tempo

Default setting: 0 (No 1st beat accent)

NOTE

The Beat of the metronome is restored to

the default setting when the power is turned

off.

Display Key Beat Display Key Beat

0C3 0

(no 1st beat accent) 4D#34

2C#3 2 5E3 5

3D3 3 6F3 6

Beat

C3 F3

Highest key (C7)

Setting range: 1–20

Default setting: 15

C1 (1) G2 (20)D2 (15)

max.min.

Lowest

key (A-1) The volume level increases as you press higher keys.

Basic Operations and More

20 • NU1X Owner’s Manual

The tempo of Metronome can be adjusted. You can also adjust the playback tempo of a MIDI Song (page

25) as well as the playback speed of an Audio Song (page 25) as they are playing.

-To increase or decrease the value by 1:

While holding down [METRONOME], press [+] (or the C#5 key) to increase or [-] (or

the B4 key) to decrease. While only the Metronome is playing, simply press [+] or [-]

to change the tempo of the Metronome.

-To increase or decrease the value by 10:

While holding down [METRONOME], press the D5 key to increase or the A#4 key to

decrease.

-To reset the value to the default:

While holding down [METRONOME], press the C5 key or press [+] and [-] simulta-

neously. While only the Metronome is playing, simply press both [+] and [-] simulta-

neously to reset the Metronome to its default tempo.

You can specify the Touch Sensitivity (how the sound responds to the way you play the keys).

While holding down [PIANO/VOICE], press one of the A6–C7 keys. The selected

Touch Sensitivity is shown on the display while both controls are held.

Adjusting the Tempo

NOTE

Adjusting the tempo of Metronome cannot

be done during the playback of Audio

Songs (page 25).

Metronome

Setting range: 5 to 500 beats per minute

Default setting: 120

MIDI Song

Setting range: 5 to 500 beats per minute

Normal setting: Depends on the selected

Song

Audio Song

Setting range: 75% to 125%

Normal setting: 100%

NOTE

The metronome tempo is restored to the

default setting when the power is turned off.

D5 (+10)B4 (-1)

A#4 (-10) C#5 (+1)

Highest key (C7)

C5 (Default)

Changing the Touch Sensitivity

Highest key (C7)

Default setting: 2 (Medium)

NOTE

The touch type is restored to the default

setting when the power is turned off.

NOTE

This setting does not change the weight of

the keyboard, but only the response.

Display Key Touch Sensitivity Descriptions

OFF A6 Fixed The volume level does not change at all regardless of

whether you play the keyboard soft or hard.

1A#6Soft The volume level does not change much when you play the

keyboard soft or hard.

2B6 Medium This is the standard piano touch response.

3C7 Hard

The volume level changes very widely from pianissimo to

fortissimo to facilitate dynamic and dramatic expression. You

have to hit the keys hard to produce a loud sound.

Basic Operations and More

NU1X Owner’s Manual •21

On an actual acoustic piano, if you press the damper pedal and play a key, not only does the string of the

pressed key vibrate, it also causes other strings and the soundboard to vibrate, with each influencing the

rest, creating a rich and brilliant resonance that sustains and spreads. The VRM (Virtual Resonance Mod-

eling) technology featured in the NU1X reproduces the complicated interaction of both string and sound-

board resonance faithfully using a virtual musical instrument (physical modeling), and makes the sound

more like a real acoustic piano. Since instantaneous resonance is made at the moment according to the

state of the keyboard or pedal, you can vary the sound expressively by changing the timing of your press-

ing the keys, and the timing and depth of your pressing the pedal.

The default setting of this function is on. Simply by selecting a VRM Voice (page 17), you can enjoy the

VRM effect. You can turn the VRM function on or off, and adjust the depth.

Turning the VRM function on or off

While holding down [PIANO/VOICE], press the C0 key repeatedly (if necessary).

Adjusting the depth of the VRM effect

While holding down [PIANO/VOICE], press one of the keys in the ranges of D0–D1.

During the operation, the specified value is shown on the display.

Playing the Realistic Resonance-enhanced VRM Voices

C0 D1D0

-1 -1 -1 -1+1 +1 +1 +1

Body Resonance Depth

Aliquot Resonance Depth

Lowest

key (A-1)

On/Off

Damper Resonance Depth

String Resonance Depth

Default (5)

Setting range: 0–10

Default setting: 5

Setting range: 0–10

Default setting: 5

Setting range: 0–10

Default setting: 5

Setting range: 0–10

Default setting: 5

NOTE

The depth of the VRM effect is restored to

the default setting when the power is turned

off.

Display Key Value Descriptions

0–10 D0–E0 Damper Reso-

nance Depth

Adjusts the depth of the VRM effect heard when pressing

the damper pedal.

0–10 F0–G0 String Resonance

Depth

Adjusts the depth of the VRM effect heard when playing the

keyboard.

0–10 A0–B0 Aliquot Reso-

nance Depth

Adjusts the sympathetic vibrations of the Aliquot (See

below.) resonance effect.

0–10 C1–D1 Body Resonance

Depth

Adjust the resonance of the piano itself, i.e. the soundboard,

sides, frame and so on.

What is Aliquot?

Aliquot is a stringing method for pianos that uses extra, un-struck strings in the upper

octaves to enhance the tone. These strings sympathetically vibrate with other strings in

an acoustic piano, resonating with overtones, and adding richness, brilliance and com-

plex color to the sound. Since they do not have damper, they will continue sounding

even after you release your hands from the keyboard.

Basic Operations and More

22 • NU1X Owner’s Manual

The Reverb effect simulates the natural reverberation of a concert hall.

Turning the Reverb on or off

Press [REVERB] repeatedly (if necessary).

Adjusting the Reverb Depth

While holding down [REVERB], press [+] or [-]. The current value is shown on the

display while both controls are held.

To restore the default value, press [+] and [-] simultaneously while holding

[REVERB].

Enhancing the Sound with Reverb

Lights up when REVERB is on.

Setting range: 1–20

Default setting: Depends on the selected

Voice

NOTE

The Reverb Depth is restored to the default

setting when the power is turned off.

NOTE

Holding [REVERB] shows the Reverb Depth

value on the display.

Basic Operations and More

NU1X Owner’s Manual •23

You can shift the pitch of the entire keyboard up or down in semitones to facilitate playing in difficult key

signatures and match the pitch of the keyboard to the range of a singer or other instruments. For example,

if “+5” is selected, playing the key C produces a pitch of F, letting you play a song of F major as though it

were in C major.

-To transpose the pitch down:

While holding down [FUNCTION], press a key between F#2 (-6) and B2 (-1).

-To transpose the pitch up:

While holding down [FUNCTION], press a key between C#3 (+1) and F#3 (+6).

-To restore the original pitch:

While holding down [FUNCTION], press the C3 key.

The specified value is shown on the display.

You can fine-tune the pitch of the entire instrument. This function is useful when you play this instrument

along with other instruments or recorded music.

During the operation described below, you can check the Pitch

value shown on the display. (The hundreds place value has been

omitted.)

-To tune up (in roughly 0.2Hz steps):

While holding down [FUNCTION], press [+]. Holding down both buttons shows the

current pitch setting (Hz).

-To tune down (in roughly 0.2Hz steps):

While holding down [FUNCTION], press [-]. Holding down both buttons shows the

current pitch setting (Hz).

-To restore standard pitch:

While holding down [FUNCTION], press [+] and [-] simultaneously. Holding down

all three buttons shows the current pitch setting (Hz).

Transposing the Pitch in Semitones

Default setting: 0 (Normal pitch)

Setting range: -6 – +6

NOTE

The Transpose value is restored to the

default setting when the power is turned off.

F#3F#2

0-1

-2 +1 +3-4

-3-5 +2+4+5

-6 +6

Lowest key (A-1)

Transpose up

Transpose down

Normal pitch

Fine-tuning the Pitch

NOTE

The tuning value is retained even when the

power is turned off.

Hz (Hertz):

This unit of measurement refers to the fre-

quency of a sound and represents the num-

ber of times a sound wave vibrates in a

second.

Setting range: 414.8–466.8Hz (=A3)

Default setting: 440.0Hz (=A3)

42.0

Example: 442.0Hz

Basic Operations and More

24 • NU1X Owner’s Manual

You can select various scales for the instrument. Equal Temperament is the most common contemporary

piano tuning scale. However, history has known numerous other scales, many of which serve as the basis

for certain genres of music. This feature lets you experience the tunings of these genres.

Selecting a Scale

While holding down [FUNCTION], press one of the C5–F#5 keys. Holding down

both controls shows the current value on the display.

Selecting the Base Note

For scales 2 and 3 in particular, you should specify the key you intend to play (Base

Note). While holding down [FUNCTION], press one of the C4–B4 keys. Holding

down both controls shows the current value on the display.

Setting the Scale Tuning

Default setting: 1 (Equal)

NOTE

The scale is restored to the default setting

when the power is turned off.

F#5

Highest key (C7)

Display Key Scale Description

1C5 Equal The pitch range of each octave is divided equally into twelve parts, with each half-step evenly spaced in

pitch. This is the most commonly used tuning in music today.

2C#5Pure Major These tunings preserve the pure mathematical intervals of each scale, especially for triad chords (root,

third, fifth). You can hear this best in actual vocal harmonies—such as choirs and a cappella singing.

3D5 Pure Minor

4D#5 Pythagorean

This scale was devised by the famous Greek philosopher and is created from a series of perfect fifths,

which are collapsed into a single octave. The 3rd in this tuning are slightly unstable, but the 4th and 5th

are beautiful and suitable for some leads.

5E5 Mean-Tone

This scale was created as an improvement on the Pythagorean scale, by making the major third interval

more “in tune.” It was especially popular from the 16th century to the 18th century. Handel, among oth-

ers, used this scale.

6F5 Werckmeister This composite scale combines the Werckmeister and Kirnberger systems, which were themselves

improvements on the mean-tone and Pythagorean scales. The main feature of this scale is that each

key has its own unique character. The scale was used extensively during the time of Bach and

Beethoven, and even now it is often used when performing period music on the harpsichord.

7F#5 Kirnberger

Default setting: C

NOTE

The base note is restored to the default set-

ting when the power is turned off.

Key Base Note Key Base Note Key Base Note Key Base Note

C4 C D#4EbF#4F#A4 A

C#4 C#E4 EG4 G A#4 Bb

D4 D F4 F G#4AbB4 B

B4C4

Highest key (C7)

F~ G A_

Example:

(Followed by a high bar if sharp)

GAb

(Followed by a low bar if flat)

NU1X Owner’s Manual •25

Playing Back Songs

This instrument can play back Songs contained in internal memory or USB flash drive connected to the

[USB TO DEVICE] terminal. There are two kinds of Songs that can be played back: MIDI Songs and

Audio Songs.

-Song data formats that can be played

NOTE

When playing back MIDI Songs containing Voices that are incompatible with this instrument such as XG and GM Songs, the Voices may not sound as intended on the original. In addition,

Song data of MIDI channels 3–16 cannot be played back, since this instrument can recognize only MIDI channels 1 and 2. This is why you should only play back Songs which have data of

only MIDI channels 1–2, to which the piano performance is assigned.

Song Category List (XX indicates numerals.)

* Shown only when USB flash drive is connected.

** When data does not exist, the Song number is not displayed.

-User Songs and External Songs

Songs recorded by this instrument are called “User Songs” while Songs created in other ways or on other instruments

are called “External Songs.” In USB flash drive, Songs in the USER FILES folder are handled as User Songs while

Songs in a location other than the USER FILES folder are handled as External Songs. When you record a Song to

USB flash drive, a USER FILES folder is created automatically and the resulting User Song will be saved in this

folder.

Songs

MIDI Songs

A MIDI Song contains data of your keyboard performance

(such as which keys you played and how hard you played

them), and is not a recording of the actual sound itself. The

performance information refers to which keys are played, at

what timing, and at what strength—just as in a musical score.

Based on the recorded performance information, the tone

generator (of the digital piano, etc.) outputs the corresponding

sound. A MIDI Song uses a small amount of data capacity in

comparison to audio recording.

Audio Songs

An Audio Song is a recording of the performed sound itself.

This data is recorded in the same way as that used in record-

ing cassette tapes, or with voice recorders, etc. This data can

be played with a portable music player, etc., allowing you to

easily let other people hear your performance.

Data formats

SMF (Standard MIDI File) Formats 0 and 1

One of the most common and widely compatible MIDI formats

used for storing sequence data. MIDI Songs recorded in this

instrument are saved as SMF Format 0.

WAV format (.wav)

Audio file format commonly used by computers. This instru-

ment can play 44.1kHz/16bit stereo WAV files. Audio Songs

recorded on this instrument are saved in this format.

Extension .MID .WAV

Songs compatible with this instrument

Song Category Song

Number Descriptions

d.XX Voice Demo Song

(MIDI Song) d.01–d.15 Each Song effectively demonstrates each of this instrument’s Voices (page 18).

P.XX Preset Song

(MIDI Song) P.01–P.50

50 classical Preset Songs (page 43) permanently stored to the instrument. For information

on these Songs, see the music book “50 Classical Music Masterpieces,” included with this

instrument.

A.XX* Audio Song in USB

flash drive

A.00–A.99 User Songs which have been recorded with this instrument (page 28)

C.XX* C.00–C.99** External Songs, commercially available or which have been recorded on a computer, etc.

S.XX* MIDI Song in USB

flash drive

S.00–S.99 User Songs which have been recorded with this instrument (page 28)

F.XX* F.00–F.99** External Songs, commercially available or which have been recorded on a computer, etc.

U.XX

MIDI Song in inter-

nal memory of this

instrument

U.01–U.10 User Songs which have been recorded to internal memory of the instrument (page 28)

L.00–L.99** External Songs (commercially available or which have been recorded on a computer, etc.)

transferred from a computer to this instrument.

Playing Back Songs

26 • NU1X Owner’s Manual

1While holding down [DEMO/SONG], press [+] to select the

desired Song Category (page 25).

2Press [+] or [-] to select the specific Song number (see “Song

Category List” on page 25), or “*.rd” (random) or “*.AL

”(all).

Song number ............Plays back only the selected Song.

...........................Plays back the Songs of this type continuously

in random order.

...........................Plays back all the Songs of this type continu-

ously in sequential order.

The asterisk (*) indicates “P”, “A”, “C”, “S”, “F” or “U” designation in the dis-

play.

3Press [>/o] (Play/Pause) to start playback.

During playback, the current measure number (for MIDI Songs) or playing time

(for Audio Songs) is shown on the display.

For information on operations such as Pause, Rewind, Fast Forward, etc., refer to

“Playback-related Operations” on page 27.

4Press [DEMO/SONG] to stop playback.

If a specific Song number is selected in Step 2, playback stops automatically

when the end of the Song is reached.

Playing Back Songs

To play back a Song on a USB flash drive:

Read “About USB Devices” (page 31), then connect the USB flash drive to the [USB TO DEVICE] terminal, and fol-

low the instructions below.

NOTE

The Song Categories will appear on the

display in the following order:

d.XX  P

.XX  (A.XX)  (C.XX) 

(S.XX)  (F.XX)  U.XX  d.XX etc.

NOTE

“A.XX”, “C.XX”, “S.XX” and “F.XX” are

shown only when a USB flash drive is con-

nected.

NOTE

Song indications such as “F.00” and

“C.00” may not appear immediately

depending on the amount of the folders in

the USB flash drive.

NOTE

This instrument can select or play Songs

saved to only the first, second, or third

hierarchical folder level. For details, refer to

page 32.

NOTE

During playback of a Demo Song, “*.rd”

or “*.AL” cannot be selected.

NOTE

• During Demo Song playback, the current

measure number is not shown on the

display.

• You can play the keyboard along with

Song playback.

• The metronome can be used during play-

back. It will automatically stop when

playback is stopped.

• When playing back External Songs on a

USB flash drive, actual playback is done

in numerical or alphabetical order,

according to the Song titles.

1. 2. 0.01. 0.02.

MIDI Song

Current measure

number

Audio Song

Playing time

Indicates minutes. In

case of 10 minutes or

more, only the low-

est digit is shown.

Indicates

seconds.

Playing Back Songs

NU1X Owner’s Manual •27

Playback-related Operations

Adjusting the tempo (MIDI Song) or playback speed (Audio Song)

You can change the playback tempo of a MIDI Song. You can also adjust the

playback speed of an Audio Song during its playback.

While holding down [METRONOME], press [+] / [-] or C#5/B4 key to increase

or decrease the value. To reset the value to default, press [+] and [-] simultane-

ously while holding down [METRONOME]. For details, refer to page 20.

Adjusting the volume (only for Audio Song)

The volume level of this instrument may be markedly different from that of com-

mercially available Audio Song or one recorded on another device. To adjust the

volume of the Audio Song, press one of the C1–G2 keys while holding down

[DEMO/SONG].

Pause

During playback, press [>/o] to pause playback. The display will also pause and

the [>/o] lamp will flash. Pressing it again resumes Song playback from the cur-

rent position.

Rewind/Fast forward

During playback, press [-] or [+] to move back or forth through the measures.

Pressing one of these buttons once moves one measure back/forward for MIDI

Songs, or one second for Audio Songs.

Returning to the Song Top

During playback, press [-] and [+] simultaneously to jump to the top of the Song.

MIDI Song

Setting range: 5 to 500 beats per minute

Default setting: Depends on the selected

Song

Audio Song

Setting range: 75% to 125%

Default setting: 100%

Setting range: 1–20

Default setting: 16

C1(1) G2(20)A1(10)

max. min.

Lowest

key (A-1)

The higher the key, the greater the volume.

D#2 (Default)

NOTE

During playback of a Demo Song, Rewind/

Fast Forward operations or returning to the

Song top cannot be done.

Setting range: JA (Japanese) / Int (Interna-

tional)

Default setting: Int

Setting the Character Code

If the Song cannot be called up, you may need to select the appropriate Character

Code from the following two settings.

-International

For playing back Songs with names using western European characters (including

umlaut or diacritic marks). To select this, turn on the power while holding down the

A-1 and A#-1 keys.

-Japanese

For playing back Songs with names using Japanese characters. To select this, turn on

the power while holding down the A-1 and B-1 keys.

A#-1

Lowest key (A-1)

B-1

Lowest key (A-1)

28 • NU1X Owner’s Manual

Recording Your Performance

This instrument allows you to record your performance by using one of the following two methods. The

recorded performance can be played back as a User Song.

-MIDI recording

With this method, your keyboard performances are recorded and saved to internal memory of this instrument or USB

flash drive as a MIDI Song (via the SMF format 0). Up to 10 Songs can be recorded to the instrument, although more

can be recorded to USB flash drive (See below).

-Audio recording

With this method, your keyboard performances are recorded then saved to USB flash drive as an Audio Song in ste-

reo WAV format of normal CD-quality resolution. The saved Audio Song can be transmitted to then played on porta-

ble music players. The recordable time differs depending on the capacity of the USB flash drive.

1Connect a USB flash drive to the [USB TO DEVICE] terminal.

2Select the Recording method.

-To make a MIDI Recording:

While holding down [DEMO/SONG], press [+] or [-] until “U.**” (for saving

data to the instrument) or “S.**” (for saving data to the USB flash drive) is shown

on the display.

-To make an Audio Recording:

While holding down [DEMO/SONG], press [+] or [-] until “A.**” (for saving

data to the USB flash drive) is shown on the display.

3Press [+] or [-] to select a Song number.

•U.01–U.10 ......User Song in this instrument (MIDI Song)

•S.00–S.99 ......User Song in USB flash drive (MIDI Song)

•A.00–A.99 ......User Song in USB flash drive (Audio Song)

-When the selected Song contains already-recorded data:

You can confirm it by checking the display.

NOTICE

When the selected Song contains data, keep in mind that recording new data will erase

the existing data.

NOTE

In case any message appears on the display

when connecting the USB flash drive to the

instrument, refer to the “Message List” on

page 41.

NOTE

If you make an audio recording while using

headphones and then play that recorded

audio Song through speakers, you should

set “Binaural sampling/Stereophonic Opti-

mizer” to “OFF.” Refer to page 15 for

details.

When is USB flash drive necessary?

MIDI Songs can be saved to internal memory of this instrument or to USB flash

drive, while Audio Songs can only be saved to the USB flash drive.

As necessary, prepare a USB flash drive referring to “About USB Devices” (page

31).

NOTE

Songs recorded with the MIDI recording

cannot be converted to Audio Songs.

NOTE

Record mode cannot be called up in the fol-

lowing situations.

• During Song playback (page 26)

• During file management operations

such as Copy (page 33), Delete (page

30) and Format(page 32)

U.01U.0.1.

When Song contains data: When Song does not contain data:

Only the left-most dot lights up.

Three dots light up.

Recording Your Performance

NU1X Owner’s Manual •29

4Select a Voice (page 17) and other parameters such as Beat

(page 19) for recording.

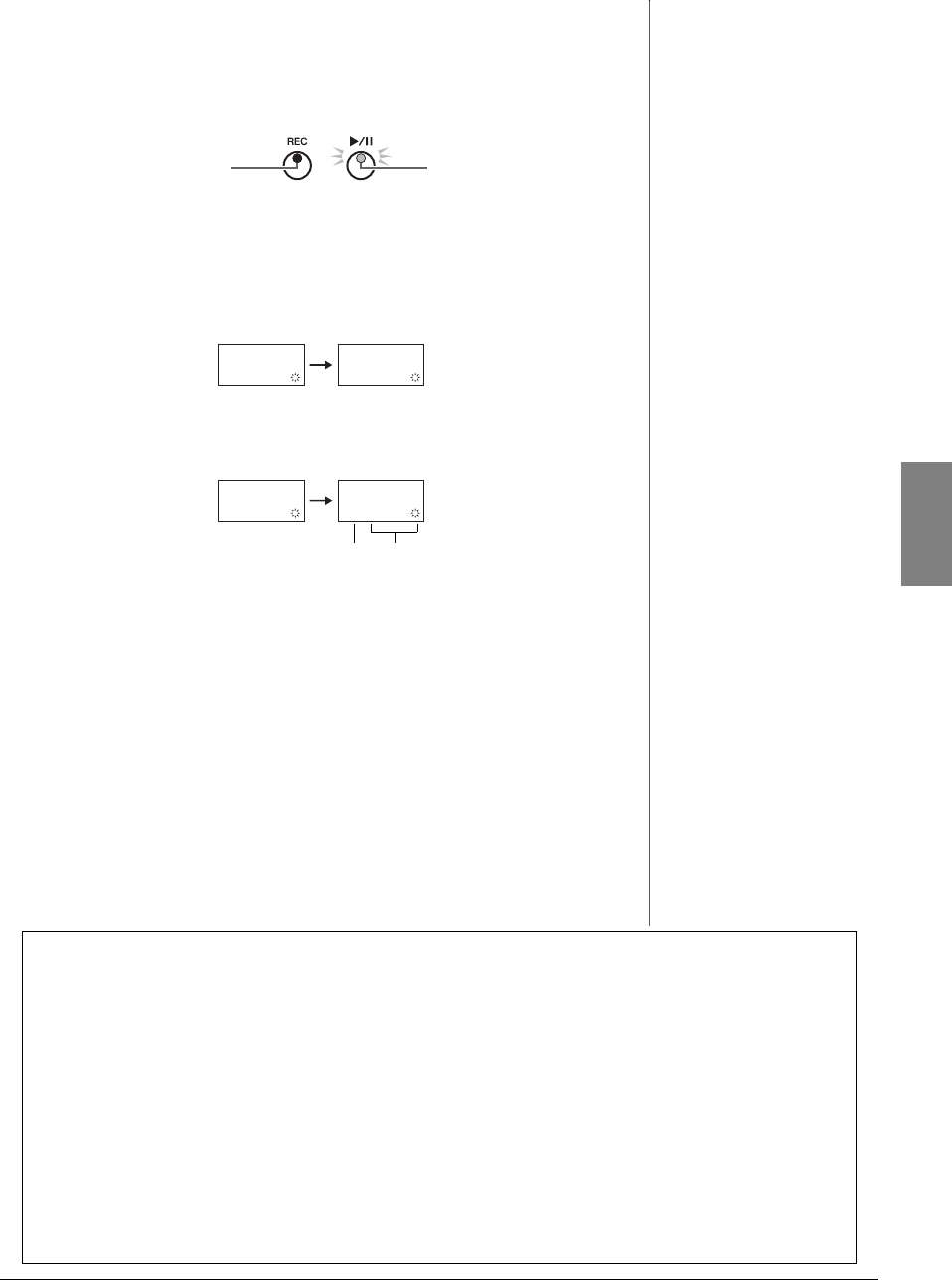

5Press [REC] to engage the Record mode.

The [REC] lamp lights up, and the [>/o] (Play/Pause) lamp flashes according to

the current tempo.

To exit from the Record mode, press [REC] again.

6Start recording.

Play a note on the keyboard or press [>/o] to start recording.

-With MIDI Recording:

While recording, the current measure number is shown on the display.

-With Audio Recording:

While recording, the elapsed time is shown on the display.

7Press [REC] or [>/o] to stop recording.

Dashes appear on the display in succession, indicating that the recorded data is

being saved. After the data is saved, an “End” message appears for three sec-

onds, indicating that the Record mode is disengaged.

NOTICE

While dashes appear on the display in succession, never turn off the power or discon-

nect the USB flash drive. Doing so may delete all Song data in the instrument, including

external Songs (page 25).

8Press [>/o] to play the recorded Song.

To stop playback, press [DEMO/SONG].

Regarding the operations such as Pause or Rewind/Fast forward etc., refer to

“Playback-related Operations” on page 27.

Using the Metronome

You can use the metronome while record-

ing, although the metronome sound will not

be recorded.

If memory space is running low:

An “EnP” or “FUL” message will

appear on the display after pressing [REC].

If “EnP” appears, you can start recording.

However, keep in mind that your perfor-

mance data may not have been correctly

saved or recording may stop automatically.

If “FUL” appears, you cannot start

recording. We recommend that you first

remove any unnecessary files (page 30) to

ensure sufficient memory capacity.

FlashesLights up

1. 2.

Measure number

NOTE

With audio recording, audio signals such

as those from the [AUX IN] jack are also

recorded.

0.01. 0.02.

Indicates minutes. In

case of 10 minutes

or more, only the

lowest digit is

shown.

Indicates seconds.

Elapsed time

NOTE

The recorded User Song data on this

instrument can be copied to a USB flash

drive. Refer to page 33.

When engaging the Record Mode (pressing [REC]) without selecting a Song number

Your performance will be recorded to the selected Song when you press [REC].

NOTICE

When the selected Song contains data, keep in mind that recording new data will erase the existing data.

If one of the following Songs (page 25) is selected, your performance will be recorded to a User Song (page 25) as indi-

cated.

• External audio Song “C.XX” ............................................................................. Recorded to “A.XX”.

• External MIDI Song on USB flash drive “F.XX”.............................................. Recorded to “S.XX”.

• External MIDI Song in internal memory of the instrument “L.XX” ................. Recorded to “U.XX”.

• Voice Demo Song “d.XX”, Preset Song “P.XX” .............................................. Recorded to “U.XX”.

Then, the Song number as the Recording target will be the lowest Song number (of those containing no data) in each

Song category, “A”, “S” and “U”.

If there are no empty User Songs, “A.0.0.”, “S.0.0.”, or “U.0.1.” will be used as the Recording target.

Recording Your Performance

30 • NU1X Owner’s Manual

A User Song can be deleted.

1If necessary, connect the USB flash drive to the [USB TO

DEVICE] terminal.

2Select the Song to be deleted.

For details on how to select a Song file, refer to page 26.

3While holding down [FUNCTION], press [REC].

“dEL” appears on the display for a while, then “n Y” appears on the display. If

you wish to cancel this operation, press [-].

4Press [+] to execute the Delete operation.

Dashes appear in succession on the display, indicating that the Delete operation is

in process. When the operation is completed, “End” appears on the display.

NOTICE

While dashes appear in succession on the display, never turn off the power or discon-

nect the USB flash drive. Doing so may not only corrupt the Song data to be deleted but

also other data in the internal memory or the USB flash drive.

Deleting a Song file

NOTE

In case a message appears on the display

when connecting a USB flash drive to the

instrument, refer to the “Message List” on

page 41.

NOTE

Song Playback is not available after execut-

ing Step 3. Make sure to confirm the to-be-

deleted Song before executing Step 3.

NOTE

The operation here does not apply to Songs

transferred from the computer to this

instrument’s internal memory. If you want to

delete such a Song, use a computer.

NU1X Owner’s Manual •31

Using USB Flash Drives

With a USB flash drive plugged in, you can use this instrument to perform the following tasks.

-Formatting a USB flash drive ......................................................... page 32

-Listening to songs stored on the USB flash drive ....................... page 25

-Recording your performances on the USB flash drive................ page 28

-Copying User Songs recorded on the instrument to

the USB flash drive ......................................................................... page 33

NOTE

• When deleting Songs on the USB flash

drive, refer to page 30.

• The Format, Copy and Delete operations

cannot be done in the following situa-

tions.

• During Song playback (page 26)

• Record mode (page 29)

About USB Devices

Precautions when using the [USB TO

DEVICE] terminal

This instrument features a built-in [USB TO DEVICE]

terminal. When connecting a USB device to the termi-

nal, be sure to handle the USB device with care. Follow

the important precautions below.

NOTE

For more information about the handling of USB devices, refer to the owner’s man-

ual of the USB device.

Compatible USB devices

• USB flash drive

• USB hub

• USB wireless LAN adaptor (UD-WL01, which is

included only in some areas) (page 38)

Other USB devices such as a USB hub, computer key-

board or mouse cannot be used.

The instrument does not necessarily support all com-

mercially available USB devices. Yamaha cannot guar-

antee operation of USB devices that you purchase.

Before purchasing a USB device for use with this

instrument, please visit the following web page:

http://download.yamaha.com/

Although USB devices 2.0 to 3.0 can be used on this

instrument, the amount of time for saving to or loading

from the USB device may differ depending on the type

of data or the status of the instrument. USB 1.1 devices

cannot be used on this instrument.

NOTICE

The rating of the [USB TO DEVICE] terminal is a maxi-

mum of 5V/500mA. Do not connect USB devices having a

rating above this, since this can cause damage to the

instrument itself.

Connecting a USB device

When connecting a USB device to the [USB TO DEVICE]

terminal, make sure that the connector on the device is

appropriate and that it is connected in the proper direction.

NOTICE

• Avoid connecting or disconnecting the USB device

during playback/recording and file management opera-

tions (such as Save, Copy, Delete and Format), or when

accessing the USB device. Failure to observe this may

result in “freezing” of the operation of the instrument

or corruption of the USB device and the data.

• When connecting then disconnecting the USB device

(and vice versa), make sure to wait a few seconds

between the two operations.

• Do not use an extension cable when connecting a USB

device.

NOTE

If you intend to connect two or three devices at the same time to a terminal, you

should use a bus-powered USB hub. Only one USB hub can be used. If an error

message appears while using the USB hub, disconnect the hub from the instrument,

then turn on the power of the instrument and re-connect the USB hub.

Using a USB flash drive

By connecting the instrument to a USB flash drive, you

can save data you’ve created to the connected device,

as well as read data from the connected USB flash

drive.

-Number of USB flash drives that can be used

Only one USB flash drive can be connected to the

[USB TO DEVICE] terminal.

(If necessary, use a USB hub. The number of USB flash

drive that can be used simultaneously with musical

instruments even when a USB hub is used is only one.)

-Formatting a USB flash drive

You should format the USB flash drive only with this

instrument (page 32). A USB flash drive formatted on

another device may not operate properly.

NOTICE

The format operation overwrites any previously existing

data. Make sure that the USB flash drive you are format-

ting does not contain important data.

-To protect your data (write-protect)

To prevent important data from being inadvertently

erased, apply the write-protect provided with each USB

flash drive. If you are saving data to the USB flash

drive, make sure to disable write-protect.

-Turning off the instrument

When turning off the instrument, make sure that the

instrument is NOT accessing the USB flash drive by

playback/recording or file management (such as during

Save, Copy, Delete and Format operations). Failure to

do so may corrupt the USB flash drive and the data.

MAX

PHONES USB TO DEVICE

MIN

MASTER VOLUME

Using USB Flash Drives

32 • NU1X Owner’s Manual

NOTICE

Executing the Format operation will delete all data in the USB flash drive. Before formatting, save important data to a computer

or another storage device.

1Connect the USB flash drive to the [USB TO DEVICE] terminal.

2While holding [FUNCTION] and [>/o] (Play/Pause), press [REC].

“For” appears on the display for a while, then “n Y” appears. If you wish to

cancel this operation, press [-] here.

3Press [+] to execute the Format operation.

Dashes appear in succession on the display, indicating that Formatting is in pro-

cess. When the operation is completed, “End” appears on the display.

NOTICE

While dashes appear in succession on the display, never turn off the power or discon-

nect the USB flash drive. Doing so may corrupt the data on the USB flash drive, and the

Format operation will not be executed properly.

When organizing files on a USB flash drive using a computer, etc., make sure to place External Songs

only in the first, second, or third hierarchical folder level. This instrument will not be able to select or

play songs from any level lower than that.

Formatting USB Flash Drive

NOTE

When you execute a Song Recording (page

29), Copy (page 33) or Delete (page 30)

operation, a “UnF” prompt may appear

on the display, indicating that the USB flash

drive has not been formatted yet. In this

case, execute the Format operation by pro-

ceeding from Step 2 as described at left.

Managing files on a USB flash drive

USB flash

drive

First level Second level Third level Fourth level

Song file

USER

FILES

folder

Song folder

User Song

(MIDI)

USERSONG

XX.mid

User Song

(audio)

USERAUDIO

XX.wav

Song folder

These Songs

are playable.

These Songs

are not playable.

Using USB Flash Drives

NU1X Owner’s Manual •33

You can copy the User Song in the instrument to the USB flash drive. The copied Song is saved as SMF

format 0 to the “USER FILES” folder in the USB flash drive, and the file is automatically named as

“USERSONG**.MID” (**: numerals).

1Connect the USB flash drive to the [USB TO DEVICE] terminal.

2For the Copy source, select a User Song in this instrument.

For detailed instructions, refer to page 25.

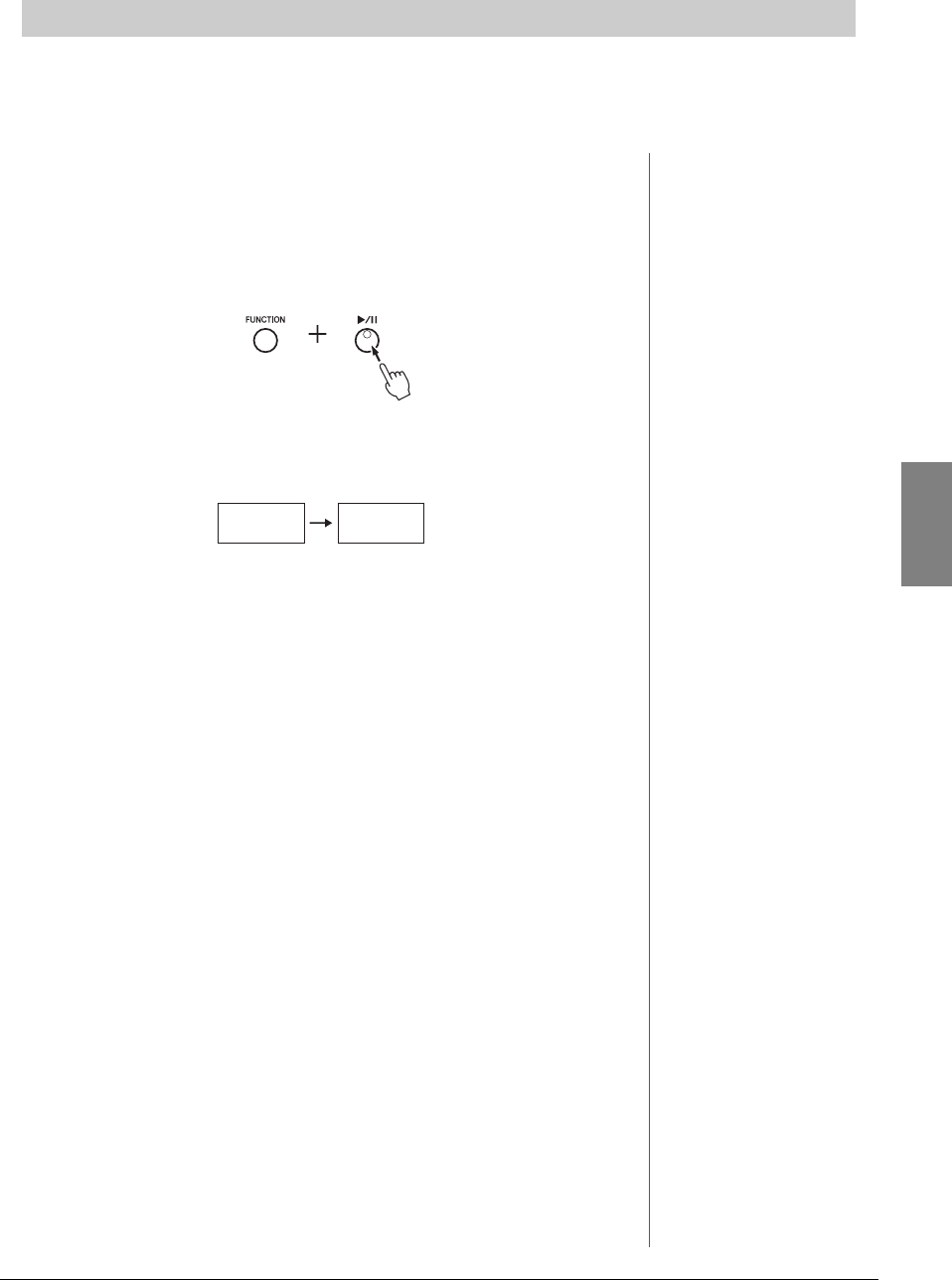

3While holding [FUNCTION], press [>/o] (Play/Pause).

On the display, “SAu” appears for a while then the Song number (for example

“S.00”) appears as Copy destination.

To cancel the Copy operation before it begins, press any button other than [>/o]

here.

4Press [>/o] to execute the Copy operation.

Dashes appears in succession on the display, indicating that the Copy operation is

in process. When the Copy is completed, “End” appears on the display.

NOTICE

When dashes appear in succession on the display, never turn off the power or discon-

nect the USB flash drive. Doing so may corrupt the data on the USB flash drive.

Copying User Songs in the Instrument to USB Flash Drive

NOTE

If any Song other than one of the User

Songs is selected in Step 2, “Pro”

appears in Step 3. In this case, return back

to Step 2.

NOTE

When there is insufficient free memory

capacity in the USB flash drive, the copied

Song cannot be saved. To ensure sufficient

memory, try erasing unnecessary files

(page 30).

SAu S.00

Song number

(Example: “S.00”)

34 • NU1X Owner’s Manual

Backup Data and Initialization

The following data, referred to as Backup data, as well as User Song data and External Song data will be

maintained even if the power is turned off.

• Character Code.................................................................page 27

• Tuning............................................................................... page 23

• IAC on/off ........................................................................page 14

• IAC Depth ........................................................................page 14

• Auto Power Off on/off......................................................page 13

• Metronome volume ..........................................................page 19

• Audio Song volume..........................................................page 27

• AUX IN Noise Gate on/off...............................................page 36

• Half Pedal Point................................................................ page 16

• Binaural Sampling / Stereophonic Optimizer on/off........page 15

• VRM function on/off........................................................page 21

•Bluetooth on/off................................................................page 39

While holding down the C7 key, turn on the power. The Backup data (with the exception of “Character

Code”) will be initialized. Note that User Songs and External Songs are not erased.

“CLr” appears on the display, and the initialization starts. When the initialization fin-

ishes, the display turns dark.

NOTICE

While the display indicators flash in a pattern (i.e., data is being initialized), never turn off the

power. Doing so may delete all Song data in the instrument, including external Songs (page

25), or corrupt the Backup data and cause the Format operation not to be executed properly.

Backup Data in Internal Memory

Initializing the Backup Data

Highest key (C7)

NOTE

If this instrument somehow becomes dis-

abled or malfunctions, turn off the power to

the instrument, then perform the initializa-

tion procedure.

NU1X Owner’s Manual •35

Connections

CAUTION

Before connecting the instrument to other electronic components, turn off the power to all the components. Before turning the

power on or off to all components, set all volume levels to minimum (0). Otherwise, damage to the components, electrical

shock, or even permanent hearing loss may occur.

Refer to the “Panel Controls and Terminals” on page 10 for information on the location of the jacks and

terminals.

q[USB TO HOST] terminal .............................................page 37

wMIDI [IN] [OUT] terminals ............................................page 36

e[AUX IN] jack ...........................................................See below.

rAUX OUT [L/L+R] [R] jacks .........................................page 36

t[USB TO DEVICE] terminal..........................................page 31

Playing a Portable Audio Player with the Built-in Speakers—[AUX IN] jack

You can connect the headphone jack of a portable audio player to the instrument’s [AUX IN] jack, letting you hear

the sound of that audio player through the built-in speakers of the instrument.

NOTICE

To avoid damage to the devices, first turn on the power to the external device, then to the

instrument. When turning off the power, first turn off the power to the instrument, then to the

external device.

Jacks and Terminals

USB TO DEVICE

eq w r

(Left side of the front surface

below the keyboard)

Connecting Audio Devices ([AUX IN] jack, AUX OUT [L/L+R] [R] jacks)

NOTE

Use audio cables and adaptor plugs having

no (zero) resistance.

Instrument

Portable

audio player

Phone plug

(stereo mini)

Headphone jack

Phone plug

(stereo mini)

Audio cable

Audio signal

Connections

36 • NU1X Owner’s Manual

-Minimizing noise of the input sound via Noise Gate

By default, this instrument cuts unwanted noise from the input sound. However, this

may result in necessary sounds also being cut, such as the soft decay sound of a piano

or guitar. To avoid this, set the Noise Gate to off via the following operation.

While holding down [FUNCTION], press the C#6 key repeatedly to toggle Noise

Gate on and off as needed.

Using an External Stereo System for Playback—AUX OUT [L/L+R] [R] jacks

These jacks let you connect the instrument to external powered speaker systems, for

playing in larger venues at higher volumes.

NOTICE

• To avoid possible damage to the devices, first turn on the power to the instrument, then to the external device. When turning

off the power, first turn off the power to the external device, then to the instrument. Since this instrument’s power may auto-

matically be turned off due to the Auto Power Off function (page 13), turn off the power to the external device, or disable Auto

Power Off when you do not intend to operate the instrument. If the instrument’s power is automatically turned off via the Auto

Power Off function, first turn off the external device, then turn on the power to the instrument then the external device again.

• When the AUX OUT jacks are connected to an external device, never connect the [AUX IN] jacks to the output jacks of the

external device. Doing so could result in feedback (oscillation) that may damage both the devices.

MIDI (Musical Instrument Digital Interface) is a global format standard for

performance data transmission and reception between electronic musical

instruments. Connecting musical instruments that support MIDI via MIDI

cables enables you to transfer performance and setting data between multiple

musical instruments. Using MIDI, you can also achieve more advanced per-

formances than using just a single musical instrument.

Default setting: On

C#6

Highest key (C7)

NOTE

Use audio cables and adaptor plugs with no

resistance.

NOTE

Use only the AUX OUT [L/L+R] jack for

connection with a mono device.

NOTE

If you are monitoring the sound output via

the AUX OUT [L/L+R] [R] jacks from head-

phones connected to the instrument, you

should set “Binaural sampling/Stereo-

phonic Optimizer” to “OFF.” Refer to page

15 for details.

AUX INAUX OUT

Audio cable

Audio signal

Instrument Powered speaker

Phone plug

(standard)

Phone plug

(standard)

Connecting External MIDI Devices (MIDI [IN] [OUT] terminals)

NOTE

You need a dedicated MIDI cable to make a

MIDI connection.

NOTE

The handled MIDI messages differ depend-

ing on the MIDI instrument. In other words,

some MIDI messages transmitted from this

instrument may not be recognized on a dif-

ferent MIDI instrument. For details, you

should check the MIDI Implementation

Chart of each MIDI instrument. The MIDI

Implementation Chart of this instrument is

described in the “MIDI Reference” on the

website (page 9).

NOTE

During Song playback, data of only MIDI

channels 3–16 will be output via MIDI.

NOTE

Voice Demo Song and Preset Song data are

not transmitted via MIDI.

Receives

MIDI data.

Transmits

MIDI data.

Connections

NU1X Owner’s Manual •37

Example for MIDI connection

Example 1:

The connection below allows you to play the sounds of an external MIDI tone generator from the keyboard of this

instrument.

Set the MIDI Receive Channel of the external MIDI tone generator to “1,” since the MIDI Transmit Channel of this

instrument is set to “1.”

Example 2:

The connection below allows you to play the sounds of this instrument by playing back a Song on an external MIDI

keyboard or sequencer.

The MIDI Receive Channels of this instrument can only be set to 1 and 2. This is why the data for the piano part

should be assigned to MIDI Channels 1 and 2 of the Song.

Local Control on/off

Normally, playing the keyboard will control the internal tone generator. This situation is called “Local Control ON.”

If you want to use the keyboard only for controlling an external MIDI instrument, turn off Local Control. With this

setting, this instrument will produce no sound even if you play the keyboard.

-To turn the Local Control ON or OFF:

While holding down [FUNCTION], press the C6 key repeatedly (if necessary).

By connecting a computer to the [USB TO HOST] terminal, you can transfer Song data between the

instrument and the computer via MIDI, and take advantage of sophisticated computer music software.

For details, refer to the “Computer-related Operations” on the website (page 9).

NOTICE

Use an AB type USB cable of less than 3 meters. USB 3.0 cables cannot be used.

MIDI OUT MIDI IN

NU1X

Performance data

MIDI

tone generator

MIDI IN MIDI OUT

Song data

NU1X

MIDI keyboard or sequencer

Default setting: On

Highest key (C7)

Connecting to a Computer ([USB TO HOST] terminal)

Files that can be transferred from a computer to this instrument (and vice versa).

• Song file: .mid (SMF format 0, 1)

Connections

38 • NU1X Owner’s Manual

You can connect a smart device such as an iPhone or iPad to this instrument

via the USB wireless LAN adaptor UD-WL01, or the wireless MIDI adaptor

UD-BT01 or MD-BT01 (These adaptors are sold separately and may not be

available in some areas.). By using appropriate application tools on your

smart device, you can take advantage of convenient functions and get more

enjoyment out of this instrument.

For information about the compatible smart devices and application tools, access the

Web page of each application tool on the following page:

http://www.yamaha.com/kbdapps/

NOTICE

Do not place your smart device such as an iPhone/iPad in an unstable position. Doing so may

cause the device to fall and result in damage.

Connection with the wireless LAN adaptor (UD-WL01*)

*UD-WL01 (sold separately) may not be available depending on your area.

There are two types of connections with the USB wireless adaptor (UD-WL01) described below.

-Connecting by Acccess Point Mode

The Access Point mode allows you to directly connect UD-WL01 (sold separately)

and a smart device such as iPhone/iPad, without the need for using an access point.

You can use this mode when there is not any access point available for connection to

the instrument, or when it is unnecessary to connect to another network while a smart

device is connected to the instrument.

1Initialize the instrument (if necessary; see page 34).

2Connect the UD-WL01 (sold separately) to the [USB TO DEVICE]

terminal.

3Connect a smart device such as iPhone/iPad to the instrument

(as an access point).

-Connecting by the Infrastructure Mode (Automatic Setup by WPS)

The Infrastructure mode uses an access point for data communication between a USB

wireless LAN adaptor and a network. You can use this mode when you connect to the

internet while connecting the wireless LAN adaptor to the instrument.

1Connect the UD-WL01 (sold separately) to the [USB TO DEVICE]

terminal.

2Hold down [WPS] on the UD-WL01 for three seconds.

3Press the WPS button on your access point within two minutes

after step 2.

Connection with the wireless MIDI adaptor (UD-BT01/MD-BT01*)

*UD-BT01 (sold separately) / MD-BT01(sold separately) may not be available depending on your area.

For details on connections, refer to the “iPhone/iPad Connection Manual” on the website (page 9).

Connecting to a smart device such as iPhone/iPad ([USB TO DEVICE]/ [USB TO

HOST], MIDI [IN][OUT] terminals)

NOTE

• Before using the [USB TO DEVICE] ter-

minal, be sure to read “Precautions when

using the [USB TO DEVICE] terminal” on

page 31.

• When you use the instrument along with

an application on your smart device,

such as iPhone/iPad, we recommend

that you set your device to not emit radio

waves (for example, by setting “Airplane

Mode” to “ON”).

Access point

An “access point” refers to a device which

acts as a base station when data is trans-

mitted/received via a USB wireless LAN

adaptor.

Some access points are combined with

router or modem functions.

NOTE

When you change the Infrastructure mode

(see below) to the Access Point mode, ini-

tialize the instrument (page 34).

NOTE

Once you connect by Infrastructure mode,

you can connect to a network automatically

without executing steps 2 and 3.

Connections

NU1X Owner’s Manual •39

This instrument is equipped with Bluetooth functionality. You can input the sound of the audio data saved

in a Bluetooth-equipped device to this instrument and listen to it through the built-in speaker of the instru-

ment. Also, you can record the input audio data as an Audio Song (page 28).

* Bluetooth-equipped device

In this manual, “Bluetooth-equipped device” means a device that can transmit the audio data saved in it to the instrument using the Bluetooth function

via wireless communication; for example, smart phone, digital audio player, etc. For proper operation, the device must be compatible with A2DP

(Advanced Audio Distribution Profile).

Pairing with

Bluetooth

-equipped Devices

If you wish to connect your Bluetooth-equipped device to the instrument via Blue-

tooth, the device needs to be paired with the instrument first.

Once the Bluetooth-equipped device has been paired with this instrument, there is no

need to perform pairing again.

1Hold down [FUNCTION] for 3 seconds.

The instrument will enter into Pairing mode. At the same time the (Bluetooth)

lamp will flash and “bt” message will appear on the display. To cancel the pair-

ing, press [>/o] (Play/Pause).

2On your Bluetooth-equipped device, set the Bluetooth function

to on and select “NU1X” from the connection list.

For details, refer to the Bluetooth-equipped device owner’s manual.

After pairing is completed, the (Bluetooth) lamp will light up and the message

will disappear and the display will turn dark.

Play back audio data on your

Bluetooth

-equipped device to confirm that

the built-in speakers of the instrument can output the audio sound.

When you turn on the instrument the next time, the last connected

Bluetooth

equipped device will be connected to this instrument automatically, if the

Bluetooth

function of the device and the instrument is set to on. If it is not connected automati-

cally, select the model name of the instrument from the connections list on the device.

Switching the

Bluetooth

Function On/Off

By default, the Bluetooth function will be set to on right after turning the instrument’s power on. However, you can

set the function to off when you want to disconnect the connection between the instrument and the Bluetooth-

equipped device, or when you want to try to connect the device to the instrument again, etc.

While holding down [FUNCTION], press the F6 key repeatedly (if necessary).

Using the

Bluetooth

audio function

Before using the Bluetooth function, be sure to read “About Bluetooth” on page 40.

Pairing

“Pairing” means to register Bluetooth-

equipped devices on this instrument, and

establish the mutual recognition for wire-

less communication between the two.

NOTE

Only one Bluetooth-equipped device can be

connected to this instrument at a time

(although up to 8 devices can be paired to

this instrument). When pairing with the 9th

Bluetooth-equipped device has succeeded,

pairing data for the device with the oldest

connection date will be deleted.

NOTE

When the Bluetooth function of this instru-

ment is set to “Off,” standby for pairing with

the instrument is not enabled when holding

[FUNCTION] for 3 seconds. In this case, set

Bluetooth to “On” (See below.), and then

start pairing.

Flashes.

Appears on the display.

NOTE

• Make sure to complete the settings on

the Bluetooth-equipped device within 5

minutes. After 5 minutes passed, the

Pairing mode ends automatically and the

(Bluetooth) lamp turns off.

• If you are required to enter a passkey,

enter the numerals “0000.”

NOTE

You can adjust the volume of the sound

input via Bluetooth by the [MASTER VOL-

UME] control. To adjust the volume balance

between your keyboard performance and

the input sound via Bluetooth, adjust the

volume on the Bluetooth-equipped device.

Highest key (C7)

Connections

40 • NU1X Owner’s Manual

About Bluetooth

•Bluetooth is a technology for wireless communication between devices within an area of about 10 meters (33 ft.)

employing the 2.4 GHz frequency band.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such

marks by Yamaha is under license.

Handling Bluetooth communications

• The 2.4 GHz band used by Bluetooth compatible devices is a radio band shared by many types of equipment.

While Bluetooth compatible devices use a technology minimizing the influence of other components using the

same radio band, such influence may reduce the speed or distance of communications and in some cases interrupt

communications.

• The speed of signal transfer and the distance at which communication is possible differs according to the distance

between the communicating devices, the presence of obstacles, radio wave conditions and the type of equipment.

• Yamaha does not guarantee all wireless connections between this unit and devices compatible with Bluetooth func-

tion.

Bluetooth availability

This instrument is equipped with Bluetooth functionality; however,

even this functionality may not ensure support of Bluetooth, depend-

ing on the country in which you purchased the product. If the Blue-

tooth logo is printed on the control panel, this means that the product

is equipped with Bluetooth functionality.

Bluetooth logo, lamp

NU1X Owner’s Manual •41

Message List

* When an operation (such as saving or data transfer) is in process, the display shows a sequence of flashing dashes.

* Press any button to exit from these message displays.

Message Descriptions

bt The instrument is standing by for Bluetooth pairing. While this message appears, you cannot operate the

instrument.

CLr Displayed when the initialization (page 34) is completed.

con Displayed when Musicsoft Downloader is started on a computer connected to the instrument. While this

message appears, you cannot operate the instrument.

E01

Displayed when the character code (page 27) is not appropriate for the file name of the Song which you

are selecting. Switch the character code.

Displayed when the data format is not compatible with this instrument, or the data has some other prob-

lems. This Song cannot be selected.

Displayed when no USB flash drive can be found, or a problem has occurred in the USB flash drive. Dis-

connect and connect the device again, then execute the operation. If this message appears repeatedly

even when there aren't any other likely problems, the USB flash drive may be damaged.

The Song you have selected cannot be copied or deleted on this instrument. Copy or delete these types

of Songs on a computer.

The memory or the number of the files in the copy destination USB flash drive is full. Remove any unnec-

essary files in the USB flash drive.

E02 Indicates that the USB flash drive is protected.

E03 Displayed when the memory of the USB flash drive becomes full, or the number of files and folders

exceeds the system limit.

E04

Displayed when Audio Song playback or recording has failed. If you are using a USB flash drive to which

data has already been stored or deleted a number of times, first make sure that the device does not con-

tain important data, then format it (page 32) and connect to the instrument again.

EE1 A malfunction has occurred in the instrument. Contact your nearest Yamaha dealer or authorized distributor.

EEE A malfunction has occurred in the instrument. Contact your nearest Yamaha dealer or authorized distributor.

End Displayed when the current operation is completed.

EnP The memory of the instrument or the USB flash drive is running out. We recommend that you remove any

unnecessary files (page 30) to ensure sufficient memory capacity before start recording.

FUL The operation could not be completed because the instrument’s internal memory or the USB flash drive is

nearly full. If this message is shown while recording, your performance data may not be correctly saved.

n Y Confirms whether each operation is executed or not.

Pro Displayed when you try to overwrite or delete a protected Song or read-only file. Use a read-only file after

cancelling the read-only setting.

UnF Displayed when an unformatted USB flash drive is connected. First make sure that the device does not

contain important data, then format it (page 32).

Uoc

Communication with the USB flash drive has been shut down because of overcurrent to the USB flash

drive. Disconnect the USB flash drive from the [USB TO DEVICE] terminal, then turn on the power of the

instrument again.

UU1

Communication with the USB flash drive has failed. Remove the USB flash drive and make the connec-

tion again. If the message appears even when the USB flash drive is connected properly, the USB flash

drive may be damaged.

UU2

This USB flash drive is not supported on this instrument, or too many USB flash drives may have been

connected. Refer to “About USB Devices” (page 31) for information on the USB flash drive connection.

§PS The instrument is in Access Point mode and standing by for connection to an access point by WPS (page

38). While this message appears, you cannot operate the instrument.

§.P.S.

A malfunction occurred in the instrument while it was standing by for connection to an access point by

WPS (page 38). Reconnect the UD-WL01 (sold separately) to the instrument and try to connect to the

access point by WPS again.

Appendix

42 • NU1X Owner’s Manual

Troubleshooting

* The message list (page 41) is also provided for your reference.

Problem Possible Cause and Solution

The instrument does not turn on. The instrument has not been plugged in properly. Securely insert the female plug into

the socket on the instrument, and the male plug into a proper AC outlet (page 12).

A click or pop is heard when the power is

turned on or off. Electrical current is being applied to the instrument. This is normal.

The power is automatically turned off. This is normal and due to the Auto Power Off function. If necessary, set the parameter

of the Auto Power Off function (page 13).

Noise is heard from the instrument's

speakers or headphones.

The noise may be due to interference caused by the use of a mobile phone in close

proximity to the instrument. Turn off the mobile phone, or use it further away from the

instrument.

Noise can be heard when you use the instrument along with the application on your

smart device, such as an iPad, iPhone, or iPod touch. We recommend that you set

your device to not emit radio waves (for example, by setting “Airplane Mode” to “ON”) in

order to avoid noise caused by communication.

The overall volume is low, or no sound is

heard.

The volume is set too low: set it to an appropriate level using the [MASTER VOLUME]

control (page 14).

Make sure a pair of headphones is not connected to the [PHONES] jack (page 15).

Make sure that Local Control (page 37) is on.

The pitch and/or tone of the Piano Voices in

certain ranges do not sound right.

The Piano Voices attempt to precisely simulate actual piano sounds. However, as a

result of sampling algorithms, overtones in some ranges may sound exaggerated,

producing a somewhat different pitch or tone. This is normal, and no cause for concern.

Sound is not heard on a particular key.

Keyboard may not function normally if the key was pressed when the power was turned

on. Turn off the power and turn it on again to reset the function. Do not touch any keys

when turning the power on (page 12).

Mechanical noise is heard during

performance.

This is normal. The keyboard mechanism of this instrument is the same as that of an

actual piano, which also has mechanical noise.

When playing the same key repeatedly and

quickly or playing a trill continuously for a

long time, a sound louder than expected

(considering your playing strength) might

very occasionally occur.

This might be caused by the mechanical structure of the keys and the action; this is

normal, but only very seldom occurs.

The key you pressed does not return to the

original position smoothly. Since the keyboard mechanism of this instrument is the same as that of an actual

piano, the mechanism may change over years of use. If this occurs or causes problems

in performance, contact your Yamaha dealer.

Some keys sound louder or quieter than

other keys.

Sound input to the [AUX IN] jacks is

interrupted.

The output volume of the external device connected to this instrument is too low,

resulting in the sound being cut off via the Noise Gate after it is input to this instrument.

• Increase the output volume of the external device. The volume level reproduced via

this instrument’s speakers can be adjusted by using the [MASTER VOLUME] control.

• Set the Noise Gate to off (page 36).

The USB flash drive has hung up (stopped).

Disconnect the USB flash drive and connect it to the instrument again.

The USB flash drive is not compatible with the instrument. Only use the USB flash drive

whose compatibility has been confirmed by Yamaha (page 31).

Higher or lower notes do not sound correctly

when the transpose setting is made.

The instrument can cover the range of C-2–G8 when you set the transposition. If notes

lower than C-2 are played, the actual resulting sound is one octave higher. If notes

higher than G8 are played, the resulting sound is one octave lower.

The Bluetooth-equipped device cannot be

paired with nor connected to this instrument.

The Bluetooth function of the instrument is off; make sure that it is turned on (page 39).

The Bluetooth-equipped device is not paired with this instrument. The device and this

instrument need to be paired to each other via Bluetooth (page 39).

The Bluetooth function of the Bluetooth-equipped device is not activated. Make sure

that the function is activated.

This instrument and the Bluetooth-equipped device are too far apart. Use the device in

close proximity to this instrument.

There is a device (microwave oven, wireless LAN device, etc.) that outputs signals in

the 2.4 GHz frequency band nearby. Move the instrument away from any devices that

might be emitting radio-frequency signals.

Sound input via Bluetooth is interrupted.

The output volume of the Bluetooth-equipped device connected to this instrument is

too low, resulting in the sound being cut off via the Noise Gate after it is input to this

instrument. Increase the output volume of the device. The volume level reproduced via

this instrument’s speakers can be adjusted by using the [MASTER VOLUME] control.

NU1X Owner’s Manual •43

Preset Song List

(50 Classical Music Masterpieces)

Display Song Name Composer

Arrangements

P.01 Canon D dur J. Pachelbel

P.02 Air On the G Strings J. S. Bach

P.03 Jesus, Joy of Man’s Desiring J. S. Bach

P.04 Twinkle, Twinkle, Little Star Traditional

P.05 Piano Sonate op.31-2 “Tempest” 3rd mov. L. v. Beethoven

P.06 Ode to Joy L. v. Beethoven

P.07 Wiegenlied op.98-2 F. P. Schubert

P.08 Grande Valse Brillante F. F. Chopin

P.09 Polonaise op.53 “Héroïque” F. F. Chopin

P.10 La Campanella F. Liszt

P.11 Salut d'amour op.12 E. Elgar

P.12 From the New World A. Dvořák

P.13 Sicilienne G. U. Fauré

P.14 Clair de lune C. A. Debussy

P.15 Jupiter (The Planets) G. Holst

Duets

P.16 Menuett (Eine kleine Nachtmusik K.525) W. A. Mozar t

P.17 Menuett G dur L. v. Beethoven

P.18 Marcia alla Turca L. v. Beethoven

P.19 Piano Concerto No.1 op.11 2nd mov. F. F. Chopin

P.20 The Nutcracker Medley P. I. Tchaikovsky

Original Coompositions

P.21 Prelude (Wohltemperierte Klavier I No.1) J. S. Bach

P.22 Menuett G dur BWV Anh.114 J. S. Bach

P.23 Piano Sonate No.15 K.545 1st mov. W. A. Mozar t

P.24 Turkish March W. A. Mozart

P.25 Piano Sonate op.13 “Pathétique” 2nd mov. L. v. Beethoven

P.26 Für Elise L. v. Beethoven

P.27 Piano Sonate op.27-2 “Mondschein” 1st mov. L. v. Beethoven

P.28 Impromptu op.90-2 F. P. Schubert

P.29 Frühlingslied op.62-6 J. L. F. Mendelssohn

P.30 Fantaisie-Impromptu F. F. Chopin

P.31 Etude op.10-3 “Chanson de l'adieu” F. F. Chopin

P.32 Etude op.10-12 “Revolutionary” F. F. Chopin

P.33 Valse op.64-1 “Petit chien” F. F. Chopin

P.34 Nocturne op.9-2 F. F. Chopin

P.35 Nocturne KK4a-16/BI 49 [Posth.] F. F. Chopin

P.36 Träumerei R. Schumann

P.37 Barcarolle P. I. Tchaikovsky

P.38 La prière d'une Vierge T. Badarzewska

P.39 Liebesträume No.3 F. L i s z t

P.40 Blumenlied G. Lange

P.41 Humoresque A. Dvořák

P.42 Arietta E. H. Grieg

P.43 Tango (España) I. Albéniz

P.44 The Entertainer S. Joplin

P.45 Maple Leaf Rag S. Joplin

P.46 La Fille aux Cheveux de Lin C. A. Debussy

P.47 Arabesque No.1 C. A. Debussy

P.48 Cakewalk C. A. Debussy

P.49 Je te veux E. Satie

P.50 Gymnopédies No.1 E. Satie

44 • NU1X Owner’s Manual

Specifications

* The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download

the manual file. Since specifications, equipment or separately sold accessories may not be the same in every locale, please check with your Yamaha dealer.

Product Name Hybrid Piano

Size/Weight

Width 1,501 mm (59-1/8”)

Height 1,024 mm (40-5/16”)

Depth 463 mm (18-1/4”)

Weight 111 kg (244 Ibs, 11 oz)

Control

Interface

Keyboard

Number of Keys 88 (A-1 – C7)

Key Surfaces - White Acrylic resin

Touch Response Hard/Medium/Soft/Fixed

Sensor System Key Sensors Non-contact optical fiber

Pedal

Number of Pedals 3

Functions Damper (with half-pedal effect), Sostenuto, Soft

Type GP Responsive Damper Pedal

Cabinet Fallboard Soft-Close Fallboard Yes

Music Rest Yes

Voices

Tone

Generation

Piano Sound Yamaha CFX, Bösendorfer Imperial

Binaural Sampling Yes (CFX Grand Voice only)

Piano Effect

VRM Yes

Key-off Samples Yes

Smooth Release Yes

Polyphony (max.) 256

Preset Number of Voices 15

Effects Ty p e s

Reverb Yes

Intelligent Acoustic Control (IAC)

Ye s

Stereophonic Optimizer Yes

Songs (MIDI)

Preset Number of Preset Songs 15 Voice Demo Songs + 50 Classics

Recording

Number of Songs 10

Number of Tracks 1

Data Capacity approx. 500 KB/Song

Format Playback SMF (Format 0, Format 1)

Recording SMF (Format 0)

Recording/

Playback

(Audio)

Recording Time (max.) 80 minutes/Song

Format Playback WAV (44.1 kHz, 16 bit, stereo)

Recording WAV (44.1 kHz, 16 bit, stereo)

Functions

Overall

Controls

Metronome Yes

Tempo Range 5 – 500

Transpose -6 – 0 – +6

Tuning 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)

Scale Type 7 Types

Bluetooth

(May not have this

functionality

depending on the

country in which

you purchased

the product.)

Bluetooth version 4.1

Supported profile A2DP

Compatible codec SBC

Wireless output Bluetooth class 2

Maximum communication distance

Approx. 10 m (33 ft)

Range of transmit frequency 2,402 – 2,480 MHz

Maximum RF output Power 4 dBm

Storage and

Connectivity

Storage Internal Memory Total maximum size approx. 1.5 MB

External Drives USB flash drive

Connectivity

Headphones Standard stereo phone jack (x 2)

MIDI IN/OUT

AUX IN Stereo Mini

AUX OUT [L/L+R] [R] (Standard phone jack)

USB TO DEVICE Yes

USB TO HOST Yes

Sound System

Amplifiers (45 W + 45 W) x 2

Speakers (16 cm + 1.9 cm) x 2

Acoustic Optimizer Yes

Power Supply Auto Power Off Yes

Included Accessories

Owner’s Manual (this book), Power cord, Felt key cover,

Bench*, Online Member Product Registration, Felt strip set,

“50 Classical Music Masterpieces” Music Book

* May not be included depending on your area.

Check with your dealer.

Separately Sold Accessories

(May not be available depending on your area.)

Headphones (HPH-50/HPH-100/HPH-150)

USB wireless LAN adaptor (UD-WL01)

Wireless MIDI Adaptor (UD-BT01/MD-BT01)

NU1X Owner’s Manual •45

Numerics

50 Classical Music Masterpieces

..43

Acccess Point Mode ..................38

Access point ...............................38

Accessories ...................................9

Aliquot Resonance .....................21

Audio recording .........................28

Audio Song .................................25

Auto Power Off ..........................13

AUX IN .......................................35

AUX OUT ..................................36

Backup ........................................34

Base Note ....................................24

Beat .............................................19

Binaural Sampling .....................15

Bluetooth ...............................39, 40

Body Resonance .........................21

Character Code ...........................27

Computer ....................................37

Computer-related Operations ......9

Connection ..................................35

Control Panel ..............................10

Copy ............................................33

Damper Resonance ....................21

Data format .................................25

Delete ..........................................30

Demo Song .................................18

Demo Song List .........................18

Display ........................................10

External Song .............................25

Fallboard .....................................11

Fast forward ................................27

Format (USB Flash Drive) ........32

Half Pedal Point .........................16

Half-pedal ...................................16

Headphone hanger .....................15

Headphones ................................15

Hz (Hertz) ...................................23

Infrastructure Mode ...................38

Initialization ................................34

Installing .......................................7

Intelligent Acoustic Control (IAC)

..14

iPhone/iPad .................................38

iPhone/iPad Connection Manual

...9

Local Control ..............................37

Maintenance .................................6

Master Volume ...........................14

Message List ...............................41

Metronome .................................19

MIDI ......................................36, 38

MIDI Basics .................................9

MIDI recording ..........................28

MIDI Reference ...........................9

MIDI Song ..................................25

Music Rest ..................................11

Noise Gate ..................................36

Pairing .........................................39

Pause ...........................................27

Pedal ............................................16

Playback

all .........................................26

Audio Song .........................26

Demo Song .........................18

MIDI Song ..........................26

Preset Song .........................26

random ................................26

Playback speed (Audio Song) ...27

Power ..........................................12

PRECAUTIONS ..........................5

Preset Song List .........................43

Quick Operation Guide .............46

Recording ................................... 28

Reverb ........................................ 22

Rewind ....................................... 27

Scale ........................................... 24

Smart device .............................. 38

Song ............................................ 25

Song Category List ................... 25

Specifications ............................ 44

Stereophonic Optimizer ............ 15

String Resonance ....................... 21

Tempo ......................................... 20

Tempo (MIDI Song) ................. 27

Touch Sensitivity ....................... 20

Transporting ................................. 7

Transpose ................................... 23

Troubleshooting ........................ 42

Tuning .................................... 7, 23

USB Device ............................... 31

USB Flash Drive ....................... 31

USB hub ..................................... 31

USB TO DEVICE ......... 31, 35, 38

USB TO HOST ................... 37, 38

USB wireless LAN adaptor

.. 31, 38

User Song .................................. 25

Version ....................................... 13

Virtual Resonance Modeling .... 21

Vo i c e ........................................... 17

Voice Demo Song ...................... 18

Voi c e L i s t ................................... 17

Volume (Audio Song) ............... 27

Volume (Master Volume) ......... 14

Volume (Metronome volume) .. 19

VRM ........................................... 21

Wireless LAN ............................ 38

Wireless MIDI adaptor ............. 38

Index

C1C0 C2 C4 C5 C6 C7

D1 E1 F1 G1 A1 B1 D2 E2 F2 G2

C#1D#1F#1G#1A#1C#2

B4 D5

A#4C#5D#2F#2

F#2

D3 E3 F3

C#3D#3

C1C0 C2 C4 C5 C6 C7

D1A0 B0

C#1D#1A#0 F#3

D3 E3 F3G2 A2 B2

C#3D#3G#2A#2F#4

D4 E4 F4

C#4D#4F#5

D5 F6E5 F5G4 A4 A5 B5B4

C#5D#5G#4A#4

C1C0 C2

D1 E1 F1 G1 A1 B1 D2 E2 F2 G2

C#1D#1F#1G#1A#1C#2D#2F#2

C1C0 C2 C4 C6C5 C7

D1D0 E0 F0 G0 A0 B0

C#1D#0F#0A#0

A6 B6B4 D5 E5

A#6A#4C#5D#5

C#6

+6+3+1 2 4 7-2-4-6

0+2+4+5

F#AbBbEbC#

CD 13 5 6EFGAB-5 -3 -1

+3+1-2

0+2-3 -1

531

1286

14 16

171513

2018 +10

-10

-1

653

531

1286

14 16

171513

2018

32-1 0 +2 +4-1 +1 -1 +1 -1 +1 -1 +1

1-2 +1 +3

Audio Song Volume

Binaural Sampling/

Stereophonic Optimizer

⁄0

Metronome Volume

Aliquot

Resonance Depth

Damper

Resonance Depth

Body

Resonance Depth

Half

Pedal Point

Touch

Sensitivity

String

Resonance Depth

VRM

⁄3

IAC

⁄2

Tempo

⁄1

Metronome Beat

⁄9

Version

¤0

Local

Control

⁄8

Auto Power Off

function

¤1

AUX IN

Noise Gate

⁄5

Transpose

⁄6

Base Note

⁄4

IAC Depth

⁄7

Scale

On/OFF

OFF

Default

On/OFF

¤3

Bluetooth

Function

¤2

Bluetooth

Pairing

Default

Quick Operation Guide

While holding down the button on the control panel, press one of the corresponding keys shown below

to set parameters.

zAudio Song Volume (page 27)

xVRM (page 21)

cDamper Resonance Depth (page 21)

vString Resonance Depth (page 21)

bAliquot Resonance Depth (page 21)

nBody Resonance Depth (page 21)

mHalf Pedal Point (page 16)

,Binaural Sampling/

Stereophonic Optimizer (page 15)

.Touch Sensitivity (page 20)

⁄0Metronome Volume (page 19)

⁄1Metronome Beat (page 19)

⁄2Tempo (page 20)

⁄3IAC (page 14)

⁄4IAC Depth (page 14)

⁄5Transpose (page 23)

⁄6Base Note (page 24)

⁄7Scale (page 24)

⁄8Auto Power Off function (page 13)

⁄9Version (page 13)

¤0 Local Control (page 37)

¤1 AUX IN Noise Gate (page 36)

¤2 Bluetooth Pairing (page 39)

¤3 Bluetooth Function (page 39)

NU1X Owner’s Manual •47

Information for users on collection and disposal of old equipment:

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products

should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with

your national legislation.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on

human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal

service or the point of sale where you purchased the items.

For business users in the European Union:

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union:

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer

and ask for the correct method of disposal.

(weee_eu_en_02)

For U.S.A.

For CANADA

For U.S.A. and CANADA

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)

l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en

compromettre le fonctionnement.

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the

FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This

equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR).

Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et

respecte les règles les radioélectriques (RF) de la FCC lignes directrices d’exposition et d’exposition aux fréquences

radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans

évaluation du débit d’absorption spécifique (DAS).
