P-140 Owner’s Manual

PLEASE KEEP THIS MANUAL

This product utilizes batteries or an external power supply (adapter). DO

NOT connect this product to any power supply or adapter other than one

described in the manual, on the name plate, or speciﬁcally recom-

mended by Yamaha.

WARNING: Do not place this product in a position where anyone could

walk on, trip over, or roll anything over power or connecting cords of any

kind. The use of an extension cord is not recommended! If you must use

an extension cord, the minimum wire size for a 25’ cord (or less) is 18

AWG. NOTE: The smaller the AWG number, the larger the current han-

dling capacity. For longer extension cords, consult a local electrician.

This product should be used only with the components supplied or; a

cart, rack, or stand that is recommended by Yamaha. If a cart, etc., is

used, please observe all safety markings and instructions that accom-

pany the accessory product.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be correct at the

time of printing. However, Yamaha reserves the right to change or modify

any of the speciﬁcations without notice or obligation to update existing

units.

This product, either alone or in combination with an ampliﬁer and head-

phones or speaker/s, may be capable of producing sound levels that

could cause permanent hearing loss. DO NOT operate for long periods

of time at a high volume level or at a level that is uncomfortable. If you

experience any hearing loss or ringing in the ears, you should consult an

audiologist.

IMPORTANT: The louder the sound, the shorter the time period before

damage occurs.

Some Yamaha products may have benches and / or accessory mounting

ﬁxtures that are either supplied with the product or as optional accesso-

ries. Some of these items are designed to be dealer assembled or

installed. Please make sure that benches are stable and any optional ﬁx-

tures (where applicable) are well secured BEFORE using.

Benches supplied by Yamaha are designed for seating only. No other

uses are recommended.

NOTICE:

Service charges incurred due to a lack of knowledge relating to how a

function or effect works (when the unit is operating as designed) are not

covered by the manufacturer’s warranty, and are therefore the owners

responsibility. Please study this manual carefully and consult your dealer

before requesting service.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are both user safe and environ-

mentally friendly. We sincerely believe that our products and the produc-

tion methods used to produce them, meet these goals. In keeping with

both the letter and the spirit of the law, we want you to be aware of the

following:

Battery Notice:

This product MAY contain a small non-rechargeable battery which (if

applicable) is soldered in place. The average life span of this type of bat-

tery is approximately ﬁve years. When replacement becomes necessary,

contact a qualiﬁed service representative to perform the replacement.

This product may also use “household” type batteries. Some of these

may be rechargeable. Make sure that the battery being charged is a

rechargeable type and that the charger is intended for the battery being

charged.

When installing batteries, do not mix batteries with new, or with batteries

of a different type. Batteries MUST be installed correctly. Mismatches or

incorrect installation may result in overheating and battery case rupture.

Warning:

Do not attempt to disassemble, or incinerate any battery. Keep all batter-

ies away from children. Dispose of used batteries promptly and as regu-

lated by the laws in your area. Note: Check with any retailer of

household type batteries in your area for battery disposal information.

Disposal Notice:

Should this product become damaged beyond repair, or for some reason

its useful life is considered to be at an end, please observe all local,

state, and federal regulations that relate to the disposal of products that

contain lead, batteries, plastics, etc. If your dealer is unable to assist

you, please contact Yamaha directly.

NAME PLATE LOCATION:

The name plate is located on the bottom of the product. The model num-

ber, serial number, power requirements, etc., are located on this plate.

You should record the model number, serial number, and the date of pur-

chase in the spaces provided below and retain this manual as a perma-

nent record of your purchase.

Model

Serial No.

Purchase Date

SPECIAL MESSAGE SECTION

92-BP (bottom)

P-140 Owner’s Manual 3

IMPORTANT SAFETY INSTRUCTIONS

INFORMATION RELATING TO PERSONAL INJURY, ELECTRICAL SHOCK,

AND FIRE HAZARD POSSIBILITIES HAS BEEN INCLUDED IN THIS LIST.

WARNING- When using any electrical or electronic product,

basic precautions should always be followed. These precautions

include, but are not limited to, the following:

1. Read all Safety Instructions, Installation Instructions, Spe-

cial Message Section items, and any Assembly Instructions

found in this manual BEFORE making any connections, includ-

ing connection to the main supply.

2. Main Power Supply Veriﬁcation: Yamaha products are

manufactured speciﬁcally for the supply voltage in the area

where they are to be sold. If you should move, or if any doubt

exists about the supply voltage in your area, please contact your

dealer for supply voltage veriﬁcation and (if applicable) instruc-

tions. The required supply voltage is printed on the name plate.

For name plate location, please refer to the graphic found in the

Special Message Section of this manual.

3. This product may be equipped with a polarized plug (one

blade wider than the other). If you are unable to insert the plug

into the outlet, turn the plug over and try again. If the problem

persists, contact an electrician to have the obsolete outlet

replaced. Do NOT defeat the safety purpose of the plug.

4. Some electronic products utilize external power supplies

or adapters. Do NOT connect this type of product to any power

supply or adapter other than one described in the owners manual,

on the name plate, or speciﬁcally recommended by Yamaha.

5. WARNING: Do not place this product or any other

objects on the power cord or place it in a position where anyone

could walk on, trip over, or roll anything over power or connect-

ing cords of any kind. The use of an extension cord is not recom-

mended! If you must use an extension cord, the minimum wire

size for a 25’ cord (or less) is 18 AWG. NOTE: The smaller the

AWG number, the larger the current handling capacity. For

longer extension cords, consult a local electrician.

6. Ventilation: Electronic products, unless speciﬁcally

designed for enclosed installations, should be placed in locations

that do not interfere with proper ventilation. If instructions for

enclosed installations are not provided, it must be assumed that

unobstructed ventilation is required.

7. Temperature considerations: Electronic products should

be installed in locations that do not signiﬁcantly contribute to

their operating temperature. Placement of this product close to

heat sources such as; radiators, heat registers and other devices

that produce heat should be avoided.

8. This product was NOT designed for use in wet/damp loca-

tions and should not be used near water or exposed to rain.

Examples of wet/damp locations are; near a swimming pool,

spa, tub, sink, or wet basement.

9. This product should be used only with the components

supplied or; a cart, rack, or stand that is recommended by the

manufacturer. If a cart, rack, or stand is used, please observe all

safety markings and instructions that accompany the accessory

product.

10. The power supply cord (plug) should be disconnected

from the outlet when electronic products are to be left unused for

extended periods of time. Cords should also be disconnected

when there is a high probability of lightning and/or electrical

storm activity.

11. Care should be taken that objects do not fall and liquids are

not spilled into the enclosure through any openings that may exist.

12. Electrical/electronic products should be serviced by a

qualiﬁed service person when:

a. The power supply cord has been damaged; or

b. Objects have fallen, been inserted, or liquids have been

spilled into the enclosure through openings; or

c. The product has been exposed to rain: or

d. The product dose not operate, exhibits a marked change

in performance; or

e. The product has been dropped, or the enclosure of the

product has been damaged.

13. Do not attempt to service this product beyond that

described in the user-maintenance instructions. All other servic-

ing should be referred to qualiﬁed service personnel.

14. This product, either alone or in combination with an

ampliﬁer and headphones or speaker/s, may be capable of pro-

ducing sound levels that could cause permanent hearing loss.

DO NOT operate for a long period of time at a high volume level

or at a level that is uncomfortable. If you experience any hearing

loss or ringing in the ears, you should consult an audiologist.

IMPORTANT: The louder the sound, the shorter the time period

before damage occurs.

15. Some Yamaha products may have benches and/or accessory

mounting ﬁxtures that are either supplied as a part of the product

or as optional accessories. Some of these items are designed to be

dealer assembled or installed. Please make sure that benches are

stable and any optional ﬁxtures (where applicable) are well

secured BEFORE using. Benches supplied by Yamaha are

designed for seating only. No other uses are recommended.

PLEASE KEEP THIS MANUAL

92-469-2

P-140 Owner’s Manual

ENGLISH

(3)-9

1/2

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical

shock, short-circuiting, damages, ﬁre or other hazards. These precautions include, but are not limited to, the following:

• Only use the voltage speciﬁed as correct for the instrument. The required

voltage is printed on the name plate of the instrument.

• Use the speciﬁed adaptor (PA-5D, PA-150, or an equivalent recommended by

Yamaha) only. Using the wrong adaptor can result in damage to the instrument

or overheating.

•Check the electric plug periodically and remove any dirt or dust which may have

accumulated on it.

•Do not place the AC adaptor cord near heat sources such as heaters or radiators,

and do not excessively bend or otherwise damage the cord, place heavy objects

on it, or place it in a position where anyone could walk on, trip over, or roll

anything over it.

• Do not open the instrument or attempt to disassemble the internal parts or

modify them in any way. The instrument contains no user-serviceable parts. If it

should appear to be malfunctioning, discontinue use immediately and have it

inspected by qualiﬁed Yamaha service personnel.

• Do not expose the instrument to rain, use it near water or in damp or wet

conditions, or place containers on it containing liquids which might spill into

any openings.

• Never insert or remove an electric plug with wet hands.

• Do not put burning items, such as candles, on the unit.

A burning item may fall over and cause a ﬁre.

• If the AC adaptor cord or plug becomes frayed or damaged, or if there is a

sudden loss of sound during use of the instrument, or if any unusual smells or

smoke should appear to be caused by it, immediately turn off the power switch,

disconnect the adaptor plug from the outlet, and have the instrument inspected

by qualiﬁed Yamaha service personnel.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage

to the instrument or other property. These precautions include, but are not limited to, the following:

• When removing the electric plug from the instrument or an outlet, always hold

the plug itself and not the cord.

• Unplug the AC power adaptor when not using the instrument, or during

electrical storms.

•Do not connect the instrument to an electrical outlet using a multiple-connector.

Doing so can result in lower sound quality, or possibly cause overheating in the

outlet.

•Do not expose the instrument to excessive dust or vibrations, or extreme cold or

heat (such as in direct sunlight, near a heater, or in a car during the day) to

prevent the possibility of panel disﬁguration or damage to the internal

components.

• Do not use the instrument in the vicinity of a TV, radio, stereo equipment,

mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio

may generate noise.

• Do not place the instrument in an unstable position where it might accidentally

fall over.

• Before moving the instrument, remove all connected adaptor and other cables.

• When setting up the instrument, make sure that the AC outlet you are using is

easily accessible. If some trouble or malfunction occurs, immediately turn off

the power switch and disconnect the plug from the outlet.

• Use only the stand speciﬁed for the instrument. When attaching the stand or

rack, use the provided screws only. Failure to do so could cause damage to the

internal components or result in the instrument falling over.

Power supply/AC power adaptor

Do not open

Water warning

Fire warning

If you notice any abnormality

Power supply/AC power adaptor

Location

P-140 Owner’s Manual

ENGLISH

• Before connecting the instrument to other electronic components, turn off the

power for all components. Before turning the power on or off for all

components, set all volume levels to minimum. Also, be sure to set the volumes

of all components at their minimum levels and gradually raise the volume

controls while playing the instrument to set the desired listening level.

• When cleaning the instrument, use a soft, dry cloth. Do not use paint thinners,

solvents, cleaning ﬂuids, or chemical-impregnated wiping cloths.

• Do not insert a ﬁnger or hand in any gaps on the instrument.

• Never insert or drop paper, metallic, or other objects into the gaps on the panel

or keyboard. If this happens, turn off the power immediately and unplug the

power cord from the AC outlet. Then have the instrument inspected by qualiﬁed

Yamaha service personnel.

• Do not place vinyl, plastic or rubber objects on the instrument, since this might

discolor the panel or keyboard.

•Do not rest your weight on, or place heavy objects on the instrument, and do not

use excessive force on the buttons, switches or connectors.

• Do not operate the instrument for a long period of time at a high or

uncomfortable volume level, since this can cause permanent hearing loss. If you

experience any hearing loss or ringing in the ears, consult a physician.

Saving and backing up your data

•Data in the instrument’s internal memory can be lost due to operational errors or

malfunction. Be sure to save any important data to external media via a

computer connection. (page 50)

Yamaha cannot be held responsible for damage caused by improper use or modiﬁcations to the instrument, or data that is lost or destroyed.

Always turn the power off when the instrument is not in use.

Even when the instrument turns the power off, electricity is still ﬂowing to the instrument at the minimum level. When you are not using the instrument for a long time, make

sure you unplug the AC power adaptor from the wall AC outlet.

Connections

Maintenance

Handling caution

Saving data

(3)-9

2/2

P-140 Owner’s Manual

ENGLISH

Introduction

Thank you for purchasing the Yamaha Electronic Piano P-140/P-140S!

We recommend that you read this manual carefully

so that you can fully take advantage of the advanced and

convenient functions of the P-140/P-140S.

We also recommend that you keep this manual in a safe and

handy place for future reference.

Main Features

Graded Hammer Effect Keyboard

Thanks to our experience as the world’s leading manufacturer of acoustic pianos, we’ve developed a keyboard with

action that’s virtually indistinguishable from the real thing. Just as on a traditional acoustic piano, the keys of the lower

notes have a heavier touch, while the higher ones are more responsive to lighter playing. The keyboard’s sensitivity can

even be adjusted to match your playing style.

AWM Dynamic Stereo Sampling

The Yamaha P-140 Electronic piano offers unmatched sonic realism and natural grand-piano type playability as well as

Yamaha’s original AWM Dynamic Stereo Sampling tone generation technology for rich, musical voices.

The Grand Piano 1, 2 and 3 voices feature totally new samples painstakingly recorded from a full concert grand piano.

The Grand Piano 1 and 3 voices feature three velocity-switched samples (Dynamic Sampling), special Sustain Sam-

pling (page 43) that samples the unique resonance of an acoustic grand piano’s soundboard and strings when the sus-

tain pedal is pressed, and Keyoff Samples that add the subtle sound produced when the keys are released. The P-140

comes much closer to the sound of a true acoustic piano.

P-140 Owner’s Manual

ENGLISH

About this Owner’s Manual

This manual consists of three main sections: Introduction, Reference and Appendix.

Introduction (page 6):

Please read this section ﬁrst.

Reference (page 14):

This section explains how to make detailed settings for the P-140’s various functions.

Appendix (page 58):

This section introduces reference material.

*The illustrations and displays as shown in this owner’s manual are for instructional purposes only, and may appear somewhat dif-

ferent from those on your instrument.

*Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited

except for your personal use.

*The models P-140/P-140S will be referred to as the P-140 in this Owner’s Manual.

•The company names and product names in this Owner’s Manual are the trademarks or registered trademarks of their respective

companies.

Accessories

• Owner’s Manual

This manual contains complete instructions for operating your P-140.

•AC Power Adaptor (Yamaha PA-5D, PA-150 or an equivalent)*

• Pedal (FC3)

•Music Rest

* May not be included depending on your particular area. Please check with your Yamaha dealer.

This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to

which it has license to use others’ copyrights. Such copyrighted materials include, without limitation, all computer software, style

ﬁles, MIDI ﬁles, WAVE data, musical scores and sound recordings. Any unauthorized use of such programs and contents outside of

personal use is not permitted under relevant laws. Any violation of copyright has legal consequences. DON’T MAKE, DISTRIBUTE

OR USE ILLEGAL COPIES.

P-140 Owner’s Manual

ENGLISH

Table of Contents

Introduction

Main Features..................................................... 6

About this Owner’s Manual ............................... 7

Accessories ......................................................... 7

Application Index............................................... 9

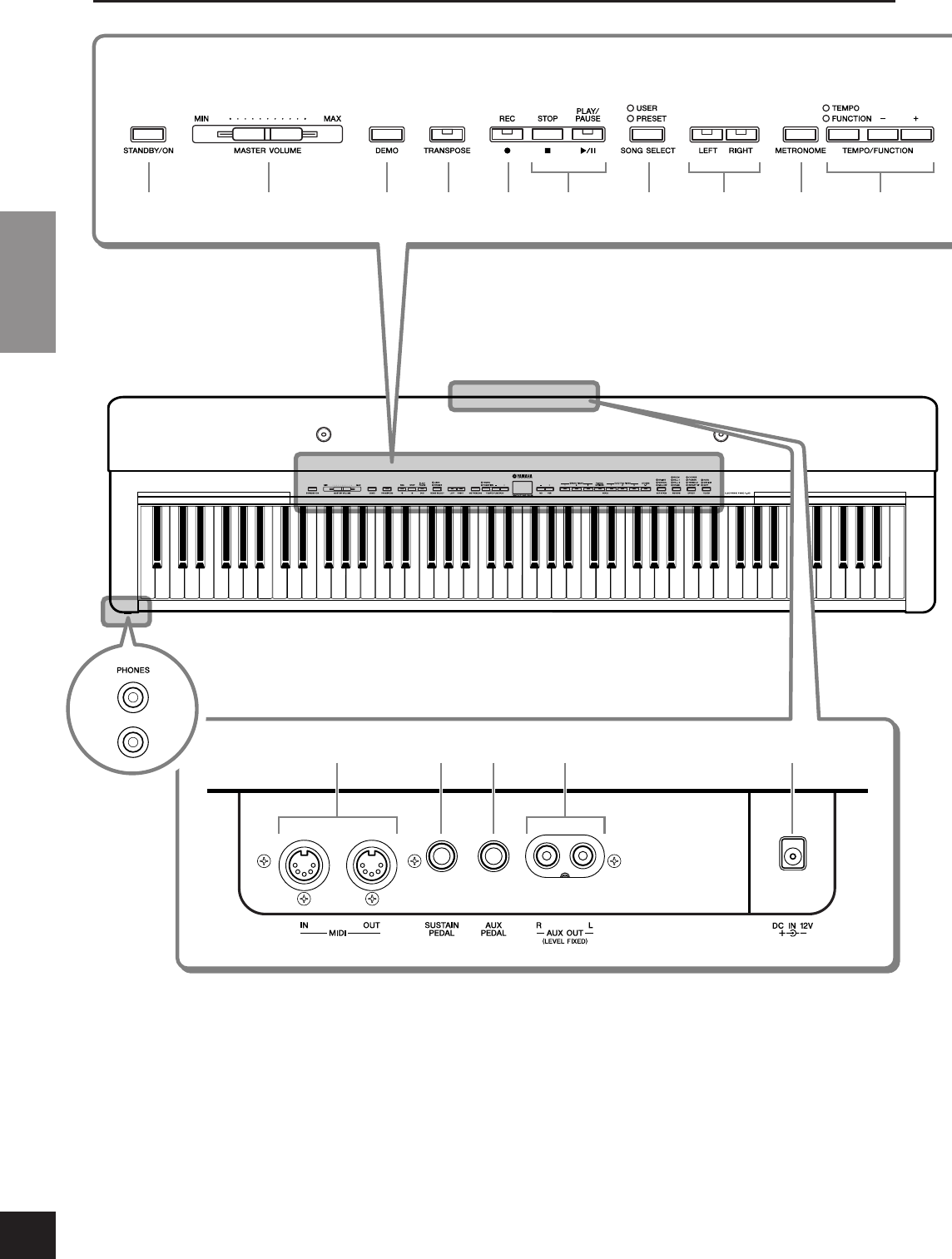

Panel Controls and Terminals.......................... 10

Before Using the P-140 .................................... 12

Turning the Power On ...............................................12

Setting the Volume.....................................................12

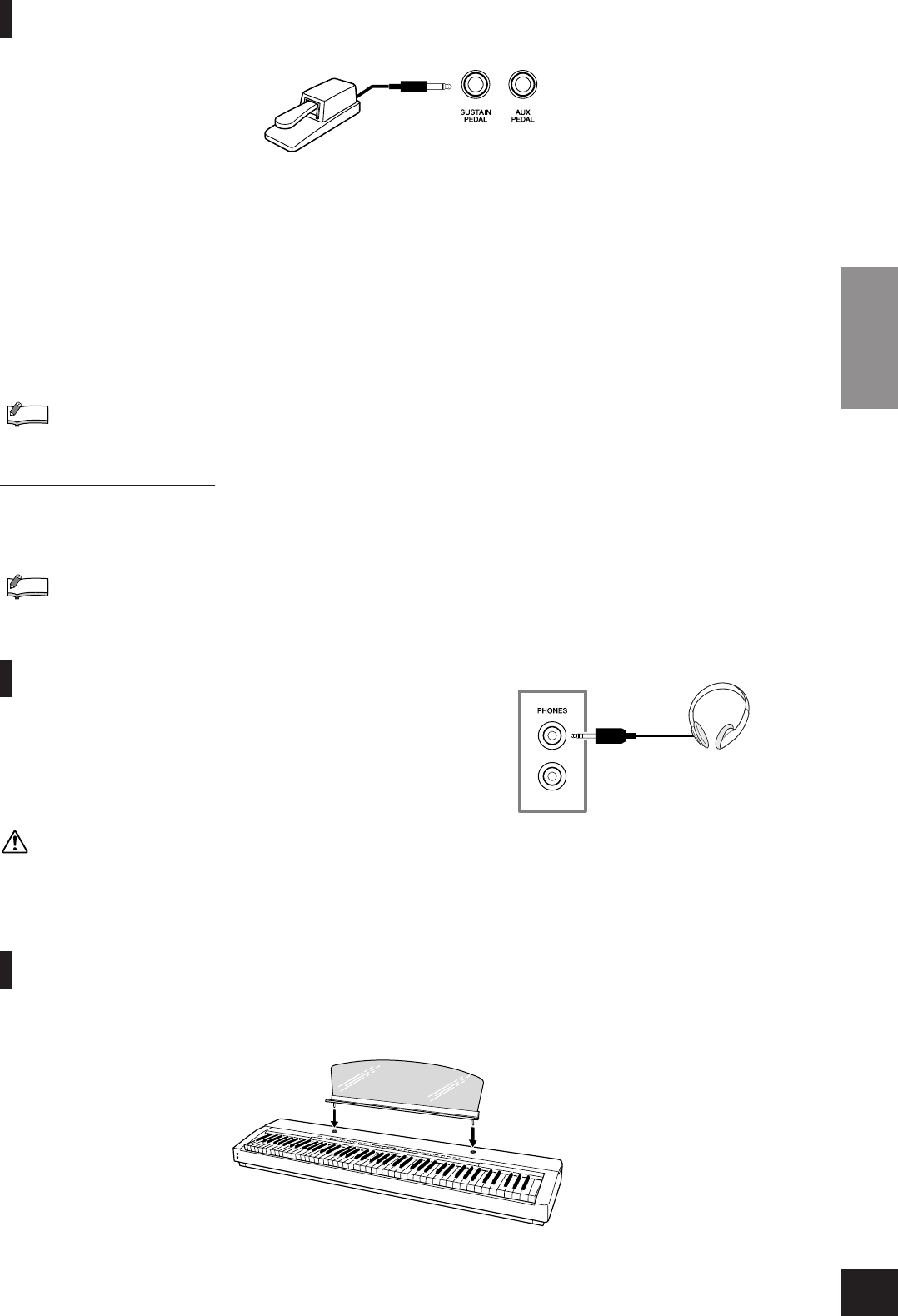

Using the Pedals..........................................................13

Using Headphones .....................................................13

Music Rest...................................................................13

Reference

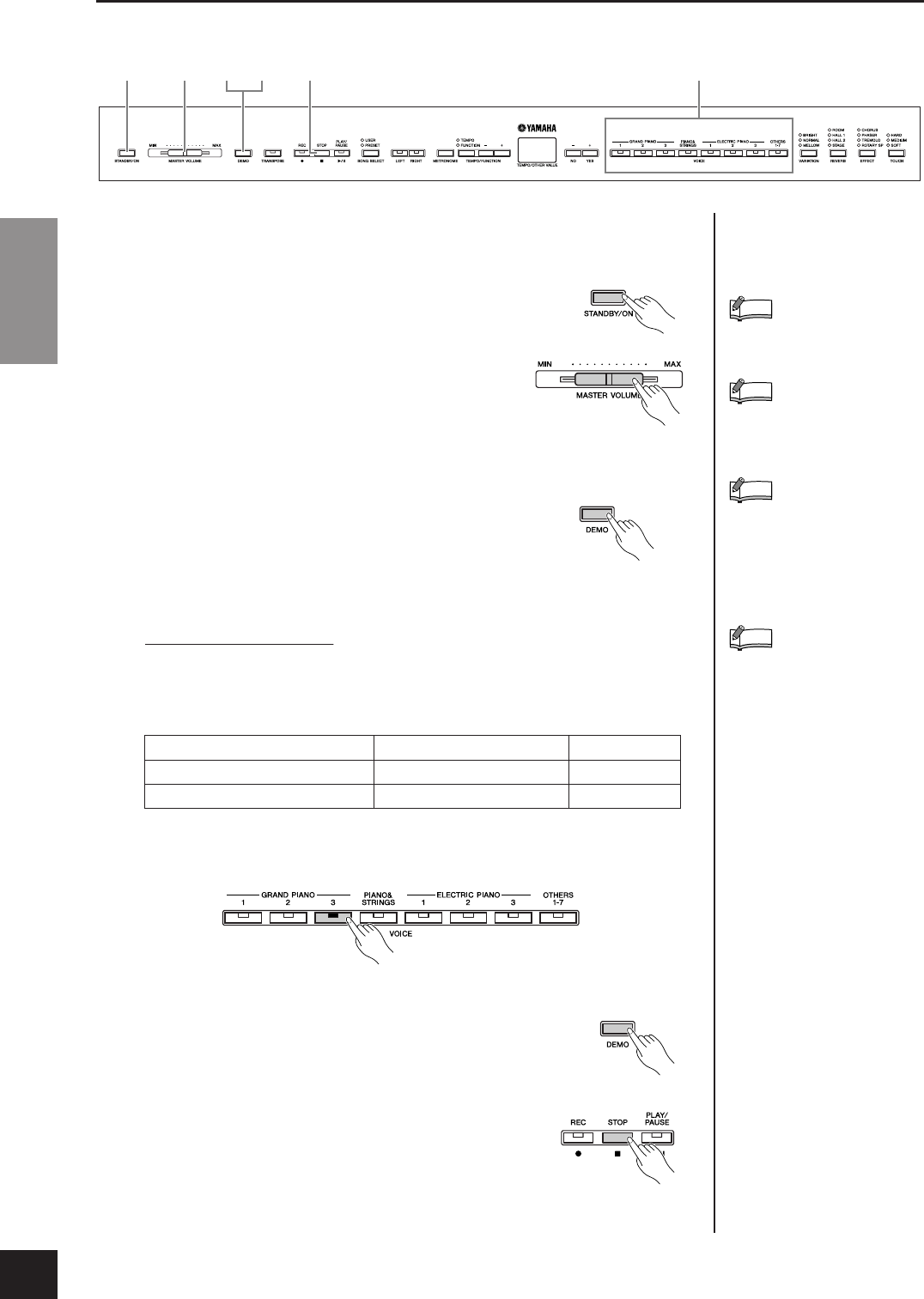

Listening to the Demo Songs .......................... 14

Using the 50 Piano Preset Songs..................... 15

Listening to the 50 Piano Preset Songs......................15

Practicing a One-Hand Part Using the 50 Preset

Songs (Part Cancel Function)....................................16

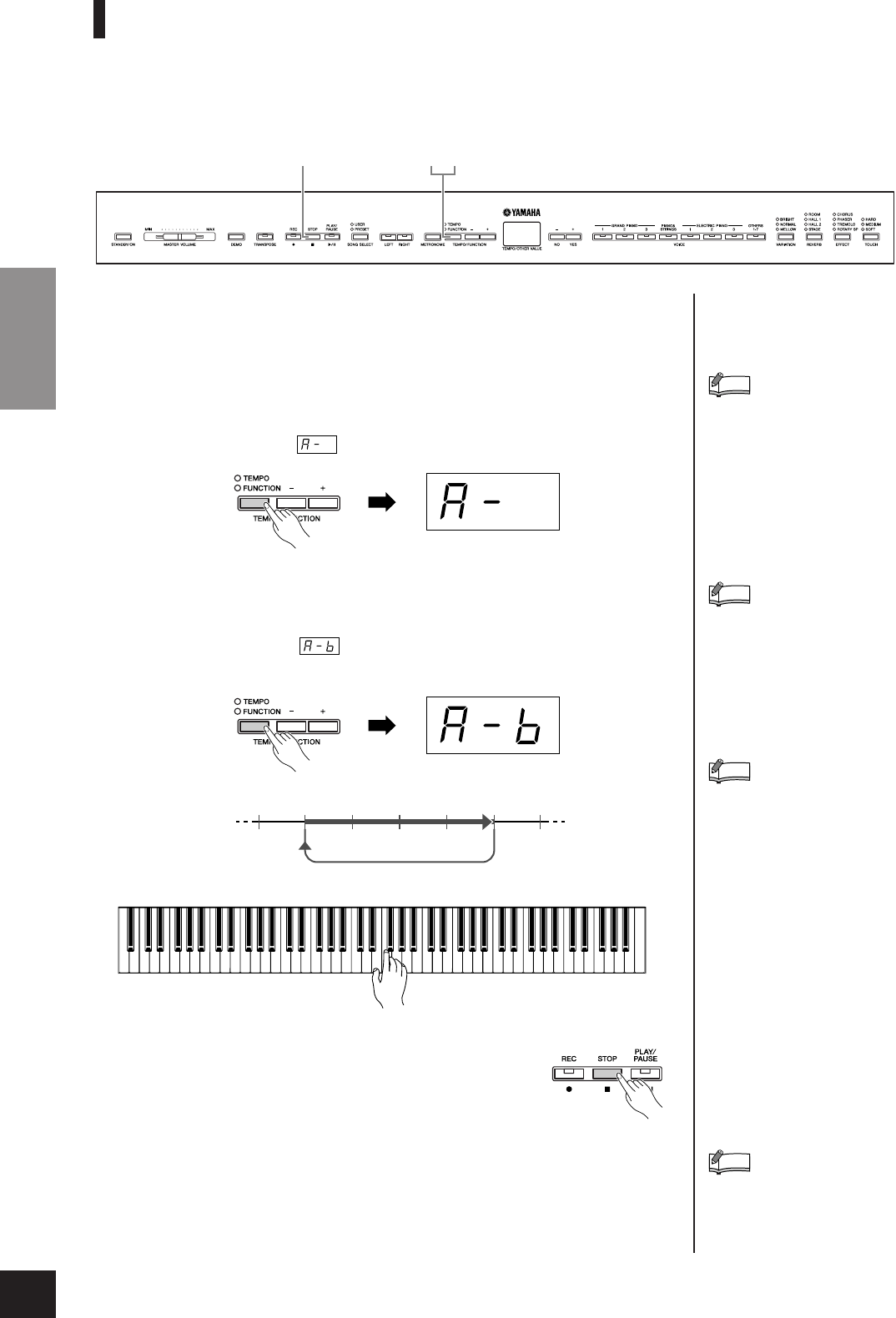

A-B Repeat for the 50 Preset Songs ...........................18

Selecting & Playing Voices............................... 19

Selecting Voices ..........................................................19

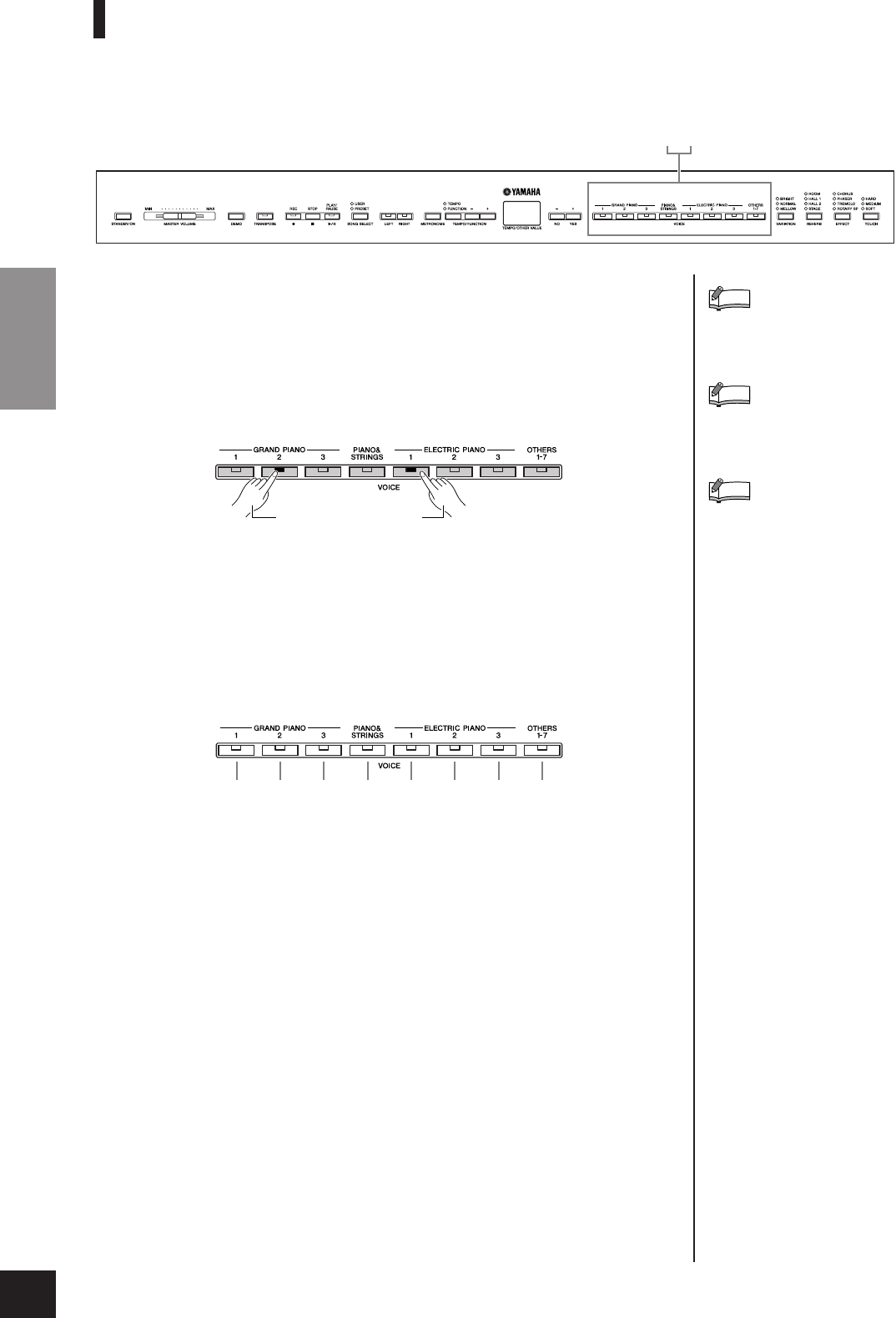

Combining Voices (Dual)..........................................20

Splitting the Keyboard Range and Playing Two

Different Voices (Split) ..............................................21

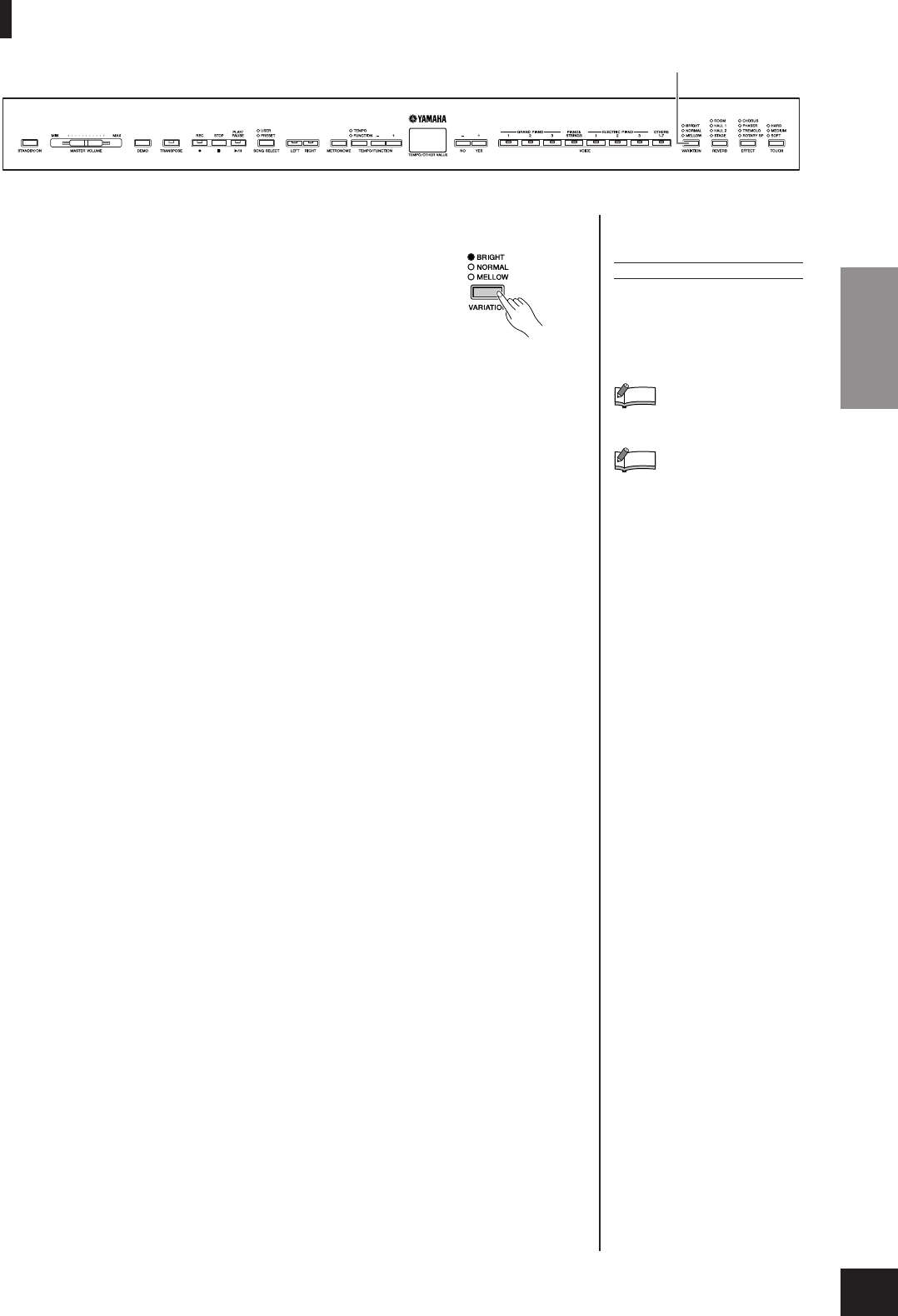

Adding Variations to the Sound – [VARIATION]...23

Selecting a Reverb/Effect type – [REVERB]/

[EFFECT]....................................................................24

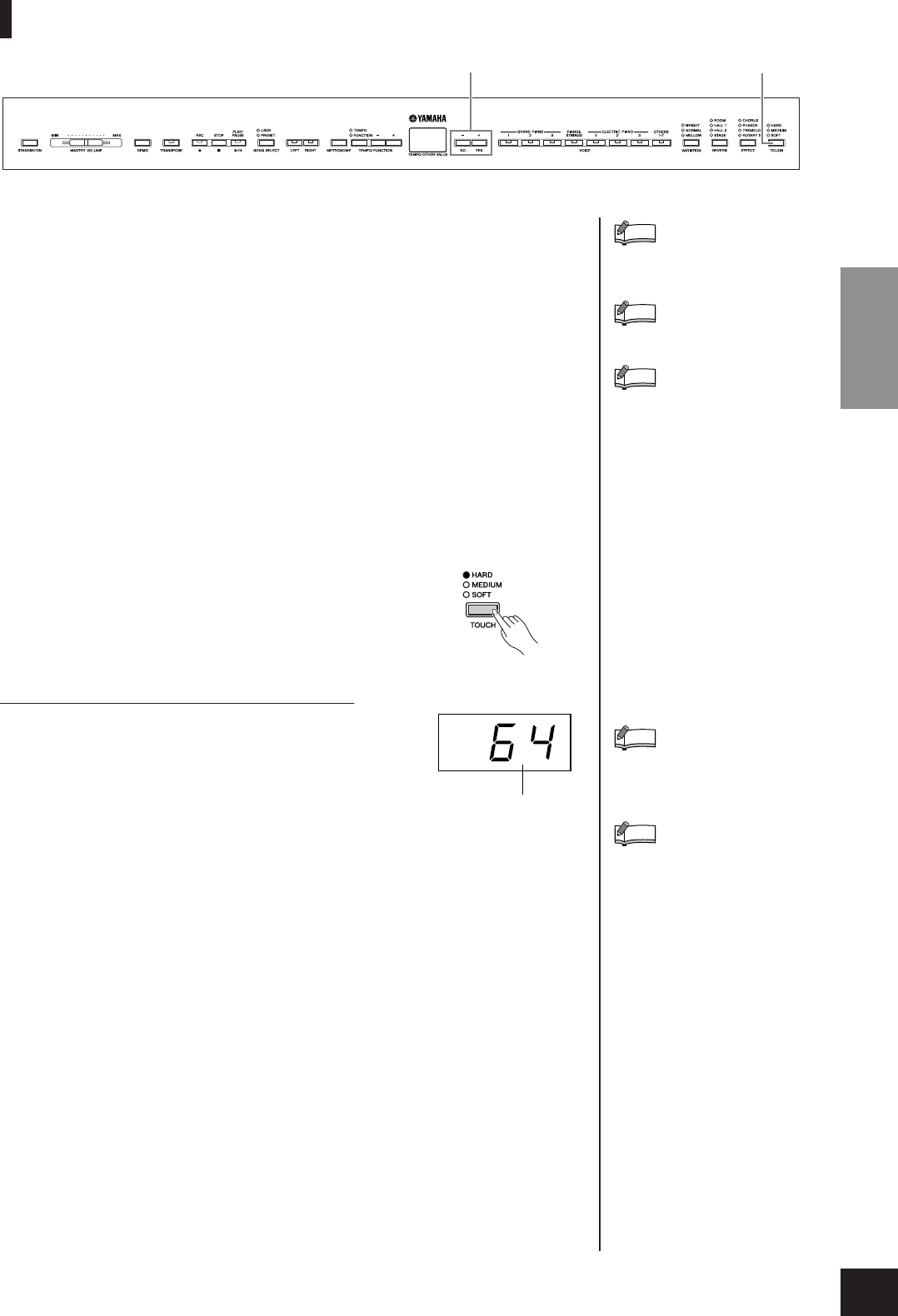

Touch Sensitivity – [TOUCH] ..................................25

Transposition – [TRANSPOSE] ................................26

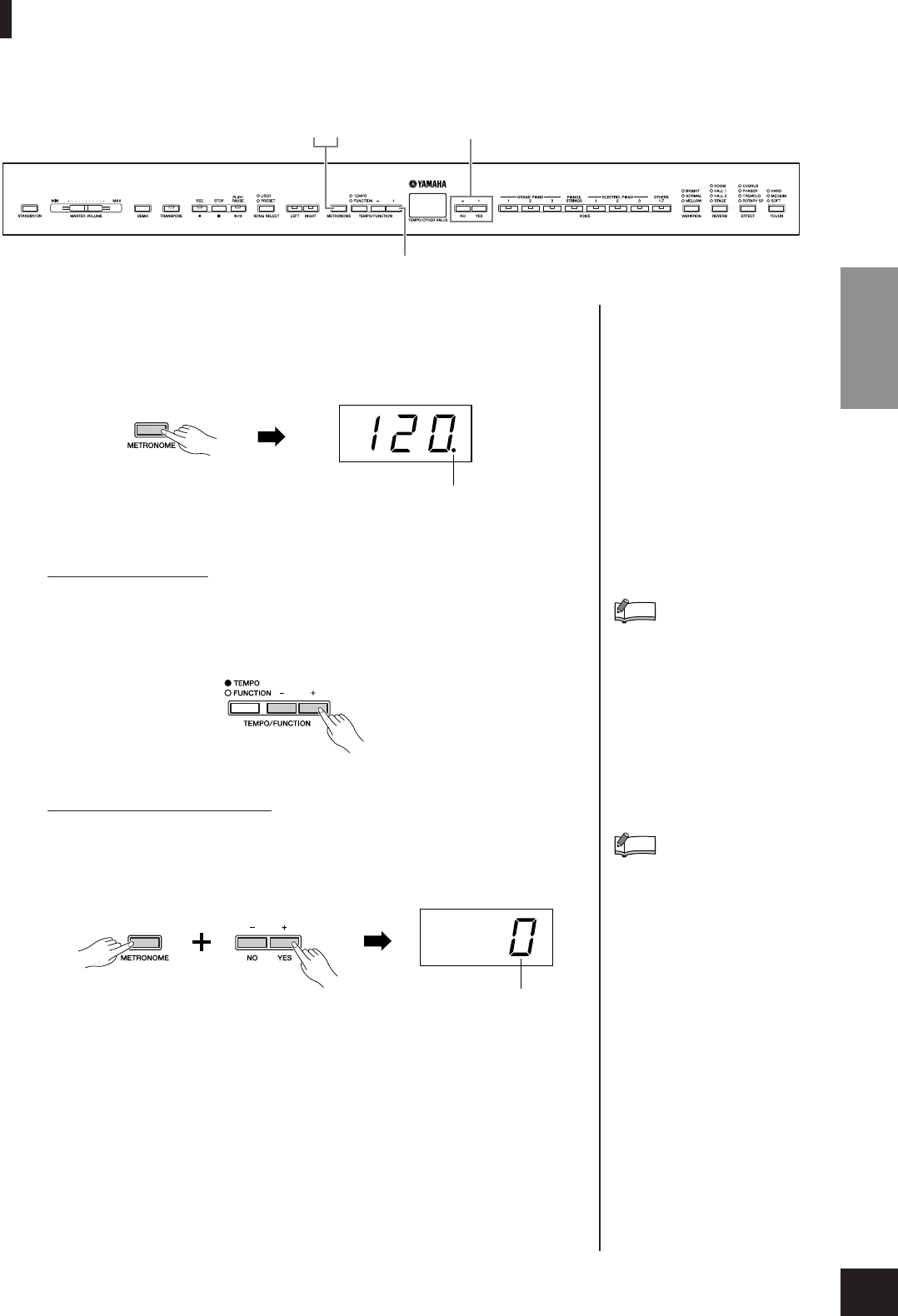

Using the Metronome ................................................27

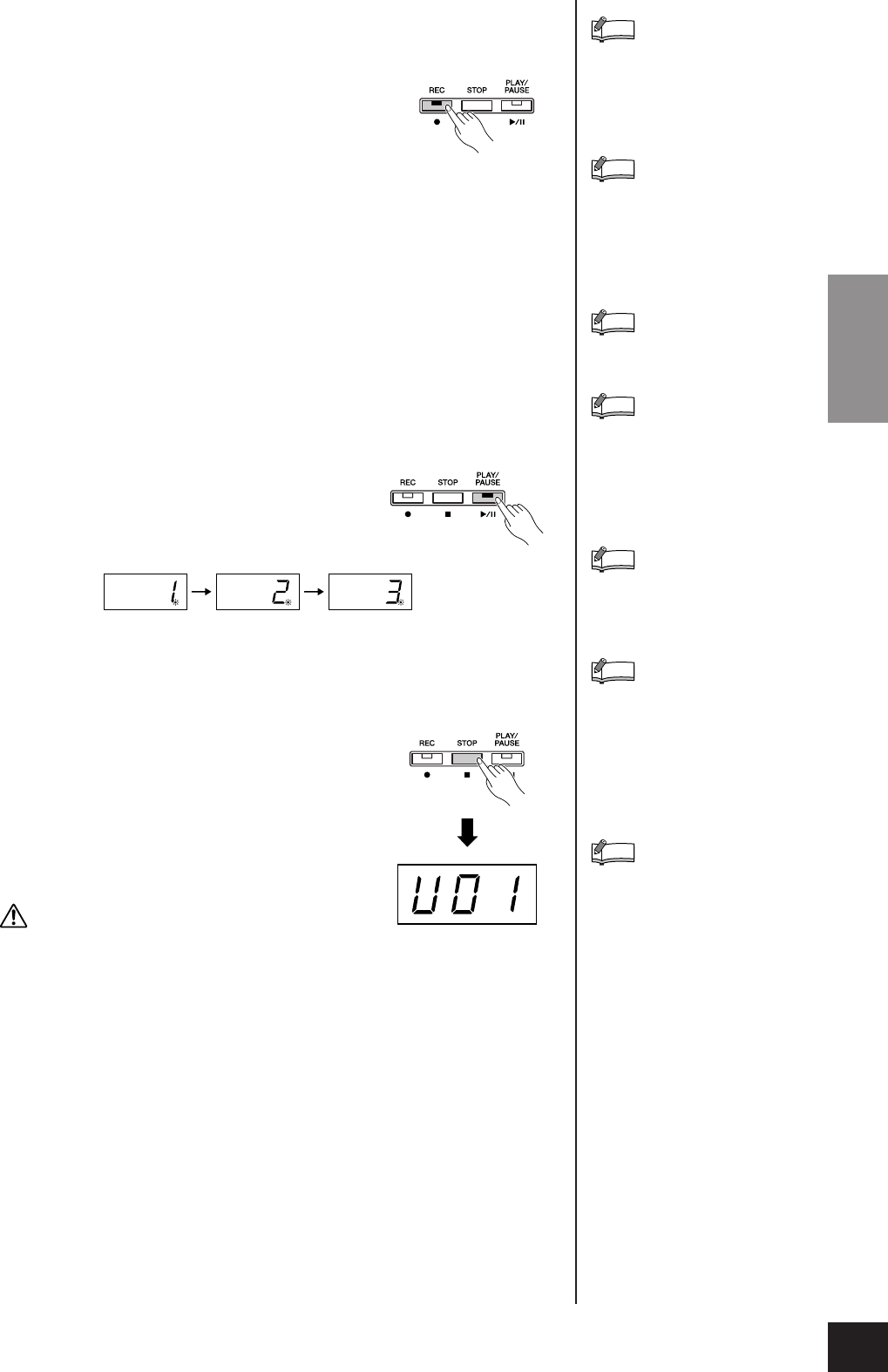

Recording Your Performance .......................... 28

Recording a performance quickly..............................28

Re-recording a previously recorded song..................30

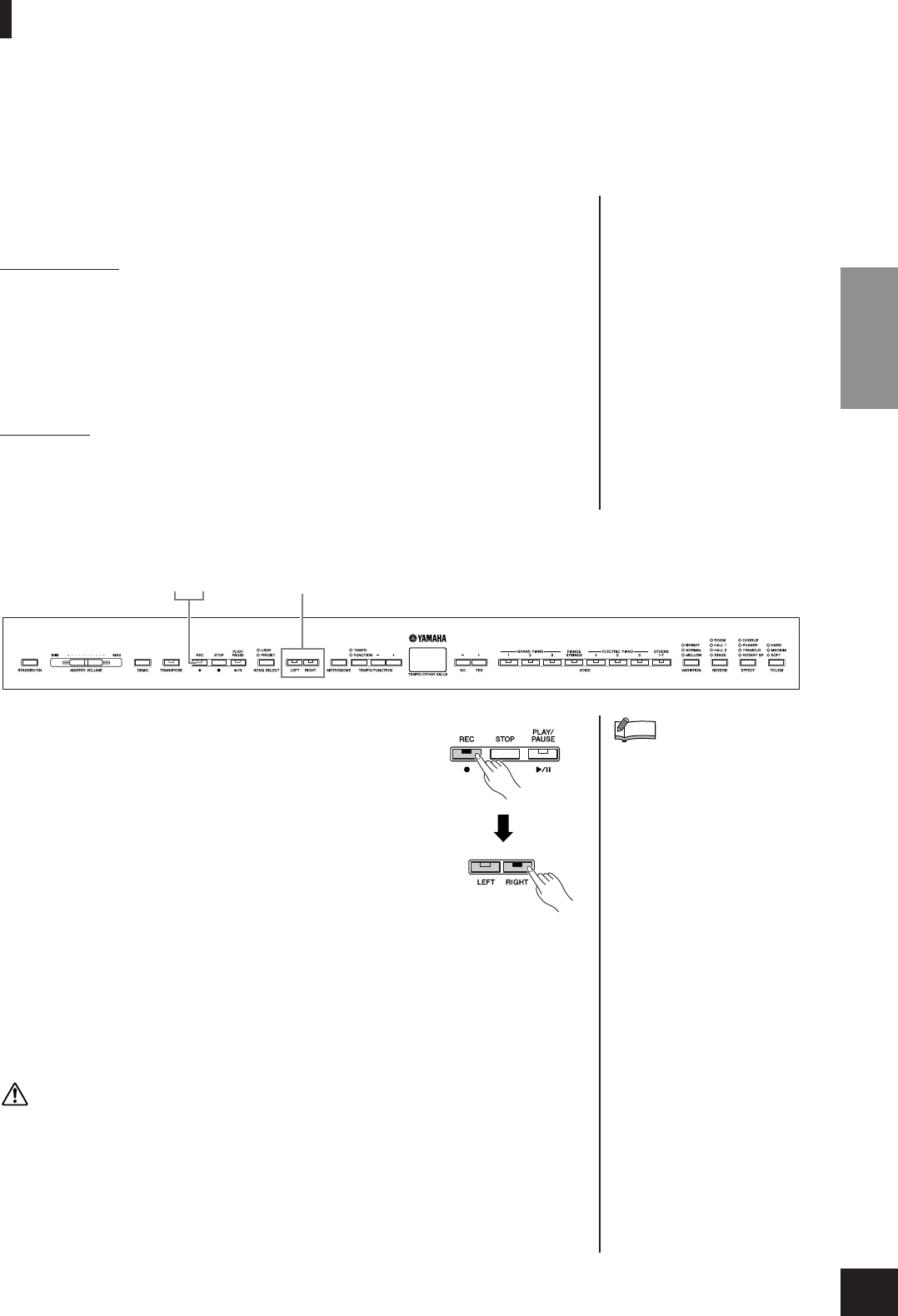

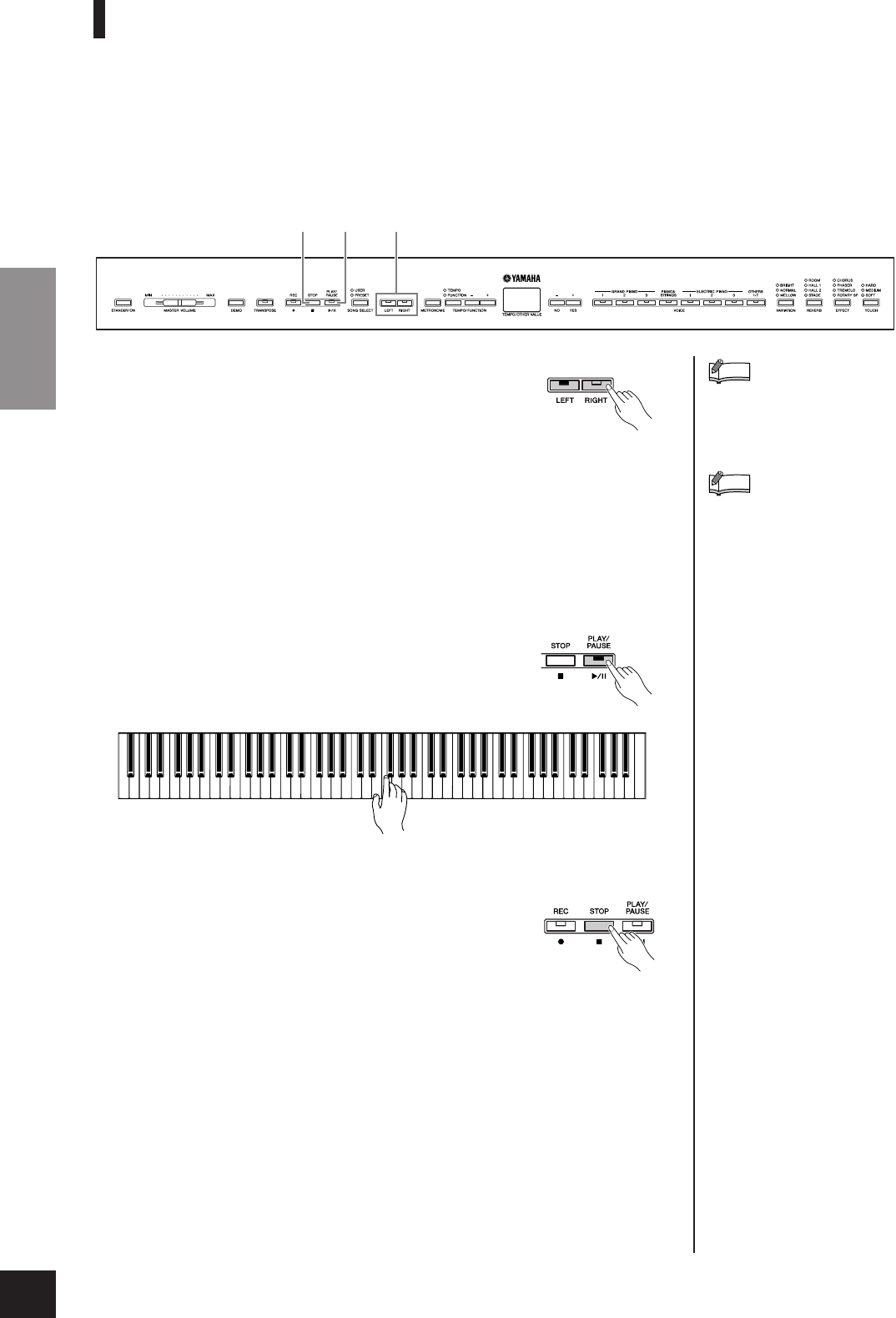

Recording to RIGHT/LEFT .......................................31

Changing the Initial Settings (data recorded

at the beginning of a song).........................................33

Playing Back Songs .......................................... 34

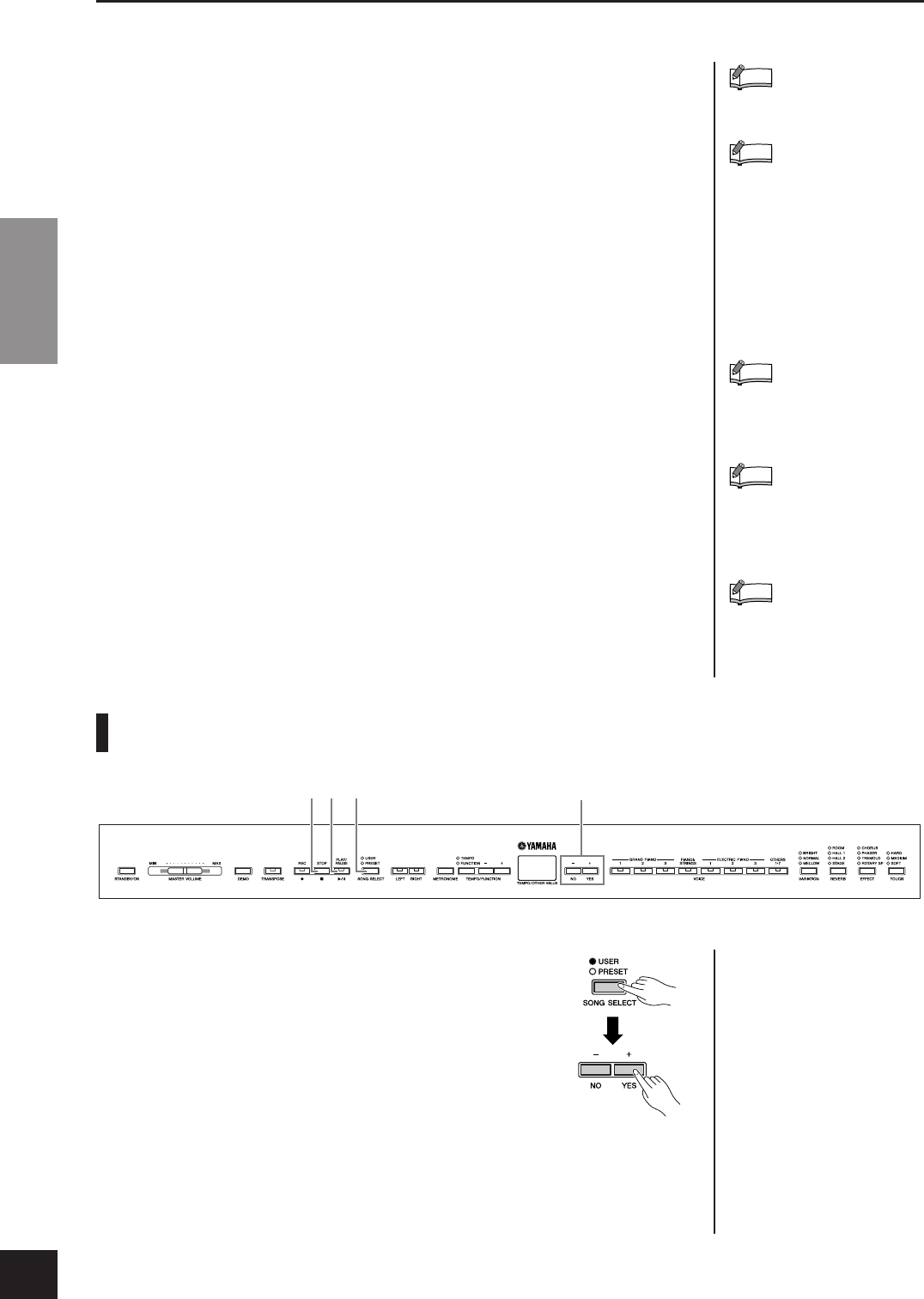

Playing Back User Songs/External Songs

on the P-140................................................................34

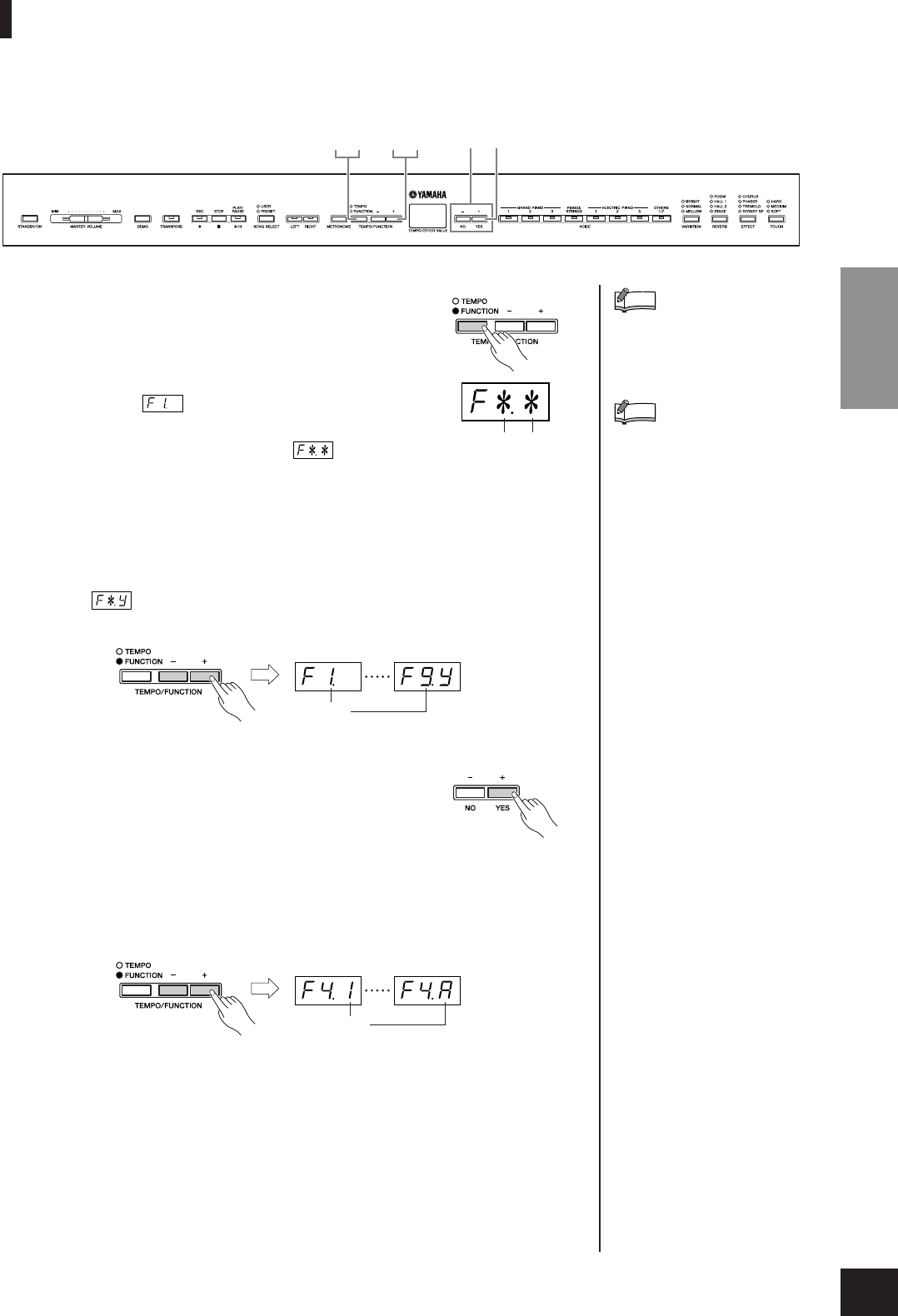

Detailed Settings – [FUNCTION]...................... 36

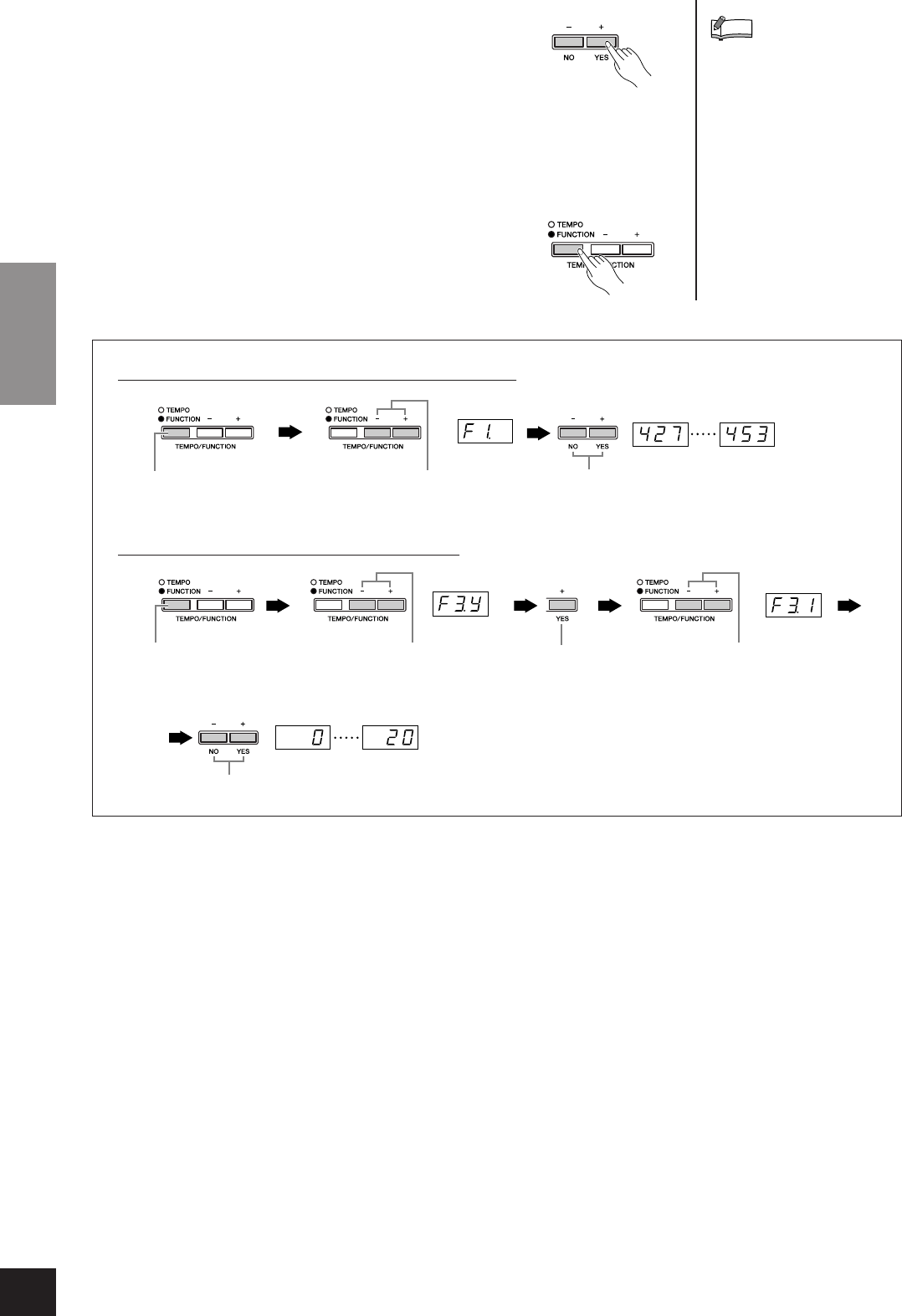

Basic Procedure in Function......................................37

About Each Function .................................................39

F1. Fine Tuning of the Pitch ...............................39

F2. Selecting a Scale .............................................40

F3. Dual Functions ..............................................41

F4. Split Functions...............................................42

F5. Other Functions ............................................43

F6. Metronome Volume ..................................... 44

F7. Song Part Cancel Volume............................. 44

F8. MIDI Functions ............................................44

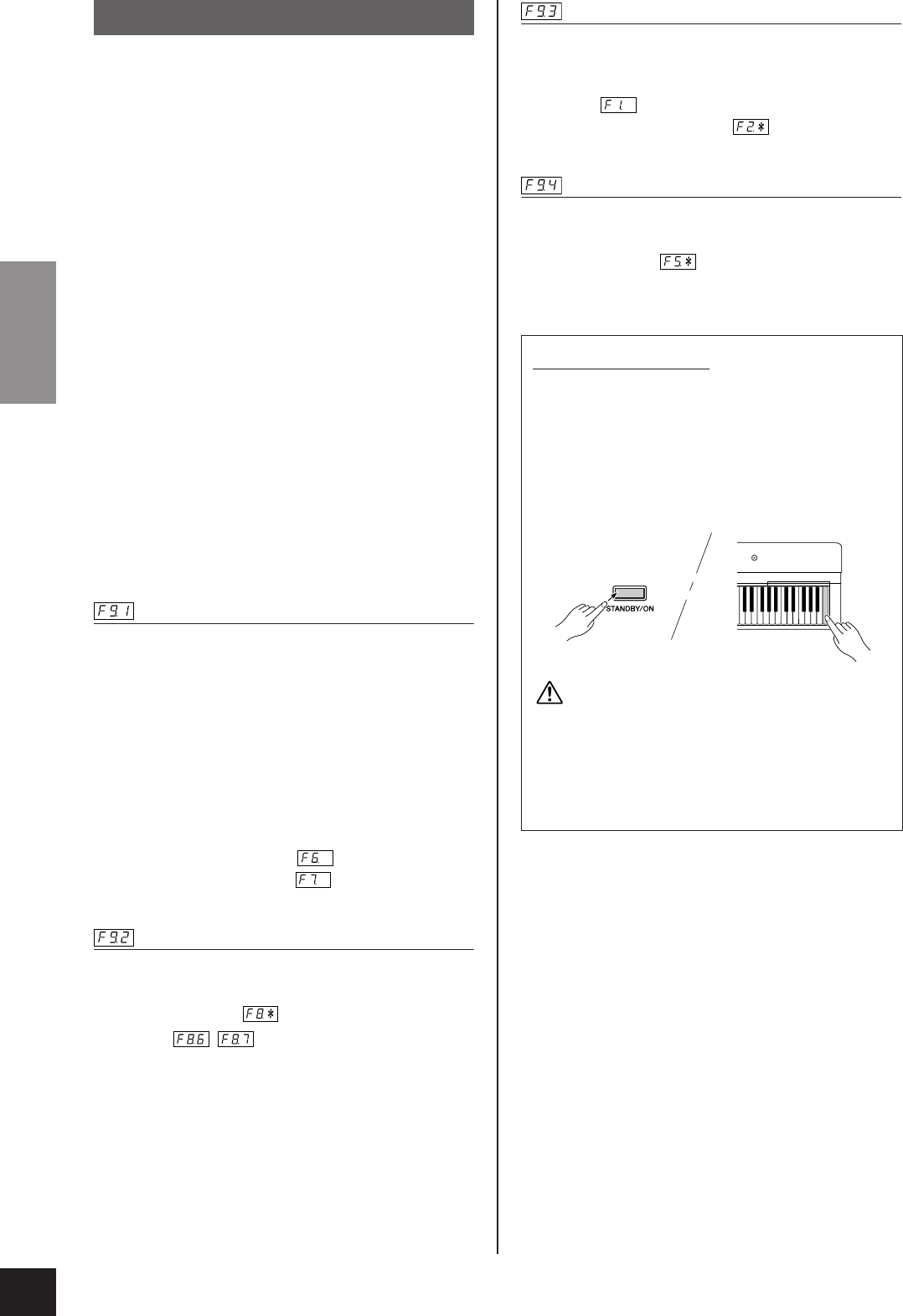

F9. Backup Functions..........................................46

Connections ..................................................... 47

Connectors .................................................................47

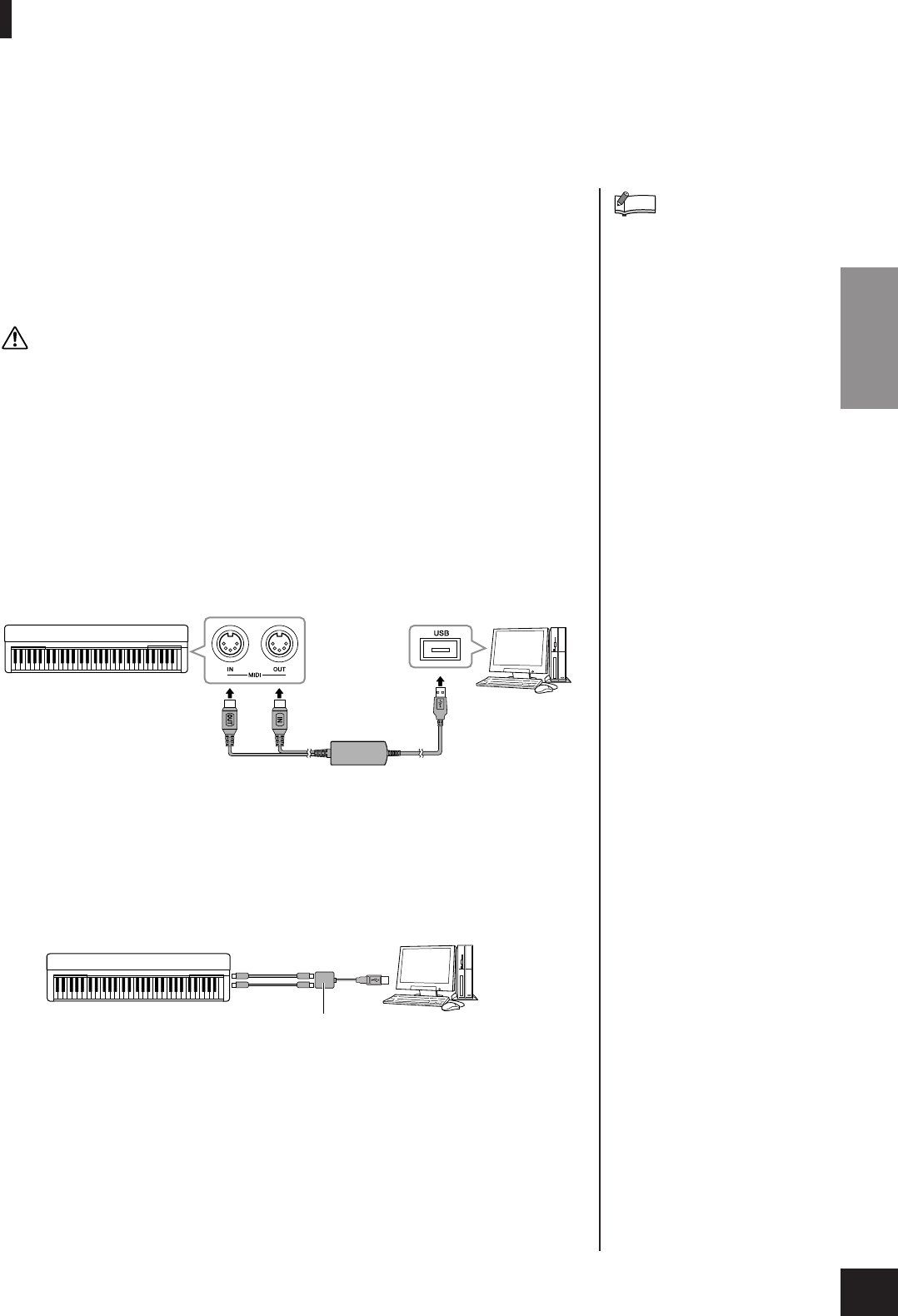

Connecting a Personal Computer.............................49

Data Backup Using a Computer....................... 50

Message List ..................................................... 51

Troubleshooting............................................... 52

Optional Equipment......................................... 52

Preset Voice List ............................................... 53

Index................................................................. 55

Appendix

Preset Song List................................................ 58

Factory Setting List .......................................... 59

MIDI Data Format ............................................ 60

MIDI Implementation Chart ............................ 64

Specifications ................................................... 65

P-140 Owner’s Manual

ENGLISH

Application Index

Use this index to ﬁnd reference pages that may be helpful for your particular application and situation.

Listening

Listening to demo songs with different voices.....................................................................Listening to the Demo Songs on page 14

Listening to my recorded performance................................................................................................Playing Back Songs on page 34

Listening to commercially available Music Data .................................................................................Playing Back Songs on page 34

Playing

Using the pedals .........................................................................................................................................Using the Pedals on page 13

Playing an accompaniment that matches pitch.............................................................. Transposition – [TRANSPOSE] on page 26

Selecting a touch sensitivity type........................................................................................Touch Sensitivity – [TOUCH] on page 25

Fine tuning the pitch of the entire instrument when you play the P-140 along with other instruments or CD music

........................................................................................................................................................Fine Tuning of the Pitch on page 39

Changing voices

Viewing the list of voices ...........................................................................................................................Preset Voice List on page 53

Combining two voices ............................................................................................................... Combining Voices (Dual) on page 20

Playing different sounds with left and right hands

............................................................................Splitting the Keyboard Range and Playing Two Different Voices (Split) on page 21

Making the sound more brilliant or more mellow......................................................................................[VARIATION] on page 23

Simulating a concert hall ....................................................................................................................................[REVERB] on page 24

Adding spread or swell to the sound...................................................................................................................[EFFECT] on page 24

Practicing

Muting the right- or left-hand part

...............................................................Practicing a One-Hand Part Using the 50 Preset Songs (Part Cancel Function) on page 16

Practicing a speciﬁed phrase repeatedly .................................................................... A-B Repeat for the 50 Preset Songs on page 18

Practicing with an accurate and steady tempo ............................................................................... Using the Metronome on page 27

Practicing using your recorded song....................................................................................Recording Your Performance on page 28

.........................................................................................................................................Turning part playback on and off on page 35

Recording

Recording your performance................................................................................................Recording Your Performance on page 28

Settings

Adjusting the P-140 settings .........................................................................................Detailed Settings – [FUNCTION] on page 36

Resetting to the default setting ...........................................................................................................Factory Preset Recall on page 46

Connecting the P-140 to other devices

What is MIDI?..................................................................................................................................................About MIDI on page 47

Making detailed settings for MIDI ...........................................................................................................MIDI Functions on page 44

Recording your performance............................................................................AUX OUT [L] [R] (LEVEL FIXED) jacks on page 48

Raising the volume............................................................................................AUX OUT [L] [R] (LEVEL FIXED) jacks on page 48

Connecting a computer ................................................................................................ Connecting a Personal Computer on page 49

Saving the data to a computer.........................................................................................Data Backup Using a Computer on page 50

Loading the data from a computer ......................................................................................................Playing Back Songs on page 34

Panel Controls and Terminals

P-140 Owner’s Manual

ENGLISH

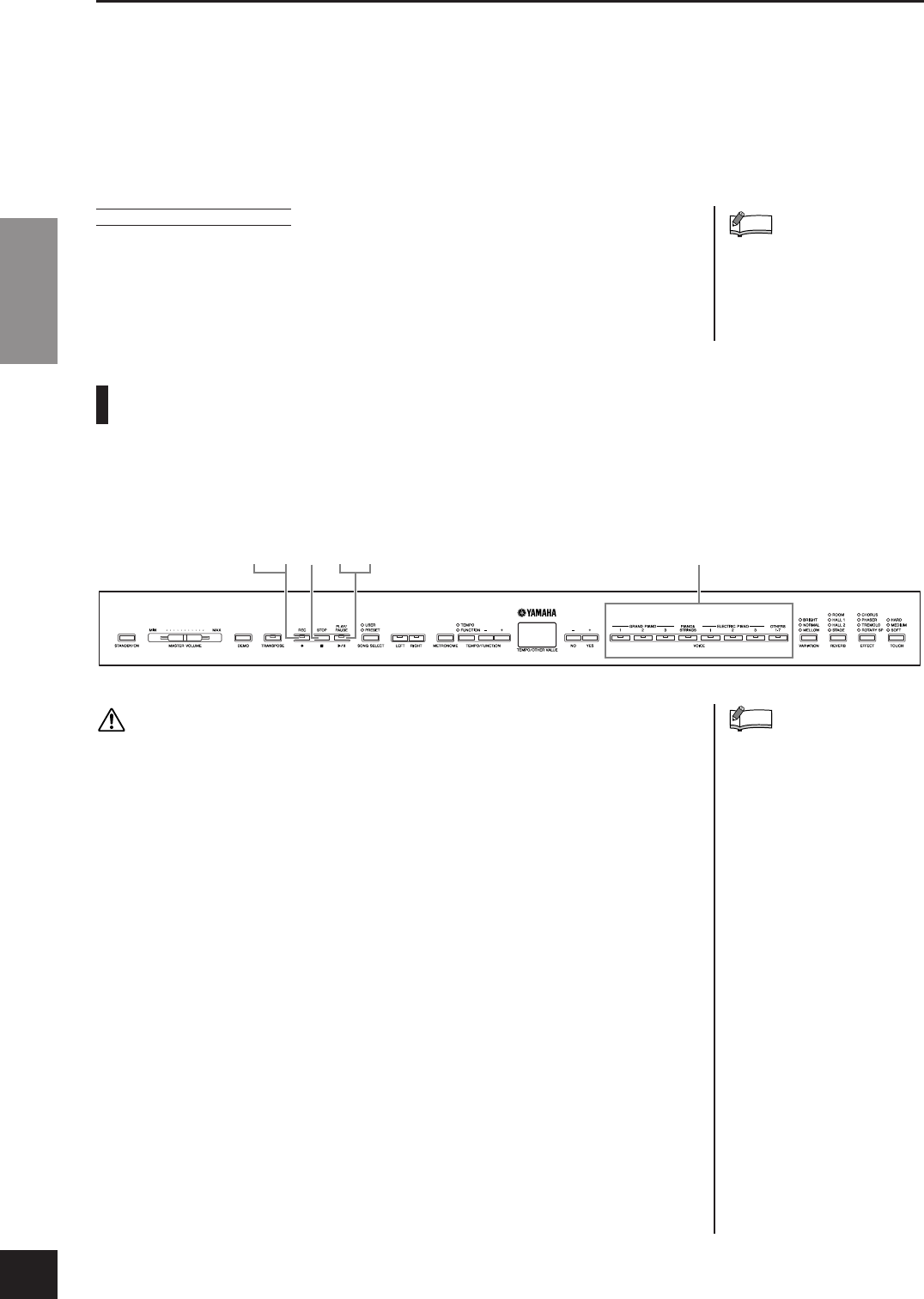

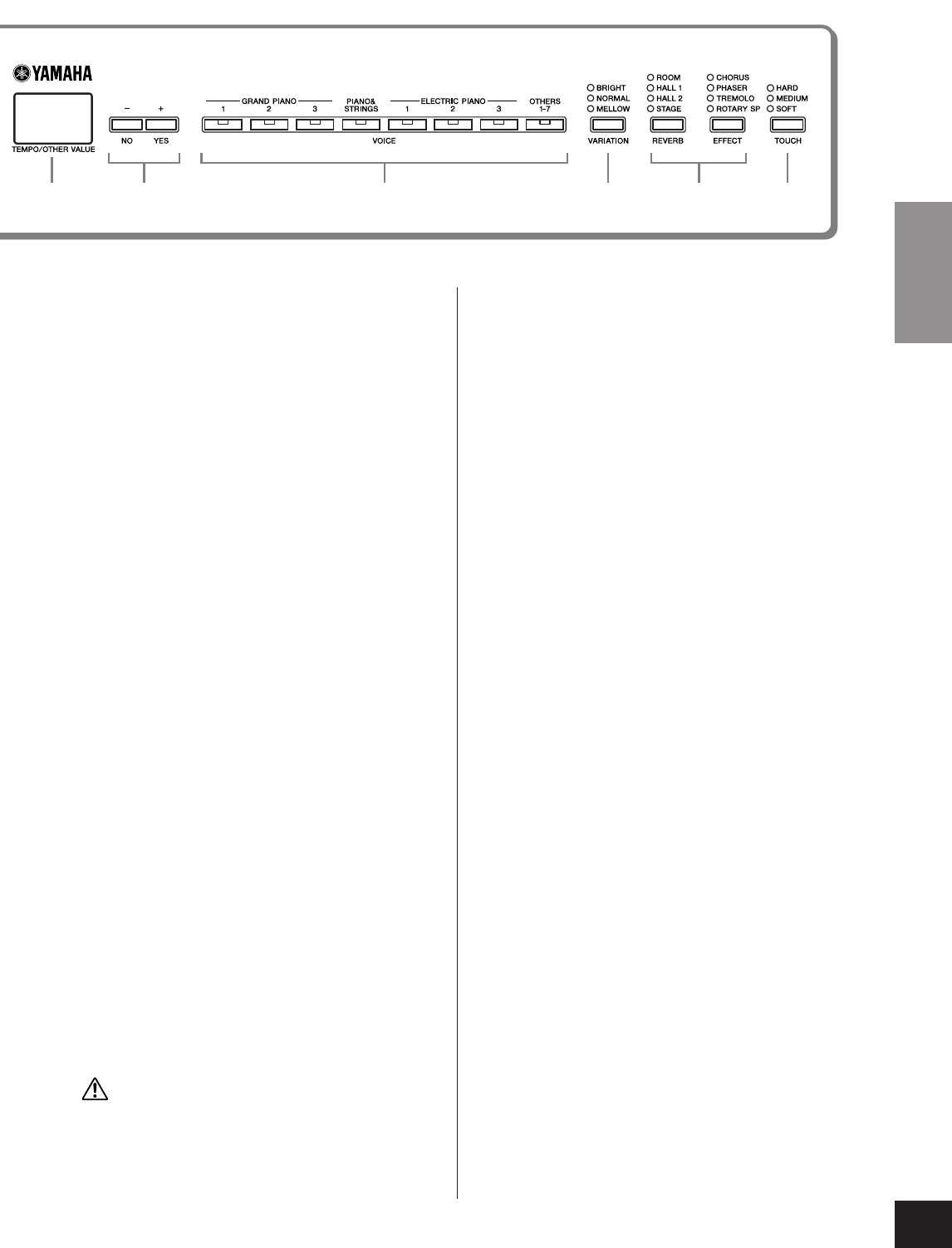

Panel Controls and Terminals

1 2 3 4 5 7 96 8 )

& * ( ¡º

™Rear panel

Front

panel

Panel Controls and Terminals

P-140 Owner’s Manual

ENGLISH

1[STANDBY/ON] switch ................ page 12

For turning the power on or off.

2[MASTER VOLUME] slider ........... page 12

For adjusting the volume level of the entire sound.

3[DEMO] button............................ page 14

For playing the demo songs.

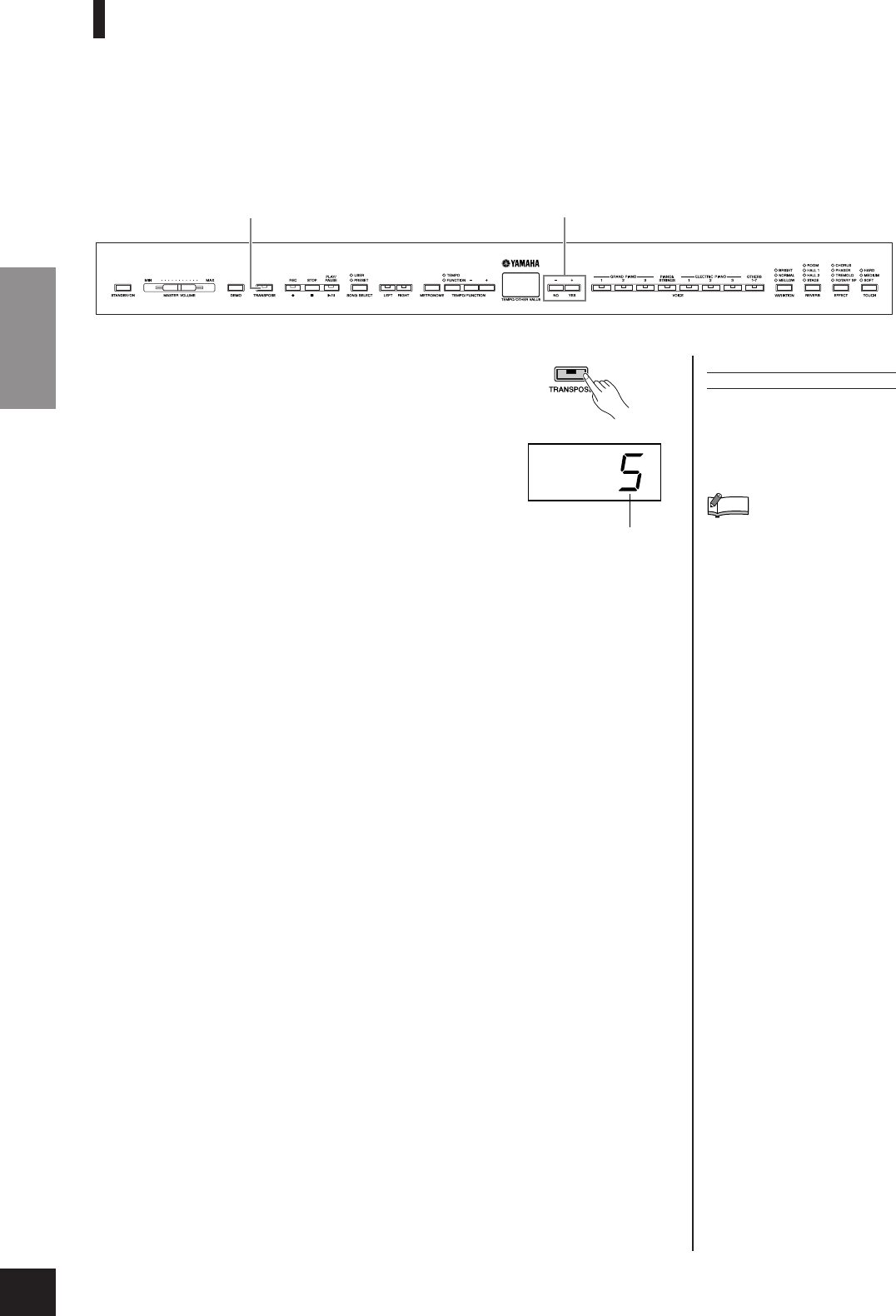

4[TRANSPOSE] button................... page 26

For shifting the pitch of the entire keyboard up or

down.

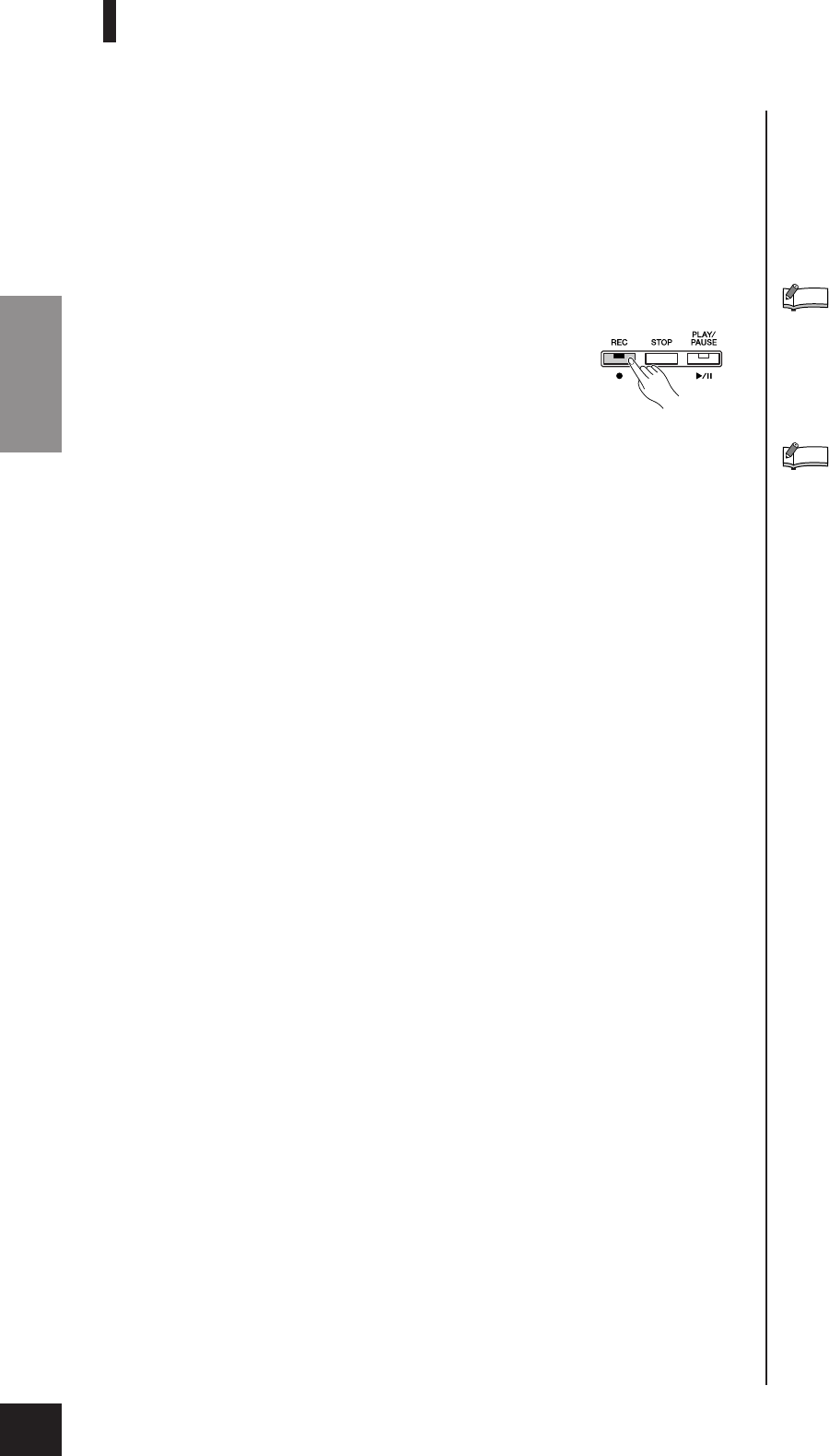

5[REC] button ................................ page 28

For recording your keyboard performance.

6[PLAY/PAUSE], [STOP] buttons

..............................................pages 15, 34

For playing back the preset songs, your recorded

material or commercially available music data, etc.

7[SONG SELECT] button ........pages 15, 34

For selecting a song to play back or edit.

8[RIGHT], [LEFT] buttons .......pages 16, 35

For turning the left- and right-hand parts on or off as

required so you can practice the corresponding part

(the part that is turned off) on the keyboard.

9[METRONOME] button.........pages 27, 44

For starting/stopping the metronome function.

)

[TEMPO/FUNCTION

–

] button

..............................................pages 27, 37

For changing the song tempo (speed) and selecting

other useful functions (pages 36-46).

!Display ......................................... page 12

For showing information on certain settings and val-

ues of the instrument.

CAUTION

Never attempt to turn off the power while ﬂashing

dashes appear in the display, indicating data is being

written to internal memory. Doing so may result in

loss of all user data.

@[–/NO], [+/YES] buttons

For setting values or performing ﬁle operations.

Pressing both buttons simultaneously for certain

value settings (Transpose, Tempo, etc.) restores the

default value.

#Voice group buttons ....................page 19

For selecting voices from 14 internal sounds includ-

ing Grand Piano 1, 2 and 3.

$[VARIATION] button ....................page 23

For adjusting the brightness of the selected voice for

your keyboard performance.

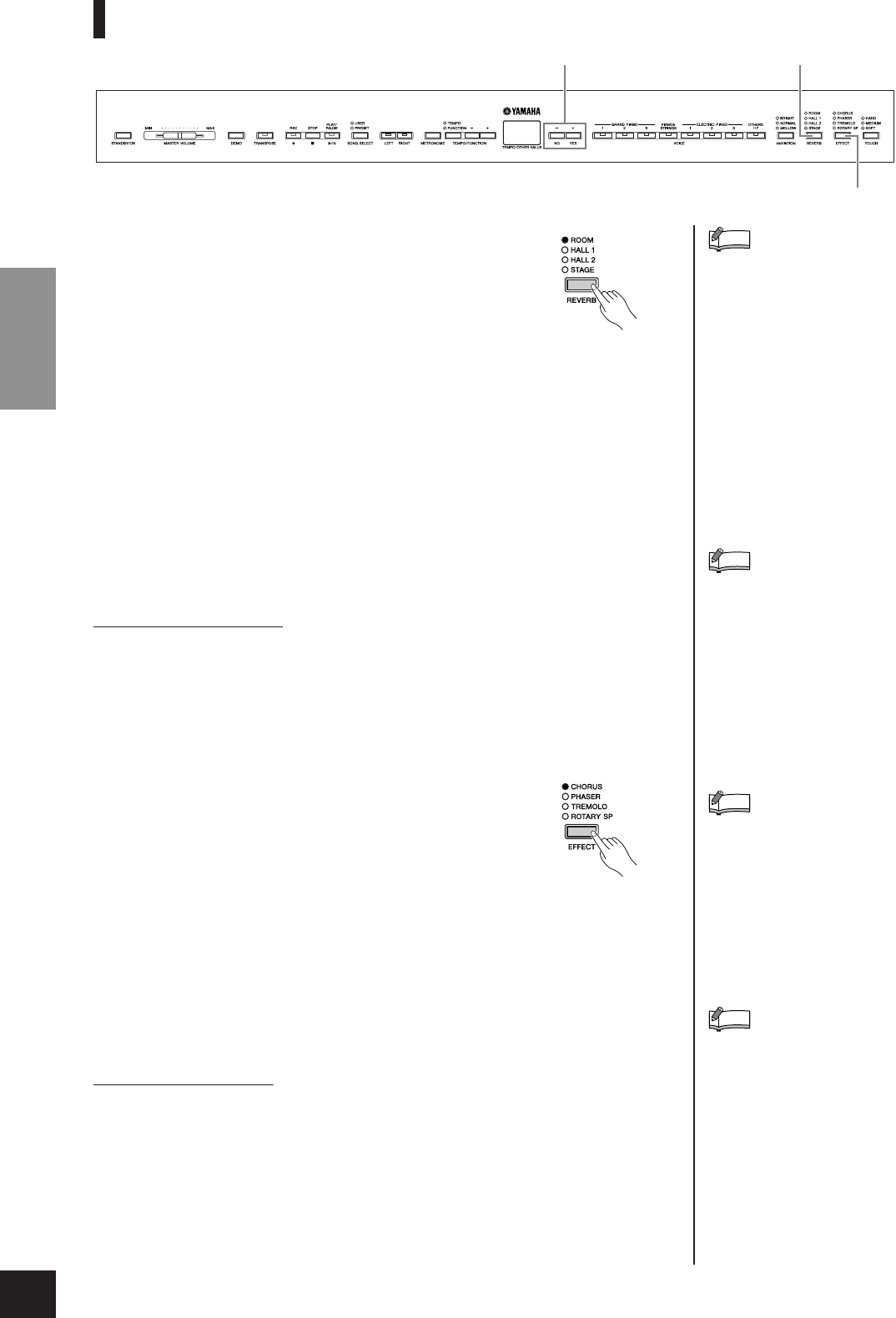

%[REVERB], [EFFECT] buttons.........page 24

For adding reverb and chorus effects to the selected

voice for your keyboard performance.

^[TOUCH] button ..........................page 25

For selecting the touch response.

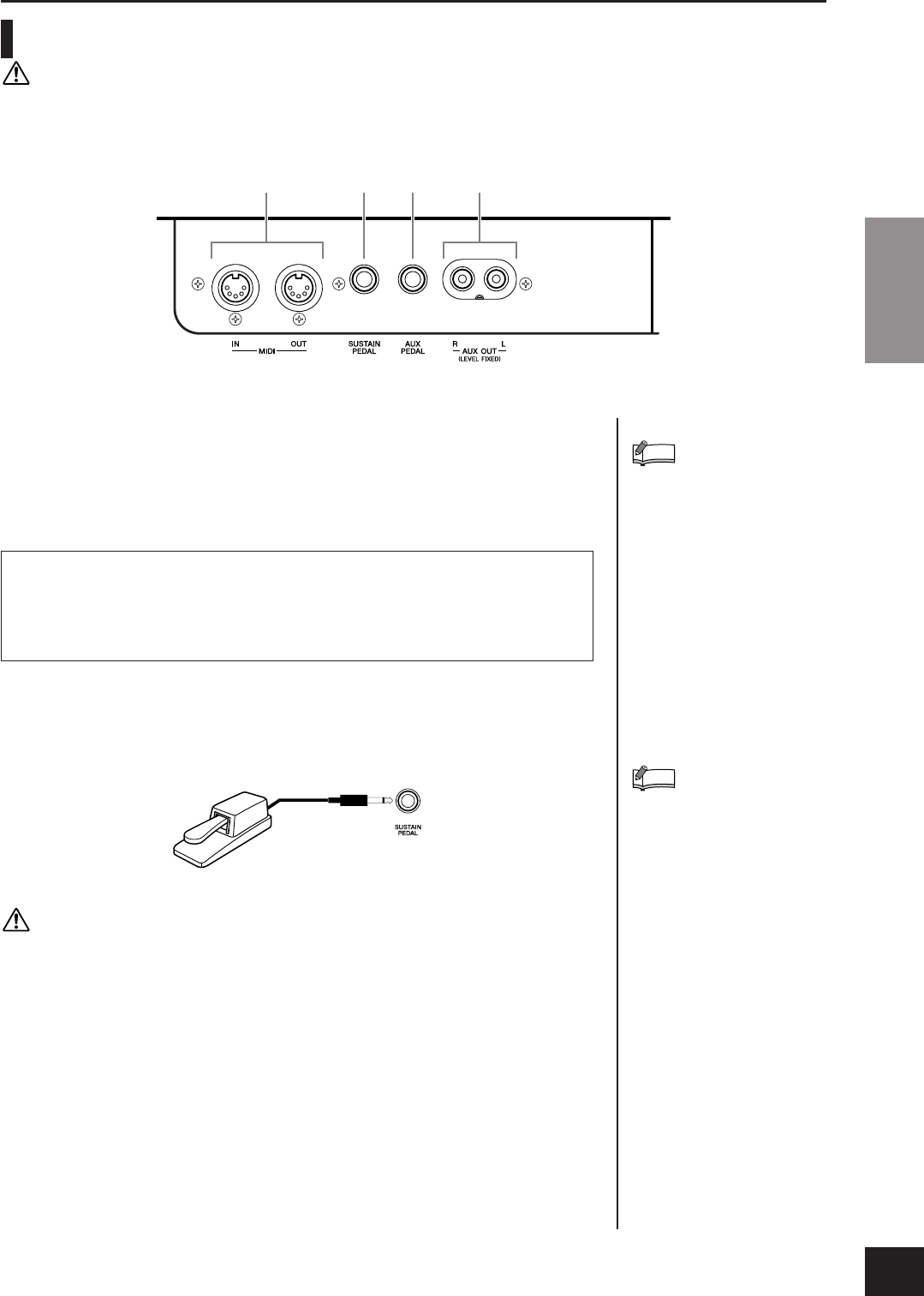

&MIDI [IN] [OUT] terminals...........page 47

For connecting external MIDI devices, allowing the

use of various MIDI functions.

*[SUSTAIN PEDAL] jack.......... pages 13, 47

For connecting an included pedal (FC3) or an

optional FC4/5 foot switch.

([AUX PEDAL] jack................. pages 13, 48

For connecting an included pedal (FC3), an optional

FC4/5 foot switch or an FC7 foot controller.

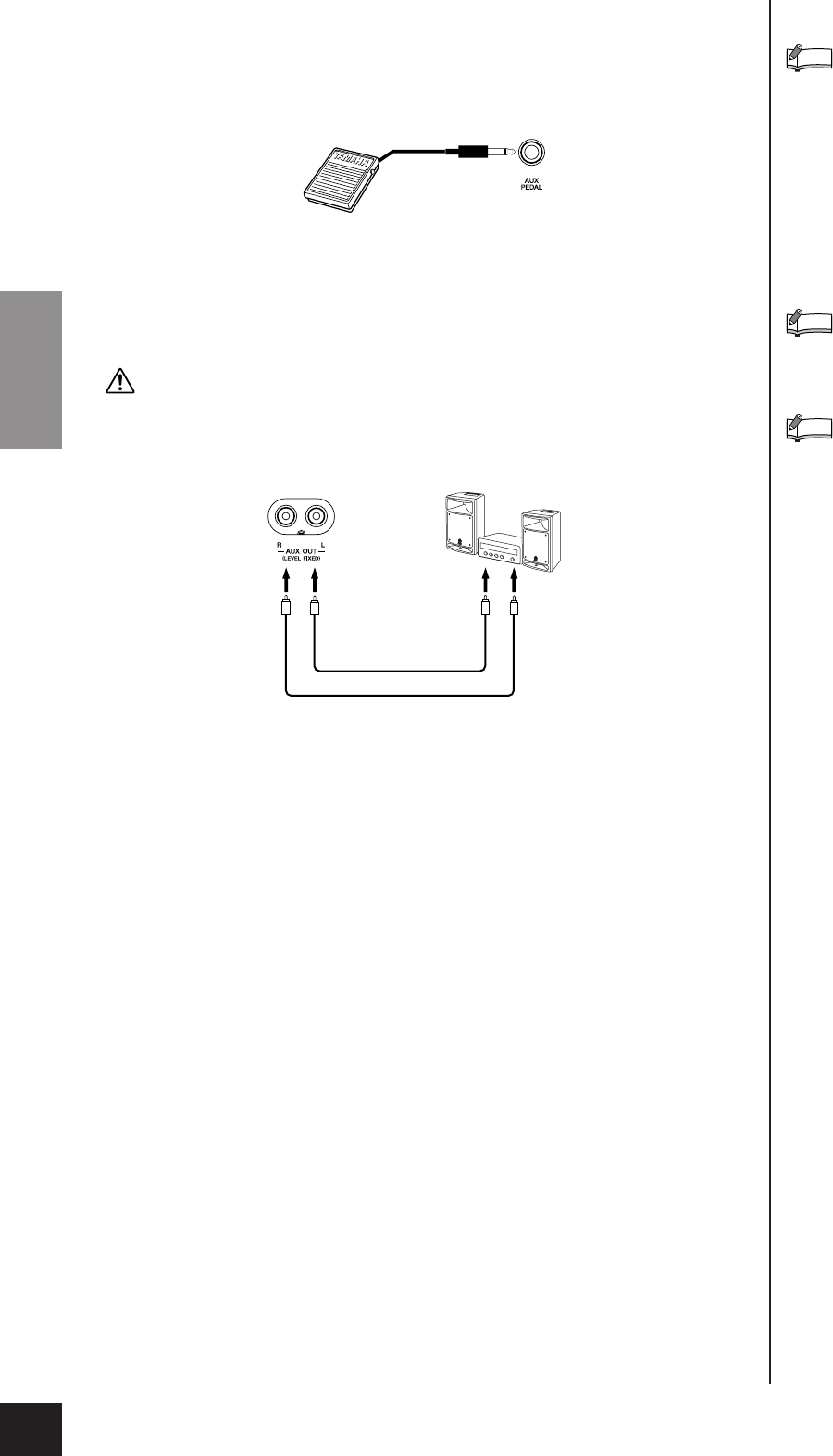

ºAUX OUT [L] [R] (LEVEL FIXED) jacks

.....................................................page 48

For outputting the sound of the P-140 to an external

audio system, or connecting it to another device (MD

recorder, etc.) to record your performance.

¡[DC IN 12V] jack...........................page 12

For connecting the included power adaptor.

™[PHONES] jack..............................page 13

For connecting a set of standard stereo headphones,

allowing private practice.

! ^$@ # %

Before Using the P-140

P-140 Owner’s Manual

ENGLISH

Before Using the P-140

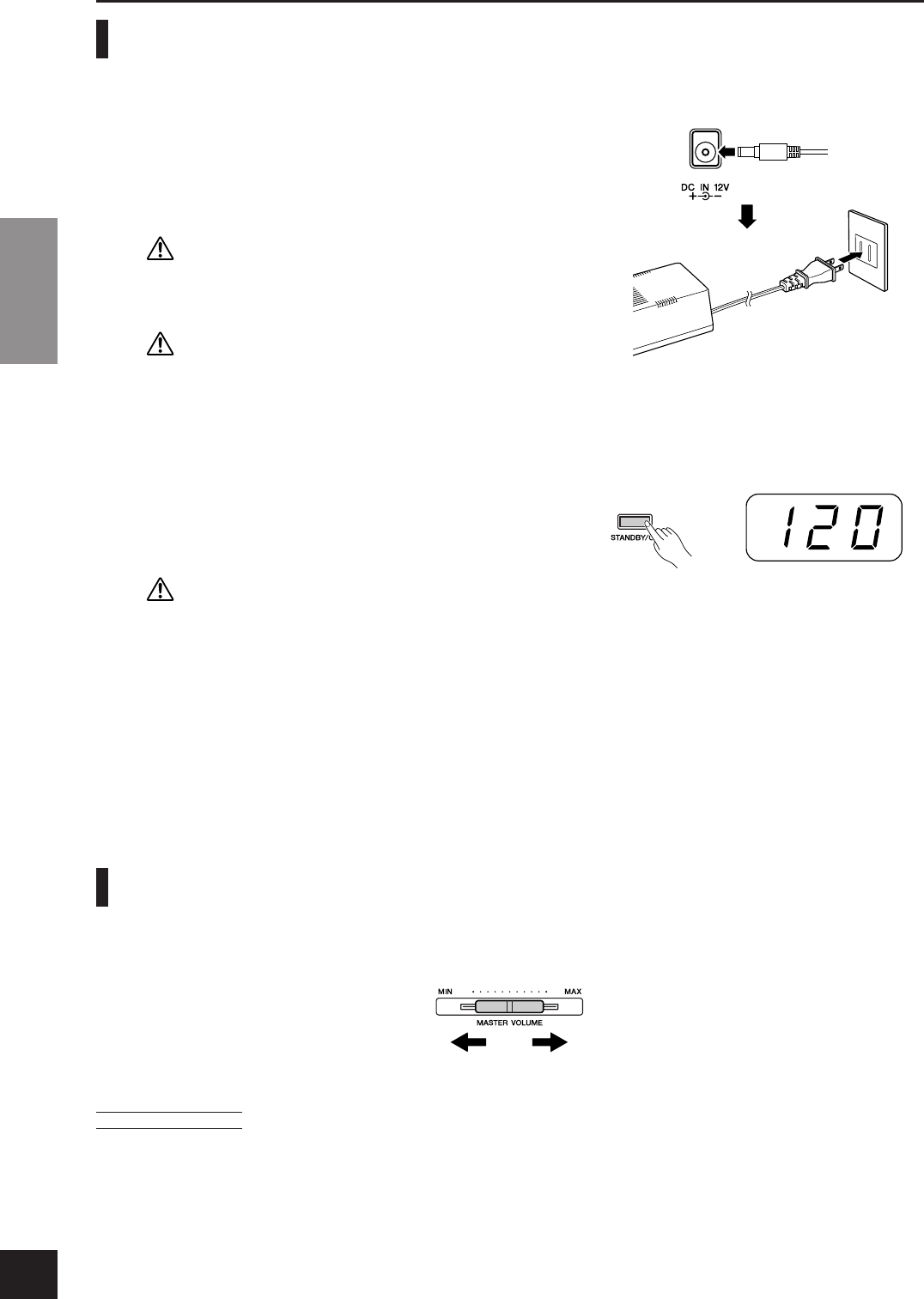

Turning the Power On

1. Connect the power adaptor’s DC cable to

the [DC IN 12V] jack.

2. Plug the AC adaptor into an AC outlet.

WARNING

Use the speciﬁed adaptor (PA-5D, PA-150, or an equivalent recom-

mended by Yamaha) only. The use of other adaptors may result in

irreparable damage to both the adaptor and the P-140.

CAUTION

Unplug the AC Power Adaptor when not using the P-140, or during

electrical storms.

3. Press the [STANDBY/ON] switch to turn

the power on.

The display located in the center of the front panel lights up.

When you’re ready to turn off the power, press the [STANDBY/

ON] switch again.

CAUTION

Even when the instrument is turned off, electricity is still ﬂowing to

the instrument at the minimum level. When you are not using the P-

140 for a long time, make sure you unplug the AC power adaptor

from the wall AC outlet.

When turning off the power, press and hold down the

[STANDBY/ON] switch for a short time until the power turns

off. The P-140 uses this power-off procedure as a “safety” device

to prevent the power from being inadvertently turned off during

performance.

Setting the Volume

Initially set the [MASTER VOLUME] slider about halfway between the “MIN” and “MAX” settings. Then, when you start

playing, re-adjust the [MASTER VOLUME] slider to the most comfortable listening level.

TERMINOLOGY MASTER VOLUME:

The volume level of the entire keyboard sound

(The shape of plug differs

depending on locale.)

Display

Normally indicates tempo.

The level increases.The level decreases.

Before Using the P-140

P-140 Owner’s Manual

ENGLISH

Using the Pedals

Sustain Pedal (Sustain Pedal jack)

This jack is for connecting the included pedal (FC3).

The pedal functions in the same way as a damper pedal on an acoustic piano. Connect the included pedal (FC3) to this

jack and press the pedal to sustain the sound. The further down the pedal is pressed, the longer the sound will be sus-

tained (can be used like a half pedal effect).

When the GRAND PIANO 1 and 3 voices are selected, pressing the FC3 pedal activates the instrument’s special Sustain

Samples to accurately recreate the unique resonance of an acoustic grand piano’s soundboard and strings.

An optional FC4/FC5 foot switch can also be connected to this jack. However, these foot switches cannot be used to con-

trol the half pedal effect.

AUX Pedal (AUX Pedal jack)

This jack is for connecting an optional FC4/FC5 foot switch or an optional FC7 foot controller. A wide range of functions,

including the Soft Pedal function can be assigned to this jack. For instructions on assigning the pedal, refer to pages 37,

43.

Using Headphones

Connect a set of headphones to one of the [PHONES] jacks.

Two [PHONES] jacks are provided.

You can connect two sets of standard stereo headphones. (If you are

using only one set of headphones, you can plug them into either

jack.)

CAUTION

Do not use the P-140 at a high volume level for a long period of time,

or your hearing may be damaged.

Music Rest

The P-140 includes a music rest that can be attached to the instrument by inserting it into the holes at the top of the con-

trol panel.

The depth of the effect produced by the Sustain Samples can be adjusted via the Pedal Functions (pages 37, 43) in

Function.

The FC7 Foot Controller can be used to control Expression (pages 37, 43).

FC3

NOTE

On front panel

Standard

stereo mini

plug

Listening to the Demo Songs

P-140 Owner’s Manual

ENGLISH

Listening to the Demo Songs

Demo songs are provided that effectively demonstrate each of the P-140’s voices.

1. Press the [STANDBY/ON] switch to turn the power

on.

When the power is turned ON, one of the voice button

indicators will light.

2. Adjust the volume.

Initially set the [MASTER VOLUME] slider about half

way between the “MIN” and “MAX” settings. Then,

when you start playing, re-adjust the [MASTER VOL-

UME] slider to the most comfortable listening level.

3. Press the [DEMO] button to listen

to the Demo songs.

The VOICE button indicators will ﬂash in sequence,

then the GRAND PIANO 1 demo song will start. Demo songs provided for each

voice will play back in sequence until you press the [DEMO] or [STOP] button.

Changing a demo song

You can change to another Demo song during playback by pressing the desired

VOICE button.

Demo Song List

• The demonstration pieces listed above are short rearranged excerpts of the original

compositions.

4. Press the [DEMO] or [STOP] button

to stop the Voice demo.

1 2 34

Demo song data is not transmit-

ted via the MIDI terminals.

Demo songs cannot be played

during User song recording

(page 28).

You cannot adjust the tempo of

demo songs.

You cannot use the Part Cancel

function (page 16) or the Song

A-B Repeat function (page 18) in

Demo.

Seven voices (page 19) are

assigned to the [OTHERS] but-

ton. The demo songs for these

voices are called up in sequence

each time the [OTHERS] button is

pressed during playback.

NOTE

Voice Name Title Composer

GRAND PIANO 3 “Eintritt” Waldszenen Op.82 R. Schumann

HARPSICHORD ([OTHERS] o 4)Gavotte J.S. Bach

Reference

Using the 50 Piano Preset Songs

P-140 Owner’s Manual

ENGLISH

Using the 50 Piano Preset Songs

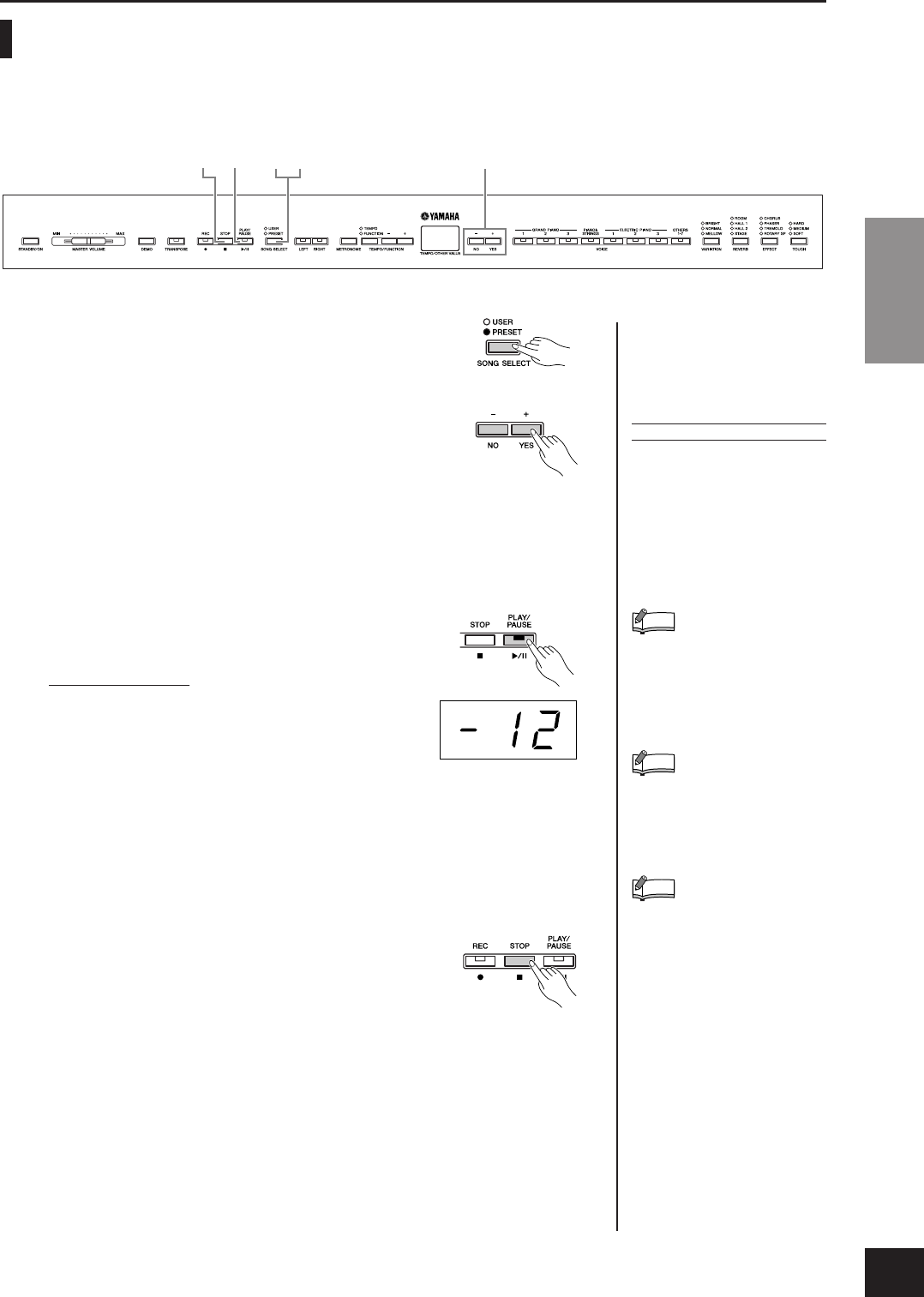

Listening to the 50 Piano Preset Songs

The P-140 provides performance data of 50 piano songs. You can simply listen to these songs

(page 58) or use them for practice (page 16).

1. Press the [SONG SELECT] button a

few times until the “PRESET” indica-

tor lights.

2. Press the [–/NO], [+/YES] buttons to

select the number of the tune you

want to play.

The number will appear on the display.

1 – 50: Select a preset song number and play only the song.

ALL: Play all preset songs in sequence.

rnd: Play all preset songs continuously in random order.

3. Press the [PLAY/PAUSE] button to

start playback.

Adjust the tempo

You can use the [TEMPO/FUNCTION –, +] but-

tons to adjust the playback tempo as required.

This produces a relative tempo variation, with

a range from “–50” through “0” to “50” at max-

imum; the range will differ depending on the

selected song.

The default tempo can be recalled by simulta-

neously pressing the [–] and [+] buttons.

4. Stop playback.

Playback will stop automatically when the selected preset

song has ﬁnished. To stop the song during playback (or

continuous playback), press the [STOP] button. You can

also pause playback by pressing the [PLAY/PAUSE] button.

To play back another song continuously, see step 2 above.

Press the [SONG SELECT] button to exit Preset Song

playback.

The indicator turns off, and the instrument returns to normal play.

34 1

TERMINOLOGY

Song:

On the P-140, performance data

is called a “Song.” This includes

demonstration tunes and piano

preset tunes.

Preset:

Preset Data supplied with the

internal memory of the P-140

shipped from the factory.

The default tempo “0” is automati-

cally selected whenever a new

preset song is selected, or when

playback of a new preset song

begins during “ALL” or “rnd”

playback.

When you select a different song

(or a different song is selected

during chained playback), appro-

priate reverb and effect types will

be selected accordingly.

You can adjust the Variation type

(page 23) and Reverb type

(page 24) that is applied to the

voice you play on the keyboard

and for the preset song playback.

NOTE

Using the 50 Piano Preset Songs

P-140 Owner’s Manual

ENGLISH

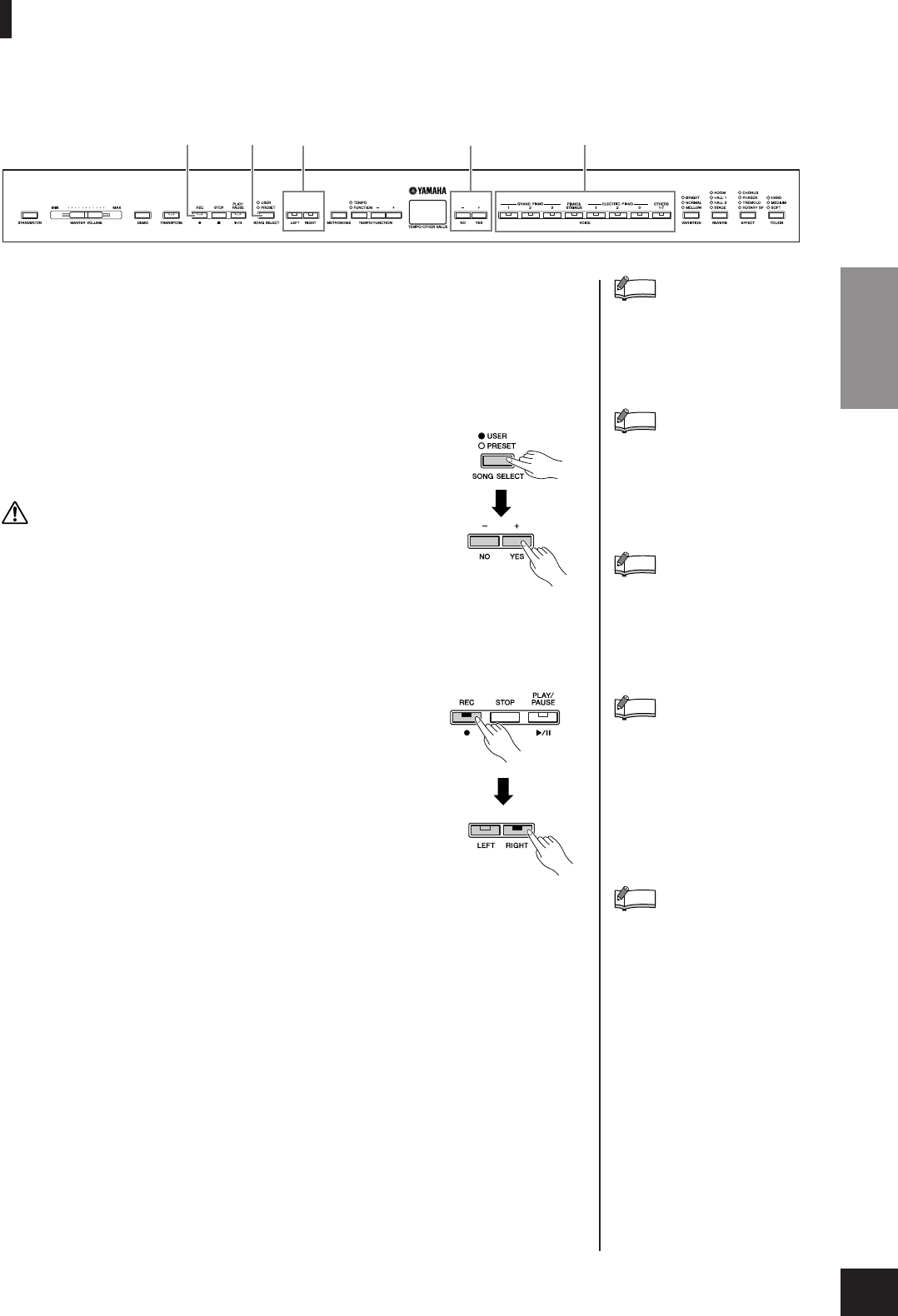

Practicing a One-Hand Part Using the 50 Preset Songs

(Part Cancel Function)

The 50 preset songs have separate left- and right-hand parts on individual parts. You can turn the

left- and right-hand parts on or off as required so you can practice the corresponding part (the part

that is turned off) on the keyboard. The right-hand part is played by [RIGHT] and the left-hand part

is played by [LEFT].

1. Turn off the playback part you wish

to practice.

After you select a song to practice, press the [RIGHT] or

[LEFT] button to turn off the corresponding part.

When you ﬁrst select a song, both [RIGHT] and [LEFT] indicators light up, indi-

cating that you can play back both parts. When you press one of the buttons to

turn off playback, the corresponding button indicator turns off and the corre-

sponding part playback is muted.

Pressing the buttons repeatedly toggles playback between on and off. The parts

can be turned on or off even during playback.

2. Press the [PLAY/PAUSE] button to

start playback and playing.

Play the part you just turned off.

3. Stop playback.

When playback is complete, it automatically stops and

the P-140 locates the top of the song. If you wish to stop

playback in the middle of a song, press the [STOP] but-

ton. You can also pause playback by pressing the [PLAY/

PAUSE] button.

The Preset Song Part Cancel

function cannot be used during

“ALL” or “rnd” (page 15) play-

back.

The “Song Part Cancel Volume”

function described on pages 37,

44 can be used to set the can-

celed part so that it plays at a vol-

ume from “0” (no sound) to “20.”

The default setting is “5.”

NOTE

Using the 50 Piano Preset Songs

P-140 Owner’s Manual

ENGLISH

Starting playback automatically as you start playing

the keyboard (Sync Start)

When the Sync Start function is engaged, playback of the selected preset song

will begin automatically as soon as you start playing on the keyboard.

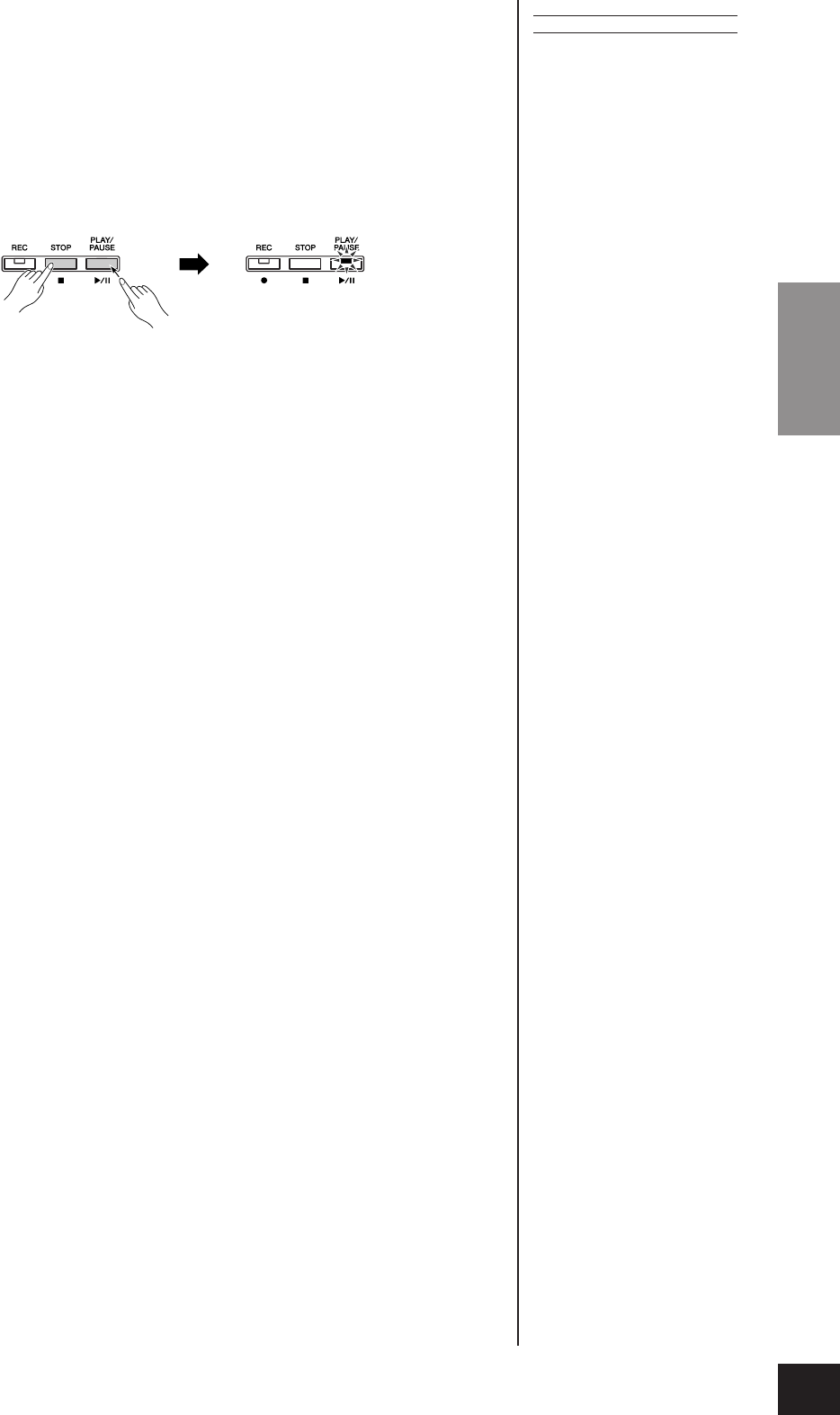

To engage the Sync Start function, simultaneously hold down the [STOP] and

press the [PLAY/PAUSE] button. Repeat the previous operation to disengage the

Sync Start function.

Playback will then start as soon as you begin playing the keyboard.

Pedal Play/Pause

A pedal connected to the [AUX PEDAL] connector can be assigned to play and

pause preset song playback via the AUX Pedal function described on pages 37,

43.

TERMINOLOGY

Sync:

Synchronized; occurring at the

same time.

Sync Start

standby

Sync Start

Using the 50 Piano Preset Songs

P-140 Owner’s Manual

ENGLISH

A-B Repeat for the 50 Preset Songs

The A-B Repeat function can be used to continuously repeat a speciﬁed phrase within a preset song.

Combined with the Part Cancel function described below, this provides an excellent way to practice

difﬁcult phrases.

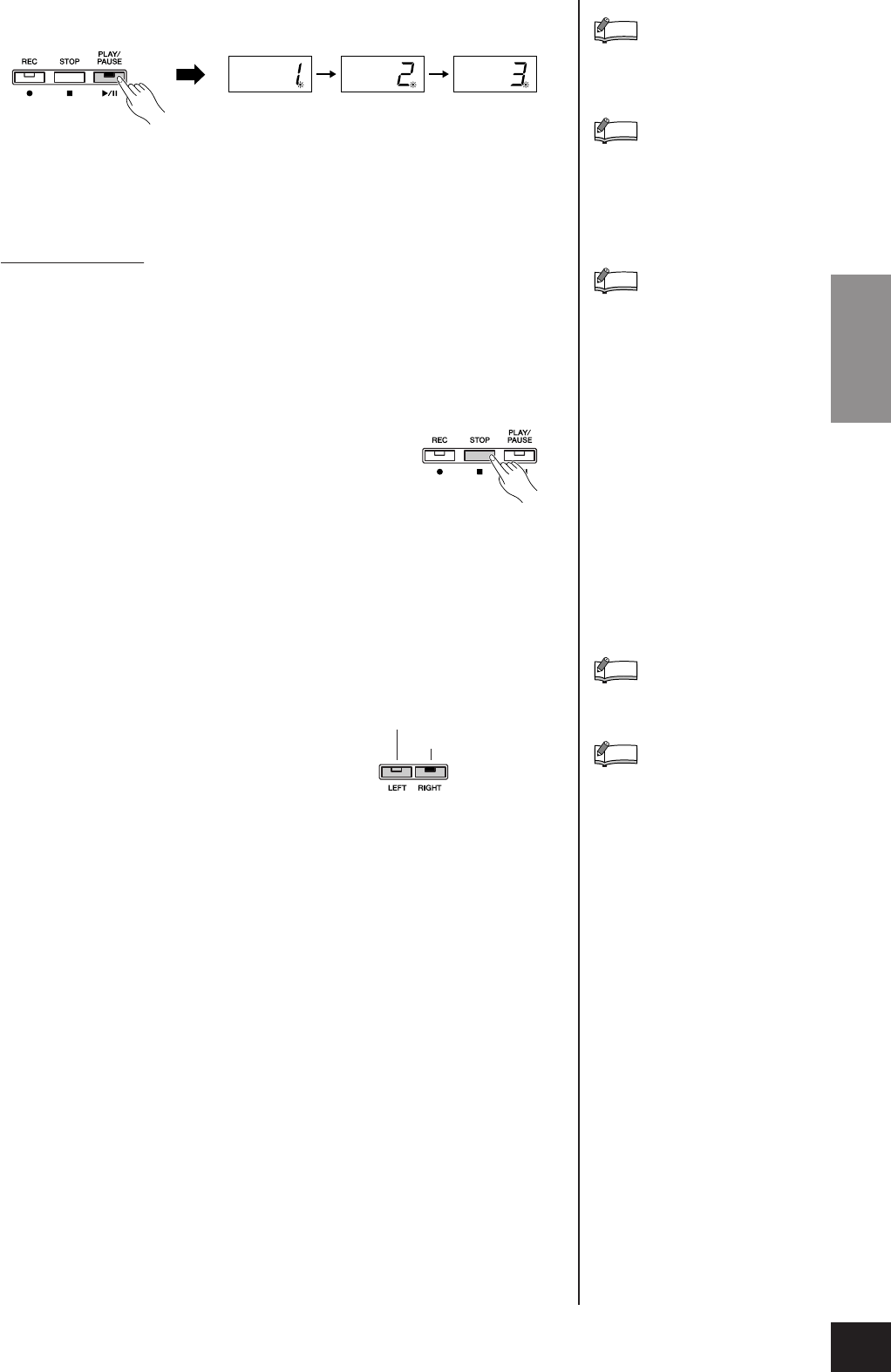

1. Select and play a preset song.

2. Press the [TEMPO/FUNCTION] button at the begin-

ning of the phrase you want to repeat.

This sets the “A” point ( will appear on the display).

3. Press the [TEMPO/FUNCTION] button a second

time at the end of the phrase.

This sets the “B” point ( will appear on the display).

At this point, repeat playback will begin between the speciﬁed A and B points.

4. Press the [STOP] button to stop play-

back.

A-B repeat playback will resume if you press the [PLAY/

PAUSE] button.

To cancel the A and B points, press the [TEMPO/FUNCTION] button once.

The A-B Repeat function cannot

be used during “ALL” or “rnd”

(page 15) playback.

NOTE

•To set the “A” point at the very

beginning of the song, press

the [TEMPO/FUNCTION] but-

ton before starting playback.

•You can have the B point auto-

matically be set to the song’s

end, by setting the A point and

letting the song play to the end.

An automatic lead-in (to help

guide you into the phrase) starts

at the A point of the song.

NOTE

Repeat A through B

The A and B points are automati-

cally canceled when a new song

is selected.

NOTE

Selecting & Playing Voices

P-140 Owner’s Manual

ENGLISH

Selecting & Playing Voices

Selecting Voices

1. Select the desired voice by pressing one of the Voice

buttons.

[OTHERS] button

Pressing the [OTHERS] button switches among the fol-

lowing seven voices.

For details about “o 7 SPLIT,” refer to page 21.

Then, when you start playing, re-adjust the [MASTER VOLUME] slider for the most

comfortable listening level.

[OTHERS] button

To familiarize yourself with the

characteristics of the voices, lis-

ten to the demo songs for each

voice (page 14). Refer to “Preset

Voice List” on page 53 for more

information on the characteristics

of each preset voice.

TERMINOLOGY

Voice:

On the P-140, the term “voice”

means “instrument sound.”

You can control the loudness of a

voice by adjusting the force with

which you strike the keys,

although different playing styles

(touch sensitivities) have little or

no effect with certain musical

instruments.

Refer to “Preset Voice List” on

page 53.

If you select the voice via the

[OTHERS] button then press

another VOICE button, the voice

last selected via the [OTHERS]

button will be maintained. In other

words, pressing the [OTHERS]

button again calls up the last

selected voice.

NOTE

o 1 CHURCH ORGAN

o 2 JAZZ ORGAN

o 3 STRINGS

o 4 HARPSI CHORD

o 5 E. CLAVI CHORD

o 6 VIBRAPHONE

o 7 SPLIT

Selecting & Playing Voices

P-140 Owner’s Manual

ENGLISH

Combining Voices (Dual)

You can play voices simultaneously across the entire range of the keyboard. In this way, you can

combine similar voices to create a thicker sound.

1. Press two voice buttons at the same time (or press

one voice button while holding another) to engage

Dual.

The voice indicators of both selected voices will light when Dual is active.

Play the keyboard.

If you want to use a voice selected via the [OTHERS] button, press the [OTHERS]

button several times to call up the desired voice (other than “SPLIT”) while

holding any other VOICE button.

According to the voice numbering priority shown in the diagram below, the

lower value voice number will be designated as Voice 1 (the other voice will be

designated as Voice 2).

The P-140 Function provides access to a number of other Dual functions, such

as volume balance setting and octave setting (pages 37, 41). (If you do not set

the Dual functions, the appropriate setting will be set in each voice by default.)

2. Press any single voice button to return to the nor-

mal single-voice play.

Two voices in the [OTHERS] but-

ton cannot be engaged at the

same time.

Dual is not available when

“SPLIT” is selected via the

[OTHER] button.

The PIANO & STRINGS voice

combines the sounds of piano

and strings. Pressing the

[PIANO&STRINGS] button will

produce the same result as Dual.

You can combine other voices

with this voice; however, keep in

mind that the sound may cut off

unnaturally.

NOTE

Press at the same time

1 2 3 4 5 6 7 8

Voice numbering priority

Selecting & Playing Voices

P-140 Owner’s Manual

ENGLISH

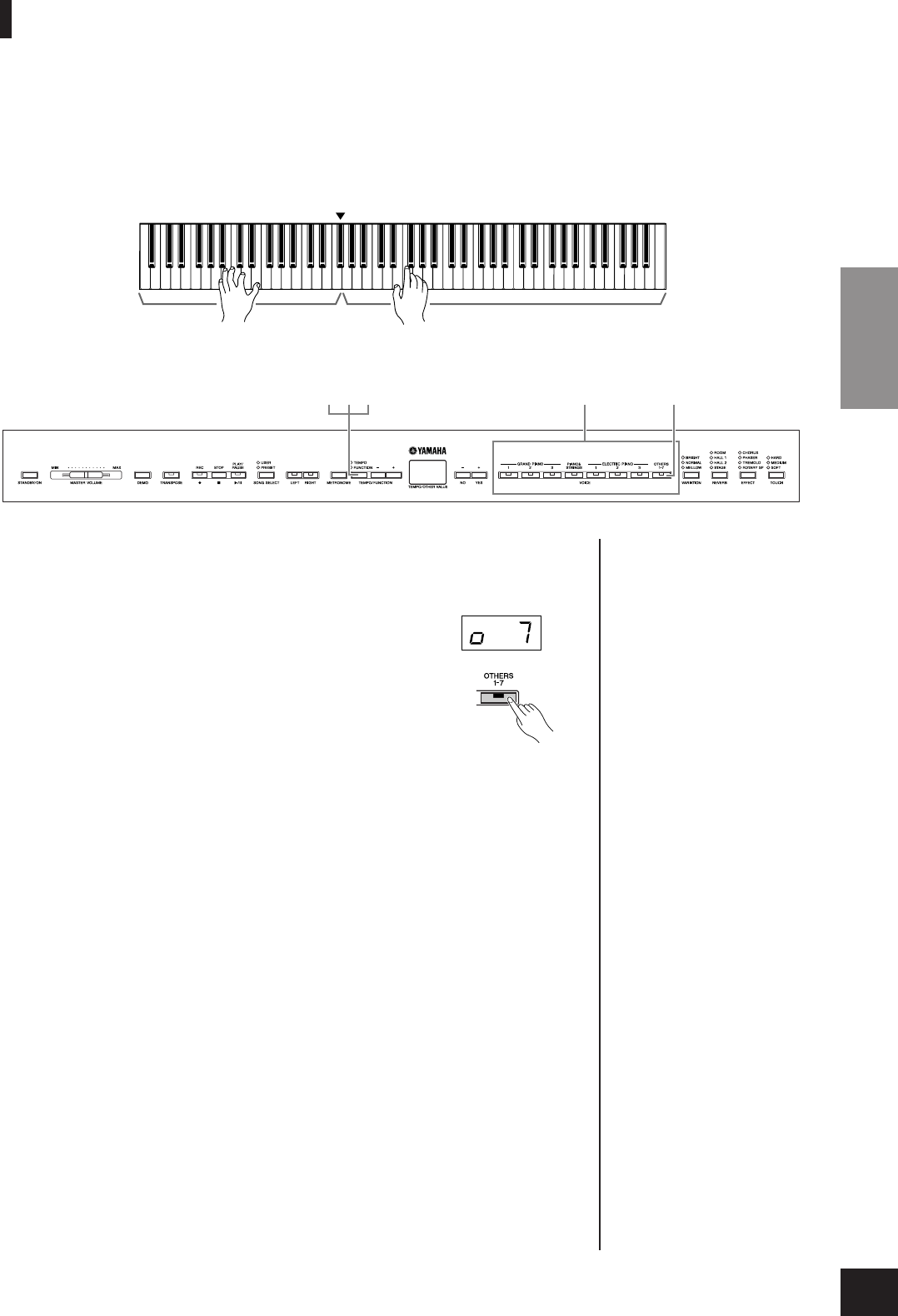

Splitting the Keyboard Range and Playing Two Different

Voices (Split)

Split enables you to play two different voices on the keyboard — one with the left hand and

another with the right hand. For example, you can play a bass part using the Wood Bass or Electric

Bass voice with the left hand, and a melody with the right hand.

1. Press the [OTHERS] button several times until “o 7”

is called up in the display.

The [OTHERS] button lights.

As a default setting, GRAND PIANO 1 will be selected

for the right-hand part and WOOD BASS will be selected

for the left-hand part.

The Function provides access to a number of other Split

functions (pages 37, 42). (If you make no settings for the

Split functions, the appropriate setting will be set in each

voice by default.)

2. Specify the split point (the border between the

right- and left-hand range).

The Split Point can be speciﬁed from the FUNCTION display. For details, refer

to pages 37, 42.

(The split point is initially set at the F#2 key by default.

If you do not need to change the split point, skip this step.)

Split point (default setting: F#2)

Bass voice Melody

243 15

Selecting & Playing Voices

P-140 Owner’s Manual

ENGLISH

3. Select a voice for the right hand.

A voice for the right hand can be selected from the following 13 voices in the

FUNCTION display. For details, refer to pages 37, 42.

4. Select a voice for the left hand.

A voice for the left hand can be selected from the following four voices in the

FUNCTION display. For details, refer to pages 37, 42.

5. Press any single voice button to exit Split and return

to normal play.

[REVERB] in Split

The reverb type assigned to the

right voice will take priority over

the other. (If the reverb is set to

OFF, the left voice’s reverb type

will be in effect.) Reverb depth

settings made via the panel con-

trols (i.e., pressing the [–/NO] or

[+/YES] buttons while holding the

[REVERB] button; see page 24)

will be applied to the right voice

only.

[EFFECT] in Split

Depending on the conditions, one

effect type will take priority over

the other. The depth will be

decided according to the default

depth value of the voice combina-

tion. However, using Function F4

(pages 37, 42) you can change

the depth value for each voice as

you like. Effect depth settings

made via the panel controls (i.e.,

pressing the [–/NO] or [+/YES]

buttons while holding the

[EFFECT] button; see page 24)

will be applied to the right voice

only.

NOTE

1 GRAND PIANO 1

2 GRAND PIANO 2

3 GRAND PIANO 3

4 PIANO & STRINGS

5 ELECTRIC PIANO 1

6 ELECTRIC PIANO 2

7 ELECTRIC PIANO 3

8 CHURCH ORGAN

9JAZZ ORGAN

10 STRINGS

11 HARPSICHORD

12 E.CLAVICHORD

13 VIBRAPHONE

1WOOD BASS

2 BASS & CYMBAL

3 E.BASS 1

4 E.BASS 2

Selecting & Playing Voices

P-140 Owner’s Manual

ENGLISH

Adding Variations to the Sound – [VARIATION]

[VARIATION]

This button enables you to select the brightness of the selected

voice for your keyboard performance. The following three types

are available.

BRIGHT: Bright tone

NORMAL: Standard tone

MELLOW: Soft and mellow tone

To select a variation type, press the [VARIATION] button a few times until the indicator

corresponding to the desired type lights (the indicator lights in sequence each time you

press the [VARIATION] button). Variation can be selected among three types.

[VARIATION] button

TERMINOLOGY

Default setting:

The “Default setting” refers to the

factory setting obtained when you

ﬁrst turn on the power to the P-

140.

Default setting = NORMAL

When the VARIATION is set to

BRIGHT, the overall sound will be

slightly louder. If the MASTER

VOLUME is set at a high level the

sound may become distorted. If

so, lower the MASTER VOLUME

level.

NOTE

Selecting & Playing Voices

P-140 Owner’s Manual

ENGLISH

Selecting a Reverb/Effect type – [REVERB]/[EFFECT]

[REVERB]

This control enables you to select various digital reverb effects

for adding extra depth and expression to the sound and creating

a realistic acoustic ambience.

OFF: When no reverb effect is selected, no REVERB indi-

cator is lit.

ROOM: This setting adds a continuous reverb effect to the sound, similar to the

acoustic reverberation you would hear in a room.

HALL 1: For a “bigger” reverb sound, use the HALL 1 setting. This effect simulates

the natural reverberation of a small-size concert hall.

HALL 2: For a truly spacious reverb sound, use the HALL 2 setting. This effect simu-

lates the natural reverberation of a large concert hall.

STAGE: Simulates the reverb of a stage environment.

Pressing the [REVERB] button repeatedly toggles the reverb on and off.

The indicators light in sequence each time the [REVERB] button is pressed. When all

indicators are off, no effect is produced.

Adjusting Reverb Depth

Adjust the reverb depth for the selected voice by using the [–/NO] [+/YES] buttons

while holding the [REVERB] button. Default depth settings are different for each voice.

The depth range is from 0 (no effect) through 20 (maximum reverb depth). The cur-

rent depth setting appears on the display while the [REVERB] button is held.

[EFFECT]

The [EFFECT] button allows you to select an effect to give your

sound greater depth and animation.

OFF: When no effect is selected, no EFFECT indicator

is lit.

CHORUS: Adds depth and richness to the sound.

PHASER: Adds a sweeping effect to the sound.

TREMOLO: Adds an animated, vibrating effect to the sound.

ROTARY SP:Adds the vibrato effect of a rotary speaker.

To select an effect type, press the [EFFECT] button a few times until the indicator corre-

sponding to the desired type lights (the indicators light in sequence each time you press

the [EFFECT] button). No effect is produced when all indicators are off.

Adjusting Effect Depth

You can adjust the effect depth for the selected voice by using the [–/NO] and [+/YES]

buttons while holding the [EFFECT] button.

Default depth settings are different for each voice. The depth range is from 0 (no effect)

through 20 (maximum effect depth). The current depth setting appears on the display

while the [EFFECT] button is held.

[–/NO][+/YES] buttons [REVERB] button

[EFFECT] button

The default reverb type (including

OFF) and depth settings are dif-

ferent for each voice.

NOTE

Releasing the [REVERB] button

changes the reverb type.

If you are changing the reverb

depth by holding the [REVERB]

button, releasing the [REVERB]

button will not change the reverb

type.

NOTE

The default effect type (including

OFF) and depth settings are dif-

ferent for each voice.

NOTE

Releasing the [EFFECT] button

changes the effect type.

If you are changing the depth set-

tings by holding the [EFFECT]

button, releasing the [EFFECT]

button will not change the effect

type.

NOTE

Selecting & Playing Voices

P-140 Owner’s Manual

ENGLISH

Touch Sensitivity – [TOUCH]

[TOUCH]

You can select four different types of keyboard touch sensitivity — HARD, MEDIUM,

SOFT or FIXED — to match different playing styles and preferences.

HARD: Requires that the keys be played quite hard to produce maximum loud-

ness.

MEDIUM: Produces a fairly “standard” keyboard response.

SOFT: Allows maximum loudness to be produced with relatively light key pres-

sure.

FIXED: All notes are produced at the same volume no matter how hard the key-

board is played. (No indicators are lit.) The ﬁxed volume can be changed.

To select a touch sensitivity type press the [TOUCH] button a

few times until the indicator corresponding to the desired type

lights (the indicators light in sequence each time the [TOUCH]

button is pressed). No indicator is lit when “FIXED” is

selected.

Changing the volume when FIXED is selected

When you select FIXED, you can set the volume for notes

played in FIXED by using the [–/NO] and [+/YES] buttons

while you hold the [TOUCH] button. The current volume

level appears on the display. The volume range is from 1

(minimum volume) through 127 (maximum volume). The

default setting is 64.

[–/NO] [+/YES] buttons [TOUCH] button

This setting does not change the

weight of the keyboard.

Default setting = MEDIUM

The touch sensitivity type will

become the common setting for

all voices. However, the touch

sensitivity settings may have little

or no effect with certain voices

that are not normally responsive

to keyboard dynamics. (Refer to

the “Preset Voice List” on

page 53.)

NOTE

The touch volume set in FIXED

will become the common setting

for all voices.

Releasing the [TOUCH] button

changes the touch type.

If you are changing the volume by

holding the [TOUCH] button,

releasing the [TOUCH] button will

not change the touch sensitivity

type. (FIXED will remain

selected.)

NOTE

Volume range

Selecting & Playing Voices

P-140 Owner’s Manual

ENGLISH

Transposition – [TRANSPOSE]

The P-140’s Transpose function makes it possible to shift the pitch of the entire keyboard up or

down in semitone intervals to facilitate playing in difﬁcult key signatures, and to let you easily

match the pitch of the keyboard to the range of a singer or other instruments. For example, if you

set the transposition amount to “5,” playing key C produces pitch F. In this way, you can play a

song as though it were in C major, and the P-140 will transpose it to the key of F.

Use the [–/NO] and [+/YES] button while holding the

[TRANSPOSE] button to transpose down or up as required.

The amount of transposition appears on the display while the

[TRANSPOSE] button is held. The default transpose setting is

“0.”

The [TRANSPOSE] button indicator remains lit when a

transpose setting other than “0” is selected. Every time the

[TRANSPOSE] button is pressed after that switches the trans-

pose function ON or OFF.

[–/NO] [+/YES] buttons[TRANSPOSE] button

TERMINOLOGY

Transpose:

Changing the key signature of a

song. On the P-140, transposing

shifts the pitch of the entire key-

board.

The transposition range:

–12: –12 semitones (down one

octave)

0: normal pitch

12: 12 semitones (up one octave)

NOTE

Transposition

Selecting & Playing Voices

P-140 Owner’s Manual

ENGLISH

Using the Metronome

The P-140 features a built-in metronome for convenience in practicing and use with the Recording

features.

1. Press the [METRONOME] button to start the metro-

nome.

The metronome sound is turned on.

Adjusting the tempo

The tempo of the metronome and user song recorder playback (the recorder is

described in the next section) can be set from 32 to 280 beats per minute by

using the [TEMPO/FUNCTION –, +] buttons (when the [TEMPO/FUNCTION –,

+] button’s [TEMPO] indicator is lit).

Adjusting the time signature

The time signature (beat) of the metronome can be set by using the [–/NO] and

[+/YES] buttons while holding the [METRONOME] button. You can set the beat

from 0 to 15. The current setting appears on the display while you are holding

the [METRONOME] button.

2. Press the [METRONOME] button to stop the metro-

nome.

12[–/NO] [+/YES] buttons

[TEMPO/FUNCTION –, +] buttons

The beat indicator ﬂashes

at the current tempo.

If the [TEMPO/FUNCTION] but-

ton’s [FUNCTION] indicator is lit,

press the [TEMPO/FUNCTION]

button to light the [TEMPO] indi-

cator.

NOTE

The volume of the metronome can

be adjusted via the Metronome

Volume function in Function

(pages 37, 44).

NOTE

Holding the

[METRONOME]

button.

Beat

Recording Your Performance

P-140 Owner’s Manual

ENGLISH

Recording Your Performance

The ability to record and play back what you’ve played on the P-140 keyboard can be an effective

practice aid. You can, for example, record just the left-hand part, and then practice the right-hand

part while playing back the recorded left-hand part. Or, since you can record up to two parts sepa-

rately, you could record the left- and right-hand parts separately, or record both parts of a duet and

hear how they sound when played back. The two-part Song Recorder on the P-140 allows the

recording of up to three User songs (U01-U03) to the instrument.

Recording a performance quickly

This convenient and simple recording method lets you quickly record your performance without

specifying the recording parts — useful, for example, in recording solo piano pieces.

In this way, the performance is automatically recorded to right part.

CAUTION

To avoid erasing previously recorded song(s):

If the song contains data, the part indicator lights up green when you select a song.

Note that recording new data on this part will erase the existing data.

1. Select the voice you want to record (or voices if you

will be using Dual or Split), before you begin to

record.

Make any other desired settings (reverb, effect, etc.) as well. You might also want

to set the volume.

You can also adjust the playback volume using the [MASTER VOLUME] slider.

You can record your performance

(audio data) to an MD recorder or

other recording device via the

AUX OUT jack (page 48).

NOTE

TERMINOLOGY

Recording vs. Saving:

The format of performance data recorded on an MD differs from that of data recorded on the P-140. An

MD records audio signals. The P-140 “saves” information regarding note timing, voices, and a tempo

value, but not audio signals. When you play back recorded songs, the P-140 produces sound based on

the saved information. Therefore, recording on the P-140 may be more accurately called “saving infor-

mation.” However, this book often uses the word “recording” because it seems to make more sense.

2 4 43 5 1

Record mode cannot be engaged

during Demo Song playback.

NOTE

Recording Your Performance

P-140 Owner’s Manual

ENGLISH

2. Press the [REC] button to engage Record Ready

mode.

This automatically selects an empty number (U01-U03)

for recording and makes the RIGHT part active. If all

song numbers contain recorded data, Song U01 will be

selected. This simply enables recording; to start record-

ing, go on to step 3.

The amount of memory available for recording is shown on the display in

approximate kilobytes. You can record up to a maximum of about 11,000 notes

on the P-140 depending on pedal usage and other factors. The [PLAY/PAUSE]

indicator will ﬂash at the current METRONOME tempo setting.

You can turn on the metronome in this step, and adjust the tempo by using the

[TEMPO/FUNCTION –, +] buttons. (Range: 32-280)

Record Ready mode can be disengaged before recording by pressing the [REC]

button again.

3. Start recording.

Recording will begin automatically as soon as you

play a note on the keyboard or press the [PLAY/

PAUSE] button. The current measure’s number will

appear on the display while recording.

4. Press either [REC] or [STOP] button to stop record-

ing.

When recording is stopped, dashes appear in the dis-

play in succession to indicate that the recorded data is

being saved to the instrument automatically. After the

data is saved, the song name (U01-U03) appears in

the display. The recorded part’s indicator will light in

green to indicate that it now contains data. (Record

mode is disengaged automatically.)

CAUTION

Never attempt to turn the [STANDBY/ON] switch OFF

while ﬂashing dashes appear in the display (these indi-

cate data is being written to internal memory). Turning

the power off in this state results in loss of all user data.

5. Play back the recorded performance.

Press the [PLAY/PAUSE] button to play back the recorded performance. To stop

playback in the middle of a song, press the [STOP] button.

If you have selected the LEFT

part previously in the same song,

the LEFT part will automatically

be made active when pressing

the [REC] button in step 2.

If the metronome was on when

you started recording, you’ll be

able to keep time with the metro-

nome while recording, but the

metronome sound will not be

recorded.

For more recording information,

see page 32.

The function of the [PLAY/

PAUSE] button can be assigned

to the AUX pedal (pages 37, 43).

This allows you to start recording

by pressing the Footswitch con-

nected to the AUX jack.

Song recording can not be

paused, even by pressing the

[PLAY/PAUSE] button.

The record part indicator will

begin to ﬂash when the recorder

memory is almost full. If the mem-

ory becomes full during record-

ing, “Fu£” will appear on the

display and recording will stop

automatically. (All recorded data

up to that point will be retained.)

Pressing the [PLAY/PAUSE] but-

ton to start recording, then press-

ing the [STOP] button to stop

recording will erase all previously

recorded data on the selected

part.

NOTE

The song name

(U01 to U03)

Recording Your Performance

P-140 Owner’s Manual

ENGLISH

Re-recording a previously recorded song

If you are not satisﬁed with the recording, you can record it again. Using the following operation.

1. Select a voice or voices (and other settings) for

recording, if necessary.

Repeat step 1 on page 28 if you wish to change the previous settings.

2. Press the [REC] button again to re-engage Record

Ready mode.

The selected part’s indicator lights in red.

Follow the procedure from step 3 in “Recording a perfor-

mance quickly” on page 29 to re-record.

If you want to change the tempo,

time signature, reverb type, or

effect type when re-recording a

part or when recording to another

part, do so after engaging the

Record Ready mode.

You cannot re-record in the mid-

dle of a song.

NOTE

Recording Your Performance

P-140 Owner’s Manual

ENGLISH

Recording to RIGHT/LEFT

This lets you record the right and left parts separately. Since you can record the left part while play-

ing back the right, this is useful for independently recording both parts of a duet.

1. Make all the initial settings.

Same as step 1 in “Recording a performance quickly” on page 28.

2. Select a song to record.

Press the [SONG SELECT] button so that the “USER”

indicator lights then press the [–/NO][+/YES] buttons to

select a song for recording.

CAUTION

To avoid erasing previously recorded song(s):

If the song contains data, the part indicator lights up green

when you select a song. Note that recording new data on this

part will erase the existing data.

3. Engage the Record Ready mode.

Press the [REC] button and press the [RIGHT]/[LEFT]

button to engage the Record Ready mode. Recording

does not actually start yet.

The amount of memory available for recording will be

shown on the display in approximate kilobytes. This

value is expressed in kilobytes and indicates how much

space remains available for recording on the P-140. You

can record up to a maximum of about 11,000 notes on

the P-140 depending on pedal usage and other factors.

The [PLAY/PAUSE] indicator will ﬂash at the current

METRONOME tempo setting.

Record Ready mode can be disengaged before recording by pressing the [REC]

button again.

4. Start and stop recording.

Same as steps 3-5 in “Recording a performance quickly” on page 29.

23 1

Part button indications

Off: Contains no data

On (green): Contains data

On (red): Part is enabled for

recording

If the metronome was on when

you started recording, you’ll be

able to keep time with the metro-

nome while recording, but the

metronome sound will not be

recorded.

If you want to change the tempo,

time signature, reverb type, or

effect type when rerecording a

part or when recording to another

part, do so after entering the

Record Ready mode.

If you don’t want to hear the previ-

ously recorded part while you

record (for example, when you

want to record a song different

from what you recorded on the

previous part), press the play-

back part button before pressing

the [REC] button so that its indi-

cator is turned off.

For more information on record-

ing, see page 32.

NOTE

Recording Your Performance

P-140 Owner’s Manual

ENGLISH

The user song recorder records the following data:

Data in addition to the notes and voices you play is recorded.

This data includes “Individual Parts” and “Entire Song.” See below.

Individual Parts

•Notes played

•Voice selection

•Pedal (Sustain/Soft/Sostenuto/Expression)

•[REVERB] depth

•[EFFECT] depth

•Dual voices

•Dual balance (F3)

•Dual detune (F3)

•Dual octave shift (F3)

• Split voices (F4)

• Split balance (F4)

•Split octave shift (F4)

Entire Song

•Tempo

•Time signature (beat)

•[REVERB] type (including OFF)

•[EFFECT] type (including OFF)

Recording Your Performance

P-140 Owner’s Manual

ENGLISH

Changing the Initial Settings (data recorded at the

beginning of a song)

The initial settings (data recorded at the beginning of a song) can be changed after the recording.

For example, after recording, you can change the voice to create a different ambience or adjust the

song tempo to your taste.

You can change the following initial settings.

Individual Parts

•Voice selection

•[REVERB] depth

•[EFFECT] depth

•Dual voices

• Split voices

Entire Song

•Tempo

•[REVERB] type (including OFF)

•[EFFECT] type (including OFF)

1. Press the [REC] button to engage

Record mode and select a part to

change the initial settings.

The indicator lights in red. (Data shared by two parts can

be changed via either part.)

2. Change the settings via the panel

controls.

For example, if you wish to change the recorded voice

from [ELECTRIC PIANO 1] to [ELECTRIC PIANO 2], press the [ELECTRIC

PIANO 2] button. When you wish to change the sustain/soft pedal depth, press

and hold the pedal.

3. Press the [REC] button to exit the Record mode.

CAUTION

Be careful not to press the [PLAY/PAUSE] button or a key on the keyboard after step 2

or 3, either of which will start recording and erase all previously-recorded data on the

selected part.

1 3

You can cancel changes made to

the initial settings by selecting a

different part after step 2, then

exiting Record mode by pressing

the [REC] button. (Changes

made to the data shared by two

parts are also canceled.)

NOTE

Playing Back Songs

P-140 Owner’s Manual

ENGLISH

Playing Back Songs

The following three types of songs are available.

•50 Piano Preset Songs

50 Piano Preset Songs in the instrument. (page 15)

•User songs in the instrument

User songs which you recorded to the instrument by using the record function

(page 28).

•External songs in the instrument

Songs transferred from a computer (including commercially available songs and

songs which have been edited on a computer). Songs can be transferred (saved) to

the instrument by using the included Musicsoft Downloader software. The songs are

saved to an area of the internal memory separate from the area for recorded User

songs. Up to 255 songs can be played back on this instrument (numbers 001-255).

You can download the Musicsoft Downloader (MSD). Please check the following

URL for the latest version.

http://music.yamaha.com/download/msd

If the song cannot be transferred from a computer, you may need to rename the ﬁle.

Sequence formats that can be played on the P-140

•SMF (Standard MIDI File) Formats 0 and 1

The SMF format is one of the most common and widely compatible sequence for-

mats used for storing sequence data. There are two variations: Format 0 and Format

1. A large number of MIDI devices are compatible with SMF Format 0, and most

commercially available MIDI sequence data is provided in SMF Format 0. The SMF

format for sequence ﬁles allows you to exchange song data between different

sequencers.

Playing Back User Songs/External Songs on the P-140

1. Press the [SONG SELECT] button

(the USER indicator lights).

2. Press the [–/NO] [+/YES] buttons to

select a song.

The User songs are displayed as “Uxx*” and External

songs in the instrument are displayed as “xxx*.”

*The “U” indication in the User song name means

“User.” The letters “xx” represent the song number.

You cannot select songs during

Demo Song playback (page 14).

When playing back songs con-

taining various voices or parts

(such as XG or GM songs), the

voices may not sound correct or

as intended on the original. You

may be able to remedy this and

make the playback sound more

natural or appropriate by chang-

ing the Song Channel Selection

setting (page 43) to “1&2,” so that

only channels 1 and 2 will play

back.

If the metronome is being used

during playback, the metronome

will automatically stop when play-

back is stopped.

If the REVERB type is changed

via the panel controls during play-

back, both the playback and key-

board reverb effects will be

changed.

If the EFFECT type is changed via

the panel controls during playback,

the playback effect may be

switched off in some cases.

NOTE

134

Playing Back Songs

P-140 Owner’s Manual

ENGLISH

3. Press the [PLAY/PAUSE] button to start playback.

The current measure number appears on the display during playback.

•You can play the keyboard while the P-140 is playing back a song. You can

also play the notes with a voice different from the playback voice by selecting

a voice from the panel.

Adjust the tempo

You can use the [TEMPO/FUNCTION –, +] buttons to adjust the playback

tempo as required before or during playback. The default tempo (the song’s

original tempo) is set when you press the [–] and [+] buttons simultaneously.

4. Press the [STOP] button or [PLAY/PAUSE] button to

stop playback.

When playback is complete, the P-140 automatically

stops and locates the top of the song. To stop playback in

the middle of a song, press the [STOP] button. You can

also pause playback by pressing the [PLAY/PAUSE] but-

ton.

Turning part playback on and off

When you select a song on the P-140, the indicators for

parts that contain data (one of [RIGHT] [LEFT] or both)

are lit in green. While the P-140 is playing or stopped,

pressing these part buttons turns off the indicators, and

the data on those parts is not played. Pressing the part

buttons toggles part playback on and off.

User song playback cannot be

started when the recorder contains

no data.

You can also enjoy playing duets

with yourself by recording one

part of a duet or a song for two

pianos, then playing the other

part while the recorded part plays

back.

If you have External songs in the

instrument, you can use the

repeat function.

ALL: Play all External songs in

sequence.

rnd: Play all External songs con-

tinuously in random order.

NOTE

Parts can be turned on or off

before or during playback.

You can adjust the volume of a

part of a song for which playback

is turned off (page 44).

NOTE

Part button indication

On: Contains data

Off: Contains no data

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

Detailed Settings – [FUNCTION]

You can set various parameters to make the best use of P-140 functions, such as ﬁne tuning the pitch or selecting a scale,

etc.

The following parameters are available.

The P-140 has nine main functions.

Some of these main functions consist of a set of sub-functions.

Functions List

Function Sub-function Display Reference page

Fine tuning of the pitch — F1. 39

Selecting a scale Scale F2.1 40

Base Note F2.2 40

Dual functions Dual Balance F3.1 41

Dual Detune F3.2 41

Voice 1 Octave Shift F3.3 41

Voice 2 Octave Shift F3.4 41

Voice 1 Effect Depth F3.5 41

Voice 2 Effect Depth F3.6 41

Reset F3.7 41

Split functions Split Point F4.1 42

Split Balance F4.2 42

Right Voice Selection F4.3 42

Left Voice Selection F4.4 42

Right Voice Octave Shift F4.5 42

Left Voice Octave Shift F4.6 42

Right Voice Effect Depth F4.7 42

Left Voice Effect Depth F4.8 42

Sustain Pedal Range F4.9 42

Reset F4.A 42

Other Functions AUX Pedal F5.1 43

Soft Pedal Effect Depth F5.2 43

Sustain Sample Depth F5.3 43

Keyoff Sample Volume F5.4 43

Song Channel Selection F5.5 43

Sustain Pedal Type F5.6 43

AUX Pedal Type F5.7 43

Metronome volume — F6. 44

Song Part Cancel Volume — F7. 44

MIDI Functions MIDI Transmit Channel Selection F8.1 44

MIDI Receive Channel Selection F8.2 44

Local Control ON/OFF F8.3 44

Program Change ON/OFF F8.4 45

Control Change ON/OFF F8.5 45

Panel/Status Transmit F8.6 45

Initial Setup Send F8.7 45

Backup Functions Voice F9.1 46

MIDI F9.2 46

Tuning F9.3 46

Others F9.4 46

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

Basic Procedure in Function

Follow the steps below to use the functions.

If you become lost while using a function, return to this page and read the basic procedure.

1. Press the [TEMPO/FUNCTION] but-

ton to enter the Function.

The [FUNCTION] indicator lights.

When you call up the FUNCTION display after turning

the power on, appears on the display. When you

call up the FUNCTION display again (without turning

the power off), the previous selected appears on

the display.

2. Use the [TEMPO/FUNCTION –, +] buttons to select

the desired function from F1–F9.

When (that include the sub-functions) is selected, go on to step 3.

When F1, F6 or F7 is selected (these have no sub-functions), go on to step 5.

3. Press the [+/YES] button to enter the

sub-function.

4. Use the [TEMPO/FUNCTION –, +] buttons to select

the desired sub-function.

In the example below, the sub-functions of F4 (Split) are shown.

12463

Functions cannot be selected

during Demo/Song Select or

when the user song recorder is in

operation.

To cancel the function in step 2, 3,

or 4, press the [TEMPO/FUNC-

TION –, +] button any time to exit

Function.

NOTE

Desired

function

Sub-

function

Desired

function

Sub-function

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

Use the [–/NO] and [+/YES] buttons

to change the ON/OFF setting, select

the type, or change the value.

The default setting (which is used when you ﬁrst turn on

the power to the P-140) is recalled by pressing the

[–/NO] and [+/YES] buttons simultaneously.

Press the [TEMPO/FUNCTION] to exit

the Function.

The [TEMPO] indicator lights.

After you select the function, the

current setting will be displayed

when the [–/NO] or [+/YES] but-

ton is pressed for the ﬁrst time.

NOTE

Operation Example 1 (F1. Fine tuning of the pitch)

Operation Example 2 (F3.1 “Dual Balance”)

Select a desired function.Engage the Function. Change the value.

Display Display

Engage the Function. Select a desired function. Engage the respective

sub-function.

Select a desired

sub-function.

Display Display

Display

Change the value.

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

About Each Function

The explanations here apply when entering the Function in step 5 on page 38.

You can ﬁne tune the pitch of the entire instru-

ment. This function is useful when you play

the P-140 along with other instruments or CD

music.

Use the [–/NO] and [+/YES] buttons to lower

or raise the pitch of the A3 key in approxi-

mately 0.2 Hz increments.

..... .....

Tenths of a hertz are indicated on the display by the

appearance and position of one or two dots, as in the

following example:

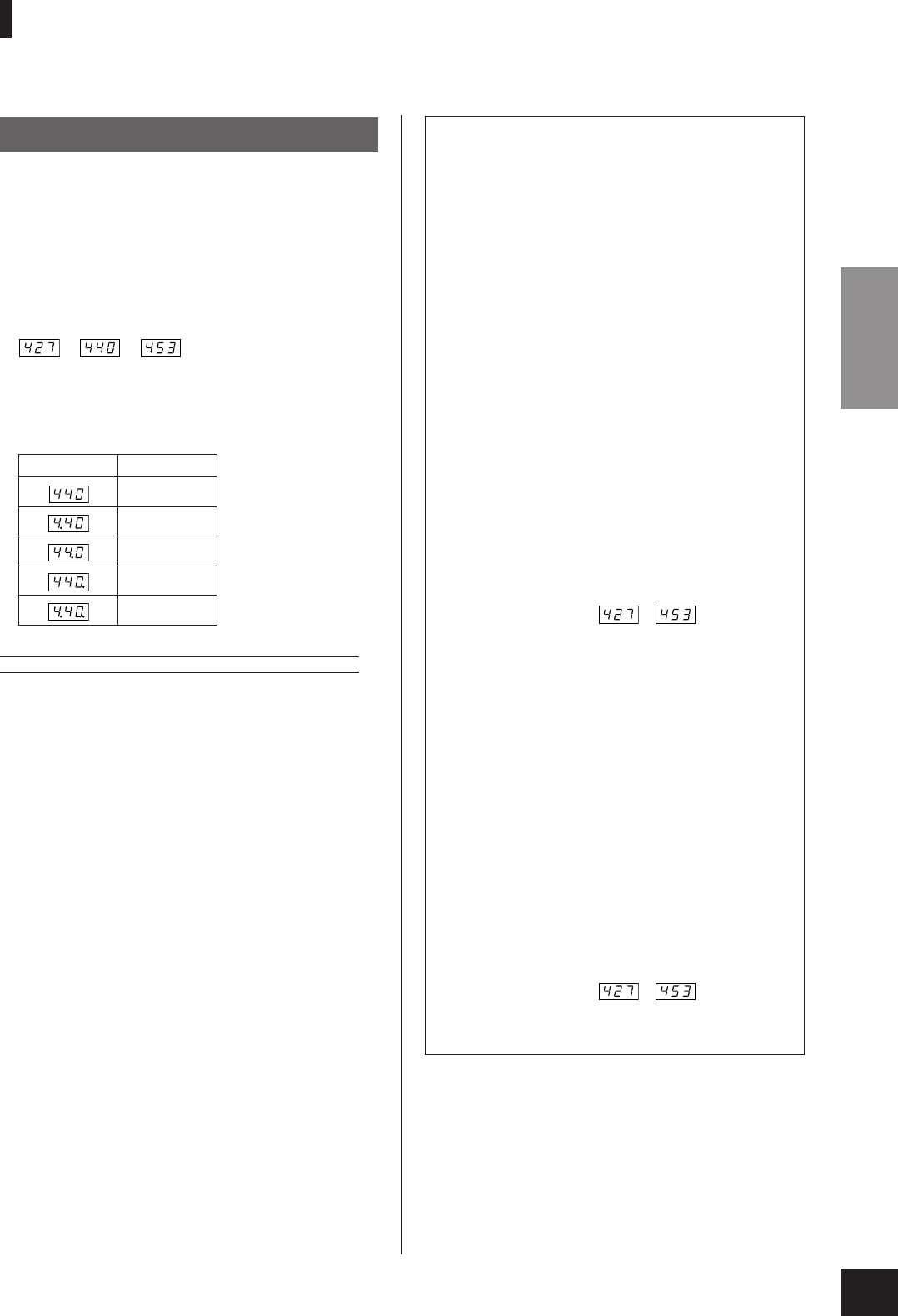

F1. Fine Tuning of the Pitch

Display Value

440.0 Setting range:

440.2 427.0–453.0 (Hz)

440.4 Default setting:

440.6 440.0 (Hz)

440.8

TERMINOLOGY

Hz (Hertz):

This unit of measurement refers to the frequency of a sound and

represents the number of times a sound wave vibrates in a sec-

ond.

Using the keyboard to set the pitch

You can ﬁne tune the pitch by pressing a key on the

keyboard, without having to call up the FUNCTION

display.

To tune up (in roughly 0.2Hz steps): Hold the A-1

and B-1 keys (two white keys at the left end) simulta-

neously and press any key between C3 and B3.

To tune down (in roughly 0.2Hz steps): Hold the A-

1 and A#-1 keys (a white and a black key at the left

end) simultaneously and press any key between C3

and B3.

To restore standard pitch: Hold the A-1, A#-1 and

B-1 keys (two white keys and one black key at the left

end) simultaneously and press any key between C3

and B3.

•Each key has a note name; for example, the lowest

(farthest left) key on the keyboard corresponds to

A-1, and the highest (farthest right) key to C7.

During the procedure described above, the display

indicates a value in Hz ( … ). After the

procedure, the display returns to the previous indica-

tion.

To tune down or up, respectively, in approximately

1 Hz increments: Hold the A-1 and A#-1 keys (a

white and a black key at the left end) or A-1 and B-1

keys (two white keys at the left end) simultaneously

and press the [–/NO] or [+/YES] button.

To restore standard pitch: Hold the A-1 and A#-1

keys (a white and a black key at the left end) or A-1

and B-1 keys (two white keys at the left end) simulta-

neously and press the [–/NO] [+/YES] buttons

simultaneously.

During the procedure described above, the display

indicates a value in Hz ( … ). After the

procedure, the display returns to the previous indica-

tion.

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

You can select various scales.

Equal Temperament is the most common con-

temporary piano tuning scale. However, his-

tory has known numerous other scales, many

of which serve as the basis for certain genres of

music. You can experience these tunings with

the P-140.

F2.1: Scale

Setting range: 1: Equal Temperament

2: Pure Major

3: Pure Minor

4: Pythagorean

5: Mean Tone

6: Werckmeister

7: Kirnberger

Default setting: 1: Equal Temperament

EQUAL TEMPERAMENT

The pitch range of each octave is divided equally into

twelve parts, with each half-step evenly spaced in pitch.

This is the most commonly used tuning in music today.

PURE MAJOR/PURE MINOR

These tunings preserve the pure mathematical intervals of

each scale, especially for triad chords (root, third, ﬁfth).

You can hear this best in actual vocal harmonies - such as

choirs and a cappella singing.

PYTHAGOREAN

This scale was devised by the famous Greek philosopher

and is created from a series of perfect ﬁfths, which are col-

lapsed into a single octave.

The 3rd in this tuning are slightly unstable, but the 4th and

5th are beautiful and suitable for some leads.

MEAN-TONE

This scale was created as an improvement on the

Pythagorean scale, by making the major third interval more

“in tune.” It was especially popular from the 16th century

to the 18th century. Handel, among others, used this scale.

WERCKMEISTER/KIRNBERGER

This composite scale combines the Werckmeister and Kirn-

berger systems, which were themselves improvements on

the mean-tone and Pythagorean scales. The main feature of

this scale is that each key has its own unique character. The

scale was used extensively during the time of Bach and

Beethoven, and even now it is often used when performing

period music on the harpsichord.

F2.2: Base Note

If you select a scale other than Equal Temperament, you

need to specify the root. (You can also specify the root

note with Equal Temperament selected, but it will have

no effect. The base note setting is effective for tunings

other than the Equal Temperament tuning.)

Setting range: C, C#, D, Eb, E, F, F#, G, Ab, A, Bb, B

Default setting: C

•Root indication example

F2. Selecting a Scale

(F#) (G) (Ab)

Followed by

a high bar if sharp

Followed by

a low bar if ﬂat

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

You can set various parameters for Dual

(page 20) to optimize the settings for the

songs you play, such as adjusting the volume

balance between two voices.

Dual function settings are set individually for

each voice combination.

If Dual is not engaged, will appear

instead of and you will be unable to

select the Dual functions. If this happens, press

two voice buttons at the same time to engage

Dual.

F3.1: Dual Balance

Setting range: 0 – 20 (A setting of “10” produces an

equal balance between the two Dual

voices. Settings below “10” increase

the volume of Voice 2 in relation to

Voice 1, and settings above “10”

increase the volume of Voice 1 in

relation to Voice 2.)

Default setting: Different for each voice combina-

tion.

You can set one voice as the main voice, and another

voice as a softer, mixed voice.

F3.2: Dual Detune

Setting range: -10 – 0 – 10 (With positive values,

the pitch of Voice 1 is raised and the

pitch of Voice 2 is lowered. With neg-

ative values, the pitch of Voice 1 is

lowered and the pitch of Voice 2 is

raised.)

Default setting: Different for each voice combina-

tion.

Detune Voice 1 and Voice 2 for Dual to create a thicker

sound.

F3.3: Voice 1 Octave Shift

F3.4: Voice 2 Octave Shift

Setting range: –1, 0, 1

Default setting: Different for each voice combina-

tion.

You can shift the pitch up and down in octave steps for

Voice 1 and Voice 2 independently. Depending on which

voices you combine in Dual, the combination may sound

better if one of the voices is shifted up or down an octave.

F3.5: Voice 1 Effect Depth

F3.6: Voice 2 Effect Depth

Setting range: 0 – 20

Default setting: Different for each voice combina-

tion.

These functions make it possible to individually set the

depth of the effect for Voices 1 and 2 for Dual. (The effect

depth settings cannot be changed unless the [EFFECT] is

ON. Function must be exited before the [EFFECT] can be

turned ON.)

•“Vo ice 1” and “Voice 2” are explained on page 20.

F3.7: Reset

This function resets all Dual functions to their default

values. Press the [+/YES] button to reset the values.

F3. Dual Functions

The available setting range is wider in the lower range (± 60

cents for A-1), and narrower in the higher range (± 5 cents for

C7). (100 cents equal one semitone.)

NOTE

SHORTCUT:

You can jump directly to the Dual functions by pressing

the [TEMPO/FUNCTION] button while holding the two Dual

voice buttons.

NOTE

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

This menu enables you to make various

detailed settings for Split.

By selecting the right/left voices, changing the

split point or other setting, you can optimize

the settings for the songs you play.

Be sure to select the Split by pressing the

[OTHERS] button before engaging Function.

If Split is not engaged, will appear

instead of and you will be unable to

select the Split functions. Also note that you

must exit Function before you can engage

Split.

F4.1: Split Point

Setting range: The entire keyboard

Default setting: F#2

Set the point on the keyboard that separates the right and

left-hand sections (split point). The pressed key is

included in the left-hand range.

•Instead of pressing the [–/NO] [+/YES] buttons, you

can engage the split point by pressing the appropriate

key on the keyboard.

•Example key name indications for Split Point:

F4.2: Split Balance

Setting range: 0 – 20 (A setting of “10” produces an

equal balance between the two Split

voices. Settings below “10” increase

the volume of the left voice in rela-

tion to the right voice, and settings

above “10” increase the volume of

the right voice in relation to the left

voice.)

Default setting: Different for each voice combina-

tion.

The volume level of the two voices combined in Split can

be adjusted as required. You can make this setting for

each combination of voices individually.

F4.3: Right Voice Selection

Setting range: 1 – 13

Default setting: 1

Set the right voice.

You can select the voices from 1 to 13. Refer to “Preset

Voice List” on page 53.

F4.4: Left Voice Selection

Setting range: 1 – 4

Default setting: 1

Set the left voice.

You can select the voices from 1 to 4. Refer to “Preset

Voice List” on page 53.

F4.5: Right Voice Octave Shift

F4.6: Left Voice Octave Shift

Setting range: –1, 0, 1

Default setting: Different for each voice combination

You can shift the pitch up and down in octave steps for

the Right Voice and Left Voice independently. Make a set-

ting depending on the note range of the songs you play.

You can make this setting for each combination of voices

individually.

F4.7: Right Voice Effect Depth

F4.8: Left Voice Effect Depth

Setting range: 0 – 20

Default setting: Different for each voice combination

These functions make it possible to individually set the

depth of the effect for the left and right Split voices.

The effect depth settings cannot be changed unless the

[EFFECT] is ON. You must exit Function before you can

turn on an [EFFECT].

You can make this setting for each combination of voices

individually.

F4.9: Sustain Pedal Range

Setting range: ALL (for both voices)

1 (for the right Voice)

2 (for the left Voice)

Default setting: ALL

The Sustain Pedal Range function determines whether

the sustain pedal affects the right voice, the left voice, or

both the left and right voices in Split.

F4.A: Reset

This function resets all Split functions to their default

values. Press the [+/YES] button to reset the values.

F4. Split Functions

(F#2) (G2) (Ab2)

Followed by

a high bar if sharp

Followed by

a low bar if ﬂat

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

This section provides a variety of other func-

tions, including letting you assign the opera-

tion of the AUX pedal to one of several

settings, and allowing you to select speciﬁc

song channels for playback.

F5.1 AUX Pedal

Setting range:

1. Soft Pedal

The soft pedal reduces the volume and slightly

changes the timbre of notes played while the pedal is

pressed. The soft pedal will not affect notes that are

already playing.

2. Sostenuto pedal

If you play a note or chord on the keyboard and press

the pedal while the note(s) are held, those notes will

be sustained for as long as the pedal is held (as if the

sustain pedal had been pressed) but all notes played

thereafter will not be sustained. This makes it possible

to sustain a chord, for example, while other notes are

played “staccato.”

3. Expression

This setting allows control of dynamics during perfor-

mance.

4. Song Play/Pause

This setting allows you to start or pause song play-

back. In this setting, the AUX Pedal functions in the

same manner as the [PLAY/PAUSE] button on the

panel.

Default setting: 1(Soft Pedal)

F5.2 Soft Pedal Effect Depth

Setting range: 1 – 5

Default setting: 3

This function sets the depth of the soft pedal effect.

F5.3 Sustain Sample Depth

Setting range: 0 – 20

Default setting: 12

The GRAND PIANO 1, 3 voice features special “Sustain

Samples” that recreate the unique resonance of an acous-

tic grand piano’s soundboard and strings when the sus-

tain pedal is pressed. This function lets you adjust the

depth of this effect.

F5.4 Keyoff Sample Volume

Setting range: 0 – 20

Default setting: 10

You can adjust the volume of the keyoff sound (the sub-

tle sound produced when the keys are released) for voices

[GRAND PIANO1, 3], [HARPSICHORD], [E.CLAVI-

CHORD].

F5.5 Song Channel Selection

Setting range: ALL, 1&2

Default setting: ALL

The setting here only affects External songs. You can

specify which song channels will play back on this instru-

ment. When “ALL” is selected, channels 1-16 will be

played back. When “1&2” is selected, only channels 1 and

2 will be played back, while channels 3-16 will be trans-

mitted via MIDI.

F5.6 SUSTAIN PEDAL Type

F5.7 AUX PEDAL Type

Setting range: 1, 2

Default setting: 1

Depending upon the pedal that is connected to the SUS-

TAIN PEDAL jack or AUX PEDAL jack, the effect pro-

duced by operating the pedal (ON/OFF, dynamics, etc.)

might be reversed.

If this happens, you can use this setting to correct the

pedal operation. The setting range is from 1 to 2.

Press the [–/NO] and [+/YES] buttons simultaneously to

recall the default setting of “1.”

F5. Other Functions

Organ, string and choir voices will continue to sound for as long

as the sostenuto pedal is depressed.

NOTE

•Make sure that the power is switched OFF when connecting or

disconnecting the pedal.

• If the SUSTAIN PEDAL type is set to “2”, disconnecting the

sustain pedal while the power is switched on may leave the

sustain active, causing notes to sustain indeﬁnitely. In this

case, switch the power off, then back on.

NOTE

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

Use this function to adjust the metronome vol-

ume.

Setting range: 1 – 20

Default setting: 10

This function sets the volume at which a “can-

celed” part is played during song playback.

Adjust the part volume to a comfortable level

and use the “canceled” part as a guide with

which to play along.

Setting range: 0 – 20

Default setting: 5

You can make detailed adjustments to the

MIDI settings.

For more information about MIDI, see the

“About MIDI” section (page 47).

F8.1: MIDI Transmit Channel Selection

In any MIDI control setup, the MIDI channels of the

transmitting and receiving devices must be matched for

proper data transfer.

This parameter enables you to specify the channel on

which the P-140 transmits MIDI data.

Setting range: 1 – 16, OFF (not transmitted)

Default setting: 1

F8.2: MIDI Receive Channel Selection

In any MIDI control setup, the MIDI channels of the

transmitting and receiving devices must be matched for

proper data transfer. This parameter enables you to spec-

ify the channel on which the P-140 receives MIDI data.

Setting range: ALL, 1&2, 1 – 16

Default setting: ALL

F8.3: Local Control ON/OFF

“Local Control” refers to the fact that, normally, the P-

140 keyboard controls its internal tone generator, allow-

ing the internal voices to be played directly from the key-

board. This situation is “Local Control On,” since the

internal tone generator is controlled locally by its own

keyboard.

Local control can be turned OFF, however, so that the P-

140 keyboard does not play the internal voices, but the

appropriate MIDI information is still transmitted via the

MIDI OUT terminal when notes are played on the key-

board. At the same time, the internal tone generator

responds to MIDI information received via the MIDI IN

terminal.

Setting range: ON/OFF

Default setting: ON

F6. Metronome Volume

SHORTCUT:

You can jump directly to the metronome functions by

pressing the [TEMPO/FUNCTION] button while holding the

[METRONOME] button.

F7. Song Part Cancel Volume

This function cannot be used for Demo songs.

F8. MIDI Functions

NOTE

•In Dual, Voice 1 data is transmitted on its speciﬁed channel. In

Split, right voice data is transmitted on its speciﬁed channel. In

Dual, Voice 2 data is transmitted on the next greater channel

number relative to the speciﬁed channel. In Split, left voice

data is transmitted on the next greater channel number relative

to the speciﬁed channel. In either case, no data is transmitted

if the transmit channel is set to “OFF.”

• Song data is not transmitted via the MIDI connections. How-

ever, channels 3-16 of External songs will be transmitted via

the MIDI connections depending on the Song Channel Selec-

tion setting (page 43).

• ALL:

“Multi-timbre” Receive. This allows simultaneous reception of

different parts on all 16 MIDI channels, enabling the P-140 to

play multi-channel song data received from a music computer

or sequencer.

1&2:

“1&2” Receive. This allows simultaneous reception on chan-

nels 1 and 2 only, enabling the P-140 to play 1 and 2 channel

song data received from a music computer or sequencer.

•Program change and other like channel messages received

will not affect the P-140’s panel settings or the notes you play

on the keyboard.

NOTE

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

F8.4: Program Change ON/OFF

Normally the P-140 will respond to MIDI program

change numbers received from an external keyboard or

other MIDI device, causing the correspondingly num-

bered voice to be selected on the corresponding channel

(the keyboard voice does not change). The P-140 will

normally also send a MIDI program change number

whenever one of its voices is selected, causing the corre-

spondingly numbered voice or program to be selected on

the external MIDI device if the device is set up to receive

and respond to MIDI program change numbers.

This function makes it possible to cancel program

change number reception and transmission so that

voices can be selected on the P-140 without affecting the

external MIDI device.

Setting range: ON/OFF

Default setting: ON

F8.5: Control Change ON/OFF

Normally the P-140 will respond to MIDI control change

data received from an external MIDI device or keyboard,

causing the voice on the corresponding channel to be

affected by pedal and other “control” settings received

from the controlling device (the keyboard voice is not

affected).

The P-140 also transmits MIDI control change informa-

tion when the pedal or other appropriate controls are

operated.

This function makes it possible to cancel control change

data reception and transmission so that, for example, the

P-140’s pedal and other controls can be operated without

affecting an external MIDI device.

Setting range: ON/OFF

Default setting: ON

F8.6: Panel/Status Transmit

This function causes all the current P-140 panel settings

(selected voice, etc.) to be transmitted via the MIDI OUT

terminal.

1. Set up the panel controls as desired.

2. Connect the P-140 to a sequencer via MIDI, and set

up the sequencer so it can receive the setup data.

3. Engage the Function and select .

4. Press the [+/YES] button to transmit the panel/status

data.

will appear on the display when the data has been

successfully transmitted.

F8.7: Initial Setup Send

This function lets you send the data of the panel settings

to a computer. By transmitting the panel settings and

recording them on the MIDI sequence recorder prior to

the actual performance data, the instrument will be

automatically restored to the same settings when the per-

formance is played back. You can also use this function to

change the settings of a connected tone generator to the

same settings as the instrument.

1. Set up the panel controls as desired.

2. Connect the P-140 to a sequencer via MIDI, and set

up the sequencer so it can receive the setup data.

3. Engage the Function and select .

4. Press the [+/YES] button to transmit the panel/status

data.

will appear on the display when the data has been

successfully transmitted.

The following data can be sent.

•Voice selection

•[REVERB] type

•[REVERB] depth

•[EFFECT] type

•[EFFECT] depth

• Split point

•Tuning (F1)

•Dual detune (F3.2)

For information on program change numbers for each of the P-

140’s voices, refer to MIDI Data Format page 60.

For information on control changes that can be used with the P-

140, refer to MIDI Data Format on page 60.

NOTE

•See page 61 for a list of the Panel Data Contents transmitted

by this function.

•Receiving the transmitted data:

1. Connect the P-140 via MIDI to the device to which the setup

data was transmitted previously.

2. Start sending the setup data from the device.

The P-140 automatically receives the setup data, which will be

reﬂected in the panel settings.

(For the data to be accepted, the P-140 that receives the setup

data should be the same model as the one that transmitted the

setup data to the sequencer.)

• For more information on transmitting and receiving setup data

via MIDI, refer to the owner’s manual for the connected MIDI

device.

NOTE

Detailed Settings – [FUNCTION]

P-140 Owner’s Manual

ENGLISH

You can back up some settings, such as voice

selection and reverb type, so that they will not

be lost when you turn off the power to the P-

140. If the backup function is turned on, the

settings at power off are effective. If the

backup function is turned off, the settings in

memory are erased when you turn off the

power. In this case, when you turn on the

power to the unit, the default settings (the ini-

tial settings) will be used. (The factory setting

default list is found on page 59.)

However, the backup settings themselves, the

contents of the user song recorder memory,

and character code setting are always backed

up. Refer to “Data Backup Using a Computer”

on page 50.

You can turn the backup function on or off for

each function group. Different Backup Groups

are provided for the different function catego-

ries of the instrument: Voice, MIDI, Tuning and

Others.

F9.1: Voice

Setting range: ON/OFF

Default setting: OFF

•Voice (Keyboard, Dual, and Split)

•Dual (ON/OFF, Voice, and Dual Functions for each

voice combination)

• Split (ON/OFF, Voice, and Split Functions for each

voice combination)

•Reverb (ON/OFF, Type, and Depth for each voice)

•Effect (ON/OFF, Type, and Depth for each voice)

•Touch Sensitivity (including the FIXED volume)

•Metronome Beat, Volume ( settings)

•Song Part Cancel Volume ( settings)

F9.2: MIDI

Setting range: ON/OFF

Default setting: ON

The MIDI functions ( settings)

(expect for )

F9.3: Tuning

Setting range: ON/OFF

Default setting: ON

•Transpose

•Tuning ( settings)

•Scale (including base note) ( settings)

F9.4: Others

Setting range: ON/OFF

Default setting: ON

•Other functions ( settings)

•VARIATION setting

F9. Backup Functions

Factory Preset Recall

All settings affected by the Functions (F1 – F9) can be

restored to their original factory preset values by

turning the [STANDBY/ON] switch ON while hold-

ing the C7 key (right-most-key on the keyboard).

This operation also erases all user song data. The fac-

tory preset values are listed on page 59.

CAUTION

After turning the [STANDBY/ON] switch ON while

holding the C7 key (right-most-key on the key-

board), “CLr” appears in the display. Never attempt

to turn off the power while “CLr” appears in the dis-

play. Turning the power off in this state may cause

the system to freeze.

Connections

P-140 Owner’s Manual

ENGLISH

Connections

Connectors

CAUTION

Before connecting the P-140 to other electronic components, turn off the power to all the components. Before turning

the power on or off to all components, set all volume levels to minimum (0). Otherwise, electrical shock or damage to the

components may result.

1MIDI [IN] [OUT] terminals

Use MIDI cables to connect external MIDI devices to these connectors.

MIDI [IN]: Receives MIDI data.

MIDI [OUT]: Transmits MIDI data.

Refer to the “Connecting a Personal Computer” on page 49.

2SUSTAIN PEDAL Jack

This jack is for connecting an included foot pedal FC3 here.

CAUTION

Make sure that power is OFF when connecting or disconnecting the pedal.

Do not turn on the power to the unit while pressing the foot switch or foot pedal. Otherwise, the

switch or pedal type (on/off) will be reversed.

1 2 3 4

Since MIDI data that can be

transmitted or received varies

depending on the type of MIDI

device, check the “MIDI Imple-

mentation Chart” to ﬁnd out what

MIDI data and commands your

devices can transmit or receive.

The P-140’s MIDI Implementation

Chart appears on page 64.

NOTE

About MIDI

MIDI (Musical Instrument Digital Interface) is a standard format for data transmission/

reception. It enables the transfer of performance data and commands between MIDI devices

and personal computers. Using MIDI, you can control a connected MIDI device from the P-

140, or control the P-140 from a connected MIDI device or computer.

Depending upon the pedal that is

connected to the SUSTAIN

PEDAL jack, the effect produced

by operating the pedal (ON/OFF,

dynamics, etc.) might be

reversed. If this happens, refer to

the “SUSTAIN PEDAL Type” sec-

tion (page 43).

NOTE

FC3

Connections

P-140 Owner’s Manual

ENGLISH

3AUX PEDAL Jack

This jack is for connecting an optional FC4/FC5 foot switch or FC7 foot controller.

A wide range of functions such as the Soft Pedal function, etc. can be assigned to

this jack. Use the Function settings to assign the function. (page 43)

4AUX OUT [R] [L] Pin jacks (LEVEL FIXED)

You can connect these jacks to a stereo system to amplify the P-140 or to a cassette

tape recorder to record your performance. Refer to the diagram below and use

audio cables to make the connections.

CAUTION

When the P-140’s AUX OUT jacks are connected to an external audio system, ﬁrst turn on the

power to the P-140, then to the external audio system. Reverse this order when you turn the

power off.

Depending upon the pedal that is

connected to the AUX PEDAL

jack, the effect produced by oper-

ating the pedal (ON/OFF, dynam-

ics, etc.) might be reversed. If this

happens, refer to the “AUX

PEDAL Type” section (page 43).

NOTE

FC5

Use audio cables and adaptor

plugs with zero resistance.

The P-140’s [MASTER VOLUME]

slider setting does not affect the

signal output from the AUX OUT

(LEVEL FIXED) jacks.

NOTE

When these are connected (with RCA pin plug; LEVEL FIXED), the sound

is output to the external device at a ﬁxed level, regardless of the [MASTER

VOLUME] slider setting.

P-140 Stereo

AUX OUT

RCA pin plug

AUX IN

RCA pin plug

audio cable

Connections

P-140 Owner’s Manual

ENGLISH

Connecting a Personal Computer

By connecting a computer to the USB [TO HOST] or MIDI terminals, you can transfer data between

the instrument and the computer via MIDI. To do this, install the USB MIDI interface (such as the

UX16, UX96, or UX256) driver and Musicsoft Downloader software.

There are two ways you can connect the P-140 to a computer:

1. Connecting the USB port on the computer to the P-140 via a USB MIDI inter-

face.

2. Using a MIDI interface and the P-140’s MIDI terminals.

For more information, see below.

CAUTION

When connecting the P-140 to a computer, ﬁrst turn off the power to both the P-140 and the

computer before connecting any cables. After making connections, turn on the power to the

computer ﬁrst, then to the P-140.

Connecting the USB port on the computer to the

P-140 via a USB MIDI interface (such as the UX16,

UX96, or UX256)

Use a USB MIDI interface device to connect the USB port on your computer to the P-

140’s MIDI terminals.

Using a MIDI interface and the P-140’s MIDI

terminals

Use a MIDI interface device to connect a computer to the P-140 using MIDI cables.

You can download the USB MIDI

interface driver and Musicsoft

Downloader (MSD). Please check

the following URL for the latest

version.

http://music.yamaha.com/

download/msd

NOTE

Computer

USB MIDI

interface

MIDI [IN]

terminal

Instrument

MIDI [OUT]

terminal USB terminal

USB port or serial port

(modem or printer terminal)

Computer

MIDI

interface

MIDI cable

MIDI [IN] terminal

MIDI [OUT]

terminal

Instrument

Data Backup Using a Computer

P-140 Owner’s Manual

ENGLISH

Data Backup Using a Computer

For maximum data security Yamaha recommends that you save your important data to your com-

puter by using the Musicsoft Downloader (MSD) software. This provides a convenient backup if the

internal memory is damaged.

Data that can be saved

● Panel settings and recorded User songs

Panel settings are the same data that can be backed up using the Backup Functions

(page 46). You can save the panel settings and recorded User songs as one ﬁle.

● External songs received via computer.

1. Install the USB MIDI driver and MSD to your com-

puter (Windows), then connect the computer and

the instrument.

For connection, see page 49.

2. Save the data to the computer.

Using MSD, save the “P-140.BUP” ﬁle from “System Drive” under “Electronic

Musical Instruments” to the computer.

The “P-140.BUP” ﬁle contains the panel settings and recorded User songs. Also,

if you store the external songs in the instrument from the computer, save the

songs from “Flash Memory” under “Electronic Musical Instruments” to the

computer via the MSD.

For instructions on using MSD, see the Help in the MSD.

To recall the settings and load songs to the instrument, save the

“P-140.BUP” ﬁle and the External songs under the folders to which you saved

the ﬁles.

You can download the USB MIDI

interface driver and Musicsoft

Downloader (MSD). Please check

the following URL for the latest

version.

http://music.yamaha.com/

download/msd

NOTE

When MSD is started on a com-

puter connected to the instru-

ment, “con (computer

connection)” appears in the dis-

play. When this indication

appears, you cannot operate the

instrument.

The Musicsoft Downloader can-

not be used when the instrument

is in the following state:

• During Demo playback.

• During song playback.

• During Record mode.

The panel settings and User

songs (P-140.BUP ﬁle) remain in

the instrument after being saved

to the computer.

NOTE

Message List

P-140 Owner’s Manual

ENGLISH

Message List

CAUTION

Never attempt to turn off the power while “CLr” or “FCL” appears in the display. Turning the power off

in this state may cause the system to freeze.

Message Comment

CLr*Displayed after factory presets are recalled.

con Displayed when Musicsoft Downloader is started on a computer connected to the instrument.

When this message appears, you cannot operate the instrument.

E02 Displayed when the song data is damaged.

E04 Indicates that the song data is too large to be loaded.

End Displayed when the current operation is completed.

Err Displayed when the MIDI/USB cable is disconnected while starting Musicsoft Downloader on a computer con-

nected to the instrument.

FCL*Indicates that internal memory has been cleaned. Recorded songs and external songs which have been

loaded from a computer are deleted, because the power has been turned off before the song save or load

operations were completed.

Fu£ Displayed when internal memory becomes full during song recording.

n Y Conﬁrms whether each operation is executed or not.

Troubleshooting

P-140 Owner’s Manual

ENGLISH

Troubleshooting

Optional Equipment

Foot Pedal (FC3/FC4/FC5/FC7)

Keyboard Stand (L-140/L-140S)

Problem Possible Cause and Solution

The P-140 does not turn on. The P-140 has not been plugged in properly. Securely insert the female plug into the

socket on the P-140, and the male plug into a proper AC outlet (page 12).

A click or pop is heard when the power is

turned on or off.

This is normal when electrical current is being applied to the instrument.

Noise is heard from the speakers or head-

phones.

The noise may be due to interference caused by the use of a mobile phone in close

proximity to the P-140. Turn off the mobile phone, or use it further away from the P-

140.

The overall volume is low, or no sound is

heard.

•The Master Volume is set too low; set it to an appropriate level using the [MASTER

VOLUME] control.

• Make sure a pair of headphones is not connected to the headphones jack

(page 13).

• Make sure that Local Control (page 44) is ON.

The sustain pedal has no effect. The pedal cable/plug may not be properly connected. Make sure to securely insert

the pedal plug into the proper jack (page 47).

The foot pedal seems to produce the oppo-

site effect. For example, pressing the foot

pedal cuts off the sound and releasing it sus-

tains the sounds.

The type of the foot pedal is reversed.

If this happens, use F5.6 or F5.7 to correct the pedal type (pages 37, 43).

If you press the [VARIATION] button during

performance, Sound is cut off.

This is normal, and is no cause for concern.

Preset Voice List

P-140 Owner’s Manual

ENGLISH

Preset Voice List

*1. Dynamic Sampling provides multiple velocity-switched samples to accurately simulate the timbral response

of an acoustic instrument.

*2. Contains a very subtle sample that is produced when the keys are released.

*3. Depends on the assigned voice.

Voice Name

Stereo

Sampling

Touch

Response

Dynamic

Sampling

Key-Off

Sampling

Voice Descriptions

1 GRAND PIANO 1

Recorded samples from a full concert grand piano. Also

includes three levels of dynamic sampling, sustain sam-

ples, and key-off samples for exceptionally realistic

acoustic grand piano sound. Perfect for classical compo-

sitions as well as any other style that requires acoustic

piano.

2 GRAND PIANO 2 Spacious and clear piano with bright reverb. Good for

popular music.

3 GRAND PIANO 3 Warm and mellow piano. Good for classical composi-

tions.

4PIANO &

STRINGS

A Dual voice combining grand piano and strings – per-

fect for slow, orchestral piano music.

5ELECTRIC

PIANO 1

An electronic piano sound created by FM synthesis.

Exceptional musical response with varying timbre

according to keyboard dynamics. Good for standard

popular music.

6ELECTRIC

PIANO 2

The sound of an electric piano using hammer-struck

metallic tines. Soft tone when played lightly, and an

aggressive tone when played hard.

7ELECTRIC

PIANO 3

A slightly different electric piano sound often heard in

rock and popular music.

8 CHURCH ORGAN

This is a typical pipe organ sound (8 feet + 4 feet + 2

feet).

Good for sacred music from the Baroque period.

9JAZZ ORGAN The sound of a tonewheel type electric organ. Often

heard in jazz and rock idioms.

10 STRINGS

Stereo-sampled, large-scale strings ensemble with real-

istic reverb. Try combining this voice with piano in the

DUAL.

11 HARPSICHORD

The deﬁnitive instrument for baroque music. Since harp-

sichord uses plucked strings, there is no touch

response.

There is, however, a characteristic additional sound

when the keys are released.

12 E. CLAVICHORD

A hammer-struck keyboard instrument that utilizes an

electric pickup that is often heard in funk and soul music.

Its tone is noted for the unique sound produced when

the keys are released.

13 VIBRAPHONE Vibraphone played with relatively soft mallets. The tone

becomes more metallic the harder you play.

14 SPLIT *3 *3 *3 *3 Split lets you play two parts at the same time a bass part

with the left hand, and a melody with the right hand.

: Yes

: No

Preset Voice List

P-140 Owner’s Manual

ENGLISH

Split Left Voice List

*1. Dynamic Sampling provides multiple velocity-switched samples to accurately simulate the timbral response

of an acoustic instrument.

*2. Contains a very subtle sample that is produced when the keys are released.

Voice Name

Stereo

Sampling

Touch

Response

Dynamic

Sampling

Key-Off

Sampling

Voice Descriptions

1WOOD BASS An upright bass played ﬁngerstyle. Ideal for jazz and

Latin music.

2BASS & CYMBAL Adds a soft ride cymbal to the bass sound. Ideal for

walking bass lines in jazz tunes.

3E. BASS 1 Electric bass for a wide range of music styles, jazz,

rock, popular, and more.

4E. BASS 2 A fretless bass. Ideal for styles such as jazz, fusion, etc.

: Yes

: No

Index

P-140 Owner’s Manual

ENGLISH

Index

Numerics

50 Piano Preset Songs .....................................................15

A-B Repeat.......................................................................18

Adjust

Tempo (50 Piano Preset Songs) ...............................15

Tempo (Recorded Songs) .........................................35

Volume (Metronome) ..............................................44

ALL (display) ...................................................................15

AUX OUT [L] [R] (LEVEL FIXED) jacks .....................48

AUX Pedal .......................................................................43

[AUX PEDAL] jack ...................................................13, 48

Backup (data) ..................................................................50

Backup Functions............................................................46

CLr (display)....................................................................51

Combining Voices (Dual)...............................................20

con (display)....................................................................51

Connecting a Personal Computer..................................49

Connections.....................................................................47

Computer...................................................................49

MIDI interface...........................................................49

Connectors ......................................................................47

Default setting .................................................................23

[DEMO] button ..............................................................14

Detailed Settings (FUNCTION).....................................36

Display .............................................................................12

Dual............................................................................20, 41

E02 (display)....................................................................51

E04 (display)....................................................................51

[EFFECT] button ............................................................24

Effects...............................................................................24

End (display) ...................................................................51

Err (display).....................................................................51

Factory Setting List .........................................................59

FCL (display)................................................................... 51

Fine Tuning of the Pitch.................................................39

Full (display) ...................................................................51

FUNCTION ..............................................................39–46

Basic Procedure.........................................................37

Hz (Hertz) .......................................................................39

[LEFT] button...........................................................16, 31

List

Factory Setting........................................................... 59

Functions...................................................................36

Preset Song ................................................................58

Preset Voice .........................................................53–54

[MASTER VOLUME] slider ..........................................12

Message List.....................................................................51

[METRONOME] button................................................27

Metronome Volume .......................................................44

MIDI [IN] [OUT]...........................................................47

MIDI Data Format..........................................................60

MIDI Functions ..............................................................44

MIDI Implementation Chart .........................................64

Music Rest .......................................................................13

n y (display)..................................................................... 51

Other Functions ..............................................................43

[OTHERS] button ..........................................................19

Part Cancel ......................................................................16

Part Playback On and Off...............................................35

Pedal Type .......................................................................43

Index

P-140 Owner’s Manual

ENGLISH

Pedals ...............................................................................13

[PHONES] jack ...............................................................13

Pitch ➝ Fine Tuning of the Pitch...................................39

[PLAY/PAUSE] button .............................................15, 35

Play/Pause playback

Demo Songs...............................................................14

Recorded Songs .........................................................34

Playing Back Songs..........................................................34

Practicing a One-Hand Part Using the 50 Preset

Songs..............................................................................16

Preset................................................................................15

Preset Song List ...............................................................58

Preset songs ➝ 50 Piano Preset Songs ...........................15

Preset Voice List ........................................................53–54

[REC] button...................................................................28

Recording.........................................................................28

Initial Settings............................................................33

Repeat ........................................................................15, 18

Re-recording....................................................................30

[REVERB] button ...........................................................24

[RIGHT] button........................................................16, 31

RIGHT/LEFT (50 Piano Preset Songs) ..........................16

rnd (display) ....................................................................15

Scale..................................................................................40

Soft Pedal .........................................................................43

Song..................................................................................15

Song Part Cancel Volume...............................................44

Song playback..................................................................34

[SONG SELECT] button ..........................................15, 34

Sostenuto pedal ...............................................................43

Specifications...................................................................65

SPLIT (Function) ............................................................42

[STANDBY/ON] switch .................................................12

[STOP] button...........................................................15, 35

Sustain Pedal..............................................................42, 43

[SUSTAIN PEDAL] jack...........................................13, 47

Sync ..................................................................................17

Sync Start .........................................................................17

TEMPO......................................................................15, 35

TEMPO (METRONOME) .............................................27

[TEMPO/FUNCTION] button................................ 27, 37

[TOUCH] button............................................................25

Touch Sensitivity.............................................................25

[TRANSPOSE] button....................................................26

Troubleshooting.............................................................. 52

Tuning ➝ Fine Tuning of the Pitch...............................39

[VARIATION] button....................................................23

VOICE .............................................................................19

Voice group buttons .......................................................19

P-140 Owner’s Manual

ENGLISH

MEMO

P-140 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones

Preset Song List / Liste der voreingestellten Songs /

Liste des morceaux prédéﬁnis /

Lista de canciones preseleccionadas

No. Title Composer

1Invention No. 1 J.S.Bach

2Invention No. 8 J.S.Bach

3Gavotte J.S.Bach

4Prelude (Wohltemperierte Klavier I No.1) J.S.Bach

5 Menuett G dur BWV.Anh.114 J.S.Bach

6 Le Coucou L-C.Daquin

7 Piano Sonate No.15 K.545 1st mov. W.A.Mozart

8Turkish March W.A.Mozart

9 Menuett G dur W.A.Mozart

10 Little Serenade J.Haydn

11 Perpetuum mobile C.M.v.Weber

12 Ecossaise L.v.Beethoven

13 Für Elise L.v.Beethoven

14 Marcia alla Turca L.v.Beethoven

15 Piano Sonate op.13 “Pathétique” 2nd mov. L.v.Beethoven

16 Piano Sonate op.27-2 “Mondschein” 1st mov. L.v.Beethoven

17 Piano Sonate op.49-2 1st mov. L.v.Beethoven

18 Impromptu op.90-2 F.P.Schubert

19 Moments Musicaux op.94-3 F.P.Schubert

20 Frühlingslied op.62-2 J.L.F.Mendelssohn

21 Jägerlied op.19b-3 J.L.F.Mendelssohn

22 Fantaisie-Impromptu F.F.Chopin

23 Prelude op.28-15 “Raindrop” F.F.Chopin

24 Etude op.10-5 “Black keys” F.F.Chopin

25 Etude op.10-3 “Chanson de l’adieu” F.F.Chopin

26 Etude op.10-12 “Revolutionary” F.F.Chopin

27 Valse op.64-1 “Petit chien” F.F.Chopin

28 Valse op.64-2 F.F.Chopin

29 Valse op.69-1 “L’adieu” F.F.Chopin

30 Nocturne op.9-2 F.F.Chopin

31 Träumerei R.Schumann

32 Fröhlicher Landmann R.Schumann

33 La prière d’une Vierge T.Badarzewska

34 Dolly’s Dreaming and Awakening T.Oesten

35 Arabesque J.F.Burgmüller

36 Pastorale J.F.Burgmüller

37 La chevaleresque J.F.Burgmüller

38 Liebesträume Nr.3 F.Liszt

39 Blumenlied G.Lange

40 Barcarolle P.I.Tchaikovsky

41 Melody in F A.Rubinstein

42 Humoresque A.Dvorák

43 Tango (España) I.Albéniz

44 The Entertainer S.Joplin

45 Maple Leaf Rag S.Joplin

46 La Fille aux Cheveux de Lin C.A.Debussy

47 Arabesque 1 C.A.Debussy

48 Clair de lune C.A.Debussy

49 Rêverie C.A.Debussy

50 Golliwog’s Cakewalk C.A.Debussy

Appendix

P-140 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones 59

Factory Setting List / Liste der Vorgabeeinstellungen /

Liste des réglages / Lista de ajustes de fábrica

Function

Default Backup Group

Voice GRAND PIANO 1

F9.1

Dual OFF

Split OFF

Split Right Voice GRAND PIANO 1

Split Left Voice WOOD BASS

Variation NORMAL F9.4

Reverb Type Preset for each voice

F9.1

Reverb Depth Preset for each voice

Effect Type Preset for each voice

Effect Depth Preset for each voice

Touch Sensitivity MEDIUM

Volume in the FIXED 64

Metronome OFF —

Metronome Time Signature 0 (no accent) F9.1

Tempo 120 —

Transpose 0 F9.3

Display Function Default Backup Group

F1. Tuning A3=440Hz

F9.3F2.1 Scale 1 (Equal Temperament)

F2.2 Base Note C

F3.1 Dual Balance Preset for each voice combination

F9.1

F3.2 Dual Detune Preset for each voice combination

F3.3, F3.4 Dual Octave Shift Preset for each voice combination

F3.5, F.3.6 Dual Effect Depth Preset for each voice combination

F4.1 Split Point F#2

F4.2 Split Balance Preset for each voice combination

F4.3 Right Voice Selection 1

F4.4 Left Voice Selection 1

F4.5, F4.6 Split Octave Shift Preset for each voice combination

F4.7, F4.8 Split Effect Depth Preset for each voice combination

F4.9 Sustain Pedal Range ALL

F5.1 AUX Pedal 1 (Soft Pedal)

F9.4

F5.2 Soft Pedal Effect Depth 3

F5.3 Sustain Sample Depth 12

F5.4 Keyoff Sample Volume 10

F5.5 Song Channel Selection ALL

F5.6 Sustain Pedal Type 1

F5.7 AUX Pedal Type 1

F6. Metronome Volume 10 F9.1

F7. Song Part Cancel Volume 5

F8.1 MIDI Transmit Channel 1

F9.2

F8.2 MIDI Receive Channel ALL

F8.3 Local Control ON

F8.4 Program Change Send & Receive ON

F8.5 Control Change Send & Receive ON

F9. Backup Voice: OFF

MIDI, Tuning, Others: ON Always backed up

P-140 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones

MIDI Data Format / MIDI-Datenformat /

Format des données MIDI / Formato de datos MIDI

If you’re already very familiar with MIDI, or are using a computer to control your music hardware with computer-generated MIDI

messages, the data provided in this section can help you to control the P-140.

Falls Sie bereits mit MIDI vertraut sind oder einen Computer zur Erzeugung von MIDI-Steuermeldungen für die Instrumente verwenden,

können Sie sich zur Steuerung des P-140 nach den im folgenden Abschnitt aufgeführten Speziﬁkationen richten.

Si vous êtes très familier avec l’interface MIDI ou si vous utilisez un ordinateur pour commander votre matériel de musique au moyen de

messages MIDI générés par ordinateur, les données suivantes vous seront utiles et vous aideront à commander le P-140.

SI usted está ya familiarizado con MIDI, o si emplea una computadora para controlar sus aparatos musicales con mensajes MIDI

generados por computadora, los datos proporcionados en esta sección le ayudarán a controlar la P-140.

1. NOTE ON/OFF

Data format: [9nH] -> [kk] -> [vv]

9nH = Note ON/OFF event (n = channel number)

kk = Note number (Transmit: 09H ~ 78H = A-2 ~ C8 /

Receive: 00H ~ 7FH = C-2 ~ G8)

vv = Velocity (Key ON = 01H ~ 7FH, Key OFF = 00H)

Data format: [8nH] -> [kk] -> [vv] (reception only)

8nH = Note OFF event (n = channel number)

kk = Note number: 00H ~ 7FH = C-2 ~ G8)

vv = Velocity

2. CONTROL CHANGE

Data format: [BnH] -> [cc] -> [vv]

BnH = Control change (n = channel number)

cc = Control number

vv = Data Range

(1) Bank Select

ccH Parameter Data Range (vvH)

00H Bank Select MSB 00H:Normal

20H Bank Select LSB 00H...7FH

Bank selection processing does not occur until receipt of next

Program Change message.

(2) Main Volume

ccH Parameter Data Range (vvH)

07H Volume MSB 00H...7FH

(3) Expression

ccH Parameter Data Range (vvH)

0BH Expression MSB 00H...7FH

(4) Sustain

ccH Parameter Data Range (vvH)

40H Sustain MSB 00H...7FH

(5) Sostenuto

ccH Parameter Data Range (vvH)

42H Sostenuto 00H-3FH:off, 40H-7FH:on

(6) Soft Pedal

ccH Parameter Data Range (vvH)

43H Soft Pedal 00H-3FH:off, 40H-7FH:on

(7) Effect1 Depth (Reverb Send Level)

ccH Parameter Data Range (vvH)

5BH Effect1 Depth 00H...7FH

Adjusts the reverb send level.

(8) Effect4 Depth (Variation Effect Send Level)

ccH Parameter Data Range (vvH)

5EH Effect4 Depth 00H...7FH

(9) RPN

65H RPN MSB

64H RPN LSB

06H Data Entry MSB

26H Data Entry LSB

60H Data Increment

61H Data Decrement

* Parameters that are controllable with RPN

• Coarse Tune

• Fine Tune

• Pitch Bend Range

3. MODE MESSAGES

Data format: [BnH] -> [cc] -> [vv]

BnH = Control event (n = channel number)

cc = Control number

vv = Data Range

(1) All Sound Off

ccH Parameter Data Range (vvH)

78H All Sound Off 00H

(2) Reset All Controllers

ccH Parameter Data Range (vvH)

79H Reset All Controllers 00H

Resets controllers as follows.

Controller Value

Expression 127 (max)

Sustain Pedal 0 (off)

Sostenuto 0 (off)

Soft Pedal 0 (off)

(3) Local Control (reception only)

ccH Parameter Data Range (vvH)

7AH Local Control 00H (off), 7FH (on)

(4) All Notes Off

ccH Parameter Data Range (vvH)

7BH All Notes Off 00H

Switches OFF all the notes that are currently ON on the spec-

iﬁed channel. Any notes being held by the sustain or soste-

nuto pedal will continue to sound until the pedal is released.

(5) Omni Off (reception only)

ccH Parameter Data Range (vvH)

7CH Omni Off 00H

Same processing as for All Notes Off.

(6) Omni On (reception only)

ccH Parameter Data Range (vvH)

7DH Omni On 00H

Same processing as for All Notes Off.

(7) Mono (reception only)

ccH Parameter Data Range (vvH)

7EH Mono 00H

Same processing as for All Sound Off.

(8) Poly (reception only)

ccH Parameter Data Range (vvH)

7FH Poly 00H

Same processing as for All Sound Off.

•When Control Change is turned OFF, Control Change mes-

sages will not be transmitted or received.

•Local on/off, OMNI on/off are not transmitted. (The appropriate

note off number is supplied with “All Note Off” transmission).

• When a voice bank MSB/LSB is received, the number is

stored in the internal buffer regardless of the received order,

then the stored value is used to select the appropriate voice

when a program change message is received.

•Poly mode is always active. This mode will not change when

the instrument receives MONO/POLY mode message.

P-140 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones 61

4. PROGRAM CHANGE

Data format: [CnH] -> [ppH]

CnH = Program event (n = channel number)

ppH = Program change number

P. C .#=Program Change number

SPLIT VOICE

•Some devices use a “0 to 127” numbering system for program

change messages. Since the P-140 uses a “1 to 128” number-

ing system, you will need to subtract 1 from the transmitted

program change numbers to select the appropriate sound:

e.g. to select P.C.#1 in the list above, transmit program

change number 0.

5. PITCH BEND CHANGE

[EnH] -> [ccH] -> [ddH]

ccH = LSB

ddH = MSB

6. SYSTEM REALTIME MESSAGES

[rrH]

F8H: Timing clock

FAH: Start

FCH: Stop

FEH: Active sensing

•Caution: If an error occurs during MIDI reception, the Sustain,

Sostenuto, and Soft effects for all channels are turned off and

an All Note Off message occurs.

7. SYSTEM EXCLUSIVE MESSAGES

(Yamaha MIDI Format)

Panel Data Transmit

Data format: [F0H] -> [43H] -> [0nH] -> [7CH] -> ... -> [F7H]

F0H, 43H, 0nH, 7CH (n: channel number)

00H, LLH (data length)

43H, 4CH, 20H, 20H (CL)

43H, 4CH, 50H, 27H, 30H, 35H (CLP05)

3xH, 3yH (version x.y)

[PANEL DATA]

[CHECK SUM (1byte)] = 0-(43H+4CH+20H+......+Data end)

F7H (End of Exclusive)

• Panel Data Contents

•Panel data send requests cannot be received.

8. SYSTEM EXCLUSIVE MESSAGES

(Universal System Exclusive)

(1) Universal Realtime Message

Data format: [F0H] -> [7FH] -> [XnH] -> [04H] -> [01H] ->

[llH] -> [mmH] -> [F7H]

MIDI Master Volume

• Simultaneously changes the volume of all channels.

•When a MIDI master volume message is received, the volume

only has affect on the MIDI receive channel, not the panel

master volume.

F0H = Exclusive status

7FH = Universal Realtime

7FH = ID of target device

04H = Sub-ID #1=Device Control Message

01H = Sub-ID #2=Master Volume

llH = Volume LSB

mmH =

Volume MSB

F7H = End of Exclusive

F0H = Exclusive status

7FH = Universal Realtime

XnH = When n is received n=0~F, whichever is received.

X = irrelevant

04H = Sub-ID #1=Device Control Message

01H = Sub-ID #2=Master Volume

llH = Volume LSB

mmH =

Volume MSB

F7H = End of Exclusive

Voice Name MSB LSB

P.C.#

GRAND PIANO 1 0 122 1

GRAND PIANO 2 0 112 1

GRAND PIANO 3 0 123 1

PIANO & STRINGS 0 125 1

ELECTRIC PIANO 1 0 122 6

ELECTRIC PIANO 2 0 122 5

ELECTRIC PIANO 3 0 123 5

CHURCH ORGAN 0 123 20

JAZZ ORGAN 0 122 17

STRINGS 0 122 49

HARPSICHORD 0 122 7

E.CLAVICHORD 0 122 8

VIBRAPHONE 0 122 12

Voice Name MSB LSB

P.C.#

WOOD BASS 0 122 33

BASS & CYMBAL 0 124 33

E.BASS 1 0 122 34

E.BASS 2 0 122 36

Data Transmission Reception

F8H Transmitted every

96 clocks

Received as 96-clock tempo timing

when MIDI clock is set to External.

FAH Song start

Song start

Not received when the MIDI clock is

set to Internal.

FCH Song stop

Song stop

Not received when the MIDI clock is

set to Internal.

FEH Transmitted every

200 milliseconds

If a signal is not received via MIDI for

more than 400 milliseconds, the same

processing will take place for All

Sound Off, All Notes Off and Reset All

Controllers as when those signals are

received.

(1) 1’st Voice

(2) Dual On/Off

(3) Dual Voice

(4) Dual Balance

(5) Dual Detune

(6) Dual Voice1 Octave

(7) Dual Voice2 Octave

(8) Dual Voice1 Effect Depth

(9) Dual Voice2 Effect Depth

(10) Split On/Off

(11) Split Voice

(12) Split Point

(13) Split Balance

(14) Split Voice1 Octave

(15) Split Voice2 Octave

(16) Split Voice1 Effect Depth

(17) Split Voice2 Effect Depth

(18) Split Sustain Mode

(19) Reverb Type 1

(20) Reverb Type 2

(21) Reverb Depth 1

(22) Reverb Depth 2

(23) Effect Type 1

(24) Effect Type 2

(25) Effect Depth

(26) —

(27) Touch Sensitivity

(28) Fixed Data

(29) AUX Pedal

(30) Soft Pedal Depth

(31) Absolute tempo low byte

(32) Absolute tempo high byte

(33) Key-Off Sampling Depth

(34) —

(35) —

(36) Variation

P-140 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones

(2) Universal Non-Realtime Message (GM On)

General MIDI Mode On

Data format: [F0H] -> [7EH] -> [XnH] -> [09H] -> [01H] ->

[F7H]

F0H = Exclusive status

7EH = Universal Non-Realtime

7FH = ID of target device

09H = Sub-ID #1=General MIDI Message

01H = Sub-ID #2=General MIDI On

F7H = End of Exclusive

F0H = Exclusive status

7EH = Universal Non-Realtime

XnH = When received, n=0~F.

X = irrelevant

09H = Sub-ID #1=General MIDI Message

01H = Sub-ID #2=General MIDI On

F7H = End of Exclusive

When a General MIDI mode ON message is received, the

MIDI system will be reset to its default settings.

This message requires approximately 50ms to execute, so

sufﬁcient time should be allowed before the next message is

sent.

9. SYSTEM EXCLUSIVE MESSAGES (XG Standard)

(1) XG Native Parameter Change

Data format: [F0H] -> [43H] -> [1nH] -> [4CH] -> [hhH] ->

[mmH] -> [llH] -> [ddH] ->...-> [F7H]

F0H = Exclusive status

43H = YAMAHA ID

1nH = When received, n=0~F.

When transmitted, n=0.

4CH = Model ID of XG

hhH = Address High

mmH =

Address Mid

llH = Address Low

ddH = Data

F7H = End of Exclusive

Data size must match parameter size (2 or 4 bytes).

When an XG System On message is received, the MIDI sys-

tem will be reset to its default settings.

The message requires approximately 50ms to execute, so

sufﬁcient time should be allowed before the next message is

sent.

(2) XG Native Bulk Data (reception only)

Data format: [F0H] -> [43H] -> [0nH] -> [4CH] -> [aaH] ->

[bbH] -> [hhH] -> [mmH] -> [llH] ->[ddH] ->...->

[ccH] -> [F7H]

F0H = Exclusive status

43H = YAMAHA ID

0nH = When received, n=0~F.

When transmitted, n=0.

4CH = Model ID of XG

aaH = Byte Count

bbH = Byte Count

hhH = Address High

mmH =

Address Mid

llH = Address Low

ddH = Data

| |

ccH = Check sum

F7H = End of Exclusive

• Receipt of the XG SYSTEM ON message causes reinitializa-

tion of relevant parameters and Control Change values. Allow

sufﬁcient time for processing to execute (about 50 msec)

before sending the P-140 another message.

• XG Native Parameter Change message may contain two or

four bytes of parameter data (depending on the parameter

size).

•For information about the Address and Byte Count values,

refer to Table 1 below. Note that the table’s Total Size value

gives the size of a bulk block. Only the top address of the

block (00H, 00H, 00H) is valid as a bulk data address.

10. SYSTEM EXCLUSIVE MESSAGES

(P-140 MIDI Format)

Data format:

[F0H] -> [43H] -> [73H] -> [01H] -> [nnH] -> [F7H]

F0H = Exclusive status

43H = Yamaha ID

73H = P-140 ID

01H = Product ID (CLP common)

nnH = Substatus

nn Control

02H Internal MIDI clock

03H External MIDI clock

F7H = End of Exclusive

11.

SYSTEM EXCLUSIVE MESSAGES (Special Control)

Data format: [F0H] -> [43H] -> [73H] -> [xxH] -> [11H] ->

[0nH] -> [ccH] -> [vvH] -> [F7H]

F0H = Exclusive status

43H = Yamaha ID

73H = P-140 ID

7FH = Extended Product ID

xxH = Product ID 4CH

11H = Special control

0nH = Control MIDI change (n=channel number)

cc = Control number

vv = Value

F7H = End of Exclusive

Control On ccH vvH

Split Point Always 00H 14H

14H:

Split Key Number

Metronome Always 00H 1BH 00H: No accent

01H-0FH: 1/4-15/4

7FH: off

Sustain Level

ch: 00H-0FH 3DH (Sets the Sustain Level

for each channel)

00H-7FH

Channel Detune

ch: 00H-0FH 43H (Sets the Detune value

for each channel)

00H-7FH

Voice Reserve

ch: 00H-0FH 45H 00H : Reserve off

7FH : on*

When Volume or Expression is received for Reserve On,

they will be effective from the next Key On. Reserve Off is

normal.

12. SYSTEM EXCLUSIVE MESSAGES (Others)

Data format:

[F0H] -> [43H] -> [1nH] -> [27H] -> [30H] -> [00H]

-> [00H] -> [mmH] -> [

H] -> [ccH] -> [F7H]

Master Tuning (XG and last message priority) simultaneously

changes the pitch of all channels.

F0H = Exclusive Status

43H = Yamaha ID

1nH = When received, n=0~F.

When transmitted, n=0.

27H = Model ID of TG100

30H = Sub ID

00H =

mmH = Master Tune MSB

llH = Master Tune LSB

ccH = irrelevant (under 7FH)

F7H = End of Exclusive

P-140 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones 63

MIDI Parameter Change table (SYSTEM)

Address (H) Size (H) Data (H) Parameter Description Default value (H)

00 00 00 4 020C - 05F4* MASTER TUNE -50 - +50[cent] 00 04 00 00

01 1st bit 3 - 0 ➝ bit 15 - 12 400

02 2nd bit 3 - 0 ➝ bit 11 - 8

03 3rd bit 3 - 0 ➝ bit 7 - 4

4th bit 3 - 0 ➝ bit 3 - 0

04 1 00 - 7F MASTER VOLUME 0 - 127 7F

7E 00 XG SYSTEM ON 00=XG system ON

7F 00 RESET ALL PARAMETERS 00=ON (receive only)

TOTAL SIZE 07

*Values lower than 020CH select -50 cents. Values higher than 05F4H select +50 cents.

MIDI Parameter Change table (EFFECT 1)

Refer to the “Effect MIDI Map” for a complete list of Reverb, Chorus and Variation type numbers.

Address (H) Size (H) Data (H) Parameter Description Default value (H)

02 01 00 2 00-7F REVERB TYPE MSB Refer to Effect MIDI Map 01 (=HALL1)

00-7F REVERB TYPE LSB 00 : basic type 00

02 01 40 2 00-7F VARIATION TYPE MSB Refer to Effect MIDI Map 00(=Effect off)

00-7F VARIATION TYPE LSB 00 : basic type 00

• “VARIATION” refers to the EFFECT on the panel.

MIDI Parameter Change table (MULTI PART)

Address (H) Size (H) Data (H) Parameter Description Default value (H)

08 nn 11 1 00 - 7F DRY LEVEL 0 - 127 7F

nn = Part Number

• Effect MIDI Map

REVERB

MSB LSB

ROOM 02H 10H

HALL 1 01H 10H

HALL 2 01H 11H

STAGE 03H 10H

OFF 00H 00H

EFFECT

MSB LSB

CHORUS 42H 10H

PHASER 48H 10H

TREMOLO 46H 10H

ROTARY SP 47H 10H

OFF 00H 00H

P-140 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones

MIDI Implementation Chart

TransmittedFunction Recognized Remarks

Basic

Channel

Note

Number : True voice

Velocity

After

Touch

Pitch Bend

Control

Change

Prog

Change : True #

System Exclusive

Common : Song Pos.

: Song Sel.

: Tune

System : Clock

Real Time : Commands

: All Sound Off

Aux :

Reset

All

Cntrls

: Local ON/OFF

Mes- : All Notes OFF

sages: Active Sense

: Reset

Notes:

Mode

Default

Changed

Note ON

Note OFF

Key's

Ch's

0,32

6,38

64,66,67

91,94

96-97

100-101

1 - 16

Ø 9nH,v=1-127

Ø 0 - 127

**************

0 - 127

**************

Mode 1 : OMNI ON , POLY Mode 2 : OMNI ON ,MONO

Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF,MONO

˛ Ø 0 - 24 semi

1 - 16

Ø 9nH,v=1-127

Ø (120,126,127)

Ø (121)

Ø (122)

Ø (123-125)

0 - 127

Ø : Yes

˛ : No

Default

Messages

Altered

YAMAHA [ Electronic Piano ] Date : 08-APR-2005

Model P-140 MIDI Implementation Chart

Version : 1.0

Bank Select

Modulation

Main Volume

Panpot

Expression

Data Entry

Portamento Control

Effect Depth

RPN Inc,Dec

RPN LSB,MSB

Ø 0 - 127

P-140 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones 65

Speciﬁcations / Technische Daten /

Caractéristiques techniques / Especiﬁcaciones

*Speciﬁcations and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify

products or speciﬁcations at any time without prior notice. Since speciﬁcations, equipment or options may not be the same in every locale, please

check with your Yamaha dealer.

*Die technischen Daten und Beschreibungen in dieser Bedienungsanleitung dienen nur der Information. Yamaha Corp. behält sich das Recht vor,

Produkte oder deren technische Daten jederzeit ohne vorherige Ankündigung zu verändern oder zu modiﬁzieren. Da die technischen Daten, das

Gerät selbst oder Sonderzubehör nicht in jedem Land gleich sind, setzen Sie sich im Zweifel bitte mit Ihrem Yamaha-Händler in Verbindung.

*Les caractéristiques techniques et les descriptions du mode d’emploi ne sont données que pour information. Yamaha Corp. se réserve le droit de

changer ou modiﬁer les produits et leurs caractéristiques techniques à tout moment sans aucun avis. Du fait que les caractéristiques techniques, les

équipements et les options peuvent différer d’un pays à l’autre, adressez-vous au distributeur Yamaha le plus proche.

*Las especiﬁcaciones y descripciones de este manual del propietario tienen sólo el propósito de servir como información. Yamaha Corp. se reserva el

derecho a efectuar cambios o modiﬁcaciones en los productos o especiﬁcaciones en cualquier momento sin previo aviso. Puesto que las especiﬁca-

ciones, equipos u opciones pueden no ser las mismas en todos los mercados, solicite información a su distribuidor Yamaha.

Keyboard GH keyboard 88 keys (A-1 – C7)

Sound Source AWM Dynamic Stereo Sampling

Polyphony (Max.) 64

Voice Selection 14

Effect Reverb, Effect

Volume Master Volume

Controls Dual, Split, Metronome, Transpose, Touch (Hard/Medium/Soft/Fixed), Functions

Recording/Playback 2-part recording/playback (three User songs), Tempo Adjustment, Sync Start

Pedal SUSTAIN PEDAL (Can be used with half pedal effect),

AUX PEDAL (Assignable to various functions)

Demo Songs 14 voice Demo Songs, 50 preset Songs

Jacks/Connectors MIDI (IN/OUT), PHONES × 2, AUX OUT (LEVEL FIXED) (L, R),

DC IN 12V, SUSTAIN PEDAL, AUX PEDAL

Memory Device (for saving User songs): 65 KB

(for saving External songs): 352 KB

Main Ampliﬁers 6W × 2

Speakers (12 cm × 6 cm) × 2

Dimensions (W × D × H)

(with music rest)

1,334 mm × 351 mm × 140 mm [52-1/2" x 13-13/16" x 5-1/2"]

(1,334 mm × 357 mm × 332 mm) [52-1/2" x 14-1/16" x 13-1/16"]

Weight 17.8 kg (39lbs., 4oz)

Accessories Owner’s Manual, AC Power Adaptor (Yamaha PA-5D, PA-150 or an equivalent),

Pedal (FC3), Music Rest

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B)

(standby)

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instruc-

tions contained in this manual, meets FCC require-

ments. Modiﬁcations not expressly approved by

Yamaha may void your authority, granted by the FCC, to

use the product.

2. IMPORTANT: When connecting this product to acces-

sories and/or another product use only high quality

shielded cables. Cable/s supplied with this product

MUST be used. Follow all installation instructions. Fail-

ure to follow instructions could void your FCC authori-

zation to use this product in the USA.

3. NOTE: This product has been tested and found to com-

ply with the requirements listed in FCC Regulations,

Part 15 for Class “B” digital devices. Compliance with

these requirements provides a reasonable level of

assurance that your use of this product in a residential

environment will not result in harmful interference with

other electronic devices. This equipment generates/

uses radio frequencies and, if not installed and used

according to the instructions found in the users manual,

may cause interference harmful to the operation of

other electronic devices. Compliance with FCC regula-

tions does not guarantee that interference will not occur

in all installations. If this product is found to be the

source of interference, which can be determined by

turning the unit “OFF” and “ON”, please try to eliminate

the problem by using one of the following measures:

Relocate either this product or the device that is being

affected by the interference.

Utilize power outlets that are on different branch (circuit

breaker or fuse) circuits or install AC line ﬁlter/s.

In the case of radio or TV interference, relocate/reorient

the antenna. If the antenna lead-in is 300 ohm ribbon

lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfac-

tory results, please contact the local retailer authorized

to distribute this type of product. If you can not locate

the appropriate retailer, please contact Yamaha Corpo-

ration of America, Electronic Service Division, 6600

Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products

distributed by Yamaha Corporation of America or its

subsidiaries.

OBSERVERA!

Apparaten kopplas inte ur växelströmskällan (nätet) så länge som den

ar ansluten till vägguttaget, även om själva apparaten har stängts av.

ADVARSEL:Netspæendingen til dette apparat er IKKE afbrudt,

sålæenge netledningen siddr i en stikkontakt, som er t endt — også

selvom der or slukket på apparatets afbryder.

VAROITUS:Laitteen toisiopiiriin kytketty käyttökytkin ei irroita koko

laitetta verkosta.

For details of products, please contact your nearest Yamaha

representative or the authorized distributor listed below.

Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou

au distributeur le plus proche de vous ﬁgurant dans la liste suivante.

Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten

Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen

Bestimmungsländern erhältlich.

Para detalles sobre productos, contacte su tienda Yamaha más cercana

o el distribuidor autorizado que se lista debajo.

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Scarborough, Ontario,

M1S 3R1, Canada

Tel: 416-298-1311

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Ave., Buena Park, Calif. 90620,

U.S.A.

Tel: 714-522-9011

MEXICO

Yamaha de México S.A. de C.V.

Calz. Javier Rojo Gómez #1149,

Col. Guadalupe del Moral

C.P. 09300, México, D.F., México

Tel: 55-5804-0600

BRAZIL

Yamaha Musical do Brasil Ltda.

Rua Joaquim Floriano, 913 - 4' andar, Itaim Bibi,

CEP 04534-013 Sao Paulo, SP. BRAZIL

Tel: 011-3704-1377

ARGENTINA

Yamaha Music Latin America, S.A.

Sucursal de Argentina

Viamonte 1145 Piso2-B 1053,

Buenos Aires, Argentina

Tel: 1-4371-7021

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Torre Banco General, Piso 7, Urbanización Marbella,

Calle 47 y Aquilino de la Guardia,

Ciudad de Panamá, Panamá

Tel: +507-269-5311

THE UNITED KINGDOM

Yamaha-Kemble Music (U.K.) Ltd.

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, England

Tel: 01908-366700

IRELAND

Danfay Ltd.

61D, Sallynoggin Road, Dun Laoghaire, Co. Dublin

Tel: 01-2859177

GERMANY

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: 04101-3030

SWITZERLAND/LIECHTENSTEIN

Yamaha Music Central Europe GmbH,

Branch Switzerland

Seefeldstrasse 94, 8008 Zürich, Switzerland

Tel: 01-383 3990

AUSTRIA

Yamaha Music Central Europe GmbH,

Branch Austria

Schleiergasse 20, A-1100 Wien, Austria

Tel: 01-60203900

CZECH REPUBLIC/SLOVAKIA/

HUNGARY/SLOVENIA

Yamaha Music Central Europe GmbH,

Branch Austria, CEE Department

Schleiergasse 20, A-1100 Wien, Austria

Tel: 01-602039025

POLAND

Yamaha Music Central Europe GmbH

Sp.z. o.o. Oddzial w Polsce

ul. 17 Stycznia 56, PL-02-146 Warszawa, Poland

Tel: 022-868-07-57

THE NETHERLANDS/

BELGIUM/LUXEMBOURG

Yamaha Music Central Europe GmbH,

Branch Benelux

Clarissenhof 5-b, 4133 AB Vianen, The Netherlands

Tel: 0347-358 040

FRANCE

Yamaha Musique France

BP 70-77312 Marne-la-Vallée Cedex 2, France

Tel: 01-64-61-4000

ITALY

Yamaha Musica Italia S.P.A.

Viale Italia 88, 20020 Lainate (Milano), Italy

Tel: 02-935-771

SPAIN/PORTUGAL

Yamaha-Hazen Música, S.A.

Ctra. de la Coruna km. 17, 200, 28230

Las Rozas (Madrid), Spain

Tel: 91-639-8888

GREECE

Philippos Nakas S.A. The Music House

147 Skiathou Street, 112-55 Athens, Greece

Tel: 01-228 2160

SWEDEN

Yamaha Scandinavia AB

J. A. Wettergrens Gata 1

Box 30053

S-400 43 Göteborg, Sweden

Tel: 031 89 34 00

DENMARK

YS Copenhagen Liaison Ofﬁce

Generatorvej 6A

DK-2730 Herlev, Denmark

Tel: 44 92 49 00

FINLAND

F-Musiikki Oy

Kluuvikatu 6, P.O. Box 260,

SF-00101 Helsinki, Finland

Tel: 09 618511

NORWAY

Norsk ﬁlial av Yamaha Scandinavia AB

Grini Næringspark 1

N-1345 Østerås, Norway

Tel: 67 16 77 70

ICELAND

Skifan HF

Skeifan 17 P.O. Box 8120

IS-128 Reykjavik, Iceland

Tel: 525 5000

OTHER EUROPEAN COUNTRIES

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: +49-4101-3030

Yamaha Corporation,

Asia-Paciﬁc Music Marketing Group

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650

Tel: +81-53-460-2312

TURKEY/CYPRUS

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: 04101-3030

OTHER COUNTRIES

Yamaha Music Gulf FZE

LOB 16-513, P.O.Box 17328, Jubel Ali,

Dubai, United Arab Emirates

Tel: +971-4-881-5868

THE PEOPLE’S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co.,Ltd.

25/F., United Plaza, 1468 Nanjing Road (West),

Jingan, Shanghai, China

Tel: 021-6247-2211

HONG KONG

Tom Lee Music Co., Ltd.

11/F., Silvercord Tower 1, 30 Canton Road,

Tsimshatsui, Kowloon, Hong Kong

Tel: 2737-7688

INDONESIA

PT. Yamaha Music Indonesia (Distributor)

PT. Nusantik

Gedung Yamaha Music Center, Jalan Jend. Gatot

Subroto Kav. 4, Jakarta 12930, Indonesia

Tel: 21-520-2577
