Outputs (SPEAKER OUT)
Output Power
20msec Burst
(THD+N=1%)
AMP MODE = 3Ω 100W x 2ch
AMP MODE = 4Ω 120W x 2ch
AMP MODE = 8Ω 100W x 2ch
AMP MODE = 70V/120W 120W x 2ch
AMP MODE = 100V/120W 120W x 2ch
AMP MODE = 70V/200W 200W x 1ch
AMP MODE = 100V/200W 200W x 1ch
Terminal 7.62mm BARRIER STRIP 4pin
Outputs (THRU OUT)
THRU OUT
Actual source impedance 600Ω
For use with nominal 10kΩ lines
Output Level Nominal -10dBV (316mV)
Terminal MONO RCA PIN x2, Unbalanced
Inputs
LINE IN
Input Level
(INPUT A-B, Euro,
balanced)
Sensitivity +4dBu (1.23V)
Nominal +4dBu (1.23V)
Max before clip +24dBu (12.3V)
Input Level
(INPUT A-B, RCA,
unbalanced)
Sensitivity -10dBV (316mV)
Nominal -10dBV (316mV)
Max before clip +10dBV (3.16V)
Terminal
INPUT A-B 3.5mm Euro Block 6pin x1
balanced
INPUT A-B MONO RCA PIN x2
unbalanced
General Specications
Precautions for rack mounting Rack mountable (Leave more than 1U of
spaces between this unit and others.)
Operating temperature 0°C to +40°C
Storage temperature -20°C to +60°C
Dimensions (W x H x D, not including knob) 480 x 44 x 351 mm
(18.90 x 1.73 x 13.82 inch)
Net Weight 4.8kg
Included Accessories AC power cord (2.0m) x1,
3.5mm Euroblock plug (6pin) x1,
3.5mm Euroblock plug (3pin) x1,
Owner’s Manual x1,
Specification sheet x1
Optional accessories Digital Control Panel
(DCP1V4S-US/EU, DCP4V4S-US/EU,
DCP4S-US/EU)
Electrical Characteristics
Amplier type
(Output circuitry) Class D
THD+N LINE IN to SPEAKER OUT,
Half power@1kHz
AMP MODE = 3Ω, 4Ω, 8Ω
≤ 0.2%
LINE IN to SPEAKER OUT,
Half power@1kHz
AMP MODE = 70V, 100V/120W
≤ 0.2%
LINE IN to SPEAKER OUT,
Half power@1kHz
AMP MODE = 70V, 100V/200W
≤ 0.2%
Frequency Response LINE IN to SPEAKER OUT,
50Hz to 20kHz@1W
AMP MODE = 3Ω, 4Ω, 8Ω
0dB, -3.0dB, +1.0dB
LINE IN to SPEAKER OUT,
90Hz to 20kHz@1W
AMP MODE = 70V, 100V/120W
0dB, -3.0dB, +1.0dB
LINE IN to SPEAKER OUT,
90Hz to 20kHz@1W
AMP MODE = 70V, 100V/200W
0dB, -3.0dB, +1.0dB
LINE to THRU OUT,
20Hz-20kHz 0dB, -2.5dB, +1.0dB
Load Protection POWER/STANDBY SW on/off Mute the output
Output Voltage Protection Compress output voltage when needed
DC-fault Power Supply shutdown
Amplier Protection Thermal Limit output " Mute " Shutdown
Over current Mute the output (with automatic restoration)
Integrated Power Limit Compress output
Power Supply
Protection
Thermal Power supply shutdown
Over voltage Power supply shutdown
Over current Limit power " Power supply shutdown
Cooling Conventional cooling, bottom to up airflow
Controls Front Panel POWER/STANDBY SW,
OUTPUT volume x 2,
BASS EQ volume x 2,
TREBLE EQ volume x 2
Rear Panel SETUP DIP SW x1,
SPEAKER A/B DIP SW x2,
MODE SW x1
Connectors Analog In (MIC/LINE) —
Analog In (LINE) 3.5mm Euro Block 6pin x1 (Rear),
MONO RCA PIN x2 (Rear)
Analog Out MONO RCA PIN x2 (Rear/THRU OUT)
Speakers 7.62mm BARRIER STRIP 4pin x1 (Rear)
Remote RJ45 x1 (Rear/DCP),
3.5mm Euro Block 3pin x1 (Rear/REMOTE)
Indicators POWER x1 (Green/Orange),
OUTPUT SIGNAL x2 (Green),
OUTPUT LIMIT x2 (Red)
AC Power Requirement 100V, 120V, 230V-240V 50Hz/60Hz (*1)
*1 It has confirmed that it is working with
±10% of the voltage of the rated supply
voltage.
Power Consumption Standby, default setting
AMP MODE = All ≤ 1W
Idle
AMP MODE = 3Ω, 4Ω, 8Ω 15W
Idle
AMP MODE = 70V, 100V 20W
1/8 Output, Pink noise
AMP MODE = 4Ω 60W
1/8 Output, Pink noise
AMP MODE = 70V/120W 60W
ENERGY STAR • It automatically enters into standby mode
when no input signal is detected for 25
minutes in order to save power while not
in use.
• Amplifier efficiency: 44% and more.
• Less than 1W in standby.

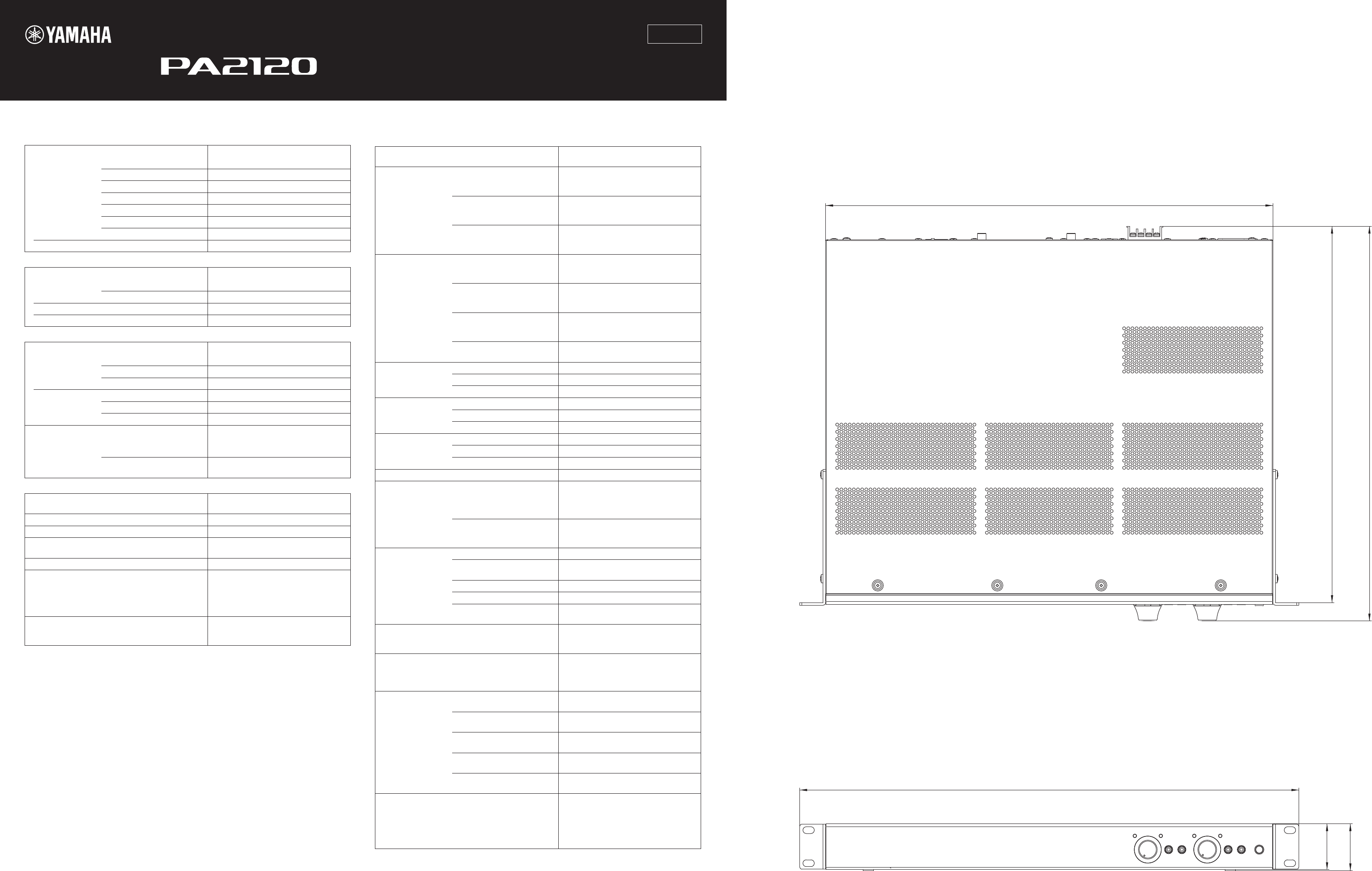

Specifications
POWER AMPLIFIER
Technical Specifications
ZT16470
Dimensions
45.1
480
44
379.4
430
(unit: mm)
361.8
Current Draw
1/8 power is typical of program material with occasional clipping. Refer to these figures for most applications.
1/3 power represents program material with extremely heavy clipping
Test signal: Pink Noise, bandwidth limited from 22Hz to 22kHz
1W = 0.860kcal/h, 1BTU = 0.252kcal
Note that Line Voltage [V] x Line Current [A] = [VA], not equals to [W]
230V/50Hz Line Current (A) Watt (W) Thermal Dissipation
230V In Out Dissipated Btu/h kcal/h
Sleep 0.10 0.8 0.0 0.8 2.7 0.7
Idle
AMP-MODE: 3Ω/4Ω/8Ω 0.18 13 0.0 13 46 11
AMP-MODE: 120W-70V/100V 0.23 19 0.0 19 64 16
AMP-MODE: 200W-70V/100V 0.19 14 0.0 14 49 12
1/8 output power
AMP-MODE: 3Ω 0.51 47 22 25 86 22
AMP-MODE: 4Ω 0.53 50 25 25 86 22
AMP-MODE: 8Ω 0.49 45 23 22 75 19
AMP-MODE: 120W-70V 0.51 48 25 23 79 20
AMP-MODE: 120W-100V 0.51 48 25 23 79 20
AMP-MODE: 200W-70V 0.46 42 22 20 69 17
AMP-MODE: 200W-100V 0.45 41 23 18 62 16
1/3 output power
AMP-MODE: 3Ω 0.96 99 59 40 137 35
AMP-MODE: 4Ω 1.04 108 66 42 144 36
AMP-MODE: 8Ω 0.93 95 61 34 117 29
AMP-MODE: 120W-70V 0.95 98 65 33 113 29
AMP-MODE: 120W-100V 0.96 99 67 32 110 28
AMP-MODE: 200W-70V 0.87 88 58 30 103 26
AMP-MODE: 200W-100V 0.86 87 60 27 93 23
120V/60Hz Line Current (A) Watt (W) Thermal Dissipation
120V In Out Dissipated Btu/h kcal/h
Sleep 0.06 0.6 0.0 0.6 2.1 0.5
Idle
AMP-MODE: 3Ω/4Ω/8Ω 0.23 12 0.0 12 41 10
AMP-MODE: 120W-70V/100V 0.33 18 0.0 18 60 15
AMP-MODE: 200W-70V/100V 0.25 13 0.0 13 44 11
1/8 output power
AMP-MODE: 3Ω 0.82 47 22 25 86 22
AMP-MODE: 4Ω 0.86 50 25 25 86 22
AMP-MODE: 8Ω 0.78 45 23 22 75 19
AMP-MODE: 120W-70V 0.82 47 25 22 75 19
AMP-MODE: 120W-100V 0.82 48 25 23 79 20
AMP-MODE: 200W-70V 0.73 41 22 19 65 16
AMP-MODE: 200W-100V 0.72 41 23 18 62 16
1/3 output power
AMP-MODE: 3Ω 1.57 100 59 41 141 35
AMP-MODE: 4Ω 1.69 110 66 44 151 38
AMP-MODE: 8Ω 1.52 96 61 35 120 30
AMP-MODE: 120W-70V 1.56 99 65 34 117 29
AMP-MODE: 120W-100V 1.57 100 67 33 113 29
AMP-MODE: 200W-70V 1.41 88 58 30 103 26
AMP-MODE: 200W-100V 1.40 87 60 27 93 23
100V/50Hz Line Current (A) Watt (W) Thermal Dissipation
100V In Out Dissipated Btu/h kcal/h
Sleep 0.04 0.6 0.0 0.6 2.1 0.5
Idle
AMP-MODE: 3Ω/4Ω/8Ω 0.26 12 0.0 12 41 10
AMP-MODE: 120W-70V/100V 0.37 17 0.0 17 60 15
AMP-MODE: 200W-70V/100V 0.28 13 0.0 13 44 11
1/8 output power
AMP-MODE: 3Ω 0.93 47 22 25 86 22
AMP-MODE: 4Ω 0.99 50 25 25 86 22
AMP-MODE: 8Ω 0.89 45 23 22 75 19
AMP-MODE: 120W-70V 0.95 48 25 23 79 20
AMP-MODE: 120W-100V 0.95 48 25 23 79 20
AMP-MODE: 200W-70V 0.84 42 22 20 69 17
AMP-MODE: 200W-100V 0.82 41 23 18 62 16
1/3 output power
AMP-MODE: 3Ω 1.80 101 59 42 144 36
AMP-MODE: 4Ω 1.95 111 66 45 154 39
AMP-MODE: 8Ω 1.74 97 61 36 123 31
AMP-MODE: 120W-70V 1.78 100 65 35 120 30
AMP-MODE: 120W-100V 1.80 101 67 34 117 29
AMP-MODE: 200W-70V 1.62 89 58 31 106 27
AMP-MODE: 200W-100V 1.60 88 60 28 96 24
* The contents of this manual apply to the latest specifications as of the printing date. Since Yamaha makes
continuous improvements to the product, this manual may not apply to the specifications of your particular
product. To obtain the latest manual, access the Yamaha website then download the manual file. Since
specifications, equipment or separately sold accessories may not be the same in every locale, please check
with your Yamaha dealer.
* Der Inhalt dieser Bedienungsanleitung gilt für die neuesten Technischen Daten zum Zeitpunkt der Drucklegung.
Da Yamaha fortwährend Produktverbesserungen vornimmt, gilt diese Anleitung unter Umständen nicht für Ihr
spezifisches Produkt. Um die neueste Version der Anleitung zu erhalten, rufen Sie die Yamaha-Website auf
und laden Sie dann die Bedienungsanleitungs-Datei herunter. Da die Technischen Daten, das Gerät selbst oder
gesondert erhältliches Zubehör nicht in jedem Land gleich sind, setzen Sie sich im Zweifel bitte mit Ihrem
Yamaha-Händler in Verbindung.
* Le contenu de ce mode d’emploi s’applique aux dernières spécifications connues à la date d’impression du
manuel. Compte tenu des améliorations continues apportées par Yamaha à ce produit, le présent manuel peut
ne pas s’appliquer aux spécifications du produit que vous utilisez actuellement. Pour obtenir la version la plus
récente du manuel, accédez au site Web de Yamaha puis téléchargez le fichier du manuel concerné. Étant donné
que les caractéristiques techniques, les équipements et les accessoires vendus séparément varient d’un pays à
l’autre, adressez-vous pour cela à votre distributeur Yamaha.
* El contenido de este manual es aplicable a las últimas especificaciones en la fecha de impresión. Dado
que Yamaha realiza mejoras continuas en el producto, es posible que este manual no sea aplicable a las
especificaciones de su producto en particular. Para obtener el último manual, acceda al sitio web de Yamaha y
descargue el archivo del manual. Puesto que las especificaciones, los equipos o los accesorios que se vendan
aparte podrían no ser iguales en todos los sitios, consulte al distribuidor de Yamaha.
* Il contenuto del presente manuale si applica alle ultime specifiche a partire dalla data di stampa. Dato che i
prodotti Yamaha sono soggetti a continui miglioramenti, questo manuale potrebbe non essere valido per le
specifiche del prodotto in proprio possesso. Per ottenere la versione più recente del manuale, accedere al sito
Web Yamaha e scaricare il file corrispondente. Dal momento che le specifiche, le apparecchiature e gli
accessori venduti separatamente potrebbero variare a seconda del paese in cui viene distribuito il prodotto,
verificarle con il rivenditore Yamaha.
*
В содержании данного руководства приведены последние на момент публикации технические характеристики.
Поскольку Yamaha постоянно совершенствует свою продукцию, приведенные в данном руководстве технические
характеристики могут не совпадать с техническими характеристикам конкретного устройства. Для получения
последней версии руководства посетите веб-сайт корпорации Yamaha и загрузите файл с руководством. Так как
технические характеристики, оборудование и отдельно продаваемые принадлежности могут различаться в
разных странах, обратитесь за информацией к представителю корпорации Yamaha в своем регионе.
* 本使用说明书的内容为印刷时最新的技术规格。请至Yamaha网站下载最新版
本的使用说明书。
*仕様および外観は、改良のため予告なく変更することがあります。取扱説明書の最
新版につきましては、ヤマハウェブサイトからダウンロードできます。
Manual Development Department
© 2016 Yamaha Corporation
Published 02/2016 KSHD-A0
Printed in China

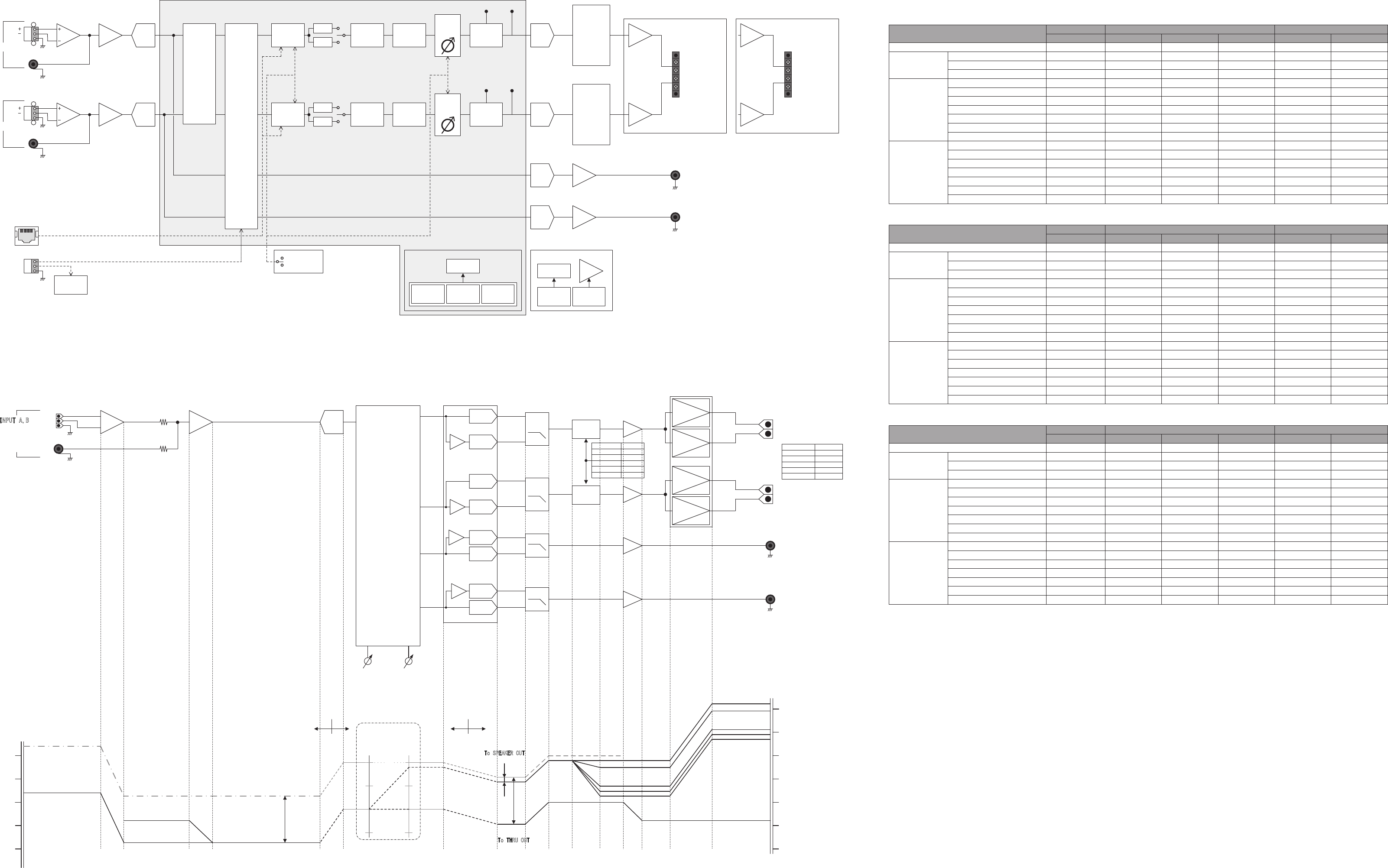

Block Diagram
HA ADC
GSUM
HA
INPUT B
ADC
GSUM
MONO
STEREO
PARALLEL
MUTE
DCP
VOLUME
80Hz OUTPUT
EQ
SPEAKER
EQ
40Hz
Lo-Z
Hi-Z
HPF
TREBLE
BASS
OFF
HPF150Hz
LPF 150Hz
LPF 200Hz
SURFACE
CEILING
VXS10S(T)
LIMITER
LIMIT SIGNAL
DAC
OUTPUT
FORMAT
SELECTION
100V
70V
8Ω
4Ω
3Ω
AMP
DCP
VOLUME
80Hz OUTPUT
EQ
SPEAKER
EQ
40Hz
Lo-Z
Hi-Z
HPF
TREBLE
BASS
LIMITER
LIMIT SIGNAL
DAC
OUTPUT
FORMAT
SELECTION
100V
70V
8Ω
4Ω
3Ω
AMP
SPEAKERS
A
B
BA
DAC
THRU OUT
A
BA
DAC
THRU OUT
B
INPUT A
AMP
AMP
SPEAKERS
A
B: No output
ENABLE
ELBASIDELBANE
ENABLE
[ AMP MODE ]
120W/100V
120W/70V
100W/8Ω
120W/4Ω
100W/3Ω
[ AMP MODE ]
200W/100V
200W/70V
OFF
HPF150Hz
LPF 150Hz
LPF 200Hz
SURFACE
CEILING
VXS10S(T)
DCP
REMOTE
STANDBY
LOGIC
LIMITER
TEMP OUTPUT
VOLTAGE
INTEGRAL
OUTPUT
POWER DC-FAULT OUTPUT
CURRENT
AMP PROTECTION LOGIC
POWER
SUPPLY
AMP PROTECTION HARDWARE
DSP PROCESS
AMP
OUTPUT
VOLUME
B
OUTPUT
VOLUME
A
ON
OFF
A-B
VOLUME
LINK
Level Diagram
-10dBu
LPF
INV
GAIN:+9.2dB
GAIN:0dB
GAIN:+24.3dB
+
SPEAKER OUT
A
LPF
GAIN:+9.2dB
INV
GAIN:0dB
＋
－
GAIN:+9.2dB
INV
GAIN:-7.7dB
DAC
OUT
LPF
GAIN:+9.2dB
INV
inverted
phase
inverted
phase
inverted
phase
inverted
phase
-
+
-
DAC
OUT
DAC
OUT
DAC
OUT
DAC
OUT
DAC
OUT
DAC
OUT
DAC
OUT
LPF
+
-
+
-
Normal
Phase
Normal
Phase
Normal
Phase
Normal
Phase
Normal
Phase
Inverted
Phase
Inverted
Phase
Normal
Phase
Normal
Phase
Inverted
Phase
Normal
Phase
Inverted
Phase
Normal
Phase
INV
INV
INV
INV
DSP
AMP Mode
100V
ATT
0dB
70V -3.0dB
8Ω -11.0dB
4Ω -13.2dB
3Ω -15.2dB
Inverted
Phase
GAIN:-7.7dB
P-AMP
(normal)
P-AMP
(inverted)
Inverted
Phase
P-AMP
(normal)
P-AMP
(inverted)
＋
－
SPEAKER OUT
B
Normal
Phase
Normal
Phase
Normal
Phase
Inverted
Phase
Inverted
Phase
HA
+
-
+
-
G
INPUT A,B
Gain:-21.3dB EURO Gain:0dB
Inverted Phase
SUM
{Nomi.:+4dBu}
3.5mm EURO BLOCK 6pin
RCA(Mono)
OUTPUT VOLUME
B
THRU OUT　A
THRU OUT　B
Normal Phase
Inverted Phase
Inverted Phase
Normal Phase
Normal Phase
AnalogDigitalAnalog Digital
-20dBu
-10dBu
0dBu
+10dBu
+20dBu
Euro(+24dBu)
Euro(+4dBu)
RCA(-10dBV=-7.8dBu)
DSP
ADC 0dBFS
(+2.7dBu)
0
Digital
dBFS
-10
-20
0
-10
-20
Digital
dBFS
ATT
ATT
0dBu
+10dBu
+20dBu
+30dBu
+40dBu
ADC Nom.
(-17.3dBu)
OUTPUT VOLUME
A
RCA Gain:-9.5dB
-20dBu
THRU OUT(-10dBV=-7.8dBu)
100V (+42.2dBu)
70V (+39.2dBu)
8Ω (+31.2dBu)
3Ω (+27.0dBu)
4Ω (+29.0dBu)
(+17.9dBu)
(+2.7dBu)
(+4.7dBu)
(+6.9dBu)
(+14.9dBu)
(+19.9dBu)
To SPEAKER OUT
Head Room Margin: 2dB
DAC 0dBFS
(+10.7dBu)
(0dBFS)(0dBFS)
ADC
-30-30
Head Room Margin:
20dB
{Nomi.:
-10dBV=-7.8dBu}
(-0.1dBu)
(-9.3dBu)
Head Room Margin:20dB
To THRU OUT
(+8.7dBu)
Nominal level
Non clip level
AMP Mode
100V
OUTPUT
42.2dBu
70V 39.2dBu
8Ω 31.2dBu
4Ω 29.0dBu
3Ω 27.0dBu
{Nomi.:-10dBV=-7.8dBu}

Navigation menu
