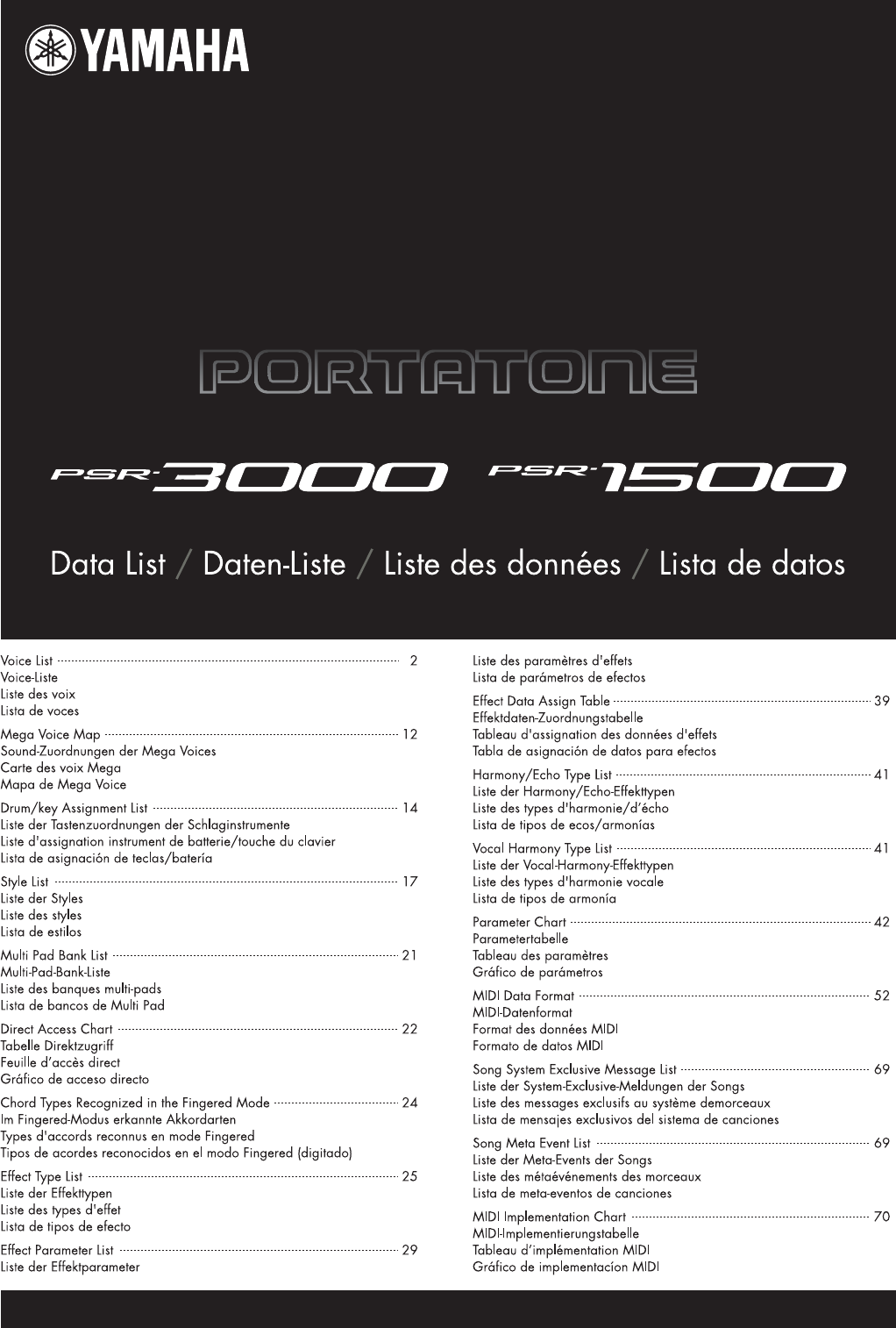

User Manual: Yamaha PSR-3000/PSR-1500 Data List

Open the PDF directly: View PDF .
Page Count: 72

PSR-3000/1500 Data List

2

Voice List / Voice-Liste / Liste des voix / Lista de voces

Category Voice Name Voice Number Voice Type

MSB LSB PRG

Piano GrandPiano 0 113 1 Live!

BrightPiano 0 112 2 Regular

Harpsichord 0 112 7 Regular

GrandHarpsi 0 113 7 Regular

HonkyTonk 0 112 4 Regular

WarmGrand 0 114 1 Live!

MidiGrand 0 112 3 Regular

Oct.Piano1 0 113 4 Regular

Oct.Piano2 0 114 4 Regular

CP80 0 113 3 Regular

E.Piano GalaxyEP 0 114 5 Cool!

SuitcaseEP 0 118 5 Cool!

PolarisEP 0 115 5 Regular

JazzChorus 0 118 6 Regular

HyperTines 0 113 6 Regular

E.Piano 0 119 5 Cool!

PhaseEP 0 120 5 Regular

NewTines 0 116 6 Regular

FunkEP 0 112 5 Regular

DX Modern 0 112 6 Regular

VintageEP 0 116 5 Regular

VenusEP 0 114 6 Regular

ModernEP 0 115 6 Regular

TremoloEP 0 113 5 Regular

SuperDX 0 117 6 Regular

StageEP 0 117 5 Regular

Clavi 0 112 8 Regular

WahClavi 0 113 8 Regular

Strings Strings 0 117 50 Live!

Allegro 0 122 50 Live!

Orchestra 0 116 50 Live!

Symphon.Str 0 114 49 Regular

Violin 0 113 41 Sweet!

Orch.Horns 0 118 50 Regular

Orch.Flute 0 119 50 Regular

Orch.Oboe 0 121 50 Regular

Tutti 0 120 50 Regular

Strings 0 112 49 Regular

OrchStrings 0 113 49 Regular

Str.Quartet 0 114 50 Regular

ConcertoStr 0 115 49 Regular

AnalogStrs 0 112 52 Regular

ChamberStrs 0 112 50 Regular

BowStrings 0 116 49 Regular

SlowStrings 0 113 50 Regular

TremoloStrs 0 112 45 Regular

MarcatoStrs 0 115 50 Regular

SynStrings1 0 112 51 Regular

SynStrings2 0 113 51 Regular

PizzStrings 0 112 46 Regular

Viola 0 112 42 Regular

Cello 0 112 43 Regular

Contrabass 0 112 44 Regular

Harp 0 112 47 Regular

Hackbrett 0 113 47 Regular

Fiddle 0 112 111 Regular

Banjo 0 112 106 Regular

Sitar 0 112 105 Regular

Koto 0 112 108 Regular

Shamisen 0 112 107 Regular

SoloViolin 0 112 41 Regular

Orch.Hit 0 112 56 Regular

Guitar&Bass NylonGuitar 0 116 25 Live!

JazzGuitar 0 115 27 Cool!

Elec.Gtr 0 114 29 Cool!

SteelGuitar 0 117 26 Live!

DynoSteel1 0 118 26 Live!

Mandolin 0 114 26 Sweet!

FunkGuitar 0 116 29 Cool!

Stratsphere 0 117 29 Cool!

Guitar&Bass VintageLead 0 125 28 Cool!

PowerLead 0 115 31 Cool!

BluesGuitar 0 117 30 Cool!

RockGuitar 0 116 30 Regular

VintageStrum 0 126 28 Regular

12StrGuitar 0 113 26 Live!

DynoSteel2 0 116 26 Live!

CleanGuitar 0 112 28 Cool!

VodooLead 0 116 31 Regular

PowerChord 0 117 31 Regular

CampfireGtr 0 115 26 Regular

SolidGuitar 0 118 28 Regular

VintageAmp 0 115 30 Regular

AlohaGtr 0 118 27 Regular

CrunchGtr 0 113 31 Regular

SmoothLead 0 119 27 Regular

60'sClean 0 117 28 Regular

ClassicGtr 0 115 25 Live!

VintageOpen 0 123 28 Regular

FolkGuitar 0 112 26 Regular

SolidChord 0 121 28 Regular

VintageMute 0 115 29 Regular

PedalSteel 0 115 28 Regular

LeadGuitar 0 114 30 Regular

ChorusGtr 0 124 28 Regular

VintageTrem 0 120 28 Regular

OctaveGtr 0 113 27 Regular

DeepChorus 0 114 28 Regular

TremoloGtr 0 113 28 Regular

HeavyStack 0 114 31 Regular

BrightClean 0 116 28 Regular

WahGuitar 0 122 28 Regular

Distortion 0 112 31 Regular

Elec.12Str 0 119 28 Regular

FeedbackGtr 0 113 30 Regular

18String 0 119 26 Regular

MutedGuitar 0 112 29 Regular

FunkGuitar 0 113 29 Regular

Overdrive 0 112 30 Regular

SteelGuitar 8 0 2 MegaVoice

HiStringGtr 8 0 3 MegaVoice

12StrGuitar 8 1 3 MegaVoice

CleanGuitar 8 0 4 MegaVoice

Overdrive 8 0 5 MegaVoice

Distortion 8 0 6 MegaVoice

FingerBass 0 114 34 Cool!

Aco.Bass 0 112 33 Regular

DynoPickBass 0 113 35 Cool!

Fretless 0 112 36 Cool!

SlapBass 0 112 37 Regular

SubBass 0 114 40 Regular

HardBass 0 114 39 Regular

ResoBass 0 112 39 Regular

RockBass 0 114 35 Regular

SuperFretles 0 113 36 Regular

PickBass 0 112 35 Regular

FusionBass 0 113 37 Regular

Bass&Cymbal 0 114 33 Regular

AnalogBass 0 112 40 Regular

DrySynBass 0 116 40 Regular

80'sSynBass 0 115 40 Regular

HiQBass 0 113 39 Regular

FunkBass 0 112 38 Regular

MellowFinger 0 112 34 Regular

ClickBass 0 115 39 Regular

Aco.Bass 8 0 17 MegaVoice

FingerBass 8 0 18 MegaVoice

PickBass 8 0 19 MegaVoice

Fretless 8 0 20 MegaVoice

Category Voice Name Voice Number Voice Type

MSB LSB PRG

PSR-3000

PSR-3000/1500 Data List 3

Voice List / Voice-Liste / Liste des voix / Lista de voces

Saxophone TenorSax 0 117 67 Sweet!

AltoSax 0 114 66 Sweet!

SopranoSax 0 113 65 Sweet!

GrowlSax 0 118 67 Regular

BaritoneSax 0 112 68 Regular

SaxSection 0 116 67 Live!

SopranoSax 0 112 65 Regular

TenorSax 0 112 67 Regular

AltoSax 0 112 66 Regular

SaxSection Soft 0 121 67 Live!

SaxSection Hard 0 122 67 Live!

Flute&Woodwind Flute 0 114 74 Sweet!

Clarinet 0 114 72 Sweet!

PanFlute 0 113 76 Sweet!

Oboe 0 113 69 Sweet!

EnglishHorn 0 112 70 Regular

Bassoon 0 112 71 Regular

Class.Flute 0 115 74 Regular

Piccolo 0 112 73 Regular

EthnicFlute 0 112 76 Regular

WoodwindEns 0 113 67 Regular

Shakuhachi 0 112 78 Regular

Clarinet 0 112 72 Regular

Flute 0 112 74 Regular

PanFlute 0 113 74 Regular

Oboe 0 112 69 Regular

Whistle 0 112 79 Regular

Recorder 0 112 75 Regular

Ocarina 0 112 80 Regular

Bagpipe 0 112 110 Regular

Organ Organ 0 118 19 Cool!

JazzOrgan 0 117 17 Cool!

RotorOrgan 0 117 19 Cool!

FullRocker 0 115 19 Cool!

StadiumOrg 0 118 17 Regular

RotaryDrive 0 116 19 Regular

RockOrgan1 0 112 19 Regular

DanceOrgan 0 113 18 Regular

GospelOrg 0 119 17 Regular

JazzOrgan1 0 112 17 Regular

PurpleOrg 0 114 19 Regular

Elec.Organ 0 118 18 Regular

DrawbarOrg 0 115 17 Regular

JazzOrgan2 0 113 17 Regular

RockOrgan2 0 113 19 Regular

ClickOrgan 0 112 18 Regular

MellowDraw 0 115 18 Regular

BrightDraw 0 116 17 Regular

60'sOrgan 0 116 18 Regular

JazzOrgan3 0 120 17 Regular

Tibia 16+4 0 114 17 Regular

Tibia Full 0 114 18 Regular

ChapelOrgn1 0 113 20 Regular

ChapelOrgn2 0 114 20 Regular

ChapelOrgn3 0 115 20 Regular

PipeOrgan 0 112 20 Regular

ReedOrgan 0 112 21 Regular

OrganFlutes JazzDraw! 0 126 17 Organ Flutes

BluesOrgan! 0 126 17 Organ Flutes

SixteenOne! 0 126 17 Organ Flutes

EvenBars! 0 126 17 Organ Flutes

PopOrgan! 0 126 17 Organ Flutes

RockingOrg! 0 126 17 Organ Flutes

Percussive! 0 126 17 Organ Flutes

GospelOrg! 0 126 17 Organ Flutes

PadOrgan! 0 126 17 Organ Flutes

FullRanks! 0 126 17 Organ Flutes

Trumpet Trumpet 0 115 57 Sweet!

Trombone 0 117 58 Sweet!

MutedTrump 0 114 60 Sweet!

Category Voice Name Voice Number Voice Type

MSB LSB PRG

Trumpet FlugelHorn 0 118 57 Sweet!

JazzTrumpet 0 116 57 Regular

SoloTrumpet 0 112 57 Regular

Trombone 0 116 58 Regular

SoloTromb 0 112 58 Regular

SoftTromb 0 115 58 Regular

MellowTromb 0 114 58 Regular

MutedTrump 0 112 60 Regular

BaritonHorn 0 113 59 Regular

BaritonHit 0 114 59 Regular

AlpBass 0 113 34 Regular

FlugelHorn 0 113 57 Regular

Tuba 0 112 59 Regular

Brass HyperBrass 0 118 63 Live!

PopBrass 0 117 63 Live!

OctaveBrass 0 116 63 Live!

FrenchHorns 0 112 61 Live!

BrassCombo 0 115 67 Regular

BrassSection 0 112 62 Regular

NaturalBrass 0 124 62 Regular

Sforzando 0 125 62 Regular

BigBrass 0 121 62 Regular

BallroomBrs 0 113 60 Regular

BrightBrass 0 120 62 Regular

MellowBrass 0 116 62 Regular

80'sBrass 0 113 63 Regular

SoftBrass 0 123 62 Regular

FullHorns 0 114 62 Regular

SmoothTromb 0 118 58 Regular

HighBrass 0 115 62 Regular

OberBrass 0 113 64 Regular

TrumpetEns 0 122 62 Regular

MellowHorns 0 119 62 Regular

BigBandBrs 0 113 62 Regular

PopBrass 0 118 62 Regular

AnalogBrs 0 112 64 Regular

Trb.Section 0 113 58 Regular

SmallBrass 0 117 62 Regular

SoftAnalog 0 114 64 Regular

FunkyAnalog 0 115 63 Regular

TechnoBrass 0 114 63 Regular

SynthBrass 0 112 63 Regular

Accodion&

Harmonica

Musette 0 112 22 Regular

TuttiAccrd 0 113 22 Regular

SmallAccrd 0 115 22 Regular

Accordion 0 116 22 Regular

TangoAccrd 0 112 24 Regular

Steirisch 0 117 22 Regular

Bandoneon 0 113 24 Regular

SoftAccrd 0 114 22 Regular

Harmonica 0 112 23 Sweet!

ModernHarp 0 113 23 Regular

BluesHarp 0 114 23 Regular

Choir&Pad Gospel 0 116 53 Live!

HahChoir 0 114 53 Regular

SweetHeaven 0 118 89 Regular

DreamHeaven 0 121 89 Regular

GothicVox 0 113 54 Regular

Choir 0 112 53 Regular

AirChoir 0 112 55 Regular

VoxHumana 0 112 54 Regular

Voices 0 113 55 Regular

Insomnia 0 113 95 Regular

Skydiver 0 112 102 Regular

NeoWarmPad 0 115 90 Regular

CyberPad 0 113 100 Regular

Wave2001 0 112 96 Regular

FarEast 0 112 98 Regular

Atmosphere 0 112 100 Regular

XenonPad 0 112 92 Regular

Category Voice Name Voice Number Voice Type

MSB LSB PRG

Voice List / Voice-Liste / Liste des voix / Lista de voces

PSR-3000/1500 Data List

4

Choir&Pad Equinox 0 112 95 Regular

GlassPad 0 114 94 Regular

Fantasia 0 112 89 Regular

DX Pad 0 112 93 Regular

Symbiont 0 113 89 Regular

Stargate 0 114 89 Regular

Area51 0 112 90 Regular

DarkMoon 0 113 90 Regular

Ionosphere 0 115 95 Regular

GoldenAge 0 115 89 Regular

Solaris 0 114 95 Regular

TimeTravel 0 116 89 Regular

Millennium 0 117 89 Regular

Dunes 0 114 90 Regular

Synth&FX Oxygen 0 122 82 Regular

Matrix 0 123 82 Regular

WireLead 0 120 82 Regular

HipLead 0 113 81 Regular

HopLead 0 117 81 Regular

FireWire 0 116 82 Regular

Analogon 0 115 82 Regular

Blaster 0 114 82 Regular

SFXKit1 126 0 1 SFX Kit

SFXKit2 126 0 2 SFX Kit

Skyline 0 115 85 Regular

SquareLead 0 112 81 Regular

Saw.Lead 0 112 82 Regular

TinyLead 0 118 81 Regular

FunkyLead 0 121 82 Regular

Paraglide 0 114 85 Regular

Fargo 0 119 82 Regular

Portatone 0 112 85 Regular

BigLead 0 113 82 Regular

Warp 0 117 82 Regular

Adrenaline 0 113 85 Regular

Stardust 0 112 99 Regular

AeroLead 0 112 84 Regular

MiniLead 0 114 81 Regular

Impact 0 113 88 Regular

SunBell 0 113 99 Regular

UnderHeim 0 112 88 Regular

HiBias 0 116 81 Regular

Vinylead 0 115 81 Regular

Perc&Drum Vibraphone 0 112 12 Regular

JazzVibes 0 113 12 Regular

Marimba 0 112 13 Regular

Xylophone 0 112 14 Regular

SteelDrums 0 112 115 Regular

Celesta 0 112 9 Regular

Glocken 0 112 10 Regular

MusicBox 0 112 11 Regular

TubularBell 0 112 15 Regular

Kalimba 0 112 109 Regular

Dulcimer 0 112 16 Regular

Timpani 0 112 48 Regular

StandardKit1 127 0 1 Drums

StandardKit2 127 0 2 Drums

JazzKit 127 0 33 Drums

BrushKit 127 0 41 Drums

HitKit 127 0 5 Drums

RoomKit 127 0 9 Drums

RockKit 127 0 17 Drums

ElectroKit 127 0 25 Drums

AnalogKit 127 0 26 Drums

DanceKit 127 0 28 Drums

SymphonyKit 127 0 49 Drums

CubanKit 126 0 41 SFX Kit

PopLatinKit 126 0 44 SFX Kit

ArabicKit 126 0 36 SFX Kit

StudioKit 127 0 87 Drums

Category Voice Name Voice Number Voice Type

MSB LSB PRG

PSR-3000/1500 Data List 5

Voice List / Voice-Liste / Liste des voix / Lista de voces

Category Voice Name Voice Number Voice Type

MSB LSB PRG

Piano GrandPiano 0 112 1 Regular

BrightPiano 0 112 2 Regular

Harpsichord 0 112 7 Regular

GrandHarpsi 0 113 7 Regular

HonkyTonk 0 112 4 Regular

RockPiano 0 114 3 Regular

MidiGrand 0 112 3 Regular

CP80 0 113 3 Regular

Oct.Piano1 0 113 4 Regular

Oct.Piano2 0 114 4 Regular

E.Piano GalaxyEP 0 114 5 Cool!

StageEP 0 117 5 Regular

PolarisEP 0 115 5 Regular

JazzChorus 0 118 6 Regular

HyperTines 0 113 6 Regular

E.Piano 0 119 5 Cool!

PhaseEP 0 120 5 Regular

NewTines 0 116 6 Regular

FunkEP 0 112 5 Regular

ModernEP 0 115 6 Regular

SuitcaseEP 0 118 5 Regular

DX Modern 0 112 6 Regular

VintageEP 0 116 5 Regular

VenusEP 0 114 6 Regular

TremoloEP 0 113 5 Regular

SuperDX 0 117 6 Regular

Clavi 0 112 8 Regular

WahClavi 0 113 8 Regular

Strings Orchestra 0 116 50 Live!

Strings 0 112 49 Regular

OrchStrings 0 113 49 Regular

Symphon.Str 0 114 49 Regular

SlowStrings 0 113 50 Regular

SoloViolin 0 112 41 Regular

AnalogStrs 0 112 52 Regular

Orch.Brass 0 118 50 Regular

Orch.Flute 0 119 50 Regular

Orch.Oboe 0 121 50 Regular

SoftViolin 0 113 41 Regular

Fiddle 0 112 111 Regular

Viola 0 112 42 Regular

Cello 0 112 43 Regular

Contrabass 0 112 44 Regular

ChamberStrs 0 112 50 Regular

Str.Quartet 0 114 50 Regular

ConcertoStr 0 115 49 Regular

BowStrings 0 116 49 Regular

MarcatoStrs 0 115 50 Regular

TremoloStrs 0 112 45 Regular

PizzStrings 0 112 46 Regular

SynStrings 0 112 51 Regular

TechStrings 0 113 51 Regular

Harp 0 112 47 Regular

Hackbrett 0 113 47 Regular

Banjo 0 112 106 Regular

Sitar 0 112 105 Regular

Koto 0 112 108 Regular

Shamisen 0 112 107 Regular

Orch.Hit 0 112 56 Regular

Guitar&Bass NylonGuitar 0 115 25 Regular

E.Guitar 0 114 29 Cool!

12StrGuitar 0 113 26 Regular

SolidGuitar 0 118 28 Regular

VintageAmp 0 115 30 Regular

PedalSteel 0 125 28 Regular

CrunchGtr 0 113 31 Regular

FunkGuitar 0 113 29 Regular

60'sClean 0 117 28 Regular

VintageOpen 0 123 28 Regular

FolkGuitar 0 112 26 Regular

SolidChord 0 121 28 Regular

VintageMute 0 115 29 Regular

LeadGuitar 0 114 30 Regular

ChorusGtr 0 124 28 Regular

VintageTrem 0 120 28 Regular

SpanishGtr 0 113 25 Regular

OctaveGtr 0 113 27 Regular

DeepChorus 0 114 28 Regular

CampfireGtr 0 115 26 Regular

SmoothNylon 0 114 25 Regular

TremoloGtr 0 113 28 Regular

HawaiianGtr 0 114 27 Regular

HeavyStack 0 114 31 Regular

Guitar&Bass BrightClean 0 116 28 Regular

WahGuitar 0 122 28 Regular

ClassicGtr 0 112 25 Regular

Distortion 0 112 31 Regular

Elec.12Str 0 119 28 Regular

Mandolin 0 114 26 Regular

CleanGuitar 0 112 28 Regular

FeedbackGtr 0 113 30 Regular

MutedGuitar 0 112 29 Regular

JazzGuitar 0 112 27 Regular

Overdrive 0 112 30 Regular

FolkGw_pick1 0 116 26 Regular

FolkGw_pick2 0 117 26 Regular

FolkGw_pick3 0 118 26 Regular

FingerBass 0 112 34 Regular

UprightBass 0 113 33 Regular

PickBass 0 112 35 Regular

SuperFretles 0 113 36 Regular

SlapBass 0 112 37 Regular

AnalogBass 0 112 40 Regular

DrySynBass 0 116 40 Regular

TouchBass 0 115 40 Regular

HiQBass 0 113 39 Regular

FunkBass 0 112 38 Regular

Aco.Bass 0 112 33 Regular

Fretless 0 112 36 Regular

Bass&Cymbal 0 114 33 Regular

FusionBass 0 113 37 Regular

RaveBass 0 114 39 Regular

DanceBass 0 113 40 Regular

SynthBass 0 112 39 Regular

SnapBass 0 114 40 Regular

ClickBass 0 115 39 Regular

Saxophone TenorSax 0 117 67 Sweet!

AltoSax 0 114 66 Sweet!

SopranoSax 0 113 65 Sweet!

GrowlSax 0 118 67 Regular

SaxSection 0 116 67 Regular

BaritoneSax 0 112 68 Regular

BreathTenor 0 114 67 Regular

BreathyAlto 0 113 66 Regular

SopranoSax 0 112 65 Regular

RockBari 0 113 68 Regular

TenorSax 0 112 67 Regular

AltoSax 0 112 66 Regular

Flute&Woodwind Flute 0 114 74 Sweet!

Clarinet 0 114 72 Sweet!

PanFlute 0 113 76 Sweet!

Oboe 0 112 69 Regular

EnglishHorn 0 112 70 Regular

Bassoon 0 112 71 Regular

Class.Flute 0 115 74 Regular

Piccolo 0 112 73 Regular

EthnicFlute 0 112 76 Regular

WoodwindEns 0 113 67 Regular

Shakuhachi 0 112 78 Regular

Clarinet 0 112 72 Regular

Flute 0 112 74 Regular

PanFlute 0 113 74 Regular

MelClarinet 0 113 72 Regular

Whistle 0 112 79 Regular

Recorder 0 112 75 Regular

Ocarina 0 112 80 Regular

Bagpipe 0 112 110 Regular

Organ RotorOrgan 0 117 19 Cool!

FullRocker 0 115 19 Cool!

RotaryDrive 0 116 19 Regular

RockOrgan1 0 112 19 Regular

DanceOrgan 0 113 18 Regular

GospelOrg 0 119 17 Regular

DrawbarOrg 0 115 17 Regular

JazzOrgan1 0 112 17 Regular

RockOrgan2 0 113 19 Regular

PurpleOrg 0 114 19 Regular

Elec.Organ 0 118 18 Regular

JazzOrgan2 0 113 17 Regular

ClickOrgan 0 112 18 Regular

MellowDraw 0 115 18 Regular

BrightDraw 0 116 17 Regular

60'sOrgan 0 116 18 Regular

JazzOrgan3 0 120 17 Regular

BluesOrgan 0 117 18 Regular

16+1Organ 0 121 17 Regular

Category Voice Name Voice Number Voice Type

MSB LSB PRG

PSR-1500

Voice List / Voice-Liste / Liste des voix / Lista de voces

PSR-3000/1500 Data List

6

Organ 16+2Organ 0 122 17 Regular

16+4Organ 0 123 17 Regular

TheatreOrg1 0 114 17 Regular

TheatreOrg2 0 114 18 Regular

ChapelOrgn1 0 113 20 Regular

ChapelOrgn2 0 114 20 Regular

ChapelOrgn3 0 115 20 Regular

PipeOrgan 0 112 20 Regular

ReedOrgan 0 112 21 Regular

OrganFlutes JazzDraw! 0 126 17 Organ Flutes

BluesOrgan! 0 126 17 Organ Flutes

SixteenOne! 0 126 17 Organ Flutes

EvenBars! 0 126 17 Organ Flutes

PopOrgan! 0 126 17 Organ Flutes

RockingOrg! 0 126 17 Organ Flutes

Percussive! 0 126 17 Organ Flutes

GospelOrg! 0 126 17 Organ Flutes

PadOrgan! 0 126 17 Organ Flutes

FullRanks! 0 126 17 Organ Flutes

Trumpet Trumpet 0 115 57 Sweet!

Trombone 0 117 58 Sweet!

MutedTrump 0 112 60 Regular

FlugelHorn 0 113 57 Regular

SoftTrumpet 0 114 57 Regular

SoloTrumpet 0 112 57 Regular

SoloTromb 0 112 58 Regular

JazzTrumpet 0 116 57 Regular

FrenchHorn 0 112 61 Regular

AirTrumpet 0 117 57 Regular

Trombone 0 116 58 Regular

SoftTromb 0 115 58 Regular

MellowTromb 0 114 58 Regular

SmoothTromb 0 118 58 Regular

Tuba 0 112 59 Regular

Brass BrassSection 0 112 62 Regular

MellowBrass 0 116 62 Regular

BigBandBrs 0 113 62 Regular

PopBrass 0 118 62 Regular

BrassCombo 0 115 67 Regular

BrightBrass 0 120 62 Regular

SoftBrass 0 123 62 Regular

FullHorns 0 114 62 Regular

HighBrass 0 115 62 Regular

TrumpetEns 0 122 62 Regular

MellowHorns 0 119 62 Regular

BallroomBrs 0 113 60 Regular

Trb.Section 0 113 58 Regular

SmallBrass 0 117 62 Regular

BrassHit 0 126 62 Regular

StepBrass 0 124 62 Regular

OberBrass 0 113 64 Regular

AnalogBrs 0 112 64 Regular

SoftAnalog 0 114 64 Regular

FunkyAnalog 0 115 63 Regular

TechnoBrass 0 114 63 Regular

SynthBrass 0 112 63 Regular

80'sBrass 0 113 63 Regular

Accodion&

Harmonica

Musette 0 112 22 Regular

TuttiAccrd 0 113 22 Regular

SmallAccrd 0 115 22 Regular

Accordion 0 116 22 Regular

TangoAccrd 0 112 24 Regular

Bandoneon 0 113 24 Regular

SoftAccrd 0 114 22 Regular

ModernHarp 0 113 23 Regular

BluesHarp 0 114 23 Regular

Harmonica 0 112 23 Regular

Choir&Pad HahChoir 0 114 53 Regular

GothicVox 0 113 54 Regular

VocalEnsbl 0 113 53 Regular

VoxHumana 0 112 54 Regular

Choir 0 112 53 Regular

AirChoir 0 112 55 Regular

SweetHeaven 0 118 89 Regular

CyberPad 0 113 100 Regular

Fantasia 0 112 89 Regular

Insomnia 0 113 95 Regular

Wave2001 0 112 96 Regular

Atmosphere 0 112 100 Regular

NeoWarmPad 0 115 90 Regular

XenonPad 0 112 92 Regular

Equinox 0 112 95 Regular

DX Pad 0 112 93 Regular

Category Voice Name Voice Number Voice Type

MSB LSB PRG

Choir&Pad Symbiont 0 113 89 Regular

Stargate 0 114 89 Regular

Area51 0 112 90 Regular

DarkMoon 0 113 90 Regular

Ionosphere 0 115 95 Regular

GoldenAge 0 115 89 Regular

Solaris 0 114 95 Regular

Millennium 0 117 89 Regular

Transform 0 113 96 Regular

Dunes 0 114 90 Regular

Synth&FX Oxygen 0 122 82 Regular

Matrix 0 123 82 Regular

WireLead 0 120 82 Regular

HipLead 0 113 81 Regular

SquareLead 0 112 81 Regular

Saw.Lead 0 112 82 Regular

FireWire 0 116 82 Regular

Analogon 0 115 82 Regular

SFXKit1 126 0 1 SFX Kit

SFXKit2 126 0 2 SFX Kit

FunkyLead 0 121 82 Regular

Fargo 0 119 82 Regular

Portatone 0 112 85 Regular

Blaster 0 114 82 Regular

BigLead 0 113 82 Regular

Warp 0 117 82 Regular

Adrenaline 0 113 85 Regular

TinyLead 0 118 81 Regular

Stardust 0 112 99 Regular

AeroLead 0 112 84 Regular

MiniLead 0 114 81 Regular

SynthFlute 0 119 81 Regular

SubAqua 0 118 82 Regular

SunBell 0 113 99 Regular

UnderHeim 0 112 88 Regular

HiBias 0 116 81 Regular

Vinylead 0 115 81 Regular

Skyline 0 115 85 Regular

Perc&Drum Vibraphone 0 112 12 Regular

JazzVibes 0 113 12 Regular

Marimba 0 112 13 Regular

Xylophone 0 112 14 Regular

SteelDrums 0 112 115 Regular

Celesta 0 112 9 Regular

Glocken 0 112 10 Regular

MusicBox 0 112 11 Regular

TubularBell 0 112 15 Regular

Kalimba 0 112 109 Regular

Dulcimer 0 112 16 Regular

Timpani 0 112 48 Regular

StandardKit1 127 0 1 Drums

StandardKit2 127 0 2 Drums

RoomKit 127 0 9 Drums

RockKit 127 0 17 Drums

ElectroKit 127 0 25 Drums

AnalogKit 127 0 26 Drums

DanceKit 127 0 28 Drums

JazzKit 127 0 33 Drums

BrushKit 127 0 41 Drums

SymphonyKit 127 0 49 Drums

ArabicKit 126 0 36 SFX Kit

HitKit 127 0 5 Drums

Category Voice Name Voice Number Voice Type

MSB LSB PRG

PSR-3000/1500 Data List 7

Voice List / Voice-Liste / Liste des voix / Lista de voces

Category Voice Name Voice Number Voice Type

MSB LSB PRG

Piano GrandPiano 0 0 1 Regular

GrndPianoKSP 0 1 1 Regular

MellowGrPno 0 18 1 Regular

PianoStrings 0 40 1 Regular

Dream 0 41 1 Regular

BrightPiano 0 0 2 Regular

BritePnoKSP 0 1 2 Regular

ElecGrandPno 0 0 3 Regular

ElecGrPnoKSP 0 1 3 Regular

DetunedCP80 0 32 3 Regular

LayeredCP1 0 40 3 Regular

LayeredCP2 0 41 3 Regular

Honkytonk 0 0 4 Regular

HonkytonkKSP 0 1 4 Regular

El.Piano1 0 0 5 Regular

El.Piano1KSP 0 1 5 Regular

MellowEP1 0 18 5 Regular

ChorusEP1 0 32 5 Regular

HardEl.Piano 0 40 5 Regular

VXfadeEl.P1 0 45 5 Regular

60sEl.Piano1 0 64 5 Regular

El.Piano2 0 0 6 Regular

El.Piano2KSP 0 1 6 Regular

ChorusEP2 0 32 6 Regular

DXEPHard 0 33 6 Regular

DXLegend 0 34 6 Regular

DXPhaseEP 0 40 6 Regular

DX+AnalogEP 0 41 6 Regular

DXKotoEP 0 42 6 Regular

VXfadeEl.P2 0 45 6 Regular

Harpsichord 0 0 7 Regular

Harpsi.KSP 0 1 7 Regular

Harpsichord2 0 25 7 Regular

Harpsichord3 0 35 7 Regular

Clavi. 0 0 8 Regular

Clavi.KSP 0 1 8 Regular

Clavi.Wah 0 27 8 Regular

PulseClavi. 0 64 8 Regular

PierceClavi. 0 65 8 Regular

ChromaticPerc Celesta 0 0 9 Regular

Glockenspiel 0 0 10 Regular

MusicBox 0 0 11 Regular

Orgel 0 64 11 Regular

Vibraphone 0 0 12 Regular

VibesKSP 0 1 12 Regular

HardVibes 0 45 12 Regular

Marimba 0 0 13 Regular

MarimbaKSP 0 1 13 Regular

SineMarimba 0 64 13 Regular

Balimba 0 97 13 Regular

LogDrums 0 98 13 Regular

Xylophone 0 0 14 Regular

TubularBells 0 0 15 Regular

ChurchBells 0 96 15 Regular

Carillon 0 97 15 Regular

Dulcimer 0 0 16 Regular

Dulcimer2 0 35 16 Regular

Cimbalom 0 96 16 Regular

Santur 0 97 16 Regular

Organ DrawbarOrgan 0 0 17 Regular

DetDrawOrgan 0 32 17 Regular

60sDrawOrg1 0 33 17 Regular

60sDrawOrg2 0 34 17 Regular

70sDrawOrg1 0 35 17 Regular

DrawbarOrg2 0 36 17 Regular

60sDrawOrg3 0 37 17 Regular

EvenBarOrg 0 38 17 Regular

16+2'2_3Org 0 40 17 Regular

OrganBass 0 64 17 Regular

70sDrawOrg2 0 65 17 Regular

CheezyOrgan 0 66 17 Regular

DrawbarOrg3 0 67 17 Regular

Perc.Organ 0 0 18 Regular

70sPercOrg1 0 24 18 Regular

DetPercOrgan 0 32 18 Regular

LightOrgan 0 33 18 Regular

Perc.Organ2 0 37 18 Regular

RockOrgan 0 0 19 Regular

RotaryOrgan 0 64 19 Regular

SlowRotary 0 65 19 Regular

FastRotary 0 66 19 Regular

ChurchOrgan 0 0 20 Regular

ChurchOrgan3 0 32 20 Regular

Organ ChurchOrgan2 0 35 20 Regular

NotreDame 0 40 20 Regular

OrganFlute 0 64 20 Regular

Trem.OrganFl 0 65 20 Regular

ReedOrgan 0 0 21 Regular

PuffOrgan 0 40 21 Regular

Accordion 0 0 22 Regular

AccordIt 0 32 22 Regular

Harmonica 0 0 23 Regular

Harmonica2 0 32 23 Regular

TangoAccord 0 0 24 Regular

TangoAccord2 0 64 24 Regular

Guitar NylonGuitar 0 0 25 Regular

NylonGuitar2 0 16 25 Regular

NylonGuitar3 0 25 25 Regular

VelGtrHarmo 0 43 25 Regular

Ukulele 0 96 25 Regular

SteelGuitar 0 0 26 Regular

SteelGuitar2 0 16 26 Regular

12StrGuitar 0 35 26 Regular

Nylon&Steel 0 40 26 Regular

Steel&Body 0 41 26 Regular

Mandolin 0 96 26 Regular

JazzGuitar 0 0 27 Regular

MellowGuitar 0 18 27 Regular

JazzAmp 0 32 27 Regular

CleanGuitar 0 0 28 Regular

ChorusGuitar 0 32 28 Regular

MutedGuitar 0 0 29 Regular

FunkGuitar1 0 40 29 Regular

MuteSteelGtr 0 41 29 Regular

FunkGuitar2 0 43 29 Regular

JazzMan 0 45 29 Regular

Overdriven 0 0 30 Regular

GuitarPinch 0 43 30 Regular

Distortion 0 0 31 Regular

FeedbackGtr 0 40 31 Regular

FeedbackGtr2 0 41 31 Regular

GtrHarmonics 0 0 32 Regular

GtrFeedback 0 65 32 Regular

GtrHarmonic2 0 66 32 Regular

Bass AcousticBass 0 0 33 Regular

JazzRhythm 0 40 33 Regular

VXUprghtBass 0 45 33 Regular

FingerBass 0 0 34 Regular

FingerDark 0 18 34 Regular

FlangeBass 0 27 34 Regular

Bass&DistEG 0 40 34 Regular

FingerSlap 0 43 34 Regular

FingerBass2 0 45 34 Regular

Mod.Bass 0 65 34 Regular

PickBass 0 0 35 Regular

MutePickBass 0 28 35 Regular

FretlessBass 0 0 36 Regular

Fretless2 0 32 36 Regular

Fretless3 0 33 36 Regular

Fretless4 0 34 36 Regular

Syn.Fretless 0 96 36 Regular

SmthFretless 0 97 36 Regular

SlapBass1 0 0 37 Regular

ResonantSlap 0 27 37 Regular

PunchThumb 0 32 37 Regular

SlapBass2 0 0 38 Regular

Velo.Sw.Slap 0 43 38 Regular

SynthBass1 0 0 39 Regular

SynBass1Dark 0 18 39 Regular

FastResoBass 0 20 39 Regular

AcidBass 0 24 39 Regular

ClaviBass 0 35 39 Regular

TechnoBass 0 40 39 Regular

Orbiter 0 64 39 Regular

SquareBass 0 65 39 Regular

RubberBass 0 66 39 Regular

Hammer 0 96 39 Regular

SynthBass2 0 0 40 Regular

MellowSyBass 0 6 40 Regular

SequenceBass 0 12 40 Regular

ClickSynBass 0 18 40 Regular

SynBass2Dark 0 19 40 Regular

SmoothSyBass 0 32 40 Regular

ModulrSyBass 0 40 40 Regular

DXBass 0 41 40 Regular

XWireBass 0 64 40 Regular

Category Voice Name Voice Number Voice Type

MSB LSB PRG

GM & XG

Voice List / Voice-Liste / Liste des voix / Lista de voces

PSR-3000/1500 Data List

8

Strings Violin 0 0 41 Regular

SlwAtkViolin 0 8 41 Regular

Viola 0 0 42 Regular

Cello 0 0 43 Regular

Contrabass 0 0 44 Regular

Trem.Strings 0 0 45 Regular

SlwAtTremStr 0 8 45 Regular

SuspenseStr 0 40 45 Regular

PizzicatoStr 0 0 46 Regular

Orch.Harp 0 0 47 Regular

YangChin 0 40 47 Regular

Timpani 0 0 48 Regular

Ensemble Strings1 0 0 49 Regular

StereoStrngs 0 3 49 Regular

SlwAtkStrngs 0 8 49 Regular

ArcoStrings 0 24 49 Regular

60'sStrings 0 35 49 Regular

Orchestra 0 40 49 Regular

Orchestra2 0 41 49 Regular

TremOrchstra 0 42 49 Regular

Velo.Strings 0 45 49 Regular

Strings2 0 0 50 Regular

S.SlowStrngs 0 3 50 Regular

LegatoStrngs 0 8 50 Regular

WarmStrings 0 40 50 Regular

Kingdom 0 41 50 Regular

70'sStrings 0 64 50 Regular

Strings3 0 65 50 Regular

SynStrings1 0 0 51 Regular

ResoStrings 0 27 51 Regular

SynStrings4 0 64 51 Regular

SynStrings5 0 65 51 Regular

SynStrings2 0 0 52 Regular

ChoirAahs 0 0 53 Regular

StereoChoir 0 3 53 Regular

ChoirAahs2 0 16 53 Regular

MellowChoir 0 32 53 Regular

ChoirStrings 0 40 53 Regular

VoiceOohs 0 0 54 Regular

SynthVoice 0 0 55 Regular

SynthVoice2 0 40 55 Regular

Choral 0 41 55 Regular

AnalogVoice 0 64 55 Regular

OrchestraHit 0 0 56 Regular

OrchestrHit2 0 35 56 Regular

Impact 0 64 56 Regular

Brass Trumpet 0 0 57 Regular

Trumpet2 0 16 57 Regular

BriteTrumpet 0 17 57 Regular

WarmTrumpet 0 32 57 Regular

Trombone 0 0 58 Regular

Trombone2 0 18 58 Regular

Tuba 0 0 59 Regular

Tuba2 0 16 59 Regular

MutedTrumpet 0 0 60 Regular

FrenchHorn 0 0 61 Regular

Fr.HornSolo 0 6 61 Regular

FrenchHorn2 0 32 61 Regular

HornOrchestr 0 37 61 Regular

BrassSection 0 0 62 Regular

Tp&TbSection 0 35 62 Regular

BrassSect2 0 40 62 Regular

HighBrass 0 41 62 Regular

MellowBrass 0 42 62 Regular

SynthBrass1 0 0 63 Regular

QuackBrass 0 12 63 Regular

ResoSynBrass 0 20 63 Regular

PolyBrass 0 24 63 Regular

SynthBrass3 0 27 63 Regular

JumpBrass 0 32 63 Regular

AnaVelBrass1 0 45 63 Regular

AnalogBrass1 0 64 63 Regular

SynthBrass2 0 0 64 Regular

SoftBrass 0 18 64 Regular

SynthBrass4 0 40 64 Regular

ChoirBrass 0 41 64 Regular

AnaVelBrass2 0 45 64 Regular

AnalogBrass2 0 64 64 Regular

Reed SopranoSax 0 0 65 Regular

AltoSax 0 0 66 Regular

SaxSection 0 40 66 Regular

HyperAltoSax 0 43 66 Regular

TenorSax 0 0 67 Regular

Category Voice Name Voice Number Voice Type

MSB LSB PRG

Reed BreathyTenor 0 40 67 Regular

SoftTenorSax 0 41 67 Regular

TenorSax2 0 64 67 Regular

BaritoneSax 0 0 68 Regular

Oboe 0 0 69 Regular

EnglishHorn 0 0 70 Regular

Bassoon 0 0 71 Regular

Clarinet 0 0 72 Regular

Pipe Piccolo 0 0 73 Regular

Flute 0 0 74 Regular

Recorder 0 0 75 Regular

PanFlute 0 0 76 Regular

BlownBottle 0 0 77 Regular

Shakuhachi 0 0 78 Regular

Whistle 0 0 79 Regular

Ocarina 0 0 80 Regular

Synth.Lead SquareLead 0 0 81 Regular

SquareLead2 0 6 81 Regular

LMSquare 0 8 81 Regular

Hollow 0 18 81 Regular

Shroud 0 19 81 Regular

Mellow 0 64 81 Regular

SoloSine 0 65 81 Regular

SineLead 0 66 81 Regular

SawtoothLead 0 0 82 Regular

SawtoothLd2 0 6 82 Regular

ThickSaw 0 8 82 Regular

DynamicSaw 0 18 82 Regular

DigitalSaw 0 19 82 Regular

BigLead 0 20 82 Regular

HeavySynth 0 24 82 Regular

WaspySynth 0 25 82 Regular

PulseSaw 0 40 82 Regular

Dr.Lead 0 41 82 Regular

VelocityLead 0 45 82 Regular

Seq.Analog 0 96 82 Regular

CalliopeLead 0 0 83 Regular

PurePad 0 65 83 Regular

ChiffLead 0 0 84 Regular

Rubby 0 64 84 Regular

CharangLead 0 0 85 Regular

DistortedLd 0 64 85 Regular

WireLead 0 65 85 Regular

VoiceLead 0 0 86 Regular

SynthAahs 0 24 86 Regular

VoxLead 0 64 86 Regular

FifthsLead 0 0 87 Regular

BigFive 0 35 87 Regular

Bass&Lead 0 0 88 Regular

Big&Low 0 16 88 Regular

Fat&Perky 0 64 88 Regular

SoftWhirl 0 65 88 Regular

Synth.Pad NewAgePad 0 0 89 Regular

Fantasy 0 64 89 Regular

WarmPad 0 0 90 Regular

ThickPad 0 16 90 Regular

SoftPad 0 17 90 Regular

SinePad 0 18 90 Regular

HornPad 0 64 90 Regular

RotaryStrngs 0 65 90 Regular

PolySynthPad 0 0 91 Regular

PolyPad80 0 64 91 Regular

ClickPad 0 65 91 Regular

AnalogPad 0 66 91 Regular

SquarePad 0 67 91 Regular

ChoirPad 0 0 92 Regular

Heaven 0 64 92 Regular

Itopia 0 66 92 Regular

CCPad 0 67 92 Regular

BowedPad 0 0 93 Regular

Glacier 0 64 93 Regular

GlassPad 0 65 93 Regular

MetallicPad 0 0 94 Regular

TinePad 0 64 94 Regular

PanPad 0 65 94 Regular

HaloPad 0 0 95 Regular

SweepPad 0 0 96 Regular

Shwimmer 0 20 96 Regular

Converge 0 27 96 Regular

PolarPad 0 64 96 Regular

Celestial 0 66 96 Regular

Synth.Effect Rain 0 0 97 Regular

ClaviPad 0 45 97 Regular

Category Voice Name Voice Number Voice Type

MSB LSB PRG

PSR-3000/1500 Data List 9

Voice List / Voice-Liste / Liste des voix / Lista de voces

Synth.Effect HarmoRain 0 64 97 Regular

AfricanWind 0 65 97 Regular

Carib 0 66 97 Regular

SoundTrack 0 0 98 Regular

Prologue 0 27 98 Regular

Ancestral 0 64 98 Regular

Crystal 0 0 99 Regular

SynthDr.Comp 0 12 99 Regular

Popcorn 0 14 99 Regular

TinyBells 0 18 99 Regular

RoundGlocken 0 35 99 Regular

GlockenChime 0 40 99 Regular

ClearBells 0 41 99 Regular

ChorusBells 0 42 99 Regular

SynthMallet 0 64 99 Regular

SoftCrystal 0 65 99 Regular

LoudGlocken 0 66 99 Regular

ChristmasBel 0 67 99 Regular

VibeBells 0 68 99 Regular

DigitalBells 0 69 99 Regular

AirBells 0 70 99 Regular

BellHarp 0 71 99 Regular

Gamelimba 0 72 99 Regular

Atmosphere 0 0 100 Regular

WarmAtmos. 0 18 100 Regular

HollwRelease 0 19 100 Regular

NylonElPiano 0 40 100 Regular

NylonHarp 0 64 100 Regular

HarpVox 0 65 100 Regular

Atmos.Pad 0 66 100 Regular

Planet 0 67 100 Regular

Brightness 0 0 101 Regular

FantasyBells 0 64 101 Regular

Smokey 0 96 101 Regular

Goblins 0 0 102 Regular

GoblinsSynth 0 64 102 Regular

Creeper 0 65 102 Regular

RingPad 0 66 102 Regular

Ritual 0 67 102 Regular

ToHeaven 0 68 102 Regular

Night 0 70 102 Regular

Glisten 0 71 102 Regular

BellChoir 0 96 102 Regular

Echoes 0 0 103 Regular

Echoes2 0 8 103 Regular

EchoPan 0 14 103 Regular

EchoBells 0 64 103 Regular

BigPan 0 65 103 Regular

SynthPiano 0 66 103 Regular

Creation 0 67 103 Regular

StarDust 0 68 103 Regular

Reso&Panning 0 69 103 Regular

Sci-Fi 0 0 104 Regular

Starz 0 64 104 Regular

Ethnic Sitar 0 0 105 Regular

DetunedSitar 0 32 105 Regular

Sitar2 0 35 105 Regular

Tambra 0 96 105 Regular

Tamboura 0 97 105 Regular

Banjo 0 0 106 Regular

MutedBanjo 0 28 106 Regular

Rabab 0 96 106 Regular

Gopichant 0 97 106 Regular

Oud 0 98 106 Regular

Shamisen 0 0 107 Regular

Koto 0 0 108 Regular

Taisho-kin 0 96 108 Regular

Kanoon 0 97 108 Regular

Kalimba 0 0 109 Regular

Bagpipe 0 0 110 Regular

Fiddle 0 0 111 Regular

Shanai 0 0 112 Regular

Shanai2 0 64 112 Regular

Pungi 0 96 112 Regular

Hichiriki 0 97 112 Regular

Percussive TinkleBell 0 0 113 Regular

Bonang 0 96 113 Regular

Altair 0 97 113 Regular

GamelanGongs 0 98 113 Regular

StereoGamlan 0 99 113 Regular

RamaCymbal 0 100 113 Regular

AsianBells 0 101 113 Regular

Agogo 0 0 114 Regular

Category Voice Name Voice Number Voice Type

MSB LSB PRG

Percussive SteelDrums 0 0 115 Regular

GlassPerc. 0 97 115 Regular

ThaiBells 0 98 115 Regular

Woodblock 0 0 116 Regular

Castanets 0 96 116 Regular

TaikoDrum 0 0 117 Regular

GranCassa 0 96 117 Regular

MelodicTom 0 0 118 Regular

MelodicTom2 0 64 118 Regular

RealTom 0 65 118 Regular

RockTom 0 66 118 Regular

SynthDrum 0 0 119 Regular

AnalogTom 0 64 119 Regular

ElectroPerc. 0 65 119 Regular

Rev.Cymbal 0 0 120 Regular

SoundEffect GtrFretNoise 0 0 121 Regular

BreathNoise 0 0 122 Regular

Seashore 0 0 123 Regular

BirdTweet 0 0 124 Regular

TelephonRing 0 0 125 Regular

Helicopter 0 0 126 Regular

Applause 0 0 127 Regular

Gunshot 0 0 128 Regular

CuttingNoise 64 0 1 Regular

CuttingNoiz2 64 0 2 Regular

StringSlap 64 0 4 Regular

Fl.KeyClick 64 0 17 Regular

Shower 64 0 33 Regular

Thunder 64 0 34 Regular

Wind 64 0 35 Regular

Stream 64 0 36 Regular

Bubble 64 0 37 Regular

Feed 64 0 38 Regular

Dog 64 0 49 Regular

Horse 64 0 50 Regular

BirdTweet2 64 0 51 Regular

Ghost 64 0 55 Regular

Maou 64 0 56 Regular

PhoneCall 64 0 65 Regular

DoorSqueak 64 0 66 Regular

DoorSlam 64 0 67 Regular

ScratchCut 64 0 68 Regular

ScratchSplit 64 0 69 Regular

WindChime 64 0 70 Regular

TelphonRing2 64 0 71 Regular

CarEngineIgn 64 0 81 Regular

CarTiresSqel 64 0 82 Regular

CarPassing 64 0 83 Regular

CarCrash 64 0 84 Regular

Siren 64 0 85 Regular

Train 64 0 86 Regular

JetPlane 64 0 87 Regular

Starship 64 0 88 Regular

Burst 64 0 89 Regular

RollrCoaster 64 0 90 Regular

Submarine 64 0 91 Regular

Laugh 64 0 97 Regular

Scream 64 0 98 Regular

Punch 64 0 99 Regular

Heartbeat 64 0 100 Regular

FootSteps 64 0 101 Regular

MachineGun 64 0 113 Regular

LaserGun 64 0 114 Regular

Explosion 64 0 115 Regular

Firework 64 0 116 Regular

Category Voice Name Voice Number Voice Type

MSB LSB PRG

Voice List / Voice-Liste / Liste des voix / Lista de voces

PSR-3000/1500 Data List

10

Category Voice Name Voice Number Voice Type

MSB LSB PRG

Piano GrandPiano 121 0 1 Regular

GrandPianoW 121 1 1 Regular

GrandPianoD 121 2 1 Regular

BrightPiano 121 0 2 Regular

BrightPianoW 121 1 2 Regular

ElecGrandPno 121 0 3 Regular

ElecGrandPW 121 1 3 Regular

Honkytonk 121 0 4 Regular

HonkytonkW 121 1 4 Regular

El.Piano1 121 0 5 Regular

DetunedEP1 121 1 5 Regular

EP1VeloMix 121 2 5 Regular

60'sEl.Piano 121 3 5 Regular

El.Piano2 121 0 6 Regular

DetunedEP2 121 1 6 Regular

EP2VeloMix 121 2 6 Regular

EPLegend 121 3 6 Regular

EPPhase 121 4 6 Regular

Harpsichord 121 0 7 Regular

Harpsi.OctMx 121 1 7 Regular

HarpsichordW 121 2 7 Regular

Harpsi.KOff 121 3 7 Regular

Clavi. 121 0 8 Regular

PulseClavi. 121 1 8 Regular

ChromaticPerc Celesta 121 0 9 Regular

Glockenspiel 121 0 10 Regular

MusicBox 121 0 11 Regular

Vibraphone 121 0 12 Regular

VibraphoneW 121 1 12 Regular

Marimba 121 0 13 Regular

MarimbaW 121 1 13 Regular

Xylophone 121 0 14 Regular

TubularBells 121 0 15 Regular

ChurchBells 121 1 15 Regular

Carillon 121 2 15 Regular

Dulcimer 121 0 16 Regular

Organ DrawbarOrgan 121 0 17 Regular

DetDrawOrgan 121 1 17 Regular

It60'sOrgan 121 2 17 Regular

DrawbarOrg2 121 3 17 Regular

Perc.Organ 121 0 18 Regular

DetPercOrgan 121 1 18 Regular

Perc.Organ2 121 2 18 Regular

RockOrgan 121 0 19 Regular

ChurchOrgan 121 0 20 Regular

ChrchOrgOctM 121 1 20 Regular

DetChurchOrg 121 2 20 Regular

ReedOrgan 121 0 21 Regular

PuffOrgan 121 1 21 Regular

Accordion 121 0 22 Regular

Accordion2 121 1 22 Regular

Harmonica 121 0 23 Regular

TangoAccord 121 0 24 Regular

Guitar NylonGuitar 121 0 25 Regular

Ukulele 121 1 25 Regular

NylonGtrKOff 121 2 25 Regular

NylonGuitar2 121 3 25 Regular

SteelGuitar 121 0 26 Regular

12StrGuitar 121 1 26 Regular

Mandolin 121 2 26 Regular

Steel&Body 121 3 26 Regular

JazzGuitar 121 0 27 Regular

PedlSteelGtr 121 1 27 Regular

CleanGuitar 121 0 28 Regular

DetCleanGtr 121 1 28 Regular

MidToneGtr 121 2 28 Regular

MutedGuitar 121 0 29 Regular

FunkGuitar 121 1 29 Regular

MutedV-SwGtr 121 2 29 Regular

JazzMan 121 3 29 Regular

Overdriven 121 0 30 Regular

GuitarPinch 121 1 30 Regular

Distortion 121 0 31 Regular

FeedbackGtr 121 1 31 Regular

DstRhythmGtr 121 2 31 Regular

GtrHarmonics 121 0 32 Regular

GtrFeedback 121 1 32 Regular

Bass AcousticBass 121 0 33 Regular

FingerBass 121 0 34 Regular

FingerSlap 121 1 34 Regular

PickBass 121 0 35 Regular

FretlessBass 121 0 36 Regular

SlapBass1 121 0 37 Regular

Bass SlapBass2 121 0 38 Regular

SynthBass1 121 0 39 Regular

WarmSyBass 121 1 39 Regular

ResoSynhBass 121 2 39 Regular

ClaviBass 121 3 39 Regular

Hammer 121 4 39 Regular

SynthBass2 121 0 40 Regular

AttackBass 121 1 40 Regular

RubberBass 121 2 40 Regular

AttackPulse 121 3 40 Regular

Strings Violin 121 0 41 Regular

SlwAtkViolin 121 1 41 Regular

Viola 121 0 42 Regular

Cello 121 0 43 Regular

Contrabass 121 0 44 Regular

Trem.Strings 121 0 45 Regular

PizzicatoStr 121 0 46 Regular

Orch.Harp 121 0 47 Regular

YangChin 121 1 47 Regular

Timpani 121 0 48 Regular

Ensemble Strings1 121 0 49 Regular

StringsBrass 121 1 49 Regular

60'sStrings 121 2 49 Regular

Strings2 121 0 50 Regular

SynStrings1 121 0 51 Regular

SynStrings3 121 1 51 Regular

SynStrings2 121 0 52 Regular

ChoirAahs 121 0 53 Regular

ChoirAahs2 121 1 53 Regular

VoiceOohs 121 0 54 Regular

Humming 121 1 54 Regular

SynthVoice 121 0 55 Regular

AnalogVoice 121 1 55 Regular

OrchestraHit 121 0 56 Regular

BassHitPlus 121 1 56 Regular

6thHit 121 2 56 Regular

EuroHit 121 3 56 Regular

Brass Trumpet 121 0 57 Regular

DarkTpSoft 121 1 57 Regular

Trombone 121 0 58 Regular

Trombone2 121 1 58 Regular

BriteTrombon 121 2 58 Regular

Tuba 121 0 59 Regular

MutedTrumpet 121 0 60 Regular

MuteTrumpet2 121 1 60 Regular

FrenchHorn 121 0 61 Regular

FrenchHorn2 121 1 61 Regular

BrassSection 121 0 62 Regular

BrassSect2 121 1 62 Regular

SynthBrass1 121 0 63 Regular

SynthBrass3 121 1 63 Regular

AnaSynBrass1 121 2 63 Regular

JumpBrass 121 3 63 Regular

SynthBrass2 121 0 64 Regular

SynthBrass4 121 1 64 Regular

AnaSynBrass2 121 2 64 Regular

Reed SopranoSax 121 0 65 Regular

AltoSax 121 0 66 Regular

TenorSax 121 0 67 Regular

BaritoneSax 121 0 68 Regular

Oboe 121 0 69 Regular

EnglishHorn 121 0 70 Regular

Bassoon 121 0 71 Regular

Clarinet 121 0 72 Regular

Pipe Piccolo 121 0 73 Regular

Flute 121 0 74 Regular

Recorder 121 0 75 Regular

PanFlute 121 0 76 Regular

BlownBottle 121 0 77 Regular

Shakuhachi 121 0 78 Regular

Whistle 121 0 79 Regular

Ocarina 121 0 80 Regular

Synth.Lead SquareLead 121 0 81 Regular

SquareLead2 121 1 81 Regular

SineLead 121 2 81 Regular

SawtoothLead 121 0 82 Regular

SawtoothLd2 121 1 82 Regular

SawPulseLead 121 2 82 Regular

DoublSawLead 121 3 82 Regular

Seq.Analog 121 4 82 Regular

CalliopeLead 121 0 83 Regular

ChiffLead 121 0 84 Regular

CharangLead 121 0 85 Regular

Category Voice Name Voice Number Voice Type

MSB LSB PRG

GM2

PSR-3000/1500 Data List 11

Voice List / Voice-Liste / Liste des voix / Lista de voces

Synth.Lead WireLead 121 1 85 Regular

VoiceLead 121 0 86 Regular

FifthsLead 121 0 87 Regular

Bass&Lead 121 0 88 Regular

SoftWhirl 121 1 88 Regular

Synth.Pad NewAgePad 121 0 89 Regular

WarmPad 121 0 90 Regular

SinePad 121 1 90 Regular

PolySynthPad 121 0 91 Regular

ChoirPad 121 0 92 Regular

ItopiaPad 121 1 92 Regular

BowedPad 121 0 93 Regular

MetallicPad 121 0 94 Regular

HaloPad 121 0 95 Regular

SweepPad 121 0 96 Regular

Synth.Effect Rain 121 0 97 Regular

SoundTrack 121 0 98 Regular

Crystal 121 0 99 Regular

SynthMallet 121 1 99 Regular

Atmosphere 121 0 100 Regular

Brightness 121 0 101 Regular

Goblins 121 0 102 Regular

Echoes 121 0 103 Regular

EchoBell 121 1 103 Regular

EchoPan 121 2 103 Regular

Sci-Fi 121 0 104 Regular

Ethnic Sitar 121 0 105 Regular

Sitar2 121 1 105 Regular

Banjo 121 0 106 Regular

Shamisen 121 0 107 Regular

Koto 121 0 108 Regular

TaishoKoto 121 1 108 Regular

Kalimba 121 0 109 Regular

Bagpipe 121 0 110 Regular

Fiddle 121 0 111 Regular

Shanai 121 0 112 Regular

Percussive TinkleBell 121 0 113 Regular

Agogo 121 0 114 Regular

SteelDrums 121 0 115 Regular

Woodblock 121 0 116 Regular

Castanets 121 1 116 Regular

TaikoDrum 121 0 117 Regular

ConcertBD 121 1 117 Regular

MelodicTom 121 0 118 Regular

MelodicTom2 121 1 118 Regular

SynthDrum 121 0 119 Regular

RhythmBoxTom 121 1 119 Regular

ElectricDrum 121 2 119 Regular

Rev.Cymbal 121 0 120 Regular

SoundEffect GtrFretNoise 121 0 121 Regular

GtrCutNoise 121 1 121 Regular

StringSlap 121 2 121 Regular

BreathNoise 121 0 122 Regular

Fl.KeyClick 121 1 122 Regular

Seashore 121 0 123 Regular

Rain 121 1 123 Regular

Thunder 121 2 123 Regular

Wind 121 3 123 Regular

Stream 121 4 123 Regular

Bubble 121 5 123 Regular

BirdTweet 121 0 124 Regular

Dog 121 1 124 Regular

HorseGallop 121 2 124 Regular

BirdTweet2 121 3 124 Regular

TelephonRing 121 0 125 Regular

TelRing2 121 1 125 Regular

DoorCreaking 121 2 125 Regular

Door 121 3 125 Regular

Scratch 121 4 125 Regular

WindChime 121 5 125 Regular

Helicopter 121 0 126 Regular

CarEngine 121 1 126 Regular

CarStop 121 2 126 Regular

CarPass 121 3 126 Regular

CarCrash 121 4 126 Regular

Siren 121 5 126 Regular

Train 121 6 126 Regular

Jetplane 121 7 126 Regular

Starship 121 8 126 Regular

BurstNoise 121 9 126 Regular

Applause 121 0 127 Regular

Laughing 121 1 127 Regular

Screaming 121 2 127 Regular

Category Voice Name Voice Number Voice Type

MSB LSB PRG

SoundEffect Punch 121 3 127 Regular

HeartBeat 121 4 127 Regular

Footsteps 121 5 127 Regular

Gunshot 121 0 128 Regular

MachineGun 121 1 128 Regular

Lasergun 121 2 128 Regular

Explosion 121 3 128 Regular

Drum StandardSet 120 0 1 Drums

RoomSet 120 0 9 Drums

PowerSet 120 0 17 Drums

ElectroSet 120 0 25 Drums

AnalogSet 120 0 26 Drums

JazzSet 120 0 33 Drums

BrushSet 120 0 41 Drums

OrchestraSet 120 0 49 Drums

SFXSet 120 0 57 Drums

Category Voice Name Voice Number Voice Type

MSB LSB PRG

PSR-3000/1500 Data List

12

MSB (0-127) 88888

LSB (0-127) 00000

PRG (0-127) 12345

PRG (1-128) 23456

Voice Name SteelGuitar HiStringGtr CleanGuitar Overdrive Distortion

Key Range below B5 above C6 above C8 below B5 above C6 above C8 below B5 above C6 above C8 below B5 above C6 above C8 below B5 above C6 above C8

Key On

Velocity

Value

127 127 127 127 127 127 127 127 127 127 127 127 127 127

Harmonics

Strum

Noise Fret Noise

Hard

Strum

Noise Fret Noise

Pick

Harmonics

Strum

Noise Fret Noise

Pick

Harmonics

EFX

Pick

Harmonics

EFX

121 121 121 121

120 120 120 120 120

Slide Slide

Mute Mute

110

106 106

105 105

Hammer Hammer

100

91 91

90 90 90 90

Mute

89

Mute

Soft

80

76 76

75 75

Dead Dead

70

61 61

60 60 60

Open Hard Slap

56 56

55 55

Open Open

50

41 41

40 40 40

Open

Medium Open Hard

30

21 21

20 20 20

Open Soft Open Soft10

111111111111 11

: No Sound

Mega Voice Map / Sound-Zuordnungen der Mega Voices / Carte des voix Mega / Mapa de Mega Voice

(PSR-3000 only)

PSR-3000/1500 Data List 13

Mega Voice Map / Sound-Zuordnungen der Mega Voices / Carte des voix Mega / Mapa de Mega Voice (PSR-3000 only)

MSB (0-127) 88888

LSB (0-127) 00001

PRG (0-127) 16 17 18 19 2

PRG (1-128) 17 18 19 20 3

Voice Name Aco.Bass FingerBass PickBass Fretless 12StrGuitar

Key Range below B5 above C6 above C8 below B5 above C6 above C8 below B5 above C6 above C8 below B5 above C6 above C8 below B5 above C6 above C8

Key On

Velocity

Value

127 127 127 127 127 127 127 127 127 127 127 127

Harmonics

EFX

Slap

EFX

Harmonics

EFX

Harmonics

EFX

Hard

Strum

Noise Fret Noise

121 121 121 121

120 120 120 120 120

Dead Dead Dead Dead

110

100

90 90

89

Soft

81 81 81 81

80 80 80 80 80

Open Hard Open Hard

Mute

Open

70

61 61

60 60 60

Open Soft Open Soft

50

41

40 40

Open

30

20

10

11 1 1 11111111

PR-3000/1500 Data List

14

•

Key Off: Keys marked “O” stop sounding the instant they are released.

•

Alternate Group: Playing any instrument within a numbered group will immediately stop the sound of ny other instrument in the same group of the same number.

Bank Select MSB (0-127) 127 127 127 127 127 127

Bank Select LSB (0-127) 000000

Program Change (0-127) 01481624

Program Change (1-128) 12591725

MIDI Keyboard

Note

Key

Off

Alternate

Group

Standard Kit 1 Standard Kit 2 Hit Kit Room Kit Rock Kit Electro Kit

Note# Note

13 C#-1 (C#0) 3 Surdo Mute

14 D-1 (D0) 3 Surdo Open

15 D#-1 (D#0) Hi Q

16 E-1 (E0) Whip Slap

17 F-1 (F0) 4 Scratch H

18 F#-1 (F#0) 4 Scratch L

19 G-1 (G0) Finger Snap

20 G#-1 (G#0) Click Noise

21 A-1 (A0) Metronome Click

22 A#-1 (A#0) Metronome Bell

23 B-1 (B0) Seq Click L

24 C0 C1 Seq Click H

25 C#0C#1 Brush Tap

26 D0 D1 O Brush Swirl

27 D#0D#1 Brush Slap

28 E0 E1 O Brush Tap Swirl Reverse Cymbal

29 F0 F1 O Snare Roll

30 F#0F#1 Castanet Hi Q 2

31 G0 G1 Snare Soft Snare Soft 2 Snare Electro Snare Noisy Snare Snappy Electro

32 G#0G#1 Sticks

33 A0 A1 Kick Soft Kick Tight L Kick 3

34 A#0A#1 Open Rim Shot Open Rim Shot H Short Snare Pitched

35 B0 B1 Kick Tight Kick Wet Kick 2 Kick Gate

36 C1 C2 Kick Kick Short Kick Tight H Kick Gate Kick Gate Heavy

37 C#1C#2 Side Stick Side Stick Light Stick Ambient

38 D1 D2 Snare Snare Short Snare Ambient Snare Snappy Snare Rock Snare Noisy 2

39 D#1D#2 Hand Clap

40 E1 E2 Snare Tight Snare Tight H Snare Tight 2 Snare Tight Snappy Snare Rock Tight Snare Noisy 3

41 F1 F2 Floor Tom L Hybrid Tom 1 Tom Room 1 Tom Rock 1 Tom Electro 1

42 F#1F#21Hi-Hat Closed Hi-Hat Closed 2

43 G1 G2 Floor Tom H Hybrid Tom 2 Tom Room 2 Tom Rock 2 Tom Electro 2

44 G#1G#21Hi-Hat Pedal Hi-Hat Pedal 2

45 A1 A2 Low Tom Hybrid Tom 3 Tom Room 3 Tom Rock 3 Tom Electro 3

46 A#1A#21Hi-Hat Open Hi-Hat Open 2

47 B1 B2 Mid Tom L Hybrid Tom 4 Tom Room 4 Tom Rock 4 Tom Electro 4

48 C2 C3 Mid Tom H Hybrid Tom 5 Tom Room 5 Tom Rock 5 Tom Electro 5

49 C#2C#3 Crash Cymbal 1

50 D2 D3 High Tom Hybrid Tom 6 Tom Room 6 Tom Rock 6 Tom Electro 6

51 D#2D#3 Ride Cymbal 1

52 E2 E3 Chinese Cymbal

53 F2 F3 Ride Cymbal Cup

54 F#2F#3Tambourine Tambourine Light

55 G2 G3 Splash Cymbal

56 G#2G#3 Cowbell

57 A2 A3 Crash Cymbal 2

58 A#2A#3Vibraslap

59 B2 B3 Ride Cymbal 2

60 C3 C4 Bongo H

61 C#3C#4 Bongo L

62 D3 D4 Conga H Mute

63 D#3D#4 Conga H Open

64 E3 E4 Conga L

65 F3 F4 Timbale H

66 F#3F#4 Timbale L

67 G3 G4 Agogo H

68 G#3G#4 Agogo L

69 A3 A4 Cabasa

70 A#3A#4Maracas

71 B3 B4 O Samba Whistle H

72 C4 C5 O Samba Whistle L

73 C#4C#5 Guiro Short

74 D4 D5 O Guiro Long

75 D#4D#5 Claves

76 E4 E5 Wood Block H

77 F4 F5 Wood Block L

78 F#4F#5 Cuica Mute Scratch H 2

79 G4 G5 Cuica Open Scratch L 2

80 G#4G#52Triangle Mute

81 A4 A5 2 Triangle Open

82 A#4A#5 Shaker

83 B4 B5 Jingle Bells

84 C5 C6 Bell Tree

85 C#5(C#6)

86 D5 (D6)

87 D#5(D#6)

88 E5 (E6)

89 F5 (F6)

90 F#5(F#6)

91 G5 (G6)

Same as Standard Kit 1

No Sound

Drum/key Assignment List / Liste der Tastenzuordnungen der Schlaginstrumente /

Liste d’assignation instrument de batterie/touche du clavier / Lista de asignación de teclas/batería

PSR-3000/1500 Data List 15

Drum/key Assignment List / Liste der Tastenzuordnungen der Schlaginstrumente / Liste d’assignation instrument de batterie/touche du clavier / Lista de asignación de teclas/batería

Bank Select MSB (0-127) 127 127 127 127 127 127

Bank Select LSB (0-127) 0 0 0 0 0 0

Program Change (0-127) 25 27 27 32 40 48

Program Change (1-128) 26 28 28 33 41 49

MIDI Keyboard

Note

Key

Off

Alternate

Group

Analog Kit Dance Kit

(PSR-3000)

Dance Kit

(PSR-1500)

Jazz Kit Brush Kit Symphony Kit

Note# Note

13 C#-1 (C#0) 3 Kick Dance 1

14 D-1 (D0) 3 Kick Dance 2

15 D#-1 (D#0)

16 E-1 (E0)

17 F-1 (F0) 4 Scratch Dance 1

18 F#-1 (F#0) 4 Scratch Dance 2

19 G-1 (G0)

20 G#-1 (G#0)

21 A-1 (A0) Dance Perc 1

22 A#-1 (A#0) Reverse Dance 1

23 B-1 (B0) Dance Perc 2

24 C0 C1 Hi Q Dance 1

25 C#0C#1 Snare Analog 3

26 D0 D1 O Vinyl Noise

27 D#0D#1 Snare Analog 4

28 E0 E1 O Reverse Cymbal Reverse Cymbal Reverse Cymbal

29 F0 F1 O Reverse Dance 2

30 F#0F#1 Hi Q 2 Hi Q 2 Hi Q 2

31 G0 G1 Snare Noisy 4 Snare Techno Snare Techno Snare Jazz H Brush Slap 2

32 G#0G#1 Snare Dance 1

33 A0 A1 Kick 3 Kick Techno Q Kick Techno Q Kick Soft 2

34 A#0A#1Rim Gate Rim Gate Open Rim Shot Light

35 B0 B1 Kick Analog Short Kick Techno L Kick Techno L Gran Cassa

36 C1 C2 Kick Analog Kick Techno Kick Techno Kick Jazz Kick Jazz Gran Cassa Mute

37 C#1C#2 Side Stick Analog Side Stick Analog Side Stick Analog Side Stick Light Side Stick Light

38 D1 D2 Snare Analog Snare Clap Snare Clap Snare Jazz L Brush Slap 3 Band Snare

39 D#1D#2Dance Clap Dance Clap

40 E1 E2 Snare Analog 2 Snare Dry Snare Dry Snare Jazz M Brush Tap 2 Band Snare 2

41 F1 F2 Tom Analog 1 Tom Analog 1 Tom Analog 1 Tom Brush 1

42 F#1F#21Hi-Hat Closed Analog Hi-Hat Closed 3 Hi-Hat Closed 3

43 G1 G2 Tom Analog 2 Tom Analog 2 Tom Analog 2 Tom Brush 2

44 G#1G#21Hi-Hat Closed Analog 2 Hi-Hat Closed Analog 3 Hi-Hat Closed Analog 3

45 A1 A2 Tom Analog 3 Tom Analog 3 Tom Analog 3 To m Brush 3

46 A#1A#21Hi-Hat Open Analog Hi-Hat Open 3 Hi-Hat Open 3

47 B1 B2 Tom Analog 4 Tom Analog 4 Tom Analog 4 To m Brush 4

48 C2 C3 Tom Analog 5 Tom Analog 5 Tom Analog 5 To m Brush 5

49 C#2C#3 Crash Analog Crash Analog Crash Analog Hand Cymbal

50 D2 D3 Tom Analog 6 Tom Analog 6 Tom Analog 6 To m Brush 6

51 D#2D#3 Hand Cymbal Short

52 E2 E3

53 F2 F3

54 F#2F#3 Tambourine Analog

55 G2 G3

56 G#2G#3 Cowbell Analog Cowbell Dance Cowbell Analog

57 A2 A3 Hand Cymbal 2

58 A#2A#3Vbraslap Analog

59 B2 B3 Ride Analog Hand Cymbal 2 Short

60 C3 C4 Bongo Analog H

61 C#3C#4 Bongo Analog L

62 D3 D4 Conga Analog H Conga Analog H Conga Analog H

63 D#3D#4 Conga Analog M Conga Analog M Conga Analog M

64 E3 E4 Conga Analog L Conga Analog L Conga Analog L

65 F3 F4

66 F#3F#4

67 G3 G4

68 G#3G#4

69 A3 A4

70 A#3A#4Maracas 2 Maracas 2 Maracas 2

71 B3 B4 O

72 C4 C5 O

73 C#4C#5

74 D4 D5 O

75 D#4D#5 Claves 2 Claves 2 Claves 2

76 E4 E5 Dance Perc 3

77 F4 F5 Dance Perc 4

78 F#4F#5 Scratch H 2 Dance Breath 1 Scratch H 2

79 G4 G5 Scratch L 2 Dance Breath 2 Scratch L 2

80 G#4G#52

81 A4 A5 2

82 A#4A#5

83 B4 B5

84 C5 C6

85 C#5(C#6)

86 D5 (D6)

87 D#5(D#6)

88 E5 (E6)

89 F5 (F6)

90 F#5(F#6)

91 G5 (G6)

Drum/key Assignment List / Liste der Tastenzuordnungen der Schlaginstrumente / Liste d’assignation instrument de batterie/touche du clavier / Lista de asignación de teclas/batería

PSR-3000/1500 Data List

16

* Actual Keyboard Notes of the SFX Kit 1 and 2 are one octave lower than the ones described in the above list.

Bank Select MSB (0-127) 127 126 126 126 126 126

Bank Select LSB (0-127) 0000 0 0

Program Change (0-127) 86 35 0 1 40 43

Program Change (1-128) 87 36 1 2 41 44

MIDI Keyboard

Note

Key

Off

Alternate

Group

Studio Kit

(PSR-3000)

Arabic Kit SFX Kit 1* SFX Kit 2* Cuban Kit

(PSR-3000)

PopLatin Kit

(PSR-3000)

Note# Note

13 C#-1 (C#0) 3

14 D-1 (D0) 3

15 D#-1 (D#0)

16 E-1 (E0)

17 F-1 (F0) 4

18 F#-1 (F#0) 4 Hand Clap

19 G-1 (G0)

20 G#-1 (G#0)

21 A-1 (A0)

22 A#-1 (A#0) Conga H Tip Conga H Tip

23 B-1 (B0) Conga H Heel Conga H Heel

24 C0 C1 Nakarazan Dom Conga H Open Conga H Open

25 C#0C#1 Brush Tap Cabasa Conga H Mute Conga H Mute

26 D0 D1 O Brush Swirl Nakarazan Edge Conga H Slap Open Conga H Slap Open

27 D#0D#1 Brush Slap Hager Dom Conga H Slap Conga H Slap

28 E0 E1 O Brush Tap Swirl Hager Edge Conga H Slap Mute Conga H Slap Mute

29 F0 F1 O Snare Roll Bongo H Conga L Tip Conga L Tip

30 F#0F#1Bongo L Conga L Heel Conga L Heel

31 G0 G1 Snare Studio L Conga H Mute Conga L Open Conga L Open

32 G#0G#1Conga H Open Conga L Mute Conga L Mute

33 A0 A1 Kick Amb H Conga L Conga L Slap Open Conga L Slap Open

34 A#0A#1 Open Rim Shot Zagrouda H Conga L Slap Conga L Slap

35 B0 B1 Kick Amb L Zagrouda L Conga L Slide Conga L Slide

36 C1 C2 Kick Studio Kick Soft Cutting Noise Phone Call Bongo H Open 1 Finger Bongo H Open 1 finger

37 C#1C#2 Side Stick Side Stick Cutting Noise 2 Door Squeak Bongo H Open 3 Finger Bongo H Open 3 finger

38 D1 D2 Snare Studio M Snare Soft Door Slam Bongo H Rim Bongo H Rim

39 D#1D#2 Hand Clap Arabic Hand Clap String Slap Scratch Cut Bongo H Tip Bongo H Tip

40 E1 E2 Snare Studio L Snare Scratch H 3 Bongo H Heel Bongo H Heel

41 F1 F2 Floor Tom L Floor Tom L Wind Chime Bongo H Slap Bongo H Slap

42 F#1F#21Hi-Hat Closed Hi-Hat Closed Telephone Ring 2 Bongo L Open 1 Finger Bongo L Open 1 finger

43 G1 G2 Floor Tom H Floor Tom H Bongo L Open 3 Finger Bongo L Open 3 finger

44 G#1G#21Hi-Hat Pedal Hi-Hat Pedal Bongo L Rim Bongo L Rim

45 A1 A2 Low Tom Low Tom Bongo L Tip Bongo L Tip

46 A#1A#21Hi-Hat Open Hi-Hat Open Bongo L Heel Bongo L Heel

47 B1 B2 Mid Tom L Mid Tom L Bongo L Slap Bongo L Slap

48 C2 C3 Mid Tom H Mid Tom H Timbale L Open Timbale L Open

49 C#2C#3 Crash Cymbal 1 Crash Cymbal 1

50 D2 D3 High Tom High Tom

51 D#2D#3 Ride Cymbal 1 Ride Cymbal 1

52 E2 E3 Chinese Cymbal Crash Cymbal 2 Flute Key Click Car Engine Ignition

53 F2 F3 Ride Cymbal Cup Duhulla Dom Car Tires Squeal Paila L Paila L

54 F#2F#3Tambourine Tambourine Car Passing Timbale H Open Timbale H Open

55 G2 G3 Splash Cymbal Duhulla Tak Car Crash

56 G#2G#3 Cowbell Cowbell Siren

57 A2 A3 Crash Cymbal 2 Duhulla Sak Train

58 A#2A#3 Claves Jet Plane

59 B2 B3 Ride Cymbal 2 Doff Dom Starship Paila H Paila H

60 C3 C4 Bongo H Katem Dom Burst Cowbell Top Cowbell Top

61 C#3C#4 Bongo L Katem Tak Roller Coaster

62 D3 D4 Conga H Mute Katem Sak Submarine

63 D#3D#4 Conga H Open Katem Tak

64 E3 E4 Conga L Doff Tak Guiro Short Guiro Short

65 F3 F4 Timbale H Tabla Dom Guiro Long Guiro Long

66 F#3F#4 Timbale L Tabla Tak1

67 G3 G4 Tabla Tik

68 G#3G#4 Tabla Tak2 Shower Laugh Tambourine Tambourine

69 A3 A4 Cabasa Tabla Sak Thunder Scream

70 A#3A#4Maracas Tabla Roll of Edge Wind Punch

71 B3 B4 O Tabla Flam Stream Heart Beat

72 C4 C5 O Sagat 1 Bubble Foot Steps Maracas Maracas

73 C#4C#5 Guiro Short Tabel Dom Feed Shaker Shaker

74 D4 D5 O Guiro Long Sagat 3 Cabasa Cabasa

75 D#4D#5Tabel Tak Cuica Mute

76 E4 E5 Sagat 2 Cuica Open

77 F4 F5 Rik Dom

78 F#4F#5 Cuica Mute Rik Tak 2

79 G4 G5 Cuica Open Rik Finger 1

80 G#4G#52Triangle Mute Rik Tak 1

81 A4 A5 2 Triangle Open Rik Finger 2 Triangle Mute

82 A#4A#5 Shaker Rik Brass Tremolo Triangle Open

83 B4 B5 Rik Sak

84 C5 C6 Wind Chime Rik Tik Dog Machine Gun Wind Chime

85 C#5(C#6) Horse Laser Gun

86 D5 (D6) Bird Tweet 2 Explosion

87 D#5(D#6) Firework

88 E5 (E6)

89 F5 (F6)

90 F#5(F#6) Ghost

91 G5 (G6) Maou

PSR-3000/1500 Data List 17

Group Style Name

Pop&Rock Cool8Beat

8BeatModern

60's8Beat

70's8Beat

BubblegumPop

60'sGuitarPop

BritPopSwing

Unplugged

Rock

RockShuffle

SouthernRock

SoftRock

8Beat

HeartBeat

GuitarPop

RockBallad

HardRock

FusionShuffle

PopShuffle

60'sRock1

60'sRock2

J-PopHit1

J-PopHit2

RootRock

Ballad 8BeatAdria

8BeatBallad

EasyBallad

EPBallad

LoveSong

PowerBallad

70'sPopBallad

GuitarBallad

AnalogBallad

6-8SlowRock

6-8Modern

6-8Orchestral

12-8Ballad

Chillout

NewR&BBallad

ChartBallad

Slow&Easy

16Beat

PopBallad

16BeatBallad

OrganBallad

PianoBallad

GuitarSerenade

Dance Ibiza2004

Ibiza2002

EuroTrance

RetroPop

NewR&B

NewHipHop

ClassicHipHop

LatinDJ's

DiscoHouse

DreamDance

FrenchHouse

TechnoParty

DiscoPhilly

70'sDiscoFunk

70'sDisco1

70'sDisco2

80'sDisco

DiscoChocolate

USPop

Clubdance

ChartPop

EuroHipHop

House

SwingHouse

Dance Groundbeat

Garage

TripHop

6-8Trance

Swing&Jazz OrchBigBand1

OrchestraSwing1

ModernJazzBld

Bebop

OrchBigBand2

AcousticJazz

MediumJazz

FastJazz

MORSwing

BigBandFast1

BigBandMed1

EasyListening

BigBandFast2

BigBandMed2

40'sBigBand

CoolJazzBallad

Dixieland

OrchestraSwing2

JazzClub

Five-Four

JazzWaltzMed

JazzWaltzFast

MidnightSwing

OrganGroove

JumpJive

Ragtime

GuitarSwing

Charleston

R&B BluesRock

SlowBlues

FranklySoul

JazzFunk

KoolFunk

GospelSwing

GospelSisters

WorshipSlow

WorshipMed

Rock&Roll1

MotorCity

6-8Soul

Swingin'Boogie

DetroitPop1

DetroitPop2

LovelyShuffle

R&BBallad

Soul

SoulBeat

SoulShuffle

60'sRock&Roll

Rock&Roll2

Twist

BluesBallad

BlueberryBlues

ComboBoogie

Country NewCountry

ModernCntryBld

CountryBallad

Country8Beat

Bluegrass

CountryPop

CountryRock

CntrySing-along

CountrySwing

Hoedown

CountryTwoStep

Country2-4

FingerPickin

Group Style Name

Style List / Liste der Styles / Liste des styles / Lista de estilos

PSR-3000

PSR-3000/1500 Data List

18

Country CountryShuffle

CountryWaltz

Latin BrazilianSamba

BossaNova

PopBossa

BigBandMambo

Tijuana

SlowBossa

PopLatin

LatinDisco1

LatinDisco2

RockChaCha

Mambo

Salsa

Montuno

Beguine

Calypso

CubanBolero

GuitarRumba

RumbaFlamenca

RumbaIsland

Caribbean

HappyReggae

SheriffReggae

Ballroom VienneseWaltz

EnglishWaltz

Slowfox

Foxtrot

Quickstep

Tango

Swingfox

Pasodoble

Samba

ChaChaCha

Rumba

Jive

OrganSwing

OrganSamba

OrganQuickstep

9-8Waltz

TraditionalWaltz

Movie&Show SecretService

70'sTVTheme

WildWest

ModBrdwayBld

MovieBallad

MovieSwing

MovieDisco

SaturdayNight

TapDanceSwing

Showtune

ChristmasSwing

ChristmasWaltz

Moonlight6-8

ClassicPianoBld

Entertainer DiscoFox

6-8SchlagerBld

SchlagerPolka

AlpBallad1

AlpBallad2

ScandBugg

ScandSlowRock

ScandCountry

PartyPolka

SchlagerSamba

SchlagerShuffle

SchlagerRock

SchlagerAlp

SchlagerPop

SchlagerBeat

PubPiano

Group Style Name

World Flamenco

SpanishPaso

PopFlamenco

FrenchMusette

ItalianMazurka

ItalianWaltz

FrenchWaltz

ScandWaltz

MariachiWaltz

ScottishReel

GayGordons

Hawaiian

Sirtaki

Tarantella

OberPolka

OberWalzer

Norteno

Zouk

Cumbia

USMarch

6-8March

GermanMarch

BandaPolka

HullyGully

Enka

FolkRock

PopEnka

Group Style Name

PSR-3000/1500 Data List 19

Group Style Name

Pop&Rock Cool8Beat

8BeatModern

60's8Beat

BubblegumPop

60'sGuitarPop

BritPopSwing

Unplugged

Rock

SoftRock

8Beat

HeartBeat

GuitarPop

HardRock1

PopShuffle

KoolShuffle

60'sRock1

60'sRock2

J-PopHit

RootRock

HardRock2

16BtUptempo

Ballad 8BeatAdria

EasyBallad

EPBallad

LoveSong

PowerBallad

70'sPopBallad

AnalogBallad

6-8SlowRock

6-8Modern

6-8Orchestral

Chillout

Slow&Easy

16Beat

PopBallad

16BeatBallad

OrganBallad

PianoBallad

GuitarSerenade

R&B

PopWaltz

Dance Ibiza2004

Ibiza2003

EuroTrance

RetroPop

LatinDJ's

DiscoHouse

DreamDance

USPop

UKPop

ChartPop

Ibiza2000

HipHopPop

HipHopLight

HipHopGroove

TechnoParty

DiscoPhilly

DiscoChocolate

70'sDisco1

70'sDisco2

80'sDisco

DiscoParty

Clubdance

SwingHouse

Garage1

Garage2

Swing&Jazz BigBandFast1

BigBandMed1

OrchestraSwing1

ModernJazzBld

Bebop

Swing&Jazz Dixieland

AcousticJazz

MediumJazz

JazzBallad

MORSwing

Swing

OrchestraSwing2

EasyListening

OrganGroove

BigBandFast2

BigBandMed2

JazzClub

JazzWaltzFast

Ragtime

GuitarSwing

Charleston

R&B BluesRock

Rock&Roll1

FranklySoul

DetroitPop1

Swingin'Boogie

GospelSwing

WorshipSlow

R&BBallad

6-8Soul

Soul

SoulBeat

SoulShuffle

DetroitPop2

ModernR&B

60'sRock&Roll

Rock&Roll2

Twist

6-8Blues

Country ModernCntryBld

CountryBallad

Country8Beat

CountrySwing

Bluegrass

Country2-4

CountryPop

CountryRock

CountryTwoStep

FingerPickin

Hoedown

CountryShuffle

CountryWaltz

Latin BrazilianSamba

BossaNova

SlowBossa

PopBossa

PopSamba

BigBandMambo

Tijuana

LatinDisco1

RockChaCha

Mambo

Salsa

Beguine

RumbaFlamenca

RumbaIsland

GuitarRumba

LatinDisco2

CubanBolero

Espagnole

Caribbean

HappyReggae

Ballroom VienneseWaltz

EnglishWaltz

Slowfox

Foxtrot

Group Style Name

PSR-1500

PSR-3000/1500 Data List

20

Ballroom Quickstep

Tango

Swingfox

Pasodoble

Samba

ChaChaCha

Rumba

Jive

OrganSwing

OrganSamba

OrganQuickstep

SwingWaltz

TraditionalWaltz

Movie&Show SecretService

WildWest

MovieSwing

MovieBallad

SaturdayNight

TapDanceSwing

Showtune

ChristmasSwing

ChristmasWaltz

ClassicPianoBld

Entertainer DiscoFox

6-8SchlagerBld

SchlagerSamba

SchlagerShuffle

SchlagerRock

SchlagerAlp

SchlagerPop

SchlagerBeat

PolkaPop

PubPiano

World FrenchMusette

ItalianWaltz

OberPolka

OberWalzer

ScottishReel

Tarantella

Hawaiian

Cumbia

MariachiWaltz

USMarch

6-8March

GermanMarch

HullyGully

Enka

PopEnka

Group Style Name

PSR-3000/1500 Data List 21

PSR-3000 PSR-1500

Bank Name Bank Name

HipHop1 DJ Fills

HipHop2 Synth Seq

New R&B House Loop

Rap Beat Scratch Bank

Heavy Shuffle Rave Set

Dancefloor Acid Bank

Garage Comedy

Add Groove Fanfare

Drum'n'Bass Classical

So 80's Attention

Conga&Bongo1 Spanish Gtr

Carnival de Rio Xmas1

Latin Pop Xmas2

Jungle Drums Drum Endings

Timbales Paila Boogie Man

Rumba 8Beat Big Bells

Shaker&Tamb Tom Flam

Samba Perc Live! Kit1

Soca Live! Kit2

Conga&Bongo2 Dance Kit

Steel Gtr Pick1 Live! Crash

Steel Gtr Pick2 Latin Perc1

Steel Strum1 Latin Perc2

Steel Strum2 Gong&Chime

Steel Strum3 Arabic Perc1

Gtr Cutting1 Arabic Perc2

Gtr Cutting2

Rock'n'Roll

Clean Gtr Pick

Flamenco

Piano Arp1

Piano Arp2

Piano Gliss

Harpeggio

Heaven Arp

Montuno

Mallet Fills

Twinkle Arp

New Age

Harpist

Brass Stab

Swingy Brass1

Brass Hit

Swingy Brass2

Synth Brs Slide

Moody Saxes

Swingy Brass3

Big Band

Orch Hit

Brass Fall

DJ Basic Set

DJ FX Set

DJ No Kick Lp

Break Beatz

Bank Name

Tom Flam

Crash Kit

Drum Kit 1

Drum Kit 2

Drum Kit 3

ArabicPerc 1

ArabicPerc 2

Latin Perc 1

Latin Perc 2

Dance Kit

Attention 1

Attention 2

Fanfare 1

Fanfare 2

Swingy

Brassy 1

Brassy 2

SynBrass

Mallet Fills

Piano Man

Heaven Arp

Piano Arp

Harpeggio 1

Harpeggio 2

Arpeggio

Crystal Arp

Twinkle Arp

Piano Gliss

Xmas 1

Xmas 2

Guitar Cut 1

Guitar Cut 2

GuitarRiff 1

GuitarRiff 2

Guitar Strum

DrumFill

Limbo Dancer

DJ Set 1

DJ Set 2

OrchestraHit

Water SE

Horror SE

Night SE

Day SE

Car SE

Big Bells

Whistle

MagicBell SE

Classical

Flamenco Gtr

Salsa Piano

Samba Show1

Samba Show2

TimbalesRoll

Multi Pad Bank List /Multi-Pad-Bank-Liste /

Liste des banques multi-pads / Lista de bancos de Multi Pad

PSR-3000/1500 Data List

22

Operation: [DIRECT ACCESS] button + button listed below Function of the accessed LCD display

STYLE CONTROL

[ACMP ON/OFF]

STYLE SETTING/SPLIT POINT/CHORD FINGERING CHORD FINGERING -[AUTO FILL IN]

[OTS LINK]

[BREAK]

MIXING CONSOLE (STYLE PART)

EFFECT DSP1

INTRO [I]

VOL/VOICE

VOICE

INTRO [II] PANPOT

INTRO [III] VOLUME

MAIN VARIATION [A] FILTER HARMONIC CONTENT

MAIN VARIATION [B] BRIGHTNESS

MAIN VARIATION [C] EFFECT REVERB

MAIN VARIATION [D] CHORUS

ENDING/rit. [I] EQ EQ HIGH

ENDING/rit. [II] EQ LOW

ENDING/rit. [III] MIXING CONSOLE EFFECT -

[SYNC START]

STYLE SETTING/SPLIT POINT/CHORD FINGERING STYLE SETTING/SPLIT POINT SYNCHRO STOP WINDOW[SYNC STOP]

[START/STOP]

STYLE

[POP & ROCK]

MIXING CONSOLE (STYLE PART) VOL/VOICE

VOICE

[BALLAD] PANPOT

[DANCE] VOLUME

[SWING & JAZZ] STYLE SETTING/SPLIT POINT/CHORD FINGERING STYLE SETTING/SPLIT POINT STYLE

[R & B]

MIXING CONSOLE (STYLE PART)

FILTER HARMONIC CONTENT

[COUNTRY] BRIGHTNESS

[LATIN]

EFFECT

REVERB

[BALLROOM] CHORUS

[MOVIE & SHOW] DSP1

[ENTERTAINER] MIXING CONSOLE

EQ

-

[WORLD] MIXING CONSOLE (STYLE PART) EQ HIGH

[USER] EQ LOW

SONG

[GUIDE] SONG SETTING - GUIDE MODE

[PERFORMANCE ASSISTANT] MICROPHONE SETTING OVERALL SETTING -

[SCORE] TALK SETTING -

[KARAOKE]

SONG SETTING -

LYRICS LANGUAGE

[TRACK 1] TRACK1

[TRACK 2] TRACK2

[EXTRA TRACKS] -

[REPEAT]

[FF] MIXING CONSOLE (SONG CH 1 – 8) EQ -

[REW] EFFECT -

[PLAY/PAUSE] MIXING CONSOLE TUNE -

[STOP] MIXING CONSOLE (SONG CH 1 – 8) FILTER HARMONIC CONTENT

[REC] VOL/VOICE VOLUME

[SONG SELECT] SONG SETTING - -

[TAP TEMPO] UTILITY CONFIG 1 TAP

TEMPO [ + ] MIDI SYSTEM CLOCK

[ - ]

METRONOME [ON/OFF] UTILITY CONFIG 1 -

[FADE IN/OUT] -

TRANSPOSE [ + ] MIXING CONSOLE TUNE TRANSPOSE **

[ - ] CONTROLLER KEYBOARD/PANEL TRANSPOSE ASSIGN

UPPER OCTAVE [ + ] MIXING CONSOLE TUNE OCTAVE *

[ - ] *

MULTI PAD CONTROL

[MULTI PAD SELECT] MULTI PAD CREATOR RECORD -

[1]

MULTI PAD EDIT -

1

[2] 2

[3] 3

[4] 4

[STOP] MULTI PAD CREATOR RECORD -

[DEMO] UTILITY OWNER LANGUAGE

[HELP] CONFIG 2 LCD BRIGHTNESS

[FUNCTION] MIDI - -

[SOUND CREATOR] MASTER TUNE/SCALE TUNE MASTER TUNE MASTER TUNE

[DIGITAL RECORDING] SCALE TUNE -

[MIXING CONSOLE] MIXING CONSOLE EQ MASTER EQ EDIT

[BALANCE] TUNE OCTAVE *

[CHANNEL ON/OFF] MASTER TUNE/SCALE TUNE SCALE TUNE -

[DIRECT ACCESS] - - -

TAB [F]- - -

[E]- - -

[ENTER] - - -

[EXIT] MAIN - -

[DATA ENTRY] - - -

VOICE

PART SELECT [LEFT]

REGIST SEQUECNE/FREEZE/VOICE SET VOICE SET

LEFT

PART SELECT [RIGHT 1] RIGHT1

PART SELECT [RIGHT 2] RIGHT2

PART ON/OFF [LEFT] LEFT

PART ON/OFF [RIGHT 1] RIGHT1

PART ON/OFF [RIGHT 2] RIGHT2

[LEFT HOLD] STYLE SETTING/SPLIT POINT/CHORD FINGERING STYLE SETTING / SPLIT POINT SPLIT POINT (LEFT)

[VOICE EFFECT] HARMONY/ECHO - -

[PIANO]

MIXING CONSOLE (PANEL PART)

VOL/VOICE

VOICE *

[E.PIANO] PANPOT *

[STRINGS] VOLUME *

[GUITAR & BASS] FILTER HARMONIC CONTENT *

[SAXOPHONE] BRIGHTNESS *

[FLUTE WOODWIND]

MIXING CONSOLE TUNE

PORTAMENTO TIME *

[ORGAN] PITCH BEND RANGE *

[ORGAN FLUTES] OCTAVE *

[TRUMPET] TUNING *

Direct Access Chart / Tabelle Direktzugriff / Feuille d’accès direct / Gráfico de acceso directo

PSR-3000/1500 Data List 23

Direct Access Chart / Tabelle Direktzugriff / Feuille d’accès direct / Gráfico de acceso directo

* The cursor position differs depending on the current keyboard part.

** The cursor position differs depending on the current function assigned to the [TRANSPOSE] button.

*** PSR-3000 only.

VOICE

[BRASS]

MIXING CONSOLE (PANEL PART) EFFECT

REVERB *

[ACCORDION & HARMONICA] CHORUS *

[CHOIR & PAD] DSP2-4 *

[SYNTH. & FX] MIXING CONSOLE EQ -

[PERC. & DRUM KIT] MIXING CONSOLE (PANEL PART) EQ EQ HIGH *

[USER] EQ LOW *

[MUSIC FINDER] MUSIC FINDER SEARCH 1 - -

ONE TOUCH SETTING

[1]

STYLE SETTING/SPLIT POINT/CHORD FINGERING STYLE SETTING/SPLIT POINT SPLIT POINT (STYLE)

[2]

[3]

[4]

[MIC SETTING/VOCAL HARMONY] VOCAL HARMONY TYPE - - ***

REGISTRATION MEMORY

[REGIST. BANK]

REGIST SEQUENCE/FREEZE/VOICE SET

REGISTRATION SEQUENCE -

[FREEZE] FREEZE GROUP SELECT

[MEMORY] REGISTRATION SEQUENCE -

[1]

REGISTRATION EDIT -

(REGISTRATION1)

[2] (REGISTRATION2)

[3] (REGISTRATION3)

[4] (REGISTRATION4)

[5] (REGISTRATION5)

[6] (REGISTRATION6)

[7] (REGISTRATION7)

[8] (REGISTRATION8)

PEDAL FOOT PEDAL 1 CONTROLLER FOOT PEDAL -

FOOT PEDAL 2

MODULATION CONTROLLER KEYBOARD/PANEL MODULATION WHEEL

PITCH BEND MIXING CONSOLE TUNE PITCH BEND RANGE

Operation: [DIRECT ACCESS] button + button listed below Function of the accessed LCD display

PSR-3000/1500 Data List

24

* Notes in parentheses can be omitted.

Chord Name [Abbreviation] Normal Voicing Display for root “C”

1+8 1+8 C1+8

1+5 1+5 C1+5

Major [M] 1+3+5 C

Sixth [6] 1+(3)+5+6 C6

Major seventh [M7] 1+3+(5)+7 CM7

Major seventh flatted fifth [M7b5] 1+3+b5+7 CM7(b5)

Major seventh add sharp eleventh [M7(#11)] 1+(2)+3+#4+5+7 CM7(#11)

Add ninth [(9)] 1+2+3+5 C9

Major seventh ninth [M7_9] 1+2+3+(5)+7 CM7(9)

Sixth ninth [6_9] 1+2+3+(5)+6 C6(9)

Flatted fifth [(b5)] 1+3+b5Cb5

Augmented [aug] 1+3+#5 Caug

Seventh augmented [7aug] 1+3+#5+b7 C7aug

Major seventh augmented [M7aug] 1+(3)+#5+7 CM7aug

Minor [m] 1+b3+5 Cm

Minor sixth [m6] 1+b3+5+6 Cm6

Minor seventh [m7] 1+b3+(5)+b7 Cm7

Minor seventh flatted fifth [m7b5] 1+b3+b5+b7 Cm7(b5)

Minor add ninth [m(9)] 1+2+b3+5 Cm9

Minor seventh ninth [m7(9)] 1+2+b3+(5)+b7 Cm7(9)

Minor seventh eleventh [m7(11)] 1+(2)+b3+4+5+(b7) Cm7(11)

Minor major seventh flatted fifth [mM7b5] 1+b3+b5+7 CmM7(b5)

Minor major seventh [mM7] 1+b3+(5)+7 CmM7

Minor major seventh ninth [mM7(9)] 1+2+b3+(5)+7 CmM7(9)

Diminished [dim] 1+b3+b5 Cdim

Diminished seventh [dim7] 1+b3+b5+6 Cdim7

Seventh [7] 1+3+(5)+b7C7

Seventh suspended fourth [7sus4] 1+4+5+b7 C7sus4

Seventh ninth [7(9)] 1+2+3+(5)+b7 C7(9)

Seventh add sharp eleventh [7(#11)] 1+(2)+3+#4+5+b7 C7(#11)

Seventh add thirteenth [7(13)] 1+3+(5)+6+b7 C7(13)

Seventh flatted fifth [7b5] 1+3+b5+b7 C7(b5)

Seventh flatted ninth [7(b9)] 1+b2+3+(5)+b7 C7(b9)

Seventh add flatted thirteenth [7(b13)] 1+3+5+b6+b7C7(b13)

Seventh sharp ninth [7(#9)] 1+#2+3+(5)+b7C7(#9)

Suspended fourth [sus4] 1+4+5 Csus4

One plus two plus five [sus2] 1+2+5 Csus2

cancel 1+b2+2 Cancel

(b5)

(b5)

C C C

1+8 C1+5

7

6CM7

6

CM7(#11)

CM7(9)

CM7

(9)

C6

(9)

C7

9

Cm

b5

C

(9)

C

(#11)

C7(13)

C7(b5)

C7(b9)

C7(b13)

C7(#9)

C7Csus4

Csus2Cancel

Caug C aug 7

CM aug Cm Cm 7

Cm 7

Cm

(9) (9)

7

Cm (11)

7

Cm (b5)

7

CmM 7

CmM 77

CmM Cdim Cdim 7

C

74

C sus

Chord Types Recognized in the Fingered Mode / Im Fingered-Modus erkannte Akkordarten / Types

d’accords reconnus en mode Fingered / Tipos de acordes reconocidos en el modo Fingered (digitado)

PSR-3000/1500 Data List 25

Effect Type List / Liste der Effekttypen / Liste des types d’effet / Lista de tipos de efecto

Reverb Block

Chorus Block

Type Description MSB LSB

HALL1

Reverb simulating the acoustics of a hall.

10

HALL2 116

HALL3 117

HALL4 118

HALL5 11

HALL M 16

HALL L 17

ROOM1

Reverb simulating the acoustics of a room

216

ROOM2 217

ROOM3 218

ROOM4 219

ROOM5 20

ROOM6 21

ROOM7 22

ROOM S 25

ROOM M 26

ROOM L 27

STAGE1

Reverb suitable for a solo instrument.

316

STAGE2 317

STAGE3 30

STAGE4 31

PLATE1

Reverb simulating a plate reverb unit.

416

PLATE2 417

PLATE3 40

GM PLATE 47

WHITE ROOM A unique short reverb with a bit of initial delay. 16 0

TUNNEL Simulates a cylindrical space expanding to left and right. 17 0

CANYON A hypothetical acoustic space which extends without limit. 18 0

BASEMENT A bit of initial delay followed by reverb with a unique resonance. 19 0

LARGE HALL Reverb simulating the acoustics of a hall. 12

MEDIUM HALL 13

WARM ROOM Reverb simulating the acoustics of a warm room. 2 3

WOODY ROOM Reverb simulating the acoustics of a woody room. 2 4

RICH PLATE Reverb simulating a rich plate reverb unit. 4 1

NO EFFECT No effect. 00

Type Description MSB LSB

CHORUS1

Conventional chorus program with rich, warm chorusing.

66 17

CHORUS2 66 8

CHORUS3 66 16

CHORUS4 66 1

CHORUS5 65 2

CHORUS6 65 0

CHORUS7 65 1

CHORUS8 65 8

GM CHORUS1 65 3

GM CHORUS2 65 4

GM CHORUS3 65 5

GM CHORUS4 65 6

FB CHORUS 65 7

CELESTE1 A 3-phase LFO adds modulation and spaciousness to the sound. 66 0

CELESTE2 66 2

FLANGER1

Creates a sound reminiscent of a jet airplane.

67 8

FLANGER2 67 16

FLANGER3 67 17

FLANGER4 67 1

FLANGER5 67 0

GM FLANGER 67 7

SYMPHONIC1 Adds more stages to the modulation of Celeste. 68 16

SYMPHONIC2 68 0

PHASER1

Cyclically modulates the phase to add modulation to the sound.

72 0

EP PHASER1 72 17

EP PHASER2 72 18

EP PHASER3 72 16

ENS DETUNE

(Ensemble Detune) Chorus effect without modulation, created by adding a slightly pitch-shifted sound. 87 0

ROTARY SP5 Simulates a rotary speaker. 66 18

NO EFFECT No effect. 00

Effect Type List / Liste der Effekttypen / Liste des types d’effet / Lista de tipos de efecto

PSR-3000/1500 Data List

26

DSP1-4 Block

Panel Block Name XG Block Name

DSP1 XG Variation Block

DSP2 XG Insertion1 Block

DSP3 XG Insertion2 Block

DSP4 XG Insertion3 Block

Type Description MSB LSB

HALL1

Reverb simulating the acoustics of a hall.

10

HALL2 116

HALL3 117

HALL4 118

HALL5 11

HALL M 16

HALL L 17

ROOM1

Reverb simulating the acoustics of a room.

216

ROOM2 217

ROOM3 218

ROOM4 219

ROOM5 20

ROOM6 21

ROOM7 22

ROOM S 25

ROOM M 26

ROOM L 27

STAGE1

Reverb suitable for a solo instrument.

316

STAGE2 317

STAGE3 30

STAGE4 31

PLATE1

Reverb simulating a plate reverb unit.

416

PLATE2 417

PLATE3 40

GM PLATE 47

*WHITE ROOM A unique short reverb with a bit of initial delay. 16 0

* TUNNEL Simulates a cylindrical space expanding to left and right. 17 0

* CANYON A hypothetical acoustic space which extends without limit. 18 0

* BASEMENT A bit of initial delay followed by reverb with a unique resonance. 19 0

CHORUS1

Conventional chorus program with rich, warm chorusing.

66 17

CHORUS2 66 8

CHORUS3 66 16

CHORUS4 66 1

CHORUS5 65 2

CHORUS6 65 0

CHORUS7 65 1

CHORUS8 65 8

GM CHORUS1 65 3

GM CHORUS2 65 4

GM CHORUS3 65 5

GM CHORUS4 65 6

FB CHORUS 65 7

CELESTE1 A 3-phase LFO adds modulation and spaciousness to the sound. 66 0

CELESTE2 66 2

SYMPHONIC1 Adds more stages to the modulation of Celeste. 68 16

SYMPHONIC2 68 0

ENS DETUNE (Ensemble Detune) Chorus effect without modulation, created by adding a slightly pitch-shifted sound. 87 0

KARAOKE1

Echo for karaoke.

20 0

KARAOKE2 20 1

KARAOKE3 20 2

* ER1 This effect isolates only the early reflection components of the reverb. 90

* ER2 91

*GATE REVERB Simulation of gated reverb. 10 0

* REVERS GATE Simulation of gated reverb played back in reverse. 11 0

EQ DISCO Equalizer effect that boosts both high and low frequencies, as is typical in most disco music. 76 16

EQ TEL Equalizer effect that cuts both high and low frequencies, to simulate the sound heard through a

telephone receiver. 76 17

2BAND EQ A stereo EQ with adjustable LOW and HIGH. Ideal for drum Parts. 77 0

3BAND EQ A mono EQ with adjustable LOW, MID, and HIGH equalizing. 76 0

HM ENHANCE1 (Harmonic Enhancer 1) Adds new harmonics to the input signal to make the sound stand out. 81 16

HM ENHANCE2 (Harmonic Enhancer 2) 81 0

ST 3BAND EQ An EQ which allows equalization of low, mid and high bands. 76 18

FLANGER1

Creates a sound reminiscent of a jet airplane.

67 8

FLANGER2 67 16

FLANGER3 67 17

FLANGER4 67 1

FLANGER5 67 0

GM FLANGER 67 7

* V_FLANGER A simulation on an analog flanger effect. The LFO has a random setting. 104 0

* T_FLANGER Tempo-synchronized flanger. 107 0

* DYN FLANGER Dynamically controlled flanger. 110 0

DELAY LCR1 Produces three delayed sounds: L, R and C (center). 516

DELAY LCR2 50

DELAY LR Produces two delayed sounds: L and R. Two feedback delays are provided. 6 0

ECHO Two delayed sounds (L and R), and independent feedback delays for L and R. 7 0

CROSS DELAY The feedback of the two delayed sounds is crossed. 8 0

TEMPO DELAY Tempo-synchronized delay. 21 0

TEMPO ECHO Tempo-synchronized echo. 21 8

PSR-3000/1500 Data List 27

Effect Type List / Liste der Effekttypen / Liste des types d’effet / Lista de tipos de efecto

TEMPO CROSS Tempo-synchronized cross delay. 22 0

DIST HEAVY (Distortion Heavy) Heavy distortion. 73 0

* ST DIST (Stereo Distortion) Stereo distortion. 73 8

*COMP+DIST1 (Compressor + Distortion 1) Since a Compressor is included in the first stage, steady distortion can be produced regardless of

changes in input level.

73 16

*COMP+DIST2 (Compressor + Distortion 2) 73 1

OVERDRIVE Adds mild distortion to the sound. 74 0

* ST OD (Stereo Overdrive) Stereo Overdrive. 74 8

DIST HARD (Distortion Hard) Hard-edge distortion. 75 16

DIST HARD2 (Distortion Hard 2) 75 22

DIST SOFT (Distortion Soft) Soft, warm distortion. 75 17

DIST SOFT2 (Distortion Soft2) 75 23

* ST DIST HARD (Stereo Distortion Hard) Hard-edge stereo distortion. 75 18

* ST DIST SOFT (Stereo Distortion Soft) Soft, warm soft distortion. 75 19

* V_DIST HARD (V Distortion Hard) Distortion which simulates vintage tube and fuzz sounds. 98 0

* V_DIST SOFT (V Distortion Soft) 98 2

AMP SIM1 (Amp Simulator 1) A simulation of a guitar amp. 75 0

*AMP SIM2 (Amp Simulator 2) 75 1

* ST AMP1 (Stereo Amp Simulator 1)

Stereo amp simulator.

75 20

ST AMP2 (Stereo Amp Simulator 2) 75 21

* ST AMP3 (Stereo Amp Simulator 3) 75 8

* DST+DELAY1 (Distortion + Delay 1) Distortion and Delay are connected in series. 95 16

* DST+DELAY2 (Distortion + Delay 2) 95 0

* OD+DELAY1 (Overdrive + Delay 1) Overdrive and Delay are connected in series. 95 17

* OD+DELAY2 (Overdrive + Delay 2) 95 1

*CMP+DST+DLY1

(Compressor + Distortion + Delay 1) Compressor, Distortion and Delay are connected in series.

96 16

*CMP+DST+DLY2

(Compressor + Distortion + Delay 2) 96 0

*CMP+OD+DLY1

(Compressor + Overdrive + Delay 1) Compressor, Overdrive and Delay are connected in series.

96 17

*CMP+OD+DLY2

(Compressor + Overdrive + Delay 2) 96 1

* V_DST H+DLY (V Distortion Hard + Delay) V Distortion and Delay are connected in series. 98 1

* V_DST S+DLY (V Distortion Soft + Delay) 98 3

* DST+TDLY (Distortion + Tempo Delay) Distortion and Tempo Delay are connected in series. 100 0

* OD+TDLY (Overdrive + Tempo Delay) Overdrive and Tempo Delay are connected in series. 100 1

*CMP+DST+TDL

(Compressor + Distortion + Tempo Delay) Compressor, Distortion and Tempo Delay are connected in series. 101 0

*CMP+OD+TDLY

(Compressor + Overdrive + Tempo Delay) Compressor, Overdrive and Tempo Delay are connected in series. 101 1

*V_DST H+TDLY

(V Distortion Hard + Tempo Delay) V Distortion Hard and Tempo Delay are connected in series. 103 0

*V_DST S+TDLY

(V Distortion Soft + Tempo Delay) V Distortion Soft and Tempo Delay are connected in series. 103 1

*MBAND COMP Multi-band compressor that allows you to adjust the compression effect for individual frequency

bands. 105 0

COMPRESSOR Holds down the output level when a specified input level is exceeded. A sense of attack can also

be added to the sound. 83 0

NOISE GATE Gates the input when the input signal falls below a specified level. 84 0

* VCE CANCEL (Voice Cancel) Attenuates the vocal part of a CD or other source. 85 0

*AMBIENCE Blurs the stereo positioning of the sound to add spatial width. 88 0

*TALKING MOD (Talking Modulation) Adds a vowel sound to the input signal. 93 0

* LO-FI Degrades the audio quality of the input signal. 94 0

* DYN FILTER Dynamically controlled filter. 109 0

* DYN RINGMOD Dynamically controlled Ring Modulator. 112 0

* RING MOD An effect that modifies the pitch by applying amplitude modulation to the frequency of the input. 113 0

* ISOLATOR Controls the level of a specified frequency band of the input signal. 115 0

PHASER1

Cyclically modulates the phase to add modulation to the sound.

72 0

* PHASER2 72 8

EP PHASER1 72 17

EP PHASER2 72 18

EP PHASER3 72 16

* T_PHASER 108 0

* DYN PHASER 111 0

* PITCH CHG1 (Pitch Change 1)

Changes the pitch of the input signal.

80 16

* PITCH CHG2 (Pitch Change 2) 80 0

* PITCH CHG3 (Pitch Change 3) 80 1

ROTARY SP1 (Rotary Speaker 1)

Simulates a rotary speaker.

69 16

ROTARY SP2 (Rotary Speaker 2) 71 17

ROTARY SP3 (Rotary Speaker 3) 71 18

ROTARY SP4 (Rotary Speaker 4) 70 17

ROTARY SP5 (Rotary Speaker 5) 66 18

ROTARY SP6 (Rotary Speaker 6) 69 0

ROTARY SP7 (Rotary Speaker 7) 71 22

*2WAY ROT SP (2-way Rotary Speaker) 86 0

* DST+ROT SP (Distortion + Rotary Speaker) Distortion and rotary speaker connected in series. 69 1

*DST+2ROT SP

(Distortion + 2-way Rotary Speaker) Distortion and 2-way rotary speaker connected in series. 86 1

* OD+ROT SP (Overdrive + Rotary Speaker) Overdrive and rotary speaker connected in series. 69 2

*OD+2ROT SP

(Overdrive + 2-way Rotary Speaker) Overdrive and 2-way rotary speaker connected in series. 86 2

*AMP+ROT SP

(Amp Simulator + Rotary Speaker) Amp simulator and rotary speaker connected in series. 69 3

*AMP+2ROT SP

(Amp Simulator + 2-way Rotary Speaker) Amp simulator and 2-way rotary speaker connected in series. 86 3

* DUAL ROT SP1 (Dual Rotor Speaker 1) Rotary speaker simulation with speed switching. 99 0

* DUAL ROT SP2 (Dual Rotor Speaker 2) 99 1

Type Description MSB LSB

Effect Type List / Liste der Effekttypen / Liste des types d’effet / Lista de tipos de efecto

PSR-3000/1500 Data List

28

* These types are not available for DSP 2-4.

AUTO PAN1

Several panning effects that automatically shift the sound position (left, right, front, back).

71 16

AUTO PAN2 71 0

EP AUTOPAN 71 21

* AUTO PAN3 71 1

TREMOLO1

Rich Tremolo effect with both volume and pitch modulation.

70 16

TREMOLO2 71 19

TREMOLO3 70 0

EP TREMOLO 70 18

GT TREMOLO1 (Guitar Tremolo 1) 71 20

GT TREMOLO2 (Guitar Tremolo 2) 70 19

VIBE VIBRATE Vibraphone effect. 119 0

AUTO WAH1 Cyclically modulates the center frequency of a wah filter. 78 16

AUTO WAH2 78 0

*AT WAH+DST1 (Auto Wah + Distortion1 ) The output of an Auto Wah can be distorted by Distortion. 78 17

*AT WAH+DST2 (Auto Wah + Distortion 2) 78 1

*AT WAH+OD1 (Auto Wah + Overdrive 1) The output of an Auto Wah can be distorted by Overdrive. 78 18

*AT WAH+OD2 (Auto Wah + Overdrive 2) 78 2

TOUCH WAH1 Changes the center frequency of a wah filter according to the input level. 82 0

TOUCH WAH2 82 8

* TC WAH+DST1 (Touch Wah + Distortion 1) The output of an Touch Wah can be distorted by Distortion. 82 16

* TC WAH+DST2 (Touch Wah + Distortion 2) 82 1

* TC WAH+OD1 (Touch Wah + Overdrive 1) The output of an Touch Wah can be distorted by Overdrive. 82 17

* TC WAH+OD2 (Touch Wah + Overdrive 2) 82 2

CLAVI TC WAH (Clavi Touch Wah) Clavinet Touch Wah. 82 18

EP TC WAH (EP Touch Wah) EP Touch Wah 82 19

*WH+DST+DLY1 (Wah + Distortion + Delay 1) Wah, Distortion and Delay are connected in series. 97 16

*WH+DST+DLY2 (Wah + Distortion + Delay 2) 97 0

*WH+DST+TDLY

(Wah + Distortion + Tempo Delay) Wah, Distortion and Tempo Delay are connected in series. 102 0

*WH+OD+DLY1 (Wah + Overdrive + Delay 1) Wah, Overdrive and Delay are connected in series. 97 17

*WH+OD+DLY2 (Wah + Overdrive + Delay 2) 97 1

*WH+OD+TDLY

(Wah + Overdrive + Tempo Delay) Wah, Overdrive and Tempo Delay are connected in series. 102 1

*NO EFFECT No effect. 00

THRU Bypass without applying an effect. 64 0

Type Description MSB LSB

PSR-3000/1500 Data List 29

Parameters marked with a ● in the “Control” column can be controlled from an AC1 (assignable controller 1) etc. However, these only affect

insertion type effects.

Panel Effect Name Type MSB (Type LSB)

HALL1, 2, 3, 4, 5, HALLM, HALLL MSB = 01,

LSB = 0, 1, 6, 7, 16, 17, 18

ROOM1, 2, 3, 4, 5, 6, 7, ROOMS, ROOMM, ROOML MSB = 0, 2,

LSB = 0, 1, 2, 5, 6, 7, 16, 17, 18, 19

STAGE1, 2, 3, 4 MSB = 03

PLATE1, 2, 3, GM PLATE MSB = 04, LSB = 0, 7, 16, 17

(Reverb, all the DSP blocks)

LARGE HALL, MEDIUM HALL MSB = 01, LSB = 2, 3

WARM ROOM, WOODY ROOM MSB = 02, LSB = 3, 4

RICH PLATE MSB = 04, LSB = 1

(Reverb block)

DELAY LCR1, DELAY LCR2 MSB = 05

(All the DSP blocks)

DELAY LR MSB = 06

(All the DSP blocks)

ECHO MSB = 07

(All the DSP blocks)

CROSS DELAY MSB = 08

(All the DSP blocks)

No. Parameter Display Value See Table Control

1 Reverb Time 0.3 – 30.0s 0 – 69 table#4

2 Diffusion 0 – 10 0 – 10

3 Initial Delay 0.1mS – 200.0mS (*1) 0 – 127 table#5

0.1mS – 99.3mS (*2, 3) 0 – 63

4 HPF Cutoff Thru – 8.0kHz 0 – 52 table#3

5 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Rev Delay 0.1mS – 200.0mS (*1) 0 – 127 table#5

0.1mS – 99.3mS (*2,3) 0 – 63

12 Density 0 – 4 (*1,2) 0 – 4

0 – 2 (*3) 0 – 2

13 Er/Rev Balance E63>R – E=R – E<R63 1 – 127

14 High Damp 0.1 – 1.0 1 – 10

15 Feedback Level -63 – +63 1 – 127 (table#16)

16

No. Parameter Display Value See Table Control

1 Reverb Time 0.3 – 30.0s 0 – 69 table#4

2 Diffusion 0 – 10 0 – 10

3 Initial Delay 0.1mS – 200.0mS 0 – 127 table#5

4 HPF Cutoff Thru – 8.0kHz 0 – 52 table#3

5 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11

12

13

14 High Damp 0.1 – 1.0 1 – 10

15

16

No. Parameter Display Value See Table Control

1 Lch Delay 0.1 – 1638.3ms (*2) 1 – 16383

0.1 – 1486.0ms (*3) 1 – 14860

2 Rch Delay 0.1 – 1638.3ms (*2) 1 – 16383

0.1 – 1486.0ms (*3) 1 – 14860

3 Cch Delay 0.1 – 1638.3ms (*2) 1 – 16383

0.1 – 1486.0ms (*3) 1 – 14860

4 Feedback Delay 0.1 – 1638.3ms (*2) 1 – 16383

0.1 – 1486.0ms (*3) 1 – 14860

5 Feedback Level -63 – +63 1 – 127 (table#16)

6 Cch Level 0 – 127 0 – 127 (table#18)

7 High Damp 0.1 – 1.0 1 – 10

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11

12

13 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

14 EQ Low Gain -12 – +12dB 52 – 76

15 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

16 EQ High Gain -12 – +12dB 52 – 76

No. Parameter Display Value See Table Control

1 Lch Delay 0.1 – 1638.3ms (*2) 1 – 16383

0.1 – 1486.0ms (*3) 1 – 14860

2 Rch Delay 0.1 – 1638.3ms (*2) 1 – 16383

0.1 – 1486.0ms (*3) 1 – 14860

3 Feedback Delay 1 0.1 – 1638.3ms (*2) 1 – 16383

0.1 – 1486.0ms (*3) 1 – 14860

4 Feedback Delay 2 0.1 – 1638.3ms (*2) 1 – 16383

0.1 – 1486.0ms (*3) 1 – 14860

5 Feedback Level -63 – +63 1 – 127 (table#16)

6 High Damp 0.1 – 1.0 1 – 10

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11

12

13 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

14 EQ Low Gain -12 – +12dB 52 – 76

15 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

16 EQ High Gain -12 – +12dB 52 – 76

No. Parameter Display Value See Table Control

1 Lch Delay1 0.1 – 1486.0ms (*2) 1 – 14860

0.1 – 743.0ms (*3) 1 – 7430

2 Lch Feedback Level -63 – +63 1 – 127 (table#16)

3 Rch Delay1 0.1 – 1486.0ms (*2) 1 – 14860

0.1 – 743.0ms (*3) 1 – 7430

4 Rch Feedback Level -63 – +63 1 – 127 (table#16)

5 High Damp 0.1 – 1.0 1 – 10

6 Lch Delay2 0.1 – 1486.0ms (*2) 1 – 14860

0.1 – 743.0ms (*3) 1 – 7430

7 Rch Delay2 0.1 – 1486.0ms (*2) 1 – 14860

0.1 – 743.0ms (*3) 1 – 7430

8 Delay2 Level 0 – 127 0 – 127 (table#18)

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11

12

13 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

14 EQ Low Gain -12 – +12dB 52 – 76

15 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

16 EQ High Gain -12 – +12dB 52 – 76

No. Parameter Display Value See Table Control

1 L->R Delay 0.1 – 1486.0ms (*2) 1 – 14860

0.1 – 743.0ms (*3) 1 – 7430

2 R->L Delay 0.1 – 1486.0ms (*2) 1 – 14860

0.1 – 743.0ms (*3) 1 – 7430

3 Feedback Level -63 – +63 1 – 127 (table#16)

4 Input Select L, R, L&R 0 – 2

5 High Damp 0.1 – 1.0 1 – 10

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11

12

13 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

14 EQ Low Gain -12 – +12dB 52 – 76

15 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

16 EQ High Gain -12 – +12dB 52 – 76

Effect Parameter List / Liste der Effektparameter /

Liste des paramètres d’effets / Lista de parámetros de efectos

Effect Parameter List / Liste der Effektparameter / Liste des paramètres d’effets / Lista de parámetros de efectos

PSR-3000/1500 Data List

30

ER1, ER2 MSB = 09

(DSP1)

GATE REVERB MSB = 10

REVERS GATE MSB = 11

(DSP1)

WHITE ROOM MSB = 16

TUNNEL MSB = 17

CANYON MSB = 18

BASEMENT MSB = 19

(Reverb and DSP1)

KARAOKE1, 2, 3 MSB = 20

(All the DSP blocks)

TEMPO DELAY

TEMPO ECHO MSB = 21

(All the DSP blocks)

TEMPO CROSS MSB = 22

(All the DSP blocks)

CHORUS1, 2, 3, 4, 5, 6, 7, 8, GMCHORUS1, 2, 3, 4 MSB = 65

FB CHORUS, CELESTE1, 2, ROTARY SP5 MSB = 66

(Chorus and all the DSP blocks)

No. Parameter Display Value See Table Control

1Type S-H, L-H, Rdm, Rvs, Plt, Spr 0 – 5

2 Room Size 0.1 – 20.0 0 – 127 table#6

3 Diffusion 0 – 10 0 – 10

4 Initial Delay 0.1mS – 200.0mS 0 – 127 table#5

5 Feedback Level -63 – +63 1 – 127 (table#16)

6 HPF Cutoff Thru – 8.0kHz 0 – 52 table#3

7 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Liveness 0 – 10 0 – 10

12 Density 0 – 3 0 – 3

13 High Damp 0.1 – 1.0 1 – 10

14

15

16

No. Parameter Display Value See Table Control

1Type TypeA, TypeB 0 – 1

2 Room Size 0.1 – 20.0 0 – 127 table#6

3 Diffusion 0 – 10 0 – 10

4 Initial Delay 0.1mS – 200.0mS 0 – 127 table#5

5 Feedback Level -63 – +63 1 – 127 (table#16)

6 HPF Cutoff Thru – 8.0kHz 0 – 52 table#3

7 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Liveness 0 – 10 0 – 10

12 Density 0 – 3 0 – 3

13 High Damp 0.1 – 1.0 1 – 10

14

15

16

No. Parameter Display Value See Table Control

1 Reverb Time 0.3 – 30.0s 0 – 69 table#4

2 Diffusion 0 – 10 0 – 10

3 Initial Delay 0.1mS – 200.0mS (*1) 0 – 127 table#5

0.1mS – 99.3mS (*2) 0 – 63

4 HPF Cutoff Thru – 8.0kHz 0 – 52 table#3

5 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3

6Width 0.5 – 30.2m (*1) 0 – 104 table#11

0.5 – 10.2m (*2) 0 – 37

7 Height 0.5 – 30.2m (*1) 0 – 104 table#11

0.5 – 20.2m (*2) 0 – 73

8 Depth 0.5 – 30.2m 0 – 104 table#11

9Wall Vary 0 – 30 0 – 30

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Rev Delay 0.1mS – 200.0mS (*1) 0 – 127 table#5

0.1mS – 99.3mS (*2) 0 – 63

12 Density 0 – 4 0 – 4

13 Er/Rev Balance E63>R – E=R – E<R63 1 – 127

14 High Damp 0.1 – 1.0 1 – 10

15 Feedback Level -63 – +63 1 – 127 (table#16)

16

No. Parameter Display Value See Table Control

1 Delay Time 0.1mS – 400.0mS 0 – 127 table#7

2 Feedback Level -63 – +63 1 – 127 (table#16)

3 HPF Cutoff Thru – 8.0kHz 0 – 52 table#3

4 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3

5

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Density 0 – 3 0 – 3

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Delay Time 64th/3 – 4thx6 0 – 19 table#14

2 Feedback Level -63 – +63 1 – 127 (table#16)

3 Feedback High Dump 0.1 – 1.0 1 – 10

4 L/R Diffusion

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

5 Lag

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W=63 1 – 127 (table#15) ●

11

12

13 EQ Low Frequency 32Hz – 2.0kHz 4 – 40

14 EQ Low Gain -12 – +12dB 52 – 76

15 EQ High Frequency 500Hz – 16.0kHz 28 – 58

16 EQ High Gain -12 – +12dB 52 – 76

No. Parameter Display Value See Table Control

1 Delay Time L>R 64th/3 – 4thx6 0 – 19 table#14

2 Delay Time R>L 64th/3 – 4thx6 0 – 19 table#14

3 Feedback Level -63 – +63 1 – 127 (table#16)

4 Input Select L, R, L&R 0 – 2

5 Feedback High Dump 0.1 – 1.0 1 – 10

6 Lag

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

7

8

9

10 Dry/Wet D63>W – D=W – D<W=63 1 – 127 (table#15) ●

11

12

13 EQ Low Frequency 32Hz – 2.0kHz 4 – 40

14 EQ Low Gain -12 – +12dB 52 – 76

15 EQ High Frequency 500Hz – 16.0kHz 28 – 58

16 EQ High Gain -12 – +12dB 52 – 76

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1

2 LFO Depth 0 – 127 0 – 127 (table#19)

3 Feedback Level -63 – +63 1 – 127 (table#17)

4 Delay Offset 0.0mS – 50mS 0 – 127 table#2

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 EQ Mid Frequency (*4) 100Hz – 10.0kHz 14 – 54 table#3

12 EQ Mid Gain (*4) -12 – +12dB 52 – 76

13 EQ Mid Width (*4) 0.1 – 12.0 1 – 120

14

15 Input Mode mono/stereo 0 – 1

16

No. Parameter Display Value See Table Control

PSR-3000/1500 Data List 31

Effect Parameter List / Liste der Effektparameter / Liste des paramètres d’effets / Lista de parámetros de efectos

FLANGER1, 2, 3, 4, 5, GM FLANGER MSB = 67

(Chorus and all the DSP blocks)

SYMPHONIC1, 2 MSB = 68

(Chorus and all the DSP blocks)

ROTARY SP1, 6 MSB = 69, LSB = 0, 16

(All the DSP blocks)

DST+ROT SP MSB = 69, LSB = 1

OD+ROT SP MSB = 69, LSB = 2

(DSP1)

AMP+ROT SP MSB = 69, LSB = 3

(DSP1)

TREMOLO1, 3, EP TREMOLO, GT TREMOLO2,

ROTARY SP4 MSB = 70

(All the DSP blocks)

AUTO PAN1, 2, EP AUTOPAN, TREMOLO2,

GT TREMOLO1, ROTARY SP2, 3, 7 MSB = 71,

(All the DSP blocks) LSB = 0,16,17,18,19, 20, 21, 22

AUTO PAN3 MSB = 71, LSB = 1

(DSP1)

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1

2 LFO Depth 0 – 127 0 – 127 (table#19)

3 Feedback Level -63 – +63 1 – 127 (table#17)

4 Delay Offset 0.0mS – 50mS 0 – 127 table#2

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 EQ Mid Frequency (*4) 100Hz – 10.0kHz 14 – 54 table#3

12 EQ Mid Gain (*4) -12 – +12dB 52 – 76

13 EQ Mid Width (*4) 0.1 – 12.0 1 – 120

14 LFO Phase Difference -180 – +180deg

(resolution=3deg.)

4 – 124

15

16

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1

2 LFO Depth 0 – 127 0 – 127 (table#19)

3 Delay Offset 0.0mS – 50mS 0 – 127 table#2

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 EQ Mid Frequency (*4) 100Hz – 10.0kHz 14 – 54 table#3

12 EQ Mid Gain (*4) -12 – +12dB 52 – 76

13 EQ Mid Width (*4) 0.1 – 12.0 1 – 120

14

15

16

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1 ●

2 LFO Depth 0 – 127 0 – 127 (table#19)

3

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 EQ Mid Frequency (*4) 100Hz – 10.0kHz 14 – 54 table#3

12 EQ Mid Gain (*4) -12 – +12dB 52 – 76

13 EQ Mid Width (*4) 0.1 – 12.0 1 – 120

14

15

16

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1 ●

2 LFO Depth 0 – 127 0 – 127 (table#19)

3

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W=63 1 – 127 (table#15)

11

12

13

14 Drive 0 – 127 0 – 127

15 LPF Cutoff 1kHz – Thru 34 – 60 table#3

16 Output Level 0 – 127 0 – 127 (table#18)

No. Parameter Display Value See Table Control

1 LFO Frequency 0.0 – 39.7Hz 0 – 127 table#1 ●

2 LFO Depth 0 – 127 0 – 127 (table#19)

3 AMP Type Off, Stack, Combo, Tube 0 – 3

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W=63 1 – 127 (table#15)

11

12

13

14 Drive 0 – 127 0 – 127

15 LPF Cutoff 1kHz – Thru 34 – 60 table#3

16 Output Level 0 – 127 0 – 127 (table#18)

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1 ●

2 AM Depth 0 – 127 0 – 127

3PM Depth 0 – 127 0 – 127

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10

11 EQ Mid Frequency (*4) 100Hz – 10.0kHz 14 – 54 table#3

12 EQ Mid Gain (*4) -12 – +12dB 52 – 76

13 EQ Mid Width (*4) 0.1 – 12.0 1 – 120

14 LFO Phase Difference -180 – +180deg

(resolution=3deg.)

4 – 124

15 Input Mode mono/stereo 0 – 1

16

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1 ●

2 L/R Depth 0 – 127 0 – 127

3 F/R Depth 0 – 127 0 – 127

4PAN Direction L<->R, L->R, L<-R, Lturn,

Rturn, L/R

0 – 5

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10

11 EQ Mid Frequency (*4) 100Hz – 10.0kHz 14 – 54 table#3

12 EQ Mid Gain (*4) -12 – +12dB 52 – 76

13 EQ Mid Width (*4) 0.1 – 12.0 1 – 120

14

15

16

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1 ●

2 L/R Depth 0 – 127 0 – 127

3 F/R Depth 0 – 127 0 – 127

4PAN Direction L<->R, L->R, L<-R, Lturn,

Rturn, L/R

0 – 5

5 LFO Wave 0 – 28 0 – 28

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10

11 EQ Mid Frequency (*4) 100Hz – 10.0kHz 14 – 54 table#3

12 EQ Mid Gain (*4) -12 – +12dB 52 – 76

13 EQ Mid Width (*4) 0.1 – 12.0 1 – 120

Effect Parameter List / Liste der Effektparameter / Liste des paramètres d’effets / Lista de parámetros de efectos

PSR-3000/1500 Data List

32

PHASER 1, EP PHASER1, 2, 3 MSB = 72, LSB = 0, 16, 17, 18

(Chorus and all the DSP blocks)

PHASER 2 MSB = 72, LSB = 8

(DSP1)

DIST HEAVY MSB = 73, LSB = 0

OVERDRIVE MSB = 74, LSB = 0

(All the DSP blocks)

COMP+DIST1, 2 MSB = 73, LSB = 1, 16

(DSP1)

ST DIST MSB = 73, LSB = 8

ST OD MSB = 74, LSB = 8

(DSP1)

AMP SIM1, DIST HARD, DIST HARD2, DIST SOFT,

DIST SOFT2 MSB = 75, LSB = 0,16,17, 22, 23

ST AMP2 (*3) MSB = 75, LSB = 21 (*3)

(All the DSP blocks)

AMP SIM2 MSB = 75, LSB = 1

(DSP1)

14

15 Input Mode Mono, Stereo 0 – 1

16

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1

2 LFO Depth 0 – 127 0 – 127 (table#19)

3 Phase Shift Offset 0 – 127 0 – 127

4 Feedback Level -63 – +63 1 – 127 (table#16)

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Stage 4 – 22 (*2) 4 – 22

4 – 12 (*3) 4 – 12

12 Diffusion mono/stereo 0 – 1

13

14

15

16

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1

2 LFO Depth 0 – 127 0 – 127 (table#19)

3 Phase Shift Offset 0 – 127 0 – 127

4 Feedback Level -63 – +63 1 – 127 (table#16)

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Stage 3 – 11 3 – 11

12

13 LFO Phase Difference -180deg – +180deg

(resolution=3deg.)

4 – 124

14

15

16

No. Parameter Display Value See Table Control

1 Drive 0 – 127 0 – 127 ●

2 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

3 EQ Low Gain -12 – +12dB 52 – 76

4 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3

5 Output Level 0 – 127 0 – 127 (table#18)

6

7 EQ Mid Frequency 100Hz – 10.0kHz 14 – 54 table#3

8 EQ Mid Gain -12 – +12dB 52 – 76

9 EQ Mid Width 0.1 – 12.0 1 – 120

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Edge (Clip Curve) 0 – 127 (mild – sharp) 0 – 127

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Drive 0 – 127 0 – 127 ●

2 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

3 EQ Low Gain -12 – +12dB 52 – 76

4 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3

5 Output Level 0 – 127 0 – 127 (table#18)

6

7 EQ Mid Frequency 100Hz – 10.0kHz 14 – 54 table#3

8 EQ Mid Gain -12 – +12dB 52 – 76

9 EQ Mid Width 0.1 – 12.0 1 – 120

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

No. Parameter Display Value See Table Control

11 Edge (Clip Curve) 0 – 127 (mild – sharp) 0 – 127

12 Attack 1ms – 40ms 0 – 19 table#8

13 Release 10ms – 680ms 0 – 15 table#9

14 Threshold -48dB – -6dB 79 – 121

15 Ratio 1.0 – 20.0 0 – 7 table#10

16

No. Parameter Display Value See Table Control

1 Drive 0 – 127 0 – 127 ●

2 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

3 EQ Low Gain -12 – +12dB 52 – 76

4 LPF Cutoff 1kHz – Thru 34 – 60

5 Output Level 0 – 127 0 – 127 (table#18)

6

7 EQ Mid Frequency 100Hz – 10.0kHz 14 – 54 table#3

8 EQ Mid Gain -12 – +12dB 52 – 76

9 EQ Mid Width 0.1 – 12.0 1 – 120

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Edge (Clip Curve) 0 – 127 0 – 127

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Drive 0 – 127 0 – 127 ●

2 AMP Type Off, Stack, Combo, Tube 0 – 3

3 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3

4 Output Level 0 – 127 0 – 127 (table#18)

5

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Edge (Clip Curve) 0 – 127 (mild – sharp) 0 – 127

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Drive 0 – 127 0 – 127 ●

2 AMP Type Off, Stack, Combo, Tube,

Crunch, Hi gain, British

0 – 6

3 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3

4 Output Level 0 – 127 0 – 127 (table#18)

5

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11

12

13

14

15

16

No. Parameter Display Value See Table Control

PSR-3000/1500 Data List 33

Effect Parameter List / Liste der Effektparameter / Liste des paramètres d’effets / Lista de parámetros de efectos

ST AMP1, 3, ST DIST HARD, ST DIST SOFT MSB = 75, LSB = 8, 18, 19, 20

ST AMP2 (*2) MSB = 75, LSB = 21 (*2)

(DSP1)

3BAND EQ, EQ DISCO, EQ TEL, ST 3BAND EQ MSB = 76

(All the DSP blocks)

2BAND EQ MSB = 77

(All the DSP blocks)

AUTO WAH1, 2 MSB = 78, LSB = 0, 16

(All the DSP blocks)

AT WAH+DST1, 2, AT WAH+OD1, 2 MSB = 78, LSB = 1, 2, 17, 18

(DSP1)

PITCH CHG1, 2 MSB = 80, LSB = 0, 16

(DSP1)

PITCH CHG3 MSB = 80, LSB = 1

(DSP1)

HM ENHANCER1, 2 MSB = 81

(All the DSP blocks)

No. Parameter Display Value See Table Control

1 Drive 0 – 127 0 – 127 ●

2AMP Type Off, Stack, Combo, Tube 0 – 3

3 LPF Cutoff 1kHz – Thru 34 – 60 table#3

4 Output Level 0 – 127 0 – 127 (table#18)

5

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Edge (Clip Curve) 0 – 127 (mild – sharp) 0 – 127

12

13

14

15

16

No. Parameter Display Value See Table Control

1 EQ Low Gain -12 – +12dB 52 – 76

2 EQ Mid Frequency 100Hz – 16.0kHz 14 – 58 table#3

3 EQ Mid Gain -12 – +12dB 52 – 76

4 EQ Mid Width 0.1 – 12.0 1 – 120

5 EQ High Gain -12 – +12dB 52 – 76

6 EQ Low Frequency 50Hz – 2.0kHz 8 – 40 table#3

7 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

8

9

10

11

12

13

14

15 Input Mode mono/stereo 0 – 1

16

No. Parameter Display Value See Table Control

1 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

2 EQ Low Gain -12 – +12dB 52 – 76

3 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

4 EQ High Gain -12 – +12dB 52 – 76

5

6

7

8

9

10

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1

2 LFO Depth 0 – 127 0 – 127 (table#19)

3

Cutoff Frequency Offset

0 – 127 0 – 127 ●

4 Resonance 1.0 – 12.0 10 – 120

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Drive (*4) 0 – 127 0 – 127

12

13

14

15

16

No. Parameter Display Value See Table Control

1 LFO Frequency 0.00Hz – 39.7Hz 0 – 127 table#1

2 LFO Depth 0 – 127 0 – 127 (table#19)

3

Cutoff Frequency Offset

0 – 127 0 – 127 ●

4 Resonance 1.0 – 12.0 10 – 120

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Drive 0 – 127 0 – 127

12

EQ Low Gain (distortion)

-12 – +12dB 52 – 76

13

EQ Mid Gain (distortion)

-12 – +12dB 52 – 76

14 LPF Cutoff 1.0kHz – thru 34 – 60 table#3

15 Output Level 0 – 127 0 – 127 (table#18)

16

No. Parameter Display Value See Table Control

1 Pitch -24 – +24 40 – 88

2 Initial Delay 0.1mS – 400.0mS 0 – 127 table#7

3 Fine 1 -50 – +50 14 – 114

4 Fine 2 -50 – +50 14 – 114

5 Feedback Level -63 – +63 1 – 127

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Pan 1 L63 – R63 1 – 127

12 Output Level 1 0 – 127 0 – 127 (table#18)

13 Pan 2 L63 – R63 1 – 127

14 Output Level 2 0 – 127 0 – 127 (table#18)

15

16

No. Parameter Display Value See Table Control

1 Pitch -24 – +24 40 – 88

2 Initial Delay 0.1mS – 400.0mS 0 – 127 table#7

3 Fine 1 -50 – +50cent 14 – 114

4 Fine 2 -50 – +50cent 14 – 114

5 Feedback Level -63 – +63 1 – 127

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Pan 1 L63 – R63 1 – 127

12 Output Level 1 0 – 127 0 – 127 (table#18)

13 Pan 2 L63 – R63 1 – 127

14 Output Level 2 0 – 127 0 – 127 (table#18)

15

16

No. Parameter Display Value See Table Control

1 HPF Cutoff 500Hz – 16.0kHz 28 – 58

2 Drive 0 – 127 0 – 127

3Mix Level 0 – 127 0 – 127

4

5

6

7

8

9

10

11

12

13

14

15

16

Effect Parameter List / Liste der Effektparameter / Liste des paramètres d’effets / Lista de parámetros de efectos

PSR-3000/1500 Data List

34

TOUCH WAH1 MSB = 82, LSB = 0

(All the DSP blocks)

TC WAH+DIST1, 2 MSB = 82, LSB = 1, 16

(DSP1)

TOUCH WAH2, CLAVI TC WAH, EP TC WAH MSB = 82, LSB = 8, 18, 19

(All the DSP blocks)

TC WAH+OD1, 2 MSB = 82, LSB = 2, 17

(DSP1)

COMPRESSOR MSB = 83

(All the DSP blocks)

NOISE GATE MSB = 84

(All the DSP blocks)

VCE CANCEL MSB = 85

(DSP1)

2WAY ROT SP MSB = 86, LSB = 0

(DSP1)

No. Parameter Display Value See Table Control

1 Sensitivity 0 – 127 0 – 127

2

Cutoff Frequency Offset

0 – 127 0 – 127 ●

3 Resonance 1.0 – 12.0 10 – 120

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Drive (*4) 0 – 127 0 – 127

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Sensitivity 0 – 127 0 – 127

2

Cutoff Frequency Offset

0 – 127 0 – 127 ●

3 Resonance 1.0 – 12.0 10 – 120

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Drive 0 – 127 0 – 127

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Sensitivity 0 – 127 0 – 127

2

Cutoff Frequency Offset

0 – 127 0 – 127 ●

3 Resonance 1.0 – 12.0 10 – 120

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Drive (*4) 0 – 127 0 – 127

12 EQ Low Gain (*4)

(distortion)

-12 – +12dB 52 – 76

13 EQ Mid Gain (*4)

(distortion)

-12 – +12dB 52 – 76

14 LPF Cutoff (*4) 1.0kHz – thru 34 – 60 table#3

15 Output Level (*4) 0 – 127 0 – 127 (table#18)

16 Release 10 – 680mS 52 – 67 table#12

No. Parameter Display Value See Table Control

1 Sensitivity 0 – 127 0 – 127

2

Cutoff Frequency Offset

0 – 127 0 – 127 ●

3 Resonance 1.0 – 12.0 10 – 120

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Drive 0 – 127 0 – 127

12

EQ Low Gain (distortion)

-12 – +12dB 52 – 76

13

EQ Mid Gain (distortion)

-12 – +12dB 52 – 76

14 LPF Cutoff 1.0kHz – thru 34 – 60 table#3

15 Output Level 0 – 127 0 – 127 (table#18)

16 Release 10 – 680mS 52 – 67 table#12

No. Parameter Display Value See Table Control

1 Attack 1 – 40ms 0 – 19 table#8

2 Release 10 – 680ms 0 – 15 table#9

3 Threshold -48 – -6dB 79-121

4 Ratio 1.0 – 20.0 0 – 7 table#10

5 Output Level 0 – 127 0 – 127 (table#18)

6

7

8

9

10

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Attack 1 – 40ms 0 – 19 table#8

2 Release 10 – 680ms 0 – 15 table#9

3 Threshold -72 – -30dB 55 – 97

4 Output Level 0 – 127 0 – 127 (table#18)

5

6

7

8

9

10

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1

2

3

4

5

6

7

8

9

10

11 Low Adjust 0 – 26 0 – 26

12 High Adjust 0 – 26 0 – 26

13

14

15

16

No. Parameter Display Value See Table Control

1 Rotor Speed 0.0Hz – 39.7Hz 0 – 127 table#1 ●

2 Drive Low 0 – 127 0 – 127

3 Drive High 0 – 127 0 – 127

4 Low/High L63>H – L=H – L<H63 1 – 127

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10

11 Crossover Frequency 100Hz – 10.0kHz 14 – 54 table#3

12 Mic L-R Angle 0deg – 180deg

(resolution=3deg.)

0 – 60

13

14

15

16

PSR-3000/1500 Data List 35

Effect Parameter List / Liste der Effektparameter / Liste des paramètres d’effets / Lista de parámetros de efectos

DST+2ROT SP MSB = 86, LSB = 1

OD+2ROT SP MSB = 86, LSB = 2

(DSP1)

AMP+2ROT SP MSB = 86, LSB = 3

(DSP1)

ENS DETUNE MSB = 87

(Chorus and all the DSP blocks)

AMBIENCE MSB = 88

(DSP1)

TALKING MOD MSB = 93

(DSP1)

LO-FI MSB = 94

(DSP1)

DST+DELAY1, 2, OD+DELAY1, 2 MSB = 95

(DSP1)

CMP+DST+DLY1, 2, CMP+OD+DLY1, 2 MSB = 96

(DSP1)

No. Parameter Display Value See Table Control

1 Rotor Speed 0.0 – 39.7Hz 0 – 127 table#1 ●

2 Drive Low 0 – 127 0 – 127

3 Drive High 0 – 127 0 – 127

4 Low/High Balance L63>H – L=H – L<H=63 1 – 127

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10

11 Crossover Frequency 100Hz – 10.0kHz 14 – 54 table#3

12 Mic L-R Angle 0 – 180deg 0 – 60

13

14 Drive 0 – 127 0 – 127

15 LPF Cutoff 1kHz – Thru 34 – 60

16 Output Level 0 – 127 0 – 127 (table#18)

No. Parameter Display Value See Table Control

1 Rotor Speed 0.0 – 39.7Hz 0 – 127 table#1 ●

2 Drive Low 0 – 127 0 – 127

3 Drive High 0 – 127 0 – 127

4 Low/High Balance L63>H – L=H – L<H=63 1 – 127

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10

11 Crossover Frequency 100Hz – 10.0kHz 14 – 54 table#3

12 Mic L-R Angle 0 – 180deg 0 – 60

13 AMP Type Off, Stack, Combo, Tube 0 – 3

14 Drive 0 – 127 0 – 127

15 LPF Cutoff 1kHz – Thru 34 – 60

16 Output Level 0 – 127 0 – 127 (table#18)

No. Parameter Display Value See Table Control

1 Detune -50 – +50cent 14 – 114

2 Lch Init Delay 0.0mS – 50mS 0 – 127 table#2

3 Rch Init Delay 0.0mS – 50mS 0 – 127 table#2

4

5

6

7

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

12 EQ Low Gain -12 – +12dB 52 – 76

13 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

14 EQ High Gain -12 – +12dB 52 – 76

15

16

No. Parameter Display Value See Table Control

1 Delay Time 0.0mS – 50mS 0 – 127 table#2

2 Output Phase normal/inverse 0 – 1

3

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1Vowel a, i, u, e, o 0 – 4 ●

2Move speed 1 – 62 1 – 62

3 Drive 0 – 127 0 – 127

4 Output Level 0 – 127 0 – 127 (table#18)

5

6

7

8

9

10

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Sampling Freq Control 44.1kHz – 345Hz 0 – 127 table#13

2Word Length 1 – 127 1 – 127

3 Output Gain -6 – +36dB 0 – 42

4 LPF Cutoff 63Hz – Thru 10 – 60 table#3

5 Filter Type Thru, PowerBass, Radio,

Tel, Clean, Low

0 – 5

6 LPF Resonance 1.0 – 12.0 10 – 120

7 Bit Assign 0 – 6 0 – 6

8Emphasis Off/On 0 – 1

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11

12

13

14

15 Input Mode mono/stereo

16

No. Parameter Display Value See Table Control

1 Lch Delay Time 0.1 – 1638.3ms 1 – 16383

2 Rch Delay Time 0.1 – 1638.3ms 1 – 16383

3 Delay Feedback Time 0.1 – 1638.3ms 1 – 16383

4 Delay Feedback Level -63 – +63 1 – 127 (table#16)

5 Delay Mix 0 – 127 0 – 127

6 Dist Drive 0 – 127 0 – 127

7 Dist Output Level 0 – 127 0 – 127 (table#18)

8 Dist EQ Low Gain -12 – +12dB 52 – 76

9 Dist EQ Mid Gain -12 – +12dB 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Delay Time 0.1 – 1638.3ms 1 – 16383

2 Delay Feedback Level -63 – +63 1 – 127 (table#16)

3 Delay Mix 0 – 127 0 – 127

4 Dist Drive 0 – 127 0 – 127

5 Dist Output Level 0 – 127 0 – 127 (table#18)

6 Dist EQ Low Gain -12 – +12dB 52 – 76

7 Dist EQ Mid Gain -12 – +12dB 52 – 76

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Comp. Attack 1ms – 40ms 0 – 19 table#8

12 Comp. Release 10ms – 680ms 0 – 15 table#9

13 Comp. Threshold -48dB – -6dB 79 – 121

14 Comp. Ratio 1.0 – 20.0 0 – 7 table#10

15

16

Effect Parameter List / Liste der Effektparameter / Liste des paramètres d’effets / Lista de parámetros de efectos

PSR-3000/1500 Data List

36

WH+DST+DLY1, 2, WH+OD+DLY1, 2 MSB = 97

(DSP1)

V_DIST HARD MSB = 98, LSB = 0

V_DIST SOFT MSB = 98, LSB = 2

(DSP1)

V DST H+DLY MSB = 98, LSB = 1

V_DST S+DLY MSB = 98, LSB = 3

(DSP1)

DUAL ROT SP1, 2 MSB = 99

(DSP1)

DST+TDLY, OD+TDLY MSB = 100

(DSP1)

CMP+DST+TDL, CMP+OD+TDLY MSB = 101

(DSP1)

WH+DST+TDL, WH+OD+TDLY MSB = 102

(DSP1)

V_DST H+TDLY,V_DST S+TDLY MSB = 103

(DSP1)

No. Parameter Display Value See Table Control

1 Delay Time 0.1 – 1638.3ms 1 – 16383

2 Delay Feedback Level -63 – +63 1 – 127 (table#16)

3 Delay Mix 0 – 127 0 – 127

4 Dist Drive 0 – 127 0 – 127

5 Dist Output Level 0 – 127 0 – 127 (table#18)

6 Dist EQ Low Gain -12 – +12dB 52 – 76

7 Dist EQ Mid Gain -12 – +12dB 52 – 76

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Wah Sensitivity 0 – 127 0 – 127

12 Wah Cutoff Freq Offset 0 – 127 0 – 127

13 Wah Resonance 1.0 – 12.0 10 – 120

14 Wah Release 10 – 680ms 52 – 67 table#12

15

16

No. Parameter Display Value See Table Control

1 Overdrive 0 – 100% 0 – 100

2 Device Transistor/Vintage Tube/

Dist1/Dist2/Fuzz

0 – 4

3 Speaker Flat/Stack/Combo/Twin/

Radio/Megaphone

0 – 5

4Presence 0 – 20 0 – 20

5 Output Level 0 – 100% 0 – 100

6

7

8

9

10 Dry/Wet Balance D63>W – D=W – D<W63 1 – 127 (table#15) ●

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Overdrive 0 – 100% 0 – 100

2 Device Transistor/Vintage Tube/

Dist1/Dist2/Fuzz

0 – 4

3 Speaker Flat/Stack/Combo/Twin/

Radio/Megaphone

0 – 5

4Presence 0 – 20 0 – 20

5 Output Level 0 – 100% 0 – 100

6 Delay Time L 0.1 – 1638.3ms 1 – 16383

7 Delay Time R 0.1 – 1638.3ms 1 – 16383

8 Delay Feedback Time 0.1 – 1638.3ms 1 – 16383

9 Delay Feedback Level -63 – +63 1 – 127 (table#16)

10 Dry/Wet Balance D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Delay Mix 0 – 127 0 – 127

12 Feedback High Dump 0.1 – 1.0 1 – 10

13

14

15

16

No. Parameter Display Value See Table Control

1 Rotor Speed Slow 0.0 – 2.65Hz 0 – 63 table#1

2 Horn Speed Slow 0.0 – 2.65Hz 0 – 63 table#1

3 Rotor Speed Fast 2.69 – 39.7Hz 64 – 127 table#1

4 Horn Speed Fast 2.69 – 39.7Hz 64 – 127 table#1

5 Slow-Fast Time of R 0 – 127 0 – 127

6 Slow-Fast Time of H 0 – 127 0 – 127

7 Drive Low 0 – 127 0 – 127

8 Drive High 0 – 127 0 – 127

9 Low/High Balance L63>H – L=H – L<H=63 1 – 127

10

11 EQ Low Frequency 32Hz – 2.0kH 4 – 40 table#3

12 EQ Low Gain -12 – +12dB 52 – 76

13 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

14 EQ High Gain -12 – +12dB 52 – 76

15 Mic L-R Angle 0 – 180deg 0 – 60

16 Speed Control Slow/Fast 0/1 ●

No. Parameter Display Value See Table Control

1 Delay Time 64th/3 – 4thx6 0 – 19 table#14

2 Delay Feedback Level -63 – +63 1 – 127 (table#16)

3 Delay Mix 0 – 127 0 – 127

4 Dist Drive 0 – 127 0 – 127

5 Dist Output Level 0 – 127 0 – 127 (table#18)

6 Dist EQ Low Gain -12 – +12dB 52 – 76

7 Dist EQ High Gain -12 – +12dB 52 – 76

8 L/R Diffusion

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

9 Lag

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

10 Dry/Wet D63>W – D=W – D<W=63 1 – 127 (table#15) ●

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1 Delay Time 64th/3 – 4thx6 0 – 19 table#14

2 Delay Feedback Level -63 – +63 1 – 127 (table#16)

3 Delay Mix 0 – 127 0 – 127

4 Dist Drive 0 – 127 0 – 127

5 Dist Output Level 0 – 127 0 – 127 (table#18)

6 Dist EQ Low Gain -12 – +12dB 52 – 76

7 Dist EQ High Gain -12 – +12dB 52 – 76

8 L/R Diffusion

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

9 Lag

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

10 Dry/Wet D63>W – D=W – D<W=63 1 – 127 (table#15) ●

11 Comp. Attack 1ms – 40ms 0 – 19 table#8

12 Comp. Release 10ms – 680ms 0 – 15 table#9

13 Comp. Threshold -48dB – -6dB 79 – 121

14 Comp. Ratio 1.0 – 20.0 0 – 7 table#10

15

16

No. Parameter Display Value See Table Control

1 Delay Time 64th/3 – 4thx6 0 – 19 table#14

2 Delay Feedback Level -63 – +63 1 – 127 (table#16)

3 Delay Mix 0 – 127 0 – 127

4 Dist Drive 0 – 127 0 – 127

5 Dist Output Level 0 – 127 0 – 127 (table#18)

6 Dist EQ Low Gain -12 – +12dB 52 – 76

7 Dist EQ High Gain -12 – +12dB 52 – 76

8 L/R Diffusion

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

9 Lag

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

10 Dry/Wet D63>W – D=W – D<W=63 1 – 127 (table#15) ●

11 Wah Sensitivity 0 – 127 0 – 127

12 Wah Cutoff Freq Offset 0 – 127 0 – 127

13 Wah Resonance 1.0 – 12.0 10 – 120

14 Wah Release 10 – 680mS 52 – 67 table#12

15

16

No. Parameter Display Value See Table Control

1 Overdrive 0 – 100% 0 – 100

2 Device Transistor/Vintage Tube/

Dist1/Dist2/Fuzz

0 – 4

3 Speaker Flat/Stack/Combo/Twin/

Radio/Megaphone

0 – 5

4Presence 0 – 20 0 – 20

5 Output Level 0 – 100% 0 – 100

6 Delay Time 64th/3 – 4thx6 0 – 19 table#14

7 Delay Feedback Level -63 – +63 1 – 127 (table#16)

8 L/R Diffusion

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

9 Lag

1(-63ms) – 64(0ms) – 127(63ms)

1 – 127

10 Dry/Wet Balance D63>W – D=W – D<W63 1 – 127 (table#15) ●

No. Parameter Display Value See Table Control

PSR-3000/1500 Data List 37

Effect Parameter List / Liste der Effektparameter / Liste des paramètres d’effets / Lista de parámetros de efectos

V_FLANGER MSB = 104

(DSP1)

MBAND COMP MSB = 105

(DSP1)

T_FLANGER MSB = 107

(DSP1)

T_PHASER MSB = 108

(DSP1)

DYN FILTER MSB = 109

(DSP1)

DYN FLANGER MSB = 110

(DSP1)

DYN PHASER MSB = 111

(DSP1)

11 Delay Mix 0 – 127 0 – 127

12 Feedback High Dump 0.1 – 1.0 1 – 10

13

14

15

16

No. Parameter Display Value See Table Control

1 LFO Freq 0.0 – 39.70[Hz] 0 – 127 table#1

2 LFO Depth 0 – 127 0 – 127 (table#19)

3 LFO Wave Triangle, Sine, Random 0 – 2

4 Delay Offset 0.09 – 36.21[ms] 0 – 139 table#23

5 Feedback Level -100 – +100[%] 0 – 200

6 EQ Low Frequency 32[Hz] – 2.0[kHz] 4 – 40 table#3

7 EQ Low Gain -12 – +12[dB] 52 – 76

8 EQ High Frequency 500[Hz] – 16.0[kHz] 28 – 58 table#3

9 EQ High Gain -12 – +12[dB] 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 EQ mid frequency 100[Hz] – 10.0[kHz] 14 – 54 table#3

12 EQ mid gain -12 – +12[dB] 52 – 76

13 EQ mid width 0.1 – 12.0 1 – 120

14 Modulation Phase -180 – +180[deg] 0 – 16 table#24

15 Feedback High Damp 0.1 – 1.0 1 – 10

16 Analog Feel 0 – 10 0 – 10

No. Parameter Display Value See Table Control

1Type Normal, Low, Mid, High,

Low/High, Low/Mid, Mid/

High, Full Bit, Wild, Attacky,

Low End, Hard, Basic

0 – 12

2 Threshold Offset -32 – +32 32 – 96 ●

3 Low Gain Offset -63 – +63 1 – 127

4Mid Gain Offset -63 – +63 1 – 127

5 High Gain Offset -63 – +63 1 – 127

6

7

8

9

10

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1 LFO Freq 16th – 4thx8 5 – 21 table#14

2 LFO Depth 0 – 127 0 – 127 (table#19)

3 Feedback Level -63 – +63 1 – 127 (table#17)

4 Delay Offset 0.0 – 50.0[ms] 0 – 127 table#2

5 LFO Phase Reset Off (free run) 0

6 EQ Low Frequency 32[Hz] – 2.0[kHz] 4 – 40 table#3

7 EQ Low Gain -12 – +12[dB] 52 – 76

8 EQ High Frequency 500[Hz] – 16.0[kHz] 28 – 58 table#3

9 EQ High Gain -12 – +12[dB] 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 EQ mid frequency 100[Hz] – 10.0[kHz] 14 – 54 table#3

12 EQ mid gain -12 – +12[dB] 52 – 76

13 EQ mid width 0.1 – 12.0 1 – 120

14 LFO phase difference -180 – +180[deg] 4 – 124

15

16

No. Parameter Display Value See Table Control

1 LFO Freq 16th – 4thx8 5 – 21 table#14

2 LFO Depth 0 – 127 0 – 127 (table#19)

3 Phase Shift Offset 0 – 127 0 – 127

4 Feedback Level -63 – +63 1 – 127 (table#16)

5 LFO Phase Reset Off (free run) 0

6 EQ Low Frequency 32[Hz] – 2.0[kHz] 4 – 40 table#3

No. Parameter Display Value See Table Control

7 EQ Low Gain -12 – +12[dB] 52 – 76

8 EQ High Frequency 500[Hz] – 16.0[kHz] 28 – 58 table#3

9 EQ High Gain -12 – +12[dB] 52 – 76

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15) ●

11 Stage 3 – 11 3 – 11

12

13 LFO phase difference -180 – +180[deg] 4 – 124

14

15

16

No. Parameter Display Value See Table Control

1 Filter Type LPF (12dB), LPF (18dB),

LPF (24dB), HPF, BPF, BEF

0 – 5

2 Sensitivity 0 – 127 0 – 127 ●

3 Dyna Level Offset 0 – 127 0 – 127

4 Resonance -16 – +111 0 – 127

5 Attack Time 0.3 – 227[ms] 0 – 127 table#20

6 Release Time 2.6 – 2171[ms] 0 – 127 table#21

7 Release Curve 0 – 127 0 – 127

8 Direction Up, Down 0 – 1

9 Dyna Threshold Level 0 – 127 0 – 127

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11

12

13 EQ Low Frequency 32[Hz] – 2.0[kHz] 4 – 40 table#3

14 EQ Low Gain -12 – +12[dB] 52 – 76

15 EQ High Frequency 500[Hz] – 16.0[kHz] 28 – 58 table#3

16 EQ High Gain -12 – +12[dB] 52 – 76

No. Parameter Display Value See Table Control

1 Sensitivity 0 – 127 0 – 127 ●

2 Delay Time Offset 0 – 127 0 – 127

3 Feedback Level -63 – +63 1 – 127 (table#17)

4 Attack Time 0.3 – 227[ms] 0 – 127 table#20

5 Release Time 2.6 – 2171[ms] 0 – 127 table#21

6 Release Curve 0 – 127 0 – 127

7 Direction Up, Down 0 – 1

8 Dyna Threshold Level 0 – 127 0 – 127

9 Dyna Level Offset 0 – 127 0 – 127

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11

12

13 EQ Low Frequency 32[Hz] – 2.0[kHz] 4 – 40 table#3

14 EQ Low Gain -12 – +12dB 52 – 76

15 EQ High Frequency 500[Hz] – 16.0[kHz] 28 – 58 table#3

16 EQ High Gain -12 – +12[dB] 52 – 76

No. Parameter Display Value See Table Control

1 Sensitivity 0 – 127 0 – 127 ●

2 Dyna Level Offset 0 – 127 0 – 127

3 Feedback Level -63 – +63 1 – 127 (table#16)

4 Attack Time 0.3 – 227[ms] 0 – 127 table#20

5 Release Time 2.6 – 2171[ms] 0 – 127 table#21

6 Release Curve 0 – 127 0 – 127

7 Direction Up, Down 0 – 1

8 Dyna Threshold Level 0 – 127 0 – 127

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11 Stage 4, 5, 6 4 – 6

12

13 EQ Low Frequency 32[Hz] – 2.0[kHz] 4 – 40 table#3

14 EQ Low Gain -12 – +12dB 52 – 76

15 EQ High Frequency 500[Hz] – 16.0[kHz] 28 – 58 table#3

16 EQ High Gain -12 – +12[dB] 52 – 76

No. Parameter Display Value See Table Control

Effect Parameter List / Liste der Effektparameter / Liste des paramètres d’effets / Lista de parámetros de efectos

PSR-3000/1500 Data List

38

DYN RINGMOD MSB = 112

(DSP1)

RING MOD MSB = 113

(DSP1)

ISOLATOR MSB = 115

(DSP1)

VIBE VIBRATE MSB = 119

(All the DSP blocks)

NO EFFECT MSB = 0

(Reverb, Chorus and DSP1)

THRU MSB = 64

(All the DSP blocks)

Parameter 10 Dry/Wet only affects insertion type effects.

(*1) Reverb Block

(*2) DSP1 Block

(*3) Chorus and DSP2 – 4 Blocks

(*4) DSP1 Block only

No. Parameter Display Value See Table Control

1 Sensitivity 0 – 127 0 – 127 ●

2 HPF Cutoff Frequency Thru (20[Hz]) – 8.0[kHz] 0 – 52 table#3

3 LPF Cutoff Frequency 1.0[kHz] – Thru (20.0[kHz]) 34 – 60 table#3

4 Attack Time 0.3 – 227[ms] 0 – 127 table#20

5 Release Time 2.6 – 2171[ms] 0 – 127 table#21

6 Release Curve 0 – 127 0 – 127

7 Direction Up, Down 0 – 1

8 Dyna Threshold Level 0 – 127 0 – 127

9 Dyna Level Offset 0 – 127 0 – 127

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11

12

13 EQ Low Frequency 32[Hz] – 2.0[kHz] 4 – 40 table#3

14 EQ Low Gain -12 – +12dB 52 – 76

15 EQ High Frequency 500[Hz] – 16.0[kHz] 28 – 58 table#3

16 EQ High Gain -12 – +12[dB] 52 – 76

No. Parameter Display Value See Table Control

1 Carrier Freq Coarse 0.7[Hz] – 5[kHz] 0 – 127 table#22 ●

2 Carrier Freq Fine 0 – 127 0 – 127

3 LFO Wave Triangle, Sine 0 – 1

4 LFO Depth 0 – 127 0 – 127 (table#19)

5 LFO Freq 0.0 – 39.70[Hz] 0 – 127 table#1

6 HPF Cutoff Frequency Thru (20[Hz]) – 8.0[kHz] 0 – 52 table#3

7 LPF Cutoff Frequency 1.0[kHz] – Thru (20.0[kHz]) 34 – 60 table#3

8

9

10 Dry/Wet D63>W – D=W – D<W63 1 – 127 (table#15)

11

12

13 EQ Low Frequency 32[Hz] – 2.0[kHz] 4 – 40 table#3

14 EQ Low Gain -12 – +12dB 52 – 76

15 EQ High Frequency 500[Hz] – 16.0[kHz] 28 – 58 table#3

16 EQ High Gain -12 – +12[dB] 52 – 76

No. Parameter Display Value See Table Control

1 On/off SW Off, On 0 – 1 ●

2 Low Level 0 – 127 0 – 127

3Mid Level 0 – 127 0 – 127

4 High Level 0 – 127 0 – 127

5 Low Mute Off, On 0 – 1

6Mid Mute Off, On 0 – 1

7 High Mute Off, On 0 – 1

8

9

10

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1Vibrate Speed 0.00Hz – 39.7Hz 0 – 127 table#1

2Vibrate Depth (AM) 0 – 127 0 – 127

3Vibrate Depth (PM) 0 – 127 0 – 127

4

5

6 EQ Low Frequency 32Hz – 2.0kHz 4 – 40 table#3

7 EQ Low Gain -12 – +12dB 52 – 76

8 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3

9 EQ High Gain -12 – +12dB 52 – 76

10 Dry/Wet Balance D63>W – D=W – D<W63 1 – 127 (table#15)

11 EQ Mid Frequency (*) 100Hz – 10.0kHz 14 – 54 table#3

12 EQ Mid Gain (*) -12 – +12dB 52 – 76

13 EQ Mid Width (*) 0.1 – 12.0 1 – 120

14 LFO Phase Difference -180 – +180deg

(resolution=3deg.)

4 – 124

15 Input Mode mono/stereo 0 – 1

16 Vibrate SW Off, On 0 – 1 ●

No. Parameter Display Value See Table Control

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

No. Parameter Display Value See Table Control

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

PSR-3000/1500 Data List 39

Effect Data Assign Table / Effektdaten-Zuordnungstabelle /

Tableau d’assignation des données d’effets / Tabla de asignación de datos para efectos

table#1

LFO Frequency

table#2

Modulation Delay Offset

table#3

EQ Frequency

Data Value Data Value Data Value Data Value

0 0.00 32 1.35 64 2.69 96 8.41

1 0.04 33 1.39 65 2.78 97 8.75

2 0.08 34 1.43 66 2.86 98 9.08

3 0.13 35 1.47 67 2.94 99 9.42

4 0.17 36 1.51 68 3.03 100 9.76

5 0.21 37 1.56 69 3.11 101 10.1

6 0.25 38 1.60 70 3.20 102 10.8

7 0.29 39 1.64 71 3.28 103 11.4

8 0.34 40 1.68 72 3.37 104 12.1

9 0.38 41 1.72 73 3.45 105 12.8

10 0.42 42 1.77 74 3.53 106 13.5

11 0.46 43 1.81 75 3.62 107 14.1

12 0.51 44 1.85 76 3.70 108 14.8

13 0.55 45 1.89 77 3.87 109 15.5

14 0.59 46 1.94 78 4.04 110 16.2

15 0.63 47 1.98 79 4.21 111 16.8

16 0.67 48 2.02 80 4.37 112 17.5

17 0.72 49 2.06 81 4.54 113 18.2

18 0.76 50 2.10 82 4.71 114 19.5

19 0.80 51 2.15 83 4.88 115 20.9

20 0.84 52 2.19 84 5.05 116 22.2

21 0.88 53 2.23 85 5.22 117 23.6

22 0.93 54 2.27 86 5.38 118 24.9

23 0.97 55 2.31 87 5.55 119 26.2

24 1.01 56 2.36 88 5.72 120 27.6

25 1.05 57 2.40 89 6.06 121 28.9

26 1.09 58 2.44 90 6.39 122 30.3

27 1.14 59 2.48 91 6.73 123 31.6

28 1.18 60 2.52 92 7.07 124 33.0

29 1.22 61 2.57 93 7.40 125 34.3

30 1.26 62 2.61 94 7.74 126 37.0

31 1.30 63 2.65 95 8.08 127 39.7

Data Value Data Value Data Value Data Value

0 0.0 32 3.2 64 6.4 96 9.6

1 0.1 33 3.3 65 6.5 97 9.7

2 0.2 34 3.4 66 6.6 98 9.8

3 0.3 35 3.5 67 6.7 99 9.9

4 0.4 36 3.6 68 6.8 100 10.0

5 0.5 37 3.7 69 6.9 101 11.1

6 0.6 38 3.8 70 7.0 102 12.2

7 0.7 39 3.9 71 7.1 103 13.3

8 0.8 40 4.0 72 7.2 104 14.4

9 0.9 41 4.1 73 7.3 105 15.5

10 1.0 42 4.2 74 7.4 106 17.1

11 1.1 43 4.3 75 7.5 107 18.6

12 1.2 44 4.4 76 7.6 108 20.2

13 1.3 45 4.5 77 7.7 109 21.8

14 1.4 46 4.6 78 7.8 110 23.3

15 1.5 47 4.7 79 7.9 111 24.9

16 1.6 48 4.8 80 8.0 112 26.5

17 1.7 49 4.9 81 8.1 113 28.0

18 1.8 50 5.0 82 8.2 114 29.6

19 1.9 51 5.1 83 8.3 115 31.2

20 2.0 52 5.2 84 8.4 116 32.8

21 2.1 53 5.3 85 8.5 117 34.3

22 2.2 54 5.4 86 8.6 118 35.9

23 2.3 55 5.5 87 8.7 119 37.5

24 2.4 56 5.6 88 8.8 120 39.0

25 2.5 57 5.7 89 8.9 121 40.6

26 2.6 58 5.8 90 9.0 122 42.2

27 2.7 59 5.9 91 9.1 123 43.7

28 2.8 60 6.0 92 9.2 124 45.3

29 2.9 61 6.1 93 9.3 125 46.9

30 3.0 62 6.2 94 9.4 126 48.4

31 3.1 63 6.3 95 9.5 127 50.0

Data Value Data Value

0 THRU(20) 32 800

12233900

22534 1.0k

32835 1.1k

43236 1.2k

53637 1.4k

64038 1.6k

74539 1.8k

85040 2.0k

95641 2.2k

10 63 42 2.5k

11 70 43 2.8k

12 80 44 3.2k

13 90 45 3.6k

14 100 46 4.0k

15 110 47 4.5k

16 125 48 5.0k

17 140 49 5.6k

18 160 50 6.3k

19 180 51 7.0k

20 200 52 8.0k

21 225 53 9.0k

22 250 54 10.0k

23 280 55 11.0k

24 315 56 12.0k

25 355 57 14.0k

26 400 58 16.0k

27 450 59 18.0k

28 500 60 THRU(20.0k)

29 560

30 630

31 700

table#4

Reverb time

table#5

Delay Time (0.1 – 200.0 [ms])

table#6

Room Size

Data Value Data Value Data Value

0 0.3 32 3.5 64 17.0

1 0.4 33 3.6 65 18.0

2 0.5 34 3.7 66 19.0

3 0.6 35 3.8 67 20.0

4 0.7 36 3.9 68 25.0

5 0.8 37 4.0 69 30.0

6 0.9 38 4.1

7 1.0 39 4.2

8 1.1 40 4.3

9 1.2 41 4.4

10 1.3 42 4.5

11 1.4 43 4.6

12 1.5 44 4.7

13 1.6 45 4.8

14 1.7 46 4.9

15 1.8 47 5.0

16 1.9 48 5.5

17 2.0 49 6.0

18 2.1 50 6.5

19 2.2 51 7.0

20 2.3 52 7.5

21 2.4 53 8.0

22 2.5 54 8.5

23 2.6 55 9.0

24 2.7 56 9.5

25 2.8 57 10.0

26 2.9 58 11.0

27 3.0 59 12.0

28 3.1 60 13.0

29 3.2 61 14.0

30 3.3 62 15.0

31 3.4 63 16.0

Data Value Data Value Data Value Data Value

0 0.1 32 50.5 64 100.8 96 151.2

1 1.7 33 52.0 65 102.4 97 152.8

2 3.2 34 53.6 66 104.0 98 154.4

3 4.8 35 55.2 67 105.6 99 155.9

4 6.4 36 56.8 68 107.1 100 157.5

5 8.0 37 58.3 69 108.7 101 159.1

6 9.5 38 59.9 70 110.3 102 160.6

7 11.1 39 61.5 71 111.9 103 162.2

8 12.7 40 63.1 72 113.4 104 163.8

9 14.3 41 64.6 73 115.0 105 165.4

10 15.8 42 66.2 74 116.6 106 166.9

11 17.4 43 67.8 75 118.2 107 168.5

12 19.0 44 69.4 76 119.7 108 170.1

13 20.6 45 70.9 77 121.3 109 171.7

14 22.1 46 72.5 78 122.9 110 173.2

15 23.7 47 74.1 79 124.4 111 174.8

16 25.3 48 75.7 80 126.0 112 176.4

17 26.9 49 77.2 81 127.6 113 178.0

18 28.4 50 78.8 82 129.2 114 179.5

19 30.0 51 80.4 83 130.7 115 181.1

20 31.6 52 81.9 84 132.3 116 182.7

21 33.2 53 83.5 85 133.9 117 184.3

22 34.7 54 85.1 86 135.5 118 185.8

23 36.3 55 86.7 87 137.0 119 187.4

24 37.9 56 88.2 88 138.6 120 189.0

25 39.5 57 89.8 89 140.2 121 190.6

26 41.0 58 91.4 90 141.8 122 192.1

27 42.6 59 93.0 91 143.3 123 193.7

28 44.2 60 94.5 92 144.9 124 195.3

29 45.7 61 96.1 93 146.5 125 196.9

30 47.3 62 97.7 94 148.1 126 198.4

31 48.9 63 99.3 95 149.6 127 200.0

Data Value Data Value Data Value Data Value

0 0.1 32 5.1 64 10.1 96 15.1

1 0.3 33 5.3 65 10.3 97 15.3

2 0.4 34 5.4 66 10.4 98 15.5

3 0.6 35 5.6 67 10.6 99 15.6

4 0.7 36 5.7 68 10.8 100 15.8

5 0.9 37 5.9 69 10.9 101 15.9

6 1.0 38 6.1 70 11.1 102 16.1

7 1.2 39 6.2 71 11.2 103 16.2

8 1.4 40 6.4 72 11.4 104 16.4

9 1.5 41 6.5 73 11.5 105 16.6

10 1.7 42 6.7 74 11.7 106 16.7

11 1.8 43 6.8 75 11.9 107 16.9

12 2.0 44 7.0 76 12.0 108 17.0

13 2.1 45 7.2 77 12.2 109 17.2

14 2.3 46 7.3 78 12.3 110 17.3

15 2.5 47 7.5 79 12.5 111 17.5

16 2.6 48 7.6 80 12.6 112 17.6

17 2.8 49 7.8 81 12.8 113 17.8

18 2.9 50 7.9 82 12.9 114 18.0

19 3.1 51 8.1 83 13.1 115 18.1

20 3.2 52 8.2 84 13.3 116 18.3

21 3.4 53 8.4 85 13.4 117 18.4

22 3.5 54 8.6 86 13.6 118 18.6

23 3.7 55 8.7 87 13.7 119 18.7

24 3.9 56 8.9 88 13.9 120 18.9

25 4.0 57 9.0 89 14.0 121 19.1

26 4.2 58 9.2 90 14.2 122 19.2

27 4.3 59 9.3 91 14.4 123 19.4

28 4.5 60 9.5 92 14.5 124 19.5

29 4.6 61 9.7 93 14.7 125 19.7

30 4.8 62 9.8 94 14.8 126 19.8

31 5.0 63 10.0 95 15.0 127 20.0

table#7

Delay Time (0.1 – 400.0 [ms])

table#8

Compressor

Attack Time

table#11

Reverb Width; Depth; Height

Data Value Data Value Data Value Data Value

0 0.1 32 100.9 64 201.6 96 302.4

1 3.2 33 104.0 65 204.8 97 305.5

2 6.4 34 107.2 66 207.9 98 308.7

3 9.5 35 110.3 67 211.1 99 311.8

4 12.7 36 113.5 68 214.2 100 315.0

5 15.8 37 116.6 69 217.4 101 318.1

6 19.0 38 119.8 70 220.5 102 321.3

7 22.1 39 122.9 71 223.7 103 324.4

8 25.3 40 126.1 72 226.8 104 327.6

9 28.4 41 129.2 73 230.0 105 330.7

10 31.6 42 132.4 74 233.1 106 333.9

11 34.7 43 135.5 75 236.3 107 337.0

12 37.9 44 138.6 76 239.4 108 340.2

13 41.0 45 141.8 77 242.6 109 343.3

14 44.2 46 144.9 78 245.7 110 346.5

15 47.3 47 148.1 79 248.9 111 349.6

16 50.5 48 151.2 80 252.0 112 352.8

17 53.6 49 154.4 81 255.2 113 355.9

18 56.8 50 157.5 82 258.3 114 359.1

19 59.9 51 160.7 83 261.5 115 362.2

20 63.1 52 163.8 84 264.6 116 365.4

21 66.2 53 167.0 85 267.7 117 368.5

22 69.4 54 170.1 86 270.9 118 371.7

23 72.5 55 173.3 87 274.0 119 374.8

24 75.7 56 176.4 88 277.2 120 378.0

25 78.8 57 179.6 89 280.3 121 381.1

26 82.0 58 182.7 90 283.5 122 384.3

27 85.1 59 185.9 91 286.6 123 387.4

28 88.3 60 189.0 92 289.8 124 390.6

29 91.4 61 192.2 93 292.9 125 393.7

30 94.6 62 195.3 94 296.1 126 396.9

31 97.7 63 198.5 95 299.2 127 400.0

Data Value

01

12

23

34

45

56

67

78

89

910

10 12

11 14

12 16

13 18

14 20

15 23

16 26

17 30

18 35

19 40

Data Value Data Value Data Value Data Value

0 0.5 32 8.8 64 17.6 96 27.5

1 0.8 33 9.1 65 17.9 97 27.8

2 1.0 34 9.4 66 18.2 98 28.1

3 1.3 35 9.6 67 18.5 99 28.5

4 1.5 36 9.9 68 18.8 100 28.8

5 1.8 37 10.2 69 19.1 101 29.2

6 2.0 38 10.4 70 19.4 102 29.5

7 2.3 39 10.7 71 19.7 103 29.9

8 2.6 40 11.0 72 20.0 104 30.2

9 2.8 41 11.2 73 20.2

10 3.1 42 11.5 74 20.5

11 3.3 43 11.8 75 20.8

12 3.6 44 12.1 76 21.1

13 3.9 45 12.3 77 21.4

14 4.1 46 12.6 78 21.7

15 4.4 47 12.9 79 22.0

16 4.6 48 13.1 80 22.4

17 4.9 49 13.4 81 22.7

18 5.2 50 13.7 82 23.0

19 5.4 51 14.0 83 23.3

20 5.7 52 14.2 84 23.6

21 5.9 53 14.5 85 23.9

22 6.2 54 14.8 86 24.2

23 6.5 55 15.1 87 24.5

24 6.7 56 15.4 88 24.9

25 7.0 57 15.6 89 25.2

26 7.2 58 15.9 90 25.5

27 7.5 59 16.2 91 25.8

28 7.8 60 16.5 92 26.1

29 8.0 61 16.8 93 26.5

30 8.3 62 17.1 94 26.8

31 8.6 63 17.3 95 27.1

table#12

Wah Release Time

table#13

LO-FI Sampling Frequency Control

table#14

Tempo

Data Value

52 10

53 15

54 25

55 35

56 45

57 55

58 65

59 75

60 85

61 100

62 115

63 140

64 170

65 230

66 340

67 680

Data Value Data Value Data Value Data Value

0 44.1k 32 1.34k 64 678.0 96 455.0

1 22.1k 33 1.30k 65 668.0 97 450.0

2 14.7k 34 1.26k 66 658.0 98 445.0

3 11.0k 35 1.23k 67 649.0 99 441.0

4 8.8k 36 1.19k 68 639.0 100 437.0

5 7.4k 37 1.16k 69 630.0 101 432.0

6 6.3k 38 1.13k 70 621.0 102 428.0

7 5.5k 39 1.10k 71 613.0 103 424.0

8 4.9k 40 1.08k 72 604.0 104 420.0

9 4.4k 41 1.05k 73 596.0 105 416.0

10 4.0k 42 1.03k 74 588.0 106 412.0

11 3.7k 43 1.00k 75 580.0 107 408.0

12 3.4k 44 980.0 76 573.0 108 405.0

13 3.2k 45 959.0 77 565.0 109 401.0

14 2.9k 46 938.0 78 558.0 110 397.0

15 2.8k 47 919.0 79 551.0 111 394.0

16 2.6k 48 900.0 80 544.0 112 390.0

17 2.5k 49 882.0 81 538.0 113 387.0

18 2.3k 50 865.0 82 531.0 114 383.0

19 2.2k 51 848.0 83 525.0 115 380.0

20 2.1k 52 832.0 84 519.0 116 377.0

21 2.0k 53 817.0 85 513.0 117 374.0

22 1.92k 54 802.0 86 507.0 118 371.0

23 1.84k 55 788.0 87 501.0 119 368.0

24 1.76k 56 774.0 88 496.0 120 364.0

25 1.70k 57 760.0 89 490.0 121 361.0

26 1.63k 58 747.0 90 485.0 122 359.0

27 1.58k 59 735.0 91 479.0 123 356.0

28 1.52k 60 723.0 92 474.0 124 353.0

29 1.47k 61 711.0 93 469.0 125 350.0

30 1.42k 62 700.0 94 464.0 126 347.0

31 1.38k 63 689.0 95 459.0 127 345.0

Data Value Data Value Data Value

0 64th/3 32 4thX19 64 4thX51

1 64th. 33 4thX20 65 4thX52

2 32th 34 4thX21 66 4thX53

3 32th/3 35 4thX22 67 4thX54

4 32th. 36 4thX23 68 4thX55

5 16th 37 4thX24 69 4thX56

6 16th/3 38 4thX25 70 4thX57

7 16th. 39 4thX26 71 4thX58

8 8th 40 4thX27 72 4thX59

9 8th/3 41 4thX28 73 4thX60

10 8th. 42 4thX29 74 4thX61

11 4th 43 4thX30 75 4thX62

12 4th/3 44 4thX31 76 4thX63

13 4th. 45 4thX32 77 4thX64

14 2nd 46 4thX33

15 2nd/3 47 4thX34

16 2nd. 48 4thX35

17 4thX4 49 4thX36

18 4thX5 50 4thX37

19 4thX6 51 4thX38

20 4thX7 52 4thX39

21 4thX8 53 4thX40

22 4thX9 54 4thX41

23 4thX10 55 4thX42

24 4thX11 56 4thX43

25 4thX12 57 4thX44

26 4thX13 58 4thX45

27 4thX14 59 4thX46

28 4thX15 60 4thX47

29 4thX16 61 4thX48

30 4thX17 62 4thX49

31 4thX18 63 4thX50

table#9

Compressor

Release Time

table#10

Compressor

Ratio

Data Value

010

115

225

335

445

555

665

775

885

9 100

10 115

11 140

12 170

13 230

14 340

15 680

Data Value

0 1.0

1 1.5

2 2.0

3 3.0

4 5.0

5 7.0

6 10.0

7 20.0

Effect Data Assign Table / Effektdaten-Zuordnungstabelle / Tableau d’assignation des données d’effets / Tabla de asignación de datos para efectos

PSR-3000/1500 Data List

40

table#15

Dry/Wet

table#16

Feedback Level (Reverb, Delay types, Flanger types)

Data Dry

(dB)

Wet

(dB)

Data Dry

(dB)

Wet

(dB)

Data Dry

(dB)

Wet

(dB)

1 0.00 -∞44 0.00 -6.63 87 -7.89 0.00

2 0.00 -71.97 45 0.00 -6.24 88 -8.33 0.00

3 0.00 -59.93 46 0.00 -5.85 89 -8.78 0.00

4 0.00 -52.89 47 0.00 -5.46 90 -9.25 0.00

5 0.00 -47.89 48 0.00 -5.09 91 -9.72 0.00

6 0.00 -44.01 49 0.00 -4.72 92 -10.21 0.00

7 0.00 -40.85 50 0.00 -4.37 93 -10.71 0.00

8 0.00 -38.17 51 0.00 -4.01 94 -11.23 0.00

9 0.00 -35.85 52 0.00 -3.67 95 -11.77 0.00

10 0.00 -33.80 53 0.00 -3.33 96 -12.32 0.00

11 0.00 -31.97 54 0.00 -3.00 97 -12.89 0.00

12 0.00 -30.32 55 0.00 -2.68 98 -13.48 0.00

13 0.00 -28.81 56 0.00 -2.36 99 -14.09 0.00

14 0.00 -27.42 57 0.00 -2.05 100 -14.72 0.00

15 0.00 -26.13 58 0.00 -1.74 101 -15.37 0.00

16 0.00 -24.93 59 0.00 -1.44 102 -16.06 0.00

17 0.00 -23.81 60 0.00 -1.14 103 -16.77 0.00

18 0.00 -22.76 61 0.00 -0.85 104 -17.50 0.00

19 0.00 -21.76 62 0.00 -0.56 105 -18.28 0.00

20 0.00 -20.82 63 0.00 -0.28 106 -19.08 0.00

21 0.00 -19.93 64 0.00 0.00 107 -19.93 0.00

22 0.00 -19.08 65 -0.28 0.00 108 -20.82 0.00

23 0.00 -18.28 66 -0.56 0.00 109 -21.76 0.00

24 0.00 -17.50 67 -0.85 0.00 110 -22.76 0.00

25 0.00 -16.77 68 -1.14 0.00 111 -23.81 0.00

26 0.00 -16.06 69 -1.44 0.00 112 -24.93 0.00

27 0.00 -15.37 70 -1.74 0.00 113 -26.13 0.00

28 0.00 -14.72 71 -2.05 0.00 114 -27.42 0.00

29 0.00 -14.09 72 -2.36 0.00 115 -28.81 0.00

30 0.00 -13.48 73 -2.68 0.00 116 -30.32 0.00

31 0.00 -12.89 74 -3.00 0.00 117 -31.97 0.00

32 0.00 -12.32 75 -3.33 0.00 118 -33.80 0.00

33 0.00 -11.77 76 -3.67 0.00 119 -35.85 0.00

34 0.00 -11.23 77 -4.01 0.00 120 -38.17 0.00

35 0.00 -10.71 78 -4.37 0.00 121 -40.85 0.00

36 0.00 -10.21 79 -4.72 0.00 122 -44.01 0.00

37 0.00 -9.72 80 -5.09 0.00 123 -47.89 0.00

38 0.00 -9.25 81 -5.46 0.00 124 -52.89 0.00

39 0.00 -8.78 82 -5.85 0.00 125 -59.93 0.00

40 0.00 -8.33 83 -6.24 0.00 126 -71.97 0.00

41 0.00 -7.89 84 -6.63 0.00 127 -∞0.00

42 0.00 -7.46 85 -7.04 0.00

43 0.00 -7.04 86 -7.46 0.00

Data Value (%) Data Value (%) Data Value (%)

1 -99.20654297 44 -31.49414063 87 36.21826172

2 -97.63183594 45 -29.91943359 88 37.79296875

3 -96.05712891 46 -28.34472656 89 39.36767578

4 -94.48242188 47 -26.77001953 90 40.94238281

5 -92.90771484 48 -25.1953125 91 42.51708984

6 -91.33300781 49 -23.62060547 92 44.09179688

7 -89.75830078 50 -22.04589844 93 45.66650391

8 -88.18359375 51 -20.47119141 94 47.24121094

9 -86.60888672 52 -18.89648438 95 48.81591797

10 -85.03417969 53 -17.32177734 96 50.390625

11 -83.45947266 54 -15.74707031 97 51.96533203

12 -81.88476563 55 -14.17236328 98 53.54003906

13 -80.31005859 56 -12.59765625 99 55.11474609

14 -78.73535156 57 -11.02294922 100 56.68945313

15 -77.16064453 58 -9.448242188 101 58.26416016

16 -75.5859375 59 -7.873535156 102 59.83886719

17 -74.01123047 60 -6.298828125 103 61.41357422

18 -72.43652344 61 -4.724121094 104 62.98828125

19 -70.86181641 62 -3.149414063 105 64.56298828

20 -69.28710938 63 -1.574707031 106 66.13769531

21 -67.71240234 64 0 107 67.71240234

22 -66.13769531 65 1.574707031 108 69.28710938

23 -64.56298828 66 3.149414063 109 70.86181641

24 -62.98828125 67 4.724121094 110 72.43652344

25 -61.41357422 68 6.298828125 111 74.01123047

26 -59.83886719 69 7.873535156 112 75.5859375

27 -58.26416016 70 9.448242188 113 77.16064453

28 -56.68945313 71 11.02294922 114 78.73535156

29 -55.11474609 72 12.59765625 115 80.31005859

30 -53.54003906 73 14.17236328 116 81.88476563

31 -51.96533203 74 15.74707031 117 83.45947266

32 -50.390625 75 17.32177734 118 85.03417969

33 -48.81591797 76 18.89648438 119 86.60888672

34 -47.24121094 77 20.47119141 120 88.18359375

35 -45.66650391 78 22.04589844 121 89.75830078

36 -44.09179688 79 23.62060547 122 91.33300781

37 -42.51708984 80 25.1953125 123 92.90771484

38 -40.94238281 81 26.77001953 124 94.48242188

39 -39.36767578 82 28.34472656 125 96.05712891

40 -37.79296875 83 29.91943359 126 97.63183594

41 -36.21826172 84 31.49414063 127 99.20654297

42 -34.64355469 85 33.06884766

43 -33.06884766 86 34.64355469

table#17

Feedback Level (Chorus types)

table#18

Level

table#19

LFO Depth

Data Value

(%)

Data Value

(%)

Data Value

(%)

Data Value

(%)

1 -72.29 33 -35.57 65 1.15 97 37.87

2 -71.14 34 -34.42 66 2.29 98 39.01

3 -70.00 35 -33.28 67 3.44 99 40.16

4 -68.85 36 -32.13 68 4.59 100 41.31

5 -67.70 37 -30.98 69 5.74 101 42.46

6 -66.55 38 -29.83 70 6.88 102 43.60

7 -65.41 39 -28.69 71 8.03 103 44.75

8 -64.26 40 -27.54 72 9.18 104 45.90

9 -63.11 41 -26.39 73 10.33 105 47.05

10 -61.96 42 -25.24 74 11.47 106 48.19

11 -60.82 43 -24.10 75 12.62 107 49.34

12 -59.67 44 -22.95 76 13.77 108 50.49

13 -58.52 45 -21.80 77 14.92 109 51.64

14 -57.37 46 -20.65 78 16.06 110 52.78

15 -56.23 47 -19.51 79 17.21 111 53.93

16 -55.08 48 -18.36 80 18.36 112 55.08

17 -53.93 49 -17.21 81 19.51 113 56.23

18 -52.78 50 -16.06 82 20.65 114 57.37

19 -51.64 51 -14.92 83 21.80 115 58.52

20 -50.49 52 -13.77 84 22.95 116 59.67

21 -49.34 53 -12.62 85 24.10 117 60.82

22 -48.19 54 -11.47 86 25.24 118 61.96

23 -47.05 55 -10.33 87 26.39 119 63.11

24 -45.90 56 -9.18 88 27.54 120 64.26

25 -44.75 57 -8.03 89 28.69 121 65.41

26 -43.60 58 -6.88 90 29.83 122 66.55

27 -42.46 59 -5.74 91 30.98 123 67.70

28 -41.31 60 -4.59 92 32.13 124 68.85

29 -40.16 61 -3.44 93 33.28 125 70.00

30 -39.01 62 -2.29 94 34.42 126 71.14

31 -37.87 63 -1.15 95 35.57 127 72.29

32 -36.72 64 0.00 96 36.72

Data dB Data dB Data dB Data dB

0 -∞32 -23.95 64 -11.90 96 -4.86

1 -84.15 33 -23.41 65 -11.64 97 -4.68

2 -72.11 34 -22.89 66 -11.37 98 -4.50

3 -65.07 35 -22.39 67 -11.11 99 -4.33

4 -60.07 36 -21.90 68 -10.85 100 -4.15

5 -56.19 37 -21.42 69 -10.60 101 -3.98

6 -53.03 38 -20.96 70 -10.35 102 -3.81

7 -50.35 39 -20.51 71 -10.10 103 -3.64

8 -48.03 40 -20.07 72 -9.86 104 -3.47

9 -45.98 41 -19.64 73 -9.62 105 -3.30

10 -44.15 42 -19.22 74 -9.38 106 -3.14

11 -42.50 43 -18.81 75 -9.15 107 -2.98

12 -40.98 44 -18.41 76 -8.92 108 -2.82

13 -39.59 45 -18.02 77 -8.69 109 -2.66

14 -38.31 46 -17.64 78 -8.47 110 -2.50

15 -37.11 47 -17.27 79 -8.25 111 -2.34

16 -35.99 48 -16.90 80 -8.03 112 -2.18

17 -34.93 49 -16.54 81 -7.81 113 -2.03

18 -33.94 50 -16.19 82 -7.60 114 -1.88

19 -33.00 51 -15.85 83 -7.39 115 -1.72

20 -32.11 52 -15.51 84 -7.18 116 -1.57

21 -31.26 53 -15.18 85 -6.98 117 -1.42

22 -30.46 54 -14.86 86 -6.77 118 -1.28

23 -29.68 55 -14.54 87 -6.57 119 -1.13

24 -28.94 56 -14.22 88 -6.37 120 -0.98

25 -28.23 57 -13.92 89 -6.18 121 -0.84

26 -27.55 58 -13.62 90 -5.98 122 -0.70

27 -26.90 59 -13.32 91 -5.79 123 -0.56

28 -26.27 60 -13.03 92 -5.60 124 -0.42

29 -25.66 61 -12.74 93 -5.41 125 -0.28

30 -25.07 62 -12.46 94 -5.23 126 -0.14

31 -24.50 63 -12.18 95 -5.04 127 0.00

Data Value

(%)

Data Value

(%)

Data Value

(%)

Data Value

(%)

0 0.00 32 25.20 64 50.39 96 75.59

1 0.78 33 25.98 65 51.17 97 76.37

2 1.56 34 26.76 66 51.95 98 77.15

3 2.34 35 27.54 67 52.73 99 77.93

4 3.13 36 28.32 68 53.52 100 78.71

5 3.91 37 29.10 69 54.30 101 79.49

6 4.69 38 29.88 70 55.08 102 80.27

7 5.47 39 30.66 71 55.86 103 81.05

8 6.25 40 31.45 72 56.64 104 81.84

9 7.03 41 32.23 73 57.42 105 82.62

10 7.81 42 33.01 74 58.20 106 83.40

11 8.59 43 33.79 75 58.98 107 84.18

12 9.38 44 34.57 76 59.77 108 84.96

13 10.16 45 35.35 77 60.55 109 85.74

14 10.94 46 36.13 78 61.33 110 86.52

15 11.72 47 36.91 79 62.11 111 87.30

16 12.50 48 37.70 80 62.89 112 88.09

17 13.28 49 38.48 81 63.67 113 88.87

18 14.06 50 39.26 82 64.45 114 89.65

19 14.84 51 40.04 83 65.23 115 90.43

20 15.63 52 40.82 84 66.02 116 91.21

21 16.41 53 41.60 85 66.80 117 91.99

22 17.19 54 42.38 86 67.58 118 92.77

23 17.97 55 43.16 87 68.36 119 93.55

24 18.75 56 43.95 88 69.14 120 94.34

25 19.53 57 44.73 89 69.92 121 95.12

26 20.31 58 45.51 90 70.70 122 95.90

27 21.09 59 46.29 91 71.48 123 96.68

28 21.88 60 47.07 92 72.27 124 97.46

29 22.66 61 47.85 93 73.05 125 98.24

30 23.44 62 48.63 94 73.83 126 99.02

31 24.22 63 49.41 95 74.61 127 100.00

table#20

Dyna Attack Time (ms)

table#21

Dyna Release Time (ms)

table#22

Ring Mod Carrier Freq Course (Hz)

Data Value Data Value Data Value Data Value

0 0.3 32 54.0 64 112 96 170

1 0.9 33 56.0 65 114 97 172

2 1.8 34 58.0 66 116 98 174

3 2.7 35 60.0 67 118 99 176

4 3.6 36 61.0 68 120 100 178

5 5.4 37 63.0 69 121 101 180

6 7.2 38 65.0 70 123 102 181

7 9.0 39 67.0 71 125 103 183

8 10.0 40 69.0 72 127 104 185

9 12.0 41 70.0 73 129 105 187

10 14.0 42 72.0 74 130 106 189

11 16.0 43 74.0 75 132 107 190

12 18.0 44 76.0 76 134 108 192

13 20.0 45 78.0 77 136 109 194

14 21.0 46 80.0 78 138 110 196

15 23.0 47 81.0 79 140 111 198

16 25.0 48 83.0 80 141 112 200

17 27.0 49 85.0 81 143 113 201

18 29.0 50 87.0 82 145 114 203

19 30.0 51 89.0 83 147 115 205

20 32.0 52 90.0 84 149 116 207

21 34.0 53 92.0 85 150 117 209

22 36.0 54 94.0 86 152 118 210

23 38.0 55 96.0 87 154 119 212

24 40.0 56 98.0 88 156 120 214

25 41.0 57 100.0 89 158 121 216

26 43.0 58 101.0 90 160 122 218

27 45.0 59 103.0 91 161 123 220

28 47.0 60 105.0 92 163 124 221

29 49.0 61 107.0 93 165 125 223

30 50.0 62 109.0 94 167 126 225

31 52.0 63 110.0 95 169 127 227

Data Value Data Value Data Value Data Value

0 2.6 32 86.8 64 369.1 96 1064.0

1 3.0 33 91.2 65 390.8 97 1085.7

2 3.4 34 95.5 66 412.5 98 1107.4

3 3.9 35 99.8 67 434.2 99 1129.1

4 4.3 36 104.2 68 456.0 100 1150.8

5 4.7 37 108.5 69 477.7 101 1172.5

6 5.2 38 112.9 70 499.4 102 1194.3

7 5.6 39 117.2 71 521.1 103 1216.0

8 6.0 40 121.6 72 542.8 104 1237.7

9 6.5 41 125.9 73 564.5 105 1259.4

10 6.9 42 130.2 74 586.2 106 1281.1

11 7.3 43 134.6 75 608.0 107 1302.8

12 7.8 44 138.9 76 629.7 108 1346.3

13 8.2 45 143.3 77 651.4 109 1389.7

14 8.6 46 147.6 78 673.1 110 1433.1

15 13.0 47 152.0 79 694.8 111 1476.6

16 17.3 48 156.3 80 716.5 112 1520.0

17 21.7 49 160.6 81 738.3 113 1563.4

18 26.0 50 165.0 82 760.0 114 1606.8

19 30.4 51 169.3 83 781.7 115 1650.3

20 34.7 52 173.7 84 803.4 116 1693.7

21 39.0 53 178.0 85 825.1 117 1737.1

22 43.4 54 182.4 86 846.8 118 1780.6

23 47.7 55 186.7 87 868.5 119 1824.0

24 52.1 56 195.4 88 890.3 120 1867.4

25 56.4 57 217.1 89 912.0 121 1910.8

26 60.8 58 238.8 90 933.7 122 1954.3

27 65.1 59 260.5 91 955.4 123 1997.7

28 69.4 60 282.2 92 977.1 124 2041.1

29 73.8 61 304.0 93 998.8 125 2084.6

30 78.1 62 325.7 94 1020.5 126 2128.0

31 82.5 63 347.4 95 1042.3 127 2171.4

Data Value Data Value Data Value Data Value

0 0.7 32 25.6 64 151.4 96 895.0

1 1.3 33 26.9 65 160.2 97 946.1

2 2.0 34 28.9 66 169.6 98 1000.7

3 2.7 35 30.3 67 179.0 99 1057.2

4 3.4 36 32.3 68 189.1 100 1117.7

5 4.0 37 33.6 69 199.9 101 1181.7

6 4.7 38 35.7 70 211.3 102 1249.0

7 5.4 39 37.7 71 223.4 103 1320.3

8 6.1 40 39.7 72 236.2 104 1395.7

9 6.7 41 42.4 73 249.7 105 1475.1

10 7.4 42 44.4 74 263.8 106 1559.2

11 8.1 43 47.1 75 279.3 107 1648.7

12 8.7 44 49.8 76 294.7 108 1742.9

13 9.4 45 52.5 77 311.6 109 1841.8

14 10.1 46 55.9 78 329.7 110 1947.5

15 10.8 47 59.2 79 348.6 111 2058.5

16 11.4 48 62.6 80 368.1 112 2175.6

17 12.1 49 65.9 81 389.6 113 2300.1

18 12.8 50 70.0 82 411.8 114 2431.3

19 13.5 51 73.3 83 435.4 115 2569.9

20 14.1 52 78.1 84 459.6 116 2716.6

21 14.8 53 82.1 85 485.9 117 2871.4

22 15.5 54 86.8 86 514.1 118 3035.6

23 16.2 55 92.2 87 543.1 119 3208.5

24 16.8 56 96.9 88 574.0 120 3391.6

25 17.5 57 103.0 89 607.0 121 3585.4

26 18.2 58 108.3 90 642.0 122 3790.0

27 19.5 59 115.1 91 678.3 123 4006.6

28 20.9 60 121.1 92 717.3 124 4234.8

29 21.5 61 128.5 93 757.7 125 4477.0

30 22.9 62 135.9 94 801.5 126 4732.1

31 24.2 63 143.3 95 847.2 127 5002.6

table#23

V-Flanger Delay Offset

table#24

Modulation Phase

Data Value Data Value

0 0.1 70 6.4

1 0.1 71 6.7

2 0.1 72 7.0

3 0.2 73 7.4

4 0.2 74 7.7

5 0.2 75 8.1

6 0.2 76 8.5

7 0.2 77 9.0

8 0.3 78 9.4

9 0.3 79 9.9

10 0.3 80 10.3

11 0.3 81 10.7

12 0.4 82 11.2

13 0.4 83 11.6

14 0.4 84 12.1

15 0.4 85 12.5

16 0.4 86 12.9

17 0.5 87 13.4

18 0.5 88 13.8

19 0.5 89 14.2

20 0.5 90 14.7

21 0.6 91 15.1

22 0.6 92 15.6

23 0.6 93 16.0

24 0.7 94 16.4

25 0.7 95 16.9

26 0.7 96 17.3

27 0.8 97 17.8

28 0.8 98 18.2

29 0.8 99 18.6

30 0.9 100 19.1

31 0.9 101 19.5

32 1.0 102 20.0

33 1.0 103 20.4

34 1.1 104 20.8

35 1.1 105 21.3

36 1.2 106 21.7

37 1.2 107 22.2

38 1.3 108 22.6

39 1.4 109 23.0

40 1.4 110 23.5

41 1.5 111 23.9

42 1.6 112 24.4

43 1.7 113 24.8

44 1.8 114 25.2

45 1.8 115 25.7

46 1.9 116 26.1

47 2.0 117 26.5

48 2.1 118 27.0

49 2.3 119 27.4

50 2.4 120 27.9

51 2.5 121 28.3

52 2.6 122 28.7

53 2.7 123 29.2

54 2.9 124 29.6

55 3.0 125 30.1

56 3.2 126 30.5

57 3.3 127 30.9

58 3.5 128 31.4

59 3.7 129 31.8

60 3.9 130 32.3

61 4.1 131 32.7

62 4.3 132 33.1

63 4.5 133 33.6

64 4.7 134 34.0

65 5.0 135 34.5

66 5.2 136 34.9

67 5.5 137 35.3

68 5.8 138 35.8

69 6.0 139 36.2

Data Value

0 -180

1 -158

2 -135

3 -113

4 -90

5 -68

6 -45

7 -23

80

923

10 45

11 68

12 90

13 113

14 135

15 158

16 180

PSR-3000/1500 Data List 41

Vocal Harmony Type List / Liste der Vocal-Harmony-Effekttypen /

Liste des types d’harmonie vocale / Lista de tipos de armonía

(PSR-3000 only)

STANDARD DUET BLOCK STRUM

STANDARD TRIO 4-WAY CLOSE 1 MULTI ASSIGN

FULL CHORD 4-WAY CLOSE 2 ECHO

ROCK DUET 4-WAY OPEN TREMOLO

COUNTRY DUET 1+5 TRILL

COUNTRY TRIO OCTAVE

Order Type LCD Name Mode Vocoder Type Chordal Type Detune Type Chromatic Type Thru Type

MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB

1 CountryQuartet CountryQuar Chordal/Vocorder 89 111 90 47

2 ClosedMenQuartet ClsdMenQuar Chordal/Vocorder 89 117 90 53

3MixAcapQuartet MixAcapQuar Chordal/Vocorder 89 119 90 55

4Women Choir WomenChoir Chordal/Vocorder 89 88 90 24

5 Jazz Sisters JazzSisters Chordal/Vocorder 89 120 90 56

6 Standard Duet Std Duet Chordal/Vocorder 89 80 90 16

7Men Choir MenChoir Chordal/Vocorder 89 87 90 23

8 Closed Choir ClosedChoir Chordal/Vocorder 89 90 90 26

9 Girl in Duet Girl Duet Chordal/Vocorder 89 81 90 17

10 Speedy Mouse SpdyMouse Chromatic 92 17

11 HighMaleQuartet HighMaleQua Chordal/Vocorder 89 115 90 51

12 Jazz Quartet JazzQuartet Chordal/Vocorder 89 114 90 50

13 Mixed Choir MixedChoir Chordal/Vocorder 89 91 90 27

14 Country Girls CntryGirls Chordal/Vocorder 89 89 90 25

15 Sisters Trio SistersTrio Chordal/Vocorder 89 113 90 49

16 Country Men CountryMen Chordal/Vocorder 89 83 90 19

17 A Capella Boy ACapellBoy Chordal/Vocorder 89 85 90 21

18 A Capella Mix ACapellaMix Chordal/Vocorder 89 86 90 22

19 Gospel Diva GospelDiva Chordal/Vocorder 89 112 90 48

20 Lisa and Tina Lisa&Tina Chordal/Vocorder 89 82 90 18

21 AcapMenQuartet AcapMenQuar Chordal/Vocorder 89 118 90 54

22 JazzMenChoir JazzMenCho Chordal/Vocorder 89 101 90 37

23 JazzClosedCho J_CloseCho Chordal/Vocorder 89 103 90 39

24 JazzWomenCho J_WomenCho Chordal/Vocorder 89 102 90 38

25 LadiesQuartet LadiesQuart Chordal/Vocorder 89 116 90 52

26 Sing B+G Sing B+G Chordal/Vocorder 89 93 90 29

27 Barbershop Barbershop Chordal/Vocorder 89 96 90 32

28 JazzMixedCho J_MixedCho Chordal/Vocorder 89 104 90 40

29 Dream Girls Dream Girls Chordal/Vocorder 89 94 90 30

30 Sing the Bass SingBass Chromatic 92 16

31 Falsetto Duet FalsetDuet Chordal/Vocorder 89 84 90 20

32 Falsetto Trio FalsettTrio Chordal/Vocorder 89 92 90 28

33 Falsetto Dia FalsettoDia Chordal/Vocorder 89 100 90 36

34 Fal A Capella FalACapella Chordal/Vocorder 89 95 90 31

35 Falsetto Jazz FalsetJazz Chordal/Vocorder 89 105 90 41

36 2 Unison Low 2UnisonLow Chordal/Vocorder 89 106 90 42

37 3 Unison Low 3UnisonLow Chordal/Vocorder 89 108 90 44

38 Diatonic Jazz DiatncJazz Chordal/Vocorder 89 97 90 33

39 Diatonic Girl DiatncGirl Chordal/Vocorder 89 98 90 34

40 A Capella Dia ACapellaDia Chordal/Vocorder 89 99 90 35

41 ChordalXG ChordalXG Chordal/Vocorder 89 64 90 0

42 Karaoke Auto KaraokAuto Chordal/Vocorder 89 24 90 88

43 Karaoke Mode KaraokMode Chordal/Vocorder 89 25 90 89

44 Karaoke Girl KaraokGirl Chordal/Vocorder 89 26 90 90

45 Karaoke Pitch KaraokPich Chordal/Vocorder 89 27 90 91

46 2 Unison High 2UnisonHigh Chordal/Vocorder 89 107 90 43

47 3 Unison High 3UnisonHigh Chordal/Vocorder 89 109 90 45

48 Vocoder Auto Upper VocodAutoU Chordal/Vocorder 89 16 90 80

49 Vocoder Auto Lower VocodAutoL Chordal/Vocorder 89 17 90 81

50 DetuneXG DetuneXG Detune 91 0

51 VocoderXG VocoderXG Chordal/Vocorder 89 0 90 64

52 Vocoder Mode Upper VocodModeU Chordal/Vocorder 89 18 90 82

53 Vocoder Mode Lower VocodModeL Chordal/Vocorder 89 19 90 83

54 Vocoder Girl Upper VocodGirlU Chordal/Vocorder 89 20 90 84

55 Vocoder Girl Lower VocodGirlL Chordal/Vocorder 89 21 90 85

56 Vocoder Pitch Upper VocodPichU Chordal/Vocorder 89 22 90 86

57 Vocoder Pitch Lower VocodPichL Chordal/Vocorder 89 23 90 87

58 ChromaticXG ChromatXG Chromatic 92 0

59 Voice&Inst Voice&Inst Chordal/Vocorder 89 110 90 46

60 Pop Vocal Pop Vocal Chordal/Vocorder 89 121 90 57

61 Thru Thru - 64 0

Harmony/Echo Type List / Liste der Harmony/Echo-Effekttypen /

Liste des types d’harmonie/d’écho / Lista de tipos de ecos/armonías

PSR-3000/1500 Data List

42

Parameter

PSR-1500

PSR-3000

System

Voice

Voice Set

Group

Song Style

Multi Pad

Registration

Param Lock

Group Note

SetUp

MIDI Setup

User Effect

Music Finder

Song Setup

Group

Style

OTS

Regist

Freeze

Group

Main

SongFile O O XXXXX - X - XXXO Song -

StyleFile O O X X X O X - X - X X X O Style -

Right1 VoiceFile O O XXXXX - X - XXXX - -

Right2 VoiceFile O O XXXXX - X - XXXX - -

Left VoiceFile O O XXXXX - X - XXXX - -

Right1 PartSelect O O XXXXX - X - XXXX - -

Right2 PartSelect O O XXXXX - X - XXXX - -

Left PartSelect O O XXXXX - X - XXXX - -

PartOnOff (Right1) O O XXXXX - O Keyboard

Voice XOXO Voice -

PartOnOff (Right2) O O XXXXX - O Keyboard

Voice XOXO Voice -

PartOnOff (Left) O O XXXXX - O Keyboard

Voice XOXO Style -

RegistrationBankFile O O XXXXX - X - XXXX - -

File System

CharacterSelect O O XXXXX - X - XXXX - - One setting for all the Name related pop-

up window.

Song

Track1, 2 On/Off O O XXXXX - O Guide

Setting XXXX - - Setting is linked to Channel on/off.

ExtraTracks On/Off O O XXXXX - X - XXXX - - Setting is linked to Channel on/off.

Synchro Start O O XXXXX - X - XXXO SONG - Ignored during playback.

StartStop O O XXXXX - X - XXXX - -

A-B Repeat O O XXXXX - X - XXXX - -

Menu > Function > SongSetting

Guide Mode O O XXXX - O Guide

Setting XX-X - - Reset to its default setting when song

data doesn’t include this data.

Guide Mode O O XXXX - O Guide

Setting XX-X - - Reset to its default setting when song

data doesn’t include this data.

Repeat Mode O O O XXXX - X - XXXX - -

Phrase Mark O O XXXXX - X - XXXX - -

Track1 Channel O O O XXXX - O - XXXX - - Set by recording. Different from one of

the Track2.

Track2 Channel O O O XXXX - O - XXXX - - Set by recording. Different from one of

the Track1.

Vocal Harmony Channel O XXXXX - OMic.Setting X X X O Mic Mic.Setting Set by recording. Different from one of

the Track1.

Auto Ch Set O O O XXXX - X - XXXX -| -

Lyrics Language O O O XXXX - O Lyrics

Setting XXXX - - Specified from the song when set to

Auto.

QuickStart O O O XXXX - X - XXXX - -

Tempo

Song Tempo O O XXXXX - O TEMPO O X X O Tempo -

DigitalStudio > DigitalRecording > Song Creator

REC Mode

Rec Start O O XXXXX - X - XXXX - -

PunchiInAt O O XXXXX - X - XXXX - -

Rec End O O XXXXX - X - XXXX - -

PunchOutAt O O XXXXX - X - XXXX - -

Pedal Punch In/Out O O XXXXX - X - XXXX - -

Channel > Quantize

Channel O O XXXXX - X - XXXX - -

Size O O XXXXX - X - XXXX - -

Strength O O XXXXX - X - XXXX - -

Channel > Track Delete

Track Delete O O XXXXX - X - XXXX - -

Channel > Track Mix

Source1 O O XXXXX - X - XXXX - -

Source2 O O XXXXX - X - XXXX - -

Destination O O XXXXX - X - XXXX - -

Channel > Channel Transpose

CHANNEL TRANSPOSE O O XXXXX - X - XXXX - -

REC Mode > Channel > Setup

Setup Select O O XXXX - X - XXXX - -

Setup Select O O XXXX - X - XXXX - -

Channel > Chd/1~16/SysEx./Lyric > Filter

Main Filter O O O XXXX - X - XXXX - -

Control Change Filter O O O XXXX - X - XXXX - -

Accompaniment Filter O O O XXXX - X - XXXX - -

Lyric (KARAOKE) SW

BackGround (Panel Setting) O O XXXX - X Lyrics

Language XX-X --Cannot be reset with Factory Reset.

Parameter Chart / Parametertabelle / Tableau des paramètres / Gráfico de parámetros

PSR-3000/1500 Data List 43

Parameter Chart / Parametertabelle / Tableau des paramètres / Gráfico de parámetros

SCORE SW

Left on/off O O O XXXX - O Score

Setting XXXX - -

Right on/off O O O XXXX - O Score

Setting XXXX - -

Lyric on/off O O O XXXX - O Score

Setting XXXX - -

Chord on/off O O O XXXX - O Score

Setting XXXX - -

NoteName on/off O O O XXXX - O Score

Setting XXXX - -

Size O O O XXXX - O Score

Setting XXXX - -

Left ch. O O O XXXX - O Score

Setting XXXX - -

Right ch. O O O XXXX - O Score

Setting XXXX - -

KeySignature O O XXXXX - O Score

Setting XXXX - -

Quantize O O O XXXX - O Score

Setting XXXX - -

NoteName O O O XXXX - O Score

Setting XXXX - -

ColorNote O O XXXX - O Score

Setting XX-X - -

Recording Data

Song XG data O O O

Style

AccompanimentOnOff O O XXXXX - X - XO

(On)

XO Style -

OTSLink O O XXXXX - X - XXXX - -

AutoFillIn O O O XXXX - X - XXXX - -

Section O O XXXXX - X - XXXO Style -

SynchroStart O O XXXXX - X - XO

(On)

XO Style - Regist: Unavailable during style

playback.

SynchroStop O O XXXXX - X - XXXO Style - Regist: Unavailable during style

playback.

StartStop O O XXXXX - X - XXXX - -

Menu > Function > StyleSetting/SplitPoint/Chord Fingering

Style Setting/SplitPoint

StopAcmp O O O XXXX-X-XXXO Style -

OTSLinkTiming O O O XXXX - X - XXXX - -

SynchroStopWindow O O O XXXX-X-XXXO Style -

StyleTouch O O O XXXX-X - XXXO Style -

SectionSet O O O XXXX - X - XXXX - -

SplitPoint (Style) O O O XXXX - O Guide

Setting XXXO Style Split Point

SplitPoint (Left) O O O XXXX-X-XXXO Style Split Point

Chord Fingering

FingeringType O O O XXXX-X-XXXO Style Fingering

Chord Root Note O O XXXXX - X - XXXX - -

Chord Root Type O O XXXXX - X - XXXX - -

DigitalStudio > DigitalRecording > Style Creator

BASIC

Section O O XXXXX - X - XXXX - -

Pattern Length O O XXXXX - X - OXXX - -

TempoOOXXXXX - X - OXXX - -

Beat O O XXXXX - X - OXXX - -

Assembly

Source Pattern O O XXXXX - X - XXXX - -

Section O O XXXXX - X - XXXX - -

Channel O O XXXXX - X - XXXX - -

Play Type O O XXXXX - X - XXXX - -

Groove > Groove

Original Beat O O XXXXX - X - XXXX - -

Beat Converter O O XXXXX - X - XXXX - -

Swing O O XXXXX - X - XXXX - -

Fine O O XXXXX - X - XXXX - -

Groove > Dynamics

Channel O O XXXXX - X - XXXX - -

Accent Type O O XXXXX - X - XXXX - -

Strength O O XXXXX - X - XXXX - -

Expand/Comp. O O XXXXX - X - XXXX - -

Boost/Cut O O XXXXX - X - XXXX - -

Channel > Quantize

Channel O O XXXXX - X - XXXX - -

Size O O XXXXX - X - XXXX - -

Strength O O XXXXX - X - XXXX - -

Parameter

PSR-1500

PSR-3000

System

Voice

Voice Set

Group

Song Style

Multi Pad

Registration

Param Lock

Group Note

SetUp

MIDI Setup

User Effect

Music Finder

Song Setup

Group

Style

OTS

Regist

Freeze

Group

Parameter Chart / Parametertabelle / Tableau des paramètres / Gráfico de parámetros

PSR-3000/1500 Data List

44

Channel > Velocity Change

Channel O O XXXXX - X - XXXX - -

Boost/Cut O O XXXXX - X - XXXX - -

Channel > Bar Copy

Channel O O XXXXX - X - XXXX - -

Source Top O O XXXXX - X - XXXX - -

Source Last O O XXXXX - X - XXXX - -

Destination O O XXXXX - X - XXXX - -

Channel > Bar Clear

Channel O O XXXXX - X - XXXX - -

Source Top O O XXXXX - X - XXXX - -

Source Last O O XXXXX - X - XXXX - -

Channel > Remove Event

Channel O O XXXXX - X - XXXX - -

Event O O XXXXX - X - XXXX - -

Parameter

Channel O O XXXXX - X - XXXX - -

Source Root O O XXXXX - X - OXXX - -

Source Chord O O XXXXX - X - OXXX - -

NTR OOXXXXX - X - OXXX - -

NTT OOXXXXX - X - OXXX - -

NTT BASS O O XXXXX - X - OXXX - -

High Key O O XXXXX - X - OXXX - -

Note Limit Low O O XXXXX - X - OXXX - -

Note Limit High O O XXXXX - X - OXXX - -

RTROOXXXXX - X - OXXX - -

Edit > Filter

Main Filter O O O XXXX - X - XXXX - -

Control Change Filter O O O XXXX - X - XXXX - -

MusicFinder

SortBy OOOXXXX - X - XXXX - -

SortOrder OOOXXXX - X - XXXX - -

TempoLock O O O XXXX - X - XXXX - -

Search 1/2 display

Music O O O XXXX - X - XXXX - -

Keyword O O O XXXX - X - XXXX - -

Style (FileNumber) O O O XXXX - X - XXXX - -

Beat O O O XXXX - X - XXXX - -

SearchArea O O O XXXX - X - XXXX - -

Tem po (From) OOOXXXX - X - XXXX - -

Tem po (To) OOOXXXX - X - XXXX - -

Genre O O O XXXX - X - XXXX - -

Search Result O O X X X O X - X - XXXX - -

Record (=Property settings) O O X X X O X - X - XXXX - -

Record (=Property settings) O O X X X O X - X - XXXX - -

Recording data

SFF data O O O

MultiPad

Multi Pad ContentsName O O XXXXX - X - XXOX - -

DigitalStudio > DigitalRecording > Multi Pad Creator

Record

Repeat O O XXXXX - X - XXOX - -

Chord Match O O XXXXX - X - XXOX - -

Edit > Filter

Main Filter O O O XXXX - X - XXXX - -

Control Change Filter O O O XXXX - X - XXXX - -

Recording data

Multi Pad data O O O

Voice

LastSelectedVoice O O XXXXX - X - XXXX - -

LeftHold O O XXXXX - O Keyboard

Voice XOXO Style -

VoiceEffect

Initial Touch On Off O O XXXXX - X - XXXO Voice -

Harmony/Echo O O XXXXX - O Keyboard

Voice XOXO Harmony -

Mono/Poly (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Mono/Poly (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Mono/Poly (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

Panel Sustain O O XXXXX - X - XXXO Voice -

DSP (Right1) O O XXXXO Effect O Keyboard

Voice XOXO Voice -

DSP (Right2) O O XXXXO Effect O Keyboard

Voice XOXO Voice -

Parameter

PSR-1500

PSR-3000

System

Voice

Voice Set

Group

Song Style

Multi Pad

Registration

Param Lock

Group Note

SetUp

MIDI Setup

User Effect

Music Finder

Song Setup

Group

Style

OTS

Regist

Freeze

Group

PSR-3000/1500 Data List 45

Parameter Chart / Parametertabelle / Tableau des paramètres / Gráfico de parámetros

DSP (Left) O O XXXXO Effect O Keyboard

Voice XOXO Style -

Variation (Right1) O O XXXXO Effect O Keyboard

Voice XOXO Voice -

Variation (Right2) O O XXXXO Effect O Keyboard

Voice XOXO Voice -

Variation (Left) O O XXXXO Effect O Keyboard

Voice XOXO Style -

DigitalStudio > SoundCreator

Voice (Right1) O O XXXXO - O Keyboard

Voice XOXO Voice -

Voice (Right2) O O XXXXO - O Keyboard

Voice XOXO Voice -

Voice (Left) O O XXXXO - O Keyboard

Voice XOXO Style -

COMMON

Volume for Balance (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Volume for Balance (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Volume for Balance (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

Touch Sense (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Touch Sense (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Touch Sense (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

Octave for Right1 O O XXXXO Voice X - XXXX - -

Octave for Right2 O O XXXXO Voice X - XXXX - -

Octave for Left O O XXXXO Voice X - XXXX - -

CONTROLLER

MW Low Pass Filter Control

(Right1) OOXXXXO Voice O Keyboard

Voice XOXO Voice -

MW Low Pass Filter Control

(Right2) OOXXXXO Voice O Keyboard

Voice XOXO Voice -

MW Low Pass Filter Control

(Left) OOXXXXO Voice O Keyboard

Voice XOXO Style -

MW Amplitude Control

(Right1) OOXXXXO Voice O Keyboard

Voice XOXO Voice -

MW Amplitude Control

(Right2) OOXXXXO Voice O Keyboard

Voice XOXO Voice -

MW AmpLitude Control (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

MW LFO PMOD Depth

(Right1) OOXXXXO Voice O Keyboard

Voice XOXO Voice -

MW LFO PMOD Depth

(Right2) OOXXXXO Voice O Keyboard

Voice XOXO Voice -

MW LFO PMOD Depth (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

MW LFO FMOD Depth

(Right1) OOXXXXO Voice O Keyboard

Voice XOXO Voice -

MW LFO FMOD Depth

(Right2) OOXXXXO Voice O Keyboard

Voice XOXO Voice -

MW LFO FMOD Depth (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

MW LFO AMOD Depth

(Right1) OOXXXXO Voice O Keyboard

Voice XOXO Voice -

MW LFO AMOD Depth

(Right2) OOXXXXO Voice O Keyboard

Voice XOXO Voice -

MW LFO AMOD Depth (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

SOUND

EG Attack (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

EG Attack (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

EG Attack (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

EG Decay (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

EG Decay (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

EG Decay (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

EG Release (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

EG Release (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

EG Release (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

Vibrato Depth (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Vibrato Depth (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Parameter

PSR-1500

PSR-3000

System

Voice

Voice Set

Group

Song Style

Multi Pad

Registration

Param Lock

Group Note

SetUp

MIDI Setup

User Effect

Music Finder

Song Setup

Group

Style

OTS

Regist

Freeze

Group

Parameter Chart / Parametertabelle / Tableau des paramètres / Gráfico de parámetros

PSR-3000/1500 Data List

46

Vibrato Depth (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

Vibrato Speed (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Vibrato Speed (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Vibrato Speed (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

Vibrato Delay (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Vibrato Delay (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Vibrato Delay (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

EFFECT/EQ

Panel Sustain (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Panel Sustain (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Panel Sustain (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

DSP Type (Right1) O O XXXXO Effect O Keyboard

Voice XOXO Voice -

DSP Type (Right2) O O XXXXO Effect O Keyboard

Voice XOXO Voice -

DSP Type (Left) O O XXXXO Effect O Keyboard

Voice XOXO Style -

LastSelectedDSP O O XXXXX - X - XXXX - -

DSP Variation Value (Right1) O O XXXXO Effect O Keyboard

Voice XOXO Voice -

DSP Variation Value (Right2) O O XXXXO Effect O Keyboard

Voice XOXO Voice -

DSP Variation Value (Left) O O XXXXO Effect O Keyboard

Voice XOXO Style -

EQ Low Freq (Right1) O O XXXXO EQ O Keyboard

Voice XOXO Voice -

EQ Low Freq (Right2) O O XXXXO EQ O Keyboard

Voice XOXO Voice -

EQ Low Freq (Left) O O XXXXO EQ O Keyboard

Voice XOXO Style -

EQ High Freq (Right1) O O XXXXO EQ O Keyboard

Voice XOXO Voice -

EQ High Freq (Right2) O O XXXXO EQ O Keyboard

Voice XOXO Voice -

EQ High Freq (Left) O O XXXXO EQ O Keyboard

Voice XOXO Style -

OrganFlute > Footage

Organ Flutes Footage

(Right1) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Footage

(Right2) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Footage (Left) O O XXXXO - O Keyboard

Voice XOXO Style -

Organ Flutes Type (Right1) O O XXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Type (Right2) O O XXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Type (Left) O O XXXXO - O Keyboard

Voice XOXO Style -

Organ Vib On/Off (Right1) O O XXXXO - O Keyboard

Voice XOXO Voice -

Organ Vib On/Off (Right2) O O XXXXO - O Keyboard

Voice XOXO Voice -

Organ Vib On/Off (Left) O O XXXXO - O Keyboard

Voice XOXO Style -

Organ Vib Depth (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Organ Vib Depth (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Organ Vib Depth (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

Organ Vib Speed (Right1) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Organ Vib Speed (Right2) O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Organ Vib Speed (Left) O O XXXXO Voice O Keyboard

Voice XOXO Style -

OrganFlute > Footage

Organ Flutes Attack Footage

(Right1) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Attack Footage

(Right2) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Attack Footage

(Left) OOXXXXO - O Keyboard

Voice XOXO Style -

Organ Flutes Attack Mode

(Right1) OOXXXXO - O Keyboard

Voice XOXO Voice -

Parameter

PSR-1500

PSR-3000

System

Voice

Voice Set

Group

Song Style

Multi Pad

Registration

Param Lock

Group Note

SetUp

MIDI Setup

User Effect

Music Finder

Song Setup

Group

Style

OTS

Regist

Freeze

Group

PSR-3000/1500 Data List 47

Parameter Chart / Parametertabelle / Tableau des paramètres / Gráfico de parámetros

Organ Flutes Attack Mode

(Right2) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Attack Mode

(Left) OOXXXXO - O Keyboard

Voice XOXO Style -

Organ Flutes Attack length

(Right1) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Attack length

(Right2) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Attack length

(Left) OOXXXXO - O Keyboard

Voice XOXO Style -

Organ Flutes Response

(Right1) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Response

(Right2) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Response

(Left) OOXXXXO - O Keyboard

Voice XOXO Style -

Organ Flutes Volume

(Right1) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Volume

(Right2) OOXXXXO - O Keyboard

Voice XOXO Voice -

Organ Flutes Volume (Left) O O XXXXO - O Keyboard

Voice XOXO Style -

Mic

VocalHarmonyOnOff O XXXXX - OMic.Setting X X X O Mic Mic.Setting

TalkOnOff O XXXXX - X - XXXX - -

Mic EffectOnOff O XXXXX - OMic.Setting X X X O Mic Mic.Setting

VHType O XXXXX - OMic.Setting X X X O Mic Mic.Setting

VHParameters O X X O X X - O Mic.Setting XXXX - Mic.Setting

Main > Mic Setting

Mic Setting > OverAll Setting

EQ Low Freq. O O XXXX - X - XXXX - -

EQ Low Gain O O XXXX - X - XXXX - -

EQ Mid Freq. O O XXXX - X - XXXX - -

EQ Mid Gain O O XXXX - X - XXXX - -

EQ High Freq. O O XXXX - X - XXXX - -

EQ High Gain O O XXXX - X - XXXX - -

Noise Gate SW O O XXXX - X - XXXX - -

Noise Gate TH O O XXXX - X - XXXX - -

Compressor SW O O XXXX - X - XXXX - -

Compressor TH O O XXXX - X - XXXX - -

Compressor RAT O O XXXX - X - XXXX - -

Compressor OUT O O XXXX - X - XXXX - -

VH Song Channel Mute

OXXXXX - X - XXXO Mic Mic.Setting

VH Song Channel O XXXXX - OMic.Setting X X X O Mic Mic.Setting

VH Keyboard O XXXXX - OMic.Setting X X X O Mic Mic.Setting

VH Balance O XXXXX - OMic.Setting X X X O Mic Mic.Setting

VH Mode O XXXXX - X - XXXO Mic Mic.Setting

VH Chord Detect O XXXXX - X - XXXO Mic Mic.Setting

Mute O XXXXX - X - XXXX - -

MicVolume O XXXXX - OMic.Setting X X X O Mic Mic.Setting

Mic Setting > Talk Setting

Talk Setting Volume O O XXXX - X - XXXX - -

Talk Setting Pan O O XXXX - X - XXXX - -

Talk Setting ReverbDepth O O XXXX - X - XXXX - -

Talk Setting ChorusDepth O O XXXX - X - XXXX - -

Talk Setting

TotalVolumeAttenuator OOXXXX - X - XXXX - -

Talk Setting DSPOnOff O O XXXX - X - XXXX - -

Talk Setting DSPDepth O O XXXX - X - XXXX - -

Talk Setting DSPType O O XXXX - X - XXXX - -

Main > Mixing Console > Voice

Volume

Offset Volume Song O O XXXXX - X - XXXO Song -

Offset Volume Style O O XXXXX - X - XXXO Style -

Volume M.Pad O O XXXXX - O Keyboard

Voice XOXO MultiPad -

Volume Mic O XXXXX - OMic.Setting X X X O Mic Mic.Setting

Volume Left O O XXXXX - O Keyboard

Voice XOXO Style -

Volume Right1 O O XXXXX - O Keyboard

Voice XOXO Voice -

Volume Right2 O O XXXXX - O Keyboard

Voice XOXO Voice -

Part Volume Song O O XXXXX - O Volume XXXX - -

Part Volume Style O O XXXXX - X - OXXO Style -

PanPot

Offset PanPot Song O O XXXXX - X - XXXX - -

Offset PanPot Style O O XXXXX - X - XXXO Style -

PanPot M.Pad O O XXXXX - X - XXXO Multi Pad -

PanPot Mic O XXXXX - OMic.Setting X X X O Mic Mic.Setting

Parameter

PSR-1500

PSR-3000

System

Voice

Voice Set

Group

Song Style

Multi Pad

Registration

Param Lock

Group Note

SetUp

MIDI Setup

User Effect

Music Finder

Song Setup

Group

Style

OTS

Regist

Freeze

Group

Parameter Chart / Parametertabelle / Tableau des paramètres / Gráfico de parámetros

PSR-3000/1500 Data List

48

PanPot Left O O XXXXX - O Keyboard

Voice XOXO Style -

PanPot Right1 O O XXXXX - O Keyboard

Voice XOXO Voice -

PanPot Right2 O O XXXXX - O Keyboard

Voice XOXO Voice -

Part PanPot Song O O XXXXX - O Pan XXXX - -

Part PanPot Style O O XXXXX - X - OXXO Style -

Voice

Voice (Right1) O O XXXXO - O Keyboard

Voice XOXO Voice -

Voice (Right2) O O XXXXO - O Keyboard

Voice XOXO Voice -

Voice (Left) O O XXXXO - O Keyboard

Voice XOXO Style -

Voice (Style Part) O O XXXXX - X - OXXO Style

Voice (Song Part) O O XXXXX - O Voice XXXX -

Auto Revoice

Auto Revoice On/Off O O O XXXX - X - XXXX - -

Auto Revoice Setup O O O XXXX - X - XXXX - -

Main > Mixing Console > Filter

Brightness

Brightness Song Part O O XXXXX - O Filter XXXX - -

Brightness Style Part O O XXXXX - X - OXXO Style -

Brightness Right1 O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Brightness Right2 O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Brightness Left O O XXXXO Voice O Keyboard

Voice XOXO Style -

Harmonic Content

Harmonic Content Song Part O O XXXXX - O Filter XXXX - -

Harmonic Content Style Part O O XXXXX - X - OXXO Style -

Harmonic Content Right1 O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Harmonic Content Right2 O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Harmonic Content Left O O XXXXO Voice O Keyboard

Voice XOXO Style -

Main > Mixing Console > Tune

Octave

Octave Right1 O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Octave Right2 O O XXXXO Voice O Keyboard

Voice XOXO Voice -

Octave Left O O XXXXO Voice O Keyboard

Voice XOXO Style -

Tune

Tune Right1 O O XXXXX - O Keyboard

Voice XOXO Voice -

Tune Right2 O O XXXXX - O Keyboard

Voice XOXO Voice -

Tune Left O O XXXXX - O Keyboard

Voice XOXO Style -

Portamento Time

Portamento Time Right1

OOXXXXO Voice O Keyboard

Voice XOXO Voice -

Portamento Time Right2

OOXXXXO Voice O Keyboard

Voice XOXO Voice -

Portamento Time Left O O XXXXO Voice O Keyboard

Voice XOXO Style -

Pitch Bend Range

Pitch Bend Range Right1 O O XXXXX - O Keyboard

Voice XOXO Voice -

Pitch Bend Range Right2 O O XXXXX - O Keyboard

Voice XOXO Voice -

Pitch Bend Range Left O O XXXXX - O Keyboard

Voice XOXO Style -

Transpose

Master Transpose O O XXXXX - X - XXXOTranspose -

Song Transpose O O XXXXX - X - XXXOTranspose -

Keyboard Transpose O O XXXXX - X - XXXOTranspose -

Main > Mixing Console > LineOut

MasterEQ Type O O O XXXX - X - XXXX - Master EQ

MasterEQ Parameter O O X X O X X - X - XXXX - Master EQ

Main > Mixing Console > EQ

EQ Low Gain

EQ Low Gain Style Part

OOXXXXX - X - OXXO Style -

EQ Low Gain Song Part

OOXXXXX - O EQ XXXX - -

EQ Low Gain Right1 O O XXXXO EQ O Keyboard

Voice XOXO Voice -

Parameter

PSR-1500

PSR-3000

System

Voice

Voice Set

Group

Song Style

Multi Pad

Registration

Param Lock

Group Note

SetUp

MIDI Setup

User Effect

Music Finder

Song Setup

Group

Style

OTS

Regist

Freeze

Group

PSR-3000/1500 Data List 49

Parameter Chart / Parametertabelle / Tableau des paramètres / Gráfico de parámetros

EQ Low Gain Right2 O O XXXXO EQ O Keyboard

Voice XOXO Voice -

EQ Low Gain Left O O XXXXO EQ O Keyboard

Voice XOXO Style -

EQ Low Gain Style (Offset) O O XXXXX - X - XXXO Style -

EQ Low Gain Song (Offset) O O XXXXX - X - XXXX - -

EQ Low Gain Multi Pad

OOXXXXX - X - XXXO Multi Pad -

EQ High Gain

EQ High Gain Style Part

OOXXXXX - X - OXXO Style -

EQ High Gain Song Part

OOXXXXX - O EQ XXXX - -

EQ High Gain Right1 O O XXXXO EQ O Keyboard

Voice XOXO Voice -

EQ High Gain Right2 O O XXXXO EQ O Keyboard

Voice XOXO Voice -

EQ High Gain Left O O XXXXO EQ O Keyboard

Voice XOXO Style -

EQ High Gain Style (Offset) O O XXXXX - X - XXXO Style -

EQ High Gain Song (Offset) O O XXXXX - X - XXXX - -

EQ High Gain Multi Pad

OOXXXXX - X - XXXO Multi Pad -

Main > Mixing Console > Effect

Reverb Type

Reverb Type O O XXXXX - O Effect O X X O Style/Song Reverb

Type

Reverb Return Level O O XXXXX - O Effect O X X O Style/Song

Reverb

Return

Level

Reverb Depth

Reverb Depth Style Part

OOXXXXX - X - OXXO Style

Reverb Depth Song Part

OOXXXXX - O Effect XXXX -

Reverb Depth Right1 O O XXXXO Effect O Keyboard

Voice XOXO Voice

Reverb Depth Right2 O O XXXXO Effect O Keyboard

Voice XOXO Voice

Reverb Depth Left O O XXXXO Effect O Keyboard

Voice XOXO Style

Reverb Depth Style (Offset) O O XXXXX - X - XXXO Style -

Reverb Depth Song (Offset) O O XXXXX - X - XXXX - -

Reverb Depth Multi Pad

OOXXXXX - X - XXXO Multi Pad -

Reverb Depth Mic O XXXXX - OMic.Setting X X X O Mic Mic.Setting

Chorus Type

Chorus Type O O XXXXX - O Effect O X X O Style/Song -

Chorus Return Level O O XXXXX - O Effect O X X O Style/Song

Chorus

Return

Level

Chorus Depth

Chorus Depth Style Part

OOXXXXX - X - OXXO Style -

Chorus Depth Song Part

OOXXXXX - O Effect XXXX - -

Chorus Depth Right1 O O XXXXO Effect O Keyboard

Voice XOXO Voice -

Chorus Depth Right2 O O XXXXO Effect O Keyboard

Voice XOXO Voice -

Chorus Depth Left O O XXXXO Effect O Keyboard

Voice XOXO Style -

Chorus Depth Style (Offset) O O XXXXX - X - XXXO Style -

Chorus Depth Song (Offset) O O XXXXX - X - XXXX - -

Chorus Depth Multi Pad

OOXXXXX - X - XXXO Multi Pad -

Chorus Depth Mic O XXXXX - OMic.Setting X X X O Mic Mic.Setting

DSP Type

DSP1 (Variation) Type O O XXXXX - O Effect O X X O Style/Song -

DSP1 (Variation) Return

Level OOXXXXX - O Effect O X X O Style/Song

DSP1

Return

Level

DSP2Type O O XXXXX - O Effect X X X O Voice/Style/

Song -

DSP3Type O O XXXXX - O Effect X X X O Voice/Style/

Song -

DSP4Type O XXXXX - O Effect/Mic X X X O Voice/Style/

Song/Mic Mic.Setting

DSP4Type O XXXXX - O Effect X X X O Voice/Style/

Song -

DSP Depth

DSP Depth Style Part O O XXXXX - X - OXXO Style -

DSP Depth Song Part O O XXXXX - O Effect XXXX - -

DSP Depth Right1 O O XXXXO Effect O Keyboard

Voice XOXO Voice -

DSP Depth Right2 O O XXXXO Effect O Keyboard

Voice XOXO Voice -

DSP Depth Left O O XXXXO Effect O Keyboard

Voice XOXO Style -

DSP Depth Mic O XXXXX - OMic.Setting X X X O Mic -

Parameter

PSR-1500

PSR-3000

System

Voice

Voice Set

Group

Song Style

Multi Pad

Registration

Param Lock

Group Note

SetUp

MIDI Setup

User Effect

Music Finder

Song Setup

Group

Style

OTS

Regist

Freeze

Group

Parameter Chart / Parametertabelle / Tableau des paramètres / Gráfico de parámetros

PSR-3000/1500 Data List

50

InsertionType

Ins.Type (Right1) O O XXXXO Effect O Keyboard

Voice XOXO Voice -

Ins.Type (Right2) O O XXXXO Effect O Keyboard

Voice XOXO Voice -

Ins.Type (Left) O O XXXXO Effect O Keyboard

Voice XOXO Style -

Ins. Type (Song) O O XXXXX - O Effect XXXX - -

Ins.Type (Mic) O XXXXX - OMic.Setting X X X O Mic Mic.Setting

Effect Parameter

(Reverb/Chorus/DSP1~4) OXXOXX-OEffect XXXX - -

Effect Parameter

(Reverb/Chorus/DSP1~3) OXXOXX-OEffect XXXX - -

Effect Parameter (DSP4) O X X O X X - O Mic.Setting XXXX - Mic.Setting

Main > Channel > Channel OnOffPopup

ChannelOnOff (Song) O O XXXXX - X - XXXO Song -

ChannelOnOff (Style) O O XXXXX - X - OXXO Style -

MIDI

MIDI Template

Template No. O O O XXXX - X - XXXX - -

Preset Template Name O OXOXXX - X - XXXX - -

Menu > Function > MIDI

System

Local Control O OXOXXX - X - XXXX - -

Clock O OXOXXX - X - XXXX - -

Transmit Clock O OXOXXX - X - XXXX - -

Receive Transpose O OXOXXX - X - XXXX - -

Receive Start/Stop O OXOXXX - X - XXXX - -

SysEx Transmit O OXOXXX - X - XXXX - -

SysEx Receive O OXOXXX - X - XXXX - -

Chord SysEx Transmit O OXOXXX - X - XXXX - -

Chord SysEx Receive O OXOXXX - X - XXXX - -

Transmit

Part Select O OXOXXX - X - XXXX - -

Ch (for each part) O OXOXXX - X - XXXX - -

Filter (for each part) O OXOXXX - X - XXXX - -

Receive

CH Select O OXOXXX - X - XXXX - -

Part Select O OXOXXX - X - XXXX - -

Filter (for each channel) O OXOXXX - X - XXXX - -

Root

Root O OXOXXX - X - XXXX - -

Chord Detect

Chord Detect O OXOXXX - X - XXXX - -

Menu > Function > Master Tune/Scale Tune

Master Tune

MasterTune O O O XXXX - X - XXXX - -

Scale Tune

Scale O O XXXXX - X - XXXO Scale -

Tune O O XXXXX - X - XXXO Scale -

BaseNote O O XXXXX - X - XXXO Scale -

Part Select (Right1/Right2,

Left, Style, Multi Pad) OOXXXXX - X - XXXO Scale -

Menu > Function > Controller

Foot Pedal

PedalFunction O O XXXXX X X X XXXO Pedal -

PedalSettings O O XXXXX X X X XXXO Pedal -

PedalPolarity O O O XXXX - X - XXXX - -

Keyboard/Panel

Initial Touch O O O XXXX - X - XXXX - -

Initial TouchOffLevel O O XXXXX - X - XXXO Voice -

Initial Touch Part OnOff O O XXXXX - X - XXXO Voice -

ModulationWheelPartOnOff O O XXXXX - X - XXXO Voice -

TransposeAssign O O O XXXX - X - XXXX - -

Menu > Function > Regist.Sequence/Freeze/VoiceSet

Regist Sequence

RegistSequenceData O O XXXXX - X - XXXO - - Memorized as a single Registration Bank

file.

RegistSequenceEnable

OOOXXXX - X - XXXX - - Memorized as a single Registration Bank

file.

Regist(+)Pedal O O O XXXX - X - XXXX - -

Regist(-)Pedal O O O XXXX - X - XXXX - -

SequenceEnd O O XXXXX - X - XXXO - - Memorized as a single Registration Bank

file.

Freeze Group

FreezeGroupSetting O O XXXX - X - XXXX - -

FreezeGroupSetting O O XXXX - X - XXXX - -

Parameter

PSR-1500

PSR-3000

System

Voice

Voice Set

Group

Song Style

Multi Pad

Registration

Param Lock

Group Note

SetUp

MIDI Setup

User Effect

Music Finder

Song Setup

Group

Style

OTS

Regist

Freeze

Group

PSR-3000/1500 Data List 51

Parameter Chart / Parametertabelle / Tableau des paramètres / Gráfico de parámetros

VoiceSet

VoiceSet Group Right1 OnOff O O O XXXX - X - XXXX - -

VoiceSet Group Right2 OnOff O O O XXXX - X - XXXX - -

VoiceSet Group Left OnOff O O O XXXX - X - XXXX - -

Menu > Function > Harmony/Echo

Type OOXXXXO

Harmony

OKeyboard

Voice XOXO Harmony -

Volume O O XXXXO

Harmony

OKeyboard

Voice XOXO Harmony -

Speed O O XXXXO

Harmony

OKeyboard

Voice XOXO Harmony -

Assign O O XXXXO

Harmony

OKeyboard

Voice XOXO Harmony -

ChordNoteOnly O O XXXXO

Harmony

OKeyboard

Voice XOXO Harmony -

TouchLimit O O XXXXO

Harmony

OKeyboard

Voice XOXO Harmony -

Menu > Function > VideoOut

NTSC/PAL O O XXXX-X -XX-X --Cannot be reset with Factory Reset.

ScreenContent O O XXXX-X-XX-X --Cannot be reset with Factory Reset.

Menu > Function > Utility

Configration1

FadeInTime O O O XXXX - X - XXXX - -

FadeOutTime O O O XXXX - X - XXXX - -

FadeOutHoldTime O O O XXXX - X - XXXX - -

MetronomeVolume O O O XXXX - X - XXXX - -

MetronomeSound O O O XXXX - X - XXXX - -

TimeSignature O O XXXXX - O - OXXX - - Set when the song/style is loaded.

ParameterLock O O XXXX - X - XXXX - -

ParameterLock O O XXXX - X - XXXX - -

TapCountPercussion O O XXXXX - O Keyboard

Voice XOXO Style -

TapCountVelocity O O XXXXX - O Keyboard

Voice XOXO Style -

Configration2

LCD Brightness O O O XXXX - X - XXXX - - Cannot be reset with Factory Reset.

DisplayVoiceNumber O O O XXXX - X - XXXX - -

Disk

SongAutoOpen O O O XXXX - X - XXXX - -

Format O O - - -

Property O O - - -

Owner

Language O O O XXXX - X - XXXX - - Cannot be reset with Factory Reset.

OwnerName O O O XXXX - X - XXXX - - Cannot be reset with Factory Reset.

MainPicture O O XXXX-X-XX-X --Cannot be reset with Factory Reset.

SystemReset

FactoryResetSetting O XXXXX - X - XX - X - - Language, and Owner Name are not

reset.

FactoryResetSetting O XXXXX - X - XX - X - -

Language, Owner Name, Main Picture

BackGround, Lyric Picture BackGround,

and Video Out related parameters are

not reset.

Registration

FreezeOnOff O O XXXXX - X - XXXX - -

RegistMemory Contents O O XXXX - X - XXXX - - Filter settings when registering

Registration.

RegistMemory Contents O O XXXX - X - XXXX - - Filter settings when registering

Registration.

RegistNumber O O XXXXX - X - XXXX - -

RegistContentsName O O XXXXX - X - XXXO - -

OTS

OTSNumber O O XXXXX - X - XXXX - -

Menu > Demo

None O O

Menu > Help

None O O

Power

None O O

Master Volume Fade In/Out

Fade in/out O O XXXXX - X - XXXX - -

Metronome

StartStop O O XXXXX - X - XXXX - -

Transpose

Transpose O O XXXXX - X - XXXOTranspose -

Upper Octave

UpperOctave O O XXXXX - X - XXXO Voice -

PAT

PAT On/Off O O XXXXX - X - XXXX - -

Set to OFF when a song is selected.

Set to ON if the selected song has the

Sys Ex at the top of the data.

Parameter

PSR-1500

PSR-3000

System

Voice

Voice Set

Group

Song Style

Multi Pad

Registration

Param Lock

Group Note

SetUp

MIDI Setup

User Effect

Music Finder

Song Setup

Group

Style

OTS

Regist

Freeze

Group

PSR-3000/1500 Data List

52

Many MIDI messages listed in the MIDI Data Format are expressed in decimal numbers, binary numbers and hexadecimal numbers.

Hexa-decimal numbers may include the letter “H” as a suffix. Also, “n” can freely be defined as any whole number.

To enter data/values, refer to the table below.

• Except the table above, for example 144-159(decimal)/9nH/1001 0000-1001 1111(binary) denotes the Note On Message for each channel

(1-16). 176-191/BnH/1011 0000-1011 1111 denotes the Control Change Message for each channel (1-16). 192-207/CnH/ 1100 0000-1100

1111 denotes the Program Change Message for each channel (1-16). 240/F0H/1111 0000 denotes the start of a System Exclusive Message.

247/F7H/1111 0111 denotes the end of a System Exclusive Message.

• aaH (hexadecimal)/0aaaaaaa (binary) denotes the data address. The address contains High, Mid, and Low.

• bbH/0bbbbbbb denotes the byte count.

• ccH/0ccccccc denotes the check sum.

• ddH/0ddddddd denotes the data/value.

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

00

01

02

03

04

05

06

07

08

09

0A

0B

0C

0D

0E

0F

10

11

12

13

14

15

16

17

18

19

1A

1B

1C

1D

1E

1F

20

21

22

23

24

25

26

27

28

29

2A

2B

2C

2D

2E

2F

30

31

32

33

34

35

36

37

38

39

3A

3B

3C

3D

3E

3F

0000 0000

0000 0001

0000 0010

0000 0011

0000 0100

0000 0101

0000 0110

0000 0111

0000 1000

0000 1001

0000 1010

0000 1011

0000 1100

0000 1101

0000 1110

0000 1111

0001 0000

0001 0001

0001 0010

0001 0011

0001 0100

0001 0101

0001 0110

0001 0111

0001 1000

0001 1001

0001 1010

0001 1011

0001 1100

0001 1101

0001 1110

0001 1111

0010 0000

0010 0001

0010 0010

0010 0011

0010 0100

0010 0101

0010 0110

0010 0111

0010 1000

0010 1001

0010 1010

0010 1011

0010 1100

0010 1101

0010 1110

0010 1111

0011 0000

0011 0001

0011 0010

0011 0011

0011 0100

0011 0101

0011 0110

0011 0111

0011 1000

0011 1001

0011 1010

0011 1011

0011 1100

0011 1101

0011 1110

0011 1111

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

60

61

62

63

64

65

66

67

68

69

6A

6B

6C

6D

6E

6F

70

71

72

73

74

75

76

77

78

79

7A

7B

7C

7D

7E

7F

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

40

41

42

43

44

45

46

47

48

49

4A

4B

4C

4D

4E

4F

50

51

52

53

54

55

56

57

58

59

5A

5B

5C

5D

5E

5F

0100 0000

0100 0001

0100 0010

0100 0011

0100 0100

0100 0101

0100 0110

0100 0111

0100 1000

0100 1001

0100 1010

0100 1011

0100 1100

0100 1101

0100 1110

0100 1111

0101 0000

0101 0001

0101 0010

0101 0011

0101 0100

0101 0101

0101 0110

0101 0111

0101 1000

0101 1001

0101 1010

0101 1011

0101 1100

0101 1101

0101 1110

0101 1111

0110 0000

0110 0001

0110 0010

0110 0011

0110 0100

0110 0101

0110 0110

0110 0111

0110 1000

0110 1001

0110 1010

0110 1011

0110 1100

0110 1101

0110 1110

0110 1111

0111 0000

0111 0001

0111 0010

0111 0011

0111 0100

0111 0101

0111 0110

0111 0111

0111 1000

0111 1001

0111 1010

0111 1011

0111 1100

0111 1101

0111 1110

0111 1111

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

PSR-3000/1500 Data List 53

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

MIDI CHANNEL MESSAGE (1)

[MIDI] [Song Creator]

MIDI Events Status byte 1st Data byte 2nd Data byte Voice MIDI Reception MIDI Transmission PLAY REC

Status Data (HEX) Parameter Data (HEX) Parameter Regular/

Drum/

Natural/

Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

Key Off

[GM1]

[GM2]

8nH (n: Channel

Number)

kk Key no.

(0-127)

vv Velocity

(0-127)

OO

(Harmony

Channel/

Melody

Channel)

OO O OOX XOOXOX X

Key On

[GM1]

[GM2]

9nH (n: Channel

Number)

kk Key no.

(0-127)

vv Key On:

vv=1-127

Key Off: vv=0

OO

(Harmony

Channel/

Melody

Channel)

OO O OO●OOO●OX O

Control

Change

BnH 0 (00H) Bank Select

MSB

[GM2]

0

8

64

118

119

120

121

126

127

00H

08H

40H

76H

77H

78H

79H

7EH

7FH

Normal

Mega Voice

SFX Voice

GS Rhythm

GS Normal

GM2 Rhythm

GM2 Normal

SFX Kit

Drum Kit

OXOOO

(Right1)

OO ●O●● XOO O

1 (01H) Modulation

[GM1]

[GM2]

0-127 (00H...7FH) Data O X O O O

(All

Keyboard

parts)

OO ●OOO●OO O

5 (05H) Portamento

Time

[GM2]

0-127 (00H...7FH) Data O

(Except

Organ

Flutes)

XOOO

(All

Keyboard

parts)

XO ●OXOXOO O

6 (06H) Data Entry

MSB

[GM2]

0-127 (00H...7FH) Data O O

(Harmony

Channel/

Melody

Channel)

OO O

(All

Keyboard

parts)

OO ●OOOXOX O

7 (07H) Main Volume

[GM1]

[GM2]

0-127 (00H...7FH) Data O O

(A/D Part

Receive

Channel)

OO O

(All

Keyboard

parts)

OO ●O●● XOO O

10 (0AH) Panpot

[GM1]

[GM2]

0-127 (00H...7FH) L64...C...R63 O O

(A/D Part

Receive

Channel)

OO O

(All

Keyboard

parts)

OO ●O●● XOO O

11 (0BH) Expression

[GM1]

[GM2]

0-127 (00H...7FH) Data O X O O O

(All

Keyboard

parts)

OO ●●●●●OO O

32 (20H) Bank Select

LSB

[GM2]

0-127 (00H...7FH) Data O X O O O

(Right1)

OO ●O●● XOO O

38 (26H) Data Entry

LSB

[GM2]

0-127 (00H...7FH) Data O X O O O

(All

Keyboard

parts)

XO ●OXOXOX O

64 (40H) Sustain

(Damper)

[GM1]

[GM2]

0-127 (00H...7FH) Data O O

(Harmony

Channel/

Melody

Channel)

OO O

(All

Keyboard

parts)

XO ●OXO●OO O

65 (41H) Portamento

[GM2]

0-127 (00H...7FH) 0...63,

64...127

(OFF, ON)

O

(Except

Natural

Piano,

Organ

Flutes)

XOOO

(All

Keyboard

parts)

XO ●OXO●OO O

66 (42H) Sostenuto

[GM2]

0-127 (00H...7FH) 0...63,

64...127

(OFF, ON)

OXOOO

(All

Keyboard

parts)

XO ●OXO●OO O

67 (43H) Soft Pedal

[GM2]

0-127 (00H...7FH) 0...63,

64...127

(OFF, ON)

OXOOO

(All

Keyboard

parts)

XO ●OXO●OO O

71 (47H) Harmonic

Content

[GM2]

0-127 (00H...7FH) -64...0...+63 O X O O O

(All

Keyboard

parts)

OO ●O●● XOO O

72 (48H) Release Time

[GM2]

0-127 (00H...7FH) -64...0...+63 O X O O O

(All

Keyboard

parts)

OO ●OOOXOO O

73 (49H) Attack Time

[GM2]

0-127 (00H...7FH) -64...0...+63 O X O O O

(All

Keyboard

parts)

OO ●OOOXOO O

74 (4AH) Brightness

[GM2]

0-127 (00H...7FH) -64...0...+63 O X O O O

(All

Keyboard

parts)

OO ●O●● XOO O

75 (4BH) Decay Time

[GM2]

0-127 (00H...7FH) -64...0...+63 O X O O O

(All

Keyboard

parts)

OO X X XO X OO X

76 (4CH) Vibrato Rate

[GM2]

0-127 (00H...7FH) -64...0...+63 O X O O O

(All

Keyboard

parts)

OO X X XO X OO X

77 (4DH) Vibrato Depth

[GM2]

0-127 (00H...7FH) -64...0...+63 O X O O O

(All

Keyboard

parts)

OO X X XO X OO X

78 (4EH) Vibrato Delay

[GM2]

0-127 (00H...7FH) -64...0...+63 O X O O O

(All

Keyboard

parts)

OO X X XO X OO X

84 (54H) Portamento

Control

0-127 (00H...7FH) Key no.

(0-127)

OXOOXOOO O●OXOX O

91 (5BH) Effect1 Depth

(Reverb Send

Level)

[GM2]

0-127 (00H...7FH) Data O O

(A/D Part

Receive

Channel)

OO O

(All

Keyboard

parts)

OO ●●●●XOO O

93 (5DH) Effect3 Depth

(Chorus Send

Level)

[GM2]

0-127 (00H...7FH) Data O O

(A/D Part

Receive

Channel)

OO O

(All

Keyboard

parts)

OO ●●●●XOO O

94 (5EH) Effect4 Depth

(Variation

Send Level)

0-127 (00H...7FH) Data O X O O O

(All

Keyboard

parts)

OO O O ●● XOO X

Multi

Record-

ing

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

PSR-3000/1500 Data List

54

●: Transmitted via panel operations and keyboard/controller performances. O: Available

About Mic/Vocal Harmony column:

The relevant parameters are received by the song part designated by the Effect’s Harmony Channel Parameter or Melody Channel Parameter.

Mic./Vocal Harmony

[GM1] ... GM Required Parameter

[GM2] ... GM Level2 Required Parameter

96 (60H) RPN

Increment

--The data byte

is ignored.

OO

(Harmony

Channel/

Melody

Channel)

OO X OO X OXOXOX X

97 (61H) RPN

Decrement

--The data byte

is ignored.

OO

(Harmony

Channel/

Melody

Channel)

OO X OO X OXOXOX X

98 (62H) NRPN LSB 0-127 (00H...7FH) Data O O

(Harmony

Channel/

Melody

Channel)

OO X OO●OOOXOO O

99 (63H) NRPN MSB 0-127 (00H...7FH) Data O O

(Harmony

Channel/

Melody

Channel)

OO X OO●OOOXOO O

100 (64H) RPN LSB

[GM2]

0-127 (00H...7FH) Data O O

(Harmony

Channel/

Melody

Channel)

OO O

(All

Keyboard

parts)

OO ●O●● XOO O

101 (65H) RPN MSB

[GM2]

0-127 (00H...7FH) Data O O

(Harmony

Channel/

Melody

Channel)

OO O

(All

Keyboard

parts)

OO ●O●● XOO O

Mode

Message

BnH (n: Channel

Number)

120 (78H) All Sound Off

[GM2]

0 (00H) Data O X O O O

(All

Keyboard

parts)

OO X O XO X OX X

121 (79H) Reset All

Controllers

[GM1]

[GM2]

0 (00H) Data O X O X X X X X O X O X O X X

122 (7AH) Local Control 0

127

(00H)

(7FH)

OFF

ON

-- O XXXXXXX X

123 (7BH) All Note Off

[GM1]

[GM2]

0 (00H) Data O O

(Harmony

Channel/

Melody

Channel)

OO O

(All

Keyboard

parts)

OO X O XO X OX X

124 (7CH) Omni Off

[GM2]

0 (00H) Data O X O X X X X X O X O X O X X

125 (7DH) Omni On

[GM2]

0 (00H) Data O X O X X X X X O X O X O X X

126 (7EH) Mono

[GM2]

0-16 (00H...10H) Data O X O X X X X X O X O X O X X

127 (7FH) Poly

[GM2]

0 (00H) Data O X O X X X X X O X O X O X X

Program

Change

[GM1]

[GM2]

CnH (n: Channel

Number)

pp (00H...

7FH)

Voice

Number

(0-127)

- - -OXOOO

(Right1)

OO ●O●● XOO O

Channel

After Touch

[GM1]

[GM2]

DnH (n: Channel

Number)

vv (00H...

7FH)

Data - - -OXOOO

(All

Keyboard

parts)

XO X O XO X OX O

Polyphonic

After Touch

AnH (n: Channel

Number)

kk (00H...

7FH)

Key no.

(0-127)

vv (00H...7FH) Data O X O X X X X X X X O X O X X

Pitch Bend

Change

[GM1]

[GM2]

EnH (n: Channel

Number)

cc (00H...

7FH)

LSB dd (00H...7FH) MSB O O

(Harmony

Channel/

Melody

Channel)

OO O

(All

Keyboard

parts)

OO ●OOO●OO O

Realtime

Message

F8H MIDI Clock - - - --- O

(Received when the Clock is set to MIDI

A, MIDI B, USB1, or USB2.)

O

(Transmitted when the Clock is set to

Internal and the Transmit Clock is set

to on.)

-- -

FAH Start - - - --- O

(Received when the Clock is set to MIDI

A, MIDI B, USB1, or USB2.)

O

(Transmitted when the Transmit Clock

is set to on.)

-- -

FBH Continue - - - --- X X ---

FCH Stop - - - --- O

(Received when the Clock is set to MIDI

A, MIDI B, USB1, or USB2.)

O

(Transmitted when the Transmit Clock

is set to on.)

-- -

FEH Active

Sense

[GM2]

------ O O ---

FFH System

Reset

------ X X ---

PSR-1500 X

PSR-3000 O

MIDI Events Status byte 1st Data byte 2nd Data byte Voice MIDI Reception MIDI Transmission PLAY REC

Status Data (HEX) Parameter Data (HEX) Parameter Regular/

Drum/

Natural/

Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

[MIDI] [Song Creator]

PSR-3000/1500 Data List 55

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

MIDI CHANNEL MESSAGE (2)

NRPN [MIDI] [Song Creator]

●: Transmitted via panel operations and keyboard/controller performances. O: Available

NRPN MSB: 14H-1FH (for drums) message is accepted as long as the channel is set with a drum voice.

Data Entry LSB: Ignored.

NRPN (Vocal Harmony) [MIDI] [Song Creator]

●: Transmitted via panel operations and keyboard/controller performances. O: Available

Data Entry LSB: Ignored.

NRPN Data Entry Parameter Data Range Voice MIDI Reception MIDI Transmission PLAY REC

MSB LSB MSB LSB Regular/

Drum/

Natural/

Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

01H 08H mmH -- Vibrato Rate mm: 00H-40H-7FH (-64...0...+63) O O

(Harmony

Channel/

Melody

Channel)

OO X OO●OOO XOO O

01H 09H mmH -- Vibrato Depth mm: 00H-40H-7FH (-64...0...+63) O O

(Harmony

Channel/

Melody

Channel)

OO X OO●OOO XOO O

01H 0AH mmH -- Vibrato Delay mm: 00H-40H-7FH (-64...0...+63) O O

(Harmony

Channel/

Melody

Channel)

OO X OO●OOO XOO O

01H 20H mmH -- Low Pass Filter Cutoff

Frequency

mm: 00H-40H-7FH (-64...0...+63) O X O X X O X X O X O X O O X

01H 21H mmH -- Low Pass Filter Resonance mm: 00H-40H-7FH (-64...0...+63) O X O X X O X X O X O X O O X

01H 30H mmH -- EQ Bass Gain mm: 00H-40H-7FH (-64...0...+63) O X O X X O X X X X O X O O X

01H 31H mmH -- EQ Treble Gain mm: 00H-40H-7FH (-64...0...+63) O X O X X O X X X X O X O O X

01H 34H mmH -- EQ Bass Frequency mm: 04H-28H (32...2.0k[Hz]) O X O X X X X X X X O X O O X

01H 35H mmH -- EQ Treble Frequency mm: 1CH-3AH (500...16.0k[Hz]) O X O X X X X X X X O X O O X

01H 63H mmH -- EG Attack Time mm: 00H-40H-7FH (-64...0...+63) O X O X X O X X O X O X O O X

01H 64H mmH -- EG Decay Time mm: 00H-40H-7FH (-64...0...+63) O X O O X O O ●OOO XOO O

01H 66H mmH -- EG Release mm: 00H-40H-7FH (-64...0...+63) O X O X X O X X O X O X O O X

14H rrH mmH -- Drum Low Pass Filter

Cutoff Frequency

rr: drum instrument note number

mm: 00H-40H-7FH (-64...0...+63)

O

(Drum only)

XOX XXXXXOO XOX X

15H rrH mmH -- Drum Low Pass Filter

Resonance

rr: drum instrument note number

mm: 00H-40H-7FH (-64...0...+63)

O

(Drum only)

XOX XXXXXOO XOX X

16H rrH mmH -- Drum EG Attack Rate rr: drum instrument note number

mm: 00H-40H-7FH (-64...0...+63)

O

(Drum only)

XOX XXXXXOO XOX X

17H rrH mmH -- Drum EG Decay Rate rr: drum instrument note number

mm: 00H-40H-7FH (-64...0...+63)

O

(Drum only)

XOX XXXXXOO XOX X

18H rrH mmH -- Drum Pitch Coarse rr: drum instrument note number

mm: 00H-40H-7FH (-64...0...+63)

O

(Drum only)

XOX XXXXXOO XOX X

19H rrH mmH -- Drum Pitch Fine rr: drum instrument note number

mm: 00H-40H-7FH (-64...0...+63)

O

(Drum only)

XOX XXXXXOO XOX X

1AH rrH mmH -- Drum Level rr: drum instrument note number

mm: 00H-7FH (0...127)

O

(Drum only)

XOX XXXXXOO XOX X

1CH rrH mmH -- Drum Pan rr: drum instrument note number

mm: 00H, 01H-40H-7FH

(RND, L63...C...R63)

O

(Drum only)

XOX XXXXXOO XOX X

1DH rrH mmH -- Drum Reverb Send Level rr: drum instrument note number

mm: 00H-7FH (0...127)

O

(Drum only)

XOX XXXXXOO XOX X

1EH rrH mmH -- Drum Chorus Send Level rr: drum instrument note number

mm: 00H-7FH (0...127)

O

(Drum only)

XOX XXXXXOO XOX X

1FH rrH mmH -- Drum Variation Send Level rr: drum instrument note number

mm: 00H-7FH (0...127)

(Variation Connection = SYSTEM)

mm: 00H, 01H-7FH (OFF, ON)

(Variation Connection = INSERTION)

O

(Drum only)

XOX XXXXXOO XOX X

30H rrH mmH -- Drum EQ Bass Gain rr: drum instrument note number

mm: 00H-7FH (0...127)

XXXXXXXX XXXXXX X

31H rrH mmH -- Drum EQ Treble Gain rr: drum instrument note number

mm: 00H-7FH (0...127)

XXXXXXXX XXXXXX X

34H rrH mmH -- Drum EQ Bass Frequency rr: drum instrument note number

mm: 04H-28H (32...2.0k[Hz])

XXXXXXXX XXXXXX X

35H rrH mmH -- Drum EQ Treble Frequency rr: drum instrument note number

mm: 1CH-3AH (500...16.0k[Hz])

XXXXXXXX XXXXXX X

NRPN Data Entry Parameter Data Range Voice MIDI Reception MIDI Transmission PLAY REC

MSB LSB MSB LSB Regular/

Drum/

Natural/

Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

00H 00H mmH -- Harmony Mute mm: 00H-3FH, 40H-7FH (Off, On) X O

(Harmony

Channel)

XX X XXX XXOXOX X

01H 1AH mmH -- Detune Modulation mm: 00H-7FH (0...127) X O

(Harmony

Channel)

XX X XXX XXOXOX X

02H 10H mmH -- Harmony1 Volume mm: 00H-7FH (0...127) X O

(Harmony

Channel)

XX X XXX XX●XOX X

02H 11H mmH -- Harmony2 Volume mm: 00H-7FH (0...127) X O

(Harmony

Channel)

XX X XXX XX●XOX X

02H 12H mmH -- Harmony3 Volume mm: 00H-7FH (0...127) X O

(Harmony

Channel)

XX X XXX XX●XOX X

02H 20H mmH -- Harmony1 Pan mm: 00H, 01H-40H-7FH

(RND, L63...C...R63)

XO

(Harmony

Channel)

XX X XXX XX●XOX X

02H 21H mmH -- Harmony2 Pan mm: 00H, 01H-40H-7FH

(RND, L63...C...R63)

XO

(Harmony

Channel)

XX X XXX XX●XOX X

02H 22H mmH -- Harmony3 Pan mm: 00H, 01H-40H-7FH

(RND, L63...C...R63)

XO

(Harmony

Channel)

XX X XXX XX●XOX X

02H 30H mmH -- Harmony1 Detune mm: 00H-40H-7FH (-64...0...+63) X O

(Harmony

Channel)

XX X XXX XX●XOX X

02H 31H mmH -- Harmony2 Detune mm: 00H-40H-7FH (-64...0...+63) X O

(Harmony

Channel)

XX X XXX XX●XOX X

02H 32H mmH -- Harmony3 Detune mm: 00H-40H-7FH (-64...0...+63) X O

(Harmony

Channel)

XX X XXX XX●XOX X

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

PSR-3000/1500 Data List

56

RPN [MIDI] [Song Creator]

●: Transmitted via panel operations and keyboard/controller performances. O: Available

About Mic/Vocal Harmony column:

The relevant parameters are received by the song part designated by the Effect’s Harmony Channel Parameter or Melody Channel Parameter.

Mic./Vocal Harmony

[GM1] ... GM Required Parameter

[GM2] ... GM Level2 Required Parameter

XG PARAMETER CHANGE TABLE

* Not received when Receive System Exclusive Message Parameters is set to off.

* Not transmitted when Transmit System Exclusive Message Parameters is set to off.

MIDI Parameter Change table (XG SYSTEM)

[MIDI] [Song Creator]

TOTAL SIZE 07

●: Transmitted via panel operations O: Available

MIDI Parameter Change table (SYSTEM INFORMATION)

[MIDI] [Song Creator]

TOTAL SIZE 10

Transmitted in response to Dump Request. Not received.

MIDI Parameter Change table (EFFECT1)

[MIDI] [Song Creator]

RPN Data Entry Parameter Data Range Voice MIDI Reception MIDI Transmission PLAY REC

MSB LSB MSB LSB Regular/

Drum/

Natural/

Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

00H 00H mmH -- Pitch Bend Sensitivity

[GM1]

[GM2]

mm: 00H-18H (0...+24[semitones]) O O

(Harmony

Channel/

Melody

Channel)

OO O

(All

Keyboard

parts)

OO ●OOOXOO O

00H 01H mmH llH Fine Tune

[GM1]

[GM2]

mm ll: 00H 00H -100[cent]

...

mm ll: 40H 00H 0[cent]

...

mm ll: 7FH 7FH 100[cent]

OXOOO

(All

Keyboard

parts)

OO ●OOOXOO O

00H 02H mmH -- Coarse Tune

[GM1]

[GM2]

mm: 28H-40H-58H

(-24...0...+24[semitones])

OXOOO

(All

Keyboard

parts)

OO X O O O X OO X

00H 05H mmH llH Modulation Sensitivity

[GM2]

mm: Specified in semitone steps

ll: Specified in 100/128 cent steps

OXOXXXXXXXOXOXX

7FH 7FH -- -- Null [GM2] - O O O O O

(All

Keyboard

parts)

OO X O O O X OX X

PSR-1500 X

PSR-3000 O

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

00 00 00

01

02

03

4 00-0F

00-0F

00-0F

00-0F

MASTER TUNE -102.4...0...+102.3[cent]

1st bit3-0 -> bit15-12

2nd bit3-0 -> bit11-8

3rd bit3-0 -> bit7-4

4th bit3-0 -> bit3-0

*Panel

setting

value

OO O ●OX X

04 1 00-7F MASTER VOLUME 0...127 7F O X O

(Available for extra parts of a song)

OOOX

05 1 00-7F MASTER ATTENUATOR 0...127 00 X X X X X X X

06 1 28-58 TRANSPOSE -24...0...+24[semitones] 40 O O O

(Available for extra parts of a song)

OOOX

7D 1 N DRUM SETUP RESET N: Drum setup number - O

(Drum only)

XO

(Available for extra parts of a song)

OOXX

7E 1 00 XG SYSTEM ON 00=XG system ON - O X O

(Available for extra parts of a song)

OOXO

7F 1 00 ALL PARAMETER RESET 00=ON - O X O

(Available for extra parts of a song)

OOXX

Address

(H)

Size

(H)

Data

(H)

Parameter Description Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

01 00 00

...

0D

0E

0F

E

1

1

20-7F

...

20-7F

Model Name 1

...

Model Name 14

NOT USED

NOT USED

32...127 (ASCII CHARACTER)

...

32...127 (ASCII CHARACTER)

-- - O

(Available only when receiving

requests via MIDI)

-- -

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

02 01 00 2 00-7F

00-7F

REVERB TYPE MSB

REVERB TYPE LSB

Refer to Effect Parameter List

˝

01 (=HALL1)

00

OO O ●OO O

02 1 00-7F REVERB PARAMETER 1 ˝ Depends on

Reverb Type

OO O ●OO O

03 1 00-7F REVERB PARAMETER 2 ˝ Depends on

Reverb Type

OO O ●OO O

04 1 00-7F REVERB PARAMETER 3 ˝ Depends on

Reverb Type

OO O ●OO O

05 1 00-7F REVERB PARAMETER 4 ˝ Depends on

Reverb Type

OO O ●OO O

06 1 00-7F REVERB PARAMETER 5 ˝ Depends on

Reverb Type

OO O ●OO O

07 1 00-7F REVERB PARAMETER 6 ˝ Depends on

Reverb Type

OO O ●OO O

PSR-3000/1500 Data List 57

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

TOTAL SIZE 0E

TOTAL SIZE 06

●: Transmitted via panel operations O: Available

[MIDI] [Song Creator]

TOTAL SIZE 0F

TOTAL SIZE 06

[MIDI] [Song Creator]

08 1 00-7F REVERB PARAMETER 7

Refer to Effect Parameter List

Depends on

Reverb Type

OO O ●OO O

09 1 00-7F REVERB PARAMETER 8 ˝ Depends on

Reverb Type

OO O ●OO O

0A 1 00-7F REVERB PARAMETER 9 ˝ Depends on

Reverb Type

OO O ●OO O

0B 1 00-7F REVERB PARAMETER 10 ˝ Depends on

Reverb Type

OO O ●OO O

0C 1 00-7F REVERB RETURN -∞dB...0dB...+6dB

(0...64...127)

40 O O O ●OO O

0D 1 01-7F REVERB PAN L63...C...R63 40 O O O O O O X

02 01 10 1 00-7F REVERB PARAMETER 11

Refer to Effect Parameter List

Depends on

Reverb Type

OO O ●OO O

11 1 00-7F REVERB PARAMETER 12 ˝ Depends on

Reverb Type

OO O ●OO O

12 1 00-7F REVERB PARAMETER 13 ˝ Depends on

Reverb Type

OO O ●OO O

13 1 00-7F REVERB PARAMETER 14 ˝ Depends on

Reverb Type

OO O ●OO O

14 1 00-7F REVERB PARAMETER 15 ˝ Depends on

Reverb Type

OO O ●OO O

15 1 00-7F REVERB PARAMETER 16 ˝ Depends on

Reverb Type

OO O ●OO O

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

02 01 20 2 00-7F

00-7F

CHORUS TYPE MSB

CHORUS TYPE LSB

Refer to Effect Parameter List

41

(=CHORUS1)

00

OO O ●OO O

22 1 00-7F CHORUS PARAMETER 1 ˝ Depends on

Chorus Type

OO O ●OO O

23 1 00-7F CHORUS PARAMETER 2 ˝ Depends on

Chorus Type

OO O ●OO O

24 1 00-7F CHORUS PARAMETER 3 ˝ Depends on

Chorus Type

OO O ●OO O

25 1 00-7F CHORUS PARAMETER 4 ˝ Depends on

Chorus Type

OO O ●OO O

26 1 00-7F CHORUS PARAMETER 5 ˝ Depends on

Chorus Type

OO O ●OO O

27 1 00-7F CHORUS PARAMETER 6 ˝ Depends on

Chorus Type

OO O ●OO O

28 1 00-7F CHORUS PARAMETER 7 ˝ Depends on

Chorus Type

OO O ●OO O

29 1 00-7F CHORUS PARAMETER 8 ˝ Depends on

Chorus Type

OO O ●OO O

2A 1 00-7F CHORUS PARAMETER 9 ˝ Depends on

Chorus Type

OO O ●OO O

2B 1 00-7F CHORUS PARAMETER 10 ˝ Depends on

Chorus Type

OO O ●OO O

2C 1 00-7F CHORUS RETURN -∞dB...0dB...+6dB

(0...64...127)

40 O O O ●OO O

2D 1 01-7F CHORUS PAN L63...C...R63 40 O O O O O O X

2E 1 00-7F SEND CHORUS TO REVERB -∞dB...0dB...+6dB

(0...64...127)

00 O O O O O O X

02 01 30 1 00-7F CHORUS PARAMETER 11

Refer to Effect Parameter List

Depends on

Chorus Type

OO O ●OO O

31 1 00-7F CHORUS PARAMETER 12 ˝ Depends on

Chorus Type

OO O ●OO O

32 1 00-7F CHORUS PARAMETER 13 ˝ Depends on

Chorus Type

OO O ●OO O

33 1 00-7F CHORUS PARAMETER 14 ˝ Depends on

Chorus Type

OO O ●OO O

34 1 00-7F CHORUS PARAMETER 15 ˝ Depends on

Chorus Type

OO O ●OO O

35 1 00-7F CHORUS PARAMETER 16 ˝ Depends on

Chorus Type

OO O ●OO O

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

02 01 40 2 00-7F

00-7F

VARIATION TYPE MSB

VARIATION TYPE LSB

Refer to Effect

Parameter List

˝

05 (=DELAY

L, C, R)

00

OO O ●OO O

42 2 00-7F

00-7F

VARIATION PARAMETER 1 MSB

VARIATION PARAMETER 1 LSB

˝ Depends on

Variation Type

OO O ●OO O

44 2 00-7F

00-7F

VARIATION PARAMETER 2 MSB

VARIATION PARAMETER 2 LSB

˝ Depends on

Variation Type

OO O ●OO O

46 2 00-7F

00-7F

VARIATION PARAMETER 3 MSB

VARIATION PARAMETER 3 LSB

˝ Depends on

Variation Type

OO O ●OO O

48 2 00-7F

00-7F

VARIATION PARAMETER 4 MSB

VARIATION PARAMETER 4 LSB

˝ Depends on

Variation Type

OO O ●OO O

4A 2 00-7F

00-7F

VARIATION PARAMETER 5 MSB

VARIATION PARAMETER 5 LSB

˝ Depends on

Variation Type

OO O ●OO O

4C 2 00-7F

00-7F

VARIATION PARAMETER 6 MSB

VARIATION PARAMETER 6 LSB

˝ Depends on

Variation Type

OO O ●OO O

4E 2 00-7F

00-7F

VARIATION PARAMETER 7 MSB

VARIATION PARAMETER 7 LSB

˝ Depends on

Variation Type

OO O ●OO O

50 2 00-7F

00-7F

VARIATION PARAMETER 8 MSB

VARIATION PARAMETER 8 LSB

˝ Depends on

Variation Type

OO O ●OO O

52 2 00-7F

00-7F

VARIATION PARAMETER 9 MSB

VARIATION PARAMETER 9 LSB

˝ Depends on

Variation Type

OO O ●OO O

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

[MIDI] [Song Creator]

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

PSR-3000/1500 Data List

58

TOTAL SIZE 21

TOTAL SIZE 06

●: Transmitted via panel operations. O: Available

MIDI Parameter Change table (MULTI EQ)

[MIDI] [Song Creator]

TOTAL SIZE 15

●: Transmitted via panel operations. O: Available

MIDI Parameter Change table (EFFECT2)

[MIDI] [Song Creator]

54 2 00-7F

00-7F

VARIATION PARAMETER 10 MSB

VARIATION PARAMETER 10 LSB

Refer to Effect

Parameter List

Depends on

Variation Type

OO O ●OO O

56 1 00-7F VARIATION RETURN -∞dB...0dB...+6dB

(0...64...127)

40 O O O ●OO O

57 1 01-7F VARIATION PAN L63...C...R63 40 O O O O O O X

58 1 00-7F SEND VARIATION TO REVERB -∞dB...0dB...+6dB

(0...64...127)

00 O O O O O O X

59 1 00-7F SEND VARIATION TO CHORUS -∞dB...0dB...+6dB

(0...64...127)

00 O O O O O O X

5A 1 00-01 VARIATION CONNECTION INSERTION, SYSTEM 00 O O O ●OO O

5B 1 00-7F VARIATION PART NUMBER Reception:

Part1...16 (0...15)

Transmission:

Part1...16 (0...15)

AD (64)

OFF (127)

7F O O O ●OO O

5C 1 00-7F

MW VARIATION CONTROL DEPTH

-64...0...+63 40 O O O O O O X

5D 1 00-7F

BEND VARIATION CONTROL

DEPTH

-64...0...+63 40 O O O O O O X

5E 1 00-7F

CAT VARIATION CONTROL DEPTH

-64...0...+63 40 O O O O O O X

5F 1 00-7F

AC1 VARIATION CONTROL DEPTH

-64...0...+63 40 O O O O O O X

60 1 00-7F

AC2 VARIATION CONTROL DEPTH

-64...0...+63 40 O O O O O O X

02 01 70 1 00-7F VARIATION PARAMETER 11

Refer to Effect Parameter

List

Depends on

Variation Type

OO O ●OO O

71 1 00-7F VARIATION PARAMETER 12 ˝ Depends on

Variation Type

OO O ●OO O

72 1 00-7F VARIATION PARAMETER 13 ˝ Depends on

Variation Type

OO O ●OO O

73 1 00-7F VARIATION PARAMETER 14 ˝ Depends on

Variation Type

OO O ●OO O

74 1 00-7F VARIATION PARAMETER 15 ˝ Depends on

Variation Type

OO O ●OO O

75 1 00-7F VARIATION PARAMETER 16 ˝ Depends on

Variation Type

OO O ●OO O

Address

(H)

Size

(H)

Data

(H)

Parameter Description Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

02 40 00 1 00-04 EQ TYPE

flat, jazz, pops, rock, classic

*The MULTI

EQ Parameter

cannot be

reset to its

factory

setting with

XG SYSTEM

ON.

OO O O OXX

01 1 34-4C EQ GAIN1 -12...0...+12[dB] O O O ●OX X

02 1 04-28 EQ FREQUENCY1 32...2.0k[Hz] O O O ●OX X

03 1 01-78 EQ Q1 0.1...12.0 O O O ●OX X

04 1 00-01 EQ SHAPE1 shelving, peaking O O O O O X X

05 1 34-4C EQ GAIN2 -12...0...+12[dB] O O O ●OX X

06 1 0E-36 EQ FREQUENCY2 100...10.0k[Hz] O O O ●OX X

07 1 01-78 EQ Q2 0.1...12.0 O O O ●OX X

08 1 NOT USED -- - - ---

09 1 34-4C EQ GAIN3 -12...0...+12[dB] O O O ●OX X

0A 1 0E-36 EQ FREQUENCY3 100...10.0k[Hz] O O O ●OX X

0B 1 01-78 EQ Q3 0.1...12.0 O O O ●OX X

0C 1 NOT USED -- - - ---

0D 1 34-4C EQ GAIN4 -12...0...+12[dB] O O O ●OX X

0E 1 0E-36 EQ FREQUENCY4 100...10.0k[Hz] O O O ●OX X

0F 1 01-78 EQ Q4 0.1...12.0 O O O ●OX X

10 1 NOT USED -- - - ---

11 1 34-4C EQ GAIN5 -12...0...+12[dB] O O O ●OX X

12 1 1C-3A EQ FREQUENCY5 0.5k...16.0k[Hz] O O O ●OX X

13 1 01-78 EQ Q5 0.1...12.0 O O O ●OX X

14 1 00-01 EQ SHAPE5 shelving, peaking O O O O O X X

Address

(H)

Size

(H)

Data

(H)

Parameter Description Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

03 n 00 2 00-7F

00-7F

INSERTION EFFECT TYPE MSB

INSERTION EFFECT TYPE LSB

Refer to Effect

Parameter List

*The EFFECT

2 Parameter

cannot be

reset to its

factory

setting with

XG SYSTEM

ON.

OO O ●OO O

02 1 00-7F INSERTION EFFECT PARAMETER 1 ˝ O O O ●OO O

03 1 00-7F INSERTION EFFECT PARAMETER 2 ˝ O O O ●OO O

04 1 00-7F INSERTION EFFECT PARAMETER 3 ˝ O O O ●OO O

05 1 00-7F INSERTION EFFECT PARAMETER 4 ˝ O O O ●OO O

06 1 00-7F INSERTION EFFECT PARAMETER 5 ˝ O O O ●OO O

07 1 00-7F INSERTION EFFECT PARAMETER 6 ˝ O O O ●OO O

08 1 00-7F INSERTION EFFECT PARAMETER 7 ˝ O O O ●OO O

09 1 00-7F INSERTION EFFECT PARAMETER 8 ˝ O O O ●OO O

0A 1 00-7F INSERTION EFFECT PARAMETER 9 ˝ O O O ●OO O

0B 1 00-7F INSERTION EFFECT PARAMETER 10 ˝ O O O ●OO O

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

[MIDI] [Song Creator]

PSR-3000/1500 Data List 59

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

TOTAL SIZE 12

TOTAL SIZE 6

TOTAL SIZE 14

●: Transmitted via panel operations O: Available

The second byte of the address is considered as an Insertion effect number

n: insertion effect number

For effect types that do not require MSB, the Parameters for Address 02-0B will be received and the Parameters for Address 30-42 will not be received.

For effect types that require MSB, the Parameters for Address 30-42 will be received and the Parameters for Address 02-0B will not be received.

When Bulk Dumps that include Effect Type data are transmitted, the Parameters for Address 02-0B will always be transmitted. But, effects that require MSB, when the bulk dump is received the Parameters for Address 02-0B will not be

received.

0C 1 00-7F INSERTION EFFECT PART NUMBER Reception:

Part1...16 (0...15)

Transmission:

Part1...16 (0...15)

AD (64)

OFF (127)

OO O ●OO O

0D 1 00-7F MW INSERTION CONTROL DEPTH -64...0...+63 O O O O O O X

0E 1 00-7F BEND INSERTION CONTROL DEPTH -64...0...+63 O O O O O O X

0F 1 00-7F CAT INSERTION CONTROL DEPTH -64...0...+63 O O O O O O X

10 1 00-7F AC1 INSERTION CONTROL DEPTH -64...0...+63 O O O O O O X

11 1 00-7F AC2 INSERTION CONTROL DEPTH -64...0...+63 O O O O O O X

20 1 00-7F INSERTION EFFECT PARAMETER 11 Refer to Effect

Parameter List

OO O ●OO O

21 1 00-7F INSERTION EFFECT PARAMETER 12 ˝ O O O ●OO O

22 1 00-7F INSERTION EFFECT PARAMETER 13 ˝ O O O ●OO O

23 1 00-7F INSERTION EFFECT PARAMETER 14 ˝ O O O ●OO O

24 1 00-7F INSERTION EFFECT PARAMETER 15 ˝ O O O ●OO O

25 1 00-7F INSERTION EFFECT PARAMETER 16 ˝ O O O ●OO O

30 2 00-7F

00-7F

INSERTION EFFECT PARAMETER 1

MSB

INSERTION EFFECT PARAMETER 1

LSB

Refer to Effect

Parameter List

OO O ●OO O

32 2 00-7F

00-7F

INSERTION EFFECT PARAMETER 2

MSB

INSERTION EFFECT PARAMETER 2

LSB

˝OOO ●OO O

34 2 00-7F

00-7F

INSERTION EFFECT PARAMETER 3

MSB

INSERTION EFFECT PARAMETER 3

LSB

˝OOO ●OO O

36 2 00-7F INSERTION EFFECT PARAMETER 4

MSB

INSERTION EFFECT PARAMETER 4

LSB

˝OOO ●OO O

38 2 00-7F

00-7F

INSERTION EFFECT PARAMETER 5

MSB

INSERTION EFFECT PARAMETER 5

LSB

˝OOO ●OO O

3A 2 00-7F

00-7F

INSERTION EFFECT PARAMETER 6

MSB

INSERTION EFFECT PARAMETER 6

LSB

˝OOO ●OO O

3C 2 00-7F

00-7F

INSERTION EFFECT PARAMETER 7

MSB

INSERTION EFFECT PARAMETER 7

LSB

˝OOO ●OO O

3E 2 00-7F

00-7F

INSERTION EFFECT PARAMETER 8

MSB

INSERTION EFFECT PARAMETER 8

LSB

˝OOO ●OO O

40 2 00-7F

00-7F

INSERTION EFFECT PARAMETER 9

MSB

INSERTION EFFECT PARAMETER 9

LSB

˝OOO ●OO O

42 2 00-7F

00-7F

INSERTION EFFECT PARAMETER 10

MSB

INSERTION EFFECT PARAMETER 10

LSB

˝OOO ●OO O

PSR-1500 n = 0~2

PSR-3000 n = 0~2

Address

(H)

Size

(H)

Data

(H)

Parameter Description Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

[MIDI] [Song Creator]

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

PSR-3000/1500 Data List

60

MIDI Parameter Change table (SPECIAL EFFECT)

[MIDI] [Song Creator]

TOTAL SIZE 12

TOTAL SIZE 2

TOTAL SIZE 6

●: Transmitted via panel operations O: Available

MIDI Parameter Change table (MULTI PART)

[MIDI] [Song Creator]

PSR-1500 X

PSR-3000 O

Address

(H)

Size

(H)

Data

(H)

Parameter Description Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

04 00 00 2 00-7F

00-7F

INSERTION EFFECT TYPE MSB

INSERTION EFFECT TYPE LSB

Vocoder (89),

Chordal (90),

Detune (91),

Chromatic (92),

Thru (0...88,

93...127)

*The

SPECIAL

EFFECT

Parameter

cannot be

reset to its

factory

setting with

XG SYSTEM

ON

XO O ●OO X

02 1 00-7F INSERTION EFFECT PARAMETER 1

Harmony Mode

XO O ●OO X

03 1 00-7F INSERTION EFFECT PARAMETER 2

Harmony Gender Type

Off (0), Auto (1) XO O ●OO X

04 1 00-7F INSERTION EFFECT PARAMETER 3

Lead Gender Type

Off (0), Unison (1),

Male (2), Female (3)

XO O ●OO X

05 1 00-7F INSERTION EFFECT PARAMETER 4

Lead Gender Depth

-64...0...+63

(0...127)

XO O ●OO X

06 1 00-7F INSERTION EFFECT PARAMETER 5

Lead Pitch Correction

Free (0), Correct (1) X O O ●OO X

07 1 00-7F INSERTION EFFECT PARAMETER 6

Auto Upper Gender Threshold

0...12 (0...12) X O O ●OO X

08 1 00-7F INSERTION EFFECT PARAMETER 7

Auto Lower Gender Threshold

0...12 (0...12) X O O ●OO X

09 1 00-7F INSERTION EFFECT PARAMETER 8

Upper Gender Depth

-64...0...+63

(0...127)

XO O ●OO X

0A 1 00-7F INSERTION EFFECT PARAMETER 9

Lower Gender Depth

-64...0...+63

(0...127)

XO O ●OO X

0B 1 00-7F INSERTION EFFECT PARAMETER 10

L63>H...L=H...L<H63

(1...64...127)

XO O ●OO X

0C 1 00-7F INSERTION EFFECT PART NUMBER AD(64), OFF (0...63,

65...127)

XO O ●OO O

0D 1 00-7F MW INSERTION CONTROL DEPTH -64...0...+63 X X X X X X X

0E 1 00-7F BEND INSERTION CONTROL DEPTH -64...0...+63 X X X X X X X

0F 1 00-7F CAT INSERTION CONTROL DEPTH -64...0...+63 X X X X X X X

10 1 00-7F AC1 INSERTION CONTROL DEPTH -64...0...+63 X X X X X X X

11 1 00-7F AC2 INSERTION CONTROL DEPTH -64...0...+63 X X X X X X X

14 1 00-7F UNIQUE INSERTION EFFECT

EXTERNAL CONTROL CH1

(HARMONY CHANNEL)

1...16 (0...15),

OFF (127)

XO O ●OO X

15 1 00-7F UNIQUE INSERTION EFFECT

EXTERNAL CONTROL CH1

(MELODY CHANNEL)

1...16 (0...15),

OFF (127)

XO O O OOX

20 1 00-7F INSERTION EFFECT PARAMETER 11

Vibrato Depth

0...100cent (0...127) X O O ●OO X

21 1 00-7F INSERTION EFFECT PARAMETER 12

Vibrato Rate

0Hz (0),

0.1...12.7Hz

(1...127)

XO O ●OO X

22 1 00-7F INSERTION EFFECT PARAMETER 13

Vibrato Delay

0...2.54sec (0...127) X O O ●OO X

23 1 00-7F INSERTION EFFECT PARAMETER 14 X X X X X X X

24 1 00-7F INSERTION EFFECT PARAMETER 15 X X X X X X X

25 1 00-7F INSERTION EFFECT PARAMETER 16 X X X X X X X

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

08 nn 00 1 00-20 ELEMENT RESERVE 0...32 part10, 26=0,

other parts=2

-------------- -

01 1 00-7F BANK SELECT MSB 0...127 part10=7F,

other parts

=00

OXOOXOOXXXOXOOX

02 1 00-7F BANK SELECT LSB 0...127 00 O X O O X O O X X X O X O O X

03 1 00-7F PROGRAM NUMBER 1...128 00 O X O O X O O X X X O X O O X

04 1 00-0F,

7F

Rcv CHANNEL 1...16, OFF Part No. O X O X X X X X X X O X O X X

05 1 00-01 MONO/POLY MODE MONO, POLY 01 O X O X X X X X X X O X O X X

06 1 00-02 SAME NOTE NUMBER KEY ON

ASSIGN

SINGLE, MULTI, INST

(for Drum)

01 O X O X X O X X X X O X O X X

07 1 00-03 PART MODE NORMAL, DRUM,

DRUMS1...2

part10=02,

other parts

=00

OXOXXXX●X●● XOX O

08 1 28-58 NOTE SHIFT -24...0...+24[semitones] 40 O X O O X O O X X X O X O O X

09

0A

2 00-0F

00-0F

DETUNE -12.8...0...+12.7[Hz]

1st bit3-0 -> bit7-4

2nd bit3-0 -> bit3-0

08 00 O X O O X O O X X X O X O X X

0B 1 00-7F VOLUME 0...127 64 O X O O X O O X X X O X O O X

0C 1 00-7F VELOCITY SENSE DEPTH 0...127 40 O X O O X X O ●OXOXOO O

0D 1 00-7F VELOCITY SENSE OFFSET 0...127 40 O X O O X X O ●OXOXOO O

0E 1 00-7F PAN RND, L63...C...R63 40 O X O O X O O X X X O X O O X

0F 1 00-7F NOTE LIMIT LOW C-2...G8 00 O X O X X X X X X X O X O X X

10 1 00-7F NOTE LIMIT HIGH C-2...G8 7F O X O X X X X X X X O X O X X

11 1 00-7F DRY LEVEL 0...127 7F O X O O X O O X O ●● XOO O

12 1 00-7F CHORUS SEND 0...127 00 O X O O X O O X X X O X O O X

13 1 00-7F REVERB SEND 0...127 28 O X O O X O O X X X O X O O X

14 1 00-7F VARIATION SEND 0...127 00 O X O O X O O X X X O X O O O

15 1 00-7F VIBRATO RATE -64...0...+63 40 O X O O X O O X X X O X O O X

16 1 00-7F VIBRATO DEPTH -64...0...+63 40 O X O O X O O X X X O X O O X

17 1 00-7F VIBRATO DELAY -64...0...+63 40 O X O O X O O X X X O X O O X

18 1 00-7F FILTER CUTOFF FREQUENCY -64...0...+63 40 O X O O X O O X X X O X O O X

PSR-3000/1500 Data List 61

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

TOTAL SIZE 29

[MIDI] [Song Creator]

19 1 00-7F FILTER RESONANCE -64...0...+63 40 O X O O X O O X X X O X O O X

1A 1 00-7F EG ATTACK TIME -64...0...+63 40 O X O O X O O X X X O X O O X

1B 1 00-7F EG DECAY TIME -64...0...+63 40 O X O O X O O X X X O X O O X

1C 1 00-7F EG RELEASE TIME -64...0...+63 40 O X O O X O O X X X O X O O X

1D 1 28-58 MW PITCH CONTROL -24...0...+24[semitones] 40 O X O O X X O X X X O X O X X

1E 1 00-7F MW LOW PASS FILTER

CONTROL

-9600...0...+9450[cent] 40 O X O O X X O ●OXOXOO O

1F 1 00-7F MW AMPLITUDE CONTROL -100...0...+100[%] 40 O X O O X X O X X X O X O X X

20 1 00-7F MW LFO PMOD DEPTH 0...127 0A O X O O X X O ●OXOXOO O

21 1 00-7F MW LFO FMOD DEPTH 0...127 00 O X O O X X O ●OXOXOO O

22 1 00-7F MW LFO AMOD DEPTH 0...127 00 O X O O X X O ●OXOXOO O

23 1 28-58 BEND PITCH CONTROL -24...0...+24[semitones] 42 O X O O X O O X X X O X O X X

24 1 00-7F BEND LOW PASS FILTER

CONTROL

-9600...0...+9450[cent] 40 O X O O X O O X X X O X O X X

25 1 00-7F BEND AMPLITUDE CONTROL -100...0...+100[%] 40 O X O O X O O X X X O X O X X

26 1 00-7F BEND LFO PMOD DEPTH 0...127 00 O X O O X O O X X X O X O X X

27 1 00-7F BEND LFO FMOD DEPTH 0...127 00 O X O O X O O X X X O X O X X

28 1 00-7F BEND LFO AMOD DEPTH 0...127 00 O X O O X O O X X X O X O X X

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

30 1 00-01 Rcv PITCH BEND OFF, ON 01 O X O X X X X X X X O X O X X

31 1 00-01 Rcv CH AFTER TOUCH (CAT) OFF, ON 01 O X O X X X X X X X O X O X X

32 1 00-01 Rcv PROGRAM CHANGE OFF, ON 01 O X O X X X X X X X O X O X X

33 1 00-01 Rcv CONTROL CHANGE OFF, ON 01 O X O X X X X X X X O X O X X

34 1 00-01

Rcv POLY AFTER TOUCH (PAT)

OFF, ON 01 O X O X X X X X X X O X O X X

35 1 00-01 Rcv NOTE MESSAGE OFF, ON 01 O X O X X X X X X X O X O X X

36 1 00-01 Rcv RPN OFF, ON 01 O X O X X X X X X X O X O X X

37 1 00-01 Rcv NRPN OFF, ON XGmode=01,

GMmode=00

OXOXXXXXXXOXOXX

38 1 00-01 Rcv MODULATION OFF, ON 01 O X O X X X X X X X O X O X X

39 1 00-01 Rcv VOLUME OFF, ON 01 O X O X X X X X X X O X O X X

3A 1 00-01 Rcv PAN OFF, ON 01 O X O X X X X X X X O X O X X

3B 1 00-01 Rcv EXPRESSION OFF, ON 01 O X O X X X X X X X O X O X X

3C 1 00-01 Rcv HOLD1 OFF, ON 01 O X O X X X X X X X O X O X X

3D 1 00-01 Rcv PORTAMENTO OFF, ON 01 O X O X X X X X X X O X O X X

3E 1 00-01 Rcv SOSTENUTO OFF, ON 01 O X O X X X X X X X O X O X X

3F 1 00-01 Rcv SOFT PEDAL OFF, ON 01 O X O X X X X X X X O X O X X

40 1 00-01 Rcv BANK SELECT OFF, ON 01 O X O X X X X X X X O X O X X

41 1 00-7F SCALE TUNING C -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

42 1 00-7F SCALE TUNING C# -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

43 1 00-7F SCALE TUNING D -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

44 1 00-7F SCALE TUNING D# -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

45 1 00-7F SCALE TUNING E -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

46 1 00-7F SCALE TUNING F -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

47 1 00-7F SCALE TUNING F# -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

48 1 00-7F SCALE TUNING G -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

49 1 00-7F SCALE TUNING G# -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

4A 1 00-7F SCALE TUNING A -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

4B 1 00-7F SCALE TUNING A# -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

4C 1 00-7F SCALE TUNING B -64...0...+63[cent] 40 O X O O X O O ●X●OXOO O

4D 1 28-58 CAT PITCH CONTROL -24...0...+24[semitones] 40 O X O O X X O X X X O X O X X

4E 1 00-7F CAT LOW PASS FILTER

CONTROL

-9600...0...+9450[cent] 40 O X O O X X O X O X O X O O O

4F 1 00-7F CAT AMPLITUDE CONTROL -100...0...+100[%] 40 O X O O X X O X X X O X O X X

50 1 00-7F CAT LFO PMOD DEPTH 0...127 00 O X O O X X O X O X O X O O O

51 1 00-7F CAT LFO FMOD DEPTH 0...127 00 O X O O X X O X O X O X O O O

52 1 00-7F CAT LFO AMOD DEPTH 0...127 00 O X O O X X O X O X O X O O O

53 1 28-58 PAT PITCH CONTROL -24...0...+24[semitones] 40 O X O X X X X X X X O X O X X

54 1 00-7F PAT LOW PASS FILTER

CONTROL

-9600...0...+9450[cent] 40 O X O X X X X X X X O X O X X

55 1 00-7F PAT AMPLITUDE CONTROL -100...0...+100[%] 40 O X O X X X X X X X O X O X X

56 1 00-7F PAT LFO PMOD DEPTH 0...127 00 O X O X X X X X X X O X O X X

57 1 00-7F PAT LFO FMOD DEPTH 0...127 00 O X O X X X X X X X O X O X X

58 1 00-7F PAT LFO AMOD DEPTH 0...127 00 O X O X X X X X X X O X O X X

59 1 00-5F AC1 CONTROLLER NUMBER 0...95 10 O X O X X X X X X X O X O X X

5A 1 28-58 AC1 PITCH CONTROL -24...0...+24[semitones] 40 O X O X X X X X X X O X O X X

5B 1 00-7F AC1 LOW PASS FILTER

CONTROL

-9600...0...+9450[cent] 40 O X O X X X X X X X O X O X X

5C 1 00-7F AC1 AMPLITUDE CONTROL -100...0...+100[%] 40 O X O X X X X X X X O X O X X

5D 1 00-7F AC1 LFO PMOD DEPTH 0...127 00 O X O X X X X X X X O X O X X

5E 1 00-7F AC1 LFO FMOD DEPTH 0...127 00 O X O X X X X X X X O X O X X

5F 1 00-7F AC1 LFO AMOD DEPTH 0...127 00 O X O X X X X X X X O X O X X

60 1 00-5F AC2 CONTROLLER NUMBER 0...95 11 O X O X X X X X X X O X O X X

61 1 28-58 AC2 PITCH CONTROL -24...0...+24[semitones] 40 O X O X X X X X X X O X O X X

62 1 00-7F AC2 LOW PASS FILTER

CONTROL

-9600...0...+9450[cent] 40 O X O X X X X X X X O X O X X

63 1 00-7F AC2 AMPLITUDE CONTROL -100...0...+100[%] 40 O X O X X X X X X X O X O X X

64 1 00-7F AC2 LFO PMOD DEPTH 0...127 00 O X O X X X X X X X O X O X X

65 1 00-7F AC2 LFO FMOD DEPTH 0...127 00 O X O X X X X X X X O X O X X

66 1 00-7F AC2 LFO AMOD DEPTH 0...127 00 O X O X X X X X X X O X O X X

67 1 00-01 PORTAMENTO SWITCH OFF, ON 00 O

(Except

Natural

Piano,

Organ

Flutes)

XOO XXOX XXOXOOX

68 1 00-7F PORTAMENTO TIME 0...127 00 O X O O X X O X X X O X O O X

69 1 00-7F PITCH EG INITIAL LEVEL -64...0...+63 40 O X O O X X O X X X O X O X X

6A 1 00-7F PITCH EG ATTACK TIME -64...0...+63 40 O X O O X X O X X X O X O X X

6B 1 00-7F PITCH EG RELEASE LEVEL -64...0...+63 40 O X O O X X O X X X O X O X X

6C 1 00-7F PITCH EG RELEASE TIME -64...0...+63 40 O X O O X X O X X X O X O X X

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

[MIDI] [Song Creator]

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

PSR-3000/1500 Data List

62

TOTAL SIZE 3F

TOTAL SIZE 04

TOTAL SIZE 0C

●: Transmitted via panel operations O: Available

[MIDI] [Song Creator]

TOTAL SIZE 06

●: Transmitted via panel operations O: Available

nn = PART NUMBER

If there is a Drum Voice assigned to the part, the following parameters are ineffective.

• BANK SELECT LSB

• PORTAMENTO

• MONO/POLY

• SCALE TUNING

• POLY AFTER TOUCH

• PITCH EG

MIDI Parameter Change table (A/D PART)

[MIDI] [Song Creator]

TOTAL SIZE 15

n: A/D Part Number (0)

6D 1 01-7F VELOCITY LIMIT LOW 1...127 01 O X O O X X O X X X O X O X X

6E 1 01-7F VELOCITY LIMIT HIGH 1...127 7F O X O O X X O X X X O X O X X

70 1 NOT USED - - - - - - - - - - - - - - - -

71 1 NOT USED - - - - - - - - - - - - - - - -

72 1 00-7F EQ BASS GAIN -12dB...+12dB 40 O X O O X O O ●●●●XOO O

73 1 00-7F EQ TREBLE GAIN -12dB...+12dB 40 O X O O X O O ●●●●XOO O

74 1 NOT USED - - - - - - - - - - - - - - - -

75 1 NOT USED - - - - - - - - - - - - - - - -

76 1 04-28 EQ BASS FREQUENCY 32...2.0k[Hz] 0C O X O O X X O ●OXOXOO O

77 1 1C-3A EQ TREBLE FREQUENCY 500...16.0k[Hz] 36 O X O O X X O ●OXOXOO O

78 1 NOT USED - - - - - - - - - - - - - - - -

79 1 NOT USED - - - - - - - - - - - - - - - -

7A 1 NOT USED - - - - - - - - - - - - - - - -

7B 1 NOT USED - - - - - - - - - - - - - - - -

7C 1 NOT USED - - - - - - - - - - - - - - - -

7D 1 NOT USED - - - - - - - - - - - - - - - -

7E 1 NOT USED - - - - - - - - - - - - - - - -

7F 1 NOT USED - - - - - - - - - - - - - - - -

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

0A nn 40 1 00-7F MW OFFSET LEVEL CONTROL -100 – 100[%] 40 O - O O X X O O O X O X O O O

41 1 00-7F BEND OFFSET LEVEL

CONTROL

-100 – 100[%] 40 O - O X X X X X X X O X O O X

42 1 00-7F CAT OFFSET LEVEL CONTROL -100 – 100[%] 40 O - O O X X O X O X O X O O O

43 1 00-7F PAT OFFSET LEVEL CONTROL -100 – 100[%] 40 O - O X X X X X X X O X O O X

44 1 00-7F AC1 OFFSET LEVEL

CONTROL

-100 – 100[%] 40 O - O X X X X X X X O X O O X

45 1 00-7F AC2 OFFSET LEVEL

CONTROL

-100 – 100[%] 40 O - O X X X X X X X O X O O X

PSR-1500 X

PSR-3000 O

Address

(H)

Size

(H)

Data

(H)

Parameter Description Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

10 0n 00 1 00-01 INPUT GAIN MIC, LINE *The A/D

PART

parameter

cannot be

reset to its

factory

setting with

XG System

On.

XX X X XXX

01 1 00-7F BANK SELECT MSB 0...127 X X X X X X X

02 1 00-7F BANK SELECT LSB 0...127 X X X X X X X

03 1 00-7F PROGRAM NUMBER 1...128 X X X X X X X

04 1 00-0F,

7F

Rcv CHANNEL 1...16, OFF X O O O O X X

05 1 NOT USED -- - - ---

06 1 NOT USED -- - - ---

07 1 NOT USED -- - - ---

08 1 NOT USED -- - - ---

09 1 NOT USED -- - - ---

0A 1 NOT USED -- - - ---

0B 1 00-7F VOLUME 0...127 X O O ●OX X

0C 1 NOT USED -- - - ---

0D 1 NOT USED -- - - ---

0E 1 01-7F PAN L63...C...R63 X O O ●OX X

0F 1 NOT USED -- - - ---

10 1 NOT USED -- - - ---

11 1 00-7F DRY LEVEL 0...127 X O O ●OX X

12 1 00-7F CHORUS SEND 0...127 X O O ●OX X

13 1 00-7F REVERB SEND 0...127 X O O ●OX X

14 1 00-7F VARIATION SEND 0...127 X O O ●OX X

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

[MIDI] [Song Creator]

PSR-3000/1500 Data List 63

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

MIDI Parameter Change table (DRUM SETUP)

[MIDI] [Song Creator]

TOTAL SIZE 10

TOTAL SIZE 0E

n: Drum Setup Number (0-1)

rr: note number (0D-5B)

In the following cases, the instrument will initialize all Drum Setups.

XG SYSTEM ON received

GM SYSTEM ON received

GM LEVEL2 SYSTEM ON received

DRUM SETUP RESET received (only when in XG mode)

[Note]

When a part to which a Drum Setup is assigned receives a program change, the assigned Drum Setup will be initialized.

If the same Drum Setup is assigned to two or more parts, changes in Drum Setup parameters (including program changes) will apply to all parts to which it is assigned.

Address

(H)

Size

(H)

Data

(H)

Parameter Description XG Default

(H)

Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW From

panel

(Right1/

Right2/

Left)

3n rr 00 1 00-7F PITCH COARSE -64...0...+63 40 O

(Drum

only)

XO

(Available only for song parts)

OOXX

01 1 00-7F PITCH FINE -64...0...+63[cent] 40 O

(Drum

only)

XO

(Available only for song parts)

OOXX

02 1 00-7F LEVEL 0...127 Depends

on the note

O

(Drum

only)

XO

(Available only for song parts)

OOXX

03 1 00-7F ALTERNATE GROUP OFF, 1...127 Depends

on the note

O

(Drum

only)

XO

(Available only for song parts)

OOXX

04 1 00-7F PAN RND, L63...C...R63 Depends

on the note

O

(Drum

only)

XO

(Available only for song parts)

OOXX

05 1 00-7F REVERB SEND 0...127 Depends

on the note

O

(Drum

only)

XO

(Available only for song parts)

OOXX

06 1 00-7F CHORUS SEND 0...127 Depends

on the note

O

(Drum

only)

XO

(Available only for song parts)

OOXX

07 1 00-7F VARIATION SEND 0...127 7F O

(Drum

only)

XO

(Available only for song parts)

OOXX

08 1 00-01 KEY ASSIGN SINGLE, MULTI 00 O

(Drum

only)

XO

(Available only for song parts)

OOXX

09 1 00-01 Rcv NOTE OFF OFF, ON Depends

on the note

O

(Drum

only)

XO

(Available only for song parts)

OOXX

0A 1 00-01 Rcv NOTE ON OFF, ON 01 O

(Drum

only)

XO

(Available only for song parts)

OOXX

0B 1 00-7F LOW PASS FILTER CUTOFF

FREQUENCY

-64...0...+63 40 O

(Drum

only)

XO

(Available only for song parts)

OOXX

0C 1 00-7F LOW PASS FILTER

RESONANCE

-64...0...+63 40 O

(Drum

only)

XO

(Available only for song parts)

OOXX

0D 1 00-7F EG ATTACK RATE -64...0...+63 40 O

(Drum

only)

XO

(Available only for song parts)

OOXX

0E 1 00-7F EG DECAY1 RATE -64...0...+63 40 O

(Drum

only)

XO

(Available only for song parts)

OOXX

0F 1 00-7F EG DECAY2 RATE -64...0...+63 40 O

(Drum

only)

XO

(Available only for song parts)

OOXX

20 1 00-7F EQ BASS GAIN -12...+12[dB] 40 X X X X X X X

21 1 00-7F EQ TREBLE GAIN -12...+12[dB] 40 X X X X X X X

22 1 NOT USED - - - - - - - -

23 1 NOT USED - - - - - - - -

24 1 04-28 EQ BASS FREQUENCY 32...2.0k[Hz] 0C X X X X X X X

25 1 1C-3A EQ TREBLE FREQUENCY 500...16.0k[Hz] 36 X X X X X X X

26 1 NOT USED - - - - - - - -

27 1 NOT USED - - - - - - - -

28 1 NOT USED - - - - - - - -

29 1 NOT USED - - - - - - - -

2A 1 NOT USED - - - - - - - -

2B 1 NOT USED - - - - - - - -

2C 1 NOT USED - - - - - - - -

2D 1 NOT USED - - - - - - - -

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

PSR-3000/1500 Data List

64

System Exclusive Messages (1)

[GM1] ... GM Required Parameter

[GM2] ... GM Level2 Required Parameter

* Not received when Receive System Exclusive Message Parameters is set to off.

* Not transmitted when Transmit System Exclusive Message Parameters is set to off.

System Exclusive Messages (Universal Real Time Messages)

[MIDI] [Song Creator]

MIDI Event Data Format Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW

From

panel

operations

Master

Volume

[GM2]

F0 7F XN 04 01 SS TT F7 OX O

(Available for extra parts of a song)

OOOX

11110000 F0 = Exclusive status

01111111 7F = Universal Real Time

0xxxnnnn XN = When N is received N = 0-F, whichever is received. X = ignored

00000100 04 = Sub-ID #1 = Device Control Message

00000001 01 = Sub-ID #2 = Master Volume

0sssssss SS = Volume LSB

0ttttttt TT = Volume MSB

11110111 F7 = End of Exclusive

Master

Fine Tuning

[GM2]

F0 7F XN 04 03 SS TT F7 OX O

(Available for extra parts of a song)

OOXX

11110000 F0 = Exclusive status

01111111 7F = Universal Real Time

0xxxnnnn XN = When N is received N = 0-F, whichever is received. X = ignored

00000100 04 = Sub-ID #1 = Device Control Message

00000011 03 = Sub-ID #2 = Master Fine Tuning

0sssssss SS = Fine Tuning LSB

0ttttttt TT = Fine Tuning MSB

11110111 F7 = End of Exclusive

Master

Coarse

Tuning

[GM2]

F0 7F XN 04 04 00 TT F7 OX O

(Available for extra parts of a song)

OOXX

11110000 F0 = Exclusive status

01111111 7F = Universal Real Time

0xxxnnnn XN = When N is received N = 0-F, whichever is received. X = ignored

00000100 04 = Sub-ID #1 = Device Control Message

00000100 04 = Sub-ID #2 = Master Coarse Tuning

00000000 00

0ttttttt TT = Coarse Tuning MSB

11110111 F7 = End of Exclusive

Reverb

Parameter

[GM2]

F0 7F XN 04 05 01 01 01 01 01 PP VV ... F7 OO O O OOX

11000000 F0 = Exclusive status

01111111 7F = Universal Real Time

0xxxnnnn XN = When N is received N = 0-F, whichever is received. X = ignored

00000100 04 = Sub-ID #1 = Device Control Message

00000101 05 = Sub-ID #2 = Global Parameter Control

00000001 01 = Slot path length = 1

00000001 01 = Parameter ID width = 1

00000001 01 = Value width = 1

00000001 01 = Slot path MSB = 1

00000001 01 = Slot path LSB = 1 (Reverb)

0ppppppp PP = Parameter to be controlled.

0vvvvvvv VV = Value for the Parameter.

: :

11110111 F7 = End of Exclusive

Parameter (pp) Value (vv) Display

-----------------------------------------------------------------------------

pp=0 Reverb Type 0...8 0: RoomS

1: RoomM

2: RoomL

3: HallM

4: HallL (default)

8: GM Plate

pp=1 Reverb Time 0...127 0...11.0s

Chorus

Parameter

[GM2]

F0 7F XN 04 05 01 01 01 01 02 PP VV ... F7 OO O O OOX

11110000 F0 = Exclusive status

01111111 7F = Universal Real Time

0xxxnnnn XN = When N is received N = 0-F, whichever is received. X = ignored

00000100 04 = Sub-ID #1 = Device Control Message

00000101 05 = Sub-ID #2 = Global Parameter Control

00000001 01 = Slot path length = 1

00000001 01 = Parameter ID width = 1

00000001 01 = Value width = 1

00000001 01 = Slot path MSB = 1

00000010 02 = Slot path LSB = 2 (Chorus)

0ppppppp PP = Parameter to be controlled.

0vvvvvvv VV = Value for the Parameter

: :

11110111 F7 = End of Exclusive

Parameter (pp) Value (vv) Display

----------------------------------------------------------------------------

pp=0 Chorus Type 0...5 0: GM Chorus1

1: GM Chorus2

2: GM Chorus3

(default)

3: GM Chorus4

4: FB Chorus

5: GM Flanger

pp=1 Mod Rate 0...127 0...15.5Hz

pp=2 Mod Depth 0...127

pp=3 Feedback 0...127

pp=4 Send to Reverb 0...127

Channel

Pressure

(Aftertouch)

[GM2]

F0 7F XN 09 01 0M PP RR ... F7 OXOXXXX XXXOXOXX

11110000 F0 = Exclusive status

01111111 7F = Universal Real Time

0xxxnnnn XN = When N is received N = 0-F, whichever is received. X = ignored

00001001 09 = Sub-ID #1 = Controller Destination Setting

00000001 01 = Sub-ID #2 = Controller Type: 01 (Channel Pressure)

0000mmmm 0M= MIDI Channel (00-0F)

0ppppppp PP = Controlled Parameter

0rrrrrrr RR = Data

: :

11110111 F7 = End of Exclusive

Make sure to set both the controlled parameter and the range.

Parameters not set will be restored to their default values.

Control Parameter (pp) Data (RR) Description

Default Value

--------------------------------------------------------------------------------------------------------

pp=00 Pitch Control 28H~58H -24...0...+24semitones 40H

pp=01 Filter Cutoff Control 00H~FH -9600...0...+9450cents 40H

pp=02 Amplitude Control 00H~FH -100...0...+100% 40H

pp=03 LFO Pitch Depth 00H~FH 0...127 00H

pp=04 LFO Filter Depth 00H~FH 0...127 00H

pp=05 LFO Amplitude Depth 00H~FH 0...127 00H

PSR-3000/1500 Data List 65

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

System Exclusive Messages (Universal Non-Real Time Messages)

[MIDI] [Song Creator]

Controller

(Control

Change)

[GM2]

F0 7F XN 09 03 0M CC PP RR ... F7 OXOXXXX XXXOXOXX

11110000 F0 = Exclusive status

01111111 7F = Universal Real Time

0xxxnnnn XN = When N is received N = 0-F, whichever is received. X = ignored

00001001 09 = Sub-ID #1 = Controller Destination Setting

00000011 03 = Sub-ID #2 = Controller Type:03 (Control Change)

0000mmmm 0M= MIDI Channel (00-0F)

0ccccccc CC= Controller Number (01H-1FH, 40H-5FH)

0ppppppp PP = Controlled Parameter

0rrrrrrr RR = Range

: :

11110111 F7 = End of Exclusive

Make sure to set both the controlled parameter and the range.

Parameters not set will be restored to their default values.

Control Parameter (pp) Data (RR) Description

Default value

--------------------------------------------------------------------------------------------------------

pp=00 Pitch Control 28H~58H -24...0...+24semitones 40H

pp=01 Filter Cutoff Control 00H~7FH -9600...0...+9450cents 40H

pp=02 Amplitude Control 00H~7FH -100...0...+100% 40H

pp=03 LFO Pitch Depth 00H~7FH 0...127 00H

pp=04 LFO Filter Depth 00H~7FH 0...127 00H

pp=05 LFO Amplitude Depth 00H~7FH 0...127 00H

Key-Based

Instrument

Control

[GM2]

F0 7F XN 0A 01 0M KK CC VV ... F7 O

(Drum

Only)

XOXXXX XXXOXOXX

11110000 F0 = Exclusive status

01111111 7F = Universal Real Time

0xxxnnnn XN = When N is received N=0-F, whichever is received. X=ignored

00001010 0A = Sub-ID #1=Key-Based Instrument Control

00000001 01 = Sub-ID #2=Controller

0000mmmm 0M= MIDI Channel (00-0F)

0kkkkkkk KK = Key Number

0ccccccc CC= Controller Number

0vvvvvvv VV = Value

... ...

11110111 F7 = End of Exclusive

Make sure to set both the controlled number and the value.

Control Number (CC) Value (VV) Description

Default value

------------------------------------------------------------------------------------------------------

CC=07H Volume 00H~7FH -100...0...+100% 40H

CC=0AH Pan 00H~7FH L63...C...R63 (Preset value)

(absolute)

CC=5BH Reverb Send Level 00H~7FH 0...Max (Preset value)

(absolute)

CC=5DH Chorus Send Level 00H~7FH 0...Max (Preset value)

(absolute)

MIDI Event Data Format Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW

From

panel

operations

GM1

System On

[GM1]

[GM2]

F0 7E XN 09 01 F7 O- O O OXO

11110000 F0 = Exclusive status

01111110 7E = Universal Non-Real Time

0xxxnnnn XN = When N is received N = 0-F, whichever is received. X = ignored

00001001 09 = Sub-ID #1 = General MIDI Message

00000001 01 = Sub-ID #2 = General MIDI On

11110111 F7 = End of Exclusive

GM2

System On

[GM2]

F0 7E XN 09 03 F7 O- O O OXX

11110000 F0 = Exclusive status

01111110 7E = Universal Non-Real Time

0xxxnnnn XN = When N is received N = 0-F, whichever is received. X = ignored

00001001 09 = Sub-ID #1=General MIDI Message

00000011 03 = Sub-ID #2=General MIDI2 On

11110111 F7 = End of Exclusive

General

MIDI

System Off

[GM1]

[GM2]

F0 7E XN 09 02 F7 O- O O OXX

11110000 F0 = Exclusive status

01111110 7E = Universal Non-Real Time

0xxxnnnn XN = When N is received N = 0-F, whichever is received. X = ignored

00001001 09 = Sub-ID #1 = General MIDI Message

00000010 02 = Sub-ID #2 = General MIDI Off

11110111 F7 = End of Exclusive

Scale/

Octave

Tuning

[GM2]

F0 7E XN 08 08 JJ GG MM SS ... F7 OX O

(Available for song parts)

OOXX

11110000 F0 = Exclusive status

01111110 7E = Universal Non-Real Time

0xxxnnnn XN = When N is received N=0-F, whichever is received. X=ignored

00001000 08 = Sub-ID #1=MIDI Tuning Standard

00001000 08 = Sub-ID #2=scale/octave tuning 1byte form

0jjjjjjj JJ = Channel/option byte1

bits 0 to 1 = channel 15 to 16

bits 2 to 6 = reserved

0ggggggg

GG

= Channel byte2 - bits0 to 6 = channel 8 to 14

0mmmmmmm

MM

= Channel byte2 - bits0 to 6 = channel 1 to 7

0sssssss SS = 12byte tuning offset of 12 semitones from C to B

00H means -64cent

40H means 0cent

7FH means +63cent

: :

11110111 F7 = End of Exclusive

MIDI Event Data Format Voice MIDI Reception MIDI Transmission PLAY REC

Regular/

Drum/

Natural/

Organ

Voice

Mic/

Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

PLAY REW

From

panel

operations

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

PSR-3000/1500 Data List

66

System Exclusive Messages (2)

* Not received when Receive System Exclusive Message Parameters is set to off.

* Not transmitted when Transmit System Exclusive Message Parameters is set to off.

System Exclusive Messages (Style)

[MIDI]

●: Transmitted via panel operations

MIDI Event Data Format Voice MIDI Reception MIDI Transmission

Regular/Drum/

Natural/Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

Section Control F0 43 7E 00 ss dd F7 -- O ●

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

01111110 7E = Style

00000000 00 =

0sssssss ss = Switch No.

00H INTRO A

01H INTRO B

02H INTRO C

03H INTRO D

08H MAIN A

09H MAIN B

0AH MAIN C

0BH MAIN D

10H FILL IN AA

11H FILL IN BB

12H FILL IN CC

13H FILL IN DD

18H BREAK FILL

20H ENDING A

21H ENDING B

22H ENDING C

23H ENDING D

0ddddddd dd = Switch On/Off

00H (Off)

7FH (On)

11110111 F7 = End of Exclusive

Tempo Control F0 43 7E 01 t4 t3 t2 t1 F7 -- O ●

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

01111110 7E = Style

00000001 01 =

0ttttttt t4 = tempo4

0ttttttt t3 = tempo3

0ttttttt t2 = tempo2

0ttttttt t1 = tempo1

11110111

Chord Control F0 43 7E tt d1 d2 d3 d4 F7 -- O ●

Type1 (tt=02)

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

01111110 7E = Style

00000010 02 = type 1

0ddddddd d1 = chord root (cr)

0ddddddd d2 = chord type (ct)

0ddddddd d3 = bass note (bn)

0ddddddd d4 = bass type (bt)

11110111 F7 = End of Exclusive

cr: Chord Root 0fffnnnn

fff: b or #, nnnn: note (root)

0000nnnn 0n bbb 0fff0000 x0 reserved

0001nnnn 1n bb 0fff0001 x1 C

0010nnnn 2n b 0fff0010 x2 D

0011nnnn 3n natural 0fff0011 x3 E

0100nnnn 4n # 0fff0100 x4 F

0101nnnn 5n ## 0fff0101 x5 G

0110nnnn 6n ### 0fff0110 x6 A

0fff0111 x7 B

ct: Chord Type 0 - 34, 127

00000000 00 0 Maj 00010010 12 18 dim7

00000001 01 1 Maj6 00010011 13 19 7th

00000010 02 2 Maj7 00010100 14 20 7sus4

00000011 03 3 Maj7(#11) 00010101 15 21 7b5

00000100 04 4 Maj(9) 00010110 16 22 7(9)

00000101 05 5 Maj7(9) 00010111 17 23 7(#11)

00000110 06 6 Maj6(9) 00011000 18 24 7(13)

00000111 07 7 aug 00011001 19 25 7(b9)

00001000 08 8 min 00011010 1A 26 7 b13)

00001001 09 9 min6 00011011 1B 27 7(#9)

00001010 0A 10 min7 00011100 1C 28 Maj7aug

00001011 0B 11 min7b5 00011101 1D 29 7aug

00001100 0C 12 min(9) 00011110 1E 30 1+8

00001101 0D 13 min7(9) 00011111 1F 31 1+5

00001110 0E 14 min7(11) 00100000 20 32 sus4

00001111 0F 15 minMaj7 00100001 21 33 1+2+5

00010000 10 16 minMaj7(9) 00100010 22 34 cc

00010001 11 17 dim

bn: On Bass Note Same as Chord root

127: No bass chord

bt: Bass Chord Same as Chord type

127: No bass chord

* Not received when Chord System Exclusive Message Parameters is set to off.

* Not received when Transmit Chord System Exclusive Message Parameters is set

to off.

Type2 (tt=03) -- O X

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

01111110 7E = Style

00000011 03 = type 2

0ddddddd dd = note1

0ddddddd dd = note2

0ddddddd dd = note3

: :

0ddddddd dd = note10

11110111 F7 = End of Exclusive

PSR-3000/1500 Data List 67

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

System Exclusive Messages (XG)

[MIDI]

System Exclusive Messages (Clavinova compliance)

[MIDI]

●: Transmitted via panel operations

System Exclusive Messages (Special Operators)

[MIDI]

MIDI Event Data Format Voice MIDI Reception MIDI Transmission

Regular/Drum/

Natural/Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard

Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

XG Parameter Changes F0 43 1n 4C hh mm ll dd ... F7 * Refer to XG Parameter

Change Table.

O

* Refer to XG Parameter Change Table.

O

* Refer to XG Parameter Change Table.

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

0001nnnn 1n = Device Number n = always 0 (when transmit),

n = 0-F (when receive)

01001100 4C = Model ID

0hhhhhhh hh = Address High

0mmmmmmm mm= Address Mid

0lllllll ll = Address Low

0ddddddd dd = Data

: :

11110111 F7 = End of Exclusive

XG Bulk Dump F0 43 0n 4C aa bb hh mm ll dd ... dd cc F7 * Refer to XG Parameter

Change Table.

O

* Refer to XG Parameter Change Table.

O

* Refer to XG Parameter Change Table.

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

0000nnnn 0n = Device Number n=always 0 (when transmit),

n=0-F (when receive)

01001100 4C = Model ID

0aaaaaaa aa = Byte Count MSB

0bbbbbbb bb = Byte Count LSB

0hhhhhhh hh = Address High

0mmmmmmm mm= Address Mid

0lllllll ll = Address Low

0ddddddd dd = Data

: :

0ddddddd dd = Data

0ccccccc cc = Checksum

11110111 F7 = End of Exclusive

XG Parameter Request F0 43 3n 4C hh mm ll F7 -- O

* Refer to XG Parameter Change Table.

O

* Refer to XG Parameter Change Table.

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

0011nnnn 3n = Device Number n = always 0 (when transmit),

n = 0-F (when receive)

01001100 4C = Model ID

0hhhhhhh hh = Address High

0mmmmmmm mm= Address Mid

0lllllll ll = Address Low

11110111 F7 = End of Exclusive

XG Dump Request F0 43 2n 4C hh mm ll F7 -- O

* Refer to XG Parameter Change Table.

O

* Refer to XG Parameter Change Table.

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

0010nnnn 2n = Device Number n = always 0 (when transmit),

n = 0-F (when receive)

01001100 4C = Model ID

0hhhhhhh hh = Address High

0mmmmmmm mm= Address Mid

0lllllll ll = Address Low

11110111 F7 = End of Exclusive

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

01110011 73 = Clavinova ID

: :

11110111 F7 = End of Exclusive

MIDI Event Data Format Voice MIDI Reception MIDI Transmission

Regular/Drum/

Natural/Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

Internal Clock F0 43 73 01 02 F7 --OX

00000001 01 = Model ID (Clavinova common ID)

00000010 02 = Internal Clock Substatus

External Clock F0 43 73 01 03 F7 --O X

00000001 01 = Model ID (Clavinova common ID)

00000011 03 = External Clock Substatus

Organ Flutes data Bulk Dump F0 43 73 01 06 0B 00 00 01 06 0n [Bulk Data] sum O

(Organ Flute)

XOO XXO●XXOX

01H Model ID (Clavinova common ID)

06H Bulk ID

0BH Bulk No. (Organ Flutes data Bulk Dump)

00H, 00H, 01H, 06H Data Length:16bytes

1st Channel No. 0nH

2nd Footage [1'] 00 - 08H

3rd [1 1/3'] 00 - 08H

4th [1 3/5'] 00 - 08H

5th [2'] 00 - 08H

6th [2 2/3'] 00 - 08H

7th [4'] 00 - 08H

8th [5 1/3'] 00 - 08H

9th [8'] 00 - 08H

10th [16'] 00 - 08H

11th [Attack 2'] 00 - 08H

12th [Attack 2 2/3'] 00 - 08H

13th [Attack 4'] 00 - 08H

14th Settings [Attack Length] 00 - 08H

15th [Response] 00 - 08H

16th [Attack Mode] 00 - 01H 00H: Each, 01H: First

17th [Wave Variation] 00 - 01H 00H: Sine, 01H: Vintage

18th [Volume] 01 - 09H

19th [aux] 00H

20th [aux] 00H

21th [aux] 00H

22th [aux] 00H

sum Check Sum = 0-sum (BULK DATA)

MIDI Event Data Format Voice MIDI Reception MIDI Transmission

Regular/Drum/

Natural/Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

MIDI Data Format / MIDI-Datenformat / Format des données MIDI / Formato de datos MIDI

PSR-3000/1500 Data List

68

System Exclusive Messages Special Operators (Vocal Harmony Additional Parameters)

Vocal Harmony

[MIDI]

●: Transmitted via panel operations

System Exclusive Messages (Others)

[MIDI]

PSR-1500 X

PSR-3000 O

MIDI Event Data Format Voice MIDI Reception MIDI Transmission

Regular/Drum/

Natural/Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

Vocal Harmony

Pitch to Note ON/OFF F0 43 73 01 11 0n 50 00 dd F7 XO O ●

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

01110011 73 = Clavinova ID

00000001 01 = Model ID (Clavinova common ID)

00010001 11 = Special Operators

0000nnnn 0n = Channel No. (Always 00)

01010000 50 = Vocal Harmony Additional Parameter Control No.

00000000 00 = Pitch to Note Parameter No.

0ddddddd dd = data (00H: Off, 01H: On)

11110111 F7 = End of Exclusive

Vocal Harmony

Pitch to Note Part F0 43 73 01 11 0n 50 01 dd F7 XO O ●

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

01110011 73 = Clavinova ID

00000001 01 = Model ID (Clavinova common ID)

00010001 11 = Special Operators

0000nnnn 0n = Channel No. (Always 00)

01010000 50 = Vocal Harmony Additional Parameter Control No.

00000001 01 = Pitch to Note Part Parameter No.

0ddddddd dd = data 00H: Right1

01H: Right2

02H: Left

03H: (not used)

04H: Upper

11110111 F7=End of Exclusive

Vocal Harmony

Vocoder Part

(Harmony Part (Panel))

F0 43 73 01 11 0n 50 10 dd F7 X O O ●

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

01110011 73 = Clavinova ID

00000001 01 = Model ID (Clavinova common ID)

00010001 11 = Special Operators

0000nnnn 0n = Channel No. (Always 00)

01010000 50 = Vocal Harmony Additional Parameter Control No.

00010000 10 = Vocoder Part Parameter No.

0ddddddd dd = data 00H: Off

01H: Upper

02H: Lower

11110111 F7 = End of Exclusive

MIDI Event Data Format Voice MIDI Reception MIDI Transmission

Regular/Drum/

Natural/Organ

Voice

Mic/Vocal

Harmony

Song Right1/

Right2/

Left

Keyboard Style Extra Right1/

Right2/

Left

M.Pad Style Song Upper

Lower

MIDI Master Tuning F0 43 1n 27 30 00 00 0m 0l cc F7 OO O X

11110000 F0 = Exclusive status

01000011 43 = YAMAHA ID

0001nnnn 1n n= always 0 (when transmit), n=0-F (when receive)

00100111 27 = Model ID of TG100

00110000 30 = Address High

00000000 00 = Address Mid

00000000 00 = Address Low

0000mmmm 0m= Master Tune MSB

0000llll 0l = Master Tune LSB

0ccccccc cc = don’t care

11110111 F7 = End of Exclusive

PSR-3000/1500 Data List 69

Guide

Score

Style

Song Meta Event List / Liste der Meta-Events der Songs /

Liste des métaévénements des morceaux / Lista de meta-eventos de canciones

YAMAHA META EVENT

YAMAHA XF META EVENT

Data Format Parameter Description Note

F0 43 73 01 1F 00 cc dd F7 Guide Mode ccH = Part Select No

00H (TRACK1=ON, TRACK2=ON)

01H (TRACK1=OFF, TRACK2=ON)

02H (TRACK1=ON, TRACK2=OFF)

03H (TRACK1=OFF, TRACK2=OFF)

ddH = Mode

00H=Guide OFF

01H=Follow Lights

02H=Any Key

03H=Karao-Key

04H=Vocal CueTIME

(Vocal Cue Time is not available on the PSR-1500.)

Entered to the song from the

[SONG CREATOR] -> CHANNEL ->

SETUP display.

F0 43 73 01 50 12 00 00 dd F7 Left Part indication On/Off 00H: OFF, 7FH: ON Entered to the song from the

[SONG CREATOR] -> CHANNEL ->

SETUP display.

F0 43 73 01 50 12 00 01 dd F7 Right Part indication On/Off 00H: OFF, 7FH: ON

F0 43 73 01 50 12 00 02 dd F7 Lyrics indication On/Off 00H: OFF, 7FH: ON

F0 43 73 01 50 12 00 03 dd F7 Chord indication On/Off 00H: OFF, 7FH: ON

F0 43 73 01 50 12 00 04 dd F7 N.Name indication On/Off 00H: OFF, 7FH: ON

F0 43 73 01 50 12 00 05 dd F7 Size designation 00H: SMALL, 02H: LARGE

F0 43 73 01 50 12 00 06 dd F7 Left Ch 00H~0FH=CH, 7EH=OFF, 7FH=AUTO

F0 43 73 01 50 12 00 07 dd F7 Right Ch 00H~0FH=CH, 7EH=OFF, 7FH=AUTO

F0 43 73 01 50 12 00 08 dd F7 Quantize triplet On/Off 00H: Triplet OFF, 7FH: Triplet ON

F0 43 73 01 50 12 00 09 dd F7 Quantize 00H: quarter, 01H: eighth, 02H: sixteenth, 03H: thirty-second

F0 43 73 01 50 12 00 0A dd F7 NoteName 00H: ABC, 01H: FixedDo, 02H: MovableDo

F0 43 73 01 50 12 00 0B dd F7 Color Note 00H: OFF, 7FH: ON

F0 43 73 01 51 00 00 00 03 10 00 dd F7 STYLE SPLIT POINT dd=STYLE SPLIT POINT (Note Number) Entered to the song from the

[SONG CREATOR] -> CHANNEL ->

SETUP display.

F0 43 73 01 51 05 00 03 04 00 00 dd dd F7 STYLE No. dd dd = Style No. Entered when recording.

F0 43 7E 00 ss dd F7 Section Control Refer to the MIDI Data Format. Entered when recording.

Data Format Parameter Description Note

FF 05 len [Data] Lyrics len = Data length, [Data] = Lyrics Data

FF 51 03 t1 t2 t3 Set Tempo t1 t2 t3 =Tempo value B7 1B 00~01 D4 C0 (Tempo 5~500) Entered when recording.

FF 58 04 nn dd cc bb Beat nn = Numerator

dd = Denominator (2n)

cc = MIDI clock per metronome click

bb = Number of thirty-second notes in MIDI quarter note

Entered when recording.

FF 59 02 sf mi Key Signature sf = -7~7

mi = 0: Major key, 1: Minor key

Entered from the [Score] -> SETUP display.

FF 7F 06 43 73 0A 00 07 dd Score Start Bar ddH: Start form this measure

dd= -100~1, 1~100

Same as ScBar entered from the [SONG

CREATOR] -> SYS/EX. Display

FF 7F len 43 73 0D 01 [Data] Keyboard Voice Voice settings for the RIGHT1~3 and LEFT Entered to the song from the [SONG

CREATOR] -> CHANNEL -> SETUP display.

FF 7F 07 43 7B 01 cr ct bn bt Chord Name Refer to “Chord Control” in the MIDI Data Format (System Exclusive

Messages)

Entered when recording.

FF 7F 05 43 7B 03 dd 08 Phrase Mark dd Phrase mark 0hfccccc

bit6 (h)

0: Right, 1: Left Right hand/Left Hand

bit5 (f)

0: Channel available, 1: Channel not available

Flag for whether channel information (bit 4-0) is valid or not

Phrases common to all channels assigned to 1

bit4-0 (ccccc)

CH (0: 1ch~31: 32ch) Channel information whose phrase mark is

available

Used when performing the Phrase Mark

repeat playback.

FF 7F 04 43 7B 04 dd Phrase Max Max Phrase Number Used when performing the Phrase Mark

repeat playback.

FF 7F 05 43 7B 0C rr ll Guide Track Flag Sets the TRACK1 and TRACK2 parameters on the [FUNCTION] ->

[SONG SETTING] display.

rr = TRACK1 (0: OFF, 1:1CH~16:16CH)

ll = TRACK2 (0: OFF, 1:1CH~16:16CH)

Entered when recording.

Song System Exclusive Message List / Liste der System-Exclusive-Meldungen der Songs / Liste des

messages exclusifs au système demorceaux / Lista de mensajes exclusivos del sistema de canciones

PSR-3000/1500 Data List

70

TransmittedFunction... Recognized Remarks

Basic

Channel

Note

Number : True voice

Velocity

After

Touch

Pitch Bend

Control

Change

Prog

Change : True #

System Exclusive

Common : Song Pos.

: Song Sel.

: Tune

System : Clock

Real Time : Commands

: All Sound Off

Aux :

Reset

All

Cntrls

: Local ON/OFF

Mes- : All Notes OFF

sages: Active Sense

: Reset

Notes:

Mode

Default

Changed

Note ON

Note OFF

Key's

Ch's

0,32

1,5,7,10,11

6,38

64,65,66,67

71-74

84

91,93,94

96-97

98-99

100-101

1 - 16

1 - 16

Ø 9nH,v=1-127

˛ 9nH,v=0

˛

˛

Ø

Ø

Ø

Ø

Ø

Ø

Ø

˛

Ø

Ø

Ø

Ø

Ø

Ø

Ø

Ø

Ø

Ø

Ø

Ø

Ø 0 - 127

**************

˛

˛

˛

Ø

Ø

˛

˛

˛

˛

Ø

˛

3

˛

**************

0 - 127

**************

Ø

Mode 1 : OMNI ON , POLY Mode 2 : OMNI ON ,MONO

Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF,MONO

Ø

1 - 16

1 - 16

Ø 9nH,v=1-127

˛

Ø 0 - 24 semi

Ø

Ø

˛

˛

˛

Ø

Ø

Ø (120,126-127)

Ø (121)

Ø (122)

Ø (123-125)

Ø

˛

3

˛

˛

0 - 127

0 - 127

Ø

Ø : Yes

˛ : No

Default

Messages

Altered

YAMAHA [ Portable Keyboard ] Date : 21-Jan-2004

Model PSR-1500/3000 MIDI Implementation Chart

Version : 1.00

Bank Select

Data Entry

Sound Controller

Portamento Cntrl

Effect Depth

RPN Inc,Dec

NRPN LSB,MSB

RPN LSB,MSB

Ø0 - 127

MIDI Implementation Chart / MIDI-Implementierungstabelle /

Tableau d’implémentation MIDI / Gráfico de implementacíon MIDI

PSR-3000/1500 Data List 71

MEMO
