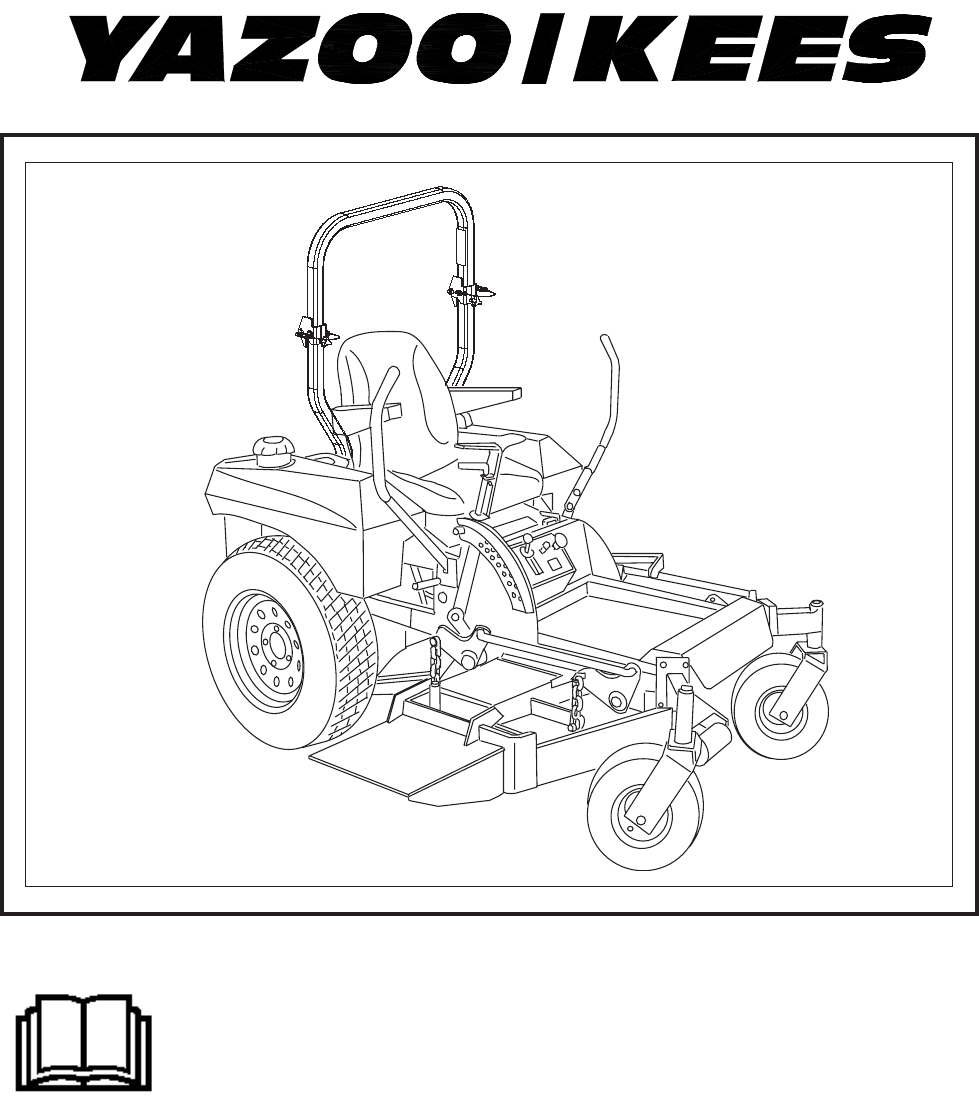

Operators manual Models:

Please read these instructions carefully and make

sure you understand them before using the machine.

MANUAL NO. 110872 REV. IR (09/13/04)

ZMBI48181

ZMKW48191

ZMKW52211

ZMKW52231

ZMKH52231

ZMKW61231

Beatrice, NE. Printed U.S.A.

CONTENTS

INTRODUCTION .................................. 4

SYMBOLS & DECALS ......................... 6

SAFETY INSTRUCTIONS .................... 7

General use and saftey rules ...... 7-8

Driving on slopes ........................ 9

Children safety............................ 10

Maintenance safety ..................... 10-11

Transportation Safety ................. 12

ROPS Safety .............................. 13

Customer Responsibilities ......... 13

PRESENTATION ................................... 14

SETUP AND ADJUSTMENTS .............. 15

Setup .......................................... 15

ROPS assembly ........................ 15

Tires ........................................... 15

Control arm ................................ 16

Seat Installation .......................... 16

Engine oil .................................... 16

Cutting height ............................. 16

Mower deck leveling ................... 17

Throttle lever tension .................. 17

Park brake adj............................. 17

Motion control lever adj. .............. 18

OPERATING INSTRUCTIONS ............ 19

Roll bar and seat belt .................. 19

Starting and operation ................. 19

Controls ...................................... 19-20

MAINTENANCE .................................... 21

Engine oil .................................... 21

Mower blades ............................. 19

Safety interlock system .............. 21

Cutter housings .......................... 21

Hardware .................................... 22

Air filter........................................ 22

Hydraulic system ........................ 22

Deck belt .................................... 22

Pump belt ................................... 23

Lubrication .................................. 23

Tire pressure .............................. 23

Caster wheels ............................ 23

Fuel filter ..................................... 23

Winter storage ............................ 23

TORQUE SPECIFICATIONS ............... 24

MAINTENANCE SCHEDULE ............... 25

TROUBLE SHOOTING ........................ 26

WIRING DIAGRAMS ............................. 28

INTRODUCTION

Introduction

Congratulations

Thank you for purchasing a Yazoo/Kees ride-on mower. This machine is built for the greatest efficiency

and rapid mowing of large areas. Convenient controls and a hydrostatic transmission regulated by

steering levers also contribute to the machine’s performance.

This manual is a valuable document. Following the instructions (use, service, maintenance, etc.) can

considerably increase the life-span of your machine and even increase its resale value.

If you sell your machine, be sure to give the operator’s manual to the new owner.

The final chapter of this operator’s manual comprises a Service Journal. Ensure that service and

repair work is documented. A well kept service journal reduces service costs of the season-based

maintenance and affects the machine’s resale value. Take the operator’s manual along when the

machine is left at the service center for service.

General

In this operator’s manual, left and right, backward and forward are used in relation to the machine’s

normal driving direction.

Driving and Transport on Public Roads

Check applicable road traffic regulations before driving and transporting on public roads. If the machine

is transported, you should always use approved fastening equipment and ensure that the machine is

well anchored.

Operating

This machine is constructed only for mowing grass on lawns and other free and even ground without

obstacles such as stones, tree stubs, etc. The machine can also be used for other tasks when equipped

with special accessories provided by the manufacturer, for which the operating instructions are pro-

vided in conjunction with delivery. All other types of use are incorrect. The manufacturer’s directions

concerning operation, maintenance, and repairs must be carefully followed.

The machine must only be operated, maintained, and repaired by persons that are familiar with the

machine’s special characteristics and who are well versed in the safety instructions.

Accident prevention regulations, other general safety regulations, occupational safety rules, and traffic

regulations must be followed without fail.

Unauthorized modifications to the design of the machine may absolve the manufacturer from liability

for any resulting personal injury or property damage.

INTRODUCTION

Good Service

Yazoo/Kees products are sold all over the world and only in specialized retail stores with complete

service. This ensures that you as a customer receive only the best support and service. Before the

product is delivered, the machine has, for example, been inspected and adjusted by your retailer, see

the certificate in the Service Journal in this operator’s manual.

When you need spare parts or support in service questions, warranty issues, etc., please consult the

following professional:

This Operator’s Manual belongs to the

machine with manufacturing number:

Engine Transmission

Manufacturing Number

The machine’s manufacturing number can be found on the printed decal affixed to the left side of the

frame under the seat.

•The machine’s type designation (I.D.).

•The manufacturer’s type number (Model).

•The machine’s serial number (Serial no.)

Please state the type designation and serial number when ordering spare parts.

The engine’s manufacturing number is stated on a decal. This is placed on the right side on the top

of the engine.

•The engine’s serial number (E/NO).

•The engine’s type designation (Code).

Please state these when ordering spare parts.

The hydraulic pump’s manufacturing number is stated on a barcode decal affixed to the left side of

the pump housing. The plate states:

•The pump’s type designation.

•The pump’s serial number.

The hydraulic motor’s manufacturing number is stated on a round metal plate. This is placed on the

gable inside the motor. The plate states:

•The hydraulic motor’s type designation and design version.

•The hydraulic motor’s serial number.

SYMBOLS AND DECALS

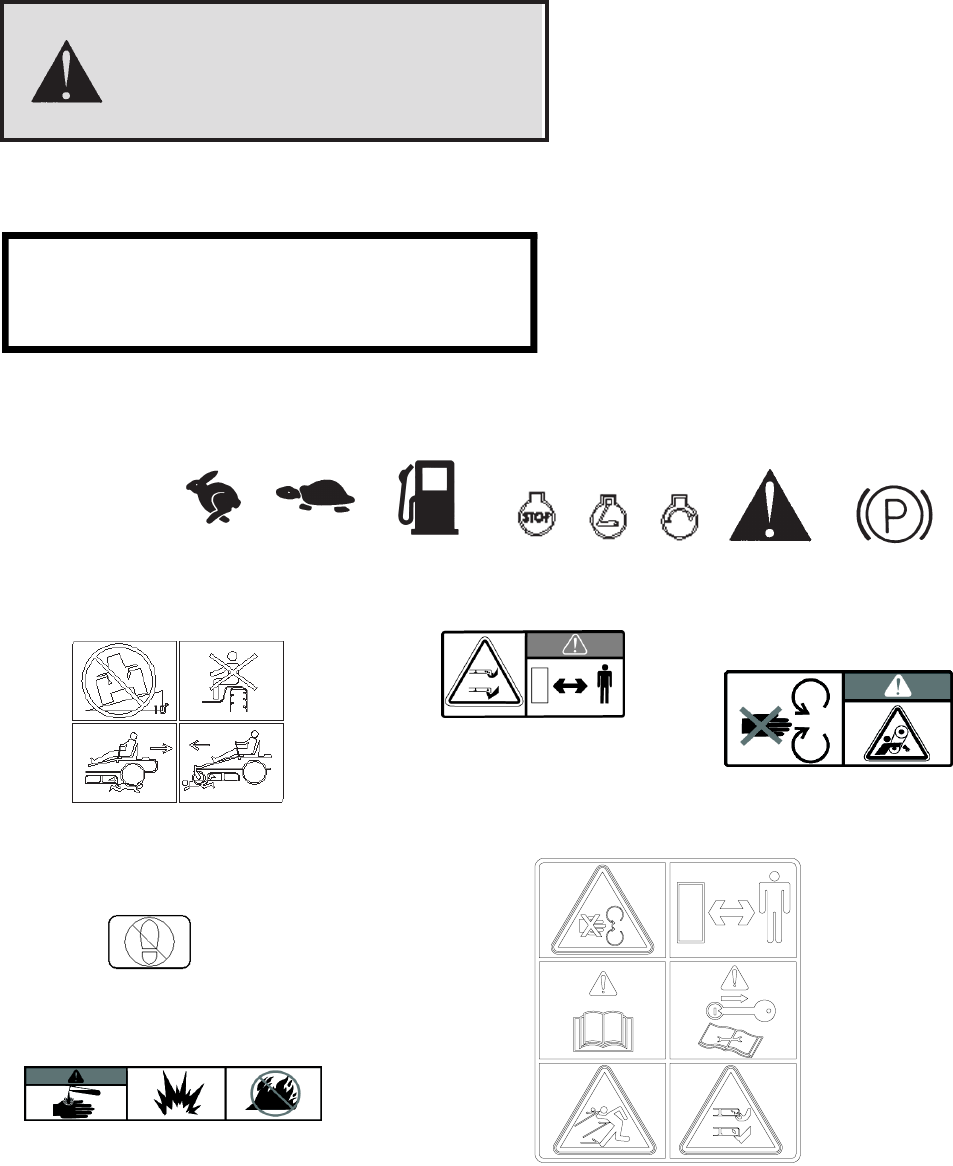

Symbols and Decals

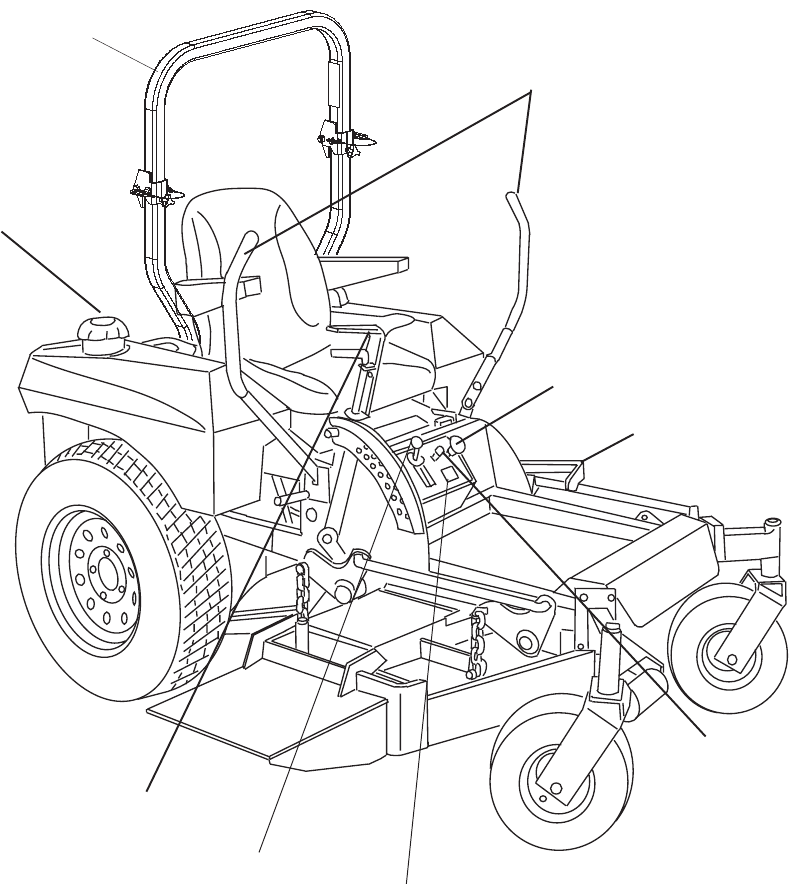

These symbols are found on the machine and in the operator’s manual.

Study them carefully so that you know what they mean.

Used in this publication to notify the reader of a risk of personal injury, particularly if the reader

should neglect to follow instructions given in the manual.

IMPORTANT INFORMATION

Xxxxxxx xxxx xxxxxxxx xxx xxx

xxxx xxxxxx xx.

Used in this publication to notify the reader of a risk of material damage, particularly if the reader

should neglect to follow instructions given in the manual. Used also when there is a potential for

misuse or misassembly.

Reverse Neutral Fast Slow Fuel

Ignition

Stop Run Start Warning

Danger

Caution

Parking brake

Do not stand here

Warning! Rotating

blades, keep away from

the discharge deck Do not touch rotating parts

Battery acid is corrosive,

explosive, and flammable

Use on a slope no greater

than 10°.

passengers

Careful going

forward, watch

for other people.

Careful backing

up, watch for

other people.

WARNING!

Xxxxxxxxxx xxx xxxxx xxxxxxxx.

Xxxxxx xxxxx xxxxxxxxx

xxxxx xxxxx xxx x xxxxx.

Shut off engine

and remove key

before performing

any maintenace

or repair work.

Read

Operators

Manual.

Whole body

exposure to

thrown objects.

Severing of

fingers and toes.

Do not open

or remove

safety shields

while engine

is running.

Keep a safe

distance from

the machine.

SAFETY INSTRUCTIONS

Safety Instructions

These instructions are for your safety. Read them carefully.

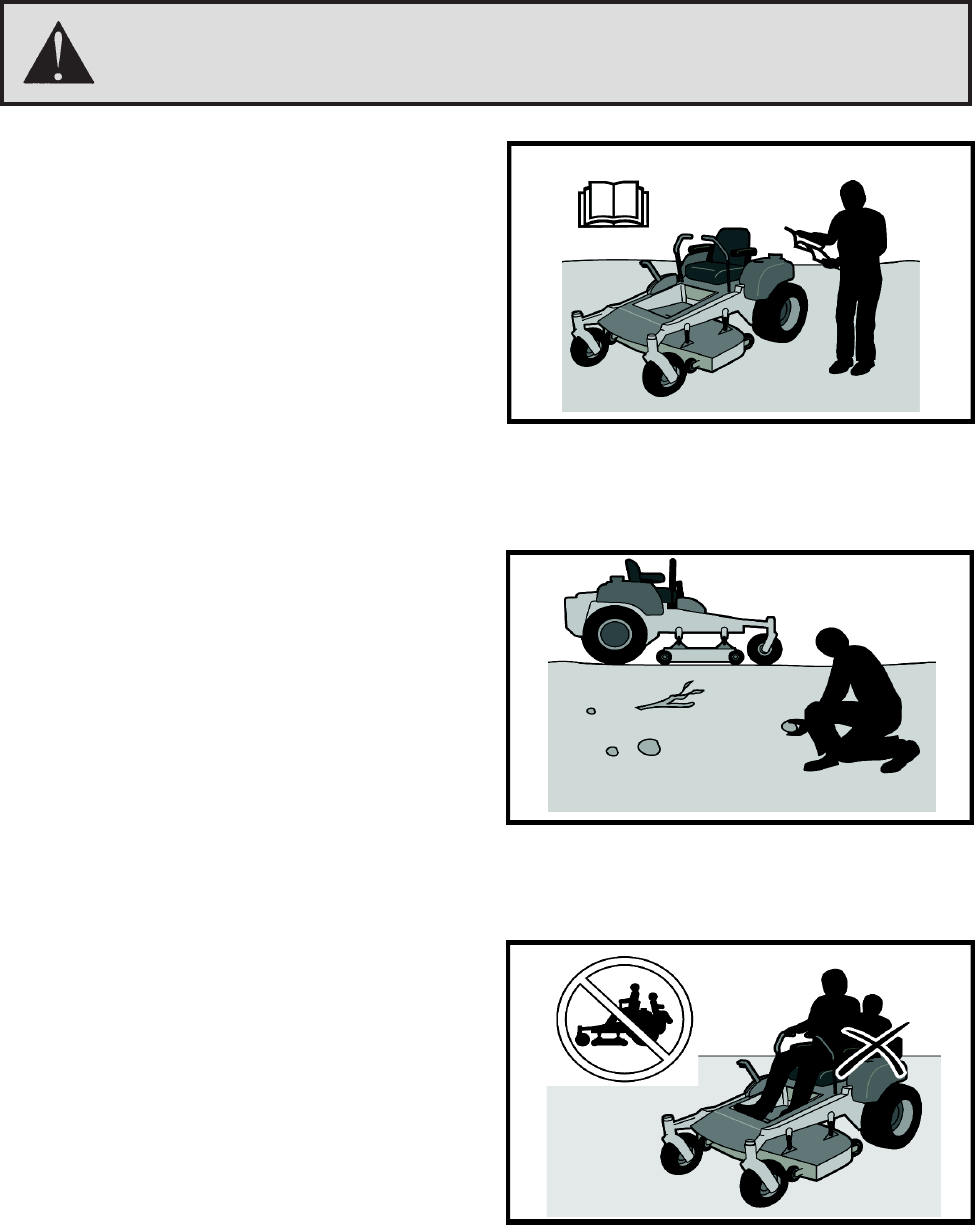

WARNING!

This symbol means that important safety instructions need to be emphasized. It

concerns your safety.

General Use

•Read all instructions in this operator’s manual

and on the machine before starting it. Ensure

that you understand them and then abide by

them.

•Learn how to use the machine and its con-

trols safely and learn how to stop quickly. Also

learn to recognize the safety decals.

•Only allow the machine to be used by adults

who are familiar with its use.

•Make sure nobody else is in the vicinity of the

machine when you start the engine, engage

the drive, or run the machine.

•Make sure animals and people maintain a safe

distance from the machine.

•Stop the machine if someone enters the work

area.

•Clear the area of objects such as stones, toys,

steel wire, etc. that may become caught in

the blades and thrown out.

•Beware of the discharge deck and do not point

it at any one. Do not use the machine without

the discharge deck in place.

•Stop the engine and prevent it from starting

before you clean the discharge deck.

•Remember that the operator is responsible

for dangers or accidents.

•Never take passengers. The machine is only

intended for use by one person.

•Always look down and behind before and dur-

ing reversing maneuvers. Keep a look out for

both large and small obstacles.

•Slow down before turning.

•Shut down the blades when not mowing.

8011-512

Read the operator’s manual before starting the machine.

8011-513

Clear the area of objects before mowing.

8011-520

Never take passengers.

SAFETY INSTRUCTIONS

•Be careful when rounding fixed objects, so that

the blades do not hit them. Never drive over

foreign objects.

•Only use the machine in daylight or in other

well-lit conditions. Keep the machine a safe

distance from holes or other irregularities in

the ground. Pay attention to other possible

risks.

•Never use the machine if you are tired, if you

have consumed alcohol, or if you are taking

other drugs or medication that can affect your

vision, judgement, or coordination.

•Beware of traffic when working near or cross-

ing a road.

•Never leave the machine unsupervised with

the engine running. Always shut down the

blades, pull back the parking brake, stop the

engine, and remove the ignition key before

leaving the machine.

•Never allow children or other persons not

trained in the use of the machine to use or

service it. Local laws may regulate the age of

the user.

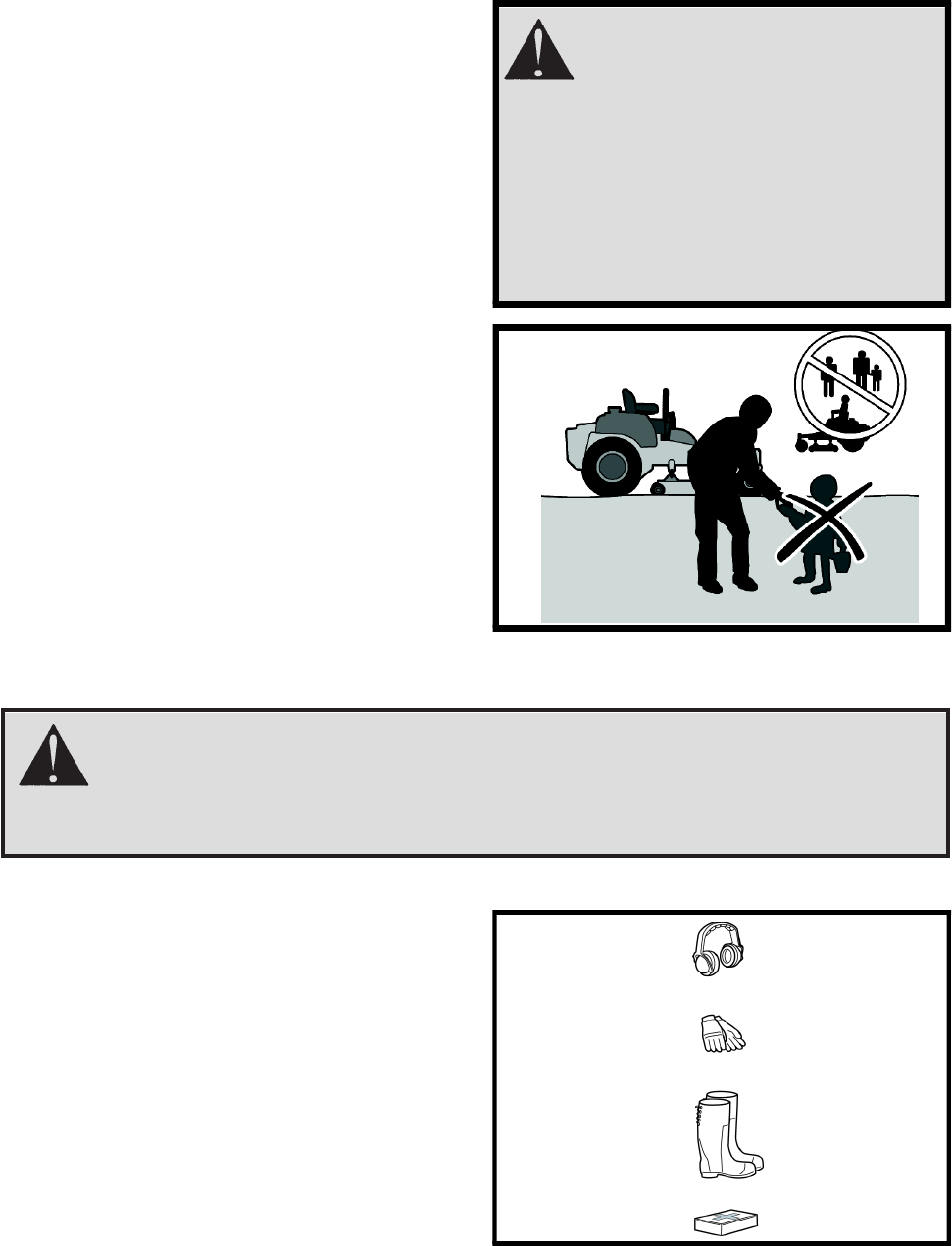

Engine exhaust and certain vehicle

components contain or emit chemi-

cals considered to cause cancer,

birth defects, or other reproductive

system damage. The engine ex-

haust contains carbon monoxide,

which is colorless, poisonous gas.

Do not use the machine in en-

closed spaces.

WARNING!

When using the machine, approved personal protective equipment shall be used.

Personal protective equipment cannot eliminate the risk of injury but it will reduce

the degree of injury if an accident does happen. Ask your retailer for help in choosing

the right equipment.

•Make sure that you have first aid equipment

close at hand when using the machine.

•Never use the machine when barefoot. Always

wear protective shoes or boots, preferably with

steel toecaps.

•Always wear approved protective glasses or

a full visor when assembling or driving.

•Never wear loose clothing that can get caught

in moving parts.

8011-292

Personal protective equipment.

8011-518

Keep children away from the work area.

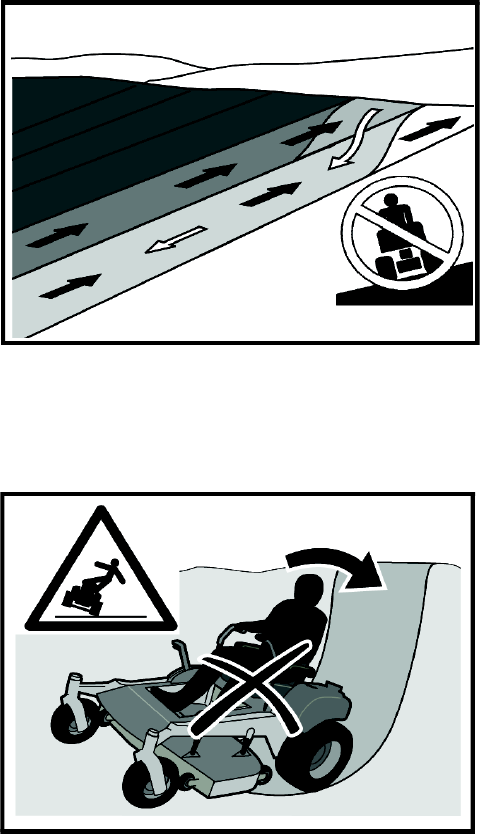

6003-004

Mow up and down, not side-to-side.

Driving on Slopes

SAFETY INSTRUCTIONS

Driving on slopes is one of the operations where

the risk is greatest that the driver will lose control

or the machine will tip over, which can result in

serious injury or death. All slopes require extra

caution. If you cannot reverse up a slope or if feel

unsure, do not mow the slope.

Do as follows:

•Remove obstacles such as stones, tree

branches, etc.

•Mow up and down, not side-to-side.

•Never drive the rider on terrain that slopes

more than 10°.

•Avoid starting or stopping on a slope, If the

tires begin to slip, shut down the blades and

drive slowly down the slope.

•Always drive evenly and slowly on slopes.

•Make no sudden changes in speed or direc-

tion.

•Avoid unnecessary turns on slopes, and if it

proves necessary, turn slowly and gradually

downward, if possible.

•Watch out for and avoid driving over furrows,

holes, and bumps. On uneven terrain, the

machine can tip more easily. Long grass can

hide obstacles.

•Drive slowly. Use small movements of the

steering controls.

•Be extra cautious with any additional equip-

ment, which can alter the machine’s stability.

•Do not mow near verges, ditches, or banks.

The machine can suddenly spin around if a

wheel goes over the edge of a drop or ditch,

or if an edge gives way.

•Do not mow wet grass. It is slippery, and the

tires can lose their grip, so that the machine

slides.

•Try not to stabilize the machine by putting a

foot on the ground.

•When cleaning the chassis, the machine may

never be driven near verges or ditches.

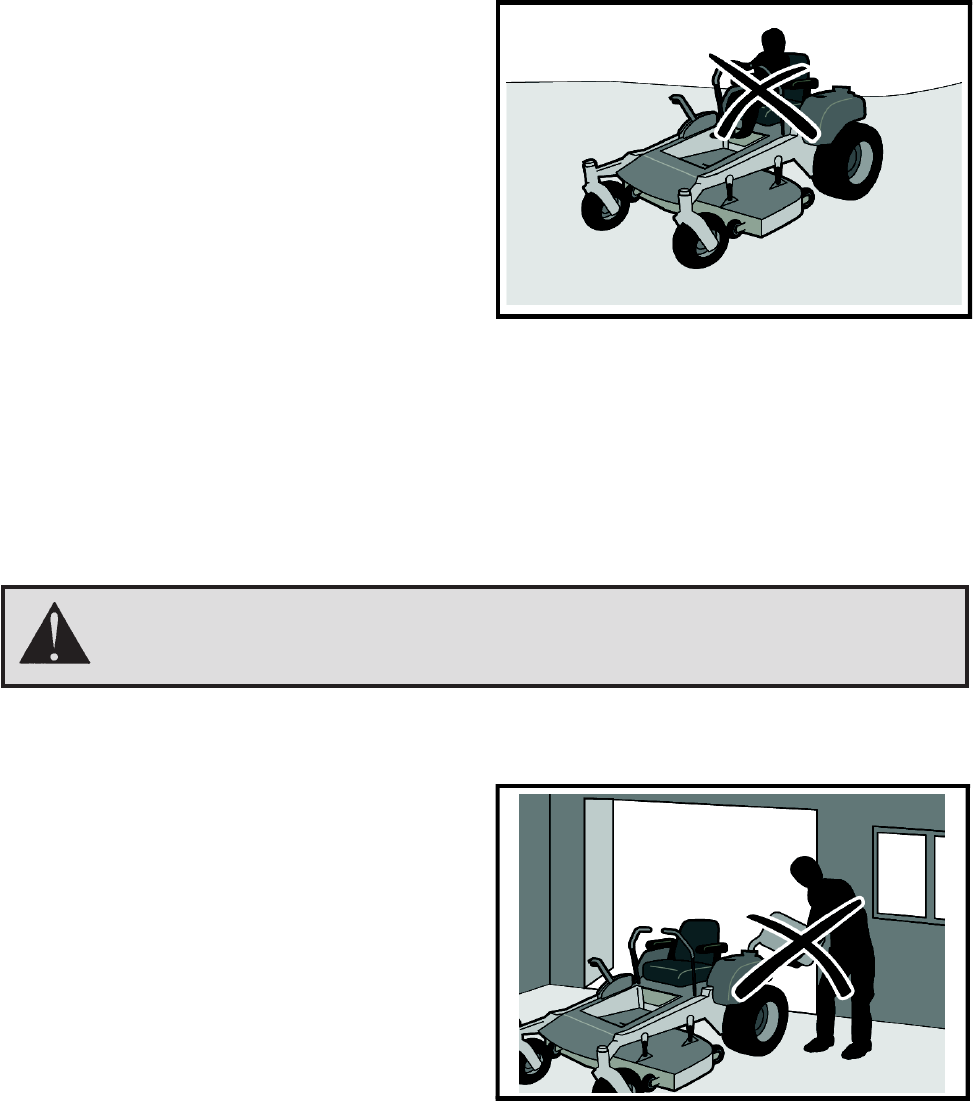

8011-519

Be extra cautious when driving on slopes.

•Avoid starting or stopping on a slope. If tires

lose traction, disengage the blades and pro-

ceed slowly straight down the slope.

•If machine stops while going uphill, disengage

blades and back down slowly.

•Do not turn on slopes unless necessary, and

then, turn slowly and gradually downhill, if pos-

sible.

SAFETY INSTRUCTIONS

Children:

•Serious accidents may occur if you fail to be

on guard for children in the vicinity of the ma-

chine. Children are often attracted to the ma-

chine and mowing work. Never assume that

children will stay put where you last saw them.

•Keep children away from the mowing area and

under close supervision by another adult.

•Keep an eye out and shut off the machine if

children enter the work area.

•Before and during a reversing maneuver, look

backward and downward for small children.

•Never allow a child to ride with you. They can

fall off and injure themselves seriously or pre-

vent risk-free maneuvering of the machine.

•Never allow children to operate the machine.

•Be particularly cautious near corners, bushes,

trees, or other objects that block your view.

WARNING!

The engine must not be started when the driver’s floor plate or any protective

plate for the mower deck’s drive belt is removed.

•Stop the engine. Prevent the engine from start-

ing by removing the ignition key before mak-

ing any adjustments or performing mainte-

nance.

•Never fill the fuel tank indoors.

•Fuel and fuel fumes are poisonous and ex-

tremely flammable. Be especially cautious

when handling fuel, as carelessness can re-

sult in personal injury or fire.

•Only store fuel in containers approved for the

purpose.

•Never remove the fuel tank cap and never fill

the fuel tank while the engine is running.

Maintenance:

8011-517

Never allow children to operate the machine.

8011-516

Never fill the fuel tank indoors.

•Allow the engine to cool before refueling. Do

not smoke. Do not fill fuel in the vicinity of

sparks or open flames.

•If leaks arise in the fuel system, the engine

must not be started until the problem has been

resolved.

•Store the machine and fuel in such a way that

there is no risk of leaking fuel or fuel vapor

leading to damages.

•Check the fuel level before each use and leave

space for the fuel to expand, because the heat

from the engine and the sun may otherwise

cause the fuel to expand and overflow.

•Avoid overfilling. If you spill fuel on the machine,

wipe up the spill and wait until it has evapo-

rated before starting the engine. If you have

spilled fuel on your clothing, change your

clothing.

•Allow the machine to cool before taking any

actions in the engine compartment.

•Be very careful when handling battery acid.

Acid on skin can cause serious corrosive

burns. If you spill battery acid on your skin,

rinse immediately with water.

•Acid in the eyes can cause blindness, con-

tact a doctor immediately.

•Be careful when servicing the battery. Explo-

sive gases form in the battery. Never perform

maintenance on the battery when smoking or

near open flames or sparks. The battery can

explode and cause serious injury/damage.

•Ensure that nuts and bolts, especially the fas-

tening bolts for the blade attachments, are

properly tightened and that the equipment is

in good condition.

•Do not modify safety equipment. Check regu-

larly to be sure it works properly. The machine

must not be driven with defective or un-

mounted protective plates, protective cowl-

ings, safety switches, or other protective de-

vices.

•Do not change the settings of governors and

avoid running the engine with overly high en-

gine speed. If you run the engine too fast, you

risk damaging the machine components.

SAFETY INSTRUCTIONS

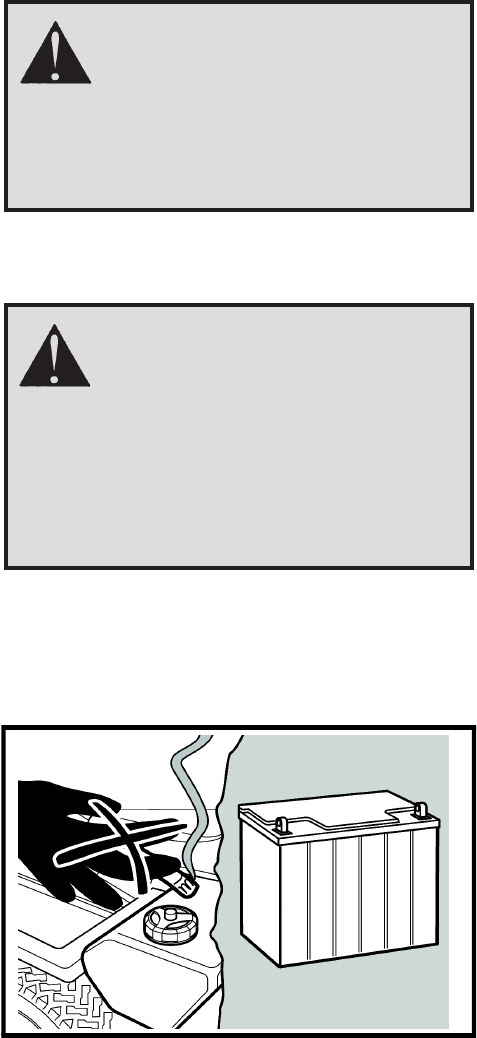

The engine, the exhaust system,

and the hydraulic system’s compo-

nents become very warm during

operation.

Risk for burns if touched.

WARNING!

The battery contains lead and lead

compounds, chemicals that are

considered to cause cancer, birth

defects, and other reproductive

system damage.

Wash your hands after touching the

battery.

WARNING!

8011-563

Do not smoke when performing maintenance on the

battery. The battery can explode and cause serious

injury/damage.

•Never use the machine indoors or in spaces

lacking proper ventilation. The exhaust fumes

contain carbon monoxide, and odorless, poi-

sonous, and lethal gas.

•Stop and inspect the equipment if you run over

or into anything. If necessary, make repairs

before starting.

•Never make adjustments with the engine run-

ning.

•The machine is tested and approved only with

the equipment originally provided or recom-

mended by the manufacturer.

•The blades are sharp and can cause cuts and

gashes. Wrap the blades or us protective

gloves when handling them.

•Check the parking brake’s functionality regu-

larly. Adjust and service as necessary.

•The mulch deck shall only be used when higher

quality mowing is desired in familiar areas.

•Reduce the risk of fire by removing grass,

leaves, and other debris that may have accu-

mulated on the machine. Allow the machine

to cool before putting it in storage.

•If a hydraulic leak is suspected, use a piece of

cardboard or wood, NOT your hands to check

for leaks.

•Escaping hydraulic oil under pressure can

have sufficient force to penetrate the skin,

causing serious injury. If injured by escaping

fluid, see a doctor at once. Serious infection

or reaction can develop if proper medical treat-

ment is not administered immdediately.

SAFETY INSTRUCTIONS

Transport:

•The machine is heavy and can cause serious

crushing injuries. Be extra cautious when it is

loaded on or unloaded from a vehicle or trailer.

•Use an approved trailer to transport the ma-

chine. Activate the parking brake, turn off the

fuel supply, and fasten the machine with ap-

proved fastening devices, such as bands,

chains, or ropes, when transporting.

•Check and abide by local traffic regulations

before transporting or driving the machine on

any road.

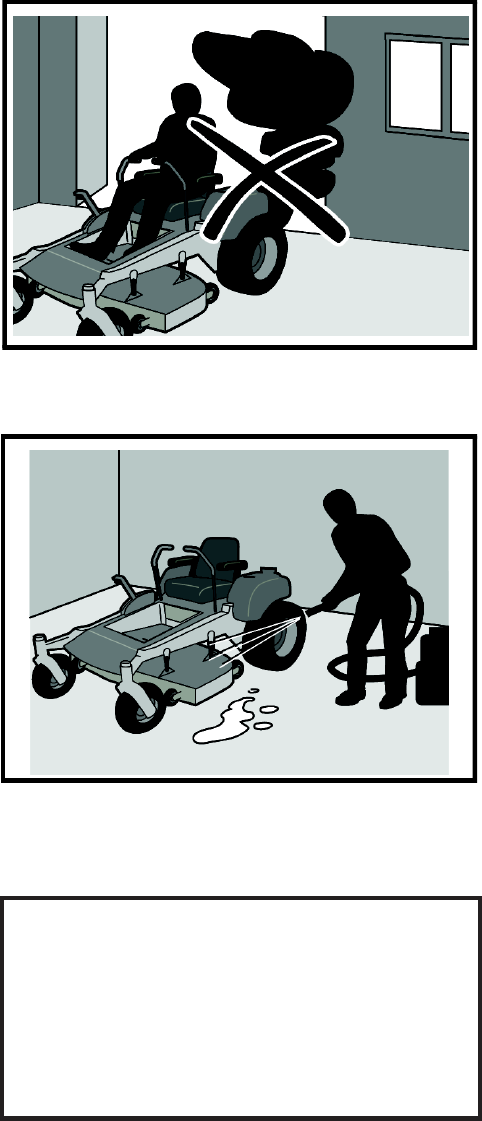

8011-515

Never drive the machine in an enclosed space.

8011-514

Clean the machine regularly.

The parking brake is not sufficient to lock

the machine in place during transport.

Ensure that the machine is well fastened

to the transport vehicle. Reverse the ma-

chine onto the transport vehicle to avoid

tipping it over.

IMPORTANT INFORMATION

SAFETY INSTRUCTIONS

WARNING!

This structure’s capability may be imparired by structural damage if overturned, or al-

teration occurs. If any of these conditions take place, the total structure MUST be re-

placed.

DO NOT use ROPS as a lifting, attaching or anchoring point.

DO NOT exceed Max GVW: 2822; ROPS mass 34 lbs./16 kg.

Read machine operator’s manual before each use.

Securely fasten your seat belt if the unit has a ROPS.

Where possible, avoid operating the unit near ditches, embankments and holes.

Reduce speed when turning, crossing slopes and on rough, slick or muddy surfaces.

Stay off slopes too steep for safe operation.

Watch where you are going, expecially at row ends, on roads and around trees.

DO NOT permit others to ride.

Operate the mower smoothly-no jerky turns, starts or stops.

Hitch only to the drawbar and the thitch points recommended by the mower manufac-

turer.

When mower is stopped, set brakes securely and use park brake.

ROPS bar is NOT intended for use in sub zero temperatures.

If any part of ROPS is damaged, the total ROPS MUST BE replaced.

CHECK ALL BOLTS including seat belt for correct torque before each use.

Check ROPS structure for damaged before each use.

Roll Over Protection System

Customer Responsibilities

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your mower.

• Follow the instructions under “Maintenance” and “Storage” sections of this owner’s manual.

WARNING!

This mower is equipped with an internal combustion engine and should not be used on or

near any unimproved forest-covered, brush-covered or grass-covered land unless the

engine’s exhaust system is equipped with a spark arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it should be maintained in effective working order

by the operator.

PRESENTATION

Presentation

Thank you for buying YAZOO/KEES! Before

operating your new mower, read, understand

and follow the safety instructions and other

directions in this manual.

Lawnmowers and all power equipment, can be

potentially dangerous if used improperly.

Safety requires good judgement, careful use in

accordance with these instructions and com-

mon sense.

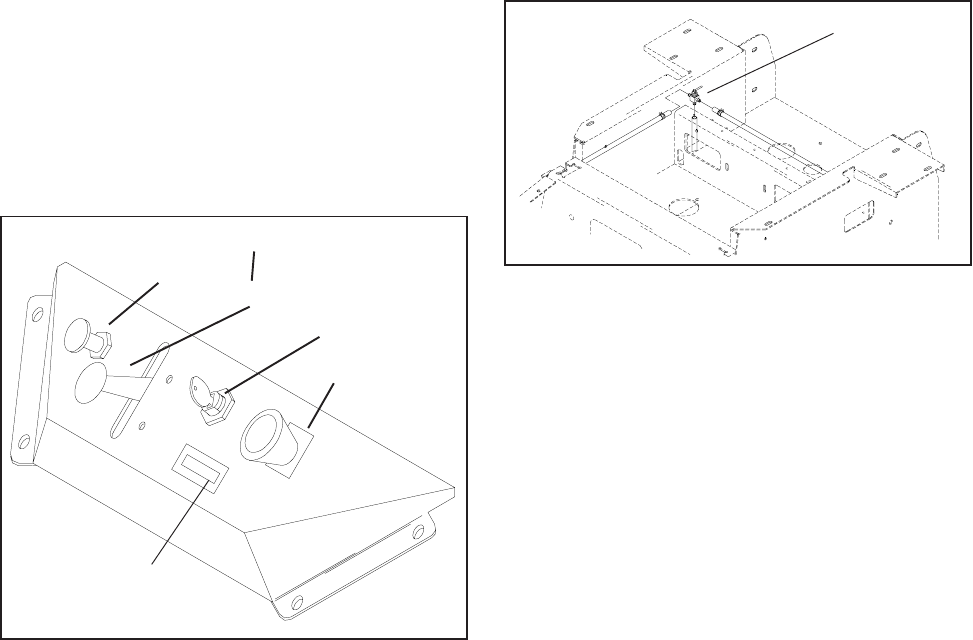

Motion Control Levers

Fuel Cap

Key Switch

Blade Engagement Switch

Park Brake Lever

Deck Lift Lever

Hour Meter

Throttle

ROPS

SETUP AND ADJUSTMENTS

Setup

Uncrate machine.

WARNING!

No settings or adjustments are to be

made unless: Engine is stopped, key has

been removed, park brake is on and bat-

tery cable removed from battery.

ROPS Assembly

(Roll Over Protection System)

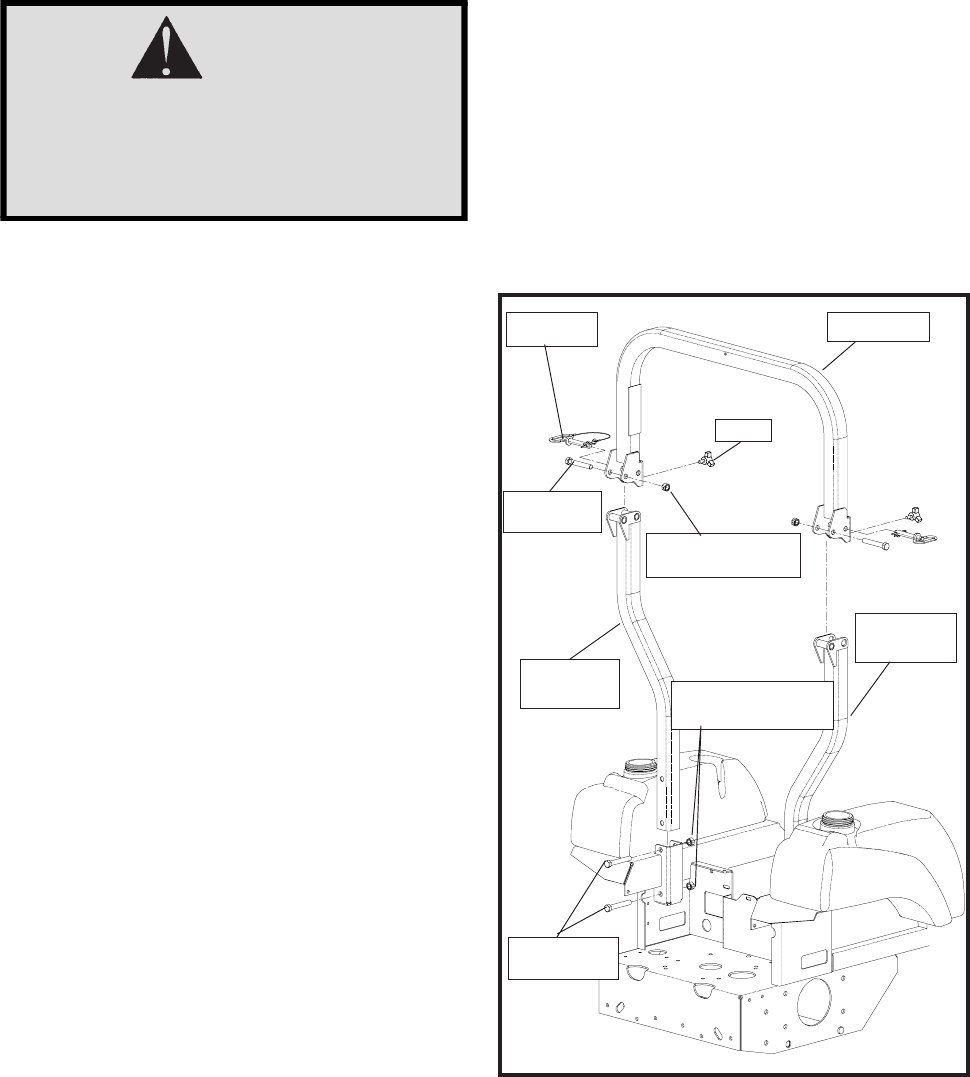

ROPS Assembly Components

1 - Top Loop

1 - Left Side Post

1 - Right Side Post

1 - Hardware Bag

2 - 1/2” Latch Pins w/lanyard

6 - 1/2C x 3 1/4” Cap screws

6 - 1/2C Centerlock Nuts

2 - Knobs

(all hardware Grade 5).

1. Remove roll bar and parts bag from the box.

2. Install roll bar side posts.

a. Locate the LEFT and RIGHT side posts.

b. Slilde the left side post into the left side

receiver on the frame, do the same on

the right side.

c. Using 1/2C x 3 1/4 cap screws, two per

post, align the holes in the side post with

the frame receiver.

d. Install the 1/2C centerlock nuts finger tight

to the side post bolts.

3. Install roll bar top loop.

a. Align the holes of the top loop with the left

and right side posts.

b. Slide the latch pins thru the front hole on

the left and right side to connect the top

loop to the side posts and secure with the

hairpin.

c. Using 1/2C x 3 1/4 cap scrws thru the

rear hole on the left and right side.

d. Install the 1/2C centerlock nuts finger

tight.

4. Torque all 1/2” hardware to 80 ft./lbs. (110 N•m).

5. Install and tighten knobs against the side

post.

LATCH PIN

1/2C X 3 1/4

CAPSCREW

KNOB

1/2C CENTERLOCK

NUT

LEFT SIDE

POST

RIGHT SIDE

POST

TOP LOOP

1/2C CENTERLOCK

NUTS

1/2C X 3 1/4

CAPSCREWS

Mount rear drive wheels using the lug nuts installed

on the hubs.

Check the tire pressure in all four tires. All tires

should be 15 psi.

Tires

SETUP AND ADJUSTMENTS

Lift Lever

Deck Height

Adjusment Plates

FIG - 3

Cutting Height

Stop the mower and disengage the blades.

Raise the deck height lever to the transport posi-

tion.

Remove the height adjustment pin and place it in

the desired cutting height hole. Lower the lift lever

down onto pin. NOTE: Anti-scalp rollers must be

in the proper position for maximum deck floata-

tion. See the decal on the front deck for proper

settings. FIG - 3

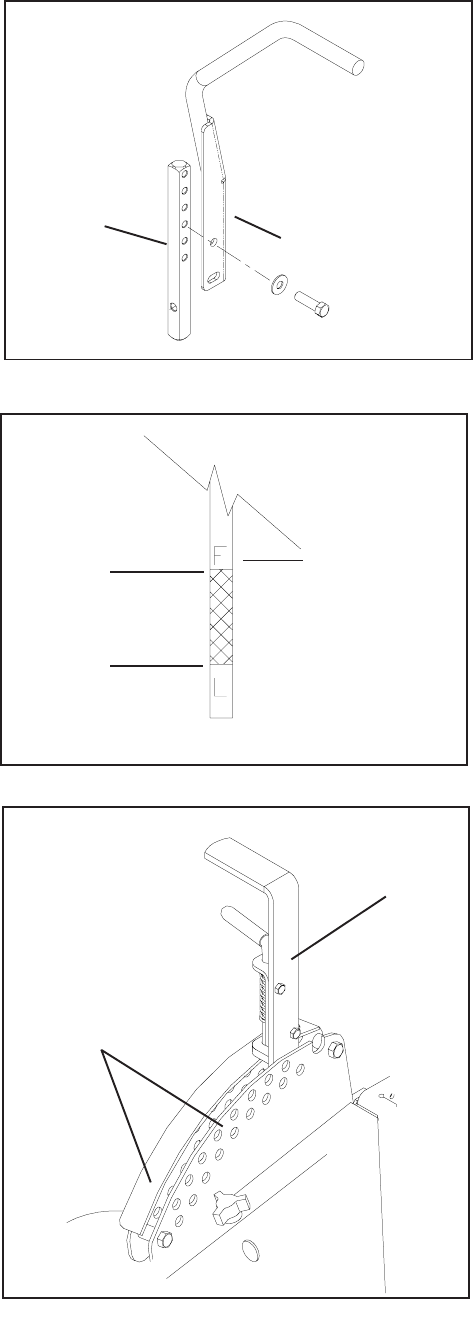

Control Arms

Remove top bolt in control arm and loosen bot-

tom bolt, rotate the control levers to the upright

position. Align the levers so they are even in the

neutral position. Reinstall hardware and tighten.

FIG - 1

Seat Install

1. Remove seat assembly from the crate.

2. Remove the four 5/16C nyloc nuts or 5/16C

studed knobs from the bottom of the seat.

Retain for use later.

3. Align the seat bottom with the holes in the seat

frame. Place seat on top of the seat frame

and secure with the four nuts or knobs re-

moved in step 2.

4. Connect the wire harness from the seat to the

frame harness.

Engine Oil

Check engine oil with dip stick. Add if needed per

the engine manufactures specifications. See en-

gine manual for oil type and filling specifications.

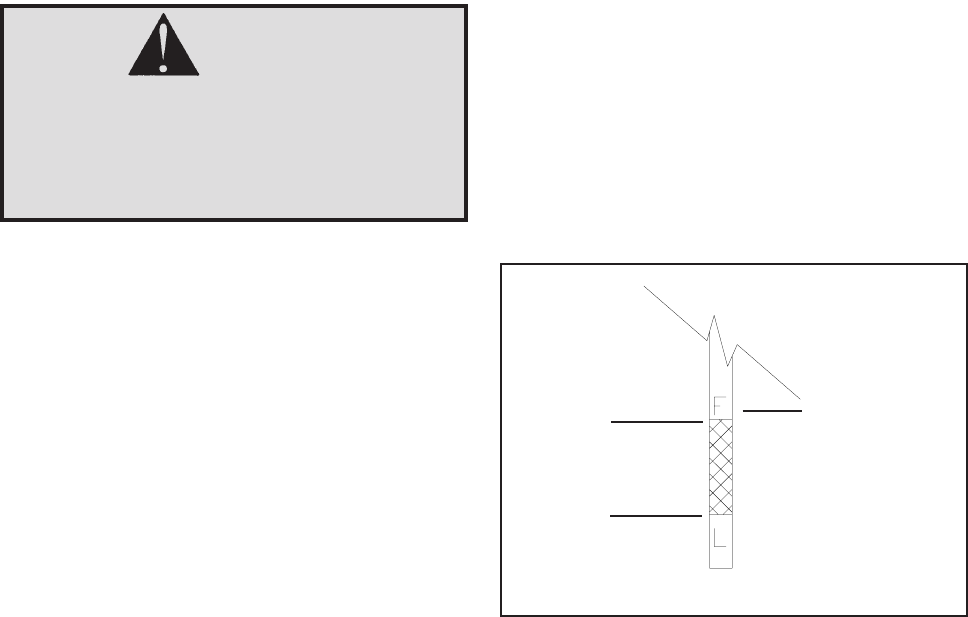

FIG - 2

Loosen the discharge chute slightly and lower into

position. Chute should be snug but still pivot freely.

Motion

Control

Lever

Control

Arm

“F” Full

Mark

Operating

Range

FIG - 1

FIG - 2

Adjustments

SETUP AND ADJUSTMENTS

Mower Deck Leveling

Position machine on a flat surface. Preferably level

concrete.

Check the tire pressure in all four tires. Inflation

should be 15 psi.

Place 2x4’s on edge under the cutting deck from

front to rear and lower the deck down onto 2x4’s.

Adjust the four upper chain bolts to the center slots

in the deck lift arms. NOTE: Make sure the lift

blocks under the frame are tightly bolted to the

frame.

Check the chains for equal tension. If unequal

adjust upper chain bolt in slot.

Place the deck in the 5” cutting height and mea-

sure from the cutting edge of the blade to the flat

level surface to check the deck cutting height.

Throttle Lever Tension

Stop engine and remove key.

Throttle lever tension may be adjusted by tighten-

ing the pivot bolt. The pivot bolt secures the throttle

arm to the mounting bracket which is mounted to

the console. Access is gained by removing the

console.

1. Stop engine and remove key. Release park

brake and measure the length of the spring.

The distance between the washer on each end

of the spring should be 2-7/8". FIG - 4

2. If adjustment is needed, loosen the nut below

the spring. Then rotate nut to desired position

so the proper distance between the washers

is obtained. Check other side for proper ad-

justment.

3. Engage the brake lever and measure the dis-

tance between the trunnion pin and the collar

welded to the brake rod. Distance should be

3/16" to 1/4". FIG - 4

4. If adjustment is needed, loosen the lock nut

directly below the yoke. Using a wrench, ro-

tate the rod by turning the double nuts using

the nuts below the yoke and the nut you just

loosened, to obtain the 3/16" to 1/4" distance.

Tighten nut against yoke and check other side

for proper adjustment.

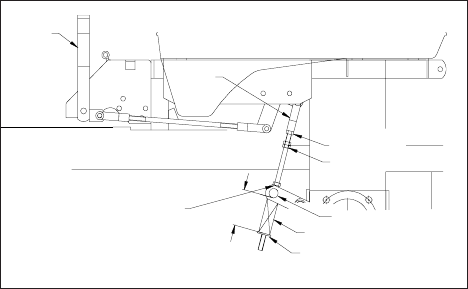

FIG - 4

Park Brake Adjustment

For Model: ZBMI48181

Park

Brake

Lever

Yoke

3/16 to 1/4

Gap Under Collar 2-7/8”

Lock Nut

Double Nuts

Trunnion Pin

Spring

Washer

Run engine full throttle to make sure wheels do

not rotate. Readjust if any rotation occurs.

Repeat the whole process for the opposite side

and tighten the nuts against the ball joints.

Turn machine off.

Reinstall the seat rod and check the wiring har-

ness to the seat safety switch for a good connec-

tion and return the seat to the normal position.

FIG - 6

Begin with either side and put the motion control

lever into the neutral position. Adjust the motion

control linkage by rotating the double nuts in the

proper direction until the wheel stops rotating. FIG

- 6 Move the motion control lever forward then

into the neutral position and place it into the neu-

tral slot. The wheel must be stopped completely

at this point. Now do the same in reverse and re-

lease the lever. The lever should return to neutral

on its own.

SETUP AND ADJUSTMENTS

Motion Control Linkage Adjustment

This adjustment must be made with the rear

wheels rotating. Raise the rear of the machine

and block it up so the wheels are free to rotate.

CAUTION: Keep hands, feet and clothing away

from rotating tires.

Start the engine. The park brake must be engaged

and the motion control levers in the neutral slots

to start the engine. Run the engine approximately

half throttle

Release park brake to allow the wheels to rotate.

Park Brake Adjustment

For Models: ZMKW48191, ZMKW52231,

ZMKH52231, ZMKW61231

1. Stop engine and remove key, release park brake

and check the gap between the rear tire and the

brake arm. The gap should be 1/8” to 1/4”.

3. Make sure the brake arm on both sides does

not touch the tire when the brake is in the off

position. FIG - 5

2. If adjustment is needed, loosen the lock nut

next to the yoke. Remove the pin from the front

yoke so you can rotate the yoke on the adjust-

ment link until the proper gap is achieved.

Park Brake Lever

(in the off position)

Front Yoke Lock Nut

Rear Tire

Adjustment Link

Yoke

Brake

Arm

1/8”-1/4”

Gap

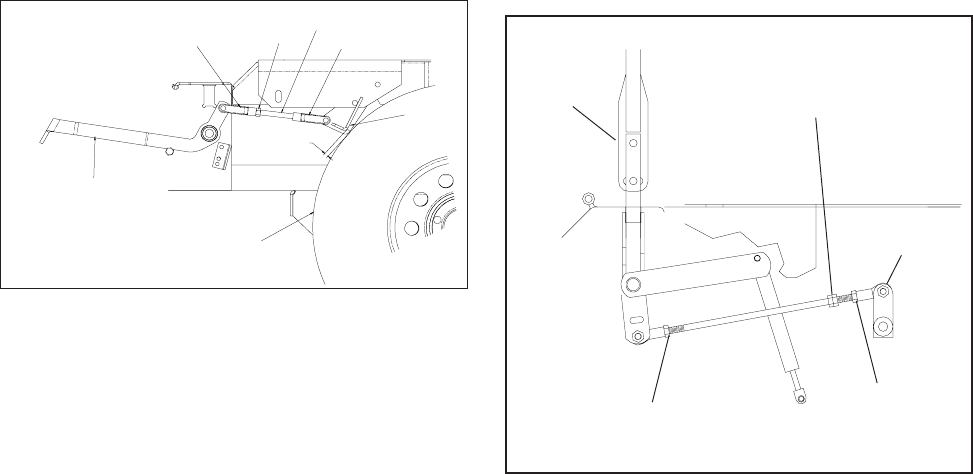

FIG - 5

Turn Here

To Adjust

Loosen Here

(Lt. Hand Thds.)

Motion

Control

Lever

Pump

Arm

Tilt seat forward and remove the seat rod so the

seat may rotate forward onto the frame.

Place a 2x4 board between the foot plate and the

center of the seat to engage the seat safety switch.

Loosen the nuts directly behind each ball joint on

both rods that connect the pump arm to the mo-

tion control assemblies. FIG - 6

OPERATION

FIG - 7

Starting and operation

Operator must be sitting in the seat. Engage the

park brake, blades disengaged and the motion

control levers in the neutral slots.

Set choke (if needed) turn key and release as soon

as engine starts. Adjust throttle to half and shut

choke off.

Release parking brake.

Close motion control levers.

Engage blades and set RPM to maximum. CAU-

TION: Be sure all persons are clear of the area

before engaging blades.

CONTROLS

Be familiar with all controls their function and how

to operate them before starting the machine.

Motion Control Levers

Motion control levers on each side of the console

control the direction of movement. The left lever

controls the flow of oil from the left hydro pump to

the left wheel motor. The right lever controls the

flow of oil from the right hydro pump to the right

wheel motor.

NOTE: To begin motion the operator must be in

the seat and the parking brake disengaged before

the motion control levers can be moved from the

neutral slots or the engine will kill.

FIG - 7

Operating instructions

Motion Control Lever Pattern

(Right Side)

Neutral Slot

Neutral Lock

Front of

Mower

Reverse

Neutral

Forward

By moving the levers an equal amount forward or

back the machine will move in a straight line in

that direction. FIG - 7.

Movement of either lever forward will cause the

right or left wheel to rotate in a forward direction.

To stop movement pull both levers into the neutral

position.

To turn right while moving in a forward direction

pull the right lever back towards the neutral posi-

tion, this will slow the rotation of the right wheel

and cause the machine to turn in that direction.

To turn left while moving in a forward direction pull

the left lever back towards the neutral position,

this will slow the rotation of the left wheel and

cause the machine to turn in that direction.

To zero turn pull one lever back beyond neutral

while holding the other slightly ahead of neutral.

NOTE: The direction of the zero turn will be deter-

mined by which lever is pulled back beyond neu-

tral. Thus left lever back, left zero turn and oppo-

site for right zero turn. Use extra care when us-

ing this maneuver the machine can spin very

rapidly if one lever is positioned to far ahead

of the other.

Blade Switch

Blade engagement switch located on the console

is engaged by pulling up on the switch and pushed

down to disengage. FIG - 8.

Choke Control

Choke control is located on the console. To choke

engine pull knob push to release. FIG - 8.

Throttle Control

Throttle control is located on the console. Used to

control engine RPM. FIG - 8. Some models have

an intergated choke located on the throttle con-

trol. Choke position for these models is maximum

forward on the throttle control.

Parking Brake

Parking brake is located on the left side of the

machine and directly in front of the fuel tank. Pull

the lever back to engage the brake and push lever

forward to release the brake.

Roll Bar and Seat Belt

Operate the unit with the roll bar in the raised and

locked position and use seat belt. There is no

rollover protection when the roll bar is down. If it is

necessary to lower roll bar do not wear the seat

belt. Raise the roll bar as soon as clearance per-

mits.

Fuel Valve

FIG - 9

OPERATION

Key Switch

Throttle

Choke

Blade

Engagement

FIG - 8

NOTE: Associated choke on some models.

Hour Meter

The hour meter displays the total operating time

and reminds of service intervals.

Meter will indicate “CHG OIL” for engine oil and

“SVC” for general service at preset intervals.

The hour meter will reset itself at predetermined

times.

Engine “CHG” will come on after the first ten (10)

hours of operation, and will stay on for one (1)

hour of operation before it will reset itself. It will

come on every 99 hours thereafter, and stay on

for five (5) hours of operation before resetting.

Mower “SVC” message will come on every 50

hours to remind to lubricate the unit, check blades

and fasteners, etc. This message will stay on for

two (2) hours of operation before resetting.

Fuel shut off valve is located at the right rear of the

seat. The valve has three positions a right tank, left

tank and center is the off position. FIG - 9.

The pump release valves are located at the right

front corner of the pumps. Used to release the

system so the machine may be moved by hand

when not running. Tilt seat forward to gain access

to the pumps. Use a 5/8” wrench to open valve.

NOTE: Only rotate valve 1/4 turn to release sys-

tem.

Tracking

The tracking knob is located in front of the left con-

trol lever. Rotating this knob allows fine tuning ad-

justments so that the machine tracks straight with

the drive levers in the full forward position.

Rotate the knob clockwise (as viewed from the

operating position) to increase the speed or coun-

terclockwise to decrease the speed on the left

control lever. Example: If control levers are full for-

ward and the unit turns to the right, turn the track-

ing knob counterclockwise to decrease the speed

on the left control lever.

Pump Release

Fuel Shut Off

Hour Meter

Key switch is located on the console. Used to start

the machine. NOTE: Do not run the starter for

more than 5 seconds at a time. If the engine will

not start, wait about 10 seconds before trying

again. FIG - 8.

Key Switch

Maintenance

Annual inspection and maintenance from an au-

thorized Yazoo/Kees dealer is recommended to

keep your machine in the best condition mechani-

cally and ensures safe operation.

Engine oil

Engine oil should be checked daily before starting

the machine. See the engine manufacturers

manual for specifications on type of oil, filling in-

structions and service intervals. FIG - 10

Mower blades

Inspect blades and sharpen or replace as needed.

Check blades daily or as needed. Bent, cracked

or blades with large notches in them should be

replaced. Sharpen to an angle of 22 to 28 degrees.

Always check the balance of the blades after

sharpening to prevent excessive vibration.

MAINTENANCE

Safety interlock system

Check daily and never operate the machine if the

system is not functioning properly. The starter

should crank only when the operator is in the seat,

the parking brake is applied, blade switch off and

the motion control levers in the neutral slots. If the

machine starts with any of these controls in an

operating position, turn the machine off and re-

pair the system immediately.

“F” Full

Mark

Operating

Range

FIG - 10

Cutter Housings

Grease housings once weekly or every 40 to 50

hours of use. Use a good synthetic grease. Pump

grease in until a small amount purges from the

popet on the underside of the deck. Check the

torque of the pulley bolt (45 ft/lbs) should be main-

tained.

WARNING!

No settings or adjustments are to be

made unless: Engine is stopped, key has

been removed, park brake is on and bat-

tery cable removed from battery.

Hardware

Check daily. Inspect the entire machine for loose

or missing hardware.

Air filter

See engine manufacturers specifications for

cleaning and replacement intervals.

Hydraulic system

Check oil level in tank daily. Oil level should be 3/

4” to 1” below the top of the tank. Check all fit-

tings, hoses and lines for damage or leaks. Re-

place or repair any questionable lines or fittings.

Change the oil and filter after the first 250 hours of

operation then annually after that. Drain tank and

remove filter, be sure to clean around the tank and

filter head before removal. Replace filter and drain

plug and refill hydraulic tank. Only use MOBIL 1

synthetic oil. FIG - 11.

Raise and block up the rear of the machine so the

drive wheels can rotate freely. Start the engine at

the lowest RPM possible, move the motion con-

trol levers forward and run machine for several

minutes. Stop engine and recheck the oil level.

If the wheels do not respond an air lock has oc-

curred within the system. The system must be

bled off of air or let the machine set overnight to

allow the air time to dissipate out of the oil. DO

NOT run the machine with an air lock serious dam-

age can occur to the pumps and wheel motors.

MAINTENANCE

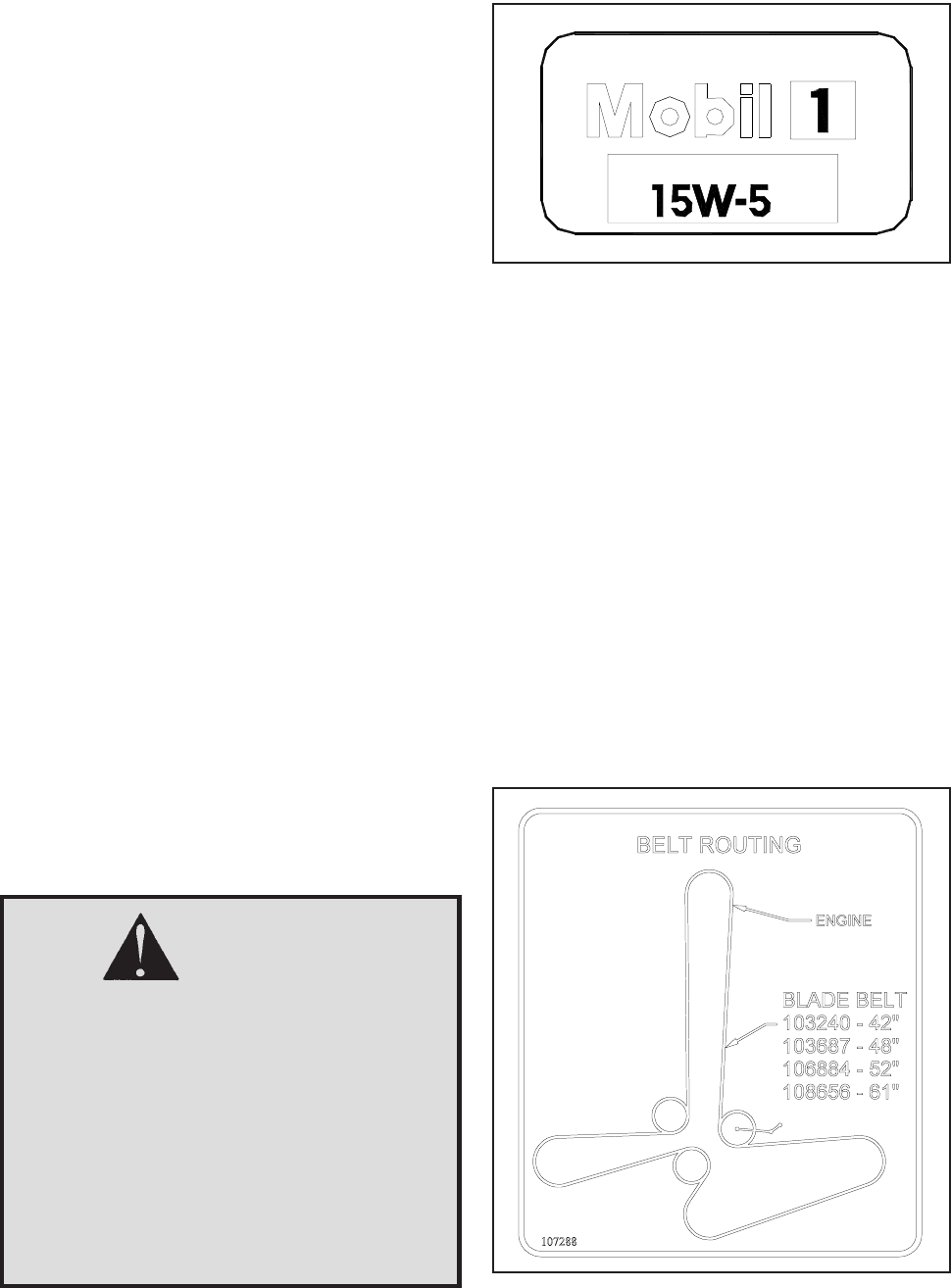

Tri-Synthetic Formula

ONLY USE

FIG - 11

FIG - 12

Deck belt

Check every 75 to 100 hours of operation. Check

for severe cracking and large nicks. NOTE: The

belt will show some small cracks in normal op-

eration.

To replace belt lower the deck to its lowest posi-

tion. Remove the foot plate and belt shields. Use

a ratchet with a 9/16” socket on the spring idler

bolt to relieve the tension on the belt. Slide the belt

off of pulley and fully remove the belt. Reverse the

proceedure for installation. See the decal on the

top of deck for belt routing information. FIG - 12.

After installation is complete check the belt for

twists.

WARNING!

If a leak is suspected, use a piece of

cardboard or wood, NOT your hands. to

check for leaks.

Escaping hydraulic oil under pressure

can have sufficient force to penetrate

the skin, causing serious injury.

If injured by escaping fluid, see a doctor

at once. Serious infection or reaction

can develop if proper medical treatment

is not administered immdediately.

MAINTENANCE

Pump belt

Check belt every 100 hours for excessive wear.

To replace belt. Relieve tension on the deck belt

and remove deck belt from clutch. See deck belt

instructions on previous page. Loosen bolt on the

clutch tie down and rotate out of the way. Using a

1/2” drive ratchet inserted into the square hole in

the pump idler arm relieve the tension on the pump

belt and remove belt. To reinstall belt. Swing pump

idler pulley out toward engine to route belt around

it. Then route belt around right side pulley first as

you are looking up from the underside of machine.

Reinstall idler spring and use the ratchet to rotate

idler so the belt may be installed all the way around

the last pulley.

Lubrication

See service decal under foot plate for service

points and maintenance intervals. Clean grease

zerks thoroughly before greasing. See engine

manual for engine service. FIG - 13.

Tire pressure

Check every 25 hours. All four tires require 15 psi.

FIG - 13

Winter storage

To prepare the machine for storage. Clean the

machine, especialy under the deck. Touch-up the

paint or spray the underside of deck with a light

coat of oil.

Inspect the machine for damage and loose hard-

ware.

Change the oil.

Drain the fuel system or add stabilizer to fuel. Make

sure to run the machine after to circulate stabi-

lizer throughout system.

Remove the plugs and add 1 tablespoon of oil in

each cylinder. Install plugs and crank the engine

two or three revolutions.

Grease all zerks.

Remove battery and store inside and protect it

from freezing temperatures.

Caster Wheels

Check every 200 hours. Lift front of unit off of

ground so caster wheels can rotate freely. Tighten

caster bolt then back off 1/2 turn. Check that wheel

rotates freely. If wheel does not rotate freely back

the caster bolt off in 1/4 turn increments until wheel

rotates freely.

NOTE: DO NOT add any type of tire liner or foam

fill material to the tires. Excessive loads created

by foam filled tires will cause premature failures.

Only use O.E.M. specified tires. Foam filling tires

or solid tires will void the warrany.

Fuel filter

Replace every 500 hours or annually. In extremely

dirty conditions replacement may need to be at

shorter intervals.

Torque Specifications

·Engine crankshaft bolt 67 Nm(50 ft/lb)

·Deck pulley bolts 61 Nm (45 ft/lb)

·Hydraulic tube nuts 41 Nm (30 ft/lb)

·Wheel motor hub nut 122 Nm (90 ft/lb)

·Lug nuts 100 Nm (75 ft/lb)

·Blade bolt 122 Nm (90 ft/lb)

·Standard ¼” fasteners 12 Nm (9 ft/lb)

·Standard 5/16” fasteners 25 Nm (18 ft/lb)

·Standard 3/8” fasteners 44 Nm (33 ft/lb)

·Standard 7/16” fasteners 70 Nm (52 ft/lb)

·Standard ½” fasteners 110 Nm (80 ft/lb)

MAINTENANCE

Maintenance Schedule

Maintenance Maintance Interval (hours)

Daily 25 50 100 200 250 500

Engine (4)

Check oil level X

Change oil and filter (1)

Clean the air filter’s (1) (3)

Replace air filter’s (1) (3)

Check for fuel and oil leakage X

Clean cooling flanges (1) (3)

Check cooling air inlet X

Replace fuel filter (1)

Replace plugs (1)

Hydraulics

Check oil level X

Check for oil leaks X

Change hydraulic oil (2) XX

Change oil filter (2) XX

Electrical

Check battery X

Check the safety system X

Lubricate

Left and right brakes X

Left and right motion control shafts X

Left and right deck struts X

Deck idler arm X

Pump idler arm X

Caster swivels X

Caster tires (5) X

Deck lift lever X

Throttle cable X

Choke cable X

Cutter housings X

General

Check bolts and nuts X

Check cutting deck X

Clean cutting deck (3) X

Clean pump compartment (3) X

Check tire pressure (15 psi) X

Check belts X

Check and adjust throttle cable X

Notes:

1. See engine manual for periodic maintenance.

2. Change hydraulic oil and filter after the first 250 hours or season and then every 500 hours.

3. During dusty or dry conditions cleaning and replacement should be more frequent.

4. Refer to engine manual for more information.

5. Foam filled tires or solid tires will void the warranty.

MAINTENANCE

TROUBLE SHOOTING

PROBLEM POSSIBLE CAUSES

ENGINE WILL NOT START.

Blade switch on.

Drive levers not in the neutral slots.

Operator not in seat.

Park brake disengaged.

Dead battery.

Fuel valve closed or in the wrong position.

No fuel.

Spark plugs defective.

Spark plug wires off.

MACHINE WILL NOT MOVE OR MOVES

SLOWLY OR HARD.

Park brake on.

Pump bypass valves open.

Pump drive belt loose or off.

Hydraulic system failure.

Air in the hydraulic system.

BLADES WILL NOT ENGAGE.

Blade belt off.

Clutch unhooked form wiring harness.

Blade switch failure or unhooked from harness.

Fuse burnt out.

UNEVEN CUT

Tire pressure uneven.

Blades bent.

Deck chains uneven.

Deck lift blocks loose.

Anti-scalp rollers set uneven.

CUT IS RAGGED

Blades dull.

Ground speed to fast.

Grass to long.

Grass accumulation under deck.

MACHINE VIBRATION

Blades loose.

Blades unbalanced.

Engine loose from mounts.

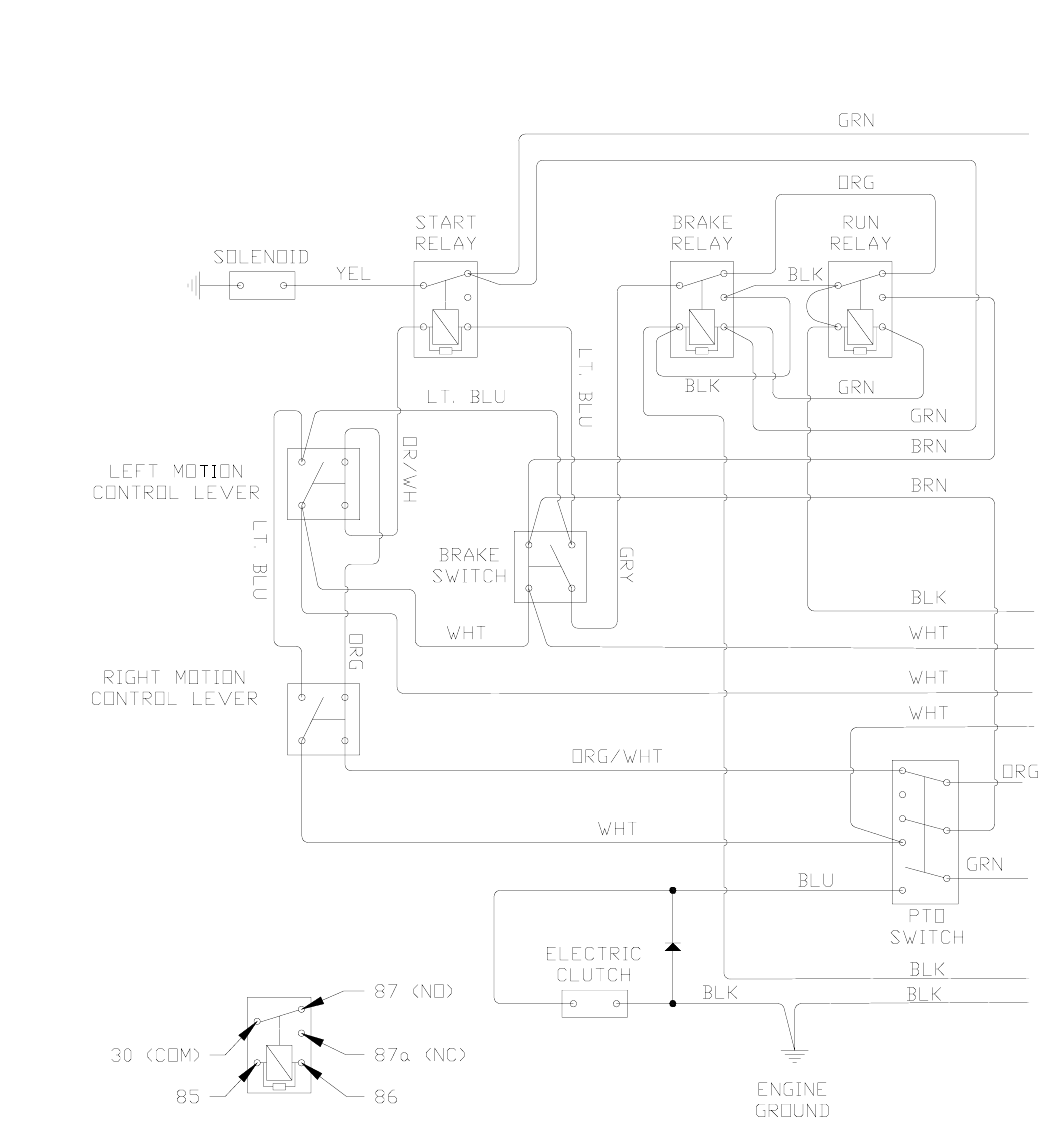

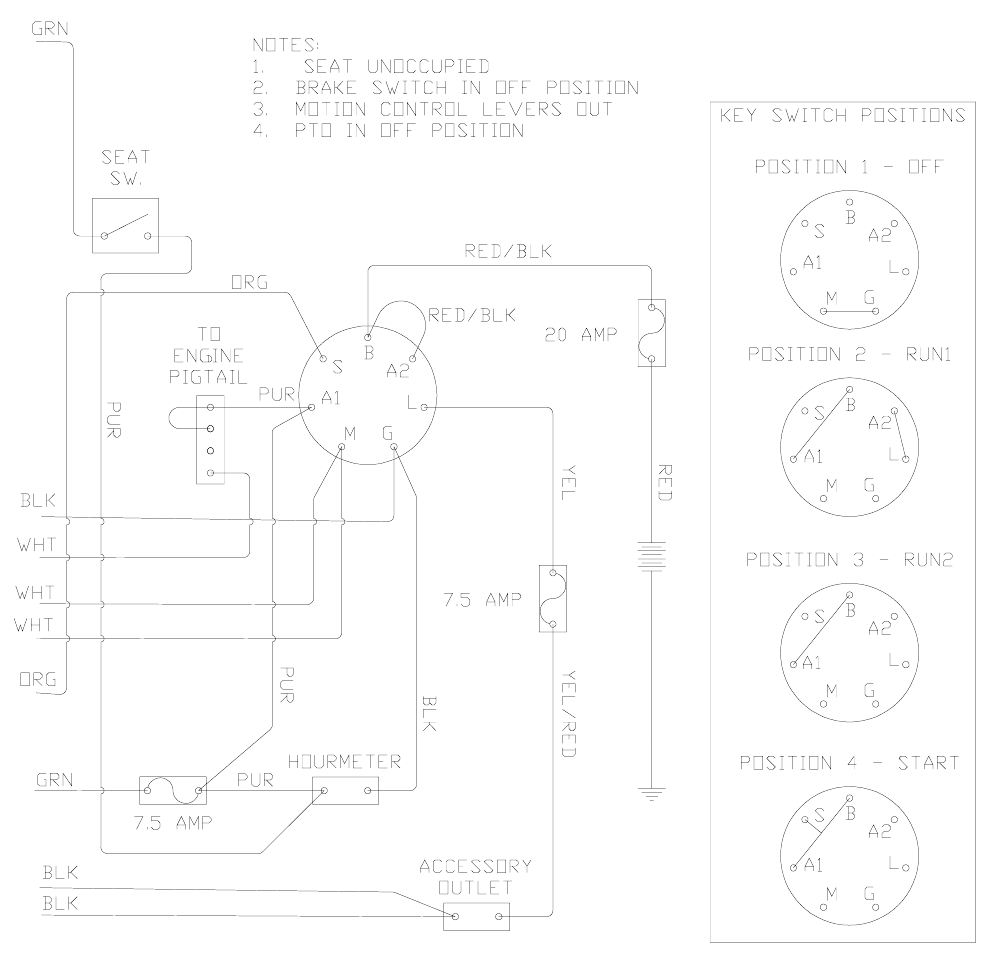

WIRING DIAGRAMS

Yazoo Kees Zmkw52231 Zmkh52231 Zmkw61231 Users Manual OM, Mid Max Series, 2004 09, Zero Turn Rider Mower, ZMBI48181, ZMKW48191, ZMKW52211, ZMKW52231, ZMKH52231, (Turf Care)

ZMBI48181, ZMKW48191, ZMKW52211, ZMKW52231, ZMKH52231, ZMKW61231 to the manual 957f7c93-e9ab-4735-bef0-7759559c7a97

Navigation menu

Versions of this User Manual:

Views

Navigation
