Yifang Digital Technology CH1161BSP Chromebook User Manual
Shenzhen Yifang Digital Technology Co., Ltd. Chromebook
User Manual
![](/img.php?id=3293918&img=bg1.png)
1
Safety Precautions
Do not subject the device to severe impact or drop it from heights.
Do not use the device in extreme hot or cold, dusty or damp conditions. Do not expose
it to direct sunlight.
Avoid using the device near strong magnetic fields.
Normal functioning of the product may be disturbed by ESD. If so, simply reset and
restart the device following the instruction manual. During file transmission, please
handle with care and operate in a static-free environment.
Keep the device away from water and other liquids. In the event that water or other
liquids enter the device, power off the product immediately and clean the device.
Do not use chemicals to clean the device in order to avoid corrosion. Clean it with a dry
cloth.
Do not install this equipment in a confined space such as a book case or similar unit.
The ventilation should not be impeded by covering the ventilation openings with items
such as newspaper, table-cloths, curtains etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Attention should be drawn to environmental aspects of battery disposal.
Use the apparatus in moderate climates.
We are not responsible for damage or lost data caused by malfunction, misuse,
modification of the device or battery replacement.
Do not attempt to disassemble, repair or modify the product. This will invalidate the
warranty.
If the device will not be used for an extended period of time, please charge the battery
at least once per month to maintain battery life.
Charge the battery if:
a) The battery level icon displays (An empty battery)
b) The device powers off automatically when restarted.
c) There is no response when pressing keys with keys unlocked and battery full.
Do not interrupt the connection when the device is being formatted or transferring files.
Otherwise, data may be corrupted or lost.
Please use and install data using the attachments/accessories provided and only
according to the manufacturer’s instruction.
To reduce the risk of fire or electric shock, do not expose this device to rain or moisture.
The device should not be exposed to dripping or splashing. Never place objects filled
with liquids, such as vases, on the device.
There is danger of explosion if the battery is replaced incorrectly. Replace only with the
same or equivalent type.
The battery (battery or batteries or battery pack) should not be exposed to excessive
heat such as sunlight, fire or the like.
Please follow responsible procedures for battery disposal.
If the power adaptor disconnected from the device, the device will remain operable as
long as the battery has sufficient charge.
![](/img.php?id=3293918&img=bg2.png)
This 5150-5250GHz band is limit to indoor use.
2
The power adaptor is a CLASS II apparatus with double insulation, and no external
ground is provided.

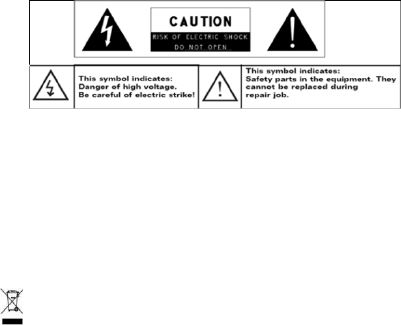

Safety symbol explanation:
- The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
- To reduce the risk of electric shock, do not remove the cover (or back) as there
are no user-serviceable parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance instructions in the
literature accompanying the device.
- Correct Disposal of this product. This marking indicates that this product
should not be disposed of with other household waste in the EU. To prevent
possible harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To dispose of your used device, please use the return and collection
systems available in your area or contact the retailer where the product was
purchased. They can take this product for safe environmental recycling.
CE in which countries where the product may be used freely: Germany, UK, Italy, Spain,
Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg, Austria,
Finland, Sweden, Norway and Iceland.
![](/img.php?id=3293918&img=bg3.png)
3
Listening Cautions
This product respects the current regulations for limiting the output volume of
consumer audio devices to a safe level. By listening to your device with headphones or
earbuds at high volumes, you run the risk of permanent damage to your ears. Even if
you get used to listening at high volumes and it seems normal to you, you still risk the
possibility of damaging your hearing. Reduce the volume of your device to a reasonable
level to avoid permanent hearing damage. If you hear ringing in your ears, reduce the
volume or shut off your device. This device has been tested with the supplied
earphones. In order to preserve your hearing, it is advised that you use only the
following headphone models: the earphones supplied with your device, or any other
headphones that respect the current regulations. Other types of headphones may
produce higher volume levels.(At full power ,the prolonged listening of the walkman
can damage the ear of the use)
Do not use while operating a motorized vehicle. It may create a traffic hazard and is
illegal in many areas.
You should use extreme caution or temporarily discontinue use in potentially
hazardous situations created by obstructed hearing.
Even if your headphones or earphones are the open-air type designed to let you hear
outside sounds, don’t turn up the volume so high that you can’t hear what’s around
you.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher
volumes of sound. What sounds “normal” can actually be loud and harmful to your
hearing. Guard against this by setting the volume of your device at a safe level BEFORE
your hearing adapts.
To establish a safe volume level:
a. Start your volume control at a low setting.
b. Slowly increase the sound until you can hear it comfortably and clearly, and
without distortion. Once you have established a comfortable sound level, leave
it there.
This illustrations and descriptions in this manual are for reference only. Please refer to the actual product.
4
Table of Content
Safety Precautions ............................................................................................................ 1
Listening Cautions ............................................................................................................ 3
Packing Contents .............................................................................................................. 5
Features & Functionality ................................................................................................... 5
Basic Connections ............................................................................................................. 6
Basic Operation ................................................................................................................ 7
Maintenance .................................................................................................................. 14
Major Specifications ....................................................................................................... 15
FCC Statement ................................................................................................................ 15
Frequently Asked Questions(FAQ) ................................................................................... 16
![](/img.php?id=3293918&img=bg5.png)
5
Packing Contents
Congratulations! Chrome Book, a brand-new operating system from Google, is
preinstalled in your PC. When you get your device, be sure to check the following items
are enclosed in the package:
PC ● Power Adaptor ● User’s Manual
Features & Functionality
Overview
Feature
Functionality
1. Microphone
Records sounds.
Provides sound input while making calls using web-based apps.
2. Front-facing camera
Capture a front view picture or record videos.
Used for making video calls
3. Combo audio port (3.5 mm)
Connect a headset, headphones, microphones, or other audio
equipment to listen to stereo sound, record audio, or make
![](/img.php?id=3293918&img=bg6.png)
6
web phone calls.
4. Charging LED indicator
Keep on once the adapter is plugged in for charging
5. Power button
Press and hold to turn the notebook on or off.
6. Vol+/- button
Increase /decrease volume
7. Speaker
Provide audio output.
8. DC-In socket
Connect the power adapter for charging the battery.
9. USB 3.0 port
Connect USB devices
10. Micro HDMI jack
Connects to HD TV
11. microSD card slot
Reads and writes files stored on a microSD card.
12. Touchpad
Touch to move the cursor
Basic Connections
Charging the notebook
Note: When using the notebook for the first time, or after a long period of idle time, charge
the battery for more than half an hour before turning it on, to ensure system stability.
The notebook has a built-in rechargeable battery. Charge the device when the battery level
is low.
1. Plug the power adapter into the DC-In socket.
2. Connect the power adapter to an electrical outlet and charge the notebook until the
battery is fully charged.
Caution:
1. Charge the battery in an ambient temperature of 0 °C to 35 °C.
2. Use only the supplied power adapter to charge your notebook. Using unauthorized
power adapters may severely damage your notebook.
Note:
1. The battery is not fully charged when you unpack your notebook.
2. It takes about 2.5 hours to fully charge a fully discharged battery.
Inserting a microSD card
1. Pick up a micro SD card.
2. Align the micro SD card so that the pins are pointed toward the card slot.
3. Push the micro SD card into the card slot until it locks into place.
4. To explore the files on the micro SD card, you can tap the App button in the lower-left
corner of the screen to find the Files app, and open it.
5. If you want to retrieve your micro SD card, it is suggested that you open the Files app
and tap the icon to safely reject it.
![](/img.php?id=3293918&img=bg7.png)
7
Caution: Pay much attention to the orientation of the card and avoid inserting it into the slot
by force, otherwise, the card or card slot may get damaged if the orientation of the card is
wrong.
Connecting a USB Device
Your notebook has two standard USB 3.0 ports on the right edge of the keyboard for
connecting USB device.
1. Insert a USB device into either USB port on the keyboard properly.
2. The system will prompt you that a removable device is detected.
3. As guided, tap on the button ‘open the file app’ to
check your USB device.
4. In the system the USB drive is labeled as Winpe and
tap on Winpe drive to explore the files on the USB
device.
5. To safely remove the USB drive from the computer,
tap once on the Winpe icon on the file app.
Using Headphones
You can connect a headset or headphones to the audio port of your notebook.
Warning: Listening to loud music for an extended period of time can lead to hearing
loss.
1. Connect headphones to the audio port (3.5 mm) on the notebook.
2. Insert the earphones in your ears and adjust the volume level to a comfortable
level.
Note: When you connect an audio device to the 3.5 mm audio jack, the integrated
speakers on your notebook are muted automatically.
Caution: To prevent damage to the headphones when disconnecting it from the notebook,
pull the connector instead of the cable.
Basic Operation
Turning On/Off the Notebook
Press and hold the Power button for about 3-4 seconds to turn on/off the notebook,
Wi-Fi Setting
Turning on/off network:
1. Touch Wi-Fi icon on the status bar in the lower-right corner of the screen to bring
up the network setting menu.
2. Touch ‘Connect to VPN’ icon to view all available Wi-Fi metworks or VPNs.
3. Tap on the Wi-Fi icon at the bottom of the menu to enable or disable network
connection.
4. Once the network connection is turned off, the network icon will be darkened and
crossed.
![](/img.php?id=3293918&img=bg8.png)
8
Connecting to a network:
1. Touch Wi-Fi icon on the status bar in the lower-right corner of the screen to bring
up the network setting menu.
2. Touch ‘Connect to VPN’ icon to view all available Wi-Fi VPNs.
3. Input the password if necessary, then touch Connect to start connecting to the
Internet.
Gestures
Your notebook has a multi-touch display. You can touch the screen to operate the
notebook.
Finger Gesture
You can do
Touch
Tap gently on the display with your
fingertip.
Select items on the screen, including options, entries,
images, and icons.
Start apps.
Touch buttons on the screen.
Touch and Hold
Touch and hold your finger on the
display.
Display detailed information about an item.
Open the context menu of an item to perform further
actions.
Drag
1. Touch and hold your finger on an
item on the screen.
2. Keeping your finger in contact with the
display, move your fingertip to the
desired location.
3. Take your finger off the display to drop
the item in the desired location.
Move items such as images and icons on the screen.
Swipe or Slide
Move your finger in a vertical or
horizontal direction on the display.
Scroll through the Start screen, web pages, lists,
entries, photos, contacts, and so on.
Close an app. (Swipe the app to the bottom of the
display.)
![](/img.php?id=3293918&img=bg9.png)
9
Zoom in
Touch the display with two fingers and
then move the fingers apart.
Enlarge the view of an image or web page.
Zoom out
Touch the display with two fingers and
then move the fingers closer.
Reduce the view of an image or web page.
Using the Keyboard
This computer has a keyboard that can rotate by 360 degrees.
Instructions for using the cool function keys:
/
Return/Go to
/
Brightness down/up
Refresh
Mute
Fullscreen
/
Volume down/up
Multitask view
Lock/ unlock account
Gestures for using the touchpad
Function
Gestures with one finger
Left click
Tap on an item to open it
Move the cursor
Touch the touchpad and move
Gestures with two fingers
Right click
Double tap to bring up the context menu
Scroll/pan
Scroll up/down to scroll through the page
Zoom in/out
Move closer /apart
Switch to a Chromebook
Learn how to get started using your new Chromebook with this guide. Along the way,
you'll see links to resources where you can find more information.
1. Prepare to switch
On your old computer:
Get a Google Account
A Google Account gives you access to all Google services on the web, including Gmail, Google
Calendar, and Google Drive.
![](/img.php?id=3293918&img=bga.png)
10
If you don't have a Google Account yet, create one.
If you already have a Google Account, you're good to go.
Back up your bookmarks, apps, and extensions
If you use the Chrome browser on your old computer, sign in to Chrome to save your
bookmarks, apps, and extensions to your Google Account.
These settings will then show up automatically when you sign in with the same account on
your Chromebook.
Back up your files
Option 1: Save your files on Google Drive
Upload your files to Google Drive so you can see and open your files on the web using
your new Chromebook or any other computer.
You can also upload your files to other cloud storage services, such as Box or SMB.
Option 2: Save your files on a storage device
You can back up your files on a compatible storage device, such as a USB thumb drive or
external hard drive.
Connect your printer to Google Cloud Print
To print with your new Chromebook, you'll need to connect your printer to Google Cloud
Print. If you don't have acloud-ready printer, you'll need to use both your old computer and
your new Chromebook to do this task.
With Google Cloud Print, you can use your Chromebook (or a smartphone or tablet) to print,
even if you're not near your printer.
2. Set up your new Chromebook
On your new Chromebook:
Sign in to your Chromebook
1) Turn on your Chromebook.
2) Sign in using your Google Account.
3) To set up your Chromebook, follow the onscreen steps.
Once you're set up, your Chromebook will automatically show your Google Account photo
and all your settings, bookmarks, and extensions from Chrome.
Find your files
Choose the same option you used to back up your files:
![](/img.php?id=3293918&img=bgb.png)
11
Option 1: Find your files on Google Drive
1) Click the launcher > All Apps > Files .
2) In the left column, click Google Drive.
3) Wait a few moments for your files to appear.
If you used a different cloud storage service, you can find your files using the Files app (for
some services) or by opening the service's website in Chrome.
Option 2: Find your files on your storage device
1) Connect the storage device to your Chromebook.
2) Click the launcher > All Apps > Files .
3) In the left column, click the name of your storage device.
Tips:
As a new Chromebook user, you can get even more free Google Drive storage.
To keep your Chromebook running fast, keep all your files in the cloud or on your
storage device.
3. Get the most out of your Chromebook
Find apps for common tasks
Your Chromebook runs web apps instead of software programs used on other computers.
For example, instead of using Microsoft Office to create documents, you can use Google
Drive to create and share files online.
Here are some suggested apps you can use for common tasks.
To find and download apps, go to the Chrome Web Store.
Customize your Chromebook
Make your Chromebook your own:
Choose a desktop wallpaper or browser theme.
Add apps and extensions.
Learn more about the keyboard hotkeys and shortcuts.
Work offline
When you're not connected to the Internet, you can still use your Chromebook with apps
like Gmail Offline andGoogle Docs.
Learn more about using your Chromebook offline, and download offline apps in
the Chrome Web Store.
![](/img.php?id=3293918&img=bgc.png)
12
Create a Google Account
In order to use this device under the highest level of rights, user should have a Google
account. If you don’t have one, you can only use the device as a guest, who is limited to
use most functions, e.g. the app store.
The Google account is actually the Gmail account. When you are creating an account, you
are requested to enter your Gmail account by default. Create a new Gmail account as
required if you have not owned one.
Once you have got an Gmail account, you will be able to sign in the Google account and
use everything available to you.
Sign in Your Account
If you sign in with your Google account, you will be able to access everything you like,such
as App Store, Gmail Google Photos, Play Movie, Google Document etc..
Find apps for your Chromebook
Use apps that are already on your Chromebook
Task
Recommended Chromebook app
Similar software
Create a document
Docs
Word, Pages
Create a spreadsheet
Sheets
Excel, Numbers
Create a presentation
Slides
Powerpoint, Keynote
Take a note
Google Keep
Notepad, Notes
Organize and play
music
Google Play Music
iTunes, Windows Media
Player
Edit a photo
Open image from Files app or
use Google Drawings
GIMP
Make calls and video
chat
Hangouts
Skype
Write an email
Gmail or Inbox
Outlook, Mac Mail
Organize your
calendar
Calendar
Outlook, iCal
Find and save files
Files or Google Drive
My Computer, Finder
Access another
computer
Chrome remote desktop
Remote Desktop Connection,
Apple Remote Desktop
![](/img.php?id=3293918&img=bgd.png)
13
Add other apps
You can also download apps from the Chrome Web Store to use on your Chromebook.
Here are some suggested apps:
Apps for every day
Task
Recommended Chromebook app
Save a file
Google Drive or Dropbox
Read email
Gmail, Inbox, or other webmail services
Organize events on a calendar
Google Calendar
Write a note
Google Keep, Evernote, or Wunderlist
Chat with friends and family
Google Hangouts or Facebook
Watch a movie, clip, or tv show
Google Play Movies, Vine, Netflix, or YouTube
Edit a video or movie
Vine, WeVideo Next, or YouTube Video Editor
Listen to music
Google Play Music, Pandora, Spotify, Amazon
Organize and save music
Google Play Music or Amazon Music
Edit or create music
Beatlab
Play a game
Cut the Rope, Entanglement, WGT Golf
Edit, organize, and store photos
Google Photos, Pixlr Editor, or Pixlr Touch Up
Create a card, newsletter, or flyer
Lucidpress
Draw a picture
Sketchpad, muro, or Sumo Paint
Read a book
Google Play Books or Kindle Cloud Reader
Get the news and weather
Google News, feedly, or WeatherBug
Research travel information
Hipmunk
Find local business information & directions
Google Maps
Play fun family games
Qbox, Coloring Pages, or Planeto Quiz
Look up new recipes
Gojee
Learn a new language
Duolingo
Apps for school
Task
Recommended Chromebook app
Take notes or write a document
Google Keep, Google Docs, Evernote, or Quick Note
Create a presentation
Google Slides
Create a diagram
Google Drawings
Create a spreadsheet
Google Sheets or Zoho Sheet
Keep track of things to do
Google Tasks or Google Keep
![](/img.php?id=3293918&img=bge.png)
14
Research a project
Google Books
Plan for a project
Zoho Projects or Smartsheet
Do calculations
Calculator app or Scientific Calculator
Look up word definitions
Google Dictionary
Keep track of time
Alarm clock app
Improve your reading skills
Sight Words
Apps for work
Task
Recommended Chromebook app
Write a document
Google Docs or Zoho Writer
Create a presentation
Google Slides, SlideRocket, or 280 Slides
Create a diagram
Google Drawings
Design a publication
Lucidpress
Create a spreadsheet
Google Sheets or Zoho Sheet
Manage accounts and taxes
Wave Accounting or Zoho Books
Organize personal finances
Mint or CashBase
Develop or debug code
Cloud9 or Koding
Manage tasks
Wunderlist or Remember the Milk
Organize and run efficient meetings
yaM
Maintenance
Cleaning Your Notebook
Caution:
Before you clean your notebook, disconnect all the cables and turn off the notebook. Clean
your notebook with a soft cloth dampened with water. Do not use liquid or aerosol
cleaners, which may contain flammable substances.
1. Turn off your notebook. For more information on turning off your notebook,
2. Disconnect any attached devices, headphones, and speakers from the notebook and
from their electrical outlets.
2. Moisten a soft, lint-free cloth with either water or a display cleaner, and wipe the
surface of the notebook until it is clean. Do not allow water from the cloth to seep
down to the notebook ports or buttons.
Caution:
1. To avoid damaging the notebook or display, do not spray cleaning solution directly
onto the display. Only use products specifically designed for cleaning displays and
follow the instructions included with the product.
2. Do not clean the keyboard with a moist cloth.
![](/img.php?id=3293918&img=bgf.png)
15
Major Specifications
Note: The following specifications may contain technical inaccuracies or typographical
errors. Yifang reserves the right to improve and/ or change specifications at any time
without prior notice.
Item
Descriptions
CPU
Operation system
ChromeOS
DDR
2GB
Internal Memory
EMMC:16 GB
Expandable Memory
Micro SD card: up to 128 GB
Interfaces
USB 3.0 high speed /Micro SD (compatible SDHC, up to 128GB) card
3.5mm Earphone
Network connection
Wi-Fi (WLAN)
BT
Support
Front Webcam
Front camera, 2.0 Mega Pixels;
Display
1366*768 Pixels, 11.6 inches
Power Supply
AC-DC Adapter: AC In 100-240V, 50-60Hz; DC-Out 19V/2.1 A
Storage Temp.
-20℃ ~ +65℃
Ambient Temp.
0℃ ~ +40℃
Operation RH
20% ~ 90% (40℃)
Storage RH
20% ~ 93% (40℃)
FCC Statement
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
16
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between theequipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The devic
e can be used in portable exposure condition without restriction.
This manual was correct and complete at the time of printing. However, new specifications
and updates can occur at any time without prior notice. No part of this manual may be
copied, republished, reproduced, transmitted or distributed in any way without prior
written consent of E Fun. Any unauthorized distribution of
this manual is expressly
forbidden.
E Fun may find it necessary to modify, amend or otherwise change or update this manual.
We reserve the right to do this at any time, without any prior notice. All specifications and
features are subject to change without notice. All screen shots shown are simulated and
may not represent the actual screen on production units sold to consumers.
For instruction manuals, updated drivers or other information, be sure to visit our website
at:
www.nextbookusa.com
Or write to us at:
E Fun
West Covina, CA 91791
USA
Copyright ©
2016
This device was tested for typical body-worn operations. To comply with RF
between the user's body and the handset, including the antenna. Third-party
belt-clips, holsters, and similar accessories used by this device should not contain
any metallic components. Body-worn accessories that do not meet these requirements
may not comply with RF exposure requirements and should be avoided. Use only the
supplied or an approved antenna.
exposure requirements, a minimum separation distance of 0 cm must be maintained
![](/img.php?id=3293918&img=bg11.png)
17
Do
Microsoft
Office,
Skype,
&
iTunes
work
on
a
Chromebook?
They don’t, but you can
use apps to replace some of the programs
you use on your other
computers.
What
is
the
Chrome
Web
Store?
It’s where you can find and add a wide range of free and paid apps, extensions, and
themes designed for Chromebooks.
Visit the
Chrome Web Store.
How
do
I
store
and
organize
photos?
You can save your photos with
Google Photos, where they’ll be quickly and safely stored
and organized for you.
How
do
I
listen
to
music
and
watch
videos?
You can stream music and organize your personal music collection with Google Play Music.
For movies and videos, try YouTube or Google Play Movies.
Do
I
need
to
store
files
online
(or
"in
the
cloud")?
You can choose to store your files on your Chromebook or online with a cloud-based file
storage service like
Google Drive.
With Google Drive, your data is stored in Google's highly secure
data centers. The
Terms
of Service
make clear that
"what belongs to you stays yours."
Frequently Asked Questions(FAQ)
Do Chromebooks work offline?
Yes. You can use offline-ready apps to keep using a Chromebook when it’s not connected
to the Internet. Below are some examples:
Read and write emails with Offline Gmail
Write a note or make a list with Google Keep
Create and edit documents, slides, or spreadsheets with Google Drive apps (Google
Docs, Sheets, and Slides)
View and RSVP to events with Google Calendar
View and edit photos saved with the built-in photo editor
Enjoy music or movies with the built-in media player
![](/img.php?id=3293918&img=bg12.png)
18
What
kinds
of
accessories
can
I
use
with
a
Chromebook?
Mac or Windows USB drives, computer mice, keyboards, and external storage devices
work well with Chromebooks.
What happens to my Google Drive files when my free storage expires?
Every Chromebook comes with at least 100 GB of free Google Drive storage for two years.
When your free storage expires, all of your files will remain in Drive and you can use,
download, or share them whenever you want. If you need additional storage, you can buy
more.
Do Chromebooks have CD or DVD drives?
Chromebooks don’t have a CD or DVD drive, but you can play saved music and movie files
in any of the compatible file types with the media player. You can also play files from a
USB drive or SD card.
