Yifang Digital Technology M1012BCP Tablet PC User Manual M1012BCP 20140828
Shenzhen Yifang Digital Technology Co., Ltd. Tablet PC M1012BCP 20140828
Users Manual
![](/img.php?id=3199769&img=bg1.png)
1
Safety Precautions
z Do not subject the device to severe impact or drop it from heights.
z Do not use the device in extreme hot or cold, dusty or damp conditions. Do not
expose it to direct sunlight.
z Avoid using the device near strong magnetic fields.
z Normal functioning of the product may be disturbed by ESD. If so, simply reset
and restart the device following the instruction manual. During file transmission,
please handle with care and operate in a static-free environment.
z Keep the device away from water and other liquids. In the event that water or
other liquids enter the device, power off the product immediately and clean the
device.
z Do not use chemicals to clean the device in order to avoid corrosion. Clean it
with a dry cloth.
z Do not install this equipment in a confined space such as a book case or similar
unit. The ventilation should not be impeded by covering the ventilation openings
with items such as newspaper, table-cloths, curtains etc.
z No naked flame sources, such as lighted candles, should be placed on the
apparatus.
z Attention should be drawn to environmental aspects of battery disposal.
z Use the apparatus in moderate climates.
z We are not responsible for damage or lost data caused by malfunction, misuse,
modification of the device or battery replacement.
z Do not attempt to disassemble, repair or modify the product. This will invalidate
the warranty.
z If the device will not be used for an extended period of time, please charge the
battery at least once per month to maintain battery life.
z Charge the battery if:
a) The battery level icon displays (An empty battery)
b) The device powers off automatically when restarted.
c) There is no response when pressing keys with keys unlocked and battery full.
z Do not interrupt the connection when the device is being formatted or
transferring files. Otherwise, data may be corrupted or lost.
z When the device is used as a portable HD, please use only per the instructions.
Otherwise, permanent data loss could occur.
z Please use and install data using the attachments/accessories provided and only
according to the manufacturer’s instruction.
z Please refer to the information on the bottom of the device for electrical and
safety information before installing data or operating the device.
z To reduce the risk of fire or electric shock, do not expose this device to rain or
moisture. The device should not be exposed to dripping or splashing. Never
place objects filled with liquids, such as vases, on the device.
z There is danger of explosion if the battery is replaced incorrectly. Replace only
with the same or equivalent type.
![](/img.php?id=3199769&img=bg2.png)
2
z The battery (battery or batteries or battery pack) should not be exposed to
excessive heat such as sunlight, fire or the like.
z Please follow responsible procedures for battery disposal.
z If the power adaptor disconnected from the device, the device will remain
operable as long as the battery has sufficient charge.
z The power adaptor is a CLASS II apparatus with double insulation, and no
external ground is provided.

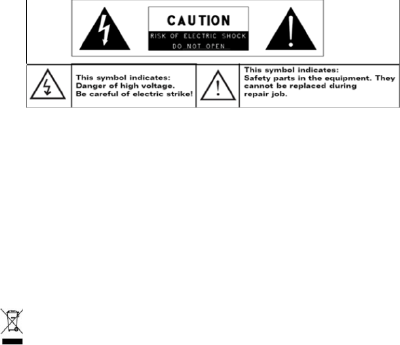

z Safety symbol explanation:
- The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
- To reduce the risk of electric shock, do not remove the cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualified
personnel.
- The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance instructions in
the literature accompanying the device.
- Correct Disposal of this product. This marking indicates that this
product should not be disposed of with other household waste in the EU. To
prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To dispose of your used device,
please use the return and collection systems available in your area or
contact the retailer where the product was purchased. They can take this
product for safe environmental recycling.
z This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
z CE in which countries where the product may be used freely: Germany, UK, Italy,
Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg,
Austria, Finland, Sweden, Norway and Iceland.
![](/img.php?id=3199769&img=bg3.png)
3
Listening Cautions
z This product respects the current regulations for limiting the output volume of
consumer audio devices to a safe level. By listening to your device with
headphones or earbuds at high volumes, you run the risk of permanent damage
to your ears. Even if you get used to listening at high volumes and it seems
normal to you, you still risk the possibility of damaging your hearing. Reduce the
volume of your device to a reasonable level to avoid permanent hearing damage.
If you hear ringing in your ears, reduce the volume or shut off your device. This
device has been tested with the supplied earphones. In order to preserve your
hearing, it is advised that you use only the following headphone models: the
earphones supplied with your device, or any other headphones that respect the
current regulations. Other types of headphones may produce higher volume
levels.(At full power ,the prolonged listening of the walkman can damage the ear
of the use)
z Do not use while operating a motorized vehicle. It may create a traffic hazard
and is illegal in many areas.
z You should use extreme caution or temporarily discontinue use in potentially
hazardous situations created by obstructed hearing.
z Even if your headphones or earphones are the open-air type designed to let you
hear outside sounds, don’t turn up the volume so high that you can’t hear what’s
around you.
z Sound can be deceiving. Over time your hearing “comfort level” adapts to higher
volumes of sound. What sounds “normal” can actually be loud and harmful to
your hearing. Guard against this by setting the volume of your device at a safe
level BEFORE your hearing adapts.
To establish a safe volume level:
a. Start your volume control at a low setting.
b. Slowly increase the sound until you can hear it comfortably and clearly,
and without distortion. Once you have established a comfortable sound
level, leave it there.
This manual may not reflect your actual device’s operation. All information is subject to change
without prior notification. Please follow your actual device’s operational procedures.
4
Table of Content
Safety Precautions ...................................................................................................... 1
Listening Cautions ...................................................................................................... 3
Packing Contents ...................................................................................................... 5
Features & Functionality ............................................................................................. 5
Basic Connections ...................................................................................................... 6
Basic Operation .......................................................................................................... 9
Maintenance ............................................................................................................. 13
Major Specifications .................................................................................................. 15
FCC Statement ......................................................................................................... 15
![](/img.php?id=3199769&img=bg5.png)
5
Packing Contents
When you get your Nextbook device, be sure to check the following items are
included in the package:
z Main Unit ● Power Adaptor ● Keyboard
z User’s Manual ● Warranty Card ● FAQ
Features & Functionality

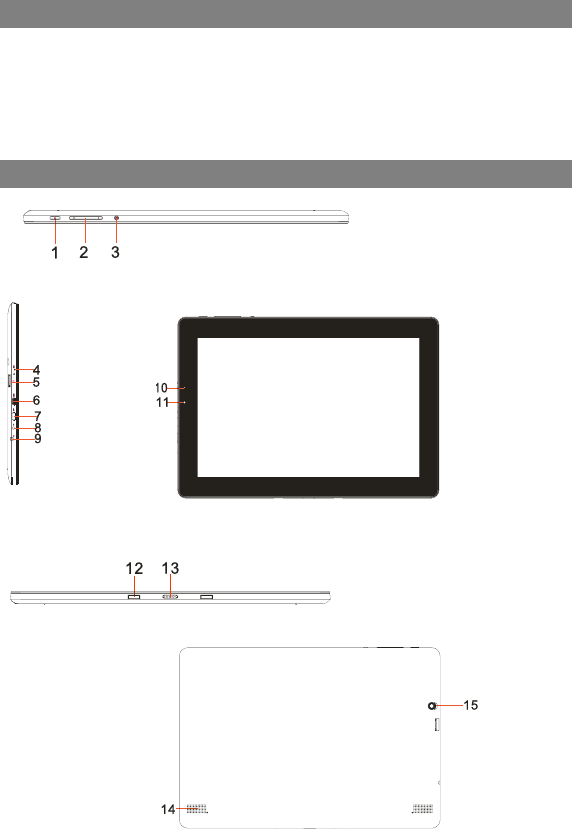

Top View
Left View Front View
Bottom View
Back View
![](/img.php?id=3199769&img=bg6.png)
6
Feature Functionality
1. Power button Press and hold to turn the tablet on or off.
Press to turn the display on or off.
2. Volume+/- buttons Press to increase/decrease volume
3. Windows button Press to open the Windows Start screen.
Press for quick access to the most recently used
app or most recently viewed screen.
4. Microphone Records sounds.
Provides sound input while making calls using
web-based apps.
5. microSD card slot Reads and writes files stored on a microSD card.
6. HDMI port Connect HD television via optional HDMI cable, for
switching the display to wider screen.
7. Micro-USB port Connect USB devices, via an optional USB
On-The-Go (OTG) dongle, for transferring data,
music, photos, videos, and so on.
8. DC-In socket Connect the supplied power adapter for charging the
battery.
9. Audio port (3.5 mm) Connect a headset, headphones, microphones, or
other audio equipment to listen to stereo sound,
record audio, or make calls.
10. Batter
y
-status light Indicates the battery-charge status.
11. Front-facing camera Capture a front view picture or record videos.
Use while making video calls.
12. Sustaining port
(
female
)
Fix and sustain the connection to external keyboard.
13. Pogo pin connecto
r
(
female
)
Connect external keyboard
14. Speake
r
Provides audio output.
15. Rear camera Captures pictures or videos.
Note:
1. Both cameras do not support zoom, face tracking.
2.The Micro-USB port does not support connecting to a computer, or power sharing
to connected USB devices.
3. User can connect a keyboard and USB mouse to this tablet if necessary.
Basic Connections
Charging the tablet
The tablet has a built-in rechargeable battery. Charge the device when the battery
level is low.

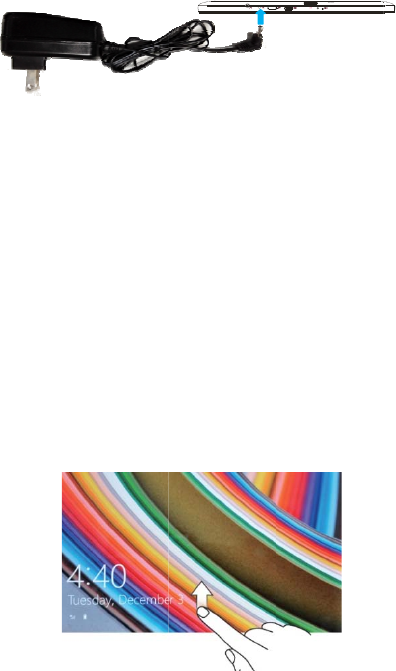

1. Plug the power adapter into the DC-In socket.
2. Connect the power adapter to an electrical outlet and charge the tablet until the
![](/img.php?id=3199769&img=bg7.png)
b
Cauti
o
1. C
h
2. U
s
po
w
Note
:
1. Th
e
2. A f
u
3. W
h
bat
t
4. Th
e
conn
e
Tur
n
Note:
user
n
1.
P
s
2.
S
a
Now
t
Note
:
the l
o
Tur
n
You
c
Usin
g
1.
P
attery is fully ch
a
o
n:
h
arge the batter
y
s
e only the supp
l
w
er adapters ma
y
:
e
battery is not f
u
u
lly discharged
b
h
en the battery i
s
t
ery has been fu
l
e
LED indicator
w
e
cted to the tabl
e
n
ing On the T
a
This Nextbook
n
eed not perfor
m
P
ress and hold t
h
s
creen appears.
S
wipe-up your fin
a
nd then enter p
a
t
he tablet is rea
d
:
If the login scr
e
o
ck screen to the
n
ing Off the
T
c
an turn off the t
a
g
the Power butt
o
P
ress and hold t
h
a
rged.
y
in an ambient t
e
l
ied power adap
t
y
severely dama
u
lly charged wh
e
b
attery takes ab
o
s
being charged,
l
ly charged, the
L
w
ill light 4-5 sec
o
e
t and the wall o
u
a
blet
device has bee
n
m
Windows setu
p
h
e Power button
ger from the bot
t
a
ssword to log in
d
y for use when t
e
en is not enabl
e
Start screen.
T
ablet
a
blet in two ways
o
n:
h
e Power button
f
7
e
mperature of 0
t
er to charge yo
u
ge your tablet.
e
n you unpack y
o
o
ut 4 hours to ful
l
the LED indicat
o
L
ED indicator lig
h
o
nds later after t
h
u
tlet.
n
equipped with
p
again before u
s
for 2 seconds
t
t
om of the displ
a
to Windows.
he Windows Sta
e
d in Windows 8
,
:
f
or at least 4 se
c
°C to 35 °C.
u
r tablet. Using u
n
o
ur tablet.
l
y charge.
o
r lights red, and
h
ts orange.
h
e adapter has
b
Win8 system at
s
ing for the first t
i
t
o turn on your t
a
y to switch to th
e
rt screen is displ
,
you will be tak
e
c
onds.
n
authorized
when the
b
een
the factory, so
i
me.
ablet. The lock
e
login screen,
ayed.
e
n directly from
![](/img.php?id=3199769&img=bg8.png)
8
2. Swipe-down the shutdown confirmation screen to the bottom edge of the display
to turn off the tablet.
Using Charms:
1. Swipe-in from the right edge of the display to access Charms.
2. Touch Settings → Power → Shut down to turn off the tablet.
Turning On/Off screen
Usually, user can press once the power button to turn on/ off the screen display.
Optionally, user can also use the Charms:
1. Swipe-in from the right edge of the display to access Charms.
2. Touch Settings → Power → Sleep to turn off the screen.
Inserting a microSD card
1. Open the slot cover.
2. Align the microSD card so that the pins are pointed toward the card slot.
3. Push the microSD card into the card slot.
4. Close the slot cover.
Removing a microSD card
Caution: Removing the microSD card while it is in use may cause data loss or result
in application errors. Make sure all save operations to the microSD card are complete
before removing the microSD card.
1. Touch the Desktop tile to enter Desktop mode.
2. Touch Safely Remove Hardware in the notification area at the bottom-right
corner of the screen.
Note: If you do not see Safely Remove Hardware , touch Show Hidden Icons
to display all icons in the notification area.
3. Touch Eject SD Memory Card. A message appears confirming that the microSD
card can be safely removed. If a warning message appears stating the microSD
card cannot be removed, ensure all data transfers involving the microSD card are
complete.
4. Open the slot cover.
5. Press on the microSD card to release it.
6. Slide the card out after it pops out from the microSD card slot.
![](/img.php?id=3199769&img=bg9.png)
9
Using Headphones
You can connect a headset or headphones to the audio port of your tablet.
Warning: Listening to loud music for an extended period of time can lead to
hearing loss.
1. Connect headphones to the audio port (3.5 mm) on the tablet.
2. Insert the earphones in your ears and adjust the volume level to a comfortable
level.
Note: When you connect an audio device to the 3.5 mm audio jack, the integrated
speakers on your tablet are muted automatically
.
Caution: To prevent damage to the headphones when disconnecting it from the
tablet, pull the connector instead of the cable.
Connecting the Keyboard
For the sake of using convenience, this device is designed to be equipped with a dedicated
keyboard. Follow these steps to connect the keyboard to your tablet:
1. Place the dedicated keyboard on an even and stable plane (e.g. desk);
2. Hold your tablet with two hands, align the connector and the two magnetic contacts on the
keyboard to the jack and positioning slots at the bottom of the tablet.
3. As soon as the keyboard is connected to the tablet, it is ready for use.
4. You can rotate the tablet to overlap the keyboard as you do with a laptop.
Note:
1.This keyboard is a plug- and-playdevice, you can plug/ unplug it into keyboard jack anytime.
2. There is no notification or indication for the keyboard connection, except for appearance of the
mouse icon (arrow) as you put your hand onto the touch area.
3. When the tablet overlaps on the keyboard, the display will be turned off; as soon as it is erect,
the display will be turned on again.
To remove the keyboard from tablet, you can directly separate them from each other gently.
Basic Operation
Wi-Fi Setting
Turning On/Off Wi-Fi:
1. Swipe-in from the right edge of the display to access Charms.
![](/img.php?id=3199769&img=bga.png)
10
2. Touch Settings → Network icon .
3. Swipe Wi-Fi icon left or right to turn Wi-Fi on or off.
Connecting to a network:
1. Swipe-in from the right edge of the display to access Charms.
2. Touch Settings → Available .
3. Select an available network from the list and touch Connect.
Gestures
Your tablet has a multi-touch display. You can touch the screen to operate the tablet.
Finger Gesture You can do
Touch
Tap gently on the display with
your fingertip.
Select items on the screen, including options,
entries, images, and icons.
Start apps.
Touch buttons on the screen.
Input text using the on-screen keyboard.
Touch and Hold
Touch and hold your finger on
the display.
Display detailed information about an item.
Open the context menu of an item to perform
further actions.
Drag
1. Touch and hold your finger
on an item on the screen.
2. Keeping your finger in
contact with the display, move
your fingertip to the desired
location.
3. Take your finger off the
display to drop the item in the
desired location.
Move items such as images and icons on the
screen.
Swipe or Slide
Move your finger in a vertical
or horizontal direction on the
display.
Scroll through the Start screen, web pages,
lists, entries, photos, contacts, and so on.
Close an app. (Swipe the app to the bottom of
![](/img.php?id=3199769&img=bgb.png)
11
the display.)
Zoom in
Touch the display with two
fingers and then move the
fingers apart.
Enlarge the view of an image or web page.
Zoom out
Touch the display with two
fingers and then move the
fingers closer.
Reduce the view of an image or web page.
Screen Orientation
For optimal viewing experience, the screen orientation changes automatically to
portrait or landscape format depending on how you hold the tablet. You can disable
automatic screen rotation and lock the screen in portrait or landscape mode.
Note: Some apps may not support automatic screen rotation and are designed to
work only in one orientation.
Locking the screen orientation
1. Change the screen to the desired orientation.
2. Swipe-in from the right edge of the display to access Charms.
3. Touch Settings → Screen .
4. Touch toggle to lock the screen orientation, or touch toggle to unlock
the screen orientation.
Windows 8 Start Screen
The Windows 8 Start screen displays a list of default and custom Live Tiles, which act
as a shortcut to Mail, Windows Explorer, Weather app, Calendar, Windows Store,
Internet Explorer, and other installed apps.
Live Tiles on your Start screen change and update in real time to show news and
sports updates, weather updates, social-networking feeds, and so on.
The tile-based user interface gives you direct access to your most recently used apps,
emails, photos, music, videos, contacts, updates from social-networking sites, and
frequently viewed websites. You can pin your favorite apps as tiles to customize the
Start screen.
![](/img.php?id=3199769&img=bgc.png)
12
You also can personalize the Start screen by setting your favorite picture as the
wallpaper.
Note: Live Tiles can be added or removed by using Pin to taskbar , Pin to Start
or Unpin from Start options.
Accessing the Start screen
When you computer boots into Windows, the Start screen appears by default. To
access the start screen from any other window or app, use any of the following
methods.
Press the Windows button.
Swipe-in from the right edge of the display to access Charms, and then touch the
Start icon .
If you are at the Start screen, pressing the Start icon takes you to the most
recently used app or most recently viewed screen.
Note: The functionality of the Start icon is same as Windows button
.
Swipe left
1. Swipe-in from the right edge of the display to show the charms. Charms provide
access to the system commands, such as Start, Search, Share, Devices, and
Settings options.
2. From the Start screen, swiping left until you reach the end of the tile view will
bring up the Apps icon. Touch Apps icon to show an alphabetical list of all apps
installed on your tablet.
Swipe right
1. Swipe-in quickly from the left edge of the display to switch the currently running
apps.
2. Swipe-in slowly from the left edge of the display to show thumbnails of open apps.
![](/img.php?id=3199769&img=bgd.png)
13
3. Swipe-in and out on the left edge of the display to show a list of the most recently
used apps.
Swipe up/down
1. From Start screen, swipe-in from the bottom or top edge of the display to show
the Customize icon . Touch Customize to organize the tiles on your Start
screen.
2. Swipe-in from the top to the bottom of an app to dock or close the app.
Synchronizing Your Tablet
Using a Microsoft account
If your computer has Microsoft Windows 8 installed, you can synchronize user
settings of your tablet with your computer using a Microsoft account. When you sign in
with your Microsoft account on your tablet, your settings, including internet browser
history, app settings, and personal files etc., are synchronized with other Windows 8
PCs and tablets computers.
1. On the tablet, access Charms and click Settings → Change PC Settings →
Accounts → Your account → Connect to a Microsoft Account to switch your
computer local account to your Microsoft account.
2. Click Settings → Change PC Settings → OneDrive → Sync settings to
see the options for synchronizing your data and settings.
Copy music, photos, and videos
1. Connect your tablet to a USB storage device with a Micro-USB to standard USB
conversion cable, then transfer files to or from the USB storage device.
2. After transferring files, use the Safely Remove Hardware wizard to remove the
USB storage device.
Note: The Micro-USB to standard USB conversion cable is sold separately and is
not shipped with the tablet.
Maintenance
Cleaning Your Tablet
Caution:
Before you clean your tablet, disconnect all the cables and turn off the tablet. Clean
your tablet with a soft cloth dampened with water. Do not use liquid or aerosol
cleaners, which may contain flammable substances.
1. Turn off your tablet. For more information on turning off your tablet,
![](/img.php?id=3199769&img=bge.png)
14
2. Disconnect any attached devices, headphones, and speakers from the tablet and
from their electrical outlets.
3. Moisten a soft, lint-free cloth with either water or a display cleaner, and wipe the
surface of the tablet until it is clean. Do not allow water from the cloth to seep
down to the tablet ports or buttons.
Caution:
1. To avoid damaging the tablet or display, do not spray cleaning solution directly
onto the display. Only use products specifically designed for cleaning displays
and follow the instructions included with the product.
2. Do not clean the keyboard with a moist cloth.
Refreshing your tablet
Refreshing your tablet will restore Windows to original factory settings without deleting
any of your personal files, installed apps from Windows Store, or personalization
settings.
To restore your tablet:
1. Swipe-in from the right edge of the display to access Charms.
2. Touch Settings → Change PC settings→ Update and recovery→
Recovery.
3. Touch Get started under Refresh your PC without affecting your files.
4. Read the warning and touch Next after you read the warning.
Note:
Apps installed from the Windows Store are automatically reinstalled after the refresh
is complete. Apps installed from sources other than the Windows Store are removed
and have to be manually installed. A list of apps removed during this process is
created on the desktop after the process is complete.
Resetting your tablet
Resetting your tablet will return the system to original factory settings.
1. Swipe-in from the right edge of the display to access Charms.
2. Touch Settings → Change PC settings→ Update and recovery→
Recovery.
3. Touch Get started under Remove everything and reinstall Windows.
4. Read the warning and touch Next after you read the warning.
![](/img.php?id=3199769&img=bgf.png)
15
Caution:
Resetting your tablet erases all data from your tablet, including your account
configuration, apps, music, pictures, files, and so on. Make sure that you back up all
the required data before you proceed.
Major Specifications
Item Descriptions
CPU Intel BayTrail-T CR, Quad core/1.8GHz (Z3735G)
Operation system Windows 8.1 with Bing
DDR 1GB
Internal Memory EMMC: 32 GB
Expandable Memory Micro SD card: up to 64 GB
Interfaces USB 2.0 high speed /Micro SD (compatible SDHC, up to 64GB) card
3.5mm Earphone
Connection Agreement WiFi (802.11 b/g/n); BT4.0
Front Webcam Front camera, 0.3 Mega Pixels; rear camera, 2.0 Mega Pixels
Bluetooth Support
Display Resolution,1280*800 Pixels, 10 inch LCD IPS
Power Supply Rechargeable lithium battery, 6000mA;
AC Adapter: Micro USB 5V/2.5 A
Storage Temp. -20℃ ~ +65℃
Ambient Temp. 0℃ ~ +40℃
Operation RH 20% ~ 90% (40℃)
Storage RH 20% ~ 93% (40℃)
![](/img.php?id=3199769&img=bg10.png)
16
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between theequipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The devic
e can be used in portable exposure condition without restriction.
This manual was correct and complete at the time of printing. However, new
specifications and updates can occur at any time without prior notice. No part of this
manual may be copied, republished, reproduced, transmitted or distributed in any way
without prior written consent of E Fun. Any unauthorized distribution of this manual is
expressly forbidden.
E Fun may find it necessary to modify, amend or otherwise change or update this
manual. We reserve the right to do this at any time, without any prior notice. All
specifications and features are subject to change without notice. All screen shots
shown are simulated and may not represent the actual screen on production units
sold to consumers.
For instruction manuals, updated drivers or other information, be sure to visit our
website at:
www.nextbookusa.com
Or write to us at:
E Fun
West Covina, CA 91791
USA
Copyright © 2014
FCC Statement
