Yifang Digital Technology M767ND Android MID, Enjoy 71 User Manual
Shenzhen Yifang Digital Technology Co., Ltd. Android MID, Enjoy 71
User manual
![](/img.php?id=1802839&img=bg1.png)
1
Safety Precautions
z Do not subject the device to severe impact or drop it from heights.
z Do not use the device in extreme hot or cold, dusty or damp conditions. Do not
expose it to direct sunlight.
z Avoid using the device near strong magnetic fields.
z Normal functioning of the product may be disturbed by ESD. If so, simply reset
and restart the device following the instruction manual. During file transmission,
please handle with care and operate in a static-free environment.
z Keep the device away from water and other liquids. In the event that water or
other liquids enter the device, power off the product immediately and clean the
device.
z Do not use chemicals to clean the device in order to avoid corrosion. Clean it
with a dry cloth.
z Do not install this equipment in a confined space such as a book case or similar
unit. The ventilation should not be impeded by covering the ventilation openings
with items such as newspaper, table-cloths, curtains etc.
z No naked flame sources, such as lighted candles, should be placed on the
apparatus.
z Attention should be drawn to environmental aspects of battery disposal.
z Use the apparatus in moderate climates.
z We are not responsible for damage or lost data caused by malfunction, misuse,
modification of the device or battery replacement.
z Do not attempt to disassemble, repair or modify the product. This will invalidate
the warranty.
z If the device will not be used for an extended period of time, please charge the
battery at least once per month to maintain battery life.
z Charge the battery if:
a) The battery level icon displays (An empty battery)
b) The device powers off automatically when restarted.
c) There is no response when pressing keys with keys unlocked and battery full.
z Do not interrupt the connection when the device is being formatted or
transferring files. Otherwise, data may be corrupted or lost.
z When the device is used as a portable HD, please use only per the instructions.
Otherwise, permanent data loss could occur.
z Please use and install data using the attachments/accessories provided and only
according to the manufacturer’s instruction.
z Please refer to the information on the bottom of the device for electrical and
safety information before installing data or operating the device.
z To reduce the risk of fire or electric shock, do not expose this device to rain or
moisture. The device should not be exposed to dripping or splashing. Never
place objects filled with liquids, such as vases, on the device.
z There is danger of explosion if the battery is replaced incorrectly. Replace only
with the same or equivalent type.
![](/img.php?id=1802839&img=bg2.png)
2
z The battery (battery or batteries or battery pack) should not be exposed to
excessive heat such as sunlight, fire or the like.
z Please follow responsible procedures for battery disposal.
z If the power adaptor disconnected from the device, the device will remain
operable as long as the battery has sufficient charge.
z The power adaptor is a CLASS II apparatus with double insulation, and no
external ground is provided.

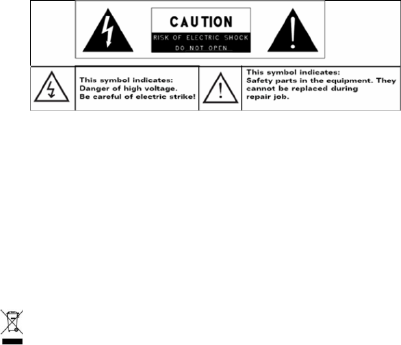

z Safety symbol explanation:
- The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
- To reduce the risk of electric shock, do not remove the cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualified
personnel.
- The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance instructions in
the literature accompanying the device.
- Correct Disposal of this product. This marking indicates that this
product should not be disposed of with other household waste in the EU. To
prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To dispose of your used device,
please use the return and collection systems available in your area or
contact the retailer where the product was purchased. They can take this
product for safe environmental recycling.
![](/img.php?id=1802839&img=bg3.png)
3
Listening Cautions
z This product respects the current regulations for limiting the output volume of
consumer audio devices to a safe level. By listening to your device with
headphones or earbuds at high volumes, you run the risk of permanent damage
to your ears. Even if you get used to listening at high volumes and it seems
normal to you, you still risk the possibility of damaging your hearing. Reduce the
volume of your device to a reasonable level to avoid permanent hearing damage.
If you hear ringing in your ears, reduce the volume or shut off your device. This
device has been tested with the supplied earphones. In order to preserve your
hearing, it is advised that you use only the following headphone models: the
earphones supplied with your device, or any other headphones that respect the
current regulations. Other types of headphones may produce higher volume
levels.(At full power ,the prolonged listening of the walkman can damage the ear
of the use)
z Maximum output voltage<=150mv
z Do not use while operating a motorized vehicle. It may create a traffic hazard
and is illegal in many areas.
z You should use extreme caution or temporarily discontinue use in potentially
hazardous situations created by obstructed hearing.
z Even if your headphones or earphones are the open-air type designed to let you
hear outside sounds, don’t turn up the volume so high that you can’t hear what’s
around you.
z Sound can be deceiving. Over time your hearing “comfort level” adapts to higher
volumes of sound. What sounds “normal” can actually be loud and harmful to
your hearing. Guard against this by setting the volume of your device at a safe
level BEFORE your hearing adapts.
To establish a safe volume level:
a. Start your volume control at a low setting.
b. Slowly increase the sound until you can hear it comfortably and clearly,
and without distortion. Once you have established a comfortable sound
level, leave it there.
This manual may not reflect your actual device’s operation. All information is subject to change
without prior notification. Please follow your actual device’s operational procedures.
4
Table of Content
Safety Precautions...................................................................................................... 1
Listening Cautions ...................................................................................................... 3
Feature Summary ....................................................................................................... 5
Accessories ................................................................................................................ 5
Buttons & Ports ........................................................................................................... 5
Charging Battery......................................................................................................... 6
Installing Memory Card............................................................................................... 6
Transferring Files ........................................................................................................ 6
Turning On/Off ............................................................................................................ 6
Unlocking the Screen.................................................................................................. 7
Home Screen.............................................................................................................. 7
Tips of touching screen............................................................................................... 9
Accessing Internet ...................................................................................................... 9
Using the Virtual Keyboard ....................................................................................... 10
Reading E-Books...................................................................................................... 10
Playing Music............................................................................................................ 11
Playing Video............................................................................................................ 12
HDMI Output......................................................................................................13
Viewing Photos ......................................................................................................... 13
Using the Camcorder/Camera .................................................................................. 14
Exploring Files .......................................................................................................... 15
Sending/Receiving E-mails ....................................................................................... 16
Other Applications..................................................................................................... 18
Managing Apps ......................................................................................................... 18
Managing Tasks........................................................................................................ 19
Troubleshooting ........................................................................................................ 19
Specifications............................................................................................................ 20
![](/img.php?id=1802839&img=bg5.png)
5
Feature Summary
● Wi-Fi ●7.0” Touch Screen ● 3rd-party Application
● Built-in Webcam ● Built-in G-sensor ● Entertainment
Accessories
z Main Unit ● USB cable ● AC Adaptor
z User Manual ● Warranty Card
Buttons & Ports
1234 56
8
9
11
12
7
10
1. Earphone socket – connects to stereo earphones.
2. HDMI jack – Connects to HD TV that supports HDMI connection.
3. Micro USB Port – Connects to PC; connects power adaptor for charging.
4. Front webcam
5. MicroSD card Slot
6. Charging indicator– Lights red when charging; lights orange as charging is over.
7. Power –Briefly press to lock or unlock the screen; press and hold for
seconds to turn on/off the unit; press and hold long enough to reset it.
8. VOL+/- – Increase/ decrease the volume.
9. Microphone
10. Touch screen
11. Built-in Speakers
12. Rear camera lens
![](/img.php?id=1802839&img=bg6.png)
6
Charging Battery
The device has a built-in rechargeable battery. No extra battery installation is required.
Just charge the device when it indicates low battery.
You can charge the device with the power adaptor or a USB cable connected to PC.
In both methods, the USB port should be used. When connecting the adaptor for
charging, plug it into any standard wall outlet. The charge indicator should light red
during charging, and should light orange as the battery is fully charged.
You can also charge the device as long as you connect it with a running PC.
Note:
a. You are strongly recommended to charge the battery immediately when the device indicates the battery
is lower than 15%!
b. For extended battery life, it is suggested NOT to use the device when it is charging.
c. Be sure to use only the dedicated power adaptor provided with the unit for charging.
Installing Memory Card
This device can read files directly from memory card.
To use a memory card, find the card slot on the device and then insert the memory
card into the slot in the correct orientation. To access the files stored in the memory
card, enter the FileBrowser/ASTRO mode and select the “SD Card” directory.
Transferring Files
Before reading or playing files, you may need to transfer media files from a computer
to the device.
(1) Connect the device to a computer with the supplied USB cable. Two removable
disks will be added to the computer, respectively referring to the internal flash
memory and the SD card.
(2) Once the connection is done, turn on the USB storage.
(3) Open a removable disk, then copy files from the PC to it.
Note:
Since pre-installed applications and Android OS occupies a considerable part of capacity – about 2.0GB, it
is normal that you see huge difference between available memory space and total capacity.
Turning On/Off
To turn on the device, press and hold the Power button on the unit until you see the
boot-up screen then release.
To turn off the device, press and hold the Power button until you see the option
“Power Off”, tap on “Power Off” and then tap on “OK”.
![](/img.php?id=1802839&img=bg7.png)
7
Tip: For the sake of power saving, this device may sleep with the screen display locked
when there is no touch action for a while (depending on the actual setting of Display-Sleep).
You can briefly press the Power button to wake it up.
Unlocking the Screen
The screen will be locked after the device is idle for a few seconds. You
need to unlock the screen by dragging the lock icon rightwards
before you continue to use the device.
Home Screen
The Home Screen consists five separate screens for positioning the shortcuts, widgets etc..
Slide your finger left or right on the screen to go to the extended screens.
Customizing Home Screen Items
y To add a Home Screen item (shortcut, widget etc.), you can tap the application icon to
display all applications and widgets, then hold your tap on an item to place it on the home
page.
Hold down Hold down
a
b c d e
a. Apps button- Open the apps
menu.
b. ESC button
c. Home button- Go to the home
screen.
d. Recent opened apps
e. Battery level
![](/img.php?id=1802839&img=bg8.png)
8
Note: If current page of Home Screen has no enough room for a shortcut or widget, you will be
prompted that there is no more room.
y To move a Home Screen item, hold your finger onto it to highlight it, then drag it to the
desired location, and release it.
y To remove a Home Screen item, hold your finger onto it to highlight it, drag it to the recycle
bin symbol “X” and then release your finger.
Changing the wallpaper
Hold your tap on the Home screen until a menu appear. Tap on “Wallpaper” and then
choose a picture as the desktop wallpaper.
Changing the System Settings
Tap the Setting icon on the Home Screen to open the settings menu and change
relevant settings for your device if necessary.
Display all Applications and widgets
The device has many useful applications and widgets pre-installed. You can tap the
Application Tab to display them.
![](/img.php?id=1802839&img=bg9.png)
9
Tip
:
Holding your finger on an item can add it to the desktop as a shortcut.
Tips of touching screen
y When watching a video or listening to music, you can tap on
the progress bar to play any designated section of the file.
You can drag the cursor of the progress bar to any other
elapsed time point of the file.
y In different browsers (File, Music, etc.), you can hold your finger on the screen
and then drag up and down to scroll the file list up and
down.
y In some browsers (File, Music etc.), you may hold your
finger on an item to display options.
Accessing Internet
This device features connection of Wi-Fi that provide you easy access to the Internet.
For Wi-Fi application, you need to configure a Wi-Fi network first, and you will have to
stay in a Wi-Fi service zone. Whenever it is within the coverage of a WiFi network you
have configured, the device will attempt to make a connection.
Make WI-FI Connection
Before launching an Internet application such as the web browser, you first need to
activate the Wi-Fi and configure a Wi-Fi network.
(1) Tap the Setting icon on the Home Screen to open the
settings menu.
(2) Select “WIFI” and slide the toggle switch to “ON” to turn
on WIFI.
(3) The device will scan automatically for available WiFi networks and display them in
the right panel. The list of available networks shows all the wireless networks in
range of your device.
(4) Choose a network from the list and then tap “Connect” to connect. Some network
may be secured with password, enter the password before connecting. If the
connection is successful, the message Connected to (WiFi Network Name) will
appear under the WIFI Setting.
Note:
1. The available network list is constantly refreshed automatically.
2. When the Wi-Fi is enabled, the device will connect automatically to your configured networks when they
are in range.
![](/img.php?id=1802839&img=bga.png)
10
Launching the Web browser
To launch the Web browser, you tap the Browser icon in the Home screen.
To display context menus, tap .
y You can scroll the screen up and down by tapping on the page and dragging it up
or down (be careful not to tap a link until you are ready!).
y To open a link, simply tap it.
y To go back to the previous page that you browsed, tap the Back icon .
y To display the available menu items, tap the Menu icon .
y To go back directly to the Home screen, tap the Home icon .
Using the Virtual Keyboard
Tapping on any text input field can open the virtual board. With the virtual keyboard, you can
enter a website address or any text required.
Reading E-Books
This device has a pre-installed E-Book reader, which allows you to read free ebooks
from the local memory or the Internet.
Get E-books
To get some e-books, you can copy them from a PC to the device via USB port (see
the “Transferring files” section mentioned above), or try to download some free
e-books from the Internet.
Note:
Make sure you have the access to the Internet by WiFi connection if you are
going to read or download on-line e-books.
Start Reading
Caps Lock
Backspace
Enter
Input method
Space
Number/
Letter switch
![](/img.php?id=1802839&img=bgb.png)
11
To read the local e-books,
(1) Open the app E-Book, then select one e-book from the local library and tap to
open it for reading.
(2) During your reading, you can slide your finger on the screen left/right to turn up/
down the pages.
(3) Tap the Menu button to open the context menu which allows you to check
your books in either local library or network library, or to perform some preferable
setting operations.
Search for local E-books
(1) In the Library screen, tap the Menu button to display Search icon.
(2) Tap the Search icon to bring up the virtual keyboard.
(3) Input the keywords of the book title, author name or tag name for search.
(4) The search result will be shown.
Playing Music
Tap the Music icon in the Apps page to launch the music player.
Music Library
You should enter the music library once you start the
music player. The Music Library shows your music files
sorted by categories (Artist, Album, etc.) if your music files
contain these song information tags.
y You can drag your finger up and down on the file list to
scroll through it.
y Tap a song to play.
Artist List music files by artist.
Album List music files by album.
Songs List all music files.
Playlists List your favorite songs.
![](/img.php?id=1802839&img=bgc.png)
12
Now Playing Go to the Now Playing screen.
Playback Screen
Playback menu
During playback of a music file, tap on the MENU icon to bring up a context
menu:
Playing Video
Tap the Movie Player icon in the Home or Apps page to launch the video player.
Navigate through Video Files
Find the video files/folders under correct directory after you enter the video player.
y You can drag your finger up and down on the video list to scroll through it.
y Tap a video to start playing.
Playback Screen
Video Playback Settings
Tap on the icon to display the video settings.
a. Now Playing List
b. Shuffle on /off
c. Repeat mode
d. Lyrics display on/off
e. Artist Name
f. Album Name
g. Song Title
h. Previous song/Rewind
i. Play/Pause
j. Next song/Fast Forward
k. Progress bar
a. Return
b. Previous Video
c. Fast Rewind
d. Play/Pause
e. Fast Rewind
f. Next video
g. Video settings
h. Progress bar
a
Library– return to music library menu.
Party Shuffle – select Party Shuffle mode.
Add to playlist – add a song to the playlist.
Delete – delete a song.
Sound Effects
–
Set the sound effects for the music pla
y
back.
b c d efg
h
a b c
f
d
e
h
k
g
i j
![](/img.php?id=1802839&img=bgd.png)
13
HDMI Output
The device features a HDMI interface that allows you to connect it to a digital
television. HDMI connection can deliver high-definition audio and video quality.
To use the HDMI function on digital televisions,
(1) Connect the device to the digital television through HDMI cable.
(2) Open the HDMISwitch app, then select an HDMI option (HDMI 720p/
HDMI1080p) and play a video file;
(3) Turn on the digital television, and switch its Source mode to HDMI.
(4) Enjoy the sharpest image quality on the wide screen of television.
Note:
For some reason, conductive objects may cause short circuit to the device when they contact the HDMI
jack. Therefore, always avoid using any conductors to touch the HDMI jack.
Viewing Photos
Tap the Gallery icon in the Apps page to launch the Photo Gallery.
Viewing Photos
(1) Photos should be listed in thumbnail. You can slide your finger on the screen left
or right to browse photos.
(2) Tap a photo thumbnail to view the photo in full screen.
Return Resume
Mode
Play
Mode Subtitle
Audio
Track Display
Mode
Brightness File
Inf
o
rm
at
i
o
n
![](/img.php?id=1802839&img=bge.png)
14
(3) To display the previous/next picture, slide your finger on the screen horizontally.
(4) To zoom in or out the picture, pinch your finger on the picture.
Display Menu
When you are viewing the picture, you can tap on the screen or the Menu icon to
show a menu.
Using the Camcorder/Camera
Tap the Camera in the apps page to launch the Camera.
Preview window
Viewfinder Zoom
![](/img.php?id=1802839&img=bgf.png)
15
z To start making video clips, tap on the Start/Stop button to start video
recording.
z Tap on the Start/Stop button again to stop video recording or photographing.
z The video clip / photo can be previewed in the Preview Window.
z To play the video clip that you have made, enter the Movie Player, and then tap
the video.
z To view the photo that you have taken, enter the Photo Viewer mode, and then tap
the photo.
Exploring Files
You can explore files and folders with either the FileBrowser or ASTRO application.
Using the FileBrowser
Navigate through Files and Folders
y Tap the FileBrowser icon in the application page
to launch the application.
y You can drag your finger up and down to scroll the
file list up and down.
y Tap to open a file or folder.
y You can go back one level in the interface by tapping on the Back icon .
y You can go back to the root of directory by tapping Up button .
y Tap button to enable multiple choices of the files.
y Tap button to edit (Cut/Copy/Paste/ Delete) the selected file or files.
y Tap button to browser the file or folders in thumbnails.
y Tap button to seek for help information on the Internet.
y You can always go back directly to the Home screen by tapping .
y Tapping can hide/display the toolbar.
Using the ASTRO
Navigate through Files and Folders
y Tap the ASTRO icon in the apps page to launch the
application.
y You can drag your finger up and down to scroll the
VCR mode
Start/Stop
Photography mode
Settings
![](/img.php?id=1802839&img=bg10.png)
16
file list up and down.
y To open a file or folder, tap the file/folder.
y Tap the menu icon , you can manage the applications.
y You can go back or forward one level in the interface by tapping on the Back icon
or Next icon .
y You can go back one level in the directory by tapping on the LevelUp button .
y Wherever you are in the interface, you can go back directly to the Home screen by
tapping on the Return icon or Home icon .
y Tap the Home icon to go to the root directory.
Copy/Move Files and Folders
(1) Navigate through the file/folder and locate the file/folder you want.
(2) Tap the Multi icon and then tap the file(s) /folder(s) that you want. You can
select multiple items by tapping. To deselect the item(s), tap the Cancel icon .
(3) Select “Copy” or “Move” from the pop-up menu.
(4) Navigate to the location where you wish to copy or move the file/folder to.
(5) Select the Edit icon from the toolbar and then choose “Paste.”
Delete Files and Folders
(1) Navigate through the file/folder and locate the file/folder you want.
(2) Tap the Multi icon and then tap the file(s) /folder(s) that you want. You can
select multiple items by tapping. To deselect the item(s), tap the Cancel icon .
(3) Select “Delete” from the pop-up menu and then select “Delete” to confirm.
Compress Files/Folder with Zip
(1) Navigate through the file/folder and locate the file/folder you want.
(2) Tap the Multi icon and then tap the file(s) /folder(s) that you want. You can
select multiple items by tapping. To deselect the item(s), tap the Cancel icon .
(3) Select “Zip” from the pop-up menu.
(4) Enter a name for the zip file and then tap “Create”.
File Options
You can hold your finger on a file or folder to display the
options (as shown on the right).
Sending/Receiving E-mails
This device has an E-mail application pre-installed. You can send or receive e-mails
from the Internet at any time with this device. Make sure you have an Internet
connection before using the email service.
In the Home Screen, tap the Applications shortcut to display all applications and then
tap the Email icon to launch the e-mail application.
![](/img.php?id=1802839&img=bg11.png)
17
Setup Email Account
First you need to setup an E-mail account for receiving or sending emails.
(1) Start up the email application by tapping the Email application icon and you are
prompted to setup an account.
(2) Input your email address and login password. You can set the account as default
by selecting the option “Send email from this account by default”.
(3) Tap “Manual Setup” to set the email server information.
(4) Choose the server type from POP3, IMAP or Exchange for incoming emails. To
know what type of your email server is, you can consult the service provider,
network administrator or search for information in the Internet.
(5) Input required information (server, port etc.). You can obtain the information from
the service provider, network administrator or the Internet.
(6) Choose the server type for outgoing emails, and input required server information.
(7) Click “Next” to continue. Your tablet will check the server settings. When it prompts
you that “Your account is set up, and email is on its way”, your account is set up
successfully.
(8) Input your name and then tap on “Done” to finish.
Note: If you have more than one account, every time when you start up the email application, you enter the
default email account.
Manage Accounts
You can setup more than one account and manage these accounts by checking
information about the account, adding another account or deleting an account.
Add another Account
Following these steps to add another account if you want.
(1) Launch the email application and then tap on the Menu icon to display the
menu item. Choose “Accounts” to display accounts.
(2) Tap on the Menu icon to display the menu item, and then choose “Add
account”.
(3) Follow the steps of setting up a Email Account to add an account.
Delete an Email Account
(1) When you are in the email box, tap on the Menu icon to display the menu
items.
(2) Tap on “Accounts” to display all email accounts.
(3) Hold your tap on the account that you want to delete until a menu pop up.
(4) Tap on “Remove Account”,and then tap on “OK” to confirm.
Check the Account Setting
(1) When you are in the email box, tap on the Menu icon to display the menu
items.
(2) Tap on “Accounts” to display all email accounts.
(3) Hold your tap on the account that you want to check until a menu pop up.
![](/img.php?id=1802839&img=bg12.png)
18
(4) Tap “Account settings”,and then you should see all setting information about the
account. You can edit these settings as you want.
View Emails
You should enter your mailbox when you start up the email application.
y In the mailbox, you can slide your finger up and down to scroll through the email
list.
y Tap on an email to open it.
y Holding your tap on the email can display a menu. With the menu, you can open,
reply, forward or delete the email.
Other Applications
Some useful small apps have been preinstalled in this device, such as Calculator,
Calendar, Sound Recorder, Office Suite etc.. They are easy to use, thus no detailed
instructions are necessary for these apps. Please always follow the actual operation
of your device.
Managing Apps
You can manage your applications of the device easily.
There are number of useful apps pre-installed in the device as it is produced at the
factory, and you can copy some from other resources, download or purchase them
from the Internet.
Install Applications
You can install applications following these steps:
(1) Open the FlieBrowser application, then find the app you want to install.
(2) Tap the app to start installing. However, for the sake of security, the device may
prompt you that there is possibility of attack risk if you install and run some apps
whose sources are not guaranteed. In this case, you shall turn to the Settings
menu and select Security to check the “Unknown sources” before you go on with
the installation.
(3) Once the installation is completed, you can find the icon of the app in the Apps
screen. It is ready for running.
Uninstall Applications
(1) Tap the Settings shortcut in the Home Screen to display setting menus.
(2) Select “Apps”.
(3) Tab on the application that you want to uninstall.
(4) Tab on “Uninstall” to uninstall the application.
(5) You can simply tap and hold on an app icon to jump to the Home Screen, then
drag it to the dustbin icon to uninstall it.
![](/img.php?id=1802839&img=bg13.png)
19
Note:
1. You cannot uninstall the pre-installed applications, but you can deactivate or stop them.
2. Make sure all apps you have copied or downloaded to your device are in the .apk format.
Managing Tasks
Your device can handle multiple tasks at the same time. For example, you can view
photos while listening to music. Multitasking is helpful but inefficient if too many tasks
are running. In order to save system memory and enhance system performance, you
can end some tasks that you don’t use at the moment.
(1) Tap to display applications that you used recently.
(2) Hold your tap on the application that you want to stop, and then select “Remove
from list”.
(3) You can also run the application Advanced Task Killer to manage your
tasks(running apps).
Troubleshooting
Reset this device
y In the event that the device freezes, you can reset the device by pressing and
holding the Power button for about 10 seconds.
![](/img.php?id=1802839&img=bg14.png)
20
Specifications
Item Description
CPU Based on AML8726-MX Cortex A9; Main CPU frequency: 1.5 GHz
DDR3 1G B
Operating System Android OS 4.0.4 .
Hardware IBM PC or compatible PC, Note-book or Macintosh with USB port
Internal Memory 4GB, 8GB, 16GB (optional)
Memory Card type SD card: 2GB, 4GB (SDHC), 8GB, 16GB, 32GB(SDHC)
Operation System Windows2000/XP/Vista/windows 7/Linux2.4/ MAC OS 10.6.7 above
USB2.0 High speed
SD (compatible SDHC)
Interface
3.5mm Earphone
Connection
Agreement WiFi (802.11 b/g/n)
Front Webcam 0.3 Mega Pixels
G-sensor Support 360 degrees rotation
E-Book Reader Support
JPEG(Baseline) : 2Mpels(Max)
Photo Format BMP / GIF (Static)/ PNG
Audio Format MP3/WAV/OGG/FLAC/APE/AAC/WMA
Video Format AVI/3GP/ MP4/RM/RMVB/FLV/MKV/MOV/MOV/MPG/VOB/DAT/WMV/ASF
Battery Life About 6 hours of music playback; About 5 hours of video playback;
About 4.5 hours of web browsing.
Display 7.0-inch TFT LCD, Touchpad (capacitive touch pad), 1024X600 pixels.
SNR >=80dB
Frequency Response
Range 20Hz—20KHz
Power Supply Rechargeable lithium-ion polymer battery;
AC Adapter: AC Input 100-240V~50/60Hz, DC Output 5V/2A
Storage Temp. -20℃ ~ +65℃
Ambient Temp. 0℃ ~ +40℃
Operation Relative
Humidity 20% ~ 90%(40℃)
Storage Relative
Humidity 20% ~ 93%(40℃)
21
FCC Warning:
z This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
z (1) this device may not cause harmful interference, and
z (2) this device must accept any interference received, including interference that may cause
undesired operation.
z Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
z NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
z -- Reorient or relocate the receiving antenna.
z -- Increase the separation between the equipment and receiver.
z -- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
z -- Consult the dealer or an experienced radio/TV technician for help.
FCC RF warning statement: The device has been evaluated to meet general RF exposure
requirement.The device can be used in portable exposure condition without restriction.
