Yifang Digital Technology NX16A11264 Tablet PC User Manual M1108CWP 20151223
Shenzhen Yifang Digital Technology Co., Ltd. Tablet PC M1108CWP 20151223
User manual
![](/img.php?id=2873140&img=bg1.png)
1
Safety Precautions
z Do not subject the device to severe impact or drop it from heights.
z Do not use the device in extreme hot or cold, dusty or damp conditions. Do not
expose it to direct sunlight.
z Avoid using the device near strong magnetic fields.
z Normal functioning of the product may be disturbed by ESD. If so, simply reset
and restart the device following the instruction manual. During file transmission,
please handle with care and operate in a static-free environment.
z Keep the device away from water and other liquids. In the event that water or
other liquids enter the device, power off the product immediately and clean the
device.
z Do not use chemicals to clean the device in order to avoid corrosion. Clean it
with a dry cloth.
z Do not install this equipment in a confined space such as a book case or similar
unit. The ventilation should not be impeded by covering the ventilation openings
with items such as newspaper, table-cloths, curtains etc.
z No naked flame sources, such as lighted candles, should be placed on the
apparatus.
z Attention should be drawn to environmental aspects of battery disposal.
z Use the apparatus in moderate climates.
z We are not responsible for damage or lost data caused by malfunction, misuse,
modification of the device or battery replacement.
z Do not attempt to disassemble, repair or modify the product. This will invalidate
the warranty.
z If the device will not be used for an extended period of time, please charge the
battery at least once per month to maintain battery life.
z Charge the battery if:
a) The battery level icon displays (An empty battery)
b) The device powers off automatically when restarted.
c) There is no response when pressing keys with keys unlocked and battery full.
z Do not interrupt the connection when the device is being formatted or
transferring files. Otherwise, data may be corrupted or lost.
z When the device is used as a portable HD, please use only per the instructions.
Otherwise, permanent data loss could occur.
z Please use and install data using the attachments/accessories provided and only
according to the manufacturer’s instruction.
z Please refer to the information on the bottom of the device for electrical and
safety information before installing data or operating the device.
z To reduce the risk of fire or electric shock, do not expose this device to rain or
moisture. The device should not be exposed to dripping or splashing. Never
place objects filled with liquids, such as vases, on the device.
z There is danger of explosion if the battery is replaced incorrectly. Replace only
with the same or equivalent type.
![](/img.php?id=2873140&img=bg2.png)
2
z The battery (battery or batteries or battery pack) should not be exposed to
excessive heat such as sunlight, fire or the like.
z Please follow responsible procedures for battery disposal.
z If the power adaptor disconnected from the device, the device will remain
operable as long as the battery has sufficient charge.
z The power adaptor is a CLASS II apparatus with double insulation, and no
external ground is provided.

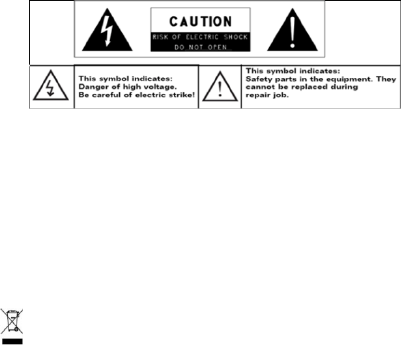

z Safety symbol explanation:
- The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
- To reduce the risk of electric shock, do not remove the cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualified
personnel.
- The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance instructions in
the literature accompanying the device.
- Correct Disposal of this product. This marking indicates that this
product should not be disposed of with other household waste in the EU. To
prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To dispose of your used device,
please use the return and collection systems available in your area or
contact the retailer where the product was purchased. They can take this
product for safe environmental recycling.
z This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
z CE in which countries where the product may be used freely: Germany, UK, Italy,
Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg,
Austria, Finland, Sweden, Norway and Iceland.
![](/img.php?id=2873140&img=bg3.png)
3
Listening Cautions
z This product respects the current regulations for limiting the output volume of
consumer audio devices to a safe level. By listening to your device with
headphones or earbuds at high volumes, you run the risk of permanent damage
to your ears. Even if you get used to listening at high volumes and it seems
normal to you, you still risk the possibility of damaging your hearing. Reduce the
volume of your device to a reasonable level to avoid permanent hearing damage.
If you hear ringing in your ears, reduce the volume or shut off your device. This
device has been tested with the supplied earphones. In order to preserve your
hearing, it is advised that you use only the following headphone models: the
earphones supplied with your device, or any other headphones that respect the
current regulations. Other types of headphones may produce higher volume
levels.(At full power ,the prolonged listening of the walkman can damage the ear
of the use)
z Do not use while operating a motorized vehicle. It may create a traffic hazard
and is illegal in many areas.
z You should use extreme caution or temporarily discontinue use in potentially
hazardous situations created by obstructed hearing.
z Even if your headphones or earphones are the open-air type designed to let you
hear outside sounds, don’t turn up the volume so high that you can’t hear what’s
around you.
z Sound can be deceiving. Over time your hearing “comfort level” adapts to higher
volumes of sound. What sounds “normal” can actually be loud and harmful to
your hearing. Guard against this by setting the volume of your device at a safe
level BEFORE your hearing adapts.
To establish a safe volume level:
a. Start your volume control at a low setting.
b. Slowly increase the sound until you can hear it comfortably and clearly,
and without distortion. Once you have established a comfortable sound
level, leave it there.
This manual may not reflect your actual device’s operation. All information is subject to change
without prior notification. Please follow your actual device’s operational procedures.
4
Table of Content
Safety Precautions ........................................................................... 1
Listening Cautions ............................................................................ 3
Packing Contents ............................................................................. 5
Features & Functionality ..................................................................... 5
Basic Connections ........................................................................... 6
Basic Operation ............................................................................... 9
Maintenance ................................................................................. 12
Major Specifications ....................................................................... 14
FCC Statement ............................................................................. 14
Frequently Asked Questions(FAQ) ....................................................... 16
![](/img.php?id=2873140&img=bg5.png)
5
Packing Contents
Congratulations! Windows 10, the state-of-the-art operating system from Microsoft, is
preinstalled on your tablet PC. When you get your device, be sure to check the
following items are enclosed in the package:
z Main Unit ● Power Adaptor ● Keyboard ● User’s Manual
Features & Functionality
Overview
Feature Functionality
1. Charging indicator Indicates the battery-charge status.
2. microSD card slot Reads and writes files stored on a microSD card.
3. HDMI port Connect HD television via optional HDMI cable, for
switching the display to wider screen.
4. Micro-USB port Connect USB devices, via an optional USB conversion
cable, for transferring data, music, photos, videos, and so
on.
5. DC-In socket Connect the supplied power adapter for charging the
battery.
6. Microphone Records sounds.
Provides sound input while making calls using web-based
apps.
7. Audio port (3.5 mm) Connect a headset, headphones, microphones, or other
audio equipment to listen to stereo sound, record audio,
or make web phone calls.
8. Speaker Provides audio output.
9. Sustaining port (female) Fix and sustain the connection to external keyboard.
10. Pogo pin connector (female) Connect external keyboard
11.Front-facing camera Capture a front view picture or record videos.
Use while making video calls.
12.Rear camera Captures pictures or videos.
13.Volume+/- buttons Press to increase/decrease volume
14.Power button Press and hold to turn the tablet on or off.
Press to turn the display on or off.
Note:
1. Both cameras support zoom, face tracking.
2. User can connect a keyboard and USB mouse to this tablet if necessary.
![](/img.php?id=2873140&img=bg6.png)
6

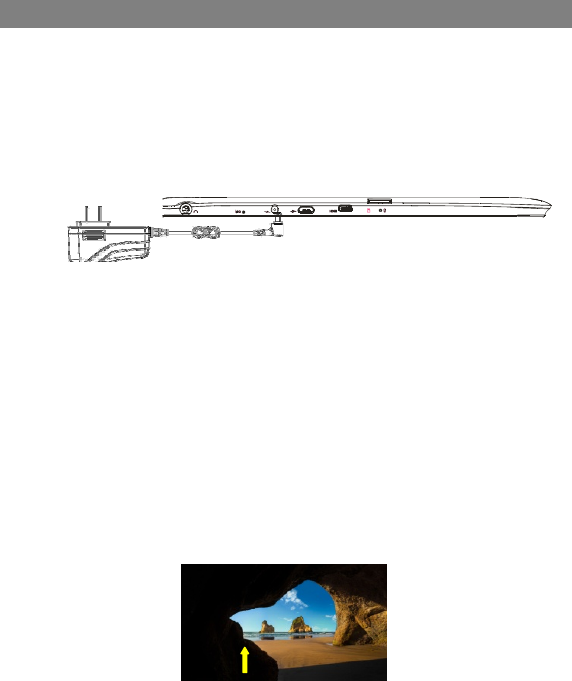

Basic Connections
Charging the tablet
Note: If using the tablet for the first time, or after a long period of idle time, charge the
battery for more than half an hour before turning it on, to ensure system stability.
The tablet has a built-in rechargeable battery. Charge the device when the battery
level is low.
1. Plug the power adapter into the DC-In socket.
2. Connect the power adapter to an electrical outlet and charge the tablet until the
battery is fully charged.
Caution:
1. Charge the battery in an ambient temperature of 0 °C to 35 °C.
2. Use only the supplied power adapter to charge your tablet. Using unauthorized
power adapters may severely damage your tablet.
Note:
1. The battery is not fully charged when you unpack your tablet.
2. A fully discharged battery takes about 5 hours to fully charge.
3. When the battery is being charged, the LED indicator lights red, and when the
battery has been fully charged, the LED indicator lights orange.
Turning On the Tablet
Note: This device has been equipped with Windows 10 system at the factory, so user
need not perform Windows setup again before using for the first time.
Press and hold the Power button for 2 seconds to turn on your tablet. The lock screen
appears.
Now the tablet is ready for use.
Note: If the login screen is not enabled in Windows 10, you will be taken directly from
the lock screen to the Start screen.
Turning Off the Tablet
You can turn off the tablet in two ways:
Using the Power button:
1. Press and hold the Power button for at least 4 seconds.
2. Swipe-down the shutdown confirmation screen to the bottom edge of the display
![](/img.php?id=2873140&img=bg7.png)
7
to turn off the tablet.

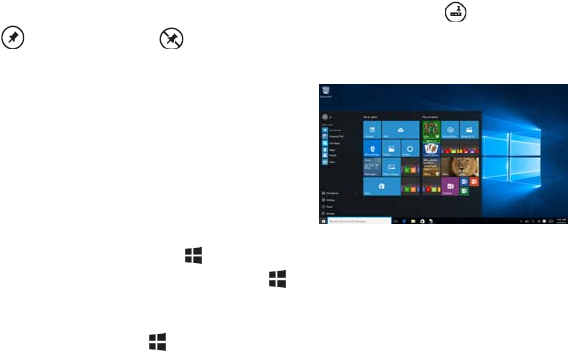

Using Start menu:
1. Touch the Windows/ Start button to bring up Start menu.
2. Touch Power → Shut down to turn off the tablet.
Turning On/Off screen
Usually, user can press once the power button to turn on/ off the screen display.
Optionally, user can also use the Start menu:
1. Touch the Windows/ Start button to bring up Start menu.
2. Touch Power → Sleep to turn off the screen.

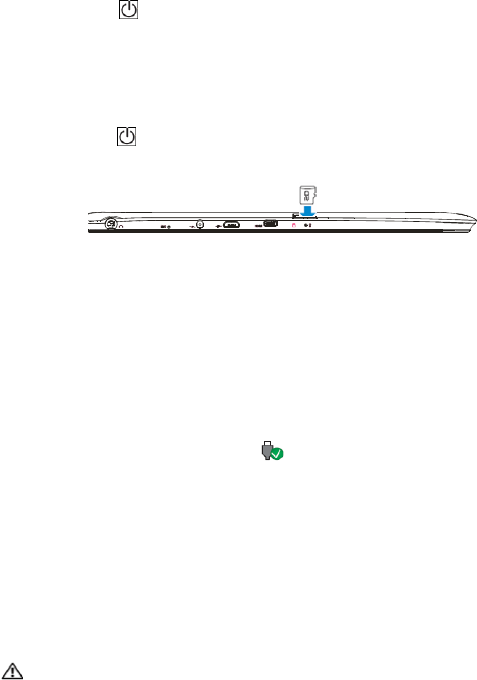

Inserting a microSD card
1. Pick up a microSD card.
2. Align the microSD card so that the pins are pointed toward the card slot.
3. Push the microSD card into the card slot until it locks into place.
Removing a microSD card
Caution: Removing the microSD card while it is in use may cause data loss or result
in application errors. Make sure all save operations to the microSD card are complete
before removing the microSD card.
1. Touch the Tray button in the notification area in the lower-right corner of the
screen.
2. Touch Safely Remove Hardware .
3. Touch Eject XXXX SD Card. A message appears confirming that the microSD
card can be safely removed. If a warning message appears stating the microSD
card cannot be removed, ensure all data transfers involving the microSD card are
complete.
4. Press on the microSD card to release it.
5. Slide the card out after it pops out from the microSD card slot.
Using Headphones
You can connect a headset or headphones to the audio port of your tablet.
Warning: Listening to loud music for an extended period of time can lead to
hearing loss.
1. Connect headphones to the audio port (3.5 mm) on the tablet.
2. Insert the earphones in your ears and adjust the volume level to a comfortable
level.
Note: When you connect an audio device to the 3.5 mm audio jack, the integrated
![](/img.php?id=2873140&img=bg8.png)
8
speakers on your tablet are muted automatically
.
Caution: To prevent damage to the headphones when disconnecting it from the
tablet, pull the connector instead of the cable.
Connecting the Keyboard
For the sake of using convenience, this device is designed to be equipped with a
dedicated keyboard. Follow these steps to connect the keyboard to your tablet:
1. Place the dedicated keyboard on an even and stable plane (e.g. desk);
2. Hold your tablet with two hands, align the connector and the two magnetic
contacts on the keyboard to the jack and positioning slots at the bottom of the
tablet.
3. As soon as the keyboard is connected to the tablet, it is ready for use.
4. You can rotate the tablet to overlap the keyboard as you do with a laptop.
5. To remove the keyboard from tablet, you need to push down the keyboard on the
top with one hand, and then lift up the tablet with the other hand properly.
Note:
1.This keyboard is a plug-and-play device; you can connect/disconnect it anytime.
2. Normally, the power LED on the keyboard will be turned on once the tablet is
connected to the keyboard.
3. When the tablet overlaps on the keyboard, the display will be turned off; as soon as
it is erect, the display will be turned on again.
4. Since the keyboard is powered by the tablet, it has no built-in battery inside.
Warning:
The maximum angle between the tablet and the keyboard is 120 degrees, so DO NOT
rotate the tablet greater than that angle; otherwise, it may cause damage to the tablet
and the keyboard.
Instructions for using the cool shotcut keys:
FN+ F1 Screen sleep FN+F8 Shift to HD TV screen
FN+F2 System settings FN+F9 Lock/unlock touchpad
FN+F3 Brightness down FN+F10 Airplane mode
FN+F4 Brightness up Window+Prtscr Capture screenshot
FN+F5 Volume down FN+PgUp Page up
FN+F6 Volume up FN+PgDn Page Down
FN+F7 Mute Enter+Windows Turn on Narrator
FN+NumLk Lock/ unlock numeric keys ESC+CapsLock Turn off Narrator
Gestures for using the touchpad
Function Gestures with one finger
Left click Double tap on an item to select it
![](/img.php?id=2873140&img=bg9.png)
9
Move the cursor Touch the touchpad and move
Move an icon Double tap on one item and drag elsewhere before releasing
Gestures with two fingers
Right click Double tap to bring up the context menu
Scroll/pan Scroll up/down to scroll through the page
Zoom in/out Move closer/wider
Gestures with three fingers
Invoke Cortana Tap twice
Multitasking Tap and move vertically or horizontally to check multitask
Gestures with four fingers
Action center Call out the Action Center
Basic Operation
Wi-Fi Setting
Turning On/Off Wi-Fi:
1. Touch WiFi icon in the notification area in the lower-right corner of the screen
to view the available WiFi hot spots.
2. Touch Available WiFi icon to turn on/off WiFi connection.
Connecting to a network:
1. Touch WiFi icon in the notification area in the lower-right corner of the screen
to view the available WiFi hot spots.
2. Select an available network from the list and touch Connect.
3. Input the password if necessary, then touch Connect to start connecting to the
Internet.
Gestures
Your tablet has a multi-touch display. You can touch the screen to operate the tablet.
Finger Gesture You can do
Touch
Tap gently on the display with your
fingertip.
Select items on the screen, including options,
entries, images, and icons.
Start apps.
Touch buttons on the screen.
Input text using the on-screen keyboard.
Touch and Hold
Touch and hold your finger on the
display.
Display detailed information about an item.
Open the context menu of an item to perform
further actions.
![](/img.php?id=2873140&img=bga.png)
10
Drag
1. Touch and hold your finger on an
item on the screen.
2. Keeping your finger in contact with
the display, move your fingertip to the
desired location.
3. Take your finger off the display to
drop the item in the desired location.
Move items such as images and icons on the
screen.
Swipe or Slide
Move your finger in a vertical or
horizontal direction on the display.
Scroll through the Start screen, web pages, lists,
entries, photos, contacts, and so on.
Close an app. (Swipe the app to the bottom of the
display.)
Zoom in
Touch the display with two fingers and
then move the fingers apart.
Enlarge the view of an image or web page.
Zoom out
Touch the display with two fingers and
then move the fingers closer.
Reduce the view of an image or web page.
Screen Orientation
For optimal viewing experience, the screen orientation changes automatically to
portrait or landscape format depending on how you hold the tablet. You can disable
automatic screen rotation and lock the screen in portrait or landscape mode.
Note: Some apps may not support automatic screen rotation and are designed to
work only in one orientation.
Locking the screen orientation
1. Change the screen to the desired orientation.
2. Touch Action Center button in the notification area to
access the Action Center;
3. Touch Rotation lock icon to lock or unlock screen
![](/img.php?id=2873140&img=bgb.png)
11
rotation.
Windows 10 Start Screen
The Windows 10 Start screen displays a list of default and custom Live Tiles, which
act as a shortcut to Mail, Microsoft Edge, Weather app, Calendar, Windows Store,
and other installed apps.
Live Tiles on your Start screen change and update in real time to show news and
sports updates, weather updates, social-networking feeds, and so on.
The tile-based user interface gives you direct access to your most recently used apps,
emails, photos, music, videos, contacts, updates from social-networking sites, and
frequently viewed websites. You can pin your favorite apps as tiles to customize the
Start screen.
You also can personalize the Start screen by setting your favorite picture as the
wallpaper.
Note: Live Tiles can be added or removed by using Pin to taskbar , Pin to Start
or Unpin from Start options.
Accessing the Start screen
When your computer boots into Windows,
the Start screen appears by default. To
access the start screen from any other
window or app, use any of the following
methods:
1. Press the Windows button on the
keyboard.
2. Touch the Start button in the lower left corner of the screen.
Note: The functionality of the Start icon is same as Windows button
.
Getting Started
Touch the Start icon to bring up the start menu, from which you can find a list
of Most used apps. Among the apps, Get Started is extremely useful for new
user of the newest Windows system-Windows 10,includes some video clips
introducing the new features of the newest system.
Windows Search bar
Next to Start button in the lower-left corner of the screen, it is Windows search
bar, with which you can type in any keywords to search the web and Windows.
Swipe left/right
Swipe-in from the right edge of the display to show the Action Center, which provides
![](/img.php?id=2873140&img=bgc.png)
12
quick access to the system settings, such as Tablet mode, Airplane mode, Rotation
lock, WiFi connection, Location, Settings etc..
Swipe-in from the left edge of the display to show thumbnails of current tasks.
Narrator Mode
This is a featured function that is friendly for blind users. Narrator is a screen reader
that reads all elements on screen, like text and buttons.
1. Touch Start > Settings>Easy access>Narrator, then toggle the slider to turn on
Narrator.
2. To turn Narrator off with the touch screen, tap the Narrator slider, and then
double-tap anywhere on the screen.
Note: If you have a keyboard connected to the tablet, you can use some shortcut keys
to turn on/off Narrator mode. See the section of ‘Connecting the Keyboard’.
Synchronizing Your Tablet
If your computer has Microsoft Windows 10 installed, you can synchronize user
settings of your tablet with your computer using a Microsoft account. When you sign in
with your Microsoft account on your tablet, your settings, including internet browser
history, app settings, and personal files etc., are synchronized with other Windows 10
PCs and tablets computers.
On the tablet, access Action Center by touching button → All Settings →
Accounts → Sync your settings to switch your computer local account to your
Microsoft account.
Copy music, photos, and videos
1. Connect your tablet to a USB storage device with a Micro-USB to standard USB
conversion cable, then transfer files to or from the USB storage device.
2. After transferring files, use the Safely Remove Hardware wizard to remove the
USB storage device.
Note: The Micro-USB to standard USB conversion cable is sold separately and is
not shipped with the tablet. See the picture below for reference.
Maintenance
Cleaning Your Tablet
Caution:
Before you clean your tablet, disconnect all the cables and turn off the tablet. Clean
your tablet with a soft cloth dampened with water. Do not use liquid or aerosol
![](/img.php?id=2873140&img=bgd.png)
13
cleaners, which may contain flammable substances.
1. Turn off your tablet. For more information on turning off your tablet,
2. Disconnect any attached devices, headphones, and speakers from the tablet and
from their electrical outlets.
3. Moisten a soft, lint-free cloth with either water or a display cleaner, and wipe the
surface of the tablet until it is clean. Do not allow water from the cloth to seep
down to the tablet ports or buttons.
Caution:
1. To avoid damaging the tablet or display, do not spray cleaning solution directly
onto the display. Only use products specifically designed for cleaning displays
and follow the instructions included with the product.
2. Do not clean the keyboard with a moist cloth.
Resetting your tablet
If your PC isn’t running well, resetting it might help. This lets you choose to keep your
files or remove them, and then reinstall Windows.
To restore your tablet:
1. Touch button in the notification area to access the Action Center;
2. Touch All Settings →Update and security→ Recovery→ Reset this PC.
3. Touch Get started to choose an option from Keep my files or Remove every
thing.
4. You can have more choices if you select Advanced startup.
Note:
Apps installed from the Windows Store are automatically reinstalled after the refresh
is complete. Apps installed from sources other than the Windows Store are removed
and have to be manually installed. A list of apps removed during this process is
created on the desktop after the process is complete.
In shutdown status, user can press and hold Power & Vol- keys at the same time to
boot the device and enter Recovery mode, for the purpose of repairing or resetting
the system.
Caution:
Resetting your tablet erases all data from your tablet, including your account
configuration, apps, music, pictures, files, and so on. Make sure that you back up all
the required data before you proceed.
![](/img.php?id=2873140&img=bge.png)
14
Major Specifications
Item Descriptions
CPU Intel Atom x5-Z8300 CPU@1.44GHz
Operation system Windows 10
DDR 2GB
Internal Memory EMMC: 32 GB
Expandable Memory Micro SD card: up to 64 GB
Interfaces USB 2.0 high speed /Micro SD (compatible SDHC, up to 64GB) card
3.5mm Earphone
Connection Agreement WiFi (802.11 b/g/n); BT4.0
Front Webcam Front camera, 2.0 Mega Pixels; rear camera, 2.0 Mega Pixels
Bluetooth Support
Display Resolution,1366*768Pixels, 11.6 inch LCD IPS
Battery life Music playback: about 9 hours; Video playback about 8.5 hours,
Web-browsing: about 6.5 hours.
Power Supply Rechargeable lithium battery,9000mAh;
AC Adapter: DC-Out 5V/3.0 A
Storage Temp. -20℃ ~ +65℃
Ambient Temp. 0℃ ~ +40℃
Operation RH 20% ~ 90% (40℃)
Storage RH 20% ~ 93% (40℃)
FCC Statement
IC Caution.
RSS-Gen Issue 4 November 2014"&"CNR-Gen 4e edition Novembre 2014:
- English:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) This device must accept any interference, including interference
that may cause undesired operation of the device.
- French:
Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions
suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le
brouillageest susceptible d'encompromettre le fonctionnement.
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
15
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between theequipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The devic
e can be used in portable exposure condition without restriction.
This manual was correct and complete at the time of printing. However, new
specifications and updates can occur at any time without prior notice. No part of this
manual may be copied, republished, reproduced, transmitted or distributed in any way
without prior written consent of E Fun. Any unauthorized distribution of this manual is
expressly forbidden.
E Fun may find it necessary to modify, amend or otherwise change or update this
manual. We reserve the right to do this at any time, without any prior notice. All
specifications and features are subject to change without notice. All screen shots
shown are simulated and may not represent the actual screen on production units
sold to consumers.
For instruction manuals, updated drivers or other information, be sure to visit our
website at:
www.nextbookusa.com
Or write to us at:
E Fun
West Covina, CA 91791
USA
Copyright © 2015
CE2200
![](/img.php?id=2873140&img=bg10.png)
16
Frequently Asked Questions(FAQ)
Q: Why the battery does not charge. What to do?
A: There are 3 main possible reasons for this problem: bad connection, improper
temperature condition, damaged battery or adapter.
As for bad connection, user should:
1. Check all connectors to ensure proper connectivity.
2. Unplug the supplied AC power adapter from the wall and verify that the outlet is
functioning.
3. Check all cable connections, plug the adapter back into the tablet, and then plug back
into the wall outlet.
And for improper temperature condition, i.e. the tablet's temperature is below 0 °C or
higher than 35 °C, user should change the location and charge the battery in an ambient
temperature between 0 °C to 35 °C.
And if the battery or adapter has been damaged, contact an authorized reseller to replace
the battery or power adapter.
Q: My battery drains quickly even when the tablet is in Standby mode. What’s the
matter?
A: If the tablet is not in the range of a network it can connect to, the tablet continues to
send out signals to locate a base station and drains the battery. So, just temporarily turn
off the tablet, or move the tablet in range of a network it can connect to, or temporarily turn
off the wireless connection on your tablet.
In addition, if the tablet keeps checking for Windows updates even in Standby mode, the
battery will drain quickly too. It is normal in this case. User can disable it by selecting
“Never check for update”. However, it is not recommended. User should be cautious
before doing this.
Q: Tablet does not turn on, what to do?
A: It may be because the battery is completely discharged. Charge the tablet for at least 4
hours, and then press and hold the Power button for 3 seconds to turn on the tablet.
Q: Tablet is connected to the power adapter for charging, but still fails to turn on.
Why?
A: If the tablet has been idle for a long period of time, or has just been purchased and
used for the first time, its battery might be completely discharged. In this case it is
suggested that user should charge the battery for over half an hour before turning it on, so
as to guarantee the stability of its system
Q: Tablet does not turn off, what to do?
A: Press and hold the Power button for 10 s to perform a hard shut down.
Note: User will have to wait for about 8 seconds before turning on the tablet again after it
shuts down.
Q: Can blind people use this tablet freely?
A: Yes. This tablet supports a featured function designed for blind people-Narrator mode.
Narrator is a screen reader that reads all elements on screen, like text and buttons.
To enable Narrator mode, touch Start > Settings>Easy access>Narrator, then toggle the
slider to turn on Narrator.
In Narrator mode, every time you touch the screen, you will hear a voice telling you
the text or button you are touching.
17
Q: The system crashes, or the screen turns blue after startup. What can I do?
A: It may be because the system of the tablet has been damaged to some extent for
improper shut-down actions. In shutdown status, press and hold the Power and Vol-
button together to reboot the device and enter the Recovery mode, so as to repair or reset
the system.
After entering the Recovery mode, user will have to choose an option from the menu
before going on:
● Continue – Exit without doing anything and continue to Windows 10 system.
● Use a device- Refresh the system by using a USB device, network connection, or
Windows recovery DVD.
● Troubleshoot- Refresh or reset your PC or use advanced tools.
● Turn off your PC- do nothing and turn off the tablet.
Q: Fail to access the account for losing the password, what should I do?
A:1. Press and hold the Power button for 10 seconds to perform a hard shut down;
2.In shutdown status, press and hold the Power and Vol- button together to reboot the
device and enter the Recovery mode;
3.Select “Troubleshooting- Refresh or reset your PC or use advanced tools”.
Q: Touchscreen responds slowly or improperly, what’s wrong?
A: Perhaps the screen is dirty, and sometimes the protective cover prevents the tablet from
recognizing your inputs.
1. Moisten a soft, lint free cloth with either water or a display cleaner, and wipe the surface
of the tablet until it is clean. Do not allow water from the cloth to seep down to the tablet
ports or buttons.
2. Remove any protective covers from the touch screen.
Q: No wireless connection, how to set it up?
A:1. Check if the wireless radio is on. See Wi-Fi setting.
2.Try to get closer to the wireless access point.
3. Reset the wireless router if using a private network; open the browser to view the
landing page if using a public network.
Q: Why the touch pad of the keyboard does not function?
A: There are two possible reasons for this problem. One is that the keyboard has not been
connected properly. If so, not only the touch pad, but also the other keys will not function.
For this case, reconnect the keyboard.
The second reason is that the touch pad has been deactivated. Press function keys to
activate it.
Q: When entering my password, I can’t input the characters I want. What’s the reason?
And in some area of the keyboard, letters can not be input, only numbers, why?
A: Once the FN+NumLk keys are pressed, the numeric keys will be locked or unlocked.
If they are locked, user can use them to enter numbers; if they are unlocked, user can
only use them to enter letters.
Q: The screen of the tablet PC turns completely dark suddenly. What’s wrong
with it? What can I do?
A: Once the remaining capacity of the battery is less than 4 %, the screen will turn black
automatically. It enters S4 mode (i.e. hibernating status). All running data will be saved
on the HDD. Under such circumstance, user can recharge the battery with the supplied
power adapter for about 5 minutes before rebooting it again.
