Yifang Digital Technology SH330 smart socket User Manual Manual
Shenzhen Yifang Digital Technology Co., Ltd. smart socket Manual
Manual
1
WiFi Smart Converter User Manual
Product Schematic
Function Key and Indicator Description
Long press the power button for about 5 seconds, blue indicator flashes means the
product begin enter into the distribution network mode.
Short press the power button, red indicator lights up means power on, red indicator
lights off means power off.
Technical Parameters
Maximum current: 10A
Rated voltage: 120V
Rated power: 1200W
Input voltage range: 100-240V
Wireless Type: Wi-Fi 2.4GHz
Operating temperature: 0 ℃ - 40 ℃
Support system: Android \IOS
Turn On Intelligence

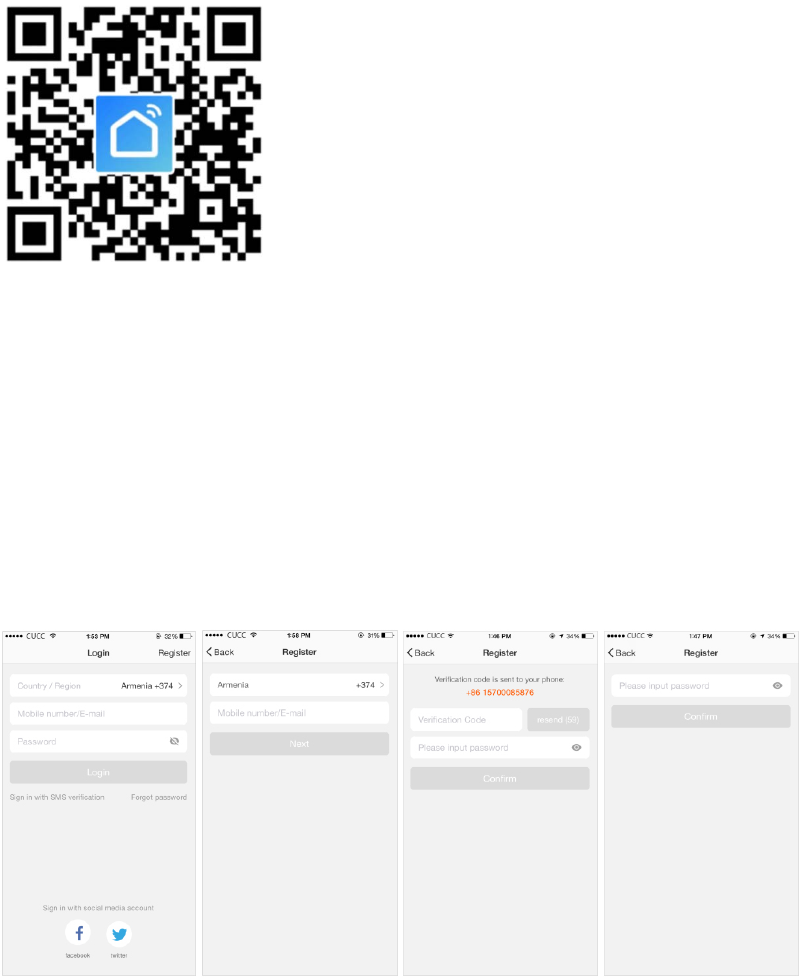

Use your phone to scan the QR code below or search “smart life” in
application market to download and install the App
2
Step 1: Registration and login "smart life" APP.
If you don't have the account of “Smart life” APP,register an account or sign in with
cellphone number + verification code.This page describes the Registration process.
1.Tap“Register”in the upper right（pic 1）
2.The system automatically determines your country / area.You can also select your
country code by yourself. Enter the cellphone number/E-mail and tap “Next” （pic 2）
3.If you enter the mobile cellphone number，enter the verification code in the message
（pic 3），and enter the password，tap"Confirm" to finish your registration.
4.If you enter the E-mail，enter the password （pic 4），tap” Confirm" to finish your
registration.

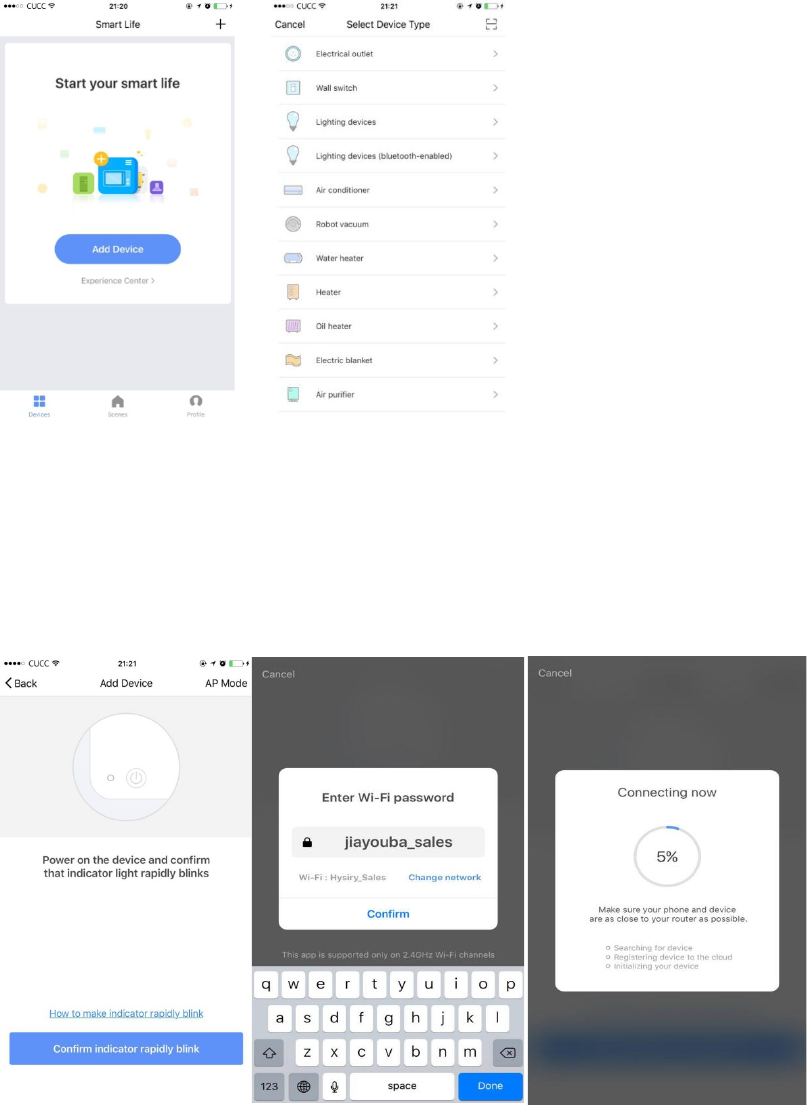

Make sure your phone is connected to WiFi in your home. Click "+" in the upper right
corner of the homepage and select "Electrical outlet" from the device type.
3
Step 2: Connect with the power supply, long press the power button more than 5
seconds until the blue indicator enters into the fast flash mode.Select confirm indicator
rapidly blinks.
Step 3: Enter your WiFi password for your phone and click "Confirm" to enter the
page of the search device.

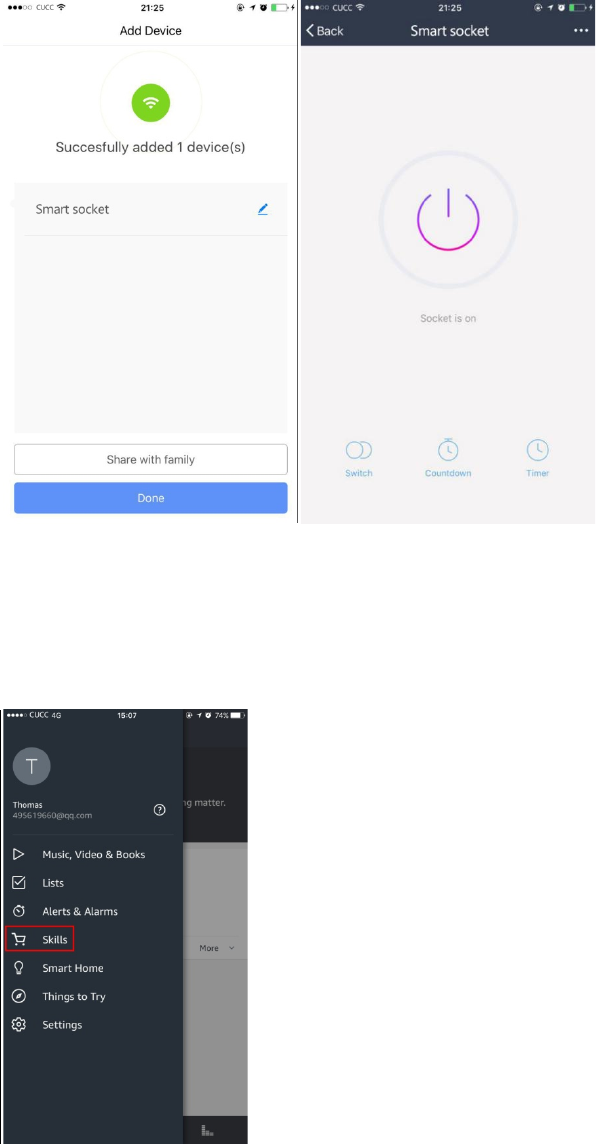

Step 4: Enter the device page, then complete the configuration
4
How to use Amazon Echo to control your Smart devices?
Step 1: Open the” Amazon Alexa”APP,then find the “Skills “button on the menu. Press
it.
5

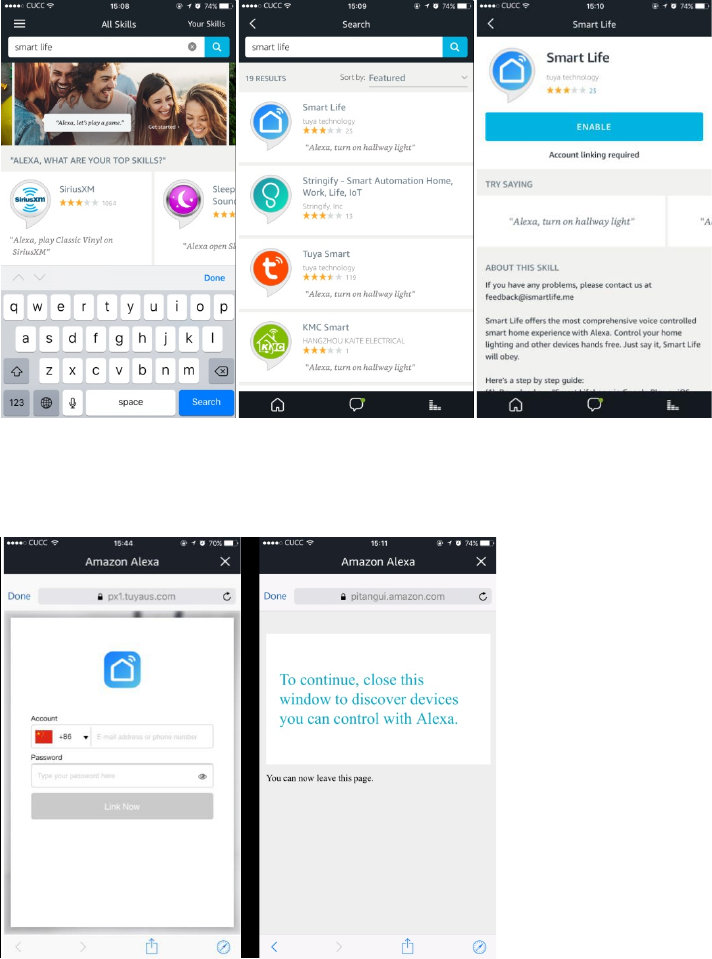

Step 2: Search the” Smart life” and choose the first one, then Enable it.
Step 3: Select your country code and Enter your “Smart life” APP Account and
Password, then press the “Link Now” button. When the Account success to login
press the “Done” button.
6

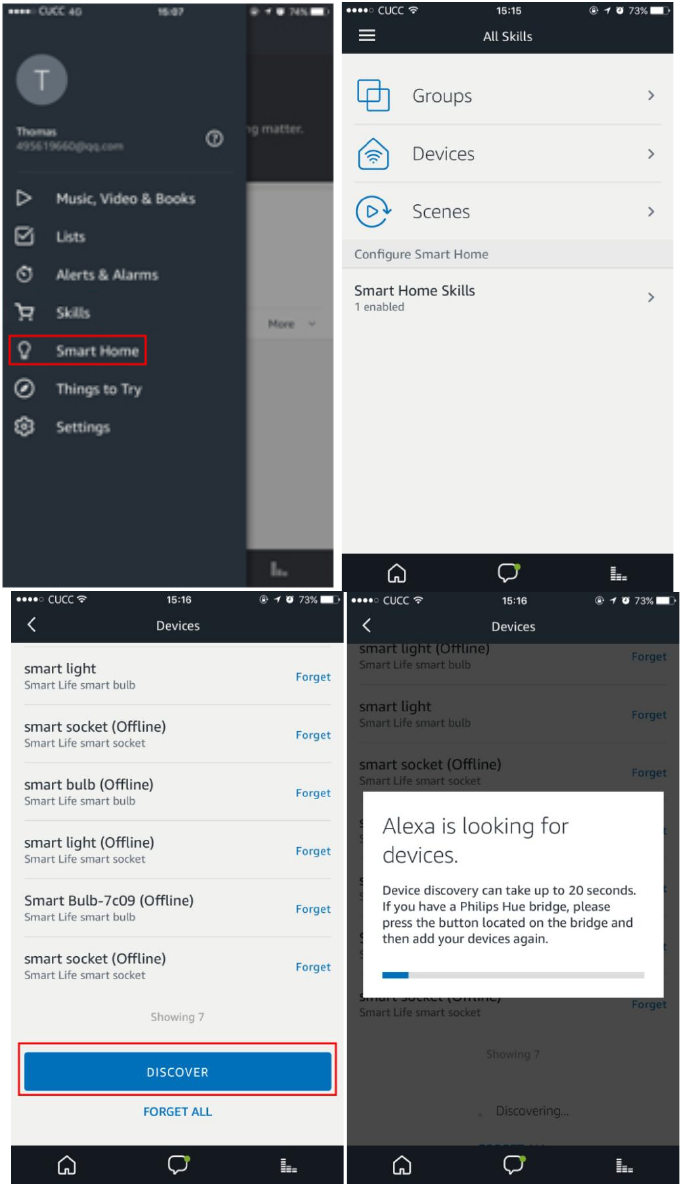

Step 4: Back to the menu, and press the “Smart home” button, then choose the
“Devices”, then press the ”Discover” button.
Step 5: Now u can use your Alexa to control your Smart devices, enjoy yourself.
7
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority
to operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
