Yoko Technology YK9120K 2.4GHz wireless CCD Camera & Portable DVR User Manual
Yoko Technology Corp 2.4GHz wireless CCD Camera & Portable DVR
Users Manual

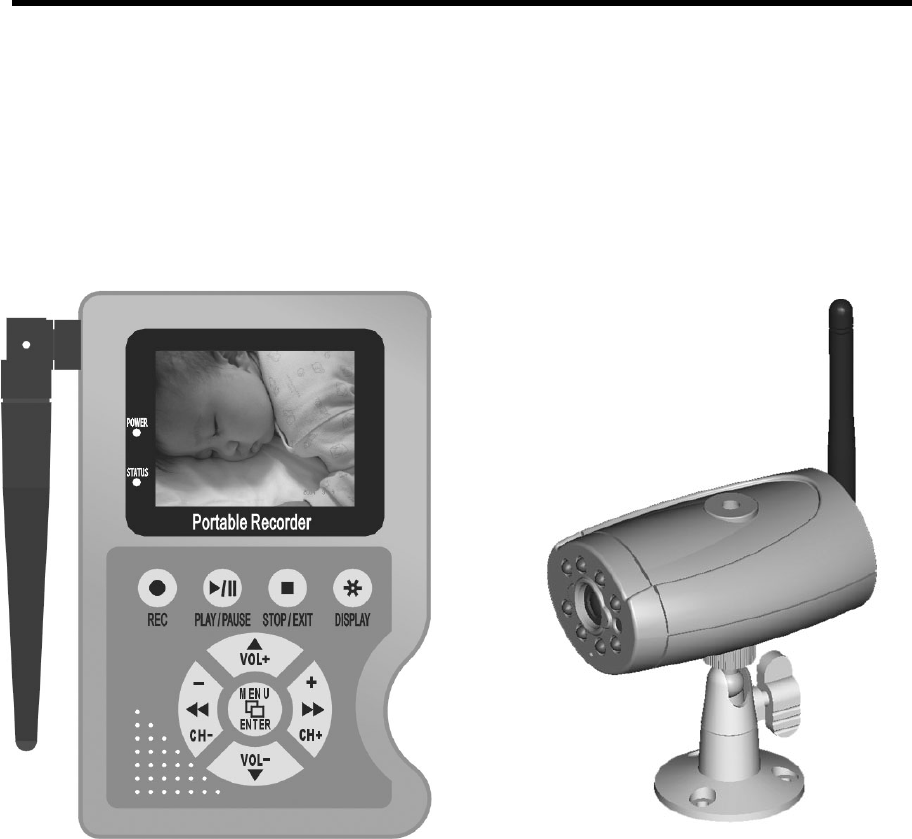

PORTABLE SECURITY RECORDER KIT
USER MANUAL
CONTENTS
1. SAFETY PRECAUTIONS........................................................................................................2
2. FEATURES.................................................................................................................................3
3. PACKING LIST.........................................................................................................................4
4. NAME AND FUNCTION OF EACH PART ...........................................................................5
4.1 MPEG4 DVR - FRONT VIEW....................................................................................................5
4.2 MPEG4 DVR – SIDE VIEW ....................................................................................................6
4.3 IR CAMERA – FRONT VIEW.....................................................................................................7
4.4 IR CAMERA – BACK VIEW ......................................................................................................7
5. CONFIGURATION...................................................................................................................8
6. OPERATION..............................................................................................................................9
6.1 POWER ON..............................................................................................................................9
6.2 LIVE MODE .............................................................................................................................9
6.3 RECORD MODE .....................................................................................................................10
6.4 PLAYBACK MODE.................................................................................................................. 11
6.5 PC PLAYBACK.......................................................................................................................13
6.6 CF CARD MAINTENANCE ......................................................................................................13
6.7 HOW TO DOWNLOAD THE UPDATE SOFTWARE.......................................................................13
7. MENU SETUP..........................................................................................................................14
7.1 MAIN MENU..........................................................................................................................14
7.2 DATE/TIME............................................................................................................................14
7.3 MOTION DETECTION .............................................................................................................15
7.4 RECORD SETUP .....................................................................................................................16
7.5 CF CARD FUNCTION .............................................................................................................17
7.6 SYSTEM STATUS DISPLAY......................................................................................................17
7.7 POWER ON SETUP .................................................................................................................18
7.8 RETURN TO FACTORY DEFAULT VALUE .................................................................................18
8. SPECIFICATION ....................................................................................................................19
8.1 WIRELESS MPEG4 DVR ......................................................................................................19
8.2 WIRELESS IR CAMERA..........................................................................................................20
9. TROUBLESHOOTING ..........................................................................................................21
The author assumes no responsibility for any errors or omissions that may appear in this
document nor does it make a commitment to update the information herein.
1
2005/07/12, Ver.: 1.0, P/N: 040099/1
1. SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN!
CAUTIO N :
TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT OPEN COVERS (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: The lightning flash with an arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of un-insulated “dangerous
voltage”.
It is advised to read the Safety Precaution Guide through carefully before operating the product,
to prevent any possible danger.
CAUTION: The exclamation point within an equilateral triangle is intended to alert the
user to presence of important operating and maintenance.
Do not Plug and unplug the power cord, it may result product malfunction.
Do not install the product in an environment where the humidity is high.
Unless the product is waterproof or weatherproof, otherwise poor image quality may
occur.
Do not drop the product or subject them to physical shocks.
Except for vandal-proof or shockproof product, otherwise malfunctions may occur.
Never keep the product to direct strong light.
It can damage the product.
Do not spill liquid of any kind on the product.
If it gets wet, wipe it dry immediately. Alcohol or beverage can contain minerals that
corrode the electronic components.
Do not install the product in extreme temperature conditions.
Use the camera under conditions where temperatures are between 0∘C (32∘ F ) ~ 4 5 ∘C.(113∘ F ) .
Be especially careful to provide ventilation when operating under high temperatures.
Do not replace or remove the antenna at will.
It can damage the product.
2
2. FEATURES
The kit includes one MPEG4 DVR and one camera both build in 2.4 GHz wireless
modules. The effective wireless transmission range of audio/video signal up to 50 M
in open area.
The camera builds in IR LED whose effective lighting distance is around 5 M. The
video image is distinguishable even at dark place.
The portable DVR builds in 2.5” Color TFT-LCD panel, speaker, and 4xAA battery
power supply. There is no limitation for the place you can see the video and hear the
voice wireless transmitted from the camera.
The DVR supports NTSC or PAL video system, and auto detects video loss. AV line
in or 4 channels RF input source is selectable.
The DVR builds in MPEG4-SP video and G.726 audio codec. It supports 1 channel
video and 1 channel audio record and playback operation. For 128 MB CF card, the
record time is about 40 minutes at Middle Quality for NTSC: 30 fps @ 352 x 240 and
PAL: 25 fps @ 352 x 280.
Audio/ Video data are recorded directly on the Compact Flash card with FAT16 file
system and ASF file format. You can backup the data to a PC, and playback those
ASF files with popular media players.
Recording date and time are video overlay with video images in ASF files.
The DVR supports: manual, motion detection, and schedule recording mode with
independent video size, quality, and frame rate set up.
For motion detection, multiple detection blocks and appropriate motion trigger level
can be set up.
3

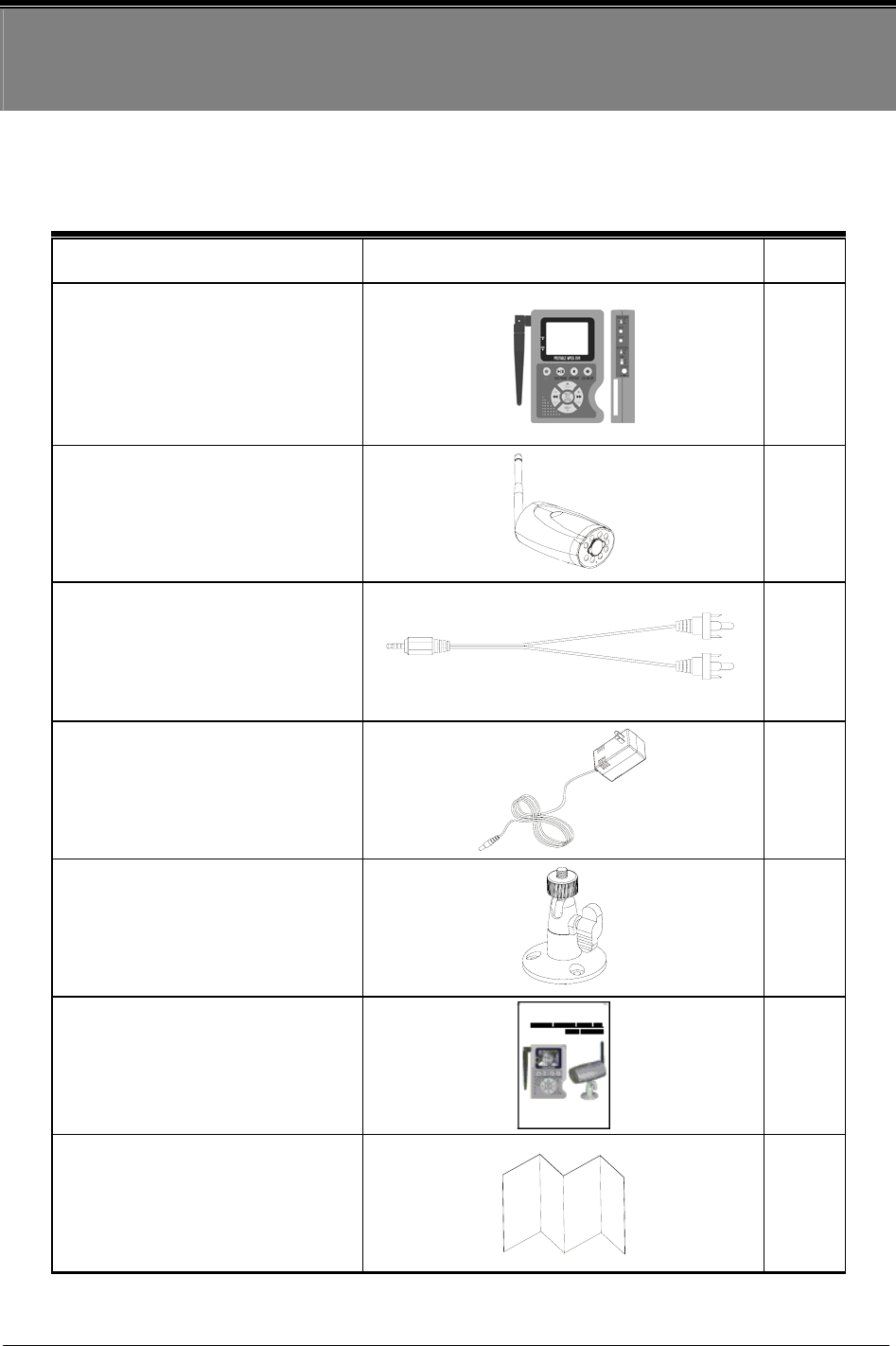

3. PACKING LIST
Check to make sure all of the items shown below are included in your Portable Security
Recorder Kit. If something is missing, contact your dealer as soon as possible.
Item Description Item Picture QTY
Wireless Portable MPEG4
DV R
1
Wireless IR Camera
1
Audio /Video Cable
2
Power Adapter 12V/ 1A
(DVR & Camera)
2
Camera Bracket
1
User Manual
1
Quick Installation Guide
1
4
4. NAME and FUNCTION of EACH PART

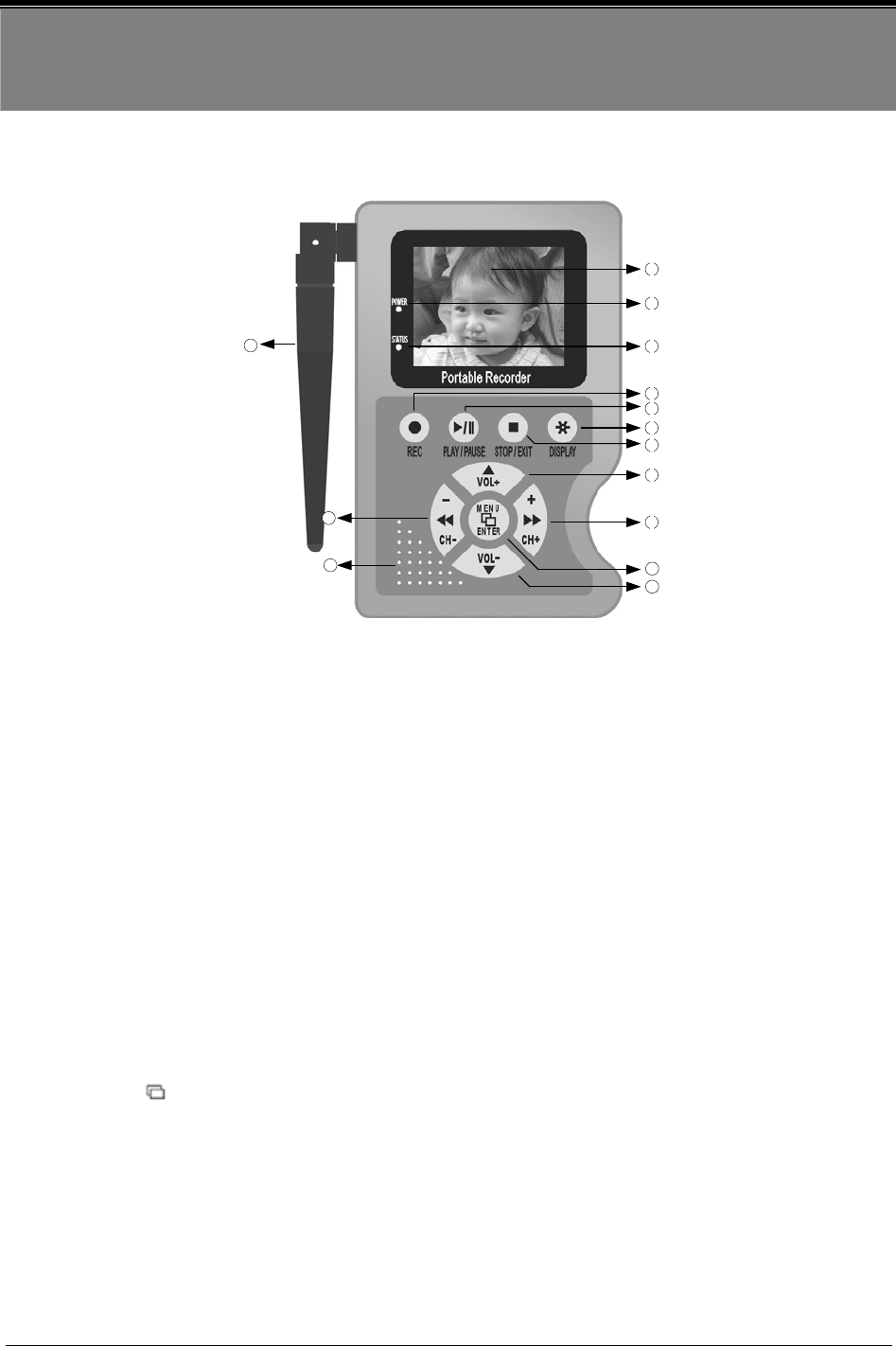

4.1 MPEG4 DVR - Front View
1
2
3
4
5
6
7
8
9
10
11
13
14
12
(1) LCD ：2.5” COLOR TFT-LCD
(2) POWER LED ：Lights when POWER ON.
(3) STATUS LED ：Lights when recording, flashes when
storage or otherwise unlit.
(4) REC BUTTON ：Press to start manual recording.
(5) PLAY/ PAUSE / BUTTON ：Press to pause or restart playback.
(6) DISPLAYBUTTON ：Press to switch ON/ OFF status info or
LCD monitor.
(7) STOP/ EXITBUTTON ：Press to stop playback or manual recording
Press to exit the menu.
(8&11) VOL + / ▼VOL – BUTTON ：Press to adjust the volume level.
Press to move the cursor up or down.
(9&13) CH- / CH+ BUTTON ：Press to switch camera channels
Press to fast forward or fast rewind.
Press to step play.
(10) MENU/ ENTER BUTTON ：Press to enter menu setup.
(12) ANTENNA
(14) BUILD-IN SPEAKER.
5

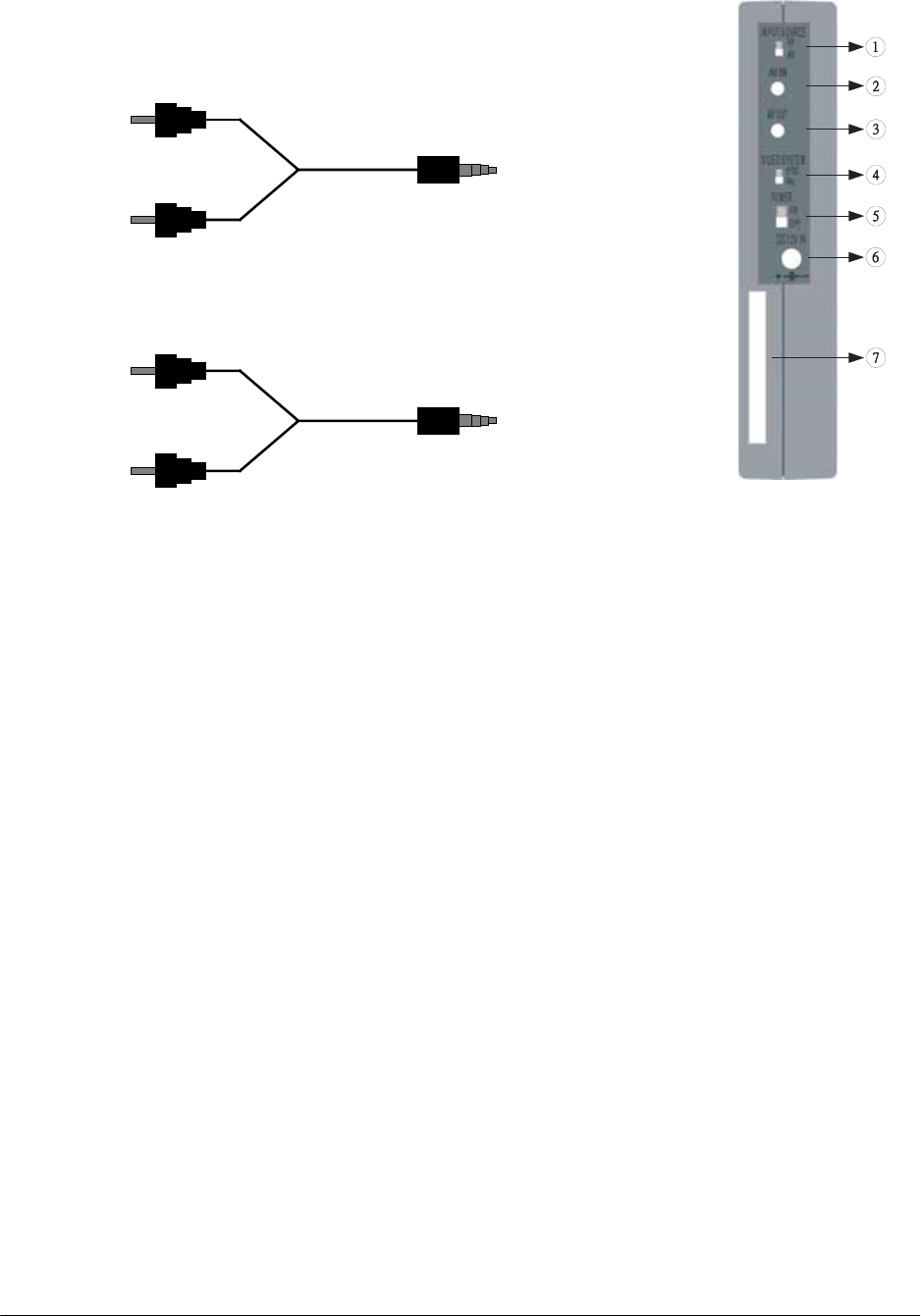

4.2 MPEG4 DVR – Side View
(1) INPUT SOURCE: Switches to RF or AV cameras.
(2) AV I N:
Audio/Video IN: 3.5 mm ∅ jack for audio/ video line in.
(3) AV OUT:
Video Out
Audio Out
AV Out
Video In
Audio In
AV In
Audio/Video OUT: 3.5 mm ∅ jack for audio/ video line out.
(4) VIDEO SYSTEM: Switches video system to NTSC or PAL format.
(5) POWER ON: Switches power to ON or OFF.
(6) DC 12V IN: Power input.
(7) Compact Flash Card Slot.
6

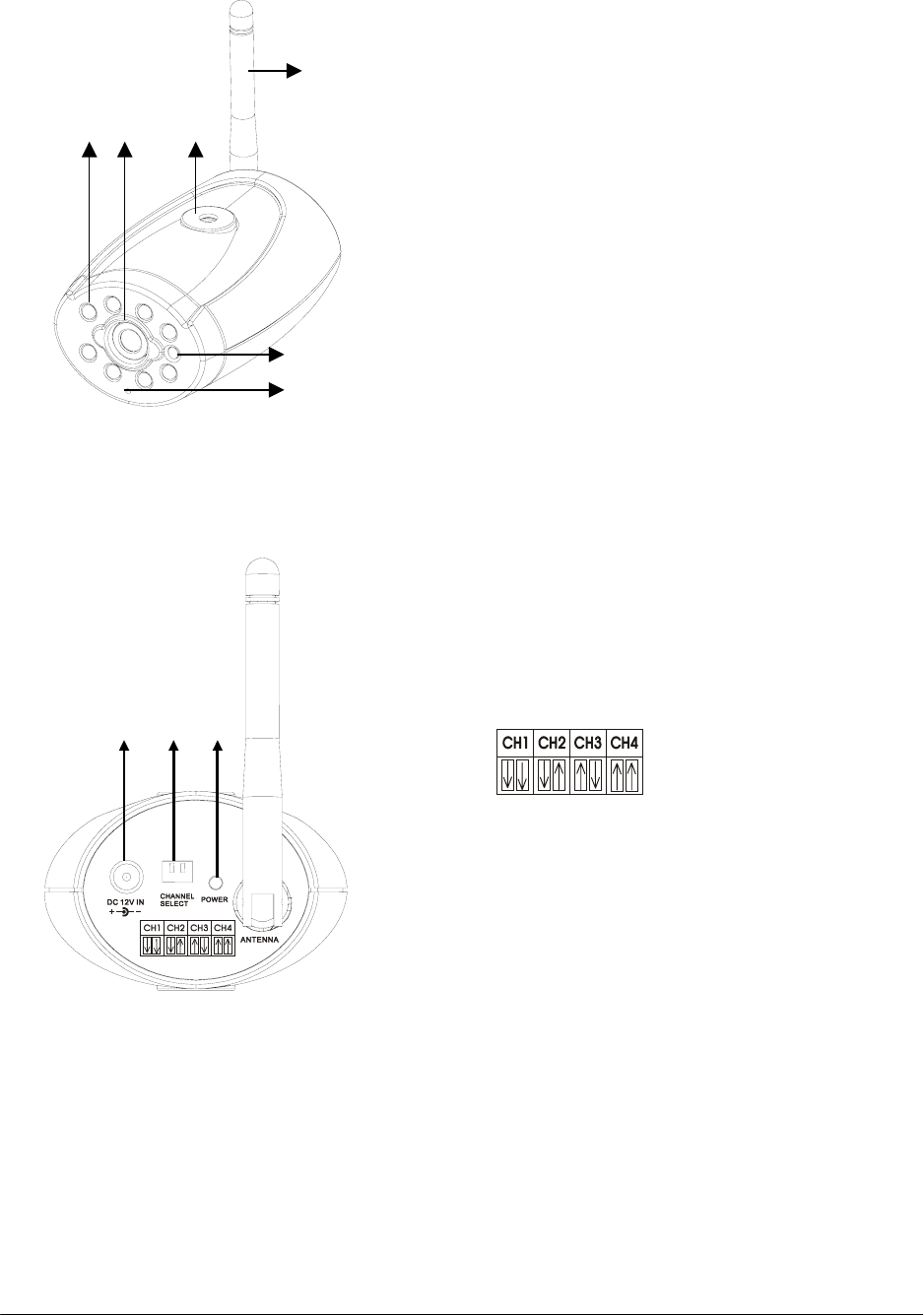

4.3 IR Camera – Front View
2 1 3
4
5
6
(1) IR LED
(2) CAMERA LENS
(3) BRACKET HOLE
(4) ANTENNA
(5) LIGHT DETECTOR
(6) MICROPHONE
4.4 IR Camera – Back View
(1) POWER CONNECTOR
(2) CHANNEL SWITCH (ON/ OFF)
(3) POWER LED
7

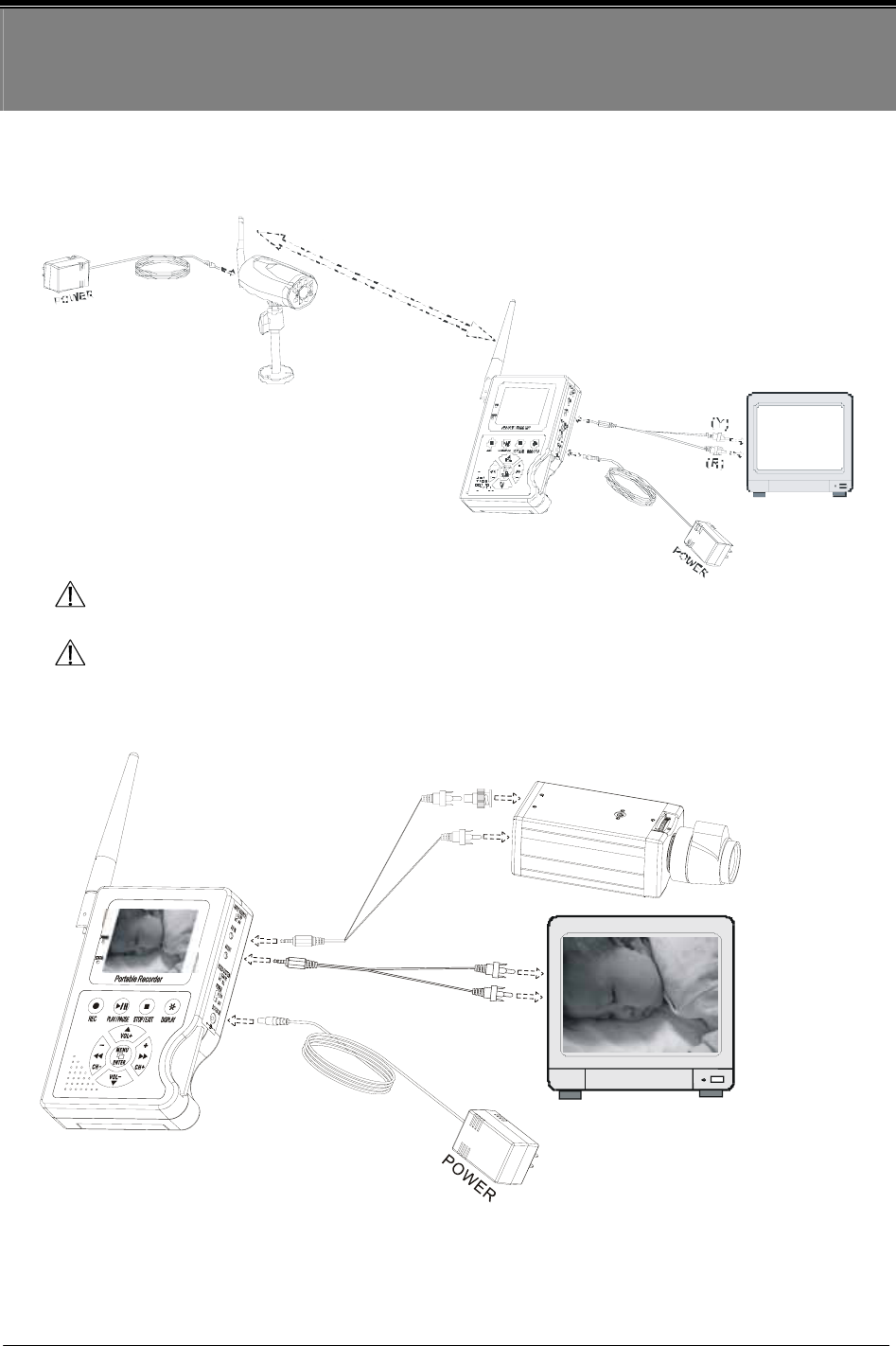

5. CONFIGURATION
(1) RF Camera: Switch INPUT SOURCE to “RF”.
Audio/ Video Transmission
Install onto high position, to reduce effects on transmission quality and free from
motion interference.
When low signals occur, please adjust the antenna to the appropriate angle for
the optimum receiver/ transmission performance.
(2) AV Line In: Switch INPUT SOURCE to “AV”.
8
6. OPERATION
6.1 Power On
1. Before power on, please check the local area video system (NTSC/ PAL). The
VIDEO SYSTEM is situated on the right side panel; this setup will affect the video
system input and output.
2. The power switch is situated on the right side of the device (switch “ON” to
power-on and “OFF” to power-off).
NOTE: Each time after power-on, the system auto-detects its peripherals. When the status LED
flashes indicates that the CF card is proceeding testing (complete boot time is several seconds)
When an image file error has been detected, the CF card will suggest the user to initiate repair
using the computer or use the Repair/ Format function supported by the device【CF Card
Management: Repair/ Format function.】
3. The user may use AV/ RF switch to select the video input system.
4. Live mode is the pre-set mode after power-on. When it is currently under schedule
recording, system auto enters recording mode.
CF auto repair status, RF channel selection, speaker volume setup, and LCD power
on status can be setup in 【7.7 Power On Setup】.
Do not withdraw the CF card while booting. It may destroy the data stored within
the CF card.
When no images are displayed on the LCD monitor, please check the video source
(line in or RF1~RF4) and NTSC/ PAL switch.
6.2 Live Mode
1. Live mode is the default setup after system start-up. User may view live images,
setup the receiving channel of the camera and adjust the sound volume.
(1) Two types of video input source (RF/ AV): Switch to “RF” for connecting to RF
camera and “AV” to line input camera.
AV IN The device supports one line input camera.
RF1 ~ RF4
The device supports portable wireless (RF) camera
(maximum connection of 4 RF cameras). Press《》or《》
button to switch between cameras (RF1 ~ RF4).
(2) Sound volume: The user may press《》or《》button to adjust the volume of the
build-in speaker.
9

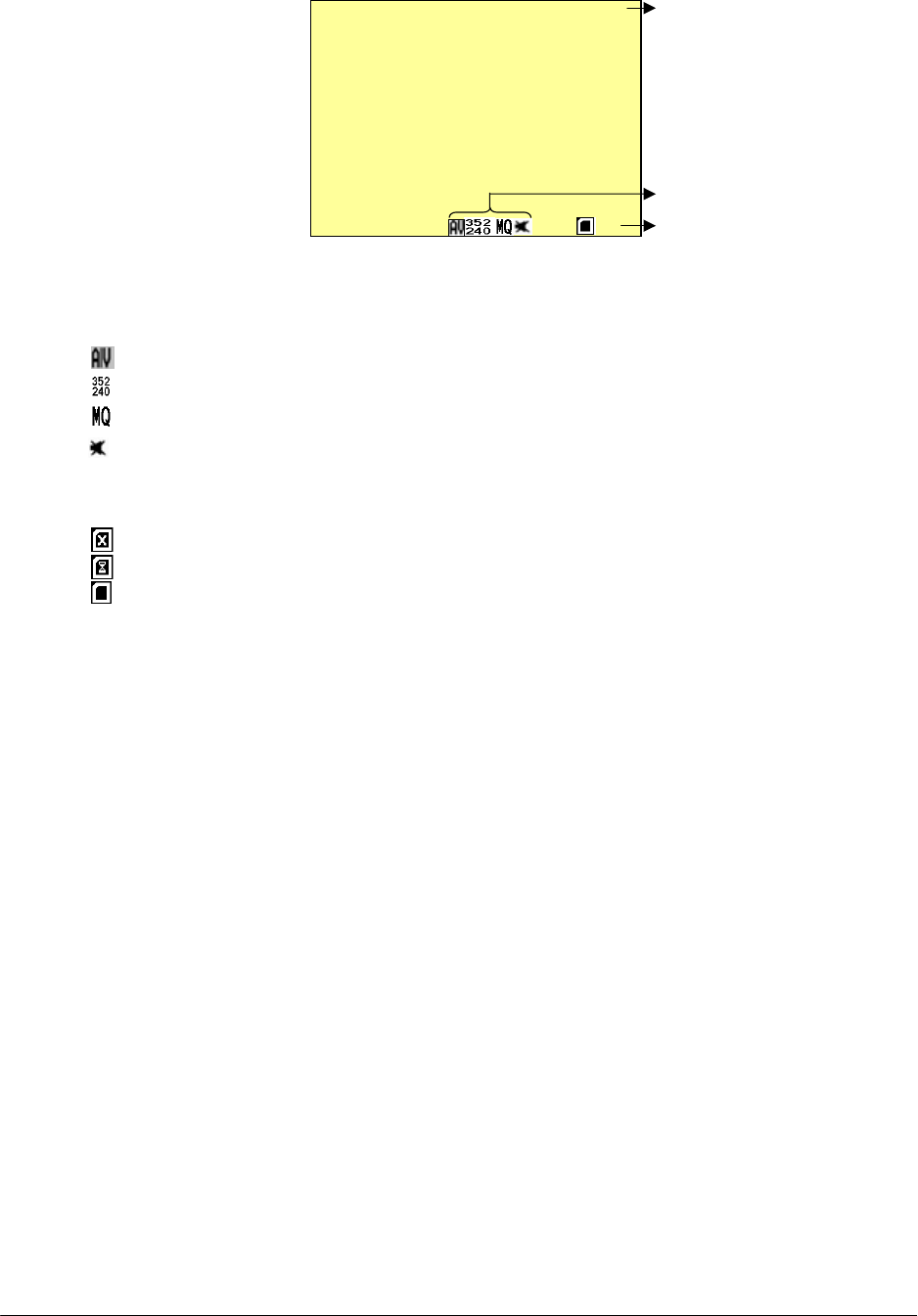

(3) Monitoring Display: Press《DISPLAY》button to switch between LCD display mode
and OSD info.
2004/02 / 01 08:10:03
1
2
3
1 Time Display: System Date and Time.
2 Record Status Display:
: Connect the camera to the AV terminal.
: Record Resolution, please refer to【7.4 Record Setup】for VIDEO SIZE setup.
: Record Quality, please refer to【7.4 Record Setup】for VIDEO QUALITY setup.
: Audio Off Record, please refer to【7.4 Record Setup】for AUDIO RECORD
setup.
3 CF Card Status:
CF Card has not been inserted or malfunction
CF Card is proceeding file testing.
CF Card is functioning normally.
Disk full and overwrite record.
6.3 Record Mode
1. Start Record: 3 Types of recording mode.
(1) Manual Record: Suitable recording at anytime. Press《REC》button, to enter
manual recording status (start recording). For more information, please refer to【7.4
Record Setup】.
(2) Motion Detection Record: Suitable to record, when there are severe image changes.
Motion detection triggers schedule recording, but it will only start recording when
the variation exceeds the alarm limitation value. For more information, please refer
to【7.3 Record setup】and【7.4 Record Setup】.
(3) Continuous Record: Suitable on few constant frame recording or on long-term
continuous recording. For more information, please refer to【7.4 Record Setup】.
2. Stop Record: Press《STOP》button. It stops manual recording only. If you enter
playback or menu mode, any kinds of recording mode will be stopped. To continue
recording, please follow the methods below to restart recording.
10
Manual Record Repress《REC》button.
Schedule Record
Motion Detection Record
After exit playback or menu mode, whether the
setup has been changed or not, the system will auto
re-check the record schedule setup again.

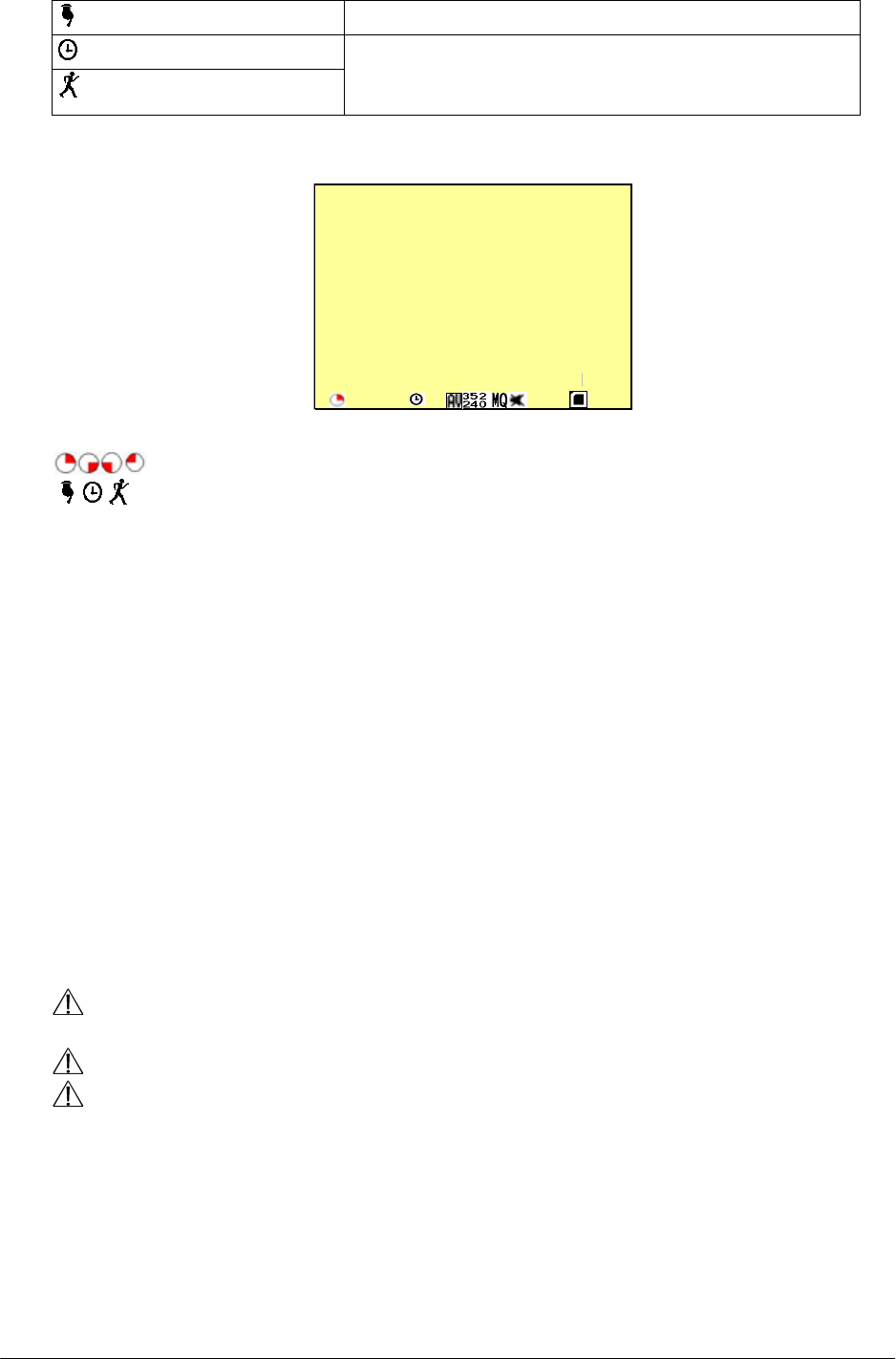

3. Record Display：
2004/ 02/ 01 08:10:03
Indicates recording is in progress.
Indicates the status of the event that has been triggered.
4. The event status is determined by the system recording, according to the order of
priority. The order of priority: Manual Record, Motion Detection and then Schedule
Record.
5. Different recording modes may have different kinds of setups. Basic setup: video size,
recording frames, video quality, and audio recording. When different recording modes
are triggered, the system starts recording according to the different setup. This kind of
design provides flexibility to ensure efficient recording time and quality.
Example: Work hour from 8:00am to 6:00pm, setup「Schedule Record」to low video
quality with less recording frames to extend the recording time. And off work hour,
setup 「Motion Detection Record」 to enable high video quality with the highest
recording frames, when an event occurs.
6. Video or audio may be recorded into the CF card (CF card is purchased separately).
When the video has been stored, the status LED flashes indicates that the system is
currently loading the file into the CF card.
Do not withdraw the CF card while recording. It may destroy the data stored within
the CF card.
Power loss during recording results incomplete videos or errors.
Video loss during recording, the system stops recording, backups the files, and when
the videos are normal again, the system will continue recording.

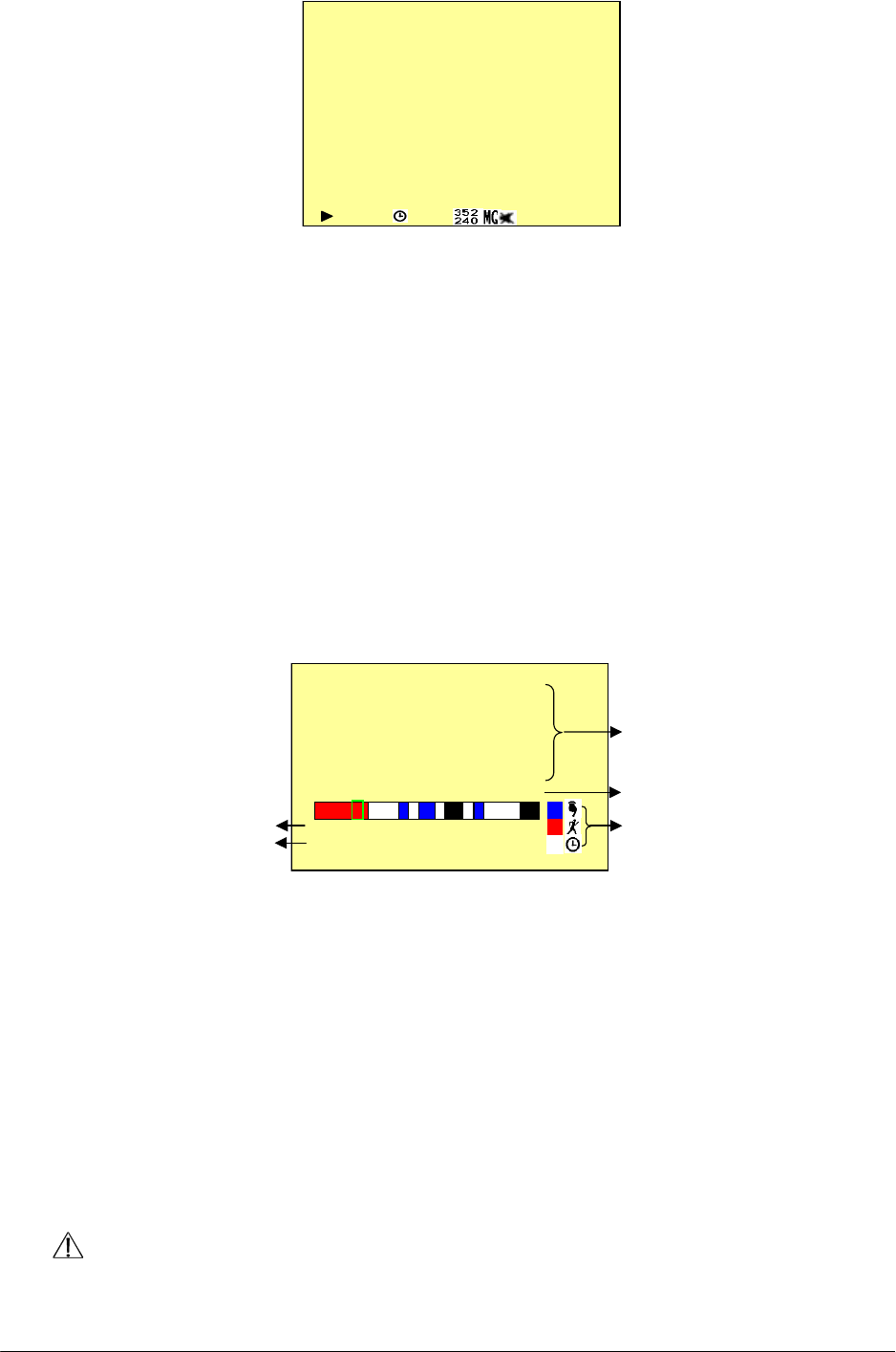

6.4 Playback Mode
Selectable Playback format: Continuous Playback and Searching Playback.
A. Normal Playback: Press《》button to playback according to the CF card file order recorded.
11
2004/ 02/ 01 08:10:03
: Normal speed playback.
: Fast Rewind and Fast Forward (Speed: x2/ x4/ x8/ x16/ x32).
Press《》button to return to normal speed playback.
: During playback, press《PAUSE》button to pause playback and press it
twice to return to playback status.
: During pause, press《》or《》button to step back one frame or to step
forward one frame and press《》button to return to normal speed
playback.
DISPLAY : Switch to 「Hide Status Info.」, 「Hide LCD Monitor」, and 「Display
LCD Monitor and Status Info.」.
Press《STOP》button to stop playback function and to return to live status.
B. Search and Playback:
SEARCH AND PLAY ■■
DATE F I LES
2003/ 12 / 25 5
2003/ 12 / 26 15
2003/ 12 / 27 2
2003/ 12 / 28 3
2003/ 12 / 29 7
PAGE : 1 / 3
FILE:038
TIME:09:18:09
1
2
35
4
(1) File directory shows dates and the amount of contents under the directory. The user
may press《》or《》button to move the cursor up or down.
(2) Current location page.
(3) Each color distinguishing different recording events, the user may press《 / +》or
《- / 》button to move the cursor left or right and immediately shows the first image
of the highlighted event on the screen display background.
(4) Displays the time highlighted by the event bar.
(5) Blue: Manual Record/ Red: Motion Detection Record/ White: Schedule Record.
Press《STOP》button to stop playback and the system will return to【SEARCH and PLAY】
selection and enables the user to select the prefered input source.
Withdrawing the CF card during playback, stops playback and enters the
monitoring mode.
12
The device supports playback only to images recorded by our device, other ASF
video files are not guaranteed.
6.5 PC Playback
1. The device uses CF card as its main storage. User may read the data stored in the CF
card from the computers that supports CF card reader device.
2. All files (under DV\ASF folder) has approximate size of 1MB and file names are
ordered according to recorded times (sequence).
File Playback： User may use Microsoft®－Media Player or DivX－DivX Player
(http://www.divx.com/) to playback video files.
Backup layback： may playback backup files from the computer (copy files to the CF
card under \DV\ASF folder).
When first time using Media Player to playback, it requires the most updated decoder
from the Microsoft® software website.
6.6 CF Card Maintenance
1. The device supports only FAT16 file system; therefore it is unable to determine other
file systems. Please proceed the function【MENU / CF CARD OPTIONS】, or use the
computer to format the CF card to FAT16 file system.
2. The system supports only partial CF card file system repair. The system is unable to
detect any file system damage, therefore please format the function by entering
【MENU / CF CARD OPTIONS】and select Repair/ Format, or enter ones computer
to repair the CF card.
Due to special design of the device, the maximum storage capacity is 4GB, but you
have to format the CF card on this device. (since the maximum storage capacity of a
FAT16 file system is 2GB).
Except ASF files generated from this device, please don’t copy any other files to
\DV\ASF folder. Other files in \DV\ASF folder will be deleted automatically.
6.7 How to Download the Update Software
Use the Compact Flash card to update your system firmware:
(1) Create a new directory under DV directory (:\DV\Hex).
(2) Copy the new system firmware into the new directory of the Compact Flash card from
your computer.
(3) Insert the CF card; switch off the main power and then restart.
(4) Wait for 5 to 6 seconds, the system update will be completed and returns back to live
mode.
Do not switch off the device or withdraw the CF card during system update. When
power loss occurs during step (4), please repeat step (3) and (4) again.
13
7. MENU SETUP
7.1 Main Menu
MA I N MENU ■
SEARCH AND PLAY >
SET DATE / T IME >
SET MOT ION DETECT >
MANUAL RECORD >
SCHEDULE RECORD >
CF CARD OPT I ONS >
SYSTEM STATUS >
FACTORY DEFAULT >
12
3
(1) MAIN MENU: Item subject.
(2) Menu Layer Indication: The device consists of three menu layers.
■ : First Menu Layer (Main Menu)
■■ : Second Menu Layer
■■■ : Third Menu Layer
(3) MENU Content: Basic Menu Operations.
Press《▲》or《▼》button, to move the highlight-bar and the cursor ().
Press《MENU/ ENTER 》button, to enter the sub menu (＞).
Press《STOP》button:
Under second or third menu layer, the system will return to the previous menu
layer (second layer to first layer or third layer to second layer).
Under main menu (first menu layer), the system will enter live mode.
Press《》or《》button, to increase or decrease the setting values that has been
highlighted.
NOTE: All words underlined and bold indicates「Default Value」.
7.2 Date/Time
DATE / T I ME ■■
DATE FORMAT : Y / M / D
SET DATE:2004/ 01/01
SET T IME: 00 : 00 : 00
1
2
(1) Date Format : Y / M / D M / D / Y D / M / Y
(2) Date/ Time Adjustment : Year settings are from 2000 to 2099.
14

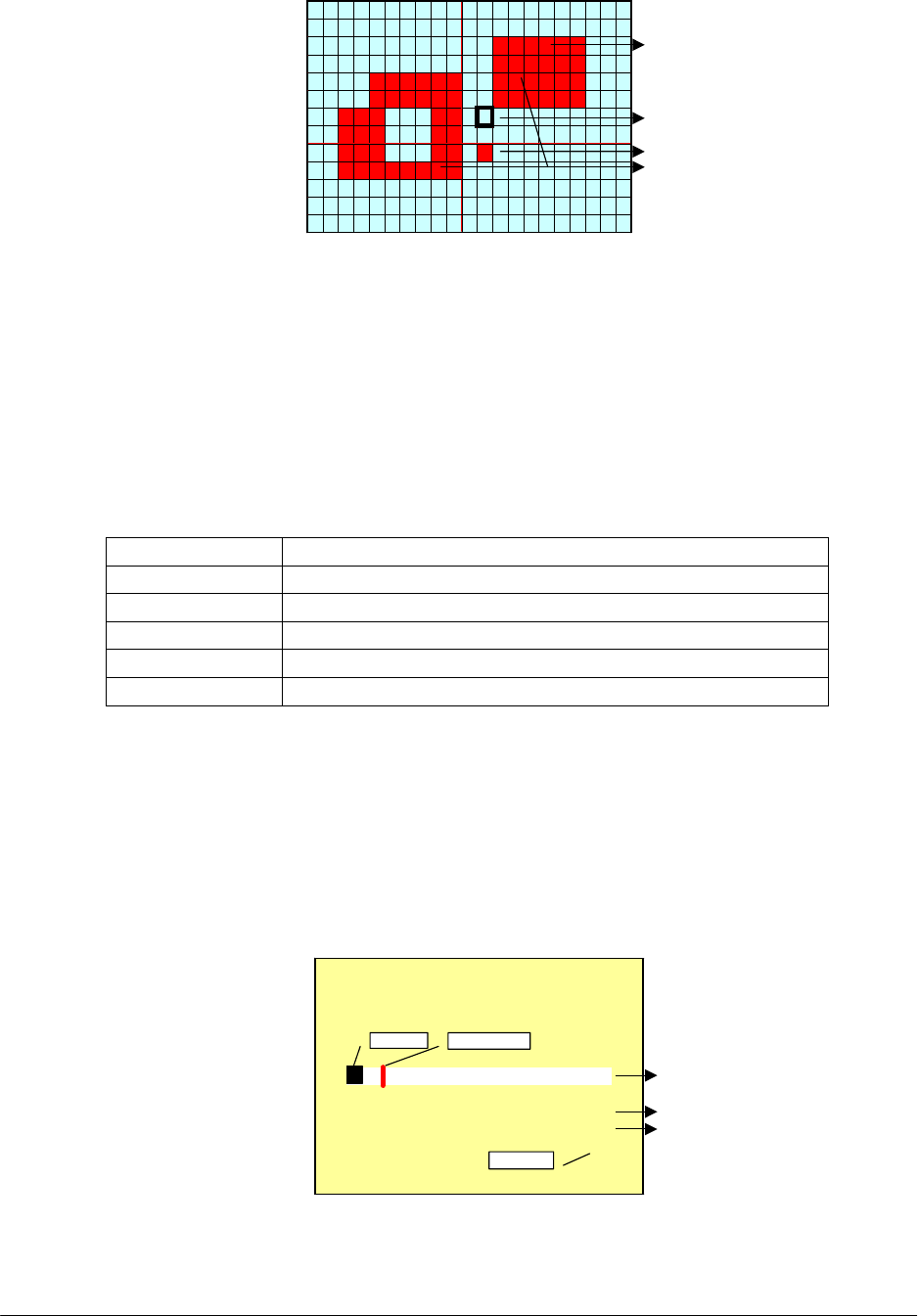

7.3 Motion Detection
1. Window setup:
MD AREA ■■■
MOD E : C E L L E D I T
MOD E : P L A Y
1
2
3
4
1 Detection Cell: Whole screen is divided into 22x15 square cells.
2 Detection Block: Two or more cells form a block.
3 Cursor: Press《PLAY》button to switch to Select/ Edit mode.
4 Detection Block.
2. Cursor Movement: Press《PLAY》button, switch cursor to setup mode (cursor color is
black). Press《▲/ ▼/ / 》button to move the cursor freely.
3. Detection Area Setup:
(1) Press《PLAY》button to select edit detection block function.
FUNCTION DESCRIPTION
CELL EDIT Single detection cell setup (detection/ non-detection)
DEL BLOCK Disable a block.
DEL ALL Disable all cells.
ADD BLOCK Enable a block.
ADD ALL Enable all cells.
(2) Press《PLAY》button, switch cursor to edit mode (cursor color is pink). Press《▲
/ ▼/ / 》button, follow step (1) to change the size of the detection block.
(3) Detection area is displayed by color red and non-detection area by color blue.
4. When a detected object is moving in the detection area, detection area turns from red
to transparent (color turns from red to transparent indicates moving status).
5. Video Detection Block Sensitivity Setup:
Changing the alert value setup may affect the recording sensitivity of the Motion Detection.
MD SENSITIVITY ■■■
MD ENERGY : 0%
MD THRESHOLD : 1 0%
THRESHOLD L :←R:→
Live Video
THRESHOLDENERGY
1
2
3
15
(1) Sensitivity Bar : Color black indicates image variable value and color red
indicates the MD threshold.
(2) MD Energy : Current image variation value.
(3) MD Threshold : Press《》or《》button, to change the motion detection
threshold value.

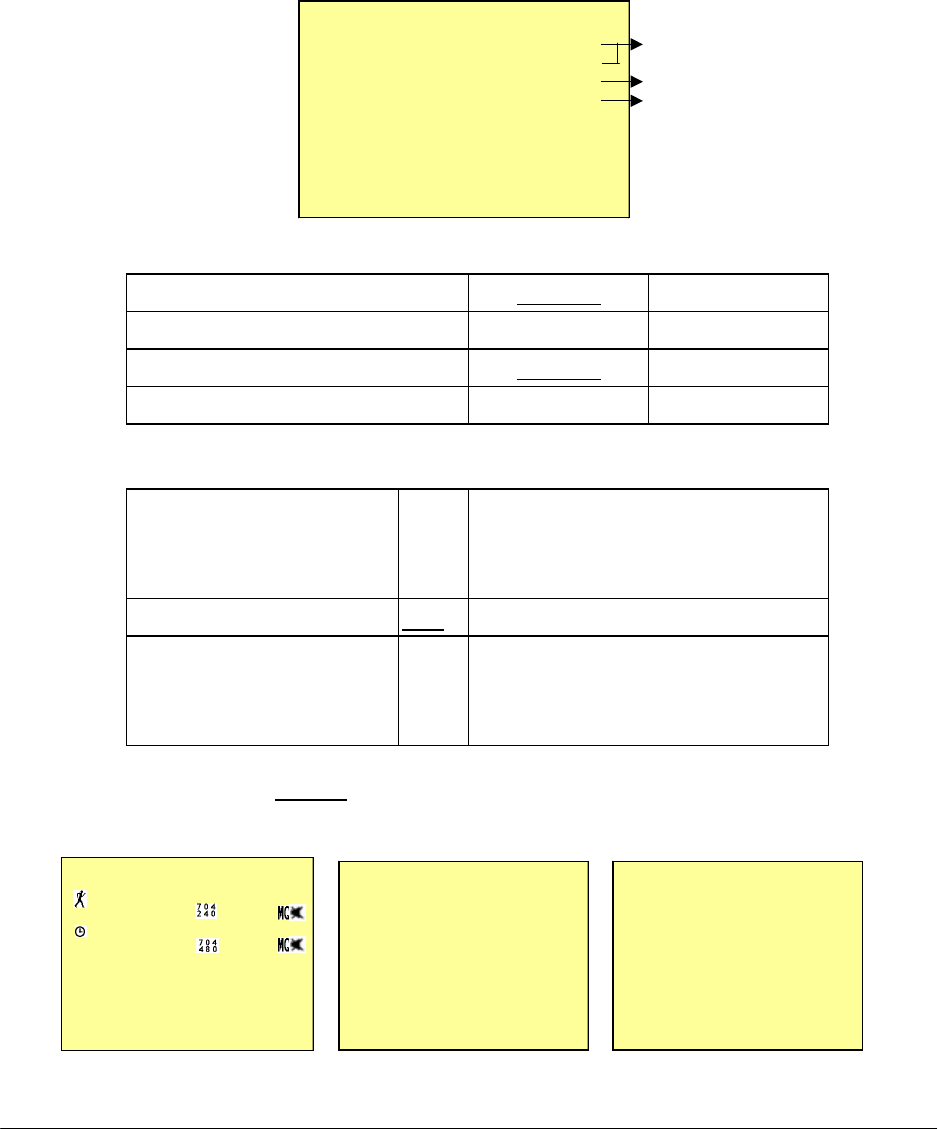

7.4 Record Setup
Selectable manual or schedule recording, basic setups are shown below:
1. Manual Record:
MANUAL RECORD ■■
VIDEO SIZE:704X240
FRAME RATE : 12FPS
QULITY :MIDIUM
AUD I O : ON
1
2
3
(1) Video Size/ Frame Rate:
NTSC 352x240 704x240
FRAME RATE (MAX) 30 F/ S 12 F/ S
PAL 352x280 704x280
FRAME RATE (MAX) 25 F/ S 12 F/ S
(2) Image Quality:
HIGH QUALITY HQ Using high recording quality
(More CF card storage capacity
will be required)
MEDIUM QUALITY MQ Using medium recording quality.
LOW QUALITY LQ Using low recording quality (Less
CF card storage capacity will be
required)
(3) Audio Record: Enable or disable audio recording.
2. Schedule Record: Records only within the setup time range.
SCHEDULE RECORD■
:ON 18:00-08:30
704X240 12FPS
:ON 15:00-17:30
704X480 3FPS
MOT I ON RECORD >
CONT I NUE RECORD >
MOT I ON RECORD ■■■
RECORD : ON
SCHEDULE :
18:00 - 08:30
DURAT I ON : 5 SEC
VIDEO SIZE:704X240
FRAME RATE : 12FPS
QUAL I T Y : M I D I UM
AUD I O : ON
CONT I NUE RECORD ■■■
RECORD : ON
SCHEDULE :
15:00 - 17:30
VIDEO SIZE:704X240
FRAME RATE : 12FPS
QUAL I T Y : M I D I UM
AUD I O : ON
16
RECORD : Enable or disable schedule recording (ON/ OFF).
SCHEDULE :
ab:cd – ab:cd = 24 hour recording and 00:00 – 00:01 = Record o
f
one minute image from 00:00 to 00:01.
DURATION :
Duration time when motion detection has been triggered (1SEC / 5SEC /
10SEC / 20SEC / 30SEC).

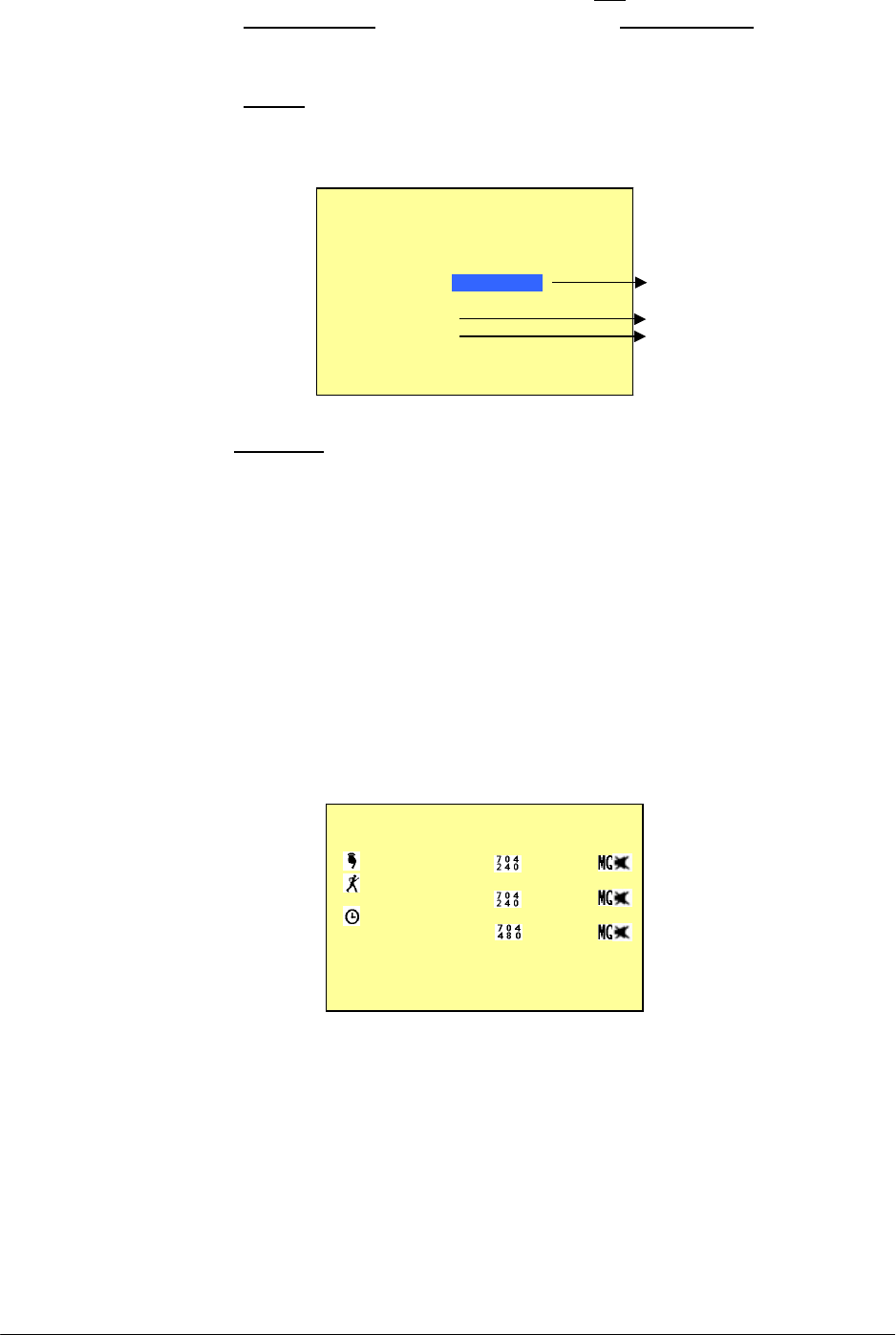

7.5 CF Card Function
CF CARD OPT I ONS ■■
TOTAL SPACE : 128MB
REMA I N SPACE : 50MB
CF FULL : LOOP
REPA I R >
FORMAT >
1
2
3
1 CF FULL : LOOP
(continuous recording)/ STOP (stop recording).
When CF card storage capacity is full, it will start overwriting information
from the earliest videos (auto repeating continuous recording).
2 REPAIR : Checks internal CF card data and delete error files.
3 FORMAT : It will delete all data stored in the CF Card, and create a new
directory under DV directory (:\DV\ASF).
NOTE: Proceeding continuous recording, old videos can be deleted and overwritten. Please confirm
before setup.
NOTE: Recording time depend on the CF card capacity, different recording modes, and degree of video
variation.
7.6 System Status Display
SYSTEM STATUS ■■
SYSTEM VER : V0 . 6
:704X240 12FPS
:ON 18:00-08:30
704X240 12FPS
:ON 15:00-17P30
704X480 3FPS
CF FULL : LOOP
Press any button to return to the Main Menu.
17
7.7 Power On Setup
POWER ON SETUP ■■
CF AUTO REPAIR:OFF
RF CHANNEL :
R
F1
SPK VOLUME : 03
LCD :ON
1
2
3
4
1 CF AUTO REPAIR : CF auto repair on/off during power on.
2 RF CHANNEL : RF channel selection during power on.
3 SPK VOLUME : Speaker volume setup during power on.
4 LCD : LCD on/off during power on
7.8 Return to Factory Default Value
FACTORY DEFAULT ■■
RECALL DEFAULT NOW?
NO: EX I T YES : ENTER
Press《ENTER》button, returns all settings to the factory default value.
Press《EXIT》button, exit this screen display and returns to the Main Menu.
18
8. SPECIFICATION
8.1 Wireless MPEG4 DVR
System NTSC / PAL with Video Loss Auto Detection
Codec MPEG4-SP ASF File Format
Record Frame Rate
1, 2, … , Maximum fps selectable
Maximum
NTSC: 30 fps@352x240 / 12 fps@704x240
PAL: 25 fps@352x280 / 12 fps@704x280
High Quality Medium Quality Low Quality
20* minutes 40* minutes 60* minutes
Record Quality * Approximate record time for 128 MB CF card at maximum record
frame rate
Recording Date/Time Overlay with Video Images in ASF File
Input 4 CH RF Selectable / 1 CH Composite Video Line In
Video
Output 2.5” Color TFT-LCD / 1 CH Composite Video Line Out
Sampling Rate 44.1 KHz
Codec G.726 / 32 kbps
Input 4 CH RF Selectable / 1 CH Audio Line In
Audio
Output 8Ω 0.5W Speaker / 1 CH Audio Line Out
Storage Media Compact Flash Card (max. 2GB FAT16 / 4GB non-standard FAT16)
Recording Mode Schedule / Motion Detection / Manual
Motion Detection Setting Multiple Blocks and adjustable sensitivity
Event Search Function Property and first image of selected file is displayed
Playback Function Play/Fast Forward/Fast Rewind/Pause/Step Forward/Step Backward
Playback Speed x1 / x2 / x4 / x8 / x16 / x32
2.4 GHz A/V Receiver 4 CH Selectable, -90dBm Sensitivity, 3 dBi Antenna
Power Supply DC 12V± 10% 1A or 4 x AA (Rechargeable Ni-MH / Alkaline Battery)
Power Consumption 5.94W/495mA (RF: 2.46W/205mA, LCD: 1.26W/105mA, Others:
2.22W/185mA)
Weight 264 g (without Battery)
Dimensions 91 mm (W) x 142.5 mm (H) x 30 mm (D)
Operating Environment 80% RH, 0℃ ~ 45℃ (32℉ ~ 113℉)
(Note: Design and Specifications are subject to change without notice.)
19
8.2 Wireless IR Camera
Image Pick-up Device SONY 1/3” interline transfer CCD sensor
Effective Picture Elements NTSC: 510*492, PAL: 500*582 (H*V)
Horizontal Resolution 330 TV lines
Minimum Illumination 0.5 LUX @ F2.0
S/N Ratio More than 48 dB
Auto Electronic Shutter NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/110,000s
Auto Gain Yes
Auto White Balance Color Temperature: 2500K~9500K
Gamma Characteristic 0.45
Synchronous System Internal, Negative sync
Microphone Sensitivity: -54 dB, S/N Ratio: min 31 dB
Audio/Video Function Transmitted by 2.4 GHz A/V Transmission
Infrared Luminary 8 x IR LED
Infrared Wavelength 850 nm
Infrared Beam Spread Angle 35°
Infrared Illuminate Distance 5 M
Infrared Illuminator Active Limit Under 10 Lux. (linear control.)
Power Supply 12V DC ± 10%
Power Consumption 1.44W / 120mA (IR-LED OFF)
3.18W / 260mA (IR-LED ON)
Lens Furnished Board lens f 3.6 mm / F2.0
2.4 GHz A/V Transmission 4 CH Selectable, 10 mW (CE/FCC), 100 mW (optional), 3 dBi
Antenna
Weight 134 g
Dimensions 72 mm (W) x 47.5 mm (H) x 96.6 mm (L)
Operating Environment 80% RH, -10℃ to 50℃ (14℉ to 122℉)
(Note: Design and Specifications are subject to change without notice.)
20
9. TROUBLESHOOTING
A. Power
1.Q: Why are there no images after power-on?
A: a. Power LED unlit; indicates power failure or insufficient power.
b. Power LED lit; please check whether the input source. When RF input source is
used, please make sure that the camera and the main device have been setup to the
same channel. When AV IN input source is used, please make sure that the AV
line is properly connected to the camera (Video/ Audio terminal); otherwise check
the camera video output line connections.
Q: Which type of batteries to choose from?
A: Please use nickel metal hydride (NiMh) or alkaline batteries for power supply.
B. Camera
1.Why does video interference occur when using wireless IR camera?
A: a. Please make channel adjustment, make sure that the camera and the main device
have been setup to the same channel. If one has 2 wireless IR cameras, one may
select channel 1 and 3 or 2 and 4 to obtain the optimum result.
b. Please prevent obstruction (caused by wall or steel) between the main device and
the camera during transmission.
c. Due to wireless network access point and wireless IR camera having the same
2.4GHz frequency. Therefore, please prevent operating the wireless IR camera
under wireless networking environment.
2.May one use other brand wireless IR cameras?
A: Please adjust the channel of the main device, check whether normal video images are
displayed and furthermore apply audio testing.
3.May one switch channels to monitor multiple wireless IR cameras?
A: Yes, please refer to【4.4 IR Camera-Back View】for wireless IR camera channel setup.
4.Why are there no sounds?
A: Please make sure that the main device is properly connected to the correct camera
input and the volume tuned up.
5.Why are the sounds distorted?
A: Please connect the RF wireless IR camera suggested by your local dealer.
6.Why are there many noises during the night time?
A: a. When using the supplied wireless IR camera, contact your local dealer at once.
b. When using standard camera, please use cameras with IR functions.
21
7.Why are video images constantly changing color?
A: It is because according to CCD camera different illuminant reflects different degrees
of color rolling; please prevent the camera directly irradiating the light source.
8.How can the wireless IR camera be started?
A: IR function is auto started during the night time (low illumination). IR LED lit
indicates that the IR function has been activated.
9.Why are video images black and white, when the IR function is activated?
A: It is because under low lux video images turn from color to black and white images.
C. CF Card
1.Why can’t the device read the CF card?
A: a. The CF card is damaged.
b. The CF card system format is incompatible to the device. Please format to FAT16
file system.
2.May one use the CF card from the digital camera?
A: Yes, only if it is FAT16 format.
3.Are there any limitations on CF card brand?
A: No, any standard brand may be used.
D. Record
1.Why are the video images distorted?
A: Make sure that the video source is setup properly (i.e., main device is setup to PAL
and camera to NTSC).
2.Why is the recording quality poor?
A: Please adjust your recording parameter; adjust your quality to high.
3.Why is the device unable to record?
A: a. Check the input system.
b. Check whether the CF card have been inserted (to view the monitoring status,
please refer to the bottom right corner, CF card status info).
c.【7.5 CF Card Management】When the recording method is not setup as continuous
recording, it stops recording when the storage capacity is full.
d. Unable to perform schedule recording, please refer to【6.3 Record Mode – Stop
Record】.
c. Please contact your local dealer, when following through the above steps, but still
unable to resolve the problem.
22
E. Playback
1. Why is the device unable to playback?
A: a. Check whether the CF card has been inserted (to view the monitoring status, please
refer to the bottom right corner, CF card status info).
b. Whether recorded videos available.
c. The device does not guarantee to playback videos of other MPEG4 files.
d. Please contact your local dealer, when following through the above steps, but still
unable to resolve the problem.
23
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution :To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface
cables when connecting to computer or peripheral devices).
