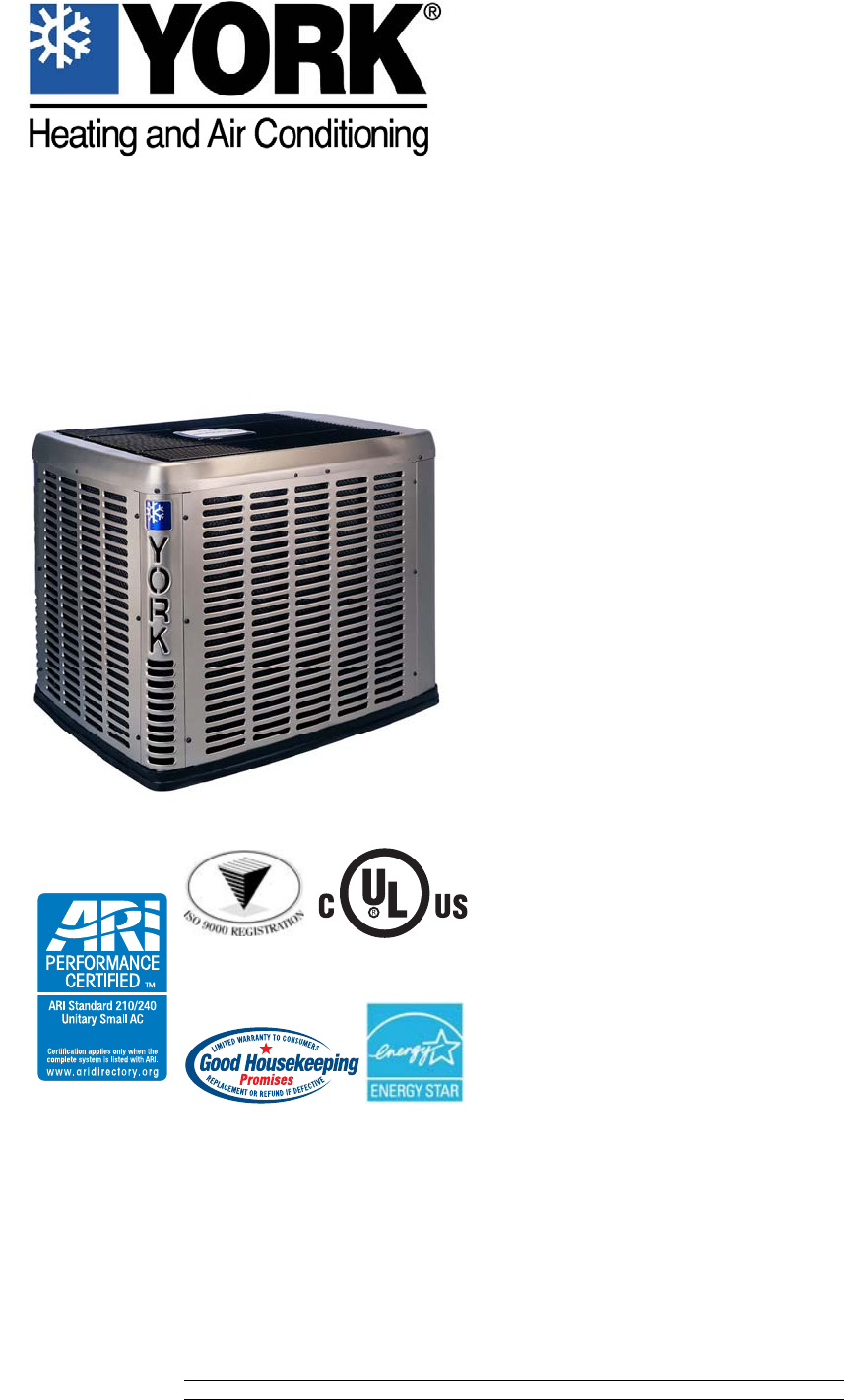

TECHNICAL GUIDE
AFFINITY
R-410A SPLIT-SYSTEM AIR CONDITIONERS
18 SEER
MODELS: CZH024 THRU 060
(2 THRU 5 NOMINAL TONS)
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.ahridirectory.org
ISO 9001
Certified Quality
Management System
LISTED
350154-YTG-C-0808
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
The CZH Series condensing unit is the outdoor part of a versatile
air conditioning system. It is designed to be custom matched with
one of our complete line of evaporator sections, each designed to
serve a specific function. Matching air handlers are available for
upflow, downflow, and horizontal left or right application to provide a
complete system. Electric heaters are available if required. Add-on
coils are available for use with upflow, downflow, or horizontal fur-
naces. Field installed accessories are available as needed.
WARRANTY
5-year limited parts warranty.
10-year limited compressor warranty.
Premium System Warranty - Limited lifetime compressor and 10-
year parts when matched with an approved York Affinity furnace or
UPG air handler and coil.
FEATURES
•Superior Coil Protection – A stamped decorative metal coil
guard completely protects coil from debris and other large dam-
aging material while a polymer mesh further protects the coil
against smaller particles.
•Isolated Compressor Compartment – A molded composite
bulkhead isolates the compressor from the rest of the unit reduc-
ing sound and vibration.
•Protected Compressors – Each compressor is protected
against abnormal pressures by an internal pressure relief valve
and factory installed high and low pressure controls. Additional
protection against moisture and debris is provided by factory
installed liquid line filter driers.
•Environmentally Friendly Refrigerant – Next generation
refrigerant R-410A delivers environmentally friendly perfor-
mance with zero ozone depletion.
•Durable Finish – Automotive quality finish provides the ultimate
protection from harmful U.V. rays and rust creep ensuring long-
lasting high quality appearance. A powder-paint topcoat is
applied over a baked-on primer, using a galvanized, zinc coated
steel base material. The result is a finish that has been proven in
testing to provide 33% greater durability than conventional pow-
der-coat finishes.
•Lower Installed Cost – Designed to provide enhanced install-
ability by featuring a slide-down control compartment and angled
service valves to reduce overall installation time and cost.
•Low Operating Sound Levels – A fan design boasting technol-
ogy adapted from aeronautic and defense engineering provides
for whisper quiet operation by allowing airflow to flow smoothly
and efficiently across the fan tips.
•Filter-Drier – A factory installed, solid core liquid line filter-drier
filters harmful debris and moisture from the system.
•Easy Service Access – A full end, full service, access panel
with handle makes for easy entry to internal components.
•Composite Base - Strong and durable composite base pan
resists rust and corrosion while it helps reduce vibrations and
noise.
•Quiet drive system - Features combination of swept-wing fan,
composite base pan, isolated compressor compartment and
two-stage compressor to reduce overall sound to a mere whis-
per.
•Low RPM fan motor - Helps to reduce airflow noise.
•Agency Listed - U.L. and C.U.L. listed - approved for outdoor
application. The unit is certified in accordance with the Unitary
Small Equipment cerification program, which is based on ARI
Standard 210/240.
350154-YTG-C-0808
2Johnson Controls Unitary Products
All dimensions are in inches. They are subject to change without notice.
Certified dimensions will be provided upon request.

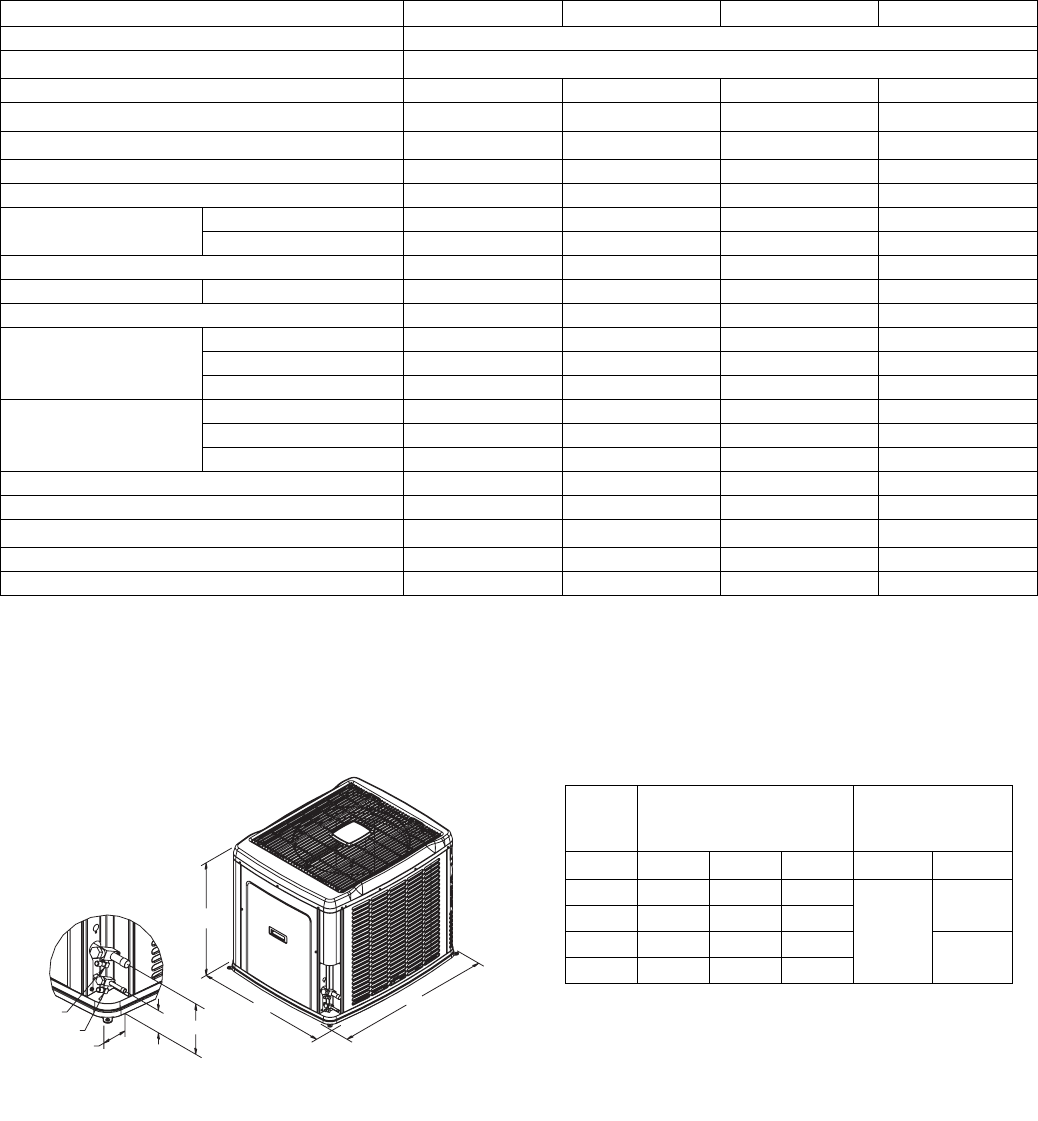

Physical and Electrical Data
MODEL CZH02411 CZH03611 CZH04811 CZH06011
Unit Supply Voltage 208-230V, 1φ, 60Hz
Normal Voltage Range 1187 to 252
Minimum Circuit Ampacity 15.6 23.6 29.2 34.8
Max. Overcurrent Device Amps 225 40 50 60
Min. Overcurrent Device Amps 320 25 30 35
Multi-stage Compressor Yes Yes Yes Yes
Compressor Type Scroll Scroll Scroll Scroll
Compressor Amps Rated Load 10.3 16.7 21.2 25.6
Locked Rotor 52 82 96 118
Crankcase Heater No No No No
Fan Motor Amps Rated Load 2.8 2.8 2.8 2.8
Fan Diameter Inches 24 24 24 24
Fan Motor
Rated HP 1/3 1/3 1/3 1/3
Nominal RPM 685 685 685 685
Nominal CFM 2900 3200 3100 3150
Coil
Face Area Sq. Ft. 23.58 23.58 23.58 23.58
Rows Deep 2 2 2 2
Fins / Inch 16 16 14 14
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 7/8 7/8
Unit Charge (Lbs. - Oz.) 415 - 1 13 - 7 12 - 9 13 - 5
Charge Per Foot, Oz. 0.62 0.62 0.67 0.67
Operating Weight Lbs. 305 305 310 330
1 Rated in accordance with ARI Standard 110, utilization range “A”.
2 Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3 Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4 The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet,
add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
VAPOR
LIQUID
2-3/8
3-1/8 6-1/2
C
A
B
Unit
Model Dimensions
(Inches)
Refrigerant
Connection
Service Valve Size
A B C Liquid Vapor
24 39-1/2 42 34
3/8”
3/4”
36 39-1/2 42 34
48 39-1/2 42 34 7/8”
60 39-1/2 42 34
350154-YTG-C-0808
Johnson Controls Unitary Products 3
PROCEDURES:
1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaporator and 15 feet of intercon-
necting line tubing.
2. Verify the TXV and additional charge required for specific evaporator coil in the system using the above table.
3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified on the previous page.
4. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + adder for evap-
orator + adder for line set.
Additional R-410A Charge / TXV Size for Various Matched Systems
Outdoor Unit CZH02411 CZH03611 CZH04811 CZH06011
Approved System Thermal Expansion Valve11TVM(902/4F1) 1TVM(904/4H1) 1TVM(905/4J1) 1TVM(906/4K1)
Factory Charge, lbs-oz 16 - 2 15 - 14 13 - 8 14 - 1
Indoor Coil2TXV Kit3 - Additional Charge, Oz
FC/MC/PC32A 1 – – –
FC/MC/PC35B 0 – – –
FC/MC/PC35C 0 – – –
FC/MC/PC37A 7 24 – –
FC/MC/PC43B 7 24 – –
FC/MC/PC43C 7 24 – –
FC/MC/PC48C 17 7 10 –
FC/MC/PC48D 17 7 10 –
FC/PC60C –––0
FC/MC/PC60D – – – 0
FC/MC62D – 39 15 12
HC36B 0 – – –
HC42C – 24 – –
HC60D – – 1 0
UC48D 17 7 10 –
UC60D – – – 0
AV36C 7 0 – –
AV/SV48D – – 1 –
AV/SV60D – – 0 0
F4FV060D – – 1 0
FOOTNOTES:
1 Systems matched with furnace or air handlers not equipped with blower-off delays may require blower Time Delay Kit 2FD06700224.
2 PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.
3 A TXV kit must be used with these coils to obtain system performance.
Note: If a TXV is factory installed on the coil, it must be replaced with the listed TXV.
350154-YTG-C-0808
4Johnson Controls Unitary Products
COOLING CAPACITY - With Air Handler Coils
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL W STAGE RATED
CFM NET MBH SEER EER
1 PH 18 SEER AC WITH MV
CZH02411
MV12B 17 FC/MC/PC35B
1 620 18.2 13.8
17.05 14.50
2 800 23.6 17.2 13.80
MV12B 17 FC/MC/PC35C
1 620 18.2 13.8
17.05 14.50
2 800 23.6 17.2 13.80
MV12B 17 FC/MC/PC43B
1 620 18.5 14.0
17.20 14.65
2 800 24.0 17.5 14.00
MV12B 17 FC/MC/PC43C
1 620 18.5 14.0
17.20 14.65
2 800 24.0 17.5 14.00
MV12D 24 FC/MC/PC48D
1 645 18.9 14.3
18.00 15.25
2 835 24.6 17.9 14.45
CZH03611
MV12B 17 FC/MC/PC43B
1 775 25.6 18.0
17.70 14.90
2 1200 36.0 25.2 13.55
MV16C 21 FC/MC/PC43C
1 775 25.7 18.1
18.00 15.00
2 1200 36.2 25.3 14.00
MV12D 24 FC/MC/PC48D
1 735 25.6 18.0
18.40 15.40
2 1135 36.0 25.2 13.95
MV16C 21 FC/MC/PC48C
1 775 25.9 18.2
18.40 15.40
2 1200 36.4 25.4 14.15
MV12D 24 FC/MC62D
1 735 25.7 18.1
18.50 15.40
2 1135 36.6 25.6 14.25
CZH04811
MV16C 21 FC/MC/PC48C
1 1000 34.0 25.1
17.30 14.20
2 1600 46.0 35.1 12.45
MV16C 21 FC/MC/PC48D
1 1000 34.0 25.1
17.30 14.20
2 1600 46.0 35.1 12.45
MV20D 24 FC/MC/PC48D
1 1020 34.0 25.1
17.00 14.00
2 1600 46.0 35.1 12.35
MV20D 24 FC/MC62D
1 1020 34.1 25.2
17.00 14.05
2 1600 46.5 35.5 12.50
CZH06011
MV20D 24 FC/MC/PC60D
1 1030 40.2 27.3
15.30 12.55
2 1800 55.5 40.5 11.55
MV20D 24 FC/MC62D
1 1030 42.1 28.6
16.00 13.20
2 1800 58.0 42.3 12.00
1 PH 18 SEER AC WITH AV/SV
CZH02411 AV36C 21 N / A 1 600 18.4 13.9
17.60 14.95
2 765 23.8 17.3 14.10
CZH03611 AV36C 21 N / A 1 830 25.7 18.1
18.00 15.25
2 1270 35.6 24.9 13.45
CZH04811
AV/SV48D 24 N / A 1 1135 33.1 24.4
16.60 13.60
2 1610 44.5 34.0 12.10
AV/SV60D 24 N / A 1 1085 33.0 24.4
16.50 13.60
2 1655 44.5 34.0 12.10
CZH06011 AV/SV60D 24 N / A 1 1145 41.5 28.2
15.70 13.00
2 1765 55.5 40.5 11.65
1 PH 18 SEER AC WITH F*F*
CZH04811 F4FV060 24 N / A 1 1200 33.6 24.8
16.85 13.75
2 1600 44.5 34.0 12.15
CZH06011 F4FV060 24 N / A 1 1200 41.8 28.4
15.55 12.80
2 1780 55.5 40.5 11.60
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210.
Cooling MBH based on 80°F entering air temperature, 50% RH, and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power
input in watt-hours during the same period.
1 MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
350154-YTG-C-0808
Johnson Controls Unitary Products 5
COOLING CAPACITY - CZH02411 With Variable Speed Furnaces
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
PV8*A12 FC/MC/PC32A 14 1 470 17.2 13.0
16.70 14.15
2 750 23.2 16.9 13.55
PV9*A12 FC/MC/PC32A 14 1 625 18.1 13.7
16.60 14.25
2 800 23.2 16.9 13.05
P(C,V)9*B12 FC/MC/PC35B 17 1 560 17.9 13.6
17.05 14.55
2 820 23.4 17.0 13.45
PV8*A12 FC/MC/PC37A 14 1 470 17.4 13.2
17.00 14.35
2 750 23.6 17.2 13.75
PV9*A12 FC/MC/PC37A 14 1 625 18.6 14.1
17.00 14.60
2 800 23.6 17.2 13.30
P(C,V)9*B12 FC/MC/PC43B 14 1 560 18.1 13.7
17.35 14.70
2 820 24.0 17.5 13.70
P(C,V)9*B12 HC36B 17 1 560 17.9 13.6
17.10 14.55
2 820 23.4 17.0 13.55
Y*(8,L)C*A12 FC/MC/PC30A 14
1 590 17.7 13.1
16.75 14.25
2 805 23.0 16.3 13.50
Y*(8,L)C*B12 FC/MC/PC30B 17
1 565 17.8 13.1
17.00 14.50
2 815 23.2 16.3 13.50
Y*9C*B12 FC/MC/PC30B 17
1 565 17.7 13.1
16.75 14.25
2 790 23.0 16.3 13.50
Y*(8,L)C*A12 FC/MC/PC32A 14
1 550 17.5 12.7
16.50 14.00
2 775 23.0 16.1 13.25
Y*(8,L)C*B12 FC/MC/PC35B 17
1 515 17.4 12.4
16.50 14.00
2 760 23.0 16.1 13.50
Y*9C*B12 FC/MC/PC35B 17
1 550 17.5 12.7
16.50 14.25
2 815 23.2 16.5 13.25
Y*(8,L)C*A12 FC/MC/PC36A 14
1 595 17.8 13.3
17.00 14.25
2 805 23.0 16.4 13.50
Y*(8,L)C*B12 FC/MC/PC36B 17
1 525 17.5 12.6
16.75 14.25
2 765 23.0 16.2 13.75
Y*9C*B12 FC/MC/PC36B 17
1 590 17.9 13.2
16.75 14.25
2 815 23.2 16.6 13.50
Y*(8,L)C*A12 FC/MC/PC37A 14
1 585 18.0 13.3
16.75 14.25
2 805 23.6 16.7 13.50
Y*(8,L)C*B12 FC/MC/PC43B 17
1 515 17.5 12.6
16.75 14.25
2 760 23.4 16.3 13.75
Y*9C*B12 FC/MC/PC43B 17
1 550 17.8 12.9
17.00 14.25
2 800 23.6 16.7 13.75
Y*(8,L)C*A12 HC30 14
1 550 17.4 12.6
16.25 13.75
2 775 22.8 15.9 13.25
Y*(8,L)C*A12 HD36 14
1 595 17.5 12.6
16.50 14.00
2 805 23.0 15.7 13.25
Y*(8,L)C*B12 HD36 17
1 515 17.0 11.9
16.00 13.75
2 760 22.6 15.5 13.25
Y*9C*B12 HD36 17
1 590 17.5 12.6
16.50 14.00
2 815 23.0 15.7 13.50
Y*(8,L)C*A12 UC30A 14
1 590 17.7 13.2
16.75 14.25
2 805 23.2 16.3 13.50
Y*(8,L)C*B12 UC30B 17
1 565 17.8 13.3
17.25 14.50
2 815 23.2 16.3 13.75
Y*9C*B12 UC30B 17
1 565 17.8 13.2
17.00 14.25
2 790 23.2 16.3 13.50
Y*(8,L)C*A12 UC36A 14
1 595 17.0 12.8
16.00 13.75
2 805 22.4 15.7 13.00
For Notes See Page 6.
350154-YTG-C-0808
6Johnson Controls Unitary Products
Y*(8,L)C*B12 UC36B 17
1 525 16.6 11.9
16.00 13.50
2 765 22.2 15.5 13.25
Y*9C*B12 UC36B 17
1 590 17.0 12.8
16.00 13.75
2 815 22.4 15.7 13.00
G*9V*A12 FC/MC/PC30A 14
1 625 17.8 13.4
16.50 14.00
2 800 23.0 16.2 13.25
G*9V*A12 FC/MC/PC32A 14
1 625 17.8 13.4
16.25 14.00
2 800 23.0 16.3 13.00
G*9V*A12 FC/MC/PC36A 14
1 625 17.9 13.5
16.50 14.00
2 800 22.8 16.3 13.00
G*9V*A12 FC/MC/PC37A 14
1 535 17.6 12.7
16.25 14.00
2 800 23.4 16.6 13.25
G*9V*A12 HC30 14
1 625 17.7 13.3
16.25 13.75
2 800 22.8 16.0 13.00
G*9V*A12 HD36 14
1 625 17.6 12.7
16.00 13.75
2 800 22.8 15.5 13.00
G*9V*A12 UC30A 14
1 625 18.0 13.4
16.50 14.00
2 800 23.2 16.2 13.25
G*9V*A12 UC36A 14
1 625 17.1 12.8
15.75 13.25
2 800 22.2 15.6 12.75
G*9V*B12 FC/MC/PC30B 17
1 565 17.7 13.1
16.75 14.25
2 790 23.0 16.3 13.50
G*9V*B12 FC/MC/PC35B 17
1 550 17.5 12.7
16.50 14.25
2 815 23.2 16.5 13.25
G*9V*B12 FC/MC/PC36B 17
1 590 17.9 13.2
16.75 14.25
2 815 23.2 16.6 13.50
G*9V*B12 FC/MC/PC43B 17
1 550 17.8 12.9
17.00 14.25
2 800 23.6 16.7 13.75
G*9V*B12 HD36 17
1 590 17.5 12.6
16.50 14.00
2 815 23.0 15.7 13.50
G*9V*B12 UC30B 17
1 565 17.8 13.2
17.00 14.25
2 790 23.2 16.3 13.50
G*9V*B12 UC36B 17
1 590 17.0 12.8
16.00 13.75
2 818 22.4 15.7 13.00
1 MC coils available with a factory installed horizontal drain pan.
2 Variable speed furnaces have B.O.D (Blower on Delay) standard.
COOLING CAPACITY - CZH02411 With Variable Speed Furnaces (Continued)
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
350154-YTG-C-0808
Johnson Controls Unitary Products 7
COOLING CAPACITY - CZH03611With Variable Speed Furnaces
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
PV8*A12 FC/MC/PC37A 14 1 750 25.4 17.9
17.50 14.80
2 1185 35.8 25.0 13.25
PV9*A12 FC/MC/PC37A 14 1 780 25.6 18.0
17.50 14.75
2 1200 35.6 24.9 13.00
PV8*B16 FC/MC/PC43B 17 1 750 25.4 17.9
17.80 14.90
2 1200 36.0 25.2 13.70
PV8*C16 FC/MC/PC43C 21 1 640 24.6 17.3
17.70 14.80
2 1200 36.2 25.3 13.80
PV8*C20 FC/MC/PC43C 21 1 780 25.7 18.1
17.90 15.10
2 1200 36.0 25.2 13.50
P(C,V)9*B12 FC/MC/PC43B 17 1 770 25.6 18.0
17.60 14.85
2 1185 35.6 24.9 13.25
P(C,V)9*C16 FC/MC/PC43C 21 1 770 25.7 18.1
18.00 15.30
2 1175 35.8 25.0 13.60
P(C,V)9*C20 FC/MC/PC43C 21 1 790 25.8 18.1
17.90 15.05
2 1195 36.0 25.2 13.65
PV8*C16 FC/MC/PC48C 21 1 640 24.7 17.4
18.20 15.15
2 1200 36.4 25.4 14.00
PV8*C16 UC48D 21 1 640 24.7 17.4
18.20 15.15
2 1200 36.4 25.4 14.00
PV8*C20 FC/MC/PC48C 21 1 780 25.9 18.2
18.35 15.45
2 1200 36.2 25.3 13.55
P(C,V)9*C16 FC/MC/PC48C 21 1 770 25.9 18.2
18.40 15.60
2 1175 36.2 25.3 13.80
P(C,V)9*C16 UC48D 21 1 770 25.9 18.2
18.40 15.60
2 1175 36.2 25.3 13.80
P(C,V)9*C20 FC/MC/PC48C 21 1 790 25.9 18.2
18.20 15.25
2 1195 36.2 25.3 13.75
P(C,V)9*C20 UC48D 21 1 790 25.9 18.2
18.20 15.25
2 1195 36.2 25.3 13.75
P(C,V)9*D20 FC/MC/PC48D 24 1 775 25.9 18.2
18.30 15.40
2 1220 36.4 25.4 13.90
P(C,V)9*D20 UC48D 24 1 775 25.9 18.2
18.30 15.40
2 1220 36.4 25.4 13.90
PV8*C20 FC/MC62D 21 1 780 26.0 18.3
18.35 15.40
2 1200 36.6 25.6 13.70
P(C,V)9*C20 FC/MC62D 21 1 790 26.0 18.3
18.20 15.25
2 1195 36.6 25.6 13.90
P(C,V)9*D20 FC/MC62D 24 1 775 26.0 18.3
18.25 15.30
2 1220 36.8 25.7 14.05
PV8*C16 HC42C 21 1 640 24.6 17.3
17.80 14.85
2 1200 36.2 25.3 13.85
PV8*C20 HC42C 21 1 780 25.7 18.1
18.05 15.20
2 1200 36.0 25.2 13.50
P(C,V)9*C16 HC42C 21 1 770 25.6 18.0
18.25 15.25
2 1175 36.0 25.2 13.75
P(C,V)9*C20 HC42C 21 1 790 25.8 18.1
17.90 15.05
2 1195 36.0 25.2 13.65
Y*(8,L)C*B12 FC/MC/PC35B 17
1 745 24.6 16.7
17.00 14.25
2 1220 35.0 24.3 12.50
Y*(8,L)C*C16 FC/MC/PC35C 21
1 815 25.0 17.5
17.25 14.25
2 1235 35.4 24.7 13.25
Y*(8,L)C*C20 FC/MC/PC35C 21
1 960 25.8 19.2
17.25 14.25
2 1170 35.2 24.3 13.25
Y*9C*B12 FC/MC/PC35B 17
1 810 25.0 17.4
16.75 14.00
2 1190 35.2 24.5 12.75
For Notes See Page 10.
350154-YTG-C-0808
8Johnson Controls Unitary Products
Y*9C*C16 FC/MC/PC35C 21
1 790 25.0 17.5
17.25 14.25
2 1215 35.4 24.7 13.00
Y*9C*C20 FC/MC/PC35C 21
1 760 24.6 16.8
17.00 14.25
2 1330 35.6 25.3 12.75
Y*(8,L)C*A12 FC/MC/PC36A 14
1 815 24.8 17.3
16.75 14.00
2 1190 34.6 23.7 12.50
Y*(8,L)C*B12 FC/MC/PC36B 17
1 745 24.6 16.7
17.00 14.25
2 1220 34.8 24.1 12.75
Y*(8,L)C*C16 FC/MC/PC36C 21
1 805 25.0 17.4
17.50 14.50
2 1235 34.8 24.1 13.00
Y*(8,L)C*C20 FC/MC/PC36C 21
1 800 25.0 17.4
17.50 14.50
2 1240 35.0 24.1 13.25
Y*9C*B12 FC/MC/PC36B 17
1 800 25.0 17.3
17.00 14.25
2 1165 34.8 23.9 12.75
Y*9C*C16 FC/MC/PC36C 21
1 915 25.4 18.2
17.25 14.25
2 1185 34.6 24.1 13.00
Y*9C*C20 FC/MC/PC36C 21
1 760 24.6 16.8
17.25 14.25
2 1320 35.2 25.1 12.75
Y*(8,L)C*A12 FC/MC/PC37A 14
1 655 24.2 15.9
16.75 14.00
2 980 34.2 22.7 13.00
Y*(8,L)C*B12 FC/MC/PC42B 17
1 760 24.6 16.9
17.25 14.25
2 1175 34.8 24.1 13.00
Y*(8,L)C*C16 FC/MC/PC42C 21
1 825 25.0 17.6
17.50 14.50
2 1205 35.4 24.7 13.50
Y*(8,L)C*C20 FC/MC/PC42C 21
1 735 24.8 17.0
17.50 14.50
2 1170 35.0 24.3 13.50
Y*9C*B12 FC/MC/PC42B 17
1 800 25.0 17.5
17.00 14.25
2 1195 34.8 24.3 12.50
Y*9C*C16 FC/MC/PC42C 21
1 780 24.6 16.9
17.25 14.25
2 1205 34.8 24.3 13.25
Y*9C*C20 FC/MC/PC42C 21
1 770 24.8 17.0
17.25 14.25
2 1325 35.4 25.5 13.00
Y*(8,L)C*B12 FC/MC/PC43B 17
1 745 24.8 16.9
17.25 14.25
2 1210 35.4 24.9 12.75
Y*(8,L)C*C16 FC/MC/PC43C 21
1 800 25.2 17.6
17.50 14.50
2 1205 35.8 25.1 13.50
Y*(8,L)C*C20 FC/MC/PC43C 21
1 745 24.8 17.0
17.50 14.50
2 1190 35.8 25.1 13.50
Y*9C*B12 FC/MC/PC43B 17
1 815 25.0 17.5
17.00 14.25
2 1200 35.4 24.9 12.75
Y*9C*C16 FC/MC/PC43C 21
1 815 25.2 17.5
17.25 14.25
2 1240 35.6 25.1 13.00
Y*9C*C20 FC/MC/PC43C 21
1 780 24.8 16.9
17.25 14.25
2 1200 35.8 25.1 13.25
Y*(8,L)C*C16 FC/MC/PC48C 21
1 810 25.6 17.9
17.75 14.75
2 1210 36.4 25.7 13.75
Y*(8,L)C*C20 FC/MC/PC48C 21
1 720 24.8 16.9
17.50 14.50
2 1155 36.2 25.1 13.75
Y*9C*C16 FC/MC/PC48C 21
1 780 25.6 17.9
17.75 14.75
2 1195 36.2 25.5 13.50
Y*9C*C20 FC/MC/PC48C 21
1 745 24.8 17.1
17.50 14.50
2 1330 36.6 26.5 13.25
Y*(8,L)C*C16 HC42 21
1 800 25.0 17.6
17.50 14.50
2 1205 35.8 25.1 13.50
Y*(8,L)C*C20 HC42 21
1 745 24.8 17.0
17.50 14.50
2 1190 35.8 25.1 13.50
For Notes See Page 10.
COOLING CAPACITY - CZH03611With Variable Speed Furnaces (Continued)
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
350154-YTG-C-0808
Johnson Controls Unitary Products 9
Y*9C*C16 HC42 21
1 815 25.0 17.6
17.25 14.25
2 1240 35.6 24.9 13.00
Y*9C*C20 HC42 21
1 780 25.0 17.6
17.50 14.50
2 1200 35.8 25.1 13.25
Y*(8,L)C*B12 HD48 17
1 750 24.8 17.0
17.25 14.50
2 1210 35.8 25.1 13.25
Y*9C*B12 HD48 17
1 710 24.6 16.5
17.00 14.25
2 1150 35.4 24.3 13.00
Y*(8,L)C*C16 HD48 21
1 810 25.4 17.7
17.75 14.75
2 1210 36.0 25.3 13.75
Y*(8,L)C*C20 HD48 21
1 720 24.8 16.7
17.50 14.50
2 1155 35.8 24.9 13.75
Y*9C*C16 HD48 21
1 780 25.4 17.6
17.50 14.75
2 1195 36.0 25.1 13.50
Y*9C*C20 HD48 21
1 745 24.8 16.9
17.25 14.50
2 1330 36.2 26.1 13.25
Y*(8,L)C*A12 UC36A 14
1 815 24.4 16.9
16.50 13.75
2 1190 34.0 23.3 12.25
Y*(8,L)C*B12 UC36B 17
1 745 24.0 16.3
16.75 14.00
2 1220 34.2 23.7 12.50
Y*(8,L)C*C16 UC36C 21
1 805 24.6 17.0
17.25 14.25
2 1235 34.4 23.5 13.00
Y*(8,L)C*C20 UC36C 21
1 800 24.6 17.1
17.25 14.25
2 1240 34.4 23.5 13.00
Y*9C*B12 UC36B 17
1 800 24.4 17.0
16.75 14.00
2 1165 34.2 23.5 12.75
Y*9C*C16 UC36C 21
1 915 25.0 17.8
17.00 14.00
2 1185 34.4 23.7 13.00
Y*9C*C20 UC36C 21
1 760 24.2 16.5
16.75 14.00
2 1300 34.8 24.9 12.75
Y*(8,L)C*B12 UC42B 17
1 760 24.4 16.8
17.00 14.25
2 1175 34.6 23.9 13.00
Y*(8,L)C*C16 UC42C 21
1 825 24.8 17.4
17.25 14.50
2 1205 35.0 24.5 13.50
Y*(8,L)C*C20 UC42C 21
1 735 24.4 16.8
17.25 14.25
2 1170 35.0 24.1 13.50
Y*9C*B12 UC42B 17
1 800 24.8 17.3
16.75 14.00
2 1195 34.6 24.1 12.50
Y*9C*C16 UC42C 21
1 780 24.4 16.7
17.00 14.25
2 1205 34.8 23.9 13.00
Y*9C*C20 UC42C 21
1 770 24.4 16.9
17.00 14.25
2 1325 35.4 25.1 13.00
Y*(8,L)C*C16 UC48C 21
1 810 25.0 17.7
17.50 14.50
2 1210 35.6 25.3 13.50
Y*(8,L)C*C20 UC48C 21
1 720 24.4 16.7
17.25 14.25
2 1155 35.4 24.7 13.50
Y*9C*C16 UC48C 21
1 780 25.0 17.7
17.50 14.50
2 1195 35.6 25.1 13.25
Y*9C*C20 UC48C 21
1 755 24.6 17.1
17.25 14.25
2 1330 35.8 25.9 13.00
G*9V*A12 FC/MC/PC36A 14
1 780 24.6 16.9
16.75 14.00
2 1200 34.2 23.7 12.25
G*9V*A12 FC/MC/PC37A 14
1 800 25.0 17.5
16.75 14.00
2 1100 34.8 23.7 12.75
G*9V*A12 UC36A 14
1 780 24.2 16.6
16.25 13.75
2 1200 34.0 23.5 12.25
For Notes See Page 10.
COOLING CAPACITY - CZH03611With Variable Speed Furnaces (Continued)
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
350154-YTG-C-0808
10 Johnson Controls Unitary Products
G*9V*B12 FC/MC/PC35B 17
1 810 25.0 17.4
16.75 14.00
2 1190 35.2 24.5 12.75
G*9V*C16 FC/MC/PC35C 21
1 790 25.0 17.5
17.25 14.25
2 1215 35.4 24.7 13.00
G*9V*C20 FC/MC/PC35C 21
1 760 24.6 16.8
17.00 14.25
2 1330 35.6 25.3 12.75
G*9V*B12 FC/MC/PC36B 17
1 800 25.0 17.3
17.00 14.25
2 1165 34.8 23.9 12.75
G*9V*C16 FC/MC/PC36C 21
1 915 25.4 18.2
17.25 14.25
2 1185 34.6 24.1 13.00
G*9V*C20 FC/MC/PC36C 21
1 760 24.6 16.8
17.25 14.25
2 1320 35.2 25.1 12.75
G*9V*B12 FC/MC/PC42B 17
1 800 25.0 17.5
17.00 14.25
2 1195 34.8 24.3 12.50
G*9V*C16 FC/MC/PC42C 21
1 780 24.6 16.9
17.25 14.25
2 1205 34.8 24.3 13.25
G*9V*C20 FC/MC/PC42C 21
1 770 24.8 17.0
17.25 14.25
2 1325 35.4 25.5 13.00
G*9V*B12 FC/MC/PC43B 17
1 815 25.0 17.5
17.00 14.25
2 1200 35.4 24.9 12.75
G*9V*C16 FC/MC/PC43C 21
1 815 25.2 17.5
17.25 14.25
2 1240 35.6 25.1 13.00
G*9V*C20 FC/MC/PC43C 21
1 780 24.8 16.9
17.25 14.25
2 1200 35.8 25.1 13.25
G*9V*C16 FC/MC/PC48C 21
1 780 25.6 17.9
17.75 14.75
2 1195 36.2 25.5 13.50
G*9V*C20 FC/MC/PC48C 21
1 745 24.8 17.1
17.50 14.50
2 1330 36.6 26.5 13.25
G*9V*C16 HC42 21
1 815 25.0 17.6
17.25 14.25
2 1240 35.6 24.9 13.00
G*9V*C20 HC42 21
1 780 25.0 17.6
17.50 14.50
2 1200 35.8 25.1 13.25
G*9V*B12 HD48 17
1 710 24.6 16.5
17.00 14.25
2 1150 35.4 24.3 13.00
G*9V*C16 HD48 21
1 780 25.4 17.6
17.50 14.75
2 1195 36.0 25.1 13.50
G*9V*C20 HD48 21
1 745 24.8 16.9
17.25 14.50
2 1330 36.2 26.1 13.25
G*9V*B12 UC36B 17
1 800 24.4 17.0
16.75 14.00
2 1165 34.2 23.5 12.75
G*9V*C16 UC36C 21
1 915 25.0 17.8
17.00 14.00
2 1185 34.4 23.7 13.00
G*9V*C20 UC36C 21
1 760 24.2 16.5
16.75 14.00
2 1300 34.8 24.9 12.75
G*9V*B12 UC42B 17
1 800 24.8 17.3
16.75 14.00
2 1195 34.6 24.1 12.50
G*9V*C16 UC42C 21
1 780 24.4 16.7
17.00 14.25
2 1205 34.8 23.9 13.00
G*9V*C20 UC42C 21
1 770 24.4 16.9
17.00 14.25
2 1325 35.4 25.1 13.00
G*9V*C16 UC48C 21
1 780 25.0 17.7
17.50 14.50
2 1195 35.6 25.1 13.25
G*9V*C20 UC48C 21
1 755 24.6 17.1
17.25 14.25
2 1330 35.8 25.9 13.00
1 MC coils available with a factory installed horizontal drain pan.
2 Variable speed furnaces have B.O.D (Blower on Delay) standard.
COOLING CAPACITY - CZH03611With Variable Speed Furnaces (Continued)
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
350154-YTG-C-0808
Johnson Controls Unitary Products 11
COOLING CAPACITY - CZH04811With Variable Speed Furnaces
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
PV8*C16 FC/MC/PC48C 21 1 880 33.0 24.4
16.90 13.90
2 1500 45.0 34.4 11.95
PV8*C16 UC48D 21 1 880 33.0 24.4
16.90 13.90
2 1500 45.0 34.4 11.95
PV8*C20 FC/MC/PC48C 21 1 1030 34.1 25.2
17.10 14.15
2 1610 45.5 34.8 12.05
PV8*C20 UC48D 21 1 1030 34.1 25.2
17.10 14.15
2 1610 45.5 34.8 12.05
P(C,V)9*C16 FC/MC/PC48C 21 1 1090 34.6 25.6
17.50 14.50
2 1600 45.5 34.8 11.85
P(C,V)9*C16 UC48D 21 1 1090 34.6 25.6
17.50 14.50
2 1600 45.5 34.8 11.85
P(C,V)9*C20 FC/MC/PC48C 21 1 1010 33.9 25.0
16.90 13.95
2 1580 45.5 34.8 12.05
P(C,V)9*C20 UC48D 21 1 1010 33.9 25.0
16.90 13.95
2 1580 45.5 34.8 12.05
P(C,V)9*D20 FC/MC/PC48D 24 1 985 33.8 25.0
16.95 13.95
2 1560 45.5 34.8 12.20
P(C,V)9*D20 UC48D 24 1 985 33.8 25.0
16.95 13.95
2 1560 45.5 34.8 12.20
PV8*C20 FC/MC62D 21 1 1030 34.2 25.3
17.20 14.25
2 1610 46.0 35.1 12.20
P(C,V)9*C20 FC/MC62D 21 1 1010 34.1 25.2
16.80 14.00
2 1580 46.0 35.1 12.15
P(C,V)9*D20 FC/MC62D 24 1 985 33.9 25.0
17.00 14.00
2 1560 46.0 35.1 12.30
P(C,V)9*D20 HC60D 24 1 985 32.3 23.9
16.25 13.25
2 1560 44.0 33.6 11.85
Y*(8,L)C*C16 FC/MC/PC48C 21
1 1035 33.4 24.6
16.50 13.50
2 1615 45.5 34.6 11.75
Y*(8,L)C*C20 FC/MC/PC48C 21
1 1080 33.4 24.4
16.25 13.50
2 1640 45.5 34.4 11.75
Y*9C*C16 FC/MC/PC48C 21
1 1050 33.4 24.6
16.25 13.50
2 1590 45.5 34.1 11.75
Y*9C*C20 FC/MC/PC48C 21
1 1055 33.4 24.6
16.50 13.50
2 1655 45.5 34.1 11.75
Y*9C*D20 FC/MC/PC48D 24
1 1060 33.0 24.2
16.25 13.25
2 1645 45.0 34.0 11.50
Y*(8,L)C*C16 FC/PC60C 21
1 1035 32.6 23.8
16.25 13.25
2 1625 44.5 33.8 11.75
Y*(8,L)C*C20 FC/PC60C 21
1 1015 32.6 23.8
16.25 13.50
2 1605 45.0 34.0 12.00
Y*9C*C16 FC/PC60C 21
1 1050 32.4 23.8
16.00 13.25
2 1590 44.5 33.6 11.50
Y*9C*C20 FC/PC60C 21
1 1055 32.6 23.8
16.00 13.25
2 1655 44.5 33.6 11.50
Y*9C*D20 FC/MC/PC60D 24
1 1070 32.4 23.8
16.00 13.25
2 1615 44.5 33.8 11.75
Y*9C*D20 FC/MC62D 24
1 1085 33.0 24.4
16.25 13.50
2 1630 45.0 34.0 11.75
Y*9C*D20 HC60 24
1 1070 32.0 23.6
15.75 13.00
2 1615 44.0 33.6 11.50
Y*(8,L)C*C16 HD48 21
1 1035 32.8 24.0
16.25 13.50
2 1615 45.5 33.9 11.75
For Notes See Page 13.
350154-YTG-C-0808
12 Johnson Controls Unitary Products
Y*(8,L)C*C20 HD48 21
1 1080 32.8 24.0
16.00 13.25
2 1640 45.5 33.7 11.75
Y*9C*C16 HD48 21
1 1050 33.0 24.0
16.25 13.25
2 1590 45.0 33.5 11.75
Y*9C*C20 HD48 21
1 1055 33.0 24.0
16.25 13.50
2 1655 45.0 33.5 11.75
Y*9C*D20 HD48 24
1 1060 32.8 24.0
16.25 13.25
2 1645 45.5 33.7 11.75
Y*(8,L)C*C16 HD60 21
1 1035 33.6 24.6
16.75 13.75
2 1625 45.5 34.6 12.00
Y*(8,L)C*C20 HD60 21
1 1015 33.6 24.6
16.75 14.00
2 1605 45.5 34.8 12.00
Y*9C*C16 HD60 21
1 1050 33.4 24.6
16.25 13.50
2 1590 45.5 34.6 11.75
Y*9C*C20 HD60 21
1 1055 33.6 24.6
16.50 13.75
2 1655 45.5 34.6 11.75
Y*9C*D20 HD60 24
1 1070 33.6 24.6
16.50 13.50
2 1615 45.5 34.6 11.75
Y*(8,L)C*C16 UC48C 21
1 1035 31.8 23.4
15.75 13.00
2 1615 44.0 33.4 11.50
Y*(8,L)C*C20 UC48C 21
1 1080 31.8 23.4
15.50 12.75
2 1640 44.0 33.4 11.50
Y*9C*C16 UC48C 21
1 1050 31.8 23.8
15.50 12.75
2 1590 43.5 33.0 11.25
Y*9C*C20 UC48C 21
1 1055 31.8 23.8
15.75 12.75
2 1630 43.5 33.0 11.25
Y*9C*D20 UC48D 24
1 1060 29.8 22.0
14.75 12.00
2 1570 42.0 31.1 11.00
Y*(8,L)C*C16 UC60C 21
1 1035 30.0 21.4
15.00 12.25
2 1570 42.0 31.1 11.25
Y*(8,L)C*C20 UC60C 21
1 1015 30.0 21.4
15.00 12.25
2 1590 42.5 31.3 11.50
Y*9C*C16 UC60C 21
1 1050 30.0 21.2
14.75 12.00
2 1570 42.0 31.1 11.00
Y*9C*C20 UC60C 21
1 1055 30.0 21.4
14.75 12.00
2 1570 42.0 31.1 11.00
Y*9C*D20 UC60D 24
1 1070 30.0 21.2
14.75 12.00
2 1570 42.0 31.1 11.00
G*9V*C16 FC/MC/PC48C 21
1 1050 33.4 24.6
16.25 13.50
2 1590 45.5 34.1 11.75
G*9V*C20 FC/MC/PC48C 21
1 1055 33.4 24.6
16.50 13.50
2 1655 45.5 34.1 11.75
G*9V*D20 FC/MC/PC48D 24
1 1060 33.0 24.2
16.25 13.25
2 1645 45.0 34.0 11.50
G*9V*C16 FC/PC60C 21
1 1050 32.4 23.8
16.00 13.25
2 1590 44.5 33.6 11.50
G*9V*C20 FC/PC60C 21
1 1055 32.6 23.8
16.00 13.25
2 1655 44.5 33.6 11.50
G*9V*D20 FC/MC/PC60D 24
1 1070 32.4 23.8
16.00 13.25
2 1615 44.5 33.8 11.75
G*9V*D20 FC/MC62D 24
1 1085 33.0 24.4
16.25 13.50
2 1630 45.0 34.0 11.75
G*9V*D20 HC60 24
1 1070 32.0 23.6
15.75 13.00
2 1615 44.0 33.6 11.50
G*9V*C16 HD48 21
1 1050 33.0 24.0
16.25 13.25
2 1590 45.0 33.5 11.75
For Notes See Page 13.
COOLING CAPACITY - CZH04811With Variable Speed Furnaces (Continued)
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
350154-YTG-C-0808
Johnson Controls Unitary Products 13
G*9V*C20 HD48 21
1 1055 33.0 24.0
16.25 13.50
2 1655 45.0 33.5 11.75
G*9V*D20 HD48 24
1 1060 32.8 24.0
16.25 13.25
2 1645 45.5 33.7 11.75
G*9V*C16 HD60 21
1 1050 33.4 24.6
16.25 13.50
2 1590 45.5 34.6 11.75
G*9V*C20 HD60 21
1 1055 33.6 24.6
16.50 13.75
2 1655 45.5 34.6 11.75
G*9V*D20 HD60 24
1 1070 33.6 24.6
16.50 13.50
2 1615 45.5 34.6 11.75
G*9V*C16 UC48C 21
1 1050 31.8 23.8
15.50 12.75
2 1590 43.5 33.0 11.25
G*9V*C20 UC48C 21
1 1055 31.8 23.8
15.75 12.75
2 1630 43.5 33.0 11.25
G*9V*D20 UC48D 24
1 1060 29.8 22.0
14.75 12.00
2 1570 42.0 31.1 11.00
G*9V*C16 UC60C 21
1 1050 30.0 21.2
14.75 12.00
2 1570 42.0 31.1 11.00
G*9V*C20 UC60C 21
1 1055 30.0 21.4
14.75 12.00
2 1570 42.0 31.1 11.00
G*9V*D20 UC60D 24
1 1070 30.0 21.2
14.75 12.00
2 1570 42.0 31.1 11.00
1 MC coils available with a factory installed horizontal drain pan.
2 Variable speed furnaces have B.O.D (Blower on Delay) standard.
COOLING CAPACITY - CZH04811With Variable Speed Furnaces (Continued)
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
COOLING CAPACITY - CZH06011 With Variable Speed Furnaces
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
PV8*C20 FC/PC60C 21 1 1120 41.0 27.8
15.45 12.75
2 1730 55.0 40.1 11.40
PV8*C20 UC60D 21 1 1120 41.0 27.8
15.45 12.75
2 1730 55.0 40.1 11.40
P(C,V)9*C20 FC/PC60C 21 1 1075 40.4 27.4
15.25 12.55
2 1650 54.0 39.4 11.25
P(C,V)9*C20 UC60D 21 1 1075 40.4 27.4
15.25 12.55
2 1650 54.0 39.4 11.25
P(C,V)9*D20 FC/MC/PC60D 24 1 1020 40.2 27.3
15.25 12.55
2 1620 54.0 39.4 11.45
P(C,V)9*D20 UC60D 24 1 1020 40.2 27.3
15.25 12.55
2 1620 54.0 39.4 11.45
PV8*C20 FC/MC62D 21 1 1120 42.8 29.1
16.10 13.35
2 1730 57.0 41.6 11.70
P(C,V)9*C20 FC/MC62D 21 1 1075 42.4 28.8
15.95 13.25
2 1650 56.5 41.2 11.65
P(C,V)9*D20 FC/MC62D 24 1 1020 42.0 28.5
15.90 13.20
2 1620 56.5 41.2 11.80
P(C,V)9*D20 HC60D 24 1 1020 40.1 27.2
15.30 12.55
2 1620 54.5 39.7 11.50
Y*(8,L)C*C20 FC/PC60C 21
1 1015 40.0 26.0
15.25 12.50
2 1605 55.0 36.1 11.25
Y*9C*C20 FC/PC60C 21
1 1055 40.0 25.8
15.00 12.25
2 1655 54.5 35.9 11.00
For Notes See Page 14.
350154-YTG-C-0808
14 Johnson Controls Unitary Products
ACCESSORIES*
Hard Start Kit (024-31994-000, 024-31995-000) - Provides
increased starting torque for areas with low voltage.
TXV Kits - 1TVM9 series thermal expansion valves precisely
meter refrigerant for optimum performance
Dehumidistat (2HU16700124) - Provides increased dehumidi-
fication when matched with variable speed furnace or air han-
dler.
Room Thermostats - A wide selection of compatible thermo-
stats are available to provide optimum performance and fea-
tures for any installation.
1 Heat Stage only, manual, mechanical thermostat. Add sub-
base for 3H/2C.
3H/2C, manual changeover electronic non-programmable ther-
mostat.
3H/2C, auto/manual changeover, electronic programmable,
deluxe 7-day, thermostat.
3H/2C, auto/manual changeover, electronic programmable.
* For the most current accessory information, refer to the price
book or consult factory.
SOUND POWER RATINGS*
* Rated in accordance with ARI 270-95 Standards.
COLOR GRILLES
Y*9C*D20 FC/MC62D 24
1 1085 40.5 26.3
15.00 12.50
2 1630 55.0 36.3 11.25
Y*9C*D20 HC60 24
1 1070 39.0 25.4
14.50 12.00
2 1615 53.5 34.9 10.75
Y*(8,L)C*C20 HD60 21
1 1015 40.5 25.8
15.25 12.50
2 1605 55.5 36.1 11.50
Y*9C*C20 HD60 21
1 1055 40.5 26.3
15.25 12.50
2 1655 55.5 36.3 11.00
Y*9C*D20 HD60 24
1 1070 40.5 26.5
15.25 12.50
2 1615 54.5 35.5 11.00
Y*(8,L)C*C20 UC60C 21
1 1015 38.5 24.6
14.50 12.00
2 1605 53.5 34.6 11.00
Y*9C*C20 UC60C 21
1 1055 38.5 24.6
14.25 11.75
2 1655 53.0 34.4 10.75
Y*9C*D20 UC60D 24
1 1070 38.5 25.0
14.50 11.75
2 1615 53.5 34.6 10.75
G*9V*C20 FC/PC60C 21
1 1055 40.0 25.8
15.00 12.25
2 1655 54.5 35.9 11.00
G*9V*D20 FC/MC62D 24
1 1085 40.5 26.3
15.00 12.50
2 1630 55.0 36.3 11.25
G*9V*D20 HC60 24
1 1070 39.0 25.4
14.50 12.00
2 1615 53.5 34.9 10.75
G*9V*C20 HD60 21
1 1055 40.5 26.3
15.25 12.50
2 1655 55.5 36.3 11.00
G*9V*D20 HD60 24
1 1070 40.5 26.5
15.25 12.50
2 1615 54.5 35.5 11.00
G*9V*C20 UC60C 21
1 1055 38.5 24.6
14.25 11.75
2 1655 53.0 34.4 10.75
G*9V*D20 UC60D 24
1 1070 38.5 25.0
14.50 11.75
2 1615 53.5 34.6 10.75
1 MC coils available with a factory installed horizontal drain pan.
2 Variable speed furnaces have B.O.D (Blower on Delay) standard.
COOLING CAPACITY - CZH06011 With Variable Speed Furnaces (Continued)
VARIABLE SPEED
FURNACE MODEL COIL
MODEL1W
COOLING
STAGE RATED
CFM
NET MBH SEER EER
TOTAL SENSIBLE
1 PH 18 SEER AC WITH VARIABLE SPEED FURNACES2
UNIT MODEL (dBA)
024 71
036 73
048 72
060 74
CHOICE OF SEVERAL COLOR COIL GRILLES TO
COMPLIMENT ANY HOME.
Color Grill Color Description
1CP1136 Terra Cotta All
1CP0236 Jet Black All
1CP0336 Stone All
1CP0436 Bermuda All
1CP0536 Gunmetal All
1CP0636 Chocolate All
350154-YTG-C-0808
Johnson Controls Unitary Products 15
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
LOW CFM
COOLING PERFORMANCE DATA - LOW CFM 1-STAGE OPERATION
OUTDOOR UNIT MODEL NO. CZH02411
INDOOR COIL MODEL NO. FC48D + MV12D
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 550 600 650
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65
T.C. 18.6 19.9 18.9 21.7 23.9 19.0 19.9 19.1 21.8 24.4 19.4 20.0 19.3 22.0 24.9
S.C. 18.6 17.5 14.9 14.8 11.7 19.2 18.5 15.6 15.5 12.1 19.7 19.4 16.2 16.2 12.5
K.W. 0.76 0.75 0.76 0.74 0.74 0.75 0.75 0.75 0.73 0.74 0.75 0.75 0.75 0.73 0.74
75
T.C. 17.8 18.8 18.0 20.6 22.8 18.3 18.9 18.3 20.9 23.2 18.7 19.1 18.5 21.1 23.6
S.C. 17.9 17.1 14.5 14.4 11.3 18.4 17.9 15.1 15.1 11.8 18.9 18.6 15.8 15.9 12.2
K.W. 0.93 0.92 0.93 0.91 0.90 0.92 0.92 0.92 0.90 0.90 0.91 0.91 0.92 0.90 0.90
85
T.C. 17.1 17.6 17.1 19.5 21.6 17.5 17.9 17.4 19.9 22.0 17.9 18.2 17.7 20.2 22.3
S.C. 17.2 16.8 14.0 14.0 10.9 17.7 17.3 14.7 14.8 11.4 18.1 17.9 15.4 15.5 11.9
K.W. 1.09 1.09 1.09 1.08 1.06 1.08 1.08 1.09 1.07 1.06 1.07 1.08 1.08 1.06 1.05
95
T.C. 16.4 16.5 16.2 18.5 20.5 16.8 16.9 16.6 18.9 20.8 17.1 17.2 16.9 19.4 21.0
S.C. 16.5 16.4 13.6 13.7 10.5 17.0 16.8 14.3 14.4 11.1 17.4 17.2 15.0 15.1 11.7
K.W. 1.26 1.26 1.26 1.24 1.22 1.24 1.25 1.25 1.24 1.22 1.24 1.24 1.25 1.23 1.21
105
T.C. 15.3 15.4 14.9 17.0 19.0 15.7 15.8 15.2 17.3 19.1 16.0 16.2 15.5 17.7 19.3
S.C. 15.4 15.2 13.0 13.2 10.1 15.8 15.6 13.6 13.9 10.5 16.2 16.0 14.3 14.5 11.0
K.W. 1.48 1.49 1.49 1.47 1.45 1.47 1.48 1.48 1.47 1.45 1.46 1.47 1.48 1.46 1.45
115
T.C. 14.2 14.3 13.6 15.5 17.5 14.6 14.7 13.9 15.8 17.6 15.0 15.1 14.1 16.1 17.7
S.C. 14.4 14.1 12.4 12.8 9.6 14.7 14.5 13.0 13.4 10.0 15.1 14.9 13.5 13.9 10.4
K.W. 1.70 1.71 1.71 1.70 1.68 1.69 1.70 1.70 1.69 1.67 1.68 1.69 1.70 1.68 1.67
125
T.C. 13.1 13.2 12.3 14.0 15.9 13.5 13.6 12.5 14.3 16.0 13.9 14.0 12.7 14.5 16.1
S.C. 13.3 13.0 11.8 12.3 9.2 13.6 13.4 12.3 12.9 9.5 14.0 13.8 12.8 13.4 9.7
K.W. 1.92 1.93 1.93 1.92 1.91 1.91 1.92 1.93 1.91 1.90 1.91 1.91 1.92 1.91 1.90
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
AV36C – 0.97 0.97 0.99
MV12B FC/MC/PC35B 0.96 0.97 1.01
MV12B FC/MC/PC35C 0.96 0.97 1.01
MV12B FC/MC/PC35B 0.98 0.98 1.02
MV12B FC/MC/PC35C 0.98 0.98 1.02
MV12D FC/MC/PC48D 1.00 1.00 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*A12 FC/MC/PC32A 0.91 0.91 0.98
PV9*A12 FC/MC/PC32A 0.96 0.96 1.02
P(C,V)9*B12 FC/MC/PC35B 0.95 0.95 0.99
PV8*A12 FC/MC/PC37A 0.92 0.92 0.98
PV9*A12 FC/MC/PC37A 0.98 0.99 1.03
P(C,V)9*B12 FC/MC/PC43B 0.96 0.96 0.99
P(C,V)9*B12 HC36B 0.95 0.95 0.99
Y*(8,L)C*A12 FC/MC/PC30A 0.95 0.91 1.01
Y*(8,L)C*B12 FC/MC/PC30B 0.96 0.92 1.00
Y*9C*B12 FC/MC/PC30B 0.95 0.91 1.01
Y*(8,L)C*A12 FC/MC/PC32A 0.94 0.89 1.01
Y*(8,L)C*B12 FC/MC/PC35B 0.93 0.86 1.00
Y*9C*B12 FC/MC/PC35B 0.94 0.89 1.00
Y*(8,L)C*A12 FC/MC/PC36A 0.96 0.92 1.00
Y*(8,L)C*B12 FC/MC/PC36B 0.94 0.88 0.99
Y*9C*B12 FC/MC/PC36B 0.96 0.92 1.01
Y*(8,L)C*A12 FC/MC/PC37A 0.97 0.93 1.02
Y*(8,L)C*B12 FC/MC/PC43B 0.94 0.88 0.99
Y*9C*B12 FC/MC/PC43B 0.96 0.90 1.00
Y*(8,L)C*A12 HC30 0.93 0.88 1.01
Y*(8,L)C*A12 HD36 0.94 0.88 1.01
Y*(8,L)C*B12 HD36 0.91 0.83 1.00
Y*9C*B12 HD36 0.94 0.88 1.01
Y*(8,L)C*A12 UC30A 0.95 0.92 1.01
Y*(8,L)C*B12 UC30B 0.96 0.92 1.00
Y*9C*B12 UC30B 0.95 0.92 1.01
Y*(8,L)C*A12 UC36A 0.91 0.89 1.01
Y*(8,L)C*B12 UC36B 0.89 0.83 1.00
Y*9C*B12 UC36B 0.91 0.89 1.01
G*9V*A12 FC/MC/PC30A 0.96 0.93 1.03
G*9V*B12 FC/MC/PC30B 0.95 0.91 1.01
G*9V*A12 FC/MC/PC32A 0.96 0.94 1.03
G*9V*B12 FC/MC/PC35B 0.94 0.89 1.00
G*9V*A12 FC/MC/PC36A 0.96 0.94 1.03
G*9V*B12 FC/MC/PC36B 0.96 0.92 1.01
G*9V*A12 FC/MC/PC37A 0.94 0.88 1.02
G*9V*B12 FC/MC/PC43B 0.96 0.90 1.00
G*9V*A12 HC30 0.95 0.92 1.03
G*9V*A12 HD36 0.95 0.88 1.03
G*9V*B12 HD36 0.94 0.88 1.01
G*9V*A12 UC30A 0.97 0.94 1.03
G*9V*B12 UC30B 0.95 0.92 1.01
G*9V*A12 UC36A 0.92 0.89 1.03
G*9V*B12 UC36B 0.91 0.89 1.01
Variable Speed
Furnace Coil T.C. S.C. KW
350154-YTG-C-0808
16 Johnson Controls Unitary Products
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
HIGH CFM
COOLING PERFORMANCE DATA - HIGH CFM 2-STAGE OPERATION
OUTDOOR UNIT MODEL NO. CZH02411
INDOOR COIL MODEL NO. FC48D + MV12D
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 700 800 900
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65
T.C. 23.1 25.7 25.0 28.6 30.7 24.3 26.0 26.1 28.8 31.1 25.5 26.3 27.1 28.9 31.6
S.C. 22.6 21.4 17.9 18.3 14.5 23.8 23.1 19.5 19.1 15.3 25.0 24.8 21.0 20.0 16.1
K.W. 1.12 1.14 1.14 1.16 1.17 1.13 1.14 1.14 1.16 1.18 1.15 1.15 1.15 1.17 1.19
75
T.C. 22.5 24.3 23.9 27.1 29.2 23.5 24.7 24.7 27.4 29.7 24.5 25.1 25.5 27.6 30.1
S.C. 21.9 20.9 17.5 17.8 14.0 23.0 22.4 18.9 18.7 14.8 24.0 23.8 20.3 19.7 15.5
K.W. 1.31 1.32 1.32 1.34 1.35 1.31 1.32 1.32 1.34 1.36 1.33 1.33 1.33 1.35 1.37
85
T.C. 21.8 22.9 22.8 25.6 27.7 22.6 23.4 23.4 26.0 28.2 23.4 23.8 23.9 26.4 28.7
S.C. 21.3 20.4 17.2 17.3 13.6 22.1 21.6 18.4 18.4 14.3 22.9 22.7 19.6 19.4 15.0
K.W. 1.49 1.50 1.50 1.52 1.53 1.49 1.50 1.50 1.52 1.54 1.51 1.51 1.51 1.54 1.55
95
T.C. 21.2 21.5 21.8 24.0 26.2 21.8 22.1 22.1 24.6 26.7 22.4 22.5 22.3 25.2 27.2
S.C. 20.6 20.0 16.8 16.8 13.1 21.3 20.9 17.9 18.0 13.7 21.9 21.7 18.9 19.1 14.4
K.W. 1.67 1.68 1.67 1.70 1.72 1.67 1.68 1.68 1.70 1.72 1.69 1.69 1.69 1.72 1.73
105
T.C. 20.1 20.3 20.4 22.6 24.5 20.6 20.9 20.7 23.0 25.0 21.2 21.4 20.9 23.5 25.5
S.C. 19.5 19.0 16.2 16.3 12.6 20.1 19.8 17.2 17.3 13.2 20.7 20.5 18.2 18.4 13.8
K.W. 1.93 1.93 1.93 1.95 1.97 1.93 1.94 1.93 1.96 1.98 1.95 1.95 1.94 1.97 1.99
115
T.C. 19.0 19.2 19.1 21.2 22.9 19.5 19.7 19.3 21.5 23.4 20.0 20.2 19.5 21.8 23.9
S.C. 18.5 18.1 15.5 15.8 12.0 19.0 18.8 16.6 16.7 12.6 19.6 19.4 17.6 17.6 13.2
K.W. 2.17 2.18 2.17 2.20 2.23 2.18 2.18 2.18 2.21 2.23 2.20 2.20 2.19 2.22 2.24
125
T.C. 17.9 18.0 17.7 19.8 21.3 18.4 18.5 17.9 20.0 21.8 18.9 19.1 18.1 20.2 22.2
S.C. 17.4 17.2 14.9 15.3 11.5 17.9 17.8 15.9 16.1 12.1 18.4 18.3 16.9 16.9 12.6
K.W. 2.42 2.42 2.42 2.45 2.48 2.43 2.43 2.42 2.45 2.48 2.45 2.45 2.44 2.47 2.50
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
AV36C – 0.97 0.97 0.99
MV12B FC/MC/PC35B 0.96 0.96 1.00
MV12B FC/MC/PC35C 0.96 0.96 1.00
MV12B FC/MC/PC35B 0.98 0.98 1.01
MV12B FC/MC/PC35C 0.98 0.98 1.01
MV12D FC/MC/PC48D 1.00 1.00 1.00
MV12D UC48D 1.00 1.00 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*A12 FC/MC/PC32A 0.94 0.94 1.01
PV9*A12 FC/MC/PC32A 0.94 0.94 1.04
P(C,V)9*B12 FC/MC/PC35B 0.95 0.95 1.02
P(C,V)9*B12 FC/MC/PC35C 0.95 0.95 1.02
PV8*A12 FC/MC/PC37A 0.96 0.96 1.01
PV9*A12 FC/MC/PC37A 0.96 0.96 1.04
P(C,V)9*B12 FC/MC/PC43B 0.98 0.98 1.03
P(C,V)9*B12 HC36B 0.95 0.95 1.01
Y*(8,L)C*A12 FC/MC/PC30A 0.95 0.92 1.01
Y*(8,L)C*B12 FC/MC/PC30B 0.96 0.92 1.00
Y*9C*B12 FC/MC/PC30B 0.95 0.92 1.01
Y*(8,L)C*A12 FC/MC/PC32A 0.95 0.92 1.02
Y*(8,L)C*B12 FC/MC/PC35B 0.95 0.91 1.00
Y*9C*B12 FC/MC/PC35B 0.96 0.94 1.02
Y*(8,L)C*A12 FC/MC/PC36A 0.95 0.93 1.01
Y*(8,L)C*B12 FC/MC/PC36B 0.95 0.92 0.99
Y*9C*B12 FC/MC/PC36B 0.96 0.94 1.01
Y*(8,L)C*A12 FC/MC/PC37A 0.97 0.95 1.02
Y*(8,L)C*B12 FC/MC/PC43B 0.97 0.93 1.00
Y*9C*B12 FC/MC/PC43B 0.97 0.95 1.01
Y*(8,L)C*A12 HC30 0.94 0.90 1.02
Y*(8,L)C*A12 HD36 0.95 0.89 1.01
Y*(8,L)C*B12 HD36 0.94 0.88 1.00
Y*9C*B12 HD36 0.95 0.89 1.00
Y*(8,L)C*A12 UC30A 0.96 0.92 1.01
Y*(8,L)C*B12 UC30B 0.96 0.93 1.00
Y*9C*B12 UC30B 0.96 0.92 1.01
Y*(8,L)C*A12 UC36A 0.92 0.89 1.00
Y*(8,L)C*B12 UC36B 0.92 0.88 0.99
Y*9C*B12 UC36B 0.92 0.89 1.00
G*9V*A12 FC/MC/PC30A 0.95 0.92 1.02
G*9V*B12 FC/MC/PC30B 0.95 0.92 1.01
G*9V*A12 FC/MC/PC32A 0.95 0.92 1.04
G*9V*B12 FC/MC/PC35B 0.96 0.94 1.02
G*9V*A12 FC/MC/PC36A 0.95 0.92 1.02
G*9V*B12 FC/MC/PC36B 0.96 0.94 1.01
G*9V*A12 FC/MC/PC37A 0.97 0.94 1.03
G*9V*B12 FC/MC/PC43B 0.97 0.95 1.01
G*9V*A12 HC30 0.95 0.91 1.02
G*9V*A12 HD36 0.94 0.88 1.02
G*9V*B12 HD36 0.95 0.89 1.00
G*9V*A12 UC30A 0.96 0.92 1.02
G*9V*B12 UC30B 0.96 0.92 1.01
G*9V*A12 UC36A 0.92 0.88 1.02
G*9V*B12 UC36B 0.92 0.89 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
350154-YTG-C-0808
Johnson Controls Unitary Products 17
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
LOW CFM
COOLING PERFORMANCE DATA - LOW CFM 1-STAGE OPERATION
OUTDOOR UNIT MODEL NO. CZH03611
INDOOR COIL MODEL NO. FC62D + MV12D
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 750 800 850
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65
T.C. 25.4 26.8 27.2 29.7 32.8 25.9 27.0 27.3 30.1 33.0 26.4 27.2 27.5 30.4 33.2
S.C. 25.0 22.9 19.4 19.3 15.3 25.6 23.7 19.9 19.8 15.7 26.1 24.6 20.4 20.2 16.1
K.W. 1.00 0.99 0.99 0.96 0.93 0.99 0.98 0.98 0.95 0.92 0.97 0.97 0.97 0.94 0.91
75
T.C. 24.3 25.5 25.7 28.3 31.2 24.9 25.7 25.9 28.6 31.3 25.4 26.0 26.1 28.9 31.5
S.C. 24.0 22.3 18.8 18.7 14.8 24.6 23.1 19.4 19.2 15.3 25.1 23.8 19.9 19.7 15.7
K.W. 1.24 1.23 1.23 1.20 1.17 1.22 1.22 1.22 1.19 1.16 1.21 1.21 1.21 1.18 1.16
85
T.C. 23.3 24.2 24.3 26.9 29.5 23.8 24.5 24.5 27.2 29.7 24.3 24.7 24.8 27.5 29.8
S.C. 23.0 21.8 18.3 18.2 14.4 23.6 22.4 18.8 18.7 14.9 24.1 23.0 19.3 19.2 15.3
K.W. 1.47 1.47 1.47 1.44 1.41 1.46 1.46 1.46 1.43 1.41 1.45 1.45 1.45 1.42 1.40
95
T.C. 22.2 22.9 22.8 25.4 27.9 22.7 23.2 23.1 25.8 28.0 23.3 23.5 23.4 26.1 28.2
S.C. 22.0 21.2 17.7 17.6 14.0 22.6 21.7 18.2 18.2 14.5 23.1 22.2 18.8 18.7 14.9
K.W. 1.71 1.71 1.71 1.68 1.65 1.70 1.70 1.70 1.67 1.65 1.69 1.69 1.69 1.66 1.64
105
T.C. 20.8 21.3 21.0 23.6 26.0 21.3 21.7 21.3 23.8 26.1 21.9 22.1 21.5 24.1 26.2
S.C. 20.6 20.0 16.8 16.8 13.4 21.2 20.5 17.4 17.4 13.7 21.7 21.0 17.9 17.9 14.1
K.W. 2.03 2.03 2.03 2.01 1.98 2.02 2.02 2.02 2.00 1.97 2.00 2.01 2.01 1.99 1.97
115
T.C. 19.4 19.7 19.3 21.7 24.1 20.0 20.2 19.5 22.0 24.2 20.5 20.7 19.7 22.2 24.3
S.C. 19.2 18.8 16.0 16.1 12.8 19.8 19.3 16.6 16.6 13.0 20.4 19.8 17.1 17.1 13.3
K.W. 2.34 2.33 2.34 2.32 2.30 2.33 2.33 2.33 2.31 2.29 2.31 2.32 2.32 2.30 2.28
125
T.C. 18.0 18.2 17.5 19.9 22.2 18.6 18.8 17.7 20.1 22.3 19.1 19.3 18.0 20.4 22.4
S.C. 17.8 17.6 15.2 15.3 12.2 18.4 18.1 15.8 15.8 12.3 19.0 18.5 16.4 16.3 12.5
K.W. 2.65 2.64 2.65 2.63 2.62 2.64 2.64 2.65 2.63 2.61 2.62 2.63 2.64 2.62 2.60
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
AV36C – 1.00 1.00 1.01
MV12B FC/MC/PC43B 1.00 0.99 1.03
MV12B FC/MC/PC43C 1.00 0.99 1.03
MV16C FC/MC/PC43C 1.00 1.00 1.03
MV12D FC/MC/PC48D 1.00 0.99 1.00
MV12D UC48D 1.00 0.99 1.00
MV16C FC/MC/PC48C 1.01 1.01 1.01
MV16C FC/MC/PC48D 1.01 1.01 1.01
MV16C UC48D 1.01 1.01 1.01
MV20D FC/MC/PC48D 1.00 1.00 1.01
MV20D UC48D 1.00 1.00 1.01
MV12D FC/MC62D 1.00 1.00 1.00
MV20D FC/MC62D 1.01 1.01 1.01
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*A12 FC/MC/PC37A 0.99 0.99 1.03
PV9*A12 FC/MC/PC37A 1.00 0.99 1.04
PV8*B16 FC/MC/PC43B 0.99 0.99 1.02
PV8*B16 FC/MC/PC43C 0.99 0.99 1.02
PV8*C16 FC/MC/PC43C 0.96 0.96 1.00
PV8*C20 FC/MC/PC43C 1.00 1.00 1.02
P(C,V)9*B12 FC/MC/PC43B 1.00 0.99 1.03
P(C,V)9*B12 FC/MC/PC43C 1.00 0.99 1.03
P(C,V)9*C16 FC/MC/PC43C 1.00 1.00 1.01
P(C,V)9*C20 FC/MC/PC43C 1.00 1.00 1.03
PV8*C16 FC/MC/PC48C 0.96 0.96 0.98
PV8*C16 FC/MC/PC48D 0.96 0.96 0.98
PV8*C16 UC48D 0.96 0.96 0.98
PV8*C20 FC/MC/PC48C 1.01 1.01 1.00
PV8*C20 FC/MC/PC48D 1.01 1.01 1.00
PV8*C20 UC48D 1.01 1.01 1.00
P(C,V)9*C16 FC/MC/PC48C 1.01 1.01 0.99
P(C,V)9*C16 FC/MC/PC48D 1.01 1.01 0.99
P(C,V)9*C16 UC48D 1.01 1.01 0.99
P(C,V)9*C20 FC/MC/PC48C 1.01 1.01 1.02
Continued on Page 18.
350154-YTG-C-0808
18 Johnson Controls Unitary Products
P(C,V)9*C20 FC/MC/PC48D 1.01 1.01 1.02
P(C,V)9*C20 UC48D 1.01 1.01 1.02
P(C,V)9*D20 FC/MC/PC48D 1.01 1.01 1.01
P(C,V)9*D20 UC48D 1.01 1.01 1.01
PV8*C20 FC/MC62D 1.01 1.01 1.01
P(C,V)9*C20 FC/MC62D 1.01 1.01 1.02
P(C,V)9*D20 FC/MC62D 1.01 1.01 1.02
PV8*C16 HC42C 0.96 0.96 0.99
PV8*C20 HC42C 1.00 1.00 1.01
P(C,V)9*C16 HC42C 1.00 0.99 1.01
P(C,V)9*C20 HC42C 1.00 1.00 1.03
Y*(8,L)C*B12 FC/MC/PC35B 0.96 0.93 1.03
Y*9C*B12 FC/MC/PC35B 0.98 0.97 1.05
Y*(8,L)C*C16 FC/MC/PC35C 0.98 0.97 1.03
Y*(8,L)C*C20 FC/MC/PC35C 1.01 1.07 1.07
Y*9C*C16 FC/MC/PC35C 0.98 0.98 1.03
Y*9C*C20 FC/MC/PC35C 0.96 0.94 1.03
Y*(8,L)C*A12 FC/MC/PC36A 0.97 0.96 1.05
Y*(8,L)C*B12 FC/MC/PC36B 0.96 0.93 1.02
Y*9C*B12 FC/MC/PC36B 0.97 0.97 1.04
Y*(8,L)C*C16 FC/MC/PC36C 0.98 0.97 1.02
Y*(8,L)C*C20 FC/MC/PC36C 0.98 0.97 1.02
Y*9C*C16 FC/MC/PC36C 0.99 1.02 1.05
Y*9C*C20 FC/MC/PC36C 0.96 0.94 1.02
Y*(8,L)C*A12 FC/MC/PC37A 0.95 0.89 1.02
Y*(8,L)C*B12 FC/MC/PC42B 0.97 0.94 1.02
Y*9C*B12 FC/MC/PC42B 0.98 0.98 1.04
Y*(8,L)C*C16 FC/MC/PC42C 0.98 0.98 1.02
Y*(8,L)C*C20 FC/MC/PC42C 0.97 0.95 1.01
Y*9C*C16 FC/MC/PC42C 0.97 0.94 1.02
Y*9C*C20 FC/MC/PC42C 0.97 0.95 1.02
Y*(8,L)C*B12 FC/MC/PC43B 0.97 0.94 1.03
Y*9C*B12 FC/MC/PC43B 0.98 0.98 1.04
Y*(8,L)C*C16 FC/MC/PC43C 0.99 0.98 1.03
Y*(8,L)C*C20 FC/MC/PC43C 0.97 0.95 1.01
Y*9C*C16 FC/MC/PC43C 0.98 0.98 1.04
Y*9C*C20 FC/MC/PC43C 0.97 0.94 1.02
Y*(8,L)C*C16 FC/MC/PC48C 1.00 1.00 1.02
Y*(8,L)C*C20 FC/MC/PC48C 0.97 0.94 1.01
Y*9C*C16 FC/MC/PC48C 1.00 1.00 1.03
Y*9C*C20 FC/MC/PC48C 0.97 0.95 1.02
Y*(8,L)C*C16 HC42 0.98 0.98 1.03
Y*(8,L)C*C20 HC42 0.97 0.95 1.01
Y*9C*C16 HC42 0.98 0.98 1.04
Y*9C*C20 HC42 0.98 0.98 1.02
Y*(8,L)C*B12 HD48 0.97 0.95 1.02
Y*(8,L)C*C16 HD48 0.99 0.99 1.02
Y*(8,L)C*C20 HD48 0.97 0.93 1.01
Y*9C*B12 HD48 0.96 0.92 1.02
Y*9C*C16 HD48 0.99 0.98 1.02
Y*9C*C20 HD48 0.97 0.94 1.02
Variable Speed
Furnace Coil T.C. S.C. KW
Y*(8,L)C*A12 UC36A 0.95 0.95 1.05
Y*(8,L)C*B12 UC36B 0.94 0.91 1.02
Y*9C*B12 UC36B 0.96 0.95 1.04
Y*(8,L)C*C16 UC36C 0.96 0.95 1.02
Y*(8,L)C*C20 UC36C 0.96 0.95 1.02
Y*9C*C16 UC36C 0.98 1.00 1.05
Y*9C*C20 UC36C 0.95 0.92 1.02
Y*(8,L)C*B12 UC42B 0.96 0.94 1.02
Y*9C*B12 UC42B 0.97 0.96 1.04
Y*(8,L)C*C16 UC42C 0.97 0.97 1.02
Y*(8,L)C*C20 UC42C 0.96 0.94 1.01
Y*9C*C16 UC42C 0.96 0.93 1.02
Y*9C*C20 UC42C 0.96 0.94 1.02
Y*(8,L)C*C16 UC48C 0.98 0.99 1.02
Y*(8,L)C*C20 UC48C 0.95 0.93 1.01
Y*9C*C16 UC48C 0.98 0.99 1.03
Y*9C*C20 UC48C 0.97 0.95 1.03
G*9V*B12 FC/MC/PC35B 0.98 0.97 1.05
G*9V*C16 FC/MC/PC35C 0.98 0.98 1.03
G*9V*C20 FC/MC/PC35C 0.96 0.94 1.03
G*9V*A12 FC/MC/PC36A 0.96 0.94 1.05
G*9V*B12 FC/MC/PC36B 0.97 0.97 1.04
G*9V*C16 FC/MC/PC36C 0.99 1.02 1.05
G*9V*C20 FC/MC/PC36C 0.96 0.94 1.02
G*9V*A12 FC/MC/PC37A 0.98 0.97 1.06
G*9V*B12 FC/MC/PC42B 0.98 0.98 1.04
G*9V*C16 FC/MC/PC42C 0.97 0.94 1.02
G*9V*C20 FC/MC/PC42C 0.97 0.95 1.02
G*9V*B12 FC/MC/PC43B 0.98 0.98 1.04
G*9V*C16 FC/MC/PC43C 0.98 0.98 1.04
G*9V*C20 FC/MC/PC43C 0.97 0.94 1.02
G*9V*C16 FC/MC/PC48C 1.00 1.00 1.03
G*9V*C20 FC/MC/PC48C 0.97 0.95 1.02
G*9V*C16 HC42 0.98 0.98 1.04
G*9V*C20 HC42 0.98 0.98 1.02
G*9V*B12 HD48 0.96 0.92 1.02
G*9V*C16 HD48 0.99 0.98 1.02
G*9V*C20 HD48 0.97 0.94 1.02
G*9V*A12 UC36A 0.94 0.92 1.05
G*9V*B12 UC36B 0.96 0.95 1.04
G*9V*C16 UC36C 0.98 1.00 1.05
G*9V*C20 UC36C 0.95 0.92 1.02
G*9V*B12 UC42B 0.97 0.96 1.04
G*9V*C16 UC42C 0.96 0.93 1.02
G*9V*C20 UC42C 0.96 0.94 1.02
G*9V*C16 UC48C 0.98 0.99 1.03
G*9V*C20 UC48C 0.97 0.95 1.03
Variable Speed
Furnace Coil T.C. S.C. KW
350154-YTG-C-0808
Johnson Controls Unitary Products 19
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
HIGH CFM
COOLING PERFORMANCE DATA - HIGH CFM 2-STAGE OPERATION
OUTDOOR UNIT MODEL NO. CZH03611
INDOOR COIL MODEL NO. FC62D + MV12D
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1100 1200 1300
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65
T.C. 35.7 38.1 38.5 41.2 45.8 37.2 39.1 38.8 41.7 46.1 38.6 40.1 39.1 42.1 46.3
S.C. 34.5 31.9 27.3 26.9 21.2 36.1 33.4 28.6 27.7 22.1 37.5 35.0 29.9 28.4 22.9
K.W. 1.71 1.74 1.74 1.79 1.82 1.74 1.76 1.76 1.81 1.84 1.78 1.79 1.78 1.84 1.86
75
T.C. 34.6 36.5 36.7 39.5 43.6 35.9 37.4 37.1 40.0 43.9 37.1 38.2 37.5 40.4 44.2
S.C. 33.6 31.1 26.5 26.0 20.6 34.8 32.6 27.6 27.0 21.4 36.0 34.1 28.8 27.9 22.1
K.W. 1.98 2.00 2.00 2.05 2.07 2.00 2.02 2.01 2.06 2.09 2.04 2.05 2.04 2.09 2.12
85
T.C. 33.6 35.0 35.0 37.8 41.5 34.6 35.7 35.4 38.3 41.8 35.5 36.4 35.9 38.7 42.0
S.C. 32.6 30.3 25.6 25.2 20.0 33.6 31.8 26.6 26.3 20.6 34.5 33.3 27.7 27.4 21.2
K.W. 2.24 2.26 2.25 2.30 2.33 2.26 2.28 2.27 2.32 2.35 2.30 2.30 2.30 2.34 2.38
95
T.C. 32.5 33.4 33.2 36.1 39.4 33.3 34.0 33.7 36.6 39.6 34.0 34.5 34.2 37.1 39.8
S.C. 31.6 29.4 24.7 24.3 19.4 32.3 31.0 25.6 25.6 19.9 33.0 32.4 26.6 26.9 20.3
K.W. 2.50 2.52 2.51 2.55 2.59 2.52 2.53 2.53 2.57 2.60 2.56 2.56 2.56 2.59 2.63
105
T.C. 30.7 31.5 31.2 33.7 37.0 31.5 32.0 31.6 34.2 37.2 32.1 32.6 32.0 34.7 37.4
S.C. 29.9 28.4 23.7 23.6 18.6 30.6 29.6 24.7 24.8 19.0 31.3 30.6 25.7 25.9 19.4
K.W. 2.89 2.90 2.90 2.94 2.97 2.92 2.92 2.91 2.96 2.99 2.95 2.95 2.94 2.98 3.02
115
T.C. 29.0 29.6 29.2 31.3 34.7 29.7 30.2 29.5 31.8 34.9 30.4 30.7 29.8 32.3 35.0
S.C. 28.3 27.5 22.8 22.9 17.9 29.0 28.2 23.8 23.9 18.2 29.6 28.9 24.8 24.9 18.5
K.W. 3.28 3.28 3.27 3.32 3.35 3.30 3.29 3.29 3.33 3.37 3.33 3.32 3.31 3.35 3.40
125
T.C. 27.3 27.7 27.2 29.0 32.4 28.0 28.3 27.4 29.5 32.6 28.6 28.8 27.7 30.0 32.7
S.C. 26.7 26.5 21.9 22.2 17.2 27.3 26.8 22.9 23.1 17.4 28.0 27.1 24.0 24.0 17.6
K.W. 3.66 3.65 3.65 3.70 3.73 3.68 3.67 3.66 3.71 3.75 3.71 3.70 3.69 3.73 3.78
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
AV36C – 0.97 0.97 1.03
MV12B FC/MC/PC43B 0.98 0.98 1.03
MV12B FC/MC/PC43C 0.98 0.98 1.03
MV16C FC/MC/PC43C 0.99 0.99 1.01
MV12D FC/MC/PC48D 0.98 0.98 1.00
MV12D UC48D 0.98 0.98 1.00
MV16C FC/MC/PC48C 0.99 0.99 1.00
MV16C FC/MC/PC48D 0.99 0.99 1.00
MV16C UC48D 0.99 0.99 1.00
MV20D FC/MC/PC48D 1.00 1.00 1.00
MV20D UC48D 1.00 1.00 1.00
MV12D FC/MC62D 1.00 1.00 1.00
MV20D FC/MC62D 1.01 1.01 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*A12 FC/MC/PC37A 0.98 0.98 1.05
PV9*A12 FC/MC/PC37A 0.97 0.97 1.07
PV8*B16 FC/MC/PC43B 0.98 0.98 1.02
PV8*B16 FC/MC/PC43C 0.98 0.98 1.02
PV8*C16 FC/MC/PC43C 0.99 0.99 1.02
PV8*C20 FC/MC/PC43C 0.98 0.98 1.04
P(C,V)9*B12 FC/MC/PC43B 0.97 0.97 1.05
P(C,V)9*B12 FC/MC/PC43C 0.97 0.97 1.05
P(C,V)9*C16 FC/MC/PC43C 0.98 0.98 1.02
P(C,V)9*C20 FC/MC/PC43C 0.98 0.98 1.03
PV8*C16 FC/MC/PC48C 0.99 0.99 1.01
PV8*C16 FC/MC/PC48D 0.99 0.99 1.01
PV8*C16 UC48D 0.99 0.99 1.01
PV8*C20 FC/MC/PC48C 0.99 0.99 1.04
PV8*C20 FC/MC/PC48D 0.99 0.99 1.04
PV8*C20 UC48D 0.99 0.99 1.04
P(C,V)9*C16 FC/MC/PC48C 0.99 0.99 1.02
P(C,V)9*C16 FC/MC/PC48D 0.99 0.99 1.02
P(C,V)9*C16 UC48D 0.99 0.99 1.02
P(C,V)9*C20 FC/MC/PC48C 0.99 0.99 1.03
Continued on Page 20.
350154-YTG-C-0808
20 Johnson Controls Unitary Products
P(C,V)9*C20 FC/MC/PC48D 0.99 0.99 1.03
P(C,V)9*C20 UC48D 0.99 0.99 1.03
P(C,V)9*D20 FC/MC/PC48D 0.99 0.99 1.02
P(C,V)9*D20 UC48D 0.99 0.99 1.02
PV8*C20 FC/MC62D 1.00 1.00 1.04
P(C,V)9*C20 FC/MC62D 1.00 1.00 1.03
P(C,V)9*D20 FC/MC62D 1.01 1.00 1.02
PV8*C16 HC42C 0.99 0.99 1.02
PV8*C20 HC42C 0.98 0.98 1.04
P(C,V)9*C16 HC42C 0.98 0.98 1.02
P(C,V)9*C20 HC42C 0.98 0.98 1.03
Y*(8,L)C*B12 FC/MC/PC35B 0.97 0.96 1.07
Y*9C*B12 FC/MC/PC35B 0.97 0.97 1.07
Y*(8,L)C*C16 FC/MC/PC35C 0.98 0.97 1.04
Y*(8,L)C*C20 FC/MC/PC35C 0.97 0.96 1.02
Y*9C*C16 FC/MC/PC35C 0.98 0.97 1.04
Y*9C*C20 FC/MC/PC35C 0.98 1.00 1.07
Y*(8,L)C*A12 FC/MC/PC36A 0.95 0.94 1.07
Y*(8,L)C*B12 FC/MC/PC36B 0.96 0.96 1.05
Y*9C*B12 FC/MC/PC36B 0.96 0.94 1.05
Y*(8,L)C*C16 FC/MC/PC36C 0.96 0.95 1.03
Y*(8,L)C*C20 FC/MC/PC36C 0.96 0.95 1.02
Y*9C*C16 FC/MC/PC36C 0.96 0.95 1.03
Y*9C*C20 FC/MC/PC36C 0.97 0.99 1.06
Y*(8,L)C*A12 FC/MC/PC37A 0.95 0.90 1.03
Y*(8,L)C*B12 FC/MC/PC42B 0.96 0.95 1.03
Y*9C*B12 FC/MC/PC42B 0.96 0.96 1.07
Y*(8,L)C*C16 FC/MC/PC42C 0.98 0.98 1.01
Y*(8,L)C*C20 FC/MC/PC42C 0.97 0.96 1.00
Y*9C*C16 FC/MC/PC42C 0.96 0.96 1.03
Y*9C*C20 FC/MC/PC42C 0.98 1.01 1.05
Y*(8,L)C*B12 FC/MC/PC43B 0.98 0.98 1.07
Y*9C*B12 FC/MC/PC43B 0.98 0.98 1.07
Y*(8,L)C*C16 FC/MC/PC43C 0.98 0.99 1.03
Y*(8,L)C*C20 FC/MC/PC43C 0.98 0.99 1.02
Y*9C*C16 FC/MC/PC43C 0.98 0.99 1.06
Y*9C*C20 FC/MC/PC43C 0.98 0.99 1.03
Y*(8,L)C*C16 FC/MC/PC48C 0.98 0.99 1.02
Y*(8,L)C*C20 FC/MC/PC48C 0.98 0.98 1.01
Y*9C*C16 FC/MC/PC48C 0.98 0.99 1.04
Y*9C*C20 FC/MC/PC48C 0.98 1.02 1.06
Y*(8,L)C*C16 HC42 0.98 0.98 1.03
Y*(8,L)C*C20 HC42 0.98 0.98 1.02
Y*9C*C16 HC42 0.98 0.98 1.06
Y*9C*C20 HC42 0.98 0.98 1.04
Y*(8,L)C*B12 HD48 0.98 0.98 1.05
Y*(8,L)C*C16 HD48 0.98 0.98 1.02
Y*(8,L)C*C20 HD48 0.98 0.97 1.01
Y*9C*B12 HD48 0.98 0.96 1.06
Y*9C*C16 HD48 0.98 0.98 1.03
Variable Speed
Furnace Coil T.C. S.C. KW
Y*9C*C20 HD48 0.98 1.01 1.06
Y*(8,L)C*A12 UC36A 0.94 0.92 1.07
Y*(8,L)C*B12 UC36B 0.95 0.94 1.05
Y*9C*B12 UC36B 0.95 0.93 1.04
Y*(8,L)C*C16 UC36C 0.95 0.93 1.03
Y*(8,L)C*C20 UC36C 0.95 0.93 1.02
Y*9C*C16 UC36C 0.95 0.93 1.03
Y*9C*C20 UC36C 0.96 0.98 1.06
Y*(8,L)C*B12 UC42B 0.96 0.95 1.03
Y*9C*B12 UC42B 0.95 0.95 1.07
Y*(8,L)C*C16 UC42C 0.97 0.96 1.01
Y*(8,L)C*C20 UC42C 0.97 0.95 1.00
Y*9C*C16 UC42C 0.96 0.95 1.03
Y*9C*C20 UC42C 0.98 0.99 1.05
Y*(8,L)C*C16 UC48C 0.98 0.99 1.02
Y*(8,L)C*C20 UC48C 0.98 0.98 1.01
Y*9C*C16 UC48C 0.98 0.99 1.03
Y*9C*C20 UC48C 0.98 1.02 1.06
G*9V*B12 FC/MC/PC35B 0.97 0.97 1.07
G*9V*C16 FC/MC/PC35C 0.98 0.97 1.04
G*9V*C20 FC/MC/PC35C 0.98 1.00 1.07
G*9V*A12 FC/MC/PC36A 0.95 0.94 1.08
G*9V*B12 FC/MC/PC36B 0.96 0.94 1.05
G*9V*C16 FC/MC/PC36C 0.96 0.95 1.03
G*9V*C20 FC/MC/PC36C 0.97 0.99 1.06
G*9V*A12 FC/MC/PC37A 0.96 0.94 1.06
G*9V*B12 FC/MC/PC42B 0.96 0.96 1.07
G*9V*C16 FC/MC/PC42C 0.96 0.96 1.03
G*9V*C20 FC/MC/PC42C 0.98 1.01 1.05
G*9V*B12 FC/MC/PC43B 0.98 0.98 1.07
G*9V*C16 FC/MC/PC43C 0.98 0.99 1.06
G*9V*C20 FC/MC/PC43C 0.98 0.99 1.03
G*9V*C16 FC/MC/PC48C 0.98 0.99 1.04
G*9V*C20 FC/MC/PC48C 0.98 1.02 1.06
G*9V*C16 HC42 0.98 0.98 1.06
G*9V*C20 HC42 0.98 0.98 1.04
G*9V*B12 HD48 0.98 0.96 1.06
G*9V*C16 HD48 0.98 0.98 1.03
G*9V*C20 HD48 0.98 1.01 1.06
G*9V*A12 UC36A 0.94 0.93 1.07
G*9V*B12 UC36B 0.95 0.93 1.04
G*9V*C16 UC36C 0.95 0.93 1.03
G*9V*C20 UC36C 0.96 0.98 1.06
G*9V*B12 UC42B 0.95 0.95 1.07
G*9V*C16 UC42C 0.96 0.95 1.03
G*9V*C20 UC42C 0.98 0.99 1.05
G*9V*C16 UC48C 0.98 0.99 1.03
G*9V*C20 UC48C 0.98 1.02 1.06
Variable Speed
Furnace Coil T.C. S.C. KW
350154-YTG-C-0808
Johnson Controls Unitary Products 21
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
LOW CFM
Continued on Page 22.
COOLING PERFORMANCE DATA - LOW CFM 1-STAGE OPERATION
OUTDOOR UNIT MODEL NO. CZH04811
INDOOR COIL MODEL NO. FC62D + MV20D
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 950 1000 1050
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65
T.C. 35.4 36.6 36.2 39.8 42.3 36.1 37.2 36.8 40.2 42.9 36.8 37.8 37.4 40.6 43.4
S.C. 34.3 31.8 26.9 27.2 21.7 34.8 32.5 27.6 27.8 22.0 35.3 33.3 28.2 28.5 22.3
K.W. 1.50 1.50 1.49 1.48 1.48 1.50 1.49 1.49 1.48 1.47 1.49 1.49 1.49 1.47 1.47
75
T.C. 34.0 34.9 34.5 37.8 40.4 34.6 35.4 35.0 38.2 40.9 35.2 36.0 35.5 38.6 41.5
S.C. 32.9 31.0 26.2 26.4 21.0 33.4 31.7 26.8 27.0 21.3 33.9 32.4 27.4 27.6 21.7
K.W. 1.81 1.81 1.81 1.80 1.79 1.81 1.81 1.80 1.79 1.78 1.80 1.80 1.80 1.79 1.78
85
T.C. 32.5 33.1 32.8 35.7 38.5 33.1 33.7 33.2 36.2 39.0 33.7 34.2 33.6 36.6 39.5
S.C. 31.5 30.2 25.5 25.5 20.3 32.0 30.9 26.0 26.1 20.7 32.5 31.6 26.6 26.7 21.1
K.W. 2.12 2.12 2.12 2.11 2.10 2.12 2.12 2.12 2.11 2.10 2.12 2.12 2.11 2.11 2.09
95
T.C. 31.1 31.4 31.1 33.7 36.6 31.7 31.9 31.4 34.2 37.1 32.2 32.4 31.7 34.6 37.6
S.C. 30.1 29.4 24.8 24.7 19.6 30.6 30.1 25.3 25.3 20.0 31.1 30.8 25.8 25.8 20.4
K.W. 2.44 2.44 2.44 2.43 2.41 2.43 2.43 2.43 2.43 2.41 2.43 2.43 2.43 2.42 2.40
105
T.C. 29.4 29.7 28.9 31.5 34.2 30.0 30.2 29.3 31.9 34.6 30.5 30.7 29.6 32.3 35.0
S.C. 28.5 27.8 23.8 23.8 18.7 28.9 28.5 24.3 24.4 19.1 29.4 29.1 24.8 24.9 19.6
K.W. 2.86 2.87 2.87 2.87 2.84 2.86 2.86 2.86 2.86 2.84 2.86 2.86 2.86 2.85 2.84
115
T.C. 27.8 28.0 26.9 29.3 31.9 28.4 28.6 27.2 29.7 32.2 28.9 29.1 27.6 30.1 32.5
S.C. 26.9 26.3 22.9 23.0 17.8 27.4 26.9 23.4 23.5 18.3 27.8 27.5 23.9 24.1 18.7
K.W. 3.28 3.28 3.29 3.29 3.26 3.27 3.28 3.28 3.27 3.26 3.27 3.27 3.28 3.27 3.26
125
T.C. 26.2 26.4 24.8 27.1 29.6 26.7 26.9 25.2 27.5 29.8 27.2 27.5 25.6 27.9 30.0
S.C. 25.4 24.8 21.9 22.1 16.9 25.8 25.4 22.4 22.7 17.4 26.2 26.0 22.9 23.3 17.9
K.W. 3.69 3.70 3.71 3.71 3.67 3.69 3.69 3.70 3.69 3.67 3.69 3.69 3.70 3.68 3.68
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
AV/SV48D – 0.97 0.97 1.00
AV/SV60D – 0.97 0.97 1.00
F4FV060 – 0.99 0.98 1.01
MV16C FC/MC/PC48C 1.00 1.00 0.99
MV16C FC/MC/PC48D 1.00 1.00 0.99
MV16C UC48D 1.00 1.00 0.99
MV20D FC/MC/PC48D 1.00 1.00 1.00
MV20D UC48D 1.00 1.00 1.00
MV20D FC/MC62D 1.00 1.00 1.00
350154-YTG-C-0808
22 Johnson Controls Unitary Products
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*C16 FC/MC/PC48C 0.97 0.97 0.98
PV8*C16 FC/MC/PC48D 0.97 0.97 0.98
PV8*C16 UC48D 0.97 0.97 0.98
PV8*C20 FC/MC/PC48C 1.00 1.00 0.99
PV8*C20 FC/MC/PC48D 1.00 1.00 0.99
PV8*C20 UC48D 1.00 1.00 0.99
P(C,V)9*C16 FC/MC/PC48C 1.01 1.02 0.98
P(C,V)9*C16 FC/MC/PC48D 1.01 1.02 0.98
P(C,V)9*C16 UC48D 1.01 1.02 0.98
P(C,V)9*C20 FC/MC/PC48C 0.99 0.99 1.00
P(C,V)9*C20 FC/MC/PC48D 0.99 0.99 1.00
P(C,V)9*C20 UC48D 0.99 0.99 1.00
P(C,V)9*D20 FC/MC/PC48D 0.99 0.99 1.00
P(C,V)9*D20 UC48D 0.99 0.99 1.00
PV8*C20 FC/MC62D 1.00 1.00 0.99
P(C,V)9*C20 FC/MC62D 1.00 1.00 1.00
P(C,V)9*D20 FC/MC62D 0.99 0.99 1.00
P(C,V)9*D20 HC60D 0.95 0.95 1.00
Y*(8,L)C*C16 FC/MC/PC48C 1.00 0.99 1.02
Y*(8,L)C*C20 FC/MC/PC48C 1.00 0.99 1.02
Y*9C*C16 FC/MC/PC48C 1.00 1.00 1.02
Y*9C*C20 FC/MC/PC48C 1.00 1.00 1.02
Y*9C*D20 FC/MC/PC48D 0.99 0.98 1.02
Y*9C*D20 FC/MC/PC60D 0.97 0.96 1.02
Y*9C*D20 FC/MC62D 0.99 0.99 1.02
Y*(8,L)C*C16 FC/PC60C 0.98 0.97 1.01
Y*(8,L)C*C20 FC/PC60C 0.98 0.97 1.01
Y*9C*C16 FC/PC60C 0.97 0.96 1.02
Y*9C*C20 FC/PC60C 0.98 0.97 1.02
Y*9C*D20 HC60 0.96 0.96 1.03
Y*(8,L)C*C16 HD48 0.98 0.97 1.02
Y*(8,L)C*C20 HD48 0.98 0.97 1.02
Y*9C*C16 HD48 0.99 0.97 1.02
Y*9C*C20 HD48 0.99 0.97 1.02
Y*9C*D20 HD48 0.98 0.97 1.02
Y*(8,L)C*C16 HD60 1.01 1.00 1.01
Y*(8,L)C*C20 HD60 1.01 1.00 1.00
Y*9C*C16 HD60 1.00 1.00 1.02
Y*9C*C20 HD60 1.01 1.00 1.02
Y*9C*D20 HD60 1.00 1.00 1.02
Y*(8,L)C*C16 UC48C 0.95 0.95 1.02
Y*(8,L)C*C20 UC48C 0.95 0.95 1.03
Y*9C*C16 UC48C 0.95 0.96 1.03
Y*9C*C20 UC48C 0.95 0.97 1.02
Y*9C*D20 UC48D 0.89 0.90 1.03
Y*(8,L)C*C16 UC60C 0.90 0.87 1.02
Y*(8,L)C*C20 UC60C 0.90 0.87 1.01
Y*9C*C16 UC60C 0.90 0.87 1.03
Y*9C*C20 UC60C 0.90 0.87 1.03
Y*9C*D20 UC60D 0.90 0.87 1.03
G*9V*C16 FC/MC/PC48C 1.00 1.00 1.02
G*9V*C20 FC/MC/PC48C 1.00 1.00 1.02
G*9V*D20 FC/MC/PC48D 0.99 0.98 1.02
G*9V*D20 FC/MC/PC60D 0.97 0.96 1.02
G*9V*D20 FC/MC62D 0.99 0.99 1.02
G*9V*C16 FC/PC60C 0.97 0.96 1.02
G*9V*C20 FC/PC60C 0.98 0.97 1.02
G*9V*D20 HC60 0.96 0.96 1.03
G*9V*C16 HD48 0.99 0.97 1.02
G*9V*C20 HD48 0.99 0.97 1.02
G*9V*D20 HD48 0.98 0.97 1.02
G*9V*C16 HD60 1.00 1.00 1.02
G*9V*C20 HD60 1.01 1.00 1.02
G*9V*D20 HD60 1.00 1.00 1.02
G*9V*C16 UC48C 0.95 0.96 1.03
G*9V*C20 UC48C 0.95 0.97 1.02
G*9V*D20 UC48D 0.89 0.90 1.03
G*9V*C16 UC60C 0.90 0.87 1.03
G*9V*C20 UC60C 0.90 0.87 1.03
G*9V*D20 UC60D 0.90 0.87 1.03
Variable Speed
Furnace Coil T.C. S.C. KW
350154-YTG-C-0808
Johnson Controls Unitary Products 23
Multipliers for determining the performance with other indoor sections
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
HIGH CFM
Continued on Page 24.
COOLING PERFORMANCE DATA - HIGH CFM 2-STAGE OPERATION
OUTDOOR UNIT MODEL NO. CZH04811
INDOOR COIL MODEL NO. FC62D + MV20D
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1500 1600 1700
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65
T.C. 48.7 49.9 49.0 53.2 56.4 49.6 50.4 49.5 54.4 56.8 50.5 50.9 50.0 55.5 57.2
S.C. 48.0 44.9 38.2 37.9 29.7 48.9 46.3 39.1 39.0 30.3 49.7 47.6 40.0 40.1 30.9
K.W. 2.53 2.57 2.56 2.64 2.71 2.58 2.61 2.61 2.67 2.75 2.64 2.67 2.66 2.72 2.79
75
T.C. 46.8 47.7 46.8 50.9 53.6 47.6 48.2 47.2 51.8 54.0 48.3 48.8 47.6 52.5 54.4
S.C. 46.2 43.8 37.1 36.8 28.7 46.9 45.0 38.0 37.9 29.3 47.6 46.2 38.9 38.9 29.9
K.W. 2.89 2.91 2.90 2.98 3.05 2.93 2.96 2.95 3.02 3.09 2.99 3.01 3.00 3.07 3.15
85
T.C. 45.0 45.5 44.5 48.6 50.9 45.6 46.1 44.9 49.1 51.3 46.2 46.6 45.2 49.6 51.6
S.C. 44.3 42.6 35.9 35.7 27.8 44.9 43.7 36.9 36.7 28.4 45.6 44.8 37.8 37.7 28.9
K.W. 3.24 3.26 3.25 3.33 3.40 3.29 3.31 3.29 3.37 3.44 3.34 3.36 3.34 3.42 3.50
95
T.C. 43.1 43.4 42.2 46.3 48.2 43.5 43.9 42.5 46.5 48.5 44.0 44.4 42.9 46.6 48.8
S.C. 42.4 41.5 34.8 34.6 26.9 43.0 42.4 35.7 35.6 27.4 43.5 43.3 36.7 36.5 27.9
K.W. 3.59 3.61 3.60 3.68 3.75 3.64 3.66 3.64 3.72 3.79 3.69 3.71 3.69 3.77 3.85
105
T.C. 40.7 41.0 39.6 43.5 45.2 41.2 41.5 39.9 43.7 45.4 41.6 41.9 40.1 43.9 45.6
S.C. 40.1 39.3 33.5 33.5 25.8 40.6 40.1 34.4 34.4 26.3 41.1 40.8 35.4 35.3 26.8
K.W. 4.10 4.12 4.10 4.18 4.25 4.15 4.16 4.14 4.22 4.29 4.21 4.22 4.19 4.27 4.35
115
T.C. 38.5 38.7 37.2 40.7 42.4 38.9 39.1 37.3 40.9 42.5 39.3 39.5 37.4 41.2 42.5
S.C. 37.9 37.2 32.3 32.4 24.9 38.4 37.8 33.2 33.3 25.3 38.8 38.4 34.1 34.2 25.7
K.W. 4.60 4.60 4.58 4.67 4.74 4.65 4.65 4.62 4.71 4.78 4.70 4.71 4.67 4.76 4.83
125
T.C. 36.2 36.4 34.7 37.9 39.6 36.6 36.8 34.7 38.2 39.6 36.9 37.1 34.7 38.4 39.5
S.C. 35.7 35.1 31.1 31.3 23.9 36.1 35.6 32.0 32.2 24.3 36.5 36.0 32.8 33.1 24.6
K.W. 5.09 5.09 5.07 5.16 5.23 5.14 5.14 5.11 5.20 5.27 5.20 5.21 5.16 5.25 5.32
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
AV/SV48D – 0.96 0.96 0.99
AV/SV60D – 0.96 0.96 0.99
F4FV060 – 0.96 0.96 0.98
MV16C FC/MC/PC48C 0.99 0.99 0.99
MV16C FC/MC/PC48D 0.99 0.99 0.99
MV16C UC48D 0.99 0.99 0.99
MV20D FC/MC/PC48D 0.99 0.99 1.00
MV20D UC48D 0.99 0.99 1.00
MV20D FC/MC62D 1.00 1.00 1.00
350154-YTG-C-0808
24 Johnson Controls Unitary Products
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*C16 FC/MC/PC48C 0.97 0.97 1.01
PV8*C16 FC/MC/PC48D 0.97 0.97 1.01
PV8*C16 UC48D 0.97 0.97 1.01
PV8*C20 FC/MC/PC48C 0.98 0.98 1.02
PV8*C20 FC/MC/PC48D 0.98 0.98 1.02
PV8*C20 UC48D 0.98 0.98 1.02
P(C,V)9*C16 FC/MC/PC48C 0.98 0.98 1.03
P(C,V)9*C16 FC/MC/PC48D 0.98 0.98 1.03
P(C,V)9*C16 UC48D 0.98 0.98 1.03
P(C,V)9*C20 FC/MC/PC48C 0.98 0.98 1.02
P(C,V)9*C20 FC/MC/PC48D 0.98 0.98 1.02
P(C,V)9*C20 UC48D 0.98 0.98 1.02
P(C,V)9*D20 FC/MC/PC48D 0.98 0.98 1.00
P(C,V)9*D20 UC48D 0.98 0.98 1.00
PV8*C20 FC/MC62D 0.99 0.99 1.01
P(C,V)9*C20 FC/MC62D 0.99 0.99 1.02
P(C,V)9*D20 FC/MC62D 0.99 0.99 1.01
P(C,V)9*D20 HC60D 0.95 0.95 1.00
Y*(8,L)C*C16 FC/MC/PC48C 1.00 1.00 1.04
Y*(8,L)C*C20 FC/MC/PC48C 1.00 1.00 1.04
Y*9C*C16 FC/MC/PC48C 1.00 0.99 1.04
Y*9C*C20 FC/MC/PC48C 1.00 0.99 1.04
Y*9C*D20 FC/MC/PC48D 0.99 0.98 1.04
Y*9C*D20 FC/MC/PC60D 0.98 0.98 1.03
Y*9C*D20 FC/MC62D 0.99 0.98 1.03
Y*(8,L)C*C16 FC/PC60C 0.98 0.98 1.03
Y*(8,L)C*C20 FC/PC60C 0.99 0.98 1.01
Y*9C*C16 FC/PC60C 0.98 0.98 1.04
Y*9C*C20 FC/PC60C 0.98 0.98 1.04
Y*9C*D20 HC60 0.97 0.97 1.03
Y*(8,L)C*C16 HD48 1.00 0.98 1.03
Y*(8,L)C*C20 HD48 1.00 0.98 1.04
Y*9C*C16 HD48 0.99 0.97 1.04
Y*9C*C20 HD48 0.99 0.97 1.04
Y*9C*D20 HD48 1.00 0.97 1.04
Y*(8,L)C*C16 HD60 1.00 1.00 1.03
Y*(8,L)C*C20 HD60 1.00 1.01 1.01
Y*9C*C16 HD60 1.00 1.00 1.04
Y*9C*C20 HD60 1.00 1.00 1.04
Y*9C*D20 HD60 1.00 1.00 1.04
Y*(8,L)C*C16 UC48C 0.97 0.97 1.03
Y*(8,L)C*C20 UC48C 0.96 0.96 1.03
Y*9C*C16 UC48C 0.96 0.96 1.03
Y*9C*C20 UC48C 0.96 0.96 1.04
Y*9C*D20 UC48D 0.92 0.90 1.03
Y*(8,L)C*C16 UC60C 0.93 0.90 1.02
Y*(8,L)C*C20 UC60C 0.93 0.91 1.00
Y*9C*C16 UC60C 0.92 0.90 1.03
Y*9C*C20 UC60C 0.92 0.90 1.03
Y*9C*D20 UC60D 0.93 0.90 1.02
G*9V*C16 FC/MC/PC48C 1.00 0.99 1.04
G*9V*C20 FC/MC/PC48C 1.00 0.99 1.04
G*9V*D20 FC/MC/PC48D 0.99 0.98 1.04
G*9V*D20 FC/MC/PC60D 0.98 0.98 1.03
G*9V*D20 FC/MC62D 0.99 0.98 1.03
G*9V*C16 FC/PC60C 0.98 0.98 1.04
G*9V*C20 FC/PC60C 0.98 0.98 1.04
G*9V*D20 HC60 0.97 0.97 1.03
G*9V*C16 HD48 0.99 0.97 1.04
G*9V*C20 HD48 0.99 0.97 1.04
G*9V*D20 HD48 1.00 0.97 1.04
G*9V*C16 HD60 1.00 1.00 1.04
G*9V*C20 HD60 1.00 1.00 1.04
G*9V*D20 HD60 1.00 1.00 1.04
G*9V*C16 UC48C 0.96 0.96 1.03
G*9V*C20 UC48C 0.96 0.96 1.04
G*9V*D20 UC48D 0.92 0.90 1.03
G*9V*C16 UC60C 0.92 0.90 1.03
G*9V*C20 UC60C 0.92 0.90 1.03
G*9V*D20 UC60D 0.93 0.90 1.02
Variable Speed
Furnace Coil T.C. S.C. KW
350154-YTG-C-0808
Johnson Controls Unitary Products 25
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
LOW CFM
COOLING PERFORMANCE DATA - LOW CFM 1-STAGE OPERATION
OUTDOOR UNIT MODEL NO. CZH06011
INDOOR COIL MODEL NO. FC62D + MV20D
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1100 1150 1200
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65
T.C. 38.1 44.0 43.9 47.7 52.4 39.7 44.2 44.3 48.1 53.0 41.4 44.3 44.7 48.5 53.5
S.C. 37.2 35.7 30.6 30.0 24.5 38.8 36.5 31.2 30.6 24.9 40.4 37.3 31.7 31.2 25.3
K.W. 3.20 1.94 1.94 1.91 1.92 2.79 1.94 1.94 1.91 1.90 2.37 1.95 1.94 1.92 1.88
75
T.C. 37.5 42.0 42.0 45.7 50.2 39.2 42.4 42.3 46.1 50.8 40.8 42.8 42.7 46.5 51.3
S.C. 36.6 35.0 29.8 29.4 23.8 38.2 35.8 30.4 30.0 24.2 39.8 36.6 30.9 30.6 24.6
K.W. 3.20 2.36 2.36 2.33 2.34 2.78 2.36 2.36 2.34 2.32 2.37 2.37 2.36 2.35 2.31
85
T.C. 37.0 40.1 40.0 43.8 48.1 38.6 40.7 40.4 44.2 48.6 40.2 41.3 40.7 44.5 49.1
S.C. 36.1 34.2 29.0 28.7 23.1 37.7 35.0 29.6 29.3 23.5 39.2 35.8 30.1 29.9 23.8
K.W. 3.20 2.78 2.78 2.75 2.76 2.78 2.78 2.78 2.76 2.75 2.37 2.78 2.78 2.77 2.74
95
T.C. 36.5 38.2 38.1 41.9 45.9 38.1 39.0 38.4 42.2 46.4 39.7 39.8 38.7 42.5 46.9
S.C. 35.6 33.5 28.2 28.1 22.4 37.1 34.3 28.8 28.7 22.7 38.7 35.0 29.3 29.2 23.1
K.W. 3.20 3.19 3.20 3.17 3.17 2.78 3.20 3.20 3.18 3.17 2.37 3.20 3.20 3.19 3.17
105
T.C. 34.2 35.5 35.3 38.8 42.7 35.4 36.1 35.6 39.1 43.1 36.6 36.7 35.8 39.3 43.5
S.C. 33.4 31.9 26.7 26.8 21.0 34.6 32.6 27.3 27.3 21.4 35.7 33.2 27.8 27.8 21.8
K.W. 3.76 3.75 3.75 3.73 3.73 3.48 3.75 3.75 3.74 3.73 3.20 3.76 3.76 3.75 3.74
115
T.C. 32.0 32.9 32.6 35.8 39.7 32.8 33.3 32.9 36.0 39.9 33.5 33.7 33.1 36.3 40.2
S.C. 31.3 30.4 25.3 25.4 19.7 32.0 30.9 25.9 25.9 20.1 32.8 31.5 26.4 26.4 20.5
K.W. 4.30 4.29 4.29 4.28 4.28 4.16 4.29 4.29 4.28 4.28 4.02 4.29 4.29 4.29 4.28
125
T.C. 29.9 30.3 30.0 32.7 36.6 30.2 30.5 30.1 33.0 36.7 30.5 30.6 30.3 33.2 36.9
S.C. 29.2 28.9 23.9 24.1 18.3 29.5 29.3 24.4 24.5 18.8 29.8 29.7 24.9 24.9 19.3
K.W. 4.84 4.82 4.83 4.83 4.83 4.83 4.83 4.83 4.83 4.83 4.83 4.83 4.83 4.83 4.83
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
AV/SV60D – 0.99 0.99 1.00
F4FV060 – 0.99 0.99 1.02
MV20D FC/MC/PC60D 0.95 0.95 1.00
MV20D UC60D 0.95 0.95 1.00
MV20D FC/MC62D 1.00 1.00 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*C20 FC/PC60C 0.97 0.97 1.01
PV8*C20 FC/MC/PC60D 0.97 0.97 1.01
PV8*C20 UC60D 0.97 0.97 1.01
P(C,V)9*C20 FC/PC60C 0.96 0.96 1.01
P(C,V)9*C20 FC/MC/PC60D 0.96 0.96 1.01
P(C,V)9*C20 UC60D 0.96 0.96 1.01
P(C,V)9*D20 FC/MC/PC60D 0.95 0.95 1.00
P(C,V)9*D20 UC60D 0.95 0.95 1.00
PV8*C20 FC/MC62D 1.02 1.02 1.01
P(C,V)9*C20 FC/MC62D 1.01 1.01 1.00
P(C,V)9*D20 FC/MC62D 1.00 1.00 1.00
P(C,V)9*D20 HC60D 0.95 0.95 1.00
Y*9C*D20 FC/MC62D 0.98 0.97 1.03
Y*(8,L)C*C20 FC/PC60C 0.97 0.95 1.01
Y*9C*C20 FC/PC60C 0.97 0.95 1.02
Y*9C*D20 HC60 0.95 0.94 1.02
Y*(8,L)C*C20 HD60 0.98 0.95 1.01
Y*9C*C20 HD60 0.98 0.97 1.03
Y*9C*D20 HD60 0.99 0.97 1.03
Y*(8,L)C*C20 UC60C 0.94 0.91 1.01
Y*9C*C20 UC60C 0.93 0.90 1.02
Y*9C*D20 UC60D 0.94 0.92 1.02
G*9V*D20 FC/MC62D 0.98 0.97 1.03
G*9V*C20 FC/PC60C 0.97 0.95 1.02
G*9V*D20 HC60 0.95 0.94 1.02
G*9V*C20 HD60 0.98 0.97 1.03
G*9V*D20 HD60 0.99 0.97 1.03
G*9V*C20 UC60C 0.93 0.90 1.02
G*9V*D20 UC60D 0.94 0.92 1.02
Variable Speed
Furnace Coil T.C. S.C. KW
Subject to change without notice. Printed in U.S.A. 350154-YTG-C-0808
Copyright © 2008 by Johnson Controls, Inc. All rights reserved. Supersedes: 350154-YTG-B-0408
Johnson Controls Unitary Products
5005 York Drive
Norman, OK 73069
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
HIGH CFM
COOLING PERFORMANCE DATA - HIGH CFM 2-STAGE OPERATION
OUTDOOR UNIT MODEL NO. CZH06011
INDOOR COIL MODEL NO. FC62D + MV20D
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1750 1850 1950
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65
T.C. 57.1 61.0 60.6 66.2 71.1 58.0 61.4 61.2 66.8 72.2 58.8 61.6 61.8 67.3 73.3
S.C. 58.1 53.7 44.6 44.7 36.4 59.0 54.7 46.2 45.8 36.6 59.8 55.6 47.7 46.8 36.8
K.W. 3.20 3.25 3.26 3.32 3.36 3.27 3.32 3.31 3.39 3.44 3.36 3.40 3.38 3.47 3.53
75
T.C. 55.3 58.5 58.0 63.4 68.2 56.0 58.8 58.4 63.9 68.9 56.7 59.1 58.7 64.3 69.5
S.C. 56.3 52.5 43.9 43.6 34.8 57.0 53.5 44.9 44.6 34.9 57.7 54.5 45.8 45.6 34.9
K.W. 3.69 3.74 3.74 3.80 3.86 3.77 3.80 3.79 3.87 3.93 3.85 3.88 3.86 3.95 4.01
85
T.C. 53.6 55.9 55.4 60.6 65.3 54.1 56.2 55.5 60.9 65.5 54.6 56.5 55.6 61.2 65.8
S.C. 54.5 51.3 43.2 42.5 33.1 55.1 52.4 43.6 43.5 33.1 55.6 53.4 44.0 44.4 33.0
K.W. 4.19 4.23 4.22 4.29 4.35 4.26 4.29 4.28 4.35 4.41 4.34 4.36 4.35 4.43 4.49
95
T.C. 51.8 53.3 52.8 57.8 62.4 52.2 53.6 52.7 58.0 62.2 52.6 53.9 52.5 58.2 62.0
S.C. 52.7 50.1 42.5 41.5 31.5 53.1 51.3 42.4 42.3 31.4 53.5 52.4 42.1 43.2 31.2
K.W. 4.69 4.71 4.70 4.77 4.84 4.76 4.77 4.76 4.83 4.90 4.83 4.85 4.83 4.91 4.97
105
T.C. 48.6 49.8 49.3 53.9 58.3 49.1 50.1 49.3 54.1 58.2 49.5 50.4 49.2 54.2 58.1
S.C. 49.5 47.7 40.5 39.8 30.1 50.0 48.7 40.7 40.6 30.1 50.4 49.6 40.8 41.3 30.1
K.W. 5.39 5.40 5.38 5.46 5.54 5.46 5.47 5.44 5.53 5.60 5.54 5.55 5.52 5.60 5.67
115
T.C. 45.6 46.3 46.0 50.2 54.3 46.1 46.7 46.0 50.3 54.3 46.5 47.1 46.0 50.4 54.2
S.C. 46.4 45.4 38.6 38.2 28.7 46.9 46.2 39.0 38.9 29.0 47.4 46.9 39.4 39.6 29.1
K.W. 6.06 6.07 6.04 6.13 6.22 6.14 6.14 6.11 6.20 6.28 6.23 6.22 6.19 6.28 6.36
125
T.C. 42.6 42.8 42.6 46.4 50.3 43.1 43.3 42.7 46.5 50.4 43.5 43.7 42.7 46.5 50.4
S.C. 43.4 43.2 36.6 36.6 27.4 43.9 43.7 37.4 37.2 27.8 44.3 44.1 38.1 37.8 28.2
K.W. 6.74 6.75 6.71 6.80 6.89 6.82 6.82 6.78 6.87 6.96 6.91 6.90 6.86 6.96 7.04
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
AV/SV60D – 0.96 0.96 0.99
F4FV060 – 0.96 0.96 0.99
MV20D FC/MC/PC60D 0.96 0.96 0.99
MV20D UC60D 0.96 0.96 0.99
MV20D FC/MC62D 1.00 1.00 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*C20 FC/PC60C 0.95 0.95 1.00
PV8*C20 FC/MC/PC60D 0.95 0.95 1.00
PV8*C20 UC60D 0.95 0.95 1.00
P(C,V)9*C20 FC/PC60C 0.93 0.93 0.99
P(C,V)9*C20 FC/MC/PC60D 0.93 0.93 0.99
P(C,V)9*C20 UC60D 0.93 0.93 0.99
P(C,V)9*D20 FC/MC/PC60D 0.93 0.93 0.98
P(C,V)9*D20 UC60D 0.93 0.93 0.98
PV8*C20 FC/MC62D 0.98 0.98 1.01
P(C,V)9*C20 FC/MC62D 0.97 0.97 1.00
P(C,V)9*D20 FC/MC62D 0.97 0.97 0.99
P(C,V)9*D20 HC60D 0.94 0.94 0.98
Y*9C*D20 FC/MC62D 0.97 0.94 1.02
Y*(8,L)C*C20 FC/PC60C 0.96 0.93 1.00
Y*9C*C20 FC/PC60C 0.96 0.93 1.02
Y*9C*D20 HC60 0.94 0.90 1.01
Y*(8,L)C*C20 HD60 0.97 0.93 1.00
Y*9C*C20 HD60 0.97 0.94 1.03
Y*9C*D20 HD60 0.96 0.92 1.02
Y*(8,L)C*C20 UC60C 0.94 0.89 1.00
Y*9C*C20 UC60C 0.93 0.89 1.02
Y*9C*D20 UC60D 0.94 0.89 1.01
G*9V*D20 FC/MC62D 0.97 0.94 1.02
G*9V*C20 FC/PC60C 0.96 0.93 1.02
G*9V*D20 HC60 0.94 0.90 1.01
G*9V*C20 HD60 0.97 0.94 1.03
G*9V*D20 HD60 0.96 0.92 1.02
G*9V*C20 UC60C 0.93 0.89 1.02
G*9V*D20 UC60D 0.94 0.89 1.01
Variable Speed
Furnace Coil T.C. S.C. KW

Navigation menu
