Affinity™ Series

Packaged Units

Affinit y™ SerieS

13–16 Seer

2–5 tOnS

Comfortable, effi cient and quiet —

that’s what you want in any heating

and cooling system. But the secret

to affordable, year-round comfort

is a unit designed for your climate

and your specifi c needs. With a

York® Affi nity™ Series Packaged

Unit, that’s what you get — a

quality system that delivers the

performance your application

demands day after day. It’s effi cient,

dependable performance that’s

also exceptionally quiet, so it’s a

perfect solution for schools and

other noise-conscious spaces.

Energy-effi cient.

With cooling ratings of up to 16.5 SEER, Affi nity™ Series Packaged Units save the most

money in extreme conditions. Energy costs can be cut by as much as 40% during

the coldest and warmest months thanks to features like our ECM motor technology,

enhanced coil design and thermostatic expansion valves.

Environmentally

Friendly

Eco-friendly.

A f fi n i t y ™ Series Packaged Units utilize R-410A, a new-generation refrigerant safer for the

ozone layer — it actually absorbs and releases heat more effi ciently so compressors run

cooler. The result is a superior effi ciency rating, reduced energy use, and less impact

on the environment. All gas/electric models come standard with low NOx gas heating,

which meets California and other state requirements for reduced emissions.

Quiet

Quiet by design.

The entire line of Affi nity™ Series Packaged Units is designed to operate quietly. Our

QuietDrive™ swept-wing condenser fan minimizes the air noise coming from the unit.

A ridged top panel and embossed side panel architecture reduce vibration. The

enhanced coil fi n and rubber isolated compressor reduce radiated sound.

Quality

Quality

Quality

Quality that lasts.

Before any Affi nity™ unit leaves our laboratory, it undergoes strict component selection

and rigorous testing. State-of-the art computer evaluations during manufacturing

ensure every unit is built correctly. All electrical and mechanical components are

operated and validated on our assembly line and then backed by a factory warranty

for a worry-free system.

Performance.

With our exclusive ClimaTraK™ technology, installers can select an operating cycle

that performs best for your particular climate — whether dry, temperate or humid.

And variable-speed motor technology provides modulating airfl ow, increasing energy-

effi ciency, comfort and humidity control while reducing sound.

Easy, space-saving installation.

A l l A f fi n i t y ™ Series Packaged Units are designed to save space. They feature a compact

cabinet design with a single footprint for all models. The removable base rails provide

a quick and simple option to ease installation when space is tight. Plus, a convertible

airfl ow design requires no panel cutting for maximum fl exibility. Save Space

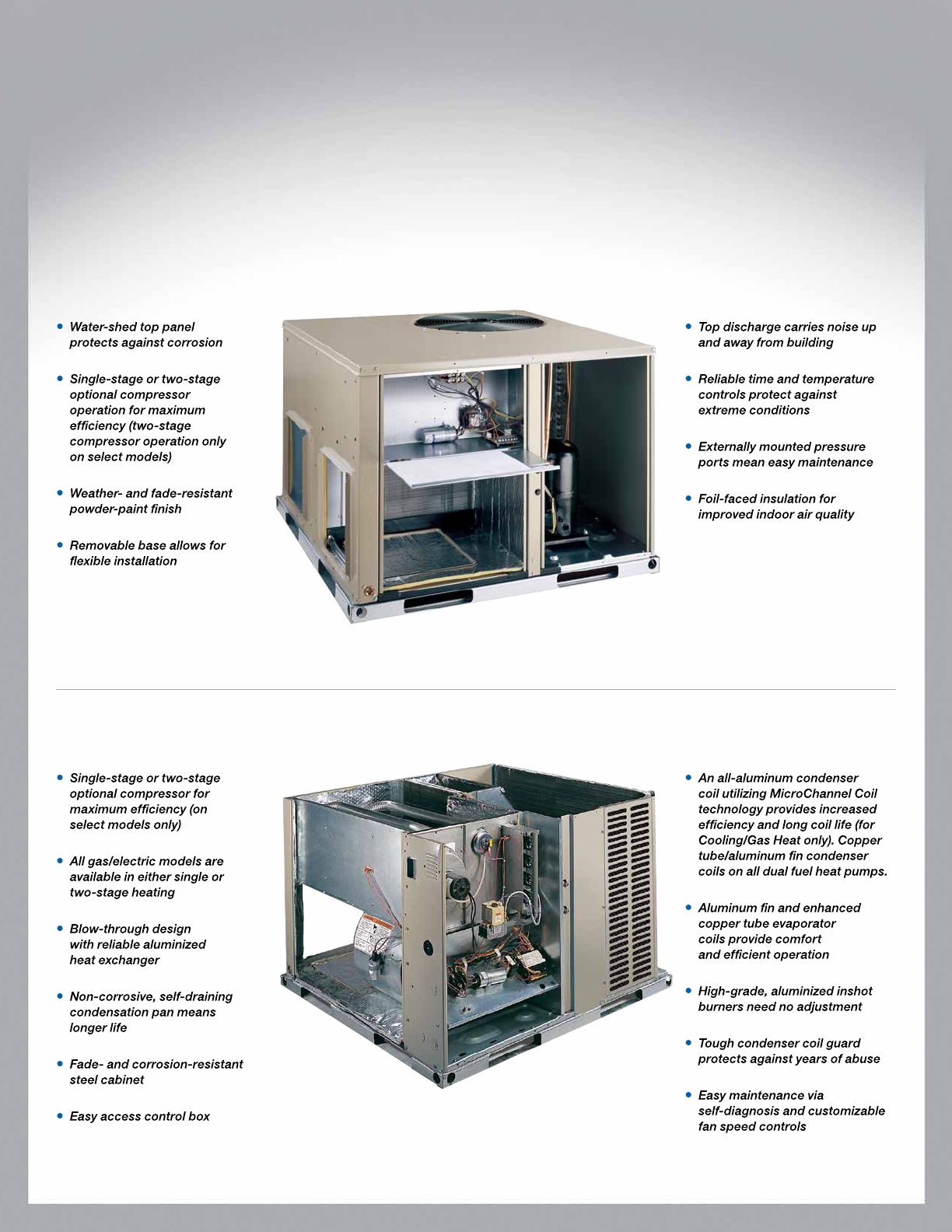

Flexibility by design

When you choose a York® packaged system, each self-contained unit is installed outdoors,

saving you a substantial amount of indoor space. And no matter where you are, there’s a

York® Affinity™ Series Packaged Unit designed to deliver exceptional comfort in your unique

climate. This innovative lineup includes gas and electric heat models and heat pumps, each

with advanced motor technology and optional two-stage heating and cooling for quiet,

efficient performance year after year.

Electric heating/electric cooling and heat pump models

Gas heating/electric cooling models

14-16 SEER products come standard with painted, louvered coil protection. Not all products include coil guards. Please see product technical guide for clarification.

DNZ models meet or exceed ASHRAE 90.1-2007 Standards. DNX single-stage and DNQ models

meet or exceed ASHRAE 90.1-2007 Standards and are ENERGY STAR® qualified. DEX, DEQ and DNX

two-stage models are ENERGY STAR® qualified.

* Generation indicator

**Warranties for Electric/Electric models DEX, DEZ, DEQ: 10-Year compressor, 5-year electric

heat, 10-year parts warranty (1 Phase); 5-Year compressor, 5-year electric heat, 1-year parts warranty (3 Phase)

† Warranties for Gas/Electric models DNX, DNZ, DNQ: 20-Year heat exchanger, 10-Year compressor, 10-year

parts warranty (1 phase); 20-Year heat exchanger, 5-Year compressor, 1-year parts warranty (3 phase). Models

DNZ, DNQ, DNX also have LoNox models available.

‡ Warranties for Electric/Electric models BHZ, BHQ, BHX: 10-Year compressor, 10-Year parts warranty

(1 phase); 5-Year compressor, 1-year parts warranty (3 phase)

Affinity™ Electric/Electric Packaged Units (DEX)** (Two-stage cooling operation standard)

MODEL SEER EER LBS.

D*EX024N* 15.1 12.3 355

D*EX030N* 15.2 12.3 390

D*EX036N* 15.2 12.3 400

D*EX042N* 15.4 12.3 410

D*EX048N* 15.2 12.3 440

Affinity™ Electric/Electric Packaged Units (DEZ)**

MODEL SEER EER LBS.

D*EZ024N* 13.0 12.6 353

D*EZ030N* 13.0 11.6 368

D*EZ036N* 13.0 11.4 368

D*EZ042N* 13.0 11.8 383

D*EZ048N* 13.0 11.9 412

D*EZ060N* 13.0 11.0 462

Affinity™ Gas/Electric Packaged Units (DEQ)**

MODEL SEER EER LBS.

DEQ024A* 14.3 12.0 346

DEQ030A* 14.1 12.0 386

DEQ036A* 14.0 12.0 396

DEQ042A* 14.2 12.1 406

DEQ048A* 14.0 12.2 440

DEQ060A* 14.0 12.0 452

Affinity™ Single-Stage Gas Heating/Two-Stage Electric Cooling Packaged Units (DNX)†

MODEL SEER EER LBS.

D*NX024N* 15.0 11. 5 440

D*NX036N* 16.5 12.3 480

D*NX048N* 15.0 11. 2 500

Affinity™ Two-Stage Gas Heating/Two-Stage Electric Cooling Packaged Units (DNX)†

MODEL SEER EER LBS.

D*NX024D* 15.0 11. 5 440

D*NX036D* 16.5 12.3 480

D*NX048D* 15.0 11.2 500

Affinity™ Single-Stage Gas Heating/Single-Stage Electric Cooling Packaged Units (DNZ)†

MODEL SEER EER LBS.

D*NZ024N* 13.2 11.6 378

D*NZ030N* 13.2 11. 5 398

D*NZ036N* 13.2 11.1 402

D*NZ042N* 13.4 11.6 460

D*NZ048N* 13.0 11.0 465

D*NZ060N* 13.0 10.9 480

Affinity™ Two-Stage Gas Heating/Single-Stage Electric Cooling Packaged Units (DNZ)†

MODEL SEER EER LBS.

D*NZ024D* 13.2 11.6 378

D*NZ030D* 13.2 11.5 398

D*NZ036D* 13.2 11.1 402

D*NZ042D* 13.4 11.6 460

D*NZ048D* 13.0 11.0 465

D*NZ060D* 13.0 10.9 480

Affinity™ Single-Stage Gas Heating/Single-Stage Electric Cooling Packaged Units (DNQ)†

MODEL SEER EER LBS.

D*NQ024N* 14.0 12.0 390

D*NQ030N* 14.0 12.0 425

D*NQ036N* 14.0 12.0 430

D*NQ042N* 14.0 12.0 485

D*NQ048N* 14.0 12.0 490

D*NQ060N* 14.0 12.0 530

Affinity™ Two-Stage Gas Heating/Single-Stage Electric Cooling Packaged Units (DNQ)†

MODEL SEER EER LBS.

D*NQ024D* 14.0 12.0 390

D*NQ030D* 14.0 12.0 425

D*NQ036D* 14.0 12.0 430

D*NQ042D* 14.0 12.0 485

D*NQ048D* 14.0 12.0 490

D*NQ060D* 14.0 12.0 530

Affinity™ Packaged Heat Pumps 13 SEER (BHZ)‡

MODEL SEER EER HSPF LBS.

B*HZ024 13.0 11.4 7.7 350

B*HZ030 13.0 11.3 7.7 350

B*HZ036 13.0 11.0 7.7 385

B*HZ042 13.0 11.3 7.7 435

B*HZ048 13.0 11.0 7.7 480

B*HZ060 13.0 11.0 7.7 490

Affinity™ Packaged Heat Pumps 14 SEER (BHQ)‡

MODEL SEER EER HSPF LBS.

B*HQ024 14.0 12.0 8.0 355

B*HQ030 14.0 12.0 8.0 375

B*HQ036 14.0 12.0 8.0 400

B*HQ042 14.0 12.0 8.0 420

B*HQ048 14.0 12.0 8.0 440

B*HQ060 14.0 12.0 8.0 490

Affinity™ Two-Stage Electric Cooling/Single-Stage Heating Packaged Heat Pump (BHX)‡

MODEL SEER EER HSPF LBS.

B*HX024 16.0 12.0 8.0 350

B*HX036 15.0 11. 5 8.0 400

B*HX048 15.0 11.3 8.0 440

B*HX060 14.3 11.0 8.0 460

Affinity™ Packaged Dual Fuel Heat Pumps 14 SEER (DHQ)

MODEL SEER EER HSPF LBS.

D*HQ024 14.0 11.0 8.0 413

D*HQ030 14.0 11.0 8.0 426

D*HQ036 14.0 11.0 8.0 433

D*HQ042 14.0 11.0 8.0 514

D*HQ048 14.0 11.0 8.0 540

D*HQ060 14.0 11.0 8.0 549

The York brand of Johnson Controls, Inc. ©2013 Johnson Controls, Inc.

5005 York Drive, Norman, OK 73069 www.york.com Subject to change without notice.

PUBL-6439-C-0513. Supersedes: PUBL-6439-B-0612. All rights reserved.
