FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

718419-YTG-B-1212

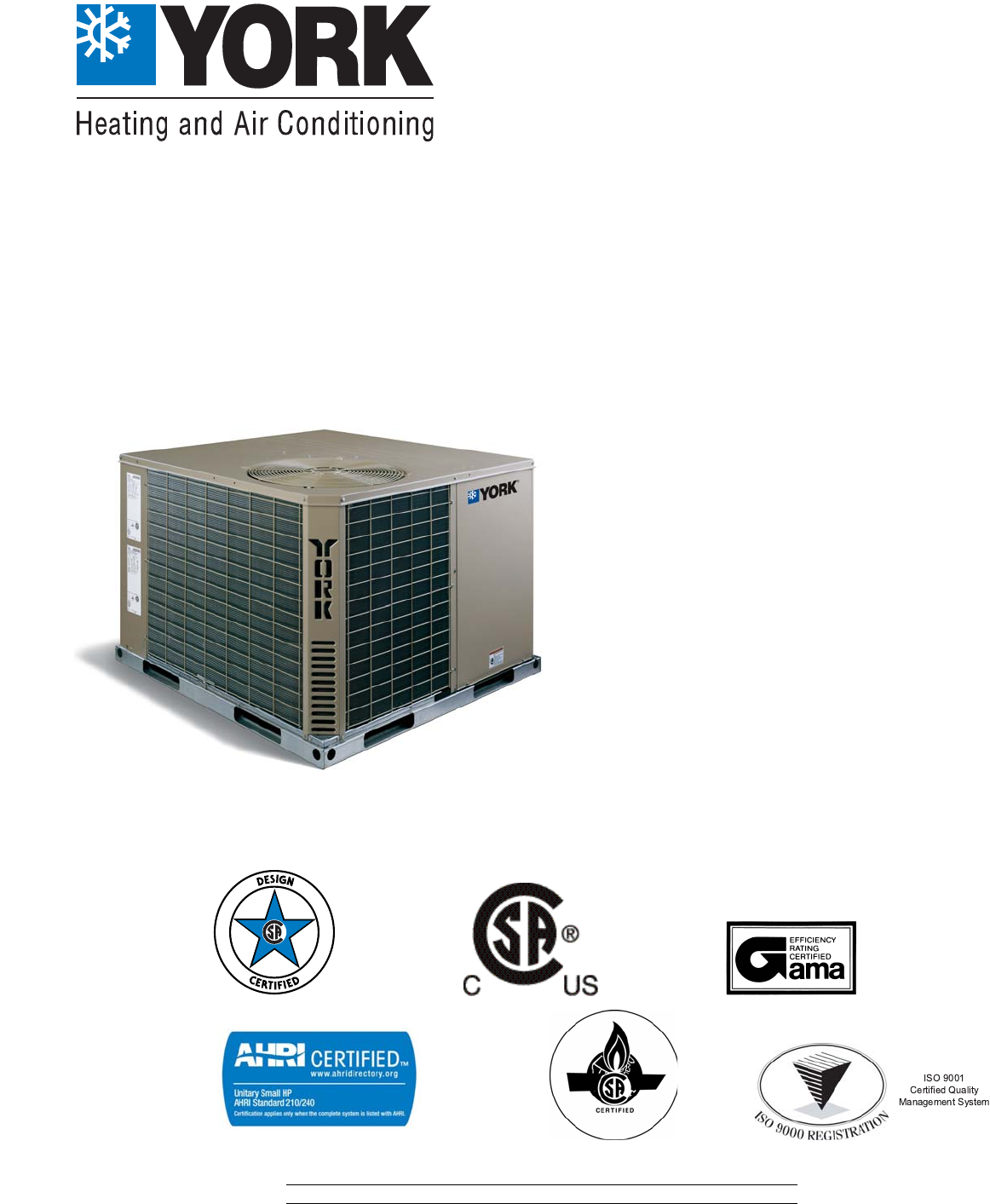

TECHNICAL GUIDE Description

These York® Affinity™ packaged heat pumps are designed for

outdoor installation. Only utility and duct connections are

required at the point of installation.

Field-installed electric heater accessories are available to

provide electric heat, if required.

R-410A

AFFINITY™ SERIES

BHZ MODELS

2 - 5 TON

60 Hertz

Tested in accordance with:

718419-YTG-B-1212

2Johnson Controls Unitary Products

Table of Contents

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Component Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Heat Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features and Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Guide Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Capacity Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Airflow Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Sound Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

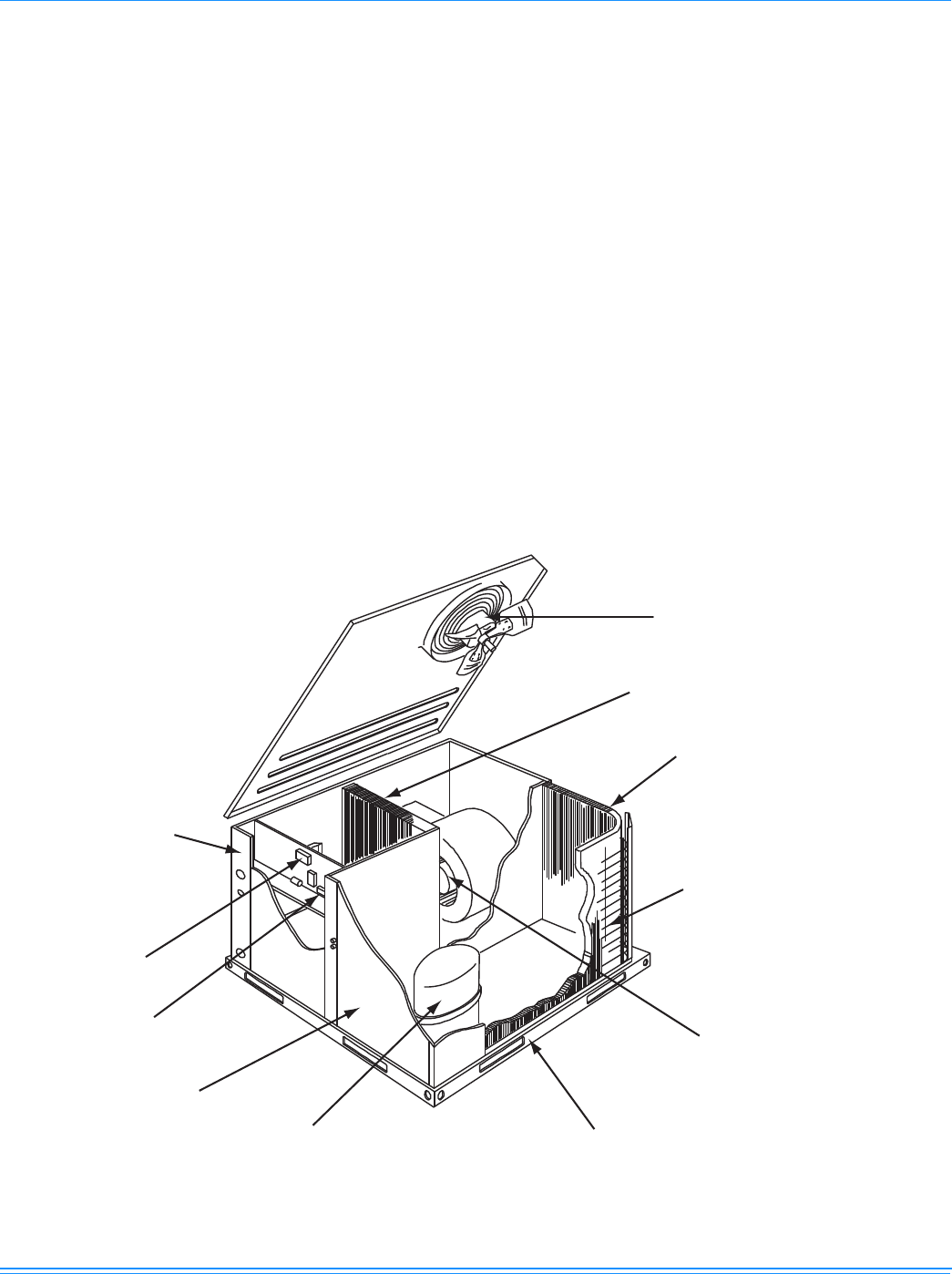

Component Location

Heat Pump

Direct Drive Condenser

Fan Motor

Highly Efficient Enhanced Copper

Tube/Aluminum Fin

Indoor Coil

Highly Efficient Enhanced Copper

Tube/Aluminum Fin

Outdoor Coil

Decorative Protective Coil Guard

(See “Features” for details)

Direct Drive Blower Motor With

Slide-Out Blower Assembly

Heavy Gauge

Removable Base Rails

High-Efficiency Compressor

Rigidly Mounted

Long-Lasting

Powder Paint Finish

Low Voltage

Terminal Block

High Voltage

Terminal Block

Back And Bottom

Return Air and Supply

Air Duct Opening

718419-YTG-B-1212

Johnson Controls Unitary Products 3

Nomenclature

Heat Pump

Features and Benefits

Standard Features

•Operating Efficiency - All heat pump units provide

operating efficiencies of 13 SEER and 7.7 HSPF. All

efficiencies exceed legislated minimum levels.

•On Site Flexibility - All model sizes share a common,

compact design cabinet in a single footprint. The installer

has the flexibility of setting one curb and placing the

proper tonnage unit on that curb after the internal load has

been determined. Field convertible duct connections from

side shot to down shot allows the installer to have greater

flexibility with less inventory.

•Lower Installation Cost - Installation time and costs are

reduced by easy power and control wiring connections.

The small base dimension means less space is required

on the ground or roof, plus, the installer can fit this unit

between the wheel wells of full size pick-up truck.

• All units are completely wired, charged with R-410A and

tested prior to shipment. Unique test stations using a new

state of the art computerized process system are used to

insure product quality. Refrigerant charge and component

part numbers are verified via computers at assembly. Vital

run test statistics such as system pressure, motor

currents, air velocity and temperature, unit vibration, and

gas system safeties are monitored and recorded by the

system to insure unit performance.

• Equal size, side supply and return duct connections

allows easy hook-up of ducts to match low crawl spaces

without transition pieces.

•Utility Connections Made Easy - Electric utility

knockouts are provided through the bottom as well as the

side of the unit. Utility connections can be made quickly

and with a minimum amount of field labor. A field supplied

and field installed electrical disconnect switch must be

installed.

•Convertible Airflow Design - The bottom duct openings

are covered when they leave the factory ready to be used

for a side supply/side return application. If a bottom

supply/bottom return application is desired, you simply

remove the two panels from the bottom of the unit and

place them in the side supply/side return duct openings.

No panel cutting is required and no accessory panel is

necessary. Convertible airflow design allows maximum

field flexibility and minimum inventory.

•Condensate Pan - A non-corrosive, long-lasting, water-

tight pan is positioned below the evaporator coil to collect

and drain all condensate. Less collection of stagnate

condensate will build-up. The condensate pan conforms

to ASHRAE 62-89 standards (Ventilation for Acceptable

Indoor Air Quality).

•Condensate Drain - The 3/4 inch NPTF connection is

rigidly mounted to assure proper fit and leak tight seal.

•Durable Finish - The cabinet is made of pre-painted

steel. The pre-treated galvanized steel provides a better

paint to steel bond, which resists corrosion and rust creep.

Special primer formulas and matted-textured finish insure

less fading when exposed to sunlight.

•Full Perimeter Base Rails - The easily removable base

rails provide a solid foundation for the entire unit and

protects the unit during shipment. The rails provide fork lift

access from all sides, and rigging holes are also provided

so that an overhead crane can be used to place the units

on a roof. On applications where the unit is placed on a

pad, the base will keep the unit off the pad to deter

corrosion. On applications where height is limited, the inch

high base rails may be removed on location.

B 2 024 06

A

HZ

Product Category

B = Single Package Heat Pumps

(Air Cooled)

Product Generation

1 = New or Current Design

2 = Second Generation

Factory Installed Electric Heat

A = No Electric Heat Installed

Product Identifier

HZ = R-410A 13 SEER

024 = 24,000 BTUH

030 = 30,000 BTUH

036 = 36,000 BTUH

Voltage Code

06 = 208/230-1-60

25 = 208/230-3-60

46 = 460-3-60

042 = 42,000 BTUH

048 = 48,000 BTUH

060 = 60,000 BTUH

Nominal Cooling Capacity (MBH)

718419-YTG-B-1212

4Johnson Controls Unitary Products

•More Attractive Appearance - A single piece Water

Shed top cover containing a top discharge condenser fan

arrangement requires less square footage on installation

and provides a wider variety of installations. The one

piece design adds greater water integrity. Rounded

corners with water drip edges add to the attractive

appearance. The cabinet panels have a non-fibrous

insulation that will not release insulation fibers into

conditioned area.

•Top Discharge - The top discharge condenser fan does

not disrupt neighboring areas or dry-out vegetation

surrounding the unit. The warm air from the top mounted

fan is blown up away from the structure and any

landscaping. This allows compact location on multi-unit

applications.

•Condenser Coil Grille - All 13 SEER models utilize a

decorative “Wire Form” coil guard to provide impact

protection against large objects.

•Low Operating Sound Level - The upward air flow

carries the normal operating noise up and away from the

living area. The rigid top panel effectively isolates any

motor sound. Isolator mounted compressor and the

rippled fins of the condenser coil muffle the normal fan

motor and compressor operating sounds. The unique

formed base pan also aids in sound alterations with it's

Super-Structure design. This design strategically places

embossments in the pan for optimum strength and rigidity.

•Fan System - All models operate over a wide range of

design conditions with an electrically commutated fan

motor. These units easily match all types of applications

and provide greater on site flexibility to match comfort

requirement. The cooling speed is factory set and can be

field adjusted to a second speed. The heating speed is

factory set to maintain mid point rise at the units heating

input, but can be field adjusted. This allows maximum

comfort conditions.

•Simple Control Circuit - A low voltage printed circuit

board contains a diagnostic indicator light and a low

voltage terminal strip. An additional set of pin connectors

is also provided to simplify the field interface of external

controls. Mate-n-lock plug connectors are used. The

electrical control box is not located in the compressor

compartment. The controls are mounted on a Control-Tilt

control panel to allow the access cover to be removed for

trouble shooting and maintenance without affecting the

normal system operating pressures. All wiring internal to

the unit is color/number coded.

•Protected Compressor - The compressor is internally

protected against high pressure and temperature. This is

accomplished by the simultaneous operation of high

pressure relief valve and a temperature sensor which

protect the compressor if undesirable operating conditions

occur.

•Pressure Switches - High pressure and low pressure/

loss of charge switches standard in all units. When

abnormal conditions are sensed through the pressure

switches, the unit will lock out preventing any further

operation until reset or problem is corrected.

•Exclusive Coil Design - Grooved copper tubes and

enhanced aluminum fin construction improves heat

transfer for maximum efficiency and durability.

•Low Maintenance - Long life, permanently lubricated

condenser and evaporator fan motor bearings need no

annual maintenance adding greater reliability to the unit.

Blower assembly can be easily cleaned by the unique

Slip- Track slide-out blower assembly.

•Secured Service Access Ports - Protected, externally

mounted, re-usable service access ports are provided on

both the high and low lines for ease of evacuating and

charging the system. No final field mounting required.

•Easy Service Access - A large, single panel covers the

electrical and gas controls makes servicing easy. The

blower compartment has an additional large panel with a

built-in handle tab. Removing this panel will allow the

blower assembly to slide-out for easy removal for

maintenance and ease of trouble shooting.

•Replacement Parts - The installer requires no special

training to replace any of the components of these units

and does not need to maintain an inventory of unique

parts.

•System Integration - Each unit has the internal ability to

integrate an electronic air cleaner or humidifier to work in

conjunction with the base unit.

Field Installed Accessories

•Economizer Down Discharge/Supply Kit - Modulating

integrated economizer provides simultaneous operation

between the mechanical cooling and economizer

operation. Independent blade design insures proper

control and less than 1% leak rate. Includes hood and

mesh bird screen filter integrated into the hood, dry bulb

sensor and relief damper. Separate field accessories of

single enthalpy and dual enthalpy are also available. A

built-in barometric relief of 25% is provided.

•Single Enthalpy Sensor - Sensor replaces dry bulb

sensor standard in economizer kit. Provides improved

economizer operation by sensing the dry bulb

temperature from outdoors plus the enthalpy content of

the outdoor air.

•Dual Enthalpy Sensor - Additional sensor to single

enthalpy sensor. Sensor senses both the return air

temperature dry bulb and humidity in conjunction with the

single enthalpy to determine the most economical mix.

Single Enthalpy sensor also required.

•Hail Guard Kit - Kit contains protective grilles made of

expanded aluminum with full perimeter frame. Sloped

hoods are also included to assure maximum protection.

•Anti Short Cycle Timer (BHZ Units Only) -

Automatically prevents the compressor from restarting for

5 minutes after cycled off.Not required if Thermostat

718419-YTG-B-1212

Johnson Controls Unitary Products 5

2ET07700224 and 2ET04700224 are used. Standard in

all BHX units.

•Filter/Frame Kit (Single Phase Only) - Kit contains the

necessary hardware to field install return air filters into the

base unit. Pre-cut filter racks and appropriate cleanable

standard size filters are shipped in one kit. The filter rack

is suitable for either 1" or 2" filters. (1" filter is supplied)

This kit is available for single phase horizontal or vertical

duct application only. Standard in all 3 Phase models.

•Motorized Fresh Air Damper - Designed for duct

mounted side supply/return and unit mounted down

supply/return applications. Damper capable of providing

0% through 50% of outdoor air (field supplied). Closes on

power loss, includes hood and screen assembly.

•Rectangle To Round Adapters - Kit includes one supply

and one return air rectangle to round duct adapter.

Adapters are preformed and designed to fit over current

duct openings on the base unit. Transition is from side

square duct opening to 14" round duct opening.

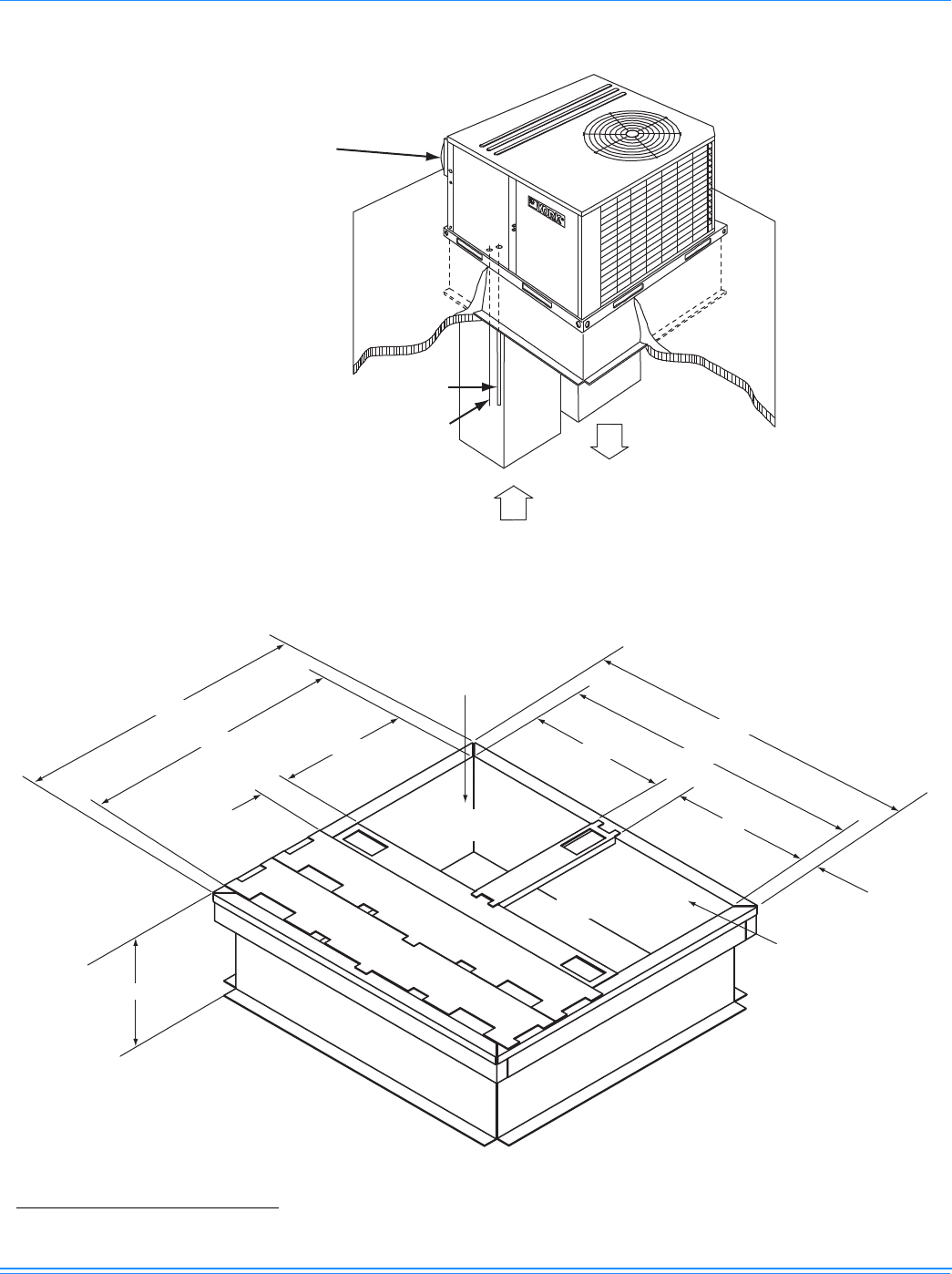

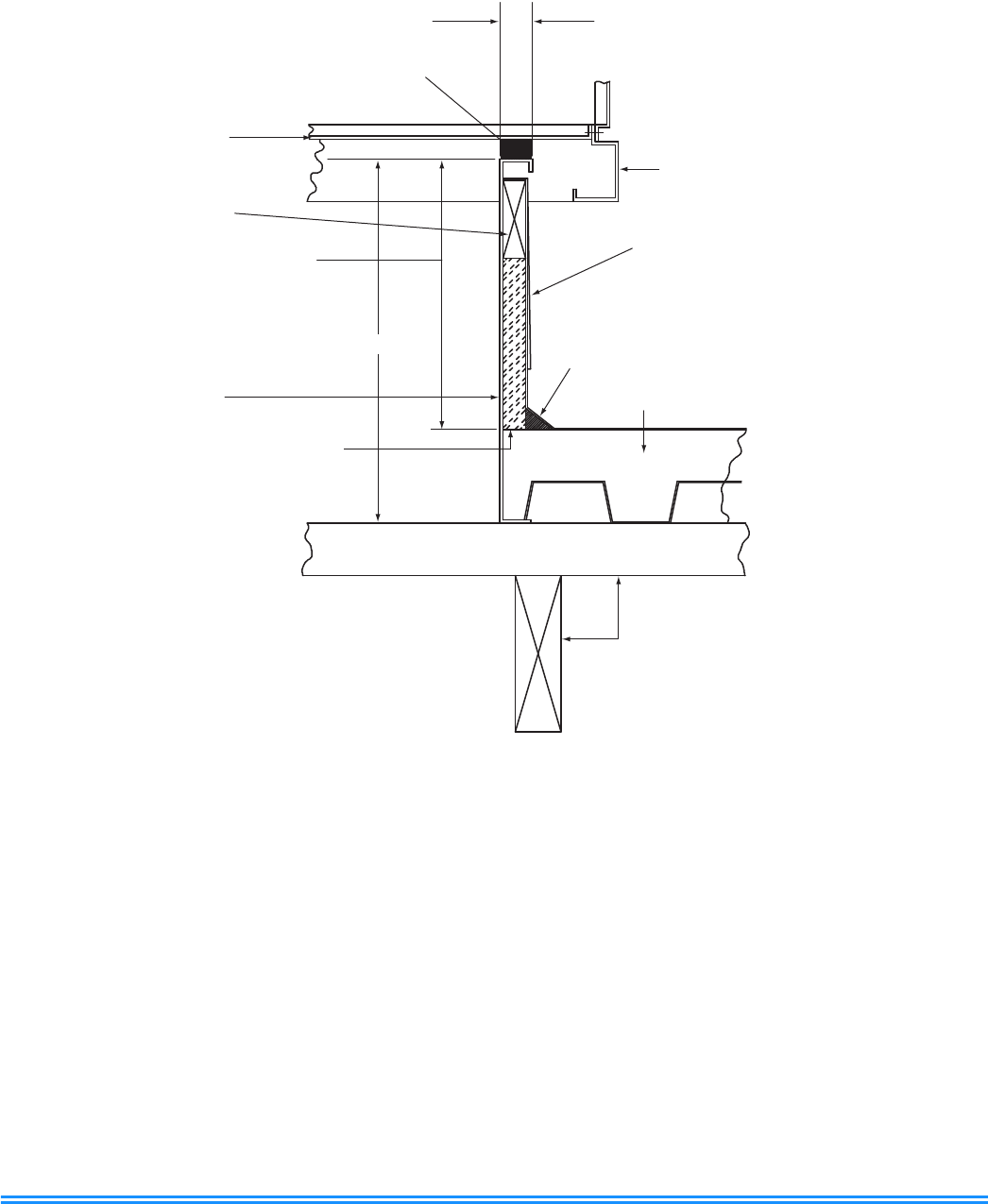

•Roof Curbs - NRCA approved curbs provide proper fit to

base unit for rooftop installations. Curbs are designed to

be assembled through hinge pins in each corner. Kit also

provides seal strip to assure a water tight seal. 8 and 14

inch high roof curbs are available.

•Manual Outdoor Damper - Provides 0% through 50%

outdoor air capability (field adjustable). Designed for duct

mounted side supply/return applications. Includes hood

and screen assembly.

•Wall Thermostat - The units are designed to operate with

24-volt electronic and electro-mechanical thermostats. All

units can operate with single stage heat/single stage cool

thermostats - with or without the economizer.

•Low Ambient Kit - Kit provides necessary hardware to

convert unit to operate in cooling cycle down to 0º F.

Standard unit operation 45º F.

•Transformer Kit - Kit provides necessary hardware to

provide single phase models from factory furnished 40 VA

transformer capability to 75 VA transformer capability.

(Required on installations with economizer or motorized

damper.)

Guide Specifications

General

Units shall be manufactured by York International Unitary

Products Group in an ISO 9001 certified facility. YORK’s

Affinity™ package units give you the flexibility and choices you

need in today’s market. These packaged heat pumps are

designed for outdoor installation. Only utility and duct

connections are required at the point of installation.

Description

Units shall be factory-assembled, single packaged, heat pump

units, designed for outdoor mounted installation. For SEER

ratings, refer to technical literature. They shall have built in,

equal size, field convertible duct connections for down

discharge supply/return or horizontal discharge supply/return.

The units shall be factory wired, piped, charged with R-410A

Refrigerant and factory tested prior to shipment. All unit wiring

shall be both numbered and color coded. All units shall be

manufactured in a facility certified to ISO 9001 standards, and

the cooling performance shall be rated in accordance with DOE

and AHRI test procedures. The heating performance shall be

rated to DOE and GAMA test procedures. Units shall be CSA

listed and classified to ANSI Z21.47/CAN/CSA 2.3 standards

and UL 1995/CAN/CSA No. 236-M90 conditions.

Unit Cabinet

Unit cabinet shall be constructed of G-90, pre-paint textured

steel, certified at 500 hours salt spray test per ASTM-B117

standards. The unit top shall be a single piece “Water Shed”

design, with drip edges and no-seam corners to provide

optimum water integrity. Unit shall have a rigidly mounted

condenser coil guard to provide protection from objects and

personnel after installation. Indoor blower section shall be

insulated with up to 3/4” thick, aluminum, foil faced insulation,

fastened to prevent insulation from entering the air stream.

Cabinet panels shall be “large” size, easily removable for

servicing and maintenance, with built-in lift handles. Unit shall

be built on a formed, “Super-Structure” design base pan, with

embossments at critical points to add strength, rigidity and aid

in minimizing sound. Full perimeter base rails shall be provided

to assure reliable transit of equipment, overhead rigging, for

truck access and proper sealing on roof curb applications. Base

rails shall be removable, when required, to lower unit height.

Filters shall be furnished and be accessible through a

removable access door, sealed airtight. Units vertical discharge

and return duct configuration shall be designed to fit between

standard 24” O.C. beams without modification to building

structure, duct work and base unit. Condensate pan shall be

internally sloped and conform to ASHRAE 62-89 self-draining

standards, with 3/4” NPTI copper, ridged mount connection.

Indoor (Evaporator) Fan Assembly

Fan shall be direct drive design. Fan wheel shall be double-inlet

type with forward-curved blades, dynamically balanced to

operate smoothly throughout the entire range of operation.

Airflow design shall be constant air volume. Bearings shall be

sealed and permanently lubricated for longer life and no

maintenance. Fan assembly shall be “Slip Track” (slide-out)

design for easy removal and cleaning.

Outdoor (Condenser) Fan Assembly

The outdoor fan shall be of the direct-driven propeller type,

discharge air vertically, have aluminum blades riveted to

corrosion resistant steel spider bracket and shall be statically

balanced for smooth operation. The outdoor fan motor shall be

totally enclosed with permanently lubricated bearings and

internally protected against overload conditions.

718419-YTG-B-1212

6Johnson Controls Unitary Products

Refrigerant Components

Compressors:

a. Shall be fully hermetic type, direct drive, internally

protected with internal high-pressure relief and over

temperature protection. The hermetic motor shall be

suction gas cooled and have a voltage range of +/- 10%

of the unit nameplate voltage.

b. Shall have internal isolation and sound muffling to

minimize vibration and noise, and be externally isolated

on a dedicated, independent mounting.

Coils:

a. Evaporator and condenser coils shall have aluminum

plate fins mechanically bonded to seamless internally

enhanced copper tubes with all joints brazed.

b. Evaporator coil shall be of the direct expansion, draw

through design, while condenser coil shall be draw

through design.

Refrigerant Circuit and Refrigerant Safety Components shall

include:

a. Independent fixed orifice expansion devices.

b. Filter/strainer to eliminate any foreign matter.

Electric Heating Section (Field Install Accessory)

An electric heating section, with nickel chromium elements,

shall be provided in a range of 5 thru 25 KW. The heating

section shall have a primary limit control(s) (automatic reset) to

prevent the heating element system from operating at an

excessive temperature. The Heating Section assembly shall

slide out of the unit for easy maintenance and service. Units

with Electric Heating Sections shall be wired for a single point

power supply with branch circuit fusing (where required).

718419-YTG-B-1212

Johnson Controls Unitary Products 7

Physical Data

BHZ024-060 Physical Data

Component Models

BHZ024 BHZ030 BHZ036 BHZ042 BHZ048 BHZ060

Nominal Tonnage 2.0 2.5 3.0 3.5 4.0 5.0

AHRI COOLING PERFORMANCE

Gross Capacity @ AHRI A point

(Mbh) 22.9 29.7 36.0 41.3 50.1 57.5

AHRI net capacity (Mbh) 22.8 29.2 33.6 40.5 46.0 56.0

EER 11.4 11.25 11.0 11.25 11.00 11.0

SEER 13 13 13 13 13 13

Nominal CFM 800 950 1100 1400 1500 1550

System power (KW) 2.0 2.6 3.1 3.6 4.18 5.10

Refrigerant type R410A R410A R410A R410A R410a R410A

Refrigerant charge (lb-oz) 6-0 7-4 9-6 12-0 11-0 11-8

AHRI HEATING PERFORMANCE

47°F Capacity Rating (Mbh) 22.2 27.8 32.8 40.0 42.0 56.0

System Power (Kw/COP) 3.4 3.3 3.0 3.0 4.1/3.0 2.90

17°F Capacity Rating (Mbh) 11.5 14.6 19.2 23.2 20.8 33.0

System Power (Kw/COP) 2.0 2.0 2.3 2.3 2.8/2.2 2.0

HSPF (BTU/Watts-hr.) 7.7 7.7 7.7 7.7 7.7 7.7

DIMENSIONS (inches)

Length 49 1/8 49 1/8 49 1/8 49 1/8 49 1/8 49 1/8

Width 47 1/4 47 1/4 47 1/4 47 1/4 47 1/4 47 1/4

Height 33 1/2 33 1/2 33 1/2 41 1/2 41 1/2 41 1/2

OPERATING WT. (lbs.) 350 350 385 435 480 490

COMPRESSORS

Type Scroll 1-spd Scroll 1-spd Scroll 1-spd Scroll 1-spd Scroll 1-spd Scroll 1-spd

Quantity 1 1 1 1 1 1

CONDENSER COIL DATA

Face area (Sq. Ft.) 12.9 12.9 12.9 16.4 16.4 16.4

Rows 1 1 2 2 2 2

Fins per inch 20 20 20 20 20 20

Tube diameter (in.) 3/8 3/8 3/8 3/8 3/8 3/8

Refrigerant control Orifice Orifice Orifice Orifice Orifice TXV

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 4.38 4.38 4.38 5.63 5.63 5.63

Rows 2 3 3 3 3 3

Fins per inch 15 13 15 15 16 16

Tube diameter 3/8 3/8 3/8 3/8 3/8 3/8

Refrigerant control Orifice Orifice Orifice Orifice Orifice TXV

CONDENSER FAN DATA

Quantity of fans 1 1 1 1 1 1

Fan diameter (Inch) 22 22 22 22 22 22

Type Prop Prop Prop Prop Prop Prop

Drive type Direct Direct Direct Direct Direct Direct

Quantity of motors 1 1 1 1 1 1

Motor HP each 1/41/4 1/41/41/4 1/2

No. speeds 1 1 1 1 1 1

RPM 850 850 850 850 850 1100

Nominal total CFM 2000 2400 2400 3200 3200 3400

DIRECT DRIVE EVAP FAN DATA

Quantity 1 1 1 1 1 1

Fan Size (Inch) 10 x 8 10 x 8 11 x 10 11 x 10 11 x 10 11 x 10

Type Centrifugal Centrifugal Centrifugal Centrifugal Centrifugal Centrifugal

No. speeds 5 5 5 5 5 5

Motor HP each 1/2 1/2 3/4 3/4 3/4 1

RPM Variable Variable Variable Variable Variable Variable

Frame size 48 48 48 48 48 48

FILTERS

Quantity - Size 2 - 22 x 14 x 1 2 - 22 x 14 x 1 2 - 22 x 14 x 1 2 - 22 x 14 x 1 2 - 22 x 14 x 1 2 - 22 x 14 x 1

718419-YTG-B-1212

8Johnson Controls Unitary Products

BHZ Unit Limitations

Size

(Tons) Model Unit Voltage

Unit Limitations

Applied Voltage Outdoor DB Temp

Min Max Max (°F)

024

(2.0) BHZ 208/230-1-60 187 252 125

030

(2.5) BHZ

208/230-1-60 187 252 125

208/230-3-60 187 252 125

460-3-60 432 504 125

036

(3.0) BHZ

208/230-1-60 187 252 125

208/230-3-60 187 252 125

460-3-60 432 504 125

042

(3.5) BHZ

208/230-1-60 187 252 125

208/230-3-60 187 252 125

460-3-60 432 504 125

048

(4.0) BHZ

208/230-1-60 187 252 125

208/230-3-60 187 252 125

460-3-60 432 504 125

060

(5.0) BHZ

208/230-1-60 187 252 125

208/230-3-60 187 252 125

460-3-60 432 504 125

718419-YTG-B-1212

Johnson Controls Unitary Products 9

Capacity Performance

BHZ024-060 Cooling Capacities

BHZ024 (2.0 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

600

77 30.6 1.5 17.9 15.0 12.2 - - - 26.8 1.7 14.7 11.8 9.0 - - -

72 28.4 1.5 19.8 16.9 14.1 11.2 - - 25.5 1.7 18.2 15.3 12.5 9.6 - -

67 26.2 1.5 21.7 18.9 16.0 13.2 10.3 - 24.1 1.7 21.6 18.8 15.9 13.1 10.2 -

62 24.3 1.5 24.3 24.0 20.1 17.3 14.4 11.6 22.4 1.6 22.4 22.2 19.4 16.5 13.7 10.8

57 23.4 1.5 23.4 23.4 22.4 19.6 16.7 13.9 22.1 1.6 22.1 22.1 20.6 17.8 14.9 12.1

700

77 30.6 1.6 19.5 16.3 12.9 - - - 27.0 1.7 16.8 12.9 9.5 - - -

72 28.4 1.6 21.7 18.4 15.0 11.6 - - 25.6 1.7 19.9 16.5 13.2 9.8 - -

67 26.1 1.5 23.9 20.5 17.1 13.7 10.4 - 24.3 1.7 23.1 20.2 16.8 13.5 10.1 -

62 24.3 1.5 24.3 24.1 21.4 18.1 14.7 11.3 22.5 1.7 22.5 22.5 20.5 17.1 13.7 10.3

57 23.4 1.6 23.4 23.4 23.9 20.5 17.1 13.7 22.3 1.7 22.3 22.3 21.8 18.4 15.0 11.7

800

77 30.6 1.6 21.2 17.5 13.6 - - - 27.2 1.8 18.8 13.9 10.0 - - -

72 28.4 1.6 23.7 19.8 15.9 12.0 - - 25.8 1.8 21.6 17.7 13.9 10.0 - -

67 26.1 1.6 26.1 22.0 18.1 14.3 10.4 - 24.5 1.8 24.5 21.6 17.7 13.8 9.9 -

62 24.2 1.6 24.2 24.2 22.7 18.8 15.0 11.1 22.7 1.8 22.7 22.7 21.5 17.6 13.8 9.9

57 23.4 1.6 23.4 23.4 25.3 21.4 17.5 13.6 22.4 1.8 22.4 22.4 22.9 19.0 15.1 11.2

900

72 28.3 1.6 25.1 20.7 16.3 11.9 - - 26.0 1.9 23.2 18.7 14.3 9.9 - -

67 26.1 1.6 26.1 23.1 18.6 14.1 9.7 - 24.6 1.9 24.6 22.7 18.3 13.9 9.4 -

62 24.2 1.6 24.2 24.2 23.4 19.0 14.5 10.1 22.9 1.8 22.9 22.9 22.2 17.8 13.4 9.0

57 23.3 1.7 23.3 23.3 24.3 19.9 15.4 11.0 22.6 1.8 22.6 22.6 22.8 18.4 14.0 9.5

1000

72 28.3 1.7 26.6 21.6 16.7 11.7 - - 26.2 1.9 24.7 19.7 14.8 9.8 - -

67 26.1 1.7 26.1 24.1 19.0 14.0 9.0 - 24.8 1.9 24.8 23.8 18.9 13.9 8.9 -

62 24.2 1.7 24.2 24.2 24.0 19.1 14.1 9.1 23.0 1.9 23.0 23.0 22.9 18.0 13.0 8.0

57 23.3 1.7 23.3 23.3 23.3 18.3 13.4 8.4 22.7 1.9 22.7 22.7 22.7 17.8 12.8 7.8

95°F 105°F

600

77 23.0 1.8 11.5 8.7 5.8 - - - 22.8 2.1 11.8 9.0 6.1 - - -

72 22.5 1.8 16.5 13.7 10.8 8.0 - - 21.6 2.1 16.3 13.4 10.6 7.7 - -

67 22.1 1.8 21.6 18.7 15.9 13.0 10.2 - 20.4 2.1 20.1 17.9 15.0 12.2 9.3 -

62 20.5 1.8 20.5 20.5 18.7 15.8 12.9 10.1 19.0 2.0 19.0 19.0 17.3 14.5 11.6 8.8

57 20.8 1.8 20.8 20.8 18.8 16.0 13.1 10.3 19.4 2.0 19.4 19.4 17.2 14.3 11.5 8.6

700

77 23.3 1.9 14.0 9.5 6.1 - - - 23.0 2.2 14.9 10.0 6.4 - - -

72 22.9 1.9 18.1 14.7 11.3 8.0 - - 21.8 2.2 17.8 14.4 11.1 7.7 - -

67 22.4 1.9 22.2 19.9 16.6 13.2 9.8 - 20.5 2.1 20.4 18.9 15.7 12.4 9.0 -

62 20.8 1.9 20.8 20.8 19.5 16.1 12.8 9.4 19.1 2.1 19.1 19.1 18.2 14.8 11.4 8.1

57 21.1 1.8 21.1 21.1 19.7 16.3 12.9 9.6 19.6 2.1 19.6 19.6 18.0 14.6 11.3 7.9

800

77 23.7 2.0 16.4 10.2 6.4 - - - 23.2 2.3 18.0 11.0 6.7 - - -

72 23.3 2.0 19.6 15.7 11.8 7.9 - - 21.9 2.3 19.3 15.5 11.6 7.7 - -

67 22.8 2.0 22.8 21.2 17.3 13.4 9.5 - 20.7 2.2 20.7 19.9 16.4 12.6 8.7 -

62 21.1 2.0 21.1 21.1 20.3 16.4 12.6 8.7 19.3 2.2 19.3 19.3 19.0 15.1 11.2 7.3

57 21.5 1.9 21.5 21.5 20.5 16.6 12.7 8.8 19.7 2.2 19.7 19.7 18.8 15.0 11.1 7.2

900

72 23.6 2.1 21.2 16.8 12.3 7.9 - - 22.2 2.3 20.6 16.5 12.0 7.6 - -

67 23.2 2.1 23.2 22.4 18.0 13.6 9.2 - 21.0 2.3 21.0 20.5 17.1 12.7 8.3 -

62 21.5 2.1 21.5 21.5 21.1 16.6 12.2 7.8 19.5 2.3 19.5 19.5 19.4 14.9 10.5 6.1

57 21.8 2.0 21.8 21.8 21.3 16.9 12.5 8.0 20.0 2.3 20.0 20.0 19.5 15.1 10.7 6.2

1000

72 24.0 2.2 22.8 17.8 12.8 7.9 - - 22.4 2.4 21.8 17.5 12.5 7.5 - -

67 23.5 2.1 23.5 23.5 18.8 13.8 8.8 - 21.2 2.4 21.2 21.2 17.8 12.8 7.8 -

62 21.8 2.1 21.8 21.8 21.8 16.9 11.9 6.9 19.7 2.4 19.7 19.7 19.7 14.8 9.8 4.8

57 22.2 2.1 22.2 22.2 22.2 17.2 12.2 7.2 20.2 2.4 20.2 20.2 20.2 15.2 10.3 5.3

718419-YTG-B-1212

10 Johnson Controls Unitary Products

115°F 125°F

600

77 22.6 2.3 12.1 9.2 6.4 - - - 22.5 2.6 12.4 9.5 6.7 - - -

72 20.6 2.3 16.0 13.1 10.3 7.4 - - 19.7 2.5 15.7 12.8 10.0 7.1 - -

67 18.6 2.3 18.6 17.0 14.1 11.3 8.4 - 16.9 2.5 16.9 16.1 13.3 10.4 7.6 -

62 17.5 2.3 17.5 17.5 16.0 13.2 10.3 7.5 15.9 2.5 15.9 15.9 14.7 11.8 9.0 6.1

57 18.0 2.3 18.0 18.0 15.6 12.7 9.9 7.0 16.7 2.5 16.7 16.7 13.9 11.1 8.2 5.4

700

77 22.6 2.4 15.8 10.5 6.7 - - - 22.3 2.7 16.8 11.1 7.0 - - -

72 20.6 2.4 17.5 14.2 10.8 7.4 - - 19.5 2.7 17.3 13.9 10.5 7.2 - -

67 18.6 2.4 18.6 17.8 14.9 11.5 8.1 - 16.7 2.6 16.7 16.7 14.0 10.7 7.3 -

62 17.4 2.4 17.4 17.4 16.8 13.5 10.1 6.7 15.8 2.6 15.8 15.8 15.5 12.1 8.8 5.4

57 18.0 2.4 18.0 18.0 16.4 13.0 9.6 6.3 16.5 2.6 16.5 16.5 14.7 11.4 8.0 4.6

800

77 22.6 2.5 19.6 11.8 7.0 - - - 22.0 2.8 21.2 12.6 7.4 - - -

72 20.6 2.5 19.1 15.2 11.3 7.4 - - 19.3 2.8 18.9 15.0 11.1 7.2 - -

67 18.6 2.5 18.6 18.6 15.6 11.7 7.8 - 16.5 2.7 16.5 16.5 14.8 10.9 7.0 -

62 17.4 2.5 17.4 17.4 17.7 13.8 9.9 6.0 15.6 2.7 15.6 15.6 15.6 12.4 8.6 4.7

57 18.0 2.5 18.0 18.0 17.2 13.3 9.4 5.5 16.3 2.8 16.3 16.3 15.5 11.6 7.7 3.8

900

72 20.7 2.6 20.0 16.2 11.8 7.3 - - 19.3 2.9 19.3 15.9 11.5 7.0 - -

67 18.7 2.6 18.7 18.7 16.2 11.8 7.3 - 16.5 2.8 16.5 16.5 15.3 10.8 6.4 -

62 17.5 2.6 17.5 17.5 17.7 13.2 8.8 4.4 15.6 2.8 15.6 15.6 15.6 11.5 7.1 2.7

57 18.1 2.6 18.1 18.1 17.7 13.3 8.9 4.4 16.3 2.8 16.3 16.3 15.9 11.5 7.0 2.6

1000

72 20.9 2.7 20.9 17.1 12.2 7.2 - - 19.3 2.9 19.3 16.8 11.8 6.9 - -

67 18.9 2.7 18.9 18.9 16.8 11.8 6.8 - 16.5 2.9 16.5 16.5 15.8 10.8 5.8 -

62 17.7 2.6 17.7 17.7 17.7 12.7 7.7 2.8 15.6 2.9 15.6 15.6 15.6 10.6 5.6 0.7

57 18.2 2.6 18.2 18.2 18.2 13.3 8.3 3.3 16.3 2.9 16.3 16.3 16.3 11.3 6.4 1.4

1. These capacities are Net Capacities.

2. These ratings include the compressor, condenser fan and supply air blower motors.

BHZ024 (2.0 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

718419-YTG-B-1212

Johnson Controls Unitary Products 11

BHZ030 (2.5 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

750

77 36.3 2.1 19.3 15.7 12.2 - - - 36.0 2.3 17.9 14.3 10.7 - - -

72 34.1 2.0 22.6 19.1 15.5 11.9 - - 33.3 2.3 21.8 18.2 14.6 11.1 - -

67 31.8 1.9 26.0 22.4 18.9 15.3 11.7 - 30.6 2.2 25.6 22.1 18.5 15.0 11.4 -

62 30.1 1.8 30.1 28.1 24.6 21.0 17.4 13.9 27.8 2.2 27.8 26.4 22.8 19.3 15.7 12.1

57 28.2 1.8 28.2 27.9 24.3 20.8 17.2 13.6 27.3 2.2 27.3 26.7 23.1 19.6 16.0 12.4

875

77 37.6 2.3 21.4 17.7 13.5 - - - 36.6 2.4 20.5 16.0 11.8 - - -

72 35.2 2.2 25.7 21.5 17.2 13.0 - - 33.8 2.4 24.5 20.3 16.1 11.9 - -

67 32.8 2.1 29.9 25.2 21.0 16.8 12.6 - 31.1 2.4 28.6 24.6 20.4 16.2 12.0 -

62 31.0 1.9 31.0 30.0 27.3 23.1 18.9 14.7 28.2 2.3 28.2 27.5 25.2 21.0 16.7 12.5

57 29.2 2.0 29.2 29.0 27.1 22.8 18.6 14.4 27.7 2.3 27.7 27.4 25.5 21.3 17.1 12.9

1000

77 38.8 2.5 23.5 19.7 14.8 - - - 37.1 2.6 23.1 17.8 12.9 - - -

72 36.3 2.4 28.7 23.8 19.0 14.1 - - 34.3 2.5 27.3 22.5 17.6 12.8 - -

67 33.9 2.3 33.9 28.0 23.1 18.2 13.4 - 31.5 2.5 31.5 27.2 22.3 17.5 12.6 -

62 32.0 2.1 32.0 32.0 30.0 25.2 20.3 15.4 28.6 2.4 28.6 28.6 27.5 22.6 17.8 12.9

57 30.1 2.2 30.1 30.1 29.8 24.9 20.1 15.2 28.2 2.4 28.2 28.2 27.9 23.0 18.1 13.3

1125

72 36.7 2.5 31.3 25.8 20.3 14.7 - - 34.3 2.6 29.9 24.4 18.9 13.3 - -

67 34.2 2.4 34.2 31.3 24.7 19.1 13.6 - 31.5 2.6 31.5 29.3 23.9 18.4 12.8 -

62 32.3 2.2 32.3 32.3 31.3 25.8 20.2 14.7 28.6 2.5 28.6 28.6 28.0 22.5 17.0 11.4

57 30.4 2.3 30.4 30.4 30.3 24.7 19.2 13.7 28.1 2.5 28.1 28.1 28.0 22.4 16.9 11.4

1250

72 37.1 2.6 34.0 27.8 21.5 15.3 - - 34.3 2.8 32.5 26.3 20.1 13.9 - -

67 34.6 2.6 34.6 34.6 26.2 20.0 13.8 - 31.5 2.7 31.5 31.5 25.5 19.3 13.1 -

62 32.6 2.3 32.6 32.6 32.6 26.4 20.2 13.9 28.6 2.6 28.6 28.6 28.6 22.4 16.1 9.9

57 30.7 2.4 30.7 30.7 30.7 24.5 18.3 12.1 28.1 2.6 28.1 28.1 28.1 21.9 15.7 9.5

95°F 105°F

750

77 35.7 2.6 16.4 12.9 9.3 - - - 32.5 2.8 15.1 11.5 8.0 - - -

72 32.6 2.6 20.9 17.3 13.7 10.2 - - 29.5 2.8 19.7 16.2 12.6 9.1 - -

67 29.4 2.5 25.3 21.7 18.2 14.6 11.1 - 26.5 2.9 24.4 20.8 17.3 13.7 10.1 -

62 25.5 2.6 25.5 24.7 21.1 17.5 14.0 10.4 23.8 2.9 23.8 23.2 19.6 16.1 12.5 8.9

57 26.4 2.6 26.4 25.5 21.9 18.4 14.8 11.2 23.3 2.9 23.3 22.8 19.3 15.7 12.1 8.6

875

77 35.6 2.6 19.6 14.4 10.1 - - - 32.4 2.9 19.1 13.2 8.8 - - -

72 32.4 2.6 23.4 19.2 15.0 10.8 - - 29.5 2.9 22.3 18.1 13.9 9.6 - -

67 29.3 2.6 27.3 24.1 19.9 15.6 11.4 - 26.5 2.9 25.4 22.9 19.0 14.8 10.5 -

62 25.4 2.6 25.4 25.0 23.0 18.8 14.6 10.4 23.8 2.9 23.8 23.5 21.6 17.3 13.1 8.9

57 26.3 2.6 26.3 25.8 23.9 19.7 15.5 11.3 23.3 2.9 23.3 23.0 21.2 16.9 12.7 8.5

1000

77 35.4 2.6 22.8 15.9 11.0 - - - 32.4 2.9 23.2 14.9 9.5 - - -

72 32.3 2.6 26.0 21.1 16.3 11.4 - - 29.4 2.9 24.8 20.0 15.1 10.2 - -

67 29.2 2.6 29.2 26.4 21.5 16.7 11.8 - 26.5 2.9 26.5 25.1 20.7 15.8 10.9 -

62 25.3 2.6 25.3 25.3 25.0 20.1 15.3 10.4 23.8 2.9 23.8 23.8 23.5 18.6 13.8 8.9

57 26.2 2.6 26.2 26.2 26.0 21.1 16.2 11.4 23.3 2.9 23.3 23.3 23.0 18.2 13.3 8.5

1125

72 31.9 2.7 28.5 23.0 17.5 11.9 - - 30.2 3.0 27.5 22.0 16.5 10.9 - -

67 28.8 2.7 28.8 27.4 23.1 17.6 12.1 - 27.2 3.1 27.2 26.5 22.5 17.0 11.5 -

62 24.9 2.8 24.9 24.9 24.8 19.2 13.7 8.2 24.4 3.0 24.4 24.4 24.3 18.8 13.2 7.7

57 25.8 2.8 25.8 25.8 25.7 20.2 14.6 9.1 23.9 3.0 23.9 23.9 23.7 18.2 12.7 7.1

1250

72 31.4 2.9 31.1 24.9 18.7 12.5 - - 31.0 3.1 30.2 24.0 17.8 11.6 - -

67 28.4 2.9 28.4 28.4 24.7 18.5 12.3 - 27.9 3.2 27.9 27.9 24.4 18.2 12.0 -

62 24.6 2.9 24.6 24.6 24.6 18.3 12.1 5.9 25.1 3.2 25.1 25.1 25.1 18.9 12.7 6.5

57 25.5 2.9 25.5 25.5 25.5 19.2 13.0 6.8 24.4 3.2 24.4 24.4 24.4 18.2 12.0 5.8

718419-YTG-B-1212

12 Johnson Controls Unitary Products

115°F 125°F

750

77 29.2 3.1 13.8 10.2 6.7 - - - 26.0 3.3 12.5 8.9 5.3 - - -

72 26.4 3.1 18.6 15.1 11.5 7.9 - - 23.4 3.4 17.5 13.9 10.4 6.8 - -

67 23.7 3.2 23.5 19.9 16.3 12.8 9.2 - 20.8 3.5 20.8 19.0 15.4 11.8 8.3 -

62 22.1 3.1 22.1 21.7 18.1 14.6 11.0 7.4 20.5 3.4 20.5 20.2 16.6 13.1 9.5 5.9

57 20.2 3.1 20.2 20.2 16.6 13.0 9.5 5.9 17.2 3.4 17.2 17.2 13.9 10.4 6.8 3.2

875

77 29.3 3.1 18.7 12.0 7.4 - - - 26.2 3.4 18.2 10.9 6.0 - - -

72 26.5 3.2 21.1 16.9 12.7 8.5 - - 23.5 3.5 20.0 15.8 11.6 7.4 - -

67 23.7 3.3 23.6 21.8 18.1 13.9 9.6 - 20.9 3.6 20.9 20.7 17.2 13.0 8.8 -

62 22.2 3.2 22.2 22.0 20.1 15.8 11.6 7.4 20.6 3.5 20.6 20.5 18.6 14.3 10.1 5.9

57 20.3 3.2 20.3 20.2 18.4 14.2 9.9 5.7 17.3 3.5 17.3 17.3 15.6 11.4 7.2 2.9

1000

77 29.3 3.2 23.6 13.8 8.1 - - - 26.3 3.4 24.0 12.8 6.6 - - -

72 26.5 3.2 23.7 18.8 13.9 9.1 - - 23.7 3.6 22.5 17.6 12.8 7.9 - -

67 23.8 3.3 23.8 23.8 19.8 15.0 10.1 - 21.0 3.7 21.0 21.0 19.0 14.1 9.2 -

62 22.2 3.2 22.2 22.2 22.0 17.1 12.3 7.4 20.7 3.5 20.7 20.7 20.5 15.6 10.8 5.9

57 20.3 3.3 20.3 20.3 20.1 15.3 10.4 5.6 17.4 3.6 17.4 17.4 17.2 12.4 7.5 2.6

1125

72 28.6 3.3 26.5 21.0 15.4 9.9 - - 26.9 3.6 25.5 20.0 14.4 8.9 - -

67 25.6 3.4 25.6 25.6 21.9 16.4 10.9 - 24.0 3.7 24.0 24.0 21.3 15.8 10.3 -

62 23.9 3.3 23.9 23.9 23.8 18.3 12.7 7.2 23.5 3.6 23.5 23.5 23.3 17.8 12.3 6.7

57 21.9 3.3 21.9 21.9 21.8 16.2 10.7 5.2 19.9 3.6 19.9 19.9 19.8 14.3 8.8 3.2

1250

72 30.6 3.4 29.4 23.1 16.9 10.7 - - 30.2 3.6 28.5 22.3 16.1 9.8 - -

67 27.4 3.5 27.4 27.4 24.1 17.9 11.6 - 26.9 3.8 26.9 26.9 23.7 17.5 11.3 -

62 25.6 3.4 25.6 25.6 25.6 19.4 13.2 7.0 26.2 3.6 26.2 26.2 26.2 20.0 13.8 7.6

57 23.4 3.4 23.4 23.4 23.4 17.2 11.0 4.8 22.4 3.7 22.4 22.4 22.4 16.2 10.0 3.8

1. These capacities are Net Capacities.

2. These ratings include the compressor, condenser fan and supply air blower motors.

BHZ030 (2.5 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

718419-YTG-B-1212

Johnson Controls Unitary Products 13

BHZ036 (3.0 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

900

77 39.2 2.6 19.4 15.1 10.8 - - - 39.6 2.7 20.6 16.3 12.0 - - -

72 38.5 2.4 27.0 22.7 18.4 14.2 - - 37.6 2.6 27.1 22.8 18.5 14.2 - -

67 37.7 2.2 34.6 30.3 26.1 21.8 17.5 - 35.5 2.6 33.6 29.3 25.0 20.7 16.5 -

62 34.8 2.2 34.8 34.8 32.3 28.0 23.7 19.5 33.2 2.5 33.2 33.2 30.9 26.6 22.3 18.1

57 34.5 2.3 34.5 34.5 32.4 28.1 23.9 19.6 32.9 2.6 32.9 32.9 30.8 26.6 22.3 18.0

1050

77 40.4 2.6 22.9 16.8 11.8 - - - 40.3 2.8 24.8 17.9 12.9 - - -

72 39.6 2.5 30.1 25.0 20.0 14.9 - - 38.2 2.7 30.0 24.9 19.9 14.8 - -

67 38.8 2.3 37.2 33.3 28.2 23.2 18.1 - 36.1 2.6 35.1 31.9 26.9 21.8 16.7 -

62 35.8 2.3 35.8 35.8 35.0 29.9 24.8 19.8 33.8 2.6 33.8 33.8 33.2 28.1 23.0 18.0

57 35.5 2.3 35.5 35.5 35.1 30.0 25.0 19.9 33.5 2.6 33.5 33.5 33.1 28.1 23.0 17.9

1200

77 41.6 2.7 26.5 18.5 12.7 - - - 40.9 2.9 29.1 19.6 13.8 - - -

72 40.7 2.5 33.2 27.3 21.5 15.7 - - 38.8 2.8 32.9 27.1 21.2 15.4 - -

67 39.8 2.4 39.8 36.2 30.4 24.5 18.7 - 36.7 2.7 36.7 34.5 28.7 22.9 17.0 -

62 36.8 2.4 36.8 36.8 37.6 31.8 26.0 20.1 34.3 2.7 34.3 34.3 35.4 29.6 23.8 17.9

57 36.5 2.4 36.5 36.5 37.7 31.9 26.1 20.3 34.1 2.7 34.1 34.1 35.4 29.5 23.7 17.9

1350

72 41.2 2.6 36.3 29.4 22.8 16.1 - - 39.5 2.9 35.9 29.3 22.7 16.0 - -

67 40.3 2.4 40.3 38.5 32.1 25.5 18.9 - 37.3 2.8 37.3 36.2 30.6 24.0 17.3 -

62 37.3 2.4 37.3 37.3 37.7 31.0 24.4 17.7 34.9 2.7 34.9 34.9 35.4 28.8 22.1 15.5

57 36.9 2.5 36.9 36.9 37.5 30.9 24.3 17.6 34.6 2.8 34.6 34.6 35.3 28.6 22.0 15.3

1500

72 41.7 2.7 39.5 31.5 24.0 16.6 - - 40.1 3.0 39.0 31.5 24.1 16.6 - -

67 40.8 2.5 40.8 40.8 33.9 26.5 19.0 - 37.9 2.9 37.9 37.9 32.5 25.1 17.6 -

62 37.7 2.5 37.7 37.7 37.7 30.3 22.8 15.4 35.4 2.8 35.4 35.4 35.4 28.0 20.5 13.1

57 37.3 2.5 37.3 37.3 37.3 29.9 22.4 15.0 35.2 2.9 35.2 35.2 35.2 27.7 20.2 12.8

95°F 105°F

900

77 40.0 2.9 21.7 17.5 13.2 - - - 37.1 3.4 20.1 15.8 11.6 - - -

72 36.7 2.9 27.1 22.8 18.6 14.3 - - 33.6 3.4 25.5 21.3 17.0 12.7 - -

67 33.4 2.9 32.5 28.2 24.0 19.7 15.4 - 30.1 3.3 29.6 26.7 22.4 18.2 13.9 -

62 31.6 2.8 31.6 31.6 29.5 25.2 20.9 16.6 28.7 3.2 28.7 28.7 26.3 22.0 17.8 13.5

57 31.4 2.8 31.4 31.4 29.3 25.0 20.7 16.4 28.6 3.3 28.6 28.6 26.2 22.0 17.7 13.4

1050

77 40.2 3.0 26.7 19.1 14.0 - - - 37.4 3.5 26.1 18.3 12.4 - - -

72 36.8 3.0 29.9 24.8 19.8 14.7 - - 33.8 3.4 28.4 23.4 18.3 13.2 - -

67 33.5 3.0 33.1 30.6 25.5 20.4 15.4 - 30.3 3.4 30.1 28.4 24.2 19.1 14.1 -

62 31.7 2.9 31.7 31.7 31.3 26.3 21.2 16.2 28.9 3.3 28.9 28.9 28.3 23.3 18.2 13.2

57 31.5 2.9 31.5 31.5 31.1 26.1 21.0 16.0 28.8 3.3 28.8 28.8 28.3 23.2 18.1 13.1

1200

77 40.3 3.1 31.6 20.7 14.9 - - - 37.6 3.6 32.0 20.7 13.3 - - -

72 37.0 3.1 32.6 26.8 20.9 15.1 - - 34.1 3.5 31.3 25.4 19.6 13.8 - -

67 33.6 3.1 33.6 32.9 27.0 21.2 15.4 - 30.5 3.4 30.5 30.1 25.9 20.1 14.2 -

62 31.9 3.0 31.9 31.9 33.2 27.4 21.6 15.7 29.1 3.4 29.1 29.1 30.3 24.5 18.7 12.8

57 31.6 3.0 31.6 31.6 33.0 27.2 21.3 15.5 29.0 3.4 29.0 29.0 30.3 24.4 18.6 12.8

1350

72 37.7 3.2 35.6 29.2 22.5 15.9 - - 34.5 3.6 33.1 27.2 20.6 13.9 - -

67 34.3 3.2 34.3 33.9 29.1 22.4 15.8 - 30.9 3.5 30.9 30.7 27.1 20.5 13.9 -

62 32.5 3.1 32.5 32.5 33.2 26.6 19.9 13.3 29.5 3.5 29.5 29.5 30.1 23.5 16.8 10.2

57 32.3 3.1 32.3 32.3 33.0 26.3 19.7 13.1 29.4 3.5 29.4 29.4 30.0 23.4 16.7 10.1

1500

72 38.5 3.3 38.5 31.6 24.1 16.7 - - 35.0 3.7 35.0 29.0 21.5 14.1 - -

67 35.0 3.3 35.0 35.0 31.1 23.7 16.2 - 31.3 3.6 31.3 31.3 28.4 20.9 13.5 -

62 33.2 3.2 33.2 33.2 33.2 25.7 18.3 10.8 29.9 3.6 29.9 29.9 29.9 22.4 15.0 7.5

57 33.0 3.2 33.0 33.0 33.0 25.5 18.1 10.6 29.8 3.6 29.8 29.8 29.8 22.3 14.9 7.4

718419-YTG-B-1212

14 Johnson Controls Unitary Products

115°F 125°F

900

77 34.1 3.9 18.5 14.2 9.9 - - - 31.2 4.4 16.9 12.6 8.3 - - -

72 30.5 3.8 24.0 19.7 15.4 11.1 - - 27.3 4.3 22.4 18.1 13.8 9.6 - -

67 26.8 3.7 26.8 25.2 20.9 16.6 12.3 - 23.5 4.2 23.5 23.5 19.3 15.1 10.8 -

62 25.7 3.7 25.7 25.7 23.1 18.9 14.6 10.3 22.7 4.1 22.7 22.7 20.0 15.7 11.4 7.2

57 25.8 3.7 25.8 25.8 23.2 18.9 14.7 10.4 22.9 4.1 22.9 22.9 20.2 15.9 11.6 7.4

1050

77 34.5 4.0 25.5 17.5 10.9 - - - 31.7 4.4 24.9 16.7 9.3 - - -

72 30.8 3.9 27.0 21.9 16.8 11.8 - - 27.8 4.3 25.5 20.4 15.4 10.3 - -

67 27.1 3.8 27.1 26.3 22.8 17.8 12.7 - 23.9 4.2 23.9 23.9 21.5 16.4 11.4 -

62 26.0 3.7 26.0 26.0 25.3 20.2 15.2 10.1 23.1 4.2 23.1 23.1 22.3 17.2 12.2 7.1

57 26.1 3.7 26.1 26.1 25.4 20.3 15.3 10.2 23.3 4.2 23.3 23.3 22.5 17.4 12.4 7.3

1200

77 34.9 4.0 32.5 20.8 11.8 - - - 32.2 4.5 32.2 20.9 10.3 - - -

72 31.2 3.9 29.9 24.1 18.3 12.4 - - 28.3 4.3 28.3 22.8 16.9 11.1 - -

67 27.4 3.8 27.4 27.4 24.8 18.9 13.1 - 24.3 4.2 24.3 24.3 23.6 17.8 12.0 -

62 26.3 3.8 26.3 26.3 27.4 21.6 15.8 9.9 23.5 4.2 23.5 23.5 23.5 18.7 12.9 7.0

57 26.4 3.8 26.4 26.4 27.5 21.7 15.9 10.0 23.7 4.2 23.7 23.7 23.7 18.9 13.1 7.3

1350

72 31.3 4.0 30.7 25.2 18.6 12.0 - - 28.1 4.4 28.1 23.3 16.6 10.0 - -

67 27.5 3.9 27.5 27.5 25.2 18.6 11.9 - 24.1 4.3 24.1 24.1 23.3 16.6 10.0 -

62 26.4 3.9 26.4 26.4 27.0 20.3 13.7 7.1 23.4 4.3 23.4 23.4 23.4 17.2 10.6 4.0

57 26.5 3.9 26.5 26.5 27.1 20.4 13.8 7.1 23.6 4.3 23.6 23.6 23.6 17.5 10.8 4.2

1500

72 31.5 4.1 31.5 26.4 18.9 11.5 - - 27.9 4.5 27.9 23.8 16.3 8.9 - -

67 27.7 4.0 27.7 27.7 25.6 18.2 10.7 - 24.0 4.4 24.0 24.0 22.9 15.4 8.0 -

62 26.5 4.0 26.5 26.5 26.5 19.1 11.6 4.2 23.2 4.4 23.2 23.2 23.2 15.8 8.3 0.9

57 26.6 4.0 26.6 26.6 26.6 19.2 11.7 4.3 23.4 4.4 23.4 23.4 23.4 16.0 8.5 1.1

1. These capacities are Net Capacities.

2. These ratings include the compressor, condenser fan and supply air blower motors.

BHZ036 (3.0 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

718419-YTG-B-1212

Johnson Controls Unitary Products 15

BHZ042 (3.5 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1050

77 52.7 3.0 26.6 21.6 16.6 - - - 47.6 3.2 24.7 19.7 14.8 - - -

72 48.9 2.9 34.3 29.3 24.4 19.4 - - 44.4 3.2 32.7 27.7 22.7 17.7 - -

67 45.1 2.8 43.9 37.1 32.1 27.1 22.1 - 41.2 3.2 40.6 35.6 30.6 25.6 20.6 -

62 44.0 2.8 44.0 44.0 42.6 37.6 32.6 27.7 38.8 3.1 38.8 38.8 38.2 33.2 28.2 23.2

57 43.6 2.8 43.6 43.6 41.8 36.8 31.8 26.8 39.4 3.1 39.4 39.4 38.5 33.5 28.5 23.5

1225

77 52.5 2.9 29.9 22.9 17.0 - - - 48.4 3.2 28.7 21.1 15.2 - - -

72 48.7 2.9 36.7 30.8 24.9 19.0 - - 45.2 3.2 35.1 29.3 23.4 17.5 - -

67 44.9 2.8 44.3 38.7 32.8 26.9 21.0 - 41.9 3.2 41.6 37.4 31.5 25.6 19.7 -

62 43.9 2.8 43.9 43.9 42.3 36.4 30.5 24.6 39.5 3.1 39.5 39.5 39.3 33.4 27.5 21.6

57 43.5 2.8 43.5 43.5 42.6 36.7 30.8 24.9 40.1 3.1 40.1 40.1 39.6 33.7 27.9 22.0

1400

77 52.3 2.9 33.2 24.1 17.3 - - - 49.3 3.2 32.6 22.4 15.6 - - -

72 48.5 2.9 39.0 32.2 25.4 18.6 - - 45.9 3.2 37.6 30.8 24.0 17.2 - -

67 44.7 2.8 44.7 40.2 33.4 26.6 19.8 - 42.6 3.2 42.6 39.2 32.4 25.6 18.8 -

62 43.8 2.8 43.8 43.8 41.9 35.1 28.3 21.5 40.2 3.1 40.2 40.2 40.4 33.6 26.8 20.0

57 43.3 2.8 43.3 43.3 43.5 36.7 29.9 23.1 40.8 3.1 40.8 40.8 40.8 34.0 27.2 20.4

1575

72 48.4 3.1 41.4 33.7 25.9 18.2 - - 46.7 3.4 40.2 32.5 24.7 17.0 - -

67 44.5 3.0 44.5 41.9 34.1 26.4 18.6 - 43.3 3.3 43.3 41.1 33.3 25.6 17.8 -

62 43.7 3.0 43.7 43.7 42.7 35.0 27.3 19.5 40.9 3.3 40.9 40.9 41.0 33.2 25.5 17.7

57 43.2 3.0 43.2 43.2 43.5 35.8 28.1 20.3 41.5 3.3 41.5 41.5 41.5 33.7 26.0 18.2

1750

72 48.2 3.3 43.9 35.2 26.5 17.8 - - 47.5 3.5 42.8 34.1 25.4 16.7 - -

67 44.4 3.3 44.4 43.6 34.9 26.2 17.5 - 44.1 3.5 44.1 43.0 34.3 25.6 16.9 -

62 43.6 3.2 43.6 43.6 43.6 34.9 26.2 17.5 41.6 3.4 41.6 41.6 41.6 32.9 24.2 15.5

57 43.1 3.2 43.1 43.1 43.6 34.9 26.2 17.5 42.2 3.4 42.2 42.2 42.2 33.5 24.8 16.1

95°F 105°F

1050

77 42.5 3.5 22.9 17.9 12.9 - - - 39.6 3.8 22.3 17.3 12.3 - - -

72 39.9 3.5 31.0 26.0 21.0 16.0 - - 36.3 3.7 29.9 24.9 19.9 14.9 - -

67 37.3 3.5 37.3 34.1 29.1 24.1 19.2 - 33.0 3.7 33.0 31.4 27.4 22.4 17.4 -

62 33.7 3.4 33.7 33.7 33.7 28.7 23.7 18.8 30.6 3.6 30.6 30.6 30.6 25.6 20.6 15.6

57 35.2 3.4 35.2 35.2 35.2 30.2 25.3 20.3 31.9 3.7 31.9 31.9 31.9 26.9 21.9 16.9

1225

77 44.4 3.5 27.5 19.3 13.4 - - - 41.2 3.9 28.3 19.6 12.8 - - -

72 41.6 3.5 33.6 27.7 21.8 16.0 - - 37.7 3.9 32.4 26.5 20.6 14.7 - -

67 38.9 3.5 38.9 36.2 30.3 24.4 18.5 - 34.3 3.8 34.3 32.9 28.5 22.6 16.7 -

62 35.2 3.4 35.2 35.2 36.3 30.4 24.5 18.6 31.8 3.8 31.8 31.8 32.8 26.9 21.0 15.1

57 36.8 3.4 36.8 36.8 36.6 30.8 24.9 19.0 33.2 3.8 33.2 33.2 33.3 27.4 21.5 15.6

1400

77 46.2 3.5 32.1 20.7 13.9 - - - 42.7 4.0 34.3 21.9 13.3 - - -

72 43.4 3.5 36.3 29.5 22.7 15.9 - - 39.2 4.0 35.0 28.2 21.4 14.6 - -

67 40.5 3.6 40.5 38.2 31.4 24.6 17.8 - 35.6 3.9 35.6 34.5 29.5 22.7 15.9 -

62 36.6 3.5 36.6 36.6 38.9 32.1 25.3 18.5 33.0 3.9 33.0 33.0 35.0 28.2 21.4 14.6

57 38.3 3.5 38.3 38.3 38.1 31.3 24.5 17.6 34.4 3.9 34.4 34.4 34.7 27.9 21.1 14.2

1575

72 45.1 3.6 39.0 31.2 23.5 15.7 - - 40.6 4.0 37.2 29.9 22.1 14.4 - -

67 42.1 3.6 42.1 40.3 32.5 24.8 17.0 - 37.0 4.0 37.0 36.0 30.5 22.8 15.0 -

62 38.1 3.5 38.1 38.1 39.2 31.5 23.7 16.0 34.3 3.9 34.3 34.3 35.3 27.5 19.8 12.0

57 39.8 3.5 39.8 39.8 39.4 31.7 23.9 16.2 35.7 3.9 35.7 35.7 35.7 27.9 20.2 12.4

1750

72 46.8 3.7 41.7 33.0 24.3 15.6 - - 42.1 4.0 39.5 31.6 22.9 14.2 - -

67 43.7 3.7 43.7 42.4 33.7 25.0 16.3 - 38.3 4.0 38.3 37.6 31.5 22.8 14.1 -

62 39.6 3.6 39.6 39.6 39.6 30.9 22.2 13.5 35.5 3.9 35.5 35.5 35.5 26.8 18.1 9.4

57 41.3 3.6 41.3 41.3 40.8 32.1 23.4 14.7 37.0 4.0 37.0 37.0 36.7 28.0 19.3 10.6

718419-YTG-B-1212

16 Johnson Controls Unitary Products

115°F 125°F

1050

77 36.6 4.1 21.7 16.7 11.7 - - - 33.6 4.3 21.1 16.1 11.2 - - -

72 32.6 4.0 28.7 23.7 18.7 13.7 - - 29.0 4.3 27.5 22.6 17.6 12.6 - -

67 28.7 3.9 28.7 28.7 25.7 20.7 15.7 - 24.4 4.2 24.4 26.0 24.0 19.0 14.0 -

62 27.4 3.9 27.4 27.4 27.4 22.4 17.5 12.5 24.3 4.1 24.3 24.3 24.3 19.3 14.3 9.3

57 28.5 4.0 28.5 28.5 28.5 23.5 18.6 13.6 25.2 4.2 25.2 25.2 25.2 20.2 15.2 10.2

1225

77 37.9 4.3 29.2 19.9 12.2 - - - 34.7 4.6 30.0 20.1 11.5 - - -

72 33.8 4.2 31.2 25.3 19.4 13.5 - - 29.9 4.5 30.0 24.1 18.2 12.3 - -

67 29.7 4.1 29.7 29.7 26.6 20.7 14.8 - 25.1 4.4 25.1 26.5 24.8 18.9 13.0 -

62 28.4 4.1 28.4 28.4 29.3 23.4 17.5 11.6 25.0 4.4 25.0 25.0 25.8 19.9 14.0 8.1

57 29.6 4.1 29.6 29.6 29.9 24.0 18.1 12.2 26.0 4.5 26.0 26.0 26.5 20.6 14.7 8.8

1400

77 39.3 4.5 36.6 23.0 12.6 - - - 35.8 4.9 38.9 24.1 11.9 - - -

72 35.0 4.4 33.7 26.9 20.1 13.3 - - 30.8 4.8 32.4 25.6 18.8 12.0 - -

67 30.8 4.3 30.8 30.8 27.5 20.7 13.9 - 25.9 4.7 25.9 27.0 25.6 18.8 12.0 -

62 29.4 4.3 29.4 29.4 31.2 24.4 17.6 10.8 25.8 4.7 25.8 25.8 27.3 20.5 13.7 6.9

57 30.6 4.3 30.6 30.6 31.3 24.5 17.7 10.9 26.7 4.8 26.7 26.7 27.9 21.1 14.3 7.5

1575

72 36.2 4.4 35.5 28.5 20.7 13.0 - - 31.7 4.8 33.8 27.1 19.4 11.6 - -

67 31.8 4.3 31.8 31.8 28.5 20.7 13.0 - 26.6 4.7 26.6 27.5 26.4 18.7 10.9 -

62 30.4 4.3 30.4 30.4 31.3 23.5 15.8 8.0 26.5 4.6 26.5 26.5 27.3 19.6 11.8 4.1

57 31.6 4.3 31.6 31.6 32.0 24.2 16.5 8.7 27.5 4.7 27.5 27.5 28.2 20.5 12.7 5.0

1750

72 37.4 4.4 37.4 30.1 21.4 12.7 - - 32.6 4.7 35.2 28.7 20.0 11.3 - -

67 32.8 4.3 32.8 32.8 29.4 20.7 12.0 - 27.4 4.6 27.4 28.1 27.3 18.6 9.9 -

62 31.4 4.2 31.4 31.4 31.4 22.7 14.0 5.3 27.3 4.6 27.3 27.3 27.3 18.6 9.9 1.2

57 32.7 4.3 32.7 32.7 32.7 24.0 15.3 6.6 28.3 4.7 28.3 28.3 28.6 19.9 11.2 2.5

1. These capacities are Net Capacities.

2. These ratings include the compressor, condenser fan and supply air blower motors.

BHZ042 (3.5 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

718419-YTG-B-1212

Johnson Controls Unitary Products 17

BHZ048 (4.0 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1200

77 59.8 3.1 28.6 23.7 18.9 - - - 56.5 3.5 27.6 22.7 17.7 - - -

72 56.3 3.0 36.6 31.8 26.9 22.1 - - 52.9 3.4 35.5 30.6 25.6 20.7 - -

67 52.7 2.9 44.6 39.8 34.9 30.1 25.3 - 49.3 3.3 43.4 38.5 33.5 28.6 23.6 -

62 47.9 2.9 47.9 46.9 41.3 36.5 31.6 26.8 45.4 3.3 45.4 44.9 39.9 35.0 30.0 25.0

57 50.4 2.9 50.4 47.8 43.0 38.1 33.3 28.4 46.1 3.3 46.1 44.3 39.3 34.4 29.4 24.5

1400

77 61.1 3.1 30.3 25.5 20.1 - - - 58.0 3.5 30.1 24.5 19.0 - - -

72 57.5 3.0 39.5 34.1 28.7 23.2 - - 54.3 3.4 38.5 33.0 27.4 21.9 - -

67 53.9 2.9 48.6 42.6 37.2 31.8 26.4 - 50.5 3.3 47.0 41.4 35.9 30.3 24.8 -

62 48.9 2.9 48.9 48.4 44.0 38.6 33.2 27.8 46.5 3.3 46.5 46.3 42.7 37.2 31.6 26.1

57 51.5 2.9 51.5 50.2 45.8 40.4 35.0 29.6 47.2 3.3 47.2 46.4 42.1 36.6 31.0 25.5

1600

77 62.5 3.1 32.0 27.3 21.3 - - - 59.4 3.5 32.5 26.4 20.2 - - -

72 58.8 3.0 42.3 36.4 30.4 24.4 - - 55.6 3.4 41.5 35.4 29.3 23.1 - -

67 55.1 3.0 52.6 45.4 39.5 33.5 27.5 - 51.8 3.4 50.6 44.4 38.3 32.1 26.0 -

62 50.0 2.9 50.0 50.0 46.6 40.7 34.7 28.7 47.7 3.3 47.7 47.7 45.6 39.4 33.3 27.1

57 52.6 3.0 52.6 52.6 48.6 42.6 36.6 30.7 48.4 3.4 48.4 48.4 44.9 38.8 32.6 26.5

1800

72 58.5 3.0 44.2 37.6 31.0 24.5 - - 55.7 3.4 43.5 36.7 29.9 23.1 - -

67 54.9 3.0 53.7 46.9 40.3 33.7 27.1 - 51.9 3.4 51.3 45.9 39.1 32.4 25.6 -

62 49.8 2.9 49.8 49.8 47.9 41.3 34.8 28.2 47.8 3.3 47.8 47.8 46.6 39.8 33.0 26.2

57 52.4 2.9 52.4 52.4 49.6 43.0 36.5 29.9 48.5 3.4 48.5 48.5 46.0 39.2 32.4 25.6

2000

72 58.3 3.0 46.1 38.9 31.7 24.5 - - 55.8 3.5 45.5 38.0 30.6 23.2 - -

67 54.7 2.9 54.7 48.3 41.2 34.0 26.8 - 52.0 3.4 52.0 47.5 40.0 32.6 25.2 -

62 49.6 2.9 49.6 49.6 49.2 42.0 34.8 27.6 47.8 3.3 47.8 47.8 47.7 40.2 32.8 25.4

57 52.2 2.9 52.2 52.2 50.7 43.5 36.3 29.1 48.6 3.4 48.6 48.6 47.0 39.5 32.1 24.7

95°F 105°F

1200

77 53.3 3.9 26.7 21.6 16.5 - - - 48.7 4.5 25.4 20.3 15.2 - - -

72 49.6 3.8 34.4 29.4 24.3 19.2 - - 45.6 4.4 33.0 27.9 22.8 17.7 - -

67 45.8 3.8 42.2 37.1 32.1 27.0 22.0 - 42.5 4.2 40.7 35.6 30.5 25.4 20.3 -

62 42.8 3.7 42.8 42.8 38.5 33.4 28.4 23.3 40.7 4.2 40.7 39.3 34.5 29.4 24.3 19.3

57 41.8 3.7 41.8 40.8 35.7 30.6 25.6 20.5 39.3 4.2 39.3 38.0 32.9 27.8 22.8 17.7

1400

77 54.9 3.9 29.8 23.5 17.8 - - - 49.8 4.5 30.0 22.2 16.4 - - -

72 51.0 3.9 37.6 31.9 26.2 20.5 - - 46.6 4.4 36.2 30.5 24.7 18.9 - -

67 47.2 3.8 45.3 40.3 34.6 28.9 23.2 - 43.4 4.3 42.5 38.7 33.0 27.2 21.4 -

62 44.1 3.7 44.1 44.1 41.5 35.8 30.1 24.4 41.6 4.2 41.6 40.9 37.4 31.6 25.8 20.0

57 43.0 3.7 43.0 42.5 38.5 32.8 27.1 21.4 40.2 4.2 40.2 39.5 35.6 29.9 24.1 18.3

1600

77 56.4 4.0 33.0 25.4 19.1 - - - 50.9 4.5 34.6 24.2 17.7 - - -

72 52.4 3.9 40.8 34.4 28.1 21.8 - - 47.6 4.4 39.5 33.0 26.6 20.1 - -

67 48.5 3.8 48.5 43.4 37.1 30.8 24.5 - 44.4 4.3 44.4 41.8 35.5 29.0 22.6 -

62 45.3 3.7 45.3 45.3 44.5 38.2 31.9 25.6 42.5 4.2 42.5 42.5 40.2 33.7 27.3 20.8

57 44.2 3.7 44.2 44.2 41.3 35.0 28.6 22.3 41.0 4.2 41.0 41.0 38.3 31.9 25.4 19.0

1800

72 52.9 3.9 42.8 35.8 28.8 21.8 - - 48.0 4.4 41.7 34.5 27.3 20.2 - -

67 48.9 3.8 48.9 45.0 38.0 31.0 24.0 - 44.7 4.3 44.7 42.8 36.5 29.3 22.2 -

62 45.7 3.7 45.7 45.7 45.3 38.3 31.3 24.3 42.9 4.2 42.9 42.9 41.2 34.0 26.8 19.7

57 44.6 3.8 44.6 44.6 42.3 35.3 28.3 21.3 41.4 4.3 41.4 41.4 39.4 32.3 25.1 17.9

2000

72 53.3 3.9 44.8 37.1 29.5 21.8 - - 48.4 4.4 43.8 36.0 28.1 20.2 - -

67 49.3 3.8 49.3 46.6 38.9 31.2 23.5 - 45.1 4.3 45.1 43.7 37.5 29.6 21.8 -

62 46.1 3.7 46.1 46.1 46.1 38.4 30.7 23.1 43.2 4.3 43.2 43.2 42.1 34.3 26.4 18.5

57 44.9 3.8 44.9 44.9 43.3 35.6 27.9 20.3 41.7 4.3 41.7 41.7 40.5 32.6 24.8 16.9

718419-YTG-B-1212

18 Johnson Controls Unitary Products

115°F 125°F

1200

77 44.1 5.0 24.1 18.9 13.8 - - - 39.5 5.5 24.5 17.6 12.5 - - -

72 41.6 4.9 31.6 26.5 21.3 16.2 - - 37.7 5.4 30.2 25.0 19.9 14.7 - -

67 39.2 4.7 39.1 34.0 28.9 23.8 18.6 - 35.8 5.2 35.8 32.4 27.3 22.1 17.0 -

62 38.6 4.7 38.6 35.7 30.6 25.4 20.3 15.2 36.5 5.2 36.5 32.1 26.6 21.4 16.3 11.1

57 36.8 4.7 36.8 35.3 30.2 25.0 19.9 14.8 34.3 5.2 34.3 32.5 27.4 22.3 17.1 12.0

1400

77 44.7 5.0 30.1 21.0 15.0 - - - 39.7 5.5 31.1 20.9 13.6 - - -

72 42.2 4.9 34.9 29.0 23.2 17.3 - - 37.8 5.4 33.6 27.6 21.7 15.8 - -

67 39.7 4.8 39.7 37.1 31.4 25.5 19.7 - 36.0 5.3 36.0 35.6 29.8 23.8 17.9 -

62 39.2 4.7 39.2 37.7 33.2 27.3 21.5 15.6 36.7 5.3 36.7 34.5 29.0 23.1 17.2 11.3

57 37.3 4.7 37.3 36.6 32.8 26.9 21.1 15.2 34.5 5.2 34.5 33.6 29.9 24.0 18.1 12.1

1600

77 45.3 5.0 36.1 23.0 16.2 - - - 39.8 5.5 37.7 24.3 14.8 - - -

72 42.8 4.9 38.2 31.6 25.0 18.5 - - 38.0 5.4 36.9 30.2 23.5 16.8 - -

67 40.3 4.8 40.3 40.3 33.9 27.3 20.7 - 36.2 5.3 36.2 36.2 32.3 25.6 18.8 -

62 39.7 4.8 39.7 39.7 35.8 29.3 22.7 16.1 36.9 5.3 36.9 36.9 31.5 24.8 18.1 11.4

57 37.9 4.8 37.9 37.9 35.4 28.8 22.2 15.6 34.7 5.3 34.7 34.7 32.5 25.7 19.0 12.3

1800

72 43.1 4.9 40.5 33.2 25.9 18.5 - - 38.3 5.4 38.3 31.9 24.4 16.9 - -

67 40.6 4.8 40.6 40.6 35.0 27.7 20.3 - 36.4 5.3 36.4 36.4 33.5 26.0 18.5 -

62 40.0 4.8 40.0 40.0 37.0 29.7 22.4 15.1 37.1 5.3 37.1 37.1 32.9 25.4 17.9 10.4

57 38.1 4.8 38.1 38.1 36.6 29.2 21.9 14.6 34.9 5.3 34.9 34.9 33.7 26.2 18.7 11.2

2000

72 43.5 4.9 42.8 34.8 26.7 18.6 - - 38.5 5.4 38.5 33.6 25.3 17.0 - -

67 40.9 4.8 40.9 40.9 36.1 28.0 20.0 - 36.7 5.3 36.7 36.7 34.7 26.5 18.2 -

62 40.3 4.8 40.3 40.3 38.2 30.1 22.1 14.0 37.4 5.3 37.4 37.4 34.3 26.0 17.8 9.5

57 38.4 4.8 38.4 38.4 37.7 29.7 21.6 13.5 35.2 5.3 35.2 35.2 34.9 26.7 18.4 10.2

1. These capacities are Net Capacities.

2. These ratings include the compressor, condenser fan and supply air blower motors.

BHZ048 (4.0 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

718419-YTG-B-1212

Johnson Controls Unitary Products 19

BHZ060 (5.0 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1500

77 74.6 3.8 37.2 30.1 23.0 - - - 68.9 4.6 34.2 27.1 19.9 - - -

72 65.7 3.9 42.0 34.9 27.8 20.6 - - 62.7 4.6 42.6 35.5 28.4 21.3 - -

67 56.8 4.0 46.8 39.7 32.6 25.4 18.3 - 56.4 4.5 51.1 44.0 36.8 29.7 22.6 -

62 55.7 3.6 55.7 55.7 45.4 38.2 31.1 24.0 53.4 4.2 53.4 53.4 46.6 39.5 32.3 25.2

57 55.0 3.6 55.0 55.0 46.1 39.0 31.9 24.8 53.0 4.2 53.0 53.0 46.9 39.7 32.6 25.5

1750

77 76.7 4.1 41.6 33.6 25.1 - - - 70.0 4.8 39.3 29.6 21.1 - - -

72 67.6 4.2 47.6 39.2 30.7 22.3 - - 63.6 4.8 46.9 38.5 30.1 21.7 - -

67 58.5 4.4 53.5 44.8 36.4 27.9 19.5 - 57.3 4.7 54.6 47.5 39.0 30.6 22.2 -

62 57.3 3.9 57.3 57.3 50.3 41.8 33.4 25.0 54.2 4.4 54.2 54.2 49.4 41.0 32.6 24.1

57 56.7 3.9 56.7 56.7 51.0 42.6 34.2 25.8 53.7 4.4 53.7 53.7 49.7 41.3 32.8 24.4

2000

77 78.8 4.4 46.0 37.0 27.3 - - - 71.0 5.0 44.3 32.1 22.3 - - -

72 69.5 4.6 53.2 43.4 33.7 24.0 - - 64.6 5.0 51.2 41.5 31.8 22.1 - -

67 60.3 4.7 60.3 49.9 40.2 30.4 20.7 - 58.1 4.9 58.1 51.0 41.3 31.5 21.8 -

62 58.9 4.2 58.9 58.9 55.1 45.4 35.7 26.0 55.0 4.6 55.0 55.0 52.2 42.5 32.8 23.1

57 58.3 4.2 58.3 58.3 56.0 46.2 36.5 26.8 54.5 4.6 54.5 54.5 52.5 42.8 33.1 23.3

2250

72 73.2 4.5 60.4 49.3 38.2 27.1 - - 66.9 5.0 57.1 46.1 35.0 23.9 - -

67 63.6 4.6 63.6 58.0 45.8 34.7 23.6 - 60.2 4.9 60.2 56.5 45.4 34.3 23.3 -

62 62.1 4.2 62.1 62.1 60.2 49.1 38.0 27.0 57.0 4.7 57.0 57.0 55.6 44.5 33.5 22.4

57 61.4 4.1 61.4 61.4 60.3 49.2 38.1 27.0 56.5 4.6 56.5 56.5 55.5 44.4 33.4 22.3

2500

72 77.0 4.5 67.6 55.1 42.7 30.3 - - 69.2 5.1 63.0 50.6 38.2 25.8 - -

67 66.9 4.6 66.9 66.2 51.4 39.0 26.5 - 62.3 5.0 62.3 62.0 49.6 37.1 24.7 -

62 65.2 4.1 65.2 65.2 65.2 52.8 40.4 28.0 59.0 4.7 59.0 59.0 59.0 46.6 34.2 21.7

57 64.5 4.1 64.5 64.5 64.5 52.1 39.7 27.3 58.5 4.7 58.5 58.5 58.5 46.1 33.7 21.2

95°F 105°F

1500

77 63.3 5.5 31.1 24.0 16.9 - - - 57.8 5.8 29.5 22.4 15.3 - - -

72 59.7 5.2 43.2 36.1 29.0 21.9 - - 53.8 5.6 40.0 32.9 25.8 18.7 - -

67 56.1 4.9 55.3 48.2 41.1 34.0 26.8 - 49.8 5.4 49.4 43.4 36.3 29.1 22.0 -

62 51.2 4.9 51.2 51.2 47.8 40.7 33.6 26.4 45.7 5.3 45.7 45.7 43.6 36.5 29.4 22.2

57 50.9 4.9 50.9 50.9 47.6 40.5 33.3 26.2 46.5 5.3 46.5 46.5 42.1 34.9 27.8 20.7

1750

77 63.2 5.6 36.9 25.6 17.1 - - - 58.1 6.0 36.9 24.6 15.9 - - -

72 59.6 5.3 46.3 37.9 29.4 21.0 - - 54.1 5.8 43.7 35.2 26.8 18.4 - -

67 56.0 5.0 55.7 50.1 41.7 33.3 24.9 - 50.1 5.5 49.9 45.9 37.7 29.3 20.9 -

62 51.1 4.9 51.1 51.1 48.6 40.1 31.7 23.3 45.9 5.4 45.9 45.9 45.4 37.0 28.6 20.1

57 50.8 4.9 50.8 50.8 48.3 39.9 31.5 23.1 46.7 5.4 46.7 46.7 43.8 35.3 26.9 18.5

2000

77 63.2 5.7 42.6 27.1 17.4 - - - 58.4 6.1 44.2 26.8 16.5 - - -

72 59.6 5.4 49.3 39.6 29.9 20.2 - - 54.4 5.9 47.3 37.6 27.9 18.1 - -

67 56.0 5.1 56.0 52.1 42.3 32.6 22.9 - 50.3 5.7 50.3 48.4 39.2 29.5 19.7 -

62 51.1 5.0 51.1 51.1 49.3 39.6 29.9 20.1 46.2 5.5 46.2 46.2 47.2 37.5 27.8 18.0

57 50.8 5.0 50.8 50.8 49.1 39.3 29.6 19.9 47.0 5.5 47.0 47.0 45.4 35.7 26.0 16.3

2250

72 60.6 5.5 53.9 42.9 31.8 20.7 - - 55.6 6.0 51.3 40.6 29.5 18.4 - -

67 56.9 5.3 56.9 54.9 45.0 34.0 22.9 - 51.5 5.8 51.5 50.5 41.5 30.4 19.4 -

62 51.9 5.2 51.9 51.9 51.0 40.0 28.9 17.8 47.3 5.7 47.3 47.3 47.8 36.7 25.6 14.5

57 51.6 5.2 51.6 51.6 50.7 39.7 28.6 17.5 48.1 5.7 48.1 48.1 47.3 36.2 25.2 14.1

2500

72 61.5 5.7 58.5 46.1 33.7 21.3 - - 56.9 6.1 55.4 43.6 31.2 18.7 - -

67 57.8 5.4 57.8 57.8 47.7 35.3 22.9 - 52.7 5.9 52.7 52.7 43.8 31.4 19.0 -

62 52.8 5.3 52.8 52.8 52.8 40.3 27.9 15.5 48.3 5.8 48.3 48.3 48.3 35.9 23.5 11.1

57 52.4 5.3 52.4 52.4 52.4 40.0 27.6 15.2 49.2 5.8 49.2 49.2 49.2 36.8 24.3 11.9

718419-YTG-B-1212

20 Johnson Controls Unitary Products

115°F 125°F

1500

77 52.2 6.2 27.9 20.8 13.7 - - - 46.7 6.6 26.3 19.2 12.1 - - -

72 47.9 6.1 36.8 29.7 22.6 15.5 - - 42.0 6.5 33.6 26.5 19.4 12.2 - -

67 43.5 5.9 43.5 38.6 31.5 24.3 17.2 - 37.2 6.4 37.2 33.8 26.7 19.5 12.4 -

62 40.2 5.8 40.2 40.2 39.4 32.3 25.1 18.0 34.7 6.2 34.7 34.7 34.7 28.1 20.9 13.8

57 42.0 5.8 42.0 42.0 36.6 29.4 22.3 15.2 37.6 6.2 37.6 37.6 31.0 23.9 16.8 9.7

1750

77 52.9 6.4 36.9 23.6 14.7 - - - 47.8 6.8 36.9 22.6 13.4 - - -

72 48.5 6.2 41.1 32.6 24.2 15.8 - - 43.0 6.7 38.4 30.0 21.6 13.2 - -

67 44.1 6.1 44.1 41.6 33.7 25.3 16.9 - 38.1 6.6 38.1 37.4 29.7 21.3 12.9 -

62 40.7 5.9 40.7 40.7 42.2 33.8 25.4 17.0 35.5 6.4 35.5 35.5 35.5 30.7 22.2 13.8

57 42.6 5.9 42.6 42.6 39.2 30.8 22.3 13.9 38.5 6.4 38.5 38.5 34.6 26.2 17.8 9.4

2000

77 53.6 6.5 45.9 26.4 15.7 - - - 48.9 7.0 47.5 26.1 14.8 - - -

72 49.2 6.4 45.3 35.6 25.8 16.1 - - 43.9 6.9 43.3 33.5 23.8 14.1 - -

67 44.7 6.2 44.7 44.7 36.0 26.3 16.6 - 39.0 6.8 39.0 39.0 32.8 23.1 13.4 -

62 41.3 6.1 41.3 41.3 45.1 35.4 25.6 15.9 36.3 6.6 36.3 36.3 36.3 33.3 23.5 13.8

57 43.2 6.1 43.2 43.2 41.8 32.1 22.4 12.7 39.4 6.6 39.4 39.4 38.2 28.5 18.8 9.1

2250

72 50.7 6.5 48.8 38.3 27.2 16.2 - - 45.8 7.0 45.8 36.0 25.0 13.9 - -

67 46.1 6.3 46.1 46.1 37.9 26.9 15.8 - 40.7 6.9 40.7 40.7 34.4 23.3 12.3 -

62 42.6 6.2 42.6 42.6 44.5 33.4 22.3 11.3 37.9 6.7 37.9 37.9 37.9 30.1 19.1 8.0

57 44.6 6.2 44.6 44.6 43.9 32.8 21.7 10.7 41.0 6.7 41.0 41.0 40.4 29.4 18.3 7.2

2500

72 52.3 6.6 52.3 41.0 28.6 16.2 - - 47.7 7.0 47.7 38.5 26.1 13.7 - -

67 47.5 6.4 47.5 47.5 39.9 27.5 15.1 - 42.4 6.9 42.4 42.4 36.0 23.6 11.1 -

62 43.9 6.3 43.9 43.9 43.9 31.5 19.0 6.6 39.4 6.7 39.4 39.4 39.4 27.0 14.6 2.2

57 45.9 6.3 45.9 45.9 45.9 33.5 21.1 8.7 42.7 6.7 42.7 42.7 42.7 30.2 17.8 5.4

1. These capacities are Net Capacities.

2. These ratings include the compressor, condenser fan and supply air blower motors.

BHZ060 (5.0 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Net

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

718419-YTG-B-1212

Johnson Controls Unitary Products 21

Heating Capacities

BHZ024-060

Size

(Tons)

Air Over Evaporator

Coil Capacity1 & kW2Outdoor Temperature (°F @ 72% RH)

CFM DB (°F)-10 0 10 20 30 40 50 60

024

(2.0)

600

55 MBH 4.86 6.37 8.30 10.78 13.98 18.11 23.43 30.30

KW 1.29 1.37 1.45 1.52 1.60 1.67 1.75 1.82

70 MBH 2.79 4.28 6.21 8.69 11.89 16.02 21.34 28.21

KW 1.51 1.58 1.66 1.74 1.81 1.89 1.96 2.04

80 MBH 1.62 3.11 5.03 7.52 10.72 14.84 20.17 27.04

KW 1.68 1.76 1.83 1.91 1.98 2.06 2.13 2.21

700

55 MBH 6.05 7.55 9.48 11.96 15.16 19.29 24.61 31.48

KW 1.29 1.37 1.44 1.52 1.59 1.67 1.74 1.82

70 MBH 3.97 5.46 7.39 9.87 13.07 17.20 22.52 29.39

KW 1.51 1.58 1.66 1.73 1.81 1.88 1.96 2.03

80 MBH 2.80 4.29 6.21 8.69 11.90 16.02 21.35 28.22

KW 1.68 1.75 1.83 1.90 1.98 2.05 2.13 2.21

800

55 MBH 7.24 8.73 10.65 13.14 16.34 20.47 25.79 32.66

KW 1.29 1.36 1.44 1.51 1.59 1.66 1.74 1.81

70 MBH 5.15 6.64 8.56 11.05 14.25 18.38 23.70 30.57

KW 1.50 1.58 1.65 1.73 1.80 1.88 1.95 2.03

80 MBH 3.98 5.47 7.39 9.87 13.07 17.20 22.53 29.39

KW 1.67 1.75 1.83 1.90 1.98 2.05 2.13 2.20

900

55 MBH 8.43 9.91 11.83 14.32 17.52 21.64 26.97 33.84

KW 1.28 1.36 1.43 1.51 1.58 1.66 1.73 1.81

70 MBH 6.33 7.82 9.74 12.23 15.43 19.55 24.88 31.75

KW 1.50 1.57 1.65 1.72 1.80 1.87 1.95 2.02

80 MBH 5.15 6.65 8.57 11.05 14.25 18.38 23.71 30.57

KW 1.67 1.75 1.82 1.90 1.97 2.05 2.12 2.20

1000

55 MBH 9.61 11.09 13.01 15.49 18.70 22.82 28.15 35.02

KW 1.28 1.35 1.43 1.50 1.58 1.65 1.73 1.81

70 MBH 7.51 9.00 10.92 13.40 16.61 20.73 26.06 32.93

KW 1.49 1.57 1.64 1.72 1.79 1.87 1.94 2.02

80 MBH 6.33 7.83 9.75 12.23 15.43 19.56 24.88 31.75

KW 1.67 1.74 1.82 1.89 1.97 2.04 2.12 2.19

030

(2.5)

750

55 MBH 12.14 13.95 16.07 18.55 21.46 24.87 28.85 33.52

KW 1.68 1.73 1.79 1.85 1.91 1.97 2.03 2.09

70 MBH 9.98 11.80 13.92 16.40 19.31 22.71 26.70 31.36

KW 1.95 2.01 2.07 2.13 2.19 2.25 2.31 2.36

80 MBH 9.05 10.86 12.99 15.47 18.38 21.78 25.77 30.43

KW 2.31 2.37 2.42 2.48 2.54 2.60 2.66 2.72

875

55 MBH 12.39 14.20 16.33 18.81 21.72 25.12 29.11 33.77

KW 1.67 1.73 1.79 1.85 1.91 1.97 2.02 2.08

70 MBH 10.24 12.05 14.17 16.66 19.57 22.97 26.96 31.62

KW 1.95 2.01 2.07 2.13 2.19 2.24 2.30 2.36

80 MBH 9.31 11.12 13.24 15.72 18.63 22.04 26.02 30.69

KW 2.30 2.36 2.42 2.48 2.54 2.60 2.66 2.72

1000

55 MBH 12.77 14.59 16.71 19.19 22.10 25.50 29.49 34.15

KW 1.67 1.73 1.78 1.84 1.90 1.96 2.02 2.08

70 MBH 10.62 12.44 14.56 17.04 19.95 23.35 27.34 32.00

KW 1.95 2.00 2.06 2.12 2.18 2.24 2.30 2.36

80 MBH 9.69 11.50 13.62 16.11 19.02 22.42 26.40 31.07

KW 2.30 2.36 2.42 2.48 2.53 2.59 2.65 2.71

1125

55 MBH 13.35 15.16 17.28 19.77 22.68 26.08 30.06 34.73

KW 1.66 1.72 1.78 1.84 1.90 1.95 2.01 2.07

70 MBH 11.20 13.01 15.13 17.62 20.52 23.93 27.91 32.58

KW 1.94 2.00 2.06 2.11 2.17 2.23 2.29 2.35

80 MBH 10.26 12.08 14.20 16.68 19.59 22.99 26.98 31.64

KW 2.29 2.35 2.41 2.47 2.53 2.59 2.64 2.70

1250

55 MBH 13.73 15.55 17.67 20.15 23.06 26.46 30.45 35.11

KW 1.66 1.71 1.77 1.83 1.89 1.95 2.01 2.07

70 MBH 11.58 13.39 15.52 18.00 20.91 24.31 28.30 32.96

KW 1.93 1.99 2.05 2.11 2.17 2.23 2.29 2.35

80 MBH 10.65 12.46 14.58 17.07 19.97 23.38 27.36 32.03

KW 2.29 2.35 2.41 2.46 2.52 2.58 2.64 2.70

718419-YTG-B-1212

22 Johnson Controls Unitary Products

036

(3.0)

900

55 MBH 11.61 13.92 16.68 19.98 23.94 28.67 34.32 41.09

KW 1.98 2.15 2.32 2.49 2.65 2.82 2.99 3.16

70 MBH 10.65 12.96 15.72 19.02 22.98 27.71 33.37 40.14

KW 2.34 2.51 2.68 2.85 3.02 3.19 3.36 3.53

80 MBH 9.30 11.61 14.37 17.67 21.63 26.36 32.02 38.79

KW 2.62 2.79 2.95 3.12 3.29 3.46 3.63 3.80

1050

55 MBH 11.98 14.29 17.05 20.36 24.31 29.04 34.70 41.47

KW 1.94 2.11 2.28 2.45 2.61 2.78 2.95 3.12

70 MBH 11.02 13.33 16.09 19.40 23.35 28.08 33.74 40.51

KW 2.30 2.47 2.64 2.81 2.98 3.15 3.32 3.49

80 MBH 9.67 11.98 14.74 18.05 22.00 26.73 32.39 39.16

KW 2.58 2.75 2.91 3.08 3.25 3.42 3.59 3.76

1200

55 MBH 12.72 15.03 17.80 21.10 25.05 29.78 35.44 42.21

KW 1.86 2.03 2.20 2.37 2.53 2.70 2.87 3.04

70 MBH 11.77 14.07 16.84 20.14 24.10 28.83 34.48 41.25

KW 2.22 2.39 2.56 2.73 2.90 3.07 3.24 3.41

80 MBH 10.42 12.72 15.49 18.79 22.75 27.48 33.13 39.90

KW 2.50 2.67 2.83 3.00 3.17 3.34 3.51 3.68

1350

55 MBH 13.10 15.41 18.17 21.47 25.43 30.16 35.81 42.58

KW 1.82 1.99 2.16 2.33 2.49 2.66 2.83 3.00

70 MBH 12.14 14.45 17.21 20.51 24.47 29.20 34.86 41.63

KW 2.18 2.35 2.52 2.69 2.86 3.03 3.20 3.37

80 MBH 10.79 13.10 15.86 19.16 23.12 27.85 33.51 40.28

KW 2.46 2.63 2.79 2.96 3.13 3.30 3.47 3.64

1500

55 MBH 13.28 15.59 18.35 21.66 25.61 30.34 36.00 42.77

KW 1.80 1.97 2.14 2.31 2.47 2.64 2.81 2.98

70 MBH 12.32 14.63 17.40 20.70 24.65 29.38 35.04 41.81

KW 2.16 2.33 2.50 2.67 2.84 3.01 3.18 3.35

80 MBH 10.97 13.28 16.05 19.35 23.30 28.03 33.69 40.46

KW 2.44 2.61 2.77 2.94 3.11 3.28 3.45 3.62

042

(3.5)

1050

55 MBH 14.34 17.01 20.13 23.79 28.08 33.09 38.97 45.85

KW 2.20 2.43 2.66 2.89 3.12 3.34 3.57 3.80

70 MBH 14.60 17.27 20.39 24.05 28.34 33.36 39.23 46.11

KW 2.72 2.95 3.18 3.41 3.63 3.86 4.09 4.32

80 MBH 13.11 15.77 18.90 22.56 26.84 31.86 37.74 44.62

KW 3.13 3.35 3.58 3.81 4.04 4.27 4.49 4.72

1225

55 MBH 14.84 17.51 20.63 24.29 28.58 33.59 39.47 46.35

KW 2.09 2.32 2.55 2.78 3.00 3.23 3.46 3.69

70 MBH 15.10 17.77 20.89 24.55 28.84 33.86 39.73 46.61

KW 2.61 2.84 3.07 3.29 3.52 3.75 3.98 4.21

80 MBH 13.61 16.27 19.40 23.06 27.34 32.36 38.24 45.12

KW 3.01 3.24 3.47 3.70 3.93 4.15 4.38 4.61

1400

55 MBH 15.34 18.01 21.13 24.79 29.08 34.09 39.97 46.85

KW 1.98 2.21 2.44 2.66 2.89 3.12 3.35 3.57

70 MBH 15.60 18.27 21.39 25.05 29.34 34.35 40.23 47.11

KW 2.50 2.73 2.95 3.18 3.41 3.64 3.86 4.09

80 MBH 14.11 16.77 19.90 23.56 27.84 32.86 38.74 45.62

KW 2.90 3.13 3.36 3.59 3.81 4.04 4.27 4.50

1575

55 MBH 15.54 18.21 21.33 24.99 29.28 34.29 40.17 47.05

KW 1.93 2.16 2.39 2.62 2.85 3.07 3.30 3.53

70 MBH 15.80 18.47 21.59 25.25 29.54 34.55 40.43 47.31

KW 2.45 2.68 2.91 3.14 3.36 3.59 3.82 4.05

80 MBH 14.31 16.97 20.10 23.76 28.04 33.06 38.94 45.82

KW 2.86 3.08 3.31 3.54 3.77 4.00 4.22 4.45

1750

55 MBH 15.62 18.29 21.41 25.07 29.35 34.37 40.25 47.13

KW 1.92 2.14 2.37 2.60 2.83 3.06 3.28 3.51

70 MBH 15.88 18.55 21.67 25.33 29.62 34.63 40.51 47.39

KW 2.43 2.66 2.89 3.12 3.35 3.57 3.80 4.03

80 MBH 14.39 17.05 20.18 23.84 28.12 33.14 39.02 45.90

KW 2.84 3.07 3.29 3.52 3.75 3.98 4.21 4.43

BHZ024-060 (Continued)

Size

(Tons)

Air Over Evaporator

Coil Capacity1 & kW2Outdoor Temperature (°F @ 72% RH)

CFM DB (°F)-10 0 10 20 30 40 50 60

718419-YTG-B-1212

Johnson Controls Unitary Products 23

048

(4.0)

1200

55 MBH 13.6 18.6 23.6 28.6 33.6 38.6 43.6 48.6

KW 2.28 2.45 2.63 2.81 2.99 3.16 3.34 3.52

70 MBH 12.0 17.0 22.0 27.0 32.0 37.0 42.0 47.0

KW 2.81 2.99 3.16 3.34 3.52 3.70 3.87 4.05

80 MBH 9.4 14.4 19.4 24.4 29.4 34.4 39.4 44.4

KW 3.19 3.37 3.55 3.72 3.90 4.08 4.26 4.44

1400

55 MBH 15.40 20.40 25.40 30.40 35.40 40.40 45.40 50.40

KW 2.16 2.34 2.52 2.70 2.87 3.05 3.23 3.41

70 MBH 13.85 18.85 23.85 28.85 33.85 38.86 43.86 48.86

KW 2.70 2.87 3.05 3.23 3.41 3.58 3.76 3.94

80 MBH 11.18 16.19 21.19 26.19 31.19 36.19 41.19 46.19

KW 3.08 3.26 3.44 3.61 3.79 3.97 4.15 4.32

1600

55 MBH 17.21 22.2 27.2 32.2 37.2 42.2 47.2 52.2

KW 2.05 2.23 2.40 2.58 2.76 2.94 3.11 3.29

70 MBH 15.7 20.7 25.7 30.7 35.7 40.7 45.7 50.7

KW 2.58 2.76 2.94 3.12 3.29 3.47 3.65 3.83

80 MBH 13.0 18.0 23.0 28.0 33.0 38.0 43.0 48.0

KW 2.97 3.15 3.33 3.50 3.68 3.86 4.04 4.21

1800

55 MBH 19.04 24.04 29.04 34.04 39.04 44.04 49.04 54.05

KW 1.94 2.11 2.29 2.47 2.65 2.82 3.00 3.18

70 MBH 17.49 22.49 27.49 32.49 37.50 42.50 47.50 52.50

KW 2.47 2.65 2.82 3.00 3.18 3.36 3.54 3.71

80 MBH 14.83 19.83 24.83 29.83 34.83 39.83 44.83 49.83

KW 2.85 3.03 3.21 3.39 3.57 3.74 3.92 4.10

2000

55 MBH 20.9 25.9 30.9 35.9 40.9 45.9 50.9 55.9

KW 1.82 2.00 2.18 2.36 2.53 2.71 2.89 3.07

70 MBH 19.3 24.3 29.3 34.3 39.3 44.3 49.3 54.3

KW 2.36 2.53 2.71 2.89 3.07 3.24 3.42 3.60

80 MBH 16.6 21.6 26.6 31.6 36.6 41.6 46.6 51.6

KW 2.74 2.92 3.09 3.27 3.45 3.63 3.81 3.98

060

(5.0)

1500

55 MBH 24.54 28.20 32.46 37.44 43.23 49.98 57.85 67.02

KW 3.12 3.34 3.56 3.79 4.01 4.23 4.45 4.67

70 MBH 22.90 26.57 30.83 35.80 41.60 48.35 56.21 65.38

KW 3.56 3.78 4.00 4.22 4.44 4.66 4.89 5.11

80 MBH 21.74 25.40 29.67 34.64 40.43 47.18 55.05 64.22

KW 4.07 4.30 4.52 4.74 4.96 5.18 5.40 5.62

1750

55 MBH 24.18 27.84 32.11 37.08 42.87 49.62 57.49 66.66

KW 3.20 3.42 3.64 3.86 4.08 4.31 4.53 4.75

70 MBH 22.55 26.21 30.47 35.45 41.24 47.99 55.86 65.02

KW 3.63 3.85 4.08 4.30 4.52 4.74 4.96 5.18

80 MBH 21.38 25.04 29.31 34.28 40.08 46.83 54.69 63.86

KW 4.15 4.37 4.59 4.82 5.04 5.26 5.48 5.70

2000

55 MBH 23.78 27.44 31.71 36.68 42.47 49.23 57.09 66.26

KW 3.28 3.50 3.73 3.95 4.17 4.39 4.61 4.83

70 MBH 22.15 25.81 30.08 35.05 40.84 47.59 55.46 64.63

KW 3.72 3.94 4.16 4.38 4.60 4.83 5.05 5.27

80 MBH 20.99 24.65 28.91 33.89 39.68 46.43 54.30 63.46

KW 4.24 4.46 4.68 4.90 5.12 5.34 5.56 5.79

2250

55 MBH 23.38 27.05 31.31 36.28 42.08 48.83 56.70 65.86

KW 3.37 3.59 3.81 4.03 4.25 4.48 4.70 4.92

70 MBH 21.75 25.41 29.68 34.65 40.44 47.20 55.06 64.23

KW 3.80 4.02 4.25 4.47 4.69 4.91 5.13 5.35

80 MBH 20.59 24.25 28.52 33.49 39.28 46.03 53.90 63.07

KW 4.32 4.54 4.76 4.99 5.21 5.43 5.65 5.87

2500

55 MBH 22.39 26.05 30.32 35.29 41.08 47.83 55.70 64.87

KW 3.58 3.80 4.02 4.24 4.47 4.69 4.91 5.13

70 MBH 20.76 24.42 28.69 33.66 39.45 46.20 54.07 63.24

KW 4.02 4.24 4.46 4.68 4.90 5.12 5.34 5.57

80 MBH 19.59 23.26 27.52 32.49 38.29 45.04 52.91 62.07

KW 4.53 4.76 4.98 5.20 5.42 5.64 5.86 6.08

1. These Capacities are net capacities - the indoor motor heat has been added.

2. These power inputs are total power inputs - the indoor motor watts have been added.

BHZ024-060 (Continued)

Size

(Tons)

Air Over Evaporator

Coil Capacity1 & kW2Outdoor Temperature (°F @ 72% RH)

CFM DB (°F)-10 0 10 20 30 40 50 60

718419-YTG-B-1212

24 Johnson Controls Unitary Products

Airflow Performance

Side Duct Application

BHZ024-060

Size

(Tons) Model Unit Speed

External Static Pressure (Inch Water Gauge)

0.2 0.4 0.6 0.8 1.0

SCFM W RPM SCFM W RPM SCFM W RPM SCFM W RPM SCFM W RPM

024

(2.0) BHZ

Low (1) 7218260061197705---------

Low/Medium (2) 76993628694112730610126832------

Medium (3) 882 131 704 812 147 797 736 162 889 651 177 979 - - -

Medium/High (4) 971 171 773 916 188 857 851 205 939 775 219 1019 681 230 1097

High (5) ------95724998288726110527882661120

030

(2.5) BHZ

Low (1) 828110673759125771---------

Low/Medium (2) 991 168 754 934 187 839 868 205 922 783 221 1003 - - -

Medium (3) 1091 214 807 1041 234 883 983 253 958 910 269 1033 785 273 1106

Medium/High (4) 1189 269 861 1144 288 927 1091 305 994 1027 318 1061 912 316 1132

High (5) - - - 1235 347 970 1186 360 1028 1125 368 1086 1007 352 1147

036

(3.0) BHZ

Low (1) 1025158769906175856---------

Low/Medium (2) 1214 237 764 1125 260 839 1034 283 913 942 307 987 - - -

Medium (3) 1370 305 779 1276 330 846 1179 354 913 1078 377 981 971 397 1048

Medium/High (4) - - - 1416 413 872 1314 436 932 1206 454 993 1083 460 1051

High (5) ------14415309701326 538 1022 1182 521 1070

042

(3.5) BHZ

Low (1) 124122170211512457781058268853------

Low/Medium (2) 1406 299 759 1325 324 826 1242 349 893 1158 373 959 1072 396 1025

Medium (3) 1536 376 808 1461 403 869 1384 427 928 1305 449 988 1223 468 1046

Medium/High (4) 1656 466 858 1584 492 912 1509 515 966 1430 533 1019 1344 542 1070

High (5) - - - 1687 590 955 1611 610 1004 1527 620 1051 1428 615 1097

048

(4.0) BHZ

Low (1) 13422497171250273789---------

Low/Medium (2) 1596 397 817 1513 422 875 1432 447 934 1354 474 995 1276 501 1058

Medium (3) 1705 476 858 1624 501 911 1545 526 966 1466 549 1021 1386 571 1077

Medium/High (4) 1806 561 895 1726 587 945 1646 610 995 1564 628 1046 1476 639 1096

High (5) 1898 652 929 1819 679 977 1736 698 1023 1646 709 1069 1547 706 1112

060

(5.0) BHZ

Low (1) 15803948591504420917---------

Low/Medium (2) 16144198741540446931---------

Medium (3) 1733 508 924 1663 536 976 1588 559 1026 1501 572 1072 - - -

Medium/High (4) 2003 737 1030 1922 746 1069 1829 746 1104 1712 728 1134 1528 659 1146

High (5) 2214 968 1104 2089 918 1121 1949 859 1136 1785 787 1148 1576 689 1154

718419-YTG-B-1212

Johnson Controls Unitary Products 25

Bottom Duct Application

BHZ024-060

Size

(Tons) Model Unit Speed

External Static Pressure (Inch Water Gauge)

0.2 0.4 0.6 0.8 1.0

SCFM W RPM SCFM W RPM SCFM W RPM SCFM W RPM SCFM W RPM

024

(2.0) BHZ

Low (1) 7218260061197705---------

Low/Medium (2) 76993628694112730610126832------

Medium (3) 882 131 704 812 147 797 736 162 889 651 177 979 - - -

Medium/High (4) 971 171 773 916 188 857 851 205 939 775 219 1019 681 230 1097

High (5) ------95724998288726110527882661120

030

(2.5) BHZ

Low (1) 828110673759125771---------

Low/Medium (2) 991 168 754 934 187 839 868 205 922 783 221 1003 - - -

Medium (3) 1091 214 807 1041 234 883 983 253 958 910 269 1033 785 273 1106

Medium/High (4) 1189 269 861 1144 288 927 1091 305 994 1027 318 1061 912 316 1132

High (5) - - - 1235 347 970 1186 360 1028 1125 368 1086 1007 352 1147

036

(3.0) BHZ

Low (1) 1025158769906175856---------

Low/Medium (2) 1214 237 764 1125 260 839 1034 283 913 942 307 987 - - -

Medium (3) 1370 305 779 1276 330 846 1179 354 913 1078 377 981 971 397 1048

Medium/High (4) - - - 1416 413 872 1314 436 932 1206 454 993 1083 460 1051

High (5) ------14415309701326 538 1022 1182 521 1070

042

(3.5) BHZ

Low (1) 124122170211512457781058268853------

Low/Medium (2) 1406 299 759 1325 324 826 1242 349 893 1158 373 959 1072 396 1025

Medium (3) 1536 376 808 1461 403 869 1384 427 928 1305 449 988 1223 468 1046

Medium/High (4) 1656 466 858 1584 492 912 1509 515 966 1430 533 1019 1344 542 1070

High (5) - - - 1687 590 955 1611 610 1004 1527 620 1051 1428 615 1097

048

(4.0) BHZ

Low (1) 13422497171250273789---------

Low/Medium (2) 1596 397 817 1513 422 875 1432 447 934 1354 474 995 1276 501 1058

Medium (3) 1705 476 858 1624 501 911 1545 526 966 1466 549 1021 1386 571 1077

Medium/High (4) 1806 561 895 1726 587 945 1646 610 995 1564 628 1046 1476 639 1096

High (5) 1898 652 929 1819 679 977 1736 698 1023 1646 709 1069 1547 706 1112

060

(5.0) BHZ

Low (1) 15803948591504420917---------

Low/Medium (2) 16144198741540446931---------

Medium (3) 1733 508 924 1663 536 976 1588 559 1026 1501 572 1072 - - -

Medium/High (4) 2003 737 1030 1922 746 1069 1829 746 1104 1712 728 1134 1528 659 1146

High (5) 2214 968 1104 2089 918 1121 1949 859 1136 1785 787 1148 1576 689 1154

718419-YTG-B-1212

26 Johnson Controls Unitary Products

Additional Static Resistance

Size

(Tons) Model CFM Wet Indoor Coil Economizer1

1. The pressure drop through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance of the return

air duct is less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.

Filter/Frame Kit Electric Heat

024

(2.0) BHZ

500 0.01 0.00 0.01 0.02

600 0.01 0.00 0.02 0.03

700 0.01 0.00 0.02 0.03

800 0.01 0.01 0.02 0.03

900 0.01 0.01 0.02 0.04

1000 0.02 0.01 0.02 0.04

1100 0.03 0.01 0.03 0.05

1200 0.04 0.02 0.03 0.06

030

(2.5) BHZ

700 0.01 0.00 0.02 0.03

800 0.01 0.01 0.02 0.03

900 0.01 0.01 0.02 0.04

1000 0.02 0.01 0.02 0.04

1100 0.03 0.01 0.03 0.05

1200 0.04 0.02 0.03 0.06

1300 0.07 0.03 0.17 -

036

(3.0) BHZ

700 0.01 0.00 0.02 0.03

800 0.01 0.01 0.02 0.03

900 0.01 0.01 0.02 0.04

1000 0.02 0.01 0.02 0.04

1100 0.03 0.01 0.03 0.05

1200 0.04 0.02 0.03 0.06

1300 0.04 0.03 0.03 0.07

1400 0.04 0.04 0.03 0.08

042

(3.5) BHZ

1100 0.03 0.01 0.03 0.05

1200 0.04 0.02 0.03 0.06

1300 0.04 0.03 0.03 0.07

1400 0.04 0.04 0.03 0.08

1500 0.05 0.05 0.04 0.09

1600 0.06 0.06 0.05 0.10

048

(4.0) BHZ

1100 0.03 0.01 0.03 0.05

1200 0.04 0.02 0.03 0.06

1300 0.04 0.03 0.03 0.07

1400 0.04 0.04 0.03 0.08

1500 0.04 0.05 0.04 0.09

1600 0.04 0.06 0.05 0.10

1700 0.05 0.07 0.05 0.11

1800 0.05 0.07 0.06 0.11

1900 0.06 0.08 0.06 0.11

2000 0.07 0.08 0.07 0.12

060

(5.0) BHZ

1100 0.03 0.01 0.03 0.05

1200 0.04 0.02 0.03 0.06

1300 0.04 0.03 0.03 0.07

1400 0.04 0.04 0.03 0.08

1500 0.04 0.05 0.04 0.09

1600 0.04 0.06 0.05 0.10

1700 0.05 0.07 0.05 0.11

1800 0.05 0.07 0.06 0.11

1900 0.06 0.08 0.06 0.11

2000 0.07 0.08 0.07 0.12

718419-YTG-B-1212

Johnson Controls Unitary Products 27

Sound Performance

Electric Heat Minimum Supply Air

Size

(Tons) Model Voltage Minimum Supply Air (CFM)

Heater kW

3.8/5.0 5.6/7.5 7.5/10.0 11.3/15.0 15.0/20.0 18.8/25.0

024

(2.0) BHZ 208/230-1-60 800 800 800 - - -

030

(2.5) BHZ

208/230-1-60 1000 1000 1000 1000 - -

208/230-3-60 1000 1000 1000 1000 - -

460-3-60 1000 1000 1000 1000 - -

036

(3.0) BHZ

208/230-1-60 1200 1200 1200 1200 - -

208/230-3-60 1200 1200 1200 1200 - -

460-3-60 1200 1200 1200 1200 - -

042

(3.5) BHZ

208/230-1-60 - - 1225 1225 - -

208/230-3-60 - - 1225 1225 - -

460-3-60 - - 1225 1225 - -

048

(4.0) BHZ

208/230-1-60 - - 1600 1600 1600 1600

208/230-3-60 - - 1600 1600 1600 1600

460-3-60 - - 1600 1600 1600 1600

060

(5.0) BHZ

208/230-1-60 - - 1750 1750 1750 1750

208/230-3-60 - - 1750 1750 1750 1750

460-3-60 - - 1750 1750 1750 1750

Indoor Blower Specifications

Size

(Tons) Model Motor

HP RPM Eff. SF Frame

024

(2.0) BHZ 1/2 Variable 0.8 1.0 48

030

(2.5) BHZ 1/2 Variable 0.8 1.0 48

036

(3.0) BHZ 3/4 Variable 0.8 1.0 48

042

(3.5) BHZ 3/4 Variable 0.8 1.0 48

048

(4.0) BHZ 3/4 Variable 0.8 1.0 48

060

(5.0) BHZ 1 Variable 0.8 1.0 48

Electric Heat Multipliers

Voltage kW Capacity Multipliers1

1. Electric heaters are rated at nominal voltage. Use this table to determine the electric heat

capacity for heaters applied at lower voltages.

Nominal Applied

240 208 0.75

230 0.92

480 460 0.92

600 575 0.92

Outdoor Sound Power Levels

Size

(Tons) Model Sound Rating1

dB (A)

1. Rated in accordance with AHRI 270 standard.

Octave Band Centerline Frequency (Hz)

125 250 500 1000 2000 4000 8000

024

(2.0) BHZ 77 6474716965.55846

030

(2.5) BHZ 77 65 66.5 72 71.5 68.5 65.5 64.5

036

(3.0) BHZ 78 67.5 67 73 73 69 64.5 61.5

042

(3.5) BHZ 77 64.5 67 71.5 72.5 69.5 64.5 59

048

(4.0) BHZ 78 656772726967.563

060

(5.0) BHZ 85 70 72.5 79 79.5 76 73.5 73

718419-YTG-B-1212

28 Johnson Controls Unitary Products

Electrical Data

BHZ024-060 Heat Pump With/Without Electric Heat

Size

(Tons) Volt Compressors

(each)

OD Fan

Motors

(each)

Supply

Blower

Motor Electric Heat Option MCA1

(Amps)

Max Fuse2/

Breaker3

Size

(Amps)

RLA LRA MCC FLA FLA Model kW Stages Amps

024

(2.0) 208/230-1-60 12.8 60 20 1.2 4.1

None - - - 21.3 30

2NH04500506 3.8/5 1 18.1/20.8 43.9/47.3 50/50

2NH04500706 5.6/7.5 2 27.1/31.3 55.2/60.4 60/70

2NH04501006 7.5/10 2 36.1/41.7 66.4/73.4 70/80

2NE04500706 5.6 / 7.5 2 27.1 / 31.3 33.9 / 39.1 35 / 40

2NE04501006 7.5 / 10 2 36.1 / 41.7 45.1 / 52.1 50 / 60

030

(2.5)

208/230-1-60 14.7 73 23 1.2 4.1

None - - - 23.7 30

2NH04500506 3.8/5 1 18.1/20.8 46.2/49.7 50/50

2NH04500706 5.6/7.5 2 27.1/31.3 57.5/62.7 60/70

2NH04501006 7.5/10 2 36.1/41.7 68.8/75.8 70/80

2NH04501506 11.3/15 2 54.2/62.5 91.4/101.8 100/110

2NE04500706 5.6 / 7.5 2 27.1 / 31.3 33.9 / 39.1 35 / 40

2NE04501006 7.5 / 10 2 36.1 / 41.7 45.1 / 52.1 50 / 60

2NE04501506 11.3 / 15 2 54.2 / 62.5 67.7 / 78.1 70 / 80

208/230-3-60 10.4 60 16 1.2 4.1 None - - - 18.3 25

2NH04501025 7.5/10 1 20.8/24.1 44.4/48.4 45/50

2NH04501525 11.3/15 1 31.3/36.1 57.4/63.4 60/70

460-3-60 4.5 31 7 0.8 4.1 None - - - 8.5 15

2NH04501046 10 1 12 23.5 25

2NH04501546 15 1 18 31 35

036

(3.0)

208/230-1-60 15.4 83 24 1.2 6.0

None - - - 26.5 35

2NH04500506 3.8/5 1 18.1/20.8 49/52.5 50/60

2NH04500706 5.6/7.5 2 27.1/31.3 60.3/65.5 70/70

2NH04501006 7.5/10 2 36.1/41.7 71.6/78.5 80/80

2NH04501506 11.3/15 2 54.2/62.5 94.2/104.6 100/110

2NE04500706 5.6 / 7.5 2 27.1 / 31.3 33.9 / 39.1 35 / 40

2NE04501006 7.5 / 10 2 36.1 / 41.7 45.1 / 52.1 50 / 60

2NE04501506 11.3 / 15 2 54.2 / 62.5 67.7 / 78.1 70 / 80

208/230-3-60 11.5 77 18 1.2 6.0 None - - - 21.6 30

2NH04501025 7.5/10 1 20.8/24.1 47.6/51.6 50/60

2NH04501525 11.3/15 1 31.3/36.1 60.7/66.7 70/70

460-3-60 5.1 35 8 0.8 6.0 None - - - 10.1 15

2NH04501046 10 1 12 25.2 30

2NH04501546 15 1 18 32.7 35

042

(3.5)

208/230-1-60 18.6 105 29 1.2 6.0

None - - - 30.5 40

2NP04501006 7.5/10 2 36.1/41.7 75.6/82.5 80/90

2NP04501506 11.3/15 2 54.2/62.5 98.2/108.6 100/110

2NE04501006 7.5 / 10 2 36.1 / 41.7 45.1 / 52.1 50 / 60

2NE04501506 11.3 / 15 2 54.2 / 62.5 67.7 / 78.1 70 / 80

208/230-3-60 13.4 88 21 1.2 6.0 None - - - 24 30

2NP04501025 7.5/10 1 20.8/24.1 50/54 60/60

2NP04501525 11.3/15 1 31.3/36.1 63/69.1 70/70

460-3-60 6.4 39 10 0.8 6.0 None - - - 11.8 15

2NP04501046 10 1 12 26.8 30

2NP04501546 15 1 18 34.3 35

048

(4.0)

208/230-1-60 21.8 117 34 1.2 6.0

None --- --- --- 34.5 45

2NP04501006 7.5 / 10 2 36.1 / 41.7 79.6 / 86.5 90 / 90

2NP04501506 11.3 / 15 2 54.2 / 62.5 102.2 / 112.6 110 / 125

2NP04502006 15 / 20 2 72.2 / 83.3 124.7 / 138.6 125 / 150

2NP04502506 18.8 / 25 2 90.3 / 104.2 147.3 / 164.7 150 / 175

2NE04501006 7.5 / 10 2 36.1 / 41.7 45.1 / 51.2 50 / 60

2NE04501506 11.3 / 15 2 54.2 / 62.5 67.7 / 78.1 70 / 80

2NE04502006 15 / 20 2 72.2 / 83.3 90.3 / 104.2 100 / 110

2NE04502506 18.8 / 25 2 90.3 / 104.2 112.8 / 130.2 125 / 150

208/230-3-60 13.7 83 21 1.2 6.0

None --- --- --- 24.3 30

2NP04501025 7.5 / 10 1 20.8 / 24.1 50.4 / 54.4 60 / 60

2NP04501525 11.3 / 15 1 31.3 / 36.1 63.4 / 69.4 70 / 70

2NP04502025 15 / 20 2 41.7 / 48.1 76.4 / 84.5 80 / 90

2NP04502525 18.8 / 25 2 52.1 / 60.1 89.5 / 99.5 90 / 100

460-3-60 6.2 41 10 0.8 6.0

None --- --- --- 11.5 15

2NP04501046 10 1 12 26.6 30

2NP04501546 15 1 18 34.1 35

2NH04502046 20 2 24.1 41.6 45

2NH04502546 25 2 30.1 49.1 50

718419-YTG-B-1212

Johnson Controls Unitary Products 29

060

(5.0)

208/230-1-60 26.2 150 41 2.3 7.6

None - - - 42.7 60

2NP04501006 7.5/10 2 36.1/41.7 87.8/94.7 100/110

2NP04501506 11.3/15 2 54.2/62.5 110.4/120.8 125/125

2NH04502006 15/20 2 72.2/83.3 132.9/146.8 150/150

2NP04502506 18.8/25 2 90.3/104.2 155.5/172.9 175/175

2NE04501006 7.5 / 10 2 36.1 / 41.7 45.1 / 52.1 50 / 60

2NE04501506 11.3 / 15 2 54.2 / 62.5 67.7 / 78.1 70 / 80

2NE04502006 15 / 20 2 72.2 / 83.3 90.3 / 104.2 100 / 110

2NE04502506 18.8 / 25 1 90.3 / 104.2 112.8 / 130.2 125 / 150

208/230-3-60 17.9 120 28 2.3 7.6

None - - - 32.3 40

2NH04501025 7.5/10 1 20.8/24.1 58.3/62.3 70/70

2NH04501525 11.3/15 1 31.3/36.1 71.4/77.4 80/80

2NH04502025 15/20 2 41.7/48.1 84.4/92.4 90/100

2NH04502525 18.8/25 2 52.1/60.1 97.4/107.5 100/110

460-3-60 9.6 70 15 1.3 7.6

None - - - 17.1 25

2NP04501046 10 1 12 32.1 35

2NH04501546 15 1 18 39.7 40

2NH04502046 20 2 24.1 47.2 50

2NP04502546 25 2 30.1 54.7 60

1. Minimum Circuit Ampacity.

2. Maximum Over Current Protection per standard UL 1995.

3. Fuse or HACR circuit breaker size installed at factory or field installed.

BHZ024-060 Heat Pump With/Without Electric Heat (Continued)

Size

(Tons) Volt Compressors

(each)

OD Fan

Motors

(each)

Supply

Blower

Motor Electric Heat Option MCA1

(Amps)

Max Fuse2/

Breaker3

Size

(Amps)

RLA LRA MCC FLA FLA Model kW Stages Amps

718419-YTG-B-1212

30 Johnson Controls Unitary Products

Typical BHZ024-060 Wiring Diagrams

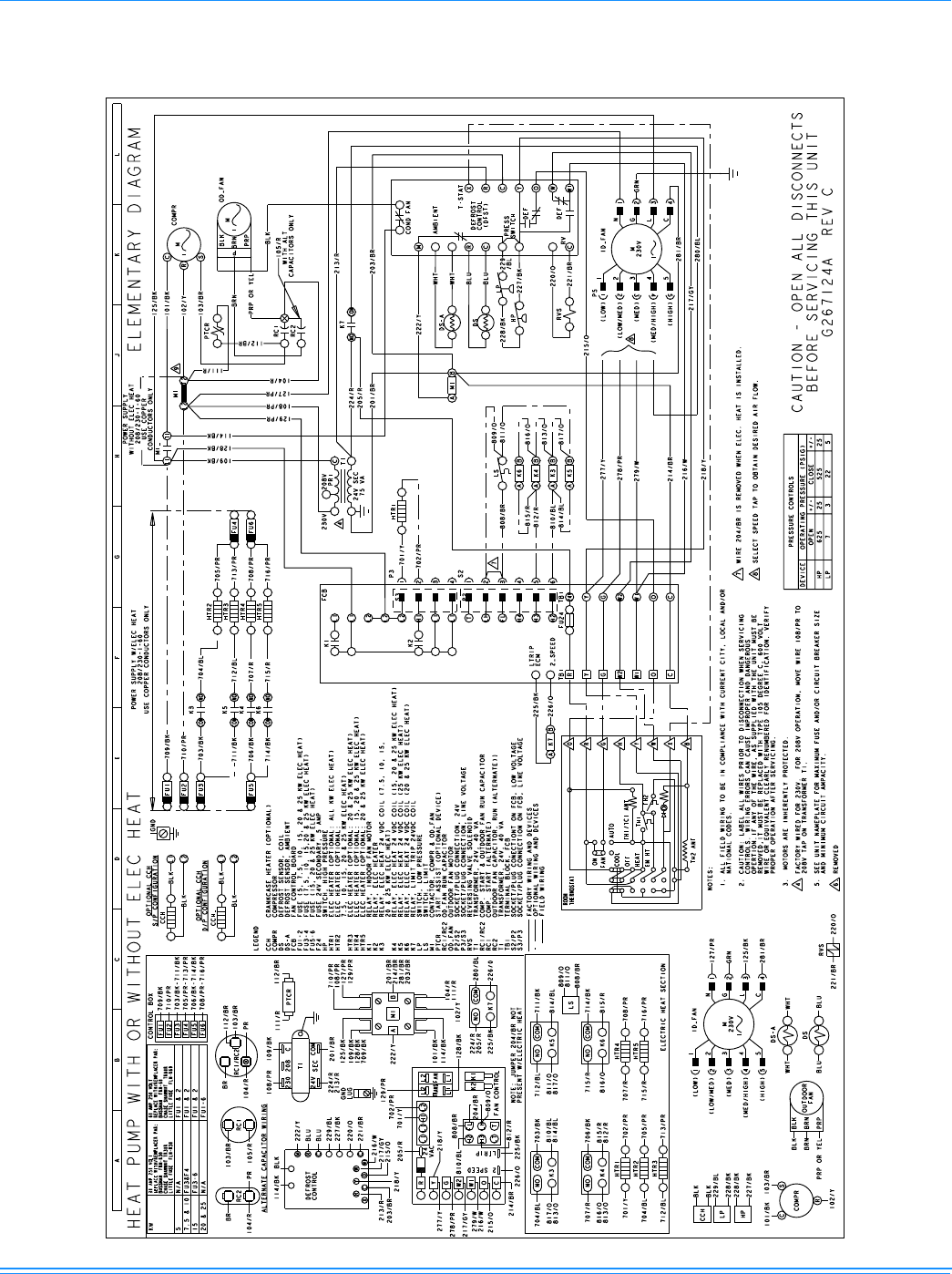

Typical BHZ024-060 Heat Pump 208/230-1-60 volt Wiring Diagram

718419-YTG-B-1212

Johnson Controls Unitary Products 31

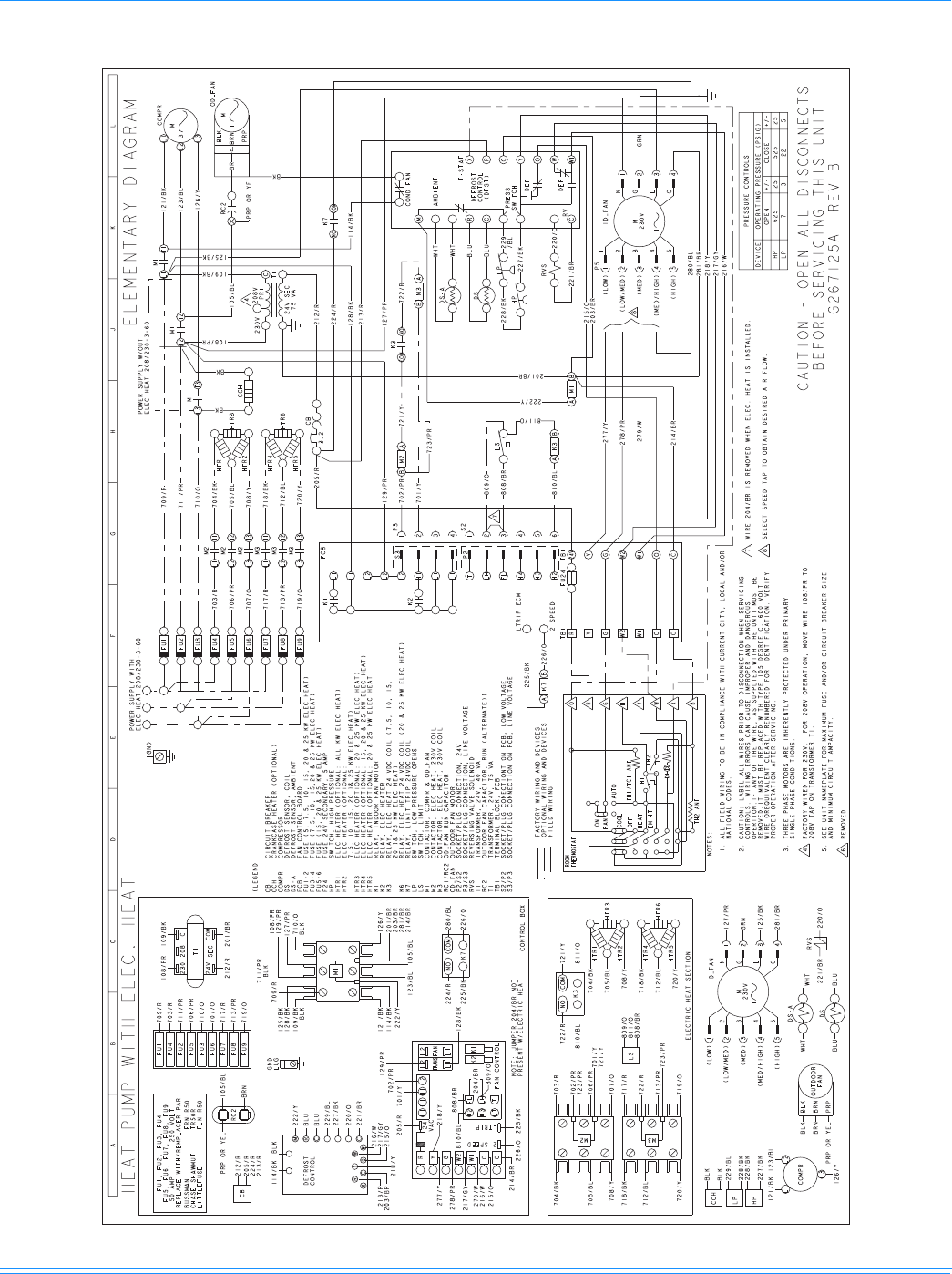

Typical BHZ030-060 Heat Pump 230-3-60 volt Wiring Diagram

718419-YTG-B-1212

32 Johnson Controls Unitary Products

Typical BHZ030-060 Heat Pump 460-3-60 volt Wiring Diagram

718419-YTG-B-1212

Johnson Controls Unitary Products 33

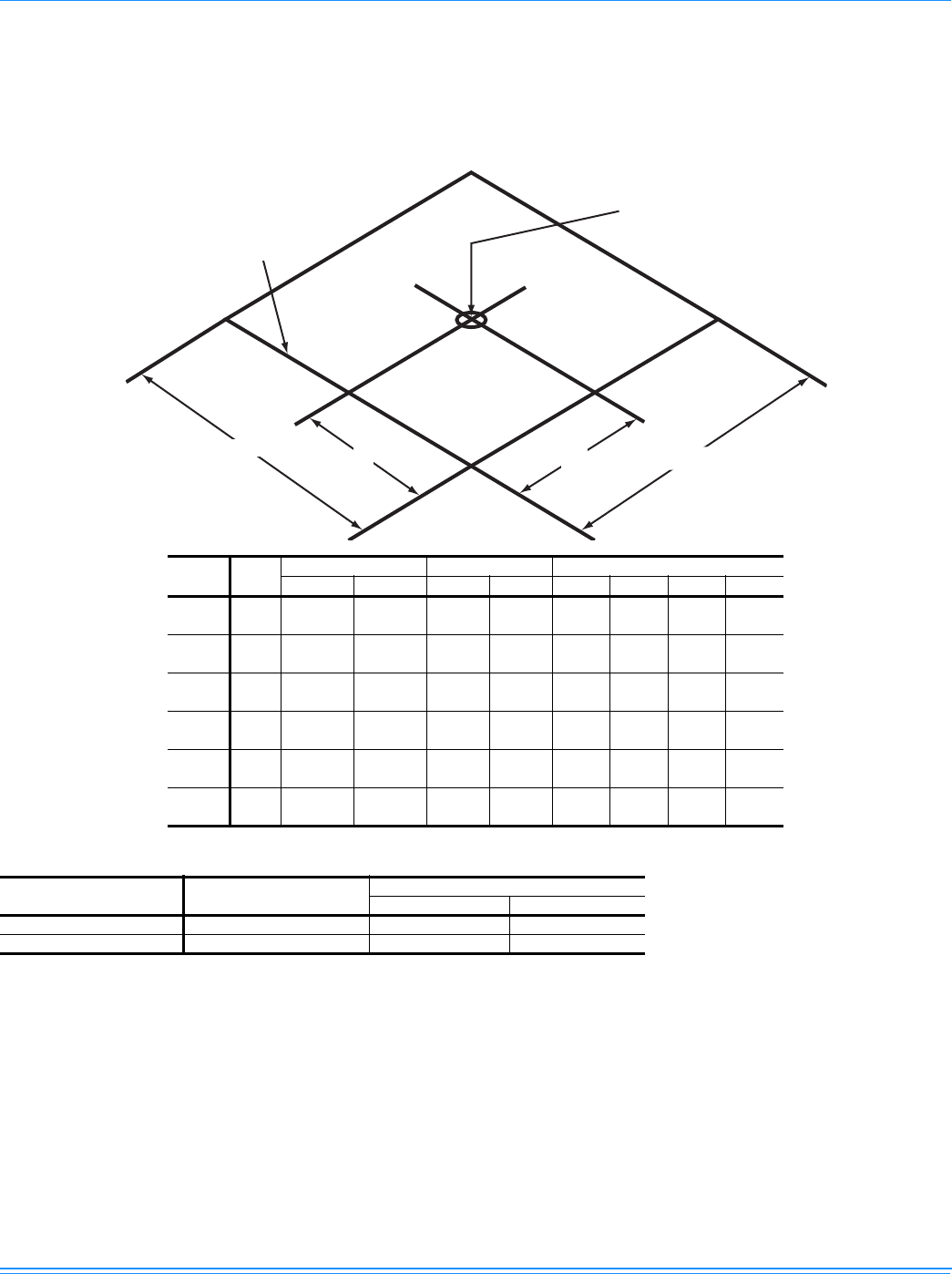

Weights and Dimensions

BHZ Unit Weights

Unit 4 Point Load Weight

Size

(Tons) Model Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)

Shipping Operating X Y A B C D

024

(2.0) BHZ 360 355 22.25 25 96 84 81 93

030

(2.5) BHZ 355 350 22.25 25 96 84 81 93

036

(3.0) BHZ 395 390 22.25 25 106 92 89 102

042

(3.5) BHZ 445 440 22.25 25 120 104 101 115

048

(4.0) BHZ 490 485 22.25 25 132 115 111 127

060

(5.0) BHZ 500 495 22.25 25 135 117 113 130

X

CENTER OF

GRAVITY

49-1/8

FRONT

OF

UNIT

Y47-1/4

"D"

"C"

"B"

"A"

Unit Accessory Weights

Unit Accessory Model Weight (lbs.)

Shipping Operating

Add Economizer All 45 40

Add Electric Heat1All 13 12

1. Weight given is for the maximum heater size available (25 kW).

718419-YTG-B-1212

34 Johnson Controls Unitary Products

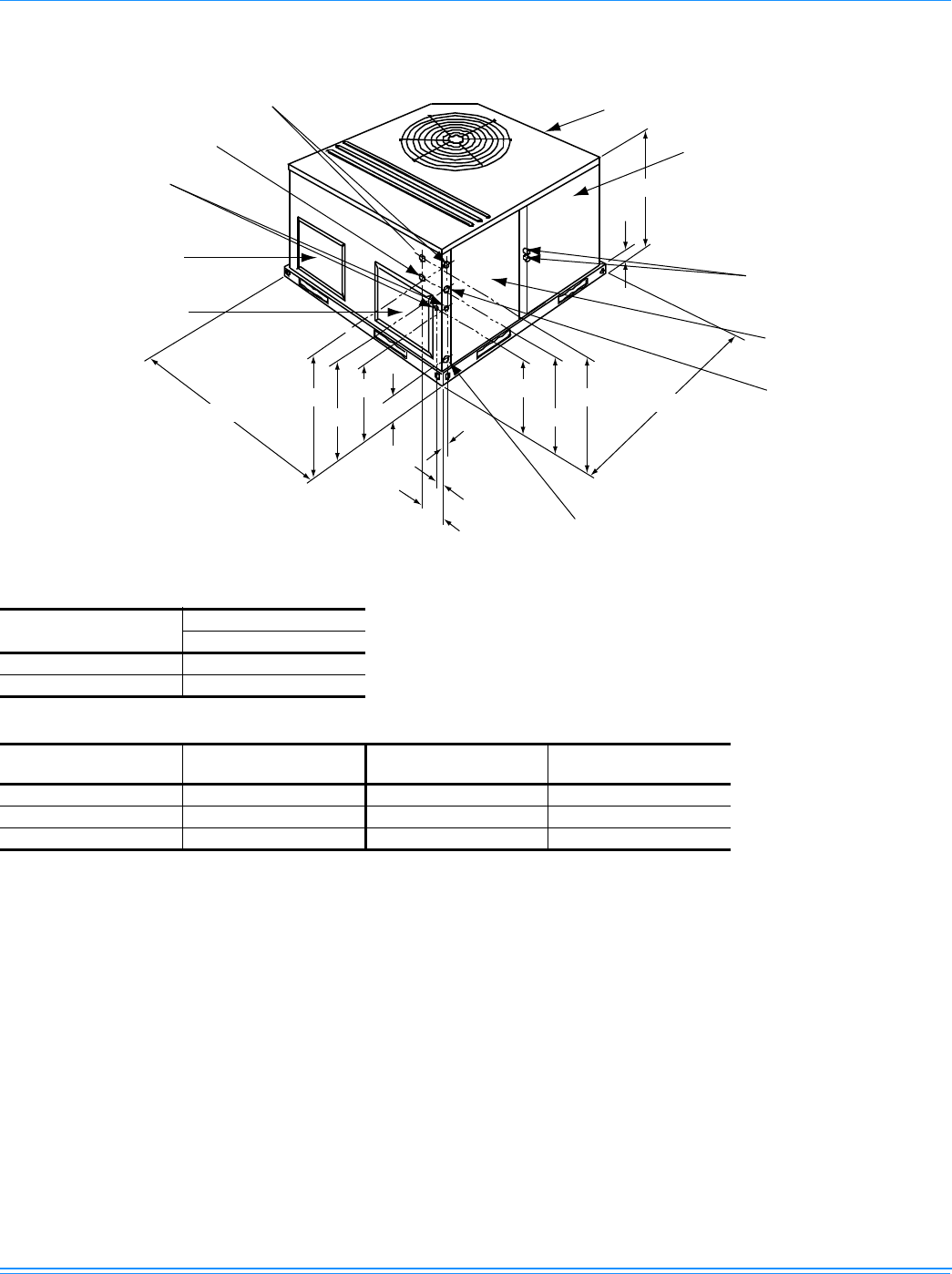

Heat Pump Unit Dimensions

Note: For units applied with a roof curb, the minimum clearance may be reduced from 1 inch to 1/2 inch

between combustible roof curb material and this supply air duct.

Heat Pump Unit Dimensions

Unit Size Dimensions

“A”

024, 030, 036 33-1/2

042, 048, 060 41-1/2

Heat Pump Unit Clearances

Direction Distance

(in.) Direction Distance

(in.)

Top1

1. Units must be installed outdoors. Over hanging structure or shrubs should not obscure condenser air

discharge outlet.

36 Right 24

Front 12 Left 24

Rear 0 Bottom2 3

2. Units may be installed on combustable floors made from wood or class A, B or C roof covering

materials.

3. Minimum Clearance of 1inch all sides of supply air duct for the first 3 foot of duct for 20 & 25 kW., zero

inches there after. For all other heaters, zero inch clearance all sides for entire length of duct.

0

FRONT

(OVERALL)

(OVERALL) (OVERALL)

COMPRESSOR SERVICE

ACCESS COMPARTMENT

PANEL

REFRIGERANT

CONNECTIONS

ELECTRICAL/FILTER

SERVICE ACCESS

COMPARTMENT PANEL

HIGH VOLTAGE CONN.

1-23/64" DIA. KNOCKOUT

UNIT CONDENSATE

CONNECTION 3/4" NPTF

(TRAP REQUIRED)

SIDE RETURN

AIR OPENING

SIDE SUPPLY

AIR OPENING

LOW VOLTAGE CONN.

7/8" DIA. KNOCKOUT

HIGH VOLTAGE CONN.

1-31/32" DIA. KNOCKOUT

HIGH VOLTAGE CONN.

7/8" DIA. KNOCKOUT

“A”

3-3/4

1-1/2

2-1/2

2-3/8

4-1/2

49-1/8

28-1/4 28-1/4 47-1/4

17-1/4 17-1/4

22-1/4 22-1/4

718419-YTG-B-1212

Johnson Controls Unitary Products 35

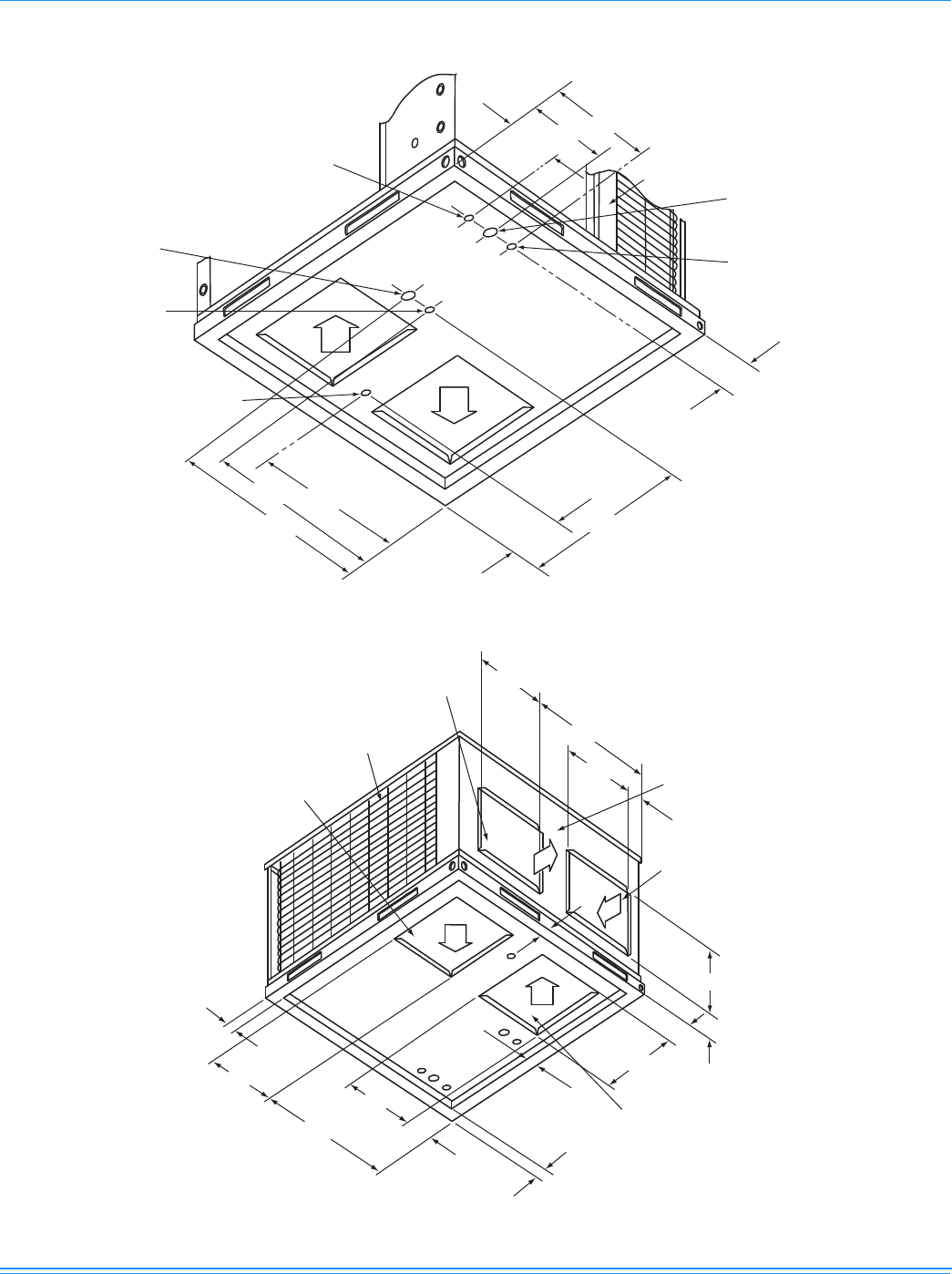

Unit Dimensions Front and Bottom

Unit Dimensions Back and Bottom

* See Features for details.

6

19-1/4

11-7/8

8-7/8

FRONT GAS SUPPLY 1-5/8"

DIA. KNOCKOUT (1/2"

NPTF CONNECTION)

LOW VOLTAGE

CONN. 7/8" DIA.

KNOCKOUT

4-5/8

26-3/4

CONDENSATE

DRAIN 3/4" NPTF

HIGH VOLTAGE

CONN. 1-3/32"

DIA. KNOCKOUT

LOW VOLTAGE

CONN. 7/8" DIA.

KNOCKOUT

HIGH VOLTAGE

CONN. 1-31/32" x 7/8"

KNOCKOUT

22-1/2

43-1/2

40-1/2

4

14-1/2

28-3/8

14-1/2

BACK

3-3/8

SIDE RETURN

AIR OPENING

14-1/2

4-1/4

3-1/2

15

1-3/4

1-3/4

BOTTOM RETURN

AIR OPENING

15

28-9/16

15

1-3/4

BOTTOM SUPPLY

AIR OPENING

*CONDENSER

COIL

SIDE SUPPLY

AIR OPENING

718419-YTG-B-1212

36 Johnson Controls Unitary Products

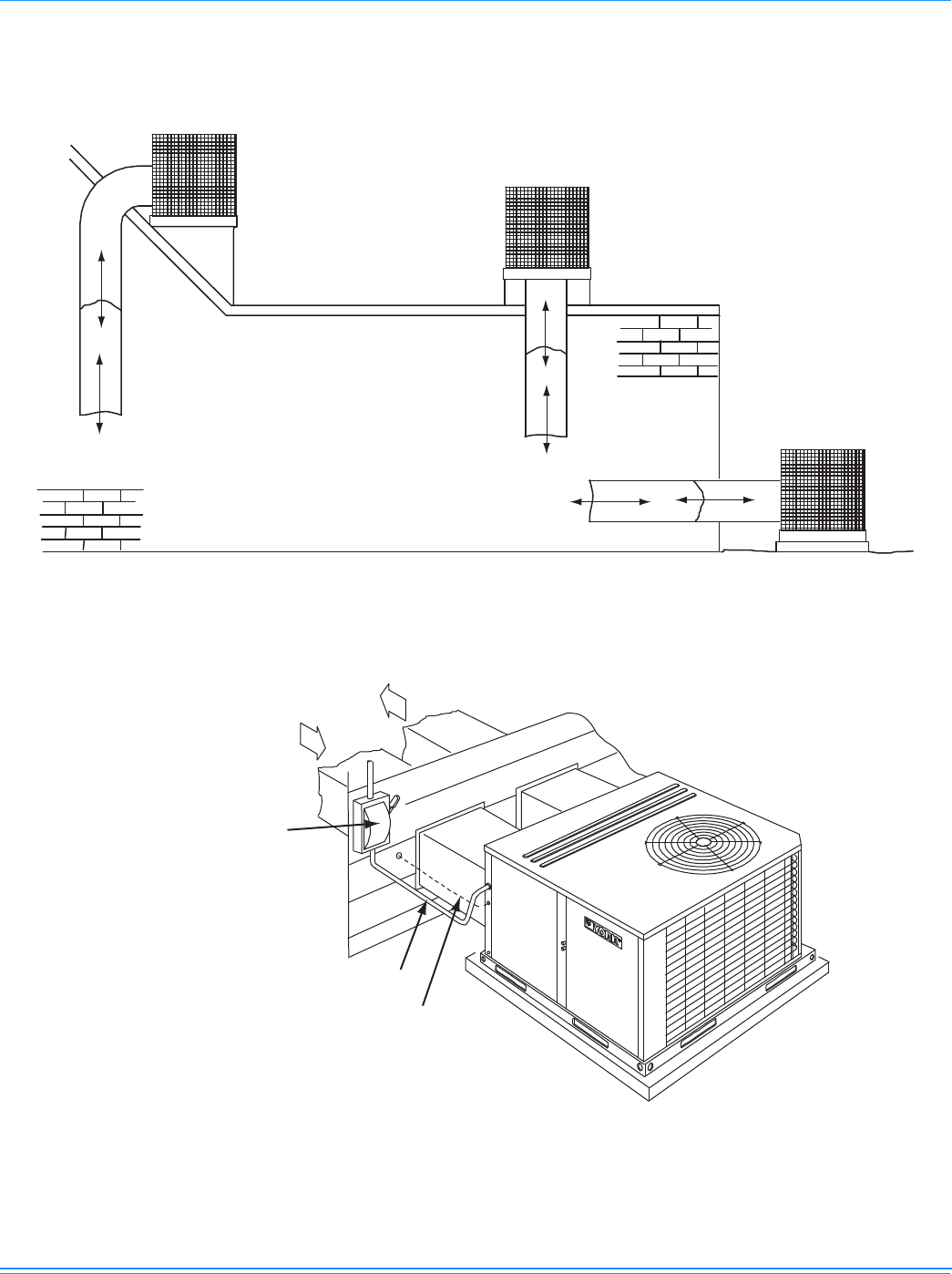

Unit Typical Duct Applications

Unit Typical Slab on Ground Installation

ROOF CURB

INSTALLATION

REAR DUCT ROOF CURB

INSTALLATION

BOTTOM DUCT

SLAB ON GROUND

INSTALLATION

TO POWER SUPPLY

SUPPLY AIR

DUCT

RETURN AIR

DUCT

FIELD SUPPLIED

DISCONNECT SWITCH

LOCATED TO REAR OF UNIT

CONTROL WIRING

TO INDOOR

THERMOSTAT

718419-YTG-B-1212

Johnson Controls Unitary Products 37

Unit Typical Roof Curb Installation

Unit Accessory Dimensions

Roof Curb1

1. 8” Roof Curb also available.

SUPPLY AIR

DUCT

RETURN AIR

DUCT

CONTROL WIRING

TO INDOOR THERMOSTAT

TO POWER SUPPLY

FIELD SUPPLIED

DISCONNECT SWITCH

MOUNTED ON UNIT

1

RECOMMENDED

DUCT SIZE

17-1/8" x 21-1/2"

RECOMMENDED

DUCT SIZE

17-1/2" x 16-3/4"

OPENING FOR

RETURN AIR DUCT

OPENING FOR

SUPPLY AIR DUCT

42-2/3

40-3/4 17-5/8 17-1/4 43-1/4

22

45-1/8

3-1/2

14

Subject to change without notice. Printed in U.S.A. 718419-YTG-B-1212

Copyright © 2013 by Johnson Controls, Inc. All rights reserved. Supersedes: 718419-YTG-A-0811

Johnson Controls Unitary Products

5005 York Drive

Norman, OK 73069

Roof Curb Cross Section

1"

UNIT BASE RAIL

COUNTERFLASHING

CANT STRIP

INSULATION AND ROOFING MATERIAL

ROOF DECK AND ROOFING MATERIAL

INSULATION

CURB FRAME

14"

8" MIN. ABOVE FINISHED ROOF

WOOD NAILER

UNIT BASE

3/4" x 1" WIDE GASKETING FOR CURB FRAME

AND ALL DUCT SUPPORT SURFACES
