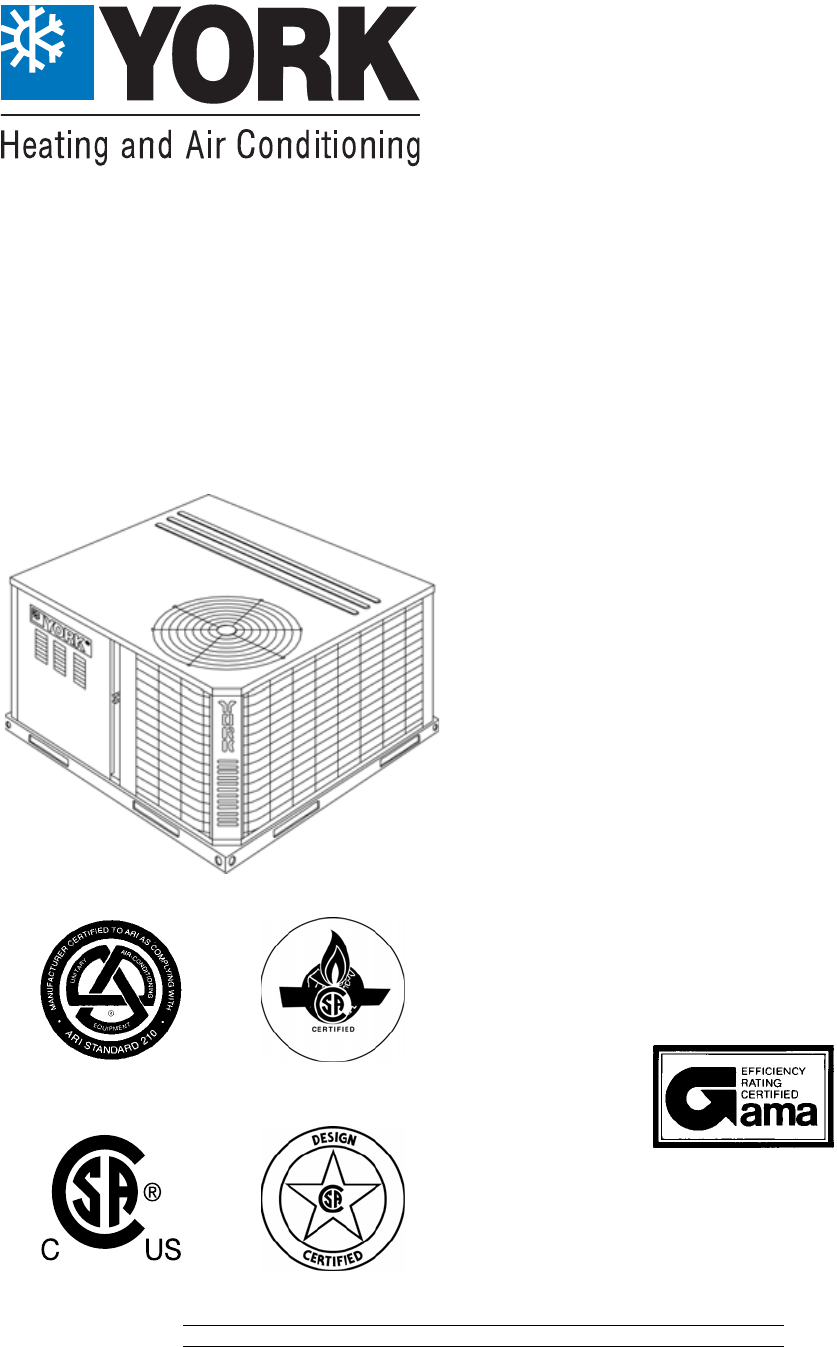

TECHNICAL GUIDE
AFFINITY™ SERIES
SINGLE PACKAGE GAS/ELECTRIC
AIR COOLED AIR CONDITIONERS
2 THRU 5 NOMINAL TON
DNP024, 030, 036, 042, 048 AND 060
13 SEER
®
DESCRIPTION
York® Affinity™ Series packaged cooling/heating air condi-
tioners are designed for outdoor installation. Only utility and
duct connections are required at the point of installation.
The gas-fired heaters have aluminized steel tubular heat
exchangers and hot surface to pilot ignition. They are avail-
able in natural gas with field conversion to propane.
FEATURING
• FACTORY MOUNTED TXV
• COOLING/GAS HEATING UNITS (NATURAL GAS OR
PROPANE)
• LOW PROFILE
• QUIET OPERATION
• COMMON FOOTPRINT
• OPTIONAL SLIDE IN MOTORIZED DAMPERS
• OPTIONAL SLIDE IN ECONOMIZERS
• OPTIONAL PROPANE CONVERSION KIT
• OPTIONAL HIGH ALTITUDE CONVERSION KIT
(NATURAL GAS/PROPANE)
• OPTIONAL LOW NOx KIT
• FULL PERIMETER BASE RAILS
• BOTTOM AND SIDE UTILITY CONNECTIONS
• 1” OR 2” CLEANABLE FILTERS STANDARD ON ALL
3 PHASE MODELS. OPTIONAL ON 1 PHASE MODELS
• WARRANTY - 1 PHASE
• 10 year compressor
• 20 year heat exchanger
• 5 year other parts
• WARRANTY - 3 PHASE
• 5 year compressor
• 10 year heat exchanger
• 1 year other parts
036-21366-007-A-1205
2Unitary Products Group
TABLE OF CONTENTS
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
STANDARD FEATURES/BENEFITS . . . . . . . . . . . . 3
FIELD-INSTALLED ACCESSORIES . . . . . . . . . . . . 4
TYPICAL WIRING DIAGRAM NOTES . . . . . . . . . . 32
MECHANICAL SPECIFICATIONS . . . . . . . . . . . . . 33
LIST OF FIGURES
Fig# Pg#
1 PRODUCT NOMENCLATURE . . . . . . . . . . . . . . . . . . 2

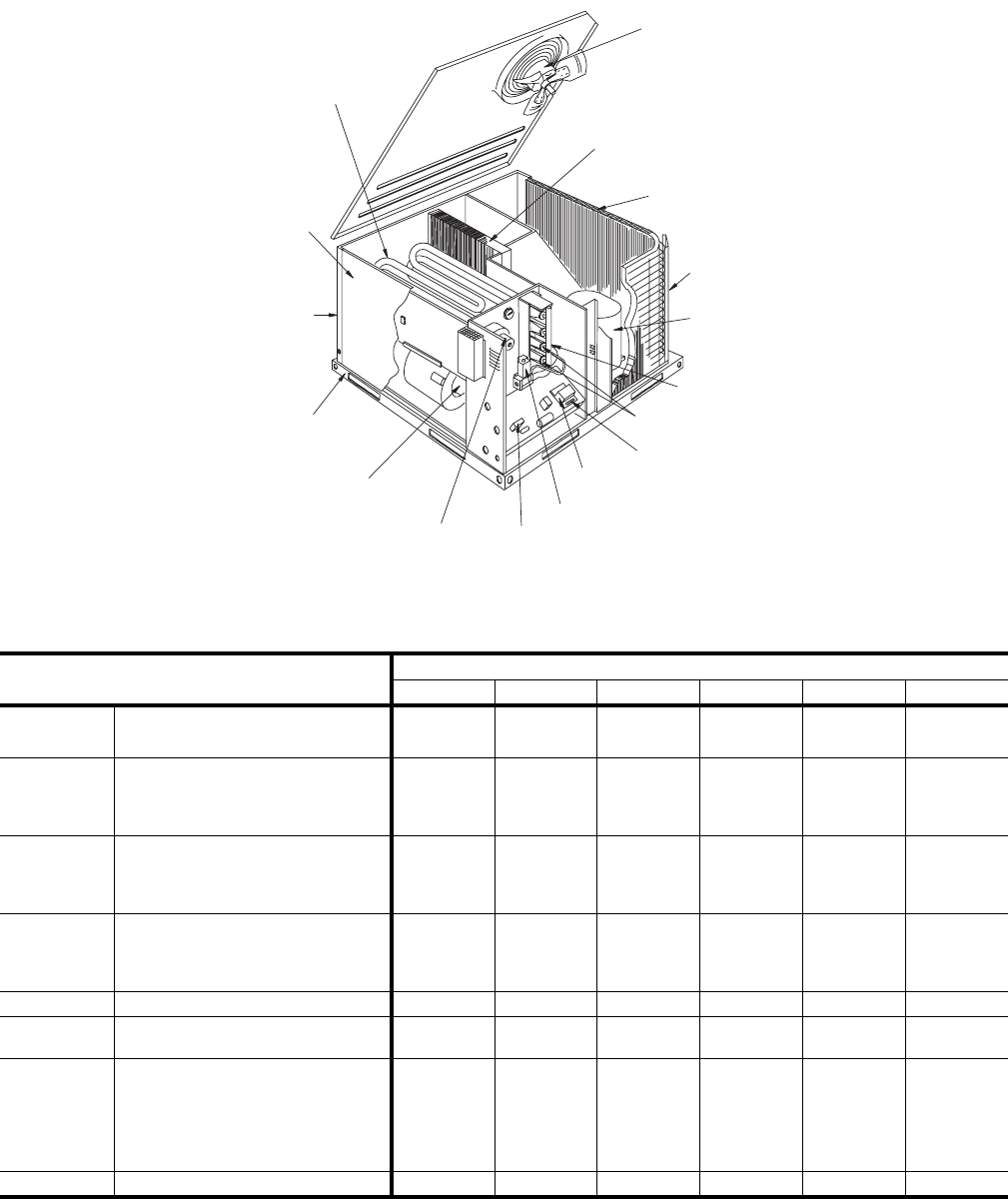

2 UNIT COMPONENT LOCATION . . . . . . . . . . . . . . . . . 6
3 FIELD WIRING DIAGRAM CONTROL WIRING . . . . 18
4 POWER WIRING FIELD DIAGRAM . . . . . . . . . . . . . 19

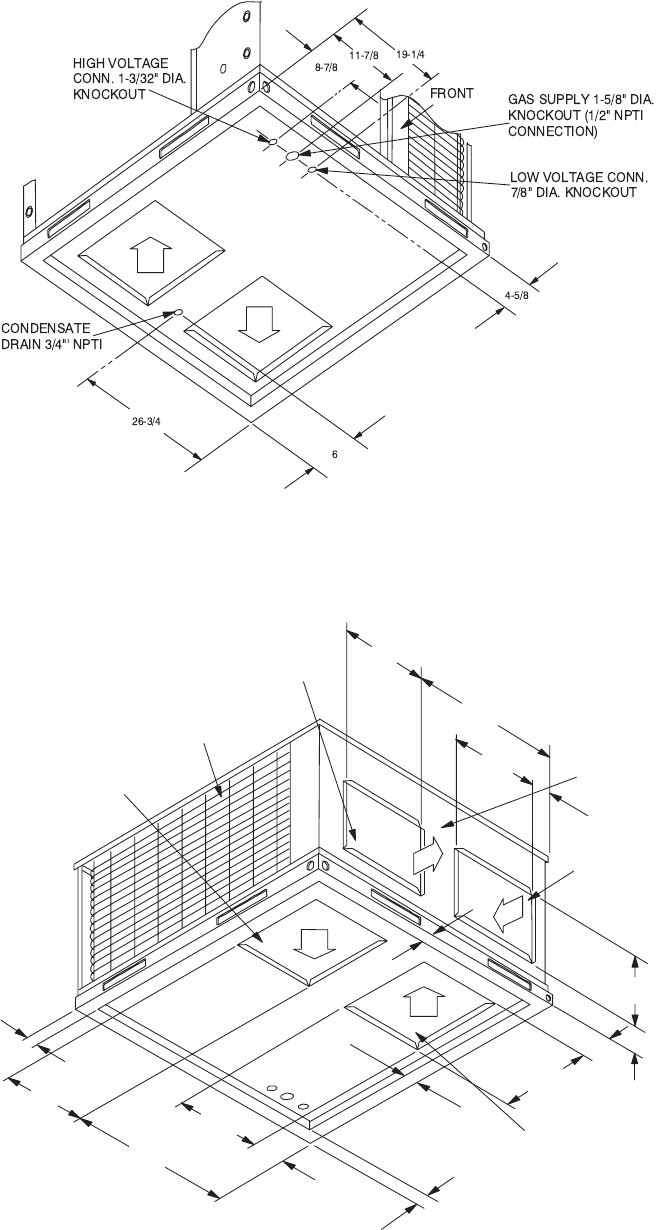

5 UNIT DIMENSIONS - FRONT . . . . . . . . . . . . . . . . . . 20
6 UNIT DIMENSIONS - FRONT & BOTTOM . . . . . . . . 21
7 UNIT DIMENSIONS - BACK & BOTTOM . . . . . . . . . 21
8 TYPICAL SLAB ON GROUND INSTALLATION . . . . 22
9 TYPICAL ROOF CURB INSTALLATION . . . . . . . . . . 22
10 TYPICAL DUCT APPLICATIONS . . . . . . . . . . . . . . . 23
11 UNIT CENTER OF GRAVITY . . . . . . . . . . . . . . . . . . 23

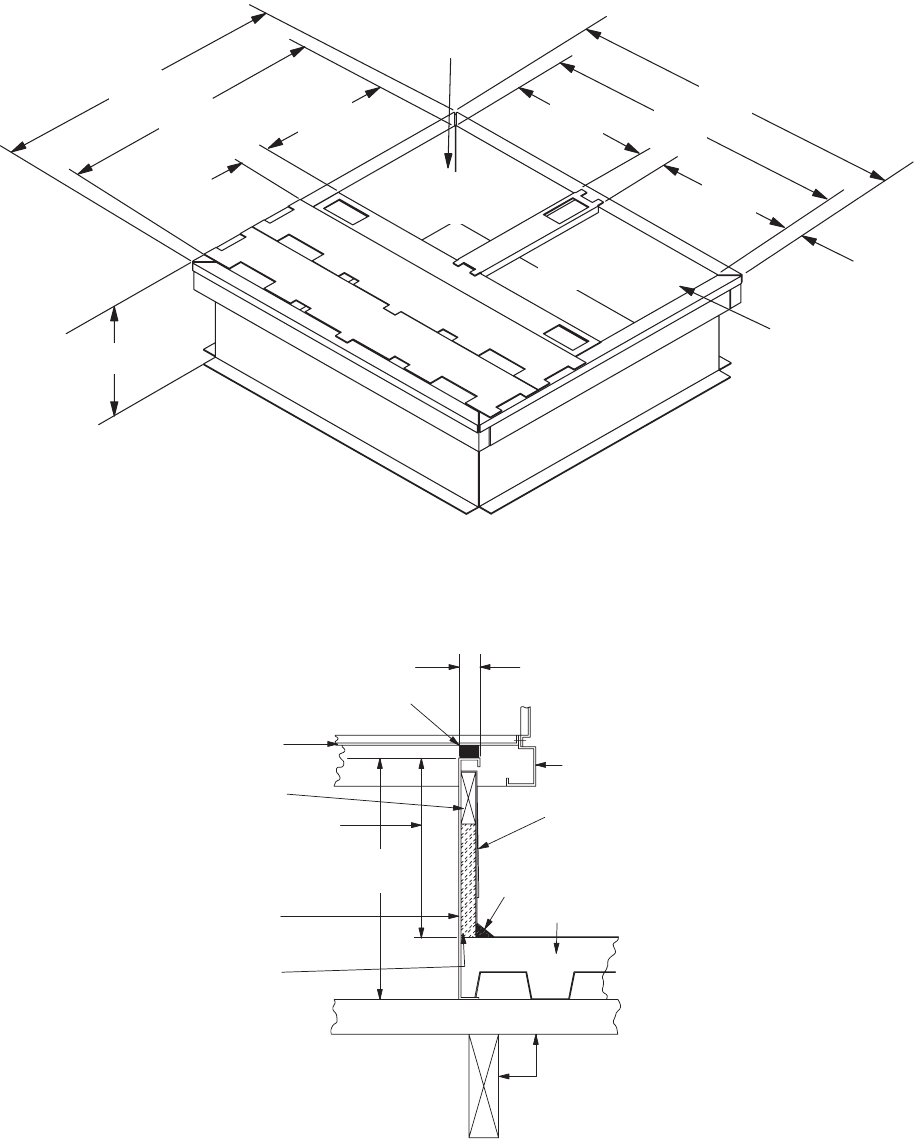

12 ROOF CURB DIMENSIONS . . . . . . . . . . . . . . . . . . . 24
13 ROOF CURB CROSS SECTION . . . . . . . . . . . . . . . . 24

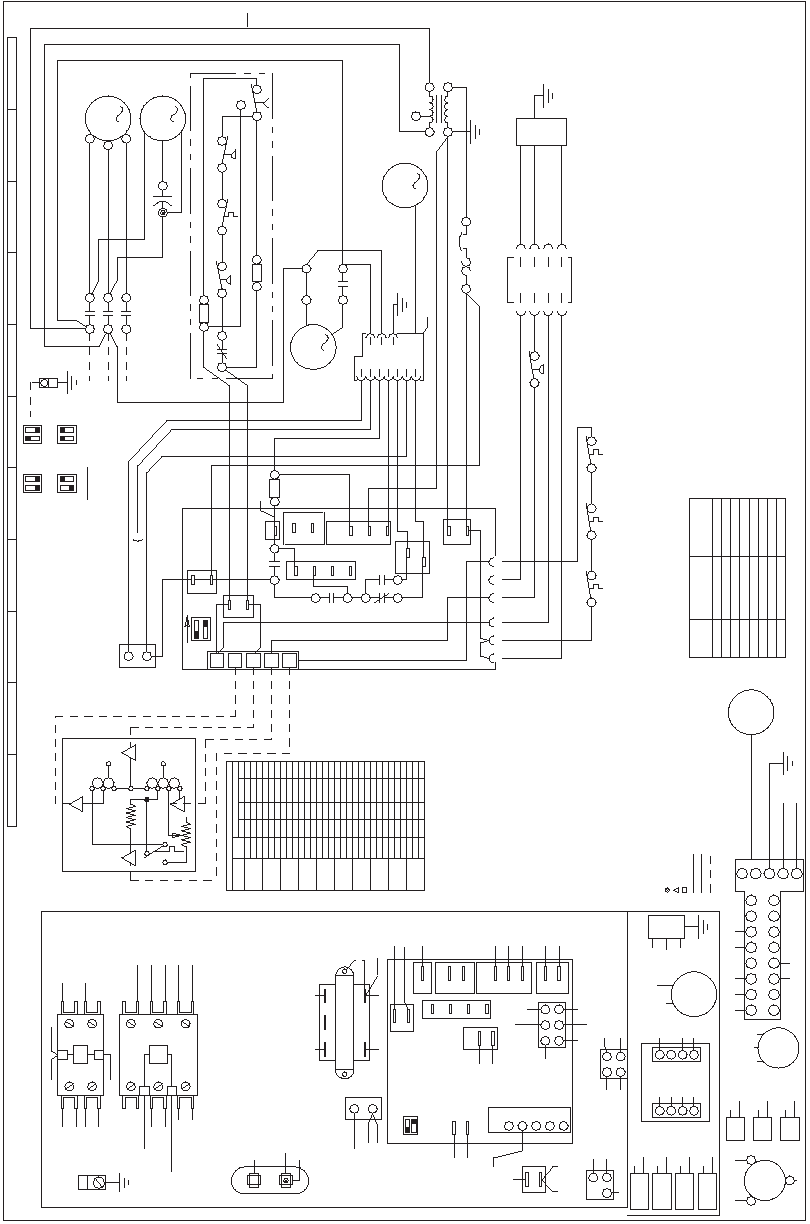

14 TYPICAL WIRING DIAGRAM D*NP 024 (208/230-1-60
POWER SUPPLY) . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
15 TYPICAL WIRING DIAGRAM D*NP 030-048 (208/230-
1-60 POWER SUPPLY) . . . . . . . . . . . . . . . . . . . . . . . 26
16 TYPICAL WIRING DIAGRAM D*NP 060 (208/230-1-60
POWER SUPPLY) . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
17 TYPICAL WIRING DIAGRAM D*NP 030-048 (208/230-
3-60 POWER SUPPLY) . . . . . . . . . . . . . . . . . . . . . . . 28
18 TYPICAL WIRING DIAGRAM D*NP 060 (208/230-3-60
POWER SUPPLY) . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
19 TYPICAL WIRING DIAGRAM D*NP 030-048
(460/575-3-60 POWER SUPPLY) . . . . . . . . . . . . . . . 30
20 TYPICAL WIRING DIAGRAM D*NP 060 (460/575-3-60
POWER SUPPLY) . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
21 TYPICAL WIRING DIAGRAM LEGEND . . . . . . . . . . 32
LIST OF TABLES
Tbl# Pg#
1 PHYSICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 RATINGS COOLING/GAS HEATING . . . . . . . . . . . . . 7
3 DNP024 COOLING CAPACITIES - 2 TON . . . . . . . . . 8
4 DNP030 COOLING CAPACITIES - 2-1/2 TON . . . . . 10
5 DNP036 COOLING CAPACITIES - 3 TON . . . . . . . . 11
6 DNP042 COOLING CAPACITIES - 3-1/2 TON . . . . . 12
7 DNP048 COOLING CAPACITIES - 4 TON . . . . . . . . 13
8 DNP060 COOLING CAPACITIES - 5 TON . . . . . . . . 14
9 TWO TON AIR PERFORMANCE . . . . . . . . . . . . . . . 15
10 SIDE SUPPLY AIR BLOWER PERFORMANCE -
208/230 VOLTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
11 BOTTOM SUPPLY AIR BLOWER PERFORMANCE -
208/230 VOLTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
12 ADDITIONAL STATIC PRESSURE RESISTANCE -
2, 2-1/2, 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
13 ADDITIONAL STATIC PRESSURE RESISTANCE -
3-1/2, 4 AND 5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 18
14 ELECTRICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . 19
15 UNIT DIMENSIONS FRONT . . . . . . . . . . . . . . . . . . . 20
16 UNIT MINIMUM CLEARANCES . . . . . . . . . . . . . . . . 20
17 UNIT WEIGHTS AND CENTER OF GRAVITY . . . . . 23

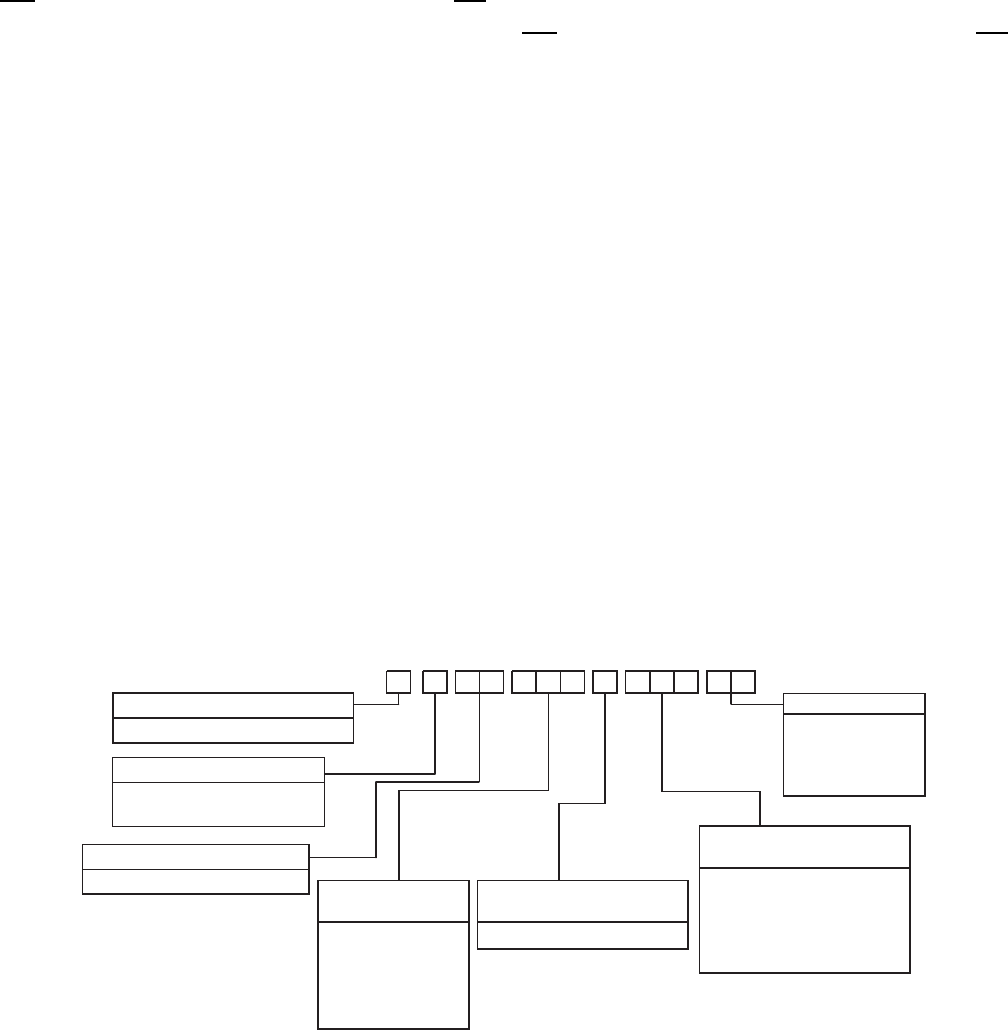

FIGURE 1 - PRODUCT NOMENCLATURE
' 1 3 1
352'8&7&$7(*25<
   
92/7$*( &2'(
 
 
 
  %78+
  %78+
  %78+
  %78+
 %78+
  %78+
 
' 6LQJOH3DFNDJH$LU&RQGLWLRQHU
352'8&7,'(17,),(5
13 6((5*DV+HDW(OHFWULF 120,1$/&22/,1*
&$3$&,7<0%+
1 1DWXUDO*DV+HDW,QVWDOOHG
)$&725<
,167$//('*$6+($7
 %78+
 %78+
 %78+
 %78+
 %78+
 %78+
120,1$/*$6+($7,1*
287387&$3$&,7<
352'8&7*(1(5$7,21
 VW*HQHUDWLRQ
 QG*HQHUDWLRQ
036-21366-007-A-1205
Unitary Products Group 3
STANDARD FEATURES/BENEFITS
OPERATING EFFICIENCY - All units provide high operating
efficiencies and have a minimum AFUE of 80% and SEER of
13.0. All efficiencies exceed legislated minimum levels.
ON SITE FLEXIBILITY - All model sizes share a common,
compact design cabinet in a single footprint. The installer has
the flexibility of setting one curb and placing the proper ton-
nage unit on that curb after the internal load has been deter-
mined. Field convertible duct connections from side shot to
down shot allows the installer to have greater flexibility with
less inventory.
LOWER INSTALLATION COST - Installation time and costs
are reduced by easy power and control wiring connections.
The small base dimension means less space is required on
the ground or roof, plus, the installer can fit this unit between
the wheel wells of full size pick-up truck. All models are well
under 500 pounds.
All units are completely wired, charged with R-22 and tested
prior to shipment. Unique test stations using a new state of the
art computerized process system are used to insure product
quality. Refrigerant charge and component part numbers are
verified via computers at assembly. Vital run test statistics
such as system pressure, motor currents, air velocity and tem-
perature, unit vibration, and gas system safeties are monitored
and recorded by the system to insure unit performance.
Equal size, side supply and return duct connections allows
easy hook-up of ducts to match low crawl spaces without
transition pieces.
UTILITY CONNECTIONS MADE EASY - Gas and electric
utility knockouts are provided through the bottom as well as
the side of the unit. Utility connections can be made quickly
and with a minimum amount of field labor. A field supplied
and field installed electrical disconnect switch must be
installed.
CONVERTIBLE AIRFLOW DESIGN - The bottom duct open-
ings are covered when they leave the factory ready to be
used for a side supply / side return application. If a bottom
supply / bottom return application is desired, you simply
remove the two panels from the bottom of the unit and place
them in the side supply / side return duct openings. No panel
cutting is required and no accessory panel is necessary.
Convertible airflow design allows maximum field flexibility and
minimum inventory.
CONDENSATE PAN - A non-corrosive, long-lasting, water-
tight pan is positioned below the evaporator coil to collect and
drain all condensate. Less collection of stagnate condensate
will build-up. The condensate pan conforms to ASHRAE 62-
89 standards (Ventilation for Acceptable Indoor Air Quality).
CONDENSATE DRAIN - The heavy duty, 3/4 inch NPTI cop-
per connection is more durable over time. The connection is
rigidly mounted to assure proper fit and leak tight seal.
DURABLE FINISH - With a heavy duty cabinet made of pow-
der-painted, galvanized steel the neutral color blends into
surrounding areas. The powdered paint provides a better
paint to steel bond, which resists corrosion and rust creep.
The special primer formulas and glossy finish insures less
fading when exposed to sunlight and offers a more attractive
on site appearance. This paint finish meets ASTM-B117 stan-
dards for 1000 hours salt spray rating. The highest in the
industry.
FULL PERIMETER BASE RAILS - The easily removable
base rails provide a solid foundation for the entire unit and
protects the unit during shipment. The rails provide fork lift
access from all sides, and rigging holes are also provided so
that an overhead crane can be used to place the units on a
roof. On applications where the unit is placed on a pad, the
base will keep the unit off the pad to deter corrosion. On
applications where height is limited, the inch high base rails
may be removed on location.
MORE ATTRACTIVE APPEARANCE - A single piece Water
Shed top cover containing a top discharge condenser fan
arrangement requires less square footage on installation and
provides a wider variety of installations. The one piece design
adds greater water integrity. Rounded corners with water drip
edges add to the attractive appearance. The cabinet panels
have a non-fibrous insulation that will not release insulation
fibers into conditioned area.
TOP DISCHARGE - The top discharge condenser fan does
not disrupt neighboring areas or dry-out vegetation surround-
ing the unit. The warm air from the top mounted fan is blown
up away from the structure and any landscaping. This allows
compact location on multi-unit applications.
CONDENSER COIL GRILLE - A multi-piece totally enclosed,
rigidly mounted condenser coil grille provides protection from
objects after installation and provides protection during transit.
LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise up and away from the liv-
ing area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the rippled fins of
the condenser coil muffle the normal fan motor and compres-
sor operating sounds. The unique formed base pan also aids
in sound alterations with it's Super-Structure design. This
design strategically places embossments in the pan for opti-
mum strength and rigidity.
036-21366-007-A-1205
4Unitary Products Group
FAN SYSTEM - All 2-1/2, 3, 3-1/2 and 4 ton models operate
over a wide range of design conditions with a constant CFM,
electrically commutated (ECM) fan motor. These units easily
match all types of applications and provide greater on site
flexibility to match comfort requirement. These models have 2
cooling speeds and a single heating speed. The cooling
speed is factory set and can be field adjusted to a second
speed. The heating speed is factory set to maintain mid point
rise at the units heating input. It cannot be field adjusted. This
allows maximum comfort conditions.
Two ton models operate over a wide range of design condi-
tions with a 3-speed direct-drive fan motor. These single
phase models have the Comfort-Match system that allows
different speed taps for heating or cooling operations.
SIMPLE CONTROL CIRCUIT - A low voltage printed circuit
board contains a diagnostic indicator light and a low voltage
terminal strip. An additional set of pin connectors is also pro-
vided to simplify the field interface of external controls. Mate-
n-lock plug connectors are used. The electrical control box is
not located in the compressor compartment. The controls are
mounted on a Control-Tilt control panel to allow the access
cover to be removed for trouble shooting and maintenance
without affecting the normal system operating pressures. All
wiring internal to the unit is color/number coded.
PROTECTED COMPRESSOR - The compressor is internally
protected against high pressure and temperature. This is
accomplished by the simultaneous operation of high pressure
relief valve and a temperature sensor which protect the com-
pressor if undesirable operating conditions occur.
EXCLUSIVE COIL DESIGN - Grooved copper tubes and
enhanced aluminum fin construction improves heat transfer
for maximum efficiency and durability.
HEAT EXCHANGERS - Are corrosion-resistant, aluminized-
steel tubular construction to provide long-life, trouble-free
operation. The unique blow-through design also assures that
condensate does not collect in humid areas when in the cool-
ing cycle. This adds to longer heat exchanger life and higher
long term efficiencies.
POST PURGE INDUCED DRAFT COMBUSTION - Exhausts
combustion products from the heat exchanger upon comple-
tion of the heating cycle to prolong the heat exchanger life.
SELF DIAGNOSTIC FAN CONTROL MODULE - Due to this
self diagnostic control, less on site time is required to trouble
shoot these units.
HOT SURFACE TO PILOT IGNITION - Provides faster heat
delivery. This ignition is highly reliable, durable and elimi-
nates nuisance lockouts. Also assures starts in damp condi-
tions.
MULTI PORT IN-SHOT BURNERS - No field adjustment is
required to mix the air and gas. These burners are con-
structed of high-grade corrosion-resistant, aluminized-steel.
LOW MAINTENANCE - Long life, permanently lubricated
condenser and evaporator fan motor bearings need no
annual maintenance adding greater reliability to the unit.
Blower assembly can be easily cleaned by the unique Slip-
Track slide-out blower assembly.
SECURED SERVICE ACCESS PORTS - Protected, exter-
nally mounted, re-usable service access ports are provided
on both the high and low lines for ease of evacuating and
charging the system. No final field mounting required.
EASY SERVICE ACCESS - A large, single panel covers the
electrical and gas controls makes servicing easy. The blower
compartment has an additional large panel with a built-in
handle tab. Removing this panel will allow the blower assem-
bly to slide-out for easy removal for maintenance and ease of
trouble shooting.
REPLACEMENT PARTS - The installer requires no special
training to replace any of the components of these units and
does not need to maintain an inventory of unique parts.
SYSTEM INTEGRATION - Each unit has the internal ability
to integrate an electronic air cleaner or humidifier to work in
conjunction with the base unit.
FIELD-INSTALLED ACCESSORIES
LOW NOx KIT - Kit includes all the necessary hardware and
instructions to field convert units to reduce emissions to less
than 40 nanogram per Joule. California requirement on single
phase models only.
PROPANE CONVERSION KIT - Kit includes burner orifices,
gas valve conversion and installation instructions necessary
to field convert unit from natural gas to propane.
HIGH ALTITUDE CONVERSION KIT (Natural Gas/Propane)
- Kit includes all necessary labels and instructions to field
alter units with natural gas/propane for installations above
2000 feet. Burner orifices must be obtained from Source 1
Parts. Propane Conversion Kit must be obtained separately.
ECONOMIZER DOWN DISCHARGE / SUPPLY KIT - Modu-
lating integrated economizer provides simultaneous opera-
tion between the mechanical cooling and economizer
operation. Independent blade design insures proper control
and less than 1% leak rate. Includes hood and mesh bird
screen filter integrated into the hood, dry bulb sensor and
relief damper. Separate field accessories of single enthalpy
and dual enthalpy are also available. A built-in barometric
relief of 25% is provided.
SINGLE ENTHALPY SENSOR - Sensor replaces dry bulb
sensor standard in economizer kit. Provides improved econo-
mizer operation by sensing the dry bulb temperature from
outdoors plus the enthalpy content of the outdoor air.
DUAL ENTHALPY SENSOR - Additional sensor to single
enthalpy sensor. Sensor senses both the return air tempera-
ture dry bulb and humidity in conjunction with the single
036-21366-007-A-1205
Unitary Products Group 5
enthalpy to determine the most economical mix. Single
Enthalpy sensor also required.
PRESSURE SWITCH UPGRADE KIT - Contains screw in
type High pressure, Low Pressure/Loss of Charge switch,
freeze protection switch and lockout relay. Switches are
placed onto existing scharder ports located in the unit by fur-
nished adapters. When abnormal conditions are sensed
through the pressure switches, the unit will lock out prevent-
ing any further operation until reset or problem is corrected.
Package agency approved.
HAIL GUARD KIT - Kit contains protective grilles made of
expanded aluminum with full perimeter frame. Sloped hoods
are also included to assure maximum protection.
ANTI SHORT CYCLE TIMER - Automatically prevents the
compressor from restarting for 5 minutes after cycled off.Not
required if Thermostat 2ET07700224 and 2ET04700224 are
used.
FILTER / FRAME KIT (Single Phase only) - Kit contains the
necessary hardware to field install return air filters into the
base unit. Pre-cut filter racks and appropriate cleanable stan-
dard size filters are shipped in one kit. The filter rack is suit-
able for either 1" or 2" filters. (1" filter is supplied) This kit is
available for single phase horizontal or vertical duct applica-
tion only. Standard in all 3 Phase models.
MOTORIZED FRESH AIR DAMPER - Designed for duct
mounted side supply/return and unit mounted down supply/
return applications. Damper capable of providing 0% through
50% of outdoor air (field supplied). Closes on power loss,
includes hood and screen assembly.
RECTANGLE TO ROUND ADAPTERS - Kit includes one
supply and one return air rectangle to round duct adapter.
Adapters are preformed and designed to fit over current duct
openings on the base unit. Transition is from side square duct
opening to 14" round duct opening.
ROOF CURBS - NRCA approved curbs provide proper fit to
base unit for rooftop installations. Curbs are designed to be
assembled through hinge pins in each corner. Kit also pro-
vides seal strip to assure a water tight seal. 8 and 14 inch
high roof curbs are available.
MANUAL OUTDOOR DAMPER - Provides 0% through 50%
outdoor air capability (field adjustable). Designed for duct
mounted side supply/return applications. Includes hood and
screen assembly.
WALL THERMOSTAT - The units are designed to operate
with 24-volt electronic and electro-mechanical thermostats.
All units can operate with single stage heat / single stage cool
thermostats - with or without the economizer.
LOW AMBIENT KIT - Kit provides necessary hardware to
convert unit to operate in cooling cycle down to 0º F. Stan-
dard unit operation 45º F.
TRANSFORMER KIT - Kit provides necessary hardware to
provide single phase models from factory furnished 40 VA
transformer capability to 75 VA transformer capability.
(Required on installations with economizer or motorized
damper.)
036-21366-007-A-1205
6Unitary Products Group
FIGURE 2 - UNIT COMPONENT LOCATION
DIRECT DRIVE
CONDENSER
FAN MOTOR
HIGHLY EFFICIENT ENHANCE
COPPER TUBE/ALUMINUM FIN
EVAPORATOR COIL
HIGHLY EFFICIENT
ENHANCED COPPER
TUBE/ALUMINUM FIN
CONDENSER COIL
DECORATIVE
PROTECTIVE
COIL GAURD
HIGH EFFICIENCY
COMPRESSOR
RIGIDLY
MOUNTED
HOT SURFACE PILOT
ASSEMBLY
HIGH GRADE ALUMINIZED
IN-SHOT BURNERS
LOW VOLTAGE
TERMINAL BLOCK
SELF-DIAGNOSTIC CONTROLS WITH
"COMFORT-MATCH" SPEED CONTROL
AUTOMATIC GAS VALVE (1/2" - 14 NPTI)
HIGH VOLTAGE
TERMINAL BLOCK
POWER VENTER MOTOR
DIRECT DRIVE
BLOWER MOTOR WITH
SLIDE-OUT BLOWER ASSEMBLY
HEAVY GAUGE
REMOVABLE
BASE RAILS
REAR AND BOTTOM
RET RUNAIR
AND SUPPLY AIR
DUCT OPENINGS
LONG LASTING
POWDER PAINT
FINISH
BLOW-THROUGH DESIGN
WITH RELIABLE ALUMINIZED
STEEL TUBULAR HEAT EX HANGERS
C
D
TABLE 1: PHYSICAL DATA
MODEL DNP
024 030 036 042 048 060
EVAPORATOR
BLOWER
CENTRIFUGAL BLOWER (Dia. x W. in.) 10 x 8 10 x 8 11 x 10 12 x 11 12 x 11 12 x 11
FAN MOTOR HP 1/2 3/4 3/4 1 1 1
EVAPORATOR
COIL
ROWS DEEP 233333
FINS PER INCH 15 13 13 13 16 16
FACE AREA (Sq. Ft.) 3.5 3.5 3.5 4.5 4.5 4.5
CONDENSER
FAN
PROPELLER DIA. (in.) 222222222222
FAN MOTOR HP 1/4 1/4 1/4 1/4 1/3 1/3
NOM. CFM TOTAL 2,200 2,400 2,400 2,400 3,000 3,500
CONDENSER
COIL
ROWS DEEP 212222
FINS PER INCH 20 20 20 20 20 20
FACE AREA (Sq. Ft.) 11.7 11.7 11.7 14.7 14.7 14.7
CHARGE REFRIGERANT 22 (lbs./oz.) 6 / 4 4 / 9 6 / 12 9 / 6 8 / 4 8 / 8
FILTER FACE AREA (Sq. Ft.) Size (Actual) 2.6 / 19 x 19.5 2.6 / 19 x 19.5 2.6 / 19 x 19.5 3.1 / 19.5 x 11.5
(2 Reqd.) 3.1 / 19.5 x 11.5
(2 Reqd.) 3.1 / 19.5 x11.5
(2 Reqd.)
FURNACE
SECTION
NATURAL GAS BURNER ORIFICE NO.
(Drill Size) 43 43 43 40 40 40
PROPANE BURNER ORIFICE NO.
(Drill Size) 55 55 55 53 53 53
GAS CONNECTION SIZE 1/2 NPTI 1/2 NPTI 1/2 NPTI 1/2 NPTI 1/2 NPTI 1/2 NPTI
COMPRESSOR HERMETIC TYPE, (Qty. = 1) Recip Scroll Scroll Scroll Scroll Scroll
036-21366-007-A-1205
Unitary Products Group 7
TABLE 2: RATINGS COOLING/GAS HEATING
MODEL
DNP
NET COOLING CAPACITY1SOUND
RATING
(dbels)2
GAS HEAT CAPACITY / EFFICIENCIES
MBH SEER3EER4INPUT
(MBH) OUTPUT
(MBH) AFUE5
(%) NUMBER OF
BURNERS
TEMP.
RISE
(°F) RANGE
024N03606 25.4 13.3 11.6 81 45 36 80.2 2 25 - 55
024N05606 25.4 13.3 11.6 81 70 56 80.2 3 30 - 60
030N03606 30.6 13.4 11.75 80 45 36 80.2 2 25 - 55
030N03625 30.6 13.4 11.75 80 45 36 80.2 2 25 - 55
030N03646 30.6 13.4 11.75 80 45 36 80.2 2 25 - 55
030N05606 30.6 13.4 11.75 80 70 56 80.2 3 30 - 60
030N05625 30.6 13.4 11.75 80 70 56 80.2 3 30 - 60
030N05646 30.6 13.4 11.75 80 70 56 80.2 3 30 - 60
036N03606 37.4 13.65 11.75 81 45 36 80.4 2 25 - 55
036N03625 37.4 13.65 11.75 81 45 36 80.4 2 25 - 55
036N03646 37.4 13.65 11.75 81 45 36 80.4 2 25 - 55
036N03658 37.4 13.65 11.75 81 45 36 80.4 2 25 - 55
036N05606 37.4 13.65 11.75 81 70 56 80.2 3 25 - 55
036N05625 37.4 13.65 11.75 81 70 56 80.2 3 25 - 55
036N05646 37.4 13.65 11.75 81 70 56 80.2 3 25 - 55
036N05658 37.4 13.65 11.75 81 70 56 80.2 3 25 - 55
036N07206 37.4 13.65 11.75 81 90 72 80.1 4 30 - 60
036N07225 37.4 13.65 11.75 81 90 72 80.1 4 30 - 60
036N07246 37.4 13.65 11.75 81 90 72 80.1 4 30 - 60
036N07258 37.4 13.65 11.75 81 90 72 80.1 4 30 - 60
042N06506 44 13.7 10.65 80 80 64 80.6 3 25 - 55
042N06525 44 13.7 10.65 80 80 64 80.6 3 25 - 55
042N06546 44 13.7 10.65 80 80 64 80.6 3 25 - 55
042N06558 44 13.7 10.65 80 80 64 80.6 3 25 - 55
042N09006 44 13.7 10.65 80 108 86 80.8 4 45 - 75
042N09025 44 13.7 10.65 80 108 86 80.8 4 45 - 75
042N09046 44 13.7 10.65 80 108 86 80.8 4 45 - 75
042N09058 44 13.7 10.65 80 108 86 80.8 4 45 - 75
048N06506 48 13.2 11.7 84 80 64 80.8 3 25 - 55
048N06525 48 13.2 11.7 84 80 64 80.8 3 25 - 55
048N06546 48 13.2 11.7 84 80 64 80.8 3 25 - 55
048N06558 48 13.2 11.7 84 80 64 80.8 3 25 - 55
048N09006 48 13.2 11.7 84 108 86 80.6 4 35 - 65
048N09025 48 13.2 11.7 84 108 86 80.6 4 35 - 65
048N09046 48 13.2 11.7 84 108 86 80.6 4 35 - 65
048N09058 48 13.2 11.7 84 108 86 80.6 4 35 - 65
048N11006 48 13.2 11.7 84 135 107 80.5 5 45 - 75
048N11025 48 13.2 11.7 84 135 107 80.5 5 45 - 75
048N11046 48 13.2 11.7 84 135 107 80.5 5 45 - 75
048N11058 48 13.2 11.7 84 135 107 80.5 5 45 - 75
060N06506 55.5 13.0 11.2 84 80 64 80.8 3 25 - 55
060N06525 55.5 13.0 11.2 84 80 64 80.8 3 25 - 55
060N06546 55.5 13.0 11.2 84 80 64 80.8 3 25 - 55
060N06558 55.5 13.0 11.2 84 80 64 80.8 3 25 - 55
060N09006 55.5 13.0 11.2 84 108 86 80.6 4 35 - 65
060N09025 55.5 13.0 11.2 84 108 86 80.6 4 35 - 65
060N09046 55.5 13.0 11.2 84 108 86 80.6 4 35 - 65
060N09058 55.5 13.0 11.2 84 108 86 80.6 4 35 - 65
060N11006 55.5 13.0 11.2 84 135 107 80.5 5 45 - 75
060N11025 55.5 13.0 11.2 84 135 107 80.5 5 45 - 75
060N11046 55.5 13.0 11.2 84 135 107 80.5 5 45 - 75
060N11058 55.5 13.0 11.2 84 135 107 80.5 5 45 - 75
1. Net Cooling Capacity = ARI 210 standard rating conditions.
2. (dbels) = ARI 270-95
3. Seasonal Energy Efficiency Ratio - the total cooling output in BTU’s during a normal annual usage period for cooling divided by the
total electric power input in watt-hours during the same period.
4. Tested in accordance with ARI 210 Standard Rating Conditions.
5. AFUE = Annual Fuel Utilization Efficiency.
036-21366-007-A-1205
8Unitary Products Group
TABLE 3: DNP024 COOLING CAPACITIES - 2 TON
AIR ON
EVAPORATOR
COIL
TEMPERATURE OF AIR ON CONDENSER COIL TEMPERATURE OF AIR ON CONDENSER COIL
85°F 95°F
NET
CAP.
MBH
POWER
INPUT
KW
SENSIBLE CAPACITY1
NET
CAP.
MBH
POWER
INPUT
KW
SENSIBLE CAPACITY1
ENTERING DRY BULB, °F ENTERING DRY BULB, °F
CFM WB
°F 86 83 80 77 74 71 68 86 83 80 77 74 71 68
600
72 24.7 1.90 15.0 13.3 11.6 9.9 8.1 #N/A #N/A 23.1 2.03 15.0 13.3 11.6 9.9 8.1 #N/A #N/A
67 22.6 1.91 18.4 16.7 14.9 13.2 11.5 9.8 8.1 21.0 2.03 18.1 16.4 14.7 13.0 11.3 9.5 7.8
62 20.9 1.89
20.9 19.5 17.8 16.1 14.4 12.7 11.0 19.5 2.00 19.5 19.4 17.7 16.0 14.3 12.5 10.8
57 20.6 1.88
20.6 20.2 18.5 16.8 15.1 13.4 11.7 19.5 1.99 19.5 19.5 17.9 16.2 14.5 12.7 11.0
700
72 26.4 1.94 17.0 14.9 12.9 10.9 8.9 #N/A #N/A 24.6 2.08 16.7 14.7 12.7 10.7 8.6 #N/A #N/A
67 24.1 1.94 20.7 18.7 16.7 14.7 12.7 10.6 8.6 22.3 2.08 20.1 18.1 16.1 14.1 12.1 10.0 8.0
62 22.3 1.93
22.3 21.6 19.9 17.9 15.9 13.9 11.8 20.7 2.05 20.7 20.7 19.4 17.4 15.3 13.3 11.3
57 22.0 1.92
22.0 21.8 20.7 18.7 16.7 14.6 12.6 20.7 2.04 20.7 20.7 19.6 17.6 15.6 13.5 11.5
800
72 28.0 1.97 19.0 16.6 14.3 12.0 9.6 #N/A #N/A 26.0 2.13 18.5 16.1 13.8 11.5 9.1 #N/A #N/A
67 25.6 1.98 23.1 20.8 18.5 16.1 13.8 11.5 9.1 23.7 2.13 22.2 19.8 17.5 15.2 12.8 10.5 8.2
62 23.7 1.96
23.7 23.7 22.0 19.7 17.4 15.0 12.7 22.0 2.09 22.0 22.0 21.1 18.8 16.4 14.1 11.8
57 23.3 1.95
23.3 23.3 22.9 20.5 18.2 15.9 13.5 22.0 2.09 22.0 22.0 21.3 19.0 16.7 14.3 12.0
900
72 28.2 2.01 20.4 17.7 15.1 12.4 9.8 #N/A #N/A 26.2 2.15 19.9 17.2 14.6 11.9 9.3 #N/A #N/A
67 25.8 2.01 24.5 22.1 19.5 16.8 14.2 11.5 8.8 23.9 2.15 23.1 21.2 18.5 15.8 13.2 10.5 7.9
62 23.8 1.99
23.8 23.8 23.0 20.3 17.7 15.0 12.4 22.1 2.12 22.1 22.1 21.7 19.1 16.4 13.7 11.1
57 23.5 1.98
23.5 23.5 23.2 20.6 17.9 15.3 12.6 22.2 2.11 22.2 22.2 21.8 19.2 16.5 13.9 11.2
1000
72 28.3 2.04 21.8 18.8 15.9 12.9 9.9 #N/A #N/A 26.5 2.18 21.3 18.3 15.4 12.4 9.4 #N/A #N/A
67 25.9 2.04
25.9 23.5 20.5 17.5 14.5 11.5 8.6 24.1 2.18 24.1 22.5 19.5 16.5 13.5 10.5 7.6
62 24.0 2.02
24.0 24.0 24.0 21.0 18.0 15.0 12.0 22.3 2.14 22.3 22.3 22.3 19.3 16.4 13.4 10.4
57 23.6 2.01
23.6 23.6 23.6 20.6 17.6 14.7 11.7 22.3 2.14 22.3 22.3 22.3 19.4 16.4 13.4 10.4
AIR ON
EVAPORATOR
COIL
TEMPERATURE OF AIR ON CONDENSER COIL TEMPERATURE OF AIR ON CONDENSER COIL
105°F 115°F
NET
CAP.
MBH
POWER
INPUT
KW
SENSIBLE CAPACITY1
NET
CAP.
MBH
POWER
INPUT
KW
SENSIBLE CAPACITY1
ENTERING DRY BULB, °F ENTERING DRY BULB, °F
CFM WB
°F 86 83 80 77 74 71 68 86 83 80 77 74 71 68
600
72 21.5 2.20 14.4 12.7 10.9 9.2 7.5 #N/A #N/A 20.0 2.36 13.7 12.0 10.3 8.6 6.9 #N/A #N/A
67 19.5 2.17 17.6 15.9 14.2 12.5 10.8 9.1 7.4 18.1 2.30 17.2 15.4 13.7 12.0 10.3 8.6 6.9
62 18.4 2.15
18.4 18.3 16.7 15.0 13.3 11.6 9.9 17.3 2.30 17.3 17.3 15.7 14.0 12.3 10.6 8.9
57 18.5 2.15
18.5 18.5 16.9 15.2 13.5 11.8 10.0 17.5 2.31 17.5 17.5 15.9 14.2 12.5 10.8 9.1
700
72 22.8 2.24 16.0 14.0 12.0 9.9 7.9 #N/A #N/A 21.0 2.40 15.3 13.3 11.2 9.2 7.2 #N/A #N/A
67 20.7 2.21 19.4 17.6 15.5 13.5 11.5 9.5 7.4 19.0 2.34 18.6 17.0 15.0 12.9 10.9 8.9 6.9
62 19.5 2.19
19.5 19.4 18.3 16.2 14.2 12.2 10.2 18.2 2.34 18.2 18.2 17.2 15.1 13.1 11.1 9.1
57 19.6 2.19 19.6 19.6 18.5 16.4 14.4 12.4 10.4 18.4 2.35 18.4 18.4 17.3 15.3 13.3 11.3 9.2
800
72 24.1 2.28 17.6 15.3 13.0 10.6 8.3 #N/A #N/A 22.1 2.43 16.8 14.5 12.2 9.8 7.5 #N/A #N/A
67 21.8 2.25 21.1 19.2 16.9 14.5 12.2 9.9 7.5 20.0 2.38 20.0 18.5 16.2 13.9 11.5 9.2 6.9
62 20.5 2.24 20.5 20.5 19.8 17.5 15.2 12.8 10.5 19.1 2.38 19.1 19.1 18.6 16.2 13.9 11.6 9.2
57 20.7 2.24
20.7 20.7 20.0 17.7 15.4 13.0 10.7 19.3 2.38 19.3 19.3 18.7 16.4 14.1 11.7 9.4
900
72 24.3 2.32 19.0 16.3 13.7 11.0 8.3 #N/A #N/A 22.3 2.48 18.1 15.4 12.7 10.1 7.4 #N/A #N/A
67 22.0 2.29 21.6 20.3 17.7 15.1 12.4 9.8 7.1 20.2 2.43 20.2 19.5 17.0 14.3 11.6 9.0 6.3
62 20.7 2.27
20.7 20.7 20.4 17.7 15.1 12.4 9.7 19.3 2.43 19.3 19.3 19.0 16.4 13.7 11.1 8.4
57 20.8 2.27
20.8 20.8 20.5 17.9 15.2 12.6 9.9 19.5 2.43 19.5 19.5 19.2 16.6 13.9 11.3 8.6
1000
72 24.5 2.36 20.3 17.3 14.3 11.4 8.4 #N/A #N/A 22.5 2.53 19.3 16.3 13.3 10.3 7.4 #N/A #N/A
67 22.2 2.33
22.2 21.4 18.6 15.6 12.6 9.7 6.7 20.4 2.47 20.4 20.4 17.7 14.8 11.8 8.8 5.8
62 20.9 2.31
20.9 20.9 20.9 17.9 15.0 12.0 9.0 19.5 2.47 19.5 19.5 19.5 16.5 13.5 10.6 7.6
57 21.0 2.31
21.0 21.0 21.0 18.0 15.1 12.1 9.1 19.7 2.48 19.7 19.7 19.7 16.7 13.7 10.8 7.8
1. These capacities are net capacities (the indoor fan heat is deducted).
ALL SENSIBLE CAPACITY
036-21366-007-A-1205
Unitary Products Group 9
TABLE 3: DNP024 COOLING CAPACITIES - 2 TON (CONT’D)
AIR ON
EVAPORATOR
COIL
TEMPERATURE OF AIR ON CONDENSER COIL
125°F
NET
CAP.
MBH
POWER
INPUT
KW
SENSIBLE CAPACITY1
ENTERING DRY BULB, °F
CFM WB
°F 86 83 80 77 74 71 68
600
72 18.4 2.5 13.1 11.4 9.7 8.0 6.3 #N/A #N/A
67 16.6 2.4
16.7 15.0 13.3 11.5 9.8 8.1 6.4
62 16.2 2.5
16.2 16.2 14.8 13.1 11.4 9.6 7.9
57 16.5 2.5
16.5 16.5 14.9 13.2 11.5 9.8 8.1
700
72 19.3 2.6 14.6 12.5 10.5 8.5 6.5 #N/A #N/A
67 17.4 2.5
17.8 16.4 14.4 12.4 10.3 8.3 6.3
62 17.0 2.5
17.0 17.0 16.0 14.0 12.0 10.0 7.9
57 17.2 2.5
17.2 17.2 16.2 14.2 12.1 10.1 8.1
800
72 20.1 2.6 16.0 13.7 11.3 9.0 6.7 #N/A #N/A
67 18.1 2.5
18.9 17.9 15.5 13.2 10.9 8.5 6.2
62 17.7 2.5
17.7 17.7 17.3 15.0 12.6 10.3 8.0
57 18.0 2.5
18.0 18.0 17.5 15.1 12.8 10.5 8.1
900
72 20.4 2.6 17.1 14.5 11.8 9.2 6.5 #N/A #N/A
67 18.3 2.6
18.7 18.6 16.2 13.5 10.9 8.2 5.6
62 17.9 2.6
17.9 17.9 17.7 15.0 12.4 9.7 7.1
57 18.2 2.6
18.2 18.2 17.9 15.3 12.6 9.9 7.3
1000
72 20.6 2.7 18.3 15.3 12.3 9.3 6.3 #N/A #N/A
67 18.5 2.6
18.5 19.3 16.9 13.9 10.9 7.9 4.9
62 18.1 2.6
18.1 18.1 18.1 15.1 12.1 9.2 6.2
57 18.4 2.7
18.4 18.4 18.4 15.4 12.4 9.4 6.5
1. These capacities are net capacities (the indoor fan heat is deducted).
ALL SENSIBLE CAPACITY
036-21366-007-A-1205
10 Unitary Products Group
TABLE 4: DNP030 COOLING CAPACITIES - 2-1/2 TON
TEMPERATURE
OF AIR ON
CONDENSER COIL
AIR ON EVAPORATOR COIL
1,000 CFM 1,250 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP.MBH 33.6 31.6 30.3 30.2 34.5 32.4 31.1 31.0
TOTAL POWER INPUT kW 2.4 2.4 2.3 2.3 2.6 2.6 2.5 2.5
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 23.6 29.2 30.3 30.2 27.2 32.4 31.1 31.0
83 20.7 26.3 30.3 30.2 23.5 29.7 31.1 31.0
80 17.8 23.4 28.4 29.6 19.7 25.9 31.1 31.0
77 14.9 20.5 25.5 26.7 16.0 22.2 27.3 27.3
74 12.0 17.5 22.6 23.8 12.3 18.5 23.6 23.5
71 N/A 14.6 19.7 20.8 N/A 14.8 19.9 19.8
68 N/A 11.7 16.8 17.9 N/A 11.0 16.2 16.1
95 °F
NET CAP. MBH 32.7 30.5 28.8 28.9 33.5 31.3 29.6 29.7
TOTAL POWER INPUT kW 2.6 2.6 2.6 2.5 2.8 2.8 2.8 2.7
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 23.1 29.0 28.8 28.9 26.9 31.3 29.6 29.7
83 20.2 26.1 28.8 28.9 23.1 29.7 29.6 29.7
80 17.3 23.2 27.9 28.4 19.4 26.0 29.6 29.7
77 14.4 20.3 25.0 25.4 15.7 22.3 25.9 26.0
74 11.5 17.3 22.1 22.5 12.0 18.5 22.1 22.2
71 N/A 14.4 19.2 19.6 N/A 14.8 18.4 18.5
68 N/A 11.5 16.3 16.7 N/A 11.1 14.7 14.8
105 °F
NET CAP.MBH 31.0 28.3 27.3 27.3 32.2 29.4 28.3 28.3
TOTAL POWERINPUT kW 2.9 2.9 2.9 2.9 3.1 3.1 3.0 3.0
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 22.6 27.6 27.3 27.3 26.4 29.4 28.3 28.3
83 19.6 25.1 27.3 27.3 22.6 28.6 28.3 28.3
80 16.7 22.2 26.4 26.8 18.9 25.1 28.3 28.3
77 13.8 19.3 23.5 23.8 15.2 21.4 24.6 24.6
74 10.9 16.4 20.6 20.9 11.5 17.6 20.8 20.9
71 N/A 13.5 17.7 18.0 N/A 13.9 17.1 17.2
68 N/A 10.5 14.8 15.1 N/A 10.2 13.4 13.4
115 °F
NET CAP.MBH 29.3 26.2 25.7 25.7 30.8 27.5 27.0 27.0
TOTAL POWER NPUT kW 3.2 3.3 3.2 3.2 3.4 3.4 3.3 3.3
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 22.0 26.2 25.7 25.7 25.8 27.5 27.0 27.0
83 19.0 24.1 25.7 25.7 22.1 27.5 27.0 27.0
80 16.1 21.2 24.9 25.2 18.4 24.2 27.0 27.0
77 13.2 18.3 22.0 22.2 14.7 20.5 23.3 23.2
74 10.3 15.4 19.1 19.3 10.9 16.8 19.5 19.5
71 N/A 12.5 16.2 16.4 N/A 13.0 15.8 15.8
68 N/A 9.6 13.3 13.5 N/A 9.3 12.1 12.1
125 °F
NET CAP. MBH 27.6 24.1 24.2 24.0 29.4 25.6 25.7 25.6
TOTAL POWER INPUT kW 3.5 3.6 3.5 3.5 3.6 3.7 3.6 3.6
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 21.4 24.8 24.2 24.0 25.3 25.6 25.7 25.6
83 18.4 23.2 24.2 24.0 21.6 26.4 25.7 25.6
80 15.5 20.2 23.4 23.6 17.9 23.3 25.7 25.6
77 12.6 17.3 20.5 20.7 14.2 19.6 22.0 21.9
74 9.7 14.4 17.6 17.7 10.4 15.9 18.3 18.1
71 N/A 11.5 14.7 14.8 N/A 12.1 14.5 14.4
68 N/A 8.6 11.8 11.9 N/A 8.4 10.8 10.7
1. These capacities are net capacities (the indoor fan heat is deducted)
ALL SENSIBLE CAPACITY
036-21366-007-A-1205
Unitary Products Group 11
TABLE 5: DNP036 COOLING CAPACITIES - 3 TON
TEMPERATURE
OF AIR ON
CONDENSER COIL
AIR ON EVAPORATOR COIL
1,200 CFM 1,350 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP.
MBH 43.3 39.9 37.4 36.7 44 40.5 38 37.2
TOTAL POWER
INPUT kW 2.932.89 2.9 2.883.083.053.063.04
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 29.5 35.8 37.4 36.7 31.8 38.4 38 37.2
83 26 32.3 37.4 36.7 27.8 34.4 38 37.2
80 22.5 28.8 34.8 35.6 23.8 30.4 36.7 36.7
77 19 25.3 31.3 32.1 19.9 26.4 32.7 32.7
74 15.5 21.8 27.8 28.6 15.9 22.5 28.7 28.7
71 - 18.3 24.3 25.1 - 18.5 24.7 24.7
68 - 14.8 20.8 21.6 - 14.5 20.7 20.7
95 °F
NET CAP.
MBH 41.4 37.1 35.7 35.3 42.5 38 36.6 36.2
TOTAL POWER
INPUT kW 3.22 3.27 3.18 3.15 3.32 3.37 3.28 3.25
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 28.5 34.8 35.7 35.3 31 36.9 36.6 36.2
83 25 31.3 35.7 35.3 27 33.7 36.6 36.2
80 21.5 27.8 33.5 33.9 23 29.7 25.5 35.5
77 18 24.3 30 30.4 19 25.7 31.5 31.5
74 14.5 20.8 26.5 26.9 15 21.7 17.6 27.5
71 - 17.3 23 23.4 - 17.7 23.6 23.5
68 - 13.8 19.5 19.9 - 13.8 19.6 19.5
105 °F
NET CAP.
MBH 38.5 34.8 33.9 33.6 39.6 35.8 34.8 34.5
TOTAL POWER
INPUT kW 3.613.61 3.5 3.483.733.723.613.59
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 27.6 33.6 33.9 33.6 29.9 35.1 34.8 34. 5
83 24.1 30.1 33.9 33.6 26 32.4 34.8 34.5
80 20.6 26.6 32 32.2 22 28.4 33.9 33.8
77 17.1 23.1 28.5 28.7 18 24.4 29.9 29.8
74 13.6 19.6 25 25.2 14 20.5 25.9 25.8
71 - 16.1 21.5 21.7 - 16.5 21.9 21.8
68 - 12.6 18 18.2 - 12.5 18 17.9
115 °F
NET CAP.
MBH 35.6 32.6 32.2 31.9 36.7 33.5 33.1 32.8
TOTAL POWER
INPUT kW 4.01 3.95 3.82 3.8 4.14 4.07 3.93 3.92
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 26.6 32.4 32.2 31.9 28.9 33.4 33.1 32.8
83 23.1 28.9 32.2 31.9 24.9 31.1 33.1 32.8
80 19.6 25.4 30.6 30.6 21 27.1 32.3 32.1
77 16.1 21.9 27.1 27.1 17 23.2 28.3 28.1
74 12.6 18.4 23.6 23.6 13 19.2 24.3 24.1
71 - 14.9 20.1 20.1 - 15.2 20.3 20.2
68 - 11.4 16.6 16.6 - 11.2 16.3 16.2
125 °F
NET CAP.
MBH 32.8 30.2 30.4 30.1 33.7 31.2 31.3 30
TOTAL POWER
INPUT kW 4.4 4.3 4.1 4.1 4.5 4.4 4.3 4.2
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 25.6 31.2 30.4 30.1 27.9 31.6 31.3 31
83 22.1 27.7 30.4 30.1 23.9 29.9 31.3 31
80 18.6 24.2 19.1 28.9 19.9 25.9 30.6 30.4
77 15.1 20.7 25.6 25.4 15.9 21.9 26.6 26.4
74 11.6 17.2 22.1 21.9 12 17.9 22.7 22.5
71 - 13.7 18.6 18.4 - 13.9 18.7 18.5
68 - 10.2 15.1 14.9 - 9.9 14.7 14.5
1. These capacities are net capacities (the indoor fan heat is deducted).
ALL SENSIBLE CAPACITY
036-21366-007-A-1205
12 Unitary Products Group
TABLE 6: DNP042 COOLING CAPACITIES - 3-1/2 TON
TEMPERATURE
OF AIR ON
CONDENSER COIL
AIR ON EVAPORATOR COIL
1,350 CFM 1,500 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP. 48.4 44.5 40.9 41.2 54.0 49.6 45.6 46.0
TOTAL POWER 3.4 3.3 3.3 3.3 3.8 3.7 3.6 3.7
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 33.0 39.9 40.9 41.2 36.8 44.4 45.6 46.0
83 29.1 36.0 40.9 41.2 32.4 40.1 45.6 46.0
80 25.2 32.0 38.1 40.4 28.1 35.7 42.4 45.0
77 21.3 28.1 34.2 36.5 23.7 31.3 38.1 40.7
74 17.3 24.2 30.2 32.6 19.3 27.0 33.7 36.3
71 N/A 20.3 26.3 28.7 N/A 22.6 29.3 31.9
68 N/A 16.4 22.4 24.7 N/A 18.2 25.0 27.6
95 °F
NET CAP. 46.1 42.4 39.6 39.1 51.3 47.3 44.1 43.5
TOTAL POWER 3.8 3.6 3.8 3.6 4.2 4.0 4.2 4.0
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 32.2 38.8 39.6 39.1 35.9 43.3 44.1 43.5
83 28.3 34.9 39.6 39.1 31.6 38.9 44.1 43.5
80 24.4 31.0 37.6 38.7 27.2 34.5 41.9 43.1
77 20.5 27.1 33.7 34.8 22.8 30.2 37.6 38.7
74 16.6 23.1 29.8 30.8 18.5 25.8 33.2 34.4
71 N/A 19.2 25.9 26.9 N/A 21.4 28.8 30.0
68 N/A 15.3 21.9 23.0 N/A 17.1 24.5 25.6
105 °F
NET CAP. 43.5 40.0 37.2 37.2 48.5 44.6 41.4 41.5
TOTAL POWER 4.2 4.1 4.1 4.0 4.6 4.5 4.6 4.5
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 31.3 38.0 37.2 37.2 34.9 42.3 41.4 41.5
83 27.4 34.1 37.2 37.2 30.6 38.0 41.4 41.5
80 23.5 30.2 36.2 36.7 26.2 33.6 40.3 40.9
77 19.6 26.2 32.3 32.8 21.8 29.2 36.0 36.5
74 15.7 22.3 28.3 28.8 17.4 24.9 31.6 32.2
71 N/A 18.4 24.4 24.9 N/A 20.5 27.2 27.8
68 N/A 14.5 20.5 21.0 N/A 16.1 22.8 23.4
115 °F
NET CAP. 41.0 37.6 34.7 35.4 45.7 41.9 38.7 39.4
TOTAL POWER 4.6 4.5 4.5 4.5 5.1 5.0 5.1 5.0
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 30.4 37.2 34.7 35.4 33.9 41.4 38.7 39.4
83 26.5 33.3 34.7 35.4 29.5 37.1 38.7 39.4
80 22.6 29.3 34.7 34.7 25.2 32.7 38.7 38.7
77 18.7 25.4 30.8 30.8 20.8 28.3 34.3 34.3
74 14.7 21.5 26.9 26.8 16.4 24.0 30.0 29.9
71 N/A 17.6 23.0 22.9 N/A 19.6 25.6 25.6
68 N/A 13.7 19.0 19.0 N/A 15.2 21.2 21.2
125 °F
NET CAP. 38.5 35.2 32.3 33.6 43.0 39.2 36.0 37.4
TOTAL POWER 5.0 5.0 4.9 4.9 5.6 5.5 5.5 5.5
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 29.5 36.3 32.3 33.6 32.9 40.5 36.0 37.4
83 25.6 32.4 32.3 33.6 28.5 36.1 36.0 37.4
80 21.7 28.5 33.3 32.7 24.1 31.8 37.1 36.4
77 17.7 24.6 29.4 28.8 19.8 27.4 32.7 32.1
74 13.8 20.7 25.4 24.9 15.4 23.0 28.3 27.7
71 N/A 16.7 21.5 20.9 N/A 18.7 24.0 23.3
68 N/A 12.8 17.6 17.0 N/A 14.3 19.6 19.0
1. These capacities are net capacities (the indoor fan heat is deducted)
ALL SENSIBLE CAPACITY
036-21366-007-A-1205
Unitary Products Group 13
TABLE 7: DNP048 COOLING CAPACITIES - 4 TON
TEMPERATURE
OF AIR ON
CONDENSER COIL
AIR ON EVAPORATOR COIL
1,400 CFM 1,600 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP.
MBH 54.0 49.2 45.6 45.9 55.2 50.4 46.6 46.9
TOTAL POWER
INPUT kW 3.69 3.66 3.62 3.57 3.85 3.83 3.79 3.73
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 35.8 43.7 45.6 45.9 39.1 47.7 46.6 46.9
83 31.7 39.6 44.6 45.3 34.5 43 46.6 46.9
80 27.7 35.6 42.4 43.6 29.8 38.3 45.7 46.9
77 23.6 31.6 38.4 39.5 25.1 33.7 41 42.3
74 19.6 27.5 34.3 35.5 20.5 29 36.3 37.6
71 - 23.5 30.3 31.4 - 24.3 31.7 32.9
68 - 19.4 26.2 27.4 - 19.7 27 28.3
95 °F
NET CAP.
MBH 51.8 46.8 43.8 44.0 51.9 46.9 43.9 44.2
TOTAL POWER
INPUT kW 4.07 4.04 4.01 3.99 4.21 4.18 4.15 4.12
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 35.4 42.9 43.8 44.0 38.4 46.4 43.9 44.2
83 31.4 38.9 42.8 43.2 33.8 41.7 43.9 44.2
80 27.4 34.9 40.9 41.5 29.1 37.1 43.5 44.2
77 23.3 30.8 36.8 37.5 24.4 32.4 38.8 39.5
74 19.3 26.8 32.8 33.4 19.8 27.7 34.1 34.8
71 - 22.7 28.7 29.4 - 23.1 29.5 30.2
68 - 18.7 24.7 25.4 - 18.4 24.8 25.5
105 °F
NET CAP.
MBH 48.7 44.3 41.4 41.7 49.2 44.7 41.8 42.1
TOTAL POWER
INPUT kW 4.49 4.45 4.38 4.34 4.63 4.59 4.51 4.48
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 34.1 41.3 41.4 41.7 37.1 4.44 41.8 42.1
83 30.0 37.7 40.7 41.1 32.4 40.6 41.8 42.1
80 26.0 33.6 38.9 39.4 27.8 35.9 41.6 42.1
77 22.0 29.6 34.9 35.3 23.1 31.3 36.9 37.4
74 17.8 25.6 30.8 31.3 18.4 26.6 32.3 32.7
71 - 21.5 26.8 27.3 - 21.9 27.6 28.1
68 - 17.5 22.8 23.2 - 17.3 22.9 23.4
115 °F
NET CAP.
MBH 45.7 41.8 39.1 39.4 46.4 42.5 39.7 40
TOTAL POWER
INPUT kW 4.91 4.86 4.74 4.70 5.05 5 4.87 4.83
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 32.7 39.7 39.1 39.4 35.8 42.5 39.7 40
83 28.7 36.5 38.7 38.9 31.1 39.5 39.7 40
80 24.6 32.4 37.0 37.2 26.4 34.8 39.7 40
77 20.6 28.4 32.9 33.2 21.8 30.1 35 35.3
74 16.6 24.4 28.9 29.1 17.1 25.5 30.4 30.6
71 - 20.3 24.9 25.1 - 20.8 25.7 26
68 - 16.3 20.8 21.1 - 16.2 21 21.3
125 °F
NET CAP.
MBH 42.7 39.3 36.8 37.0 43.6 40.2 37.6 37.9
TOTAL POWER
INPUT kW 4.3 5.3 5.1 5.0 5.5 5.4 5.2 5.2
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 31.4 38.0 36.8 37.0 34.5 40.5 37.6 37.9
83 27.3 35.3 36.7 36.8 29.8 38.4 37.6 37.9
80 23.3 31.2 35.1 35.1 25.1 33.7 37.6 37.9
77 19.2 27.2 31.0 31.0 20.5 29 33.2 33.2
74 15.2 23.1 27.0 27.0 15.8 24.4 28.5 28.5
71 - 19.1 22.9 23.0 - 19.7 23.8 23.9
68 - 15.1 18.9 18.9 - 15 19.2 19.2
1. These capacities are net capacities (the indoor fan heat is deducted).
ALL SENSIBLE CAPACITY
036-21366-007-A-1205
14 Unitary Products Group
TABLE 8: DNP060 COOLING CAPACITIES - 5 TON
TEMPERATURE
OF AIR ON
CONDENSER COIL
AIR ON EVAPORATOR COIL
1,500 CFM 1,800 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP.
MBH 63.5 57.6 52.7 53.1 64.3 58.3 53.3 53.7
TOTAL POWER
INPUT kW 4.49 4.44 4.38 4.27 4.68 4.63 4.57 4.45
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 39.4 47.5 52.7 53.1 41.4 49.6 53.3 53.7
83 35.0 43.2 50.9 53.1 36.1 44.3 52.0 53.7
80 30.6 38.8 46.5 50.5 30.7 38.9 46.6 50.7
77 26.3 34.4 42.1 46.2 25.4 33.5 41.2 45.3
74 21.9 30.0 37.7 41.8 20.0 28.2 35.9 39.9
71 -- 25.7 33.4 37.4 -- 22.8 30.5 34.6
68 -- 21.3 29.0 33.1 -- 17.4 25.1 29.2
95 °F
NET CAP.
MBH 60.6 56.0 52.1 51.5 61.2 56.6 52.6 52.0
TOTAL POWER
INPUT kW 4.96 4.90 4.80 4.73 5.12 5.05 4.95 4.88
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 38.2 46.6 52.1 51.5 43.3 52.6 52.6 52.0
83 33.9 42.2 49.8 51.5 38.0 47.2 52.6 52.0
80 29.5 37.8 45.4 48.7 32.6 41.9 50.3 52.0
77 25.1 33.5 41.1 44.4 27.3 36.5 44.9 46.7
74 20.7 29.1 36.7 40.0 21.9 31.1 39.5 41.3
71 -- 24.7 32.3 35.6 -- 25.8 34.2 35.9
68 -- 20.3 27.9 31.2 -- 20.4 28.8 30.6
105 °F
NET CAP.
MBH 57.6 53.3 49.5 49.3 58.4 54.1 50.2 50.0
TOTAL POWER
INPUT kW 5.52 5.43 5.34 5.27 5.69 5.60 5.51 5.43
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 37.1 45.3 49.5 49.3 42.6 51.8 50.2 50.0
83 32.7 40.9 48.4 49.3 37.2 46.4 50.2 50.0
80 28.4 36.6 44.1 46.4 31.8 41.1 49.1 50.0
77 24.0 32.2 39.8 42.1 26.5 35.7 43.7 44.7
74 19.6 27.8 35.4 37.7 21.1 30.3 38.3 39.3
71 -- 23.4 31.0 33.3 -- 25.0 33.0 33.9
68 -- 19.1 26.6 29.0 -- 19.6 27.6 28.6
115 °F
NET CAP.
MBH 54.6 50.6 46.9 47.1 55.7 51.6 47.9 48.0
TOTAL POWER
INPUT kW 6.07 5.97 5.89 5.81 6.26 6.16 6.07 5.99
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 36.0 44.0 46.9 47.1 41.8 51.0 47.9 48.0
83 31.6 39.7 46.9 47.1 36.4 45.6 47.9 48.0
80 27.2 35.3 42.9 44.2 31.1 40.3 47.9 48.0
77 22.8 30.9 38.5 39.8 25.7 34.9 42.5 42.7
74 18.5 26.5 34.1 35.4 20.3 29.5 37.1 37.3
71 -- 22.2 29.7 31.0 -- 24.2 31.8 31.9
68 -- 17.8 25.4 26.7 -- 18.8 26.4 26.6
125 °F
NET CAP.
MBH 51.6 47.9 44.4 44.9 52.9 49.1 45.5 46.0
TOTAL POWER
INPUT kW 6.62 6.51 6.43 6.35 6.82 6.71 6.62 6.54
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 34.8 42.8 44.4 44.9 41.0 50.2 45.5 46.0
83 30.5 38.4 45.5 44.9 35.6 44.8 45.5 46.0
80 26.1 34.0 41.6 41.9 30.3 39.5 46.7 46.0
77 21.7 29.6 37.2 37.5 24.9 34.1 41.3 40.7
74 17.3 25.3 32.8 33.1 19.6 28.7 35.9 35.3
71 -- 20.9 28.4 28.7 -- 23.4 30.6 29.9
68 -- 16.5 24.1 24.4 -- 18.0 25.2 24.6
1. These capacities are net capacities (the indoor fan heat is deducted).
ALL SENSIBLE CAPACITY
036-21366-007-A-1205
Unitary Products Group 15
TABLE 9: TWO TON AIR PERFORMANCE 1
MODEL #
DNP
(Cooling/
Heating)
MTR
SPD
EXTERNAL STAIC PRESSURE - IWG
.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00 1.10
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
SIDE SUPPLY AIR PERFORMANCE - 208 VOLT
024
HI----------984443894422751390608358----
MED 994 333 947 321 901 309 854 297 774 280 695 263 615 246 - - - - - - - -
LOW743243700235657226614218--------------
SIDE SUPPLY AIR BLOWER PERFORMANCE - 230 VOLT
024
HI------------929491809473688454----
MED - - - - 999 353 944 338 865 319 785 299 706 280 - - - - - - - -
LOW998372906333813294721255651241------------
BOTTOM SUPPLY AIR BLOWER PERFORMANCE - 208 VOLT
024
HI----------886398805380676351547322----
MED 895 300 853 289 811 278 769 267 697 252 625 237 554 221 - - - - - - - -
LOW669219630211591204553196--------------
BOTTOM SUPPLY AIR BLOWER PERFORMANCE - 230 VOLTS
024
HI------------836442728425620409----
MED - - - - 899 318 850 304 778 287 707 269 635 252 - - - - - - - -
LOW898335815300732265649230586217------------
1. Above data includes allowances for a dry evaporator coil, gas heat exchanger and no filters. For additional pressure drops, refer
to Table 12 and 13.
036-21366-007-A-1205
16 Unitary Products Group
TABLE 10: SIDE SUPPLY AIR BLOWER PERFORMANCE - 208/230 VOLTS1
MODEL #
DNP MODE
(COOLING / HEATING) CFM
EXTERNAL STATIC PRESSURE - IWG
.20 .30 .40 .50 .60 .70 .80 .90 1.0
WATTS WATTS WATTS WATTS WATTS WATTS WATTS WATTS WATTS
030 COOLING
(FACTORY SETTING) 1000 248 298 325 365 385 411 470 498 500
030 COOLING
(FIELD SETTING) 1250 342 385 431 474 510 562 614 657 694
030 HEATING (2 TUBE)
(FACTORY SETTING) 850 169 217 237 278 302 334 374 401 431
030 HEATING (3 TUBE)
(FACTORY SETTING) 1100 300 338 378 416 447 493 539 576 609
036 COOLING
(FACTORY SETTING) 1200 354 396 436 511 548 599 641 677 721
036 COOLING
(FIELD SETTING) 1350 442 503 563 606 648 685 721 774 826
036 HEATING (2 TUBE)
(FACTORY SETTING) 700 207 231 254 298 320 349 - - -
036 HEATING (3 TUBE)
(FACTORY SETTING) 1250 383 432 478 543 581 628 - - -
036 HEATING (4 TUBE)
(FACTORY SETTING) 1350 442 503 563 606 648 685 - - -
042 COOLING
(FACTORY SETTING) 1350 410 457 504 575 646 687 729 780 830
042 COOLING
(FIELD SETTING) 1500 450 500 553 641 729 798 830 872 939
042 HEATING (3 TUBE)
(FACTORY SETTING) 1500 450 500 553 641 729 798 830 872 939
042 HEATING (4 TUBE)
(FACTORY SETTING) 1275 388 433 478 545 612 652 691 739 787
048 COOLING
(FACTORY SETTING) 1400 427 476 525 599 673 716 759 812 865
048 COOLING
(FIELD SETTING) 1600 476 532 587 687 786 872 958 994 1030
048 HEATING (3 TUBE)
(FACTORY SETTING) 1525 458 511 564 654 744 814 - - -
048 HEATING (4 TUBE)
(FACTORY SETTING) 1600 476 532 587 687 786 872 - - -
048 HEATING (5 TUBE)
(FACTORY SETTING) 1600 476 532 587 687 786 872 - - -
060 COOLING
(FACTORY SETTING) 1500 439 526 559 636 716 748 816 884 941
060 COOLING
(FIELD SETTING) 1800 659 809 814 946 1001 1053 1124 1176 1180
060 HEATING (3 TUBE)
(FACTORY SETTING) 1500 439 526 559 636 716 748 816 884 941
060 HEATING (4 TUBE)
(FACTORY SETTING) 1700 576 757 788 872 929 979 1000 1121 1188
060 HEATING (5 TUBE)
(FACTORY SETTING) 1700 576 757 788 872 929 979 1000 1121 1188
1. Above data includes allowances for a dry coil, gas heat exchanger and no filters. For additional pressure drops, refer to Tables 11
and 12.
036-21366-007-A-1205
Unitary Products Group 17
TABLE 11: BOTTOM SUPPLY AIR BLOWER PERFORMANCE - 208/230 VOLTS1
MODEL #
DNP MODE
(COOLING / HEATING) CFM
EXTERNAL STATIC PRESSURE - IWG
.20 .30 .40 .50 .60 .70 .80 .90 1.0
WATTS WATTS WATTS WATTS WATTS WATTS WATTS WATTS WATTS
030 CO OLI NG
(FACTORY SETTING) 1000 248 298 325 365 385 411 470 498 500
030 CO OLI NG
(FIELD SETTING) 1250 342 385 431 474 510 562 614 657 694
030 HEATING (2 TUBE)
(FACTORY SETTING) 850 169 217 237 278 302 334 374 401 431
030 HEATING (3 TUBE)
(FACTORY SETTING) 1100 300 338 378 416 447 493 539 576 609
036 COO LI NG
(FACTORY SETTING) 1200 354 396 436 511 548 599 641 677 721
036 CO OLI NG
(FIELD SETTING) 1350 442 503 563 606 648 685 721 774 826
036 HEATING (2 TUBE)
(FACTORY SETTING) 700 207 231 254 298 320 349 - - -
036 HEATING (3 TUBE)
(FACTORY SETTING) 1250 383 432 478 543 581 628 - - -
036 HEATING (4 TUBE)
(FACTORY SETTING) 1350 442 503 563 606 648 685 - - -
042 CO OLI NG
(FACTORY SETTING) 1350 410 457 504 575 646 687 729 780 830
042 CO OLI NG
(FIELD SETTING) 1500 450 500 553 641 729 798 830 872 939
042 HEATING (3 TUBE)
(FACTORY SETTING) 1500 450 500 553 641 729 798 830 872 939
042 HEATING (4 TUBE)
(FACTORY SETTING) 1275 388 433 478 545 612 652 691 739 787
048 CO OLI NG
(FACTORY SETTING) 1400 427 476 525 599 673 716 759 812 865
048 CO OLI NG
(FIELD SETTING) 1600 476 532 587 687 786 872 958 994 1030
048 HEATING (3 TUBE)
(FACTORY SETTING) 1525 458 511 564 654 744 814 - - -
048 HEATING (4 TUBE)
(FACTORY SETTING) 1600 476 532 587 687 786 872 - - -
048 HEATING (5 TUBE)
(FACTORY SETTING) 1600 476 532 587 687 786 872 - - -
060 CO OLI NG
(FACTORY SETTING) 1500 345 487 554 569 654 745 784 835 896
060 CO OLI NG
(FIELD SETTING) 1800 567 663 794 917 948 1015 1048 1155 1175
060 HEATING (3 TUBE)
(FACTORY SETTING) 1500 345 487 554 569 654 745 784 835 896
060 HEATING (4 TUBE)
(FACTORY SETTING) 1700 504 603 698 771 831 1043 1102 1155 1202
060 HEATING (5 TUBE)
(FACTORY SETTING) 1700 504 603 698 771 831 1043 1102 1155 1202
1. Above data includes allowances for a dry coil, gas heat exchanger and no filters. For additional pressure drops, refer to Tables 11
and 12.
036-21366-007-A-1205
18 Unitary Products Group

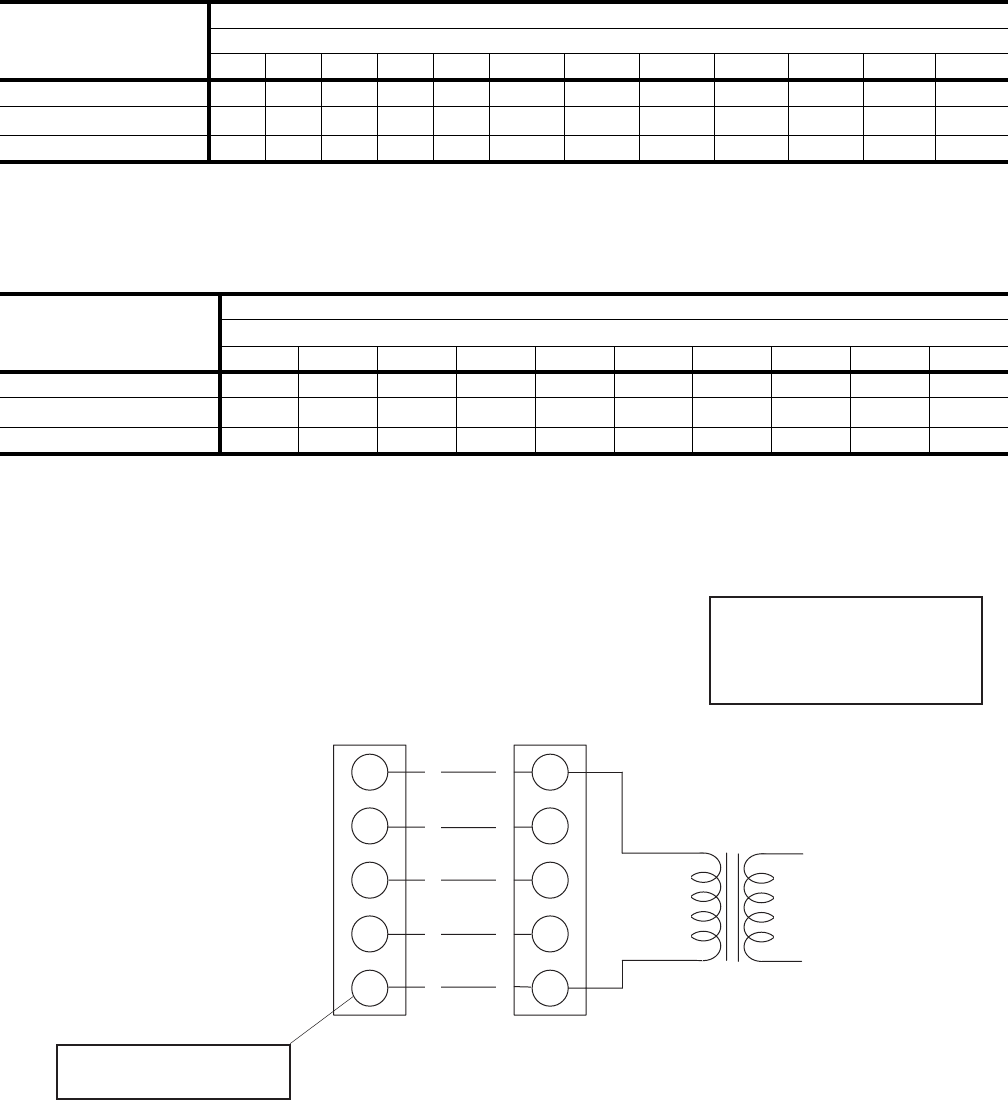

FIGURE 3 - FIELD WIRING DIAGRAM CONTROL WIRING
TABLE 12: ADDITIONAL STATIC PRESSURE RESISTANCE - 2, 2-1/2, 3 TON
DESCRIPTION
RESISTANCE, IWG
CFM
500 600 700 800 900 1,000 1,100 1,200 1,300 1,400 1,500 1,600
WET EVAPORATOR COIL .01 .01 .01 .02 .03 .04 .05 .06 .07 .08 .09 .09
ECONOMIZER1.00 .00 .00 .01 .01 .01 .01 .02 .03 .04 .05 .06
FILTER FRAME KIT .01 .02 .04 .06 .08 .10 .13 .16 .17 .18 .19 .20
1. The pressure through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance of the return air
duct system is less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.
TABLE 13: ADDITIONAL STATIC PRESSURE RESISTANCE - 3-1/2, 4 AND 5 TON
DESCRIPTION
RESISTANCE, IWG
CFM
1,100 1,200 1,300 1,400 1,500 1,600 1,700 1,800 1,900 2,000
WET EVAPORATOR COIL .02 .03 .04 .05 .06 .07 .07 .08 .09 .09
ECONOMIZER1.02 .02 .02 .03 .03 .04 .04 .04 .05 .05
FILTER FRAME KIT .04 .04 .05 .05 .06 .07 .08 .09 .10 .11
1. The pressure through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance of the return air
duct system is less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.
R
G
W
R
G
C
YY
W
C
PROGRAMMABLE
THERMOSTAT ONLY
**
*
*=Minimumwiresizeof18AWG
wire should be used for all
field installed 24 volt wire.
THERMOSTAT UNIT TERMINAL STRIP
NOTE:
HEAT ANTICIPATOR
SHOULD BE SET AT 0.35
AMPS FOR ALL MODELS.
24 VOLT
TRANSFORMER
036-21366-007-A-1205
Unitary Products Group 19

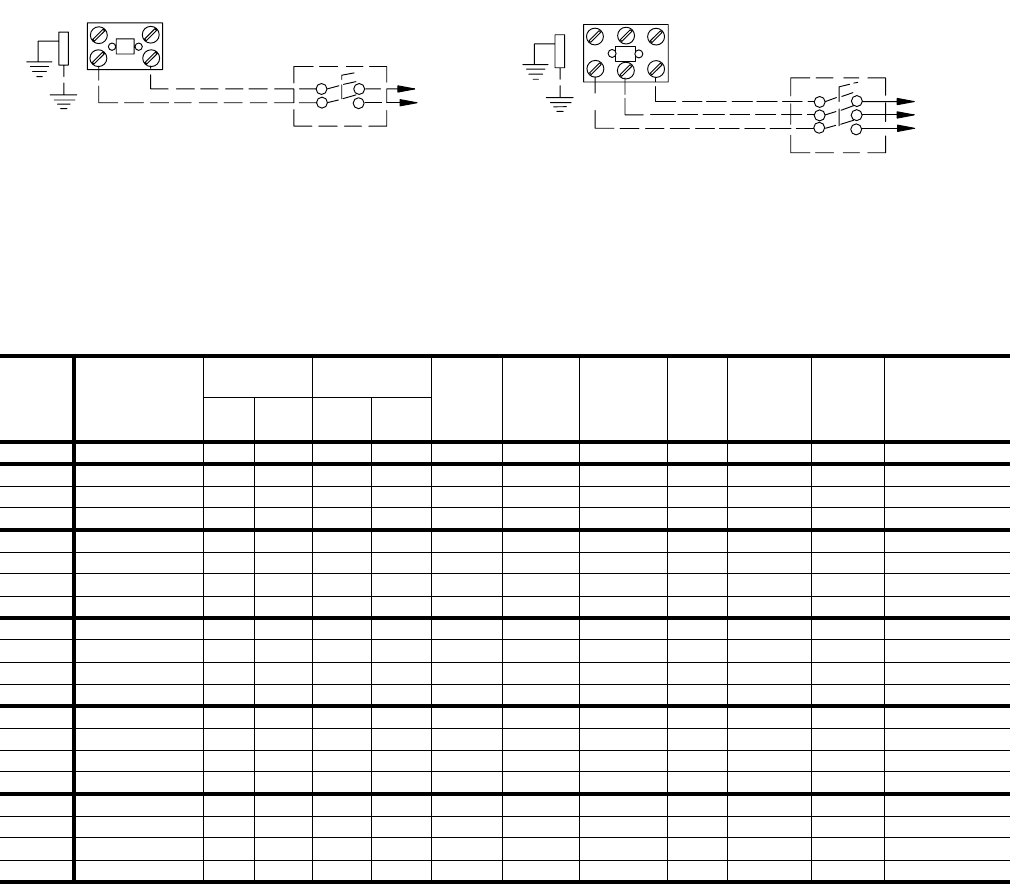

FIGURE 4 - POWER WIRING FIELD DIAGRAM
G R O U N D
L U G
R E F E R T O E L E C T R I C A L
D A T A T A B L E S T O S I Z E
T H E D I S C O N N E C T
F I E L D - S U P P L I E D
D I S C O N N E C T
C O N T A C T O R
F I E L D - S U P P L I E D
D I S C O N N E C T
C O N T A C T O R
G R O U N D
L U G R E F E R T O E L E C T R I C A L
D A T A T A B L E S T O S I Z E
T H E D I S C O N N E C T
S I N G L E
PH A S E
P O W E R
S U P P L Y
T H R E E
PHASE
P O W E R
S U P P L Y
TABLE 14: ELECTRICAL DATA
MODEL
DNP POWER SUPPLY
VOLTAGE
LIMITATIONS1COMPRESSOR COND.
FAN
MOTOR,
FLA
SUPPLY
AIR
BLOWER
MOTOR
FLA
MINIMUM
CIRCUIT
AMPACITY
MAX.
FUSE
SIZE,
AMPS2
MAX.
HACR
BREAKER
SIZE,
AMPS
UNIT
POWER
FACTOR
TRANSFORMER
SIZE (VA)
MIN. MAX. RLA LRA
024 208/230-1-60 187 253 8.0 53.5 1.1 2.6 16.5 20 20 0.96 40
030 208/230-1-60 187 253 13.6 67 1.1 6.8 24.9 35 35 0.96 40
030 208/230-3-60 187 253 8.6 55 1.1 6.8 18.7 25 25 0.96 75
030 460-3-60 432 504 5.7 39 0.6 6.8 13.4 20 20 0.96 75
036 208/230-1-60 187 253 17.2 88 1.1 6.8 29.4 45 45 0.96 40
036 208/230-3-60 187 253 11.4 77 1.1 6.8 22.2 30 30 0.96 75
036 460-3-60 432 504 5.7 39 0.6 6.8 14.8 20 20 0.96 75
036 575-3-60 540 630 4.7 31 0.6 6.8 13.3 20 20 0.96 75
042 208/230-1-60 187 253 20 104 1.3 9.1 35.4 50 50 0.96 40
042 208/230-3-60 187 253 13.9 88 1.3 9.1 27.8 40 40 0.96 75
042 460-3-60 432 504 6.4 44 0.7 9.1 18.5 25 25 0.96 75
042 575-3-60 540 630 5.4 34 0.6 9.1 16.8 25 25 0.96 75
048 208/230-1-60 187 253 23.4 126 1.9 9.1 39.5 60 60 0.96 40
048 208/230-3-60 187 253 13 93 1.9 9.1 26.5 35 35 0.96 75
048 460-3-60 432 504 6.4 46.5 1.0 9.1 18.4 25 25 0.96 75
048 575-3-60 540 630 5.1 37.2 0.8 9.1 17.3 25 25 0.96 75
060 208/230-1-60 187 253 25 150 2.8 9.1 43.2 60 60 0.96 40
060 208/230-3-60 187 253 17.3 123 2.8 9.1 33.5 45 45 0.96 75
060 460-3-60 432 504 8.4 70 2.8 9.1 22.6 30 30 0.96 75
060 575-3-60 540 630 7.0 53 2.8 9.1 21.2 30 30 0.96 75
1. Rated in accordance with ARI Standard 110, utilization range “A”.
2. Dual element, time delay type.
036-21366-007-A-1205
20 Unitary Products Group
FIGURE 5 - UNIT DIMENSIONS - FRONT
All dimensions are in inches.
They are subject to change with-
out notice. Certified dimensions
will be provided upon request.
TABLE 15: UNIT DIMENSIONS FRONT
UNIT SIZE DIMENSION
“A” “B”
024, 030, 036 33-1/2 18-1/4
042, 048, 060 41-1/2 23-1/8
TABLE 16: UNIT MINIMUM CLEARANCES1 2
1. A 1” clearance must be provided between any combus-
tible material and the supply air ductwork.
2. The products of combustion must not be allowed to
accumulate within a confined space and recirculate.
CLEARANCES
FRONT 36”
BACK 0”
LEFT SIDE (Filter-Access) 24”
RIGHT SIDE 12”
BELOW UNIT3
3. Units may be installed on combustible floors made from
wood or class A, B, or C roof covering material.
0”
ABOVE UNIT 4
4. Units must be installed outdoors. Overhanging struc-
tures or shrubs should not obstruct condenser air dis-
charge outlet.
36” (For Condenser Air Discharge)
036-21366-007-A-1205
Unitary Products Group 21
FIGURE 6 - UNIT DIMENSIONS - FRONT & BOTTOM
FIGURE 7 - UNIT DIMENSIONS - BACK & BOTTOM
1 - 3 / 4
1 5
2 9 - 9 / 1 6
1 5
3 - 1 / 2
1 - 3 / 4
1 - 3 / 4
1 5
4
1 4 - 1 / 2
3 - 1 / 2
3 - 3 / 8
1 4 - 1 / 2
2 8 - 3 / 8
1 4 - 1 / 2
C O N D E N S E R
C O I L
B O T T O M S U P P L Y
A I R O P E N I N G
B O T T O M R E T U R N
A I R O P E N I N G
S I D E R E T U R N
A I R O P E N I N G
S I D E S U P P L Y
A I R O P E N I N G
B A C K
036-21366-007-A-1205
22 Unitary Products Group
FIGURE 8 - TYPICAL SLAB ON GROUND INSTALLATION
FIGURE 9 - TYPICAL ROOF CURB INSTALLATION
F I E L D S U P P L I E D
D I S C O N N E C T S W I T C H
L O C A T E D T O R E A R O F U N I T
T O G A S
S
U P P L Y L I N E
M A N U A L G A S
S H U T - O F F V A L V E
R E T U R N A I R
D U C T
SUPPLY AI
R
D U C T
C O N T R O L W I R I N G
T O I N D O O R
T H E R M O S T A T
T O P O W E R S U P P Y
M A N U A L G A S
S H U T - O F F V A L V E
F I E L D
S U P P L I E D
D I S C O N N E C T
S W I T C H
M O U N T E D
O N U N I T
T O P O W E R
S U P P L Y
T O G A S
S U P P L Y L I N E
C O N T R O L W I R I N G
T O I N D O O R T H E R M O S T A T
R E T U R N A I R
D U C T
S U P P L Y A I R
D U C T
036-21366-007-A-1205
Unitary Products Group 23

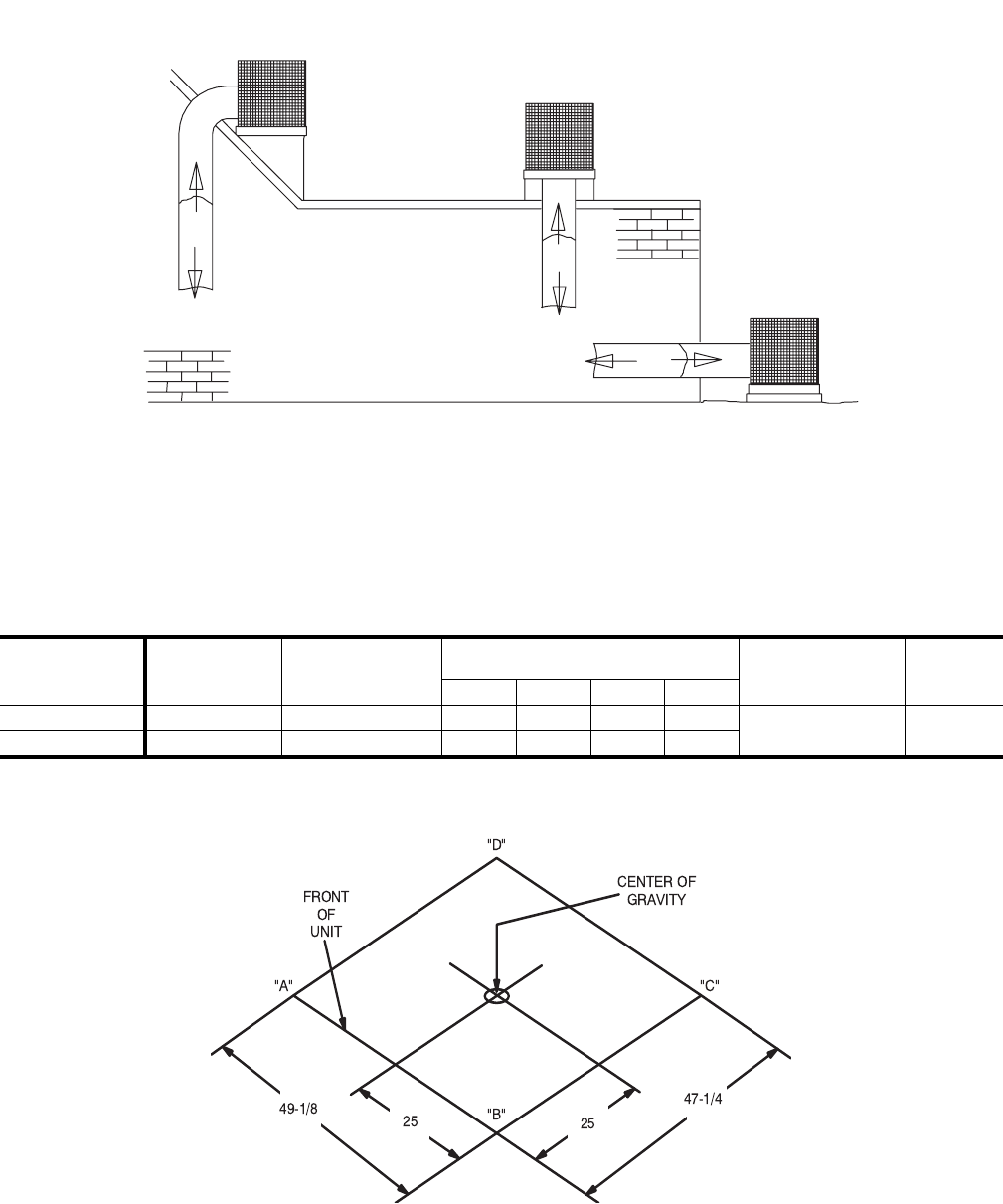

FIGURE 10 - TYPICAL DUCT APPLICATIONS
FIGURE 11 - UNIT CENTER OF GRAVITY
R O O F C U R B
I N S T A L L A T I O N
R E A R D U C T R O O F C U R B
I N S T A L L A T I O N
B O T T O M D U C T
S L A B O N G R O U N D
I N S T A L L A T I O N
TABLE 17: UNIT WEIGHTS AND CENTER OF GRAVITY
UNIT
SIZE
SHIPPING
WEIGHT
(lbs.)
OPERATING
WEIGHT
(lbs.)
CORNER WEIGHTS
(location, lbs.) ECONOMIZER
(lbs.)
ROOF
CURB
(lbs.)
“A” “B” “C” “D”
024, 030, 036 400 395 100 96 98 101 40 8” - 70
14” - 75
042, 048, 060 475 470 133 130 102 104
036-21366-007-A-1205
24 Unitary Products Group
FIGURE 12 - ROOF CURB DIMENSIONS1
FIGURE 13 - ROOF CURB CROSS SECTION
1. 8” Roof curb also available
O P E N I N G F O R
R E T U R N A I R D U C T
O P E N I N G F O R
S U P P L Y A I R D U C T
1 4
3 - 1 / 2
1 7 - 5 / 8
4 0 - 3 / 4
4 2 - 2 / 3
4 5 - 1 / 8
4 3 - 1 / 4
1 7 - 1 / 4
2 2
1
R E C O M M E N D E D
D U C T S I Z E
1 7 - 1 / 8 " X 2 1 - 1 / 2 "
R E C O M M E N D E D
D U C T S I Z E
1 7 - 1 / 2 " X 1 6 - 3 / 4 "
3 / 4 " X 1 " W I D E G A S K E T I N G F O R C U R B F R A M E
A N D A L L D U C T S U P P O R T S U R F A C E S
U N I T B A S E
W O O D N A I L E R
8 " M I N . A B O V E F I N I S H E D R O O F
C U R B F R A M E
I N S U L A T I O N
U N I T B A S E R A I L
C O U N T E R F L A S H I N G
C A N T S T R I P
I N S U L A T I O N A N D R O O F I N G M A T E R I A L
R O O F D E C T A N D R O O F I N G M A T E R I A L
14"
1 "
036-21366-007-A-1205
Unitary Products Group 25

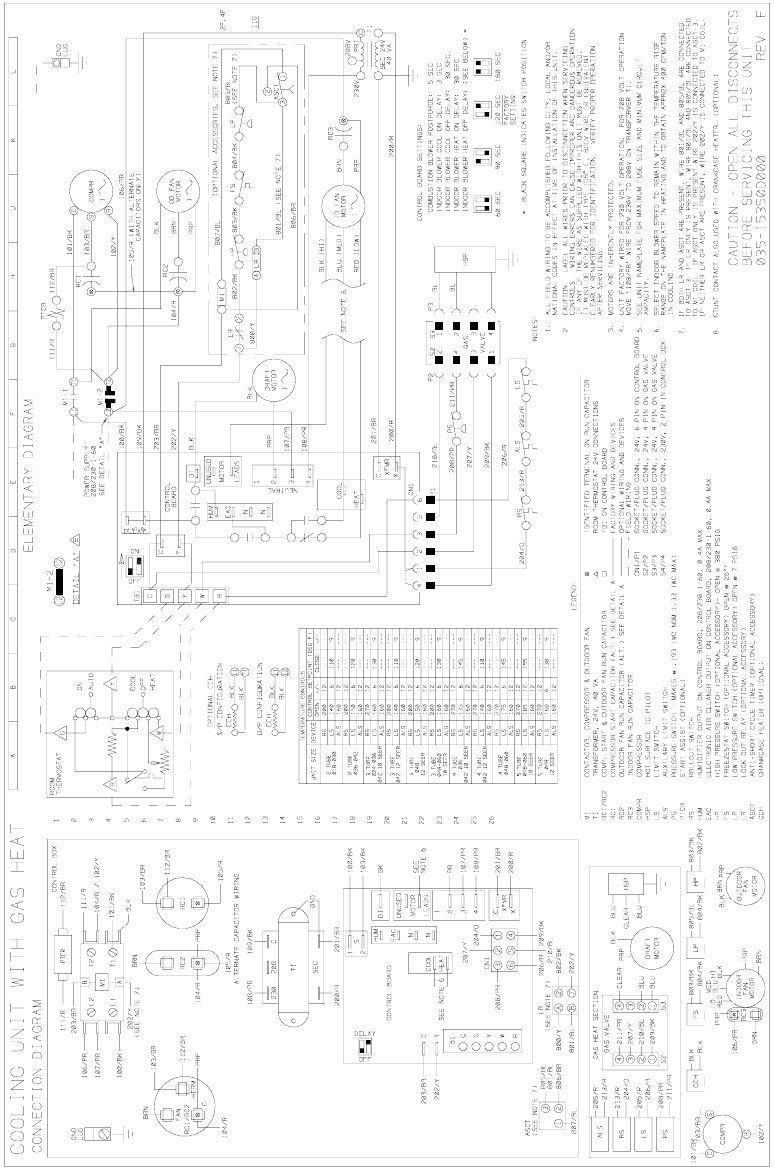

FIGURE 14 - TYPICAL WIRING DIAGRAM D*NP 024 (208/230-1-60 POWER SUPPLY)
036-21366-007-A-1205
26 Unitary Products Group

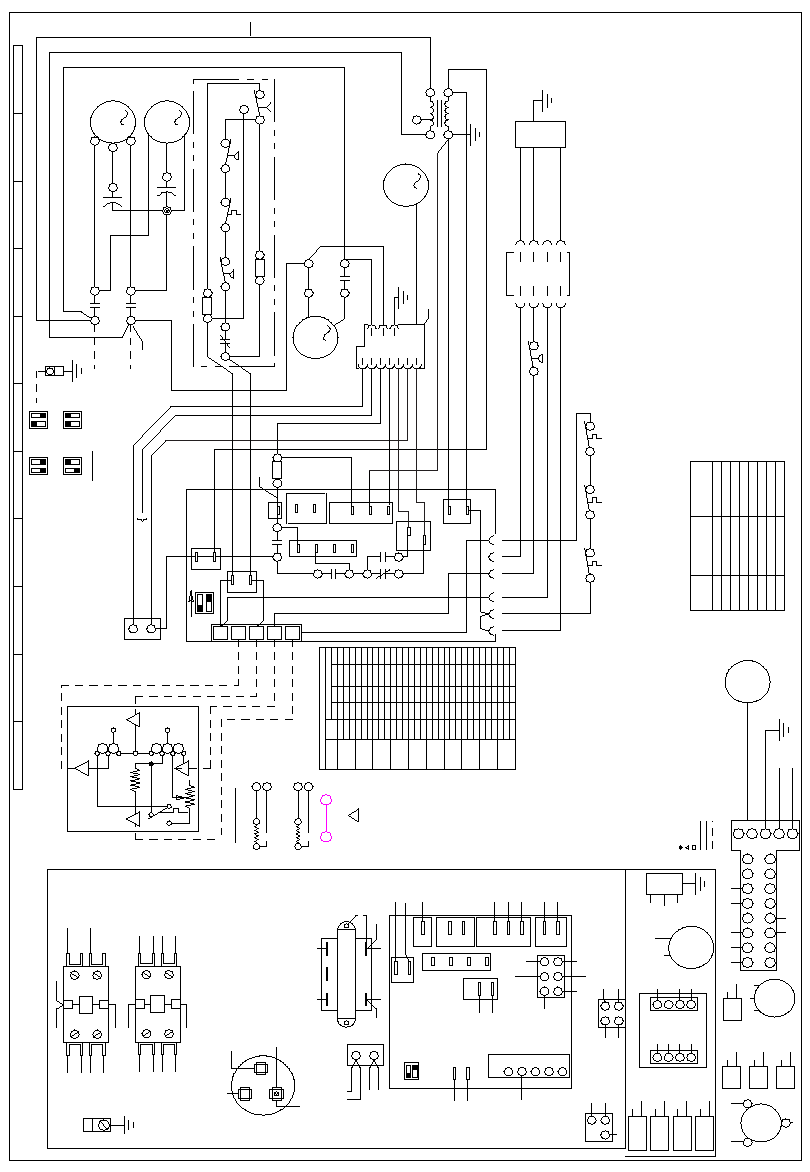

FIGURE 15 - TYPICAL WIRING DIAGRAM D*NP 030-048 (208/230-1-60 POWER SUPPLY)
7
DETAIL "A"
T2L2
M1-2
COOL/BLU
HEAT/BK
R/RED
224/R
240V/BLK
240V/PRP
GND/GRN
G/GRA
224/R
"SPEED" CONNECTIONS
COOLING BLOWER
FOR HEATING AND
SEE TABLES 1 AND 2
R/RED
213/R 224/R 214/BR
110/BK
PRP
BLK
108/PR
240V/PRP
C2/BRN
108/PR
110/BK
220/O
213/R
221/BR
214/BR
224/R
M1
L1
L2
T1
T2
A
B
203/BR
(SEE NOTE 5)
202/Y
100/BK
107/PR
108/PR
BLK
101/BK
104/R
C
FAN
HERM
RC1/RC2
BRN
103/BR
PRP
104/R
RC1
7. SHUNT CONTACT ALSO USED WITH CRANKCASE HEATER. (OPTIONAL)
MOVE '108/PR' WIRE FROM 230V TO 208V ON TRANFORMER T1.
6. UNIT FACTORY WIRED FOR 230 VOLT OPERATION. FOR 208 VOLT OPERATION
208
208V
R/RED
/BLK
HEAT
MOTOR
ID FAN
5
4
3
2
1
S5
S4ID MOTOR CONTROLLER
YEL
Y1/
/BLU
COOL
BRN
C2/
WHT
W1/
BRN
C1/
1514131211109
87654321
16
MOTOR "SPEED" CONNECTIONS
TB2 TERMINAL BLOCK, 24V, ID
B
A
TB2
ID MOTOR CONTROLLER
S5/P5 SOCKET/PLUG CONNECTION, 230V, 5 PIN ON ID MOTOR CONTROL
* BLACK SQUARE INDICATES SWITCH POSITION
SETTING
FACTORY
180 SEC120 SEC
90 SEC60 SEC
INDOOR BLOWER HEAT OFF DELAY: (SEE RIGHT)*
INDOOR BLOWER HEAT ON DELAY: 30 SEC
INDOOR BLOWER COOL OFF DELAY: 30 SEC
INDOOR BLOWER COOL ON DELAY: 3 SEC
CONTROL BOARD SETTINGS:
COMBUSTION BLOWER POSTPURGE: 5 SEC
S4/P4 SOCKET/PLUG CONNECTION, 24V, 16 PIN ON ID MOTOR CONTROL
S3/P3 SOCKET/PLUG CONNECTION, 24V, 4 PIN ON GAS VALVE
S2/P2 SOCKET/PLUG CONNECTION, 24V, 4 PIN ON GAS VALVE
CN1/P1 SOCKET/PLUG CONNECTION, 24V, 6 PIN ON CONTROL BOARD
S5/P5
P4/S4
B
A
TB2
FOR COOLING AIRFLOW
BLOWER CONNECTIONS
TABLE 1
"SPEED" CONNECTIONS
FOR COOLING BLOWER
SEE TABLE 1
COOL/BLU
HEAT/BLK
C1/BRN
BLK
PRP
11
5
3
5
4
3
12
2
6
1
R/RED
C2/BRN
W1/WHT
Y1/YEL
240V/BK
240V/PR
GRN
ROOM THERMOSTAT 24V CONNECTIONS
TB1 ON CONTROL BOARD
FIELD WIRING
OPTIONAL WIRING AND DEVICES
FACTORY WIRING AND DEVICES
OUTDOOR
FAN
MOTOR
BLK BRN PRP
230-1-60
MOTOR
DRAFT
1
230-1-60
1
MOTOR
ID FAN
L2
L1
T2
T1
M2-2
M2-1
M2
ON CONTROL BOARD, 24-1-60, 18VA MAX
EAC ELECTRONIC AIR CLEANER RELAY OUTPUT
BOARD, 24-1-60, 18VA MAX
HUM HUMIDIFIER RELAY OUTPUT ON CONTROL
N
N
EAC
HUM
N
N
EAC
HUM
GRN
VALVE
GAS
P3
4
3
2
1
P2
1
3
4
2
230-1-60
230-1-60
GAS VALVE
207/Y
211/PR
210/BL
209/BK
CLEAR
BLU
BLU
S3
4
3
2
1
S2
4
3
2
1
AFTER SERVICING.
CLEARLY RENUMBERED FOR IDENTIFICATION. VERIFY PROPER OPERATION
IT MUST BE REPLACED WITH TYPE 105 DEGREE C, 600V WIRE OR EQUIVALENT
IF ANY OF THE WIRE AS SUPPLIED WITH THIS UNIT MUST BE REMOVED,
CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS OPERATION.
2. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING
15H
220/O
221/BR
110/BK
240V/BLK
B
A
T2
T1
L2
L1
M2
110/BK
M2 CONTACTOR, DRAFT INDUCER MOTOR
107/PR
100/BK
108/PR
100/BK107/PR
201/BR200/R
211/PR
208/PR
206/R
205/R
204/O
213/R
CLEAR
BLU
BLUBLK
PRP
102/Y
103/BR101/BK
206/R
210/BL
209/BK
208/PR
207/Y
204/O
200/R
201/BR
C1/BRN
214/BR
221/BR
220/O
213/R
W1/WHT
Y1/YEL
203/BR
202/Y
HEAT
COOL
HSP
GAS HEAT SECTION
PS
LS
RS
MOTOR
DRAFT
R
SC
CONTROL BOX
T1
CONTROL BOARD
1
2
S
DI
LEADS
MOTOR
UNUSED
4
3
2
1
C
X
XFMR
CN1
654
321
OFF
DELAY
TB1
Y
C
R
W
Y
G
C
SEC
C230
LUG
GND
LUG
GND
NOTES:
4. SEE UNIT NAMEPLATE FOR MAXIMUM FUSE SIZE AND MINIMUM CIRCUIT AMPACITY.
3. MOTORS ARE INHERENTLY PROTECTED.
CODES IN EFFECT AT TIME OF INSTALLATION OF THIS UNIT.
1. ALL FIELD WIRING TO BE ACCOMPLISHED FOLLOWING CITY, LOCAL AND/OR NATIONAL
LEGEND:
M1 CONTACTOR, COMPR & OD FAN
T1 TRANSFORMER, 24V, 40 VA
RC1/RC2 COMP. START & OUTDOOR FAN RUN CAPACITOR
COMPR COMPRESSOR
HSP HOT SURFACE TO PILOT
LS LIMIT SWITCH
.193 IWC NOM (.33 IWC MAX)
PS PRESSURE SWITCH - MAKES @
RS ROLLOUT SWITCH
IDENTIFIED TERMINAL ON CAPACITOR
035-18578D000 REV. C
BEFORE SERVICING THIS UNIT
CAUTION - OPEN ALL DISCONNECTS
3H,5H
LKJHGFEDCBA
CONNECTION DIAGRAM ELEMENTARY DIAGRAM
COOLING UNIT WITH GAS HEAT
RC2
202/Y
203/BR
208/230-1-60
POWER SUPPLY
102/Y
103/BR
101/BK
R
S
C
COMPR
1
104/R
PRP
BRN
BLK
T2
T1
L2
L1
M1-2
M1-1
1
MOTOR
OD FAN
230V
PRI
T1
C
75 VA
SEC 24V
201/BR
200/R
BLU
BLU
HSP
S3S2
211/PR
PS
207/Y
208/PR
209/BK
210/BL
206/R
204/O RS
BOARD
CONTROL
Y
C
1
2
S
DI
LEADS
MOTOR
UNUSED
NEUTRAL
4
3
2
1
XFMR
X
C
HEAT
COOL
P1
CN1
653214
ALS 205/R
213/R
ALS AUXILARY LIMIT SWITCH
LS
213/R ALS 205/R
M1
FSHP LP
ASCT
31
2
72
802/BK 803/BK 804/BK
807/BL
800/Y
LR
801/BL (SEE NOTE 5)
(SEE NOTE 5)
805/BL
B
LR
A
806/BR
(OPTIONAL ACCESSORIES - SEE NOTE 5)
ACCESSORY) OPENS @ 380 PSIG
HP HIGH PRESSURE SWITCH (OPTIONAL
OPEN @ 26 DEGREE F
FS FREEZESTAT SWITCH (OPTIONAL ACCESSORY)
OPEN @ 7 PSIG
LP LOW PRESSURE SWITCH (OPTIONAL ACCESSORY)
LR LOCK OUT RELAY (OPTIONAL ACCESSORY)
(OPTIONAL ACCESSORY)
ASCT ANTI-SHORT CYCLE TIMER
PRESENT, WIRE 202/Y IS CONNECTED TO M1 COIL.
ONLY IS PRESENT WIRE 202/Y IS CONNECTED TO ASCT-3. IF NEITHER LR OR ASCT ARE
IF LR ONLY IS PRESENT, WIRE 801/BL AND 805/BL ARE CONNECTED TO M1 COIL. IF ASCT
5. IF BOTH LR AND ASCT ARE PRESENT, WIRE 801/BL AND 805/BL ARE CONNECTED TO ASCT-3.
COMPR
2A
7B
800/Y
801/BL
(SEE NOTE 5)
LR
802/BK
800/Y
202/Y
FS 803/BK
804/BK
LP 805/BL
804/BK
HP 803/BK
802/BK
3
21
807/BL
(SEE NOTE 5)
ASCT
801/BL
805/BL
806/BR
10G
100/BK
107/PR
201/BR
30
29
28
OFF
ON
DELAY
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
THERMOSTAT
ROOM
R
G
Y
W
HEAT
COOL
OFF
ON
AUTO
TB1
C
G
Y
W
R
17H
102/Y
CCH CRANKASE HEATER (OPTIONAL)
CCH BLK
BLK
L1
T1
BLK
CCH
BLK
L1
L2
BLK
CCH
BLK
OPTIONAL CCH
D/P CONFIGURATION
S/P CONFIGURATION
SEE DETAIL "A"
COOL/BLU TO:
WIRE
CONNECT
(CFM)
AIRFLOW
FOR COOLING
1400 (ARI RATING)
TB2-A
1350 TB2-B
1200 (ARI RATING)
TB2-A
1600 TB2-B
UNIT SIZE
-036
-036
-048
-048
------
------
12
12160
270
ALS
RS
036
4 TUBE
LS 160 130
69
------
------
12
12160
270
ALS
RS
LS 160 130
69
------
------
12
12160
200
ALS
RS
036
2 TUBE
LS 140 110
69
+/-CLOSE+/-OPEN
CONTROL SETPOINT (DEG F)
UNIT SIZE DEVICE
TEMPERATURE CONTROLS
------
------
12
12160
270
ALS
RS
048
5 TUBE
LS 160 130
69
------
------
12
12160
270
ALS
RS
048
4 TUBE
LS 175 145
69
------
------
12
12160
200
ALS
RS
048
3 TUBE
LS 150 120
69
036
3 TUBE
------
------
12
12160
200
ALS
RS
030
2 TUBE
LS 140 110
69
------
------
12
12160
270
ALS
RS
030
3 TUBE
LS 160 130
69
------
------
12
12160
200
ALS
RS
042
3 TUBE
LS 140 110
69
------
------
12
12160
270
ALS
RS
042
4 TUBE
LS 140 110
69
1250 TB2-B
1000 (ARI RATING)
TB2-A
-030
-030
1500 TB2-B
1350 (ARI RATING)
TB2-A
-042
-042
036-21366-007-A-1205
Unitary Products Group 27
FIGURE 16 - TYPICAL WIRING DIAGRAM D*NP 060 (208/230-1-60 POWER SUPPLY)
036-21366-007-A-1205
28 Unitary Products Group
FIGURE 17 - TYPICAL WIRING DIAGRAM D*NP 030-048 (208/230-3-60 POWER SUPPLY)
17H
15H
3H,5H
10G
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
G/GRA
COOL/BLU
HEAT/BK
R/RED
108/PR
224/R
213/R
224/R
224/R
"SPEED" CONNECTIONS
COOLING BLOWER
FOR HEATING AND
SEE TABLES 1 AND 2
R/RED
213/R 214/BR
BLK
PRP
108/PR
240V/PRP
C2/BRN
240V/BLK
240V/PRP
GND/GRN
220/O
221/BR
224/R
214/BR
110/BK
MOVE '108/PR' WIRE FROM 230V TO 208V ON TRANFORMER T1.
6. UNIT FACTORY WIRED FOR 230 VOLT OPERATION. FOR 208 VOLT OPERATION
208
208V
R/RED
/BLK
HEAT
MOTOR
ID FAN
5
4
3
2
1
S5
S4ID MOTOR CONTROLLER
YEL
Y1/
/BLU
COOL
BRN
C2/
WHT
W1/
BRN
C1/
1514131211109
87654321
16
MOTOR "SPEED" CONNECTIONS
TB2 TERMINAL BLOCK, 24V, ID
B
A
TB2
ID MOTOR CONTROLLER
S5/P5 SOCKET/PLUG CONNECTION, 230V, 5 PIN ON ID MOTOR CONTROL
* BLACK SQUARE INDICATES SWITCH POSITION
SETTING
FACTORY
180 SEC120 SEC
90 SEC60 SEC
INDOOR BLOWER HEAT OFF DELAY: (SEE RIGHT)*
INDOOR BLOWER HEAT ON DELAY: 30 SEC
INDOOR BLOWER COOL OFF DELAY: 30 SEC
INDOOR BLOWER COOL ON DELAY: 3 SEC
CONTROL BOARD SETTINGS:
COMBUSTION BLOWER POSTPURGE: 5 SEC
S4/P4 SOCKET/PLUG CONNECTION, 24V, 16 PIN ON ID MOTOR CONTROL
S3/P3 SOCKET/PLUG CONNECTION, 24V, 4 PIN ON GAS VALVE
S2/P2 SOCKET/PLUG CONNECTION, 24V, 4 PIN ON GAS VALVE
CN1/P1 SOCKET/PLUG CONNECTION, 24V, 6 PIN ON CONTROL BOARD
B
A
TB2
FOR COOLING AIRFLOW
BLOWER CONNECTIONS
TABLE 1
"SPEED" CONNECTIONS
FOR COOLING BLOWER
SEE TABLE 1
BLK
PRP
5
4
3
240V/BLK
240V/PRP
GRN
ROOM THERMOSTAT 24V CONNECTIONS
TB1 ON CONTROL BOARD
FIELD WIRING
OPTIONAL WIRING AND DEVICES
FACTORY WIRING AND DEVICES
OUTDOOR
FAN
MOTOR
BLK BRN PRP
230-1-60
MOTOR
DRAFT
1
230-1-60
1
MOTOR
ID FAN
L2
L1
T2
T1
M2-2
M2-1
M2
ON CONTROL BOARD, 24-1-60, 18VA MAX
EAC ELECTRONIC AIR CLEANER RELAY OUTPUT
BOARD, 24-1-60, 18VA MAX
HUM HUMIDIFIER RELAY OUTPUT ON CONTROL
N
N
EAC
HUM
N
N
EAC
HUM
GRN
VALVE
GAS
P3
4
3
2
1
P2
1
3
4
2
230-1-60
230-3-60
GAS VALVE
207/Y
211/PR
210/BL
209/BK
CLEAR
BLU
BLU
S3
4
3
2
1
S2
4
3
2
1
AFTER SERVICING.
CLEARLY RENUMBERED FOR IDENTIFICATION. VERIFY PROPER OPERATION
IT MUST BE REPLACED WITH TYPE 105 DEGREE C, 600V WIRE OR EQUIVALENT
IF ANY OF THE WIRE AS SUPPLIED WITH THIS UNIT MUST BE REMOVED,
CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS OPERATION.
2. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING
220/O
221/BR
110/BK
240V/BLK
110/BK
100/BK
B
A
T2
T1
L2
L1
M2
110/BK
M2 CONTACTOR, DRAFT INDUCER MOTOR
107/PR
100/BK
108/PR
203/BR
(SEE NOTE 5)
202/Y
107/PR
108/PR
100/BK107/PR
201/BR200/R
BRN
PRP
105/BL
212/R
200/R
121/BK
BK
123/BL
105/BL
126/Y
211/PR
208/PR
206/R
205/R
204/O
213/R
CLEAR
BLU
BLUBLK
PRP
126/Y
123/BL121/BK
206/R
210/BL
209/BK
208/PR
207/Y
204/O
212/R
201/BR
C1/BRN
214/BR
221/BR
220/O
213/R
W1/WHT
Y1/YEL
203/BR
202/Y
HEAT
COOL
HSP
GAS HEAT SECTION
PS
LS
RS
MOTOR
DRAFT
L3
L2L1
CONTROL BOX
T1
CONTROL BOARD
CB
1
2
S
DI
LEADS
MOTOR
UNUSED
4
3
2
1
C
X
XFMR
CN1
654
321
OFF
DELAY
TB1
Y
C
R
W
Y
G
C
SEC
C230
RC2
LUG
GND
T3
T2
T1
L3
L2
L1
B
A
M1
LUG
GND
NOTES:
4. SEE UNIT NAMEPLATE FOR MAXIMUM FUSE SIZE AND MINIMUM CIRCUIT AMPACITY.
3. MOTORS ARE INHERENTLY PROTECTED.
CODES IN EFFECT AT TIME OF INSTALLATION OF THIS UNIT.
1. ALL FIELD WIRING TO BE ACCOMPLISHED FOLLOWING CITY, LOCAL AND/OR NATIONAL
3.2 AMP
LEGEND:
M1 CONTACTOR, COMPR & OD FAN
T1 TRANSFORMER, 24V, 75 VA
RC2 OUTDOOR FAN RUN CAPACITOR
CB CIRCUIT BREAKER
COMPR COMPRESSOR
HSP HOT SURFACE TO PILOT
LS LIMIT SWITCH
.193 IWC NOM (.33 IWC MAX)
PS PRESSURE SWITCH - MAKES @
RS ROLLOUT SWITCH
IDENTIFIED TERMINAL ON CAPACITOR
035-18845D000 REV.C
BEFORE SERVICING THIS UNIT
CAUTION - OPEN ALL DISCONNECTS
LKJHGFEDCBA
CONNECTION DIAGRAM ELEMENTARY DIAGRAM
COOLING UNIT WITH GAS HEAT
RC2
202/Y
203/BR
208/230-3-60
POWER SUPPLY
126/Y
123/BL
121/BK
L3
L2
L1
COMPR
3
105/BL
PRP
BRN
BLK
T3
T2
T1
L3
L2
L1
M1-3
M1-2
M1-1
1
MOTOR
OD FAN
230V
PRI
T1
C
CB 75 VA
SEC 24V
200/R
201/BR
212/R
BLU
BLU
HSP
S3S2
211/PR
PS
207/Y
208/PR
209/BK
210/BL
206/R
204/O RS
BOARD
CONTROL
Y
C
1
2
S
DI
LEADS
MOTOR
UNUSED
NEUTRAL
4
3
2
1
XFMR
X
C
HEAT
COOL
P1
CN1
653214
ALS 205/R
213/R
ALS AUXILARY LIMIT SWITCH
LS
213/R ALS 205/R
M1
FSHP LP
ASCT
31
2
72
802/BK 803/BK 804/BK
807/BL
800/Y
LR
801/BL (SEE NOTE 5)
(SEE NOTE 5)
805/BL
B
LR
A
806/BR
(OPTIONAL ACCESSORIES - SEE NOTE 5)
ACCESSORY) OPENS @ 380 PSIG
HP HIGH PRESSURE SWITCH (OPTIONAL
OPEN @ 26 DEGREE F
FS FREEZESTAT SWITCH (OPTIONAL ACCESSORY)
OPEN @ 7 PSIG
LP LOW PRESSURE SWITCH (OPTIONAL ACCESSORY)
LR LOCK OUT RELAY (OPTIONAL ACCESSORY)
(OPTIONAL ACCESSORY)
ASCT ANTI-SHORT CYCLE TIMER
PRESENT, WIRE 202/Y IS CONNECTED TO M1 COIL.
ONLY IS PRESENT WIRE 202/Y IS CONNECTED TO ASCT-3. IF NEITHER LR OR ASCT ARE
IF LR ONLY IS PRESENT, WIRE 801/BL AND 805/BL ARE CONNECTED TO M1 COIL. IF ASCT
5. IF BOTH LR AND ASCT ARE PRESENT, WIRE 801/BL AND 805/BL ARE CONNECTED TO ASCT-3.
COMPR
2A
7B
800/Y
801/BL
(SEE NOTE 5)
LR
802/BK
800/Y
202/Y
FS 803/BK
804/BK
LP 805/BL
804/BK
HP 803/BK
802/BK
3
21
807/BL
(SEE NOTE 5)
ASCT
801/BL
805/BL
806/BR
100/BK
107/PR
201/BR
OFF
ON
DELAY
13
12
11
10
9
8
7
6
5
4
3
2
1
THERMOSTAT
ROOM
R
G
Y
W
HEAT
COOL
OFF
ON
AUTO
TB1
C
G
Y
W
R
W1/WHT
R/RED
Y1/YEL
C1/BRN
C2/BRN
COOL/BLU
HEAT/BLK
3
1
6
12
2
P4/S4
11
5
COOL/BLU TO:
WIRE
CONNECT
(CFM)
AIRFLOW
FOR COOLING
1400 (ARI RATING)
TB2-A
1350 TB2-B
1200 (ARI RATING)
TB2-A
1600 TB2-B
UNIT SIZE
-036
-036
-048
-048
1250 TB2-B
1000 (ARI RATING)
TB2-A
-030
-030
1500 TB2-B
1350 (ARI RATING)
TB2-A
-042
-042
------
------
12
12160
270
ALS
RS
036
4 TUBE
LS 160 130
69
------
------
12
12160
270
ALS
RS
LS 160 130
69
------
------
12
12160
200
ALS
RS
036
2 TUBE
LS 140 110
69
+/-CLOSE+/-OPEN
CONTROL SETPOINT (DEG F)
UNIT SIZE DEVICE
TEMPERATURE CONTROLS
------
------
12
12160
270
ALS
RS
048
5 TUBE
LS 160 130
69
------
------
12
12160
270
ALS
RS
048
4 TUBE
LS 175 145
69
------
------
12
12160
200
ALS
RS
048
3 TUBE
LS 150 120
69
036
3 TUBE
------
------
12
12160
200
ALS
RS
030
2 TUBE
LS 140 110
69
------
------
12
12160
270
ALS
RS
030
3 TUBE
LS 160 130
69
------
------
12
12160
200
ALS
RS
042
3 TUBE
LS 140 110
69
------
------
12
12160
270
ALS
RS
042
4 TUBE
LS 140 110
69
036-21366-007-A-1205
Unitary Products Group 29
FIGURE 18 - TYPICAL WIRING DIAGRAM D*NP 060 (208/230-3-60 POWER SUPPLY)
036-21366-007-A-1205
30 Unitary Products Group
FIGURE 19 - TYPICAL WIRING DIAGRAM D*NP 030-048 (460/575-3-60 POWER SUPPLY)
036-21366-007-A-1205
Unitary Products Group 31
FIGURE 20 - TYPICAL WIRING DIAGRAM D*NP 060 (460/575-3-60 POWER SUPPLY)
036-21366-007-A-1205
32 Unitary Products Group
TYPICAL WIRING DIAGRAM NOTES
1. All field wiring to be accomplished following city, local
and/or national codes in effect at time of installation of
this unit.
2. Caution: Label all wires prior to disconnection when ser-
vicing controls. Wiring errors can cause improper and
dangerous operation if any of the wire as supplied with
this unit must be removed it must be replaced with type
105°C, 600V wire or equivalent clearly renumbered for
identification. Verify proper operation after servicing.
3. Motors are inherently protected.
4. See unit nameplate for maximum fuse size and minimum
circuit ampacity.
5. Select indoor blower cooling speed from unit wiring dia-
gram Table 1. Heating speed is preset at the factory.
6. If both LR and ASCT are present, wire 801/BL and 805/
BL are connected to ASCT-3 if LR only is present wire
801/BL and 805/BL are connected to M1 coil. If ASCT
only is present wire 202/Y is connected to ASCT-3. If
neither LR or ASCT are present, Wire 202/Y is connect
to M1 coil.
7. Shunt contact also used with crankcase heater.
(Optional).
FIGURE 21 - TYPICAL WIRING DIAGRAM LEGEND
Open all disconnects before servicing this unit.
ALS
ASCT
COMPR
EAC
FS
HP
HSP
HUM
LP
LR
LS
M1
M2
PS
RC1/RC2
RS
T1
T2
TB2
ELECTRIC AIR CLEANER RELAY OUTPUT
LEGEND :
AUXILLARY LIMIT SWITCH
ANTI-SHORT CYCLE TIMER
(OPTIONAL ACCESSORY)
COMPRESSOR
ON CONTROL BOARD, 24-1-60, 18VA MAX.
FREEZESTAT SWITCH (OPTIONAL ACCESSORY)
OPEN @ 250 F
HIGH PRESSURE SWITCH (OPTIONAL
ACCESSORY) OPENS @ 380 PSIG
HOT SURFACE TO PILOT
HUMIDIFER RELAY OUTPUT ON CONTROL
BOARD, 24-1-60, 18VA MAX.
LOW PRESSURE SWITCH (OPTIONAL ACCESSORY)
OPEN @ 7 PSIG
LOCK OUT RELAY (OPTIONAL ACCESSORY)
LIMIT SWITCH
CONTACTOR, COMPR. & O.D.FAN
CONTACTOR, DRAFT INDUCER MOTOR
PRESSURE SWITCH MAKES @
.193 IWC NOM. (.33 IWC MAX.)
COMPR. START & OUTDOOR FAN RUN CAPACITOR
ROLL OUT SWITCH
TRANSFORMER, 24V, 40VA
TRANSFORMER, 480/240 VOLT
TERMINAL BLOCK, 24V, I.D.
MOTOR "SPEED" CONNECTION
IDENTIFIED TERMINAL ON CAPACITOR
FIELD WIRING
DNP LEGEND WIRING DIA.
ROOM THERMOSTAT 24V CONNECTIONS
TB1 ON CONTROL BOARD
FACTORY WIRING AND DEVICES
OPTIONAL WIRING AND DEVICES
036-21366-007-A-1205
Unitary Products Group 33
MECHANICAL SPECIFICATIONS
GENERAL
Units shall be manufactured by York International Unitary
Products Group in an ISO 9001 certified facility. YORK’s
DNP is a unit that gives you the flexibility and choices you
need in today’s market. These packaged cooling/heating air
conditioners are designed for outdoor installation. Only utility
and duct connections are required at the point of installation.
The gas fired heaters have aluminized steel tubular heat
exchangers and hot surface to pilot ignition. They are avail-
able in natural gas with field conversion to propane.
DESCRIPTION
Units shall be factory-assembled, single packaged, Electric
Cooling/Gas Heating units, designed for outdoor mounted
installation. For SEER ratings, refer to technical literature.
They shall have built in, equal size, field convertible duct
connections for down discharge supply/return or horizontal
discharge supply/return. The units shall be factory wired,
piped, charged with R-22 refrigerant and factory tested prior
to shipment. All unit wiring shall be both numbered and
color coded. All units shall be manufactured in a facility cer-
tified to ISO 9001 standards, and the cooling performance
shall be rated in accordance with DOE and ARI test proce-
dures. The heating performance shall be rated to DOE and
GAMA test procedures. Units shall be CSA listed and classi-
fied to ANSI Z21.47/CAN/CSA 2.3 standards and UL 1995/
CAN/CSA No. 236-M90 conditions.
UNIT CABINET
Unit cabinet shall be constructed of G90 galvanized steel,
with exterior surfaces coated with a non-chalking, powdered
paint finish, certified at 1000 hours salt spray test per ASTM-
B117 standards. The unit top shall be a single piece “Water
Shed” design, with drip edges and no-seam corners to pro-
vide optimum water integrity. Unit shall have a rigidly
mounted condenser coil guard to provide protection from
objects and personnel after installation. Indoor blower section
shall be insulated with up to 3/4” thick, aluminum, foil faced
insulation, fastened to prevent insulation from entering the air
stream. Cabinet panels shall be “large” size, easily remov-
able for servicing and maintenance, with built-in lift handles.
Unit shall be built on a formed, “Super-Structure” design base
pan, with embossments at critical points to add strength,
rigidity and aid in minimizing sound. Full perimeter base rails
shall be provided to assure reliable transit of equipment,
overhead rigging, for truck access and proper sealing on roof
curb applications. Base rails shall be removable, when
required, to lower unit height. Filters shall be furnished and
be accessible through a removable access door, sealed air-
tight. Units vertical discharge and return duct configuration
shall be designed to fit between standard 24” O.C. beams
without modification to building structure, duct work and base
unit. Condensate pan shall be internally sloped and conform
to ASHRAE 62-89 self-draining standards, with 3/4” NPTI
copper, ridged mount connection.
INDOOR (EVAPORATOR) FAN ASSEMBLY
Fan shall be direct drive, multi-speed design. Job site
selected (BHP) brake horsepower shall not exceed the
motors nameplate horsepower rating. Fan wheel shall be
double-inlet type with forward-curved blades, dynamically
balanced to operate smoothly throughout the entire range of
operation. Airflow design shall be constant air volume. Bear-
ings shall be sealed and permanently lubricated for longer life
and no maintenance. Fan assembly shall be “Slip Track”
(slide-out) design for easy removal and cleaning.
OUTDOOR (CONDENSER) FAN ASSEMBLY
The outdoor fan shall be of the direct-driven propeller type,
discharge air vertically, have aluminum blades riveted to cor-
rosion resistant steel spider bracket and shall be statically
balanced for smooth operation. The outdoor fan motor shall
be totally enclosed with permanently lubricated bearings and
internally protected against overload conditions.
REFRIGERANT COMPONENTS
Compressors:
a. Shall be fully hermetic type, direct drive, internally
protected with internal high-pressure relief and over
temperature protection. The hermetic motor shall be
suction gas cooled and have a voltage range of + or
- 10% of the unit nameplate voltage.
b. Shall have internal isolation and sound muffling to
minimize vibration and noise, and be externally iso-
lated on a dedicated, independent mounting.
Coils:
a. Evaporator and condenser coils shall have alumi-
num plate fins mechanically bonded to seamless
internally enhanced copper tubes with all joints
brazed.
b. Evaporator coil shall be of the direct expansion,
blow through design, while condenser coil shall be
draw through design.
Refrigerant Circuit and Refrigerant Safety Components:
a. Shall include independent thermal expansion
devices (TXV).
b. Shall include filter/strainer to eliminate any foreign
matter.
036-21366-007-A-1205
34 Unitary Products Group
UNIT OPERATING CHARACTERISTICS
Unit shall be capable of starting and running at 125º F out-
door temperature, exceeding maximum load criteria ARI
Standard 210/240. The compressor, with standard controls,
shall be capable of operation down to 45º F outdoor tempera-
ture. Accessory low ambient kit shall be available for opera-
tion to 0º F.
ELECTRICAL REQUIREMENTS
All unit power wiring shall enter unit cabinet at a single factory
provided location and be capable of side or bottom entry, to
minimize roof penetrations and avoid unit field modifications.
Separate side and bottom openings shall be provided for the
control wiring.
036-21366-007-A-1205
Unitary Products Group 35
Subject to change without notice. Printed in U.S.A. 036-21366-007-A-1205
Copyright © 2005 by Unitary Products Group. All rights reserved. Supersedes: 036-21366-006-A-1005
Unitary 5005 Norman
Products York OK
Group Drive 73069

Navigation menu
